3-081-017-01 (1) USVideo Cassette RecorderOperating InstructionsFor customers in the USAMany solutions to common problems and service information can be found at www.sony.com/vcrhelp or contact Sony VCR service at 1 (800) VHS-SONY.For all other Sony product questions, please call Sony Customer Information Services Company at 1-800-222-SONY (7669). Or write to: Sony Customer Information Services Company 12451 Gateway Boulevard Ft. Myers, FL 33913Declaration of ConformityTrade Name: SONYModel No.: SLV-N700/N500Responsible Party: Sony Electronics Inc.Address: 680 Kinderkamack Road Oradell, New Jersey 07649Telephone No.: 201-930-6972This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.For Customers in CanadaIf this product is not working properly, please call 1-877-602-2008 for Peace of Mind Warranty Replacement service.For other product related questions please contact our Customer Information Service Centre at 1-877-899-7669 or write to us at: Customer Information Service 115 Gordon Baker Road, Toronto, Ontario, M2H 3R6SLV-N700SLV-N500© 2002 Sony Corporation
2WARNINGWARNINGTo prevent fire or shock hazard, do not expose the unit to rain or moisture.This symbol is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.This symbol is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.CAUTIONTo prevent electric shock, do not use this polarized AC plug with an extension cord, receptacle or other outlet unless the blades can be fully inserted to prevent blade exposure.PrecautionsSafety• Operate the unit only on 120 V AC, 60 Hz.• If anything falls into the cabinet, unplug the unit and have it checked by qualified personnel before operating it any further.• This unit is not disconnected from the AC power source (mains) as long as it is connected to the wall outlet, even if the unit itself has been turned off.• Unplug the unit from the wall outlet if you do not intend to use it for an extended period of time. To disconnect the cord, pull it out by the plug, never by the cord.• One blade of the plug is wider than the other for the purpose of safety and will fit into the power outlet only one way. If you are unable to insert the plug fully into the outlet, contact your Sony dealer.Installing• Allow adequate air circulation to prevent internal heat buildup.• Do not place the unit on surfaces (rugs, blankets, etc.) or near materials (curtains, draperies) that may block the ventilation slots.• Do not install the unit near heat sources such as radiators or air ducts, or in a place subject to direct sunlight, excessive dust, mechanical vibration or shock.• Do not install the unit in an inclined position. It is designed to be operated in a horizontal position only.• Keep the unit and cassettes away from equipment with strong magnets, such as microwave ovens or large loudspeakers.• Do not place heavy objects on the unit.• If the unit is brought directly from a cold to a warm location, moisture may condense inside the VCR and cause damage to the video head and tape. When you first install the unit, or when you move it from a cold to a warm location, wait for about three hours before operating the unit.InformationFor customers in the USACAUTIONYou are cautioned that any changes or modifications not expressly approved in this manual could void your authority to operate this equipment.NOTE:This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules.These limits are designed to provide reasonable protection against harmful interference in a residential installation.This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:• Reorient or relocate the receiving antenna.• Increase the separation between the equipment and receiver.• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.• Consult the dealer or an experienced radio/TV technician for help.Owner’s recordThe model and serial numbers are located at the rear of the unit.Record these numbers in the spaces provided below. Refer to them whenever you call upon your Sony dealer regarding this product.Model No._________________________Serial No._________________________
3Important SafeguardsImportant SafeguardsFor your protection, please read these safety instructions completely before operating the appliance, and keep this manual for future reference.Carefully observe all warnings, precautions and instructions on the appliance, or the one described in the operating instructions and adhere to them.UseInstallationPower sourcesThis set should be operated only from the type of power source indicated on the marking label. If you are not sure of the type of electrical power supplied to your home, consult your dealer or local power company. For those sets designed to operate from battery power, or other sources, refer to the operating instructions.Grounding or PolarizationThis set is equipped with a polarized AC power cord plug (a plug having one blade wider than the other), or with a three-wire grounding type plug (a plug having a third pin for grounding). Follow the instructions below:For the set with a polarized AC power cord plug:This plug will fit into the power outlet only one way. This is a safety feature. If you are unable to insert the plug fully into the outlet, try reversing the plug. If the plug should still fail to fit, contact your electrician to have a suitable outlet installed. Do not defeat the safety purpose of the polarized plug by forcing it in.For the set with a three-wire grounding type ac plug:This plug will only fit into a grounding-type power outlet. This is a safety feature. If you are unable to insert the plug into the outlet, contact your electrician to have a suitable outlet installed. Do not defeat the safety purpose of the grounding plug.OverloadingDo not overload wall outlets, extension cords or convenience receptacles beyond their capacity, since this can result in fire or electric shock.Object and Liquid EntryNever push objects of any kind into the set through openings as they may touch dangerous voltage points or short out parts that could result in a fire or electric shock. Never spill liquid of any kind on the set.AttachmentsDo not use attachments not recommended by the manufacturer, as they may cause hazards.CleaningUnplug the set from the wall outlet before cleaning or polishing it. Do not use liquid cleaners or aerosol cleaners. Use a cloth lightly dampened with water for cleaning the exterior of the set.Water and MoistureDo not use power-line operated sets near water - for example, near a bathtub, washbowl, kitchen sink, or laundry tub, in a wet basement, or near a swimming pool, etc.Power-Cord ProtectionRoute the power cord so that it is not likely to be walked on or pinched by items placed upon or against them, paying particular attention to the plugs, receptacles, and the point where the cord exits from the appliance.AccessoriesDo not place the set on an unstable cart, stand, tripod, bracket, or table. The set may fall, causing serious injury to a child or an adult, and serious damage to the set. Use only a cart stand tripod, bracket, or table recommended by the manufacturer.An appliance and cart combination should be moved with care. Quick stops, excessive force, and uneven surfaces may cause the appliance and cart combination to overturn.VentilationThe slots and openings in the cabinet are provided for necessary ventilation. To ensure reliable operation of the set, and to protect it from overheating, these slots and openings must never be blocked or covered.• Never cover the slots and openings with a cloth or other materials.• Never block the slots and openings by placing the set on a bed, sofa, rug or other similar surface.S3125A

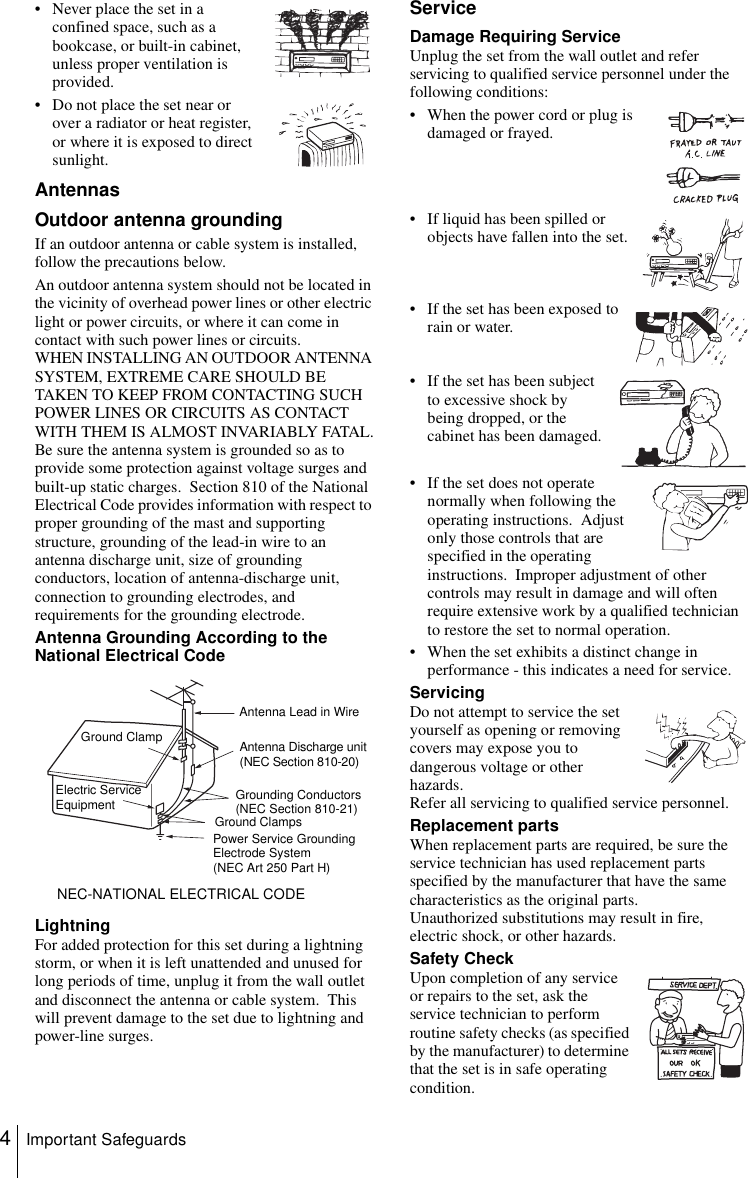

4Important SafeguardsAntennasService• Never place the set in a confined space, such as a bookcase, or built-in cabinet, unless proper ventilation is provided.• Do not place the set near or over a radiator or heat register, or where it is exposed to direct sunlight.Outdoor antenna groundingIf an outdoor antenna or cable system is installed, follow the precautions below.An outdoor antenna system should not be located in the vicinity of overhead power lines or other electric light or power circuits, or where it can come in contact with such power lines or circuits.WHEN INSTALLING AN OUTDOOR ANTENNA SYSTEM, EXTREME CARE SHOULD BE TAKEN TO KEEP FROM CONTACTING SUCH POWER LINES OR CIRCUITS AS CONTACT WITH THEM IS ALMOST INVARIABLY FATAL.Be sure the antenna system is grounded so as to provide some protection against voltage surges and built-up static charges. Section 810 of the National Electrical Code provides information with respect to proper grounding of the mast and supporting structure, grounding of the lead-in wire to an antenna discharge unit, size of grounding conductors, location of antenna-discharge unit, connection to grounding electrodes, and requirements for the grounding electrode.Antenna Grounding According to the National Electrical CodeLightningFor added protection for this set during a lightning storm, or when it is left unattended and unused for long periods of time, unplug it from the wall outlet and disconnect the antenna or cable system. This will prevent damage to the set due to lightning and power-line surges.Antenna Lead in WireGround ClampAntenna Discharge unit (NEC Section 810-20)Grounding Conductors(NEC Section 810-21)Ground ClampsPower Service Grounding Electrode System(NEC Art 250 Part H)Electric Service EquipmentNEC-NATIONAL ELECTRICAL CODEDamage Requiring ServiceUnplug the set from the wall outlet and refer servicing to qualified service personnel under the following conditions:• When the power cord or plug is damaged or frayed.• If liquid has been spilled or objects have fallen into the set.• If the set has been exposed to rain or water.• If the set has been subject to excessive shock by being dropped, or the cabinet has been damaged.• If the set does not operate normally when following the operating instructions. Adjust only those controls that are specified in the operating instructions. Improper adjustment of other controls may result in damage and will often require extensive work by a qualified technician to restore the set to normal operation.• When the set exhibits a distinct change in performance - this indicates a need for service.ServicingDo not attempt to service the set yourself as opening or removing covers may expose you to dangerous voltage or other hazards.Refer all servicing to qualified service personnel.Replacement partsWhen replacement parts are required, be sure the service technician has used replacement parts specified by the manufacturer that have the same characteristics as the original parts.Unauthorized substitutions may result in fire, electric shock, or other hazards.Safety CheckUpon completion of any service or repairs to the set, ask the service technician to perform routine safety checks (as specified by the manufacturer) to determine that the set is in safe operating condition.
5Table of contentsGetting StartedTable of contentsGetting Started6Step 1 : Unpacking7Step 2 : Setting up the remote commander10 Step 3 : Hookups17 Step 4 : Selecting a language18 Step 5 : Setting the clock23 Step 6 : Presetting channels27 Step 7 : Setting up the VCR Plus+® system (SLV-N700 only)Basic Operations30 Playing a tape33 Recording TV programs36 Recording TV programs using the VCR Plus+® system (SLV-N700 only)39 Setting the timer manually42 Locking the VCR (Child Lock)Additional Operations43 Playing/searching at various speeds45 Quick Timer Recording46 Checking/changing/canceling timer settings48 Recording stereo and bilingual programs49 Searching using various functions51 Adjusting the picture (tracking)52 Changing menu options54 Editing with another VCRAdditional Information56 Antenna information57 Troubleshooting59 Specifications60 Index to parts and controls65 IndexBack CoverQuick reference to using the VCR* VCR Plus+ and PlusCode are registered trademarks of Gemstar Development Corporation.The VCR Plus+ system is manufactured under license from Gemstar Development Corporation.CautionTelevision programs, films, video tapes and other materials may be copyrighted.Unauthorized recording of such material may be contrary to the provisions of the copyright laws. Also, use of this recorder with cable television transmission may require authorization from the cable television transmission and/or program owner.
6UnpackingGetting StartedStep 1 : UnpackingCheck that you have received the following items with the VCR:• Remote commander• Size AA (R6) batteries• 75-ohm coaxial cable with F-type connectorsCheck your model nameThe instructions in this manual are for the 2 models: SLV-N700 and SLV-N500. Check your model name by looking at the rear panel of your VCR. SLV-N700 is the model used for illustration purposes. Any difference in operation is clearly indicated in the text, for example, “SLV-N700 only.”

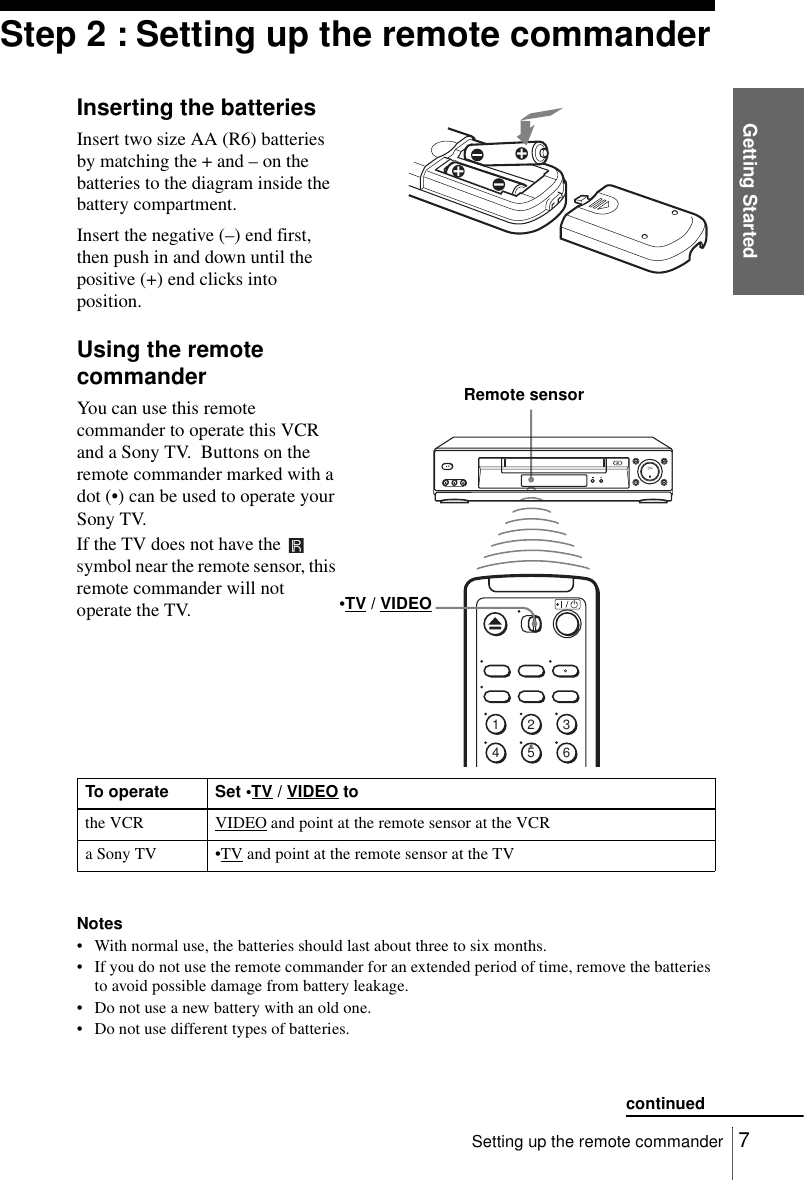

Getting Started7Setting up the remote commanderStep 2 : Setting up the remote commanderNotes• With normal use, the batteries should last about three to six months.• If you do not use the remote commander for an extended period of time, remove the batteries to avoid possible damage from battery leakage.• Do not use a new battery with an old one.• Do not use different types of batteries.Inserting the batteriesInsert two size AA (R6) batteries by matching the + and – on the batteries to the diagram inside the battery compartment.Insert the negative (–) end first, then push in and down until the positive (+) end clicks into position.Using the remote commanderYou can use this remote commander to operate this VCR and a Sony TV. Buttons on the remote commander marked with a dot (•) can be used to operate your Sony TV. If the TV does not have the symbol near the remote sensor, this remote commander will not operate the TV.To operate Set •TV / VIDEO tothe VCR VIDEO and point at the remote sensor at the VCRa Sony TV •TV and point at the remote sensor at the TV123456•TV / VIDEORemote sensorcontinued

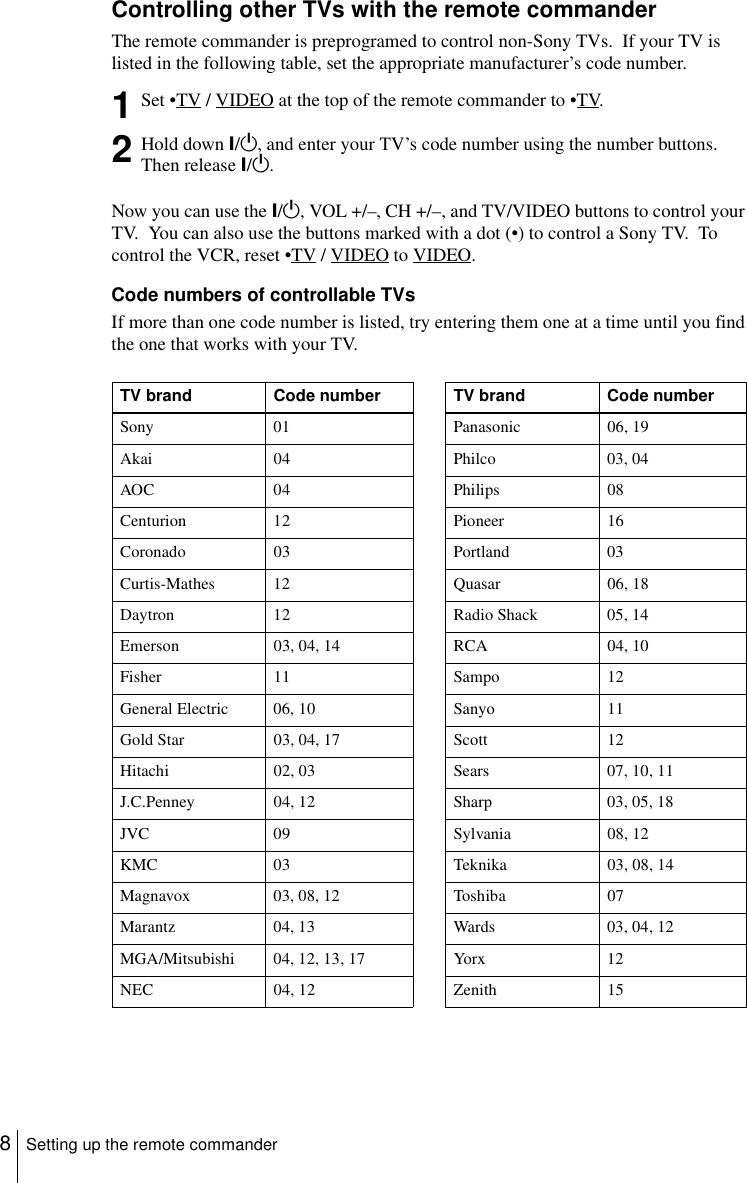

8Setting up the remote commanderControlling other TVs with the remote commanderThe remote commander is preprogramed to control non-Sony TVs. If your TV is listed in the following table, set the appropriate manufacturer’s code number.Now you can use the ?/1, VOL +/–, CH +/–, and TV/VIDEO buttons to control your TV. You can also use the buttons marked with a dot (•) to control a Sony TV. To control the VCR, reset •TV / VIDEO to VIDEO.Code numbers of controllable TVsIf more than one code number is listed, try entering them one at a time until you find the one that works with your TV.1Set •TV / VIDEO at the top of the remote commander to •TV.2Hold down ?/1, and enter your TV’s code number using the number buttons. Then release ?/1.TV brand Code numberSony 01Akai 04AOC 04Centurion 12Coronado 03Curtis-Mathes 12Daytron 12Emerson 03, 04, 14Fisher 11General Electric 06, 10Gold Star 03, 04, 17Hitachi 02, 03J.C.Penney 04, 12JVC 09KMC 03Magnavox 03, 08, 12Marantz 04, 13MGA/Mitsubishi 04, 12, 13, 17NEC 04, 12Panasonic 06, 19Philco 03, 04Philips 08Pioneer 16Portland 03Quasar 06, 18Radio Shack 05, 14RCA 04, 10Sampo 12Sanyo 11Scott 12Sears 07, 10, 11Sharp 03, 05, 18Sylvania 08, 12Teknika 03, 08, 14Toshiba 07Wards 03, 04, 12Yorx 12Zenith 15TV brand Code number
Getting Started9Setting up the remote commanderNotes• If you enter a new code number, the code number previously entered will be erased.• If the TV uses a different remote control system from the one programed to work with the VCR, you cannot control your TV with the remote commander.• When you replace the batteries of the remote commander, the code number may change. Set the appropriate code number every time you replace the batteries.• When you press the AUDIO MONITOR button, your TV’s menu may appear on the TV screen. To exit the TV menu, press the MENU button on the TV remote commander or wait until the menu disappears automatically.

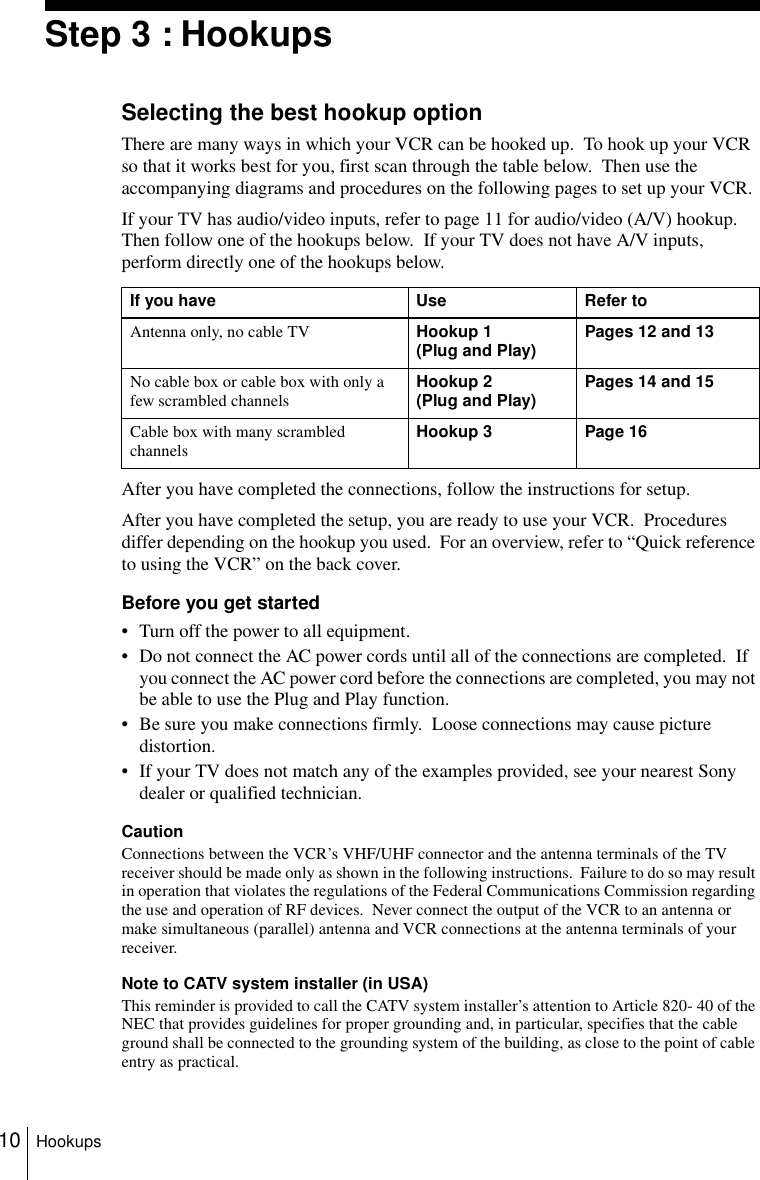

10 HookupsStep 3 : HookupsSelecting the best hookup optionThere are many ways in which your VCR can be hooked up. To hook up your VCR so that it works best for you, first scan through the table below. Then use the accompanying diagrams and procedures on the following pages to set up your VCR.If your TV has audio/video inputs, refer to page 11 for audio/video (A/V) hookup. Then follow one of the hookups below. If your TV does not have A/V inputs, perform directly one of the hookups below. After you have completed the connections, follow the instructions for setup.After you have completed the setup, you are ready to use your VCR. Procedures differ depending on the hookup you used. For an overview, refer to “Quick reference to using the VCR” on the back cover.Before you get started• Turn off the power to all equipment.• Do not connect the AC power cords until all of the connections are completed. If you connect the AC power cord before the connections are completed, you may not be able to use the Plug and Play function.• Be sure you make connections firmly. Loose connections may cause picture distortion.• If your TV does not match any of the examples provided, see your nearest Sony dealer or qualified technician.CautionConnections between the VCR’s VHF/UHF connector and the antenna terminals of the TV receiver should be made only as shown in the following instructions. Failure to do so may result in operation that violates the regulations of the Federal Communications Commission regarding the use and operation of RF devices. Never connect the output of the VCR to an antenna or make simultaneous (parallel) antenna and VCR connections at the antenna terminals of your receiver.Note to CATV system installer (in USA)This reminder is provided to call the CATV system installer’s attention to Article 820- 40 of the NEC that provides guidelines for proper grounding and, in particular, specifies that the cable ground shall be connected to the grounding system of the building, as close to the point of cable entry as practical.If you have Use Refer toAntenna only, no cable TV Hookup 1 (Plug and Play) Pages 12 and 13No cable box or cable box with only a few scrambled channels Hookup 2 (Plug and Play) Pages 14 and 15Cable box with many scrambled channels Hookup 3 Page 16
Getting Started11HookupsAudio/video (A/V) hookupIf your TV has audio/video (A/V) input jacks, you will get a better picture and sound if you hook up your VCR using these connections. For a true “home theater” experience, you should connect the audio outputs of your VCR or TV to your stereo system. If your TV does not have A/V inputs, see the following pages for antenna or cable hookups.If you are not planning to use your VCR to record programs, you finished setting up the VCR after you have made the connections shown on this page. If you want to record regular or cable TV programs, complete these connections first, and then go to the following pages for antenna or cable hookups.A Use this hookup if your TV has stereo jacksBUse this hookup if your TV does not have stereo jacksNotes• To play a tape in stereo, you must use the A/V connection.• If you do not have a stereo receiver, connect the white LINE OUT/AUDIO L jack to the AUDIO IN jack on your TV.INVIDEOAUDIOAUDIO OUTAUX INLINEIN 1LINEOUTAUDIOVIDEOAudio/video cable (not supplied)TVAudio cable (not supplied)Stereo receiverVCRLINEIN 1LINEOUTAUDIOVIDEOVIDEOAUDIOINAUX INVideo cable (not supplied)TVAudio cable (not supplied)Stereo receiverVCR
12 HookupsHookup 1 (Plug and Play)Antenna hookupMake the following connections if you are using an antenna (if you do not have cable TV).AUse this hookup if you are using:• VHF/UHF antenna (you get channels 2–13 and channels 14 and higher)• UHF-only antenna (you get channels 14 and higher)• Separate VHF and UHF antennasBUse this hookup if you are using a VHF-only antenna (you get channels 2–13 only)If you cannot connect your antenna cable to the VCR directlyIf your antenna cable is a flat cable (300-ohm twin lead cable), attach an external antenna connector (not supplied) so you can connect the cable to the RF IN connector. If you have separate cables for VHF and UHF antennas, you should use a U/V band mixer (not supplied) (page 56).INOUTorARear of TV VHF/UHFBVHFCVHForMatch the type of connector on your TV: A, B, or C.UHFUHFVCRINOUTorARear of TV VHF/UHFBVHFCVHForMatch the type of connector on your TV: A, B, or C.UHFUHFVCR For connector typesB and C, no UHF connection is required.
Getting Started13HookupsHookup 1 : VCR setupNotes• If you connect the AC power cord before the antenna connections are completed, the channels may be incorrectly set. If this happens, see “Step 6 : Presetting channels” on page 23.• Do not press any buttons on the VCR or remote commander during Auto preset.• Auto preset starts automatically only when you plug in the AC power cord for the first time after you purchase the VCR.• Auto preset can be performed by pressing xSTOP on the VCR continuously for 5 seconds or more with the VCR power turned off.Plug the VCR into the AC outlet.The VCR automatically presets the VCR’s clock and TV channels when the VCR is plugged into the AC outlet.The VCR starts presetting the clock and channels.When Auto preset is completed, the current time appears in the display window.You have now completed VCR setup.To change the on-screen display language to French or Spanish, see “Step 4 : Selecting a language” on page 17.The clock is set using a time signal provided by some TV channels. If the clock is incorrect, or “--:--” appears in the display window, see “Using Manual Clock Set” on page 21.To add or disable channels manually, see “Presetting/disabling channels manually” on page 25.AC power cordto AC outlet
14 HookupsHookup 2 (Plug and Play)You have no cable box, or a cable box with only a few scrambled channelsRecommended useUse this hookup if you do not have a cable box. Also use this hookup if your cable system scrambles only a few channels.What you can do with this hookup• Record any unscrambled channel by selecting the channel on the VCRWhat you cannot do• Record scrambled channels that require a cable boxINOUTINOUTRear of TV VHF/UHFVHFUHFVCRMatch the type of connector on your TV: A, B, or C.For connector types B and C, no UHF connection is required.BCororCable boxAVHFUHFWallConnect this cable directly to your TV if you do not have a cable box.
Getting Started15HookupsHookup 2 : VCR setupNotes• If you connect the AC power cord before the antenna connections are completed, the channels may be incorrectly set. If this happens, see “Step 6 : Presetting channels” on page 23.• Do not press any buttons on the VCR or remote commander during Auto preset.• Auto preset starts automatically only when you plug in the AC power cord for the first time after you purchase the VCR.• Auto preset can be performed by pressing xSTOP on the VCR continuously for 5 seconds or more with the VCR power turned off.Plug the VCR into the AC outlet.The VCR automatically presets the VCR’s clock and TV channels when the VCR is plugged into the AC outlet.The VCR starts presetting the clock and channels.When Auto preset is completed, the current time appears in the display window.You have now completed VCR setup.To change the on-screen display language to French or Spanish, see “Step 4 : Selecting a language” on page 17.The clock is set using a time signal provided by some TV channels. If the clock is incorrect, or “--:--” appears in the display window, see “Using Manual Clock Set” on page 21.To add or disable channels manually, see “Presetting/disabling channels manually” on page 25.AC power cordto AC outlet
16 HookupsHookup 3Connecting a cable box with many scrambled channelsRecommended useUse this hookup if your cable system scrambles all or most channels.What you can do with this hookup• Record any channel by selecting the channel on the cable boxWhat you cannot do• Record with the cable box turned off• Record one channel while watching another channelAfter you have completed hookup…After you have completed hookup, plug the VCR into the AC outlet and see “Step 4 : Selecting a language” on page 17.INOUTINOUTRear of TV VHF/UHFVHFUHFVCRMatch the type of connector on your TV: A, B, or C.For connector types B and C, no UHF connection is required.BCororCable boxAVHFUHFWallto AC outletAC power cord
Getting Started17Selecting a languageStep 4 : Selecting a languageYou can change the on-screen display language.Before you start…• Turn on the VCR and the TV.• Set the “Output CH” to “3CH” or “4CH” in ADVANCED OPTIONS menu (page 52). If both are used, set the switch to either channel. If your TV is connected to the VCR using A/V connections, set the TV to video input.• Press TV/VIDEO to display the VCR indicator in the VCR’s display window.1Press MENU.2Press M/m to move the cursor (B) to “Language/Idioma/Langue.”3Press , to select the desired language, French or Spanish.4Press MENU to exit the menu.M/m/,MENUMENUSelect :Set :MAIN MENUOKVvClock setTimer set / checkTuner presetAdvanced optionsLanguage / Idioma / Langue: MENUQuitOKPLAYSelect :Set :MAIN MENUbVvClock setTimer set / checkTuner presetAdvanced optionsLanguage / Idioma / Langue: MENUQuitOKPLAYMENU
18 Setting the clockStep 5 : Setting the clockUsing the Auto Clock Set featureSome TV and cable channels transmit time signals with their broadcasts. Your VCR can pick up this time signal to automatically set the clock.The Auto Clock Set feature works only if a channel in your area is broadcasting a time signal. If broadcasters in your area are not yet sending time signals, set the time manually (page 21).Before you start…• Turn on the VCR and the TV. When using a cable box, turn it on.• Set the “Output CH” to “3CH” or “4CH” in ADVANCED OPTIONS menu (page 52). If both are used, set the switch to either channel. If your TV is connected to the VCR using A/V connections, set the TV to video input.• Press TV/VIDEO to display the VCR indicator in the VCR’s display window.1Press MENU.2Press M/m to move the cursor (B) to “Clock set,” then press OK.M/m/</,OKMENUMENUSelect :Set :MAIN MENUOKVvClock setTimer set / checkTuner presetAdvanced optionsLanguage / Idioma / Langue: MENUQuitOKPLAYSelect :Set :CLOCK SETOKVvAUTOMANUAL: MENUQuit
Getting Started19Setting the clock3Press M/m to select AUTO, then press OK.4Press M/m to select the item you want. Then press </, to make the setting and press OK.• For “Clock set CH”Leave the setting to AUTO to have the VCR automatically search for a channel that carries a time signal. Press </, to select a channel that carries a time signal. Use this option if you know of a channel that carries a time signal. Most PBS member stations broadcast a time signal. For the fastest response, select your local PBS station.• For “Time zone”Select the time zone of your area, or select AUTO to have the VCR automatically set your time zone.The options are:AUTO y Atl. (Atlantic) y East (Eastern) y Cen. (Central) y Mtn. (Mountain) y Pac. (Pacific) y Alas (Alaska) y Haw. (Hawaii) y AUTO• For “Daylight Saving”Select YES or NO (standard time), or AUTO to have the VCR automatically set the daylight saving time.5Press MENU to exit the menu.6To activate the Auto Clock Set function, turn off the VCR.OKPLAYSelect :End :CLOCK SETOKVv Set : BbTime zone:Clock set CH:Daylight Saving: AUTOAUTO[[]AUTO[]]: MENUQuitOKPLAYSelect ::CLOCK SETOKVv Set : BbTime zone:Clock set CH:Daylight Saving:123[]: MENUQuitEndAUTO[]AUTO[]Select :End :CLOCK SETOKVv Set : BbTime zone:Clock set CH:Daylight Saving: Pac.AUTO[[]]AUTO[]: MENUQuitSelect ::CLOCK SETOKVv Set : BbTime zone:Clock set CH:Daylight Saving:AUTO[]: MENUQuitEndAUTO[]NO[]MENUcontinued
20 Setting the clockNotes• The clock cannot be set automatically if you do not receive a channel that carries a time signal in your area. If so, set the clock manually (page 21).• If there are only a few channels in your area that carry time signals, setting the clock automatically may take up to about 20 minutes. If nothing happens even after you wait about 20 minutes, set the clock manually (page 21).• If you made Hookup 3, make sure you leave the cable box on.

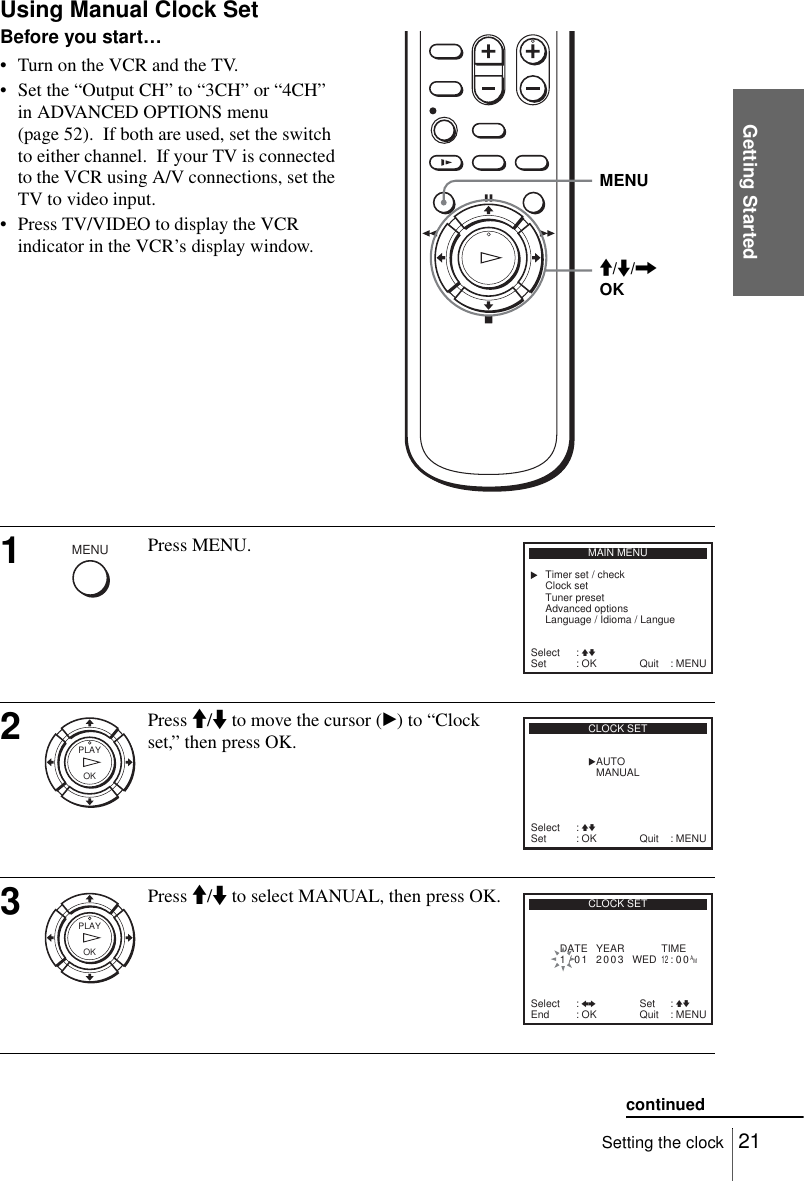

Getting Started21Setting the clockUsing Manual Clock SetBefore you start…• Turn on the VCR and the TV.• Set the “Output CH” to “3CH” or “4CH” in ADVANCED OPTIONS menu (page 52). If both are used, set the switch to either channel. If your TV is connected to the VCR using A/V connections, set the TV to video input.• Press TV/VIDEO to display the VCR indicator in the VCR’s display window.1Press MENU.2Press M/m to move the cursor (B) to “Clock set,” then press OK.3Press M/m to select MANUAL, then press OK.MENUM/m/,OKMENUSelect :Set :MAIN MENUOKVvClock setTimer set / checkTuner presetAdvanced optionsLanguage / Idioma / Langue: MENUQuitOKPLAYSelect :Set :CLOCK SETOKVvAUTOMANUAL: MENUQuitOKPLAYSelect :End :CLOCK SETOKBb Set : VvDATE10120 0003 WED :12AM/TIME: MENUQuitYEARcontinued
22 Setting the clock4Press M/m to set the month.5Press , to flash the day and press M/m to set the day.6Set the year, hour, and minutes in the same way as the day.The day of the week is set automatically.7Press OK or MENU to start the clock.OKPLAYSelect :End :CLOCK SETOKBb Set : VvDATE90120 0003 MON :12AM/TIME: MENUQuitYEAROKPLAYSelect :End :CLOCK SETOKBb Set : VvDATE YEAR92820 0003 SUN :12AM/TIME: MENUQuitOKPLAYMENU

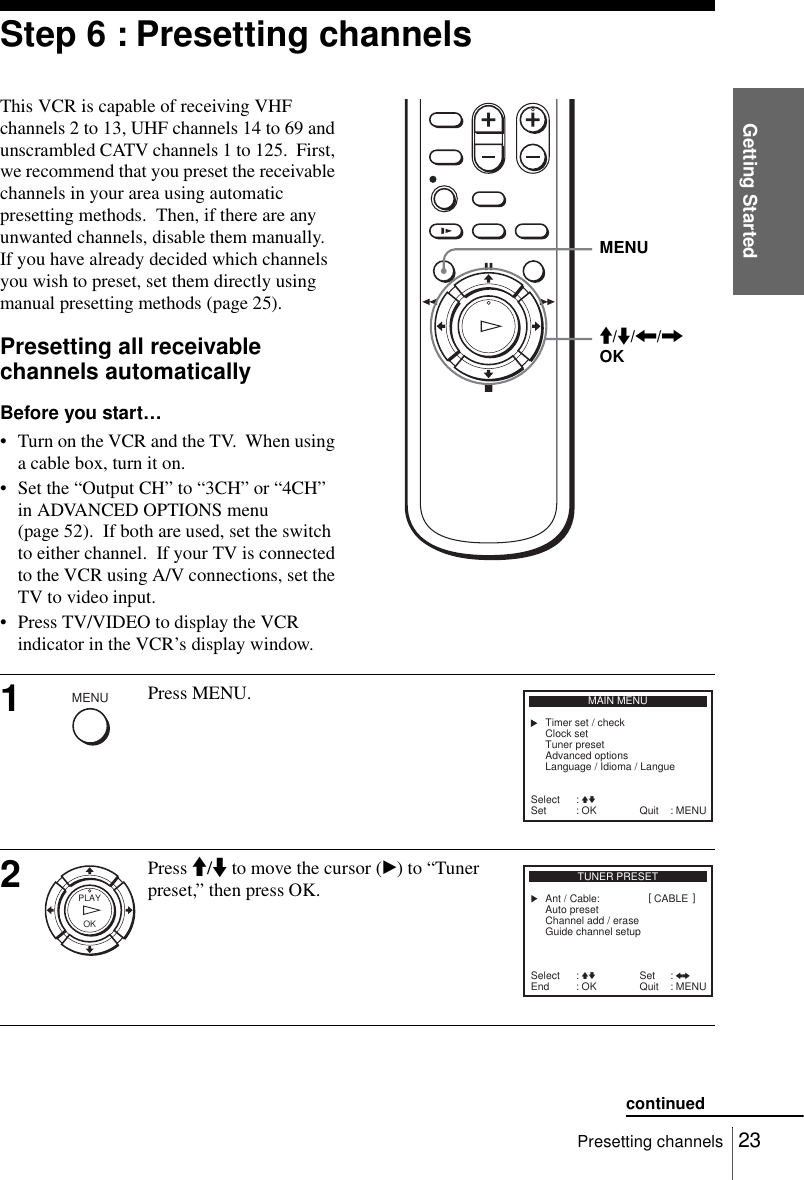

Getting Started23Presetting channelsStep 6 : Presetting channelsThis VCR is capable of receiving VHF channels 2 to 13, UHF channels 14 to 69 and unscrambled CATV channels 1 to 125. First, we recommend that you preset the receivable channels in your area using automatic presetting methods. Then, if there are any unwanted channels, disable them manually. If you have already decided which channels you wish to preset, set them directly using manual presetting methods (page 25).Presetting all receivable channels automaticallyBefore you start…• Turn on the VCR and the TV. When using a cable box, turn it on.• Set the “Output CH” to “3CH” or “4CH” in ADVANCED OPTIONS menu (page 52). If both are used, set the switch to either channel. If your TV is connected to the VCR using A/V connections, set the TV to video input.• Press TV/VIDEO to display the VCR indicator in the VCR’s display window.1Press MENU.2Press M/m to move the cursor (B) to “Tuner preset,” then press OK.MENUM/m/</,OKMENUSelect :Set :MAIN MENUOKVvClock setTimer set / checkTuner presetAdvanced optionsLanguage / Idioma / Langue: MENUQuitOKPLAYTUNER PRESETAuto presetAnt / Cable:Channel add / eraseGuide channel setupSelect :End :OKVv Set : Bb: MENUQuitCABLE[]continued

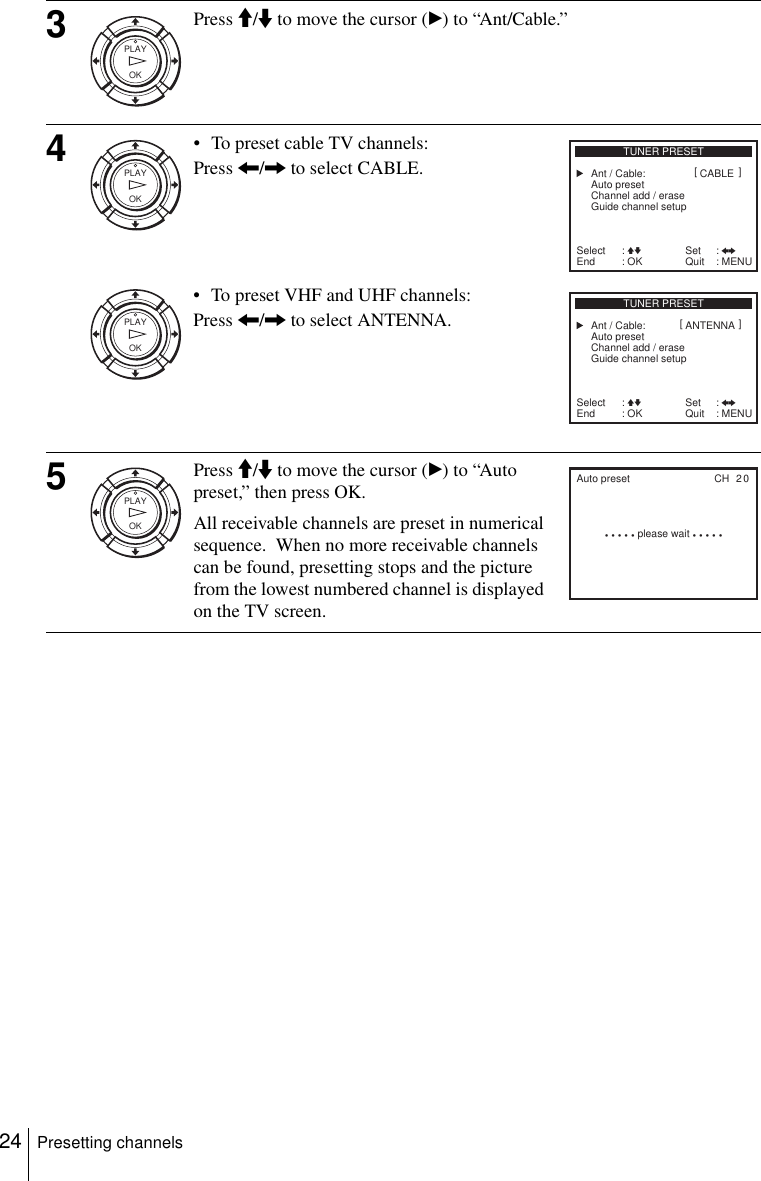

24 Presetting channels3Press M/m to move the cursor (B) to “Ant/Cable.”4• To preset cable TV channels:Press </, to select CABLE.• To preset VHF and UHF channels:Press </, to select ANTENNA.5Press M/m to move the cursor (B) to “Auto preset,” then press OK.All receivable channels are preset in numerical sequence. When no more receivable channels can be found, presetting stops and the picture from the lowest numbered channel is displayed on the TV screen.OKPLAYOKPLAYOKPLAYTUNER PRESETAuto presetAnt / Cable: CABLE[]Channel add / eraseGuide channel setupSelect :End :OKVv Set : Bb: MENUQuitTUNER PRESETAuto presetAnt / Cable: ANTENNA[]Channel add / eraseGuide channel setupSelect :End :OKVv Set : Bb: MENUQuitOKPLAY• • • • • please wait • • • • •02CHAuto preset

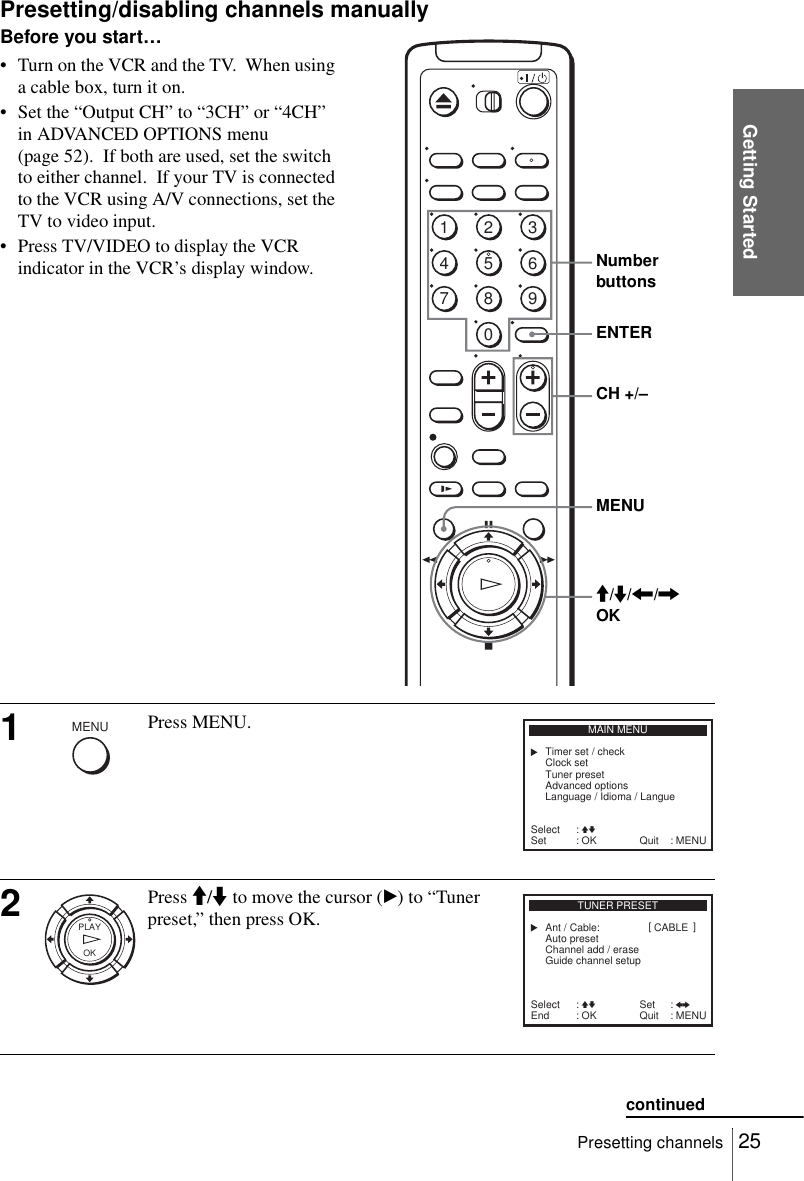

Getting Started25Presetting channelsPresetting/disabling channels manuallyBefore you start…• Turn on the VCR and the TV. When using a cable box, turn it on.• Set the “Output CH” to “3CH” or “4CH” in ADVANCED OPTIONS menu (page 52). If both are used, set the switch to either channel. If your TV is connected to the VCR using A/V connections, set the TV to video input.• Press TV/VIDEO to display the VCR indicator in the VCR’s display window.1Press MENU.2Press M/m to move the cursor (B) to “Tuner preset,” then press OK.1234567890MENUCH +/–Number buttonsM/m/</,OKENTERMENUSelect :Set :MAIN MENUOKVvClock setTimer set / checkTuner presetAdvanced optionsLanguage / Idioma / Langue: MENUQuitOKPLAYTUNER PRESETAuto presetAnt / Cable:Channel add / eraseGuide channel setupSelect :End :OKVv Set : Bb: MENUQuitCABLE[]continued

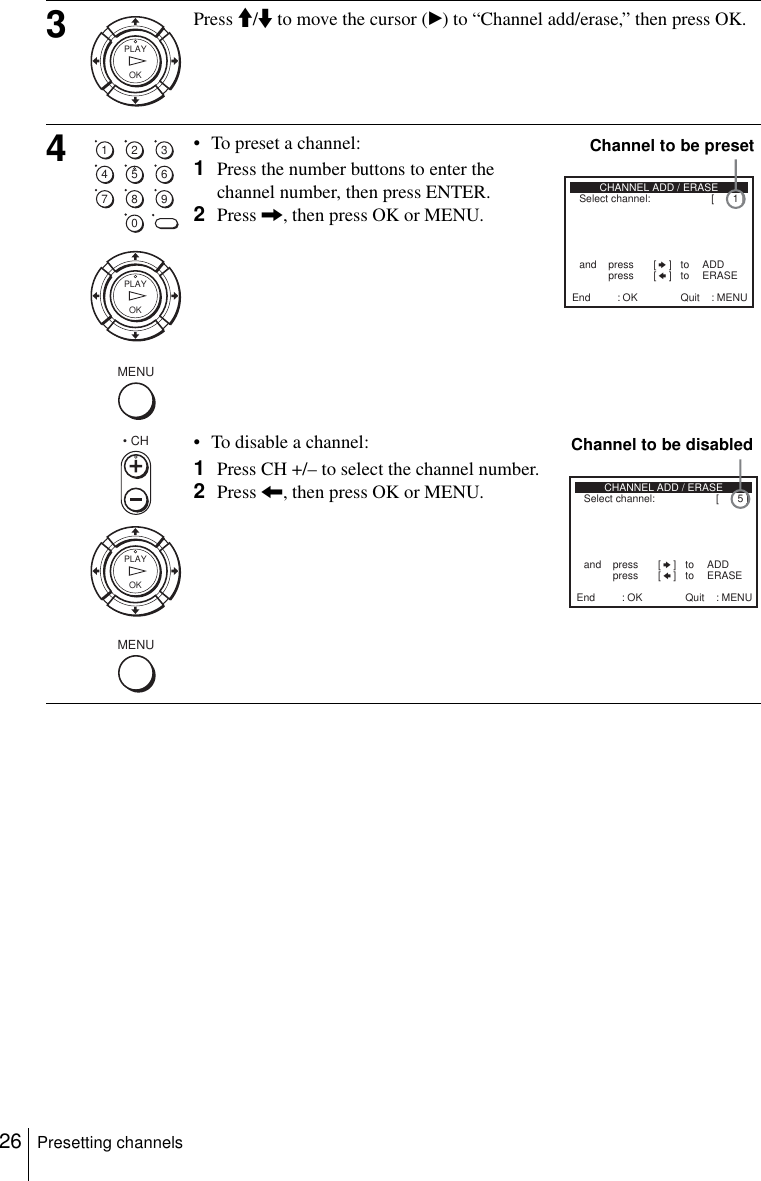

26 Presetting channels3Press M/m to move the cursor (B) to “Channel add/erase,” then press OK.4• To preset a channel:1Press the number buttons to enter the channel number, then press ENTER.2Press ,, then press OK or MENU.• To disable a channel:1Press CH +/– to select the channel number.2Press <, then press OK or MENU.OKPLAYOKPLAY1234567890MENUOKPLAY• CHMENU:EndCHANNEL ADD / ERASEOKSelect channel:and press to ADD[]bpress to ERASE[]B[]1: MENUQuitChannel to be preset:EndCHANNEL ADD / ERASEOKSelect channel:and press to ADD[]bpress to ERASE[]B5: MENUQuit[]Channel to be disabled
Getting Started27Setting up the VCR Plus+® system (SLV-N700 only)Step 7 : Setting up the VCR Plus+® system (SLV-N700 only)How the VCR Plus+ system worksWhenever you want to record a TV program, all you need to do is look up the “PlusCode” number, a number assigned to each program published in the TV section of most newspapers, cable TV listings, and even TV GUIDE magazine. Then, just enter the PlusCode number of the program you want and the VCR is automatically programed to record that show. It’s that simple.How to set up your VCRSetting up your VCR involves coordinating the TV channel number (the number you turn to on your TV or VCR to watch a program) with the guide channel (the number that is assigned to that channel in your program guide).To find the guide channel numbers, look at the “Channel Line-up Chart” in the program guide for your area that features VCR PlusCode numbers. It usually looks like the example to the right.To set the guide channels, use the Channel Line-up Chart to check that the guide channel numbers match the TV channel your VCR receives. For example, if HBO is listed in the Channel Line-up Chart as channel 33, and your VCR receives HBO on channel 5, you need to coordinate these numbers using the following procedure. If the guide and TV channel numbers are the same, you can skip this procedure.5:306:30PlusCode142CNN2345SCIENCE AND TECHNOLOGY(1hr. 15min.) 73457DRAMAWS 9974SPORTMOVIE Musical (2hrs.) 33044Golf (1hr. 25min.) 42060Comedy (2hrs.) 17390SAMPLECABLE TVAMCBRVCNNCSPDISDSCESNFAMHBOLIFMAXMTVNIKSCSCASHOTBSTMCTNNTNTUSAVCR Plus+GUIDE CH355442285337344733464548385970414358495244American Movie ClassicsBravo (program grid only)Cable News NetworkC-SPANThe Disney ChannelThe Discovery ChannelESPNThe Family ChannelHome Box OfficeLifetimeCinemaxMusic TelevisionNickelodeonSports ChannelSports Channel AmericaShowtimeTBS SuperStationThe Movie ChannelThe Nashville NetworkTurner Network TelevisionUSA NetworkCABLECH16172021222534355272931383945174449505130Example of “PlusCode”Example of “Channel Line-up Chart”continued

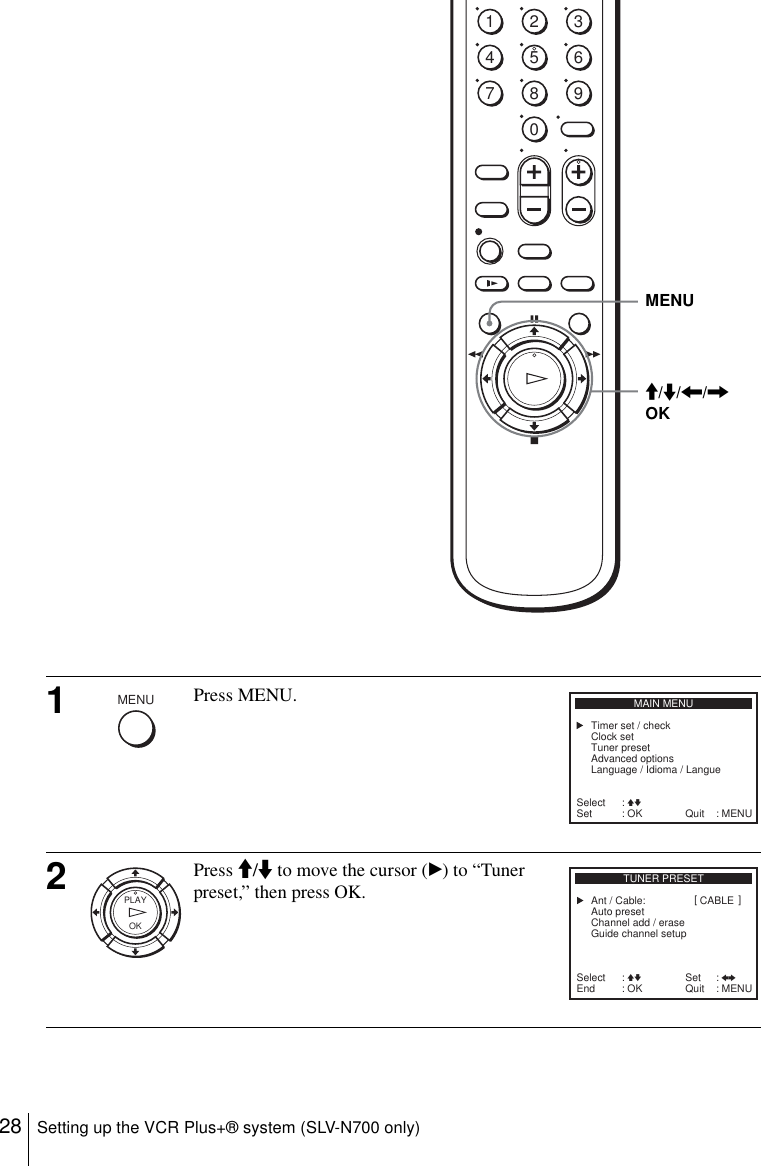

28 Setting up the VCR Plus+® system (SLV-N700 only)1Press MENU.2Press M/m to move the cursor (B) to “Tuner preset,” then press OK.1234567890MENUM/m/</,OKMENUSelect :Set :MAIN MENUOKVvClock setTimer set / checkTuner presetAdvanced optionsLanguage / Idioma / Langue: MENUQuitOKPLAYTUNER PRESETAuto presetAnt / Cable:Channel add / eraseSelect :End :OKVv Set : Bb: MENUQuit]Guide channel setupCABLE[
Getting Started29Setting up the VCR Plus+® system (SLV-N700 only)3Press M/m to move the cursor (B) to “Guide channel setup,” then press OK.4The upper row shows VCR Plus+ guide channels and the lower row shows TV channels or cable box out put channels. Press </, to select the channel number that does not match the guide channel.5• If you made Hookup 1 or 2: Enter the actual number on your TV (and VCR), then press M/m.• If you made Hookup 3: Enter the cable box output channel (usually 2, 3, or 4), then press M/m.6Repeat steps 4 and 5 for each channel number that does not match.7Press OK to confirm the setting.8Press MENU to exit the menu.OKPLAYGUIDE CHANNEL SETUPSelect :End :OK VvSet :Bb : MENUQuitEnter actual receiving channelv[GUIDE CH][TV CH]OKPLAYOKPLAYOKPLAYMENU
30 Playing a tapeBasic OperationsPlaying a tape1Turn on your TV and set it to the video channel.2Insert a tape.The VCR turns on and starts playing automatically if you insert a tape with its safety tab removed.1234567890ZEJECTDISPLAYCLEARHPLAYCOMMERCIAL SKIPXPAUSEMFFxSTOPmREWREPLAY?/1
31Playing a tapeBasic OperationsAdditional tasksTo play a recently watched sceneYou can immediately rewind and playback the scene you want to watch again.During playback, press REPLAY. The VCR rewinds the tape about ten seconds on the counter for each press of the button, and restarts playback.To skip playbackYou can skip a portion of playback you do not want to watch (such as a commercial) and restart playback.During playback, press COMMERCIAL SKIP up to four times. The VCR skips the tape 30 seconds on the counter for each press of the button, and restarts playback.To turn off the power while rewinding (Rewind Shut Off)Press ?/1 while the tape is rewinding. The power will turn off but the tape will keep rewinding until it reaches the end.3Press HPLAY.The display window shows the playback time and playback direction.When the tape reaches the end, it will rewind automatically.To PressStop play xSTOPPause play XPAUSEResume play after pause XPAUSE or HPLAYFast-forward the tape MFF during stopRewind the tape mREW during stopEject the tape ZEJECTOKPLAYHour Minutecontinued
32 Playing a tapeTo use the time counterPress CLEAR at the point on the tape that you want to find later. The counter in the display window resets to “00:00” or “0:00.” To search for the counter 0:00:00 point automatically, see “To search for the counter 0:00:00 point” on page 50.To display the counter on the TV screen, press DISPLAY.Notes• Tapes recorded in the LP mode on other VCRs can be played back on this VCR but the picture quality cannot be guaranteed.• While displaying a menu on the TV screen, you cannot use HPLAY, XPAUSE,MFF, mREW, or xSTOP buttons.• The counter resets to “00:00” or “0:00” (in the display window) or “0:00:00” (on the TV screen) whenever a tape is reinserted.• The counter stops counting when it comes to a portion with no recording.• When 10 hours have passed, the counter in the display window returns to “0:00” and the count starts over again.• When playback does not start even if you insert a tape with its safety tab removed, set “Auto play” in the ADVANCED OPTIONS menu correctly (page 52).
33Recording TV programsBasic OperationsRecording TV programs1Turn on your TV and set it to the video channel.To record from a cable box, turn it on.2Insert a tape with its safety tab in place.1234567890CH +/–zRECSP/EPxSTOPCOUNTER/REMAINDISPLAYTV/VIDEOENTERINPUT SELECTcontinued
34 Recording TV programsTo stop recordingPress xSTOP.To check the remaining tape lengthPress DISPLAY. With the display on, press COUNTER/REMAIN to check the remaining time. Each time you press COUNTER/REMAIN, the time counter and the remaining tape length appear alternately. The white bar indicates the current location in relation to the entire tape length. The remaining time also appears in the display window.To check the remaining tape length of a tape, set “Tape select” in the ADVANCED OPTIONS menu correctly (page 52).3Press CH +/– to select the channel or line input video source you want to record.4Press SP/EP to select the tape speed, SP or EP.EP (Extended Play) provides recording time three times as long as SP (Standard Play). However, SP produces better picture and audio quality.5Press zREC to start recording.“REC” appears in the display window.• CHSP / EPRECTime counter Remaining tape length::00030SP :Rem 1 38 SP
35Recording TV programsBasic OperationsTo watch another TV program while recordingTo save a recordingTo prevent accidental erasure, break off the safety tab as illustrated. To record on the tape again, cover the tab hole with adhesive tape.Tips• To select a channel, you can use the number buttons on the remote commander. Enter the channel number, then press ENTER.• You can select a video source from the LINE IN 1 or LINE-2 IN jacks using the INPUT SELECT button.• The display appears on the TV screen indicating information about the tape, but the information will not be recorded on the tape.• If you do not want to watch TV while recording, you can turn off the TV. When using a cable box, make sure to leave it on.Notes• The remaining tape length may not be indicated accurately for short tapes such as T-20 or T-30, or tapes recorded in the LP mode.• The display does not appear during still (pause) mode or slow-motion playback.• It may take up to one minute for the VCR to calculate and display the remaining tape length after you press DISPLAY.1Press TV/VIDEO to turn off the VCR indicator in the display window.2If your TV is connected to the VCR using A/V connections, set the TV to the TV’s antenna input; if not, skip this step.3Select another channel on the TV.Safety tab

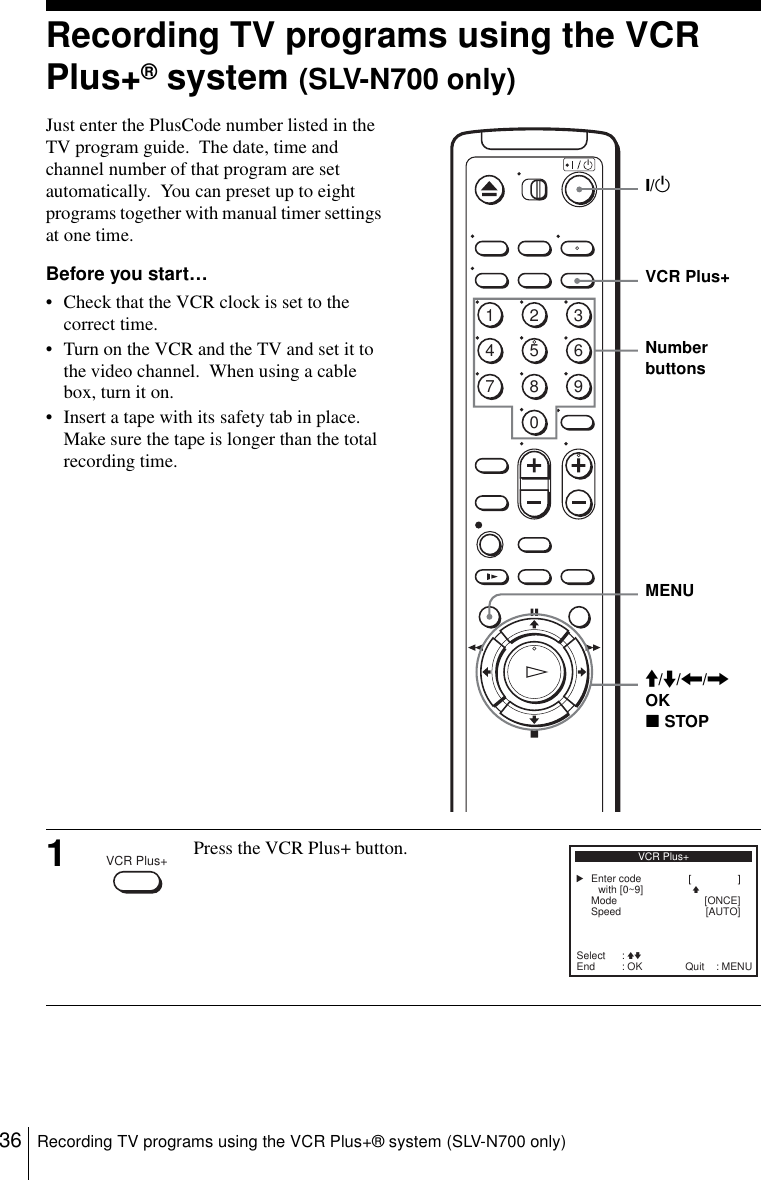

36 Recording TV programs using the VCR Plus+® system (SLV-N700 only)Recording TV programs using the VCR Plus+® system (SLV-N700 only)Just enter the PlusCode number listed in the TV program guide. The date, time and channel number of that program are set automatically. You can preset up to eight programs together with manual timer settings at one time.Before you start…• Check that the VCR clock is set to the correct time.• Turn on the VCR and the TV and set it to the video channel. When using a cable box, turn it on.• Insert a tape with its safety tab in place. Make sure the tape is longer than the total recording time.1Press the VCR Plus+ button.1234567890VCR Plus+M/m/</,OKxSTOPNumber buttons?/1MENUVCR Plus+Select :End :VCR Plus+OKVvwith [0~9]Enter codeModeSpeed: MENUQuit[ONCE][AUTO]V

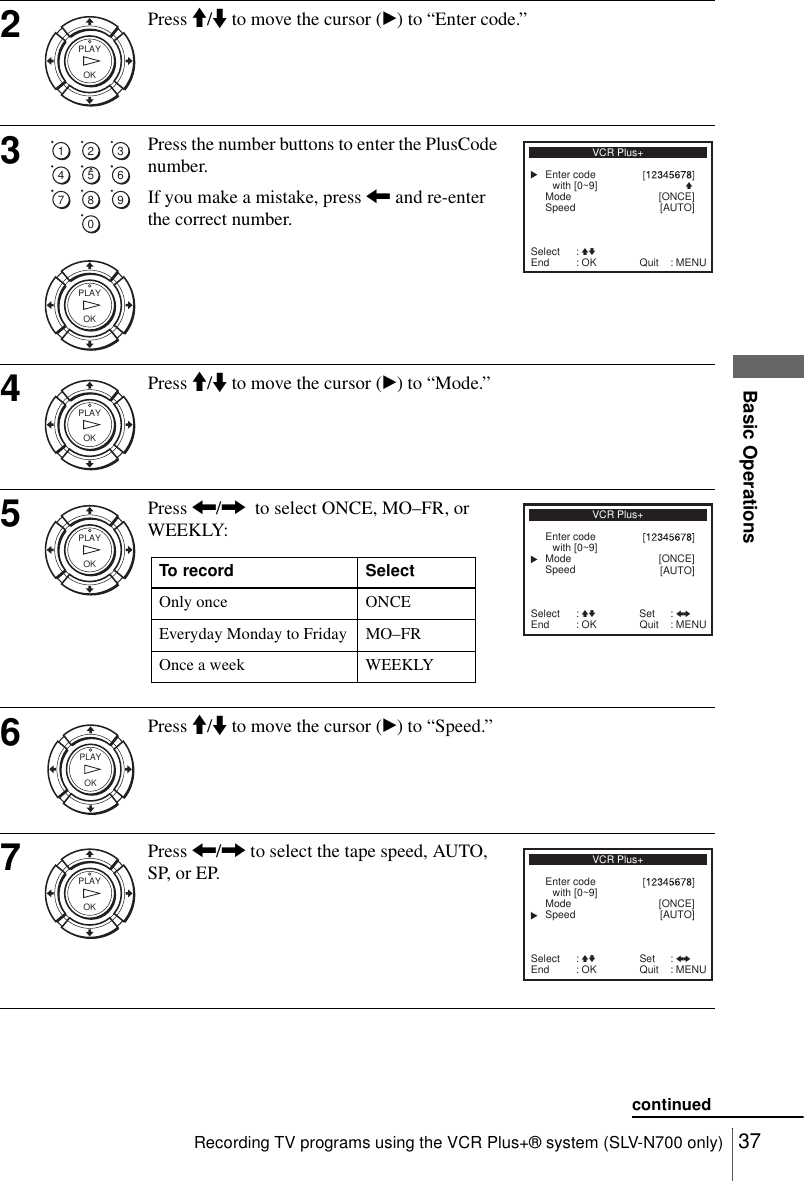

37Recording TV programs using the VCR Plus+® system (SLV-N700 only)Basic Operations2Press M/m to move the cursor (B) to “Enter code.”3Press the number buttons to enter the PlusCode number.If you make a mistake, press < and re-enter the correct number.4Press M/m to move the cursor (B) to “Mode.”5Press </, to select ONCE, MO–FR, or WEEKLY:6Press M/m to move the cursor (B) to “Speed.”7Press </, to select the tape speed, AUTO, SP, or EP.OKPLAY1234567890OKPLAYSelect :End :VCR Plus+OKVvwith [0~9]Enter codeModeSpeed: MENUQuit[ONCE][AUTO]VOKPLAYOKPLAYSelect :End :VCR Plus+OKVv :Bbwith [0~9]Enter codeModeSpeed: MENUQuit[ONCE][AUTO]SetTo record SelectOnly once ONCEEveryday Monday to Friday MO–FROnce a week WEEKLYOKPLAYOKPLAYSelect :End :VCR Plus+OKVvwith [0~9]Enter codeModeSpeed: MENUQuit[ONCE][AUTO]:BbSetcontinued
38 Recording TV programs using the VCR Plus+® system (SLV-N700 only)To stop recordingTo stop the VCR while recording, press xSTOP.To use the Auto Tape Speed functionWhen you are recording a program in the SP mode and the remaining tape becomes shorter than the recording time, the tape speed is automatically changed to the EP mode. Note that some noise will appear on the picture when the tape speed is changed. If you want to keep the tape speed, select SP. To operate this function, set “Tape select” in the ADVANCED OPTIONS menu correctly (page 52).To use the VCR after setting the timerTo use the VCR before a timer recording begins, just press ?/1. The TIMER indicator disappears from the display window and the VCR switches on. Remember to press ?/1 to reset the VCR to the timer recording standby mode after using the VCR.You can also do the following tasks while the VCR is recording:• Reset the counter (page 32).• Display tape information on the TV screen (page 34).• Check the timer settings (page 46).• Watch another TV program (page 35).Tip• To check, change or cancel the program setting, see “Checking/changing/canceling timer settings” on page 46.Note• If the VCR does not accept the PlusCode number, this means that:– The PlusCode number is incorrect.– ONCE, MO–FR, or WEEKLY was selected incorrectly. You cannot select MO–FR or WEEKLY for a program that airs more than seven days ahead.Correctly set the PlusCode number again from step 2.8Press OK to confirm the setting.To enter another setting, repeat steps 1 to 7.9Press MENU to exit the menu.10 Press ?/1 to turn off the VCR.The TIMER indicator appears in the display window and the VCR stands by for recording. When using a cable box, leave it on.OKPLAYMENU

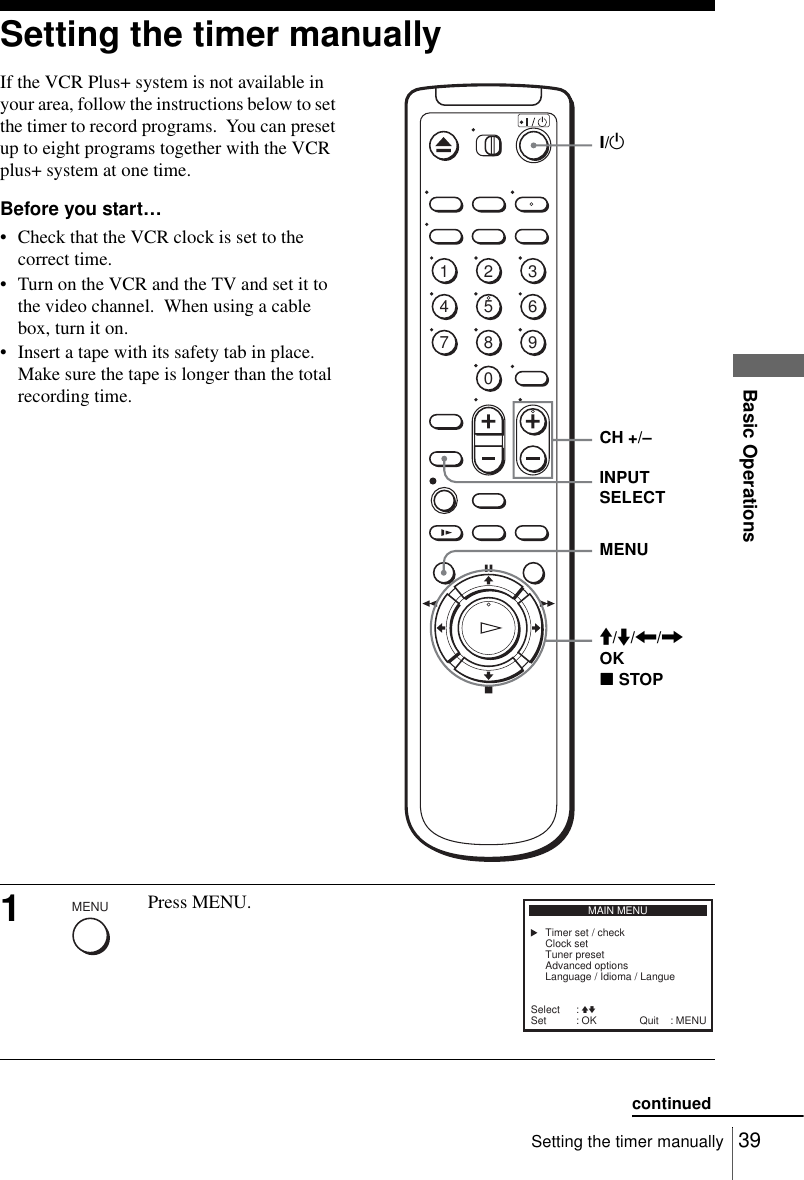

39Setting the timer manuallyBasic OperationsSetting the timer manuallyIf the VCR Plus+ system is not available in your area, follow the instructions below to set the timer to record programs. You can preset up to eight programs together with the VCR plus+ system at one time.Before you start…• Check that the VCR clock is set to the correct time.• Turn on the VCR and the TV and set it to the video channel. When using a cable box, turn it on.• Insert a tape with its safety tab in place. Make sure the tape is longer than the total recording time.1Press MENU.1234567890MENUINPUT SELECTCH +/–M/m/</,OKxSTOP?/1MENUSelect :Set :MAIN MENUOKVvClock setTimer set / checkTuner presetAdvanced optionsLanguage / Idioma / Langue: MENUQuitcontinued

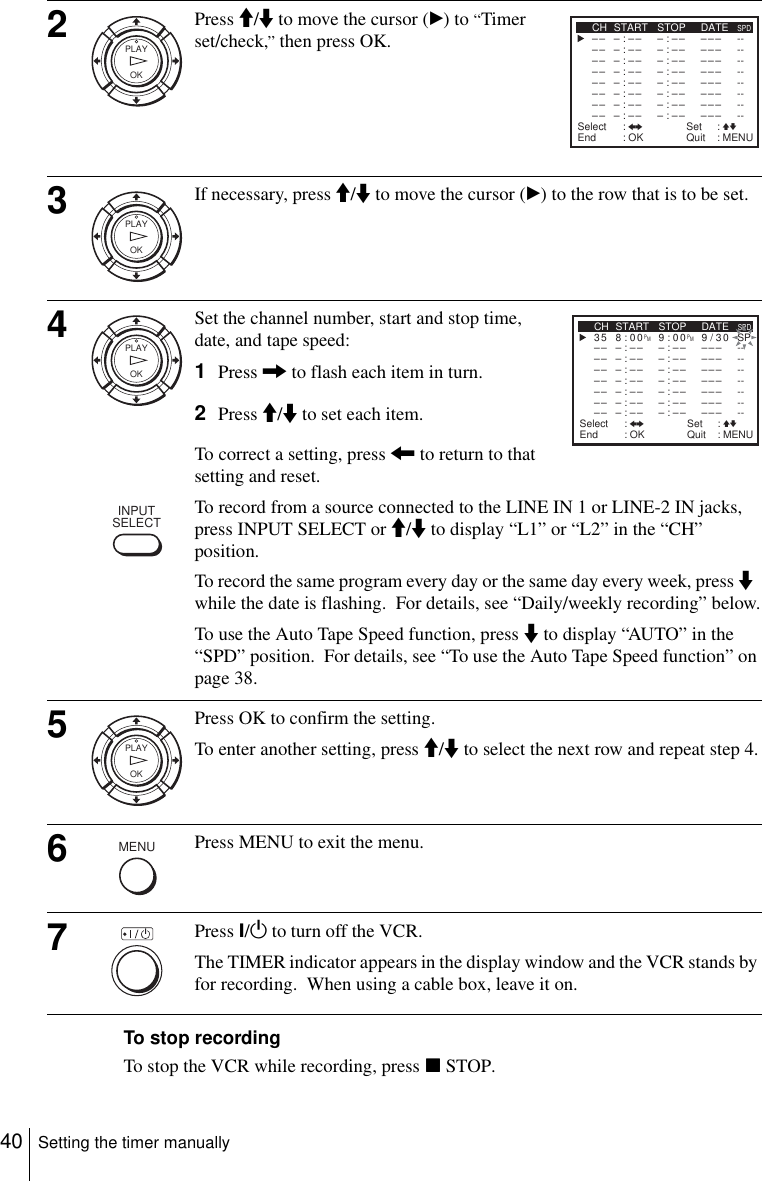

40 Setting the timer manuallyTo stop recordingTo stop the VCR while recording, press xSTOP.2Press M/m to move the cursor (B) to “Timer set/check,” then press OK.3If necessary, press M/m to move the cursor (B) to the row that is to be set.4Set the channel number, start and stop time, date, and tape speed:1Press , to flash each item in turn.2Press M/m to set each item.To correct a setting, press < to return to that setting and reset.To record from a source connected to the LINE IN 1 or LINE-2 IN jacks, press INPUT SELECT or M/m to display “L1” or “L2” in the “CH” position.To record the same program every day or the same day every week, press m while the date is flashing. For details, see “Daily/weekly recording” below.To use the Auto Tape Speed function, press m to display “AUTO” in the “SPD” position. For details, see “To use the Auto Tape Speed function” on page 38.5Press OK to confirm the setting.To enter another setting, press M/m to select the next row and repeat step 4.6Press MENU to exit the menu.7Press ?/1 to turn off the VCR.The TIMER indicator appears in the display window and the VCR stands by for recording. When using a cable box, leave it on.OKPLAYSelect ::End :CH START STOP DATESPDOKBb MENUQuitSet : Vv–– – :–– – :–– ––– --–– – :–– – : –– ––– --–– – :–– – : –– ––– --–– – :–– – : –– ––– --–– – :–– – : –– ––– --–– – :–– – : –– ––– --–– – :–– – : –– ––– --–– – :–– – : –– ––– --OKPLAYOKPLAYINPUTSELECTSelect ::End :CH START STOP DATESPDOKBb MENUQuitSet : Vv35 8 :00 9 :00 9 /30 SP–– – :–– – :–– ––– --–– – :–– – :–– ––– --–– – :–– – :–– ––– --–– – :–– – :–– ––– --–– – :–– – :–– ––– --–– – :–– – :–– ––– --–– – :–– – :–– ––– --PMPMOKPLAYMENU

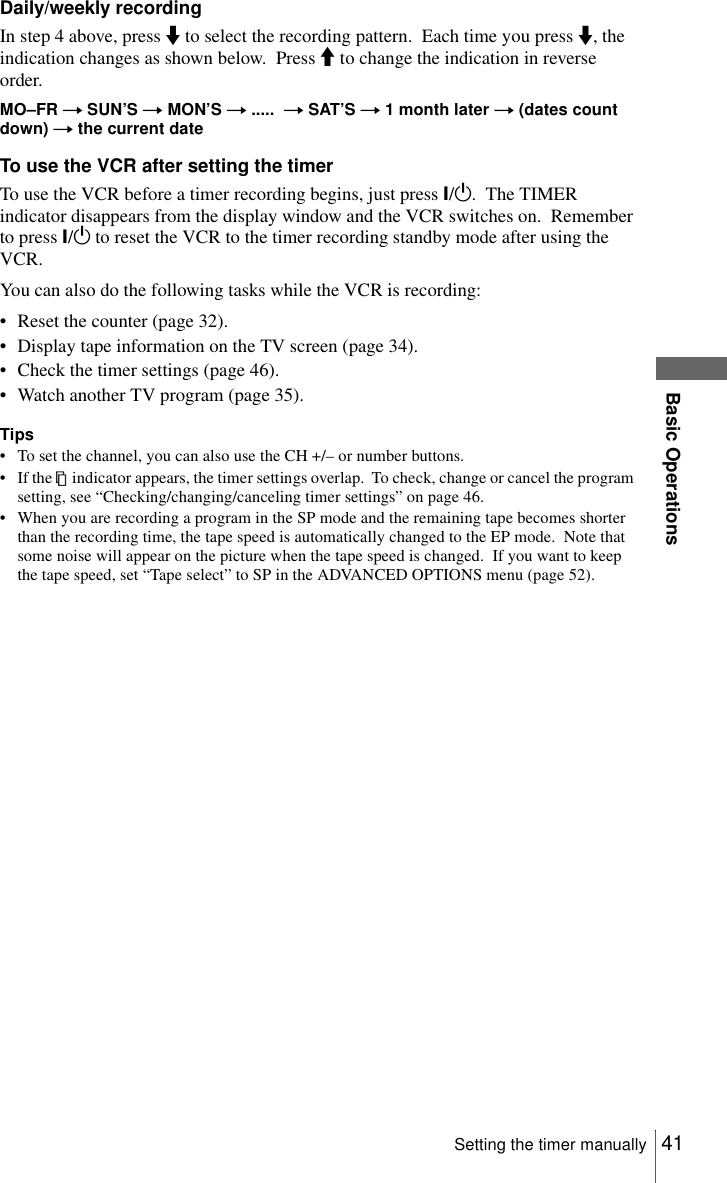

41Setting the timer manuallyBasic OperationsDaily/weekly recordingIn step 4 above, press m to select the recording pattern. Each time you press m, the indication changes as shown below. Press M to change the indication in reverse order.MO–FR t SUN’S t MON’S t ..... t SAT’S t 1 month later t (dates count down) t the current dateTo use the VCR after setting the timerTo use the VCR before a timer recording begins, just press ?/1. The TIMER indicator disappears from the display window and the VCR switches on. Remember to press ?/1 to reset the VCR to the timer recording standby mode after using the VCR.You can also do the following tasks while the VCR is recording:• Reset the counter (page 32).• Display tape information on the TV screen (page 34).• Check the timer settings (page 46).• Watch another TV program (page 35).Tips• To set the channel, you can also use the CH +/– or number buttons.• If the indicator appears, the timer settings overlap. To check, change or cancel the program setting, see “Checking/changing/canceling timer settings” on page 46.• When you are recording a program in the SP mode and the remaining tape becomes shorter than the recording time, the tape speed is automatically changed to the EP mode. Note that some noise will appear on the picture when the tape speed is changed. If you want to keep the tape speed, set “Tape select” to SP in the ADVANCED OPTIONS menu (page 52).

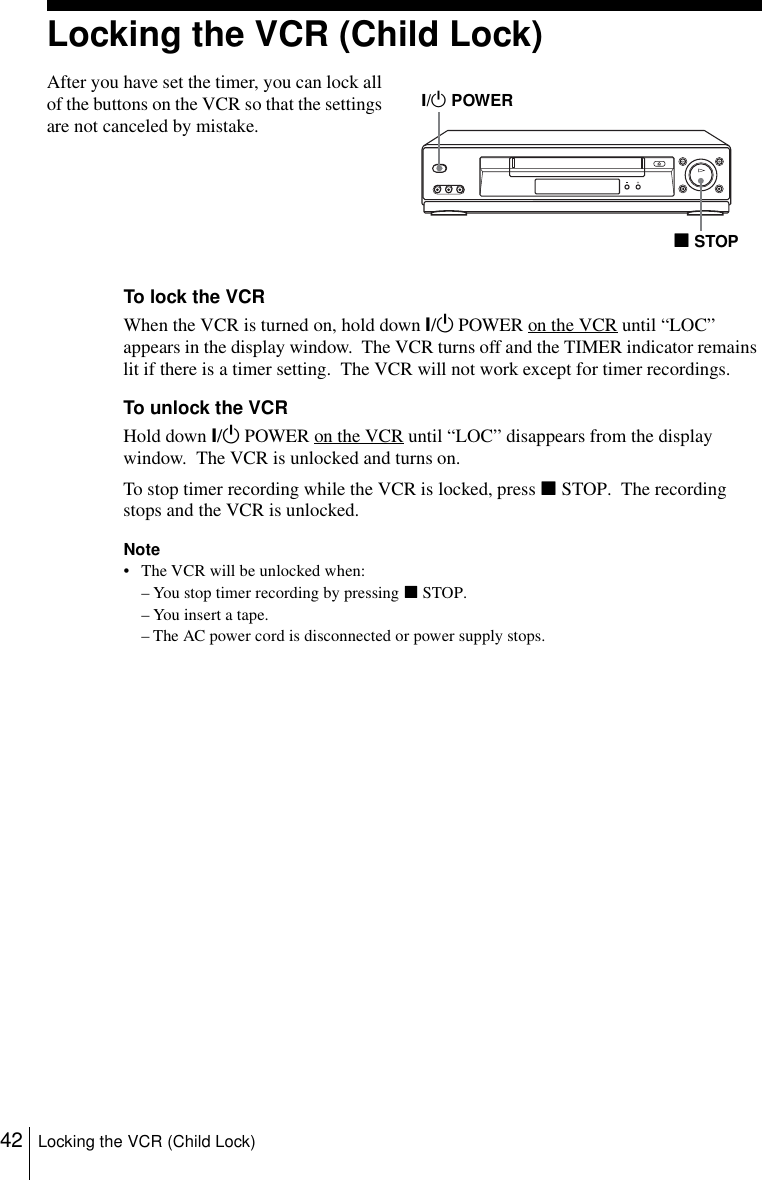

42 Locking the VCR (Child Lock)Locking the VCR (Child Lock)To lock the VCRWhen the VCR is turned on, hold down ?/1 POWER on the VCR until “LOC” appears in the display window. The VCR turns off and the TIMER indicator remains lit if there is a timer setting. The VCR will not work except for timer recordings.To unlock the VCRHold down ?/1 POWER on the VCR until “LOC” disappears from the display window. The VCR is unlocked and turns on.To stop timer recording while the VCR is locked, press xSTOP. The recording stops and the VCR is unlocked.Note• The VCR will be unlocked when:– You stop timer recording by pressing xSTOP.– You insert a tape.– The AC power cord is disconnected or power supply stops.After you have set the timer, you can lock all of the buttons on the VCR so that the settings are not canceled by mistake.?/1 POWERxSTOP
43Playing/searching at various speedsAdditional OperationsAdditional OperationsPlaying/searching at various speedsTo resume normal playbackPress HPLAY.Playback options OperationView the picture during fast-forward or rewind During fast-forward, hold down MFF. During rewind, hold down mREW.Play at high speed • During playback, briefly press MFF or mREW. The tape continues to play at high speed.• During playback, hold down MFF or mREW. When you release the button, normal playback resumes.Play at twice the normal speed During playback, press ×2.Play in slow motion During playback or pause, press ySLOW.Play frame by frame During pause, press MFF on the remote commander.MFFySLOW×2mREWHPLAYTRACKING +/–continued

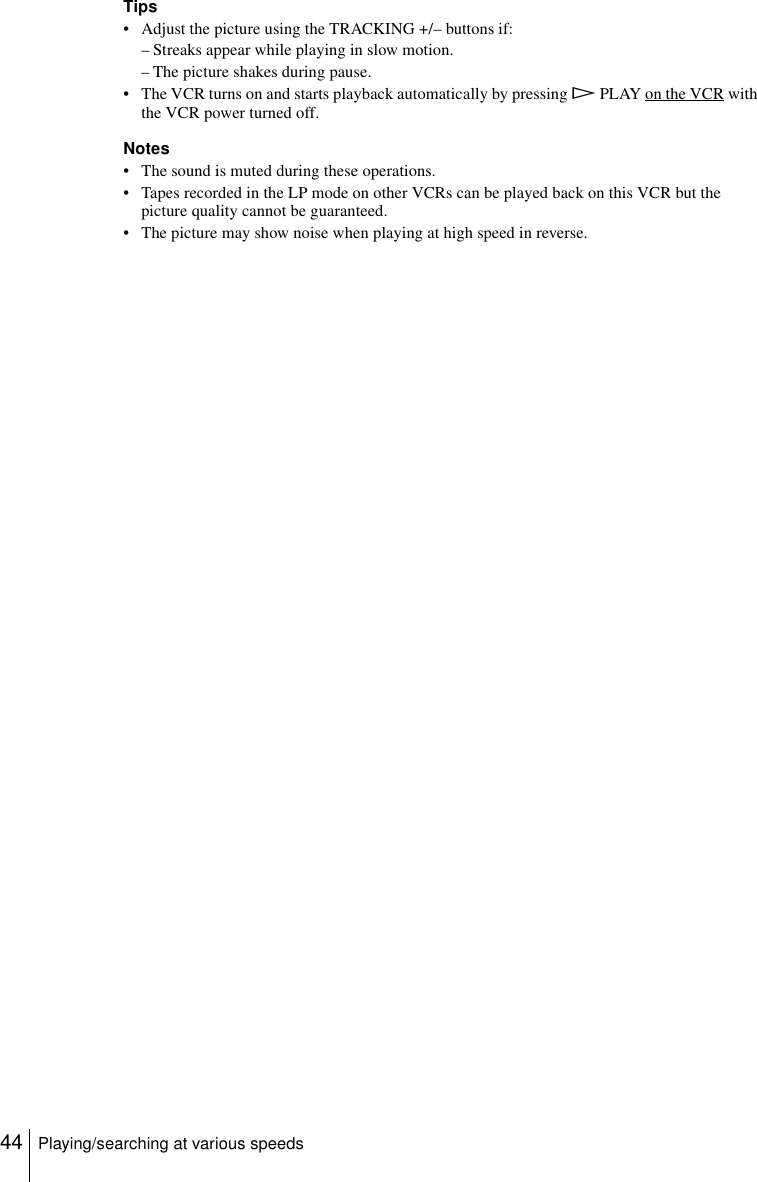

44 Playing/searching at various speedsTips• Adjust the picture using the TRACKING +/– buttons if:– Streaks appear while playing in slow motion.– The picture shakes during pause.• The VCR turns on and starts playback automatically by pressing HPLAY on the VCR with the VCR power turned off.Notes• The sound is muted during these operations.• Tapes recorded in the LP mode on other VCRs can be played back on this VCR but the picture quality cannot be guaranteed.• The picture may show noise when playing at high speed in reverse.
45Quick Timer RecordingAdditional OperationsQuick Timer RecordingTo extend the durationPress zREC repeatedly to set a new duration time.To cancel the durationPress zREC repeatedly until the TIMER indicator disappears and the VCR returns to normal recording mode.To stop while recordingPress xSTOP.Note• You cannot display the current tape time in the display window when setting the recording duration time.After you have started recording, you can have the VCR stop recording automatically after a specified duration.1While recording, press zREC.The TIMER indicator appears in the display window.2Press zREC repeatedly to set the duration time.Each press advances the time in increments of 30 minutes.The tape counter decreases minute by minute to 0:00, then the VCR stops recording and turns off automatically.zREC0:30 1:00 3:30 4:00 Normal recording

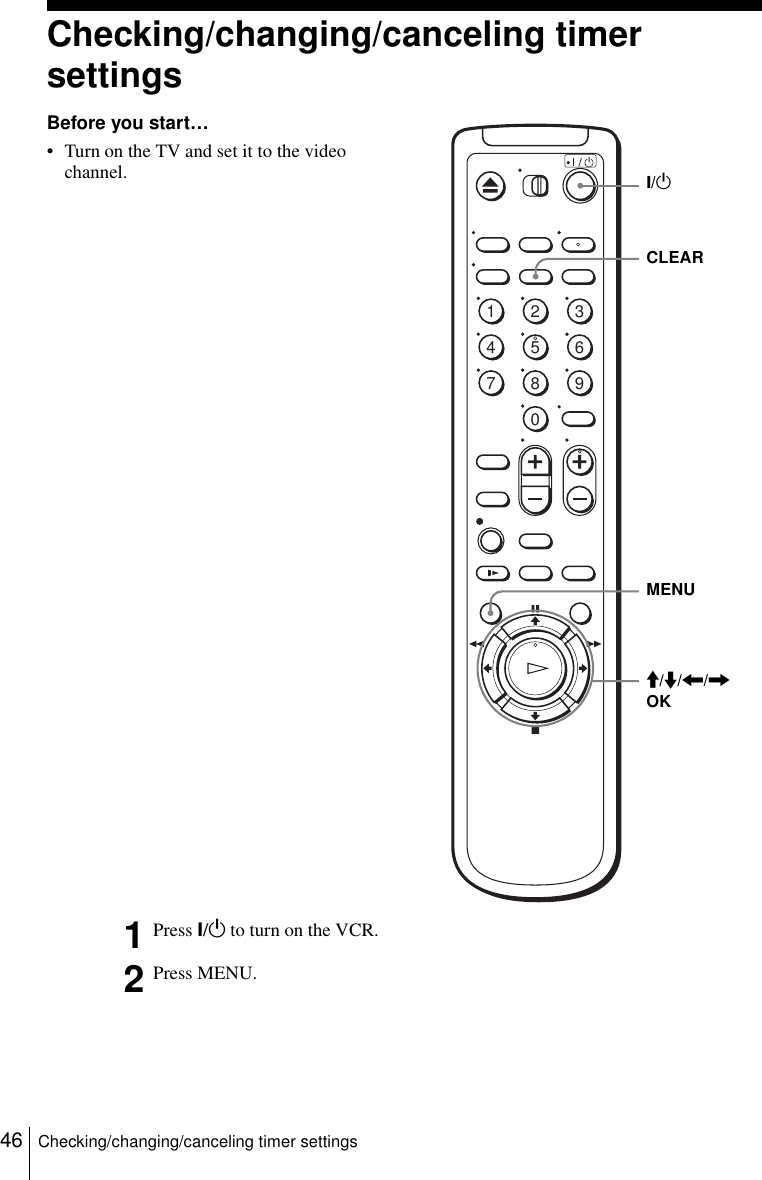

46 Checking/changing/canceling timer settingsChecking/changing/canceling timer settingsBefore you start…• Turn on the TV and set it to the video channel.1Press ?/1 to turn on the VCR.2Press MENU.1234567890?/1CLEARMENUM/m/</,OK
47Checking/changing/canceling timer settingsAdditional OperationsWhen the timer settings overlapThe program that starts first has priority and the second program starts recording only after the first program has finished. If the programs start at the same time, the program listed first in the menu has priority.3Press M/m to move the cursor (B) to “Timer set/check,” then press OK.• If you want to change a setting, go on to the next step.• If you do not need to change the settings, press MENU, then turn off the VCR to return to recording standby.4Press M/m to move the cursor (B) to the setting you want to change or cancel.• To change the setting, press </, to flash the item you want to change, and press M/m to change it.• To cancel the setting, press CLEAR.5Press OK to confirm the setting.6Press MENU to exit the menu.If any timer settings remain, turn off the VCR to return to recording standby.Select ::End :CH START STOP DATESPDOKBb MENUQuitSet : Vv35 8 :00 9 : 00 9 / 30 SP2010:0011:3010/0 EP–– – : –– – : –– ––– --–– – : –– – : –– ––– --–– – : –– – : –– ––– --–– – : –– – : –– ––– --–– – : –– – : –– ––– --60 8 : 3010:00 9/320AUTOPMAMPMPMAMPMWill be cut offProgram 1Program 2
48 Recording stereo and bilingual programsRecording stereo and bilingual programsRecording stereo programsWhen you receive a program broadcast in stereo, press AUDIO MONITOR to display STEREO on the TV screen. You can also select LEFT, RIGHT, or MONO. If there is noise in the stereo program, select MONO. The sound will be recorded in monaural (on both hi-fi and normal audio tracks) but with less noise.Recording bilingual programsPress AUDIO MONITOR to display “SAP” on the TV screen. When a SAP (Second Audio Program) is received, “SAP” appears on the TV screen. When MAIN is selected, the VCR records only the main sound.Selecting the sound during playbackDuring playback, press AUDIO MONITOR to select the sound you want.How sound is recorded on a video tapeThe VCR records sound onto two separate tracks. Hi-fi audio is recorded onto the main track along with the picture. Monaural sound is recorded onto the normal audio track along the edge of the tape.Notes• To play a tape in stereo, you must use the A/V connections.• When you play a tape recorded in monaural, the sound is heard in monaural regardless of the AUDIO MONITOR setting.To listen to On-screen display Display windowStereo HI-FI Hi-FiLeft channel LEFT Hi-FiRight channel RIGHT Hi-FiMonaural sound on the normal audio track MONO No indicatorNormal audio trackHi-fi audio track(main track)Monaural soundStereo sound(left/right channels)

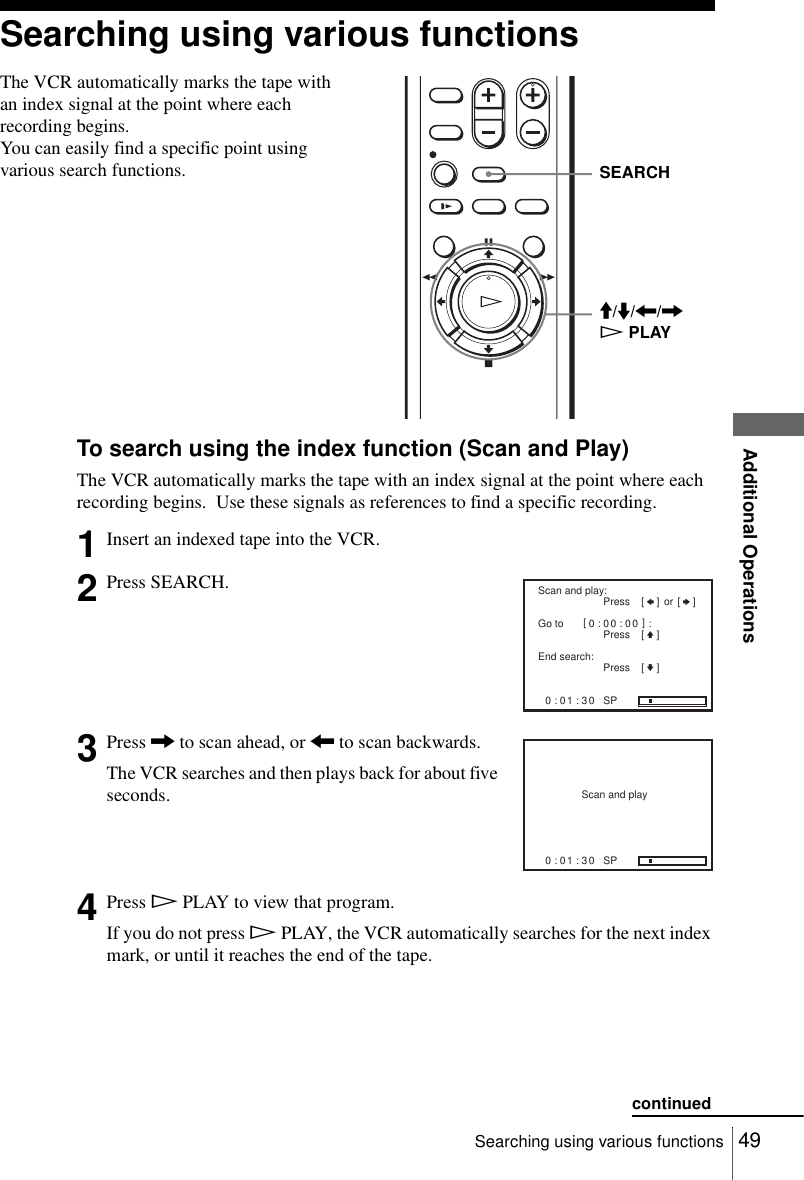

49Searching using various functionsAdditional OperationsSearching using various functionsTo search using the index function (Scan and Play)The VCR automatically marks the tape with an index signal at the point where each recording begins. Use these signals as references to find a specific recording.The VCR automatically marks the tape with an index signal at the point where each recording begins. You can easily find a specific point using various search functions. 1Insert an indexed tape into the VCR.2Press SEARCH.3Press , to scan ahead, or < to scan backwards.The VCR searches and then plays back for about five seconds.4Press HPLAY to view that program.If you do not press HPLAY, the VCR automatically searches for the next index mark, or until it reaches the end of the tape.SEARCHM/m/</,HPLAY::00130SPScan and play:Press [ orB][b]Go to []000:00::Press [ V]End search: Press [ v]::00130SPScan and playcontinued
50 Searching using various functionsTo search for the counter 0:00:00 pointTo mark a point on the tape that you want to find later, reset the tape counter to “0:00:00.”The VCR automatically fast-forwards or rewinds to the 0:00:00 point on the tape counter.To search for a blank portion of the tapeThe VCR automatically searches for the beginning of a blank portion. You can easily find a point you can start recording from.Note• Once in recording mode, if the VCR is put in pause and then released to start the recording, no index mark will be inserted. An index mark will be inserted if the channel is changed while VCR is put in pause.1Press SEARCH.2Press M.The VCR starts searching and automatically stops at the 0:00:00 point.1Press SEARCH.2Press m.The VCR starts searching and automatically stops at the beginning of a blank space. If no blank space is found, the VCR reaches the end and the tape will be ejected.::00130SPGo to []000:00:::00130SPEnd search
51Adjusting the picture (tracking)Additional OperationsAdjusting the picture (tracking)Although the VCR automatically adjusts the tracking when playing a tape, distortion may occur if the recording is in poor condition. In this case, manually adjust the tracking.Press TRACKING +/– on the VCR to display the tracking meter. The distortion should disappear as you press one of the two tracking buttons. To resume automatic tracking adjustment, eject the tape and reinsert it.Note• The auto tracking adjustment cannot be guaranteed to work with tapes recorded in the LP mode on other VCRs.TRACKINGTracking meter
52 Changing menu optionsChanging menu optionsMenu choicesInitial settings are indicated in bold print.1Press MENU.2Press M/m to move the cursor (B) to “Advanced options,” then press OK.3Press M/m to move the cursor (B) to the option to change.4Press </, to change the setting.5Press MENU to exit the menu.Menu option Set this option toTape select • T-120 when using a T-120 or shorter length tape.• T-160 when using a T-160 length tape.• T-180 when using a T-180 or longer length tape.For details, see page 34.Auto play • ON to start playback automatically, when you insert a tape with its safety tab removed.• OFF to turn off Auto play. You need to press HPLAY to start playback, even if you insert a tape with its safety tab removed.Auto repeat • ON to play back a tape repeatedly. The VCR rewinds a tape to the beginning and restarts playback automatically.•OFF to turn off Auto repeat.Auto power off • 1Hr to turn off the VCR automatically one hour after the last operation.• 2Hr to turn off the VCR automatically two hours after the last operation.•OFF to set no specific time to turn off.Power save • ON to turn off the indicators in the display window during standby mode to reduce the VCR’s power consumption to a minimum.•OFF to turn on the indicators in the display window while the VCR is standing by.Output CH • 3CH when using channel 3 to receive the VCR signal.• 4CH when using channel 4 to receive the VCR signal.For details, see page 53.Select :End :ADVANCED OPTIONSOKVv Set : BbAuto play:Tape select:Auto repeat: ONT120OFF[[[]]]Auto power off: OFF[]OFF[]: MENUQuitPower save: 3CH[]Output CH:
53Changing menu optionsAdditional OperationsSetting the RF Output channelWhen connecting the VCR to the TV using only the antenna cable, you must set the “Output CH” in the ADVANCED OPTIONS menu so that the TV can receive the correct signal from the VCR.1Set the “Output CH” to “3CH” or “4CH” (see page 52 to set the channel), whichever channel is not used in your area. If both are used, set the switch to either channel.2Press ?/1 to turn on the VCR.3Press TV/VIDEO to turn on the VCR indicator in the VCR’s display window.4Press CH +/– to display a channel number in the display window.Select an active channel number in your area.5Turn on your TV and set it to the channel you selected in step 1 (3HC or 4CH).The channel you selected in step 4 appears on the TV screen. If the channels change when you press CH +/–, you have made the correct setting.Whenever you use the VCR, set the TV to the channel selected in step 1.TVCHANNEL +/–?/11234567890?/1CH +/–TV/VIDEO
54 Editing with another VCREditing with another VCRHow to connect to record on this VCRNotes• Make sure you connect the plugs to jacks of the same color.• If the other VCR is a monaural type and connected to this VCR’s LINE-2 IN jacks, connect the audio plug to the AUDIO L (white) jack. The sound is recorded on both right and left channels. If you connect to the AUDIO R (red) jack, the sound is recorded only on the right channel.• If you connected this VCR to both the LINE IN and LINE OUT jacks of the other VCR, select the input correctly to prevent a humming noise.• You can use the LINE IN 1 jacks for editing. If the other VCR is a monaural type the sound is recorded only on the channel whose jack is connected to the audio plug. To record on both right and left channels, connect the audio plugs to the AUDIO R/L jacks using a VMC-910MS audio/video cable (not supplied).This VCR (Recorder)Other VCR (Player)LINE OUT: Signal flowLINE-2 INTVAudio/video cable (not supplied)
55Editing with another VCRAdditional OperationsOperation (when recording on this VCR)To stop editingPress the xSTOP buttons on both VCRs.Tip• To cut out unwanted scenes while editing, press XPAUSE on this VCR when an unwanted scene begins. When it ends, press XPAUSE again to resume recording.Before you start editing• Turn on the VCR and the TV and set it to the video channel.• Press INPUT SELECT or CHANNEL +/– to display “L1” or “L2” in the display window.• Press SP/EP to select the tape speed, SP or EP.1Insert a source tape with its safety tab removed into the other (playback) VCR. Search for the point to start playback and set it to playback pause.2Insert a tape into this (recording) VCR. Search for the point to start recording and press XPAUSE.3Press zREC on this VCR to set it to recording pause.4To start editing, press the XPAUSE buttons on both VCRs at the same time.zRECXPAUSE

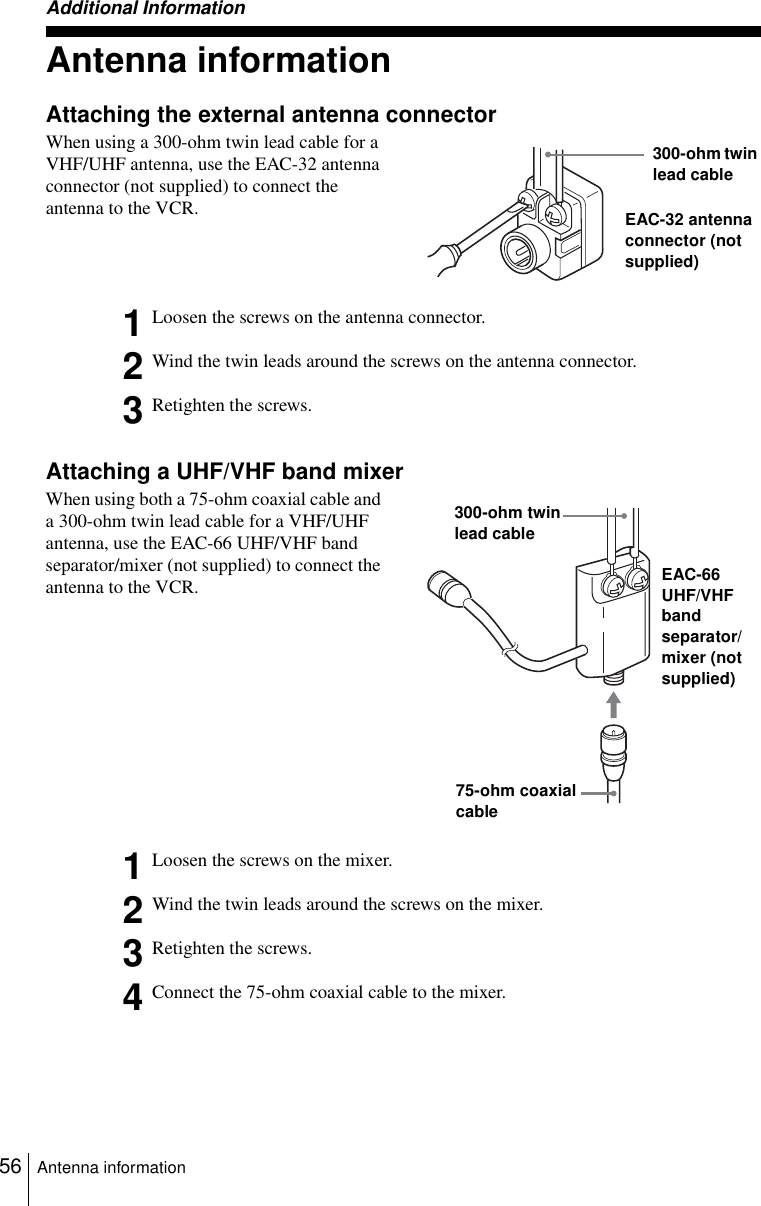

56 Antenna informationAdditional InformationAntenna informationAttaching the external antenna connectorAttaching a UHF/VHF band mixerWhen using a 300-ohm twin lead cable for a VHF/UHF antenna, use the EAC-32 antenna connector (not supplied) to connect the antenna to the VCR.1Loosen the screws on the antenna connector.2Wind the twin leads around the screws on the antenna connector.3Retighten the screws.When using both a 75-ohm coaxial cable and a 300-ohm twin lead cable for a VHF/UHF antenna, use the EAC-66 UHF/VHF band separator/mixer (not supplied) to connect the antenna to the VCR.1Loosen the screws on the mixer.2Wind the twin leads around the screws on the mixer.3Retighten the screws.4Connect the 75-ohm coaxial cable to the mixer.300-ohm twin lead cableEAC-32 antenna connector (not supplied)300-ohm twin lead cableEAC-66 UHF/VHF band separator/mixer (not supplied)75-ohm coaxial cable
57TroubleshootingAdditional InformationTroubleshootingIf you have any questions or problems not covered below, please consult your nearest Sony dealer.Symptom RemedyPowerThe ?/1 switch does not function. • Connect the AC power cord securely.• Make sure the VCR is not locked. To unlock, hold down?/1 POWER on the VCR until “LOC” disappears.The power is turned on but the VCR does not operate. • Moisture condensation has occurred. Turn the power off, unplug the AC power cord and leave the VCR to dry for over three hours.ClockThe clock has stopped and “--:--” appears in the display window. • The clock stops if the VCR is disconnected from the wall outlet for more than one minute. Reset the clock (and timer).PlaybackThe playback picture does not appear on the TV screen. • Make sure the TV is set to the channel for the VCR. If you are using a monitor, set it to video input.The picture is not clear. • Adjust the tracking with the TRACKING +/– buttons.• The video heads are dirty (see the last page of “Troubleshooting”). Clean the video heads using the Sony T-25CLD or T-25CLDR video head cleaning cassette. If these cleaning cassettes are not available in your area, have the heads cleaned at your nearest Sony dealer (a standard service fee will be charged). Do not use a commercially available liquid type cleaning cassette, as it may damage the video heads. • The video heads may have to be replaced. Consult your local Sony dealer for more information.The picture rolls vertically during picture search. • Adjust the vertical hold control on the TV or monitor.The picture has no sound. • The tape is defective.• If you made A/V connections, check the audio cable connection.RecordingA TV program does not appear on the TV screen. • Make sure the TV is set to the channel for the VCR. If you are using a monitor, set it to video input.• Select the correct source with the INPUT SELECT or CH +/– buttons. Select a channel number when recording TV programs; select “L1” or “L2” when recording from other equipment.TV reception is poor. • Adjust the TV antenna.The tape starts playing as soon as it is inserted. • The safety tab has been removed. To record on this tape, cover the tab hole.The tape is ejected when you press zREC. • Check that the safety tab has not been removed.Nothing happens when you press zREC. • Make sure the tape is not at its end.continued
58 TroubleshootingTimer recordingThe timer does not operate. • Check that the clock is set.• Make sure a tape has been inserted.• Check that the safety tab has not been removed.• Make sure the tape is not at its end.• Make sure a program has been set for timer recording.• Make sure your timer settings are past the current time.• Check that the cable box is turned on.• The clock stops if the VCR is disconnected from the wall outlet for more than one minute. Reset the clock and timer.• Turn the power off and unplug the AC power cord.OthersA tape cannot be inserted. • Check that a tape is not already in the tape compartment.The remote commander does not function. • Make sure you are pointing the remote commander at the remote sensor on the VCR.• Replace all the batteries in the remote commander with new ones if they are weak.• Make sure the •TV / VIDEO switch is set correctly.The tracking meter does not appear on the screen. • The recording condition of the tape is very poor and tracking cannot be adjusted.You cannot control other TVs. • Set your TV’s code number. The code number may change when you replace the batteries of the remote commander.The VCR needs to be cleaned. • Clean the cabinet, panel and controls with a dry, soft cloth, or a soft cloth slightly moistened with a mild detergent solution. Do not use any type of solvent, such as alcohol or benzine.Symptom RemedySymptoms caused by contaminated video heads• Normal picture • Unclear picture• Rough pictureinitial contamination terminal• No picture (or black & white screen appears)
59SpecificationsAdditional InformationSpecificationsSystemFormatVHS NTSC standardVideo recording systemRotary head helical scanning FM systemVideo headsDouble azimuth four headsVideo signalNTSC color, EIA standardsTape speedSP: 33.35 mm/s (1 inches/s)EP: 11.12 mm/s ( inches/s)LP: 16.67 mm/s ( inches/s),playback onlyMaximum recording/playback time8 hrs. in EP mode (with T-160 tape)Rewind timeApprox. 1 min (with T-120 tape)Tuner sectionChannel coverageVHF 2 to 13UHF 14 to 69CATV A-8 to A-1, A to W, W+1 to W+84Antenna75-ohm antenna terminal for VHF/UHFInputs and outputsLINE IN 1 and LINE-2 INVIDEO IN, phono jack (1 each)Input signal: 1 Vp-p, 75 ohms, unbalanced, sync negativeAUDIO IN, phono jacks (2 each)Input level: 327 mVrmsInput impedance: more than 47 kilohmsLINE OUTVIDEO OUT, phono jack (1)Output signal: 1 Vp-p, 75 ohms, unbalanced, sync negativeAUDIO OUT, phono jacks (2)Standard output: 327 mVrmsLoad impedance: 47 kilohmsOutput impedance: less than 10 kilohmsTimer sectionClockQuartz lockedTimer indication12-hour cycleTimer setting8 programs (max.)GeneralPower requirements120 V AC, 60 HzPower consumption15 WOperating temperature0°C to 45°C (32°F to 113°F)Storage temperature–20°C to 60°C (–4°F to 140°F)Dimensions including projecting parts and controls (w/h/d)SLV-N700Approx. 430 × 96 × 251 mm(Approx. 17 × 3 × 10 inches) SLV-N500Approx. 360 × 95 × 249 mm(Approx. 14 × 3 × 9 inches) MassSLV-N700Approx. 2.8 kg (Approx. 6 lb 3 oz)SLV-N500Approx. 2.6 kg (Approx. 5 lb 12 oz)Supplied accessoriesRemote commander (1)Size AA (R6) batteries (2)75-ohm coaxial cable with F-type connectors (1)Design and specifications are subject to change without notice.ENERGY STAR® is a U.S. registered mark.As an ENERGY STAR® Partner, Sony Corporation has determined that this product meets the ENERGY STAR® guidelines for energy efficiency.3871611 1678143478
60 Index to parts and controlsIndex to parts and controlsRefer to the pages indicated in parentheses ( ) for details.Front panelA?/1 POWER switch (38) (40)BRemote sensor (7)CTape compartmentDAEJECT button (31)EmREW (rewind) button (31) (43)FHPLAY button* (31)GMFF (fast-forward) button (31) (43)HzREC (record) button (34) (45) (55)IxSTOP button* (31) (55)JXPAUSE button (31) (55)KCHANNEL/TRACKING +/– buttons* (34) (51)LLINE-2 IN VIDEO/AUDIO L/R jacks (54)* The HPLAY, CHANNEL + and xSTOP buttons have a tactile dot.SLV-N700SLV-N500
61Index to parts and controlsAdditional InformationDisplay windowATape indicator (34)BTIMER indicator (38) (40)CHi-Fi indicator (48)DTime counter/clock/line/channel indicator (32) (34) (55)EVCR indicator (35)continued

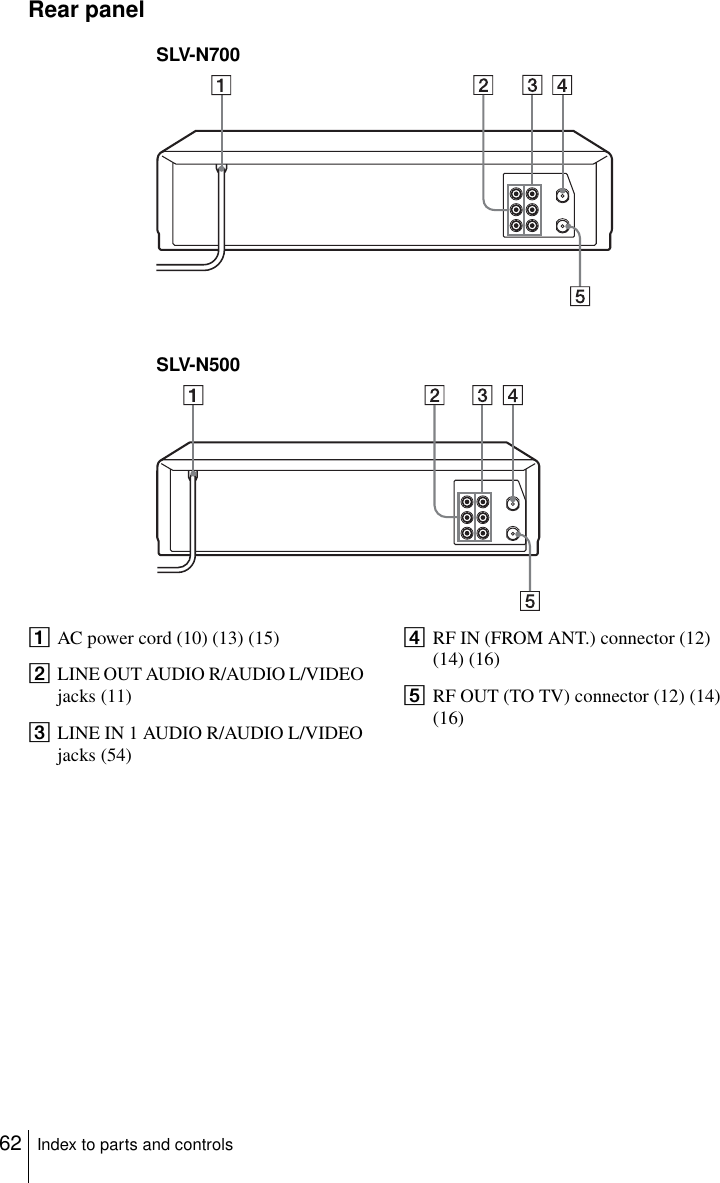

62 Index to parts and controlsRear panelAAC power cord (10) (13) (15)BLINE OUT AUDIO R/AUDIO L/VIDEO jacks (11)CLINE IN 1 AUDIO R/AUDIO L/VIDEO jacks (54)DRF IN (FROM ANT.) connector (12) (14) (16)ERF OUT (TO TV) connector (12) (14) (16)SLV-N700SLV-N500

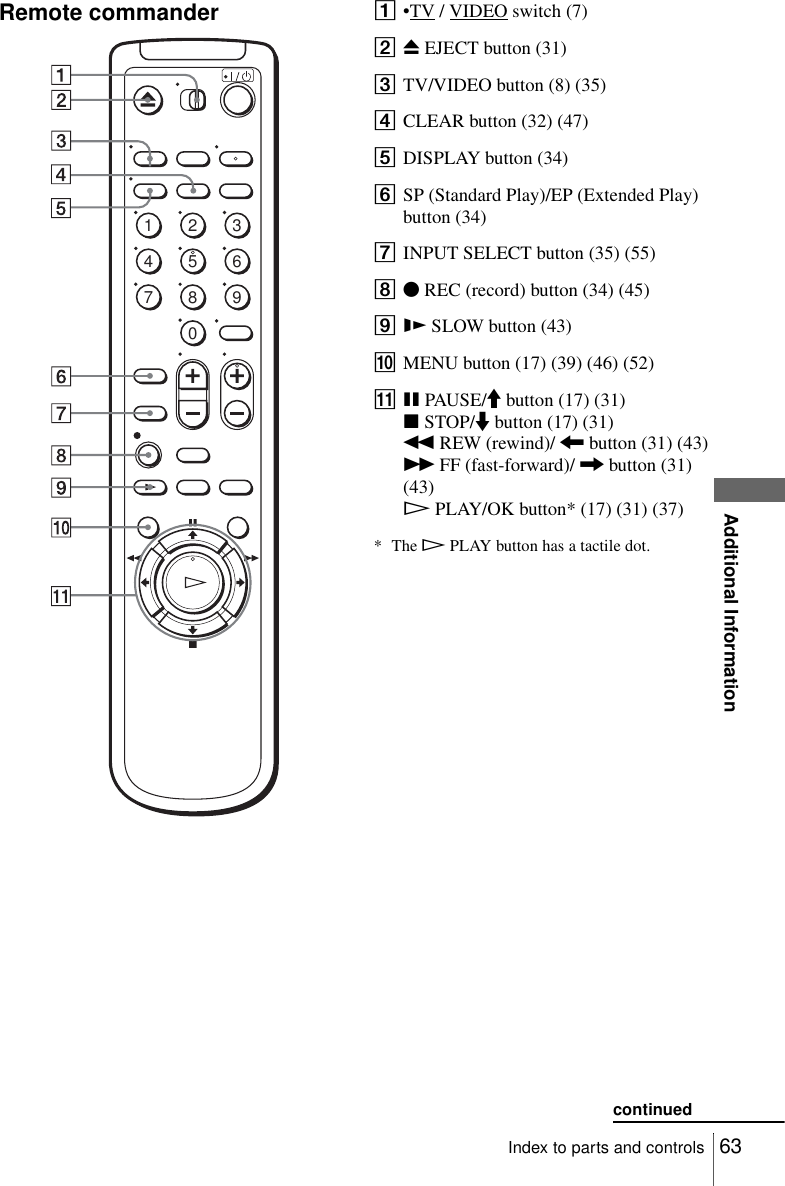

63Index to parts and controlsAdditional InformationRemote commander A•TV / VIDEO switch (7)BZEJECT button (31)CTV/VIDEO button (8) (35)DCLEAR button (32) (47)EDISPLAY button (34)FSP (Standard Play)/EP (Extended Play) button (34)GINPUT SELECT button (35) (55)HzREC (record) button (34) (45)IySLOW button (43)JMENU button (17) (39) (46) (52)KXPAUSE/M button (17) (31)xSTOP/m button (17) (31)mREW (rewind)/ < button (31) (43)MFF (fast-forward)/ , button (31) (43)HPLAY/OK button* (17) (31) (37)* The HPLAY button has a tactile dot.1234567890continued
64 Index to parts and controlsL?/1 (power) switch (8) (38) (40)MCOUNTER/REMAIN button (34)NAUDIO MONITOR button*1 (48)OVCR Plus+ button*2 (36)PNumber buttons*1 (35) (37)QENTER button (35)RCH (channel) +/– buttons*1 (8) (34)SVOL (volume) +/– buttons (8)TSEARCH button (49)UREPLAY button (31)V×2 button (43)WCOMMERCIAL SKIP button (31)*1The AUDIO MONITOR, number 5 and CH + buttons have a tactile dot.*2SLV-N700 only1234567890
65IndexIndexAAdjustingpicture 51tracking 51Advanced option 52Antenna hookup 12Audio track 48Audio/video (A/V) hookup 11Auto Clock Set 18Auto Tape Speed 38CCable hookup 10Channel line-up chart 27Child Lock 42Cleaning the video heads 57Clock setting 18Commercial Skip 31ConnectingCable TV 16external antenna connector 56UHF/VHF band mixer 56Counter 32DDisabling channels 25Dubbing. see EditingEEditing 54EP mode 34HHi-fi audio track 48LLanguage selecting 17Locking the VCR 42LP mode 35MMonaural 48Monitoring audio during playback 48NNormal audio track 48PPicture adjustment 51Playback 30at various speeds 43frame by frame 43selecting the sound 48skip 31slow motion 43Presetting channels 23RRecording 33bilingual programs 48SAP broadcasts 48saving 35stereo broadcasts 48timer setting 39using the VCR Plus+® system 36while watching another program 35RF channel 53SSafety tab 35SAP (Second Audio Program) 48Searchingat various speeds 43for a blank portion 50for the counter 0 point 50Scan and Play 49SP mode 34Stereo 48TTimer setting 39canceling 46changing 46checking 46daily/weekly recording 41using the VCR Plus+® system 36Tracking adjustment. see AdjustingTuner presetting 23VVCR Plus+® systemchannel set up 27recording 36

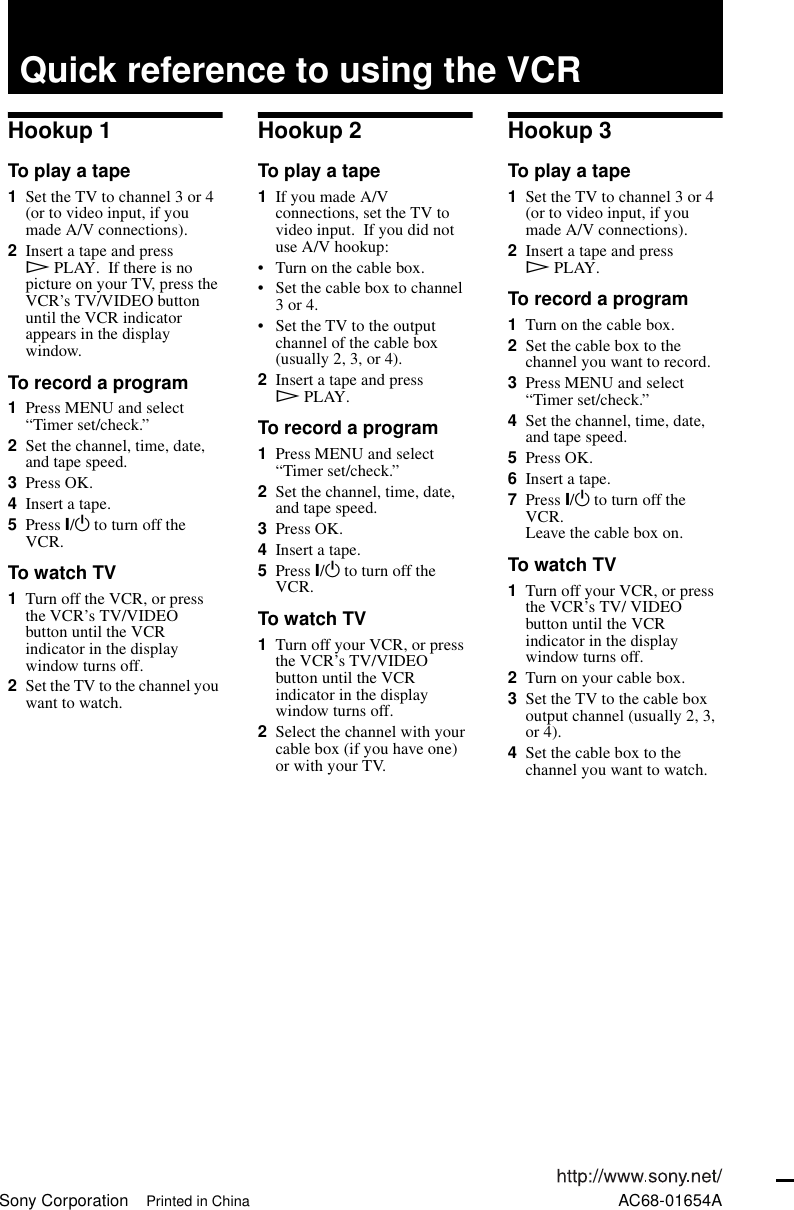

Sony Corporation Printed in China AC68-01654AQuick reference to using the VCRHookup 1To play a tape1Set the TV to channel 3 or 4 (or to video input, if you made A/V connections).2Insert a tape and press HPLAY. If there is no picture on your TV, press the VCR’s TV/VIDEO button until the VCR indicator appears in the display window.To record a program1Press MENU and select “Timer set/check.”2Set the channel, time, date, and tape speed.3Press OK.4Insert a tape.5Press ?/1 to turn off the VCR.To watch TV1Turn off the VCR, or press the VCR’s TV/VIDEO button until the VCR indicator in the display window turns off.2Set the TV to the channel you want to watch.Hookup 2To play a tape1If you made A/V connections, set the TV to video input. If you did not use A/V hookup:• Turn on the cable box.• Set the cable box to channel 3 or 4.• Set the TV to the output channel of the cable box (usually 2, 3, or 4).2Insert a tape and press HPLAY.To record a program1Press MENU and select “Timer set/check.”2Set the channel, time, date, and tape speed.3Press OK.4Insert a tape.5Press ?/1 to turn off the VCR.To watch TV1Turn off your VCR, or press the VCR’s TV/VIDEO button until the VCR indicator in the display window turns off.2Select the channel with your cable box (if you have one) or with your TV.Hookup 3To play a tape1Set the TV to channel 3 or 4 (or to video input, if you made A/V connections).2Insert a tape and press HPLAY.To record a program1Turn on the cable box.2Set the cable box to the channel you want to record.3Press MENU and select “Timer set/check.”4Set the channel, time, date, and tape speed.5Press OK.6Insert a tape.7Press ?/1 to turn off the VCR.Leave the cable box on.To watch TV1Turn off your VCR, or press the VCR’s TV/ VIDEO button until the VCR indicator in the display window turns off.2Turn on your cable box.3Set the TV to the cable box output channel (usually 2, 3, or 4).4Set the cable box to the channel you want to watch.
