Video Cassette
Recorder
Operating Instructions
For customers in the USA
Many solutions to common problems and service information can be found at
www.sony.com/vcrhelp or contact Sony VCR service at 1 (800) VHS-SONY.
For all other Sony product questions, please call Sony Customer Information Services
Company at 1-800-222-SONY (7669).
Or write to: Sony Customer Information Services Company 12451 Gateway
Boulevard Ft. Myers, FL 33913
Declaration of Conformity
Trade Name: SONY
Model No.: SLV-N700/N500
Responsible Party: Sony Electronics Inc.
Address: 680 Kinderkamack Road Oradell, New Jersey 07649
Telephone No.: 201-930-6972
This device complies with Part 15 of the FCC Rules. Operation is subject to the following
two conditions: (1) This device may not cause harmful interference, and (2) this device must
accept any interference received, including interference that may cause undesired operation.
For Customers in Canada
If this product is not working properly, please call 1-877-602-2008 for Peace of Mind
Warranty Replacement service.
For other product related questions please contact our Customer Information Service
Centre at 1-877-899-7669 or write to us at: Customer Information Service 115 Gordon
Baker Road, Toronto, Ontario, M2H 3R6
SLV-N700
SLV-N500
© 2002 Sony Corporation
2WARNING
WARNING
To prevent fire or shock hazard, do not
expose the unit to rain or moisture.
This symbol is intended to alert the user
to the presence of uninsulated
“dangerous voltage” within the product’s
enclosure that may be of sufficient
magnitude to constitute a risk of electric
shock to persons.
This symbol is intended to alert the user
to the presence of important operating
and maintenance (servicing) instructions
in the literature accompanying the
appliance.
CAUTION
To prevent electric shock, do not use this polarized
AC plug with an extension cord, receptacle or other
outlet unless the blades can be fully inserted to
prevent blade exposure.
Precautions
Safety
• Operate the unit only on 120 V AC, 60 Hz.
• If anything falls into the cabinet, unplug the unit
and have it checked by qualified personnel before
operating it any further.
• This unit is not disconnected from the AC power
source (mains) as long as it is connected to the
wall outlet, even if the unit itself has been turned
off.
• Unplug the unit from the wall outlet if you do not
intend to use it for an extended period of time. To
disconnect the cord, pull it out by the plug, never
by the cord.
• One blade of the plug is wider than the other for
the purpose of safety and will fit into the power
outlet only one way. If you are unable to insert
the plug fully into the outlet, contact your Sony
dealer.
Installing
• Allow adequate air circulation to prevent internal
heat buildup.
• Do not place the unit on surfaces (rugs, blankets,
etc.) or near materials (curtains, draperies) that
may block the ventilation slots.
• Do not install the unit near heat sources such as
radiators or air ducts, or in a place subject to
direct sunlight, excessive dust, mechanical
vibration or shock.
• Do not install the unit in an inclined position. It
is designed to be operated in a horizontal position
only.
• Keep the unit and cassettes away from equipment
with strong magnets, such as microwave ovens or
large loudspeakers.
• Do not place heavy objects on the unit.
• If the unit is brought directly from a cold to a
warm location, moisture may condense inside the
VCR and cause damage to the video head and
tape. When you first install the unit, or when you
move it from a cold to a warm location, wait for
about three hours before operating the unit.
Information
For customers in the USA
CAUTION
You are cautioned that any changes or modifications
not expressly approved in this manual could void
your authority to operate this equipment.
NOTE:
This equipment has been tested and found to
comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules.
These limits are designed to provide reasonable
protection against harmful interference in a
residential installation.
This equipment generates, uses, and can radiate
radio frequency energy and, if not installed and used
in accordance with the instructions, may cause
harmful interference to radio communications.
However, there is no guarantee that interference will
not occur in a particular installation. If this
equipment does cause harmful interference to radio
or television reception, which can be determined by
turning the equipment off and on, the user is
encouraged to try to correct the interference by one
or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment
and receiver.
• Connect the equipment into an outlet on a circuit
different from that to which the receiver is
connected.
• Consult the dealer or an experienced radio/TV
technician for help.
Owner’s record
The model and serial numbers are located at the rear
of the unit.
Record these numbers in the spaces provided below.
Refer to them whenever you call upon your Sony
dealer regarding this product.
Model No._________________________
Serial No._________________________
3
Important Safeguards
Important Safeguards
For your protection, please read these safety
instructions completely before operating the
appliance, and keep this manual for future reference.
Carefully observe all warnings, precautions and
instructions on the appliance, or the one described in
the operating instructions and adhere to them.
Use
Installation
Power sources
This set should be operated only
from the type of power source
indicated on the marking label. If
you are not sure of the type of
electrical power supplied to your
home, consult your dealer or local power company.
For those sets designed to operate from battery
power, or other sources, refer to the operating
instructions.
Grounding or Polarization
This set is equipped with a polarized AC power cord
plug (a plug having one blade wider than the other),
or with a three-wire grounding type plug (a plug
having a third pin for grounding). Follow the
instructions below:
For the set with a polarized AC power cord
plug:
This plug will fit into the power
outlet only one way. This is a
safety feature. If you are unable
to insert the plug fully into the outlet, try reversing
the plug. If the plug should still fail to fit, contact
your electrician to have a suitable outlet installed.
Do not defeat the safety purpose of the polarized
plug by forcing it in.
For the set with a three-wire grounding
type ac plug:
This plug will only fit into a
grounding-type power outlet.
This is a safety feature. If you are
unable to insert the plug into the outlet, contact your
electrician to have a suitable outlet installed. Do not
defeat the safety purpose of the grounding plug.
Overloading
Do not overload wall outlets,
extension cords or convenience
receptacles beyond their capacity,
since this can result in fire or
electric shock.
Object and Liquid Entry
Never push objects of any kind into
the set through openings as they
may touch dangerous voltage
points or short out parts that could
result in a fire or electric shock.
Never spill liquid of any kind on the set.
Attachments
Do not use attachments not
recommended by the manufacturer, as
they may cause hazards.
Cleaning
Unplug the set from the wall
outlet before cleaning or polishing
it. Do not use liquid cleaners or
aerosol cleaners. Use a cloth
lightly dampened with water for
cleaning the exterior of the set.
Water and Moisture
Do not use power-line operated sets
near water - for example, near a
bathtub, washbowl, kitchen sink, or
laundry tub, in a wet basement, or
near a swimming pool, etc.
Power-Cord Protection
Route the power cord so that it is
not likely to be walked on or
pinched by items placed upon or
against them, paying particular attention to the
plugs, receptacles, and the point where the cord exits
from the appliance.
Accessories
Do not place the set on an
unstable cart, stand, tripod,
bracket, or table. The set may
fall, causing serious injury to a
child or an adult, and serious damage to the set. Use
only a cart stand tripod, bracket, or table
recommended by the manufacturer.
An appliance and cart
combination should be moved
with care. Quick stops, excessive
force, and uneven surfaces may
cause the appliance and cart
combination to overturn.
Ventilation
The slots and openings in the cabinet are provided for
necessary ventilation. To ensure reliable operation of
the set, and to protect it from overheating, these slots
and openings must never be blocked or covered.
• Never cover the slots and
openings with a cloth or other
materials.
• Never block the slots and
openings by placing the set on
a bed, sofa, rug or other similar
surface.
S3125A
4Important Safeguards
Antennas
Service
• Never place the set in a
confined space, such as a
bookcase, or built-in cabinet,
unless proper ventilation is
provided.
• Do not place the set near or
over a radiator or heat register,
or where it is exposed to direct
sunlight.
Outdoor antenna grounding
If an outdoor antenna or cable system is installed,
follow the precautions below.
An outdoor antenna system should not be located in
the vicinity of overhead power lines or other electric
light or power circuits, or where it can come in
contact with such power lines or circuits.
WHEN INSTALLING AN OUTDOOR ANTENNA
SYSTEM, EXTREME CARE SHOULD BE
TAKEN TO KEEP FROM CONTACTING SUCH
POWER LINES OR CIRCUITS AS CONTACT
WITH THEM IS ALMOST INVARIABLY FATAL.
Be sure the antenna system is grounded so as to
provide some protection against voltage surges and
built-up static charges. Section 810 of the National
Electrical Code provides information with respect to
proper grounding of the mast and supporting
structure, grounding of the lead-in wire to an
antenna discharge unit, size of grounding
conductors, location of antenna-discharge unit,
connection to grounding electrodes, and
requirements for the grounding electrode.

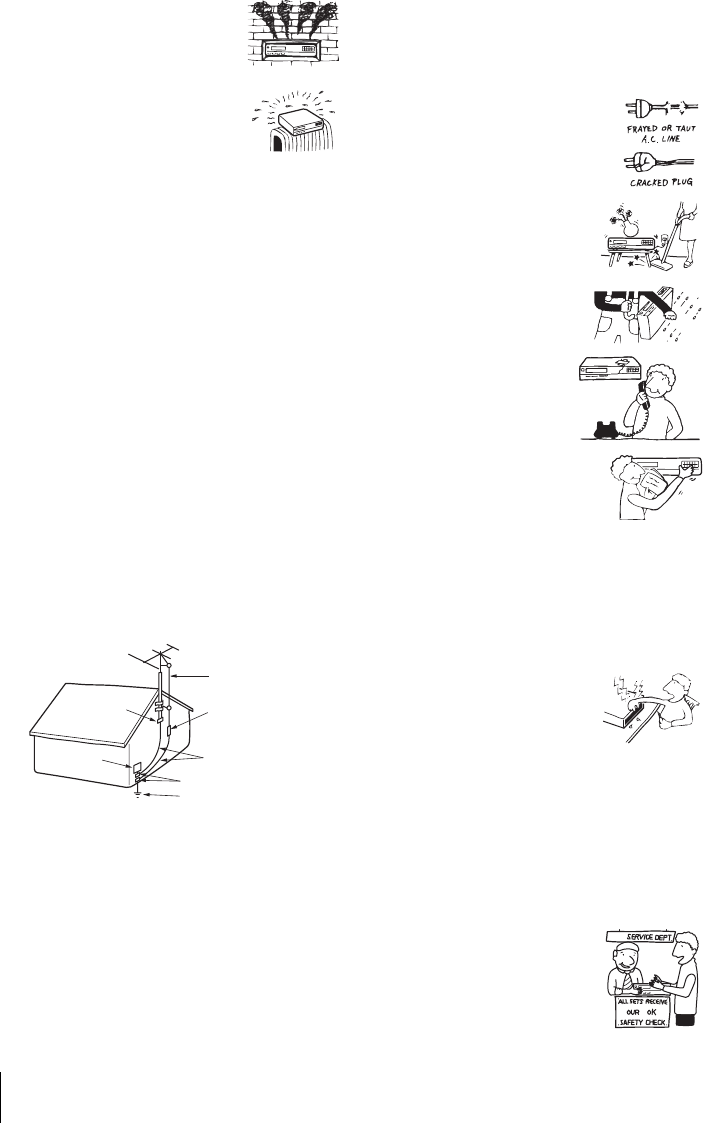

Antenna Grounding According to the
National Electrical Code
Lightning
For added protection for this set during a lightning
storm, or when it is left unattended and unused for
long periods of time, unplug it from the wall outlet
and disconnect the antenna or cable system. This
will prevent damage to the set due to lightning and
power-line surges.
Antenna Lead in Wire
Ground Clamp
Antenna Discharge unit
(NEC Section 810-20)
Grounding Conductors
(NEC Section 810-21)
Ground Clamps
Power Service Grounding
Electrode System
(NEC Art 250 Part H)
Electric Service
Equipment
NEC-NATIONAL ELECTRICAL CODE
Damage Requiring Service
Unplug the set from the wall outlet and refer
servicing to qualified service personnel under the
following conditions:
• When the power cord or plug is
damaged or frayed.
• If liquid has been spilled or
objects have fallen into the set.
• If the set has been exposed to
rain or water.
• If the set has been subject
to excessive shock by
being dropped, or the
cabinet has been damaged.
• If the set does not operate
normally when following the
operating instructions. Adjust
only those controls that are
specified in the operating
instructions. Improper adjustment of other
controls may result in damage and will often
require extensive work by a qualified technician
to restore the set to normal operation.
• When the set exhibits a distinct change in
performance - this indicates a need for service.
Servicing
Do not attempt to service the set
yourself as opening or removing
covers may expose you to
dangerous voltage or other
hazards.
Refer all servicing to qualified service personnel.
Replacement parts
When replacement parts are required, be sure the
service technician has used replacement parts
specified by the manufacturer that have the same
characteristics as the original parts.
Unauthorized substitutions may result in fire,
electric shock, or other hazards.
Safety Check
Upon completion of any service
or repairs to the set, ask the
service technician to perform
routine safety checks (as specified
by the manufacturer) to determine
that the set is in safe operating
condition.
5
Table of contents
Getting Started
Table of contents
Getting Started
6Step 1 : Unpacking
7Step 2 : Setting up the remote commander
10 Step 3 : Hookups

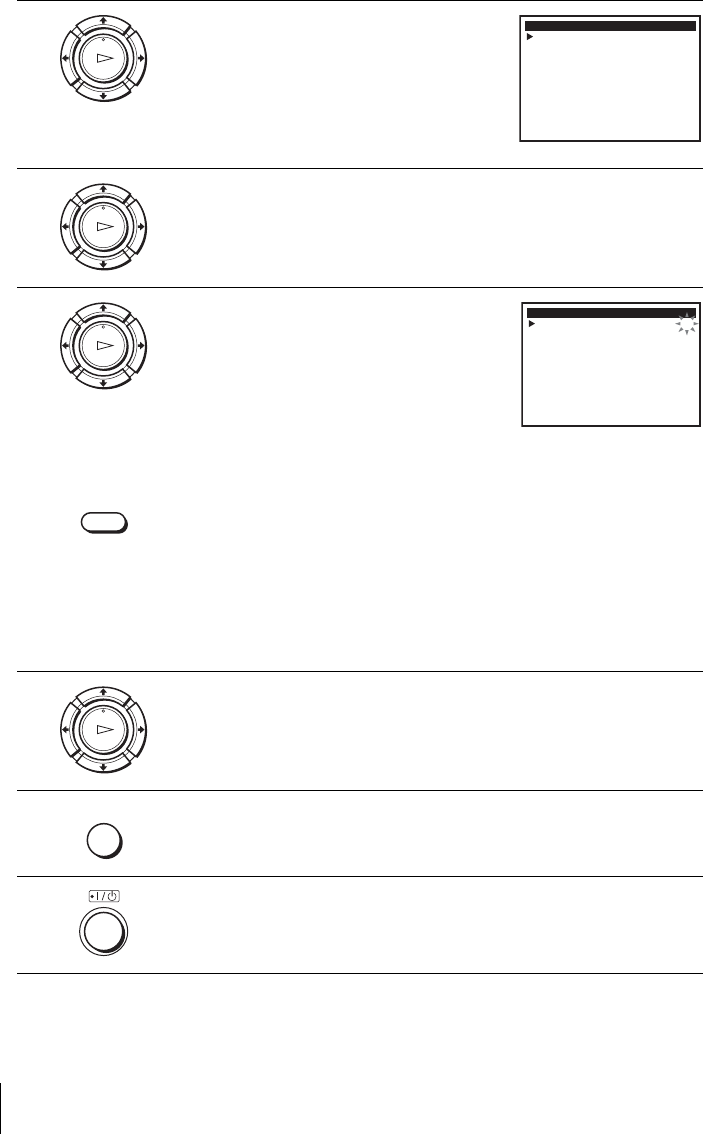

17 Step 4 : Selecting a language
18 Step 5 : Setting the clock
23 Step 6 : Presetting channels
27 Step 7 : Setting up the VCR Plus+® system (SLV-N700 only)
Basic Operations

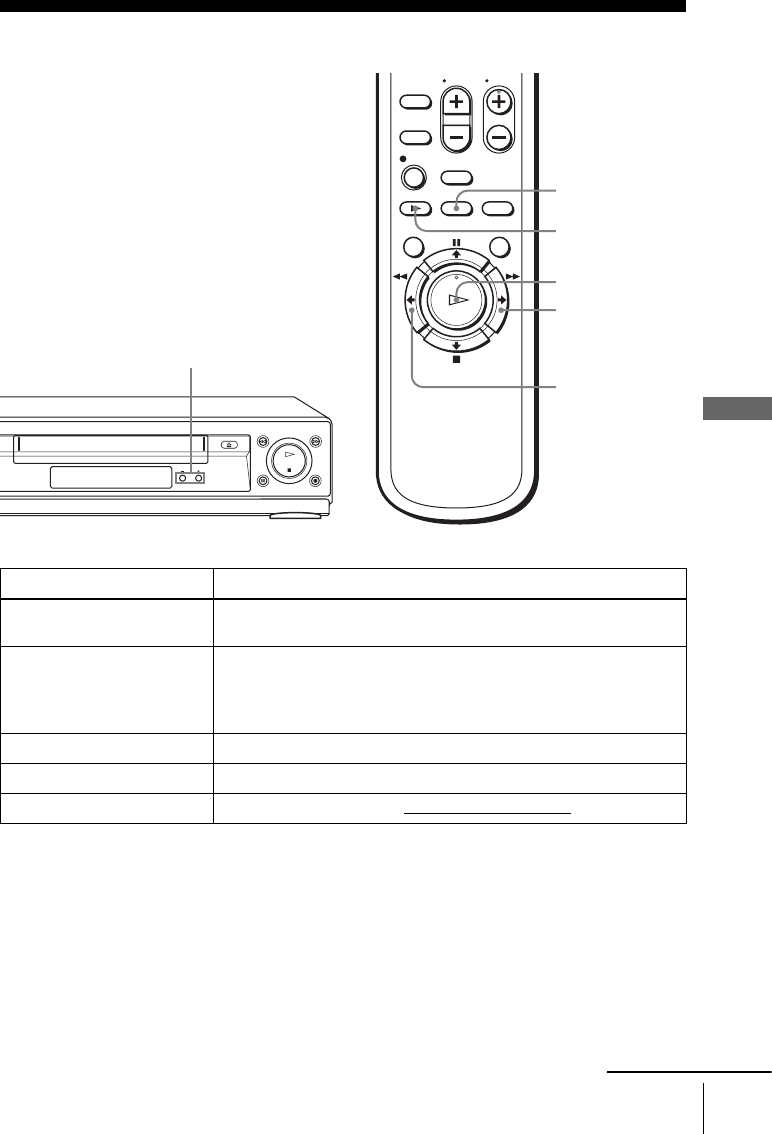

30 Playing a tape
33 Recording TV programs
36 Recording TV programs using the
VCR Plus+® system (SLV-N700
only)
39 Setting the timer manually
42 Locking the VCR (Child Lock)
Additional Operations
43 Playing/searching at various speeds
45 Quick Timer Recording
46 Checking/changing/canceling timer
settings
48 Recording stereo and bilingual
programs
49 Searching using various functions
51 Adjusting the picture (tracking)

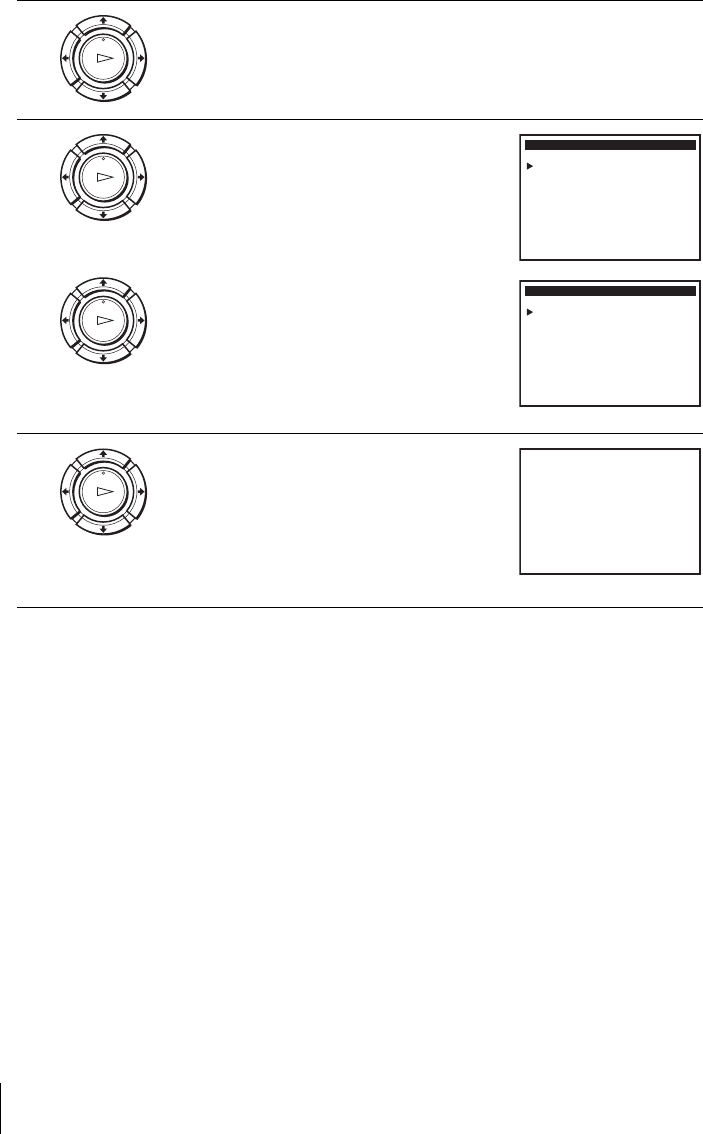

52 Changing menu options
54 Editing with another VCR
Additional Information
56 Antenna information
57 Troubleshooting
59 Specifications

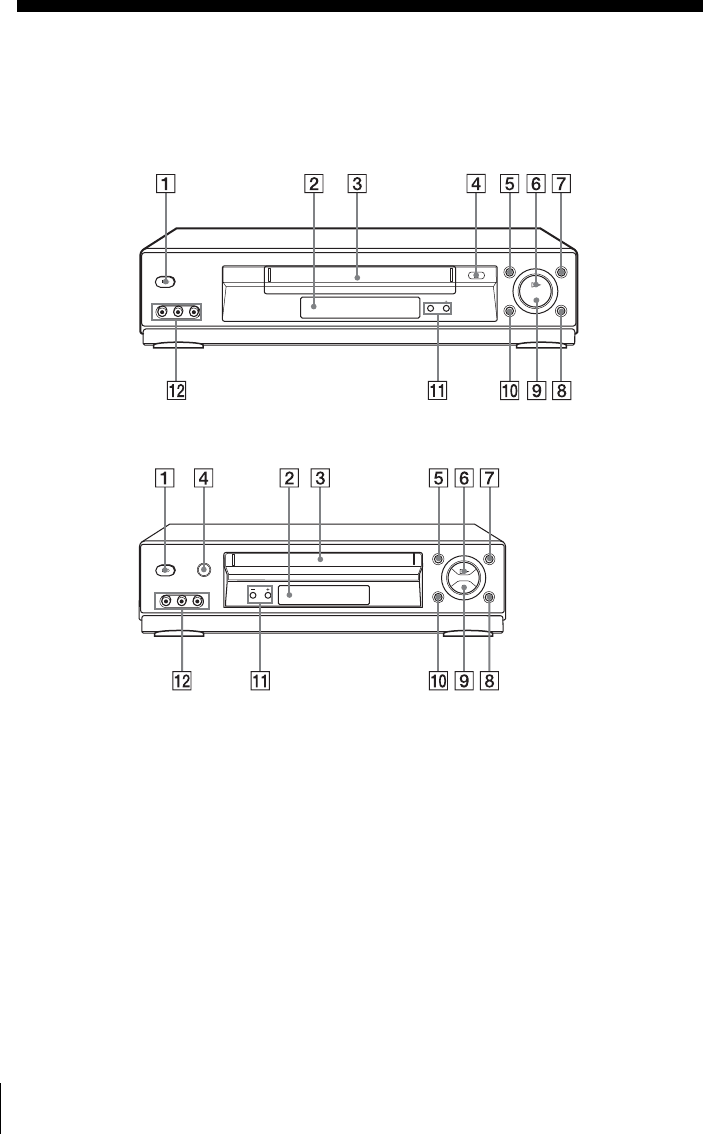

60 Index to parts and controls
65 Index
Back Cover
Quick reference to using the VCR
* VCR Plus+ and PlusCode are registered trademarks of Gemstar Development Corporation.
The VCR Plus+ system is manufactured under license from Gemstar Development Corporation.
Caution
Television programs, films, video tapes and other materials may be copyrighted.
Unauthorized recording of such material may be contrary to the provisions of the copyright laws. Also, use of
this recorder with cable television transmission may require authorization from the cable television
transmission and/or program owner.
6Unpacking
Getting Started
Step 1 : Unpacking

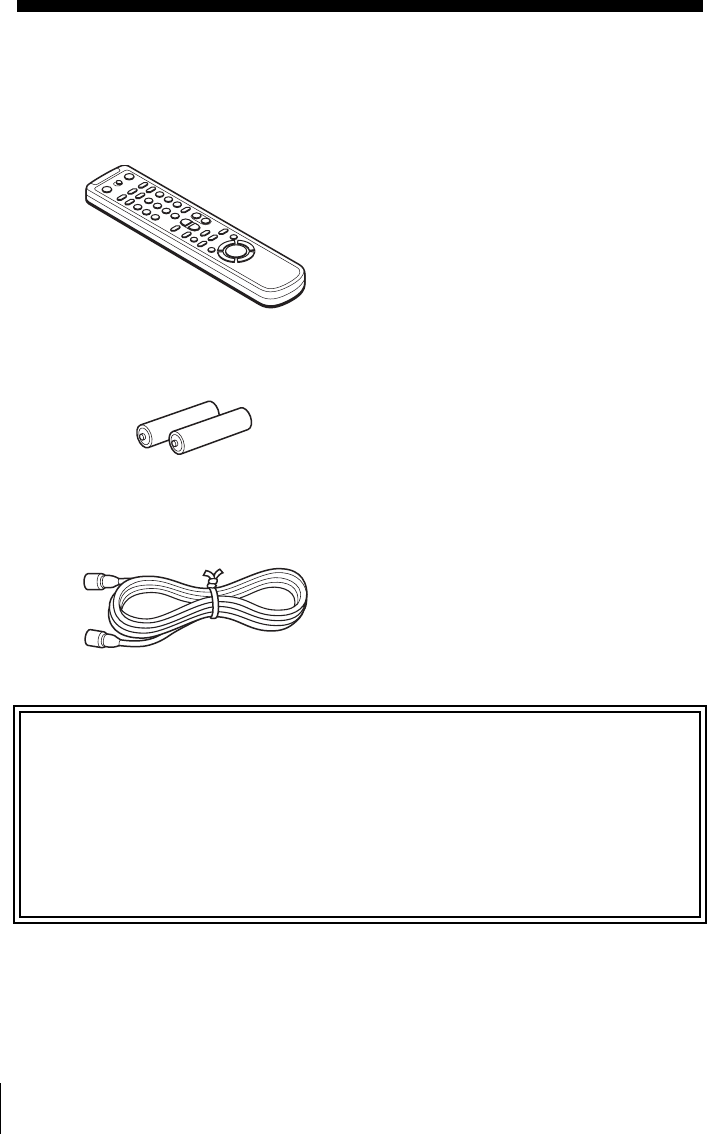

Check that you have received the following items with the VCR:
• Remote commander
• Size AA (R6) batteries
• 75-ohm coaxial cable with F-type connectors
Check your model name
The instructions in this manual are for the 2 models: SLV-N700 and SLV-N500. Check
your model name by looking at the rear panel of your VCR.
SLV-N700 is the model used for illustration purposes. Any difference in operation is
clearly indicated in the text, for example, “SLV-N700 only.”
Getting Started
7
Setting up the remote commander
Step 2 : Setting up the remote commander
Notes
• With normal use, the batteries should last about three to six months.
• If you do not use the remote commander for an extended period of time, remove the batteries
to avoid possible damage from battery leakage.
• Do not use a new battery with an old one.
• Do not use different types of batteries.

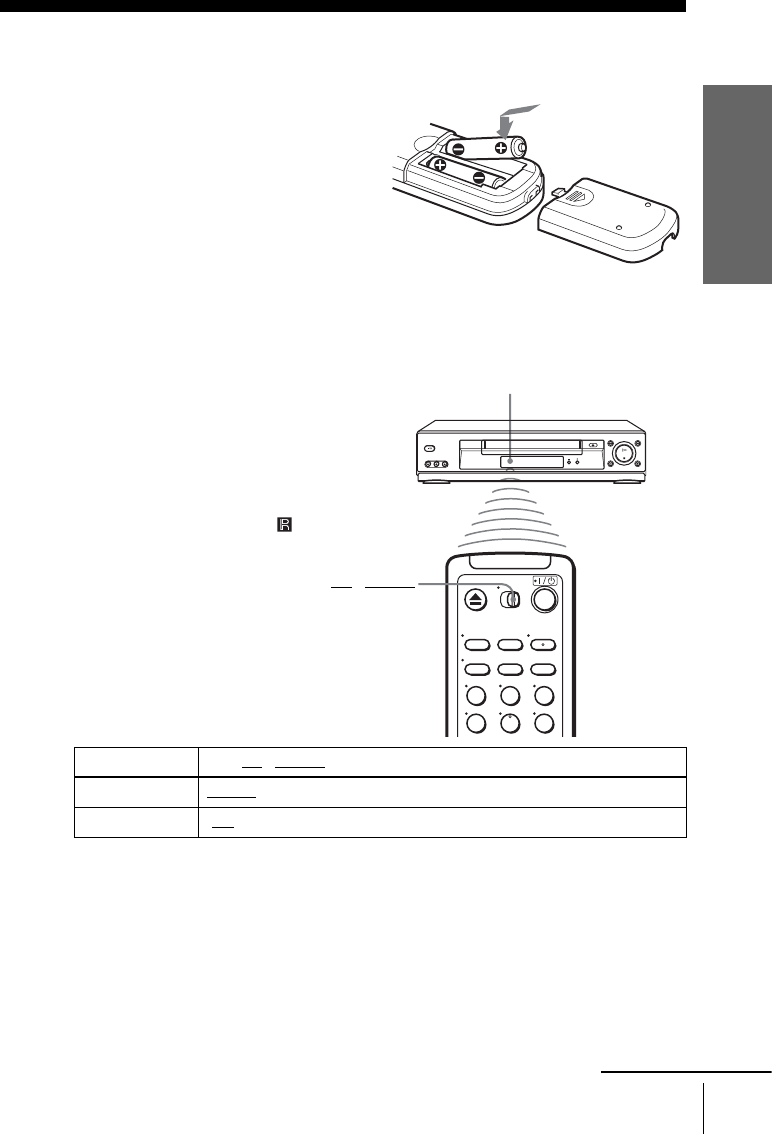

Inserting the batteries
Insert two size AA (R6) batteries
by matching the + and – on the
batteries to the diagram inside the
battery compartment.
Insert the negative (–) end first,
then push in and down until the
positive (+) end clicks into
position.

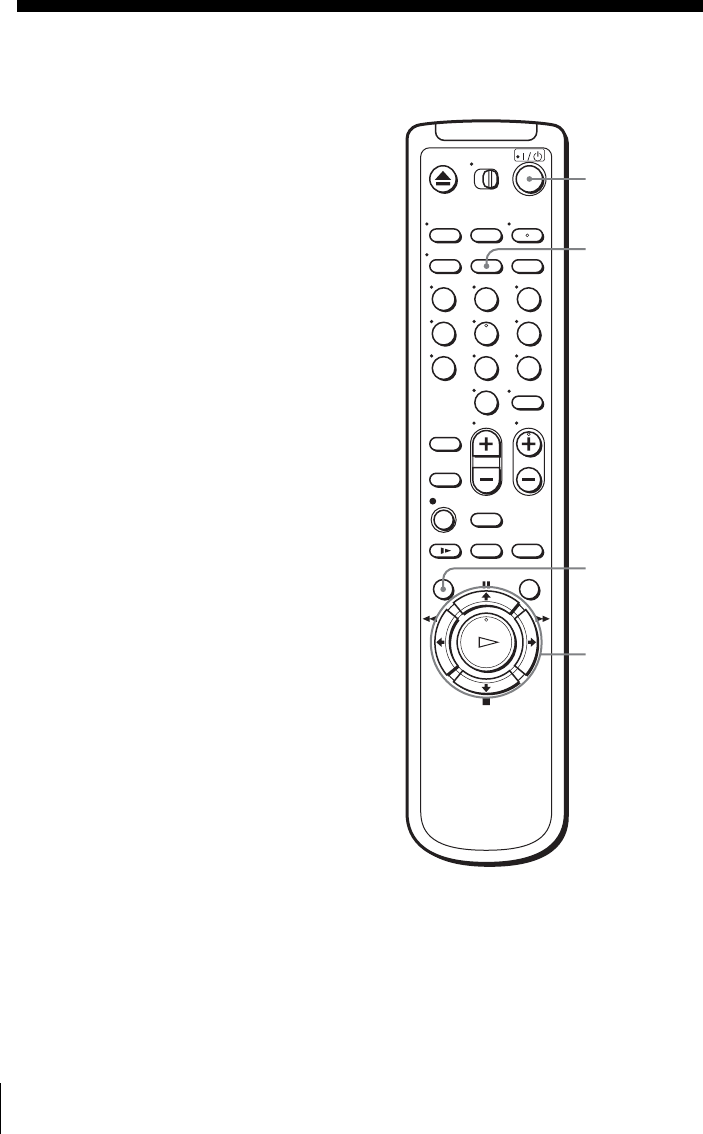

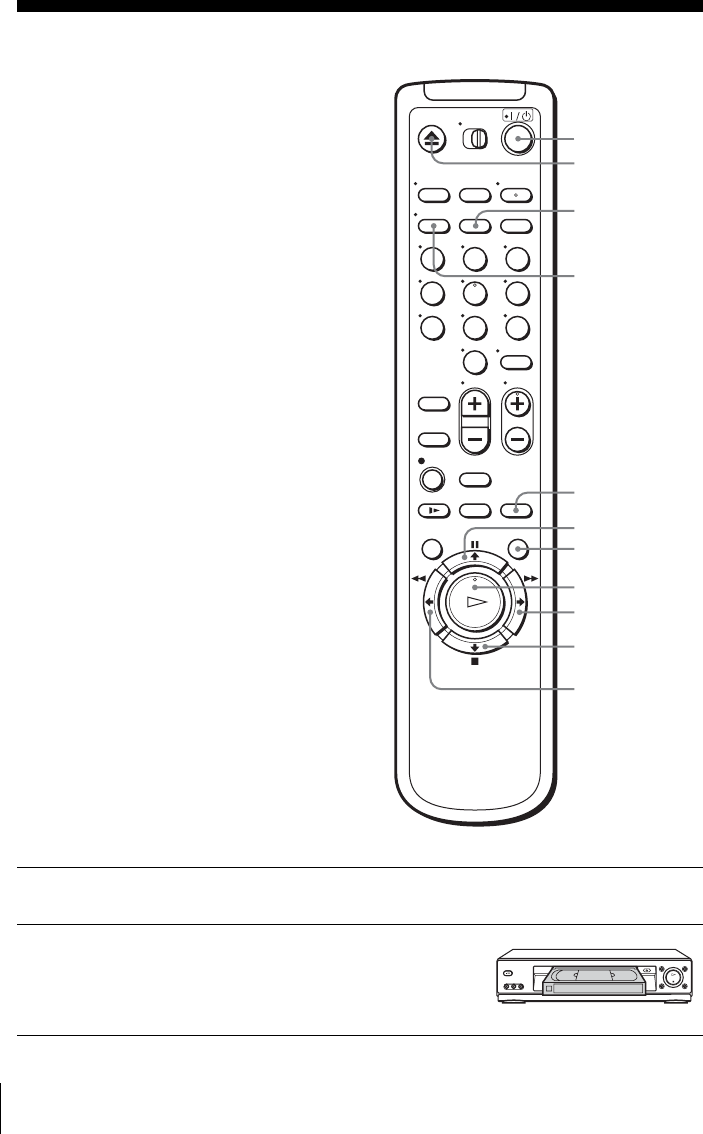

Using the remote
commander
You can use this remote
commander to operate this VCR
and a Sony TV. Buttons on the
remote commander marked with a
dot (•) can be used to operate your
Sony TV.
If the TV does not have the
symbol near the remote sensor, this
remote commander will not
operate the TV.
To operate Set •TV / VIDEO to
the VCR VIDEO and point at the remote sensor at the VCR
a Sony TV •TV and point at the remote sensor at the TV
123
456
•TV / VIDEO
Remote sensor
continued
8Setting up the remote commander
Controlling other TVs with the remote commander
The remote commander is preprogramed to control non-Sony TVs. If your TV is
listed in the following table, set the appropriate manufacturer’s code number.
Now you can use the ?/1, VOL +/–, CH +/–, and TV/VIDEO buttons to control your
TV. You can also use the buttons marked with a dot (•) to control a Sony TV. To
control the VCR, reset •TV / VIDEO to VIDEO.
Code numbers of controllable TVs
If more than one code number is listed, try entering them one at a time until you find
the one that works with your TV.
1Set •TV / VIDEO at the top of the remote commander to •TV.
2Hold down ?/1, and enter your TV’s code number using the number buttons.
Then release ?/1.
TV brand Code number
Sony 01
Akai 04
AOC 04
Centurion 12
Coronado 03
Curtis-Mathes 12
Daytron 12
Emerson 03, 04, 14
Fisher 11
General Electric 06, 10
Gold Star 03, 04, 17
Hitachi 02, 03
J.C.Penney 04, 12
JVC 09
KMC 03
Magnavox 03, 08, 12
Marantz 04, 13
MGA/Mitsubishi 04, 12, 13, 17
NEC 04, 12
Panasonic 06, 19
Philco 03, 04
Philips 08
Pioneer 16
Portland 03
Quasar 06, 18
Radio Shack 05, 14
RCA 04, 10
Sampo 12
Sanyo 11
Scott 12
Sears 07, 10, 11
Sharp 03, 05, 18
Sylvania 08, 12
Teknika 03, 08, 14
Toshiba 07
Wards 03, 04, 12
Yorx 12
Zenith 15
TV brand Code number
Getting Started
9
Setting up the remote commander
Notes
• If you enter a new code number, the code number previously entered will be erased.
• If the TV uses a different remote control system from the one programed to work with the
VCR, you cannot control your TV with the remote commander.
• When you replace the batteries of the remote commander, the code number may change. Set
the appropriate code number every time you replace the batteries.
• When you press the AUDIO MONITOR button, your TV’s menu may appear on the TV
screen. To exit the TV menu, press the MENU button on the TV remote commander or wait
until the menu disappears automatically.
10 Hookups
Step 3 : Hookups
Selecting the best hookup option
There are many ways in which your VCR can be hooked up. To hook up your VCR
so that it works best for you, first scan through the table below. Then use the
accompanying diagrams and procedures on the following pages to set up your VCR.
If your TV has audio/video inputs, refer to page 11 for audio/video (A/V) hookup.
Then follow one of the hookups below. If your TV does not have A/V inputs,
perform directly one of the hookups below.
After you have completed the connections, follow the instructions for setup.
After you have completed the setup, you are ready to use your VCR. Procedures
differ depending on the hookup you used. For an overview, refer to “Quick reference
to using the VCR” on the back cover.
Before you get started
• Turn off the power to all equipment.
• Do not connect the AC power cords until all of the connections are completed. If
you connect the AC power cord before the connections are completed, you may not
be able to use the Plug and Play function.
• Be sure you make connections firmly. Loose connections may cause picture
distortion.
• If your TV does not match any of the examples provided, see your nearest Sony
dealer or qualified technician.
Caution
Connections between the VCR’s VHF/UHF connector and the antenna terminals of the TV
receiver should be made only as shown in the following instructions. Failure to do so may result
in operation that violates the regulations of the Federal Communications Commission regarding
the use and operation of RF devices. Never connect the output of the VCR to an antenna or
make simultaneous (parallel) antenna and VCR connections at the antenna terminals of your
receiver.
Note to CATV system installer (in USA)
This reminder is provided to call the CATV system installer’s attention to Article 820- 40 of the
NEC that provides guidelines for proper grounding and, in particular, specifies that the cable
ground shall be connected to the grounding system of the building, as close to the point of cable
entry as practical.
If you have Use Refer to
Antenna only, no cable TV Hookup 1
(Plug and Play) Pages 12 and 13
No cable box or cable box with only a
few scrambled channels Hookup 2
(Plug and Play) Pages 14 and 15
Cable box with many scrambled
channels Hookup 3 Page 16
Getting Started
11
Hookups

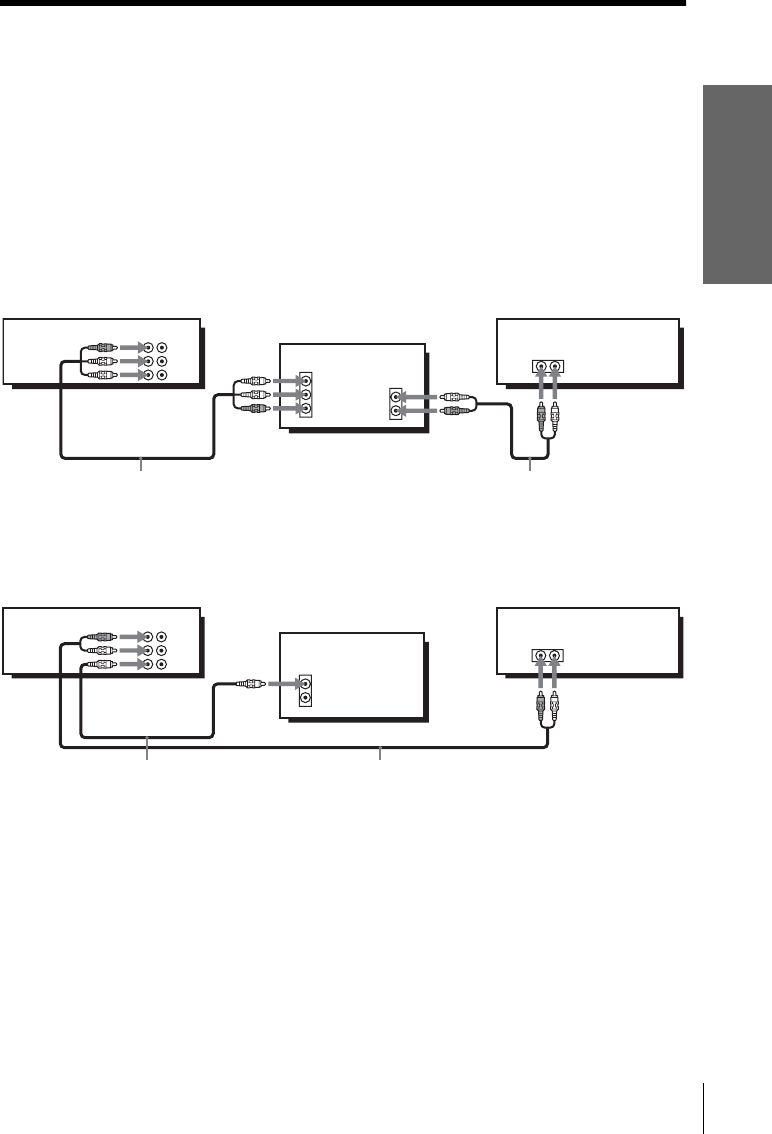

Audio/video (A/V) hookup
If your TV has audio/video (A/V) input jacks, you will get a better picture and sound
if you hook up your VCR using these connections. For a true “home theater”
experience, you should connect the audio outputs of your VCR or TV to your stereo
system. If your TV does not have A/V inputs, see the following pages for antenna or
cable hookups.
If you are not planning to use your VCR to record programs, you finished setting up
the VCR after you have made the connections shown on this page. If you want to
record regular or cable TV programs, complete these connections first, and then go to
the following pages for antenna or cable hookups.
A Use this hookup if your TV has stereo jacks
BUse this hookup if your TV does not have stereo jacks
Notes
• To play a tape in stereo, you must use the A/V connection.
• If you do not have a stereo receiver, connect the white LINE OUT/AUDIO L jack to the
AUDIO IN jack on your TV.
IN
VIDEO
AUDIO
AUDIO OUT
AUX IN
LINE
IN 1
LINE
OUT
AUDIO
VIDEO
Audio/video cable (not supplied)
TV
Audio cable (not supplied)
Stereo receiverVCR
LINE
IN 1
LINE
OUT
AUDIO
VIDEO
VIDEO
AUDIO
IN
AUX IN
Video cable (not supplied)
TV
Audio cable (not supplied)
Stereo receiverVCR
12 Hookups

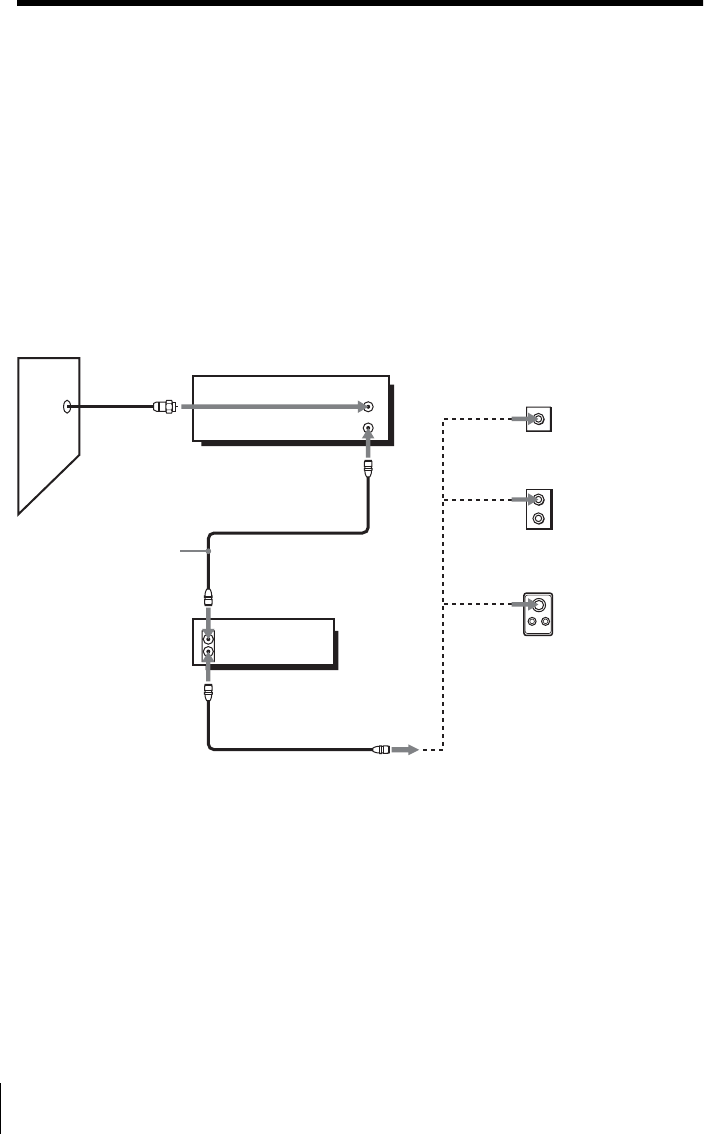

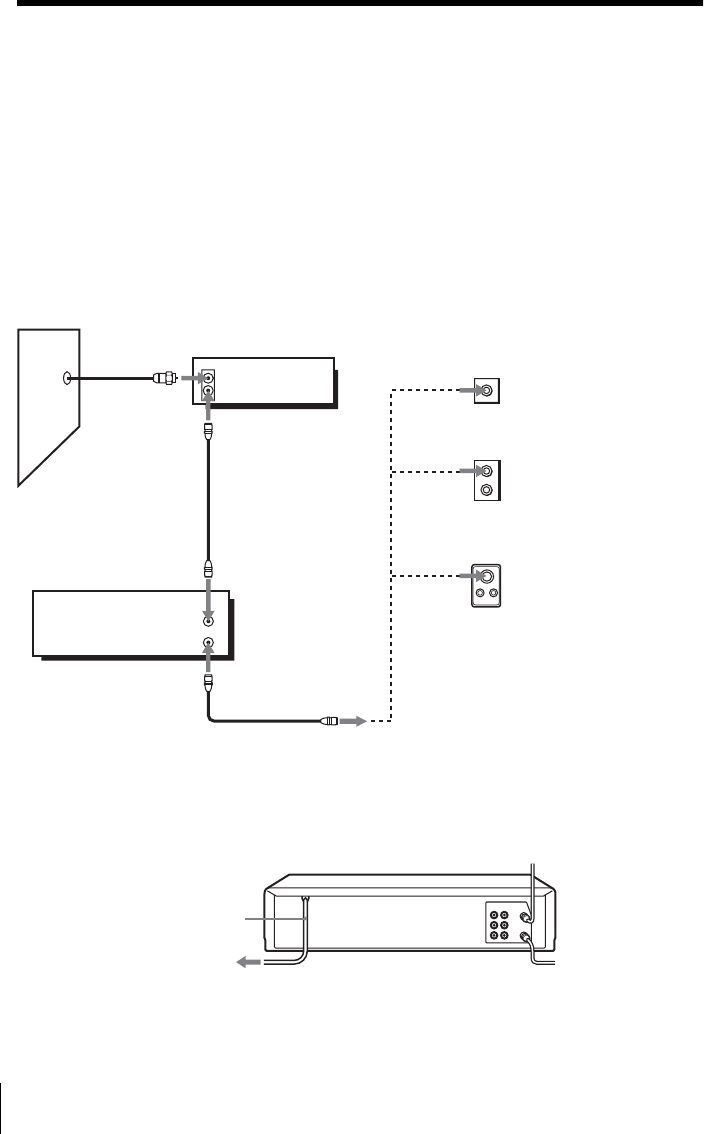

Hookup 1 (Plug and Play)

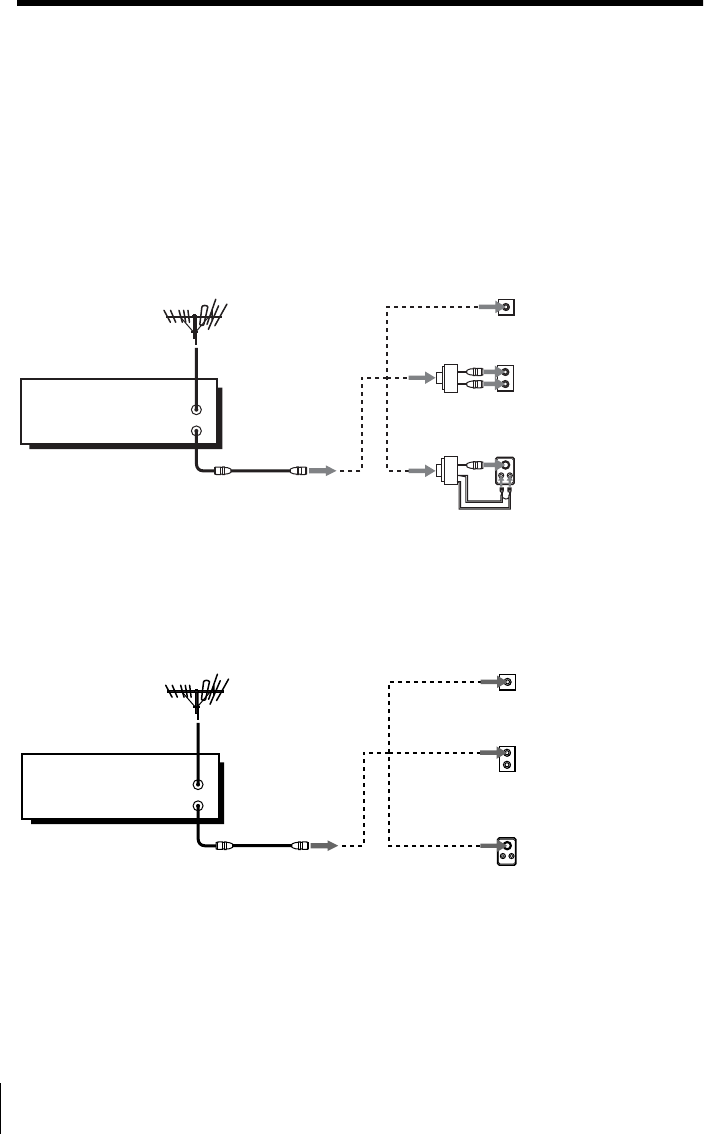

Antenna hookup
Make the following connections if you are using an antenna (if you do not have cable
TV).
AUse this hookup if you are using:
• VHF/UHF antenna (you get channels 2–13 and channels 14 and higher)
• UHF-only antenna (you get channels 14 and higher)
• Separate VHF and UHF antennas
BUse this hookup if you are using a VHF-only antenna (you get
channels 2–13 only)

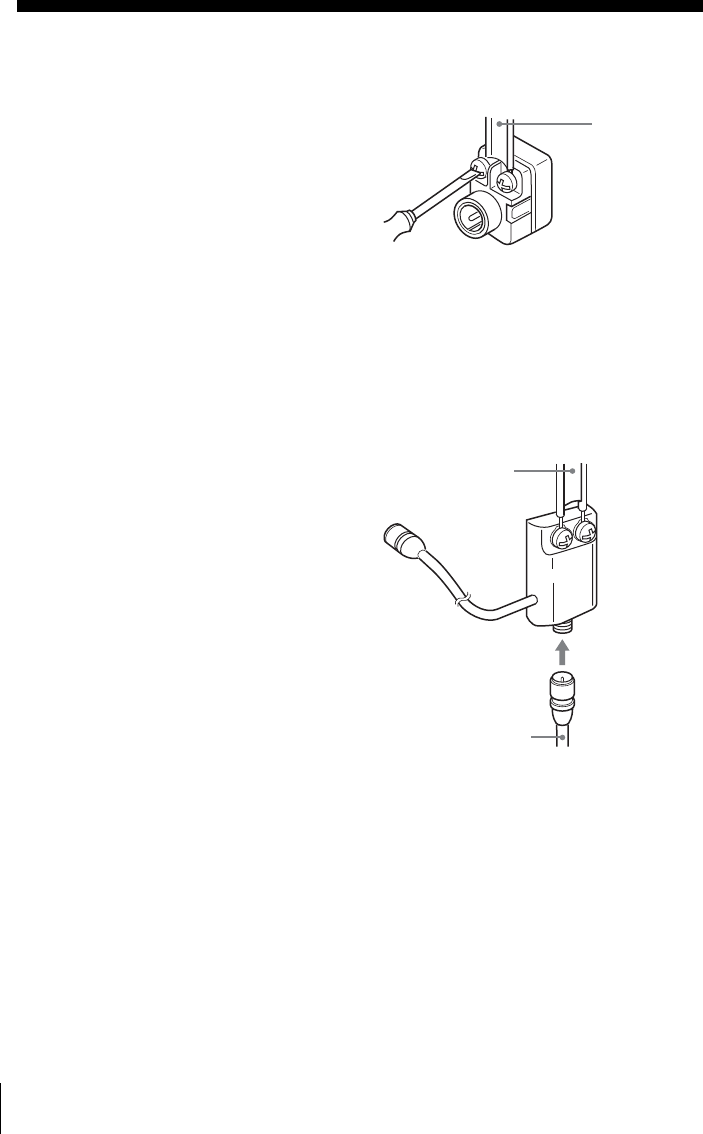

If you cannot connect your antenna cable to the VCR directly
If your antenna cable is a flat cable (300-ohm twin lead cable), attach an external
antenna connector (not supplied) so you can connect the cable to the RF IN
connector. If you have separate cables for VHF and UHF antennas, you should use a
U/V band mixer (not supplied) (page 56).
IN
OUT
or
A
Rear of TV
VHF/UHF
B
VHF
C
VHF
or
Match the type of
connector on your
TV: A, B, or C.
UHF
UHF
VCR
IN
OUT
or
A
Rear of TV
VHF/UHF
B
VHF
C
VHF
or
Match the type of
connector on your
TV: A, B, or C.
UHF
UHF
VCR For connector type
s
B and C, no UHF
connection is
required.
Getting Started
13
Hookups

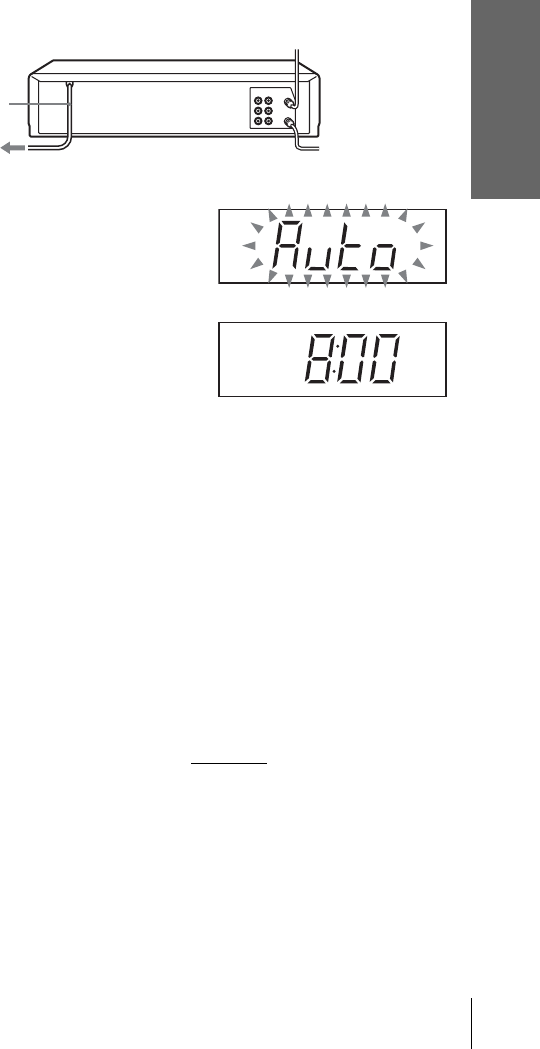

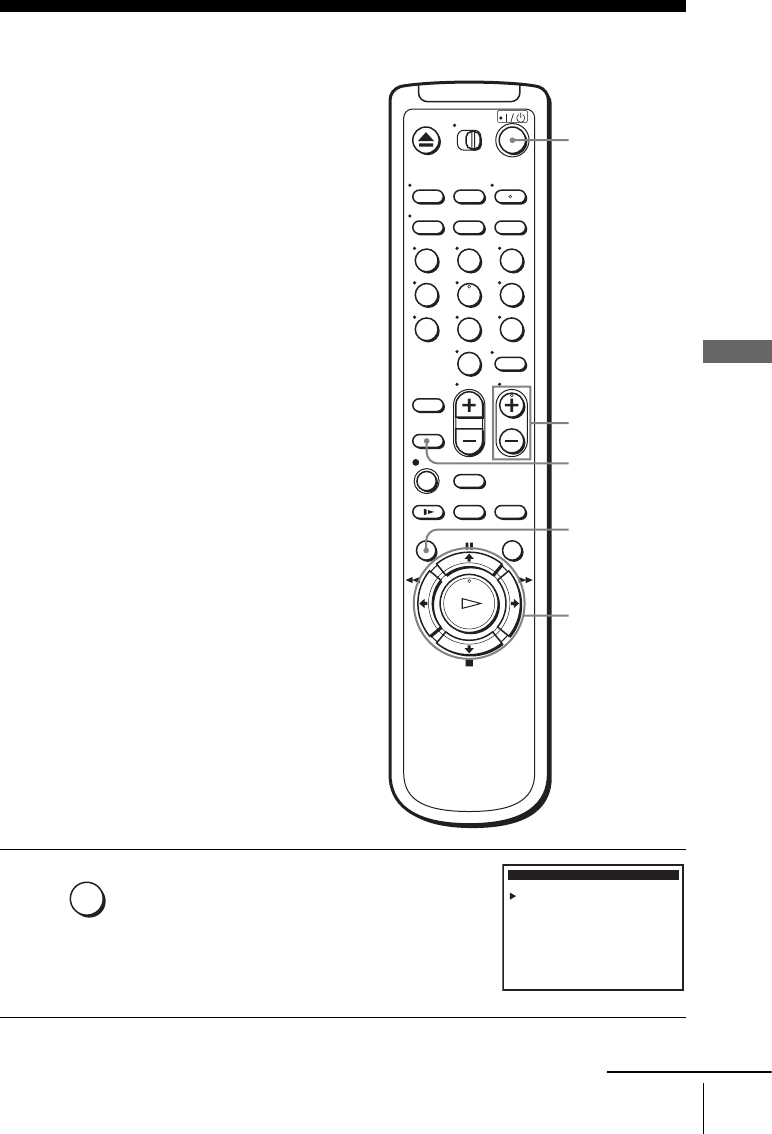

Hookup 1 : VCR setup
Notes
• If you connect the AC power cord before the antenna connections are completed, the channels
may be incorrectly set. If this happens, see “Step 6 : Presetting channels” on page 23.
• Do not press any buttons on the VCR or remote commander during Auto preset.
• Auto preset starts automatically only when you plug in the AC power cord for the first time
after you purchase the VCR.
• Auto preset can be performed by pressing xSTOP on the VCR continuously for 5 seconds
or more with the VCR power turned off.
Plug the VCR into the AC outlet.
The VCR automatically presets the VCR’s clock and TV channels when the VCR
is plugged into the AC outlet.
The VCR starts presetting the clock and
channels.
When Auto preset is completed, the current
time appears in the display window.
You have now completed VCR setup.
To change the on-screen display language to French or Spanish, see
“Step 4 : Selecting a language” on page 17.
The clock is set using a time signal provided by some TV channels. If the clock
is incorrect, or “--:--” appears in the display window, see “Using Manual Clock
Set” on page 21.
To add or disable channels manually, see “Presetting/disabling channels
manually” on page 25.
AC power cord
to AC outlet
14 Hookups
Hookup 2 (Plug and Play)
You have no cable box, or a cable box with only a few
scrambled channels
Recommended use
Use this hookup if you do not have a cable box. Also use this hookup if your cable
system scrambles only a few channels.
What you can do with this hookup
• Record any unscrambled channel by selecting the channel on the VCR
What you cannot do
• Record scrambled channels that require a cable box
IN
OUT
IN
OUT

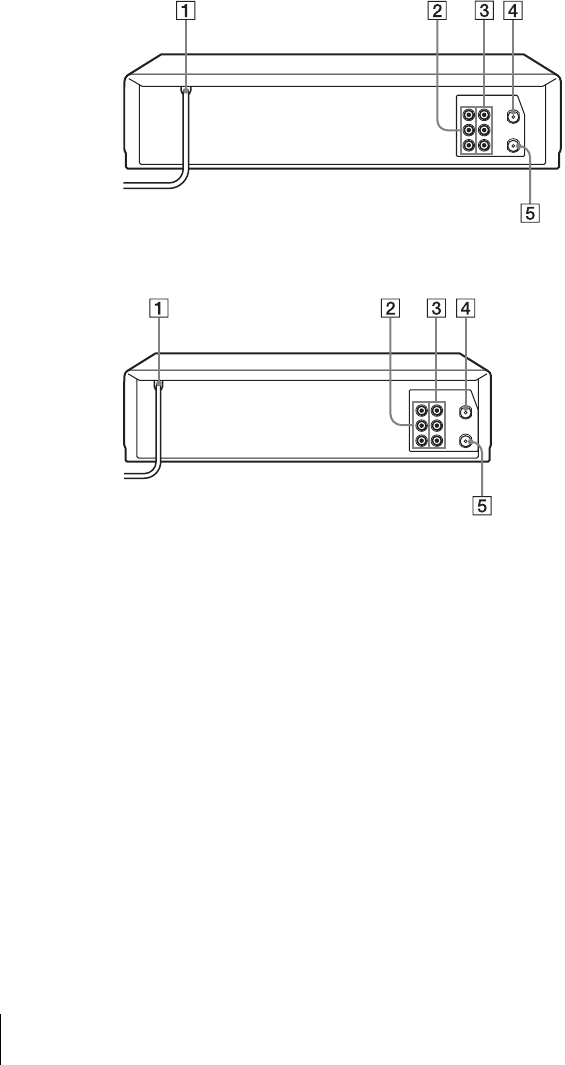

Rear of TV
VHF/UHF
VHF
UHF
VCR
Match the type
of connector
on your TV: A,
B, or C.
For connector
types B and C,
no UHF
connection is
required.
B
C
or
or
Cable box
A
VHF
UHF
Wall
Connect this cable
directly to your TV if
you do not have a
cable box.
Getting Started
15
Hookups
Hookup 2 : VCR setup
Notes
• If you connect the AC power cord before the antenna connections are completed, the channels
may be incorrectly set. If this happens, see “Step 6 : Presetting channels” on page 23.
• Do not press any buttons on the VCR or remote commander during Auto preset.
• Auto preset starts automatically only when you plug in the AC power cord for the first time
after you purchase the VCR.
• Auto preset can be performed by pressing xSTOP on the VCR continuously for 5 seconds
or more with the VCR power turned off.
Plug the VCR into the AC outlet.
The VCR automatically presets the VCR’s clock and TV channels when the VCR
is plugged into the AC outlet.
The VCR starts presetting the clock and
channels.
When Auto preset is completed, the current
time appears in the display window.
You have now completed VCR setup.
To change the on-screen display language to French or Spanish, see
“Step 4 : Selecting a language” on page 17.
The clock is set using a time signal provided by some TV channels. If the clock
is incorrect, or “--:--” appears in the display window, see “Using Manual Clock
Set” on page 21.
To add or disable channels manually, see “Presetting/disabling channels
manually” on page 25.
AC power cord
to AC outlet
16 Hookups
Hookup 3
Connecting a cable box with many scrambled channels
Recommended use
Use this hookup if your cable system scrambles all or most channels.
What you can do with this hookup
• Record any channel by selecting the channel on the cable box
What you cannot do
• Record with the cable box turned off
• Record one channel while watching another channel
After you have completed hookup…
After you have completed hookup, plug the VCR into the AC outlet and see
“Step 4 : Selecting a language” on page 17.
IN
OUT
IN
OUT
Rear of TV
VHF/UHF
VHF
UHF
VCR
Match the type of
connector on your
TV: A, B, or C.
For connector
types B and C, no
UHF connection
is required.
B
C
or
or
Cable box
A
VHF
UHF
Wall
to AC outlet
AC power cord
Getting Started
17

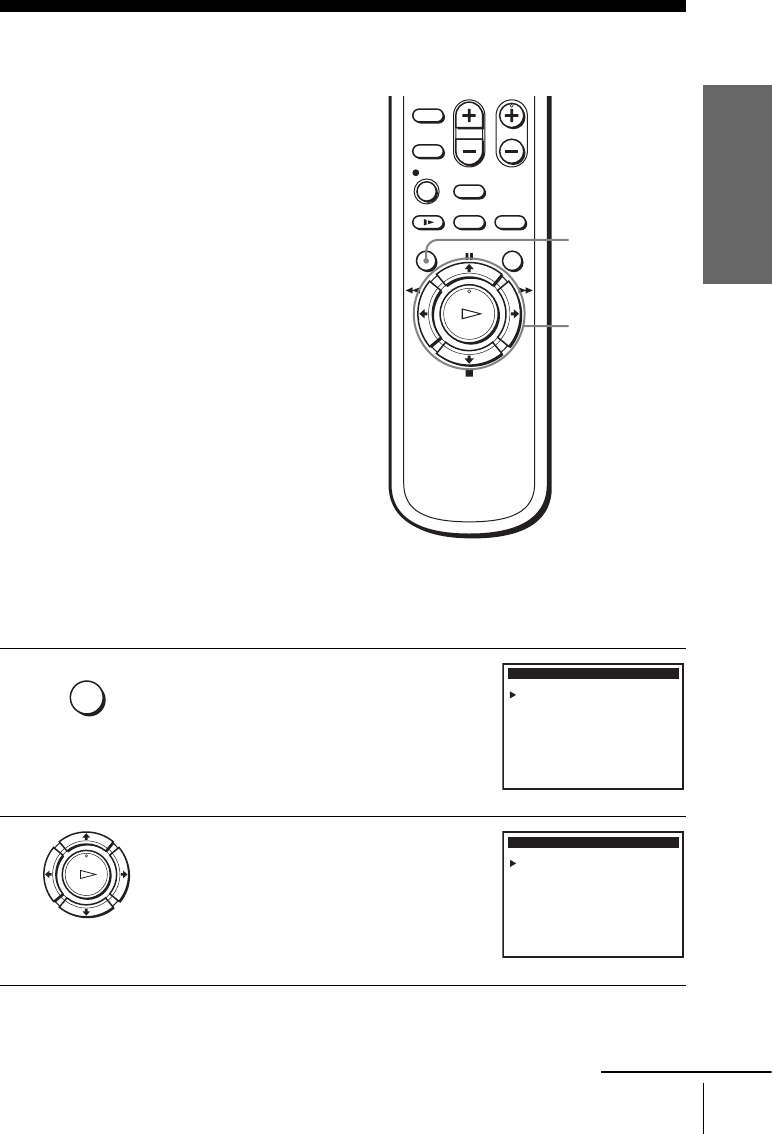

Selecting a language
Step 4 : Selecting a language
You can change the on-screen display
language.
Before you start…
• Turn on the VCR and the TV.
• Set the “Output CH” to “3CH” or “4CH”
in ADVANCED OPTIONS menu
(page 52). If both are used, set the switch
to either channel. If your TV is connected
to the VCR using A/V connections, set the
TV to video input.
• Press TV/VIDEO to display the VCR
indicator in the VCR’s display window.

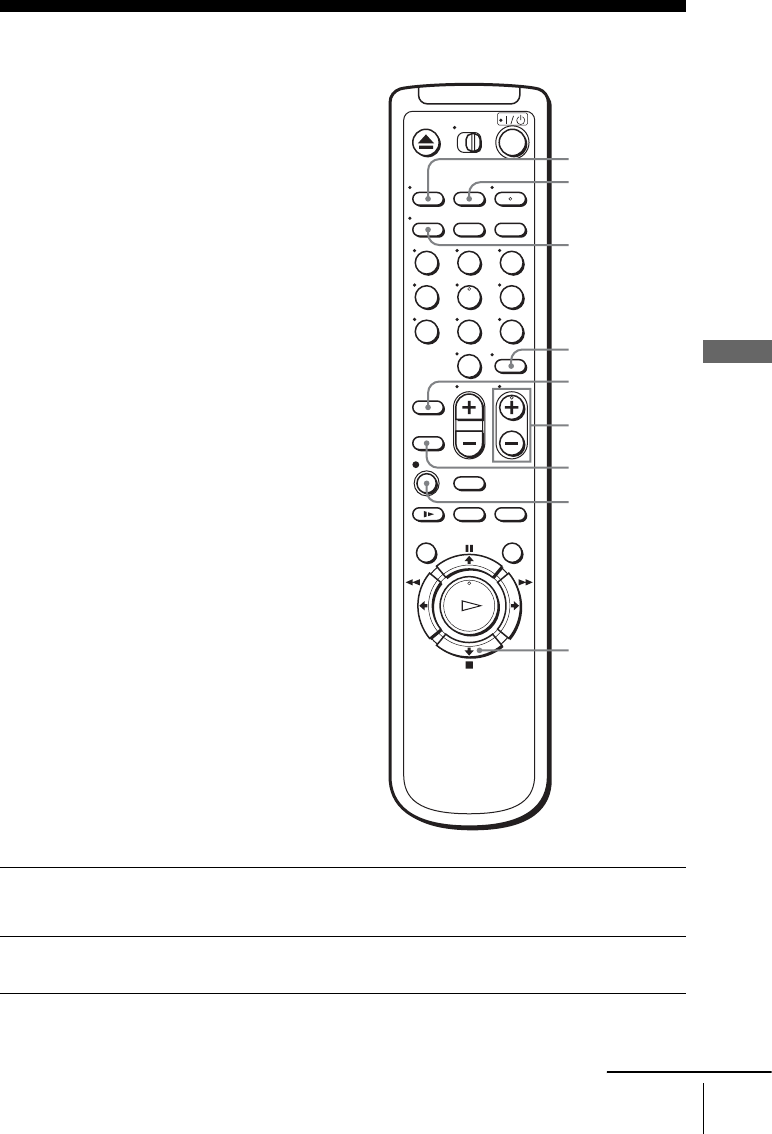

1Press MENU.
2Press M/m to move the cursor (B) to
“Language/Idioma/Langue.”
3Press , to select the desired language, French or Spanish.
4Press MENU to exit the menu.
M/m/,
MENU
MENU
Select :Set :
MAIN MENU
OK
Vv
Clock set
Timer set / check
Tuner preset
Advanced options
Language / Idioma / Langue
: MENUQuit
OK
PLAY
Select :Set :
MAIN MENU
b
Vv
Clock set
Timer set / check
Tuner preset
Advanced options
Language / Idioma / Langue
: MENUQuit
OK
PLAY
MENU
18 Setting the clock
Step 5 : Setting the clock
Using the Auto Clock Set
feature
Some TV and cable channels transmit time
signals with their broadcasts. Your VCR can
pick up this time signal to automatically set
the clock.
The Auto Clock Set feature works only if a
channel in your area is broadcasting a time
signal. If broadcasters in your area are not
yet sending time signals, set the time
manually (page 21).
Before you start…
• Turn on the VCR and the TV. When using
a cable box, turn it on.
• Set the “Output CH” to “3CH” or “4CH”
in ADVANCED OPTIONS menu
(page 52). If both are used, set the switch
to either channel. If your TV is connected
to the VCR using A/V connections, set the
TV to video input.
• Press TV/VIDEO to display the VCR
indicator in the VCR’s display window.

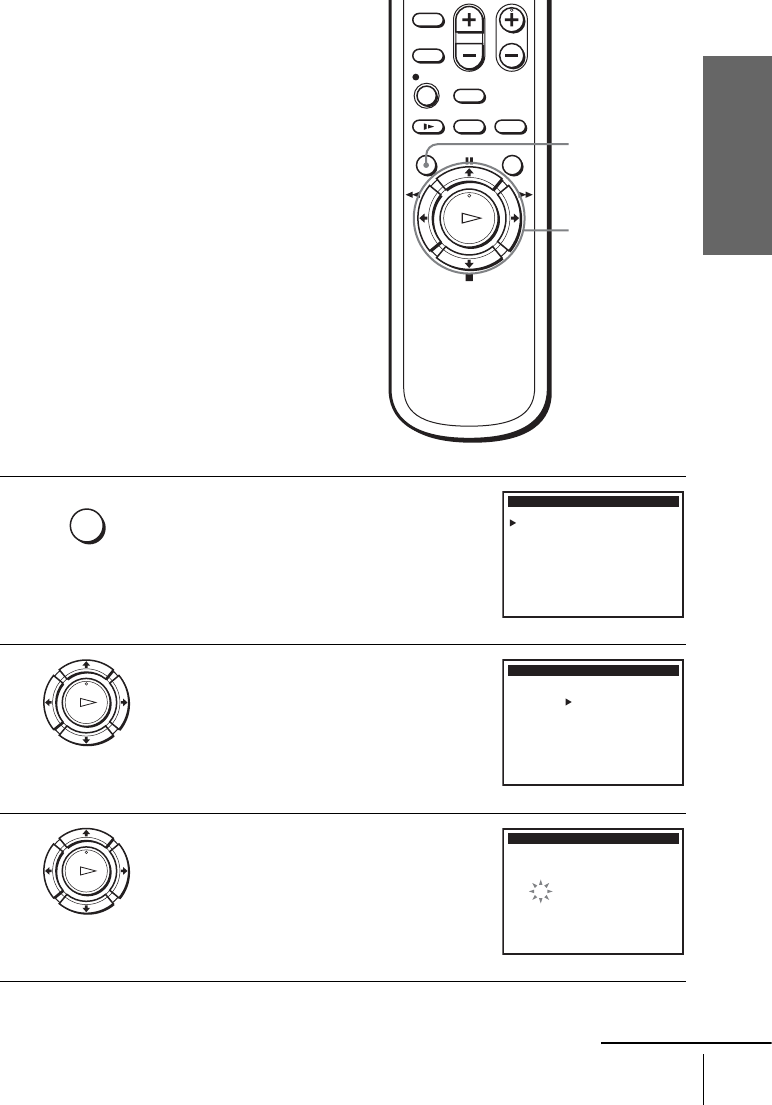

1Press MENU.
2Press M/m to move the cursor (B) to “Clock
set,” then press OK.
M/m/</,
OK
MENU
MENU
Select :Set :
MAIN MENU
OK
Vv
Clock set
Timer set / check
Tuner preset
Advanced options
Language / Idioma / Langue
: MENUQuit
OK
PLAY
Select :Set :
CLOCK SET
OK
Vv
AUTO
MANUAL
: MENUQuit
Getting Started
19
Setting the clock
3Press M/m to select AUTO, then press OK.
4Press M/m to select the item you want. Then
press </, to make the setting and press OK.
• For “Clock set CH”
Leave the setting to AUTO to have the VCR
automatically search for a channel that
carries a time signal. Press </, to select a
channel that carries a time signal. Use this
option if you know of a channel that carries a
time signal. Most PBS member stations
broadcast a time signal. For the fastest
response, select your local PBS station.
• For “Time zone”
Select the time zone of your area, or select
AUTO to have the VCR automatically set
your time zone.
The options are:
AUTO y Atl. (Atlantic) y East (Eastern)
y Cen. (Central) y Mtn. (Mountain) y
Pac. (Pacific) y Alas (Alaska) y
Haw. (Hawaii) y AUTO
• For “Daylight Saving”
Select YES or NO (standard time), or AUTO
to have the VCR automatically set the
daylight saving time.
5Press MENU to exit the menu.
6To activate the Auto Clock Set function, turn off the VCR.
OK
PLAY
Select :End :
CLOCK SET
OK
Vv Set : Bb
Time zone:
Clock set CH:
Daylight Saving: AUTO
AUTO
[
[]
AUTO
[]
]
: MENUQuit
OK
PLAY
Select :
:
CLOCK SET
OK
Vv Set : Bb
Time zone:
Clock set CH:
Daylight Saving:
123
[]
: MENUQuitEnd
AUTO
[]
AUTO
[]
Select :End :
CLOCK SET
OK
Vv Set : Bb
Time zone:
Clock set CH:
Daylight Saving: Pac.
AUTO
[
[]
]
AUTO
[]
: MENUQuit
Select :
:
CLOCK SET
OK
Vv Set : Bb
Time zone:
Clock set CH:
Daylight Saving:
AUTO
[]
: MENUQuitEnd
AUTO
[]
NO
[]
MENU
continued
20 Setting the clock
Notes
• The clock cannot be set automatically if you do not receive a channel that carries a time
signal in your area. If so, set the clock manually (page 21).
• If there are only a few channels in your area that carry time signals, setting the clock
automatically may take up to about 20 minutes. If nothing happens even after you wait about
20 minutes, set the clock manually (page 21).
• If you made Hookup 3, make sure you leave the cable box on.
Getting Started
21
Setting the clock
Using Manual Clock Set
Before you start…
• Turn on the VCR and the TV.
• Set the “Output CH” to “3CH” or “4CH”
in ADVANCED OPTIONS menu
(page 52). If both are used, set the switch
to either channel. If your TV is connected
to the VCR using A/V connections, set the
TV to video input.
• Press TV/VIDEO to display the VCR
indicator in the VCR’s display window.
1Press MENU.
2Press M/m to move the cursor (B) to “Clock
set,” then press OK.
3Press M/m to select MANUAL, then press OK.
MENU
M/m/,
OK
MENU
Select :Set :
MAIN MENU
OK
Vv
Clock set
Timer set / check
Tuner preset
Advanced options
Language / Idioma / Langue
: MENUQuit
OK
PLAY
Select :Set :
CLOCK SET
OK
Vv
AUTO
MANUAL
: MENUQuit
OK
PLAY
Select :End :
CLOCK SET
OK
Bb Set : Vv
DATE
10120 0003 WED :
12
AM
/TIME
: MENUQuit
YEAR
continued
22 Setting the clock

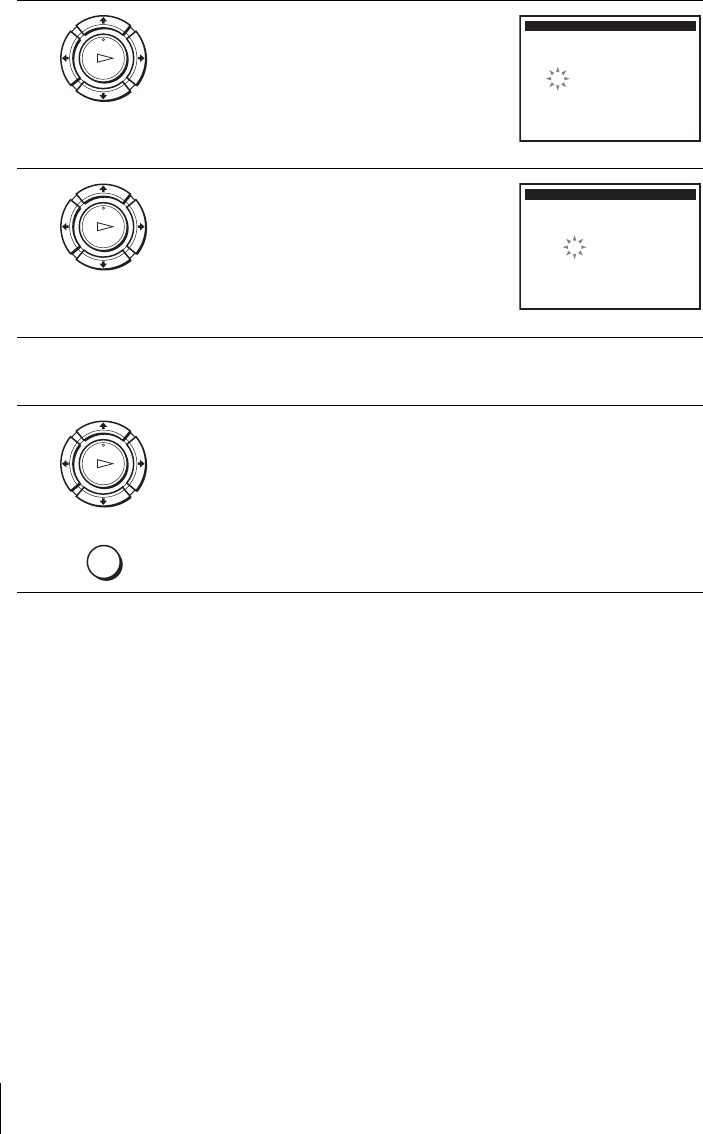

4Press M/m to set the month.
5Press , to flash the day and press M/m to set
the day.
6Set the year, hour, and minutes in the same way as the day.
The day of the week is set automatically.
7Press OK or MENU to start the clock.
OK
PLAY
Select :End :
CLOCK SET
OK
Bb Set : Vv
DATE
90120 0003 MON :
12
AM
/TIME
: MENUQuit
YEAR
OK
PLAY
Select :End :
CLOCK SET
OK
Bb Set : Vv
DATE YEAR
92820 0003 SUN :
12
AM
/TIME
: MENUQuit
OK
PLAY
MENU
Getting Started
23
Presetting channels
Step 6 : Presetting channels
This VCR is capable of receiving VHF
channels 2 to 13, UHF channels 14 to 69 and
unscrambled CATV channels 1 to 125. First,
we recommend that you preset the receivable
channels in your area using automatic
presetting methods. Then, if there are any
unwanted channels, disable them manually.
If you have already decided which channels
you wish to preset, set them directly using
manual presetting methods (page 25).
Presetting all receivable
channels automatically
Before you start…
• Turn on the VCR and the TV. When using
a cable box, turn it on.
• Set the “Output CH” to “3CH” or “4CH”
in ADVANCED OPTIONS menu
(page 52). If both are used, set the switch
to either channel. If your TV is connected
to the VCR using A/V connections, set the
TV to video input.
• Press TV/VIDEO to display the VCR
indicator in the VCR’s display window.

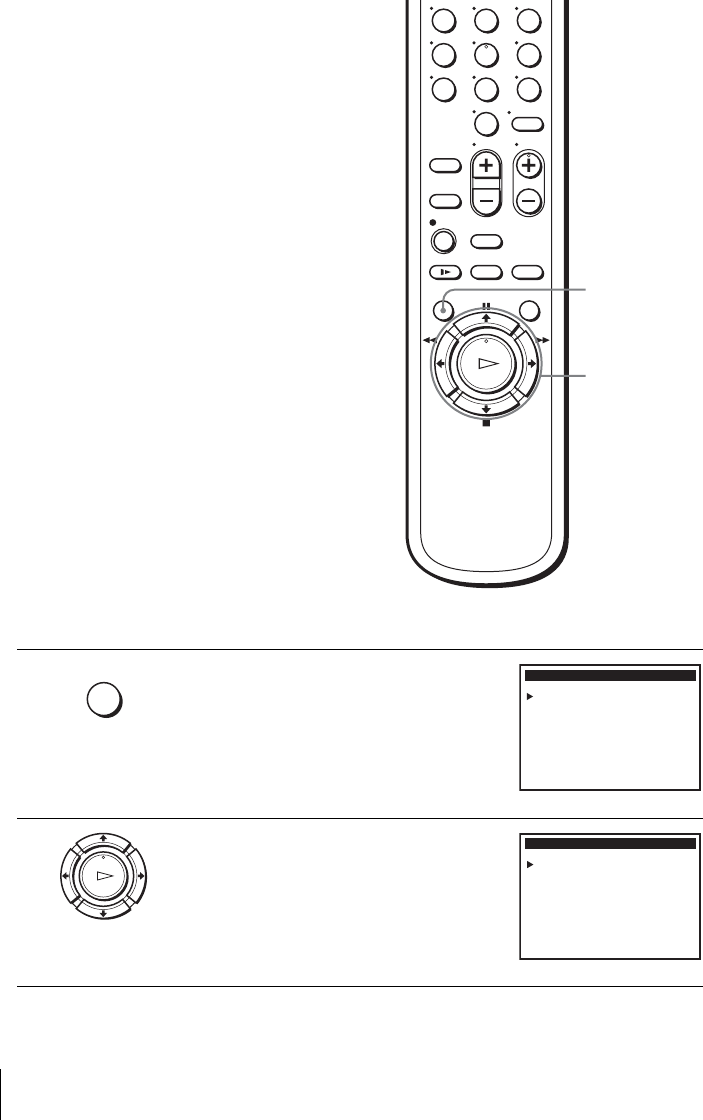

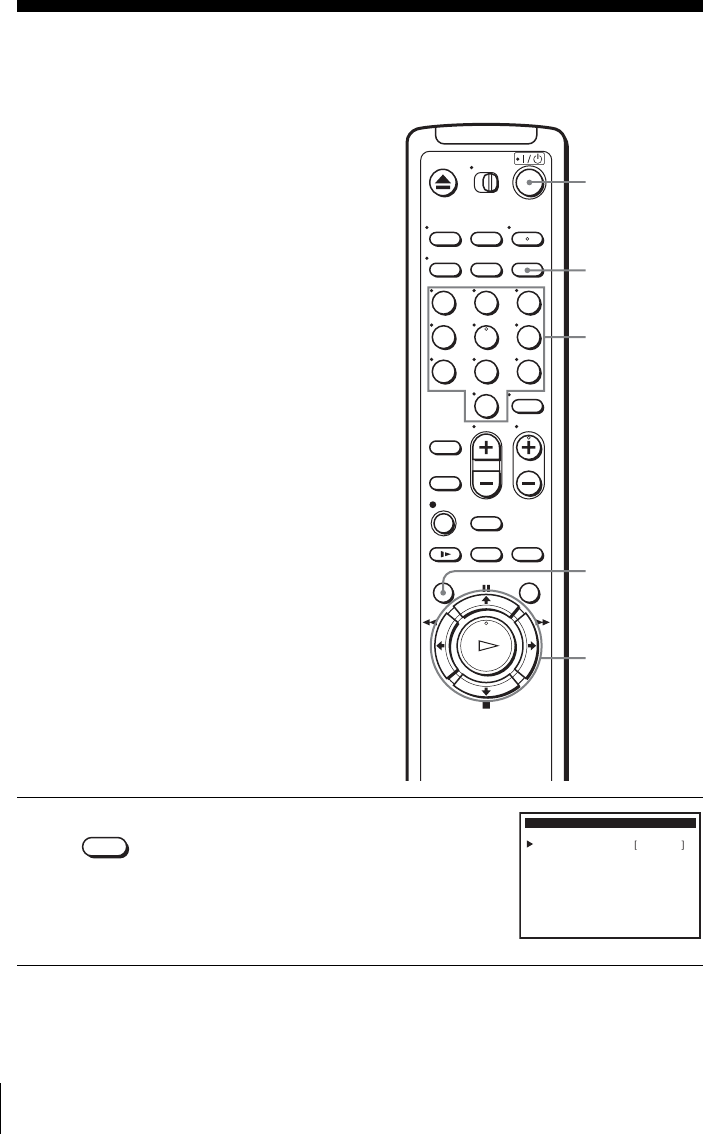

1Press MENU.
2Press M/m to move the cursor (B) to “Tuner
preset,” then press OK.
MENU
M/m/</,
OK
MENU
Select :Set :
MAIN MENU
OK
Vv
Clock set
Timer set / check
Tuner preset
Advanced options
Language / Idioma / Langue
: MENUQuit
OK
PLAY
TUNER PRESET
Auto preset
Ant / Cable:
Channel add / erase
Guide channel setup
Select :End :OK
Vv Set : Bb
: MENUQuit
CABLE
[]
continued
24 Presetting channels
3Press M/m to move the cursor (B) to “Ant/Cable.”
4• To preset cable TV channels:
Press </, to select CABLE.
• To preset VHF and UHF channels:
Press </, to select ANTENNA.
5Press M/m to move the cursor (B) to “Auto
preset,” then press OK.
All receivable channels are preset in numerical
sequence. When no more receivable channels
can be found, presetting stops and the picture
from the lowest numbered channel is displayed
on the TV screen.
OK
PLAY
OK
PLAY
OK
PLAY
TUNER PRESET
Auto preset
Ant / Cable: CABLE
[]
Channel add / erase
Guide channel setup
Select :End :OK
Vv Set : Bb
: MENUQuit
TUNER PRESET
Auto preset
Ant / Cable: ANTENNA
[]
Channel add / erase
Guide channel setup
Select :End :OK
Vv Set : Bb
: MENUQuit
OK
PLAY
• • • • • please wait • • • • •
02CHAuto preset
Getting Started
25
Presetting channels
Presetting/disabling channels manually
Before you start…
• Turn on the VCR and the TV. When using
a cable box, turn it on.
• Set the “Output CH” to “3CH” or “4CH”
in ADVANCED OPTIONS menu
(page 52). If both are used, set the switch
to either channel. If your TV is connected
to the VCR using A/V connections, set the
TV to video input.
• Press TV/VIDEO to display the VCR
indicator in the VCR’s display window.
1Press MENU.
2Press M/m to move the cursor (B) to “Tuner
preset,” then press OK.
123
456
789
0
MENU
CH +/–
Number
buttons
M/m/</,
OK
ENTER
MENU
Select :Set :
MAIN MENU
OK
Vv
Clock set
Timer set / check
Tuner preset
Advanced options
Language / Idioma / Langue
: MENUQuit
OK
PLAY
TUNER PRESET
Auto preset
Ant / Cable:
Channel add / erase
Guide channel setup
Select :End :OK
Vv Set : Bb
: MENUQuit
CABLE
[]
continued
26 Presetting channels

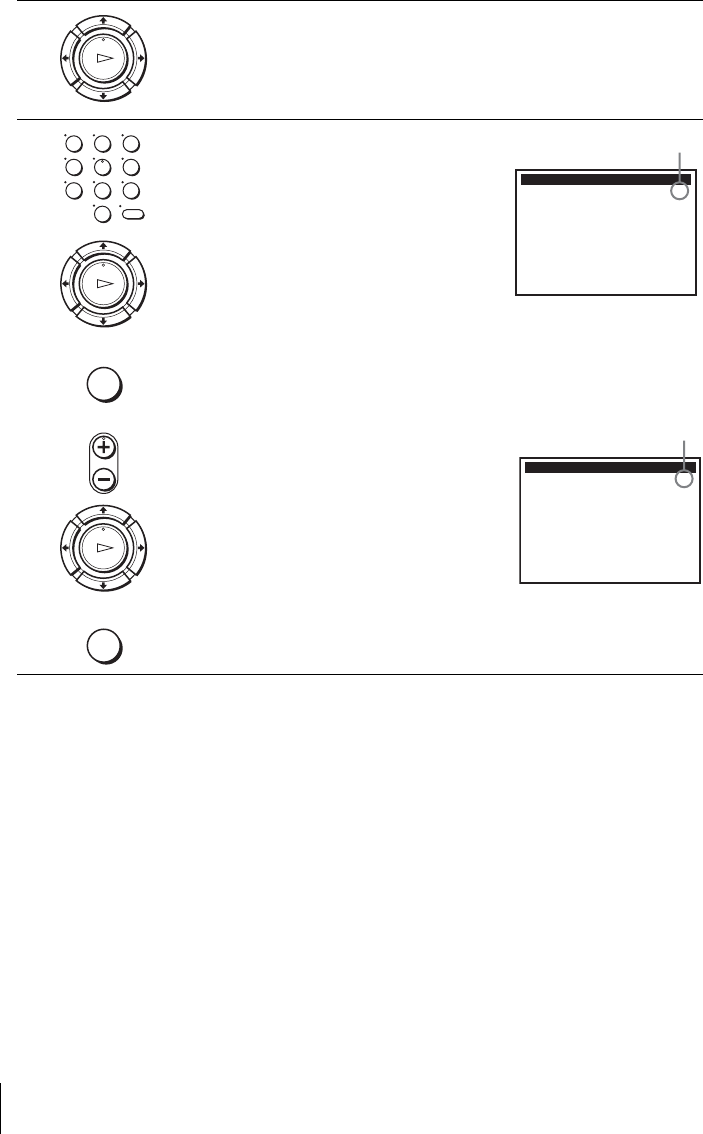

3Press M/m to move the cursor (B) to “Channel add/erase,” then press OK.
4• To preset a channel:
1Press the number buttons to enter the
channel number, then press ENTER.
2Press ,, then press OK or MENU.
• To disable a channel:
1Press CH +/– to select the channel number.
2Press <, then press OK or MENU.
OK
PLAY
OK
PLAY
123
456
789
0
MENU
OK
PLAY
• CH
MENU
:End
CHANNEL ADD / ERASE
OK
Select channel:
and press to ADD[]b
press to ERASE[]B
[]1
: MENUQuit
Channel to be preset
:End
CHANNEL ADD / ERASE
OK
Select channel:
and press to ADD[]b
press to ERASE[]B
5
: MENUQuit
[]
Channel to be disabled
Getting Started
27
Setting up the VCR Plus+® system (SLV-N700 only)
Step 7 : Setting up the VCR Plus+® system
(SLV-N700 only)
How the VCR Plus+ system works
Whenever you want to record a TV program,
all you need to do is look up the “PlusCode”
number, a number assigned to each program
published in the TV section of most
newspapers, cable TV listings, and even TV
GUIDE magazine. Then, just enter the
PlusCode number of the program you want
and the VCR is automatically programed to
record that show. It’s that simple.
How to set up your VCR
Setting up your VCR involves coordinating
the TV channel number (the number you turn
to on your TV or VCR to watch a program)
with the guide channel (the number that is
assigned to that channel in your program
guide).
To find the guide channel numbers, look at
the “Channel Line-up Chart” in the program
guide for your area that features VCR
PlusCode numbers. It usually looks like the
example to the right.
To set the guide channels, use the Channel
Line-up Chart to check that the guide channel
numbers match the TV channel your VCR
receives. For example, if HBO is listed in the
Channel Line-up Chart as channel 33, and
your VCR receives HBO on channel 5, you
need to coordinate these numbers using the
following procedure. If the guide and TV
channel numbers are the same, you can skip
this procedure.
5:30
6:30
PlusCode
14
2
CNN
234
5SCIENCE AND TECHNOLOGY
(1hr. 15min.) 73457
DRAMA
WS 9974
SPORT
MOVIE Musical (2hrs.) 33044
Golf (1hr. 25min.) 42060
Comedy (2hrs.) 17390
SAMPLE
CABLE TV
AMC
BRV
CNN
CSP
DIS
DSC
ESN
FAM
HBO
LIF
MAX
MTV
NIK
SC
SCA
SHO
TBS
TMC
TNN
TNT
USA
VCR Plus+
GUIDE CH
35
54
42
28
53
37
34
47
33
46
45
48
38
59
70
41
43
58
49
52
44
American Movie Classics
Bravo (program grid only)
Cable News Network
C-SPAN
The Disney Channel
The Discovery Channel
ESPN
The Family Channel
Home Box Office
Lifetime
Cinemax
Music Television
Nickelodeon
Sports Channel
Sports Channel America
Showtime
TBS SuperStation
The Movie Channel
The Nashville Network
Turner Network Television
USA Network
CABLE
CH
16
17
20
21
22
25
34
35
5
27
29
31
38
39
45
17
44
49
50
51
30
Example of “PlusCode”
Example of “Channel Line-up Chart”
continued
28 Setting up the VCR Plus+® system (SLV-N700 only)
1Press MENU.
2Press M/m to move the cursor (B) to “Tuner
preset,” then press OK.
123
456
789
0
MENU
M/m/</,
OK
MENU
Select :Set :
MAIN MENU
OK
Vv
Clock set
Timer set / check
Tuner preset
Advanced options
Language / Idioma / Langue
: MENUQuit
OK
PLAY
TUNER PRESET
Auto preset
Ant / Cable:
Channel add / erase
Select :End :OK
Vv Set : Bb
: MENUQuit
]
Guide channel setup
CABLE
[
Getting Started
29
Setting up the VCR Plus+® system (SLV-N700 only)
3Press M/m to move the cursor (B) to “Guide
channel setup,” then press OK.
4The upper row shows VCR Plus+ guide channels and the lower row shows
TV channels or cable box out put channels. Press </, to select the
channel number that does not match the guide channel.
5• If you made Hookup 1 or 2: Enter the actual number on your TV (and
VCR), then press M/m.
• If you made Hookup 3: Enter the cable box output channel (usually 2, 3,
or 4), then press M/m.
6Repeat steps 4 and 5 for each channel number that does not match.
7Press OK to confirm the setting.
8Press MENU to exit the menu.
OK
PLAY
GUIDE CHANNEL SETUP
Select :End :OK Vv
Set :
Bb : MENUQuit
Enter actual
receiving channel
v
[GUIDE CH]
[TV CH]
OK
PLAY
OK
PLAY
OK
PLAY
MENU
30 Playing a tape
Basic Operations
Playing a tape
1Turn on your TV and set it to the video channel.
2Insert a tape.
The VCR turns on and starts playing
automatically if you insert a tape with its
safety tab removed.
123
456
789
0
ZEJECT
DISPLAY
CLEAR
HPLAY
COMMERCIAL
SKIP
XPAUSE
MFF
xSTOP
mREW
REPLAY
?/1
31
Playing a tape
Basic Operations
Additional tasks
To play a recently watched scene
You can immediately rewind and playback the scene you want to watch again.
During playback, press REPLAY. The VCR rewinds the tape about ten seconds on
the counter for each press of the button, and restarts playback.
To skip playback
You can skip a portion of playback you do not want to watch (such as a commercial)
and restart playback.
During playback, press COMMERCIAL SKIP up to four times. The VCR skips the
tape 30 seconds on the counter for each press of the button, and restarts playback.
To turn off the power while rewinding (Rewind Shut Off)
Press ?/1 while the tape is rewinding. The power will turn off but the tape will keep
rewinding until it reaches the end.
3Press HPLAY.

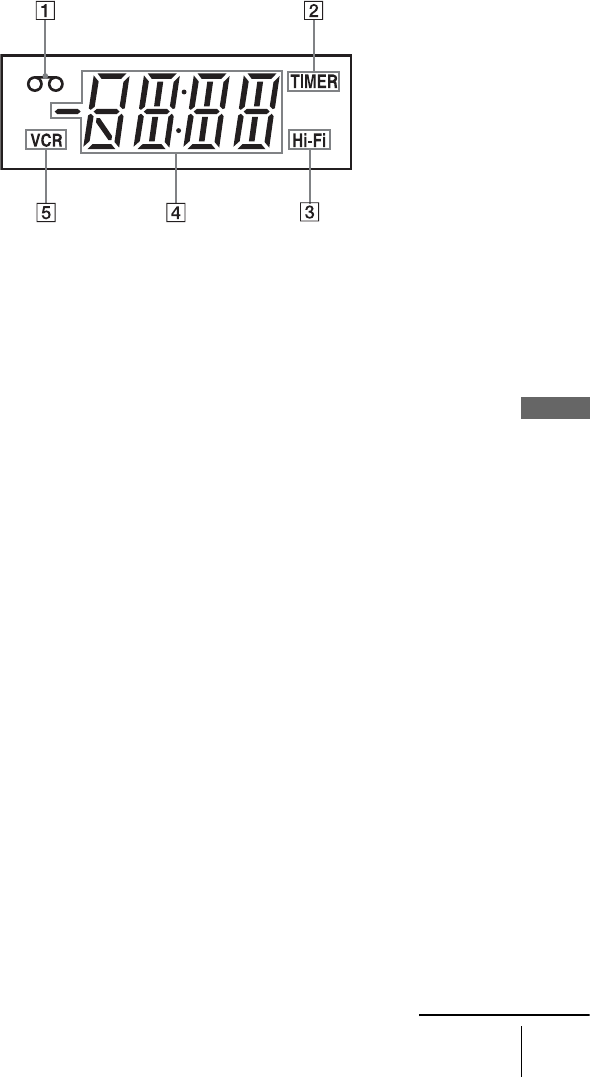

The display window shows the playback
time and playback direction.
When the tape reaches the end, it will
rewind automatically.
To Press
Stop play xSTOP
Pause play XPAUSE
Resume play after pause XPAUSE or HPLAY
Fast-forward the tape MFF during stop
Rewind the tape mREW during stop
Eject the tape ZEJECT
OK
PLAY
Hour Minute
continued
32 Playing a tape
To use the time counter
Press CLEAR at the point on the tape that you want to find later. The counter in the
display window resets to “00:00” or “0:00.” To search for the counter 0:00:00 point
automatically, see “To search for the counter 0:00:00 point” on page 50.
To display the counter on the TV screen, press DISPLAY.
Notes
• Tapes recorded in the LP mode on other VCRs can be played back on this VCR but the
picture quality cannot be guaranteed.
• While displaying a menu on the TV screen, you cannot use HPLAY, XPAUSE,
MFF, mREW, or xSTOP buttons.
• The counter resets to “00:00” or “0:00” (in the display window) or “0:00:00” (on the TV
screen) whenever a tape is reinserted.
• The counter stops counting when it comes to a portion with no recording.
• When 10 hours have passed, the counter in the display window returns to “0:00” and the
count starts over again.
• When playback does not start even if you insert a tape with its safety tab removed, set “Auto
play” in the ADVANCED OPTIONS menu correctly (page 52).
33
Recording TV programs
Basic Operations
Recording TV programs
1Turn on your TV and set it to the video channel.
To record from a cable box, turn it on.
2Insert a tape with its safety tab in place.
123
456
789
0
CH +/–
zREC
SP/EP
xSTOP
COUNTER/
REMAIN
DISPLAY
TV/VIDEO
ENTER
INPUT
SELECT
continued
34 Recording TV programs
To stop recording
Press xSTOP.
To check the remaining tape length
Press DISPLAY. With the display on, press COUNTER/REMAIN to check the
remaining time. Each time you press COUNTER/REMAIN, the time counter and the
remaining tape length appear alternately. The white bar indicates the current location
in relation to the entire tape length. The remaining time also appears in the display
window.
To check the remaining tape length of a tape, set “Tape select” in the ADVANCED
OPTIONS menu correctly (page 52).
3Press CH +/– to select the channel or line input video source you want to
record.
4Press SP/EP to select the tape speed, SP or EP.
EP (Extended Play) provides recording time three times as long as SP
(Standard Play). However, SP produces better picture and audio quality.
5Press zREC to start recording.
“REC” appears in the display window.
• CH
SP / EP
REC
Time counter Remaining tape length
::00030SP :Rem 1 38 SP
35
Recording TV programs
Basic Operations
To watch another TV program while recording

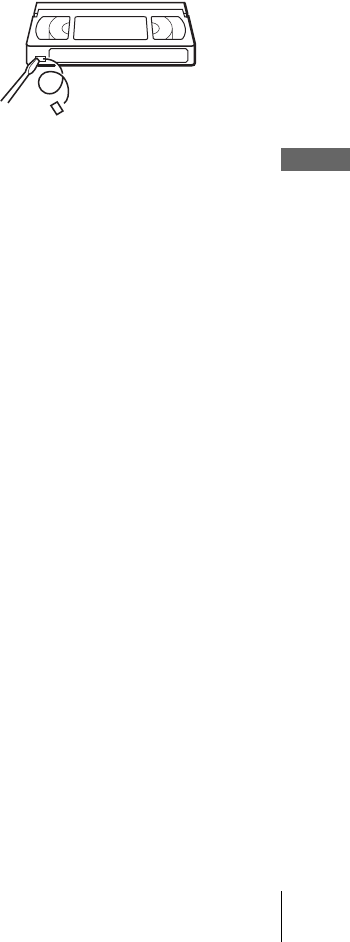

To save a recording
To prevent accidental erasure, break
off the safety tab as illustrated. To
record on the tape again, cover the tab
hole with adhesive tape.
Tips
• To select a channel, you can use the number buttons on the remote commander. Enter the
channel number, then press ENTER.
• You can select a video source from the LINE IN 1 or LINE-2 IN jacks using the INPUT
SELECT button.
• The display appears on the TV screen indicating information about the tape, but the
information will not be recorded on the tape.
• If you do not want to watch TV while recording, you can turn off the TV. When using a cable
box, make sure to leave it on.
Notes
• The remaining tape length may not be indicated accurately for short tapes such as T-20 or T-
30, or tapes recorded in the LP mode.
• The display does not appear during still (pause) mode or slow-motion playback.
• It may take up to one minute for the VCR to calculate and display the remaining tape length
after you press DISPLAY.
1Press TV/VIDEO to turn off the VCR indicator in the display window.
2If your TV is connected to the VCR using A/V connections, set the TV to the
TV’s antenna input; if not, skip this step.
3Select another channel on the TV.
Safety tab
36 Recording TV programs using the VCR Plus+® system (SLV-N700 only)
Recording TV programs using the VCR
Plus+® system (SLV-N700 only)
Just enter the PlusCode number listed in the
TV program guide. The date, time and
channel number of that program are set
automatically. You can preset up to eight
programs together with manual timer settings
at one time.
Before you start…
• Check that the VCR clock is set to the
correct time.
• Turn on the VCR and the TV and set it to
the video channel. When using a cable
box, turn it on.
• Insert a tape with its safety tab in place.
Make sure the tape is longer than the total
recording time.
1Press the VCR Plus+ button.
123
456
789
0
VCR Plus+
M/m/</,
OK
xSTOP
Number
buttons
?/1
MENU
VCR Plus+
Select :End :
VCR Plus+
OK
Vv
with [0~9]
Enter code
Mode
Speed
: MENUQuit
[ONCE]
[AUTO]
V
37
Recording TV programs using the VCR Plus+® system (SLV-N700 only)
Basic Operations

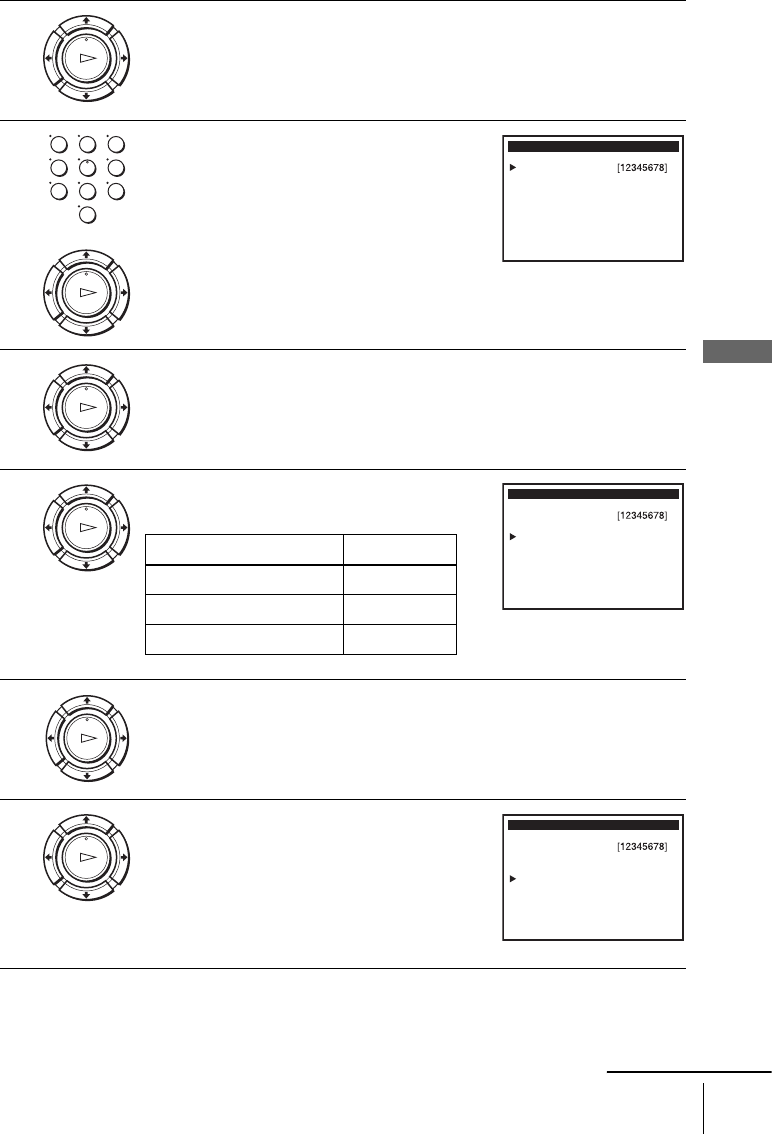

2Press M/m to move the cursor (B) to “Enter code.”
3Press the number buttons to enter the PlusCode
number.
If you make a mistake, press < and re-enter
the correct number.
4Press M/m to move the cursor (B) to “Mode.”
5Press </, to select ONCE, MO–FR, or
WEEKLY:
6Press M/m to move the cursor (B) to “Speed.”
7Press </, to select the tape speed, AUTO,
SP, or EP.
OK
PLAY
123
456
789
0
OK
PLAY
Select :End :
VCR Plus+
OK
Vv
with [0~9]
Enter code
Mode
Speed
: MENUQuit
[ONCE]
[AUTO]
V
OK
PLAY
OK
PLAY
Select :End :
VCR Plus+
OK
Vv :Bb
with [0~9]
Enter code
Mode
Speed
: MENUQuit
[ONCE]
[AUTO]
Set
To record Select
Only once ONCE
Everyday Monday to Friday MO–FR
Once a week WEEKLY
OK
PLAY
OK
PLAY
Select :End :
VCR Plus+
OK
Vv
with [0~9]
Enter code
Mode
Speed
: MENUQuit
[ONCE]
[AUTO]
:Bb
Set
continued
38 Recording TV programs using the VCR Plus+® system (SLV-N700 only)
To stop recording
To stop the VCR while recording, press xSTOP.
To use the Auto Tape Speed function
When you are recording a program in the SP mode and the remaining tape becomes
shorter than the recording time, the tape speed is automatically changed to the EP
mode. Note that some noise will appear on the picture when the tape speed is
changed. If you want to keep the tape speed, select SP. To operate this function, set
“Tape select” in the ADVANCED OPTIONS menu correctly (page 52).
To use the VCR after setting the timer
To use the VCR before a timer recording begins, just press ?/1. The TIMER
indicator disappears from the display window and the VCR switches on. Remember
to press ?/1 to reset the VCR to the timer recording standby mode after using the
VCR.
You can also do the following tasks while the VCR is recording:
• Reset the counter (page 32).
• Display tape information on the TV screen (page 34).
• Check the timer settings (page 46).
• Watch another TV program (page 35).
Tip
• To check, change or cancel the program setting, see “Checking/changing/canceling timer
settings” on page 46.
Note
• If the VCR does not accept the PlusCode number, this means that:
– The PlusCode number is incorrect.
– ONCE, MO–FR, or WEEKLY was selected incorrectly. You cannot select MO–FR or
WEEKLY for a program that airs more than seven days ahead.
Correctly set the PlusCode number again from step 2.
8Press OK to confirm the setting.
To enter another setting, repeat steps 1 to 7.
9Press MENU to exit the menu.
10 Press ?/1 to turn off the VCR.
The TIMER indicator appears in the display window and the VCR stands by
for recording. When using a cable box, leave it on.
OK
PLAY
MENU
39
Setting the timer manually
Basic Operations
Setting the timer manually
If the VCR Plus+ system is not available in
your area, follow the instructions below to set
the timer to record programs. You can preset
up to eight programs together with the VCR
plus+ system at one time.
Before you start…
• Check that the VCR clock is set to the
correct time.
• Turn on the VCR and the TV and set it to
the video channel. When using a cable
box, turn it on.
• Insert a tape with its safety tab in place.
Make sure the tape is longer than the total
recording time.
1Press MENU.
123
456
789
0
MENU
INPUT
SELECT
CH +/–
M/m/</,
OK
xSTOP
?/1
MENU
Select :Set :
MAIN MENU
OK
Vv
Clock set
Timer set / check
Tuner preset
Advanced options
Language / Idioma / Langue
: MENUQuit
continued
40 Setting the timer manually
To stop recording
To stop the VCR while recording, press xSTOP.
2Press M/m to move the cursor (B) to “Timer
set/check,” then press OK.
3If necessary, press M/m to move the cursor (B) to the row that is to be set.
4Set the channel number, start and stop time,
date, and tape speed:
1Press , to flash each item in turn.
2Press M/m to set each item.
To correct a setting, press < to return to that
setting and reset.
To record from a source connected to the LINE IN 1 or LINE-2 IN jacks,
press INPUT SELECT or M/m to display “L1” or “L2” in the “CH”
position.
To record the same program every day or the same day every week, press m
while the date is flashing. For details, see “Daily/weekly recording” below.
To use the Auto Tape Speed function, press m to display “AUTO” in the
“SPD” position. For details, see “To use the Auto Tape Speed function” on
page 38.
5Press OK to confirm the setting.
To enter another setting, press M/m to select the next row and repeat step 4.
6Press MENU to exit the menu.
7Press ?/1 to turn off the VCR.
The TIMER indicator appears in the display window and the VCR stands by
for recording. When using a cable box, leave it on.
OK
PLAY
Select ::End :
CH START STOP DATE
SPD
OK
Bb MENUQuit
Set : Vv
–– – :–– – :–– ––– --
–– – :–– – : –– ––– --
–– – :–– – : –– ––– --
–– – :–– – : –– ––– --
–– – :–– – : –– ––– --
–– – :–– – : –– ––– --
–– – :–– – : –– ––– --
–– – :–– – : –– ––– --
OK
PLAY
OK
PLAY
INPUT
SELECT
Select ::End :
CH START STOP DATE
SPD
OK
Bb MENUQuit
Set : Vv
35 8 :00 9 :00 9 /30 SP
–– – :–– – :–– ––– --
–– – :–– – :–– ––– --
–– – :–– – :–– ––– --
–– – :–– – :–– ––– --
–– – :–– – :–– ––– --
–– – :–– – :–– ––– --
–– – :–– – :–– ––– --
PMPM
OK
PLAY
MENU
41
Setting the timer manually
Basic Operations
Daily/weekly recording

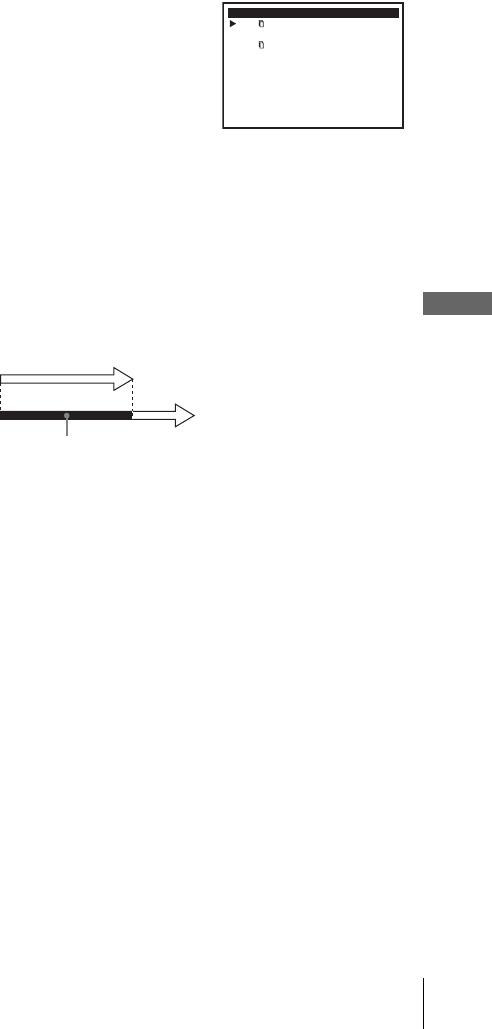

In step 4 above, press m to select the recording pattern. Each time you press m, the
indication changes as shown below. Press M to change the indication in reverse
order.
MO–FR t SUN’S t MON’S t ..... t SAT’S t 1 month later t (dates count
down) t the current date
To use the VCR after setting the timer
To use the VCR before a timer recording begins, just press ?/1. The TIMER
indicator disappears from the display window and the VCR switches on. Remember
to press ?/1 to reset the VCR to the timer recording standby mode after using the
VCR.
You can also do the following tasks while the VCR is recording:
• Reset the counter (page 32).
• Display tape information on the TV screen (page 34).
• Check the timer settings (page 46).
• Watch another TV program (page 35).
Tips
• To set the channel, you can also use the CH +/– or number buttons.
• If the indicator appears, the timer settings overlap. To check, change or cancel the program
setting, see “Checking/changing/canceling timer settings” on page 46.
• When you are recording a program in the SP mode and the remaining tape becomes shorter
than the recording time, the tape speed is automatically changed to the EP mode. Note that
some noise will appear on the picture when the tape speed is changed. If you want to keep
the tape speed, set “Tape select” to SP in the ADVANCED OPTIONS menu (page 52).
42 Locking the VCR (Child Lock)

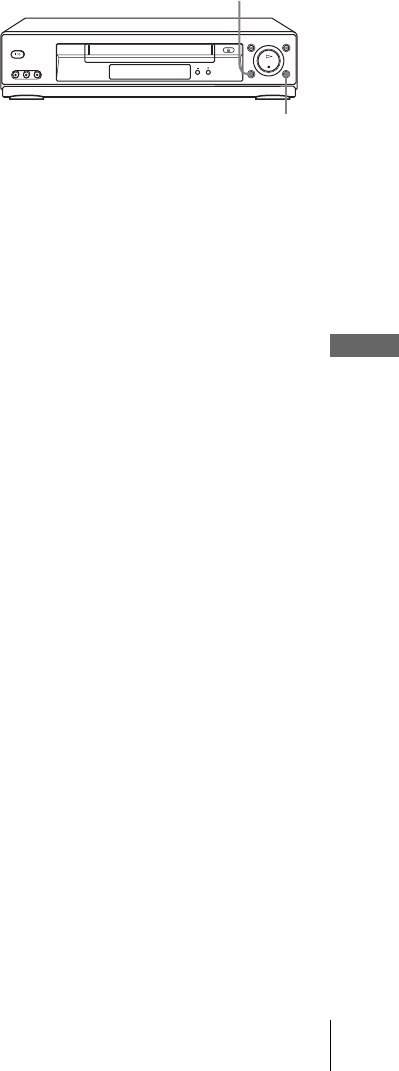

Locking the VCR (Child Lock)
To lock the VCR
When the VCR is turned on, hold down ?/1 POWER on the VCR until “LOC”
appears in the display window. The VCR turns off and the TIMER indicator remains
lit if there is a timer setting. The VCR will not work except for timer recordings.
To unlock the VCR
Hold down ?/1 POWER on the VCR until “LOC” disappears from the display
window. The VCR is unlocked and turns on.
To stop timer recording while the VCR is locked, press xSTOP. The recording
stops and the VCR is unlocked.
Note
• The VCR will be unlocked when:
– You stop timer recording by pressing xSTOP.
– You insert a tape.
– The AC power cord is disconnected or power supply stops.
After you have set the timer, you can lock all
of the buttons on the VCR so that the settings
are not canceled by mistake.
?/1 POWER
xSTOP
43
Playing/searching at various speeds
Additional Operations
Additional Operations
Playing/searching at various speeds
To resume normal playback
Press HPLAY.
Playback options Operation
View the picture during fast-
forward or rewind During fast-forward, hold down MFF. During rewind, hold down
mREW.
Play at high speed • During playback, briefly press MFF or mREW. The tape
continues to play at high speed.
• During playback, hold down MFF or mREW. When you
release the button, normal playback resumes.
Play at twice the normal speed During playback, press ×2.
Play in slow motion During playback or pause, press ySLOW.
Play frame by frame During pause, press MFF on the remote commander.
MFF
ySLOW
×2
mREW
HPLAY
TRACKING +/–
continued
44 Playing/searching at various speeds
Tips
• Adjust the picture using the TRACKING +/– buttons if:
– Streaks appear while playing in slow motion.
– The picture shakes during pause.
• The VCR turns on and starts playback automatically by pressing HPLAY on the VCR with
the VCR power turned off.
Notes
• The sound is muted during these operations.
• Tapes recorded in the LP mode on other VCRs can be played back on this VCR but the
picture quality cannot be guaranteed.
• The picture may show noise when playing at high speed in reverse.
45
Quick Timer Recording
Additional Operations
Quick Timer Recording
To extend the duration
Press zREC repeatedly to set a new duration time.
To cancel the duration
Press zREC repeatedly until the TIMER indicator disappears and the VCR returns
to normal recording mode.
To stop while recording
Press xSTOP.
Note
• You cannot display the current tape time in the display window when setting the recording
duration time.
After you have started recording, you can
have the VCR stop recording automatically
after a specified duration.

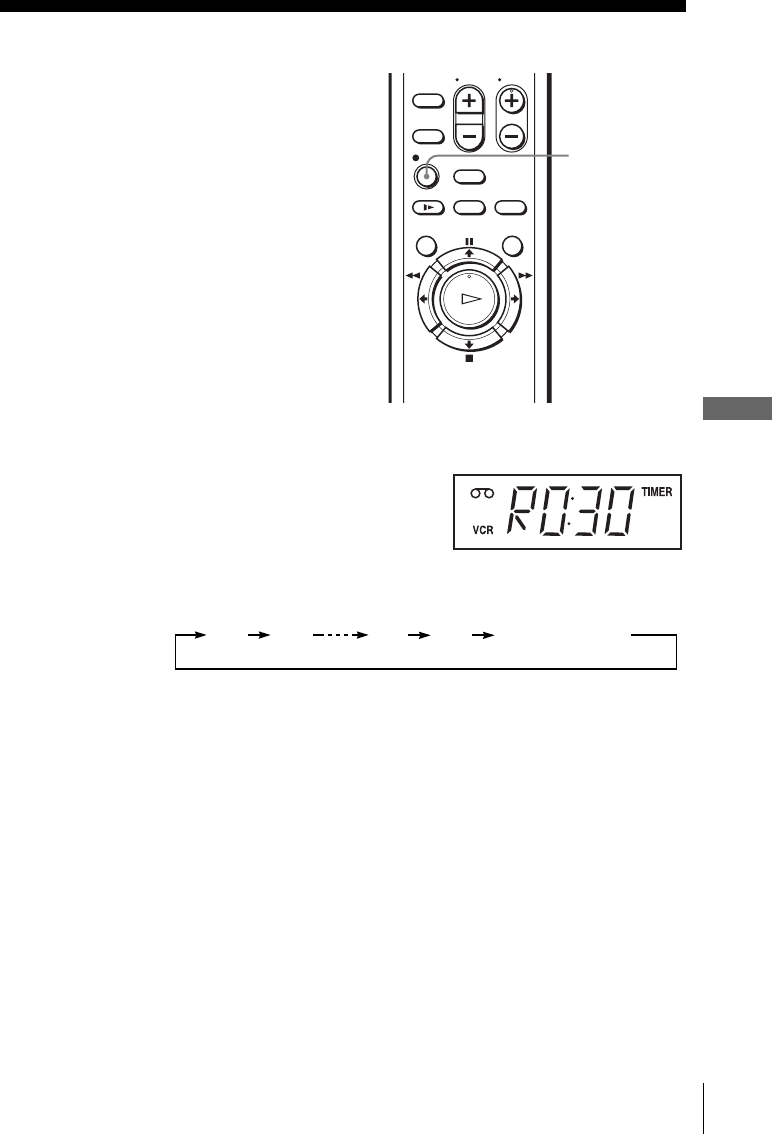

1While recording, press zREC.
The TIMER indicator appears in the display window.
2Press zREC repeatedly to set the duration time.
Each press advances the time in increments of 30 minutes.
The tape counter decreases minute by minute to 0:00, then the VCR stops
recording and turns off automatically.
zREC
0:30 1:00 3:30 4:00 Normal recording
46 Checking/changing/canceling timer settings
Checking/changing/canceling timer
settings
Before you start…
• Turn on the TV and set it to the video
channel.
1Press ?/1 to turn on the VCR.
2Press MENU.
123
456
789
0
?/1
CLEAR
MENU
M/m/</,
OK
47
Checking/changing/canceling timer settings
Additional Operations
When the timer settings overlap
The program that starts first has priority and the second program starts recording only
after the first program has finished. If the programs start at the same time, the
program listed first in the menu has priority.
3Press M/m to move the cursor (B) to “Timer set/check,” then press OK.
• If you want to change a setting, go on to the next step.
• If you do not need to change the settings, press MENU, then turn off the VCR
to return to recording standby.
4Press M/m to move the cursor (B) to the setting you
want to change or cancel.
• To change the setting, press </, to flash the
item you want to change, and press M/m to change
it.
• To cancel the setting, press CLEAR.
5Press OK to confirm the setting.
6Press MENU to exit the menu.
If any timer settings remain, turn off the VCR to return to recording standby.
Select ::End :
CH START STOP DATE
SPD
OK
Bb MENUQuit
Set : Vv
35 8 :00 9 : 00 9 / 30 SP
20
10
:00
11
:30
10
/0 EP
–– – : –– – : –– ––– --
–– – : –– – : –– ––– --
–– – : –– – : –– ––– --
–– – : –– – : –– ––– --
–– – : –– – : –– ––– --
60 8 : 30
10
:00 9/32
0
AUTO
PM
AM
PM
PM
AM
PM
Will be cut off
Program 1
Program 2
48 Recording stereo and bilingual programs
Recording stereo and bilingual programs
Recording stereo programs
When you receive a program broadcast in stereo, press AUDIO MONITOR to display
STEREO on the TV screen. You can also select LEFT, RIGHT, or MONO. If there
is noise in the stereo program, select MONO. The sound will be recorded in
monaural (on both hi-fi and normal audio tracks) but with less noise.
Recording bilingual programs
Press AUDIO MONITOR to display “SAP” on the TV screen. When a SAP (Second
Audio Program) is received, “SAP” appears on the TV screen. When MAIN is
selected, the VCR records only the main sound.
Selecting the sound during playback
During playback, press AUDIO MONITOR to select the sound you want.

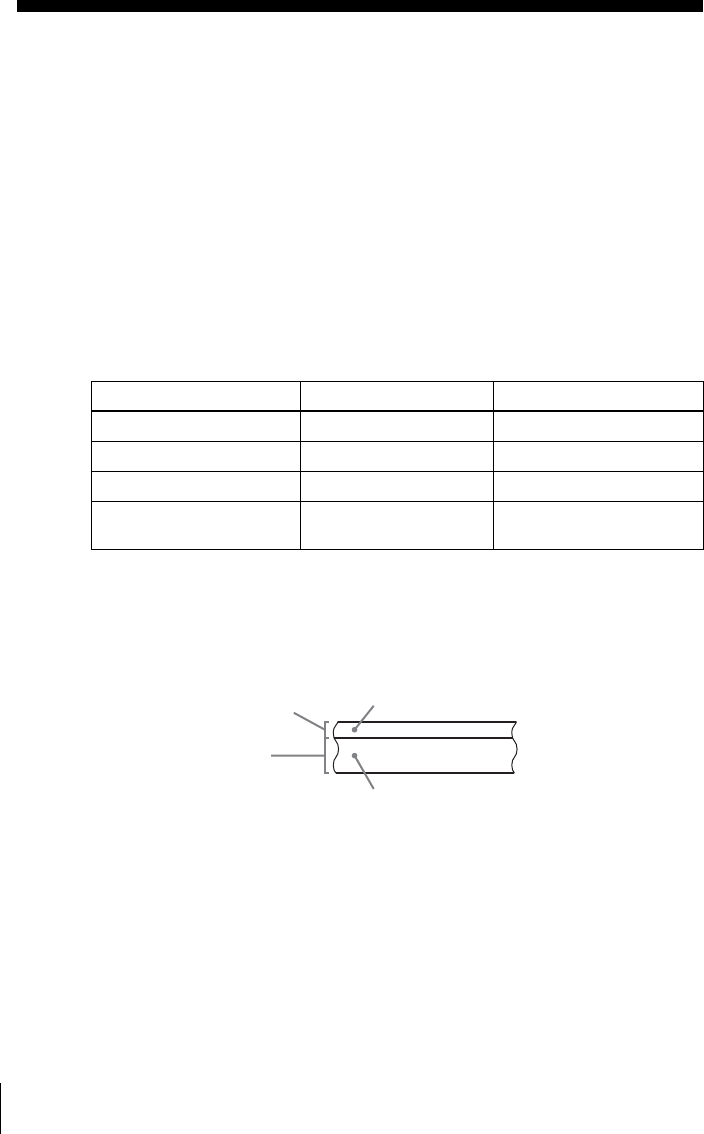

How sound is recorded on a video tape
The VCR records sound onto two separate tracks. Hi-fi audio is recorded onto the
main track along with the picture. Monaural sound is recorded onto the normal audio
track along the edge of the tape.
Notes
• To play a tape in stereo, you must use the A/V connections.
• When you play a tape recorded in monaural, the sound is heard in monaural regardless of the
AUDIO MONITOR setting.
To listen to On-screen display Display window
Stereo HI-FI Hi-Fi
Left channel LEFT Hi-Fi
Right channel RIGHT Hi-Fi
Monaural sound on the
normal audio track MONO No indicator
Normal audio track
Hi-fi audio track
(main track)
Monaural sound
Stereo sound
(left/right channels)
49
Searching using various functions
Additional Operations

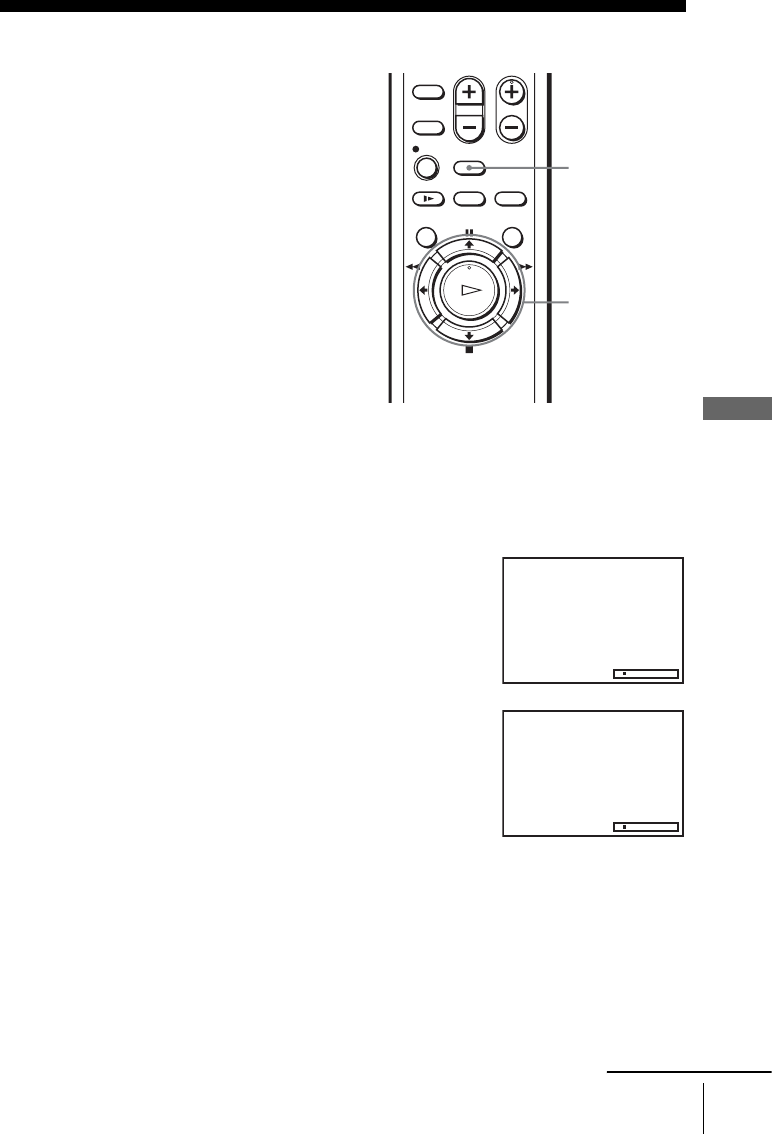

Searching using various functions
To search using the index function (Scan and Play)
The VCR automatically marks the tape with an index signal at the point where each
recording begins. Use these signals as references to find a specific recording.
The VCR automatically marks the tape with
an index signal at the point where each
recording begins.
You can easily find a specific point using
various search functions.
1Insert an indexed tape into the VCR.
2Press SEARCH.
3Press , to scan ahead, or < to scan backwards.
The VCR searches and then plays back for about five
seconds.
4Press HPLAY to view that program.
If you do not press HPLAY, the VCR automatically searches for the next index
mark, or until it reaches the end of the tape.
SEARCH
M/m/</,
HPLAY
::00130SP
Scan and play:
Press [ orB][b]
Go to []
000:00::
Press [ V]
End search: Press [ v]
::00130SP
Scan and play
continued
50 Searching using various functions
To search for the counter 0:00:00 point
To mark a point on the tape that you want to find later, reset the tape counter to
“0:00:00.”
The VCR automatically fast-forwards or rewinds to the 0:00:00 point on the tape
counter.
To search for a blank portion of the tape
The VCR automatically searches for the beginning of a blank portion. You can easily
find a point you can start recording from.
Note
• Once in recording mode, if the VCR is put in pause and then released to start the recording,
no index mark will be inserted. An index mark will be inserted if the channel is changed
while VCR is put in pause.
1Press SEARCH.
2Press M.
The VCR starts searching and automatically stops at
the 0:00:00 point.
1Press SEARCH.
2Press m.
The VCR starts searching and automatically stops at
the beginning of a blank space. If no blank space is
found, the VCR reaches the end and the tape will be
ejected.
::00130SP
Go to []
000:00:
::00130SP
End search
51
Adjusting the picture (tracking)
Additional Operations
Adjusting the picture (tracking)
Although the VCR automatically adjusts the tracking
when playing a tape, distortion may occur if the
recording is in poor condition. In this case, manually
adjust the tracking.
Press TRACKING +/– on the VCR to display the
tracking meter. The distortion should disappear as you
press one of the two tracking buttons. To resume
automatic tracking adjustment, eject the tape and reinsert
it.
Note
• The auto tracking adjustment cannot be guaranteed to work with tapes recorded in the LP
mode on other VCRs.
TRACKING
Tracking meter
52 Changing menu options
Changing menu options
Menu choices
Initial settings are indicated in bold print.
1Press MENU.
2Press M/m to move the cursor (B) to “Advanced
options,” then press OK.
3Press M/m to move the cursor (B) to the option to change.
4Press </, to change the setting.
5Press MENU to exit the menu.
Menu option Set this option to
Tape select • T-120 when using a T-120 or shorter length tape.
• T-160 when using a T-160 length tape.
• T-180 when using a T-180 or longer length tape.
For details, see page 34.
Auto play • ON to start playback automatically, when you insert a tape
with its safety tab removed.
• OFF to turn off Auto play. You need to press HPLAY to
start playback, even if you insert a tape with its safety tab
removed.
Auto repeat • ON to play back a tape repeatedly. The VCR rewinds a tape to
the beginning and restarts playback automatically.
•OFF to turn off Auto repeat.
Auto power off • 1Hr to turn off the VCR automatically one hour after the last
operation.
• 2Hr to turn off the VCR automatically two hours after the last
operation.
•OFF to set no specific time to turn off.
Power save • ON to turn off the indicators in the display window during
standby mode to reduce the VCR’s power consumption to a
minimum.
•OFF to turn on the indicators in the display window while the
VCR is standing by.
Output CH • 3CH when using channel 3 to receive the VCR signal.
• 4CH when using channel 4 to receive the VCR signal.
For details, see page 53.
Select :End :
ADVANCED OPTIONS
OK
Vv Set : Bb
Auto play:
Tape select:
Auto repeat: ON
T120
OFF
[
[
[]
]
]
Auto power off: OFF
[]
OFF
[]
: MENUQuit
Power save: 3CH
[]
Output CH:
53
Changing menu options
Additional Operations
Setting the RF Output channel
When connecting the VCR to the TV
using only the antenna cable, you must
set the “Output CH” in the ADVANCED
OPTIONS menu so that the TV can
receive the correct signal from the VCR.
1Set the “Output CH” to “3CH” or “4CH” (see page 52 to set the channel),
whichever channel is not used in your area. If both are used, set the switch to
either channel.
2Press ?/1 to turn on the VCR.
3Press TV/VIDEO to turn on the VCR indicator in the VCR’s display window.
4Press CH +/– to display a channel number in the display window.
Select an active channel number in your area.
5Turn on your TV and set it to the channel you selected in step 1 (3HC or 4CH).
The channel you selected in step 4 appears on the TV screen. If the channels
change when you press CH +/–, you have made the correct setting.
Whenever you use the VCR, set the TV to the channel selected in step 1.
TV
CHANNEL +/–?/1
123
456
789
0
?/1
CH +/–
TV/VIDEO
54 Editing with another VCR
Editing with another VCR
How to connect to record on this VCR
Notes
• Make sure you connect the plugs to jacks of the same color.
• If the other VCR is a monaural type and connected to this VCR’s LINE-2 IN jacks, connect
the audio plug to the AUDIO L (white) jack. The sound is recorded on both right and left
channels. If you connect to the AUDIO R (red) jack, the sound is recorded only on the right
channel.
• If you connected this VCR to both the LINE IN and LINE OUT jacks of the other VCR,
select the input correctly to prevent a humming noise.
• You can use the LINE IN 1 jacks for editing. If the other VCR is a monaural type the sound
is recorded only on the channel whose jack is connected to the audio plug. To record on both
right and left channels, connect the audio plugs to the AUDIO R/L jacks using a VMC-
910MS audio/video cable (not supplied).
This VCR (Recorder)
Other VCR (Player)
LINE OUT
: Signal flow
LINE-2 IN
TV
Audio/video cable (not supplied)
55
Editing with another VCR
Additional Operations
Operation (when recording on this VCR)
To stop editing
Press the xSTOP buttons on both VCRs.
Tip
• To cut out unwanted scenes while editing, press XPAUSE on this VCR when an unwanted
scene begins. When it ends, press XPAUSE again to resume recording.
Before you start editing
• Turn on the VCR and the TV and set
it to the video channel.
• Press INPUT SELECT or
CHANNEL +/– to display “L1” or
“L2” in the display window.
• Press SP/EP to select the tape speed,
SP or EP.
1Insert a source tape with its safety tab removed into the other (playback) VCR.
Search for the point to start playback and set it to playback pause.
2Insert a tape into this (recording) VCR. Search for the point to start recording
and press XPAUSE.
3Press zREC on this VCR to set it to recording pause.
4To start editing, press the XPAUSE buttons on both VCRs at the same time.
zREC
XPAUSE
56 Antenna information
Additional Information
Antenna information
Attaching the external antenna connector
Attaching a UHF/VHF band mixer
When using a 300-ohm twin lead cable for a
VHF/UHF antenna, use the EAC-32 antenna
connector (not supplied) to connect the
antenna to the VCR.
1Loosen the screws on the antenna connector.
2Wind the twin leads around the screws on the antenna connector.
3Retighten the screws.
When using both a 75-ohm coaxial cable and
a 300-ohm twin lead cable for a VHF/UHF
antenna, use the EAC-66 UHF/VHF band
separator/mixer (not supplied) to connect the
antenna to the VCR.
1Loosen the screws on the mixer.
2Wind the twin leads around the screws on the mixer.
3Retighten the screws.
4Connect the 75-ohm coaxial cable to the mixer.
300-ohm twin
lead cable
EAC-32 antenna
connector (not
supplied)
300-ohm twin
lead cable
EAC-66
UHF/VHF
band
separator/
mixer (not
supplied)
75-ohm coaxial
cable
57
Troubleshooting
Additional Information
Troubleshooting
If you have any questions or problems not covered below, please consult your nearest Sony
dealer.
Symptom Remedy
Power
The ?/1 switch does not function. • Connect the AC power cord securely.
• Make sure the VCR is not locked. To unlock, hold down
?/1 POWER on the VCR until “LOC” disappears.
The power is turned on but the VCR
does not operate. • Moisture condensation has occurred. Turn the power off,
unplug the AC power cord and leave the VCR to dry for
over three hours.
Clock
The clock has stopped and “--:--”
appears in the display window. • The clock stops if the VCR is disconnected from the wall
outlet for more than one minute. Reset the clock (and
timer).
Playback
The playback picture does not appear
on the TV screen. • Make sure the TV is set to the channel for the VCR. If
you are using a monitor, set it to video input.
The picture is not clear. • Adjust the tracking with the TRACKING +/– buttons.
• The video heads are dirty (see the last page of
“Troubleshooting”). Clean the video heads using the
Sony T-25CLD or T-25CLDR video head cleaning
cassette. If these cleaning cassettes are not available in
your area, have the heads cleaned at your nearest Sony
dealer (a standard service fee will be charged). Do not
use a commercially available liquid type cleaning
cassette, as it may damage the video heads.
• The video heads may have to be replaced. Consult your
local Sony dealer for more information.
The picture rolls vertically during
picture search. • Adjust the vertical hold control on the TV or monitor.
The picture has no sound. • The tape is defective.
• If you made A/V connections, check the audio cable
connection.
Recording
A TV program does not appear on
the TV screen. • Make sure the TV is set to the channel for the VCR. If
you are using a monitor, set it to video input.
• Select the correct source with the INPUT SELECT or
CH +/– buttons. Select a channel number when recording
TV programs; select “L1” or “L2” when recording from
other equipment.
TV reception is poor. • Adjust the TV antenna.
The tape starts playing as soon as it is
inserted. • The safety tab has been removed. To record on this tape,
cover the tab hole.
The tape is ejected when you press
zREC. • Check that the safety tab has not been removed.
Nothing happens when you press
zREC. • Make sure the tape is not at its end.
continued
58 Troubleshooting
Timer recording
The timer does not operate. • Check that the clock is set.
• Make sure a tape has been inserted.
• Check that the safety tab has not been removed.
• Make sure the tape is not at its end.
• Make sure a program has been set for timer recording.
• Make sure your timer settings are past the current time.
• Check that the cable box is turned on.
• The clock stops if the VCR is disconnected from the wall
outlet for more than one minute. Reset the clock and
timer.
• Turn the power off and unplug the AC power cord.
Others
A tape cannot be inserted. • Check that a tape is not already in the tape compartment.
The remote commander does not
function. • Make sure you are pointing the remote commander at the
remote sensor on the VCR.
• Replace all the batteries in the remote commander with
new ones if they are weak.
• Make sure the •TV / VIDEO switch is set correctly.
The tracking meter does not appear
on the screen. • The recording condition of the tape is very poor and
tracking cannot be adjusted.
You cannot control other TVs. • Set your TV’s code number. The code number may
change when you replace the batteries of the remote
commander.
The VCR needs to be cleaned. • Clean the cabinet, panel and controls with a dry, soft
cloth, or a soft cloth slightly moistened with a mild
detergent solution. Do not use any type of solvent, such
as alcohol or benzine.
Symptom Remedy

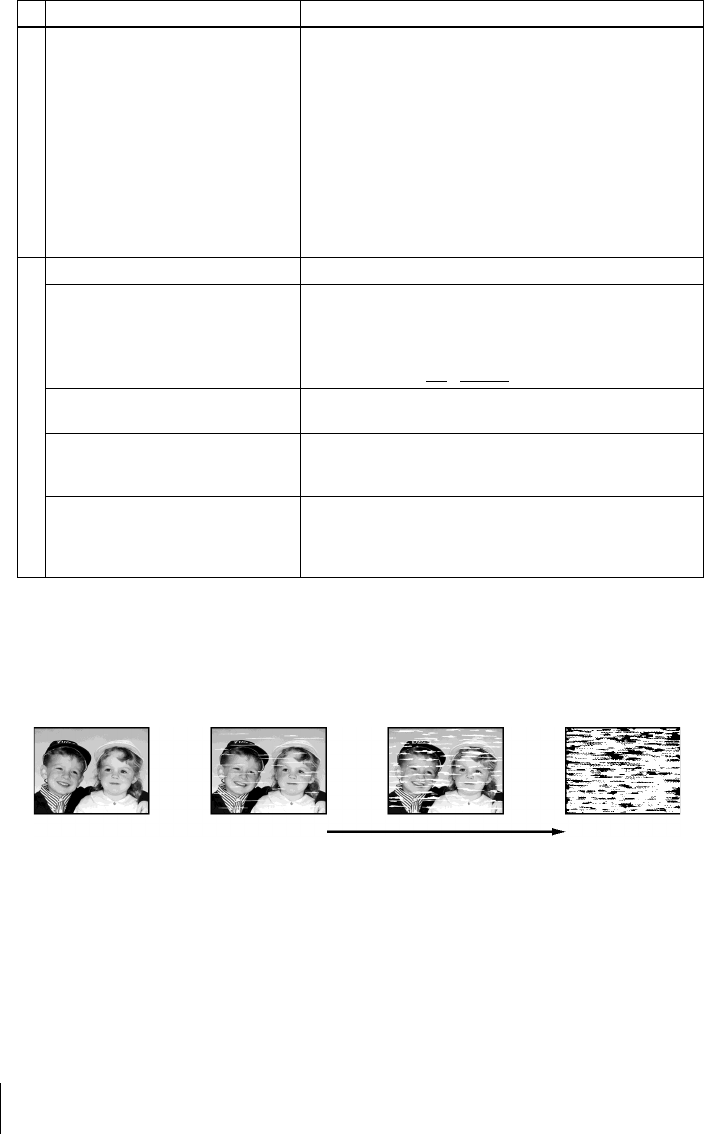

Symptoms caused by contaminated video heads
• Normal picture • Unclear picture• Rough picture
initial
contamination terminal
• No picture (or
black & white
screen appears)
59
Specifications
Additional Information
Specifications
System
Format
VHS NTSC standard
Video recording system
Rotary head helical scanning FM system
Video heads
Double azimuth four heads
Video signal
NTSC color, EIA standards
Tape speed
SP: 33.35 mm/s (1 inches/s)
EP: 11.12 mm/s ( inches/s)
LP: 16.67 mm/s ( inches/s),
playback only
Maximum recording/playback time
8 hrs. in EP mode (with T-160 tape)
Rewind time
Approx. 1 min (with T-120 tape)
Tuner section
Channel coverage
VHF 2 to 13
UHF 14 to 69
CATV A-8 to A-1, A to W, W+1 to W+84
Antenna
75-ohm antenna terminal for VHF/UHF
Inputs and outputs
LINE IN 1 and LINE-2 IN
VIDEO IN, phono jack (1 each)
Input signal: 1 Vp-p, 75 ohms, unbalanced, sync
negative
AUDIO IN, phono jacks (2 each)
Input level: 327 mVrms
Input impedance: more than 47 kilohms
LINE OUT
VIDEO OUT, phono jack (1)
Output signal: 1 Vp-p, 75 ohms, unbalanced, sync
negative
AUDIO OUT, phono jacks (2)
Standard output: 327 mVrms
Load impedance: 47 kilohms
Output impedance: less than 10 kilohms
Timer section
Clock
Quartz locked
Timer indication
12-hour cycle
Timer setting
8 programs (max.)
General
Power requirements
120 V AC, 60 Hz
Power consumption
15 W
Operating temperature
0°C to 45°C (32°F to 113°F)
Storage temperature
–20°C to 60°C (–4°F to 140°F)
Dimensions including projecting parts and controls
(w/h/d)
SLV-N700
Approx. 430 × 96 × 251 mm
(Approx. 17 × 3 × 10 inches)
SLV-N500
Approx. 360 × 95 × 249 mm
(Approx. 14 × 3 × 9 inches)
Mass
SLV-N700
Approx. 2.8 kg (Approx. 6 lb 3 oz)
SLV-N500
Approx. 2.6 kg (Approx. 5 lb 12 oz)
Supplied accessories
Remote commander (1)
Size AA (R6) batteries (2)
75-ohm coaxial cable with F-type connectors (1)
Design and specifications are subject to change without
notice.
ENERGY STAR® is a U.S. registered mark.
As an ENERGY STAR® Partner, Sony Corporation has
determined that this product meets the ENERGY STAR®
guidelines for energy efficiency.
38
716
11 16
78
143478
60 Index to parts and controls
Index to parts and controls
Refer to the pages indicated in parentheses ( ) for details.
Front panel
A?/1 POWER switch (38) (40)
BRemote sensor (7)
CTape compartment
DAEJECT button (31)
EmREW (rewind) button (31) (43)
FHPLAY button* (31)
GMFF (fast-forward) button (31) (43)
HzREC (record) button (34) (45) (55)
IxSTOP button* (31) (55)
JXPAUSE button (31) (55)
KCHANNEL/TRACKING +/– buttons*
(34) (51)
LLINE-2 IN VIDEO/AUDIO L/R jacks
(54)
* The HPLAY, CHANNEL + and xSTOP
buttons have a tactile dot.
SLV-N700
SLV-N500
61
Index to parts and controls
Additional Information
Display window
ATape indicator (34)
BTIMER indicator (38) (40)
CHi-Fi indicator (48)
DTime counter/clock/line/channel
indicator (32) (34) (55)
EVCR indicator (35)
continued
62 Index to parts and controls
Rear panel
AAC power cord (10) (13) (15)
BLINE OUT AUDIO R/AUDIO L/VIDEO
jacks (11)
CLINE IN 1 AUDIO R/AUDIO L/VIDEO
jacks (54)
DRF IN (FROM ANT.) connector (12)
(14) (16)
ERF OUT (TO TV) connector (12) (14)
(16)
SLV-N700
SLV-N500
63
Index to parts and controls
Additional Information

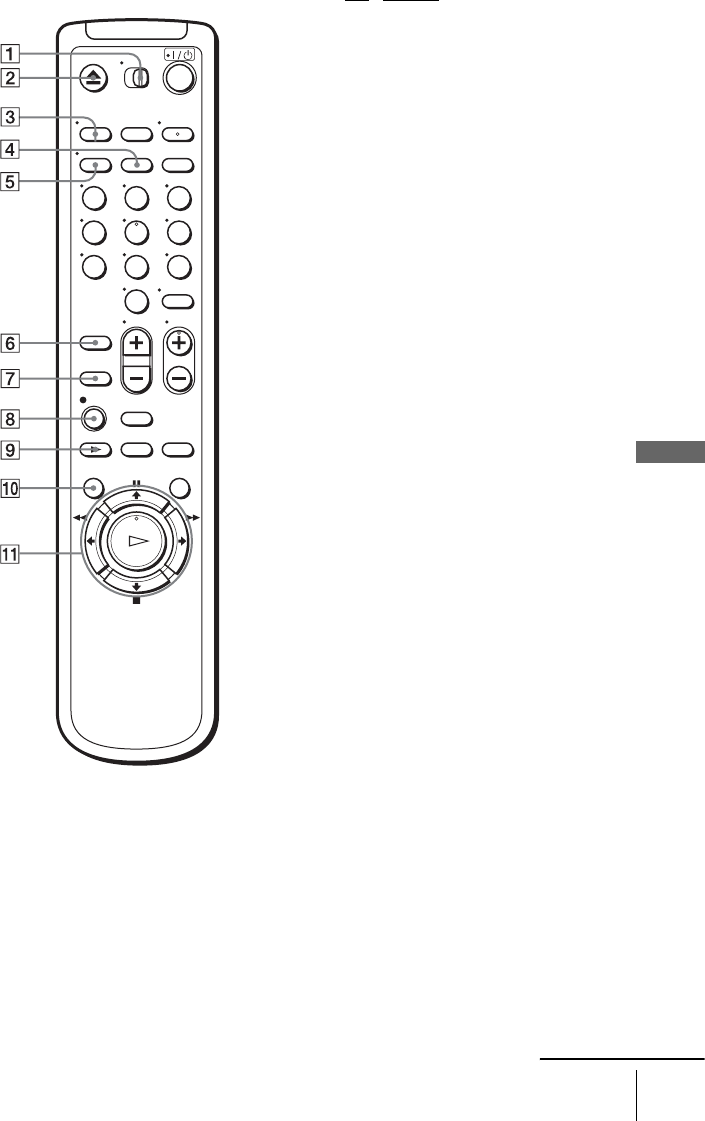

Remote commander A•TV / VIDEO switch (7)
BZEJECT button (31)
CTV/VIDEO button (8) (35)
DCLEAR button (32) (47)
EDISPLAY button (34)
FSP (Standard Play)/EP (Extended Play)
button (34)
GINPUT SELECT button (35) (55)
HzREC (record) button (34) (45)
IySLOW button (43)
JMENU button (17) (39) (46) (52)
KXPAUSE/M button (17) (31)
xSTOP/m button (17) (31)
mREW (rewind)/ < button (31) (43)
MFF (fast-forward)/ , button (31)
(43)
HPLAY/OK button* (17) (31) (37)
* The HPLAY button has a tactile dot.
123
456
789
0
continued
64 Index to parts and controls
L?/1 (power) switch (8) (38) (40)
MCOUNTER/REMAIN button (34)
NAUDIO MONITOR button*1 (48)
OVCR Plus+ button*2 (36)
PNumber buttons*1 (35) (37)
QENTER button (35)
RCH (channel) +/– buttons*1 (8) (34)
SVOL (volume) +/– buttons (8)
TSEARCH button (49)
UREPLAY button (31)
V×2 button (43)
WCOMMERCIAL SKIP button (31)
*1The AUDIO MONITOR, number 5 and CH +
buttons have a tactile dot.
*2SLV-N700 only
123
456
789
0
65
Index
Index
A
Adjusting
picture 51
tracking 51
Advanced option 52
Antenna hookup 12
Audio track 48
Audio/video (A/V) hookup 11
Auto Clock Set 18
Auto Tape Speed 38
C
Cable hookup 10
Channel line-up chart 27
Child Lock 42
Cleaning the video heads 57
Clock setting 18
Commercial Skip 31
Connecting
Cable TV 16
external antenna connector
56
UHF/VHF band mixer 56
Counter 32
D
Disabling channels 25
Dubbing. see Editing
E
Editing 54
EP mode 34
H
Hi-fi audio track 48
L
Language selecting 17
Locking the VCR 42
LP mode 35
M
Monaural 48
Monitoring audio during
playback 48
N
Normal audio track 48
P
Picture adjustment 51
Playback 30
at various speeds 43
frame by frame 43
selecting the sound 48
skip 31
slow motion 43
Presetting channels 23
R
Recording 33
bilingual programs 48
SAP broadcasts 48
saving 35
stereo broadcasts 48
timer setting 39
using the VCR Plus+®
system 36
while watching another
program 35
RF channel 53
S
Safety tab 35
SAP (Second Audio Program)
48
Searching
at various speeds 43
for a blank portion 50
for the counter 0 point 50
Scan and Play 49
SP mode 34
Stereo 48
T
Timer setting 39
canceling 46
changing 46
checking 46
daily/weekly recording 41
using the VCR Plus+®
system 36
Tracking adjustment. see
Adjusting
Tuner presetting 23
V
VCR Plus+® system
channel set up 27
recording 36
