Samsung Electronics Co KT35MPB Laser Beam Printer User Manual ML 3560Series En

Samsung Electronics Co Ltd Laser Beam Printer ML 3560Series En

Users Manual

This manual is provided for information purposes only. All information included herein is subject to change without notice. Samsung

Electronics is not responsible for any changes, direct or indirect, arising from or related to use of this manual.

Co., Ltd

• ML-3560, ML-3561N, ML-3561ND, ML-3562W, and Samsung logo are trademarks of Samsung Electronics Co., Ltd.

• Centronics is a trademark of Centronics Data Computer Corporation.

• IBM and IBM PC are trademarks of International Business Machines Corporation.

• PCL and PCL 6 are trademarks of Hewlett-Packard company.

• Microsoft, Windows, Windows 9x, Windows Me, Windows 2000, Windows NT 4.0, and Windows XP are registered trademarks of Microsoft

Corporation.

• PostScript 3 is a trademark of Adobe System, Inc.

• UFST® and MicroType™ are registered trademarks of Agfa division of Bayer Corp.

• TrueType, LaserWriter, and Macintosh are trademarks of Apple Computer, Inc.

• All other brand or product names are trademarks of their respective companies or organizations.

1. Introduction

Special Features .................................................................................................................... 1.1

Printer Features ............................................................................................................... 1.2

Printer Components ................................................................................................................ 1.3

Front View ....................................................................................................................... 1.3

Rear View ........................................................................................................................ 1.3

2. Setting Up Your Printer

Unpacking ............................................................................................................................. 2.1

Selecting a Location .......................................................................................................... 2.2

Installing the Toner Cartridge .................................................................................................. 2.2

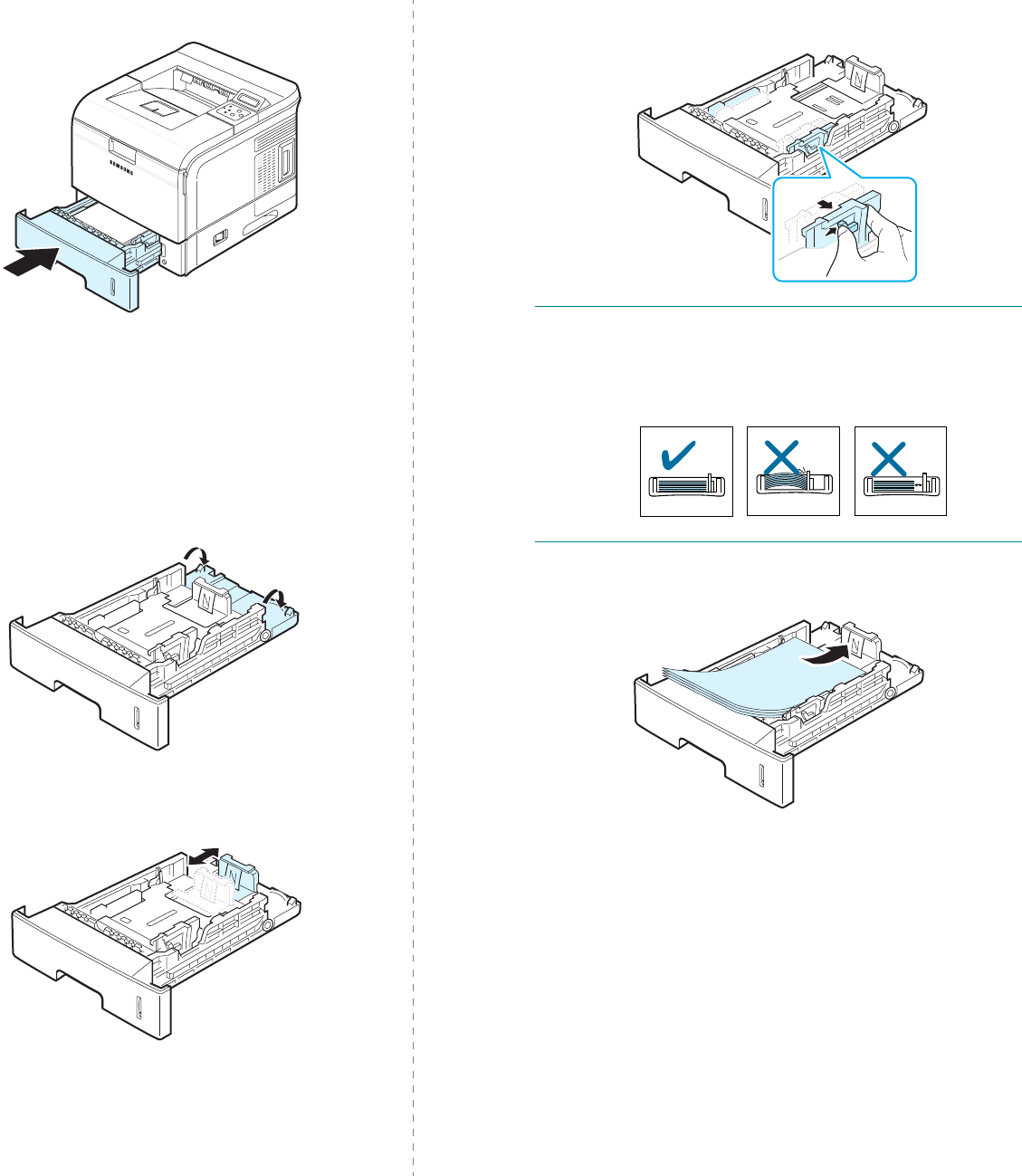

Loading Paper ....................................................................................................................... 2.4

Changing the Size of the Paper in the Paper Tray .................................................................. 2.5

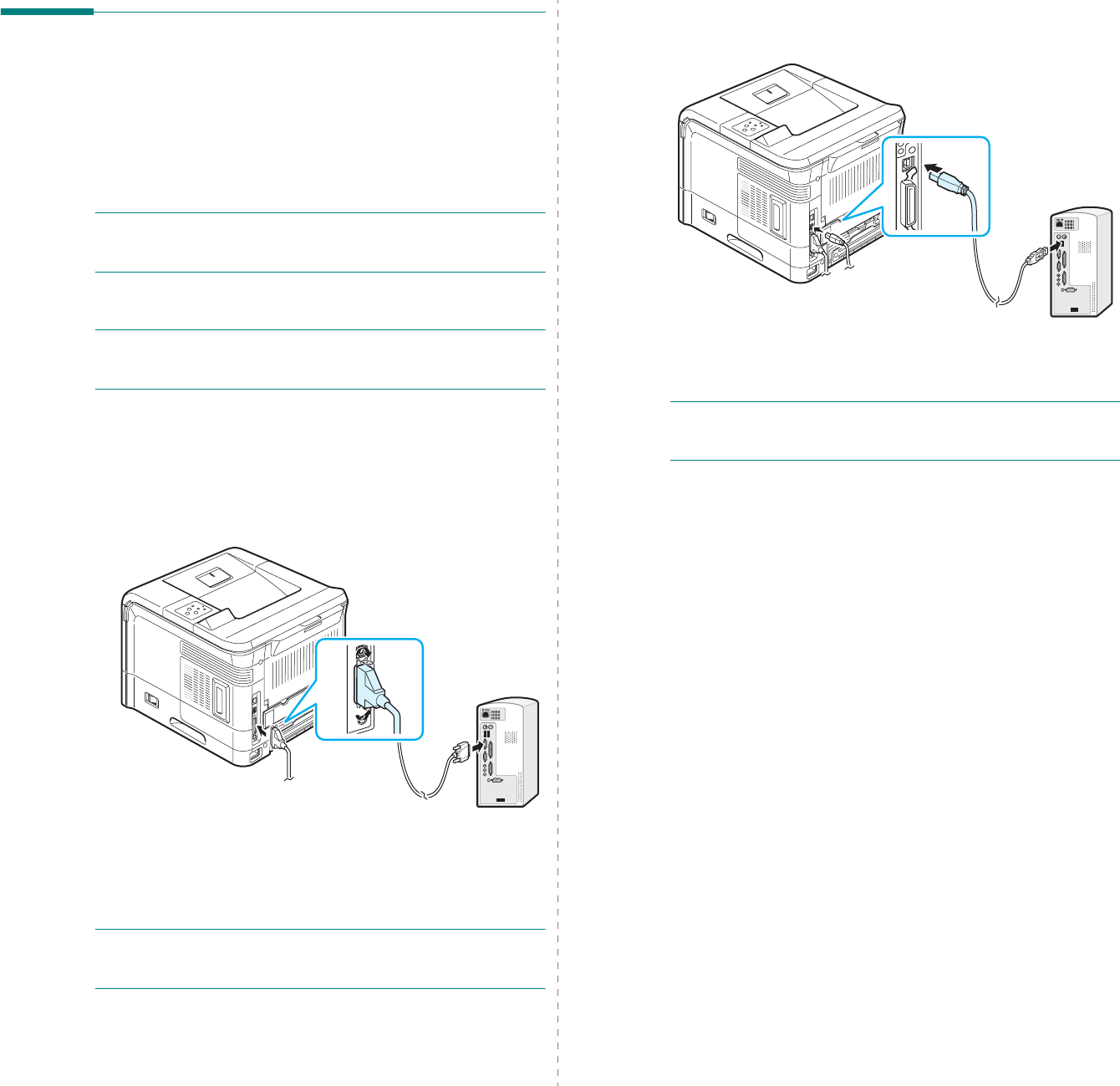

Connecting a Printer Cable ...................................................................................................... 2.6

For Local Printing .............................................................................................................. 2.6

For Network Printing ......................................................................................................... 2.6

Turning the Printer On ............................................................................................................ 2.7

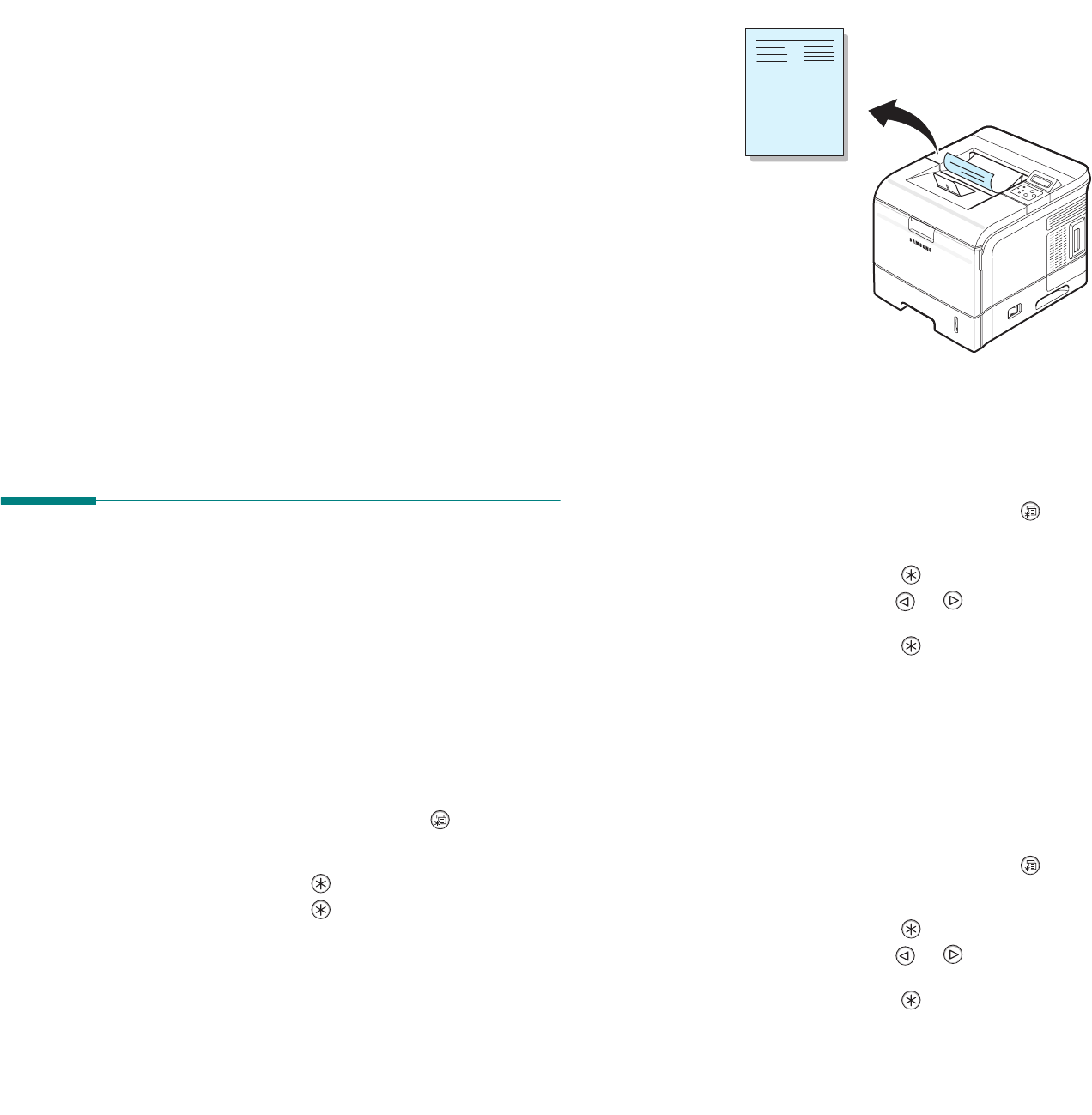

Printing a Demo Page ............................................................................................................. 2.7

Changing the Display Language ............................................................................................... 2.8

Using the Toner Save Mode ..................................................................................................... 2.8

Using the Control Panel Button ........................................................................................... 2.8

Using the Control Panel Menu ............................................................................................. 2.8

From the Software Application ............................................................................................ 2.8

Installing Printer Software ....................................................................................................... 2.8

3. Using the Control Panel

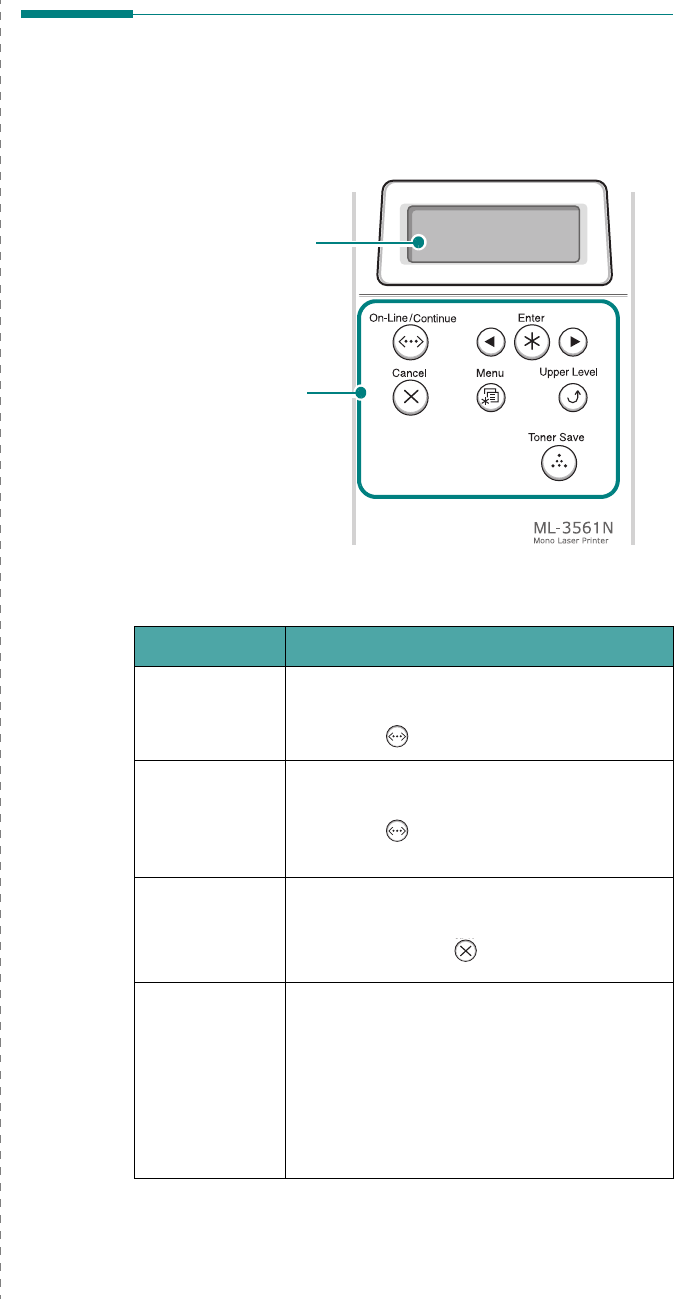

Understanding the Control Panel .............................................................................................. 3.1

Display ............................................................................................................................ 3.1

Buttons ........................................................................................................................... 3.2

Using Control Panel Menus ...................................................................................................... 3.3

Accessing Control Panel Menus ........................................................................................... 3.3

Overview of Control Panel Menus ........................................................................................ 3.3

Information Menu ............................................................................................................. 3.4

Paper Menu ..................................................................................................................... 3.4

Layout Menu .................................................................................................................... 3.5

Graphics Menu ................................................................................................................. 3.6

Printer Menu .................................................................................................................... 3.7

Setup Menu ..................................................................................................................... 3.7

PCL Menu ........................................................................................................................ 3.8

PostScript Menu ............................................................................................................... 3.9

EPSON/IBM Menu ............................................................................................................. 3.9

Network Menu .................................................................................................................. 3.9

4. Using Print Materials

Choosing Paper and Other Materials ......................................................................................... 4.1

Sizes and Capacities ......................................................................................................... 4.1

Guidelines for Paper and Special Materials ........................................................................... 4.1

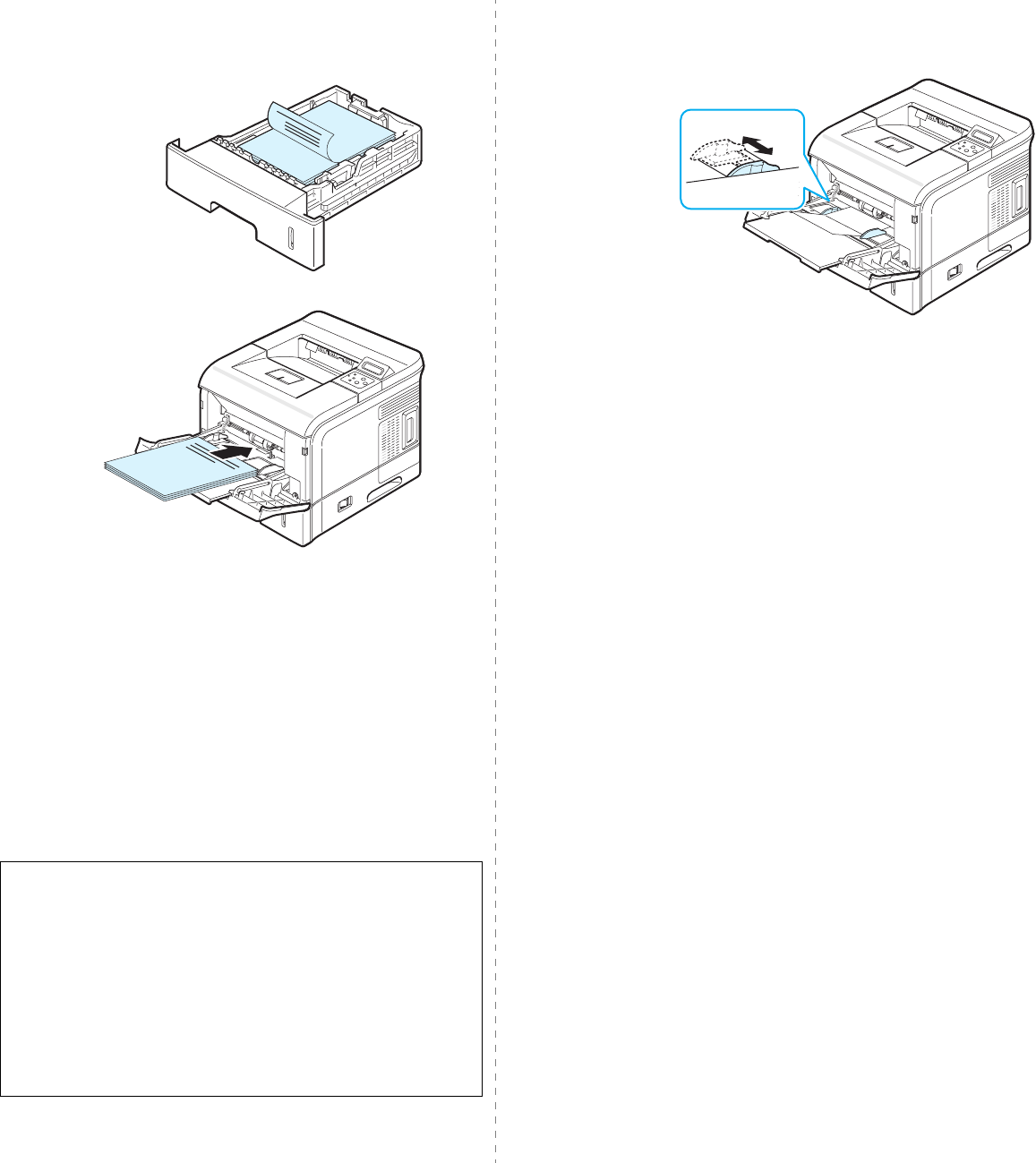

Loading Paper ....................................................................................................................... 4.2

Using the Standard Tray or the Optional Tray ....................................................................... 4.2

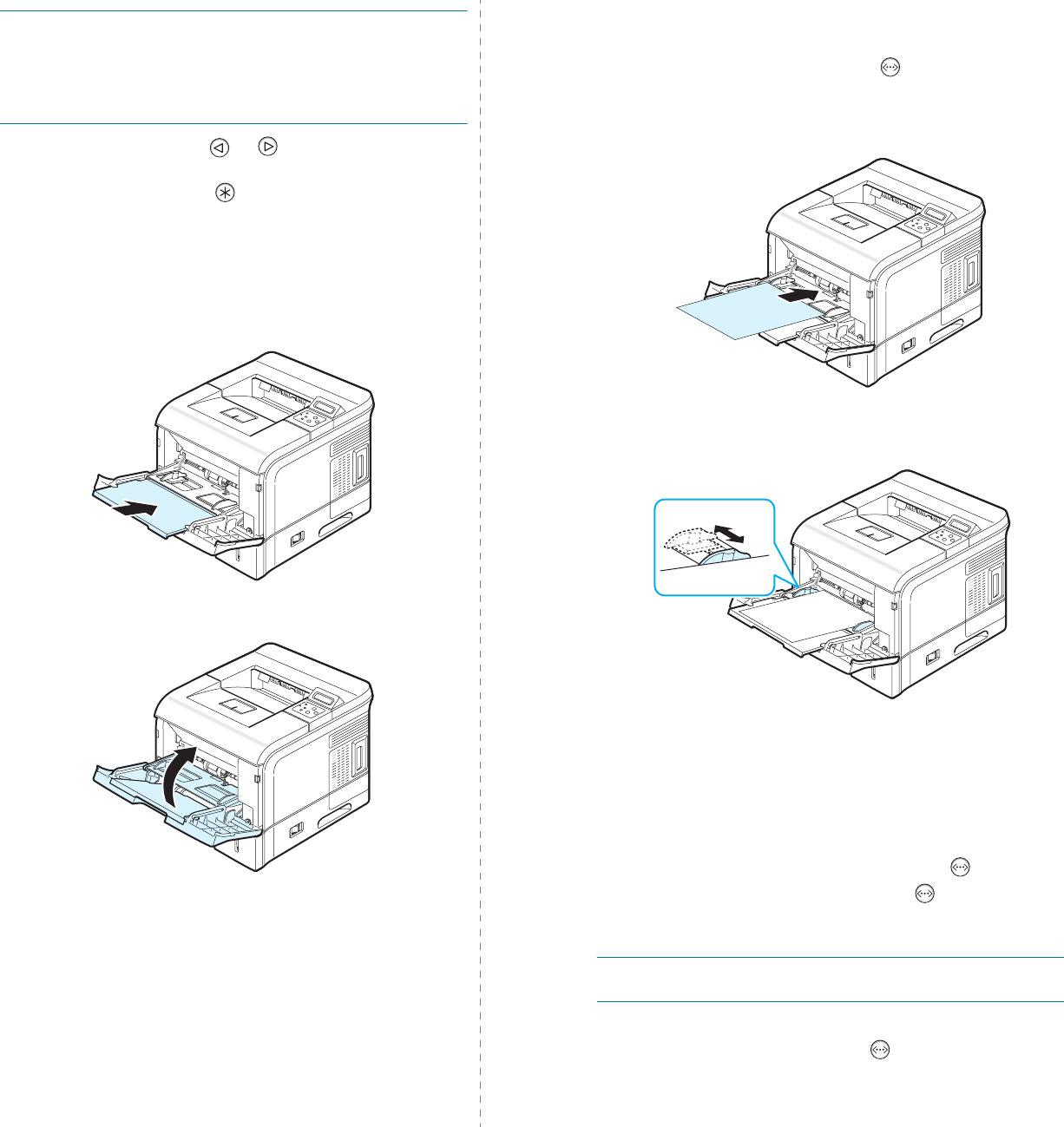

Using the Multi-purpose Tray ............................................................................................. 4.2

Using the Manual Feed Mode .............................................................................................. 4.4

Selecting an Output Location ................................................................................................... 4.5

Printing to the Top Output Tray (Face down) ........................................................................ 4.5

Printing to the Rear Output Tray (Face up) ........................................................................... 4.5

Printing on Special Print Materials ............................................................................................. 4.6

Printing on Envelopes ........................................................................................................ 4.6

Printing on Labels ............................................................................................................. 4.7

Printing on Transparencies ................................................................................................. 4.8

Printing on Preprinted Paper ............................................................................................... 4.8

Printing on Card Stock or Custom-sized Materials .................................................................. 4.9

iii

5. Basic Printing

Printing a Document ............................................................................................................... 5.1

Canceling a Print Job .............................................................................................................. 5.1

6. Maintaining Your Printer

Printing Information Pages ...................................................................................................... 6.1

Printing a Configuration Page ............................................................................................. 6.1

Printing Event Log Page ..................................................................................................... 6.1

Printing Usage Page .......................................................................................................... 6.1

Maintaining the Toner Cartridge ............................................................................................... 6.2

Checking the Toner Remains .............................................................................................. 6.2

Redistributing Toner .......................................................................................................... 6.2

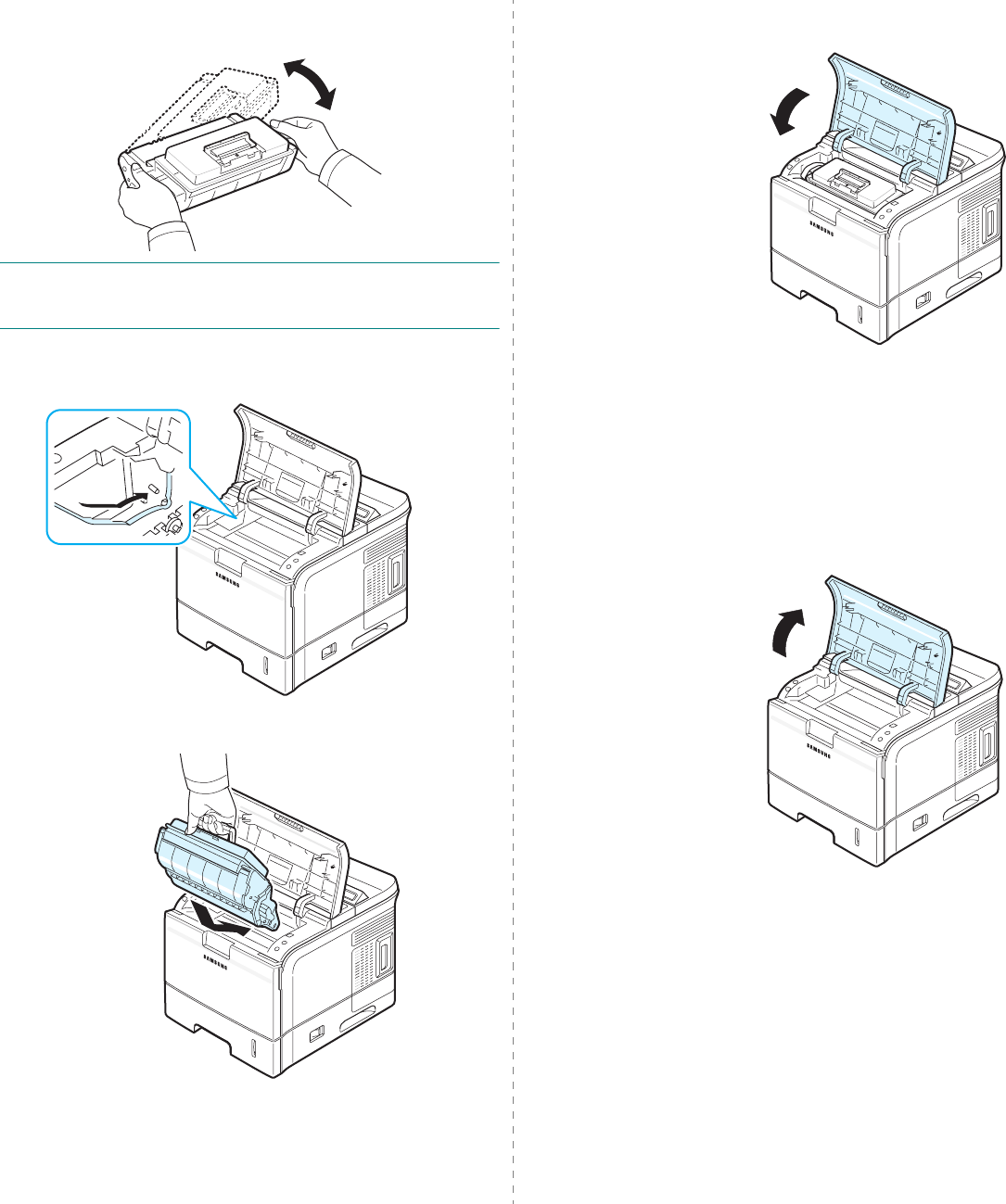

Replacing the Toner Cartridge ............................................................................................ 6.3

Replacing Transfer Roller ........................................................................................................ 6.5

Replacing Pickup Roller ........................................................................................................... 6.6

Replacing Pickup Pad .............................................................................................................. 6.7

Replacing Fuser Roller ............................................................................................................ 6.8

Cleaning the Printer ................................................................................................................ 6.9

Cleaning the Outside of the Printer ...................................................................................... 6.9

Cleaning the Inside of the Printer ........................................................................................ 6.9

Consumables and Replacement Parts ...................................................................................... 6.10

7. Solving Problems

Troubleshooting Checklist ........................................................................................................ 7.1

Solving General Printing Problems ............................................................................................ 7.2

Clearing Paper Jams ............................................................................................................... 7.4

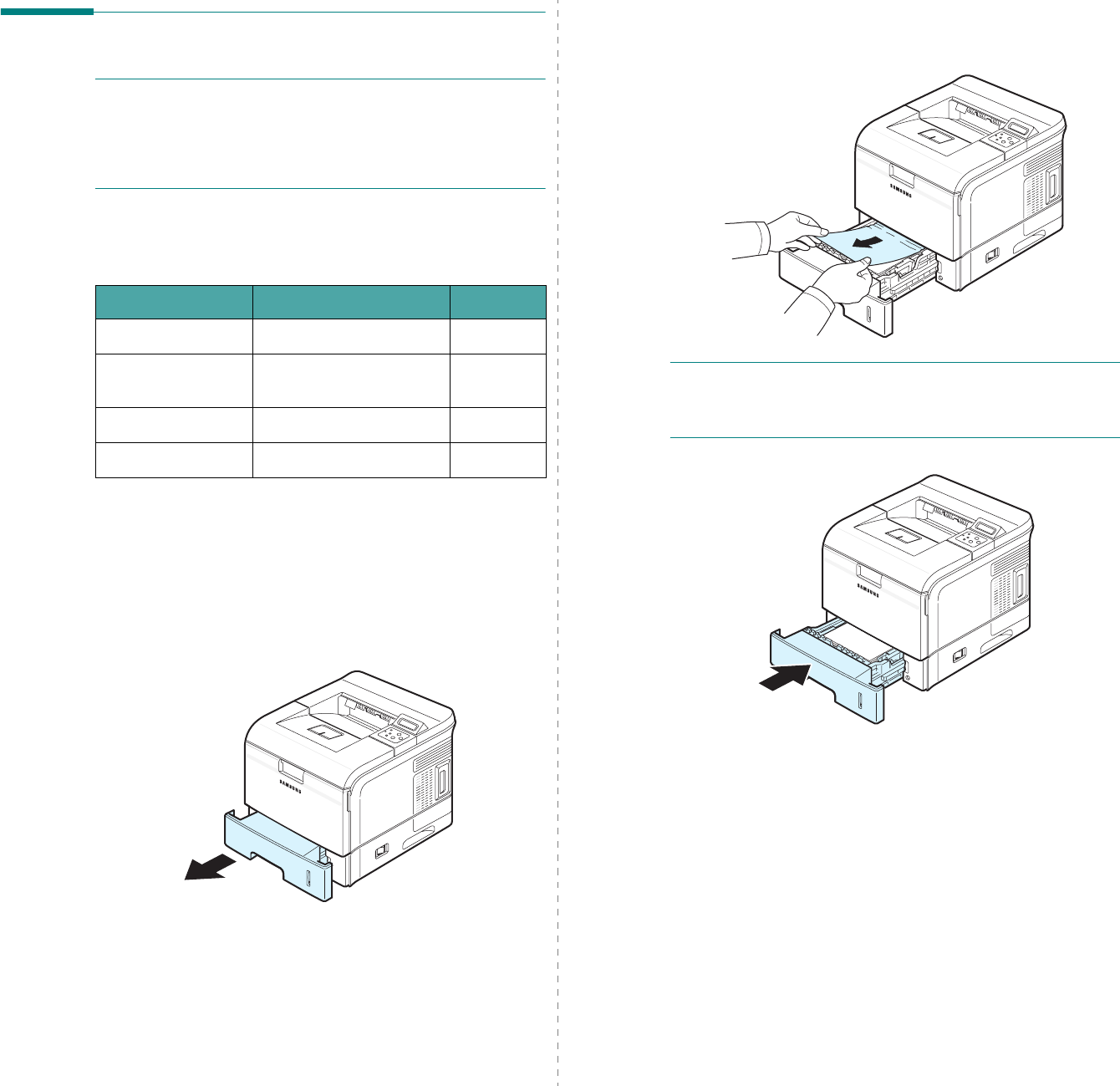

In the Paper Feed Area ...................................................................................................... 7.4

Around the Toner Cartridge ................................................................................................ 7.6

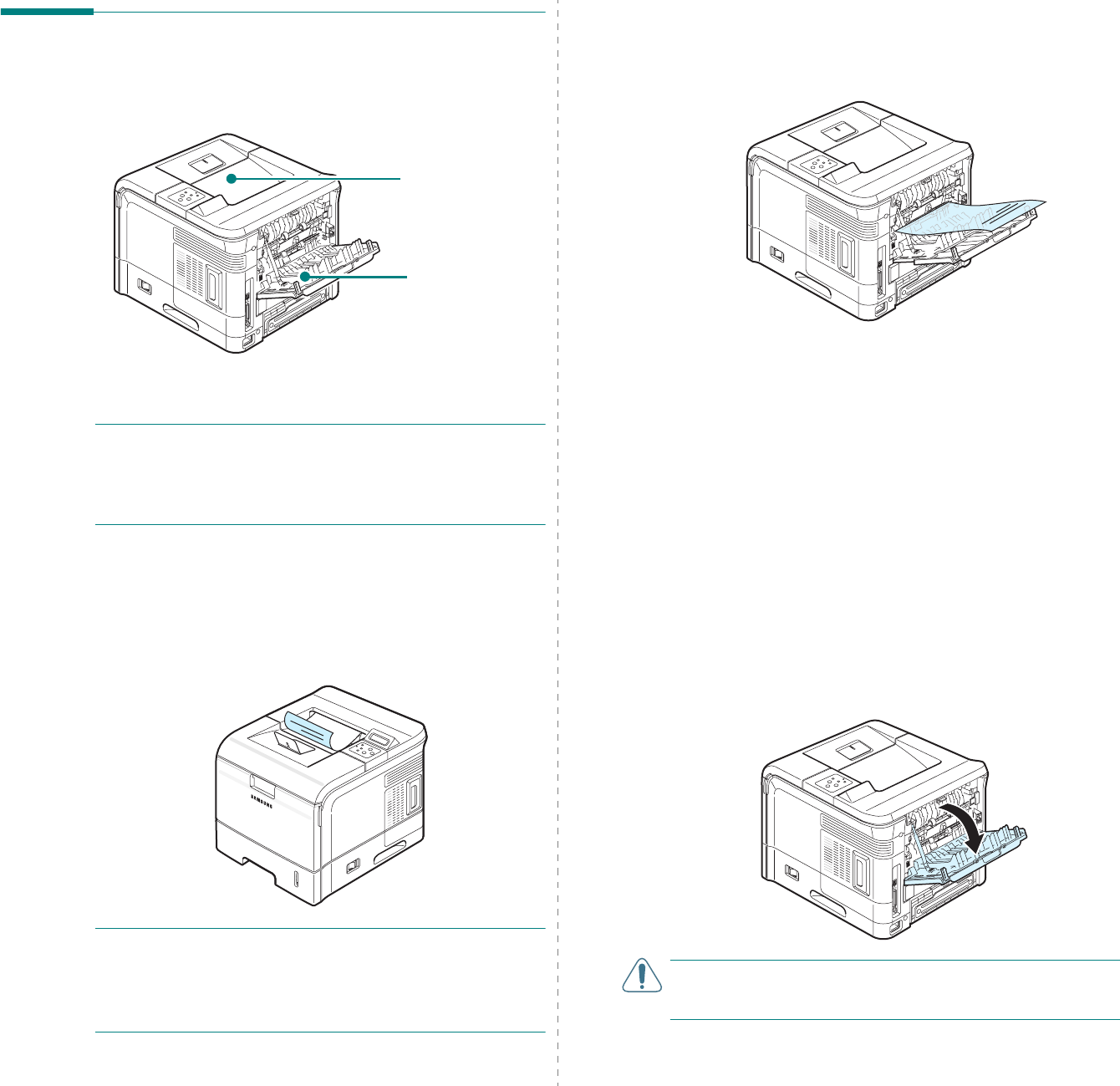

In the Paper Exit Area ....................................................................................................... 7.7

In the Duplex Area ........................................................................................................... 7.7

Tips for Avoiding Paper Jams .............................................................................................. 7.8

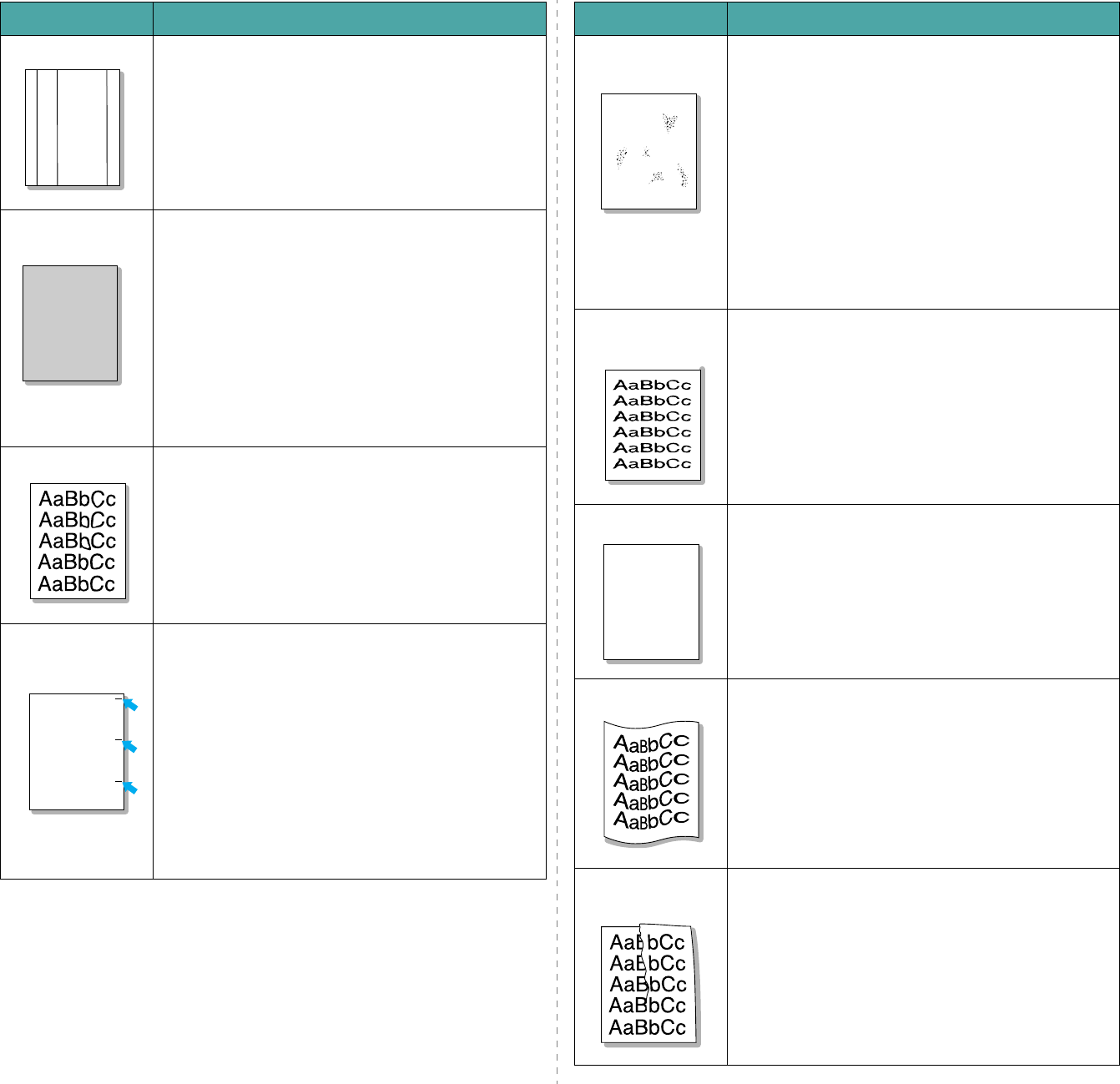

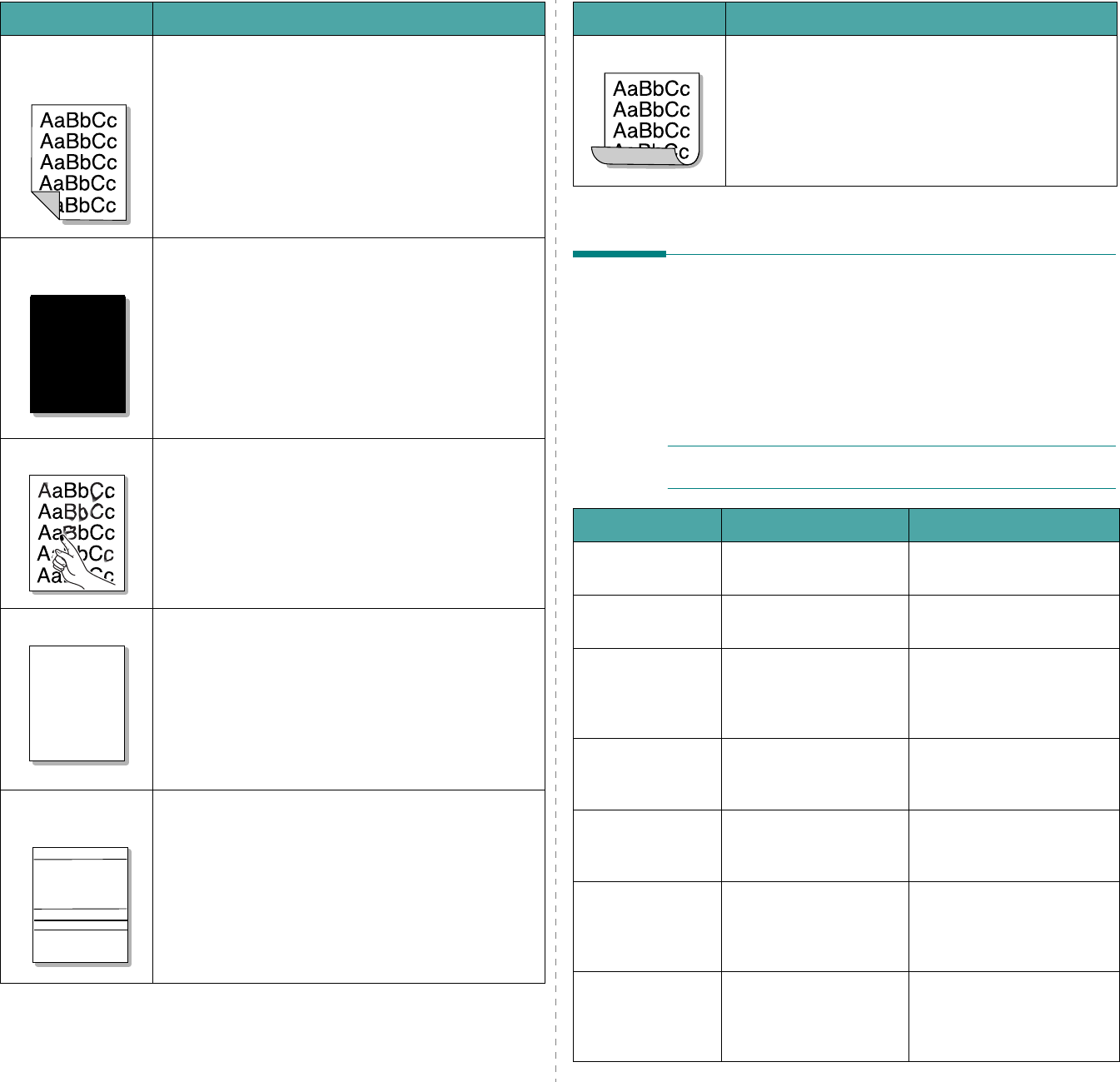

Solving Print Quality Problems ................................................................................................. 7.8

Understanding Display Messages ............................................................................................ 7.10

Common Windows Problems .................................................................................................. 7.12

Common Macintosh Problems ................................................................................................ 7.12

Common PS Problems ........................................................................................................... 7.13

Common Linux Problems ....................................................................................................... 7.13

8. Using Your Printer on a Network

About Sharing the Printer on a Network .................................................................................... 8.1

Setting Up a Network-Connected Printer ................................................................................... 8.1

Configuring Network Parameters on the Control Panel ........................................................... 8.1

9. Installing Printer Options

Precautions When Installing Printer Options ............................................................................... 9.1

Installing Memory DIMM ......................................................................................................... 9.1

Removing the Memory DIMM .............................................................................................. 9.3

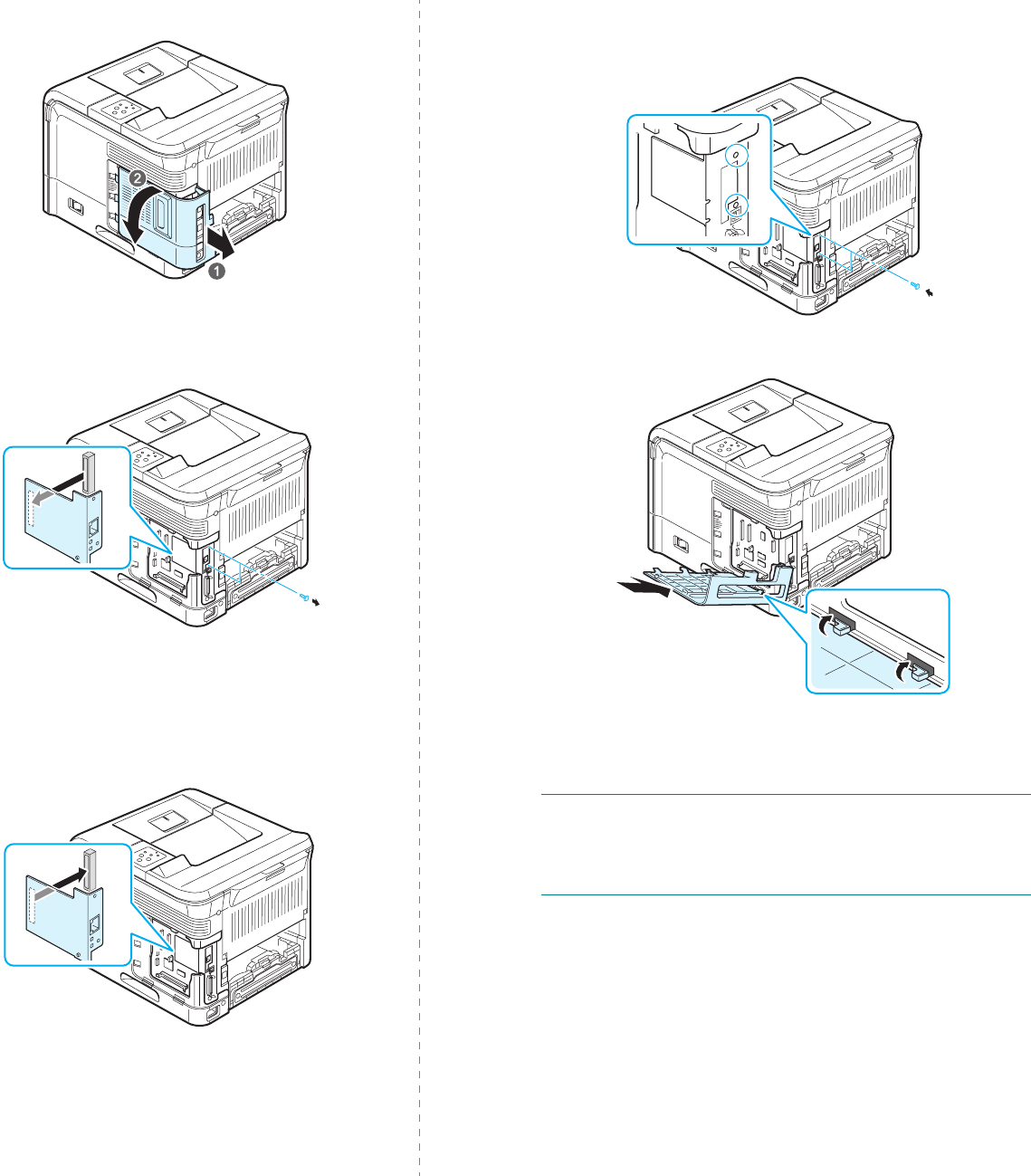

Installing a Network Card or Serial Interface Card ...................................................................... 9.3

Using the Hard Disk ................................................................................................................ 9.5

Installing the Hard Disk ..................................................................................................... 9.5

Printing with the Optional Hard Disk .................................................................................... 9.6

Installing an Optional Paper Tray .............................................................................................. 9.8

Installing a Duplex Unit ........................................................................................................... 9.9

Printing on Both Sides of Paper ........................................................................................ 9.10

10. Specifications

Printer Specifications ............................................................................................................ 10.1

Paper Specifications ............................................................................................................. 10.2

Overview ....................................................................................................................... 10.2

Supported Sizes of Paper ................................................................................................. 10.2

Guidelines for Using Paper ............................................................................................... 10.3

Paper Specifications ........................................................................................................ 10.4

Paper Output Capacity .................................................................................................... 10.4

Printer and Paper Storage Environment ............................................................................. 10.4

Envelopes ...................................................................................................................... 10.4

Labels ........................................................................................................................... 10.5

Transparencies ............................................................................................................... 10.5

Environmental and Safety

Consideration

Laser Safety Statement

The printer is certified in the U.S. to conform to the

requirements of DHHS 21 CFR, chapter 1 Subchapter J for Class

I(1) laser products, and elsewhere, is certified as a Class I laser

product conforming to the requirements of IEC 825.

Class I laser products are not considered to be hazardous. The

laser system and printer are designed so there is never any

human access to laser radiation above a Class I level during

normal operation, user maintenance, or prescribed service

condition.

ARNING

Never operate or service the printer with the protective cover

removed from Laser/Scanner assembly. The reflected beam,

although invisible, can damage your eyes.

When using this product, these basic safety precautions should

always be followed to reduce risk of fire, electric shock, and

injury to persons:

Ozone Safety

During normal operation, this machine

produces ozone. The ozone produced

does not present a hazard to the

operator. However, it is advisable that

the machine be operated in a well

ventilated area.

If you need additional information about

ozone, please contact your nearest

Samsung dealer.

Power Saver

This printer contains advanced energy

conservation technology that reduces

power consumption when it is not in

active use.

When the printer does not receive data

for an extended period of time, power

consumption is automatically lowered.

The energy star emblem does not

represent EPA endorsement of any

product or service.

Recycling

Please recycle or dispose of the

packaging material for this product in

an environmentally responsible

manner.

Radio Frequency Emissions

FCC regulations

This device has been tested and found to comply with the limits

for a Class B digital device, pursuant to Part 15 of the FCC rules.

These limits are designed to provide reasonable protection

against harmful interference in a residential installation. This

equipment generates, uses and can radiate radio frequency

energy and, if not installed and used in accordance with the

instructions, may cause harmful interference to radio

communications. However, there is no guarantee that

interference will not occur in a particular installation. If this

equipment does cause harmful interference to radio or

television reception, which can be determined by turning the

equipment off and on, the user is encouraged to try to correct

the interference by one or more of the following measures:

Reposition the receiving antenna.

Increase the separation between the equipment and receiver.

Connect the equipment into an outlet on a circuit different from

that to which the receiver is connected.

Consult the dealer or an experienced radio/TV technician for

help.

AUTION

: Changes or modifications not expressly approved

by the manufacturer responsible for compliance could void the

user’s authority to operate the equipment.

Canadian Radio Interference Regulations

This digital apparatus does not exceed the Class B limits for

radio noise emissions from digital apparatus as set out in the

interference-causing equipment standard entitled “Digital

Apparatus”, ICES-003 of the Industry and Science Canada.

Cet appareil numérique respecte les limites de bruits

radioélectriques applicables aux appareils numériques de

Classe B prescrites dans la norme sur le matériel brouilleur:

“Appareils Numériques”, ICES-003 édictée par l’Industrie et

Sciences Canada.

United States of America

Federal Communications Commission (FCC)

Intentional emitter per FCC Part 15

Low power, Radio LAN type devices (radio frequency (RF)

wireless communication devices), operating in the 2.4 GHz

Band, may be present (embedded) in your printer system. This

section is only applicable if these devices are present. Refer to

the system label to verify the presence of wireless devices.

Wireless devices that may be in your system are only qualified

for use in the United States of America if an FCC ID number is

on the system label.

The FCC has set a general guideline of 20 cm (8 inches)

separation between the device and the body, for use of a

wireless device near the body (this does not include

extremities). This device should be used more than 20 cm (8

inches) from the body when wireless devices are on. The power

output of the wireless device (or devices), which may be

embedded in your printer, is well below the RF exposure limits

as set by the FCC.

This transmitter must not be collocated or operation in

conjunction with any other antenna or transmitter.

Operation of this device is subject to the following two

conditions:(1) This device may not cause harmful interference,

and(2) this device must accept any interference received,

including interference that may cause undesired operation of

the device.

Wireless devices are not user serviceable. Do not

modify them in any way. Modification to a

wireless device will void the authorization to use

it. Contact manufacturer for service.

FCC Statement for Wireless LAN use:

“While installing and operating this transmitter

and antenna combination the radio frequency

exposure limit of 1mW/cm2 may be exceeded at

distances close to the antenna installed.

Therefore, the user must maintain a minimum

distance of 20cm from the antenna at all times.

This device can not be colocated with another

transmitter and transmitting antenna.”

Declaration of Conformity (European

Countries)

Approvals and Certifications

The CE marking applied to this product

symbolises Samsung Electronics Co., Ltd.

Declaration of Conformity with the

following applicable 93/68/EEC Directives

of the European Union as of the dates

indicated:

January 1, 1995: Council Directive 73/23/EEC Approximation of

the laws of the member states related to low voltage

equipment.

January 1, 1996: Council Directive 89/336/EEC (92/31/EEC),

approximation of the laws of the Member States related to

electromagnetic compatibility.

March 9, 1999: Council Directive 1999/5/EC on radio

equipment and telecommunications terminal equipment and

the mutual recognition of their conformity.

A full declaration, defining the relevant Directives and

referenced standards can be obtained from your Samsung

Electronics Co., Ltd. representative.

EC Certification

Certification to 1999/5/EC Radio Equipment &

Telecommunications Terminal Equipment Directive

(FAX)

This Samsung product has been self-certified by Samsung for

pan-European single terminal connection to the analogue public

switched telephone network (PSTN) in accordance with

Directive 1999/5/EC. The product has been designed to work

with the national PSTNs and compatible PBXs of the European

countries:

In the event of problems, you should contact the Euro QA Lab

of Samsung Electronics Co., Ltd. in the first instance.

The product has been tested against TBR21 and/or TBR 38. To

assist in the use and application of terminal equipment which

complies with this standard, the European Telecommunication

Standards Institute (ETSI) has issued an advisory document

(EG 201 121) which contains notes and additional requirements

to ensure network compatibility of TBR21 terminals. The

product has been designed against, and is fully compliant with,

all of the relevant advisory notes contained in this document.

vii

European Radio Approval Information

(for products fitted with EU-approved radio

devices)

This Product is a printer; low power, Radio LAN type devices

(radio frequency (RF) wireless communication devices),

operating in the 2.4 GHz band, may be present (embedded) in

your printer system which is intended for home or office use.

This section is only applicable if these devices are present.

Refer to the system label to verify the presence of wireless

devices.

Wireless devices that may be in your system are only qualified

for use in the European Union or associated areas if a CE mark

with a Notified Body Registration Number and the Alert

Symbol is on the system label.

The power output of the wireless device or devices that may be

embedded in you printer is well below the RF exposure limits as

set by the European Commission through the R&TTE directive.

European States qualified under wireless

approvals:

Austria, Belgium, Denmark, Finland, France

(with frequency restrictions), Germany,

Greece, Ireland, Italy, Luxembourg, The

Netherlands, Portugal, Spain, Sweden and

the United

Accept EU

Iceland, Liechtenstein, Norway and Switzerland

European States with restrictions on use:

In France, the frequency range is restricted

to 2446.5-2483.5 MHz for devices above

10 mW transmitting power such as wireless

Accept EU

No limitations at this time.

Regulatory Compliance Statements

Wireless Guidance

Low power, Radio LAN type devices (radio frequency (RF)

wireless communication devices), operating in the 2.4 GHz

Band, may be present (embedded) in your printer system. The

following section is a general overview of considerations while

operating a wireless device.

Additional limitations, cautions, and concerns for specific

countries are listed in the specific country sections (or country

group sections). The wireless devices in your system are only

qualified for use in the countries identified by the Radio

Approval Marks on the system rating label. If the country you

will be using the wireless device in, is not listed, please contact

your local Radio Approval agency for requirements. Wireless

devices are closely regulated and use may not be allowed.

The power output of the wireless device or devices that may be

embedded in your printer is well below the RF exposure limits

as known at this time. Because the wireless devices (which may

be embedded into your printer) emit less energy than is allowed

in radio frequency safety standards and recommendations,

manufacturer believes these devices are safe for use.

Regardless of the power levels, care should be taken to

minimize human contact during normal operation.

As a general guideline, a separation of 20 cm (8 inches)

between the wireless device and the body, for use of a wireless

device near the body (this does not include extremities) is

typical. This device should be used more than 20 cm (8 inches)

from the body when wireless devices are on and transmitting.

This transmitter must not be collocated or operation in

conjunction with any other antenna or transmitter.

Some circumstances require restrictions on wireless devices.

Examples of common restrictions are listed below:

Radio frequency wireless communication can

interfere with equipment on commercial aircraft.

Current aviation regulations require wireless

devices to be turned off while traveling in an

airplane. 802.11B (also known as wireless

Ethernet) and Bluetooth communication devices

are examples of devices that provide wireless

communication.

In environments where the risk of interference to

other devices or services is harmful or perceived

as harmful, the option to use a wireless device

may be restricted or eliminated. Airports,

Hospitals, and Oxygen or flammable gas laden

atmospheres are limited examples where use of

wireless devices may be restricted or eliminated.

When in environments where you are uncertain

of the sanction to use wireless devices, ask the

applicable authority for authorization prior to use

or turning on the wireless device.

Every country has different restrictions on the

use of wireless devices. Since your system is

equipped with a wireless device, when traveling

between countries with your system, check with

the local Radio Approval authorities prior to any

move or trip for any restrictions on the use of a

wireless device in the destination country.

If your system came equipped with an internal

embedded wireless device, do not operate the

wireless device unless all covers and shields are

in place and the system is fully assembled.

viii

Wireless devices are not user serviceable. Do not

modify them in any way. Modification to a

wireless device will void the authorization to use

it. Please contact manufacturer for service.

Only use drivers approved for the country in

which the device will be used. See the

manufacturer System Restoration Kit, or contact

manufacturer Technical Support for additional

information.

Temporary

WARNING

• Do not disassemble the printer. Doing so may give you an

electric shock.

• If you continuously print many pages, the surface of the

output tray may become hot. Be careful not to touch the

surface, especially for children.

Introduction

1.1

1Introduction

Congratulations on the purchase of your printer!

This chapter includes:

• Special Features

• Printer Components

Special Features

Your new printer is equipped with several special features that

improve the print quality. You can:

Print with excellent quality and high speed

• You can print up to

1200 x 1200 dpi

effective output.

For

details, see the

Software User’s Guide

• Your printer prints A4-sized paper at

33 ppm

and letter-

sized paper at

35 ppm

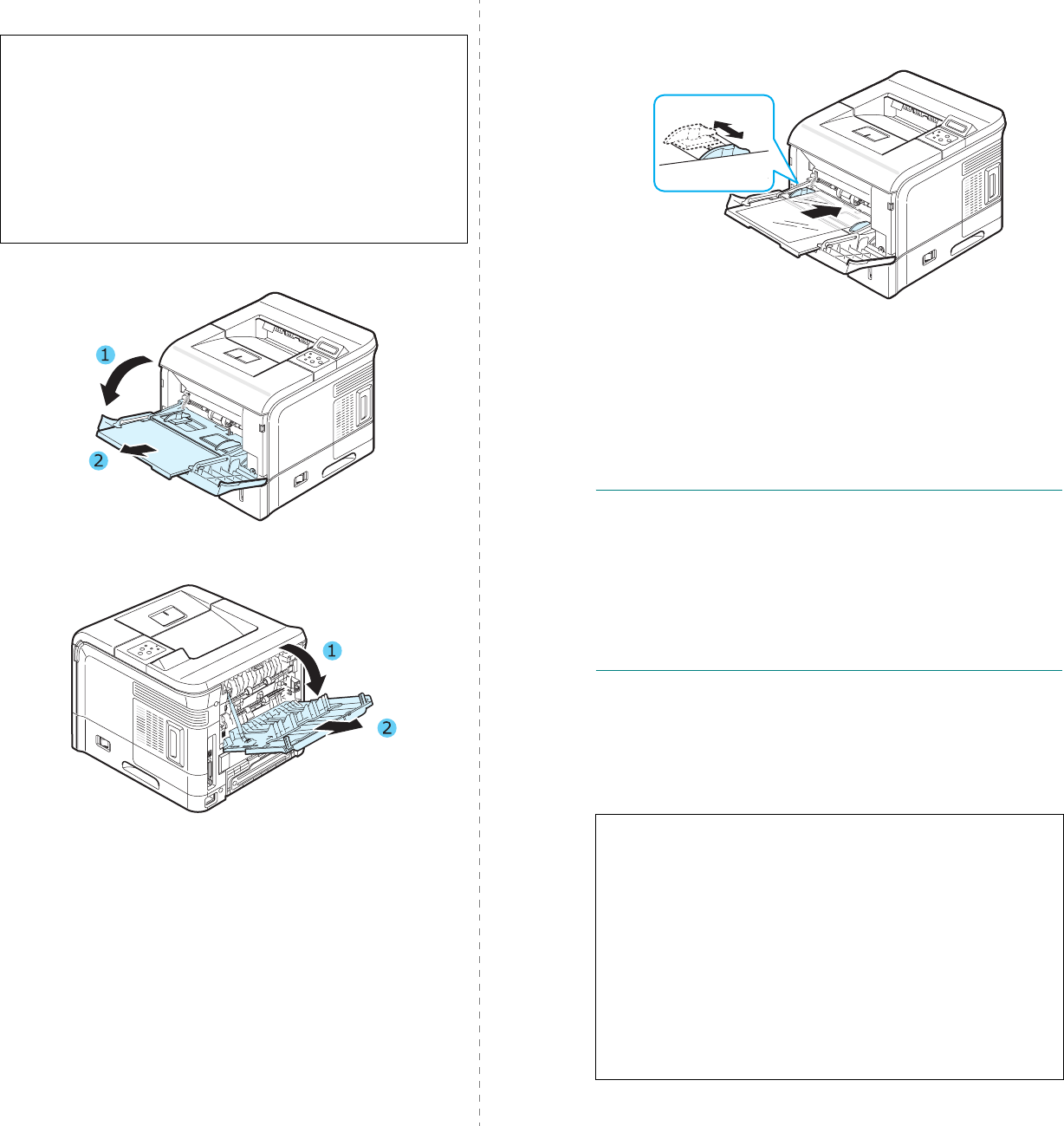

Handle paper flexibly

•The

Multi-purpose Tray

supports letterheads, envelopes,

labels, transparencies, custom-sized materials,

postcards, and heavy paper.

The

Multi-purpose Tray

also

supports up to 100 sheets of plain paper.

•

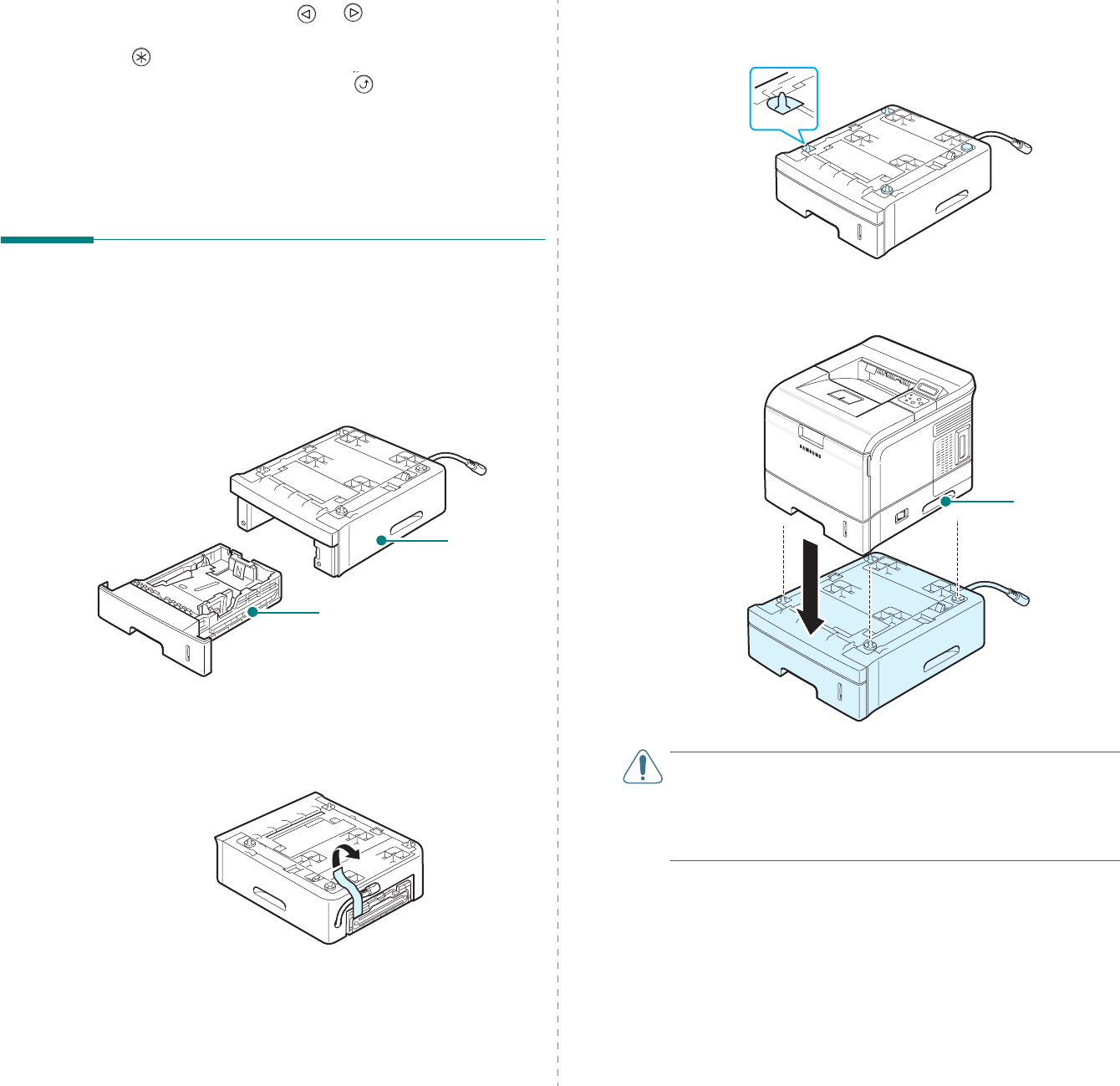

Standard 500-sheet input tray

(Tray1) and

optional

500-sheet input tray

(Tray2) supports all standard sizes

of paper.

• Two output tray; select either

the top output (face-

down)

the rear output tray (face-up)

for the most

convenient access.

•

Straight-through paper path

capability from the

Multi-purpose Tray to the rear output tray.

Create professional documents

•Print

Watermarks

. You can customize your documents with

a watermark, such as the word “Confidential.” For details,

see the

Software User’s Guide

•Print

Booklets

. This feature enables you to easily print a

document to create a book. Once printed, all you have to do

is fold and staple the pages. For details, see the

Software

User’s Guide

•Print

Posters

. The text and pictures of each page of your

document can be magnified and printed across several

sheets of paper and taped together to form a poster. For

details, see the

Software User’s Guide

Introduction

1.2

Save time and money

• This printer allows you to use the

Toner Save

mode to

save toner. For details, s

page 2.8.

• You can print on both sides of the paper to save paper

(

double-sided printing

) if you install an optional duplex

unit.

For details, see

page 9.9.

• You can print multiple pages on a single sheet of paper to

save paper (

N-Up printing

For details, see the

Software

User’s Guide

• You can use preprinted forms and letterhead. For details, see

the

Software User’s Guide

• This printer automatically

conserves electricity

substantially reducing power consumption when not

printing.

• This printer meets

Energy Star

guidelines for energy

efficiency.

Expand the printer capacity

• This printer has 32 MB of memory which can be expanded

288 MB

. For details, see page 9.1.

• An optional Serial interface card allows you to use the

serial connection.

•A

Network interface

enables network printing. You can

add an optional network interface card to the ML-3560.

The ML-3561N, ML-3561ND and ML-3562W come with a built-

in network interface, 10/100 Base TX. The ML-3562W also

has a wireless network interface.

You can also use an optional wireless network interface in

both the ML-3560, ML-3561N

and ML-3561ND.

• Your printer comes with a built-in

PostScript 3

Emulation

* (PS) DIMM which enables PS printing.

* PostScript 3 Emulation

the Zoran logo, IPS/PS3 and OneImage

are trademarks of zoran Corporation.

* 136 PS3 fonts

• Contains UFST and MicroType from Agfa Monotype

Corporation.

Use the optional hard disk

If you install an optional hard disk, you can use it in various

ways with your printer.

For details, see page 9.5.

• The hard disk allows the data from your computer to be

sent to the print queue of the printer hard disk. This

decreases the workload of the computer.

• You can use various print features, such as storing a job

in the hard disk and printing jobs anytime you want.

• You can print or delete the stored files in the hard disk.

• You can manage the print jobs in the print queue of the

printer hard disk.

Print in various environments

• You can print in

Windows 95/98/Me/NT 4.0/2000/XP/

2003

• Your printer is compatible with

Linux

and

Macintosh

• Your printer comes with both the

Parallel

and

USB

interfaces.

• You can also use a

network interface

. The ML-3561N,

ML-3561ND and ML-3562W come with a built-in network

interface, 10/100 Base TX. The ML-3562W also has a

wireless network interface.

However, you need to install the optional network interface

card to the ML-3560. You can also install the optional wireless

network interface in both the ML-3560, ML-3561N and ML-

3561ND.

Printer Features

The table below lists a general overview of features supported

by your printer.

(S: Standard, O: Option)

Features

ML-3560 ML-3561N ML-3561ND ML-3562W

IEEE 1284 S S S S

USB 2.0 S S S S

Network

Interface OS S S

Wireless LAN O O O S

PostScript

Emulation SS S S

Serial Interface O O O O

Hard Disk O O O O

Duplex Unit O O S O

Optional Paper

Tray OO O O

Introduction

1.3

Printer Components

Front View

Top Output Tray

(Face down)

Control Panel

(See page 3.1.)

Standard Tray

(Tray1)

(500-sheet paper feeder)

Paper Level

Indicator

Control Board

Cover

(Open to install

optional printer

accessories.)

Multi-purpose Tray

Output Support

Optional Tray

(Tray2)

(500-sheet paper feeder)

* The figure above shows an ML-3561N.

Top Cover

(Open to access the

toner cartridge.)

Handle

Rear View

Output Tray

(Face down)

* The figure above shows an ML-3561N.

Parallel Port

USB Port

Power Switch

Network Port

(ML-3560: Option

ML-3561N, ML-3561ND and

ML-3562W: Standard)

Rear Output Tray

(Face up)

Optional Tray2

Cable Connector

Power

Receptacle

Optional

Duplex Unit

(ML-3561ND:

Standard

ML-3560, ML-

3561N and ML-

3562W: Option)

Setting Up Your Printer

2.1

2Setting Up Your Printer

This chapter provides step by step information on setting up

your printer.

This chapter includes:

•Unpacking

• Installing the Toner Cartridge

•Loading Paper

• Connecting a Printer Cable

• Turning the Printer On

• Printing a Demo Page

• Changing the Display Language

• Using the Toner Save Mode

• Installing Printer Software

Unpacking

Remove the printer and all accessories from the packing

carton. Make sure that the printer has been packed with

the following items:

OTES

• If any items are missing or damaged, notify your dealer

immediately.

•

Components may differ from one country to another.

AUTION

: The printer weights 17kg including the toner

cartridge and the tray. Use safe lifting and handling

techniques. If you need to move the printer, it should be

moved by two people. Use the lifting handles as shown in the

diagram (see page 1.3). Back injury could result if a single

person attempts to lift the printer.

Carefully remove all of the packing tape from the printer.

CD-ROM

* The CD-ROM contains the printer driver, the User’s Guide,

and the Adobe Acrobat Reader programme.

Network CD-ROM

**The Network CD-ROM and Network Quick Guide are only for

ML-3561N, ML-3561ND and ML-3562W.

Network Quick

Guide**

Power Cord

***

***The appearance of the power cord may differ depending on

your country’s specifications.

Setup Guide

Setting Up Your Printer

2.2

Pull the paper tray out of the printer and remove the

packing tape and the packing material inside of the tray.

Selecting a Location

Select a level, stable place with adequate space for air

circulation. Allow extra space for opening covers and trays.

The area should be well-ventilated and away from direct

sunlight or sources of heat, cold, and humidity. Do not set the

printer close to the edge of your desk or table.

Clearance Space

Front

: 482.6 mm

(enough space so that

trays can be opened

or removed)

Back

: 320 mm

(enough space to

allow opening of the

rear output tray)

Right

: 100 mm

(enough space for

ventilation)

Left

: 100 mm

(enough space for

ventilation)

320mm(12.6in)

482.6mm(19in)

100mm

(3.9in)

100mm

(3.9in)

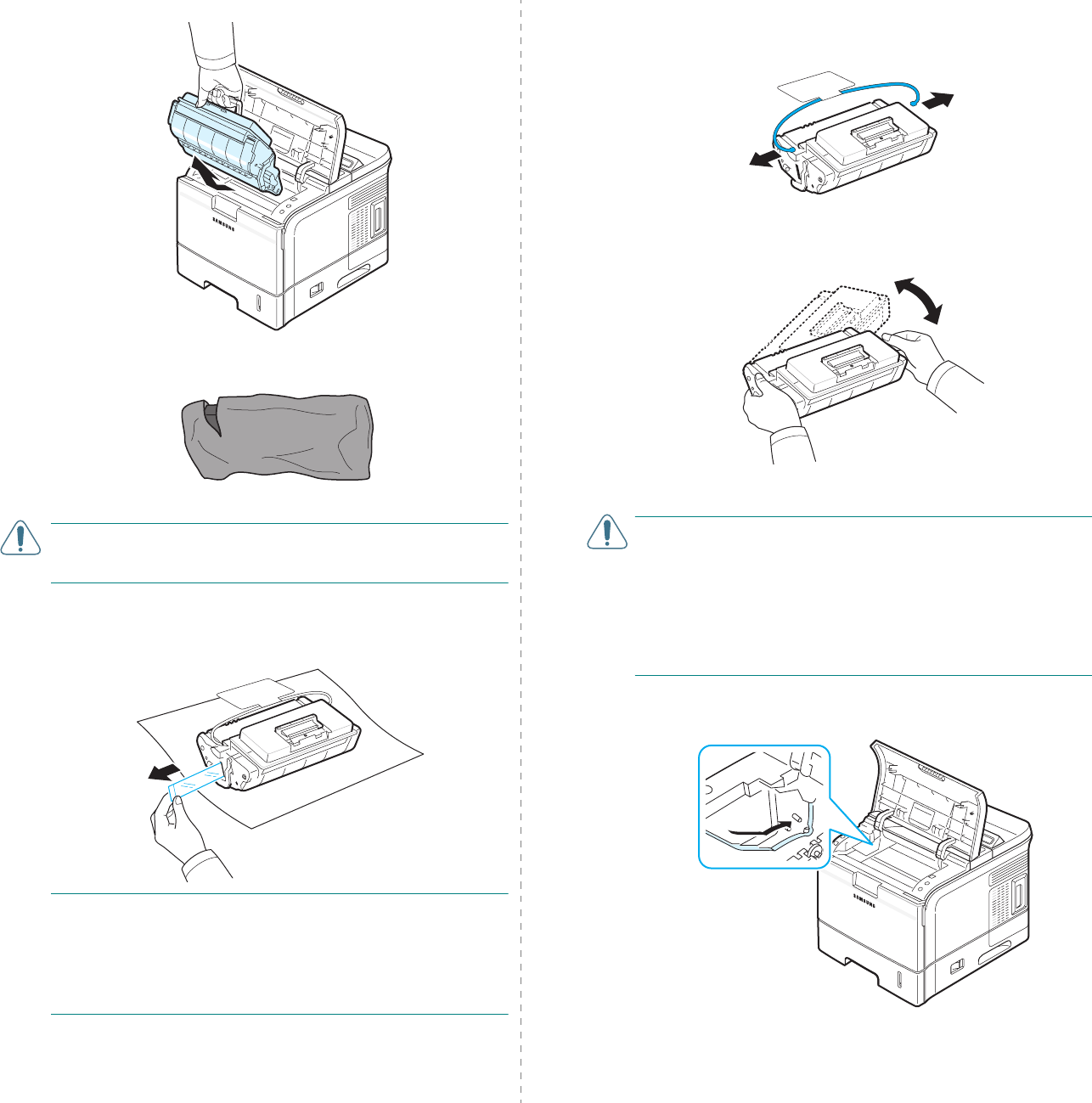

Installing the Toner Cartridge

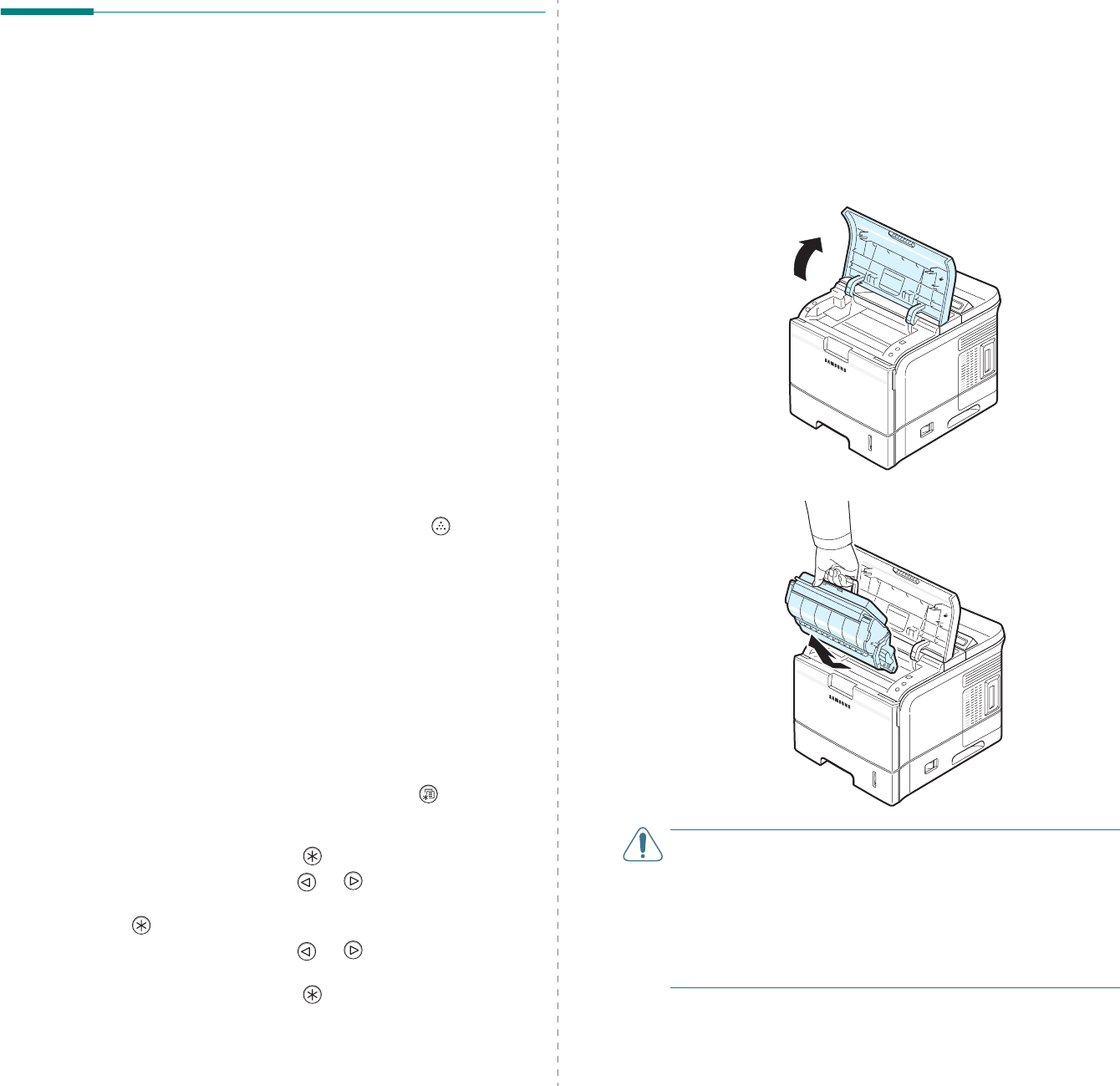

Open the top cover. Pull up on the handle to open the

cover.

Remove the starter toner cartridge from its bag.

AUTION

: Do not use sharp objects, such as a knife or

scissors, to open the toner cartridge package. They might

scratch the drum of the cartridge.

Locate the sealing tape at the end of the toner cartridge.

Carefully pull the tape completely out of the cartridge and

discard it.

OTES

• The sealing tape should be longer than 600 mm when

correctly removed.

• Holding the toner cartridge, pull the sealing tape straight to

remove it from the cartridge. Be careful not to cut the tape.

If this happens, you cannot use the toner cartridge.

Setting Up Your Printer

2.3

Hold the toner cartridge and lift up the handle part of the

toner cartridge. There is a flexible plastic holder. Remove

the holder out of the toner cartridge.

Gently shake the cartridge from side to side to distribute

the toner evenly inside the cartridge.

Thoroughly shaking the cartridge will assure maximum

copies per cartridge.

AUTIONS

• If toner gets on your clothing, wipe it off with a dry cloth and

wash clothing in cold water. Hot water sets toner into fabric.

• Do not touch the green surface, the OPC drum, on the front

of the toner cartridge with your hands or any other material.

• To prevent damage, do not expose the toner cartridge to

light for more than a few minutes. Cover it with a piece of

paper to protect it, if necessary.

Locate the cartridge slots inside the printer, one on each

side.

Grasp the handle and insert the cartridge in the printer

until it snaps into place.

Close the top cover. Make sure that the cover is securely

closed.

OTE

: When printing text at 5% coverage, you can expect a

toner cartridge life of approximately 12,000 pages (6,000

pages for the toner cartridge that is shipped with the printer).

Setting Up Your Printer

2.4

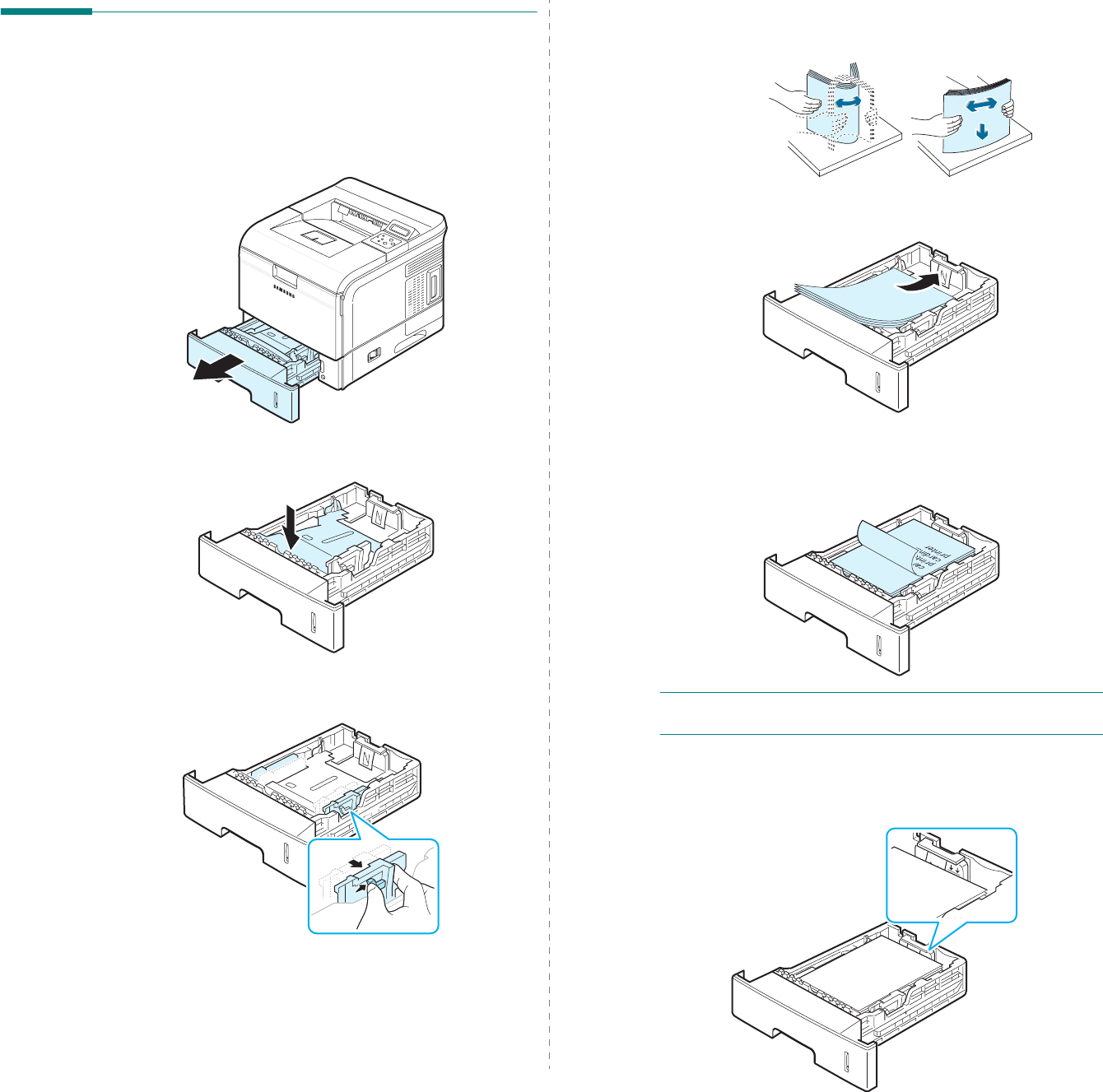

Loading Paper

The paper tray can hold a maximum of 500 sheets of 20lb plain

paper.

To load a stack of A4 or Letter-sized paper:

Pull open the paper tray and remove it from the printer.

Pull down the metal plate until it locks into position.

Squeeze the paper width guide and slide it to the desired

paper size marked at the bottom of the tray.

Fan the edges of the paper stack to separate the pages.

Then tap the stack on a flat surface to even it up.

Insert the paper stack into the paper tray

with the print

side down

You can load previously printed paper. The printed side

should be facing up with an uncurled edge at the top side.

If you experience problems with paper feed, turn the

paper around.

OTE

If you want load a different sized paper, you need to

adjust the paper guides. For details, see page 2.5.

Make sure not to overfill the tray and that all four corners

are flat in the tray and under the paper length guide

bracket, as shown below. Overfilling the tray may cause a

paper jam.

Setting Up Your Printer

2.5

Insert and slide the paper tray back into the printer.

Changing the Size of the Paper in the

Paper Tray

The tray is preset to Letter or A4 size, depending on your

country. To change the size, you need to adjust the paper

guides.

Push the back plate of the tray outwards completely so

that it can extend the length of the tray.

Squeeze the paper length guide and slide it to the correct

position for the paper size you are loading, which is

marked at the bottom of the tray.

Squeeze the paper width guide and slide it to the desired

paper size marked at the bottom of the tray.

OTES

• Do not push the paper width guide far enough to cause the

material to warp.

• If you do not adjust the paper width guide, it may cause

paper jams.

Load paper with the print side down. For details, see from

step 5 on page 2.4.

Setting Up Your Printer

2.6

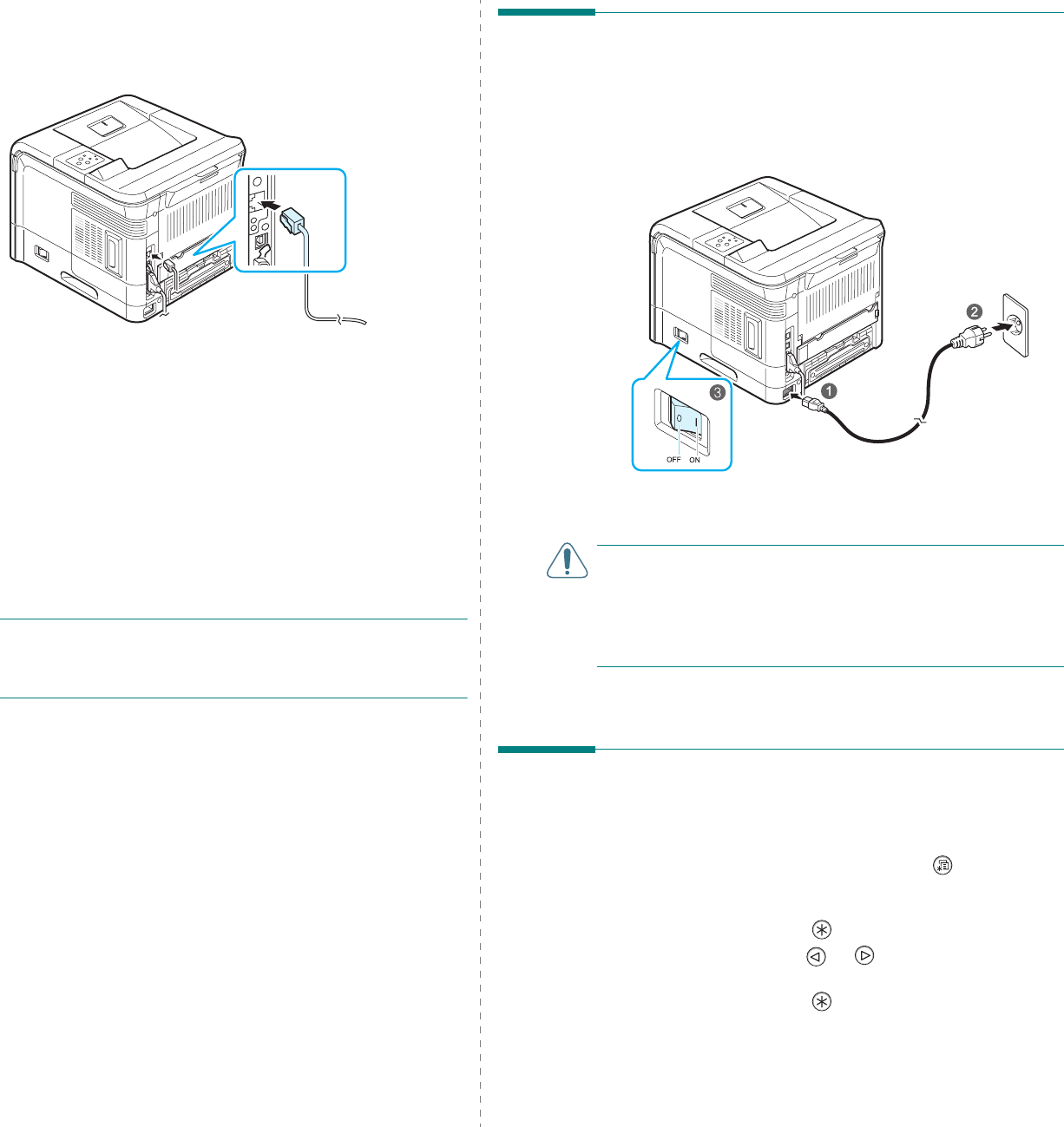

Connecting a Printer Cable

For Local Printing

To print from your computer in a local environment, you need

to connect your printer to the computer with either a parallel

interface cable or a Universal Serial Bus (USB) cable.

If you are a Macintosh user, you can use only the USB cable.

OTE

: You only need to connect one of the cables mentioned

above. Do not use the parallel cable and USB cables at the

same time.

Using a Parallel Cable

OTE

: Connecting the printer to the parallel port of the

computer requires a certified parallel cable. You will need to

buy a IEEE1284 compliant cable that is 3 m or less in length.

Make sure that both the printer and the computer are

turned off.

Connect a parallel printer cable into the parallel connector

on the back of the printer.

Push the metal clips down to fit inside the notches on the

cable plug.

Connect the other end of the cable to the parallel interface

port on your computer, and tighten the screws.

See your computer’s User’s Guide, if you need help.

Using a USB Cable

OTE

: Connecting the printer to the USB port of the computer

requires a certified USB cable. You will need to buy a USB 2.0

compliant cable that is within 3 m in length.

Make sure that both the printer and the computer are

turned off.

Connect a USB printer cable into the USB connector on the

back of the printer.

Connect the other end of the cable to the USB port on your

computer.

See your computer’s User’s Guide, if you need help.

OTE

To print using the USB interface, you must be running

Windows 98/Me/2000/XP/2003 or Macintosh with the

OS 9.x

and G3 processor or OS 10.2.x later

For Network Printing

You can attach your printers to a network using an Ethernet

cable (UTP cable with RJ.45 connector).

The ML-3561N, ML-3561ND and ML-3562W come with a built-

in network interface card. The ML-3562W also has a network

antenna which allows you to use wireless LAN interface.

If you are a ML-3560 user, you need to install an optional

network interface card.

If you want to use the printer in both wired and wireless

network environments, you need to install an optional wired

and wireless network card to the ML-3560. For the ML-3561N,

ML-3561ND you can replace the network interface card to one

supporting the wired and wireless LAN interface.

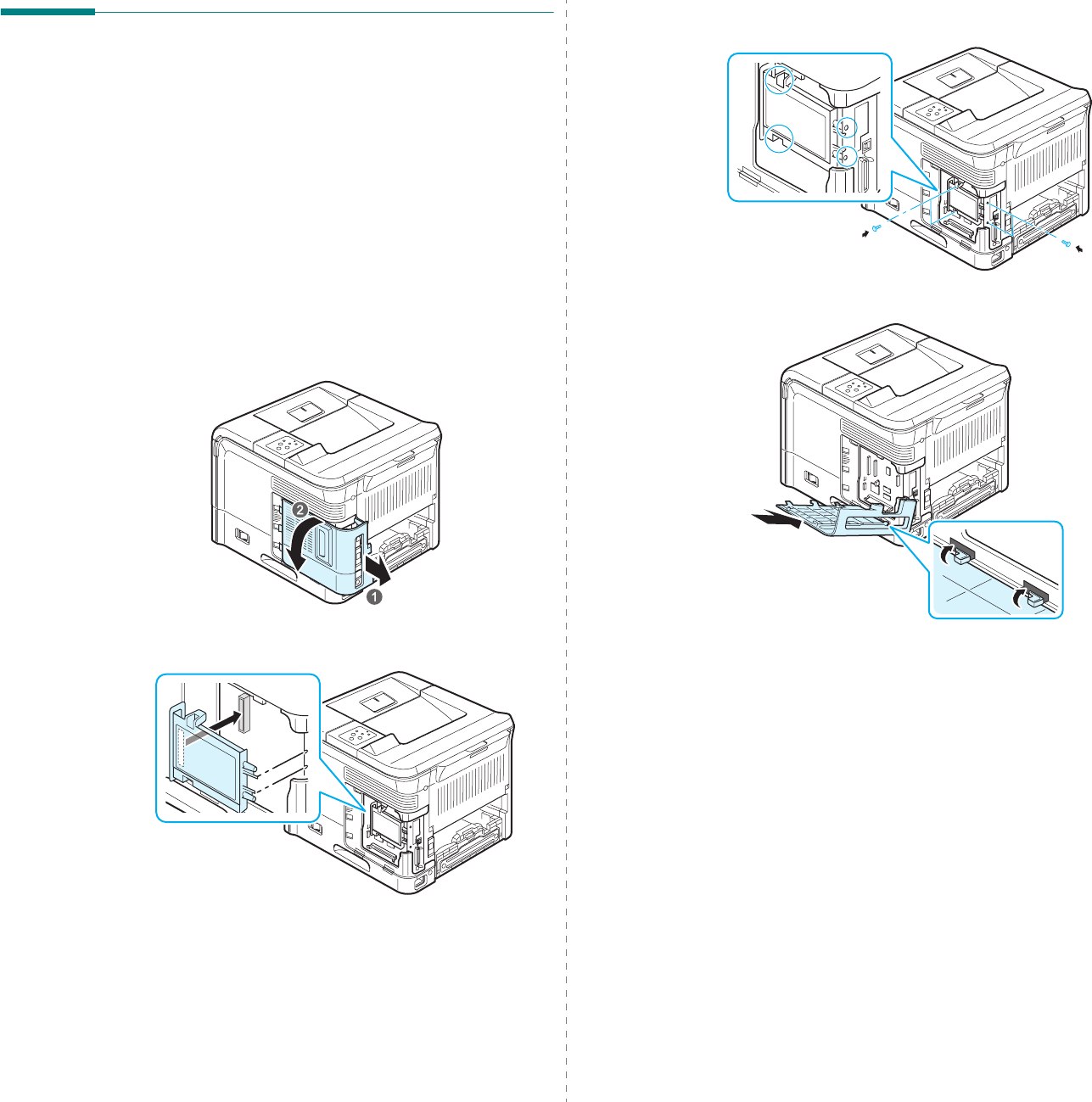

For details about installing the network interface card, see

page 9.3.

Setting Up Your Printer

2.7

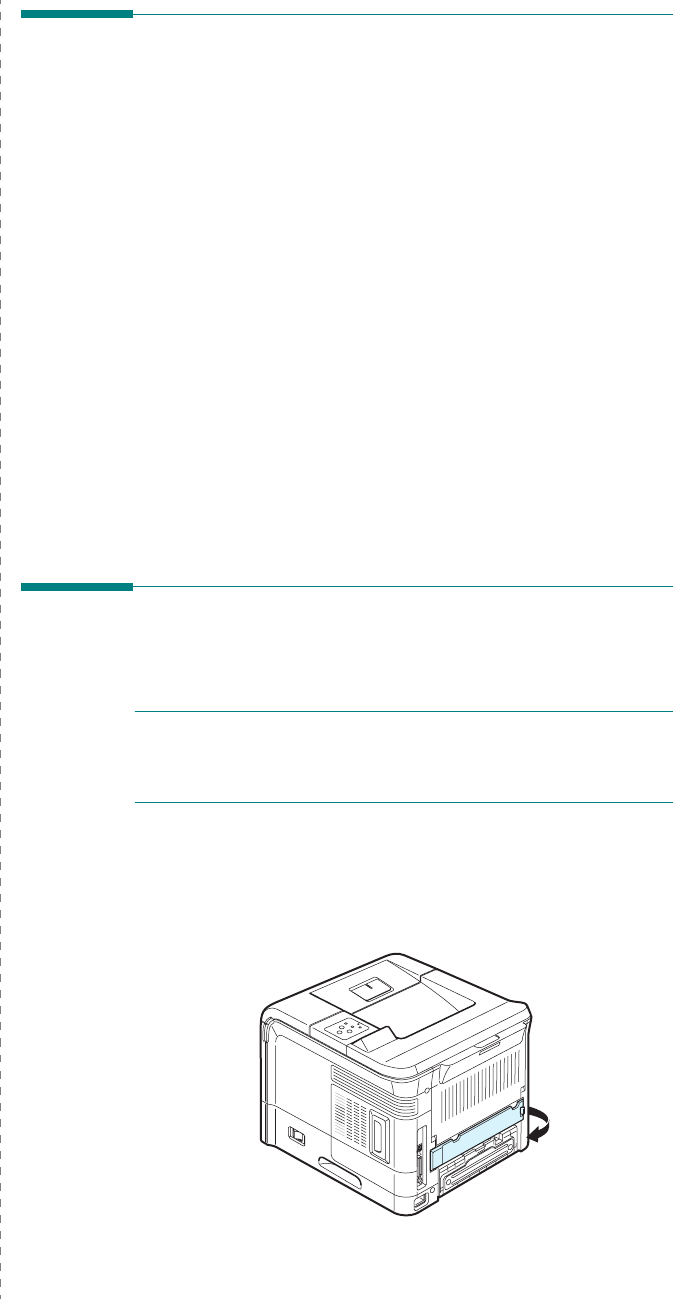

Using an Ethernet Cable

Connect one end of the Ethernet cable into the Ethernet

network port on the printer.

Connect the other end of the cable into a network LAN

connection.

See your computer’s User’s Guide, if you need help.

Using a Network Antenna

If you install a wired and wireless network card, you can use

your printer in a wireless environment by using a network

antenna.

For the ML-3560, ML-3561N, ML-3561ND you need to install an

optional wired and wireless network card. For details about

installing the wired and wireless network card, see page 9.3.

OTE

: After connecting the printer, you need to configure the

network parameters on the control panel. See page 8.1. You

can use the software supplied with the card. Refer to the

software User’s Guide.

To the network LAN

connection

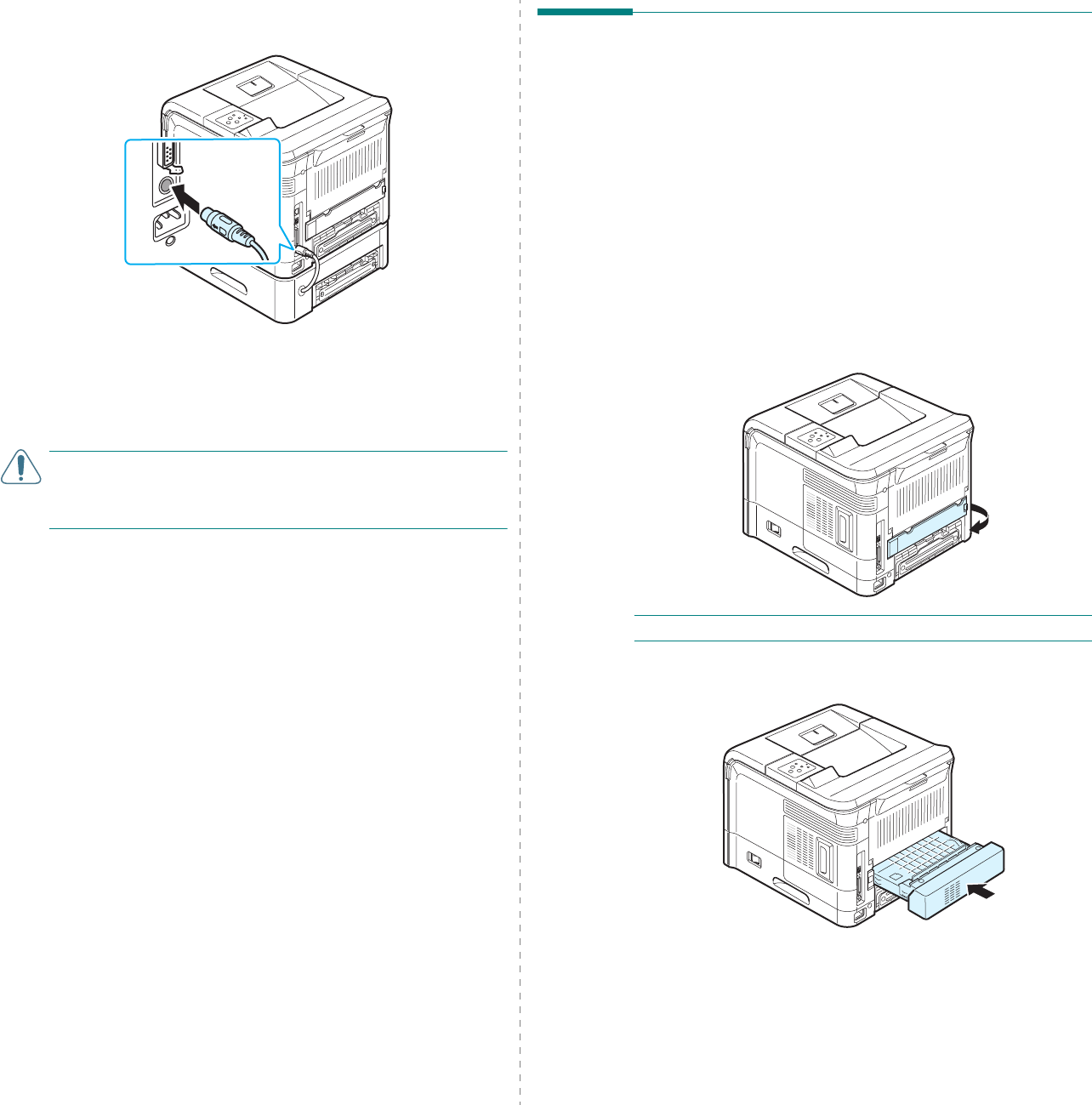

Turning the Printer On

Connect one end of the supplied power cord into the power

receptacle on the back of the printer.

Connect the other end into a properly grounded AC outlet

and turn on the printer using the power switch.

To view your display text in another language, see

page 2.8.

AUTIONS

• The fuser area inside the rear output tray of your printer

becomes very hot when in use. Take care not to burn your

fingers when you access this area.

• Do not disassemble the printer with power on. If you do, you

may receive an electric shock.

Printing a Demo Page

Print a demo page to make sure that the printer is operating

correctly.

In ready mode, press the

button ( ) on the

control panel. You can see “Information” on the bottom

line of the display.

Press the

Enter

button ( ) to access the menu.

Press the scroll button ( or ) until you see “Demo

Page” on the bottom line.

Press the

Enter

button ( ).

A demo page prints out.

Setting Up Your Printer

2.8

Changing the Display Language

To change the language that is displayed on the control panel,

follow these steps:

In ready mode, press the

button ( ) on the

control panel until you see “Setup” on the bottom line of

the display.

Press the

Enter

button ( ) to access the menu.

Press the scroll button ( or ) until you see “LCD

Language” on the bottom line.

Press the

Enter

button ( ) to confirm the menu item.

Press the scroll button ( or ) to display the language

you want to use.

Press the

Enter

button ( ) to save the selection.

Press the

On Line/Continue

button ( ) to return to

ready mode.

Using the Toner Save Mode

The Toner Save mode allows the printer to use less toner on

each page. Activating this mode extends the life of your toner

cartridge and reduces your cost per page beyond what one

would experience in the normal mode, but it reduces print

quality. This setting is not available with the 1200 dpi setting.

There are three ways to enable the Toner Save mode:

Using the Control Panel Button

Press the

Toner Save

button ( ) on the control panel. The

printer must be in ready mode; the

On Line/Continue

button

( ) is on in green and “Ready” is shown on the display.

•If the

Toner Save

button backlight is on, the mode is

enabled and the printer uses less toner to print a page.

•If the

Toner Save

button backlight is off, the mode is

disabled and the printer prints in normal mode.

Using the Control Panel Menu

You can set the

Toner Save

item in the

Graphics

menu to turn

the Toner Save mode on or off.

For further details about using the control panel menu, see

page 3.3.

From the Software Application

You can set the Toner Save mode from the printer properties

window on your printer driver. For details, see the

Software

User’s Guide

Installing Printer Software

You must install software using the supplied CD-

ROM after you have set up your printer and

connected it to your computer. For details, see the

Software User’s Guide

The CD-ROM provides you with the following software:

If you are printing from Windows

You can install the following printer software using the CD-

ROM.

•

PCL printer driver

for Windows. Use this driver to take

full advantage of your printer’s features. See the

Software User’s Guide

for details about installing the

Samsung PCL printer driver.

•

PostScript Printer Description (PPD) file

for Windows

to allow installation of the PostScript driver.

To install the PostScript driver, you need to select

Custom

and put a check mark on the PostScript driver when you

install the software. For details, see the

Software User’s

Guide

•

SmartPanel

. Appears when printing errors occur. See the

Software User’s Guide

for details about installing the

SmartPanel program.

If you are printing in Linux

You can print from a Linux-based computer with your printer.

Go to the

Software User’s Guide

for information about

installing the Linux driver and printing from a Linux

environment.

If you are printing from a Macintosh

You can print from a Macintosh with your printer. Go to the

Software User’s Guide

for information about installing the

print software and printing from a Macintosh.

Using the Control Panel

3.1

3Using the Control Panel

This chapter describes how to use the printer’s control panel.

This chapter includes:

• Understanding the Control Panel

• Using Control Panel Menus

Understanding the Control

Panel

The control panel on the top right side of your printer has the

display and the eight buttons.

Display

See “Understanding Display Messages” on page 7.10 for a

complete listing of all printer messages.

Message Description

Ready

• The printer is on-line and ready to print.

• If you press the

On Line/Continue

button ( )

, the printer goes to off-line.

Offline

• The printer is off-line and cannot print.

• If you press the

On Line/Continue

button ( )

, the printer switches to on-

line.

Printing XXX

* xxx is the

current

emulation.

• The printer is printing.

• If you want to stop printing, press the

Cancel

button ( )

Sleeping...

• The printer is in the Power Save mode,

consuming less power. When a print job is

received from the computer, or if any

button is pressed, the printer switches to

on-line.

• To deactivate the Power Save mode or

change the power-saving time, see

page 3.7.

Display

: displays the

printer status and job

in progress.

Buttons

Using the Control Panel

3.2

Buttons

Button Description

On Line/

Continue

• Press to switch between on-line and off-line.

• In menu mode, press to return to ready mode.

You can check the printer status according to the

button backlight.

Green

The printer is on-line and

can receive data from the

computer.

Blinking

• When the backlight

slowly blinks, the printer

is receiving data from the

computer.

• When the backlight fast

blinks, the printer is

receiving and printing

data.

If you want to pause

printing, switch the printer

to off-line.

Orange

The printer has stopped

printing due to a major

error. Check the display

message. See page 7.10

for details on the meaning

of the error message.

Blinking

A minor error occurs and

the printer is waiting an

error to be cleared. Check

the display message. When

the problem is cleared, the

printer resumes printing. If

you want to ignore this

warning, press this button.

Off

• The printer is off-line and cannot

print.

• The printer is in the Power Save

mode. When data is received, it

switches to on-line automatically.

• Press to enter menu mode.

• In menu mode, press to scroll through the

menus.

Enter

In menu mode, press to select the displayed sub

menu item or to confirm the changed setting. You

can see the selected value marked with *.

Scroll

buttons

In menu mode, press to scroll through sub menu

items or setting options. Pressing



moves you to

the next option and pressing



sends you back to

the previous option.

Cancel • Press to cancel the current print job.

• In menu mode, press to return to ready mode.

Upper

Level

In menu mode, press to go back to the upper

menu level.

Toner

Save

Press to enable or disable the Toner Save mode.

• If the button backlight is on, the mode is

enabled and the printer uses less toner to print a

document.

• If the button backlight is off, the mode is

disabled and the printer will print in the normal

quality.

For more information on the Toner Save mode, see

page 2.8.

Button Description

Using the Control Panel

3.3

Using Control Panel Menus

A number of menus are available to make it easy for you to

change printer settings. The diagram on next column shows the

menus and all of the menu items available in each menu. The

items in each menu and the values you can select are described

in more detail in the tables beginning on page 3.4.

Accessing Control Panel Menus

You can control your printer from the printer’s control panel.

You can also set the control panel menus while the printer is in

use.

In ready mode, press the

button ( ) until you see

the menu you want on the bottom line of the display.

Press the

Enter

button ( ) to access the menu.

Press the scroll button ( or ) until the desired menu

item displays on the bottom line.

Press the

Enter

button ( ) to confirm the selected item.

If the selected menu item has sub menus, repeat steps 3

and 4.

Press the scroll button ( or ) until the desired setting

option displays on the bottom line, or enter the required

value.

Press the

Enter

button ( ) to save your input or

selection.

An asterisk (

) appears next to the selection on the

display, indicating that it is now the default.

To exit the menu, press the

Upper Level

button ( )

repeatedly, or the

Cancel

button ( ).

After 60 seconds of inactivity (no key being pressed), the

printer automatically returns to ready mode.

OTE

: Print settings made from the printer driver on a

connected computer override the settings on the control panel.

Overview of Control Panel Menus

The control panel menus are used to configure the printer. The

control panel provides access to the following menus:

EPSON/IBM/IBM

(See page 3.9.)

Font

Auto Wrap

Character Set

Character Tab..

LPI

Pitch

Network******

(See page 3.9.)

Config Network

Config TCP

IP Get Method

IP Address

Subnet Mask

Gateway

Config 802.11b

AppleTalk

Netware

Config Netware

IPX Frame Type

Reset Network

Default Set

Print Net CFG

PostScript

(See page 3.9.)

Print PS Error

*:Available when your printer is printing a file from an optional hard disk.

**: Available when there is a file stored in an optional hard disk.

***: Available when your printer has an optional hard disk.

****: Available when an optional duplex unit is installed in your printer.

*****: Available when an optional serial interface card is installed in your printer.

******: Available when a network card is installed in your printer. (ML-3561N, ML-3561ND or ML-3562W, or

ML-3560 with an optional network card)

Stored Job **

(See page 9.6.)

User Name

Job Name

Active Job *

(See page 9.6.)

User Name

Job Name

Information

(See page 3.4.)

Configuration

Menu Map

Demo Page

Stored Job List***

Event Log***

Usage Page***

Completed Job***

PS3 Font List

PCL Font List

EPSON Fonts

IBM Fonts

Paper

(See page 3.4.)

Tray Source

Media Size

Custom Width

Custom Height

Media Type

Tray Chaining

Graphics

(See page 3.6.)

Resolution

Image Enhance

Toner S ave

Density

Layout

(See page 3.5.)

Orientation

Duplex****

Duplex Margin****

Simplex Margin

Copies

Setup

(See page 3.7.)

Date & Time***

Fixed Overlay***

Sel. 1st. Form***

Sel. 2nd. Form***

LCD Language

Emulation

Power Save

Auto Continue

Jam Recovery

Altitude Adj.

Auto CR

Job Time Out

RS-232C*****

Maintenance

PCL

(See page 3.8.)

Typeface

Symbol

Lines

Pitch

Point Size

Courier

Printer

(See page 3.7.)

Default Set

Current Job

Using the Control Panel

3.4

Information Menu

This menu contains printer information pages that give details

about the printer and its configuration.

Item Explanation

Configuration The configuration page shows the printer’s

current configuration. See page 6.1.

Menu Map

The menu map shows the layout and

current settings of the control panel menu

items.

Demo Page The demo page allows you to check if your

printer properly performs printing.

Stored Job List The list shows the file list stored in the

optional hard disk.

Event Log

The Event Log page lists the errors

occurring when you are using the printer.

See page 6.1.

Usage Page

The Usage Page contains the total number

of pages printed by person or group. This

page can be used for cost accounting. See

page 6.1.

Completed Job

The Completed Job page shows the list of

completed print jobs. The list contains up

to 50 files from the latest print jobs.

PS3 Font List

PCL Font List

EPSON Fonts

IBM Fonts

The font sample list shows all of the fonts

currently available in the selected

language.

Paper Menu

Use this menu to define all settings relating to print material

input and output, as well as the specific print material you are

using with your printer.

(*: the default setting)

Item Explanation

Tray Source

Using this item, you can set the tray you will

use.

• If you select

Auto Select

, the printer can

automatically determine the source.

• Select

MP Tray

Manual Tray

to use the

Multi-purpose Tray. If you select

Manual

Tray

, you need to press the

On Line/

Continue

button each time you print a

page.

•The

Tray2

item is available only when the

optional Tray2 is installed.

Media Size

Select the paper size currently loaded in the

tray.

Custom Width

Select the paper size currently loaded in the

tray. This menu is shown when

Media Size

value is set up by

Custom Size

•

Custom Width

: Set the custom width from

76 to 216 mm.

Custom

Height

Select the paper size currently loaded in the

tray. This menu is shown when

Media Size

value is set up by

Custom Size

•

Custom Height

: Set the custom height

from 127 to 356 mm.

Values: Auto Select*, Tray1, MP Tray,

Tray2 , Manual Tray

Values: Letter, Legal, A4, Executive, JIS B5,

ISO B5, No. 10 Env., Monarch Env., DL Env.,

C5 Env., C6 Env., US Folio, A5, A6, Custom ,

Oficio

* Letter for USA, A4 for Europe and Asia

Values: A4:210 mm/ Letter:215 mm

* Letter for USA, A4 for Europe and Asia

Values: A4:297 mm/ Letter:279 mm

* Letter for USA, A4 for Europe and Asia

Using the Control Panel

3.5

Media Type

The Media Type setting lets you specify the type

of print material you are using to get the best

result.

•

Plain Paper

: Select for plain paper.

•

Thick

: Select for thick paper

•

Thin

: Select for thin paper

•

Bond

: Select for thick paper.

•

Color Paper

: Select for colored paper.

•

Card Stock

: Select for card stocks.

•

Labels

: Select for labels.

•

Transparency

: Select for transparencies.

•

Envelope

: Select for envelops.

•

Preprinted

: Preprinted is for paper with

something else printed on it, such as

letterhead.

Tray Chaining

When you select any other value except

Auto

Select

from

Tray Source

and the selected

tray is empty, the printer automatically prints

from other trays.

If this menu item is set to

Off

, the

On Line/Continue

button backlight blinks in

orange and the printer doesn’t work until you

insert paper into the specified tray.

Item Explanation

Values: Off*, Plain Paper, Thick, Thin, Bond,

Color Paper, Card Stock, Labels,

Transparency, Envelope, Preprinted

Values: Off, On*

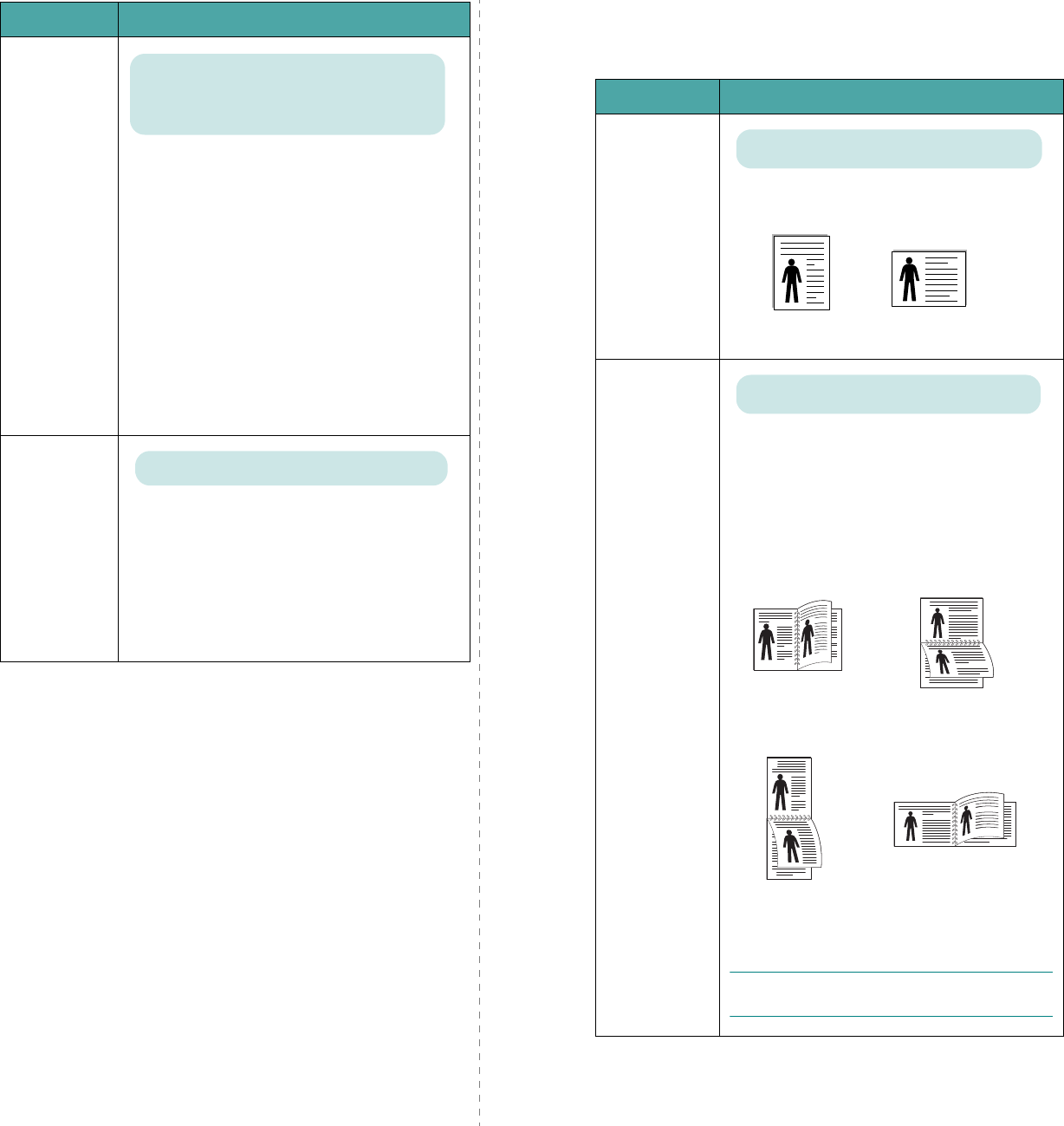

Layout Menu

Use the

Layout

menu to define all settings relating to output.

(*: the default setting)

Item Explanation

Orientation

Choose the default orientation of print image

on the page.

Duplex

To print on both sides of paper, choose the

binding edge as follows.

•

Long Edge

: Flip on long edge. Prints

pages to read like a book.

•

Short Edge

: Flip on short edge. Prints

pages to read by flipping over like a note

pad.

Select

Off

to print on one side of paper.

OTE

: This menu item is available only

when you install an optional duplex unit.

Values: Portrait*, Landscape

Portrait Landscape

Values: Off*, Long Edge, Short Edge

Long Edge in the

Portrait orientation Long Edge in the

Landscape orientation

Short Edge in the

Landscape orientation

Short Edge in the

Portrait orientation

Using the Control Panel

3.6

Duplex Margin

In this menu, you can set the margin of print

materials for double-sided printing. You can

increase or decrease the value in 0.1 mm

increments.

•

Top Margin

: Set the top margin, from 0.0

to 9.9 mm.

•

Left Margin

: Set the left margin, from 0.0

to 9.9 mm.

•

Short Binding

: Set the bottom margin of

the rear side for short binding, from 0.0 to

22 mm.

•

Long Binding

: Set the right margin of the

rear side for long binding, from 0.0 to 22

mm.

OTE

This menu item is available only

when you install an optional

duplex unit

Simplex

Margin

Set the margin of print materials for one-

sided printing. You can increase or decrease

the value in 0.1 mm increments.

•

Top Margin

: Set the top margin, from 0.0

to 250 mm.

•

Left Margin

: Set the left margin, from 0.0

to 164 mm.

Copies

Set the default number of copies by selecting

any number from 1 to 999.

Item Explanation

Values: Top/Left:5.0* , Short/Long: 0*

Values: 0.0*

Values: 1* ~ 999

Graphics Menu

Use the

Graphics

menu to change settings affecting the quality

of the printed characters and images.

(*: the default setting)

Item Explanation

Resolution

Specify the number of dots printed per inch

(dpi). The higher the setting, the sharper the

clarity of printed characters and graphics.

• Select

300dpi-Draft

to print a draft

document.

• If your print jobs are mostly text, select

600dpi-Normal

for the highest quality

output.

• Select

1200dpi-Best

when your job

contains bitmapped images, such as

scanned photos or some business graphics,

that will benefit from enhanced line

screening.


Enhance

This item enhances the print quality.

•

Normal

: Doesn’t enhance the quality.

•

Image Enhance

: Enhances bitmap

images, like scanned pictures.

•

Text Enhance

: Enhances letters and

simple figures.

Toner Save To get the most from your toner supply, set

this menu to

Off

. If you set this menu to

print quality may be reduced.

Density You can lighten or darken the print on the

page by changing the toner density setting.

The

Medium

setting usually produces the

best result. Use the

Light

toner density

setting to save toner.

Values: 300dpi-Draft, 600dpi-Normal*,

1200dpi-Best

Values: Normal, Image Enhance, Text

Enhance*

Values: Off*, On

Values: Light, Medium*, Dark

Using the Control Panel

3.7

Printer Menu

This menu allows you to reset the printer settings or cancel the

current job.

Setup Menu

Use the

Setup

menu to configure a variety of printer features.

(*: the default setting)

Item Explanation

Default Set This menu item allows you to restore the

printer’s factory default settings.

Current Job You can cancel the current print job and

remove it from the printer buffer.

Item Explanation

Date & Time

Fixed Overlay

Sel. 1st. Form

Sel. 2nd. Form

For details, see “Using the Hard Disk” on

page .5.

LCD

Language The LCD Language setting determines the

language of the text that appears on the

control panel display and information printing.

Emulation The printer language defines how the

computer communicates with the printer.

If you select

Auto

, your printer can change

the printer language automatically.

Power Save When the printer does not receive data for an

extended period of time, power consumption

is automatically lowered. You can set how long

the printer waits before going to the power

save state.

Values: English*, German, French, Italian,

Spanish

Values: Auto*, PCL, HEXDUMP, EPSON,

PS3, IBM ProPrint

Values: Off, 5 Minutes*, 10 Minutes,

15 Minutes, 30 Minutes, 45 Minutes,

60 Minutes

Auto

Continue

This item determines whether or not the

printer continues printing when it detects the

paper unmatched to your paper setting.

•

Off

: If the paper mismatch occurs, the

message will remain on the display and the

printer will remain off-line until you insert

the correct paper.

•

: If the paper mismatch occurs, an error

message will display. The printer will go

offline for 30 seconds and automatically

clear the message and continue printing.

Jam Recovery

This item determines how the printer behaves

when a paper jam occurs.

•

Off

: The printer does not reprint pages.

Printing performance might be increased

with this setting.

•

: The printer automatically reprints

pages after you clear the paper jam.

Altitude Adj.

You can optimize print quality depending on

the air pressure, such as in a high ground.

Auto CR

This item allows you to append the required

carriage return to each line feed.

Refer to the following samples:

Job Time Out

You can set the time length the printer waits

before printing the last page of a print job that

does not end with a command to print the

page.

When a print time-out occurs, the printer

prints the page in the print buffer.

Item Explanation

Values: Off, On*

Values: Off*, On

Values: Low*, High

Values: LF*, LF+CR

LF LF+CR

Values: 0 ~ 1800 sec *15 sec

Using the Control Panel

3.8

PCL Menu

This menu sets the PCL emulation configuration. You can set

the font type, symbol type, lines per page, and point size.

(*: the default setting)

RS-232C

This item is available only if the optional serial

interface card is installed in your printer. For

details, see page 9.3.

•

BAUD Rate

: Lets you select the rate at

which data is being sent to or from your

computer using the serial communication.

•

Robust XON

: Turns use of XON/OFF of

serial communication control on or off.

When this item is set to

, the printer

sends a continuous stream of XONs to the

computer to indicate that the serial port is

ready to receive more data.

Maintenance

This item allows you to maintain the toner

cartridge.

•

OPC Cleaning

: Cleans the OPC drum of

the cartridge and produces a cleaning sheet

with toner debris on it.

•

Fuser Cleaning

: Cleans the fuser unit

inside of the printer and produces a cleaning

sheet with toner debris on it.

•

Remain Toner

This item allows you to

check how much toner are left in the

cartridge.

Item Explanation

Typeface

You can select the standard font to be used in PCL

emulation.

•PCL1~PCL7’s interval between letters is fixed,

and PCL8~PCL45’s interval is proportional to

the font type and point size. You can adjust the

font size of PCL1~PCL7 using the

Pitch

item,

and PCL8~PCL45 can do using

Point Size

item.

• PCL46~PCL54’s interval and point size are

fixed.

Symbol

This item selects the symbol to be used in PCL

emulation. The symbol is the group of numbers,

marks, and special signs being used when

printing letters.

Item Explanation

Values: PCL1* ~ PCL68

Values: ROMAN8 ~ PCCYRILLIC *PC8

Lines

This item allows you to set vertical spacing from 5

to 128 lines for the default paper size. The lines

may differ according to the paper size and

printing orientation.

Pitch

When you select one between PCL1 and PCL7

from the

Typeface

menu, you can determine the

font size by setting the number of characters that

will print in one horizontal inch of type. The

default value, 10 is the best size.

Point Size

When you select one between PCL8 and PCL45

from the

Typeface

menu, you can determine the

font size by setting the height of the characters in

the font.

Courier

This item lets you select the version of Courier

font to use.

Item Explanation

Values: 5 ~ 128 *60 (Letter), 64 (A4)

Values: 0.44 ~ 99.99 (0.01 unit) *10

Values: 4.00 ~ 999.75 (0.25 unit) *12

Values: Regular*, Dark

Using the Control Panel

3.9

PostScript Menu

This menu provides you with the Print PS Error menu item.

(*: the default setting)

EPSON/IBM Menu

This menu sets the EPSON emulation configuration.

(*: the default setting)

Item Explanation

Print PS

Error

You can select whether or not your printer

prints an error list when a PS error occurs.

•Select

to print PS 3 emulation errors. If an

error occurs, the job stops processing, the error

message prints, and the printer flushes the job.

• If this menu is set to

Off

, the job is flushed

without an indication of the error.

Item Explanation

Font

You can select the standard font will be used in

EPSON emulation.

Auto Wrap

This item determines whether or not the printer

automatically performs line feed when the data

overflows the printable area of the print material.

Character

Set

This item

allows you to select a character set of

the desired language

Character

Tab.

This item

selects the character set.

LPI

You can

set the number of lines printed in one

vertical inch.

Values: Off*, On

Values: SANSERIF*, ROMAN

Values: On*, Off

Values: USA*, FRANCE, GERMANY, UK,

DENMARK1, SWEDEN, ITALY, SPAIN1, JAPAN,

NORWAY, DENMARK2, SPAIN2, LATIN

Values: ITALIC, PC437US*, PC850

Values: 6*, 8

Network Menu

This menu lets you configure the network interface card

installed in your printer. You can upgrade the firmware of the

network interface card and print a configuration page.

OTE

: This menu only appears when a network card is

installed (ML-3561N, ML-3561ND or ML-3562W, or ML-3560

with an optional network card).

(*: the default setting)

Pitch

You can determine the font size by setting the

number of characters that will print in one

horizontal inch of type.

Item Explanation

Config

Network

Set whether or not you configure network

values.

If you select

Yes

, the following options are

available:

Config TCP

Config 802.11b

AppleTalk

, and

Netware

Config TCP

Select whether you set the IP address item

or not.

If you select

Yes

, you can configure the IP

address.

If you select

Yes

, the

IP Get Method

option

appears on the display. You can select how to

get the IP address.

IP Get

Method

You can set this item only when you set

Config TCP

Yes

•

BOOTP

: The BOOTP server allots the IP

address to you automatically.

•

DHCP

: The DHCP server allots the IP

address to you automatically.

•

Static

: You can enter IP address,

subnetmask, and gateway manually.

Item Explanation

Values: 10*, 12, 17.14, 20

Values: Yes, No*

Values: Static*, BOOTP, DHCP

Using the Control Panel

3.10

IP Address

You can select this item only when you set

Get Method

Static

. This item lets you

enter the IP address manually. Press the scroll

button to set the value of the 1st byte between

0 and 255, and then press the

Enter

button.

Set the value for the 2nd, 3rd, and 4th byte

the same way.

Subnet Mask

You can set this item only when you set

Get Method

Static

. This item lets you

enter the subnet mask manually. Press the

scroll button to set the value of the 1st byte

between 0 and 255, and then press the

Enter

button.

Set the value for the 2nd, 3rd, and 4th bytes in

the same way.

Gateway

You can set this item only when you set

Get Method

Static

. This item lets you

enter the gateway manually. Press the scroll

button to set the value of the 1st byte between

0 and 255, and then press the

Enter

button.

Set the value for the 2nd, 3rd, and 4th byte in

the same way.

Config

802.11b

Configure the Wireless Network

environments.

If you select

Yes

, the following options are

available :

SSID

Operation Mode

Channel

Authentication

Encryption

Using Key

Key Type

, and

Key1

Key4

See “Configuring the Wireless Network” on

page 8.4

OTE

: This menu only appears when an

optional wireless network interface card has

been installed in ML-3560, ML-3561N or ML-

3561ND. The ML-3562W comes with a built-

in wired and wireless network card.

AppleTalk

This item lets you select whether or not you

use the AppleTalk protocol. Select

to use

the protocol.

Item Explanation

Values: Yes, No*

Values: On*, Off

Netware

This item selects whether you use the Netware

protocol.

If you select

, you can access the Config

Netware menu item.

In the

Config Netware

menu, you can

specify the frame type parameter used on your

network.

Config

Netware

You can set this item only when you set

Netware

. This item lets you select

whether or not you set the frame type

parameter.

Select

Yes

to select the frame

type.

If you select

Yes

, the

IPX Frame Type

option appears on the display.

IPX Frame

Type

You can select this item only when you set

Config Netware

Yes

. This item lets you

select the IPX frame type.

•

Auto

: You can set the frame type

automatically.

•

EN_8023

: Select this value to use the IEEE

802.3 frame type.

•

EN_II

: Select this value to use the

ETHERNET II frame type.

•

EN_8022

: Select this value to use the IEEE

802.2 frame type.

•

EN_SNAP

: Select this value to use the SNAP

frame type.

Reset

Network

This item reboots the network interface card.

Default Set

This item performs a simple reset and

restores the factory default settings for the

network configuration.

This setting will only

take effect after you have reset the printer.

Print Net CFG

This item print a page showing the network

parameters you set.

Item Explanation

Values: On*, Off

Values: Yes, No*

Values: Auto*, EN_8023, EN_II, EN_8022,

EN_SNAP

Using Print Materials

4.1

4Using Print Materials

This chapter will help you understand types of paper you can

use with your printer and how to properly load paper in the

different paper trays for the best print quality.

This chapter includes:

• Choosing Paper and Other Materials

•Loading Paper

• Selecting an Output Location

• Printing on Special Print Materials

Choosing Paper and Other

Materials

You can print on a variety of print materials, such as plain

paper, envelopes, labels, transparencies, and so on. See “Paper

Specifications” on page 10.2. To get the best possible print

quality, use only high-quality, copier-grade paper.

When you choose print materials, consider the following:

•

Desired outcome

: The paper you choose should be

appropriate for the project.

•

Size

: You can use any size paper that fits easily within

the paper adjusters of the paper tray.

•

Weight

: Your printer supports paper weight as follows:

-16~28 lbs (60~105 g/m

) bond for the standard tray or

optional Tray2

-16~43 lbs (60~163 g/m

) bond for the Multi-purpose Tray

•

Brightness

: Some papers are whiter than others and

produce sharper, more vibrant images.

•

Surface smoothness

: The smoothness of the paper

affects how crisp the printing looks on the paper.

AUTION

: Using a material that does not conform to the

specifications listed on page 10.2 can cause problems that

may require service. This service will not be covered by the

warranty or service agreements.

Sizes and Capacities

Guidelines for Paper and Special

Materials

When selecting or loading paper, envelopes, or other special

materials, keep these guidelines in mind:

• Attempting to print on damp, curled, wrinkled, or torn

paper can cause paper jams and poor print quality.

• Use cut-sheet paper only. You cannot use multi-part

paper.

• Use only high-quality, copier grade paper for the best

print quality.

• Do not use paper with irregularities, such as tabs or a

staples.

• Do not attempt to load any tray during printing, and

never overfill the tray. This could cause a paper jam.

• Avoid paper with embossed lettering, perforations, or a

texture that is too smooth or too rough.

• Colored paper should be of the same high quality as

white photocopy paper. The pigments must be able to

withstand the printer’s fusing temperature of 383°F

(195°C) for 0.1 seconds without deteriorating. Do not use

paper with a colored coating that was added after the

paper was produced.

Size

Input Source/Capacity

* Depending on paper thickness, maximum capacity may be

reduced.

Tray1 or

optional

Tray2

Multi-

purpose

Tray

Manual

Feed

Plain Paper

500 100 1

Envelopes

-101

Labels

** If you are experiencing excessive jamming, feed one sheet

at a time through the Multi-purpose Tray.

-251

Transparencies**

-501

Card stocks**

-101

Bond**

-101

Using Print Materials

4.2

• Preprinted forms must be printed with nonflammable,

heat-resistant ink that does not melt, vaporize, or release

hazardous emissions when subjected to the printer’s

approximately 383°F (195°C) fusing temperature for 0.1

seconds.

• Store paper in its ream wrapper until you are ready to

use it. Place cartons on pallets or shelves, not on the

floor.

• Do not place heavy objects on top of the paper, whether

it is packaged or unpackaged.

• Keep paper away from moisture, direct sunlight, or other

conditions that can cause it to wrinkle or curl.

OTE

Do not use carbonless paper or tracing paper. They are

unstable at the fusing temperature and can give of fumes, or

cause damage to the printer.

Loading Paper

Proper paper loading helps prevent paper jams and ensure

trouble-free printing. Do not remove the paper tray while a job

is printing. Doing so may cause a paper jam. See “Sizes and

Capacities” on page 4.1 for acceptable paper size and

capacities for each tray.

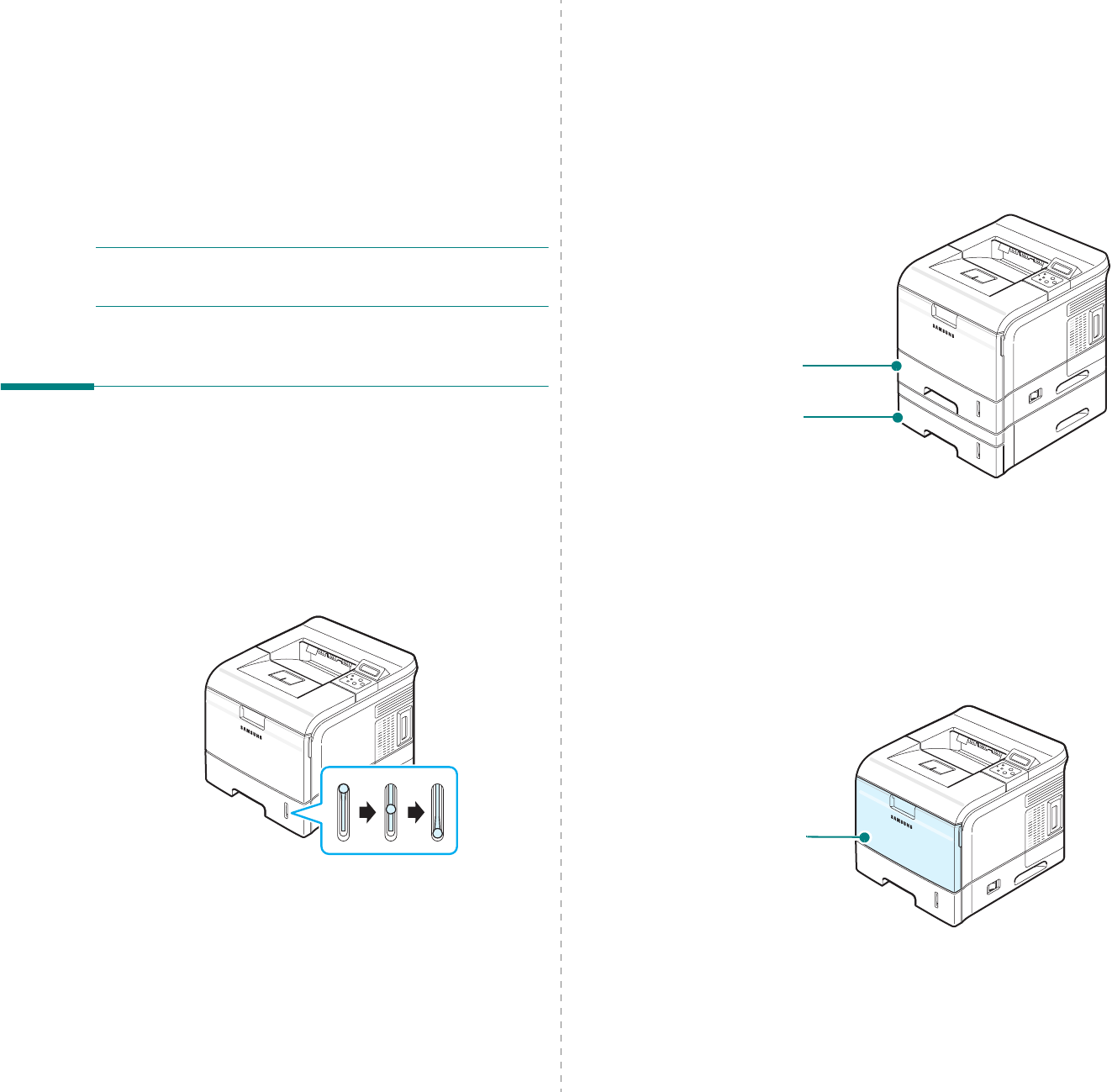

The paper level indicator on the front of the paper tray shows

the amount of paper currently left in the tray. When the tray is

empty, the indicator of the bar is completely lowered.

Paper full Paper empty

Using the Standard Tray or the

Optional Tray

Use the print material you use for the majority of your print

jobs in the standard tray. The standard tray can hold a

maximum of 500 sheets of 20lb paper.

You can purchase an optional paper tray (Tray2) and attach it

below the standard tray to load an additional 500 sheets of

paper. See page 9.8 for more information about installing the

optional Tray2.

To load paper, pull open the paper tray and load paper with the

print side down. For details about loading paper in the standard

tray or optional Tray2, see “Loading Paper” on page 2.4.

Using the Multi-purpose Tray

The Multi-purpose Tray is located in the front of your printer. It

can be closed when not in use, making the printer more

compact.

The Multi-purpose Tray can hold several sizes and types of

material, such as transparencies, cards, and envelopes. You

may also want to use the Multi-purpose Tray for single page

print jobs on letterheads, colored paper for use as separator

sheets, or other special materials that you do not normally keep

in the paper tray. You can load approximately 100 sheets of

plain paper, 10 envelopes, 50 transparencies, 10 card stocks,

or 25 labels at a time.

Standard Tray

Optional Tray2

Multi-purpose Tray

Using Print Materials

4.3

• Load only one size of print material at a time in the

Multi-purpose Tray.

• To prevent paper jams, do not add paper when there is

still paper in the Multi-purpose Tray. This also applies to

other types of print materials.

• Print materials should be loaded face up with the top

edge going into the Multi-purpose Tray first, and be

placed on the center of the tray.

• Do not place objects on the Multi-purpose Tray. Also avoid

pressing down or applying excessive force on it. The tray

may fall apart from the printer.

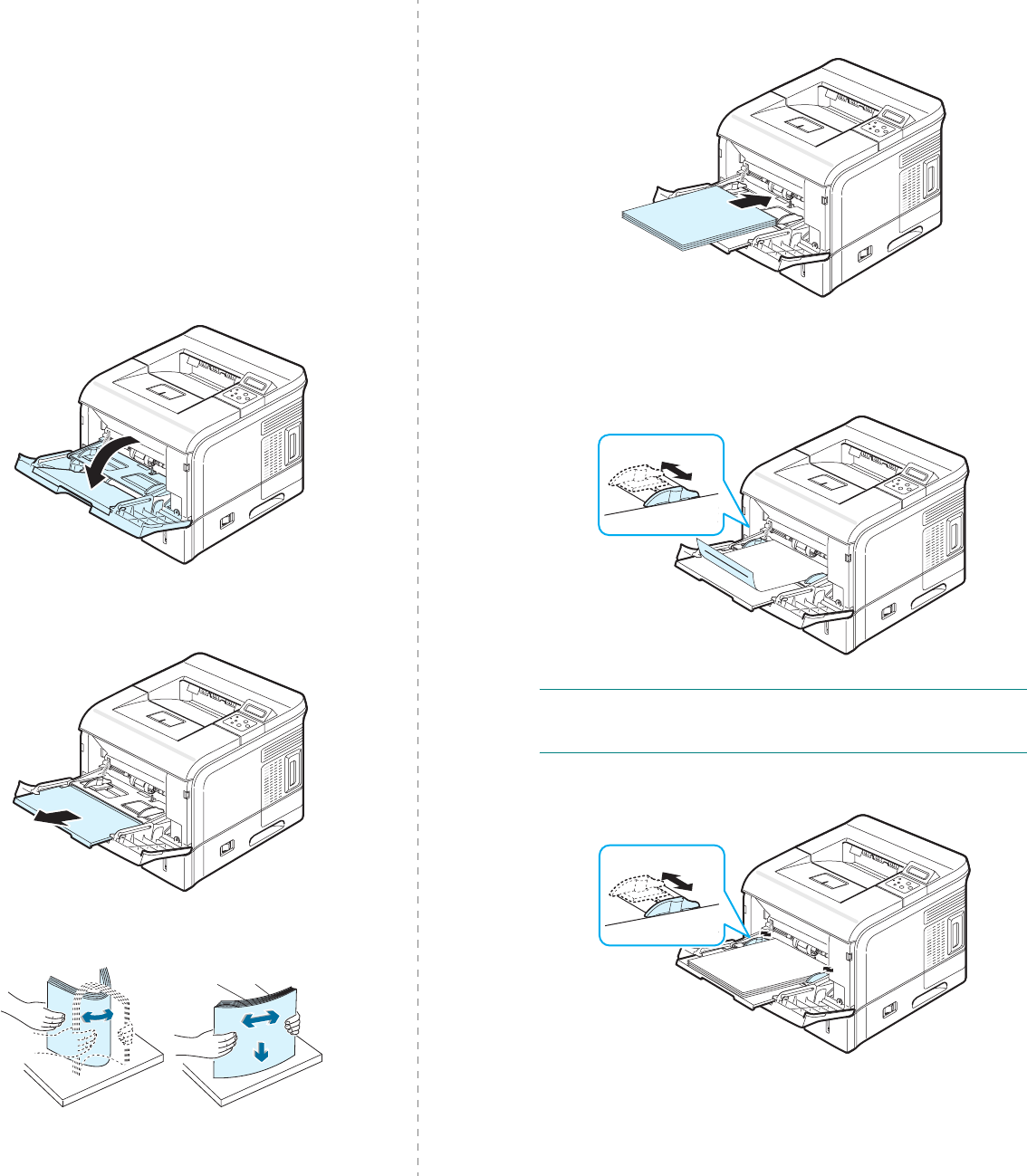

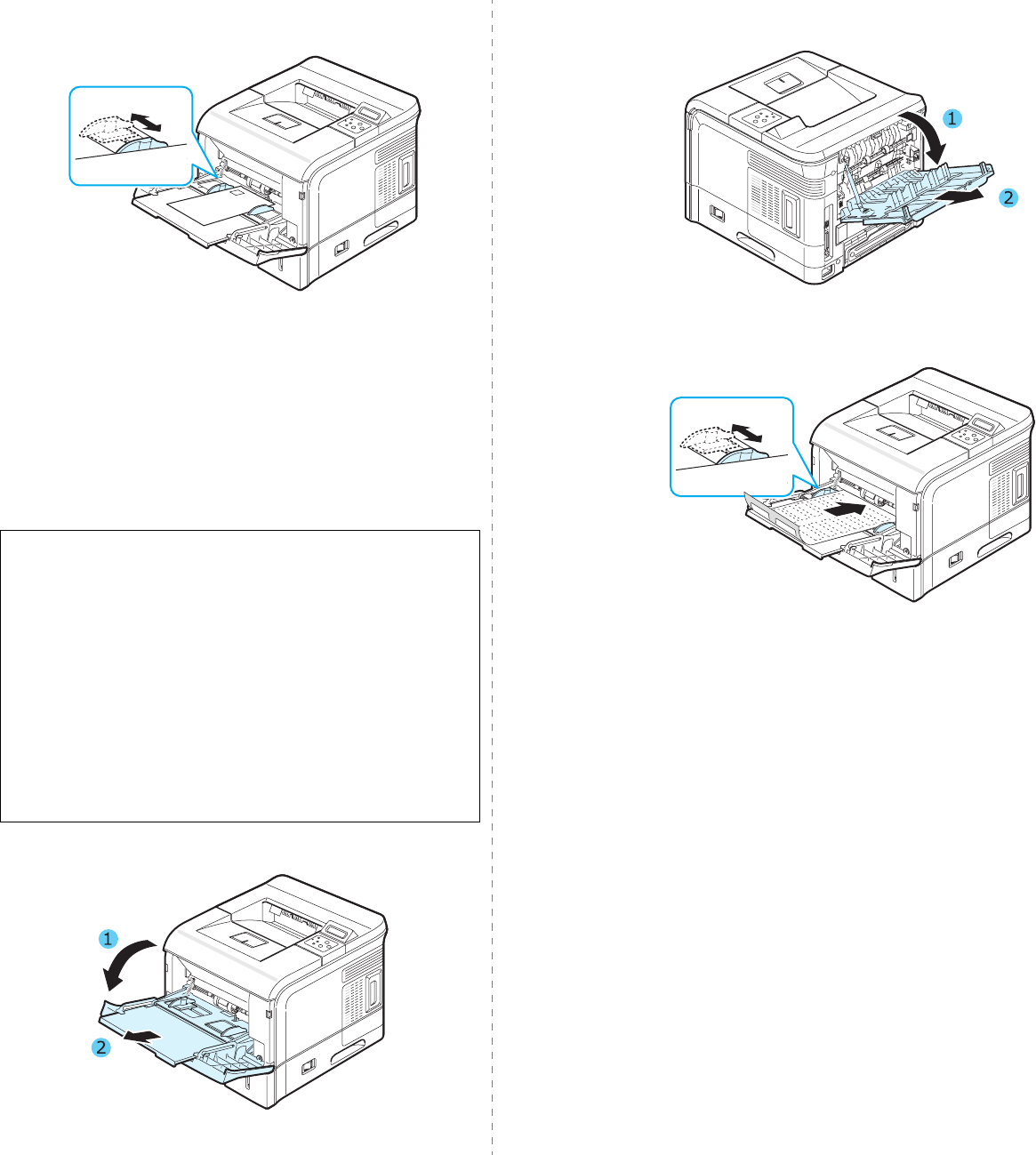

To load paper in the Multi-purpose Tray:

Pull the Multi-purpose Tray down towards you.

Pull the extender to extend the Multi-purpose Tray to hold

longer paper.

If you are using paper, flex or fan the edge of the paper

stack to separate the pages before loading.

For transparencies, hold them by the edges and avoid

touching the print side. Oils from your fingers can cause

print quality problems.

Load the print material on the center of the tray

with the

print side up

If you want to print on previously printed paper from the

Multi-purpose Tray, the printed side should be facing down

with an uncurled edge to the printer. If you experience

problems with paper feeding, turn the paper around.

OTE

: Make sure that you have not loaded too much print

material. The print material buckles if you load a stack that is

too deep or if you push it in too far.

Squeeze the paper width guide and slide it to the edge of

the print material without causing it to bend.

Now, the display on the control panel prompts you to

confirm the paper size in the Multi-purpose Tray.

Using Print Materials

4.4

OTE

: Your printer cannot automatically detect the size of

paper loaded in the Multi-purpose Tray. Configuring the Multi-

purpose Tray with the correct paper size allows you to select

paper by size rather than paper source when you print from

your software application. You do not have to check which

paper is loaded in the Multi-purpose Tray before printing.

Press the scroll button ( or ) until the size of paper

you loaded appears on the bottom line of the display.

Press the

Enter

button ( ). Now, you are ready to print.

When you print a document, set the paper source and type

in the software application. For details, see the

Software

User’s Guide

For information about setting on the control panel, see

page 3.3.

After printing, put the extender back to its place.

Close the Multi-purpose Tray.

Using the Manual Feed Mode

You can manually load a sheet of print material in the Multi-

purpose Tray if you select

Manual Feed

in the

Source

option

from the

Paper

tab when you change print settings to print a

document. For details about changing print settings, see the

Software User’s Guide

Manually loading paper can be

helpful when you want to check the print quality after each

page is printed.

This loading procedure is almost the same as the procedure for

loading in the Multi-purpose tray, except you load paper sheet-

by-sheet in the tray, send print data to print the first page, and

press the

On Line/Continue

button ( ) on the control panel

to print each following page.

Load a sheet of print material on the center of the Multi-

purpose Tray

with the print side up

Squeeze the paper width guide and slide it to the edge of

the print material without causing it to bend.

When you print a document, set the paper source to

Manual Feed

and select the appropriate paper size and

type

in the software application.

For details, see the

Software User’s Guide

Print a document.

The display shows a message prompting you to load paper

and press the

On Line/Continue

button ( ).

Press the

On Line/Continue

button ( ).

The printer picks up the print material and prints. After

one page is printed, the message appears again.

OTE

: If you do not press the button, after a pause the

printer will automatically pick the print material.

Insert the next sheet into the Multi-purpose Tray and press

the

On Line/Continue

button ( ).

Repeat this step for every page to be printed.

Using Print Materials

4.5

Selecting an Output Location

The printer has two output locations; the rear output tray (face

up) and the top output tray (face down).

To use the top output tray, make sure that the rear output tray

is closed. To use the rear output tray, open it.

OTES

• If paper coming out of the top output tray has problems,

such as excessive curl, try printing to the rear output tray.

• To avoid paper jams, do not open or close the rear output

tray while the printer is printing.

Printing to the Top Output Tray

(Face

down)

The top output tray collects paper face down, in the order in

which the sheets were printed. The tray should be used for

most print jobs.

OTE

• If you continuously print many pages, the surface of the

output tray may become hot. Be careful not to touch the

surface, especially for children.

• The top output tray can hold up to 250 sheets of paper.

Top output tray

Rear output tray

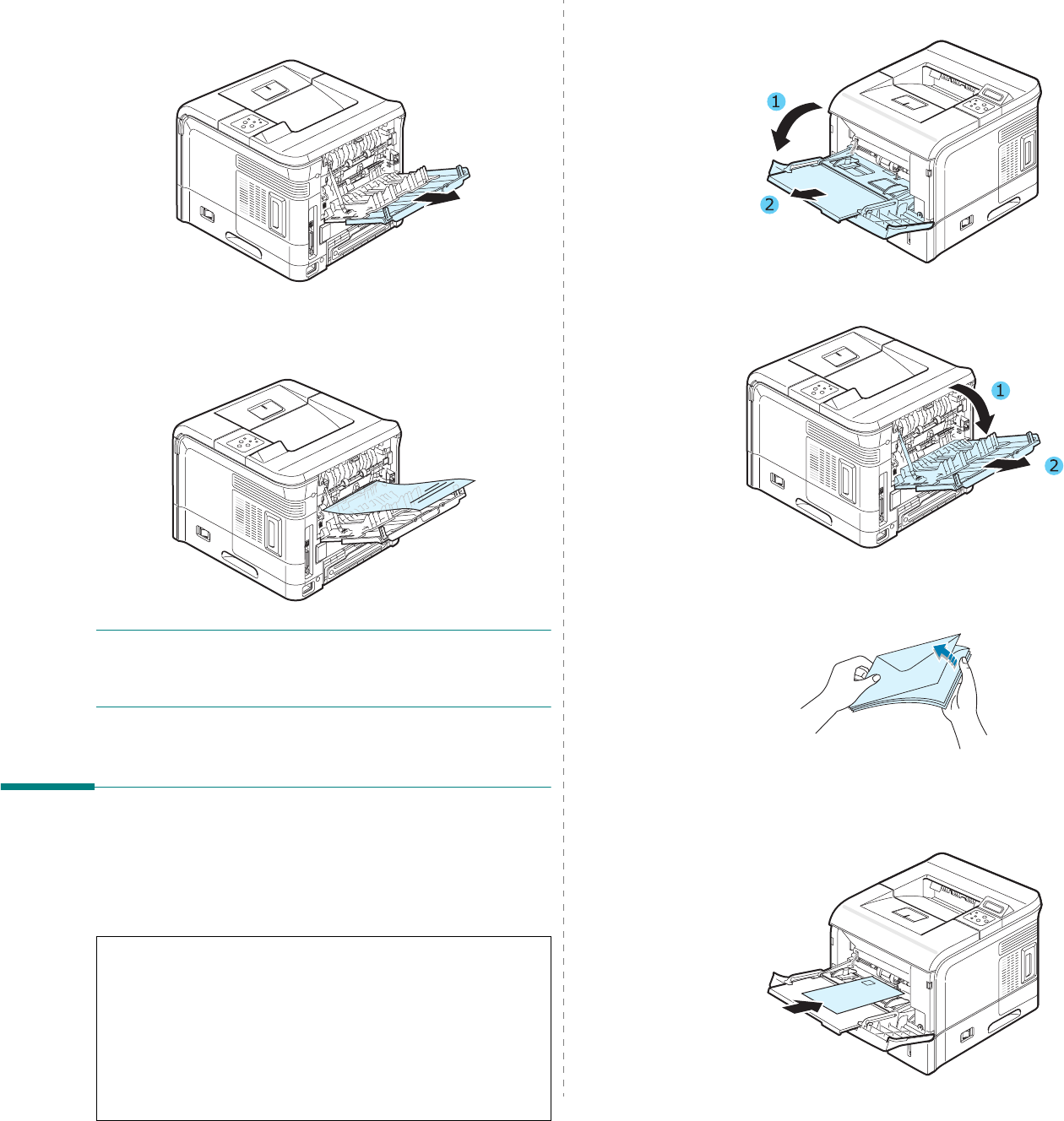

Printing to the Rear Output Tray

(Face up)

The printer always prints to the rear output tray if it is open.

Paper comes out of the printer face up, with the last page on

top.

Printing from the Multi-purpose Tray to the rear output tray

provides the

straight paper path

. Opening the rear output

tray might improve the output quality with the following:

• over 100 sheets of paper continuously

•envelopes

•labels

• small custom-sized paper

•postcards

• paper lighter than 60 g/m2 (16 lb) or heavier than 105 g/

m2 (28 lb)

• transparencies: some special transparencies may have

stacking problem by curl. In that case, please use the top

output tray (face down).

To open the rear output tray:

Open the rear door by pulling it down. The cover functions

as the output tray.

AUTION

The fusing area inside the rear output tray of your

printer becomes very hot when in use. Take care not to burn

your fingers when you access this area.

Using Print Materials

4.6

Pull the extender to extend the output tray to its full-

length position to hold longer paper.

If you do not want to stack the printed pages on the rear

output tray, slide the extender to its place and close the

tray. The pages will stack on the top output tray.

OTE

: The rear output tray can hold up to 100 sheets of

paper. If the tray is overloaded with printed pages, it may fall

from the printer. Remove the pages so that the tray is not

overloaded.

Printing on Special Print

Materials

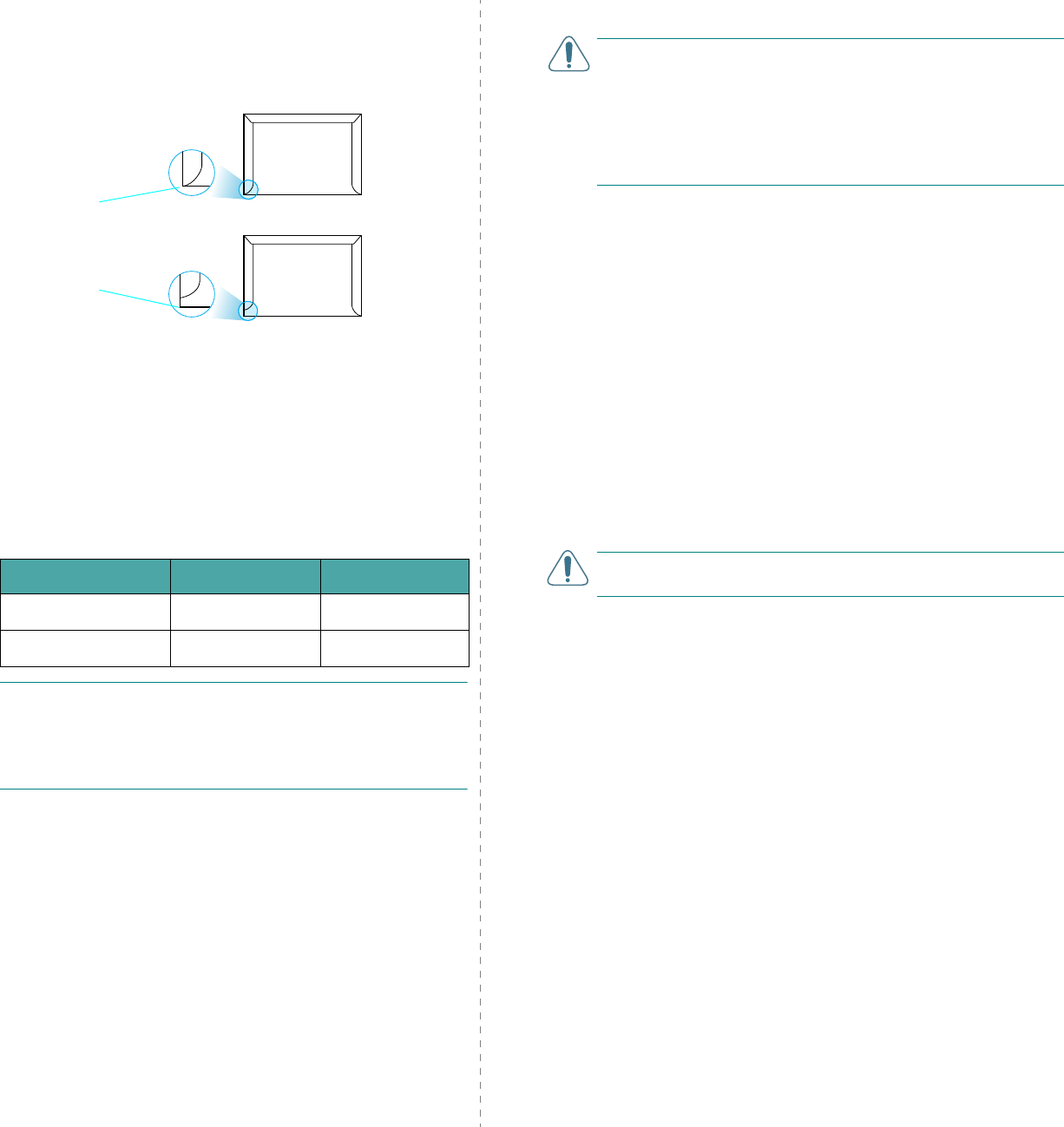

Printing on Envelopes

Guidelines

• Only use envelopes recommended for laser printers. Before

loading envelopes in the Multi-purpose Tray, make sure that

they are undamaged and are not stuck together.

• Load envelopes into the Multi-purpose Tray only.

• Do not feed stamped envelopes.

• Never use envelopes with clasps, snaps, windows, coated

lining, or self-stick adhesives. These envelopes may severely

damage the printer.

Open the Multi-purpose Tray and pull the extender.

Open the rear output tray and pull the extender.

Flex or fan the edge of the envelope stack to separate

them before loading.

Load the envelopes into the Multi-purpose Tray

with the

flap side down

. The stamp area is

on the left side

and

the end of the envelope

with the stamp area enters the

printer first

Using Print Materials

4.7

Squeeze the paper width guide and slide it to the edge of

the envelope stack without causing it to bend.

When you print, set the paper source, type, and size

properly in the software application. For details, see the

Software User’s Guide

For details about setting on the control panel, see

page 3.3.

After printing, close the Multi-purpose Tray and the rear

output tray.

Printing on Labels

Open the Multi-purpose Tray and pull the extender.

Guidelines

• Only use labels recommended for laser printers.

• Verify that the labels’ adhesive material can tolerate fusing

temperature of 195°C (383°F) for 0.1 second.

• Make sure that there is no exposed adhesive material

between the labels. Exposed areas can cause labels to peel

off during printing, which can cause paper jams. Exposed

adhesive can also cause damage to printer components.

• Never print on the same sheet of labels more than once, or

print on a partial sheet of labels.

• Do not use labels that are separating from the backing sheet

or are wrinkled, bubbled, or damaged in any way.

• To prevent labels from sticking together, do not let the

printed label sheets stack up as they are printed out.

Open the rear output tray and pull the extender.

Load labels into the

Multi-purpose Tray

with the print

side up

. Adjust the guide to fit the width of the labels.

When you print, set the paper source, type, and size

properly in the software application. For details, see the

Software User’s Guide

For details about setting on the control panel, see

page 3.3.

After printing, close the Multi-purpose Tray and the rear

output tray.

Using Print Materials

4.8

Printing on Transparencies

Open the Multi-purpose Tray and pull the extender.

Open the rear output tray and pull the extender.

Load transparencies in the

Multi-purpose Tray

with the

print side up

, and

the top with the adhesive strip

Guidelines

• Only use transparencies recommended for use in laser

printers.

• Ensure that transparencies are not wrinkled, curled, or have

any torn edges.

• Hold the transparencies by the edges and avoid touching the

print side. Oils from your fingers can cause print quality

problems.

• Be careful not to scratch or leave fingerprints on the print

side.

entering the printer first

. Adjust the guide to fit the

width of the transparencies.

When you print, set the paper source, type, and size

properly in the software application. For details, see the

Software User’s Guide

For details about setting on the control panel, see

page 3.3.

After printing, close the Multi-purpose Tray and the rear

output tray.

OTES

• If you print on thin transparencies to the rear output tray,

they can be curled. In this case, use the top output tray. If

the problem persists, check if your transparencies meets the

printer’s specifications.

• To prevent transparencies from sticking, do not let the

printed sheets stack up as they are printed out.

• Place transparencies on a flat surface after removing them

from the printer.

Printing on Preprinted Paper

Preprinted paper is paper that has some type of printing on it

before it is sent through the printer (paper that has a

preprinted logo at the top of the page, for example).

Guidelines

• Letterheads must be printed with heat-resistant ink that will

not melt, vaporize, or release hazardous emissions when

subjected to the printer’s fusing temperature of 383 °F (195

°C) for 0.1 second.

• Ink on letterheads must be non-flammable and should not

adversely affect printer rollers.

• Forms and letterheads should be sealed in a moisture-proof

wrapping to prevent changes during storage.

• Before you load preprinted paper, such as forms and

letterheads, verify that the ink on the paper is dry. During

the fusing process, wet ink can come off preprinted paper,

reducing print quality.

Using Print Materials

4.9

Load letterheads into the tray you want to use, as shown

in the figures below. Adjust the guides to fit the width of

the paper stack.

When you print, set the paper source, type, and size

properly in the software application. For details, see the

Software User’s Guide

For details about setting on the control panel, see

page 3.3.

Printing on Card Stock or Custom-

sized Materials

Postcards, 3.5 by 5.83 in. (index) cards, and other custom-

sized materials can be printed with your printer. The minimum

size is 76 by 127 mm (3 by 5 in.) and the maximum size is 216

by 356 mm (8.5 by 14 in.).

Open the Multi-purpose Tray and pull the extender.

Open the rear output tray and pull the extender.

Guidelines

• Always insert the short-edge into the Multi-purpose Tray

first. If you want to print in landscape mode, make this

selection through your software. Inserting paper long-edge

first may cause a paper jam.

• Do not load more than 10 cards into the Multi-purpose Tray

at a time.

• Do not print on media smaller than 76 mm (3 in.) wide or

127 mm (5 in.) long.

• In the software application, set margins at least 6.4 mm

(0.25 in.) away from the edges of the material.

Load with the design face

down, bottom edge

towards the printer.

Load with the design

face up, top edge

towards the printer.

Load print material in the

Multi-purpose Tray

with the

print side up and short edge first

. Adjust the guide to

fit the width of the material stack.

When you print, set the paper source, type, and size

properly in the software application. For details, see the

Software User’s Guide

For details about setting on the control panel, see page

page 3.3.

After printing, close the Multi-purpose Tray and the rear

output tray.

Basic Printing

5.1

5Basic Printing

This chapter explains common printing tasks.

This chapter includes:

• Printing a Document

• Canceling a Print Job

Printing a Document

This printer allows you to print from various Windows

applications, a Macintosh computer, or a Linux system. The

exact steps for printing a document may vary depending on the

application you use.

For details about printing, see the

Software User’s Guide

Canceling a Print Job

If the print job is waiting in a print queue or print spooler, such

as the printer group in Windows, delete the job as follows:

Click the Windows

Start

button.

For Windows 98SE/NT 4.0/2000/Me, select

Settings

and

then

Printers

For Windows XP/2003, select

Printers and Faxes

Double-click the

Samsung ML-3560 Series PCL6

Samsung ML-3560 Series PS

icon.

From the

Document

menu, select

Cancel Printing

(Windows 98SE/Me) or

Cancel

(Windows NT 4.0/2000/

XP/2003).

NOTE

: You can access this window simply by double-clicking

the printer icon at the bottom right corner of the Windows

desktop.

You can also cancel the current job by pressing the

Cancel

button ( ) on the control panel of your printer.

Maintaining Your Printer

6.1

6Maintaining Your

Printer

This chapter provides information for maintaining your printer

and the toner cartridge, as well as suggestions for high-quality

and economical printing.

This chapter includes:

• Printing a Configuration Page

• Maintaining the Toner Cartridge

• Replacing Transfer Roller

• Replacing Pickup Roller

• Replacing Pickup Pad

• Replacing Fuser Roller

• Cleaning the Printer

• Consumables and Replacement Parts

Printing Information Pages

From the printer’s control panel, you can print pages that give

detailed information about the printer. They can be help you

maintain your printer.

Printing a Configuration Page

You can print a configuration page from the printer’s control

panel. Use the configuration page to view the current settings,

to help troubleshoot problems, or to verify the installation of

optional accessories, such as memory, optional tray, hard disk,

or duplex unit.

To print a configuration page:

In ready mode, press the

button ( ) on the

control panel until you see “Information” on the bottom

line of the display.

Press the

Enter

button ( ) to access the menu.

Press the

Enter

button ( ) when “Configuration”

displays on the bottom line.

A configuration page prints out.

Printing Event Log Page

This page contains a log of the errors. You can print this page

only when an optional hard disk is installed in your printer.

To print an event log page:

In ready mode, press the

button ( ) on the

control panel until you see “Information” on the bottom

line of the display.

Press the

Enter

button ( ) to access the menu.

Press the scroll button ( or ) until “Event Log”

displays on the bottom line.

Press the

Enter

button ( ).

The Event Log Page prints out.

Printing Usage Page

This page shows the total number of pages printed up to the

current time by person or group. It is useful for cost accounting.

You can print this page only when an optional hard disk is

installed in your printer.

To print a usage page:

In ready mode, press the

button ( ) on the

control panel until you see “Information” on the bottom

line of the display.

Press the

Enter

button ( ) to access the menu.

Press the scroll button ( or ) until “Usage Page”

displays on the bottom line.

Press the

Enter

button ( ).

The Usage Page prints out.

Maintaining Your Printer

6.2

Maintaining the Toner Cartridge

Toner Cartridge Storage

To get the maximum results from a toner cartridge, keep the

following guidelines in mind:

• Do not remove the toner cartridge from its package until

ready for use.

• Do not refill the toner cartridge.

The printer warranty

does not cover damage caused by using a refilled

cartridge.

• Store toner cartridges in the same environment as the

printer.

• To prevent damage to the toner cartridge, do not expose

it to light for more than a few minute.

Expected Cartridge Life

The life of a toner cartridge depends on the amount of toner

that your print jobs require. When printing text at 5%

coverage, a new toner cartridge lasts an average of 12,000

pages or 6,000 pages depending on its type. (The original toner

cartridge supplied with the printer lasts an average of 6,000

pages.)

Saving Toner

To save toner, press the

Toner Save

button ( ) on the

printer control panel. The button backlight turns on. You can

also enable the Toner Save mode in the printer properties

window or from the control panel menu. For details, see

page 2.8.

Using this feature extends the life of the toner cartridge and

reduce your cost per page, but it also reduces print quality.

Checking the Toner Remains

You can check the level of toner currently left in the cartridge.

If you are having print quality problems, this can help you

determine if the problem is caused by low toner.

In ready mode, press the

button ( ) on the

control panel until you see “Setup” on the bottom line of

the display.

Press the

Enter

button ( ) to access the menu.

Press the scroll button ( or ) until “Maintenance”

displays on the bottom line and press the

Enter

button

().

Press the scroll button ( or ) until “Remain Toner”

displays on the bottom line.

Press the

Enter

button ( ).

The display shows the percentage of the toner remains.

Redistributing Toner

When a toner cartridge is nearly empty, “Ready Low Toner”

appears on the display and faded or light areas may appear on

a printed page. Also, the SmartPanel program window appears

on the computer telling you the toner cartridge is low on toner.

You may be able to temporarily improve print quality by

redistributing the toner.

To redistribute the toner:

Open the top cover.

Remove the toner cartridge from the printer.

AUTIONS

• Avoid reaching too far into the printer. The fusing area may

be hot.

• Do not touch the green surface, the OPC drum, on the front

of the toner cartridge with your hands or any other material.

• To prevent damage, do not expose the toner cartridge to

light for more than a few minutes. Cover it with a piece of

paper to protect it, if necessary.

Maintaining Your Printer

6.3

Gently shake the toner cartridge from side to side 5 or 6

times to distribute the toner evenly inside the cartridge.

OTE

If toner gets on your clothing, wipe it off with a dry

cloth and wash clothing in cold water. Hot water sets toner into

fabric.

Locate the cartridge slots inside the printer, one on each

side.

Grasp the handle and insert the cartridge in the printer

until it snaps into place.

Close the top cover. Make sure that the cover is securely

closed.

Replacing the Toner Cartridge

When “Ready Replace Cart” appears on the display, you need

to replace the toner cartridge. Also, the SmartPanel program

window appears on the computer telling you the toner cartridge

is empty.

To replace the toner cartridge:

Open the top cover.

Maintaining Your Printer

6.4

Remove the old toner cartridge from the printer.

Take a new toner cartridge out of its package.

AUTION

: Do not use sharp objects, such as a knife or

scissors, to open the toner cartridge package. They might

scratch the drum of the cartridge.

Locate the sealing tape at the end of the toner cartridge.

Carefully pull the tape completely out of the cartridge and

discard it.

OTES

• The sealing tape should be longer than 600 mm when

correctly removed.

• Holding the toner cartridge, pull the sealing tape straight to

remove it from the cartridge. Be careful not to cut the tape.

If this happens, you cannot use the toner cartridge.

Hold the toner cartridge and lift up the handle part of the

toner cartridge. There is a flexible plastic holder. Remove

the holder out of the toner cartridge.

Gently shake the cartridge from side to side 5 or 6 times to

distribute the toner evenly inside the cartridge.

Thoroughly shaking the cartridge will assure maximum

copies per cartridge.

AUTIONS

• If toner gets on your clothing, wipe it off with a dry cloth and

wash clothing in cold water. Hot water sets toner into fabric.

• Do not touch the green surface, the OPC drum, on the front

of the toner cartridge with your hands or any other material.

• To prevent damage, do not expose the toner cartridge to

light for more than a few minutes. Cover it with a piece of

paper to protect it, if necessary.

Locate the cartridge slots inside the printer, one on each

side.

Maintaining Your Printer

6.5

Grasp the handle and insert the cartridge in the printer

until it snaps into place.

Close the top cover. Make sure that the cover is securely

closed.

OTE

: When printing text at 5% coverage, you can expect a

toner cartridge life of approximately 12,000 pages (6,000

pages for the toner cartridge that is shipped with the printer).

Replacing Transfer Roller

The life of the transfer roller is apprroximately 150,000 pages.

When the life of the transfer roller has expired, the display on

the control panel shows the the error message, “Replace

Transfer Roller”. Also, the SmartPanel program window appears

on the computer, indicating the paper transfer belt needs to be

replaced. At this stage, replace the paper transfer roller.

To replace the transfer roller:

Turn the printer off, then wait a few minutes for the printer

to cool.

Pull open the paper tray and remove it form the printer.

Push the lever on the transfer belt and pull the transfer

roller.

Install a new transfer roller.

Maintaining Your Printer

6.6

Insert and slide the paper tray back into the printer.

Replacing Pickup Roller

The life of the pickup roller is apprroximately 150,000 pages.

When the life of the pickup roller has expired, the display on the

control panel shows the the error message, “Replace Pickup

Roller”. Also, the SmartPanel program window appears on the

computer, indicating the pickup roller needs to be replaced. At

this stage, replace the paper pickup roller.

To replace the pickup roller:

Turn the printer off, then wait a few minutes for the printer

to cool.

Pull open the paper tray and remove it form the printer.

Open the front cover. Unlatch the two latches on the both

side of the front cover carefully.

By sliding the front cover to the right, remove it.

Pinch the pickup roller and pull it out.

Place a new pickup roller into your printer. Align the pin

that is located on each side of the roller with the slot in the

printer and insert it until it snaps into place.

Maintaining Your Printer

6.7

By sliding the fornt cover to the left, insert it.

Reconnect the latches you unlatched in the step 3 and

close the front cover.

Insert and slide the paper tray back into the printer.

Replacing Pickup Pad

The life of the pickup pad is apprroximately 150,000 pages.

When the life of the pickup pad has expired, the display on the

control panel shows the the error message, “Replace Pickup

Pad”. Also, the SmartPanel program window appears on the

computer, indicating the pickup pad needs to be replaced. At

this stage, replace the pickup pad.

To replace the pickup pad:

Turn the printer off, then wait a few minutes for the printer

to cool.

Pull open the paper tray and remove it form the printer.

Locate the pickup pad in the front of the tray. Use the flat

blade screwdriver to life the one end of the pickup pad as

shown below.

Maintaining Your Printer

6.8

Disengage the pickup pad using your hand and remove the

old pickup pad.

Snap a new pickup pad firmly into place until it click.

Insert and slide the paper tray back into the printer.

Replacing Fuser Roller

The life of the fuser roller is apprroximately 150,000 pages.

When the life of the fuser roller has expired, the display on the

control panel shows the the error message, “Replace Fuser

Roller”. Also, the SmartPanel program window appears on the

computer, indicating the fuser roller needs to be replaced. At

this stage, replace the fuser roller.

To replace the fuser roller:

Turn the printer off, then wait a few minutes for the printer

to cool.

Open the rear output tray and lift the left end with the

gear of the fuser roller outward.

Pull the fuser roller out and remove it.

Install a new fuser roller by snaping the right end into

place and moving the left end into place.

Close the rear output tray.

Maintaining Your Printer

6.9

Cleaning the Printer

During the printing process, particles of paper, toner, and dust

can accumulate inside the printer. Over time, this build-up can

cause print quality problems such as toner specks or smearing.

Your printer has a cleaning mode that can correct and prevent

these types of problems.

Cleaning the Outside of the Printer

Clean the cabinet of the printer with a soft, lint-free cloth. You

can dampen the cloth slightly with water, but be careful not to

let any water drip onto the printer or inside of it.

AUTION

: Cleaning the printer cabinet with cleaners

containing large amounts of alcohol, solvents, or other strong

substances can discolor or crack the cabinet.

Cleaning the Inside of the Printer

OTE

While cleaning the inside of the printer, be careful not

to touch the transfer roller (located underneath the toner

cartridge). Oil from your fingers can cause print quality

problems.

There are two methods to clean the inside of the printer:

• Clean the inside manually.

• Print a cleaning sheet, which can be done from the

control panel.

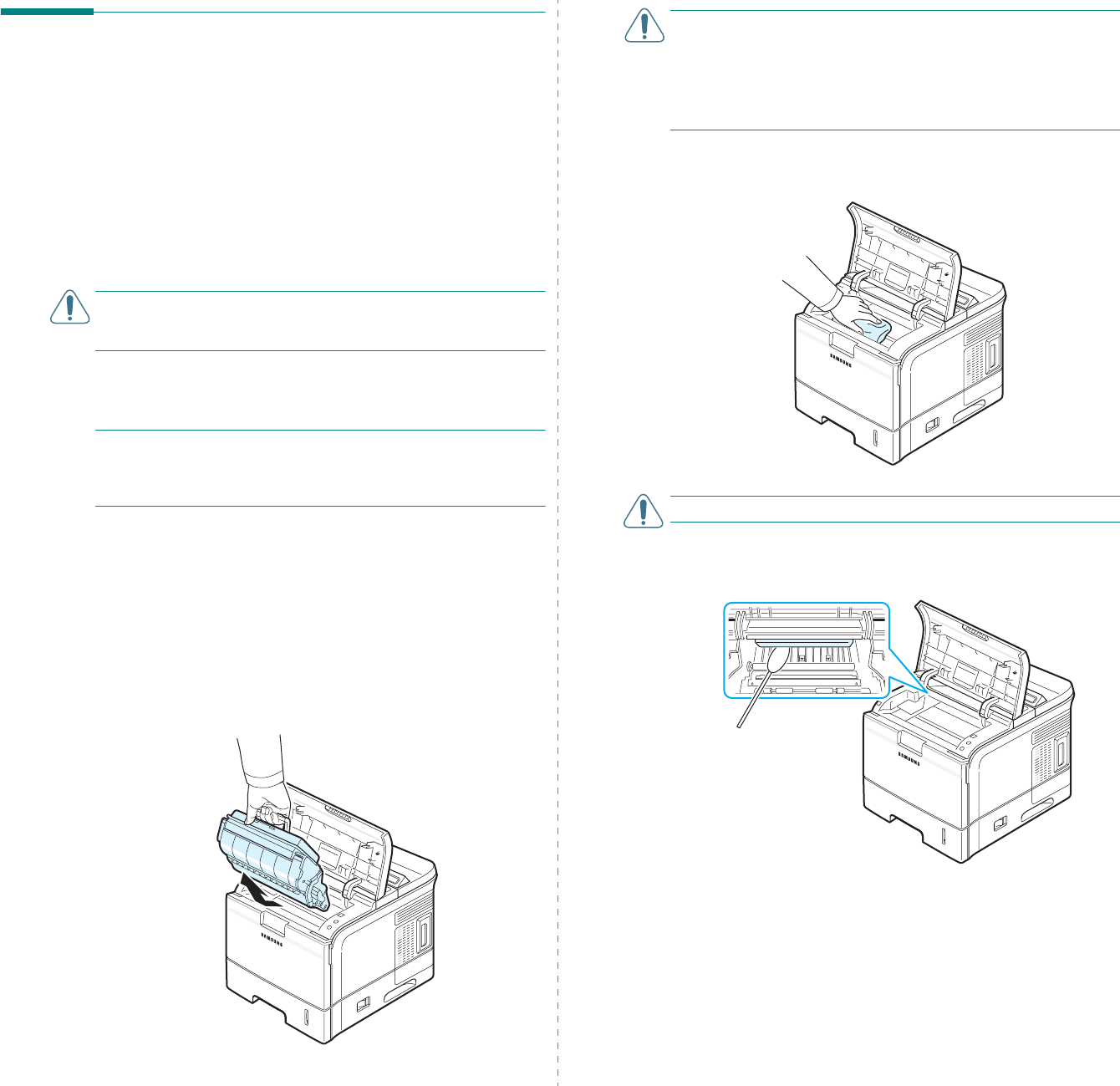

Cleaning the Inside of the Printer Manually

Turn the printer off and unplug the power cord, then wait a

few minutes for the printer to cool.

Open the top cover and remove the toner cartridge.

AUTION

• Do not touch the green surface, the OPC drum, on the front

of the toner cartridge with your hands or any other material.

• To prevent damage, do not expose the toner cartridge to

light for more than a few minutes. Cover it with a piece of

paper to protect it, if necessary.

Look inside the printer. Remove any dust, paper particles,

and spilled toner with a damp, soft lint-free cloth.

AUTION

: Do not touch the transfer roller inside the printer.

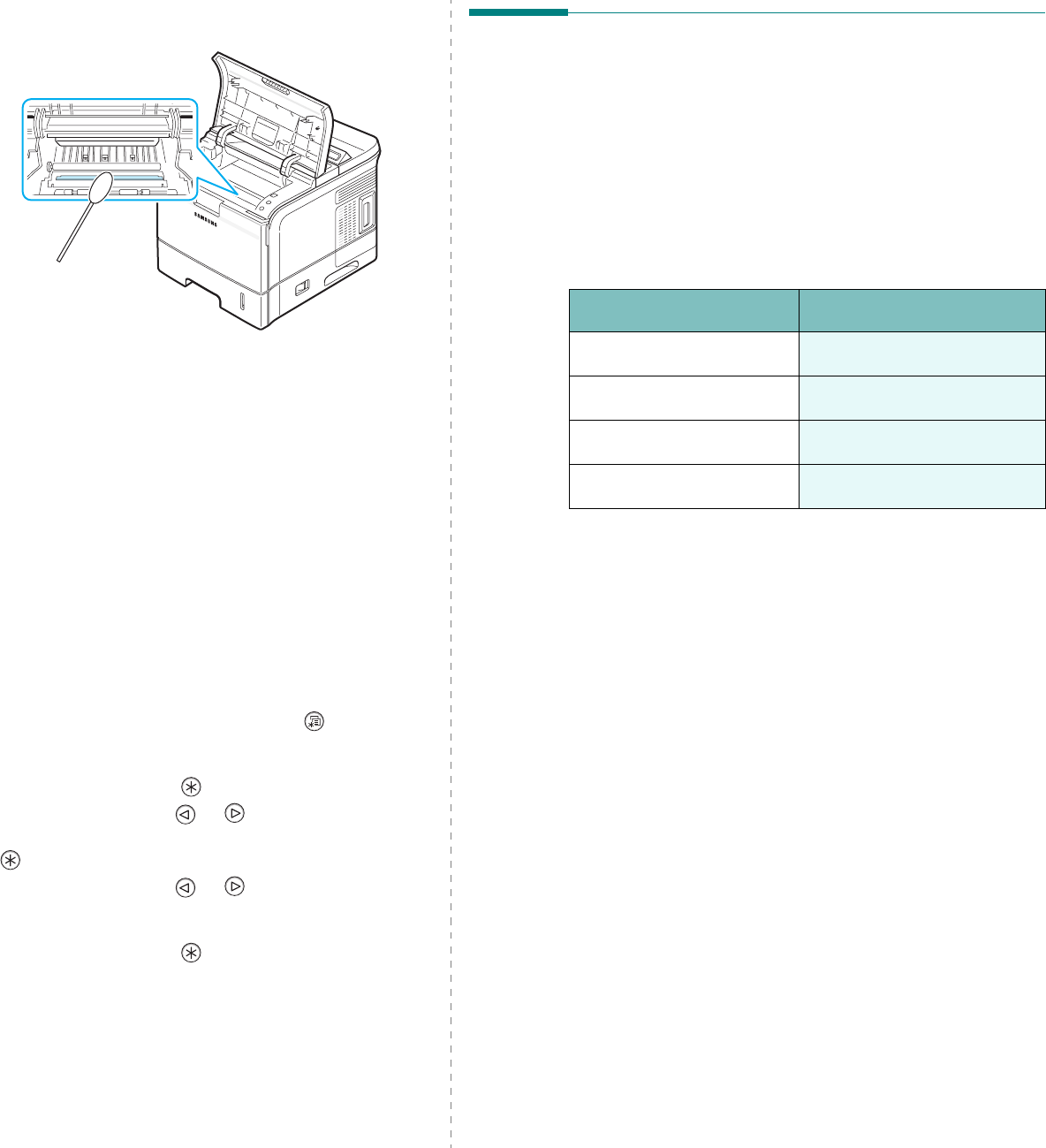

Locate the long strip of glass (LSU) inside the top of the

cartridge compartment, and gently swab the glass to see if

dirt turns the white cotton black.

Maintaining Your Printer

6.10

Locate the PTL lens by flipping up the guide feed and

gently swab the lens with the pointed white cotton..

Reinsert the toner cartridge and close the cover.

Plug in the power cord and turn the printer on.

Printing a Cleaning Sheet

If you are experiencing blurred, faded, or smeared printouts,

you can clear the problem by printing a cleaning sheet,

provided by your printer. You can print:

• OPC Cleaning sheet: cleans the OPC drum of the toner

cartridge.

• Fuser Cleaning sheet: cleans the fuser unit inside the

printer.

This process will produce a page with toner debris, which

should be discarded.

Make sure that the printer is turned on with paper loaded

in the tray.

In ready mode, press the

button ( ) on the

control panel until you see “Setup” on the bottom line of

the display.

Press the

Enter

button ( ) to access the menu.

Press the scroll button ( or ) until “Maintenance”

displays on the bottom line and press the

Enter

button

().

Press the scroll button ( or ) until the required

option, “OPC Cleaning” or “Fuser Cleaning” displays on the

bottom line.

Press the

Enter

button ( ).

Your printer automatically picks up a sheet of paper from

the tray and prints out a cleaning sheet with dust or toner

particles on it.

Consumables and Replacement

Parts

From time to time, you need to replace the following items to

maintain top performance and to avoid print quality problems

and paper feed problems resulting from worn parts.

The following items should be replaced after you have printed

the specified number of pages or when the life span of each

item has expired. The SmartPanel program window will appear

on the computer, indicating which item needs to be replaced.

See below.

To purchase the consumables and replacement parts, contact

your Samsung dealer or the retailer where you bought your

printer. If you want to replace the retard roller, we strongly

recommend that the item be installed by a trained service

professional, except for .

Items Yield (Average)

Transfer Roller 150,000

Pick-up Roller 150,000

Pick-up Pad 150,000

Fuser Roller 150,000

Solving Problems

7.1

7Solving Problems

This chapter provides helpful information for what to do if you

encounter an error while using your printer.

This chapter includes:

• Troubleshooting Checklist

• Solving General Printing Problems

•Clearing Paper Jams

• Solving Print Quality Problems

• Understanding Display Messages

• Common Windows Problems

• Common Macintosh Problems

• Common PS Problems

• Common Linux Problems

Troubleshooting Checklist

If the printer is not working properly, consult the following

checklist. If the printer does not pass a step, follow the

corresponding troubleshooting suggestions.

Check Solution

Make sure that the

Line/Continue

button on the control

panel is on in green

and “Ready” is shown

on the display.

• If the button backlight is off, check the power

cord connection. Check the power switch. Check

the power source by plugging the power cord

into another outlet.

• If the button backlight is on in orange, check the

display message and go to “Understanding

Display Messages” on page 7.10.

Print a demo page to

verify that the printer

is feeding paper

correctly. See

page 2.7.

• If a demo page does not print, check the paper

supply in the paper tray.

• If the paper jams in the printer, go to “Clearing

Paper Jams” on page 7.4.

• If an error message appears on the display, go to

“Understanding Display Messages” on page 7.10.

Check the demo page

to see if it printed

correctly.

If there is a print quality problem, go to “Solving

Print Quality Problems” on page 7.8.

Print a short document

from a software

application to verify

that the computer and

printer are connected

and are

communicating

correctly.

• If the page does not print, check the cable

connection between the printer and the

computer.

• Check the print queue or print spooler to see if

the printer has been paused.

• Check the software application to ensure that

you are using the proper printer driver and

communication port. If the page is interrupted

during printing, go to “Solving General Printing

Problems” on page 7.2.

If completing the

checklist does not

resolve the printer

problem, check the

following

troubleshooting

sections.

• “Solving General Printing Problems” on page 7.2.

• “Understanding Display Messages” on page 7.10.

• “Common Windows Problems” on page 7.12.

• “Common Macintosh Problems” on page 7.12.

• “Common PS Problems” on page 7.13.

• “Common Linux Problems” on page 7.13.

Solving Problems

7.2

Solving General Printing

Problems

For problems with the operation of your printer, refer to the

table for suggested solutions.

Problem Possible Cause Solution

The printer

does not

print.

The printer is not

receiving power.

Check the power cord connections.

Check the power switch and the

power source.

The printer is not

selected as the

default printer.

Select

Samsung ML-3560 Series

PCL 6

Samsung ML-3560

Series PS

as your default printer.

Check the printer for

the following:

• The printer cover

is not closed.

• Paper is jammed.

• No paper is loaded.

• The toner cartridge

is not installed.

After locating the problem, clear it.

If a printer system error occurs,

contact your service representative.

• Close the printer cover.

• Clear the paper jam. See

page 7.4.

• Load paper. See page 2.4.

• Install the toner cartridge. See

page 2.2.

The printer may be

in manual feed mode

and out of paper.

Check the display message, add

paper to the Multi-purpose Tray, and

press the

On Line/Continue

button on the printer’s control panel.

The connection cable

between the

computer and the

printer is not

connected properly.

Disconnect the printer cable and

reconnect it.

The connection cable

between the

computer and the

printer is defective.

If possible, attach the cable to

another computer that is working

properly and try to print a

document. You can also try using a

different printer cable.

The port setting is

incorrect.

Check the Windows printer setting to

make sure that the print job is sent

to the correct port. If the computer

has more than one port, make sure

that the printer is attached to the

correct one.

The printer may be

configured

incorrectly.

Check the printer properties to

ensure that all of the print settings

are correct.

The printer

does not

print.

(Continued)

The printer driver

may be incorrectly

installed.

Reinstall the printer driver; for

details, see the

Software User’s

Guide

. Try printing a test page.

The printer is

malfunctioning.

Check the display message on the

control panel to determine if the

printer is indicating a system error.

Printer

selects print

materials

from the

wrong paper

source.

The paper source

selection in the

printer properties

may be incorrect.

For many software applications, the

paper source selection is found

under the

Paper

tab within the

printer properties. Select the correct

paper source. For details, see the

Software User’s Guide

Paper does

not feed into

the printer.

Paper has not been

loaded correctly.

Remove paper from the tray and

reload it correctly.

Check that the paper size guides are

set correctly.

There is too much

paper in the paper

tray.

Remove excess paper from the tray.

The paper is too

thick.

Use only paper that meets printer

specifications.

Print job is

extremely

slow.

The job may be very

complex.

Reduce the complexity of the

page(s) or try adjusting the print

quality settings.

To adjust the print quality settings,

reduce the resolution. If you have

set the resolution to

1200 dpi

(

Best

), change it to

600 dpi

(

Normal

). For details, see the

Software User’s Guide

Change the port setting to the USB

or network port to improve print

speed.

Your printer prints A4-sized paper at

33 ppm and letter-sized paper at 34

ppm.

If using Windows 9x/

Me, the Spooling

Setting may be set

incorrectly.

From the

Start

menu, choose

Settings

and

Printers

. Right-click

the

Samsung ML-3560 Series

PCL 6

printer icon, choose

Properties

, click the

Details

tab,

and then choose the

Spool

Settings

button. Select the desired

spool setting.

The computer may

have insufficient

random-access

memory (RAM).

Install more memory in your printer.

See “Installing Memory DIMM” on

page 9.1.

Problem Possible Cause Solution

Solving Problems

7.3

Half the

page is

blank.

The page layout is

too complex.

Simplify the page layout and remove

any unnecessary graphics from the

document.

Install more memory in your printer.

See “Installing Memory DIMM” on

page 9.1.

The page orientation

setting may be

incorrect.

Change the page orientation in your

application. For details, see the

Software User’s Guide

The paper size and

the paper size

settings do not

match.

Ensure that the paper size in the

printer driver settings matches the

paper in the tray.

Or, ensure that the paper size in the

printer driver settings matches the

paper selection in the software

application settings you use.

The paper

keeps

jamming.

There is too much

paper in the paper

tray.

Remove excess paper from the tray.

If printing on special materials, use

the Multi-purpose Tray.

An incorrect type of

paper is being used.

Use only paper that meets printer

specifications.

If printing on special materials, use

the Multi-purpose Tray.

An incorrect output

method is being

used.

Special print materials, such as thick

paper, should not be printed using

the top output tray (face-down). Use

the rear output tray (face-up)

instead.

There may be debris

inside the machine.

Open the top cover and remove the

debris.

The printer

prints, but

the text is

wrong,

garbled, or

incomplete.

The printer cable is

loose or defective.

Disconnect and reconnect the printer

cable. Try a print job that you have

already printed successfully. If

possible, attach the cable and

printer to another computer and try

a print job that you know works.

Finally, try a new printer cable.

The wrong printer

driver was selected.

Check the application’s printer

selection menu to ensure that your

printer is selected.

The software

application is

malfunctioning.

Try printing a job from another

application.

Problem Possible Cause Solution

The printer

prints, but

the text is

wrong,

garbled, or

incomplete.

(Continued)

The operating

system is

malfunctioning.

If printing from Windows (any

version), exit to a DOS prompt and

verify functionality with the following

command: At a

C:\

prompt, type

Dir LPT1

, and press

Enter

. (This

assumes you are connected to

LPT1.)

Exit Windows and reboot the

computer. Turn the printer off and

then back on again.

Pages print,

but are

blank.

The toner cartridge

is defective or out of

toner.

Redistribute the toner cartridge. See

page 6.2.

If necessary, replace the toner

cartridge. See page 6.3.

The file may have

blank pages.

Check the file to ensure that it does

not contain blank pages.

Some parts, such as

the controller or the

board, may be

defective.

Contact a service representative.

The

illustrations

incorrectly in

Adobe

Illustrator.

The setting in the

software application

is wrong.

Select

Download as Bit Image

the

Advanced Options

window of

the graphic properties. Print the

document again.

Problem Possible Cause Solution

Solving Problems

7.4

Clearing Paper Jams

OTE

: When removing paper that is jammed in the printer, if

possible always pull the paper in the direction that it normally

moves so as not to damage internal components. Always pull

firmly and evenly; do not jerk the paper. If the paper tears,

ensure that all fragments of paper are removed; otherwise a

jam will occur again.

When a paper jam occurs, the display on the control panel

shows the message indicating the corresponding location of the

paper jam. Refer to the table below to locate the paper jam and

to clear it:

To resume printing after clearing paper jams, you must open

and close the top cover.

In the Paper Feed Area

In the Tray

Slide out the standard tray to expose the jammed paper.

Message Location of Jam Go To

Paper Jam0 In the paper feed area below

Paper Jam1 Around the toner

cartridge

page 7.6

Paper Jam2 In the paper exit area page 7.7

Duplex Jam (1, 2) In the duplex area page 7.7

Remove any jammed paper by gently pulling it straight out

by the visible edge from the tray. Make sure that all of the

paper is properly aligned in the tray.

OTE

: If you cannot find jammed paper, or if there is any

resistance removing the paper, stop pulling and remove the

tray from the printer and carefully pull the jammed paper from

the printer.

Slide the tray back into the printer.

Open and close the top cover. The printer will resume

printing.

Solving Problems

7.5

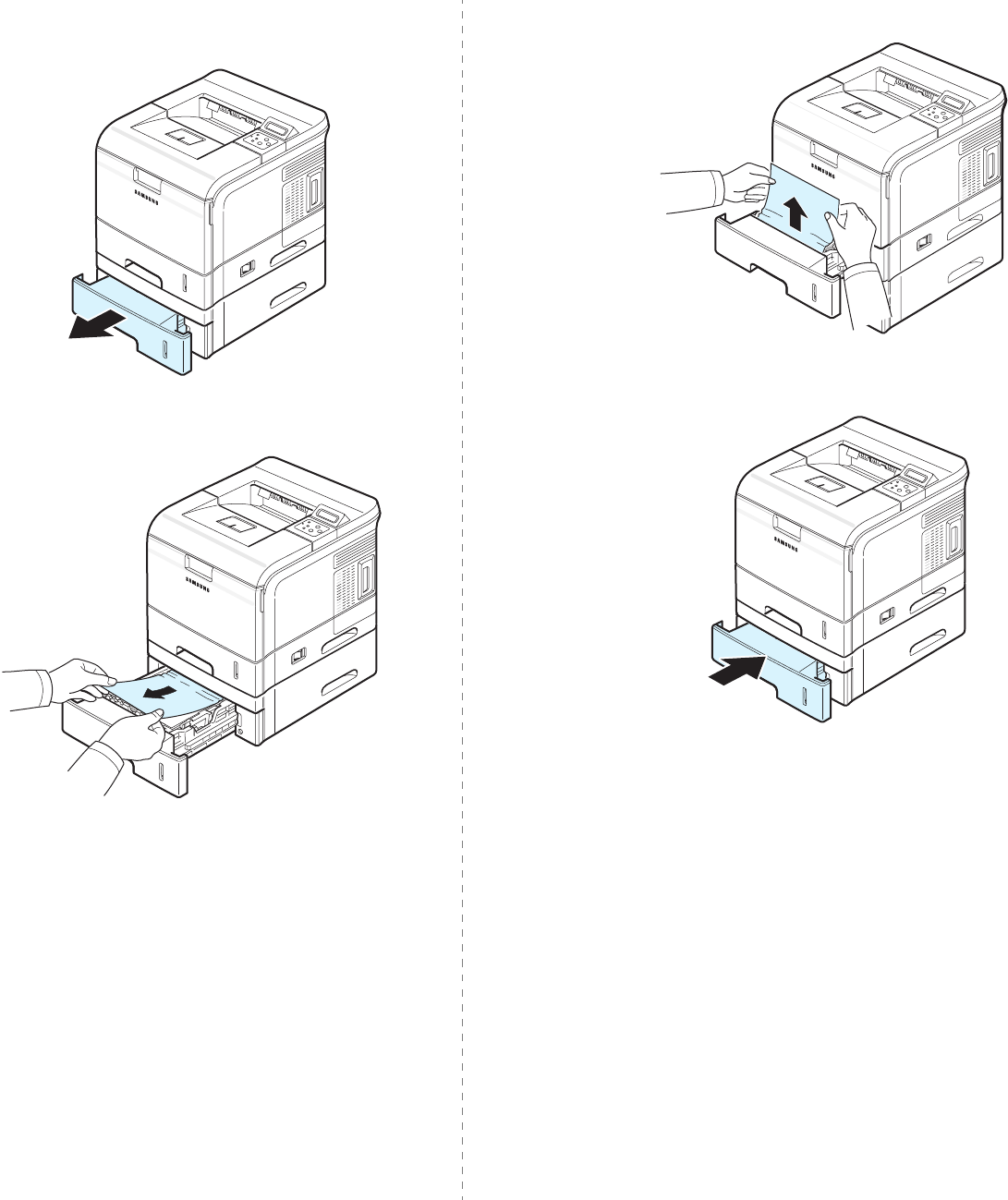

In the Optional Tray2

Pull the optional Tray2 out of the printer.

Remove the jammed paper from the tray. Slide the tray

back into the printer. Go to step 6.

If you cannot find jammed paper, or if there is any

resistance removing the paper, stop pulling and go to step

Remove the Tray 2 and pull the standard tray half way out

of the printer.

Pull the jammed paper by gently pulling it straight out.

Slide the trays back into the printer.

Open and close the top cover. The printer will resume

printing.

Solving Problems

7.6

In the Multi-purpose Tray

Open the Multi-purpose Tray.

Remove the jammed paper by pulling in direction shown.

To avoid tearing the paper, pull it out gently and slowly.

Open and close the top cover. The printer will resume

printing.

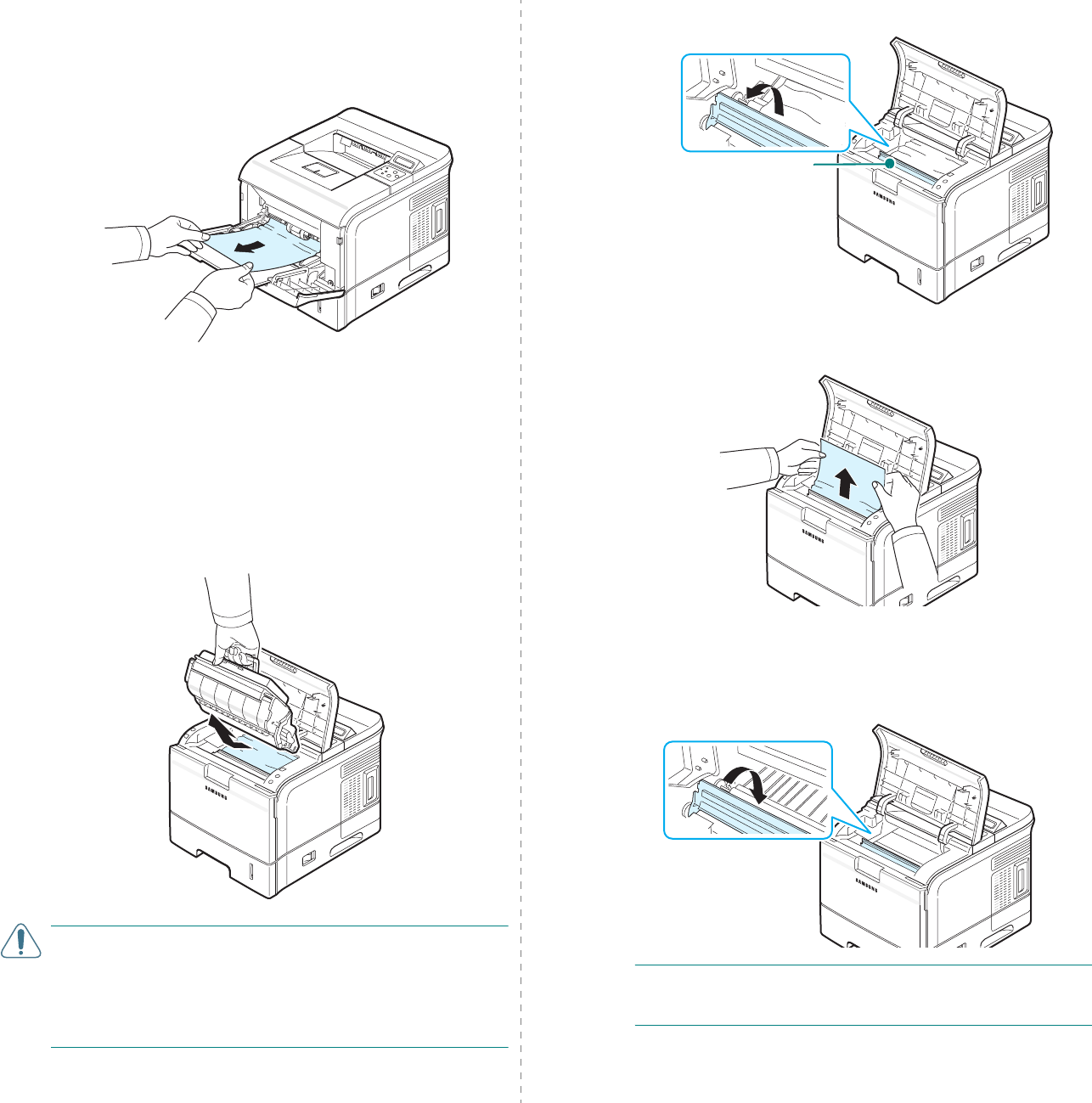

Around the Toner Cartridge

Open and close the top cover. The jammed paper

automatically exits the printer.

If the paper does not exit, continue to step 2.

Open the top cover and remove the toner cartridge.

AUTION

• Do not touch the green surface, the OPC drum, on the front

of the toner cartridge with your hands or any other material.

• To prevent damage, do not expose the toner cartridge to

light for more than a few minutes. Cover it with a piece of

paper to protect it, if necessary.

Carefully lift up the guide feed.

Gently pull the jammed paper towards you to remove it

from the printer.

If you cannot find jammed paper, or if there is any

resistance removing the paper, stop pulling and go to “In

the Paper Exit Area” on page 7.7.

Flip down the guide feed and reinstall the toner cartridge.

OTE

: If it is difficult to reinstall the toner cartridge, make

sure that the guide feed has been flipped back down into

position.

Guide Feed

Solving Problems

7.7

Close the top cover. The printer will resume printing.

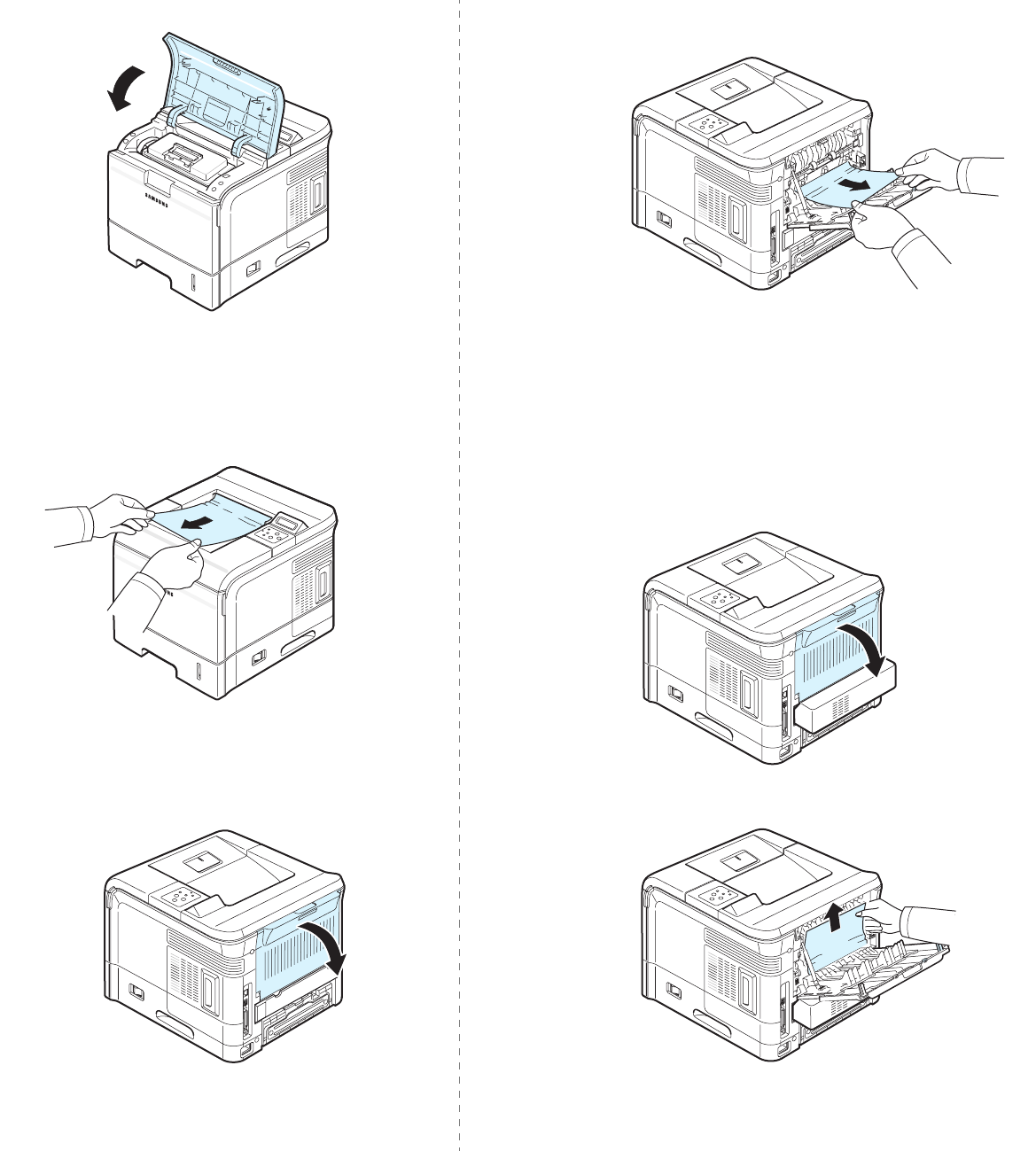

In the Paper Exit Area

If a long portion of the paper is visible, pull it straight out.

Go to step 5.

If you cannot find jammed paper, or if there is any

resistance removing the paper, stop pulling and go to step

Open the rear output tray.

Loosen the jammed paper if it is caught in the feed rollers.

Then gently pull the paper straight out.

Close the rear output tray.

Open and close the top cover. The printer will resume

printing.

In the Duplex Area

Duplex Jam 1

Open the rear output tray.

Gently pull the paper straight up.

Close the rear output tray.

Open and close the top cover. The printer will resume

printing.

Solving Problems

7.8

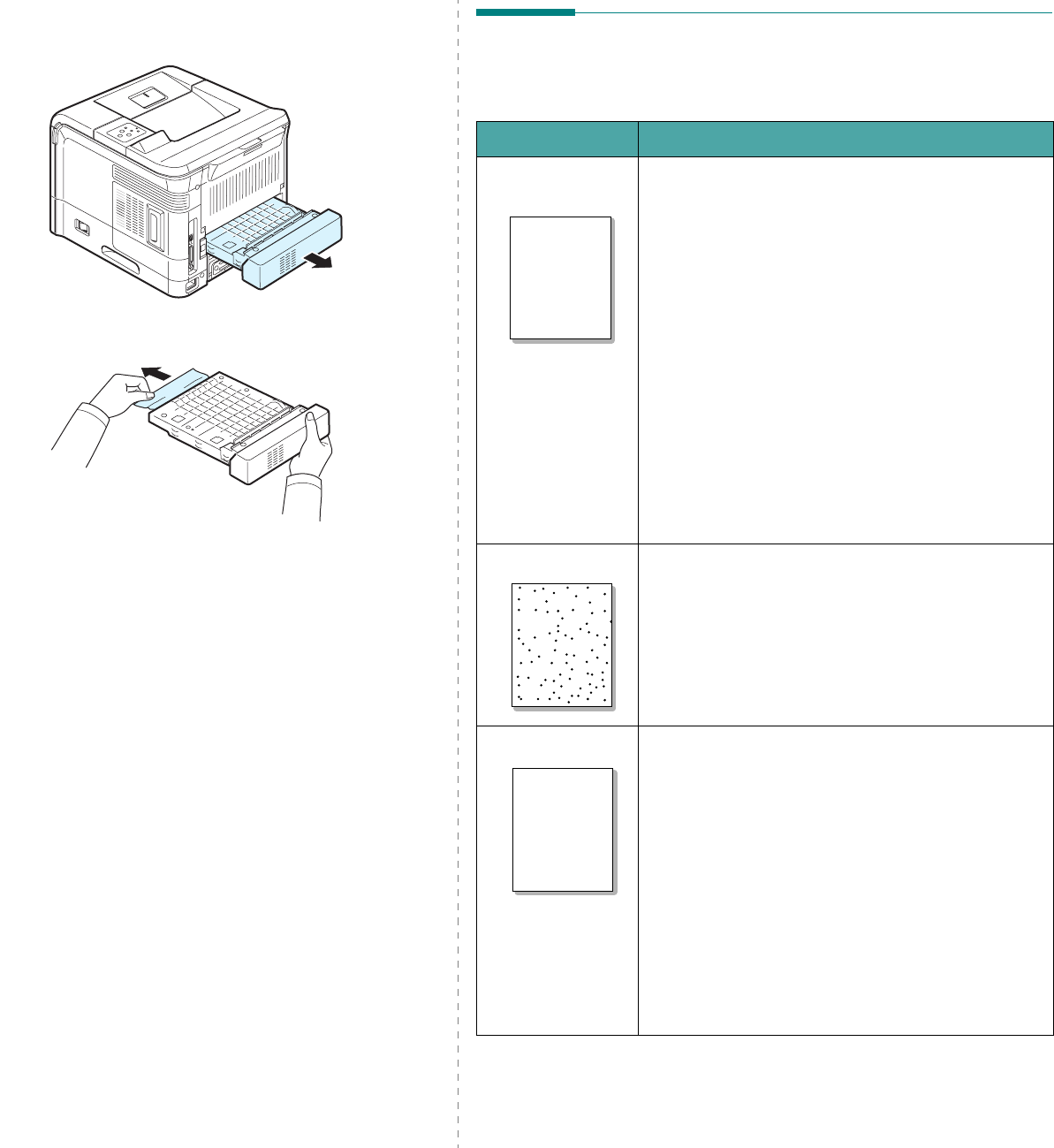

Duplex Jam 2

Pull the duplex unit out of the printer.

Locate the jammed paper and remove it.

Insert the duplex unit into the slot.

Open and close the top cover. The printer will resume

printing.

Tips for Avoiding Paper Jams

By selecting the correct paper types, most paper jams can be

avoided. If a paper jam occurs, follow the steps outlined in

“Clearing Paper Jams” on page 7.4.

• Follow the procedures in “Loading Paper” on page 2.4.

Ensure that the adjustable guides are positioned

correctly.

• Do not overload the paper tray.

• Do not remove the paper from the tray while printing.

• Flex, fan, and straighten the paper before loading.

• Do not use creased, damp, or highly curled paper.

• Do not mix paper types in the tray.

• Use only recommended print materials. See “Paper

Specifications” on page 10.2.

• Ensure that the recommended print side is facing down in

the tray and facing up in the Multi-purpose Tray.

Solving Print Quality Problems

Dirt inside of the printer or improper paper loading may reduce

print quality. See the table below to troubleshoot problems.

Problem Solution

Light or faded

If a vertical white streak or faded area appears on the

page:

• The toner supply is low. You may be able to

temporarily extend the toner cartridge life. See

“Redistributing Toner” on page 6.2. If this does not

improve print quality, install a new toner cartridge.

• The paper may not meet paper specifications (for

example, the paper is too moist or too rough). See

“Paper Specifications” on page 10.2.

• If the entire page is light, the print resolution setting

is too light or the Toner Save Mode is on. Adjust the

print resolution and the Toner Save mode in the

printer properties. For details, see the

Software

User’s Guide

• A combination of faded or smeared defects may

indicate that the printer needs cleaning. See

“Cleaning the Inside of the Printer” on page 6.9.

• The surface of LSU may be dirty. Clean the LSU. See

“Cleaning the Inside of the Printer” on page 6.9.

Toner specs

• The paper may not meet specifications (for example,

the paper is too moist or too rough). See “Paper

Specifications” on page 10.2.

• The transfer roller or paper path may be dirty. See

“Cleaning the Inside of the Printer” on page 6.9.

Dropouts

If generally rounded, faded areas occur randomly on

the page:

• A single sheet of paper may be defective. Try

reprinting the job.

• The moisture content of the paper is uneven or the

paper has moist spots on its surface. Try a different

brand of paper. See “Paper Specifications” on

page 10.2.

• The paper lot is bad. The manufacturing processes

can cause some areas to reject toner. Try a different

kind or brand of paper.

• The toner cartridge may be defective. See “

Vertical

repetitive defects

” on the next page.

• If these steps do not correct the problems, contact a

service representative.

AaBbCc

Solving Problems

7.9

Vertical lines

If black vertical streaks appear on the page:

• The drum inside the toner cartridge has probably

been scratched. Install a new toner cartridge.

If white vertical lines appear on the page:

• The surface of the LSU may be dirty. Clean the LSU.

See page 6.9.

Gray

background

If the amount of background shading becomes

unacceptable, the procedures below may fix the

problem.

• Change to lighter weight pages. See “Paper

Specifications” on page 10.2.

• Check the printer’s environment; very dry (low

humidity) or high humidity (higher than 80% RH)

conditions can increase the amount of background

shading.

• Remove the old toner cartridge and install a new

one. See “Replacing the Toner Cartridge” on

page 6.3.

Toner smear

• Clean the inside of the printer. See “Cleaning the

Inside” on “Cleaning the Inside of the Printer” on

page 6.9.

• Check the paper type and quality. See “Paper

Specifications” on page 10.2.

• Remove the toner cartridge and install a new one.

See “Replacing the Toner Cartridge” on page 6.3.

Vertical

repetitive

defects

If marks repeatedly appear on the printed side of the

page at even intervals:

• The toner cartridge may be damaged. If a repetitive

mark occurs on the page, print a cleaning sheet

several times to clean the cartridge; see page 6.10.

After the printout, if you still have the same

problems, install a new toner cartridge. See

“Replacing the Toner Cartridge” on page 6.3.

• Parts of the printer may have toner on them. If the

defects occur on the back of the page, the problem

will likely correct itself after a few more pages.

• The fusing assembly may be damaged. Contact a

service representative.

Problem Solution

AaBbCc

Background

scatter

Background scatter results from bits of toner

distributed on the printed page.

• The paper may be too damp. Try printing with a

different batch of paper. Do not open packages of

paper until necessary so that the paper does not

absorb too much moisture.

• If background scatter occurs on an envelope, change

the printing layout to avoid printing over areas that

have overlapping seams on the reverse side. Printing

on seams can cause problems.

• If background scatter covers the entire surface area

of a printed page, adjust the print resolution through

your software application or via the printer

properties window.

Misformed

characters

• If characters are improperly formed and producing

hollowed images, the paper stock may be too slick.

Try a different paper. See “Paper Specifications” on

page 10.2.

• If characters are improperly formed and producing a

wavy effect, the scanner unit may need service.

Verify that it also occurs on a demo page (see

page 2.7). For service, contact a service

representative.

Page skew

• Ensure that the paper is loaded properly.

• Check the paper type and quality. See “Paper

Specifications” on page 10.2.

• Ensure that the paper or other material is loaded

correctly and the guides are not too tight or too

loose against the paper stack.

Curl or wave

• Ensure that the paper is loaded properly.

• Check the paper type and quality. Both high

temperature and humidity can cause paper curl. See

“Paper Specifications” on page 10.2.

• Turn over the stack of paper in the tray. Also try

rotating the paper 180° in the tray.

• Try printing to the face up output slot.

Wrinkles or

creases

• Ensure that the paper is loaded properly.

• Check the paper type and quality. See “Paper

Specifications” on page 10.2.

• Open the rear output tray and try printing to the

rear output tray (face-up).

• Turn over the stack of paper in the paper tray. Also

try rotating the paper 180° in the tray.

Problem Solution

aBbC

AaBbC

AaBbCc

aBbCc

Solving Problems

7.10

Back of

printouts are

dirty

• The transfer roller may be dirty. “Cleaning the Inside

of the Printer” on page 6.9.

• Check for leaking toner. Clean the inside of the

printer.

Solid color or

Black pages

• The toner cartridge may not be installed properly.

Remove the cartridge and reinsert.

• The toner cartridge may be defective and need

replacing. Install a new toner cartridge.

• The printer may require repair. Contact a service

representative.

Loose toner

• Clean the inside of the printer.

• Check the paper type and quality. See page 10.2.

• Install a new toner cartridge. See “Replacing the

Toner Cartridge” on page 6.3.

• If the problem persists, the printer may require

repair. Contact a service representative.

Character Voids

Character voids are white areas within characters that

should be solid black:

• If you are using transparencies, try another type of

transparency. Because of the composition of the

transparency, some character voids may be normal.

• You may be printing on the wrong surface on the

paper. Remove the paper and turn it around.

• The paper may not meet paper specifications. See

“Paper Specifications” on page 10.2.

Horizontal

stripes

If horizontally aligned black streaks or smears appear:

• The toner cartridge may be installed improperly.

Remove the cartridge and reinsert.

• The toner cartridge may be defective. Install a new

toner cartridge. See “Replacing the Toner Cartridge”

on page 6.3.

• If the problem persists, the printer may require

repair. Contact a service representative.

Problem Solution

AaBbCc

Understanding Display

Messages

Messages appear on the SmartPanel program window or the

control panel display to indicate the printer’s status or errors.

Refer to the tables below to understand the messages’ meaning

and correct the problem if necessary. Messages and their

meanings are listed in alphabetical order.

OTE

: When you call for service, it is very convenient to tell

the service representative the display message.

Curl

If the printed paper is curled or paper does not feed

into the printer:

• Turn over the stack of paper in the tray. Also try

rotating the paper 180

in the tray.

• Try printing to rear output tray.

Problem Solution

Message Status Do this...

Cleaning Now An OPC or fuser cleaning

page is printing.

Wait until printing is

complete.

Close Fuser Door A rear output cover is

open.

Close the rear output cover

firmaly.

Cover Open / No

Toner Cartridge

A cover is open.

Or, there is no toner

cartridge installed in

your printer

Close the top cover or rear

output tray firmly.

Or, install the cartridge.

Delete The stored files in the

optional hard disk is

deleting

Waite until deleting is

complete.

Duplex Jam

(1, 2)

A paper jam occurs

while printing on both

sides of paper.

Remove the jammed paper

from the printer, referring

to page 7.7.

Engine Fuser Error A problem has occurred

in the fuser inside the

printer.

Unplug the power cord and

plug it in again. If the

problem persists, call for

service.

Engine Fuser

Low Heat Error

The temperature in the

fuser is abnormally low.

Unplug the power cord and

plug it in again. If the

problem persists, call for

service.

Solving Problems

7.11

Engine Fuser

Over Heat Error

The temperature in the

fuser is abnormally high.

Unplug the power cord and

plug it in again. If the

problem persists, call for

service.

Engine Hsync

Error

There is a problem in

your printer engine.

Turn off and then on the

printer.

Engine LSU Error A problem has occurred

in the LSU (Laser

Scanning Unit) in the

printer.

Unplug the power cord and

plug it in again. If the

problem persists, call for

service.

Initialize

System

The printer is now

turning on.

Wait until your printer turns

on completely.

Check Cartridge Your toner cartridge is

not for your printer.

Install a Samsung-

approved toner cartridge,

designed for your printer.

Load Manual

Press Cont Key

The Multi-purpose Tray

is empty in manual feed

mode.

Load a sheet of print

material and press the

Line/Continue

button.

You need to press the

button each page to be

printed.

Load

[Size] In [Tray]

The paper size specified

in the printer properties

does not match the

paper you are loading.

Load the correct paper in

the tray.

Memory Overflow The printer does not

have enough memory to

print the current job.

The job will be

automatically cleared and

the printer will return to

ready mode.

• Expand the memory in

your printer.

See“Installing Memory

DIMM” on page 9.1.

Menu The

button is

pressed.

Use the printer features.

Offline The printer is off-line

and cannot print.

Press the

On Line/

Continue

button.

Outbin Full The output bin is full. It can hold up to 250 sheets

of paper. Once the paper is

removed from the output

bin, the printer resumes

printing.

Message Status Do this...

Page Too Complex Too complicated data

was sent to the printer.

Simplify the page layout

and remove unnecessary

graphics from your

document.

If the message persists,

expand the memory in your

printer. See “Installing

Memory DIMM” on

page 9.1.

Paper Empty

[Size] In [Tray]

The displayed tray is

empty.

Load the corresponding size

of paper into the tray.

Paper Jam 0 A paper jam occurs in

the paper feed area.

Remove the jammed paper

from the tray in use,

referring to page 7.4.

Paper Jam 1 A paper jam occurs

around the toner

cartridge.

Remove the jammed paper

from the printer, referring

to page 7.6.

Paper Jam 2 A paper jam occurs in

the paper exit area.

Remove the jammed paper

from the output tray,

referring to page 7.7.

Press Cont key The paper size specified

in the printer properties

does not match the

paper you are loading.

Load the correct paper and

press the

On Line/

Continue

button.

Printing xxx

(xxx: Emulation)

The printer is printing

jobs using the displayed

language.

Complete your printing.

Ready The printer is on-line

and ready to printer.

Use your printer.

Ready

Close Tray 1

The standard tray is

open but there is paper

in the Multi-purpose

tray.

Close the standard tray to

clear the message.

Ready

Close Tray 2

The optional Tray2 is

open but there is paper

in the Multi-purpose

tray.

Close the optional Tray2 to

clear the message.

Ready IP Conflict An IP address conflicts

with other devices on

the network.

Contact your network

administrator and choose

an address within your

subnet which will not

conflict with any other

devices.

Ready

Low Toner

The toner cartridge in

your printer is nearly

empty.

Redistribute the toner,

referring to page 6.2.

Message Status Do this...

Solving Problems

7.12

Ready

Replace Cart.

The life of some parts on

the toner cartridge ends.

The overflow of the waste

toner contaminates the

inside of the machine.

Regardless of the remaining

toner, this is warning

message showing that The

toner cartridge replacement

is needed as the parts life

there of is exhausted. the

toner cartridge is at the end

of its life and the print

quality lowers, You need to

replace

the cartridge to new one. to

continue printing, press

Line/Continue

each time

you print a page.

Replace Cart. The toner cartridge is

out of its life.

Replace the toner cartridge.

Serial Error

* may be shown

only if you

installed an

optional serial

interface card.

The printer detects a

serial interface error.

Set the baud rate the same

as the setting on your

computer.

Sleeping The printer is on Power

Save mode.

When data is received, it

switches to on-line

automatically.

Reset Now The network card is

initializing.

Wait until the message is

cleared.

Restore The printer settings or

network settings are

turning to their default

value.

Wait until restoring is

complete.

Tray 1

Open

The standard tray is

open and also there is

no paper in the Multi-

purpose tray.

Close the standard tray or

load paper in the Multi-

purpose tray.

Tray 2

Open

The optional Tray2 is

open and also there is

no paper in the Multi-

purpose tray.

Close the optional Tray2 or

load paper in the Multi-

purpose tray.

Message Status Do this...

Common Windows Problems

OTE

: Refer to Microsoft Windows 9x/Me/NT 4.0/2000/XP/

2003 User’s Guide that came with your PC for further

information on Windows error messages.

Common Macintosh Problems

Problem Possible Cause and Solution

“File in Use” message

appears during

installation.

Exit all software applications. Remove all software

from the StartUp Group, then restart Windows.

Reinstall the printer driver.

“Error Writing to LPTx”

message appears.

• Ensure that the cables are connected correctly,

the printer is on.

• If bi-directional communication is not turned on

in the driver, it will also cause this message.

“General Protection

Fault”, “Exception OE”,

“Spool32”, or “Illegal

Operation” messages

appear.

Close all other applications, reboot Windows and

try printing again.

“Fail To Print,” “A

printer timeout error

occurred,” messages

appear.

These messages may appear during printing. Just

keep waiting until the printer finishes printing. If

the message appears in standby mode or after

printing has been completed, check the connection

and/or whether an error has occurred.

Problem Possible Cause and Solution

The printer does not

print a document from

Acrobat Reader.

You should change the Print Method option to

Print as Image

when you print from Acrobat

Reader.

The document has

printed, but the print

job has not

disappeared from the

spooler in Mac OS

10.3.2.

Update your Mac OS to OS 10.3.3 or higher.

Solving Problems

7.13

Common PS Problems

The following situations are PS language specific and may occur

when several printer languages are being used.

OTE

: To receive a printed or screen displayed message when

PS errors occur, open the Print Options window and click the

desired selection next to the PostScript errors section. You can

also receive an error list by setting from the control panel. See

page 3.9.

Problem Possible

Cause Solution

PostScript file can

not be printed.

The PostScript

driver may not

be installed.

• Print a configuration page and

verify that the PS version is

available for printing.

• Install the PostScript driver; to

installing the PS printer driver,

you need to selct

Custom

and

put a check mark on the PS

printer driver. For details, see the

Software User’s Guide

“This job contains

binary data...”

message appears.

The pure binary

data option is

not supported by

the PostScript

driver.

Open the PostScript driver

Properties, and click on

Advanced

The pure binary data option is not

supported. Choose another.

A PS error page

prints.

Print job may

not be PS.

Make sure that the print job is a PS

job. Check to see whether the

software application expected a

setup or PS header file to be sent to

the printer.

The optional

Tray2 is not

selected in the

driver.

The printer

driver has not

been configured

to recognize the

optional Tray2.

Open the PostScript driver

properties and set the

Tray2

item

of the

Device

option

Installed

Common Linux Problems

Problem Possible Cause and Solution

I can’t change

settings in the

configuration tool.

You need to have administrator privileges to be able

to affect global settings.

I am using the KDE

desktop but the

configuration tool

and LLPR won’t

start.

Maybe you do not have the GTK libraries installed.

These usually come with most Linux distributions, but

you may have to install them manually. Refer to your

distribution’s installation manual for more details

about installing additional packages.

I just installed this

package but can’t

find entries in the

KDE/Gnome menus.

Some versions of the KDE or GNOME desktop

environments may require that you restart your

session for the changes to take effect.

I get a “Some

options are not

selected” error

message while

editing the printer

settings.

Some printers have conflicting settings, meaning that

some settings for two options can’t be selected at the

same time. When you change a setting and the

Printer Package detects such a conflict, the conflicting

option is changed to a “No Choice” value, and you

have to choose an option that does not conflict before

being able to submit the changes.

I can’t make a

printer the system

default.

In some conditions, it may not be possible to change

the default queue. This happens with some variants

of LPRng, especially on recent RedHat systems that

use the “printconf” database of queues.

When using printconf, the /etc/printcap file is

automatically refreshed from the database of printers

managed by the system (usually through the

“printtool” command), and the queues in /etc/

printcap.local are appended to the resulting file. Since

the default queue in LPRng is defined as the first

queue in /etc/printcap, therefore it is not possible for

the Linux Printer Package to change the default when

some queues have otherwise been defined using

printtool.

LPD systems identify the default queue as the one

named “lp”. Thus, if there is already a queue by this

name, and if it doesn’t have an alias, then you won’t

be able to change the default. To work around this,

you can either delete the queue or rename it by

manually editing the /etc/printcap file.

The N-up setting

does not work

correctly for some

of my documents.

The N-up feature is achieved through post-processing

of the PostScript data that is being sent to the

printing system. However, such post-processing can

only be adequately achieved if the PostScript data

conforms to the Adobe Document Structuring

Conventions. Problems may arise when using N-up

and other features relying on post-processing if the

document being printed isn’t compliant.

Solving Problems

7.14

I am using BSD lpr

(Slackware, Debian,

older distributions)

and some options

chosen in LLPR

don’t seem to take

effect.

Legacy BSD lpr systems have a hard limitation on the

length of the option string that can be passed to the

printing system. As such, if you selected a number of

different options, the length of the options may have

exceeded and some of your choices won’t be passed

to the programmes responsible for implementing

them. Try to select fewer options that deviate from

the defaults, to save on memory usage.

I am trying to print

a document in

Landscape mode,

but it prints rotated

and cropped.

Most Unix applications that offer a Landscape

orientation option in their printing options will

generate correct PostScript code that should be

printed as is. In that case, you need to make sure

that you leave the LLPR option set to its default

Portrait setting, to avoid unwanted rotations of the

page that would result in cropped output.

Some pages come

out all white

(nothing is printed),

and I am using

CUPS.

If the data being sent is in Encapsulated PostScript

(EPS) format, some earlier versions of CUPS (1.1.10

and before) have a bug preventing them from being

processed correctly. When going through LLPR to

print, the Printer Package will work around this issue

by converting the data to regular PostScript. However,

if your application bypasses LLPR and feeds EPS data

to CUPS, the document may not print correctly.

I can’t print to an

SMB (Windows)

printer.

To be able to configure and use SMB-shared printers

(such as printers shared on a Windows machine), you

need to have a correct installation of the SAMBA

package that enables that feature. The “smbclient”

command should be available and usable on your

system.

My application

seems to be frozen

while LLPR is

running.

Most Unix applications will expect a command like the

regular “lpr” command to be non-interactive and thus

return immediately. Since LLPR is waiting for user

input before passing the job on to the print spooler,

very often the application will wait for the process to

return, and thus will appear to be frozen (its windows

won’t refresh). This is normal and the application

should resume functioning correctly after the user

exits LLPR.

How do I specify the

IP address of my

SMB server?

It can be specified in the “Add Printer” dialogue of the

configuration tool, if you don’t use the CUPS printing

system. Unfortunately, CUPS currently doesn’t allow

to specify the IP address of SMB printers, so you will

have to be able to browse the resource with SAMBA in

order to be able to print.

Some documents

come out as white

pages when

printing.

Some versions of CUPS, especially those shipped with

Mandrake Linux before the 8.1 release, have some

known bugs when processing PostScript output from

some applications. Try upgrading to the latest version

of CUPS (at least 1.1.14). Some RPM packages for

most popular distributions are provided as a

convenience with this Linux Printing Package.

Problem Possible Cause and Solution

I have CUPS and

some options (such

as N-up) seem to be

always enabled

even though I don’t

pick them in LLPR.

There may be some local options defined in your ~/

.lpoptions file, which is manipulated by the lpoptions

command. These options will always be used if not

overridden by LLPR settings. To get rid of all options

for a printer, run the following command, replacing

“printer” with the name of the queue: lpoptions -x

printer

I configured a

printer to print to a

file, but I get

“Permission denied”

errors.

Most printing systems will not run as the super-user

but as a special user (usually “lp”). Therefore, make

sure that the file you have chosen to print to is

accessible to the user owning the spooler daemon.

On my PCL (or SPL)

printer, I sometimes

get error messages

printing instead of

my document.

Unfortunately, some Unix applications may generate

non-compliant PostScript output that may not be

supported by Ghostscript, or even the printer itself in

PostScript mode. You can try to capture the output to

a file and view the results with Ghostscript (gv or

ghostview will allow you to do so interactively) and

see if you get error messages. However, since the

application is fault at probably, contact your software

vendor to inform them of the issue.

Some color images

come out all black.

This a known bug in Ghostscript (until GNU

Ghostscript version 7.05) when the base color space

of the document is indexed color space and it is

converted through CIE color space.

Because Postscript uses CIE color space for Color

Matching System, you should upgrade Ghostscript on

your system to at least GNU Ghostscript version 7.06

or later. You can find recent Ghostscript versions at

www.ghostscript. com.

Problem Possible Cause and Solution

Using Your Printer on a Network

8.1

8Using Your Printer on a

Network

If you work in a networked environment, the printer can be shared

by other users on the network. ML-3561N, ML-3561ND and ML-

3562W printers are network printers and can be connected to the

network via direct attachment to an external print server.

This chapter includes:

• About Sharing the Printer on a Network

• Setting Up a Network-Connected Printer

OTE

: If you are a ML-3560 user, you need to install an

optional network interface card. For details, see “Installing a

Network Card or Serial Interface Card” on page 9.3.

About Sharing the Printer on a

Network

If you work in a networked environment, you can connect your

printer to the network.

Locally-Shared Printer

You can connect the printer directly to a selected computer, which

is called the “host computer” on the network. The printer can then

be shared by other users on the network through a Windows 9x/

Me/NT 4.0/2000/XP/2003 network printer connection.

For details about sharing the printer locally, see the

Software

User’s Guide

Wired Network-connected Printer

The ML-3561N, ML-3561ND and ML-3562W printer come with a

built-in network interface. For more information about

connecting your printer to the network, see page 2.7.

To use a ML-3560 printer as a network printer, you need to

install an optional network interface card in your printer. See

page 9.3 for information about installing the card.

Wireless Network-connected Printer

The ML-3562W comes with a built-in wired and wireless

network card.

To use your ML-3560, ML-3561N or ML-3561ND in a wireless

network environment, you need to install an optional wired and

wireless network interface card in your printer. See page 9.3.

Printing Across a Network

Whether the printer is locally connected or network-connected,

you need to install the ML-3560 Series printer software on each

computer that prints documents using the printer.

Setting Up a Network-

Connected Printer

You can set up the network protocols on the printer to use it as

your network printer. Setting protocols can be accomplished by

using the supplied network program. Please refer to Network

User’s Guide.

You can configure the basic network parameters through the

printer’s control panel. Use the printer control panel to do the

following:

• Print a Network Configuration page

• Enable or disable network protocols (AppleTalk, IPX/SPX)

• Configure TCP/IP

• Configure IPX frame types

Configuring Network Parameters on

the Control Panel

Supported Operating Systems

OTE

: The operating systems supported by the network card

may be different from the operating systems supported by the

printer. The following table shows the network environments

supported by the printer.

•IPX/SPX: Internet Packet exchange/Sequenced Packet

eXchange

•TCP/IP: Transmission Control Protocol/Internet Protocol

•DLC/LLC: Data Link Control/Logical Link Control

•DHCP: Dynamic Host Configuration Protocol

•BOOTP: Bootstrap Protocol

Item Requirements

Network

Interface

10/100 Base-TX (standard for ML-3561N,

ML-3561ND and ML-3562W) or 802.11b

Wireless LAN (standard for ML-3562W)

Network

Operating

System

• Novell NetWare 4.x, 5.x, 6.x

• Windows 98/Me, NT 4.0/2000/XP/2003

• Unix, BSD4.3, HP-UX, SUN OS, SOLARIS,

SCO

• Linux Red Hat 8.0~9.0, Fedora Core 1~3,

Mandrake 9.0~10.2, and SuSE 8.2~9.2

• Macintosh OS 8.6~9.2/10.1~10.3

Network

Protocols

• IPX/SPX

•TCP/IP(LPR,Standard TCP/IP

printing,IPP,DHCP,BOOTP,SNMP,HTTP)

•EtherTalk

Using Your Printer on a Network

8.2

Printing a Network Configuration Page

The Network Configuration page shows how the network

interface card on your printer is configured. The default settings

enabled all parts which are suitable for most applications.

In ready mode, press the

button ( ) until you see

“Network” on the bottom line of the display.

Press the

Enter

button ( ) to access the menu.

Press the scroll button ( or ) until “Print Net CFG”

displays on the bottom line.

Press the

Enter

button ( ).

The Network Configuration page prints out.

Setting Network Protocols

When you first install the printer, all supported network

protocols are enabled when you turn the printer on. If a

network protocol is enabled, the printer may actively transmit

on the network even when the protocol is not in use. This may

increase network traffic slightly. To eliminate unnecessary

traffic, you can disable unused protocols.

In ready mode, press the

button ( ) until you see

“Network” on the bottom line of the display. Press the

Enter

button ( ) to access the menu.

Press the

Enter

button ( ) when “Config Network”

displays on the bottom line.

Press the scroll button ( or ) until “Yes” displays and

press the

Enter

button ( ). Then press the

Upper Level

button ( ).

Press the scroll button ( or ) until you see the

desired protocol on the bottom line.

Press the

Enter

button ( ).

If you selected “AppleTalk,” press the scroll button ( or

) to change the setting to “On” (enable) or “Off”

(disable).

Press the

Enter

button ( ) to save the selection.

Press the

On Line/Continue

button ( ) to return to

ready mode.

Configuring TCP/IP

Your printer can be set up on a variety of TCP/IP networks.

There are several ways in which your printer can be assigned a

TCP/IP address, depending on your network.

• Static Addressing: TCP/IP address is assigned manually

by the network administrator.

• Dynamic Addressing BOOTP/DHCP (default): TCP/IP

address is assigned automatically by the server.

Static Addressing

To enter the TCP/IP address from your printer’s control panel,

take the following steps:

In ready mode, press the

button ( ) until you see

“Network” on the bottom line of the display. Press the

Enter

button ( ) to access the menu.

Press the

Enter

button ( ) when “Config Network”

displays on the bottom line.

Press the scroll button ( or ) until “Yes” displays and

press the

Enter

button ( ).

Press the

Upper Level

button ( ), then use the scroll

button ( ).

Press the

Enter

button ( ) when “Config TCP” displays.

Press the scroll button ( or ) until “Yes” displays and

press the

Enter

button ( ).

Press the

Upper Level

button ( ), then use the scroll

button ( ).

Press the

Enter

button ( ) when “IP Get Method”

displays.

Press the scroll button ( or ) until “Static” displays

and press the

Enter

button ( ).

Press the

Upper Level

button ( ), then use the scroll

button ( ).

Press the

Enter

button ( ) to access the IP Address

menu.

IP address consists of 4 bytes.

Press the scroll button ( or ) to enter a number

between 0 and 255 and press the

Enter

button ( ).

Repeat step 12 to complete the address from the 1st byte

to the 4th byte.

To select other parameters, such as Subnet Mask or

Gateway, press the

Upper Level

button ( ), then use

the scroll button ( or ). Press the

Enter

button ( ).

Repeat steps 12 and 13 to configure the other TCP/IP

parameters.

Press the

Upper Level

button ( ) to return to ready

mode.

Enter a number between 0

and 255 for each byte.

Using Your Printer on a Network

8.3

Dynamic Addressing (BOOTP/DHCP)

To assign the TCP/IP address automatically by the server, take

the following steps:

In ready mode, press the

button ( ) until you see

“Network” on the bottom line of the display. Press the

Enter

button ( ) to access the menu.

Press the

Enter

button ( ) when “Config Network”

displays on the bottom line.

Press the scroll button ( or ) until “Yes” displays and

press the

Enter

button ( ).

Press the

Upper Level

button ( ), then use the scroll

button ( ).

Press the

Enter

button ( ) when “Config TCP” displays.

Press the scroll button ( or ) until “Yes” displays and

press the

Enter

button ( ).

Press the

Upper Level

button ( ), then use the scroll

button ( ).

Press the

Enter

button ( ) when “IP Get Method”

displays.

Press the scroll button ( or ) until “DHCP” displays

and press the

Enter

button ( ).

To assign the address from the BOOTP server, press the

Enter

button ( ) when “BOOTP” displays.

Press the

On Line/Continue

button ( ) to return to

ready mode.

Configuring IPX Frame Types

On IPX/SPX protocol networks (for example, Novell NetWare),

the format of network communication frames must be specified

on the printer. In most cases, you can keep the default setting

“

Auto

”. However, you can manually set the frame type format,

if required.

•

AUTO

(default): Automatically senses and limits the

frame type to the first one detected.

•

EN_8023

: Limits the frame type to IPX over IEEE 802.3

frames. All others will be counted and discarded.

•

EN_II

: Limits the frame type to IPX over Ethernet

Frames. All others will be counted and discarded.

•

EN_8022

: Limits the frame type to IPX over IEEE 802.2

with IEEE 802.3 frames. All others will be counted and

discarded.

•

EN_SNAP

: Limits the frame type to IPX over SNAP with

IEEE 802.3 frames. All others will be counted and

discarded.

Note that the IPX/SPX protocol must be enabled in the

Netware

menu before you can configure frame types. See

“Setting Network Protocols” on page 8.2.

Take the following steps to change the frame type format:

In ready mode, press the

button ( ) until you see

“Network” on the bottom line of the display. Press the

Enter

button ( ) to access the menu.

Press the

Enter

button ( ) when “Config Network”

displays on the bottom line.

Press the scroll button ( or ) until “Yes” displays on

the bottom line. Press the

Enter

button ( ).

Press the

Upper Level

button ( ).

Press the scroll button ( or ) until “Netware” displays

on bottom line. Press the

Enter

button ( ).

Press the scroll button ( or ) until “On” displays on

the bottom line and press the

Enter

button ( ).

Press the

Upper Level

button ( ), then use the scroll

button ( ).

Press the

Enter

button ( ) when “Config Netware”

displays.

Press the scroll button ( or ) until “Yes” displays on

the bottom line. Press the

Enter

button ( ).

Press the

Upper Level

button ( ), then use the scroll

button ( ).

Press the

Enter

button ( ) when “IPX Frame Type”

displays.

Press the scroll button ( or ) until you see the

desired frame type and press the

Enter

button ( ).

Press the

On Line/Continue

button ( ) to return to

ready mode.

Restoring the Network Configuration

You can return the network configuration to its default settings.

In ready mode, press the

button ( ) until you see

“Network”

on the bottom line of the display.

Press the

Enter

button ( ) to access the menu.

Press scroll button ( or ) until “Default Set” displays

on the bottom line.

Press the

Enter

button ( ) to confirm the selection.

Rebooting the Network Interface Card

If you configured the “Netware” or “Config 802.11b” menu

option, the printer will not recognize your change.

In this case, you can simply reboot the network interface card

without turning your printer off and back on.

In ready mode, press the

button ( ) until you see

“Network” on the bottom line of the display.

Using Your Printer on a Network

8.4

Press scroll button ( or ) until “Reset Network”

displays on the bottom line.

Press the

Enter

button ( ) to reboot the network

interface card.

Configuring the Wireless Network

See the instructions supplied with the wireless network

interface card.

You can easily configure the wireless network environments

using the SetIP program in Windows. See the Wireless Network

User's Guide.

To configure the wireless network settings:

In ready mode, press the

button ( ) until you see

“Network Setup” on the top line of the display.

Press the scroll button ( or ) until “Configuration”

displays on the bottom line.

Press the scroll button ( or ) until “Yes” displays on

the bottom line. Press

Enter

button ( ).

Press the scroll button ( or ) until “Config 802.11b”

displays on the bottom line. Press

Enter

Press the scroll button ( or ) until “Yes” displays on

the bottom line. Press

Enter

button ( ).

You can configure the following items:

•

SSID

: When you select “Search List”, the wireless

network card on your printer searches for wireless

networks in the area and shows the results on the list.

Select a network on the list. You cannot change

“Operation Mode” and “Channel”.

If you select “Custom”, you can configure the wireless

settings according to your needs and enter a name of up to

32 letters for your “Custom” setting. “SSID” is case sensitive,

so you need to change it carefully. Using the scroll buttons,

find the alphabet you want and press the

Enter

button ( )

. When the cursor moves to the next input field, enter the

following letters the same way you entered the first letter.

After you entered the last letter of the name, press the

Enter

button ( ) once again to save the ID. The way to enter the

key number for the encryption key is the same as to enter

letters.

•

Operation Mode

: “Ad-Hoc” mode allows the wireless

devices to communicate directly with each other. This is

the default operating mode for the print server.

If your network uses an Access Point, you must reconfigure

the operation mode to “Infra”. “Infra” mode allows both

wireless and cabled computers to send files to the printer

through an Access Point.

If you select “

Auto

”, the print server selects the operation

mode automatically according to the network cable’s

connection each time it boots up. If the network cable is

detected, the print server enters “Ad-Hoc” mode; if not,

enters “Infra” mode.

•

Channel

: This option is available in the “Ad-Hoc” mode

only. In most cases, you will not need to change this

setting. The print server will scan all available channels

for the specified network and will adapt its channel to the

one detected. Default setting is 10.

•

Authentication

: “Open System” or “Shared Key”. The

Samsung print server is not configured for network

authentication (Open System). If required by your

network, the proper authentication method must be

configured on the print server.

•

Encryption

: “None”, “64-bit WEP”, or “128-bit WEP”.

Default setting is “None”. If your network uses WEP

encryption keys, you must configure the encryption keys.

You can configure up to four keys. The active key must

match the value and active key position (for example,

Key 1) configured on other wireless devices.

•

Using Key

: Select the key to use in your network.

•

Key Type

: Select the key type of your network.

•

Key1

Key2

Key3

Key4

: Enter the key number for

“Encryption”. The number you can enter are as follows:

Hexadecimal Alphanumeric

64-bit WEP 10 digits 5 characters

128-bit WEP 26 digits 13 characters

Installing Printer Options

9.1

9Installing Printer

Options

Your printer is a full-featured laser printer that has been

optimized to meet most of your printing needs. Recognizing

that each user may have different requirements, however,

Samsung makes several options available to enhance the

printer’s capabilities.

This chapter includes:

• Precautions When Installing Printer Options

• Installing Memory DIMM

• Installing a Network Card or Serial Interface Card

• Using the Hard Disk

• Installing an Optional Paper Tray

• Installing a Duplex Unit

Precautions When Installing

Printer Options

DISCONNECT THE POWER CORD:

Never remove the printer control board while the printer is

plugged in.

To avoid the possibility of an electrical shock, always disconnect

the power cord when installing or removing ANY internal or

external printer option.

DISCHARGE STATIC ELECTRICITY:

The control board and internal printer options (Memory DIMM,

Network and Serial Interface Cards, and Hard Disk) are

sensitive to static electricity. Before installing or removing an

internal option, discharge static electricity from your body by

touching something metal, such as the metal back plate on any

device plugged into a grounded power source. If you walk

round before finishing installation, discharge any static

electricity once again.

Installing Memory DIMM

Your printer has a dual in-line memory module (DIMM) slot. Use

this DIMM slot to install more memory for the printer.

OTE

: Your printer has 32 MB of memory which can be

expanded to 288 MB. Use only Samsung-approved 100 pin

SDRAM DIMM, part numbers ML- 00MC (32 MB), or ML-00MD

(288 MB). Contact your Samsung dealer.

Turn the printer power off and unplug all cables from the

printer.

Remove the duplex-slot cover from the back of the printer.

If you installed an optional duplex unit, remove it from the

printer.

Installing Printer Options

9.2

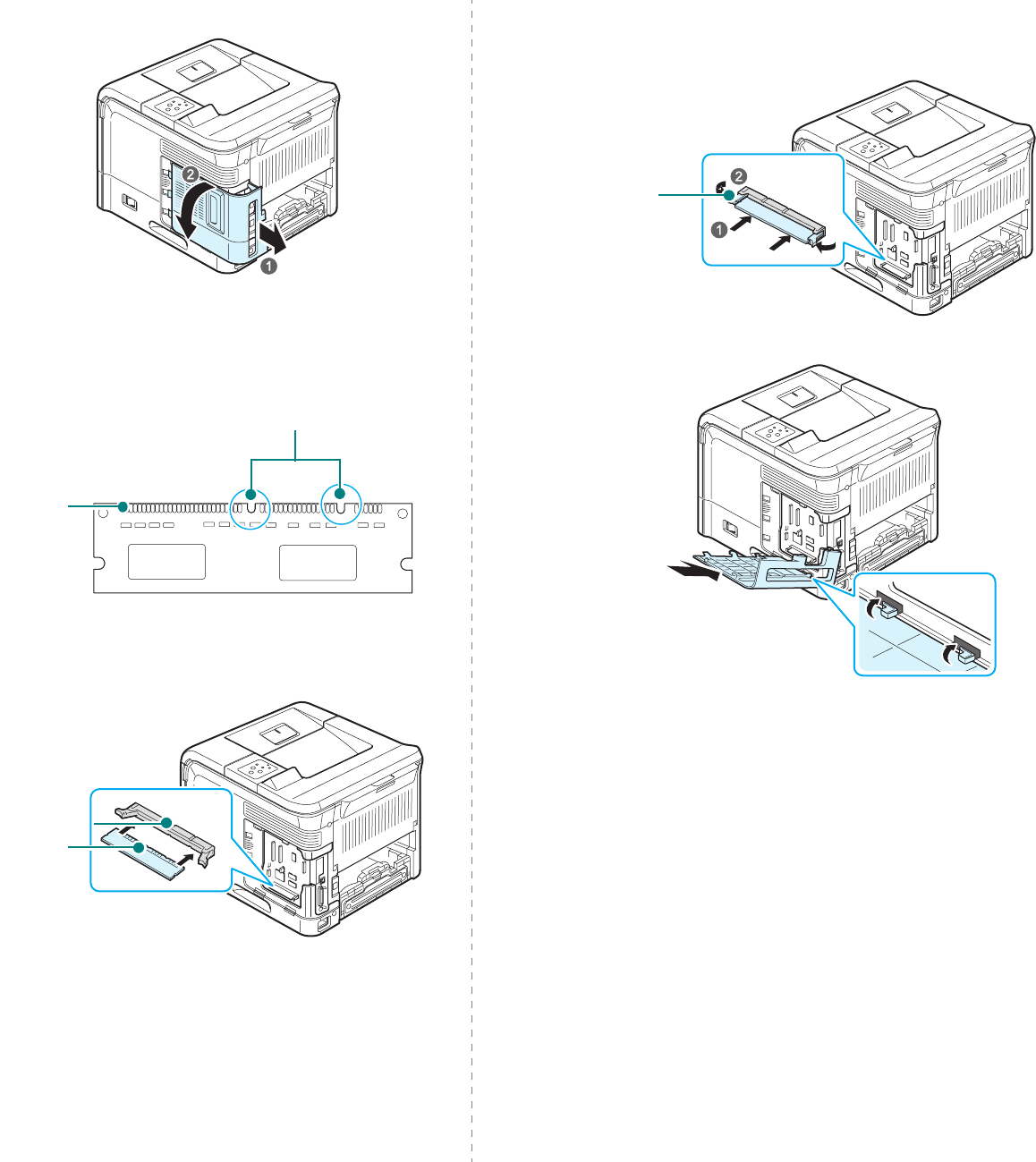

Hold the control board cover and remove it.

Completely open the latches on each side of the DIMM

slot.

Remove the memory DIMM from its antistatic package.

Locate the alignment notches on the bottom edge of the

DIMM.

Holding the memory DIMM by the edges, align the notches

on the memory DIMM with the grooves on the memory

DIMM slot.

Notches

Connection

Points

Groove

Notch

Push the DIMM straight into the DIMM slot until it snaps

into place. Make sure the latches fit over the notches

located on either side of the DIMM.

Replace the control board cover.

Reinstall the duplex-slot cover or the optional duplex unit.

Reconnect the power cord and printer cable, and turn the

printer on.

After installing the memory DIMM, you need to select it in the

printer properties of the PostScript printer driver so that you

can use it with your printer:

Make sure that the PostScript printer driver is installed in

your computer. To installing the PS printer driver, you need

to selct

Custom

and put a check mark on the PS printer

driver. For details, see the

Software User’s Guide

Click the Window

Start

menu.

For Windows 95/98/Me/NT4.0/2000, select

Settings

and

then

Print.ers

For Windows XP/2003, select

Printers and Faxes

Select the

Samsung

ML-3560 Series PS

printer.

Click the right mouse button on the printer icon and select

Properties

For Windows 95/98/Me, select

Device Options

tab.

For Windows NT4.0/2000/XP/2003, select

Device

Settings

tab.

Select the memory DIMM you installed in from

Printer

Memory

in the

Installable Option

section and click

Latch

Installing Printer Options

9.3

For Windows 98, select

Installable Option

→

VMOption

→

change setting for:VMOption

→

change memory

Removing the Memory DIMM

Follow steps 1 and 3 on page 9.1 to access the control

board.

Push the latches at both ends of the DIMM slot away from

the DIMM. Pull out the DIMM.

Place the DIMM in its original package or wrap it with a

sheet of thin metal, such as aluminium foil, and store it in

a box.

Follow from step 8 on page 9.2.

Installing a Network Card or

Serial Interface Card

The procedure for installing a network interface card is the

same as the procedure for installing a serial interface card.

Check to see if there are any missing parts in your optional

network or serial interface card package.

Tips for using the Network Interface Card

• The ML-3561N, ML-3561ND and ML-3562W comes with a

built-in network interface card. The ML-3562W also has a

network antenna which allows you to use a wireless LAN

interface.

• If you use a ML-3560 user, you need to install an optional

network interface card.

• If you want to use the printer in both wired and wireless

network environments, you need to install an optional

wired/wireless network interface card in both ML-3560,

ML-3561N and ML-3561ND.

• When you purchase a wired/wireless network interface

card, the antenna connected to the card may not be

separated from the card, depending on your country.

Review the precautions on page 9.1 and then follow this

procedure to install the network or serial interface card in your

printer.

Turn the printer power off and unplug all cables from the

printer.

Remove the duplex-slot cover from the back of the printer.

If you installed an optional duplex unit, remove it from the

printer.

ML-3560 only

ML-3560,

ML-3561N,

ML-3561ND

ML-3560,

ML-3561N,

ML-3561ND,

ML-3562W

Ethernet 10/100

Base TX (Internal)

Ethernet 10/100 Base

TX + 802.11b Wireless

LAN (Internal)

Serial Interface Card

Order number: ?? Order number: ?? Order number: ??

Network interface

Card, Network CD-

ROM and Network

Quick Guide

Wireless Network

interface Card, Network

CD-ROM, Network

Quick Guide

Serial Interface Card

Installing Printer Options

9.4

Hold the control board cover and remove it.

If you are replacing an existing network interface card with

a new one or the serial interface card, remove the two

screws and the old card.

Align the connector on the network card with the

connector on the control board. Make sure that the jacks

on the card go through the holes. Push the card firmly into

the connector on the control board until it is completely

and securely in place.

Tighten the two screws which you removed in step 4 or

supplied with your new network card.

Replace the control board cover.

Reinstall the duplex-slot cover or the optional duplex unit.

Connect the network or serial cable, reconnect the power

cord, and then turn the printer on.

OTE

:For information about configuring and using the printer

on a network environment, refer to the Network User’s Guide

provided with the network interface card. You can also

configure the network parameters on the control panel; see

page 8.1.

Installing Printer Options

9.5

Using the Hard Disk

Installing the hard disk allows the data from your computer to

be sent to the print queue of the printer hard disk. This

decreases the workload of the computer.

You can use various print features, such as storing a job in the

hard disk, proofing a job, and printing private documents.

Installing the Hard Disk

Turn the printer off. Unplug the power cord and all of the

cables.

Remove the duplex-slot cover from the back of the printer.

If you installed an optional duplex unit, remove it from the

printer.

Hold the control board cover and remove it.

Insert the hard disk and push it in until it is latched into

place.

Fasten the four screws on the hard disk.

Replace the control board cover.

Reinstall the duplex-slot cover or the optional duplex unit.

Print a configuration page from the control panel to check

if the hard disk is correctly installed. See page 6.1.

Now you need to set the hard disk in your printer driver.

The procedure for setting the hard disk may differ

depending on the selected printer driver.

Take the following steps:

1. Click the Windows

Start

menu.

2. For Windows 9x/Me/NT4.0/2000, select

Settings

and

then

Printers

For Windows XP/2003, select

Printers and Faxes

3. Select the

Samsung

ML-3560 Series

PCL 6

printer

icon or

Samsung

ML-3560 Series

printer icon.

4. Right-click on the printer icon and select

Properties

5. In PCL 6 Properties, click the

Printer

tab and then check

Optional Hard Disk Drive(HDD)

In PS Properties, click the

Device Option

tab and set

the

Printer Hard Disk

option to

Installed

6. Click

Installing Printer Options

9.6

Printing with the Optional Hard Disk

If you have the optional hard disk installed, you can use

advanced printing features, such as storing or spooling a print

job to the hard disk, proofing a job, and specifying of printing

a private job in the printer properties window on your printer

driver.

Once you stored files in the hard disk, you can easily reprint or

delete the stored files using the control panel of your printer.

You can also manage all of the print jobs in the print queue of

the printer hard disk.

Setting the time and date

Press the

button ( ) on the control panel until

“Setup” appears on the bottom line of the display.

Press the

Enter

button ( ) to access the menu.

When “Date & Timet” appears, press the

Enter

button

().

Press the scroll button ( or ) until the digit you want

appears and press the

Enter

button ( ).

The cursor moves to the next position. Repeat step 4 until

all digits appears correctly.

Press the

Enter

button ( ).

Storing a Job

You can store jobs in the installed hard disk.

Open the file you want to store.

Select

Printer

from the

File

menu. The Print window is

displayed (It may look slightly different depending on your

application.)

Click

Properties

. If you see

Setup

Printer

Options

click the button instead.

Click the

Extra

tab and click

Print and Hold

Select the Print Mode you want from the drop-down list.

•

Normal

: prints in mornal mode.

•

Proof

: prints the first file and after a pause prints the

next file.

•

Confidential

: stores the files secured with a password.

•

Store

: stores the file to the hard disk.

•

Spool

: spools the file into the hard disk and prints it from

the hard disk queue.

•

Delay

: prints the file at a specified time.

Click

until the Print window is displayed.

Click

to start printing.

Printing a Stored Job

You can print jobs currently stored in the hard disk.

Press the

button ( ) on the control panel until

“Stored Job” appears on the bottom line of the display.

Press the

Enter

button ( ) to access the menu.

Press the scroll button ( or ) until the file name

appears on the display and then press the

Enter

button

().

If the job is secured with a password, “Input PIN” displays.

Press the

Enter

button ( ).

You must enter the specified 4-digit password. Press the

scroll button ( or ) to enter the first digit and press

the

Enter

button ( ). The cursor automatically moves to

the nxet digit position. Enter the 2nd, 3rd, and 4th digit in

the same way.

When “Func Print” appears, press the

Enter

button ( ).

If you enter incorrect password, “Input PIN” appears

again. Reenter the correct password.

If you want to change the number of copies, press the

Enter

button ( ) when “Copies” appears on the display.

If you installed the optional duplex unit and want to print

on both sides of paper, press the

Enter

button ( ) when

“Duplex” appears on the display. Select the

binding edge

When “Print Now” appears, press the

Enter

button ( ) to

start printing.

Deleting a Stored Job

You can delete jobs currently stored in the hard.

Press the

button ( ) on the control panel until you

see “Stored Job” appears on the bottom line of the display.

Press the

Enter

button ( ) to access the menu.

Press the scroll button ( or ) until the file name

appears on the display and then press the

Enter

button

().

If the job is secured with a password, “Input PIN” displays.

Press the

Enter

button ( ).

You must enter the specified 4-digit password. Press the

scroll button ( or ) to enter the first digit and press

the

Enter

button ( ). The cursor automatically moves to

the nxet digit position. Enter the 2nd, 3rd, and 4th digit in

the same way.

Press the scroll button ( or ) until you see “Func

Delete” on the display.

Press the

Enter

button ( ).

Press the scroll button ( or ) until you see “Yes” on

the display.

Press the

Enter

button ( ).

Installing Printer Options

9.7

Controlling the Active Job Queue

All of the print jobs waiting to be printed are listed in the Active

Job Queue in the order you sent them to the printer. You can

delete a job from the queue before printing, or promote a job

to print sooner.

To delete a file from the queue

Press the

button ( ).

The first available menu item, “Active Job,” appears on the

bottom line of the display.

Press the

Enter

button ( ).

Press the scroll button ( or ) until the file name

appears on the display and then press the

Enter

button

().

If the job is secured with a password, “Input PIN” displays.

Press the

Enter

button ( ).

You must enter the specified 4-digit password. Press the

scroll button ( or ) to enter the first digit and press

the

Enter

button ( ). The cursor automatically moves to

the nxet digit position. Enter the 2nd, 3rd, and 4th digit in

the same way.

Press the scroll button ( or ) until you see “Func

Cancel” on the display.

Press the

Enter

button ( ).

If you enter incorrect password, “Input PIN” appears

again. Reenter the correct password.

Press the scroll button ( or ) until you see “On” on

the display.

Press the

Enter

button ( ) to delete the selected file.

To promote a file from the queue

You can select a job waiting in the Active Job Queue and change

its print order so that it can be printed sooner.

Press the

button ( ).

Press the

Enter

button ( ) when “Active Job” displays

on the bottom line of the display.

Press the scroll button ( or ) until the file name

appears on the display and then press the

Enter

button

().

If the job is secured with a password, “Input PIN” displays.

Press the

Enter

button ( ).

You must enter the specified 4-digit password. Press the

scroll button ( or ) to enter the first digit and press

the

Enter

button ( ). The cursor automatically moves to

the nxet digit position. Enter the 2nd, 3rd, and 4th digit in

the same way.

Press the scroll button ( or ) until you see “Func

Promote” on the display.

Press the

Enter

button ( ).

If you enter incorrect password, “Input PIN” appears

again. Reenter the correct password.

To print a file immediately

You can print the print job you want immediately. In this case,

the job currently printing is stopped and the selected job will be

printed.

Press the

button ( ).

Press the

Enter

button ( ) when “Active Job” displays on

the bottom line of the display.

Press the scroll button ( or ) until the file name

appears on the display and then press the

Enter

button

().

If the job is secured with a password, “Input PIN” displays.

Press the

Enter

button ( ).

You must enter the specified 4-digit password. Press the

scroll button ( or ) to enter the first digit and press

the

Enter

button ( ). The cursor automatically moves to

the nxet digit position. Enter the 2nd, 3rd, and 4th digit in

the same way.

Press the scroll button ( or ) until you see “Func

Release” on the display. The Select Function Release

option appears only when you select Delay in the Print

Mode option. See “Storing a Job” on page 9.6

Press the

Enter

button ( ).

If you enter incorrect password, “Input PIN” appears

again. Reenter the correct password.

Printing using the form files

In ready mode, press the scroll button ( or ) until

you see "Setup" on the bottom line of the display. Press

the

Enter

button ( ) to access the menu.

Press scroll button ( or ) until you see "Fixed

Overlay" on the bottom line of the display. Press the

Enter

button ( ) to access the menu.

Select one among three menu "Off", "Single Form",

"Double Form". Then, Press

button ( ).

Press the

Upper Level

button ( ).

If you selected "Single Form", press right button. Then you

can see "Sel. 1st. Form" menu, and then press

button ( ).

Press the scroll button ( or ) until the form name

appears on the display and then press the

Enter

button

().

Press the

Upper Level

button ( ).

If you selected "Double Form", press right button. Then

you can see "Sel. 2nd. Form" menu, and then press

button ( ).

Installing Printer Options

9.8

Press the scroll button ( or ) until the form name

appears on the display and then press the

Enter

button

() for even page.

Press the

Upper Level

button ( ) to return to ready

mode. If you selected "Single Form", the selected form will

be applied to every page. If you selected "Double Form",

1st form will be applied to odd page and 2nd page will be

even page.

Installing an Optional Paper

Tray

You can increase the paper handling capacity of your printer by

installing an optional Tray2. This tray holds 500 sheets of paper.

The optional paper tray consists of two components; the

support unit and paper tray.

Turn off the printer and unplug all cables from the printer.

Remove the packing tape and the packing material inside

of the tray.

Support Unit

Paper Tray

Find the location of the connector and the optional tray

positioners.

Place the printer over the tray, aligning the feet on the

printer with the positioners on the optional tray.

AUTION

: The printer weights 23kg including the toner

cartridge and the tray. Use safe lifting and handling

techniques. If you need to move the printer, it should be

moved by two people. Use the lifting handles as shown in the

diagram (see page 1.3). Back injury could result if a single

person attempts to lift the printer.

Lifting handles

are located at

the lower edge

of both sides of

the printer.

Installing Printer Options

9.9

Plug the tray’s interface cable into the connector on the

back of the printer.

Load paper in the tray. The instructions for loading paper

in the tray are same as for loading in the standard paper

tray. See page 2.4.

Reconnect the power cord and cables and then turn the

printer on.

AUTION

Do not remove the standard tray from the printer

while you are printing using the optional Tray2. If you do this, a

paper jam may occur. Use the optional Tray2 with the standard

tray.

After installing Tray 2, you must set the tray as installed in the

printer properties window.

Click the Windows

Start

menu.

For Windows 9x/Me/NT4.0/2000, select

Settings

and then

Printers

For Windows XP/2003, select

Printers and Faxes

Select the

Samsung

ML-3560 Series

PCL 6

printer icon

Samsung

ML-3560 Series

printer icon.

Right-click on the printer icon and select

Properties

In PCL 6 Properties, click the

Printer

. Then select

Tray 2

from the

Optional Tray

drop-down list.

In PS Properties, click the

Device Option

tab and select

Installed

from the

Tray 2

drop-down list.

Click

Installing a Duplex Unit

The printer can automatically print on both sides of a sheet of

paper with an optional duplex unit. This is called duplexing. The

optional duplex unit supports the following paper sizes: letter,

legal, folio, and A4.

The duplex-slot cover that is located at the rear of the printer

must be removed when the optional duplex unit is installed.

When you use duplexing, the printer partially ejects the printed

page into the top output bin, and then pulls it back to print the

reverse side.

To install a duplex unit:

Turn the printer off and unplug all cables from the printer.

Remove the tape and all packing material from the duplex

unit.

Remove the duplex-slot cover from the back of the printer.

OTE

: Reinstall this cover when the duplex unit is not in use.

Insert the duplex unit all the way into the slot until it fits

into place.

Reconnect the power cord and printer cable, and turn the

printer on.

After installing the duplex unit, you must set the unit as

installed in the printer properties window.

Click the Windows

Start

menu.

For Windows 9x/Me/NT4.0/2000, select

Settings

and then

Printers

Installing Printer Options

9.10

For Windows XP/2003, select

Printers and Faxes

Select the

Samsung

ML-3560 Series

PCL 6

printer icon

Samsung

ML-3560 Series

printer icon.

Right-click on the printer icon and select

Properties

In PCL 6 Properties, click the

Printer

tab and check

Duplex Unit

In PS Properties, click the

Device Option

tab and select

Installed

from the

Duplex Unit

drop-down list.

Click

Printing on Both Sides of Paper

After installing the duplex unit, you can print on both sides of

paper. Before printing, decide how you want your document

oriented.

The options are:

•Long Edge, which is the conventional layout used in

book binding.

•Short Edge, which is the type often used with calendars.

OTES

• Do not print on both sides of labels, transparencies,

envelopes, or thick paper. Paper jamming and damage to the

printer may result.

• To use double-sided printing, you can use only the following

paper sizes: A4, Letter, Legal, and Folio, with a weight of

20~24lbs (75~90g/m

There are two ways to enable or disable the double-sided

printing:

Using the Control Panel Menu

You can use the

Duplex

item in the

Layout

menu for double-

sided printing. After setting the item, set the

Duplex Margin

item in the same menu, if necessary.

For further details about using the control panel menu, see

page 3.3.

From the Software Application

You can use the printer properties window on your printer

driver. For details, see the

Software User’s Guide

Specifications

10.1

Specifications

This chapter includes:

• Printer Specifications

• Paper Specifications

Printer Specifications

Item Specifications and Description

Print Speed

Up to 33 PPM (A4); 35 PPM (Letter)

Duplex: Up to 23 IPM (A4); 24 IPM

(Letter)

Resolution Up to 1200 x 1200 dpi effective output

First Printing

Time

Standby mode: 10 seconds

Sleep mode: 40 seconds

Warm-up Time 30 seconds

Power Rating AC 100 ~ 127 V (USA, Canada) / 220 ~

240 V (Others), 50 / 60 Hz

Power

Consumption

550 W average during operation

Less than 20 W in power-save mode

Acoustic Noise

Stand by: Less than 35 dB

Operating: Less than 55 dB

Toner Supply Single cartridge

Toner Cartridge

Life

***

12,000 Pages (for starter, 6,000 Pages)

ISO 19752 (LSA 5% coverage)

Duty Cycle Monthly: 150,000 pages maximum

Weight Gross: 21 Kg (46.3 lb)

Net: 17 Kg (37.5 lb)

Package Weight Paper: 2.5 Kg, Plastic: 0.6 Kg

External

Dimensions

(W x D x H)

396 (W) x 453 (D) x 353 (H) mm / 15.6 x

17.8 x 13.9 in. (without options)

Operating

Environment

Temperature: 10 ~ 32 °C / 50 ~ 90 °F

Humidity: 20 ~ 80 % RH

Emulation PCL 6

****

, PostScript 3, IBM ProPrinter,

EPSON

Random Access

Memory (RAM)

32 MB (Max 288 MB)

16, 32, 64, 128, or 256 MB optional

memory available

Use only the Samsung-approved DIMM.

Fonts 1 bitmap, 45 scalable, 136 PS3 fonts

Interface

Switching Automatic (Parallel, USB, Network)

Interface

• IEEE 1284 Bidirectional Parallel

Standard

- Modes supported: Compatible, Nibble,

Byte, ECP

• USB Interface Standard

- USB 2.0 compliant

- 480 Mbps 1 port

• Network Interface

- 10/100 Base TX (option for ML-3560)

- 802.11b Wireless LAN (option for ML-

3560, ML-3561N andML-3561ND )

• Serial Interface (option)

Compatibility

*****

Windows 95/98/Me/NT 4.0/2000/XP/

2003, Various Linux OS including Red Hat,

Caldera, Debian, Mandrake, Slackware,

SuSE, and Turbo Linux, Mac 8.6~9.2/

10.1~10.3

Options

ML-3560: Duplex unit, 500-sheet tray,

Ethernet 10/100 Base TX, Ethernet 100

Base TX + 802.11a/b/g wireless LAN,

Serial board, Hard disk

ML-3561N: Duplex unit, 500-sheet tray,

Ethernet 100 Base TX + 802.11a/b/g

wireless LAN, Serial board, Hard disk

ML-3561ND: 500-sheet tray, Ethernet 100

Base TX + 802.11a/b/g wireless LAN,

Serial board, Hard disk

ML-3562W: Duplex unit, 500-sheet tray,

Serial board, Hard disk

* Print speed will be affected by operating system used, com-

puting performance, application software, connection

method, media type, media size, and job complexity.

**Sound pressure Level, ISO7779

***The number of pages may be affected by operating envi-

ronment, printing interval, media type, and media size.

****Compatible with PCL6 Version 2.1

*****Please visit www.samsungprinter.com to download the

latest software version.

Item Specifications and Description

Specifications

10.2

Paper Specifications

Overview

Your printer accepts a variety of print materials, such as cut-

sheet paper (including up to 100% recycled fiber content

paper), envelopes, labels, transparencies, and custom-size

paper. Properties, such as weight, composition, grain, and

moisture content, are important factors affecting the printer’s

performance and the output quality. Paper that does not meet

the guidelines outlined in this User’s Guide can cause the

following problems:

• Poor print quality

• Increased paper jams

• Premature wear on the printer.

OTES

• Some paper may meet all of the guidelines in this guide and

still not produce satisfactory results. This may be the result

of improper handling, unacceptable temperature and

humidity levels, or other variables over which Samsung has

no control.

• Before purchasing large quantities of paper, ensure that the

paper meets the requirements specified in this User’s Guide.

AUTION

: Using paper that does not meet these

specifications may cause problems, requiring repairs. These

repairs are not covered by the Samsung warranty or service

agreements.

Supported Sizes of Paper

Tray1/

Tray2 Dimensions* Weight Capacity

Letter 216 x 279 mm

(8.5 x 11 in.)

60 to 105 g/

bond (16

to 28 lb)

500 sheets

of 75 g/m

bond paper

A4 210 x 297 mm

(8.3 x 11.7 in.)

Executive 191 x 267 mm

(7.25 x 10.5 in.)

Legal 216 x 356 mm

(8.5 x 14 in.)

B5 (JIS) 182 x 257 mm

(7.2 x 10 in.)

B5 (ISO) 176 x 250 mm

(6.9 x 9.8 in.)

Folio 216 x 330 mm

(8.5 x 13 in.)

A5 148 x 210 mm

(5.8 x 8.3 in.)

A6 105 x 148 mm

(4.1 x 5.8 in.)

Oficio 216 x 343 mm

(8.5 x 13.5 in.)

Specifications

10.3

OTE

: You may experience jams when using print materials

with a length of less than 127 mm (5.0 in.). For optimum

performance, ensure that you are storing and handling the

paper correctly. Please refer to “Printer and Paper Storage

Environment” on page 10.4.

Multi-

purpose

Tray

Dimensions

* The printer supports a wide range of media sizes. See “Print-

ing on Card Stock or Custom-sized Materials” on page 4.9.

Weight Capacity

**Capacity may vary depending on media weight and thick-

ness, and environmental conditions.

Minimum

Size (custom)

76 x 127 mm

(3 x 5 in.) 60 to 163 g/

bond (16

to 43 lb)

100 sheets

of 75 g/m

bond paper

Maximum

Size (custom)

216 x 356mm

(8.5 x 14 in.)

Transparency

Same

minimum and

maximum

paper sizes as

listed above.

Thickness:

0.10 x 0.14

mm (0.0039

x 0.0055 in.)

50 typical

Labels

***

***Smoothness: 100 to 250 (Sheffield)

Thickness:

0.10 x 0.14

mm (0.0039

x 0.0055 in.)

25 typical

Envelopes

up to 90 g/

(16 to 24

lb)

up to 10

Guidelines for Using Paper

For the best result, use conventional 75 g/m

(20 lb) paper.

Ensure that the paper is of good quality, and free of cuts, nicks,

tears, spots, loose particles, dust, wrinkles, voids, and curled

or bent edges.

If you are unsure of what type of paper you are loading, such

as bond or recycled paper, check the label on the package.

The following problems may cause print quality deviations,

jamming or even damage to the printer.

OTES

• Do not use letterhead paper printed with low-temperature

inks, such as those used in some types of thermography.

• Do not use raised or embossed letterhead.

• The printer uses heat and pressure to fuse toner to the

paper. Insure that any colored paper or preprinted forms use

inks that are compatible with this fusing temperature (195

°C or 383 °F for 0.1 second).

Symptom Problem with

Paper Solution

Poor print quality

or toner

adhesion,

problems with

feeding

Too moist, too

rough, too

smooth or

embossed;

faulty paper lot

Try another kind of

paper, between 100 ~

250 Sheffield, 4 ~ 5

% moisture content.

Dropout,

jamming, curl

Stored

improperly

Store paper flat in its

moisture-proof

wrapping.

Increased gray

background

shading/printer

wear

Too heavy

Use lighter paper,

open the rear output

tray.

Excessive curl

problems with

feeding

Too mo ist,

wrong grain

direction or

short-grain

construction

•Open the rear

output tray.

• Use long-grain

paper.

Jamming,

damage to printer

Cutouts or

perforations

Do not use paper with

cutouts or

perforations.

Problems with

feeding Ragged edges Use good quality

paper.

Specifications

10.4

Paper Specifications

Paper Output Capacity

Printer and Paper Storage

Environment

Paper storage environmental conditions directly affect the feed

operation.

Ideally, the printer and paper storage environment should be at

or near room temperature, and not too dry or humid.

Remember that paper is hygroscopic; it absorbs and loses

moisture rapidly.

Heat works with humidity to damage paper. Heat causes the

moisture in paper to evaporate, while cold causes it to

condense on the sheets. Heating systems and air conditioners

remove most of the humidity from a room. As paper is opened

and used, it loses moisture, causing streaks and smudging.

Humid weather or water coolers can cause the humidity to

increase in a room. As paper is opened and used it absorbs any

excess moisture, causing light print and dropouts. Also, as

paper loses and gains moisture it can become distorted. This

can cause paper jams.

Category Specifications

Acid Content 5.5 ~ 8.0 pH

Caliper 0.094 ~ 0.18 mm (3.0 ~ 7.0 mils)

Curl in Ream Flat within 5 mm (0.02 in.)

Cut Edge

Conditions

Cut with sharp blades with no visible

fray.

Fusing

Compatibility

Must not scorch, melt, offset, or release

hazardous emissions when heated to

195 °C (383 °F) for 0.1 second.

Grain Long Grain

Moisture Content 4 % ~ 6 % by weight

Smoothness 100 ~ 250 Sheffield

Output Tray Capacity

Face-down top output tray 250 sheets of 75 g/m

bond

paper

Face-up rear output tray 100 sheet of 75 g/m

bond

paper

Care should be taken not to purchase more paper than can be

used in a short time (about 3 months). Paper stored for long

periods may experience heat and moisture extremes, which

can cause damage. Planning is important to prevent damage to

large supplies of paper.

Unopened paper in sealed reams can remain stable for several

months before use. Opened packages of paper have more

potential for environment damage, especially if they are not

wrapped with a moisture-proof barrier.

The paper storage environment should be properly maintained

to ensure optimum printer performance. The required condition

is 20° to 24°C (68° to 75°F), with a relative humidity of 45%

to 55%. The following guidelines should be considered when

evaluating the paper’s storage environment:

• Paper should be stored at or near room temperature.

• The air should not be too dry or too humid.

• The best way to store an opened ream of paper is to

rewrap it tightly in its moisture-proof wrapping. If the

printer environment is subject to extremes, unwrap only

the amount of paper to be used during the day’s

operation to prevent unwanted moisture changes.

Envelopes

Envelope construction is critical. Envelope fold lines can vary

considerably, not only between manufacturers, but also within

a box from the same manufacturer. Successful printing on

envelopes depends upon the quality of the envelopes. When

selecting envelopes, consider the following components:

• Weight: The weight of the envelope paper should not

exceed 90 g/m

(24 lb) or jamming may occur.

• Construction: Prior to printing, envelopes should lie flat

with less than 6 mm (0.25 in) curl, and should not

contain air.

• Condition: Envelopes should not be wrinkled, nicked, or

otherwise damaged.

• Temperature: You should use envelopes that are

compatible with the heat and pressure of the printer.

• Size: You should only use envelopes within the following

size ranges.

OTES

• Use only the Multi-purpose Tray to print envelopes.

• You may experience some paper jams when using any media

with a length less than 127 mm (5.0 in). This may be caused

by paper that has been affected by environmental

conditions. For optimum performance, make sure you are

storing and handling the paper correctly. Please refer to

“Printer and Paper Storage Environment” on page 10.4.

Minimum Maximum

Multi-purpose

Tray

76 x 127 mm

(3 x 5 in)

216 x 356 mm

(8.5 x 14 in)

Specifications

10.5

Envelopes with Double Side Seams

Double side-seams construction has vertical seams at both

ends of the envelope rather than diagonal seams. This style

may be more likely to wrinkle. Be sure the seam extends all the

way to the corner of the envelope as illustrated below.

Envelopes with Adhesive Strips or Flaps

Envelopes with a peel-off adhesive strip or with more than one

flap that folds over to seal must use adhesives compatible with

the heat and pressure in the printer. The extra flaps and strips

might cause wrinkling, creasing, or even jams and may even

damage the fuser.

Envelope Margins

The following gives typical address margins for a commercial

#10 or DL envelope.

OTES

• For best print quality, position margins no closer than 15 mm

(0.6 in) from the edges of the envelope.

• Avoid printing over the area where the envelope’s seams

meet.

Envelope Storage

Proper storage of envelopes helps contribute to print quality.

Envelopes should be stored flat. If air is trapped in an envelope,

creating an air bubble, then the envelope may wrinkle during

printing. See “Printing on Envelopes” on page 4.6.

Type of Address Minimum Maximum

Return address 15 mm (0.6 in.) 51 mm (2 in.)

Delivery address 51 mm (2 in.) 89 mm (3.5 in.)

Correct

Incorrect

Labels

AUTIONS

• To avoid damaging the printer, use only labels recommended

for laser printers.

• To prevent serious jams, always use the Multi-purpose Tray

to print labels and always use the rear output tray.

• Never print on the same sheet of labels more than once and

never print on a partial sheet of labels.

When selecting labels, consider the quality of each component:

• Adhesives: The adhesive material should be stable at 195

°C (383 °F), the printer’s fusing temperature.

• Arrangement: Only use labels with no exposed backing

between them. Labels can peel off sheets with spaces

between the labels, causing serious jams.

• Curl: Prior to printing, labels must lie flat with no more

than 13 mm (0.5 in) of curl in any direction.

• Condition: Do not use labels with wrinkles, bubbles, or

other indications of separation.

See “Printing on Labels” on page 4.7.

Transparencies

Transparencies used in the printer must be able to withstand

140 °C (284 °F), the printer’s fusing temperature.

AUTION

To avoid damaging the printer, use only

transparencies recommended for use in laser printers.

See “Printing on Transparencies” on page 4.8.

INDEX

antenna, connect

2.7

card stock, print

4.9

clean

inside

6.9

outside

6.9

cleaning sheet, print

6.10

components

1.3

configuration page, print

6.1

connect

Ethernet

2.7

network antenna

2.7

parallel

2.6

power cord

2.7

USB

2.6

control panel

3.1

buttons

3.2

display

3.1

menus

3.3

custom-sized materials, prnt

4.9

demo page, print

2.7

display language, change

control panel

2.8

duplex unit, install

9.9

envelopes, print

4.6

error messages

7.10

Ethernet cable, print

2.7

face down output tray

4.5

face up output tray

4.5

features

printer

1.1

hard disk

install

9.5

use

9.6

install

printer options

9.1

labels, print

4.7

Linux

common problems

7.13

load, paper

in the Multi-Purpose Tray

4.2

in the Tray1/optional Tray 2

2.4

using the manual feed

4.4

Macintosh

common problems

7.12

manual feed mode, use

4.4

memory DIMM, install

9.1

Multi-Purpose Tray, use

4.2

network antenna, connect

2.7

network interface card, install

9.3

network printing

cable/antenna, connect

2.6

card, install

9.3

network-connected printer, set

8.1

parameters, configure

8.1

option

9.1

option, install

duplex unit

9.9

hard disk

9.5

memory DIMM

9.1

network interface card

9.3

paper tray 2

9.8, 9.9

serial interface card

9.3

optional tray, install

9.8

output location, select

4.5

paper

choose

4.1

load

2.4

sizes and capacities

4.1

specifications

10.2

paper jam

around the toner cartridge

7.6

in the duplex area

7.7

in the paper exit area

7.7

in the paper feed area

Multi-Purpose Tray

7.6

optional Tray 2

7.4, 7.5

Tray 1

7.4

tips for avoiding

7.8

Index will be

updated!!!!!!!!

paper level bar

4.2

Paper size, change in the tray

3.4

parallel cable, connect

2.6

PostScript driver

errors

7.13

preprinted paper, print

4.8

print quality problems, solve

7.8

printing

configuration page

6.1

demo page

2.7

printing problems

7.2

problem, solve

checklist

7.1

error messages

7.10

general

7.2

Linux

7.13

Macintosh

7.12

paper jams

7.4

print quality

7.8

PS errors

7.13

Windows

7.12

quality problems, solve

7.8

rear output tray, use

4.5

software

overview

2.8

specification

paper

10.2

printer

10.1

toner cartridge

install

2.2

maintain

6.2

redistribute

6.2

replace

6.3

top output tray, use

4.5

transparencies, print

4.8

Tray 1, use

2.4

turn on, printer

2.7

unpack

2.1

USB cable, connect

2.6
