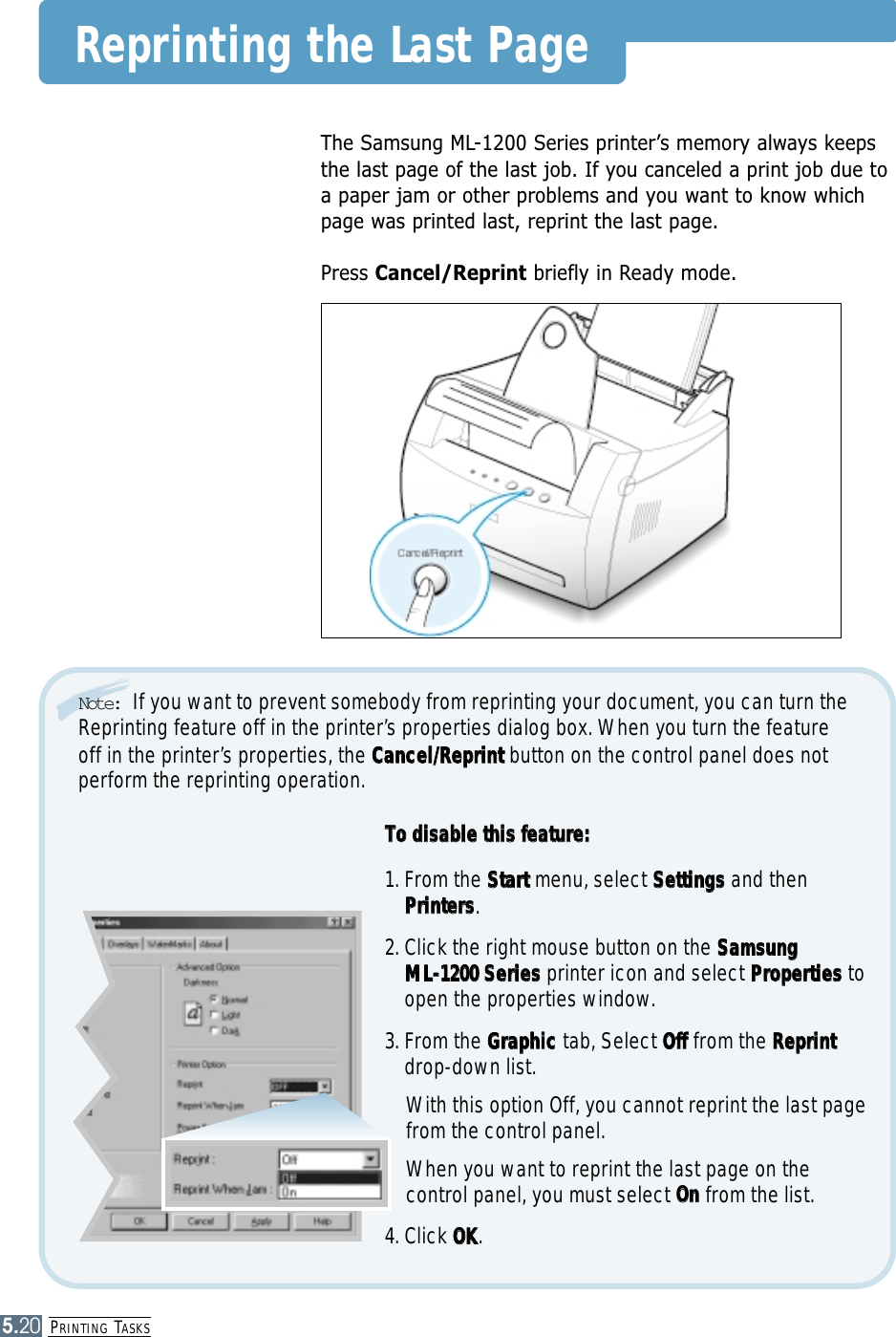

PRINTING TASKS5.20Reprinting the Last PageThe Samsung ML-1200 Series printer’s memory always keepsthe last page of the last job. If you canceled a print job due toa paper jam or other problems and you want to know whichpage was printed last, reprint the last page.Press Cancel/Reprint briefly in Ready mode.TToo ddiissaabbllee tthhiiss ffeeaattuurree::1. From the SSttaarrttmenu, select SSeettttiinnggssand thenPPrriinntteerrss. 2. Click the right mouse button on the SSaammssuunngg MMLL--11220000 SSeerriieessprinter icon and select PPrrooppeerrttiieesstoopen the properties window.3. From the GGrraapphhiicctab, Select OOfffffrom the RReepprriinnttdrop-down list. With this option Off, you cannot reprint the last pagefrom the control panel.When you want to reprint the last page on thecontrol panel, you must select OOnnfrom the list.4. Click OOKK.Note: If you want to prevent somebody from reprinting your document, you can turn theReprinting feature off in the printer’s properties dialog box. When you turn the featureoff in the printer’s properties, the CCaanncceell//RReepprriinnttbutton on the control panel does notperform the reprinting operation.
PRINTING TASKS5.21Printing on a Network EnvironmentIf you work in a network environment, you can connect yourML-1200 Series printer directly to a selected computer(called the “host computer”) on the network. The printer canthen be shared by other users on the network through aWindows 9x, Me, NT 4.0 or 2000 network printer connection.Note: You need to install the Samsung ML-1200 Series printerdriver on each computer that will print documents to theprinter.1Start Windows.2From the Start menu, select Control Panel, anddouble-click on the Network icon.3Check the File and Print Sharing box, then click OK.Close the window.4Click Start and select Printers from Settings, thendouble-click your printer name.5Select Properties in the Printers menu.6Click the Sharing tab, then check the Shared As box.Fill in the Shared Name field, then click OK.Setting Up Host Computer

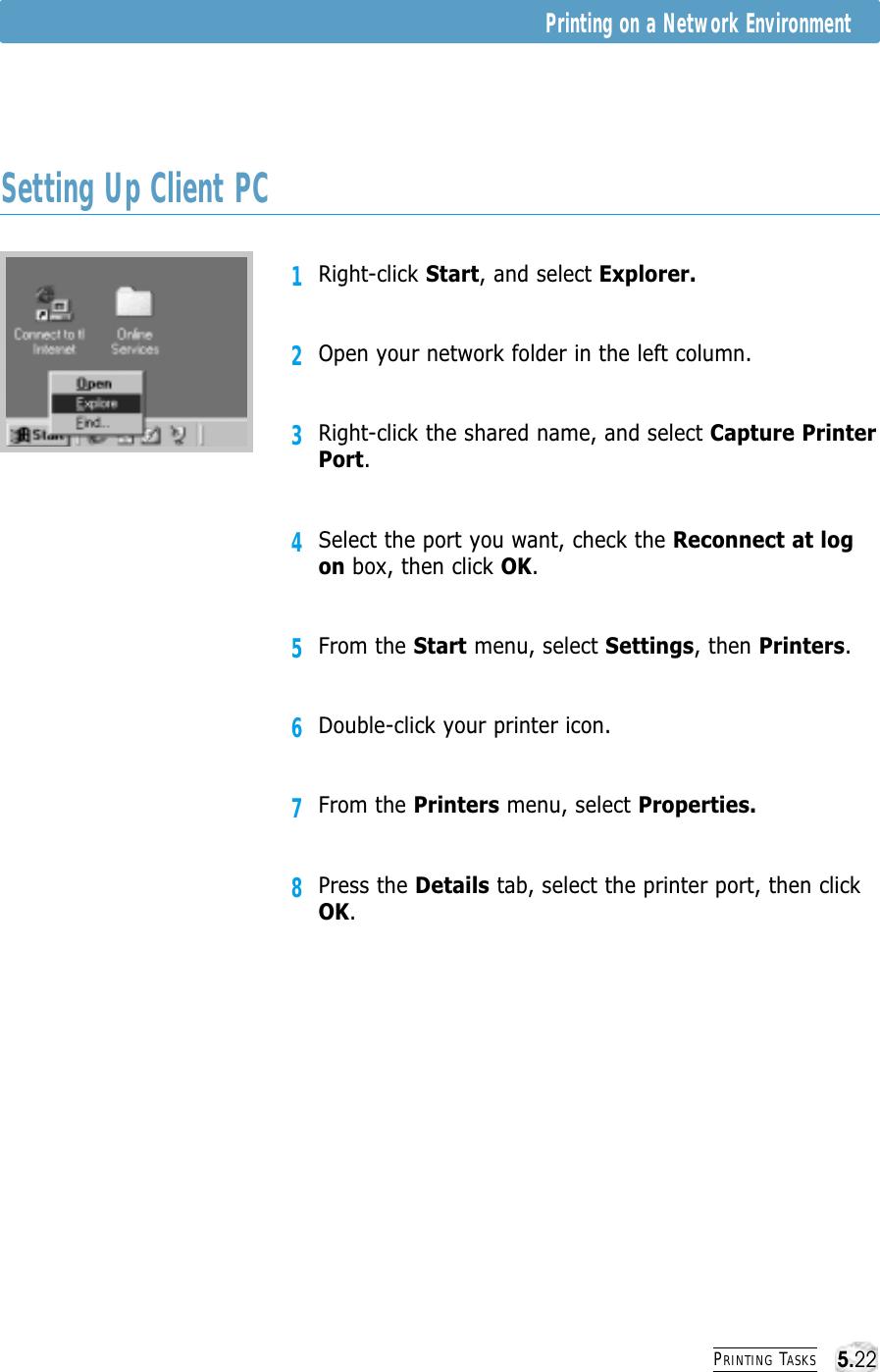

PRINTING TASKS1Right-click Start, and select Explorer.2Open your network folder in the left column.3Right-click the shared name, and select Capture PrinterPort.4Select the port you want, check the Reconnect at logon box, then click OK.5From the Start menu, select Settings, then Printers.6Double-click your printer icon.7From the Printers menu, select Properties.8Press the Details tab, select the printer port, then clickOK.Setting Up Client PCPrinting on a Network Environment5.22
chapter This chapter provides suggestions for high-quality andeconomical printing and information for maintaining the tonercartridge and the printer. Topics included in this chapter are:◆Maintaining Toner Cartridge◆Cleaning the Printer66
MAINTAINING YOUR PRINTER6.1Maintaining Toner CartridgeTo get the most from the toner cartridge, keep the followingguidelines in your mind.• Do not remove the toner cartridge from its package until youare ready to use. • Do not refill toner cartridges. The printer warranty does notcover damage caused by using a refilled cartridge.• Store toner cartridges in the same environment as the printer.• Do not remove a toner cartridge from the printer except toreplace it, clean it or clear a paper jam. Replace the cartridgeimmediately.• To prevent damage to the toner cartridge, do not expose it tolight for more than a few minute.Toner cartridge storageThe life of the toner cartridge depends on the amount of thetoner that print jobs require. When printing text at 5 %coverage, a new toner cartridge lasts an average of 2,500 pages.(But, the toner cartridge supplied with the printer lasts anaverage of 1,000 pages.)Toner cartridge lifeexpectancyAfter you install a new toner cartridge (see page 2.2), follow theinstructions included in the toner cartridge box to recycle the oldcartridge.Recycling tonercartridgeTo save toner, press the Toner Save button on the printercontrol panel. The button will be lit. You can also enable theToner Save Mode in your printer properties. Refer to “UsingToner Save Mode” on page 5.6. Selecting this option will expendthe life of the toner cartridge and reduce your cost per page, butwill reduce print quality. Saving toner
MAINTAINING YOUR PRINTER6.2Toner CartridgeWhen toner is low, faded or light areas may appear on a printed page. You may be able totemporarily improve print quality by redistributing the toner. The following procedures mayallow you to finish the current print job before replacing the toner cartridge.Redistributing Toner1Grasp the front cover by both sides ofthe cover and pull it toward you toopen.2Remove the toner cartridge from theprinter.3Gently shake the toner cartridge fromside to side 5 or 6 times to redistributethe toner.Note: If the toner gets on yourclothing, wipe it off with a dry clothand wash clothing in cold water. Hotwater sets toner into fabric.CAUTIONS:• Avoid reaching too far into theprinter. The fusing area may be hot.• To prevent damage to the tonercartridge, do not expose it to lightfor more than a few minute.
MAINTAINING YOUR PRINTER6.3Toner Cartridge4Reinsert the toner cartridge into theprinter. Be sure that the toner cartridgesnaps in its place.5Firmly close the cover.If the print remains light Remove the old cartridge and install anew toner cartridge. See “Install theToner Cartridge” on page 2.2.ATTENTION: OPC Cleaning• After every 500 page printing, your printer will automaticallyclean the OPC drum inside the toner cartridge and produce a OPC cleaning sheet with the toner debris.
MAINTAINING YOUR PRINTER6.4Cleaning the PrinterTo maintain print quality, follow the cleaning procedures below every time the toner cartridgeis replaced or whenever print quality problems occur. As much as possible, keep the printerfree from dust and debris.Notes:• Do not use ammonia-based cleaners or volatile solvents such as thinner, on or around theprinter. These can damage the printer.• While cleaning the inside of the printer, be careful not to touch the transfer roller (locatedunderneath the toner cartridge ). The oil from your hands on the roller can cause print qualityproblems.Wipe the outside surface of the printer with a soft, clean, lint-free cloth. You can dampen the cloth slightly with water, but becareful not to be let any water drip onto the printer or inside it.Cleaning the OutsideDuring the printing process, paper, toner, and dust particlescan accumulate inside the printer. Over time, this buildup cancause print quality problems such as toner specks or smearing.Cleaning inside the printer will eliminate or reduce theseproblems.Cleaning the Inside1Turn the printer off and unplug the power cord, then wait forthe printer to cool.2Open the front cover and remove the toner cartridge.3With a dry, lint-free cloth, wipe away any dust and spilled tonerfrom the toner cartridge area and the toner cartridge cavity.Cleaning inside the printerNote: To preventdamage to the tonercartridge, do not exposeit to light for more than afew minute. Cover it witha piece of paper, ifnecessary. Also, do nottouch the black transferroller inside the printer.By doing so, you candamage the printer.
3Your printer automatically picks up a sheet of paper from thetray and prints out a cleaning sheet with the dust or tonerparticles on it.MAINTAINING YOUR PRINTER5Then, plug in the power cord, and turn the printer on.Note: The cartridgecleaning process takessome time. To stop theprinting, turn the poweroff.Cleaning the PrinterPrinting a cleaning sheet Printing a cleaning sheet cleans the drum inside the tonercartridge. Use this process if you are experiencing blurred,faded or smeared printouts. This process will produce a pagewith toner debris, which should be discarded.1Make sure the printer is turned on and in the Ready mode andthere is paper loaded in the automatic input tray.2Press and hold down Demo on the control panel for about 10seconds until all control panel lights remain lit, then releasethe button.4Reinsert the toner cartridge and close the cover6.5
chapter This chapter gives helpful information for what to do if youencounter a printer error. It provides information on thefollowing topics:◆ Troubleshooting Checklist◆ Solving General Printing Problems◆ Clearing Paper Jams◆ Solving Print Quality Problems◆ Troubleshooting Error Messages◆ Common Windows Problems77
PROBLEM SOLVING7.1Troubleshooting ChecklistIf the printer is not working properly, complete the following checklist in order. If the printerdoes not pass a step, follow the corresponding troubleshooting suggestions.CheckMake sure that the Data light onthe control panel is on.Press the Demo button to printa demo page to verify that theprinter is feeding paper correctly.See page 2.7.Check the demo page to see if itis printed correctly.Print a short document from asoftware application to verify thecomputer and printer areconnected and arecommunicating correctly.If completing the checklist didnot diagnose the problem withthe printer, check the followingtroubleshooting sections.Solution• If no lights are on, check the power cord connectionand the power switch. Check the power source byplugging into another outlet.• If other lights are on, go to “Troubleshooting ErrorMessages” on page 7.17.• If a demo page does not print, check the papersupply in the input tray.• If the paper jams in the printer, go to “ ClearingPaper Jams” on page 7.6.• If the Error indicator light is illuminated on thecontrol panel, go to “Troubleshooting ErrorMessages” on page 7.17.If there is a print quality problem, go to “SolvingPrint Quality Problems” on page 7.11.• If the page does not print, check the cableconnection between the printer and computer. • Check the print queue or print spooler to see if theprinter has been paused.• Check the software application to make sure youare using the proper printer driver andcommunication port. If the page is interruptedduring printing, go to “Solving General PrintingProblems” on page 7.2.• “Solving General Printing Problems” on page 7.2.• “Troubleshooting Error Messages” on page 7.17.• “Common Windows Problems” on page 7.19.
PROBLEM SOLVING7.2Solving General Printing ProblemsProblemThe printer does notprint.Possible CauseThe printer is notreceiving power.Your printer is notselected as the defaultprinter.Check the printer forthe following:The printer may be inmanual feed mode andout of paper. (ThePaper light is on.)The connection cablebetween the computerand the printer is notconnected properly.The connection cablebetween the computerand the printer isdefective.The port setting isincorrect.SolutionIf no lights are on, check the powercord connections. Check the powerswitch and the power source.Select Samsung ML-1200 Seriesas your default printer. • The printer cover is not closed.• Paper is jammed.• No paper is loaded.• Toner cartridge is not installed.• Printer system error occurs.Contact a service representative.Add paper to the manual input tray,and press the Demo button on theprinter’s control panel to startprinting.Disconnect the printer cable andreconnect it.If possible, attach the cable toanother computer that is workingproperly and print a job. You mayalso try using a different printercable.Check the Windows printer setting tomake sure that the print job is sentto the correct port (for example,LPT1). If the computer has morethan one port, make sure the printeris attached to the correct one.If you have any problems with the operation of your printer, refer to the table for suggestedsolutions.
PROBLEM SOLVING7.3Solving General Printing ProblemsProblemThe printer does notprint. (continued)Printer selects mediafrom the wrongpaper source.Paper does not feedinto the printer.Print job is extremelyslow.Possible CauseThe printer may beconfigured incorrectly.The printer driver maybe incorrectly installed.The printer ismalfunctioning.The paper sourceselection in the printerproperties may beincorrect.Paper has not beenloaded correctly.There is too much paperin the input tray.The paper is too thick.The job may be verycomplex.The maximum printspeed of the SamsungML-1200 Series printer is12 pages per minute.If using Windows 95, theSpooling Setting may beset incorrectly. SolutionCheck the printer properties to makesure that all print settings are correct.Uninstall the printer driver, thenreinstall the printer driver. Try printinga demo page.Check the lights on the control panel todetermine if the printer is indicating asystem error.For many software applications thepaper source selection is found underthe Paper tab within the printerproperties. Select the correct papersource.Remove paper from the input tray andreload it correctly.Remove excess paper from the inputtray.Use only paper that meets thespecifications required by the printer.Reduce the complexity of the page ortry adjusting the print quality settings. From the Start menu, and then chooseSettings and Printers. Right-click theSamsung ML-1200 Series printer icon,choose Properties, click the Detailstab, and then choose the SpoolSettings button. Select the desiredspool setting from the availablechoices.

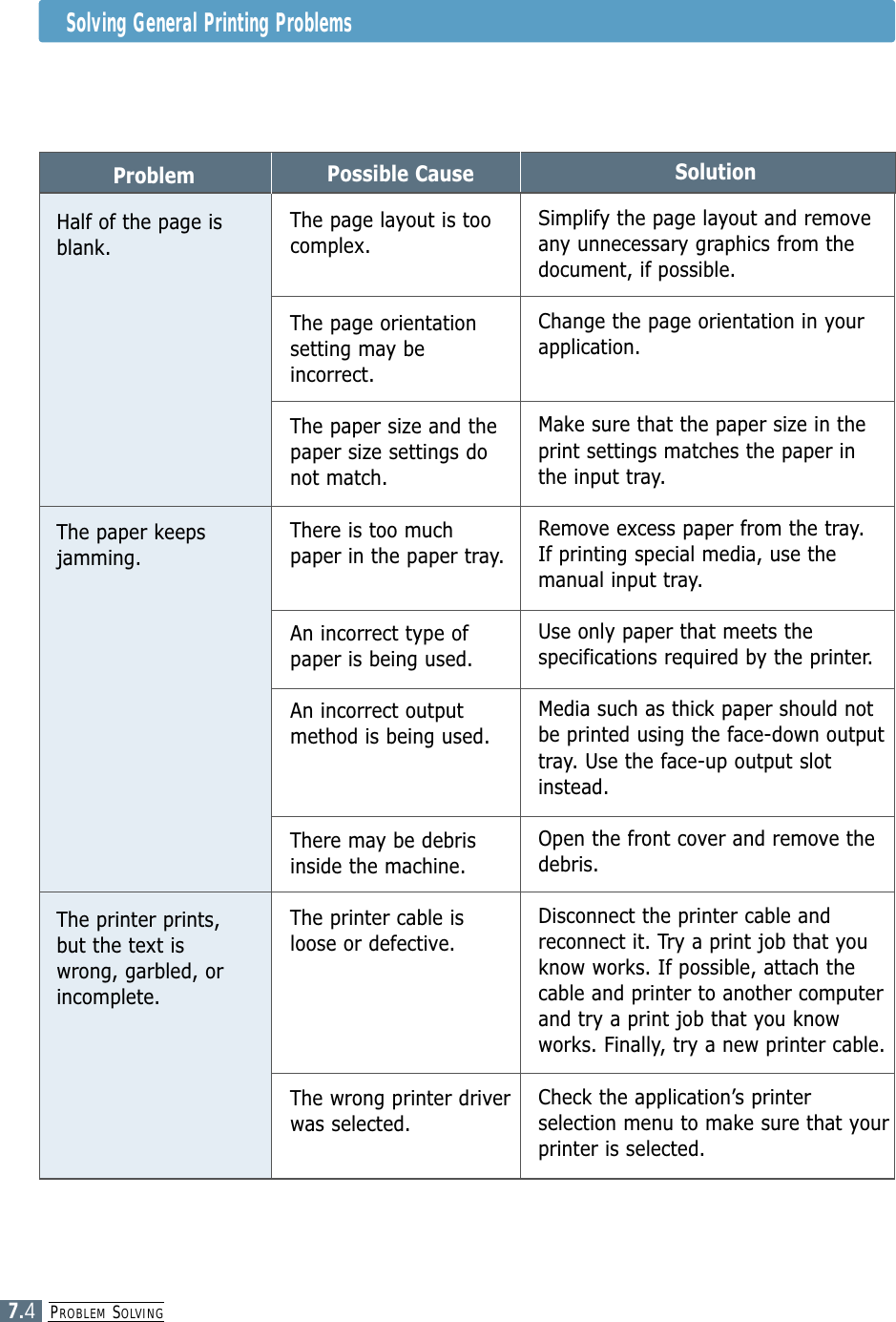

PROBLEM SOLVING7.4Solving General Printing ProblemsProblemHalf of the page isblank.The paper keepsjamming.The printer prints,but the text iswrong, garbled, orincomplete.Possible CauseThe page layout is toocomplex.The page orientationsetting may beincorrect.The paper size and thepaper size settings donot match.There is too muchpaper in the paper tray.An incorrect type ofpaper is being used.An incorrect outputmethod is being used.There may be debrisinside the machine.The printer cable isloose or defective.The wrong printer driverwas selected.SolutionSimplify the page layout and removeany unnecessary graphics from thedocument, if possible. Change the page orientation in yourapplication.Make sure that the paper size in theprint settings matches the paper in the input tray.Remove excess paper from the tray. If printing special media, use themanual input tray.Use only paper that meets thespecifications required by the printer.Media such as thick paper should notbe printed using the face-down outputtray. Use the face-up output slotinstead.Open the front cover and remove thedebris.Disconnect the printer cable andreconnect it. Try a print job that youknow works. If possible, attach thecable and printer to another computerand try a print job that you knowworks. Finally, try a new printer cable.Check the application’s printerselection menu to make sure that yourprinter is selected.

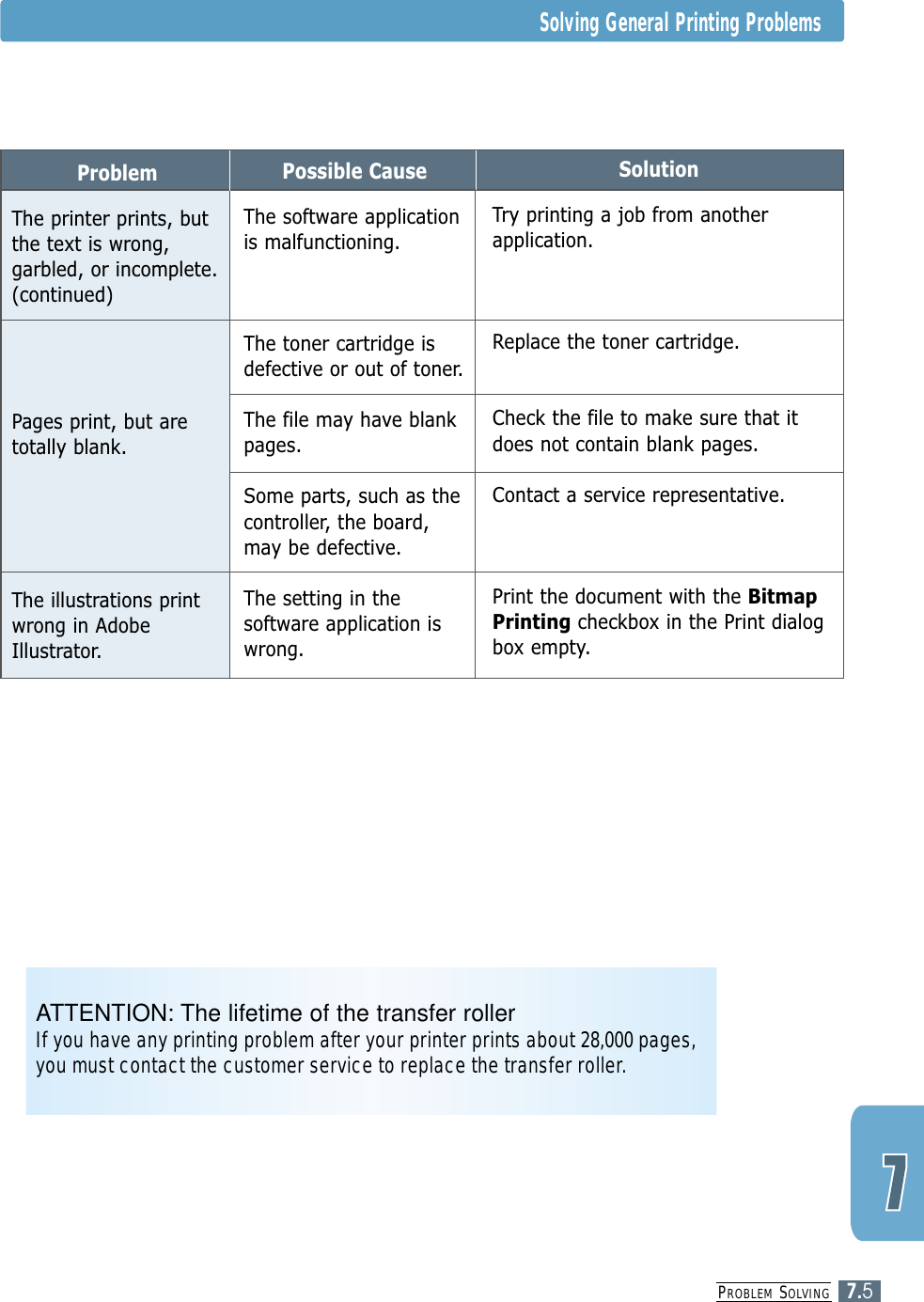

PROBLEM SOLVING7.5Solving General Printing ProblemsProblemThe printer prints, butthe text is wrong,garbled, or incomplete.(continued) Pages print, but aretotally blank.The illustrations printwrong in AdobeIllustrator.Possible CauseThe software applicationis malfunctioning.The toner cartridge isdefective or out of toner.The file may have blankpages.Some parts, such as thecontroller, the board,may be defective.The setting in thesoftware application iswrong.SolutionTry printing a job from anotherapplication.Replace the toner cartridge.Check the file to make sure that itdoes not contain blank pages.Contact a service representative.Print the document with the BitmapPrinting checkbox in the Print dialogbox empty.ATTENTION: The lifetime of the transfer rollerIf you have any printing problem after your printer prints about 28,000 pages,you must contact the customer service to replace the transfer roller.
PROBLEM SOLVING7.6Clearing Paper JamsOccasionally, paper can become jammed during a print job. Some of the causes include:• The paper tray is loaded improperly or overfilled.• The paper tray has been pulled out during a print job.• The top cover has been opened during a print job.• Paper that does not meet paper specifications has been used. See “Paper Specifications” onpage A.2.• Paper that is outside of the supported size range has been used. See “Paper Specifications”.If a paper jam occurs, the Paper and the Error lights remain lit on the control panel. Findand remove the jammed paper. If the location of the paper jam is not obvious, look firstinside the printer.Note: Paper jams in this area may result in loose toner on the page. If you get any toner on yourclothes, wash them in cold water because hot water will set the toner into the fabric.Output Area1 Pull the jammed paper carefully out ofthe output stacker.
PROBLEM SOLVING7.7Note: If paper has entered the toner cartridge area, follow the instructions on page 7.8. It iseasier to remove such jams from the inside of the printer than the paper input area.Input Area1 Carefully pull the jammed paper out ofthe input tray.5 Open and close the front cover.Printing can be resumed.5 If paper is jammed in the face-upoutput slot, carefully remove the paperas shown.Clearing Paper Jams
PROBLEM SOLVING7.8Clearing Paper Jams2 Open and close the front cover toresume printing.Note: If the Paper and the Error lightsdo not turn off, there is still jammedpaper inside the printer. Check theinside of the printer.Inside the Printer1 Grasp the front cover by both sides ofthe cover and pull it toward you toopen.Note: Paper jams in this area may result in loose toner on the page. If you get any toner onyour clothes, wash them in cold water because hot water will set the toner into the fabric.
PROBLEM SOLVING7.9Clearing Paper Jams4 Reinsert the toner cartridge and closethe front cover. Printing can beresumed.3 Gently pull the paper toward you toremove it from the printer.Make sure that there is no paperremaining inside the printer.CAUTION:To prevent damage to thetoner cartridge, do not expose it tolight for more than a few minutes.Place a piece of paper over the top ofthe toner cartridge to shield it while itis out of the printer.2 Remove the toner cartridge.
PROBLEM SOLVING7.10Tips for Avoiding Paper JamsBy selecting correct paper types and loading them properly,you should be able to avoid most paper jams. If paper jamsoccurs, follow the steps outlined in “Clearing Paper Jams” onpage 7.6. If jams occur frequently, make sure you arefollowing these tips to avoid jams.• Follow the procedures in “Load Paper” on page 2.4 to loadthe paper properly. Make sure the adjustable guides arepositioned correctly.• Do not overload the automatic input tray. Make sure thepaper is under the paper capacity mark on the inside of thetray.• Do not remove the paper from the input tray while print jobsare in process.• Flex, fan and straighten the paper before loading it. • Do not load wrinkled, creased, damp or highly curled paper.• Do not mix paper types in the input tray.• Use only recommended print media. See “PaperSpecifications” on page A.2.• Make sure that the recommended print side is facing up whenloading the paper into both input trays.• Keep print media stored in an acceptable environment. See“Printer and Paper Storage Environment” on page A.6.Clearing Paper Jams
PROBLEM SOLVING7.11Problem SolutionSolving Print Quality ProblemsGeneral print quality problems can be solved by following the checklist below.• Redistribute the toner in the toner cartridge (see page 6.2).• Clean the inside of the printer (see page 6.4).• Adjust the print resolution from the printer properties (see page 5.11).• Check to make sure that Toner Save Mode is off (see page 5.6).• Troubleshoot general printing problems (see page 7.2).• Install a new toner cartridge, then check print quality again (see page 2.2). Print Quality ChecklistSolving Print Quality ProblemsIf a vertical white streak or faded area appears on the page:• The toner supply is low. You may be able to temporarilyextend the toner cartridge life. See “Redistributing theToner” on page 6.2. If this does not improve the printquality, install a new toner cartridge.• The paper may not meet paper specifications (for example,the paper is too moist or too rough). See “PaperSpecifications” on page A.2.• If the whole page is light, the print resolution setting is toolight or Toner Save Mode may be on. Adjust the printresolution and Toner Save Mode within the printerproperties. See page 5.6 and 5.11 respectively.• A combination of faded and smeared defects may indicatethat the toner cartridge needs cleaning. See “Cleaning thePrinter” on page 6.4.• The surface of LSU part inside the printer may be dirty.Clean the LSU. See “Cleaning the Printer”.Light or faded print
PROBLEM SOLVING7.12Solving Print Quality ProblemsProblem Solution• The paper may not meet paper specifications (for example,the paper is too moist or too rough). See “PaperSpecifications” on page A.2.• The transfer roller may be dirty. See “Cleaning the Inside”on page 6.4.• The paper path may need cleaning. See “Cleaning theInside”.Toner specksIf faded areas, generally rounded, occur randomly on thepage:• A single sheet of paper may be defective. Try reprinting thejob.• The moisture content of the paper is uneven or the paperhas moist spots on its surface. Try a different kind or brandof paper. See “Paper Specifications” on page A.2.• The paper lot is bad. The manufacturing processes cancause some areas to reject toner. Try a different kind orbrand of paper.• The toner cartridge may be defective. See “Verticalrepetitive defects” on the next page.• If these steps do not correct the problems, contact aservice representative.DropoutsIf black vertical streaks appear on the page:• The photosensitive drum inside the toner cartridge hasprobably been scratched. Install a new toner cartridge. If white vertical streaks appear on the page:• The surface of LSU part inside the printer may be dirty.Clean the LSU (see page 6.4).Vertical lines

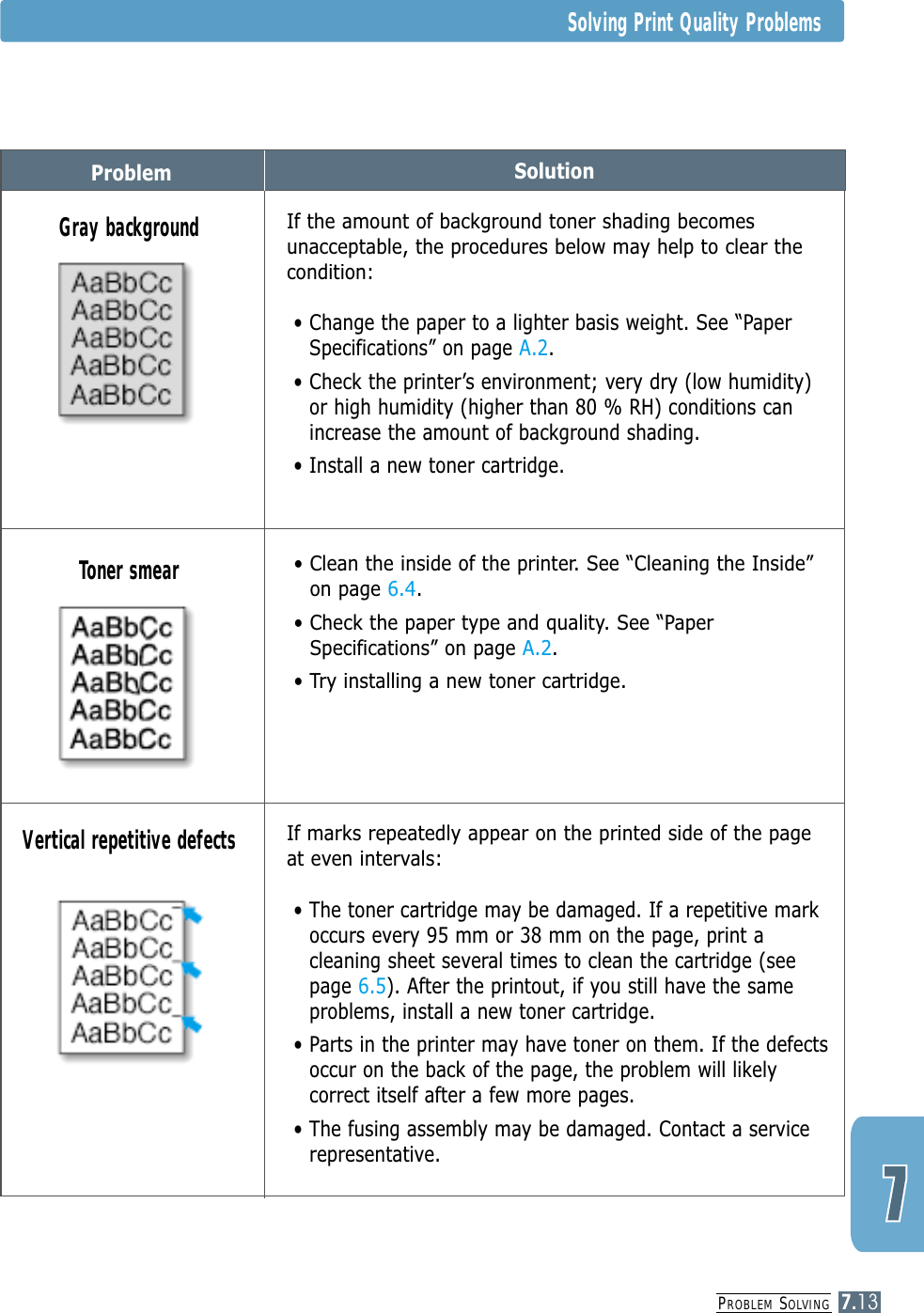

PROBLEM SOLVING7.13Problem SolutionIf the amount of background toner shading becomesunacceptable, the procedures below may help to clear thecondition:• Change the paper to a lighter basis weight. See “PaperSpecifications” on page A.2.• Check the printer’s environment; very dry (low humidity)or high humidity (higher than 80 % RH) conditions canincrease the amount of background shading.• Install a new toner cartridge.Gray background• Clean the inside of the printer. See “Cleaning the Inside”on page 6.4.• Check the paper type and quality. See “PaperSpecifications” on page A.2.• Try installing a new toner cartridge.Toner smearIf marks repeatedly appear on the printed side of the pageat even intervals:• The toner cartridge may be damaged. If a repetitive markoccurs every 95 mm or 38 mm on the page, print acleaning sheet several times to clean the cartridge (seepage 6.5). After the printout, if you still have the sameproblems, install a new toner cartridge.• Parts in the printer may have toner on them. If the defectsoccur on the back of the page, the problem will likelycorrect itself after a few more pages.• The fusing assembly may be damaged. Contact a servicerepresentative.Vertical repetitive defectsSolving Print Quality Problems
PROBLEM SOLVING7.14Solving Print Quality ProblemsProblem Solution• If characters are improperly formed, producing hollowimages, the paper stock may be too slick. Try a differentpaper. See “Paper Specifications” on page A.2.• If characters are improperly formed, producing a wavyeffect, the scanner unit may need service. Verify that italso occurs on a demo page by pressing the Demo buttonon the control panel when printer is ready. If you needservice, contact a service representative.Misformed characters• Check the paper type and quality. See “PaperSpecifications” on page A.2.• Make sure that the paper or other media is loadedcorrectly and the guides are not too tight or too looseagainst the paper stack.Page skewBackground scatter results from bits of toner distributed onthe printed page. • The paper may be too damp. Try printing with a differentbatch of paper. Do not open packages of paper untilnecessary so that the paper does not absorb too muchmoisture from the air.• If background scatter occurs on an envelope, change yourprinting layout to avoid printing over areas that haveoverlapping seams on the reverse side. Printing on seamscan cause this problem.• If background scatter covers the entire surface of a printedpage, adjust the print resolution through your softwareapplication or the printer properties.Background scatter
PROBLEM SOLVING7.15Problem SolutionSolving Print Quality Problems• Check the paper type and quality. Both high temperatureand humidity will cause paper curl. See “PaperSpecifications” on page A.2.• Turn over the stack of paper in the input tray. Also tryrotating the paper 180° in the input tray.• Push the output lever and try printing to the face up outputslot.Curl or wave• Make sure that paper is loaded properly.• Check the paper type and quality. See “PaperSpecifications” on page A.2.• Push the output lever and try printing to the face up outputslot.• Turn over the stack of paper in the input tray. Also tryrotating the paper 180° in the feeder.Wrinkles or creases• The transfer roller may be dirty. See “Cleaning the Inside”on page 6.4.• Check if the toner is leaking. Clean inside the printer. Back of printouts dirty• The toner cartridge may not be installed properly. Removethe cartridge and reinsert it.• The toner cartridge may be defective and need replacing.Install a new toner cartridge.• The printer may require repairs. Contact a servicerepresentative.Black pages
PROBLEM SOLVING7.16Problem SolutionCharacter voids are white areas within the parts ofcharacters that should be solid black:• If you are using transparencies when you experience thisproblem, try another type of transparency. (Because of thecomposition of transparency media, some character voidsare normal.) • You may be printing on the wrong surface on the paper.Remove the paper and turn it around. • The paper may not meet paper specifications. See “PaperSpecifications” on page A.2.Character Voids• Clean the inside of the printer. • Check the paper type and quality. See “PaperSpecifications” on page A.2.• Try installing a new toner cartridge.• If the problem persists, the printer may require repairs.Contact a service representative.Loose tonerIf horizontally aligned black streaks or smears appear:• The toner cartridge may be installed improperly. Removethe cartridge and reinsert it.• The toner cartridge may be defective. Install a new tonercartridge.• If the problem persists, the printer may require repairs.Contact a service representative.Horizontal stripesSolving Print Quality Problems
PROBLEM SOLVING7.17When the printer experiences an error, the control panel will indicate error messages by theindicator lights. Find the light pattern below that matches the printer light pattern and followthe solutions to clear the error.Troubleshooting Error MessagesPrinter Light PatternsLight status legendsymbol for “light on”symbol for “light blinking”symbol for “light off”• Check the power cord and the power switch if your printer does not generate aresponse.• Make sure that the printer is powered with the specified AC voltage.Power offError Paper DataThe printer is out of paper in the input tray. • Load paper into the tray. For the automatic input tray, loading paper will cancelthis message and allow you to continue with the print job. For the manual inputtray, press the Demo button after loading paper.Paper out DataError PaperPaper is jammed inside the printer or the toner cartridge is not installed. • Clear the paper jam. See “Clearing Paper Jams” on page 7.6.• Make sure that the toner cartridge is correctly installed in the printer.Paper jam, or no toner cartridgeDataError Paper
PROBLEM SOLVING7.18Troubleshooting Error MessagesWhile printing in the manual feed mode, the printer is waiting the Demobutton to be pressed.• Press the Demo button on the control panel to start printing. You must press thebutton to print each page after loading paper into the manual input tray. Waiting the Demo button to be pressedDataError PaperThe printer front cover may be opened. • Check that the printer front cover door is closed properly. Door openDataError PaperWhile your printer is canceling a job (see page 5.5), the Error light blinks.When canceling is completed, this message will automatically cleared.Otherwise, the printer memory ran out of memory in the middle of a print job.The page being printed may have been too complex for the memory capacity ofthe printer. Press the Cancel/Reprint button to cancel the current job.• Try to free some printer memory by removing any unnecessary fonts, macros, orany data currently in printer memory.• Simplify the image or print at a lower resolution.Canceling a job or memory outDataPaperError• Reset the printer by briefly turning the printer off and back on again.• If the error persists, contact the service representative.System error - Fuser or LSU errorDataError Paper
PROBLEM SOLVINGCommon Windows ProblemsNote: Refer to Microsoft Windows 9x, Me, NT 4.0 or 2000 documentation that came with your PCfor further information on Windows error messages.Problem“File in Use” messageappears during installation.“Error Writing to LPTx”message appears.“General Protection Fault”,“Exception OE”, “Spool32”,or “Illegal Operation”messages appear.Possible Cause and SolutionQuit all software application. Remove all software from theStartUp Group, then restart Windows. Reinstall the printerdriver.• Make sure the cables are connected correctly, the printeris on, and the Data light on the control panel is on.• If bi-directional communication is not turned on in thedriver, it will also cause this message.• From the Start menu, select Settings, then Printers.Right-click on the Samsung ML-1200 Series printer iconand select Properties. From the Details tab, click onPort Settings. Remove check from Check Port Statebefore Printing box and click OK. From SpoolSettings, select Print Directly to Printer and click OK.Try printing again.• Close all other applications, reboot Windows, and tryprinting again.• Delete all temp files from the Temp sub-directory. Youcan determine the name of the directory by editing theAUTOEXEC.BAT file and locking for the statement, “SetTemp =”. The name after this statement is the tempdirectory. It is usually C:\temp by default, but can beredefined.7.19
This appendix provides information on the following topics:◆ Printer Specifications◆ Paper Specifications◆ Using Your Printer with a USB cable◆ Using Your Printer with Macintosh◆ Linux Driver Installation
APPENDIXA.1Printer SpecificationsItem Specification and DescriptionPrint Speed12 PPMResolution 600 dpiFirst Printing TimeWarmUp TimeLess than 12 seconds Power Consumption250 W average during operation / Less than 10 W in sleep modePower RatingAC 100 ~ 127 V (USA, Canada) / 220 ~ 240 V (Others), 50 / 60 HzAcoustic NoiseStand by: Less than 35 dB; Operating: Less than 47 dBToner SupplySingle cartridgeToner Cartridge Life2,500 pages (for starter, 1,000 pages), 5% area coverageEmulation PrinThruRandom AccessMemory (RAM)8 MB (nonexpandable)30 secondsInterface• IEEE 1284 Bidirectional Parallel- Modes supported: Compatible, Nibble, Byte, ECP• USB Interface Standard- USB 1.0 compliant- 12 Mbps 1 portWeight 6.5 Kg / 13.4 lb.External Dimensions(W x D x H)329 x 355 x 231 mm / 12.95 x 13.98 x 9.09 in. Temperature:10 ~ 32 °C / 50 ~ 90 °F; Humidity: 20 ~ 80 % RHPackage WeightPaper: 1.83 KgPlastic: 0.33 KgDuty CycleMonthly: 12,000 pages maximumOperating Environment
APPENDIXA.2Paper SpecificationsThis printer accepts a variety of media, such as cut-sheetpaper (including up to 100 % recycled fiber content paper),envelopes, labels, transparencies and custom-size paper.Properties such as weight, composition, grain and moisturecontent are important factors affecting printer performance andoutput quality. Paper that does not meet the guidelinesoutlined in this manual can cause the following problems:• Poor print quality• Increased paper jams• Premature wear on the printer, requiring repairs.OverviewNotes:• Some paper may meet all of the guidelines in this manualand still not produce satisfactory results. This might be theresult of improper handling, unacceptable temperature andhumidity levels, or other variables over which Samsung hasno control.• Before purchasing large quantities of paper, make sure thatthe paper meets the requirements specified in this userguide. Always test paper before buying large quantities.CAUTION: Using paper that does not meet thisspecifications may cause problems for the printer, requiringrepairs. This repair is not covered by the Samsung warrantyor service agreements.
APPENDIXA.3PaperLetterDimensions8.5 ✕11 in. (216 ✕279 mm)16 to 24 lb Bond (60 to 105 g/m2)• 150 sheets of 20 lbBond (75 g/m2)paper for theautomatic inputtray• 1 sheet paper forthe manual inputtray Weight CapacityaA4210 ✕297 mm (8.3 X 11.7 in.)ExecutiveLegalB5 (JIS)Folio7.3 X 10.5 in. (191 X 267 mm)8.5 ✕14 in. (216 ✕356 mm)182 ✕257 mm(7.2 ✕10 in.)216 ✕330 mm(8.5 ✕13 in.)Minimum Size(custom)76 X 127 mm (3 X 5 in.)76 X 127 mm (3 X 5 in.)AutomaticInput TrayManualInput Tray60 to 163 g/m2Bond (16 to 43 lb ) • 5 sheets of 20 lbBond (75 g/m2)paper for theautomatic inputtray• 1 sheet paper forthe manual inputtray Maximum Size (custom)216 ✕356 mm (8.5 X 14 in.)TransparencyLabelsbEnvelopesSame minimum andmaximum paper sizes aslisted above.Thickness:.10 X .14 mm(0.0039 X0.0055 in.)up to 90 g/m2(16-24 lb)a. Capacity may vary depending on media weight and thickness, and environmental conditions.b. Smoothness - 100 to 250 (Sheffield)Supported Sizes of PaperNote: You may experience some paper jams when using any media with a length of less than127 mm (5 in.). For optimum performance, make sure you are storing and handling the papercorrectly. Please refer to “Printer and Paper Storage Environment” on page A.6.Paper Specifications
APPENDIXA.4Paper SpecificationsFor best results, use conventional 90 g/m2(24 lb) paper. Make sure the paper is of goodquality, and free of cuts, nicks, tears, spots, loose particles, dust, wrinkles, voids, and curledor bent edges.If you are unsure of what type of paper you are loading (such as bond or recycled), check thelabel on the package of the paper.The following problems with paper cause print quality deviations, jamming, or even damageto the printer.SymptomPoor print quality ortoner adhesionproblems with feedingDropout, jamming,curlIncreased graybackground shading/printer wearExcessive curlproblems with feedingJamming, damage toprinterProblems with feedingProblem with PaperToo moist, too rough, toosmooth, or embossed;faulty paper lotStored improperlyToo heavyToo moist, wrong graindirection or short-grainconstructionCutouts or perforationsRagged edgesSolutionTry another kind of paper,between 100 ~ 250 Sheffield, 4 ~ 5 % moisture content.Store paper flat in its moisture-proof wrapping.Use lighter paper, open the rearoutput tray.• Open the rear output tray.• Use long-grain paper.Do not use paper with cutouts orperforations.Use good quality paperNotes:• Do not use letterhead paper that is printed with low-temperature inks, such as those used insome types of thermography.• Do not use raised or embossed letterhead.• The printer uses heat and pressure to fuse toner to the paper. Make sure that any coloredpaper or preprinted forms use inks that are compatible with this fusing temperature (200 °C or392 °F for 0.1 second).Guidelines for Using Paper

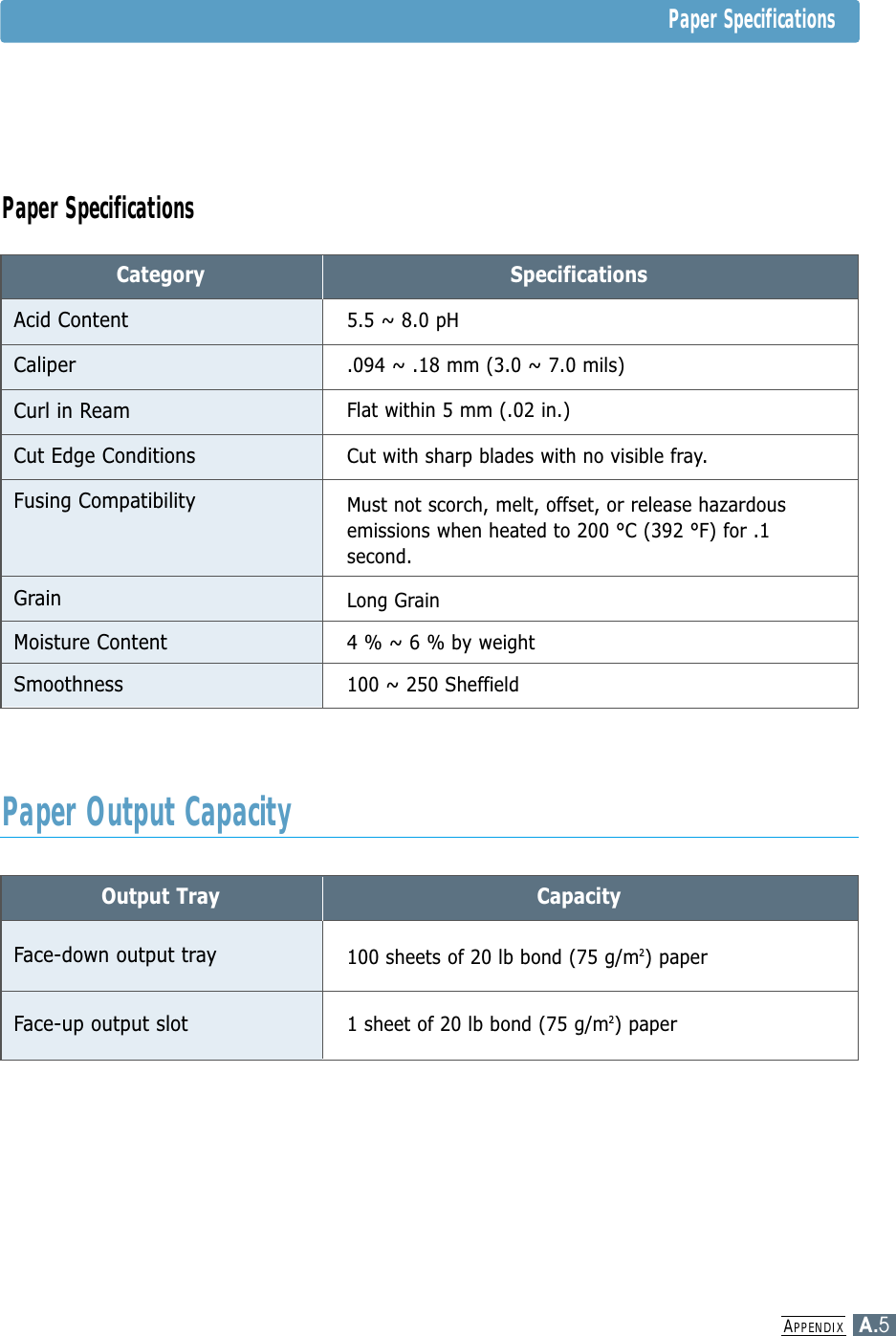

APPENDIXA.5Paper SpecificationsCategoryAcid ContentSpecifications5.5 ~ 8.0 pHCaliper.094 ~ .18 mm (3.0 ~ 7.0 mils)Curl in ReamCut Edge ConditionsFusing CompatibilityGrainFlat within 5 mm (.02 in.)Cut with sharp blades with no visible fray.Moisture Content4 % ~ 6 % by weightSmoothness100 ~ 250 SheffieldMust not scorch, melt, offset, or release hazardousemissions when heated to 200 °C (392 °F) for .1second.Long GrainPaper SpecificationsOutput TrayFace-down output trayCapacity100 sheets of 20 lb bond (75 g/m2) paperFace-up output slot1 sheet of 20 lb bond (75 g/m2) paperPaper Output Capacity

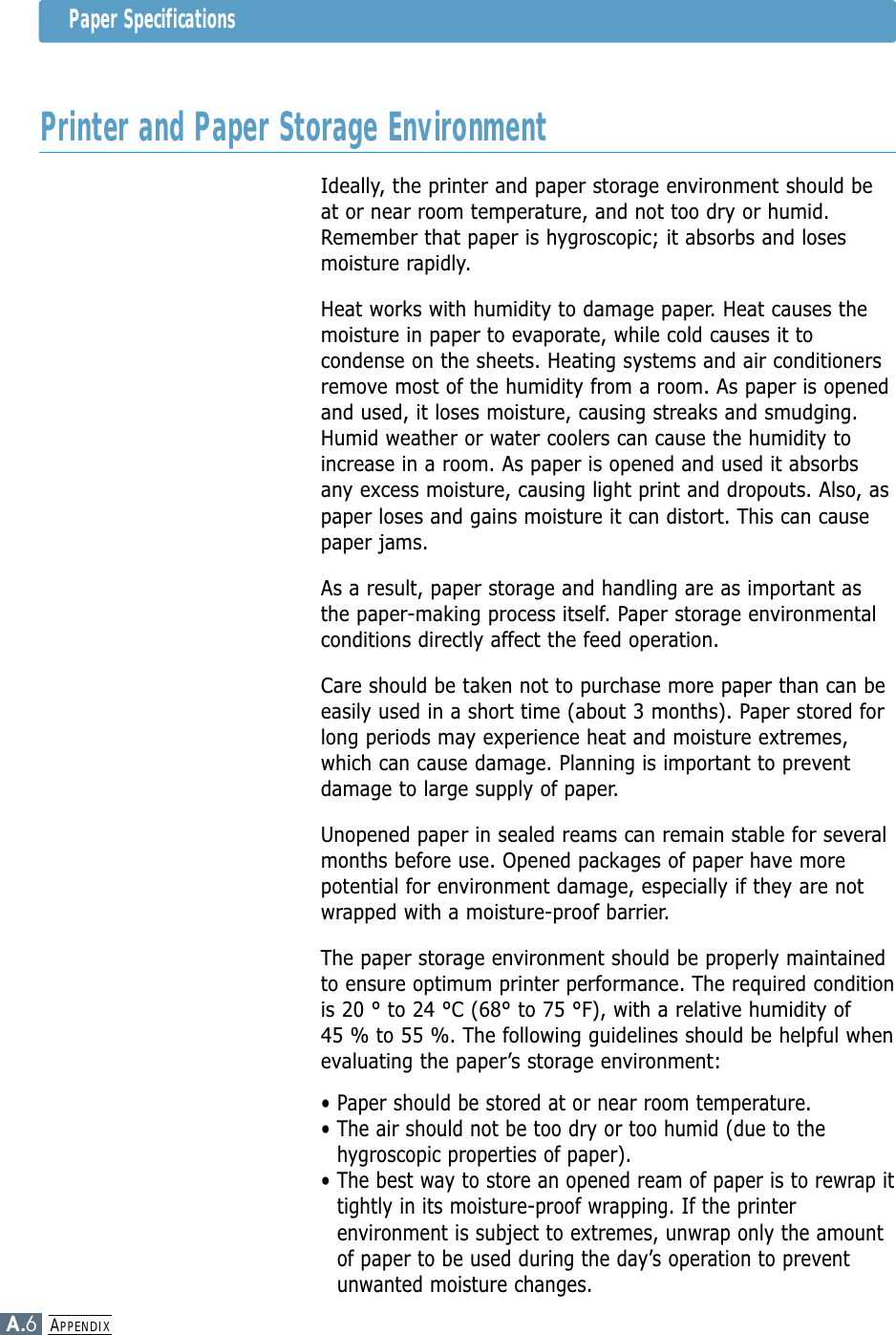

APPENDIXA.6Ideally, the printer and paper storage environment should beat or near room temperature, and not too dry or humid.Remember that paper is hygroscopic; it absorbs and losesmoisture rapidly.Heat works with humidity to damage paper. Heat causes themoisture in paper to evaporate, while cold causes it tocondense on the sheets. Heating systems and air conditionersremove most of the humidity from a room. As paper is openedand used, it loses moisture, causing streaks and smudging.Humid weather or water coolers can cause the humidity toincrease in a room. As paper is opened and used it absorbsany excess moisture, causing light print and dropouts. Also, aspaper loses and gains moisture it can distort. This can causepaper jams.As a result, paper storage and handling are as important asthe paper-making process itself. Paper storage environmentalconditions directly affect the feed operation.Care should be taken not to purchase more paper than can beeasily used in a short time (about 3 months). Paper stored forlong periods may experience heat and moisture extremes,which can cause damage. Planning is important to preventdamage to large supply of paper.Unopened paper in sealed reams can remain stable for severalmonths before use. Opened packages of paper have morepotential for environment damage, especially if they are notwrapped with a moisture-proof barrier.The paper storage environment should be properly maintainedto ensure optimum printer performance. The required conditionis 20 ° to 24 °C (68° to 75 °F), with a relative humidity of 45 % to 55 %. The following guidelines should be helpful whenevaluating the paper’s storage environment:• Paper should be stored at or near room temperature.• The air should not be too dry or too humid (due to thehygroscopic properties of paper).• The best way to store an opened ream of paper is to rewrap ittightly in its moisture-proof wrapping. If the printerenvironment is subject to extremes, unwrap only the amountof paper to be used during the day’s operation to preventunwanted moisture changes.Paper SpecificationsPrinter and Paper Storage Environment

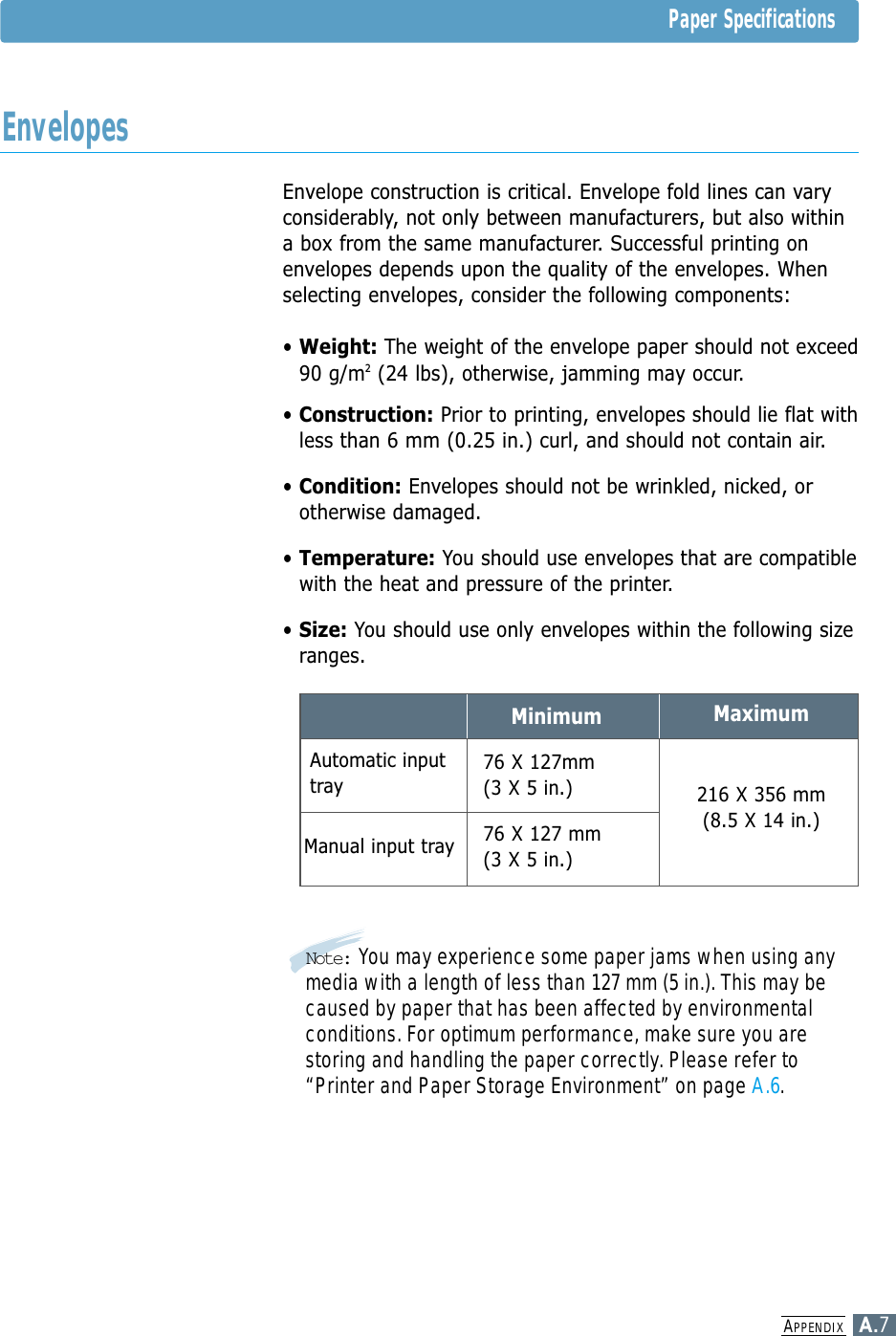

APPENDIXA.7Envelope construction is critical. Envelope fold lines can varyconsiderably, not only between manufacturers, but also withina box from the same manufacturer. Successful printing onenvelopes depends upon the quality of the envelopes. Whenselecting envelopes, consider the following components:• Weight: The weight of the envelope paper should not exceed90 g/m2(24 lbs), otherwise, jamming may occur.• Construction: Prior to printing, envelopes should lie flat withless than 6 mm (0.25 in.) curl, and should not contain air.• Condition: Envelopes should not be wrinkled, nicked, orotherwise damaged.• Temperature: You should use envelopes that are compatiblewith the heat and pressure of the printer.• Size: You should use only envelopes within the following sizeranges.Minimum Maximum216 X 356 mm(8.5 X 14 in.)76 X 127 mm(3 X 5 in.)76 X 127mm(3 X 5 in.)Automatic inputtrayManual input trayNote: You may experience some paper jams when using anymedia with a length of less than 127 mm (5 in.). This may becaused by paper that has been affected by environmentalconditions. For optimum performance, make sure you arestoring and handling the paper correctly. Please refer to“Printer and Paper Storage Environment” on page A.6.Paper SpecificationsEnvelopes
APPENDIXA.8Double side-seams construction has vertical seams at both endsof the envelope rather than diagonal seams. This style may bemore likely to wrinkle. Be sure the seam extends all the way tothe corner of the envelope as illustrated below.Envelopes with DoubleSide SeamsEnvelopes with a peel-off adhesive strip or with more than oneflap that folds over to seal must use adhesives compatible withthe heat and pressure in the printer. The extra flaps and stripsmight cause wrinkling, creasing, or even jams and may evendamage the fuser.Envelopes withAdhesive Strips or FlapsThe following gives typical address margins for a commercial#10 or DL envelope.Envelope MarginsProper storage of envelopes helps contribute to print quality.Envelopes should be stored flat. If air is trapped in an envelope,creating an air bubble, then the envelope may wrinkle duringprinting. See “Printing on Envelopes” on page 4.7.Envelope StorageCorrectIncorrectMinimumType of AddressReturn addressDelivery addressMaximum15 mm (0.6 in.)15 mm (0.6 in.)89 mm (3.5 in.)51 mm (2 in.)Notes:• For best print quality, position margins no closer than 15 mm(0.6 in.) from the edges of the envelope.• Avoid printing over the area where the envelope’s seamsmeet.Paper Specifications
APPENDIXA.9When selecting labels, consider the quality of each component:• Adhesives: The adhesive material should be stable at 200 °C (392 °F), the printer’s fusing temperature.• Arrangement: Only use labels with no exposed backingbetween them. Labels can peel off sheets with spacesbetween the labels, causing serious jams.• Curl: Prior to printing, labels must lie flat with no more than13 mm (.5 in.) of curl in any direction.• Condition: Do not use labels with wrinkles, bubbles, or otherindications of separation.See “Printing on Labels” on page 4.10.Transparencies used in the printer must be able to withstand200 °C (392 °F), the printer’s fusing temperature.See “Printing on Transparencies” on page 4.11.CAUTION: To avoid damaging the printer, use onlytransparencies recommended for use in laser printers.CAUTIONS:• To avoid damaging the printer, use only labelsrecommended for laser printers.• To prevent serious jams, always use the face-up output slot.• Never print on the same sheet of labels more than once orprint on a partial sheet of labels.Paper SpecificationsLabelsTransparencies
APPENDIXA.10Using Your Printer with a USB CableIf you have a USB (Universal Serial Bus) port enabled on your computer, and if yourcomputer is running Windows 98, you can connect your ML-1200 Series printer to theUSB chain of devices.To operate your printer with a Windows PC, you must install thePrinThru printer driver. Place the CD-ROM in the CD-ROM driveand perform the instructions on page 2.8.If you have a USB (Universal Serial Bus) port enabled onyour computer, and if your computer is running Windows 98,you can connect your ML-1200 Series printer to the USBchain of devices.1Make sure that both the printer and computer are turnedON.2Plug one end of the USB cable into the USB port on theprinter.2. Connect printer withUSB cable andinstall USB driver1. Install PrinThru driver Installing the Printer SoftwareTo the USB porton PC➜

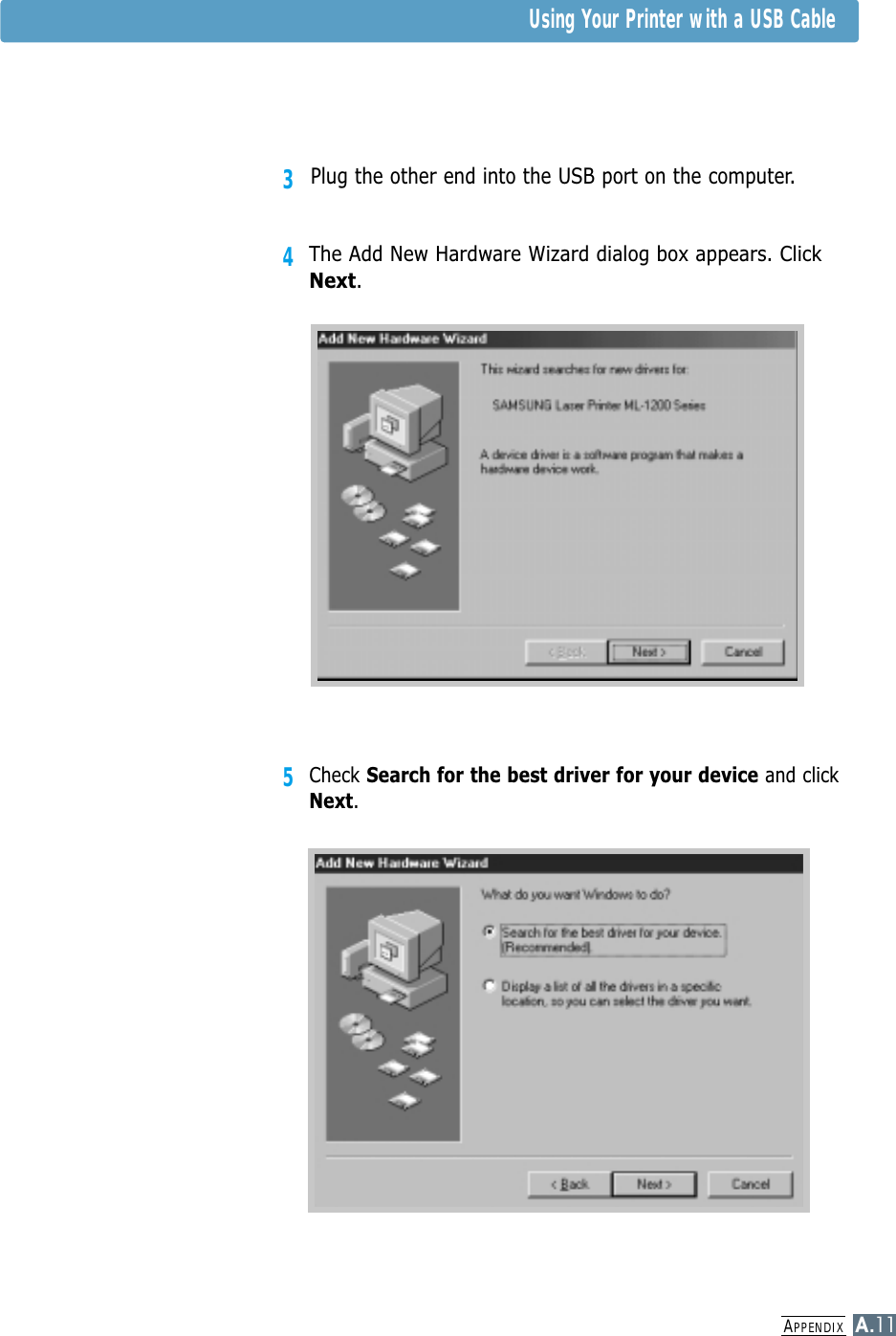

APPENDIXA.11Using Your Printer with a USB Cable3Plug the other end into the USB port on the computer.4The Add New Hardware Wizard dialog box appears. ClickNext.5Check Search for the best driver for your device and clickNext.

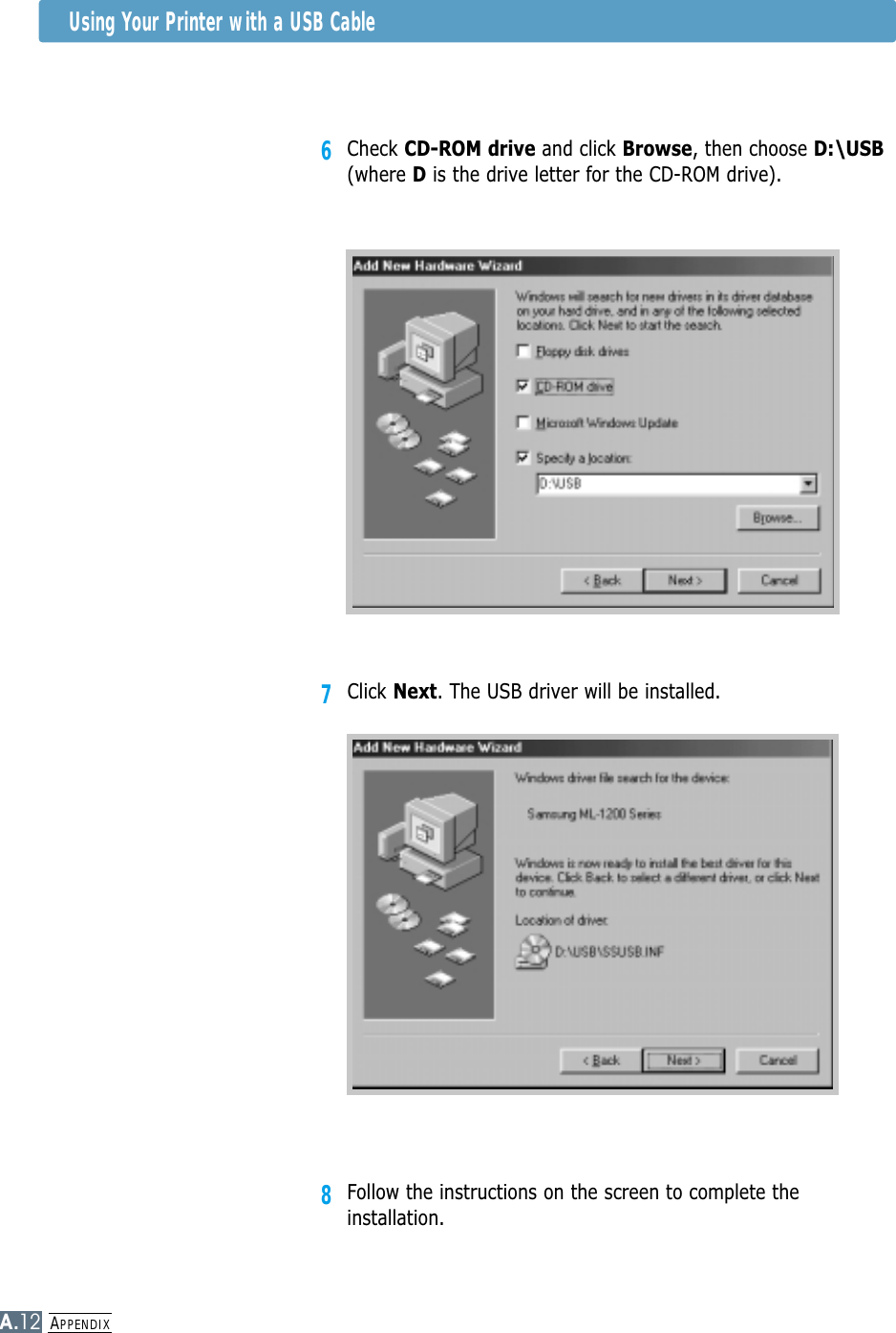

APPENDIXA.12Using Your Printer with a USB Cable7Click Next. The USB driver will be installed. 8Follow the instructions on the screen to complete theinstallation.6Check CD-ROM drive and click Browse, then choose D:\USB(where Dis the drive letter for the CD-ROM drive).
APPENDIXA.13Using Your Printer with a USB Cable1From the Start menu, select Settings, then select Printers.2Select the Samsung ML-1200 Series printer icon in thePrinters folder.3Select Properties from the File menu.4Click the Details tab. Select SSUSB: (ML-1210) in thePrint to the following port box. Click OK. The setup isnow completed.3. Set your PC printerport
APPENDIXA.14Frequently Asked Questions About USBUsing Your Printer with a USB CableQQQQWhat is USB?How can I determine if my computer’s USB port is enabled?AAUniversal Serial Bus (USB) makes it easy to connect devices toyour computer without having to open your PC. USB uses astandard port and plug combination for connecting devices likeprinters, modems, scanners, and digital cameras. It also offersthe benefit of being able to easily add, remove, and movedevices.Because USB is a relatively new technology, we recommendedusing a parallel printing connection. However, USB is an optionto customers who want to print from Windows 98 across theUSB cable. If your computer’s USB port is enabled and properlysetup, you can connect your printer to it or to a chain of USBdevices via a USB cable.11In Windows 98, select Start ➝ Settings ➝ Control Panel.2Double-click the System icon.3Click the Device Manager tab.4Click the plus (+) icon before the Universal Serial BusController item.If you see a USB host controller and a USB root hub listed, USBis properly enabled. If you have multiple hubs on the USB chain,try connecting your printer to a different hub or to another USBdevice. Also, make sure the cable connections are firm. (USBhubs are hardware devices into which you can plug multiple USBcables.)If you do not see these devices listed, refer to your computer’sdocumentation or contact the manufacturer for moreinformation on enabling and setting up USB. Remember, you canalways use a parallel cable to connect your printer’s parallel portto your computer. (If you decide to switch to a parallel cableconnection, you may need to remove and reinstall the printersoftware. )AA
APPENDIXA.15Using Your Printer with a USB CableQQQQQQCan other users on my USB chain print to my ML-1200 Seriesprinter on the USB chain?Yes. Windows 98 allows you to “share” your printer usingsoftware settings on your computer. After others on the USBchain have installed the printer software for your specific printer,they can print to your shared printer. After I install my printer, why isn’t my ML-1200 Series printerassigned to an LPT printer port in the Print dialog box of mysoftware application?USB uses a different naming convention for USB devices. Afterthe printer has been installed, you see SSUSB:(your printername) instead of LPT.How can I increase printing speed and quality?When operated on a USB chain, your printer may becomeslower if other USB devices are being used while you’re printing.For optimal print performance, avoid using other devices in theUSB chain while printing.AAAAAA
APPENDIXA.16Your printer supports Macintosh system with a built-in USBinterface. When you print a file from Macintosh, you can use thePrinThru driver to support your printer’s major printing features. Using Your Printer with MacintoshTo use your ML-1200 Series printer and its software with aMacintosh, your system should have:Macintosh Hardware Requirement:• One of the following Macintosh models:-Power Macintosh series (with external network connection)-Power Macintosh G3, G4-iMac series-PowerBook series-iBook series• USB interface Macintosh System Requirement:System 8.6 or laterSystem RequirementsYou can connect the printer to your Macintosh using the USBinterface.1Turn off the printer and computer.Installing Software for MacintoshConnecting toMacintosh
APPENDIXA.172Hold the USB cable so the icon faces up and connect it toyour printer’s USB connector.3Connect the other end of the cable to an available USB porton your Macintosh computer. If you have any connectingproblems, please refer to your computer documentation.Note: If you are using a USB hub, connect the printer’s cable tothe first tier of the hub or the printer may malfunction. Ifthe printer doesn’t work with the hub, connect it directly tothe USB port. Using Your Printer with MacintoshInstalling Software1Turn on your computer and printer.2Insert the CD-ROM which came with your printer into the CD-ROM drive.3Double-click the Samsung ML-1200 Series on yourMacintosh desktop.4Select the correct language, then click Continue. 5Click Install.6After installation is complete, click Quit.
APPENDIXA.18Using Your Printer with MacintoshWhen you print with a Macintosh, you need to check the printersoftware setting in each application you use. Follow these stepsto print from a Macintosh:1Open a Macintosh application and select a file you want toprint.2Open the File menu, and click Page Setup (DocumentSetup in some applications). You see the Page Setup dialogbox.Printing from a MacintoshChoosing PrinThruDriver1From the Apple menu, select Chooser.2From the left pane of the Chooser window, click SAMSUNGPrinThru. Then the Samsung printer name will appear in theright pane of the Chooser window.3Click the Samsung PrinThru driver, and close the Chooserwindow.4You see the message box indicating that you have changedyour current printer. Click OK. 5Then you see the Samsung PrinThru printer icon is created asa desktop printer.
APPENDIXA.19Using Your Printer with MacintoshChoose Watermark if you want to add a watermark to eachpage in your document to emphasize its purpose or indicatehow it should be handled. For details on the watermarkoption, see page 5.13.3Choose your paper size, orientation, paper type and otheroptions and click OK.
APPENDIXA.20Using Your Printer with Macintosh4Now open the File menu and click Print. You see the mainprinter settings dialog box.5Choose the number of copies and indicate which pages youwant to print. For advanced printing features, select thedesired option. For details, see page A.21.6Click Print when you are finished checking your settings.Select the desired option foradvanced printing features.
APPENDIXA.21Using Your Printer with MacintoshThe Page Setup dialog box contains five categories of pagesetup properties. Listed below is the name of each property.-Darkness/Quality-Layout-Color-Background Printing-Paper SourceFigures below display each property in the Page Setup dialogbox.Advanced PrintingDarkness/QualityLayoutSelect print resolution.Select the number of pagesyou want to print on onesheet of paper. The pageswill appear decreased in sizeand arranged on the sheet.Select print darkness.
APPENDIXA.22ColorBackground Printing➐Grayscale ➐Black&WhiteSelect a priority for your print job inthe queue of jobs waiting to print,click one of the following:• Normal to print in the order thejob is received.• Urgent to print before anyNormal priority job.• Print at: to print at the specifictime you enter in the day andtime in the fields to the right.• Put document on hold to holdthe print job in the print queueuntil you are ready to release it.Paper SourceSelect the corresponding papersource. If Auto Select is set, theprinter automatically selects theprint media according to thefollowing order: Manual Tray, AutoTray.Select grayscalemode.Turns backgroundprinting on or off.Using Your Printer with Macintosh

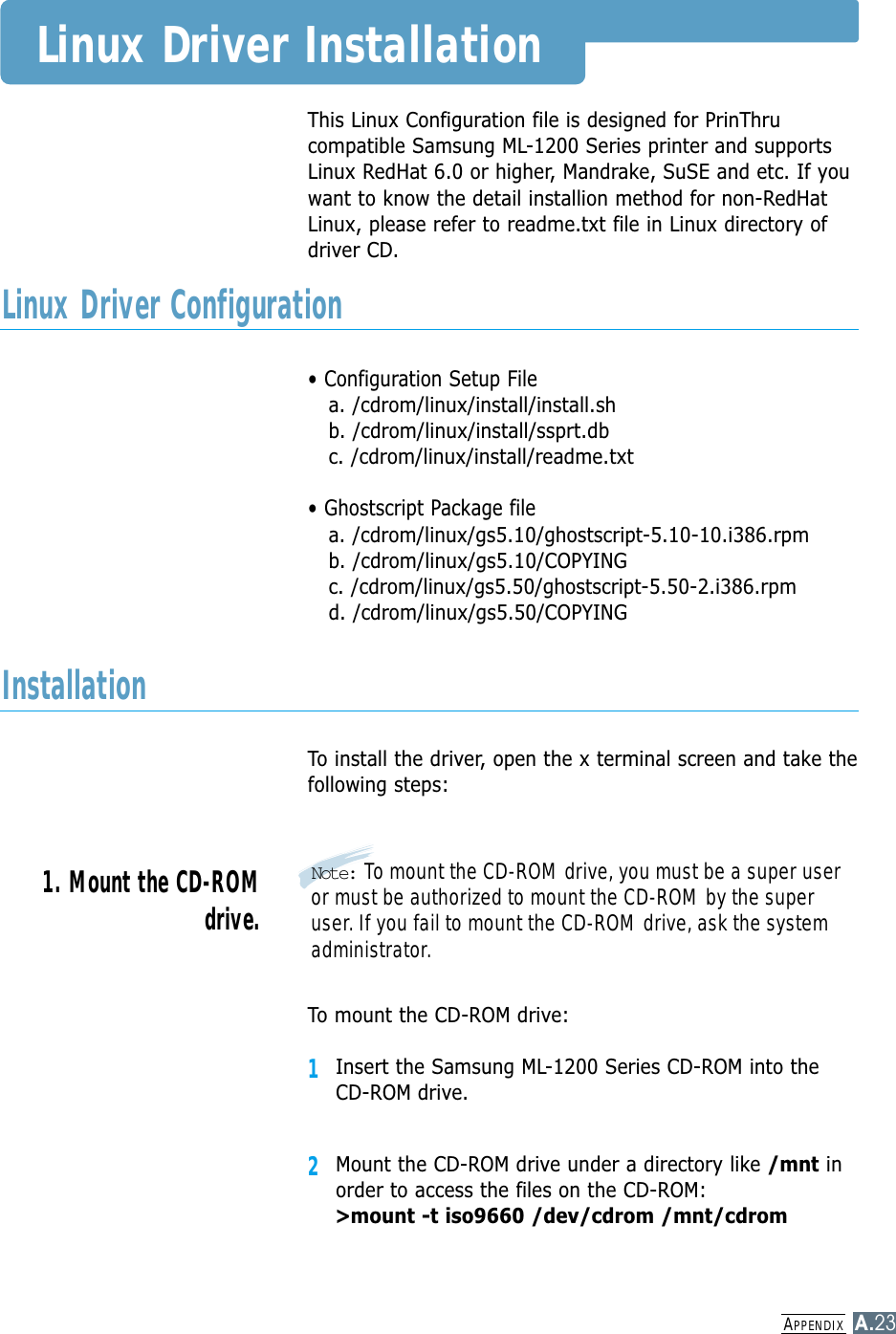

APPENDIXA.23This Linux Configuration file is designed for PrinThrucompatible Samsung ML-1200 Series printer and supportsLinux RedHat 6.0 or higher, Mandrake, SuSE and etc. If youwant to know the detail installion method for non-RedHatLinux, please refer to readme.txt file in Linux directory ofdriver CD.• Configuration Setup Filea. /cdrom/linux/install/install.shb. /cdrom/linux/install/ssprt.dbc. /cdrom/linux/install/readme.txt• Ghostscript Package filea. /cdrom/linux/gs5.10/ghostscript-5.10-10.i386.rpmb. /cdrom/linux/gs5.10/COPYINGc. /cdrom/linux/gs5.50/ghostscript-5.50-2.i386.rpmd. /cdrom/linux/gs5.50/COPYINGLinux Driver ConfigurationTo install the driver, open the x terminal screen and take thefollowing steps:InstallationTo mount the CD-ROM drive:1Insert the Samsung ML-1200 Series CD-ROM into theCD-ROM drive.2Mount the CD-ROM drive under a directory like /mnt inorder to access the files on the CD-ROM: >mount -t iso9660 /dev/cdrom /mnt/cdromNote: To mount the CD-ROM drive, you must be a super useror must be authorized to mount the CD-ROM by the superuser. If you fail to mount the CD-ROM drive, ask the systemadministrator.1. Mount the CD-ROMdrive.Linux Driver Installation
APPENDIXA.24Linux Driver Installation2. Install the Ghostscript.3. Install setup script.To update the ghostscript:1Change to the directory where the ghostscript is in bytyping in:>cd/mnt/cdrom/linux/gs5.XX (where /mnt/cdromis the CD-ROM directory you have mounted at step 1 andXX is the version of the ghostscript to be installed, 10 or50.)2Delete the ghostscript currently installed in your machineby typing in:/mnt/cdrom/linux/gs5.XX>rpm -e --nodepsghostscript3Install the ghostscript which is supplied in the SamsungML-1200 Series CD-ROM by typing in:/mnt/cdrom/linux/gs5.XX/rpm -ivh ghostscript -5.XX-xx.i386.rpm4When # appears in the screen and the installation iscompleted, the ghostscript is successfully updated. Tomake sure, type in:/mnt/cdrom/linux/gs5.XX/rpm -q ghostscriptIf ‘ghostscript-5.XX-xx’ message appears, the installationis successfully completed.For details on installing the setup script, refer to the/cdrom/linux/install/readme.txt file.Add the driver to the printer list by typing in:/cdrom/linux/install>install.sh (or)/cdrom/linux/install>./install.sh (if the path of thecurrent working directly is not determined.)Note: Ghostscript may already be installed in your Linuxmachine. To support Samsung printer PrinThru, you mustupdate the ghostscript. If you are not sure whether theghostscript is already installed in your machine, use thecommand: >rpm -q ghostscript (You can see the version of theghostscript currently installed in your machine by thiscommand.)
APPENDIXGNU Ghostscript software, in directory /linux/gs5.10 and /linux/gs5.50 on this CD isCopyright (C) 1999 Aladdin Enterprise, Menlo Park, California, and other authors asindicated in its documentation. This software is not subject to the End User License Agreement: your rights to thissoftware are given by the GNU License, which is in a file called COPYING in thatdirectory.GNU Ghostscript should be available on all GNU site, such as ftp://ftp.gnu.org/pub/gnu/.4. Set up the printer filter.To set up:1Run printtool at x terminal.2To add the printer driver, click the Add button.3In the Add a Printer Entry window, decide the printertype you will use. Select Local Printer if you have a PC-connected printer.4Click the OK button.5If the Info button appears, ignore it, then click the OKbutton.6The Edit xxxx Entry window opens (where xxxx is theprinter type you have selected at step 3).If you are not an advanced user, do not change theNames/Spool Directory/File Limit in Kb/PrinterDevice option.7Click the Select button in the Input Filter to accessfilter setup.8Select Samsung Printer PrinThru Compatible for thePrinter Type item. Then select the default resolution andpaper size.9To save the setting, press the OK button.10In the Edit xxxx Entry window, press the OK button tocomplete the printer driver installation.11You can find that the printer driver is added to thedriver window. Select Quit from the PrintTool menu.Linux Driver InstallationA.25
INDEXIINDEXAautomatic input trayloading paper 4.5paper source setting 5.3Ccancel, print job 5.5Cancel/Reprint button 3.2cardstock, print 4.13clean, printer 6.4clean sheet, print 6.5components 1.3control panelbuttons 3.1lights 3.3DData light 3.3Demo button 3.1demo page, print 2.7diskette, make, install software 2.13driveraccess 5.1install 2.8in Linux A.23Macintosh A.16remove 2.11USB A.10Eenvelopes, print 4.7Error light 7.17error messages 7.17Fface-down output tray 4.4face-up output slot 4.4features 1.1fitting to a selected paper size 5.8Ggraphic properties 5.11IinstallLinux driver A.23Macintosh driver A.16printer software 2.8software from diskette 2.13toner cartridge 2.2USB driver A.10Jjam see paper jamLlabels, print 4.10letterhead, print 4.12Linux A.23load, paperIn the automatic input tray 2.4in the manual input tray 4.5
INDEXIIMMacintosh A.16manual input trayloading paper 4.5paper source setting 5.3multiple pages on one sheet, print 5.7Nnetwork, setup 5.21n-up printing 5.7Oorientation 5.3output lever 4.4output location, select 4.4overlays, print 5.16Ppage overlays, print 5.16paperacceptable size and capacities 4.2, A.3choose 4.1guidelines 4.3, A.4load 2.4, 4.5specifications A.2storage environment A.6paper jam, clear input area 7.6inside the printer 7.8output area 7.6tips avoiding paper jams 7.10Paper light 3.3paper orientation, setting 5.3paper out, indication 3.3, 7.17paper size, setting 5.3paper source, setting 5.3paper type, setting 5.3parallel, connection 2.6posters, printing 5.9power save mode 5.12 print media see paperprinter light patterns 3.3, 7.17print quality problem, solvingback of printouts dirty 7.15background scatter 7.14black pages 7.15character voids 7.16checklist 7.11curl or wave 7.15dropouts 7.12gray background 7.13horizontal stripes 7.16light print or fade 7.11loose toner 7.16misformed characters 7.14page skew 7.14toner smear 7.13toner specks 7.12vertical lines 7.12vertical repetitive defects 7.13wrinkles or creases 7.15printer driver see driverprinter software, install 2.8printingcancel 5.5cleaning sheet 6.5demo page 2.7fitting to a selected paper size 5.8general problems, solving 7.2help 5.5multi pages on one sheet 5.7 on a network envirionment 5.21page overlay 5.16posters 5.9quality problems, solving 7.11watermarks 5.13INDEX

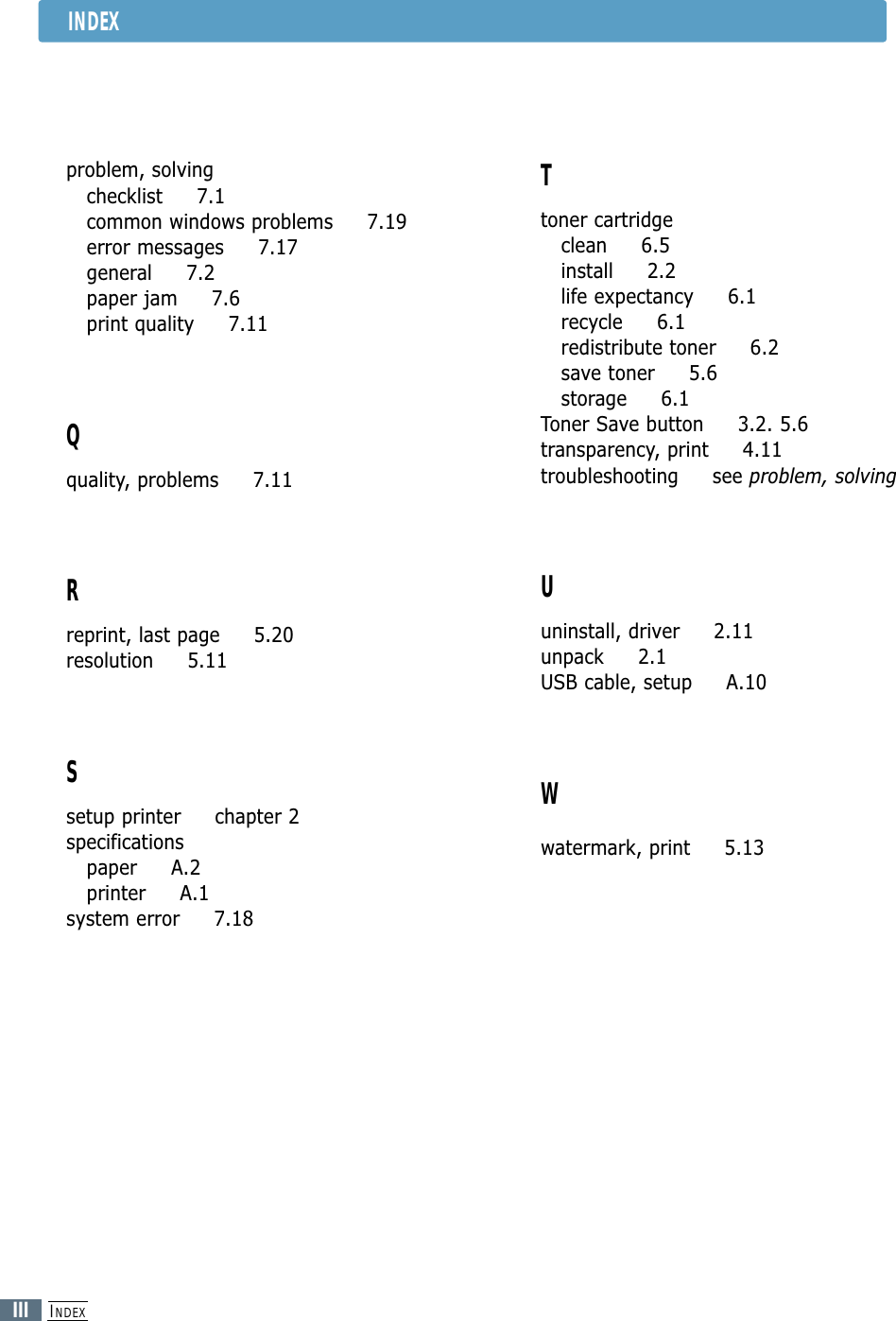

INDEXIIIproblem, solvingchecklist 7.1common windows problems 7.19error messages 7.17general 7.2paper jam 7.6print quality 7.11Qquality, problems 7.11Rreprint, last page 5.20resolution 5.11Ssetup printer chapter 2specificationspaper A.2printer A.1system error 7.18Ttoner cartridgeclean 6.5install 2.2life expectancy 6.1recycle 6.1redistribute toner 6.2save toner 5.6storage 6.1Toner Save button 3.2. 5.6transparency, print 4.11troubleshooting see problem, solvingUuninstall, driver 2.11unpack 2.1USB cable, setup A.10Wwatermark, print 5.13INDEX
HomeVisit us at: http://www.samsungprinter.com Rev.1.00
