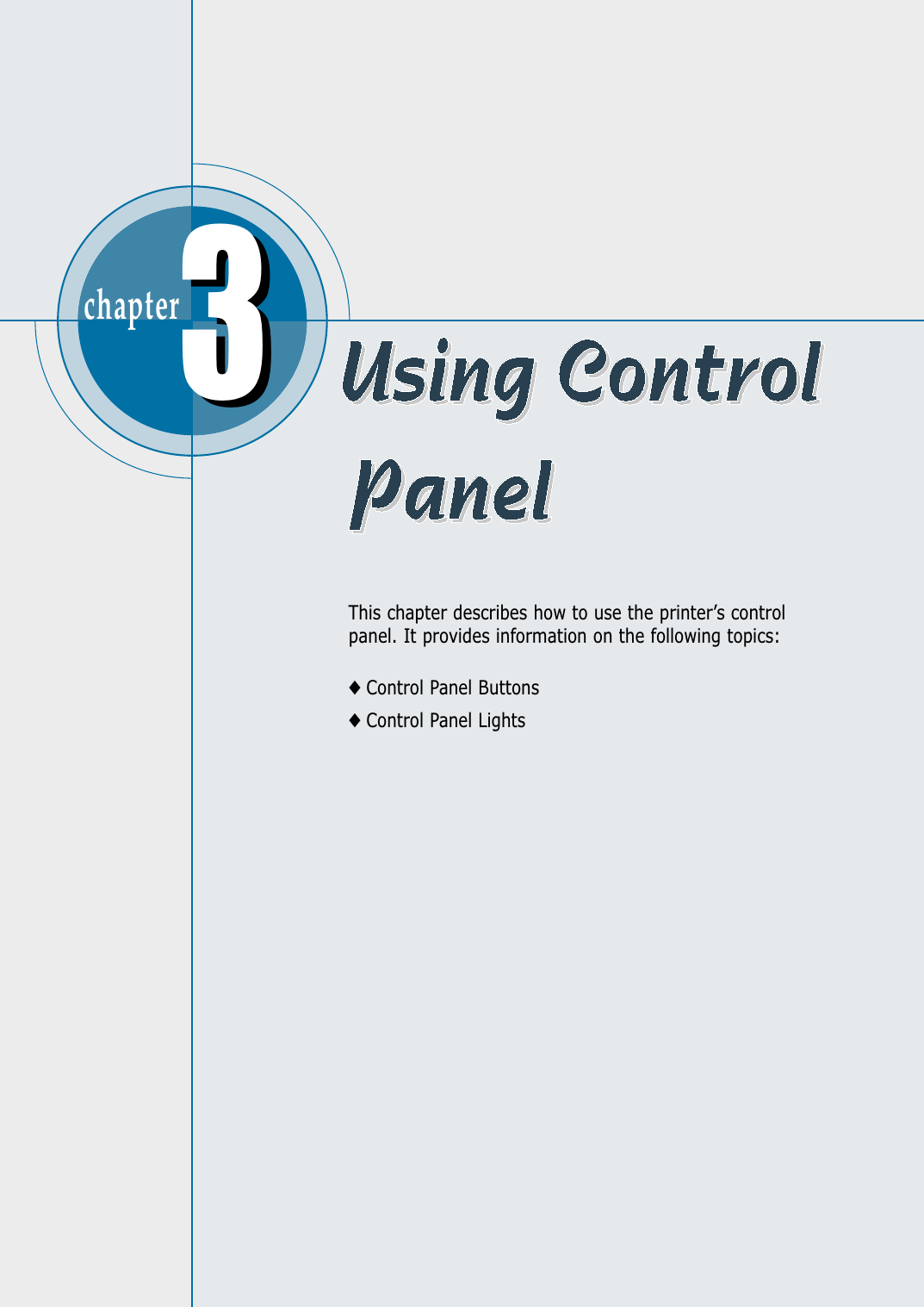

chapter This chapter describes how to use the printer’s controlpanel. It provides information on the following topics:◆Control Panel Buttons◆Control Panel Lights33

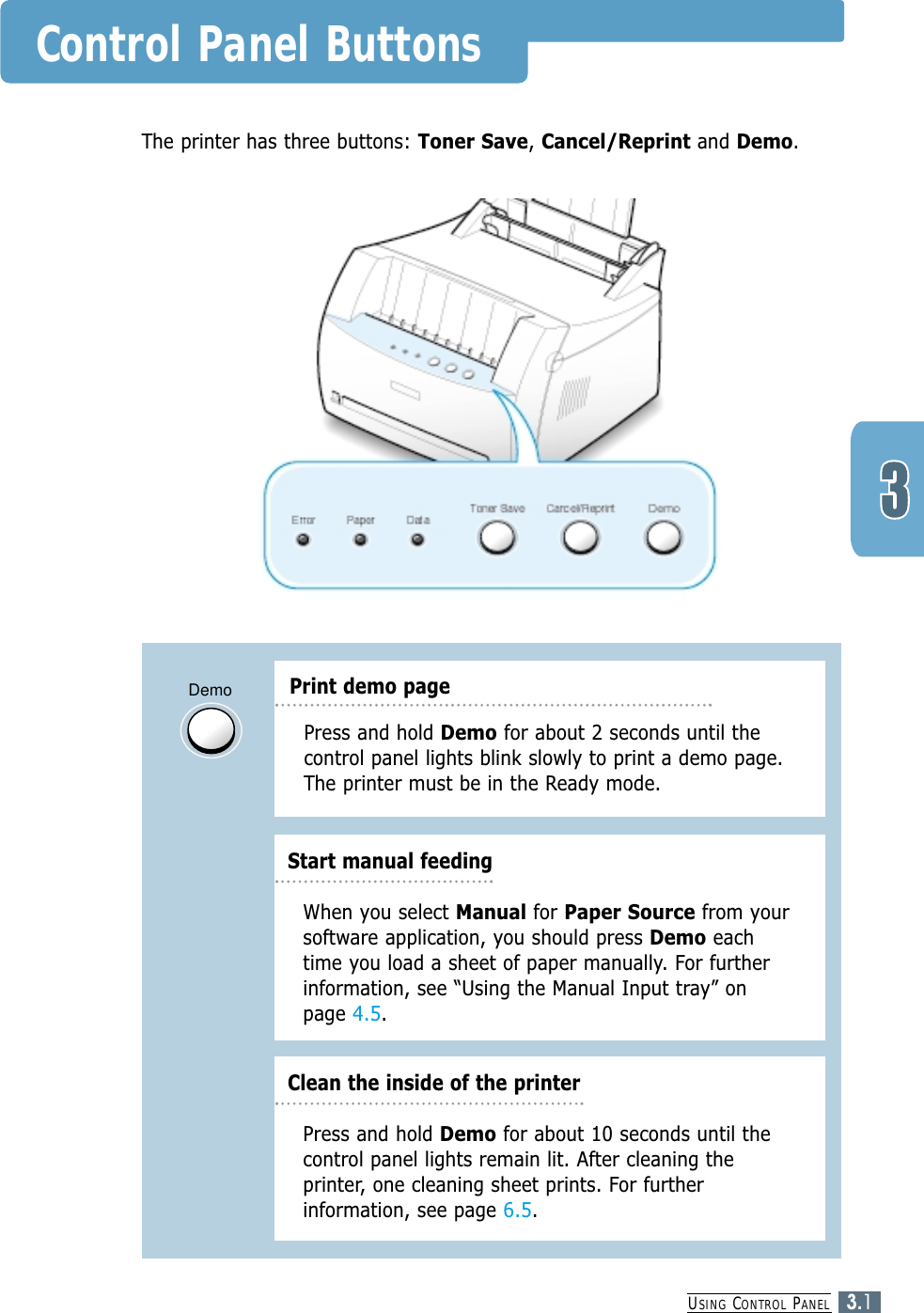

USING CONTROL PANEL3.1Control Panel ButtonsThe printer has three buttons: Toner Save, Cancel/Reprint and Demo.DemoClean the inside of the printerPress and hold Demo for about 2 seconds until thecontrol panel lights blink slowly to print a demo page.The printer must be in the Ready mode.Press and hold Demo for about 10 seconds until thecontrol panel lights remain lit. After cleaning theprinter, one cleaning sheet prints. For furtherinformation, see page 6.5.Print demo pageStart manual feedingWhen you select Manual for Paper Source from yoursoftware application, you should press Demo eachtime you load a sheet of paper manually. For furtherinformation, see “Using the Manual Input tray” onpage 4.5.

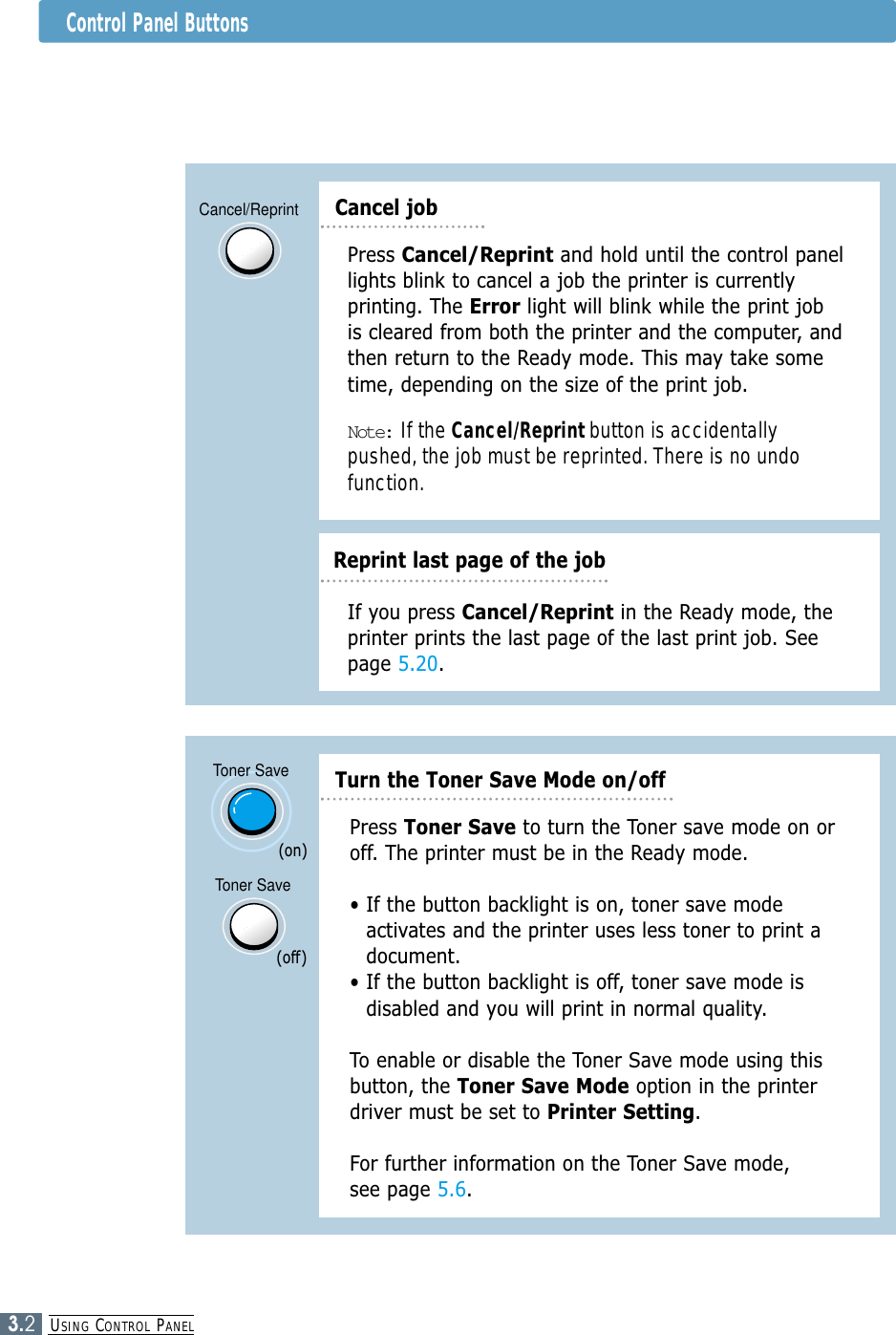

USING CONTROL PANEL3.2Control Panel ButtonsCancel/ReprintReprint last page of the jobPress Cancel/Reprint and hold until the control panellights blink to cancel a job the printer is currentlyprinting. The Error light will blink while the print jobis cleared from both the printer and the computer, andthen return to the Ready mode. This may take sometime, depending on the size of the print job.Note: If the Cancel/Reprint button is accidentallypushed, the job must be reprinted. There is no undofunction.If you press Cancel/Reprint in the Ready mode, theprinter prints the last page of the last print job. Seepage 5.20.Cancel jobToner SaveToner SavePress Toner Save to turn the Toner save mode on oroff. The printer must be in the Ready mode.• If the button backlight is on, toner save modeactivates and the printer uses less toner to print adocument.• If the button backlight is off, toner save mode isdisabled and you will print in normal quality. To enable or disable the Toner Save mode using thisbutton, the Toner Save Mode option in the printerdriver must be set to Printer Setting.For further information on the Toner Save mode, see page 5.6.(on)(off)Turn the Toner Save Mode on/off

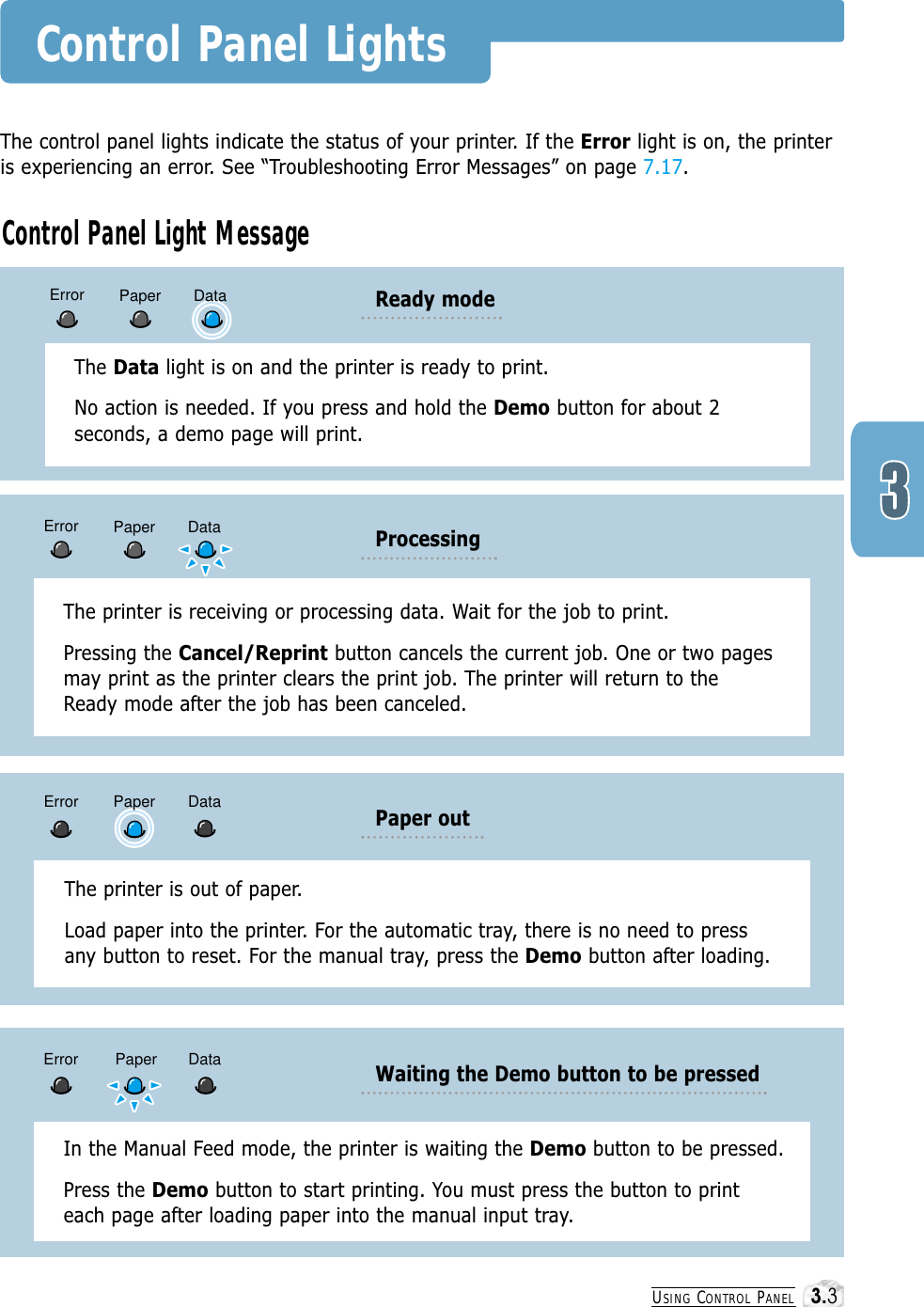

USING CONTROL PANELControl Panel LightsThe control panel lights indicate the status of your printer. If the Error light is on, the printeris experiencing an error. See “Troubleshooting Error Messages” on page 7.17.Control Panel Light MessageThe Data light is on and the printer is ready to print. No action is needed. If you press and hold the Demo button for about 2seconds, a demo page will print. Ready modeError Paper DataThe printer is out of paper. Load paper into the printer. For the automatic tray, there is no need to pressany button to reset. For the manual tray, press the Demo button after loading.Paper outDataError PaperIn the Manual Feed mode, the printer is waiting the Demo button to be pressed.Press the Demo button to start printing. You must press the button to printeach page after loading paper into the manual input tray. Waiting the Demo button to be pressedDataError PaperThe printer is receiving or processing data. Wait for the job to print. Pressing the Cancel/Reprint button cancels the current job. One or two pagesmay print as the printer clears the print job. The printer will return to theReady mode after the job has been canceled.ProcessingDataError Paper3.3

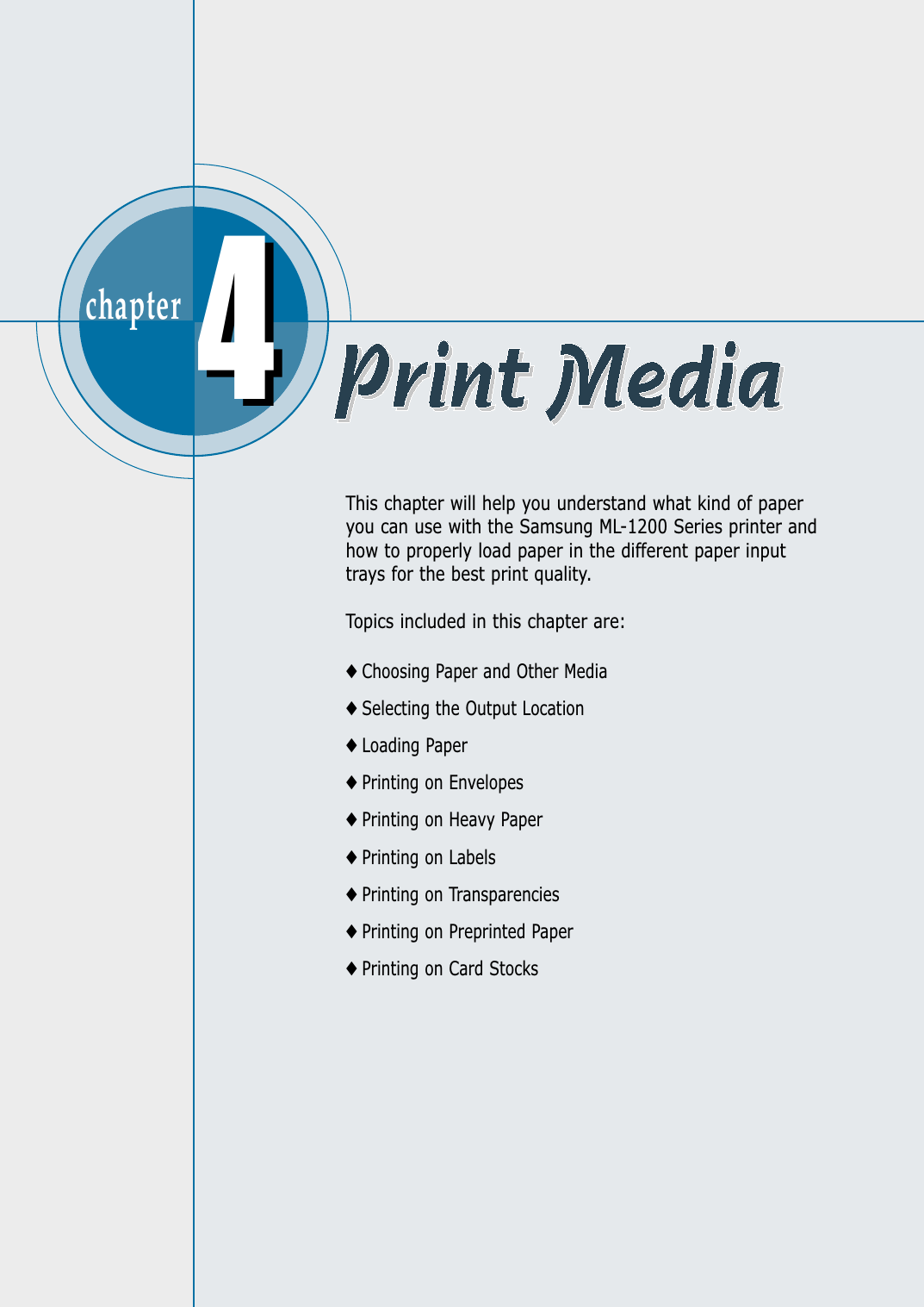

chapter This chapter will help you understand what kind of paperyou can use with the Samsung ML-1200 Series printer andhow to properly load paper in the different paper inputtrays for the best print quality.Topics included in this chapter are:◆ Choosing Paper and Other Media◆ Selecting the Output Location◆ Loading Paper◆ Printing on Envelopes◆ Printing on Heavy Paper◆ Printing on Labels◆ Printing on Transparencies◆ Printing on Preprinted Paper◆ Printing on Card Stocks44

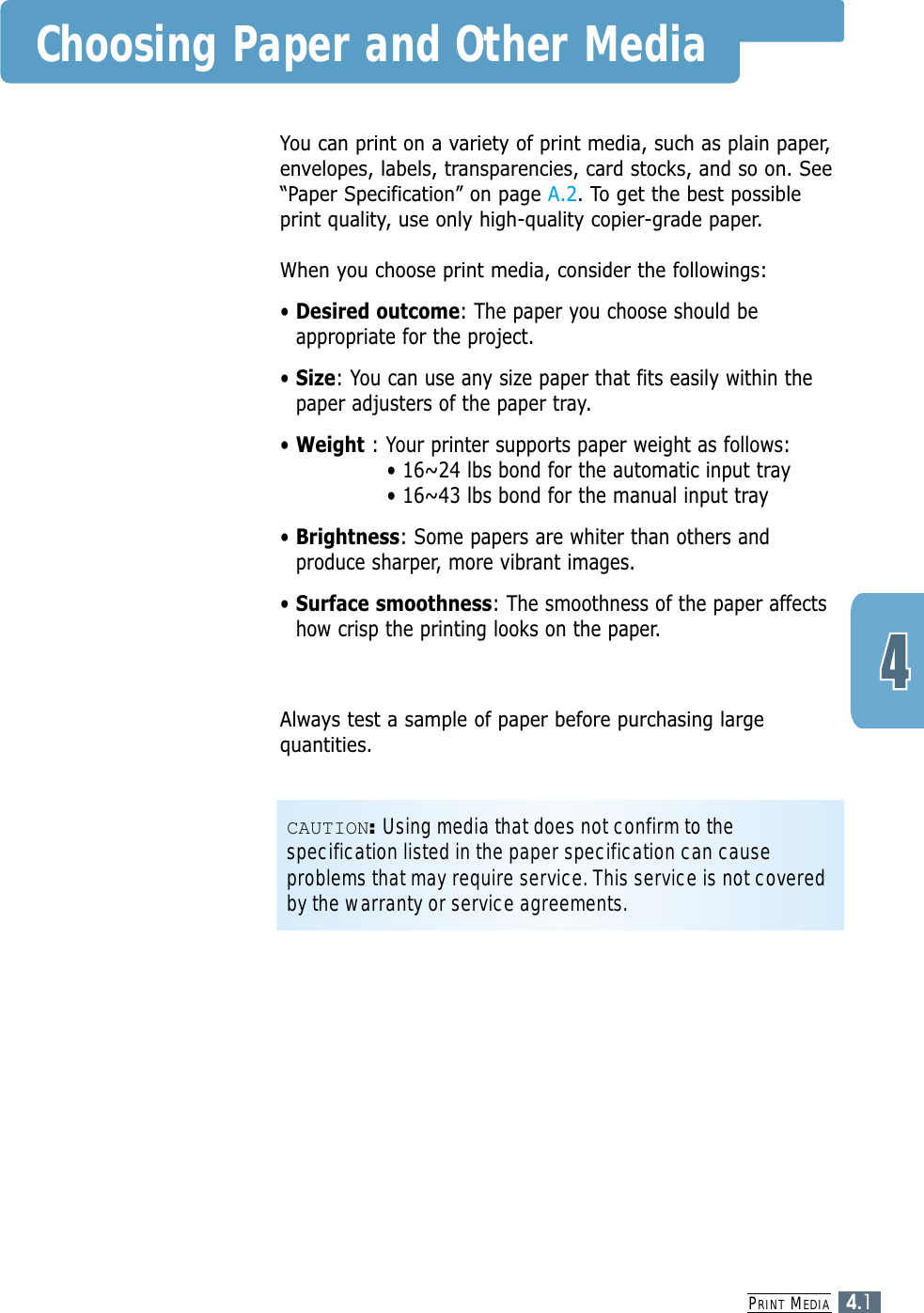

PRINT MEDIA4.1Choosing Paper and Other MediaYou can print on a variety of print media, such as plain paper,envelopes, labels, transparencies, card stocks, and so on. See“Paper Specification” on page A.2. To get the best possibleprint quality, use only high-quality copier-grade paper.When you choose print media, consider the followings:• Desired outcome: The paper you choose should beappropriate for the project.• Size: You can use any size paper that fits easily within thepaper adjusters of the paper tray.• Weight : Your printer supports paper weight as follows:• 16~24 lbs bond for the automatic input tray• 16~43 lbs bond for the manual input tray• Brightness: Some papers are whiter than others andproduce sharper, more vibrant images. • Surface smoothness: The smoothness of the paper affectshow crisp the printing looks on the paper.Always test a sample of paper before purchasing largequantities.CAUTION:Using media that does not confirm to thespecification listed in the paper specification can causeproblems that may require service. This service is not coveredby the warranty or service agreements.

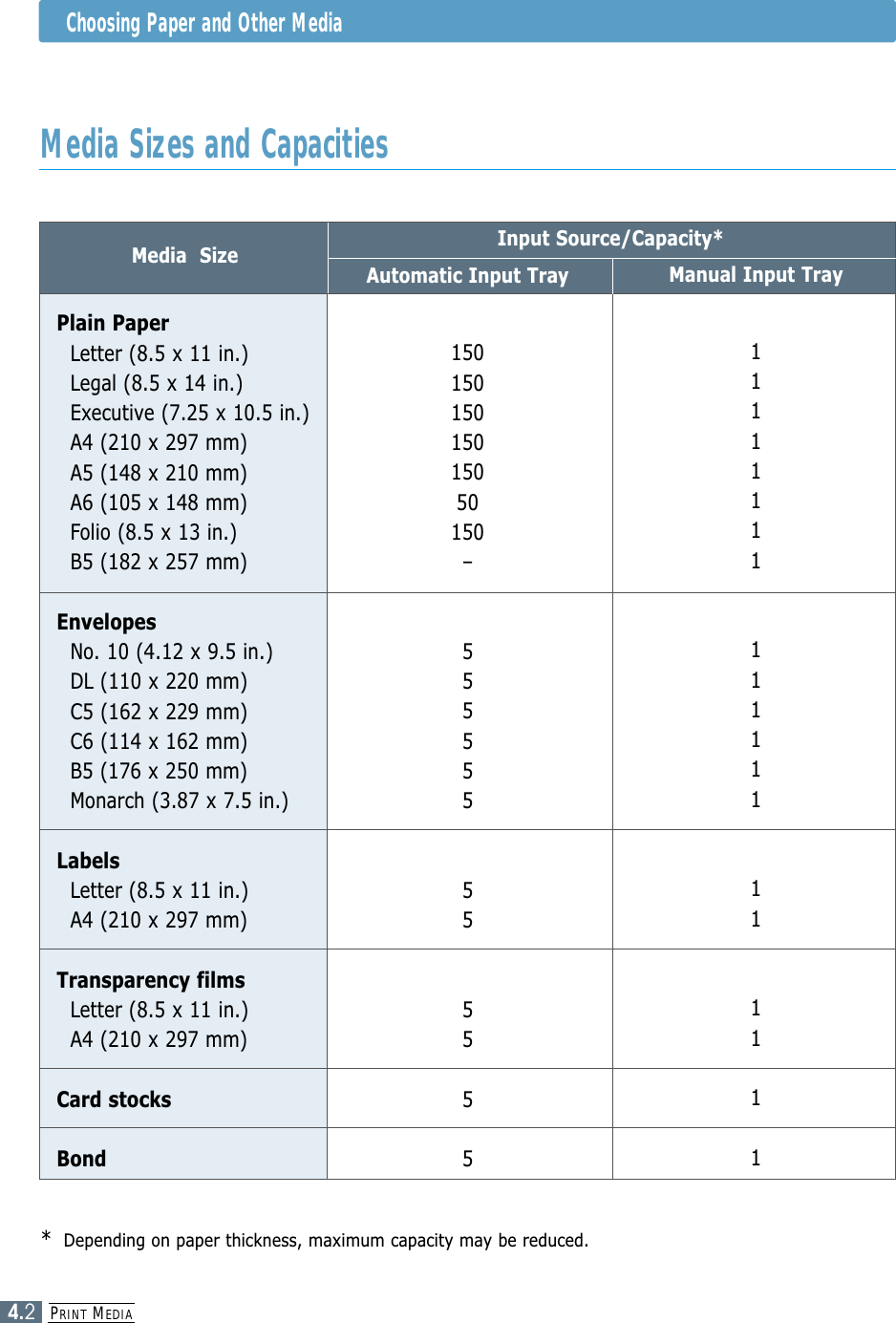

PRINT MEDIA4.2Choosing Paper and Other MediaPlain PaperLetter (8.5 x 11 in.)Legal (8.5 x 14 in.)Executive (7.25 x 10.5 in.)A4 (210 x 297 mm)A5 (148 x 210 mm)A6 (105 x 148 mm)Folio (8.5 x 13 in.)B5 (182 x 257 mm)EnvelopesNo. 10 (4.12 x 9.5 in.)DL (110 x 220 mm)C5 (162 x 229 mm)C6 (114 x 162 mm)B5 (176 x 250 mm)Monarch (3.87 x 7.5 in.)LabelsLetter (8.5 x 11 in.)A4 (210 x 297 mm)Transparency filmsLetter (8.5 x 11 in.)A4 (210 x 297 mm)Card stocksBondAutomatic Input Tray15015015015015050150–555555555555Manual Input Tray11111111111111111111Media Sizes and CapacitiesInput Source/Capacity*Media Size*Depending on paper thickness, maximum capacity may be reduced.

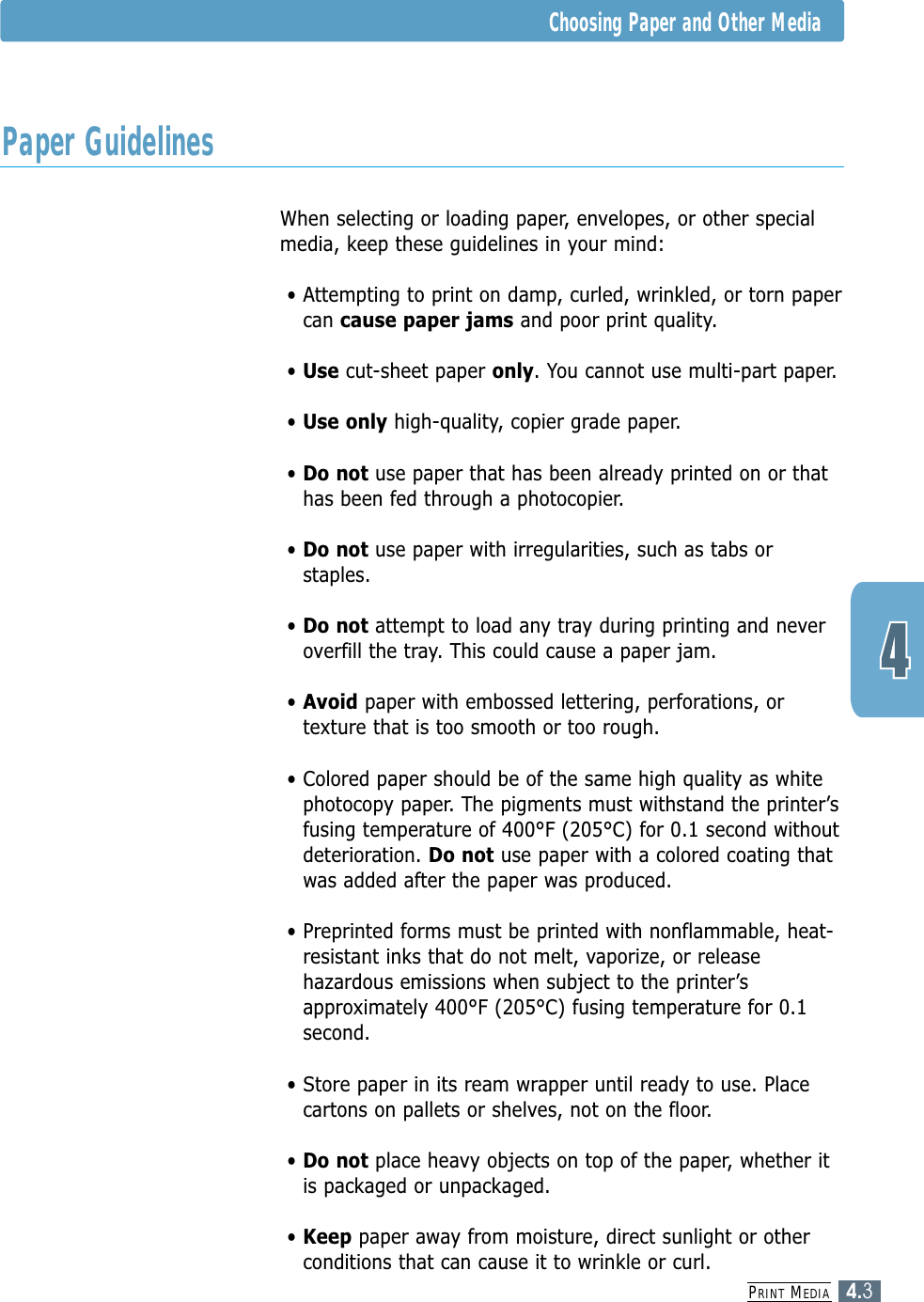

When selecting or loading paper, envelopes, or other specialmedia, keep these guidelines in your mind:• Attempting to print on damp, curled, wrinkled, or torn papercan cause paper jams and poor print quality.• Use cut-sheet paper only. You cannot use multi-part paper.• Use only high-quality, copier grade paper. • Do not use paper that has been already printed on or thathas been fed through a photocopier.• Do not use paper with irregularities, such as tabs orstaples.• Do not attempt to load any tray during printing and neveroverfill the tray. This could cause a paper jam.• Avoid paper with embossed lettering, perforations, ortexture that is too smooth or too rough.• Colored paper should be of the same high quality as whitephotocopy paper. The pigments must withstand the printer’sfusing temperature of 400°F (205°C) for 0.1 second withoutdeterioration. Do not use paper with a colored coating thatwas added after the paper was produced.• Preprinted forms must be printed with nonflammable, heat-resistant inks that do not melt, vaporize, or releasehazardous emissions when subject to the printer’sapproximately 400°F (205°C) fusing temperature for 0.1second.• Store paper in its ream wrapper until ready to use. Placecartons on pallets or shelves, not on the floor. • Do not place heavy objects on top of the paper, whether itis packaged or unpackaged. • Keep paper away from moisture, direct sunlight or otherconditions that can cause it to wrinkle or curl.PRINT MEDIA4.3Choosing Paper and Other MediaPaper Guidelines

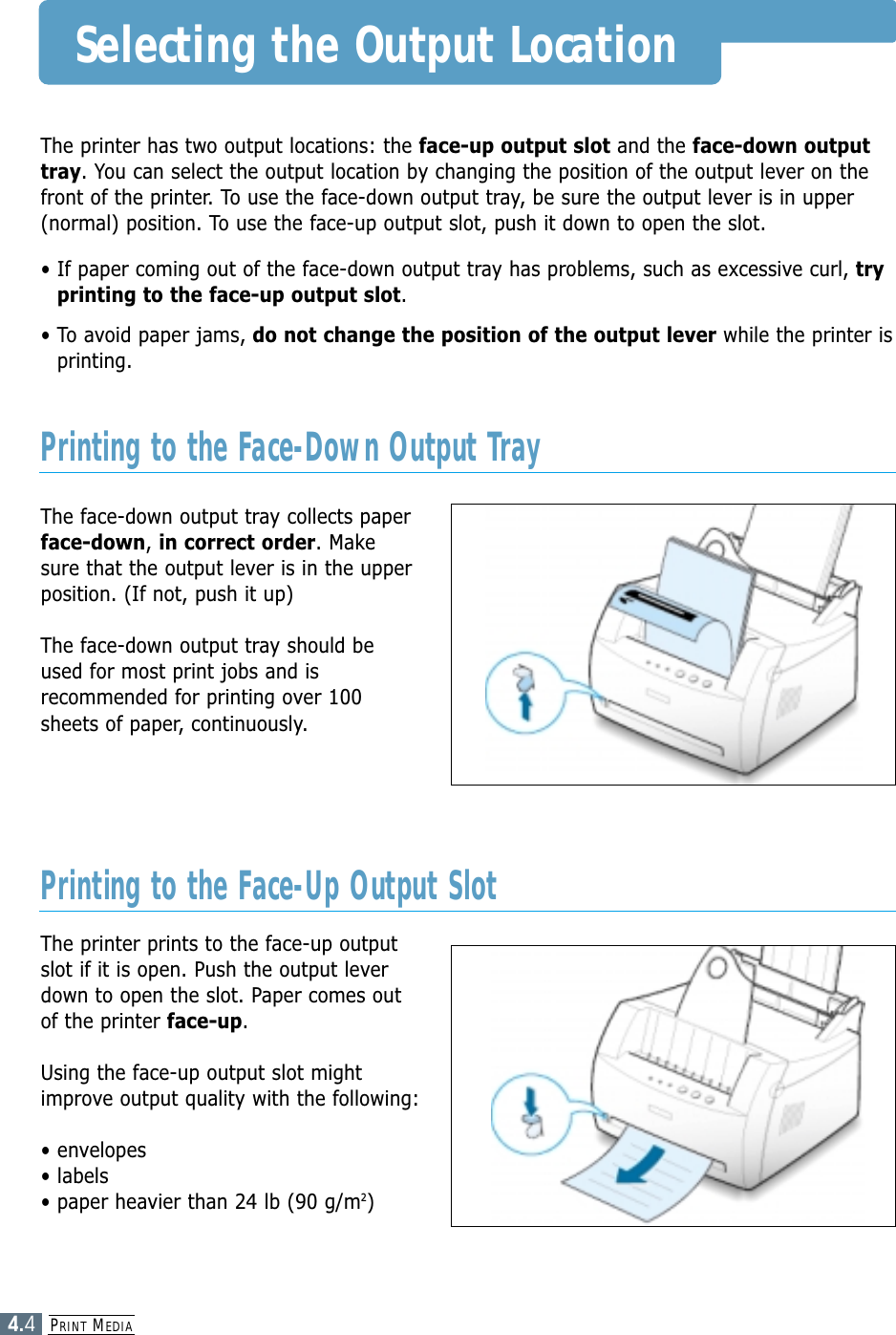

PRINT MEDIA4.4Selecting the Output LocationThe printer has two output locations: the face-up output slot and the face-down outputtray. You can select the output location by changing the position of the output lever on thefront of the printer. To use the face-down output tray, be sure the output lever is in upper(normal) position. To use the face-up output slot, push it down to open the slot.• If paper coming out of the face-down output tray has problems, such as excessive curl, tryprinting to the face-up output slot.• To avoid paper jams, do not change the position of the output lever while the printer isprinting.The face-down output tray collects paperface-down, in correct order. Makesure that the output lever is in the upperposition. (If not, push it up)The face-down output tray should beused for most print jobs and isrecommended for printing over 100sheets of paper, continuously.The printer prints to the face-up outputslot if it is open. Push the output leverdown to open the slot. Paper comes outof the printer face-up.Using the face-up output slot mightimprove output quality with the following:• envelopes• labels• paper heavier than 24 lb (90 g/m2)Printing to the Face-Down Output TrayPrinting to the Face-Up Output Slot

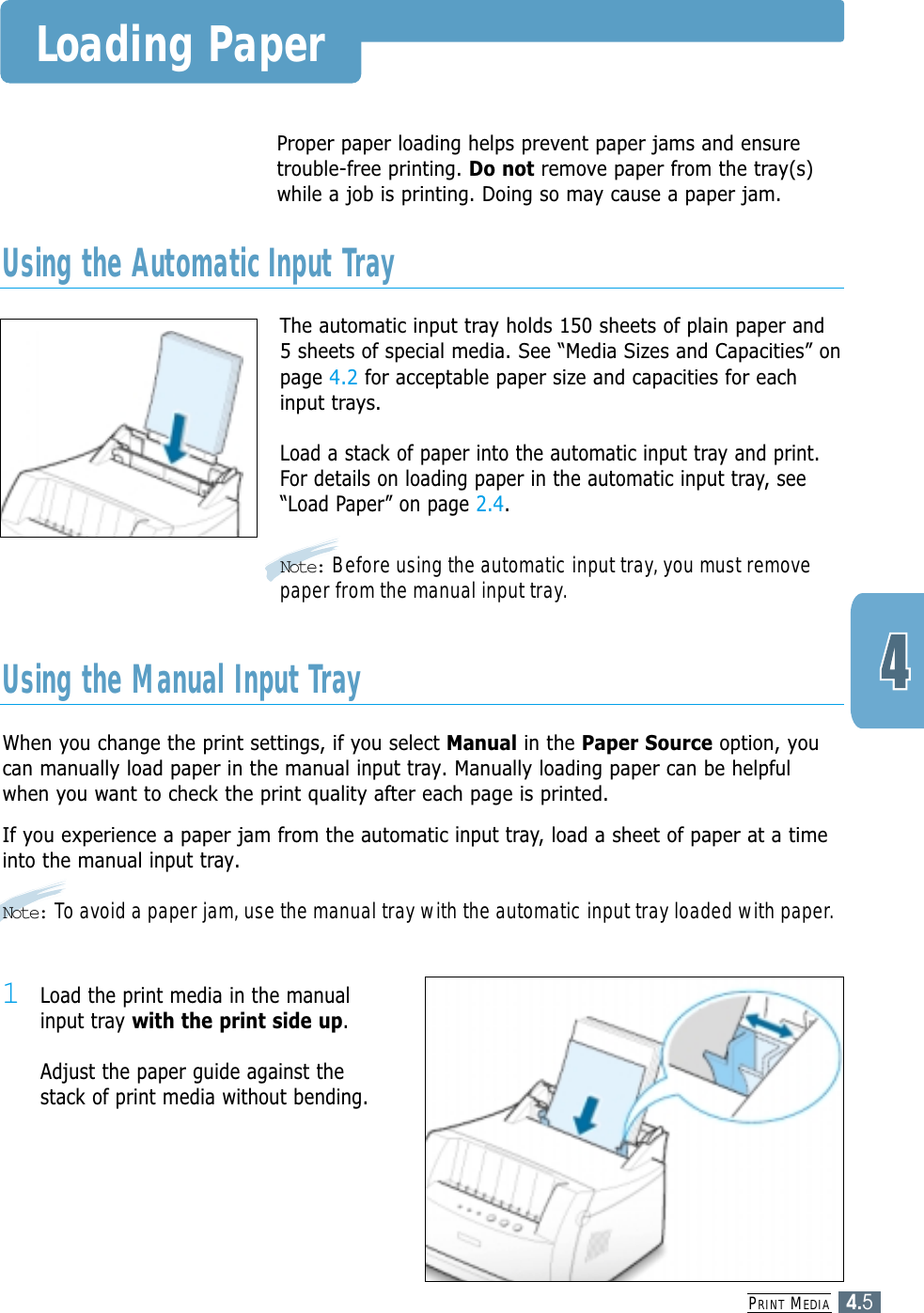

PRINT MEDIA4.5Loading PaperThe automatic input tray holds 150 sheets of plain paper and5 sheets of special media. See “Media Sizes and Capacities” onpage 4.2 for acceptable paper size and capacities for eachinput trays.Load a stack of paper into the automatic input tray and print.For details on loading paper in the automatic input tray, see“Load Paper” on page 2.4.Note: Before using the automatic input tray, you must removepaper from the manual input tray.Proper paper loading helps prevent paper jams and ensuretrouble-free printing. Do not remove paper from the tray(s)while a job is printing. Doing so may cause a paper jam. Using the Automatic Input TrayWhen you change the print settings, if you select Manual in the Paper Source option, youcan manually load paper in the manual input tray. Manually loading paper can be helpfulwhen you want to check the print quality after each page is printed. If you experience a paper jam from the automatic input tray,load a sheet of paper at a timeinto the manual input tray.Note: To avoid a paper jam, use the manual tray with the automatic input tray loaded with paper.Using the Manual Input Tray1Load the print media in the manualinput tray with the print side up.Adjust the paper guide against thestack of print media without bending.

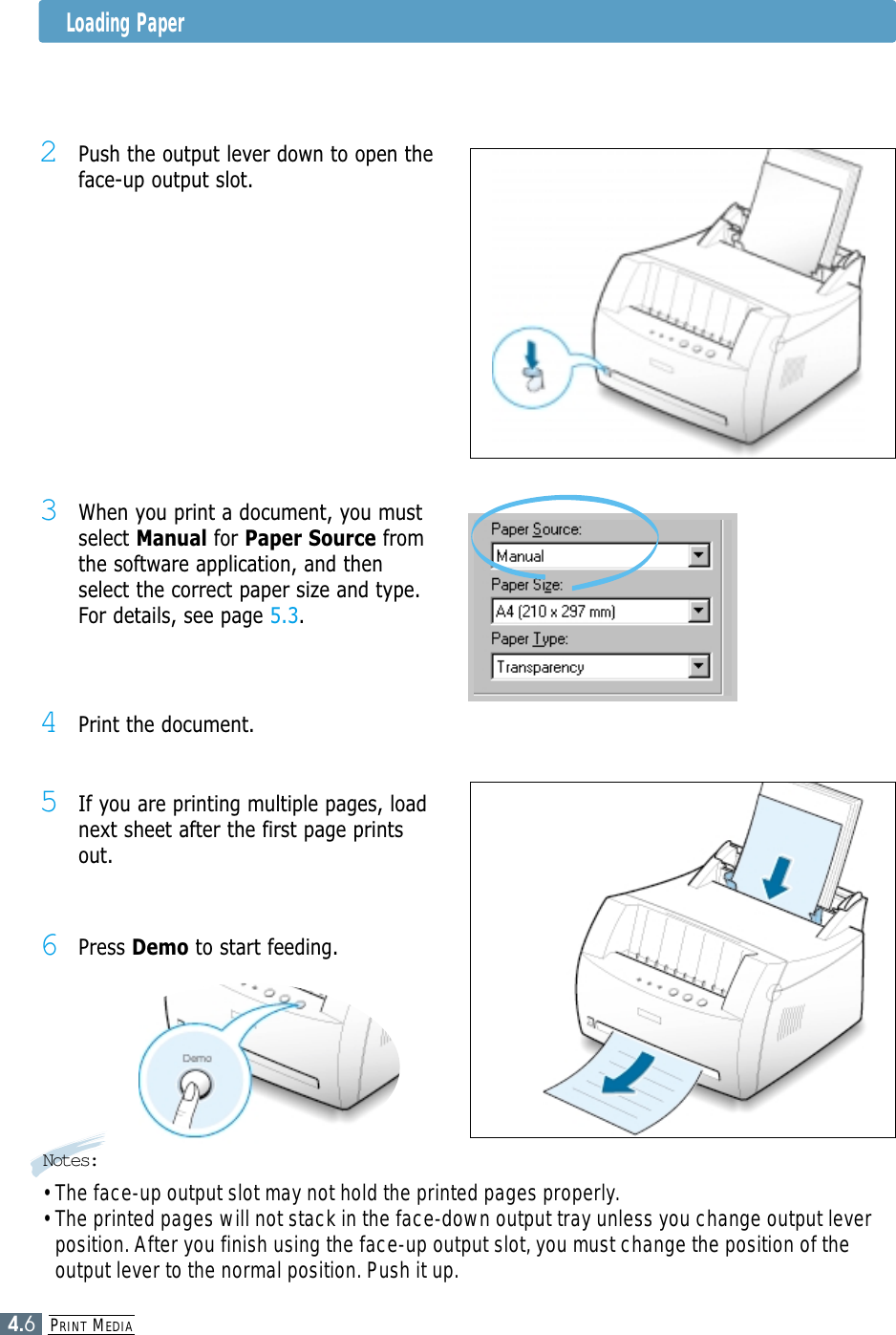

PRINT MEDIA4.6Loading Paper4Print the document.3When you print a document, you mustselect Manual for Paper Source fromthe software application, and thenselect the correct paper size and type.For details, see page 5.3.5If you are printing multiple pages, loadnext sheet after the first page printsout.6Press Demo to start feeding.Notes:• The face-up output slot may not hold the printed pages properly.• The printed pages will not stack in the face-down output tray unless you change output leverposition. After you finish using the face-up output slot, you must change the position of theoutput lever to the normal position. Push it up.2Push the output lever down to open theface-up output slot.

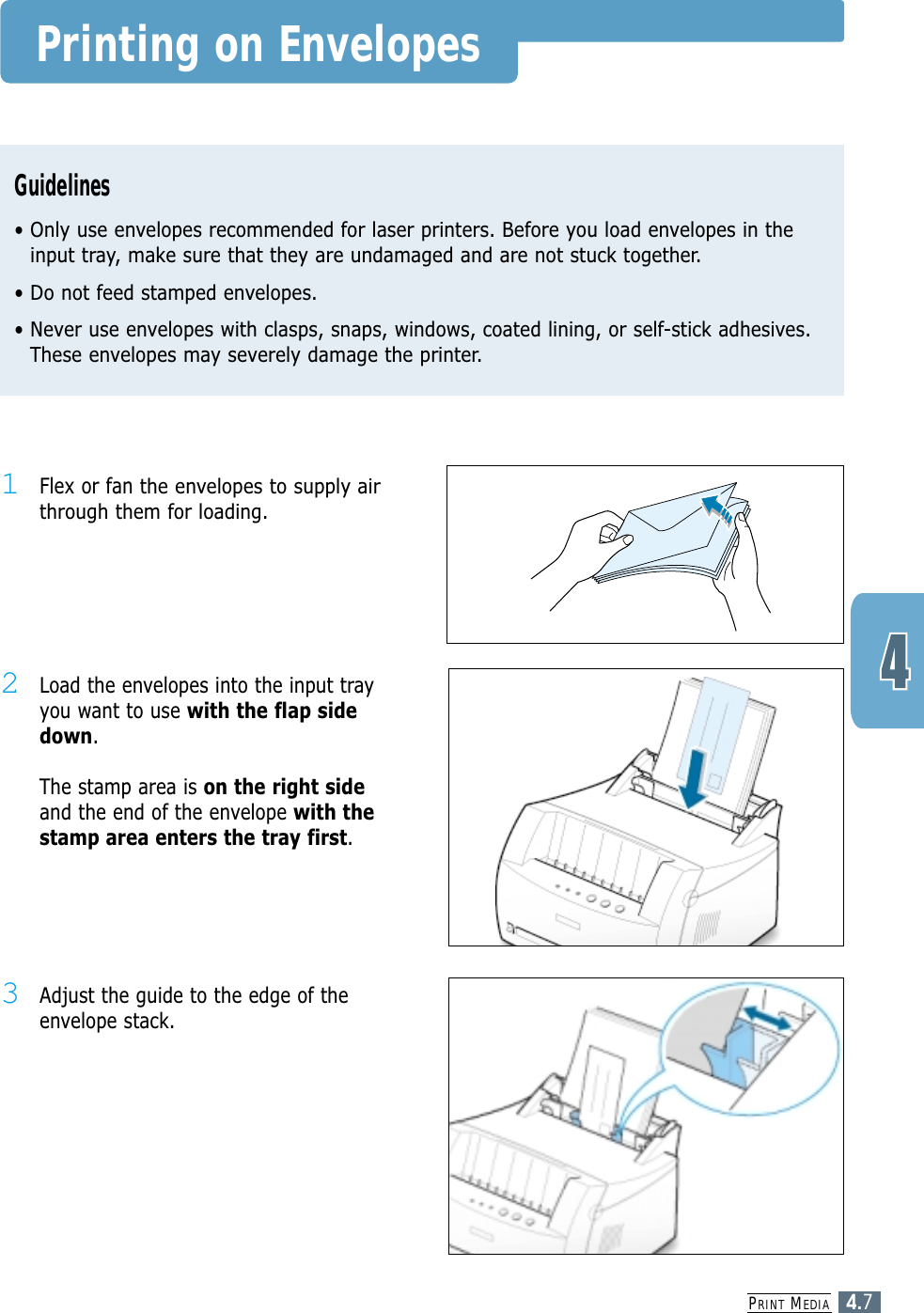

PRINT MEDIA4.7Printing on EnvelopesGuidelines• Only use envelopes recommended for laser printers. Before you load envelopes in theinput tray, make sure that they are undamaged and are not stuck together. • Do not feed stamped envelopes.• Never use envelopes with clasps, snaps, windows, coated lining, or self-stick adhesives.These envelopes may severely damage the printer.2Load the envelopes into the input trayyou want to use with the flap sidedown. The stamp area is on the right sideand the end of the envelope with thestamp area enters the tray first.1Flex or fanthe envelopes to supply airthrough them for loading.3Adjust the guide to the edge of theenvelope stack.

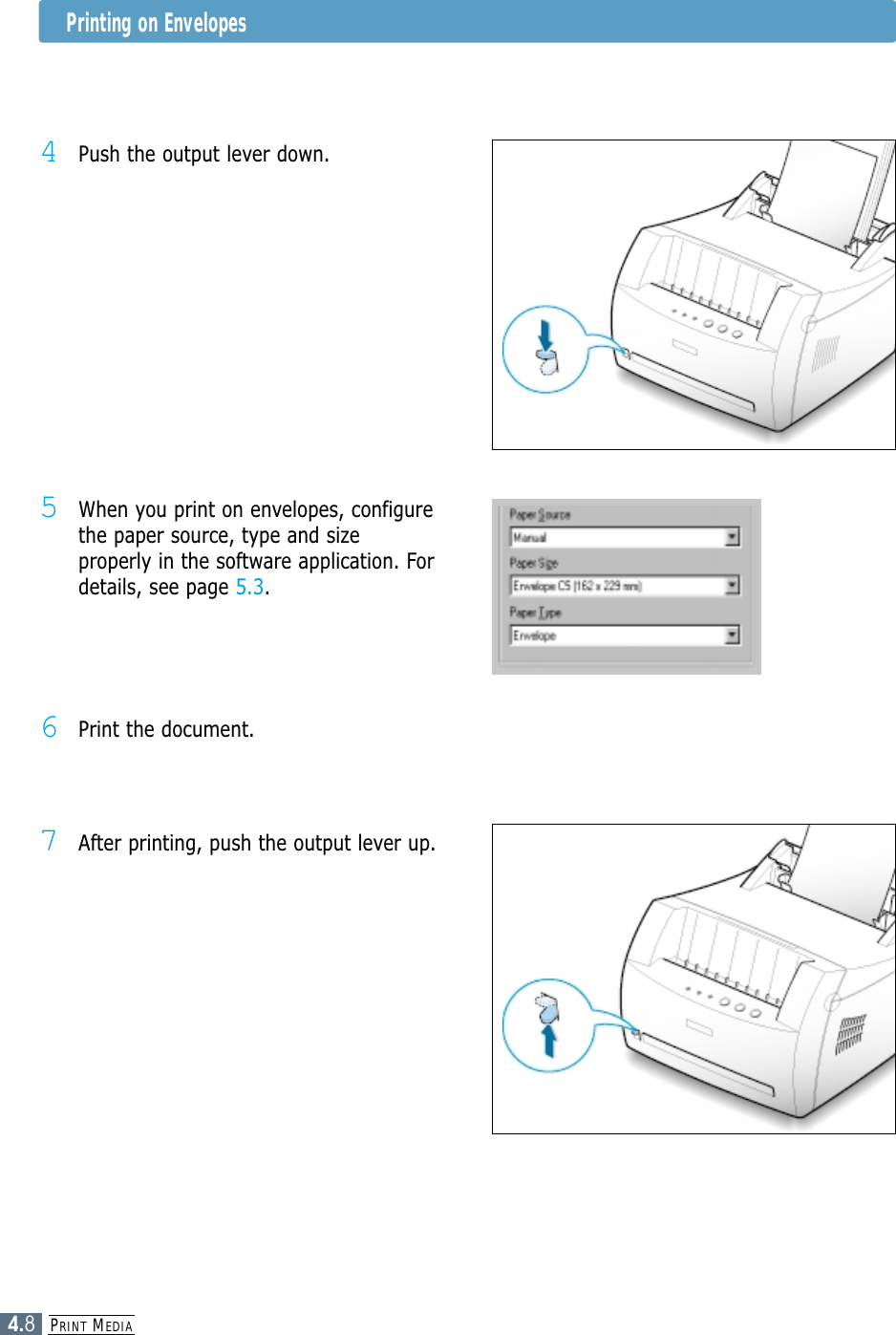

PRINT MEDIA4.84Push the output lever down.5When you print on envelopes, configurethe paper source, type and sizeproperly in the software application. Fordetails, see page 5.3.7After printing, push the output lever up.6Print the document.Printing on Envelopes

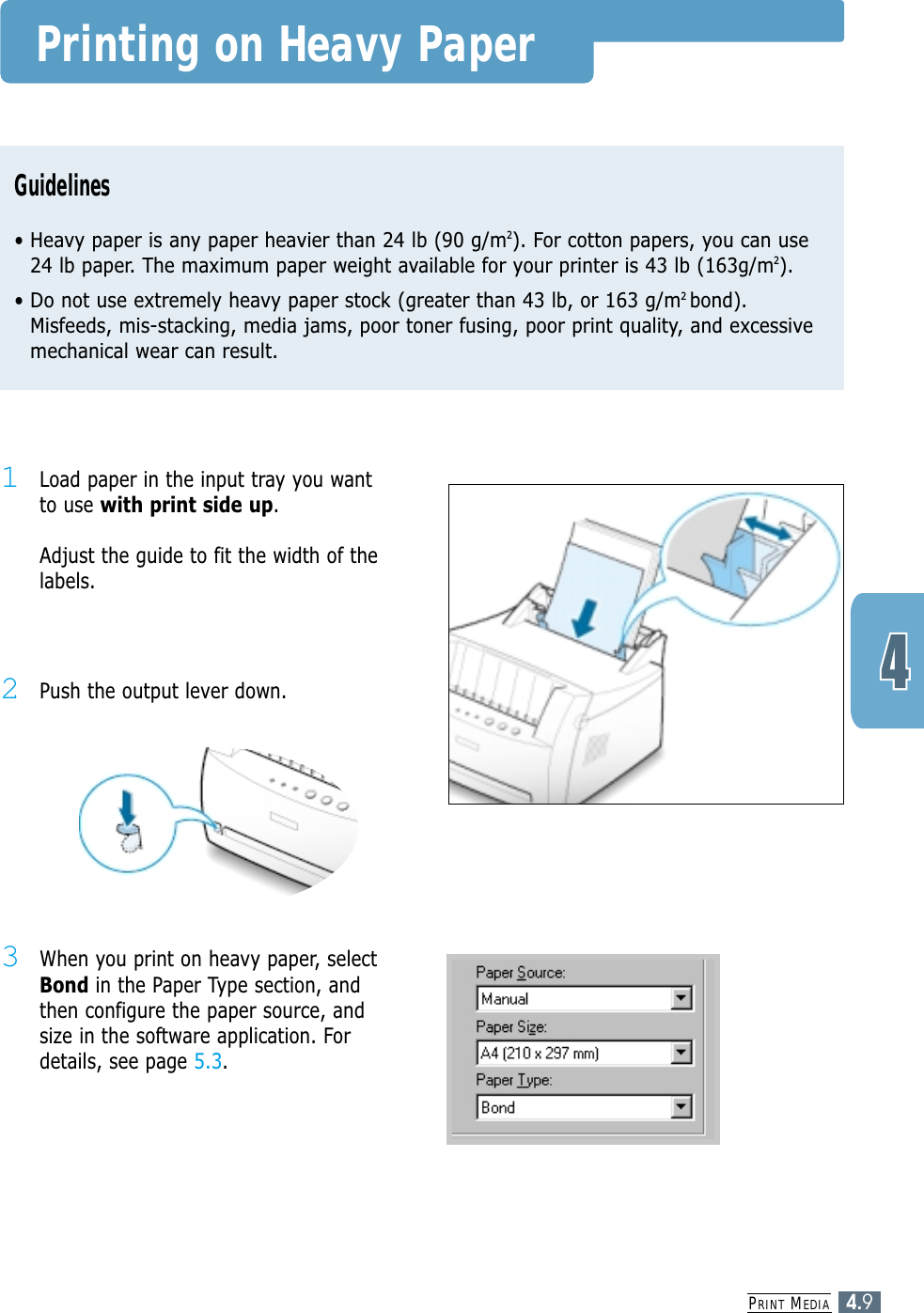

PRINT MEDIA4.9Printing on Heavy PaperGuidelines• Heavy paper is any paper heavier than 24 lb (90 g/m2). For cotton papers, you can use24 lb paper. The maximum paper weight available for your printer is 43 lb (163g/m2).• Do not use extremely heavy paper stock (greater than 43 lb, or 163 g/m2 bond).Misfeeds, mis-stacking, media jams, poor toner fusing, poor print quality, and excessivemechanical wear can result.2Push the output lever down.1Load paper in the input tray you wantto use with print side up. Adjust the guide to fit the width of thelabels.3When you print on heavy paper, selectBond in the Paper Type section, andthen configure the paper source, andsize in the software application. Fordetails, see page 5.3.

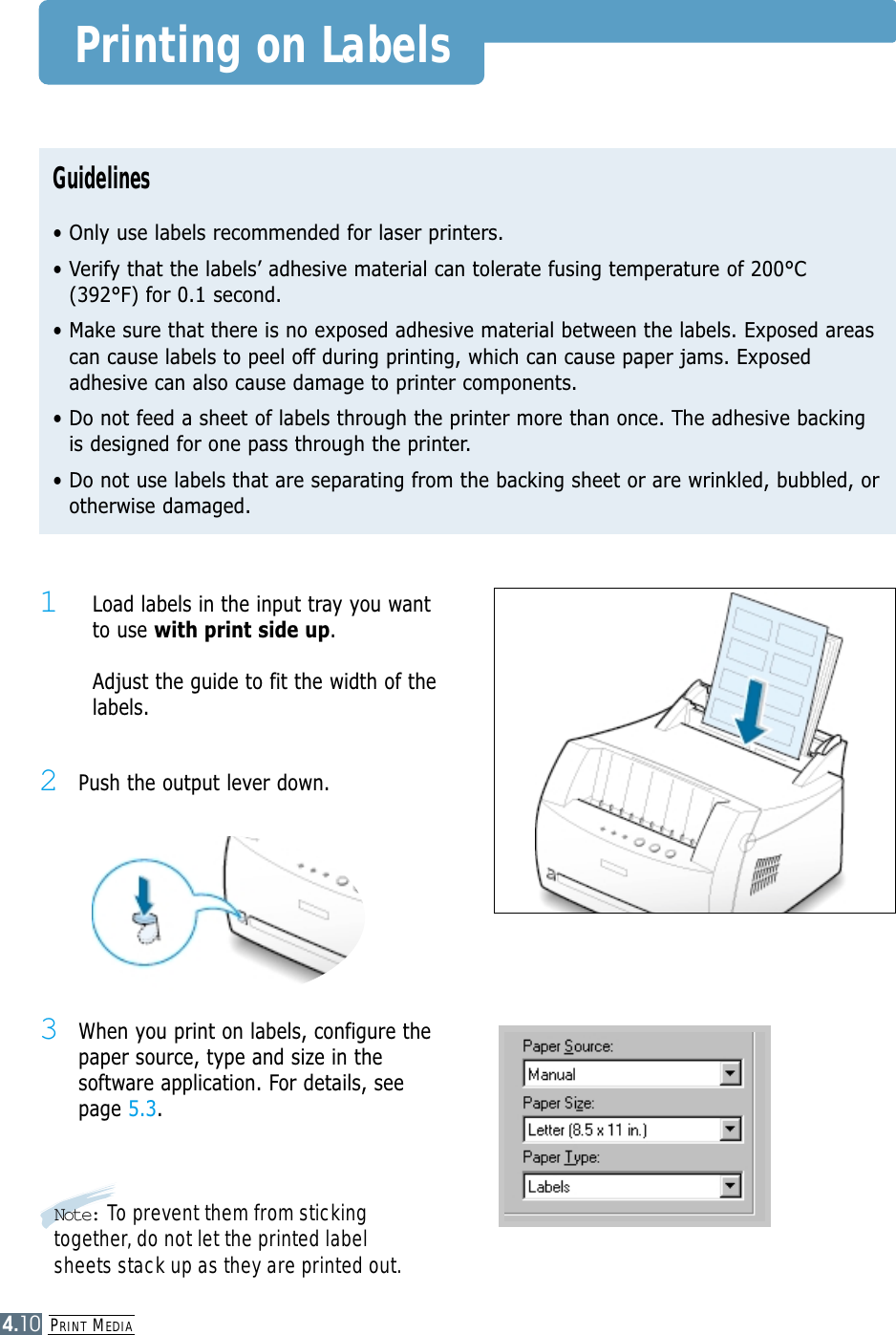

PRINT MEDIA4.10Printing on LabelsGuidelines• Only use labels recommended for laser printers.• Verify that the labels’ adhesive material can tolerate fusing temperature of 200°C(392°F) for 0.1 second.• Make sure that there is no exposed adhesive material between the labels. Exposed areascan cause labels to peel off during printing, which can cause paper jams. Exposedadhesive can also cause damage to printer components.• Do not feed a sheet of labels through the printer more than once. The adhesive backingis designed for one pass through the printer.• Do not use labels that are separating from the backing sheet or are wrinkled, bubbled, orotherwise damaged.2Push the output lever down.1 Load labels in the input tray you wantto use with print side up. Adjust the guide to fit the width of thelabels.3When you print on labels, configure thepaper source, type and size in thesoftware application. For details, seepage 5.3.Note: To prevent them from stickingtogether, do not let the printed labelsheets stack up as they are printed out.

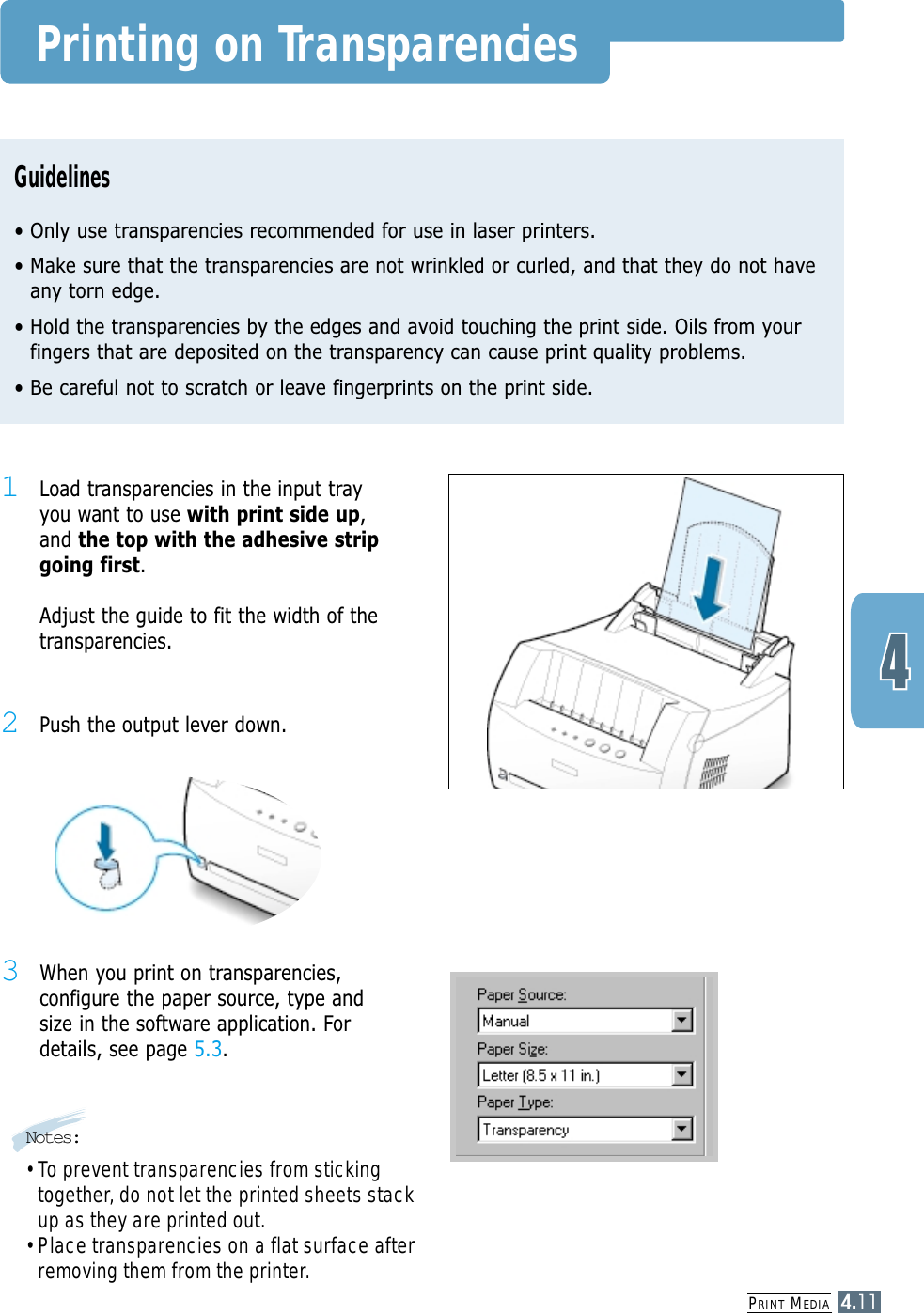

PRINT MEDIA4.11Printing on TransparenciesGuidelines• Only use transparencies recommended for use in laser printers.• Make sure that the transparencies are not wrinkled or curled, and that they do not haveany torn edge.• Hold the transparencies by the edges and avoid touching the print side. Oils from yourfingers that are deposited on the transparency can cause print quality problems.• Be careful not to scratch or leave fingerprints on the print side.1Load transparencies in the input trayyou want to use with print side up,and the top with the adhesive stripgoing first. Adjust the guide to fit the width of thetransparencies.3When you print on transparencies,configure the paper source, type andsize in the software application. Fordetails, see page 5.3.Notes:• To prevent transparencies from stickingtogether, do not let the printed sheets stackup as they are printed out.• Place transparencies on a flat surface afterremoving them from the printer.2Push the output lever down.

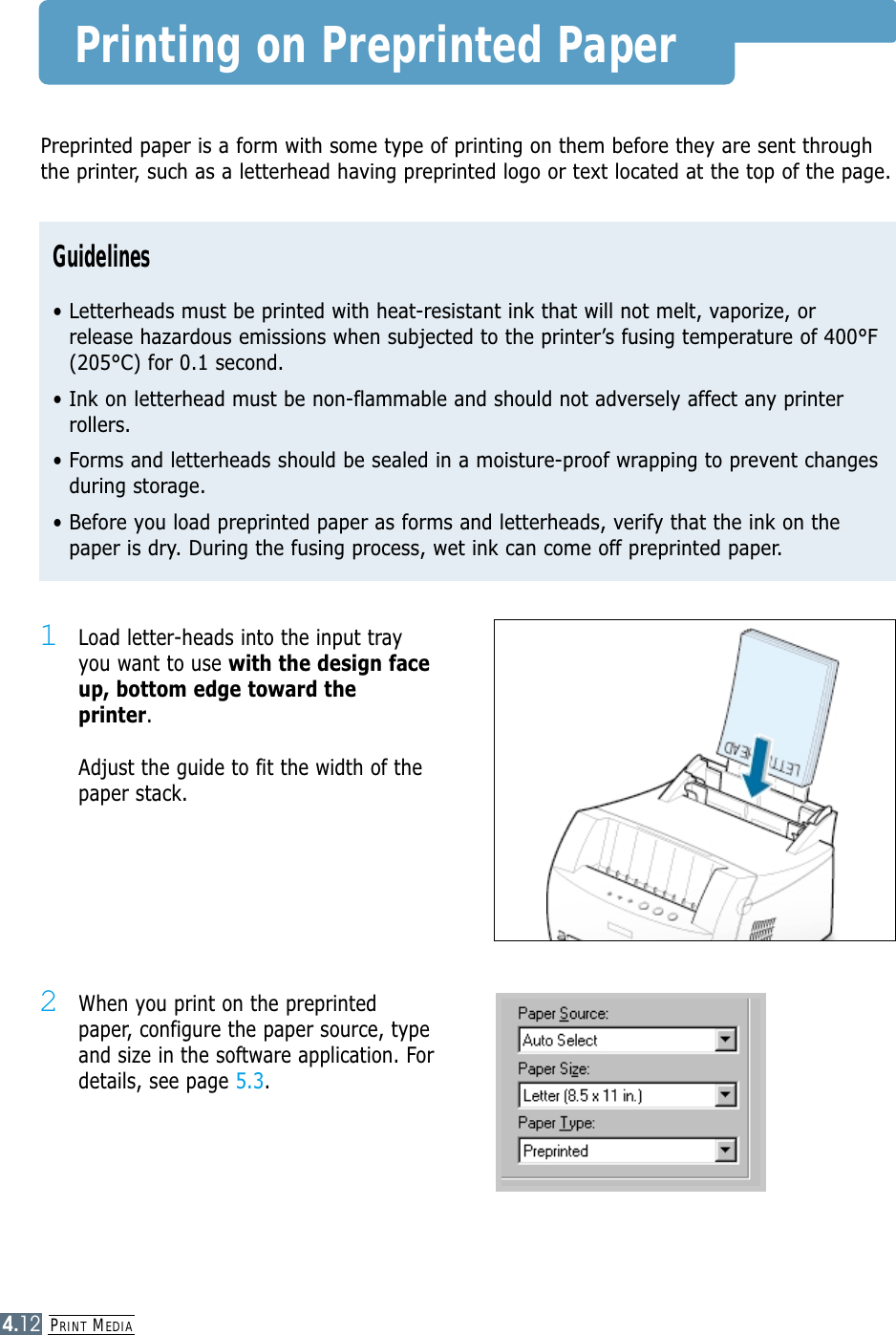

PRINT MEDIA4.12Printing on Preprinted Paper1Load letter-heads into the input tray you want to use with the design faceup, bottom edge toward theprinter. Adjust the guide to fit the width of thepaper stack. 2When you print on the preprintedpaper, configure the paper source, typeand size in the software application. Fordetails, see page 5.3.Preprinted paper is a form with some type of printing on them before they are sent throughthe printer, such as a letterhead having preprinted logo or text located at the top of the page.Guidelines• Letterheads must be printed with heat-resistant ink that will not melt, vaporize, orrelease hazardous emissions when subjected to the printer’s fusing temperature of 400°F(205°C) for 0.1 second.• Ink on letterhead must be non-flammable and should not adversely affect any printerrollers.• Forms and letterheads should be sealed in a moisture-proof wrapping to prevent changesduring storage.• Before you load preprinted paper as forms and letterheads, verify that the ink on thepaper is dry. During the fusing process, wet ink can come off preprinted paper.

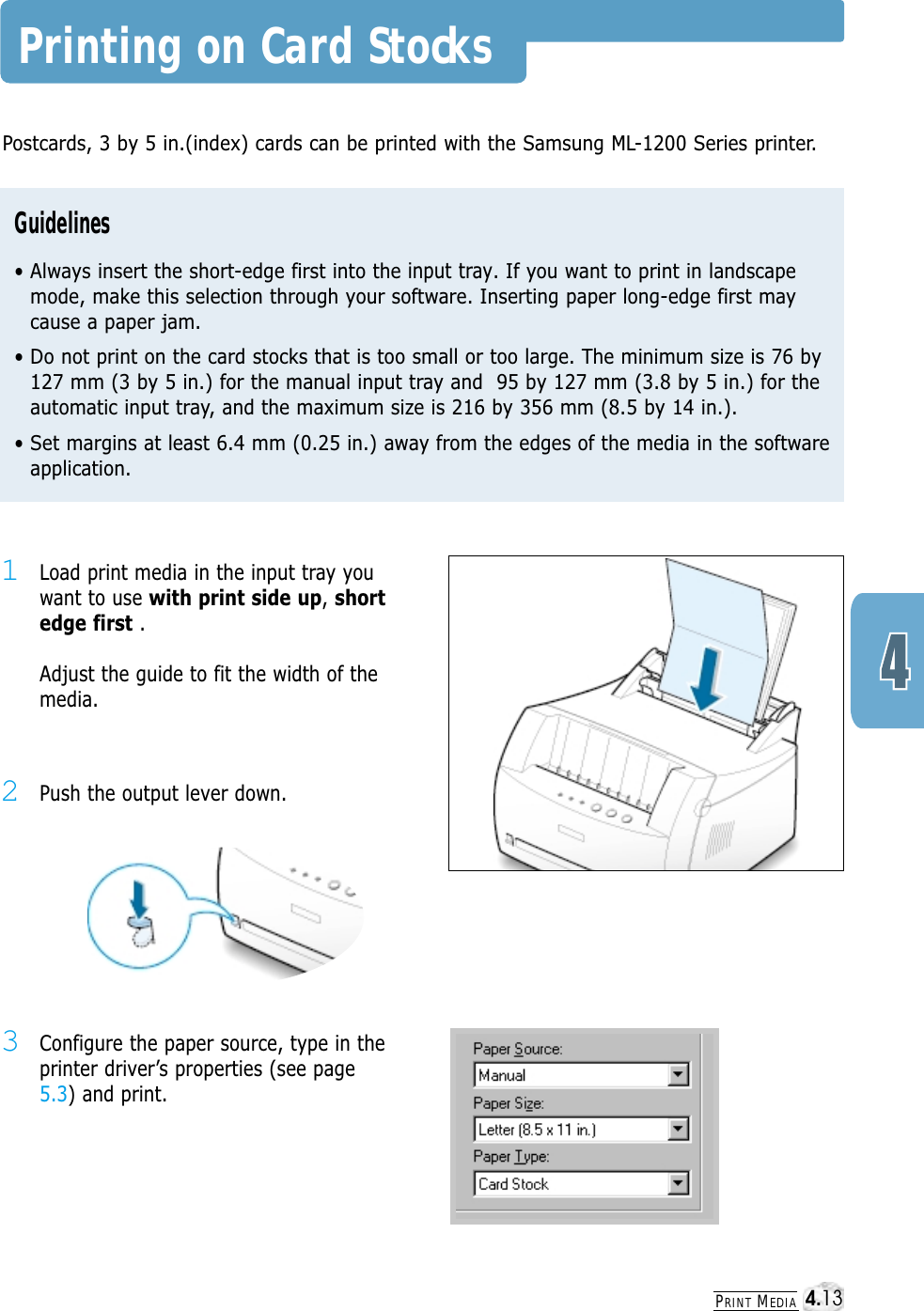

PRINT MEDIAPrinting on Card Stocks2Push the output lever down.1Load print media in the input tray youwant to use with print side up, shortedge first . Adjust the guide to fit the width of themedia.3Configure the paper source, type in theprinter driver’s properties (see page5.3) and print.Postcards, 3 by 5 in.(index) cards can be printed with the Samsung ML-1200 Series printer. Guidelines• Always insert the short-edge first into the input tray. If you want to print in landscapemode, make this selection through your software. Inserting paper long-edge first maycause a paper jam.• Do not print on the card stocks that is too small or too large. The minimum size is 76 by127 mm (3 by 5 in.) for the manual input tray and 95 by 127 mm (3.8 by 5 in.) for theautomatic input tray, and the maximum size is 216 by 356 mm (8.5 by 14 in.).• Set margins at least 6.4 mm (0.25 in.) away from the edges of the media in the softwareapplication.4.13

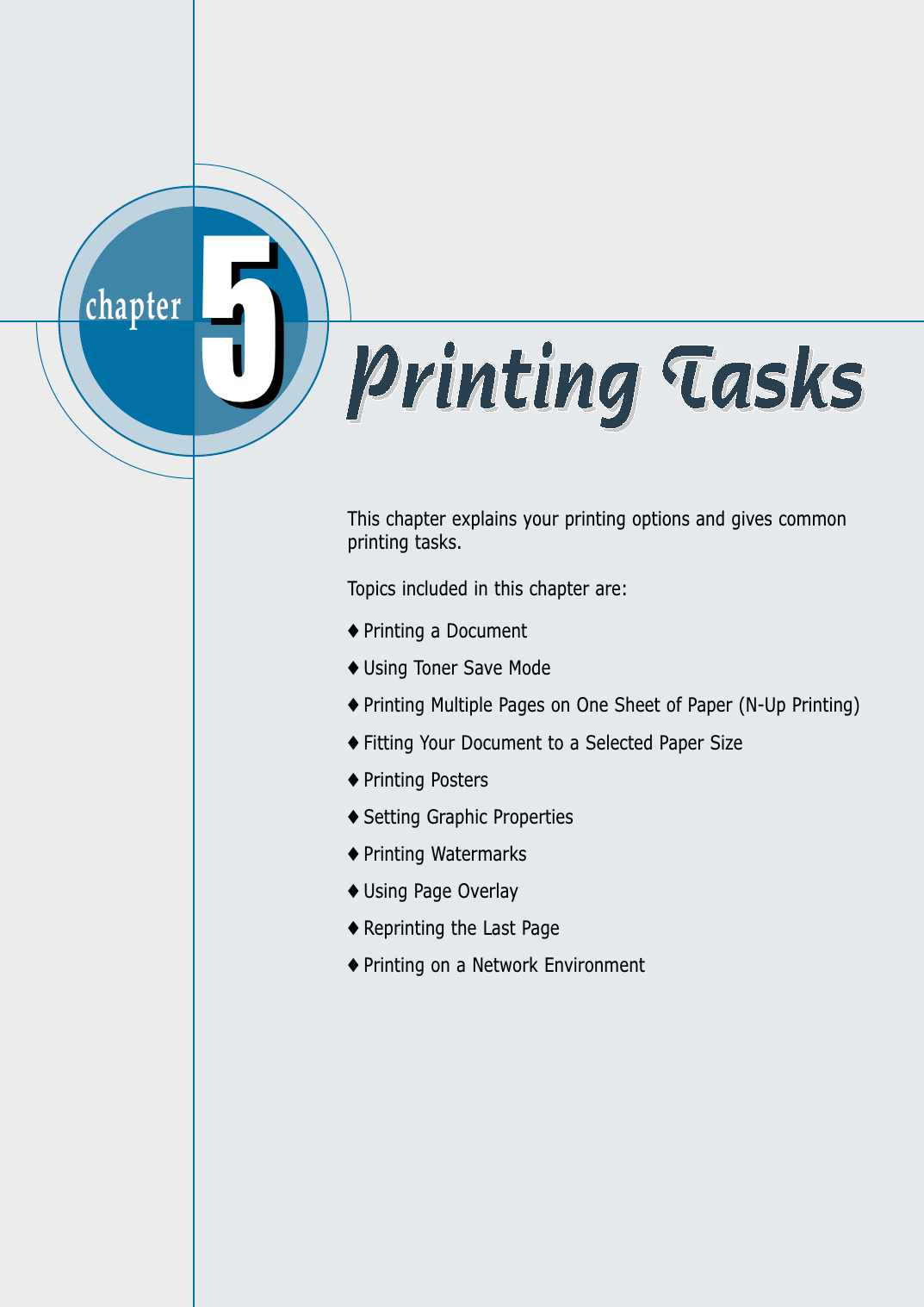

chapter This chapter explains your printing options and gives commonprinting tasks.Topics included in this chapter are:◆ Printing a Document◆ Using Toner Save Mode◆ Printing Multiple Pages on One Sheet of Paper (N-Up Printing)◆ Fitting Your Document to a Selected Paper Size◆ Printing Posters◆ Setting Graphic Properties◆ Printing Watermarks◆ Using Page Overlay◆ Reprinting the Last Page◆ Printing on a Network Environment55

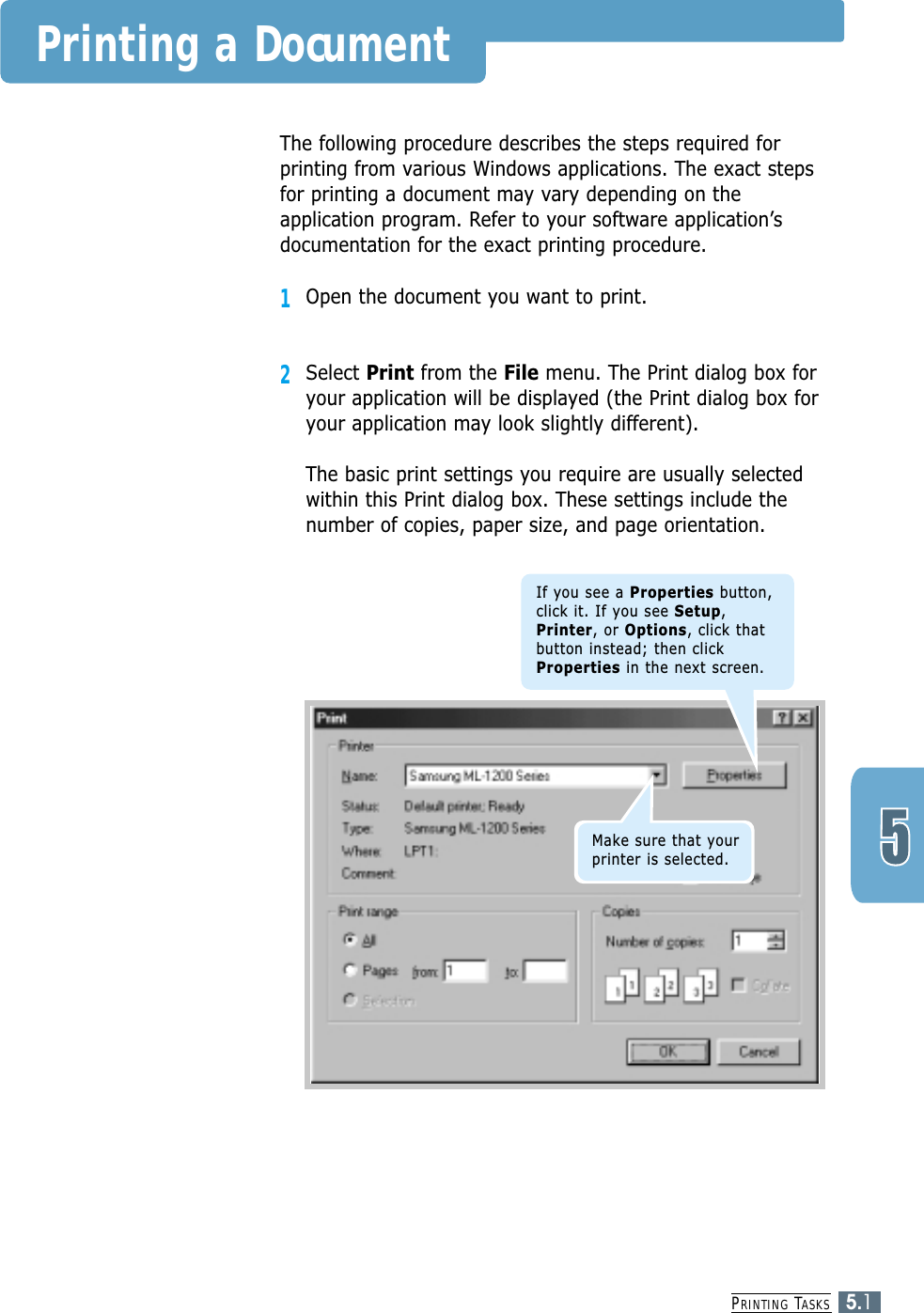

PRINTING TASKS5.1Printing a DocumentThe following procedure describes the steps required forprinting from various Windows applications. The exact stepsfor printing a document may vary depending on theapplication program. Refer to your software application’sdocumentation for the exact printing procedure.1Open the document you want to print.2Select Print from the File menu. The Print dialog box foryour application will be displayed (the Print dialog box foryour application may look slightly different). The basic print settings you require are usually selectedwithin this Print dialog box. These settings include thenumber of copies, paper size, and page orientation.If you see a Properties button,click it. If you see Setup,Printer, or Options, click thatbutton instead; then clickProperties in the next screen.Make sure that yourprinter is selected.

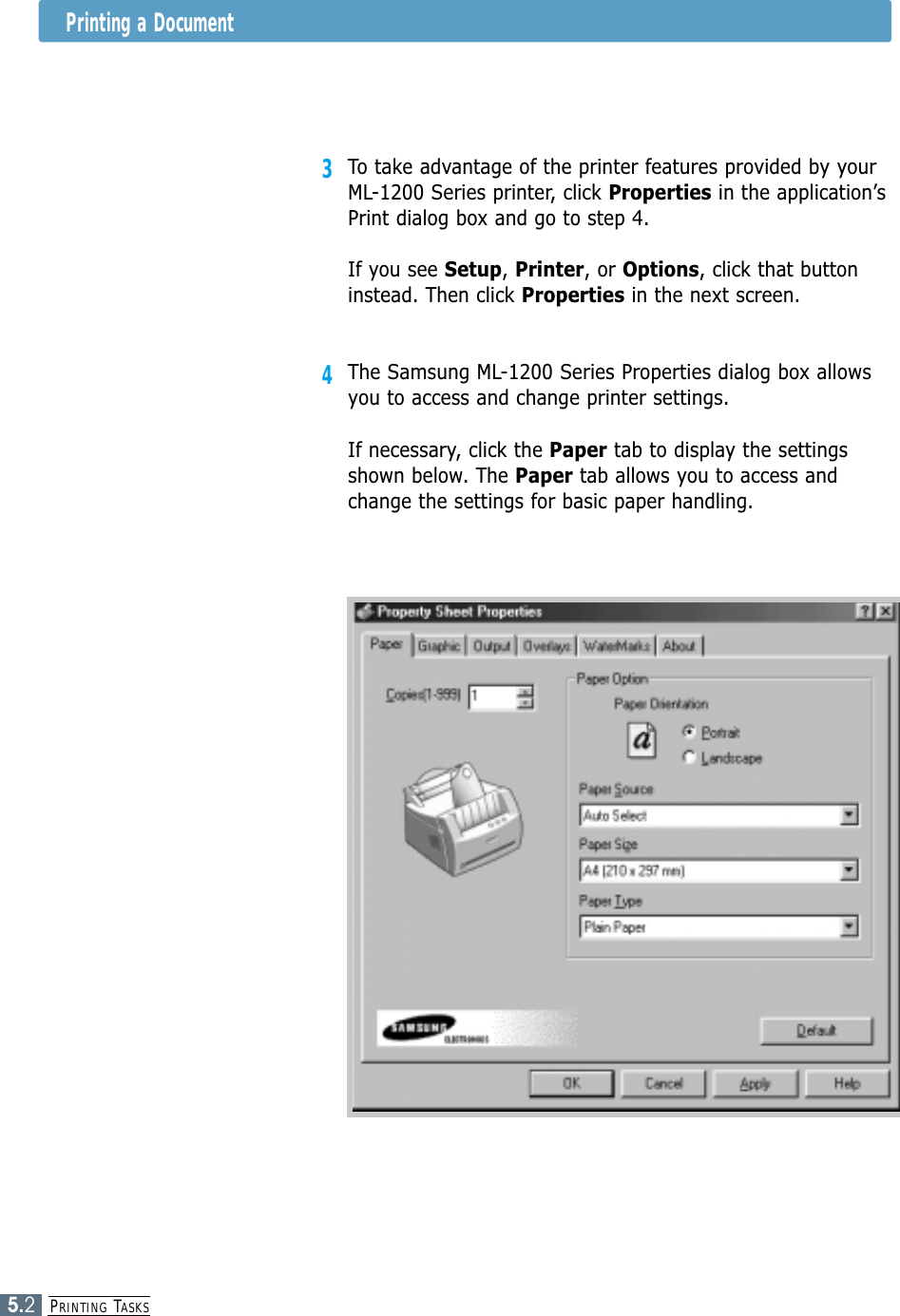

PRINTING TASKS5.2Printing a Document3To take advantage of the printer features provided by yourML-1200 Series printer, click Properties in the application’sPrint dialog box and go to step 4. If you see Setup, Printer, or Options, click that buttoninstead. Then click Properties in the next screen.4The Samsung ML-1200 Series Properties dialog box allowsyou to access and change printer settings.If necessary, click the Paper tab to display the settingsshown below. The Paper tab allows you to access andchange the settings for basic paper handling.

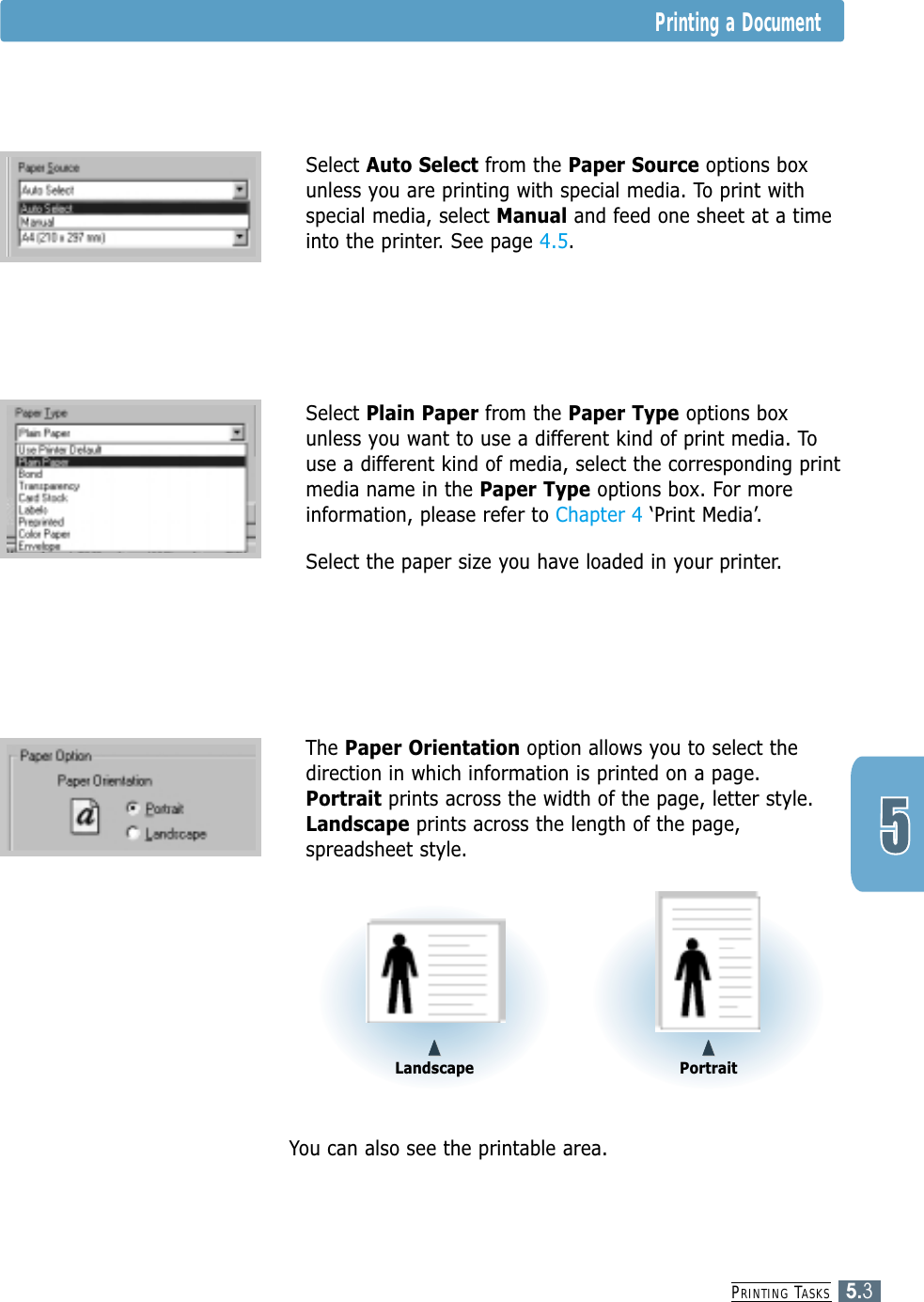

PRINTING TASKS5.3Printing a Document4Select Auto Select from the Paper Source options boxunless you are printing with special media. To print withspecial media, select Manual and feed one sheet at a timeinto the printer. See page 4.5.4Select Plain Paper from the Paper Type options boxunless you want to use a different kind of print media. Touse a different kind of media, select the corresponding printmedia name in the Paper Type options box. For moreinformation, please refer to Chapter 4 ‘Print Media’. 4Select the paper size you have loaded in your printer.4You can also see the printable area.4The Paper Orientation option allows you to select thedirection in which information is printed on a page.Portrait prints across the width of the page, letter style.Landscape prints across the length of the page,spreadsheet style.➐➐➐➐Landscape➐➐➐➐Portrait

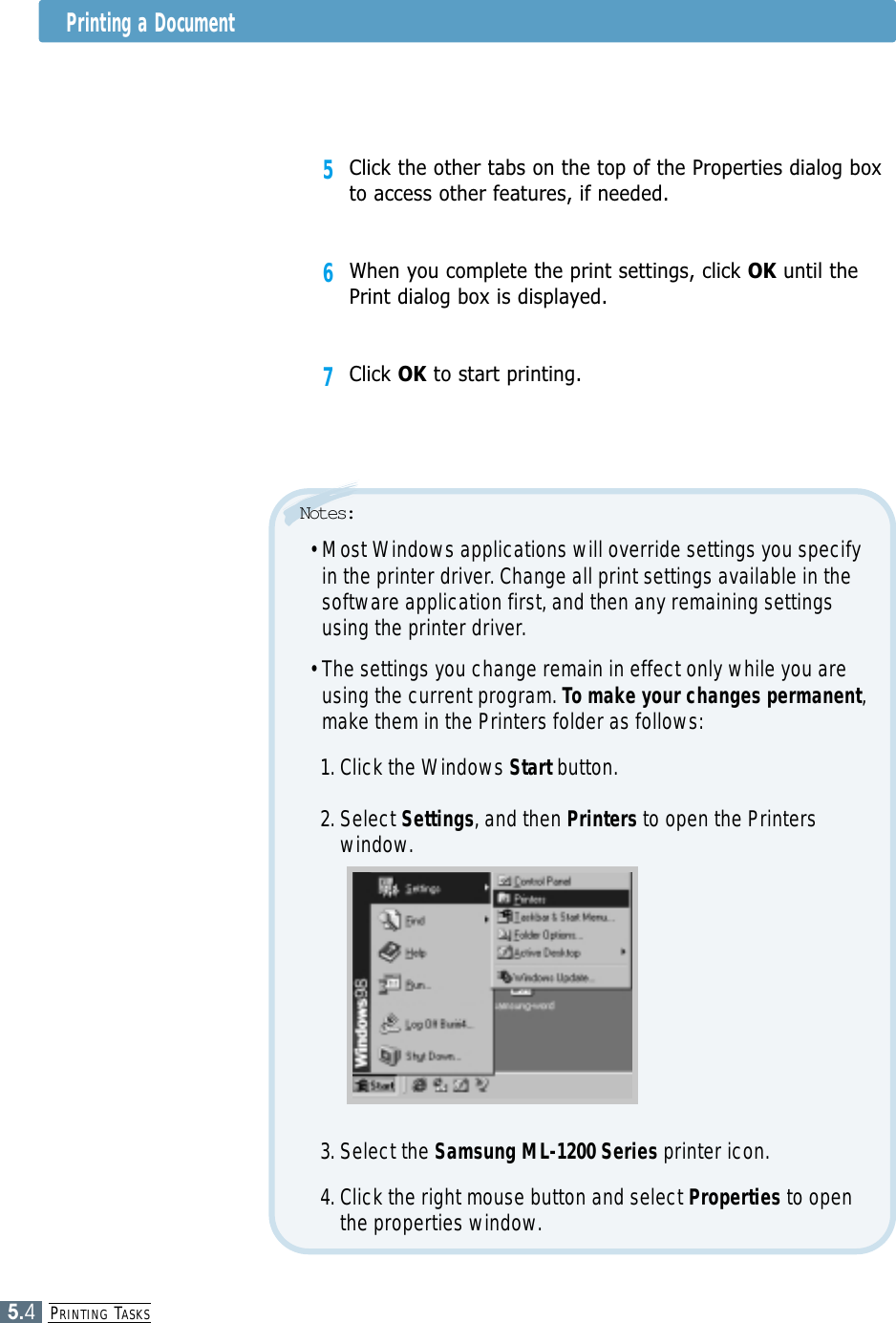

PRINTING TASKS5.45Click the other tabs on the top of the Properties dialog boxto access other features, if needed.6When you complete the print settings, click OK until thePrint dialog box is displayed.7Click OK to start printing. • Most Windows applications will override settings you specifyin the printer driver. Change all print settings available in thesoftware application first, and then any remaining settingsusing the printer driver.• The settings you change remain in effect only while you areusing the current program. To make your changes permanent,make them in the Printers folder as follows:1. Click the Windows Start button. 2. Select Settings, and then Printers to open the Printerswindow.Notes:3. Select the Samsung ML-1200 Series printer icon. 4. Click the right mouse button and select Properties to openthe properties window.Printing a Document

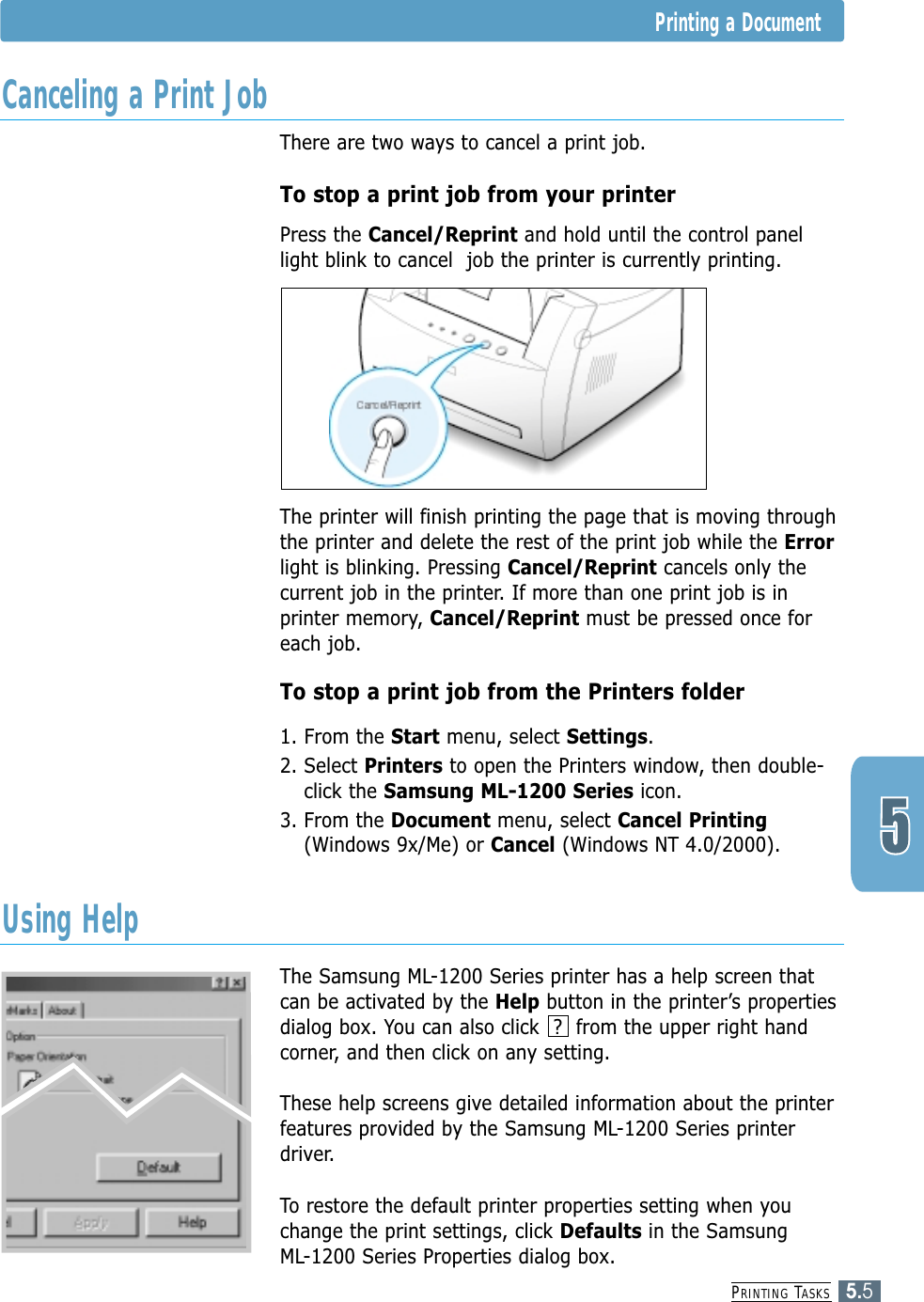

PRINTING TASKS5.5Printing a DocumentThere are two ways to cancel a print job.To stop a print job from your printerPress the Cancel/Reprint and hold until the control panellight blink to cancel job the printer is currently printing. The printer will finish printing the page that is moving throughthe printer and delete the rest of the print job while the Errorlight is blinking. Pressing Cancel/Reprint cancels only thecurrent job in the printer. If more than one print job is inprinter memory, Cancel/Reprint must be pressed once foreach job.To stop a print job from the Printers folder1. From the Start menu, select Settings.2. Select Printers to open the Printers window, then double-click the Samsung ML-1200 Series icon. 3. From the Document menu, select Cancel Printing(Windows 9x/Me) or Cancel (Windows NT 4.0/2000).The Samsung ML-1200 Series printer has a help screen thatcan be activated by the Help button in the printer’s propertiesdialog box. You can also click ? from the upper right handcorner, and then click on any setting. These help screens give detailed information about the printerfeatures provided by the Samsung ML-1200 Series printerdriver.To restore the default printer properties setting when youchange the print settings, click Defaults in the Samsung ML-1200 Series Properties dialog box.Canceling a Print JobUsing Help

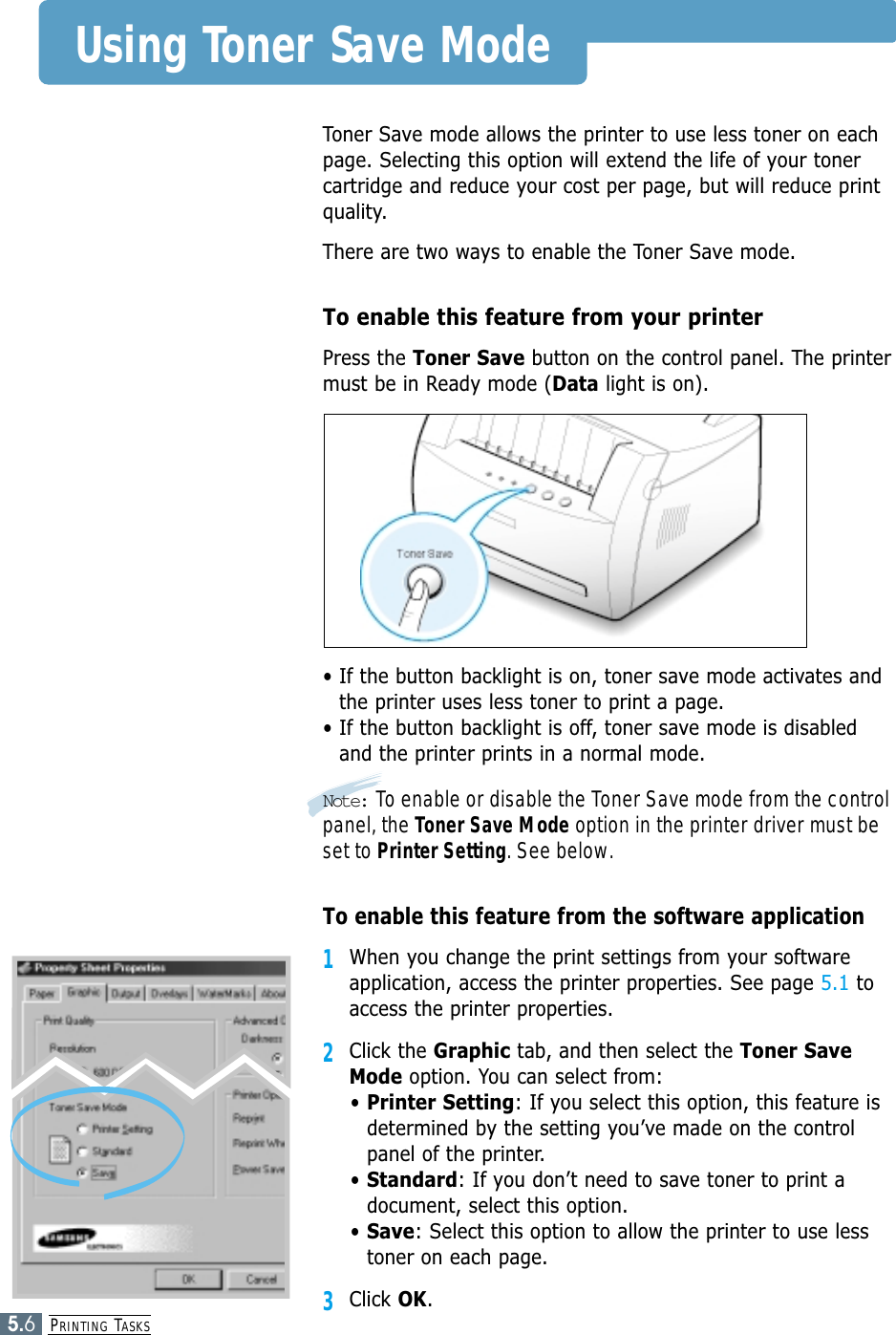

PRINTING TASKS5.6Using Toner Save ModeToner Save mode allows the printer to use less toner on eachpage. Selecting this option will extend the life of your tonercartridge and reduce your cost per page, but will reduce printquality. There are two ways to enable the Toner Save mode.To enable this feature from your printerPress the Toner Save button on the control panel. The printermust be in Ready mode (Data light is on).• If the button backlight is on, toner save mode activates andthe printer uses less toner to print a page.• If the button backlight is off, toner save mode is disabledand the printer prints in a normal mode.Note: To enable or disable the Toner Save mode from the controlpanel, the Toner Save Mode option in the printer driver must beset to Printer Setting. See below.To enable this feature from the software application1When you change the print settings from your softwareapplication, access the printer properties. See page 5.1 toaccess the printer properties.2Click the Graphic tab, and then select the Toner SaveMode option. You can select from: • Printer Setting: If you select this option, this feature isdetermined by the setting you’ve made on the controlpanel of the printer.• Standard: If you don’t need to save toner to print adocument, select this option.• Save: Select this option to allow the printer to use lesstoner on each page. 3Click OK.

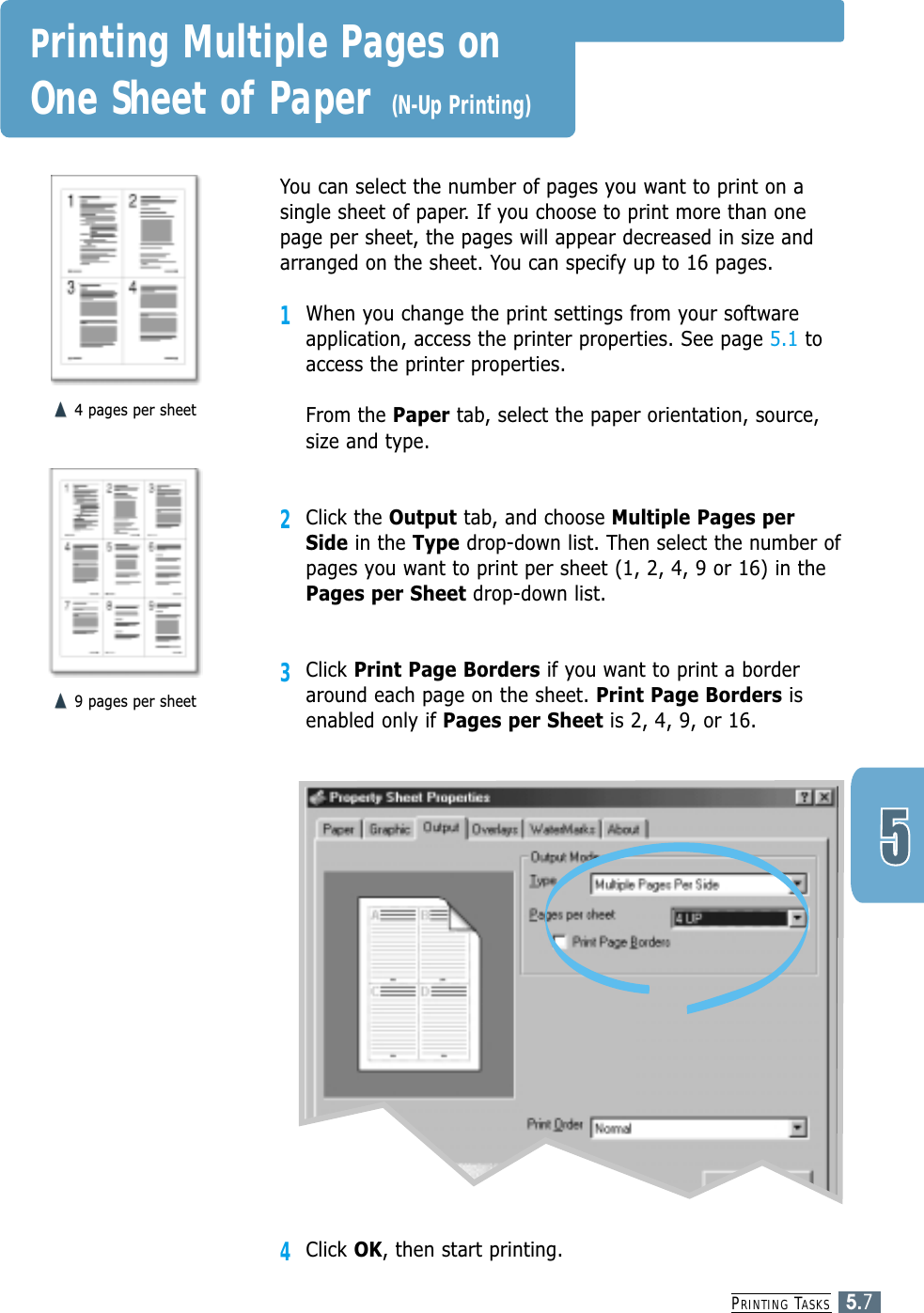

PRINTING TASKS5.7You can select the number of pages you want to print on asingle sheet of paper. If you choose to print more than onepage per sheet, the pages will appear decreased in size andarranged on the sheet. You can specify up to 16 pages.1When you change the print settings from your softwareapplication, access the printer properties. See page 5.1 toaccess the printer properties.From the Paper tab, select the paper orientation, source,size and type.2Click the Output tab, and choose Multiple Pages perSide in the Type drop-down list. Then select the number ofpages you want to print per sheet (1, 2, 4, 9 or 16) in thePages per Sheet drop-down list.3Click Print Page Borders if you want to print a borderaround each page on the sheet. Print Page Borders isenabled only if Pages per Sheet is 2, 4, 9, or 16.➐☎➐☎4 pages per sheet➐☎➐☎9 pages per sheetPrinting Multiple Pages on One Sheet of Paper (N-Up Printing)4Click OK, then start printing.

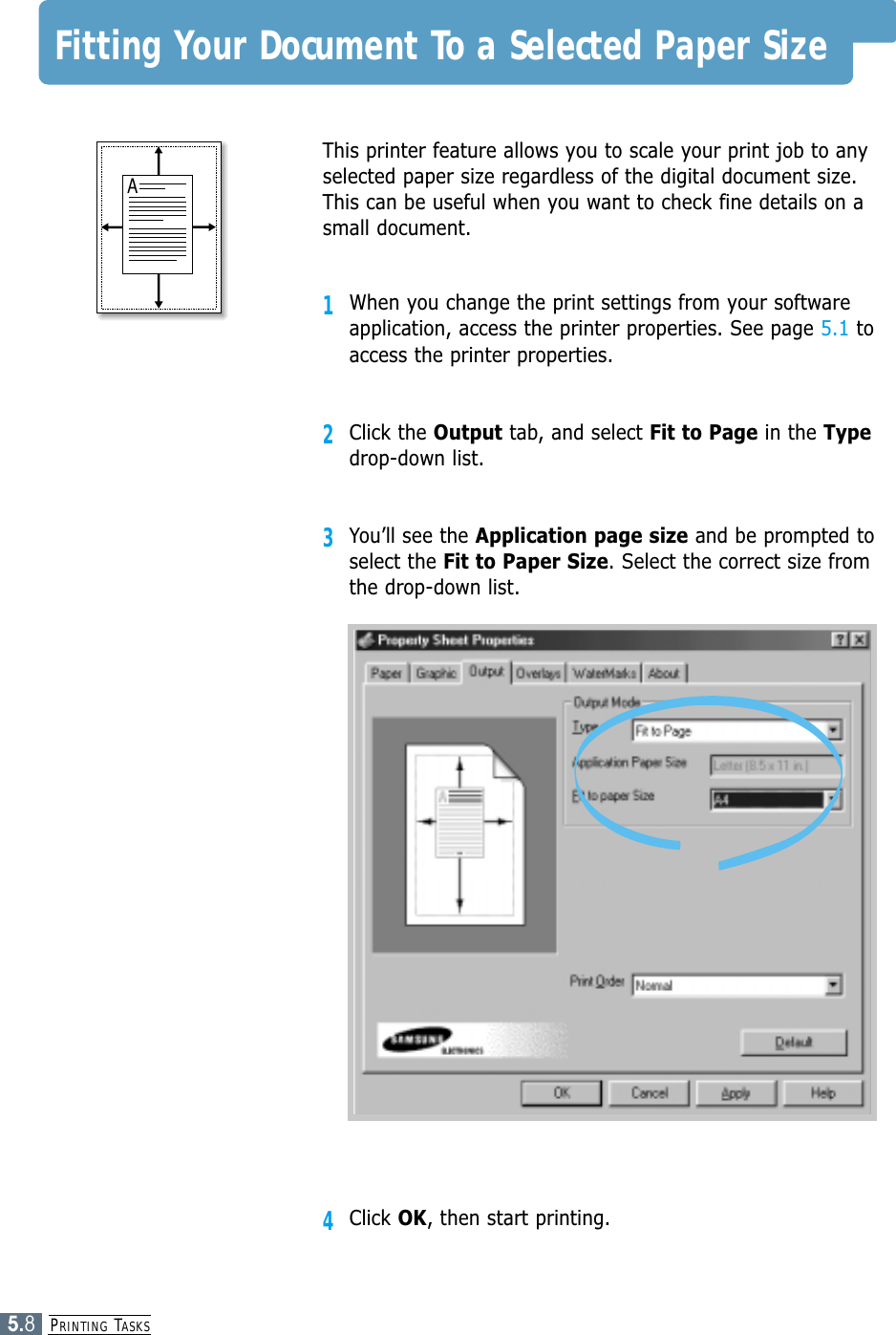

PRINTING TASKS5.84Click OK, then start printing. Fitting Your Document To a Selected Paper Size This printer feature allows you to scale your print job to anyselected paper size regardless of the digital document size.This can be useful when you want to check fine details on asmall document. 1When you change the print settings from your softwareapplication, access the printer properties. See page 5.1 toaccess the printer properties.2Click the Output tab, and select Fit to Page in the Typedrop-down list. 3You’ll see the Application page size and be prompted toselect the Fit to Paper Size. Select the correct size fromthe drop-down list.A

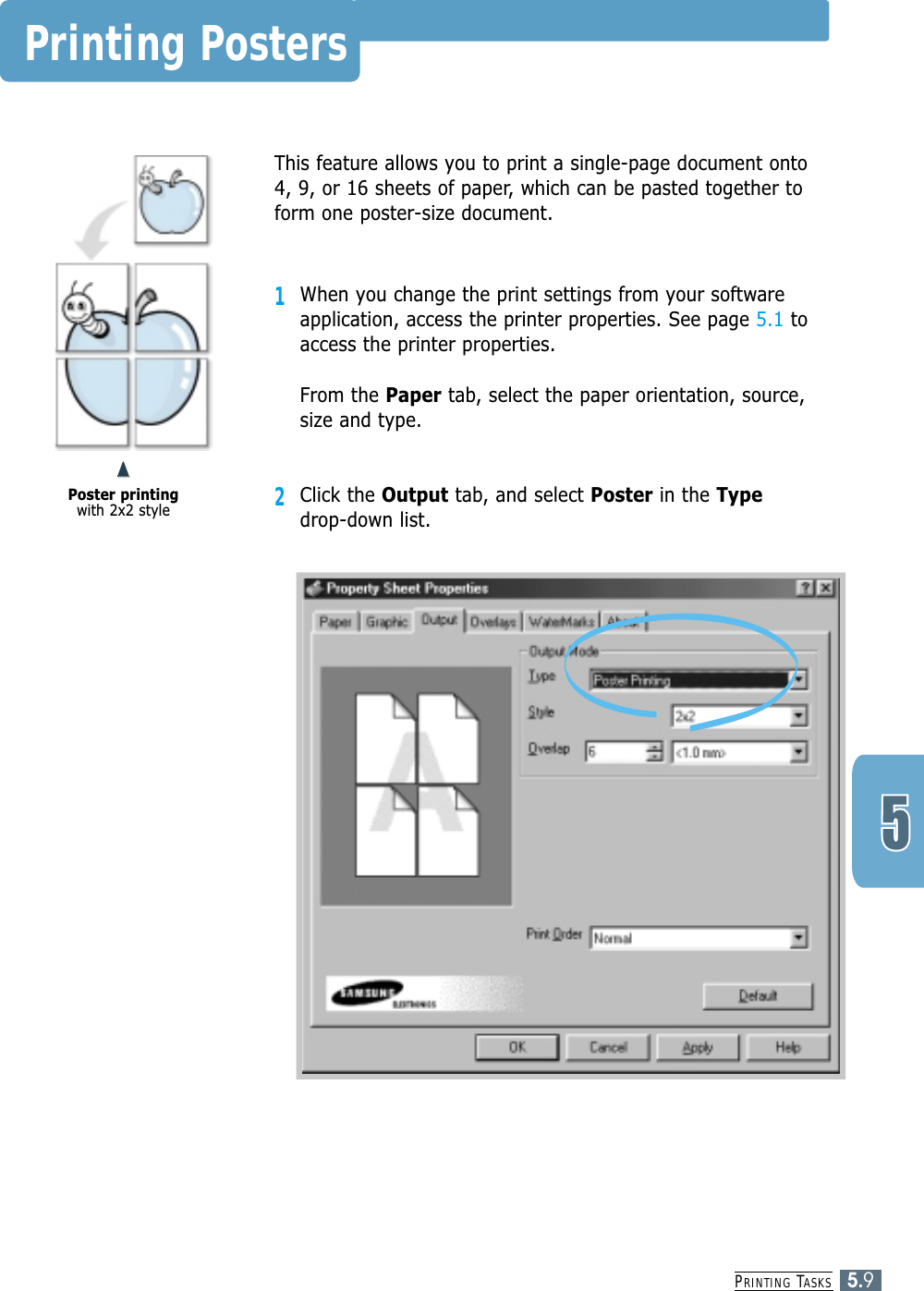

PRINTING TASKS5.9Printing PostersThis feature allows you to print a single-page document onto4, 9, or 16 sheets of paper, which can be pasted together toform one poster-size document.1When you change the print settings from your softwareapplication, access the printer properties. See page 5.1 toaccess the printer properties.From the Paper tab, select the paper orientation, source,size and type.2Click the Output tab, and select Poster in the Typedrop-down list.➐➐➐➐Poster printingwith 2x2 style

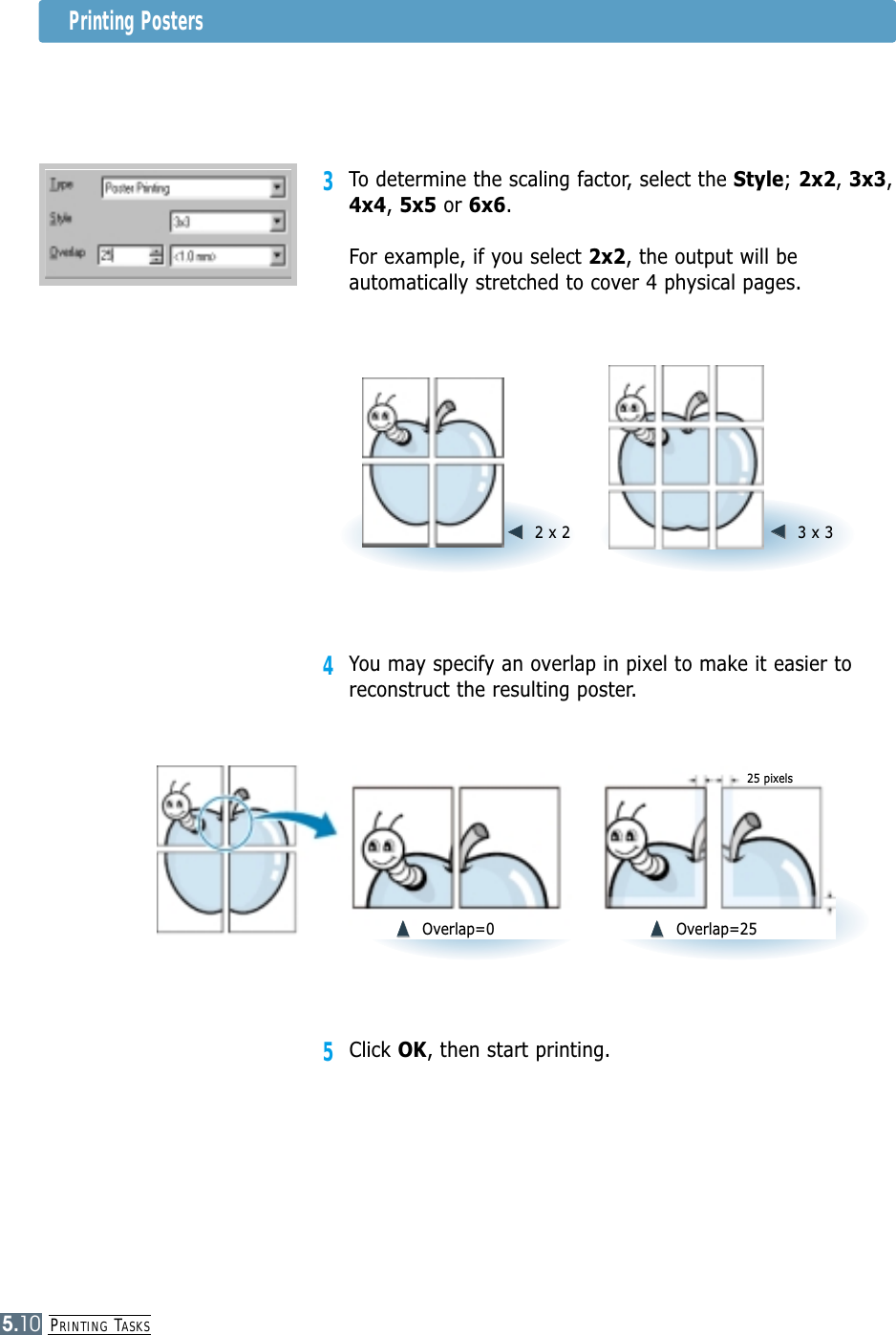

PRINTING TASKS5.10➛➛☎☎☎☎➛➛☎☎☎☎2 x 2➐➐☎☎☎☎➐➐☎☎☎☎Overlap=0 ➐➐☎☎☎☎➐➐☎☎☎☎Overlap=2525 pixels➛➛☎☎☎☎➛➛☎☎☎☎3 x 35Click OK, then start printing. 3To determine the scaling factor, select the Style; 2x2, 3x3,4x4, 5x5 or 6x6.For example, if you select 2x2, the output will beautomatically stretched to cover 4 physical pages.4You may specify an overlap in pixel to make it easier toreconstruct the resulting poster.Printing Posters

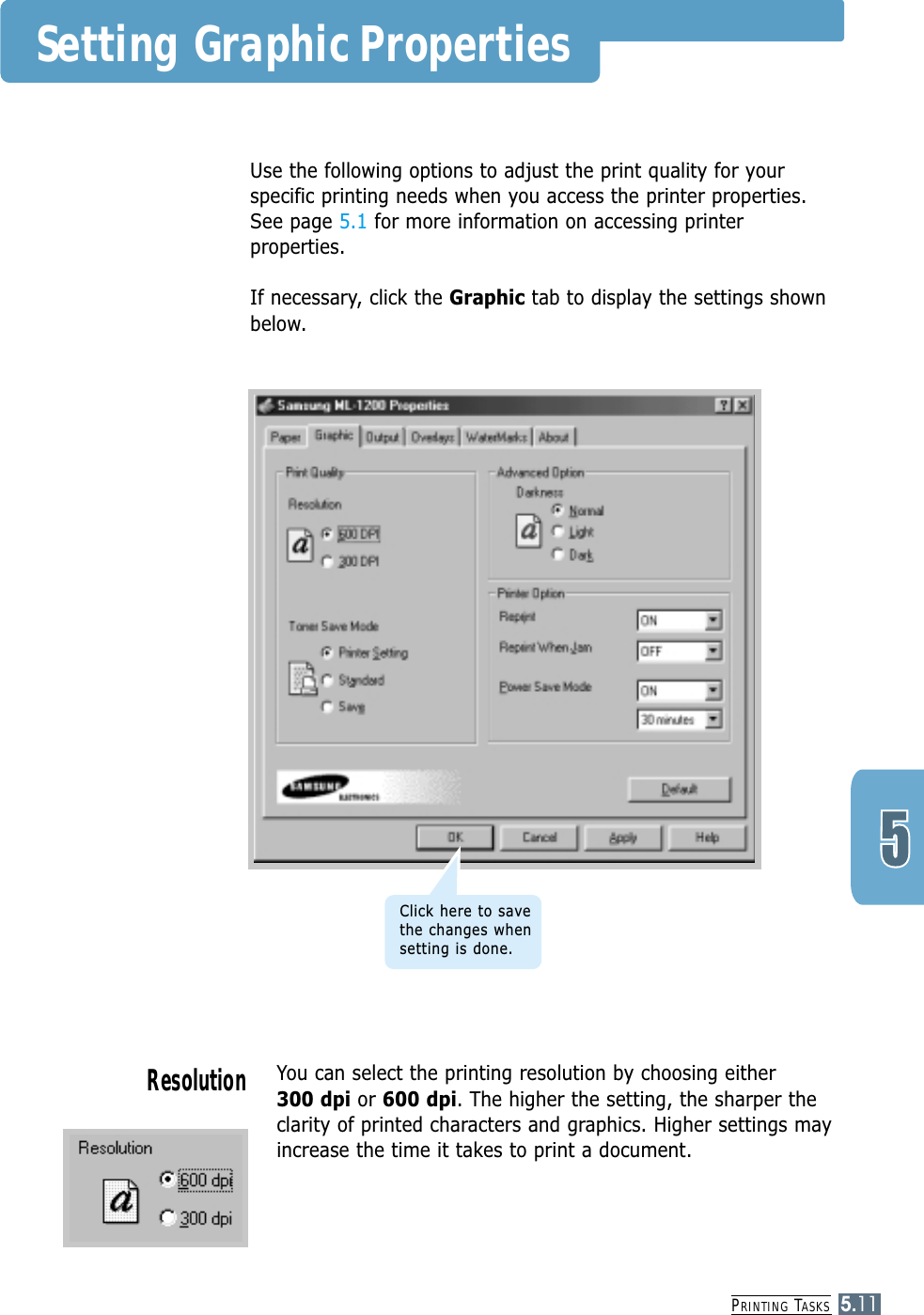

PRINTING TASKS5.11You can select the printing resolution by choosing either 300 dpi or 600 dpi. The higher the setting, the sharper theclarity of printed characters and graphics. Higher settings mayincrease the time it takes to print a document.ResolutionUse the following options to adjust the print quality for yourspecific printing needs when you access the printer properties.See page 5.1 for more information on accessing printerproperties. If necessary, click the Graphic tab to display the settings shownbelow.Setting Graphic PropertiesClick here to savethe changes whensetting is done.

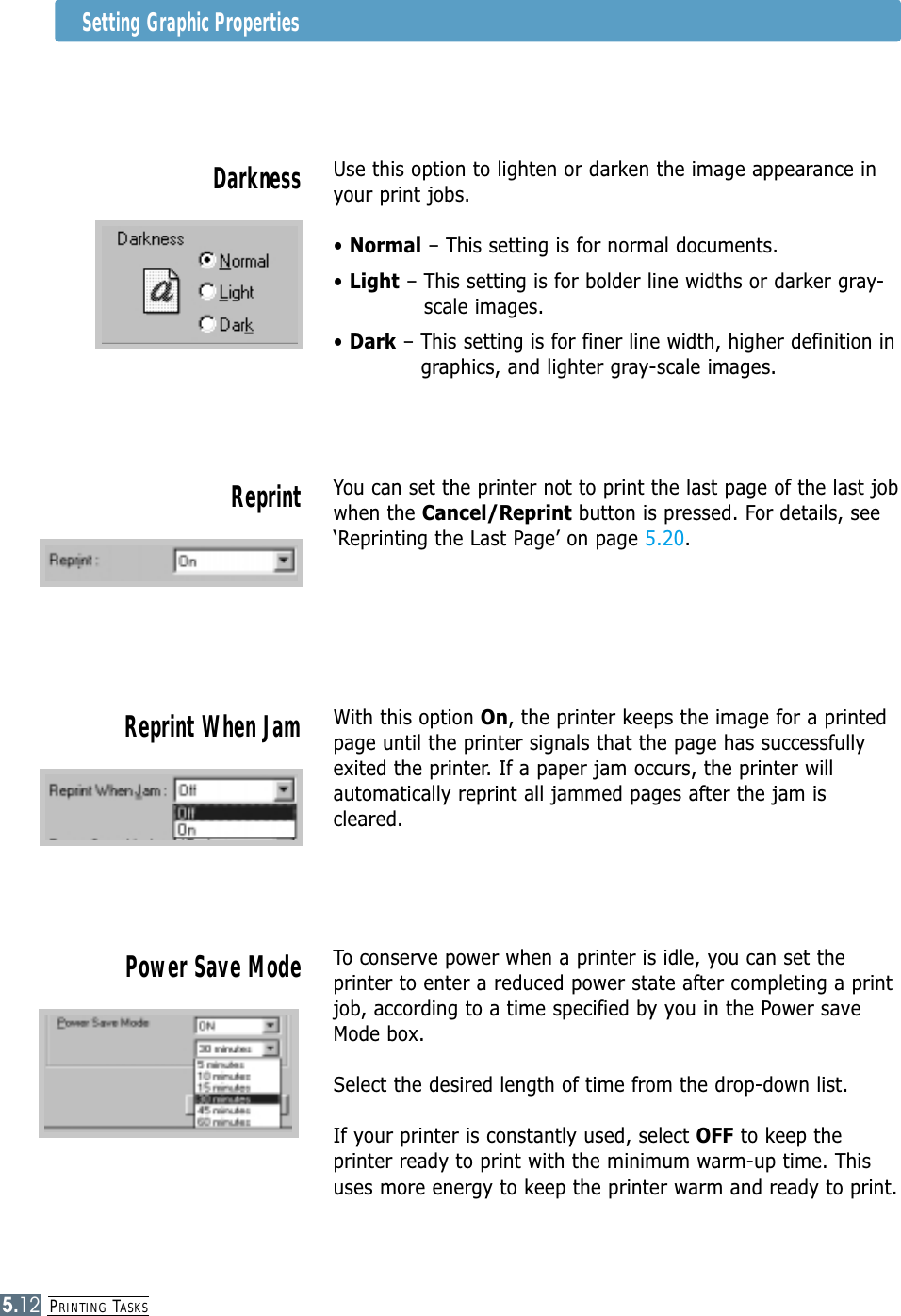

PRINTING TASKS5.12Setting Graphic PropertiesUse this option to lighten or darken the image appearance inyour print jobs.• Normal – This setting is for normal documents.• Light – This setting is for bolder line widths or darker gray-scale images.• Dark – This setting is for finer line width, higher definition ingraphics, and lighter gray-scale images.DarknessWith this option On, the printer keeps the image for a printedpage until the printer signals that the page has successfullyexited the printer. If a paper jam occurs, the printer willautomatically reprint all jammed pages after the jam iscleared.Reprint When JamYou can set the printer not to print the last page of the last jobwhen the Cancel/Reprint button is pressed. For details, see‘Reprinting the Last Page’ on page 5.20.ReprintTo conserve power when a printer is idle, you can set theprinter to enter a reduced power state after completing a printjob, according to a time specified by you in the Power saveMode box.Select the desired length of time from the drop-down list.If your printer is constantly used, select OFF to keep theprinter ready to print with the minimum warm-up time. Thisuses more energy to keep the printer warm and ready to print.Power Save Mode

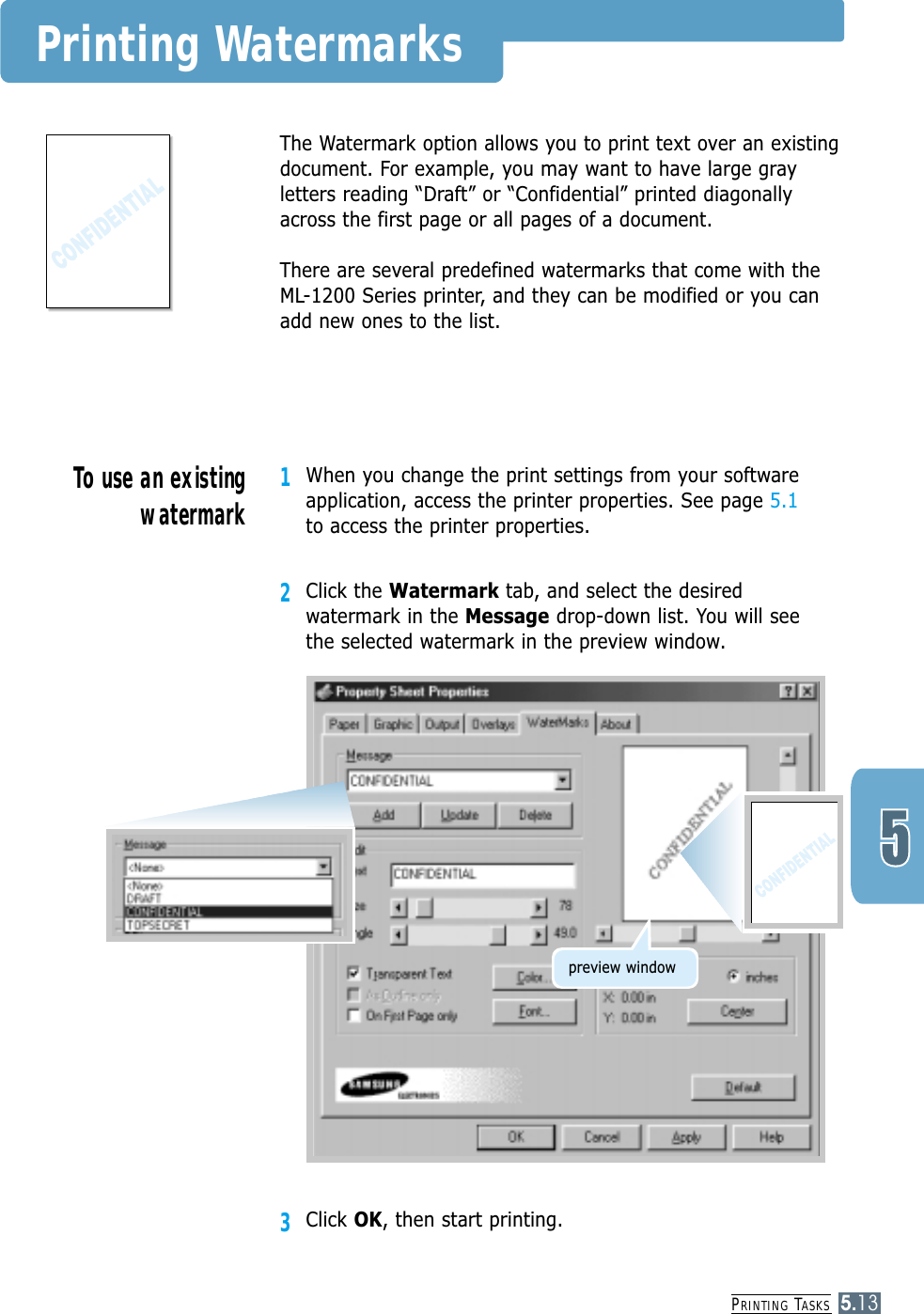

PRINTING TASKS5.13Printing WatermarksThe Watermark option allows you to print text over an existingdocument. For example, you may want to have large grayletters reading “Draft” or “Confidential” printed diagonallyacross the first page or all pages of a document.There are several predefined watermarks that come with theML-1200 Series printer, and they can be modified or you canadd new ones to the list.1When you change the print settings from your softwareapplication, access the printer properties. See page 5.1to access the printer properties.2Click the Watermark tab, and select the desiredwatermark in the Message drop-down list. You will see the selected watermark in the preview window.3Click OK, then start printing.To use an existingwatermarkpreview window

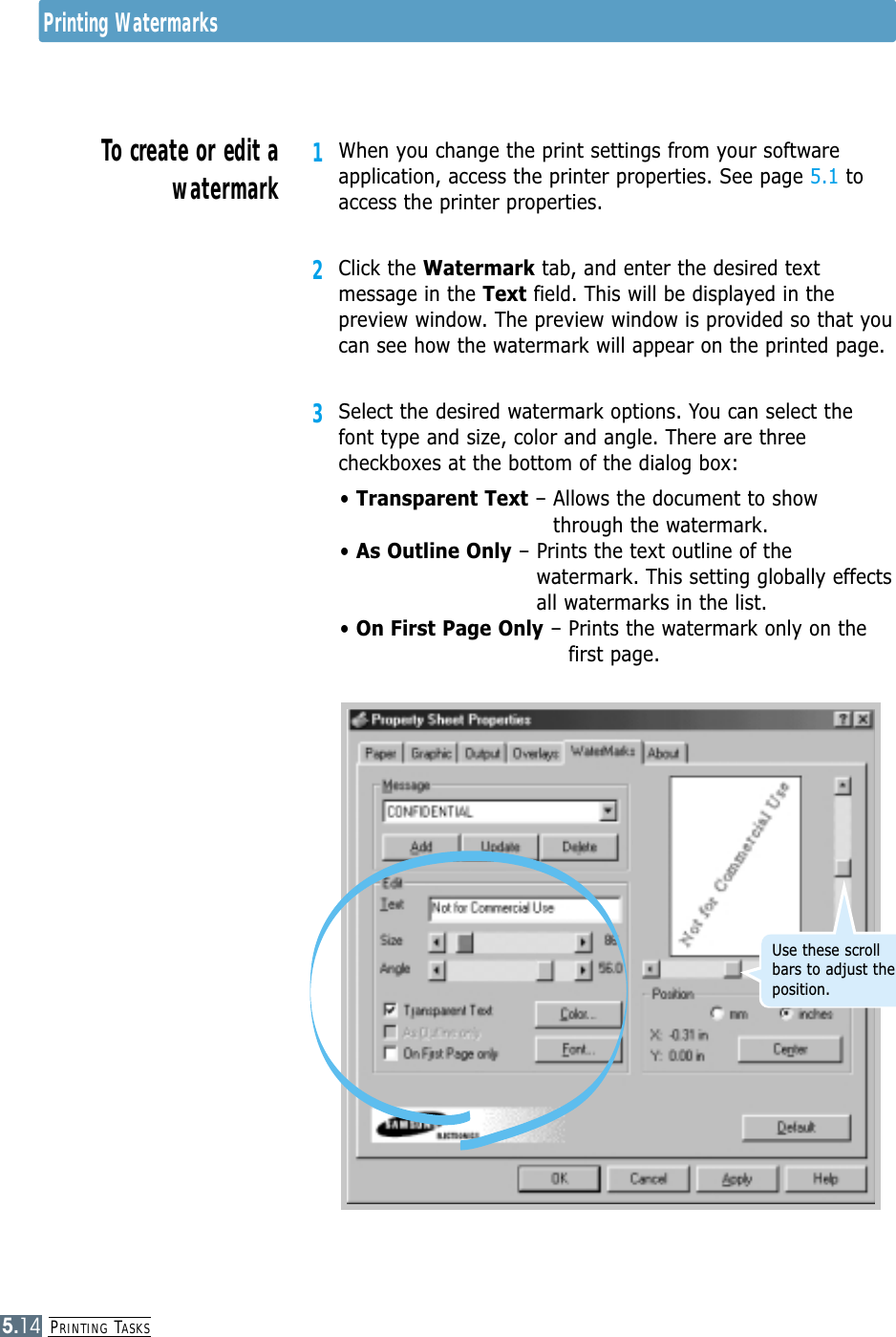

PRINTING TASKS5.141When you change the print settings from your softwareapplication, access the printer properties. See page 5.1 toaccess the printer properties.2Click the Watermark tab, and enter the desired textmessage in the Text field. This will be displayed in thepreview window. The preview window is provided so that youcan see how the watermark will appear on the printed page.3Select the desired watermark options. You can select thefont type and size, color and angle. There are threecheckboxes at the bottom of the dialog box:• Transparent Text – Allows the document to showthrough the watermark.• As Outline Only – Prints the text outline of thewatermark. This setting globally effectsall watermarks in the list.• On First Page Only – Prints the watermark only on the first page.To create or edit awatermarkPrinting WatermarksUse these scrollbars to adjust theposition.

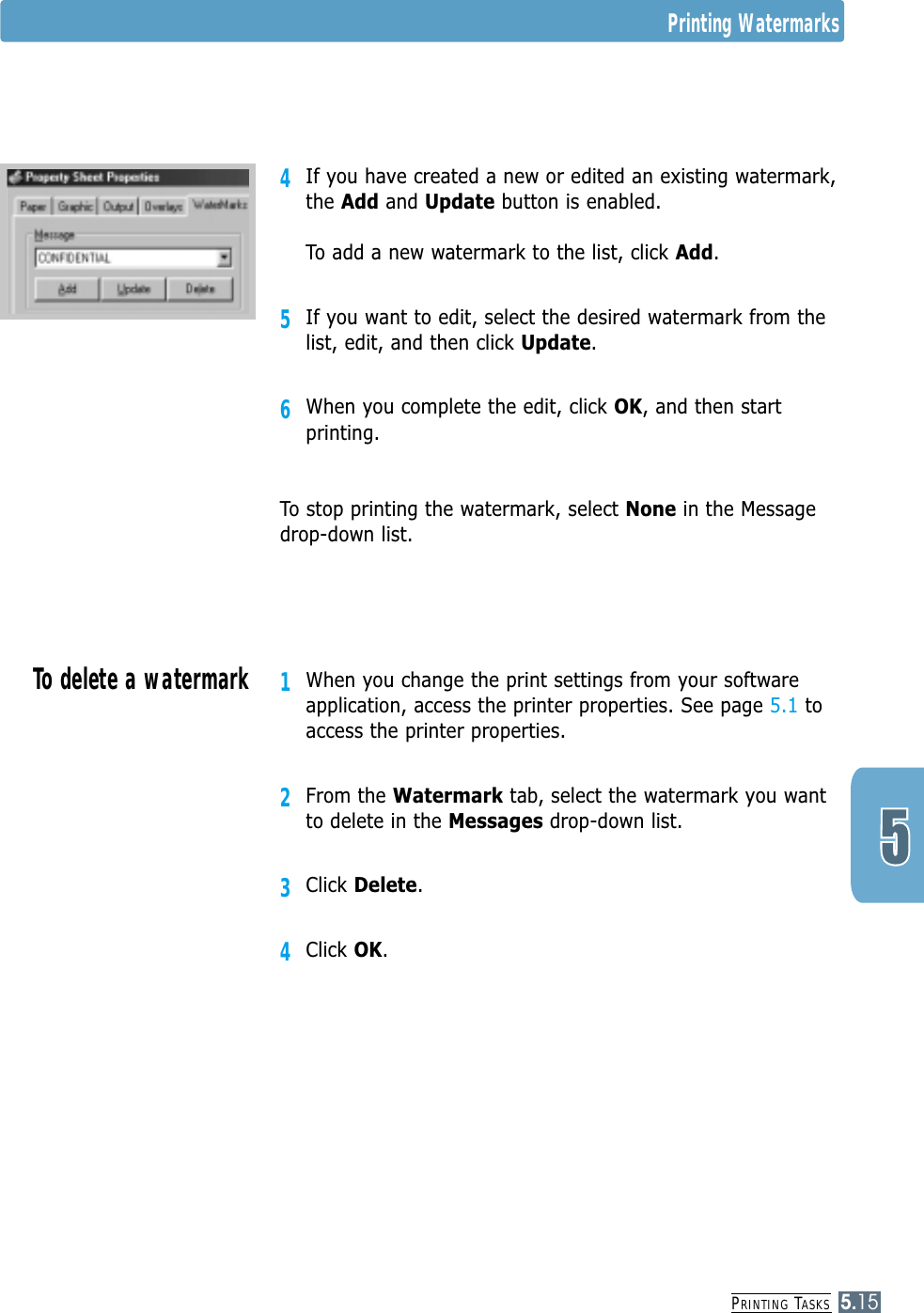

PRINTING TASKS5.154If you have created a new or edited an existing watermark,the Add and Update button is enabled.To add a new watermark to the list, click Add.5If you want to edit, select the desired watermark from thelist, edit, and then click Update. 6When you complete the edit, click OK, and then startprinting.To stop printing the watermark, select None in the Messagedrop-down list.1When you change the print settings from your softwareapplication, access the printer properties. See page 5.1 toaccess the printer properties.2From the Watermark tab, select the watermark you wantto delete in the Messages drop-down list. 3Click Delete.4Click OK.To delete a watermarkPrinting Watermarks

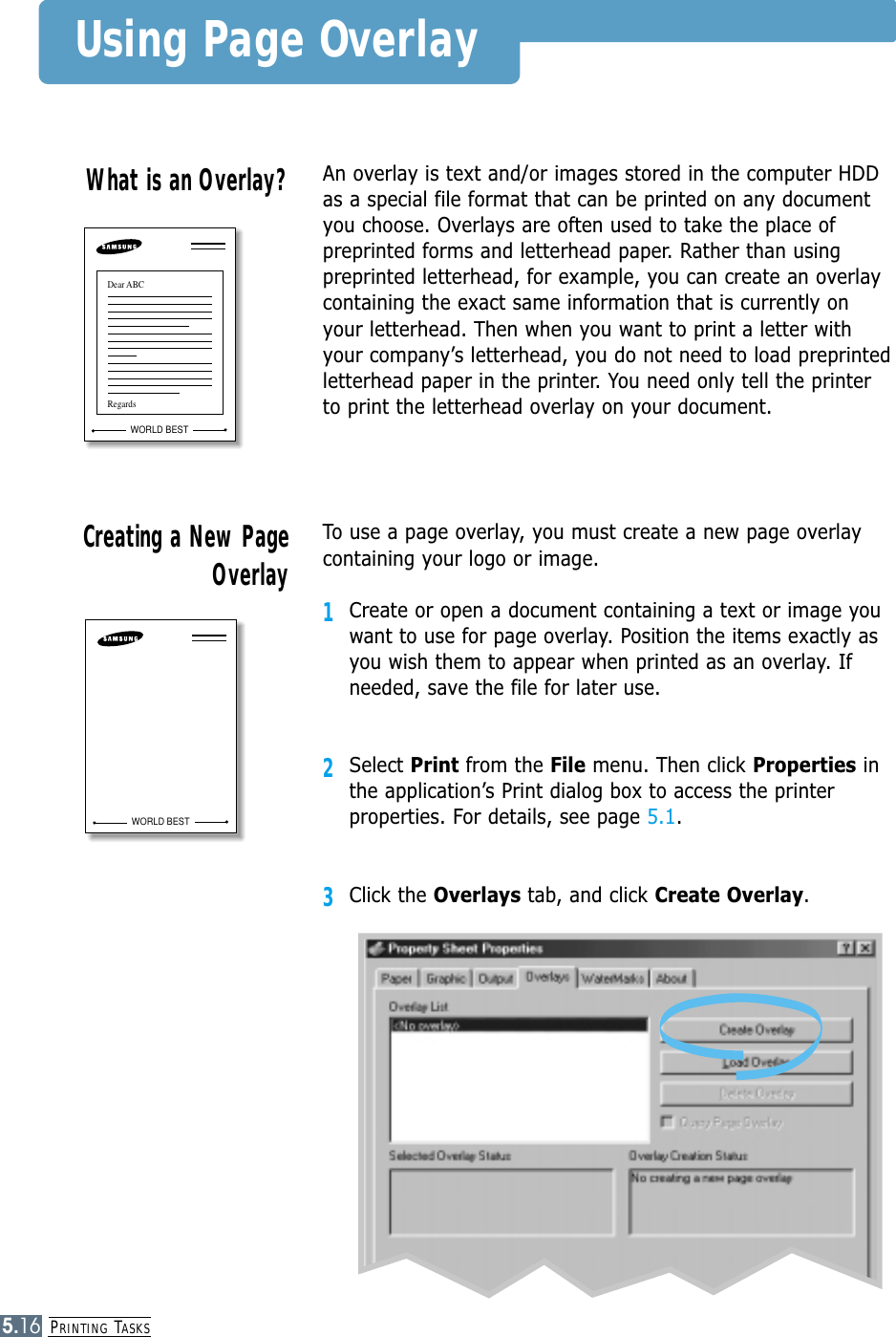

PRINTING TASKS5.16Using Page OverlayAn overlay is text and/or images stored in the computer HDDas a special file format that can be printed on any documentyou choose. Overlays are often used to take the place ofpreprinted forms and letterhead paper. Rather than usingpreprinted letterhead, for example, you can create an overlaycontaining the exact same information that is currently onyour letterhead. Then when you want to print a letter withyour company’s letterhead, you do not need to load preprintedletterhead paper in the printer. You need only tell the printerto print the letterhead overlay on your document.What is an Overlay?WORLD BESTDear ABCRegardsTo use a page overlay, you must create a new page overlaycontaining your logo or image.1Create or open a document containing a text or image youwant to use for page overlay. Position the items exactly asyou wish them to appear when printed as an overlay. Ifneeded, save the file for later use.2Select Print from the File menu. Then click Properties inthe application’s Print dialog box to access the printerproperties. For details, see page 5.1.3Click the Overlays tab, and click Create Overlay.Creating a New PageOverlayWORLD BEST

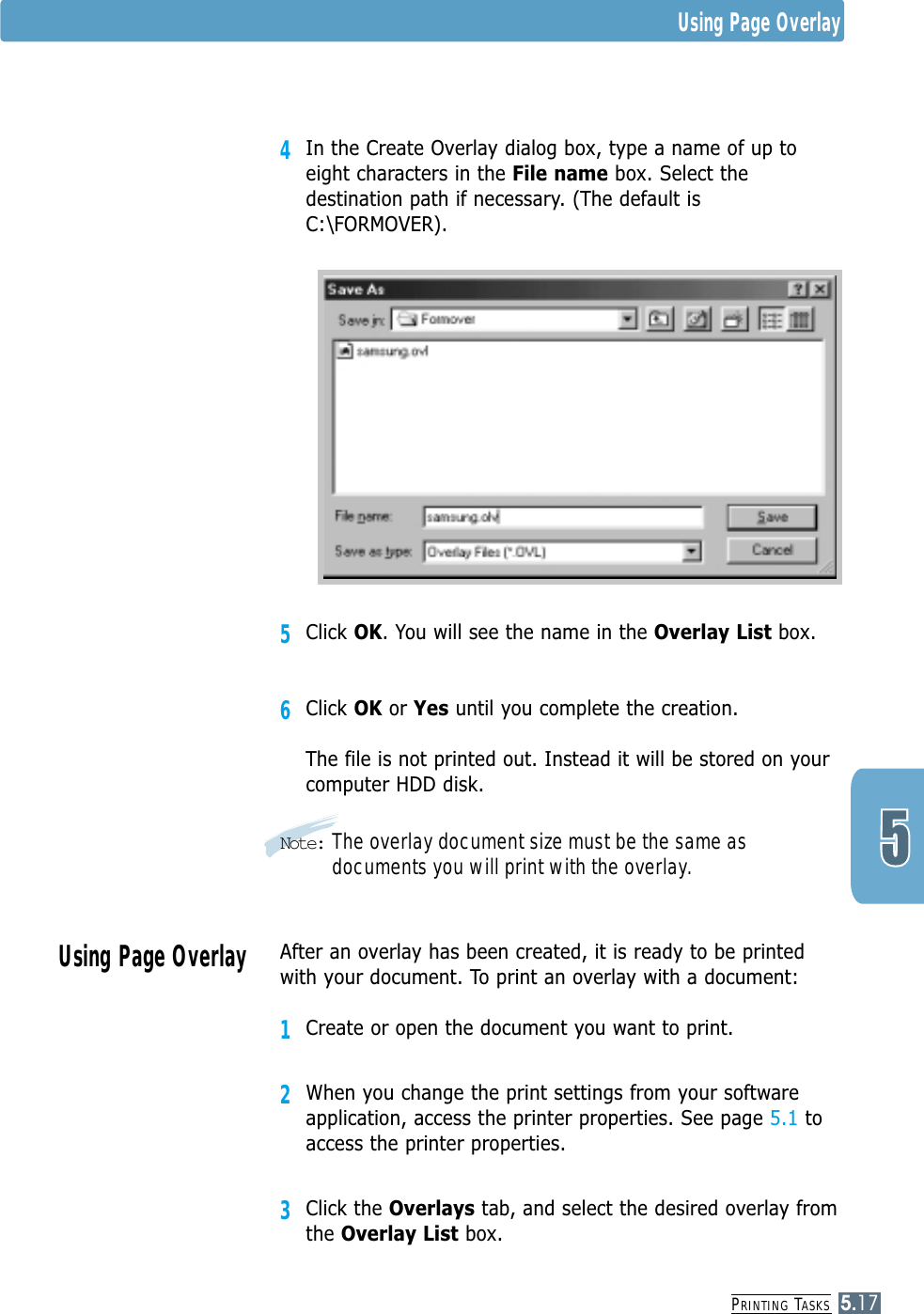

PRINTING TASKS5.174In the Create Overlay dialog box, type a name of up toeight characters in the File name box. Select thedestination path if necessary. (The default isC:\FORMOVER).5Click OK. You will see the name in the Overlay List box.6Click OK or Yes until you complete the creation. The file is not printed out. Instead it will be stored on yourcomputer HDD disk. Note: The overlay document size must be the same asdocuments you will print with the overlay.Using Page OverlayAfter an overlay has been created, it is ready to be printedwith your document. To print an overlay with a document:1Create or open the document you want to print. 2When you change the print settings from your softwareapplication, access the printer properties. See page 5.1 toaccess the printer properties.3Click the Overlays tab, and select the desired overlay fromthe Overlay List box. Using Page Overlay

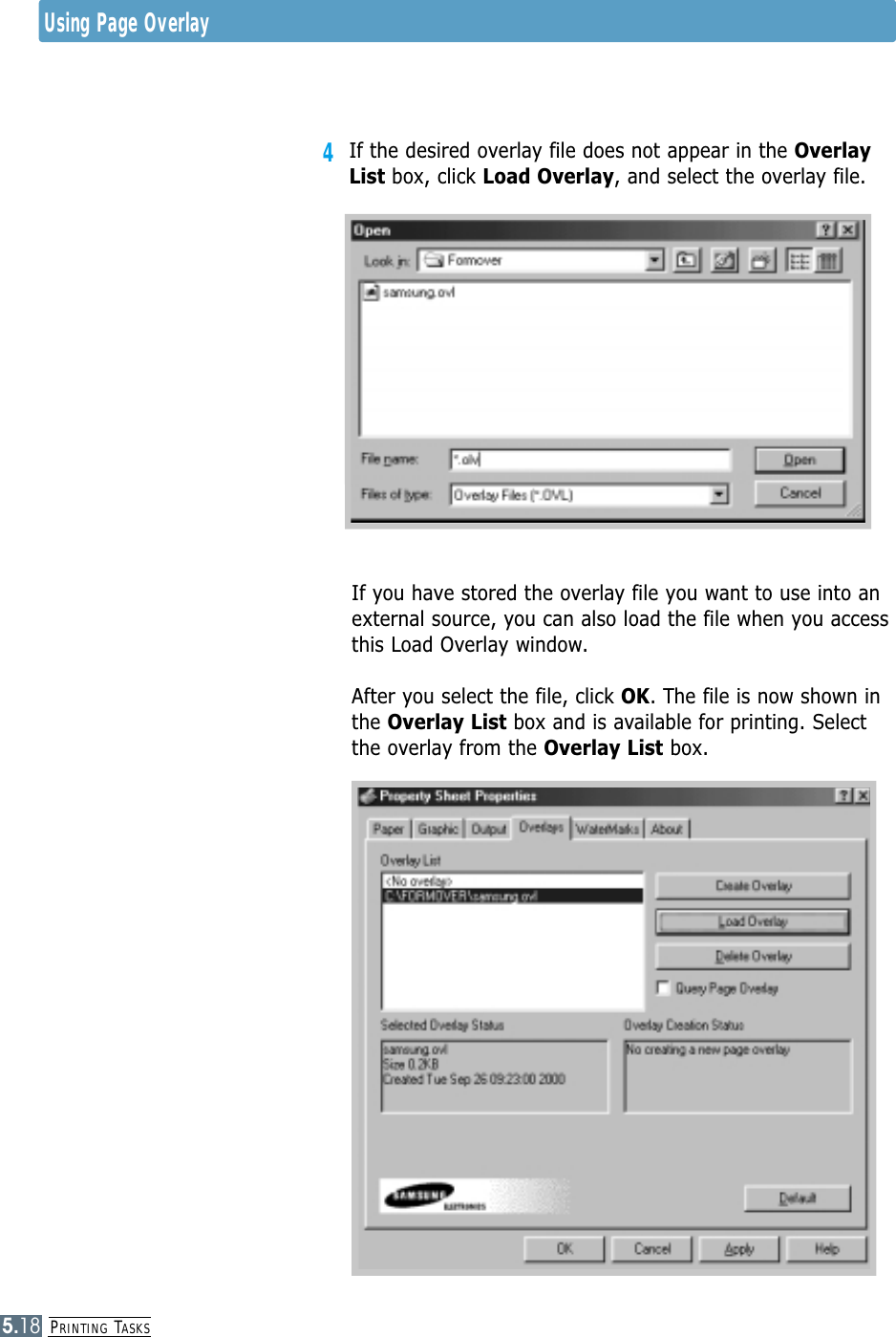

PRINTING TASKS5.18Using Page Overlay4If the desired overlay file does not appear in the OverlayList box, click Load Overlay, and select the overlay file. If you have stored the overlay file you want to use into anexternal source, you can also load the file when you accessthis Load Overlay window.After you select the file, click OK. The file is now shown inthe Overlay List box and is available for printing. Selectthe overlay from the Overlay List box.

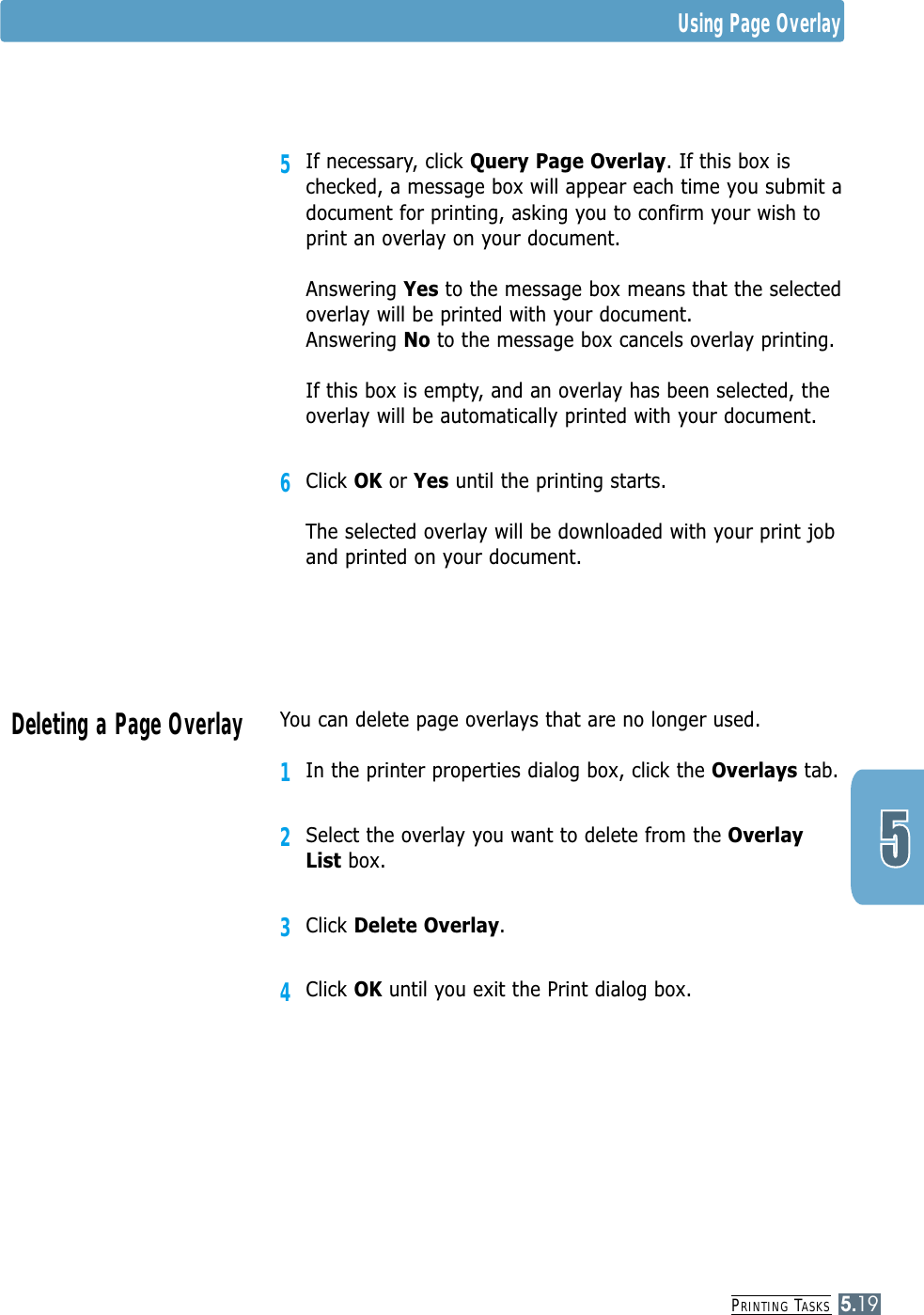

PRINTING TASKS5.19You can delete page overlays that are no longer used.1In the printer properties dialog box, click the Overlays tab.2Select the overlay you want to delete from the OverlayList box. 3Click Delete Overlay.4Click OK until you exit the Print dialog box.Deleting a Page Overlay5If necessary, click Query Page Overlay. If this box ischecked, a message box will appear each time you submit adocument for printing, asking you to confirm your wish toprint an overlay on your document. Answering Yes to the message box means that the selectedoverlay will be printed with your document.Answering No to the message box cancels overlay printing.If this box is empty, and an overlay has been selected, theoverlay will be automatically printed with your document.6Click OK or Yes until the printing starts.The selected overlay will be downloaded with your print joband printed on your document.Using Page Overlay
