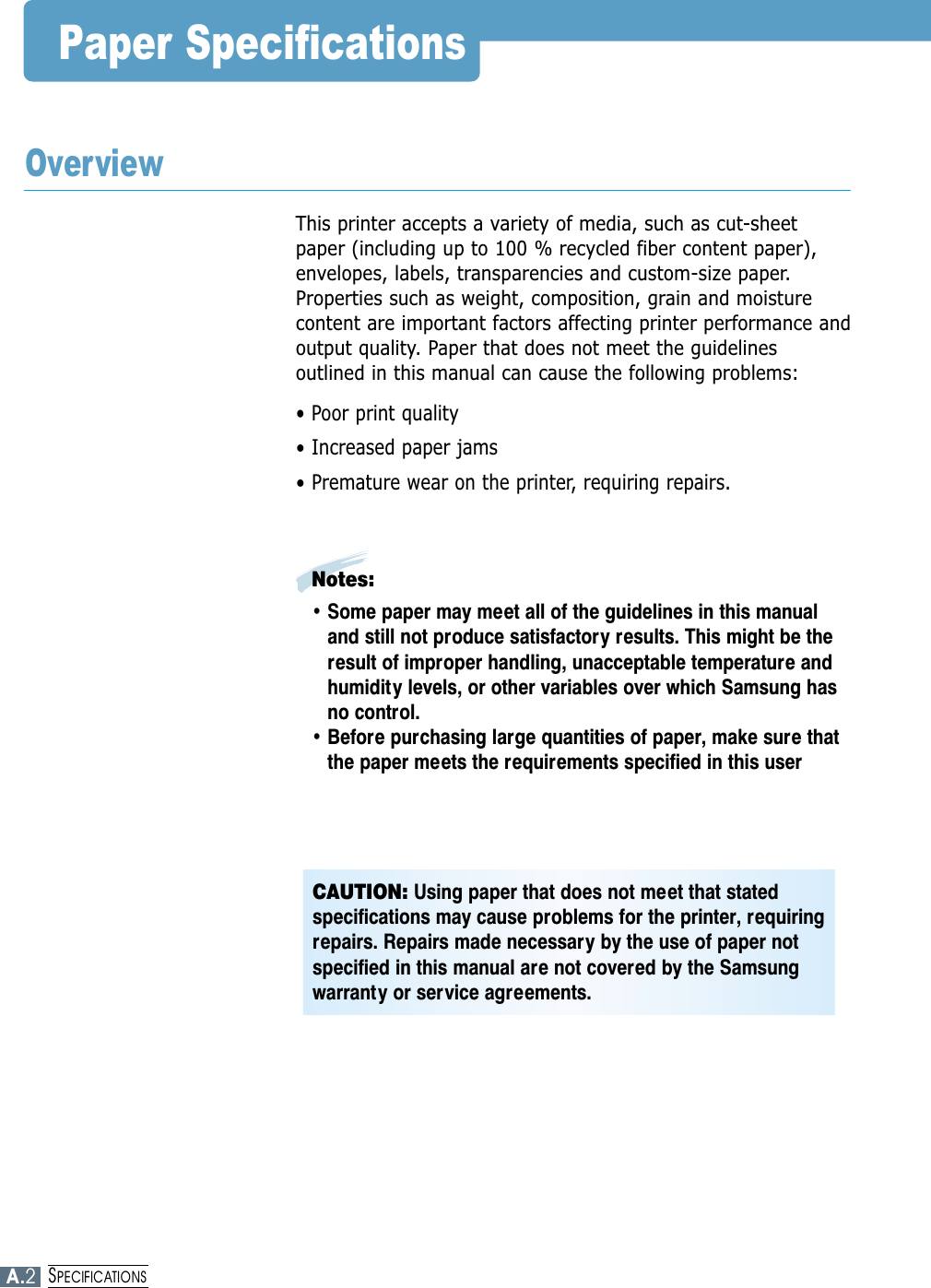

Paper SpecificationsThis printer accepts a variety of media, such as cut-sheetpaper (including up to 100 % recycled fiber content paper),envelopes, labels, transparencies and custom-size paper.Properties such as weight, composition, grain and moisturecontent are important factors affecting printer performance andoutput quality. Paper that does not meet the guidelinesoutlined in this manual can cause the following problems:• Poor print quality• Increased paper jams• Premature wear on the printer, requiring repairs.OverviewNotes: • Some paper may meet all of the guidelines in this manualand still not produce satisfactory results. This might be theresult of improper handling, unacceptable temperature andhumidity levels, or other variables over which Samsung hasno control.• Before purchasing large quantities of paper, make sure thatthe paper meets the requirements specified in this userCAUTION: Using paper that does not meet that statedspecifications may cause problems for the printer, requiringrepairs. Repairs made necessary by the use of paper notspecified in this manual are not covered by the Samsungwarranty or service agreements.A.2SPECIFICATIONS

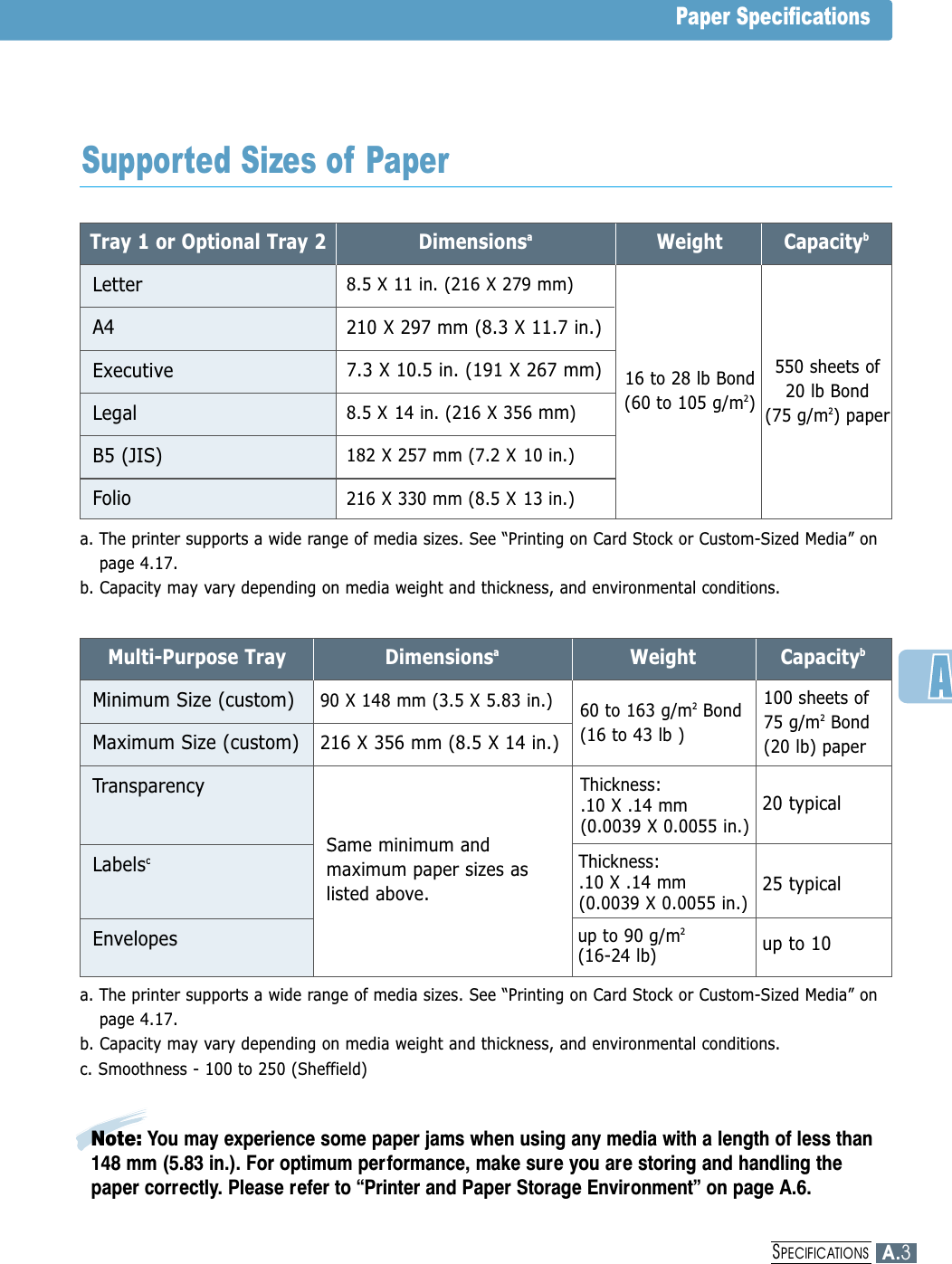

Tray 1 or Optional Tray 2LetterDimensionsa8.5 X 11 in. (216 X 279 mm)16 to 28 lb Bond (60 to 105 g/m2)550 sheets of20 lb Bond (75 g/m2) paperWeight CapacitybA4210 X 297 mm (8.3 X 11.7 in.)ExecutiveLegalB5 (JIS)Folio7.3 X 10.5 in. (191 X 267 mm)8.5 X 14 in. (216 X 356 mm)182 X 257 mm (7.2 X 10 in.)216 X 330 mm (8.5 X 13 in.)Multi-Purpose TrayMinimum Size (custom)Dimensionsa90 X 148 mm (3.5 X 5.83 in.) 60 to 163 g/m2Bond (16 to 43 lb )100 sheets of 75 g/m2Bond (20 lb) paperWeight CapacitybMaximum Size (custom)216 X 356 mm (8.5 X 14 in.)TransparencyLabelscEnvelopesSame minimum andmaximum paper sizes aslisted above.Thickness:.10 X .14 mm(0.0039 X 0.0055 in.)Thickness:.10 X .14 mm(0.0039 X 0.0055 in.)up to 90 g/m2(16-24 lb)20 typical25 typicalup to 10a. The printer supports a wide range of media sizes. See “Printing on Card Stock or Custom-Sized Media” onpage 4.17.b. Capacity may vary depending on media weight and thickness, and environmental conditions.a. The printer supports a wide range of media sizes. See “Printing on Card Stock or Custom-Sized Media” onpage 4.17.b. Capacity may vary depending on media weight and thickness, and environmental conditions.c. Smoothness - 100 to 250 (Sheffield)Supported Sizes of PaperNote: You may experience some paper jams when using any media with a length of less than148 mm (5.83 in.). For optimum performance, make sure you are storing and handling thepaper correctly. Please refer to “Printer and Paper Storage Environment” on page A.6.Paper SpecificationsA.3SPECIFICATIONS

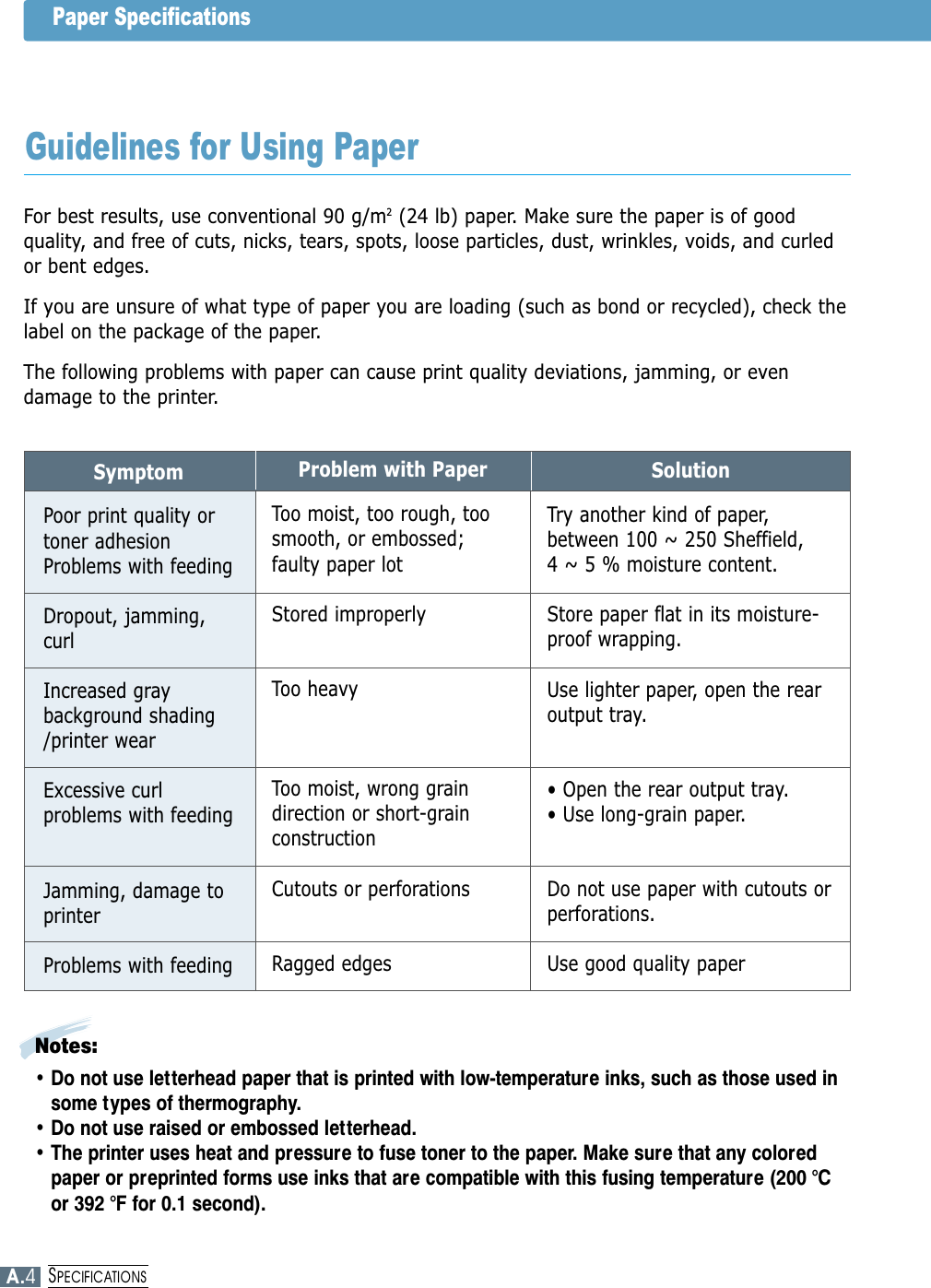

Paper SpecificationsFor best results, use conventional 90 g/m2(24 lb) paper. Make sure the paper is of goodquality, and free of cuts, nicks, tears, spots, loose particles, dust, wrinkles, voids, and curledor bent edges.If you are unsure of what type of paper you are loading (such as bond or recycled), check thelabel on the package of the paper.The following problems with paper can cause print quality deviations, jamming, or evendamage to the printer.SymptomPoor print quality ortoner adhesionProblems with feedingDropout, jamming,curlIncreased graybackground shading/printer wearExcessive curlproblems with feedingJamming, damage toprinterProblems with feedingProblem with PaperToo moist, too rough, toosmooth, or embossed;faulty paper lotStored improperlyToo heavyToo moist, wrong graindirection or short-grainconstructionCutouts or perforationsRagged edgesSolutionTry another kind of paper,between 100 ~ 250 Sheffield, 4 ~ 5 % moisture content.Store paper flat in its moisture-proof wrapping.Use lighter paper, open the rearoutput tray.• Open the rear output tray.• Use long-grain paper.Do not use paper with cutouts orperforations.Use good quality paperNotes: • Do not use letterhead paper that is printed with low-temperature inks, such as those used insome types of thermography.• Do not use raised or embossed letterhead.• The printer uses heat and pressure to fuse toner to the paper. Make sure that any coloredpaper or preprinted forms use inks that are compatible with this fusing temperature (200 °Cor 392 °F for 0.1 second).Guidelines for Using PaperA.4SPECIFICATIONS

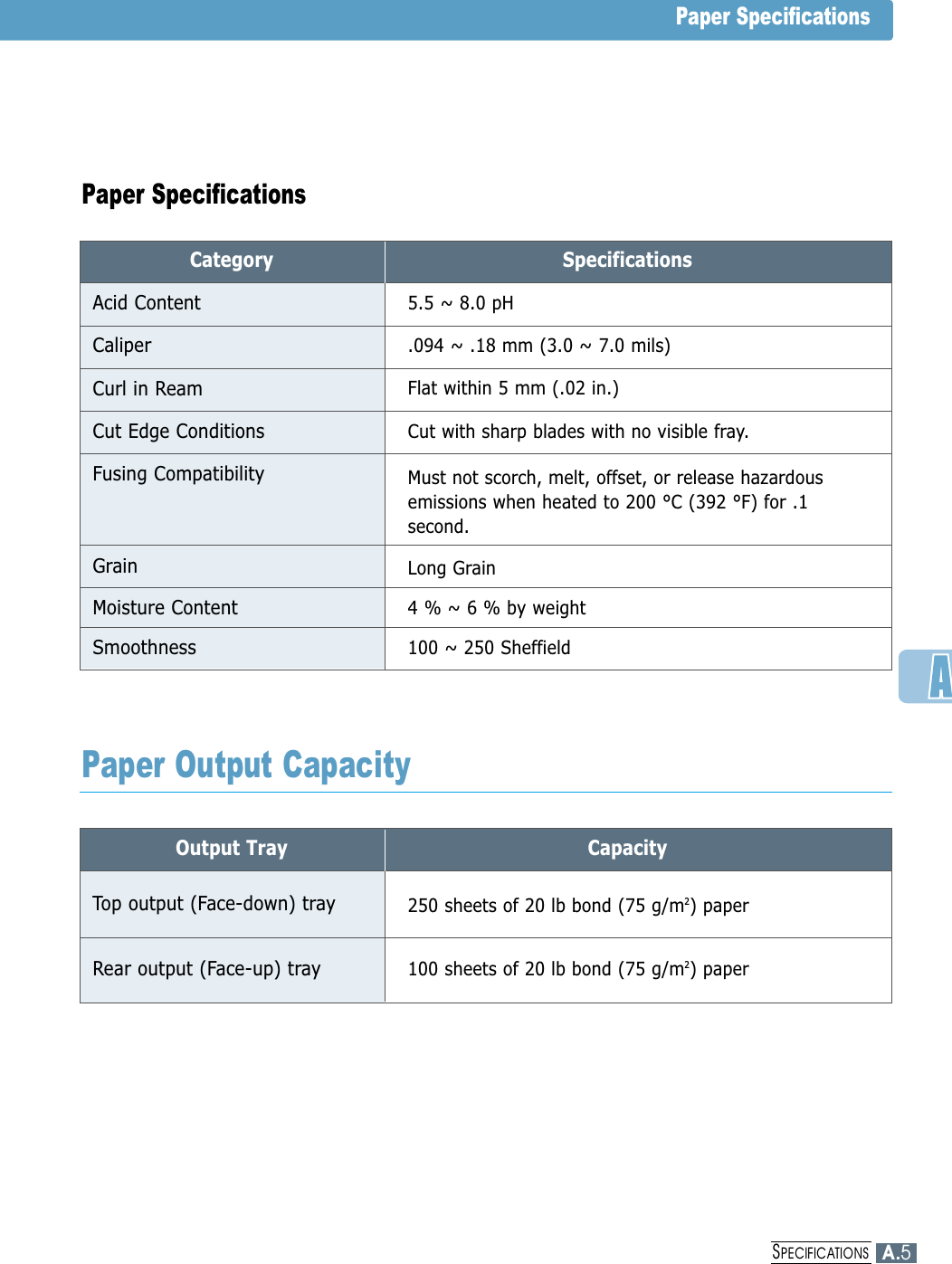

Paper SpecificationsCategoryAcid ContentSpecifications5.5 ~ 8.0 pHCaliper.094 ~ .18 mm (3.0 ~ 7.0 mils)Curl in ReamCut Edge ConditionsFusing CompatibilityGrainFlat within 5 mm (.02 in.)Cut with sharp blades with no visible fray.Moisture Content4 % ~ 6 % by weightSmoothness100 ~ 250 SheffieldMust not scorch, melt, offset, or release hazardousemissions when heated to 200 °C (392 °F) for .1second.Long GrainPaper SpecificationsOutput TrayTop output (Face-down) trayCapacity250 sheets of 20 lb bond (75 g/m2) paperRear output (Face-up) tray100 sheets of 20 lb bond (75 g/m2) paperPaper Output CapacityA.5SPECIFICATIONS

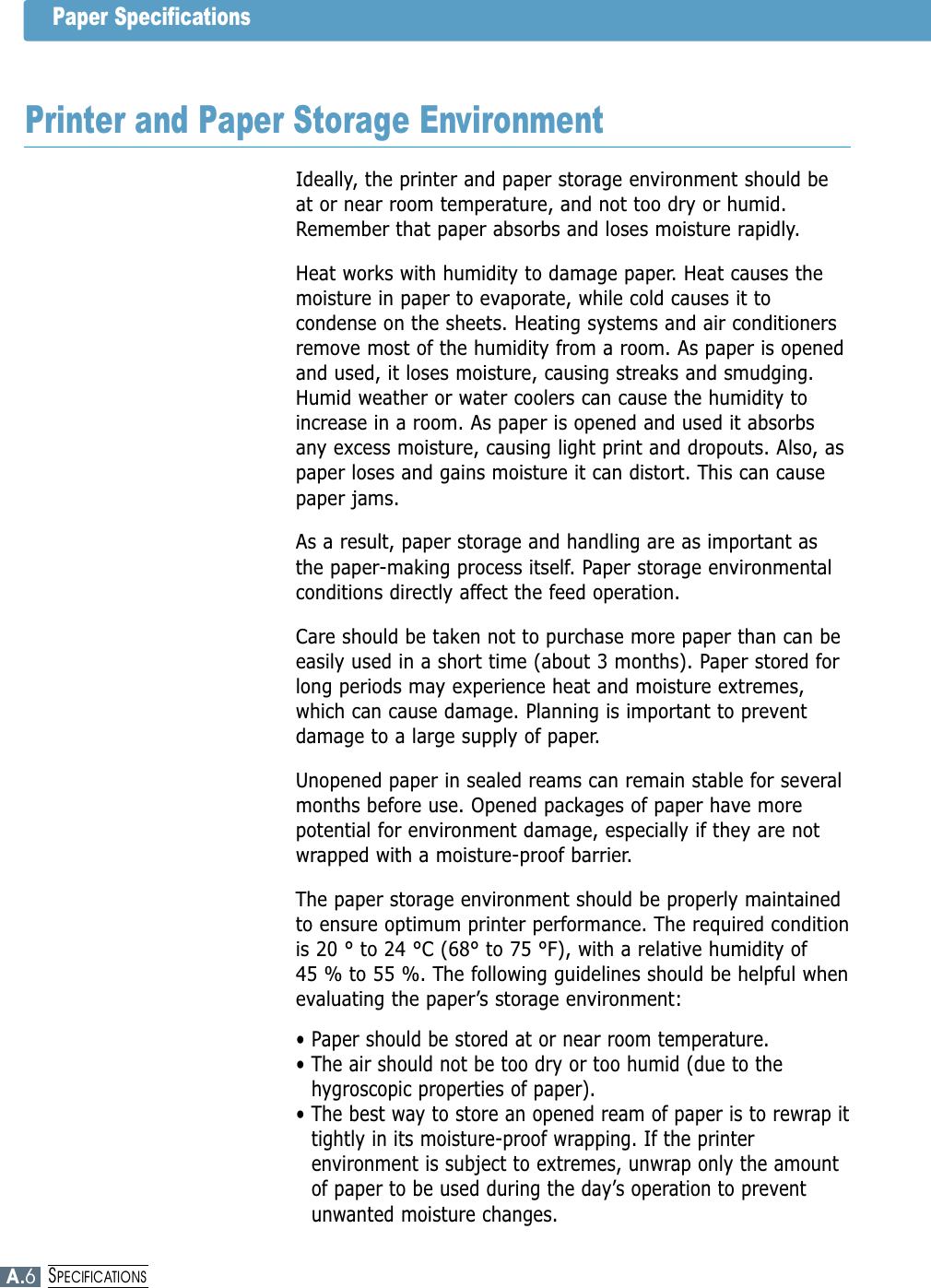

Ideally, the printer and paper storage environment should beat or near room temperature, and not too dry or humid.Remember that paper absorbs and loses moisture rapidly.Heat works with humidity to damage paper. Heat causes themoisture in paper to evaporate, while cold causes it tocondense on the sheets. Heating systems and air conditionersremove most of the humidity from a room. As paper is openedand used, it loses moisture, causing streaks and smudging.Humid weather or water coolers can cause the humidity toincrease in a room. As paper is opened and used it absorbsany excess moisture, causing light print and dropouts. Also, aspaper loses and gains moisture it can distort. This can causepaper jams.As a result, paper storage and handling are as important asthe paper-making process itself. Paper storage environmentalconditions directly affect the feed operation.Care should be taken not to purchase more paper than can beeasily used in a short time (about 3 months). Paper stored forlong periods may experience heat and moisture extremes,which can cause damage. Planning is important to preventdamage to a large supply of paper.Unopened paper in sealed reams can remain stable for severalmonths before use. Opened packages of paper have morepotential for environment damage, especially if they are notwrapped with a moisture-proof barrier.The paper storage environment should be properly maintainedto ensure optimum printer performance. The required conditionis 20 ° to 24 °C (68° to 75 °F), with a relative humidity of 45 % to 55 %. The following guidelines should be helpful whenevaluating the paper’s storage environment:• Paper should be stored at or near room temperature.• The air should not be too dry or too humid (due to thehygroscopic properties of paper).• The best way to store an opened ream of paper is to rewrap ittightly in its moisture-proof wrapping. If the printerenvironment is subject to extremes, unwrap only the amountof paper to be used during the day’s operation to preventunwanted moisture changes.Paper SpecificationsPrinter and Paper Storage EnvironmentA.6SPECIFICATIONS

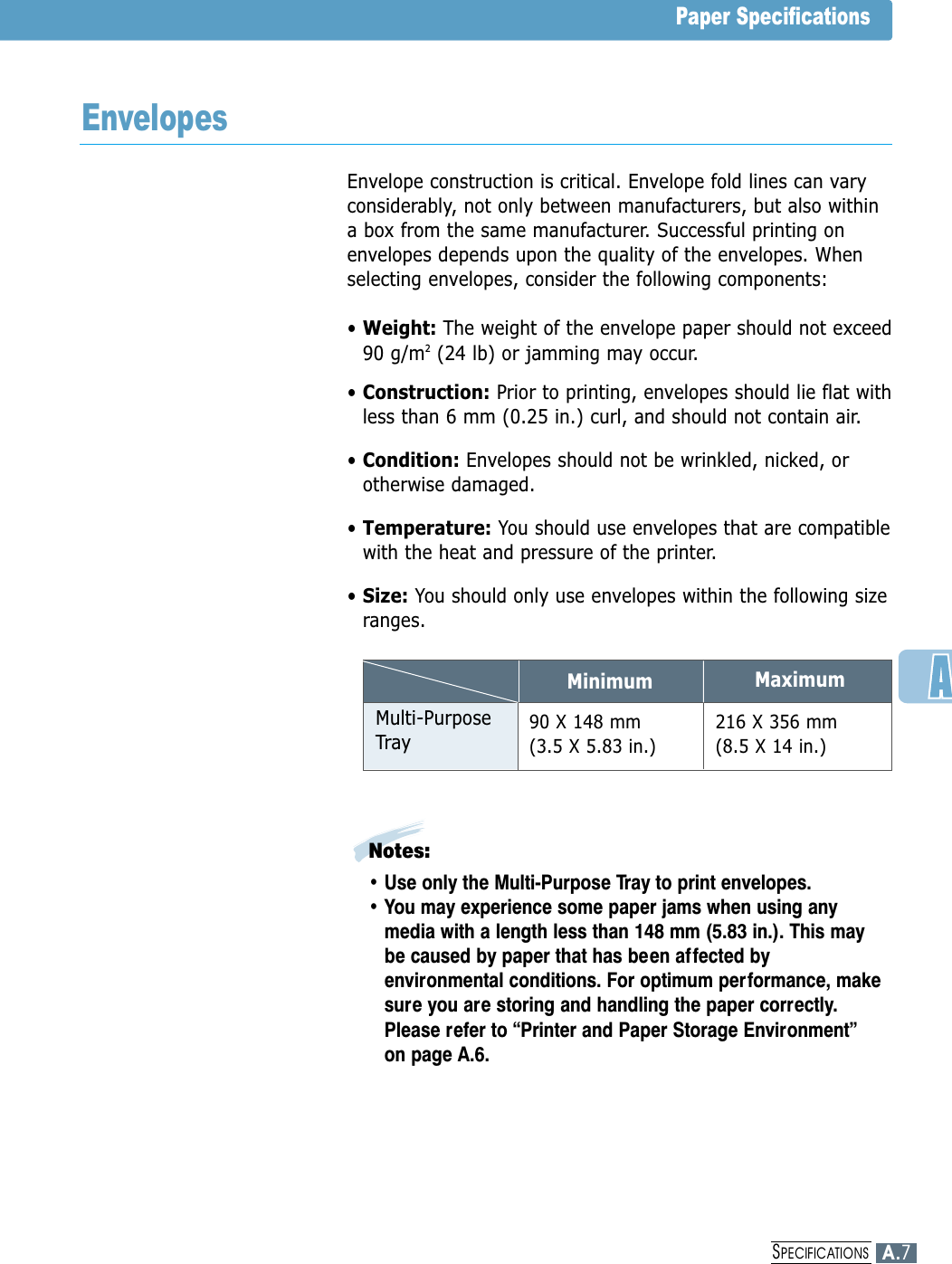

Envelope construction is critical. Envelope fold lines can varyconsiderably, not only between manufacturers, but also withina box from the same manufacturer. Successful printing onenvelopes depends upon the quality of the envelopes. Whenselecting envelopes, consider the following components:• Weight: The weight of the envelope paper should not exceed90 g/m2(24 lb) or jamming may occur.• Construction: Prior to printing, envelopes should lie flat withless than 6 mm (0.25 in.) curl, and should not contain air.• Condition: Envelopes should not be wrinkled, nicked, orotherwise damaged.• Temperature: You should use envelopes that are compatiblewith the heat and pressure of the printer.• Size: You should only use envelopes within the following sizeranges.MinimumMulti-PurposeTrayMaximum216 X 356 mm(8.5 X 14 in.)90 X 148 mm(3.5 X 5.83 in.)Notes:• Use only the Multi-Purpose Tray to print envelopes.• You may experience some paper jams when using anymedia with a length less than 148 mm (5.83 in.). This maybe caused by paper that has been af fected byenvironmental conditions. For optimum performance, makesure you are storing and handling the paper correctly.Please refer to “Printer and Paper Storage Environment”on page A.6.Paper SpecificationsEnvelopesA.7SPECIFICATIONS

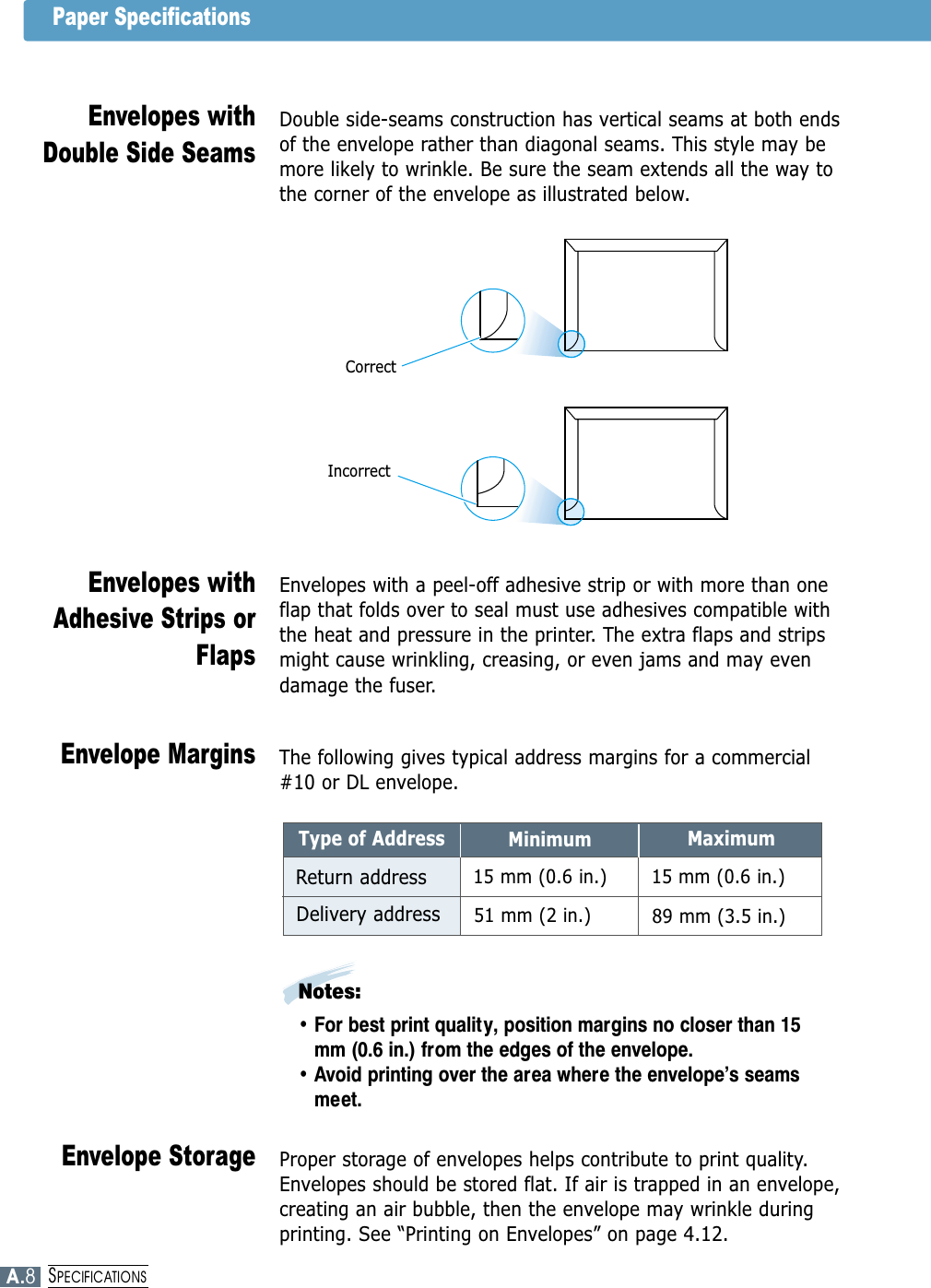

Double side-seams construction has vertical seams at both endsof the envelope rather than diagonal seams. This style may bemore likely to wrinkle. Be sure the seam extends all the way tothe corner of the envelope as illustrated below.Envelopes withDouble Side SeamsEnvelopes with a peel-off adhesive strip or with more than oneflap that folds over to seal must use adhesives compatible withthe heat and pressure in the printer. The extra flaps and stripsmight cause wrinkling, creasing, or even jams and may evendamage the fuser.Envelopes withAdhesive Strips orFlapsThe following gives typical address margins for a commercial#10 or DL envelope.Envelope MarginsProper storage of envelopes helps contribute to print quality.Envelopes should be stored flat. If air is trapped in an envelope,creating an air bubble, then the envelope may wrinkle duringprinting. See “Printing on Envelopes” on page 4.12.Envelope StorageCorrectIncorrectMinimumType of AddressReturn addressDelivery addressMaximum15 mm (0.6 in.)15 mm (0.6 in.)89 mm (3.5 in.)51 mm (2 in.)Notes: • For best print quality, position margins no closer than 15mm (0.6 in.) from the edges of the envelope.• Avoid printing over the area where the envelope’s seamsmeet.Paper SpecificationsA.8SPECIFICATIONS

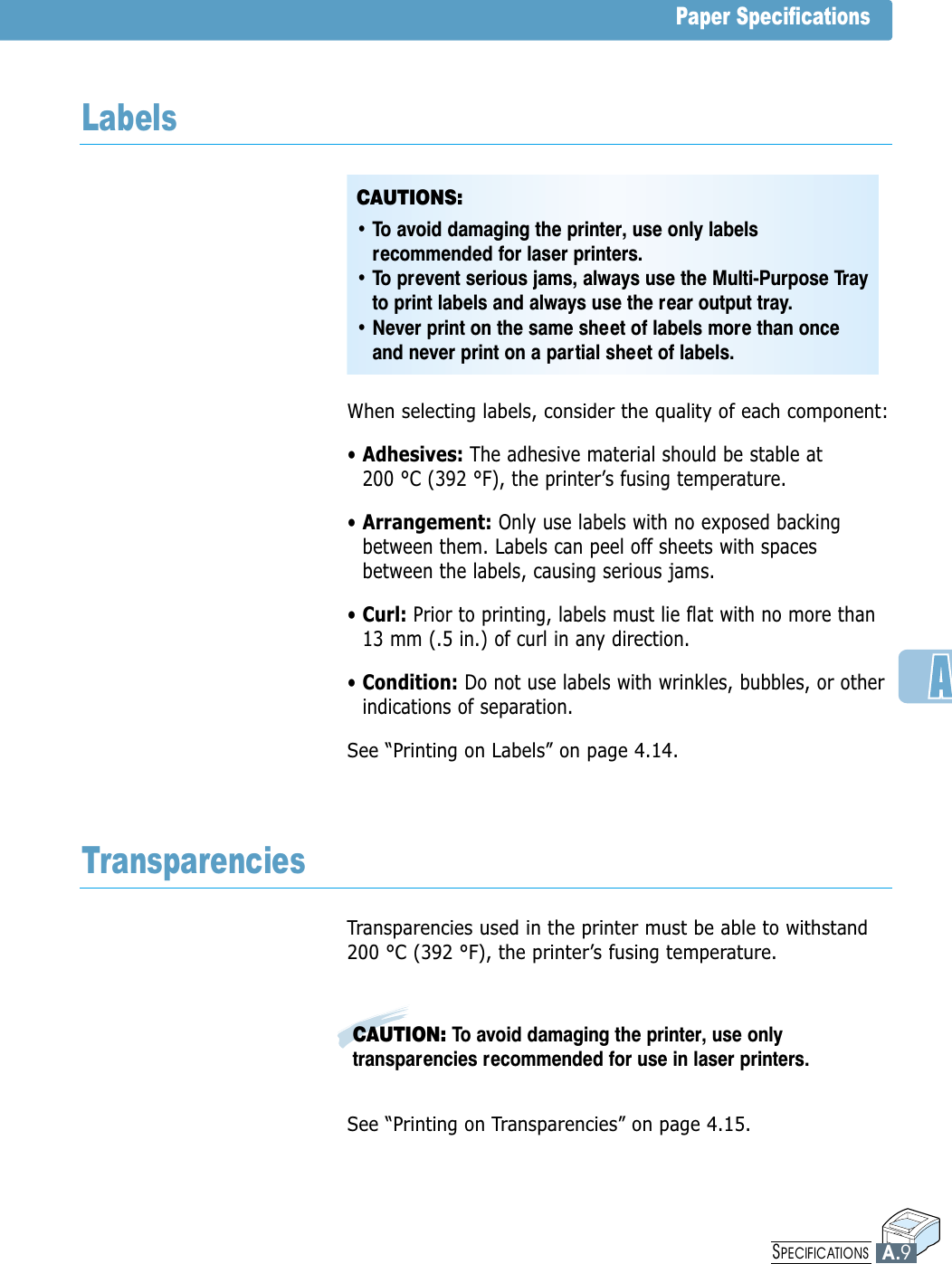

When selecting labels, consider the quality of each component:• Adhesives: The adhesive material should be stable at 200 °C (392 °F), the printer’s fusing temperature.• Arrangement: Only use labels with no exposed backingbetween them. Labels can peel off sheets with spacesbetween the labels, causing serious jams.• Curl: Prior to printing, labels must lie flat with no more than13 mm (.5 in.) of curl in any direction.• Condition: Do not use labels with wrinkles, bubbles, or otherindications of separation.See “Printing on Labels” on page 4.14.Transparencies used in the printer must be able to withstand200 °C (392 °F), the printer’s fusing temperature.See “Printing on Transparencies” on page 4.15.CAUTION: To avoid damaging the printer, use onlytransparencies recommended for use in laser printers.CAUTIONS: • To avoid damaging the printer, use only labelsrecommended for laser printers.• To prevent serious jams, always use the Multi-Purpose Trayto print labels and always use the rear output tray.• Never print on the same sheet of labels more than onceand never print on a partial sheet of labels.Paper SpecificationsLabelsTransparenciesA.9SPECIFICATIONS
AppendixIf you have a USB (Universal Serial Bus) port enabled on yourcomputer, and if your computer is running Windows 98, youcan connect your ML-1650 series printer to the USB chain ofdevices.This appendix provides information on the following topics:◆Installing the Printer Software◆Frequently Asked Questions About USBBBUsing Your Printerwith a USB CableUsing Your Printerwith a USB Cable

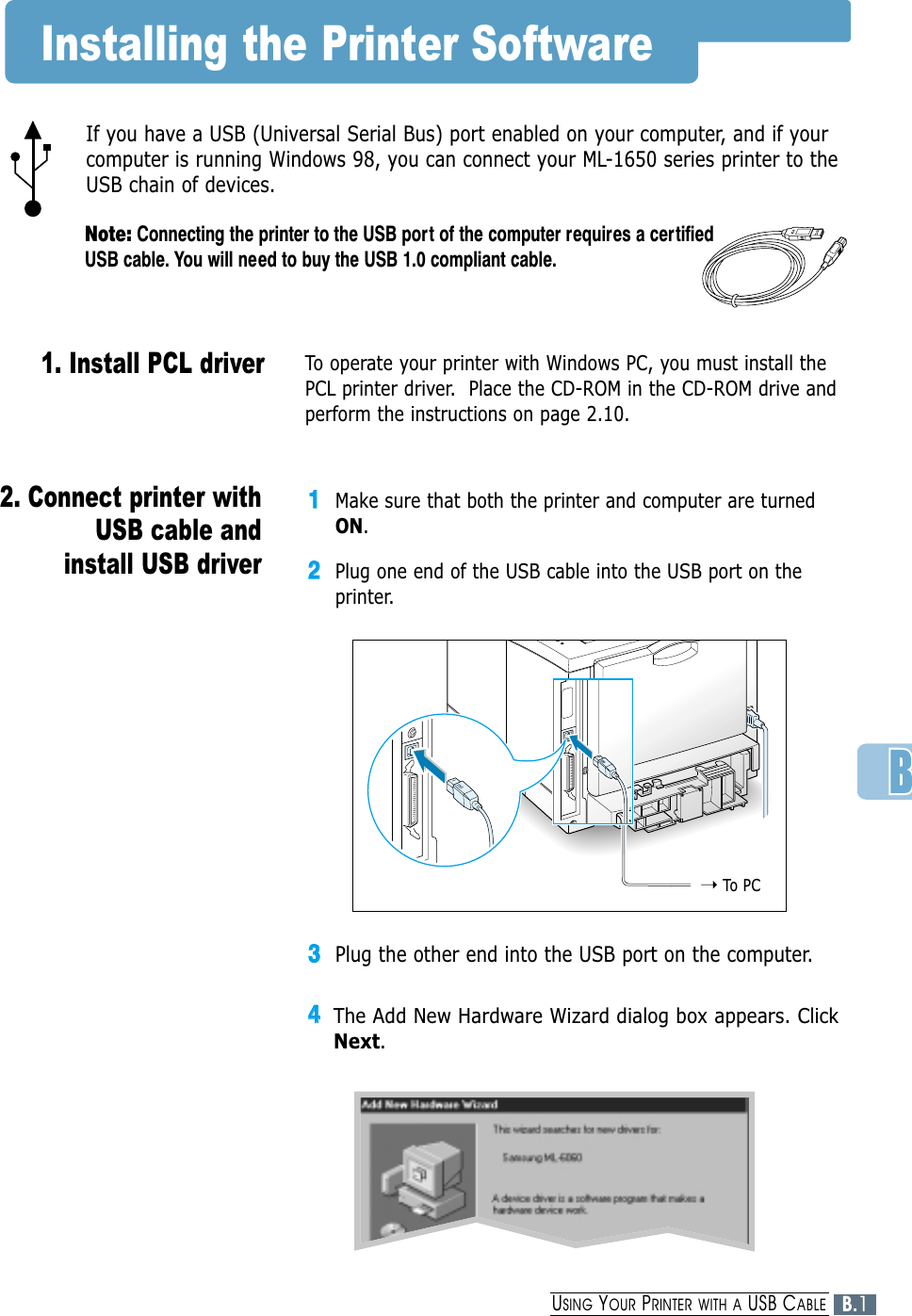

If you have a USB (Universal Serial Bus) port enabled on your computer, and if yourcomputer is running Windows 98, you can connect your ML-1650 series printer to theUSB chain of devices.Note: Connecting the printer to the USB port of the computer requires a certifiedUSB cable. You will need to buy the USB 1.0 compliant cable.➝To PCInstalling the Printer SoftwareTo operate your printer with Windows PC, you must install thePCL printer driver. Place the CD-ROM in the CD-ROM drive andperform the instructions on page 2.10.11Make sure that both the printer and computer are turnedON.22Plug one end of the USB cable into the USB port on theprinter.33Plug the other end into the USB port on the computer.44The Add New Hardware Wizard dialog box appears. ClickNext.2. Connect printer withUSB cable andinstall USB driver1. Install PCL driver B.1USING YOUR PRINTER WITH A USB CABLE

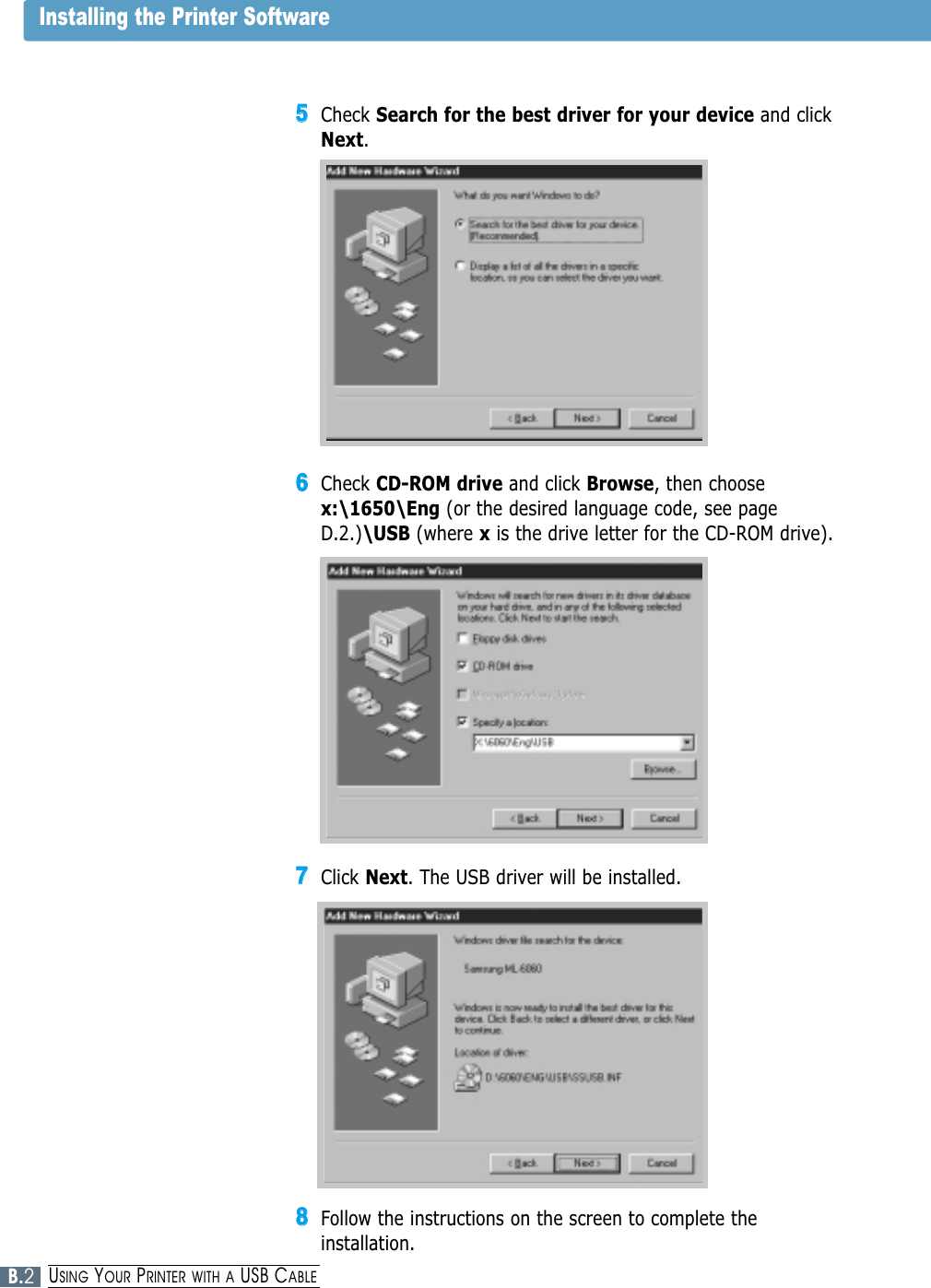

55Check Search for the best driver for your device and clickNext.66Check CD-ROM drive and click Browse, then choosex:\1650\Eng (or the desired language code, see pageD.2.)\USB (where xis the drive letter for the CD-ROM drive).77Click Next. The USB driver will be installed. 88Follow the instructions on the screen to complete theinstallation.Installing the Printer SoftwareB.2USING YOUR PRINTER WITH A USB CABLE

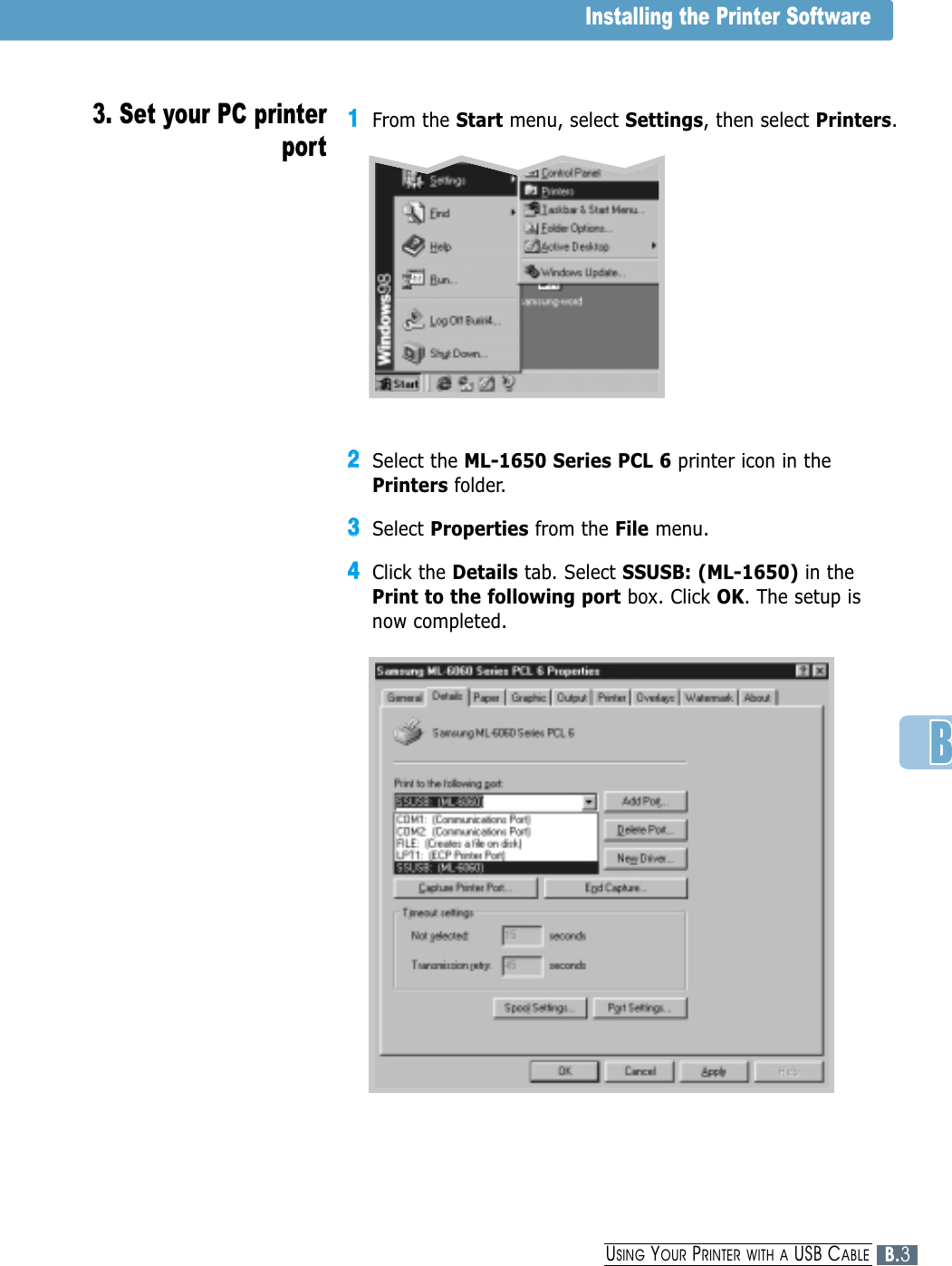

11From the Start menu, select Settings, then select Printers.22Select the ML-1650 Series PCL 6 printer icon in thePrinters folder.33Select Properties from the File menu.44Click the Details tab. Select SSUSB: (ML-1650) in thePrint to the following port box. Click OK. The setup isnow completed.Installing the Printer Software3. Set your PC printerportB.3USING YOUR PRINTER WITH A USB CABLE

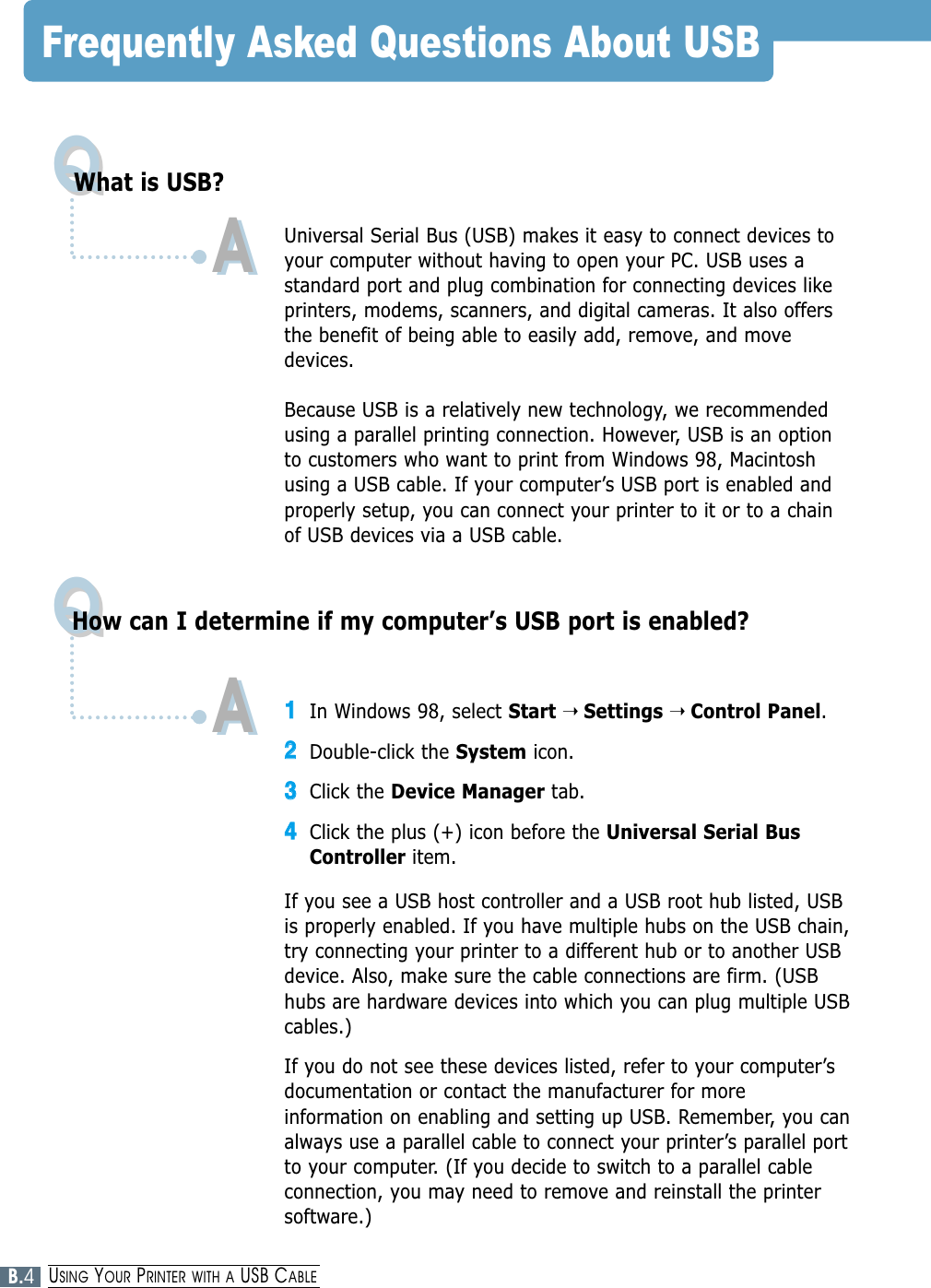

Frequently Asked Questions About USBQQQQWhat is USB?How can I determine if my computer’s USB port is enabled?AAUniversal Serial Bus (USB) makes it easy to connect devices toyour computer without having to open your PC. USB uses astandard port and plug combination for connecting devices likeprinters, modems, scanners, and digital cameras. It also offersthe benefit of being able to easily add, remove, and movedevices.Because USB is a relatively new technology, we recommendedusing a parallel printing connection. However, USB is an optionto customers who want to print from Windows 98, Macintoshusing a USB cable. If your computer’s USB port is enabled andproperly setup, you can connect your printer to it or to a chainof USB devices via a USB cable.11In Windows 98, select Start ➝ Settings ➝ Control Panel.22Double-click the System icon.33Click the Device Manager tab.44Click the plus (+) icon before the Universal Serial BusController item.If you see a USB host controller and a USB root hub listed, USBis properly enabled. If you have multiple hubs on the USB chain,try connecting your printer to a different hub or to another USBdevice. Also, make sure the cable connections are firm. (USBhubs are hardware devices into which you can plug multiple USBcables.)If you do not see these devices listed, refer to your computer’sdocumentation or contact the manufacturer for moreinformation on enabling and setting up USB. Remember, you canalways use a parallel cable to connect your printer’s parallel portto your computer. (If you decide to switch to a parallel cableconnection, you may need to remove and reinstall the printersoftware.)AAB.4USING YOUR PRINTER WITH A USB CABLE

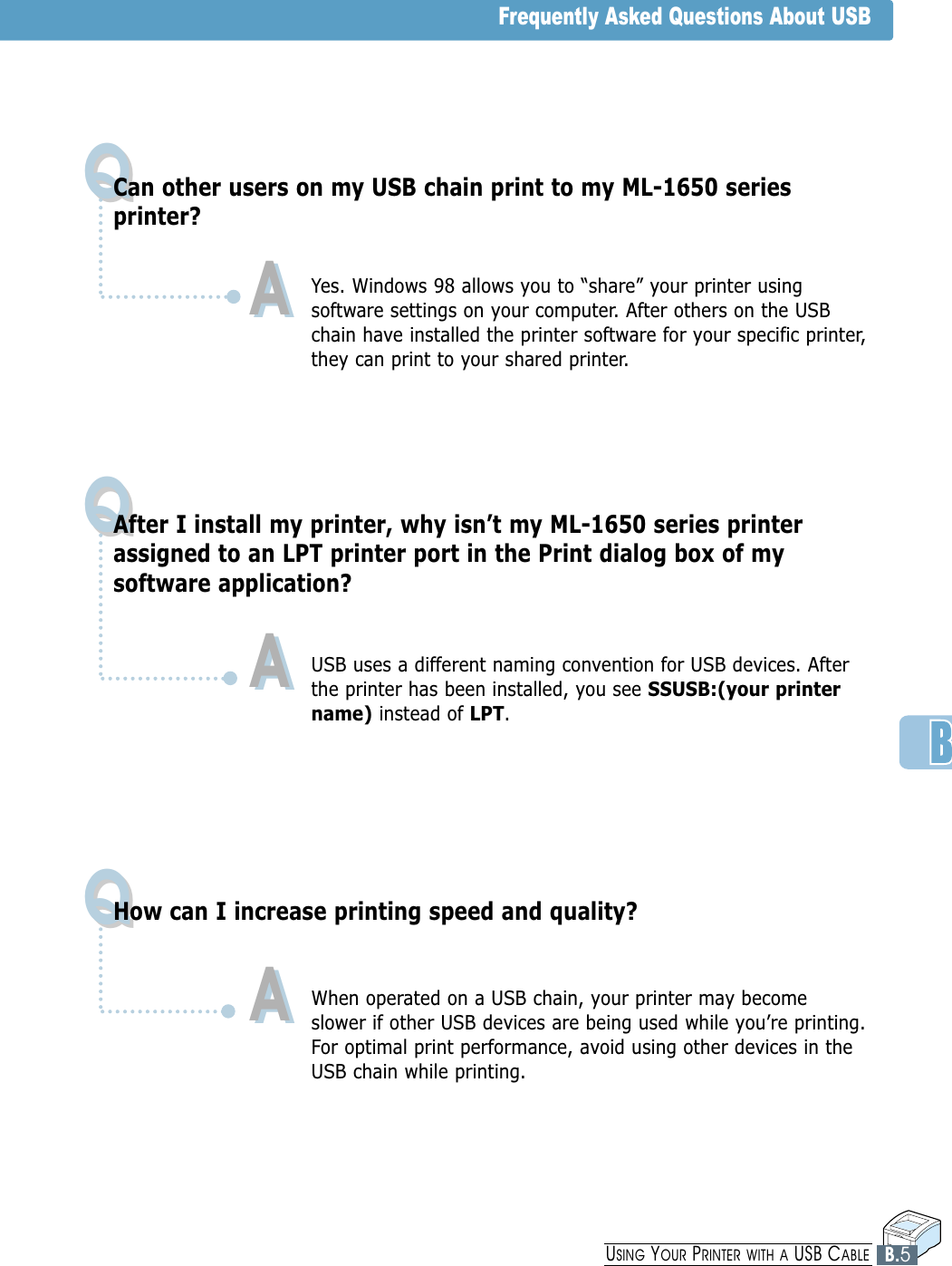

QQQQQQCan other users on my USB chain print to my ML-1650 seriesprinter?Yes. Windows 98 allows you to “share” your printer usingsoftware settings on your computer. After others on the USBchain have installed the printer software for your specific printer,they can print to your shared printer. After I install my printer, why isn’t my ML-1650 series printerassigned to an LPT printer port in the Print dialog box of mysoftware application?USB uses a different naming convention for USB devices. Afterthe printer has been installed, you see SSUSB:(your printername) instead of LPT.How can I increase printing speed and quality?When operated on a USB chain, your printer may becomeslower if other USB devices are being used while you’re printing.For optimal print performance, avoid using other devices in theUSB chain while printing.AAAAAAFrequently Asked Questions About USBB.5USING YOUR PRINTER WITH A USB CABLE

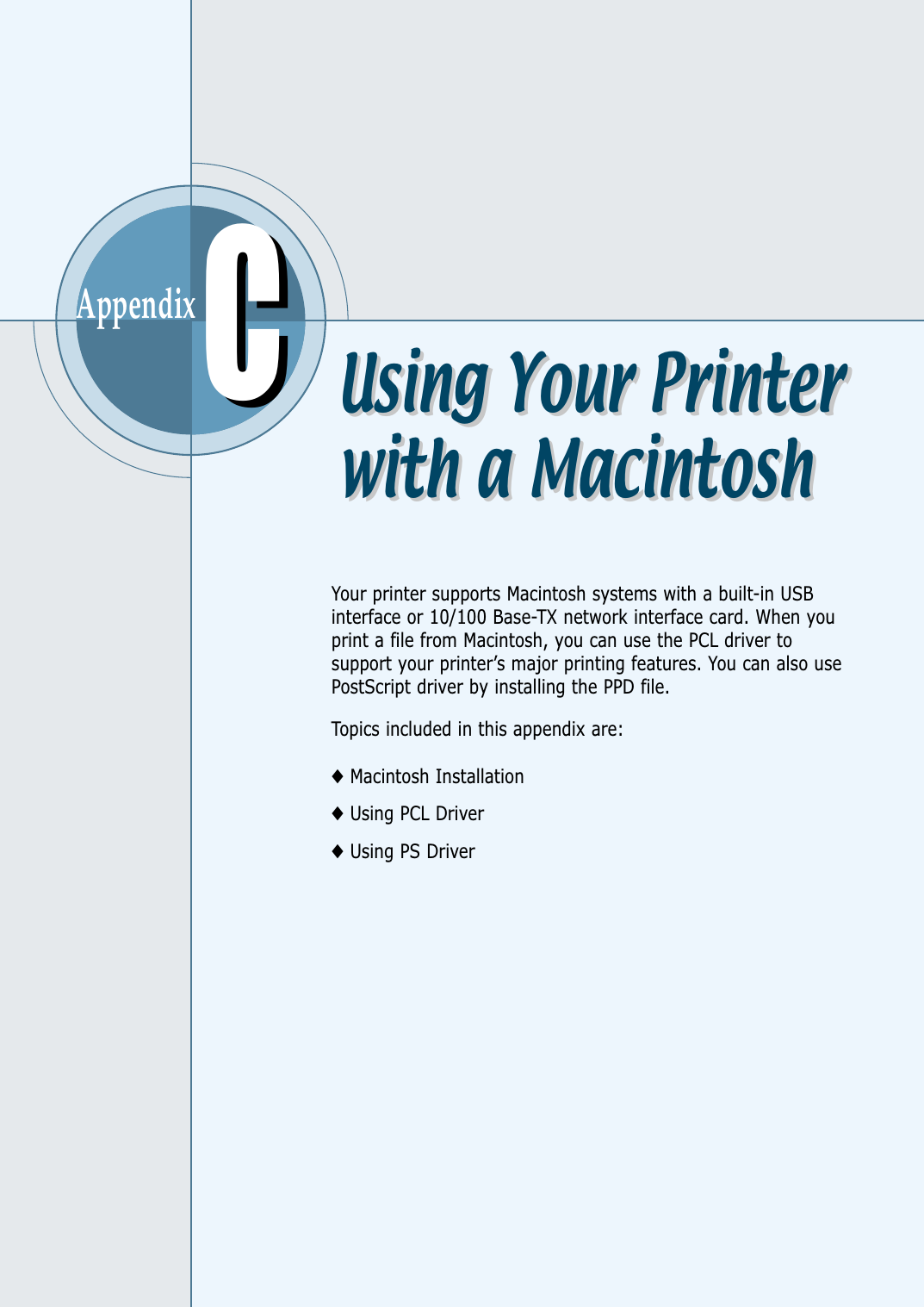

AppendixYour printer supports Macintosh systems with a built-in USBinterface or 10/100 Base-TX network interface card. When youprint a file from Macintosh, you can use the PCL driver tosupport your printer’s major printing features. You can also usePostScript driver by installing the PPD file. Topics included in this appendix are:◆Macintosh Installation◆Using PCL Driver◆Using PS DriverCCUsing Your Printerwith a MacintoshUsing Your Printerwith a Macintosh

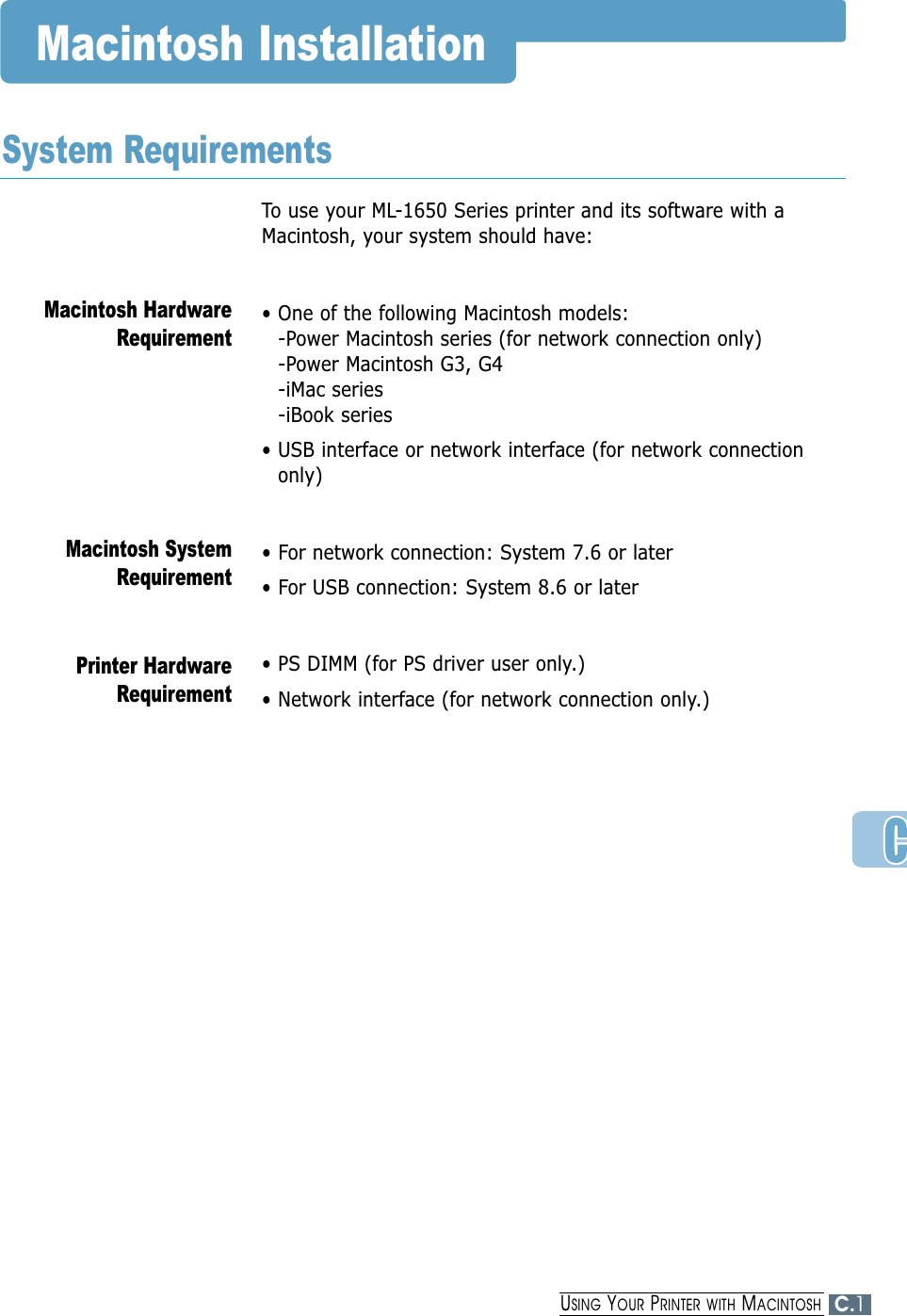

Macintosh InstallationTo use your ML-1650 Series printer and its software with aMacintosh, your system should have:• One of the following Macintosh models:-Power Macintosh series (for network connection only)-Power Macintosh G3, G4-iMac series-iBook series• USB interface or network interface (for network connectiononly)• For network connection: System 7.6 or later• For USB connection: System 8.6 or later• PS DIMM (for PS driver user only.)• Network interface (for network connection only.)System RequirementsMacintosh HardwareRequirementMacintosh SystemRequirementPrinter HardwareRequirementC.1USING YOUR PRINTER WITH MACINTOSH

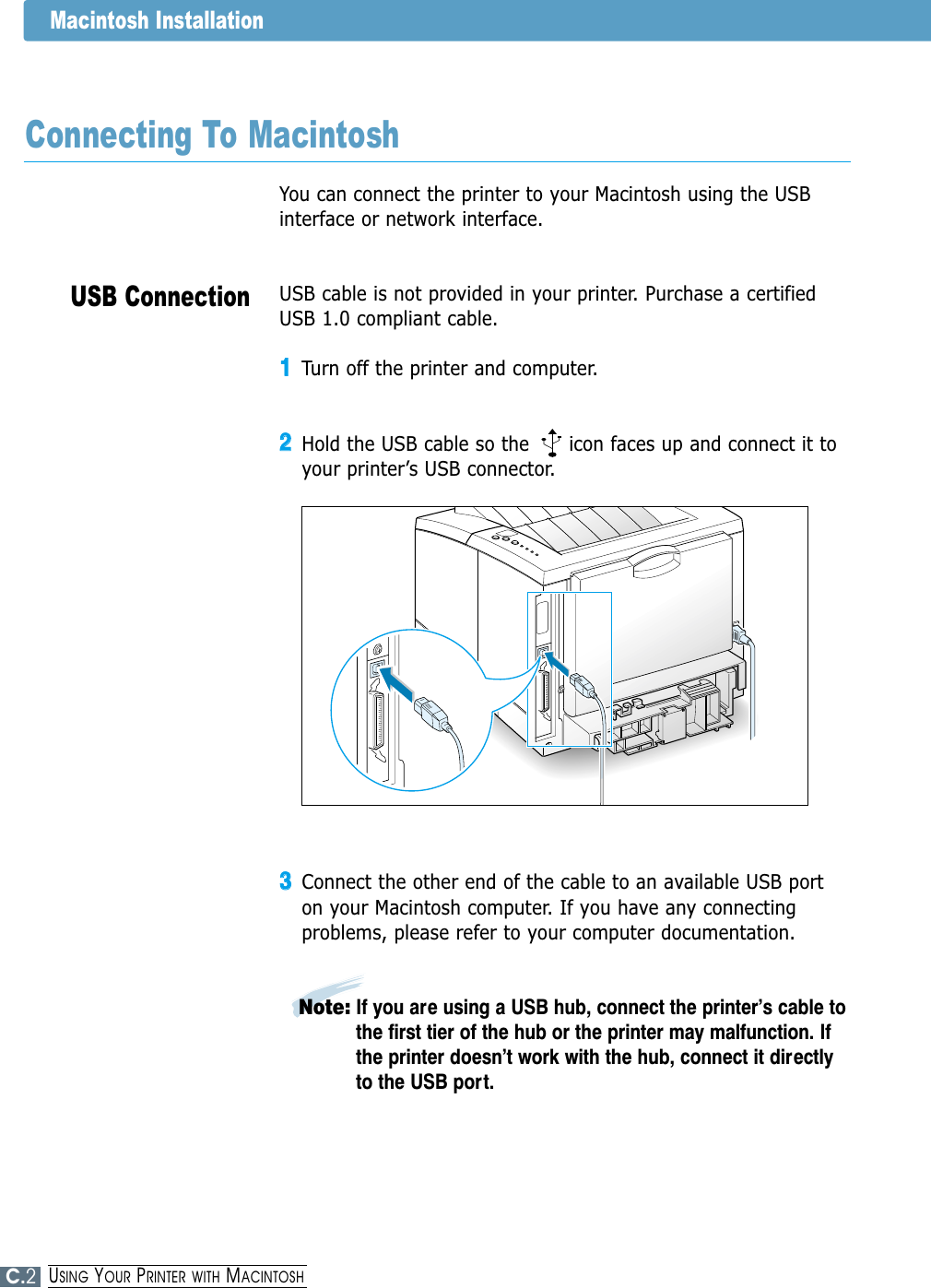

USB ConnectionMacintosh InstallationYou can connect the printer to your Macintosh using the USBinterface or network interface. USB cable is not provided in your printer. Purchase a certifiedUSB 1.0 compliant cable. 11Turn off the printer and computer.22Hold the USB cable so the icon faces up and connect it toyour printer’s USB connector.33Connect the other end of the cable to an available USB porton your Macintosh computer. If you have any connectingproblems, please refer to your computer documentation.Note: If you are using a USB hub, connect the printer’s cable tothe first tier of the hub or the printer may malfunction. Ifthe printer doesn’t work with the hub, connect it directlyto the USB port. Connecting To MacintoshC.2USING YOUR PRINTER WITH MACINTOSH

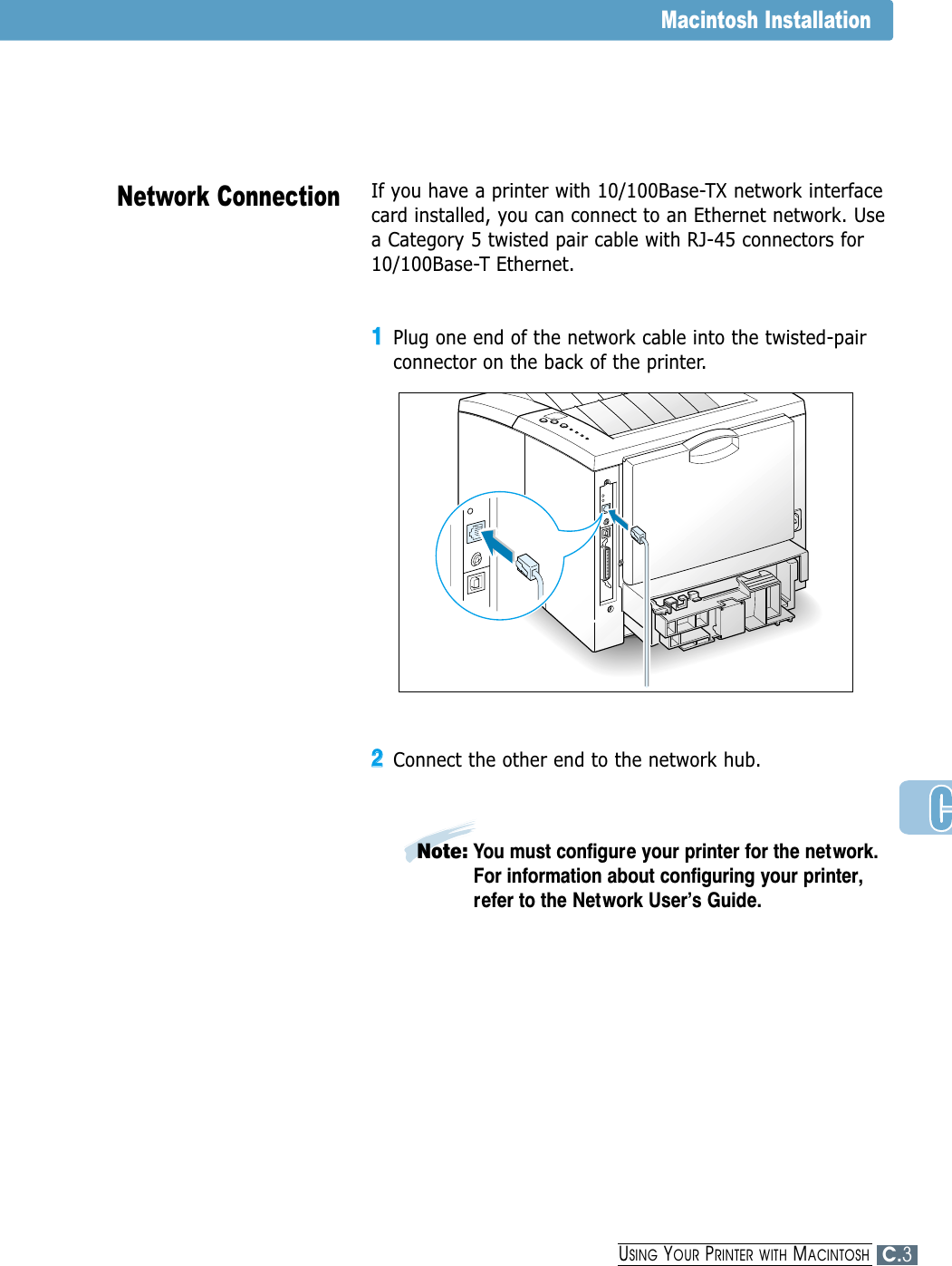

If you have a printer with 10/100Base-TX network interfacecard installed, you can connect to an Ethernet network. Usea Category 5 twisted pair cable with RJ-45 connectors for10/100Base-T Ethernet. 11Plug one end of the network cable into the twisted-pairconnector on the back of the printer.22Connect the other end to the network hub. Network ConnectionMacintosh InstallationNote: You must configure your printer for the network.For information about configuring your printer,refer to the Network User’s Guide.C.3USING YOUR PRINTER WITH MACINTOSH

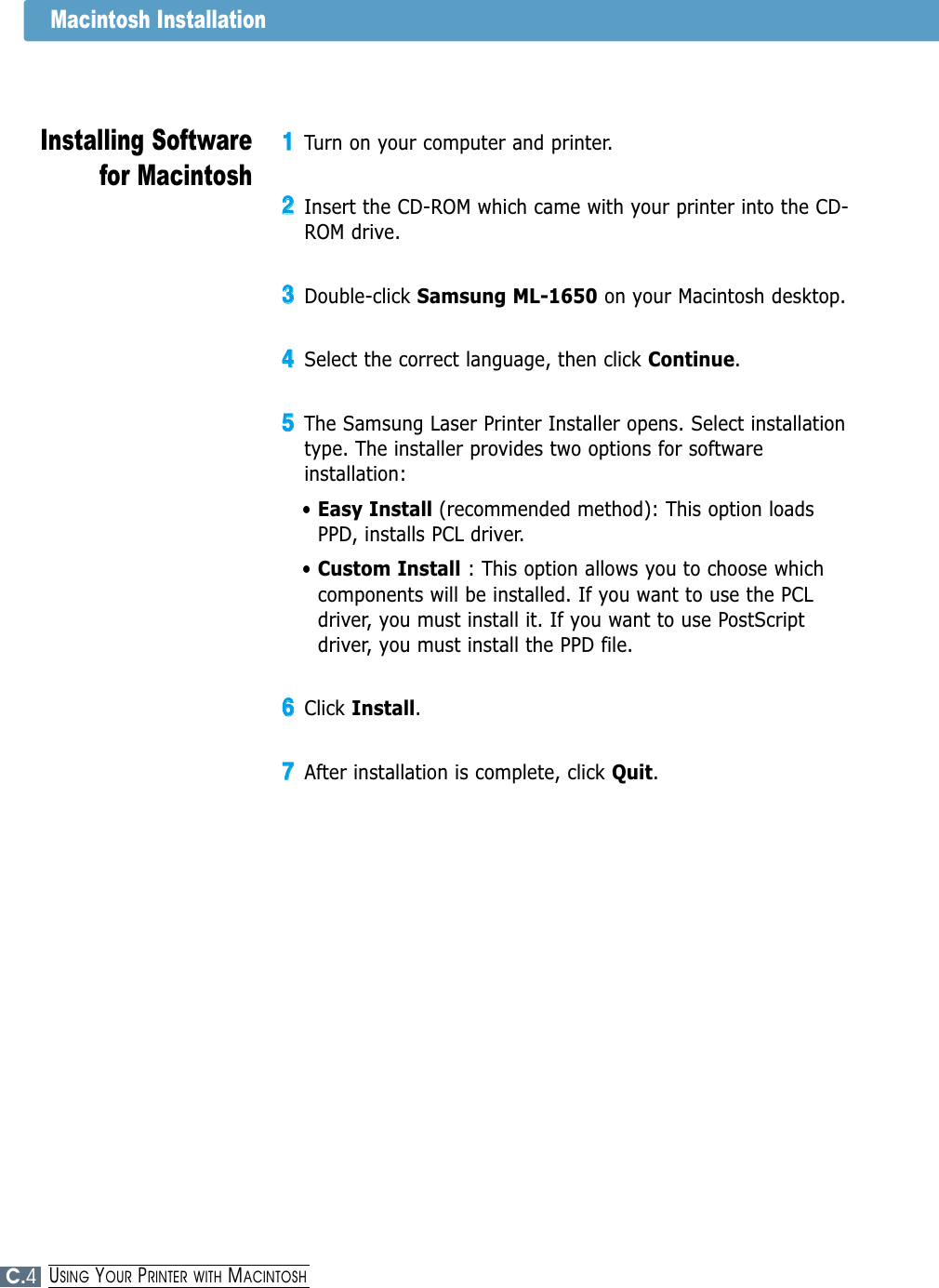

Macintosh InstallationInstalling Softwarefor Macintosh11Turn on your computer and printer.22Insert the CD-ROM which came with your printer into the CD-ROM drive.33Double-click Samsung ML-1650 on your Macintosh desktop.44Select the correct language, then click Continue. 55The Samsung Laser Printer Installer opens. Select installationtype. The installer provides two options for softwareinstallation:• Easy Install (recommended method): This option loadsPPD, installs PCL driver. • Custom Install : This option allows you to choose whichcomponents will be installed. If you want to use the PCLdriver, you must install it. If you want to use PostScriptdriver, you must install the PPD file.66Click Install.77After installation is complete, click Quit.C.4USING YOUR PRINTER WITH MACINTOSH

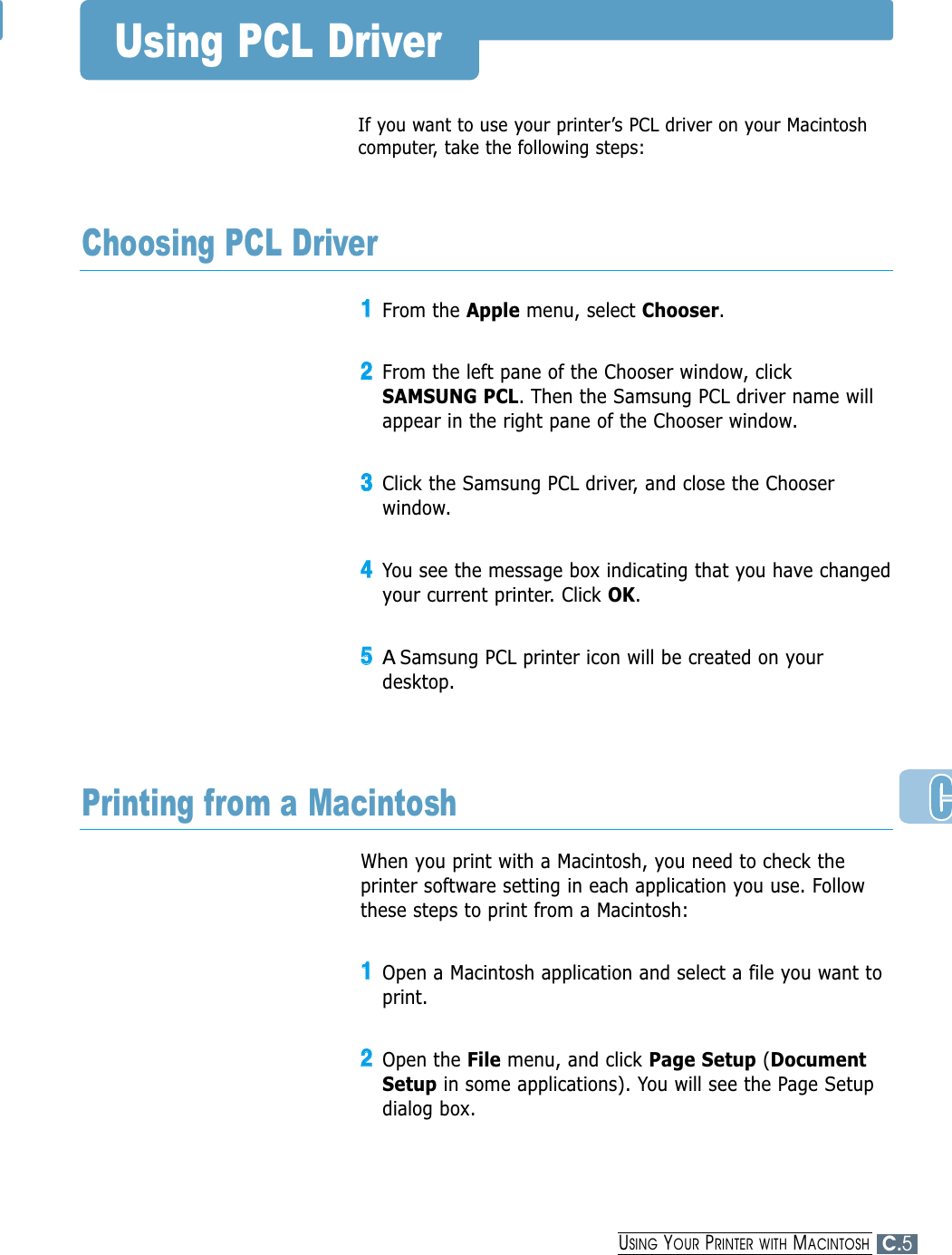

If you want to use your printer’s PCL driver on your Macintoshcomputer, take the following steps:Using PCL Driver11From the Apple menu, select Chooser.22From the left pane of the Chooser window, clickSAMSUNG PCL. Then the Samsung PCL driver name willappear in the right pane of the Chooser window.33Click the Samsung PCL driver, and close the Chooserwindow.44You see the message box indicating that you have changedyour current printer. Click OK. 55ASamsung PCL printer icon will be created on yourdesktop. Choosing PCL DriverWhen you print with a Macintosh, you need to check theprinter software setting in each application you use. Followthese steps to print from a Macintosh:11Open a Macintosh application and select a file you want toprint.22Open the File menu, and click Page Setup (DocumentSetup in some applications). You will see the Page Setupdialog box.Printing from a MacintoshC.5USING YOUR PRINTER WITH MACINTOSH

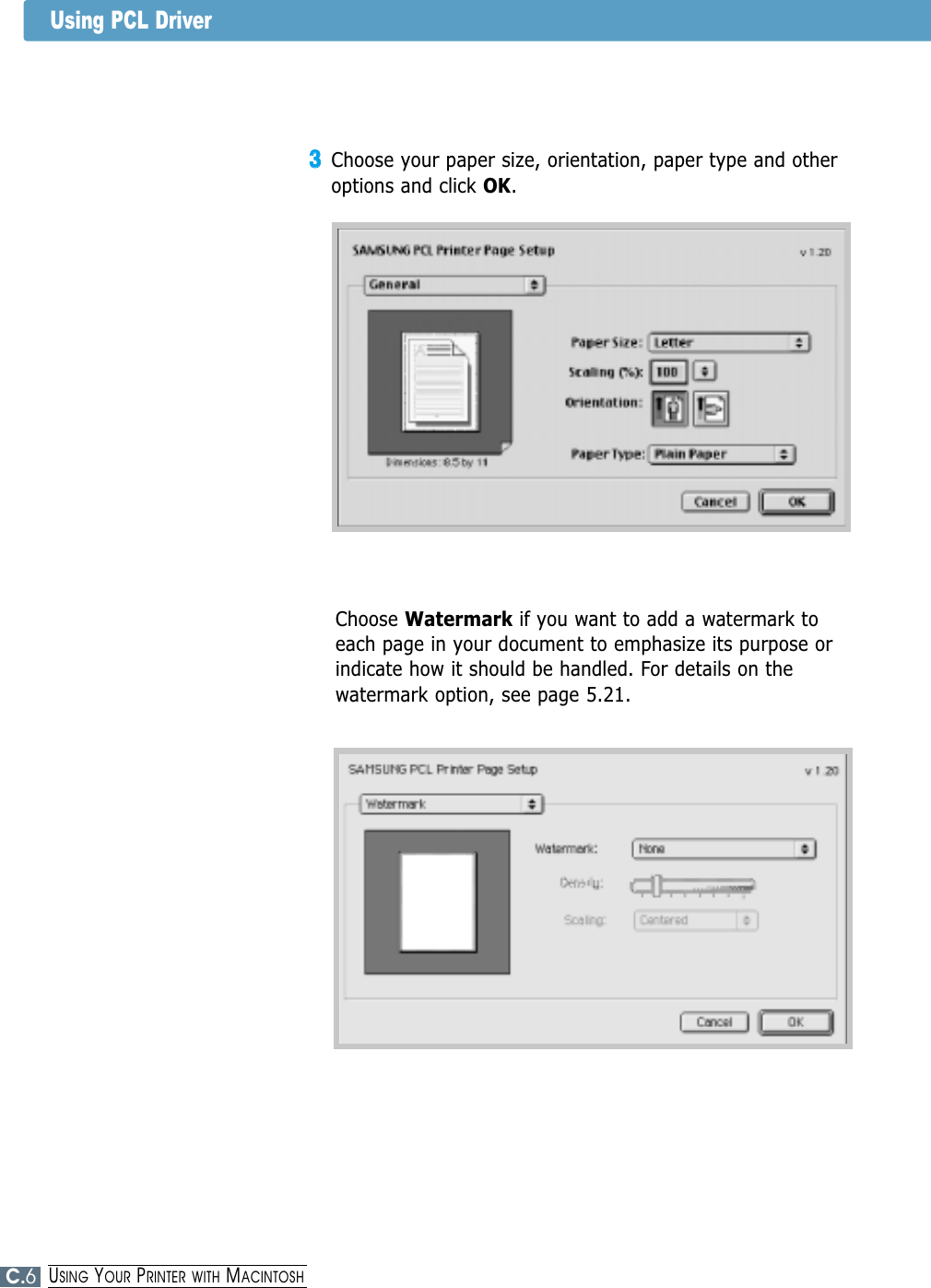

Choose Watermark if you want to add a watermark toeach page in your document to emphasize its purpose orindicate how it should be handled. For details on thewatermark option, see page 5.21.Using PCL Driver33Choose your paper size, orientation, paper type and otheroptions and click OK.C.6USING YOUR PRINTER WITH MACINTOSH

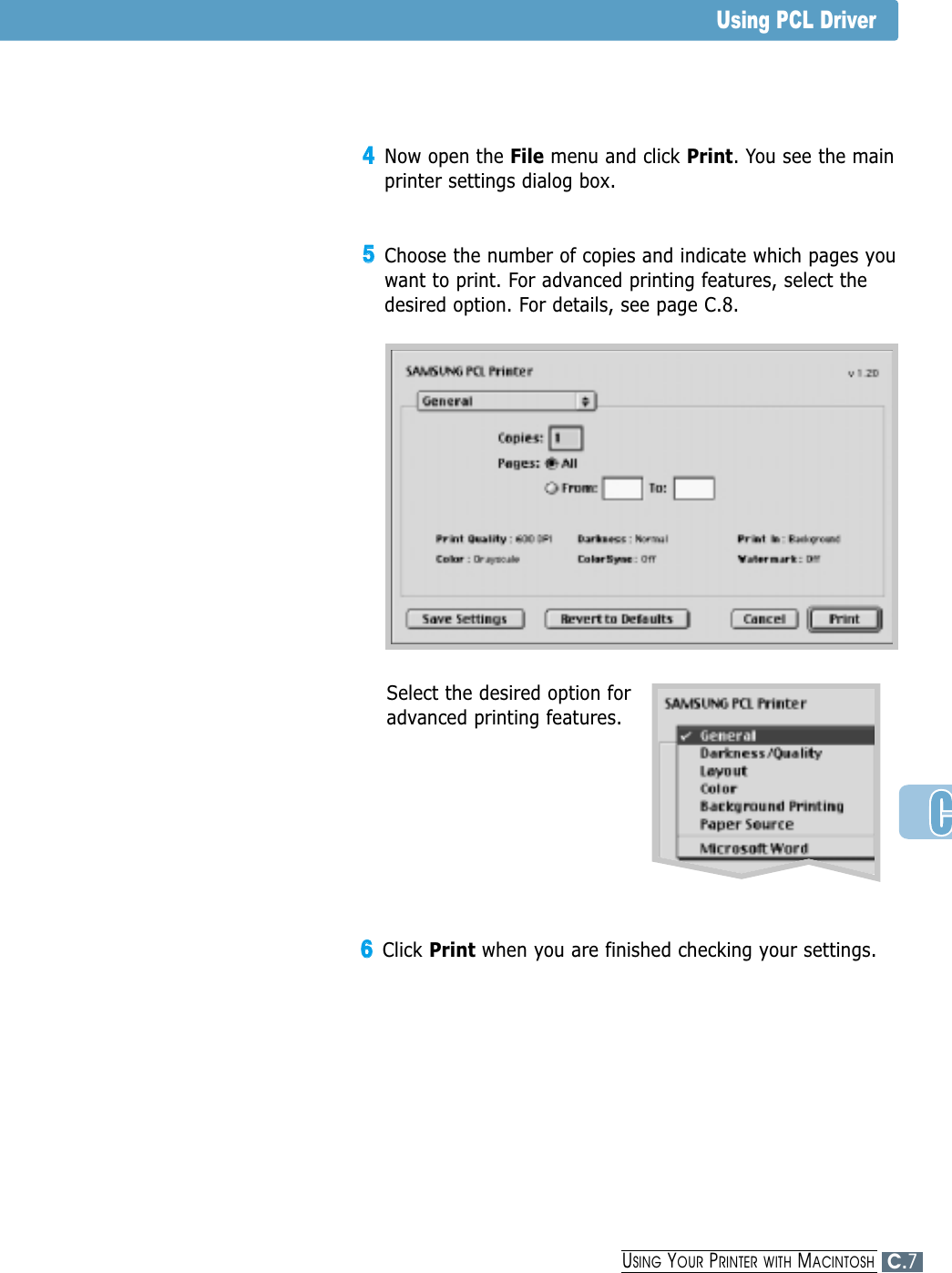

44Now open the File menu and click Print. You see the mainprinter settings dialog box.55Choose the number of copies and indicate which pages youwant to print. For advanced printing features, select thedesired option. For details, see page C.8.Using PCL Driver66Click Print when you are finished checking your settings.Select the desired option foradvanced printing features.C.7USING YOUR PRINTER WITH MACINTOSH

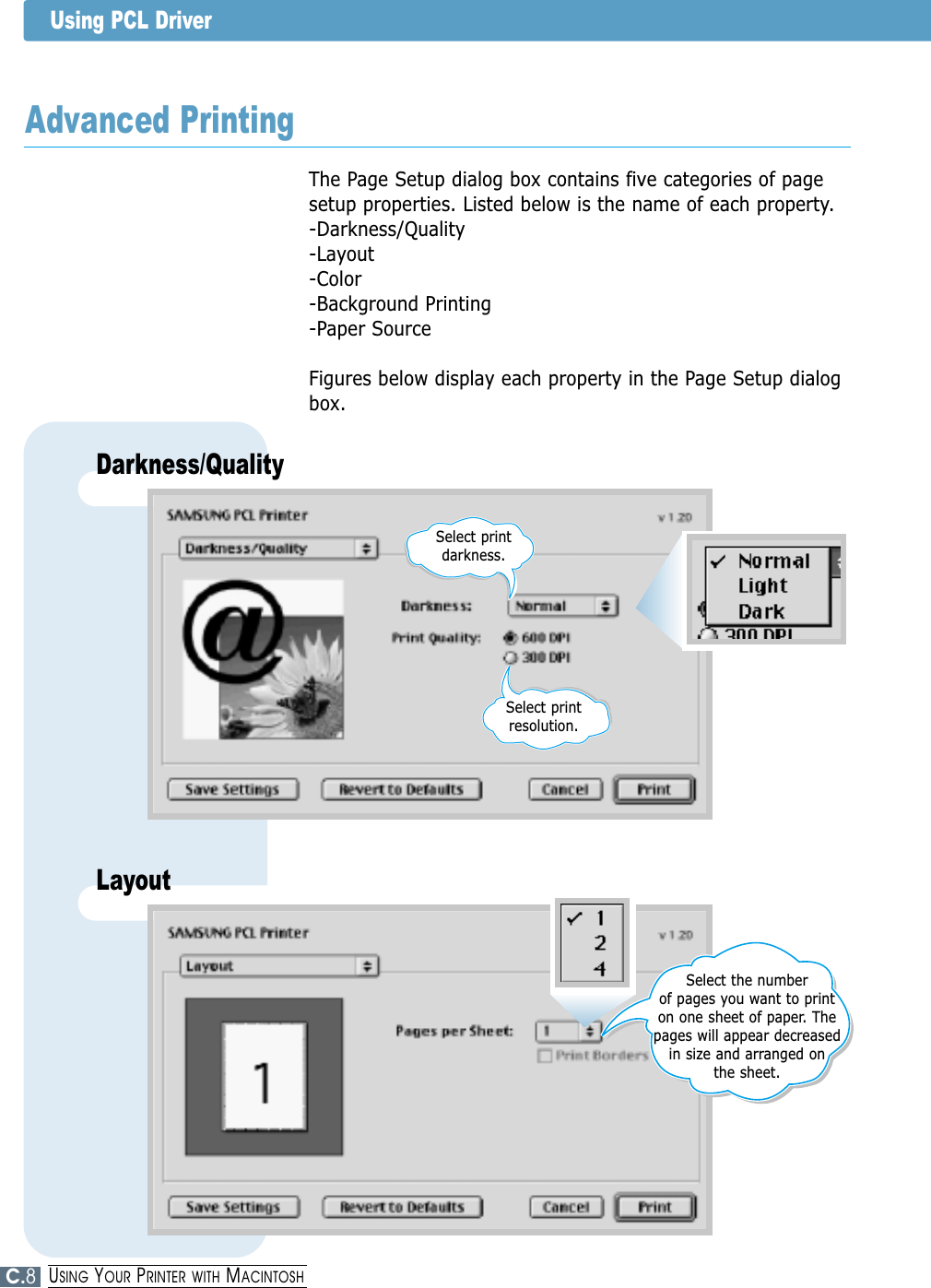

Using PCL DriverThe Page Setup dialog box contains five categories of pagesetup properties. Listed below is the name of each property.-Darkness/Quality-Layout-Color-Background Printing-Paper SourceFigures below display each property in the Page Setup dialogbox.Advanced PrintingDarkness/QualitySelect print darkness.Select print resolution.LayoutSelect the number of pages you want to printon one sheet of paper. Thepages will appear decreasedin size and arranged on the sheet.C.8USING YOUR PRINTER WITH MACINTOSH

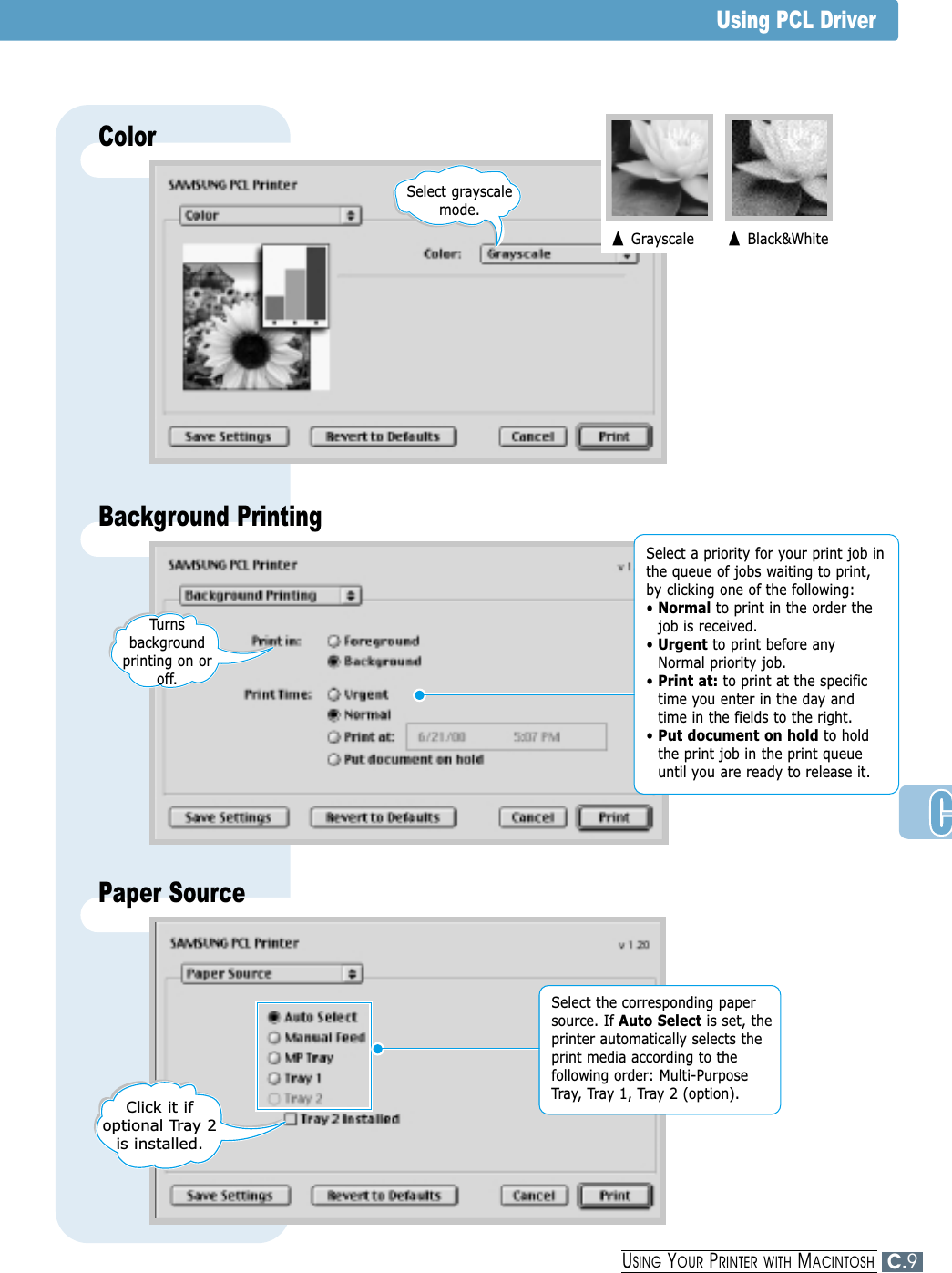

Using PCL DriverColorSelect grayscalemode.Background Printing➐Grayscale ➐Black&WhiteTurns backgroundprinting on oroff.Select a priority for your print job inthe queue of jobs waiting to print,by clicking one of the following:• Normal to print in the order thejob is received.• Urgent to print before anyNormal priority job.• Print at: to print at the specifictime you enter in the day andtime in the fields to the right.• Put document on hold to holdthe print job in the print queueuntil you are ready to release it.Paper SourceClick it ifoptional Tray 2is installed.Select the corresponding papersource. If Auto Select is set, theprinter automatically selects theprint media according to thefollowing order: Multi-PurposeTray, Tray 1, Tray 2 (option).C.9USING YOUR PRINTER WITH MACINTOSH

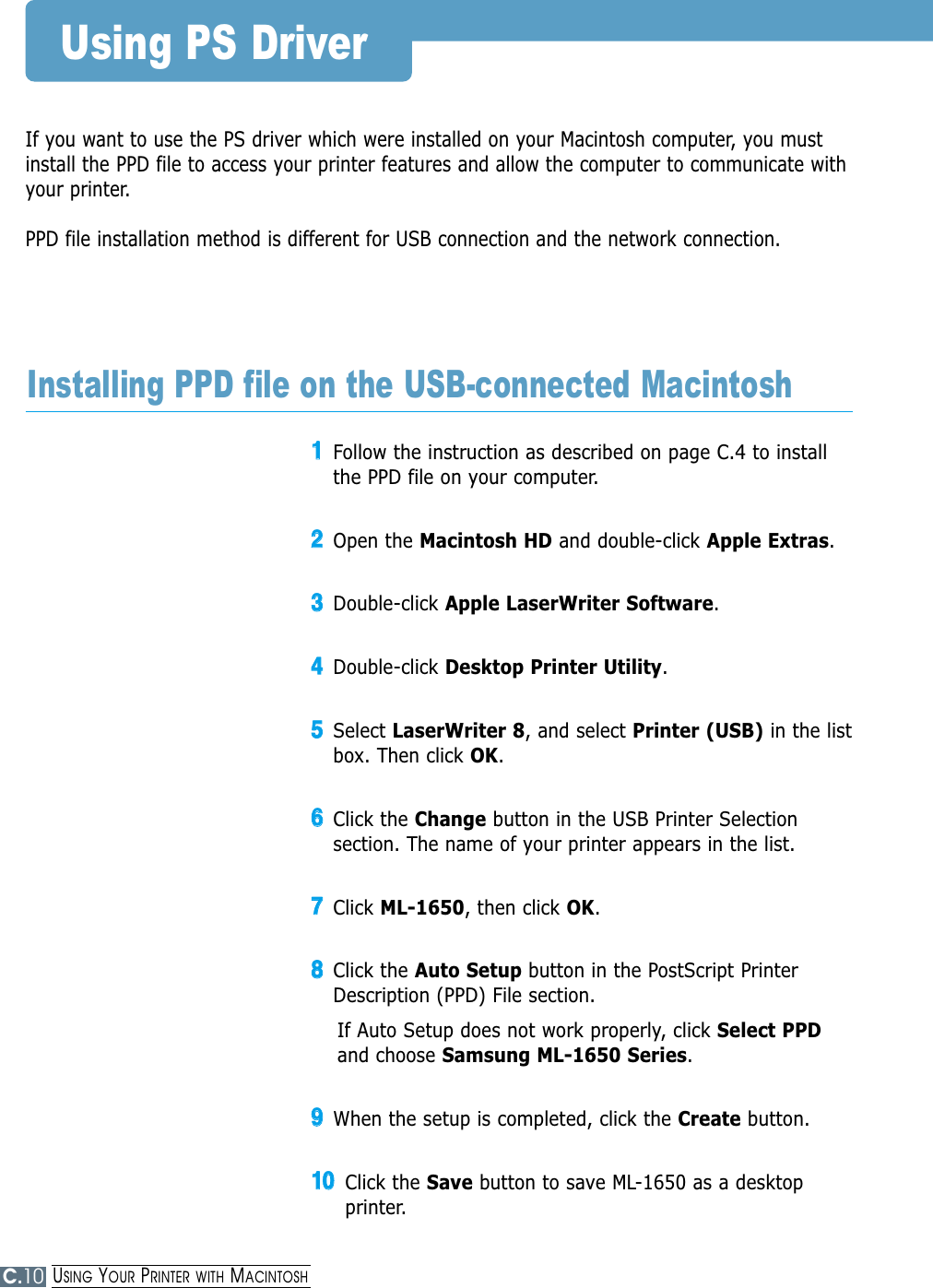

C.10If you want to use the PS driver which were installed on your Macintosh computer, you mustinstall the PPD file to access your printer features and allow the computer to communicate withyour printer.PPD file installation method is different for USB connection and the network connection.Using PS Driver11Follow the instruction as described on page C.4 to installthe PPD file on your computer.22Open the Macintosh HD and double-click Apple Extras.33Double-click Apple LaserWriter Software.44Double-click Desktop Printer Utility.55Select LaserWriter 8, and select Printer (USB) in the listbox. Then click OK.66Click the Change button in the USB Printer Selectionsection. The name of your printer appears in the list.77Click ML-1650, then click OK.88Click the Auto Setup button in the PostScript PrinterDescription (PPD) File section.If Auto Setup does not work properly, click Select PPDand choose Samsung ML-1650 Series.99When the setup is completed, click the Create button. 1100Click the Save button to save ML-1650 as a desktopprinter. Installing PPD file on the USB-connected MacintoshUSING YOUR PRINTER WITH MACINTOSH

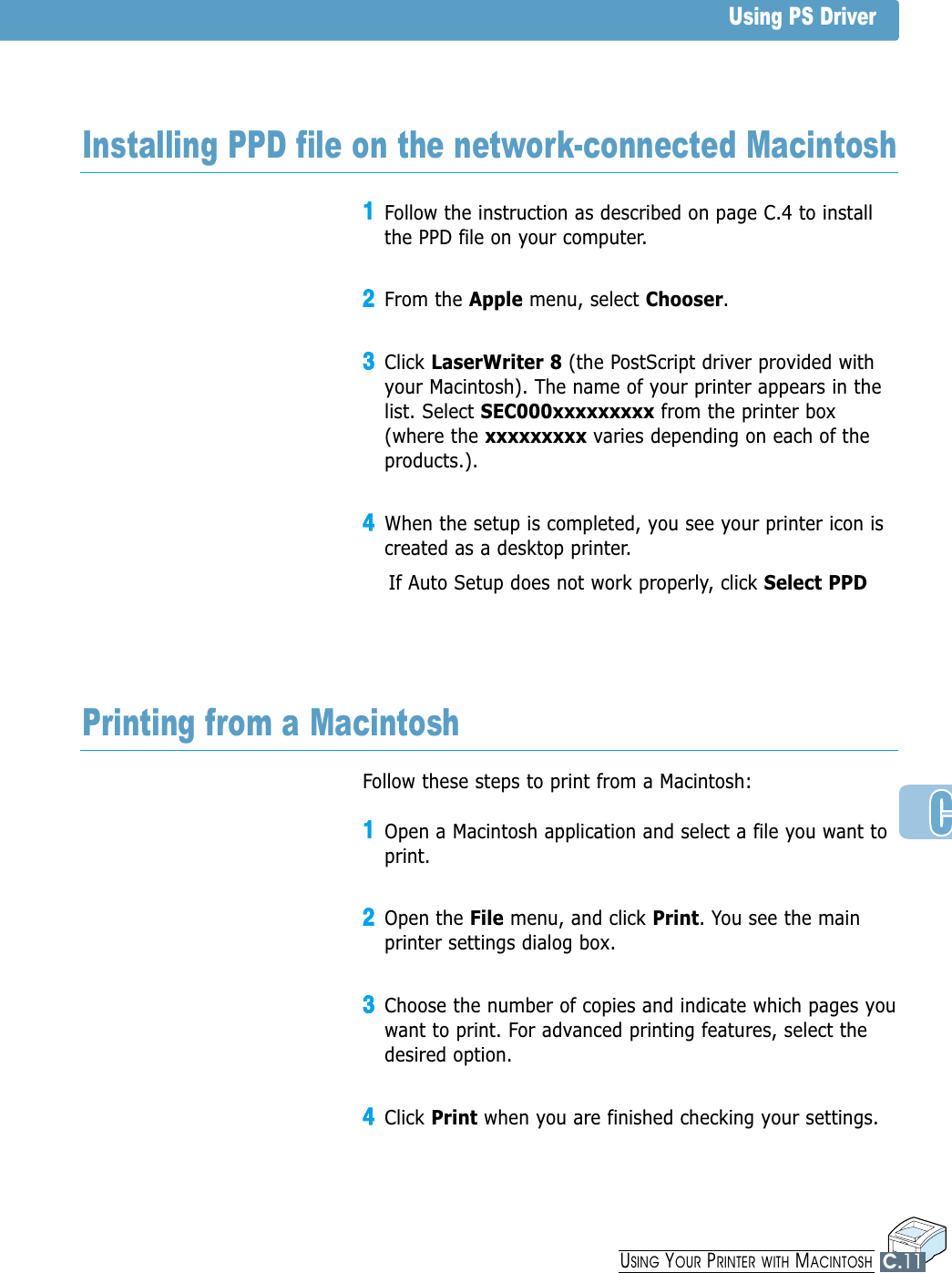

11Follow the instruction as described on page C.4 to installthe PPD file on your computer.22From the Apple menu, select Chooser.33Click LaserWriter 8 (the PostScript driver provided withyour Macintosh). The name of your printer appears in thelist. Select SEC000xxxxxxxxx from the printer box(where the xxxxxxxxx varies depending on each of theproducts.).44When the setup is completed, you see your printer icon iscreated as a desktop printer.If Auto Setup does not work properly, click Select PPDInstalling PPD file on the network-connected MacintoshFollow these steps to print from a Macintosh:11Open a Macintosh application and select a file you want toprint.22Open the File menu, and click Print. You see the mainprinter settings dialog box.33Choose the number of copies and indicate which pages youwant to print. For advanced printing features, select thedesired option. 44Click Print when you are finished checking your settings.Printing from a MacintoshUsing PS DriverUSING YOUR PRINTER WITH MACINTOSHC.11

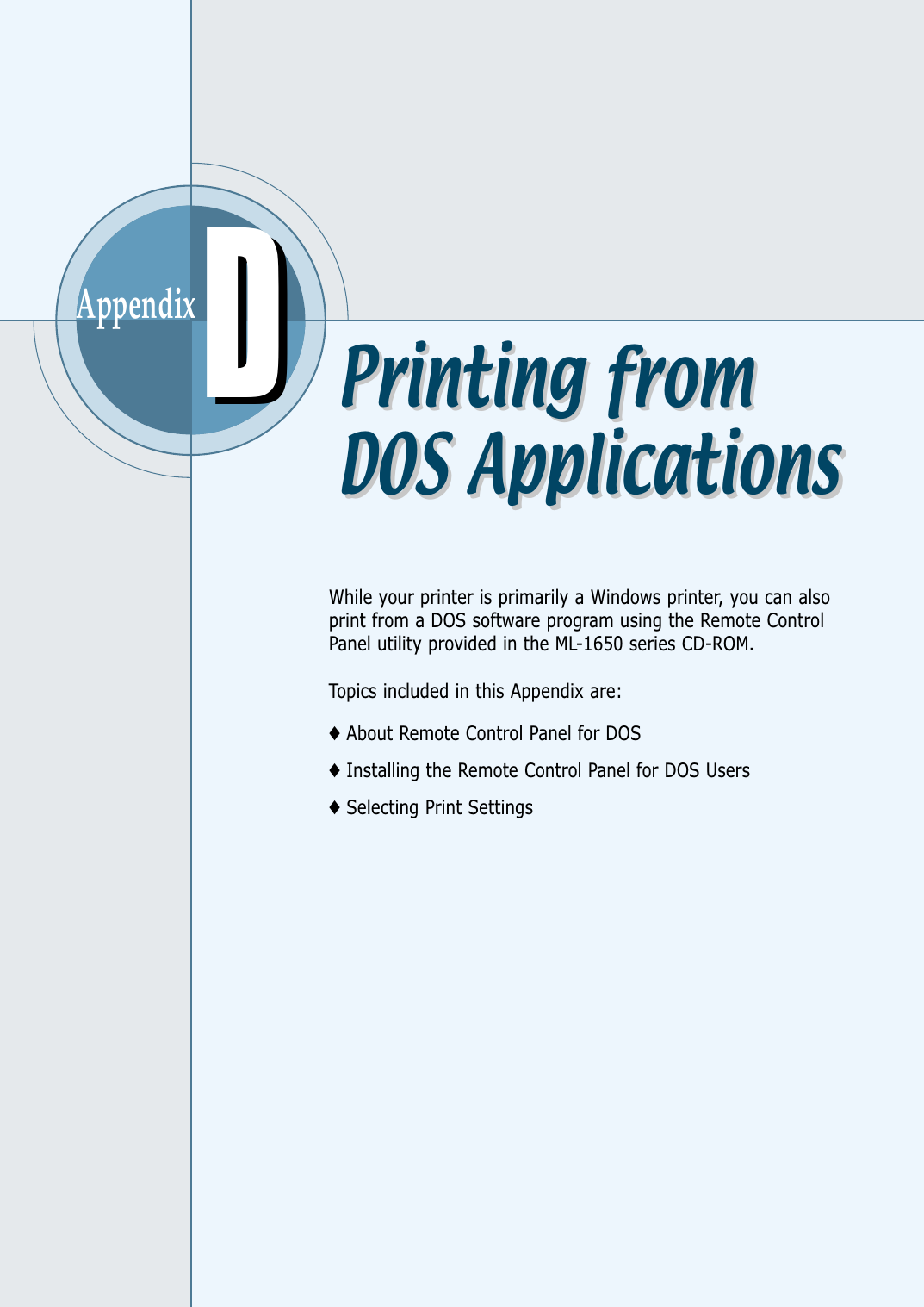

AppendixWhile your printer is primarily a Windows printer, you can alsoprint from a DOS software program using the Remote ControlPanel utility provided in the ML-1650 series CD-ROM.Topics included in this Appendix are:◆About Remote Control Panel for DOS◆Installing the Remote Control Panel for DOS Users◆Selecting Print SettingsDDPrinting fromDOS ApplicationsPrinting fromDOS Applications

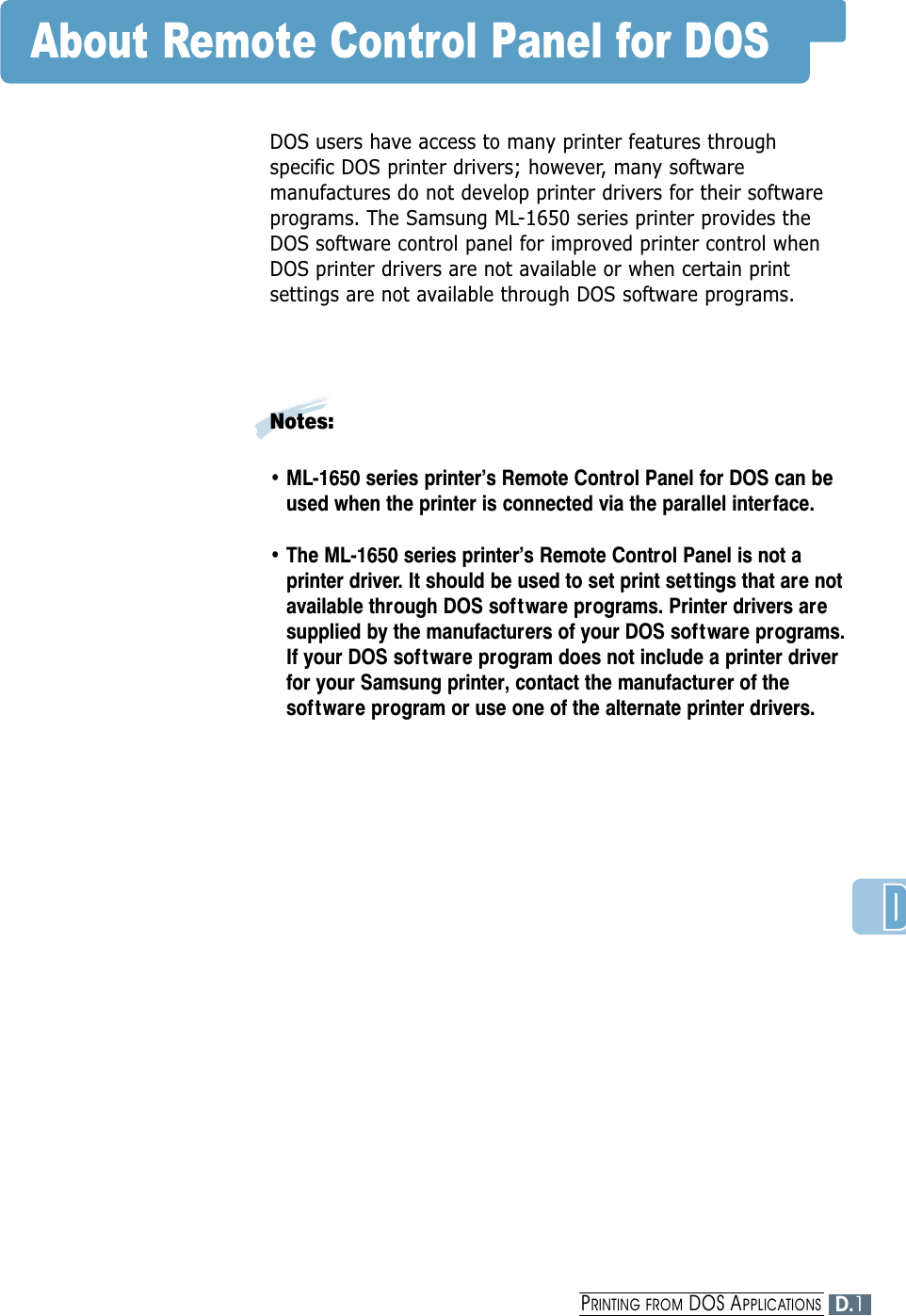

About Remote Control Panel for DOSDOS users have access to many printer features throughspecific DOS printer drivers; however, many softwaremanufactures do not develop printer drivers for their softwareprograms. The Samsung ML-1650 series printer provides theDOS software control panel for improved printer control whenDOS printer drivers are not available or when certain printsettings are not available through DOS software programs.Notes: • ML-1650 series printer’s Remote Control Panel for DOS can beused when the printer is connected via the parallel interface.• The ML-1650 series printer’s Remote Control Panel is not aprinter driver. It should be used to set print settings that are notavailable through DOS software programs. Printer drivers aresupplied by the manufacturers of your DOS sof tware programs.If your DOS sof tware program does not include a printer driverfor your Samsung printer, contact the manufacturer of thesoftware program or use one of the alternate printer drivers.D.1PRINTING FROM DOS APPLICATIONS

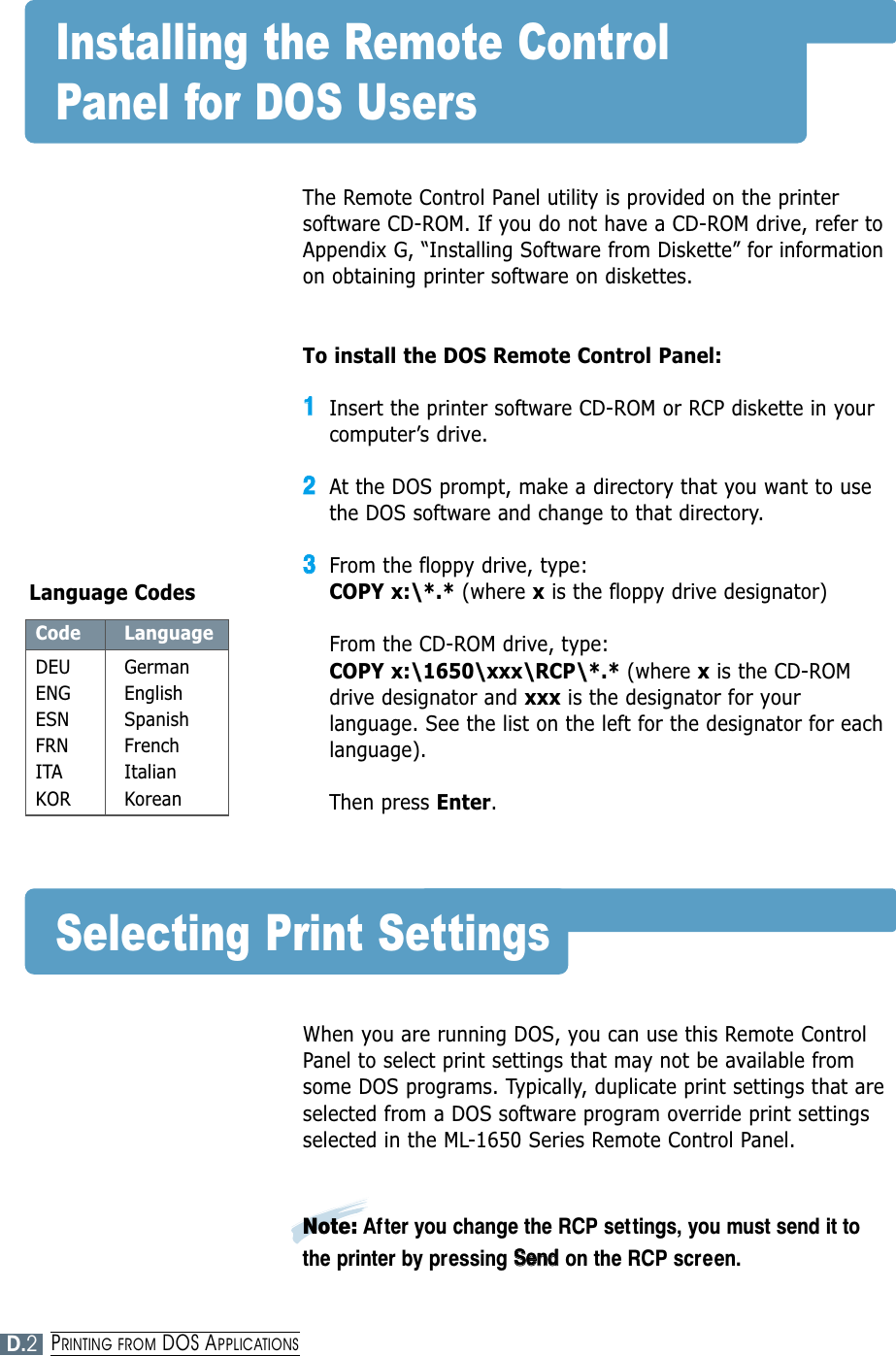

Installing the Remote ControlPanel for DOS UsersThe Remote Control Panel utility is provided on the printersoftware CD-ROM. If you do not have a CD-ROM drive, refer toAppendix G, “Installing Software from Diskette” for informationon obtaining printer software on diskettes.To install the DOS Remote Control Panel:11Insert the printer software CD-ROM or RCP diskette in yourcomputer’s drive.22At the DOS prompt, make a directory that you want to usethe DOS software and change to that directory. 33From the floppy drive, type:COPY x:\*.* (where xis the floppy drive designator)From the CD-ROM drive, type:COPY x:\1650\xxx\RCP\*.* (where xis the CD-ROMdrive designator and xxx is the designator for yourlanguage. See the list on the left for the designator for eachlanguage).Then press Enter. Code LanguageDEU GermanENG EnglishESN SpanishFRN FrenchITA ItalianKOR KoreanSelecting Print SettingsWhen you are running DOS, you can use this Remote ControlPanel to select print settings that may not be available fromsome DOS programs. Typically, duplicate print settings that areselected from a DOS software program override print settingsselected in the ML-1650 Series Remote Control Panel.Note: After you change the RCP set tings, you must send it tothe printer by pressing SSeennddon the RCP screen.Language CodesD.2PRINTING FROM DOS APPLICATIONS

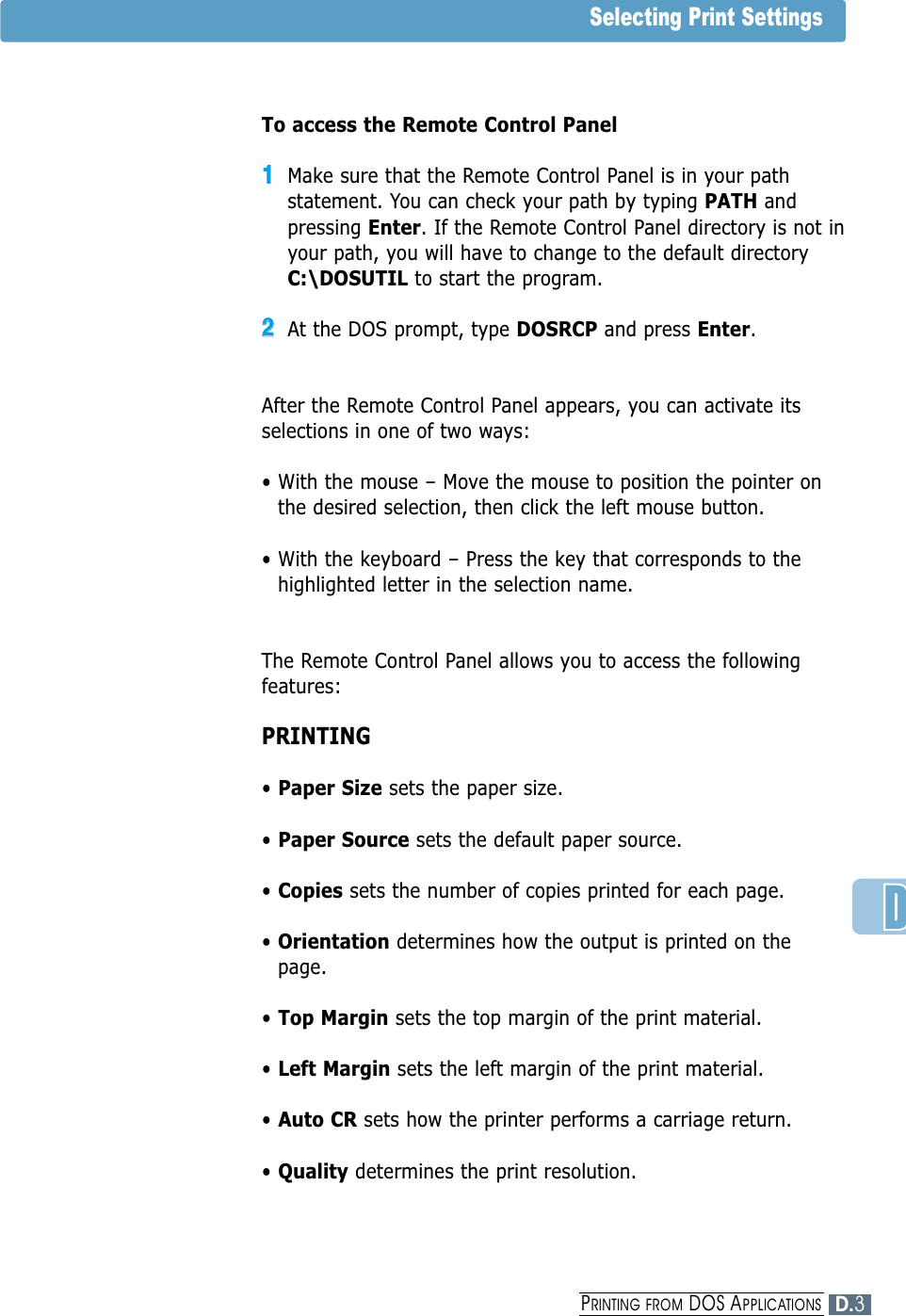

To access the Remote Control Panel11Make sure that the Remote Control Panel is in your pathstatement. You can check your path by typing PATH andpressing Enter. If the Remote Control Panel directory is not inyour path, you will have to change to the default directoryC:\DOSUTIL to start the program.22At the DOS prompt, type DOSRCP and press Enter. After the Remote Control Panel appears, you can activate itsselections in one of two ways:• With the mouse – Move the mouse to position the pointer onthe desired selection, then click the left mouse button.• With the keyboard – Press the key that corresponds to thehighlighted letter in the selection name.The Remote Control Panel allows you to access the followingfeatures:PRINTING• Paper Size sets the paper size.• Paper Source sets the default paper source.• Copies sets the number of copies printed for each page.• Orientation determines how the output is printed on thepage.• Top Margin sets the top margin of the print material.• Left Margin sets the left margin of the print material.• Auto CR sets how the printer performs a carriage return.• Quality determines the print resolution.Selecting Print SettingsD.3PRINTING FROM DOS APPLICATIONS

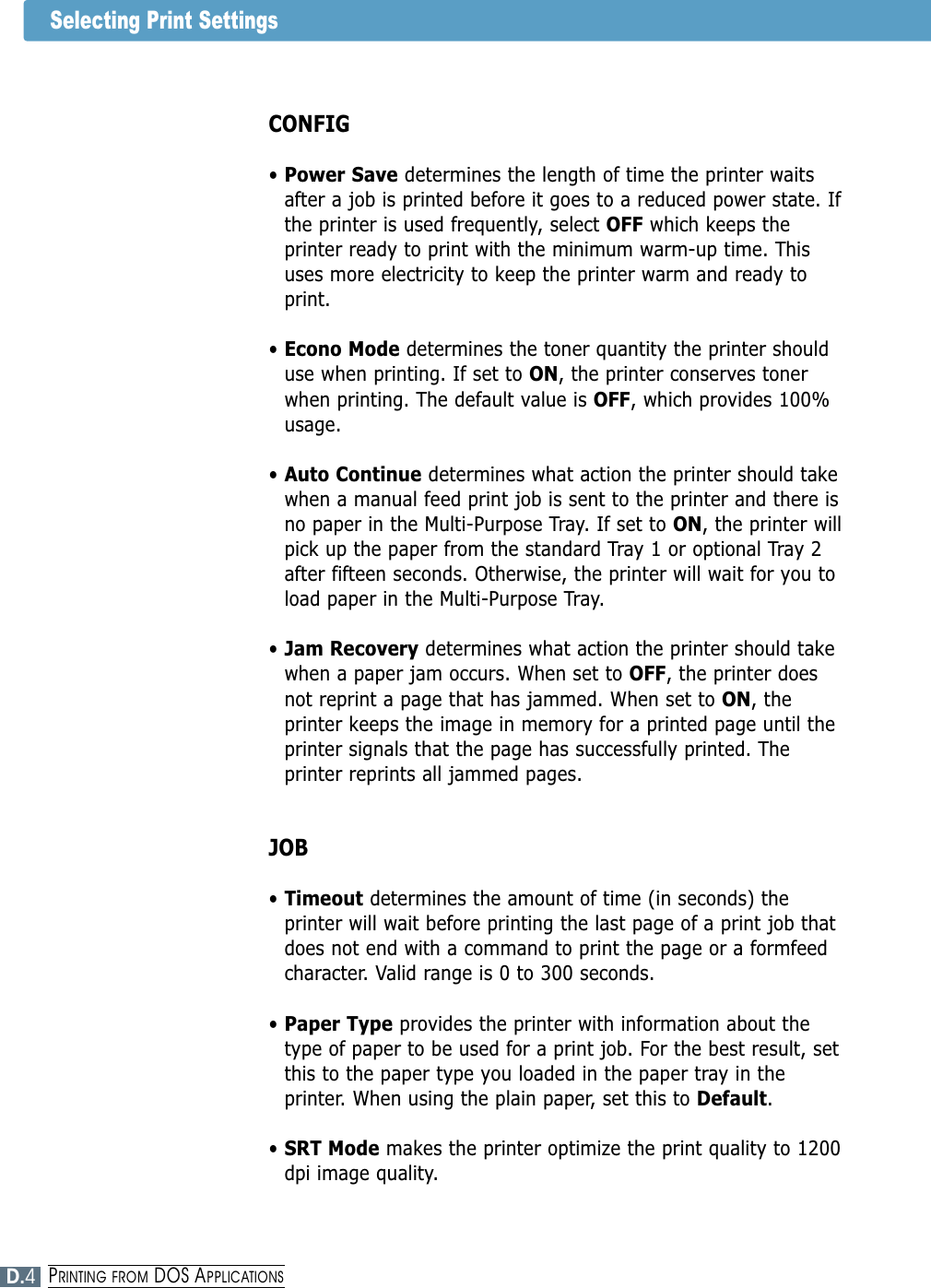

Selecting Print SettingsCONFIG• Power Save determines the length of time the printer waitsafter a job is printed before it goes to a reduced power state. Ifthe printer is used frequently, select OFF which keeps theprinter ready to print with the minimum warm-up time. Thisuses more electricity to keep the printer warm and ready toprint.• Econo Mode determines the toner quantity the printer shoulduse when printing. If set to ON, the printer conserves tonerwhen printing. The default value is OFF, which provides 100%usage.• Auto Continue determines what action the printer should takewhen a manual feed print job is sent to the printer and there isno paper in the Multi-Purpose Tray. If set to ON, the printer willpick up the paper from the standard Tray 1 or optional Tray 2after fifteen seconds. Otherwise, the printer will wait for you toload paper in the Multi-Purpose Tray.• Jam Recovery determines what action the printer should takewhen a paper jam occurs. When set to OFF, the printer doesnot reprint a page that has jammed. When set to ON, theprinter keeps the image in memory for a printed page until theprinter signals that the page has successfully printed. Theprinter reprints all jammed pages.JOB• Timeout determines the amount of time (in seconds) theprinter will wait before printing the last page of a print job thatdoes not end with a command to print the page or a formfeedcharacter. Valid range is 0 to 300 seconds.• Paper Type provides the printer with information about thetype of paper to be used for a print job. For the best result, setthis to the paper type you loaded in the paper tray in theprinter. When using the plain paper, set this to Default.• SRT Mode makes the printer optimize the print quality to 1200dpi image quality.D.4PRINTING FROM DOS APPLICATIONS

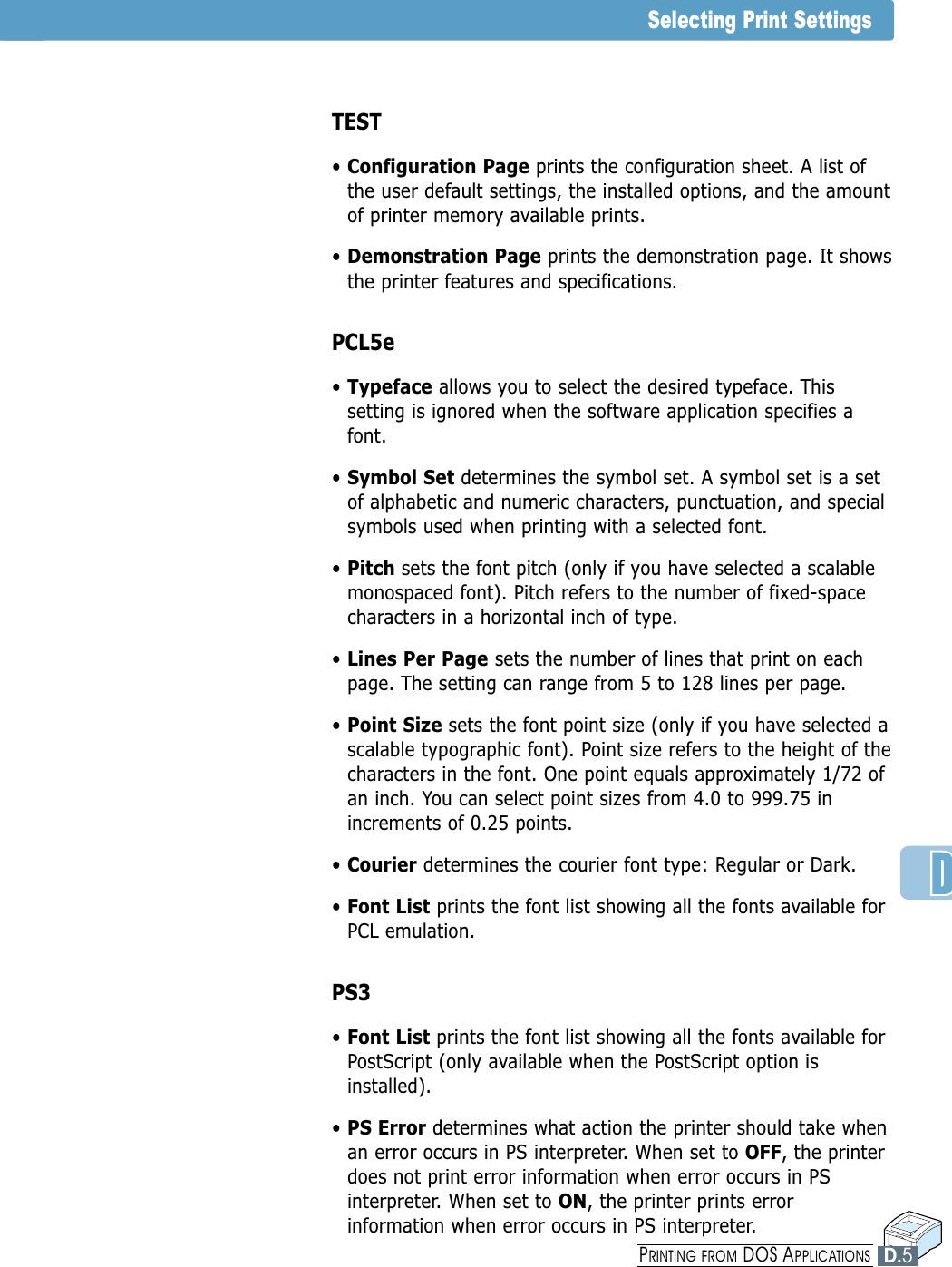

Selecting Print SettingsTEST• Configuration Page prints the configuration sheet. A list ofthe user default settings, the installed options, and the amountof printer memory available prints.• Demonstration Page prints the demonstration page. It showsthe printer features and specifications.PCL5e• Typeface allows you to select the desired typeface. Thissetting is ignored when the software application specifies afont.• Symbol Set determines the symbol set. A symbol set is a setof alphabetic and numeric characters, punctuation, and specialsymbols used when printing with a selected font.• Pitch sets the font pitch (only if you have selected a scalablemonospaced font). Pitch refers to the number of fixed-spacecharacters in a horizontal inch of type.• Lines Per Page sets the number of lines that print on eachpage. The setting can range from 5 to 128 lines per page.• Point Size sets the font point size (only if you have selected ascalable typographic font). Point size refers to the height of thecharacters in the font. One point equals approximately 1/72 ofan inch. You can select point sizes from 4.0 to 999.75 inincrements of 0.25 points.• Courier determines the courier font type: Regular or Dark.• Font List prints the font list showing all the fonts available forPCL emulation.PS3• Font List prints the font list showing all the fonts available forPostScript (only available when the PostScript option isinstalled).• PS Error determines what action the printer should take whenan error occurs in PS interpreter. When set to OFF, the printerdoes not print error information when error occurs in PSinterpreter. When set to ON, the printer prints errorinformation when error occurs in PS interpreter.D.5PRINTING FROM DOS APPLICATIONS

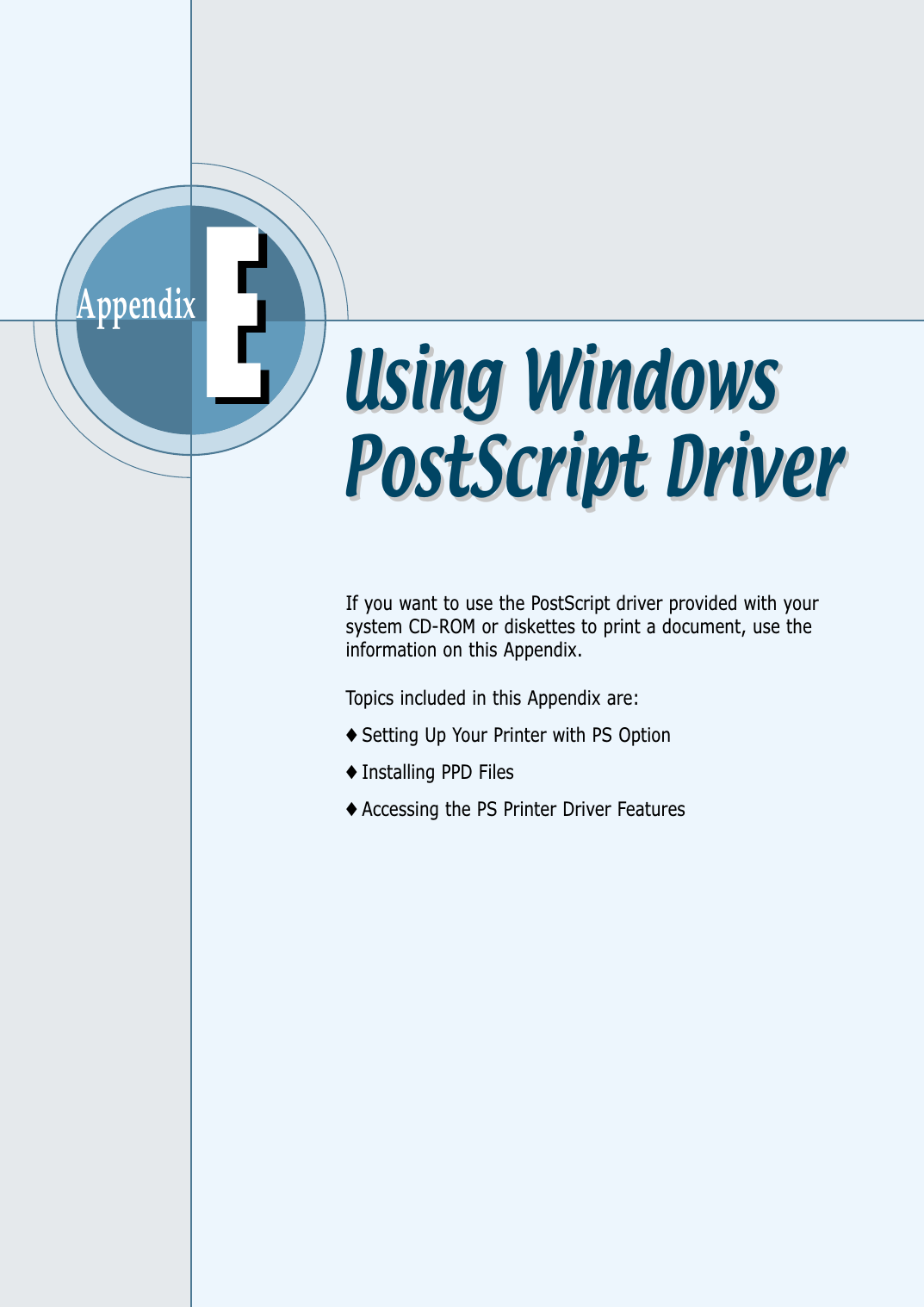

AppendixIf you want to use the PostScript driver provided with yoursystem CD-ROM or diskettes to print a document, use theinformation on this Appendix. Topics included in this Appendix are:◆ Setting Up Your Printer with PS Option◆ Installing PPD Files◆ Accessing the PS Printer Driver FeaturesEEUsing WindowsPostScript DriverUsing WindowsPostScript Driver

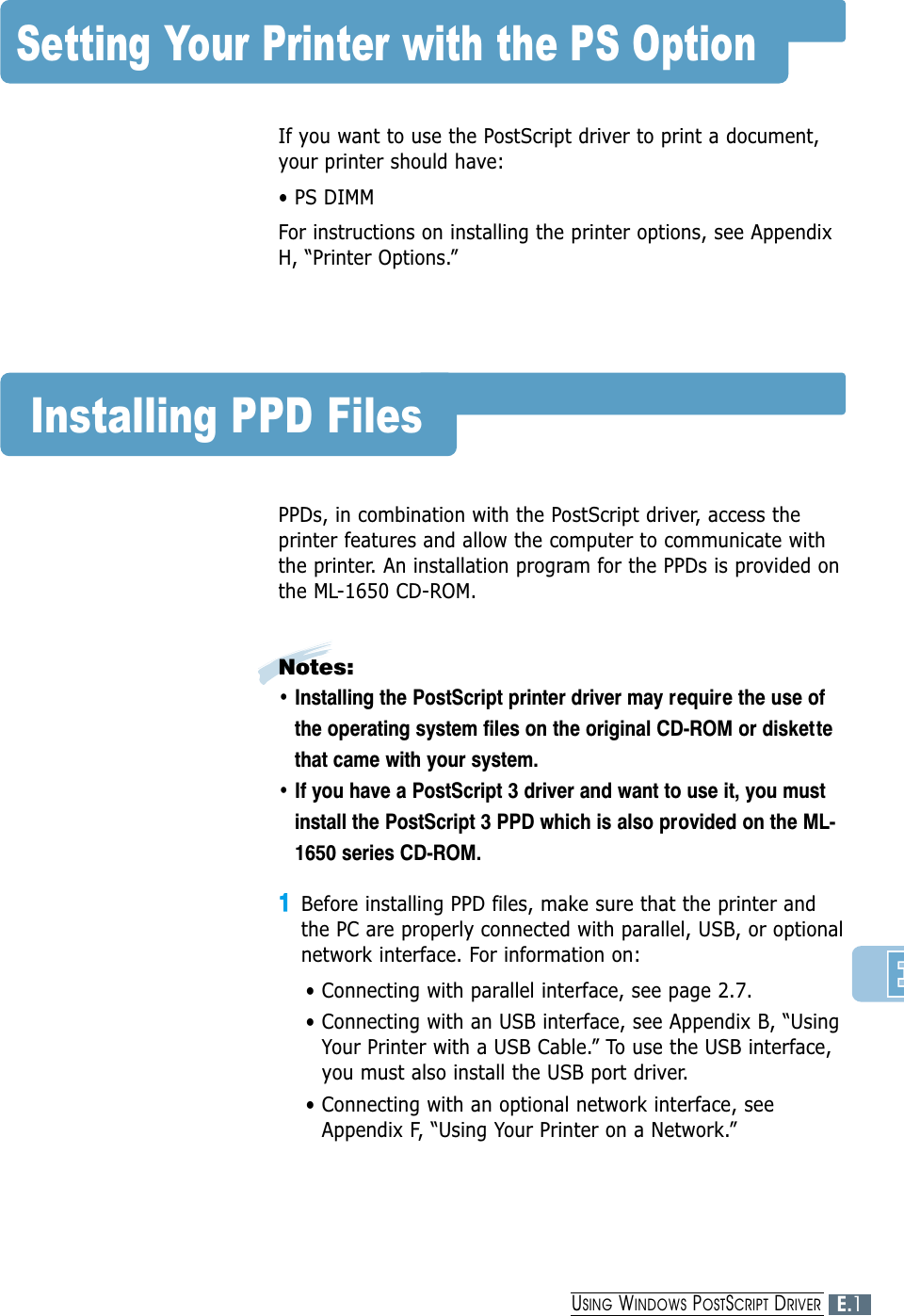

Setting Your Printer with the PS OptionIf you want to use the PostScript driver to print a document,your printer should have:• PS DIMMFor instructions on installing the printer options, see AppendixH, “Printer Options.”Installing PPD FilesPPDs, in combination with the PostScript driver, access theprinter features and allow the computer to communicate withthe printer. An installation program for the PPDs is provided onthe ML-1650 CD-ROM. Notes: • Installing the PostScript printer driver may require the use ofthe operating system files on the original CD-ROM or disket tethat came with your system.• If you have a PostScript 3 driver and want to use it, you mustinstall the PostScript 3 PPD which is also provided on the ML-1650 series CD-ROM.11Before installing PPD files, make sure that the printer and the PC are properly connected with parallel, USB, or optionalnetwork interface. For information on:• Connecting with parallel interface, see page 2.7.• Connecting with an USB interface, see Appendix B, “UsingYour Printer with a USB Cable.” To use the USB interface,you must also install the USB port driver.• Connecting with an optional network interface, seeAppendix F, “Using Your Printer on a Network.”E.1USING WINDOWS POSTSCRIPT DRIVER

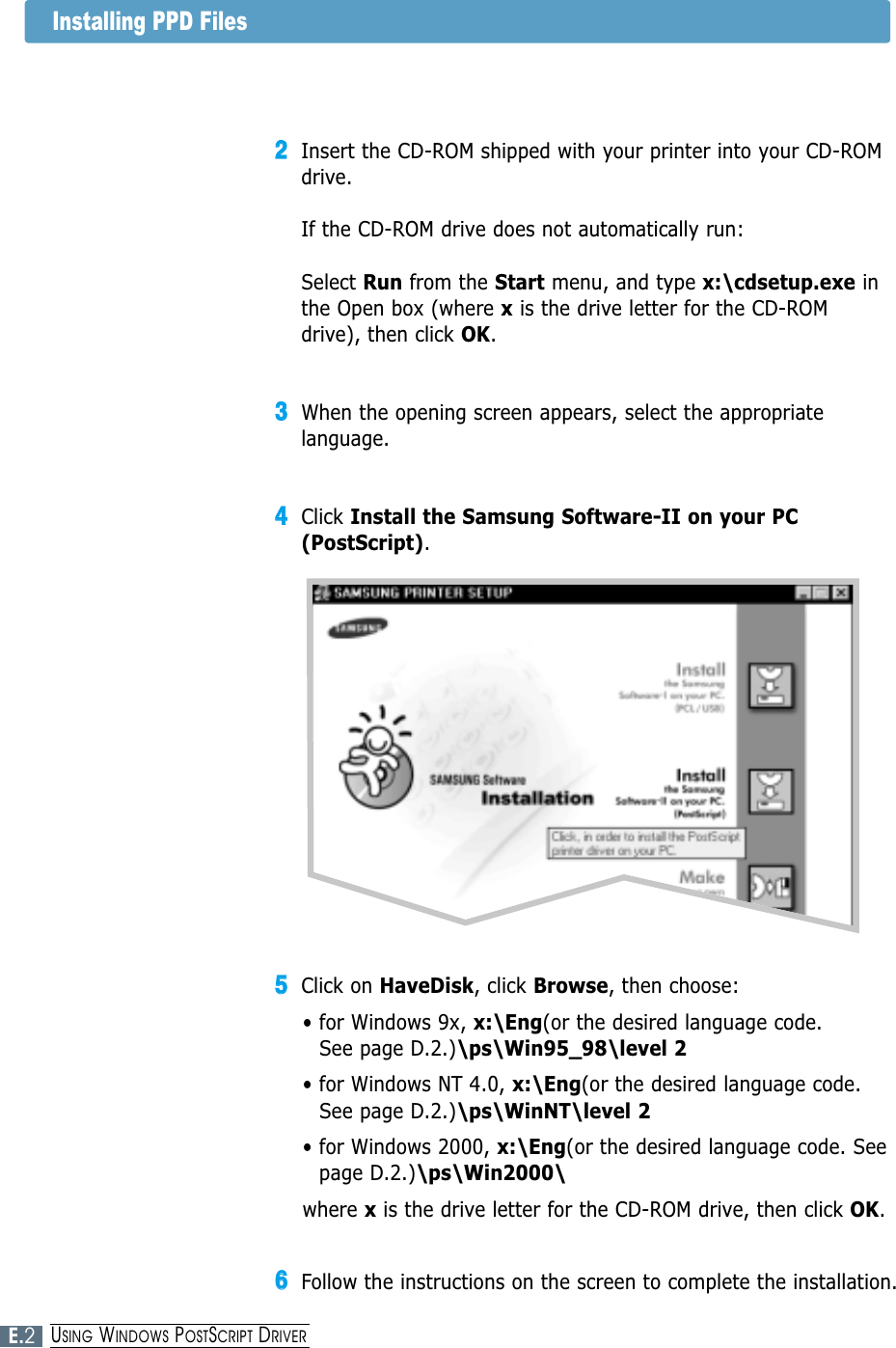

22Insert the CD-ROM shipped with your printer into your CD-ROMdrive.If the CD-ROM drive does not automatically run:Select Run from the Start menu, and type x:\cdsetup.exe inthe Open box (where xis the drive letter for the CD-ROMdrive), then click OK.33When the opening screen appears, select the appropriatelanguage. 44Click Install the Samsung Software-II on your PC(PostScript).55Click on HaveDisk, click Browse, then choose:• for Windows 9x, x:\Eng(or the desired language code. See page D.2.)\ps\Win95_98\level 2• for Windows NT 4.0, x:\Eng(or the desired language code.See page D.2.)\ps\WinNT\level 2• for Windows 2000, x:\Eng(or the desired language code. Seepage D.2.)\ps\Win2000\where xis the drive letter for the CD-ROM drive, then click OK.66Follow the instructions on the screen to complete the installation.Installing PPD FilesE.2USING WINDOWS POSTSCRIPT DRIVER

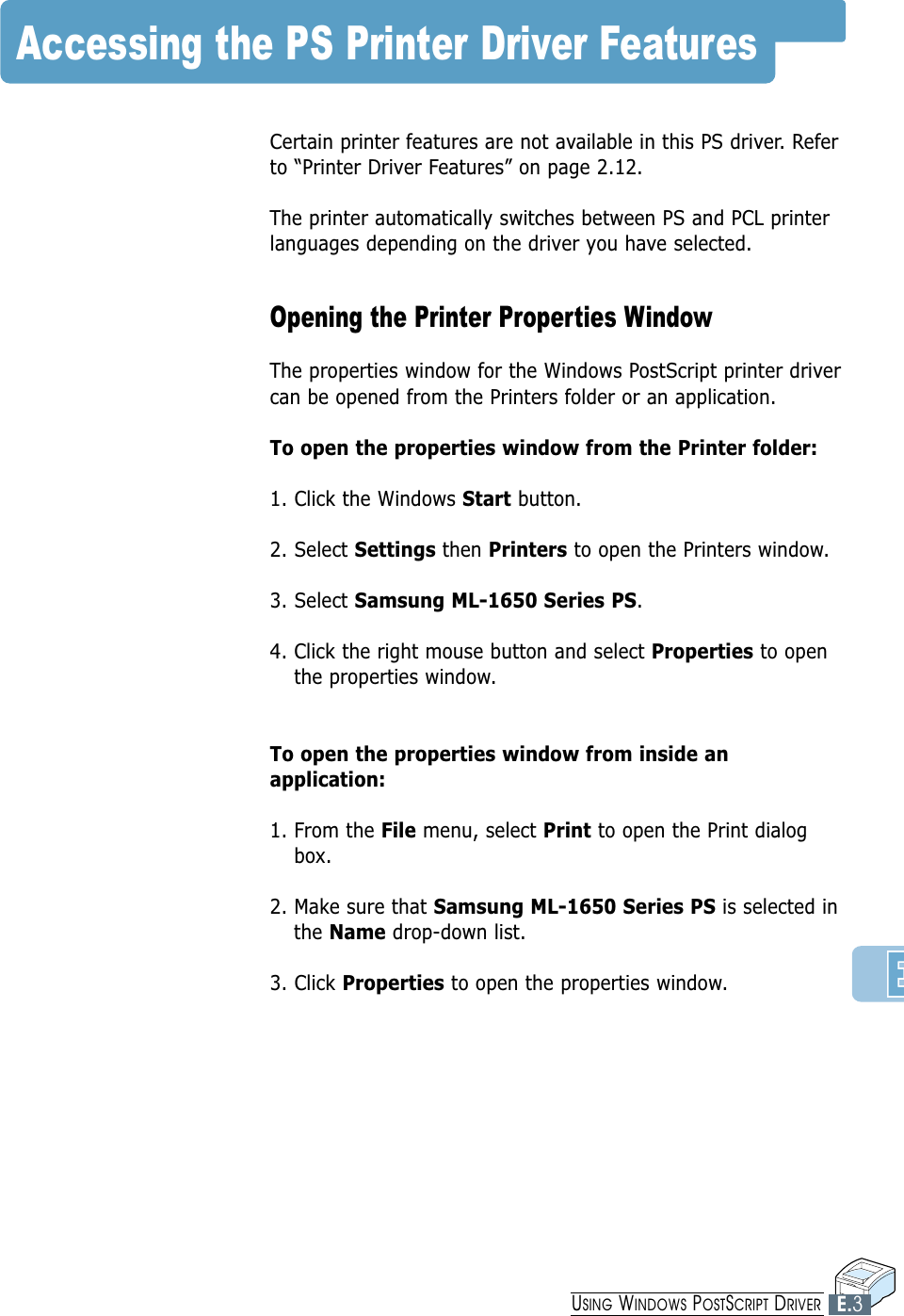

Accessing the PS Printer Driver FeaturesCertain printer features are not available in this PS driver. Referto “Printer Driver Features” on page 2.12.The printer automatically switches between PS and PCL printerlanguages depending on the driver you have selected. Opening the Printer Properties WindowThe properties window for the Windows PostScript printer drivercan be opened from the Printers folder or an application.To open the properties window from the Printer folder:1. Click the Windows Start button.2. Select Settings then Printers to open the Printers window.3. Select Samsung ML-1650 Series PS. 4. Click the right mouse button and select Properties to openthe properties window.To open the properties window from inside anapplication:1. From the File menu, select Print to open the Print dialogbox.2. Make sure that Samsung ML-1650 Series PS is selected inthe Name drop-down list. 3. Click Properties to open the properties window.E.3USING WINDOWS POSTSCRIPT DRIVER

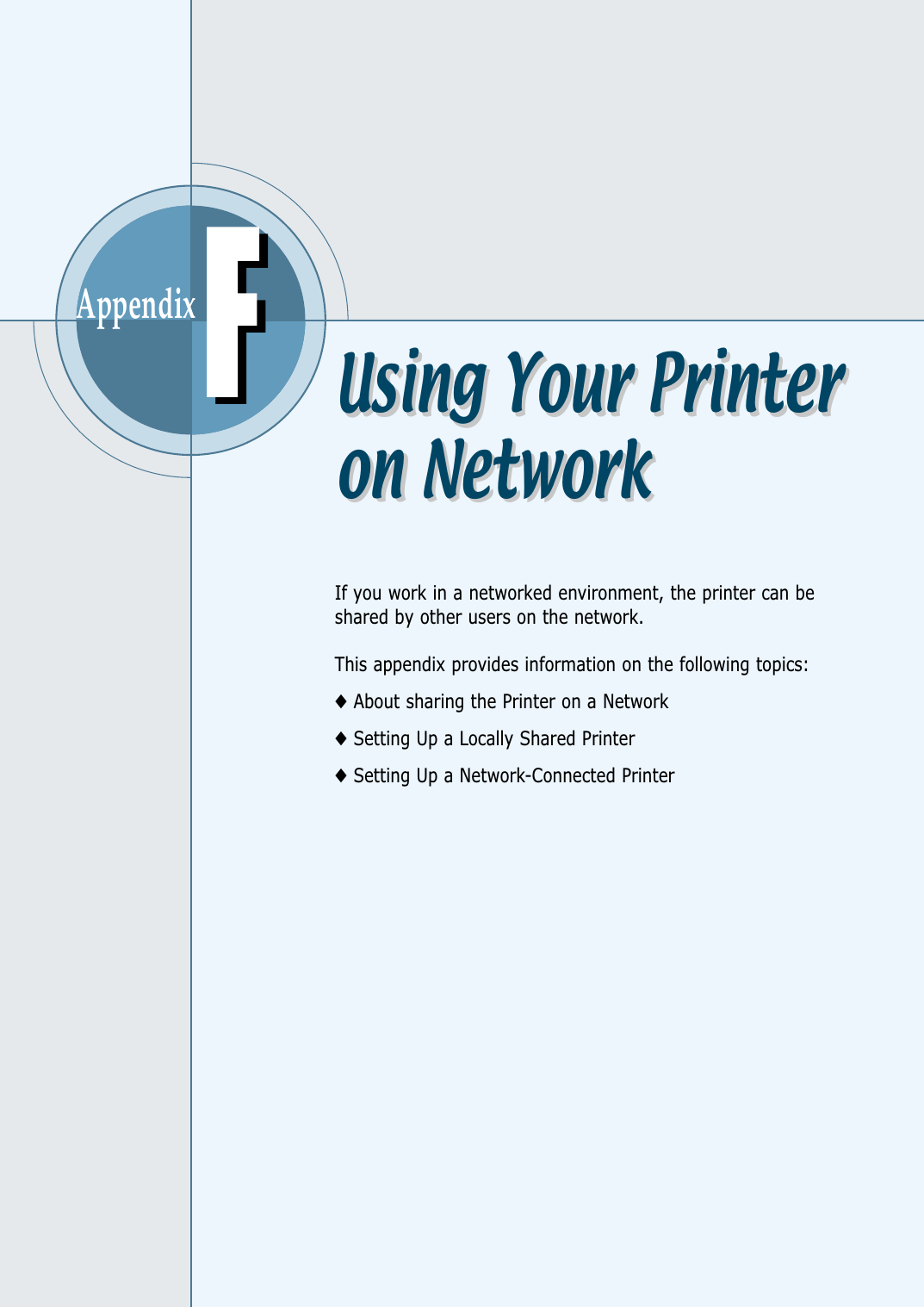

AppendixIf you work in a networked environment, the printer can beshared by other users on the network. This appendix provides information on the following topics:◆About sharing the Printer on a Network◆Setting Up a Locally Shared Printer◆Setting Up a Network-Connected PrinterFFUsing Your Printeron NetworkUsing Your Printeron Network

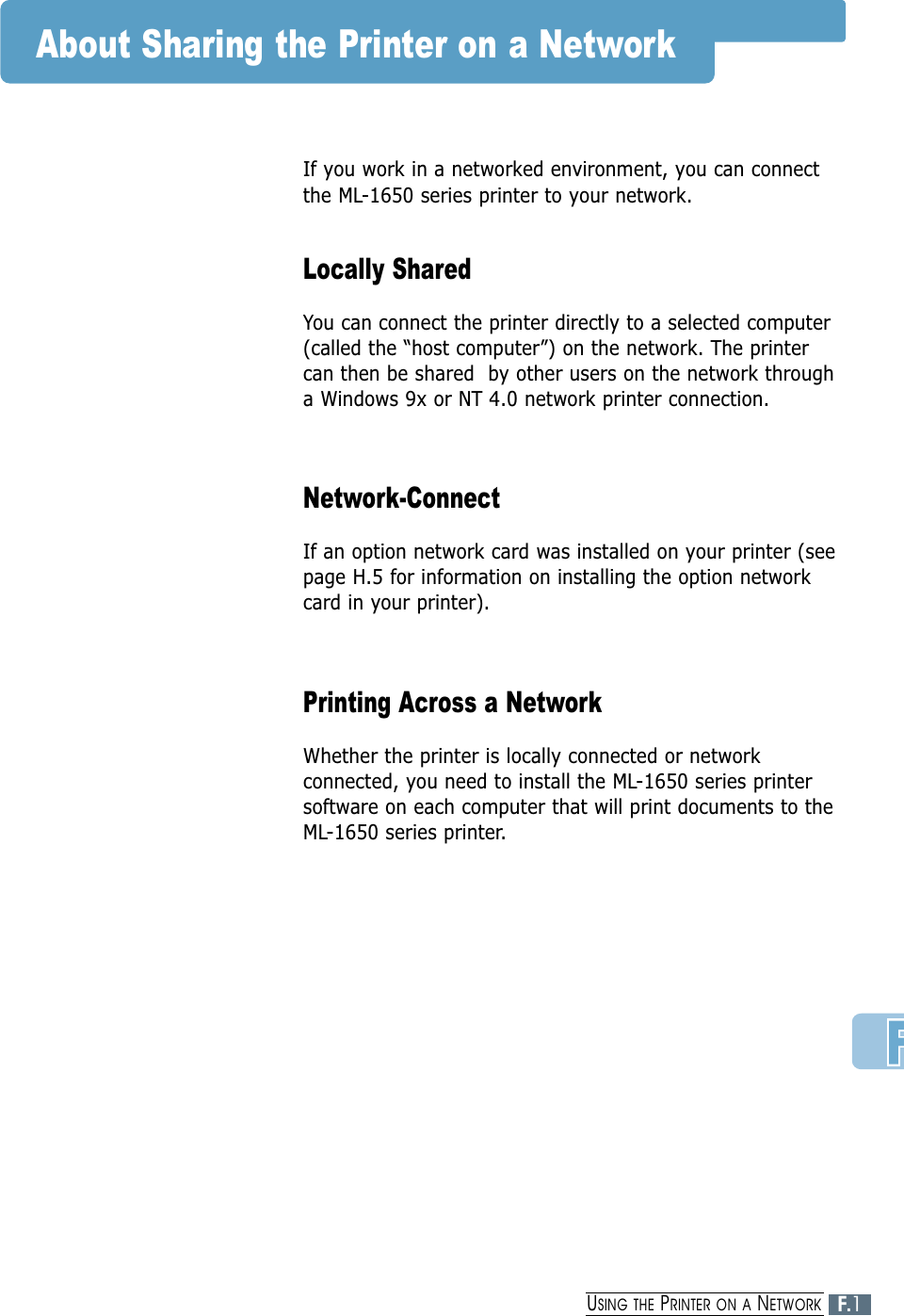

About Sharing the Printer on a NetworkIf you work in a networked environment, you can connectthe ML-1650 series printer to your network. Locally SharedYou can connect the printer directly to a selected computer(called the “host computer”) on the network. The printercan then be shared by other users on the network througha Windows 9x or NT 4.0 network printer connection.Network-ConnectIf an option network card was installed on your printer (seepage H.5 for information on installing the option networkcard in your printer). Printing Across a NetworkWhether the printer is locally connected or networkconnected, you need to install the ML-1650 series printersoftware on each computer that will print documents to theML-1650 series printer.F.1USING THE PRINTER ON A NETWORK

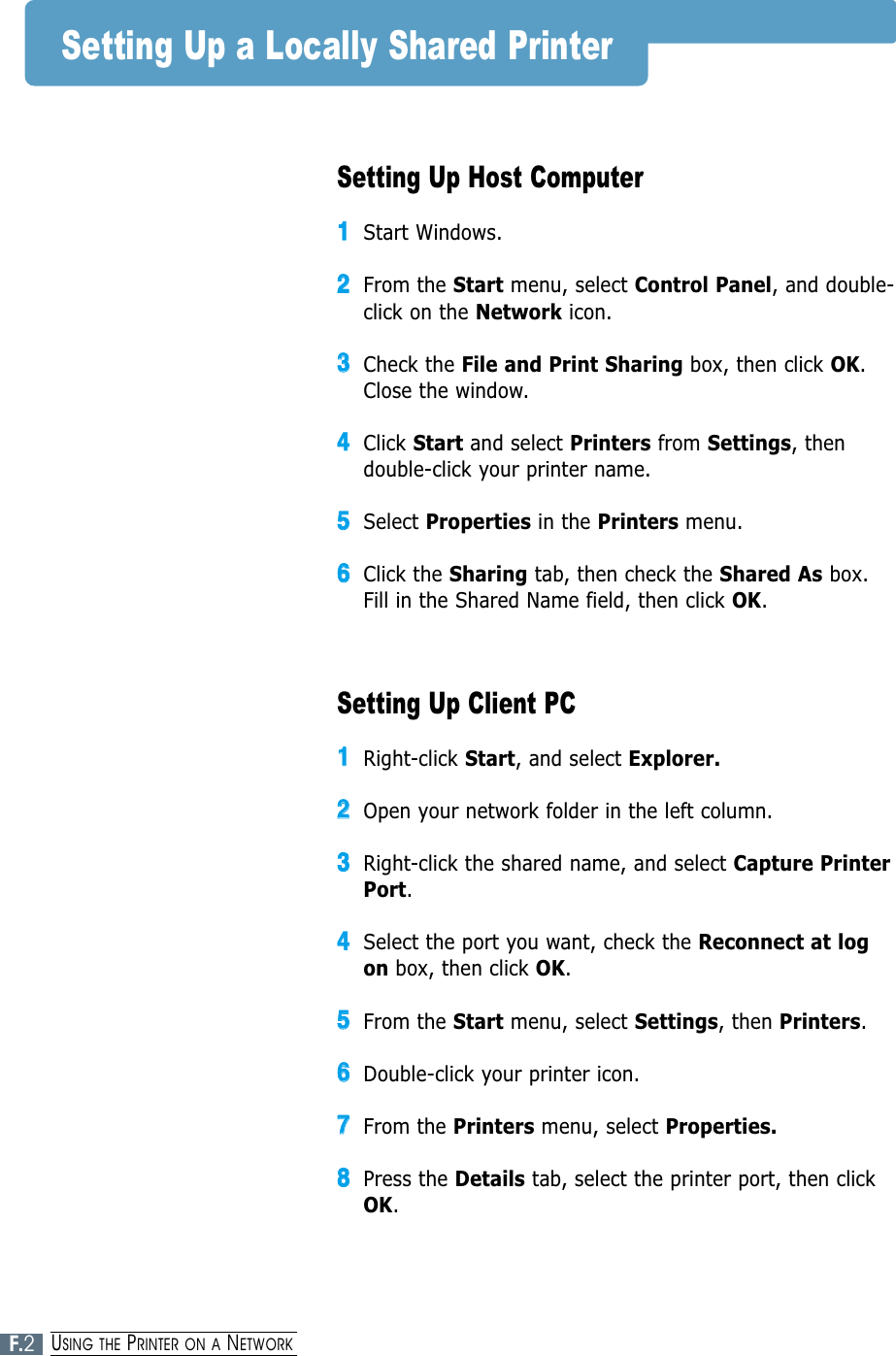

Setting Up Host Computer11Start Windows.22From the Start menu, select Control Panel, and double-click on the Network icon.33Check the File and Print Sharing box, then click OK.Close the window.44Click Start and select Printers from Settings, thendouble-click your printer name.55Select Properties in the Printers menu.66Click the Sharing tab, then check the Shared As box.Fill in the Shared Name field, then click OK.Setting Up Client PC11Right-click Start, and select Explorer.22Open your network folder in the left column.33Right-click the shared name, and select Capture PrinterPort.44Select the port you want, check the Reconnect at logon box, then click OK.55From the Start menu, select Settings, then Printers.66Double-click your printer icon.77From the Printers menu, select Properties.88Press the Details tab, select the printer port, then clickOK.Setting Up a Locally Shared PrinterF.2USING THE PRINTER ON A NETWORK

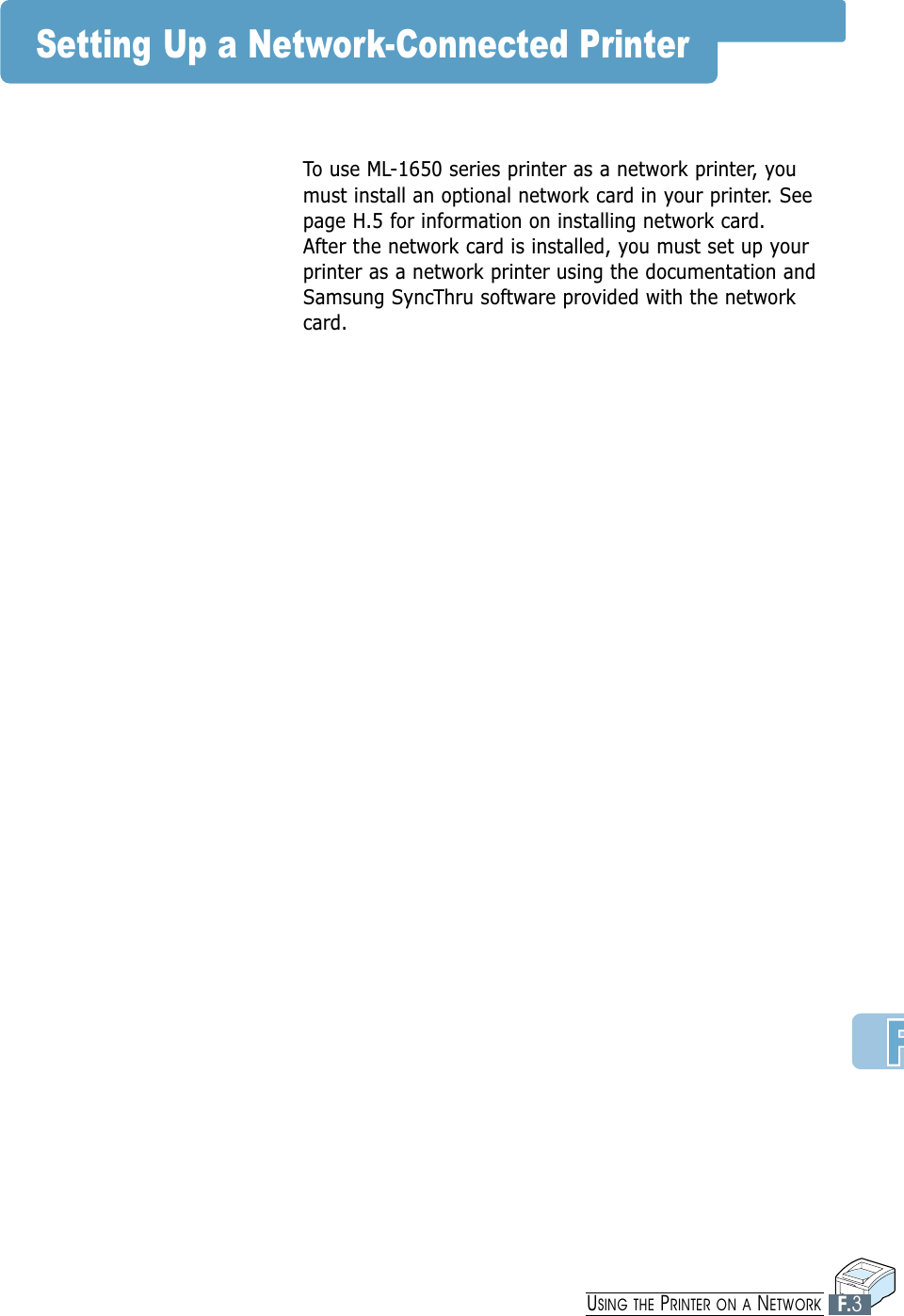

Setting Up a Network-Connected PrinterTo use ML-1650 series printer as a network printer, youmust install an optional network card in your printer. Seepage H.5 for information on installing network card.After the network card is installed, you must set up yourprinter as a network printer using the documentation andSamsung SyncThru software provided with the networkcard.F.3USING THE PRINTER ON A NETWORK

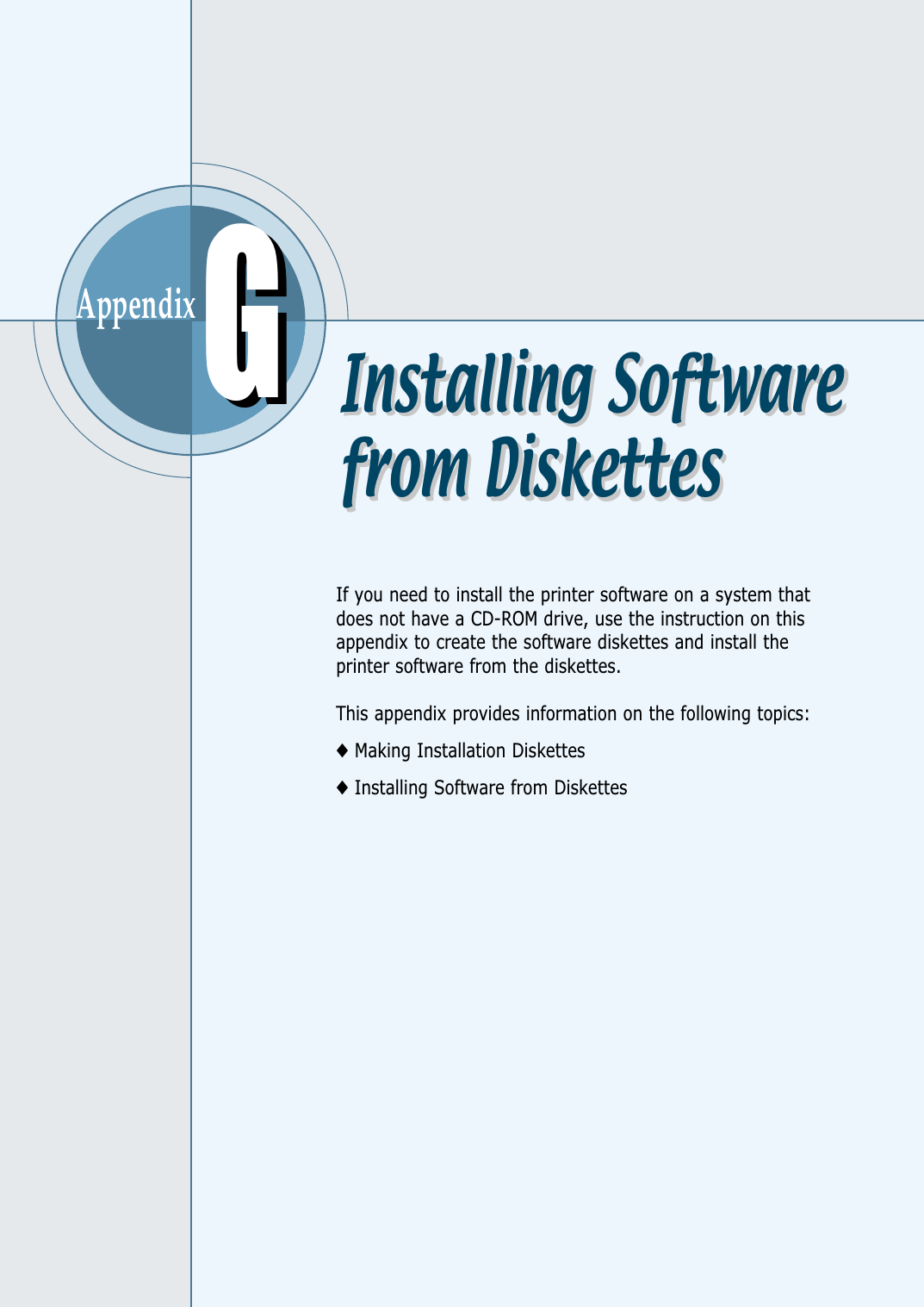

AppendixIf you need to install the printer software on a system thatdoes not have a CD-ROM drive, use the instruction on thisappendix to create the software diskettes and install theprinter software from the diskettes.This appendix provides information on the following topics:◆Making Installation Diskettes◆Installing Software from DiskettesGGInstalling Softwarefrom DiskettesInstalling Softwarefrom Diskettes

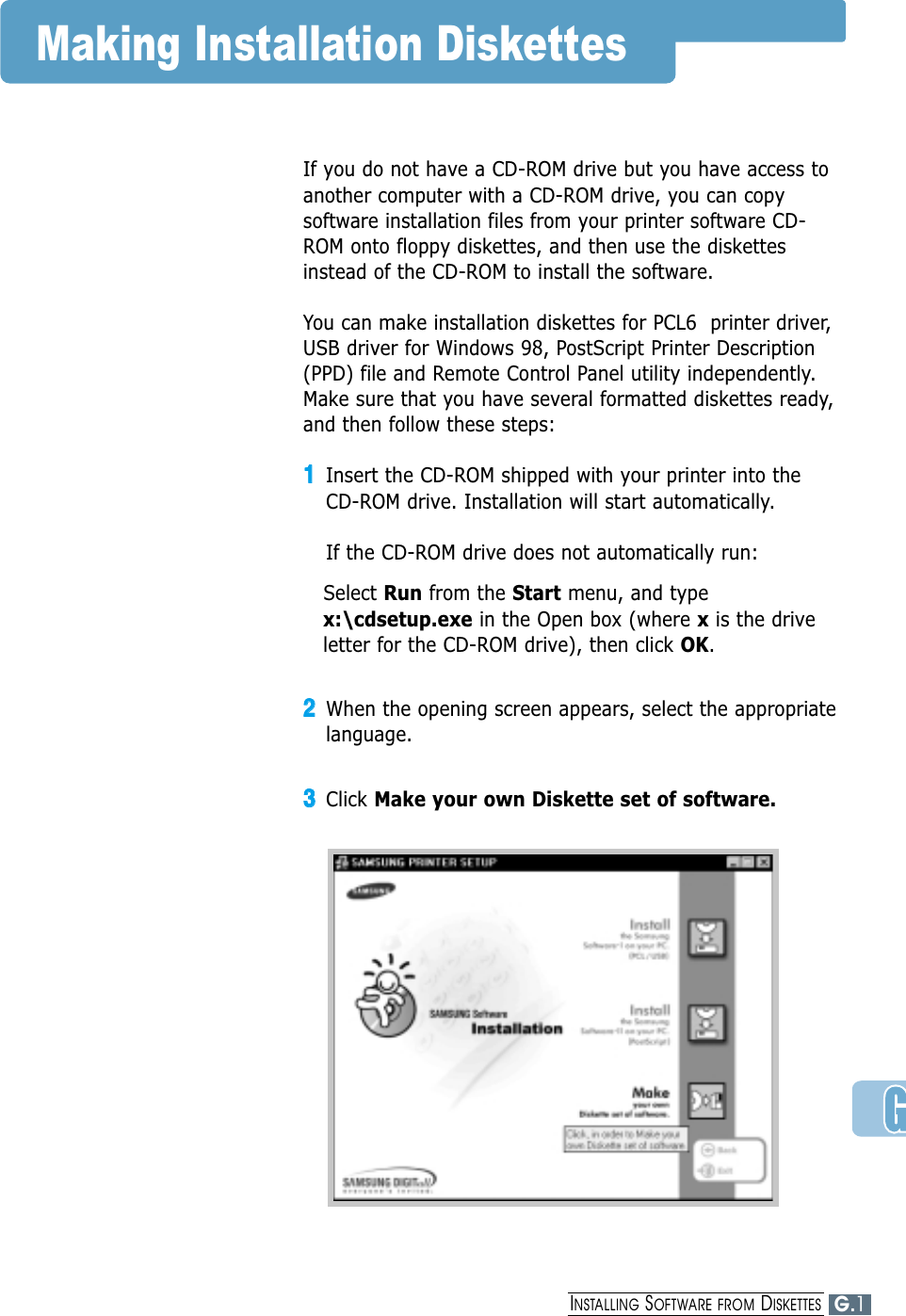

Making Installation DiskettesIf you do not have a CD-ROM drive but you have access toanother computer with a CD-ROM drive, you can copysoftware installation files from your printer software CD-ROM onto floppy diskettes, and then use the diskettesinstead of the CD-ROM to install the software.You can make installation diskettes for PCL6 printer driver,USB driver for Windows 98, PostScript Printer Description(PPD) file and Remote Control Panel utility independently.Make sure that you have several formatted diskettes ready,and then follow these steps:11Insert the CD-ROM shipped with your printer into the CD-ROM drive. Installation will start automatically.If the CD-ROM drive does not automatically run:Select Run from the Start menu, and typex:\cdsetup.exe in the Open box (where xis the driveletter for the CD-ROM drive), then click OK.22When the opening screen appears, select the appropriatelanguage.33Click Make your own Diskette set of software.G.1INSTALLING SOFTWARE FROM DISKETTES

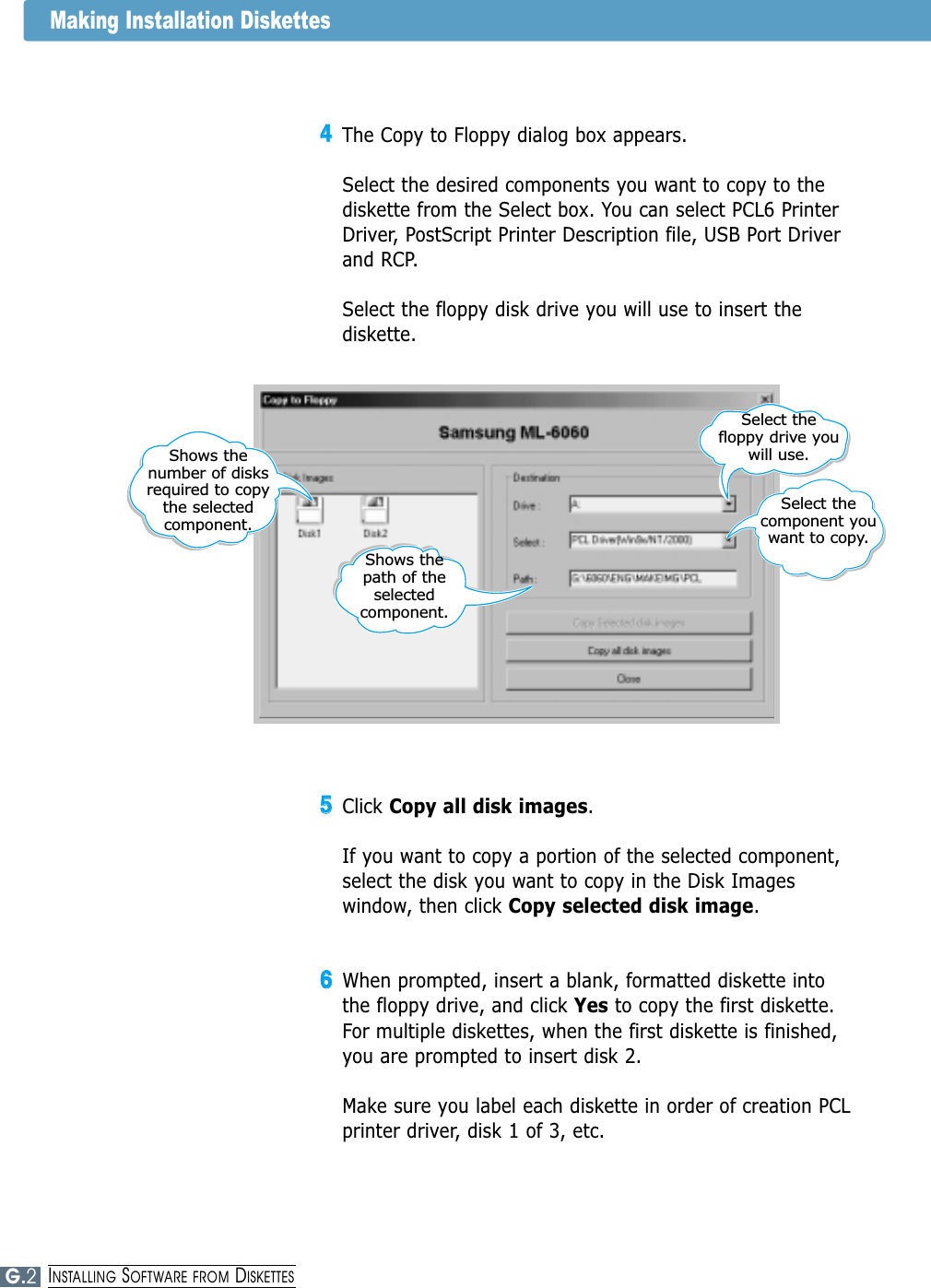

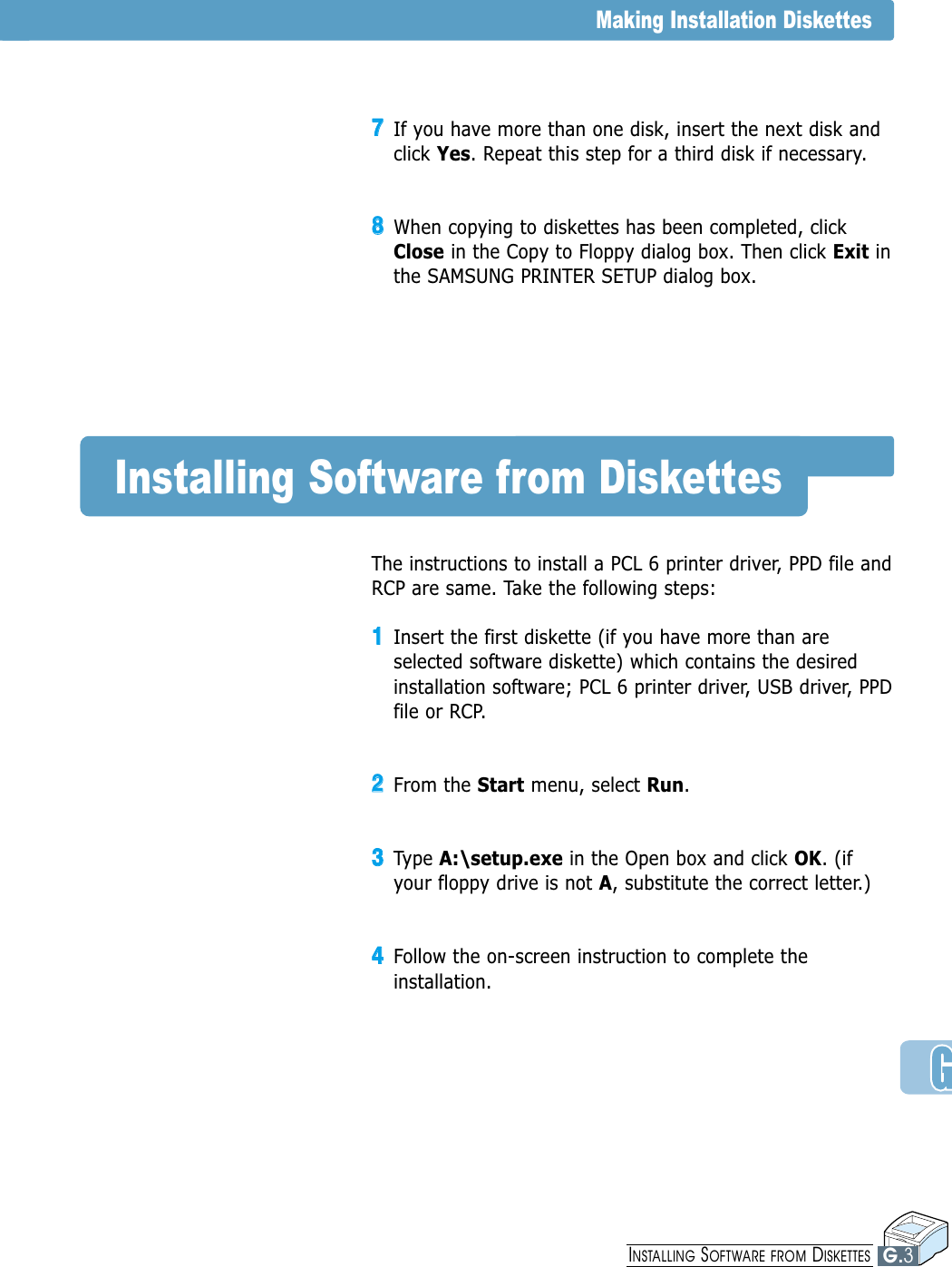

44The Copy to Floppy dialog box appears.Select the desired components you want to copy to thediskette from the Select box. You can select PCL6 PrinterDriver, PostScript Printer Description file, USB Port Driverand RCP. Select the floppy disk drive you will use to insert thediskette. 55Click Copy all disk images.If you want to copy a portion of the selected component,select the disk you want to copy in the Disk Imageswindow, then click Copy selected disk image. 66When prompted, insert a blank, formatted diskette intothe floppy drive, and click Yes to copy the first diskette.For multiple diskettes, when the first diskette is finished,you are prompted to insert disk 2.Make sure you label each diskette in order of creation PCLprinter driver, disk 1 of 3, etc.Shows the path of theselectedcomponent.Select thefloppy drive youwill use.Making Installation DiskettesShows the number of disksrequired to copythe selectedcomponent. Select thecomponent youwant to copy.G.2INSTALLING SOFTWARE FROM DISKETTES
77If you have more than one disk, insert the next disk andclick Yes. Repeat this step for a third disk if necessary.88When copying to diskettes has been completed, clickClose in the Copy to Floppy dialog box. Then click Exit inthe SAMSUNG PRINTER SETUP dialog box.Installing Software from DiskettesThe instructions to install a PCL 6 printer driver, PPD file andRCP are same. Take the following steps:11Insert the first diskette (if you have more than areselected software diskette) which contains the desiredinstallation software; PCL 6 printer driver, USB driver, PPDfile or RCP.22From the Start menu, select Run. 33Type A:\setup.exe in the Open box and click OK. (ifyour floppy drive is not A, substitute the correct letter.)44Follow the on-screen instruction to complete theinstallation.Making Installation DiskettesG.3INSTALLING SOFTWARE FROM DISKETTES

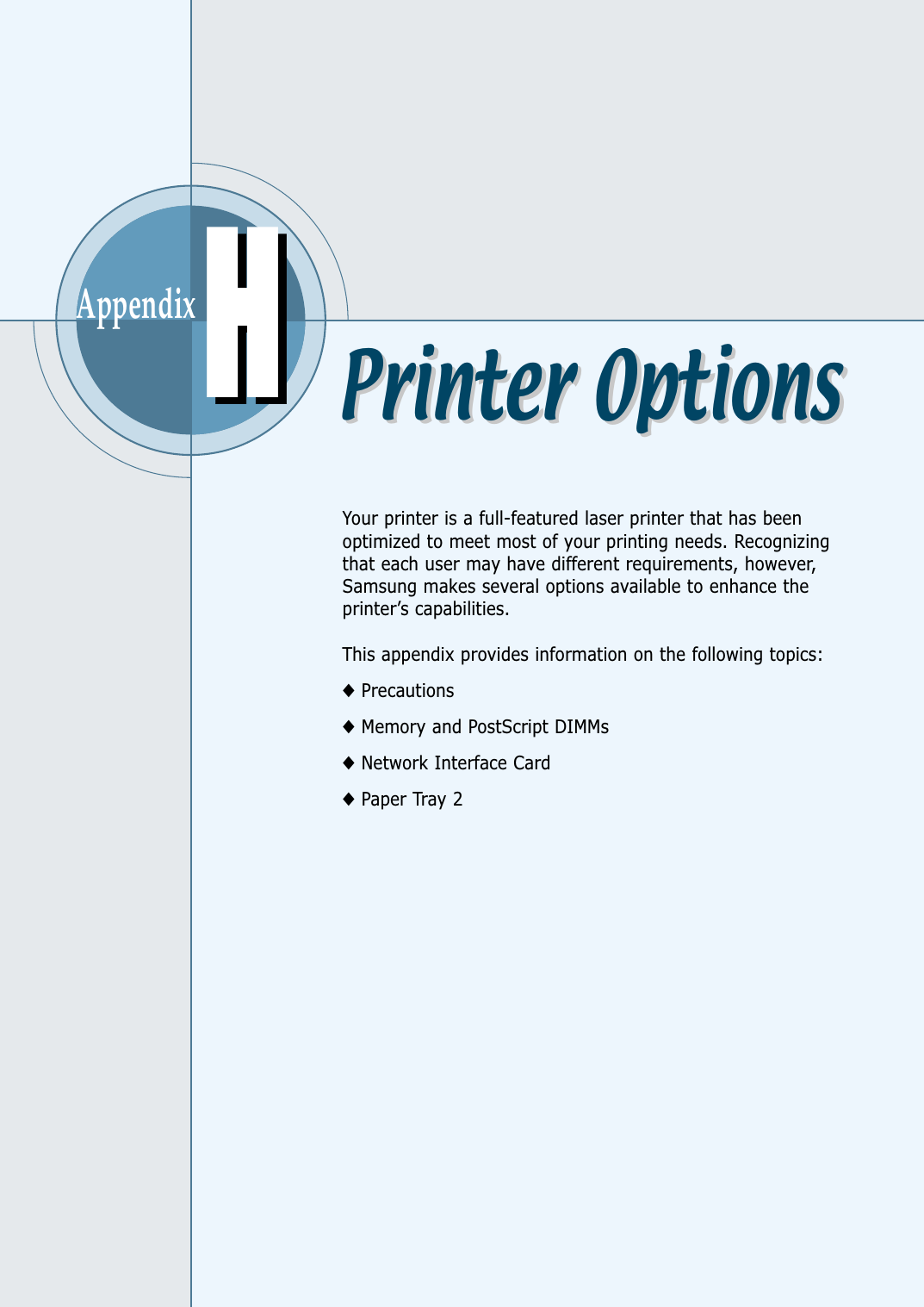

AppendixYour printer is a full-featured laser printer that has beenoptimized to meet most of your printing needs. Recognizingthat each user may have different requirements, however,Samsung makes several options available to enhance theprinter’s capabilities.This appendix provides information on the following topics:◆Precautions◆Memory and PostScript DIMMs◆Network Interface Card◆Paper Tray 2HHPrinter OptionsPrinter Options

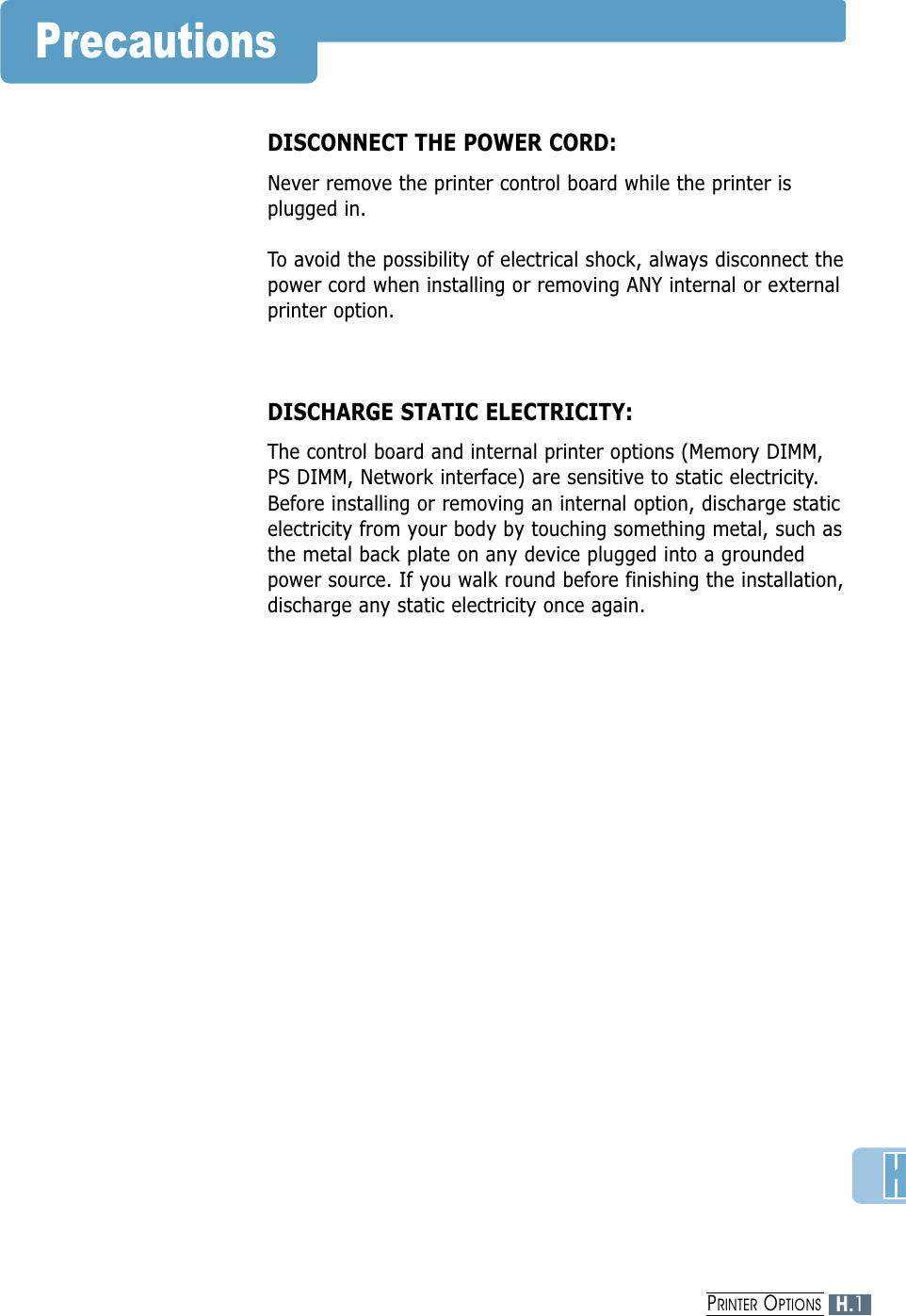

PrecautionsDISCONNECT THE POWER CORD: Never remove the printer control board while the printer isplugged in.To avoid the possibility of electrical shock, always disconnect thepower cord when installing or removing ANY internal or externalprinter option.DISCHARGE STATIC ELECTRICITY: The control board and internal printer options (Memory DIMM,PS DIMM, Network interface) are sensitive to static electricity.Before installing or removing an internal option, discharge staticelectricity from your body by touching something metal, such asthe metal back plate on any device plugged into a groundedpower source. If you walk round before finishing the installation,discharge any static electricity once again.H.1PRINTER OPTIONS

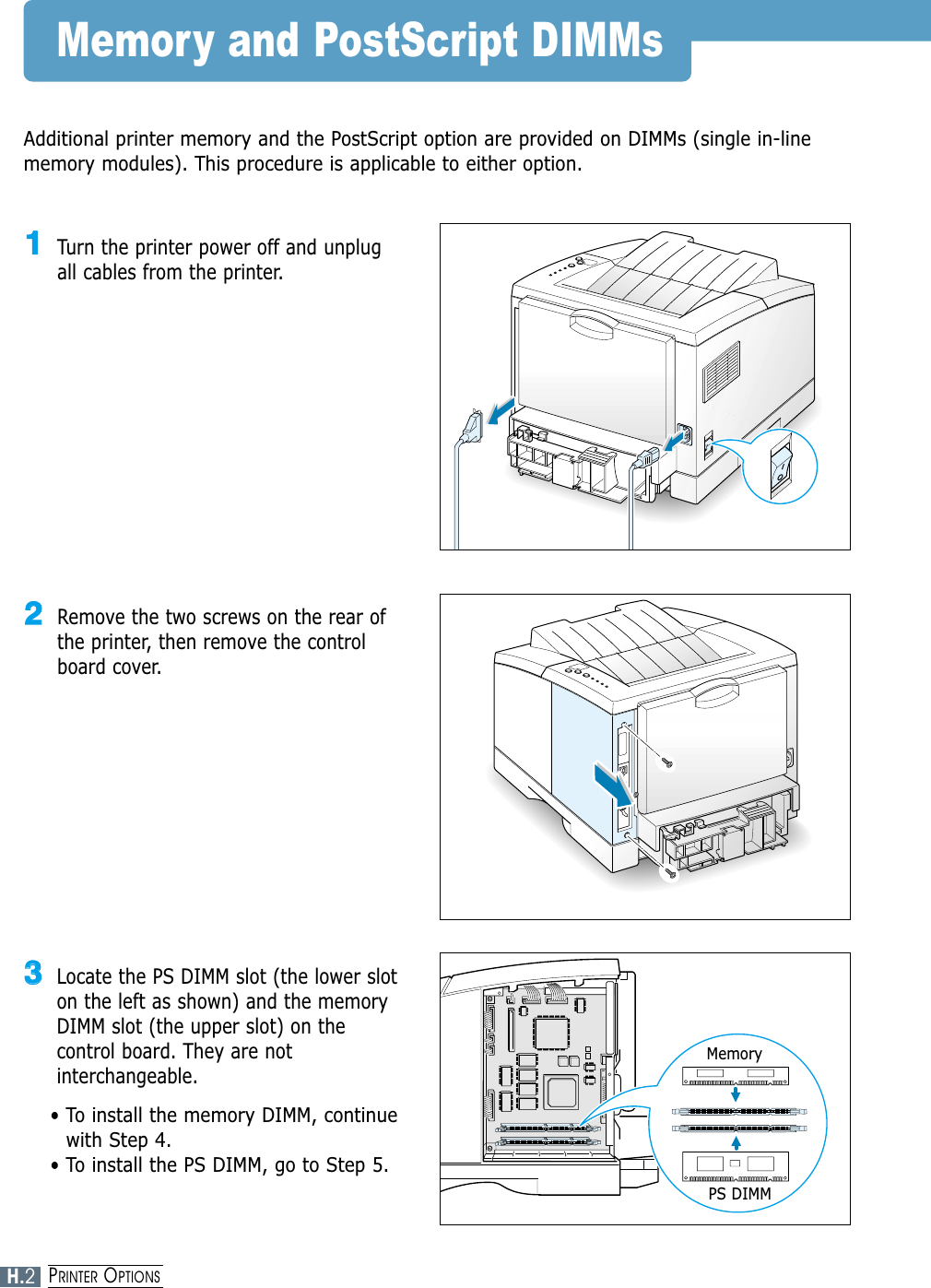

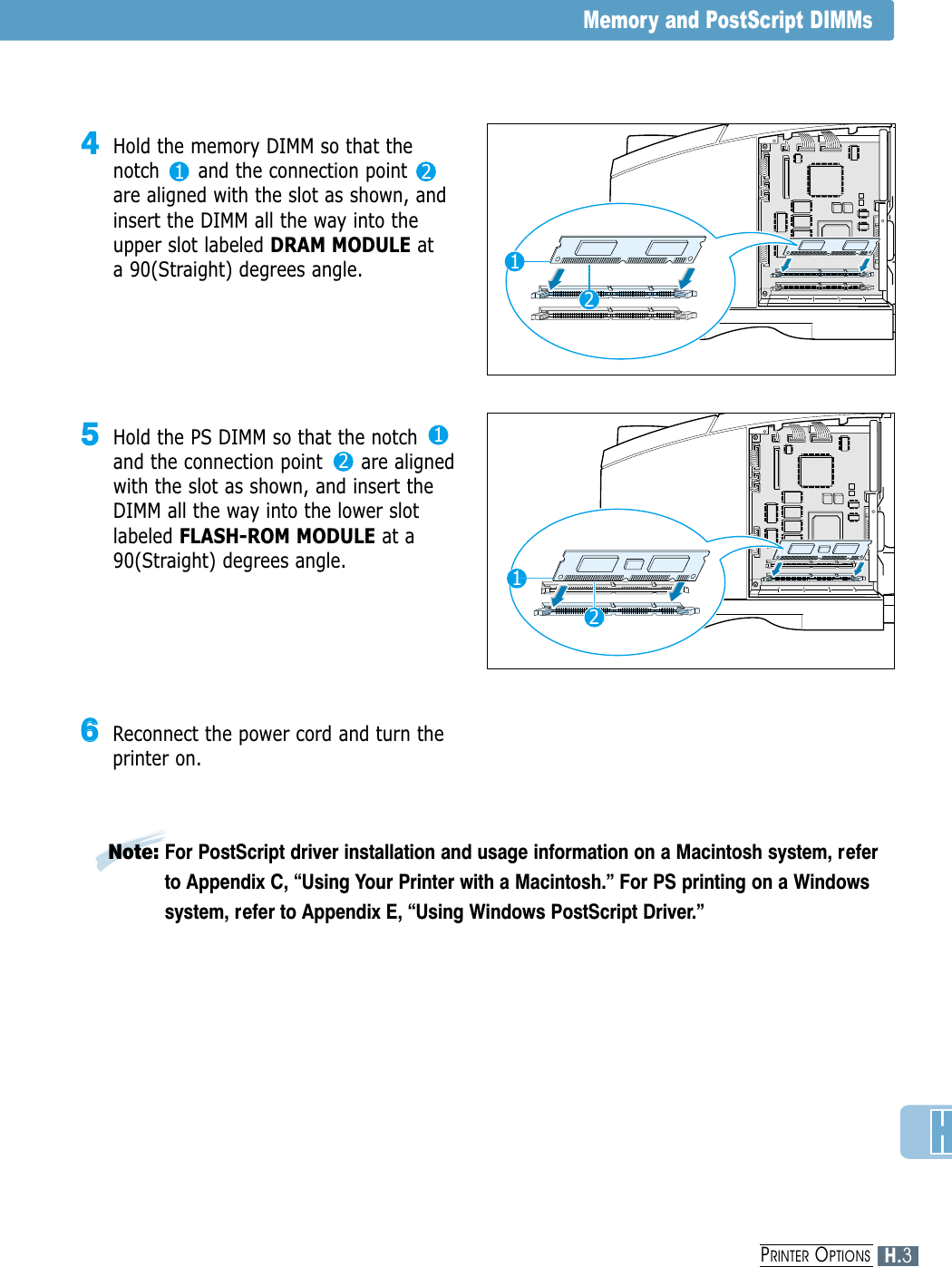

Memory and PostScript DIMMsAdditional printer memory and the PostScript option are provided on DIMMs (single in-linememory modules). This procedure is applicable to either option.11Turn the printer power off and unplugall cables from the printer.22Remove the two screws on the rear ofthe printer, then remove the controlboard cover.33Locate the PS DIMM slot (the lower sloton the left as shown) and the memoryDIMM slot (the upper slot) on thecontrol board. They are notinterchangeable.• To install the memory DIMM, continuewith Step 4.• To install the PS DIMM, go to Step 5.MemoryPS DIMMH.2PRINTER OPTIONS
44Hold the memory DIMM so that thenotch and the connection pointare aligned with the slot as shown, andinsert the DIMM all the way into theupper slot labeled DRAM MODULE at a 90(Straight) degrees angle. Memory and PostScript DIMMs121 255Hold the PS DIMM so that the notchand the connection point are alignedwith the slot as shown, and insert theDIMM all the way into the lower slotlabeled FLASH-ROM MODULE at a90(Straight) degrees angle. 121266Reconnect the power cord and turn theprinter on.Note: For PostScript driver installation and usage information on a Macintosh system, referto Appendix C, “Using Your Printer with a Macintosh.” For PS printing on a Windowssystem, refer to Appendix E, “Using Windows PostScript Driver.”H.3PRINTER OPTIONS

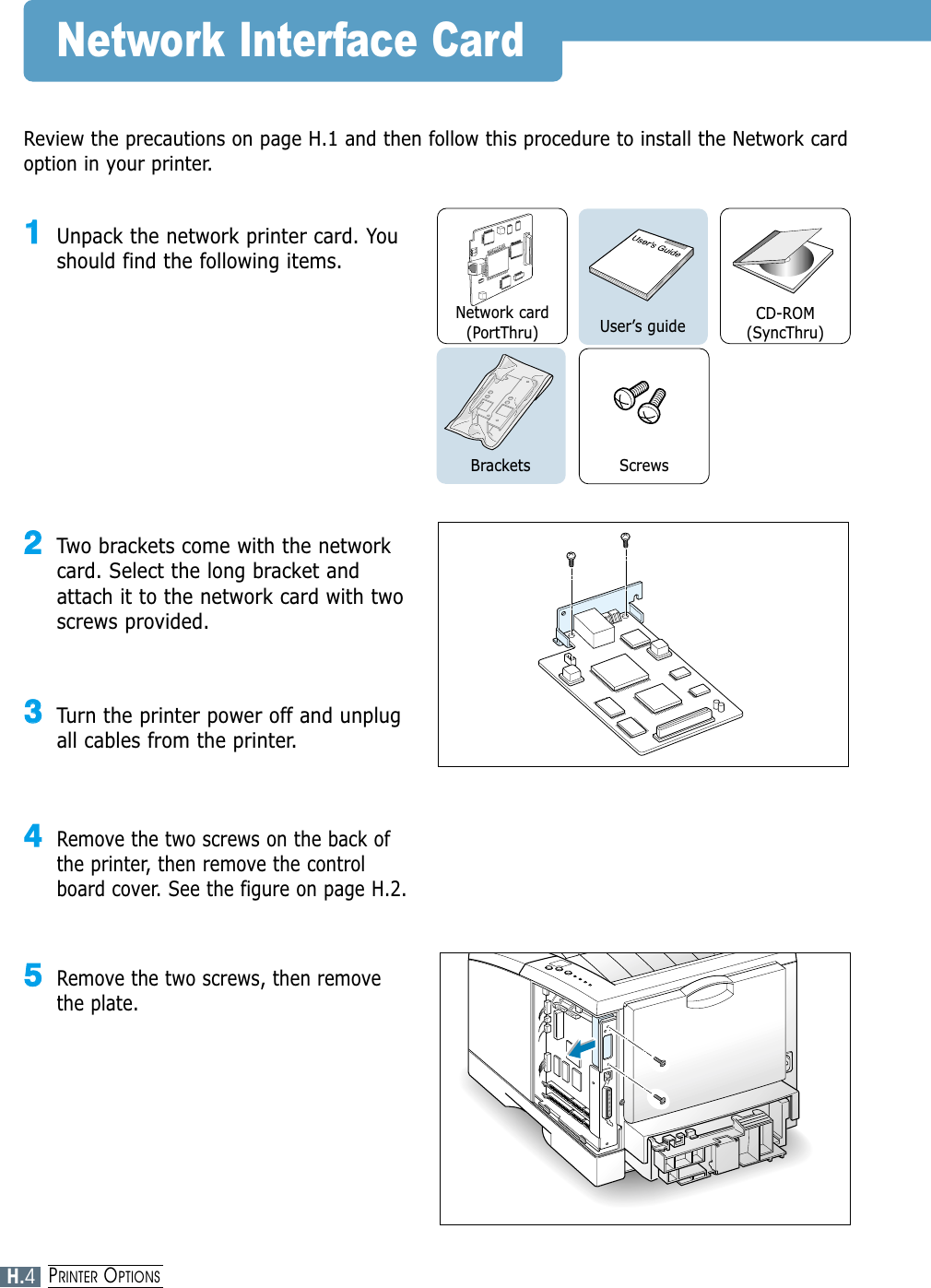

Network Interface CardReview the precautions on page H.1 and then follow this procedure to install the Network cardoption in your printer.11Unpack the network printer card. Youshould find the following items.22Two brackets come with the networkcard. Select the long bracket andattach it to the network card with twoscrews provided.33Turn the printer power off and unplugall cables from the printer.44Remove the two screws on the back ofthe printer, then remove the controlboard cover. See the figure on page H.2.55Remove the two screws, then removethe plate.Network card(PortThru)ScrewsUser’s guide CD-ROM(SyncThru)BracketsH.4PRINTER OPTIONS

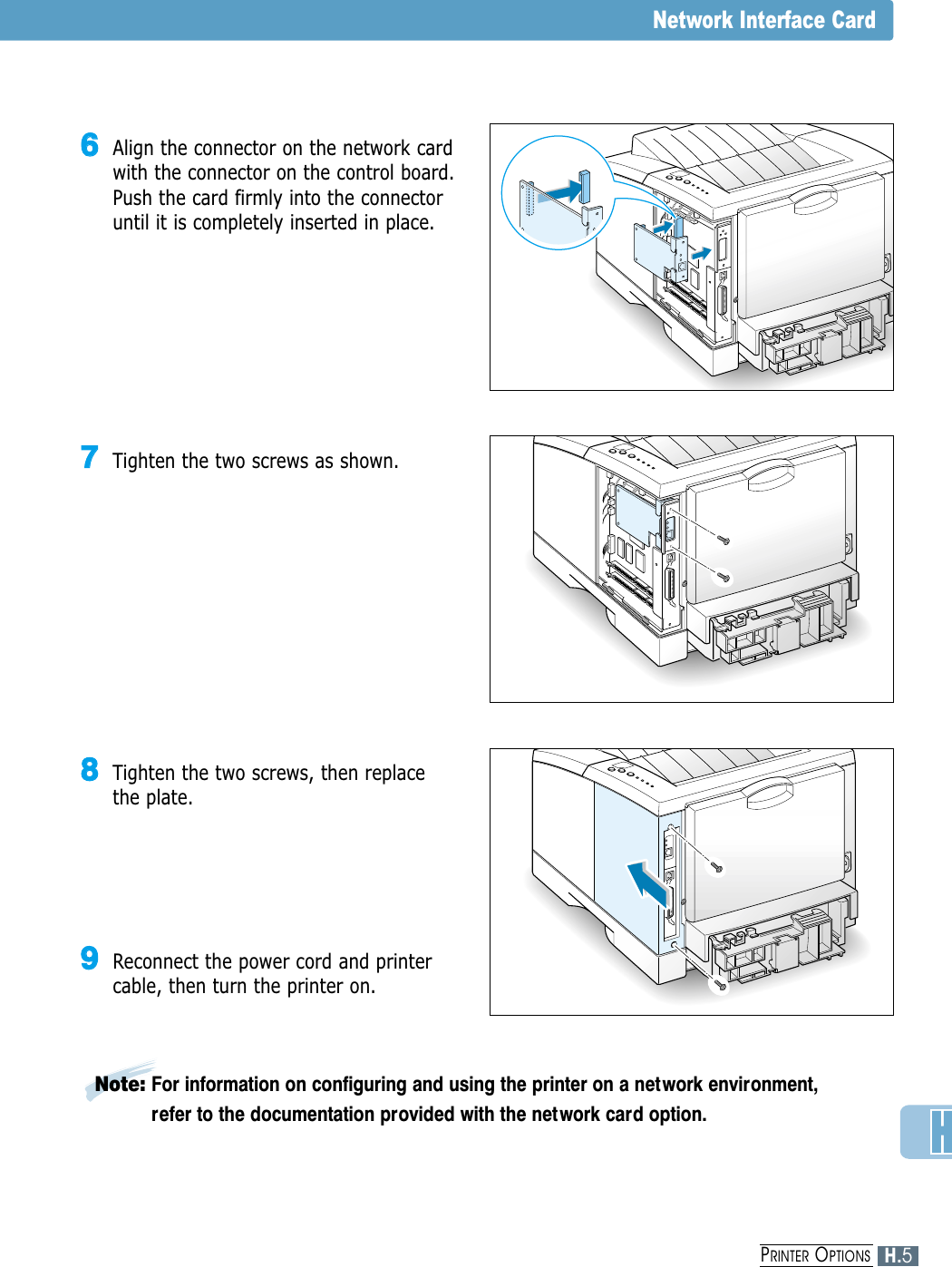

66Align the connector on the network cardwith the connector on the control board.Push the card firmly into the connectoruntil it is completely inserted in place.77Tighten the two screws as shown.88Tighten the two screws, then replacethe plate.99Reconnect the power cord and printercable, then turn the printer on.Network Interface CardNote: For information on configuring and using the printer on a network environment,refer to the documentation provided with the network card option.H.5PRINTER OPTIONS

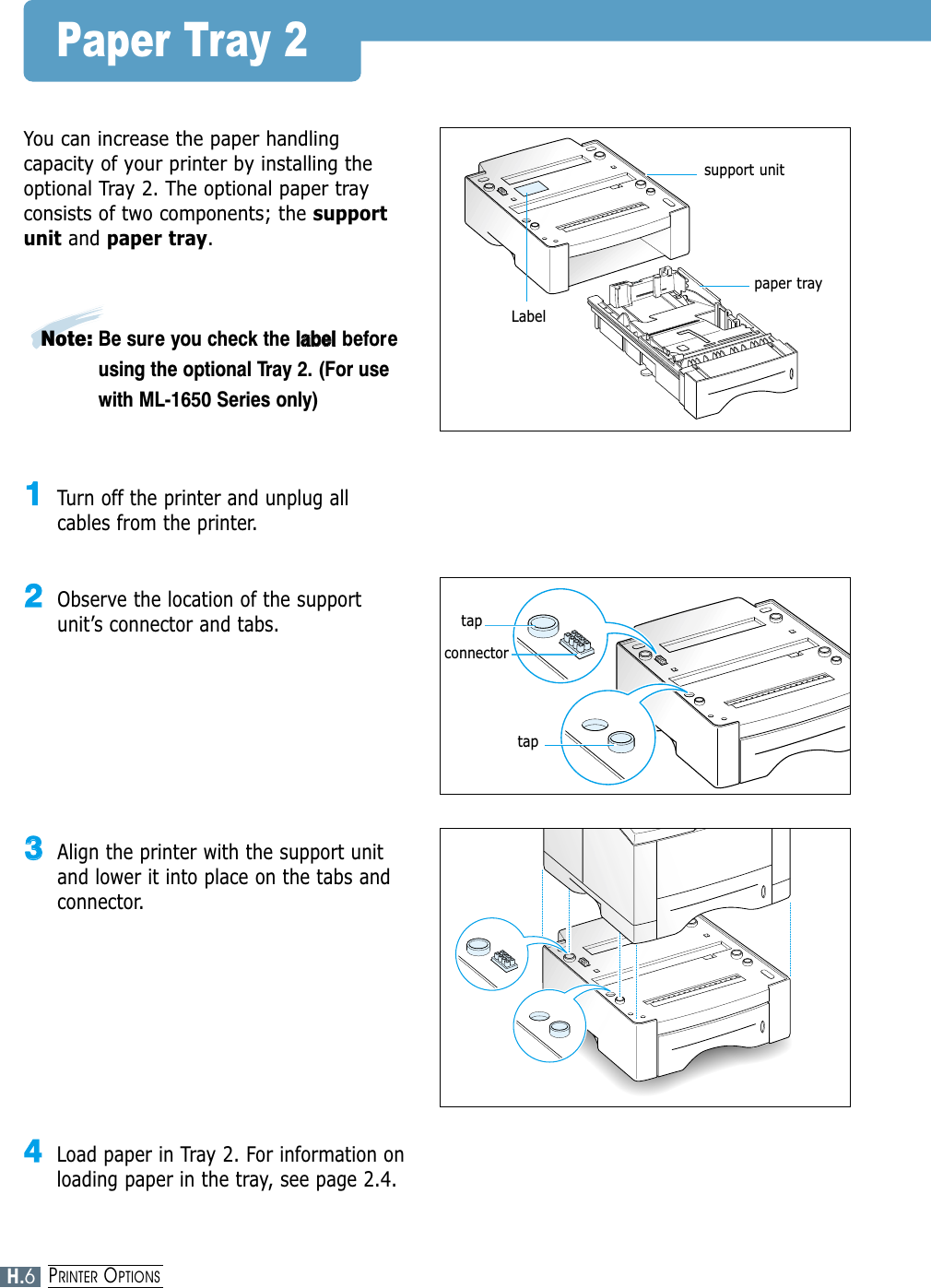

Paper Tray 2You can increase the paper handlingcapacity of your printer by installing theoptional Tray 2. The optional paper trayconsists of two components; the supportunit and paper tray.11Turn off the printer and unplug allcables from the printer.22Observe the location of the supportunit’s connector and tabs.33Align the printer with the support unitand lower it into place on the tabs andconnector.44Load paper in Tray 2. For information onloading paper in the tray, see page 2.4.support unitpaper trayLabeltaptapconnectorH.6PRINTER OPTIONSNote: Be sure you check the llaabbeellbeforeusing the optional Tray 2. (For usewith ML-1650 Series only)

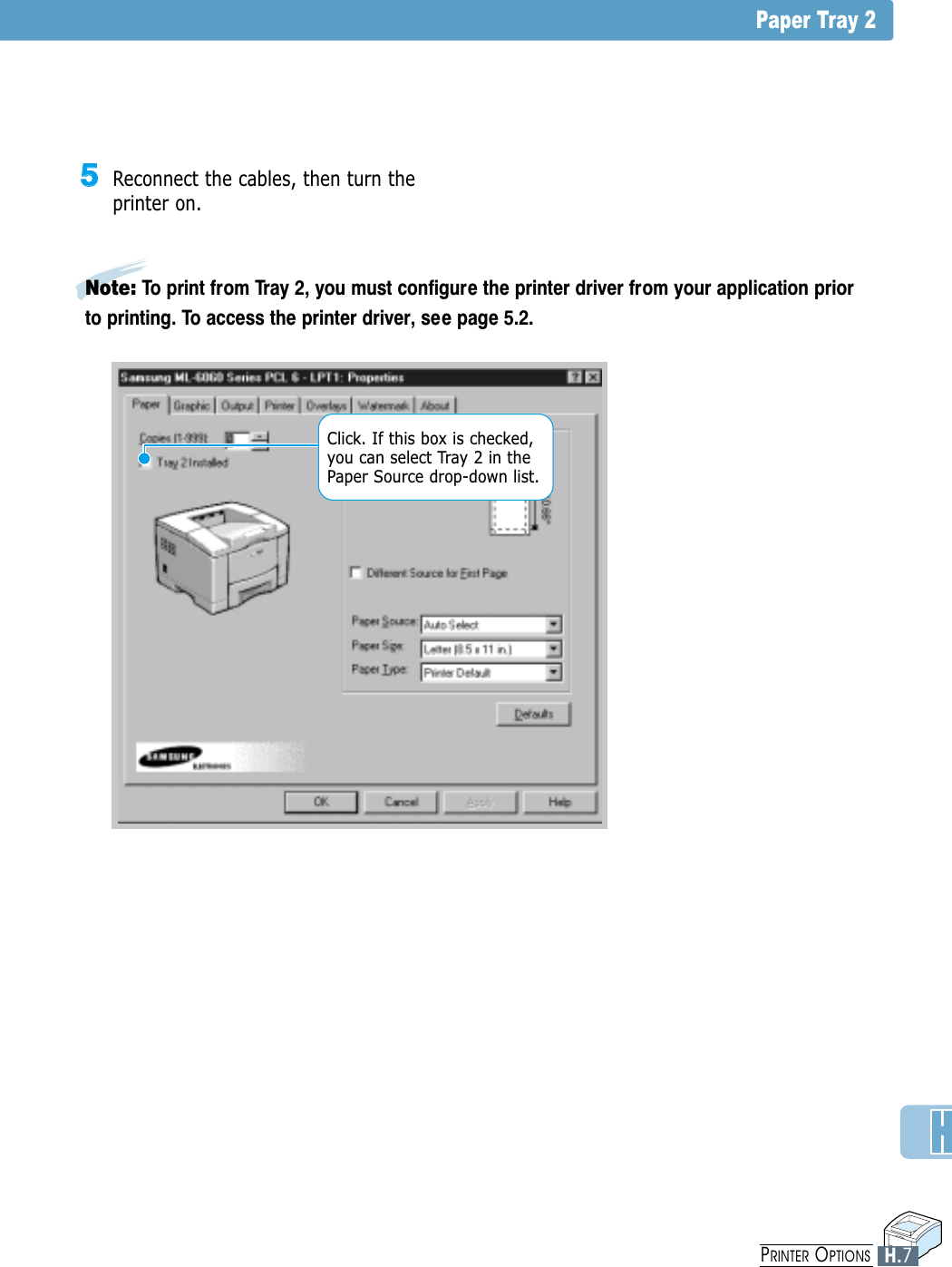

Paper Tray 2Note: To print from Tray 2, you must configure the printer driver from your application priorto printing. To access the printer driver, see page 5.2.55Reconnect the cables, then turn theprinter on.Click. If this box is checked,you can select Tray 2 in thePaper Source drop-down list.H.7PRINTER OPTIONS

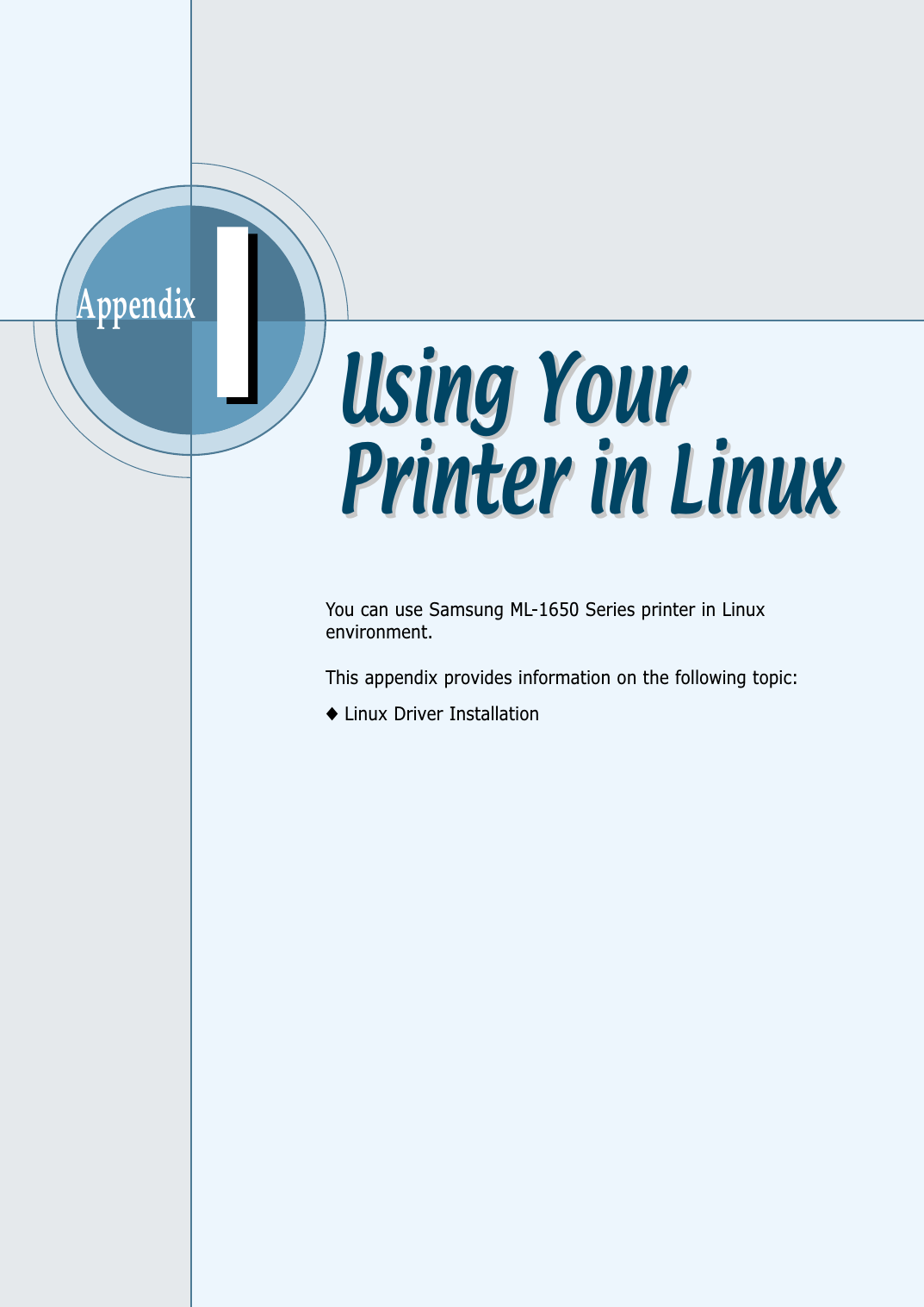

AppendixYou can use Samsung ML-1650 Series printer in Linuxenvironment.This appendix provides information on the following topic:◆Linux Driver InstallationIIUsing YourPrinter in LinuxUsing Your Printer in Linux

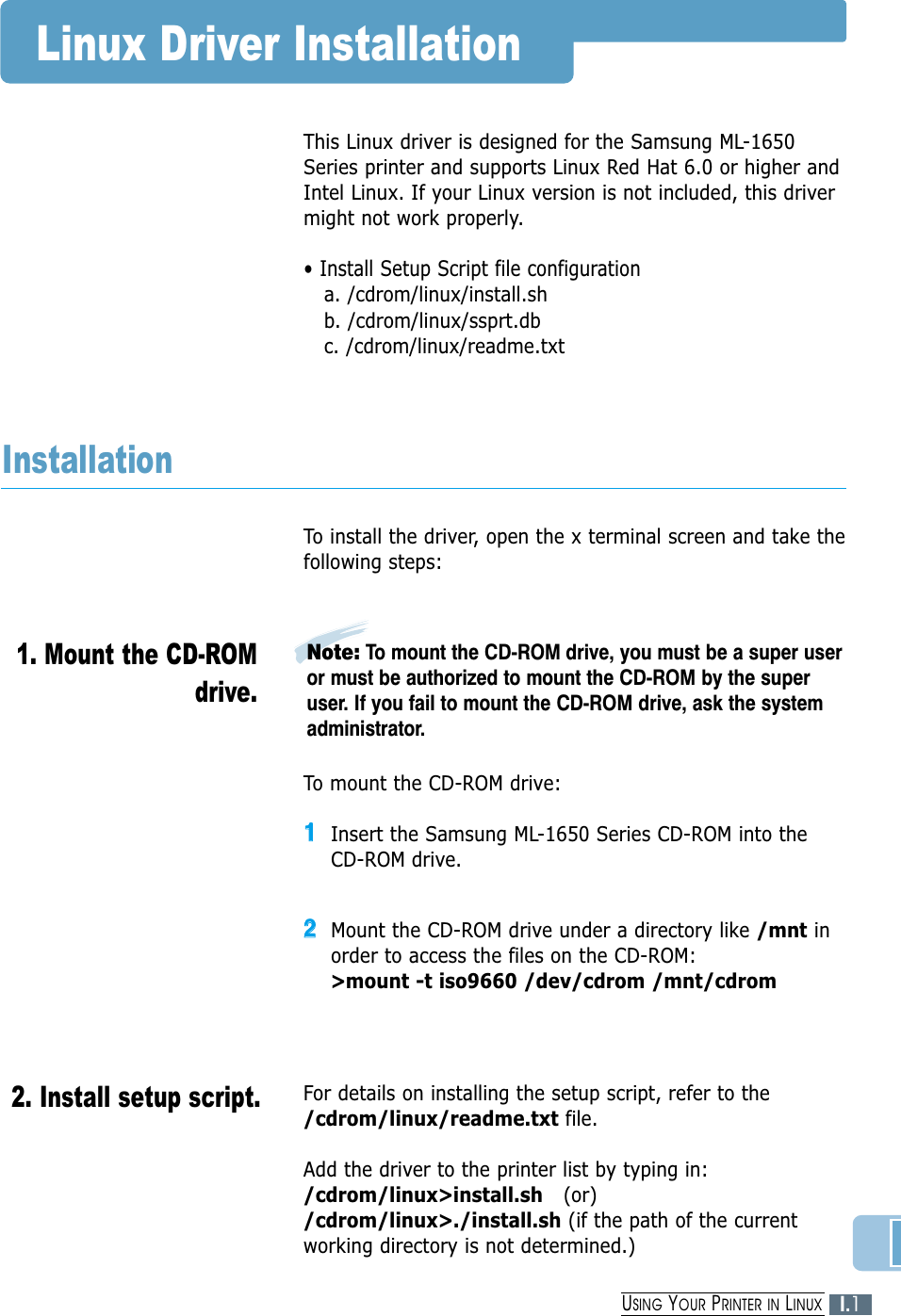

Linux Driver InstallationThis Linux driver is designed for the Samsung ML-1650Series printer and supports Linux Red Hat 6.0 or higher andIntel Linux. If your Linux version is not included, this drivermight not work properly.• Install Setup Script file configurationa. /cdrom/linux/install.shb. /cdrom/linux/ssprt.dbc. /cdrom/linux/readme.txtTo install the driver, open the x terminal screen and take thefollowing steps:InstallationTo mount the CD-ROM drive:11Insert the Samsung ML-1650 Series CD-ROM into theCD-ROM drive.22Mount the CD-ROM drive under a directory like /mnt inorder to access the files on the CD-ROM: >mount -t iso9660 /dev/cdrom /mnt/cdromNote: To mount the CD-ROM drive, you must be a super useror must be authorized to mount the CD-ROM by the superuser. If you fail to mount the CD-ROM drive, ask the systemadministrator.1. Mount the CD-ROMdrive.2. Install setup script.For details on installing the setup script, refer to the/cdrom/linux/readme.txt file.Add the driver to the printer list by typing in:/cdrom/linux>install.sh (or)/cdrom/linux>./install.sh (if the path of the currentworking directory is not determined.)I.1USING YOUR PRINTER IN LINUX

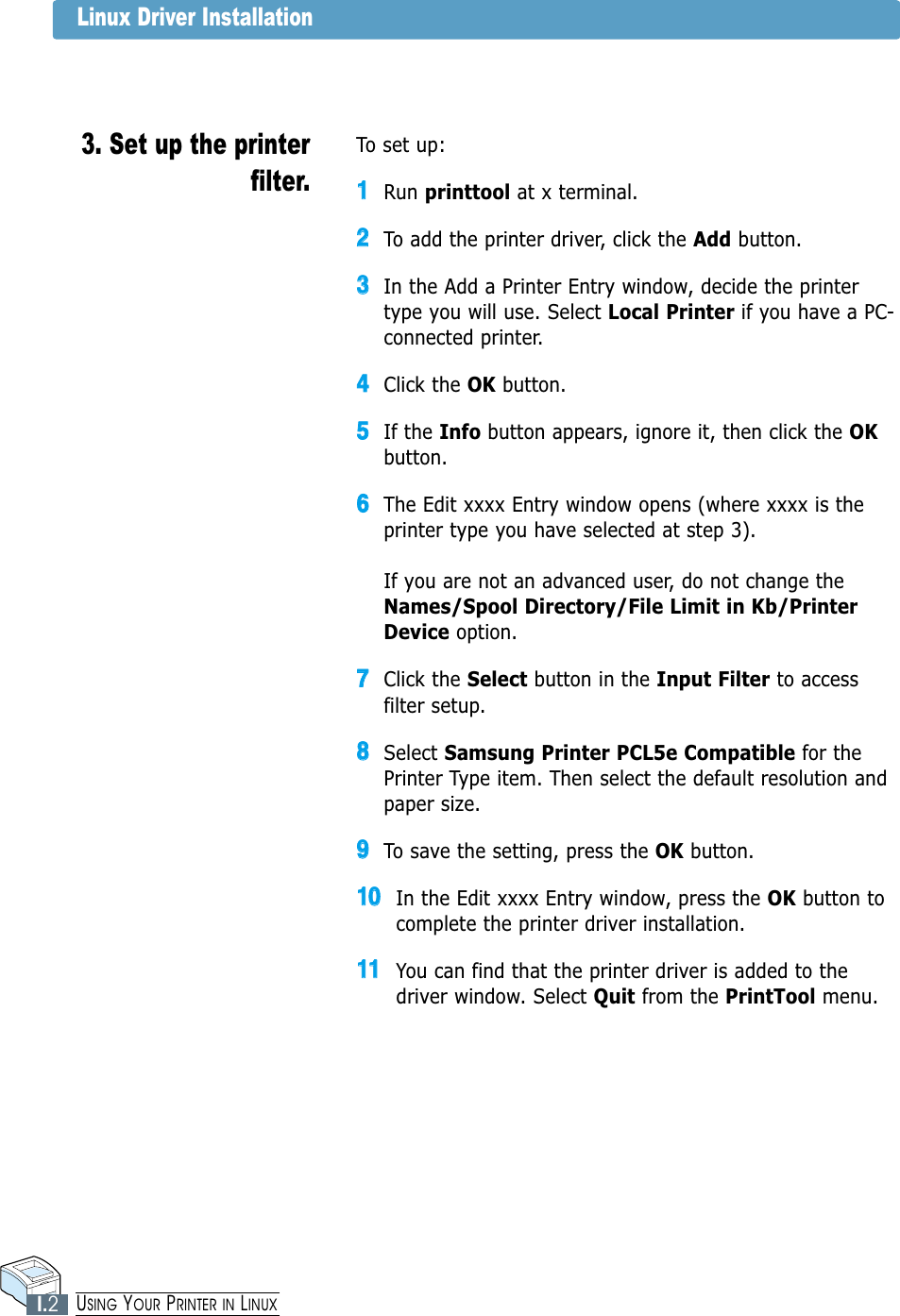

Linux Driver Installation3. Set up the printerfilter.To set up:11Run printtool at x terminal.22To add the printer driver, click the Add button.33In the Add a Printer Entry window, decide the printertype you will use. Select Local Printer if you have a PC-connected printer.44Click the OK button.55If the Info button appears, ignore it, then click the OKbutton.66The Edit xxxx Entry window opens (where xxxx is theprinter type you have selected at step 3).If you are not an advanced user, do not change theNames/Spool Directory/File Limit in Kb/PrinterDevice option.77Click the Select button in the Input Filter to accessfilter setup.88Select Samsung Printer PCL5e Compatible for thePrinter Type item. Then select the default resolution andpaper size.99To save the setting, press the OK button.1100In the Edit xxxx Entry window, press the OK button tocomplete the printer driver installation.1111You can find that the printer driver is added to thedriver window. Select Quit from the PrintTool menu.I.2USING YOUR PRINTER IN LINUX

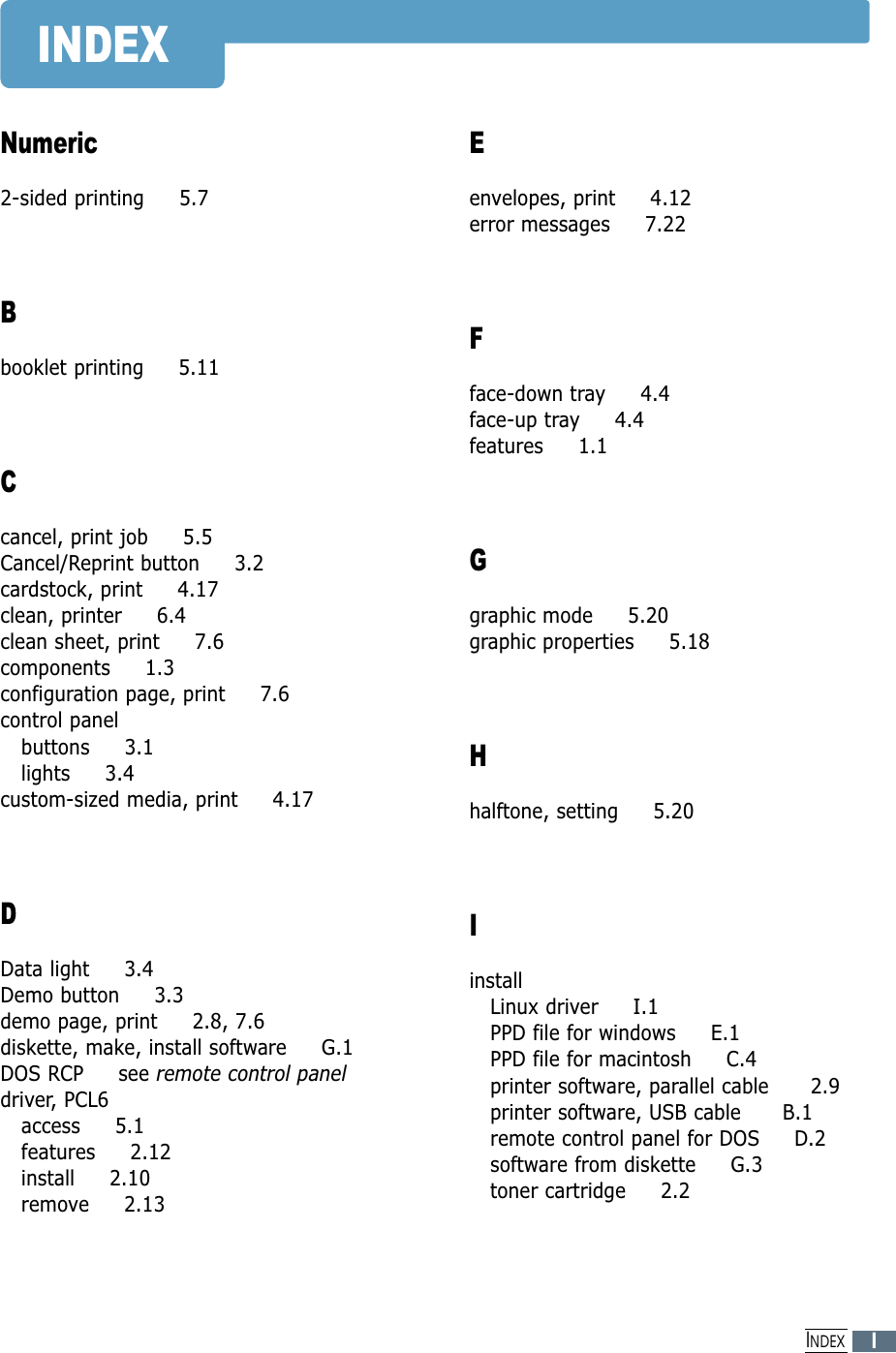

INDEXNumeric2-sided printing 5.7Bbooklet printing 5.11Ccancel, print job 5.5Cancel/Reprint button 3.2cardstock, print 4.17clean, printer 6.4clean sheet, print 7.6components 1.3configuration page, print 7.6control panelbuttons 3.1lights 3.4custom-sized media, print 4.17DData light 3.4Demo button 3.3demo page, print 2.8, 7.6diskette, make, install software G.1DOS RCP see remote control paneldriver, PCL6access 5.1features 2.12install 2.10remove 2.13Eenvelopes, print 4.12error messages 7.22Fface-down tray 4.4face-up tray 4.4features 1.1Ggraphic mode 5.20graphic properties 5.18Hhalftone, setting 5.20IinstallLinux driver I.1PPD file for windows E.1PPD file for macintosh C.4printer software, parallel cable 2.9printer software, USB cable B.1remote control panel for DOS D.2software from diskette G.3toner cartridge 2.2IINDEX
INDEXJjam see paper jamLlabels, print 4.14letterhead, print 4.16load, paperin the multi-purpose tray 4.8in tray 1 or the optional tray 2 2.4using the manual feed 4.10Linux driver I.1MMacintoshconnecting network interface C.3connecting USB interface C.2install PCL driver C.4install PPD file C.10solving common problems 7.25system requirements C.1manual 2-sided printing 5.7manual duplexing 5.7manual feedloading paper 4.10paper source setting 5.3Manual light 3.5memory, option H.2multi-purpose trayloading paper 4.8paper source setting 5.3multiple pages on one sheet, print 5.10Nnetwork interfaceinstall network card H.5set up a locally shared printer F.2sharing the printer on a network F.1n-up printing 5.10Ooptionmemory DIMM H.2network interface card H.5paper tray 2 H.7PS DIMM H.2orientation 5.3output tray, select 4.4rear 4.4top 4.4overlay, print 5.24Ppaperacceptable size and capacities 4.2, A.3choose 4.1guidelines 4.3, A.4load 2.4, 4.6specifications A.2storage environment A.6paper jam, clear 7.7in the optional Tray 2 7.14input area 7.10inside the printer 7.12output area 7.7tips for avoiding paper jams 7.15IIINDEX
INDEXP(continued)paper level indicator 4.6Paper light 3.5paper orientation, setting 5.3paper out, indicator 7.22paper source, setting 5.3paper traychange paper size in tray 2.5load paper 2.4optional Tray 2 H.7paper type, setting 5.3parallel, connection 2.7PCL 6 driver see driver, PCL 6poster, print 5.16postscript level 3 emulation 1.2access windows PS driver E.3install PPD file for Macintosh C.4, C.10install PPD file for windows E.1problem solving 7.27print media see paperprint quality problem, solvingback of printouts dirty 7.20background scatter 7.19black pages 7.20character voids 7.21checklist 7.16curl or wave 7.20dropouts 7.17grey background 7.18horizontal stripes 7.21light or feded print 7.16loose toner 7.21misformed characters 7.19page skew 7.19toner smear 7.18toner specks 7.17vertical lines 7.17vertical repetitive defects 7.18wrinkles or creases 7.20printer light patterns 7.22printer driver see driver, PCL 6printer software, install 2.10printingbooklets 5.11cancel 5.5cleaning sheet 7.6configuration page 7.6demo page 7.6fitting to a selected paper size 5.15from windows application 5.1from DOS applications D.1general problems, solving 7.2help 5.5multiple pages on one sheet 5.10on a network F.1on both sides of the paper 5.7on different paper for first page 5.14poster 5.16quality problems, solving 7.16using page overlay 5.24using windows PS driver E.1watermarks 5.21with macintosh C.1problem, solvingcommon macintosh problems 7.25common windows problems 7.24error messages 7.22general 7.2paper jam 7.7print quality 7.16PS errors 7.27Troubleshooting checklist 7.1PS see postscript level 3 emulationQquality, problems 7.16IIIINDEX

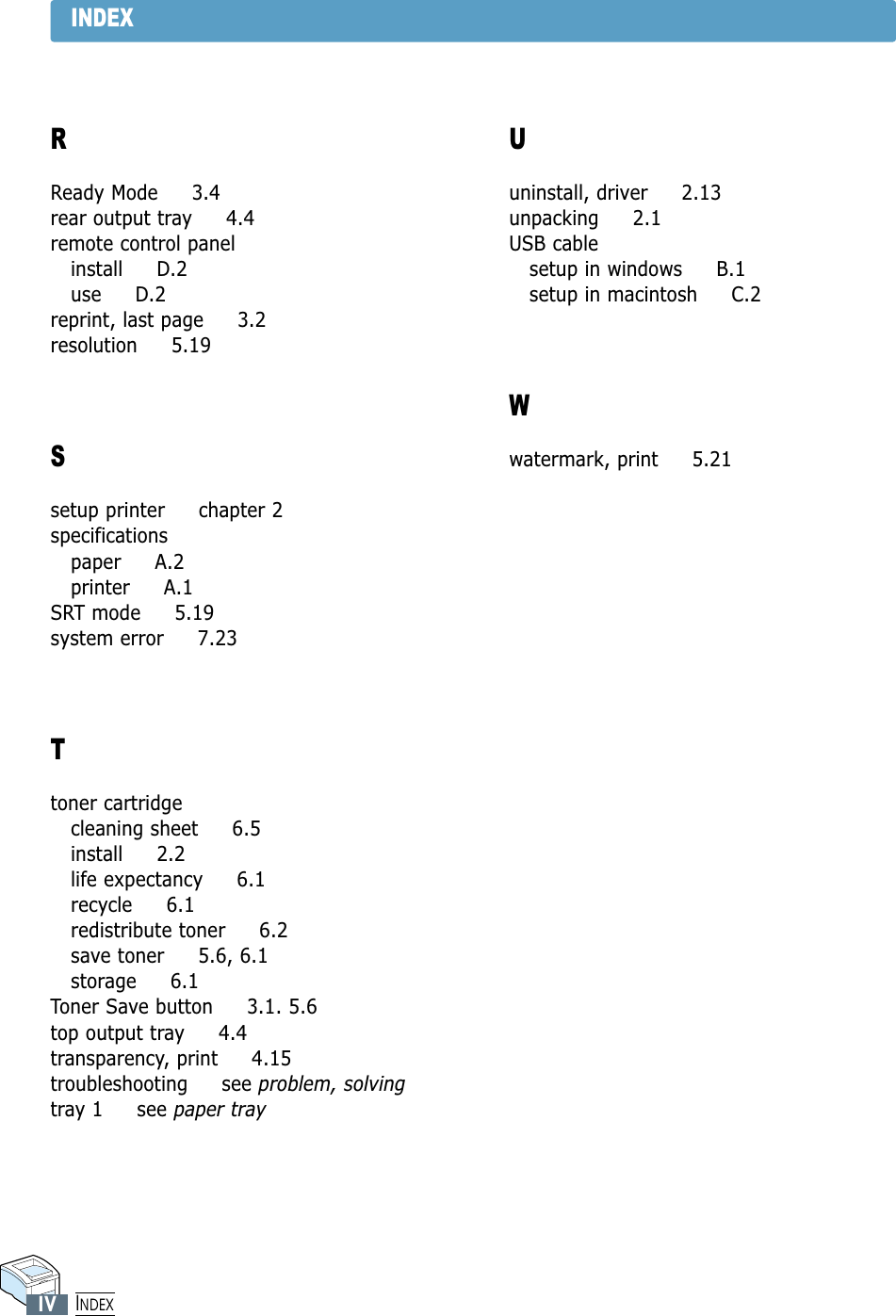

RReady Mode 3.4rear output tray 4.4remote control panelinstall D.2use D.2reprint, last page 3.2resolution 5.19Ssetup printer chapter 2specificationspaper A.2printer A.1SRT mode 5.19system error 7.23Ttoner cartridgecleaning sheet 6.5install 2.2life expectancy 6.1recycle 6.1redistribute toner 6.2save toner 5.6, 6.1storage 6.1Toner Save button 3.1. 5.6top output tray 4.4transparency, print 4.15troubleshooting see problem, solvingtray 1 see paper trayUuninstall, driver 2.13unpacking 2.1USB cablesetup in windows B.1setup in macintosh C.2Wwatermark, print 5.21INDEXIVINDEX
