Samsung Electronics Co ML7300N LASER PRINTER User Manual 1 of 2

Samsung Electronics Co Ltd LASER PRINTER 1 of 2

Contents

user manual 1 of 2

CopyrightThe software described in this document is supplied under a license agreement. The software may be used or copied only in accordance with the terms of thisagreement. It is against the law to copy the software on any medium except asspecifically allowed in the license agreement. The purchaser may make only one copy of the software for backup purposes.No part of this manual may be photocopied or transmitted in any form or by anymeans, electronic or mechanical including photocopying, recording or informationstorage and retrieval systems, for any purpose other than the purchaser’s personaluse, without the expressly written consent of Samsung Electronics Co., Ltd.Information in this document is subject to change without notice and does not rep-resent a commitment on the part of Samsung Electronics Co., Ltd. SamsungElectronics Co., Ltd. or its distributors can in no circumstances be held responsiblefor any prejudice, whether direct or indirect, resulting from the use of the softwareor the documentation.August 2000Trademark NoticesCopyright 2000 SAMSUNG Electronics Co., Ltd. All rights reserved.All other brand or product names are trademarks or registered trademarks of theirrespective companies or organizations.ML-7300 Series and Samsung logo are trademarks of Samsung Electronics Co., Ltd.Centronics is a registered trademark of Centronics Data Computer Corporation.HP, PCL 6, PCL 5e are registered trademarks of Hewlett-Packard Company.IBM, IBM PC, XT, AT, PS/2 are registered trademarks of International BusinessMachines Corporation.Apple, AppleTalk, LocalTalk, LaserWriter, TrueType, Macintosh are registeredtrademarks of Apple Computer Inc.Microsoft, MS-windows, MS-DOS are registered trademarks of Microsoft Corporation.CompuServe is a registered trademark of CompuServe Inc.TrueDoc Ris a registered trademark of Bitstream Inc.Font NavigatorTM is a registered trademark of Bitstream Inc.PostScript is a registered trademark of Adobe Systems Inc.
Using Operator Panel3STEP1: Unpacking your printer - - - - - - - - - - - -2.1STEP2: Installing Toner Cartridge - - - - - - - - - - -2.3STEP3: Load Paper - - - - - - - - - - - - - - - - - - - -2.5SETP4: Connecting the Parallel Cable - - - - - - - - -2.8STEP5: Connecting the AC Power Cord - - - - - - -2.10STEP6: Testing the Printer! - - - - - - - - - - - - - -2.11STEP7: Setting Up the Printer Driver - - - - - - - -2.12Operator Panel Buttons - - - - - - - - - - - - - - - - - -3.1Changing Printer Setting - - - - - - - - - - - - - - - - -3.3Overview of Printer Setting - - - - - - - - - - - - - - - -3.4PRINTING MENU - - - - - - - - - - - - - - - - - - - - - -3.5CONFIG MENU - - - - - - - - - - - - - - - - - - - - - - -3.9JOB MENU - - - - - - - - - - - - - - - - - - - - - - - - -3.12TEST MENU - - - - - - - - - - - - - - - - - - - - - - - -3.15PCL MENU - - - - - - - - - - - - - - - - - - - - - - - - -3.15I/O MENU - - - - - - - - - - - - - - - - - - - - - - - - - -3.17PS3 MENU - - - - - - - - - - - - - - - - - - - - - - - - -3.17NETWORK MENU - - - - - - - - - - - - - - - - - - - - -3.18ContentsIntroduction12Setting Up your PrinterSafety Precautions - - - - - - - - - - - - - - - - - - - - -1.1Features and Model Descriptions - - - - - - - - - - - -1.2Printer Components - - - - - - - - - - - - - - - - - - - -1.31
Print Media4Printing Tasks5Maintaining your Printer6Problem Solving7Loading Paper - - - - - - - - - - - - - - - - - - - - - - - -4.1Printing on Envelopes - - - - - - - - - - - - - - - - - - -4.5Printing on Label - - - - - - - - - - - - - - - - - - - - - -4.7Printing on Transparencies - - - - - - - - - - - - - - - -4.82Using Features in the Printer Driver - - - - - - - - - - -5.1Using the Printer Driver - - - - - - - - - - - - - - - - - -5.3- Paper Tab - - - - - - - - - - - - - - - - - - - - - - - -5.3- Graphic Tab - - - - - - - - - - - - - - - - - - - - - - -5.5- Output Tab - - - - - - - - - - - - - - - - - - - - - - -5.7- Printer Tab - - - - - - - - - - - - - - - - - - - - - - -5.9- Overlay Tab - - - - - - - - - - - - - - - - - - - - - -5.10- Watermark Tab - - - - - - - - - - - - - - - - - - - -5.12Printing Both Sides of Paper - - - - - - - - - - - - - -5.14Toner Cartridge - - - - - - - - - - - - - - - - - - - - - - -6.1Cleaning the Printer - - - - - - - - - - - - - - - - - - - -6.4Cleaning LSU - - - - - - - - - - - - - - - - - - - - - - - -6.6Clearing Paper Jams - - - - - - - - - - - - - - - - - - - -7.1Error Messages - - - - - - - - - - - - - - - - - - - - - - -7.5General Printing Problems - - - - - - - - - - - - - - - - -7.8Poor Print Quality - - - - - - - - - - - - - - - - - - - - - -7.9PS(PostScript) Problems - - - - - - - - - - - - - - - - -7.10Network Problems - - - - - - - - - - - - - - - - - - - - -7.10Macintosh Problems - - - - - - - - - - - - - - - - - - - -7.11
3ASpecificationsBMacintosh User’s GuideCUsing the Printer on a NetworkPrinter Specifications - - - - - - - - - - - - - - - - - - -A.1Paper Specifications - - - - - - - - - - - - - - - - - - - -A.4Setting Up Your Printer - - - - - - - - - - - - - - - - - -B.1Installing Software - - - - - - - - - - - - - - - - - - - -B.1Printing with a Macintosh - - - - - - - - - - - - - - - - -B.5About Sharing the Printer on a Network - - - - - - - -C.1Setting Up a Locally Shared Printer - - - - - - - - - - -C.2Setting Up a Network-Connected Printer - - - - - - - -C.3DUsing Windows PostScript DriverInstalling PS Driver - - - - - - - - - - - - - - - - - - - -D.1
4FPrinter OptionsGUsing Your Printer in LinuxINDEXPrecautions - - - - - - - - - - - - - - - - - - - - - - - - -F.1Preparations - - - - - - - - - - - - - - - - - - - - - - - - -F.2Closing The Printer Cover - - - - - - - - - - - - - - - - -F.3Understanding the Printer Control Board - - - - - - - -F.4Printer Memory - - - - - - - - - - - - - - - - - - - - - - -F.5Network Option Card - - - - - - - - - - - - - - - - - - -F.8Installing Serial/LocalTalk or Serial/IrDA option card F.12Serial/LocalTalk - - - - - - - - - - - - - - - - - - - - - -F.14Serial/IrDA - - - - - - - - - - - - - - - - - - - - - - - - -F.15Tray 2 - - - - - - - - - - - - - - - - - - - - - - - - - - - -F.17Linux Driver Installation - - - - - - - - - - - - - - - -G.1EInstalling Software from DisketteMaking Installation Diskettes - - - - - - - - - - - - - -E.1Installing Software from Diskettes - - - - - - - - - - -E.3
5Environmental andSafety ConsiderationThe printer is certified in the U. S. to conform to the requirements of DHHS 21 CFR,chapter 1 Subchapter J for Class I(1) laser products, and elsewhere is certified as aClass I laser product conforming to the requirements of IEC 825.Class I laser products are not considered to be hazardous. The laser system and printerare designed so there is never any human access to laser radiation above a Class I lev e lduring normal operation, user maintenance, or prescribed service condition.CAUTIONN e ver operate or service the printer with the protective cover removed from Laser/Scanner assembly. The reflected beam, although invisible, can damage your eye s .CLASS 1 LASER PRODUCT LASER KLASSE 1LUOKAN 1 LASERLAITEAPPAREIL A LASER DECLASSE 1 TO IEC 825Class 1 Laser Statement LabelLaser safety statement
6C AU T I O N - I N V I S I B L E L ASER RADIATION WHEN THIS COVER ISOPEN. DO NOT OPEN THIS COVER.VORSICHT - UNSICHTBARE LASERSTRAHLUNG, WENN ABDECKUNGG E Ö F F N E T. NICHT DEM STRAHL AU SS E T Z E N .ATTENTION - R AYONNEMENT LASER INVISIBLE EN CAS D’OUVERTURE. DANGEREUSE AU FA I S C E A U.ATTENZIONE -RADIAZIONE LASER INVISIBILE IN CASO DIAPER T U R A .E V I TARE L’ESPOSIZIONE AL FAS C I O.P R E C AUCION -RADIACION LASER IVISIBLE CUANDO SE ABRE. E V I TAR EXPONERSE AL RAYO.A D VARSEL - USYNLIG LASERSTRÅLNING VED ÅBNING NÅR SIKKERHEDSBRYDERE ER UDE AF FUNKTION UNDGÅ UDSA E TTELSE FOR STRÅLNING.A D VARSER - USYNLIG LASERSTRÅLNING NÅR DEKSEL ÅPNES. STIRR IKKE INN ISTRÅLEN. UNNGÅ EKSPONERING FOR STRÅLEN.VARNING - OSYNLIG LASERSTRÅLNING NÄR DENNA DEL ÄR ÖPPAND OCHS P Ä R R E N Å R U R KO P P L A D. BETRAKTA E J S T R Å L E N S T R Å L E N A R FA R L I G .VARO - AVATTA E SSA JA S U O JA L U K I T U S O H I T E TTA E SSA O L E T A LTT I I N AN Ä K Y M Ä TTÖMÄLLE LAS E R S Ä T E I LYLLE ÄLÄ KATSO SÄTEESEEN.Laser caution labelEnvironmental and Safety Consideration
7This equipment has been tested and found to comply with the limits for a ClassB digital device, pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmfulinterference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmfulinterference to radio communications. However, there is no guarantee thatinterference will not occur in a particular installation. If this equipment doescause harmful interference to radio or television reception, which can be deter-mined by turning the equipment off and on, the user is encouraged to try tocorrect the interference by one or more of the following measures:•Re-orient or relocate the receiving antenna.•Increase the separation between the equipment and receiver.•Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.•Consult the dealer or an experienced radio/TV technician for help.Shielded interface cables and I/O cords must be used for this equipment tocomply with the relevant FCC regulations.Changes or modifications not expressly approved in writing by Samsung mayvoid the user’s authority to operate this equipment.FCC ComplianceElectronic Emissions
8We, SAMSUNG ELECTRONICS CO.,LTD#259, Gong Dan-Dong, Gumi-City, Kyung Buk, Koreadeclare sole responsibility that the ML-7300, ML-7300N Laser Printermeets the intent of Directive 89/336/EEC for Electromagnetic Compatibility and Low Voltage Directive 73/23/EEC.Compliance was demonstrated to the following specifications as listed in the official journal of the European Communities:Electromagnetic Interference :EN 55022 Radiated, Class BEN 55022 Conducted, Class BEN 61000-3-2Power HarmonicsEN 50082-1 Electromagnetic Susceptibility :IEC 801-2 Electrostatic DischargeIEC 801-3 RF EM FieldIEC 801-4 Fast Transients/BurstEN 60950-SafetyEC Declaration of ConformityThis Class B digital apparatus meets all requirements of the CanadianInterference-Causing Equipment Regulations of ICES-003.Cet appareil numerigue de la Classe B respecte toutes les exigences duReglement ICES-003 sur le Materiel brouilleur du Canada.IC COMPLIANCE NOTICEElectronic Emissions
9S a f e ty and Regulatory Listing for this printer.PRODUCT SAFETYUSA & CANADA Evaluated by UL according to UL 1950and CSA C22.2 No. 950 for C-ULEEC(Europe) IEC 60950/EN 60950(TUV GS Certification)CB IEC 60950LASER SAFETYEEC(Europe) HD 194. & EN 60825USA 21 CFR, Chapter 1, Subchapter J(CDRH Certified)Safety informationElectronic Emissions
10Electronic EmissionsI m p o r t a n tThe mains lead for this machine is fitted with a standard (BS1363) 13 amp plug and has a 13 amp fuse. When you changeor examine the fuse, you must re-fit the correct 13 amp fuse.You then need to replace the fuse cove r. If you have lost thefuse cove r, do not use the plug until you get another fusec over from the people whom you bought the machine.The 13 amp plug is the most widely used type in the UK andshould be suitable. Howeve r, some buildings (mainly old ones)do not have normal 13 amp plug sockets. You need to buy asuitable plug adaptor. Do not remove the moulded plug.W a r n i n gIf you cut off the moulded plug, get rid of it straight away. You cannot rewire the plug or you may get an electric shock if you put it into a s o c k e t .Important warning: You must earth this machine.The wires in the mains lead have the following colour code:Green and Ye l l o w : EarthB l u e : Neutra lB r o w n : LiveIf the wires in the mains lead do not match the coloursm a r ked in your plug, do the following:You must connect the blue wire to the pin which is marke dwith the letter ‘N’ or coloured black.You must connect the brown wire to the pin which is marke dwith the letter ‘L’ or coloured red.You must have a 13 amp fuse in the plug, adaptor, or at thedistribution board.Replacing the fitted plug (Only in UK)
IntroductionCongratulations on the purchase of your ML-7300 series printer! This chapter provides informationon the following topics:◆Safety Precautions◆Features and Model Descriptions◆Printer Components11
IN T R O D U C T I O N1.1Before using the printer, please read the instructions in this guide carefullyand put the guide in a safe place close to the printer, so that it is ava i l a b l ewhen you need it later. Please take the following precautions when usingand maintaining your printer.●Unplug the printer before cleaning it. Do Not use any liquid or aerosolcleaners. Simply use a damp cloth. Refer to the page of this guide forfurther details.●Do Not place the printer on an unstable surface or close to a radiator orsource of heat.●Take care not to block or cover the ventilation holes on the side of theprinter. Do Not insert any object in these holes.●Check that the electrical power source to which you wish to connect theprinter complies with the electrical specifications of this printer : (110 ~ 230V) -Power cord may differ from one country to another.●Connect all your computer equipment, including the printer to a powerpoint with earthing device. Avoid plugging your printer into the samepower point as equipment likely to cause voltage variations, such as aphotocopying machine or an air conditioner.●Check regularly that the power cable is in good condition and is notdamaged in any way.●If you use an extension cord, check that total intensity of all equipmentconnected to it does not exceed the maximum intensity allowed for theextention cord. Check that the total intensity of the equipment connectedto the same power point does not exceed 15 amps.●Unless otherwise indicated in this guide, do not attempt to repair theprinter yourself. Should you detect a fault, return your printer to anauthorized service center or your dealer.●Systematically return your printer to an authorised service center or yourlocal dealer if one of the following situations occurs :- The power cord or plug is damaged.- A liquid has been spilled on and/or in the printer.- The printer has fallen or been dropped or the bodywork is damaged inany way.-The printer is not operating correctly or you have noticed a significantdrop in the quality of the printing. Safety Precautions
IN T R O D U C T I O N1.2Your new Laser Printer is designed for use in anoffice environment, providing such advantages as :●Printing on both sides of paper●High-quality, high-speed text and graphics printing●Vast choice of paper types and sizes●Full operating status and error messages onoperator panel display●On-screen feedback of the printing status●Various printer menusThis Laser Printer provides the following main features.●Built in Duplex function which allows printing on both sides of the paper●Printing speeds of 21PPM(Pages Per Minute) for Letter-size paper●H i g h - q u a l i ty printing at a maximum resolution of 1200 DPI●Automatic paper feed with a capacity of up to 500 sheets●Wide range of paper sizes and weights●Expandable design- 500-sheet universal paper Tray- Memory(up to 208 MB)-Connectors for optional RS-232C/LocalTalk Card and Network Interface Card- Connector for optional Infrared AdapterFeatures and Model DescriptionsYour new PrinterPrinter InformationMain FeaturesItem Values and FunctionsML-7300 ●The ML-7300 comes equipped with 16MBRAM and one 500-sheet Tray1 asstandard.ML-7300N ●The ML-7300N is equipped with networkcard (Po r t T h r u )as standard. Install the network printer driver(SyncThru) for network printing.
The following illustration shows the front view of your printer and indicates the various main elements.IN T R O D U C T I O N1.3Top output binOperator panelPrint prevention sensor(It prevents the printer from printing when 250 sheets of paper are piled up on the top output bin).Paper level indicatorTray1(500-sheet, closed)Top coverMulti-Purpose tray(100-sheet, with extension)Power switchThe following illustration shows the rear view of your printer and indicates the various main elements.Rear coverPowerconnectorParallel interface connectorLSU cleaner(When the top cover is opened)Printer ComponentsFront ViewRear View
Setting Up Your PrinterThis chapter provides step by step informationon setting up your printer.Topics included in this chapter are:• S T E P 1 :Unpacking Your Printer• S T E P 2 :Installing Toner Cartridge• S T E P 3 :Load Pa p e r• S T E P 4 :Connecting the Pa r allel Cable• S T E P 5:Connecting the AC Power Cord• S T E P 6:Testing the Printer!• S T E P 7:Setting Up the Printer Drive r22
Notes •If you find that any of the above items are missing or damaged, contact your local dealer.•A printer cable is not included in the package items.•Cable specifications - The parallel cable should be compatible with the centronics Rp a rallel interface and IEEE standard 1284. • * Power cord may differ from one country to another.When you start unpacking the box of your printer, you will find the followingitems in addition to your printer.SE T T I N G UPYO U R PR I N T E R2.1Power cord*Toner cartridge CD-ROM DiskThis manualItems SuppliedUnpacking Your Printer
SE T T I N G UPYO U R PR I N T E R2.2During the storage and transport of your printer, adhesive tape is used to blocksome of the elements that may move or open unexpectedly and consequentlybe damaged.1Before connecting up your printerand starting to use it, you musttherefore remove all the adhesivetapes, as illustrated in the figurebelow.2Slide tray out of the printer.Remove the packaging materialfrom the tray.Preparation
SE T T I N G UPYO U R PR I N T E R2.3Installing Toner CartridgeTo install a toner cartridge in your printer proceed as follows.1Remove the toner cartridge fromits packaging.2Open the top cover of the printerby pressing the button on rightside of the printer.Notes •Do not remove the cartridgefrom its packaging until youare ready to use it. •Do not expose the cartridgeto light, it could damage thecartridge permanently.
SE T T I N G UPYO U R PR I N T E R2.4Installing Toner Cartridge3Rotate the cartridge and gentlyshake it from side to side to distribute the toner evenly insidethe cartridge.4Position the cartridge as shownwith the arrow pointing into theprinter. Slide the cartridge intothe printer as far as it will go.NotesIf toner gets on your clothing, wipe it off with a dry cloth and wash clothingin cold water. When printing text at 5% coverage, a toner cartridge lasts anaverage of 10,000pages in simplex mode.5Close the top cover.
SE T T I N G UPYO U R PR I N T E R2.5Load PaperTo load paper in the tray, proceed as follows.1Pull the Tray1 completely out ofthe printer.2Squeeze the back of the rearpaper guide and slide it to thedesired paper size until it clicksinto place.The paper sizes are indicated onthe bottom of the tray1.Rear paperguide

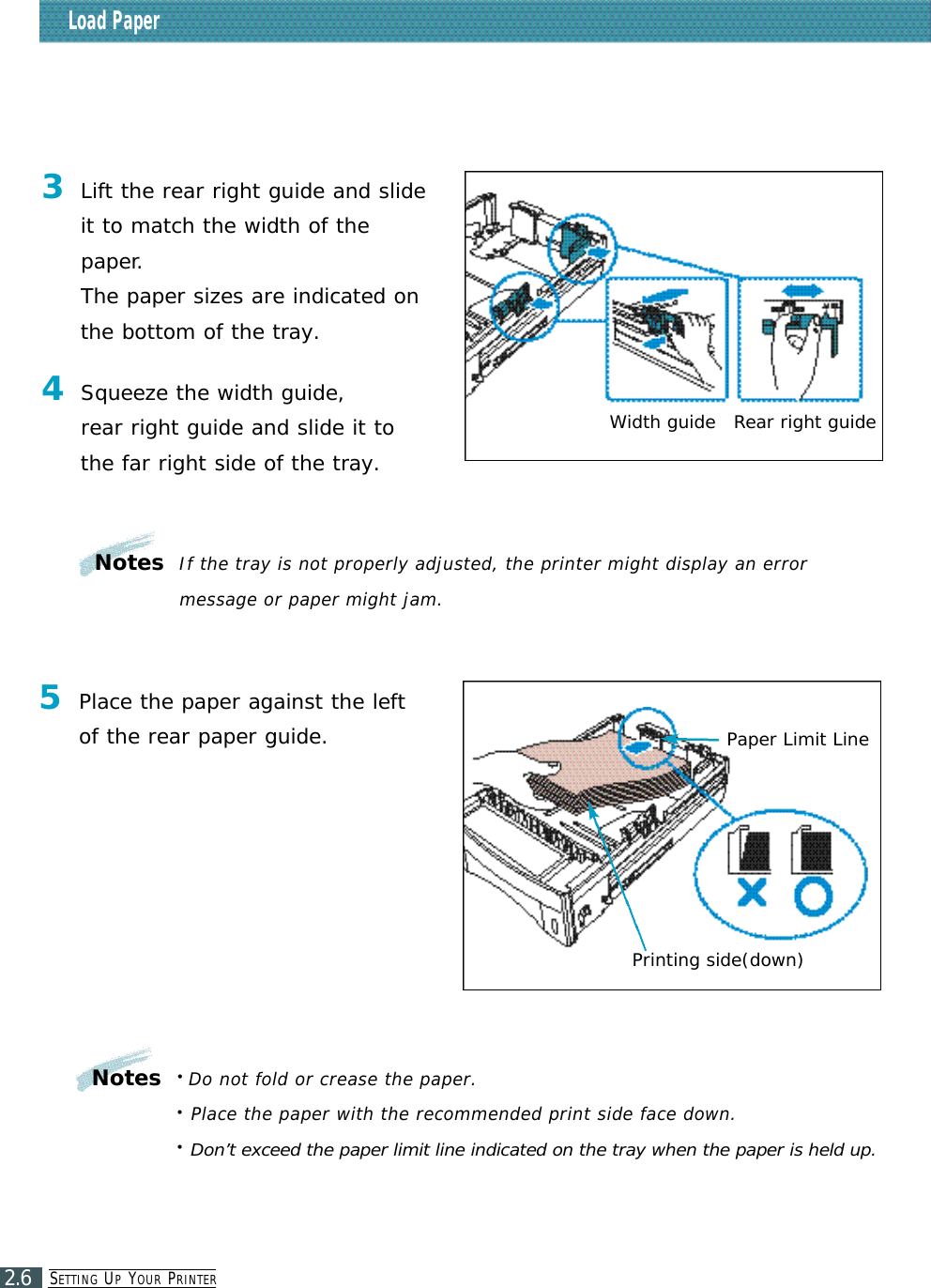

SE T T I N G UPYO U R PR I N T E R2.63Lift the rear right guide and slideit to match the width of thepaper.The paper sizes are indicated onthe bottom of the tray.4Squeeze the width guide, rear right guide and slide it tothe far right side of the tray.5Place the paper against the leftof the rear paper guide.Printing side(down)Paper Limit LineWidth guide Rear right guideNotesIf the tray is not properly adjusted, the printer might display an errormessage or paper might jam.Notes •Do not fold or crease the paper.•Place the paper with the recommended print side face down.•Don’t exceed the paper limit line indicated on the tray when the paper is held up.Load Paper
SE T T I N G UPYO U R PR I N T E R2.76Squeeze the width guide andslide it to the left until it lightlyrests against the edge of thepaper.7Make sure the paper is set below the tab on the tray.Notes To load the paper of the Legalor Folio(24Ib, 90g/m2) size intothe tray, push down the leveron the left side of the tray tolock it.8Gently slide the tray back into the printer. The printer automatically senses the size of paper loaded if the tray1 is adjusted correctly.Load Paper
SE T T I N G UPYO U R PR I N T E R2.8To print from computer software, you need to connect your printer to yourcomputer with a parallel interface cable.The parallel cable should be compatible with the Centronics Rparallel interface and IEEE standard 1284. If you purchase parallel cable, ensure that it :•Is compatible with Centronics interface.•Supports bi-directional communications(IEEE standard 1284).•Is shielded.•Has the appropriate connector : - 25 pin D-Sub connector on the computer side.- Amphenol 36 connector on the printer side.Connecting the Parallel CableCable Specifications (Not provided)Connecting the Parallel Cable2Plug the appropriate end of theparallel cable into the connectoron the rear of the printer.To connect the printer to your computer use a parallel cable and proceed as follows.1Check that both the printer and the computer to which it is to be connectedare powered off and disconnected from the power point.
SE T T I N G UPYO U R PR I N T E R2.9Connecting the Parallel Cable3Push the clip at each end of the connector down into the notcheson the plug as shown.4Plug the other end of the cableinto the appropriate parallel connector on your computer andtighten the screw.
SE T T I N G UPYO U R PR I N T E R2.10Connecting the AC Power CordTo connect the printer to a power point, proceed as follows.1Plug the appropriate end of thepower cable supplied to the connector on the rear of theprinter.2Plug the other end into a suitable power point.•Power cord may differ fromone country to another.3Power the printer on by pressingthe power on/off button.ResultYou will hear some movement inside the printer. The printer enters the Ready state.
SE T T I N G UPYO U R PR I N T E R2.11Testing the Printer!1Make sure the printer is plugged in and the READY status message appears on the display.2Press On Line.3Press Menu > or < Menu to enter themenus.4Press Menu > or < Menu one or more times until the TEST MENU message is displayed.5Press Item> or <Item one or more times until the SELFTEST message is displayed.Print a configuration page to make sure the printer is operating correctly.6Press Enter to print.ResultThe OFFLINE message appears on the display and the printer is off-line.Notes •The message ‘PRINTING PCL6’ appears and remains on the display until the page prints.•The printer returns to the Ready state after printing.
SE T T I N G UPYO U R PR I N T E R2.12Setting Up the Printer DriverThe printer drivers provided on the CD must be installed to take full a d vantage of the printer’s features. Printer drivers access the printer features and allow the computer tocommunicate with the printer.If you install the printer driver using the CD, PCL 6 and PCL 5e arei n s t a l l e d .The CD includes the following printer drive r s .• PCL 5e • PCL 6- You can use the PCL 5e and PCL 6 driver in Windows 3.x, Windows 95,Windows 98, Windows NT 4.0, Windows 2000. In case of the PCL 6 drive r, it supports Watermark, Ove r l a y, N-up printingand so forth.• Po s t s c r i p t .• Font Nav i g a t o r.• Linux Drive r.Notes •You cannot use PostScript in Windows 3.1. •PCL 6 is the combination of PCL 5e and the new PCLXL printer language.
SE T T I N G UPYO U R PR I N T E R2.13Hardware RequirementsTo install and run the PCL printer drive r, you must have the followingminimum hardware configura t i o n .• PC-compatible 486 microcomputer or better. • 8MB of RAM for Windows 3.1 and 3.11 (16MB recommended for some applications) or 16MB for Windows 95/98, Windows NT 4.0, Windows 2000.• 20MB available hard-disk space.• CD-ROM Drive .Software RequirementsTo install and run the printer drive r, you must have one of the following minimum software configuration : • Windows 3.1 or Windows for Workgroups (Windows 3.11).• Windows 95, Windows 98, Windows NT 4.0, Windows 2000.• Macintosh System 7.5 or later.Install ProcedureTo install the printer driver on your hard disk, make backup copies of theprint driver CD. Keep the original CD in a safe place and use the copies.Notes If you do not have access to a CD-ROM drive, contact your local dealer andrequest the printer driver diskettes.Installing the DriverSetting Up the Printer Driver
SE T T I N G UPYO U R PR I N T E R2.14Setting Up the Printer DriverWith Windows 95/98/NT 4.0/2000 installation3Select the appropriate l a n g u a g e .1M a k e sure that the printer is plugged in and connected to your computer. Turn the printer and the computer on, then start Windows.If Windows 95/98 recognizes the new printer, go to the section“Windwos 95/98 plug and play” on page 2.16.2Insert the setup CD-ROM into your CD-ROM drive.The Samsung Printer Setup windows opens.If Windows does not automatically run the CD-ROM:1) Select Run from the Start menu.2) Type d:\cdsetup. e xe on the command line (where “d” is your CD-ROM drive letter), then click OK.3 )Follow the instructions on the screen.
SE T T I N G UPYO U R PR I N T E R2.15Setting Up the Printer Driver4Select Install The SamsungSoftware on your PC.5Follow the instructions on the screen to complete the installation.

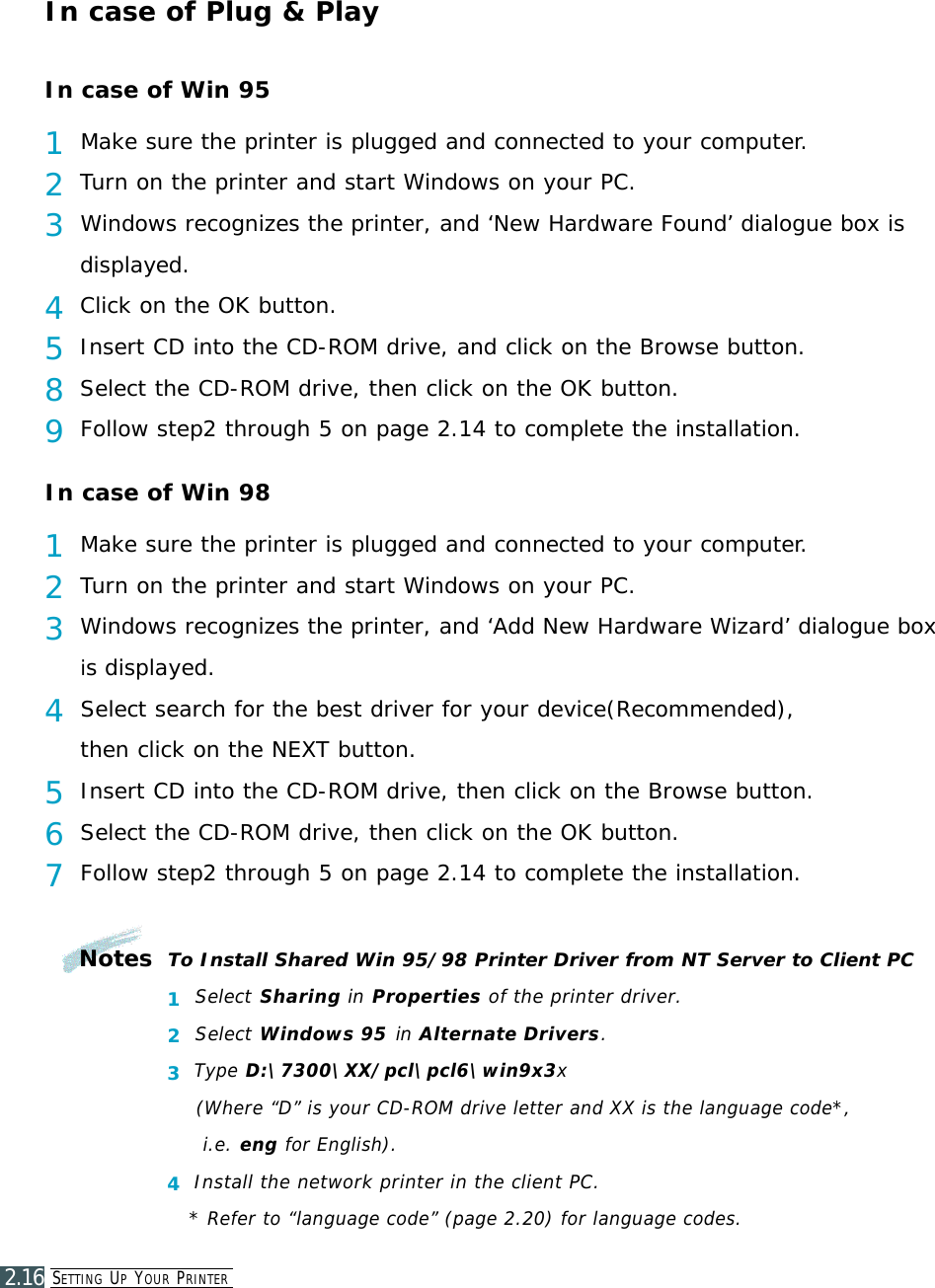

SE T T I N G UPYO U R PR I N T E R2.16In case of Win 951Make sure the printer is plugged and connected to your computer.2Turn on the printer and start Windows on your PC.3Windows recognizes the printer, and ‘New Hardware Found’ dialogue box is displayed. 4Click on the OK button.5Insert CD into the CD-ROM drive, and click on the Browse button.8Select the CD-ROM drive, then click on the OK button. 9Follow step2 through 5 on page 2.14 to complete the installation.In case of Win 981Make sure the printer is plugged and connected to your computer.2Turn on the printer and start Windows on your PC.3Windows recognizes the printer, and ‘Add New Hardware Wizard’ dialogue boxis displayed. 4Select search for the best driver for your device(Recommended), then click on the NEXT button.5Insert CD into the CD-ROM drive, then click on the Browse button.6Select the CD-ROM drive, then click on the OK button.7Follow step2 through 5 on page 2.14 to complete the installation.In case of Plug & PlayNotes To Install Shared Win 95/98 Printer Driver from NT Server to Client PC1Select S h a r i n g in P r o p e r t i e s of the printer driver.2Select Windows 95 in Alternate Drivers.3Type D : \ 7 3 0 0 \ X X / p c l \ p c l 6 \ w i n 9 x 3 x(Where “D” is your CD-ROM drive letter and XX is the language code*, i.e. e n g for English).4Install the network printer in the client PC.* Refer to “language code” (page 2.20) for language codes.
SE T T I N G UPYO U R PR I N T E R2.171Make sure the printer is plugged and connected to your computer.2Turn on the computer.3Insert the compact disk into the CD-ROM drive.4From program manager window, select Run from the file menu.With Windows 3.1 :5Type d:\cdsetup.exe on the command line, (where “d” is your CD-ROM drive letter), then click OK.6From now on, follow the instructions on page 2.14 to complete the installation.An uninstall utility is supplied with the printer driver to enable you to remove the driver and all associated files from your hard disk, if so required.To uninstall the driver, proceed as follows.Select Start Programs Samsung 7300 Samsung ML-7300 Driveruninstall from the windows task bar.●PCL 6 and PCL 5e drivers are removed from your hard disk. Notes The Run dialogue box appears.Uninstalling the Printer Driver
SE T T I N G UPYO U R PR I N T E R2.18Default PrinterAfter installing the printer driver Samsung ML-7300 PCL 6 is selectedautomatically as the default printer.If you did not select this Laser printer as the default printer when yo uinstalled it, you must select it before attempting to print a document on it.S e l e c t i o nTo select the printer, proceed as follows.1Select Start Settings P r i n t e r s from the Windows task bar.2Double click the desired printer drive r s ( PCL 5e, PCL 6) icon.3Select File Default Printer.Selecting the Printer
SE T T I N G UPYO U R PR I N T E R2.19Font Navigator is a font manager for Windows 95/98, Windows NT(4.0), andWindows 3.1. It gives a quick and easy way to find fonts, install those fonts,and view and print font samples. With Windows 95/98/NT 4.0/2000 and Windows 3.1:Installing the Font Navigator (FontNav)3Select the appropriate language.1Make sure that the printer is plugged in and connected to your computer.Turn the printer and the computer on, then start Windows.If Windows 95/98 recognizes the new printer, go to the section“Windwos 95/98 plug and play” on page 2.16.2Insert the setup CD-ROM into your CD-ROM drive.The Samsung Printer Setup windows opens.If Windows does not automatically run the CD-ROM:1) Select Run from the Start menu.2) Type d:\cdsetup.exe on the command line (where “d” is your CD-ROM drive letter), then click OK.4Select “Install the Bonus Software on your PC”.
SE T T I N G UPYO U R PR I N T E R2.20Language CodesEng EnglishDeu DeutschFrn FrançaisEsn EspañolIta ItalianoKor KoreanCodes Language
Using OperatorPanelThis chapter describes how to use the printer’s Operatorpanel. It provides information on the following topics:◆Operator Panel Buttons◆Changing Printer Setting◆Overview of Printer Menu◆PRINTING MENU◆CONFIG MENU◆JOB MENU◆TEST MENU◆PCL MENU◆I/O MENU◆PS3 MENU◆NETWORK MENU33
US I N G OP E R AT O R PA N E L3.1The operator panel, on the front right sideof your printer, has a 2-line LCD(LiquidCrystal Display) and five buttons.Operator PanelDisplayOperator Panel ButtonsLCD panelLight ColorGreenOrangeLight StateOnOffBlinkingOnBlinkingThe Printer IS...OnlineOfflineProcessing informationIn Non-recoverable error state•Solve the problems for theerror message, by goingthrough check lists and tests.In recoverable error state
US I N G OP E R AT O R PA N E L3.2A number of menus are available to make it easy for you to change printer settings.Some menus are displayed only if a specific option is installed in the printer.When you select a new setting from the operator panel, the asterisk(❊) movesnext to the selected setting to identify it as the current user default setting.Use the five operator panel buttons to open a menu, scroll through a list of values, change printer settings, and respond to printer messages. The following table describes the functions of each button.Operator Panel ButtonsNotesChanges mode from a software application override the user default set -tings made from the printer operator panel.Using Panel ButtonsButtonOn Line/ContinueEnter/CancelFunction•Places the printer either online or offline.•Allows the printer, to continue printing when theprinter is in recoverable error state.•Cancels the print job that the printer is processingwhen the printer is online.•Saves the selected value for that item when theprinter is offline.Menu • Cycles through the operator panel menus.Item • Cycles through the selected menu’s items.Value • Cycles through the selected menu item’s values.Operator Panel Menus
US I N G OP E R AT O R PA N E L3.3To change an operator panel setting, proceed as follows.A value can be :•A phrase or word that describes a setting.•A numerical value that you can increase or decrease.•An On or Off setting.1Make sure the ‘READY’ message appears on the display.2Press On Line.3Press Menu until the menu you need appears on the display.4Press Item until the menu item you need appears on the display.5Press Value until the setting you need appears on the display.6Press Enter to save the selection.Changing Printer SettingResultThe ‘OFF LINE’ message appears on the display and theprinter is off-line.Result An asterisk(❊) appears beside the current user default setting for that menu item.
US I N G OP E R AT O R PA N E L3.4Some menus are displayed only if a required option is installed. They are as follows.Overview of Printer MenuPAPERMP SIZECOPIESORIENTTRAYT-MARGINL-MARGINDUPLEXAUTO CRWIDE A4QUALITYPRINTINGMENUEMULSWITCHLOCKTRAYPWR SAVEAUTOCONTECONOJAM RECVTONERLOWCONFIG MENUSRT MODETIMEOUTDENSITYPAP.TYPEMENU CLRSMET DUP.TOPDUP.LEFTS-BINDL-BINDFUSER CLEANJOB MENUSELFTESTDEMOPAGETEST MENUFONTLISTTYPEFACESYMBOLLINESPITCH PT.SIZECOURIERPCL MENURESET NICCFG NETTCP/IPCFG TCPDHCPCFG ADRSBOOTPRARPLPDAPL TALKNETWARECFG NWARAUTOEN_8023EN_IINETWORK MENUIf the Network card(PortThru)is installed in your printerEN_8022EN_SNAPUPDATEBOOT SVRUNIXWINDOWSSV-IP B1SV-IP B2SV-IP B3SV-IP B4FACTORY DEFAULTIPP MENUJOBSHEETPRINT NET CFGFONT LISTPS.ERRORPS 3 MENUI/O MENUIf the serial/LocalTalk optioncard is installed in your printerBAUDRATEROBU.XON
US I N G OP E R AT O R PA N E L3.5Use the PRINTING MENU to define all settings relating to printer input andoutput, as well as the specific print materials you are using with your printer.ItemPAPERMP SIZEValues and FunctionsIf the TRAY menu is AUTO, MP, MANUALA4(country specific), LEGAL, Letter(country specific),EXE, JIS B5, ISO B5, COM-10, MONARCH, DL, C5, POSTA6, C6, FOLIO A5, STS, A6If the TRAY menu is 1STA4(country specific), LEGAL, Letter(country specific),EXE, JIS B5, ISO B5, FOLIOIf the TRAY menu is OPTA4(country specific), LEGAL, Letter(country specific),EXE, JIS B5, ISO B5, COM-10, MONARCH, DL, C5,FOLIOIf the DUPLEX menu is not OFF(SHORT or LONG)A4(country specific), LEGAL, Letter(country specific), FOLIOIf the DUPLEX menu is OFFA4(country specific), LEGAL, Letter(country specific),EXE, JIS B5,ISO B5, COM-1 0, MONARCH, DL, C5, POST A6, C6, FOLIO, A5, STS, A6If the DUPLEX menu is not OFF(SHORT or LONG)A4(country specific), LEGAL, Letter(country specific),FOLIONotes The PAPER SIZE setting identifies the default formatting size for each tray.It is important to select the correct paper size from the menu when usingtrays.PRINTING MENU
US I N G OP E R AT O R PA N E L3.6PRINTING MENUItemCOPIESORIENTValues and Functions1 to 999 (1; Factory Default)The COPIES setting determines the number of copies printed for each page. The printer does not automatically collate thecopies. For example, if you send three pages to print and setCopies to 2, the printer prints page1, page 1, page 2, page 2,page 3, page 3.P : Portrait (Factory Default)L : LandscapeThe ORIENT setting determines how the printing is oriented on the page.P(Portrait) means the printing is parallel to the short edge of the paper.L(Landscape) means the printing is parallel to the long edge of the paper.LandscapePortrait
AUTO(Factory Default)1STMPOPT(If the optional cassette is installed)MANUALThe TRAY setting identifies the default paper tray.1ST means that the printer feeds print material from Trayunless it is empty or closed.MP means that the printer feeds print materialfrom Multi-Purpose tray unless it is empty or closed.Use the MANUAL selection when manually feedingenvelopes or other print material through the Multi-Purpose tray.OPT is available only if the optional cassette is installed. See ‘Tray 2’ on page F.17. Auto means that the printer feeds print material from theother tray when one tray is empty. If you are using thesame size and type of print material in all the trays, thet rays are automatically linke d .0.0” ~ 9.9”The T-MARGIN menu item lets you select the top margin of the print materials.US I N G OP E R AT O R PA N E L3.7PRINTING MENUTRAYT-MARGINItem Values and Functions
US I N G OP E R AT O R PA N E L3.8PRINTING MENUL-MARGINDUPLEX0.0”~ 9.9”The L-MARGIN menu item lets you select the left margin of the print materials.AUTO CR LF(Factory Default)LF + CR The AUTO CR setting determines if the printer automatically performs carriage return after a line feedcontrol command.WIDE A4 OFF (default)O NThe WIDE A4 setting determines if the printer can print 80 columns in A4 size .QUALITY 3 0 0600 (Factory Default)1200QUALITY setting determines the print resolution while printing the page.OFF (Factory Default)LONGSHORTThe printer can automatically print on both sides ofpaper. Use the OFF selection when printing on one sideof a sheet of paper. For more information, see page5.14.LongShortItem Values and Functions
US I N G OP E R AT O R PA N E L3.9Use the CONFIG MENU to configure a variety of printer features. EMULPWR SAVEAUTO (Factory Default)PCLPS3HEXDUMPYou can select the emulation for printing a document.AUTOCONT ON (Factory Default)OFFThe AUTOCONT setting determines whether the printer continues printing after it detects paper mismatch. If an error occurs and AUTOCONT is set to OFF,the printer stops and waits for operator intervention. If the Continue button on the operator panel is pressed, the printer continues printing regardless of paper mis-match. When AUTOCONT is set to ON, the printerautomatically resumes processing. OFF1 53 0 (Factory Default)4 56 0The PWR SAVE menu item lets you reduce power usage when the printer is idle. The PWR SAVE settingdetermines the length of time (in minutes) the printerwaits after a job is printed before it goes to a reducedpower state. CONFIG MENUItem Values and Functions
US I N G OP E R AT O R PA N E L3.10CONFIG MENUECONOJAM RECVOFF (Factory Default)ONThe ECONO setting helps conserve the toner cartridge by controlling how much toner the printer uses for printjob.Select O F F if toner conservation is not a concern.But this setting may affect the print quality of your job.TONERLOW CONTINU (Factory Default)STOPThis setting determines whether the printer continue printing after the printer detects that the toner is low.If the toner is low and TONERLOW is set to ‘Stop’,press the Continue button to print. In that case, replacethe toner cartridge or set the TONERLOW menu item toCONTINU.OFF (Factory Default)ONWhen JAM RECV is set to OFF, the printer does not reprint a page that has been jammed after all the imagehas been drawn on the page.When JAM RECV is set to ON, the printer keeps printed page until the printer signals that the page has successfully exited the printer. The printer reprints thejammed page.Item Values and Functions
US I N G OP E R AT O R PA N E L3.11CONFIG MENUSWITCH(If the optional tray 2 is installed)LOCKTRAY(If the optional trayis installed and the SWITCHmenu itemis set to on)ON (Factory Default)OFFThe ON setting makes the printer supply the paper from another Tray when a cassette is empty.In case of the OFF setting, an error message is displayed.NONE (Factory Default)1STOPTMPThe cassette set to LOCKTRAY doesn’t occurres traychange. For example, If LOCKTRAY is set to MP, thetray is not switched to Multi-Purpose tray.Item Values and Functions
US I N G OP E R AT O R PA N E L3.12Use the JOB MENU to define all settings relating to print quality,as well as Menu clear.SRT MODE(SamsungResolutionEnhancement Technology)TIMEOUTENHANCE (Factory Default)NORMALGRAYUse the printer’s SRT(Samsung Resolution enhancement Technology) setting to produce print with smooth angles,curves, and edges. ENHANCE : Better Text ImageGRAY : Better Photo ImageDENSITY LIGHTMEDIUM (Factory Default)DARKLighten or darken the print on the page by changing the DENSITY setting. The MEDIUM setting usually produces the best results. 0 ~ 3 0 01 5 (Factory Default)The TIMEOUT Setting determines the amount of time(in seconds) the printer waits before printing the lastpage of a print job that does not end with a command toprint the page. When a print timeout occurs, the printerprints the data in the print buffer.0 : No timeout.JOB MENUItem Values and Functions
US I N G OP E R AT O R PA N E L3.13PAP.TYPEMENU CLRNORMAL (Factory Default)THICKWETTRANSP.The PAP.TYPE setting lets you specify the type of print material installed in each tray.Select NORMAL if the printer material is plain paper.Select THICK if the printer material is thick paper, highcotton paper or envelopes.Select WET if printer material is thin paper(60g) and the air is humid. Select T R A N S P . if printer material is tra n s p a r e n c i e s .(if the TRAY menu is MP or Manual) you select this va l u e .SMET(Samsung MemoryEnhancement Technology)ON (Factory Default)OFFThis setting makes the printer process more data byoptimizing the memory.If the value is set to ON, the complex data can beprocessed.When you select MENU CLR, the printer resets to thefactory default setting for each menu item. JOB MENUItem Values and Functions
US I N G OP E R AT O R PA N E L3.14JOB MENUDUP.TOP 5.0 (Factory Default)0~9.9mm (In increments of 0.1)This item lets you select the top margin of the print materials when the Duplex menu item is set to Long.DUP.LEFT 5.0 (Factory Default)0~9.9mm (In increments of 0.1)This item lets you select the left margin of the print materials when the Duplex menu item is set to Long.S-BIND 0 (Factory Default)0~22mm (In increments of 1)This item lets you select the left margin for the binding when short edge duplexing.L-BIND 0 (Factory Default)0~22mm (In increments of 1)This item lets you select the left margin for the binding when long edge duplexing.FUSER CLEAN If there happens random dirty spots on the back side ofpaper, Select FUSER CLEAN.It cleans fuser contamination.Item Values and Functions
US I N G OP E R AT O R PA N E L3.15Use the TEST MENU to print a variety of listings relating to available printer resources, printer settings and print jobs. SELFTEST Select SELFTEST to print a configuration page. Thismenu item lets you make sure the printer is operatingcorrectly. For more information, see page 2.11.DEMOPAGE Select DEMOPAGE to print the standard demonstrationpage.Use the PCL MENU to change printer settings that only affect jobs printed using the PCL emulation printer language. FONTLISTSYMBOLYou can print a font sample list showing all the fonts available for PCL emulation.TYPEFACE PCL 1 ~ PCL 54PCL 1 (Factory Default)ROMAN 8 DESKTOP..PC8 (Factory Default)List of symbol set nameASYMBOL set is a set of alphabetic and numericcharacters, punctuation, and specific symbols used whenprinting with a selected font.In PCL emulation, a symbol set also defines which character will be print for each key on the keyboard (ormore specifically, for each code point).TEST MENUPCL MENUItem Values and FunctionsItem Values and Functions
US I N G OP E R AT O R PA N E L3.16PCL MENULINES 5 ~ 12860 (Factory Default : USA, Canada)64 (Factory Default : Others Country)Use the LINES menu item to change the number of linesthat print on each page. The setting can range from 5 to 128 lines per page. The printer sets the amount of space between each linebased on the Lines, Paper size, and Orientation settings.PITCH 0 . 4 4~ 9 9 . 9 910.00 (Factory Default)If you chose a scalable monospaced font, you can select the font pitch. PITCH refers to the number of fixed - space characters in a horizontal inch of type. You can select from 0 . 4 4 to 9 9 . 9 9 characters per inch in increments of 0 . 0 1 cpi. PT.SIZE You can select the character size for the font. PITCH or PT.SIZE appears according to the value of TYPEFACE.COURIER REGULAR (Factory Default)DARKItem Values and Functions
US I N G OP E R AT O R PA N E L3.17This menu is only available if the Serial/LocalTalk option card is installed inyour printer.BAUDRATE This setting lets you select the rate at which data isbeing sent to or from your computer.Setting the COM Port and printer setting atanything higher that 19200 bps will createunexpected errors in DOS mode.3 0 0 ~ 1 1 5 2 0 09 6 0 0 (Factory Default) ROBU.XON ON(Factory Default)OFFI/O MENUFONT LISTprints the font list showing all the fonts available forPo s t S c r i p t .PS.ERROR ONOFF (Factory Default)determines what action the printer should take when anerror occurs in PS interpreter. When set to O F F , theprinter does not print error information when erroroccurs in PS interpreter. When set to O N , the printerprints error information when error occurs in PS inter-p r e t e r.PS3 MENUItem Values and FunctionsItem Values and Functions
US I N G OP E R AT O R PA N E L3.18This menu is only available if the Network option card is installed in your printer.Menu Item ValueE n t e r / C a n c e lOn LinePressingOn Line/ContinueOFFLINE NETWORKMENU RESET NICCFG NETLPDAPL TALKUPDATEBOOT SVRFACTORYDEFAULTPRINTNET CFGTCP/IPCFG TCPNETWARECFG NWARNOONNOONONONNONOUNIXThe PortThru card is re s e tSelect YES or NOSelect ON or OFF for enablingSelect YES or NOSelect ON or OFF for LPD printingSelect ON or OFF for enablingSelect ON or OFF for IPX/SPXSelect YES or NOSelect YES or NO or for upgradingSelect Unix or WindowsSelect for Factory Default settingsSelect for test printingP r essing Menu cyclesf o r w a rd or backward Pressing Item cyclesforward backward Pressing Value cyclesforward backward PressingEnter/Cancel PressingOn Line/ContinueOn LineNETWORK MENU
US I N G OP E R AT O R PA N E L3.19RESET NICCFG NETThe PortThru card is reset.TCP/IP ONOFFThis menu item lets you enable TCP/IP.CFG TCP YESNOThis menu item lets you configure TCP/IP.LPD ONOFFThis menu item lets you print using LPD.APL TALKNETWARE ONOFFYou can configure the printer server for IPX/SPX configuration parameters, and FRAME. When you set it toON, you may select the Frame Type.DHCPCFG ADRSBOOTPRARPYESNOYou can configure the print server for TCP/IP configura-tion parameters, DHCP, CFG ADRS, BOOT P, and RARP. When you enable TCP/IP protocol, you have to select oneof the IP Address assignment methods, DHCP, CFGA D R S , BOOT P, RARP. In case of DHCP, RARP, BOOT P, yo uneed to configure the serve r. In case of CFG ADRS, yo uh ave to enter the IP address, Subnet mask, DefaultG a t e way manually.YESNOThis menu item lets you configure network settings.NETWORK MENUItem Values and FunctionsONOFFWhen you set APL TALK to OFF, this PortThru can not bedetected by Macintosh systems.
US I N G OP E R AT O R PA N E L3.20CFG NWARAUTOEN-8023EN-IIEN-8022EN-SNAPYESNOThis menu item lets you configure IPX/SPX configuration parameters.UPDATE YESNO You need to set the server that provides the upgrade file. You can set it to UNIX or WINDOWS. After setting the serverfor update, you should reset printer. Upgrade process will bedone. FACTORYDEFAULT You can reconfigure the PortThru card to the factorydefault value for each menu item. After selecting thismenu, make sure that you reset printer.PRINT NET CFGSelect this menu item to print configuration pages.BOOT SVR UNIXWINDOWS If you want to set UNIX to the server that provide theupgrade file, you have to save the file to be upgraded to it and configurethe file name and path to bootptab of it. If you want to setWINDOWS to the server that provides the upgrade file, youhave to enter the IP address of the server that has theupgrade file.ONOFFThese items are the frame type for IPX/SPX protocol. You can select one of these. If you don’t set any value,Auto(default value) which switches the frame types automatically is used.NETWORK MENUItem Values and Functions
US I N G OP E R AT O R PA N E L3.21To reset PortThru1Press On Line/Continue.OFFLINE appears on the display.2Press Menu until NETWORK MENU appears on the display.3Press Item until RESET NIC appears on the display.4Press Enter and READY appears on the display.To configure network settings for PortThru.1Press On Line/Continue.OFFLINE appears on the display.2Press Menu until NETWORK MENU appears on the display.3Press Item until CFG NET appears on the display.4Press Value until YES appears on the display.5Press E n t e r and you can configure following network settings now.6Skip this step if you don’t want to configure TC P / I P. Press Item until TCP/IP appears on the display.aPress Value until ON appears on the display.bPress Enter and PortThru can use TCP/IP for communicating.cPress Item until CFG TCP appears on the display.dPress Value until YES appears on the display.ePress Enter and you can select the IP address assignment method.fPress Item until the IP address assignment method you want appears on the display.gTake the YES by pressing the Value button.hPress Enter.iSkip this step if you don’t select CFG ADRS as the IP addressassignment method. Enter the IP address, Subnet mask, Default gateway by using Item,Value and Enter buttons. NETWORK MENUResetting PortThruConfiguring Network setting for PortThru
US I N G OP E R AT O R PA N E L3.227Skip this step if you don’t want to use LPD. LPD appears only if TCP/IP is ON. Press Item until TCP/IP appears on the display.aPress Value until ON appears on the display.bPress Enter.cPress Item until LPD appears on the display.dTake the ON by pressing the Value button.ePress Enter and PortThru can print using LPD.8Skip this step if you don’t want to use AppleTalk protocol. Press Item until APL TALK appears on the display.aTake the ON by pressing the Value button.bPress Enter and PortThru can communicate with AppleTalk protocol.9Skip this step if you don’t want to use IPX/SPX protocol. Press Item until NETWARE appears on the display.aPress Value until ON appears on the display.bPress Enter.cSkip this step not to configure IPX/SPX. Press Item until CFGNWAR appears on the display. Take the YES by pressing theValue button, then Press Enter.dPress Item until the frame type you want to use appears onthe display.eTake the ON by pressing the Value button.fPress Enter.NETWORK MENU
US I N G OP E R AT O R PA N E L3.23To upgrade the firmware of your PortThru.1Press On Line/Continue.OFFLINE appears on the display.2Press Menu until NETWORK MENU appears on the display.3Press Item until UPDATE appears on the display.4Take the YES by pressing the Value button.5Press Enter.6If Unix is the server that provides the upgrade file, go tostep 7. Otherwise go to step 8. 7In case of Unix server:aPress Item until BOOT SVR appears on the display.bPress Value until UNIX appears on the display.cGo to step 9.8In case of Windows server: This step should be done afterexecuting the section Upgrading Firmware In AbnormalCases in see page 3.26.aPress Item until BOOT SVR appears on the display.bPress Value until WINDOWS appears on the display.cEnter the IP address of the server to provide upgrade fileby using Item,Value and Enter button.9Reset printer and the firmware will be upgraded.Upgrading FirmwareNETWORK MENU
NETWORK MENUUS I N G OP E R AT O R PA N E L3.24Restoring Factory DefaultsTo restore factory default settings to the printer.1Press On Line/Continue.OFFLINE appears on the display.2Press Menu until NETWORK MENU appears on the display.3Press Item until FACTORY DEFAULT appears on the display.4Press Enter.5Reset printer and all settings will be reset to factory defaults.Printing Test PagesYou can use the Front Panel to print out important informationpages describing PortThru settings.1Press On Line/Continue.OFFLINE appears on the display.2Press Menu until NETWORK MENU appears on the display.3Press Item until PRINT NET CFG appears on the display.4Press Enter and the test pages will be printed out.
US I N G OP E R AT O R PA N E L3.25NETWORK MENUSetting Unix as BOOTP server1There must be a BOOTP server present in the network environment in which the network printer is present.2On the BOOTP server the / e t c / b o o t p t a b file must be created and an entry for the boot parameters must be made in the file as follows:(Please check with your system manual).npc:\:pc:\:ht=ether:\:ha=000070414243:\:sm=255.255.255.0:\:gw=200.160.251.47:\:lg=200.160.251.51:\:sa=200.160.251.52:\:hn::ip=200.460.251.18:\:bf=”/test/Firmwareup”.\:vm=rfc1048::ht=hardware type, ha=hardware add, image:download file nameUpgrading the Firmware1Set UPDATE to YES in the Network menu on the printer front panel.2Set BOOT SVR to UNIX.3Reset the printer.4It may take 3 minutes to reboot the printer.Rebooting time depends on network traffic.Upgrading the Firmware in a Unix EnvironmentNotes• Firmware upgrading requires Tftp protocol. Check whether Tftp daemon is installed in advance.• Setting IP Address Assignment Method to DHCP is recommended in order to execute Firmware upgrading.
US I N G OP E R AT O R PA N E L3.26NETWORK MENUA ny error in the process of upgrading may result in disablingPortThru. In this case, perform the following steps.In SyncThru1Select the Upgrade Firmware menu item under the Maintenance menu in SyncThru.2You can see the Choose the Upgrade Firmware File dialog box. 3Check the Wait Printer Request check box.4Select the Firmware file Name you downloaded and its path, and then click Start.5You will see the message ”Please set the values through the FRONT Panel to initiate FLASH Upgra d e ”. Click O K.Select the After this procedure, move to printer which yo uwant to update and do as following procedure.In Front Panel of the printer6Press On Line. O F F L I N E appears on the display.7Press M e n u until NETWORK MENU appears on the display.8Press I t e m until UPDATE appears on the display.9Ta k e the Y E S by pressing the V a l u e b u t t o n .10 Press E n t e r / C a n c e l.11 Press I t e m until BOOT SVR appears on the display.12 Press V a l u e until WINDOWS appears on the display.13 Press E n t e r / C a n c e l .Upgrading the Firmware in Abnormal Cases
US I N G OP E R AT O R PA N E L3.2714 Set the IP address of the WINDOWS pc running Sy n cT h r uin step1. For example, if the IP address is155.213.211.12, do as following steps.aPress I t e m until SV-IP B1 appears on the display.bPress V a l u e until 1 5 5 appears on the display.cPress E n t e r / C a n c e l .dPress I t e m until SV-IP B2 appears on the display.ePress V a l u e until 2 1 3 appears on the display.fPress E n t e r / C a n c e l .gPress I t e m until SV-IP B3 appears on the display.hPress V a l u e until 2 1 1 appears on the display.iPress E n t e r / C a n c e l .jPress I t e m until SV-IP B4 appears on the display.kPress V a l u e until 1 2 appears on the display.lPress E n t e r / C a n c e l .15 Reset printer and the firmware will be upgra d e d .NETWORK MENUNotesAfter the ”Completed. Network Card will start about30secs later” message is displayed on Sy n cThru, click OK. It may take a few seconds to write the newfile to Firmware. Normally 30 seconds is sufficient.
Print MediaThis chapter will help you understand what kind of paperyou can use with the ML-7300 series printer and how toproperly load paper in the different paper trays for the bestprint quality.Topics included in this chapter are:◆Loading Paper◆Printing on Envelopes◆Printing on Label◆Printing on Transparencies44
PR I N T ME D I A4.1Loading PaperMulti-Purpose tray provides a convenient way to print envelopes, transparencies, or other type of media without having to unload the other tray.To load paper in the Multi-Purpose tray, proceed as follows.Using the Multi-Purpose Tray1Pull the Multi-Purpose trayt o wards yo u .2Slide the length guide outt o ward yo u .
PR I N T ME D I A4.2Notes • Do not fold or crease the paper.• Place the paper with the recommended print side face up.3Flex the sheets back and forthto loosen them, then fan them.4Place the paper against the sideof the Multi-Purpose tray withthe recommended print sideface up and the top edge goingin first toward the printer ass h o w n .5Adjust the paper guide to thes i ze of the paper inserted bypushing the guide. Loading Paper
PR I N T ME D I A4.31Select Manual as the paper source.•Set the source item in the properties dialogue box to Manual.•You can select Manual as the paper source by setting the Tray itemof the operator panel menu.2Print your document.3Place a sheet of paper in the Multi-Purpose tray.4Press continue key when you areprompted.The Manual Feed feature allows you to print on special paper from Multi-Purpose tray such as envelopes or letterhead. If the Tray menu item is set to Manual, the printer will print only from Multi-Purpose tray. Manual Feed is selected through the software or printer driver too. Loading PaperManually Feeding Paper from Multi-Purpose Tray
PR I N T ME D I A4.4For Multi-Purpose tray, load the paper with the side-to-be-printed facing up, and the top, shortedge toward the printer.• Set the source item in the properties dialogue box to Manual or MP.- To print continuously from Multi-Purpose tray, set the source item to MP.- To print a sheet of paper from Multi-Purpose tray, set the source item to Manual.For All other trays, load paper with the side-to-be-printedfacing down, and the top, short edget o ward yo u .Loading PaperLetterhead / Prepunched PaperPrinting Side(down)Printing Side(up)Special paper includes letterhead, prepunched, envelopes, labels, and tra n s p a r e n c i e s .When printing letterhead, prepunched paper, it is important to load the trays with the correct orientation.
PR I N T ME D I A4.5Many types of envelopes can be printed from Multi-Purpose tray.The types of envelopes are COM-10, MONARCH, DL, C5 and C6(60~90g/m2).The printer will automatically feed up to 10 envelopes.Printing performance depends on the construction of the envelope.Printing information•Set margins at least 0.6inch(15mm) from the edge of the envelope.•Always test a few sample envelopes before purchasing large quantities.•Select THICK paper for better quality.Envelopes guidelinesFor best performance, use envelopes made from 75g/m2(20lb bond) paper.Do not use envelopes that : •Are damaged in any way.•Use metal claps, string ties, metal folding bars.•Contain windows, holes, cutouts or embossing.•Have exposed flap adhesive when the flap is in the sealed or closed position. For envelope specifications, see page Appendix A.4. 1Open the Multi-Purpose tray. Pull out the extension.EnvelopesLoading envelopesLoading Paper
PR I N T ME D I A4.6(Side View)2Load up to 10 envelopes in theleft side of Multi-Purpose traywith the side-to-be printed facing up, and the postage-endt o ward the printer.3Adjust the guide to touch thee nvelope stack without bendingthe enve l o p e s .4Set the source item in the properties dialogue box to Manual or MP.N o t e s Do not use an envelope curled down side, refer to the figure.Loading Paper
PR I N T ME D I A4.7Labels automatically feed from the Multi-Purpose tray or the other tray s .Label guidelinesMake sure that labels meet the specifications for the tray you use.•Use full label sheet. Partial sheets may cause labels to peel off duringprinting, resulting in a paper jam.•The adhesive material should be stable at 400OF(205OC), the printersmaximum temperature.•Do not use labels that have the backing sheet exposed.• For Multi-Purpose tray, load thelabels with the side-to-be-printedfacing up, and the short edget o ward the printer. Print a stackof 25 labels from Multi-Purposet ray.Notes Do not print on both sides of labels.Loading PaperL a b e lLabel orientation
PR I N T ME D I A4.8• For Multi-Purpose tray, load the t ransparencies with side-to-be-printed facing up, and the topt o ward the printer. Print a stack of 30 tra n s p a r e n c i e sfrom Multi-Purpose tray.Transparencies automatically feed from the Multi-Purpose tray or the other trays. Some brand of transparencies may require manual feeding.The Multi-Purpose tray is a tray that holds the paper of A4 or Letter, including up to 30 sheets.Transparencies guidelines• Use only transparencies recommended for use in laser printers.• Place transparencies on a flat surface to cool after removing them fromp r i n t e r.Transparencies orientationTr a n s p a r e n c i e sNotes• Because transparencies are heavier than paper, do not load the trays to capacity.• Remove each transparency from the output bin before printing another.Loading Paper
Printing Tasks55This chapter explains your printing options and give commonprinting tasks.Topics included in this chapter are:◆Using Features in the Printer Driver- With Windows 95/98/NT 4.0/2000- With Windows 3.1◆Using the Printer Driver- Paper Tab- Graphics Tab- Output Tab- Printer Tab- Overlay Tab- Watermark Tab◆Printing Both Sides of Paper
PR I N T I N G TA S K S5.1Using Features inthe Printer DriverWhen you print from software application, many of the printer’s featuresare available from the printer driver.To change the settings from a software application, do the following way.1Select S t a r t - S e t t i n g s - P r i n t e r s from the Windows task bar.2Double-Click on the desired printer driver icon.3Select P r i n t e r - P r o p e r t i e s .4Click on the appropriate tab.5Select the required options.With Windows 95/98/NT 4.0/2000
PR I N T I N G TA S K S5.2Using Features in the Printer Driver1From Program Manager Windows, double-click on the C o n t r o lP a n e l icon within the Main Program group.2Double click on the p r i n t e r s icon within the Control PanelW i n d o w s .3In the Installed Printers list, click on Samsung ML-7300 (PCL 6 or PCL 5e) if it is not already highlighted.4Click on the S e t u p b u t t o n .5Select the required options.GeneralYou can print a test page and view the driver information.See page 5.9SharingYou can sharethe printer.See page 5.10DetailsYou can selectthe printer portand spool setting.See page 5.7See page 5.5See page 5.12R e s u l t The OFFLINE message appears on the displayand the printer is off-line.Notes Changes made from a software application override the userdefault setting made from the printer operator panel.With Windows 3.1See page 5.3
PR I N T I N G TA S K S5.3The features of the printer driver are organized under ten tabs : Click on a tab at the top of the properties window to access one of the ninedialog boxe s .Each tab of the properties box is described in this section.You can restore all the original settings of the PCL 6 printerd r i ver by clicking Restore Defaults.Using the Printer DriverPaper Tab
Using the Printer DriverPR I N T I N G TA S K S5.4C o p i e sUse the Copies box to set the number of copies yo uwant to print.Paper OrientationChoose Po r t rait or Landscape to select the defaultorientation of the printed page.Different Soruce for First PageIf the box is checked, this feature is enabled and thedialog box allows you to select the desired papersource for the Fi r s t Pa g e and Other Pa g e si n d e p e n d e n t l y. If the box is empty, this feature is disabled. Paper SourceThe source setting identifies the default paper tray.Paper sizesUse this setting to select the paper size .Paper typeThe Paper type setting lets you specify the type ofprint material installed in each tray.L a n d s c a p e P o r t r a i tprintable a r e aImportantIf you want to know more about each menu, click on the Help button.The help screen gives detailed information about each menu.
PR I N T I N G TA S K S5.5Using the Printer DriverThe settings on the Graphic tab allow you to fine tune your image qualityand to balance print quality and print speed.Graphic TabYou can restore all the original settings of the PCL 6 printerdriver by clicking Restore Defaults.
PR I N T I N G TA S K S5.6R e s o l u t i o nSelect from the available setting to set the maximumresolution for your print jobs.SRT ModeSome printed characters or images can appear toh ave jagged or uneven edges. Set this SamsungResolution enhancement Technology (SRT) option toi m p r o ve the print quality of your text and image andm a ke the characters and images appear smoother. Toner Save ModeThis determines the amount of toner to be usedwhile printing a page. The printer uses 50% lesstoner when Toner Save Mode is selected.Graphic ModeThis setting allows you to change the Graphic Mode.H a l f t o n i n gThis setting lets you fine-tune the way colors ing r aphic images are converted to gray dot patterns.Important If you want to know more about each menu, click on the Help button.The help screen gives detailed information about each menu.Using the Printer DriverNotes SRT Mode is disabled when 1200 dpi settings areselected.
PR I N T I N G TA S K S5.7Output TabYou can restore all the original settings of the PCL 6 printerd r i ver by clicking Restore Defaults.Using the Printer Driver
