Samsung Electronics Co MV900F Digital Camera User Manual
Samsung Electronics Co Ltd Digital Camera
User Manual
1
Prevent damage to subjects’ eyesight.
Do not use the flash in close proximity (closer than 1 m/3 ft) to
people or animals. If you use the flash too close to your subject’s
eyes, this can cause temporary or permanent eyesight damage.
Keep your camera away from small children and pets.
Keep your camera and all accessories out of the reach of small
children and animals. Small parts may cause choking or serious
injury if swallowed. Moving parts and accessories may present
physical dangers as well.
Do not expose the camera to direct sunlight or high
temperatures for an extended period of time.
Prolonged exposure to sunlight or extreme temperatures can
cause permanent damage to your camera’s internal components.
Avoid covering the camera or charger with blankets or clothes.
The camera may overheat, which may distort the camera or
cause a fire.
Do not handle the power supply cord or go near the charger
during a thunderstorm.
This may result in electric shock.
Health and safety information
Always comply with the following precautions and usage tips to avoid dangerous situations and ensure peak performance of your camera.
Warning—situations that could cause injury to yourself or
others
Do not disassemble or attempt to repair your camera.
This may result in electric shock or damage to the camera.
Do not use your camera near flammable or explosive gases and
liquids.
This may cause a fire or explosion.
Do not insert flammable materials into the camera or store these
materials near the camera.
This may cause a fire or electric shock.
Do not handle your camera with wet hands.
This may result in electric shock.
2
If liquid or foreign objects enter your camera, immediately
disconnect all power sources, such as the battery or charger,
and then contact a Samsung service center.
Comply with any regulations that restrict the use of a camera in
a certain area.
• Avoid interference with other electronic devices.
• Turn off the camera when in an aircraft. Your camera can cause
interference with aircraft equipment. Follow all airline regulations
and turn off your camera when directed by airline personnel.
• Turn off the camera near medical equipment. Your camera can
interfere with medical equipment in hospitals or health care
facilities. Follow all regulations, posted warnings, and directions
from medical personnel.
Avoid interference with pacemakers.
Maintain a minimum of 15 cm between this camera and all
pacemakers to avoid potential interference, as recommended by
the manufacturer and the independent research group, Wireless
Technology Research. If you have any reason to suspect that your
camera is interfering with a pacemaker or other medical device,
turn off the camera immediately and contact the manufacturer of
the pacemaker or medical device for guidance.
Caution—situations that could cause damage to your camera
or other equipment
Remove the batteries from your camera when storing it for an
extended period of time.
Installed batteries may leak or corrode over time and cause
serious damage to your camera.
Use only authentic, manufacturer-recommended, Lithium-ion
replacement batteries. Do not damage or heat the battery.
Inauthentic, damaged, or heated batteries may cause a fire or
personal injury.
Use only Samsung-approved batteries, chargers, cables and
accessories.
• Using unauthorized batteries, chargers, cables or accessories
can cause batteries to explode, damage your camera, or cause
injury.
• Samsung is not responsible for damage or injuries caused by
unapproved batteries, chargers, cables or accessories.
Health and safety information
3
Use the battery only for its intended purpose.
Misusing the battery may cause a fire or electric shock.
Do not touch the flash while it fires.
The flash is very hot when fired and may burn your skin.

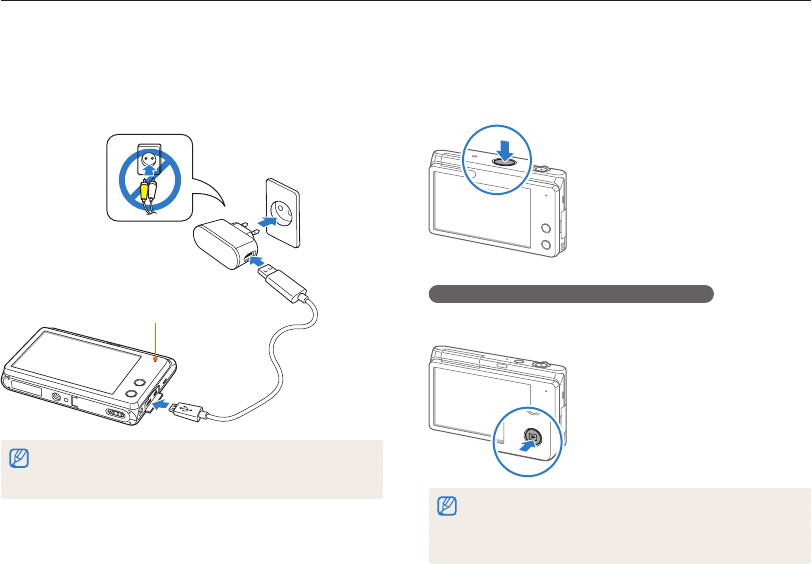

When you use the AC charger, turn off the camera before you
disconnect the power to the AC charger.
Failing to do so may result in fire or electric shock.
Disconnect the charger from the wall socket when not in use.
Failing to do so may result in fire or electric shock.
Do not use a damaged power supply cord, plug, or loose outlet
when you charge batteries.
This may cause a fire or electric shock.
Do not allow the AC charger to come in contact with the +/-
terminals on the battery.
This may cause a fire or electric shock.
Do not force the camera’s parts or apply pressure to the
camera.
This may cause your camera to malfunction.
Exercise caution when you connect cables or adapters and

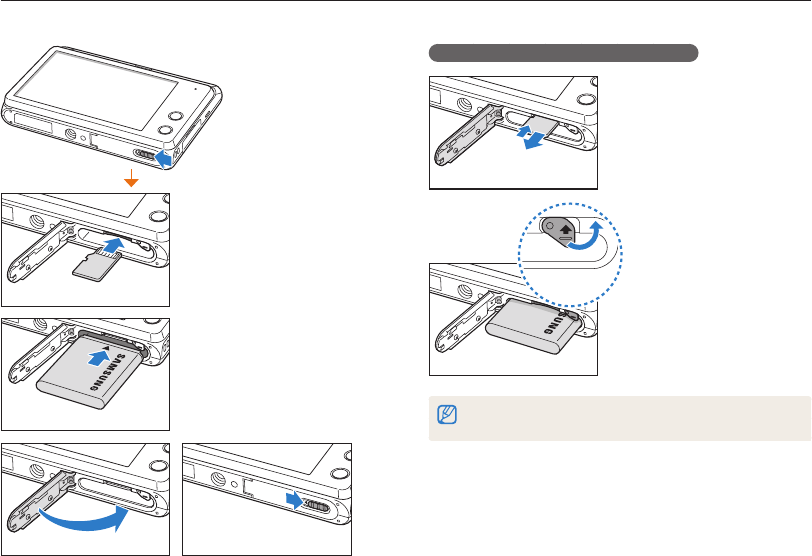

install batteries and memory cards.
If you force the connectors, improperly connect cables, or
improperly install batteries and memory cards, you can damage
ports, connectors, and accessories.
Keep cards with magnetic strips away from the camera case.
Information stored on the card may be damaged or erased.
Never use a damaged charger, battery, or memory card.
This may result in electric shock or camera malfunction or
cause a fire.
Check that the camera is operating properly before use.
The manufacturer takes no responsibility for any loss of files or
damage that may result from camera malfunction or improper
use.
Health and safety information
4
Health and safety information

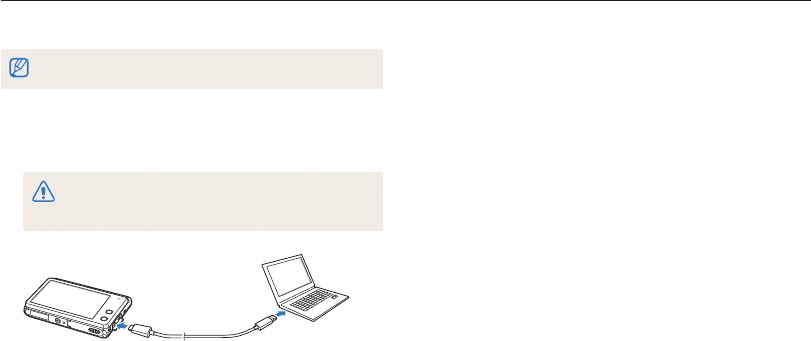

You must plug the small end of the USB cable into your camera.
If the cable is reversed, it may damage your files.
The manufacturer is not responsible for any loss of data.
Avoid interference with other electronic devices.
Your camera emits radio frequency (RF) signals that may interfere
with unshielded or improperly shielded electronic equipment,
such as pacemakers, hearing aids, medical devices, and
other electronic devices in homes or vehicles. Consult the
manufacturers of your electronic devices to solve any interference
problems you experience. To prevent unwanted interference, use
only Samsung-approved devices or accessories.
Use your camera in the normal position.
Avoid contact with your camera’s internal antenna.
Do not place the camera in or near a magnetic field.
If the camera is placed with a magnetic object, the camera may
malfunction.
Please be careful not to drop the camera or shock the camera's
exterior.
• Because this could damage the camera's screen, please be
careful.
• If you drop the camera, the exterior may be damaged and the
internal components may break.
Please be careful if the camera's screen is damaged.
• If glass or acrylic parts are broken, please use the camera after
repairing it at Samsung Electronics Service Center to reduce
the risk of accidents and injuries.
• Please do not use the camera other than its intended use.
Data transference and your responsibilities
• Data transferred via WLAN could be leaked, so avoid
transferring sensitive data in public areas or on open networks.
• The camera manufacturer is not liable for any data transfers that
infringe on copyrights, trademarks, intellectual property laws, or
public decency ordinances.
5
Copyright information
• Microsoft Windows and the Windows logo are
registered trademarks of the Microsoft Corporation.
• Mac is a registered trademark of the Apple Corporation.
• HDMI, the HDMI logo and the term “High Definition
Multimedia Interface” are trademarks or registered
trademarks of HDMI Licensing LLC.
• microSD™, microSDHC™, and microSDXC™ are
registered trademarks of the SD Association.
• Wi-Fi®, the Wi-Fi CERTIFIED logo, and the Wi-Fi logo are
registered trademarks of the Wi-Fi Alliance.
• Trademarks and trade names used in this manual are
the property of their respective owners.
• Camera specifications or contents of this manual may
be changed without prior notice due to upgrade of
camera functions.
• We recommend using your camera within the country
where you purchased.
• Use this camera responsibly and adhere to all laws
and regulations concerning its use.
• You are not allowed to reuse or distribute any part of
this manual without prior permission.
Outline of the User Manual
Basic functions 13
Learn about your camera’s layout, icons, and basic
functions for shooting.
Extended functions 38
Learn how to capture a photo and record a video by
selecting a mode.
Shooting options 62
Learn how to set the options in Shooting mode.
Playback/Editing 87
Learn how to play back photos or videos, and edit

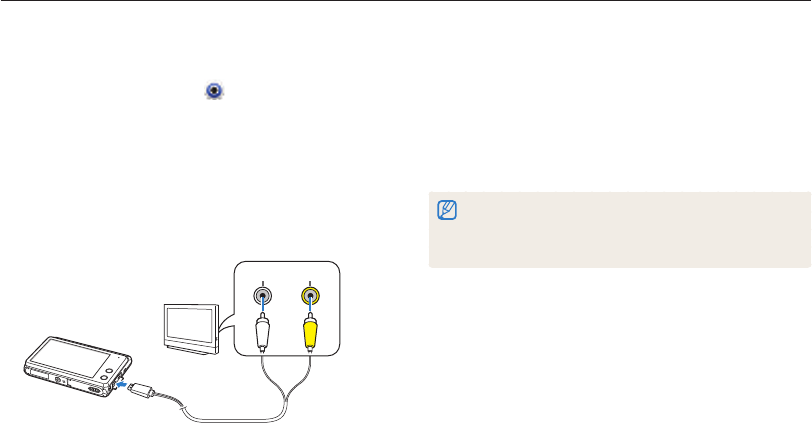

photos or videos. Also, learn how to connect your
camera to your computer, photo printer, or TV.
Wireless network 114
Learn to connect to wireless local area networks
(WLANs) and use functions.
Settings 136
Refer to options to configure your camera’s settings.
Appendixes 143
Get information about error messages, specifications,
and maintenance.
6
Icons used in this manual
Icon Function
Additional information
Safety warnings and precautions
[] Camera buttons. For example, [Shutter] represents the
shutter button.
() Page number of related information
The order of options or menus you must select to
perform a step; for example: Select Face Detection
Normal (represents Select Face Detection, and then
select Normal).
*Annotation
Expressions used in this manual
Pressing the shutter
• Half-press [Shutter]: Press the shutter halfway down
• Press [Shutter]: Press the shutter all the way down
Half-press [Shutter] Press [Shutter]
Subject, background, and composition
• Subject: The main object in a scene, such as a person,
animal, or still life
• Background: The objects around the subject
• Composition: The combination of a subject and background
Composition
Background
Subject
Exposure (Brightness)
The amount of light that enters your camera determines the
exposure. You can alter the exposure by changing the shutter
speed, aperture value, or ISO sensitivity. By altering the exposure,
your photos will be darker or lighter.
S
Normal exposure
S
Overexposure (too bright)
7
Basic troubleshooting
Learn to solve common problems by setting shooting options.
The subject’s eyes
appear red.
Red eye occurs when the subject's eyes reflect light from the camera flash.
•
Set the flash option to Red-eye or Red-eye Fix. (p. 66)
•
If the photo has already been captured, select Red-eye Fix in the edit menu. (p. 101)
Photos have dust
spots.
If dust particles are present in the air, you may capture them in photos when you use the flash.
•
Turn off the flash or avoid capturing photos in a dusty place.
•
Set ISO sensitivity options. (p. 68)
Photos are blurred. Blurring can occur if you capture photos in low light conditions or hold the camera incorrectly.
Use the OIS function or half-press [Shutter] to ensure the subject is focused. (p. 36)
Photos are blurred
when shooting at
night.
As the camera tries to let in more light, the shutter speed slows. This can make it difficult to hold the
camera steady long enough to capture a clear photo and may result in camera shake.
•
Turn on the flash. (p. 66)
•
Set ISO sensitivity options. (p. 68)
•
Use a tripod to prevent your camera from shaking.
Subjects come out
too dark because of
backlighting.
When the light source is behind the subject or when there is a high contrast between light and dark
areas, the subject may appear too dark.
•
Avoid shooting toward the sun.
•
Select Backlight in Scene mode. (p. 44)
•
Set the flash option to Fill in. (p. 66)
•
Adjust the exposure. (p. 77)
•
Set the Auto Contrast Balance (ACB) option. (p. 78)
•
Set the metering option to Spot if a subject is in the center of the frame. (p. 78)
8
Quick reference
Capturing photos of people
•
Self Shot mode
f
32
•
Gesture Shot mode
f
48
•
Beauty Shot mode
f
49
•
Low Light Shot mode
f
50
•
Picture in Picture mode
f
53
•
Red-eye/Red-eye Fix (to prevent or correct
red-eye)
f
66
•
Face Detection
f
72
•
Beauty Palette mode
f
59
Capturing photos at night or in
the dark
•
Scene mode > Sunset, Dawn
f
44
•
Flash options
f
66
•
ISO sensitivity (to adjust the sensitivity to light)
f
68
Capturing action photos
•
Burst
f
81
Capturing photos of text,
insects, or flowers
•
Scene mode > Text
f
44
•
Macro
f
69
Adjusting the exposure
(brightness)
•
ISO sensitivity (to adjust the sensitivity to light)
f
68
•
EV (to adjust exposure)
f
77
•
ACB (to compensate for subjects against bright
backgrounds)
f
78
•
Metering
f
78
•
AEB (to capture 3 photos of the same scene
with different exposures)
f
82
Capturing photos of scenery
•
Scene mode > Landscape
f
44
•
Live Panorama mode
f
46
Applying effects to photos
•
HDR Plus mode
f
49
•
Photo Filter mode
f
51
•
Magic Frame mode
f
55
•
My Magic Frame mode
f
55
•
Split Shot mode
f
56
•
Artistic Brush mode
f
57
•
Motion Photo mode
f
58
•
Image Adjust (to adjust Sharpness, Contrast,
or Saturation)
f
83
Applying effects to videos
•
Movie Filter mode
f
52
Reducing camera shake
•
Optical Image Stabilization (OIS)
f
34
•
Viewing files by category in Smart Album
f
91
•
Viewing files as thumbnails
f
92
•
Deleting all files on the memory
f
93
•
Viewing files as a slide show
f
95
•
Viewing files on a TV
f
105
•
Connecting your camera to a computer
f
108
•
Using photo or video sharing websites
f
123
•
Sending photos or videos via email
f
126
•
Adjusting sound and volume
f
138
•
Adjusting the brightness of the display
f
138
•
Changing the display language
f
140
•
Setting the date and time
f
140
•
Before contacting a service center
f
155
9
Contents
Extended functions
.......................................................... 38
Using shooting modes ................................................ 39
Using the Smart Auto mode ........................................ 39
Using the Program mode ............................................ 40
Using the Movie mode ................................................ 42
Using the Scene mode ............................................... 44
Using the 3D Photo mode ........................................... 45
Using the Live Panorama mode ................................... 46
Using the Gesture Shot mode ..................................... 48
Using the Beauty Shot mode ....................................... 49
Using the HDR Plus mode .......................................... 49
Using the Low Light Shot mode ................................... 50
Using effect modes ..................................................... 51
Using the Photo Filter mode ....................................... 51
Using the Movie Filter mode ....................................... 52
Using the Picture in Picture mode ................................ 53
Using the Magic Frame mode ..................................... 55
Using the My Magic Frame mode ................................ 55
Using the Split Shot mode .......................................... 56
Using the Artistic Brush mode ..................................... 57
Using the Motion Photo mode ..................................... 58
Using the Beauty Palette mode ................................... 59
Using the Wig Shot mode ........................................... 60
Basic functions
................................................................. 13
Unpacking ................................................................... 14
Camera layout ............................................................. 15
Using the screen ........................................................ 17
Using the SMART LINK button ..................................... 18
Inserting the battery and memory card ....................... 19
Charging the battery and turning on your camera ...... 20
Charging the battery ................................................... 20
Turning on your camera .............................................. 20
Performing the initial setup ......................................... 21
Learning icons ............................................................. 23
Using the touch screen ............................................... 24
Using the Home screen ............................................... 26
Accessing the Home screen ....................................... 26
Icons on the Home screen .......................................... 26
Browsing the Home screen ......................................... 28
Rearranging icons ...................................................... 29
Setting Wallpaper ....................................................... 29
Using the Help mode .................................................. 30
Capturing photos ......................................................... 31
Using the Self Shot mode ........................................... 32
Zooming .................................................................... 32
Reducing camera shake (OIS) ..................................... 34
Tips for getting a clearer photo ................................... 36
10
Contents
Shooting options
.............................................................. 62
Selecting a resolution and quality ............................... 63
Selecting a resolution .................................................. 63
Selecting an image quality ........................................... 64
Using the timer ............................................................ 65
Shooting in the dark .................................................... 66
Preventing red-eye ..................................................... 66
Using the flash ........................................................... 66
Adjusting the ISO sensitivity ......................................... 68
Changing the camera’s focus ..................................... 69
Using macro .............................................................. 69
Using tracking auto focus ............................................ 70
Using One Touch Shot ............................................... 71
Adjusting the focus area .............................................. 71
Using Face Detection .................................................. 72
Detecting faces .......................................................... 72
Capturing a self portrait shot ........................................ 73
Capturing a smile shot ................................................ 73
Detecting eye blinking ................................................. 74
Using Smart Face Recognition .................................... 74
Registering faces as your favorites (My Star) ................. 75
Adjusting brightness and color ................................... 77
Adjusting the exposure manually (EV) ........................... 77
Compensating for backlighting (ACB) ........................... 78
Changing the metering option ...................................... 78
Selecting a White Balance setting ................................ 79
Using burst modes (Burst/AEB) .................................. 81
Using High-speed burst mode .................................... 81
Using AEB (Auto Exposure Bracketing) ......................... 82
Applying effect/Adjusting images ............................... 83
Adjusting images ........................................................ 83
Reducing the sound of the zoom ................................ 84
Available shooting options by shooting mode ............ 85
11
Contents
Playback/Editing
............................................................... 87
Viewing photos or videos in Playback mode .............. 88
Starting Playback mode .............................................. 88
Viewing photos .......................................................... 94
Playing a video ........................................................... 96
Editing a photo ............................................................ 98
Resizing a photo ........................................................ 98
Rotating a photo ......................................................... 98
Cropping a photo ....................................................... 99
Applying Smart Filter effects ........................................ 99
Adjusting your photos ............................................... 100
Creating a print order (DPOF) ..................................... 102
Using the Creative Movie Maker mode .................... 103
Making a movie with the Creative Movie Maker ........... 103
View a movie made in Creative Movie Maker mode ..... 104
Viewing files on a TV (HDTV, 3D TV) ......................... 105
Viewing files on a TV ................................................. 105
Viewing files on an HDTV .......................................... 106
Viewing files on a 3D TV ............................................ 107
Transferring files to your Windows OS computer ..... 108
Transferring files with Intelli-studio ............................... 109
Transferring files by connecting the camera
as a removable disk .................................................. 111
Disconnecting the camera (for Windows XP) ............... 112
Transferring files to your Mac OS computer ............. 113
Wireless network
............................................................ 114
Connecting to a WLAN and configuring
network settings ........................................................ 115
Connecting to a WLAN ............................................. 115
Using the login browser ............................................ 117
Network connection tips ........................................... 117
Entering text ............................................................. 118
Sending photos or videos to a smart phone ............ 120
Using a smart phone as a remote shutter release .... 121
Using photo or video sharing websites .................... 123
Accessing a website ................................................ 123
Uploading photos or videos ....................................... 123
Sending photos or videos via email .......................... 125
Changing email settings ............................................ 125
Sending photos or videos via email ............................ 126
Uploading photos to a cloud server .......................... 128
Using Auto Backup to send photos or videos ......... 129
Installing the program for Auto Backup on your PC ...... 129
Sending photos or videos to a PC ............................. 129
Viewing photos or videos on
a TV Link-enabled TV ................................................ 131
Sending photos using Wi-Fi Direct ........................... 133
About the Wake on LAN (WOL) feature .................... 134
12
Contents
Settings
........................................................................... 136
Settings menu ........................................................... 137
Accessing the settings menu .................................... 137
Sound ..................................................................... 138
Display .................................................................... 138
Connectivity ............................................................. 139
General ................................................................... 140
Appendixes
..................................................................... 143
Error messages ......................................................... 144
Camera maintenance ................................................ 146
Cleaning your camera ............................................... 146
Using or storing the camera ...................................... 147
About memory cards ................................................ 148
About the battery ...................................................... 151
Before contacting a service center ........................... 155
Camera specifications ............................................... 158
Glossary ..................................................................... 162
FCC notice ................................................................. 167
Declaration sentence in official languages ............... 170
Index .......................................................................... 172
Unpacking
………………………………… 14
Camera layout
……………………………… 15
Using the screen
………………………… 17
Using the SMART LINK button
…………… 18
Inserting the battery and memory card
… 19
Charging the battery and turning on
your camera
………………………………… 20
Charging the battery
……………………… 20
Turning on your camera
………………… 20
Performing the initial setup
……………… 21
Learning icons
……………………………… 23
Using the touch screen
…………………… 24
Using the Home screen
…………………… 26
Accessing the Home screen
……………… 26
Icons on the Home screen
……………… 26
Browsing the Home screen
……………… 28
Rearranging icons
………………………… 29
Setting Wallpaper
………………………… 29
Using the Help mode
……………………… 30
Capturing photos
………………………… 31
Using the Self Shot mode
………………… 32
Zooming
………………………………… 32
Reducing camera shake (OIS)
…………… 34
Tips for getting a clearer photo
…………… 36
Basic functions
Learn about your camera’s layout, icons, and basic functions for shooting.
Basic functions
14
Unpacking
The following items are included in your product box.
Camera AC adapter/
USB cable
Rechargeable battery Strap
Quick Start Guide
Optional accessories
Camera case A/V cable

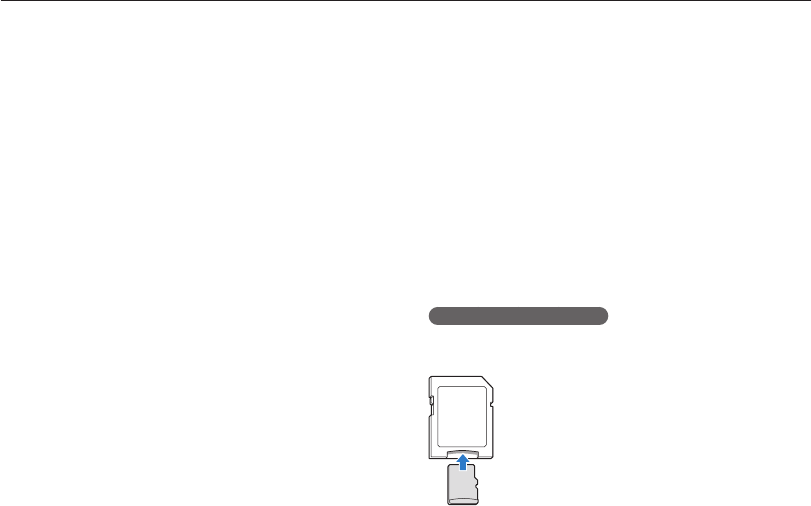

Memory card/Memory card adapter
•
The illustrations may differ slightly from the items shipped with your
product.
•
The items included in the box may differ depending on the model.
•
You can purchase optional accessories at a retailer or a Samsung
service center. Samsung is not responsible for any problems
caused by using unauthorized accessories.
Basic functions
15
Camera layout
Before you start, familiarize yourself with your camera’s parts and their functions.
Flash
Lens
MicrophoneShutter button
AF-assist light/Timer lamp
POWER button
Battery chamber cover
Insert a memory card and battery
Tripod mount
USB and A/V port
Accepts USB cable and A/V cable
HDMI port
Accepts HDMI cable
Speaker
Main display
Internal antenna*
*Avoid contact with the internal antenna
while using the wireless network.
Basic functions
16
Camera layout
Status lamp
•
Blinking: When the camera is saving a photo or video, being
read by a computer, when the image is out of focus, or there is a
problem charging the battery (when the camera is connecting to
WLAN or sending a photo)
•
Steady: When the camera is connected to a computer, charging
the battery, or when the image is in focus
Zoom button
•
In Shooting mode: Zoom in or out
•
In Playback mode: Zoom in on part of a photo or view files as
thumbnails, or adjust the volume
Attaching the strap
x
y
Home button
Access the Home screen
Playback button
Enter Playback mode
SMART LINK button
Start a preset Wi-Fi function
Basic functions
17
Camera layout

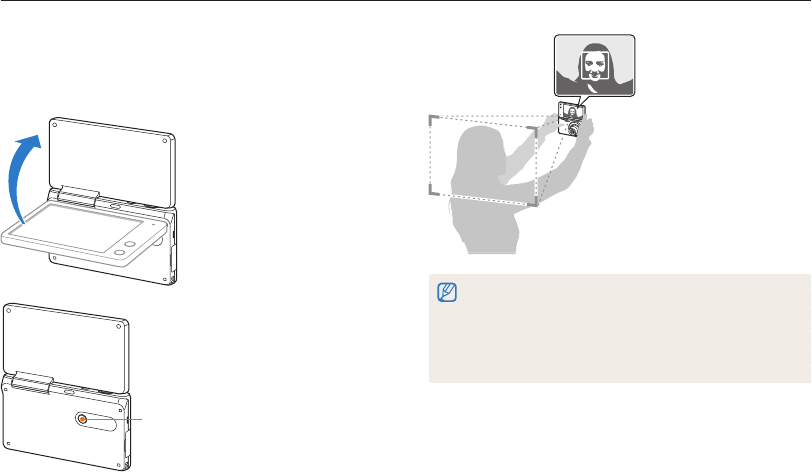

Using the screen
You can take a self-portrait while looking at yourself on the screen
by flipping the screen up and using the shutter button on the
back of the camera. The screen can flip 180 degrees upward.
Shutter button
•
Fold the screen when not in use.
•
Please do not move the screen by more than 180 degrees,
or it may break.
•
Flip the screen upward to turn on the camera with Self Shot mode.
•
In Smart Auto mode and Program mode, the camera accesses
Self Shot mode as you flip the screen upward. (p. 32)
Basic functions
18
Camera layout
Using the SMART LINK button
You can turn on the Wi-Fi feature conveniently with the SMART
LINK button.
• Press the SMART LINK button to activate the Wi-Fi function that
you have designated. The ring around button will light up and
the camera will activate the designated function.
Setting a SMART LINK option
You can select a Wi-Fi function to launch when you press the
SMART LINK button.
1
On the Home screen, touch .
2
Touch General Wi-Fi.
3
Select an option.
Basic functions
19
Inserting the battery and memory card
Learn how to insert the battery and an optional memory card into the camera.
Removing the battery and memory card
Memory card
Push the card gently until it
disengages from the camera,
and then pull it out of the slot.
Rechargeable battery
Battery lock
Slide the lock up to release
the battery.
You can use the internal memory for temporary storage if a memory card is
not inserted.
Memory card
Insert a memory card with the
gold-colored contacts facing
up.
Rechargeable battery
Insert the battery with the
Samsung logo facing up.
Basic functions
20
Charging the battery and turning on your camera
Turning on your camera
Press [POWER] to turn your camera on or off.
• The initial setup screen appears when you turn on the camera
for the first time. (p. 21)
Turning on your camera in Playback mode
Press and hold [Playback]. The camera turns on and
immediately accesses Playback mode.
•
If you turn on your camera by pressing and holding [Playback] until
the status lamp blinks, the camera does not emit any sounds.
•
Flip the screen upward. The camera turns on and immediately
accesses Self Shot mode. (p. 32)
Charging the battery
Before you use the camera for the first time, you must charge the
battery. Plug the small end of the USB cable into your camera,
and then plug the other end of the USB cable into the AC adapter.
Status lamp
•
Red light on: Charging
•
Red light off: Fully charged
•
Red light blinking: Error
Use only the AC adapter and USB cable supplied with your camera. If you
use another AC adapter (such as SAC-48), the camera battery may not
charge or work properly.
Basic functions
21
Performing the initial setup
When the initial setup screen appears, follow the steps below to configure the camera’s basic settings.
4
Touch Home, and then touch
z
or
x
to select a time
zone.
•
When you travel to another country, touch Visit, and then
select a new time zone.
London
Time Zone
5
Touch
o
to save.
6
Touch Date/Time Set.
1
Touch Language.
2
Select a language, and then touch .
3
Touch Time Zone.
Basic functions
22
Performing the initial setup
7
Touch the up or down arrows to set the date.
Date/Time Set
DayYear Month
8
Touch , and then set the time.
Date/Time Set
Hr Min
•
To set daylight-saving time, touch .
9
Touch
o
to save.
10
Touch
o
to save settings.
11
Touch
o
on a pop-up window.
Basic functions
23
Learning icons
The icons the camera displays on the screen change according to the mode you select or the options you set.
123
Icon Description
Photo resolution
Video resolution
Frame rate
Sound Alive is on
Metering
Optical Image Stabilization (OIS)
Exposure value adjusted
ISO sensitivity
White balance
Burst type
Flash
Smart Filter
Image Adjust
Intelli zoom is on
Face detection
Auto focus
Icon Description
Timer
Auto focus frame
Camera shake
Zoom indicator
Zoom ratio
Photo resolution when Intelli
zoom is on
Grid lines
3
Shooting information
Icon Description
Available number of photos
Available recording time
Memory card not inserted
(Internal memory)
Memory card inserted
•
: Fully charged
•
: Partially charged
•
: Empty (Recharge)
•
: Charging
(Connected with AC charger)
1
Shooting options (left)
Icon Description
Flash option
Auto focus option
Burst type option
m
Shooting options
2
Shooting information
Icon Description
Current shooting mode
Current date
Current time
Aperture value
Shutter speed
Basic functions
24

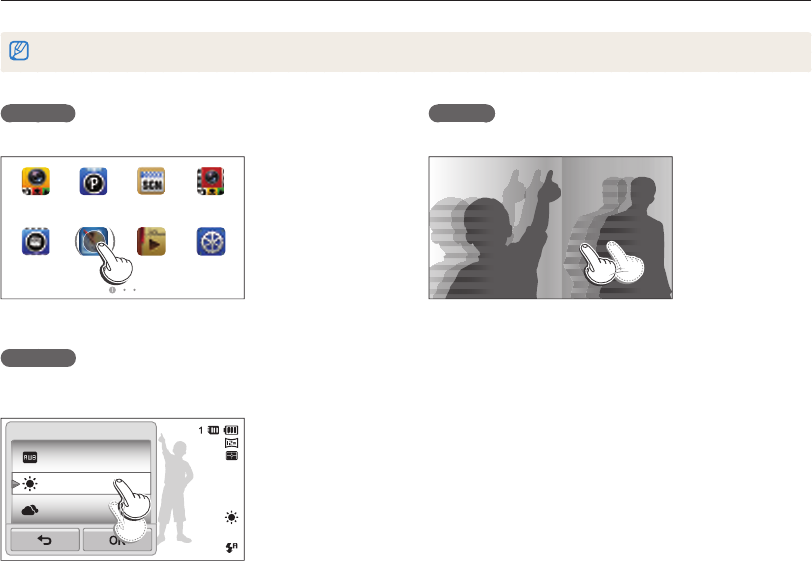

Flicking
Gently flick the touch pen across the screen.
Touching
Touch an icon to select a menu or option.
Smart Auto Web
Program
Settings
Album
Auto Backup
Email
Smart movie
Dragging
Touch and hold a part of the screen, and then drag the touch
pen.
Auto WB
Daylight
Cloudy
White Balance
Using the touch screen
Learn how to use the touch screen. The touch screen works best when you touch it with the soft part of your finger.
Do not use sharp objects, such as pens or pencils, to touch the screen. You can damage the screen.
Basic functions
25
Using the touch screen
•
The touch screen may not recognize your inputs if you touch the
screen with your finger.
•
When you touch or drag the screen, discolorations may occur.
This is not a malfunction, but a characteristic of the touch screen.
Touch or drag lightly to minimize the effect.
•
The touch screen may not work properly if you use the camera
in extremely humid environments.
•
The touch screen may not work properly if you apply screen protection
film or other accessories to the screen.
•
Depending on the viewing angle, the screen may appear dim.
Adjust the brightness or viewing angle to improve the resolution.
Selecting an option
• Drag the option list up or down until you find the desired option.
Touch the option, and then touch o.
If you touch ,
a pop-up window
with information on
features and settings is
displayed.
Auto WB
Daylight
Cloudy
White Balance
• Touch the desired option to turn the setting on or off.
Drive
Smart Filter
Image Adjust
DIS
Basic functions
26
Using the Home screen
You can select a shooting mode or access the settings menu by touching the icons on the Home screen.
Icons on the Home screen
Icon Description
Smart Auto: Capture a photo with a scene mode selected
automatically by the camera. (p. 39)
Program: Capture a photo with settings you have adjusted
manually. (p. 40)
Movie: Record a video. (p. 42)
Scene: Capture a photo with options that are preset for a
specific scene. (p. 44)
3D Photo: Capture a photo with 3D effects for a 3D TV.
(p. 45)
Live Panorama: Capture and combine a series of photos
to create a panoramic image. (p. 46)
Gesture Shot: Capture photos with hand gestures.
Social Sharing: Upload photos or videos to file sharing
websites. (p. 123)
Email: Send photos or videos stored on the camera via
email. (p. 125)
MobileLink: Send photos or videos to a smart phone.
(p. 120)
Accessing the Home screen
In Shooting or Playback mode, press [h]. Press [h] again to
return to the previous mode.
Smart Auto Movie Scene
Program
Live Panorama
S
mart Aut
o
M
o
vi
e
Scen
e
Prog
ram
Live Pan
oram
a
P
1
2
No. Description
1
Touch an icon to access a mode or function.
•
Scroll to another page by dragging or flicking the touch
pen on the screen.
2
The number of the current page. ( )
Basic functions
27
Using the Home screen
Icon Description
Remote Viewfinder: Use a smart phone as a remote
shutter release and see a preview on your smart phone of
an image from your camera. (p. 121)
Cloud: Upload photos to a cloud server. (p. 128)
Auto Backup: Send photos or videos that you captured
with the camera to a PC wirelessly. (p. 129)

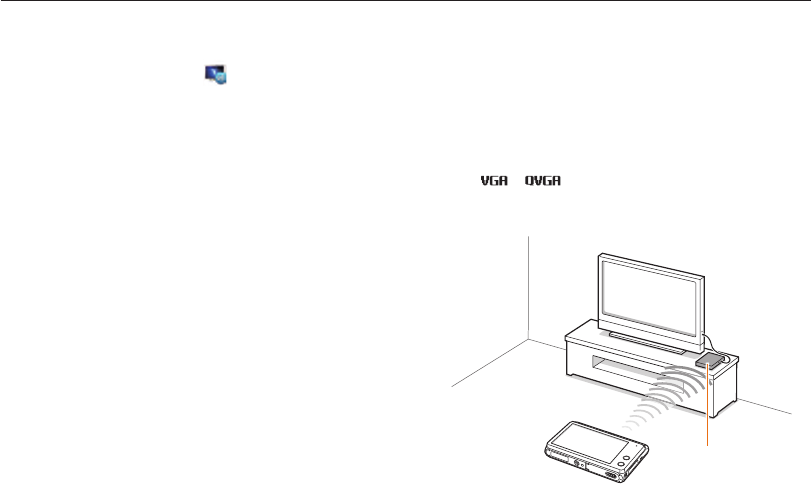

TV Link: View photos or videos that you captured with the
camera on a widescreen TV. (p. 131)
Beauty Shot: Capture a portrait with options to hide facial
imperfections. (p. 49)
HDR Plus: With the High Dynamic Range (HDR) Plus
effect, you can capture photos with a greater range of
tones. (p. 49)
Low Light Shot: In low light conditions, capture multiple
photos and combine them into one clear image. (p. 50)
Photo Filter: Capture a photo with various filter effects.
(p. 51)
Icon Description
Movie Filter: Record a video with various filter effects.
(p. 52)
Picture in Picture: Capture a background photo and
insert a smaller photo or video into the foreground. (p. 53)
Magic Frame: Capture a photo with various frame effects.
(p. 55)
My Magic Frame: Capture a photo and select an area to
make it transparent. Overlay a newly captured photo onto
the area. (p. 55)
Split Shot: Capture several photos and arrange them with
preset layouts. (p. 56)
Artistic Brush: Capture a photo and save a video that
shows the process of how the filter effect is applied. (p. 57)
Motion Photo: Capture and combine a series of photos,
and then select an area to be animated to create a
GIF animation. (p. 58)
Beauty Palette: Capture a photo and apply beautifying
effects to a portrait. (p. 59)
Basic functions
28
Using the Home screen
Icon Description
Wig Shot: Add various wig styles to your subjects. (p. 60)
Album: View files by category in Smart album. (p. 91)
Photo Editor: Edit photos with various effects. (p. 98)
Creative Movie Maker: Create movies from photos and
videos stored on the memory card. (p. 103)
Wallpapers: Set wallpaper for the Home scre en with the
desired image. (p. 29)
Help: View the help and learn how to use the camera.
(p. 30)
Settings: Adjust settings to match your preferences.
(p. 137)
Browsing the Home screen
Rotate [Zoom] to the left to display all the pages of the home
screen. Touch the desired page to display it in full screen view.
Basic functions
29
Using the Home screen

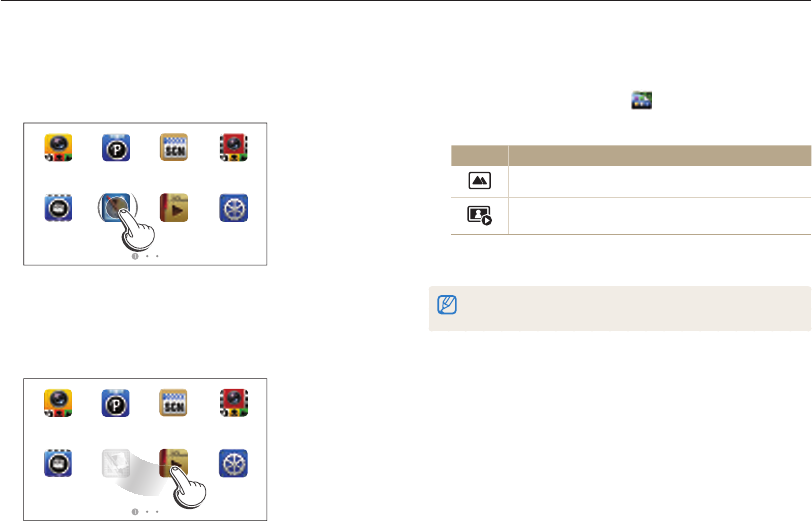

Rearranging icons
You can rearrange the icons on the Home screen in any order.
1
Touch and hold an icon.
Smart Auto Smart movie WebProgram
SettingsAlbumAuto BackupEmail
2
Drag it to a new location.
•
To move an icon to another page, drag it to the left or right
edge of the screen. When you drop the icon to a new
location, the other icons will neatly slide out of the way.
Album
Smart Auto Smart movie
Email
WebProgram
Settings
Setting Wallpaper
Set wallpaper for the Home screen with the desired image.
1
On the Home screen, touch .
2
Select an option.
Icon Description
Select the desired wallpaper from the default gallery.
Set a photo you have captured as wallpaper.
•
You can set a specified area as wallpaper.
3
Select the desired wallpaper, and then touch
o
.
You can also set the photo you are viewing as wallpaper by touching
m
Set Wallpaper in Playback mode.
Basic functions
30
Using the Help mode
You can view a simple application description and an operation tip in Help mode.
2
Select an option.
•
Select a desired option from the subsection list
Application description Operation guide
•
Touch to return to the list.
•
Touch or to move from one description or tip to
another.
3
Touch to access a mode or function.
1
On the Home screen, touch .
Slide Show Edit
Magazine
View
Help
Delete Reset
Basic functions
31
Capturing photos
Learn how to capture photos easily and quickly in Smart Auto mode.
4
Press [Shutter] to capture a photo.
5
Press [
p
] to view the captured photo.
•
To delete the photo, touch Yes.
6
Press [
p
] to return to Shooting mode.
See page 36 for tips to get clearer photos.
1
On the Home screen, touch .
2
Align your subject in the frame.
3
Half-press [Shutter] to focus.
•
A green frame means the subject is in focus.
•
A red frame means the subject is out of focus.
Basic functions
32
Capturing photos
Zooming
You can capture close-up photos by adjusting the zoom.
Zoom out Zoom in
Zoom ratio
When you rotate the zoom button, the zoom ratio shown on the screen may
change inconsistently.
Using the Self Shot mode
In Smart Auto mode and Program mode, flip the screen upward
and capture a self portrait while looking at yourself on the screen.
1
On the Home screen, touch or .
2
Flip the screen upward.
3
Touch the frame area on the screen.
•
After 3 seconds from being focused, the camera automatically
release the shutter.
Basic functions
33
Capturing photos
Digital zoom
The Digital zoom is supported by default in Shooting mode. If you
zoom in on a subject in Shooting mode and the zoom indicator
is in the digital range, your camera is using the Digital zoom. By
using both the 5X Optical zoom and 5X Digital zoom, you can
zoom in up to 25 times.
Zoom indicator
Optical range
Digital range
•
The Digital zoom is available only in Program and Scene (except Text)
modes.
•
The Digital zoom is not available with the Filter effect or the One touch
shooting and Smart Touch AF options.
•
If you capture a photo with the Digital zoom, the photo quality may be
lower than normal.
Intelli zoom
If the zoom indicator is in the Intelli range, your camera is using
the Intelli zoom. Photo resolution varies according to the zoom
rate if you use the Intelli zoom. By using both the Optical zoom
and Intelli zoom, you can zoom in up to 10 times.
Zoom
indicator
Optical range
Intelli range
Photo resolution when
the Intelli zoom is on
•
The Digital zoom is available only in Program and Scene (except Text)
modes.
•
Intelli zoom is not available with the Filter effect or the One touch
shooting and Smart Touch AF options.
•
The Intelli zoom helps you capture a photo with less quality
deterioration than the Digital zoom. However, the photo quality may be
lower than when you use the Optical zoom.
•
The Intelli zoom is available only when you set a 4:3 resolution ratio.
If you set another resolution ratio with Intelli zoom on, the Intelli zoom
will be turned off automatically.
Basic functions
34
Capturing photos
Setting Intelli zoom
1
In Shooting mode, touch
m
.
2
Touch Intelli Zoom, and then touch the desired option
to turn On or Off.
Icon Description
Off: The Intelli zoom is deactivated.
On: The Intelli zoom is activated.
Reducing camera shake (OIS)
Reduce camera shake optically in Shooting mode.
S
Before correction
S
After correction
1
In Shooting mode, touch
m
.
2
Touch OIS , and then touch the desired option to turn
On or Off.
Icon Description
Off: OIS is deactivated.
On: OIS is activated.
Basic functions
35
Capturing photos
•
OIS may not function properly when:
- you move your camera to follow a moving subject
- you use the Digital zoom
- there is too much camera shake
- the shutter speed is slow (for example, when you capture night
scenes)
- the battery is low
- you capture a close-up shot
•
If you use the OIS function with a tripod, your images may be blurred
by the vibration of the OIS sensor. Deactivate the OIS function when
you use a tripod.
•
If the camera is hit or dropped, the display will be blurry. If this occurs,
turn off the camera, and then turn it on again.
Basic functions
36

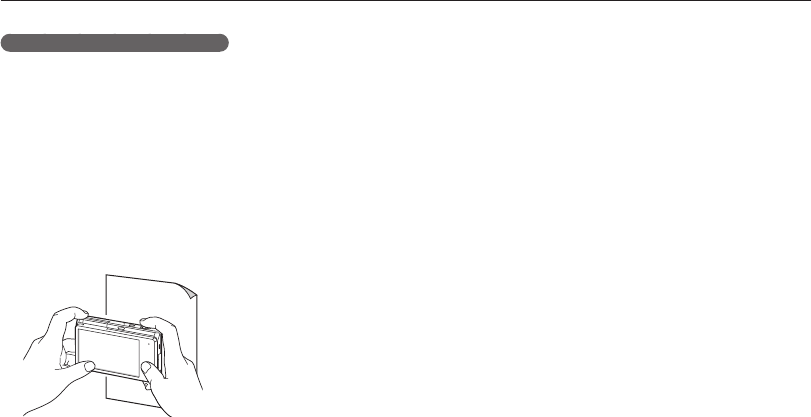

Holding your camera correctly
Ensure nothing is
blocking the lens,
flash, or microphone.
Half-pressing the shutter button
Half-press [Shutter] and adjust the
focus. The camera adjusts the focus and
exposure automatically.
The camera sets the aperture value
and shutter speed automatically.
Focus frame
•
Press [Shutter] to capture the photo
if the focus frame appears in green.
•
Change the composition and half-
press [Shutter] again if the focus
frame appears in red.
Reducing camera shake
Set the Optical Image Stabilization option to reduce
camera shake optically. (p. 34)
When is displayed
Camera shake
When you shoot in the dark, avoid setting the flash option to
Slow Sync or Off. The aperture remains open longer and it may be
harder to hold the camera steady long enough to capture a clear photo.
•
Use a tripod or set the flash option to Fill in. (p. 66)
•
Set ISO sensitivity options. (p. 68)
Tips for getting a clearer photo
Basic functions
37
Preventing your subject from being out of focus
It may be difficult to get your subject in focus when:
-
there is little contrast between the subject and background (for
example, when your subject is wearing clothing that is similar in color
to the background)
-
the light source behind the subject is too bright
-
the subject is shiny or reflective
-
the subject includes horizontal patterns, such as blinds
-
the subject is not positioned in the center of the frame
•
When you capture photos in low light
Turn on the flash.
(p. 66)
Using the focus lock
Half-press [Shutter] to focus. When the subject is in focus,
you can reposition the frame to change the composition.
When you are ready, press [Shutter] to capture your photo.
•
When subjects are moving rapidly
Use the Burst function.
(p. 81)
Extended functions
Learn how to capture a photo and record a video by selecting a mode.
Using shooting modes
…………………… 39
Using the Smart Auto mode
……………… 39
Using the Program mode
………………… 40
Using the Movie mode
…………………… 42
Using the Scene mode
…………………… 44
Using the 3D Photo mode
……………… 45
Using the Live Panorama mode
………… 46
Using the Gesture Shot mode
…………… 48
Using the Beauty Shot mode
…………… 49
Using the HDR Plus mode
……………… 49
Using the Low Light Shot mode
………… 50
Using effect modes
………………………… 51
Using the Photo Filter mode
……………… 51
Using the Movie Filter mode
……………… 52
Using the Picture in Picture mode
………… 53
Using the Magic Frame mode
…………… 55
Using the My Magic Frame mode
………… 55
Using the Split Shot mode
……………… 56
Using the Artistic Brush mode
…………… 57
Using the Motion Photo mode
…………… 58
Using the Beauty Palette mode
………… 59
Using the Wig Shot mode
………………… 60
Extended functions
39
Using shooting modes
Capture photos or record videos by selecting the best shooting mode for the conditions.
Icon Description
Scenes with bright white backgrounds
Landscapes at night
Portraits at night
Landscapes with backlighting
Portraits with backlighting
Portraits
Close-up photos of objects
Close-up photos of text
Sunsets
Blue skies
Forested areas
Close-up photos of colorful subjects
Camera is stabilized or on a tripod
(when shooting in the dark)
Actively moving subjects
Fireworks (when using a tripod)
Using the Smart Auto mode
In Smart Auto mode, your camera automatically chooses the
appropriate camera settings based on the type of scene it
detects. The Smart Auto mode is helpful if you are not familiar
with the camera settings for various scenes.
Capture a photo
1
On the Home screen, touch .
2
Align your subject in the frame.
•
The camera automatically selects a scene. An appropriate
scene icon appears at the top left of the screen. The icons are
listed below.
Icon Description
Landscapes
Extended functions
40
Using shooting modes
3
Half-press [Shutter] to focus.
4
Press [Shutter] to capture the photo.
Icon Description
Landscapes
Sunsets
Blue skies
Forested areas
•
If the camera does not recognize an appropriate scene mode, it uses
the default settings for Smart Auto mode.
•
Even if it detects a face, the camera may not select a portrait mode
depending on the subject's position or lighting.
•
The camera may not select the correct scene depending on the
shooting conditions, such as camera shake, lighting, or distance to
the subject.
•
Even if you use a tripod, the camera may not detect the mode if
the subject is moving.
•
In Smart Auto mode, the camera consumes more battery power,
because it changes settings often to select appropriate scenes.
Using the Program mode
In Program mode, you can set most options, except the shutter
speed and aperture value, which the camera sets automatically.
1
On the Home screen, touch .
2
Touch
m
, and then set the desired options.
•
For a list of options, refer to "Shooting options". (p. 62)
3
Align your subject in the frame, and then half-press
[Shutter] to focus.
4
Press [Shutter] to capture the photo.
Extended functions
41
Using shooting modes
Setting the user buttons
In Program mode, you can add shortcuts for your favorite options
to the left side of the screen.
1
In Shooting mode, touch
m
My screen
o
.
2
Select one of the icons on the right and drag the icon
into a desired box on the left.
•
To remove shortcuts, drag an icon to the right.
OK Cancel Reset
My screen
3
Touch
o
to save.
You can create up to 3 shortcuts.
Extended functions
42
Using shooting modes
Recording high-speed videos
You can record high-speed videos by setting frame rate at .
High-speed videos will be played in slow motion.
•
Memory cards with slow write speeds do not support high-speed
videos.
•
The camera does not record audio when recording high-speed
videos.
•
The image quality of high-speed video may be lower than normal
speed video.
Using the Movie mode
In Movie mode, you can customize settings to record HD videos
of up to 20 minutes in length. The camera saves recorded videos
as MP4 (H.264) files.
•
H.264 (MPEG-4 part10/AVC) is a high-compression video format
established by the international standards organizations ISO-IEC and
ITU-T.
•
Some memory cards may not support high definition recording. If your
card does not, set a lower resolution.
•
Memory cards with slow writing speeds will not support high-
resolution videos. To record high-resolution videos, use memory cards
with faster write speeds.
•
If you activate the OIS function while recording a video, the camera
may record the operating sound of the OIS function.
•
If you use the zoom function when recording a video, the camera may
record the noise of the zoom operating. To decrease zoom noise, use
the Sound Alive function. (p. 84)
1
On the Home screen, touch .
2
Touch
m
, and then set desired options.
•
For a list of options, refer to "Shooting options". (p. 62)
3
Touch to start recording.
4
Touch to to stop recording.
Extended functions
43
Using shooting modes
Pause recording
The camera allows you to temporarily pause a video while
recording. With this function, you can record separate scenes as
a single video.
• Touch to pause while recording.
• Touch to resume.
Capturing still images while recording a video
You can capture still images while recording a video without
switching to the photo shooting modes (up to 6 photos). This
feature is available only when you use a memory card.
Images captured while
recording a video
• Press [Shutter] to capture images while recording a video.
• Captured images will be saved automatically.
•
Captured images will be automatically resized, depending on the size
of the recorded video.
•
You cannot capture still images while recording high-speed videos.
•
You cannot capture still images when you pause the video recording.
•
The quality of images captured while recording a video may be lower
than those captured normally.
Extended functions
44
Using shooting modes
Using the Scene mode
In Scene mode, you can capture a photo with options that are
preset for a specific scene.
1
On the Home screen, touch .
2
Select a scene.
Landscape
Panel off
Option Description
Landscape Capture still-life scenes and landscapes.
Sunset Capture scenes at sunset, with natural-looking
reds and yellows.
Dawn Capture scenes at sunrise.
Backlight Capture backlit subjects.
Beach & Snow Reduce underexposure of subjects caused by
sunlight reflected from sand or snow.
Text Clearly capture text from printed or electronic
documents.
3
Align your subject in the frame, and then half-press
[Shutter] to focus.
4
Press [Shutter] to capture the photo.
Extended functions
45
Using shooting modes
Using the 3D Photo mode
You can take 3D pictures in 3D Photo mode that can be viewed
on a 3D TV or 3D monitor.
1
On the Home screen, touch .
2
Align your subject in the frame, and then half-press
[Shutter] to focus.
3
Press [Shutter] to capture the photo.
•
The camera captures 2 photos in both JPEG and MPO file
formats.
•
When using the 3D Photo mode, limited shooting options are available.
•
An MPO file for 3D effects can only be displayed on devices
supporting the MPO format (3D TV and 3D monitor), while the camera
can display only regular JPEG files.
•
If you want to see the 3D effect of MPO files on a 3D TV or 3D monitor,
you need to wear 3D glasses provided by the manufacturer.
•
The resolution is fixed at in the 3D Photo mode.
About 3D Depth Viewer
The 3D Depth Viewer represents 3D effects with a color gradient
for 3D shooting. Touch m 3D Depth Viewer to turn on or off
the option.
Far White
Black
Near
Extended functions
46
Using shooting modes
Using the Live Panorama mode
In Live Panorama mode, you can capture a wide panoramic
scene in a single photo. Capture a 2D-panoramic photo or a
3D-panoramic photo that can be viewed on a 3D TV.
S
Shooting example
1
On the Home screen, touch .
2
Touch (2D Panorama mode) or
(3D Panorama mode).
3
Align your subject in the frame, and then half-press
[Shutter] to focus.
•
Align the camera with the far left or the far right, or very top or
bottom, of the scene you want to capture.
4
Press and hold [Shutter] to start shooting.
5
With [Shutter] pressed, slowly move the camera in the
direction that will let it capture the rest of the panorama.
•
If 3D Panorama mode is selected, the panoramic shot can be
taken only in a horizontal direction.
•
Arrows toward the direction of motion are displayed, and the
entire shooting image is displayed in the preview box.
•
When the viewfinder is aligned with the next scene, the
camera captures the next photo automatically.
6
When you are finished, release [Shutter].
•
When you have captured all the necessary shots, the camera
combines them into one panoramic photo.
Extended functions
47
Using shooting modes
•
For best results when capturing panoramic photos, avoid the
following:
- moving the camera too quickly or too slowly
- moving the camera too little to capture the next image
- moving the camera at irregular speeds
- shaking the camera
- changing the camera direction while capturing a photo
- shooting in dark places
- capturing moving subjects nearby
- shooting conditions where the brightness or color of light is
changing
•
Photos taken are automatically saved, and shooting is stopped under
the following conditions:
- If you change the shooting direction while shooting
- If you move the camera too rapidly
- If you don't move the camera
•
Selecting Live Panorama mode will disable the digital and optical zoom
functions. If you select Live Panorama mode while the lens is zoomed
in, the camera automatically zooms out to the default position.
•
In Live Panorama mode, some shooting options are not available.
•
In Live Panorama mode, your camera may not capture the last scene
in its entirety if you stop moving the camera exactly where you want
the scene to end. To capture the entire scene, move your camera
slightly beyond the point where you want the scene to end.
•
In 3D Panorama mode, your camera may not capture the very
beginning or end of a scene due to the nature of the 3D effect.
To capture the entire scene, move slightly beyond the beginning
and end points you want to capture.
•
In 3D Panorama mode, photos are captured in both JPEG and
MPO file formats.
•
You can view an MPO file that supports the 3D effect only on an
MPO-compatible display, such as 3D TV or 3D monitor. On your
camera's display, you can view only JPEG files.
•
Use proper 3D glasses when you view an MPO file on a 3D TV or
3D monitor.
Extended functions
48
Using shooting modes
Using the Gesture Shot mode
Control the shutter and zoom functions with hand gestures.
1
Set your camera on a tripod and flip the screen upward.
2
On the Home screen, touch .
3
Read the instructions about basic hand gestures and
touch
o
.
•
A frame for detecting hand gestures will appear.
4
Align your subject in the frame, and then adjust the
zoom:
•
To zoom in, move your hand in a clockwise motion .
•
To zoom out, move your hand in an anti-clockwise motion .
5
Move your hand up and down twice to start the timer.
•
The camera automatically releases the shutter 3 seconds after
recognizing the gesture.
•
Ensure the subject is between 50cm and 5m from the camera lens.
•
Ensure the subject is on the screen.
•
The camera may react to other movements.
Extended functions
49
Using shooting modes
Using the HDR Plus mode
In High Dynamic Range (HDR) Plus mode, the camera
automatically adjusts the exposure or saturation, to produce
images with high tonal detail or to set an artistic mood.
S
Before
S
After
S
Before
S
After
Using the Beauty Shot mode
In Beauty Shot mode, you can capture a portrait with options to
hide facial imperfections.
1
On the Home screen, touch .
2
Drag the sliders or touch the +/- icons to adjust the
Face Tone and Face Retouch.
•
For example, increase the Face Tone setting to make skin
appear lighter.
Panel off
Face Retouch : 2
3
Align your subject in the frame, and then half-press
[Shutter] to focus.
4
Press [Shutter] to capture the photo.
When using the Beauty Shot mode, the focus distance will be set to
Auto Macro.
Extended functions
50
Using shooting modes
Using the Low Light Shot mode
In Low Light Shot mode, the camera captures multiple photos
and combines them, to produce one clear photo without any
image noise.
1
On the Home screen, touch .
2
Align your subject in the frame, and then half-press
[Shutter] to focus.
3
Press [Shutter] to capture the photo.
•
You can set the resolution to or lower.
•
In the Low Light Shot mode, the quality is automatically set to Fine.
•
In the Low Light Shot mode, the focus area is set to Center AF, the
focus is set to Auto macro, and OIS is set to On.
•
Quick View is not available in the Low Light Shot mode.
1
On the Home screen, touch .
2
Touch (HDR) or (HDR art).
3
Align your subject in the frame, and then half-press
[Shutter] to focus.
4
Press [Shutter] to capture the photo.
5
Check the image with the HDR effect, and then
touch
o
.
In the HDR Plus mode, the final image after applying or effect is
saved.
Extended functions
51
Using effect modes
Capture photos or record videos with various effects.
1
On the Home screen, touch .
2
Select an effect.
Option Description
Miniature Apply a tilt-shift effect to make the subject appear
in miniature.
Vignetting Apply the retro-looking colors, high contrast, and
strong vignette effect of Lomo cameras.
Soft Focus Hide facial imperfections or apply dreamy effects.
Old Film Apply a vintage film effect.
Half Tone Dot Apply a halftone effect.
Sketch Apply a pen sketch effect.
Fish-eye
Blacken the edges of the frame and distort
objects to imitate the visual effect of a fisheye
lens.
Classic Apply a black and white effect.
Retro Apply a sepia tone effect.
Using the Photo Filter mode
Apply various filter effects to your photos to create unique images.
Miniature Vignetting
Fish-eye Sketch
Extended functions
52
Using effect modes
Option Description
Oil Painting Apply an oil painting effect.
Ink Painting Apply a watercolor painting effect.
Cartoon Apply a cartoon painting effect.
Cross Filter Add lines that radiate outward from bright objects
to imitate the visual effect of a cross filter.
Zooming Shot Blur the edges of a photo to emphasize the
subjects in the center.
3
Align your subject in the frame, and then half-press
[Shutter] to focus.
4
Press [Shutter] to capture a photo.
•
Depending on the option you select, the resolution may change to
or smaller automatically.
•
To apply filter effects to saved photos, touch .
Using the Movie Filter mode
Apply various filter effects to your videos to create unique images.
1
On the Home screen, touch .
2
Select an effect.
Option Description
Miniature Apply a tilt-shift effect to make the subject
appear in miniature.
Vignetting Apply the retro-looking colors, high contrast,
and strong vignette effect of Lomo cameras.
Half Tone Dot Apply a halftone effect.
Sketch Apply a pen sketch effect.
Fish-eye Distort close objects to imitate the visual effect
of a fisheye lens.
Classic Apply a black and white effect.
Retro Apply a sepia tone effect.
Extended functions
53
Using effect modes
Option Description
Palette Effect 1 Create a vivid look with sharp contrast and
strong color.
Palette Effect 2 Make scenes clean and clear.
Palette Effect 3 Apply a soft brown tone.
Palette Effect 4 Create a cold and monotone effect.
3
Touch to start recording.
4
Touch to stop recording.
•
If you select Miniature, the miniature recording time is also displayed
and is shorter than the real recording time.
•
If you select Miniature, you cannot record the video sound.
•
Depending on the option you select, the recording speed may change
to and the recording resolution may change to or smaller
automatically.
Using the Picture in Picture mode
In Picture in Picture mode, you can capture or select a full-sized
background photo, and then insert a smaller photo or video into
the foreground.
1
On the Home screen, touch .
2
Half-press [Shutter] to focus, and then press [Shutter]
to capture a background photo.
•
To select a background photo from your saved photos,
touch . You cannot select a video file or a photo captured
in Live Panorama mode.
Retake Move Frame
3
Press
o
to set the photo as the background image.
•
To recapture a background photo, touch Exit.
Extended functions
54
Using effect modes
4
Drag the Self-shot screen to move it to a desired
location.
5
Touch the Self-shot screen once again to adjust the
screen size.
6
Flip the screen and take a self-portrait shot.
•
The insertion window appears larger when you half-press
[Shutter], so that you can determine whether or not the
subject is in focus.
•
To record a video, touch .
To stop recording and insert the video, touch .
•
To recapture a background photo, press Exit.
•
In the Picture in Picture mode, the resolution is automatically set to
.
•
The final Picture-in-picture photos or videos are saved as one
combined file and the inserted photos or videos are not saved
separately.
•
When inserting a video, the resolution for the combined file is
automatically set to or smaller.
•
When capturing a background photo, a vertical photo captured in the
vertical position is displayed horizontally without auto rotate.
•
The maximum size of the insertion window is 1/4 of the screen, and
the aspect ratio stays the same when changing the size.
•
The maximum length of video that can be inserted is 20 minutes.
•
In Picture in Picture mode, the available zoom range may be less than
in other shooting modes.
•
In Picture in Picture mode, you cannot set the Sound Alive options.
•
When you select a background photo from your saved photos,
black bars may appear at the edges of the image, depending on the
aspect ratio.
•
The background image is saved in the opposite direction as the self
shot.
Extended functions
55
Using effect modes
Using the My Magic Frame mode
In My Magic Frame mode, you can make part of the photo
transparent and then capture a new photo within the transparent
area.
1
On the Home screen, touch .
2
Half-press [Shutter] to focus, and then press [Shutter]
to capture a background photo.
3
Touch Use.
•
To recapture a background photo, touch Retake.
•
To select a background photo from your saved photos,
touch .
4
Select a desired frame.
•
To draw a new frame and set the thickness of the pen,
touch .
Using the Magic Frame mode
In Magic Frame Shot mode, you can apply various frame effects
to your photos. The shape and the feel of the photos will change
according to the frame you select.
1
On the Home screen, touch .
2
Select a desired frame.
Mural
Panel off
3
Align your subject in the frame, and then half-press
[Shutter] to focus.
4
Press [Shutter] to capture the photo.
In Magic Frame mode, the resolution is automatically set to .
Extended functions
56
Using effect modes
Using the Split Shot mode
In Split Shot mode, you can capture several photos and arrange
them with preset layouts.
1
On the Home screen, touch .
2
Select a split style.
•
To adjust the sharpness of the dividing line, press
m
Line Blur a desired value.
•
To apply a Smart Filter effect to part of the shot, touch
an effect
o
. You can apply different Smart Filter effects to
each part of the shot.
•
To get information about each options, touch .
Panel off
5
Drag the selected frame to place it to the desired
location.
6
To adjust the size, touch the selected frame and then
drag the edge of the box that appears around it.
7
Touch
o
.
8
Adjust Transparency by moving the sliders or touch the
+/- icons to adjust.
9
Align your subject in the frame, and then half-press
[Shutter] to focus.
10
Press [Shutter] to capture a photo.
•
When using the My Magic Frame mode, limited shooting options are
available.
•
As the area to be displayed as transparent increases, it may take
longer to save the picture.
•
When using the My Magic Frame mode, the area displayed
transparent in the frame is focused.
•
The resolution is fixed at in the My Magic Frame mode.
Extended functions
57
Using effect modes
3
Align your subject in the frame, and then half-press
[Shutter] to focus.
4
Press [Shutter] to capture a photo.
•
Repeat steps 3 and 4 to capture the rest of the photos.
•
To recapture a photo, press .
•
In Split Shot mode, the resolution is automatically set to or smaller.
•
In Split Shot mode, the available zoom range may be less than in other
shooting modes.
Using the Artistic Brush mode
In Artistic Brush mode, you can capture a photo, and then view a
video that shows the process of how the filter effect is applied.
1
On the Home screen, touch .
2
Select a filter.
Ink Painting
Panel off
Option Description
Ink Painting Apply a watercolor painting effect.
Cartoon Apply a cartoon painting effect.
Sketch Apply a pen sketch effect.
Extended functions
58
Using effect modes
3
Align your subject in the frame, and then half-press
[Shutter] to focus.
4
Press [Shutter] to capture a photo.
•
After capturing the photo, the video that shows the process of
how the filter effect is applied will begin automatically.
•
Touch XXX to capture a still image from the video that shows the
process of how the filter effect is applied.
•
In Artistic Brush mode, the resolution is automatically set to or
smaller.
•
In Artistic Brush mode, the focus area is automatically set to Multi AF.
•
In Artistic Brush mode, both the photo with the filter effect and the
video that shows how to apply the filter effect are saved.
•
In Artistic Brush mode, the available zoom range may be less than in
other shooting modes.
•
In Artistic Brush mode, it may take longer to save files.
•
You cannot upload a video captured in Artistic Brush mode via the
wireless networking feature on your camera.
Using the Motion Photo mode
In Motion Photo mode, you can capture and combine a series of
photos, and then select an area to be animated to create a GIF
animation. This mode is available only when you insert a memory
card into the camera.
1
On the Home screen, touch .
2
Align your subject in the frame, and then half-press
[Shutter] to focus.
3
Press [Shutter] to capture the photo.
•
The camera captures multiple photos while the status lamp
is blinking.
Extended functions
59
Using effect modes
4
On the screen, draw an area to be animated.
•
To adjust the motion speed, touch +/- icon.
•
To adjust the thickness of the brush, touch .
•
To draw the animated area again, touch .
•
To recapture a photo, touch .
Cancel Save
Frame Size
5
Touch to save the photo.
•
The camera saves an animated GIF and one JPG of the first
scene from the GIF file. You cannot view the JPG file on your
camera. To view it, connect your camera to a PC. (p. 109)
•
In Motion Photo mode, the resolution is automatically set to .
•
Use a tripod to prevent your camera from shaking.
•
In Motion Photo mode, it may take longer to save files.
Using the Beauty Palette mode
You can capture a portrait with various beautifying effect.
1
On the Home screen, touch .
2
Align your subject in the frame, and then half-press
[Shutter] to focus.
3
Press [Shutter] to capture a photo.
4
Touch Use.
•
Touch , and then select a photo.
5
Select a beauty effect.
6
Touch to save the photo.
•
To recapture a photo, touch .
Extended functions
60
Using effect modes
•
If the camera fails to detect a face in the photo, you cannot use
Beauty Palette mode.
•
The camera is only able to detect one face at a time.
•
Depending on the subject’s facial structure, the camera may not
recognize the subject’s face.
•
Face recognition works better for subjects that are nearer the camera.
•
When an image is rotated, the camera can recognize a subject’s face
only when the angle of the face is 90°, 180°, or 270° from normal
orientation.
•
To increase the face recognition rate, the subject’s face size should be
bigger 1/12 of the screen.
Using the Wig Shot mode
In Wig Shot mode, you can add different styles of wigs to
subjects in your photos.
1
On the Home screen, touch .
2
Select a wig style.
•
To apply a wig shot effect to a saved image, touch .
3
Touch to adjust the size, angle, color, and location of
the selected wig.
•
To adjust the size, touch the wig and then drag the edge of
the box that appears around it.
•
Drag the wig to place it on a subject’s head.
•
Touch to adjust the angle of the wig.
•
Touch , and then select a colour by dragging the slide or
touching + or -.
Extended functions
61
Using effect modes
4
Touch
o
to save your changes.
•
Touch to discard your changes.
5
Align your subject in the frame, and then half-press
[Shutter] to focus.
6
Press [Shutter] to capture the photo.
•
The resolution is fixed at in Wig Shot mode.
•
You cannot capture a photo in Wig Shot mode while the camera is
connected to a TV.
Selecting a resolution and quality
………… 63
Selecting a resolution
…………………… 63
Selecting an image quality
………………… 64
Using the timer
……………………………… 65
Shooting in the dark
……………………… 66
Preventing red-eye
……………………… 66
Using the flash
…………………………… 66
Adjusting the ISO sensitivity
……………… 68
Changing the camera’s focus
…………… 69
Using macro
……………………………… 69
Using tracking auto focus
………………… 70
Using One Touch Shot
…………………… 71
Adjusting the focus area
………………… 71
Using Face Detection
……………………… 72
Detecting faces
…………………………… 72
Capturing a self portrait shot
……………… 73
Capturing a smile shot
…………………… 73
Detecting eye blinking
…………………… 74
Using Smart Face Recognition
…………… 74
Registering faces as your favorites
(My Star)
………………………………… 75
Adjusting brightness and color
…………… 77
Adjusting the exposure manually (EV)
…… 77
Compensating for backlighting (ACB)
…… 78
Changing the metering option
…………… 78
Selecting a White Balance setting
………… 79
Using burst modes (Burst/AEB)
………… 81
Using High-speed burst mode
…………… 81
Using AEB (Auto Exposure Bracketing)
… 82
Applying effect/Adjusting images
………… 83
Adjusting images
………………………… 83
Reducing the sound of the zoom
………… 84
Available shooting options by
shooting mode
……………………………… 85
Shooting options
Learn how to set the options in Shooting mode.
Shooting options
63
Selecting a resolution and quality
Learn how to change the image resolution and quality settings.
Setting the video resolution
1
In Video Shooting mode, touch
m
Movie Size.
2
Select an option.
Icon Description
1920 X 1080 : High-quality HD files to play back on an
HDTV.
1280 X 720 HQ: High-quality files to Play back on an
HDTV.
1280 X 720: HD files to play back on an HDTV.
640 X 480: SD files to play back on an analog TV.
320 X 240: Post on a web page.
For Sharing: Post on a website using the wireless
network (30 seconds maximum).
Selecting a resolution
As you increase the resolution, your photo or video will include
more pixels, so it can be printed on larger paper or displayed on
a larger screen. When you use a high resolution, the file size will
also increase.
Setting the photo resolution
1
In Shooting mode, touch
m
Photo Size.
2
Select an option.
Icon Description
4608 X 3456: Print on A1 paper.
4608 X 3072: Print on A1 paper in wide ratio (3:2).
4608 X 2592: Print on A1 paper in panorama ratio (16:9)
or play back on an HDTV.
3648 X 2736: Print on A2 paper.
2592 X 1944: Print on A4 paper.
1984 X 1488: Print on A5 paper.
1920 X 1080: Print on A5 paper in panorama ratio (16:9)
or play back on an HDTV.
1024 X 768: Attach to an email.
Shooting options
64
Selecting a resolution and quality
Selecting an image quality
Set the photo and video quality settings. Higher image quality
settings will result in larger file sizes.
Setting the photo quality
The camera compresses and saves the photos you capture in
the JPEG format.
1
In Shooting mode, touch
m
Quality.
2
Select an option.
Icon Description
Super Fine: Capture photos in super high quality.
Fine: Capture photos in high quality.
Normal: Capture photos in normal quality.
Setting the video quality
The camera compresses and saves the videos you record in
MP4 (H.264) format.
1
In Video Shooting mode, touch
m
Frame Rate.
2
Select an option.
•
As the frame rate increases, action appears more natural,
but the file size also increases.
Icon Description
120 FPS: Record 120 frames per second.
(120 fps is available only with 320 X 240)
60 FPS: Record 60 frames per second.
(60 fps is available only with 1920 X 1080)
30 FPS: Record 30 frames per second.
15 FPS: Record 15 frames per second.
Shooting options
65
Using the timer
Learn how to set the timer to delay shooting.
3
Press [Shutter] to start the timer.
•
The AF-assist light/timer lamp blinks. The camera will
automatically capture a photo after the specified time has
elapsed.
•
Press [Shutter] to cancel the timer.
•
Depending on the Face Detection option you have selected, the timer
function or some of its options may not be available.
•
Self timer options are not available if you set burst options.
1
In Shooting mode, touch
m
Timer.
2
Select an option.
Icon Description
Off: The timer is not active.
10 Sec: Capture a photo after a 10-second delay.
2 Sec: Capture a photo after a 2-second delay.
Double: Capture one photo after a 10-second delay
and another photo after a 2-second delay.
Available options may differ depending on the shooting conditions.
Shooting options
66
Shooting in the dark
Learn how to capture photos at night or in low light conditions.
Using the flash
Use the flash when you capture photos in the dark or when you
need more light in your photos.
1
In Shooting mode, touch
m
Flash.
2
Select an option.
Icon Description
Off:
•
The flash will not fire.
•
The camera will display the shake warning when
you are shooting in low light.
Auto: The flash will fire automatically when the subject or
background is dark.
Preventing red-eye
If the flash fires when you capture a photo of a person in the dark,
a red glow may appear in the person’s eyes. To prevent this,
select Red-eye or Red-eye Fix. Refer to flash options in
“Using the flash.”
S
Before correction
S
After correction
This option is available in Program and Beauty Shot modes.
Shooting options
67
Shooting in the dark
•
Flash options are not available if you set burst options or select
Self-Portrait or Blink Detection.
•
Make sure that your subjects are within the recommended distance
from the flash. (p. 158)
•
If light from the flash is reflected or there is a substantial amount of
dust in the air, tiny spots may appear in your photo.
Icon Description
Red-eye:
•
The flash will fire twice when the subject or
background is dark to reduce the red-eye effect.
•
There is an interval between the 2 bursts of the flash.
Do not move until the flash fires a second time.
Fill in:
•
The flash always fires.
•
The camera automatically adjusts light intensity.
Slow Sync:
•
The flash fires and the shutter stays open longer.
•
This option is recommended when you want to
capture more ambient light to reveal more details in
the background.
•
Use a tripod to prevent your photos from blurring.
•
The camera will display the shake warning when
you are shooting in low light.
Red-eye Fix:
•
The flash fires twice when the subject or background
is dark. The camera corrects red-eyes through its
advanced software analysis.
•
There is an interval between the 2 bursts of the flash.
Do not move until the flash fires a second time.
Available options may differ depending on the shooting conditions.
Shooting options
68
Shooting in the dark
Adjusting the ISO sensitivity
The ISO sensitivity is the measure of a film’s sensitivity to light as
defined by the International Organization for Standardization (ISO).
The higher ISO sensitivity you select, the more sensitive to light
your camera becomes. Use a higher ISO sensitivity to capture
better photos and reduce camera shake when not using the
flash.
1
In Shooting mode, touch
m
ISO.
2
Select an option.
•
Select to use an appropriate ISO sensitivity based on the
brightness of the subject and lighting.
Higher ISO sensitivities may result in more image noise.
Shooting options
69
Changing the camera’s focus
Learn how to adjust the camera’s focus to suit the subject and the shooting conditions.
1
In Shooting mode, touch
m
Focus.
2
Touch Macro to select it.
Focus
Normal (AF)
Macro
Icon Description
Normal (AF): Focus on a subject farther than
32 in. (80 cm) away. Farther than 98 in. (250 cm) away
when you use the zoom.
Macro: Focus on a subject that is 2–32 in. (5–80 cm)
from the camera. 39–98 in. (100–250 cm) when you use
the zoom.
Available options may differ depending on the shooting conditions.
Using macro
Use macro to capture close-up photos of subjects, such as
flowers or insects.
•
Try to hold the camera firmly to prevent blurry photos.
•
Turn off the flash if the distance to the subject is less than
15.7 in. (40 cm).
Shooting options
70
Changing the camera’s focus
•
If you do not select a focus area, the focus frame will appear in the
center of the screen.
•
Tracking a subject may fail when:
- the subject is too small
- the subject moves excessively
- the subject is backlit or you are shooting in a dark place
- colors or patterns on the subject and the background are the same
- the subject includes horizontal patterns, such as blinds
- the camera shakes excessively
•
When tracking a subject fails, the focus frame will appear as a white
single-line frame ( ).
•
If the camera fails to track the subject, you must reselect the subject
to track.
•
If the camera fails to focus, the focus frame will change to a red
single-line frame ( ).
•
If you use this function, you cannot set Face Detection options,
Timer options, Burst options, and Intelli zoom.
Using tracking auto focus
Tracking AF allows you to track and auto focus on your subject,
even when you are moving.
1
In Shooting mode, touch
m
Focus Area.
2
Touch Smart Touch AF to select it.
3
Touch the subject you want to track in the touch area.
•
A focus frame appears on the subject and follows the subject
as you move the camera.
•
The white frame means that your camera is tracking the
subject.
•
The green frame means that your subject is in focus when you
half-press [Shutter].
4
Press [Shutter] to capture the photo.
Shooting options
71
Changing the camera’s focus
Adjusting the focus area
You can get clearer photos by selecting an appropriate focus
area according to your subject's location in the scene.
1
In Shooting mode, touch
m
Focus Area.
2
Select an option.
Icon Description
Center AF: Focus on the center of the frame (suitable
when subjects are located at or near the center).
Multi AF: Focus on one or more of 9 possible areas.
One Touch Shooting: Focus on the subject and
capture a photo by touching the image on the screen.
(p. 71)
Smart Touch AF: Focus on and track the subject that
you touch on the screen. (p. 70)
Available shooting options may differ depending on the shooting
conditions.
Using One Touch Shot
You can capture a photo with the touch of your finger. As
you touch on a subject, the camera focuses on the subject
automatically.
1
In Shooting mode, touch
m
Focus Area.
2
Touch One Touch Shooting to select it.
3
Touch the subject to capture a photo.
If you use this function, you cannot set Self Timer options and Burst options.
Shooting options
72
Using Face Detection
If you use Face Detection options, your camera can automatically detect a human face. When you focus on a human face, the camera
adjusts the exposure automatically. Use Blink Detection to detect closed eyes or Smile Shot to capture a smiling face. You can also use
Smart Face Recognition to register faces and prioritize the focus on them.
Detecting faces
Your camera automatically detects up to 10 human faces in one
scene.
1
In Shooting mode, touch
m
Face Detection.
2
Touch Normal to select it.
3
Press [Shutter] to capture the photo.
The nearest face appears in
a white focus frame and the
rest of the faces appear in
gray focus frames.
•
The closer you are to the subjects, the quicker your camera will detect
faces.
•
To focus on a subject in a gray focus frame, touch the face in the
frame.
•
The detected faces may not be registered if you set Burst options
such as Continuous or AEB.
•
When your camera detects a face, it tracks the detected face
automatically.
•
Face Detection may not be effective when:
- the subject is far from the camera (The focus frame will appear
orange for Smile Shot and Blink Detection.)
- it is too bright or too dark
- the subject is not facing the camera
- the subject is wearing sunglasses or a mask
- the subject’s facial expression changes drastically
- the subject is backlit or the lighting conditions are unstable
•
Face Detection is not available when you set Image Adjustment
options or Smart Touch AF.
•
Depending on the shooting options you selected, available Face
Detection options may differ.
•
Depending on the Face Detection options you selected, the timer
function may not be available.
•
When you set Face Detection options, the AF area is automatically
set to Multi AF.
•
Depending on the Face Detection options you selected, Burst options
may not be available.
•
When you set Smart Face Recognition option and capture photos of
detected faces, they will be registered in the face list.
•
You can view registered faces in order of priority in Playback mode.
(p. 91) Even though faces are registered successfully, they may not be
classified in Playback mode.
•
A face detected with Smart Face Recognition option may not appear in
the face list or Smart Album.
Shooting options
73
Using Face Detection
Capturing a self portrait shot
Capture photos of yourself. The focus distance will be set to
close-up and your camera will emit a beep.
1
In a Shooting mode, touch
m
Face Detection.
2
Touch Self-Portrait to select it.
3
Flip the screen upward.
4
When you hear a quick beep, press [Shutter].
If you turn Volume off in the sound settings, the camera will not emit a beep.
(p. 138)
Capturing a smile shot
The camera automatically releases the shutter when it detects a
smiling face.
1
In Shooting mode, touch
m
Face Detection.
2
Touch Smile Shot to select it.
3
Compose your shot.
•
The camera automatically releases the shutter when it detects
a smiling face.
When your subject smiles broadly,
your camera can detect the smile
more easily.
Shooting options
74
Using Face Detection
Using Smart Face Recognition
The camera automatically registers faces that you frequently
photograph. The Smart Face Recognition feature will
automatically prioritize the focus on those faces and on favorite
faces. The Smart Face Recognition feature is available only when
you use a memory card.
1
In Shooting mode, touch
m
Face Detection.
2
Touch Smart Face Recognition to select it.
3
Press [Shutter] to capture the photo.
• : Faces that you have registered as favorites.
(To register faces as favorites, refer to page 75.)
• : Faces that the camera has automatically registered.
Detecting eye blinking
If your camera detects closed eyes, it will automatically capture
3 photos in succession.
1
In Shooting mode, touch
m
Face Detection.
2
Touch Blink Detection to select it.
3
Press [Shutter] to capture the photo.
Shooting options
75
Using Face Detection
Registering faces as your favorites (My Star)
You can register your favorite faces to prioritize the focus and
exposure on those faces. This feature is available only when you
use a memory card.
1
In Shooting mode, touch
m
Smart FR Edit.
2
Touch My Star to select it.
3
Align your subject’s face with the oval guideline, and then
press [Shutter] to register the face.
•
Capture photos of one person at a time when registering faces.
•
Capture 5 photos of the subject’s face for best results: one each
from the front, left, right, above, and below.
•
When capturing photos from the left, right, above, and below,
instruct the subject not to turn his or her face more than
30 degrees.
•
You can register a face even if you capture only one photo of the
subject's face.
•
The camera may recognize and register faces incorrectly depending
on lighting conditions, drastic changes in the subject's pose or face,
and whether or not the subject is wearing glasses.
•
The camera can automatically register up to 12 faces. If the camera
recognizes a new face when 12 faces have already been registered,
it will replace the lowest priority face with the new one.
•
The camera can detect up to 5 favorite faces in one scene.
Shooting options
76
Using Face Detection
4
Touch when the face list appears.
•
Your favorite faces are indicated with a on the face list.
•
You can register up to 8 favorite faces.
•
The flash will not fire when you register a favorite face.
•
If you register the same face twice, you can delete one of the faces
in the face list.
Viewing your favorite faces
1
In Shooting mode, touch
m
Smart FR Edit.
2
Touch Face List to select it.
•
To change the ranking of your favorite faces, touch Ye s,
and then drag the face to a new location. (p. 90)
•
To delete a favorite face, touch , a face
o
. (p. 90)
Shooting options
77
Adjusting brightness and color
Learn how to adjust the brightness and color for better image quality.
2
Select the desired exposure value by moving the slider
or touching +/- icons, and then touch
o
.
•
The photo will be brighter as the exposure value increases.
Cancel Set
EV : +1
•
Once you adjust the exposure, the setting will be stored automatically.
You may need to change the exposure value later to avoid
overexposure or underexposure.
•
If you cannot decide on an appropriate exposure, select the
AEB (Auto Exposure Bracket) option. The camera will capture
3 consecutive photos, each with a different exposure: normal,
underexposed, and overexposed. (p.82)
Adjusting the exposure manually (EV)
Depending on the intensity of the ambient light, your photos
may be too bright or dark. In these cases, you can adjust the
exposure to get a better photo.
S
Darker (-)
S
Neutral (0)
S
Brighter (+)
1
In Shooting mode, touch
m
EV.
Shooting options
78
Adjusting brightness and color
Changing the metering option
The metering mode refers to the way in which a camera
measures the quantity of light. The brightness and lighting of your
photos will vary depending on the metering mode you select.
1
In Shooting mode, touch
m
Metering.
2
Select an option.
Icon Description
Multi:
•
Your camera divides the frame into several areas,
and then measures the light intensity of each area.
•
Suitable for general photos.
Spot:
•
Your camera measures only the light intensity at the
very center of the frame.
•
If a subject is not in the center of the frame, your
photo may be improperly exposed.
•
Suitable for a subject with backlighting.
Center-weighted:
•
Your camera averages the meter reading of the entire
frame with emphasis placed on the center.
•
Suitable for photos with subjects in the center of the
frame.
Compensating for backlighting (ACB)
When the light source is behind your subject or there is high
contrast between your subject and the background, your subject
is likely to appear dark in the photo. In this case, set the Auto
Contrast Balance (ACB) option.
SWithout ACB SWith ACB
1
In Shooting mode, touch
m
.
2
Touch ACB, and then touch On or Off.
Icon Description
Off: ACB (Auto Contrast Balance) is deactivated.
On: ACB (Auto Contrast Balance) is activated.
•
The ACB feature is always on in Smart Auto mode.
•
The ACB feature is not available when you set Burst options.
Shooting options
79
Adjusting brightness and color
Selecting a White Balance setting
The color of your photo depends on the type and quality of the
light source. If you want the color of your photo to be realistic,
select a White Balance setting that is appropriate for the lighting
conditions, such as Auto WB, Daylight, Cloudy, or Tungsten.
Auto WB Daylight
Cloudy Tungsten
1
In Shooting mode, touch
m
White Balance.
2
Touch the desired Metering option.
Icon Description
Auto WB: Automatically set the White Balance based
on the lighting conditions.
Daylight: For outdoor photos on a sunny day.
Cloudy: For outdoor photos on a cloudy day or in
shadows.
Fluorescent_H: For shooting under a daylight
fluorescent or 3-way fluorescent light.
Fluorescent_L: For shooting under white fluorescent
light.
Tungsten: For shooting indoor photos under
incandescent bulbs or halogen lamps.
Custom Set: To use White Balance settings that you
define. (p. 80)
Shooting options
80
Adjusting brightness and color
Defining your own White Balance
You can customize the White Balance by capturing a photo of
a white surface, such as a piece of paper, under the lighting
conditions in which you intend to capture a photo. The White
Balance feature will help you to match the colors in your photo
with the actual scene.
1
In Shooting mode, touch
m
White Balance.
2
Touch Custom Set to select it.
3
Aim the lens at a piece of white paper, and then press
[Shutter].
Shooting options
81
Using burst modes (Burst/AEB)
It can be difficult to capture photos of fast-moving subjects or capture natural facial expressions and gestures of your subjects in photos.
Also, it can be difficult to adjust the exposure correctly and select a proper light source. In these cases, select one of the burst modes.
3
Align your subject in the frame, and then half-press
[Shutter] to focus.
4
Press and hold [Shutter].
•
While you are pressing [Shutter], the camera captures photos
continuously.
•
You can use the flash and timer only when you select Single.
•
When you select Motion Capture, your camera will set the resolution
to and set the ISO sensitivity to Auto.
•
Depending on the Face Detection option you selected, some Burst
options may not be available.
Using High-speed burst mode
1
In Shooting mode, touch
m
Drive.
2
Select an option.
Icon Description
Single: Capture a single photo.
3fps: Capture 3 photos per second continuously.
(You can capture up to 8 photos in one burst.)
5fps: Capture 5 photos per second continuously.
(You can capture up to 8 photos in one burst.)
10fps: Capture 10 photos per second continuously.
(You can capture up to 8 photos in one burst.)
Shooting options
82
Using burst modes (Burst/AEB)
Using AEB (Auto Exposure Bracketing)
1
In Shooting mode, touch
m
.
2
Touch Drive AEB.
3
Align your subject in the frame, and then half-press
[Shutter] to focus.
4
Press [Shutter].
•
The camera captures 3 photos continuously.
Use a tripod to prevent blurry photos.
Shooting options
83
Adjusting images
Adjust the sharpness, contrast, or saturation of your photos.
1
In Shooting mode, touch
m
Image Adjust.
Image Adjust
Sharpness
Contrast
Saturation
Cancel Set
2
Select the desired value by dragging the slider or
touching +/- icons.
Sharpness Description
-Soften the edges on your photos (suitable for
editing the photos on your computer).
+
Sharpen the edges to improve the clarity of your
photos. This may also increase the noise in your
photos.
Contrast Description
-Decrease the color and brightness.
+Increase the color and brightness.
Saturation Description
-Decrease the saturation.
+Increase the saturation.
3
Touch
o
to save your settings.
Select 0 if you do not want to apply any effects (suitable for printing).
Applying effect/Adjusting images
Shooting options
84
1
In Video Shooting mode,
m
Voice.
2
Select an option.
Icon Description
Sound Alive On: Turn on the Sound Alive function to
reduce the zoom noise.
Sound Alive Off: Turn off the Sound Alive function.
The camera can record the zoom noise.
Mute: Do not record sounds.
•
Do not block the microphone when you use the Sound Alive
function.
•
Recordings made with Sound Alive may differ from actual
sounds.
•
In Picture-in-Picture mode, you cannot set the Sound Alive
options.
Reducing the sound of the zoom
When you use the zoom while recording videos, the camera can record the sound of the zoom. Use the Sound Alive function to reduce the
zoom noise.
Shooting options
85
Available shooting options by shooting mode
For details about shooting options, refer to "Shooting options".
Smart Auto Program Movie Scene 3D Photo Live
Panorama
Gesture
Shot
Beauty
Shot HDR Plus Low Light
Shot
Resolution ○○○○ △ ○ △
Quality △○○○ △ ○ ○
Timer △○△○ - △ ○
Flash △○-△ - △ △
ISO sensitivity -○-----
Macro △○○△-△-
Focus area -○-----
Face detection △○-△ - △ -
EV -○○----
ACB △○- - - - -
Metering -○○- - - -
White balance -○○- - - -
Drive -○-- - - -
Image adjust -○-- - △ △
Sound Alive --○- - - -
Digital zoom -○-△ - - -
Intelli zoom △△-△ - - -
OIS ○○○○ - ○ ○
U: In these modes, some options are limited or a certain option is set by default. O: The option is available in this mode.
Shooting options
86
Available shooting options by shooting mode
Filter
Movie
Filter
Picture in
Magic
Frame
My Magic
Frame
Split
Shot
Artistic
Brush
Motion
Beauty
Palette mode
Wig
Shot
Resolution △△△ △△△
Quality △-○ ○○△
Timer △△△ △△△
Flash -△△ △△-
ISO sensitivity --- ---
Macro △-- --△
Focus Area --- ---
Face detection --- ---
EV --- ---
ACB --- ---
Metering --- ---
White balance --- ---
Drive --- ---
Image adjust --- △△-
Sound Alive △-- ---
Digital zoom --- ---
Intelli zoom --- ---
OIS ○○- ○○○
U: In these modes, some options are limited or a certain option is set by default. O: The option is available in this mode.
Viewing photos or videos in
Playback mode
…………………………… 88
Starting Playback mode
………………… 88
Viewing photos
…………………………… 94
Playing a video
…………………………… 96
Editing a photo
……………………………… 98
Resizing a photo
………………………… 98
Rotating a photo
………………………… 98
Cropping a photo
………………………… 99
Applying Smart Filter effects
……………… 99
Adjusting your photos
………………… 100
Creating a print order (DPOF)
………… 102
Using the Creative Movie Maker
mode
……………………………………… 103
Making a movie with the Creative Movie
Maker
………………………………… 103
View a movie made in Creative Movie
Maker mode
…………………………… 104
Viewing files on a TV (HDTV, 3D TV)
…… 105
Viewing files on a TV
…………………… 105
Viewing files on an HDTV
……………… 106
Viewing files on a 3D TV
……………… 107
Transferring files to your Windows OS
computer
………………………………… 108
Transferring files with Intelli-studio
……… 109
Transferring files by connecting
the camera as a removable disk
……… 111
Disconnecting the camera
(for Windows XP)
……………………… 112
Transferring files to your
Mac OS computer
……………………… 113
Playback/Editing
Learn how to play back photos or videos, and edit photos or videos. Also, learn how to connect
your camera to your computer, photo printer, or TV.
Playback/Editing
88
Viewing photos or videos in Playback mode
Learn how to play back photos or videos and how to manage files.
The camera will not properly play back files of unsupported sizes or files that
were captured with other cameras.
Starting Playback mode
View photos or play videos and voice memos stored in your
camera.
1
Press [Playback].
•
The most recent file will be displayed.
•
If the camera is off, it will turn on and display the most recent
file.
•
To view files by category, touch on the Home screen.
(p. 91)
2
Drag the image left or right to move to another file.
•
To skip files quickly, tilt the camera to the direction you want to
flip files. (p. 89)
•
You can also touch and hold the left end or right end of the
screen to skip files quickly.
•
You can also drag the slider left or right to move to the
previous or next file.
Playback/Editing
89
Viewing photos or videos in Playback mode
Photo file information
File Information
Memory in use
Album/Zoom In
Icon Description
Current file/Total files
Photo captured in a High-speed burst mode or in
Precapture mode (See Viewing files as a folder, p. 91)
Folder name–File name
GIF file
Photo captured in 3D Photo mode
Protected file
Print order has been set (DPOF)
Delete files (p. 93)
View files as thumbnails (p. 92)
To display file information on the screen, touch
m
File Information On.
Viewing files with motion recognition
You can view files by tilting the camera in Playback mode.
• Motion recognition may not work well if you hold the camera
with the screen parallel to the ground.
• When you rotate the camera 90° or 180° while you view a
photo, the camera will automatically change the orientation of
the displayed photo.
(p. 141)
• To deactivate motion recognition, touch m Gesture View
Off.
Playback/Editing
90
Viewing photos or videos in Playback mode
Ranking your favorite faces
You can rank your favorite faces. The favorite face feature is
available only when you insert a memory card into the camera.
1
In Playback mode, touch
m
Face List.
•
In Thumbnail view or Smart album, touch
m
Face List.
2
Touch Yes, and then drag the face to a new
location.
3
Touch
o
to save your settings.
•
To delete a face from the list, touch , touch a face, and
then touch
o
.
Touch to view only your favorite face in the face list.
Video file information
Play Capture
Album
Icon Description
Current file/Total files
Folder name-File name
Current playback time
Video length
Protected file
Play videos (p. 96)
Delete files p. 93)
View files as thumbnails p. 92)
To display file information on the screen, touch
m
, and then touch
File Information On.
Playback/Editing
91
Viewing photos or videos in Playback mode
Viewing files by category in Smart Album
View files by category, such as date, face, or file type.
1
On the Home screen, touch .
•
You can also access Smart Album by touching or rotating
[Zoom] to the left in Playback mode.
2
Touch a category option.
Icon Description
View files normally.
View files by the date they were saved.
View files by recognized faces and favorite faces.
View files by the file type.
•
It may take some time for the camera to open Smart Album, change
the category, or reorganize files.
•
If you delete a category, all files in the category will be deleted.
Viewing files as a folder
Photos captured in a High-speed burst mode or in Precapture
mode appear as a folder.
1
In Playback mode, drag the image left or right or move
the slider to move to a desired file.
•
The camera will automatically play back photos in the folder.
2
Touch the folder to open it.
3
drag the image left or right or move the slider to move to
another file.
4
Touch to return to Playback mode.
You cannot edit a photo while viewing a folder. To edit a photo in a folder,
touch the folder to open it, and then move to the photo.
Playback/Editing
92
Viewing photos or videos in Playback mode
Viewing files as thumbnails
Scan thumbnails of files.
In Playback mode, rotate [Zoom] to the left to view
thumbnails (12 at a time). Rotate [Zoom] to the left
once or twice more to display more thumbnails
(20 or 48 at a time). Rotate [Zoom] to the right to return
to the previous view.
Touch a file to display
it in full screen view.
Drag the screen up or down to move to the previous or next page of
thumbnails.
Protecting files
Protect your files from accidental deletion.
1
Locate the file you want to protect, and then touch
m
.
2
Touch Protect On.
You cannot delete or rotate a protected file.
Playback/Editing
93
Viewing photos or videos in Playback mode
Deleting multiple files
You can select multiple files, and then delete them at once.
1
In Thumbnail view, touch .
2
Select the files you want to delete, and then touch .
3
When the pop-up message appears, touch Yes .
When you sort files by category, deleting a category will delete all files in that
category.
Deleting all files
You can select all files, and then delete them at once.
1
In Playback mode,
m
Delete.
•
When viewing files in Smart Album or thumbnails view,
touch
m
Delete to delete files.
2
Touch Delete All.
3
When the pop-up message appears, select Yes .
•
All unprotected files are deleted.
Deleting files
Select files to delete in Playback mode.
Deleting a single file
You can select one file, and then delete it.
1
In Playback mode, locate the file you want to delete,
and then touch .
2
When the pop-up message appears, touch Yes .
•
You can also delete files in Playback mode by touching
m
Delete
Delete Yes.
•
While viewing files as a folder, touch to delete all photos in the
folder.
•
To delete a specific photo in a folder, open the folder, select a file,
and then touch .
Playback/Editing
94
Viewing photos or videos in Playback mode
Viewing panoramic photos
View photos captured in Live Panorama mode.
1
In Playback mode, drag the image left or right to move
to a desired panoramic photo.
•
The entire panoramic photo appears on the screen.
2
Touch .
•
The camera automatically scrolls through the photo from left to
right for a horizontal panoramic photo and from top to bottom
for a vertical panoramic photo. The camera then switches to
Playback mode.
•
While playing back a panoramic photo, touch to pause or
touch to resume.
•
When playback of a panoramic photo pauses, drag the image
to move the photo horizontally or vertically, depending on the
direction you moved when capturing the photo.
3
Touch to return to Playback mode.
•
You can play the panoramic photo by touching only if the longest
side of the photo is two or more times longer than the shortest side.
•
On your camera’s display, a photo captured in 3D Panorama mode
appears as a 2D panoramic photo. To see the 3D effect, connect your
camera to a 3D TV or 3D monitor. (p. 107)
Viewing photos
Enlarge part of a photo or view photos as a slide show.
Enlarging a photo
In Playback mode, rotate [Zoom] to the right to enlarge
a portion of the photo. Rotate [Zoom] to the left to
zoom out.
Enlarged area
Drag the screen to
see another part of
the photo.
Icon Description
Delete the file.
Crop the photo (the camera will save it as a new file).
Return to the original view.
Playback/Editing
95
Viewing photos or videos in Playback mode
* Default
Option Description
Music Set background audio.
Effect
•
Set a scene change effect between photos.
(Off, Calm*, Shine, Relax, Lively, Sweet)
•
Select Off to cancel effects.
•
When you use the Effect option, the interval
between photos will be set to 1 second.
4
Touch .
5
Touch Start Slide Show.
6
View the slide show.
•
Touch to pause the slide show.
•
Touch to resume the slide show.
•
Touch to stop the sild show and return to Playback mode.
•
Touch to adjust the volume level.
Viewing animated photos
View animated GIF files repeatedly that were captured in Motion
Photo mode or Jump Shot mode.
1
In Playback mode, drag the image left or right to move
to a desired GIF file.
2
Touch .
3
Touch to return to Playback mode.
Playing a slide show
Apply effects and audio to a slide show of your photos.
The slide show function does not work for videos and GIF files.
1
In Playback mode, touch
m
.
2
Touch Slide Show Options.
•
Skip to step 4 to start a slide show with no effects.
3
Select a slide show effect option.
* Default
Option Description
Play Mode Set whether or not to repeat the slide show.
(One Play*, Repeat)
Interval
•
Set the interval between photos.
(1 sec*, 3 sec, 5 sec, 10 sec)
•
You must set the Effect option to Off to set the
interval.
Playback/Editing
96
Viewing photos or videos in Playback mode
Playing a video
In Playback mode, you can view a video, and then capture or trim
parts of the playing video. You can save the captured or trimmed
segments as new files.
1
In Playback mode, locate a video, and then touch .
2
View the video.
Pause Stop
Icon Description
Play.
Scan backward.
Pause.
Scan forward.
Adjust the volume or mute the sound.
Return to Playback mode.
When playing a movie, the Scan forward/Scan backward/pause features can
be used after 2 seconds.
Playback/Editing
97
Viewing photos or videos in Playback mode
Capturing an image from video
1
While viewing a video, touch at the point where you
want to capture an image.
2
Touch .
3
When the pop-up message appears, touch Yes .
•
The resolution of the captured image will be the same as the original
video.
•
The captured image is saved as a new file.
Trimming a video
1
While viewing a video, touch at the point where you
want the trimming to begin.
2
Touch .
3
Touch at the point where you want the trimming to
end.
•
You can also adjust the scene to be cropped by dragging the
handles that appear on the progress bar.
4
Touch .
5
When the pop-up message appears, touch Yes .
•
The original video should be at least 10 seconds long.
•
The camera will save the edited video as a new file and leave the
original video intact.
Playback/Editing
98
Editing a photo
Learn how to edit photos.
•
The camera will save edited photos as new files.
•
When you edit photos, the camera will automatically convert them to a lower resolution. Photos that you rotate or resize manually are not automatically converted to
a lower resolution.
Rotating a photo
1
On the Home screen, touch .
•
The most recent file will be displayed.
2
Touch a photo.
3
Touch , and then select a rotate option.
4
Touch to save.
•
The camera will overwrite the original file.
•
In Playback mode, touch
m
Rotate to rotate a photo.
Resizing a photo
Change the size of a photo and save it as a new file.
1
In Playback mode, locate a photo, and then touch
m
.
2
Touch Resize, and then select a size option.
2592 X 1944
1984 X 1488
1024 X 768
Resize
Available resize options differ depending on the original size of the photo.
Playback/Editing
99
Editing a photo
Cropping a photo
1
On the Home screen, touch .
•
The most recent file will be displayed.
2
Touch a photo.
3
Touch , and then select an area to drag and crop.
4
Touch to save.
Applying Smart Filter effects
Apply special effects to your photos.
1
On the Home screen, touch .
•
The most recent file will be displayed.
2
Touch a photo.
3
Touch .
4
Select a filter, and then touch
o
.
Option Description
Normal No effect
Miniature Apply a tilt-shift effect to make the subject
appear in miniature.
Vignetting Apply the retro-looking colors, high contrast,
and strong vignette effect of Lomo cameras.
Playback/Editing
100
Editing a photo
Adjusting your photos
Learn how to adjust the brightness, contrast, or saturation or how
to correct the red-eye effect. If the center of a photo is dark, you
can adjust it to be brighter. The camera will save an edited photo
as a new file, but may convert it to a lower resolution.
•
You can adjust brightness, contrast, and saturation and apply Smart
Filter effects at the same time.
•
You cannot apply the ACB, Face Retouch, and Red-eye Fix effects
at the same time.
Adjusting brightness, contrast, or saturation
1
On the Home screen, touch .
•
The most recent file will be displayed.
2
Touch a photo.
3
Select an adjusting option.
Icon Description
Brightness
Contrast
Saturation
Option Description
Soft Focus Hide facial imperfections or apply dreamy
effects.
Old Film Apply a vintage film effect.
Half Tone Dot Apply a halftone effect.
Sketch Apply a pen sketch effect.
Fish-eye
Blacken the edges of the frame and distort
objects to imitate the visual effect of a fisheye
lens.
Classic Apply a black and white effect.
Retro Apply a sepia tone effect.
Oil Painting Apply an oil painting effect.
Ink Painting Apply a watercolor painting effect.
Cartoon Apply a cartoon painting effect.
Cross Filter
Add lines that radiate outward from bright
objects to imitate the visual effect of a cross
filter.
Zooming Shot Blur the edges of a photo to emphasize the
subjects in the center.
5
Touch to save.
Playback/Editing
101
Editing a photo
4
Drag the sliders or touch the +/- icons to adjust the
option.
5
Touch
o
.
6
Touch to save.
Adjusting dark subjects (ACB)
1
On the Home screen, touch .
•
The most recent file will be displayed.
2
Touch a photo.
3
Touch
m
ACB.
4
Touch to save.
Retouching faces
1
On the Home screen, touch .
•
The most recent file will be displayed.
2
Touch a photo.
3
Touch
m
Face Retouch.
4
Drag the sliders or touch the +/- icons to adjust the
option.
•
As the number increases, the skin tone becomes brighter and
smoother.
5
Touch to save.
Removing red-eye
1
On the Home screen, touch .
•
The most recent file will be displayed.
2
Touch a photo.
3
Touch
m
Red-eye Fix.
4
Touch to save.
Playback/Editing
102
Editing a photo
Creating a print order (DPOF)
Select photos to print and save print options in the Digital Print
Order Format (DPOF). This information is saved in the MISC
folder on your memory card for convenient printing on DPOF-
compatible printers.
1
In Playback mode, locate a photo, and then touch
m
.
2
Touch DPOF.
3
Touch the +/- icons to select the number of copies,
and then touch
o
.
•
You can take the memory card to a print shop that supports DPOF
(Digital Print Order Format) or you can print photos directly through a
DPOF-compatible printer at home.
•
Photos with dimensions that are wider than the paper may be cut off
on the left and right edges. Ensure that your photo dimensions are
compatible with the paper you select.
•
If you specify the print size, you can print photos only with
DPOF 1.1-compatible printers.
Playback/Editing
103
Making a movie with the Creative Movie
Maker
1
On the Home screen, touch .
2
Touch + Movie Creation.
3
Touch Select, and then select files.
•
You must select at least 2 files.
•
If you select a folder, every photo in the folder will be selected.
•
Touch Shuffle to let the camera select photos and videos
randomly. The movie cannot exceed 2 minutes 30 seconds
in length.
Select
Shuffle
Back Set
Select image
•
You cannot select photos captured in Panorama mode, videos made
in Creative Movie Maker mode, videos recorded with Filter effects,
or high-speed videos.
•
You can select up to 60 photos and 10 videos.
4
Touch
o
to confirm the selection.
5
Select a Theme.
6
Select Music.
7
Select a Movie Size.
8
Touch Creation Start or Preview.
•
If your camera does not have enough available memory to
store the movie, you cannot select Creation Start. Delete
files from the memory card to make more memory available.
(p. 93)
•
If the pop-up message appears when you select Creation
Start, select a smaller movie size in the Movie Size option.
•
The video rendering may take longer depending on the
number and size of the selected files.
•
Touch to cancel the video rendering.
Using the Creative Movie Maker mode
In the Creative Movie Maker mode, you can easily make movies from the photos and videos stored on your memory card.
Playback/Editing
104
Using the Creative Movie Maker mode
View a movie made in Creative Movie Maker
mode
1
On the Home screen, touch .
2
Select a movie.
3
Touch to play the movie.
To view the movie in Playback mode, touch [Playback]. (p. 88)
Playback/Editing
105
Viewing files on a TV (HDTV, 3D TV)
Play back photos or videos by connecting your camera to a TV with the A/V cable.
6
Turn on your TV, and then select the A/V video source
with the TV remote control.
7
Turn on your camera.
•
The camera automatically enters into Playback mode when
you connect it to a TV.
8
View photos or play videos using the camera.
•
Depending on the TV model, you may see some digital noise or part
of an image may not appear.
•
Images may not be centered on the TV screen depending on your
TV settings.
Viewing files on a TV
1
On the Home screen, touch .
2
Touch Connectivity Video Out.
3
Select the video signal output for your country or region.
(p. 139)
4
Turn off your camera and TV.
5
Connect your camera to your TV with the A/V cable.
VideoAudio
Playback/Editing
106
Viewing files on a TV (HDTV, 3D TV)
Viewing files on an HDTV
1
On the Home screen, touch I-home_settings.eps.
2
Touch Connectivity HDMI Size.
3
Select an HDMI resolution. (p. 140)
4
Turn off your camera and HDTV.
5
Connect your camera to your HDTV using an optional
HDMI cable.
If both A/V and HDMI cables are connected at the same time, the HDMI cable
has the priority. Disconnect the A/V cable for better playback.
6
Make sure that the HDTV and camera are turned on,
and then select the HDMI mode on the HDTV.
•
The HDTV screen mirrors the camera's display.
7
View the videos and photos using the camera.
•
When using the HDMI cable, you can connect the camera to an HDTV
using the Anynet+(CEC) method.
•
The Anynet+(CEC) functions allow you to control connected devices
using the TV remote control.
•
If the HDTV supports Anynet+(CEC), the TV turns on automatically
when used in conjunction with the camera. This feature may not be
available on some HDTVs.
•
When connected to an HDTV by an HDMI cable, the camera cannot
capture a photo or video.
•
When connected to an HDTV, some of the camera’s playback
functions may not be available.
•
The length of time after which the camera and an HDTV are connected
may vary depending on the memory card that you are using.
•
As the main feature of a memory card is to increase the transfer
speed, it is not necessarily true to say that a memory card with a faster
transfer speed is also fast in using the HDMI function.
Playback/Editing
107
Viewing files on a TV (HDTV, 3D TV)
Viewing files on a 3D TV
You can view photos captured in 3D mode or 3D Panorama mode
on a 3D TV.
1
On the Home screen, touch .
2
Touch Connectivity HDMI Size.
3
Select an HDMI resolution. (p. 140)
4
Turn off your camera and 3D TV.
5
Connect your camera to your 3D TV using an optional
HDMI cable.
6
Turn on your camera.
•
If you have an Anynet+ compatible Samsung 3D TV and you
have turned on your camera's Anynet+ function, the 3D TV
turns on automatically and displays the camera screen, while
the camera automatically enters Playback mode.
•
If you turn Anynet+ off in your camera, the 3D TV does not turn
on automatically.
7
Touch to switch to 3D TV Mode.
•
Touch again to switch to 2D TV Mode.
8
Turn on your TV's 3D function.
•
Refer to your TV's user manual for more details.
9
View 3D photos with the touch screen on your camera
or your TV's remote control.
•
You cannot view an MPO file in 3D effect on TVs that do not
support the file format.
•
Use proper 3D glasses when you view an MPO file on a 3D
TV.
Do not view the 3D images captured by your camera on a 3D TV or
3D monitor for an extended period of time. It may cause unpleasant
symptoms, such as eyestrain, fatigue, nausea, and more.
Playback/Editing
108
Transferring files to your Windows OS computer
Transfer files to your Windows OS computer, edit them with Intelli-studio, and upload them to the web.
•
The requirements are recommendation only. Intelli-studio may not work
properly even when the computer meets the requirements, depending
on the condition of your computer.
•
If your computer does not meet the requirements, videos may not play
correctly or it may take longer to edit videos.
•
Install DirectX 9.0c or later before you use Intelli-studio.
•
Your computer must be running Windows XP, Windows Vista, or
Windows 7 for you to connect the camera as a removable disk.
The manufacturer is not responsible for any damage that results from using
unqualified computers such as a computer you assembled yourself.
Requirements
Item Requirements
CPU Intel Core 2 Duo
®
2.0 GHz or higher/
AMD Phenom 2.4 GHz or higher
RAM Minimum 512 MB RAM (1 GB or more recommended)
OS* Windows XP SP2, Windows Vista, or Windows 7
Hard disk
capacity 250 MB or more (1 GB and above recommended)
Others
•
CD-ROM drive
•
1024 X 768 pixels, 16-bit color display compatible
monitor (1280 X 1024 pixels, 32-bit color display
recommended)
•
USB 2.0 port
•
nVIDIA Geforce 7600GT or higher/
ATI X1600 series or higher
•
Microsoft DirectX 9.0c or higher
* A 32-bit version of Intelli-studio will be installed—even on 64-bit editions of
Windows XP, Windows Vista, and Windows 7.
Playback/Editing
109
Transferring files to your Windows OS computer
5
Turn on the camera.
•
When the Intelli-studio installation pop-up appears on the
computer screen, follow the on-screen instructions to
complete the installation.
•
Once the Intelli-studio is installed on your computer, the
computer recognizes the camera and launches the
Intelli-studio automatically.
6
Select a destination folder on your computer, and then
select Yes .
•
New files stored on the camera will automatically transfer to
the selected folder.
•
If your camera has no new files, the pop-up window for saving
new files will not appear.
For Windows Vista and Windows 7, select Run iLinker.exe from the
Auto Play window to start Intelli-studio. If Run iLinker.exe does not appear on
the computer, click Computer Intelli-studio, and then follow the
on-screen instructions to complete the Intelli-studio installation.
Transferring files with Intelli-studio
You can download Intelli-studio from the linked webpage and
install it on your computer. When you connect the camera to
a computer with Intelli-studio installed, the program will launch
automatically.
The battery will charge while the camera is connected to a computer with the
USB cable.
1
On the Home screen, touch .
2
Touch Connectivity PC Software On.
3
Turn off the camera.
4
Connect the camera to your computer with the USB
cable.
You must plug the small end of the USB cable into your camera. If the
cable is reversed, it may damage your files. The manufacturer is not
responsible for any loss of data.
Playback/Editing
110
Transferring files to your Windows OS computer
Using Intelli-studio
Intelli-studio allows you to play back and edit files. For details, select Help Help from the program toolbar.
•
You can update the firmware of your camera by selecting Web Support Upgrade firmware for the connected device from the program toolbar.
•
If you install Intelli-studio on your computer, the program will launch more quickly. To install the program, select Tool Install Intelli-studio on PC.
•
You cannot edit files directly on the camera. Transfer files to a folder on your computer before editing.
•
Intelli-studio supports the following formats:
- Videos: MP4 (Video: H.264, Audio: AAC), WMV (WMV 7/8/9), AVI (MJPEG)
- Photos: JPG, GIF, BMP, PNG, TIFF
%
@
#
$
6
7
9
0
!
8
54312
Playback/Editing
111
Transferring files to your Windows OS computer
No. Description
1
Open menus.
2
Display files in the selected folder.
3
Switch to the Photo edit mode.
4
Switch to the Video edit mode.
5
Switch to the Sharing mode. (to send files by email or
upload files to websites, such as Flickr or YouTube)
6
Enlarge or reduce the thumbnails in the list.
7
Select a file type.
8
View files in the selected folder on your computer.
9
Show or hide files on the connected camera.
0
View files in the selected folder on the camera.
!
View files as thumbnails or on a map.
@
Browse folders stored on the camera.
#
Browse folders stored on your computer.
$
Move to the previous or next folder.
%
Print files, view files on a map, store files in My Folder, or
register faces.
Transferring files by connecting the camera
as a removable disk
Connect the camera to your computer as a removable disk.
1
On the Home screen, touch .
2
Touch Connectivity PC Software Off.
3
Turn off the camera.
4
Connect the camera to your computer with the USB
cable.
You must plug the small end of the USB cable into your camera. If the
cable is reversed, it may damage your files. The manufacturer is not
responsible for any loss of data.
Playback/Editing
112
Transferring files to your Windows OS computer
Disconnecting the camera (for Windows XP)
With Windows Vista and Windows 7, the methods for
disconnecting the camera are similar.
1
Verify that the status lamp is not blinking.
•
The status lamp blinks when transferring files. Wait until it
stops.
2
Click on the tool bar at the bottom right of your
computer screen.
3
Click the pop-up message.
4
Click the message box that indicates the camera can be
removed safely.
5
Remove the USB cable.
The camera may not disconnect safely while Intelli-studio is running. End the
program before disconnecting the camera.
5
Turn on the camera.
•
The computer recognizes the camera automatically.
6
On your computer, select My Computer
Removable Disk DCIM 100PHOTO.
7
Drag or save files to your computer.
Playback/Editing
113
Transferring files to your Mac OS computer
When you connect the camera to your Mac OS computer, the computer will automatically recognize the device. You can transfer files
directly from the camera to the computer without installing any programs.
Mac OS 10.4 or later is supported.
2
Turn on the camera.
•
The computer recognizes the camera automatically and
displays a removable disk icon.
3
Double-click the removable disk icon.
4
Drag or save files to your computer.
1
Connect your camera to your Mac OS computer with
the USB cable.
You must plug the small end of the USB cable into your camera. If the
cable is reversed, it may damage your files. The manufacturer is not
responsible for any loss of data.
Connecting to a WLAN and configuring
network settings
………………………… 115
Connecting to a WLAN
………………… 115
Using the login browser
………………… 117
Network connection tips
……………… 117
Entering text
…………………………… 118
Sending photos or videos to
a smart phone
…………………………… 120
Using a smart phone as
a remote shutter release
………………… 121
Using photo or video sharing
websites
………………………………… 123
Accessing a website
…………………… 123
Uploading photos or videos
…………… 123
Sending photos or videos via email
…… 125
Changing email settings
……………… 125
Sending photos or videos via email
…… 126
Uploading photos to a cloud server
…… 128
Using Auto Backup to send photos
or videos
………………………………… 129
Installing the program for Auto Backup
on your PC
…………………………… 129
Sending photos or videos to a PC
…… 129
Viewing photos or videos on
a TV Link-enabled TV
…………………… 131
Sending photos using Wi-Fi Direct
…… 133
About the Wake on
LAN (WOL) feature
……………………… 134
Wireless network
Learn to connect to wireless local area networks (WLANs) and use functions.
Wireless network
115
Connecting to a WLAN and configuring network settings
Learn to connect via an access point (AP) when you are in a range of a WLAN. You can also configure network settings.
Icon/Option Description
Ad hoc AP
Secured AP
WPS AP
Signal strength
Open network setting options.
Refresh connectable APs.
Add wireless network Add an AP manually.
•
When you select a secured AP, a pop-up window appears.
Enter the required passwords to connect to the WLAN. For
information about entering text, refer to "Entering text". (p. 118)
•
When a login page appears, refer to "Using the login browser".
(p. 117)
•
When you select an unsecured AP, the camera will connect to
the WLAN.
•
If you select a WPS profile supported AP, select WPS PIN,
and then enter a PIN on the AP device. You can also connect
to a WPS profile supported AP by selecting WPS PBC on the
camera, and then pushing the WPS button on the AP device.
Connecting to a WLAN
1
On the Home screen, touch , , , , or .
2
Touch
m
Wi-Fi Setting.
•
In some modes, touch
m
or follow the on-screen
instructions until the Wi-Fi Setting screen appears.
•
The camera automatically searches for available AP devices.
3
Select an AP.
Wi-Fi Setting
Samsung 2
Samsung 1
Samsung 3
Samsung 4
Samsung 5
Back Select
Wireless network
116
Connecting to a WLAN and configuring network settings
Manually setting the IP address
1
In the Wi-Fi Setting screen, move to an AP,
and then touch .
2
Touch IP Setting Manual.
3
Select each option, and then enter the required
information.
Option Description
IP Enter the static IP address.
Subnet Mask Enter the subnet mask.
Gateway Enter the gateway.
DNS Server Enter the DNS address.
Setting network options
1
In the Wi-Fi Setting screen, move to an AP,
and then touch .
2
Select each option, and then enter the required
information.
Option Description
Forget Network
Remove the selected AP from the list.
(This option appears only when you select
a stored AP.)
Authentication Select a network authentication type.
Data Encryption Select an encryption type.
Network Password Enter the network password.
IP Setting Set the IP address manually.
Wireless network
117
Connecting to a WLAN and configuring network settings
Network connection tips
• The quality of the network connection will be determined by
the AP.
• The further the distance between your camera and the AP, the
longer it will take to connect to the network.
• If a nearby device is using the same radio frequency signal as
your camera, it may interrupt your connection.
• If your AP name is not in English, the camera may not be able
to locate the device or the name may appear incorrectly.
• For network settings or a password, contact your network
administrator or network service provider.
• If a WLAN requires authentication from the service provider,
you may not be able to connect to it. To connect the WLAN,
contact your network service provider.
• Depending on the encryption type, the number of digits in the
password may differ.
• A WLAN connection may not be possible in all surroundings.
• The camera may display a WLAN enabled printer on the AP
List. You cannot connect to a network via a printer.
• You cannot connect your camera to a network and a TV
simultaneously. Also, you cannot view photos or videos on a TV
while connected to a network.
• Connecting to a network may incur additional charges. Costs
will vary based on the conditions of your contract.
Using the login browser
You can enter your login information via the login browser when
connecting to some APs, sharing sites, or cloud servers.
Button Description
XX Move to an item or scroll the page.
XX Select an item.
XX
Access the following options:
•
Previous Page: Move to the previous page.
•
Next Page: Move to the next page.
•
Reload: Reload the page.
•
Stop: Stop loading the page.
•
Exit: Close the login browser.
XX Close the login browser.
•
You cannot select some items depending on the page you connected
to. This does not indicate a malfunction.
•
The login browser may not close automatically after you log into some
pages. If this occurs, close the login browser by touching XX, and
then proceed with the desired operation.
•
It may take longer to load the login page due to the page size or
network speed. If this occurs, wait until the login information input
window appears.
Wireless network
118
Connecting to a WLAN and configuring network settings
• If you cannot connect to a WLAN, try another AP from the
available AP list.
• You can also connect to free WLANs in some foreign countries.
• A login page may appear when you select free WLANs
provided by some network service providers. Enter your ID
and password to connect to the WLAN. For information about
registering or the service, contact the network service providers.
• Be cautious when you enter personal information for an AP
connection. Do not enter any payment or credit card information
on your camera. The manufacturer is not liable for any problem
caused by entering such information.
• Available network connections may differ by country.
• The WLAN feature of your camera must comply with radio
transmission laws in your region. To ensure compliance, use
the WLAN feature only in the country where you purchased the
camera.
• The process for adjusting network settings may differ,
depending on network conditions.
• Do not access a network that you are not authorized to use.
• Before you connect to a network, ensure your battery is fully
charged.
• When a DHCP server is not available you must make an autoip.
txt file and copy it to the inserted memory card to connect to
the network using Auto IP.
Entering text
Learn how to enter text. The icons in the table below let you move
the cursor, change the case, etc.
Back Backspace
Done
Icon Description
Delete the last letter.
Move the cursor.
In ABC mode, change the case.
Enter ".com".
Switch between Symbol mode and ABC mode.
Enter a space.
Wireless network
119
Connecting to a WLAN and configuring network settings
Icon Description
Done Save the displayed text.
View the entering text guide.
•
You can use only the English alphabet, regardless of the display
language.
•
You can enter up to 64 characters.
•
The screen may differ depending on the language selected.
Wireless network
120
Sending photos or videos to a smart phone
The camera connects to a smart phone that supports the MobileLink feature via a WLAN. You can easily send photos or videos to your
smart phone.
•
The MobileLink feature is supported by Galaxy series smart phones with the Android 2.2 OS or higher. If your smart phone uses the Android 2.1 OS,
upgrade your smart phone to Android 2.2 or higher. This feature is also supported by 7 and 10.1 inch Galaxy Tab.
•
You should install the Samsung MobileLink application on your phone or device before using this feature. You can download the application from Samsung Apps or
Android market.
•
When there are no files in the camera memory, you cannot use this feature.
•
You can view up to 1,000 files and send up to 100 files at a time.
4
On the camera, touch OK.
5
On the smart phone, select files to send from the camera
to the smart phone.
6
On the smart phone, touch Copy.
•
The camera will send the files.
1
On the camera's Home screen, touch .
•
If the pop-up message that prompts you to download the
application appears, select OK.
2
On the camera, select All Images or Selected Images
to select files to share with the smart phone.
•
Only the selected files will be displayed on the smart phone.
•
If you Selected Images, select Share on the camera after
selecting files to share.
3
On the smart phone, turn on the Samsung MobileLink
application.
•
Read the on-screen instructions carefully to select and
connect to your camera.
•
The smart phone can connect to only one camera at a time.
Wireless network
121
Using a smart phone as a remote shutter release
The camera connects to a smart phone via a WLAN. Use the smart phone as a remote shutter release with the Remote Viewfinder feature.
The captured photo will display on the smart phone.
•
The Remote Viewfinder feature is supported by Galaxy series smart phones with the Android 2.2 OS or higher. If your smart phone uses the Android 2.1 OS,
upgrade your smart phone to Android 2.2 or higher. This feature is also supported by 7 and 10.1 inch Galaxy Tab.
•
You should install the Remote Viewfinder application on your phone or device before using this feature. You can download the application from Samsung Apps or
Android market.
3
On the smart phone, set the following shooting options.
Icon Description
Flash option
Timer option
Photo size
•
While using this feature, some buttons are not available on
your camera.
•
The zoom button and the shutter button on your smart phone
will not function when using this feature.
•
Remote Viewfinder mode supports the and photo
sizes only.
1
On the camera's Home screen, touch .
•
If the pop-up message that prompts you to download the
application appears, select Yes.
2
On the smart phone, turn on the Remote Viewfinder
application.
•
Read the on-screen instructions carefully to select and
connect to your camera.
•
The smart phone can connect to only one camera at a time.
Wireless network
122
Using a smart phone as a remote shutter release
4
On the smart phone, touch and hold to focus.
•
The focus is automatically set to multi-AF.
5
Release to capture the photo.
•
The photo will be saved in your camera.
•
Touch the photo in the bottom of the screen to save it to the
smart phone. The photo will be resized to 640 X 360.
•
When you use this feature, the ideal distance between the camera
and the smart phone may vary, depending on your surroundings.
•
The smart phone must be within 7 m of the camera to use this feature.
•
It will take some time to capture the photo after you release on
the smart phone.
•
The Remote Viewfinder function will deactivate when:
- there is an incoming call on the smart phone
- either the camera or the smart phone turn off
- the memory is full
- either device loses its connection to the WLAN
- the Wi-Fi connection is poor or unstable
Wireless network
123
Using photo or video sharing websites
Upload your photos or videos to file sharing websites. Available websites will be displayed on your camera.
Uploading photos or videos
1
Access the website with your camera.
2
Select files to upload from the list, and then touch
o
.
•
You can select up to 20 files. The total size must be
10 MB or less.
3
Touch Upload.
•
If you connected to Facebook, select Upload Upload.
•
If you connected to Facebook, you can enter your comments
by selecting the Comment box. For information about
entering text, refer to "Entering text". (p. 118)
Accessing a website
1
On the Home screen, touch .
2
Select a website.
•
The camera will automatically attempt to connect to a WLAN
via the most recently connected AP device.
•
If the camera has not previously been connected to a WLAN,
it will search for available AP devices. (p. 115)
3
Enter your ID and password, and then select Login.
•
For information about entering text, refer to "Entering text".
(p. 118)
•
To select an ID from the list, select an ID.
•
If you have previously logged in to the website, you may be
logged in automatically.
You must have an existing account on the file sharing website to use this
feature.
Wireless network
124
Using photo or video sharing websites
•
You can upload up to 20 files at a time.
•
The maximum photo resolution you can upload is 2M, and the longest
video you can upload is 30 seconds at resolution or a video
recorded using . If the selected photo resolution is higher than
2M, it will be automatically resized to a lower resolution.
•
The method of uploading photos or videos may differ depending on
the selected website.
•
If you cannot access a website because of firewall or user
authentication settings, contact your network administrator or network
service provider.
•
Uploaded photos or videos may be automatically titled with the date
they were captured.
•
The speed of your internet connection may affect how quickly photos
upload or web pages open.
•
When there are no files in the camera memory, you cannot use this
feature.
•
You can also upload photos or videos to file sharing websites in
Playback mode by touching
m
, and then selecting Share(Wi-Fi)
a desired website.
Wireless network
125
Sending photos or videos via email
You can change settings in the email menu, and send photos or videos stored on the camera via email.
Setting an email password
1
On the Home screen, touch
m
.
2
Touch Setting Password On.
•
To deactivate the password, select Off.
3
When the pop-up appears, touch
o
.
•
The pop-up disappears automatically even if you do not
press
o
.
4
Enter a 4-digit password.
5
Enter the password again.
6
When the pop-up appears, press
o
.
•
The pop-up disappears automatically even if you do not
press
o
.
If you lost your password, you can reset it by selecting Reset on the
password setting screen. When you reset the information, previously saved
user’s setting information, email address, and recently sent email list will be
deleted.
Changing email settings
In the email menu, you can change settings for storing your
information. You can also set or change the email password. For
information about entering text, refer to "Entering text". (p. 118)
Storing your information
1
On the Home screen, touch
m
.
2
Touch Sender Setting.
3
Select the Name box, enter your name, and then
select Done.
Name
Email
Back
OK Reset
Sender Setting
4
Select the Email box, enter your email address, and
then select Done.
5
Select Save to save your changes.
•
To delete your information, select Reset.
Wireless network
126
Sending photos or videos via email
Changing the email password
1
On the Home screen, touch
m
.
2
Touch Change Password.
3
Enter your current 4-digit password.
4
Enter a new 4-digit password.
5
Enter the new password again.
6
When the pop-up appears, touch
o
.
•
The pop-up disappears automatically even if you do not
touch
o
.
Sending photos or videos via email
You can send photos or videos stored on the camera via email.
For information about entering text, refer to "Entering text".
(p. 118)
1
On the Home screen, touch .
2
Select the Name(Email) box, enter your email address,
and then select Done.
•
If you have previously saved your information, it will be inserted
automatically. (p. 125)
•
To use an address from the list of previous senders, select
an address.
3
Select the Receiver box, enter an email address, and
then select Done.
•
To use an address from the list of previous recipients,
touch an address.
•
Touch to add additional recipients. You can input up to
30 recipients.
•
Touch to delete an address from the list.
4
Touch Next.
Wireless network
127
Sending photos or videos via email
•
You can send up to 20 files at a time.
•
Even if a photo appears to have transferred successfully, errors with
the recipient’s email account may cause the photo to be rejected or
recognized as spam.
•
You may not be able to send an email if no network connection is
available or if your email account settings are incorrect.
•
The maximum photo resolution you can send is 2M and the longest
video you can upload is 30 seconds at resolution or a video
recorded using . If the selected photo resolution is higher than
2M, it will be automatically resized to a lower resolution.
•
If you cannot send an email because of firewall or user authentication
settings, contact your network administrator or network service
provider.
•
When there are no files in the camera memory, you cannot use this
feature.
•
You can also send an email in Playback mode by touching
m
Share(Wi-Fi) Email.
5
Select files to upload from the list, and then touch
o
.
•
You can select up to 20 files. The total size must be
10 MB or less.
6
Touch Send.
7
Touch the Comment box, enter your comments,
and then select Done.
8
Touch Send.
•
The camera will automatically attempt to connect to a WLAN
via the most recently connected AP device and send the
email.
•
If the camera has not previously been connected to a WLAN,
it will search for available AP devices. (p. 115)
Wireless network
128
Uploading photos to a cloud server
You can upload your photos to SkyDrive. To upload photos, you must visit the Microsoft website and register before connecting your
camera.
3
Select files to upload from the list, and then touch
o
.
4
Touch Upload.
•
You can also upload photos to a cloud server in Playback mode by
touching
m
Share(Wi-Fi) a cloud server.
•
When there are no photos in the camera memory, you cannot use
this feature.
1
On the camera's Home screen, touch .
•
If the pop-up message that prompts you to create an account
appears, select OK.
•
The camera will attempt to connect to a WLAN via the most
recently connected AP.
•
If the camera has not previously been connected to a WLAN,
it will search for available AP devices. (p. 115)
2
Login with your ID and password.
•
For information about entering text, refer to "Entering text".
(p. 118)
•
If you connected to SkyDrive, refer to "Using the login
browser". (p. 117)
•
Touch
m
to use option menus.
Option Description
Previous Page Move to the previous page.
Next Page Move to the next page.
Reload Reload the page.
Stop Stop loading the page.
Exit Close the login browser.
Wireless network
129
Using Auto Backup to send photos or videos
You can send photos or videos that you captured with the camera to a PC wirelessly. The Auto Backup feature works only with the
Windows OS.
Sending photos or videos to a PC
1
On the camera's Home screen, touch .
2
You must configure the backup PC information to use
the Auto Backup feature. For more details, refer to
“Installing the program for Auto Backup on your PC”.
(p. 129)
3
Touch
m
to set options.
•
To turn off your PC automatically after the transfer is complete,
touch Shut down PC after backup On.
4
Touch
o
to start the backup.
•
To cancel sending, touch
o
.
•
You cannot select individual files to backup. This function
backs up only new files on the camera.
•
The backup's progress will be shown on the PC monitor.
•
When the transfer is completed, the camera will turn off
automatically in approximately 30 seconds. Touch Cancel to
return to the previous screen and prevent the camera from
turning off automatically.
Installing the program for Auto Backup on
your PC
1
Install Intelli-studio on the PC. (p. 109)
2
Connect the camera to the PC with the USB cable.
3
Click OK on the pop-up window.
•
The Auto Backup program is installed on the PC.
Follow the on-screen instructions to complete the installation
4
Remove the USB cable.
5
Connect the camera to the PC again with the USB
cable.
•
The camera stores information about the PC, so that the
camera can send files to the PC.
Before installing the program, ensure that the PC is connected to a network.
If no internet connection is available, you must install the program from the
provided CD.
Wireless network
130
Using Auto Backup to send photos or videos
•
If the PC supports the Wake on LAN (WOL) feature, you can turn on
the PC automatically by searching for the PC from your camera.
(p. 134)
•
When you connect the camera to the WLAN, select the AP that is
connected to the PC.
•
The camera will search for available access points even if you are
connecting to the same access point again.
•
If you turn off the camera or remove the battery while sending files,
the file transfer will be interrupted.
•
While you are using this feature, only [POWER] is available on your
camera.
•
You can connect only one camera to the PC at a time for sending
files.
•
The backup may be canceled due to network conditions.
•
Photos or videos can be sent to a PC one time only. Files cannot be
sent again even if you reconnect your camera to another PC.
•
When there are no files in the camera memory, you cannot use this
feature.
•
You must turn off Windows Firewall and any other firewalls before
using this feature.
•
You can send up to 1,000 files.
•
On the PC software, the server name must be entered in the Latin
alphabet and can contain no more than 48 characters.
Wireless network
131
Viewing photos or videos on a TV Link-enabled TV
TV Link is a technology for sharing media files between a camera and TV connected to the same AP device. With this technology, you can
view your photos or videos on a widescreen TV.
3
On the TV, search for the camera and browse the shared
photos or videos.
•
For information about searching for the camera and browsing
the photos or videos on the TV, refer to the TV user manual.
•
Videos may not play smoothly depending on the type of TV
or network condition. If this happens, re-record the video
in or quality and play it again. If videos do not
play smoothly on your TV over the wireless connection, try
connecting the camera to the TV with an A/V cable.
AP
1
On the Home screen, touch .
•
If the guide message appears, touch
o
.
•
The camera will automatically attempt to connect to a WLAN
via the most recently connected AP device.
•
If the camera has not previously been connected to a WLAN,
it will search for available AP devices. (p. 115)
2
Connect your TV to a wireless network via an AP device.
•
Refer to your TV’s user manual for more information.
Wireless network
132
Viewing photos or videos on a TV Link-enabled TV
•
If you reorder or sort files on the camera while viewing them on a TV,
you must repeat the initial set-up process to update the list of files on
the TV.
•
When there are no files in the camera memory, you cannot use this
feature.
•
We recommend you use a network cable to connect your TV to your
AP. This will minimize any video ‘Stuttering’ you may experience when
streaming content.
•
You can share up to 1,000 photos or videos.
•
On a TV screen, you can view only photos or videos captured with
your camera.
•
The range of the wireless connection between your camera and a TV
may vary depending on the specifications of the AP.
•
If the camera is connected to 2 TVs, playback may be slower.
•
Photos or videos will be shared in their original sizes.
•
You can use this feature only with TV Link-enabled TVs.
•
Shared photos or videos will not be stored on the TV, but they can be
stored in the camera to meet the TV's specifications.
•
Transferring photos or videos to the TV may take some time depending
on the network connection, the number of files to be shared, or sizes
of the files.
•
If you power off the camera abnormally while viewing photos or videos
on a TV (for example, by removing the battery), the TV considers the
camera to still be connected.
•
The order of photos or videos on the camera may be different than
on the TV.
•
Depending on the number of photos or videos you want to share,
it may take some time to load your photos or videos and complete the
initial set-up process.
•
While viewing photos or videos on the TV, continuously using the TV
remote or performing additional operations on the TV may prevent this
feature from working properly.
Wireless network
133
Sending photos using Wi-Fi Direct
When the camera connects via a WLAN to a device that supports the Wi-Fi Direct function, you can send photos to the device. This feature
may not be supported on some devices.
5
On the device, allow the camera to connect to the
device.
•
The photo will be sent to the device.
•
You can send up to 20 files at a time.
•
When there are no photos in the camera memory, you cannot use
this feature.
•
If you cancel the connection attempt before it is complete, the camera
may not be able to reconnect to the device. In this case, update your
device with the latest firmware.
1
On the device, turn on the Wi-Fi Direct option.
2
On the camera, in Playback mode, select a photo.
3
Touch
m
, and then select Share(Wi-Fi)
Wi-Fi Direct.
•
When in the single image view, you can send only one photo
at a time.
•
When in the thumbnails view, you can select multiple photos
by scrolling to thumbnails, and then touching
o
.
Touch Send when you are finished selecting photos.
4
Select the device from the camera’s list of Wi-Fi Direct
devices.
•
Ensure that the device's Wi-Fi Direct option is turned on.
•
You can also select your camera from the device's list of
Wi-Fi Direct devices.
Wireless network
134
About the Wake on LAN (WOL) feature
With the WOL feature, you can automatically turn on or wake up a PC with your camera. This feature has been available for Samsung
desktop PCs for the last 5 years (not available for all-in-one PCs).
Any changes to your PC’s BIOS settings other than the ones described below may damage your PC. The manufacturer is not responsible for damage caused by your changing
your PC’s BIOS settings.
Setting the PC to wake up from sleep mode
1
Click Start, and then open the Control Panel.
2
Configure the network connection.
•
Windows 7:
Click Network and Internet Network and Sharing
Center Change adapter settings.
•
Windows Vista:
Click Network and Internet Network and Sharing
Center Manage network connections.
•
Windows XP:
Click Network and Internet Connection
Network Connection.
3
Right click Local Area, and then click Properties.
4
Click Configure the Power manage tab
Allow this device to wake the computer.
5
Click OK.
6
Restart the PC.
Wireless network
135
About the Wake on LAN (WOL) feature
Setting the PC to turn on
1
Turn on the PC, and then press F2 while the PC is
booting.
•
The BIOS setting menu will appear.
2
Select Advanced tab Power management Setup.
3
Select Resume on PME Enabled.
4
Press F10 to save your changes, and then continue
booting.
5
Click Start, and then open the Control Panel.
6
Configure the network connection.
•
Windows 7:
Click Network and Internet Network and Sharing
Center Change adapter settings.
•
Windows Vista:
Click Network and Internet Network and Sharing
Center Manage network connections.
•
Windows XP:
Click Network and Internet Connection
Network Connection.
7
Select the drivers for the network adapter.
8
Click the Advanced tab, and then set the WOL menus.
•
You cannot use this feature across a firewall or if a security program has
been installed.
•
To turn on the PC with the WOL feature, the PC must have an active
connection to the LAN. Ensure that the indicator light on the PC’s LAN
port is on indicating that the LAN connection is active.
•
Depending on your PC model, the camera may only be able to wake
the PC.
•
Depending on your PC’s OS or drivers, the names of the WOL setting
menu may vary.
- examples of setting menu names: Enable PME, Wake on LAN, etc.
- examples of setting menu values: Enable, Magic packet, etc.
Settings
137
Settings menu
Learn to configure your camera's settings.
3
Select an item.
Back Select
Medium
On
Sound 1
Off
On
Volume
Beep Sound
Shutter Sound
Start Sound
AF Sound
Sound
4
Select an option.
Back Select
Off
Low
Medium
High
Volume
5
Touch to return to the previous screen.
Accessing the settings menu
1
On the Home screen, touch .
2
Select a menu.
Settings
Sound
Display
Connectivity
General
Option Description
Sound: Set various camera sounds and the volume.
(p. 138)
Display: Customize the display settings. (p. 138)
Connectivity: Set the connection options. (p. 139)
General: Change the settings for the camera system
such as memory format and default file name. (p. 140)
Settings
138
Settings menu
Sound
* Default
Item Description
Volume Set the volume of all sounds.
(Off, Low, Medium*, High)
Beep Sound Set to emit a sound when you press the buttons
or switch modes. (Off, On*)
Shutter Sound
Set the sound the camera emits when you press
the shutter button.
(Off, Sound 1*, Sound 2, Sound 3)
Start Sound
Set the sound the camera emits when you turn on
your camera.
(Off*, Star Flight, Laser Show, Cloud)
AF Sound Set to emit a sound when you half-press the
shutter button. (Off, On*)
Display
* Default
Item Description
Start Image
Set a start image to display when the camera
turns on.
•
Off*: Display no start image.
•
Logo: Display a default image stored in the
internal memory.
•
User Image: Select User Image from the
photos you captured in the memory.
Guide Line Select a guide to help you compose a scene.
(Off*, 3 X 3, 2 X 2, Cross, Diagonal)
Date/Time
Display
Set whether or not to display the date and time on
the camera's display. (Off*, On)
Display
Brightness
Adjust the brightness of the screen.
(Auto*, Dark, Normal, Bright)
Normal is fixed in Playback mode even if you have
selected Auto.
Settings
139
Settings menu
* Default
Item Description
Quick View Set whether or not to review a captured image
before returning to the Shooting mode. (Off, On*)
Power Save
If you perform no operations for 30 seconds, the
camera automatically switches to Power save
mode. (Off*, On)
•
In Power save mode, press any button other
than [POWER] to resume using the camera.
•
Even if you do not set the Power save mode,
the screen will dim 30 seconds after the last
operation to save power.
Connectivity
* Default
Item Description
Video Out
Set the video signal output for your region.
•
NTSC: USA, Canada, Japan, Korea, Taiwan,
Mexico
•
PAL (supports only BDGHI): Australia, Austria,
Belgium, China, Denmark, England, Finland,
France, Germany, Italy, Kuwait, Malaysia,
Netherlands, New Zealand, Norway, Singapore,
Spain, Sweden, Switzerland, Thailand
Anynet+
(HDMI-CEC)
Set to control the playback feature on the camera
with a TV remote control when the camera is
connected to an HDTV or 3D TV that supports
Anynet+(CEC).
•
On*: Control the camera with an HDTV remote
control.
•
Off: View files without using an HDTV remote
control.
Settings
140
Settings menu
* Default
Item Description
HDMI Size
Set the resolution of photos when the camera
plays back files on an HDTV via the HDMI cable.
(NTSC: 1080i*, 720p, 480p/ PAL: 1080i*, 720p,
576p)
•
If the HDTV does not support the selected
resolution, the HDTV automatically selects the
next lower resolution.
•
If you select 480p or 576p, the playback menus
and Smart Album will not be available when you
connect the camera to a TV.
PC Software Set Intelli-studio to launch automatically when you
connect your camera to your computer. (Off, On*)
General
* Default
Item Description
Device Information
See the Mac address and serial number of
your camera.
If the device name is changed, the names for
the Wi-Fi network and the upload folder will also
be changed.
Language Set a language for the display text.
Time Zone
Set the time zone for your location. When
you travel to another country, select Visit,
and then select the appropriate time zone.
(Home*, Visit)
Date/Time Set Set the date and time.
Date Type
Set a date format. (YYYY/MM/DD,
MM/DD/YYYY, DD/MM/YYYY)
The default date type may differ depending on the
language selected.
Wi-Fi
Start a preset Wi-Fi function by pressing
[SMART LINK]. (Mobile Link*, Remote
Viewfinder, Social Sharing, Email, Cloud,
Auto Backup, TV Link)
Settings
141
Settings menu
* Default
Item Description
File No.
Specify how to name files.
•
Reset: Set the file number to start from
0001 when you insert a new memory card,
format a memory card, or delete all files.
•
Series*: Set the file number to resume from
the previous file number when you insert a
new memory card, format a memory card,
or delete all files.
•
The default name of the first folder is
100PHOTO and the default name of the first
file is SAM_0001.
•
The file number increases by one, from
SAM_0001 to SAM_9999, each time you
take a picture.
•
The folder number increases by one, from
100PHOTO to 999PHOTO, each time a
folder is full.
•
The maximum number of files that can be
stored in one folder is 9,999.
•
The camera defines file names according
to the Design rule for Camera File system
(DCF) standard. If you intentionally change
file names, the camera may not play back
the files.
* Default
Item Description
Auto Rotate Set to automatically rotate photos as you
rotate the camera. (Off, On*)
Imprint
Set whether or not to display the date and
time on captured photos.
(Off*, Date, Date & Time)
•
The date and time will be displayed on the
bottom right corner of the photo.
•
Some printer models may not print the date
and time properly.
•
The photo will not display the date and
time if:
- you select Text in Scene mode
- you select Live Panorama, Picture in
Picture, Self Shot, Children, Jump Shot,
Intelligent Portrait, Funny Face, or Motion
Auto Power Off
Set the camera to automatically turn off when
you perform no operations for a specified
period. (Off, 1 min, 3 min*, 5 min, 10 min)
•
Your settings will not change when you
replace the battery.
•
The camera will not automatically turn
off when the camera is connected to a
computer, printer, or WLAN, and when you
are playing a slide show or videos.
Settings
142
Settings menu
* Default
Item Description
AF Lamp Set a light to automatically turn on in dark
places to help you focus. (Off, On*)
Format
Format the memory card. Formatting will
delete all files, including protected files.
(Yes, No)
Errors can occur if you use a memory card
formatted by another brand of camera, a memory
card reader, or a computer. Please format memory
cards in the camera before using them to capture
photos.
Reset
Reset menus and shooting options. Date and
time, language, and video output settings will
not be reset. (Yes, No)
Error messages
……………………………………… 144
Camera maintenance
………………………………… 146
Cleaning your camera
……………………………… 146
Using or storing the camera
………………………… 147
About memory cards
……………………………… 148
About the battery
…………………………………… 151
Before contacting a service center
………………… 155
Camera specifications
……………………………… 158
Glossary
……………………………………………… 162
FCC notice
…………………………………………… 167
Declaration sentence in official languages
………… 170
Index
…………………………………………………… 172
Appendixes
Get information about error messages, specifications, and
maintenance.
Appendixes
144
Error messages
When the following error messages appear, try these remedies.
Error message Suggested remedies
Device
disconnected.
Network connection disconnected while
transferring photos. Select a TV Link device
again.
File Error Delete the damaged file or contact a service
center.
File system not
supported.
Your camera does not support the FAT file
structure of the inserted memory card. Format
the memory card on the camera.
Initialization failed.
•
Turn on TV Link enabled devices on the
network.
•
The camera has failed to locate a TV Link-
enabled device.
Invalid password.
The password for transferring files to another
camera is wrong. Enter the correct password
again.
Low Battery Insert a charged battery or recharge the battery.
Memory Full Delete unnecessary files or insert a new memory
card.
Error message Suggested remedies
Card Error
•
Turn off your camera, and then turn it on
again.
•
Remove your memory card, and then insert
it again.
•
Format your memory card.
Card not
supported.
The inserted memory card is not supported by
your camera. Insert a microSD, microSDHC,
or microSDXC memory card.
Connection failed.
•
The camera cannot connect to the network
using the selected access point. Select
another AP and try again.
•
The camera has failed to connect to the other
camera. Try connecting again.
DCF Full Error
File names do not match the DCF standard.
Transfer the files from the memory card to your
computer and format the card. Then, open the
Settings menu and select File No. Reset.
(p. 141)
Appendixes
145
Error messages
Error message Suggested remedies
No Image File Capture photos or insert a memory card that
contains some photos.
Photo transfer
failed.
Network connection disconnected while
transferring photos. Try turning on the TV Link
feature again.
Photo reception
failed.
The camera has failed to receive a photo from
the sending camera. Ask the other person to
send the file again.
Transfer failed.
•
The camera has failed to send a photo to the
other camera. Try sending again.
•
The camera has failed to send an email or
transfer a photo to a TV Link device. Check
the network connection and try again.
Appendixes
146
Camera maintenance
Camera body
Wipe gently with a soft, dry cloth.
•
Never use benzene, thinners, or alcohol to clean the device.
These solutions can damage the camera or cause it to malfunction.
•
Do not press on the lens cover or use a blower brush on the lens
cover.
Cleaning your camera
Camera lens and display
Use a blower brush to remove dust and wipe the lens gently with
a soft cloth. If any dust remains, apply lens cleaning liquid to a
piece of lens cleaning paper and wipe gently.
Appendixes
147
Camera maintenance
Storing for extended period of time
• When you store the camera for an extended period, place it in a
sealed container with an absorbent material, such as silica gel.
• Remove the batteries from your camera when storing it for an
extended period. Installed batteries may leak or corrode over
time and cause serious damage to your camera.
• Over time, unused batteries will discharge and must be
recharged before use.
• The present date and time can be initialized when the camera
is turned on after the camera and battery have been separated
for over 40 hours.
Using the camera with caution in humid environments
When you transfer the camera from a cold environment to a warm
one, condensation can form on the lens or internal components
of the camera. In this situation, turn off the camera and wait for at
least 1 hour. If condensation forms on the memory card, remove
the memory card from the camera and wait until all moisture has
evaporated before reinserting it.
Other cautions
• Do not swing your camera by the strap. This may cause injury
to yourself or others or damage to your camera.
• Do not paint your camera, as paint can clog moving parts and
prevent proper operation.
• Turn off the camera when not using it.
Using or storing the camera
Inappropriate places to use or store the camera
• Avoid exposing the camera to very cold or very hot
temperatures.
• Avoid using your camera in areas with extremely high humidity,
or where the humidity changes drastically.
• Avoid exposing the camera to direct sunlight and storing it in
hot, poorly-ventilated areas, such as in a car during summer
time.
• Protect your camera and the display from impact, rough
handling, and excessive vibration to avoid serious damage.
• Avoid using or storing your camera in dusty, dirty, humid, or
poorly-ventilated areas to prevent damage to moving parts and
internal components.
• Do not use your camera near fuels, combustibles, or flammable
chemicals. Do not store or carry flammable liquids, gases, or
explosive materials in the same compartment as the camera or
its accessories.
• Do not store the camera where there are mothballs.
Using on beaches or shores
• Protect your camera from sand and dirt when you use it on
beaches or in similar areas.
• Your camera is not waterproof. Do not handle the battery,
adapter, or memory card with wet hands. Operating the camera
with wet hands may cause damage to your camera.
Appendixes
148
Camera maintenance
• Paint or metal on the outside of the camera may cause
allergies, itchy skin, eczema, or swelling for people with
sensitive skin. If you experience any of these symptoms, stop
using the camera immediately and consult a doctor.
• Do not insert foreign objects into any of your camera’s
compartments, slots, or access points. Damage due to
improper use may not be covered by your warranty.
• Do not allow unqualified personnel to service the camera or
attempt to service the camera yourself. Any damage that results
from unqualified service is not covered by your warranty.
About memory cards
Supported memory cards
Your camera supports microSD, microSDHC, or microSDXC
memory cards.
To read data with a PC or memory card reader,
insert the memory card into a memory card
adapter.
• Your camera contains delicate parts. Avoid impacts to the
camera.
• Protect the display from external force by keeping it in the case
when not in use. Protect the camera from scratches by keeping
it away from sand, sharp implements, or loose change.
• Do not use the camera if the screen is cracked or broken.
Broken glass or acrylic could cause injury to your hands and
face. Take the camera to a Samsung service center to have it
repaired.
• Never place cameras, batteries, chargers, or accessories near,
on, or in heating devices, such as microwave ovens, stoves, or
radiators. These devices may be deformed and can overheat
and cause a fire or explosion.
• Do not expose the lens to direct sunlight, as this may discolor
the image sensor or cause it to malfunction.
• Protect the lens from fingerprints and scratches. Clean the lens
with a soft, clean, debris-free lens cloth.
• The camera may turn off if struck or dropped. This is to protect
the memory card. Turn on the camera to use it again.
• While you use the camera, it may heat up. This is normal and
should not affect your camera’s lifespan or performance.
• When you use the camera in low temperatures, it may take
some time to turn on, the color of the display may be changed
temporarily, or after-images may appear. These conditions are
not malfunctions and they will correct themselves when the
camera is returned to milder temperatures.
Appendixes
149
Camera maintenance
Memory card capacity
The memory capacity may differ depending on shooting scenes
or shooting conditions. These capacities are based on a
1 GB microSD card:
Size Super Fine Fine Normal
105 206 303
117 230 337
140 275 406
166 323 469
319 607 858
522 954 1,336
742 1,336 1,878
1,582 2,505 3,006
Video
Size 30fps 15fps
1280 X 720 HQ
Approx.
XX' XX"
Approx.
XX' XX"
1920 X 1080
Approx.
XX' XX"
Approx.
XX' XX"
1280 X 720
Approx.
XX' XX"
Approx.
XX' XX"
640 X 480
Approx.
XX' XX"
Approx.
XX' XX"
320 X 240
Approx.
XX' XX"
Approx.
XX' XX"
For Sharing
Approx.
XX' XX"
Approx.
XX' XX"
* The figures above are measured without using the zoom function. Available
recording time may vary if you use the zoom. Several videos were recorded
in succession to determine the total recording time.
Appendixes
150
Camera maintenance
• Prevent memory cards from making contact with liquids, dirt, or
foreign substances. If dirty, wipe the memory card clean with a
soft cloth before you insert the memory card into your camera.
• Do not allow liquids, dirt, or foreign substances to come in
contact with memory cards or the memory card slot. Doing so
may cause memory cards or the camera to malfunction.
• When you carry a memory card, use a case to protect the card
from electrostatic discharges.
• Transfer important data to other media, such as a hard disk,
CD, or DVD.
• When you use the camera for an extended period, the memory
card may become warm. This is normal and does not indicate
a malfunction.
The manufacturer is not responsible for any loss of data.
Cautions when using memory cards
• Avoid exposing memory cards to very cold or very hot
temperatures (below 0 °C/32 °F or above 40 °C/104 °F).
Extreme temperatures can cause memory cards to malfunction.
• Insert a memory card in the correct direction. Inserting a
memory card in the wrong direction may damage your camera
and memory card.
• Do not use memory cards that have been formatted by other
cameras or by a computer. Reformat the memory card with
your camera.
• Turn off the camera before you insert or remove the memory
card.
• Do not remove the memory card or turn off your camera while
the lamp is blinking, as this may damage your data.
• When the lifespan of a memory card has expired, you cannot
store any more photos on the card. Use a new memory card.
• Do not bend, drop, or subject memory cards to heavy impact
or pressure.
• Avoid using or storing memory cards near strong magnetic
fields.
• Avoid using or keeping memory cards in areas with high
temperature, high humidity, or corrosive substances.
Appendixes
151
Camera maintenance
Battery life
Average shooting time/
Number of photos
Test conditions
(when the battery is fully charged)
Photos
Approximately
130 min/
Approximately
260 photos
The battery life was measured under the
following conditions: in Program mode,
in darkness, resolution, Fine quality,
OIS on.
1. Set the flash option to Fill in, take a
single shot, and zoom in or out.
2. Set the flash option to Off, take a
single shot, and zoom in or out.
3. Perform steps 1 and 2, waiting
30 seconds between each step.
Repeat the process for 5 minutes,
and then turn off the camera for
1 minute.
4. Repeat steps 1 to 3.
Videos Approximately
80 min
Record videos at resolution and
30 FPS.
•
The figures above are measured by Samsung’s standards. Your results may
differ, depending on your actual usage.
•
Several videos were recorded in succession to determine the total recording
time.
•
When using network functions, the battery will be depleted more quickly.
About the battery
Use only Samsung-approved batteries.
Battery specifications
Specification Description
Model BP88A
Type Lithium-ion battery
Cell capacity 880 mAh
Voltage 3.7 V
Charging time*
(when the camera is switched off) Approximately 210 min
* Charging the battery by connecting it to a computer may take longer.
Appendixes
152
Camera maintenance
Cautions about using the battery
Protect batteries, chargers, and memory cards from
damage
Prevent batteries from making contact with metal objects, as this
can create a connection between the + and – terminals of your
battery and lead to temporary or permanent battery damage and
may cause a fire or electric shock.
Notes about charging the battery
• If the status lamp is off, make sure that the battery is inserted
correctly.
• If the camera is on while charging, the battery may not fully
charge. Turn off the camera before charging the battery.
• Do not use your camera when you are charging the battery.
This may cause a fire or electric shock.
• Do not pull the power supply cord to disconnect the plug from
the power outlet, as this may cause a fire or electric shock.
• Let the battery charge for at least 10 minutes before turning on
the camera.
• If you connect the camera to an external power source when
the battery is depleted, using high energy-consuming functions
will cause the camera to turn off. To use the camera normally,
recharge the battery.
Low battery message
When the battery has fully discharged, the battery icon will turn
red and the "Low Battery" message will appear.
Notes about using the battery
• Avoid exposing batteries to very cold or very hot temperatures
(below 0 °C/32 °F or above 40 °C/104 °F). Extreme
temperatures can reduce the charging capacity of your
batteries.
• When you use the camera for an extended period, the area
around the battery chamber may become warm. This does not
affect the normal use of the camera.
• Do not pull the power supply cord to disconnect the plug from
the power outlet, as this may cause a fire or electric shock.
• In temperatures below 0 °C/32 °F, battery capacity and battery
life may decrease.
• Battery capacity may decrease in low temperatures but will
return to normal in milder temperatures.
Appendixes
153
Camera maintenance
• If you reconnect the power cable when the battery is fully
charged, the status lamp turns on for approximately 30 minutes.
• Using the flash or recording videos depletes the battery quickly.
Charge the battery until the red status lamp turns off.
• If the status lamp blinks in red, reconnect the cable, or remove
the battery and insert it again.
• If you charge the battery when the cable is overheated or
the temperature is too high, the status lamp may blink in red.
Charging will start when the battery cools down.
• Overcharging batteries may shorten battery life. After charging is
finished, disconnect the cable from your camera.
• Do not bend or place heavy objects on the AC cable. Doing so
may damage the cable.
Notes about charging with a computer connected
• Use only the provided USB cable.
• The battery may not charge when:
-
you use a USB hub
-
other USB devices are connected to your computer
-
you connect the cable to the port on the front side of your
computer
-
the USB port of your computer does not support the power output
standard (5 V, 500 mA)
Handling and disposing of batteries and chargers
with care
• Never dispose of batteries in a fire. Follow all local regulations
when you dispose of used batteries.
• Never place batteries or cameras on or in heating devices,
such as microwave ovens, stoves, or radiators. Batteries may
explode when they are overheated.
Appendixes
154
Camera maintenance
Personal injury or death can occur if the battery is
handled carelessly or improperly. For your safety,
follow these instructions for proper battery handling:
•
The battery can ignite or explode if not handled properly.
If you notice any deformities, cracks, or other
abnormalities in the battery, immediately discontinue use
of the battery and contact a service center.
•
Use only authentic, manufacturer-recommend battery
chargers and adapters and charge the battery only by the
methods described in this user manual.
•
Do not place the battery near heating devices or expose
it to excessively warm environments, such as the inside
of an enclosed car in the summertime.
•
Do not place the battery in a microwave oven.
•
Avoid storing or using the battery in hot, humid places,
such as spas or shower enclosures.
•
Do not rest the device on flammable surfaces, such as
bedding, carpets, or electric blankets for a prolonged
period.
•
When the device is switched on, do not leave it in any
confined space for a prolonged period.
•
Do not allow battery terminals to come in contact with
metallic objects, such as necklaces, coins, keys, or
watches.
•
Use only authentic, manufacturer-recommended,
Lithium-ion replacement batteries.
•
Do not disassemble or puncture the battery with any
sharp object.
•
Avoid exposing the battery to high pressure or crushing
forces.
•
Avoid exposing the battery to major impacts, such as
dropping it from high places.
•
Do not expose the battery to temperatures of
60 °C (140 °F) or above.
•
Do not allow the battery to come in contact with moisture
or liquids.
•
Do not expose the battery to sources of excessive heat
such as sunshine, fire or the like.
Disposal guidelines
•
Dispose of the battery with care.
•
Do not dispose of the battery in a fire.
•
Disposal regulations may differ by country or region.
Dispose of the battery in accordance with all local and
federal regulations.
Guidelines for charging the battery
Charge the battery only by the method described in
this user manual. The battery can ignite or explode if
not charged properly.
Appendixes
155
Before contacting a service center
If you are having trouble with your camera, try these troubleshooting procedures before you contact a service center. If you have attempted
the suggested remedy and are still having problems with your device, contact your local dealer or service center.
When you leave your camera at a service center, be sure to also leave the other components that may have contributed to the malfunction, such as the memory card and battery.
Situation Suggested remedies
Cannot capture photos
•
There is no space on the memory card.
Delete unnecessary files or insert a new
card.
•
Format the memory card.
•
The memory card is defective. Get a new
memory card.
•
Make sure that the camera is switched on.
•
Charge the battery.
•
Make sure that the battery is inserted
correctly.
The camera freezes Remove the battery and insert it again.
The camera heats up
While you use the camera, it may heat up.
This is normal and should not affect your
camera’s lifespan or performance.
The flash does not work
•
The flash option may be set to Off.
(p. 66)
•
You cannot use the flash in some modes.
Situation Suggested remedies
Cannot turn on the
camera
•
Ensure that the battery is inserted.
•
Ensure that the battery is inserted
correctly. (p. 19)
•
Charge the battery.
The power turns off
suddenly
•
Charge the battery.
•
Your camera may be in Auto Power Off
mode. (p. 141)
•
The camera may turn off to prevent the
memory card from being damaged due
to an impact. Turn on your camera again.
The camera is losing
battery power quickly
•
The battery may lose power more quickly
in low temperatures (below 0 °C/32 °F).
Keep the battery warm by putting it into
your pocket.
•
Using the flash or recording videos
depletes the battery quickly. Recharge
if needed.
•
Batteries are consumable parts that must
be replaced over time. Get a new battery
if the battery life is diminishing quickly.
Appendixes
156
Before contacting a service center
Situation Suggested remedies
The flash fires
unexpectedly
The flash may fire due to static electricity.
The camera is not malfunctioning.
The date and time are
incorrect
Set the date and time in the display settings.
(p. 140)
The display or buttons
do not work Remove the battery, and then insert it again.
The camera display
responds poorly
If you use your camera at very low
temperatures, it may cause the camera
screen to malfunction or discolor. For better
performance of your camera screen, use
your camera in moderate temperatures.
The memory card has
an error
•
Turn off your camera, and then turn it
on again.
•
Remove your memory card, and then
insert it again.
•
Format your memory card.
See “Cautions when using memory cards”
for more detail. (p. 150)
Cannot play back files
If you change the name of a file, your
camera may not play the file (the name of
the file should meet the DCF standard). If
you encounter this situation, play back the
files on your computer.
Situation Suggested remedies
The photo is blurry
•
Make sure that the focus option you set
is suitable for close-up shots. (p. 69)
•
Make sure that the lens is clean. If not,
clean the lens. (p. 146)
•
Make sure that the subject is within range
of the flash. (p. 158)
The colors in the photo
do not match the actual
scene
An incorrect White Balance can create
unrealistic color. Select the proper White
Balance option to suit the light source.
(p. 79)
The photo is too bright
Your photo is overexposed.
•
Turn off the flash. (p. 66)
•
Adjust the ISO sensitivity. (p. 68)
•
Adjust the exposure value. (p. 77)
The photo is too dark
Your photo is underexposed.
•
Turn on the flash. (p. 66)
•
Adjust the ISO sensitivity. (p. 68)
•
Adjust the exposure value. (p. 77)
Appendixes
157
Before contacting a service center
Situation Suggested remedies
The TV does not
display your photos
•
Make sure that the camera is correctly
connected to the TV with the A/V cable.
•
Make sure that your memory card
contains photos.
Your computer does
not recognize your
camera
•
Make sure that the USB cable is
connected correctly.
•
Make sure that your camera is switched
on.
•
Make sure that you are using a supported
operating system.
Your computer
disconnects the camera
while transferring files
The file transmission may be interrupted by
static electricity. Disconnect the USB cable
and connect it again.
Your computer cannot
play videos
Videos may not play on some video player
programs. To play video files captured with
your camera, install and use the Intelli-studio
program on your computer. (p. 109)
Situation Suggested remedies
Intelli-studio is not
functioning properly
•
End Intelli-studio and restart the program.
•
You cannot use Intelli-studio on
Macintosh computers.
•
Make sure that PC Software is set to
On in the settings menu. (p. 140)
•
Depending on your computer's
specifications and environment, the
program may not launch automatically. In
this case, click Start All Programs
SAMSUNG Intelli-studio
Intelli-studio on your computer.
Your TV or computer
cannot display photos
and videos that are
stored on a microSDXC
memory card.
microSDXC memory cards use the exFAT
file system. Ensure that the external device
is compatible with the exFAT file system
before connecting the camera to the device.
Your computer does
not recognize a
microSDXC memory
card.
microSDXC memory cards use the exFAT
file system. To use microSDXC memory
cards on a Windows XP computer,
download and update the exFAT file system
driver from the Microsoft website.
Appendixes
158
Camera specifications
Range
Wide (W) Tele (T)
Normal (AF) 80 cm–infinity 250 cm–infinity
Macro 5–80 cm 100–250 cm
Auto Macro 5 cm–infinity 100 cm–infinity
Shutter speed
•
Auto: 1/8–1/2,000 sec.
•
Program: 1–1/2,000 sec.
Exposure
Control Program AE
Metering Multi, Spot, Center-weighted, Face Detection
Compensation ±2EV (1/3 EV Step)
ISO equivalent Auto, ISO 100, ISO 200, ISO 400, ISO 800, ISO 1600,
ISO 3200
Flash
Mode Off,
Auto, Red-eye, Fill in, Slow Sync, Red-eye Fix
Range
•
Wide: 0.2-4.2 m (ISO Auto)
•
Tele: 0.5-1.8 m (ISO Auto)
Recharging time Approximately 4 sec.
Image sensor
Type 1/2.3" (Approximately 7.76 mm) BSI CMOS
Effective pixels Approximately 16.4 mega-pixels
Total pixels Approximately 16.9 mega-pixels
Lens
Focal length Samsung Lens f = 4.5–22.5 mm
(35 mm film equivalent: 25–125 mm)
F-stop range F2.5 (W)–F6.3 (T)
Zoom
Still image mode: 1.0–5.0X
(Optical zoom X Digital zoom: 25.0X,
Optical zoom X Intelli zoom: 10.0X)
Display
Type AMOLED
Feature Main display: 3.31" (8.41 cm) WVGA (800 x 480)
Focusing
Type
TTL auto focus (Center AF, Multi AF, One Touch
Shooting, Smart Touch AF, Face Detection AF,
Smart Face Recognition AF)
Appendixes
159
Camera specifications
Shake reduction
Optical Image Stabilization (OIS)
Effect
Photo Shooting
mode
Photo Filter (Smart Filter): Miniature, Vignetting,
Soft Focus, Old Film, Half Tone Dot, Sketch, Fish-eye,
Classic, Retro, Oil Painting, Ink Painting, Cartoon,
Cross Filter, Zooming Shot
•
Image Adjust: Sharpness, Contrast, Saturation
Video Shooting
mode
Movie Filter (Smart Filter): Miniature, Vignetting,
Half Tone Dot, Sketch, Fish-eye, Classic, Retro,
Palette Effect 1, Palette Effect 2, Palette Effect 3,
Palette Effect 4
White Balance
Auto WB, Daylight, Cloudy, Fluorescent_H, Fluorescent_L, Tungsten,
Custom Set
Date Imprinting
Date & Time, Date, Off
Shooting
Photos
•
Modes: Smart Auto (Portrait, Night Portrait,
Backlight Portrait, Night, Backlight, Landscape,
White, Natural Green, Blue Sky, Sunset, Macro,
Macro text, Macro Color, Tripod, Action, Fireworks,
candlelight, spotlight, macro_spotlight, portrait_
spotlight), Program, Scene (Landscape, Sunset,
Dawn, Backlight, Beach & Snow, Text), 3D,
Live Panorama, Gesture Shot, Beauty Shot,
HDR Plus, Low Light Shot, Photo Filter,
Picture in Picture, Magic Frame, My Magic Frame,
Split Shot, Artistic Brush, Motion Photo,
Beauty Palette, Wig Shot
•
Burst: Single, Continuous (10 FPS, 5 FPS, 3 FPS),
AEB
•
Timer: Off, 10 Sec, 2 Sec, Double (10 Sec, 2 Sec)
Videos
•
Modes: Smart Movie (Landscape, Blue Sky,
Natural Green, Sunset), Movie, Picture in Picture,
Movie Filter
•
Format: MP4 (H.264) (Max recording time: 20 min)
•
Size: 1280 X 720, 640 X 480, 320 X 240,
For Sharing
•
Frame Rate: 120 FPS, 60 FPS, 30 FPS, 15 FPS
•
Sound Alive: Sound Alive On, Sound Alive Off, Mute
•
OIS: On, Off
•
Video editing (embedded): Pause during recording,
Still image capture
Appendixes
160
Camera specifications
Playback
Photos
•
Type: Single image, Thumbnails, Multi Slide Show
with Music and Effect, Movie clip, Smart Album*
* Smart Album category: All, Date, Face List,
File Type
•
Edit: Resize, Rotate, Image Adjust, Smart Filter, Crop
•
Effect: Image Adjust (Brightness, Contrast,
Saturation, ACB, Face Retouch, Red-eye Fix),
Smart Filter (Normal, Miniature, Vignetting, Soft
Focus, Old Film, Half Tone Dot, Sketch, Fish-eye,
Classic, Retro, Oil Painting, Ink Painting, Cartoon,
Cross Filter, Zooming Shot), Creative Movie Maker
Videos Edit: Still image capture, Time trimming
Storage
Media
External memory (Optional):
microSD card (1–2 GB guaranteed),
microSDHC card (up to 32 GB guaranteed),
microSDXC card (up to 64 GB guaranteed)
File format
•
Still Image: JPEG (DCF), EXIF 2.21, DPOF 1.1, GIF
•
Movie Clip: MP4 (Video: MPEG-4.AVC/H.264,
Audio: AAC)
Image size
For 2 GB microSD: Number of photos
Super Fine Fine Normal
4608 X 3456 XXX XXX XXX
4608 X 3072 XXX XXX XXX
4608 X 2592 XXX XXX XXX
3648 X 2736 XXX XXX XXX
2592 X 1944 XXX XXX XXX
1984 X 1488 XXX XXX XXX
1920 X 1080 XXX XXX XXX
1024 X 768 XXX XXX XXX
These figures are measured under Samsung’s standard
conditions. Your results may vary depending on the
shooting conditions and camera settings.
Appendixes
161
Camera specifications
Dimensions (W X H X D)
98.5 X 59.95 X 17.2 mm (3.88 X 2.36 X 0.68 in.) (without protrusions)
Weight
133 g (4.691 oz.) (without battery and memory card)
Operating Temperature
0–40 °C (32–104 °F)
Operating Humidity
5–85 %
Software
Intelli-studio
Specifications may change without notice to improve performance.
Wireless network
Social Sharing, Email, Samsung MobileLink, Remote Viewfinder, Cloud,
Auto Backup, TV Link, Wi-Fi Direct
Interface
Digital output
connector USB 2.0
Audio input/
output Internal speaker (Mono), Microphone (Mono)
Video output
•
A/V: NTSC, PAL (selectable)
•
HDMI 1.3: NTSC, PAL (selectable)
DC power input
connector 4.2 V
Power source
Rechargeable
battery Lithium-ion battery (BP88A, 880 mAh)
Connector type Micro USB (5 pin)
The power source may differ depending on your region.
Appendixes
162
Glossary
Composition
Composition in photography means arranging objects in a photo.
Usually, abiding by the rule of thirds leads to a good composition.
DCF (Design rule for Camera File system)
A specification to define a file format and file system for digital
cameras created by the Japan Electronics and Information
Technology Industries Association (JEITA).
Depth of field
The distance between the nearest and farthest points that can
be acceptably focused in a photograph. Depth of field varies with
lens aperture, focal length, and distance from the camera to the
subject. Selecting a smaller aperture, for example, will increase
the depth of field and blur the background of a composition.
Digital zoom
A feature that artificially increases the amount of zoom available
with a zoom lens (Optical zoom). When using the Digital zoom,
the image quality will deteriorate as the magnification increases.
ACB (Auto Contrast Balance)
This feature automatically improves the contrast of your images
when the subject is backlit or when there is a high contrast
between your subject and the background.
AEB (Auto Exposure Bracket)
This feature automatically captures several images at different
exposures to help you capture a properly-exposed image.
AF (Auto Focus)
A system that automatically focuses the camera lens on the
subject. Your camera uses the contrast to focus automatically.
Aperture
The aperture controls the amount of light that reaches the
camera’s sensor.
Camera shake (Blur)
If the camera is moved while the shutter is open, the entire image
may appear blurred. This occurs more often when the shutter
speed is slow. Prevent camera shake by raising the sensitivity,
using the flash, or using a faster shutter speed. Alternately, use a
tripod, the DIS or OIS function to stabilize the camera.
Appendixes
163
Glossary
Exposure
The amount of light allowed to reach the camera’s sensor.
Exposure is controlled by a combination of the shutter speed, the
aperture value, and ISO sensitivity.
Flash
A speed light that helps to create adequate exposure in low-light
conditions.
Focal length
The distance from the middle of the lens to its focal point (in
millimeters). Longer focal lengths result in narrower angles of view
and the subject is magnified. Shorter focal lengths result in wider
angles of view.
H.264/MPEG-4
A high-compression video format established by international
standard organizations ISO-IEC and ITU-T and developed by the
Joint Video Team (JVT). This codec is capable of providing good
video quality at low bit rates.
DPOF (Digital Print Order Format)
A format for writing printing information, such as selected images
and number of prints, on a memory card. DPOF-compatible
printers, sometimes available at photo shops, can read the
information from the card for convenient printing.
EV (Exposure Value)
All the combinations of the camera’s shutter speed and lens
aperture that result in the same exposure.
EV Compensation
This feature allows you to quickly adjust the exposure value
measured by the camera, in limited increments, to improve the
exposure of your photos. Set the EV compensation to -1.0 EV to
adjust the value one step darker and 1.0 EV to one step brighter.
Exif (Exchangeable Image File Format)
A specification to define an image file format for digital cameras
created by the Japan Electronic Industries Development
Association (JEIDA).
Appendixes
164
Glossary
Macro
This feature allows you to capture close-up photos of very small
objects. When using the macro feature, the camera can maintain
a sharp focus on small objects at a near life-size ratio (1:1).
Metering
The metering refers to the way in which the camera measures the
quantity of light to set the exposure.
MJPEG (Motion JPEG)
A video format which is compressed as a JPEG image.
Noise
Misinterpreted pixels in a digital image that may appear as
misplaced or random, bright pixels. Noise usually occurs when
photos are shot with a high sensitivity or when a sensitivity is
automatically set in a dark place.
OIS (Optical Image Stabilization)
This feature compensates in real-time for shaking and vibrating
while shooting. There is no image degradation compared to
Digital Image Stabilization feature.
Image sensor
The physical part of a digital camera that contains a photosite for
each pixel in the image. Each photosite records the brightness of
the light that strikes it during an exposure. Common sensor types
are CCD (Charge-coupled Device) and CMOS (Complementary
Metal Oxide Semiconductor).
ISO sensitivity
The sensitivity of the camera to light, based on the equivalent film
speed used in a film camera. At higher ISO sensitivity settings,
the camera uses a higher shutter speed, which can reduce blur
caused by camera shake and low light. However, images with
high sensitivity are more susceptible to noise.
JPEG (Joint Photographic Experts Group)
A lossy method of compression for digital images. JPEG images
are compressed to reduce their overall file size with minimal
deterioration of the image resolution.
LCD (Liquid Crystal Display)
A visual display commonly used in consumer electronics. This
display needs a separate backlight, such as CCFL or LED, to
reproduce colors.
Appendixes
165
Glossary
Vignetting
A reduction of an image’s brightness or saturation at the periphery
(outer edges) compared to the center of the image. Vignetting
can draw interest to subjects positioned in the center of an
image.
White balance (color balance)
An adjustment of the intensities of colors (typically the primary
colors red, green, and blue), in an image. The goal of adjusting
the white balance, or color balance, is to correctly render the
colors in an image.
Optical zoom
This is a general zoom which can enlarge images with a lens and
does not deteriorate quality of images.
Quality
An expression of the rate of compression used in a digital image.
Higher quality images have a lower rate of compression, which
usually results in a larger file size.
Resolution
The number of pixels present in a digital image. High resolution
images contain more pixels and typically show more detail than
low resolution images.
Shutter speed
Shutter speed refers to the amount of time it takes to open and
close the shutter, and it is an important factor in the brightness of
a photo, as it controls the amount of light which passes through
the aperture before it reaches the image sensor. A fast shutter
speed allows less time to let light in and the photo becomes
darker and more easily freezes subjects in motion.
Appendixes
166
Correct Disposal of This Product
(Waste Electrical & Electronic Equipment)
(Applicable in the European Union and other European
countries with separate collection systems)
This marking on the product, accessories or literature indicates that
the product and its electronic accessories (e.g. charger, headset, USB
cable) should not be disposed of with other household waste at the
end of their working life. To prevent possible harm to the environment
or human health from uncontrolled waste disposal, please separate
these items from other types of waste and recycle them responsibly to
promote the sustainable reuse of material resources. Household users
should contact either the retailer where they purchased this product,
or their local government office, for details of where and how they can
take these items for environmentally safe recycling. Business users
should contact their supplier and check the terms and conditions of the
purchase contract. This product and its electronic accessories should
not be mixed with other commercial wastes for disposal.
PlanetFirst represents Samsung Electronics'
commitment to sustainable development and social
responsibility through eco-driven business and
management activities.
Correct disposal of batteries in this product
(Applicable in the European Union and other European
countries with separate battery return systems)
This marking on the battery, manual or packaging indicates that
the batteries in this product should not be disposed of with other
household waste at the end of their working life. Where marked, the
chemical symbols Hg, Cd or Pb indicate that the battery contains
mercury, cadmium or lead above the reference levels in EC Directive
2006/66. If batteries are not properly disposed of, these substances
can cause harm to human health or the environment.
To protect natural resources and to promote material reuse, please
separate batteries from other types of waste and recycle them through
your local, free battery return system.
This Class [B] digital apparatus complies with Canadian
ICES-003.
Dispose unwanted electronics through an approved recycler.
To find the nearest recycling location, go to our website:
www.samsung.com/recyclingdirect Or call, (877) 278 - 0799
Appendixes
167
FCC notice
Caution:
Any changes or modifications in construction of this device which are not
expressly approved by the party responsible for compliance could void the user's
authority to operate the equipment.
NOTE:
This equipment has been tested and found to comply with the limits for a Class
B digital device, pursuant to part 15 of the FCC Rules. These limits are designed
to provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses and can radiate radio frequency
energy and, if not installed and used in accordance with the instructions,
may cause harmful interference to radio communications. However, there is
no guarantee that interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or television reception,
which can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the following
measures:
- Reorientate, or relocate, the receiving antenna.
- Increase the distance between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which
the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
•
Declaration of Conformity
Trade Name : Samsung Electronics America, Inc.
Model No. : Samsung MV900F
Responsible Party : Samsung Electronics America, Inc.
Address : 85 Challenger Road, Ridgefield Park,
NJ 07660
Telephone No. : 1-800-SAMSUNG (726-7864)
This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and (2)
this device must accept any interference received, including
interference that may cause undesired operation.
FCC ID:A3LDV300F
This device complies with part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) This device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that
may cause undesired operation.
RF exposure statements:
This device is for handheld operation only. The antenna(s) used for this
transmitter must be installed to provide a separation distance of at least 20 cm
from all persons and must not be co-located or operating in conjunction with any
other antenna or transmitter.
FCC ID : A3LMV900F
0cm
Appendixes
168
CAUTION
RISK OF EXPLOSION IF BATTERY IS REPLACED BY
AN INCORRECT TYPE.
DISPOSE OF USED BATTERIES ACCORDING
TO THE INSTRUCTIONS.
Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and
(2) This device must accept any interference received,
including interference that may cause undesired operation.
Caution:
Any changes or modifications to the equipment not expressly
approved by the party responsible for compliance could void
user’s authority to operate the equipment.
IC: 649E-DV300F
This equipment may be operated in all EU countries.
In France, this equipment may only be used indoors.
Complies with
IDA Standards
DA100790
Approved by PTA,
year 2012
TA-2011/1536
APPROVED
No.: ESD-1205936C
938
NO-L-14041/01/2011/ETA/2012
1668/2012/WRLO
IC : 649E-MV900F
Le présent appareil est conforme aux CNR d'Industrie
Canada applicables aux appareils radio exempts de licence.
L'exploitation est autorisée aux deux conditions suivantes :
(1) l'appareil ne doit pas produire de brouillage, et (2)
l'utilisateur de l'appareil doit accepter tout brouillage
radioélectrique subi, même si le brouillage est susceptible
d'en compromettre le fonctionnement.
Appendixes
169
Declaration of Conformity
and the Eco-Design Directive (2009/125/EC) implemented by
Regulations (EC) No 278/2009 for external power supplies.
Representative in the EU
Samsung Electronics Euro QA Lab.
Blackbushe Business Park
Saxony Way, Yateley, Hampshire
GU46 6GG, UK
(YEAR TO BEGIN AFFIXING CE MARKING 2011)
22 December, 2011
(Place and date of issue)
Joong-Hoon Choi / Lab. Manager
(Name and signature of authorized person)
* This is not the address of Samsung Service Centre. For the
address or the phone number of Samsung Service Centre, see
the warranty card or contact the retailer where you purchased
your product.
Product details
For the following
Product : DIGITAL CAMERA
Model(s) : MV900F
Declaration & Applicable standards
We hereby declare that the product(s) above is(are) in
compliance with the essential requirements and other provisions
of the R&TTE Directive (1999/5/EC), the Low Voltage Directive
(2006/95/EC) and the Electromagnetic Compatibility Directive
(2004/108/EC) by application of:
EN 60950-1:2006+A1:2010 EN 55024:1998+A1:2001+A2:2003
EN 55022:2006+A1 :2007
EN 61000-3-2:2006 +A1:2009 +A2:2009
EN 61000-3-3:2008 EN 300 328 v1.7.1
EN 301 489-1 v1.8.1 EN 301 489-17 V2.1.1
EN62311 :2008
Appendixes
170
Declaration sentence in official languages
Nation Declaration
Cesky
Samsung Electronics tímto prohlašuje, že tento digitální fotoaparát je ve shodě se základními požadavky a dalšími
příslušnými ustanoveními směrnice 1999/5/ES.
Dansk Samsung Electronics erklærer herved, at digitale kameraer overholder de væsentlige krav og øvrige relevante krav i direktiv
1999/5/EF.
Deutsch Hiermit erklärt Samsung Electronic, dass sich die Digitalkamera in Übereinstimmung mit den grundlegenden Anforderungen und den
übrigen einschlägigen Bestimmungen der Richtlinie 1999/5/EG befindet.
Eesti Käesolevaga kinnitab Samsung Electronics digitaalkaamera vastavust direktiivi 1999/5/EÜ põhinõuetele ja nimetatud direktiivist
tulenevatele teistele asjakohastele sätetele.
English Hereby, Samsung Electronics declares that this digital camera is in compliance with the essential requirements and other relevant
provisions of Directive 1999/5/EC.
Español Por medio de la presente Samsung Electronics declara que la cámara digital cumple con los requisitos esenciales y cualesquiera
otras disposiciones aplicables o exigibles de la Directiva 1999/5/CE.
Ελληνική ΜΕ ΤΗΝ ΠΑΡΟΥΣΑ η Samsung Electronics ΔΗΛΩΝΕΙ ΟΤΙ η ψηφιακή φωτογραφική μηχανή ΣΥΜΜΟΡΦΩΝΕΤΑΙ ΠΡΟΣ ΤΙΣ
ΟΥΣΙΩΔΕΙΣ ΑΠΑΙΤΗΣΕΙΣ ΚΑΙ ΤΙΣ ΛΟΙΠΕΣ ΣΧΕΤΙΚΕΣ ΔΙΑΤΑΞΕΙΣ ΤΗΣ ΟΔΗΓΙΑΣ 1999/5/ΕΚ.
Français Par la présente Samsung Electronic déclare que l'appareil photo numérique est conforme aux exigences essentielles et aux autres
dispositions pertinentes de la directive 1999/5/CE.
Italiano Con la presente Samsung Electronicsdichiara che questa fotocamera digitale è conforme ai requisiti essenziali e alle altre disposizioni
stabilite dalla Direttiva 1999/5/CE.
Latviski Ar šo Samsung Electronics deklarē, ka digitālā kamera atbilst Direktīvas 1999/5/EK būtiskajām prasībām un citiem ar to saistītajiem
noteikumiem.
LietuviųŠiuo Samsung Electronics deklaruoja, kad šis skaitmeninis fotoaparatas, atitinka esminius reikalavimus ir kitas 1999/5/EB Direktyvos
nuostatas.
Nederlands Hierbij verklaart Samsung Electronics dat de digitale camera in overeenstemming is met de essentiële eisen en de andere relevante
bepalingen van richtlijn 1999/5/EG.
Appendixes
171
Declaration sentence in official languages
Nation Declaration
Malti Hawnhekk, Samsung Electronics, tiddikjara li din il-kamera diġitali hi konformi mar-rekwiżiti essenzjali u ma' dispożizzjonijiet rilevanti
oħrajn ta' Direttiva 1999/5/KE.
Magyar A Samsung Electronics kijelenti, hogy ez a digitális fényképezőgép megfelel az 1999/5/EK irányelv alapvetõ követelményeinek és
egyéb vonatkozó elõírásainak.
Polski Niniejszym firma Samsung Electronics oświadcza, że ten aparat cyfrowy jest zgodny z zasadniczymi wymogami oraz pozostałymi
stosownymi postanowieniami Dyrektywy 1999/5/WE.
Português Samsung Electronics declara que esta câmera digital está conforme os requisitos essenciais e outras disposições da Directiva
1999/5/CE.
Slovensko Samsung Electronics izjavlja, da je ta digitalni fotoaparat v skladu z bistvenimi zahtevami in ostalimi relevantnimi določili direktive
1999/5/ES.
Slovensky Samsung Electronics týmto vyhlasuje, že tento digitálny fotoaparát spĺňa základné požiadavky a všetky príslušné ustanovenia
Smernice 1999/5/ES.
Suomi Samsung Electronics vakuuttaa täten että tämä digitaalikamera on direktiivin 1999/5/EY oleellisten vaatimusten ja sitä koskevien
direktiivin muiden ehtojen mukainen.
Svenska Härmed intygar Samsung Electronicsatt dessa digitalkameror står i överensstämmelse med de väsentliga egenskapskrav och övriga
relevanta bestämmelser som framgår av direktiv 1999/5/EG.
Български С настоящото Samsung Electronics декларира, че този цифров фотоапарат е в съответствие със съществените изисквания и
другите приложими разпоредби на Директива 1999/5/ЕК.
RomânăPrin prezenta, Samsung Electronics, declară că această cameră foto digitală este în conformitate cu cerinţele esenţiale şi alte
prevederi relevante ale Directivei 1999/5/CE.
Norsk Samsung Electronicserklærer herved at dette digitalkameraet er i samsvar med de grunnleggende krav og øvrige relevante krav i
direktiv 1999/5/EF.
Türkiye Bu belge ile, Samsung Electronics bu dijital kameranın 1999/5/EC Yönetmeliginin temel gerekliliklerine ve ilgili hükümlerine uygun
olduğunu beyan eder.
Íslenska Hér með lýsir Samsung Electronics því yfir að þessi stafræna myndavél sé í samræmi við grunnkröfur og önnur ákvæði tilskipunar
1999/5/EB.
Appendixes
172
Index
A
AF-assist light
Location 15
Settings 142
AF Lamp 142
AF Sound 138
Artistic Brush mode 57
Auto Backup 129
Auto Contrast Balance (ACB)
Playback mode 101
Shooting mode 78
A/V port 15
B
Battery
Caution 152
Charging 20
Inserting 19
Beauty Shot mode 49
Blink Detection 74
Brightness
Playback mode 100
Shooting mode 77
C
Camera maintenance 146
Camera specifications 158
Capturing an image from
video 97
Charging 20
Cleaning
Camera body 146
Display 146
Lens 146
Connecting to a computer
Mac 113
Windows 108
Contrast
Playback mode 100
Shooting mode 83
D
Date/Time Set 140
Deleting files 93
Digital Print Order Format
(DPOF) 102
Digital zoom 33
Disconnecting
the camera 112
Display brightness 138
E
Editing photos 98
Editing videos
Capturing 97
Trimming 97
Enlarging 94
Error messages 144
Exposure 77
Appendixes
173
Index
F
Face Detection 72
Flash
Auto 66
Fill in 67
Off 66
Red-eye 67
Red-eye Fix 67
Slow Sync 67
Focus area
Center AF 71
Multi AF 71
Formatting 142
G
Guide Line 138
H
Half-press shutter 36
Help mode 30
Home screen 26
I
Icons
Home screen 26
Playback mode 89
Shooting mode 23
Image Adjustment
ACB 101
Brightness
Playback mode 100
Shooting mode 77
Contrast
Playback mode 100
Shooting mode 83
Red-eye 101
Saturation
Playback mode 100
Shooting mode 83
Sharpness 83
Image quality 64
Imprint 141
Intelli-studio 110
Intelli zoom 33
ISO sensitivity 68
L
Language settings 140
Live Panorama mode 46
M
Macro 69
Magic Frame mode 55
Memory card
Caution 150
Insert 19
Metering
Center-weighted 78
Multi 78
Spot 78
Motion recognition 89
Movie Filter mode 52
Movie mode 42
My star
Ranking 90
Registering 75
O
Optical Image Stabilization
(OIS) 34
Optional accessories 14
P
Photo Filter mode 51
Picture in Picture mode 53
Playback mode 88
Power button 15
Power save mode 139
Program mode 40
Protecting files 92
Appendixes
174
Time zone settings 21, 140
Transferring files
Auto Backup 129
Email 125
Mac 113
Windows 108
Tripod mount 15
TV Link 131
U
Unpacking 14
USB port 15
User buttons 41
Using the touch screen
flicking 24
scrolling 24
touching 24
Slide show 95
Smart Album 91
Smart Auto mode 39
Smart Face Recognition 74
Smart Filter
Photo shooting mode 51
Playback mode 99
Video recording mode 52
Smile Shot 73
Split Shot mode 56
Start Image 138
Status lamp 16
T
Thumbnails 92
Timer
Shooting mode 65
Timer lamp 15
Time settings 21
S
Saturation
Playback mode 100
Shooting mode 83
Scene mode 44
Service center 155
Settings 140
Sharpness 83
Shooting portraits
Blink Detection 74
Face Detection 72
Red-eye 67
Red-eye fix 67
Smart Face Recognition 74
Smile Shot 73
Shutter button 15
Q
Quick view 139
R
Red-eye
Playback mode 101
Shooting mode 66
Remote Viewfinder 121
Reset 142
Resolution
Playback mode 98
Shooting mode 63
Retouching faces
Playback mode 101
Shooting mode 49
Index
Appendixes
175
V
Video
Playback mode 96
Shooting mode 42
Video out 139
Viewing files
Animated photos 95
Folder 91
Panoramic photos 94
Slide show 95
Smart Album 91
Thumbnails 92
TV 105
W
Website
Accessing 123
Uploading photos
or videos 123
White Balance 79
Wireless network 115
Z
Zoom
Using the zoom 32
Zoom button 16
Zoom sound settings 84
Index
