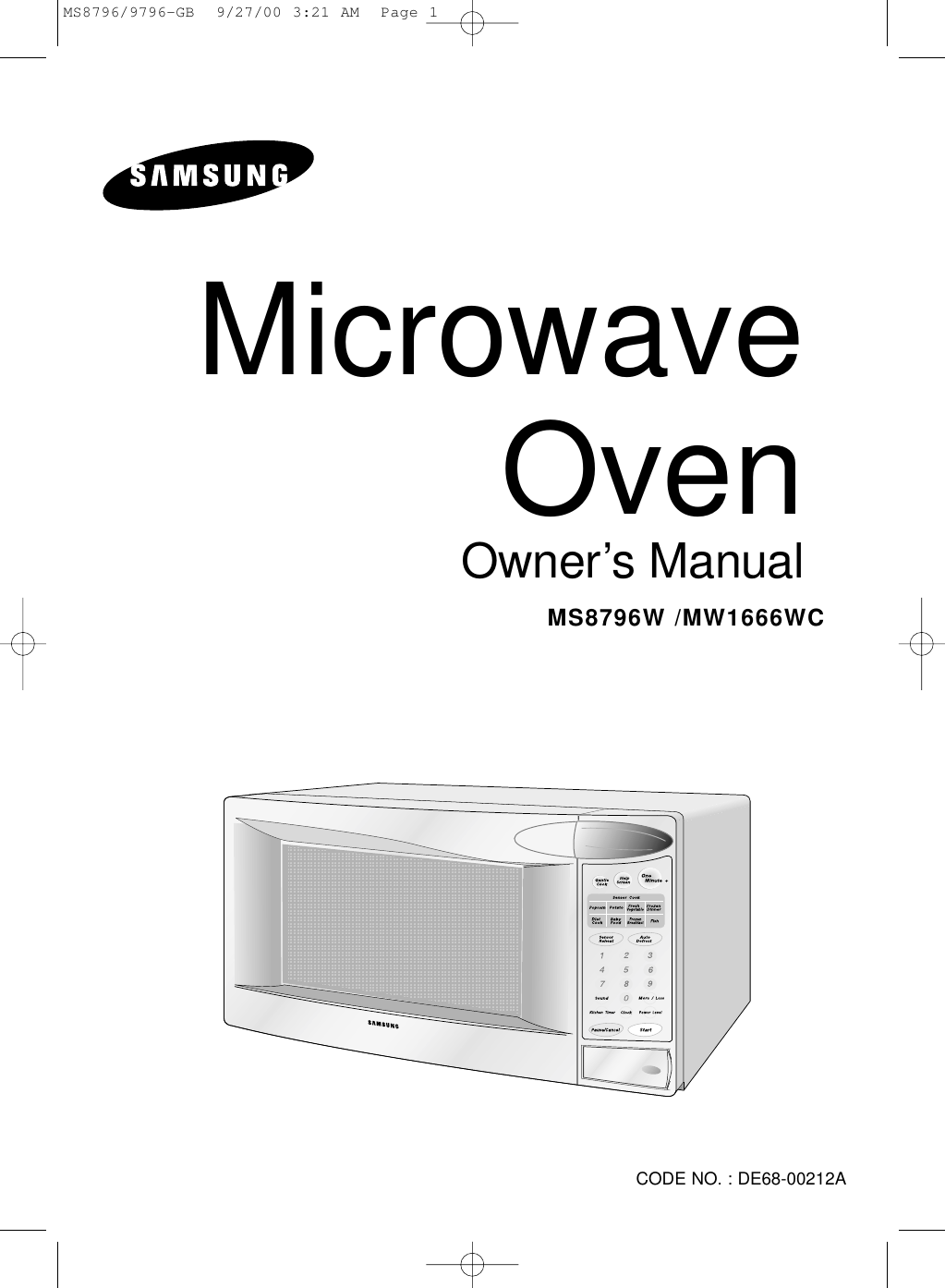

Microwave OvenOwner’s ManualMS8796W /MW1666WCCODE NO. : DE68-00212AMS8796/9796-GB 9/27/00 3:21 AM Page 1
SAFETY2SAFETYPRECAUTIONS TOAVOID POSSIBLEEXPOSURE TOEXCESSIVEMICROWAVE ENERGY:(a) Do not attempt to operate this oven with the door open since open-door operation can result in harmful exposure to microwave energy. It is important not to defeat or tamper with the safety interlocks.(b) Do not place any object between the front face of the oven and the door or allow soil or cleaner residue to accu-mulate on sealing surfaces.(c) Do not operate the oven if it is dam-aged. It is particularly important that theoven door close properly and that thereis no damage to the 1) Door (bent or dented), 2) Hinges and latches (broken orloosened), 3) Door seals and sealing surfaces.(d) The oven should not be adjusted or repaired by anyone except properly qualified service personnel.WARNINGAlways observe Safety Precautionswhen using your oven. Never try torepair the oven on your own – there isdangerous voltage inside. If the ovenneeds to be repaired, call 1-800-SAM-SUNG for the name of an authorizedservice center near you.IMPORTANT SAFETYINSTRUCTIONSWARNING• Some items, like whole eggs and food in sealedcontainers, may explode if heated in this oven.• Use this appliance only for its intended use asdescribed in the manual. Do not use corrosivechemicals or vapors in this appliance. This typeof oven is specifically designed to heat, cook, ordry food. It is not designed for industrial or labo-ratory use.• As with any appliance, close supervision is nec-essary when used by children.To reduce risk of burns, electricshock, fire, personal injury or expo-sure to excessive microwave energy:• Read all safety instructions before using the appliance.• Read and follow the specific “Precautions to Avoid Exposure to Excessive Microwave Energy” on this page.• This appliance must be grounded. Connect only to properly grounded outlets. See “Important Grounding Instructions” on page 4of this manual. • Install or place this appliance only in accor-dance with the installation instructionsprovided.SAVE THESE INSTRUCTIONSWhen using any electrical appliance,basic safety precautions should be followed, including the following:MS8796/9796-GB 9/27/00 3:21 AM Page 2
SAFETY3SAFETYImportant Safety Instructions, continued• Do not operate this appliance if it has a damagedcord or plug, if it is not working properly, or if ithas been damaged.• This appliance should be serviced only by quali-fied service personnel. Contact the nearest autho-rized service facility for examination, repair, oradjustment.• Do not cover or block any of the openings on thisappliance.• Do not store this appliance outdoors. Do not usenear water – for example, near a kitchen sink, in awet basement, or near a swimming pool, etc. • Keep the inside of the oven clean. Food particlesor spattered oils stuck to the oven walls or floorcan cause paint damage and reduce the efficien-cy of the oven.• Do not immerse cord or plug in water.• Keep cord away from heated surfaces.• Do not let cord hang over edge of table orcounter.• When cleaning door and oven surfaces, use onlymild, nonabrasive soaps or detergents appliedwith a sponge or soft cloth.• To reduce the risk of fire in the oven:a.Do not overcook food. Watch appliance carefully if paper, plastic, or other combustible materials are inside.b. Remove wire twist-ties from plastic cooking bags before placing bags in oven.c.If materials inside the oven ignite, keep the oven door closed, turn the oven off, disconnect the power cord, or shut off the power at the fuse or circuit breaker panel.d.Do not use the oven compartment for storage purposes. Do not leave paper products, cookingutensils, or food in the oven when not in use.• Do not try to preheat oven or operate while empty.• Do not cook without the glass tray in place on theoven floor. Food will not cook properly without thetray.• Do not defrost frozen beverages in narrow-neckedbottles. The containers can break.• Do not cook whole eggs in the shell.Break egg into dish, prick yolk 2 to 3 times, coverand microwave on 50% power until desired done-ness.• Dishes and containers can become hot. Handlewith care.• Carefully remove container coverings, directingsteam away from hands and face.• Remove lids from baby food before heating. Afterheating baby food, stir well and test temperatureby tasting before serving.• A short power-supply cord is provided to reducethe risk of becoming entangled in or tripping overa longer cord. Longer cord sets or extensioncords are available and may be used with caution. • Do not operate any other heating or cooking appli-ance beneath this appliance.• Do not mount unit over or near any portion of aheating or cooking appliance.• Do not mount over a sink.• Do not store anything directly on top of the appli-ance when it is in operation.SAVE THESE INSTRUCTIONSMS8796/9796-GB 9/27/00 3:21 AM Page 3
This appliance must be grounded. In the event ofan electrical short circuit, grounding reduces therisk of electric shock by providing an escape wirefor the electrical current. This appliance isequipped with a cord that includes a groundingwire and a grounding plug. The plug must beplugged into an outlet that is properly installed andgrounded. Plug the three-prong power cord into aproperly grounded outlet of standard 115-120 volt-age, 60 Hz. Your oven should be the only applianceon this circuit.WARNINGImproper use of the grounding plug can resultin a risk of electric shock. Consult a qualifiedelectrician or servicer if you do not understandthe grounding instructions or if you are notsure if the appliance is properly grounded.Use of Extension Cords A short power-supply cord is provided to reducethe risk of becoming entangled in or tripping over alonger cord. Longer cord sets or extension cordsare available and may be used if care is exercisedin their use. If a long cord or extension cord isused:1. The marked electrical rating of the cord set or extension cord should be at least as great as the electrical rating of the appliance.2. The extension cord must be a grounding-type 3-wire cord and it must be plugged into a 3-slot outlet. 3. The longer cord should be arranged so that it will not drape over the counter top or tabletop where it can be pulled on by children or tripped over accidentally. If you use an extension cord, the interior light may flicker and the blower may vary when the microwave oven is on. Cooking times may be longer, too.WARNING Do not cut or remove the third (ground) prongfrom the power cord under any circum-stances.SAFETY4SAFETYImportant GroundingInstructionsSAVE THESE INSTRUCTIONSMS8796/9796-GB 9/27/00 3:21 AM Page 4
Your New Microwave Oven . . . . . .6Checking Parts . . . . . . . . . . . . . . . . . . . .6Setting Up Your Microwave Oven . . . .6Control Panel Buttons . . . . . . . . . . . . . .7Operation . . . . . . . . . . . . . . . . . . . . .8Turning on the Power and Selecting aDisplay Language . . . . . . . . . . . . . . . . . .8Setting the Clock . . . . . . . . . . . . . . . . . .8Using the Pause/Cancel Button . . . . . .8Using the Help System . . . . . . . . . . . . .9Using the Sensor Cook Buttons . . . . . .9Using the One Minute+ Button . . . . . .10Using the Gentle Cook Button . . . . . .10Sensor Reheat . . . . . . . . . . . . . . . . . . .10Defrosting Automatically . . . . . . . . . . .11Defrosting Guide . . . . . . . . . . . . . . . . .12Setting Cooking Times &Power Levels . . . . . . . . . . . . . . . . . . . .13One-stage Cooking . . . . . . . . . . . .13Multi-stage Cooking . . . . . . . . . . .13Using the More/Less Button . . . . . . . .14Adjusting the Volume . . . . . . . . . . . . . .14Using the Kitchen Timer . . . . . . . . . . .15Setting the Child Protection Lock . . . .15Demonstration Mode . . . . . . . . . . . . . .15Cooking Instructions . . . . . . . . . . . .16Cooking Utensils . . . . . . . . . . . . . . . . . .16Testing Utensils . . . . . . . . . . . . . . . . . .16Cooking Techniques . . . . . . . . . . . . . . .17General Tips . . . . . . . . . . . . . . . . . . . . .17Auto Sensor Cook . . . . . . . . . . . . . . . .18Utensils & Cover For Sensor Cooking . . . . . . . . . . . . . . . . . .18Important . . . . . . . . . . . . . . . . . . . . . . . .18Cooking Guides . . . . . . . . . . . . . . . .19-20Sensor Cooking Guide . . . . . . . . . .21-22Sensor Reheat Guide . . . . . . . . . . . . .22Sensor Recipes . . . . . . . . . . . . . . . .23-24Appendix . . . . . . . . . . . . . . . . . . . . .25Troubleshooting Guide . . . . . . . . . . . . .25Care and Cleaning . . . . . . . . . . . . . . . .25Warranty Information . . . . . . . . . . . . .26Specifications . . . . . . . . . . . . . . . . . . . .26Guía de Consulta Rápida enEspañol . . . . . . . . . . . . . . . . . . . .27-28Manual Block Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . .29-30Quick Guide . . . . . . . . . . . . .Back CoverCONTENTS5CONTENTSMS8796/9796-GB 9/27/00 3:21 AM Page 5
Checking PartsUnpack your microwave oven and check to makesure that you have all the parts shown here. If anypart is missing or broken, call your dealer.Thank You for Choosing SamsungYour new oven represents the latest in microwavecooking technology. This oven is a full-featured,easy-to-use appliance built to strict quality stan-dards set by Samsung — the highest in the indus-try. We’re proud to offer you a product that willprovide convenient, dependable service for yearsto come. Please record the serial number from the inside orback of your Samsung microwave oven and thedate of purchase in the space provided below. Werecommend that you keep your purchase receiptwith this manual for easy warranty service. Model Number _________________________Serial Number _________________________Date Purchased _________________________Dealer _________________________Setting Up Your Microwave Oven1Place the oven on a flat, sturdy surfaceand plug the cord into a grounded outlet.Once plugged in, the display on youroven will show:Make sure there is adequate ventilation for youroven by leaving at least four inches of spacebehind, above, and to the side of the oven. 2Open the oven door by pressing the but-ton below the control panel.3Wipe the inside of the oven with a dampcloth.4Place the pre-assembled roller guide inthe indentation in the center of the oven.5Place the glass tray on top of the rollerguide so that the three glass tabs in thecenter of the tray fit securely into thetabs on the floor of the oven.YOURNEWMICROWAVE OVEN6YOURNEWMICROWAVEOVENmicrowave ovenglass tray instruction manualregistration cardroller guide MS8796/9796-GB 9/27/00 3:21 AM Page 6
YOURNEWMICROWAVE OVEN7YOURNEWMICROWAVEOVENControl Panel ButtonsOne Minute+ p. 10Press once for every minute of cooking atHigh power.Sensor Cook Buttons p. 9Seneor settings to cook popular foods.Sensor Reheat p. 10Shows type and quantity of food to be reheat-ed.Help Screen p. 9Press to see help information about the fea-ture you are using.Gentle Cook p. 10Press to set gentler cooking with reducedpowerNumber ButtonsSets cooking times or amounts and powerlevels other than high.Sound Button p. 14More/Less Button p. 14Increases or decreases cooking time. Kitchen Timer p. 15StartPress to start cooking.Auto Defrost p. 11Sets weight of food to be defrosted.Power Level p. 13Sets power to level other than high.Clock p. 8Sets current time.Pause/Cancel p. 8Press to pause oven or correct a mistake.MS8796/9796-GB 9/27/00 3:21 AM Page 7

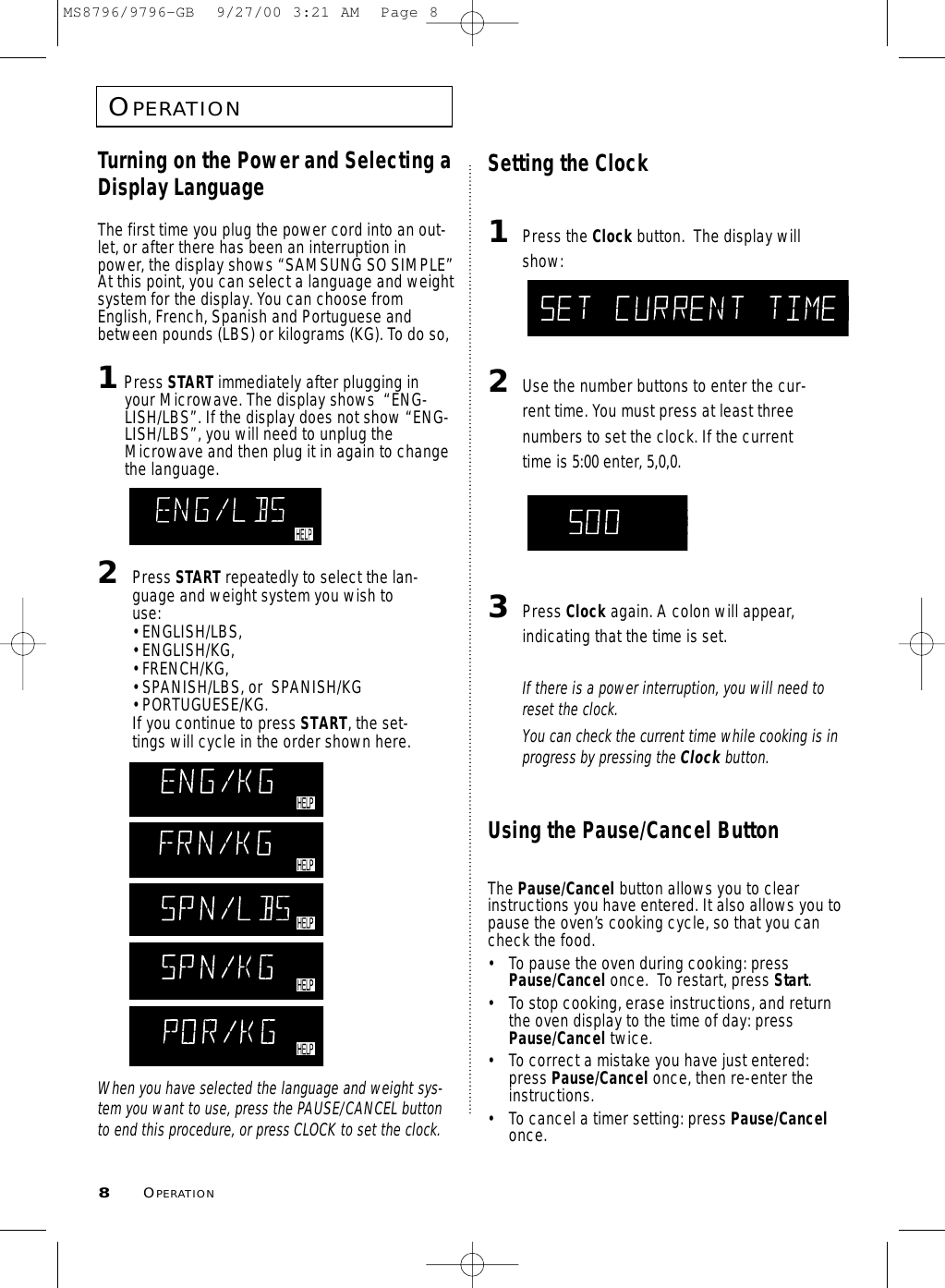

Turning on the Power and Selecting aDisplay LanguageThe first time you plug the power cord into an out-let, or after there has been an interruption inpower, the display shows “SAMSUNG SO SIMPLE”At this point, you can select a language and weightsystem for the display. You can choose fromEnglish, French, Spanish and Portuguese andbetween pounds (LBS) or kilograms (KG). To do so, 1 Press START immediately after plugging in your Microwave. The display shows “ENG-LISH/LBS”. If the display does not show “ENG-LISH/LBS”, you will need to unplug theMicrowave and then plug it in again to changethe language.2 Press START repeatedly to select the lan-guage and weight system you wish touse:• ENGLISH/LBS,• ENGLISH/KG,• FRENCH/KG,• SPANISH/LBS, or SPANISH/KG• PORTUGUESE/KG.If you continue to press START, the set-tings will cycle in the order shown here.When you have selected the language and weight sys-tem you want to use, press the PAUSE/CANCEL buttonto end this procedure, or press CLOCK to set the clock. Setting the Clock1 Press the Clock button. The display willshow:2 Use the number buttons to enter the cur-rent time. You must press at least threenumbers to set the clock. If the currenttime is 5:00 enter, 5,0,0. 3 Press Clock again. A colon will appear,indicating that the time is set. If there is a power interruption, you will need toreset the clock.You can check the current time while cooking is inprogress by pressing the Clock button.Using the Pause/Cancel ButtonThe Pause/Cancel button allows you to clearinstructions you have entered. It also allows you topause the oven’s cooking cycle, so that you cancheck the food. • To pause the oven during cooking: pressPause/Cancel once. To restart, press Start.• To stop cooking, erase instructions, and returnthe oven display to the time of day: pressPause/Cancel twice.• To correct a mistake you have just entered:press Pause/Cancel once, then re-enter theinstructions.• To cancel a timer setting: press Pause/Cancelonce.OPERATION8OPERATIONMS8796/9796-GB 9/27/00 3:21 AM Page 8
Using the Help systemYour microwave offers helpful instructions for manyprocedures. 1 When you need feature information andhelpful hints, press the Help Screenbutton and then press the button that youwant to get information on. Help informa-tion is available in 4 languages (English,French, Spanish and Portuguese). The“HELP” indicator appears in the displaywhile you are using this feature. Using the Sensor Cook ButtonsBy actually sensing the steam that escapes as foodheat, this feature automatically adjusts the oven’sheating time for various types and amounts of pre-cooked food. All food should be precooked and atrefrigerator temperature.1 Press the Sensor Cook button corre-sponding to the food you are cooking(Popcorn, for example). The displayshows “POPCORN” and your microwaveoven will begin cooking automatically.OPERATION9OPERATIONWhen cooking popcorn, wait at least five minutesbetween each bag to avoid overheating the glass tray.If you want to adjust the cooking time, you can use the MORE/LESS button. See page 14 for more information.If you want to check the current time while cookingis in progress, press the CLOCK button.Serving sizes available for each button:POPCORN1.5 oz -3.5 oz (If you want to use the 1.5 oz ~1.75 oz serving size, you can use the“LESS” key of the More/Less button for best results.FROZEN BREAKFAST(Sandwich, Waffle, Egg)2 - 8 oz FRESH VEGETABLE1 - 4 Cups FISH0.5-1.5 lbsPOTATO6 oz -8 oz eachDIET COOK(Low calorie frozen dinners)7-18 ozFROZEN DINNER(Frozen Entree, Frozen Dinner)7-18 ozBABY FOOD2.5-6.0 ozMS8796/9796-GB 9/27/00 3:21 AM Page 9

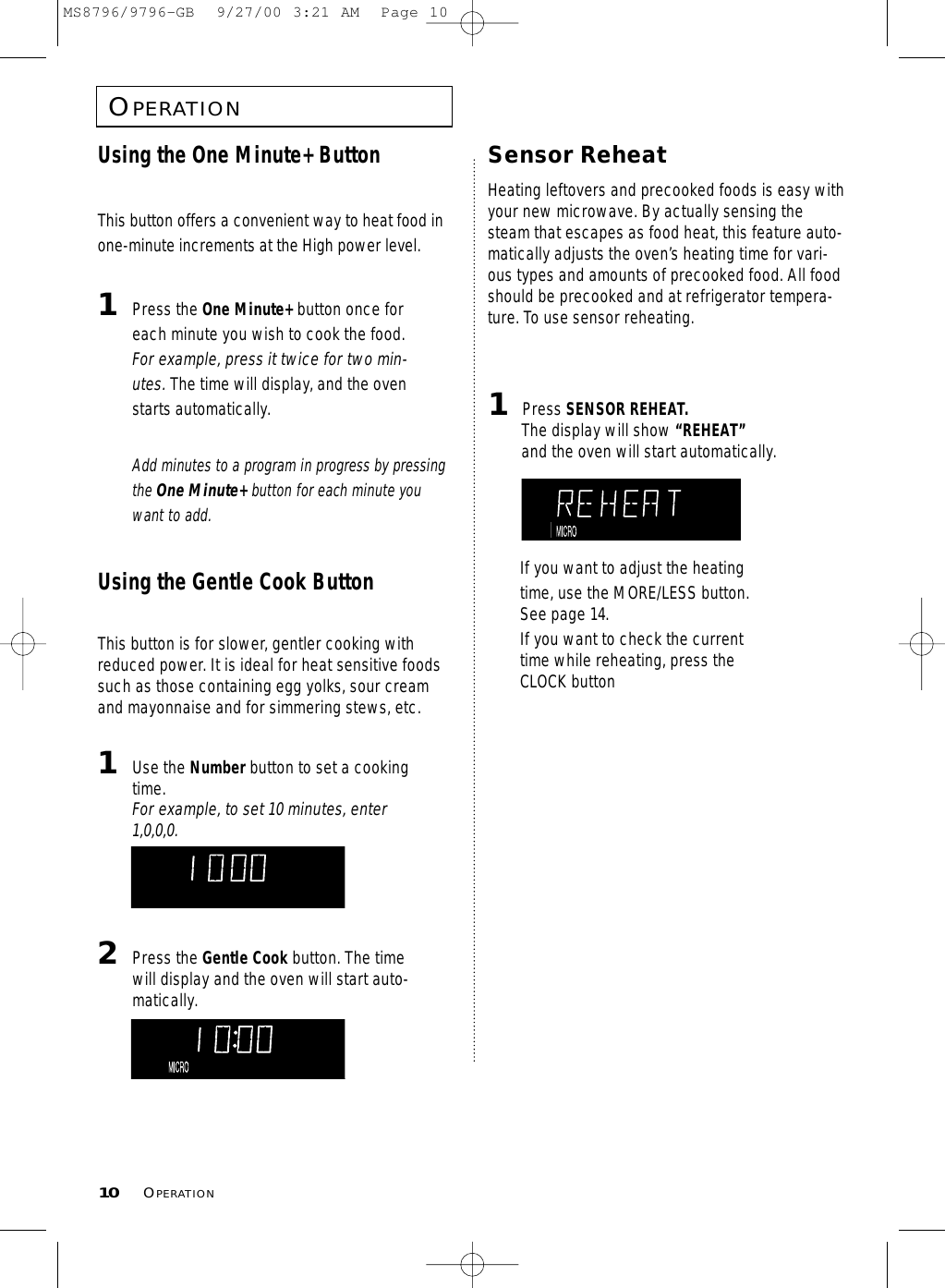

Sensor ReheatHeating leftovers and precooked foods is easy withyour new microwave. By actually sensing thesteam that escapes as food heat, this feature auto-matically adjusts the oven’s heating time for vari-ous types and amounts of precooked food. All foodshould be precooked and at refrigerator tempera-ture. To use sensor reheating.1 Press SENSOR REHEAT.The display will show “REHEAT”and the oven will start automatically.OPERATION10 OPERATIONUsing the One Minute+ ButtonThis button offers a convenient way to heat food inone-minute increments at the High power level.1Press the One Minute+ button once foreach minute you wish to cook the food.For example, press it twice for two min-utes. The time will display, and the ovenstarts automatically.Add minutes to a program in progress by pressingthe One Minute+ button for each minute youwant to add. Using the Gentle Cook ButtonThis button is for slower, gentler cooking withreduced power. It is ideal for heat sensitive foodssuch as those containing egg yolks, sour creamand mayonnaise and for simmering stews, etc.1 Use the Number button to set a cookingtime.For example, to set 10 minutes, enter1,0,0,0.2Press the Gentle Cook button. The timewill display and the oven will start auto-matically.If you want to adjust the heating time, use the MORE/LESS button.See page 14.If you want to check the currenttime while reheating, press theCLOCK buttonMS8796/9796-GB 9/27/00 3:21 AM Page 10
OPERATION11OPERATIONDefrosting AutomaticallyTo thaw frozen food, set the weight of the food andthe microwave automatically sets the defrostingtime, power level and standing time. 1 Press the Auto Defrost button. The dis-play shows “0.5 LB.”(0.2Kg if you haveset your oven for metric measure).2 To set the weight of your food, press theAuto Defrost button repeatedly. Thisincreases the weight by 0.5 lb incre-ments, up to 6.0 lbs. You can also use the number buttons toenter the weight of the food directly. The oven calculates the defrosting timeand starts automatically. Twice duringdefrosting, the oven will beep and thedisplay will read “TURN THE FOODOVER.”3Press the Pause/Cancel button, open theoven door, and turn the food over. 4 Press the Start button to resume defrosting. • See next page for the Auto Defrosting GuideMS8796/9796-GB 9/27/00 3:21 AM Page 11
Defrosting GuideFollow the instructions below when defrosting dif-ferent types of food.Type of food: Roast beef, porkAmount: 2.5-6.0 lbs.Procedure: Start with the food placed fatside down. After each stage,turn the food over and shieldany warm portions with narrowstrips of aluminum foil.Type of food: Steaks, chops, fishAmount: 0.5-3.0 lbs.Procedure: After each stage, rearrange thefood. If there are any warm orthawed portions of food, shieldthem with narrow strips of alu-minum foil. Remove any piecesof food that are nearly defrost-ed. Let stand, covered, for 5-10minutes.Type of food: Ground meatAmount: 0.5-3.0 lbs.Procedure: After each stage, remove anypieces of food that are nearlydefrosted. Let stand, coveredwith foil, for 5–10 minutes.Type of food: Chicken, wholeAmount: 2.5-6.0 lbs.Procedure: Remove giblets before freezingpoultry. Start defrosting with thebreast side down. After the firststage, turn the chicken over andshield any warm portions withnarrow strips of aluminum foil.After the second stage, againshield any warm portions withnarrow strips of aluminum foil.When defrost cycle is over, letstand, covered, for 30–60 minutesin the refrigerator.Type of food: Chicken, piecesAmount: 0.5-3.0 lbs.Procedure: After each stage, rearrange orremove any pieces of food thatare nearly defrosted. Let standfor 10-20 minutes.NotesCheck foods when the oven signals. After the finalstage, small sections may still be icy; let them standto continue thawing. Do not cook until all ice crystalshave thawed.Shielding roasts and steaks prevents the edges fromcooking before the center of the food has defrosted.Use narrow, flat, smooth strips of aluminum foil tocover the edges and thinner sections of the food.OPERATION12 OPERATIONMS8796/9796-GB 9/27/00 3:21 AM Page 12
Setting Cooking Times & PowerLevelsYour microwave allows you to set up to three differ-ent stages of cooking, each with its own time lengthand power level. The power level lets you controlthe heating intensity from Warm (1) to High (0).One-stage Cooking For simple one-stage cooking, you only need to set acooking time. The power level is automatically set atHigh. If you want the power set at any other level,you must set it using the Power Level button.1Use the number buttons to set a cookingtime. You can set a time from one secondto 99 minutes, 99 seconds. To set a timeover one minute, enter the seconds too.For example, to set 20 minutes, enter2, 0, 0, 0 .2 If you want to set the power level tosomething other than High, press thePower Level button, then use the numberbuttons to enter a power level. Power Levels:1 = warm 6 = simmer2 = low 7 = medium high3 = defrost 8 = reheat4 = medium low 9 = sauté5 = medium 0 = highThe display shows “PRESS START OR ENTER NEXTSTAGE COOKING TIME”3 Press the Start button to begin cooking.If you want to change the power level,press Pause/Cancel before you pressStart, and reenter all of the instructions.Setting Cooking Times, continuedSome recipes require different stages of cooking atdifferent temperatures. You can set multiple stagesof cooking with your microwave.Multi-stage Cooking1 Follow steps 1 and 2 in the “One-StageCooking” section on this page. The dis-play shows “PRESS START OR ENTERNEXT STAGE COOKING TIME.”When entering more than one cooking stage, thePower Level button must be pressed before thesecond cooking stage can be entered. To set the power level at High for a stage of cook-ing, press the Power Level button twice. 2 Use the Number buttons to set a secondcooking time. 3 Press the Power Level button, then usethe number buttons to set the powerlevel of the second stage of cooking.The display shows the power level youhave set and then “PRESS START ORENTER NEXT STAGE COOKING TIME.”4 Press Start to begin cooking, or repeatsteps 2 and 3 to set a cooking time andpower level for a third stage of cooking.When finished, press Start.OPERATION13OPERATIONMS8796/9796-GB 9/27/00 3:21 AM Page 13

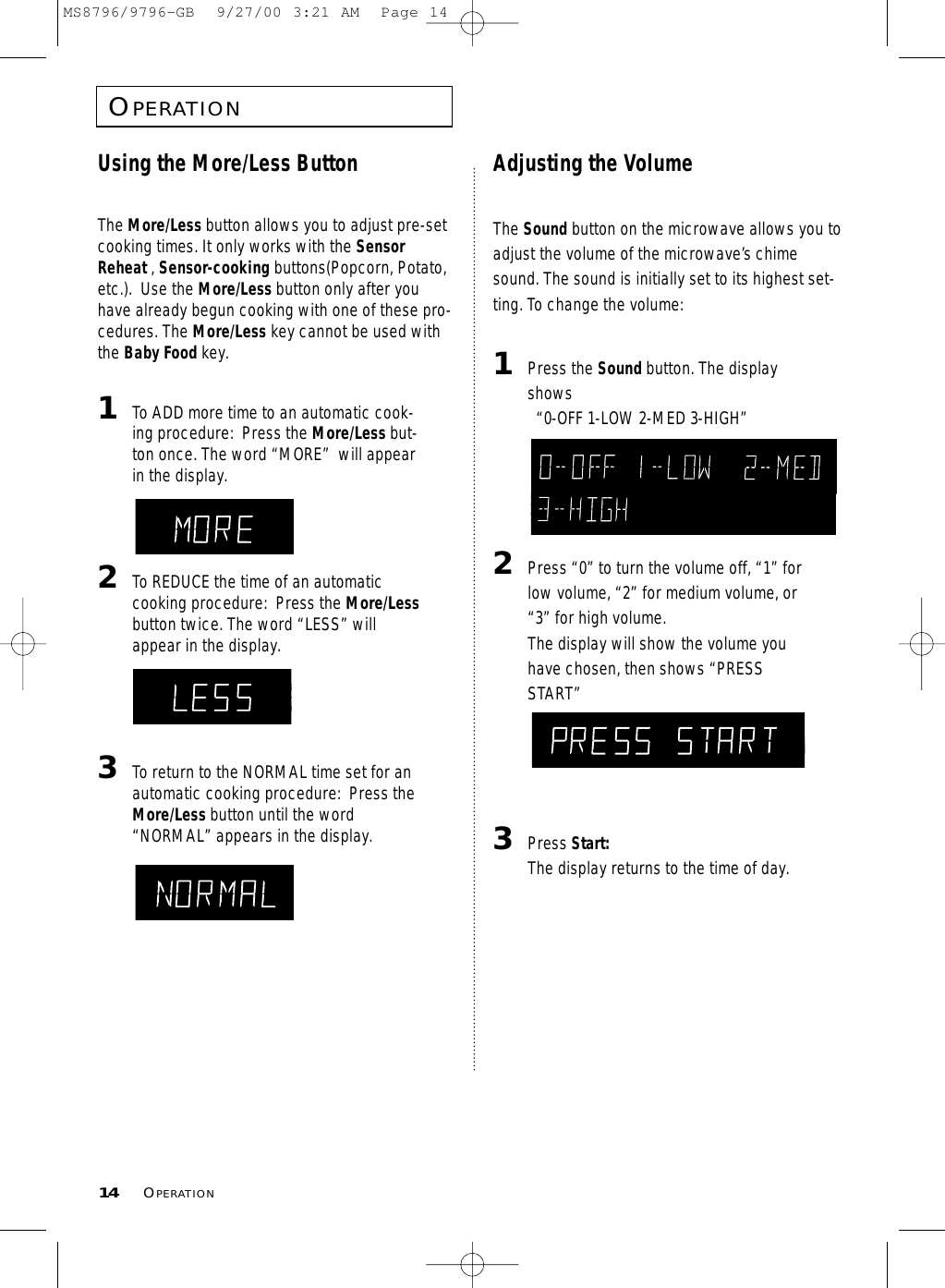

Using the More/Less ButtonThe More/Less button allows you to adjust pre-setcooking times. It only works with the SensorReheat , Sensor-cooking buttons(Popcorn, Potato,etc.). Use the More/Less button only after youhave already begun cooking with one of these pro-cedures. The More/Less key cannot be used withthe Baby Food key.1 To ADD more time to an automatic cook-ing procedure: Press the More/Less but-ton once. The word “MORE” will appearin the display. 2 To REDUCE the time of an automaticcooking procedure: Press the More/Lessbutton twice. The word “LESS” willappear in the display.3 To return to the NORMAL time set for anautomatic cooking procedure: Press theMore/Less button until the word“NORMAL” appears in the display.Adjusting the VolumeThe Sound button on the microwave allows you toadjust the volume of the microwave’s chimesound. The sound is initially set to its highest set-ting. To change the volume:1 Press the Sound button. The displayshows “0-OFF 1-LOW 2-MED 3-HIGH” 2 Press “0” to turn the volume off, “1” forlow volume, “2” for medium volume, or“3” for high volume.The display will show the volume youhave chosen, then shows “PRESSSTART”3 Press Start:The display returns to the time of day.OPERATION14 OPERATIONMS8796/9796-GB 9/27/00 3:21 AM Page 14

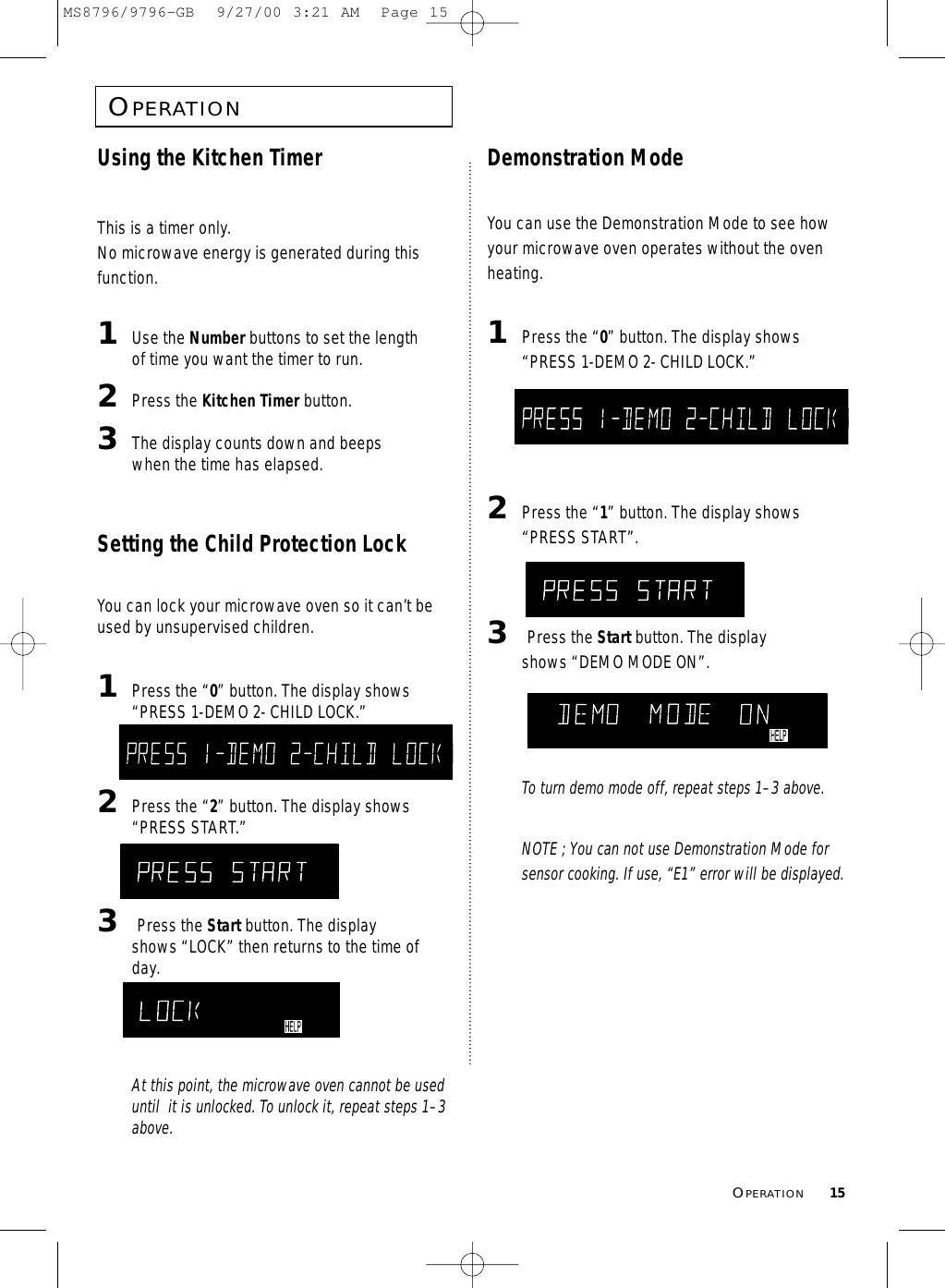

Using the Kitchen TimerThis is a timer only. No microwave energy is generated during thisfunction. 1Use the Number buttons to set the lengthof time you want the timer to run.2Press the Kitchen Timer button.3 The display counts down and beepswhen the time has elapsed.Setting the Child Protection LockYou can lock your microwave oven so it can’t beused by unsupervised children.1 Press the “0” button. The display shows“PRESS 1-DEMO 2- CHILD LOCK.”2Press the “2” button. The display shows“PRESS START.”3Press the Start button. The displayshows “LOCK” then returns to the time ofday.At this point, the microwave oven cannot be useduntil it is unlocked. To unlock it, repeat steps 1–3above.Demonstration ModeYou can use the Demonstration Mode to see howyour microwave oven operates without the ovenheating.1Press the “0” button. The display shows“PRESS 1-DEMO 2- CHILDLOCK.”2 Press the “1” button. The display shows“PRESS START”.3Press the Start button. The displayshows “DEMO MODE ON”.To turn demo mode off, repeat steps 1–3 above.NOTE ; You can not use Demonstration Mode forsensor cooking. If use, “E1” error will be displayed.OPERATION15OPERATIONMS8796/9796-GB 9/27/00 3:21 AM Page 15
Cooking UtensilsRecommended Use• Glass and glass-ceramic bowls and dishes —Use for heating or cooking.• Microwave browning dish — Use to brown theexterior of small items such as steaks, chops, orpancakes. Follow the directions provided withyour browning dish.• Microwavable plastic wrap — Use to retainsteam. Leave a small opening for some steam toescape and avoid placing it directly on the food.• Wax paper — Use as a cover to prevent spatter-ing.• Paper towels and napkins — Use for short-termheating and covering; they absorb excess mois-ture and prevent spattering. Do not use recycledpaper towels, which may contain metal and cancatch fire.• Paper plates and cups — Use for short-termheating at low temperatures. Do not use recy-cled paper, which may contain metal and cancatch fire.• Thermometers — Use only those labeled“Microwave Safe” and follow all directions.Check the food in several places. Conventionalthermometers may be used once the food hasbeen removed from the oven.Limited Use• Aluminum foil — Use narrow strips of foil to pre-vent overcooking of exposed areas. Using toomuch foil can damage your oven, so be careful.• Ceramic, porcelain, and stoneware — Use theseif they are labeled “Microwave Safe.” If theyare not labeled, test them to make sure they canbe used safely. Never use dishes with metallictrim.• Plastic — Use only if labeled “Microwave Safe.”Other plastics can melt.• Straw, wicker, and wood — Use only for short-term heating, as they can be flammable.Not Recommended• Glass jars and bottles — Regular glass is toothin to be used in a microwave, and can shatter.• Paper bags — These are a fire hazard, exceptfor popcorn bags that are designed formicrowave use.• Styrofoam plates and cups — These can meltand leave an unhealthy residue on food.• Plastic storage and food containers —Containers such as margarine tubs can melt inthe microwave.• Metal utensils — These can damage your oven.Remove all metal before cooking. Testing UtensilsIf you are not sure whether a dish is microwave-safe or not, you can perform this test:1Fill a 1 cup glass measuring cup withwater and put it inside your oven, next tothe dish you want to test.2Press the One Minute+ button once toheat them for one minute at High power.The water should be warm and the dish you aretesting should be cool. If the dish is warm, then it isabsorbing microwave energy and is not acceptablefor use in the microwave.COOKINGINSTRUCTIONS16 COOKINGINSTRUCTIONSMS8796/9796-GB 9/27/00 3:21 AM Page 16

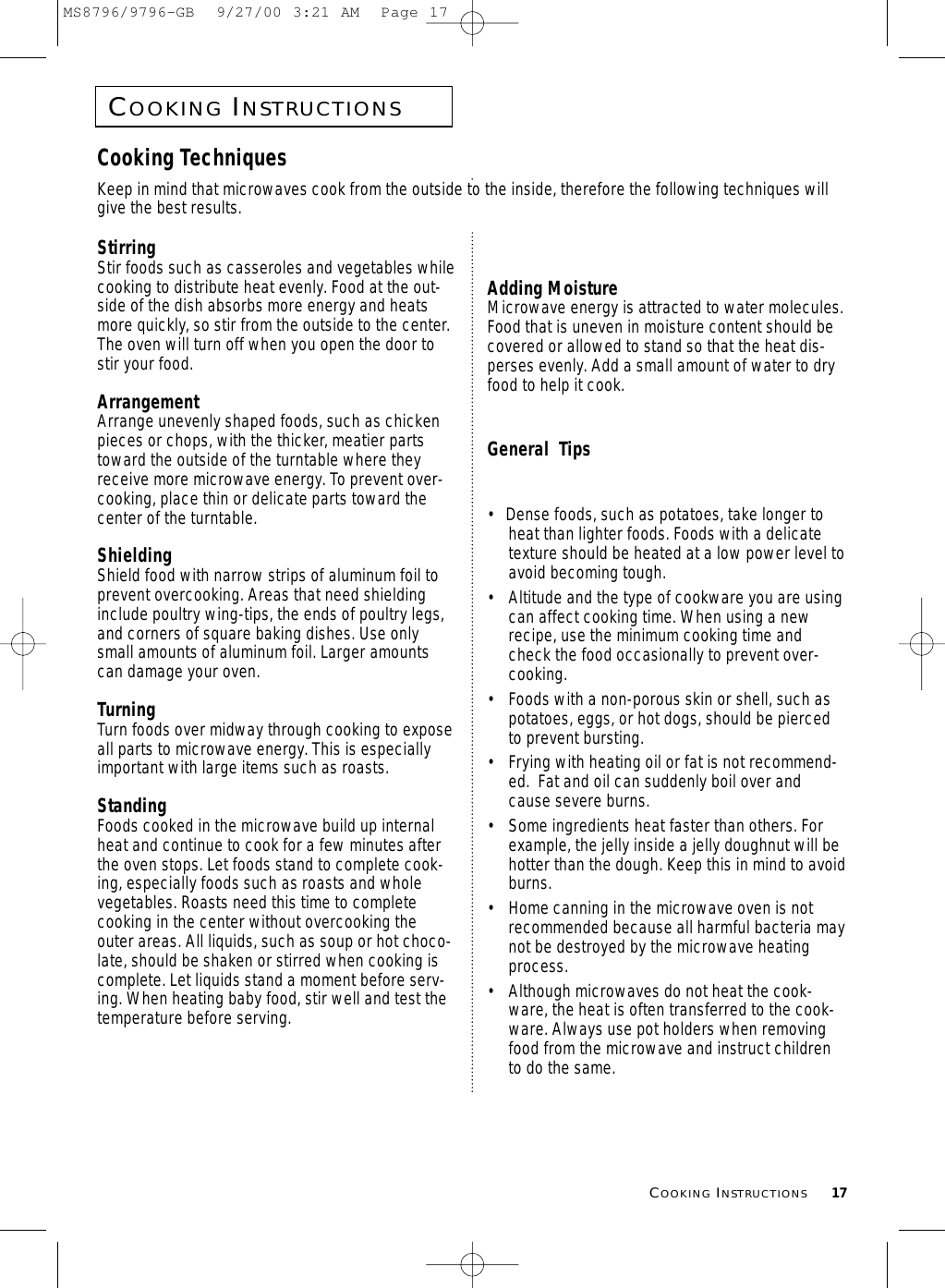

Cooking TechniquesStirringStir foods such as casseroles and vegetables whilecooking to distribute heat evenly. Food at the out-side of the dish absorbs more energy and heatsmore quickly, so stir from the outside to the center.The oven will turn off when you open the door tostir your food.ArrangementArrange unevenly shaped foods, such as chickenpieces or chops, with the thicker, meatier partstoward the outside of the turntable where theyreceive more microwave energy. To prevent over-cooking, place thin or delicate parts toward thecenter of the turntable.ShieldingShield food with narrow strips of aluminum foil toprevent overcooking. Areas that need shieldinginclude poultry wing-tips, the ends of poultry legs,and corners of square baking dishes. Use onlysmall amounts of aluminum foil. Larger amountscan damage your oven.Turning Turn foods over midway through cooking to exposeall parts to microwave energy. This is especiallyimportant with large items such as roasts.Standing Foods cooked in the microwave build up internalheat and continue to cook for a few minutes afterthe oven stops. Let foods stand to complete cook-ing, especially foods such as roasts and wholevegetables. Roasts need this time to completecooking in the center without overcooking theouter areas. All liquids, such as soup or hot choco-late, should be shaken or stirred when cooking iscomplete. Let liquids stand a moment before serv-ing. When heating baby food, stir well and test thetemperature before serving.Adding Moisture Microwave energy is attracted to water molecules.Food that is uneven in moisture content should becovered or allowed to stand so that the heat dis-perses evenly. Add a small amount of water to dryfood to help it cook.General Tips • Dense foods, such as potatoes, take longer toheat than lighter foods. Foods with a delicatetexture should be heated at a low power level toavoid becoming tough.• Altitude and the type of cookware you are usingcan affect cooking time. When using a newrecipe, use the minimum cooking time andcheck the food occasionally to prevent over-cooking.• Foods with a non-porous skin or shell, such aspotatoes, eggs, or hot dogs, should be piercedto prevent bursting.• Frying with heating oil or fat is not recommend-ed. Fat and oil can suddenly boil over andcause severe burns.• Some ingredients heat faster than others. Forexample, the jelly inside a jelly doughnut will behotter than the dough. Keep this in mind to avoidburns.• Home canning in the microwave oven is notrecommended because all harmful bacteria maynot be destroyed by the microwave heatingprocess.• Although microwaves do not heat the cook-ware, the heat is often transferred to the cook-ware. Always use pot holders when removingfood from the microwave and instruct childrento do the same.COOKINGINSTRUCTIONS17COOKINGINSTRUCTIONSKeep in mind that microwaves cook from the outside to the inside, therefore the following techniques willgive the best results.MS8796/9796-GB 9/27/00 3:21 AM Page 17

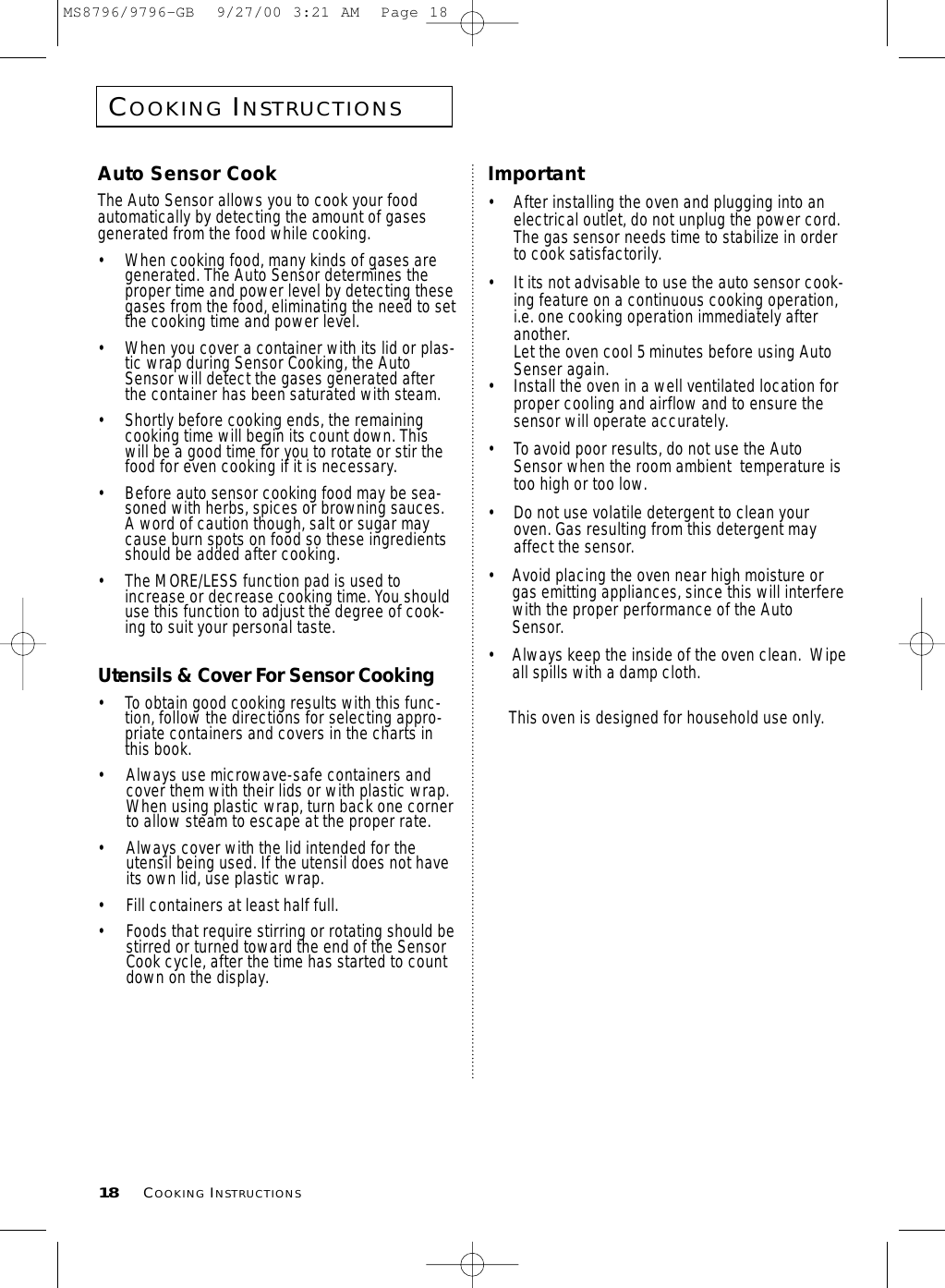

Important• After installing the oven and plugging into anelectrical outlet, do not unplug the power cord.The gas sensor needs time to stabilize in orderto cook satisfactorily.• It its not advisable to use the auto sensor cook-ing feature on a continuous cooking operation,i.e. one cooking operation immediately afteranother.Let the oven cool 5 minutes before using AutoSenser again.• Install the oven in a well ventilated location forproper cooling and airflow and to ensure thesensor will operate accurately.• To avoid poor results, do not use the AutoSensor when the room ambient temperature istoo high or too low. • Do not use volatile detergent to clean youroven. Gas resulting from this detergent mayaffect the sensor. • Avoid placing the oven near high moisture orgas emitting appliances, since this will interferewith the proper performance of the AutoSensor.• Always keep the inside of the oven clean. Wipeall spills with a damp cloth.This oven is designed for household use only.Auto Sensor CookThe Auto Sensor allows you to cook your foodautomatically by detecting the amount of gasesgenerated from the food while cooking.• When cooking food, many kinds of gases aregenerated. The Auto Sensor determines theproper time and power level by detecting thesegases from the food, eliminating the need to setthe cooking time and power level.• When you cover a container with its lid or plas-tic wrap during Sensor Cooking, the AutoSensor will detect the gases generated afterthe container has been saturated with steam.• Shortly before cooking ends, the remainingcooking time will begin its count down. Thiswill be a good time for you to rotate or stir thefood for even cooking if it is necessary.• Before auto sensor cooking food may be sea-soned with herbs, spices or browning sauces.A word of caution though, salt or sugar maycause burn spots on food so these ingredientsshould be added after cooking.• The MORE/LESS function pad is used toincrease or decrease cooking time. You shoulduse this function to adjust the degree of cook-ing to suit your personal taste.Utensils & Cover For Sensor Cooking• To obtain good cooking results with this func-tion, follow the directions for selecting appro-priate containers and covers in the charts inthis book.• Always use microwave-safe containers andcover them with their lids or with plastic wrap.When using plastic wrap, turn back one cornerto allow steam to escape at the proper rate.• Always cover with the lid intended for theutensil being used. If the utensil does not haveits own lid, use plastic wrap.• Fill containers at least half full.• Foods that require stirring or rotating should bestirred or turned toward the end of the SensorCook cycle, after the time has started to countdown on the display.COOKINGINSTRUCTIONS18 COOKINGINSTRUCTIONSMS8796/9796-GB 9/27/00 3:21 AM Page 18
GUIDE for Cooking Meat in Your Microwave• Place meat on a microwave-safe roasting rack in a microwave-safe dish.• Start meat fat-side down. Use narrow strips of aluminum foil to shield any bone tips or thin meat areas.• Check the temperature in several places before letting the meat stand the recommended time.• The following temperatures are removal temperatures. The temperature of the food will rise during thestanding time.Roast BeefBonelessUp to 4 lbs.Cook Time /Power Level DirectionsPorkBoneless orbone-inUp to 6 lbs.Bacon2-6 slicesFoodWholeChickenUp to 6 lbs.Cook Time /Power Level DirectionsChickenPiecesUp to 3 lbs.Cooking Time: 5-8 min. / lb. 170°F -180°F Power Level: Medium High(7).Place chicken breast-side down onroasting rack. Cover with wax paper.Turn over when half of the cooking timeis up. Cook until juices run clear andmeat near the bone is no longer pink. Letstand 5-10 min.FoodCooking Time: 5-8 min. / lb. 180°F dark meat170°F light meatPower Level: Medium High(7).Place chicken bone-side down on dish,with the thickest portions towards theoutside of the dish. Cover with waxpaper. Turn over when half of the cook-ing time is up. Cook until juices run clearand meat near the bone is no longerpink. Let stand 5-10 min.GUIDE for Cooking Poultry in Your Microwave• Place poultry on a microwave-safe roasting rack in a microwave-safe dish.• Cover poultry with wax paper to prevent spattering.• Use aluminum foil to shield bone tips, thin meat areas, or areas that start to overcook.• Check the temperature in several places before letting the poultry stand the recommended time.Cooking Time: 8-11 min. / lb. for 115°F - Rare 9-13 min. / lb. for 120°F - Medium10-15 min. / lb. for 145°F - Well DonePower Level: High(10) for first 5 min., then Medium(5).Place roast fat-side down on roast-ing rack. Cover with wax paper.Turn over when half of cookingtime is up. Let stand 10 min.Cooking Time: 11-15 min. / lb. for 160° F Well Done Power Level: High(10) for first 5 min., then Medium(5).Place roast fat-side down on roast-ing rack. Cover with vented plasticwrap. Turn over when half of cook-ing time is up. Let stand 10 min.Cooking Time: 2 slices: 1 - 1 3/4 min. 4 slices: 3 - 3 1/2 min.6 slices: 3 1/2 - 4 1/2 min.Power Level: High(10).Arrange slices on roasting rack or adish lined with paper-towel. Coverwith paper towel. Microwave untilcrisp.COOKINGINSTRUCTIONS19COOKINGINSTRUCTIONSMS8796/9796-GB 9/27/00 3:21 AM Page 19
20 COOKINGINSTRUCTIONSCooking Time: 3-7 min. / lb. Power Level: Medium High(7).Arrange fillets in a baking dish, turningany thin pieces under. Cover with waxpaper. If fillets are over 1/2" thick, turnover and rearrange when cooking time ishalf up. Cook until fish flakes easily with afork. Let stand 2-3 min.• Vegetables should be washed just before cooking.Often, no extra water is needed. If dense vegeta-bles such as potatoes, carrots and green beansare being cooked, add about 1/4 cup water.• Small vegetables (sliced carrots, peas, lima beans,etc.) will cook faster than larger ones.• Whole vegetables, such as potatoes, acornsquash or corn on the cob, should be arranged ina circle on the turntable before cooking. They willcook more evenly if turned over after half thecooking time.• Always place vegetables like asparagus and broc-coli with the stem ends pointing towards the edgeof the dish and the tips toward the center.• When cooking cut vegetables, always cover thedish with a lid or vented microwavable plasticwrap. • Whole, unpeeled vegetables such as potatoes,squash, eggplant, etc., should have their skinpricked in several spots before cooking to preventthem from bursting.• For more even cooking, stir or rearrange wholevegetables halfway through the cooking time.• Generally, the denser the food, the longer thestanding time. (Standing time refers to the timenecessary for dense, large foods and vegetablesto finish cooking after they come out of the oven.)A baked potato can stand on the counter for fiveminutes before cooking is completed, while a dishof peas can be served immediately.GUIDE for Cooking Eggs in Your Microwave• Never cook eggs in the shell, and never warm hard-cooked eggs in the shell; they can explode.• Always pierce whole eggs to keep them from bursting.• Cook eggs just until set; they become tough if overcooked.GUIDE for Cooking Vegetables in Your MicrowaveGUIDE for Cooking Seafood in Your Microwave• Cook fish until it flakes easily with a fork.• Place fish on a microwave-safe roasting rack in a microwave-safe dish. • Use a tight cover to steam fish. A lighter cover of wax paper or paper towel provides less steaming.• Do not overcook fish; check it at minimum cooking time.SteaksUp to 3 lbs.Cook Time /Power Level DirectionsFilletsUp to 3 lbs.ShrimpUp to 3 lbs. Cooking Time: 6-10 min. / lb. Power Level: Medium High(7).Arrange steaks on roasting rack withmeaty portions towards the outside ofrack. Cover with wax paper. Turn overand rearrange when half of cooking timeis up. Cook until fish flakes easily with afork. Let stand 3-5 min. FoodCooking Time: 3-5 1/2 min. / lb.Power Level: Medium High(7).Arrange shrimp in a baking dish without overlapping or layering. Cover with waxpaper. Cook until firm and opaque, stir-ring 2 or 3 times. Let stand 5 min.COOKINGINSTRUCTIONSMS8796/9796-GB 9/27/00 3:21 AM Page 20
21COOKINGINSTRUCTIONSCOOKINGINSTRUCTIONSProcedurePopcorn 1 package (3.0to 3.5 oz.)Use one microwave-only bag of popcorn. Pop only one bag at a time.Use caution when removing and opening hot bag from oven.When popping 1.5 or 1.75 oz. snack-size popcorn bags, use “Less” keyfor best results. Let oven cool for at least 5 minutes before using again.Potatoes 1 to 6 EA. Prick each potato several times with fork. Place on turntablein spoke-like fashion. Let stand 3 -5 min.Let oven cool for at least 5 minutes before using again.Fresh Vegetables 1 to 4 cups Arrange fresh vegetables in microwave-safe ceramic, glass or plastic dish and combine with 2 Tbs. water.For even cooking, stir or turn vegetables according to instructions. Let vegetables stand 3 minutes before serving.Let oven cool for at least 5 minutes before using again.Frozen Dinner 7 to 18 oz. Remove packing from outer wrapping and follow box instructions for covering and standing.Let oven cool for at least 5 minutes before using again.Diet cook 7 to 18 oz. Remove package from outer wrapping and follow packageinstructions for covering and standing.Let oven cool for at least 5 minutes before using again.Food AmountSENSOR COOKING GUIDE• Follow the instructions below when sensor cooking different types of food. MS8796/9796-GB 9/27/00 3:21 AM Page 21

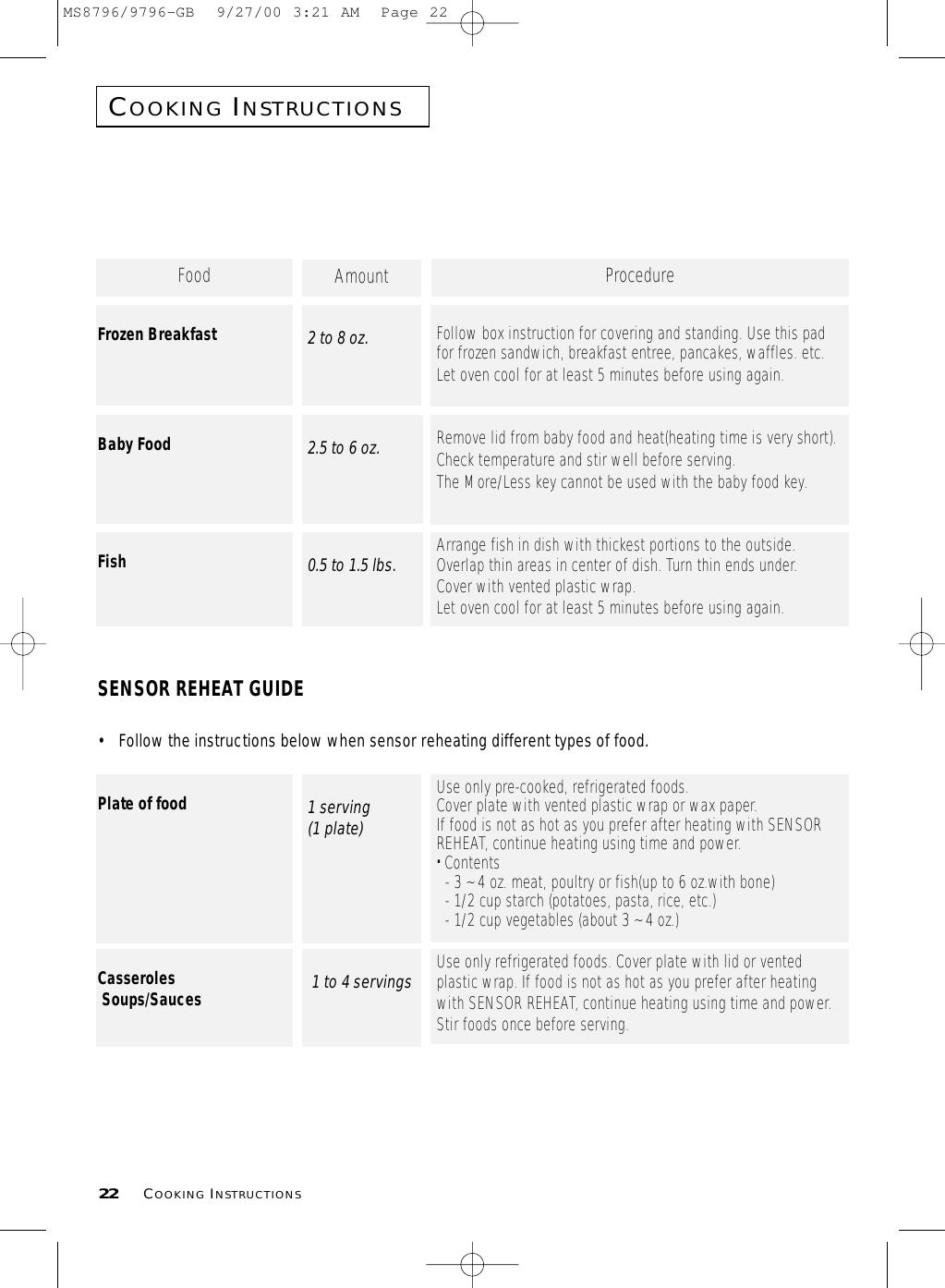

COOKINGINSTRUCTIONSProcedureFrozen Breakfast 2 to 8 oz. Follow box instruction for covering and standing. Use this padfor frozen sandwich, breakfast entree, pancakes, waffles. etc.Let oven cool for at least 5 minutes before using again.Fish 0.5 to 1.5 lbs. Arrange fish in dish with thickest portions to the outside.Overlap thin areas in center of dish. Turn thin ends under.Cover with vented plastic wrap.Let oven cool for at least 5 minutes before using again.Plate of food 1 serving(1 plate)Use only pre-cooked, refrigerated foods.Cover plate with vented plastic wrap or wax paper.If food is not as hot as you prefer after heating with SENSORREHEAT, continue heating using time and power.. Contents- 3 ~ 4 oz. meat, poultry or fish(up to 6 oz.with bone)- 1/2 cup starch (potatoes, pasta, rice, etc.)- 1/2 cup vegetables (about 3 ~ 4 oz.)CasserolesSoups/Sauces 1 to 4 servings Use only refrigerated foods. Cover plate with lid or vented plastic wrap. If food is not as hot as you prefer after heatingwith SENSOR REHEAT, continue heating using time and power.Stir foods once before serving.Baby Food 2.5 to 6 oz. Remove lid from baby food and heat(heating time is very short).Check temperature and stir well before serving.The More/Less key cannot be used with the baby food key.Food AmountSENSOR REHEAT GUIDE• Follow the instructions below when sensor reheating different types of food. 22 COOKINGINSTRUCTIONSMS8796/9796-GB 9/27/00 3:21 AM Page 22
Peas With Lettuce (4 servings)2 cups fresh shelled green peas1/3 cup thinly sliced celery2 tablespoons water3 cups shredded head lettuce1 tablespoon butter or magarine 1 tablespoon all-purpose flour1/2 teaspoon sugar1/4 teaspoon salt1/4 cup whipping creamDash pepper to taste1 In 1 1/2-quart casserole combine peas, cel-ery and water ; cover.Microwave at HIGH (10) for 5 to 7 1/2 min-utes or use Sensor Fresh Vegetable. Stir inlettuce ; re-cover.2 In small dish combine butter, flour, sugar, saltand pepper.Blend in cream. Microwave at HIGH (10) for1 to 2 minutes or use Sensor Reheat. Stiruntil smooth.3 Drain vegetables. Add sauce to vegetables ;toss to coat.Stuffed Potatoes (4 servings)4 medium potatoes, scrubbed1/2 cup dairy sour cream1/3 cup milk2 tablespoons grated parmesan cheese1 teaspoon chopped chives or parsley flakesSalt, pepper, paprika to taste1 Prick potatoes twice with a fork. Arrangepotatoes at least 1 inch apart on paper towelplaced on turntable. Microwave at HIGH (10)for 10 to 12 minutes or use Sensor Potato.Let stand 5 minutes.2 Slice top from each potato ; scoop out cen-ter. Mash with sour cream, milk, cheese,chives, salt and pepper. Spoon into shells.3 Sprinkle with paprika. Place on plate or onpaper towel in oven. Microwave at HIGH (10)for 2 to 4 minutes or use Sensor Reheat.Sensor RecipesFrench Onion Soup (4 servings)3 tablespoons butter or margarine3 cups ( about 3 medium ) sliced onions3 cups beef broth1 cup water1 teaspoon Worcestershire sauceSalt, pepper, croutons, grated parmesancheese to taste2 tablespoons brandy (optional)1 Combine butter and onions in 3-quart casse-role.Cover with lid. Microwave at HIGH (10) for 8 to9 minutes or use Sensor Fresh Vegetable.2 Stir in broth, water, Worcestershire sauce, saltand pepper ; cover.Microwave at HIGH (10) for 5 minutes, and atMEDIUM (5) for 5 minutes or use SensorReheat. Stir in brandy.Let stand, covered, for 5 minutes before serv-ing.Serve with croutons and cheese.Snap Crackle Popcorn Balls (10 to 15 balls)30 square caramel candies1 1/2 tablespoons water1 teaspoon butter or magarine1 pkg.( 3.5 oz.) microwave popcorn1 Combine caramel, water and butter in 4 cupglass bowl.Microwave at HIGH (10) for 2 to 3 minutes untilmelted.Stir until smooth. Set aside.2 Place popcorn on turntable. Microwave atHIGH (10) for 2 to 3 minutes or use SensorPopcorn.3 Place popcorn in bowl. Pour caramel mixtureover popcorn ; toss until completely coatedand cool enough to handle. Using buttered hands, form into 3-inch balls.4 Cool on waxed paper. Serve immediately.COOKINGINSTRUCTIONS23COOKINGINSTRUCTIONSMS8796/9796-GB 9/27/00 3:21 AM Page 23

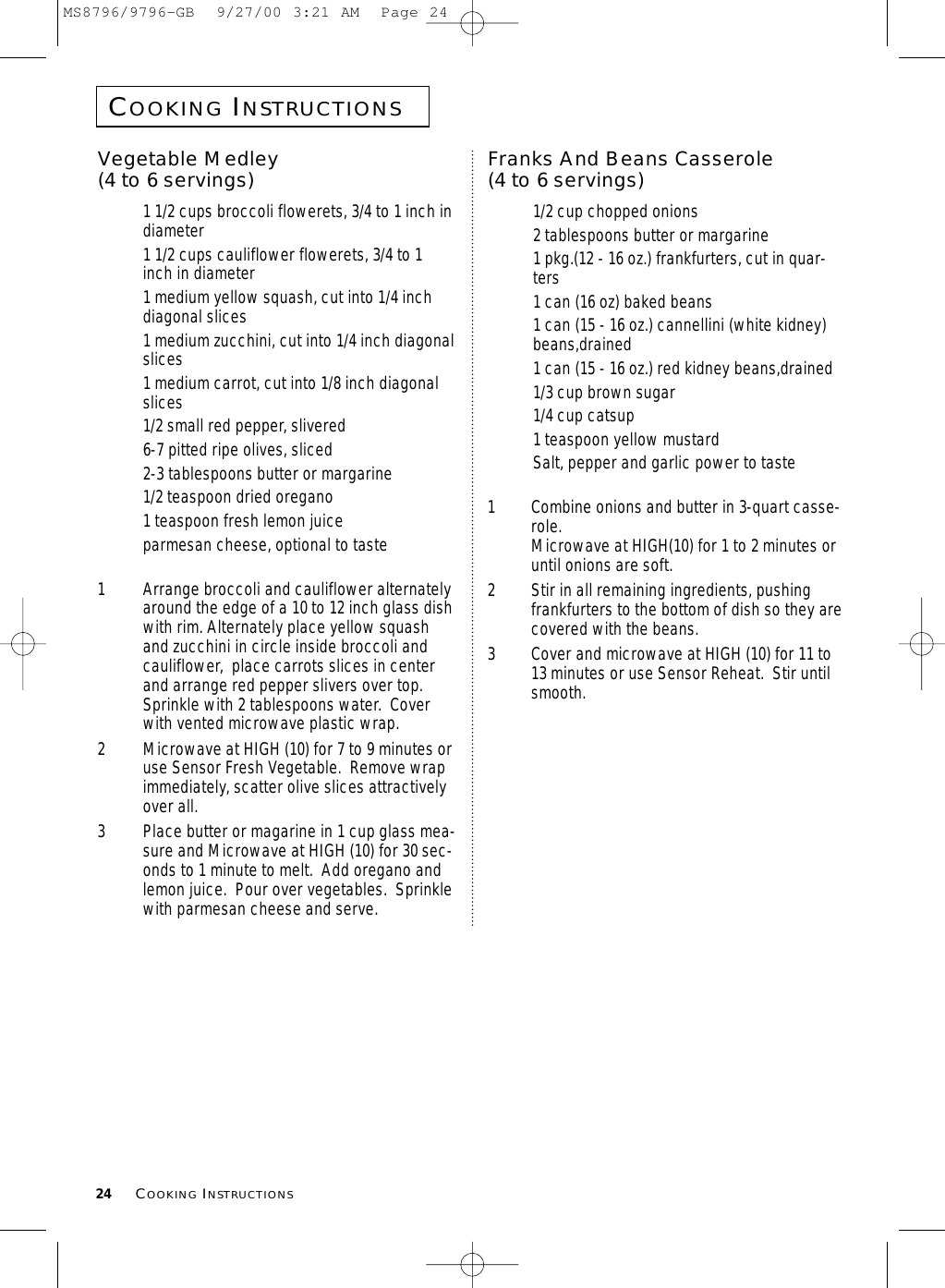

Vegetable Medley (4 to 6 servings)1 1/2 cups broccoli flowerets, 3/4 to 1 inch indiameter1 1/2 cups cauliflower flowerets, 3/4 to 1inch in diameter1 medium yellow squash, cut into 1/4 inchdiagonal slices1 medium zucchini, cut into 1/4 inch diagonalslices1 medium carrot, cut into 1/8 inch diagonalslices1/2 small red pepper, slivered6-7 pitted ripe olives, sliced2-3 tablespoons butter or margarine1/2 teaspoon dried oregano 1 teaspoon fresh lemon juiceparmesan cheese, optional to taste1 Arrange broccoli and cauliflower alternatelyaround the edge of a 10 to 12 inch glass dishwith rim. Alternately place yellow squashand zucchini in circle inside broccoli andcauliflower, place carrots slices in centerand arrange red pepper slivers over top.Sprinkle with 2 tablespoons water. Coverwith vented microwave plastic wrap.2 Microwave at HIGH (10) for 7 to 9 minutes oruse Sensor Fresh Vegetable. Remove wrapimmediately, scatter olive slices attractivelyover all.3 Place butter or magarine in 1 cup glass mea-sure and Microwave at HIGH (10) for 30 sec-onds to 1 minute to melt. Add oregano andlemon juice. Pour over vegetables. Sprinklewith parmesan cheese and serve.Franks And Beans Casserole(4 to 6 servings)1/2 cup chopped onions2 tablespoons butter or margarine1 pkg.(12 - 16 oz.) frankfurters, cut in quar-ters1 can (16 oz) baked beans1 can (15 - 16 oz.) cannellini (white kidney)beans,drained1 can (15 - 16 oz.) red kidney beans,drained1/3 cup brown sugar 1/4 cup catsup1 teaspoon yellow mustardSalt, pepper and garlic power to taste1 Combine onions and butter in 3-quart casse-role.Microwave at HIGH(10) for 1 to 2 minutes oruntil onions are soft.2 Stir in all remaining ingredients, pushingfrankfurters to the bottom of dish so they arecovered with the beans.3 Cover and microwave at HIGH (10) for 11 to13 minutes or use Sensor Reheat. Stir untilsmooth.COOKINGINSTRUCTIONS24 COOKINGINSTRUCTIONSMS8796/9796-GB 9/27/00 3:21 AM Page 24
Troubleshooting GuideBefore you call a repair person for your oven, check this list of possible problems and solutions.Neither the oven’s display nor the oven operate.• Properly insert the plug into a grounded outlet. • If the outlet is controlled by a wall switch, makesure the wall switch is turned on. • Remove the plug from the outlet, wait ten sec-onds, then plug it in again. • Reset the circuit breaker or replace any blownfuse.• Plug another appliance into the outlet; if theother appliance doesn’t work, have a qualifiedelectrician repair the outlet. • Plug the oven into a different outlet.The oven’s display works, but the power won’t come on.• Make sure the door is closed securely.• Check to see if packing material or other materi-al is stuck to the door seal. • Check for door damage.• Press Cancel twice and re-enter all cookinginstructions.The power goes off before the set time has elapsed.• If there has not been a power outage, removethe plug from the outlet, wait ten seconds, thenplug it in again. If there was a power outage, thetime indicator will display “SAMSUNG SO SIM-PLE” Reset the clock and any cooking instruc-tions. • Reset the circuit breaker or replace any blownfuse. The food is cooking too slowly.• Make sure the oven is on its own 20 amp circuitline. Operating another appliance on the samecircuit can cause a voltage drop. If necessary,move the oven to its own circuit.You see sparks or arcing.• Remove any metallic utensils, cookware, ormetal ties. If using foil, use only narrow stripsand allow at least one inch between the foil andinterior oven walls.The turntable makes noises or sticks.• Clean the turntable, roller ring and oven floor. • Make sure the turntable and roller ring are posi-tioned correctly.Using your microwave causes TV or radio interference.• This is similar to the interference caused byother small appliances, such as hair dryers.Move your microwave further away from otherappliances, like your TV or radio.Care and CleaningFollow these instructions to clean and care foryour oven.• Keep the inside of the oven clean. Food parti-cles and spilled liquids can stick to the ovenwalls, causing the oven to work less efficiently.• Wipe up spills immediately. Use a damp clothand mild soap. Do not use harsh detergents orabrasives. • To help loosen baked on food particles or liq-uids, heat two cups of water (add the juice ofone lemon if you desire to keep the oven fresh)in a four-cup measuring glass at High power forfive minutes or until boiling. Let stand in theoven for one or two minutes. • Remove the glass tray from the oven whencleaning the oven or tray. To prevent the trayfrom breaking, handle it carefully and do not putit in water immediately after cooking. Wash thetray carefully in warm sudsy water or in thedishwasher. • Clean the outside surface of the oven with soapand a damp cloth. Dry with a soft cloth. To pre-vent damage to the operating parts of the oven,don’t let water seep into the openings.• Wash the door window with very mild soap andwater. Be sure to use a soft cloth to avoidscratching.• If steam accumulates inside or outside the ovendoor, wipe with a soft cloth. Steam can accumu-late when operating the oven in high humidityand in no way indicates microwave leakage.• Never operate the oven without food in it; thiscan damage the magnetron tube or glass tray.You may wish to leave a cup of water in theoven when it is not in use to prevent damage ifthe oven is accidentally turned on.APPENDIX25APPENDIXIf you have a problem you cannot solve, please call our service line:1-800-SAMSUNGMS8796/9796-GB 9/27/00 3:21 AM Page 25
Obligation to the Original OwnerThe original dated sales receipt must be retainedby the customer and is the only acceptable proofof purchase. It must be presented to an SEAAuthorized Service Center at the time service isrequested before warranty services are rendered.On all carry-in models, transportation to and fromthe Authorized Service Center is the responsibilityof the customer.Exclusions of the WarrantyThis warranty does not cover damage due to acci-dent, fire, flood, and/or other Acts of God: misuse,incorrect line voltage, improper installation,improper or unauthorized repairs, commercial use,or damage that occurs during shipping. Customeradjustments which are explained in this owner’smanual are not covered under the terms of thiswarranty. This warranty will automatically be void-ed for any unit found with a missing or altered seri-al number. This warranty is valid only on productspurchased and used in the United States andPuerto Rico. Some states do not allow the exclu-sion or limitations of incidental or consequentialdamages, or allow limitations on how long animplied warranty lasts, so the above limitations orexclusions may not apply to you. This warrantygives you specific legal rights and you may alsohave other rights which vary from state to state.APPENDIX26 APPENDIXWarranty InformationLimited Warranty for Original PurchaserThis Samsung product is warranteed by SamsungElectronics America, Inc. (hereafter referred to asSEA) against manufacturing defects in material orworkmanship for the following periods:Labor: One year (carry-in)Parts: One yearMagnetron: Eight yearsSEA further warrants that if this product fails tooperate properly within the specified warrantyperiod and the failure is due to improper workman-ship or defective material, SEA will repair orreplace the product at its option.All warranty repairs or part replacements must beperformed by a SEA Authorized Service Center. (Tofind the nearest SEA Service Center, call 1-800-SAMSUNG.)SpecificationsModel NumberOven CavityControlsTimerPower SourcePower OutputOutside DimensionsOven Cavity DimensionsNet/Gross WeightMS8796W / MW1666WC1.6cuft10 power levels, including defrost99 minutes, 99 seconds120 VAC, 60 Hz1100 Watts2121/32”(W) X 135/16”(H) X 1811/32”(D)161/2”(W) X 93/16”(H) X 179/32”(D)44/50 lbs MS8796/9796-GB 9/27/00 3:21 AM Page 26
Ajustando el Tiempo de Concinar y Nivelesde Potencia – Cocinando en Etapas Múltiples• Utilice los botones numéricos 0–9 paraajustar el tiempo de cocinar.• Oprima el botón POWER LEVEL, y losbotones numéricos 0–9 para seleccionar lapotencia de cocinar (si es diferente a 0).• Utilice los botones numéricos 0–9 paraajustar el segundo tiempo de cocinar.• Oprima el botón POWER LEVEL, y losbotones numéricos 0–9 para seleccionar lapotencia de cocinar (si es diferente a 0).• Utilice los botones numéricos 0–9 paraajustar el tercer tiempo de cocinar.• Oprima el botón POWER LEVEL, y losbotones numéricos 0–9 para seleccionar lapotencia de cocinar (si es diferente a 0).• Oprima el botón START para comenzar acocinar.GUÍA DECONSULTARÁPIDA ENESPAÑOL27GUÍA DECONSULTARÁPIDA ENESPAÑOLUsando el Botón PAUSE/CANCEL• Para pausar mientras está cocinando, opri-ma una vez al botón PAUSE/CANCEL.• Para detener el horno y borrar las instruc-ciones para cocinar, oprima dos veces albotón PAUSE/CANCEL.• Para corregir un error de programación,oprima una vez al botón PAUSE/CANCEL yvuelva a programr las instrucciones.• Para cancelar un ajuste del cronómetro,oprima una vez al botón PAUSE/CANCEL.Encendiendo el Horno y Seleccionando elIdioma del desPliegue• Enchufe el horno de microondas y oprimael botón START repetidamente hasta quevea el idioma y sistema de medida quedesea utilizar.Poniendo el Reloj• Oprima una vez al botón CLOCK.• Utilice los botones numéricos 0–9 paraseleccionar la hora correcta.• Oprima una vez más al botón CLOCK parafijar la hora.Ajustando el Tiempo de Concinar y Nivelesde Potencia – Cocinando en una Etapa• Utilice los botones numéricos 0–9 paraajustar el tiempo de cocinar.• Oprima el botón POWER LEVEL, y losbotones numéricos 0–9 para seleccionar lapotencia de cocinar (si es diferente a 0).• Oprima el botón START para comenzar acocinar.MS8796/9796-GB 9/27/00 3:21 AM Page 27
GUÍA DECONSULTARÁPIDA ENESPAÑOL28 GUÍA DECONSULTARÁPIDA ENESPAÑOLDescongelado Automático• Oprima repetidamente al botón AUTODEFROST para ajustar el peso correcto dela comida que va descongelar.Recalentamiento Sensor• Oprima repetidamente al botón SeneorREHEAT para seleccionar el tipo de comi-da.• Utilice los botones numéricos 0-9 para pro-gramar las porciones (si son más de unaporción).• Oprima el botón START para comenzar acocinar.Cocinando Con un Bóton• Oprima el botón ONE MINUTE una vez paracada minuto que desea cocinar.Usando el Teclado de Cocina Sensor cook• Selecione el botón “Sensor-cook” (POP-CORN, FROZEN DINNER, etc.) apropiadopara el tipo de comida que desea cocinar,oprima este botón repetidamente para pro-gramar el tamaño de la porción.Ajustando el Tiempo de Cocinado• Si desea ajustar el tiempo de cocinadomientras el horno está en operación, opri-ma el botón MORE/LESS repetidamentehasta llegar al tiempo deseado.Usando el Cronómetro• Oprima los botones numéricos 0–9 paraajustar el tiempo, luego oprima el botónKITCHEN TIMER.Utilizando el Seguro Para Evitar que NiñosUtilicen el Horno• Oprima los botones 0, 2 y START. Repitapara pagar el seguro.MS8796/9796-GB 9/27/00 3:21 AM Page 28
SAMSUNG ELECTRONICSNORTH AMERICAN LIMITED WARRANTY STATEMENTSubject to the requirements, conditions, exclusions and limitations ofthe Original Limited Warranty supplied with Samsung Electronics(SAMSUNG) products, and the requirements, conditions, exclusionsand limitations contained herein, SAMSUNG will additionally provideWarranty Repair Service in the United States on SAMSUNG products purchased in Canada, and in Canada on SAMSUNGproducts purchased in the United States, for the warranty period orig-inally specified, and to the Original Purchaser only.The above described warranty repairs must be performed by a SAMSUNG Authorized Service Center. Along with this Statement,the Original Limited Warranty Statement and a dated Bill of Sale asProof of Purchase must be presented to the Service Center.Transportation to and from the Service Center is the responsibility ofthe purchaser.Conditions covered are limited only to manufacturing defects inmaterial or workmanship, and only those encountered in normal useof the product.Excluded, but not limited to, are any original specified provisions for,in-home or on-site services, minimum or maximum repair times,exchanges or replacements, accessories, options, upgrades, orconsumables.For the locations of a SAMSUNG Authorized Service Center, pleasecall toll-free:In the United States: 1-800-SAMSUNG ( 1-800-726-7864 )In Canada: 1-800-SAMSUNG29MS8796/9796-GB 9/27/00 3:21 AM Page 29
SAMSUNG ELECTRONICSGARANTIE LIMITÉE POUR L’AMÉRIQUE DU NORDAssujettie aux exigences, conditions, exclusions et limitationsde la garantie limitée originale fournie avec les produits deSamsung Electronics (SAMSUNG) et les exigences,conditions, exclusions et limitations de la présente garantie,SAMSUNG offrira en plus un service de réparation sousgarantie aux États-Unis pour les produits achetés au Canadaet un servicede réparation sous garantie au Canada pour les produitsachetés aux États-Unis pendant la période de garantie précisée à l’origine et pour l’acheteur inital seulement.Les réparations sous garantie décrites ci-dessus doiventêtre effectuées dans un centre de réparation agréé SAMSUNG. En plus de la présente garantie, la garantie lim-itée originale et une facture datée en tant que preuve d’achatdoivent être présentées au centre de réparation. Le transportde l’appareil au et à partir du centre de réparation demeurela responsabilité de l’acheteur.Les conditions couvertes ne sont limitées qu’aux vices dematériaux et de fabrication dans des conditions d’utilisationnormale.Exclues, mais non pas limitées à, sont les dispositions précisées à l’origine pour le service à domicile ou sur place,durées de réparation minimales et maximales, échanges ouremplacements, accessoires, options, extensions ouproduits non durables.Pour obtenir le nom d’un centre de réparation agréé Samsung, appelez sans frais :Aux États-Unis : 1-800-SAMSUNG (1-800-726-7864)Au Canada : 1-800-SAMSUNG30MS8796/9796-GB 9/27/00 3:21 AM Page 30
QUICKREFERENCEELECTRONICSOperation1. Press CLOCK.2. Use number buttons to enter time.3. Press CLOCK again.1. Use number buttons to set cooking time.2. Set power level or leave at high. 3. Press START.1. Press the ONE MINUTE + button once for each minute of cooking.2. The time will display and the oven will start.1. Press button that corresponds to the food you are cooking(for example, POPCORN).2. The display will show the food you have chosen and the oven will start automatically. 1. Press AUTO DEFROST.2. Enter weight of food by pressing AUTO DEFROST button repeatedly or using the number buttons.3. When prompted by oven display, open oven doorand turn food over. Press START to resume defrosting cycle.1. Press SENSOR REHEAT repeatedly to select type of dish to reheat.2.To increase serving size, press the corresponding number button.3. Press START to begin reheating cycle.1. Use number buttons to set cooking time.2. To set power level at other than HIGH, press POWER LEVEL and use the number buttons to enter the power level. (Example: number 5 is 50% power.)3. Press START to begin cooking. FeatureSet ClockOne Stage CookingOne Minute+ CookingSensor Cook ButtonsAuto DefrostSensor ReheatSet Cooking Time andPower LevelsSAMSUNG ELECTRONICS AMERICA, INC.HEADQUARTERS105 CHALLENGER ROADRIDGEFIELD PARK, NEW JERSEY 07660-0511April. 1999Printed in KoreaMS8796/9796-GB 9/27/00 3:21 AM Page 31
