Samsung Electronics Co MYMP200 MP3 Player User Manual

Samsung Electronics Co Ltd MP3 Player

User Manual

ELECTRMP3 PLAYERMY-MP200Instruction Manual
2MP3 PLAYERCLASS 1 LASER PRODUCTThis Compact Disc player is classified as aCLASS 1 LASER product.Use of controls, adjustments or performanceof procedures other than those specified here-in may result in hazardous radiation exposure.CAUTION-Invisible laser radiationwhen open and interlocksdefeated, avoid exposure tobeam.This symbol indicates that dangerous voltage which can cause electricshock is present inside this unit.This symbol alerts you to important operating and maintenance instruc-tions accompanying the unit.WARNING: To reduce the risk of fire or electric shock, do not expose this appli-ance to rain or moisture.CAUTION: To prevent electric shock, match wide blade of plug to wide slot, fullyinsert.Attention: FCC Regulations state that unauthorized changes or modifications tothis equipment may void the user’s authority to operate it.CLASS 1 LASER PRODUCTKLASSE 1 LASER PRODUKTLUOKAN 1 LASER LAITEKLASS 1 LASER APPARATPRODUCTO LASER CLASE 1RISK OF ELECTRIC SHOCK. DO NOT OPENCAUTION:TO REDUCE THE RISK OF ELECTRICSHOCK, DO NOT REMOVE REAR COVER.NO USER SERVICEABLE PARTS INSIDE.REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.CAUTIONSafety WarningsSAFETY WARNINGS

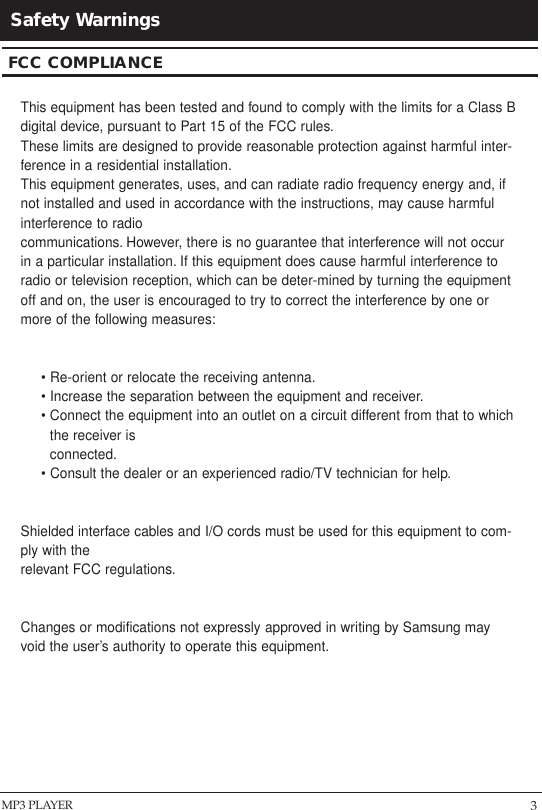

3MP3 PLAYERThis equipment has been tested and found to comply with the limits for a Class Bdigital device, pursuant to Part 15 of the FCC rules.These limits are designed to provide reasonable protection against harmful inter-ference in a residential installation.This equipment generates, uses, and can radiate radio frequency energy and, ifnot installed and used in accordance with the instructions, may cause harmfulinterference to radio communications. However, there is no guarantee that interference will not occurin a particular installation. If this equipment does cause harmful interference toradio or television reception, which can be deter-mined by turning the equipmentoff and on, the user is encouraged to try to correct the interference by one ormore of the following measures:• Re-orient or relocate the receiving antenna.• Increase the separation between the equipment and receiver.• Connect the equipment into an outlet on a circuit different from that to whichthe receiver is connected.• Consult the dealer or an experienced radio/TV technician for help.Shielded interface cables and I/O cords must be used for this equipment to com-ply with the relevant FCC regulations.Changes or modifications not expressly approved in writing by Samsung mayvoid the user’s authority to operate this equipment.Safety WarningsFCC COMPLIANCE
4MP3 PLAYERTable of ContentsAccessories Supplied◆Safety Warnings ................................................................................................. 2◆Accessories Supplied ........................................................................................ 4◆Location of controls........................................................................................... 5◆Getting Started................................................................................................... 6◆MP3 Player•Connecting to PC.............................................................................................. 7•Installing the MP3 programs on your PC..................................................... 8•Using MP3 program......................................................................................... 9•MP3 playback.................................................................................................. 11•Special features............................................................................................... 12◆Recommendations for Use•Troubleshooting Guide.................................................................................. 14•Specifications................................................................................................... 14•Warranty Card ................................................................................................ 15NoteImportantPushPressSymbolsOwner's Manual(Including Warranty) CD-ROM DISC Parallel CableEarphone Smart Card Recording Protect Sticker
5MP3 PLAYERRepeat ButtonVolume Increase ButtonVolume Decrease ButtonSmartMedia Card SlotHold SwitchSmartMedia Card Eject SwitchDISPLAYUNITVolume Decrease ButtonHeadphone TerminalSkip/Search( )Data I/O ConnectorRepeatRecordingMP3ChannelVolume Increase ButtonPlay/Stop ButtonSkip/Search( )S. bass ButtonTotal FileDelete FilesS. bassDisplay DigitsBatteryLocation of controls
6MP3 PLAYERGetting Started1Insert a SmartMedia Card into the Unit2Downloading MP3 files.• Refer to pages 7~13.3To remove the SmartMedia Card.• Push the SmartMedia Eject Switch.Setting the SmartMedia CardSmartMedia Card Erase Protection FeatureSmartMedia Card Eject Switch(Front) (Back)(Recording protect sticker)• To prevent an MP3 file from being erased, attach the memory erasing protectionsticker to the memory protection tab.• Be sure to protect SmartMedia Card from magnet, humidity, shock, etc.• Be sure to power off before inserting or removing the SmartMedia Card. Otherwise, the MP3files stored in the player may be damaged.• Only 16MB and 32MB SmartMedia Cards can be used with this product.☛
7MP3 PLAYERConnecting to a PC• To download an MP3 file to your MP3 Player, the parallel port should be availableon your computer.• If a printer is connected to the parallel port of your PC, disconnect it temporarily toconnect your MP3 Player.• If your PC does not have a parallel port, inquire with the dealers where youpurchased your PC and have a parallel port installed.• For best results, your system requirements should be as follows:Taking the steps shown below will prepare your Wingo for downloading MP3 files.PARALLEL PARALLEL PORT• Connect the MP3 Player to a PC using a parallel cable.MP3 PlayerPC- Pentium 120MHz or higher- Windows 95/98- At least 20MB Hard Disk space- Parallel Port supporting ECP- CD-ROM Drive - 32MB RAM or higherPARALLEL DATA I/O CONNECTOR
8MP3 PLAYERInstalling the MP3 programs on your PCIn order to download MP3 files to the MP3 Player, you must install programs containedon the CD-ROM supplied for your PC.• This program may not be installed correctly if MS EXPLORER version 4.01 or higher hasnot been installed on your PC.• The computer should be set while booting as shown below.1) Turn on the computer.2) While testing the RAM, press the F2 or Del key to enter the Setup screen.3) Move to the Peripheral setting screen to set the Printer port.4) Set the Printer port to the ECP mode.5) Save the setting and reboot the computer.Check the “Environment ➔options” menu of unit, set to the ECP mode by check.• Refer to page 9.1Load the supplied software CD into the CD-ROMdrive of your PC and click on the "NEXT" Button.• The MP3 Player setup program will start automatically.• If the setup does not start automatically, find the"setup.exe" file using the File Finder, then double clickon it to execute the program.• To install in another directory, use the Browse Button to select.2Check the program path icon and thenpress the "NEXT" Button.• An icon will be created automatically.3After installation procedures are completed,click the "Finish" Button to exit the setupprogram.

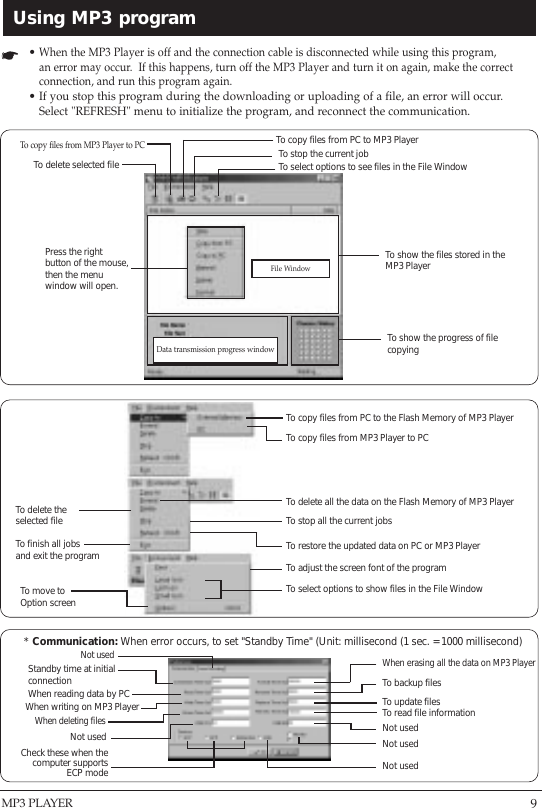

9MP3 PLAYERUsing MP3 programTo copy files from PC to the Flash Memory of MP3 PlayerTo copy files from MP3 Player to PCTo delete all the data on the Flash Memory of MP3 PlayerTo stop all the current jobs To restore the updated data on PC or MP3 PlayerTo adjust the screen font of the programTo select options to show files in the File WindowTo move to Option screen* Communication: When error occurs, to set "Standby Time" (Unit: millisecond (1 sec. = 1000 millisecond)When erasing all the data on MP3 PlayerStandby time at initialconnectionTo delete the selected file To finish all jobs and exit the programWhen reading data by PCWhen writing on MP3 PlayerWhen deleting filesNot usedNot usedCheck these when thecomputer supports ECP modeTo backup filesTo update filesTo read file informationNot usedNot usedNot used• When the MP3 Player is off and the connection cable is disconnected while using this program, an error may occur. If this happens, turn off the MP3 Player and turn it on again, make the correctconnection, and run this program again.• If you stop this program during the downloading or uploading of a file, an error will occur.Select "REFRESH" menu to initialize the program, and reconnect the communication.Data transmission progress windowFile WindowPress the rightbutton of the mouse,then the menuwindow will open.To show the progress of filecopyingTo show the files stored in the MP3 PlayerTo select options to see files in the File WindowTo stop the current jobTo copy files from PC to MP3 PlayerTo delete selected fileTo copy files from MP3 Player to PC
10MP3 PLAYERUsing MP3 program234Double click on “MP3 Player Explorer icon” to execute the program.Then choose "External Memory" command from "Copy to" command. Alternately, press the Button on the screen.From the PC window, choose the "File" menu either by clicking the left button of the Mouse or by using (ins) key.Press the OPEN button on the screen.From the MP3 Player window, choose the "File" menu eitherby clicking the left button of the Mouse or by using (Ins) key.Then choose "Flash Memory" command from "Copy to"command. Alternately, press the Button on the screen.From the PC window, choose the “Directory”, Press the“SAVE” Button.From the MP3 Player window, choose the "File" menu either byclicking the left button of the Mouse or by using (ins) key.Then choose the "Delete" command from the File menu.Alternately, press the Button on the screen.232111Choose the "File" menu. Then choose the "Format"command from the "File" menu to delete all the files.• Your unit (MP3 Player) can download up to 32 Mbytes. Hence, depending on the size ofMP3 file, the number of files to be downloaded may be limited.• The number on the Total Space of the Data transmission progress window indicates theremaining space for download.Transferring files from PC to MP3 PlayerTransferring files from MP3 Player to PCDeleting filesDeleting all files in the MP3 Player1
11MP3 PLAYERMP3 playbackIf you want to pause MP3 music, press “Play/Stop” button.If you want to play MP3 music again, press "Play/Stop" button again.-MP3 music will restart to play at the point where it was stopped.22After connecting headphones, adjust the volume.• If the power is completely disconnected by replacing the battery, the first MP3 filewill be played.☛☛• The player automatically switches off if no buttons are pressed within 100 seconds ofwhen playback is stopped, the end of a file is reached, or pause is activated.☛Copy audio files from your PC to play them back on the MP3 player.11Press the Play/Stop Button.• Switch the player on by pressing Play/Stop.• Switch the player off by pressing Play/Stop for over 2 seconds.
12MP3 PLAYERSpecial FeaturesRepeat ButtonPress REPEAT button to select “REPEAT” or “REPEAT ALL”To listen to the present song repeatedly:• Press the REPEAT button to select, then “REP” appears on the LCD flash.To repeat all the songs:• Press the REPEAT button once more, then “REP ALL” appears on the LCD.If you want to disable the repeat function:• press the REPEAT button once more. “REP ALL” will disappear from the LCD.REPEAT FunctionDuring playback, momentarily press the " , " Button.•Press and release the " " Button to select the next track.Press and release the " " Button to replay the current track.•When in STOP mode, press and release the " " Button to playback the second track.Press and release the " " Button to playback the last track.To select a trackDuring playback, hold down the " , " Button.•Hold down " " Button to fast forward the track. Hold down " " Button to searchbackwards.•Release the button for playback at normal speed.High-Speed Search
13MP3 PLAYER2Press it again to select “OFF”111UnlockLock ➨➨11Set the HOLD Switch to Lock position.•Use the HOLD Function in the following cases:1)While in playback mode, if the HOLD Switch is set to the Lock position, none of the otherbuttons will not work.2)Even when the HOLD Switch on main unit is in the Lock position, the Remote Control willwork.•If you carry this unit in your bag without using it, be sure to check that the unit is in“HOLD” mode to prevent the power button from being pressed accidentally. (Thisfunction will save the battery life.)While the HOLD Switch on the main unit is in “Lock” position,pressing any button on MP3 Player unit will cause the “Hold”Indicator to flash and the operation corrersponding to the buttonwill not start.DELAREATAPE STFRSBSAUTOMEREPFREEFMMP31Press the S. bass Button•” SBS ” will appear on the LCD and the bass will be increased.S. bass FunctionSpecial Features
14MP3 PLAYERMP3Flash Memory . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32MByteSignal/Noise Ratio . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 70dBFrequency Range . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20Hz~20KHzProblemCheck the charge level of thegeneral or rechargeablebatteries loaded in the set.Check the polarity (+, -) of theloaded batteries.Check if the Hold function isselected.Check that MP3 files are storedin the memory of the player.Check the connection of the PCand the player.If the power cannot beturned on or no operationscan be performed:If the buttons on the player donot work:If music playback is notperformed even when thePlay button is pressed in theMP3 mode:If MP3 file download cannotbe performed: Check thepower is properly supplied.MP3PLAYERTroubleshooting GuideSpecificationsChecksRemedy
15MP3 PLAYERWarranty (for USA users only)SAMSUNGLIMITED WARRANTYSamsung Electronics America Inc.(SEA), warrants that this product is free from defectivematerials and workmanship.SEA further warrants that if this product falls to operate properly within the specified war-ranty period and the failure is due to improper workmanship or defective materials, SEAwill repair or replace the product at its option.All warranty repairs must be performed by a SEA Authorized Service Center. (The nameand address of the location nearest you can be obtained by calling toll free: 1-800-SAM-SUNG)LABOR PARTS90 Days (Carry–in) One yearOn carry-in models, transportation to and from the service center is the customer’s respon-sibility.The original dated sales receipt must be retained by the customer and is the only accept-able proof of purchase. It must be presented to the authorized service center at the timeservice is requested.EXCLUSIONS (WHAT IS NOT COVERED)This warranty does not cover damage due to accident, fire, flood and/or other acts of God;misuse, incorrect line voltage, improper installation, improper or unauthorized repairs,commercial use or damage that occurs in shipping. Operations explained in the instructionmanual are not covered under the terms of this warranty. This warranty will automaticallybe voided for any unit found with a missing or altered serial number. This warranty is validonly on products purchased and used in the United States and Puerto Rico.Some states do not allow the exclusions or limitations of incidental or consequential dam-ages, or allow limitations on how long an implied warranty lasts, so the above limitationsor exclusions may not apply to you. This warranty gives you specific legal rights and youmay also have other rights which vary from state to state.Warranty (for Canada users only)SAMSUNGLIMITED WARRANTYSamsung Electronics Canada.(SECA), warrants that this product is free from defectivematerial and workmanship.SECA further warrants that if this product falls to operate properly within the specifiedwarranty period and the failure is due to improper workmanship or defective materials,SECA will repair or replace the product at its option.All warranty repairs must be performed by a SECA Authorized Service Center. (The nameand address of the location nearest you can be obtained by calling toll free: 1-800-SAM-SUNG)LABOR PARTS90 Days (Carry–in) One yearOn carry-in models, transportation to and from the service center is the customer’s respon-sibility.The original dated sales receipt must be retained by the customer and is the only accept-able proof of purchase. It must be presented to the authorized service center at the timeservice is requested.EXCLUSIONS (WHAT IS NOT COVERED)This warranty does not cover damage due to accident, fire, flood and/ or other acts of God;misuse, incorrect line voltage, improper installation, improper or unauthorized repairs,commercial use or damage that occurs in shipping. Exterior and interior finish, lamps,glass are not covered under this warranty. Customer adjustments which are explained inthe instruction manual are not covered under the terms of this warranty. This warranty willautomatically be voided for any unit found with a missing or altered serial number. Thiswarranty is valid only on products purchased and used in Canada.
ELECTRONICSELECTRONICSSAMSUNG ELECTRONICS AMERICA, INC.HEADQUARTERS105 Challenger Road, Ridgefield Park, N.J.07660-0511TEL : 1-800-SAMSUNGSERVICE DIVISION1 Samsung Place Ledgewood, N.J. 078521-800-SAMSUNG (1-800-726-7864)www.samsungsupport.com
