user guide_04
60
61
Chapter 3.
Using the computer
LCD Brightness Control
The screen brightness is automatically set to the brightest
level when AC power is connected and the brightness is
automatically set dimmer when the computer runs on battery
power to extend the battery use time.
Controlling the Brightness Using the Keyboard
1 Click the Charms menu > Settings
áᔪ
Ŗᮁ
᯲
ᰆ⊹
ᖅᱶ
> Screen
Adjustment icon
⦽
.
2 Adjust the brightness with the screen brightness control bar.
Saving battery power consumption•
Decreases the LCD brightness when the computer
is running on battery power to save battery power
consumption.
LCD bad pixels principle of computer•
Samsung observes the specications regarding strict
quality and reliability of LCD. But in spite of that, it is
inevitable that there might be a small number of bad
pixels. A large number of bad pixels can cause problems in
appearance, but a small number of pixels doesn’t aect the
computer performance.
Therefore Samsung observes and manages the following
dot principles:
- Bright dot : 2 or less
- Black dot : 4 or less
- Combination of Bright and Dark : 4 or less
Instructions for Cleaning the LCD
Clean the LCD panel with a soft cloth lightly moistened with
computer cleansing detergent moving in one direction.
Cleaning the LCD panel with excessive force can damage the
LCD.
62
Chapter 3.
Using the computer
Wired Network
A wired network is a network environment used for a company
network or broadband internet connection at home.
You can use wired LAN by using the LAN adapter (Optional).•
Since these descriptions are written on the basis of the •
latest operating system, Windows 8, some of the content
and the gures of the descriptions may dier depending
on the operating system. Since the procedures for other
Windows operating systems are similar, use the computer
referring to these descriptions.
The gures used for the description are of a representative •
model. Therefore the gures may dier from the real ones.
Connecting to the Wired LAN
1 Connect the LAN adapter to the wired LAN port.
2 Connect the LAN cable to the connected LAN adapter.
LAN
adapter
z
x
3 Click Charms menu on the Desktop > Settings
áᔪ
Ŗᮁ
᯲
ᰆ⊹
ᖅᱶ
>
Control Panel > Network and Internet > Network and
Sharing Center and click on Change adapter settings in
the left menu pane.
62
63
Chapter 3.
Using the computer

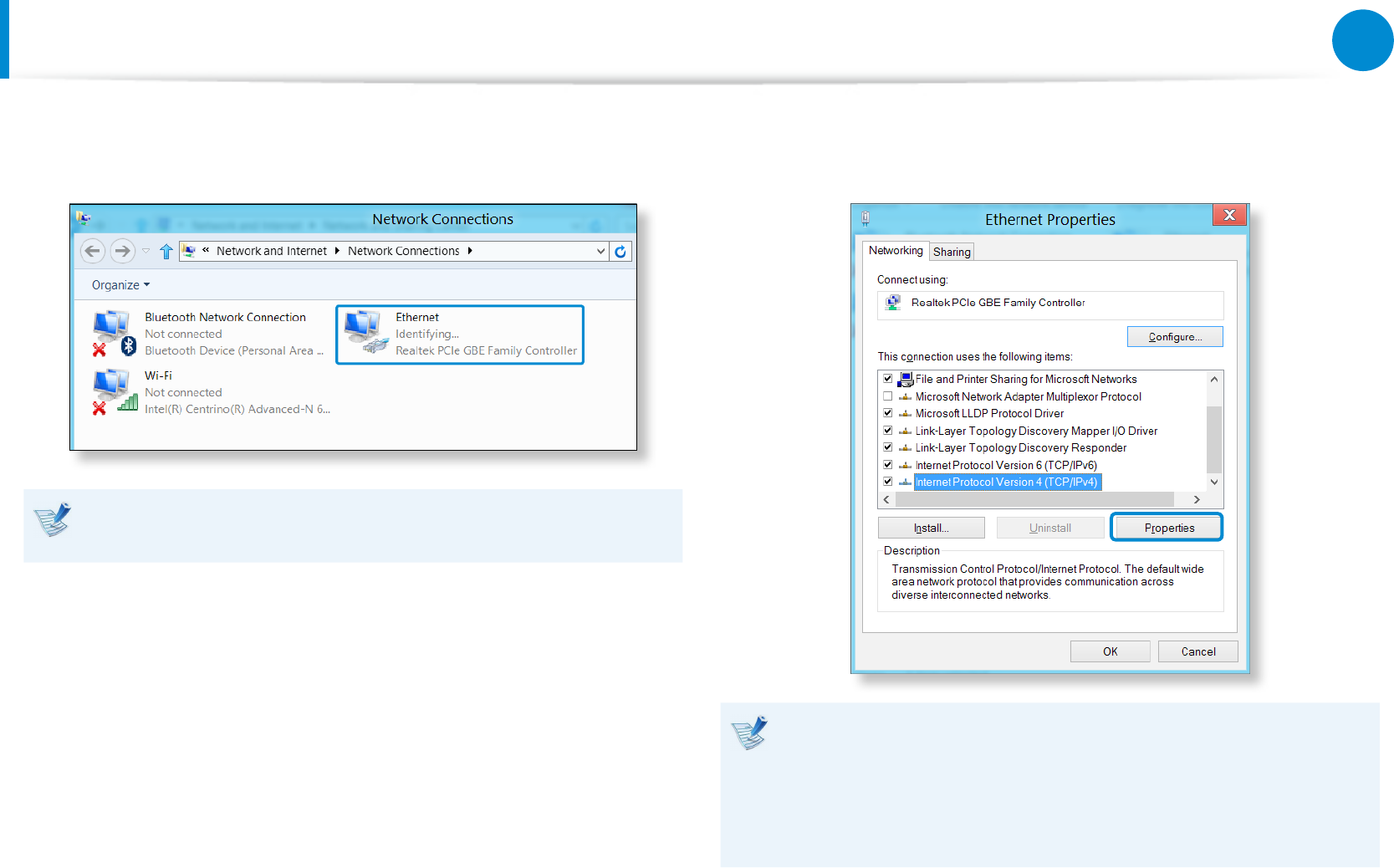

4 Select Ethenet and click the right button of the touch pad
and select Properties.
The LAN Device name may dier depending on your
computer’s Network Device.
5 Select Internet Protocol Version 4(TCP/IPv4) from the list
of Network Components and click Properties.
The Network Component name may dier depending on •
the Operating System Installed.
To add a network component, click Install in the screen •
shown in the gure above. You can add clients, services,
and protocols.
Wired Network
64
Chapter 3.
Using the computer
Wired Network

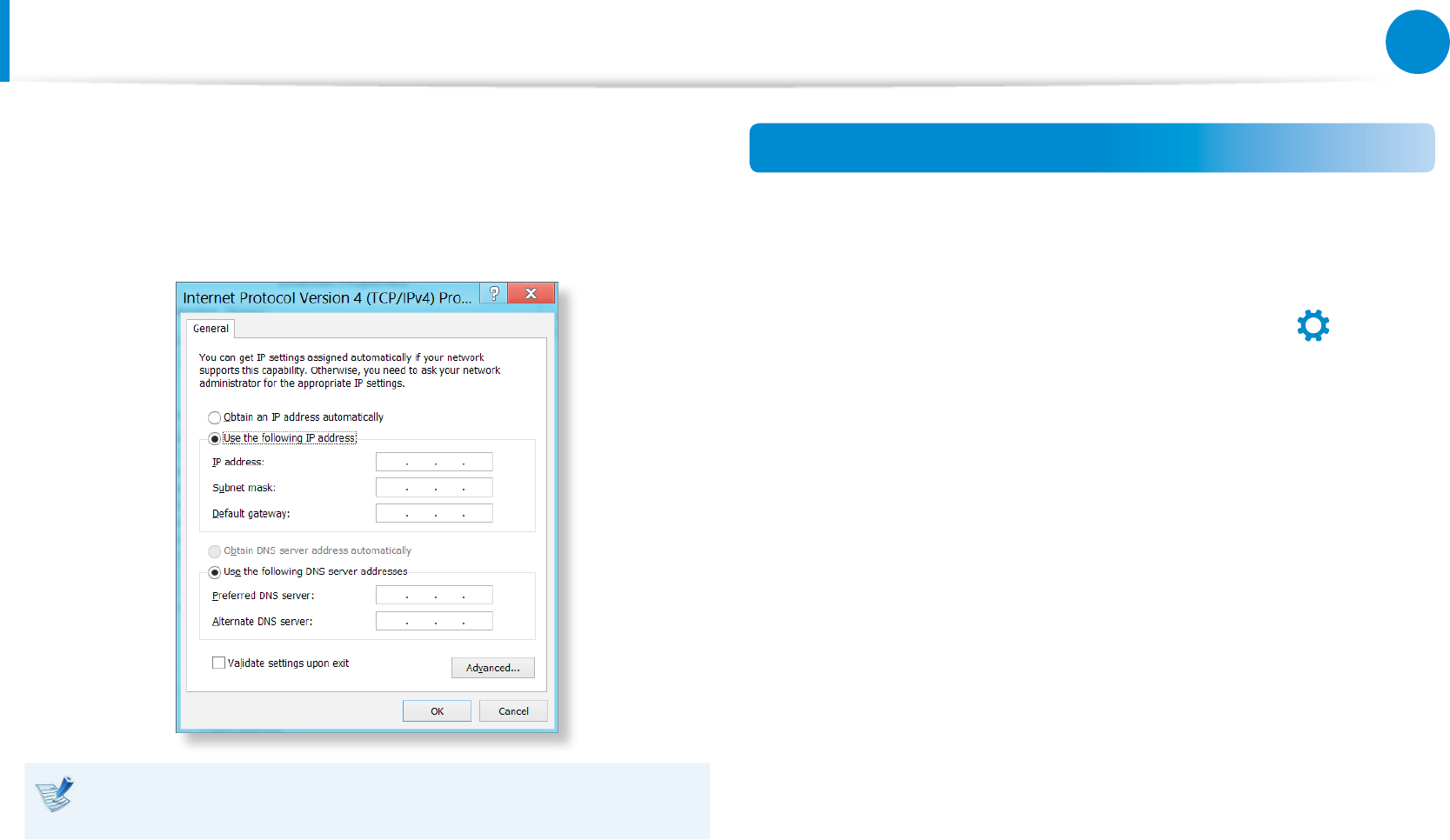

6 Congure the IP settings.
When using DHCP, select Obtain an IP address
automatically. To use a static IP address, select Use the
following IP address, and set the IP address manually.
When not using DHCP, ask your network administrator for the
IP address.
7 When you have completed the settings, click the OK button.
The network settings have been completed.
Using the WOL (Wake On LAN) function
<Wake On LAN> is a function that activates the system from Sleep
mode when a signal (such as a ping or magic packet command)
arrives over the network (wired LAN).
1 Click Charms menu on the Desktop > Settings
áᔪ
Ŗᮁ
᯲
ᰆ⊹
ᖅᱶ
>
Control Panel > Network and Internet > Network and
Sharing Center and click on Change adapter settings in
the left menu pane.
2 Right-click on the Wired Ethernet Connection and select
Properties.
3 Click Congure > Power Management tab. Select Allow
this device to wake the computer, then click OK. Restart
the system.
- If the system wakes up from Sleep mode even though there
is no received signal, use the system after disabling the
<Wake On LAN> function.
-
Connecting a wired LAN while using a wireless LAN may not
activate the <Wake On LAN> function. Set the Wireless LAN
to Disable to use the <Wake On LAN> function.
- <Wake On LAN> feature may not work while using Hybrid
power saving feature. Hybrid sleep mode can be disabled
from Power Options under Control Panel.
64
65
Chapter 3.
Using the computer
Wired Network
For Windows 8, Wake On LAN is not supported by Ping.
When connected to a 100Mbps/1Gbps wired LAN and the
computer exits Sleep/hibernation mode, a message appears
informing you of a connection to a 10Mbps/100Mbps
wired LAN. This happens because when the computer exits
standby/hibernate mode, restoring the network takes about
3 seconds. When the network is restored, it operates at
100Mbps/1Gbps.
When system is running on battery, some time it may take
a few second extra after inserting LAN cable to be able to
connect to internet. This symptom happen as a result of
power saving feature to reduce battery consumption.
When system is running on battery, the Wired LAN speed
is decreased automatically to reduce battery consumption.
In such case, a 1Gbps /100Mbps LAN would function at
100Mbps/10Mbps speed.
66
Chapter 3.
Using the computer
A wireless network (Wireless LAN) environment is a network
environment that enables communication between multiple
computers at home or a small-size oce through wireless LAN
devices.
The screen gures and terms may dier depending on the •
model.
Depending on the program version, some functions may •
not be provided or dierent functions may be provided.
The descriptions below are for computer models with •
a Wireless LAN card or device. A Wireless LAN device is
optional.
The pictures in this manual may dier from the actual
product depending on your wireless LAN device model.

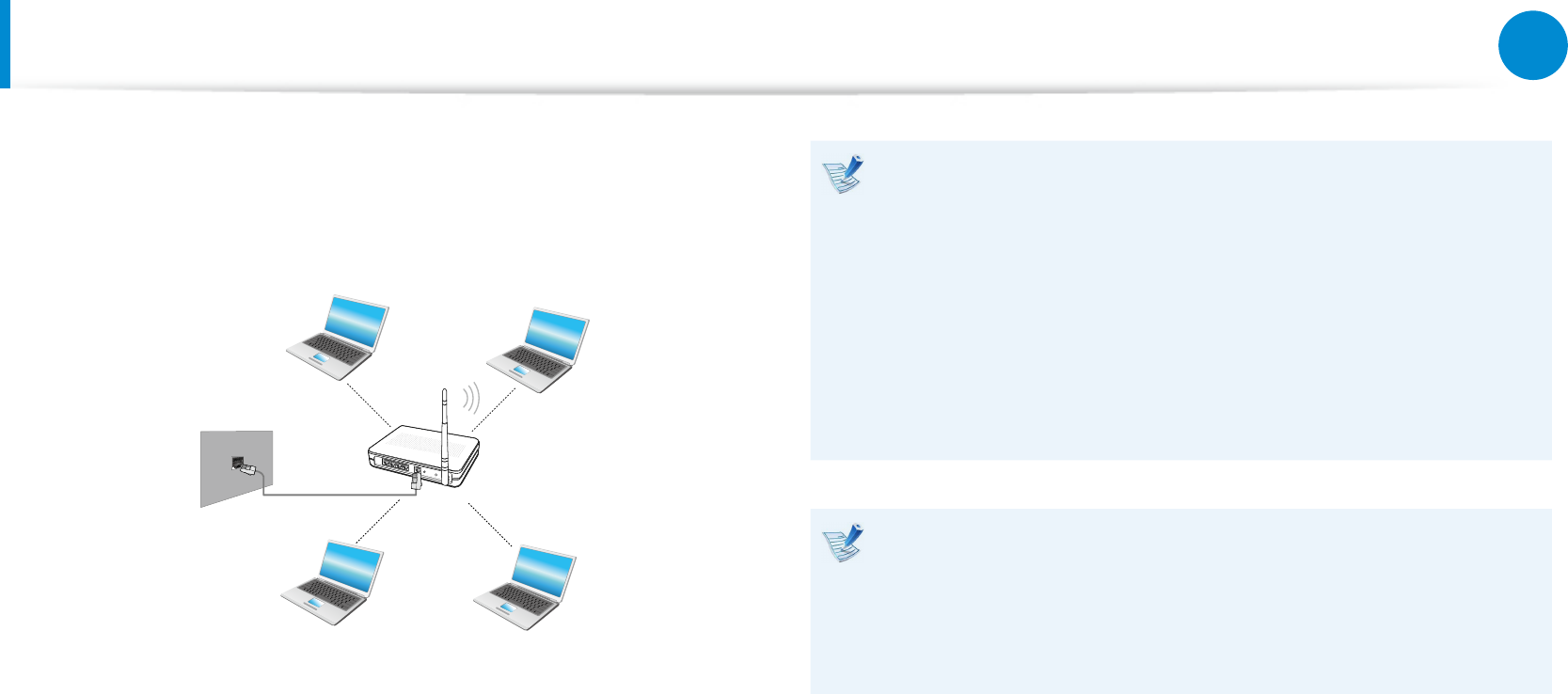

What is an Access Point (AP)?
An AP is a network device that bridges wired and wireless
LANs, and corresponds to a wireless hub in a wired network.
You can connect multiple wireless LAN installed computers
to an AP.
Wireless Network (Optional)
66
67
Chapter 3.
Using the computer
Wireless Network (Optional)
Connecting to a Wireless LAN
If there is an AP, you can connect to the Internet via the AP using
the Wireless LAN connection method provided by Windows.
1 If you click the Charms menu > Settings
áᔪ
Ŗᮁ
᯲
ᰆ⊹
ᖅᱶ
> Network
Connections icon, a list of available APs appears.
If you select an AP to connect to, the Connect button
appears.
AP List
2 Click Connect.
If a network key is set for the AP, enter the network key and
then click OK.
For the network key, please ask your network administrator.
3 When the AP connection is completed, Connected is
displayed next to the corresponding AP. You can now use the
wireless network.
68
Chapter 3.
Using the computer
Mobile broadband (Wireless WAN, Optional)
A wireless wide area network (WWAN) is a mobile broadband
network that is available in mobile phone service areas.
The descriptions below are for computer models with •
mobile broadband devices. A mobile broadband device is
optional.
Depending on the version of the operating system, some •
functions may not be provided or dierent functions may
be provided.
The pictures in this manual may dier from the actual •
product depending on your WWAN device model.
1 Click Charms > Settings
áᔪ
Ŗᮁ
᯲
ᰆ⊹
ᖅᱶ
> Network to display available
mobile broadband networks as shown below.
If there are no available network service providers listed
under Mobile broadband, turn o the computer, and insert
the SIM card correctly, and then turn on the computer.
2 Select a carrier name to connect to and the Connect button
is displayed.
3 If the Prole settings screen appears, follow the onscreen
instructions to enter the required information.
4 The network connection is established and Internet access is
available.
68
69
Chapter 3.
Using the computer
Using the TPM Security Device (Optional)
A TPM (Trusted Platform Module) security device is a security
solution that protects your personal information by saving
the user authentication data on the TPM chip installed on the
computer.
To use the TPM security device, you have to initialize the TPM chip
in the BIOS Setup, initialize the TPM program, and then register
the user.
This function is only supported for models with TPM •
(security chip).
For more information, refer to the online help for the •
program.
The program version described in this manual is subject to •
change and the screenshots and terms used in this manual
may dier from the actual product.
Setting Up the TPM
To use the TPM function, you have to complete the following
steps.
1 Initializing the TPM chip
Initializes the authentication information saved on the TPM
chip.

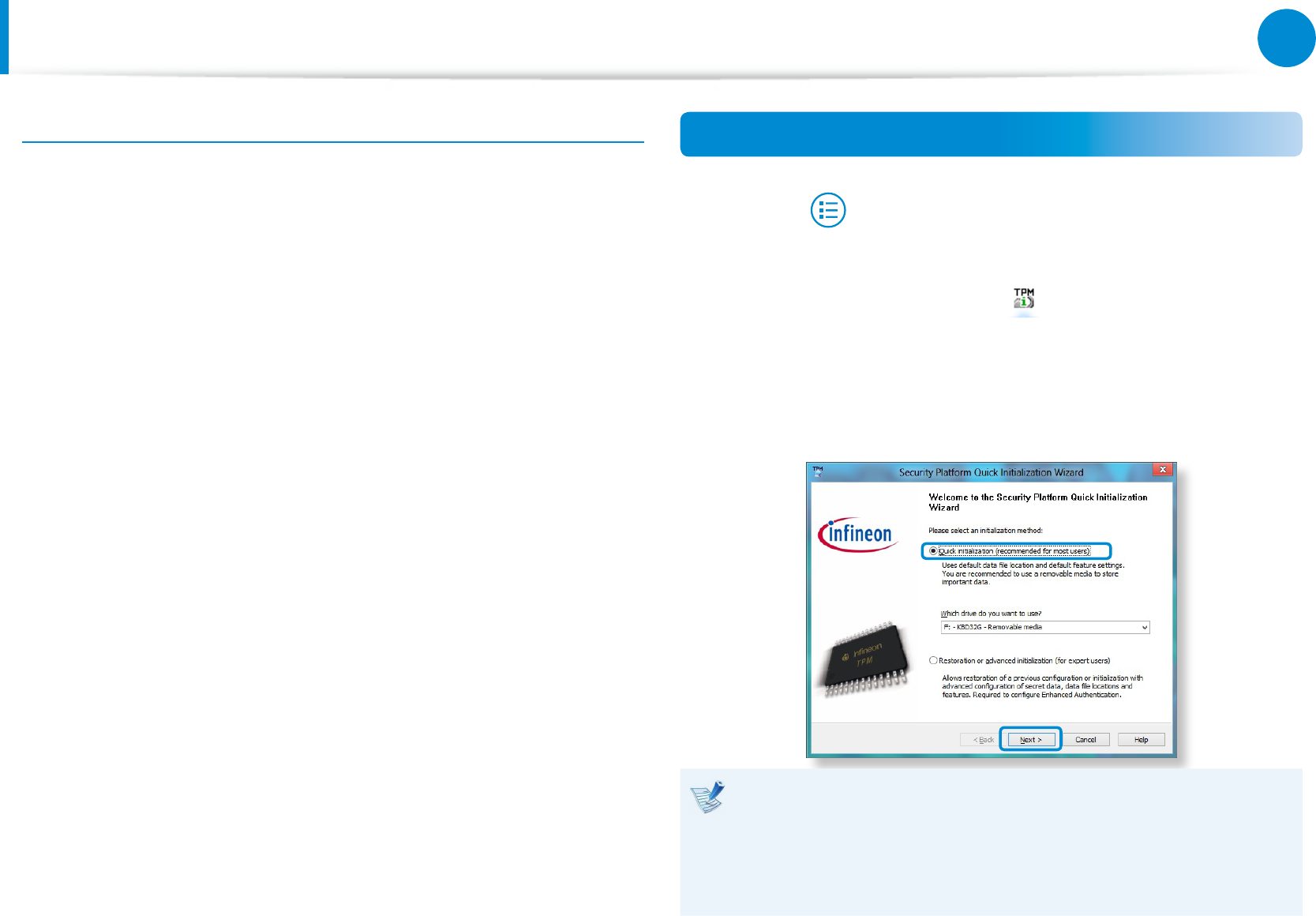

2 Installing the TPM program
Installs the TPM program.
3 Registering the TPM program
Registers the TPM program.
If you complete the steps above, you can use the TPM function.
70
Chapter 3.
Using the computer

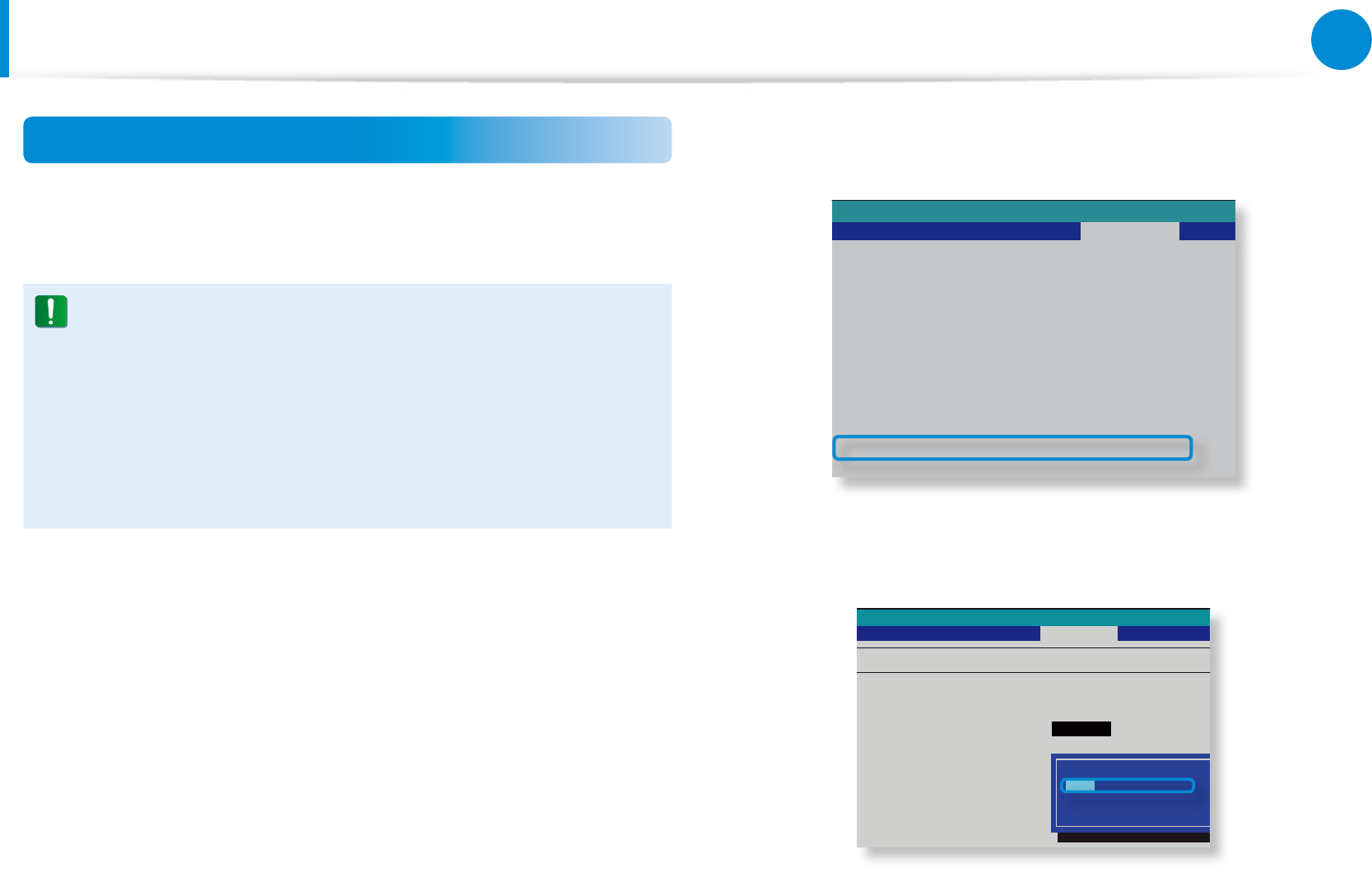

Initializing the TPM chip
When you use the TPM function for the rst time or you want to
register the user again, you have to initialize the TPM chip.
Initializing the TPM chip erases all authentication •
information saved on the TPM chip. Any decision to
initialize must be taken carefully.
To initialize the TPM chip again while the TPM function is •
in use, you have to decrypt any existing les and folders
encrypted by the TPM function rst. Otherwise, you
will not be able to access the les and folders after re-
initialization.
1 Restart the computer.
When the Samsung logo screen appears, press the F2 key
repeatedly.
2 If the BIOS screen appears, select the Security > TPM
Conguration item and press Enter.
Aptio Setup Utility
SysInfo
Supervisor Password
User Password
HDD Password
Set Supervisor Password
Set User Password
Set HDD Password
Password on Boot
Advanced SecurityBoot
Clear
Clear
Clear
[Enter]
[Enter]
[Enter]
[Enabled]
▶ TPM Conguration
Exit
3 Set the TPM Device item to Enabled and set the Change
TPM Status to Clear.
Aptio Setup Utility
TPM Conguration
TPM Device
Change TPM Status
Security Chip State
Security
[Enabled]
[No Change]
Disabled and Deactivated
No Change
Clear
Enable and Activate
Disable and Deactivate
4 Press the F10 key to save the changes.
Using the TPM Security Device (Optional)
70
71
Chapter 3.
Using the computer
5 When the system reboots, press the corresponding key(s) by
following the onscreen instructions.
6 When the computer restarts automatically and the Samsung
logo screen appears, press the F2 key repeatedly.
7 Select the Security > TPM Conguration > Change TPM
Status item and set the item to Enable and Activate.
Aptio Setup Utility
TPM Conguration
TPM Support
Change TPM Status
Security Chip State
Security
[Enabled]
[No Change]
Disabled and Deactivated
No Change
Clear
Enable and Activate
Disable and Deactivate
8 Press the F10 key to save the changes.
9 When the system reboots, press the corresponding key(s) by
following the onscreen instructions.
10
Press the F10 key to save the changes. The computer
automatically restarts. Initialization of the TPM chip has been
completed. Now, install the TPM program and register the
TPM program.
Installing the TPM program
You can install the TPM program as follows. Install the program
according to the procedures below.
This program is only provided for models with Recovery and
the TPM function.
Method 1
1 Run Recovery and click on System Software.
- If your computer does not boot up or if System Software
does not display in the Recovery program, use Method 2
to install the TPM program.
2 Click on System Software Installation.
3 The SW Update program will be launched.
Select TPM Host SW and click Install Now.
If the system software media is supplied with the product,
you can install the program by using the system software
media (only when supplied.)
4 After the installation, if you click OK, the computer restarts.
Using the TPM Security Device (Optional)
72
Chapter 3.
Using the computer
Using the TPM Security Device (Optional)
Method 2
1 Turn the computer on and immediately press the F4 key
several times.
2 After a moment, the Recovery program runs.
Click System Software.
3 When a pop-up window appears to ask you to reboot the
system, click Yes.
The system starts to reboot. After a moment, the SW Update
program automatically runs.
4 Connect to the network.
5 Select TPM Host SW and click Install.
6 After the program is completely installed, click Close.
7 Close the SW Update window and reboot your computer
again.
Registering the TPM program
1 From the Start Screen, right-click any area and select
All apps in the bottom right corner. Then, click
Inneon Security Platform Solution > Security Platform
Management > User Settings. (with administrator authority)
Alternatively, double-click the icon on the Taskbar and
run initialization with administrator authority.
2 The security authentication settings begin with the
Initialization Wizard. When the Initialization Wizard appears,
click Next.
If the status not initialized message appears, click Yes.
If you backup the emergency recovery le to an external
storage device according to the instructions of the
Initialization Wizard, you can use the TPM security device
more safely.
72
73
Chapter 3.
Using the computer
Using the TPM Security Device (Optional)
3 Select a Security Platform Feature and set a basic user
password.
4 Complete the registration according to the instructions.
5 The user registration for the TPM program has been
completed. You can encrypt les and folders by using
the encryption le system, and use les and folders to be
encrypted by creating or copying them to the virtual drive.
The virtual drive is created in the following location.
Using the TPM program
For more information about using the TPM program, refer to
the online help for the program.
Encrypting a le (folder)
This function enables encrypting les and folders. You can safely
protect documents through the Encrypt File System (EFS).
The Encrypt File System(EFS) function is supported by the
following operating systems.
Windows 7 Professional / Enterprise / Ultimate •
Windows 8 Pro / Enterprise•
1 Right-click over the folder (or le) to be encrypted, and select
Encrypt from the pop-up menu.
74
Chapter 3.
Using the computer
Using the TPM Security Device (Optional)
2 If the Conrm Attribute Changes window appears, select
the range to apply the encryption to and click OK.
(This dialog box only appears when the folder is encrypted.)
If the current operating system is Windows 8/7, the user
account control window appears. In this case, click Continue.
3 In the user authentication window, enter the Basic user
password you entered when registering the user and click
OK.
4 You will be able to conrm that the color of the folder (le)
name in the encrypted folder has been changed to green.
74
75
Chapter 3.
Using the computer
Using the TPM Security Device (Optional)
Opening an encrypted folder (le)
1 Double-click an encrypted folder (le).
2 If the user authentication window appears, enter the basic
user password you entered when registering the user and
click OK.
3 The folder (le) opens.
Decrypting an encrypted folder (le)
1 Right-click over an encrypted folder (le) and select Decrypt
from the pop-up window.
2 If the user authentication window appears, enter the basic
user password you entered when registering the user and
click OK.
3 The folder (le) is decrypted.
Using the virtual drive (Personal Secure Drive: PSD)
The virtual drive (PSD) is a virtual space to save and manage
condential data. In the created virtual drive (PSD), you can create
les and folders as with a normal drive (e.g. drive C:) and you can
use condential data saved on another drive by copying the data
to the virtual drive (PSD).
When the virtual drive (PSD) does not appear
You can only use the virtual drive (PSD) when you have selected
the Personal Secure Drive (PSD) option during the program
registration.
If you have not selected the option during the registration,
complete the following steps.
1 From the Start Screen, right-click any area and select
All apps in the bottom right corner.
Then, click Inneon Security Platform Solution > Security
Platform Management > User Settings tab > Congure
Security Platform Features.
2 When the Initialization Wizard appears, select Personal
Secure Drive (PSD) and enter the user password.
3 Click Next several times according to the instructions of the
Initialization Wizard to nish the wizard.
76
Chapter 3.
Using the computer
Using the TPM Security Device (Optional)
When the virtual drive (PSD) is not loaded
To use the virtual drive (PSD), the virtual drive (PSD) should be
loaded rst. If it is not loaded, you can load it according to the
procedures below.
1 Right-click over the Security Platform icon in the system
tray of the Taskbar and select Personal Secure Drive > Load
from the pop-up menu.
2 In the load window, enter the basic user password and click
OK.
3 If you click Start > Computer, you will be able to conrm that
the Personal Secure Drive is created.
Note that when you have copied condential data to the PSD,
the original data les are not encrypted.
When you have to register again (to erase the
authentication information on the TPM chip)
To register a user again, you need to delete the existing
authentication information saved on the TPM chip and then clear
the TPM chip.
Register the user in the following order.
1 Delete the virtual drive.
2 Delete the existing authentication information saved on the
TPM chip.
76
77
Chapter 3.
Using the computer
Using the TPM Security Device (Optional)
Deleting the virtual drive
If a virtual drive has been created, you have to delete the virtual
drive before deleting the existing authentication information
saved on the TPM chip.
1 Right-click over > and click Personal Secure Drive >
Create/Manage.
2 Click Next.
3 Enter the password that you entered when registering the
TPM program and click Next.
4 Select Delete selected PSD and click Next.
5 Select “I want to permanently delete my Personal
Secure Drive without saving an unencrypted copy of its
contents.” and click Next.
6 Click Next and then Finish.
7 Now the virtual drive has been deleted.
Deleting the existing authentication information saved
on the TPM chip.
1 On the desktop, select the Charms menu > Settings >
Control Panel > Programs > Uninstall a program >
Inneon TPM Professional Package. Then click Uninstall.
2 If the message window appears, click Yes to remove the
program.
3 If the Inneon Security Platform message appears, click No.
4 Click the Windows Explorer icon in the taskbar on the
Desktop.
5 In View > Options > Folder Options > View > Hidden les
and folders item, select the Show hidden les, folders, and
drives option and click OK.
6 Click the Start > Computer > Drive C: > ProgramData
folder and delete the Inneon folder.
7 Now the TPM Program has been deleted.
To use the TPM function, please repeat the procedures of the
TPM chip initialization process.
78
Chapter 3.
Using the computer
Using the Multimedia App (Optional)
You can enjoy photo, video and music les with the S Camera, S
Gallery and S Player apps.
S Camera You can take photos and record videos with the S
Camera app, and view them directly in this app.
S Gallery Only photos or videos recorded with the S Camera
app can be viewed with the S Camera app.
S Player You can view the photo, video and music les saved
on the computer.
Depending on the version of the program, some functions
may not be provided or dierent functions may be provided.
Third-party software related services
For descriptions about and service requests for third-party •
software, please contact the relevant manufacturer.
Some troubleshooting actions in response to service •
requests may not work depending on the software
manufacturer.

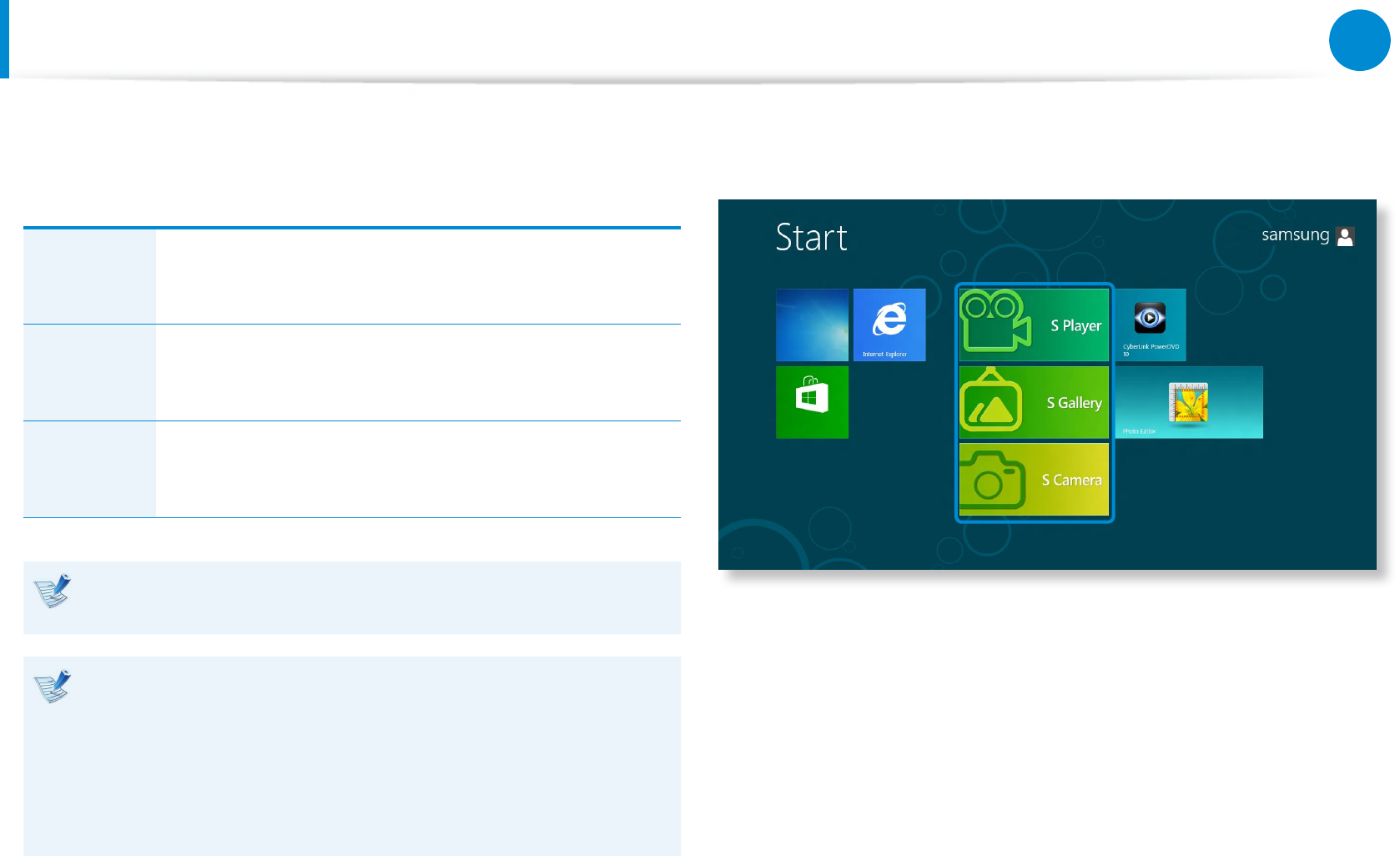

You can launch an app in the Start screen.
78
79
Chapter 3.
Using the computer
You can enjoy photo, video and music les with the S Camera, S
Gallery and S Player apps.
S Camera You can take photos and record videos with the S
Camera app, and view them directly in this app.
S Gallery Only photos or videos recorded with the S Camera
app can be viewed with the S Camera app.
S Player You can view the photo, video and music les saved
on the computer.
Depending on the version of the program, some functions
may not be provided or dierent functions may be provided.
Third-party software related services
For descriptions about and service requests for third-party •
software, please contact the relevant manufacturer.
Some troubleshooting actions in response to service •
requests may not work depending on the software
manufacturer.
You can launch an app in the Start screen.
Using the Multimedia App (Optional)
Using the S Camera app
1 Tap Charm menu > Start
áᔪ
Ŗᮁ
᯲
ᰆ⊹
ᖅᱶ
> S Camera.
Zoom in/out
Camera mode (Photo , Video )
preview
Take a picture/
Record a video
Photo settings
2 To take a picture, slide the camera mode bar into the Photo
position.
To make a video recording, slide the camera mode bar to the
Video position.
3 Tap on Take a picture/Record a video to take a picture
or record a video.
4 You can view the picture or video using the Picture preview
or S Gallery app.
The S Camera app is not available in Desktop mode.
Precautions while taking a picture or video
Do not take a picture or video of others without their •
consent.
Do not take a picture or video in locations where this is not •
allowed.
Do not take picture or videos in locations where you may •
infringe on others’ privacy or condential information may
be exposed.
80
Chapter 3.
Using the computer
Using the Multimedia App (Optional)
Using the S Gallery app
1 Tap Charm menu > Start
áᔪ
Ŗᮁ
᯲
ᰆ⊹
ᖅᱶ
> S Gallery.
2 You can view the pictures and videos taken by the S Camera.
In addition, you can apply special eects to the pictures using
the photo editing function.
You can take a picture in the S Gallery app by tapping the
Camera icon.

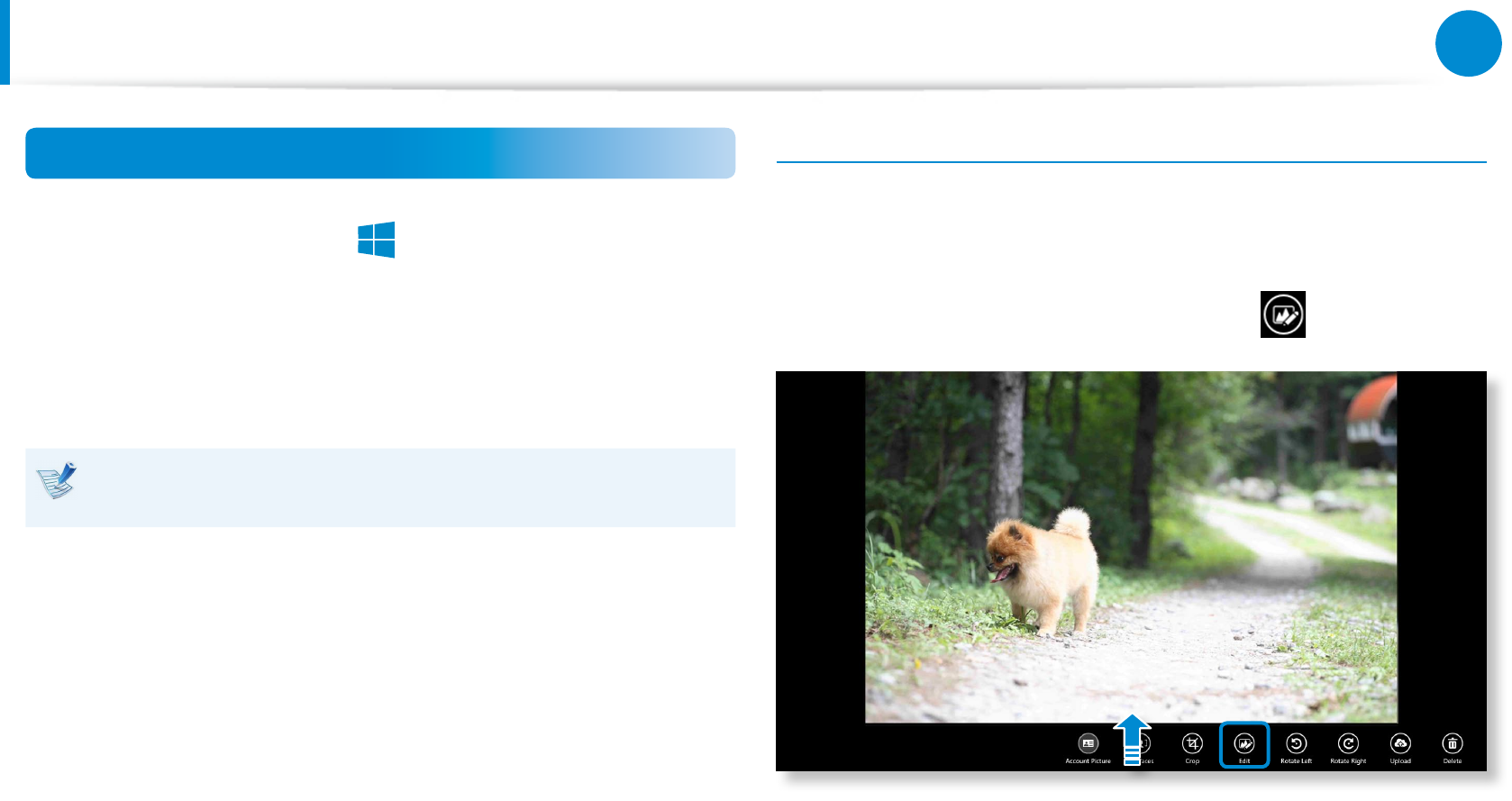

Editing a photo
1 Select Picture preview.
Drag it upward slightly from the bottom center.
If the options menu appears, select Edit .
80
81
Chapter 3.
Using the computer
Using the S Gallery app
1 Tap Charm menu > Start
áᔪ
Ŗᮁ
᯲
ᰆ⊹
ᖅᱶ
> S Gallery.
2 You can view the pictures and videos taken by the S Camera.
In addition, you can apply special eects to the pictures using
the photo editing function.
You can take a picture in the S Gallery app by tapping the
Camera icon.
Editing a photo
1 Select Picture preview.
Drag it upward slightly from the bottom center.
If the options menu appears, select Edit .
Using the Multimedia App (Optional)
2 Select an eect to be applied to the photo.
E.g. If you select Draw
Close
UndoLine preview
Line thickness Save
Color
Erase/Draw
Frame
Draw
Stamp
Using the S Player app
1 Tap Charm menu > Start
áᔪ
Ŗᮁ
᯲
ᰆ⊹
ᖅᱶ
> S Player.
My Photos
My Music
My Videos
My photo list
Music playlist Slideshow
2 Select a menu to enjoy photo, video and music les.
Some les may not be played depending on their format.
82
Chapter 3.
Using the computer

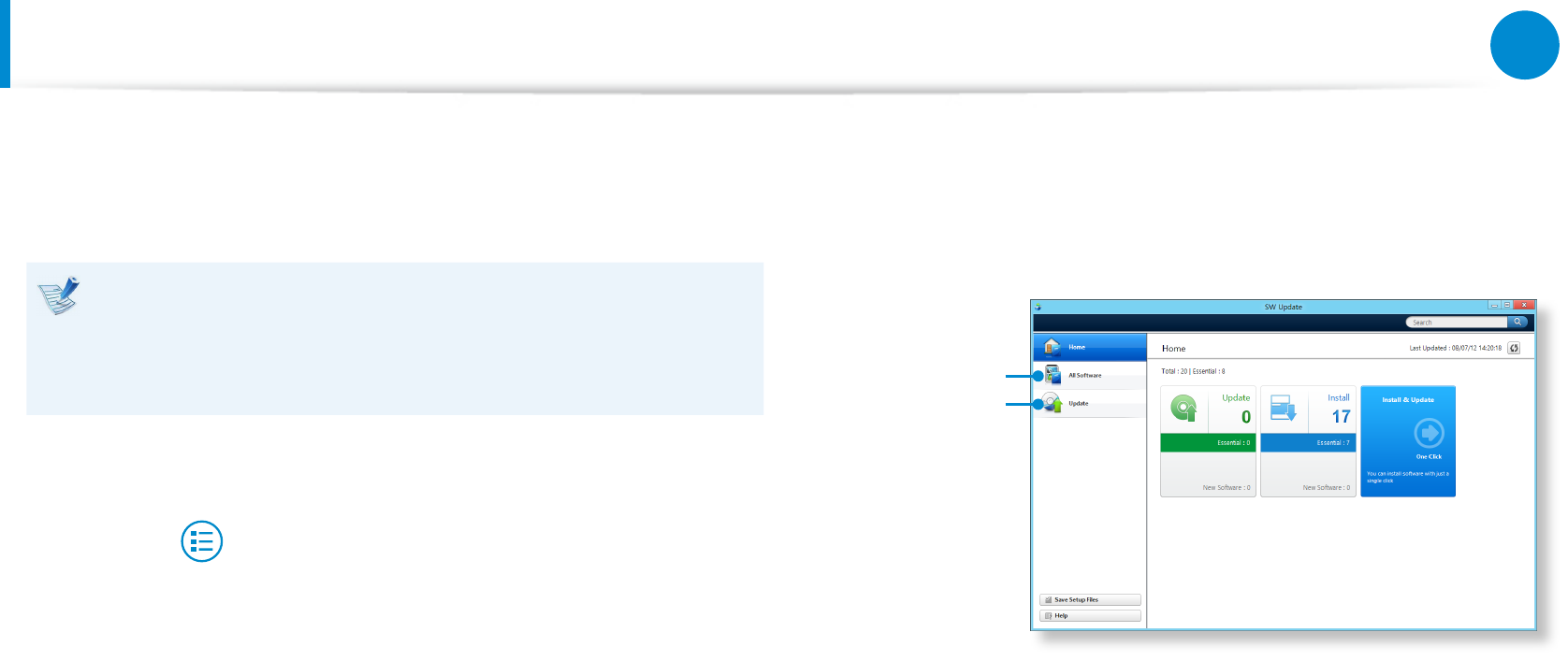

Samsung Software Update
SW Update is a software program that searches for Samsung
software programs and drivers installed when you purchased the
computer and helps you update any drivers or programs.
You can check updatable les before performing the •
update only when you are connected to the internet.
SW Update does not provide any updates for device drivers •
or software programs installed separately by the user.
1 From the Start Screen, right-click any area and select
All apps in the bottom right corner.
Then, click SW Update.
2 If the program is running for the rst time, the User
Agreement for personal information use appears.
Click Agree.
3 The SW Update program runs.
Select the items that you want to update before proceeding
with the update process.
Software
Update
Software List
82
83
Chapter 3.
Using the computer
Diagnosing the Computer Status and Troubleshooting
The Support Center program, which is Samsung’s computer’s
troubleshooting guide, supports diagnosing the system and has a
FAQ for frequently occurring problem(s).
Support Center may not be provided or may be a dierent
version depending on the model.
1 From the Start Screen, right-click any area and select
All apps in the bottom right corner.
Then, click Support Center.
2 Support Center is activated and starts diagnosing your
computer.
After the diagnosing process is nished, the System Status
menu displays a list of the current problems to be solved as
shown.
FAQ for
computer’s
major problems
Diagnosing
Computer and
Troubleshooting
Searching for
computer’s problems
3 You can solve a problem by clicking the Troubleshoot button
for the problem.
BIOS Setup 85
Setting a Boot Password 87
Changing the Boot Priority 90
Battery 91
Chapter 4.
Settings and Upgrade
85
Chapter 4.
Settings and Upgrade
BIOS Setup
The BIOS Setup enables you to congure your computer hardware
according to your needs.
Use the BIOS setup to dene a boot password, change the •
booting priority, or add a new device.
Since incorrect settings may cause your system to •
malfunction or crash, take care when conguring the BIOS.
The functions of the BIOS setup are subject to change for •
product function enhancement purposes.
The BIOS Setup menus and items may dier depending on •
your computer model.
Entering the BIOS Setup
1 Turn the computer on.
Immediately press the F2 key several times.
2 After a moment, the BIOS setup screen appears.
The items in the BIOS setup may dier depending on the
product.
86
Chapter 4.
Settings and Upgrade
The BIOS Setup Screen
The BIOS Setup menus and items may dier depending on
your computer model.
Setup Menu
Setup Items
Help
Help for the
selected
item appears
automatically.
Setup Menu Description
SysInfo This is a description about the basic specications
of the computer.
Advanced Using this menu, you can congure the major
chipsets and additional functions.
Security Used to congure security functions, including
passwords.
Boot This menu enables you to congure peripherals and
booting related settings such as the boot priority.
Exit Used to exit the Setup either saving the changes or
not.
System Setup Keys
In the Setup, you have to use the keyboard.
F1 Press to view the Setup Help.
Up & Down
Keys
Press to move up and down.
F5/F6
Press to change the item value.
F9 Press to load the default Setup
settings.
ESC Press to return to a higher level
menu or to move to the Exit menu.
Left & Right
Keys
Press to move to another menu.
Enter Press to select an item or to enter a
sub menu.
F10 Press to save the changes and exit
Setup.
The keyboard image may dier from the actual keyboard.
BIOS Setup
86
87
Chapter 4.
Settings and Upgrade
Setting a Boot Password
If you set a password, you have to enter the password when you
turn the computer on or enter the BIOS Setup.
By conguring a password, you can restrict system access to
authorized users only and protect data and les saved on the
computer.
The password setting provides the following 3 sub menus.•
(Supervisor Password, User Password and HDD Password)
Do not lose or forget your password. •
Do not let others know your password.•
If you forget the Supervisor Password or HDD Password, •
you will need to request assistance from the service center.
In this case, a service fee will be charged.
When you forget the User Password, you can disable •
the Supervisor Password, and the User Password is also
automatically disabled.
The screen images and terms may dier from actual •
product depending on the computer model and driver
version.
Setting a Supervisor Password
If you set a Supervisor Password, you need to enter the password
when you turn the computer on or enter the BIOS Setup.
Setting only the Supervisor Password and User Password is not
very secure. You can use an HDD Password as well to increase the
security level.
1 Select the Security menu in the BIOS Setup.
2 In the Set Supervisor Password item, press <Enter>.
XXXXXXXX
3 Enter a password, press <Enter>, re-enter the password for
conrmation, and press <Enter> again.
The password can be up to 8 alphanumeric characters.
Special characters are not allowed.
4 The supervisor password has been set.
The supervisor password is required to turn the computer on
or to enter the BIOS Setup.
For some models, if the password entered message appears
in the Setup Notice window, the settings are not complete
until the <Enter> key is pressed.
88
Chapter 4.
Settings and Upgrade
Setting a Boot Password
Setting a User Password
Using the User Password, you can turn the computer on but you
cannot change the major settings of the BIOS Setup because you
cannot enter the BIOS Setup.
This helps prevent unauthorized access to the major settings in
the BIOS Setup menu.
Before conguring a user password, a supervisor password must
have been congured. Deactivating the supervisor password also
deactivates the user password.
In the Set User Password item, press <Enter> and complete the
procedures from Step 3 of Setting a Supervisor Password.
Setting Up a Boot Password
To setup a boot password, the administrator password (Set
Supervisor Password) should be set in advance.
Set the Password on boot item to Enabled.
Once a boot password is set, you have to enter a password to boot
up the computer.
Be sure to remember the password for later use.
Setting up a Hard Disk Drive Password
(Optional)
If you set a password for a hard disk drive, it cannot be accessed
from another computer.
Press <Enter> in the Set HDD Password item and dene a
password as described in Step 3 of the Setting up the Supervisor
Password.
The hard disk drive password setting function is not •
provided for some models.
Changing the hard disk drive password•
For security purposes, you can only change a hard disk
drive password after restarting the computer by pressing
the computer Power button.
If you cannot change the hard disk drive password or the
HDD Password Frozen message appears when entering
the BIOS Setup and then selecting Security > HDD
Password, press the Power button to turn the computer
on again.
88
89
Chapter 4.
Settings and Upgrade
Setting a Boot Password
Deactivating the Password
1 Press <Enter> on the password to be deactivated. For
example, to deactivate a supervisor password in the Set
Supervisor Password item, press <Enter>.
2 In the Enter Current Password item, enter the currently
congured password and press <Enter>.
3 Leave the Enter New Password item eld empty, and press
<Enter>.
4 Leave the Conrm New Password eld empty, and press
<Enter>.
The password is deactivated.
For some models the password is only canceled if the
<Enter> key is pressed in the Setup Notice window.
90
Chapter 4.
Settings and Upgrade
Changing the Boot Priority
As an example, the procedures to change the highest boot priority
device to the hard disk drive are described below.
The screen images and terms may dier from actual product
depending on the computer model and driver version.
1 Select the Boot menu in the BIOS Setup.
2 Press <Enter> on the Boot Device Priority item.
XXXXXXXX
0WO.QEM =1HH?
'PCDNG-G[RCF =$[0WO.QEM?
6QWEJ2CF/QWUG ='PCDNGF?
+PVGTPCN.#0 ='PCDNGF?
2:'1241/ =&KUCDNGF?
5OCTV$CVVGT[%CNKDTCVKQP
3 Press the down key (↓) to move to the SATA HDD item and
press the F6 key to move up to the top item.
Boot Menu
[Boot Priority Order]
1. SATA CD : XXXXXXXXXXXX
2. SATA HDD : XXXXXXXXXXXX
3. USB CD : N/A
4. USB FDD : N/A
5. USB HDD : N/A
6. NETWORK : N/A
4 Press the F10 key to save the settings and exit Setup.
The highest boot priority device is now set to the Hard Drive.
If you need to boot to DOS using a USB device, enter the
BIOS Setup, select the Advanced menu and set the Fast
BIOS Mode item to Disabled.
90
91
Chapter 4.
Settings and Upgrade
Battery
Please refer to the following instructions when running the
computer on battery power without connecting the AC power.
This computer is equipped with an internal battery.
Precautions
Users cannot remove or replace the internal battery. •
To remove or replace the battery, use an authorized •
service center in order to protect the product and
users. You will be charged for this service.
Use only chargers specied in the User Manual.•
Never heat the battery pack, put it near or in a re or use at • a temperature higher than 60°C, as this may cause re.
Please refer to the system operation environment of • this manual and operate and store the battery at room
temperature.
Before using the computer for the rst time, make sure to • connect the AC adapter and charge the battery completely.
The images used for the illustration are of a representative • model, therefore the images may dier from the the actual
product.
The location of the
internal battery
Charging the Battery
1 An internal battery is embedded. Connect the AC adapter to
the power input jack of the computer. The battery will start
charging.
2 When charging is complete, the Charge LED turns green.
Status Charge LED
Charging Red or orange
Charging complete Green
AC adapter not
connected O
92
Chapter 4.
Settings and Upgrade
Battery
Measuring the Remaining Battery Charge
You can view the battery charge status by completing the
following procedures.

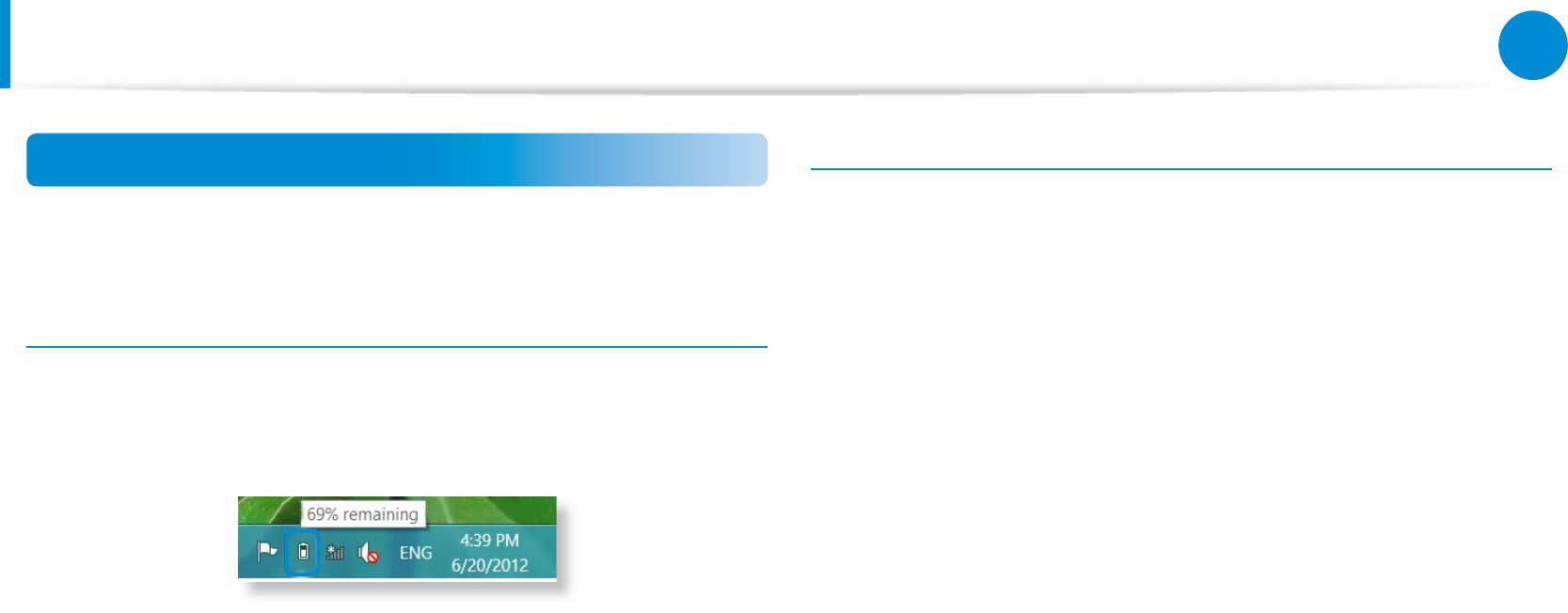

Conrming the battery charge in the Taskbar
Disconnect the AC adapter and move the mouse cursor over
the battery icon in the system tray of the Taskbar to conrm the
remaining battery charge.
Battery Usage Time Information
A battery is an expendable supply, so when using it over a long
time, the capacity/battery life is shortened. If the battery life is
reduced to under half of its initial time, we recommend purchasing
a new battery.
When not using the battery for a long time, store the battery after
charging it to 30-40% of its capacity. This extends the battery life
time.
92
93
Chapter 4.
Settings and Upgrade
Battery
Extending the Battery Usage Time
Decreasing the LCD Brightness
1 Click the Charms menu > Settings
áᔪ
Ŗᮁ
᯲
ᰆ⊹
ᖅᱶ
> Screen
Adjustment icon
⦽
.
2 Adjust the brightness with the screen brightness control bar.
The battery life will be extended.
Using the power management program
This program helps you use the battery more eciently
and supports the power mode optimized for the operating
environment.
1 Click Charms menu on the Desktop > Settings
áᔪ
Ŗᮁ
᯲
ᰆ⊹
ᖅᱶ
>
Control Panel > Hardware and Sound > Power Options.
Alternatively, right-click the power measuring device icon
in the notication area of the taskbar and select Power
Options.
2 If the following screen appears, select one of the modes.
94
Chapter 4.
Settings and Upgrade
Battery
Using the Battery Calibration Function
When charging/discharging the battery repeatedly for a short time
only, the battery usage time may be reduced by the dierence
between the actual battery charge and the remaining charge
display.
In this case, the actual battery charge and the remaining charge
display will be the same by discharging the battery completely
using the Battery Calibration function, and then recharging it
again.
The screen images and terms may dier from actual product
depending on the computer model and driver version.
1 Disconnect the AC power adapter after turning o the
computer.
2 Turn the computer back on, and press the F2 key to enter the
Setup screen.
3 Move to the Boot > Smart Battery Calibration item using
the direction keys and press <Enter>.
XXXXXXXX
0WO.QEM =1HH?
'PCDNG-G[RCF =$[0WO.QEM?
6QWEJ2CF/QWUG ='PCDNGF?
+PVGTPCN.#0 ='PCDNGF?
2:'1241/ =&KUCDNGF?
5OCTV$CVVGT[%CNKDTCVKQP
4 Highlight Yes in the Battery Calibration Conrmation
window and press <Enter>.
The Battery Calibration function is activated and the battery
is forcefully discharged. To stop the operation, press the
<Esc> button.
This operation requires 3~5 hours depending on the battery
capacity and the remaining battery charge.
Chapter 5.
Troubleshooting
Recovering/Backing up the Computer (Optional) 96
Reinstalling Windows (Optional) 103
Q&A 106
96
Chapter 5.
Troubleshooting
Recovering/Backing up the Computer (Optional)
If a problem occurs with your computer, Recovery (recovery
program) allows you to easily restore your computer to the default
(factory) settings. Alternatively, you can back up your computer so
that you can restore it to your preferred state at any time.
Recovery Introduction
Help
Recover
Back Up
Function Description
Recover Restores the entire Windows drive.
Back Up You can back up your entire Windows drive.
Recovery may not be provided or may be a dierent •
version depending on the model.
For models whose hard disk or SSD capacity is less than 64 •
GB, the Recovery program is not provided.
The instructions are provided based on Recovery 1.0 •
version. Some functions may dier slightly or be excluded
depending on the version. Refer to the program's Help
section for more information.
An ODD (CD/DVD drive, etc.) is not supported by the •
Recovery program.
96
97
Chapter 5.
Troubleshooting
Recovering
You can recover your computer to the default (factory) status
when your computer does not boot up.
1 - If Windows does not start
Turn your computer on and press the F4 key.
Run recovery mode.
- If Windows is running
From the Start Screen, right-click any area and select
All apps in the bottom right corner.
Then, click Recovery.
2 If the program is running for the rst time, you need to agree
to the User Agreement.
3 If the initial menu screen appears, click Recover.
Select a recovery point and click Recover.
If you set the User Data Maintenance to ON, the computer is
restored while maintaining the current user data.
4 Recover is performed based on the screen instructions.
If the recover is completed, you can use your computer
normally.
Recovering/Backing up the Computer (Optional)
98
Chapter 5.
Troubleshooting
Recovering after a Backup
You can recover your computer after you have backed up your
computer to a separate drive or external storage device.
Backing up
1 To back up your computer to an external storage device,
connect the external storage device and select the relevant
drive.
2 Click Backup in the Recovery Home screen.
Select the drive to save and click Backup.
You cannot select a DVD drive.
Select the drive
to save to.
3 The backup process is performed based on the instructions.
Recovering/Backing up the Computer (Optional)
98
99
Chapter 5.
Troubleshooting
Recovering
You can recover your computer using the backup from the above
process.
1 If the backup image is saved to an external storage device,
connect the device.
2 Start Recovery and click Recover.
3 Select a Recover Option and click Recover.
Select a point to recover.
4 The recover is performed based on the screen instructions.
You can use your computer after the recover is completed.
Recovering/Backing up the Computer (Optional)
100
Chapter 5.
Troubleshooting

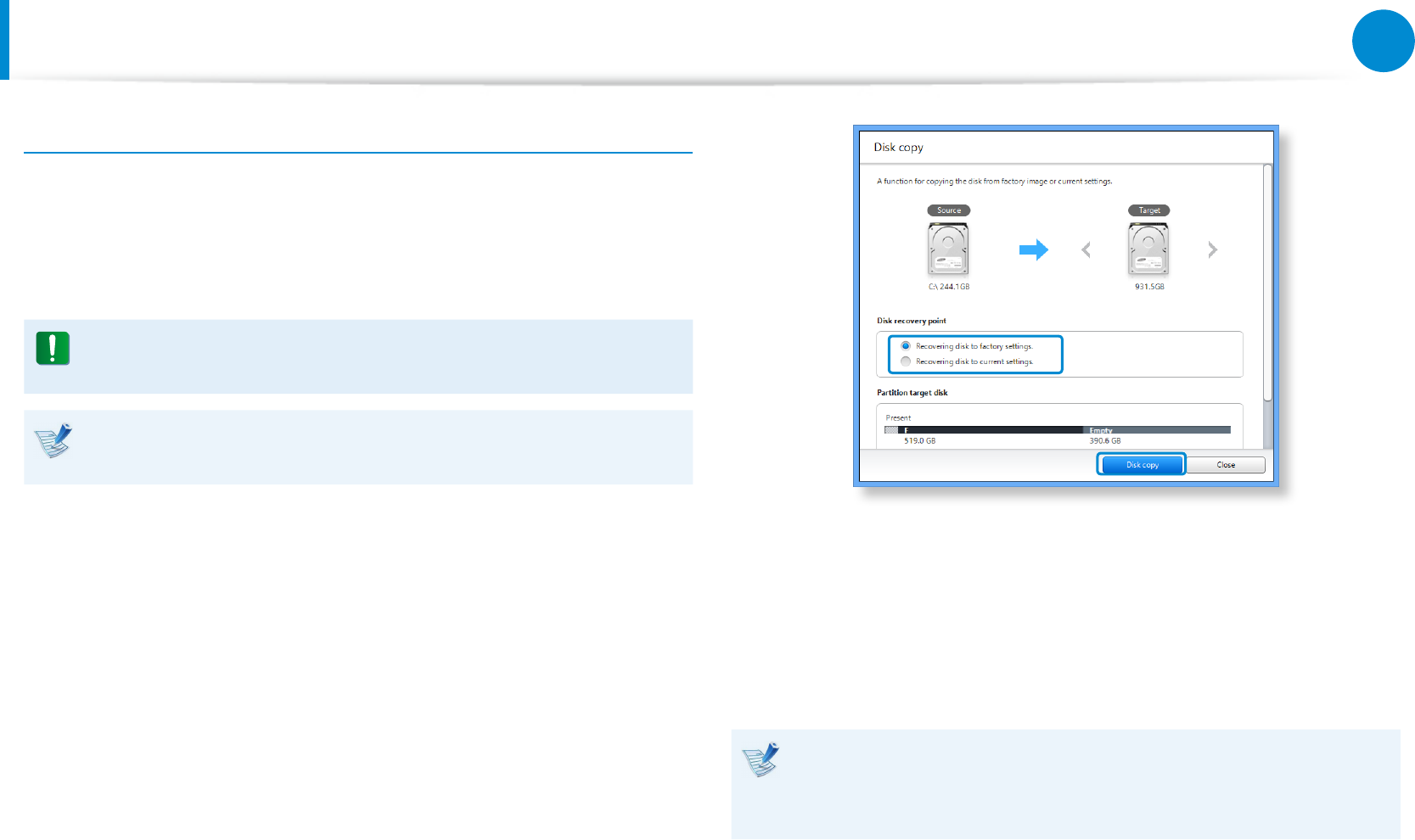

To copy the external storage disk
When you replace a storage device such as the HDD, SSD, etc.
(hereafter referred to as a hard disk) built into your computer, you
can move your existing data to the new storage device easily and
safely.
The new storage device must have sucient capacity to save
your existing data.
You need to purchase an external hard USB connector
separately to connect the hard disk and your computer.
1 You need to purchase an external hard USB connector
separately to connect the hard disk and your computer.
2 Start Recovery and click Disk copy.
3 Select an option in Disk recovery Point and click Disk copy.
4 The data on the current hard disk is saved to the new hard
disk.
5 If the data is completely saved, open the hard disk cover at
the bottom of your computer and replace the existing hard
disk with the new one.
If you cannot open the cover at the bottom of the computer,
contact the Samsung Service Center to request assistance.
In this case, you may be charged for the relevant service.
6 Your computer is now equipped with a new hard disk.
You can use your computer with a larger hard disk capacity
with the same conguration as the old one.
Recovering/Backing up the Computer (Optional)
100
101
Chapter 5.
Troubleshooting
Export Disk Image Function
If you frequently recover your computer to the default (factory)
settings, you can conveniently recover your computer after
exporting the default (factory) status disk image to an external
storage device.
1 Connect the external storage device, and then select a drive
to save to.
2 Click Run.
3 Perform the process by following the instructions to
completely save the default (factory) status disk image to the
external storage device.
Now disconnect the saved external storage device and store
it separately.
4 If your computer needs to be restored to the default (factory)
settings, connect the external storage device with the saved
image.
5 Start Recovery and click Recover. Select Factory Default
Point and click Recover. The Recover process is started.
When the recover process is nished, you can use your
computer with the default (factory) settings.
Recovering/Backing up the Computer (Optional)
102
Chapter 5.
Troubleshooting
Recovering/Backing up the Computer (Optional)
Computer Recovery Function in Windows 8
If a problem occurs with your computer, the recovery program
allows you to restore your computer to the default settings.
For models where the SSD is less than 64GB, use the Windows
System Restore function instead of the Recovery program.
1 Click the Charms menu > Settings > Change PC Settings >
General.
2 Click the Start button for Refresh.... or Remove.....
Refresh....
If your PC does not work properly, you can
restore your PC while keeping your media
les such as your photo, video and music
les, etc. as well as your personal documents.
Remove…. You can remove all items in your PC and
reinstall Windows again.
You should back up the les in the following folders
before using the PC Recovery function since these les
are not kept.
\Windows, \Program les, \Program les(x86), \ProgramData,
OEM Folder (ex) c:\samsung), \User\<user name>\AppData
3 Follow the onscreen instructions to proceed with the
recovery process.
If the recovery is complete, you can use your computer
normally.
You can restore required Samsung software programs
through All Apps > SW Update.
102
103
Chapter 5.
Troubleshooting
Reinstalling Windows (Optional)
You can reinstall Windows using the SYSTEM RECOVERY MEDIA
for Windows when Windows is no longer working properly.
(For models supplied with a SYSTEM RECOVERY MEDIA.)
For models supplied with the Samsung Recovery Solution, you
can reinstall Windows using the Samsung Recovery
Solution.
These descriptions are for Windows 7/8 and Windows Vista and for
supported models only.
A • SYSTEM RECOVERY MEDIA may not be supplied
depending on your computer model.
If you cannot start Windows, or if you want to delete •
all existing data and reinstall Windows, install Windows
according to the descriptions in [Reinstalling when
Windows does not start].
Some pictures may dier from actual product.•
These descriptions may dier depending on the operating •
system.
Reinstalling Windows may delete data (les and programs) •
saved on the hard disk drive.
Make sure to backup all important data. Samsung •
Electronics shall not be held liable for any loss of data.

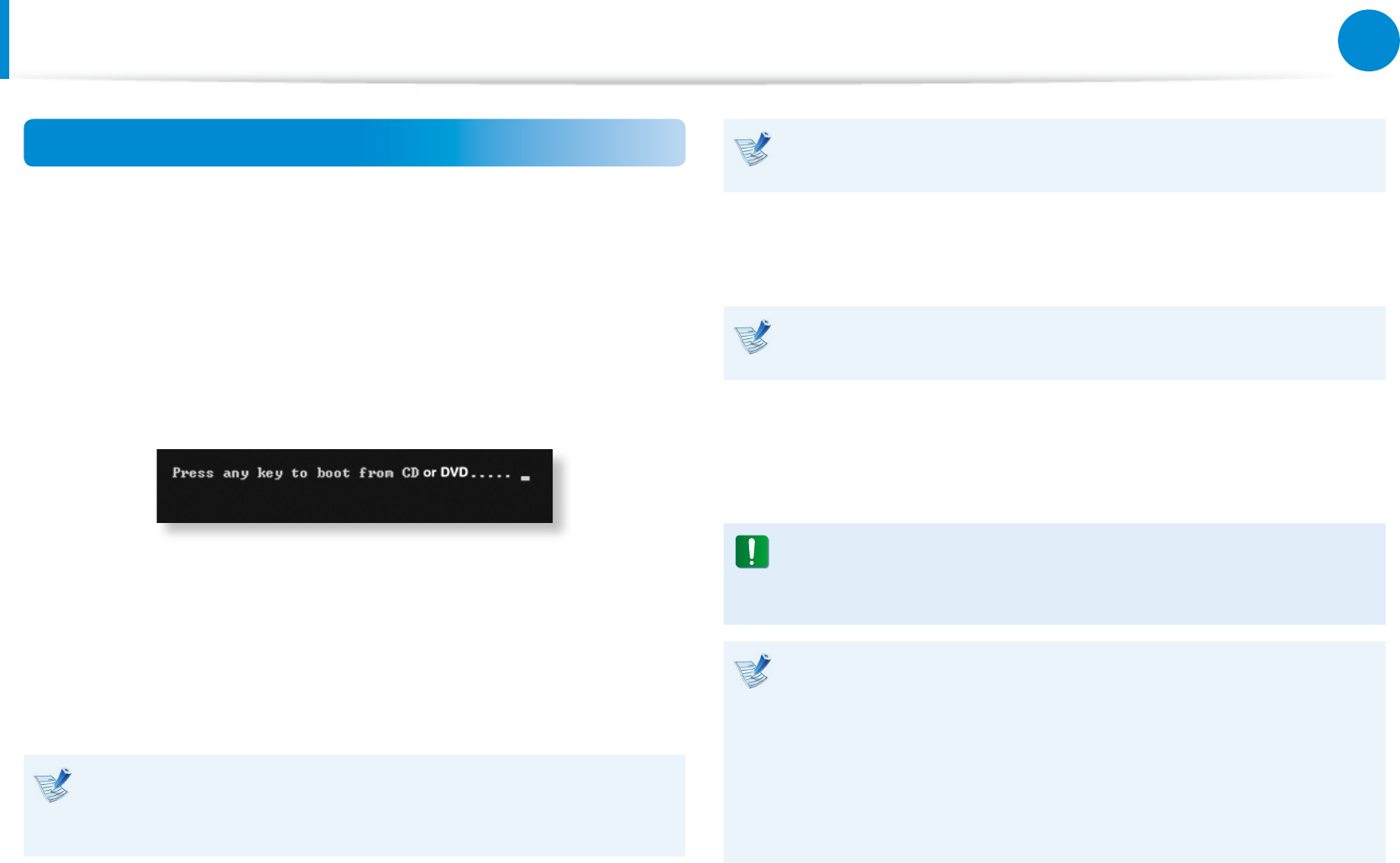

Reinstalling in Windows
1 Insert the SYSTEM RECOVERY MEDIA into the DVD drive.
2 If the Select Windows Installation window appears, click
Install Now. When the Select Update window appears, click
on the relevant item.
If you select • Go online to get the latest updates for
installation in the Select Update window, the latest
updates are installed and Step 4 follows. At this time, the
computer must be connected to the Internet.
For Windows 7/8, the screen asking for the operating •
system to be installed may appear depending on the
version. If you click the Next button, the screen of Step
3appears.
3 If the User Agreement screen appears, select I accept the
license terms and then click Next.
For Windows 7/8, this screen may not appear depending on
the version.
104
Chapter 5.
Troubleshooting
Reinstalling Windows (Optional)
4 The following window appears, select an installation option.
If you click Custom, the procedures from Step 5 continue
sequentially.
If you click Upgrade, the procedures from Step 6 continue
sequentially.
For Windows 7/8, this screen may not appear depending •
on the version.
Custom•
Select this option to Reinstall Windows. You have to
reinstall all necessary device drivers and programs after
the Custom installation. In addition, unnecessary folders
and les may remain on the hard disk drives after the
installation (e.g. C:\ Windows.old, etc.).
Upgrade•
Select this option to Upgrade Windows while maintaining
current les, congurations and programs. Although you
therefore do not need to reinstall the device drivers and
programs, some programs may not work properly after the
upgrade.
5 When a window appears asking for the location to install the
operating system to, select a disk drive partition and click the
Next button.
Drive D includes an area to save the backup image used by
Samsung Recovery Solution. Installing Windows to drive C is
recommended.
When previous Windows installation les are in the selected
partition, a message appears informing you that the les and
folders will be moved to the Windows. old folder. Click the
OK button.
6 The Windows installation continues.
The computer will restart 3 times during the installation.
If the Press any key to boot from CD or DVD... message
appears after a restart, do not press any button.
7 Register a user according to the instructions on the Windows
screen.
8 When the registration is complete, the Windows Desktop
screen appears.
For a smooth computer operation, installing the necessary
software installation is recommended.
104
105
Chapter 5.
Troubleshooting
Reinstalling Windows (Optional)
Reinstalling when Windows does not start
When Windows does not start, boot up with the SYSTEM
RECOVERY MEDIA and from there you can reinstall Windows.
1 Insert the SYSTEM RECOVERY MEDIA into the DVD drive
and restart the computer.
2 If the Press any key to boot from CD or DVD... message
appears while booting, press any key on the keyboard.
3 After a while, the Options windows such as Language, Time,
Keyboard, etc. appear. Conrm the settings and click the
Next button.
4 If the Select Windows Installation window appears, click
Install Now.
For Windows 7/8, the screen asking for the operating system
to be installed may appear depending on the version. If you
click the Next button, the screen of Step 5 appears.
5 If the User Agreement screen appears, select I accept the
license terms and then click Next.
For Windows 7/8, this screen may not appear depending on
the version.
6 When the window asking for the installation type appears,
click Custom.
For Windows 7/8, this screen may not appear depending on
the version.
7 When a window appears asking for the location to install the
operating system to, select the partition of the disk drive and
then click the Next button.
Drive D includes an area to save the backup image used by
Samsung Recovery Solution. Installing Windows to drive C is
recommended.
A If you click • Drive Options (Advanced), you can delete,
format, create or expand a partition. Click on a function
and proceed according to the instructions on the screen.
When previous Windows installation les are in the •
selected partition, a message appears informing you that
the les and folders will be moved to the Windows.old
folder. Click the OK button.
8 The subsequent steps are the same as those from Step 7 of
Installing in Windows.
106
Chapter 5.
Troubleshooting
You can look for potential problems that may occur with the
system and view the relevant solutions. Also, you may look up any
reference(s) required while operating the computer.
Recovery Related
Q1
What is a Recovery Area?
A Samsung computers have an additional partition to recover
computers or save backup les. (Only for models with the
Recovery.)
This partition is called a Recovery Area and it includes a
recovery image that comprises of the OS and application
programs.
Q2
The capacity representation of the hard disk
drive(HDD) in Windows is dierent from the product
specications.
A The capacity of the storage device (HDD) of the
manufacturer is calculated assuming that 1KB=1,000 Bytes.
However, the operating system (Windows) calculates the
storage device capacity assuming that 1KB=1,024 Bytes,
and therefore the capacity representation of the HDD in
Windows is smaller than the actual capacity.
The capacity representation in Windows may be smaller
than the actual capacity because some programs occupy a
certain area of the HDD outside of Windows.
For models with Recovery, the HDD capacity representation
in Windows may be smaller than the actual capacity because
Recovery uses a hidden area of about 5~20GB of the HDD
to save the recovery image, and that hidden area is not
counted towards the total size available to Windows.
The size of Recovery varies by models because of the
dierent size of applied programs.
Q3
What is a recovery image?
A This refers to the computer status (including operating
system, specic driver(s), software(s), etc.) which is converted
to a data image. It is required to recover your computer and
is embedded in the computer's hard disk. However, this is
not provided for storage devices where the capacity is less
than 64 GB due to the small capacity.
Q4
How can I restore a computer that does not have the
Recovery program?
A You can restore the computer using the system recovery
function provided by Windows.
Refer to the Restore Functionality item in the Help section
for more details.
Q&A
106
107
Chapter 5.
Troubleshooting
Windows 8 Related
Q1
I cannot nd the Start button on the Desktop.
A There's no Start button in Windows 8.
You can use the Control Panel, PC-running menu(s), etc. by
activating the Charms menu.
Q2
I cannot nd the computer's Shutdown button.
A Click the Charms menu > Settings > Power to display the
Power Options menu.
Click Shutdown.
Q3
The App disappeared in the Start screen.
A Click the Charms menu > Search to display all installed
Apps. Right-click over the corresponding App to select in a
Tile in the Start Screen.
Q4
Since I'm familiar with Windows 7, I would like the
Desktop screen to appear as it does in Windows 7.
A Currently, there is no way to set the Desktop to appear by
default.
Press the Windows key + D key simultaneously to reveal
the Desktop when the Start screen appears. This is currently
the only workaround.
Q5
How can I install a printer driver?
A Run your driver installation le and follow the corresponding
instructions. You can install it in the same method as the
existing OS.
Refer to your printer manual for detailed instructions for
each model.
Q6
How can I uninstall the driver?
A On the Desktop, click Charms menu > Settings > Control
Panel > Programs and Features.
Click the program. Then click uninstall.
Q&A
108
Chapter 5.
Troubleshooting
Q&A
Q7
How can I change the screen settings, environment
settings, type size, color, and so on?
A Click Charms menu > Settings > Change PC Settings >
Personalization. You can set the OS settings such as the
screen design, etc.
To congure your computer in detail, click the Charms
menu in Desktop > Settings > Control Panel.
You can congure your computer in the same way as
existing Windows systems.
Q8
Active X does not run in Internet Explorer on the Start
screen.
A Since Internet Explorer on the Start screen complies with the
HTML5 web standards, it does not support Active X. However,
Internet Explorer on the Desktop supports Active X.
►
How to activate Active X:
If you right-click over the Internet Explorer, the following
window appears. Press the button and click View on the
Desktop. Active X is now enabled.
Q9
I want to remove the pre-installed Windows 8
operating system and install a dierent OS.
A If you want to install a dierent operating system on your
PC, you need to change the BIOS settings rst.
For more information, visit http://www.samsung.com and
go to Customer Support > Troubleshooting. Search for
Windows 8 and look through the list of search results for the
relevant issue.
108
109
Chapter 5.
Troubleshooting
Q&A
Display Related
Q1
The Desktop displayed on the TV after connecting via
the HDMI port does not t the screen.
A Go to the Graphics Control Panel to adjust the screen
settings.
►
For Intel graphics cards
Right-click over the Desktop and go to Graphics Properties
> Display > General. Adjust the Horizontal Ratio and
Vertical Ratio settings to t your screen and click OK.
►
For AMD graphics cards
1. Right-click over the Desktop and select Graphics
Properties > Desktop and Display > My Digital Flat
Panel > Expansion Options (Digital Flat Panel).
2. Adjust the control bar to t the TV corners and click Apply.
Sound Related
Q1
I cannot hear any sound from the TV after connecting
via the HDMI port.
A 1. Right-click over the taskbar on the Desktop and click Play
Device.
2. Change the option to Digital Audio (HDMI), HDMI device,
HDMI Output or another option and click Set as Default.
Then click OK.
Others
Q1
You can congure your computer in the same way as
existing Windows systems.
A If you want to start your computer in DOS via a USB device,
set the Fast BIOS Mode item in the Advanced menu in the
BIOS Setup to Disabled before using this feature.
Chapter 6.
Appendix
Important Safety Information 111
Replacement Parts and Accessories 113
Regulatory Compliance Statements 115
WEEE Symbol Information 131
Samsung Packaging Take-Back Program 132
TCO Certied (for corresponding models only) 133
Product Specications 134
Glossary 136
Index 140
111
Chapter 6
Appendix
Safety Instructions
Your system is designed and tested to meet the latest standards
for safety of information technology equipment. However, to
ensure safe use of this product, it is important that the safety
instructions marked on the product and in the documentation are
followed.
Always follow these instructions to help guard against
personal injury and damage to your system.
Setting Up your System
Read and follow all instructions marked on the product and in •
the documentation before you operate your system. Retain all
safety and operating instructions for future use.
Do not use this product near water or a heat source such as a •
radiator.
Set up the system on a stable work surface.•
The product should be operated only with the type of power •
source indicated on the rating label.
Ensure that the electrical outlet you are using to power your •
equipment is easily accessible in case of re or short circuit.
If your computer has a voltage selector switch, make sure that •
the switch is in the proper position for your area.
Openings in the computer case are provided for ventilation. •
Do not block or cover these openings. Make sure you provide
adequate space, at least 6 inches (15 cm), around the system
for ventilation when you set up your work area. Never insert
objects of any kind into the computer ventilation openings.
Ensure that the fan vents on the bottom of the casing are clear •
at all times. Do not place the computer on a soft surface, doing
so will block the bottom vents.
If you use an extension cord with this system, make sure that •
the total power rating on the products plugged into the
extension cord does not exceed the extension cord power
rating.
For Notebooks with glossy display bezels the user should •
consider the placement of the Notebook as the bezel may
cause disturbing reections from surrounding light and bright
surfaces.
Important Safety Information
NB Ver 3.1
112
Chapter 6
Appendix
Care During Use
Do not walk on the power cord or allow anything to rest on it.•
Do not spill anything on the system. The best way to avoid •
spills is to not eat or drink near your system.
Some products have a replaceable CMOS battery on the •
system board. There is a danger of explosion if the CMOS
battery is replaced incorrectly. Replace the battery with the
same or equivalent type recommended by the manufacturer.
Dispose of batteries according to the manufacturers
instructions. If the CMOS battery requires replacement insure
that a qualied technician performs the task.
When the computer is turned o, a small amount of electrical •
current still ows through the computer.
To avoid electrical shock, always unplug all power cables,
remove the battery and modem cables from the wall outlets
before cleaning the system.
Unplug the system from the wall outlet and refer servicing to •
qualied personnel if:
– The power cord or plug is damaged.
– Liquid has been spilled into the system.
– The system does not operate properly when the operating
instructions are followed.
– The system was dropped or the casing is damaged.
– The system performance changes.
The Instruction On Safety Operation of NotePC
1.When installing and operating devices please refer to safety
requirements in the user guide.
2.Devices can be used only with the equipment specied in the
technical specications of the devices.
3. If any smell of burning or smoke is detected from the computer
the unit should be switched o and battery removed. The unit
should be checked by a qualied technician before reuse.
4.Service and repair of devices should be carried out by
authorized service centers.
5.Do not allow your portable computer to operate with the base
resting directly on exposed skin for extended periods of time.
The surface temperature of the base will rise during normal
operation (particularly when AC Power is present). Allowing
sustained contact with exposed skin can cause discomfort or
eventually a burn.
Important Safety Information
112
113
Chapter 6
Appendix
Replacement Parts and Accessories
Use only replacement parts and accessories recommended by
manufacturer.
To reduce the risk of re, use only No. 26 AWG or larger
telecommunications line cord.
Do not use this product in areas classied as hazardous.
Such areas include patient care areas of medical and dental
facilities, oxygen rich environments, or industrial areas.
Battery Disposal
Do not put rechargeable batteries or products powered by
non-removable rechargeable batteries in the garbage.
Contact the Samsung Helpline for information on how to dispose
of batteries that you cannot use or recharge any longer.
Follow all local regulations when disposing of old batteries.
THERE IS A RISK OF EXPLOSION IF BATTERY IS REPLACED BY
AN INCORRECT TYPE.
DISPOSE OF USED BATTERIES ACCORDING TO THE
INSTRUCTIONS.
Laser Safety
All systems equipped with CD or DVD drives comply with the
appropriate safety standards, including IEC 60825-1. The laser
devices in these components are classied as “Class 1 Laser
Products” under a US Department of Health and Human Services
(DHHS) Radiation Performance Standard. Should the unit ever
need servicing, contact an authorized service location.
Laser Safety Note:•
Use of controls or adjustments or performance of
procedures other than those specied in this manual
may result in hazardous radiation exposure. To prevent
exposure to laser beams, do not try to open the enclosure
of a CD or DVD drive.
Class 1M laser radiation when operating part is open.•
Do not view directly with optical instruments.
Class 3B invisible laser radiation when open.•
Avoid exposure to the beam.
114
Chapter 6
Appendix
Replacement Parts and Accessories
Connect and Disconnect the AC adapter
The socket-outlet shall be installed near the equipment and shall
be easily accessible.
Do not unplug the power cord by pulling the cable only.
Power Cord Requirements
The power cord set (wall plug, cable and AC adapter plug) you
received with your computer meets the requirements for use in
the country where you purchased your equipment.
Power cord sets for use in other countries must meet the
requirements of the country where you use the computer. For
more information on power cord set requirements, contact your
authorized dealer, reseller, or service provider.
General Requirements
The requirements listed below are applicable to all countries:
All power cord sets must be approved by an acceptable •
accredited agency responsible for evaluation in the country
where the power cord set will be used.
The power cord set must have a minimum current capacity •
of 7 A and a nominal voltage rating of 125 or 250 volts AC, as
required by each country’s power system. (USA ONLY)
The appliance coupler must meet the mechanical conguration •
of an EN 60 320/IEC 320 Standard Sheet C7 (or C5) connector,
for mating with appliance inlet on the computer.
114
115
Chapter 6
Appendix
Regulatory Compliance Statements
Wireless Guidance
(If tted with 2.4G band or 5G band)
Low power, Radio LAN type devices (radio frequency (RF) wireless
communication devices), operating in the 2.4GHz/5GHz Band, may
be present (embedded) in your notebook system. The following
section is a general overview of considerations while operating a
wireless device.
Additional limitations, cautions, and concerns for specic countries
are listed in the specic country sections (or country group
sections). The wireless devices in your system are only qualied for
use in the countries identied by the Radio Approval Marks on the
system rating label. If the country you will be using the wireless
device in, is not listed, please contact your local Radio Approval
agency for requirements. Wireless devices are closely regulated
and use may not be allowed.
The RF eld strength of the wireless device or devices that may
be embedded in your notebook are well below all international
RF exposure limits as known at this time. Because the wireless
devices (which may be embedded into your notebook) emit less
energy than is allowed in radio frequency safety standards and
recommendations, manufacturer believes these devices are safe
using. Regardless of the power levels, care should be taken to
minimize human contact during normal operation.
Some circumstances require restrictions on wireless devices.
Examples of common restrictions are listed on the next page:
Radio frequency wireless communication can interfere •
with equipment on commercial aircraft. Current aviation
regulations require wireless devices to be turned o while
traveling in an airplane.
802.11ABGN (also known as wireless Ethernet or Wi) and
Bluetooth communication devices are examples of devices
that provide wireless communication.
In environments where the risk of interference to other •
devices or services is harmful or perceived as harmful,
the option to use a wireless device may be restricted or
eliminated. Airports, Hospitals, and Oxygen or ammable
gas laden atmospheres are limited examples where use
of wireless devices may be restricted or eliminated. When
in environments where you are uncertain of the sanction
to use wireless devices, ask the applicable authority for
authorization prior to use or turning on the wireless device.
Every country has dierent restrictions on the use of •
wireless devices. Since your system is equipped with
a wireless device, when traveling between countries
with your system, check with the local Radio Approval
authorities prior to any move or trip for any restrictions on
the use of a wireless device in the destination country.
If your system came equipped with an internal embedded •
wireless device, do not operate the wireless device unless
all covers and shields are in place and the system is fully
assembled.
116
Chapter 6
Appendix
Regulatory Compliance Statements
Wireless devices are not user serviceable. Do not modify •
them in any way. Modication to a wireless device will void
the authorization to use it. Please contact manufacturer for
service.
Only use drivers approved for the country in which •
the device will be used. See the manufacturer System
Restoration Kit, or contact manufacturer Technical Support
for additional information.
United States of America
USA and Canada Safety Requirements and Notices
Do not touch or move antenna while the unit is transmitting or
receiving.
Do not hold any component containing the radio such that the
antenna is very close or touching any exposed parts of the body,
especially the face or eyes, while transmitting.
Do not operate the radio or attempt to transmit data unless the
antenna is connected; if not, the radio may be damaged.
Use in specic environments:
The use of wireless devices in hazardous locations is limited by the
constraints posed by the safety directors of such environments.
The use of wireless devices on airplanes is governed by the Federal
Aviation Administration (FAA).
The use of wireless devices in hospitals is restricted to the limits
set forth by each hospital.
Explosive Device Proximity Warning
Do not operate a portable transmitter (such as a wireless
network device) near unshielded blasting caps or in an
explosive environment unless the device has been modied
to be qualied for such use.
116
117
Chapter 6
Appendix
Use On Aircraft Caution
Regulations of the FCC and FAA prohibit airborne operation
of radio-frequency wireless devices because their signals
could interfere with critical aircraft instruments.
Other Wireless Devices
Safety Notices for Other Devices in the Wireless Network:
Refer to the documentation supplied with wireless Ethernet
adapters or other devices in the wireless network.
The Part 15 radio device operates on a non-interference basis
with other devices operating at this frequency. Any changes
or modication to said product not expressly approved by
Intel could void the user’s authority to operate this device.
Unintentional Emitter per FCC Part 15
This device complies with Part 15 of the FCC Rules. Operation is
subject to the following two conditions:(1) this device may not
cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause
undesired operation.
This equipment has been tested and found to comply
with the limits for a Class B digital device pursuant to Part
15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a
residential installation. This equipment generates, uses,
and can radiate radio frequency energy. If not installed
and used in accordance with the instructions, it may cause
harmful interference. If this equipment does cause harmful
interference to radio or television reception, which can be
determined by turning the equipment o and on, the user is
encouraged to try to correct the interference by one or more
of the following measures:
Reorient or relocate the receiving antenna.•
Increase the separation between the equipment and •
receiver.
Connect the equipment into an outlet on a circuit dierent •
from that to which the receiver is connected.
Consult the dealer or an experienced radio/TV technician •
for help.
Regulatory Compliance Statements
118
Chapter 6
Appendix
If necessary, the user should consult the dealer or an experienced
radio/television technician for additional suggestions. The user
may nd the following booklet helpful: “Something About
Interference.”
This is available at FCC local regional oces. Our company is not
responsible for any radio or television interference caused by
unauthorized modications of this equipment or the substitution
or attachment of connecting cables and equipment other than
those specied by our company. The correction will be the
responsibility of the user. Use only shielded data cables with this
system.
Intentional emitter per FCC Part 15
(If tted with 2.4G band or 5G band)
Low power, Radio LAN type devices (radio frequency (RF) wireless
communication devices), operating in the 2.4GHz/5GHz Band, may
be present (embedded) in your notebook system. This section is
only applicable if these devices are present. Refer to the system
label to verify the presence of wireless devices.
Wireless devices that may be in your system are only qualied for
use in the United States of America if an FCC ID number is on the
system label.
This device is restricted to indoor use due to its operation in the
5.15 to 5.25 GHz frequency range. FCC requires this product to be
used indoors for the frequency range 5.15 to 5.25 GHz to reduce
the potential for harmful interference to co-channel Mobile
Satellite systems. High power radars are allocated as primary users
of the 5.25 to 5.35 GHz and 5.65 to 5.85 GHz bands. These radar
stations can cause interference with and /or damage this device.
Operation of this device is subject to the following two conditions:
(1) This device may not cause harmful interference, and (2)
this device must accept any interference received, including
interference that may cause undesired operation of the device.
Wireless devices are not user serviceable. Do not modify
them in any way.
Modication to a wireless device will void the authorization
to use it. Contact manufacturer for service.
Regulatory Compliance Statements
118
119
Chapter 6
Appendix
Health and safety information
Exposure to Radio Frequency (RF) Signals
Certication Information (SAR)
This product can contain an embedded radio transmitter and
receiver. It is designed and manufactured not to exceed the
exposure limits for radio frequency (RF) energy set by the Federal
Communications Commission (FCC) of the U.S. government. These
FCC exposure limits are derived from the recommendations of two
expert organizations, the National Council on Radiation Protection
and Measurement (NCRP) and the Institute of Electrical and
Electronics Engineers (IEEE). In both cases, the recommendations
were developed by scientic and engineering experts drawn from
industry, government, and academia after extensive reviews of the
scientic literature related to the biological eects of RF energy.
The exposure limit set by the FCC for wireless devices employs a
unit of measurement known as the Specic Absorption Rate (SAR).
The SAR is a measure of the rate of absorption of RF energy by the
human body expressed in units of watts per kilogram (W/kg). The
FCC requires wireless devices to comply with a safety limit of 1.6
watts per kilogram (1.6 W/kg). The FCC exposure limit incorporates
a substantial margin of safety to give additional protection to the
public and to account for any variations in measurements.
SAR tests are conducted using standard operating positions
accepted by the FCC with the wireless transmitting at its highest
certied power level in all tested frequency bands. Although the
SAR is determined at the highest certied power level, the actual
SAR level of the device while operating can be well below the
maximum value. This is because the device is designed to operate
at multiple power levels so as to use only the power required to
reach the network. In general, the closer you are to a wireless base
station antenna, the lower the power output.
Before a new model is available for sale to the public, it must
be tested and certied to the FCC that it does not exceed the
exposure limit established by the FCC. Tests for each model are
performed in positions and locations (e.g. at the bottom on the
body) as required by the FCC.
For body worn operation, this model has been tested and meets
the FCC RF exposure guidelines when used with Samsung
accessory designated for this product. Non-compliance with the
above restrictions may result in violation of FCC RF exposure
guidelines.
SAR information on this and other model can be viewed on-line
at http://www.fcc.gov/oet/ea/fccid/. This site uses this product FCC
ID number on the outside of the product. Sometimes it may be
necessary to remove the battery pack to nd the number. Once
you have the FCC ID number for a particular product, follow the
instructions on the website and it should provide values for typical
or maximum SAR for a particular product.
Regulatory Compliance Statements
120
Chapter 6
Appendix
FCC Part 68 (If tted with a modem device.)
This equipment complies with part of the FCC rules. On the
back of this equipment is a label that contains, among other
information, the FCC registration number and ringer equivalence
number (REN) for this equipment. If requested, this information
must be provided to the telephone company.
This equipment uses the following USOC jacks : RJ11C
An FCC compliant telephone cord and modular plug is provided
with this equipment. This equipment is designed to be connected
to the telephone network or promises wiring using a compatible
modular jack which is Part 68 compliant. See Installation
Instructions for details.
The REN is used to determine the quantity of devices which may
be connected to telephone line. Excessive RENs on the telephone
line may result in the devices not ringing in response to an
incoming call. In most, but not all areas, the sum of RENs should
not exceed ve (5.0). To be certain of the number of devices that
may be connected to a line, as determined by total RENs, contact
the local telephone company to determine the maximum REN for
the calling area.
If the terminal equipment causes harm to the telephone network,
the Telephone Company will notify you in advance that temporary
discontinuance of service may be required. But if advance notice
is not practical, the telephone company will notify the customer
as soon as possible. Also, you will be advised of your right to le a
complaint with the FCC if you believe it is necessary.
The telephone company may make changes in its facilities,
equipment, operations, or procedures that could aect the
operation of the equipment. If this happens, the telephone
company will provide advanced notice in order for you to make
necessary modications to maintain uninterrupted service.
If trouble is experienced with this equipment (Modem) for repair
or warranty information, please contact your local distributor.
If the equipment is causing harm to the telephone network,
the telephone company may request that you disconnect the
equipment until the problem is resolved.
The user must use the accessories and cables supplied by the
manufacturer to get optimum performance from the product.
No repairs may be done by the customer.
This equipment cannot be used on public coin phone service
provided by the telephone company. Connection to party line
service is subject to state taris.
The Telephone Consumer Protection Act of 1991 makes it
unlawful for any person to use a computer or other electronic
device, including fax machines, to send any message unless such
message clearly contains in a margin at the top or bottom of
each transmitted page or on the rst page of the transmission,
the date and time it is sent and an identication of the business
or other entity, or other individual sending the message and the
telephone number of the sending machine or such business, other
entity, or individual. (The telephone number provided may not
be any number for which charges exceed local or long-distance
transmission charges.)
In order to program this information into your fax machine, refer
to your communications software user manual.
Regulatory Compliance Statements
120
121
Chapter 6
Appendix
Canada
Unintentional Emitter per ICES-003
This digital apparatus does not exceed the Class B limits for radio
noise emissions from digital apparatus as set out in the radio
interference regulations of Industry Canada.
Le présent appareil numérique n’émet pas de bruits
radioélectriques dépassant les limitesapplicables aux appareils
numériques de Classe B prescrites dans le règlement sur le
brouillage radioélectrique édicté par Industrie Canada.
Intentional Emitter per RSS 210
This device complies with RSS 210 of Industry Canada. Operation
is subject to the following two conditions: (1) this device may not
cause interference, and (2) this device must accept any interference,
including interference that may cause undesired operation of this
device.”
L‘ utilisation de ce dispositif est autorisée seulement aux
conditions suivantes : (1) il ne doit pas produire de brouillage et (2)
l’ utilisateur du dispositif doit étre prêt à accepter tout brouillage
radioélectrique reçu, même si ce brouillage est susceptible de
compromettre le fonctionnement du dispositif.
The term “IC” before the equipment certication number only
signies that the Industry Canada technical specications were
met. To reduce potential radio interference to other users, the
antenna type and its gain should be so chosen that the equivalent
isotropically radiated power (EIRP) is not more than that required
for successful communication. To prevent radio interference
to the licensed service, this device is intended to be operated
indoors and away from windows to provide maximum shielding.
Equipment (or its transmit antenna) that is installed outdoors is
subject to licensing.
Pour empecher que cet appareil cause du brouillage au service
faisant l’objet d’une licence, il doit etre utilize a l’interieur et devrait
etre place loin des fenetres an de Fournier un ecram de blindage
maximal. Si le matriel (ou son antenne d’emission) est installe a
l’exterieur, il doit faire l’objet d’une licence.
(If tted with 2.4G band or 5G band)
Low power, Radio LAN type devices (radio frequency (RF) wireless
communication devices), operating in the 2.4GHz/5GHz Band, may
be present (embedded) in your notebook system. This section is
only applicable if these devices are present. Refer to the system
label to verify the presence of wireless devices.
Wireless devices that may be in your system are only qualied for
use in Canada if an Industry Canada ID number is on the system
label.
Regulatory Compliance Statements
122
Chapter 6
Appendix
When using IEEE 802.11a wireless LAN, this product is restricted to
indoor use due to its operation in the 5.15- to 5.25-GHz frequency
range. Industry Canada requires this product to be used indoors
for the frequency range of 5.15 GHz to 5.25 GHz to reduce the
potential for harmful interference to co-channel mobile satellite
systems. High power radar is allocated as the primary user of the
5.25- to 5.35-GHz and 5.65 to 5.85-GHz bands. These radar stations
can cause interference with and/or damage to this device.
The maximum allowed antenna gain for use with this device
is 6dBi in order to comply with the E.I.R.P limit for the 5.25- to
5.35 and 5.725 to 5.85 GHz frequency range in point-to-point
operation.
The power output of the wireless device (or devices), which may
be embedded in your notebook, is well below the RF exposure
limits as set by Industry Canada.
Operation of this device is subject to the following two conditions:
(1) This device may not cause harmful interference, and (2)
this device must accept any interference received, including
interference that may cause undesired operation of the device.
To prevent radio interference to licensed service, this device
is intended to be operated indoors and away from windows
to provide maximum shielding. Equipment (or its transmit
antenna) that is installed outdoors is subject to licensing.
Wireless devices are not user serviceable. Do not modify
them in any way. Modication to a wireless device will void
the authorization to use it. Contact manufacturer for service.
(Si l’appareil est équipé d’une bande 2,4 G ou 5 G)
Des dispositifs de basse puissance, de type radio LAN
(périphériques de communication sans l par radiofréquence
RF) fonctionnant sur une bande de 2.4GHz/5GHz sont peut-
être intégrés dans votre appareil. Cette section est applicable
uniquement si ces dispositifs sont présents. Consultez l’étiquette
du système pour vériez la présence de dispositifs sans l.
Les dispositifs sans l qui peuvent être intégrés dans votre système
sont uniquement aptes pour une utilisation au Canada si l’étiquette
du système présente un nombre d’identication d’Industrie
Canada.
En cas d’utilisation d’un LAN sans l IEEE 802.11a, ce produit ne
peut être utilisé qu’à l’intérieur en raison de son fonctionnement
dans une plage des fréquences allant de 5,15 à 5,25 GHz. Industrie
Canada exige l’utilisation de ce produit à l’intérieur pour une
plage des fréquences allant de 5,15 à 5,25 GHz an de réduire
les éventuelles interférences nuisibles avec les systèmes mobiles
par satellite du même canal. Le radar de grande puissance est
considéré comme l’utilisateur principal des bandes de 5,25 à 5,35
GHz et de 5,65 à 5,85 GHz. Ces stations radar peuvent provoquer
des interférences avec ce périphérique et/ou l’endommager.
Le gain d’antenne maximum autorisé avec ce périphérique est
de 6 dBi an de respecter la limite de P.I.R.E. pour une plage des
fréquences de 5,25 à 5,35 GHz et de 5,725 à 5,85 GHz dans un
fonctionnement point à point.
La sortie de puissance du dispositif sans l (ou des dispositifs) qui
peut être intégré dans votre système est bien inférieure aux limites
d’exposition de RF établies par Industrie Canada.
Regulatory Compliance Statements
122
123
Chapter 6
Appendix
Son utilisation est soumise aux deux conditions suivantes : 1) ce
dispositif ne peut pas provoquer d’interférences nuisibles et 2
2) ce dispositif doit accepter toute interférence reçue, y compris
les interférences qui peuvent provoquer des anomalies dans le
système.
An de prévenir des interférences de radio au service
autorisé, ce dispositif est prévu pour être utilisé à l’intérieur et
éloigné des fenêtres pour fournir une protection maximum.
Un équipement (ou son antenne de transmission) qui est
installé à l’extérieur est sujet à une autorisation.
Les dispositifs sans l ne peuvent pas être réparés par
l’utilisateur. Ne les modiez en aucune façon. La modication
d’un dispositif sans l annulera votre autorisation à son
utilisation. Contactez le fabricant pour la réparation.
Telecommunications per DOC notice
(for products tted with an IC-compliant modem)
The Industry Canada label identies certied equipment.
This certication means that the equipment meets certain
telecommunications network protective, operation, and safety
requirements. The Department does not guarantee the equipment
will operate to the users’ satisfaction.
Before installing this equipment, users should make sure that
it is permissible to be connected to the facilities of the local
telecommunications company. The equipment must also be
installed using an acceptable method of connection. In some
cases, the inside wiring associated with a single-line individual
service may be extended by means of a certied connector
assembly. The customer should be aware that compliance with
the above conditions may not prevent degradation of service in
some situations.
Repairs to certied equipment should be made by an authorized
Canadian maintenance facility designated by the supplier. Any
repairs or alterations made by the user to this equipment, or
equipment malfunctions, may give the telecommunications
company cause to request the user to disconnect the equipment.
Users should make sure, for their own protection, that the
electrical ground connections of the power utility, telephone lines,
and internal metallic water pipe system, if present, are connected
together. This precaution may be particularly important in rural
areas.
Regulatory Compliance Statements
124
Chapter 6
Appendix
To avoid electrical shock or equipment malfunction do not
attempt to make electrical ground connections by yourself.
Contact the appropriate inspection authority or an electrician,
as appropriate.
The Ringer Equivalence Number (REN) assigned to each
terminal device provides an indication of the maximum number
of terminals allowed to be connected to a telephone interface.
The termination on an interface may consist of any combination of
devices subject only to the requirement that the sum of the Ringer
Equivalence Numbers of all the devices does not exceed 5.
Déclarations sur les télécommunications selon DOC
(pour des produits munis d’un modem homologué par
la IC)
L’étiquette d’Industrie Canada identie un équipement autorisé.
Cette autorisation signie que l’équipement satisfait certaines
exigences pour la sécurité, fonctionnement et protection des
réseaux téléphoniques. Le département ne garantie pas que
l’équipement fonctionne comme le désirerait l’utilisateur.
Avant d’installer l’équipement, les utilisateurs doivent s’assurer
que leur connexion aux installations de la compagnie de
télécommunication locale soit permise.
L’équipement doit être également installé selon une méthode
acceptable de connexion. Dans certains cas, l’installation
électrique associée à un service de ligne individuel peut être
rallongé par un connecteur homologué. Le client doit savoir que
la conformité aux conditions précédentes ne garantit pas un
fonctionnement parfait dans toutes les situations.
Les réparations de l’équipement homologué doivent être
eectuées dans les installations de maintenance canadiennes
autorisées par le fournisseur. Les réparations ou modications
eectuées par l’utilisateur sur cet équipement, ou anomalies
de l’équipement, peuvent faire que la compagnie de
télécommunication demande la déconnexion de l’équipement.
Les utilisateurs doivent s’assurer, pour leur propre protection, que
les raccordements électriques à la terre, les lignes de téléphone
et l’infrastructure de la conduite d’eau, si il y en a, sont connectés
ensemble. Cette précaution peut être particulièrement importante
dans les zones rurales.
An d’éviter une électrocution ou le disfonctionnement
de l’équipement, n’essayez pas de faire vous-même les
raccordements électriques à la terre. Contactez l’autorité
inspectrice adéquate ou un électricien, selon il conviendra.
Le Numéro d’équivalence d’appel (REN) attribué à chaque
dispositif terminal fourni une indication du nombre maximum
de terminales qui peuvent être connectées à une interface
téléphonique. Le bout d’une interface peut contenir n’importe
quelle combinaison de dispositifs sujets uniquement à la
condition que le total des numéros d’équivalence d’appel de tous
les dispositifs ne dépasse pas 5.
Regulatory Compliance Statements
124
125
Chapter 6
Appendix
Brazil
Este produto esta homologado pela ANATEL, de acordo com
os procedimentos regulamentados pela Resolucao 242/2000, e
atende aos requisitos tecnicos aplicados.
Este equipamento opera em caráter secundário, isto é, não
tem direito a proteção contra interferência prejudicial, mesmo
de estações do mesmo tipo, e não pode causar interferência a
sistemas operando em caráter primário.
European Union
European Union CE Marking and Compliance Notices
Products intended for sale within the European Union are marked
with the Conformité Européene (CE) Marking, which indicates
compliance with the applicable Directives and European standards
and amendments identied below. This equipment also carries
the Class 2 identier.
The following information is only applicable to systems labeled
with the CE mark .
European Directives
This Information Technology Equipment has been tested and
found to comply with the following European directives:
EMC Directive 2004/108/EC•
Low Voltage Directive 2006/95/EC•
R&TTE Directive 1999/5/EC•
Manufacturer Information
Samsung Electronics Co., Ltd.
416, Maetan-3Dong, Yeongtong-Gu, Suwon-City, Gyeonggi-Do,
443-742, Korea
Samsung Electronics Suzhou Computer Co., Ltd.
No. 198, Fangzhou Road, Suzhou Industrial Park, Jiangsu Province,
215021, China
Tel: +86-512-6253-8988
For the web or the phone number of Samsung Service Centre, see
the Warranty or contact the retailer where you purchased your
product.
Regulatory Compliance Statements
126
Chapter 6
Appendix
European Radio Approval Information
(for products tted with EU-approved radio devices)
This Product is a Notebook computer; low power, Radio LAN type
devices (radio frequency (RF) wireless communication devices),
operating in the 2.4GHz/5GHz band, may be present (embedded)
in your notebook system which is intended for home or oce use.
This section is only applicable if these devices are present. Refer to
the system label to verify the presence of wireless devices.
Wireless devices that may be in your system are only qualied for
use in the European Union or associated areas if a CE mark
with a Notied Body Registration Number and the Alert Symbol is
on the system label.
The power output of the wireless device or devices that may be
embedded in you notebook is well below the RF exposure limits
as set by the European Commission through the R&TTE directive.
The low band 5.15 - 5.35 GHz is for indoor use only.
See 802.11b and 802.11g restrictions for specic countries
or regions within countries under the heading “European
Economic Area Restrictions” below.
EU R&TTE Compliance Statements
Česky
[Czech]
Samsung tímto prohlašuje, že tento Notebook
PC je ve shodě se základními požadavky a
dalšími příslušnými ustanoveními směrnice
1999/5/ES.
Dansk
[Danish]
Undertegnede Samsung erklærer herved, at
følgende udstyr Notebook PC overholder de
væsentlige krav og øvrige relevante krav i
direktiv 1999/5/EF.
Deutsch
[German]
Hiermit erklärt Samsung, dass sich das Gerät
Notebook PC in Übereinstimmung mit den
grundlegenden Anforderungen und den
übrigen einschlägigen Bestimmungen der
Richtlinie 1999/5/EG bendet.
Eesti
[Estonian]
Käesolevaga kinnitab Samsung seadme
Notebook PC vastavust direktiivi 1999/5/
EÜ põhinõuetele ja nimetatud direktiivist
tulenevatele teistele asjakohastele sätetele.
English
Hereby, Samsung, declares that this Notebook
PC is in compliance with the essential
requirements and other relevant provisions of
Directive 1999/5/EC.
Español
[Spanish]
Por medio de la presente Samsung declara
que el Notebook PC cumple con los requisitos
esenciales y cualesquiera otras disposiciones
aplicables o exigibles de la Directiva 1999/5/CE.
Regulatory Compliance Statements
126
127
Chapter 6
Appendix
Ελληνική
[Greek]
ΜΕ ΤΗΝ ΠΑΡΟΥΣΑ Samsung ΔΗΛΩΝΕΙ ΟΤΙ
Notebook PC ΣΥΜΜΟΡΦΩΝΕΤΑΙ ΠΡΟΣ ΤΙΣ
ΟΥΣΙΩΔΕΙΣ ΑΠΑΙΤΗΣΕΙΣ ΚΑΙ ΤΙΣ ΛΟΙΠΕΣ
ΣΧΕΤΙΚΕΣ ΔΙΑΤΑΞΕΙΣ ΤΗΣ ΟΔΗΓΙΑΣ 1999/5/ΕΚ.
Français
[French]
Par la présente Samsung déclare que l’appareil
Notebook PC est conforme aux exigences
essentielles et aux autres dispositions
pertinentes de la directive 1999/5/CE.
Italiano
[Italian]
Con la presente Samsung dichiara che questo
Notebook PC è conforme ai requisiti essenziali
ed alle altre disposizioni pertinenti stabilite
dalla direttiva 1999/5/CE.
Latviski
[Latvian]
Ar šo Samsung deklarē, ka Notebook PC atbilst
Direktīvas 1999/5/EK būtiskajām prasībām un
citiem ar to saistītajiem noteikumiem.
Lietuvių
[Lithuanian]
Šiuo Samsung deklaruoja, kad šis Notebook PC
atitinka esminius reikalavimus ir kitas 1999/5/
EB Direktyvos nuostatas.
Nederlands
[Dutch]
Hierbij verklaart Samsung dat het toestel
Notebook PC in overeenstemming is met
de essentiële eisen en de andere relevante
bepalingen van richtlijn 1999/5/EG.
Malti
[Maltese]
Hawnhekk, Samsung, jiddikjara li dan
Notebook PC jikkonforma mal-ħtiāijiet
essenzjali u ma provvedimenti oħrajn relevanti
li hemm d-Dirrettiva 1999/5/EC.
Magyar
[Hungarian]
Alulírott, Samsung nyilatkozom, hogy a
Notebook PC megfelel a vonatkozó alapvetõ
követelményeknek és az 1999/5/EC irányelv
egyéb elõírásainak.
Polski
[Polish]
Niniejszym Samsung oświadcza, Ŝe Notebook
PC jest zgodny z zasadniczymi wymogami oraz
pozostałymi stosownymi postanowieniami
Dyrektywy 1999/5/EC.
Português
[Portuguese]
Samsung declara que este Notebook PC está
conforme com os requisitos essenciais e outras
disposições da Directiva 1999/5/CE.
Slovensko
[Slovenian]
Samsung izjavlja, da je ta Notebook PC v skladu
z bistvenimi zahtevami in ostalimi relevantnimi
določili direktive 1999/5/ES.
Slovensky
[Slovak]
Samsung týmto vyhlasuje, že Notebook PC
spĺňa základné požiadavky a všetky príslušné
ustanovenia Smernice 1999/5/ES.
Suomi
[Finnish]
Samsung vakuuttaa täten että Notebook
PC tyyppinen laite on direktiivin 1999/5/
EY oleellisten vaatimusten ja sitä koskevien
direktiivin muiden ehtojen mukainen.
Svenska
[Swedish]
Härmed intygar Samsung att denna Notebook
PC står I överensstämmelse med de väsentliga
egenskapskrav och övriga relevanta
bestämmelser som framgår av direktiv 1999/5/
EG.
Regulatory Compliance Statements
128
Chapter 6
Appendix
Íslenska
[Icelandic]
Hér með lýsir Samsung yr því að Notebook PC
er í samræmi við grunnkröfur og aðrar kröfur,
sem gerðar eru í tilskipun 1999/5/EC.
Norsk
[Norwegian]
Samsung erklærer herved at utstyret Notebook
PC er i samsvar med de grunnleggende krav og
øvrige relevante krav i direktiv 1999/5/EF.
Türkiye
[Türkçe]
Bu belge ile, Samsung bu Notebook PC’nin
1999/5/EC Yönetmeliğinin temel gerekliliklerine
ve ilgili hükümlerine uygun olduğunu beyan
eder.
To view the EU Declaration of Conformity for this product (in
English only), go to: http://www.samsung.com/uk/support/
download/supportDownMain.do then search the model number
of the product.
If the Declaration of Conformity for the model you are interested
in is not available on our web-site, please contact your distributor.
European Economic Area Restrictions
Local Restriction of 802.11b/802.11g Radio Usage
[Note to integrator: The following statements on local restrictions
must be published in all end-user documentation provided with
the system or product incorporating the wireless product.]
Due to the fact that the frequencies used by 802.11b/802.11g
wireless LAN devices may not yet be harmonized in all
countries, 802.11b/802.11g products are designed for use
only in specic countries or regions, and are not allowed
to be operated in countries or regions other than those of
designated use.
As a user of these products, you are responsible for ensuring
that the products are used only in the countries or regions
for which they were intended and for verifying that they
are congured with the correct selection of frequency and
channel for the country or region of use. Any deviation from
permissible settings and restrictions in the country or region
of use could be an infringement of local law and may be
punished as such.
Regulatory Compliance Statements
128
129
Chapter 6
Appendix
The European variant is intended for use throughout the European
Economic Area. However, authorization for use is further restricted
in particular countries or regions within countries, as follows:
General
European standards dictate maximum radiated transmit power
of 100 mW eective isotropic radiated power (EIRP) and the
frequency range 2400 – 2483.5 MHz.
The low band 5.15 - 5.35 GHz is for indoor use only.
Belgium
The product may be used outdoors, but for outdoor transmissions
over a distance of 300m or more, a license from the BIPT is
required.
This restriction should be indicated in the manual as follows:
Dans le cas d’une utilisation privée, à l’extérieur d’un bâtiment, au-
dessus d’un espace public, aucun enregistrement n’est nécessaire
pour une distance de moins de 300m. Pour une distance
supérieure à 300m un enregistrement auprès de l’IBPT est requise.
Pour une utilisation publique à l’extérieur de bâtiments, une
licence de l’IBPT est requise. Pour les enregistrements et licences,
veuillez contacter l’IBPT.
France
For Metropolitan departments:
2.400 - 2.4835 GHz for indoor use.
2.400 - 2.454 GHz (channels 1 to 7) for outdoor use.
For Guadeloupe, Martinique, St Pierre et Miquelon, Mayotte:
2.400 - 2.4835 GHz for indoor and outdoor use.
For Reunion, Guyane:
2.400 - 2.4835 GHz for indoor use.
2.420 - 2.4835 GHz for outdoor use (channels 5 to 13)
The low band 5.15 - 5.35 GHz is for indoor use only.
Regulatory Compliance Statements
130
Chapter 6
Appendix
Regulatory Compliance Statements
European Telecommunication Information
(for products tted with EU-approved modems)
Marking by the symbol indicates compliance of this equipment
to the Radio and Telecom Terminal Equipment Directive 1999/5/
EC. Such marking is indicative that this equipment meets or
exceeds the following technical standards:
CTR 21 - Attachment requirements for pan-European approval for
connection to the analogue Public Switched Telephone Networks
(PSTNs) of TE (excluding TE supporting voice telephony services) in
which network addressing, if provided, is by means of Dual Tone
Multi-Frequency (DTMF) signaling.
Although this equipment can use either loop disconnect
(pulse) or DTMF (tone) signaling, only the performance of
the DTMF signaling is subject to regulatory requirements for
correct operation.
It is therefore strongly recommended that the equipment
is set to use DTMF signaling for access to public or private
emergency services. DTMF signaling also provides faster call
setup.
This equipment has been approved to Council Decision 98/482/
EEC - “CTR 21” for Pan-European single terminal connection to the
Public Switched Telephone Network (PSTN).
However, due to dierences between the individual PSTNs
provided in dierent countries, the approval does not, of itself,
give an unconditional assurance of successful operation on every
PSTN termination point. In the event of problems, you should
contact manufacturer Technical Support.
RTC CAUTION
CAUTION : Danger of explosion if battery is incorrectly replaced.
Replace only with the same or equivalent type recommended
by the manufacturer. Discard used batteries according to the
Manufacturer’s instruction.
Attention: Danger d’explosion si les piles sont mal palcées.
Remplacez les piles usagées uniquement par des piles de type
identique ou équivalent recommandees par is fabriquant. Otez les
piles usagées selon les instructions du fabriquant.
130
131
Chapter 6
Appendix
WEEE Symbol Information
Correct disposal of this product
(Waste Electrical & Electronic Equipment)
(Applicable in countries with separate collection systems)
This marking on the product, accessories or literature indicates that
the product and its electronic accessories (e.g. charger, headset, USB
cable) should not be disposed of with other household waste at the
end of their working life.
To prevent possible harm to the environment or human health
from uncontrolled waste disposal, please separate these items from
other types of waste and recycle them responsibly to promote the
sustainable reuse of material resources.
Household users should contact either the retailer where they
purchased this product, or their local government oce, for details
of where and how they can take these items for environmentally safe
recycling.
Business users should contact their supplier and check the terms and
conditions of the purchase contract. This product and its electronic
accessories should not be mixed with other commercial wastes for
disposal.
India Only
For more information on safe disposal and recycling visit our
website www.samsung.com/in or contact our Helpline numbers -
18002668282, 180030008282.
Pb
Correct disposal of batteries in this product
(Applicable in countries with separate collection systems)
This marking on the battery, manual or packaging indicates that
the batteries in this product should not be disposed of with other
household waste at the end of their working life. Where marked,
the chemical symbols Hg, Cd or Pb indicate that the battery contains
mercury, cadmium or lead above the reference levels in EC Directive
2006/66. If batteries are not properly disposed of, these substances
can cause harm to human health or the environment.
To protect natural resources and to promote material re-use, please
separate batteries from other types of waste and recycle them
through your local, free battery return system.
USA ONLY
This Perchlorate warning applies only to primary CR
(Maganese Dioxide) Lithium coin cells in the product sold or
distributed ONLY in California USA.
“Perchlorate Material- special handling may apply, See www.dtsc.
ca.gov/hazardouswaste/perchlorate.”
Dispose unwanted electronics through an approved recycler.
To nd the nearest recycling location, go to our website:
www.samsung.com/recyclingdirect Or call, (877) 278-0799
For battery recycling go to call2recycle.org; or call 1-877-723-1297
132
Chapter 6
Appendix
In partnering with select recyclers, Samsung oers packaging
take-back at no cost to you.
Simply call the following number for the locations nearest you.
CRT Processing, LLC
(877) 278-0799
Kathy Severson – Logistics contact
Dispose unwanted electronics through an approved recycler.
To nd the nearest recycling location, go to our website:
www.samsung.com/recyclingdirect Or call, (877) 278-0799
Samsung Packaging Take-Back Program
132
133
Chapter 6
Appendix
TCO Certied (for corresponding models only)
Congratulations!
This product is TCO Certied for Usability and the
Environment.
Félicitations !
The product you have just purchased carries the
TCO Certied label. This means that your
computer is designed, manufactured and tested
according to some of the strictest performance
and environmental criteria in the world. That makes for a high
performance product designed with the user in focus and one
that also minimizes the impact on the climate and our natural
environment.
TCO Certied is a third party veried program, where every
product model is tested by an accredited impartial test laboratory.
All criteria have been developed by TCO Development in
collaboration with scientists, product experts, users as well as
manufacturers all over the world.
Here are some of the features oered with this product:
Usability – Designed for You
Good visual ergonomics and image quality, ensuring •
top performance and reduced risk of eye strain. Several
requirements within the area of luminance, contrast, resolution
and color
Designed with the option to connect an external display, •
keyboard and mouse (recommended when working with a
notebook or netbook for longer periods)
Ergonomic keyboard design – for ease of use and good •
readability
Fully tested according to rigorous safety standards•
Low Electric and Magnetic eld emissions. Low acoustic noise •
levels
Environment– Designed for the Planet
Brand demonstrates corporate social responsibility and has •
a certied environmental management system (EMAS or ISO
14001)
Very low energy consumption both in idle- and standby mode, •
reducing climate impact
Restrictions on hazardous materials: chlorinated and •
brominated ame retardants, plasticizers, plastics and heavy
metals such as cadmium, mercury, lead and hexavalent
chromium (mercury ban and limits on hazardous ame
retardants go beyond RoHS compliance)
Both product and product packaging are designed for •
recycling
The brand company oers take-back options•
For more information, please visit
www.tcodevelopment.com
TCO Certied – Technology for You and the Planet
TCOF1190 TCO Document Version 2.0
134
Chapter 6
Appendix
The system specications may dier depending on the derived
models.
For detailed system specications, refer to the product catalogue.
CPU Intel Core i3/i5/i7 Processor
Main Memory Memory type: DDR3 SDRAM
Main Chipset
(Optional) Intel HM65 / HM75
Storage Device SSD
Graphics Intel HD Graphics (Internal)
Operating
Environment
Temperature: -5~40°C for storage,
10~32°C when operating
Humidity: 5~90% for storage,
20~80% when operating
AC/DC Rating Input: 100-240VAC, 50 ~ 60Hz,
Output: 19VDC, 2.1A
PC Rating 19VDC 2.1A (40W)
Optional components may not be provided or dierent •
components may be provided depending on the computer
model.
The system specications are subject to change without •
notice.
The Storage device capacity of a computer in which •
Recovery is installed, is represented as smaller than the
product specication.
For this product, you cannot replace, add or upgrade the •
memory due to the design of the computer architecture.
The amount of memory that Windows can use may be •
smaller than the actual amount of memory available.
Product Specications
134
135
Chapter 6
Appendix
Product Specications
Registered Trademarks
Samsung is a registered trademark of Samsung Co., Ltd.
Intel, Core are registered trademarks of the Intel Corporation.
Microsoft, MS-DOS, and Windows are registered trademarks of the
Microsoft Corporation.
The terms HDMI and HDMI High-Denition Multimedia Interface,
and the HDMI Logo are trademarks or registered trademarks of
HDMI Licensing LLC in the United States and other countries.
All other product or company names mentioned herein are
registered trademarks of their respective companies.
ENERGY STAR® Partner
As an ENERGY STAR® Partner, SAMSUNG has
determined that this product meets the ENERGY STAR®
guidelines for energy eciency.
HDMI
136
Chapter 6
Appendix
Glossary
The Glossary lists the terminologies used in this User Guide. For terminologies other than these, look in Windows Help.
Backup
A way to save the current data to restore it later if necessary.
A backup is a way to restore computer data when the data or
computer is damaged.
Chargeable USB
This program enables supplying power to a specic USB port when
the system is in power saving mode, hibernation mode or o.
Client
This refers to a computer that uses a shared network resource
provided by a server.
DDR SDRAM
(Double Data Rate Synchronous Dynamic Random Access Memory)
DRAM is a memory type whose cells consist of a capacitor and
transistor manufactured at a low price. SDRAM is a memory type
whose performance has been improved by synchronizing the clock
with the external CPU clock. DDR SDRAM is a memory type whose
performance has been improved by doubling the operating speed
of the SDRAM and is widely used nowadays. This computer uses
DDR SDRAM.
Device Manager
An administrative tool used to manage computer devices. You can
add or remove hardware or update a device driver using the Device
Manager.
DHCP (Dynamic Host Conguration Protocol)
This refers to automatically allocating IP addresses to the users on
the network by the network administrators.
Direct X
An application interface developed to enable Windows application
programs to access hardware devices at a very high speed. Since
the operating speed of graphics, memory and sound cards must be
very fast to provide high quality video and sound for games, Direct
X enables faster control and interaction between applications and
hardware devices. By using Direct X, the multimedia performance
of Windows has been hugely improved.
Driver
Software that interacts between the hardware and the operating
system. An operating system knows the hardware information
and controls the hardware. In general, a driver is supplied with the
corresponding hardware device.
D-sub (D-subminiature)
This is the cable connecting a general CRT monitor and the
computer. Analog video is output through this cable.
136
137
Chapter 6
Appendix
DVD (Digital Versatile Disk)
DVD was developed to replace CD (compact disk). Although the
shape and size of the disc are the same as that of a CD, the capacity
of a DVD is at least 4.7GB while the capacity of a CD is 600MB. DVD
video is digital unlike VHS (analog) video and supports MPEG2
compression and digital audio. To play a DVD, a DVD drive is
required.
Firewall
A security system used to protect an internal network or intranet
from external networks through an authentication procedure.
HDMI
This is a digital video / audio interface specication that transmits
video and audio signals over a single cable.
Hibernation Mode
A power mode that saves all data in memory to the hard disk and
turns the CPU and hard disk o. When canceling Hibernation Mode,
all application programs that were running are restored to their last
state.
Icon
This refers to a small image that represents a le that users can use.
IEEE802.XX
This is a set fo specications developed by the 802 committee of
IEEE for the LAN connection method called XX.
LAN (Local Area Network)
A communications network connecting computers, printers and
other devices within a local area such as within a building. A LAN
enables all connected devices to interact with other devices on the
network. The current LAN uses the Ethernet media access control
method developed in the early 1980s. To connect to an Ethernet, a
network card called a LAN card, Ethernet card or network interface
card is required. To exchange data between computers, a protocol
is required besides the hardware equipment. Windows uses TCP/IP
as the default protocol.
LCD (Liquid Crystal Display)
There are Passive Matrix and Active Matrix LCD types. This
computer uses the Active Matrix type LCD called a TFT LCD. Since
an LCD is implemented by transistors instead of a cathode-ray tube
unlike a CRT, its size can be slim. And because it does not blink, it
reduces eye strain.
Glossary
138
Chapter 6
Appendix
Network
A group of computers and devices, such as printers and scanners,
connected by a communications link. A network can be either
small or large and can be connected permanently through cables
or temporarily through telephone lines or wireless links. The
biggest network is the Internet, a worldwide network.
Network Administrator
A user who plans, congures and manages network operations.
Sometimes, a network administrator is called a system
administrator.
Notication Area
This refers to the right area of the Taskbar including program icons
such as the volume control, the power options and the time.
Partition
This refers to the act or practice of dividing the storage space of
a hard disk drive into separate data areas known as partitions. If a
100GB hard disk drive is partitioned into 2 x 50GB partitions, the
hard disk drive can be used as if there are 2 hard disk drives.
PCMCIA( Personal Computer Memory Card International
Association) card
This is an extended card slot specication for mobile computers
such as a notebook computer. Not only a memory, device but also
most peripherals such as hard disk drives, LAN cards, etc. can be
connected to this card slot.
Protocol
A protocol is a set of rules used by computers to communicate with
each other across a network. A protocol is a convention or standard
that controls or enables the connection, communication, and
data transfer between computing endpoints. It denes the data
transmission procedures and the transmission medium for more
ecient network functions.
Quick Launch
This refers to a toolbar that can be congured so that you can
launch a program such as Internet Explorer or display the Windows
Desktop with one click. You can add any icon to the quick launch
area of the Taskbar and launch frequently used program by clicking
that icon.
SDHC (Secure Digital High Capacity) card
This is the extension of the SD card that supports over 2GB bytes.
Glossary
138
139
Chapter 6
Appendix
SDXC (Secure Digital eXtended Capacity)
SDXC provides a higher capacity and speed than the SDHC
specication. This is a new SD card specication that can
theoretically implement a memory capacity up to 2TB.
For high capacity implementation, apply the exFAT specications.
Server
In general, a server refers to a computer that provides shared
resources for network users.
Share
This refers to setting a resource of a computer such as a folder or
printer so that other users can also use it.
Shared Folder
A folder that can be used by other users on the network.
Sleep Mode
A power mode that enables computers to save power consumption
when they are not being used. When a computer is in Sleep Mode,
the data on the computer memory is not saved to the hard disk. If
the power is turned o, the data in memory will be lost.
System File
System Files refer to les that are read and used by the Windows
operating system. In general, system les must not be deleted or
moved.
TCP/IPv4
This is a 4 byte (32 bit) address system separated into each byte
(8 bits) by a dot and each byte is represented as a decimal number.
USB (Universal Serial Bus)
This refers to a serial interface standard developed to replace the
conventional interface standards such as Serial and PS/2.
The data transmission specications are one of the interface
standards used to connect a computer to peripheral devices.
These specications include USB 1.0, 1.1, 2.0 and 3.0.
It is appropriate to support peripheral devices that require high
data rates such as an AV device, secondary HDD or CD-RW.
The higher the version (e.g. USB 3.0), the higher the data rate
provided.
Windows Media Player
A multimedia program included with Windows. Using this
program, you can play a media le, create an audio CD, listen to a
radio broadcast, search and manage media les, and copy les to a
portable device, etc.
Glossary
140
Chapter 6
Appendix
Index
A
AP 66
B
Battery 91
BIOS Setup 85
Booting Priority 90
C
CD Drive 50
Charge 91
Click 46
D
Double-Click 46
Drag 47
Dual View 56
L
LCD Brightness 61
M
Monitor Connection / Output 55
Multi Card Slot 52
O
Overview 24
P
Password 87
Product Specications 134
R
Recorder 59
Recovery 96
S
Safety Precautions 6
Scroll 48
Shortcut Key 43
Status Indicators 25
Supervisor Password 87
Support Center 83
SW Update 82
T
Touchpad 46
U
User Password 88
V
Volume Control 59
W
Wired Network 62
Wireless Network 66
