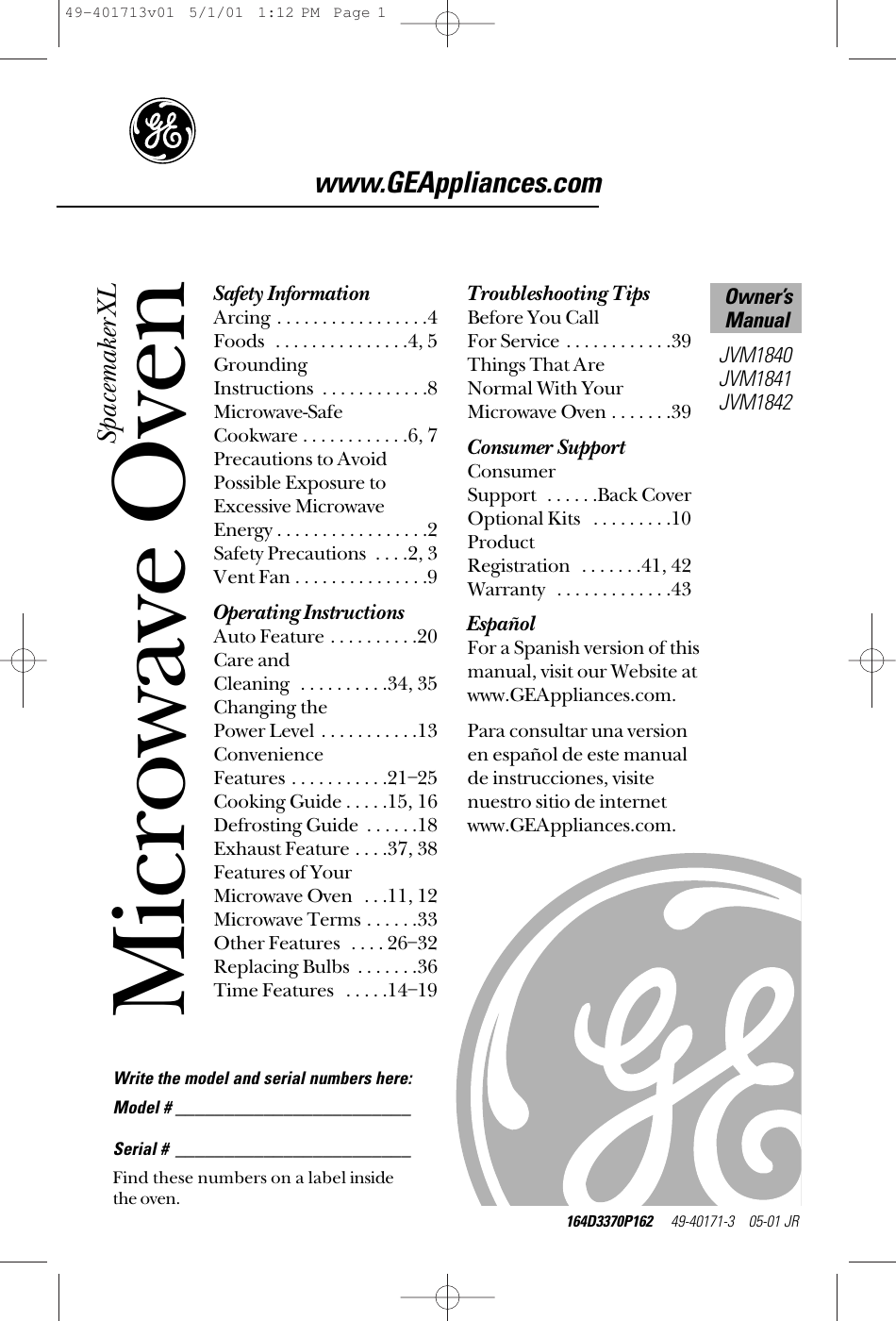

Microwave Oven164D3370P162 49-40171-3 05-01 JR JVM1840JVM1841JVM1842Owner’sManualSafety InformationArcing . . . . . . . . . . . . . . . . .4Foods . . . . . . . . . . . . . . .4, 5Grounding Instructions . . . . . . . . . . . .8Microwave-Safe Cookware . . . . . . . . . . . .6, 7Precautions to AvoidPossible Exposure toExcessive MicrowaveEnergy . . . . . . . . . . . . . . . . .2Safety Precautions . . . .2, 3Vent Fan . . . . . . . . . . . . . . .9Operating InstructionsAuto Feature . . . . . . . . . .20Care and Cleaning . . . . . . . . . .34, 35Changing thePower Level . . . . . . . . . . .13Convenience Features . . . . . . . . . . .21–25Cooking Guide . . . . .15, 16Defrosting Guide . . . . . .18Exhaust Feature . . . .37, 38Features of Your Microwave Oven . . .11, 12Microwave Terms . . . . . .33Other Features . . . . 26–32Replacing Bulbs . . . . . . .36Time Features . . . . .14–19Troubleshooting TipsBefore You Call For Service . . . . . . . . . . . .39Things That Are Normal With YourMicrowave Oven . . . . . . .39Consumer SupportConsumer Support . . . . . .Back CoverOptional Kits . . . . . . . . .10Product Registration . . . . . . .41, 42Warranty . . . . . . . . . . . . .43EspañolFor a Spanish version of thismanual, visit our Website atwww.GEAppliances.com. Para consultar una versionen español de este manualde instrucciones, visitenuestro sitio de internetwww.GEAppliances.com.www.GEAppliances.comSpacemakerXLWrite the model and serial numbers here:Model #________________________Serial #________________________Find these numbers on a label inside the oven.49-401713v01 5/1/01 1:12 PM Page 1
■Read and follow the specificprecautions in the Precautionsto Avoid Possible Exposure toExcessive Microwave Energysection above.■This appliance must begrounded. Connect only to a properly grounded outlet. See the GroundingInstructionssection on page 8.■Install or locate this appliance only in accordancewith the provided InstallationInstructions.■Do Not Attemptto operate this oven with the door opensince open-door operationcan result in harmfulexposure to microwaveenergy. It is important not todefeat or tamper with thesafety interlocks.■Do Not Place any objectbetween the oven front face and the door or allowsoil or cleaner residue toaccumulate on sealing surfaces.■Do Not Operate the oven if it isdamaged. It is particularlyimportant that the oven doorclose properly and that thereis no damage to the:door (bent),hinges and latches (broken or loosened),door seals and sealingsurfaces.■The Oven Should Not beadjusted or repaired by anyone except properlyqualified service personnel.321PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGYSafety InformationOperating InstructionsTroubleshooting TipsConsumer SupportIMPORTANT SAFETY INFORMATION.READ ALL INSTRUCTIONS BEFORE USING.2For your safety, the information in this manual must be followed to minimize the risk of fire or explosion, electricshock, or to prevent property damage, personal injury, or loss of life.WARNING!This microwave oven is UL listed for installation overelectric and gas ranges. This microwave oven is notapproved or tested for marine use.SAFETY PRECAUTIONS49-401713v01 5/1/01 1:12 PM Page 2
www.GEAppliances.com3Consumer SupportTroubleshooting TipsOperating InstructionsSafety InformationUse this appliance only for its intended purpose asdescribed in this Owner’s Manual.■Do not mount thisappliance over a sink. ■This over-the-range ovenwas designed for use overranges no wider than 36″. It may be installed overboth gas and electriccooking equipment.■Do not operate thisappliance if it has adamaged power cord orplug, if it is not workingproperly, or if it has beendamaged or dropped. If the power cord is damaged,it must be replaced byGeneral Electric Service or an authorized serviceagent using a power cord available from General Electric.■Do not cover or block anyopenings on the appliance.■Use this appliance only for its intended use asdescribed in this manual.Do not use corrosivechemicals or vapors in thisappliance. This microwaveoven is specifically designedto heat, dry or cook food,and is not intended forlaboratory or industrial use.■Do not store this applianceoutdoors. Do not use thisproduct near water—for example, in a wet basement, near a swimmingpool or near a sink.■Keep power cord away fromheated surfaces.■Do not immerse power cordor plug in water.■To reduce the risk of fire in the oven cavity:— Do not overcook food.Carefully attend appliance if paper, plastic or other combustible materials areplaced inside the ovenwhile cooking.— Remove wire twist-ties andmetal handles from paper or plastic containers beforeplacing them in the oven.— Do not use the oven for storage purposes. Do notleave paper products, cooking utensils or food inthe oven when not in use.— If materials inside the ovenshould ignite, keep the ovendoor closed, turn the ovenoff and disconnect thepower cord, or shut offpower at the fuse or circuitbreaker panel. If the door isopened, the fire may spread.■See door surface cleaninginstructions in the Care andcleaning of the microwaveovensection of this manual.■This appliance should beserviced only by qualifiedservice personnel. Contactnearest authorized servicefacility for examination,repair or adjustment.■As with any appliance, closesupervision is necessarywhen used by children.49-401713v01 5/1/01 1:12 PM Page 3

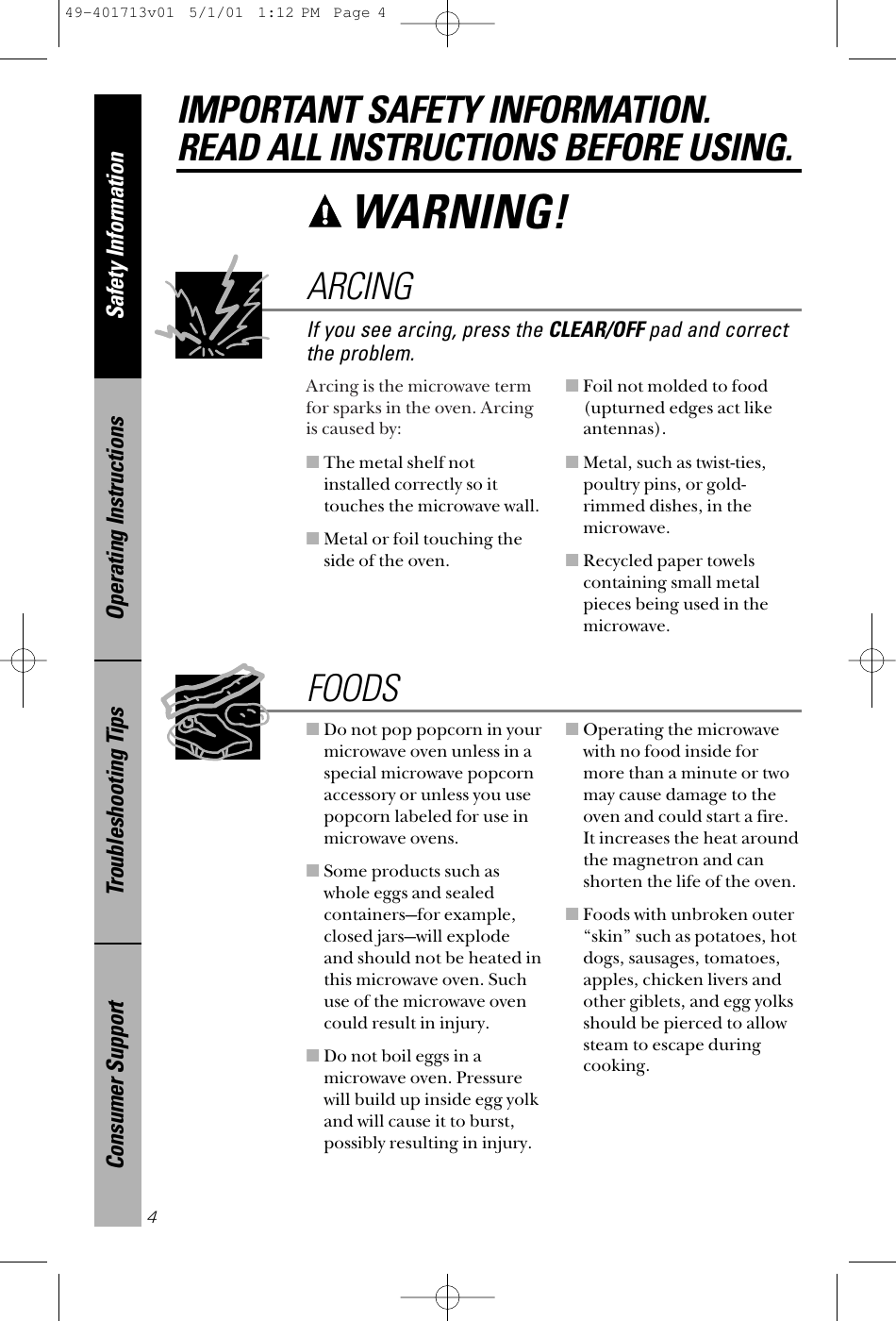

Arcing is the microwave termfor sparks in the oven. Arcing is caused by:■The metal shelf notinstalled correctly so ittouches the microwave wall.■Metal or foil touching theside of the oven.■Foil not molded to food(upturned edges act likeantennas).■Metal, such as twist-ties, poultry pins, or gold-rimmed dishes, in themicrowave.■Recycled paper towels containing small metalpieces being used in themicrowave.■Do not pop popcorn in yourmicrowave oven unless in aspecial microwave popcornaccessory or unless you usepopcorn labeled for use inmicrowave ovens.■Some products such as whole eggs and sealed containers—for example,closed jars—will explodeand should not be heated inthis microwave oven. Suchuse of the microwave ovencould result in injury.■Do not boil eggs in amicrowave oven. Pressure will build up inside egg yolkand will cause it to burst, possibly resulting in injury.■Operating the microwavewith no food inside formore than a minute or twomay cause damage to theoven and could start a fire.It increases the heat aroundthe magnetron and canshorten the life of the oven.■Foods with unbroken outer“skin” such as potatoes, hotdogs, sausages, tomatoes,apples, chicken livers andother giblets, and egg yolksshould be pierced to allowsteam to escape during cooking.FOODSSafety InformationOperating InstructionsTroubleshooting TipsConsumer SupportIMPORTANT SAFETY INFORMATION.READ ALL INSTRUCTIONS BEFORE USING.4WARNING! If you see arcing, press the CLEAR/OFF pad and correctthe problem.ARCING49-401713v01 5/1/01 1:12 PM Page 4
www.GEAppliances.com5Consumer SupportTroubleshooting TipsOperating InstructionsSafety Information■SUPERHEATED WATERMicrowaved water and otherliquids do not always bubblewhen they reach the boilingpoint. They can actually getsuperheated and not bubble at all.Superheated liquid will bubbleup out of the cup when it ismoved or when somethinglike a spoon or tea bag is putinto it.To prevent this fromhappening and causing injury,do not heat any liquid formore than 2 minutes per cup.After heating, let the cupstand in the microwave for 30 seconds before moving itor putting anything into it.■Avoid heating baby food inglass jars, even with the lidoff. Make sure all infantfood is thoroughly cooked.Stir food to distribute theheat evenly. Be careful toprevent scalding whenwarming formula or breastmilk. The container mayfeel cooler than the milkreally is. Always test the milkbefore feeding the baby.■Don’t defrost frozen beverages in narrow-neckedbottles (especially carbonated beverages).Even if the container isopened, pressure can buildup. This can cause thecontainer to burst, possiblyresulting in injury.■Spontaneous boiling—Under certain specialcircumstances, liquids maystart to boil during or shortlyafter removal from themicrowave oven. To preventburns from splashing liquid,we recommend thefollowing: before removingthe container from the oven,allow the container to standin the oven for 30 to 40 seconds after the oven hasshut off. Do not boil liquids in narrow-necked containerssuch as soft drink bottles,wine flasks and especiallynarrow-necked coffee cups.Even if the container isopened, excessive steam can build up and cause it to burst or overflow.■Hot foods and steam cancause burns. Be carefulwhen opening anycontainers of hot food,including popcorn bags,cooking pouches andboxes. To prevent possibleinjury, direct steam awayfrom hands and face.■Do not overcook potatoes.They could dehydrate andcatch fire, causing damage to your oven.■Cook meat and poultry thoroughly—meat to at least an INTERNAL temperature of 160°F. and poultry to at least anINTERNAL temperature of 180°F. Cooking to these temperatures usually protects againstfoodborne illness.49-401713v01 5/1/01 1:12 PM Page 5
Make sure all cookware usedin your microwave oven issuitable for microwaving.Most glass casseroles, cookingdishes, measuring cups,custard cups, pottery or chinadinnerware which does nothave metallic trim or glazewith a metallic sheen can beused. Some cookware islabeled “suitable formicrowaving.”■If you are not sure if a dishis microwave-safe, use thistest: Place in the oven boththe dish you are testing anda glass measuring cup filledwith 1 cup of water—set themeasuring cup either in ornext to the dish. Microwave 30–45 seconds at high. Ifthe dish heats, it should notbe used for microwaving. If the dish remains cool and only the water in thecup heats, then the dish ismicrowave-safe.■If you use a meat thermometer while cooking,make sure it is safe for use inmicrowave ovens.■Do not use recycled paperproducts. Recycled papertowels, napkins and waxedpaper can contain metalflecks which may causearcing or ignite. Paperproducts containing nylonor nylon filaments shouldbe avoided, as they may also ignite. ■Some styrofoam trays (likethose that meat is packagedon) have a thin strip ofmetal embedded in thebottom. When microwaved,the metal can burn thefloor of the oven or ignite a paper towel.■Do not use the microwaveto dry newspapers.■Not all plastic wrap issuitable for use in microwaveovens. Check the packagefor proper use.■Paper towels, waxed paperand plastic wrap can beused to cover dishes inorder to retain moistureand prevent spattering. Be sure to vent plastic wrapso steam can escape.■Cookware may become hotbecause of heat transferredfrom the heated food. Potholders may be needed tohandle the cookware.MICROWAVE-SAFE COOKWARESafety InformationOperating InstructionsTroubleshooting TipsConsumer SupportIMPORTANT SAFETY INFORMATION.READ ALL INSTRUCTIONS BEFORE USING.6WARNING! 49-401713v01 5/1/01 1:12 PM Page 6
www.GEAppliances.com7Consumer SupportTroubleshooting TipsOperating InstructionsSafety Information■“Boilable” cooking pouchesand tightly closed plasticbags should be slit, piercedor vented as directed by package. If they are not, plastic could burst duringor immediately aftercooking, possibly resultingin injury. Also, plasticstorage containers shouldbe at least partiallyuncovered because theyform a tight seal. Whencooking with containers tightly covered with plasticwrap, remove covering carefully and direct steamaway from hands and face.■Use foil only as directed inthis manual. TV dinnersmay be microwaved in foiltrays less than 3/4″high;remove the top foil coverand return the tray to thebox. When using foil in themicrowave oven, keep thefoil at least 1″away from the sides of the oven.■Plastic cookware—Plasticcookware designed formicrowave cooking is veryuseful, but should be usedcarefully. Even microwave-safe plastic may not be astolerant of overcookingconditions as are glass orceramic materials and maysoften or char if subjected to short periods ofovercooking. In longer exposures to overcooking,the food and cookware could ignite. Follow these guidelines: Use microwave-safe plastics only and use them in strictcompliance with the cookware manufacturer’s recommendations. Do not microwaveempty containers. Do not permit children to use plastic cookware without complete supervision.32149-401713v01 5/1/01 1:12 PM Page 7

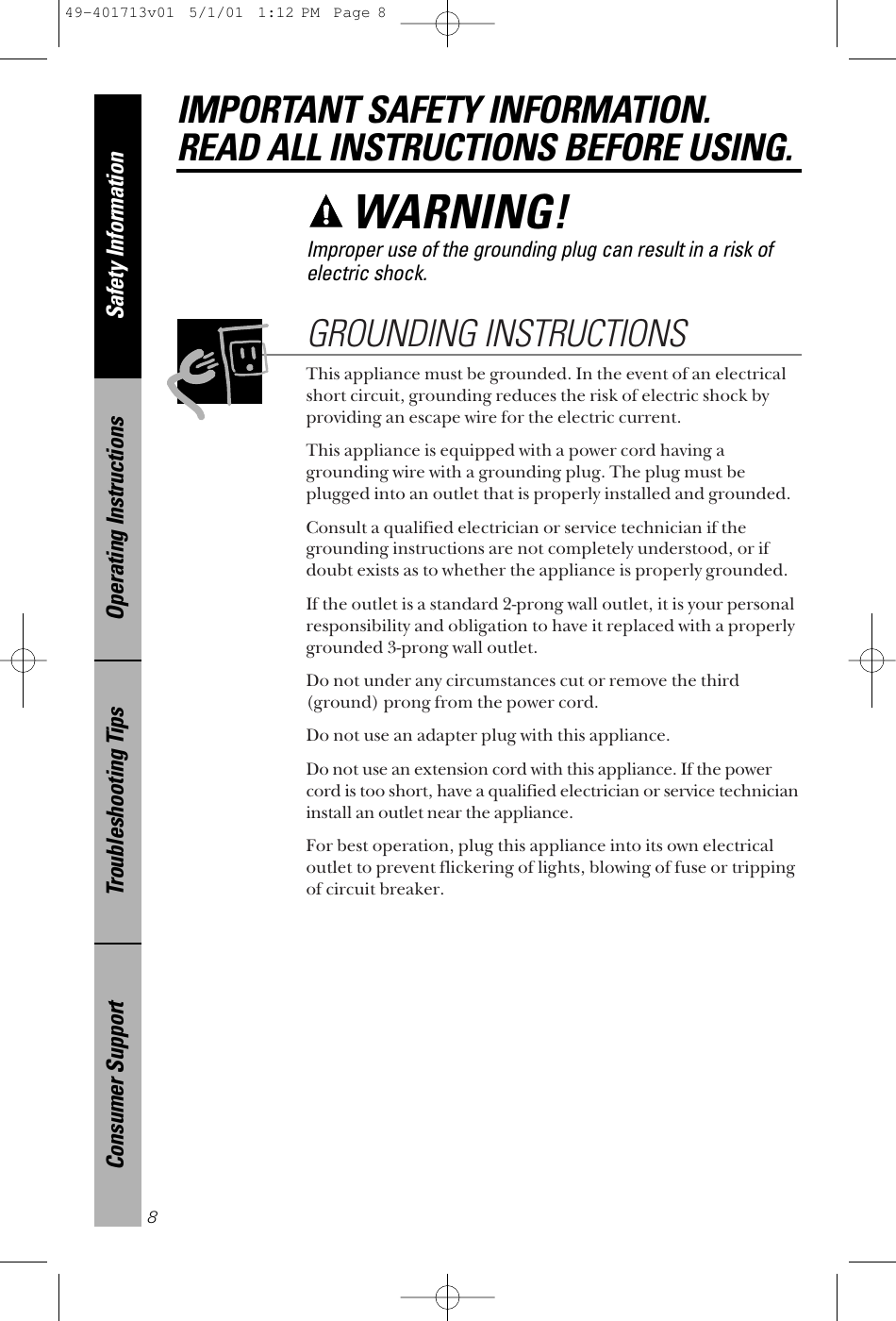

This appliance must be grounded. In the event of an electricalshort circuit, grounding reduces the risk of electric shock byproviding an escape wire for the electric current. This appliance is equipped with a power cord having agrounding wire with a grounding plug. The plug must beplugged into an outlet that is properly installed and grounded.Consult a qualified electrician or service technician if thegrounding instructions are not completely understood, or ifdoubt exists as to whether the appliance is properly grounded.If the outlet is a standard 2-prong wall outlet, it is your personalresponsibility and obligation to have it replaced with a properlygrounded 3-prong wall outlet.Do not under any circumstances cut or remove the third(ground) prong from the power cord.Do not use an adapter plug with this appliance.Do not use an extension cord with this appliance. If the powercord is too short, have a qualified electrician or service technicianinstall an outlet near the appliance.For best operation, plug this appliance into its own electricaloutlet to prevent flickering of lights, blowing of fuse or trippingof circuit breaker.GROUNDING INSTRUCTIONSSafety InformationOperating InstructionsTroubleshooting TipsConsumer SupportIMPORTANT SAFETY INFORMATION.READ ALL INSTRUCTIONS BEFORE USING.8WARNING! Improper use of the grounding plug can result in a risk ofelectric shock.49-401713v01 5/1/01 1:12 PM Page 8
www.GEAppliances.comConsumer SupportTroubleshooting TipsOperating InstructionsSafety Information9The fan will operate automatically under certain conditions (seeAutomatic Fan feature). Take care to prevent the starting andspreading of accidental cooking fires while the vent fan is in use. ■Clean the underside of the microwave often. Do not allowgrease to build up on the microwave or the fan filters.■In the event of a grease fire on the surface units below themicrowave oven, smother a flaming pan on the surface unitby covering the pan completely with a lid, a cookie sheet or a flat tray.■Use care when cleaning the vent fan filters. Corrosivecleaning agents, such as lye-based oven cleaners, may damagethe filters.■When preparing flaming foods under the microwave, turnthe fan on. ■Never leave surface units beneath your microwave ovenunattended at high heat settings. Boilovers cause smokingand greasy spillovers that may ignite and spread if themicrowave vent fan is operating. To minimize automatic fanoperation, use adequate sized cookware and use high heat on surface units only when necessary.THE VENT FANREAD AND FOLLOW THIS SAFETYINFORMATION CAREFULLY.SAVE THESE INSTRUCTIONS49-401713v01 5/1/01 1:12 PM Page 9

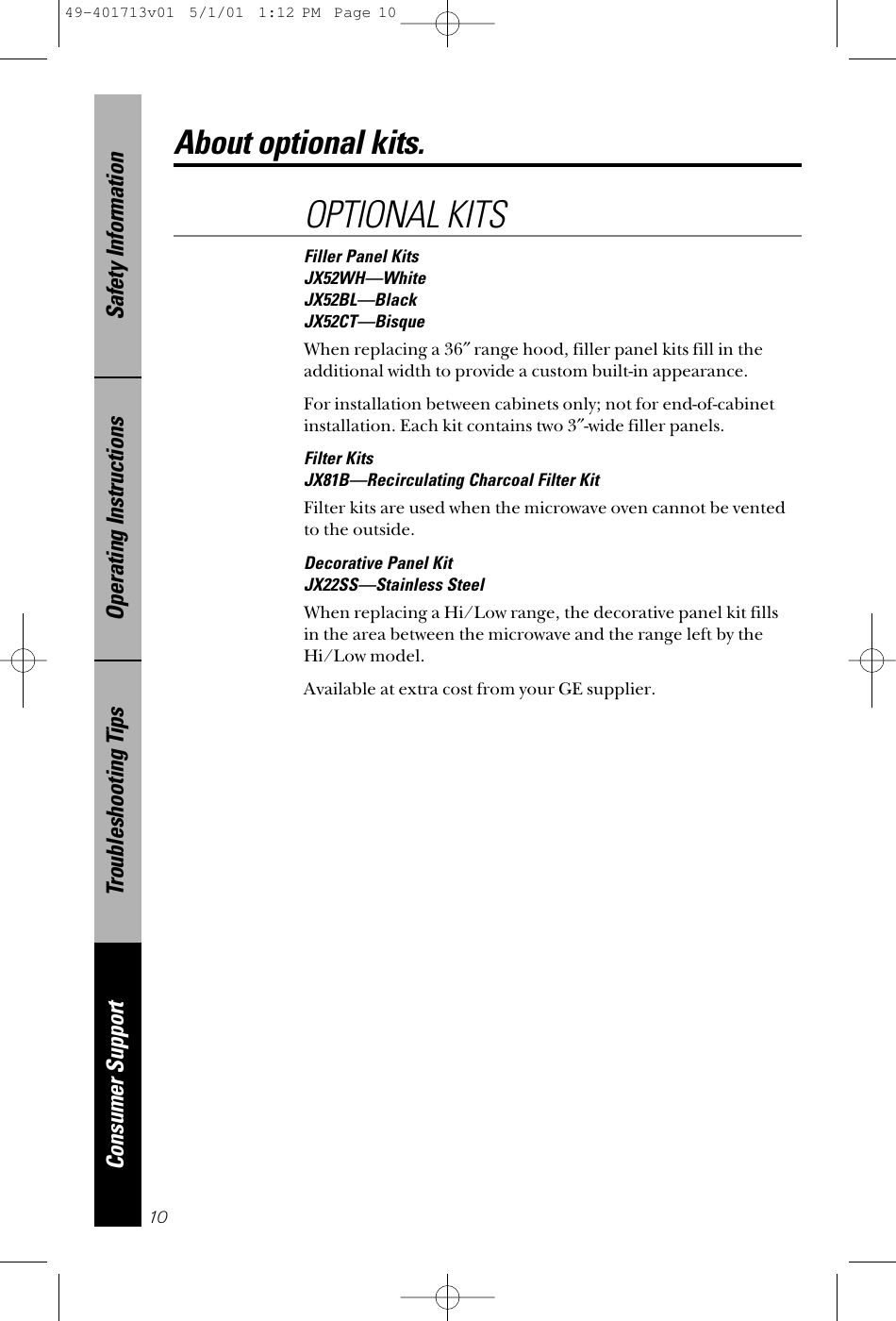

Safety InformationOperating InstructionsTroubleshooting TipsConsumer Support10Filler Panel KitsJX52WH—WhiteJX52BL—BlackJX52CT—BisqueWhen replacing a 36″range hood, filler panel kits fill in theadditional width to provide a custom built-in appearance. For installation between cabinets only; not for end-of-cabinetinstallation. Each kit contains two 3″-wide filler panels.Filter KitsJX81B—Recirculating Charcoal Filter KitFilter kits are used when the microwave oven cannot be ventedto the outside.Decorative Panel KitJX22SS—Stainless SteelWhen replacing a Hi/Low range, the decorative panel kit fills in the area between the microwave and the range left by theHi/Low model.Available at extra cost from your GE supplier.OPTIONAL KITSAbout optional kits.49-401713v01 5/1/01 1:12 PM Page 10
Consumer SupportTroubleshooting TipsOperating InstructionsSafety Information11About the features of your microwave oven.www.GEAppliances.comThroughout this manual, features and appearance may vary from your model.Features of the OvenDoor Handle. Pull to openthe door. The door mustbe securely latched forthe microwave to operate.Door Latches. Window with Metal Shield.Screen allows cooking tobe viewed while keepingmicrowaves confined inthe oven.Shelf. Lets you microwaveseveral foods at once.Food microwaves bestwhen placed directly on the oven floor orturntable.Touch Control Panel. Cooktop Lights.Grease Filters.Removable Turntable.Turntable and supportmust be in place whenusing the oven. Theturntable may beremoved for cleaning.NOTE: Rating plate, oven vent(s) and oven light arelocated on the inside walls of the microwave oven.1000 Watts49-401713v01 5/1/01 1:12 PM Page 11
You can microwave by time or with the convenience features.About the features of your microwave oven.Cooking ControlsTime FeaturesPress EnterTIME COOK I & II Amount of cooking timePress once or twiceTIME DEFROST Amount of defrosting timeEXPRESS COOK Starts immediately!ADD 30 SEC Starts immediately!POWER LEVEL Power level 1–10AUTO/QUICK DEFROST Food weightPress once (Auto Defrost) up to 6 lbs.Press twice (Quick Defrost) up to 1 lb.Convenience FeaturesPress Enter OptionPOPCORN Starts immediately! more/less timePress once 3.5 oz.Press twice 3.0 oz.Press 3 times 1.75 oz.BEVERAGE Starts immediately!Press once 4 oz.Press twice 8 oz.Press 3 times 12 oz.COOK Food type 1–6 + weightREHEAT Food type 1–6 1–3 servingsVEGETABLEPress once (fresh vegetables) Food weightPress twice (frozen vegetables)Press three times (canned vegetables)SNACKS Snack type 1–6 number/weightSafety InformationOperating InstructionsTroubleshooting TipsConsumer Support1249-401713v01 5/1/01 1:12 PM Page 12
Consumer SupportTroubleshooting TipsOperating InstructionsSafety Information13About changing the power level.www.GEAppliances.comVariable power levels add flexibility to microwavecooking. The power levels on the microwave ovencan be compared to the surface units on a range.High (power level 10) or full power is the fastestway to cook and gives you 100% power. Each powerlevel gives you microwave energy a certain percentof the time. Power level 7 is microwave energy 70%of the time. Power level 3 is energy 30% of the time.A high setting (10) will cook faster but food mayneed more frequent stirring, rotating or turningover. Most cooking will be done on High (powerlevel 10). A lower setting will cook more evenly and need less stirring or rotating of the food. Some foods may have better flavor, texture orappearance if one of the lower settings is used. Use a lower power level when cooking foods that have atendency to boil over, such as scalloped potatoes.Rest periods (when the microwave energy cycles off)give time for the food to “equalize” or transfer heatto the inside of the food. An example of this is shownwith power level 3—the defrost cycle. If microwaveenergy did not cycle off, the outside of the foodwould cook before the inside was defrosted.Here are some examples of uses for various power levels:Power Level Best UsesHigh 10Fish, bacon, vegetables, boiling liquids.Med-High 7Gentle cooking of meat and poultry;baking casseroles and reheating.Medium 5Slow cooking and tenderizing such asstews and less tender cuts of meat.Low 2 or 3 Defrosting without cooking;simmering; delicate sauces.Warm 1Keeping food warm withoutovercooking; softening butter.How to Change the Power Level The power level may be entered or changedimmediately afterentering the featuretime for TIME COOK,TIME DEFROST, EXPRESSCOOK orADD 30 SEC.The power level mayalso be changed duringtime countdown.Press TIME COOK orTIME DEFROST.Enter cooking ordefrosting time.Press POWER LEVEL.Select desiredpower level 1–10.Press START.5432149-401713v01 5/1/01 1:12 PM Page 13
About the time features.Time Cook IAllows you to microwave for any time up to 99minutes and 99 seconds. Power level 10 (High) is automatically set, but youmay change it for more flexibility. You may open the door during TIME COOKto checkthe food. Close the door and press STARTto resumecooking.Time Cook IILets you change power levels automatically duringcooking. Here’s how to do it:Press TIME COOK.Enter the first cook time. Change the power level if you don’t want fullpower. (Press POWER LEVEL. Select a desiredpower level 1–10.)Press TIME COOKagain.Enter the second cook time.Change the power level if you don’t want fullpower. (Press POWER LEVEL. Select a power level 1–10.)Press START. At the end of Time Cook I, Time Cook IIcounts down.76543211EXPRESS COOK3EXPRESS COOK4EXPRESS COOK6EXPRESS COOKTIMECOOK2EXPRESS COOK5EXPRESS COOK7890STARTPAUSESafety InformationOperating InstructionsTroubleshooting TipsConsumer Support14Press TIME COOK.Enter cooking time.Change power levelif you don’t wantfull power. (PressPOWER LEVEL. Selecta desired powerlevel 1–10.)Press START.432149-401713v01 5/1/01 1:12 PM Page 14
15Consumer SupportTroubleshooting TipsOperating InstructionsSafety Informationwww.GEAppliances.comCooking Guide for Time Cook I and Time Cook IINOTE: Use power level High (10) unless otherwise noted.Vegetable Amount Time CommentsAsparagus(fresh spears) 1 lb. 6 to 9 min., In 11⁄2-qt. oblong glass baking Med-High (7) dish, place 1/4 cup water.(frozen spears) 10-oz. package 5 to 7 min. In 1-qt. casserole.Beans(fresh green) 1 lb. cut in half 9 to 11 min. In 11⁄2-qt. casserole, place 1/2 cup water.(frozen green) 10-oz. package 6 to 8 min. In 1-qt. casserole, place 2 tablespoons water.(frozen lima) 10-oz. package 6 to 8 min. In 1-qt. casserole, place 1/4 cup water.Beets(fresh, whole) 1 bunch 17 to 21 min. In 2-qt. casserole, place 1/2 cup water.Broccoli(fresh cut) 1 bunch 7 to 10 min. In 2-qt. casserole, place (11⁄4to 11⁄2lbs.) 1/2 cup water.(fresh spears) 1 bunch 9 to 13 min. In 2-qt. oblong glass baking (11⁄4to 11⁄2lbs.) dish, place 1/4 cup water. (frozen, 10-oz. package 5 to 7 min. In 1-qt. casserole.chopped)(frozen spears) 10-oz. package 5 to 7 min. In 1-qt. casserole, place 3 tablespoons water.Cabbage(fresh) 1 medium head 8 to 11 min. In 11⁄2- or 2-qt. casserole, place (about 2 lbs.) 1/4 cup water.(wedges) 7 to 10 min. In 2- or 3-qt. casserole, place 1/4 cup water.Carrots(fresh, sliced) 1 lb. 7 to 9 min. In 11⁄2-qt. casserole, place 1/4 cup water.(frozen) 10-oz. package 5 to 7 min. In 1-qt. casserole, place 2 tablespoons water.Cauliflower(flowerets) 1 medium head 9 to 14 min. In 2-qt. casserole, place 1/2 cup water.(fresh, whole) 1 medium head 10 to 17 min. In 2-qt. casserole, place 1/2 cup water.(frozen) 10-oz. package 5 to 7 min. In 1-qt. casserole, place 2 tablespoons water.49-401713v01 5/1/01 1:12 PM Page 15
About the time features.Safety InformationOperating InstructionsTroubleshooting TipsConsumer Support16Vegetable Amount Time CommentsCorn(frozen kernel) 10-oz. package 5 to 7 min. In 1-qt. casserole, place 2 tablespoons water.Corn on the cob(fresh) 1 to 5 ears 3 to 4 min. In 2-qt. oblong glass baking per ear dish, place corn. If corn is in husk, use no water; if corn has been husked, add 1/4 cup water. Rearrange after half of time.(frozen) 1 ear 5 to 6 min. Place in 2-qt. oblong glass baking dish. 2 to 6 ears 3 to 4 min. Cover with vented plastic wrap. per ear Rearrange after half of time. Mixed vegetables(frozen) 10-oz. package 5 to 7 min. In 1-qt. casserole, place 3 tablespoons water.Peas(fresh, shelled) 2 lbs. unshelled9 to 12 min.In 1-qt. casserole, place 1/4 cup water.(frozen) 10-oz. package 5 to 7 min. In 1-qt. casserole, place 2 tablespoons water.Potatoes(fresh, cubed, 4 potatoes9 to 12 min.Peel and cut into 1 inch cubes. white) (6 to 8 oz. each) Place in 2-qt. casserole with 1/2 cup water. Stir after half of time.(fresh, whole, 1 (6 to 8 oz.) 3 to 4 min. Pierce with cooking fork. sweet or white) Place in center of the oven.Let stand 5 minutes.Spinach(fresh) 10 to 16 oz. 5 to 7 min. In 2-qt. casserole, place washed spinach.(frozen, 10-oz. package 5 to 7 min. In 1-qt. casserole, place chopped 3 tablespoons water.and leaf)Squash(fresh, summer 1 lb. sliced 5 to 7 min. In 11⁄2-qt. casserole, place and yellow) 1/4 cup water.(winter, acorn 1 to 2 squash 8 to 11 min. Cut in half and remove fibrous butternut)(about 1 lb. each)membranes. In 2-qt. oblong glass baking dish, place squash cut-side-down. Turn cut-side-upafter 4 minutes.49-401713v01 5/1/01 1:12 PM Page 16
Consumer SupportTroubleshooting TipsOperating InstructionsSafety Information17www.GEAppliances.comTime DefrostAllows you to defrost for the length of time youselect. See the Defrosting Guide for suggested times.Power level 3 is automatically set, but you maychange this for more flexibility. You may defrostsmall items more quickly by raising the power levelafter entering the time. However, they will needmore frequent attention than usual.Power level 7 cuts the total defrosting time in about half; power level 10 cuts the total time toapproximately 1/3. Rotate or stir food frequently.A dull thumping noise may be heard duringdefrosting. This sound is normal when the oven is not operating at High power.Defrosting Tips■Foods frozen in paper or plastic can be defrostedin the package. Tightly closed packages shouldbe slit, pierced or vented AFTER food haspartially defrosted. Plastic storage containersshould be at least partially uncovered.■Family-size, prepackaged frozen dinners can bedefrosted and microwaved. If the food is in a foilcontainer, transfer it to a microwave-safe dish.■Foods that spoil easily, such as milk, eggs, fish,stuffings, poultry and pork, should not beallowed to sit out for more than one hour afterdefrosting. Room temperature promotes thegrowth of harmful bacteria.■For more even defrosting of larger foods, such asbeef, lamb and veal roasts, use Auto Defrost.■Be sure large meats are completely defrostedbefore cooking.■When defrosted, food should be cool but softened in all areas. If still slightly icy, return to the microwave very briefly, or let it stand a few minutes.1EXPRESS COOK3EXPRESS COOK4EXPRESS COOK6EXPRESS COOK2EXPRESS COOK5EXPRESS COOK7890STARTPAUSETIMEDEFROSTPress TIME DEFROST.Enter defrostingtime.Press START. 32149-401713v01 5/1/01 1:12 PM Page 17
Defrosting GuideSafety InformationOperating InstructionsTroubleshooting TipsConsumer SupportAbout the time features.18Food Time CommentsBreads, CakesBread, buns or rolls(1 piece) 1 min.Sweet rolls(approx. 12 oz.) 3 to 5 min.Fish and SeafoodFillets, frozen (1 lb.) 6 to 8 min.Shellfish, small pieces(1 lb.) 5 to 7 min. Place block in casserole. Turn over and break up after half the time.FruitPlastic pouch—1 to 23 to 6 min.(10-oz. package)Meat Bacon(1 lb.) 2 to 5 min. Place unopened package in oven. Let stand 5 minutes after defrosting. Franks(1 lb.) 2 to 5 min. Place unopened package in oven. Microwave just until franks can be separated. Let stand 5 minutes, if necessary, to complete defrosting.Ground meat(1 lb.) 5 to 7 min. Turn meat over after half the time.Roast: beef, lamb, veal, pork12 to 16 min. Use power level 1.per lb.Steaks, chops and cutlets5 to 7 min. Place unwrapped meat in cooking per lb. dish. Turn over after half the time and shield warm areas with foil. When finished, separate pieces and let stand to complete defrosting.PoultryChicken, broiler-fryer15 to 19 min. Place wrapped chicken in dish. cut up(21⁄2to 3 lbs.) Unwrap and turn over after half the time. When finished, separate pieces and microwave 2 to 4 minutes more, if necessary.Let stand to finish defrosting.Chicken, whole17 to 21 min. Place wrapped chicken in dish. (21⁄2to 3 lbs.) After half the time, unwrap and turn chicken over. Shield warm areas with foil. Finish defrosting. If necessary, run cold water in the cavity until giblets can be removed.Cornish hen7 to 13 min. Place unwrapped hen in the oven per lb. breast-side-up. Turn over after halfthe time. Run cool water in the cavity until giblets can be removed.Turkey breast(4 to 6 lbs.) 5 to 9 min. Place unwrapped breast in dish per lb. breast-side-down. After half the time, turn over and shield warm areas with foil. Finish defrosting. Let stand 1 to 2 hours in refrigerator to complete defrosting.49-401713v01 5/1/01 1:12 PM Page 18
www.GEAppliances.comConsumer SupportTroubleshooting TipsOperating InstructionsSafety Information19Express CookThis is a quick way to set cooking time for 1–6 minutes.Press one of the Express Cookpads (from 1 to 6) for 1 to 6 minutes of cooking at power level 10.For example, press the 2pad for 2 minutes ofcooking time. The power level can be changed as time is countingdown. Press POWER LEVELand enter 1–10.1EXPRESS COOK3EXPRESS COOK4EXPRESS COOK6EXPRESS COOK2EXPRESS COOK5EXPRESS COOKAdd 30 SecondsYou can use this feature two ways:■It will add 30 seconds to the time counting downeach time the pad is pressed.■It can be used as a quick way to set 30 seconds of cooking time.ADD30 SEC.49-401713v01 5/1/01 1:12 PM Page 19
About the auto feature.Safety InformationOperating InstructionsTroubleshooting TipsConsumer Support20Auto/Quick DefrostThe Auto/Quick Defrostfeature gives you two ways todefrost frozen foods. Press AUTO/QUICK DEFROSTonce for Auto Defrostor twice for Quick Defrost.Auto Defrostautomatically sets the defrosting timesand power levels to give even defrosting results formeats, poultry and fish weighing up to six pounds.Quick Defrostautomatically sets the defrosting timesand power levels for foods weighing up to one pound.■Remove meat from package and place onmicrowave-safe dish.■Twice during Auto Defrostor once during Quick Defrost, the oven signals Turn Food Over. At each signal, turn the food over. Removedefrosted meat or shield warm areas with small pieces of foil.■After defrosting, most meats need to stand 5 minutes to complete defrosting. Large roastsshould stand for about 30 minutes.Conversion GuideIf the weight of food is stated in pounds andounces, the ounces must be converted to tenths (.1) of a pound.Press AUTO/QUICKDEFROST once forAuto Defrost. Presstwice for QuickDefrost.Using theConversion Guide at right, enter foodweight. For example,press pads 1 and 2for 1.2 pounds (1 pound, 3 ounces).Enter weight up to 6 pounds for AutoDefrost, 1 pound forQuick Defrost.Press START.3211EXPRESS COOK3EXPRESS COOK4EXPRESS COOK6EXPRESS COOKAUTO/QUICKDEFROST2EXPRESS COOK5EXPRESS COOK7890STARTPAUSEWeight of EnterFood in Weight Ounces (tenths of a pound)1–2 .13.24–5 .36–7 .48.5Weight of EnterFood in Weight Ounces (tenths of a pound)9–10 .611 .712–13 .814–15 .949-401713v01 5/1/01 1:12 PM Page 20
Consumer SupportTroubleshooting TipsOperating InstructionsSafety InformationPopcornHow to Use the Popcorn FeatureFollow package instructions, using Time Cookif the package is less than 1.75 ounces or largerthan 3.5 ounces. Place the package of popcornin the center of the microwave.Press POPCORN. The oven starts immediately.Tap POPCORNto select the bag size you arecooking.How to Adjust the Popcorn Program to Provide a Shorteror Longer Cook TimeIf you find that the brand of popcorn you useunderpops or overcooks consistently, you can addor subtract 20–30 seconds to the automaticpopping time.To add time:After pressing POPCORN, press 9within the first 30 seconds after the oven starts for an extra 20 seconds.Press 9 again to add another 10 seconds (total 30 seconds additional time).To subtract time:After pressing POPCORN, press 1within the first 30 secondsafter the oven starts for 20 seconds less cooking time.Press 1again to reduce cooking time another 10 seconds (total 30 seconds less time).211EXPRESS COOKPOPCORN921Use only with prepackagedmicrowave popcorn weighing1.75 to 3.5 ounces.About the convenience features.www.GEAppliances.comNOTE: Do not use themetal shelf when usingthe Popcorn feature.49-401713v01 5/1/01 1:12 PM Page 21
Safety InformationOperating InstructionsTroubleshooting TipsConsumer Support22About the convenience features.1 Bread, rolls, muffins1 to 42 Sandwich1 to 23 Pizza (leftover slices)1 to 44 Dessert toppings1 to 45 Soup8 to 40 oz.6 Cheese dip4 to 16 oz.Pad Food Type Quantity or WeightSnacks Guide SnacksThe Snacksfeature automatically sets themicrowaving times and power levels to warm avariety of snack foods.Press SNACKS.Select snack type 1–6 (see the Snacks Guidebelow).Enter the number of items or the food weight in ounces.Press START.43211EXPRESS COOK3EXPRESS COOK4EXPRESS COOK6EXPRESS COOKSNACKS2EXPRESS COOK5EXPRESS COOK7890STARTPAUSE49-401713v01 5/1/01 1:12 PM Page 22

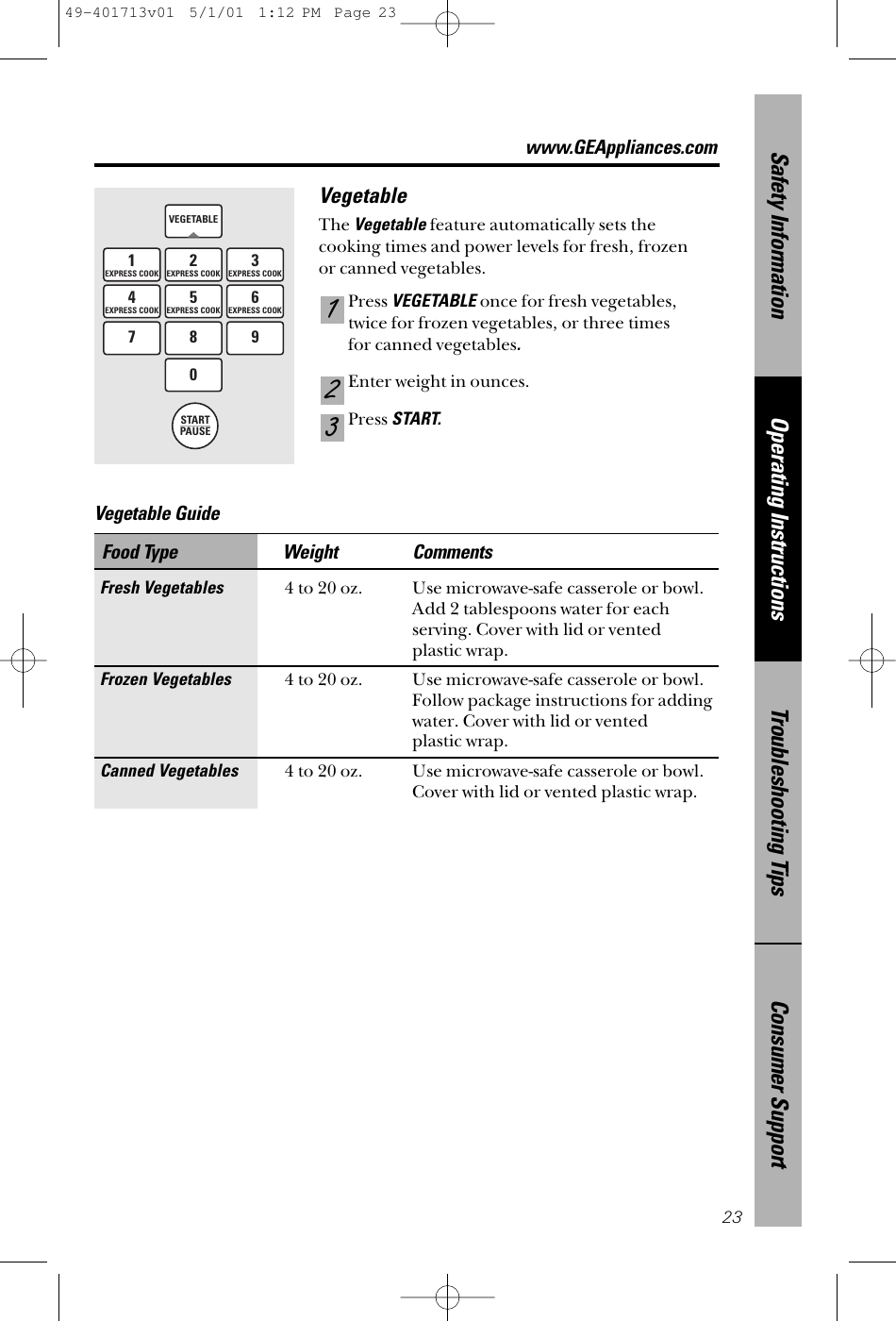

23Consumer SupportTroubleshooting TipsOperating InstructionsSafety Information1EXPRESS COOK3EXPRESS COOK4EXPRESS COOK6EXPRESS COOKVEGETABLE2EXPRESS COOK5EXPRESS COOK7890STARTPAUSEFresh Vegetables4 to 20 oz. Use microwave-safe casserole or bowl.Add 2 tablespoons water for eachserving. Cover with lid or vented plastic wrap.Frozen Vegetables4 to 20 oz. Use microwave-safe casserole or bowl.Follow package instructions for addingwater. Cover with lid or vented plastic wrap.Canned Vegetables4 to 20 oz. Use microwave-safe casserole or bowl.Cover with lid or vented plastic wrap.Food Type Weight CommentsVegetable GuideVegetableThe Vegetablefeature automatically sets thecooking times and power levels for fresh, frozen or canned vegetables.Press VEGETABLEonce for fresh vegetables,twice for frozen vegetables, or three times for canned vegetables.Enter weight in ounces.Press START.321www.GEAppliances.com49-401713v01 5/1/01 1:12 PM Page 23
Safety InformationOperating InstructionsTroubleshooting TipsConsumer SupportAbout the convenience features.24ReheatThe Reheatfeature reheats 1 to 3 servings of manypreviously cooked foods.Press REHEAT.Select food type 1–6 for one serving (see ReheatGuide below). The oven starts immediately.NOTE: The serving size may be changed within the first30 seconds. Press 1 for one serving, 2 for two servingsor 3 for three servings. Serving size can not bechanged for the PLATE selection.21Pad Food Type CommentsReheat Guide 1EXPRESS COOK3EXPRESS COOK4EXPRESS COOK6EXPRESS COOKREHEAT2EXPRESS COOK5EXPRESS COOKSTARTPAUSE1 PastaCover with lid or vented plastic wrap.2 Meats, casseroles, pizzaCover with lid or vented plastic wrap.3 Fruits and vegetablesCover with lid or vented plastic wrap.4 Beverages, 8–10 oz.Works best with wide mouth mug—do not cover.5 Sauces and graviesCover with lid or vented plastic wrap.6 Plate of leftoversCover with vented plastic wrap.(2 to 3 foods, 4 oz. each)BeverageThe Beveragefeature heats 4–12 ounces of anybeverage.Press BEVERAGEonce for 4 ounces. The oven startsimmediately.Press BEVERAGEa second time for 8 ounces.Press BEVERAGEa third time for 12 ounces.Drinks heated with the Beverage feature may be veryhot. Remove the container with care.BEVERAGE49-401713v01 5/1/01 1:12 PM Page 24
1 Potatoes8 to 40 oz. Pierce skin with fork. Place potatoeson oven floor or turntable.2 Fish4 to 16 oz. Use oblong, square or round dish. Cover with vented plastic wrap or wax paper.3 Chicken Pieces4 to 40 oz. Use oblong, square or round dish.Cover with vented plastic wrap.4 Ground Meat8 to 48 oz. Use round casserole dish. Crumble(beef, pork, turkey)meat into dish. Cover with lid orvented plastic wrap. Drain and stirat signal.5 Bacon2 to 10 oz. Layer strips on a plate, 4 to a layer.Cover each layer with a paper towel.6 Pizza (frozen,4 to 16 oz. Follow package instructions to microwaveable)prepare pizza for microwaving.www.GEAppliances.comConsumer SupportTroubleshooting TipsOperating InstructionsSafety InformationCookThe Cookfeature automatically sets the cookingtimes and power levels for a variety of foods.Press COOK.Select food type 1–6 (see the Cook Guidebelow).Enter weight in ounces.Press START.43211EXPRESS COOK3EXPRESS COOK4EXPRESS COOK6EXPRESS COOKCOOK2EXPRESS COOK5EXPRESS COOK7890STARTPAUSEPad Food Type Weight CommentsCook Guide2549-401713v01 5/1/01 1:12 PM Page 25
Other features your model may have.Safety InformationOperating InstructionsTroubleshooting TipsConsumer Support26ClockPress to enter the time of day or to check the timeof day while microwaving.Press CLOCK.Enter time of day.Select AM or PM.Press START.43211EXPRESS COOK3EXPRESS COOK4EXPRESS COOK6EXPRESS COOK2EXPRESS COOK5EXPRESS COOK7890STARTPAUSECLOCKAM / PMTimerTimer operates as a minute timer and can be used at any time, even when the oven is operating.Press TIMER.Enter time you want to count down.Press TIMER to start.To pause the countdown, press TIMER.When time is up, the oven will signal. To turn offthe timer signal, press TIMER.NOTE:The timer indicator will be lit while the timer is operating.To cancel the timer, press and hold the TIMERpadfor 2 seconds.321TIMER1EXPRESS COOK3EXPRESS COOK4EXPRESS COOK6EXPRESS COOK2EXPRESS COOK5EXPRESS COOK7890HelpThe HELPpad displays feature information andhelpful hints. Press HELP, then select a feature pad.HELP49-401713v01 5/1/01 1:12 PM Page 26

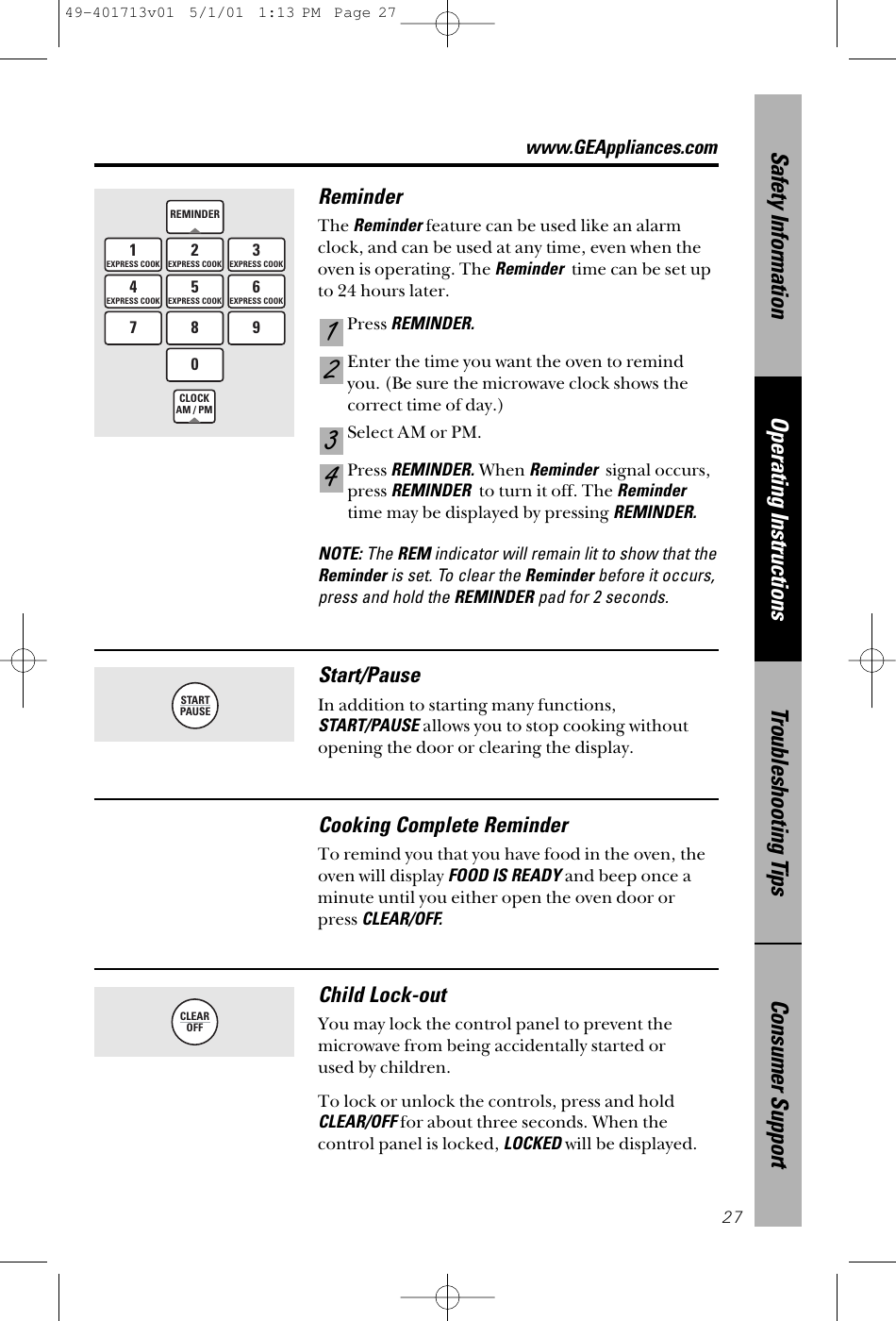

Consumer SupportTroubleshooting TipsOperating InstructionsSafety Information27ReminderThe Reminderfeature can be used like an alarmclock, and can be used at any time, even when theoven is operating. The Remindertime can be set upto 24 hours later.Press REMINDER.Enter the time you want the oven to remindyou. (Be sure the microwave clock shows thecorrect time of day.)Select AM or PM.Press REMINDER. When Remindersignal occurs,press REMINDER to turn it off. The Remindertime may be displayed by pressing REMINDER.NOTE: The REM indicator will remain lit to show that theReminder is set. To clear the Reminder before it occurs,press and hold the REMINDER pad for 2 seconds.4321REMINDERCLOCKAM / PM1EXPRESS COOK3EXPRESS COOK4EXPRESS COOK6EXPRESS COOK2EXPRESS COOK5EXPRESS COOK7890www.GEAppliances.comCooking Complete ReminderTo remind you that you have food in the oven, theoven will display FOOD IS READYand beep once aminute until you either open the oven door or press CLEAR/OFF.Start/PauseIn addition to starting many functions,START/PAUSEallows you to stop cooking withoutopening the door or clearing the display.STARTPAUSEChild Lock-outYou may lock the control panel to prevent themicrowave from being accidentally started or used by children.To lock or unlock the controls, press and holdCLEAR/OFFfor about three seconds. When the control panel is locked, LOCKEDwill be displayed.CLEAROFF49-401713v01 5/1/01 1:13 PM Page 27

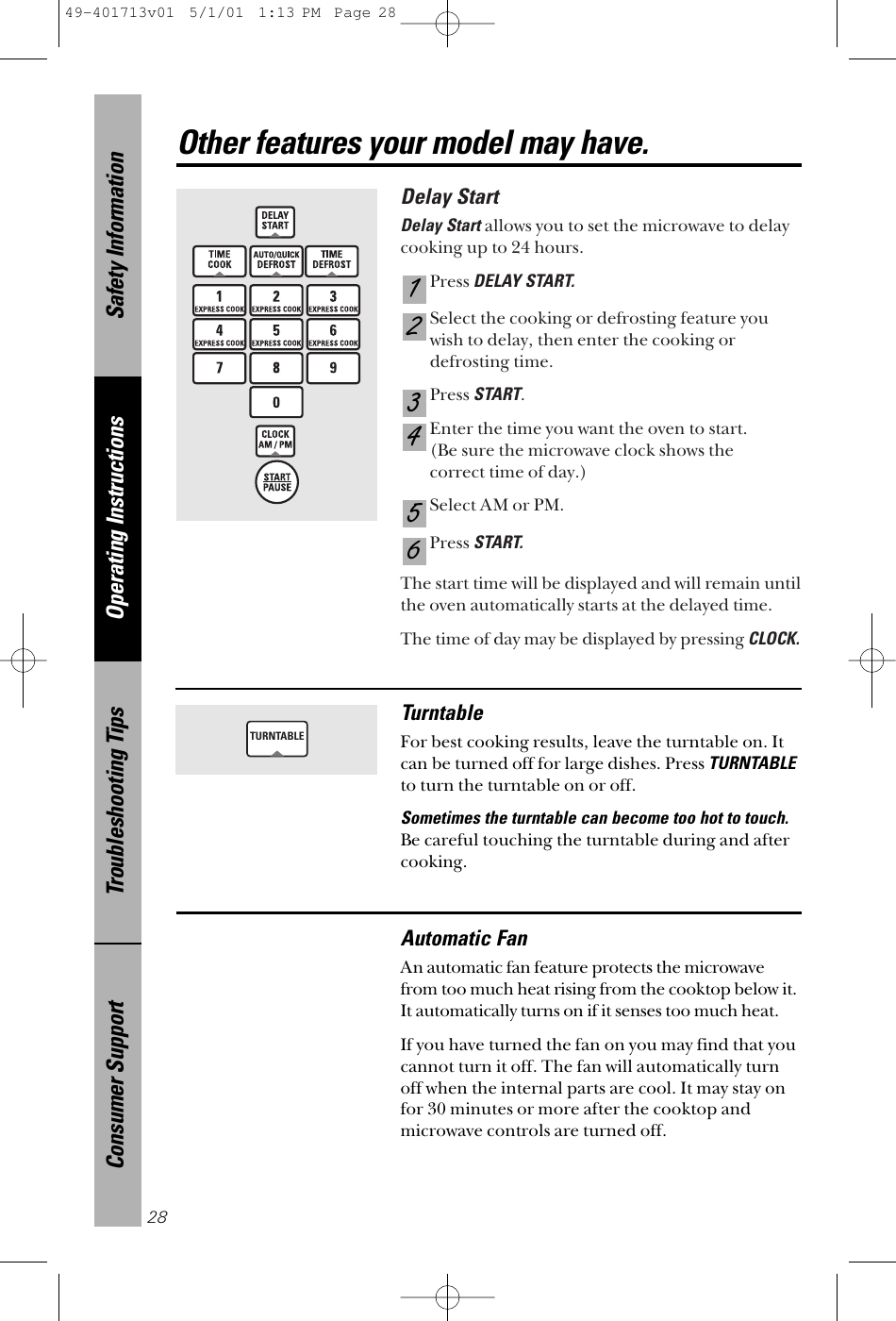

Delay StartDelay Start allows you to set the microwave to delay cooking up to 24 hours.Press DELAY START.Select the cooking or defrosting feature youwish to delay, then enter the cooking ordefrosting time.Press START.Enter the time you want the oven to start. (Be sure the microwave clock shows the correct time of day.)Select AM or PM.Press START.The start time will be displayed and will remain untilthe oven automatically starts at the delayed time.The time of day may be displayed by pressing CLOCK.654321Safety InformationOperating InstructionsTroubleshooting TipsConsumer Support28TurntableFor best cooking results, leave the turntable on. Itcan be turned off for large dishes. Press TURNTABLEto turn the turntable on or off.Sometimes the turntable can become too hot to touch.Be careful touching the turntable during and aftercooking.TURNTABLEAutomatic FanAn automatic fan feature protects the microwavefrom too much heat rising from the cooktop below it.It automatically turns on if it senses too much heat. If you have turned the fan on you may find that youcannot turn it off. The fan will automatically turnoff when the internal parts are cool. It may stay onfor 30 minutes or more after the cooktop andmicrowave controls are turned off.Other features your model may have.49-401713v01 5/1/01 1:13 PM Page 28
www.GEAppliances.comConsumer SupportTroubleshooting TipsOperating InstructionsSafety Information29Surface LightPress SURFACE LIGHTonce for bright light, twice forthe night light or three times to turn the light off.SURFACELIGHTVent FanThe vent fan removes steam and other vapors fromsurface cooking.Press VENT FANonce for high fan speed, twice formedium fan speed, a third time for low fan speed,or a fourth time to turn the fan off.Press the VENT FAN BOOSTpad for extra fan speed.VENT FANVENT FANBOOSTCustomThe CUSTOMpad allows you to save your mostfrequently used settings. (Sensor cooking settings cannot be saved).To set and save a setting:Press the CUSTOMpad.Set the amount of cooking time.Set the power level, if desired. (Full power willautomatically be set if you do not change it).Press the CUSTOMpad.Your custom setting will be remembered for futureone touch use.To clear the custom setting, press and hold theCUSTOMpad for 2 seconds.4321CUSTOM1EXPRESS COOK2EXPRESS COOK3EXPRESS COOK4EXPRESS COOK5EXPRESS COOK6EXPRESS COOK7 8 9049-401713v01 5/1/01 1:13 PM Page 29
Safety InformationOperating InstructionsTroubleshooting TipsConsumer Support30OPTIONSOptionsPress the OPTIONSpad multiple times to cyclethrough the available options.Auto Nite LightThe Auto Nite Lightcan be set to come on and go offat desired times.To set the timer:Press 1.Enter the time of day for the light to come on.Select AM or PM.Press the OPTIONSpad.Enter the time of day for the light to go off.Select AM or PM.Press the OPTIONSpad.To review the nite light settings, press 2afterselecting the Auto Nite Lightoption.To turn the nite light off, press 0 after selecting the Auto Nite Lightoption.Beeper VolumeThe beeper sound level can be adjusted. Choose0–3 for mute to loud.Charcoal Filter ReminderThe Charcoal Filter Reminderis a 180 day timer toremind you when to change the charcoal filter.Press 0to turn the reminder off. Press 1to set thereminder. Press 2to reset the reminder.Display LanguageThe language for the scrolling display may be set at either English or Spanish.Press 1for English or 2for Spanish.Display On/OffYou can choose to turn the clock display on or off.Press 0to turn the display off. Press 1to turn thedisplay on.Display SpeedThe scroll speed of the display can be changed.Select 1–5 for slowest to fastest scroll speed.7654321Other features your model may have.CLOCKAM / PM1EXPRESS COOK3EXPRESS COOK4EXPRESS COOK6EXPRESS COOK2EXPRESS COOK5EXPRESS COOK7 8 9049-401713v01 5/1/01 1:13 PM Page 30
Consumer SupportTroubleshooting TipsOperating InstructionsSafety Information31www.GEAppliances.comShelfFood microwaves best when placed on theturntable or on the shelf in the lower position.For best cooking results, remove the shelf unlessyou are reheating on more than one level.How to Use the ShelfWhen Microwaving■Make sure the shelf ispositioned properlyinside the microwaveto prevent damage tothe oven from arcing.■Do not use amicrowave browningdish on the shelf. Theshelf could overheat.■Do not use the ovenwith the shelf on themicrowave floor. This could damagethe microwave.■Use pot holders when handling theshelf—it may be hot.■Do not use the shelf when cookingpopcorn.For best resultsUneven results2-level reheating49-401713v01 5/1/01 1:13 PM Page 31
Safety InformationOperating InstructionsTroubleshooting TipsConsumer Support32Switch places after 1/2 timeSwitch places after 1/2 timeShelf and Reheating■To reheat on 2 levelsOR■To reheat 2 dishes on the lower level:Multiply reheat time by 11/2.Switch places after 1/2 the time.21Other features your model may have.49-401713v01 5/1/01 1:13 PM Page 32
33Consumer SupportTroubleshooting TipsOperating InstructionsSafety InformationMicrowave terms.www.GEAppliances.comTerm DefinitionArcing Arcing is the microwave term for sparks in the oven. Arcing is caused by:■the metal shelf not installed correctly so that it touches the microwave wall.■metal or foil touching the side of the oven.■foil that is not molded to food (upturned edges act like antennas).■metal such as twist-ties, poultry pins, gold-rimmed dishes.■recycled paper towels containing small metal pieces.CoveringCovers hold in moisture, allow for more even heating and reduce cooking time. Venting plastic wrap or covering with wax paper allows excess steam to escape.ShieldingIn a regular oven, you shield chicken breasts or baked foods to prevent over-browning. When microwaving, you use small strips of foil to shield thin parts, such as the tips of wings and legs on poultry, which would cook before larger parts.Standing TimeWhen you cook with regular ovens, foods such as roasts or cakes are allowed to stand to finish cooking or to set. Standing time is especially important in microwave cooking. Note that a microwaved cake is not placed on a cooling rack.VentingAfter covering a dish with plastic wrap, you vent the plastic wrap by turning back one corner so excess steam can escape.49-401713v01 5/1/01 1:19 PM Page 33
Helpful HintsOpen the oven door a few minutes after cooking toair out the inside. An occasional thorough wipingwith a solution of baking soda and water keeps theinside fresh.NOTE: Be certain the power is off before cleaning anypart of this oven.How to Clean the InsideWalls, Floor, Inside Window, Metal and Plastic Partson the DoorSome spatters can be removed with a paper towel; others may require a damp cloth. Remove greasy spatters with a sudsy cloth, then rinse with a damp cloth. Do not use abrasive cleaners or sharp utensils on oven walls.Never use a commercial oven cleaner on any part ofyour microwave.Removable Turntable and Turntable Support To prevent breakage, do not place the turntableinto water just after cooking. Wash it carefully in warm, sudsy water or in the dishwasher. Theturntable and support can be broken if dropped.Remember, do not operate the oven without theturntable and support in place.ShelfClean with mild soap and water or in thedishwasher.Do not clean in a self-cleaning oven.Safety InformationOperating InstructionsTroubleshooting TipsConsumer Support34Care and cleaning of the microwave oven.49-401713v01 5/1/01 1:13 PM Page 34

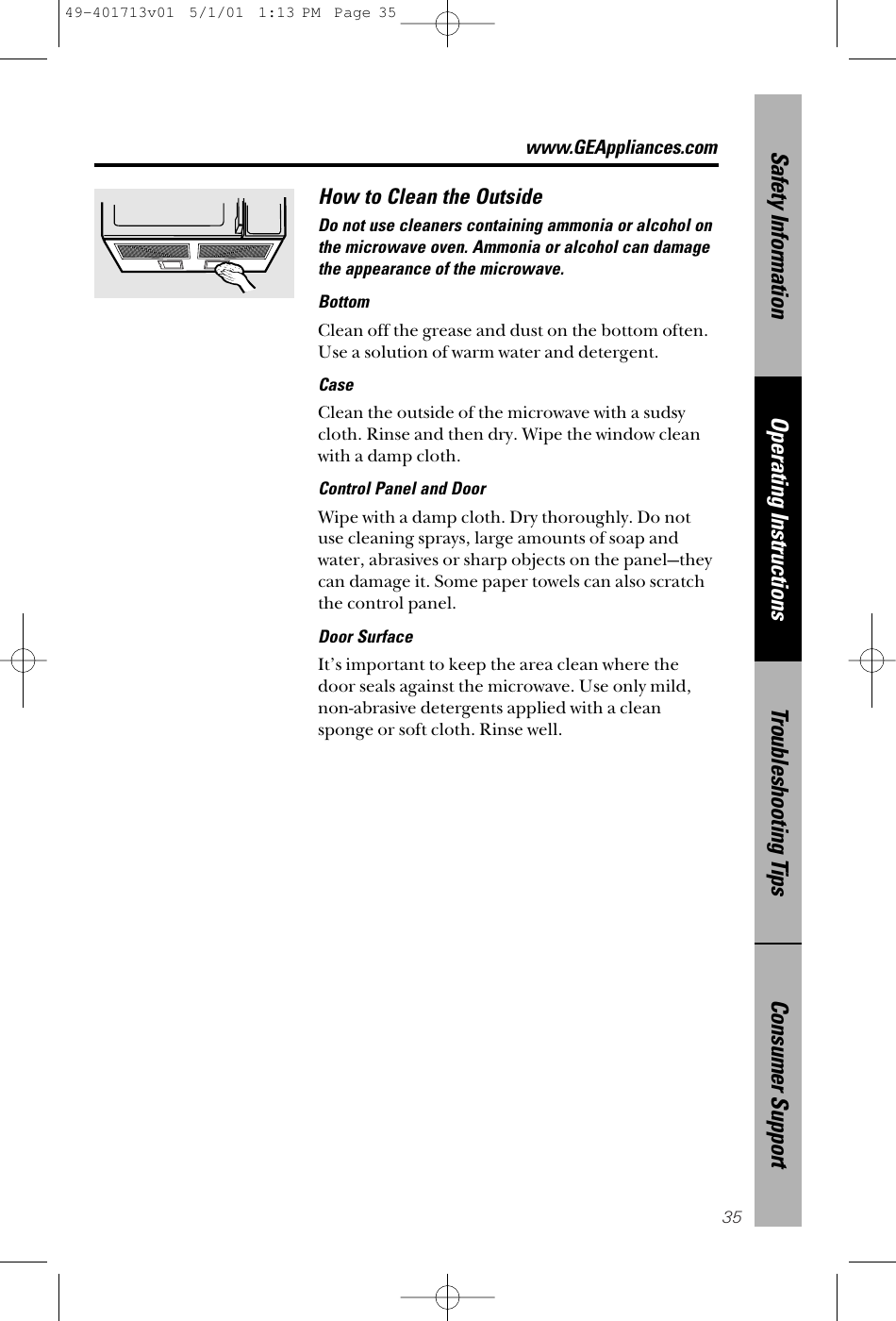

35Consumer SupportTroubleshooting TipsOperating InstructionsSafety InformationHow to Clean the OutsideDo not use cleaners containing ammonia or alcohol onthe microwave oven. Ammonia or alcohol can damagethe appearance of the microwave.BottomClean off the grease and dust on the bottom often.Use a solution of warm water and detergent. CaseClean the outside of the microwave with a sudsycloth. Rinse and then dry. Wipe the window cleanwith a damp cloth. Control Panel and DoorWipe with a damp cloth. Dry thoroughly. Do notuse cleaning sprays, large amounts of soap andwater, abrasives or sharp objects on the panel—theycan damage it. Some paper towels can also scratchthe control panel.Door SurfaceIt’s important to keep the area clean where thedoor seals against the microwave. Use only mild,non-abrasive detergents applied with a cleansponge or soft cloth. Rinse well.www.GEAppliances.com49-401713v01 5/1/01 1:13 PM Page 35

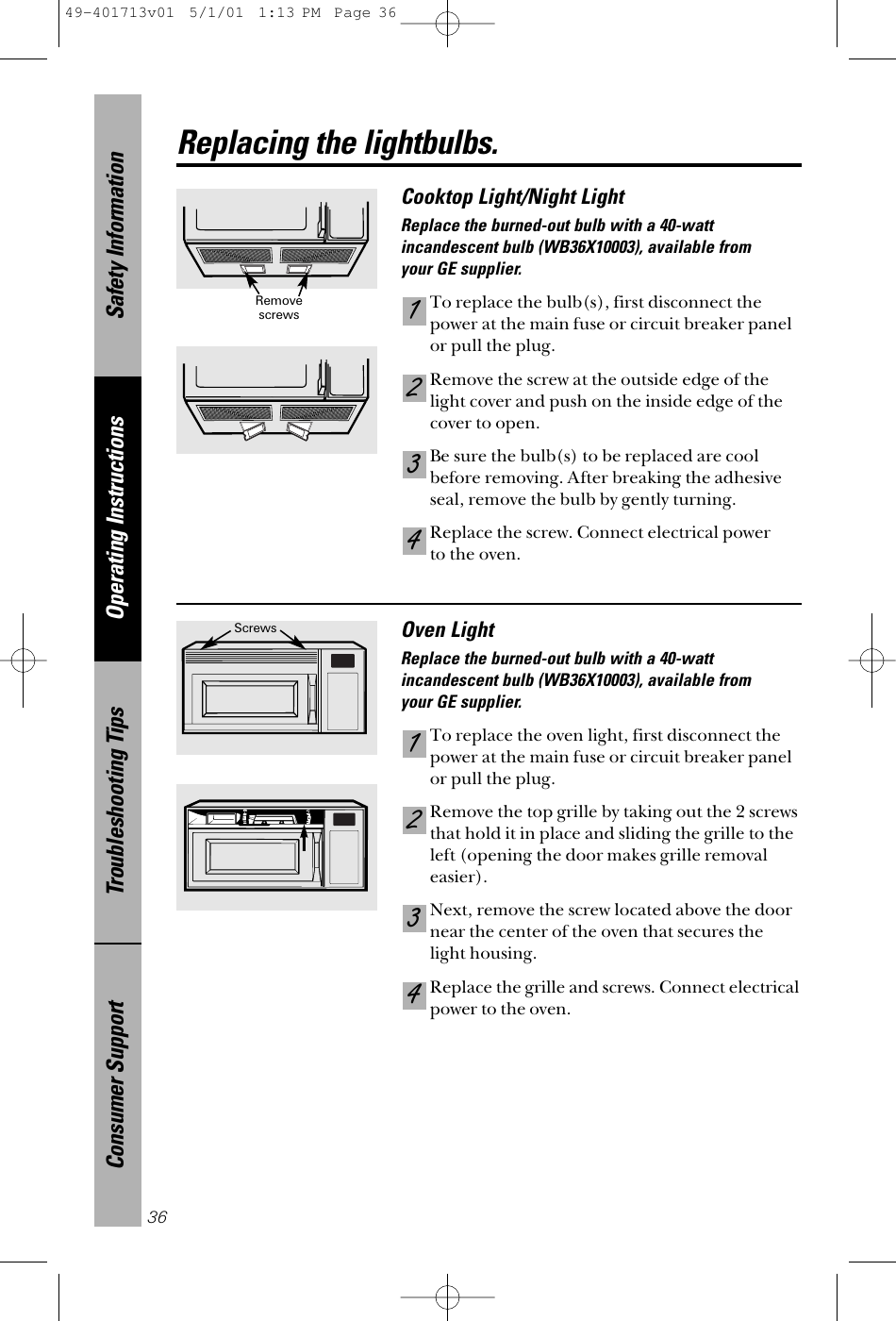

Safety InformationOperating InstructionsTroubleshooting TipsConsumer Support36Cooktop Light/Night LightReplace the burned-out bulb with a 40-wattincandescent bulb (WB36X10003), available from your GE supplier.To replace the bulb(s), first disconnect thepower at the main fuse or circuit breaker panelor pull the plug.Remove the screw at the outside edge of thelight cover and push on the inside edge of thecover to open.Be sure the bulb(s) to be replaced are coolbefore removing. After breaking the adhesiveseal, remove the bulb by gently turning.Replace the screw. Connect electrical power to the oven.4321Oven LightReplace the burned-out bulb with a 40-wattincandescent bulb (WB36X10003), available from your GE supplier.To replace the oven light, first disconnect thepower at the main fuse or circuit breaker panelor pull the plug.Remove the top grille by taking out the 2 screwsthat hold it in place and sliding the grille to theleft (opening the door makes grille removaleasier).Next, remove the screw located above the doornear the center of the oven that secures thelight housing.Replace the grille and screws. Connect electricalpower to the oven.4321Replacing the lightbulbs.ScrewsRemovescrews49-401713v01 5/1/01 1:13 PM Page 36
37Consumer SupportTroubleshooting TipsOperating InstructionsSafety InformationAbout the exhaust feature.www.GEAppliances.comThe Vent FanThe vent fan has 2 metal reusable grease filters. Models that recirculate air back into the room alsouse a charcoal filter.Reusable Grease FiltersThe metal filters trap grease released by foods onthe cooktop. They also prevent flames from foodson the cooktop from damaging the inside of themicrowave. For this reason, the filters must ALWAYS be inplace when the hood is used. The grease filtersshould be cleaned once a month, or as needed.Removing and Cleaning the FilterTo remove,slide it to the outside using the tab. Pull it down and out. To clean the grease filter,soak it and then swish itaround in hot water and detergent. Don’t useammonia or ammonia products because they willdarken the metal. Light brushing can be used toremove embedded dirt.Rinse, shake and let it dry before replacing.To replace,slide the filter in the frame slot at theoutside of the opening. Pull up and in to lock into place.Charcoal Filter(on some models)Reusable Grease Filters(on all models)49-401713v01 5/1/01 1:13 PM Page 37
Safety InformationOperating InstructionsTroubleshooting TipsConsumer Support38Charcoal Filter (on some models)The charcoal filter cannot be cleaned. It must bereplaced. Order Part No. WB02X10733 from your GE supplier.If the model is not vented to the outside, the air willbe recirculated through a disposable charcoal filterthat helps remove smoke and odors. The charcoal filter should be replaced when it isnoticeably dirty or discolored (usually after 6 to 12 months, depending on hood usage).To Remove Charcoal FilterTo remove the charcoal filter, disconnect power at the main fuse or circuit breaker panel or pull the plug. Remove the top grille by removing the 2 screws that hold it in place and sliding the grille to the left(opening the door makes grille removal easier).Slide the filter towards the front of the oven andremove it.To Install Charcoal FilterTo install a new filter, remove plastic and otherouter wrapping from the new filter. Insert the filter into the top opening of the oven asshown. It will rest at an angle on 2 side support tabsand in front of the right rear tab. Replace the grilleand 2 screws.About the exhaust feature.Remove 2 grille screws to remove the grille.Screws49-401713v01 5/1/01 1:13 PM Page 38

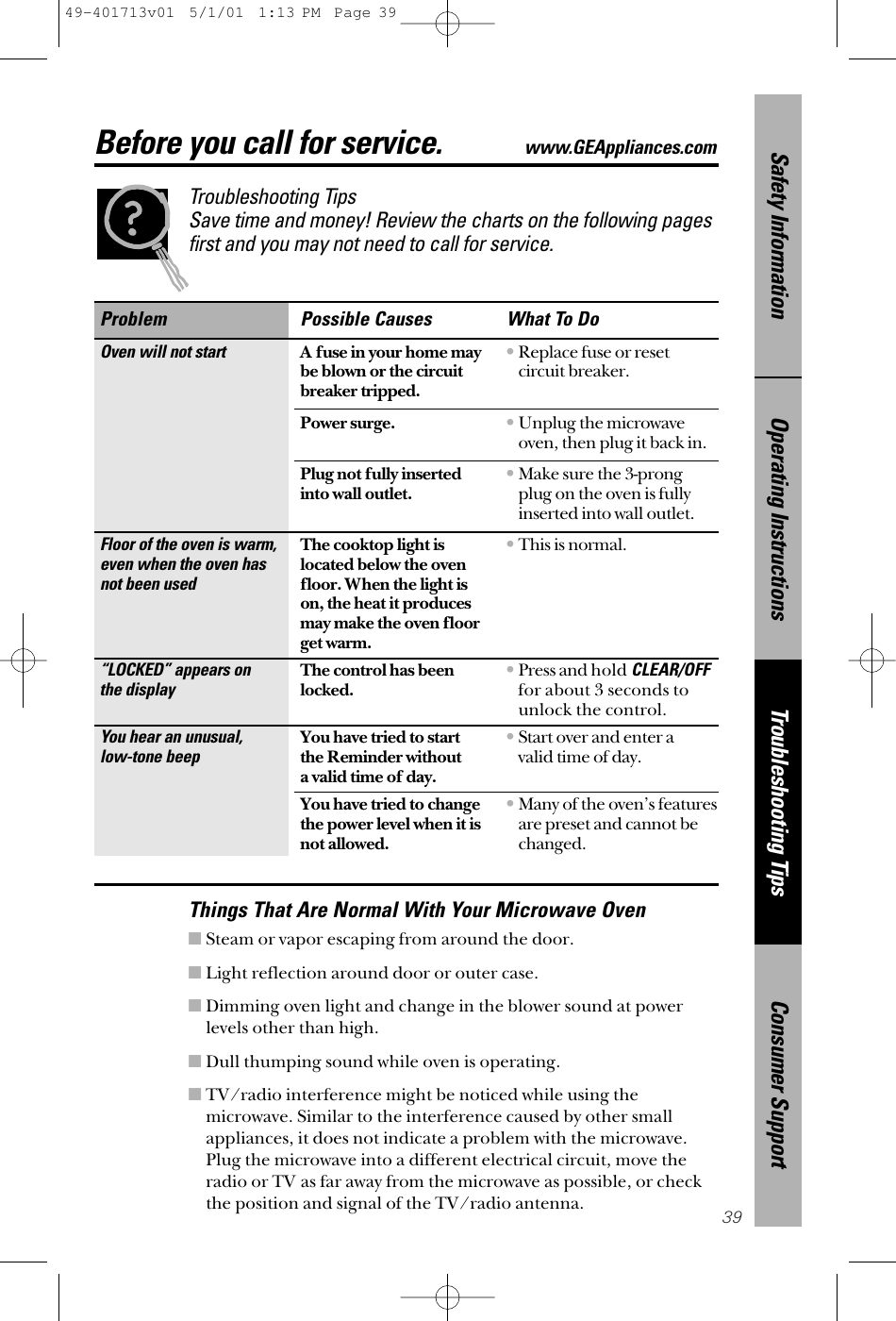

39Consumer SupportTroubleshooting TipsOperating InstructionsSafety InformationBefore you call for service.www.GEAppliances.comTroubleshooting Tips Save time and money! Review the charts on the following pages first and you may not need to call for service.Things That Are Normal With Your Microwave Oven■Steam or vapor escaping from around the door.■Light reflection around door or outer case.■Dimming oven light and change in the blower sound at powerlevels other than high.■Dull thumping sound while oven is operating.■TV/radio interference might be noticed while using themicrowave. Similar to the interference caused by other smallappliances, it does not indicate a problem with the microwave.Plug the microwave into a different electrical circuit, move theradio or TV as far away from the microwave as possible, or checkthe position and signal of the TV/radio antenna.Problem Possible Causes What To DoOven will not startA fuse in your home may •Replace fuse or resetbe blown or the circuit circuit breaker. breaker tripped.Power surge. •Unplug the microwave oven, then plug it back in.Plug not fully inserted •Make sure the 3-prong into wall outlet. plug on the oven is fullyinserted into wall outlet.Floor of the oven is warm,The cooktop light is •This is normal.even when the oven haslocated below the ovennot been usedfloor. When the light ison, the heat it produces may make the oven floorget warm.“LOCKED” appears on The control has been •Press and hold CLEAR/OFFthe displaylocked. for about 3 seconds tounlock the control.You hear an unusual,You have tried to start •Start over and enter alow-tone beepthe Reminder without valid time of day.a valid time of day.You have tried to change •Many of the oven’s featuresthe power level when it is are preset and cannot be not allowed. changed.49-401713v01 5/1/01 1:13 PM Page 39
Notes.Safety InformationOperating InstructionsTroubleshooting TipsConsumer Support4049-401713v01 5/1/01 1:13 PM Page 40
41GE Service Protection Plus™GE, a name recognized worldwide for quality and dependability, offers you Service Protection Plus™—comprehensive protection on all your appliances—No Matter What Brand!Benefits Include:• Backed by GE• All brands covered• Unlimited service calls• All parts and labor costs included• No out-of-pocket expenses• No hidden deductibles• One 800 number to callYou will be completely satisfied with our service protection or you may request yourmoney back on the remaining value of your contract. No questions asked. It’s that simple.Protect your refrigerator, dishwasher, washer and dryer, range, TV, VCR and muchmore—any brand! Plus there’s no extra charge for emergency service and low monthlyfinancing is available. Even icemaker coverage and food spoilage protection is offered.You can rest easy, knowing that all your valuable household products are protectedagainst expensive repairs.Place your confidence in GE and call us in the U.S. toll-free at 800.626.2224for more information.*All brands covered, up to 20 years old, in the continental U.S.We’ll Cover Any Appliance.Anywhere. Anytime.*General Electric CompanyWarranty Registration DepartmentP.O. Box 32150Louisville, KY 40232-2150Please place in envelope and mail to:Cut here✂49-401713v01 5/1/01 1:13 PM Page 41
Day YearStreetAddressConsumer Product Ownership RegistrationDear Customer:Thank you for purchasing our product and thank you for placing your confidence in us. We are proud to have you as a customer!Follow these three steps to protect your new appliance investment:Complete and mailyour ConsumerProduct OwnershipRegistration today.Have the peace ofmind of knowing wecan contact you inthe unlikely event ofa safety modification.After mailing the registration below,store this document ina safe place. It contains informationyou will need shouldyou require service. Our service number is800.GE.CARES (800.432.2737).Read your Owner’sManual carefully.It will help you operate your newappliance properly. 123Model Number Serial NumberImportant: If you did not get a registration card with your product, detach andreturn the form below to ensure that your product is registered, orregister online at www.GEAppliances.com.First NameApt. #CityLast NameZipCodeStatePhoneNumberGE AppliancesGeneral Electric Company Louisville, Kentucky www.GEAppliances.comMr. Ms. Mrs. Miss E-mail Address** Please provide your e-mail address to receive, via e-mail,discounts, special offers and other important communicationsfrom GE Appliances (GEA).■■Check here if you do not want to receive communicationsfrom GEA’s carefully selected partners.Consumer Product Ownership RegistrationModel Number Serial NumberImportantMailToday!Date Placed In UseMonthCut here✂4249-401713v01 5/1/01 1:13 PM Page 42
GE Microwave Oven Warranty.Consumer SupportTroubleshooting TipsOperating InstructionsSafety InformationThis warranty is extended to the original purchaser and any succeeding owner for products purchasedfor ordinary home use within the USA. In Alaska, the warranty excludes the cost of shipping or servicecalls to your home.Some states do not allow the exclusion or limitation of incidental or consequential damages so theabove limitation or exclusion may not apply to you. This warranty gives you specific legal rights, andyou may also have other rights which vary from state to state. To know what your legal rights are,consult your local or state consumer affairs office or your state’s Attorney General.Warrantor: General Electric Company. Louisville, KY 40225For The Period Of: GE Will Replace:One Year Any partof the microwave oven which fails due to a From the date of thedefect in materials or workmanship. During this fulloriginal purchase one-year warranty, GE will also provide, free of charge,all parts and service labor to repair or replace the defective part. Ten Years The magnetron tube, if the magnetron tube fails due to For the second througha defect in materials or workmanship. During this the tenth year from the additional nine-year limited warranty, you will be date of original purchaseresponsible for any labor or in-home service costs.■Service trips to your home to teach youhow to use the product.■Improper installation.■Failure of the product if it is abused, misused, or used for other than the intended purpose or usedcommercially.■Replacement of house fuses or resetting of circuit breakers.■Damage to the product caused by accident, fire, floods or acts of God.■Incidental or consequential damagecaused by possible defects with thisappliance.What GE Will Not Cover:43All warranty service provided by ourFactory Service Centers, or an authorizedCustomer Care®technician. To scheduleservice, on-line, 24 hours a day, visit us at www.GEAppliances.com, or call 800.GE.CARES (800.432.2737).Staple your receipt here.Proof of the originalpurchase date is needed to obtain service under the warranty.49-401713v01 5/1/01 1:13 PM Page 43
Printed in KoreaConsumer Support. GE Appliances Websitewww.GEAppliances.comHave a question or need assistance with your appliance? Try the GE Appliances Website24 hours a day, any day of the year! For greater convenience and faster service, you cannow download Owner’s Manuals, order parts, catalogs, or even schedule service on-line. You can also “Ask Our Team of Experts™” your questions, and so much more...Schedule Servicewww.GEAppliances.comExpert GE repair service is only one step away from your door. Get on-line and scheduleyour service at your convenience 24 hours any day of the year! Or call 800.GE.CARES(800.432.2737) during normal business hours.Real Life Design Studiowww.GEAppliances.comGE supports the Universal Design concept—products, services and environments thatcan be used by people of all ages, sizes and capabilities. We recognize the need to designfor a wide range of physical and mental abilities and impairments. For details of GE’sUniversal Design applications, including kitchen design ideas for people withdisabilities, check out our Website today. For the hearing impaired, please call 800.TDD.GEAC (800.833.4322). Extended Warrantieswww.GEAppliances.comPurchase a GE extended warranty and learn about special discounts that are availablewhile your warranty is still in effect. You can purchase it on-line anytime, or call 800.626.2224 during normal business hours. GE Consumer Home Services will still be there after your warranty expires.Parts and Accessories www.GEAppliances.comIndividuals qualified to service their own appliances can have parts or accessories sent directly to their homes (VISA, MasterCard and Discover cards are accepted). Order on-line today, 24 hours every day or by phone at 800.626.2002 during normalbusiness hours.Instructions contained in this manual cover procedures to be performed by any user. Otherservicing generally should be referred to qualified service personnel. Caution must beexercised, since improper servicing may cause unsafe operation. Contact Uswww.GEAppliances.comIf you are not satisfied with the service you receive from GE, contact us on our Websitewith all the details including your phone number, or write to: General Manager, Customer RelationsGE Appliances, Appliance ParkLouisville, KY 40225Register Your Appliancewww.GEAppliances.comRegister your new appliance on-line—at your convenience! Timely product registrationwill allow for enhanced communication and prompt service under the terms of yourwarranty, should the need arise. You may also mail in the pre-printed registration cardincluded in the packing material, or detach and use the form in this Owner’s Manual.49-401713v01 5/1/01 1:13 PM Page 44
