164D3370P325 49-40395 05-03 JR www.GEAppliances.comWrite the model and serial numbers here:Model # __________________________Serial # __________________________Find these numbers on a label inside the oven.Microwave OvenSafety Instructions . . . .2–9Operating InstructionsAuto Features . . . . . . . . .20Care and Cleaning . . . . . . . . . .33, 34Changing thePower Level . . . . . . . . . .13Cooking Guide . . . . .15, 16Defrosting Guide . . . . . .18Exhaust Feature . . . .37, 38Features of Your Microwave Oven . . . .11, 12Microwave Terms . . . . . .32Other Features . . . . 25–31Replacing Bulbs . . . .35, 36Sensor Features . . . .21–24Time Features . . . . . .14–19Troubleshooting Tips . . .39Things That AreNormal With YourMicrowave Oven . . . . . . .40Consumer SupportConsumer Support . . . . . .Back CoverOptional Kits . . . . . . . . .10ProductRegistration . . . . . . .41, 42Warranty . . . . . . . . . . . . .43EspañolFor a Spanish version of this manual, visit our Website atGEAppliances.com. Para consultar una version en español de este manual de instrucciones, visite nuestro sitio de internetGEAppliances.com.SpacemakerJVM1850JVM1851JVM1860JVM1861JVM1870JVM1871JVM2050Owner’sManual49-40395 ENv02 5/23/03 3:55 PM Page 1
■Read and follow the specific precautions in the Precautions to AvoidPossible Exposure toExcessive Microwave Energy section above.■This appliance must begrounded. Connect only to a properly grounded outlet. See the GroundingInstructions section on page 8.■Install or locate thisappliance only inaccordance with theprovided InstallationInstructions.■This microwave oven is ULlisted for installation overelectric and gas ranges.■This microwave oven is not approved or tested formarine use.■Do Not Attempt to operate this oven with the door opensince open-door operationcan result in harmfulexposure to microwaveenergy. It is important not to defeat or tamper with the safety interlocks.■Do Not Place any objectbetween the oven front face and the door or allowsoil or cleaner residue toaccumulate on sealingsurfaces.■Do Not Operate the oven if it is damaged. It is particularlyimportant that the oven doorclose properly and that thereis no damage to the:door (bent),hinges and latches (broken or loosened),door seals and sealingsurfaces.■The Oven Should Not beadjusted or repaired by anyone except properlyqualified service personnel.321PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGYSafety InstructionsOperating InstructionsTroubleshooting TipsConsumer SupportIMPORTANT SAFETY INFORMATION.READ ALL INSTRUCTIONS BEFORE USING.2For your safety, the information in this manual must be followed to minimize the risk of fire or explosion, electricshock, or to prevent property damage, personal injury, or loss of life.WARNING!When using electrical appliances, basic safetyprecautions should be followed, including the following:SAFETY PRECAUTIONS49-40395 ENv02 5/23/03 3:55 PM Page 2
www.GEAppliances.com3Consumer SupportTroubleshooting TipsOperating InstructionsSafety InstructionsUse this appliance only for its intended purpose as described in thisOwner’s Manual.■Do not mount this appliance over asink.■This over-the-range oven was designedfor use over ranges no wider than 36″.It may be installed over both gas andelectric cooking equipment.■Do not operate this appliance if it hasa damaged power cord or plug, if it isnot working properly, or if it has beendamaged or dropped. If the powercord is damaged, it must be replacedby General Electric Service or anauthorized service agent using apower cord available from GeneralElectric.■Do not cover or block any openingson the appliance.■Use this appliance only for itsintended use as described in thismanual. Do not use corrosivechemicals or vapors in this appliance.This microwave oven is specificallydesigned to heat, dry or cook food,and is not intended for laboratory orindustrial use.■Do not store this appliance outdoors.Do not use this product near water—for example, in a wet basement, neara swimming pool, near a sink or insimilar locations.■Keep power cord away from heatedsurfaces.■Do not immerse power cord or plugin water.■Do not store anything directly on topof the microwave oven surface whenthe microwave oven is in operation.■To reduce the risk of fire in the ovencavity:– Do not overcook food. Carefullyattend appliance when paper, plasticor other combustible materials areplaced inside the oven while cooking.– Remove wire twist-ties and metalhandles from paper or plasticcontainers before placing them in the oven.– Do not use the oven for storagepurposes. Do not leave paperproducts, cooking utensils or food inthe oven when not in use.– If materials inside the oven ignite,keep the oven door closed, turn theoven off and disconnect the powercord, or shut off power at the fuse orcircuit breaker panel. If the door isopened, the fire may spread.– Do not use the Sensor Features twice in succession on the same foodportion. If food is undercooked afterthe first countdown, use Time Cook foradditional cooking time.■See door surface cleaning instructions in the Care and cleaningof the microwave oven section of thismanual.■This appliance should be servicedonly by qualified service personnel.Contact nearest authorized servicefacility for examination, repair oradjustment.■As with any appliance, closesupervision is necessary when used bychildren.49-40395 ENv02 5/23/03 3:55 PM Page 3
Arcing is the microwave termfor sparks in the oven. Arcing is caused by:■The metal shelf notinstalled correctly so ittouches the microwave wall.■Metal or foil touching theside of the oven.■Foil not molded to food(upturned edges act likeantennas).■Metal, such as twist-ties, poultry pins, or gold-rimmed dishes, in themicrowave.■Recycled paper towels containing small metalpieces being used in themicrowave.■Do not pop popcorn inyour microwave oven unlessin a special microwavepopcorn accessory or unlessyou use popcorn labeledfor use in microwave ovens.■Some products such as whole eggs and sealed containers—for example,closed jars—are able toexplode and should not beheated in this microwaveoven. Such use of themicrowave oven couldresult in injury.■Do not boil eggs in amicrowave oven. Pressure will build up inside egg yolkand will cause it to burst, possibly resulting in injury.■Operating the microwavewith no food inside formore than a minute or twomay cause damage to theoven and could start a fire.It increases the heat aroundthe magnetron and canshorten the life of the oven.■Foods with unbroken outer“skin” such as potatoes, hotdogs, sausages, tomatoes,apples, chicken livers andother giblets, and egg yolksshould be pierced to allowsteam to escape during cooking.FOODSSafety InstructionsOperating InstructionsTroubleshooting TipsConsumer SupportIMPORTANT SAFETY INFORMATION.READ ALL INSTRUCTIONS BEFORE USING.4WARNING! If you see arcing, press the CLEAR/OFF pad and correctthe problem.ARCING49-40395 ENv02 5/23/03 3:55 PM Page 4
www.GEAppliances.com5Consumer SupportTroubleshooting TipsOperating InstructionsSafety Instructions■SUPERHEATED WATERLiquids, such as water, coffee or tea are able to beoverheated beyond theboiling point withoutappearing to be boiling.Visible bubbling or boilingwhen the container isremoved from the microwaveoven is not always present.THIS COULD RESULT IN VERYHOT LIQUIDS SUDDENLYBOILING OVER WHEN THECONTAINER IS DISTURBEDOR A SPOON OR OTHERUTENSIL IS INSERTED INTOTHE LIQUID.To reduce the risk of injuryto persons:— Do not overheat the liquid.— Stir the liquid both beforeand halfway throughheating it.— Do not use straight-sidedcontainers with narrownecks.— After heating, allow thecontainer to stand in themicrowave oven for a shorttime before removing thecontainer.— Use extreme care wheninserting a spoon or otherutensil into the container.■Avoid heating baby food inglass jars, even with the lidoff. Make sure all infantfood is thoroughly cooked.Stir food to distribute theheat evenly. Be careful toprevent scalding whenwarming formula or breastmilk. The container mayfeel cooler than the milkreally is. Always test themilk before feeding thebaby.■Don’t defrost frozenbeverages in narrow-neckedbottles (especiallycarbonated beverages).Even if the container isopened, pressure can buildup. This can cause thecontainer to burst, possiblyresulting in injury.■Hot foods and steam cancause burns. Be carefulwhen opening anycontainers of hot food,including popcorn bags,cooking pouches andboxes. To prevent possibleinjury, direct steam awayfrom hands and face.■Do not overcook potatoes.They could dehydrate andcatch fire, causing damage to your oven.■Cook meat and poultrythoroughly—meat to atleast an INTERNALtemperature of 160°F and poultry to at least anINTERNAL temperature of 180°F. Cooking to thesetemperatures usuallyprotects against food-borne illness.49-40395 ENv02 5/23/03 3:55 PM Page 5

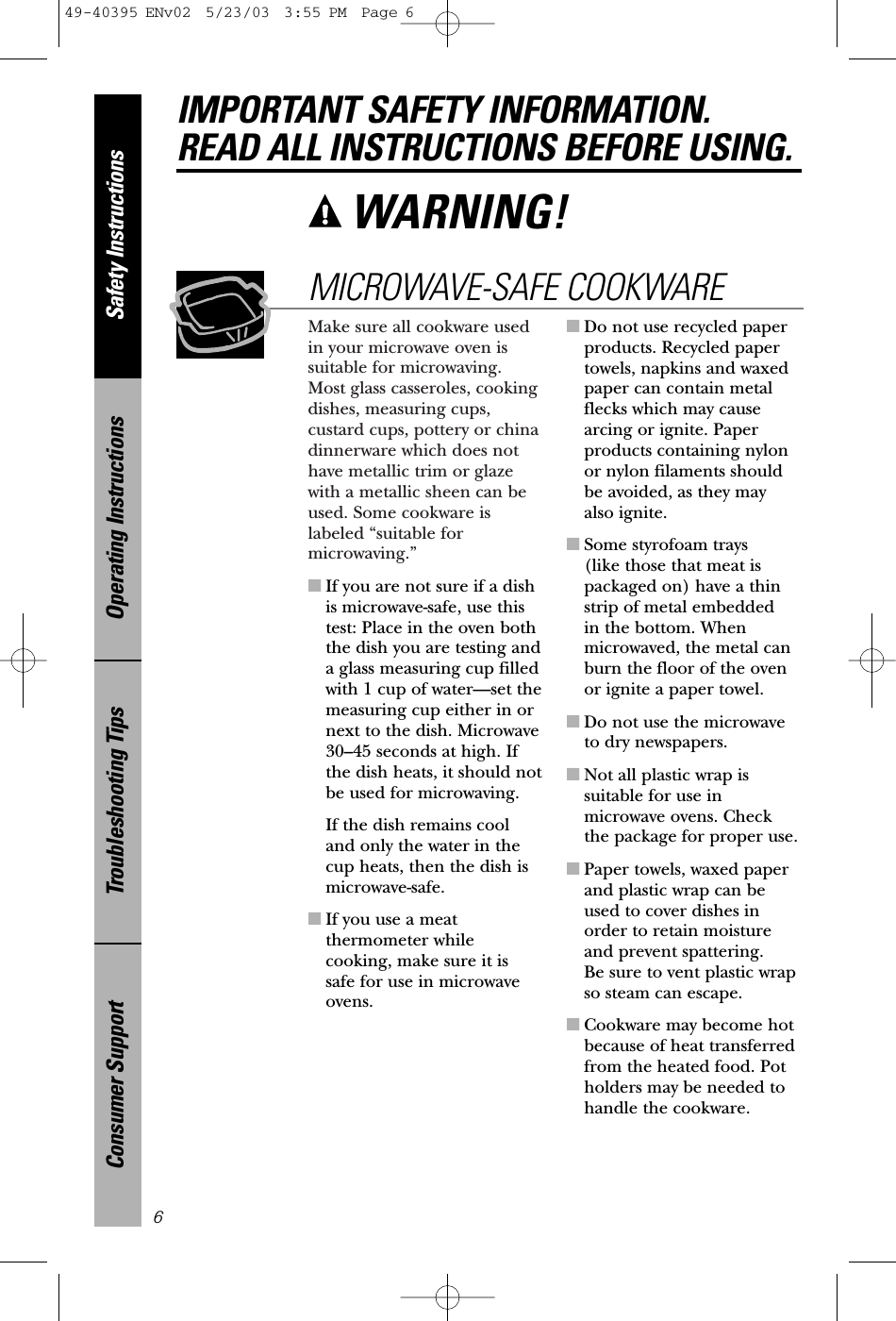

Make sure all cookware usedin your microwave oven issuitable for microwaving.Most glass casseroles, cookingdishes, measuring cups,custard cups, pottery or chinadinnerware which does nothave metallic trim or glazewith a metallic sheen can beused. Some cookware islabeled “suitable formicrowaving.”■If you are not sure if a dishis microwave-safe, use thistest: Place in the oven boththe dish you are testing anda glass measuring cup filledwith 1 cup of water—set themeasuring cup either in ornext to the dish. Microwave 30–45 seconds at high. Ifthe dish heats, it should notbe used for microwaving. If the dish remains cool and only the water in thecup heats, then the dish ismicrowave-safe.■If you use a meatthermometer whilecooking, make sure it issafe for use in microwaveovens.■Do not use recycled paperproducts. Recycled papertowels, napkins and waxedpaper can contain metalflecks which may causearcing or ignite. Paperproducts containing nylonor nylon filaments shouldbe avoided, as they may also ignite. ■Some styrofoam trays (like those that meat ispackaged on) have a thinstrip of metal embedded in the bottom. Whenmicrowaved, the metal canburn the floor of the ovenor ignite a paper towel.■Do not use the microwaveto dry newspapers.■Not all plastic wrap issuitable for use inmicrowave ovens. Checkthe package for proper use.■Paper towels, waxed paperand plastic wrap can beused to cover dishes inorder to retain moistureand prevent spattering. Be sure to vent plastic wrapso steam can escape.■Cookware may become hotbecause of heat transferredfrom the heated food. Potholders may be needed tohandle the cookware.MICROWAVE-SAFE COOKWARESafety InstructionsOperating InstructionsTroubleshooting TipsConsumer SupportIMPORTANT SAFETY INFORMATION.READ ALL INSTRUCTIONS BEFORE USING.6WARNING! 49-40395 ENv02 5/23/03 3:55 PM Page 6

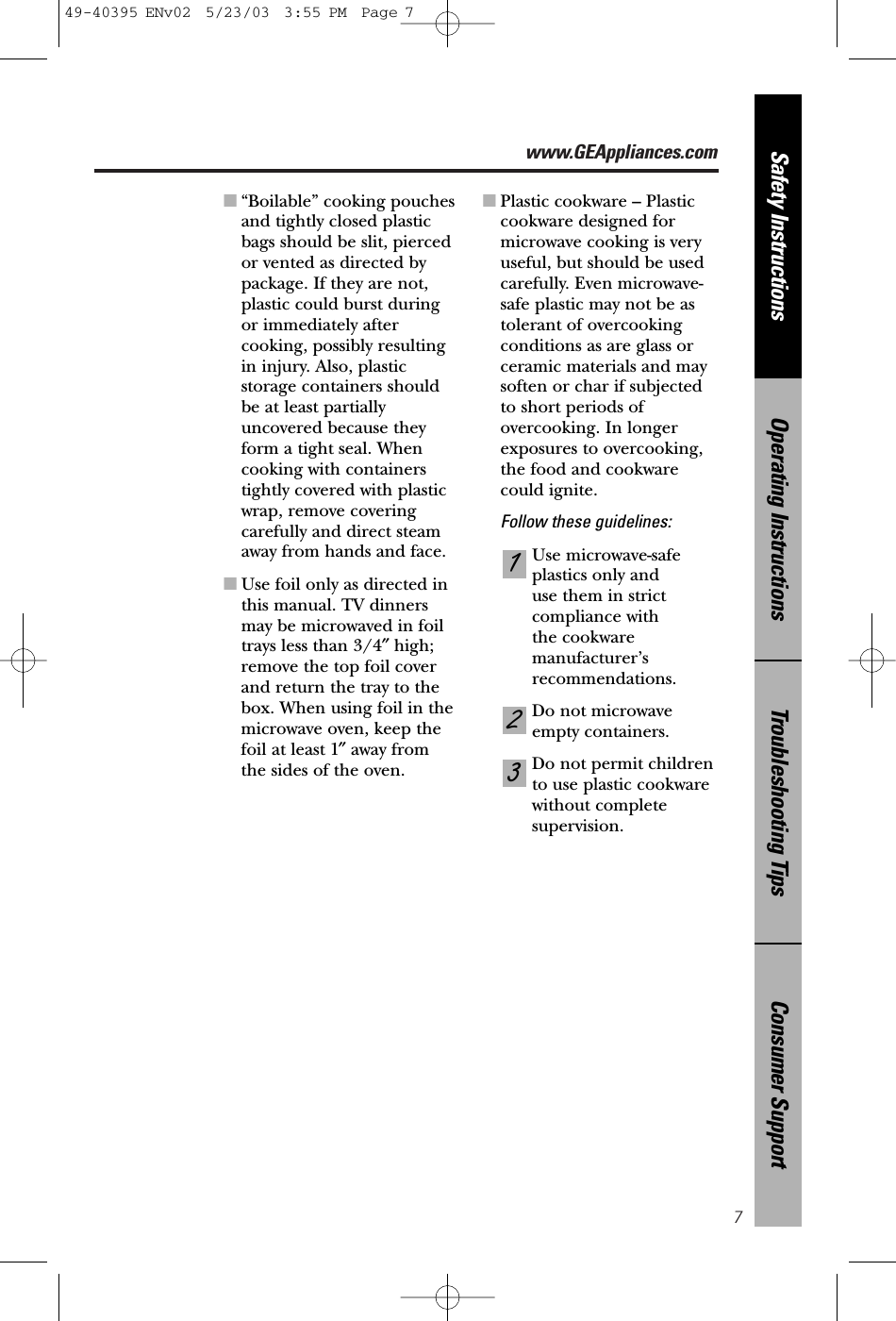

www.GEAppliances.com7Consumer SupportTroubleshooting TipsOperating InstructionsSafety Instructions■“Boilable” cooking pouchesand tightly closed plasticbags should be slit, piercedor vented as directed by package. If they are not, plastic could burst duringor immediately aftercooking, possibly resultingin injury. Also, plasticstorage containers shouldbe at least partiallyuncovered because theyform a tight seal. Whencooking with containers tightly covered with plasticwrap, remove covering carefully and direct steamaway from hands and face.■Use foil only as directed inthis manual. TV dinnersmay be microwaved in foiltrays less than 3/4″high;remove the top foil coverand return the tray to thebox. When using foil in themicrowave oven, keep thefoil at least 1″away from the sides of the oven.■Plastic cookware – Plasticcookware designed formicrowave cooking is veryuseful, but should be usedcarefully. Even microwave-safe plastic may not be as tolerant of overcooking conditions as are glass orceramic materials and maysoften or char if subjected to short periods of overcooking. In longer exposures to overcooking,the food and cookware could ignite. Follow these guidelines: Use microwave-safe plastics only and use them in strictcompliance with the cookwaremanufacturer’s recommendations. Do not microwaveempty containers. Do not permit children to use plastic cookware without complete supervision.32149-40395 ENv02 5/23/03 3:55 PM Page 7

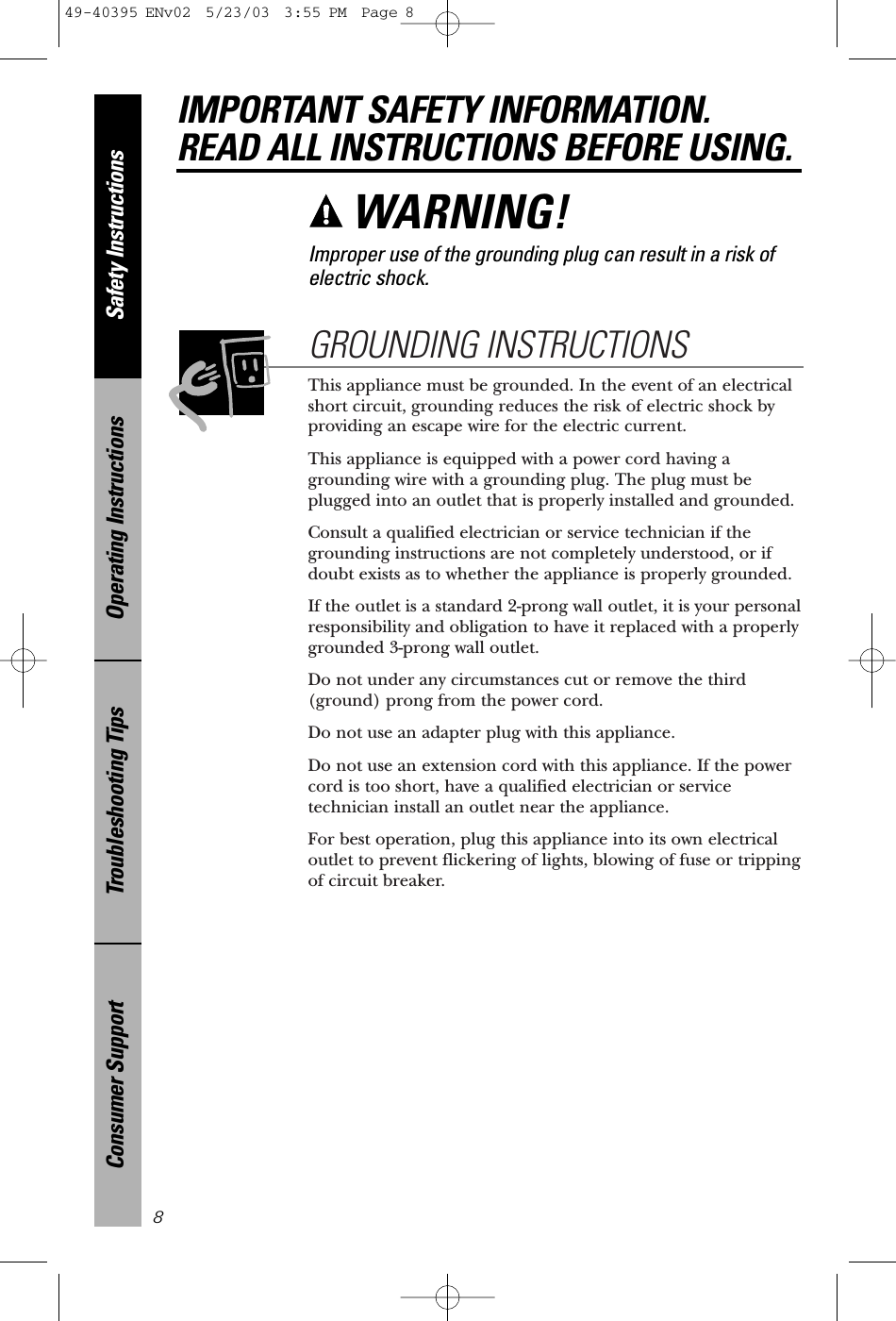

This appliance must be grounded. In the event of an electricalshort circuit, grounding reduces the risk of electric shock byproviding an escape wire for the electric current. This appliance is equipped with a power cord having agrounding wire with a grounding plug. The plug must beplugged into an outlet that is properly installed and grounded.Consult a qualified electrician or service technician if thegrounding instructions are not completely understood, or ifdoubt exists as to whether the appliance is properly grounded.If the outlet is a standard 2-prong wall outlet, it is your personalresponsibility and obligation to have it replaced with a properlygrounded 3-prong wall outlet.Do not under any circumstances cut or remove the third(ground) prong from the power cord.Do not use an adapter plug with this appliance.Do not use an extension cord with this appliance. If the powercord is too short, have a qualified electrician or servicetechnician install an outlet near the appliance.For best operation, plug this appliance into its own electricaloutlet to prevent flickering of lights, blowing of fuse or trippingof circuit breaker.GROUNDING INSTRUCTIONSSafety InstructionsOperating InstructionsTroubleshooting TipsConsumer SupportIMPORTANT SAFETY INFORMATION.READ ALL INSTRUCTIONS BEFORE USING.8WARNING! Improper use of the grounding plug can result in a risk ofelectric shock.49-40395 ENv02 5/23/03 3:55 PM Page 8
www.GEAppliances.comConsumer SupportTroubleshooting TipsOperating InstructionsSafety Instructions9READ AND FOLLOW THIS SAFETYINFORMATION CAREFULLY.SAVE THESE INSTRUCTIONSThe fan will operate automatically under certain conditions(see Automatic Fan feature). Take care to prevent the startingand spreading of accidental cooking fires while the vent fan is in use. ■Clean the underside of the microwave often. Do not allowgrease to build up on the microwave or the fan filters.■In the event of a grease fire on the surface units below themicrowave oven, smother a flaming pan on the surface unitby covering the pan completely with a lid, a cookie sheet or a flat tray.■Use care when cleaning the vent fan filters. Corrosive cleaningagents, such as lye-based oven cleaners, may damage the filters.■When preparing flaming foods under the microwave, turnthe fan on. ■Never leave surface units beneath your microwave ovenunattended at high heat settings. Boilovers cause smokingand greasy spillovers that may ignite and spread if themicrowave vent fan is operating. To minimize automatic fanoperation, use adequate-sized cookware and use high heat on surface units only when necessary.THE VENT FAN49-40395 ENv02 5/23/03 3:55 PM Page 9
Safety InstructionsOperating InstructionsTroubleshooting TipsConsumer Support10Filler Panel KitsJX52WH – WhiteJX52BL – BlackJX52CT – BisqueWhen replacing a 36″range hood, filler panel kits fill in theadditional width to provide a custom built-in appearance. For installation between cabinets only; not for end-of-cabinetinstallation. Each kit contains two 3″-wide filler panels.Filter KitsJX81B – Recirculating Charcoal Filter Kit (1800 Series models)JX81H – Recirculating Charcoal Filter Kit (2000 Series models)Filter kits are used when the microwave oven cannot be ventedto the outside.Available at extra cost from your GE supplier.OPTIONAL KITSAbout optional kits.49-40395 ENv02 5/23/03 3:55 PM Page 10
Consumer SupportTroubleshooting TipsOperating InstructionsSafety Instructions11About the features of your microwave oven. www.GEAppliances.comThroughout this manual, features and appearance may vary from your model.Features of the OvenDoor Handle. Pull to openthe door. The door mustbe securely latched for themicrowave to operate.Door Latches. Window with Metal Shield.Screen allows cooking to be viewed while keepingmicrowaves confined in the oven.Active Vent (on somemodels). The vent doorswings open when the fan operates and closeswhen the fan shuts off.Defrost Rack. Whendefrosting, for best results,place food directly on thedefrost rack and place therack on the turntable.Shelf. Lets you microwaveseveral foods at once. Food microwaves best when placed directly on the turntable.Touch Control Panel Display. Cooktop Lights.Grease Filters.Removable Turntable.Turntable and supportmust be in place whenusing the oven. Theturntable may be removed for cleaning.NOTE: Rating plate is located onthe inside wall of the microwave,or on the upper left front behindthe door. Oven vent(s) and ovenlight are located on the insidewalls of the microwave oven.1100 Watts49-40395 ENv02 5/23/03 3:55 PM Page 11
Safety InstructionsOperating InstructionsTroubleshooting TipsConsumer SupportAbout the features of your microwave oven.12You can microwave by time, with the sensor features or with the auto features.Cooking ControlsTime and Auto FeaturesPress EnterTIME COOK I & II Amount of cooking timePress once or twiceAUTO/TIME DEFROST Amount of defrosting timePress twiceCUSTOM (on some models) Follow displayed instructionsEXPRESS COOK Starts immediately!ADD 30 SEC Starts immediately!POWER LEVEL Power level 1–10AUTO/TIME DEFROST Food weightPress once up to 6 lbs.1 lb. QUICK DEFROST Starts immediately!Sensor FeaturesPress Enter OptionPOPCORN Starts immediately! more/less timeBEVERAGE Starts immediately!REHEAT Starts immediately! more/less timePOTATO Starts immediately! more/less timeVEGETABLE Starts immediately!Press once (fresh vegetables) more/less timePress twice (frozen vegetables) more/less timePress three times (canned vegetables) more/less time(on some models)CHICKEN/FISH (on some models) Starts immediately! more/less timePress once (chicken pieces)Press twice (fish)49-40395 ENv02 5/23/03 3:55 PM Page 12
Consumer SupportTroubleshooting TipsOperating InstructionsSafety InstructionsAbout changing the power level. www.GEAppliances.com13Variable power levels add flexibility to microwavecooking. The power levels on the microwave ovencan be compared to the surface units on a range.High (power level 10) or full power is the fastestway to cook and gives you 100% power. Each powerlevel gives you microwave energy a certain percentof the time. Power level 7 is microwave energy 70%of the time. Power level 3 is energy 30% of the time.A high setting (10) will cook faster but food mayneed more frequent stirring, rotating or turningover. Most cooking will be done on High (powerlevel 10). A lower setting will cook more evenly andneed less stirring or rotating of the food. Some foods may have better flavor, texture orappearance if one of the lower settings is used. Use a lower power level when cooking foods that have atendency to boil over, such as scalloped potatoes.Rest periods (when the microwave energy cycles off)give time for the food to “equalize” or transfer heatto the inside of the food. An example of this isshown with power level 3—the defrost cycle. Ifmicrowave energy did not cycle off, the outside ofthe food would cook before the inside was defrosted.Here are some examples of uses for various power levels:Power Level Best UsesHigh 10 Fish, bacon, vegetables, boilingliquids.Med-High 7 Gentle cooking of meat and poultry;baking casseroles and reheating.Medium 5 Slow cooking and tenderizing suchas stews and less tender cuts of meat.Low 2 or 3 Defrosting without cooking;simmering; delicate sauces.Warm 1 Keeping food warm withoutovercooking; softening butter.How to Change the Power Level The power level may be entered or changedimmediately afterentering the featuretime for TIME COOK,TIME DEFROST, EXPRESSCOOK or ADD 30 SEC.The power level mayalso be changed duringtime countdown.Press TIME COOK orselect Time Defrost.Enter cooking ordefrosting time.Press POWER LEVEL.Select desired powerlevel 1–10.Press START.5432149-40395 ENv02 5/23/03 3:55 PM Page 13
Time Cook IAllows you to microwave for any time up to 99 minutes and 99 seconds. Power level 10 (High) is automatically set, but youmay change it for more flexibility. You may open the door during TIME COOK to check the food. Close the door and press START toresume cooking.Time Cook IILets you change power levels automatically duringcooking. Here’s how to do it:Press TIME COOK.Enter the first cook time.Change the power level if you don’t want fullpower. (Press POWER LEVEL. Select a desiredpower level 1–10.)Press TIME COOK again.Enter the second cook time.Change the power level if you don’t want fullpower. (Press POWER LEVEL. Select a power level 1–10.)Press START. At the end of Time Cook I, Time Cook II counts down.76543211EXPRESS COOK3EXPRESS COOK4EXPRESS COOK6EXPRESS COOKTIMECOOK2EXPRESS COOK5EXPRESS COOK7890STARTPAUSESafety InstructionsOperating InstructionsTroubleshooting TipsConsumer SupportAbout the time features.14Press TIME COOK.Enter cooking time.Change power levelif you don’t want full power. (PressPOWER LEVEL. Select a desiredpower level 1–10.)Press START.432149-40395 ENv02 5/23/03 3:55 PM Page 14
15Consumer SupportTroubleshooting TipsOperating InstructionsSafety Instructionswww.GEAppliances.comCooking Guide for Time Cook I and Time Cook IINOTE: Use power level High (10) unless otherwise noted.Vegetable Amount Time CommentsAsparagus(fresh spears) 1 lb. 6 to 9 min., In 11⁄2-qt. oblong glass baking Med-High (7) dish, place 1/4 cup water.(frozen spears) 10-oz package 5 to 7 min. In 1-qt. casserole.Beans(fresh green) 1 lb. cut in half 9 to 11 min. In 11⁄2-qt. casserole, place 1/2 cup water.(frozen green) 10-oz package 6 to 8 min. In 1-qt. casserole, place 2 tablespoons water.(frozen lima) 10-oz package 6 to 8 min. In 1-qt. casserole, place 1/4 cup water.Beets(fresh, whole) 1 bunch 17 to 21 min. In 2-qt. casserole, place 1/2 cup water.Broccoli(fresh cut) 1 bunch 7 to 10 min. In 2-qt. casserole, place (11⁄4to 11⁄2lbs.) 1/2 cup water.(fresh spears) 1 bunch 9 to 13 min. In 2-qt. oblong glass baking (11⁄4to 11⁄2lbs.) dish, place 1/4 cup water. (frozen, 10-oz package 5 to 7 min. In 1-qt. casserole.chopped)(frozen spears) 10-oz package 5 to 7 min. In 1-qt. casserole, place 3 tablespoons water.Cabbage(fresh) 1 medium head 8 to 11 min. In 11⁄2- or 2-qt. casserole, place (about 2 lbs.) 1/4 cup water.(wedges) 7 to 10 min. In 2- or 3-qt. casserole, place 1/4 cup water.Carrots(fresh, sliced) 1 lb. 7 to 9 min. In 11⁄2-qt. casserole, place 1/4 cup water.(frozen) 10-oz package 5 to 7 min. In 1-qt. casserole, place 2 tablespoons water.Cauliflower(flowerets) 1 medium head 9 to 14 min. In 2-qt. casserole, place 1/2 cup water.(fresh, whole) 1 medium head 10 to 17 min. In 2-qt. casserole, place 1/2 cup water.(frozen) 10-oz package 5 to 7 min. In 1-qt. casserole, place 2 tablespoons water.49-40395 ENv02 5/23/03 3:55 PM Page 15
Safety InstructionsOperating InstructionsTroubleshooting TipsConsumer SupportAbout the time features.16Vegetable Amount Time CommentsCorn(frozen kernel) 10-oz package 5 to 7 min. In 1-qt. casserole, place 2 tablespoons water.Corn on the cob(fresh) 1 to 5 ears 3 to 4 min. In 2-qt. oblong glass baking per ear dish, place corn. If corn is in husk, use no water; if corn has been husked, add 1/4 cup water. Rearrange after half of time.(frozen) 1 ear 5 to 6 min. Place in 2-qt. oblong glass baking dish. 2 to 6 ears 3 to 4 min. Cover with vented plastic wrap. per ear Rearrange after half of time. Mixed vegetables(frozen) 10-oz package 5 to 7 min. In 1-qt. casserole, place 3 tablespoons water.Peas(fresh, shelled) 2 lbs. unshelled9 to 12 min.In 1-qt. casserole, place 1/4 cup water.(frozen) 10-oz package 5 to 7 min. In 1-qt. casserole, place 2 tablespoons water.Potatoes(fresh, cubed, 4 potatoes9 to 12 min.Peel and cut into 1 inch cubes. white) (6 to 8 oz each) Place in 2-qt. casserole with 1/2 cup water. Stir after half of time.(fresh, whole, 1 (6 to 8 oz) 3 to 4 min. Pierce with cooking fork.sweet or white) Place in center of the oven.Let stand 5 minutes.Spinach(fresh) 10 to 16 oz 5 to 7 min. In 2-qt. casserole, place washed spinach.(frozen, 10-oz package 5 to 7 min. In 1-qt. casserole, place chopped 3 tablespoons water.and leaf)Squash(fresh, summer 1 lb. sliced 5 to 7 min. In 11⁄2-qt. casserole, place and yellow) 1/4 cup water.(winter, acorn, 1 to 2 squash 8 to 11 min. Cut in half and remove fibrous butternut)(about 1 lb. each)membranes. In 2-qt. oblong glass baking dish, place squash cut-side-down. Turn cut-side-upafter 4 minutes.49-40395 ENv02 5/23/03 3:55 PM Page 16
www.GEAppliances.comConsumer SupportTroubleshooting TipsOperating InstructionsSafety Instructions17Time DefrostAllows you to defrost for the length of time youselect. See the Defrosting Guide for suggested times.Power level 3 is automatically set, but you maychange this for more flexibility. You may defrostsmall items more quickly by raising the power levelafter entering the time. However, they will needmore frequent attention than usual.Power level 7 cuts the total defrosting time in about half; power level 10 cuts the total time toapproximately 1/3. Rotate or stir food frequently.A dull thumping noise may be heard duringdefrosting. This sound is normal when the oven is not operating at High power.Defrosting Tips■For best results, place food directly on thedefrost rack and place the rack on the turntable.■Foods frozen in paper or plastic can be defrostedin the package. Tightly closed packages shouldbe slit, pierced or vented AFTER food haspartially defrosted. Plastic storage containersshould be at least partially uncovered.■Family-size, prepackaged frozen dinners can bedefrosted and microwaved. If the food is in a foilcontainer, transfer it to a microwave-safe dish.■Foods that spoil easily, such as milk, eggs, fish, stuffings, poultry and pork should not be allowed to sit out for more than one hour afterdefrosting. Room temperature promotes thegrowth of harmful bacteria.■For more even defrosting of larger foods, such as beef, lamb and veal roasts, use Auto Defrost.■Be sure large meats are completely defrostedbefore cooking.■When defrosted, food should be cool but softened in all areas. If still slightly icy, return to the microwave very briefly, or let it stand a few minutes.Press AUTO/TIMEDEFROST twice.Enter defrostingtime.Press START. 32149-40395 ENv02 5/23/03 3:55 PM Page 17
Defrosting GuideSafety InstructionsOperating InstructionsTroubleshooting TipsConsumer SupportAbout the time features.18Food Time CommentsBreads, CakesBread, buns or rolls (1 piece) 1 min.Sweet rolls (approx. 12 oz) 3 to 5 min.Fish and SeafoodFillets, frozen (1 lb.) 6 to 8 min.Shellfish, small pieces (1 lb.) 5 to 7 min. Place block in casserole. Turn over and break up after half the time.FruitPlastic pouch – 1 to 2 3 to 6 min.(10-oz package)Meat Bacon (1 lb.) 2 to 5 min. Place unopened package in oven. Let stand 5 minutes after defrosting.Franks (1 lb.) 2 to 5 min. Place unopened package in oven. Microwave just until franks can be separated. Let stand 5 minutes, if necessary, to complete defrosting.Ground meat (1 lb.) 5 to 7 min. Turn meat over after half the time.Roast: beef, lamb, veal, pork 12 to 16 min. Use power level 1.per lb.Steaks, chops and cutlets 5 to 7 min. Place unwrapped meat in cooking per lb. dish. Turn over after half the time and shield warm areas with foil. When finished, separate pieces and let stand to complete defrosting.PoultryChicken, broiler-fryer 15 to 19 min. Place wrapped chicken in dish. cut up (21⁄2to 3 lbs.) Unwrap and turn over after half the time. When finished, separate pieces and microwave 2 to 4 minutes more, if necessary.Let stand to finish defrosting.Chicken, whole 17 to 21 min. Place wrapped chicken in dish. (21⁄2to 3 lbs.) After half the time, unwrap and turn chicken over. Shield warm areas with foil. Finish defrosting. If necessary, run cold water in the cavity until giblets can be removed.Cornish hen 7 to 13 min. Place unwrapped hen in the oven per lb. breast-side-up. Turn over after halfthe time. Run cool water in the cavity until giblets can be removed.Turkey breast (4 to 6 lbs.) 5 to 9 min. Place unwrapped breast in dish per lb. breast-side-down. After half the time, turn over and shield warm areas with foil. Finish defrosting. Let stand 1 to 2 hours in refrigerator to complete defrosting.49-40395 ENv02 5/23/03 3:55 PM Page 18
www.GEAppliances.comConsumer SupportTroubleshooting TipsOperating InstructionsSafety Instructions19Express CookThis is a quick way to set cooking time for 1–6 minutes.Press one of the Express Cook pads (from 1 to 6) for 1 to 6 minutes of cooking at power level 10.For example, press the 2pad for 2 minutes ofcooking time. The power level can be changed as time is countingdown. Press POWER LEVEL and enter 1–10.1EXPRESS COOK3EXPRESS COOK4EXPRESS COOK6EXPRESS COOK2EXPRESS COOK5EXPRESS COOKAdd 30 SecondsYou can use this feature two ways:■It will add 30 seconds to the time counting downeach time the pad is pressed.■It can be used as a quick way to set 30 seconds of cooking time.ADD30 SEC.49-40395 ENv02 5/23/03 3:55 PM Page 19
Safety InstructionsOperating InstructionsTroubleshooting TipsConsumer SupportAbout the auto features.20Auto Defrost Auto Defrost automatically sets the defrosting timesand power levels to give even defrosting results formeats, poultry and fish weighing up to six pounds.■For best results, remove food from the package,place food directly on the defrost rack and placethe rack on the turntable.■Twice during Auto Defrost, the oven signals TurnFood Over. At each signal, turn the food over.Remove defrosted meat or shield warm areaswith small pieces of foil.■After defrosting, most meats need to stand 5 minutes to complete defrosting. Large roastsshould stand for about 30 minutes.Conversion GuideIf the weight of food is stated in pounds andounces, the ounces must be converted to tenths (.1) of a pound.Press AUTO/TIMEDEFROST once forAuto Defrost. Using theConversion Guide at right, enter foodweight. For example,press pads 1 and 2for 1.2 pounds (1 pound, 3 ounces).Enter weight up to 6 pounds for AutoDefrost.Press START.321Weight of Enter Food Food in Weight Ounces (tenths of a pound)1–2 .13.24–5 .36–7 .48.5Weight of Enter Food Food in Weight Ounces (tenths of a pound)9–10 .611 .712–13 .814–15 .91 lb. Quick Defrost1 lb. Quick Defrost automatically sets the defrosting times and power levels for foods weighing onepound.Press 1 lb. Quick Defrost. The oven startsautomatically. When the oven signals, turn food over.■For best results, remove food from the package,place food directly on the defrost rack and placethe rack on the turntable.49-40395 ENv02 5/23/03 3:55 PM Page 20

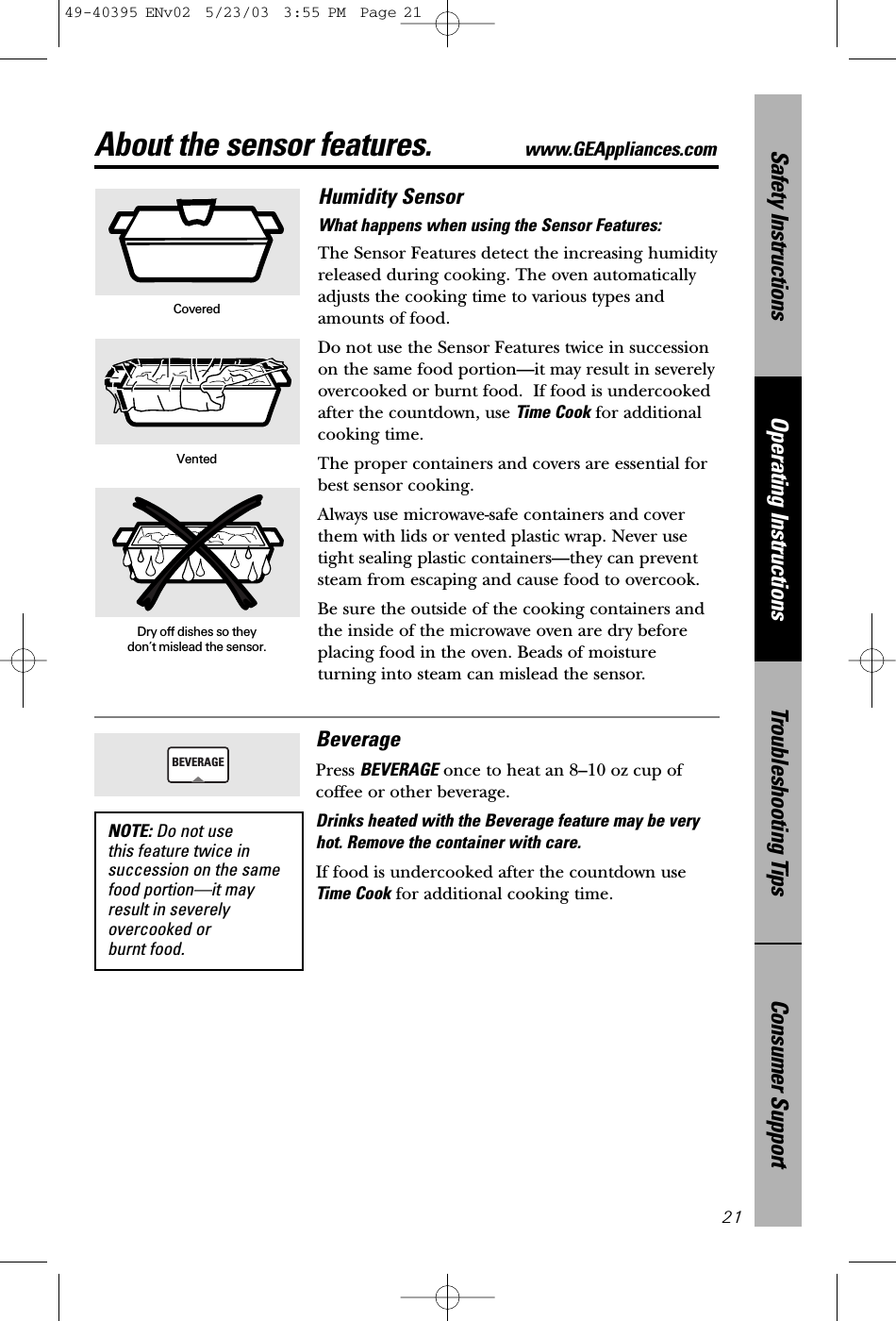

Consumer SupportTroubleshooting TipsOperating InstructionsSafety Instructions21About the sensor features. www.GEAppliances.comHumidity SensorWhat happens when using the Sensor Features: The Sensor Features detect the increasing humidityreleased during cooking. The oven automaticallyadjusts the cooking time to various types andamounts of food.Do not use the Sensor Features twice in successionon the same food portion—it may result in severelyovercooked or burnt food. If food is undercookedafter the countdown, use Time Cook for additionalcooking time.The proper containers and covers are essential forbest sensor cooking.Always use microwave-safe containers and coverthem with lids or vented plastic wrap. Never usetight sealing plastic containers—they can preventsteam from escaping and cause food to overcook.Be sure the outside of the cooking containers andthe inside of the microwave oven are dry beforeplacing food in the oven. Beads of moistureturning into steam can mislead the sensor.CoveredVentedDry off dishes so they don’t mislead the sensor.BeveragePress BEVERAGE once to heat an 8–10 oz cup ofcoffee or other beverage.Drinks heated with the Beverage feature may be veryhot. Remove the container with care.If food is undercooked after the countdown useTime Cook for additional cooking time.BEVERAGENOTE: Do not use this feature twice insuccession on the samefood portion—it mayresult in severelyovercooked or burnt food.49-40395 ENv02 5/23/03 3:55 PM Page 21
Safety InstructionsOperating InstructionsTroubleshooting TipsConsumer Support22About the sensor features.NOTE: Do not use themetal shelf when usingthe Popcorn feature.NOTE: Do not use thisfeature twice insuccession on the samefood portion—it mayresult in severelyovercooked or burntfood. PopcornHow to Use the Popcorn FeatureFollow package instructions, using Time Cookif the package is less than 3.0 ounces or largerthan 3.5 ounces. Place the package of popcornin the center of the microwave.Press POPCORN for a regular size (3.0 to 3.5 oz)bag of popcorn. The oven starts immediately. If you open the door while POPCORN is displayed, an error message will appear. Close the door andpress START.If food is undercooked after the countdown useTime Cook for additional cooking time.How to Adjust the Popcorn Program to Provide a Shorter or Longer Cook TimeIf you find that the brand of popcorn you useunderpops or overcooks consistently, you can add or subtract 20–30 seconds to the automaticpopping time.To add time:After pressing POPCORN, press 9within the first 30 seconds after the oven starts for an extra 20 seconds.Press 9 again to add another 10 seconds (total 30 seconds additional time).To subtract time:After pressing POPCORN, press 1within the first 30 secondsafter the oven starts for 20 seconds lesscooking time.Press 1again to reduce cooking time another 10 seconds (total 30 seconds less time).211EXPRESS COOKPOPCORN9Use only with prepackagedmicrowave popcorn weighing3.0 to 3.5 ounces.49-40395 ENv02 5/23/03 3:55 PM Page 22
23Consumer SupportTroubleshooting TipsOperating InstructionsSafety InstructionsReheatHow to Use the Reheat feature: Place the cup of liquid or covered food in theoven. Press REHEAT once, twice or three times. The oven starts immediately.Press once for a plate of leftovers.Press twice for pasta (8–12 oz).Press three times for vegetables (1/2 to 2 cups).The oven signals when steam is sensed and thetime remaining begins counting down.Do not open the oven door until time is counting down. If the door is opened, close it and pressSTART immediately.After removing food from the oven, stir, if possible, toeven out the temperature. Reheated foods may havewide variations in temperature. Some areas may beextremely hot.If food is not hot enough after the countdown useTime Cook for additional reheating time.How to Change the Automatic Settings: To reduce time by 10%:Press 1within 30 seconds after pressing theREHEAT pad.To add 10% to cooking time:Press 9within 30 seconds after pressing theREHEAT pad. Some Foods Not Recommended For Use With Reheat:It is best to use Time Cook for these foods:■Bread products.■Foods that must be reheated uncovered.■Foods that need to be stirred or rotated.■Foods calling for a dry look or crisp surface after reheating.21For reheating single servingsof previously cooked foods ora plate of leftovers.NOTE: Do not use themetal shelf when usingthe Reheat feature.NOTE: Do not use thisfeature twice insuccession on the samefood portion—it mayresult in severelyovercooked or burnt food. www.GEAppliances.com49-40395 ENv02 5/23/03 3:55 PM Page 23
About the sensor features.Safety InstructionsOperating InstructionsTroubleshooting TipsConsumer Support24Cooking GuideSensor Cooking (on some models)Vegetables, Potatoes, Fish, Chicken PiecesPlace covered food in the oven. Press the food pad. For vegetables, press the VEGETABLEpad once for fresh vegetables, twice for frozen vegetables, or three times for cannedvegetables. For chicken or fish, press theCHICKEN/FISH pad once for chicken pieces ortwice for fish. The oven starts immediately.The oven signals when steam is sensed and thetime remaining begins counting down. Turn orstir the food if necessary.Do not open the oven door until time is counting down. If the door is opened, close it and pressSTART immediately.If food is undercooked after the countdown useTime Cook for additional cooking time.How to Change the Automatic Settings (automaticsettings for canned vegetables cannot be adjusted on some models): You can adjust the cooking time for all foods to suit your personal taste.To reduce time by 10%:Press 1within 30 seconds after pressing the food pad.To add 10% to cooking time:Press 9within 30 seconds after pressing the food pad. 21Sensor cooking gives youeasy, automatic results witha variety of foods (see theCooking Guide below).Canned Vegetables 4–16 oz Cover with lid or vented plastic wrap. Frozen Vegetables 4–16 oz Follow package instructions for adding water. Cover with lid or vented plastic wrap.Fresh Vegetables 4–16 oz Add 1/4 cup water per serving.Cover with lid or vented plastic wrap.Potatoes 8–32 oz Pierce skin with fork. Place potatoeson the turntable.Fish 4–16 oz Cover with vented plastic wrap.Chicken Pieces 2–8 pieces Cover with vented plastic wrap.NOTE: Do not use themetal shelf with SensorCooking.NOTE: Do not use thisfeature twice insuccession on the samefood portion—it mayresult in severelyovercooked or burnt food. Food Type Amount Comments49-40395 ENv02 5/23/03 3:55 PM Page 24
Consumer SupportTroubleshooting TipsOperating InstructionsSafety Instructions25Custom (on some models)The CUSTOM pad allows you to save your mostfrequently used settings. (Sensor cooking settings cannot be saved.)To set and save a setting:Press the CUSTOM pad.Set the amount of cooking time.Set the power level, if desired. (Full power willautomatically be set if you do not change it.)Press the CUSTOM pad.Your custom setting will be remembered for futureone touch use.To clear the custom setting, press and hold theCUSTOM pad for 2 seconds.4321CUSTOM1EXPRESS COOK2EXPRESS COOK3EXPRESS COOK4EXPRESS COOK5EXPRESS COOK6EXPRESS COOK7 8 90Other features your model may have. www.GEAppliances.com1EXPRESS COOK3EXPRESS COOK4EXPRESS COOK6EXPRESS COOK2EXPRESS COOK5EXPRESS COOK7890STARTPAUSECLOCKAM / PMHelpThe HELP pad displays feature information andhelpful hints. Press HELP; then select a feature pad.HELPCooking Complete ReminderTo remind you that you have food in the oven, the oven will display FOOD IS READY and beep oncea minute until you either open the oven door or press CLEAR/OFF.ClockPress CLOCK to set the time of day. Press CLOCK.Enter the time of day.Select AM or PM.Press START.To check the time of day while microwaving, press CLOCK.432149-40395 ENv02 5/23/03 3:55 PM Page 25
Safety InstructionsOperating InstructionsTroubleshooting TipsConsumer Support26Delay StartDelay Start allows you to set the microwave to delaycooking up to 24 hours.Press DELAY START.Select the cooking or defrosting feature you wishto delay; then enter the cooking or defrosting time.Press START.Enter the time you want the oven to start. (Be sure the microwave clock shows the correcttime of day.)Select AM or PM.Press START.The start time will be displayed and will remain untilthe oven automatically starts at the delayed time.The time of day may be displayed by pressing CLOCK.654321Other features your model may have.TIMER1EXPRESS COOK3EXPRESS COOK4EXPRESS COOK6EXPRESS COOK2EXPRESS COOK5EXPRESS COOK7890TimerTimer operates as a minute timer and can be used at any time, even when the oven is operating.Press TIMER.Enter time you want to count down.Press TIMER to start.To pause the countdown, press TIMER.When time is up, the oven will signal. To turn offthe timer signal, press TIMER.NOTE: The timer indicator will be lit while the timer is operating.To cancel the timer, press and hold the TIMER padfor 2 seconds.32149-40395 ENv02 5/23/03 3:55 PM Page 26
Consumer SupportTroubleshooting TipsOperating InstructionsSafety Instructions27www.GEAppliances.comReminderThe Reminder feature can be used like an alarmclock, and can be used at any time, even when theoven is operating. The Reminder time can be set upto 24 hours later.Press REMINDER.Enter the time you want the oven to remindyou. (Be sure the microwave clock shows thecorrect time of day.)Select AM or PM.Press REMINDER. When Reminder signal occurs,press REMINDER to turn it off. The Remindertime may be displayed by pressing REMINDER.NOTE: The REM indicator will remain lit to show that theReminder is set. To clear the Reminder before it occurs,press and hold the REMINDER pad for 2 seconds.4321REMINDERCLOCKAM / PM1EXPRESS COOK3EXPRESS COOK4EXPRESS COOK6EXPRESS COOK2EXPRESS COOK5EXPRESS COOK7890STARTPAUSEStart/PauseIn addition to starting many functions,START/PAUSE allows you to stop cooking withoutopening the door or clearing the display.CLEAROFFChild Lock-OutYou may lock the control panel to prevent themicrowave from being accidentally started or used by children.To lock or unlock the controls, press and holdCLEAR/OFF for about three seconds. When the control panel is locked, CONTROL LOCKED orLOCKED will be displayed.49-40395 ENv02 5/23/03 3:55 PM Page 27
Safety InstructionsOperating InstructionsTroubleshooting TipsConsumer SupportOther features your model may have.28TurntableFor best cooking results, leave the turntable on. It can be turned off for large dishes. PressTURNTABLE to turn the turntable on or off.Sometimes the turntable can become too hot to touch.Be careful touching the turntable during and aftercooking.TURNTABLEVENT FANVent FanThe vent fan removes steam and other vapors fromsurface cooking.Press VENT FAN once for high fan speed, twice formedium fan speed, a third time for low fan speed, or a fourth time to turn the fan off.Press the VENT FAN BOOST pad for extra fan speed.Automatic FanAn automatic fan feature protects the microwave fromtoo much heat rising from the cooktop below it. Itautomatically turns on if it senses too much heat. If you have turned the fan on, you may find that youcannot turn it off. The fan will automatically turn offwhen the internal parts are cool. It may stay on for 30 minutes or more after the cooktop and microwavecontrols are turned off.VENT FANBOOSTSURFACELIGHTSurface LightPress SURFACE LIGHT once for bright light, twice forthe night light, or three times to turn the light off.49-40395 ENv02 5/23/03 3:55 PM Page 28
www.GEAppliances.comConsumer SupportTroubleshooting TipsOperating InstructionsSafety Instructions29OptionsPress the OPTIONS pad multiple times to cyclethrough the available options.Auto Nite LightThe Auto Nite Light can be set to come on and gooff at desired times.To set the timer:Press 1.Enter the time of day for the light to come on.Select AM or PM.Press the OPTIONS pad.Enter the time of day for the light to go off.Select AM or PM.Press the OPTIONS pad.To review the nite light settings, press 2afterselecting the Auto Nite Light option.To turn the nite light off, press 0 after selecting the Auto Nite Light option.Beeper VolumeThe beeper sound level can be adjusted. Choose0–3 for mute to loud.Charcoal Filter ReminderThe Charcoal Filter Reminder is a 180-day timer toremind you when to change the charcoal filter.Press 0to turn the reminder off. Press 1to set thereminder. Press 2to reset the reminder.Display LanguageThe language for the scrolling display may be set ateither English or Spanish.Press 1for English or 2for Spanish.Display On/OffYou can choose to turn the clock display on or off.Press 0to turn the display off. Press 1to turn thedisplay on.Display SpeedThe scroll speed of the display can be changed.Select 1–5 for slowest to fastest scroll speed.7654321OPTIONSCLOCKAM / PM1EXPRESS COOK3EXPRESS COOK4EXPRESS COOK6EXPRESS COOK2EXPRESS COOK5EXPRESS COOK789049-40395 ENv02 5/23/03 3:55 PM Page 29
Safety InstructionsOperating InstructionsTroubleshooting TipsConsumer SupportOther features your model may have.30How to Use the ShelfWhen Microwaving■Make sure the shelf ispositioned properlyinside the microwaveto prevent damage tothe oven from arcing.■Do not use amicrowave browningdish on the shelf. Theshelf could overheat.■Do not use the ovenwith the shelf on themicrowave floor. This could damage the microwave.■Use pot holders whenhandling the shelf—it may be hot.■Do not use the shelfwhen cookingpopcorn.■Do not use the shelfwith Sensor Cookingor Reheat.ShelfFood microwaves best when placed on theturntable or on the shelf in the lower position.Only use the shelf when reheating on more than one level. Do not store the shelf inside the oven cavity.For best resultsUneven results2-level reheating49-40395 ENv02 5/23/03 3:55 PM Page 30

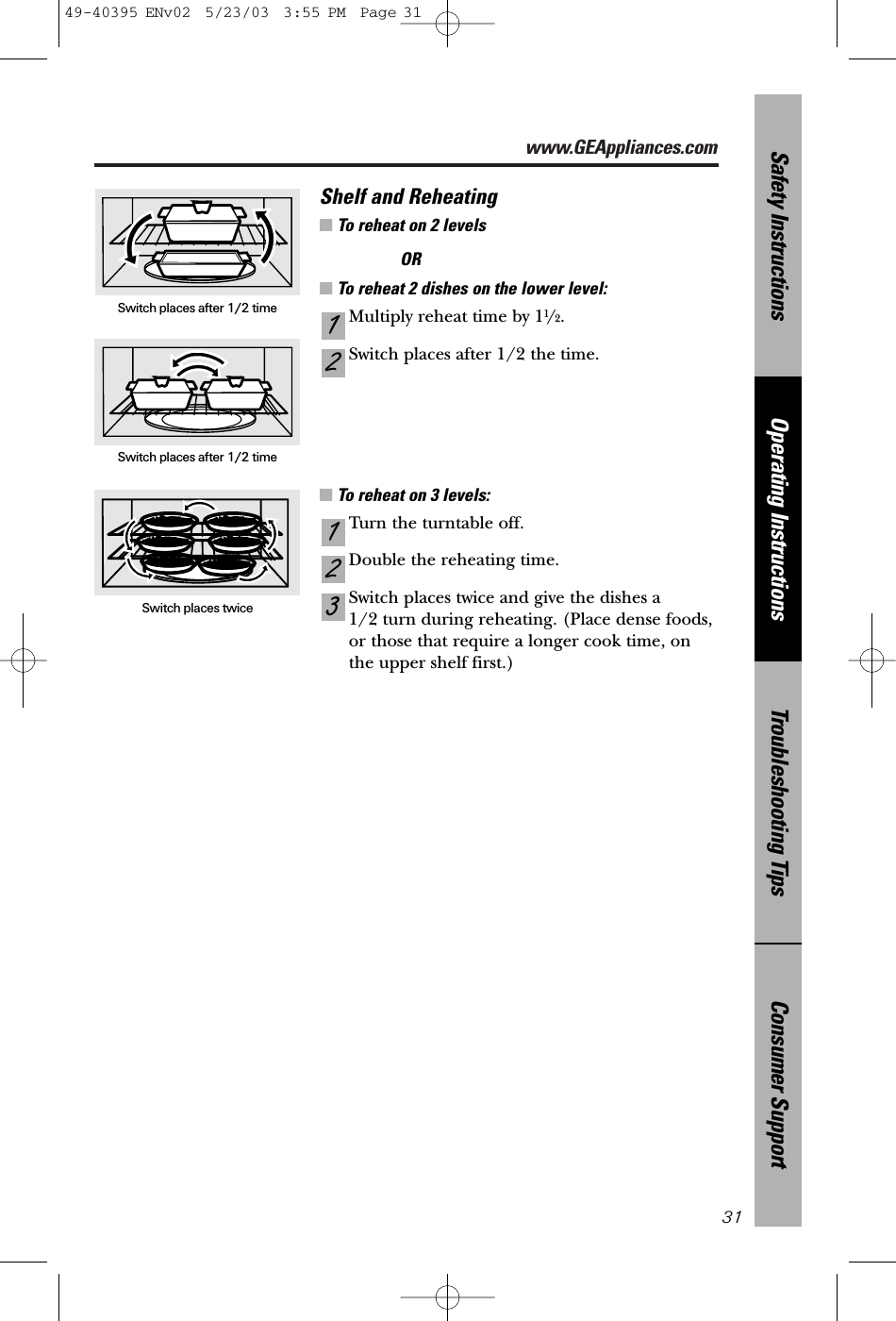

www.GEAppliances.comConsumer SupportTroubleshooting TipsOperating InstructionsSafety Instructions31Shelf and Reheating■To reheat on 2 levelsOR■To reheat 2 dishes on the lower level:Multiply reheat time by 11/2.Switch places after 1/2 the time.■To reheat on 3 levels:Turn the turntable off.Double the reheating time.Switch places twice and give the dishes a 1/2 turn during reheating. (Place dense foods,or those that require a longer cook time, onthe upper shelf first.)32121Switch places after 1/2 timeSwitch places after 1/2 timeSwitch places twice49-40395 ENv02 5/23/03 3:55 PM Page 31
Safety InstructionsOperating InstructionsTroubleshooting TipsConsumer Support32Microwave terms.Term DefinitionArcing Arcing is the microwave term for sparks in the oven. Arcing is caused by:■the metal shelf being installed incorrectly and touching the microwave walls.■metal or foil touching the side of the oven.■foil that is not molded to food (upturned edges act like antennas).■metal such as twist-ties, poultry pins, gold-rimmed dishes.■recycled paper towels containing small metal pieces.Covering Covers hold in moisture, allow for more even heating and reduce cooking time. Venting plastic wrap or covering with wax paper allows excess steam to escape.Shielding In a regular oven, you shield chicken breasts or baked foods to prevent over-browning. When microwaving, you use small strips of foil to shield thin parts, such as the tips of wings and legs on poultry, which would cook before larger parts.Standing Time When you cook with regular ovens, foods such as roasts or cakes are allowed to stand to finish cooking or to set. Standing time is especially important in microwave cooking. Note that a microwaved cake is not placed on a cooling rack.Venting After covering a dish with plastic wrap, you vent the plastic wrap by turning back one corner so excess steam can escape.49-40395 ENv02 5/23/03 3:55 PM Page 32

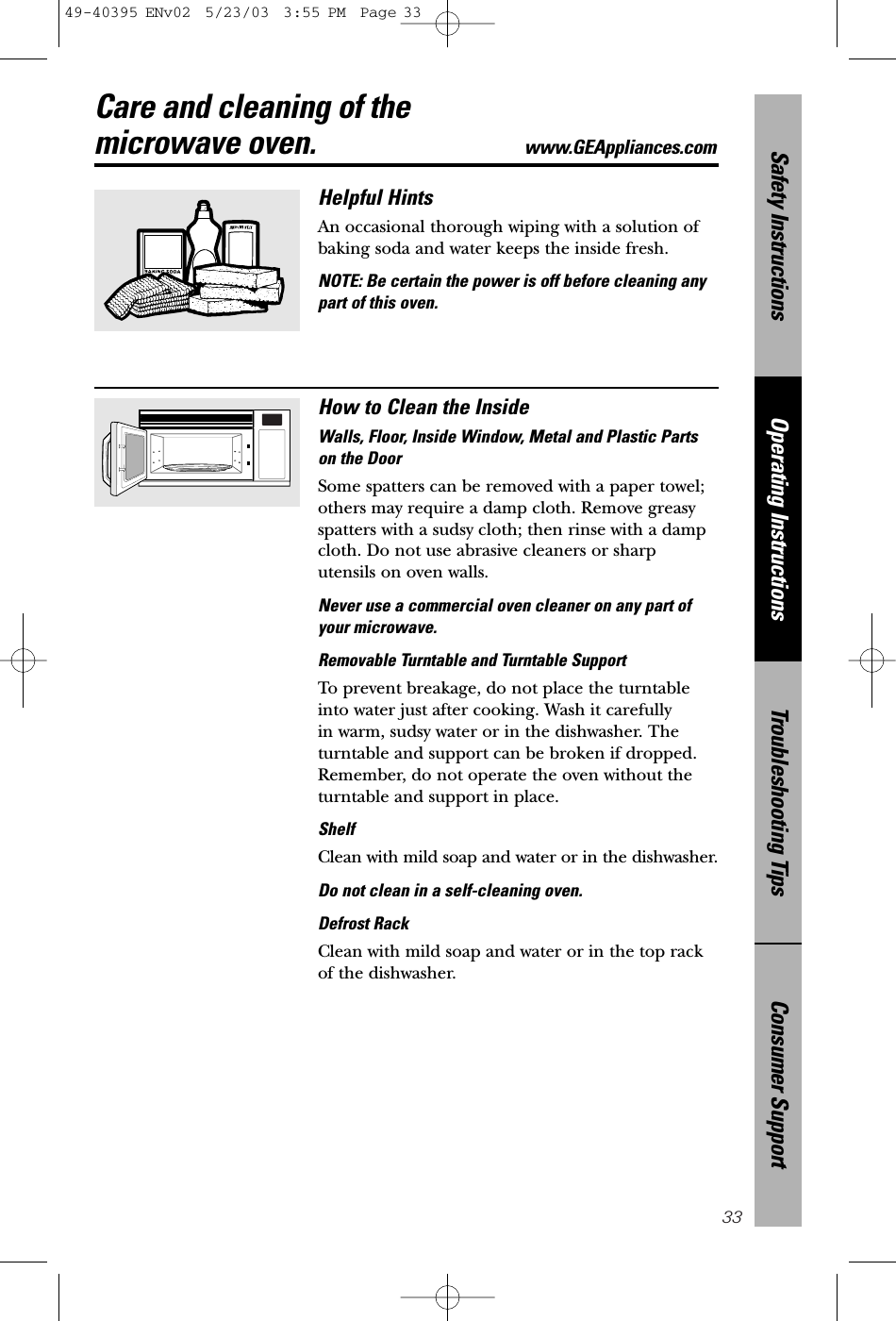

33Consumer SupportTroubleshooting TipsOperating InstructionsSafety InstructionsHelpful HintsAn occasional thorough wiping with a solution ofbaking soda and water keeps the inside fresh.NOTE: Be certain the power is off before cleaning anypart of this oven.Care and cleaning of themicrowave oven. www.GEAppliances.comHow to Clean the InsideWalls, Floor, Inside Window, Metal and Plastic Partson the DoorSome spatters can be removed with a paper towel;others may require a damp cloth. Remove greasyspatters with a sudsy cloth; then rinse with a dampcloth. Do not use abrasive cleaners or sharputensils on oven walls. Never use a commercial oven cleaner on any part ofyour microwave.Removable Turntable and Turntable SupportTo prevent breakage, do not place the turntableinto water just after cooking. Wash it carefully in warm, sudsy water or in the dishwasher. Theturntable and support can be broken if dropped.Remember, do not operate the oven without theturntable and support in place.ShelfClean with mild soap and water or in the dishwasher. Do not clean in a self-cleaning oven.Defrost RackClean with mild soap and water or in the top rackof the dishwasher.49-40395 ENv02 5/23/03 3:55 PM Page 33
Safety InstructionsOperating InstructionsTroubleshooting TipsConsumer Support34How to Clean the OutsideWe recommend against using cleaners with ammonia or alcohol, as they can damage the appearance of themicrowave oven. If you choose to use a common householdcleaner, first apply the cleaner directly to a clean cloth, then wipe the soiled area.BottomClean off the grease and dust on the bottom often. Use asolution of warm water and detergent.CaseClean the outside of the microwave with a sudsy cloth.Rinse and then dry. Wipe the window clean with a dampcloth.Control Panel and DoorWipe with a damp cloth. Dry thoroughly. Do not usecleaning sprays, large amounts of soap and water,abrasives or sharp objects on the panel—they candamage it. Some paper towels can also scratch thecontrol panel.Door SealIt’s important to keep the area clean where the doorseals against the microwave. Use only mild, non-abrasivedetergents applied with a clean sponge or soft cloth.Rinse well.Stainless Steel (on some models)Do not use a steel-wood pad; it will scratch the surface.To clean the stainless steel surface, use a hot, damp clothwith a mild detergent suitable for stainless steel surfaces.Use a clean, hot, damp cloth to remove soap. Dry with adry, clean cloth.If food soil remains, try a general kitchen cleaner.For hard-to-clean soil, use a standard stainless steelcleaner, such as Bon-Ami®or Cameo®.Apply cleaner with a damp sponge. Use a clean, hot,damp cloth to remove cleaner. Dry with a dry, cleancloth. Always scrub lightly in the direction of the grain.After cleaning, use a stainless steel polish, such asStainless Steel Magic®, Revere Copper and Stainless SteelCleaner®or Wenol All Purpose Metal Polish®. Follow theproduct instructions for cleaning the stainless steelsurface.Care and cleaning of the microwave oven.49-40395 ENv02 5/23/03 3:56 PM Page 34
35Consumer SupportTroubleshooting TipsOperating InstructionsSafety InstructionsCooktop Light/Night LightOn models JVM1850 and JVM1851, replace theburned-out bulb with a 40-watt incandescent bulb(WB36X10003), available from your GE supplier.On models JVM1860, JVM1861, JVM1870 and JVM2050replace the burned-out bulb with a 120 volt, 20-watthalogen bulb (WB36X10213), available from your GEsupplier.To replace the bulb(s), first disconnect thepower at the main fuse or circuit breaker panelor pull the plug.Remove the screw at the right edge of the lightcover and push on the left edge of the cover toopen.Be sure the bulb(s) to be replaced are coolbefore removing. After breaking the adhesiveseal, remove the bulb by either gently turning(for models JVM1850 and JVM1851) or pullingstraight out (for models JVM1860, JVM1861,JVM1870 and JVM2050). Replace with the samesize and type bulb.Raise the light shield and replace the screw.Connect electrical power to the oven.4321Replacing the light bulbs. www.GEAppliances.comRemove screw49-40395 ENv02 5/23/03 3:56 PM Page 35

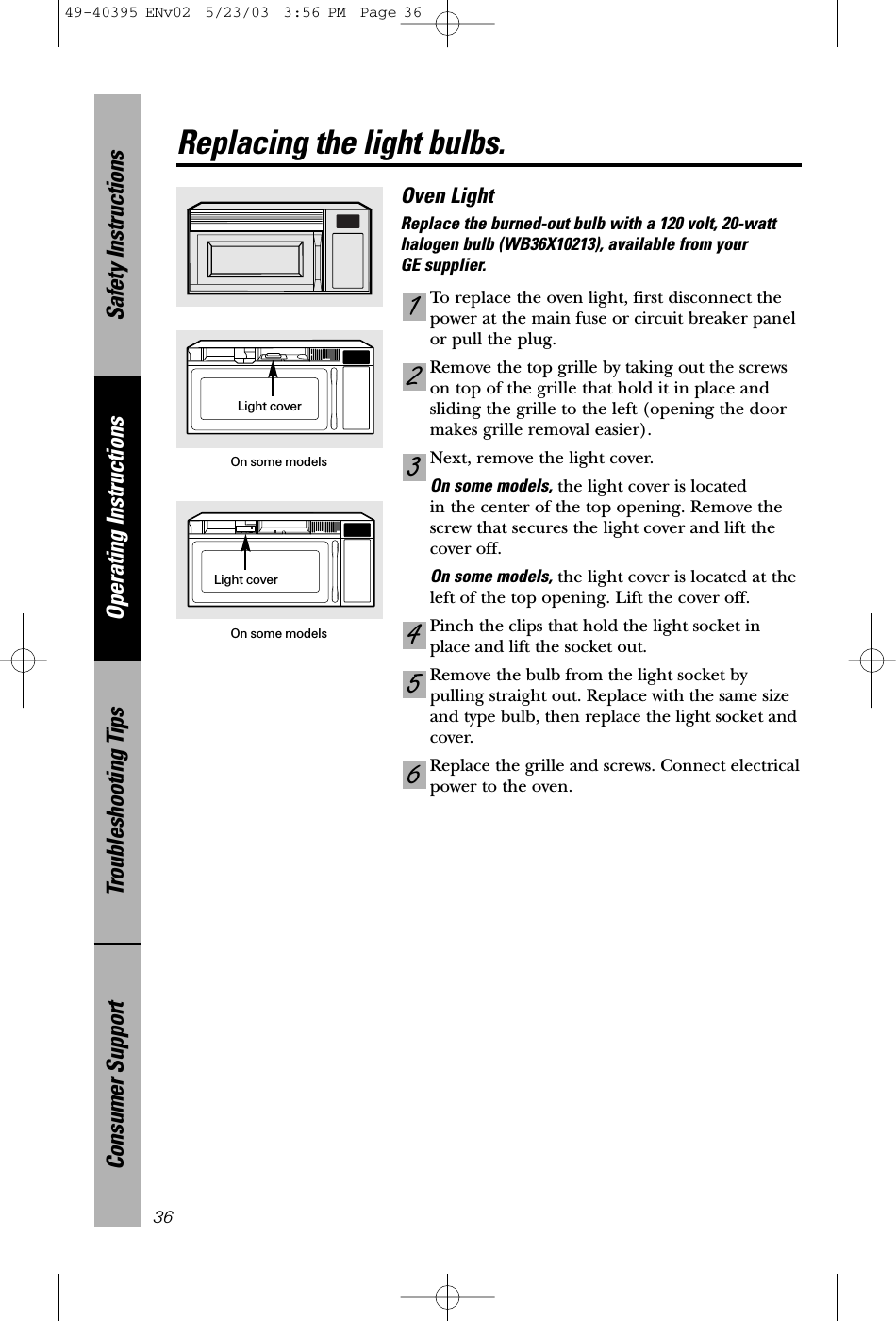

Safety InstructionsOperating InstructionsTroubleshooting TipsConsumer Support36Replacing the light bulbs.Oven LightReplace the burned-out bulb with a 120 volt, 20-watthalogen bulb (WB36X10213), available from your GE supplier.To replace the oven light, first disconnect thepower at the main fuse or circuit breaker panelor pull the plug.Remove the top grille by taking out the screwson top of the grille that hold it in place andsliding the grille to the left (opening the doormakes grille removal easier).Next, remove the light cover.On some models, the light cover is located in the center of the top opening. Remove thescrew that secures the light cover and lift thecover off.On some models, the light cover is located at theleft of the top opening. Lift the cover off.Pinch the clips that hold the light socket inplace and lift the socket out.Remove the bulb from the light socket bypulling straight out. Replace with the same sizeand type bulb, then replace the light socket andcover.Replace the grille and screws. Connect electricalpower to the oven.654321On some modelsOn some modelsLight coverLight cover49-40395 ENv02 5/23/03 3:56 PM Page 36
37Consumer SupportTroubleshooting TipsOperating InstructionsSafety InstructionsCharcoal Filter(on some models)Reusable Grease Filters(on all models)The Vent FanThe vent fan has 2 metal reusable grease filters. Models that recirculate air back into the room alsouse a charcoal filter.Reusable Grease FiltersThe metal filters trap grease released by foods onthe cooktop. They also prevent flames from foodson the cooktop from damaging the inside of themicrowave. For this reason, the filters must ALWAYS be inplace when the hood is used. The grease filtersshould be cleaned once a month, or as needed.Removing and Cleaning the FilterTo remove, slide it to the outside using the tab. Pull it down and out. To clean the grease filter, soak it and then swish itaround in hot water and detergent. Don’t useammonia or ammonia products because they willdarken the metal. Light brushing can be used toremove embedded dirt.Rinse, shake and let it dry before replacing.To replace, slide the filter in the frame slot at theoutside of the opening. Pull up and in to lock into place.About the exhaust feature. www.GEAppliances.com49-40395 ENv02 5/23/03 3:56 PM Page 37

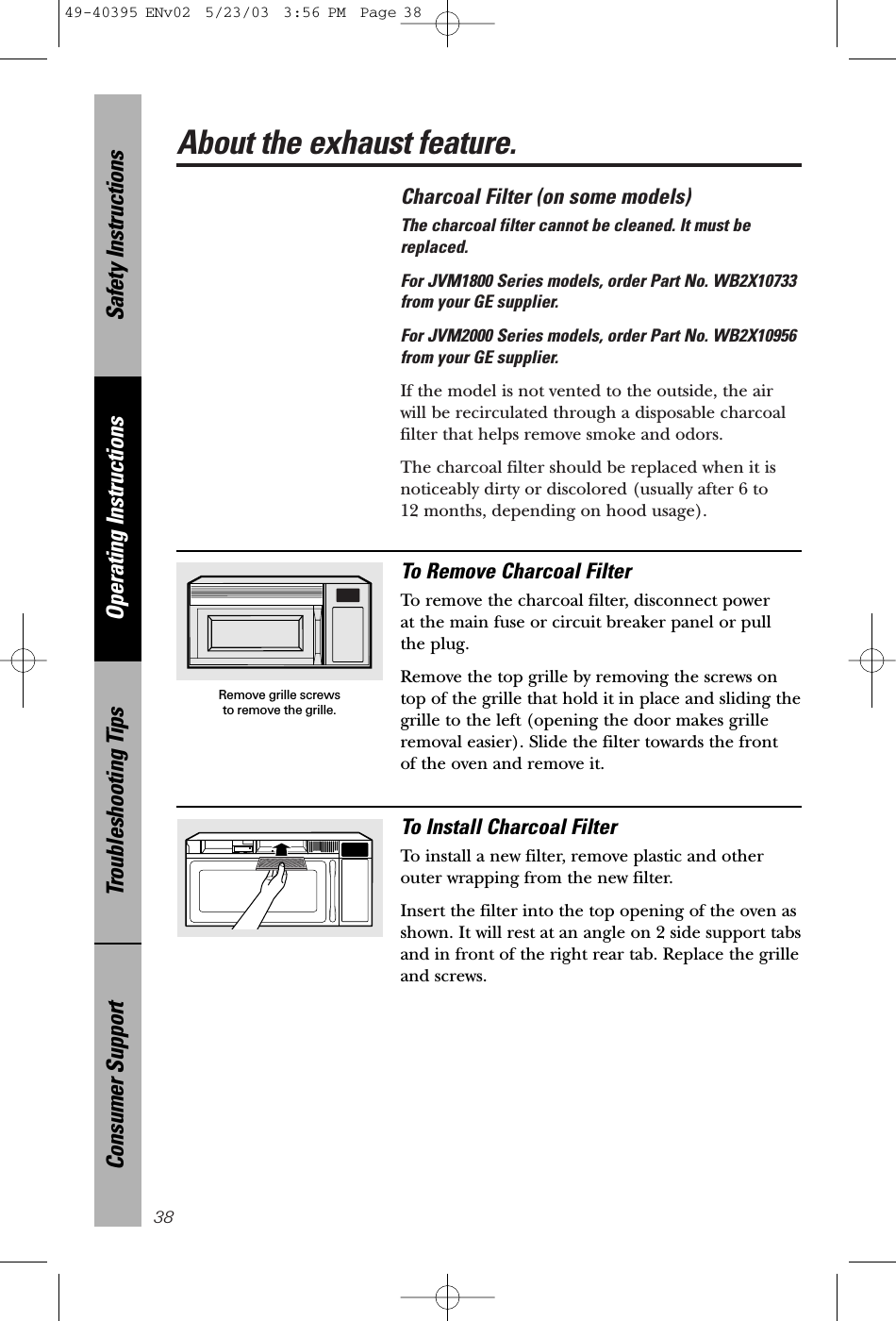

38About the exhaust feature.Charcoal Filter (on some models)The charcoal filter cannot be cleaned. It must bereplaced.For JVM1800 Series models, order Part No. WB2X10733from your GE supplier.For JVM2000 Series models, order Part No. WB2X10956from your GE supplier.If the model is not vented to the outside, the airwill be recirculated through a disposable charcoalfilter that helps remove smoke and odors. The charcoal filter should be replaced when it isnoticeably dirty or discolored (usually after 6 to 12 months, depending on hood usage).To Remove Charcoal FilterTo remove the charcoal filter, disconnect power at the main fuse or circuit breaker panel or pull the plug. Remove the top grille by removing the screws ontop of the grille that hold it in place and sliding thegrille to the left (opening the door makes grilleremoval easier). Slide the filter towards the front of the oven and remove it.Remove grille screws to remove the grille.To Install Charcoal FilterTo install a new filter, remove plastic and otherouter wrapping from the new filter. Insert the filter into the top opening of the oven asshown. It will rest at an angle on 2 side support tabsand in front of the right rear tab. Replace the grilleand screws.Safety InstructionsOperating InstructionsTroubleshooting TipsConsumer Support49-40395 ENv02 5/23/03 3:56 PM Page 38
Consumer SupportTroubleshooting TipsOperating InstructionsSafety InstructionsTroubleshooting Tips Save time and money! Review the charts on the following pages first and you may not need to call for service.Problem Possible Causes What To DoOven will not start A fuse in your home may •Replace fuse or resetbe blown or the circuit circuit breaker. breaker tripped.Power surge. •Unplug the microwave oven; then plug it back in.Plug not fully inserted •Make sure the 3-prong into wall outlet. plug on the oven is fullyinserted into wall outlet.Floor of the oven is warm, The cooktop light is •This is normal.even when the oven has located below the ovennot been used floor. When the light ison, the heat it produces may make the oven floorget warm.“CONTROL LOCKED” The control has been •Press and hold CLEAR/OFFor “LOCKED” appears on locked. for about 3 seconds tothe display unlock the control.“SENSOR ERROR” appears When using a Sensor •Do not open door until on the display feature, the door was steam is sensed and timeopened before steam is shown counting downcould be detected. on the display.Steam was not detected •Use Time Cook to heatin maximum amount for more time.of time.You hear an unusual, You have tried to start •Start over and enter alow-tone beep the Reminder without valid time of day.a valid time of day.You have tried to start •Start over and enter athe Auto Nite Light valid time of day.without a valid time of day entered for the on-timeand off-time.You have tried to change •Many of the oven’s featuresthe power level when it is are preset and cannot be not allowed. changed.Food amount too large Sensor Reheat is for •Use Time Cook for large for Sensor Reheat single servings of amounts of food.recommended foods.39Before you call for service… www.GEAppliances.com49-40395 ENv02 5/23/03 3:56 PM Page 39

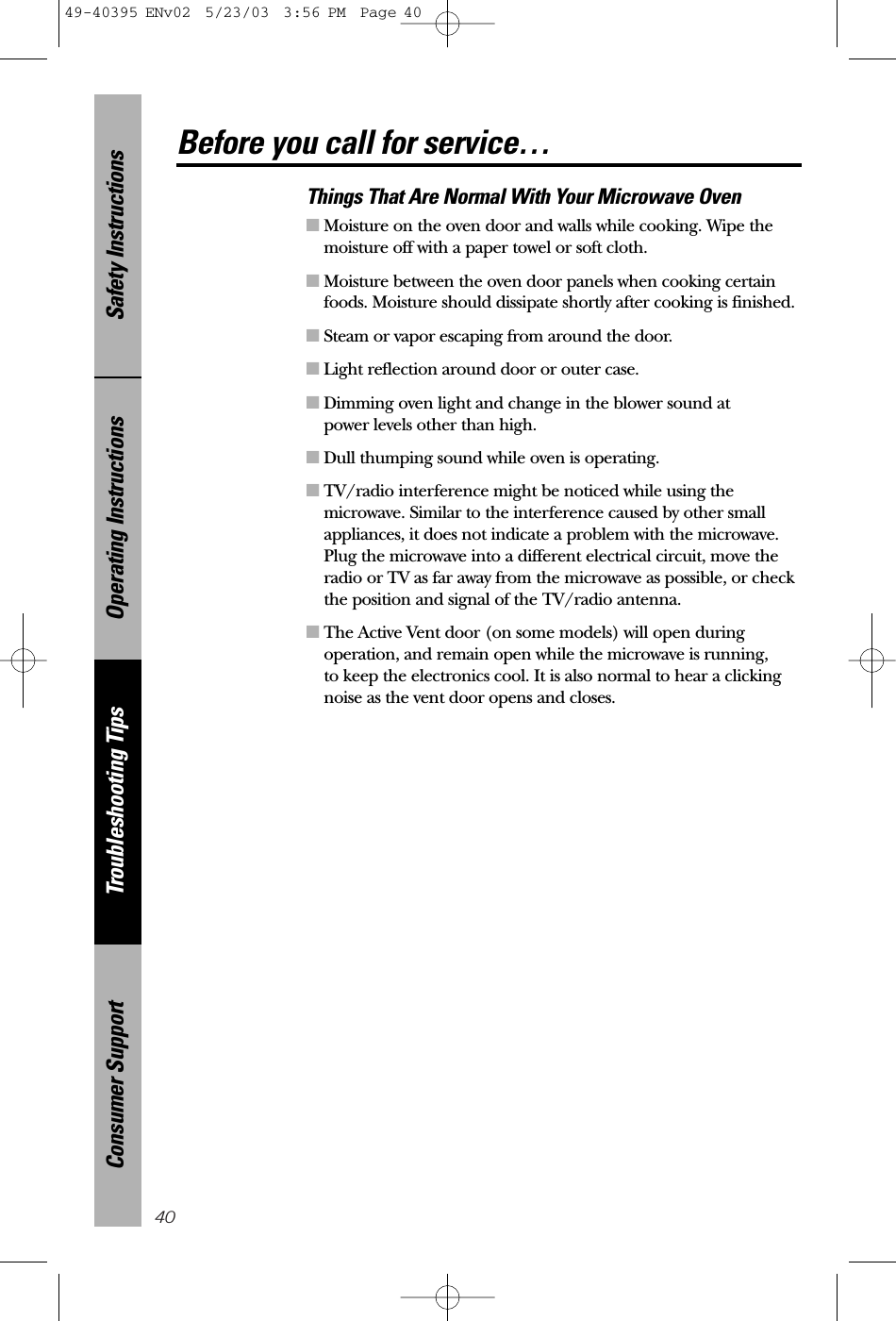

40Safety InstructionsOperating InstructionsTroubleshooting TipsConsumer SupportThings That Are Normal With Your Microwave Oven■Moisture on the oven door and walls while cooking. Wipe themoisture off with a paper towel or soft cloth.■Moisture between the oven door panels when cooking certainfoods. Moisture should dissipate shortly after cooking is finished.■Steam or vapor escaping from around the door.■Light reflection around door or outer case.■Dimming oven light and change in the blower sound at power levels other than high.■Dull thumping sound while oven is operating.■TV/radio interference might be noticed while using themicrowave. Similar to the interference caused by other smallappliances, it does not indicate a problem with the microwave.Plug the microwave into a different electrical circuit, move theradio or TV as far away from the microwave as possible, or checkthe position and signal of the TV/radio antenna.■The Active Vent door (on some models) will open duringoperation, and remain open while the microwave is running, to keep the electronics cool. It is also normal to hear a clickingnoise as the vent door opens and closes.Before you call for service…49-40395 ENv02 5/23/03 3:56 PM Page 40
41GE Service Protection Plus™GE, a name recognized worldwide for quality and dependability, offers you Service Protection Plus™—comprehensive protection on all your appliances—No Matter What Brand!Benefits Include:• Backed by GE• All brands covered• Unlimited service calls• All parts and labor costs included• No out-of-pocket expenses• No hidden deductibles• One 800 number to callYou will be completely satisfied with our service protection or you may request yourmoney back on the remaining value of your contract. No questions asked. It’s that simple.Protect your refrigerator, dishwasher, washer and dryer, range, TV, VCR and much more—any brand! Plus there’s no extra charge for emergency service and low monthly financingis available. Even icemaker coverage and food spoilage protection is offered. You can resteasy, knowing that all your valuable household products are protected against expensiverepairs.Place your confidence in GE and call us in the U.S. toll-free at 800.626.2224for more information.*All brands covered, up to 20 years old, in the continental U.S.We’ll Cover Any Appliance.Anywhere. Anytime.*General Electric CompanyWarranty Registration DepartmentP.O. Box 32150Louisville, KY 40232-2150Please place in envelope and mail to:Cut here✂49-40395 ENv02 5/23/03 3:56 PM Page 41
Day YearStreetAddressConsumer Product Ownership RegistrationDear Customer:Thank you for purchasing our product and thank you for placing your confidence in us. We are proud to have you as a customer!Follow these three steps to protect your new appliance investment:Complete and mailyour ConsumerProduct OwnershipRegistration today.Have the peace ofmind of knowingwe can contact youin the unlikelyevent of a safetymodification.After mailing the registrationbelow, store thisdocument in a safeplace. It containsinformation you willneed should yourequire service. Our service numberis 800.GE.CARES (800.432.2737).Read your Owner’sManual carefully.It will help you operate your newappliance properly. 123Model Number Serial NumberImportant: If you did not get a registration card with your product, detachand return the form below to ensure that your product isregistered, or register online at www.GEAppliances.com.First NameApt. #CityLast NameZipCodeStatePhoneNumberGE AppliancesGE Consumer ProductsGeneral Electric Company Louisville, Kentucky www.GEAppliances.comMr. Ms. Mrs. Miss E-mail Address** Please provide your e-mail address to receive, via e-mail,discounts, special offers and other important communicationsfrom GE Appliances (GEA).■■Check here if you do not want to receive communicationsfrom GEA’s carefully selected partners.Consumer Product Ownership RegistrationModel Number Serial NumberImportantMailToday!Date Placed In UseMonthCut here✂4249-40395 ENv02 5/23/03 3:56 PM Page 42
GE Microwave Oven Warranty.Consumer SupportTroubleshooting TipsOperating InstructionsSafety InstructionsThis warranty is extended to the original purchaser and any succeeding owner for products purchasedfor ordinary home use within the USA. In Alaska, the warranty excludes the cost of shipping or servicecalls to your home.Some states do not allow the exclusion or limitation of incidental or consequential damages, so theabove limitation or exclusion may not apply to you. This warranty gives you specific legal rights, andyou may also have other rights which vary from state to state. To know what your legal rights are,consult your local or state consumer affairs office or your state’s Attorney General.Warrantor: General Electric Company. Louisville, KY 40225■Service trips to your home to teachyou how to use the product.■Improper installation, delivery ormaintenance.■Failure of the product if it is abused, misused, or used for other than the intended purpose or usedcommercially.■Replacement of the cooktop lightbulbs.■Replacement of house fuses or resetting of circuit breakers.■Damage to the product caused by accident, fire, floods or acts of God.■Incidental or consequential damagecaused by possible defects with thisappliance.■Damage caused after delivery.What GE Will Not Cover:43All warranty service provided by ourFactory Service Centers, or an authorizedCustomer Care®technician. To scheduleservice, on-line, 24 hours a day, visit us at www.GEAppliances.com, or call 800.GE.CARES (800.432.2737).Staple your receipt here.Proof of the originalpurchase date is needed to obtain service under the warranty.For The Period Of: GE Will Replace:One Year Any part of the microwave oven which fails due to a From the date of the defect in materials or workmanship. During this fulloriginal purchase one-year warranty, GE will also provide, free of charge,all labor and related service costs to repair or replace the defective part.Second Through Tenth Year The magnetron tube, if the magnetron tube fails due to From the date of the a defect in materials or workmanship. During this original purchase additional nine-year limited warranty, you will be responsible for any labor or related service costs.49-40395 ENv02 5/23/03 3:56 PM Page 43
Printed in KoreaConsumer Support. GE Appliances Website www.GEAppliances.comHave a question or need assistance with your appliance? Try the GE Appliances Website24 hours a day, any day of the year! For greater convenience and faster service, you cannow download Owner’s Manuals, order parts, catalogs, or even schedule service on-line.You can also “Ask Our Team of Experts™” your questions, and so much more...Schedule Service www.GEAppliances.comExpert GE repair service is only one step away from your door. Get on-line andschedule your service at your convenience 24 hours any day of the year! Or call800.GE.CARES (800.432.2737) during normal business hours.Real Life Design Studio www.GEAppliances.comGE supports the Universal Design concept—products, services and environments thatcan be used by people of all ages, sizes and capabilities. We recognize the need todesign for a wide range of physical and mental abilities and impairments. For details of GE’s Universal Design applications, including kitchen design ideas for people withdisabilities, check out our Website today. For the hearing impaired, please call 800.TDD.GEAC (800.833.4322). Extended Warranties www.GEAppliances.comPurchase a GE extended warranty and learn about special discounts that are availablewhile your warranty is still in effect. You can purchase it on-line anytime, or call 800.626.2224 during normal business hours. GE Consumer Home Services will still be there after your warranty expires.Parts and Accessories www.GEAppliances.comIndividuals qualified to service their own appliances can have parts or accessories sent directly to their homes (VISA, MasterCard and Discover cards are accepted). Order on-line today, 24 hours every day or by phone at 800.626.2002 during normalbusiness hours.Instructions contained in this manual cover procedures to be performed by any user. Otherservicing generally should be referred to qualified service personnel. Caution must beexercised, since improper servicing may cause unsafe operation. Contact Us www.GEAppliances.comIf you are not satisfied with the service you receive from GE, contact us on our Websitewith all the details including your phone number, or write to: General Manager, Customer RelationsGE Appliances, Appliance ParkLouisville, KY 40225Register Your Appliance www.GEAppliances.comRegister your new appliance on-line—at your convenience! Timely product registrationwill allow for enhanced communication and prompt service under the terms of yourwarranty, should the need arise. You may also mail in the pre-printed registration cardincluded in the packing material.49-40395 ENv02 5/23/03 3:56 PM Page 44
