Contents

Users Manual 3

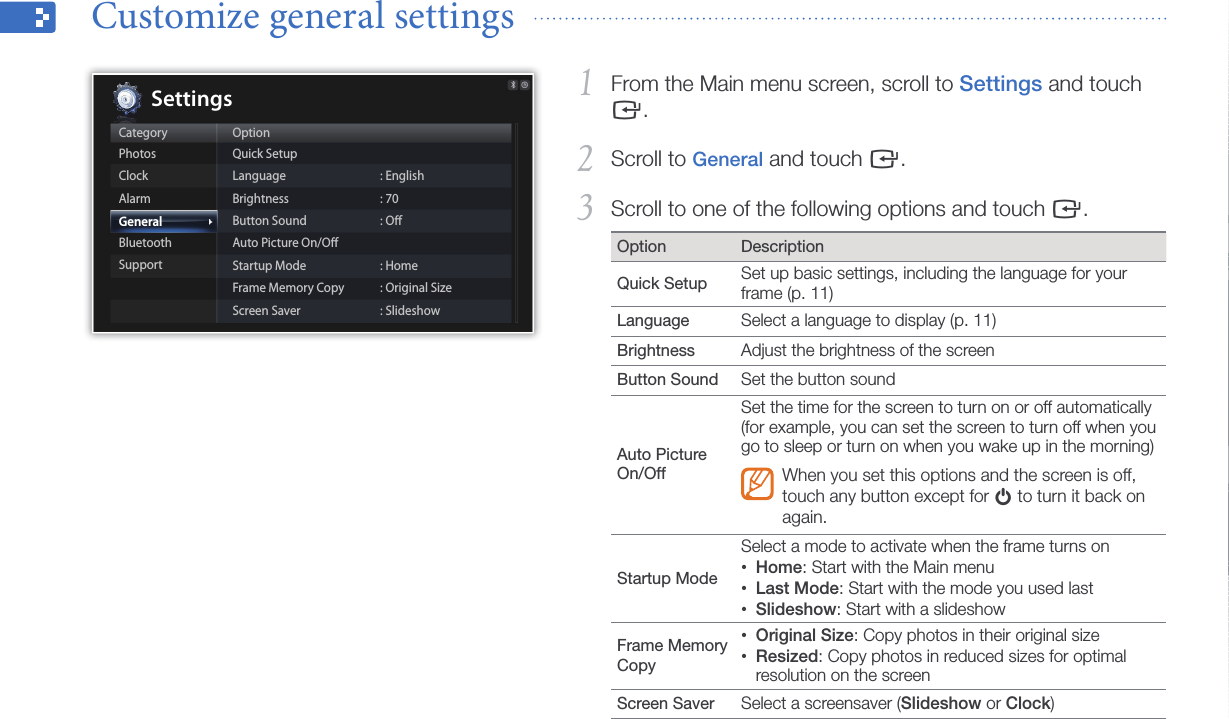

Customize settings39From the Main menu screen, scroll to 1 Settings and touch e.Scroll to 2 General and touch e.Scroll to one of the following options and touch 3 e. Option DescriptionQuick Setup Set up basic settings, including the language for your frame (p. 11)Language Select a language to display (p. 11)Brightness Adjust the brightness of the screenButton Sound Set the button soundAuto Picture On/OffSet the time for the screen to turn on or off automatically (for example, you can set the screen to turn off when you go to sleep or turn on when you wake up in the morning)When you set this options and the screen is off, touch any button except for p to turn it back on again.Startup Mode Select a mode to activate when the frame turns onHome• : Start with the Main menuLast Mode• : Start with the mode you used lastSlideshow• : Start with a slideshowFrame Memory CopyOriginal Size• : Copy photos in their original sizeResized• : Copy photos in reduced sizes for optimal resolution on the screenScreen Saver Select a screensaver (Slideshow or Clock)Customize general settings CategoryPhotosClockAlarmGeneralBluetoothSupportOptionQuick SetupLanguageBrightnessButton SoundAuto Picture On/OffStartup ModeFrame Memory CopyScreen Saver: English: 70: Off: Home: Original Size: SlideshowSettings

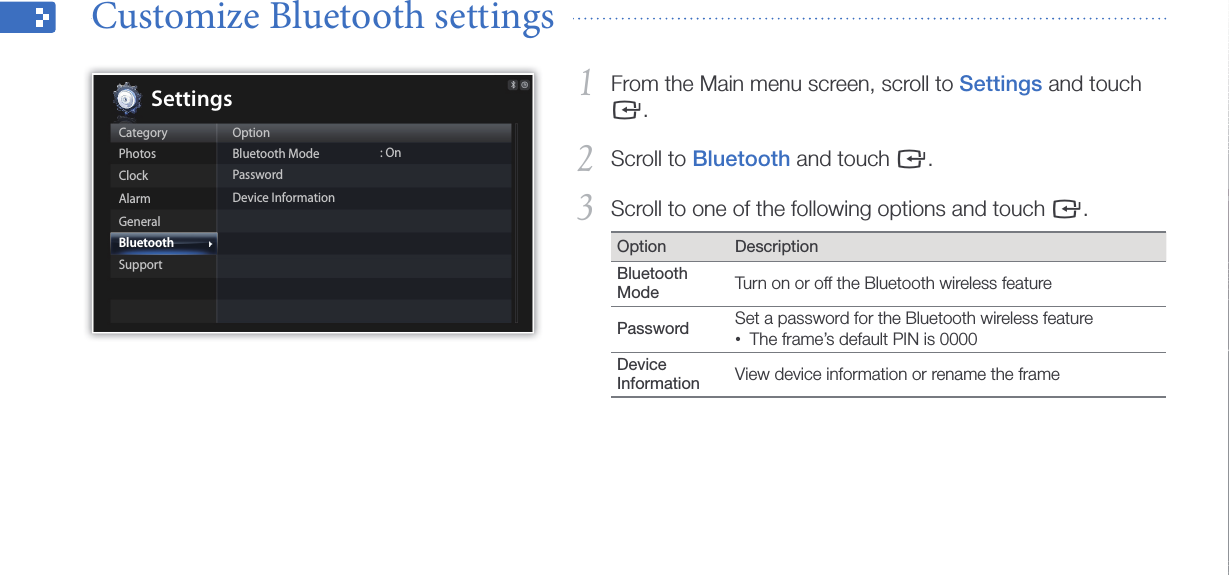

Customize settings40From the Main menu screen, scroll to 1 Settings and touch e.Scroll to 2 Bluetooth and touch e.Scroll to one of the following options and touch 3 e.Option DescriptionBluetooth Mode Turn on or off the Bluetooth wireless featurePassword Set a password for the Bluetooth wireless featureThe frame’s default PIN is 0000•Device Information View device information or rename the frameCustomize Bluetooth settings CategoryPhotosClockAlarmGeneralBluetoothSupportOptionBluetooth ModePasswordDevice Information: OnSettings

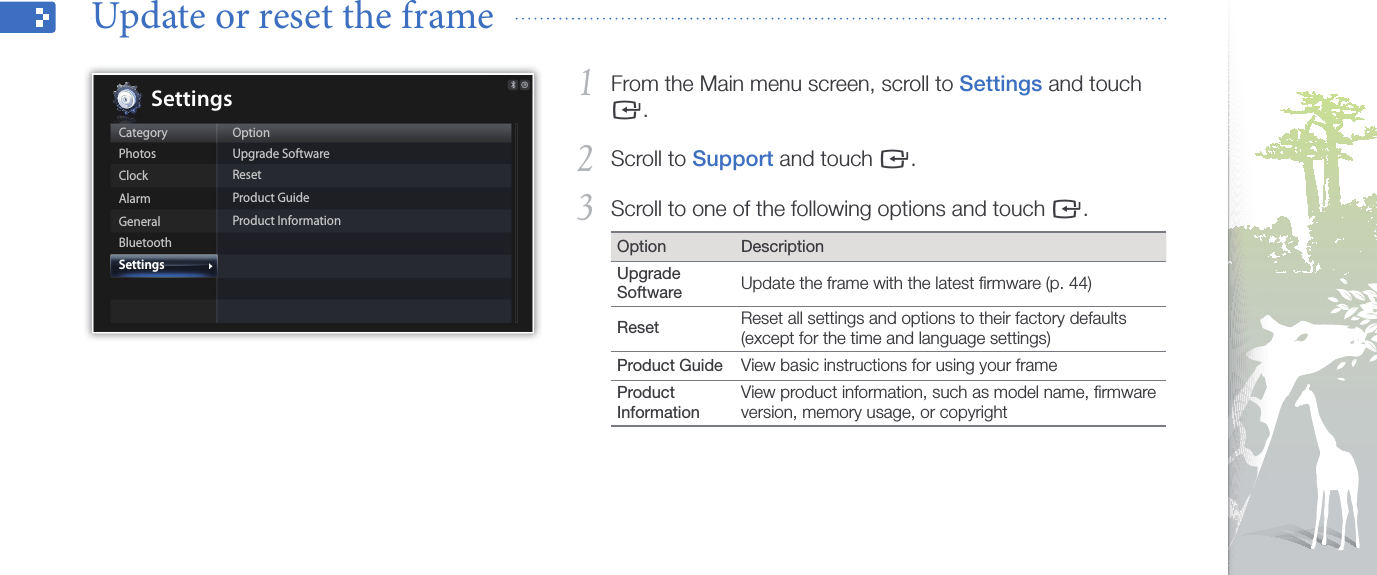

Customize settings41From the Main menu screen, scroll to 1 Settings and touch e.Scroll to 2 Support and touch e.Scroll to one of the following options and touch 3 e.Option DescriptionUpgrade Software Update the frame with the latest firmware (p. 44)Reset Reset all settings and options to their factory defaults (except for the time and language settings)Product Guide View basic instructions for using your frameProduct InformationView product information, such as model name, firmware version, memory usage, or copyrightUpdate or reset the frame CategoryPhotosClockAlarmGeneralBluetoothSettingsOptionUpgrade SoftwareResetProduct GuideProduct InformationSettings

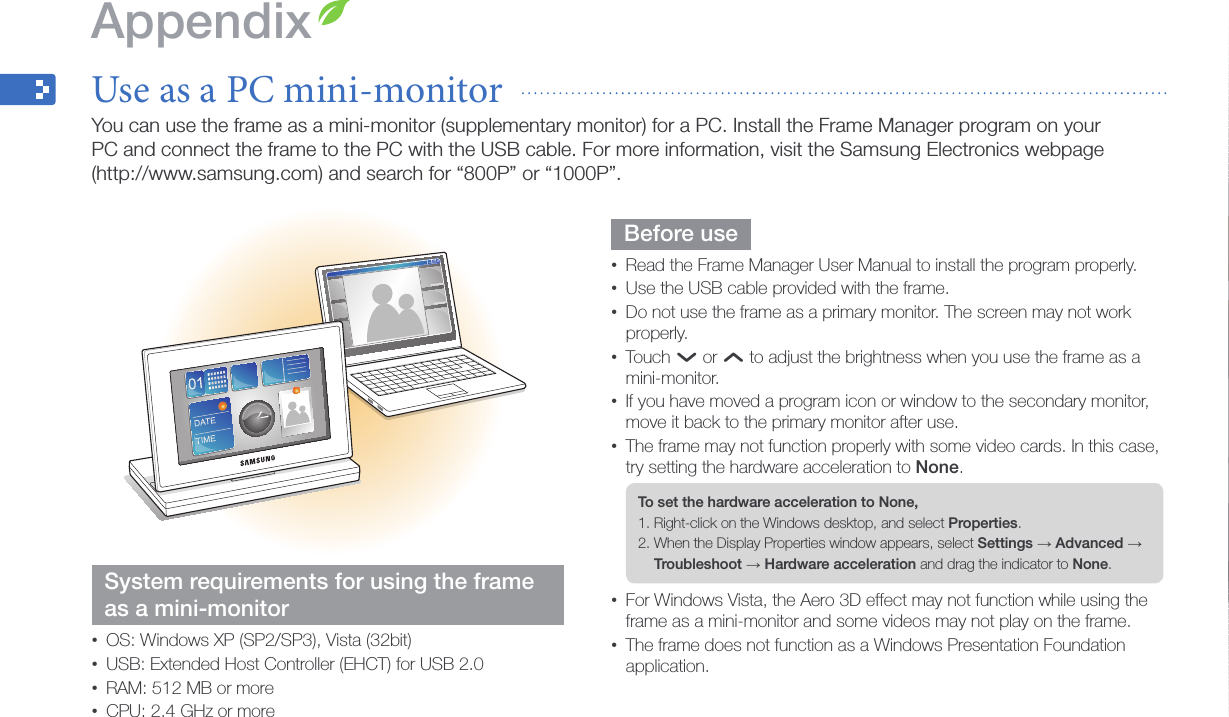

42 Before use Read the Frame Manager User Manual to install the program properly.•Use the USB cable provided with the frame.•Do not use the frame as a primary monitor. The screen may not work •properly.Touch • d or u to adjust the brightness when you use the frame as a mini-monitor.If you have moved a program icon or window to the secondary monitor, •move it back to the primary monitor after use.The frame may not function properly with some video cards. In this case, •try setting the hardware acceleration to None.To set the hardware acceleration to None, 1. Right-click on the Windows desktop, and select Properties.2. When the Display Properties window appears, select Settings → Advanced → Troubleshoot → Hardware acceleration and drag the indicator to None.For Windows Vista, the Aero 3D effect may not function while using the •frame as a mini-monitor and some videos may not play on the frame.The frame does not function as a Windows Presentation Foundation •application. System requirements for using the frame as a mini-monitor OS: Windows XP (SP2/SP3), Vista (32bit)•USB: Extended Host Controller (EHCT) for USB 2.0•RAM: 512 MB or more•CPU: 2.4 GHz or more•AppendixUse as a PC mini-monitor You can use the frame as a mini-monitor (supplementary monitor) for a PC. Install the Frame Manager program on your PC and connect the frame to the PC with the USB cable. For more information, visit the Samsung Electronics webpage (http://www.samsung.com) and search for “800P” or “1000P”.

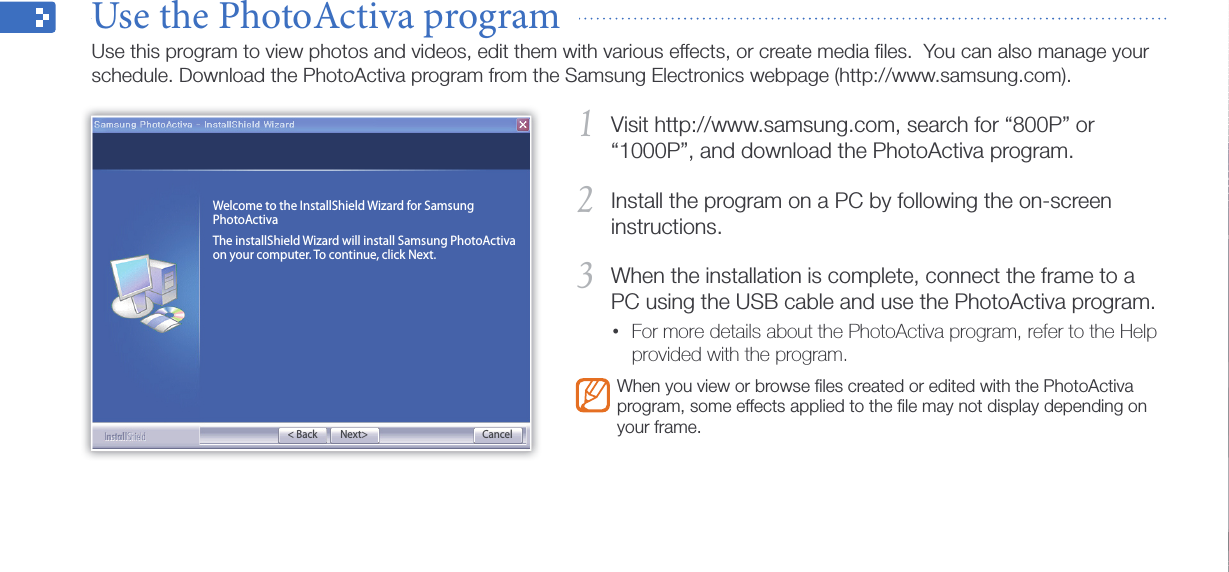

Appendix43Visit http://www.samsung.com, search for “800P” or 1 “1000P”, and download the PhotoActiva program.Install the program on a PC by following the on-screen 2 instructions.When the installation is complete, connect the frame to a 3 PC using the USB cable and use the PhotoActiva program. For more details about the PhotoActiva program, refer to the Help •provided with the program.When you view or browse files created or edited with the PhotoActiva program, some effects applied to the file may not display depending on your frame.Use the PhotoActiva program Use this program to view photos and videos, edit them with various effects, or create media files. You can also manage your schedule. Download the PhotoActiva program from the Samsung Electronics webpage (http://www.samsung.com).Next>Welcome to the InstallShield Wizard for Samsung PhotoActivaThe installShield Wizard will install Samsung PhotoActiva on your computer. To continue, click Next.Cancel< Back

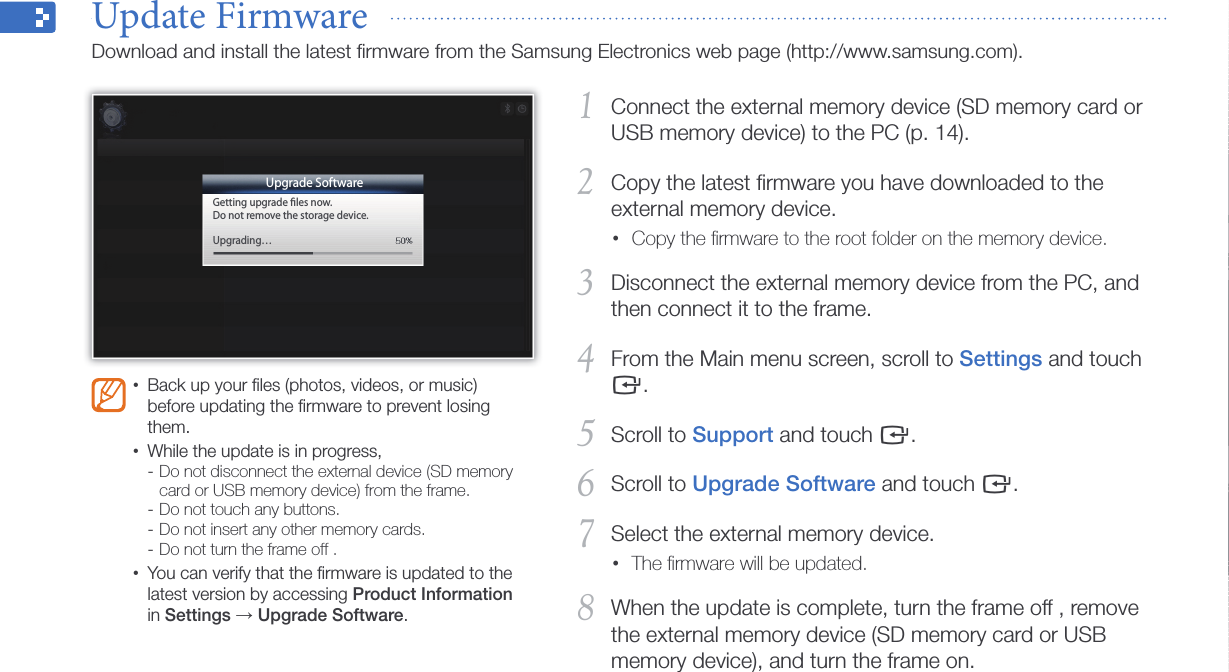

Appendix44Connect the external memory device (SD memory card or 1 USB memory device) to the PC (p. 14).Copy the latest firmware you have downloaded to the 2 external memory device.Copy the firmware to the root folder on the memory device.•Disconnect the external memory device from the PC, and 3 then connect it to the frame.From the Main menu screen, scroll to 4 Settings and touch e.Scroll to 5 Support and touch e.Scroll to 6 Upgrade Software and touch e.Select the external memory device.7 The firmware will be updated.•When the update is complete, turn the frame off , remove 8 the external memory device (SD memory card or USB memory device), and turn the frame on.Back up your files (photos, videos, or music) •before updating the firmware to prevent losing them.While the update is in progress, •Do not disconnect the external device (SD memory -card or USB memory device) from the frame.Do not touch any buttons. -Do not insert any other memory cards. -Do not turn the frame off . -You can verify that the firmware is updated to the •latest version by accessing Product Information in Settings → Upgrade Software.Update Firmware Download and install the latest firmware from the Samsung Electronics web page (http://www.samsung.com).Upgrade SoftwareGetting upgrade files now.Do not remove the storage device.Upgrading…

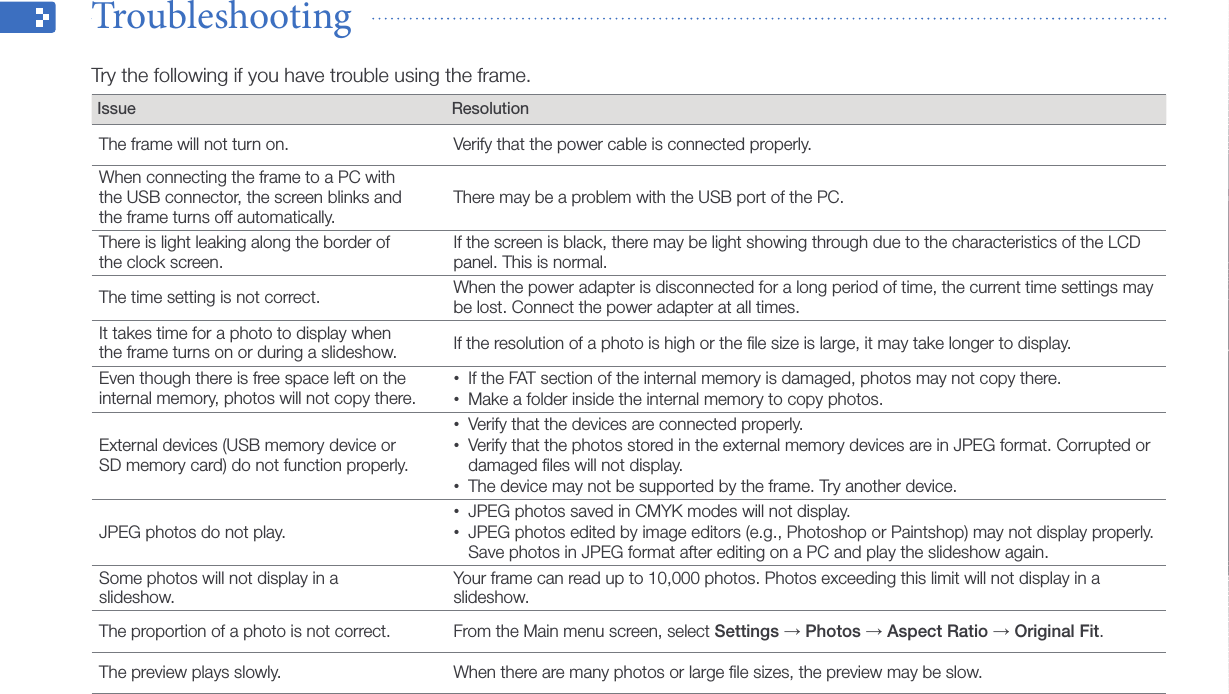

Appendix45Troubleshooting Try the following if you have trouble using the frame.Issue ResolutionThe frame will not turn on. Verify that the power cable is connected properly.When connecting the frame to a PC with the USB connector, the screen blinks and the frame turns off automatically.There may be a problem with the USB port of the PC.There is light leaking along the border of the clock screen. If the screen is black, there may be light showing through due to the characteristics of the LCD panel. This is normal.The time setting is not correct. When the power adapter is disconnected for a long period of time, the current time settings may be lost. Connect the power adapter at all times.It takes time for a photo to display when the frame turns on or during a slideshow. If the resolution of a photo is high or the file size is large, it may take longer to display.Even though there is free space left on the internal memory, photos will not copy there.If the FAT section of the internal memory is damaged, photos may not copy there.•Make a folder inside the internal memory to copy photos.•External devices (USB memory device or SD memory card) do not function properly.Verify that the devices are connected properly.•Verify that the photos stored in the external memory devices are in JPEG format. Corrupted or •damaged files will not display.The device may not be supported by the frame. Try another device.•JPEG photos do not play.JPEG photos saved in CMYK modes will not display.•JPEG photos edited by image editors (e.g., Photoshop or Paintshop) may not display properly. •Save photos in JPEG format after editing on a PC and play the slideshow again.Some photos will not display in a slideshow.Your frame can read up to 10,000 photos. Photos exceeding this limit will not display in a slideshow.The proportion of a photo is not correct. From the Main menu screen, select Settings → Photos → Aspect Ratio → Original Fit.The preview plays slowly. When there are many photos or large file sizes, the preview may be slow.

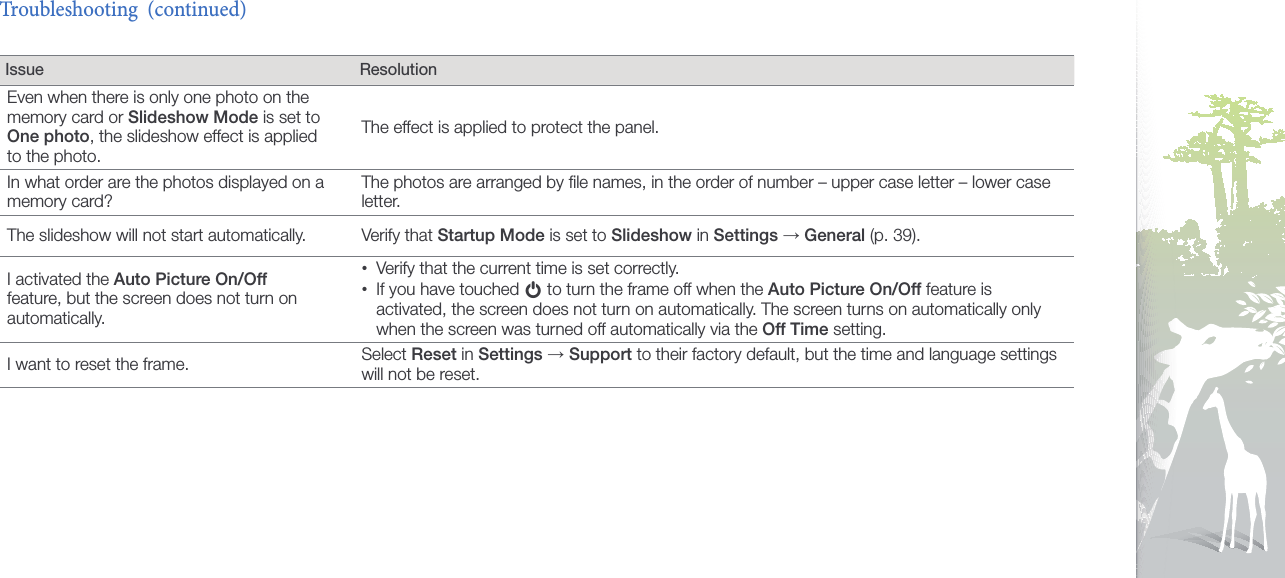

Appendix46Issue ResolutionEven when there is only one photo on the memory card or Slideshow Mode is set to One photo, the slideshow effect is applied to the photo.The effect is applied to protect the panel.In what order are the photos displayed on a memory card?The photos are arranged by file names, in the order of number – upper case letter – lower case letter.The slideshow will not start automatically. Verify that Startup Mode is set to Slideshow in Settings → General (p. 39).I activated the Auto Picture On/Off feature, but the screen does not turn on automatically.Verify that the current time is set correctly.•If you have touched •p to turn the frame off when the Auto Picture On/Off feature is activated, the screen does not turn on automatically. The screen turns on automatically only when the screen was turned off automatically via the Off Time setting.I want to reset the frame. Select Reset in Settings →Support to their factory default, but the time and language settings will not be reset.Troubleshooting (continued)

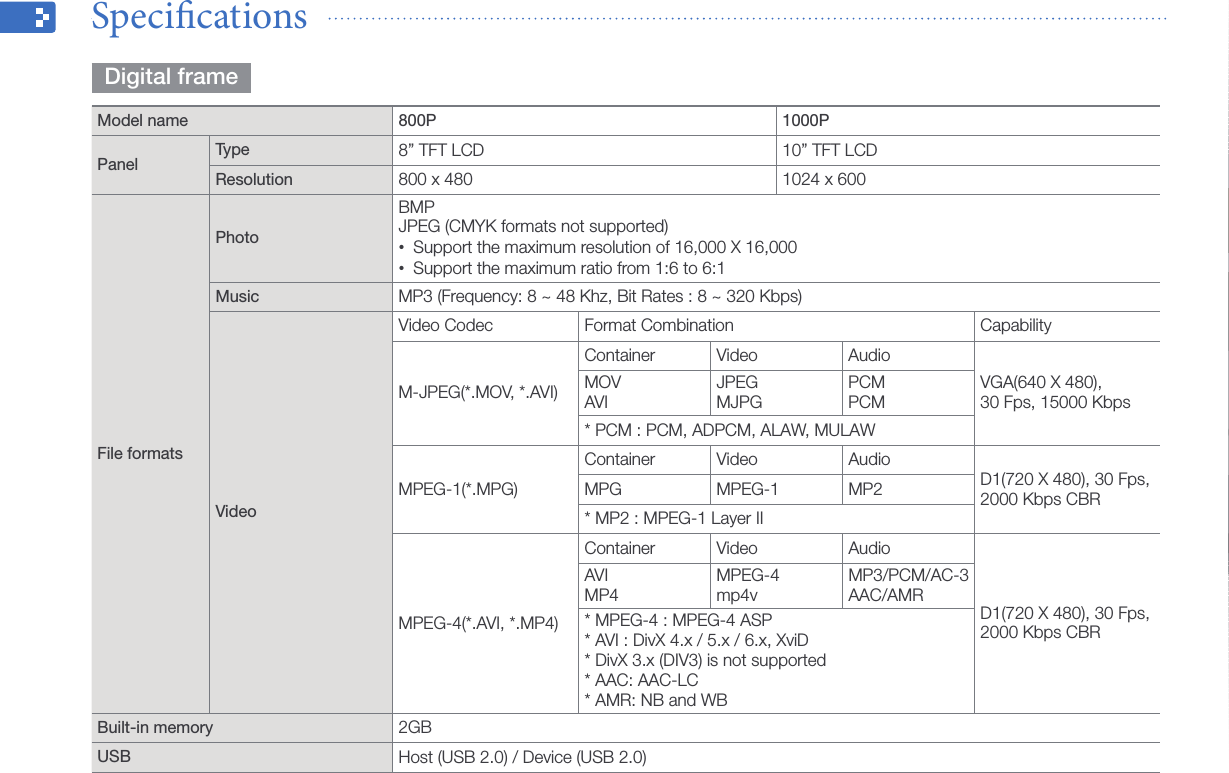

Appendix47Specications Digital frame Model name 800P 1000PPanel Type 8” TFT LCD 10” TFT LCDResolution 800 x 480 1024 x 600File formatsPhotoBMPJPEG (CMYK formats not supported)Support the maximum resolution of 16,000 X 16,000•Support the maximum ratio from 1:6 to 6:1•Music MP3 (Frequency: 8 ~ 48 Khz, Bit Rates : 8 ~ 320 Kbps)VideoVideo Codec Format Combination CapabilityM-JPEG(*.MOV, *.AVI)Container Video AudioVGA(640 X 480), 30 Fps, 15000 KbpsMOVAVIJPEGMJPGPCMPCM* PCM : PCM, ADPCM, ALAW, MULAWMPEG-1(*.MPG)Container Video AudioD1(720 X 480), 30 Fps, 2000 Kbps CBRMPG MPEG-1 MP2* MP2 : MPEG-1 Layer IIMPEG-4(*.AVI, *.MP4)Container Video AudioD1(720 X 480), 30 Fps, 2000 Kbps CBRAVIMP4MPEG-4mp4vMP3/PCM/AC-3AAC/AMR* MPEG-4 : MPEG-4 ASP * AVI : DivX 4.x / 5.x / 6.x, XviD* DivX 3.x (DIV3) is not supported* AAC: AAC-LC* AMR: NB and WB Built-in memory 2GBUSB Host (USB 2.0) / Device (USB 2.0)

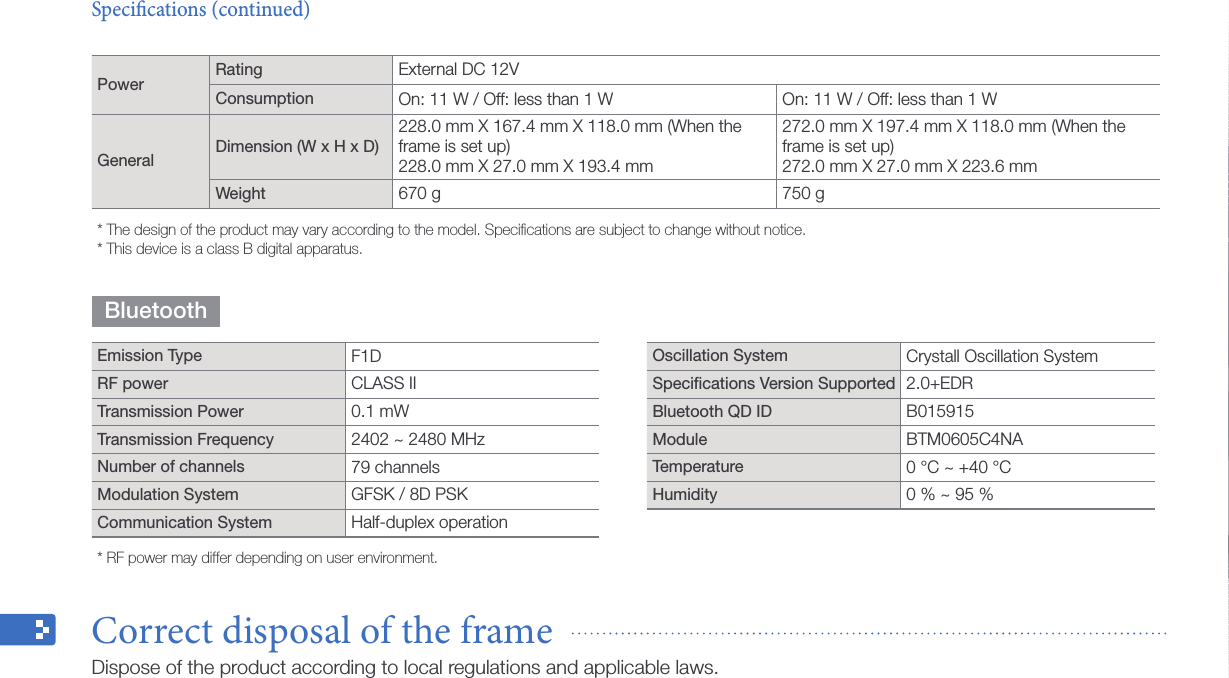

Appendix48Specications (continued) Power Rating External DC 12VConsumption On: 11 W / Off: less than 1 W On: 11 W / Off: less than 1 WGeneral Dimension (W x H x D)228.0 mm X 167.4 mm X 118.0 mm (When the frame is set up)228.0 mm X 27.0 mm X 193.4 mm272.0 mm X 197.4 mm X 118.0 mm (When the frame is set up)272.0 mm X 27.0 mm X 223.6 mmWeight 670 g 750 g* The design of the product may vary according to the model. Specifications are subject to change without notice.* This device is a class B digital apparatus. Bluetooth Emission Type F1D Oscillation System Crystall Oscillation SystemRF power CLASS II Specifications Version Supported 2.0+EDR Transmission Power 0.1 mW Bluetooth QD ID B015915Transmission Frequency 2402 ~ 2480 MHz Module BTM0605C4NANumber of channels 79 channels Temperature 0 °C ~ +40 °CModulation System GFSK / 8D PSK Humidity 0 % ~ 95 %Communication System Half-duplex operation* RF power may differ depending on user environment.Correct disposal of the frame Dispose of the product according to local regulations and applicable laws.

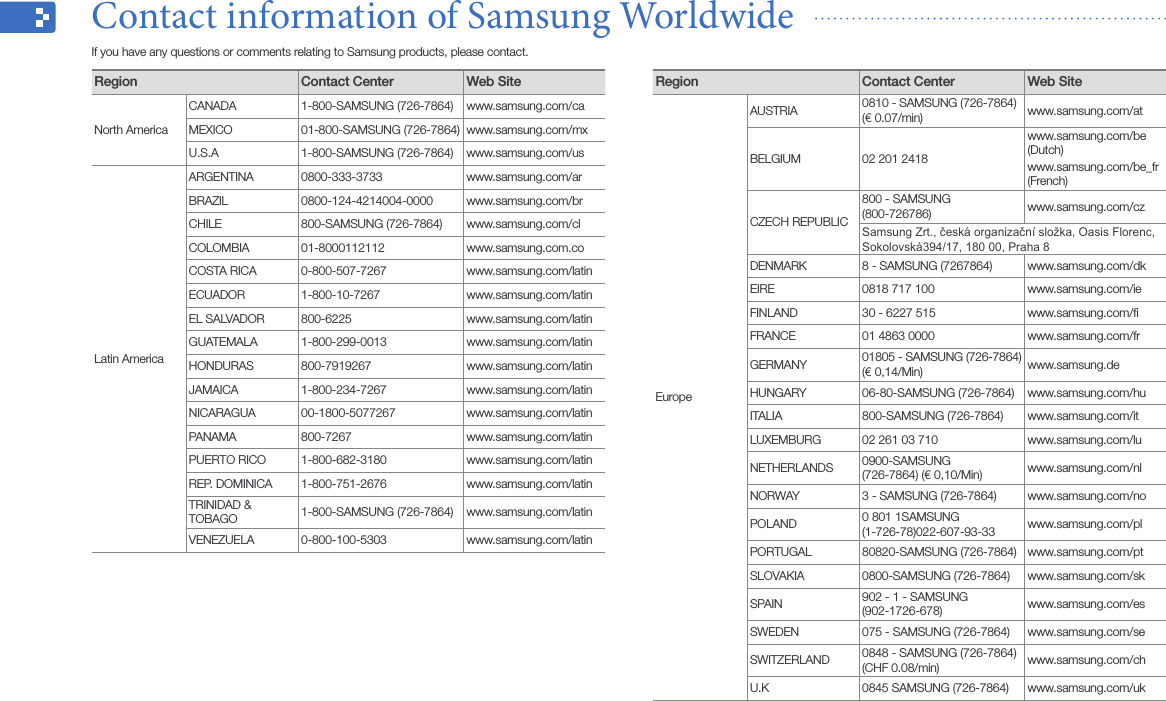

Appendix49Region Contact Center Web SiteEuropeAUSTRIA 0810 - SAMSUNG (726-7864) (€ 0.07/min) www.samsung.com/atBELGIUM 02 201 2418www.samsung.com/be (Dutch)www.samsung.com/be_fr (French)CZECH REPUBLIC800 - SAMSUNG (800-726786) www.samsung.com/czSamsungZrt.,českáorganizačnísložka,OasisFlorenc,Sokolovská394/17,18000,Praha8DENMARK 8 - SAMSUNG (7267864) www.samsung.com/dkEIRE 0818 717 100 www.samsung.com/ieFINLAND 30 - 6227 515 www.samsung.com/fiFRANCE 01 4863 0000 www.samsung.com/frGERMANY 01805 - SAMSUNG (726-7864) (€ 0,14/Min) www.samsung.deHUNGARY 06-80-SAMSUNG (726-7864) www.samsung.com/huITALIA 800-SAMSUNG (726-7864) www.samsung.com/itLUXEMBURG 02 261 03 710 www.samsung.com/luNETHERLANDS 0900-SAMSUNG (726-7864) (€ 0,10/Min) www.samsung.com/nlNORWAY 3 - SAMSUNG (726-7864) www.samsung.com/noPOLAND 0 801 1SAMSUNG (1-726-78)022-607-93-33 www.samsung.com/plPORTUGAL 80820-SAMSUNG (726-7864) www.samsung.com/ptSLOVAKIA 0800-SAMSUNG (726-7864) www.samsung.com/sk SPAIN 902 - 1 - SAMSUNG (902-1726-678) www.samsung.com/esSWEDEN 075 - SAMSUNG (726-7864) www.samsung.com/seSWITZERLAND 0848 - SAMSUNG (726-7864) (CHF 0.08/min) www.samsung.com/chU.K 0845 SAMSUNG (726-7864) www.samsung.com/ukRegion Contact Center Web SiteNorth AmericaCANADA 1-800-SAMSUNG (726-7864) www.samsung.com/caMEXICO 01-800-SAMSUNG (726-7864) www.samsung.com/mxU.S.A 1-800-SAMSUNG (726-7864) www.samsung.com/usLatin AmericaARGENTINA 0800-333-3733 www.samsung.com/arBRAZIL 0800-124-4214004-0000 www.samsung.com/brCHILE 800-SAMSUNG (726-7864) www.samsung.com/clCOLOMBIA 01-8000112112 www.samsung.com.coCOSTA RICA 0-800-507-7267 www.samsung.com/latinECUADOR 1-800-10-7267 www.samsung.com/latinEL SALVADOR 800-6225 www.samsung.com/latinGUATEMALA 1-800-299-0013 www.samsung.com/latinHONDURAS 800-7919267 www.samsung.com/latinJAMAICA 1-800-234-7267 www.samsung.com/latinNICARAGUA 00-1800-5077267 www.samsung.com/latinPANAMA 800-7267 www.samsung.com/latinPUERTO RICO 1-800-682-3180 www.samsung.com/latinREP. DOMINICA 1-800-751-2676 www.samsung.com/latinTRINIDAD & TOBAGO 1-800-SAMSUNG (726-7864) www.samsung.com/latinVENEZUELA 0-800-100-5303 www.samsung.com/latinContact information of Samsung Worldwide If you have any questions or comments relating to Samsung products, please contact.

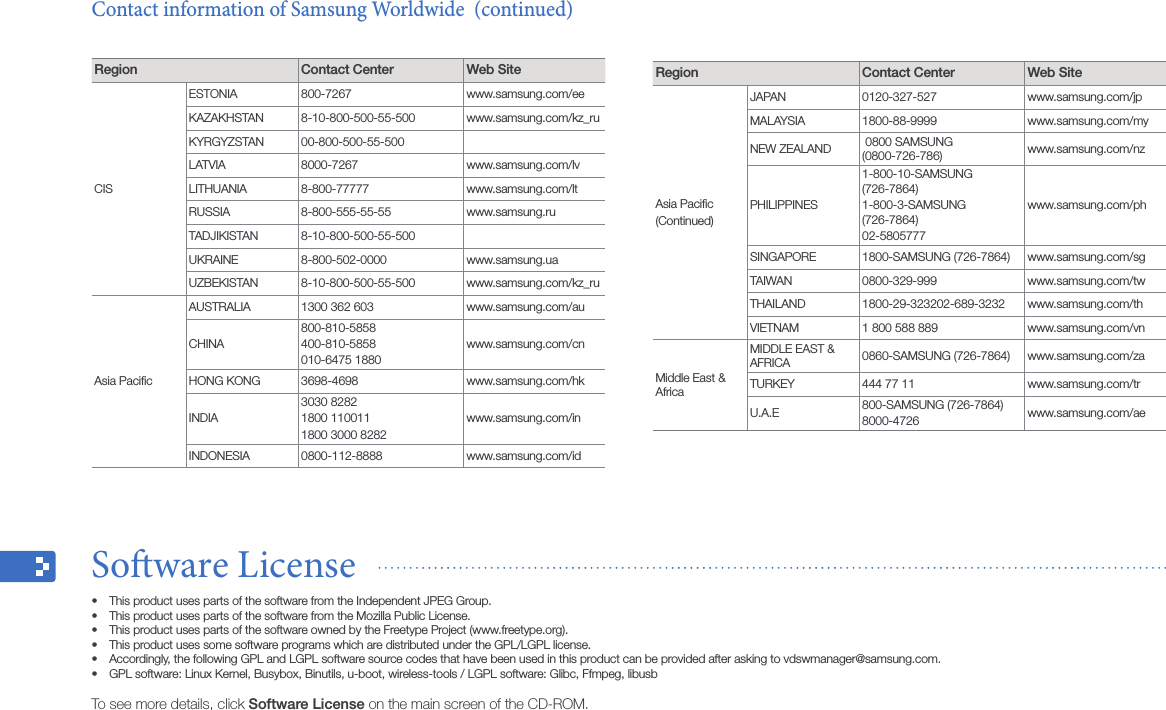

Appendix50Region Contact Center Web SiteAsia Pacific(Continued)JAPAN 0120-327-527 www.samsung.com/jpMALAYSIA 1800-88-9999 www.samsung.com/myNEW ZEALAND 0800 SAMSUNG (0800-726-786) www.samsung.com/nzPHILIPPINES1-800-10-SAMSUNG (726-7864)1-800-3-SAMSUNG (726-7864)02-5805777www.samsung.com/phSINGAPORE 1800-SAMSUNG (726-7864) www.samsung.com/sgTAIWAN 0800-329-999 www.samsung.com/twTHAILAND 1800-29-323202-689-3232 www.samsung.com/thVIETNAM 1 800 588 889 www.samsung.com/vnMiddle East & AfricaMIDDLE EAST & AFRICA 0860-SAMSUNG (726-7864) www.samsung.com/zaTURKEY 444 77 11 www.samsung.com/trU.A.E 800-SAMSUNG (726-7864)8000-4726 www.samsung.com/aeRegion Contact Center Web SiteCISESTONIA 800-7267 www.samsung.com/eeKAZAKHSTAN 8-10-800-500-55-500 www.samsung.com/kz_ruKYRGYZSTAN 00-800-500-55-500LATVIA 8000-7267 www.samsung.com/lvLITHUANIA 8-800-77777 www.samsung.com/ltRUSSIA 8-800-555-55-55 www.samsung.ruTADJIKISTAN 8-10-800-500-55-500UKRAINE 8-800-502-0000 www.samsung.uaUZBEKISTAN 8-10-800-500-55-500 www.samsung.com/kz_ru Asia PacificAUSTRALIA 1300 362 603 www.samsung.com/auCHINA800-810-5858400-810-5858010-6475 1880www.samsung.com/cnHONG KONG 3698-4698 www.samsung.com/hkINDIA3030 82821800 1100111800 3000 8282www.samsung.com/inINDONESIA 0800-112-8888 www.samsung.com/idContact information of Samsung Worldwide (continued)Soware License This product uses parts of the software from the Independent JPEG Group.• This product uses parts of the software from the Mozilla Public License.• This product uses parts of the software owned by the Freetype Project (www.freetype.org).• This product uses some software programs which are distributed under the GPL/LGPL license.• Accordingly, the following GPL and LGPL software source codes that have been used in this product can be provided after asking to vdswmanager@samsung.com.• GPL software: Linux Kernel, Busybox, Binutils, u-boot, wireless-tools / LGPL software: Glibc, Ffmpeg, libusb• To see more details, click Software License on the main screen of the CD-ROM.

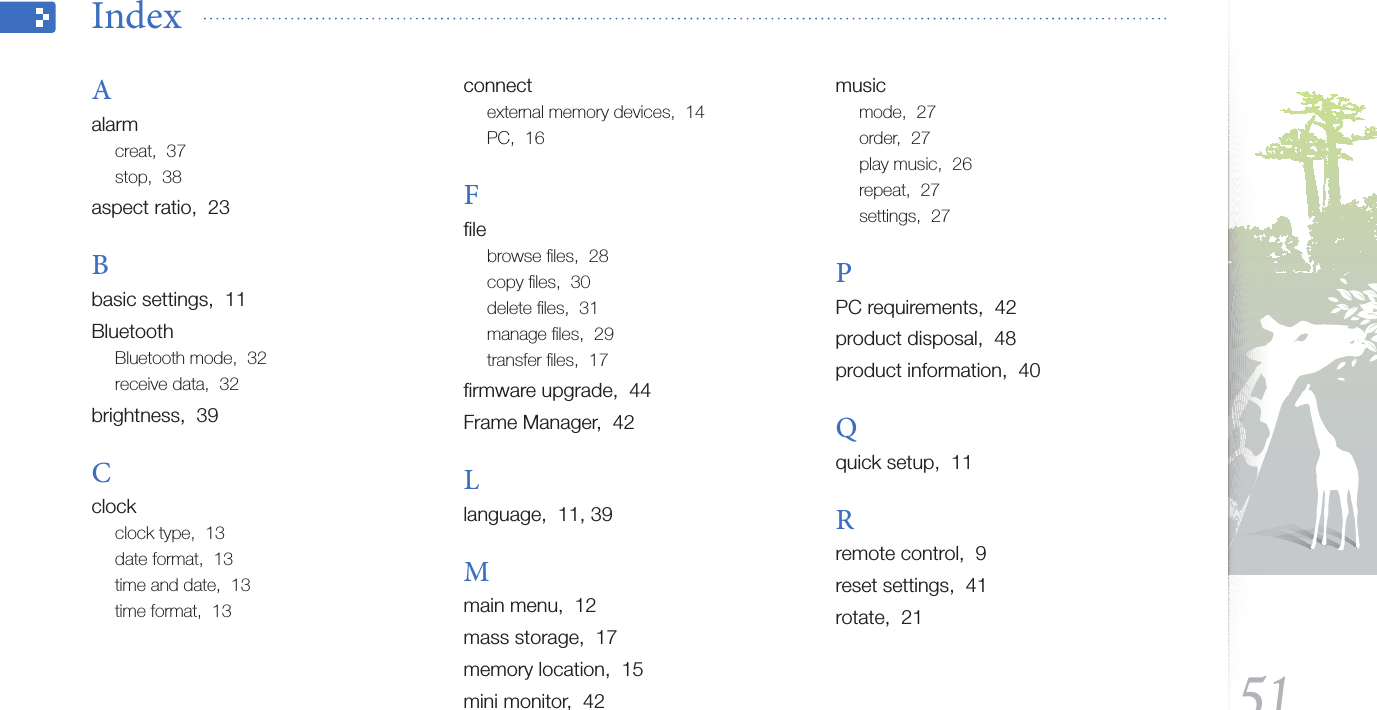

Appendix51Index Aalarmcreat, 37stop, 38aspect ratio, 23Bbasic settings, 11BluetoothBluetooth mode, 32receive data, 32brightness, 39Cclockclock type, 13date format, 13time and date, 13time format, 13connectexternal memory devices, 14PC, 16Ffilebrowse files, 28copy files, 30delete files, 31manage files, 29transfer files, 17firmware upgrade, 44Frame Manager, 42Llanguage, 11, 39Mmain menu, 12mass storage, 17memory location, 15mini monitor, 42musicmode, 27order, 27play music, 26repeat, 27settings, 27PPC requirements, 42product disposal, 48product information, 40Qquick setup, 11Rremote control, 9reset settings, 41rotate, 21

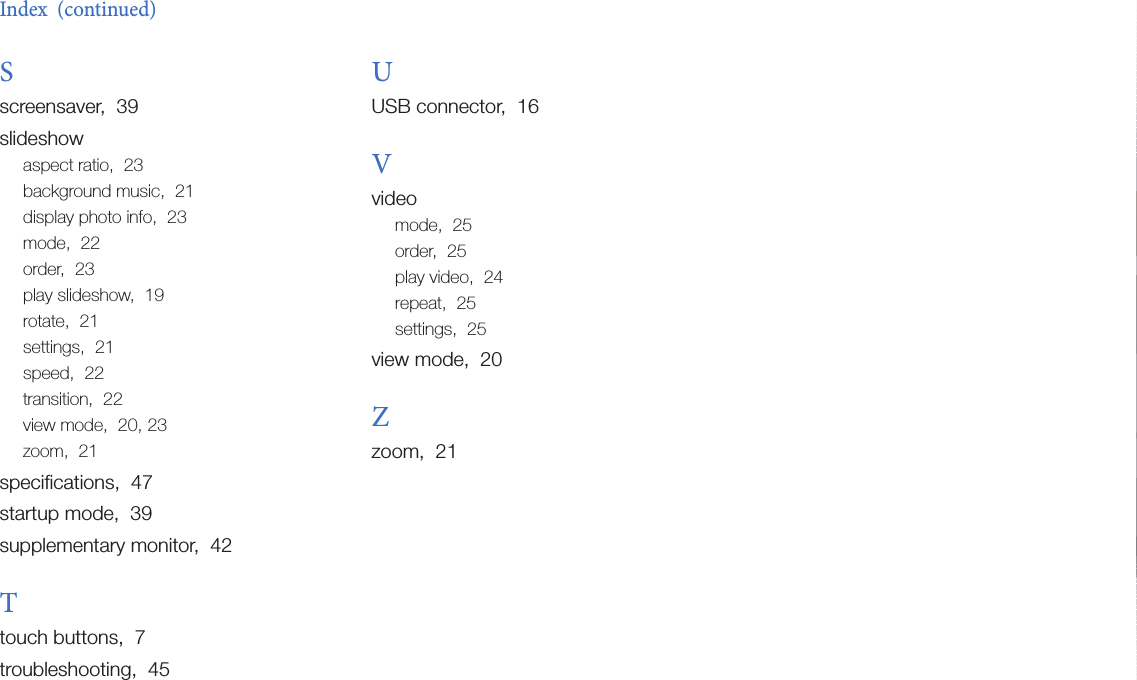

Appendix52UUSB connector, 16Vvideomode, 25order, 25play video, 24repeat, 25settings, 25view mode, 20Zzoom, 21Index (continued)Sscreensaver, 39slideshowaspect ratio, 23background music, 21display photo info, 23mode, 22order, 23play slideshow, 19rotate, 21settings, 21speed, 22transition, 22view mode, 20, 23zoom, 21specifications, 47startup mode, 39supplementary monitor, 42Ttouch buttons, 7troubleshooting, 45

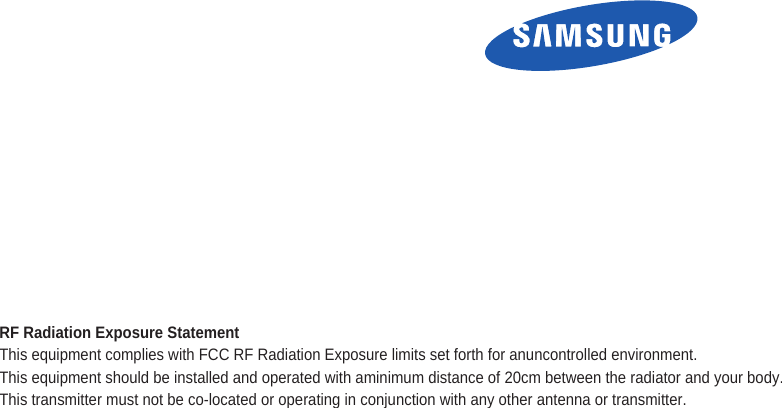

RF Radiation Exposure StatementThis equipment complies with FCC RF Radiation Exposure limits set forth for anuncontrolled environment. This equipment should be installed and operated with aminimum distance of 20cm between the radiator and your body. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.
