Samsung Electronics Co ROH20S RF Control handle User Manual 1

Samsung Electronics Co Ltd RF Control handle 1

User Manual 1

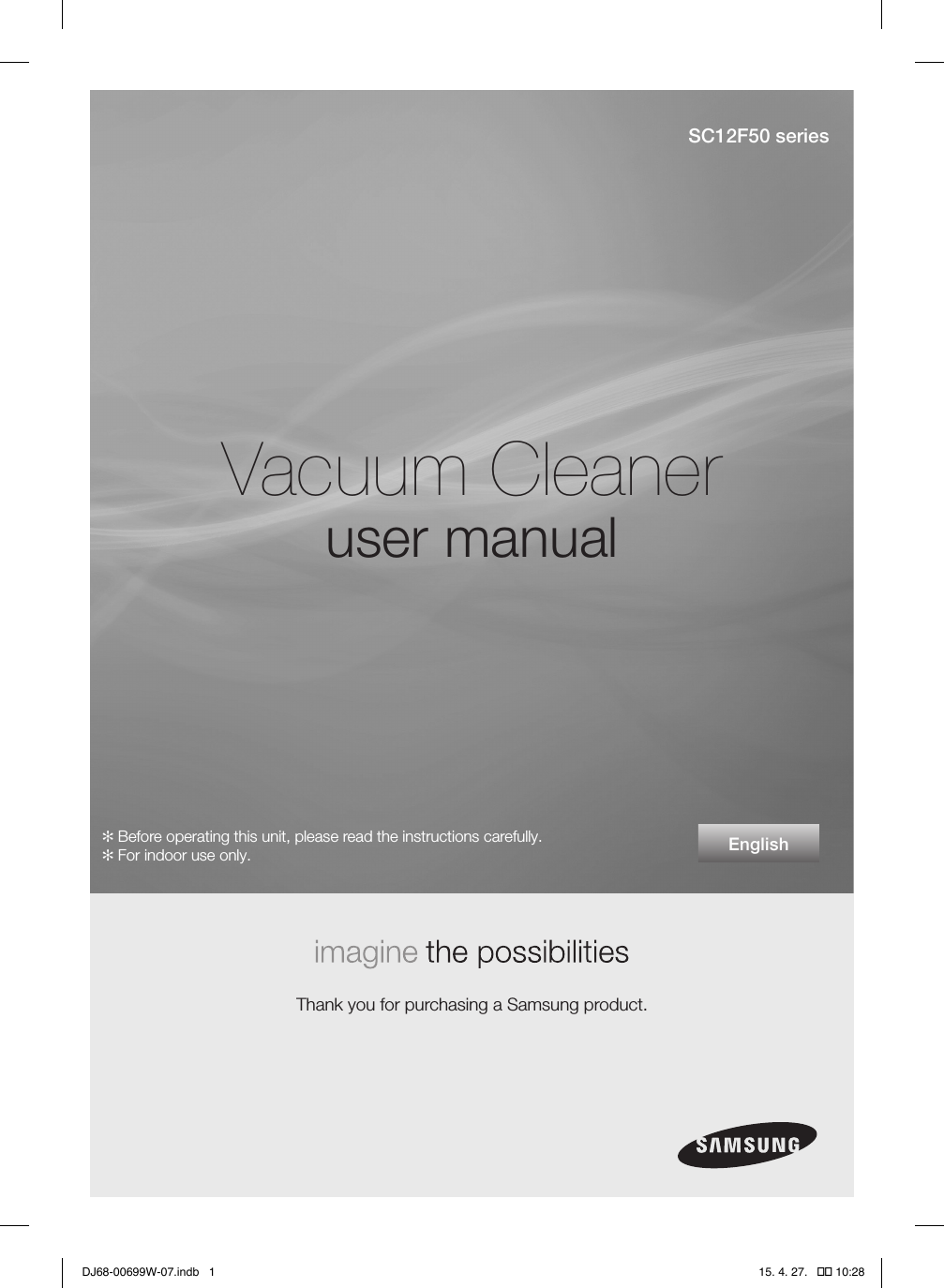

EnglishVacuum Cleaneruser manual Thank you for purchasing a Samsung product.SC12F50 series✻ Before operating this unit, please read the instructions carefully.✻ For indoor use only.DJ68-00699W-07.indb 1 15. 4. 27. �� 10:28

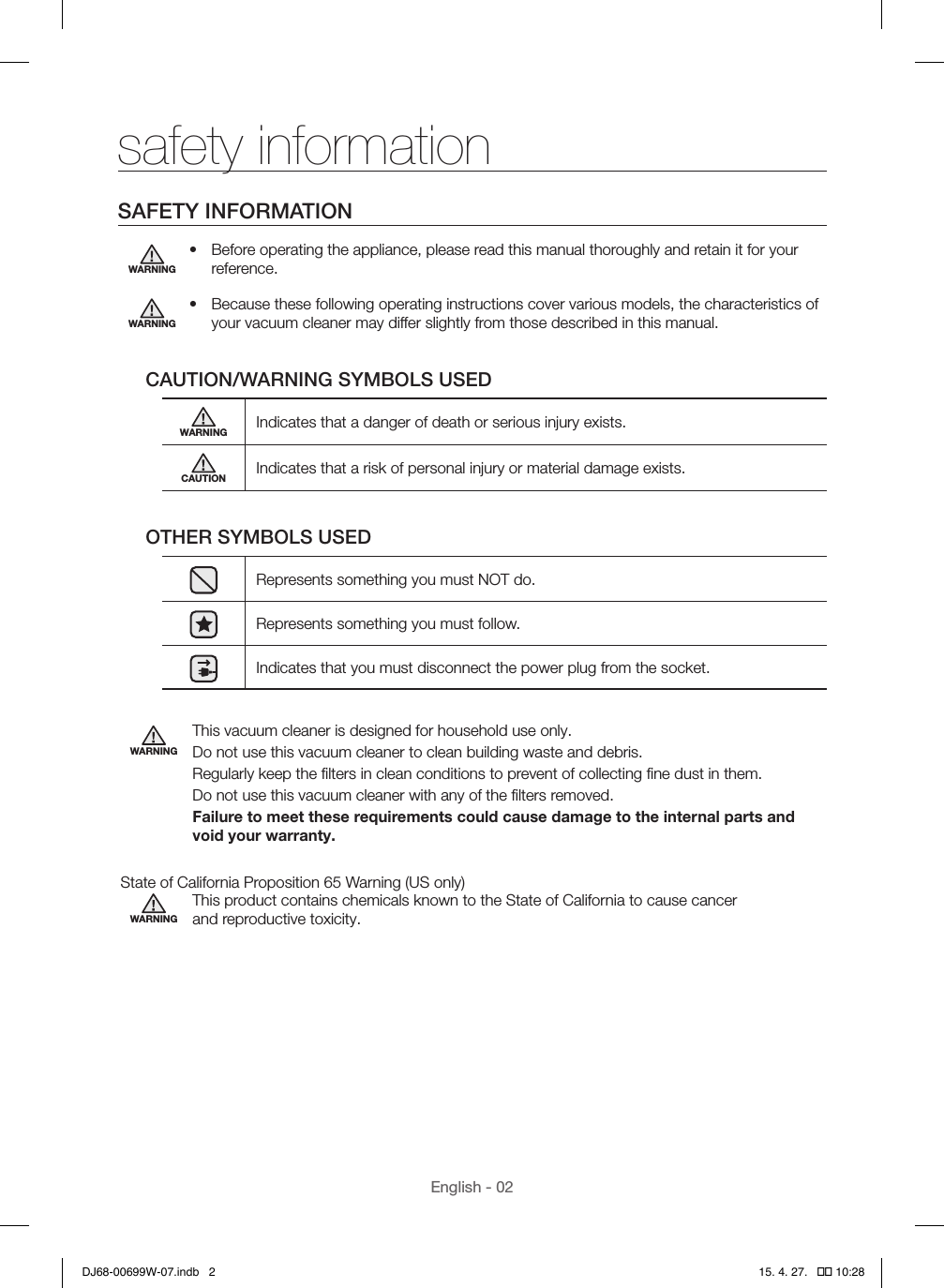

English - 02safety informationSAFETY INFORMATIONWARNING• Before operating the appliance, please read this manual thoroughly and retain it for your reference.WARNING• Because these following operating instructions cover various models, the characteristics of your vacuum cleaner may differ slightly from those described in this manual.CAUTION/WARNING SYMBOLS USEDWARNING Indicates that a danger of death or serious injury exists.CAUTION Indicates that a risk of personal injury or material damage exists.OTHER SYMBOLS USEDRepresents something you must NOT do.Represents something you must follow.Indicates that you must disconnect the power plug from the socket.WARNINGThis vacuum cleaner is designed for household use only.Do not use this vacuum cleaner to clean building waste and debris.Regularly keep the filters in clean conditions to prevent of collecting fine dust in them.Do not use this vacuum cleaner with any of the filters removed.Failure to meet these requirements could cause damage to the internal parts and void your warranty. State of California Proposition 65 Warning (US only)WARNINGThis product contains chemicals known to the State of California to cause cancer and reproductive toxicity.DJ68-00699W-07.indb 2 15. 4. 27. �� 10:28

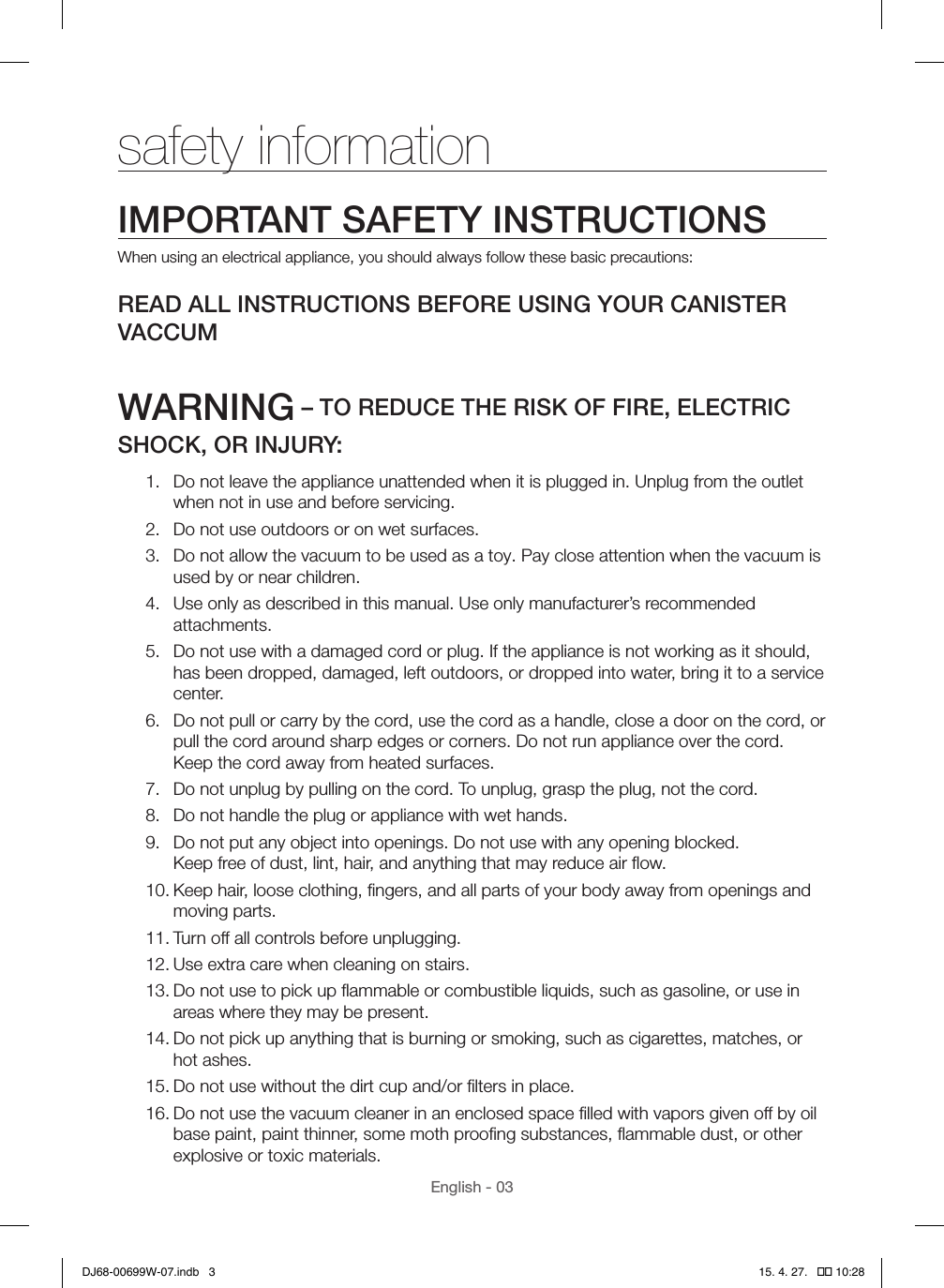

English - 03safety informationIMPORTANT SAFETY INSTRUCTIONSWhen using an electrical appliance, you should always follow these basic precautions:READ ALL INSTRUCTIONS BEFORE USING YOUR CANISTER VACCUMWARNING – TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK, OR INJURY:1. Do not leave the appliance unattended when it is plugged in. Unplug from the outlet when not in use and before servicing.2. Do not use outdoors or on wet surfaces.3. Do not allow the vacuum to be used as a toy. Pay close attention when the vacuum is used by or near children.4. Use only as described in this manual. Use only manufacturer’s recommended attachments.5. Do not use with a damaged cord or plug. If the appliance is not working as it should, has been dropped, damaged, left outdoors, or dropped into water, bring it to a service center.6. Do not pull or carry by the cord, use the cord as a handle, close a door on the cord, or pull the cord around sharp edges or corners. Do not run appliance over the cord. Keep the cord away from heated surfaces.7. Do not unplug by pulling on the cord. To unplug, grasp the plug, not the cord.8. Do not handle the plug or appliance with wet hands.9. Do not put any object into openings. Do not use with any opening blocked. Keep free of dust, lint, hair, and anything that may reduce air flow.10. Keep hair, loose clothing, fingers, and all parts of your body away from openings and moving parts.11. Turn off all controls before unplugging.12. Use extra care when cleaning on stairs.13. Do not use to pick up flammable or combustible liquids, such as gasoline, or use in areas where they may be present.14. Do not pick up anything that is burning or smoking, such as cigarettes, matches, or hot ashes.15. Do not use without the dirt cup and/or filters in place.16. Do not use the vacuum cleaner in an enclosed space filled with vapors given off by oil base paint, paint thinner, some moth proofing substances, flammable dust, or other explosive or toxic materials.DJ68-00699W-07.indb 3 15. 4. 27. �� 10:28

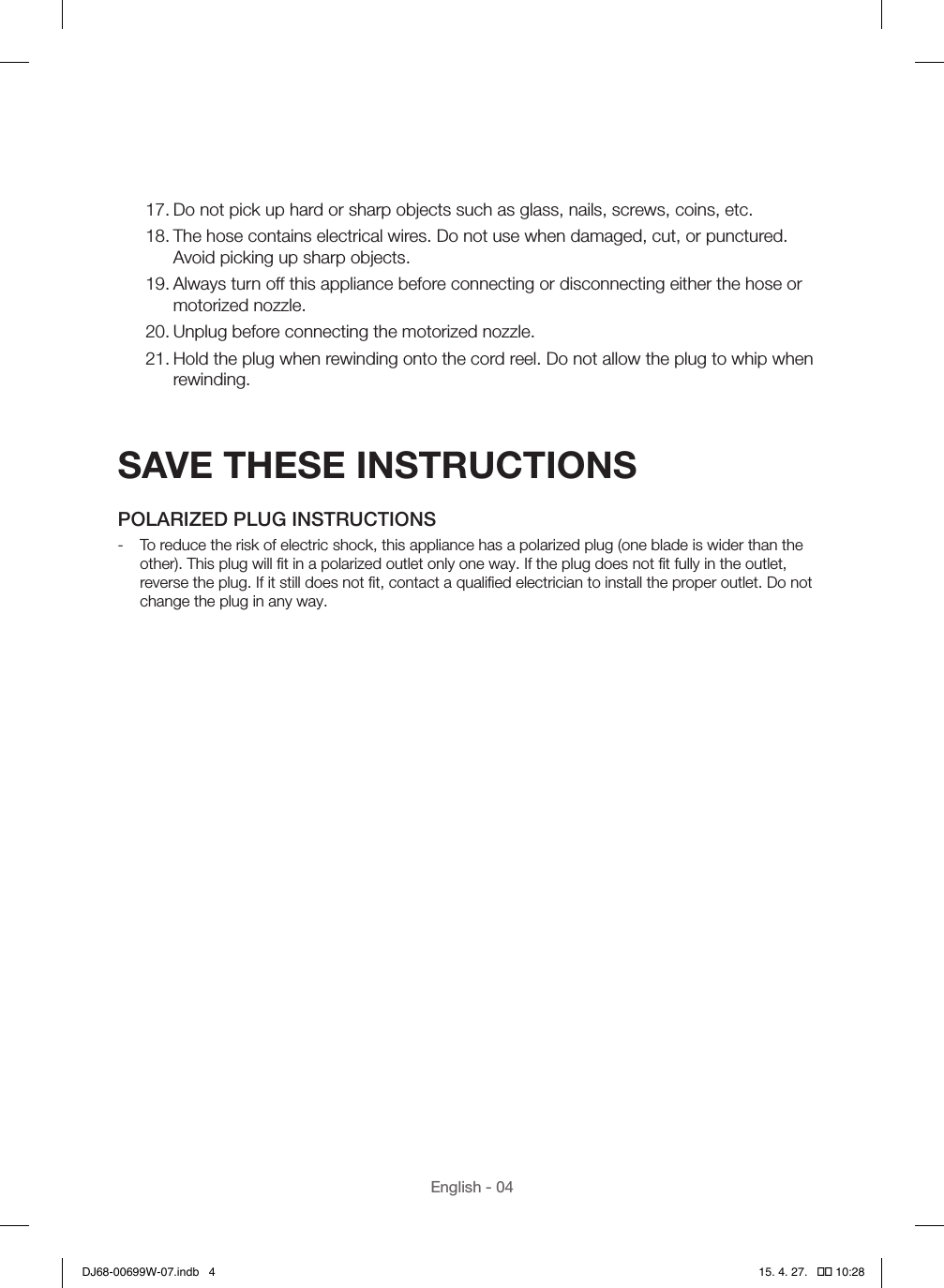

English - 0417. Do not pick up hard or sharp objects such as glass, nails, screws, coins, etc.18. The hose contains electrical wires. Do not use when damaged, cut, or punctured. Avoid picking up sharp objects.19. Always turn off this appliance before connecting or disconnecting either the hose or motorized nozzle.20. Unplug before connecting the motorized nozzle.21. Hold the plug when rewinding onto the cord reel. Do not allow the plug to whip when rewinding.SAVE THESE INSTRUCTIONSPOLARIZED PLUG INSTRUCTIONS - To reduce the risk of electric shock, this appliance has a polarized plug (one blade is wider than the other). This plug will fit in a polarized outlet only one way. If the plug does not fit fully in the outlet, reverse the plug. If it still does not fit, contact a qualified electrician to install the proper outlet. Do not change the plug in any way. DJ68-00699W-07.indb 4 15. 4. 27. �� 10:28
English - 05REGULATORY NOTICE1. FCC NoticeCAUTION FCC CAUTION:Any changes or modifi cations not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.This device complies with Part 15 of FCC Rules. Operation is Subject to following two conditions:1. This device may not cause harmful interference, and2. This device must accept any interference received including interference that cause undesired operation.For product available in the USA/Canada market, only channel 1~11 can be operated. Selection of other channels is not possible.FCC STATEMENT:This equipment has been tested and found to comply within the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:• Reorient or relocate the receiving antenna• Increase the separation between the equipment and receiver• Connect the equipment into an outlet on a diff erent circuit from that to which the receiver is connected• Consult the dealer or an experienced radio/TV technician for help.FCC RADIATION EXPOSURE STATEMENT:This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with a minimum distance of 20cm between the radiator and your body. This device and its antenna(s) must not be co-located or operation in conjunction with any other antenna or transmitter.DJ68-00699W-07.indb 5 15. 4. 27. �� 10:28

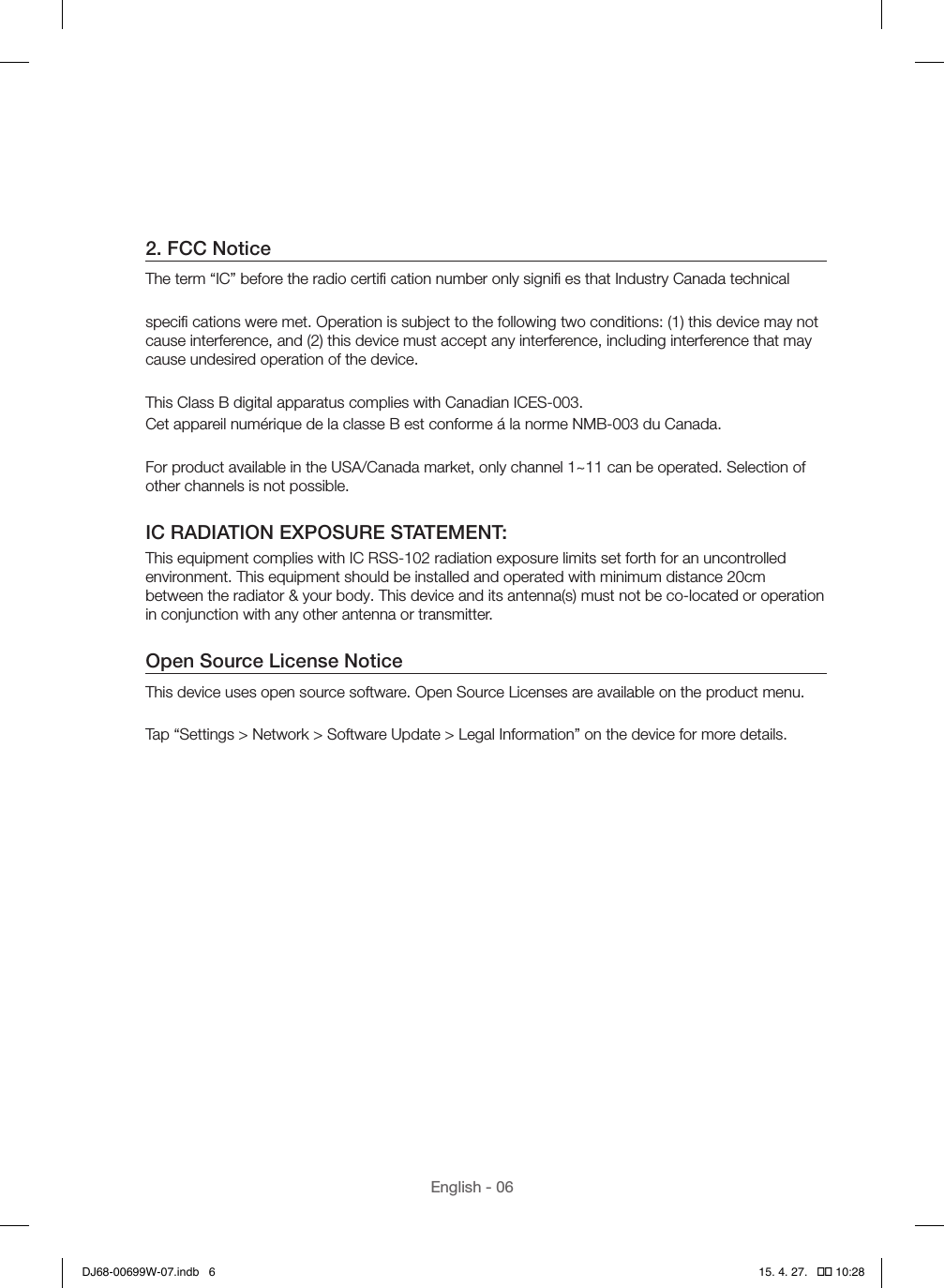

English - 062. FCC NoticeThe term “IC” before the radio certifi cation number only signifi es that Industry Canada technicalspecifi cations were met. Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device.This Class B digital apparatus complies with Canadian ICES-003.Cet appareil numérique de la classe B est conforme á la norme NMB-003 du Canada.For product available in the USA/Canada market, only channel 1~11 can be operated. Selection of other channels is not possible.IC RADIATION EXPOSURE STATEMENT:This equipment complies with IC RSS-102 radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body. This device and its antenna(s) must not be co-located or operation in conjunction with any other antenna or transmitter.Open Source License NoticeThis device uses open source software. Open Source Licenses are available on the product menu.Tap “Settings > Network > Software Update > Legal Information” on the device for more details.DJ68-00699W-07.indb 6 15. 4. 27. �� 10:28

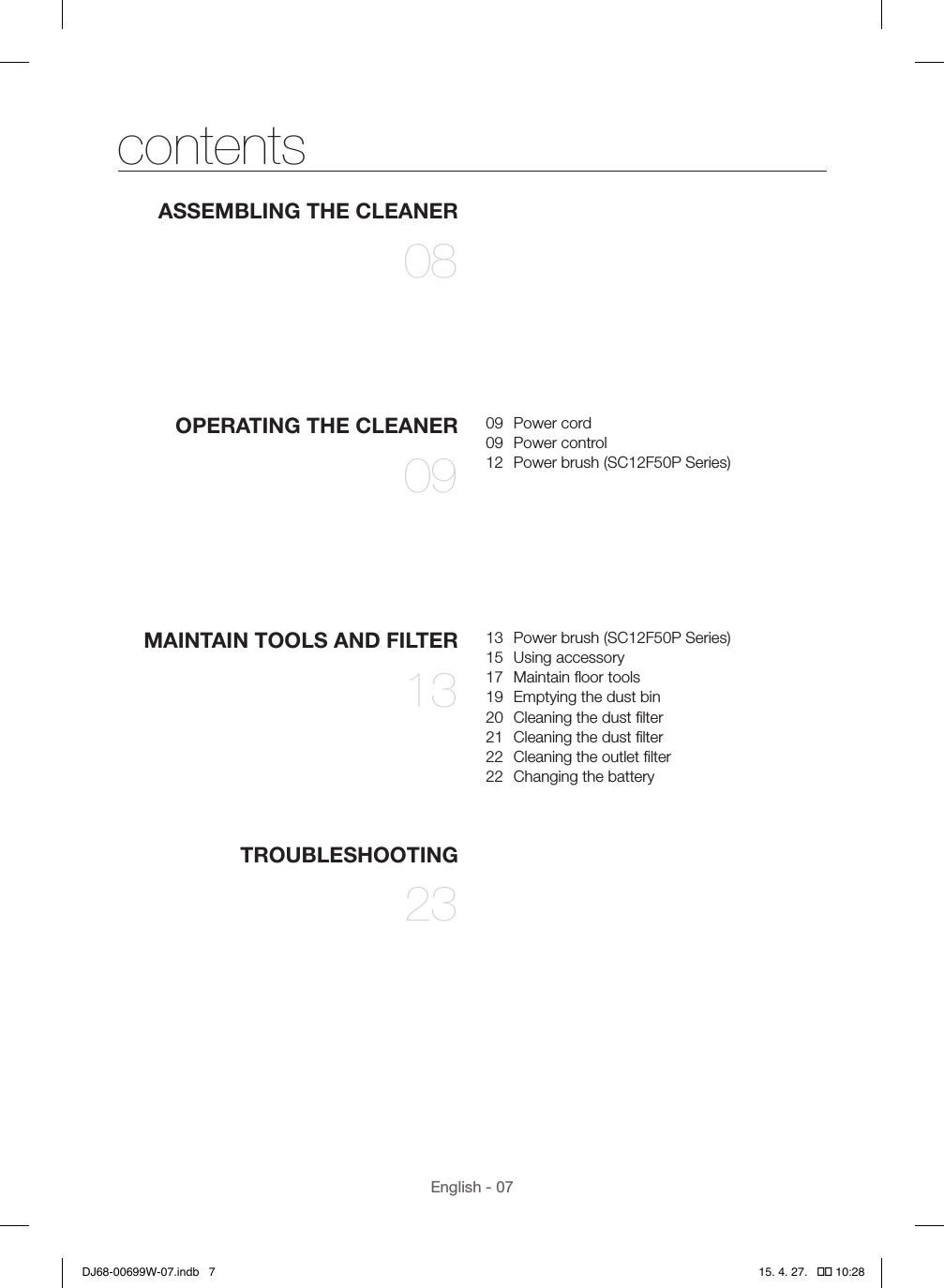

English - 07contentsASSEMBLING THE CLEANER 08OPERATING THE CLEANER 0909 Power cord09 Power control12 Power brush (SC12F50P Series)MAINTAIN TOOLS AND FILTER 1313 Power brush (SC12F50P Series)15 Using accessory17 Maintain floor tools19 Emptying the dust bin20 Cleaning the dust filter21 Cleaning the dust filter22 Cleaning the outlet filter22 Changing the batteryTROUBLESHOOTING 23DJ68-00699W-07.indb 7 15. 4. 27. �� 10:28

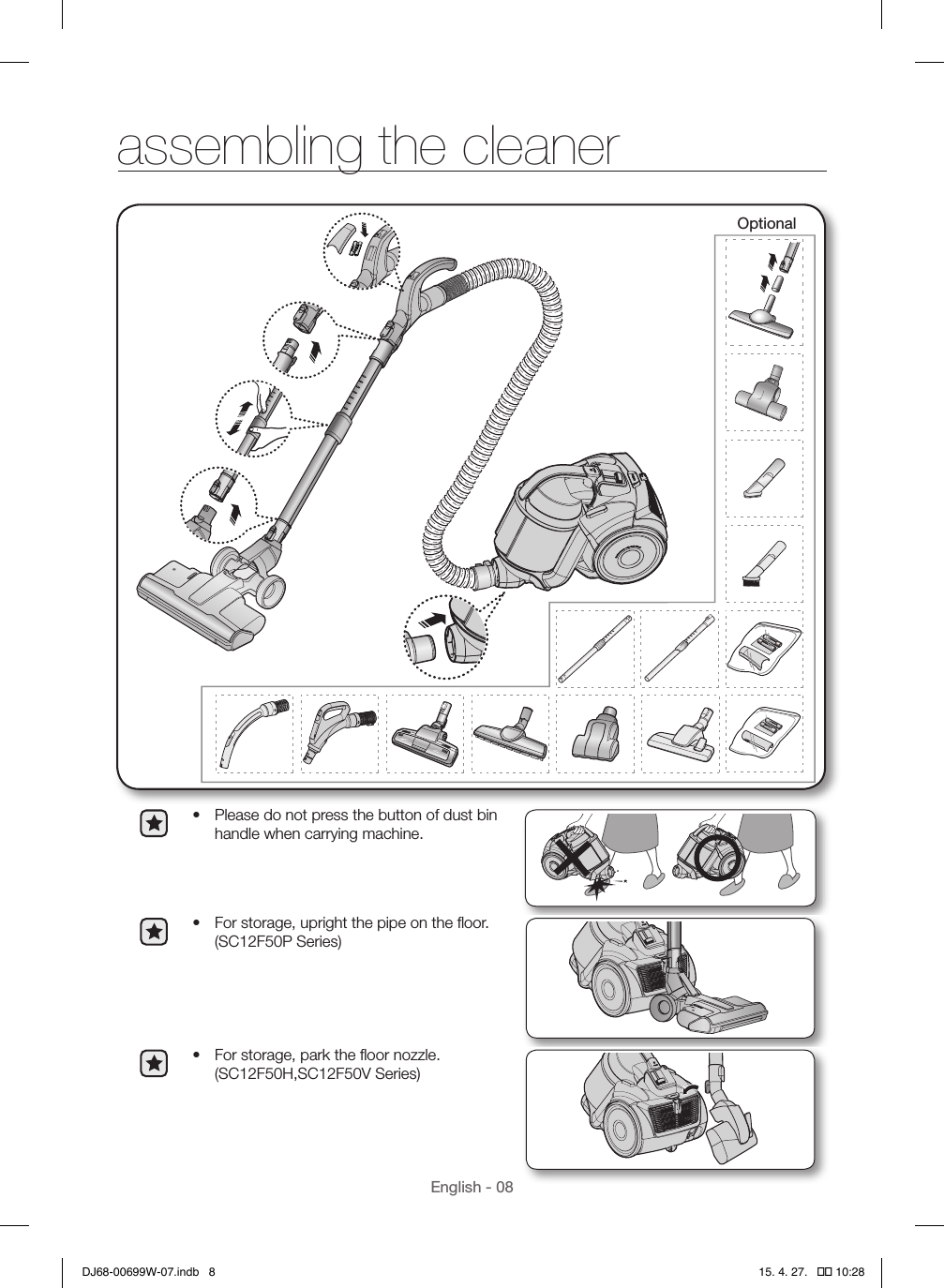

English - 08Optional• Please do not press the button of dust bin handle when carrying machine.• For storage, upright the pipe on the floor. (SC12F50P Series) • For storage, park the floor nozzle. (SC12F50H,SC12F50V Series) assembling the cleanerDJ68-00699W-07.indb 8 15. 4. 27. �� 10:28

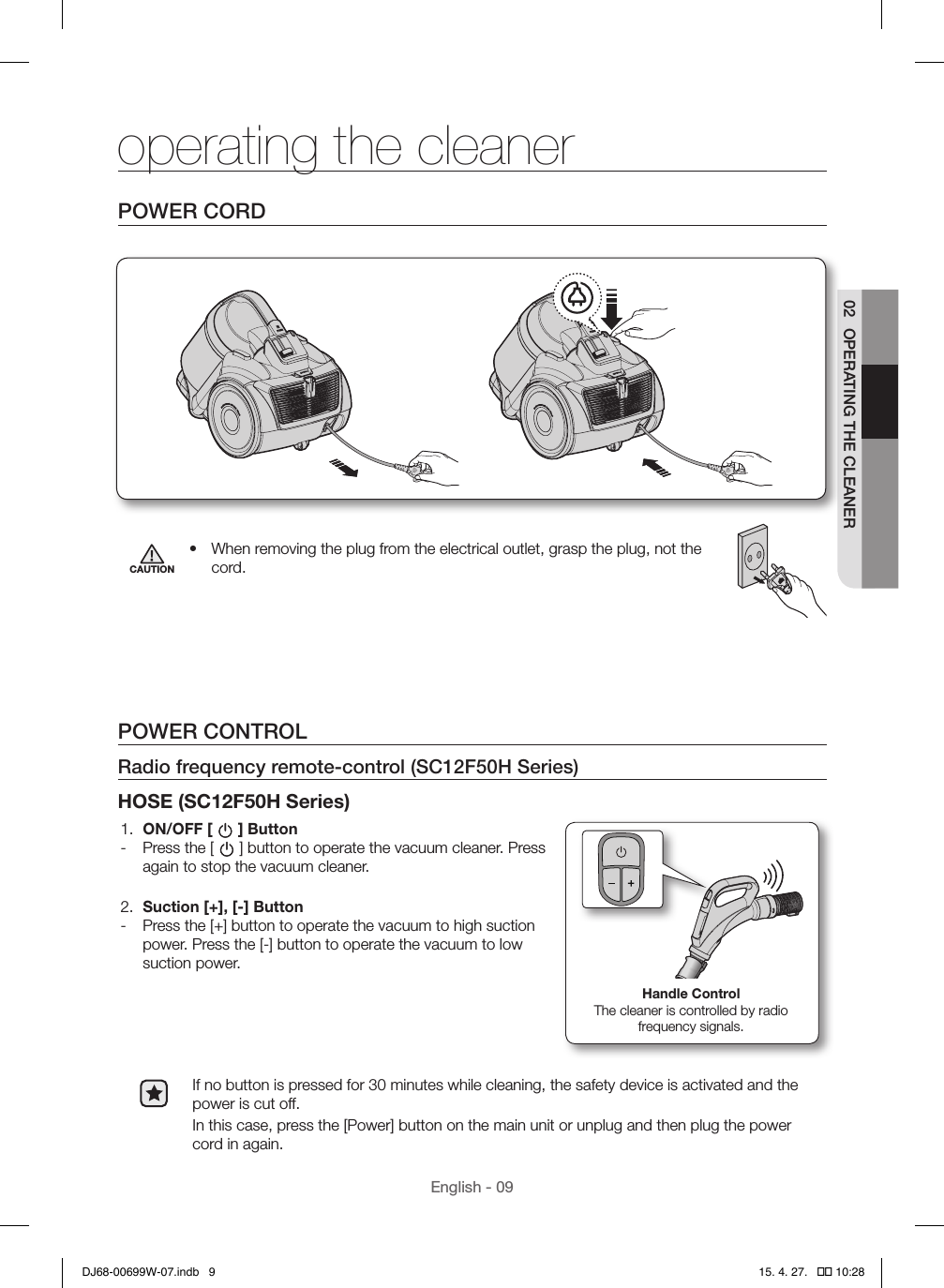

English - 0902 OPERATING THE CLEANERPOWER CORDCAUTION• When removing the plug from the electrical outlet, grasp the plug, not the cord.POWER CONTROLRadio frequency remote-control (SC12F50H Series)HOSE (SC12F50H Series)1. ON/OFF [ ] Button - Press the [ ] button to operate the vacuum cleaner. Press again to stop the vacuum cleaner.2. Suction [+], [-] Button - Press the [+] button to operate the vacuum to high suction power. Press the [-] button to operate the vacuum to low suction power.Handle ControlThe cleaner is controlled by radio frequency signals.If no button is pressed for 30 minutes while cleaning, the safety device is activated and the power is cut off.In this case, press the [Power] button on the main unit or unplug and then plug the power cord in again.operating the cleanerDJ68-00699W-07.indb 9 15. 4. 27. �� 10:28

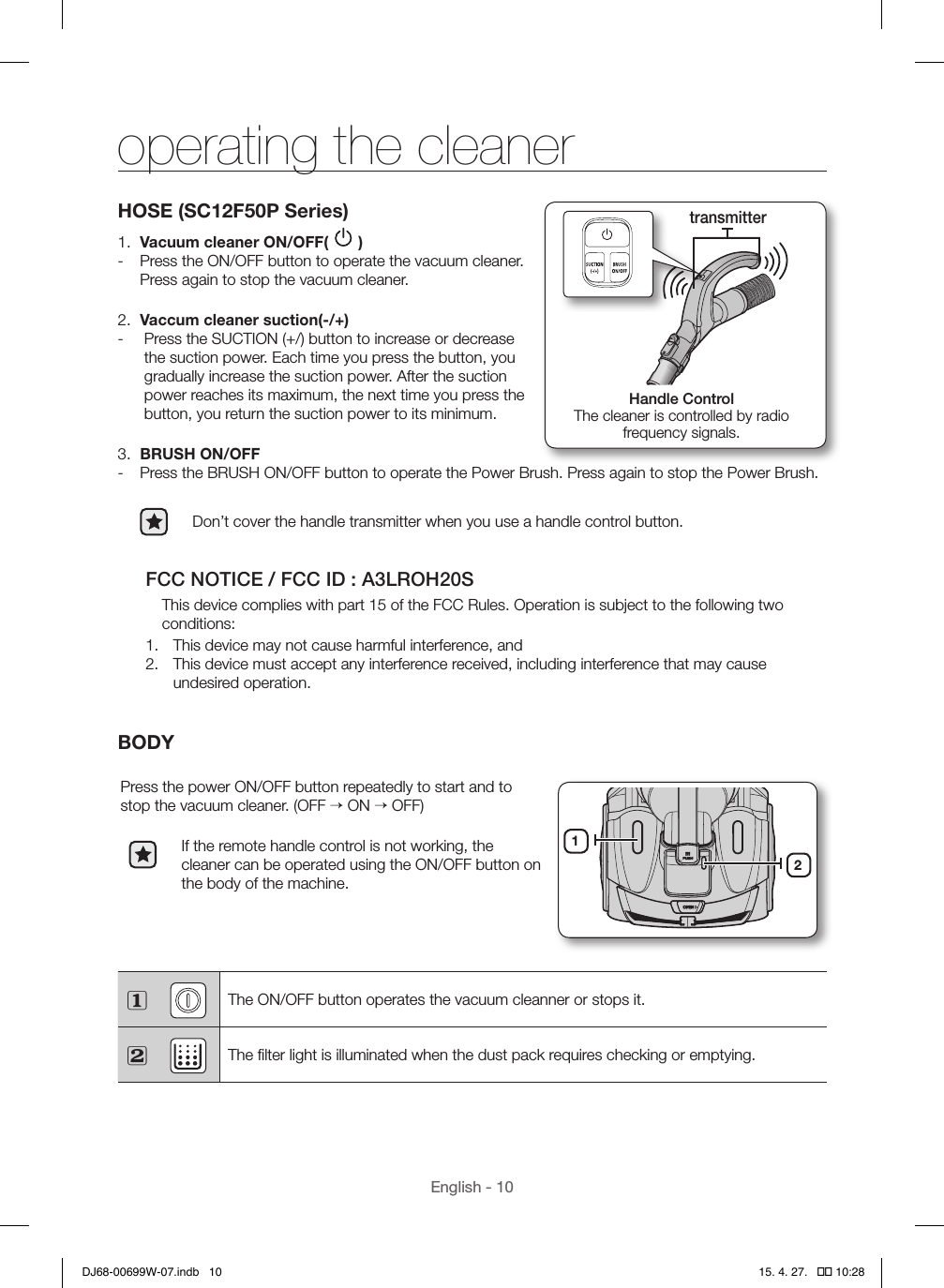

English - 10HOSE (SC12F50P Series)1. Vacuum cleaner ON/OFF( ) - Press the ON/OFF button to operate the vacuum cleaner. Press again to stop the vacuum cleaner.2. Vaccum cleaner suction(-/+) - Press the SUCTION (+/) button to increase or decrease the suction power. Each time you press the button, you gradually increase the suction power. After the suction power reaches its maximum, the next time you press the button, you return the suction power to its minimum.3. BRUSH ON/OFF - Press the BRUSH ON/OFF button to operate the Power Brush. Press again to stop the Power Brush.Don’t cover the handle transmitter when you use a handle control button.FCC NOTICE / FCC ID : A3LROH20SThis device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:1. This device may not cause harmful interference, and2. This device must accept any interference received, including interference that may cause undesired operation.BODYPress the power ON/OFF button repeatedly to start and to stop the vacuum cleaner. (OFF → ON → OFF)If the remote handle control is not working, the cleaner can be operated using the ON/OFF button on the body of the machine.12 The ON/OFF button operates the vacuum cleanner or stops it. The filter light is illuminated when the dust pack requires checking or emptying.Handle ControlThe cleaner is controlled by radio frequency signals.transmitteroperating the cleanerDJ68-00699W-07.indb 10 15. 4. 27. �� 10:28
