Samsung Electronics Co ROH20S RF CONTROL HANDLE User Manual

Samsung Electronics Co Ltd RF CONTROL HANDLE Users Manual

Users Manual

imagine the possibilitiesThank you for purchasing a Samsung product.To receive a more complete service, please register your product atwww.samsung.com/registerVacuum Cleaneruser manual✻ Before operating this unit, please read the instructions carefully.✻ For indoor use only.EnglishSC88P* seriesThis manual is made with 100% recycled paper.RAMBO (미주향).indd 1 2011.10.17 2:10:11 PM
2_ safety informationsafety informationSAFETY INFORMATION• Before operating the appliance, please read this manual thoroughly and retain it for your reference.• Because these following operating instructions cover various models, the characteristics of your vacuum cleaner may differ slightly from those described in this manual.CAUTION/WARNING SYMBOLS USEDWARNING Indicates that a danger of death or serious injury exists.CAUTION Indicates that a risk of personal injury or material damage exists.OTHER SYMBOLS USEDRepresents something you must NOT do.Represents something you must follow.Indicates that you must disconnect the power plug from the socket.This vacuum cleaner is designed for domestic household use only. Do not use this vacuum cleaner to clear building waste or debris. Do not use this vacuum cleaner with any of the filters removed as this could cause damage to the internal components and void your warranty. SAVE THESE INSTRUCTIONSThis vacuum cleaner is intended for household use only.POLARIZATION INSTRUCTIONS- To reduce the risk of electric shock, this appliance has a polarized plug (one blade is wider than the other). This plug will fit in a polarized outlet only one way. If the plug does not fit fully in the outlet, reverse the plug. If it still does not fit, contact a qualified electrician to install the proper outlet. Do not change the plug in any way.WARNINGWARNINGWARNINGRAMBO (미주향).indd 2 2011.10.17 2:10:11 PM
safety information _3IMPORTANT SAFETY INSTRUCTIONS When using an electrical appliance, basic precautions should always be followed, including the following:READ ALL INSTRUCTIONS BEFORE USING YOUR CANISTER VACCUMWARNING – To reduce the risk of fire, electric shock, or injury:1. Do not leave appliance when plugged in. Unplug from outlet when not in use and before servicing.2. Do not use outdoors or on wet surfaces.3. Do not allow to be used as a toy. Close attention is necessary when used by or near children.4. Use only as described in this manual. Use only manufacturer’s recommended attachments.5. Do not use with damaged cord or plug. If appliance is not working as it should, has been dropped, damaged, left outdoors, or dropped into water, return it to a service center.6. Do not pull or carry by cord, use cord as a handle, close a door on cord, or pull cord around sharp edges or corners. Do not run appliance over cord. Keep cord away from heated surfaces.7. Do not unplug by pulling on cord. To unplug, grasp the plug, not the cord.8. Do not handle plug or appliance with wet hands.9. Do not put any object into openings. Do not use with any opening blocked; keep free of dust, lint, hair, and anything that may reduce air flow.10. Keep hair, loose clothing, fingers, and all parts of body away from openings and moving parts.11. Turn off all controls before unplugging.12. Use extra care when cleaning on stairs.13. Do not use to pick up flammable or combustible liquids, such as gasoline, or use in are as where they may be present.14. Do not pick up anything that is burning or smoking, such as cigarettes, matches, or hot ashes.15. Do not use without dirt cup and/or filters in place.16. The hose contains electrical wires. Do not use when damaged, cut, or punctured. Avoid picking up sharp objects. 17. Always turn off this appliance before connecting or disconnecting either hose or motorized nozzle.18. Unplug before connecting motorized nozzle. 19. Hold plug when rewinding onto cord reel. Do not allow plug to whip when rewinding.safety informationRAMBO (미주향).indd 3 2011.10.17 2:10:11 PM
4_ contentscontentsASSEMBLING THE CLEANER 0505 Assembling the CleanerOPERATING THE CLEANER 0606 Power cord 06 On/Off switch07 Power control08 Power BrushMAINTAIN TOOLS AND FILTER 0909 Using accessory10 Maintain floor tools11 Emptying the dust bin12 Cleaning the dust pack14 Cleaning the outlet filter14 Change the battery (optional)TROUBLESHOOTING 15RAMBO (미주향).indd 4 2011.10.17 2:10:11 PM
assembling the cleaner _501 ASSEMBLING THE CLEANERassembling the cleaner• Please do not push the button of dust bin handle when carrying machine.• For storage, park the oor nozzle.OPTIONRAMBO (미주향).indd 5 2011.10.17 2:10:12 PM
6_ operating the cleaneroperating the cleanerPOWER CORDON/OFF SWITCH• When removing the plug from the electrical outlet, grasp the plug, not the cord.CAUTIONRAMBO (미주향).indd 6 2011.10.17 2:10:13 PM

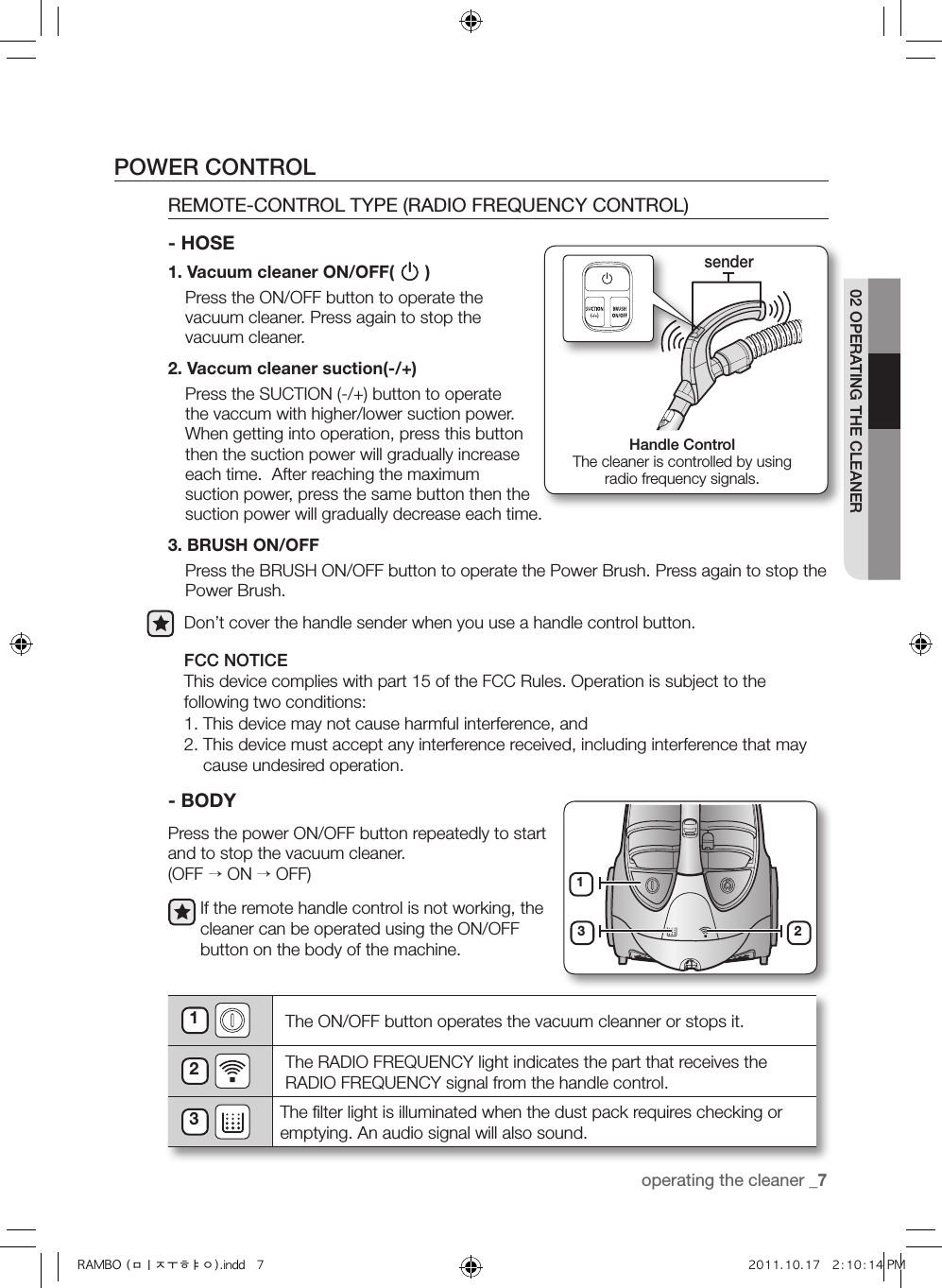

operating the cleaner _702 OPERATING THE CLEANER- BODYPress the power ON/OFF button repeatedly to start and to stop the vacuum cleaner. (OFF → ON → OFF)If the remote handle control is not working, the cleaner can be operated using the ON/OFF button on the body of the machine.1 The ON/OFF button operates the vacuum cleanner or stops it.2 The RADIO FREQUENCY light indicates the part that receives the RADIO FREQUENCY signal from the handle control.3 The filter light is illuminated when the dust pack requires checking or emptying. An audio signal will also sound.13 2POWER CONTROL1. Vacuum cleaner ON/OFF( ) Press the ON/OFF button to operate the vacuum cleaner. Press again to stop the vacuum cleaner.2. Vaccum cleaner suction(-/+) Press the SUCTION (-/+) button to operate the vaccum with higher/lower suction power. When getting into operation, press this button then the suction power will gradually increase each time. After reaching the maximum suction power, press the same button then the suction power will gradually decrease each time.3. BRUSH ON/OFF Press the BRUSH ON/OFF button to operate the Power Brush. Press again to stop the Power Brush.Don’t cover the handle sender when you use a handle control button.FCC NOTICEThis device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:1. This device may not cause harmful interference, and2. This device must accept any interference received, including interference that may cause undesired operation.REMOTE-CONTROL TYPE (RADIO FREQUENCY CONTROL) - HOSEHandle ControlThe cleaner is controlled by using radio frequency signals.senderRAMBO (미주향).indd 7 2011.10.17 2:10:14 PM

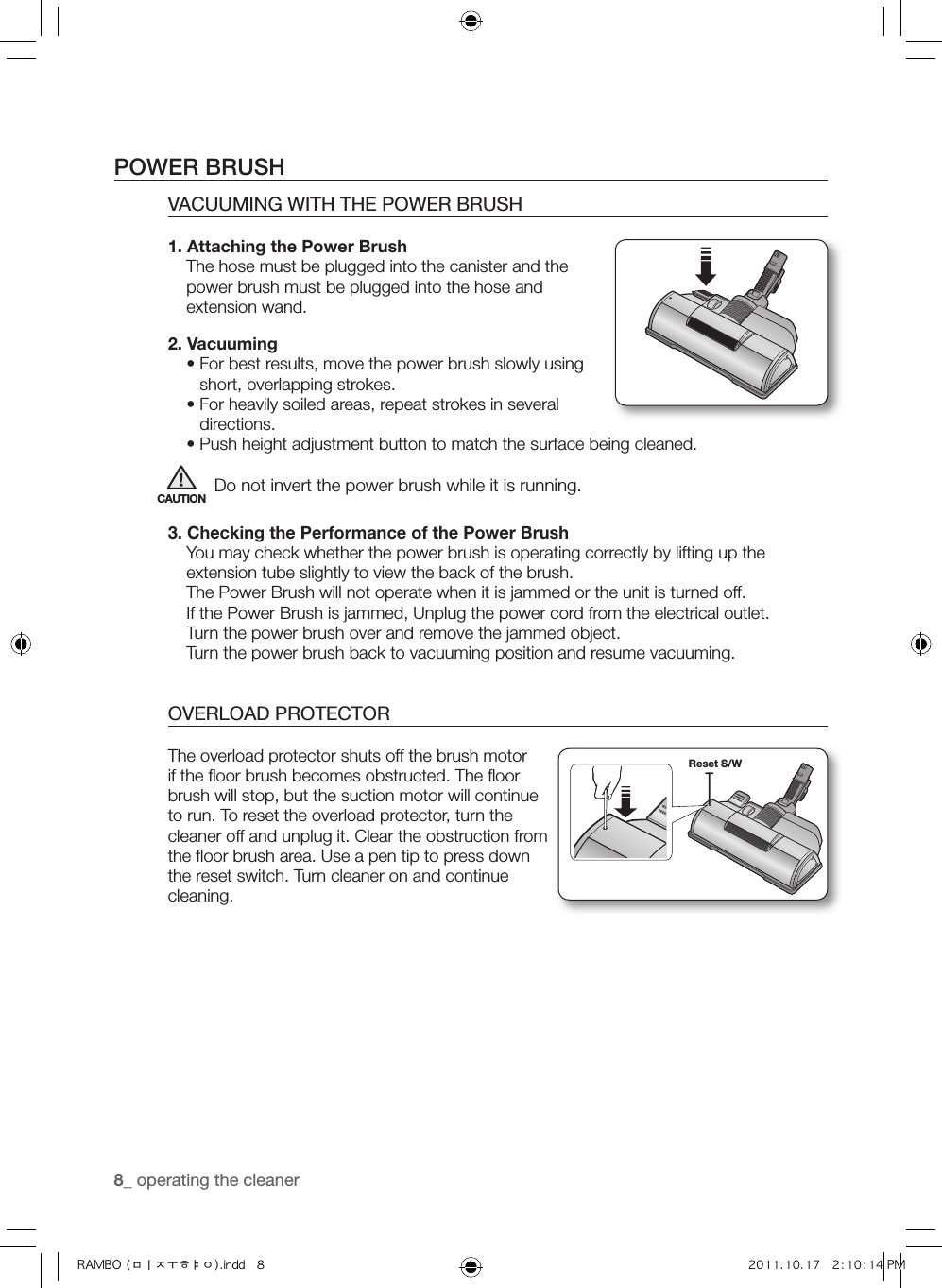

8_ operating the cleanerVACUUMING WITH THE POWER BRUSHOVERLOAD PROTECTOR 1. Attaching the Power BrushThe hose must be plugged into the canister and the power brush must be plugged into the hose and extension wand.2. Vacuuming• For best results, move the power brush slowly using short, overlapping strokes.• For heavily soiled areas, repeat strokes in several directions.• Push height adjustment button to match the surface being cleaned.Do not invert the power brush while it is running.3. Checking the Performance of the Power BrushYou may check whether the power brush is operating correctly by lifting up the extension tube slightly to view the back of the brush.The Power Brush will not operate when it is jammed or the unit is turned off.If the Power Brush is jammed, Unplug the power cord from the electrical outlet.Turn the power brush over and remove the jammed object.Turn the power brush back to vacuuming position and resume vacuuming.The overload protector shuts off the brush motor if the floor brush becomes obstructed. The floor brush will stop, but the suction motor will continue to run. To reset the overload protector, turn the cleaner off and unplug it. Clear the obstruction from the floor brush area. Use a pen tip to press down the reset switch. Turn cleaner on and continue cleaning.CAUTIONReset S/WPOWER BRUSHRAMBO (미주향).indd 8 2011.10.17 2:10:14 PM
maintain tools and filter _903 MAINTAIN TOOLS AND FILTERmaintain tools and filterUSING ACCESSORYPIPE• Adjust the length of the telescopic pipe by sliding the length control button located in the center of the telescopic pipe back and forth.• To check for blockages, separate the telescopic pipe and adjust to shorten. This allows for easier removal of waste clogging the tube.ACCESSORY (OPTIONAL)• Push the accessory on to the end of the hose handle.• Pull out the dusting brush to use crevice toolRAMBO (미주향).indd 9 2011.10.17 2:10:18 PM
10_ maintain tools and filter• Vacuum dust in wide area at once.• Remove waste matter completely if the inlet is blocked.PARQUET BRUSH (OPTION)REPLACING Drive Belt1. Unplug cleaner from electrical outlet.2. With rotating floor brush removed from vacuum cleaner, grasp old drive belt and remove from motor pulley. Discard old drive belt.3. Place new drive belt over motor pulley and stretch other end over rotating floor brush in the space between the bristles.4. Place ends of rotating oor brush down into slots on sides as shown.5. T urn rotating floor brush by hand several times in the direction of motor pulley. If properly installed, drive belt will center itself on rotating brush crown.6. Reposition brush cover and screws. Tighten screws securely.CHECKING Rotating Floor Brush and Drive BeltYou should check your vacuum cleaners rotating floor brush and drive belt regularly for wear or damage. You should also clean the brush and brush ends of strings, hair, and carpet fibers. These can wrap around the brush and hamper its ability to effectively clean your carpet. Also remove any debris that has accumulated under the brush cover.1. Unplug cleaner from electrical outlet.2. Place handle in low position and turn vacuum cleaner over so bottom side is up.3. Remove the six screws as shown with a screwdriver.4. Remove the brush cover from the floor brush.5. Grasp rotating floor brush at both ends and lift.6. Clean string, hair and other debris from rotating floor brush, paying particular attention to brush ends.7. Clean string, hair and other debris from motor pulley and drive belt areas.8. Check drive belt carefully for wear, cuts or stressed areas.9. Check air passageway for obstructions. Remove debris from this area.Rotating floor brush could cause the fringe of a rug to become tangled within cleaner.Use caution and turn off the floor brush when vacuuming throw rugs with fringe.Brush CoverCAUTIONMAINTAIN FLOOR TOOLSRAMBO (미주향).indd 10 2011.10.17 2:10:27 PM
maintain tools and filter _1103 MAINTAIN TOOLS AND FILTEREMPTYING THE DUST BIN Once dust reaches the dust full mark, empty the dust bin.Take the dust bin out by pushing the button. Separate the dust bin cover.Throw the dust away in the bin. Close the dust bin cover.Before use, push the dust bin into the main body of the vacuum cleaner until you hear the “click” sound.4 5 61 2 3You may rinse the dust bin with cold water only.- Empty into a plastic bag. (recommended for asthma/allergy sufferers)RAMBO (미주향).indd 11 2011.10.17 2:10:31 PM
12_ maintain tools and filterWhen suction is noticeably reduced continuously or vacuum cleaner abnormally overheats, please clean the dust pack.CLEANING THE DUST PACKWHEN TO CLEAN THE DUST PACK• The lamp will turn red when suction is reduced. If the light comes on, please clean the dust pack.• If the filter check indicator turns red with the inlet floating 10cm above flat floor, clean the dust pack.• Turn the vacuum power to ‘MAX’.ON(MAX) � OFFHandle ControlBody ControlRAMBO (미주향).indd 12 2011.10.17 2:10:33 PM
maintain tools and filter _1303 MAINTAIN TOOLS AND FILTERMake sure the filter is completely dry before putting it back into the vacuumcleaner. Allow 12 hours for it to dry.CLEANING THE DUST PACK 1471025811 123Remove the dust bin. Separate the dust bin cover.Before reassembly, align the dust pack cover and dust pack correctly. Close the dust bin cover.Before use, push the dust bin into the main body of the vacuum cleaner until you hear the “click” sound.Remove the fixed frame of the dust pack cover.Separate the dust pack.Let the sponge and filter dryin the shade for more than 12 hours.Put the sponge and lter into the dust pack.Remove the sponge and filter from the dust pack.Wash the sponge and the filter of the dust pack with water.Put the assembled dust pack into the cover.69RAMBO (미주향).indd 13 2011.10.17 2:10:34 PM
14_ maintain tools and filterCHANGE THE BATTERY (OPTIONAL)1. When the vacuum cleaner dows not work, replace the batteries. If the problem persists, please contact our authorized dealer.2. Use 2 batteries of size AAA.1. Never disassemble or recharge the batteries.2. Never heat up the batteries or throw them into fire.3. Do not reverse (+), (-) poles.4. Dispose of the batteries property.WARNINGBATTERY TYPE : AAA Size CLEANING THE OUTLET FILTER 1 2Press the xed frame part at the back of the main body to remove.Remove the dust bin and HEPA Filter as shown.Remove and replace the blocked outlet filter.• When suction is noticeably reduced continuously or vacuum cleaner abnormally overheats, please clean the outlet filter. Note. Do not wash HEPA lter. If cleaning does not resolve the problem Please replace blocked out lter.• Replacement lters are available at your local Samsung distributor.RAMBO (미주향).indd 14 2011.10.17 2:10:36 PM

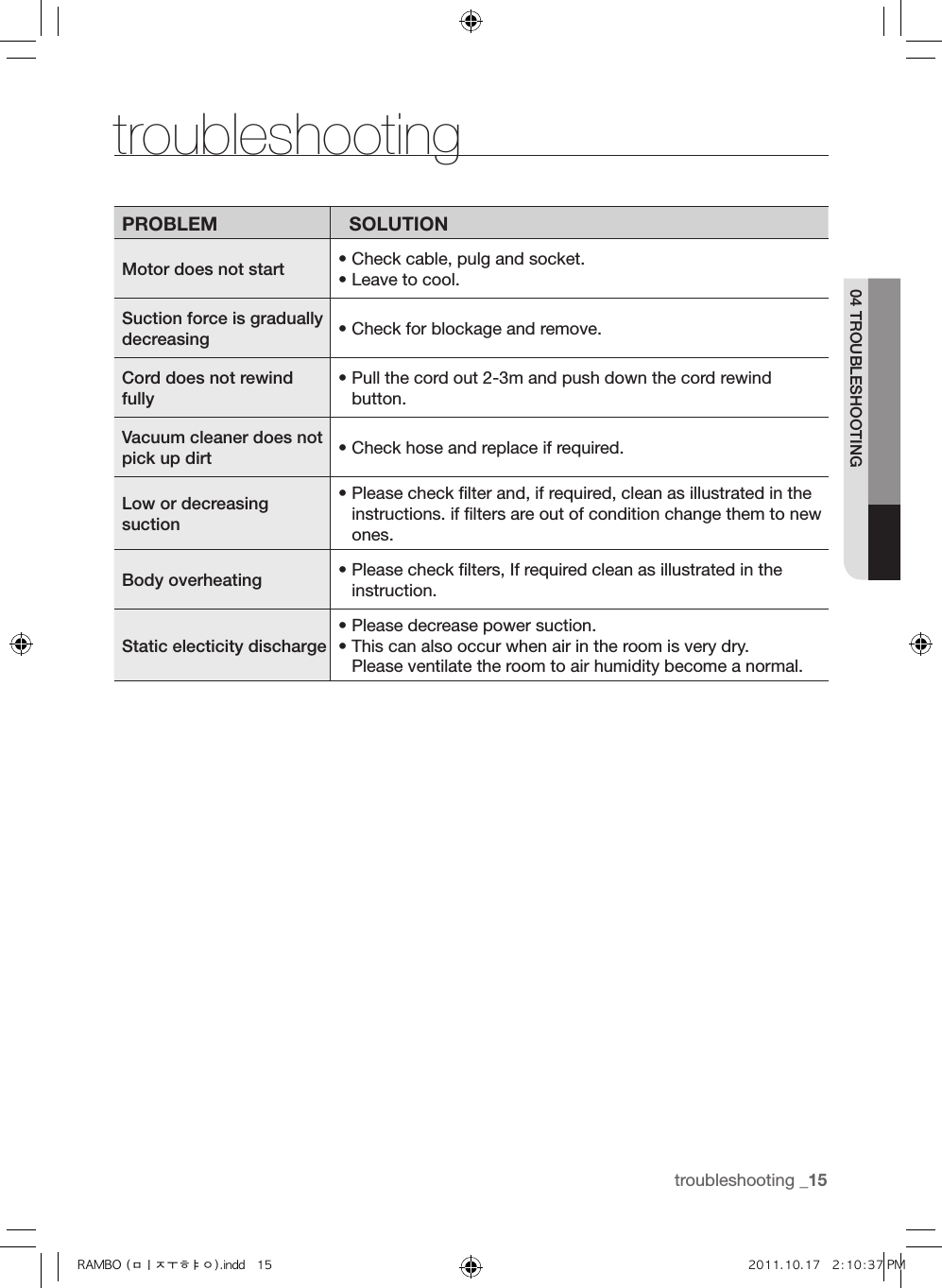

troubleshooting _1504 TROUBLESHOOTINGtroubleshootingPROBLEM SOLUTIONMotor does not start • Check cable, pulg and socket.• Leave to cool.Suction force is gradually decreasing • Check for blockage and remove.Cord does not rewind fully• Pull the cord out 2-3m and push down the cord rewind button.Vacuum cleaner does not pick up dirt • Check hose and replace if required.Low or decreasing suction• Please check lter and, if required, clean as illustrated in the instructions. if lters are out of condition change them to new ones.Body overheating • Please check lters, If required clean as illustrated in the instruction.Static electicity discharge• Please decrease power suction.• This can also occur when air in the room is very dry. Please ventilate the room to air humidity become a normal.RAMBO (미주향).indd 15 2011.10.17 2:10:37 PM
FCC NOTICE THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES. OPERATION IS SUBJECT TO THE FOLLOWING TWO CONDITIONS: (1) THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE, AND (2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED, INCLUDING INTERFERENCE THAT MAY CAUSE UNDERSIRED OPERATION. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communication. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures : - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit difference from that to which the receiver is connected. - Consult the dealer of an experienced radio/TV technician for help. NOTE : The manufacturer is not responsible for any radio or TV interference caused by unauthorized modifications to this equipment. Such modifications could void the user's authority to operate the equipment. FCC Notice_16
