Thank you for purchasing a Samsung product.
To receive a more complete service,
please register your product at
www.samsung.com/register
Vacuum Cleaner
user manual
✻ Before operating this unit, please read the instructions carefully.
✻ For indoor use only.
English
SC88P* series
This manual is made with 100% recycled paper.
RAMBO (미주향).indd 1 2011.10.17 2:10:11 PM
2_ safety information
safety information
SAFETY INFORMATION
• Before operating the appliance, please read this manual thoroughly and retain
it for your reference.
• Because these following operating instructions cover various models,
the characteristics of your vacuum cleaner may differ slightly from those
described in this manual.
CAUTION/WARNING SYMBOLS USED
WARNING Indicates that a danger of death or serious injury exists.
CAUTION Indicates that a risk of personal injury or material damage exists.
OTHER SYMBOLS USED
Represents something you must NOT do.
Represents something you must follow.
Indicates that you must disconnect the power plug from the socket.
This vacuum cleaner is designed for domestic household use only. Do not use this
vacuum cleaner to clear building waste or debris. Do not use this vacuum cleaner with
any of the filters removed as this could cause damage to the internal components and
void your warranty.
SAVE THESE INSTRUCTIONS
This vacuum cleaner is intended for household use only.
POLARIZATION INSTRUCTIONS
- To reduce the risk of electric shock, this appliance has a polarized plug (one blade is wider than
the other). This plug will fit in a polarized outlet only one way. If the plug does not fit fully in the
outlet, reverse the plug. If it still does not fit, contact a qualified electrician to install the proper
outlet. Do not change the plug in any way.
WARNING
WARNING
WARNING
RAMBO (미주향).indd 2 2011.10.17 2:10:11 PM
safety information _3
IMPORTANT SAFETY INSTRUCTIONS
When using an electrical appliance, basic precautions should always be followed, including
the following:
READ ALL INSTRUCTIONS BEFORE USING YOUR CANISTER VACCUM
WARNING – To reduce the risk of fire, electric shock, or injury:
1. Do not leave appliance when plugged in. Unplug from outlet when not in use and
before servicing.
2. Do not use outdoors or on wet surfaces.
3. Do not allow to be used as a toy. Close attention is necessary when used by or near
children.
4. Use only as described in this manual. Use only manufacturer’s recommended
attachments.
5. Do not use with damaged cord or plug. If appliance is not working as it should, has
been dropped, damaged, left outdoors, or dropped into water, return it to a service
center.
6. Do not pull or carry by cord, use cord as a handle, close a door on cord, or pull cord
around sharp edges or corners. Do not run appliance over cord. Keep cord away from
heated surfaces.
7. Do not unplug by pulling on cord. To unplug, grasp the plug, not the cord.
8. Do not handle plug or appliance with wet hands.
9. Do not put any object into openings. Do not use with any opening blocked; keep free
of dust, lint, hair, and anything that may reduce air flow.
10. Keep hair, loose clothing, fingers, and all parts of body away from openings and
moving parts.
11. Turn off all controls before unplugging.
12. Use extra care when cleaning on stairs.
13. Do not use to pick up flammable or combustible liquids, such as gasoline, or use in
are as where they may be present.
14. Do not pick up anything that is burning or smoking, such as cigarettes, matches, or
hot ashes.
15. Do not use without dirt cup and/or filters in place.
16. The hose contains electrical wires. Do not use when damaged, cut, or punctured.
Avoid picking up sharp objects.
17. Always turn off this appliance before connecting or disconnecting either hose or
motorized nozzle.
18. Unplug before connecting motorized nozzle.
19. Hold plug when rewinding onto cord reel. Do not allow plug to whip when rewinding.
safety information
RAMBO (미주향).indd 3 2011.10.17 2:10:11 PM
4_ contents
contents
ASSEMBLING THE CLEANER
05
05 Assembling the Cleaner
OPERATING THE CLEANER
06
06 Power cord
06 On/Off switch
07 Power control
08 Power Brush
MAINTAIN TOOLS AND FILTER
09
09 Using accessory
10 Maintain floor tools
11 Emptying the dust bin
12 Cleaning the dust pack
14 Cleaning the outlet filter
14 Change the battery (optional)
TROUBLESHOOTING
15
RAMBO (미주향).indd 4 2011.10.17 2:10:11 PM
assembling the cleaner _5

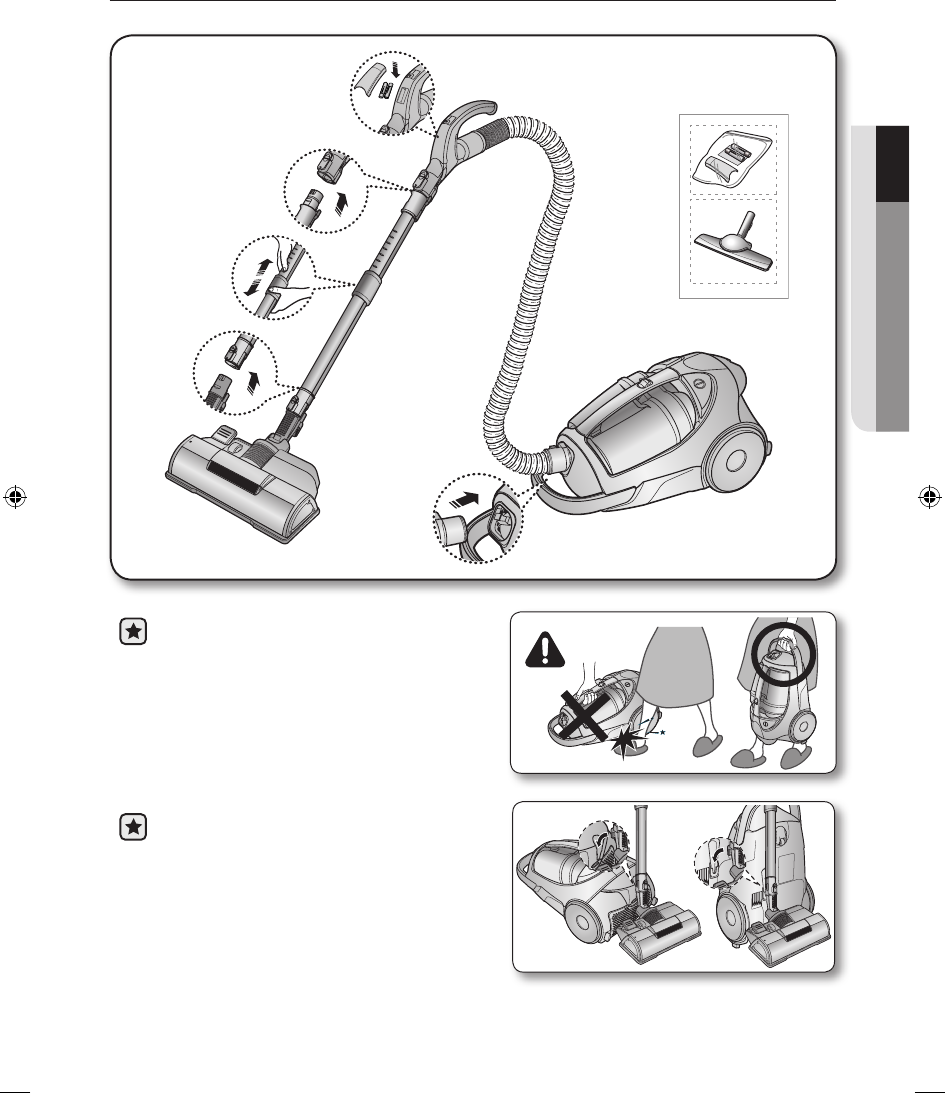

01 ASSEMBLING THE CLEANER
assembling the cleaner
• Please do not push the button
of dust bin handle when carrying
machine.
• For storage, park the oor nozzle.
OPTION
RAMBO (미주향).indd 5 2011.10.17 2:10:12 PM
6_ operating the cleaner
operating the cleaner

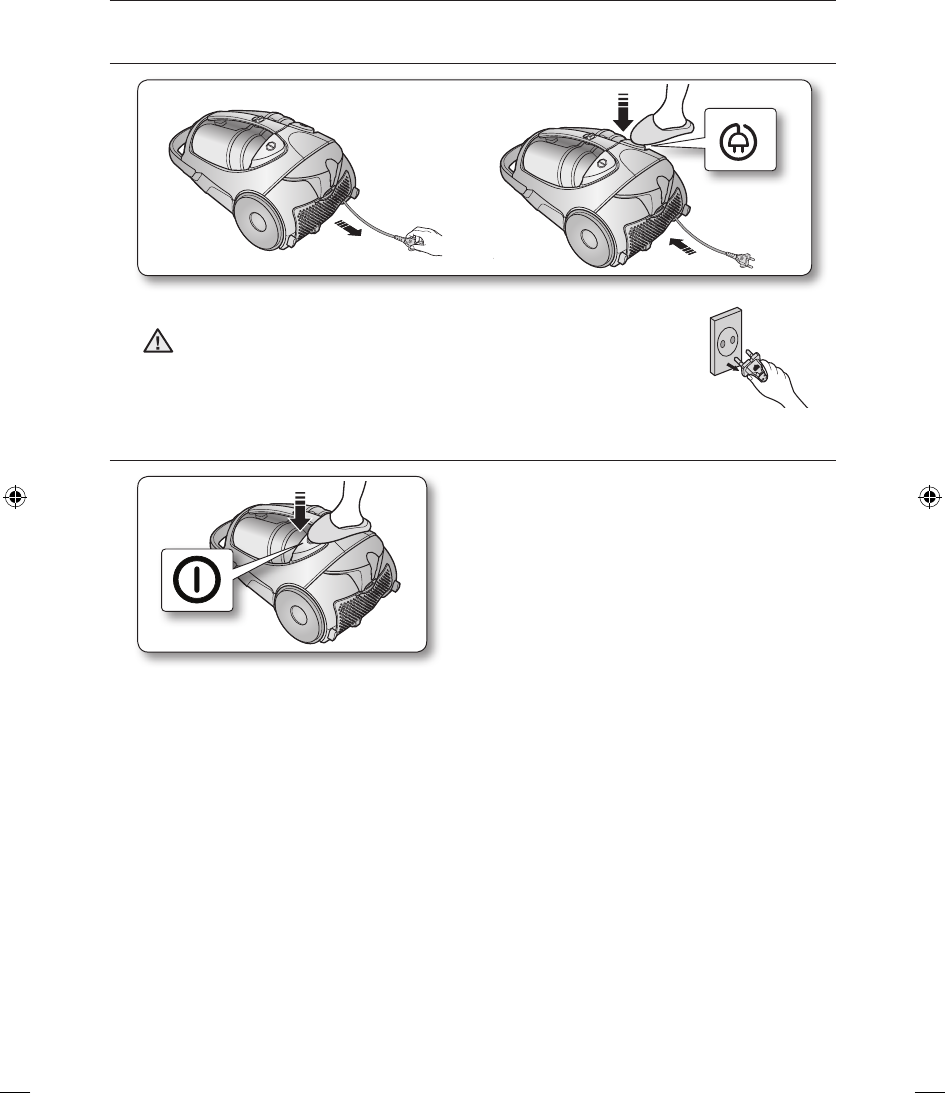

POWER CORD
ON/OFF SWITCH
• When removing the plug from the electrical outlet, grasp the
plug, not the cord.
CAUTION
RAMBO (미주향).indd 6 2011.10.17 2:10:13 PM
operating the cleaner _7
02 OPERATING THE CLEANER
- BODY
Press the power ON/OFF button repeatedly to start
and to stop the vacuum cleaner.
(OFF → ON → OFF)
If the remote handle control is not working, the
cleaner can be operated using the ON/OFF
button on the body of the machine.

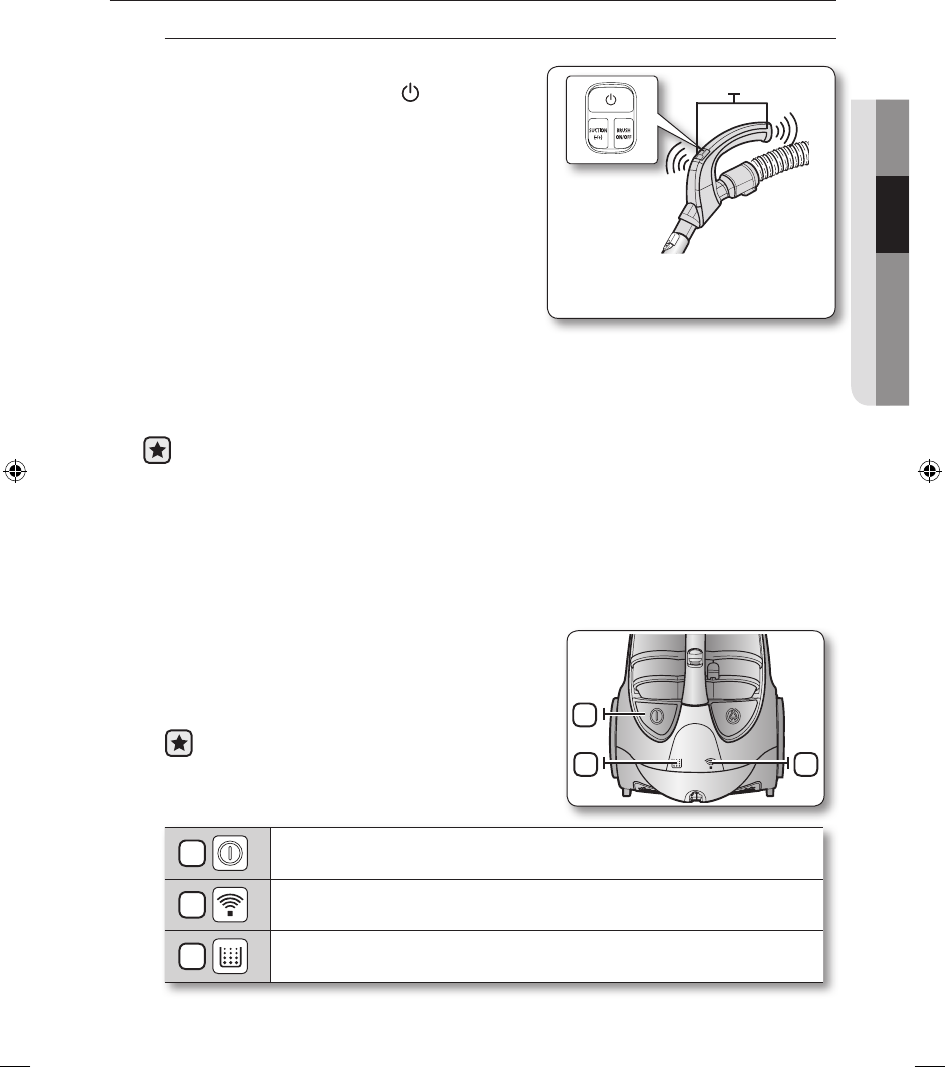

1 The ON/OFF button operates the vacuum cleanner or stops it.
2 The RADIO FREQUENCY light indicates the part that receives the
RADIO FREQUENCY signal from the handle control.
3 The filter light is illuminated when the dust pack requires checking or
emptying. An audio signal will also sound.
1
3 2
POWER CONTROL
1. Vacuum cleaner ON/OFF( )
Press the ON/OFF button to operate the
vacuum cleaner. Press again to stop the
vacuum cleaner.
2. Vaccum cleaner suction(-/+)
Press the SUCTION (-/+) button to operate
the vaccum with higher/lower suction power.
When getting into operation, press this button
then the suction power will gradually increase
each time. After reaching the maximum
suction power, press the same button then the
suction power will gradually decrease each time.
3. BRUSH ON/OFF
Press the BRUSH ON/OFF button to operate the Power Brush. Press again to stop the
Power Brush.
Don’t cover the handle sender when you use a handle control button.
FCC NOTICE
This device complies with part 15 of the FCC Rules. Operation is subject to the
following two conditions:
1. This device may not cause harmful interference, and
2. This device must accept any interference received, including interference that may
cause undesired operation.
REMOTE-CONTROL TYPE (RADIO FREQUENCY CONTROL)
- HOSE
Handle Control
The cleaner is controlled by using
radio frequency signals.
sender
RAMBO (미주향).indd 7 2011.10.17 2:10:14 PM
8_ operating the cleaner
VACUUMING WITH THE POWER BRUSH
OVERLOAD PROTECTOR

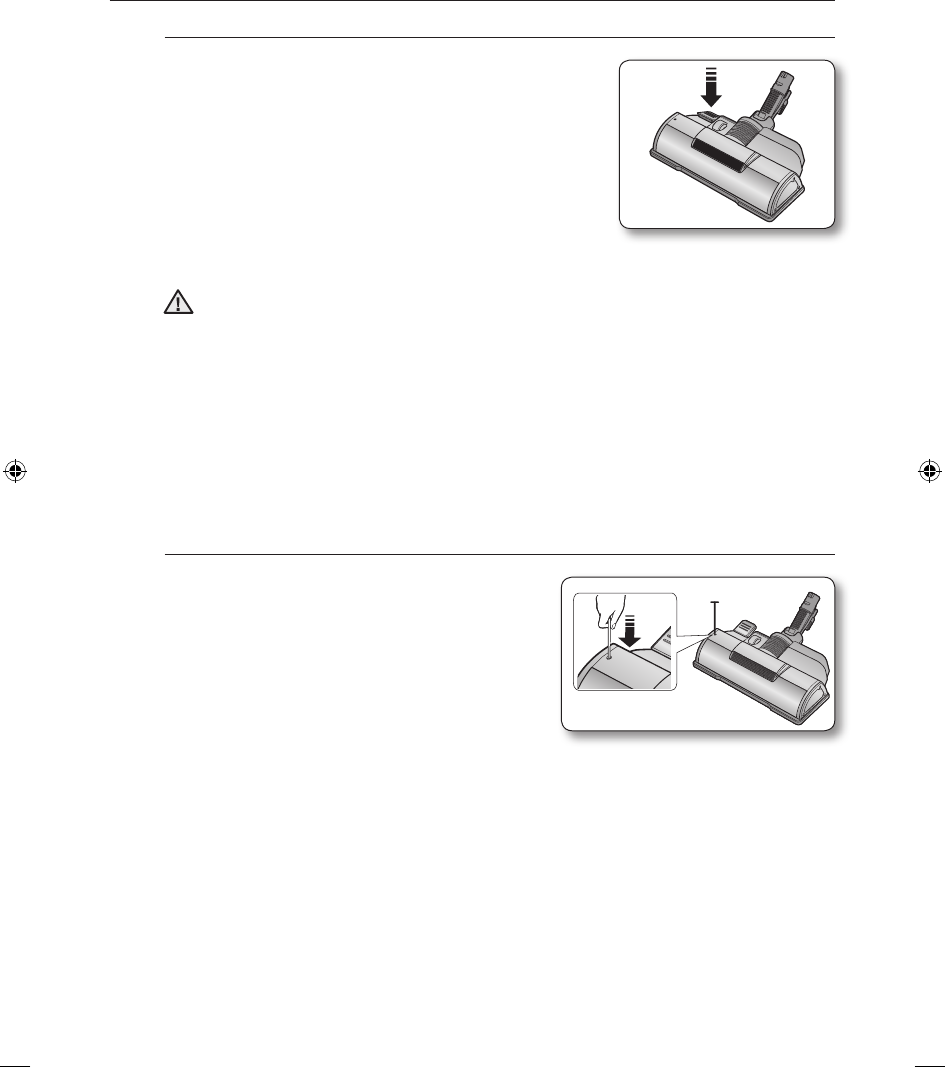

1. Attaching the Power Brush
The hose must be plugged into the canister and the
power brush must be plugged into the hose and
extension wand.
2. Vacuuming
• For best results, move the power brush slowly using
short, overlapping strokes.
• For heavily soiled areas, repeat strokes in several
directions.
• Push height adjustment button to match the surface being cleaned.
Do not invert the power brush while it is running.
3. Checking the Performance of the Power Brush
You may check whether the power brush is operating correctly by lifting up the
extension tube slightly to view the back of the brush.
The Power Brush will not operate when it is jammed or the unit is turned off.
If the Power Brush is jammed, Unplug the power cord from the electrical outlet.
Turn the power brush over and remove the jammed object.
Turn the power brush back to vacuuming position and resume vacuuming.
The overload protector shuts off the brush motor
if the floor brush becomes obstructed. The floor
brush will stop, but the suction motor will continue
to run. To reset the overload protector, turn the
cleaner off and unplug it. Clear the obstruction from
the floor brush area. Use a pen tip to press down
the reset switch. Turn cleaner on and continue
cleaning.
CAUTION
Reset S/W
POWER BRUSH
RAMBO (미주향).indd 8 2011.10.17 2:10:14 PM
maintain tools and filter _9
03 MAINTAIN TOOLS AND FILTER
maintain tools and filter

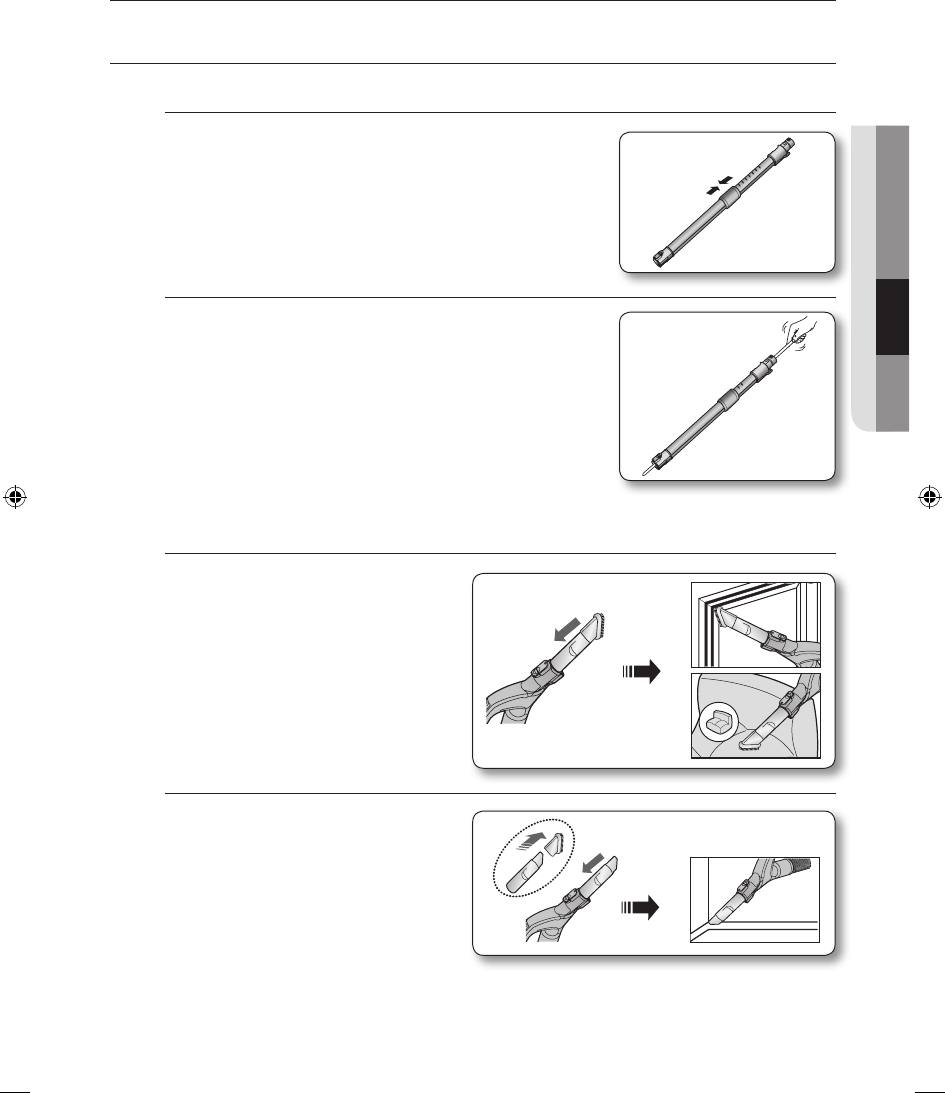

USING ACCESSORY
PIPE
•
Adjust the length of the telescopic pipe by sliding
the length control button located in the center of the
telescopic pipe back and forth.
•
To check for blockages, separate the telescopic pipe
and adjust to shorten. This allows for easier removal of
waste clogging the tube.
ACCESSORY (OPTIONAL)
•
Push the accessory on to the end of
the hose handle.
•
Pull out the dusting brush to use
crevice tool
RAMBO (미주향).indd 9 2011.10.17 2:10:18 PM
10_ maintain tools and filter
•
Vacuum dust in wide area at once.
•
Remove waste matter completely if
the inlet is blocked.
PARQUET BRUSH (OPTION)

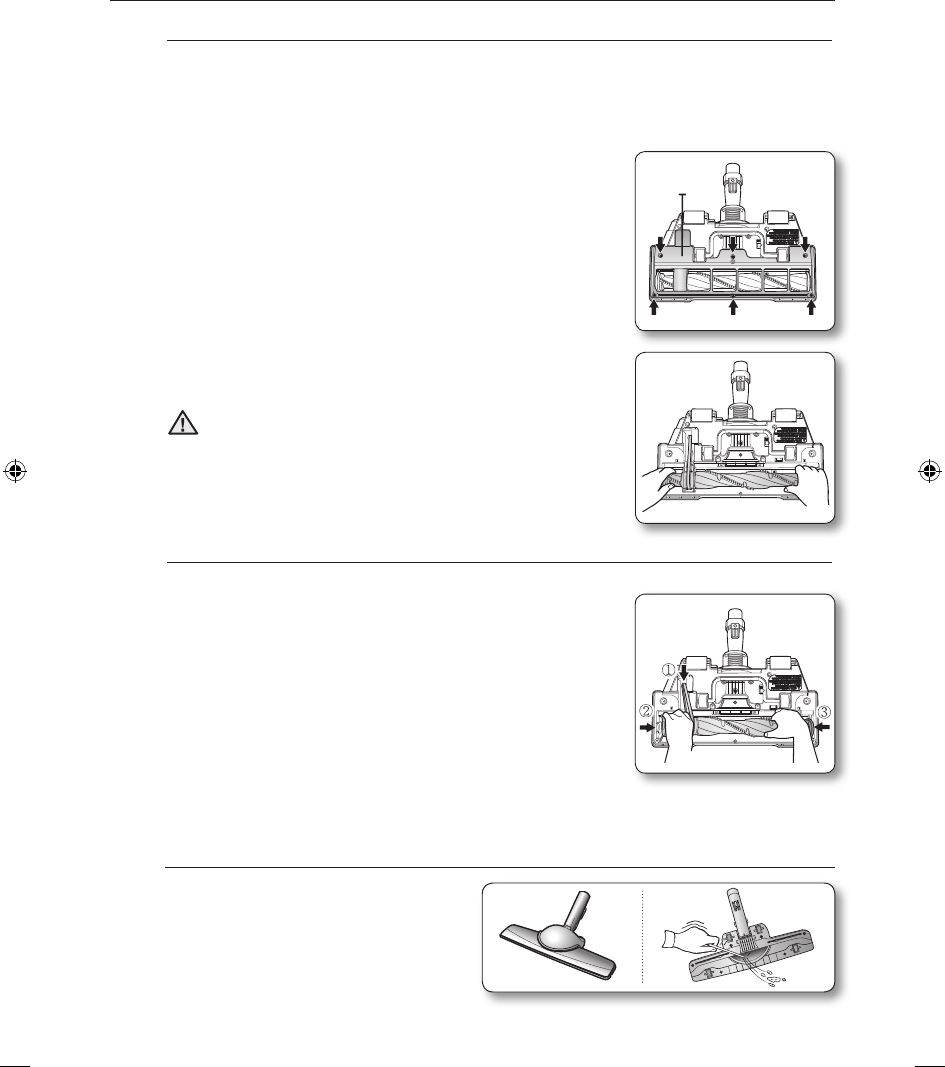

REPLACING Drive Belt
1. Unplug cleaner from electrical outlet.
2. With rotating floor brush removed from vacuum cleaner,
grasp old drive belt and remove from motor pulley.
Discard old drive belt.
3. Place new drive belt over motor pulley and stretch other
end over rotating floor brush in the space between the
bristles.
4. Place ends of rotating oor brush down into slots on sides
as shown.
5. T urn rotating floor brush by hand several times in
the direction of motor pulley. If properly installed, drive belt
will center itself on rotating brush crown.
6. Reposition brush cover and screws. Tighten screws securely.
CHECKING Rotating Floor Brush and Drive Belt
You should check your vacuum cleaners rotating floor brush and drive belt regularly for
wear or damage. You should also clean the brush and brush ends of strings, hair, and
carpet fibers. These can wrap around the brush and hamper its ability to effectively clean
your carpet. Also remove any debris that has accumulated under the brush cover.
1. Unplug cleaner from electrical outlet.
2. Place handle in low position and turn vacuum cleaner over
so bottom side is up.
3. Remove the six screws as shown with a screwdriver.
4. Remove the brush cover from the floor brush.
5. Grasp rotating floor brush at both ends and lift.
6. Clean string, hair and other debris from rotating floor brush,
paying particular attention to brush ends.
7. Clean string, hair and other debris from motor pulley and
drive belt areas.
8. Check drive belt carefully for wear, cuts or stressed areas.
9. Check air passageway for obstructions. Remove debris
from this area.
Rotating floor brush could cause the fringe of a rug to
become tangled within cleaner.
Use caution and turn off the floor brush when
vacuuming throw rugs with fringe.
Brush
Cover
CAUTION
MAINTAIN FLOOR TOOLS
RAMBO (미주향).indd 10 2011.10.17 2:10:27 PM
maintain tools and filter _11
03 MAINTAIN TOOLS AND FILTER

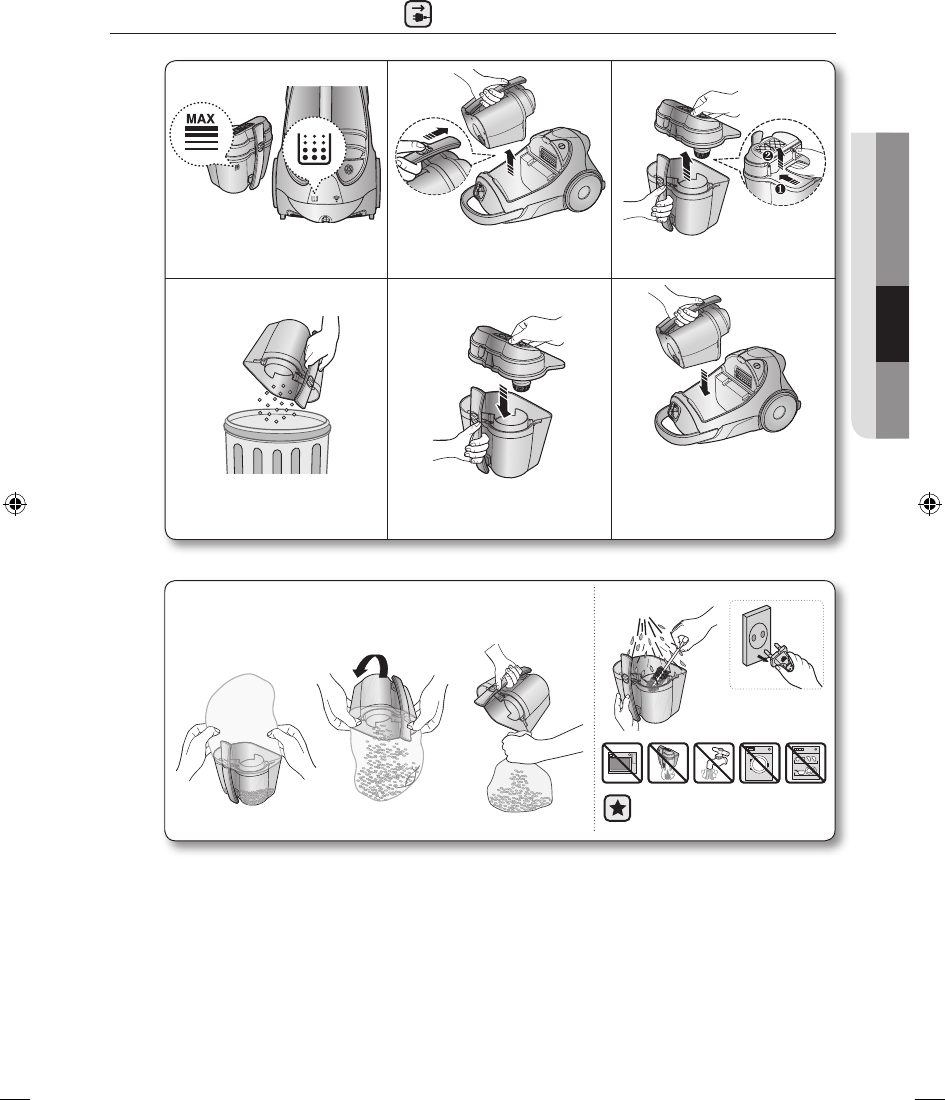

EMPTYING THE DUST BIN
Once dust reaches the dust
full mark, empty the dust bin.
Take the dust bin out by
pushing the button. Separate the dust bin cover.
Throw the dust away in the
bin. Close the dust bin cover.
Before use, push the dust
bin into the main body of
the vacuum cleaner until
you hear the “click” sound.
4 5 6
1 2 3

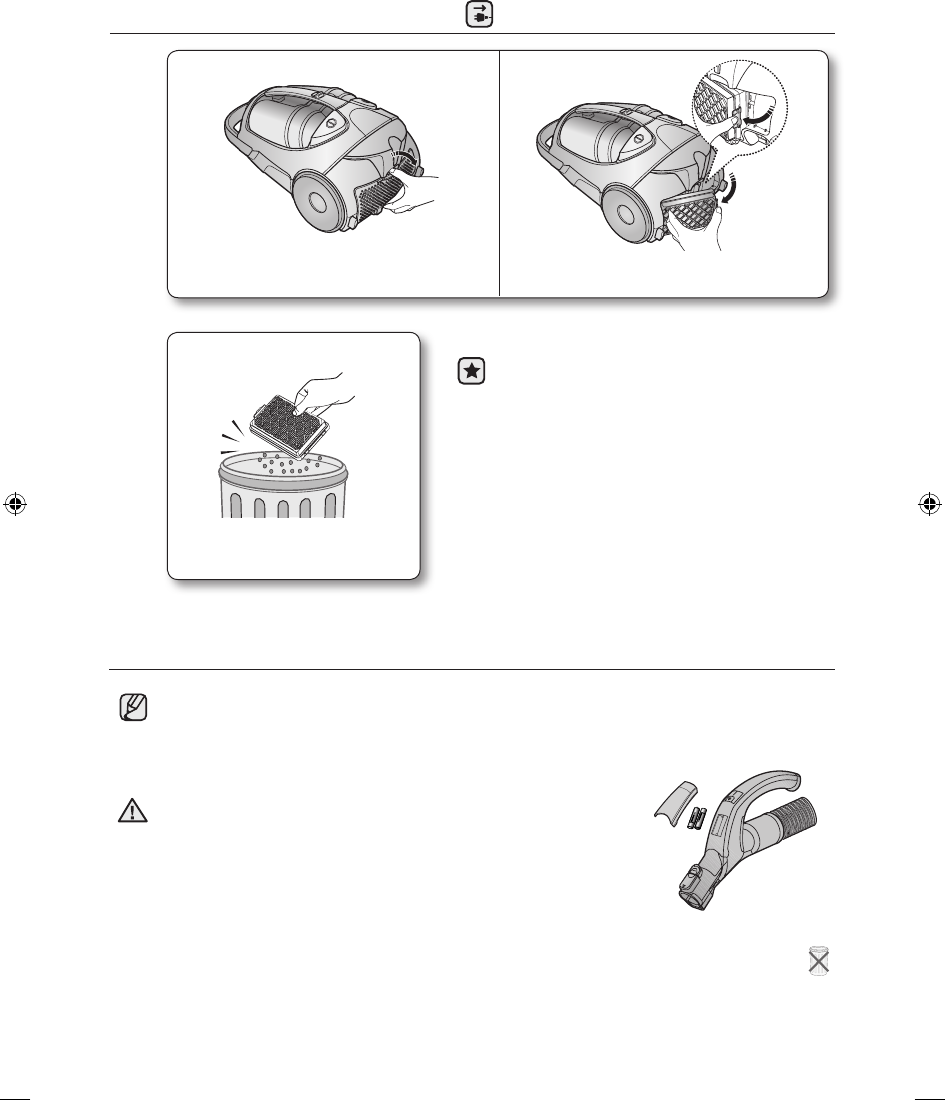

You may rinse the dust bin
with cold water only.
- Empty into a plastic bag.
(recommended for asthma/allergy sufferers)
RAMBO (미주향).indd 11 2011.10.17 2:10:31 PM
12_ maintain tools and filter

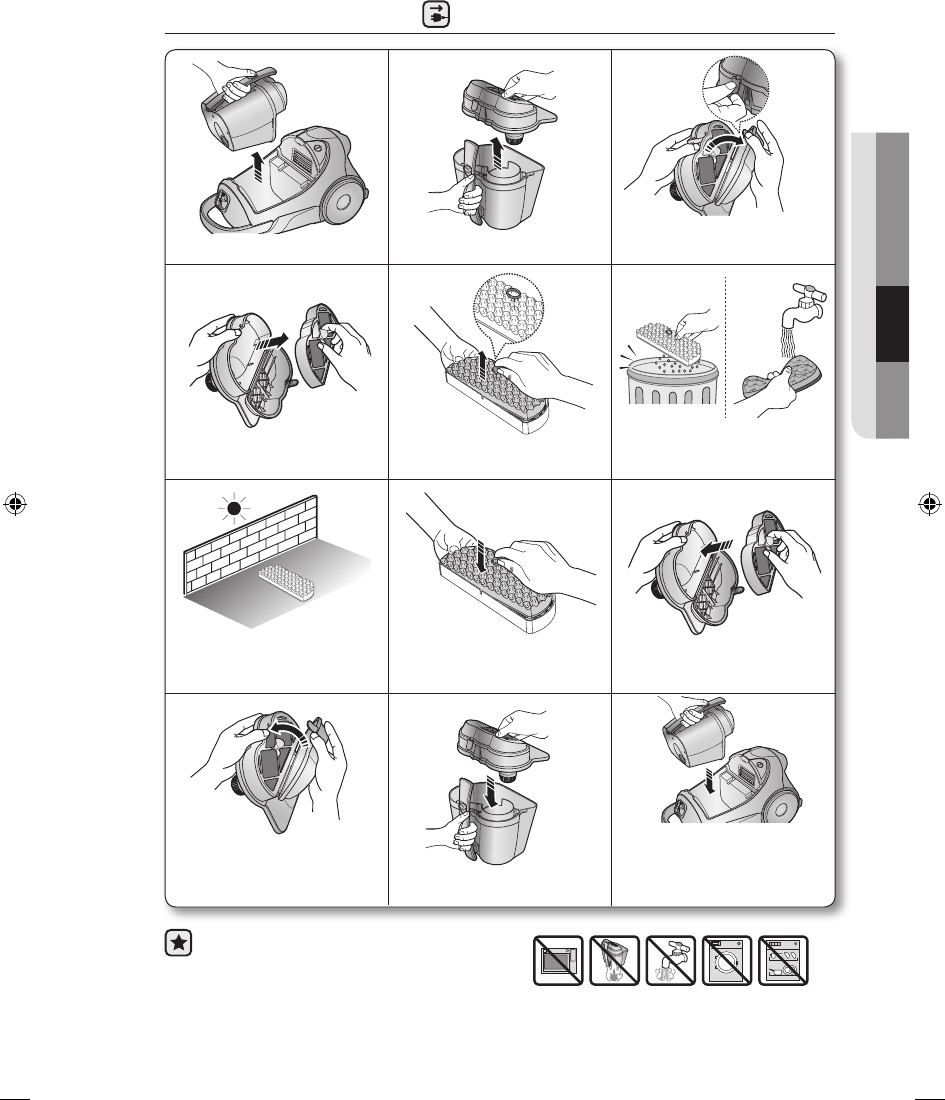

When suction is noticeably reduced continuously or vacuum cleaner abnormally
overheats, please clean the dust pack.
CLEANING THE DUST PACK
WHEN TO CLEAN THE DUST PACK

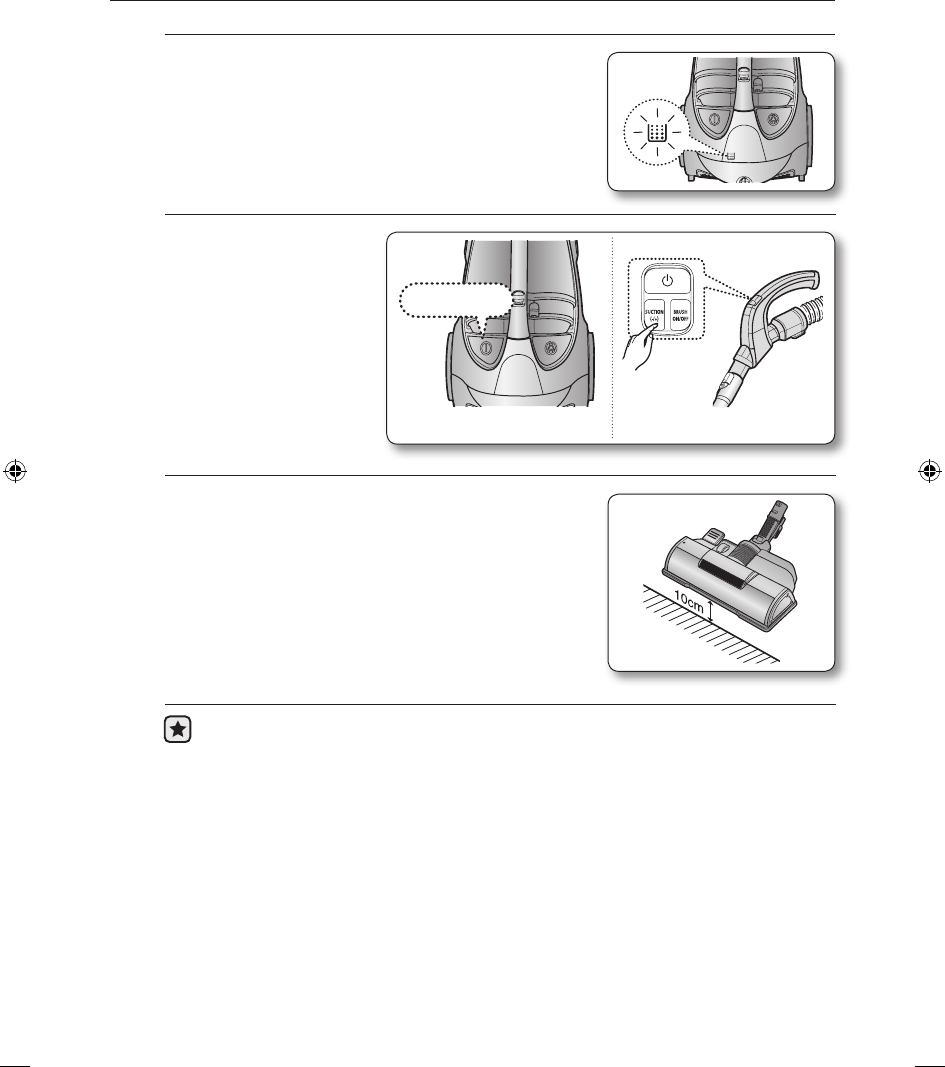

• The lamp will turn red when suction is reduced.
If the light comes on, please clean the dust pack.
• If the filter check indicator turns red with the inlet
floating 10cm above flat floor, clean the dust pack.
• Turn the vacuum power
to ‘MAX’.
ON(MAX) � OFF
Handle Control
Body Control
RAMBO (미주향).indd 12 2011.10.17 2:10:33 PM
maintain tools and filter _13
03 MAINTAIN TOOLS AND FILTER
Make sure the filter is completely dry
before putting it back into the vacuum
cleaner. Allow 12 hours for it to dry.
CLEANING THE DUST PACK
1
4
7
10
2
5
8
11 12
3
Remove the dust bin. Separate the dust bin cover.
Before reassembly, align the
dust pack cover and dust
pack correctly. Close the dust bin cover.
Before use, push the dust
bin into the main body of
the vacuum cleaner until
you hear the “click” sound.
Remove the fixed frame of
the dust pack cover.
Separate the dust pack.
Let the sponge and filter dry
in the shade for more than
12 hours.
Put the sponge and lter into
the dust pack.
Remove the sponge and
filter from the dust pack.
Wash the sponge and the
filter of the dust pack with
water.
Put the assembled dust
pack into the cover.
6
9
RAMBO (미주향).indd 13 2011.10.17 2:10:34 PM
14_ maintain tools and filter
CHANGE THE BATTERY (OPTIONAL)
1. When the vacuum cleaner dows not work, replace the batteries.
If the problem persists, please contact our authorized dealer.
2. Use 2 batteries of size AAA.
1. Never disassemble or recharge the batteries.
2. Never heat up the batteries or throw them into fire.
3. Do not reverse (+), (-) poles.
4. Dispose of the batteries property.
WARNING
BATTERY TYPE : AAA Size
CLEANING THE OUTLET FILTER
1 2
Press the xed frame part at the back of
the main body to remove.
Remove the dust bin and HEPA Filter as
shown.
Remove and replace the
blocked outlet filter.
• When suction is noticeably reduced
continuously or vacuum cleaner abnormally
overheats, please clean the outlet filter.
Note. Do not wash HEPA lter.
If cleaning does not resolve the problem
Please replace blocked out lter.
• Replacement lters are available at your
local Samsung distributor.
RAMBO (미주향).indd 14 2011.10.17 2:10:36 PM
troubleshooting _15
04 TROUBLESHOOTING
troubleshooting
PROBLEM SOLUTION
Motor does not start • Check cable, pulg and socket.
• Leave to cool.
Suction force is gradually
decreasing • Check for blockage and remove.
Cord does not rewind
fully
• Pull the cord out 2-3m and push down the cord rewind
button.
Vacuum cleaner does not
pick up dirt • Check hose and replace if required.
Low or decreasing
suction
• Please check lter and, if required, clean as illustrated in the
instructions. if lters are out of condition change them to new
ones.
Body overheating • Please check lters, If required clean as illustrated in the
instruction.
Static electicity discharge
• Please decrease power suction.
• This can also occur when air in the room is very dry.
Please ventilate the room to air humidity become a normal.
RAMBO (미주향).indd 15 2011.10.17 2:10:37 PM
FCC NOTICE
THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES.
OPERATION IS SUBJECT TO THE FOLLOWING TWO CONDITIONS:
(1) THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE, AND
(2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED,
INCLUDING INTERFERENCE THAT MAY CAUSE UNDERSIRED
OPERATION.
This equipment has been tested and found to comply with the limits for a
Class B digital device, pursuant to part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communication.
However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference by one or
more of the following measures :
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit difference from
that to which the receiver is connected.
- Consult the dealer of an experienced radio/TV technician for help.
NOTE : The manufacturer is not responsible for any radio or TV interference
caused by unauthorized modifications to this equipment. Such modifications
could void the user's authority to operate the equipment.
FCC Notice_16
