Accessories (SC12F50P Series)

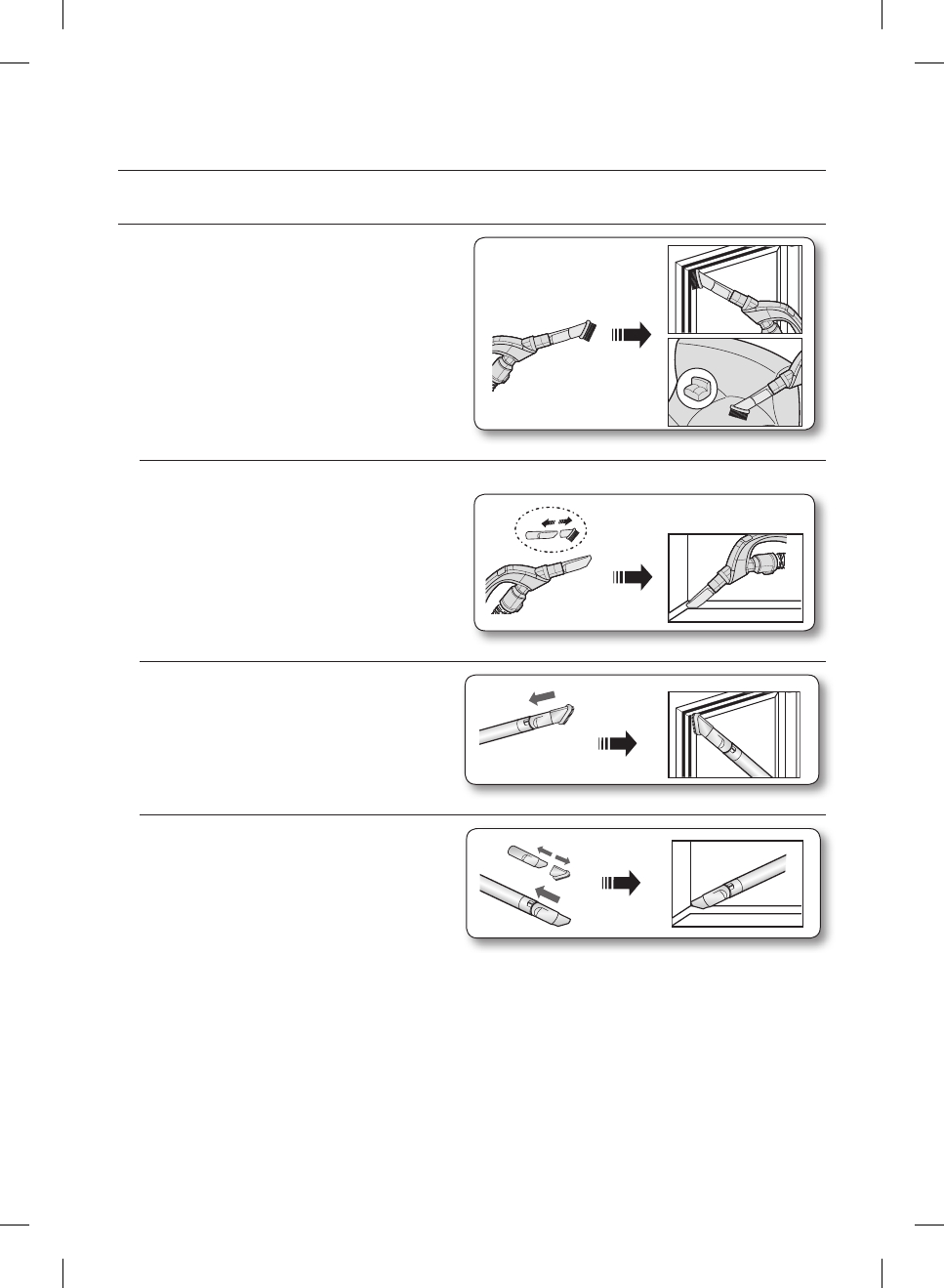

• Push the accessory onto the end of the hose
handle.
• Pull out the dusting brush to use the crevice
tool.
• Push the accessory onto the end of the pipe.
• Pull out the dusting brush to use the crevice
tool.
maintain tools and filter
DJ68-00699W-07.indb 16 15. 4. 27. �� 10:28
English - 17
03 MAINTAIN TOOLS AND FILTER
MAINTAIN FLOOR TOOLS

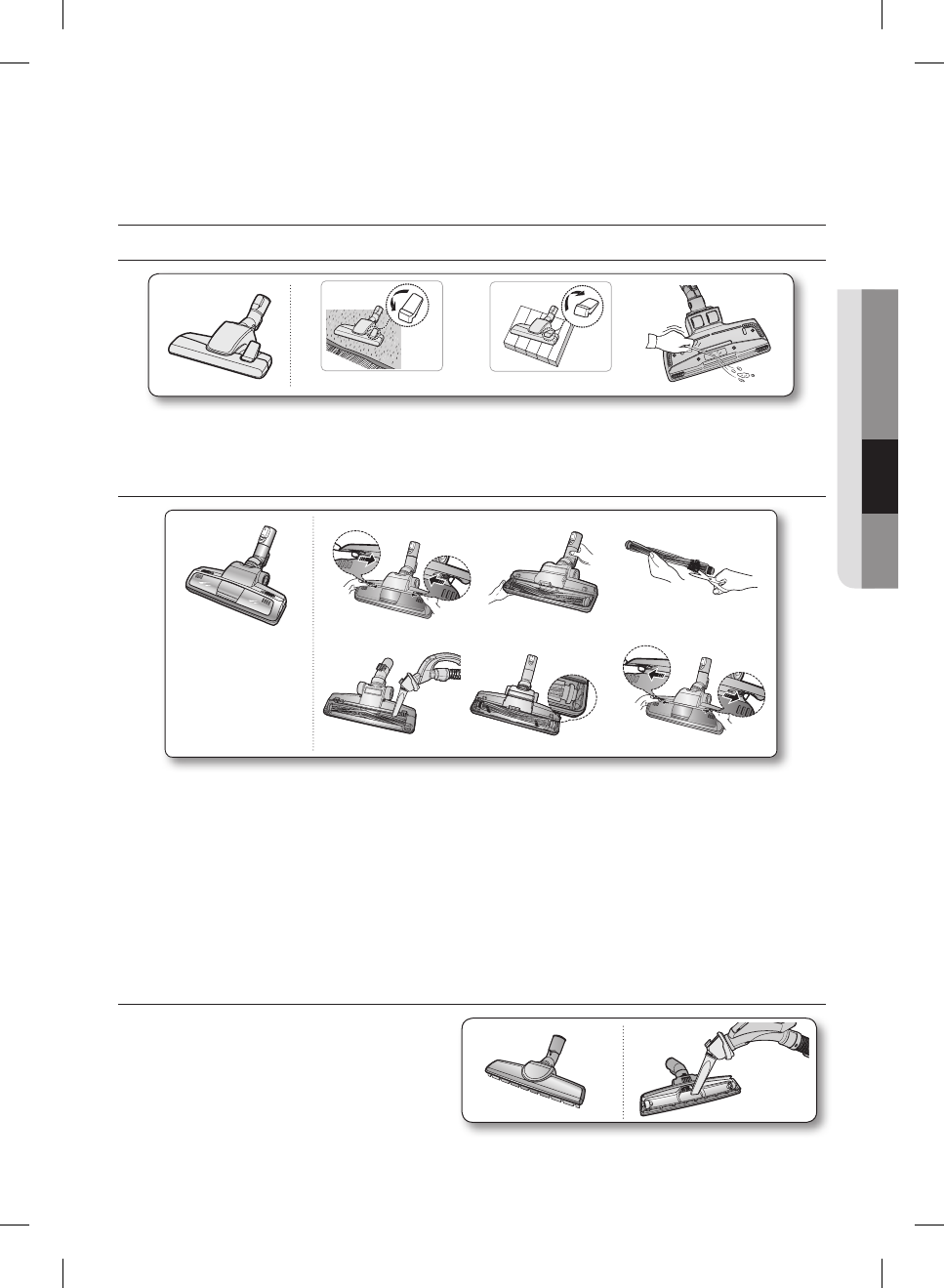

2-Step Brush (Optional)
Carpet Cleaning Floor Cleaning
• Adjust the inlet lever according to the floor surface.
• Remove waste matter completely if the inlet is blocked.
Power Pet Plus Brush (Optional)
1 2
4 5
3
6
For improved pickup
of pet hair and fibre on
carpets.
Frequent vacuuming of hair or pet fur may cause a falling-off of the rotation due to matters tangled around
the drum. In this case, clean the drum with care.
1. Push the Open button of the transparent screen cover to separate the cover.
2. Remove the brushbar from the transparent screen.
3. Remove waste matter such as dust and hair tangled around the brushbar using scissors.
4. Remove dust inside the brush housing using a dry duster or crevice tool.
5. Insert brushbar into rotating belt and assemble.
6. Click the transparent screen cover back into place to reassemble.
Parquet Master Brush (Optional)
• Vacuum dust in wide area at once.
• Remove waste matter completely if the inlet
is blocked.
DJ68-00699W-07.indb 17 15. 4. 27. �� 10:28
English - 18
Mini turbo brush (Optional)

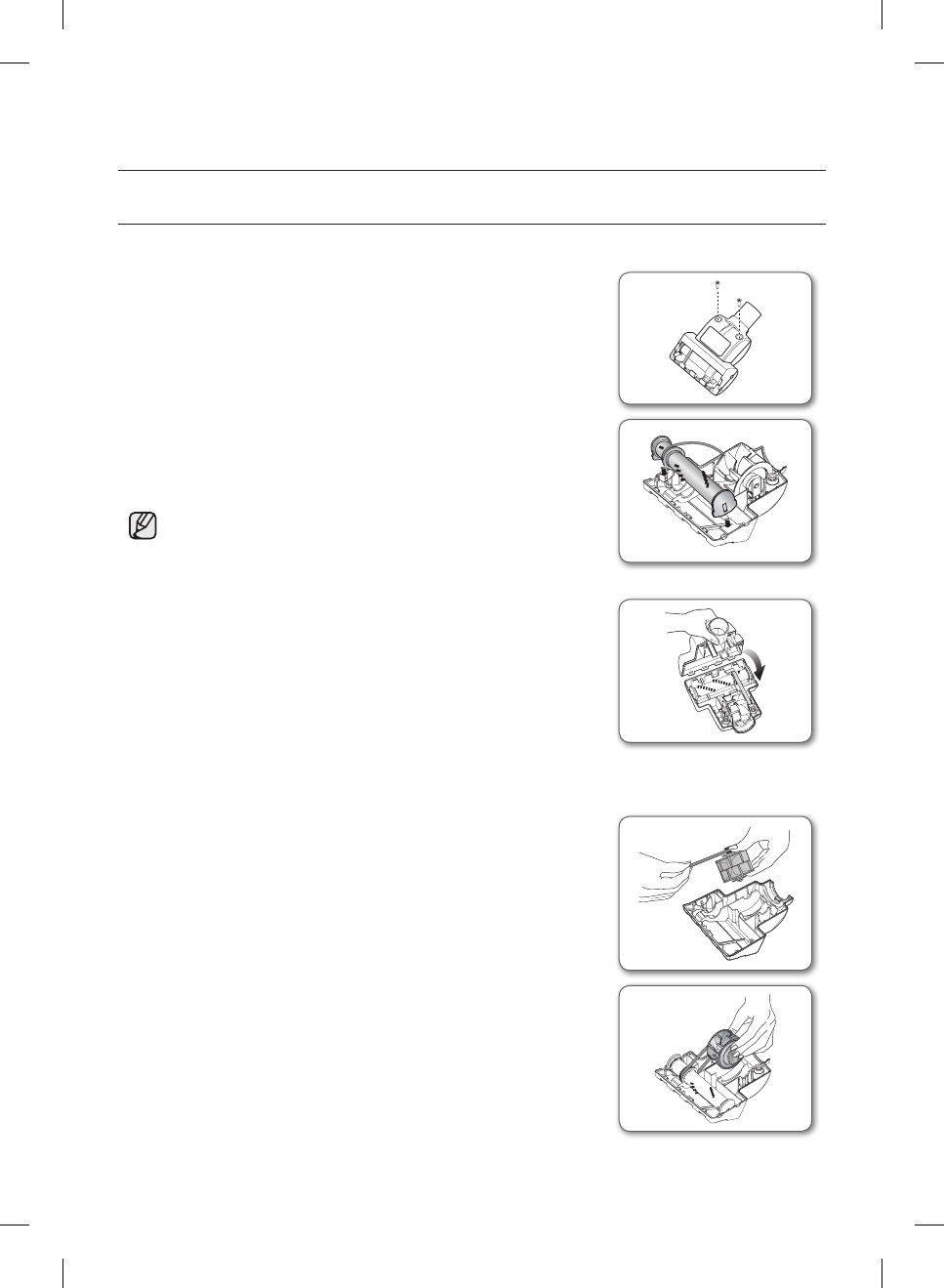

- To replace brushroll
1. If a clog is present or debris is visible, unscrew the two screws on
the back of the Mini turbo brush to remove the faceplate and clear
any obstructions.
2. Inspect condition of brushroll.
Replace brushroll if brushes are worn down.
To remove brushroll, pull up and out of end slots in nozzle housing.
Insert ends of brushroll into same slots to replace.
Inspect belt to ensure that it is in good condition.
If belt is broken or cracked, replace belt according to To Replace
Belt instructions.
3. Using at MAX.
Press the MAX button to operate the vacuum at maximum intake.
- To replace belt
1. Remove bottom plate.
See figure in to replace brushroll instructions.
2. Loop one end of new belt around shaft of pulley.
3. Loop other end of belt around designated area for it on brushroll.
Insert brushroll into slots in nozzle housing.
See figure in to replace brushroll instructions.
4. Fit Mini turbo brush back together as described in to replace
brushroll instructions.
maintain tools and filter
DJ68-00699W-07.indb 18 15. 4. 27. �� 10:28
English - 19
03 MAINTAIN TOOLS AND FILTER

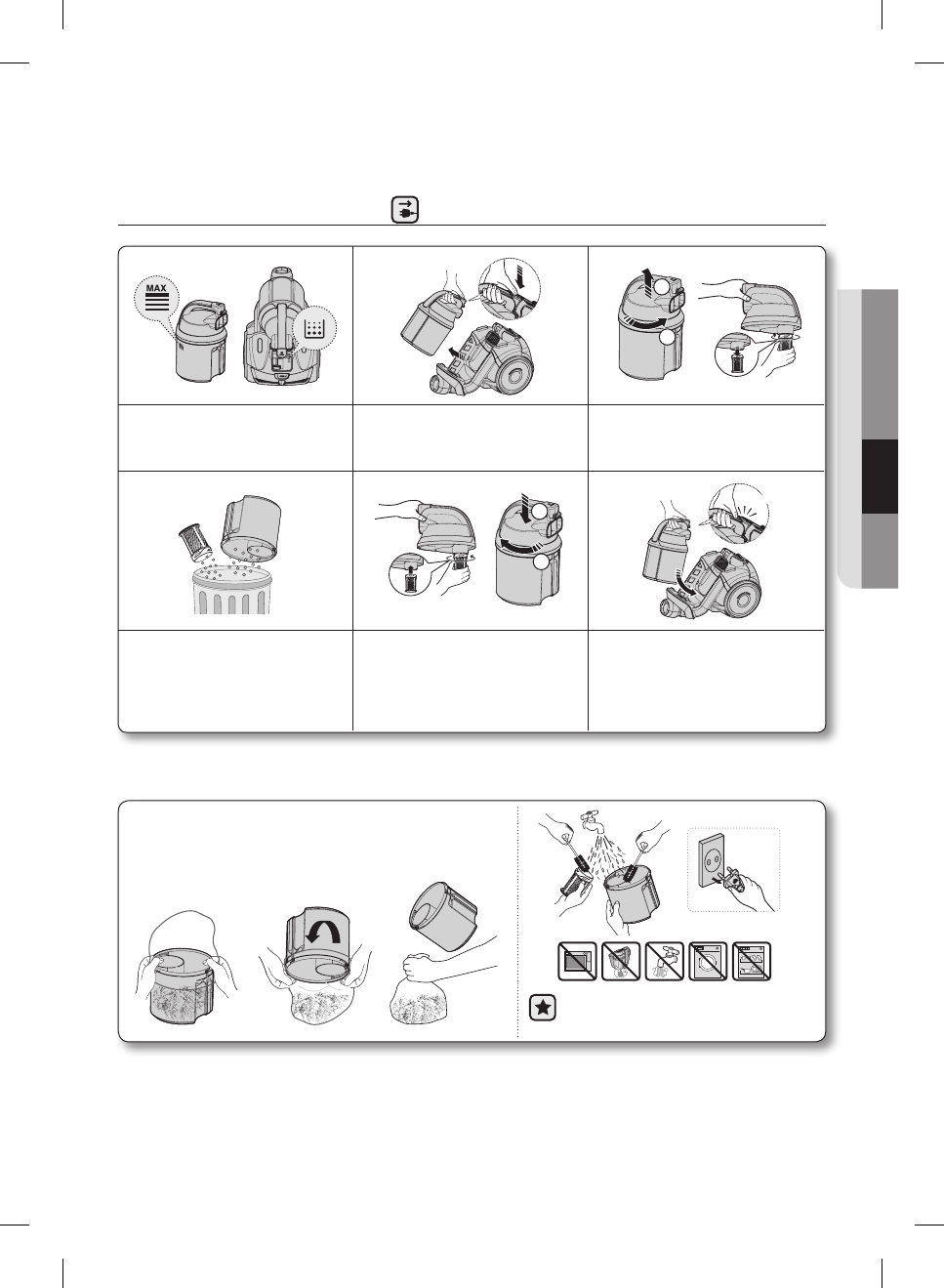

EMPTYING THE DUST BIN
1
2
Once dust reaches the dust full
mark, empty the dust bin.
Take the dust bin out by pushing
the button. Separate the dust bin cover.
1
2
Click
Throw the dust away in the bin. Close the dust bin cover.
Before use, push the dust
bin into the main body of the
vacuum cleaner until you hear
the “click” sound.
1 2 3
4 5 6
You may rinse the dust bin with cold
water.
• Empty into a plastic bag.
(recommended for asthma/allergy sufferers)
DJ68-00699W-07.indb 19 15. 4. 27. �� 10:28
English - 20

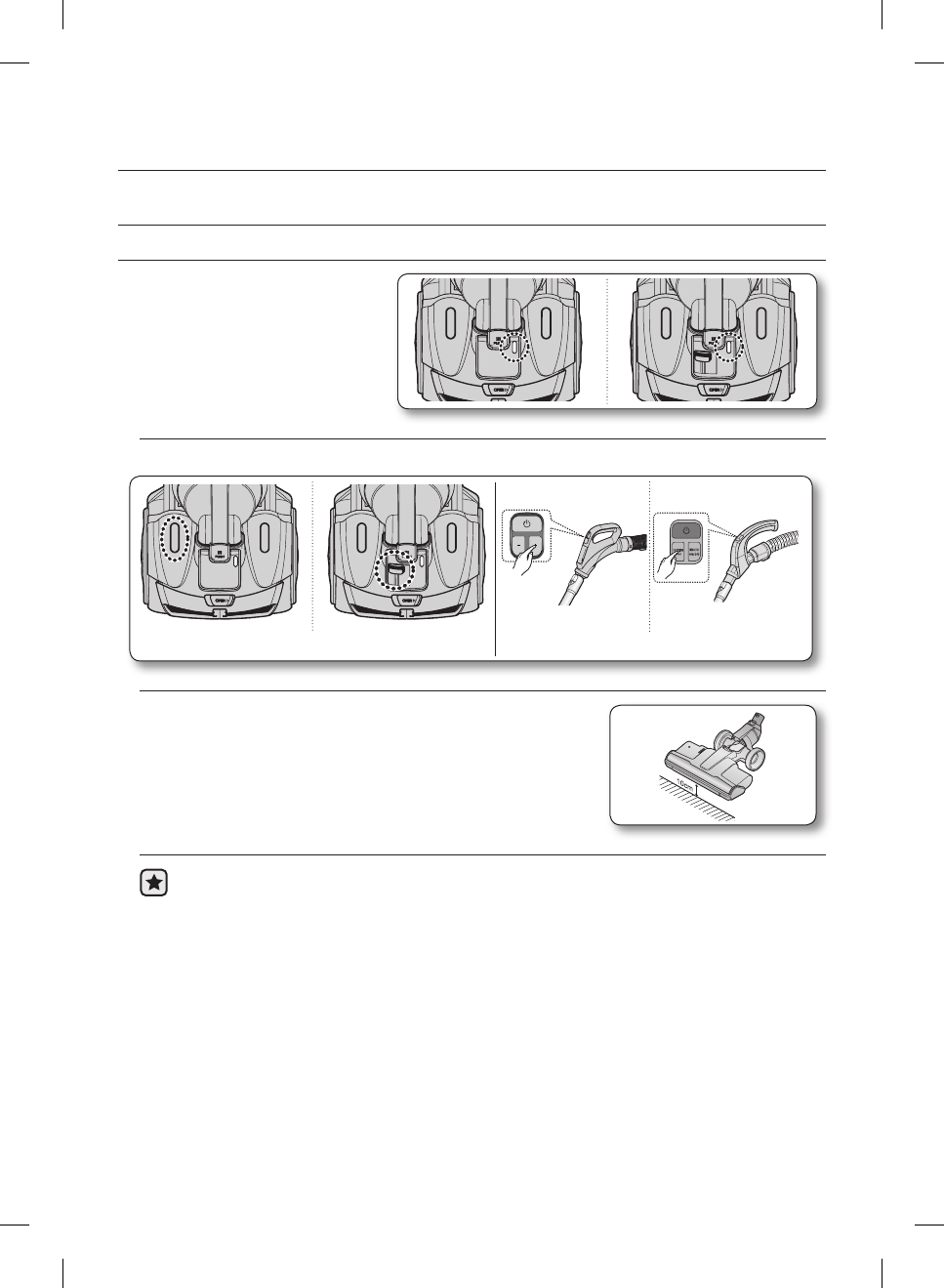

CLEANING THE DUST FILTER
When to clean the dust filter
• The lamp will turn red when suction
is reduced. If the light comes on,
please clean the dust filter.
• Turn the vacuum power to ‘MAX’.
Handle ControlBody Control
• If the filter check indicator turns red with the inlet floating 10cm
above flat floor, clean the dust pack.
When suction is noticeably reduced continuously or vacuum cleaner abnormally overheats,
please clean the dust pack.
maintain tools and filter
