USER MANUAL

User manualS19E200NYS19E200BRS19E200NWS19E200BWS22E200NYS22E200NS22E200BS22E200BWS23E200BS24E200BLThe color and the appearance may differ depending onthe product, and the specifications are subject tochange without prior notice to improve the performance.BN46-00479A-X0
Table Of Contents 2Table Of ContentsBEFORE USING THEPRODUCT7 Copyright7 Icons used in this manual8 Cleaning9 Securing the Installation Space9 Precautions for storage10 Safety Precautions10 Symbols11 Electricity and Safety12 Installation and Safety 14 Operation and Safety18 Correct posture to use the product PREPARATIONS 19 Checking the Components19 Checking the Components20 Parts20 Frontal Buttons24 Reverse Side25 Installation25 Attaching the Stand26 Removing the Stand27 Adjusting the Product Tilt28 Installing a Wall-mount Kit or Desktop Stand29 Anti-theft LockCONNECTING AND USINGA SOURCE DEVICE30 Before Connecting30 Pre-connection Checkpoints30 Connecting the Power31 Connecting and Using a PC31 Connecting to a PC32 Driver Installation33 Setting Optimum Resolution
Table Of ContentsTable Of Contents 3SCREEN SETUP 34 Brightness34 Configuring Brightness35 Contrast35 Configuring Contrast36 Sharpness36 Configuring Sharpness37 Eye Saver Mode37 Configuring Eye Saver Mode38 Game Mode38 Configuring Game Mode39 SAMSUNG MAGIC Bright39 Configuring SAMSUNG MAGIC Bright41 SAMSUNG MAGIC Angle (S19E200NY / S19E200NW / S22E200NY / S22E200N)41 Configuring SAMSUNG MAGIC Angle43 SAMSUNG MAGIC Upscale43 Configuring SAMSUNG MAGIC Upscale44 Image Size44 Changing the Image Size46 H-Position & V-Position46 Configuring H-Position & V-Position47 Coarse47 Adjusting Coarse48 Fine48 Adjusting FineCONFIGURING TINT 49 Red49 Configuring Red50 Green50 Configuring Green
Table Of ContentsTable Of Contents 451 Blue51 Configuring Blue52 Color Tone52 Configuring the Color Tone Settings53 Gamma53 Configuring GammaRESIZING ORRELOCATING THESCREEN54 Language54 Changing the Language55 Menu H-Position & Menu V-Position55 Configuring Menu H-Position & Menu V-Position56 Display Time56 Configuring Display Time57 Transparency 57 Changing TransparencySETUP AND RESET 58 Reset58 Initializing Settings (Reset)59 Eco Saving Plus 59 Configuring Eco Saving Plus61 Off Timer 61 Configuring Off Timer62 Configuring Turn Off After63 PC/AV Mode (S19E200BR / S19E200BW / S22E200B / S22E200BW / S23E200B / S24E200BL)63 Configuring PC/AV Mode64 Key Repeat Time 64 Configuring Key Repeat Time
Table Of ContentsTable Of Contents 565 Source Detection (S19E200BR / S19E200BW / S22E200B / S22E200BW / S23E200B / S24E200BL)65 Configuring Source DetectionINFORMATION MENU ANDOTHERS66 INFORMATION66 Displaying INFORMATION67 Configuring Brightness, Contrast and Sharpness from the Initial ScreenINSTALLING THESOFTWARE68 Magic Tune68 What is MagicTune?68 Installing the Software69 Removing the Software70 MultiScreen70 Installing the Software71 Removing the SoftwareTROUBLESHOOTINGGUIDE72 Requirements Before Contacting Samsung Customer Service Center72 Testing the Product72 Checking the Resolution and Frequency72 Check the following.75 Q & ASPECIFICATIONS 77 General (S19E200NY / S19E200NW)78 General (S19E200BW / S19E200BR)79 General (S22E200NY / S22E200N)80 General (S22E200B / S22E200BW)81 General (S23E200B / S24E200BL)82 PowerSaver84 Standard Signal Mode Table
Table Of ContentsTable Of Contents 6APPENDIX 95 Contact SAMSUNG WORLD WIDE103 Responsibility for the Pay Service (Cost to Customers)103 Not a product defect103 A Product damage caused by customer's fault103 Others104 Correct Disposal104 Correct Disposal of This Product (Waste Electrical & Electronic Equipment)105 TerminologyINDEX
7 Before Using the Product Before Using the ProductCopyrightThe contents of this manual are subject to change without notice to improve quality.© 2015 Samsung ElectronicsSamsung Electronics owns the copyright for this manual.Use or reproduction of this manual in parts or entirety without the authorization of Samsung Electronics is prohibited.Microsoft, Windows and Windows NT are registered trademarks of Microsoft Corporation.VESA, DPM and DDC are registered trademarks of the Video Electronics Standards Association.Icons used in this manualAn administration fee may be charged if either(a) an engineer is called out at your request and there is no defect in the product(i.e. where you have failed to read this user manual).(b) you bring the unit to a repair center and there is no defect in the product (i.e. where you have failed to read this user manual).The amount of such administration charge will be advised to you before any work or home visit is carried out.The following images are for reference only. Real-life situations may differ from what is shown in the images.
8Before Using the Product Before Using the ProductCleaningExercise care when cleaning as the panel and exterior of advanced LCDs are easily scratched. Take the following steps when cleaning. 1. Power off the monitor and computer.2. Disconnect the power cord from the monitor. Hold the power cable by the plug and do not touch the cable with wet hands. Otherwise, an electric shock may result. 3. Wipe the monitor screen using a clean, soft and dry cloth.Do not apply a cleaning agent that contains alcohol, solvent, or surfactant to the monitor.Do not spray water or detergent directly on the product.4. Wet a soft and dry cloth in water and wring thoroughly to clean the exterior of the monitor.5. Connect the power cord to the product after cleaning the product.6. Power on the monitor and computer.!!
9Before Using the Product Before Using the ProductSecuring the Installation SpaceEnsure some space around the product for ventilation. An internal temperature rise may cause fire and damage the product. Be sure to allow the amount of space as shown below or greater when installing the product. The exterior may differ depending on the product. Precautions for storage Be sure to contact Samsung Customer Service Center (page 95) if the inside of the monitor needs cleaning. (A service fee will be charged.) 3.93inches(10 cm)3.93 inches (10 cm)3.93inches(10 cm)3.93 inches(10 cm)3.93 inches (10 cm)
10Before Using the Product Before Using the ProductSafety PrecautionsSymbolsCautionRISK OF ELECTRIC SHOCK DO NOT OPENCaution: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). THERE ARE NO USER SERVICEABLE PARTS INSIDE. REFER ALL SERVICING TO QUALIFIED PERSONNEL.This symbol indicates that high voltage is present inside. It is dangerous to make any kind of contact with any internal part of this product.This symbol alerts you that important literature concerning operation and maintenance has been included with this product. Warning A serious or fatal injury may result if instructions are not followed. Caution Personal injury or damage to properties may result if instructions are not followed.Activities marked by this symbol are prohibited.Instructions marked by this symbol must be followed.
11Before Using the Product Before Using the ProductElectricity and Safety The following images are for reference only. Real-life situations may differ from what is shown in the images. WarningDo not use a damaged power cord or plug, or a loose power socket.An electric shock or fire may result.Do not plug many products into the same power socket.Otherwise, the socket may overheat and cause a fire.Do not touch the power plug with wet hands.Otherwise, an electric shock may result.Insert the power plug all the way in so it is not loose.An unstable connection may cause a fire.Ensure you connect the power plug to a grounded power socket. (type 1 insulated devices only). An electric shock or injury may result.Do not bend or pull the power cord with force. Do not weigh the power cord down with a heavy object.A damaged power cord may cause an electric shock or fire.Do not place the power cord or product near heat sources. An electric shock or fire may result.Remove foreign substances such as dust around the plug pins and power socket with a dry cloth. Otherwise, a fire may result.!!!
12Before Using the Product Before Using the Product CautionInstallation and Safety WarningDo not unplug the power cord when the product is in use.The product may become damaged by an electric shock.Do not use the power cord for products other than authorized products supplied by Samsung. An electric shock or fire may result.Keep the power socket where the power cord is connected unobstructed. If any problem occurs in the product, unplug the power cable to completely cut the power to the product. Power to the product cannot be completely cut off with the power button. Hold the plug when disconnecting the power cord from the power socket. An electric shock or fire may result.DO NOT PLACE CANDLES, INSECT REPELLANTS OR CIGARETTES ON TOP OF THE PRODUCT. DO NOT INSTALL THE PRODUCT NEAR HEAT SOURCES.Otherwise, a fire may result.Avoid installing the product in a narrow space with bad ventilation, such as a bookshelf or wall closet.Otherwise, a fire may result due to an increased internal temperature.Keep the plastic packaging bag for the product in a place that cannot be reached by children.Children may suffocate.!!!!
13Before Using the Product Before Using the Product CautionDo not install the product on an unstable or vibrating surface (insecure shelf, sloped surface, etc.). The product may fall and break or cause a personal injury.Using the product in an area with excess vibration may damage the product or cause a fire.Do not install the product in a vehicle or a place exposed to dust, moisture (water drips, etc.), oil, or smoke. An electric shock or fire may result.Do not expose the product to direct sunlight, heat, or a hot object such as a stove.Otherwise, the product lifespan may be reduced, or a fire may result.Do not install the product within the reach of young children.The product may fall and injure children. Edible oil, such as soybean oil, can damage or deform the product. Do not install the product in a kitchen or near a kitchen counter.Take care not to drop the product when moving it. Otherwise, product failure or personal injury may result.Do not set down the product on its front.The screen may become damaged.When installing the product on a cabinet or shelf, make sure that the bottom edge of the front of the product is not protruding.The product may fall and break or cause a personal injury.Install the product only on cabinets or shelves of the right size.!!
14Before Using the Product Before Using the ProductOperation and Safety WarningPut down the product carefully.The product may fall and break or cause a personal injury.Installing the product in an unusual place (a place exposed to a lot of fine dust, chemical substances, extreme temperatures or a significant presence of moisture, or a place where the product will operate continuously for an extended period of time) may seriously affect its performance.Be sure to consult Samsung Customer Service Center (page 95) before installation if you want to install the product at such a place.High voltage runs through the product. Do not attempt to disassemble, repair, or modify the product on your own.An electric shock or fire may result.Contact Samsung Customer Service Center (page 95) for repair.To move the product, first disconnect all the cables from it, including the power cable.Otherwise, the power cord may be damaged and a fire or electric shock may result.If the product generates a strange noise, a burning smell, or smoke, remove the power cord immediately and contact Samsung Customer Service Center (page 95).An electric shock or fire may result.Do not let children hang from the product or climb on top of it.The product may fall, and your child may become injured or seriously harmed.If the product falls or the exterior is damaged, power off the product, remove the power cord, and contact Samsung Customer Service Center (page 95).Otherwise, an electric shock or fire may result. Do not put a heavy object, toy, or sweets on top of the product.The product or heavy objects may fall as children try to reach for the toy or sweets resulting in a serious injury.!SAMSUNG!!!
15Before Using the Product Before Using the ProductIf there is a thunderstorm or lightning strike, turn off the power and disconnect the power cable.An electric shock or fire may result.Do not drop objects on the product or apply impact.An electric shock or fire may result.Do not move the product by pulling the power cord or any cable.Otherwise, the cable may be damaged and product failure, an electric shock or fire may result.If a gas leakage is found, do not touch the product or power plug. Also, ventilate the area immediately.Sparks can cause an explosion or fire.Do not lift or move the product by pulling the power cord or any cable.Otherwise, the cable may be damaged and product failure, an electric shock or fire may result.Do not use or keep combustible spray or an inflammable substance near the product.An explosion or fire may result.Ensure the vents are not blocked by tablecloths or curtains.Otherwise, a fire may result from an increased internal temperature.Do not insert a metallic object (a chopstick, coin, hair pin, etc.) or inflammable object (paper, match, etc.) into the vent or ports of the product.If water or any foreign substance enters the product, be sure to power off the product, remove the power cord, and contact Samsung Customer Service Center (page 95).Product failure, an electric shock or fire may result. Do not place objects containing liquid (vases, pots, bottles, etc) or metallic objects on top of the product.If water or any foreign substance enters the product, be sure to power off the product, remove the power cord, and contact Samsung Customer Service Center (page 95). Product failure, an electric shock or fire may result.!!!GAS!10 0
16Before Using the Product Before Using the Product CautionLeaving the screen fixed on a stationary image for an extended period of time may cause afterimage burn-in or defective pixels.If you are not going to use the product for an extended period of time, activate power-saving mode or a moving-picture screen saver.Disconnect the power cord from the power socket if you do not plan on using the product for an extended period of time (vacation, etc.).Otherwise, a fire may result from accumulated dust, overheating, an electric shock, or electric leakage. Use the product at the recommended resolution and frequency.Otherwise,Your eyesight may deteriorate.Do not put DC power adapters together.Otherwise, a fire may result.Remove the plastic bag from the DC power adapter before you use it.Otherwise, a fire may result.Do not let water enter the DC power device or get the device wet.An electric shock or fire may result. Avoid using the product outdoors where it can be exposed to rain or snow.Be careful not to get the DC power adapter wet when you wash the floor.Do not put the DC power adapter near to any heating apparatus.Otherwise, a fire may result.Keep the DC power adapter in a well-ventilated area.Looking at the screen too close for an extended period of time can deteriorate your eyesight.!!-_-!!!!
17Before Using the Product Before Using the ProductDo not hold the monitor upside-down or move it by holding the stand.The product may fall and break or cause a personal injury.Do not use humidifiers or stoves around the product.An electric shock or fire may result.Rest your eyes for more than 5 minutes for every 1 hour of product use.Eye fatigue will be relieved.Do not touch the screen when the product has been turned on for an extended period of time as it will become hot.Store the small accessories used with the product out of reach of children.Exercise caution when adjusting the product angle or stand height.Otherwise, children's fingers or hands may become stuck and injured.Tilting the product excessively may cause it to fall and result in personal injury. Do not place heavy objects on the product.Product failure or personal injure may result.!!!
18Before Using the Product Before Using the ProductCorrect posture to use the product Use the product in the correct posture as follows:Straighten your back.Allow a distance of 45 to 50 cm between your eye and the screen, and look slightly downward at the screen. Keep your eyes directly in front of the screen. Adjust the angle so light does not reflect on the screen.Keep your forearms perpendicular to your upper arms and level with the back of your hands.Keep your elbows at about a right angle.Adjust the height of the product so you can keep your knees bent at 90 degrees or more, your heels attached to the floor, and your arms lower than your heart.
191 Preparations1 Preparations1.1 Checking the Components1.1.1 Checking the Components Contact the dealer from whom you purchased the product if any item is missing.The appearance of the components and items sold separately may differ from the image shown. Components Components may vary depending on the country. Quick setup guide Warranty card(Not available in some locations) Regulatory guide User manual(optional)Power cable D-SUB cable(optional)DVI cable(optional)Stand Stand Connector
20Preparations11 Preparations1.2 Parts1.2.1 Frontal Buttons The color and shape of parts may differ from what is shown. Specifications are subject to change without notice to improve quality. S19E200NY / S19E200NW / S22E200NY / S22E200NIcons DescriptionOpen or close the onscreen display (OSD) menu, or return to the parent menu.OSD control lock: Maintain the current settings, or lock the OSD control to prevent unintended changes to settings. Enable: To lock the OSD control, press the [ ] button for 10 seconds. Disable: To unlock the locked OSD control, press the [ ] button for more than 10 seconds. If the OSD control is locked,Brightness and Contrast can be adjusted. Eye Saver Mode is available. INFORMATION can be viewed.The Eye Saver Mode function can be used by pressing the [ ] button. (The Eye Saver Mode is available even when the OSD control is locked.) Select [ ] by moving the JOG button in the function key guide screen.Press to enable or disable Eye Saver Mode.The items below are not available if the Eye Saver Mode function is enable.PICTURE Game Mode, Bright, Brightness, COLORSETUP&RESET Eco Saving PlusKey GuideEYESAVERMENU SOURCEAUTOEYESAVERMENU SOURCEAUTOMENUMENUMENUSAMSUNGMAGIC
21Preparations11 PreparationsMove to the upper or lower menu or adjust the value for an option on the OSD menu.Use this button to control the brightness, contrast and sharpness of the screen.Confirm a menu selection.Pressing the [ ] button when the OSD menu is not displayed will change the input source (Analog/DVI). If you power on the product or change the input source by pressing the [ ] button, a message that shows the changed input source will appear at the top left corner of the screen. This function is not available for products with an Analog interface only. Press the [ ] button to automatically adjust the screen settings. Changing the resolution in Display Properties will activate the Auto Adjustment function.This function is only available in Analog mode. Turn the screen on or off. Key GuideWhen a control button on the product is pressed, the Key Guide will be displayed before the onscreen menu opens. (The guide shows the function of the button pressed.)To access the onscreen menu when the guide is displayed, press the corresponding button again.The Key Guide may vary depending on the function or product model. Refer to the actual product.Icons DescriptionAUTOAUTO
22Preparations11 PreparationsS19E200BR / S19E200BW / S22E200B / S22E200BW / S23E200B / S24E200BLIcons DescriptionOpen or close the onscreen display (OSD) menu, or return to the parent menu.OSD control lock: Maintain the current settings, or lock the OSD control to prevent unintended changes to settings. Enable: To lock the OSD control, press the [ ] button for 10 seconds. Disable: To unlock the locked OSD control, press the [ ] button for more than 10 seconds. If the OSD control is locked,Brightness and Contrast can be adjusted. Eye Saver Mode is available. INFORMATION can be viewed.The Eye Saver Mode function can be used by pressing the [ ] button. (The Eye Saver Mode is available even when the OSD control is locked.) Select [ ] by moving the JOG button in the function key guide screen.Press to enable or disable Eye Saver Mode.The items below are not available if the Eye Saver Mode function is enable.PICTURE Game Mode, Bright, Brightness, COLORSETUP&RESET Eco Saving PlusMove to the upper or lower menu or adjust the value for an option on the OSD menu.Use this button to control the brightness, contrast and sharpness of the screen.Key GuideEYESAVERMENU SOURCEEYESAVERMENU SOURCEMENUMENUMENUSAMSUNGMAGIC
23Preparations11 PreparationsConfirm a menu selection.Pressing the [ ] button when the OSD menu is not displayed will change the input source (Analog/DVI). If you power on the product or change the input source by pressing the [ ] button, a message that shows the changed input source will appear at the top left corner of the screen. This function is not available for products with an Analog interface only. Press the [ ] button to automatically adjust the screen settings. Changing the resolution in Display Properties will activate the Auto Adjustment function.This function is only available in Analog mode. Turn the screen on or off. Key GuideWhen a control button on the product is pressed, the Key Guide will be displayed before the onscreen menu opens. (The guide shows the function of the button pressed.)To access the onscreen menu when the guide is displayed, press the corresponding button again.The Key Guide may vary depending on the function or product model. Refer to the actual product.Icons DescriptionAUTOAUTO
24Preparations11 Preparations1.2.2 Reverse Side The color and shape of parts may differ from what is shown. Specifications are subject to change without notice to improve quality. Port PortsConnect the power cord for your monitor to the POWER IN port on the back of the product.Connect to a PC using the DVI cable. The [DVI IN] terminal is supplied for the digital (DVI)-dedicated models only. Connect to a PC using the D-SUB cable.DVI IN RGB IN POWER INRGB INDVI IN POWER INS19E200BR / S19E200BW / S22E200BS22E200BW / S23E200B / S24E200BLRGB IN POWER INRGB IN POWER INS19E200NY / S19E200NW / S22E200NY / S22E200N
25Preparations11 Preparations1.3 Installation1.3.1 Attaching the Stand Before assembling the product, place the product down on a flat and stable surface so that the screen is facing downwards. The color and shape of parts may differ from what is shown. Specifications are subject to change without notice to improve quality. Insert the Stand Connector into the Stand in the direction shown by the figure.Check if the Stand Connector is firmly connected.Turn the connecting screw at the bottom of the stand fully so that it is completely fixed.Place a soft cloth over the table to protect the product and place the product onto the cloth so that the front of the product is facing downwards.Hold the main body of the product with your hand as shown by the figure.Push the assembled stand into the main body in the direction of the arrow as shown in the figure.- CautionDo not hold the product upside down only by the stand.
26Preparations11 Preparations1.3.2 Removing the Stand The exterior may differ depending on the product. Place a soft cloth over the table to protect the product and place the product onto the cloth so that the front of the product faces downwards.While holding the stand neck with one hand, pound the other fisted hand down onto the top of the stand base in the direction of the arrow to detach the stand base.Turn the connecting screw at the bottom of the stand base to separate it.Remove the stand neck from the stand base by pulling it in the direction of the arrow as shown in the figure.
27Preparations11 Preparations1.3.3 Adjusting the Product Tilt The color and shape of parts may differ from what is shown. Specifications are subject to change without notice to improve quality.You can adjust the tilt of your monitor.Hold the lower part of the product and adjust the tilt carefully. -1° (±2°) - 20° (±2°)
28Preparations11 Preparations1.3.4 Installing a Wall-mount Kit or Desktop StandBefore Installation Power the product off and remove the power cable from the power socket. Align the grooves and tightly fasten the screws on the bracket on the product with the corresponding parts on the wall-mount kit or desktop stand you want to attach.Place a protective cloth or cushion on a flat surface. Next, place the product with the face down on top of the cloth or cushion.Hold the main body of the product with your hand as shown by the figure. Pull the stand in the direction of the arrow as shown in the figure to separate it.Installing a Wall-mount Kit or Desktop Stand Attach the wall-mount kit or desktop stand here Bracket (sold separately)1A23B4AB
29Preparations11 Preparations NotesUsing a screw longer than the standard length can damage the internal components of the product.The length of screws required for a wall mount that does not comply with the VESA standards may vary depending on the specifications.Do not use screws that do not comply with the VESA standards. Do not attach the wall-mount kit or desktop stand using excessive force. The product may get damaged or fall and cause personal injury. Samsung shall not be held liable for any damage or injury caused by using improper screws or attaching the wall-mount kit or desktop stand using excessive force.Samsung shall not be held liable for any product damage or personal injury caused by using a wall-mount kit other than the one specified or from an attempt to install the wall-mount kit on your own.To mount the product on a wall, ensure you purchase a wall-mount kit that can be installed 10cm or farther away from the wall.Be sure to use a wall-mount kit that complies with the standards. 1.3.5 Anti-theft LockAn anti-theft lock allows you to use the product securely even in public places. The locking device shape and locking method depend on the manufacturer. Refer to the user guide provided with your anti-theft locking device for details. The lock device is sold separately. The color and shape of parts may differ from what is shown. Specifications are subject to change without notice to improve quality. To lock an anti-theft locking device: 1Fix the cable of your anti-theft locking device to a heavy object such as a desk.2Put one end of the cable through the loop on the other end.3Insert the locking device into the anti-theft lock slot at the back of the product.4Lock the locking device. An anti-theft locking device can be purchased separately.Refer to the user guide provided with your anti-theft locking device for details.Anti-theft locking devices can be purchased at electronics retailers or online. RGB INDVI IN POWER IN
302 Connecting and Using a Source Device2 Connecting and Using a Source Device2.1 Before Connecting2.1.1 Pre-connection CheckpointsBefore connecting a source device, read the user manual provided with it.The number and locations of ports on source devices may differ from device to device.Do not connect the power cable until all connections are completed.Connecting the power cable during connection may damage the product.Check the types of ports at the back of the product you want to connect.2.2 Connecting the PowerTo use the product, connect the power cable to a power outlet and the [POWER IN] port on the product.(The input voltage is switched automatically.)RGB INDVI IN POWER INPOWER IN
31Connecting and Using a Source Device22 Connecting and Using a Source Device2.3 Connecting and Using a PC2.3.1 Connecting to a PCSelect a connection method suitable for your PC. Connecting parts may differ in different products. Connection Using the D-SUB Cable (Analog Type) Do not connect the power cable before connecting all other cables. Ensure you connect a source device first before connecting the power cable. 1Connect the D-SUB cable to the [RGB IN] port on the back of the product and the RGB port on the PC.2Press [ ] to change the input source to Analog. This function is not available for products with an Analog interface only. Connection Using the DVI Cable (S19E200BR / S19E200BW / S22E200B / S22E200BW / S23E200B / S24E200BL) Do not connect the power cable before connecting all other cables. Ensure you connect a source device first before connecting the power cable. 1Connect the DVI cable to the [DVI IN] port on the back of the product and the DVI port on the PC.2Press [ ] to change the input source to DVI. The [DVI IN] terminal is supplied for the digital (DVI)-dedicated models only. RGB INDVI IN
32Connecting and Using a Source Device22 Connecting and Using a Source Device2.3.2 Driver Installation You can set the optimum resolution and frequency for this product by installing the corresponding drivers.An installation driver is contained on the CD supplied with the product.If the file provided is faulty, visit the Samsung homepage (http://www.samsung.com) and download the file. 1Insert the user manual CD provided with the product into the CD-ROM drive.2Click "Windows Driver".3Follow the instructions given on the screen to proceed with installation.4Select your product model from the list of models.5Go to Display Properties and check that the resolution and refresh rate are appropriate.Refer to your Windows OS manual for further details.
33Connecting and Using a Source Device22 Connecting and Using a Source Device2.3.3 Setting Optimum ResolutionAn information message about setting optimum resolution will appear if you power on the product for the first time after purchase.Select a language on the product and change the resolution on your PC to the optimum setting.1Press [ ] to move to the language you want and press [ ].2To hide the information message, press [ ]. If the optimum resolution is not selected, the message will appear up to three times for a specified time even when the product is turned off and on again.The optimum resolution can also be selected in Control Panel on your PC. 2.(QJOLVK7KHRSWLPDOUHVROXWLRQIRUWKLVPRQLWRULVDVIROORZV****x**** **Hz8VHWKHDERYHVHWWLQJVWRVHWWKHUHVROXWLRQRQ\RXU3&6HWXS*XLGHAUTOAUTOMENU
343 Screen Setup3 Screen SetupConfigure the screen settings such as brightness.3.1 BrightnessYou can adjust the general brightness of the picture. (Range: 0~100)A higher value will make the picture appear brighter. This menu is not available when Bright is set to Dynamic Contrast mode.This menu is not available when Eco Saving Plus is set.This menu is not available when Eye Saver Mode is enabled.The functions available on the monitor may vary depending on the model. Refer to the actual product. 3.1.1 Configuring Brightness1Press any button on the front of the product to display the Key Guide. Next, press [ ] to display the corresponding menu screen.2Press [ ] to move to PICTURE and press [ ] on the product.3Press [ ] to move to Brightness and press [ ] on the product.The following screen will appear.4Adjust the Brightness using the [ ] buttons.SAMSUNGMAGICMENUPICTURE SAMSUNGMAGICBrightSAMSUNGMAGICUpscaleAdjust the brightness level. Values closer to 100 mean a brighter screen.AUTOBrightnessContrastSharpnessEye Saver ModeGame Mode1007560OffOffCustomOffAUTOAUTOAUTOPICTURE SAMSUNGMAGICBrightSAMSUNGMAGICAngleAdjust the brightness level. Values closer to 100 mean a brighter screen.AUTOBrightnessContrastSharpnessEye Saver ModeGame Mode1007560OffOffCustomOffAUTOAUTOAUTO
35Screen Setup33 Screen Setup3.2 ContrastAdjust the contrast between the objects and background. (Range: 0~100)A higher value will increase the contrast to make the object appear clearer. This menu is not available when Bright is in Cinema or Dynamic Contrast mode.This menu is not available when Game Mode is enabled.The functions available on the monitor may vary depending on the model. Refer to the actual product. 3.2.1 Configuring Contrast1Press any button on the front of the product to display the Key Guide. Next, press [ ] to display the corresponding menu screen.2Press [ ] to move to PICTURE and press [ ] on the product.3Press [ ] to move to Contrast and press [ ] on the product.The following screen will appear.4Adjust the Contrast using the [ ] buttons.SAMSUNGMAGICMENUPICTURE SAMSUNGMAGICBrightSAMSUNGMAGICUpscaleAdjust the contrast level. Values closer to 100 mean a bigger light/dark contrast.AUTOBrightnessContrastSharpnessEye Saver ModeGame Mode1007560OffOffCustomOffAUTOAUTOAUTO SAMSUNGMAGICBrightSAMSUNGMAGICAngleAdjust the contrast level. Values closer to 100 mean a bigger light/dark contrast.AUTOBrightnessContrastSharpnessEye Saver ModeGame Mode1007560OffOffCustomOffPICTUREAUTOAUTOAUTO
36Screen Setup33 Screen Setup3.3 SharpnessMake the outline of objects more clear or blurry. (Range: 0~100)A higher value will make the outline of objects clearer. This menu is not available when Bright is in Cinema or Dynamic Contrast mode.This menu is not available when Upscale is in Mode1 or Mode2.This menu is not available when Game Mode is enabled.The functions available on the monitor may vary depending on the model. Refer to the actual product. 3.3.1 Configuring Sharpness1Press any button on the front of the product to display the Key Guide. Next, press [ ] to display the corresponding menu screen.2Press [ ] to move to PICTURE and press [ ] on the product.3Press [ ] to move to Sharpness and press [ ] on the product.The following screen will appear.4Adjust the Sharpness using the [ ] buttons.SAMSUNGMAGICSAMSUNGMAGICMENUPICTURE SAMSUNGMAGICBrightSAMSUNGMAGICUpscaleAdjust the sharpness of the picture. Values closer to 100 mean a sharper image.AUTOBrightnessContrastSharpnessEye Saver ModeGame Mode1007560OffOffCustomOffAUTOAUTOAUTO SAMSUNGMAGICBrightSAMSUNGMAGICAngleAdjust the sharpness of the picture. Values closer to 100 mean a sharper image.AUTOBrightnessContrastSharpnessEye Saver ModeGame Mode1007560OffOffCustomOffPICTUREAUTOAUTOAUTOAUTO
37Screen Setup33 Screen Setup3.4 Eye Saver ModeSet to an optimum picture quality suitable for eye relaxation.TÜV Rheinland “Low Blue Light Content” is a certification for products which meet requirements for lower blue light levels. When Eye Saver Mode is 'On', the blue light that wavelength is around 400nm will become lower and lower, and one hour later it will approach the optimum picture quality suitable for eye relaxation. At the same time, the blue light level is lower than in the default settings, and it was tested by TÜV Rheinland and certified as it met the requirements of TÜV Rheinland “Low Blue Light Content” standards. The functions available on the monitor may vary depending on the model. Refer to the actual product. 3.4.1 Configuring Eye Saver Mode1Press any button on the front of the product to display the Key Guide. Next, press [ ] to display the corresponding menu screen.Next, press the [ ] button.2Press [ ] to move to PICTURE and press [ ] on the product.3Press [ ] to move to Eye Saver Mode and press [ ] on the product.The following screen will appear.4Move the focus to the desired option by pressing [ ] button on the DOME Type JOG Button. Press [ ] button.5The selected option will be applied.MENUPICTURE SAMSUNGMAGICBrightSAMSUNGMAGICUpscaleSet to an optimum picture quality suitable for eye relaxation.1007560OffOffCustomOffOffOnBrightnessContrastSharpnessEye Saver ModeGame ModeAUTOAUTO SAMSUNGMAGICBrightSAMSUNGMAGICAngleSet to an optimum picture quality suitable for eye relaxation.AUTO1007560OffOffCustomOffOffOnBrightnessContrastSharpnessEye Saver ModeGame ModePICTUREAUTOAUTOAUTO
38Screen Setup33 Screen Setup3.5 Game ModeConfigure the product screen settings for game mode.Use this feature when playing games on a PC or when a game console such as PlayStation™ or Xbox™ is connected. This menu is not available when Eye Saver Mode is enabled.The functions available on the monitor may vary depending on the model. Refer to the actual product. 3.5.1 Configuring Game Mode1Press any button on the front of the product to display the Key Guide. Next, press [ ] to display the corresponding menu screen.2Press [ ] to move to PICTURE and press [ ] on the product.3Press [ ] to move to Game Mode and press [ ] on the product.The following screen will appear.4Move the focus to the desired option by pressing [ ] button on the DOME Type JOG Button. Press [ ] button.5The selected option will be applied. When the monitor turns off, enters power-saving mode or changes input sources, Game Mode turns Off even if it is set to On.If you want to keep Game Mode enabled all the time, select Always On. MENUPICTURE 1007560OffCustomOffOptimizes image settings for playing games.AUTOOffOnAlways OnBrightnessContrastSharpnessEye Saver ModeGame ModeSAMSUNGMAGICBrightSAMSUNGMAGICUpscaleAUTOAUTO 1007560OffCustomOffOptimizes image settings for playing games.AUTOOffOnAlways OnBrightnessContrastSharpnessEye Saver ModeGame ModeSAMSUNGMAGICBrightSAMSUNGMAGICAnglePICTUREAUTOAUTO
39Screen Setup33 Screen Setup3.6 SAMSUNG MAGIC BrightThis menu provides an optimum picture quality suitable for the environment where the product will be used. This menu is not available when Eco Saving Plus is set.This menu is not available when Game Mode is enabled.This menu is not available when Eye Saver Mode is enabled.This menu is not available when Angle is enabled.The functions available on the monitor may vary depending on the model. Refer to the actual product. You can customize the brightness to suit your preferences.3.6.1 Configuring SAMSUNG MAGIC Bright1Press any button on the front of the product to display the Key Guide. Next, press [ ] to display the corresponding menu screen.2Press [ ] to move to PICTURE and press [ ] on the product.3Press [ ] to move to Bright and press [ ] on the product.The following screen will appear.Custom: Customize the contrast and brightness as required.Web mode: Obtain the best screen for editing documents and browsing the Internet without the issue of narrow viewing angles. (S19E200NY / S19E200NW / S22E200NY / S22E200N)SAMSUNGMAGICMENUSAMSUNGMAGIC1007560505022000PICTURE 100Set to an optimum picture quality suitable for the working environment.AUTOCustomWeb modeStandardCinemaDynamic ContrastBrightnessContrastSharpnessEye Saver ModeGame ModeSAMSUNGMAGICBrightSAMSUNGMAGICUpscaleAUTOAUTO1007560505022000 1007560CustomOffOffWideSet to an optimum picture quality suitable for the working environment.AUTOCustomStandardCinemaDynamic ContrastBrightnessContrastSharpnessEye Saver ModeGame ModeSAMSUNGMAGICBrightSAMSUNGMAGICAnglePICTUREAUTOAUTO
40Screen Setup33 Screen SetupStandard: Obtain a picture quality suitable for editing documents or using Internet.Cinema: Obtain the brightness and sharpness of TVs suitable for enjoying video and DVD content.Dynamic Contrast: Obtain balanced brightness through automatic contrast adjustment.4Press [ ] to move to the option you want and press [ ].5The selected option will be applied.
41Screen Setup33 Screen Setup3.7 SAMSUNG MAGIC Angle (S19E200NY / S19E200NW / S22E200NY / S22E200N)Angle allows you to configure the settings to obtain the optimum picture quality according to your viewing angle. This menu is not available when Bright is in Cinema or Dynamic Contrast mode.This menu is not available when Game Mode is enabled.The functions available on the monitor may vary depending on the model. Refer to the actual product. You can customize the angle to suit your preferences.3.7.1 Configuring SAMSUNG MAGIC Angle1Press any button on the front of the product to display the Key Guide. Next, press [ ] to display the corresponding menu screen.2Press [ ] to move to PICTURE and press [ ] on the product.3Press [ ] to move to Angle and press [ ] on the product. The following screen will appear.Off : Select this option to view directly in front of the product.Lean Back Mode 1 : Select this option to view from a place slightly lower than the product.Lean Back Mode 2 : Select this option to view from a place lower than Lean Back Mode 1.Standing Mode : Select this option to view from a place higher than the product.Side Mode : Select this option to view from either side of the product.Group View: Select this option for more than one viewer to view from places , , and .Custom: Lean Back Mode 1 will be applied by default if Custom is selected.SAMSUNGMAGICSAMSUNGMAGICMENUSAMSUNGMAGIC1007560505022000 1007560CustomOffOffWideAUTOoffLean Back Mode 1Lean Back Mode 2Standing ModeSide ModeBrightnessContrastSharpnessEye Saver ModeGame ModeSAMSUNGMAGICBrightSAMSUNGMAGICAngleSelect an angle that best suits your viewing position.PICTUREAUTOAUTO423115 5①② ③④⑤①④⑤
42Screen Setup33 Screen Setup4Press [ ] to move to the option you want and press [ ].5The selected option will be applied.
43Screen Setup33 Screen Setup3.8 SAMSUNG MAGIC UpscaleUpscale function can enhance the layers of the picture details and the vividness of the picture. The function has more obvious effects on low-resolution pictures.This menu is not available when Bright is in Cinema or Dynamic Contrast mode.This menu is not available when Game Mode is enabled.The functions available on the monitor may vary depending on the model. Refer to the actual product. 3.8.1 Configuring SAMSUNG MAGIC Upscale1Press any button on the front of the product to display the Key Guide. Next, press [ ] to display the corresponding menu screen. 2Press [ ] to move to PICTURE and press [ ] on the product.3Press [ ] to move to Upscale and press [ ] on the product. The following screen will appear.Comparing with Mode1, Mode2 has a stronger effect.4Press [ ] to move to the option you want and press [ ].5The selected option will be applied.SAMSUNGMAGICSAMSUNGMAGICMENUSAMSUNGMAGIC1007560505022000PICTURE 1007560CustomOffOffWideEnhance picture detail and vividness.AUTOoffMode1Mode2BrightnessContrastSharpnessEye Saver ModeGame ModeSAMSUNGMAGICBrightSAMSUNGMAGICUpscaleAUTOAUTO AUTOImage SizeH-PositionV-PositionCoarseFineSAMSUNGMAGICUpscaleoffMode1Mode2Enhance picture detail and vividness.PICTUREAUTOAUTO
44Screen Setup33 Screen Setup3.9 Image SizeChange the picture size. The functions available on the monitor may vary depending on the model. Refer to the actual product. 3.9.1 Changing the Image Size1Press any button on the front of the product to display the Key Guide. Next, press [ ] to display the corresponding menu screen.2Press [ ] to move to PICTURE and press [ ] on the product.3Press [ ] to move to Image Size and press [ ] on the product. The following screen will appear.Auto: Display the picture according to the aspect ratio of the input source.Wide: Display the picture in full screen regardless of the aspect ratio of the input source.In PC modeMENUPICTURE AutoWideChoose the size and aspect ratio of the picture displayed on screen.AUTOImage SizeH-PositionV-PositionCoarseFine22000AUTOAUTO AutoWideChoose the size and aspect ratio of the picture displayed on screen.AUTOSAMSUNGMAGICUpscalePICTUREImage SizeH-PositionV-PositionCoarseFineAUTOAUTO
45Screen Setup33 Screen Setup4:3: Display the picture with an aspect ratio of 4:3. Suitable for videos and standard broadcasts.16:9: Display the picture with an aspect ratio of 16:9.Screen Fit: Display the picture with the original aspect ratio without cutting off.Wide: Display the picture in full screen regardless of the aspect ratio of the input source.(TBD /TBD / TBD) Changing the screen size is available when the following conditions are satisfied,except TBD and TBD models.A digital output device is connected using the DVI cable.The input signal is 480p, 576p, 720p, or 1080p and monitor can display normally(not every model can support all of these signals ).This can only be set when the external input is connected through DVI and PC/AV Mode is set to AV. 4Press [ ] to move to the option you want and press [ ].5The selected option will be applied.In AV mode (S19E200BR / S19E200BW / S22E200B / S22E200BW / S23E200B / S24E200BL) Choose the size and aspect ratio of the picture displayed on screen.AUTO4:316:9Screen FitSAMSUNGMAGICUpscalePICTUREImage SizeH-PositionV-PositionCoarseFineAUTOAUTO Choose the size and aspect ratio of the picture displayed on screen.AUTO4:3WideScreen FitSAMSUNGMAGICUpscalePICTUREImage SizeH-PositionV-PositionCoarseFineAUTOAUTO
46Screen Setup33 Screen Setup3.10 H-Position & V-PositionH-Position: Move the screen to the left or right.V-Position: Move the screen up or down. This menu is available in Analog mode.This menu is only available when Image Size is set to Screen Fit in AV Mode. When a 480P or 576P or 720P or 1080P signal is input in AV mode and the monitor can display normally ,select Screen Fit to adjust horizontal position in 0-6 levels.The functions available on the monitor may vary depending on the model. Refer to the actual product. 3.10.1 Configuring H-Position & V-Position1Press any button on the front of the product to display the Key Guide. Next, press [ ] to display the corresponding menu screen.2Press [ ] to move to PICTURE and press [ ] on the product.3Press [ ] to move to H-Position or V-Position, and press [ ]. The following screen will appear.4Press [ ] to configure H-Position or V-Position.MENUPICTURE Image SizeH-PositionV-PositionCoarseFineWide505022000AUTOMove the image displayed on the screen to the left or right.AUTOAUTOPICTURE Image SizeH-PositionV-PositionCoarseFineWide505022000AUTOMove the image displayed on the screen up or down.AUTOAUTO AUTOAUTOMove the image displayed on the screen to the left or right.OffWide505022000Image SizeH-PositionV-PositionCoarseFineSAMSUNGMAGICUpscalePICTURE Move the image displayed on the screen up or down.OffWide505022000Image SizeH-PositionV-PositionCoarseFineSAMSUNGMAGICUpscalePICTUREAUTOAUTO
47Screen Setup33 Screen Setup3.11 CoarseAdjust the screen frequency. This menu is available in Analog mode only.The functions available on the monitor may vary depending on the model. Refer to the actual product. 3.11.1 Adjusting Coarse1Press any button on the front of the product to display the Key Guide. Next, press [ ] to display the corresponding menu screen.2Press [ ] to move to PICTURE and press [ ] on the product.3Press [ ] to move to Coarse and press [ ] on the product. The following screen will appear.4Adjust the Coarse using the [ ] buttons.MENUPICTURE Image SizeH-PositionV-PositionCoarseFineWide505022000AUTOAdjust the screen frequency.AUTOAUTO AUTOAUTOAdjust the screen frequency.OffWide505022000Image SizeH-PositionV-PositionCoarseFineSAMSUNGMAGICUpscalePICTUREAUTOAUTO
48Screen Setup33 Screen Setup3.12 FineFine-adjust the screen to obtain a vivid picture. This menu is available in Analog mode only.The functions available on the monitor may vary depending on the model. Refer to the actual product. 3.12.1 Adjusting Fine1Press any button on the front of the product to display the Key Guide. Next, press [ ] to display the corresponding menu screen.2Press [ ] to move to PICTURE and press [ ] on the product.3Press [ ] to move to Fine and press [ ] on the product. The following screen will appear.4Adjust the Fine using the [ ] buttons.MENUPICTURE Image SizeH-PositionV-PositionCoarseFineWide505022000AUTOFine-tune the screen to get a vivid picture.AUTOAUTO AUTOAUTOOffWide505022000Image SizeH-PositionV-PositionCoarseFineSAMSUNGMAGICUpscalePICTUREAUTOAUTOFine-tune the screen to get a vivid picture.
494 Configuring Tint4 Configuring TintA detailed description of each function is provided. Refer to your product for details.Adjust the tint of the screen. This menu is not available when Bright is set to Cinema or Dynamic Contrast mode. This menu is not available when Game Mode or Eye Saver Mode is enabled.SAMSUNGMAGIC4.1 RedAdjust the value of the color red in the picture. (Range: 0~100)A higher value will increase the intensity of the color. This menu is not available when Bright is in Web mode mode. 4.1.1 Configuring Red1Press any button on the front of the product to display the Key Guide. Next, press [ ] to display the corresponding menu screen.2Press [ ] to move to COLOR and press [ ] on the product.3Press [ ] to move to Red and press [ ] on the product. The following screen will appear.4Adjust the Red using the [ ] buttons.SAMSUNGMAGICMENU RedGreenBlueColor ToneGammaAdjust the red saturation level. Values closer to 100 mean greater intensity for the color.505050NormalMode1COLORAUTOAUTOAUTOAUTO
50Configuring Tint44 Configuring Tint4.2 GreenAdjust the value of the color green in the picture. (Range: 0~100)A higher value will increase the intensity of the color. This menu is not available when Bright is in Web mode mode. 4.2.1 Configuring Green1Press any button on the front of the product to display the Key Guide. Next, press [ ] to display the corresponding menu screen.2Press [ ] to move to COLOR and press [ ] on the product.3Press [ ] to move to Green and press [ ] on the product. The following screen will appear.4Adjust the Green using the [ ] buttons.SAMSUNGMAGICMENUCOLOR RedGreenBlueColor ToneGamma505050NormalMode1Adjust the green saturation level. Values closer to 100 mean greater intensity for the color.AUTOAUTOAUTOAUTO
51Configuring Tint44 Configuring Tint4.3 BlueAdjust the value of the color blue in the picture. (Range: 0~100)A higher value will increase the intensity of the color. This menu is not available when Bright is in Web mode mode. 4.3.1 Configuring Blue1Press any button on the front of the product to display the Key Guide. Next, press [ ] to display the corresponding menu screen.2Press [ ] to move to COLOR and press [ ] on the product.3Press [ ] to move to Blue and press [ ] on the product. The following screen will appear.4Adjust the Blue using the [ ] buttons.SAMSUNGMAGICMENU RedGreenBlueColor ToneGamma505050NormalMode1AUTOAdjust the blue saturation level. Values closer to 100 mean greater intensity for the color.COLORAUTOAUTOAUTO
52Configuring Tint44 Configuring Tint4.4 Color ToneAdjust the general color tone of the picture. This menu is not available when Angle is enabled. 4.4.1 Configuring the Color Tone Settings1Press any button on the front of the product to display the Key Guide. Next, press [ ] to display the corresponding menu screen.2Press [ ] to move to COLOR and press [ ] on the product.3Press [ ] to move to Color Tone and press [ ] on the product. The following screen will appear.Cool 2: Set the color temperature to be cooler than Cool 1.Cool 1: Set the color temperature to be cooler than Normal mode.Normal: Display the standard color tone.Warm 1: Set the color temperature to be warmer than Normal mode.Warm 2: Set the color temperature to be warmer than Warm 1.Custom: Customize the color tone. When the external input is connected through HDMI and PC/AV Mode is set to AV, Color Tone has four color temperature settings (Cool, Normal, Warm and Custom). 4Press [ ] to move to the option you want and press [ ].5The selected option will be applied.SAMSUNGMAGICMENU RedGreenBlueColor ToneGammaCool 2 Cool 1 NormalWarm 1 Warm 2AUTOSelect a color tone that best suits your viewing needs.COLOR50
53Configuring Tint44 Configuring Tint4.5 GammaAdjust the mid-range brightness (Gamma) of the picture. This menu is not available when Bright is in Web mode mode.This menu is not available when Angle is enabled. 4.5.1 Configuring Gamma1Press any button on the front of the product to display the Key Guide. Next, press [ ] to display the corresponding menu screen.2Press [ ] to move to COLOR and press [ ] on the product.3Press [ ] to move to Gamma and press [ ] on the product. The following screen will appear.4Press [ ] to move to the option you want and press [ ].5The selected option will be applied.SAMSUNGMAGICSAMSUNGMAGICMENU 505050NormalMode1RedGreenBlueColor ToneGammaAUTOMode1 Mode2Mode3Adjust the middle level of luminance.COLOR
545 Resizing or Relocating the Screen5 Resizing or Relocating the Screen5.1 LanguageSet the menu language. A change to the language setting will only be applied to the onscreen menu display.It will not be applied to other functions on your PC. 5.1.1 Changing the Language1Press any button on the front of the product to display the Key Guide. Next, press [ ] to display the corresponding menu screen.2Press [ ] to move to MENU SETTINGS and press [ ] on the product.3Press [ ] to move to Language and press [ ] on the product. The following screen will appear.4Press [ ] to move to the language you want and press [ ].5The selected option will be applied.MENUMENU SETTINGS DeutschEnglishEspañolFrançaisItalianoLanguageMenu H-PositionMenu V-PositionDisplay TimeTransparency Set the menu language.AUTOAUTO
55Resizing or Relocating the Screen55 Resizing or Relocating the Screen5.2 Menu H-Position & Menu V-PositionMenu H-Position: Move the menu position to the left or right. Menu V-Position: Move the menu position up or down. 5.2.1 Configuring Menu H-Position & Menu V-Position1Press any button on the front of the product to display the Key Guide. Next, press [ ] to display the corresponding menu screen.2Press [ ] to move to MENU SETTINGS and press [ ] on the product.3Press [ ] to move to Menu H-Position or Menu V-Position, and press [ ]. The following screen will appear.4Press [ ] to configure Menu H-Position or Menu V-Position.MENU LanguageMenu H-PositionMenu V-PositionDisplay TimeTransparency English100120 secOnMove the menu position to the left or right.AUTOMENU SETTINGSAUTOAUTOAUTOAUTO LanguageMenu H-PositionMenu V-PositionDisplay TimeTransparency English100120 secOnMove the menu position up or down.AUTOMENU SETTINGSAUTOAUTOAUTOAUTO
56Resizing or Relocating the Screen55 Resizing or Relocating the Screen5.3 Display TimeSet the on-screen display (OSD) menu to automatically disappear if the menu is not used for a specified period of time. Display Time can be used to specify the time after which you want the OSD menu to disappear. 5.3.1 Configuring Display Time1Press any button on the front of the product to display the Key Guide. Next, press [ ] to display the corresponding menu screen.2Press [ ] to move to MENU SETTINGS and press [ ] on the product.3Press [ ] to move to Display Time and press [ ] on the product. The following screen will appear.4Press [ ] to move to the option you want and press [ ].5The selected option will be applied.MENU English100220 secOnLanguageMenu H-PositionMenu V-PositionDisplay TimeTransparency 5 sec10 sec20 sec200 secSet how long the menu window will remain on screen for when it is not in use.AUTOMENU SETTINGSAUTO
57Resizing or Relocating the Screen55 Resizing or Relocating the Screen5.4 Transparency Set the transparency for the menu windows: 5.4.1 Changing Transparency1Press any button on the front of the product to display the Key Guide. Next, press [ ] to display the corresponding menu screen.2Press [ ] to move to MENU SETTINGS and press [ ] on the product.3Press [ ] to move to Transparency and press [ ] on the product. The following screen will appear.4Press [ ] to move to the option you want and press [ ].5The selected option will be applied.MENUMENU SETTINGS English100120 secOnLanguageMenu H-PositionMenu V-PositionDisplay TimeTransparency OffOnConfigure the transparency of the menu windows.AUTOAUTO
586 Setup and Reset6 Setup and Reset6.1 ResetReturn all the settings for the product to the default factory settings. The functions available on the monitor may vary depending on the model. Refer to the actual product. 6.1.1 Initializing Settings (Reset)1Press any button on the front of the product to display the Key Guide. Next, press [ ] to display the corresponding menu screen.2Press [ ] to move to SETUP&RESET and press [ ] on the product.3Press [ ] to move to Reset and press [ ] on the product.The following screen will appear.4Press [ ] to move to the option you want and press [ ].5The selected option will be applied.MENUSETUP&RESET OffAccelerationReset AllEco Saving PlusOff TimerKey Repeat Time AUTOReturn all the settings for the product to the default factory settings.AUTOAUTOAUTOSETUP&RESET OffAccelerationAutoReset AllEco Saving PlusOff TimerPC/AV ModeKey Repeat TimeSource DetectionAUTOReturn all the settings for the product to the default factory settings.AUTOAUTOAUTO $OOWKHPHQXVHWWLQJVZLOOEHUHVHWWRGHIDXOW$UH\RXVXUH\RXZDQWWRUHVHW"<HV 1RAUTO
59Setup and Reset66 Setup and Reset6.2 Eco Saving Plus The Eco Saving Plus function reduces power consumption by controlling the electric current used by the monitor panel. This menu is not available when Bright is in Dynamic Contrast mode.This menu is not available when Game Mode is enabled.This menu is not available when Eye Saver Mode is enabled.The functions available on the monitor may vary depending on the model. Refer to the actual product. 6.2.1 Configuring Eco Saving Plus1Press any button on the front of the product to display the Key Guide. Next, press [ ] to display the corresponding menu screen.Next, press the [ ] button.2Press [ ] to move to SETUP&RESET and press [ ] on the product.3Press [ ] to move to Eco Saving Plus and press [ ] on the product.The following screen will appear.Off: Deactivate the Eco Saving Plus function.Auto: The power consumption will automatically be reduced by about 10% over the current setting.(The reduction of power consumption depends on the customer screen brightness condition.)Low: The power consumption will be reduced by 25% over the default setting.SAMSUNGMAGICMENU OffAutoLowHighAUTOSETUP&RESETReset AllEco Saving PlusOff TimerKey Repeat Time Adjust the power consumption of the product to save energy.AUTOAUTOAUTO OffAutoLowHighAUTOSETUP&RESETAdjust the power consumption of the product to save energy.Reset AllEco Saving PlusOff TimerPC/AV ModeKey Repeat TimeSource DetectionAUTOAUTOAUTO
60Setup and Reset66 Setup and ResetHigh: The power consumption will be reduced by 50% over the default setting.4Move the focus to the desired option by pressing [ ] button on the DOME Type JOG Button. Press [ ] button.5The selected option will be applied.
61Setup and Reset66 Setup and Reset6.3 Off Timer You can set the product to automatically turn off.6.3.1 Configuring Off Timer1Press any button on the front of the product to display the Key Guide. Next, press [ ] to display the corresponding menu screen.2Press [ ] to move to SETUP&RESET and press [ ] on the product.3Press [ ] to move to Off Timer and press [ ] on the product.4Press [ ] to move to Off Timer and press [ ] on the product.The following screen will appear.Off: Deactivate the off timer so that the product does not power off automatically.On: Activate the off timer so that the product powers off automatically.5Press [ ] to move to the option you want and press [ ].6The selected option will be applied.MENU SETUP&RESETOffAccelerationReset AllEco Saving PlusOff TimerKey Repeat Time Enable or disable the Off Timer.AUTOAUTOAUTOAUTOAUTO AUTOSETUP&RESETEnable or disable the Off Timer.Reset AllEco Saving PlusOff TimerPC/AV ModeKey Repeat TimeSource DetectionOffAccelerationAutoAUTOAUTOAUTOAUTO Off TimerOff TimerTurn Off After OffOnAUTOEnable or disable the Off Timer.AUTOAUTOAUTOAUTOAUTO
62Setup and Reset66 Setup and Reset6.3.2 Configuring Turn Off After1Press any button on the front of the product to display the Key Guide. Next, press [ ] to display the corresponding menu screen.2Press [ ] to move to SETUP&RESET and press [ ] on the product.3Press [ ] to move to Off Timer and press [ ] on the product.4Press [ ] to move to Turn Off After and press [ ] on the product. The following screen will appear.5Press [ ] to configure Turn Off After. The off timer can be set within a range of 1 to 23 hours. The product will automatically power off after the specified number of hours.This option is only available when Off Timer is set to On.For products for the market in some regions, the Off Timer is set to automatically activate 4 hours after the product powers on. This is done in accordance with power supply regulations. If you do not want the timer to activate, go to MENU SETUP&RESET and set Off Timer to Off. MENU Off TimerOff TimerTurn Off After AUTOSet the monitor to automatically turn off after a certain time period.AUTOAUTOAUTOAUTOAUTO4h→
63Setup and Reset66 Setup and Reset6.4 PC/AV Mode (S19E200BR / S19E200BW / S22E200B / S22E200BW / S23E200B / S24E200BL)Set PC/AV Mode to AV. The picture size will be enlarged. This option is useful when you view a movie. This function does not support Analog mode.Supplied for the wide models only such as 16:9 or 16:10.If the monitor (when set to DVI) is in power saving mode or is displaying the message Check Signal Cable, press the [ ] button to display the On Screen Display (OSD). You can select PC or AV.The functions available on the monitor may vary depending on the model. Refer to the actual product. 6.4.1 Configuring PC/AV Mode1Press any button on the front of the product to display the Key Guide. Next, press [ ] to display the corresponding menu screen.2Press [ ] to move to SETUP&RESET and press [ ] on the product.3Press [ ] to move to PC/AV Mode and press [ ] on the product.The following screen will appear.4Press [ ] to move to the option you want and press [ ].5The selected option will be applied.MENUMENU AUTOSETUP&RESETSet to AV to enlarge the picture.Reset AllEco Saving PlusOff TimerPC/AV ModeKey Repeat TimeSource DetectionOffAccelerationAutoAUTOAUTOAUTOAUTOAUTO DVI PCAVAUTOPC/AV ModeSelect the PC/AV mode for the DVI source.AUTOAUTOAUTOAUTO
64Setup and Reset66 Setup and Reset6.5 Key Repeat Time Control the response rate of a button when the button is pressed. The functions available on the monitor may vary depending on the model. Refer to the actual product. 6.5.1 Configuring Key Repeat Time1Press any button on the front of the product to display the Key Guide. Next, press [ ] to display the corresponding menu screen.2Press [ ] to move to SETUP&RESET and press [ ] on the product.3Press [ ] to move to Key Repeat Time and press [ ] on the product.The following screen will appear.Acceleration, 1 sec, or 2 sec can be selected. If No Repeat is selected, a command responds only once when a button is pressed.4Press [ ] to move to the option you want and press [ ].5The selected option will be applied.MENU OffAccelerationAutoAcceleration1 sec2 secNo RepeatReset AllEco Saving PlusOff TimerKey Repeat Time AUTOSETUP&RESETAUTOAUTOConfigure the response rate of a button when the button is pressed. AUTOSETUP&RESETConfigure the response rate of a button when the button is pressed.OffAccelerationAutoAUTOAUTOAUTOAUTOAUTOAcceleration1 sec2 secNo RepeatReset AllEco Saving PlusOff TimerPC/AV ModeKey Repeat TimeSource DetectionAUTOAUTO
65Setup and Reset66 Setup and Reset6.6 Source Detection (S19E200BR / S19E200BW / S22E200B / S22E200BW / S23E200B / S24E200BL)You can activate Source Detection.6.6.1 Configuring Source Detection1Press any button on the front of the product to display the Key Guide. Next, press [ ] to display the corresponding menu screen.2Press [ ] to move to SETUP&RESET and press [ ] on the product.3Press [ ] to move to Source Detection and press [ ] on the product.The following screen will appear.Auto: The input source is automatically recognized.Manual: Manually select an input source.4Press [ ] to move to the option you want and press [ ].5The selected option will be applied.MENU AUTOSETUP&RESETDecide how input sources will be detected.OffAccelerationAutoAUTOAUTOAUTOAUTOAUTOAUTOAUTOAutoManualReset AllEco Saving PlusOff TimerPC/AV ModeKey Repeat TimeSource Detection
667 INFORMATION Menu and Others7 INFORMATION Menu and Others7.1 INFORMATIONView the current input source, frequency and resolution.7.1.1 Displaying INFORMATION1Press any button on the front of the product to display the Key Guide. Next, press [ ] to display the corresponding menu screen.2Press [ ] to move to INFORMATION. The current input source, frequency and resolution will appear. The displayed menu items may vary depending on the model. MENUINFORMATION S / N : ***************Analog**kHz **Hz NN**** x ****Optimal Mode**** x **** **HzPICTURECOLORMENU SETTINGSSETUP&RESETINFORMATIONAUTO
67INFORMATION Menu and Others77 INFORMATION Menu and Others7.2 Configuring Brightness, Contrast and Sharpness from the Initial ScreenAdjust the Brightness, Contrast and Sharpness setting using the [ ] buttons in the initial screen (where no OSD menu is displayed). Brightness :This menu is not available when Bright is set to Dynamic Contrast mode.This menu is not available when Eco Saving Plus is enabled.This menu is not available when Eye Saver Mode is enabled. Contrast :This option is not available when Bright is in Cinema or Dynamic Contrast mode.This menu is not available when Game Mode is enabled. Sharpness :This option is not available when Bright is in Cinema or Dynamic Contrast mode.This menu is not available when Game Mode is enabled. 1Press any button on the front of the product (when no menu screen is displayed) to display the Key guide. Next, press [ ]. The following screen will appear.2Press the [ ] button to alternate between the Brightness, Contrast and Sharpness settings.3Adjust the Brightness, Contrast and Sharpness settings using the [ ] buttons.SAMSUNGMAGICSAMSUNGMAGICSAMSUNGMAGICContrastSharpness100Brightness

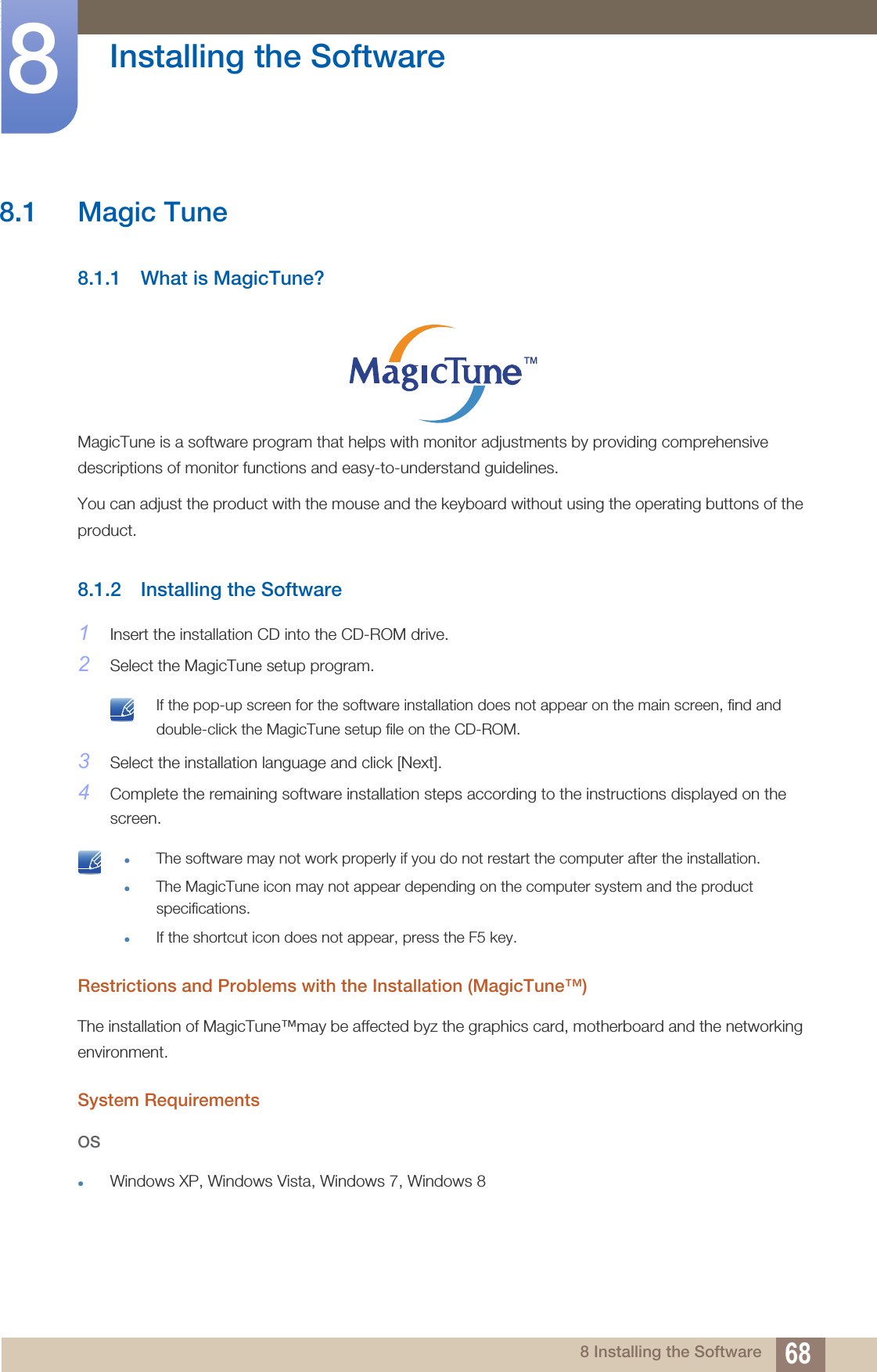

688 Installing the Software8 Installing the Software8.1 Magic Tune8.1.1 What is MagicTune?MagicTune is a software program that helps with monitor adjustments by providing comprehensive descriptions of monitor functions and easy-to-understand guidelines.You can adjust the product with the mouse and the keyboard without using the operating buttons of the product.8.1.2 Installing the Software1Insert the installation CD into the CD-ROM drive.2Select the MagicTune setup program. If the pop-up screen for the software installation does not appear on the main screen, find and double-click the MagicTune setup file on the CD-ROM. 3Select the installation language and click [Next].4Complete the remaining software installation steps according to the instructions displayed on the screen. The software may not work properly if you do not restart the computer after the installation.The MagicTune icon may not appear depending on the computer system and the product specifications.If the shortcut icon does not appear, press the F5 key. Restrictions and Problems with the Installation (MagicTune™)The installation of MagicTune™may be affected byz the graphics card, motherboard and the networking environment.System RequirementsOSWindows XP, Windows Vista, Windows 7, Windows 8
69Installing the Software88 Installing the Software8.1.3 Removing the SoftwareYou can only remove MagicTune™ through [Add or Remove Programs] in Windows.To remove MagicTune™, complete the following steps.1Click [Start] select [Settings], and select [Control Panel] from the menu.For Windows XP, click [Start], and select [Control Panel] from the menu.2Double-click the [Add or Remove Programs] icon in the Control Panel.3In the [Add/Remove] window, find and select MagicTune™so that it is highlighted.4Click [Change or Remove Programs] to remove the software.5Select [Yes] to start removing MagicTune™.6Wait until a message box appears informing you that the software has been removed completely. For technical support, the FAQ (frequently asked questions) or information about the software upgrade for MagicTune™, please visit our website(http://www.samsung.com/us/consumer/learningresources/monitor/magetune/pop_intro.html).
70Installing the Software88 Installing the Software8.2 MultiScreenMultiScreen enables users to use the monitor by partitioning multiple sections.8.2.1 Installing the Software1Insert the installation CD into the [CD-ROM drive].2Select the "MultiScreen" setup program. If the pop-up screen for the software installation does not appear on the main screen, find and double-click the "MultiScreen" setup file on the [CD-ROM]. 3When the Installation Wizard appears, click [Next].4Follow the instructions given on the screen to proceed with installation. The software may not work properly if you do not restart the computer after the installation.The "MultiScreen" icon may not appear depending on the computer system and the product specifications.If the shortcut icon does not appear, press the F5 key. Restrictions and Problems with the Installation (MultiScreen)The "MultiScreen" installation may be affected by the [Graphics card], [Motherboard] and the [Networking environment].Operating System"OS""Windows 2000""Windows XP Home Edition""Windows XP Professional""Windows Vista 32bit""Windows 7 32bit""Windows 8 32bit" For "MultiScreen", the operating systems "Windows 2000" or later is recommended. "Hardware"At least 32MB of memoryAt least 60MB of free space on the hard disk driveMultiScreen
71Installing the Software88 Installing the Software8.2.2 Removing the SoftwareClick [Start], select [Settings]/[Control Panel], and then double-click [Add or Remove Programs].Select "MultiScreen" from the program list and click the [Add/Delete] button.
729 Troubleshooting Guide9 Troubleshooting Guide9.1 Requirements Before Contacting Samsung Customer Service Center9.1.1 Testing the Product Before calling Samsung Customer Service Center, test your product as follows. If the problem persists, contact Samsung Customer Service Center. Check if your product is operating normally by using the product test function.If the screen is turned off and the power indicator blinks even though the product is properly connected to a PC, perform a self-diagnosis test.1Power off both the PC and product.2Disconnect the cables from the product.3Power on the product.4If the message Check Signal Cable appears, the product is working normally. If the screen remains blank, check the PC system, video controller and cable. 9.1.2 Checking the Resolution and FrequencyFor a mode that exceeds the supported resolution (refer to "10.7 Standard Signal Mode Table"), the message Not Optimum Mode will appear for a short time.9.1.3 Check the following.Installation issue (PC mode)Issues SolutionsThe screen keeps switching on and off. Check the cable connection between the product and PC, and ensure the connectors are locked. (Refer to "2.3 Connecting and Using a PC")
73Troubleshooting Guide99 Troubleshooting GuideScreen issueIssues SolutionsThe power LED is off. The screen will not switch on.Check that the power cable is connected properly. (Refer to "2.3 Connecting and Using a PC")The message Check Signal Cable appears. Check that the cable is properly connected to the product. (Refer to "2.3 Connecting and Using a PC")Check that the device connected to the product is powered on.Not Optimum Mode is displayed. This message appears when the signal from the graphics card exceeds the maximum resolution or frequency for the product.Change the maximum resolution and frequency to suit the product performance, referring to Standard Signal Mode Table (page 84).The images on the screen look distorted. Check the cable connection to the product (Refer to "2.3 Connecting and Using a PC")The screen is not clear. The screen is blurry. Adjust Coarse (page 47) and Fine (page 48).Remove any accessories (video extension cable, etc.) and try again.Set the resolution and frequency to the recommended level.The screen appears unstable and shaky. Check that the resolution and frequency for the PC are within the range of resolution and frequency compatible with the product. Next, if required, change the settings, referring to Standard Signal Mode Table (page 84) in this manual and the INFORMATION menu on the product.There are shadows or ghost images left on the screen.The screen is too bright. The screen is too dark. Adjust Brightness (page 34) and Contrast (page 35).Screen color is inconsistent. Change the COLOR settings. (Refer to " Configuring Tint")The colors on the screen have a shadow and are distorted.Change the COLOR settings. (Refer to " Configuring Tint")White does not really look white. Change the COLOR settings. (Refer to " Configuring Tint")
74Troubleshooting Guide99 Troubleshooting GuideSource device issue The LED lights on the frame of the product may be seen depending on the user's viewing angle. The light is harmless to people and has no bearing on product features and performance. The product is safe to use. There is no image on the screen and the power LED blinks every 0.5 to 1 second.The product is operating in power-saving mode.Press any key on the keyboard or move the mouse to return to normal operating mode.Issues SolutionsA beeping sound is heard when my PC is booting. If a beeping sound is heard when your PC is booting, have your PC serviced.Issues Solutions
75Troubleshooting Guide99 Troubleshooting Guide9.2 Q & AQuestion AnswerHow can I change the frequency?Set the frequency on your graphics card.Windows XP: Go to Control Panel Appearance and Themes Display Settings Advanced Monitor, and adjust Refresh rate under Monitor settings.Windows ME/2000: Go to Control Panel Display Settings Advanced Monitor, and adjust Refresh rate under Monitor settings.Windows Vista: Go to Control Panel Appearance and Personalization Personalization Display Settings Advanced Settings Monitor, and adjust Refresh rate under Monitor settings.Windows 7: Go to Control Panel Appearance and Personalization Display Screen Resolution Advanced settings Monitor, and adjust Refresh rate under Monitor settings.Windows 8: Go to Settings Control Panel Appearance and Personalization Display Screen Resolution Advanced settings Monitor, and adjust Refresh rate under Monitor settings.
76Troubleshooting Guide99 Troubleshooting Guide Refer to the user manual for your PC or graphics card for further instructions on adjustment. How can I change the resolution?Windows XP: Go to Control Panel Appearance and Themes Display Settings, and adjust the resolution.Windows ME/2000: Go to Control Panel Display Settings, and adjust the resolution.Windows Vista: Go to Control Panel Appearance and Personalization Personalize Display Settings, and adjust the resolution.Windows 7: Go to Control Panel Appearance and Personalization Display Adjust Resolution, and adjust the resolution.Windows 8: Go to Settings Control Panel Appearance and Personalization Display Adjust Resolution, and adjust the resolution.How do I set power-saving mode?Windows XP: Set power-saving mode in Control Panel Appearance and Themes Display Screen Saver Settings or BIOS SETUP on the PC. Windows ME/2000: Set power-saving mode in Control Panel Display Screen Saver Settings or BIOS SETUP on the PC.Windows Vista: Set power-saving mode in Control Panel Appearance and Personalization Personalize Screen Saver Settings or BIOS SETUP on the PC.Windows 7: Set power-saving mode in Control Panel Appearance and Personalization Personalize Screen Saver Settings or BIOS SETUP on the PC.Windows 8: Set power-saving mode in Settings Control Panel Appearance and Personalization Personalize Screen Saver Settings or BIOS SETUP on the PC.Question Answer
7710 Specifications10 Specifications10.1 General (S19E200NY / S19E200NW) Plug-and-PlayThis monitor can be installed and used with any Plug-and-Play compatible systems. Two-way data exchange between the monitor and PC system optimizes the monitor settings. Monitor installation takes place automatically. However, you can customize the installation settings if desired. Panel Dots (Pixels)Due to the nature of the manufacturing of this product, approximately 1 pixel per million (1ppm) may be brighter or darker on the LCD panel. This does not affect product performance. The above specifications are subject to change without notice to improve quality. This device is a Class B digital apparatus. Model Name S19E200NY S19E200NWPanel Size 18.5 Inches (47 cm) 19.0 Inches (48 cm)Display area 409.8 mm (H) x 230.4 mm (V)16.1 Inches (H) x 9.1 Inches (V)408.24 mm (H) x 255.15 mm (V)16.1 Inches (H) x 10.0 Inches (V)Pixel Pitch0.300 mm (H) x 0.300 mm (V)0.011811 Inches (H) x 0.011811 Inches (V)0.2835 mm (H) x 0.2835 mm (V)0.011161 Inches (H) x 0.011161 Inches (V)Power SupplyThis product uses 100 to 240V.Refer to the label at the back of the product as the standard voltage can vary in different countries.Dimensions (W x H x D) / WeightWithout Stand441.4 x 266.6 x 76.8 mm17.4 x 10.5 x 3.0 Inches 439.4 x 289.9 x 76.2 mm17.3 x 11.4 x 3.0 Inches With Stand441.4 x 348.8 x 170 mm / 2.8 kg17.4 x 13.7 x 6.7 Inches / 6.2 lbs439.4 x 373.6 x 170 mm / 3.1 kg17.3 x 14.7 x 6.7 Inches / 6.8 lbsEnvironmental considerationsOperating Temperature : 50 °F – 104 °F (10 °C – 40 °C) Humidity : 10% – 80%, non-condensingStorage Temperature : -4 °F – 113 °F (-20 °C – 45 °C) Humidity : 5% – 95%, non-condensing(USA only)Dispose unwanted electronics through an approved recycler.To find the nearest recycling location, go to our website:www.samsung.com/recyclingdirect or call, (877) 278 - 0799
78Specifications1010 Specifications10.2 General (S19E200BW / S19E200BR) Plug-and-PlayThis monitor can be installed and used with any Plug-and-Play compatible systems. Two-way data exchange between the monitor and PC system optimizes the monitor settings. Monitor installation takes place automatically. However, you can customize the installation settings if desired. Panel Dots (Pixels)Due to the nature of the manufacturing of this product, approximately 1 pixel per million (1ppm) may be brighter or darker on the LCD panel. This does not affect product performance. The above specifications are subject to change without notice to improve quality. This device is a Class B digital apparatus. Model Name S19E200BW S19E200BRPanel Size 19.0 Inches (48 cm) 19.0 Inches (48 cm)Display area 408.24 mm (H) x 255.15 mm (V)16.1 Inches (H) x 10.0 Inches (V)376.32 mm (H) x 301.06 mm (V)14.8 Inches (H) x 11.9 Inches (V)Pixel Pitch0.2835 mm (H) x 0.2835 mm (V)0.011161 Inches (H) x 0.011161 Inches (V)0.294 mm (H) x 0.294 mm (V)0.011575 Inches (H) x 0.011575 Inches (V)Power SupplyThis product uses 100 to 240V.Refer to the label at the back of the product as the standard voltage can vary in different countries.Dimensions (W x H x D) / WeightWithout Stand439.4 x 289.9 x 76.2 mm17.3 x 11.4 x 3.0 Inches 407 x 336 x 77 mm16.0 x 13.2 x 3.0 Inches With Stand439.4 x 373.6 x 170 mm / 3.1 kg17.3 x 14.7 x 6.7 Inches / 6.8 lbs407 x 419 x 170 mm / 3.25 kg16.0 x 16.5 x 6.7 Inches / 7.2 lbsEnvironmental considerationsOperating Temperature : 50 °F – 104 °F (10 °C – 40 °C) Humidity : 10% – 80%, non-condensingStorage Temperature : -4 °F – 113 °F (-20 °C – 45 °C) Humidity : 5% – 95%, non-condensing(USA only)Dispose unwanted electronics through an approved recycler.To find the nearest recycling location, go to our website:www.samsung.com/recyclingdirect or call, (877) 278 - 0799
79Specifications1010 Specifications10.3 General (S22E200NY / S22E200N) Plug-and-PlayThis monitor can be installed and used with any Plug-and-Play compatible systems. Two-way data exchange between the monitor and PC system optimizes the monitor settings. Monitor installation takes place automatically. However, you can customize the installation settings if desired. Panel Dots (Pixels)Due to the nature of the manufacturing of this product, approximately 1 pixel per million (1ppm) may be brighter or darker on the LCD panel. This does not affect product performance. The above specifications are subject to change without notice to improve quality. This device is a Class B digital apparatus. Model Name S22E200NY / S22E200NPanel Size 21.5 Inches (54 cm)Display area 476.64 mm (H) x 268.11 mm (V)18.8 Inches (H) x 10.6 Inches (V)Pixel Pitch 0.24825 mm (H) x 0.24825 mm (V)0.009774 Inches (H) x 0.009774 Inches (V)Power SupplyThis product uses 100 to 240V.Refer to the label at the back of the product as the standard voltage can vary in different countries.Dimensions (W x H x D) / WeightWithout Stand504.3 x 301.9 x 77.6 mm19.9 x 11.9 x 3.1 Inches With Stand504.3 x 385.35 x 185.0 mm / 3.5 kg19.9 x 15.2 x 7.3 Inches / 7.7 lbsEnvironmental considerationsOperating Temperature : 50 °F – 104 °F (10 °C – 40 °C) Humidity : 10% – 80%, non-condensingStorage Temperature : -4 °F – 113 °F (-20 °C – 45 °C) Humidity : 5% – 95%, non-condensing(USA only)Dispose unwanted electronics through an approved recycler.To find the nearest recycling location, go to our website:www.samsung.com/recyclingdirect or call, (877) 278 - 0799
80Specifications1010 Specifications10.4 General (S22E200B / S22E200BW) Plug-and-PlayThis monitor can be installed and used with any Plug-and-Play compatible systems. Two-way data exchange between the monitor and PC system optimizes the monitor settings. Monitor installation takes place automatically. However, you can customize the installation settings if desired. Panel Dots (Pixels)Due to the nature of the manufacturing of this product, approximately 1 pixel per million (1ppm) may be brighter or darker on the LCD panel. This does not affect product performance. The above specifications are subject to change without notice to improve quality. This device is a Class B digital apparatus. Model Name S22E200B S22E200BWPanel Size 21.5 Inches (54 cm) 22.0 Inches (55 cm)Display area476.64 mm (H) x 268.11 mm (V)18.8 Inches (H) x 10.6 Inches (V)473.76 mm (H) x 296.1 mm (V)18.7 Inches (H) x 11.7 Inches (V)Pixel Pitch0.24825 mm (H) x 0.24825 mm (V)0.009774 Inches (H) x 0.009774 Inches (V)0.282 mm (H) x 0.282 mm (V)0.011102 Inches (H) x 0.011102 Inches (V)Power SupplyThis product uses 100 to 240V.Refer to the label at the back of the product as the standard voltage can vary in different countries.Dimensions (W x H x D) / WeightWithout Stand504.3 x 301.9 x 77.6 mm19.9 x 11.9 x 3.1 Inches 502.4 x 329.8 x 77.4 mm19.8 x 13.0 x 3.0 Inches With Stand504.3 x 385.35 x 185.0 mm / 3.5 kg19.9 x 15.2 x 7.3 Inches / 7.7 lbs502.4 x 413.5 x 185 mm / 3.85 kg19.8 x 16.3 x 7.3 Inches / 8.5 lbsEnvironmental considerationsOperating Temperature : 50 °F – 104 °F (10 °C – 40 °C) Humidity : 10% – 80%, non-condensingStorage Temperature : -4 °F – 113 °F (-20 °C – 45 °C) Humidity : 5% – 95%, non-condensing(USA only)Dispose unwanted electronics through an approved recycler.To find the nearest recycling location, go to our website:www.samsung.com/recyclingdirect or call, (877) 278 - 0799
81Specifications1010 Specifications10.5 General (S23E200B / S24E200BL) Plug-and-PlayThis monitor can be installed and used with any Plug-and-Play compatible systems. Two-way data exchange between the monitor and PC system optimizes the monitor settings. Monitor installation takes place automatically. However, you can customize the installation settings if desired. Panel Dots (Pixels)Due to the nature of the manufacturing of this product, approximately 1 pixel per million (1ppm) may be brighter or darker on the LCD panel. This does not affect product performance. The above specifications are subject to change without notice to improve quality. This device is a Class B digital apparatus. Model Name S23E200B S24E200BLPanel Size 23.0 Inches (58 cm) 23.6 Inches (59 cm)Display area 509.76 mm (H) x 286.74 mm (V)20.1 Inches (H) x 11.3 Inches (V)521.28 mm (H) x 293.22 mm (V)20.5 Inches (H) x 11.5 Inches (V)Pixel Pitch0.2655 mm (H) x 0.2655 mm (V)0.010453 Inches (H) x 0.010453 Inches (V)0.2715 mm (H) x 0.2715 mm (V)0.010689 Inches (H) x 0.010689 Inches (V)Power SupplyThis product uses 100 to 240V.Refer to the label at the back of the product as the standard voltage can vary in different countries.Dimensions (W x H x D) / WeightWithout Stand 542.9 x 321.4 x 76.3 mm21.4 x 12.7 x 3.0 Inches 554.6 x 330.5 x 78.2 mm21.8 x 13.0 x 3.1 Inches With Stand542.9 x 404.65 x 185 mm / 3.25 kg21.4 x 15.9 x 7.3 Inches / 7.2 lbs554.6 x 412.35 x 185 mm / 4.1 kg21.8 x 16.2 x 7.3 Inches / 9.0 lbsEnvironmental considerationsOperating Temperature : 50 °F – 104 °F (10 °C – 40 °C) Humidity : 10% – 80%, non-condensingStorage Temperature : -4 °F – 113 °F (-20 °C – 45 °C) Humidity : 5% – 95%, non-condensing(USA only)Dispose unwanted electronics through an approved recycler.To find the nearest recycling location, go to our website:www.samsung.com/recyclingdirect or call, (877) 278 - 0799
82Specifications1010 Specifications10.6 PowerSaverThe power-saving function of this product reduces power consumption by switching off the screen and changing the color of the power LED if the product is not used for a specified period of time. The power is not turned off in power-saving mode. To switch the screen back on, press any key on the keyboard or move the mouse. Power-saving mode functions only when the product is connected to a PC that has a power-saving function.PowerSaver Normal operation modeEnergy Star Power ConsumptionPower saving modePower off (Power button)Power Indicator On On Blinking OffPower Consumption(S19E200NY)Typical 19 W Typical 13 W Less than 0.1 W Less than 0.1 WPower Consumption(S19E200BR)Power Consumption(S19E200NW)Power Consumption(S19E200BW)Power Consumption(S22E200NY)Power Consumption(S22E200N)Power Consumption(S22E200B)Power Consumption(S22E200BW)Typical 19 W Typical 16 W Less than 0.1 W Less than 0.1 WTypical 19 W Typical 15 W Less than 0.1 W Less than 0.1 WTypical 19 W Typical 15 W Less than 0.1 W Less than 0.1 WTypical 24 W Typical 21 W Less than 0.1 W Less than 0.1 WTypical 24 W Typical 21 W Less than 0.1 W Less than 0.1 WTypical 24 W Typical 21 W Less than 0.1 W Less than 0.1 WTypical 24 W Typical 19 W Less than 0.1 W Less than 0.1 W
83Specifications1010 Specifications The displayed power consumption level can vary in different operating conditions or when settings are changed. (S**E200** Model Power saving mode / Power off (Power button) : Less than 0.1 watts (Analog Input Condition), Max 0.25watts )ENERGY STAR® is a US registered mark of the United States Environmental Protection Agency.Energy Star power is measured with the test method in the current Energy Star® Standard.To reduce the power consumption to 0 watts, turn off the power switch on the back of the product or disconnect the power cable. Be sure to disconnect the power cable when you will not be using the product for an extended period of time. To reduce the power consumption to 0 watts when the power switch is not available, disconnect the power cable. Power Consumption(S23E200B)Power Consumption(S24E200BL)PowerSaver Normal operation modeEnergy Star Power ConsumptionPower saving modePower off (Power button)Typical 25 W Typical 22 W Less than 0.1 W Less than 0.1 WTypical 25 W Typical 22 W Less than 0.1 W Less than 0.1 W
84Specifications1010 Specifications10.7 Standard Signal Mode Table This product can be set to only one resolution for each screen size to obtain the optimum picture quality due to the nature of the panel. Therefore, a resolution other than the specified resolution may degrade the picture quality. To avoid this, it is recommended that you select the optimum resolution specified for the screen size of your product.Check the frequency when you exchange a CDT monitor (connected to a PC) for an LCD monitor. If the LCD monitor does not support 85Hz, change the vertical frequency to 60Hz using the CDT monitor before you exchange it with the LCD monitor. If a signal that belongs to the following standard signal modes is transmitted from your PC, the screen will automatically be adjusted. If the signal transmitted from the PC does not belong to the standard signal modes, the screen may be blank even though the power LED turns on. In such a case, change the settings according to the following table by referring to the graphics card user manual.Model NameSynchronization ResolutionHorizontal FrequencyVertical Frequency Optimum Resolution Maximum ResolutionS19E200NY30 – 81 kHz 56 – 75 Hz 1366 x 768 @ 60 Hz 1366 x 768 @ 60 HzS19E200NW / S19E200BW30 – 81 kHz 56 – 75 Hz 1440 x 900 @ 60 Hz 1440 x 900 @ 75 HzS19E200BR30 – 81 kHz 56 – 75 Hz 1280 x 1024 @ 60 Hz 1280 x 1024 @ 75 HzS22E200BW30 – 81 kHz 56 – 75 Hz 1680 x 1050 @ 60 Hz 1680 x 1050 @ 60 HzS22E200NY /S22E200N /S22E200B /S23E200B /S24E200BL30 – 81 kHz 56 – 75 Hz 1920 x 1080 @ 60 Hz 1920 x 1080 @ 60 Hz
85Specifications1010 SpecificationsS19E200NYResolutionHorizontal Frequency (kHz)Vertical Frequency (Hz)Pixel Clock (MHz)Sync Polarity (H/V)IBM, 720 x 400 31.469 70.087 28.322 -/+MAC, 640 x 480 35.000 66.667 30.240 -/-MAC, 832 x 624 49.726 74.551 57.284 -/-VESA, 640 x 480 31.469 59.940 25.175 -/-VESA, 640 x 480 37.861 72.809 31.500 -/-VESA, 640 x 480 37.500 75.000 31.500 -/-VESA, 800 x 600 35.156 56.250 36.000 +/+VESA, 800 x 600 37.879 60.317 40.000 +/+VESA, 800 x 600 48.077 72.188 50.000 +/+VESA, 800 x 600 46.875 75.000 49.500 +/+VESA, 1024 x 768 48.363 60.004 65.000 -/-VESA, 1024 x 768 56.476 70.069 75.000 -/-VESA, 1024 x 768 60.023 75.029 78.750 +/+VESA, 1280 x 720 45.000 60.000 74.250 +/+VESA, 1366 x 768 47.712 59.790 85.500 +/+
86Specifications1010 SpecificationsS19E200NWResolutionHorizontal Frequency (kHz)Vertical Frequency (Hz)Pixel Clock (MHz)Sync Polarity (H/V)IBM, 720 x 400 31.469 70.087 28.322 -/+MAC, 640 x 480 35.000 66.667 30.240 -/-MAC, 832 x 624 49.726 74.551 57.284 -/-MAC, 1152 x 870 68.681 75.062 100.000 -/-VESA, 640 x 480 31.469 59.940 25.175 -/-VESA, 640 x 480 37.861 72.809 31.500 -/-VESA, 640 x 480 37.500 75.000 31.500 -/-VESA, 800 x 600 35.156 56.250 36.000 +/+VESA, 800 x 600 37.879 60.317 40.000 +/+VESA, 800 x 600 48.077 72.188 50.000 +/+VESA, 800 x 600 46.875 75.000 49.500 +/+VESA, 1024 x 768 48.363 60.004 65.000 -/-VESA, 1024 x 768 56.476 70.069 75.000 -/-VESA, 1024 x 768 60.023 75.029 78.750 +/+VESA, 1152 x 864 67.500 75.000 108.000 +/+VESA, 1280 x 720 45.000 60.000 74.250 +/+VESA, 1280 x 800 49.702 59.810 83.500 -/+VESA, 1440 x 900 55.935 59.887 106.500 -/+VESA, 1440 x 900 70.635 74.984 136.750 -/+
87Specifications1010 SpecificationsS19E200BWResolutionHorizontal Frequency (kHz)Vertical Frequency (Hz)Pixel Clock (MHz)Sync Polarity (H/V)IBM, 720 x 400 31.469 70.087 28.322 -/+MAC, 640 x 480 35.000 66.667 30.240 -/-MAC, 832 x 624 49.726 74.551 57.284 -/-MAC, 1152 x 870 68.681 75.062 100.000 -/-VESA, 640 x 480 31.469 59.940 25.175 -/-VESA, 640 x 480 37.861 72.809 31.500 -/-VESA, 640 x 480 37.500 75.000 31.500 -/-VESA, 800 x 600 35.156 56.250 36.000 +/+VESA, 800 x 600 37.879 60.317 40.000 +/+VESA, 800 x 600 48.077 72.188 50.000 +/+VESA, 800 x 600 46.875 75.000 49.500 +/+VESA, 1024 x 768 48.363 60.004 65.000 -/-VESA, 1024 x 768 56.476 70.069 75.000 -/-VESA, 1024 x 768 60.023 75.029 78.750 +/+VESA, 1152 x 864 67.500 75.000 108.000 +/+VESA, 1280 x 720 45.000 60.000 74.250 +/+VESA, 1280 x 800 49.702 59.810 83.500 -/+VESA, 1440 x 900 55.935 59.887 106.500 -/+VESA, 1440 x 900 70.635 74.984 136.750 -/+
88Specifications1010 SpecificationsS19E200BRResolutionHorizontal Frequency (kHz)Vertical Frequency (Hz)Pixel Clock (MHz)Sync Polarity (H/V)IBM, 720 x 400 31.469 70.087 28.322 -/+MAC, 640 x 480 35.000 66.667 30.240 -/-MAC, 832 x 624 49.726 74.551 57.284 -/-MAC, 1152 x 870 68.681 75.062 100.000 -/-VESA, 640 x 480 31.469 59.940 25.175 -/-VESA, 640 x 480 37.861 72.809 31.500 -/-VESA, 640 x 480 37.500 75.000 31.500 -/-VESA, 800 x 600 35.156 56.250 36.000 +/+VESA, 800 x 600 37.879 60.317 40.000 +/+VESA, 800 x 600 48.077 72.188 50.000 +/+VESA, 800 x 600 46.875 75.000 49.500 +/+VESA, 1024 x 768 48.363 60.004 65.000 -/-VESA, 1024 x 768 56.476 70.069 75.000 -/-VESA, 1024 x 768 60.023 75.029 78.750 +/+VESA, 1152 x 864 67.500 75.000 108.000 +/+VESA, 1280 x 720 45.000 60.000 74.250 +/+VESA, 1280 x 800 49.702 59.810 83.500 -/+VESA, 1280 x 960 60.000 60.000 108.000 +/+VESA, 1280 x 1024 63.981 60.020 108.000 +/+VESA, 1280 x 1024 79.976 75.025 135.000 +/+
89Specifications1010 SpecificationsS22E200NYResolutionHorizontal Frequency (kHz)Vertical Frequency (Hz)Pixel Clock (MHz)Sync Polarity (H/V)IBM, 720 x 400 31.469 70.087 28.322 -/+MAC, 640 x 480 35.000 66.667 30.240 -/-MAC, 832 x 624 49.726 74.551 57.284 -/-MAC, 1152 x 870 68.681 75.062 100.000 -/-VESA, 640 x 480 31.469 59.940 25.175 -/-VESA, 640 x 480 37.861 72.809 31.500 -/-VESA, 640 x 480 37.500 75.000 31.500 -/-VESA, 800 x 600 35.156 56.250 36.000 +/+VESA, 800 x 600 37.879 60.317 40.000 +/+VESA, 800 x 600 48.077 72.188 50.000 +/+VESA, 800 x 600 46.875 75.000 49.500 +/+VESA, 1024 x 768 48.363 60.004 65.000 -/-VESA, 1024 x 768 56.476 70.069 75.000 -/-VESA, 1024 x 768 60.023 75.029 78.750 +/+VESA, 1152 x 864 67.500 75.000 108.000 +/+VESA, 1280 x 720 45.000 60.000 74.250 +/+VESA, 1280 x 800 49.702 59.810 83.500 -/+VESA, 1280 x 1024 63.981 60.020 108.000 +/+VESA, 1280 x 1024 79.976 75.025 135.000 +/+VESA, 1440 x 900 55.935 59.887 106.500 -/+VESA, 1600 x 900 60.000 60.000 108.000 +/+VESA, 1680 x 1050 65.290 59.954 146.250 -/+VESA, 1920 x 1080 67.500 60.000 148.500 +/+
90Specifications1010 SpecificationsS22E200NResolutionHorizontal Frequency (kHz)Vertical Frequency (Hz)Pixel Clock (MHz)Sync Polarity (H/V)IBM, 720 x 400 31.469 70.087 28.322 -/+MAC, 640 x 480 35.000 66.667 30.240 -/-MAC, 832 x 624 49.726 74.551 57.284 -/-MAC, 1152 x 870 68.681 75.062 100.000 -/-VESA, 640 x 480 31.469 59.940 25.175 -/-VESA, 640 x 480 37.861 72.809 31.500 -/-VESA, 640 x 480 37.500 75.000 31.500 -/-VESA, 800 x 600 35.156 56.250 36.000 +/+VESA, 800 x 600 37.879 60.317 40.000 +/+VESA, 800 x 600 48.077 72.188 50.000 +/+VESA, 800 x 600 46.875 75.000 49.500 +/+VESA, 1024 x 768 48.363 60.004 65.000 -/-VESA, 1024 x 768 56.476 70.069 75.000 -/-VESA, 1024 x 768 60.023 75.029 78.750 +/+VESA, 1152 x 864 67.500 75.000 108.000 +/+VESA, 1280 x 720 45.000 60.000 74.250 +/+VESA, 1280 x 800 49.702 59.810 83.500 -/+VESA, 1280 x 1024 63.981 60.020 108.000 +/+VESA, 1280 x 1024 79.976 75.025 135.000 +/+VESA, 1440 x 900 55.935 59.887 106.500 -/+VESA, 1600 x 900 60.000 60.000 108.000 +/+VESA, 1680 x 1050 65.290 59.954 146.250 -/+VESA, 1920 x 1080 67.500 60.000 148.500 +/+
91Specifications1010 SpecificationsS22E200BResolutionHorizontal Frequency (kHz)Vertical Frequency (Hz)Pixel Clock (MHz)Sync Polarity (H/V)IBM, 720 x 400 31.469 70.087 28.322 -/+MAC, 640 x 480 35.000 66.667 30.240 -/-MAC, 832 x 624 49.726 74.551 57.284 -/-MAC, 1152 x 870 68.681 75.062 100.000 -/-VESA, 640 x 480 31.469 59.940 25.175 -/-VESA, 640 x 480 37.861 72.809 31.500 -/-VESA, 640 x 480 37.500 75.000 31.500 -/-VESA, 800 x 600 35.156 56.250 36.000 +/+VESA, 800 x 600 37.879 60.317 40.000 +/+VESA, 800 x 600 48.077 72.188 50.000 +/+VESA, 800 x 600 46.875 75.000 49.500 +/+VESA, 1024 x 768 48.363 60.004 65.000 -/-VESA, 1024 x 768 56.476 70.069 75.000 -/-VESA, 1024 x 768 60.023 75.029 78.750 +/+VESA, 1152 x 864 67.500 75.000 108.000 +/+VESA, 1280 x 720 45.000 60.000 74.250 +/+VESA, 1280 x 800 49.702 59.810 83.500 -/+VESA, 1280 x 1024 63.981 60.020 108.000 +/+VESA, 1280 x 1024 79.976 75.025 135.000 +/+VESA, 1440 x 900 55.935 59.887 106.500 -/+VESA, 1600 x 900 60.000 60.000 108.000 +/+VESA, 1680 x 1050 65.290 59.954 146.250 -/+VESA, 1920 x 1080 67.500 60.000 148.500 +/+
92Specifications1010 SpecificationsS22E200BWResolutionHorizontal Frequency (kHz)Vertical Frequency (Hz)Pixel Clock (MHz)Sync Polarity (H/V)IBM, 720 x 400 31.469 70.087 28.322 -/+MAC, 640 x 480 35.000 66.667 30.240 -/-MAC, 832 x 624 49.726 74.551 57.284 -/-MAC, 1152 x 870 68.681 75.062 100.000 -/-VESA, 640 x 480 31.469 59.940 25.175 -/-VESA, 640 x 480 37.861 72.809 31.500 -/-VESA, 640 x 480 37.500 75.000 31.500 -/-VESA, 800 x 600 35.156 56.250 36.000 +/+VESA, 800 x 600 37.879 60.317 40.000 +/+VESA, 800 x 600 48.077 72.188 50.000 +/+VESA, 800 x 600 46.875 75.000 49.500 +/+VESA, 1024 x 768 48.363 60.004 65.000 -/-VESA, 1024 x 768 56.476 70.069 75.000 -/-VESA, 1024 x 768 60.023 75.029 78.750 +/+VESA, 1152 x 864 67.500 75.000 108.000 +/+VESA, 1280 x 720 45.000 60.000 74.250 +/+VESA, 1280 x 800 49.702 59.810 83.500 -/+VESA, 1280 x 1024 63.981 60.020 108.000 +/+VESA, 1280 x 1024 79.976 75.025 135.000 +/+VESA, 1440 x 900 55.935 59.887 106.500 -/+VESA, 1600 x 900 60.000 60.000 108.000 +/+VESA, 1680 x 1050 65.290 59.954 146.250 -/+
93Specifications1010 SpecificationsS23E200BResolutionHorizontal Frequency (kHz)Vertical Frequency (Hz)Pixel Clock (MHz)Sync Polarity (H/V)IBM, 720 x 400 31.469 70.087 28.322 -/+MAC, 640 x 480 35.000 66.667 30.240 -/-MAC, 832 x 624 49.726 74.551 57.284 -/-MAC, 1152 x 870 68.681 75.062 100.000 -/-VESA, 640 x 480 31.469 59.940 25.175 -/-VESA, 640 x 480 37.861 72.809 31.500 -/-VESA, 640 x 480 37.500 75.000 31.500 -/-VESA, 800 x 600 35.156 56.250 36.000 +/+VESA, 800 x 600 37.879 60.317 40.000 +/+VESA, 800 x 600 48.077 72.188 50.000 +/+VESA, 800 x 600 46.875 75.000 49.500 +/+VESA, 1024 x 768 48.363 60.004 65.000 -/-VESA, 1024 x 768 56.476 70.069 75.000 -/-VESA, 1024 x 768 60.023 75.029 78.750 +/+VESA, 1152 x 864 67.500 75.000 108.000 +/+VESA, 1280 x 720 45.000 60.000 74.250 +/+VESA, 1280 x 800 49.702 59.810 83.500 -/+VESA, 1280 x 1024 63.981 60.020 108.000 +/+VESA, 1280 x 1024 79.976 75.025 135.000 +/+VESA, 1440 x 900 55.935 59.887 106.500 -/+VESA, 1600 x 900 60.000 60.000 108.000 +/+VESA, 1680 x 1050 65.290 59.954 146.250 -/+VESA, 1920 x 1080 67.500 60.000 148.500 +/+
94Specifications1010 SpecificationsS24E200BL Horizontal FrequencyThe time required to scan a single line from the left to the right side of the screen is called a horizontal cycle. The reciprocal number of a horizontal cycle is called horizontal frequency. Horizontal frequency is measured in kHz.Vertical FrequencyRepeating the same picture dozens of times per second allows you to view natural pictures. The repeat frequency is called "vertical frequency" or "refresh rate" and is indicated in Hz. ResolutionHorizontal Frequency (kHz)Vertical Frequency (Hz)Pixel Clock (MHz)Sync Polarity (H/V)IBM, 720 x 400 31.469 70.087 28.322 -/+MAC, 640 x 480 35.000 66.667 30.240 -/-MAC, 832 x 624 49.726 74.551 57.284 -/-MAC, 1152 x 870 68.681 75.062 100.000 -/-VESA, 640 x 480 31.469 59.940 25.175 -/-VESA, 640 x 480 37.861 72.809 31.500 -/-VESA, 640 x 480 37.500 75.000 31.500 -/-VESA, 800 x 600 35.156 56.250 36.000 +/+VESA, 800 x 600 37.879 60.317 40.000 +/+VESA, 800 x 600 48.077 72.188 50.000 +/+VESA, 800 x 600 46.875 75.000 49.500 +/+VESA, 1024 x 768 48.363 60.004 65.000 -/-VESA, 1024 x 768 56.476 70.069 75.000 -/-VESA, 1024 x 768 60.023 75.029 78.750 +/+VESA, 1152 x 864 67.500 75.000 108.000 +/+VESA, 1280 x 720 45.000 60.000 74.250 +/+VESA, 1280 x 800 49.702 59.810 83.500 -/+VESA, 1280 x 1024 63.981 60.020 108.000 +/+VESA, 1280 x 1024 79.976 75.025 135.000 +/+VESA, 1440 x 900 55.935 59.887 106.500 -/+VESA, 1600 x 900 60.000 60.000 108.000 +/+VESA, 1680 x 1050 65.290 59.954 146.250 -/+VESA, 1920 x 1080 67.500 60.000 148.500 +/+
95 Appendix AppendixContact SAMSUNG WORLD WIDE If you have any questions or comments relating to Samsung products, please contact the SAMSUNG customer care center. NORTH AMERICAU.S.A 1-800-SAMSUNG (726-7864) http://www.samsung.com/us/supportCANADA 1-800-SAMSUNG (726-7864) http://www.samsung.com/ca/support (English)http://www.samsung.com/ca_fr/support (French)LATIN AMERICAARGENTINE 0800-555-SAMSUNG(0800-555-7267)http://www.samsung.com/ar/supportBOLIVIA 800-10-7260 http://www.samsung.com/cl/supportBRAZIL 0800-124-421 (Demais cidades e regiões)4004-0000 (Capitais e grandes centros)http://www.samsung.com/br/supportCHILE 800-SAMSUNG (726-7864) http://www.samsung.com/cl/supportCOLOMBIA Bogotá 600 12 72Gratis desde cualquier parte del país 01 8000 112 112 ó desde su celular #SAM(726)http://www.samsung.com/co/supportCOSTA RICA 0-800-507-726700-800-1-SAMSUNG (726-7864)http://www.samsung.com/latin/support (Spanish)http://www.samsung.com/latin_en/support (English)DOMINICAN REPUBLIC 1-800-751-2676 http://www.samsung.com/latin/support (Spanish)http://www.samsung.com/latin_en/support (English)ECUADOR 1-800-10-72671-800-SAMSUNG (72-6786)http://www.samsung.com/latin/support (Spanish)http://www.samsung.com/latin_en/support (English)
96Appendix AppendixEL SALVADOR 800-6225800-0726-7864http://www.samsung.com/latin/support (Spanish)http://www.samsung.com/latin_en/support (English)GUATEMALA 1-800-299-00131-800-299-0033http://www.samsung.com/latin/support (Spanish)http://www.samsung.com/latin_en/support (English)HONDURAS 800-2791-9267800-2791-9111http://www.samsung.com/latin/support (Spanish)http://www.samsung.com/latin_en/support (English)JAMAICA 1-800-234-72671-800-SAMSUNG (726-7864)http://www.samsung.com/latin_en/support (English)MEXICO 01-800-SAMSUNG (726-7864) http://www.samsung.com/mx/supportNICARAGUA 001-800-5077267 http://www.samsung.com/latin/support (Spanish)http://www.samsung.com/latin_en/support (English)PANAMA 800-7267800-0101http://www.samsung.com/latin/support (Spanish)http://www.samsung.com/latin_en/support (English)PARAGUAY 009-800-542-0001 http://www.samsung.com/latin/support (Spanish)http://www.samsung.com/latin_en/support (English)PERU 0800-777-08 http://www.samsung.com/pe/supportPUERTO RICO 1-800-682-3180 http://www.samsung.com/latin/support (Spanish)http://www.samsung.com/latin_en/support (English)TRINIDAD & TOBAGO 1-800-SAMSUNG (726-7864) http://www.samsung.com/latin/support (Spanish)http://www.samsung.com/latin_en/support (English)LATIN AMERICA
97Appendix AppendixURUGUAY 000-405-437-33 http://www.samsung.com/latin/support (Spanish)http://www.samsung.com/latin_en/support (English)VENEZUELA 0-800-SAMSUNG (726-7864) http://www.samsung.com/ve/supportEUROPEAUSTRIA 0800-SAMSUNG (0800-7267864) http://www.samsung.com/at/supportBELGIUM 02-201-24-18 http://www.samsung.com/be/support (Dutch)http://www.samsung.com/be_fr/support (French)BOSNIA 055 233 999 http://www.samsung.com/supportBULGARIA http://www.samsung.com/bg/supportCROATIA 072 726 786 http://www.samsung.com/hr/supportCYPRUS 8009 4000 only from landline, toll freehttp://www.samsung.com/gr/supportCZECH 800 - SAMSUNG(800-726786)http://www.samsung.com/cz/supportDENMARK 70 70 19 70 http://www.samsung.com/dk/supportEIRE 0818 717100 http://www.samsung.com/ie/supportESTONIA 800-7267 http://www.samsung.com/ee/supportFINLAND 030-6227 515 http://www.samsung.com/fi/supportFRANCE 01 48 63 00 00 http://www.samsung.com/fr/supportGERMANY 0180 6 SAMSUNG bzw.0180 6 7267864*(*0,20 €/Anruf aus dem dt. Festnetz, aus dem Mobilfunk max. 0,60 €/Anruf)http://www.samsung.com/de/supportLATIN AMERICA800 111 31, 
98Appendix AppendixGREECE 80111-SAMSUNG (80111 7267864) only from land line(+30) 210 6897691 from mobileand land linehttp://www.samsung.com/gr/supportHUNGARY 0680SAMSUNG (0680-726-786)0680PREMIUM (0680-773-648)http://www.samsung.com/hu/supportITALIA 800-SAMSUNG (800.7267864) http://www.samsung.com/it/supportLATVIA 8000-7267 http://www.samsung.com/lv/supportLITHUANIA 8-800-77777 http://www.samsung.com/lt/supportLUXEMBURG 261 03 710 http://www.samsung.com/supportMONTENEGRO 020 405 888 http://www.samsung.com/supportNETHERLANDS 0900-SAMSUNG (0900-7267864) (€ 0,10/Min)http://www.samsung.com/nl/supportNORWAY 815 56480 http://www.samsung.com/no/supportPOLAND http://www.samsung.com/pl/support PORTUGAL 808 20 7267 http://www.samsung.com/pt/supportROMANIA 08008 726 78 64 (08008 SAMSUNG) Apel GRATUIThttp://www.samsung.com/ro/supportSERBIA 011 321 6899 http://www.samsung.com/rs/supportSLOVAKIA 0800 - SAMSUNG(0800-726 786)http://www.samsung.com/sk/supportSLOVENIA 080 697 267 (brezplačna številka)090 726 786 (0,39 EUR/min)klicni center vam je na voljo od ponedeljka do petka od 9. do 18. ure.http://www.samsung.com/siSPAIN 0034902172678 http://www.samsung.com/es/supportEUROPE801-172-678* lub +48 22 607-93-33 *
99Appendix AppendixSWEDEN 0771 726 7864 (0771-SAMSUNG) http://www.samsung.com/se/supportSWITZERLAND 0800 726 78 64 (0800-SAMSUNG) http://www.samsung.com/ch/support (German)http://www.samsung.com/ch_fr/support (French)UK 0330 SAMSUNG (7267864) http://www.samsung.com/uk/supportCISARMENIA 0-800-05-555 http://www.samsung.com/supportAZERBAIJAN 0-88-555-55-55 http://www.samsung.com/supportBELARUS 810-800-500-55-500 http://www.samsung.com/supportGEORGIA 0-800-555-555 http://www.samsung.com/supportKAZAKHSTAN 8-10-800-500-55-500(GSM: 7799, VIP care 7700)http://www.samsung.com/supportKYRGYZSTAN 00-800-500-55-500 http://www.samsung.com/kz_ru/supportMOLDOVA 0-800-614-40 http://www.samsung.com/supportMONGOLIA +7-495-363-17-00 http://www.samsung.com/supportRUSSIA 8-800-555-55-55 (VIP care 8-800-555-55-88)http://www.samsung.com/ru/supportTAJIKISTAN 8-10-800-500-55-500 http://www.samsung.com/supportUKRAINE 0-800-502-000 http://www.samsung.com/ua/support (Ukrainian)http://www.samsung.com/ua_ru/support (Russian)UZBEKISTAN 8-10-800-500-55-500(GSM: 7799)http://www.samsung.com/supportCHINACHINA 400-810-5858 http://www.samsung.com/cn/supportEUROPE
100Appendix AppendixHONG KONG (852) 3698 4698 http://www.samsung.com/hk/support (Chinese)http://www.samsung.com/hk_en/support (English)MACAU 0800 333 http://www.samsung.com/supportS.E.AAUSTRALIA 1300 362 603 http://www.samsung.com/au/supportINDONESIA 021-5699777708001128888http://www.samsung.com/id/supportJAPAN 0120-363-905 http://www.samsung.com/jp/supportMALAYSIA 1800-88-9999603-77137477 (Overseas contact)http://www.samsung.com/my/supportMYANMAR +95-01-2399-888 http://www.samsung.com/supportNEW ZEALAND 0800 726 786 http://www.samsung.com/nz/supportPHILIPPINES 1-800-10-7267864 [PLDT]1-800-8-7267864 [Globe landlineand Mobile]02-4222111 [Other landline]http://www.samsung.com/ph/supportSINGAPORE 1800-SAMSUNG (726-7864) http://www.samsung.com/sg/supportTAIWAN 0800-329999 http://www.samsung.com/tw/supportTHAILAND 0-2689-3232,1800-29-3232http://www.samsung.com/th/supportVIETNAM 1800 588 889 http://www.samsung.com/vn/supportS.W.ABANGLADESH 09612300300 http://www.samsung.com/in/supportINDIA 1800 3000 8282 - Toll Free1800 266 8282 - Toll Freehttp://www.samsung.com/in/supportSRI LANKA 94117540540 http://www.samsung.com/supportCHINA
101Appendix AppendixMENAALGERIA 021 36 11 00 http://www.samsung.com/n_africa/supportBAHRAIN 8000-GSAM (8000-4726) http://www.samsung.com/ae/support (English)http://www.samsung.com/ae_ar/support (Arabic)EGYPT 08000-726786416580http://www.samsung.com/eg/supportIRAN 021-8255 [CE] http://www.samsung.com/iran/supportJORDAN 0800-2227306 5777444http://www.samsung.com/Levant/support (English)KUWAIT 183-CALL (183-2255) http://www.samsung.com/ae/support (English)http://www.samsung.com/ae_ar/support (Arabic)MOROCCO 080 100 22 55 http://www.samsung.com/n_africa/supportOMAN 800-SAMSUNG (800 - 726 7864) http://www.samsung.com/ae/support (English)http://www.samsung.com/ae_ar/support (Arabic)PAKISTAN 0800-Samsung (72678) http://www.samsung.com/pk/supportQATAR 800-CALL (800-2255) http://www.samsung.com/ae/support (English)http://www.samsung.com/ae_ar/support (Arabic)SAUDI ARABIA 8002474357 http://www.samsung.com/sa/supporthttp://www.samsung.com/sa_en/support (English)SYRIA 18252273 http://www.samsung.com/Levant/support (English)TUNISIA 80-1000-12 http://www.samsung.com/n_africa/support
102Appendix AppendixTURKEY 444 77 11 http://www.samsung.com/tr/supportU.A.E 800-SAMSUNG (800 - 726 7864) http://www.samsung.com/ae/support (English)http://www.samsung.com/ae_ar/support (Arabic)AFRICABOTSWANA 8007260000 http://www.samsung.com/supportBURUNDI 200 http://www.samsung.com/supportCAMEROON 7095-0077 http://www.samsung.com/africa_fr/supportCOTE D’ IVOIRE 8000 0077 http://www.samsung.com/africa_fr/supportDRC 499999 http://www.samsung.com/supportGHANA 0800-100770302-200077http://www.samsung.com/africa_en/supportKENYA 0800 545 545 http://www.samsung.com/supportMAURITIUS 23052574020 http://www.samsung.com/supportMOZAMBIQUE 847267864 / 827267864 http://www.samsung.com/supportNAMIBIA 08 197 267864 http://www.samsung.com/supportNIGERIA 0800-726-7864 http://www.samsung.com/africa_en/supportREUNION 262508869 http://www.samsung.com/supportRWANDA 9999 http://www.samsung.com/supportSENEGAL 800-00-0077 http://www.samsung.com/africa_fr/supportSOUTH AFRICA 0860 SAMSUNG (726 7864) http://www.samsung.com/supportSUDAN 1969 http://www.samsung.com/supportTANZANIA 0800 755 755 / 0685 889 900 http://www.samsung.com/supportUGANDA 0800 300 300 http://www.samsung.com/supportZAMBIA 0211 350370 http://www.samsung.com/supportMENA
103Appendix AppendixResponsibility for the Pay Service (Cost to Customers) When the service is requested, in spite of in warranty, we may charge you for a visit from a service technician in the following cases. Not a product defectCleaning of the product, Adjustment, Explanation, Re-installation and etc.If a service technician gives instructions on how to use product or simply adjusts options without disassembling product.If a defect is caused by external environmental factors. (Internet, Antenna, Wired Signal, etc.)If a product is reinstalled or devices are connected additionally after installing the purchased product for the first time.If a product is reinstalled to move to a different spot or to move to a different house.If customer requests instructions on how to use because of another company's product.If customer requests instructions on how to use the network or another company's program.If customer requests software installation and setup for the product.If a service technician removes/cleans dusts or foreign materials inside of the product.If customer requests an installation additionally after purchasing a product through home-shopping or online.A Product damage caused by customer's faultProduct damage caused by customer's mishandling or wrong repair If a product damage is caused by;external impact or drop.use of supplies or separately sold product unspecified by Samsung.repair from a person besides an engineer of outsourcing service company or partner of Samsung Electronics Co., Ltd.remodeling or repairing the product by customer.using it with incorrect voltage or non-authorised electrical connections.not following the "cautions" in User Manual.OthersIf product fails by natural disaster. (lightning, fire, earthquake, flood damage, etc)If consumable components are all used up. (Battery, Toner, Fluorescent lights, Head, Vibrator, Lamp, Filter, Ribbon, etc.) If customer requests a service in case the product has no defect, service fee may be charged. So please read User Manual first.
104Appendix AppendixCorrect DisposalCorrect Disposal of This Product (Waste Electrical & Electronic Equipment)(Applicable in countries with separate collection systems)This marking on the product, accessories or literature indicates that the product and its electronic accessories (e.g. charger, headset, USB cable) should not be disposed of with other household waste at the end of their working life. To prevent possible harm to the environment or human health from uncontrolled waste disposal, please separate these items from other types of waste and recycle them responsibly to promote the sustainable reuse of material resources.Household users should contact either the retailer where they purchased this product, or their local government office, for details of where and how they can take these items for environmentally safe recycling. Business users should contact their supplier and check the terms and conditions of the purchase contract. This product and its electronic accessories should not be mixed with other commercial wastes for disposal.
105Appendix AppendixTerminologyOSD (On Screen Display)On screen display (OSD) allows you to customize on-screen settings to optimize the picture quality as required. You can change the screen brightness, tint, size and many other settings using menus displayed on the screen.GammaThe Gamma menu adjusts the grey scale that represents middle tones on the screen. Adjusting the brightness brightens the whole screen, but adjusting Gamma only brightens the medium brightness.Grey scaleScale refers to levels of color intensity that show variations of color change from darker areas to brighter areas on the screen. Changes to the screen brightness are expressed with black and white variation, and grey scale refers to the medium area between black and white. Changing the grey scale through Gamma adjustment will change the medium brightness on the screen.Scanning rateScanning rate, or refresh rate, refers to the frequency of screen refreshes. Screen data is transmitted as it refreshes to display an image, although the refreshing is invisible to the naked eye. The number of screen refreshes is called scanning rate and is measured in Hz. A scanning rate of 60Hz means that the screen refreshes 60 times per second. The screen scanning rate depends on the performance of the graphics cards in your PC and monitor. Horizontal FrequencyCharacters or images displayed on the monitor screen consist of numerous dots (pixels). Pixels are transmitted in horizontal lines, which are then arranged vertically to create an image. The horizontal frequency is measured in kHz and represents how many times horizontal lines per second are transmitted and displayed on the monitor screen. A horizontal frequency of 85 means that the horizontal lines that make up an image are transmitted 85000 times per second. The horizontal frequency is indicated in 85kHz.Vertical FrequencyOne image is made of numerous horizontal lines. The vertical frequency is measured in Hz and represents how many images can be created per second by those horizontal lines. A vertical frequency of 60 means that an image is transmitted 60 times per second. The vertical frequency is also called "refresh rate" and affects screen flicker.
106Appendix AppendixResolutionResolution is the number of horizontal pixels and vertical pixels that form a screen. It represents the level of display detail. A higher resolution displays a greater amount of information on the screen and is suitable for performing multiple tasks at the same time.E.g. A resolution of 1920 x 1080 consists of 1920 horizontal pixels (horizontal resolution) and 1080 vertical lines (vertical resolution).Plug & PlayThe Plug & Play feature allows the automatic exchange of information between a monitor and PC to produce an optimum display environment. The monitor uses VESA DDC (international standard) to execute Plug & Play.
Index 107IndexBBefore Connecting 30Blue 51Brightness 34CCleaning 8Coarse 47Color Tone 52Connecting and Using a PC 31Contact SAMSUNG WORLD WIDE 95Contrast 35Copyright 7Correct Disposal 104Correct posture to use the product 18DDisplay Time 56EEco Saving Plus 59Eye Saver Mode 37FFine 48GGame Mode 38Gamma 53General 77, 78, 79, 80, 81Green 50IImage Size 44INFORMATION 66Installation 25KKey Repeat Time 64LLanguage 54MMultiScreen 70OOff Timer 61PParts 20PC/AV Mode 63QQ & A 75RRed 49Requirements Before Contacting Samsung Customer Service Center 72Reset 58Responsibility for the Pay Service (Cost to Customers) 103SSafety Precautions 10SAMSUNG MAGIC Angle 41SAMSUNG MAGIC Bright 39
IndexIndex 108SAMSUNG MAGIC Upscale 43Sharpness 36Source Detection 65Standard Signal Mode Table 84TTerminology 105Transparency 57
