USER MANUAL
User manual
S19E200NY
S19E200BR
S19E200NW
S19E200BW
S22E200NY
S22E200N
S22E200B
S22E200BW
S23E200B
S24E200BL
The color and the appearance may differ depending on
the product, and the specifications are subject to
change without prior notice to improve the performance.
BN46-00479A-X0
Table Of Contents 2
Table Of Contents
BEFORE USING THE
PRODUCT
7 Copyright
7 Icons used in this manual
8 Cleaning
9 Securing the Installation Space
9 Precautions for storage
10 Safety Precautions
10 Symbols
11 Electricity and Safety
12 Installation and Safety
14 Operation and Safety

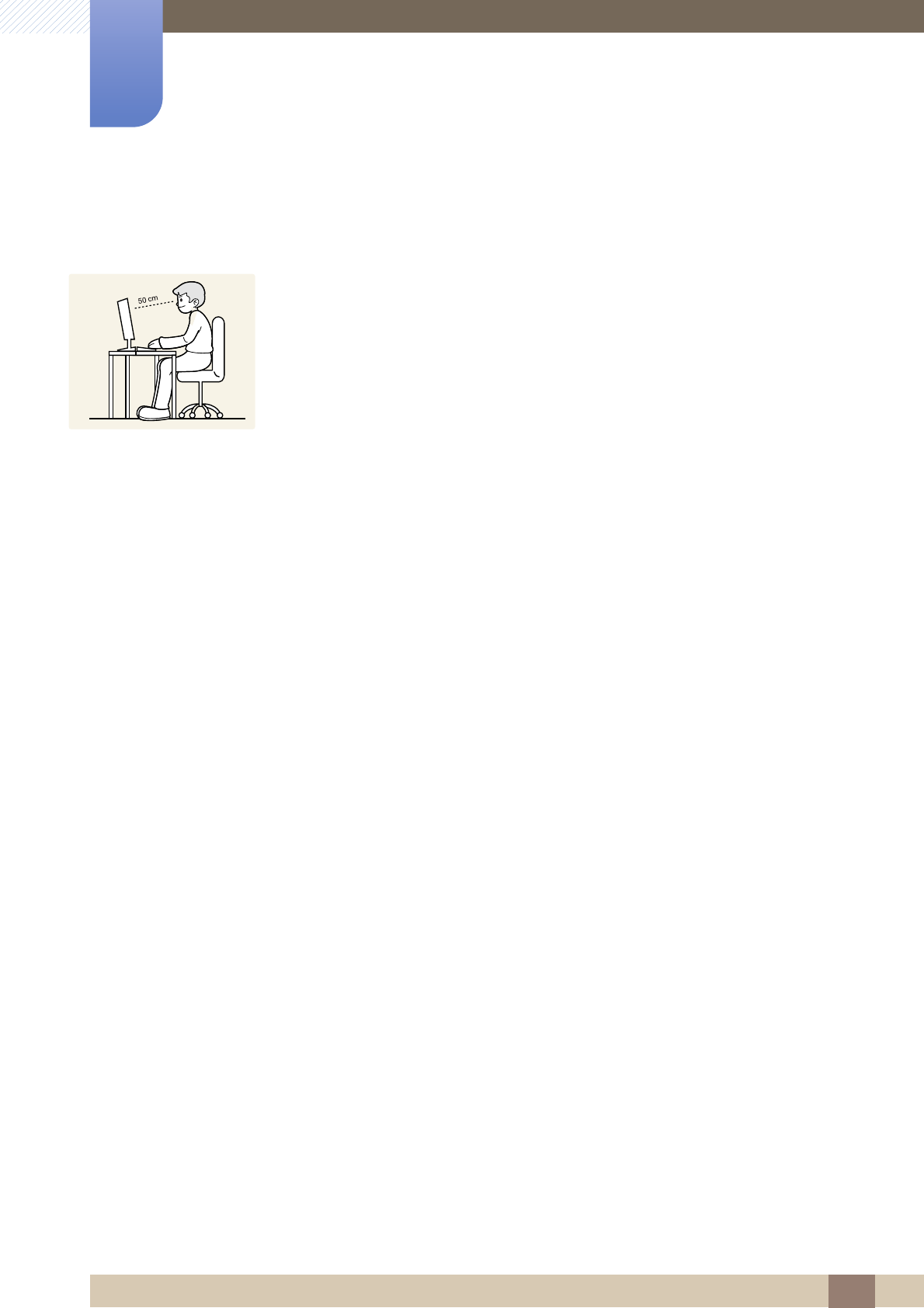

18 Correct posture to use the product
PREPARATIONS 19 Checking the Components

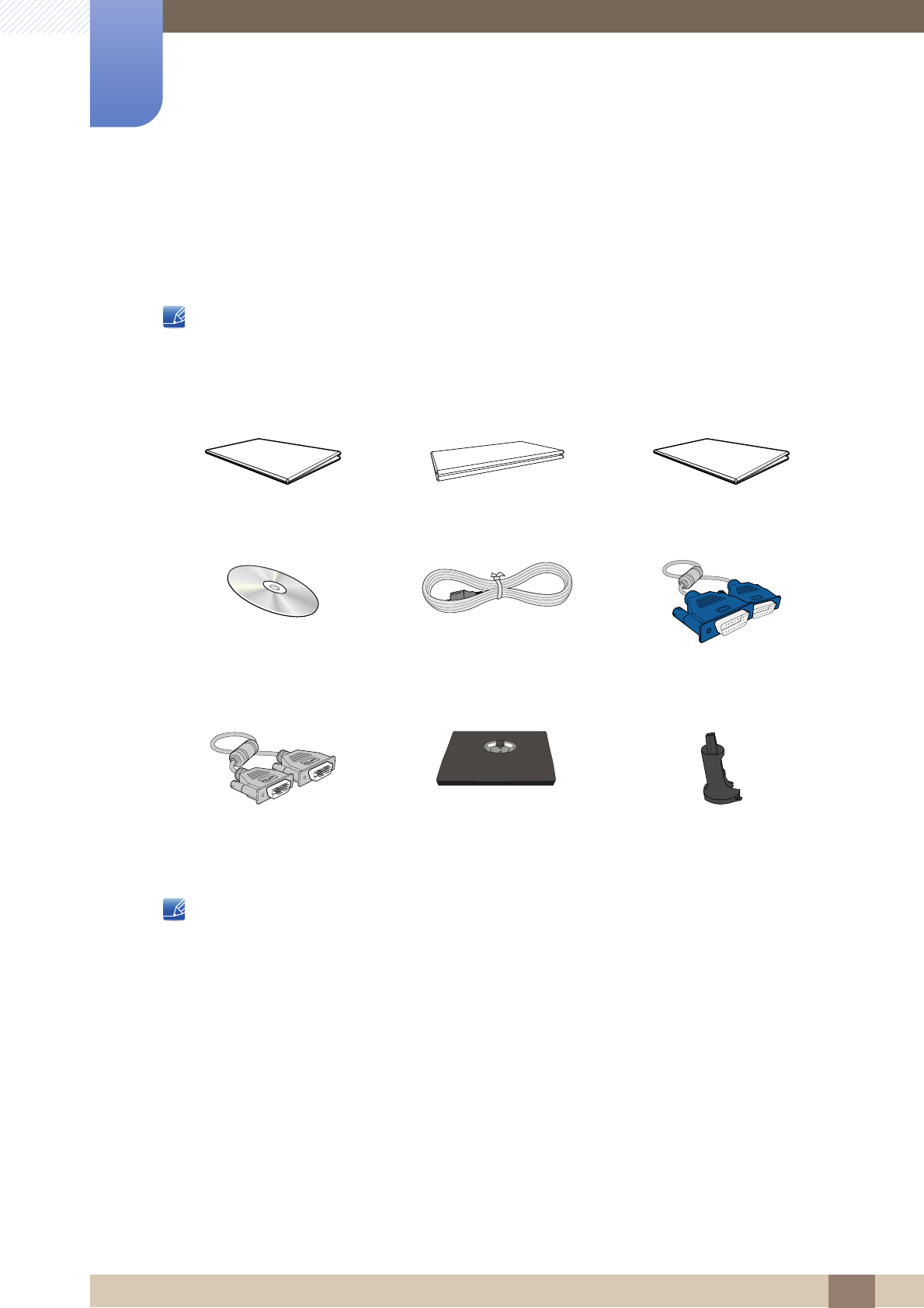

19 Checking the Components
20 Parts

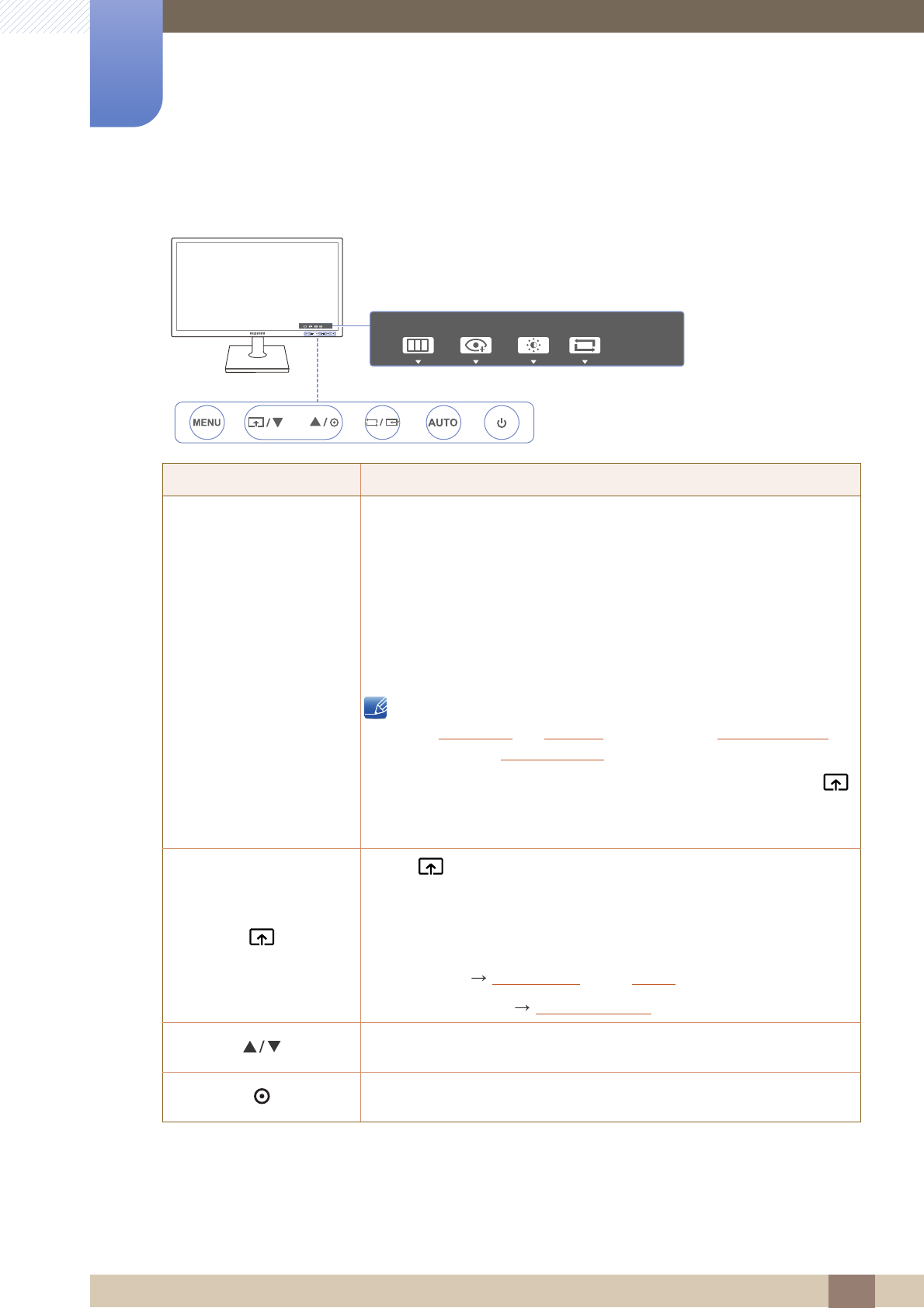

20 Frontal Buttons

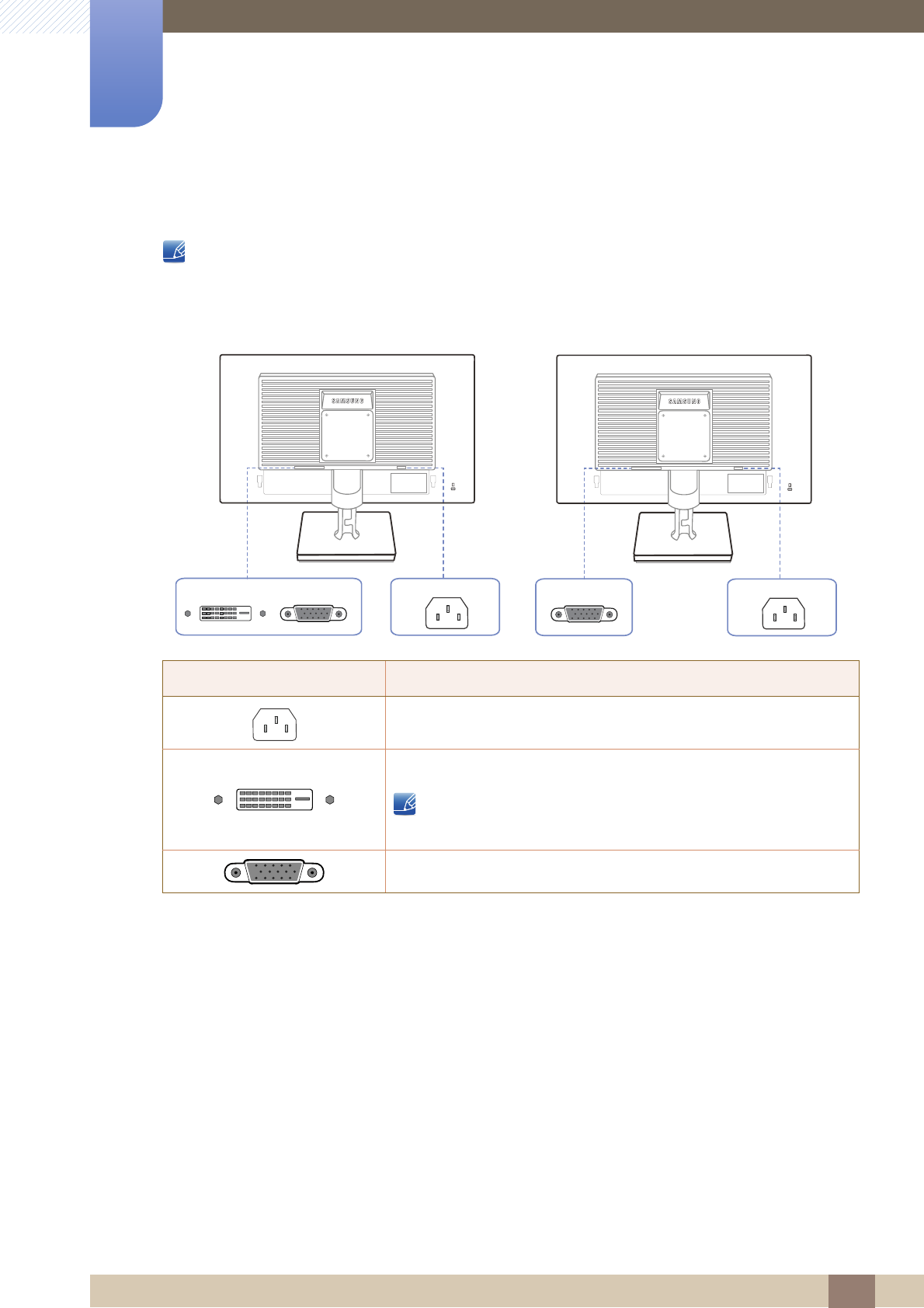

24 Reverse Side
25 Installation

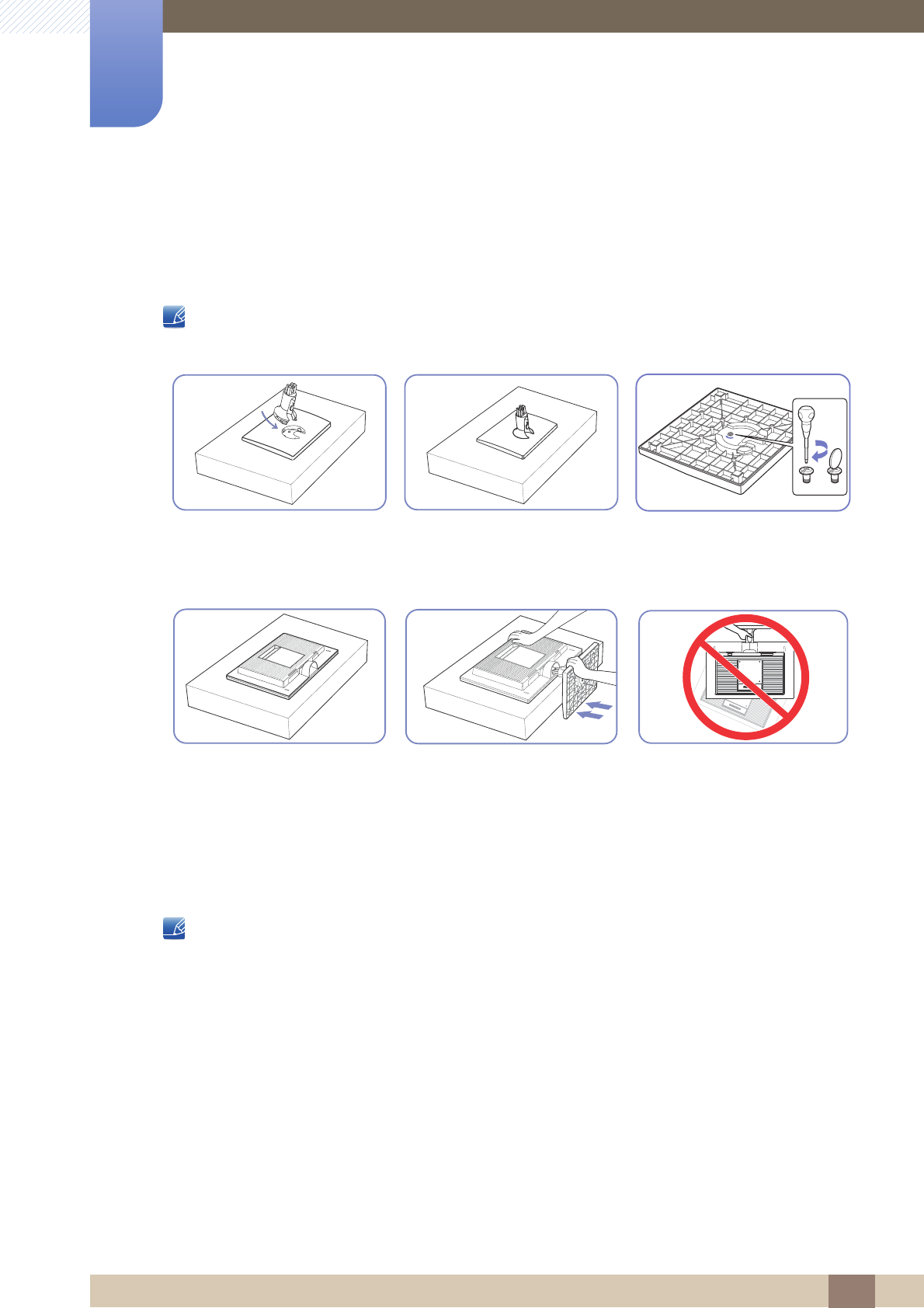

25 Attaching the Stand

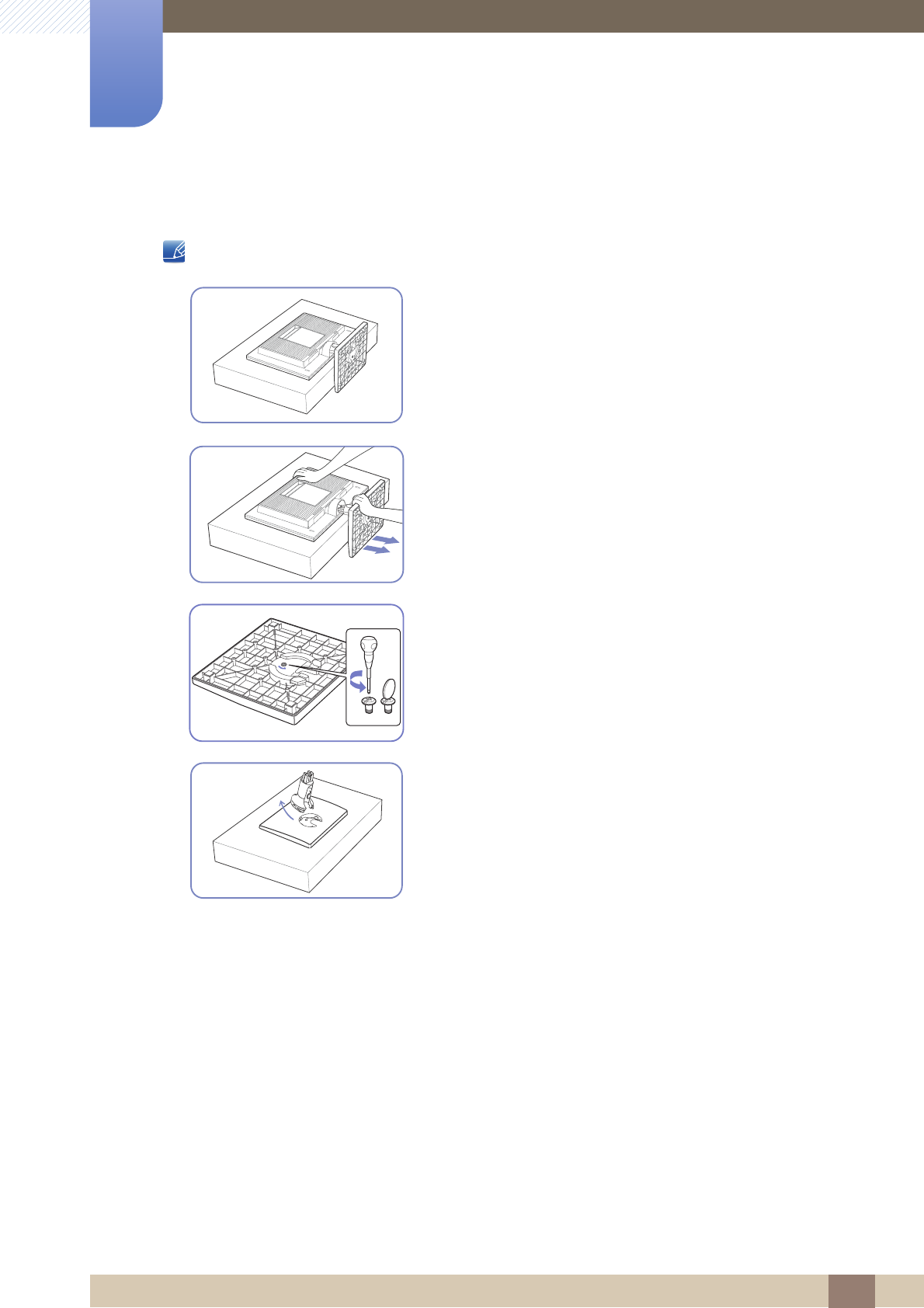

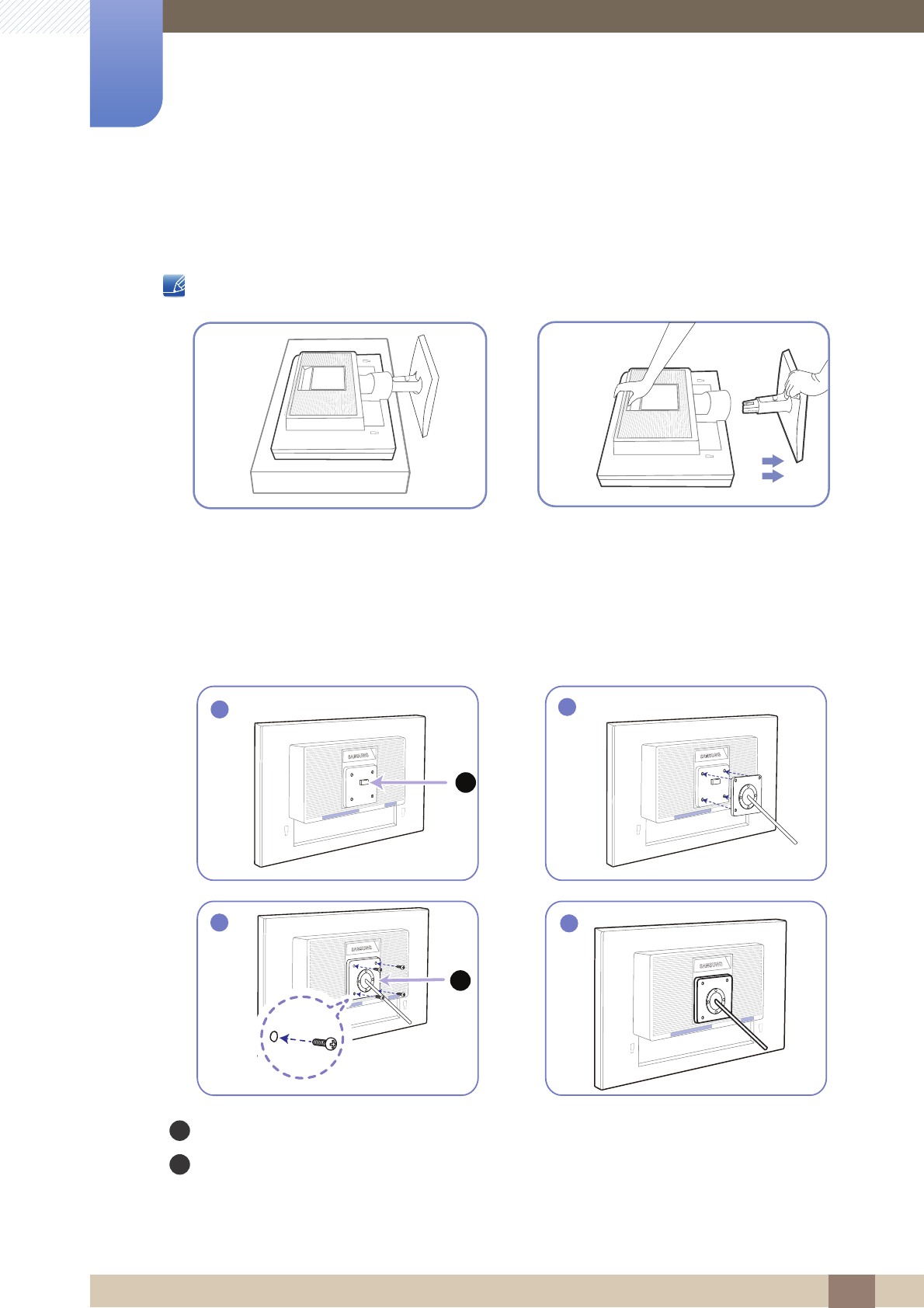

26 Removing the Stand

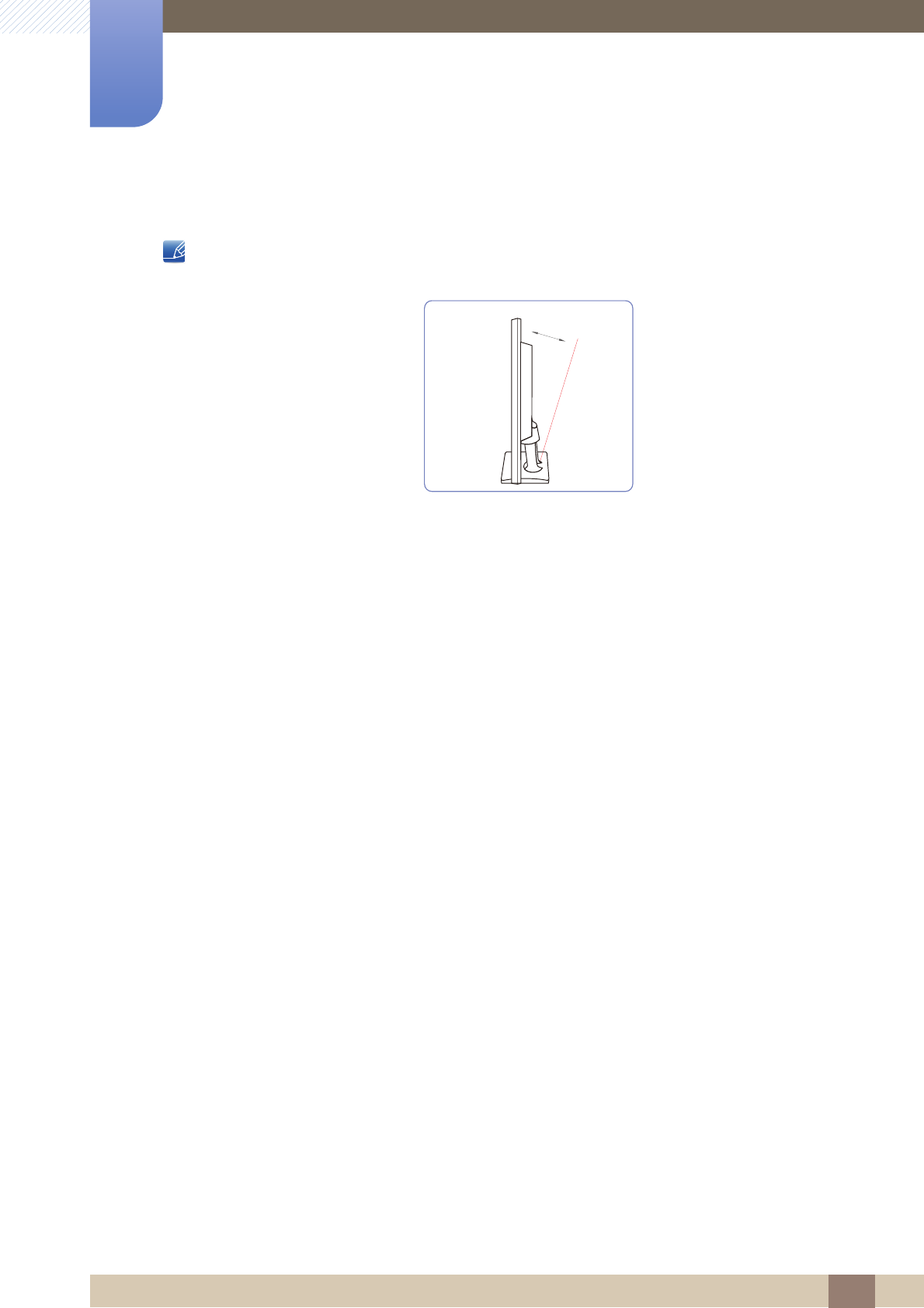

27 Adjusting the Product Tilt
28 Installing a Wall-mount Kit or Desktop Stand
29 Anti-theft Lock
CONNECTING AND USING
A SOURCE DEVICE
30 Before Connecting
30 Pre-connection Checkpoints

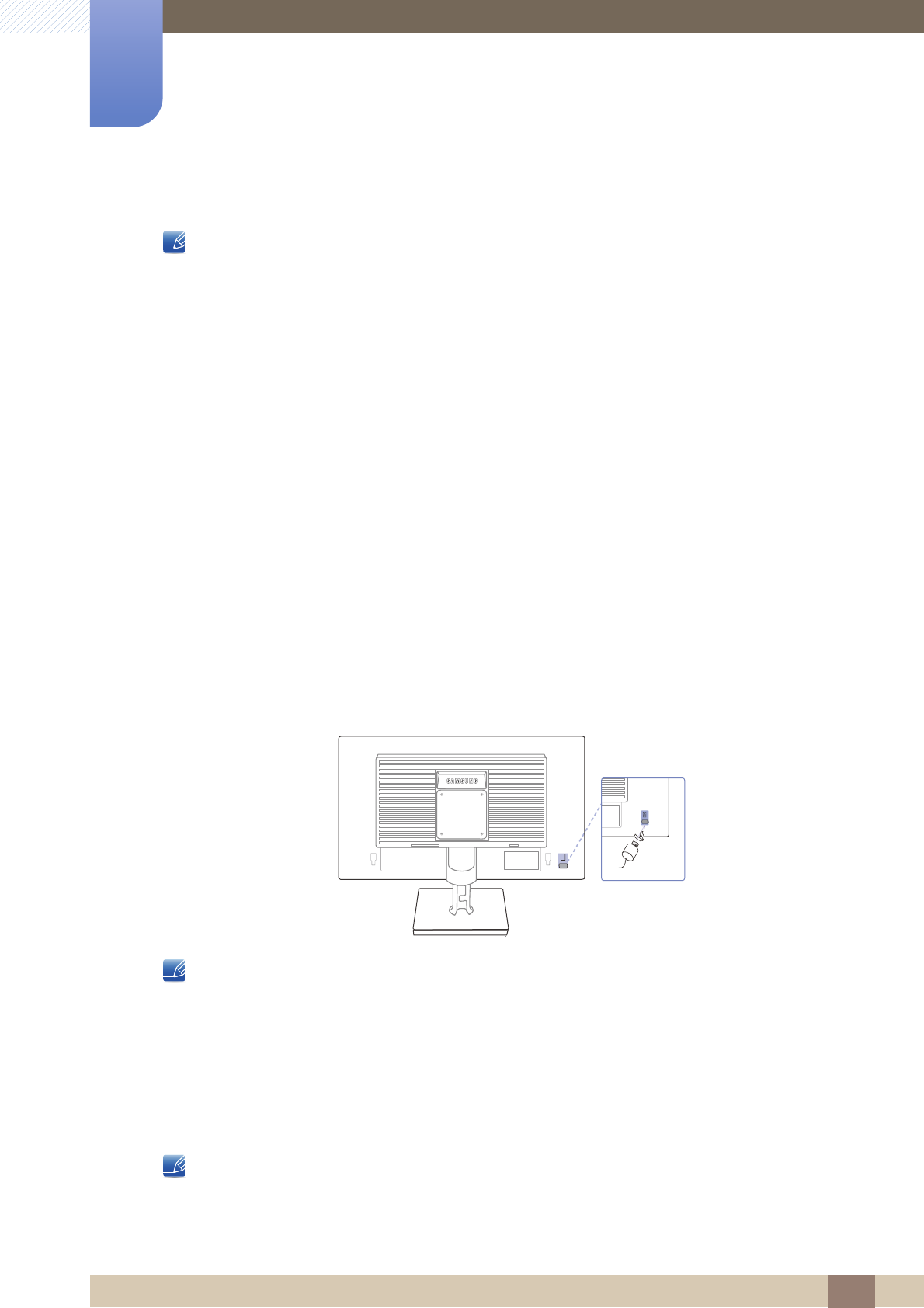

30 Connecting the Power
31 Connecting and Using a PC

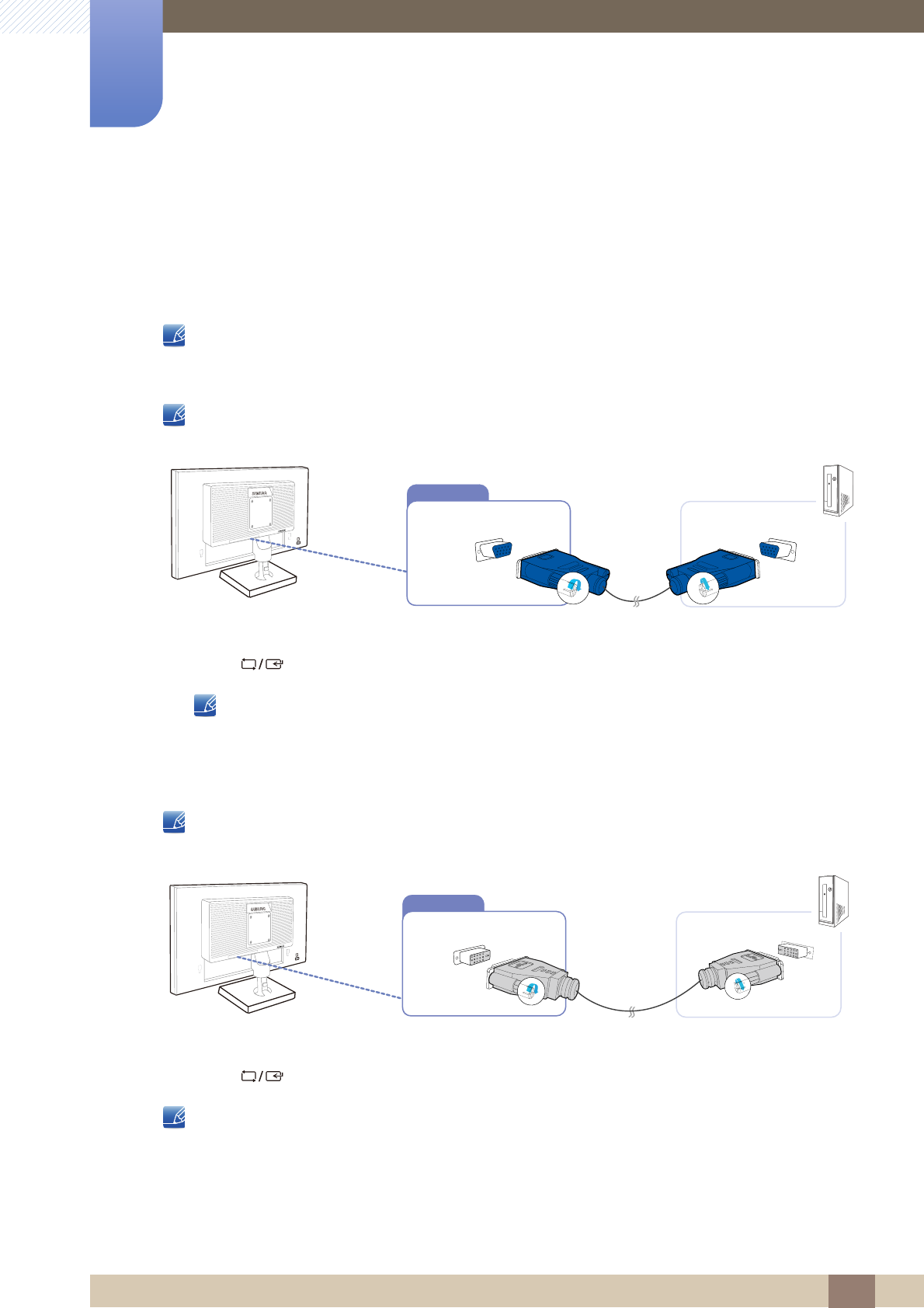

31 Connecting to a PC

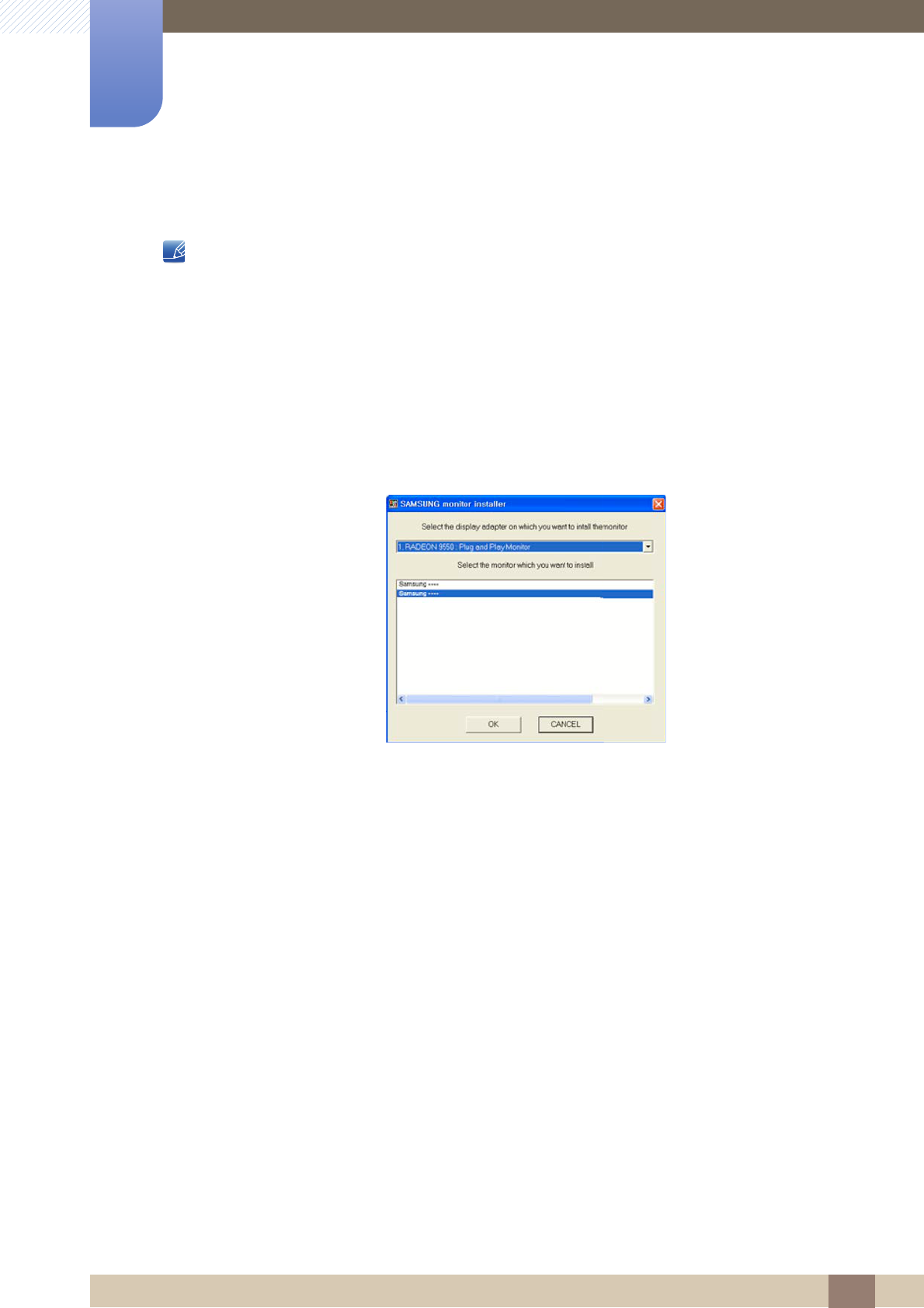

32 Driver Installation
33 Setting Optimum Resolution
Table Of Contents
Table Of Contents 3

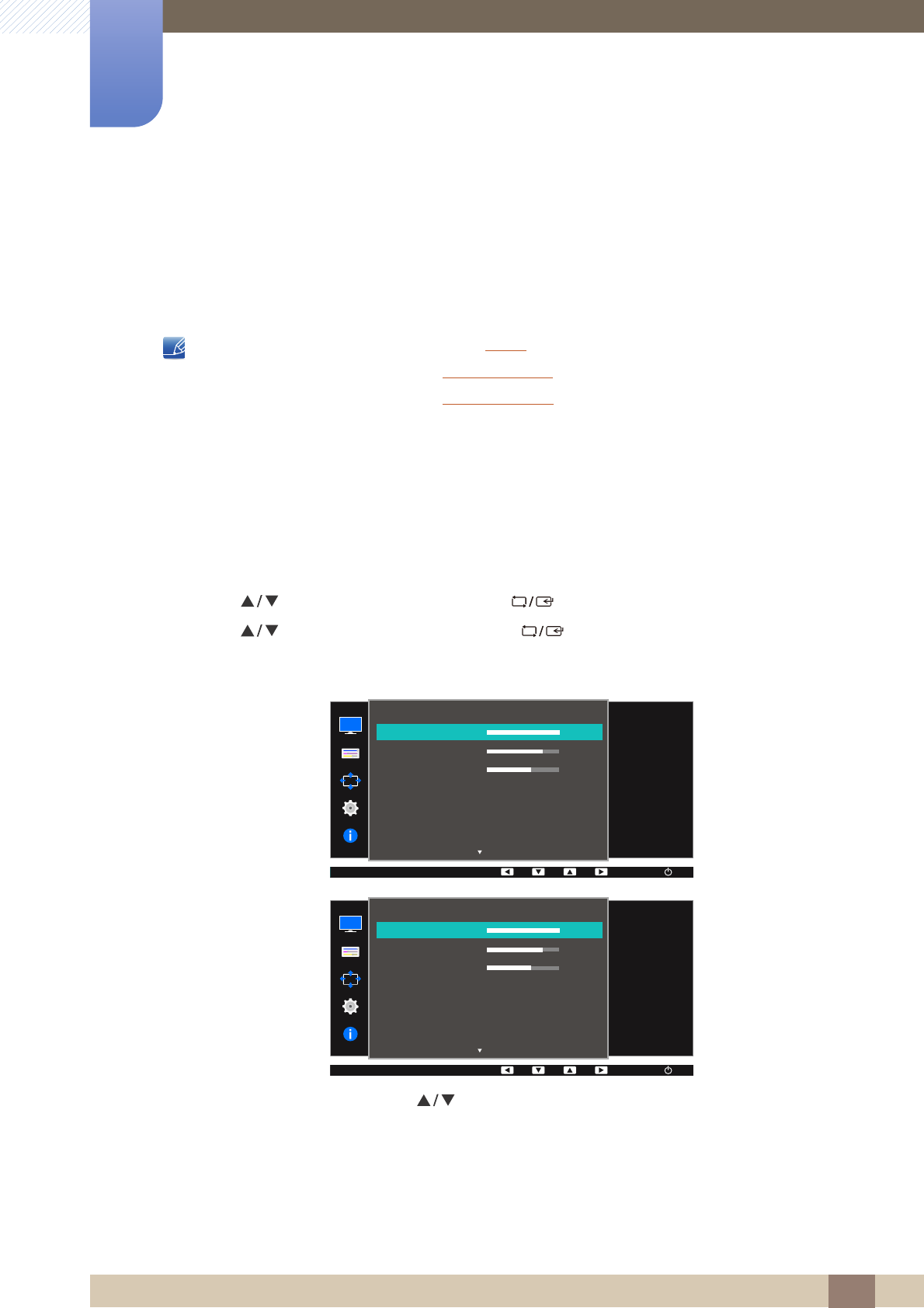

SCREEN SETUP 34 Brightness
34 Configuring Brightness
35 Contrast
35 Configuring Contrast
36 Sharpness
36 Configuring Sharpness
37 Eye Saver Mode
37 Configuring Eye Saver Mode
38 Game Mode
38 Configuring Game Mode
39 SAMSUNG MAGIC Bright
39 Configuring SAMSUNG MAGIC Bright

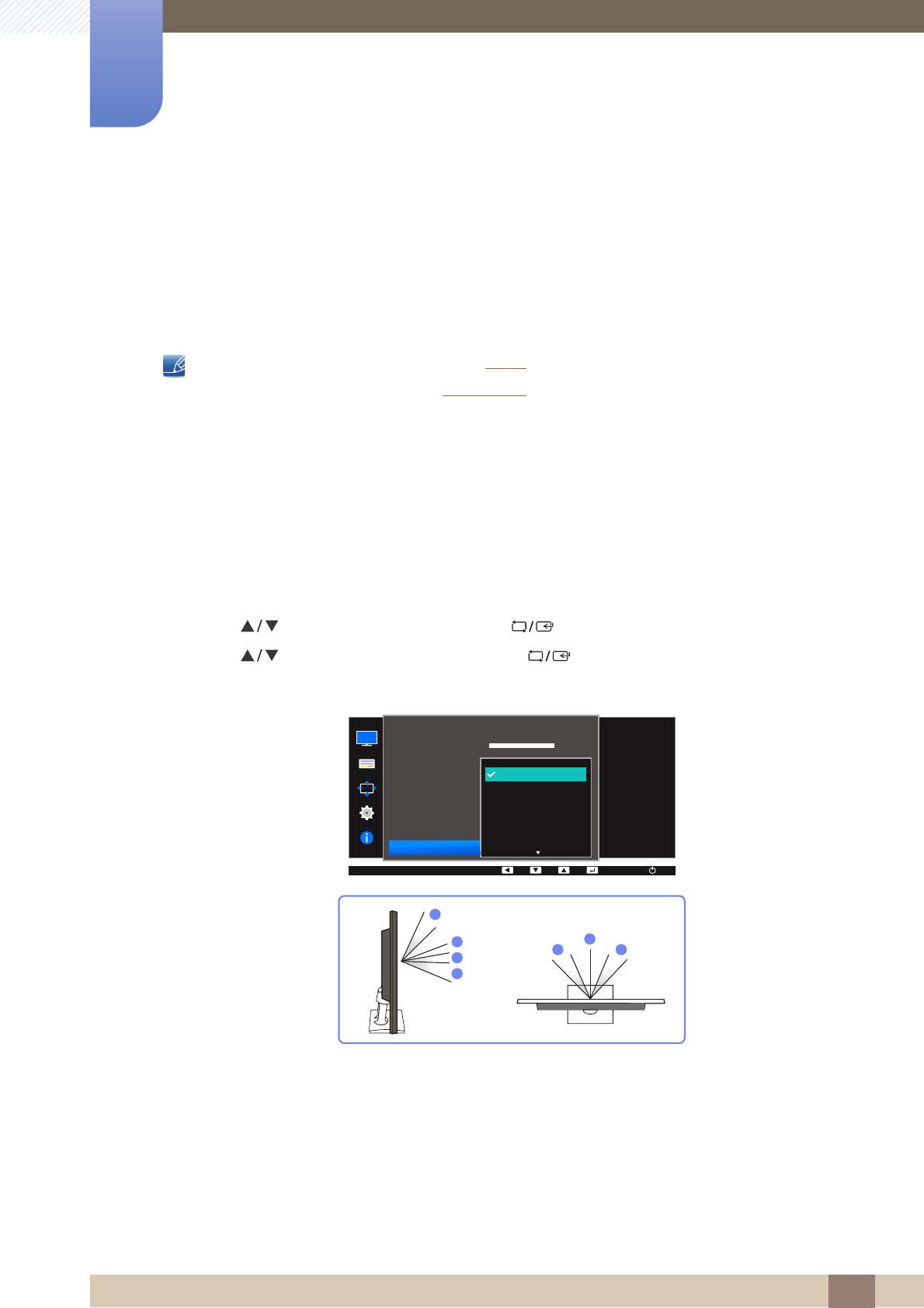

41 SAMSUNG MAGIC Angle (S19E200NY /
S19E200NW / S22E200NY / S22E200N)
41 Configuring SAMSUNG MAGIC Angle
43 SAMSUNG MAGIC Upscale
43 Configuring SAMSUNG MAGIC Upscale
44 Image Size
44 Changing the Image Size
46 H-Position & V-Position
46 Configuring H-Position & V-Position
47 Coarse
47 Adjusting Coarse
48 Fine
48 Adjusting Fine
CONFIGURING TINT 49 Red
49 Configuring Red
50 Green
50 Configuring Green
Table Of Contents
Table Of Contents 4
51 Blue
51 Configuring Blue
52 Color Tone
52 Configuring the Color Tone Settings
53 Gamma
53 Configuring Gamma
RESIZING OR
RELOCATING THE
SCREEN
54 Language
54 Changing the Language
55 Menu H-Position & Menu V-Position
55 Configuring Menu H-Position & Menu V-
Position
56 Display Time
56 Configuring Display Time
57 Transparency
57 Changing Transparency
SETUP AND RESET 58 Reset
58 Initializing Settings (Reset)
59 Eco Saving Plus
59 Configuring Eco Saving Plus
61 Off Timer
61 Configuring Off Timer
62 Configuring Turn Off After
63 PC/AV Mode (S19E200BR / S19E200BW
/ S22E200B / S22E200BW / S23E200B /
S24E200BL)
63 Configuring PC/AV Mode
64 Key Repeat Time
64 Configuring Key Repeat Time
Table Of Contents
Table Of Contents 5
65 Source Detection (S19E200BR /
S19E200BW / S22E200B / S22E200BW /
S23E200B / S24E200BL)
65 Configuring Source Detection
INFORMATION MENU AND
OTHERS
66 INFORMATION
66 Displaying INFORMATION
67 Configuring Brightness, Contrast and
Sharpness from the Initial Screen
INSTALLING THE
SOFTWARE
68 Magic Tune
68 What is MagicTune?
68 Installing the Software
69 Removing the Software
70 MultiScreen
70 Installing the Software
71 Removing the Software
TROUBLESHOOTING
GUIDE
72 Requirements Before Contacting
Samsung Customer Service Center
72 Testing the Product
72 Checking the Resolution and Frequency
72 Check the following.
75 Q & A
SPECIFICATIONS 77 General (S19E200NY / S19E200NW)
78 General (S19E200BW / S19E200BR)
79 General (S22E200NY / S22E200N)
80 General (S22E200B / S22E200BW)
81 General (S23E200B / S24E200BL)
82 PowerSaver
84 Standard Signal Mode Table
Table Of Contents
Table Of Contents 6
APPENDIX 95 Contact SAMSUNG WORLD WIDE
103 Responsibility for the Pay Service (Cost
to Customers)
103 Not a product defect
103 A Product damage caused by customer's fault
103 Others
104 Correct Disposal
104 Correct Disposal of This Product (Waste
Electrical & Electronic Equipment)
105 Terminology
INDEX
7
Before Using the Product
Before Using the Product
Copyright
The contents of this manual are subject to change without notice to improve quality.
© 2015 Samsung Electronics
Samsung Electronics owns the copyright for this manual.
Use or reproduction of this manual in parts or entirety without the authorization of Samsung Electronics is
prohibited.
Microsoft, Windows and Windows NT are registered trademarks of Microsoft Corporation.
VESA, DPM and DDC are registered trademarks of the Video Electronics Standards Association.
Icons used in this manual
An administration fee may be charged if either
(a) an engineer is called out at your request and there is no defect in the product
(i.e. where you have failed to read this user manual).
(b) you bring the unit to a repair center and there is no defect in the product
(i.e. where you have failed to read this user manual).
The amount of such administration charge will be advised to you before any work or home visit is
carried out.
The following images are for reference only. Real-life situations may
differ from what is shown in the images.
8
Before Using the Product
Before Using the Product
Cleaning
Exercise care when cleaning as the panel and exterior of advanced LCDs are easily scratched.
Take the following steps when cleaning.
1. Power off the monitor and computer.
2. Disconnect the power cord from the monitor.
Hold the power cable by the plug and do not touch the cable with wet
hands. Otherwise, an electric shock may result.
3. Wipe the monitor screen using a clean, soft and dry cloth.
Do not apply a cleaning agent that contains alcohol,
solvent, or surfactant to the monitor.
Do not spray water or detergent directly on the product.
4. Wet a soft and dry cloth in water and wring thoroughly to clean the
exterior of the monitor.
5. Connect the power cord to the product after cleaning the product.
6. Power on the monitor and computer.
!
!
9
Before Using the Product
Before Using the Product
Securing the Installation Space
Ensure some space around the product for ventilation. An internal temperature rise may cause fire
and damage the product. Be sure to allow the amount of space as shown below or greater when
installing the product.
The exterior may differ depending on the product.
Precautions for storage
Be sure to contact Samsung Customer Service Center (page 95) if the inside of the monitor needs
cleaning. (A service fee will be charged.)
3.93
inches
(10 cm)
3.93 inches (10 cm)
3.93
inches
(10 cm)
3.93 inches
(10 cm)
3.93 inches (10 cm)
10
Before Using the Product
Before Using the Product
Safety Precautions
Symbols
Caution
RISK OF ELECTRIC SHOCK DO NOT OPEN
Caution: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR
BACK). THERE ARE NO USER SERVICEABLE PARTS INSIDE. REFER ALL SERVICING TO
QUALIFIED PERSONNEL.
This symbol indicates that high voltage is present inside. It is dangerous to
make any kind of contact with any internal part of this product.
This symbol alerts you that important literature concerning operation and
maintenance has been included with this product.
Warning A serious or fatal injury may result if instructions are not followed.
Caution Personal injury or damage to properties may result if instructions are
not followed.
Activities marked by this symbol are prohibited.
Instructions marked by this symbol must be followed.
11
Before Using the Product
Before Using the Product
Electricity and Safety
The following images are for reference only. Real-life situations may differ from what is shown in the
images.
Warning
Do not use a damaged power cord or plug, or a loose power socket.
An electric shock or fire may result.
Do not plug many products into the same power socket.
Otherwise, the socket may overheat and cause a fire.
Do not touch the power plug with wet hands.
Otherwise, an electric shock may result.
Insert the power plug all the way in so it is not loose.
An unstable connection may cause a fire.
Ensure you connect the power plug to a grounded power socket. (type 1
insulated devices only).
An electric shock or injury may result.
Do not bend or pull the power cord with force. Do not weigh the power cord
down with a heavy object.
A damaged power cord may cause an electric shock or fire.
Do not place the power cord or product near heat sources.
An electric shock or fire may result.
Remove foreign substances such as dust around the plug pins and power socket
with a dry cloth.
Otherwise, a fire may result.
!
!
!
12
Before Using the Product
Before Using the Product

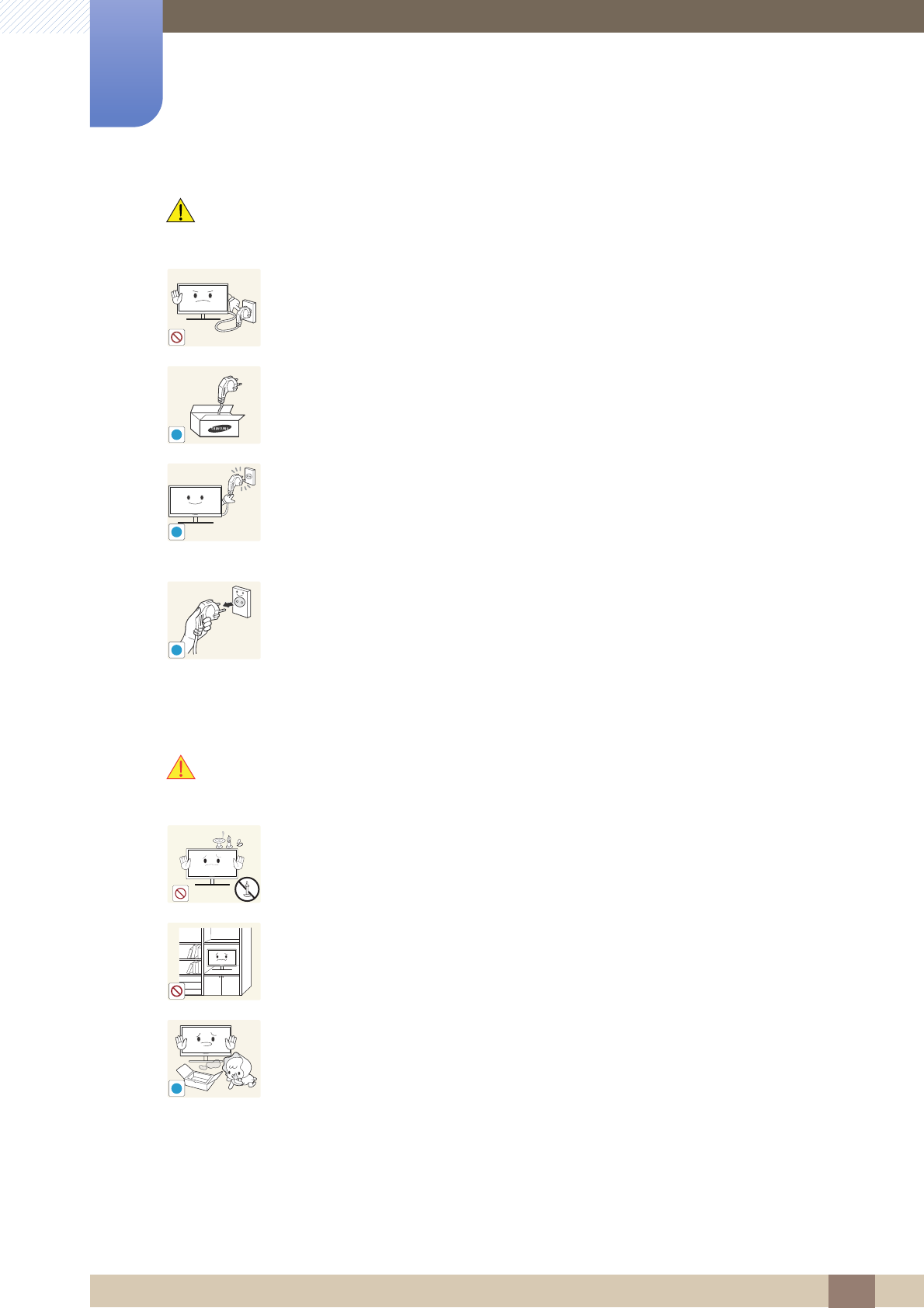

Caution
Installation and Safety
Warning
Do not unplug the power cord when the product is in use.
The product may become damaged by an electric shock.
Do not use the power cord for products other than authorized products supplied
by Samsung.
An electric shock or fire may result.
Keep the power socket where the power cord is connected unobstructed.
If any problem occurs in the product, unplug the power cable to completely
cut the power to the product.
Power to the product cannot be completely cut off with the power button.
Hold the plug when disconnecting the power cord from the power socket.
An electric shock or fire may result.
DO NOT PLACE CANDLES, INSECT REPELLANTS OR CIGARETTES ON TOP
OF THE PRODUCT. DO NOT INSTALL THE PRODUCT NEAR HEAT SOURCES.
Otherwise, a fire may result.
Avoid installing the product in a narrow space with bad ventilation, such as a
bookshelf or wall closet.
Otherwise, a fire may result due to an increased internal temperature.
Keep the plastic packaging bag for the product in a place that cannot be reached
by children.
Children may suffocate.
!
!
!
!
13
Before Using the Product
Before Using the Product

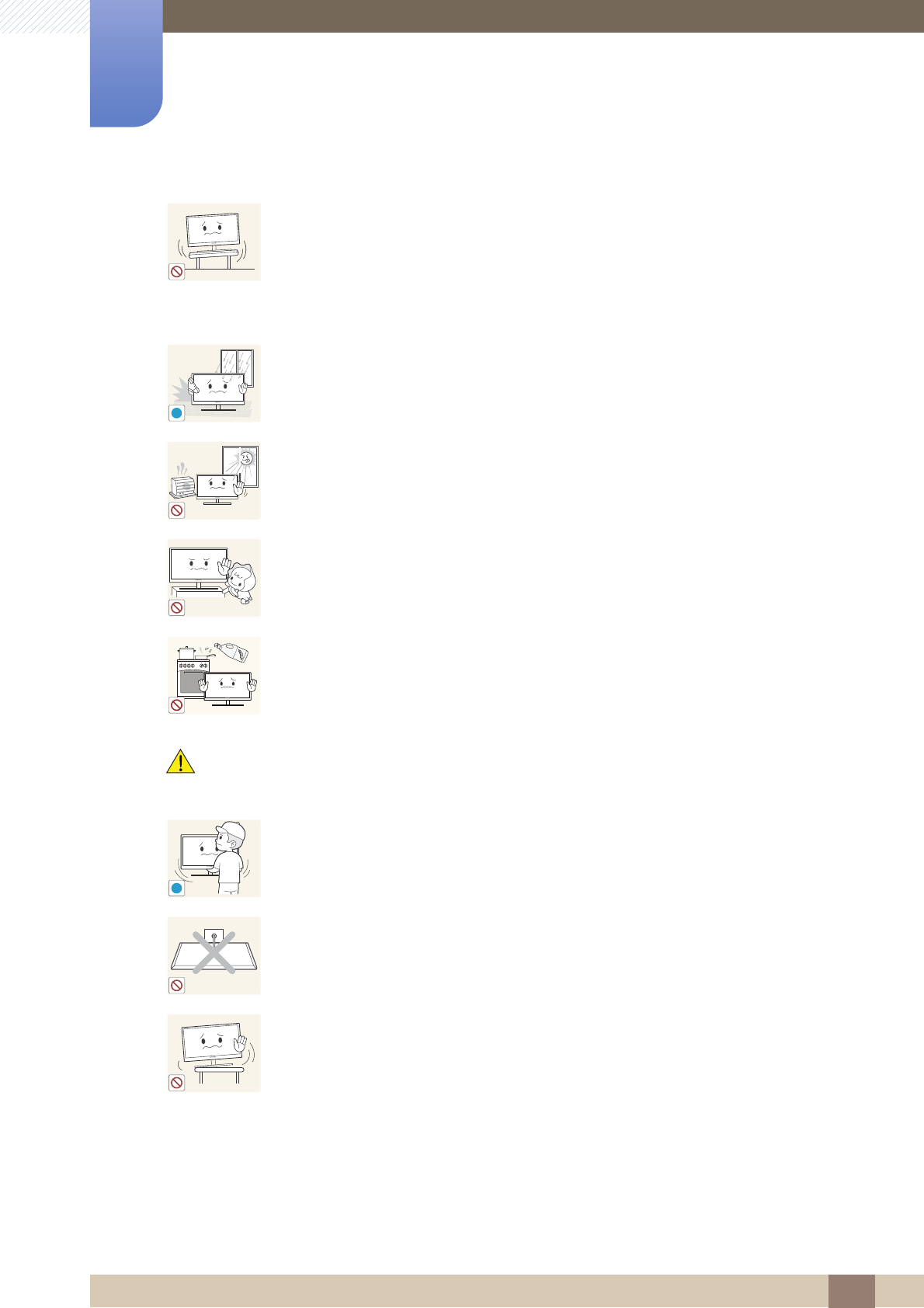

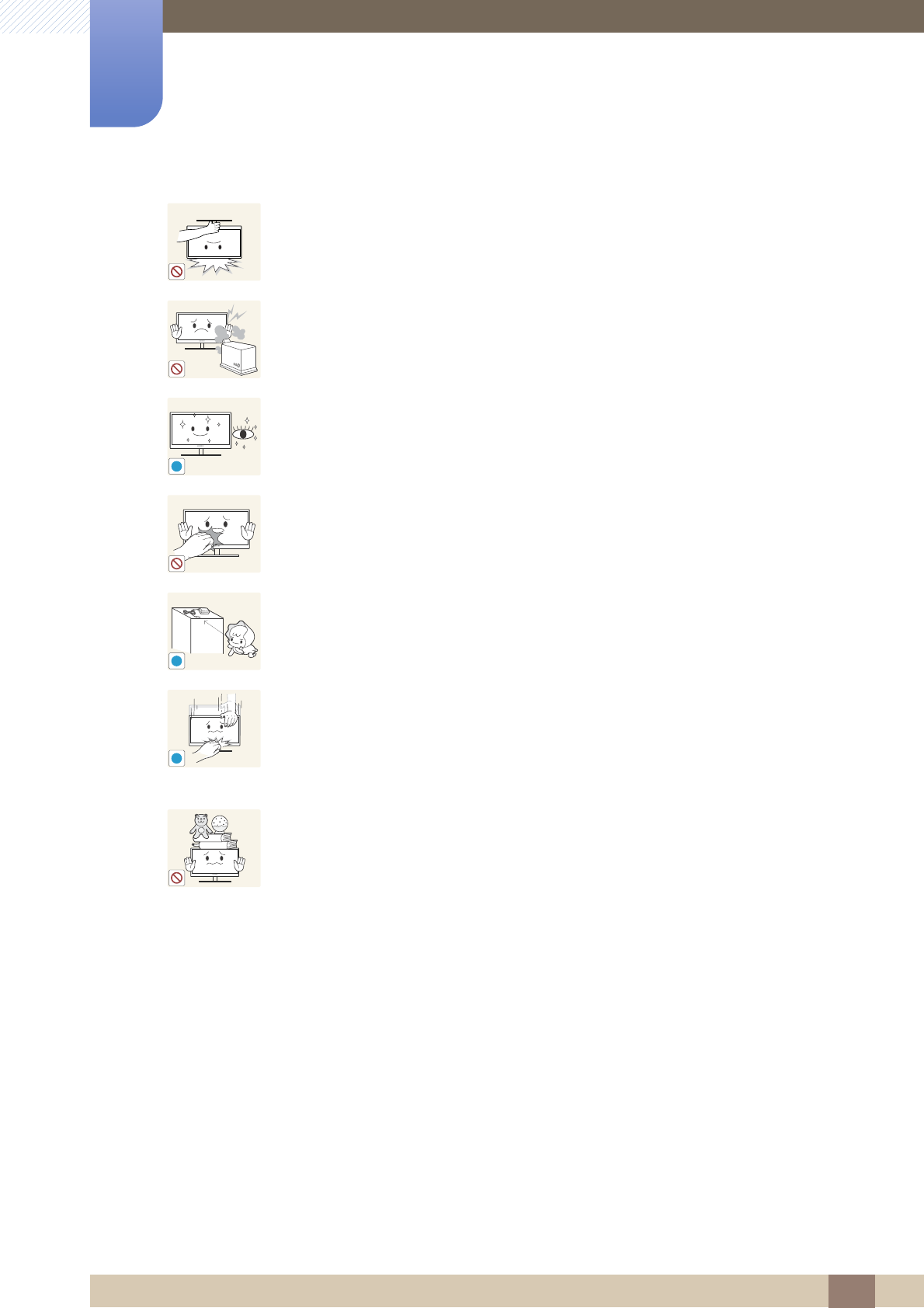

Caution
Do not install the product on an unstable or vibrating surface (insecure shelf,
sloped surface, etc.).
The product may fall and break or cause a personal injury.
Using the product in an area with excess vibration may damage the product
or cause a fire.
Do not install the product in a vehicle or a place exposed to dust, moisture (water
drips, etc.), oil, or smoke.
An electric shock or fire may result.
Do not expose the product to direct sunlight, heat, or a hot object such as a
stove.
Otherwise, the product lifespan may be reduced, or a fire may result.
Do not install the product within the reach of young children.
The product may fall and injure children.
Edible oil, such as soybean oil, can damage or deform the product. Do not install
the product in a kitchen or near a kitchen counter.
Take care not to drop the product when moving it.
Otherwise, product failure or personal injury may result.
Do not set down the product on its front.
The screen may become damaged.
When installing the product on a cabinet or shelf, make sure that the bottom
edge of the front of the product is not protruding.
The product may fall and break or cause a personal injury.
Install the product only on cabinets or shelves of the right size.
!
!
14
Before Using the Product
Before Using the Product

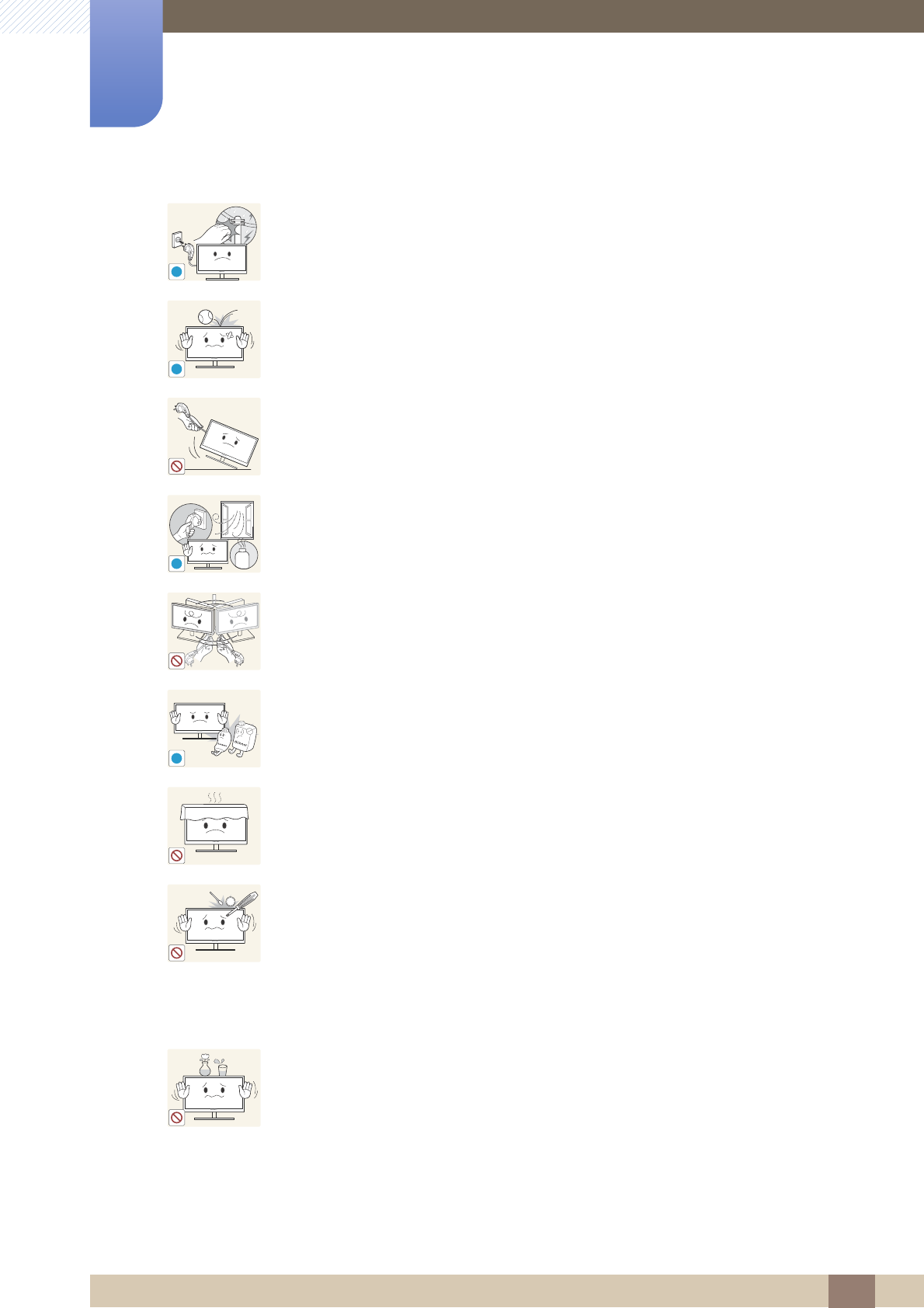

Operation and Safety
Warning
Put down the product carefully.
The product may fall and break or cause a personal injury.
Installing the product in an unusual place (a place exposed to a lot of fine dust,
chemical substances, extreme temperatures or a significant presence of
moisture, or a place where the product will operate continuously for an extended
period of time) may seriously affect its performance.
Be sure to consult Samsung Customer Service Center (page 95) before
installation if you want to install the product at such a place.
High voltage runs through the product. Do not attempt to disassemble, repair, or
modify the product on your own.
An electric shock or fire may result.
Contact Samsung Customer Service Center (page 95) for repair.
To move the product, first disconnect all the cables from it, including the power
cable.
Otherwise, the power cord may be damaged and a fire or electric shock may
result.
If the product generates a strange noise, a burning smell, or smoke, remove the
power cord immediately and contact Samsung Customer Service Center (page
95).
An electric shock or fire may result.
Do not let children hang from the product or climb on top of it.
The product may fall, and your child may become injured or seriously
harmed.
If the product falls or the exterior is damaged, power off the product, remove the
power cord, and contact Samsung Customer Service Center (page 95).
Otherwise, an electric shock or fire may result.
Do not put a heavy object, toy, or sweets on top of the product.
The product or heavy objects may fall as children try to reach for the toy or
sweets resulting in a serious injury.
!
SAMSUNG
!
!
!
15
Before Using the Product
Before Using the Product
If there is a thunderstorm or lightning strike, turn off the power and disconnect the
power cable.
An electric shock or fire may result.
Do not drop objects on the product or apply impact.
An electric shock or fire may result.
Do not move the product by pulling the power cord or any cable.
Otherwise, the cable may be damaged and product failure, an electric shock
or fire may result.
If a gas leakage is found, do not touch the product or power plug. Also, ventilate
the area immediately.
Sparks can cause an explosion or fire.
Do not lift or move the product by pulling the power cord or any cable.
Otherwise, the cable may be damaged and product failure, an electric shock
or fire may result.
Do not use or keep combustible spray or an inflammable substance near the
product.
An explosion or fire may result.
Ensure the vents are not blocked by tablecloths or curtains.
Otherwise, a fire may result from an increased internal temperature.
Do not insert a metallic object (a chopstick, coin, hair pin, etc.) or inflammable
object (paper, match, etc.) into the vent or ports of the product.
If water or any foreign substance enters the product, be sure to power off the
product, remove the power cord, and contact Samsung Customer Service
Center (page 95).
Product failure, an electric shock or fire may result.
Do not place objects containing liquid (vases, pots, bottles, etc) or metallic
objects on top of the product.
If water or any foreign substance enters the product, be sure to power off the
product, remove the power cord, and contact Samsung Customer Service
Center (page 95).
Product failure, an electric shock or fire may result.
!
!
!
GAS
!
10 0
16
Before Using the Product
Before Using the Product

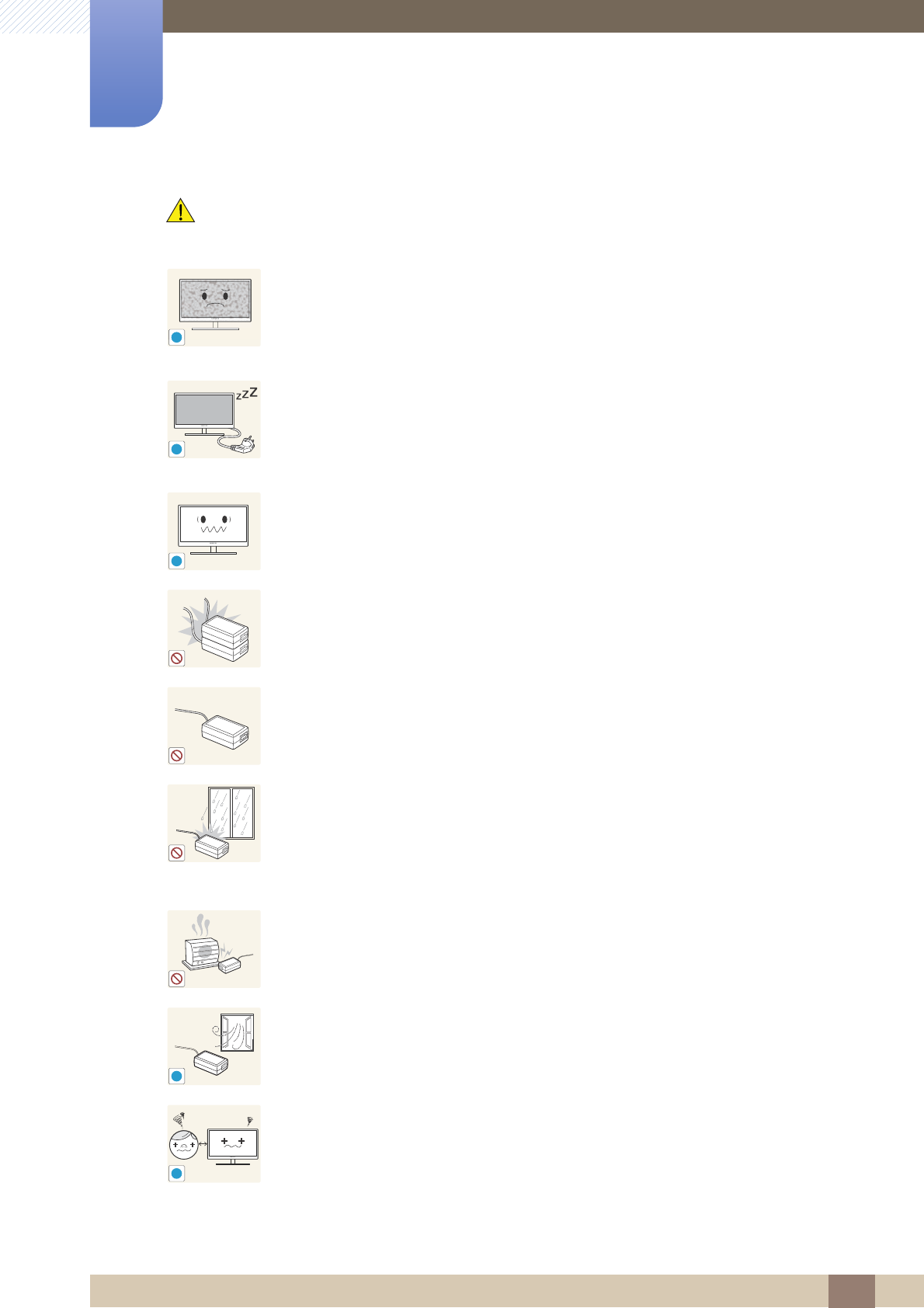

Caution
Leaving the screen fixed on a stationary image for an extended period of time
may cause afterimage burn-in or defective pixels.
If you are not going to use the product for an extended period of time,
activate power-saving mode or a moving-picture screen saver.
Disconnect the power cord from the power socket if you do not plan on using the
product for an extended period of time (vacation, etc.).
Otherwise, a fire may result from accumulated dust, overheating, an electric
shock, or electric leakage.
Use the product at the recommended resolution and frequency.
Otherwise,Your eyesight may deteriorate.
Do not put DC power adapters together.
Otherwise, a fire may result.
Remove the plastic bag from the DC power adapter before you use it.
Otherwise, a fire may result.
Do not let water enter the DC power device or get the device wet.
An electric shock or fire may result.
Avoid using the product outdoors where it can be exposed to rain or snow.
Be careful not to get the DC power adapter wet when you wash the floor.
Do not put the DC power adapter near to any heating apparatus.
Otherwise, a fire may result.
Keep the DC power adapter in a well-ventilated area.
Looking at the screen too close for an extended period of time can deteriorate
your eyesight.
!
!
-_-
!
!
!
!
17
Before Using the Product
Before Using the Product
Do not hold the monitor upside-down or move it by holding the stand.
The product may fall and break or cause a personal injury.
Do not use humidifiers or stoves around the product.
An electric shock or fire may result.
Rest your eyes for more than 5 minutes for every 1 hour of product use.
Eye fatigue will be relieved.
Do not touch the screen when the product has been turned on for an extended
period of time as it will become hot.
Store the small accessories used with the product out of reach of children.
Exercise caution when adjusting the product angle or stand height.
Otherwise, children's fingers or hands may become stuck and injured.
Tilting the product excessively may cause it to fall and result in personal
injury.
Do not place heavy objects on the product.
Product failure or personal injure may result.
!
!
!
18
Before Using the Product
Before Using the Product
Correct posture to use the product
Use the product in the correct posture as follows:
Straighten your back.
Allow a distance of 45 to 50 cm between your eye and the screen, and look slightly
downward at the screen.
Keep your eyes directly in front of the screen.
Adjust the angle so light does not reflect on the screen.
Keep your forearms perpendicular to your upper arms and level with the back of
your hands.
Keep your elbows at about a right angle.
Adjust the height of the product so you can keep your knees bent at 90 degrees or
more, your heels attached to the floor, and your arms lower than your heart.
19
1 Preparations
1 Preparations
1.1 Checking the Components
1.1.1 Checking the Components
Contact the dealer from whom you purchased the product if any item is missing.
The appearance of the components and items sold separately may differ from the image shown.
Components
Components may vary depending on the country.
Quick setup guide Warranty card
(Not available in some locations) Regulatory guide
User manual
(optional)
Power cable D-SUB cable
(optional)
DVI cable
(optional)
Stand Stand Connector
20
Preparations
1
1 Preparations
1.2 Parts
1.2.1 Frontal Buttons
The color and shape of parts may differ from what is shown.
Specifications are subject to change without notice to improve quality.
S19E200NY / S19E200NW / S22E200NY / S22E200N
Icons Description
Open or close the onscreen display (OSD) menu, or return to the
parent menu.
OSD control lock: Maintain the current settings, or lock the OSD
control to prevent unintended changes to settings.
Enable: To lock the OSD control, press the [ ] button for 10
seconds.
Disable: To unlock the locked OSD control, press the [ ] button
for more than 10 seconds.
If the OSD control is locked,
Brightness and Contrast can be adjusted. Eye Saver Mode is
available. INFORMATION can be viewed.
The Eye Saver Mode function can be used by pressing the [ ]
button. (The Eye Saver Mode is available even when the OSD
control is locked.)
Select [ ] by moving the JOG button in the function key guide screen.
Press to enable or disable Eye Saver Mode.
The items below are not available if the Eye Saver Mode function is
enable.
PICTURE Game Mode, Bright, Brightness, COLOR
SETUP&RESET Eco Saving Plus
Key Guide
EYE
SAVERMENU SOURCE
AUTO
EYE
SAVERMENU SOURCE
AUTO
MENU
M
ENU
M
ENU
SAMSUNG
MAGIC
21
Preparations
1
1 Preparations
Move to the upper or lower menu or adjust the value for an option on the
OSD menu.
Use this button to control the brightness, contrast and sharpness of the
screen.
Confirm a menu selection.
Pressing the [ ] button when the OSD menu is not displayed will
change the input source (Analog/DVI). If you power on the product or
change the input source by pressing the [ ] button, a message that
shows the changed input source will appear at the top left corner of the
screen.
This function is not available for products with an Analog interface
only.
Press the [ ] button to automatically adjust the screen settings.
Changing the resolution in Display Properties will activate the
Auto Adjustment function.
This function is only available in Analog mode.
Turn the screen on or off.
Key Guide
When a control button on the product is pressed, the Key Guide will be
displayed before the onscreen menu opens. (The guide shows the
function of the button pressed.)
To access the onscreen menu when the guide is displayed, press the
corresponding button again.
The Key Guide may vary depending on the function or product model.
Refer to the actual product.
Icons Description
AUTO
AUTO
22
Preparations
1
1 Preparations
S19E200BR / S19E200BW / S22E200B / S22E200BW / S23E200B / S24E200BL
Icons Description
Open or close the onscreen display (OSD) menu, or return to the
parent menu.
OSD control lock: Maintain the current settings, or lock the OSD
control to prevent unintended changes to settings.
Enable: To lock the OSD control, press the [ ] button for 10
seconds.
Disable: To unlock the locked OSD control, press the [ ] button
for more than 10 seconds.
If the OSD control is locked,
Brightness and Contrast can be adjusted. Eye Saver Mode is
available. INFORMATION can be viewed.
The Eye Saver Mode function can be used by pressing the [ ]
button. (The Eye Saver Mode is available even when the OSD
control is locked.)
Select [ ] by moving the JOG button in the function key guide screen.
Press to enable or disable Eye Saver Mode.
The items below are not available if the Eye Saver Mode function is
enable.
PICTURE Game Mode, Bright, Brightness, COLOR
SETUP&RESET Eco Saving Plus
Move to the upper or lower menu or adjust the value for an option on the
OSD menu.
Use this button to control the brightness, contrast and sharpness of the
screen.
Key Guide
EYE
SAVERMENU SOURCE
EYE
SAVERMENU SOURCE
MENU
M
ENU
MENU
SAMSUNG
MAGIC
23
Preparations
1
1 Preparations
Confirm a menu selection.
Pressing the [ ] button when the OSD menu is not displayed will
change the input source (Analog/DVI). If you power on the product or
change the input source by pressing the [ ] button, a message that
shows the changed input source will appear at the top left corner of the
screen.
This function is not available for products with an Analog interface
only.
Press the [ ] button to automatically adjust the screen settings.
Changing the resolution in Display Properties will activate the
Auto Adjustment function.
This function is only available in Analog mode.
Turn the screen on or off.
Key Guide
When a control button on the product is pressed, the Key Guide will be
displayed before the onscreen menu opens. (The guide shows the
function of the button pressed.)
To access the onscreen menu when the guide is displayed, press the
corresponding button again.
The Key Guide may vary depending on the function or product model.
Refer to the actual product.
Icons Description
AUTO
AUTO
24
Preparations
1
1 Preparations
1.2.2 Reverse Side
The color and shape of parts may differ from what is shown. Specifications are subject to change
without notice to improve quality.
Port Ports
Connect the power cord for your monitor to the POWER IN port on
the back of the product.
Connect to a PC using the DVI cable.
The [DVI IN] terminal is supplied for the digital (DVI)-dedicated
models only.
Connect to a PC using the D-SUB cable.
DVI IN RGB IN POWER IN
RGB INDVI IN POWER IN
S19E200BR / S19E200BW / S22E200B
S22E200BW / S23E200B / S24E200BL
RGB IN POWER IN
RGB IN POWER IN
S19E200NY / S19E200NW / S22E200NY /
S22E200N
25
Preparations
1
1 Preparations
1.3 Installation
1.3.1 Attaching the Stand
Before assembling the product, place the product down on a flat and stable surface so that the screen
is facing downwards.
The color and shape of parts may differ from what is shown. Specifications are subject to change
without notice to improve quality.
Insert the Stand Connector into
the Stand in the direction shown
by the figure.
Check if the Stand Connector is
firmly connected.
Turn the connecting screw at the
bottom of the stand fully so that it
is completely fixed.
Place a soft cloth over the table
to protect the product and place
the product onto the cloth so
that the front of the product is
facing downwards.
Hold the main body of the
product with your hand as
shown by the figure.
Push the assembled stand into
the main body in the direction of
the arrow as shown in the figure.
- Caution
Do not hold the product upside
down only by the stand.
26
Preparations
1
1 Preparations
1.3.2 Removing the Stand
The exterior may differ depending on the product.
Place a soft cloth over the table to protect the product and
place the product onto the cloth so that the front of the product
faces downwards.
While holding the stand neck with one hand, pound the other
fisted hand down onto the top of the stand base in the direction
of the arrow to detach the stand base.
Turn the connecting screw at the bottom of the stand base to
separate it.
Remove the stand neck from the stand base by pulling it in the
direction of the arrow as shown in the figure.
27
Preparations
1
1 Preparations
1.3.3 Adjusting the Product Tilt
The color and shape of parts may differ from what is shown. Specifications are subject to change
without notice to improve quality.
You can adjust the tilt of your monitor.
Hold the lower part of the product and adjust the tilt carefully.
-1° (±2°) - 20° (±2°)
28
Preparations
1
1 Preparations
1.3.4 Installing a Wall-mount Kit or Desktop Stand
Before Installation
Power the product off and remove the power cable from the power socket.
Align the grooves and tightly fasten the screws on the bracket on the product with the corresponding
parts on the wall-mount kit or desktop stand you want to attach.
Place a protective cloth or cushion on a flat
surface. Next, place the product with the face
down on top of the cloth or cushion.
Hold the main body of the product with your hand
as shown by the figure.
Pull the stand in the direction of the arrow as
shown in the figure to separate it.
Installing a Wall-mount Kit or Desktop Stand
Attach the wall-mount kit or desktop stand here
Bracket (sold separately)
1
A
2
3
B
4
A
B
29
Preparations
1
1 Preparations
Notes
Using a screw longer than the standard length can damage the internal components of the
product.
The length of screws required for a wall mount that does not comply with the VESA standards may
vary depending on the specifications.
Do not use screws that do not comply with the VESA standards. Do not attach the wall-mount kit
or desktop stand using excessive force. The product may get damaged or fall and cause personal
injury. Samsung shall not be held liable for any damage or injury caused by using improper screws
or attaching the wall-mount kit or desktop stand using excessive force.
Samsung shall not be held liable for any product damage or personal injury caused by using a wall-
mount kit other than the one specified or from an attempt to install the wall-mount kit on your own.
To mount the product on a wall, ensure you purchase a wall-mount kit that can be installed 10cm
or farther away from the wall.
Be sure to use a wall-mount kit that complies with the standards.
1.3.5 Anti-theft Lock
An anti-theft lock allows you to use the product securely even in public places. The locking device shape
and locking method depend on the manufacturer. Refer to the user guide provided with your anti-theft
locking device for details. The lock device is sold separately.
The color and shape of parts may differ from what is shown. Specifications are subject to change
without notice to improve quality.
To lock an anti-theft locking device:
1Fix the cable of your anti-theft locking device to a heavy object such as a desk.
2Put one end of the cable through the loop on the other end.
3Insert the locking device into the anti-theft lock slot at the back of the product.
4Lock the locking device.
An anti-theft locking device can be purchased separately.
Refer to the user guide provided with your anti-theft locking device for details.
Anti-theft locking devices can be purchased at electronics retailers or online.
RGB INDVI IN POWER IN
30
2 Connecting and Using a Source Device
2 Connecting and Using a Source Device
2.1 Before Connecting
2.1.1 Pre-connection Checkpoints
Before connecting a source device, read the user manual provided with it.
The number and locations of ports on source devices may differ from device to device.
Do not connect the power cable until all connections are completed.
Connecting the power cable during connection may damage the product.
Check the types of ports at the back of the product you want to connect.
2.2 Connecting the Power
To use the product, connect the power cable to a power outlet and the [POWER IN] port on the
product.(The input voltage is switched automatically.)
RGB INDVI IN POWER IN
POWER IN
31
Connecting and Using a Source Device
2
2 Connecting and Using a Source Device
2.3 Connecting and Using a PC
2.3.1 Connecting to a PC
Select a connection method suitable for your PC.
Connecting parts may differ in different products.
Connection Using the D-SUB Cable (Analog Type)
Do not connect the power cable before connecting all other cables. Ensure you connect a source
device first before connecting the power cable.
1
Connect the D-SUB cable to the [RGB IN] port on the back of the product and the RGB port on the PC.
2Press [ ] to change the input source to Analog.
This function is not available for products with an Analog interface only.
Connection Using the DVI Cable
(S19E200BR / S19E200BW / S22E200B / S22E200BW / S23E200B / S24E200BL)
Do not connect the power cable before connecting all other cables. Ensure you connect a source
device first before connecting the power cable.
1Connect the DVI cable to the [DVI IN] port on the back of the product and the DVI port on the PC.
2Press [ ] to change the input source to DVI.
The [DVI IN] terminal is supplied for the digital (DVI)-dedicated models only.
RGB IN
DVI IN
32
Connecting and Using a Source Device
2
2 Connecting and Using a Source Device
2.3.2 Driver Installation
You can set the optimum resolution and frequency for this product by installing the corresponding
drivers.
An installation driver is contained on the CD supplied with the product.
If the file provided is faulty, visit the Samsung homepage (http://www.samsung.com) and
download the file.
1Insert the user manual CD provided with the product into the CD-ROM drive.
2Click "Windows Driver".
3Follow the instructions given on the screen to proceed with installation.
4Select your product model from the list of models.
5Go to Display Properties and check that the resolution and refresh rate are appropriate.
Refer to your Windows OS manual for further details.
33
Connecting and Using a Source Device
2
2 Connecting and Using a Source Device
2.3.3 Setting Optimum Resolution
An information message about setting optimum resolution will appear if you power on the product for the
first time after purchase.
Select a language on the product and change the resolution on your PC to the optimum setting.
1Press [ ] to move to the language you want and press [ ].
2To hide the information message, press [ ].
If the optimum resolution is not selected, the message will appear up to three times for a specified
time even when the product is turned off and on again.
The optimum resolution can also be selected in Control Panel on your PC.
2.
(QJOLVK
7KHRSWLPDOUHVROXWLRQIRUWKLV
PRQLWRULVDVIROORZV
****x**** **Hz
8VHWKHDERYHVHWWLQJVWRVHW
WKHUHVROXWLRQRQ\RXU3&
6HWXS*XLGH
AUTO
AUTO
M
ENU
34
3 Screen Setup
3 Screen Setup
Configure the screen settings such as brightness.
3.1 Brightness
You can adjust the general brightness of the picture. (Range: 0~100)
A higher value will make the picture appear brighter.
This menu is not available when Bright is set to Dynamic Contrast mode.
This menu is not available when Eco Saving Plus is set.
This menu is not available when Eye Saver Mode is enabled.
The functions available on the monitor may vary depending on the model. Refer to the actual
product.
3.1.1 Configuring Brightness
1Press any button on the front of the product to display the Key Guide. Next, press [ ] to display
the corresponding menu screen.
2Press [ ] to move to PICTURE and press [ ] on the product.
3Press [ ] to move to Brightness and press [ ] on the product.
The following screen will appear.
4Adjust the Brightness using the [ ] buttons.
SAMSUNG
MAGIC
MENU
SAMSUNG
MAGICBright
SAMSUNG
MAGICUpscale
Adjust the brightness
level. Values closer
to 100 mean a
brighter screen.
AUTO
Brightness
Contrast
Sharpness
Eye Saver Mode
Game Mode
100
75
60
Off
Off
Custom
Off
AUTO
AUTO
AUTO
SAMSUNG
MAGICBright
SAMSUNG
MAGICAngle
Adjust the brightness
level. Values closer
to 100 mean a
brighter screen.
AUTO
Brightness
Contrast
Sharpness
Eye Saver Mode
Game Mode
100
75
60
Off
Off
Custom
Off
AUTO
AUTO
AUTO
35
Screen Setup
3
3 Screen Setup
3.2 Contrast
Adjust the contrast between the objects and background. (Range: 0~100)
A higher value will increase the contrast to make the object appear clearer.
This menu is not available when Bright is in Cinema or Dynamic Contrast mode.
This menu is not available when Game Mode is enabled.
The functions available on the monitor may vary depending on the model. Refer to the actual
product.

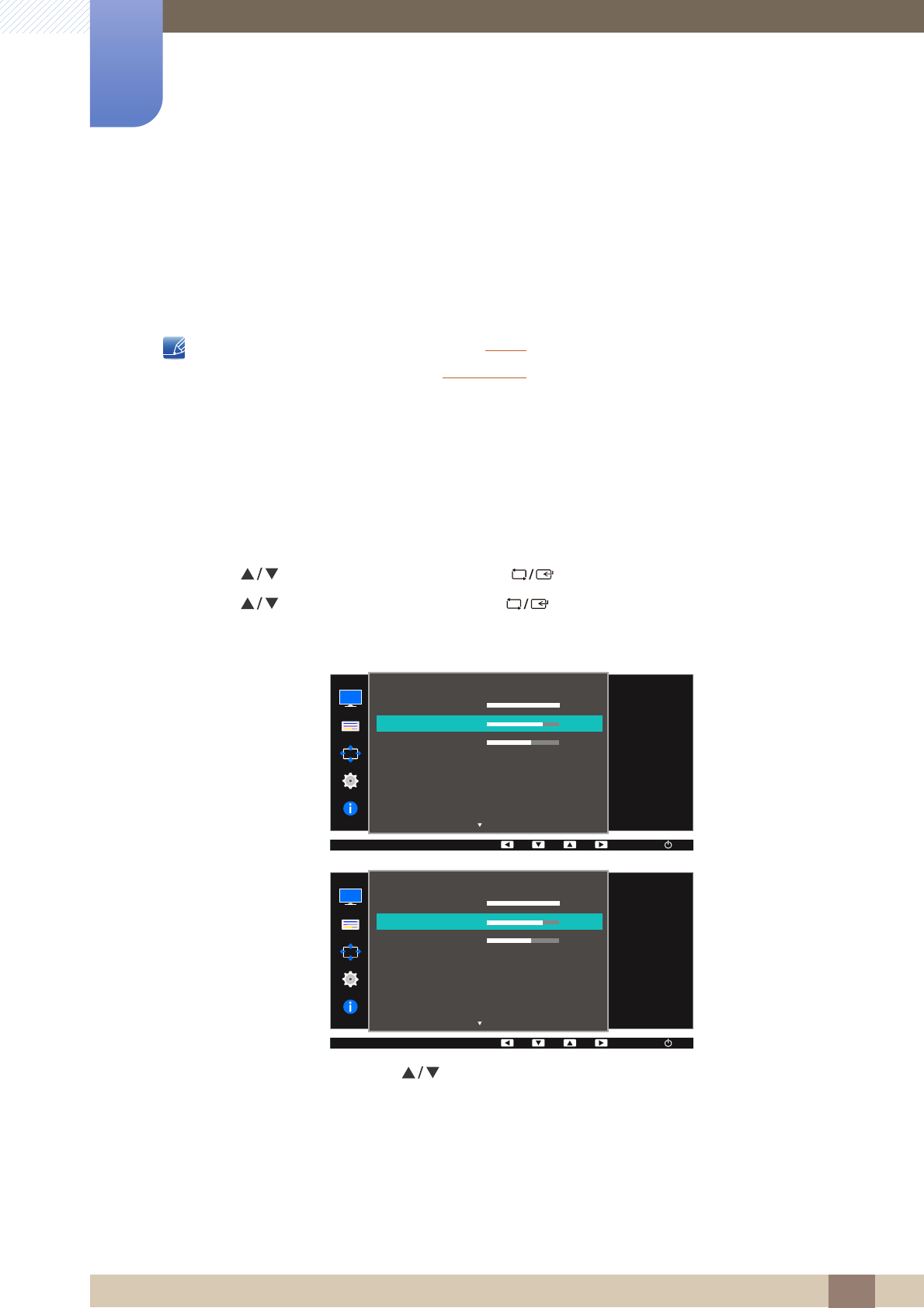

3.2.1 Configuring Contrast
1Press any button on the front of the product to display the Key Guide. Next, press [ ] to display
the corresponding menu screen.
2Press [ ] to move to PICTURE and press [ ] on the product.
3Press [ ] to move to Contrast and press [ ] on the product.
The following screen will appear.
4Adjust the Contrast using the [ ] buttons.
SAMSUNG
MAGIC
MENU
SAMSUNG
MAGICBright
SAMSUNG
MAGICUpscale
Adjust the contrast
level. Values closer to
100 mean a bigger
light/dark contrast.
AUTO
Brightness
Contrast
Sharpness
Eye Saver Mode
Game Mode
100
75
60
Off
Off
Custom
Off
AUTO
AUTO
AUTO
SAMSUNG
MAGICBright
SAMSUNG
MAGICAngle
Adjust the contrast
level. Values closer to
100 mean a bigger
light/dark contrast.
AUTO
Brightness
Contrast
Sharpness
Eye Saver Mode
Game Mode
100
75
60
Off
Off
Custom
Off
AUTO
AUTO
AUTO
36
Screen Setup
3
3 Screen Setup
3.3 Sharpness
Make the outline of objects more clear or blurry. (Range: 0~100)
A higher value will make the outline of objects clearer.
This menu is not available when Bright is in Cinema or Dynamic Contrast mode.
This menu is not available when Upscale is in Mode1 or Mode2.
This menu is not available when Game Mode is enabled.
The functions available on the monitor may vary depending on the model. Refer to the actual
product.

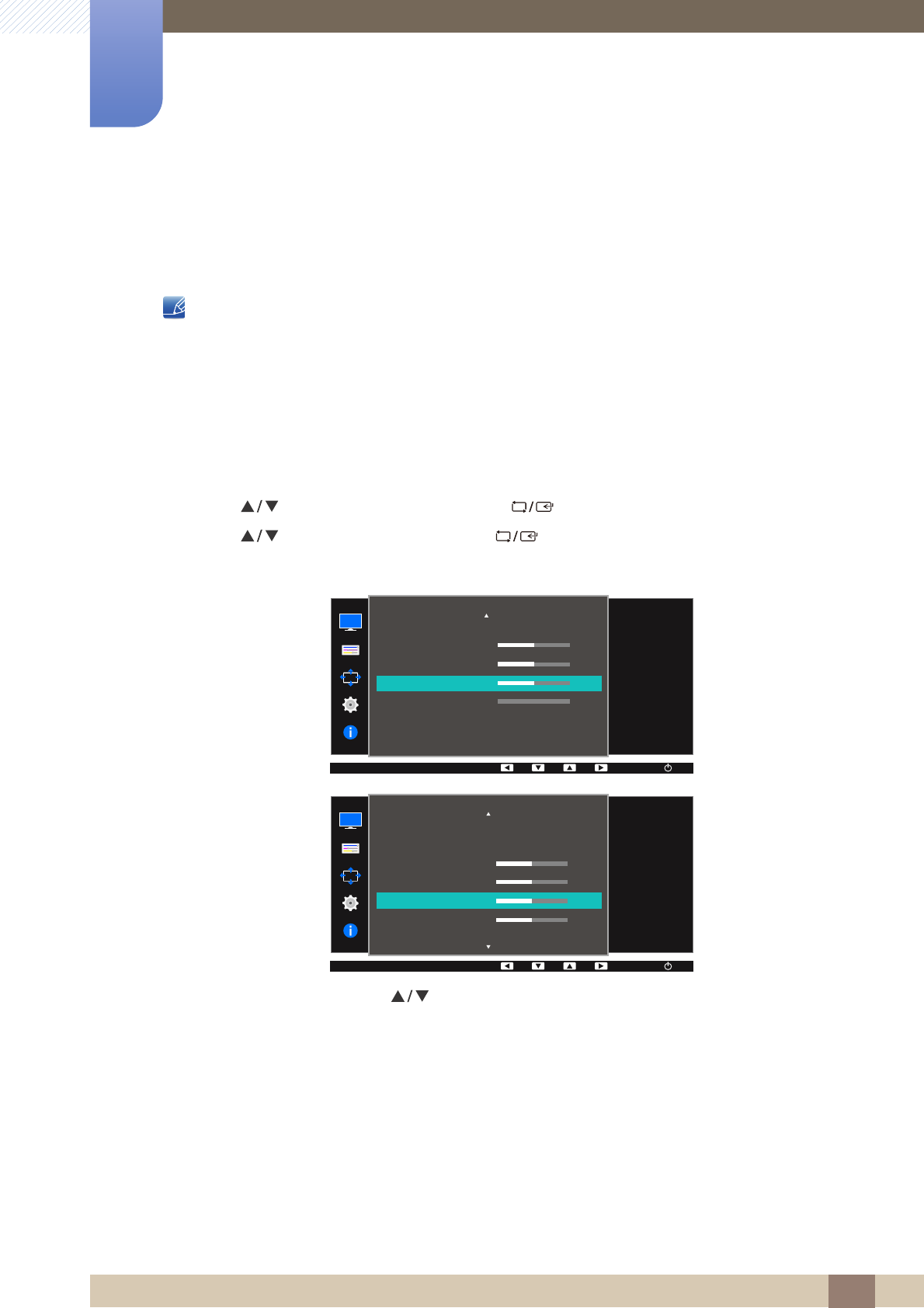

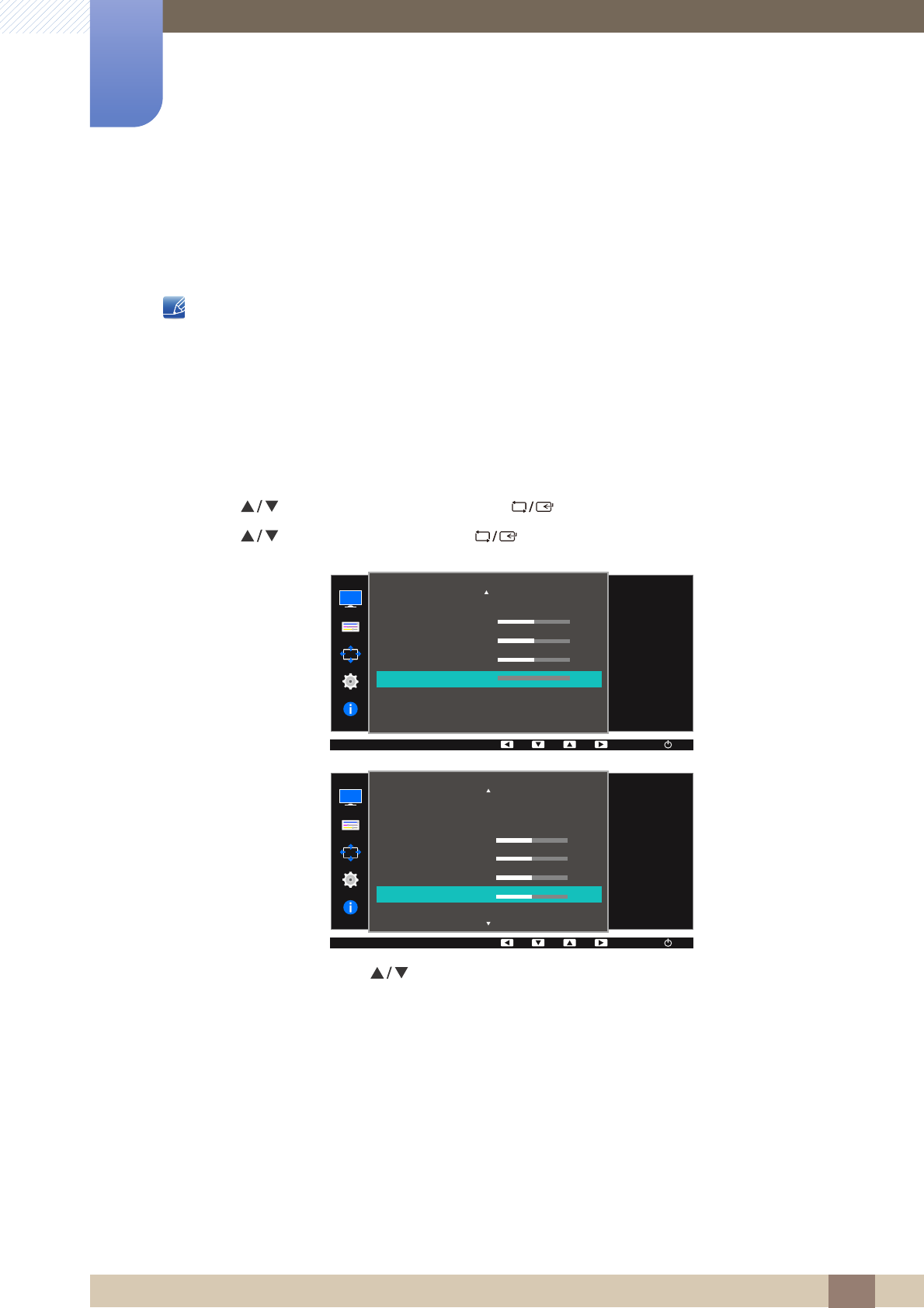

3.3.1 Configuring Sharpness
1Press any button on the front of the product to display the Key Guide. Next, press [ ] to display
the corresponding menu screen.
2Press [ ] to move to PICTURE and press [ ] on the product.
3Press [ ] to move to Sharpness and press [ ] on the product.
The following screen will appear.
4Adjust the Sharpness using the [ ] buttons.
SAMSUNG
MAGIC
SAMSUNG
MAGIC
MENU
SAMSUNG
MAGICBright
SAMSUNG
MAGICUpscale
Adjust the sharpness
of the picture. Values
closer to 100 mean a
sharper image.
AUTO
Brightness
Contrast
Sharpness
Eye Saver Mode
Game Mode
100
75
60
Off
Off
Custom
Off
AUTO
AUTO
AUTO
SAMSUNG
MAGICBright
SAMSUNG
MAGICAngle
Adjust the sharpness
of the picture. Values
closer to 100 mean a
sharper image.
AUTO
Brightness
Contrast
Sharpness
Eye Saver Mode
Game Mode
100
75
60
Off
Off
Custom
Off
AUTO
AUTO
AUTO
AUTO
37
Screen Setup
3
3 Screen Setup

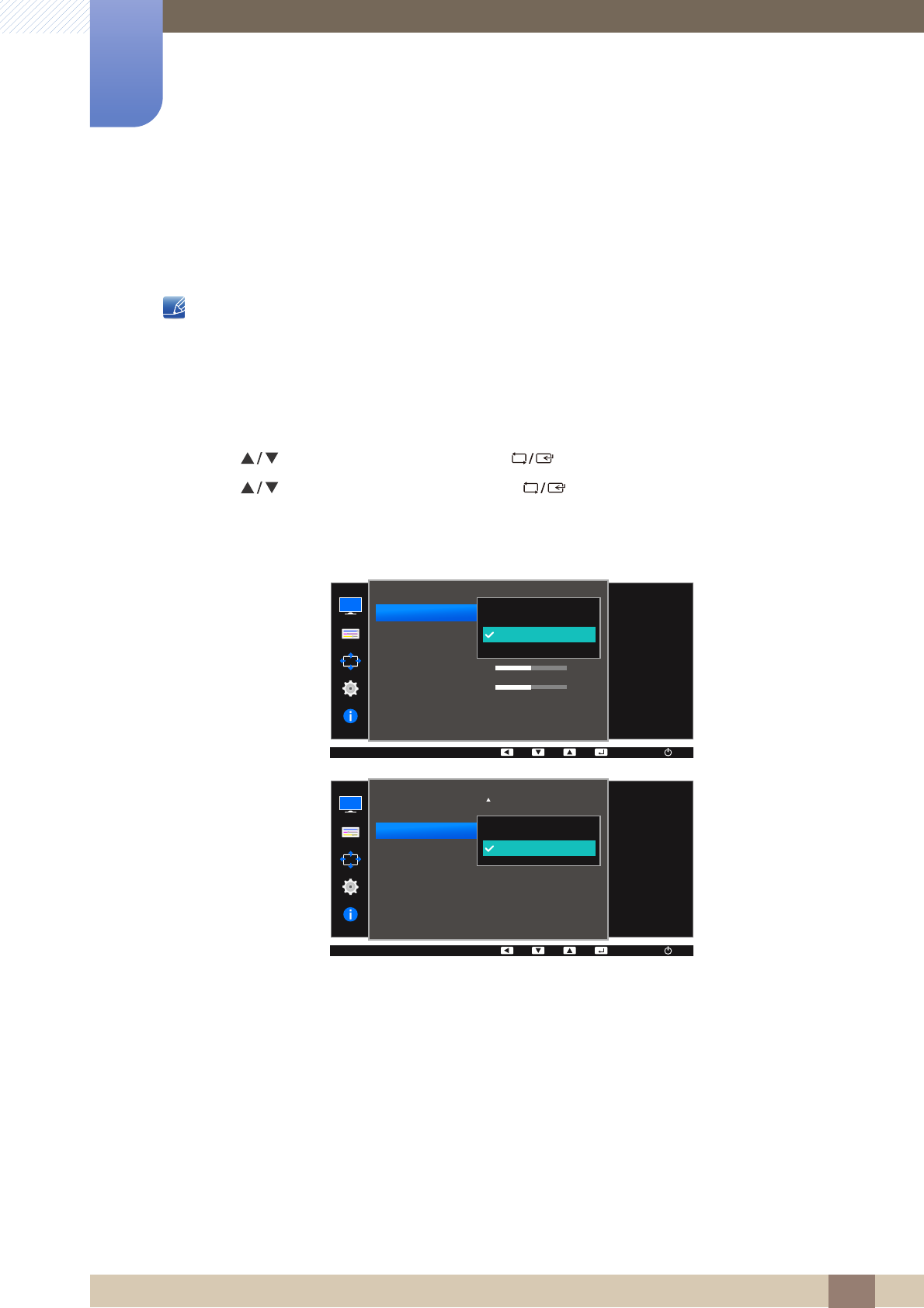

3.4 Eye Saver Mode
Set to an optimum picture quality suitable for eye relaxation.
TÜV Rheinland “Low Blue Light Content” is a certification for products which meet requirements for lower
blue light levels. When Eye Saver Mode is 'On', the blue light that wavelength is around 400nm will
become lower and lower, and one hour later it will approach the optimum picture quality suitable for eye
relaxation. At the same time, the blue light level is lower than in the default settings, and it was tested by
TÜV Rheinland and certified as it met the requirements of TÜV Rheinland “Low Blue Light Content”
standards.
The functions available on the monitor may vary depending on the model. Refer to the actual product.

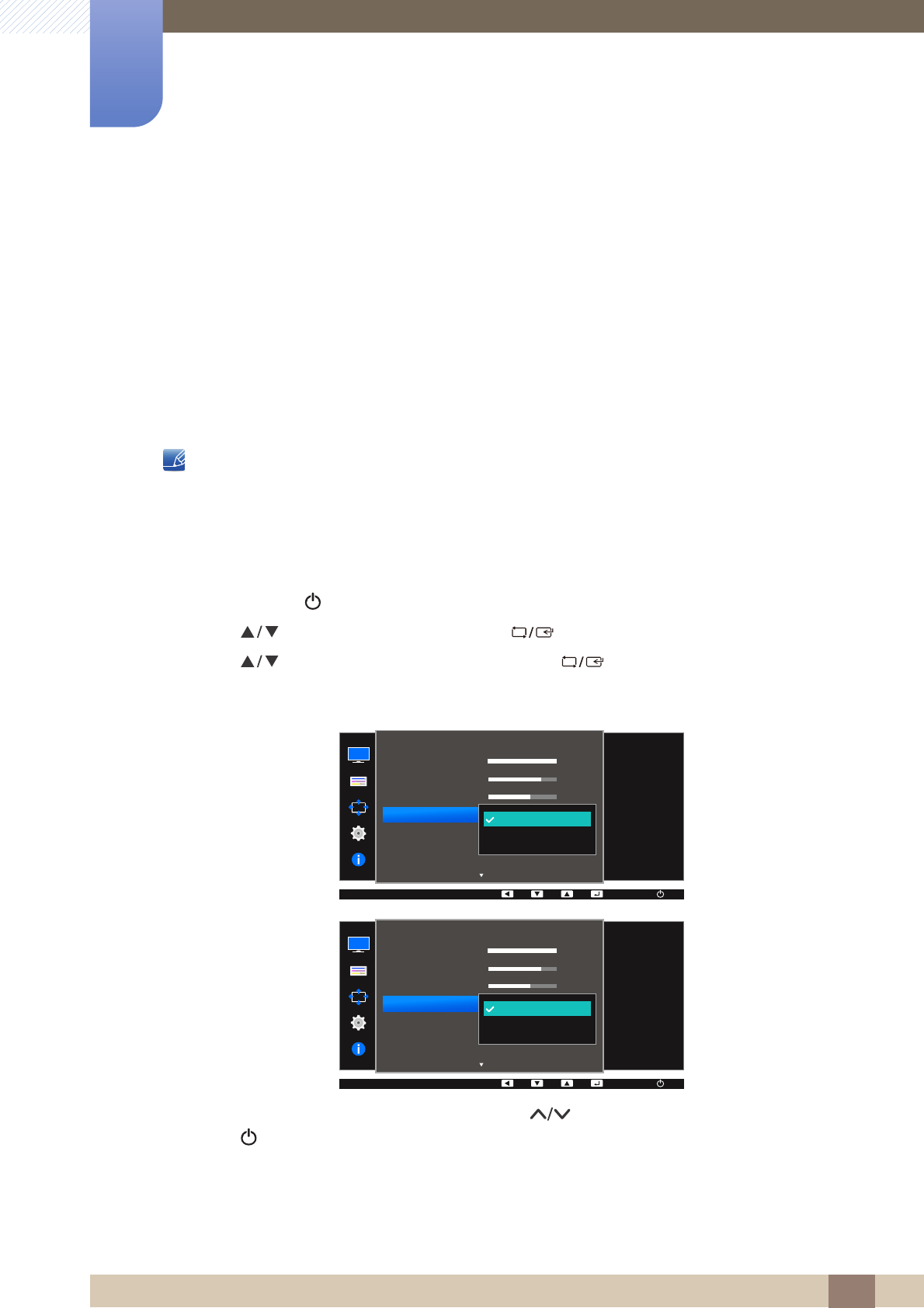

3.4.1 Configuring Eye Saver Mode
1Press any button on the front of the product to display the Key Guide. Next, press [ ] to display
the corresponding menu screen.
Next, press the [ ] button.
2Press [ ] to move to PICTURE and press [ ] on the product.
3Press [ ] to move to Eye Saver Mode and press [ ] on the product.
The following screen will appear.
4Move the focus to the desired option by pressing [ ] button on the DOME Type JOG Button.
Press [ ] button.
5The selected option will be applied.
MENU
SAMSUNG
MAGICBright
SAMSUNG
MAGICUpscale
Set to an optimum
picture quality suitable
for eye relaxation.
100
75
60
Off
Off
Custom
Off
Off
On
Brightness
Contrast
Sharpness
Eye Saver Mode
Game Mode
AUTO
AUTO
SAMSUNG
MAGICBright
SAMSUNG
MAGICAngle
Set to an optimum
picture quality suitable
for eye relaxation.
AUTO
100
75
60
Off
Off
Custom
Off
Off
On
Brightness
Contrast
Sharpness
Eye Saver Mode
Game Mode
AUTO
AUTO
AUTO
38
Screen Setup
3
3 Screen Setup
3.5 Game Mode
Configure the product screen settings for game mode.
Use this feature when playing games on a PC or when a game console such as PlayStation™ or Xbox™
is connected.
This menu is not available when Eye Saver Mode is enabled.
The functions available on the monitor may vary depending on the model. Refer to the actual
product.

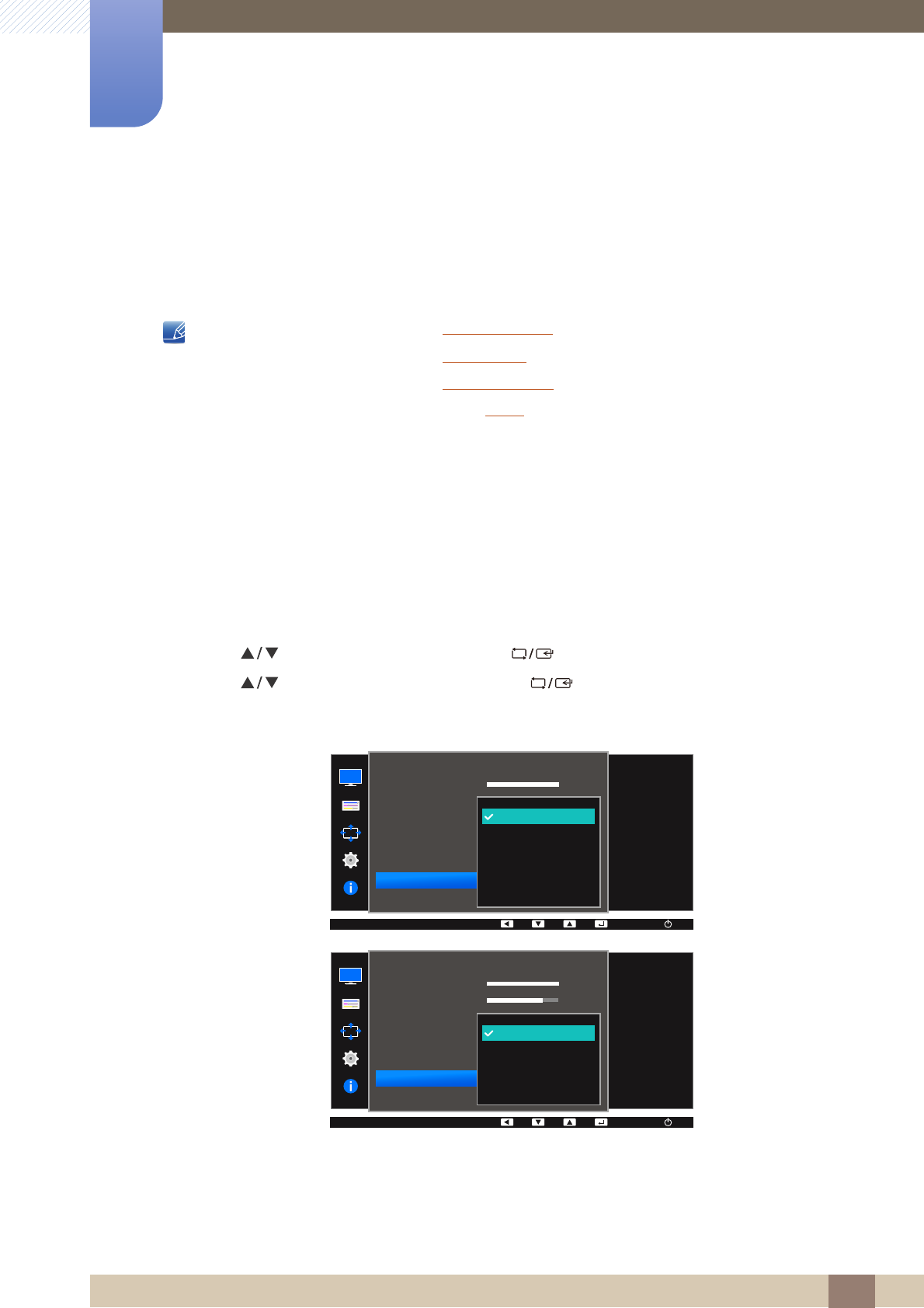

3.5.1 Configuring Game Mode
1Press any button on the front of the product to display the Key Guide. Next, press [ ] to display
the corresponding menu screen.
2Press [ ] to move to PICTURE and press [ ] on the product.
3Press [ ] to move to Game Mode and press [ ] on the product.
The following screen will appear.
4Move the focus to the desired option by pressing [ ] button on the DOME Type JOG Button.
Press [ ] button.
5The selected option will be applied.
When the monitor turns off, enters power-saving mode or changes input sources, Game Mode
turns Off even if it is set to On.
If you want to keep Game Mode enabled all the time, select Always On.
MENU
100
75
60
Off
Custom
Off
Optimizes image
settings for playing
games.
AUTO
Off
On
Always On
Brightness
Contrast
Sharpness
Eye Saver Mode
Game Mode
SAMSUNG
MAGICBright
SAMSUNG
MAGICUpscale
AUTO
AUTO
100
75
60
Off
Custom
Off
Optimizes image
settings for playing
games.
AUTO
Off
On
Always On
Brightness
Contrast
Sharpness
Eye Saver Mode
Game Mode
SAMSUNG
MAGICBright
SAMSUNG
MAGICAngle
AUTO
AUTO
39
Screen Setup
3
3 Screen Setup

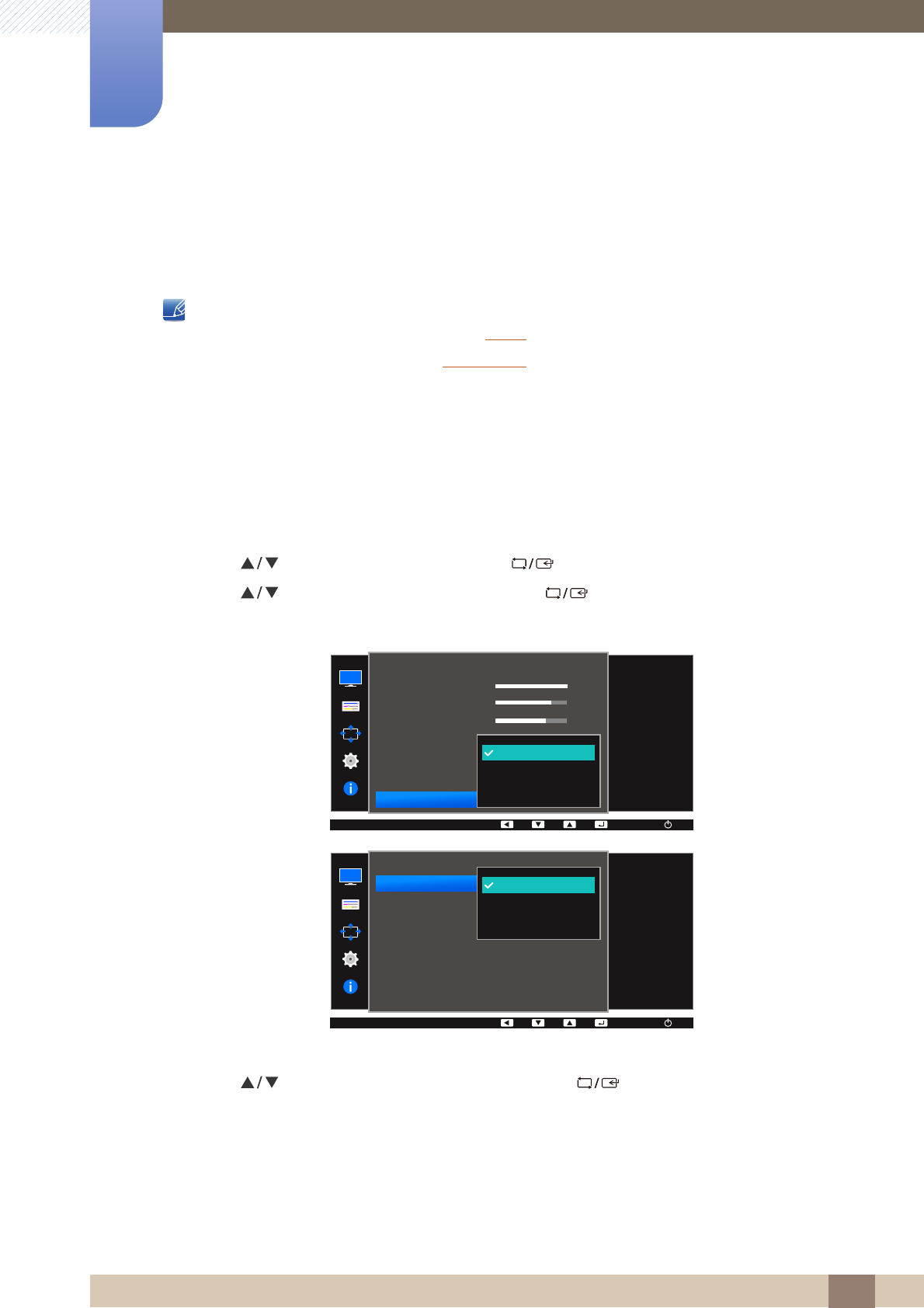

3.6 SAMSUNG MAGIC Bright
This menu provides an optimum picture quality suitable for the environment where the product will be
used.
This menu is not available when Eco Saving Plus is set.
This menu is not available when Game Mode is enabled.
This menu is not available when Eye Saver Mode is enabled.
This menu is not available when Angle is enabled.
The functions available on the monitor may vary depending on the model. Refer to the actual
product.
You can customize the brightness to suit your preferences.
3.6.1 Configuring SAMSUNG MAGIC Bright
1Press any button on the front of the product to display the Key Guide. Next, press [ ] to display
the corresponding menu screen.
2Press [ ] to move to PICTURE and press [ ] on the product.
3Press [ ] to move to Bright and press [ ] on the product.
The following screen will appear.
Custom: Customize the contrast and brightness as required.
Web mode: Obtain the best screen for editing documents and browsing the Internet without
the issue of narrow viewing angles. (S19E200NY / S19E200NW / S22E200NY / S22E200N)
SAMSUNG
MAGIC
MENU
SAMSUNG
MAGIC
100
75
60
50
50
2200
0
100
Set to an optimum
picture quality suitable
for the working
environment.
AUTO
Custom
Web mode
Standard
Cinema
Dynamic Contrast
Brightness
Contrast
Sharpness
Eye Saver Mode
Game Mode
SAMSUNG
MAGICBright
SAMSUNG
MAGICUpscale
AUTO
AUTO
100
75
60
50
50
2200
0
100
75
60
Custom
Off
Off
Wide
Set to an optimum
picture quality suitable
for the working
environment.
AUTO
Custom
Standard
Cinema
Dynamic Contrast
Brightness
Contrast
Sharpness
Eye Saver Mode
Game Mode
SAMSUNG
MAGICBright
SAMSUNG
MAGICAngle
AUTO
AUTO
40
Screen Setup
3
3 Screen Setup
Standard: Obtain a picture quality suitable for editing documents or using Internet.
Cinema: Obtain the brightness and sharpness of TVs suitable for enjoying video and DVD
content.
Dynamic Contrast: Obtain balanced brightness through automatic contrast adjustment.
4Press [ ] to move to the option you want and press [ ].
5The selected option will be applied.
41
Screen Setup
3
3 Screen Setup
3.7 SAMSUNG MAGIC Angle (S19E200NY / S19E200NW /
S22E200NY / S22E200N)
Angle allows you to configure the settings to obtain the optimum picture quality according to your
viewing angle.
This menu is not available when Bright is in Cinema or Dynamic Contrast mode.
This menu is not available when Game Mode is enabled.
The functions available on the monitor may vary depending on the model. Refer to the actual
product.
You can customize the angle to suit your preferences.
3.7.1 Configuring SAMSUNG MAGIC Angle
1Press any button on the front of the product to display the Key Guide. Next, press [ ] to display
the corresponding menu screen.
2Press [ ] to move to PICTURE and press [ ] on the product.
3Press [ ] to move to Angle and press [ ] on the product. The following screen will
appear.
Off : Select this option to view directly in front of the product.
Lean Back Mode 1 : Select this option to view from a place slightly lower than the product.
Lean Back Mode 2 : Select this option to view from a place lower than Lean Back Mode 1.
Standing Mode : Select this option to view from a place higher than the product.
Side Mode : Select this option to view from either side of the product.
Group View: Select this option for more than one viewer to view from places , , and .
Custom: Lean Back Mode 1 will be applied by default if Custom is selected.
SAMSUNG
MAGIC
SAMSUNG
MAGIC
MENU
SAMSUNG
MAGIC
100
75
60
50
50
2200
0
100
75
60
Custom
Off
Off
Wide
AUTO
off
Lean Back Mode 1
Lean Back Mode 2
Standing Mode
Side Mode
Brightness
Contrast
Sharpness
Eye Saver Mode
Game Mode
SAMSUNG
MAGICBright
SAMSUNG
MAGICAngle
Select an angle that
best suits your
viewing position.
AUTO
AUTO
4
2
3
11
5 5
①
②
③
④
⑤
①
④
⑤
42
Screen Setup
3
3 Screen Setup
4Press [ ] to move to the option you want and press [ ].
5The selected option will be applied.
43
Screen Setup
3
3 Screen Setup

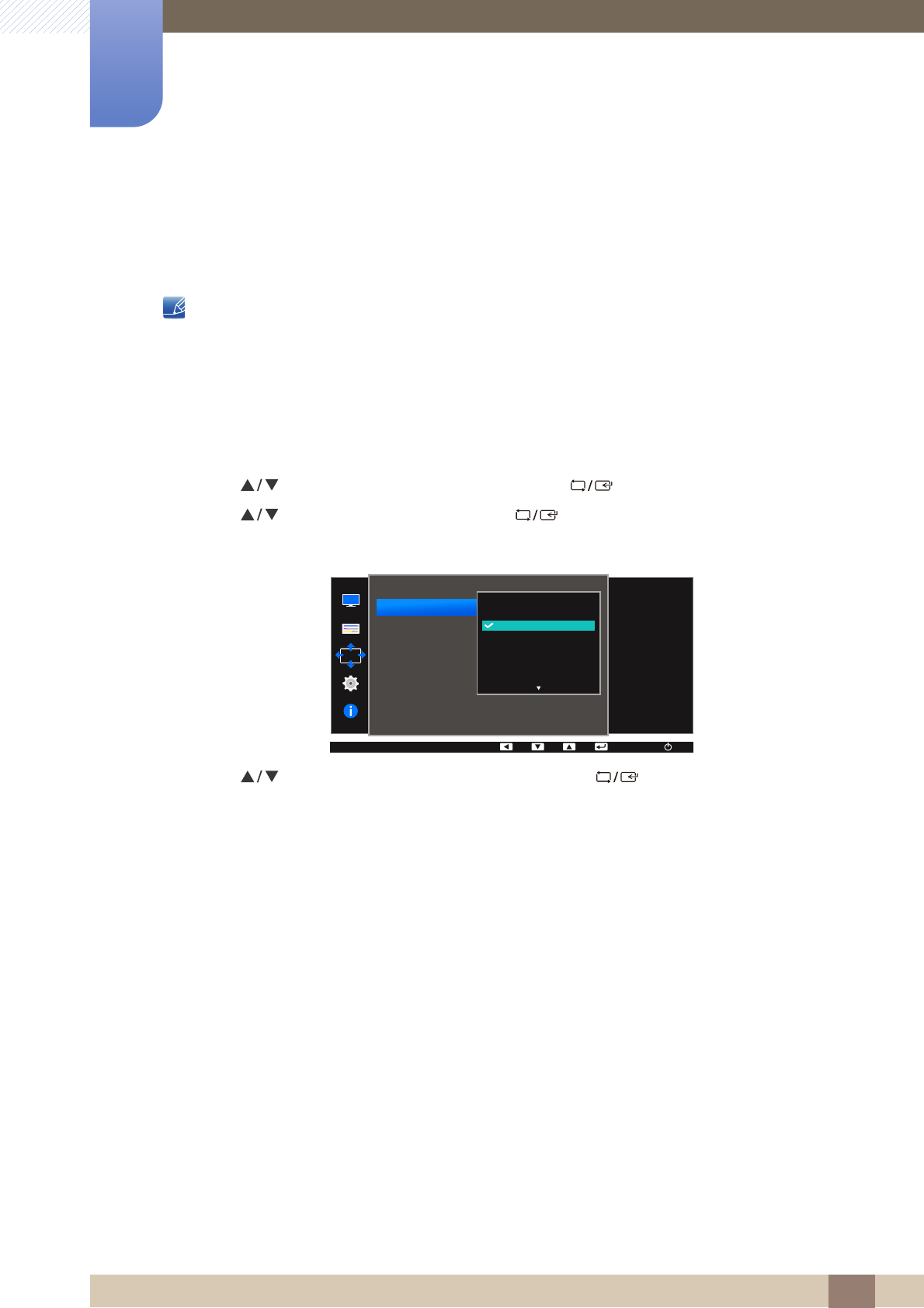

3.8 SAMSUNG MAGIC Upscale
Upscale function can enhance the layers of the picture details and the vividness of the picture.
The function has more obvious effects on low-resolution pictures.
This menu is not available when Bright is in Cinema or Dynamic Contrast mode.
This menu is not available when Game Mode is enabled.
The functions available on the monitor may vary depending on the model. Refer to the actual
product.

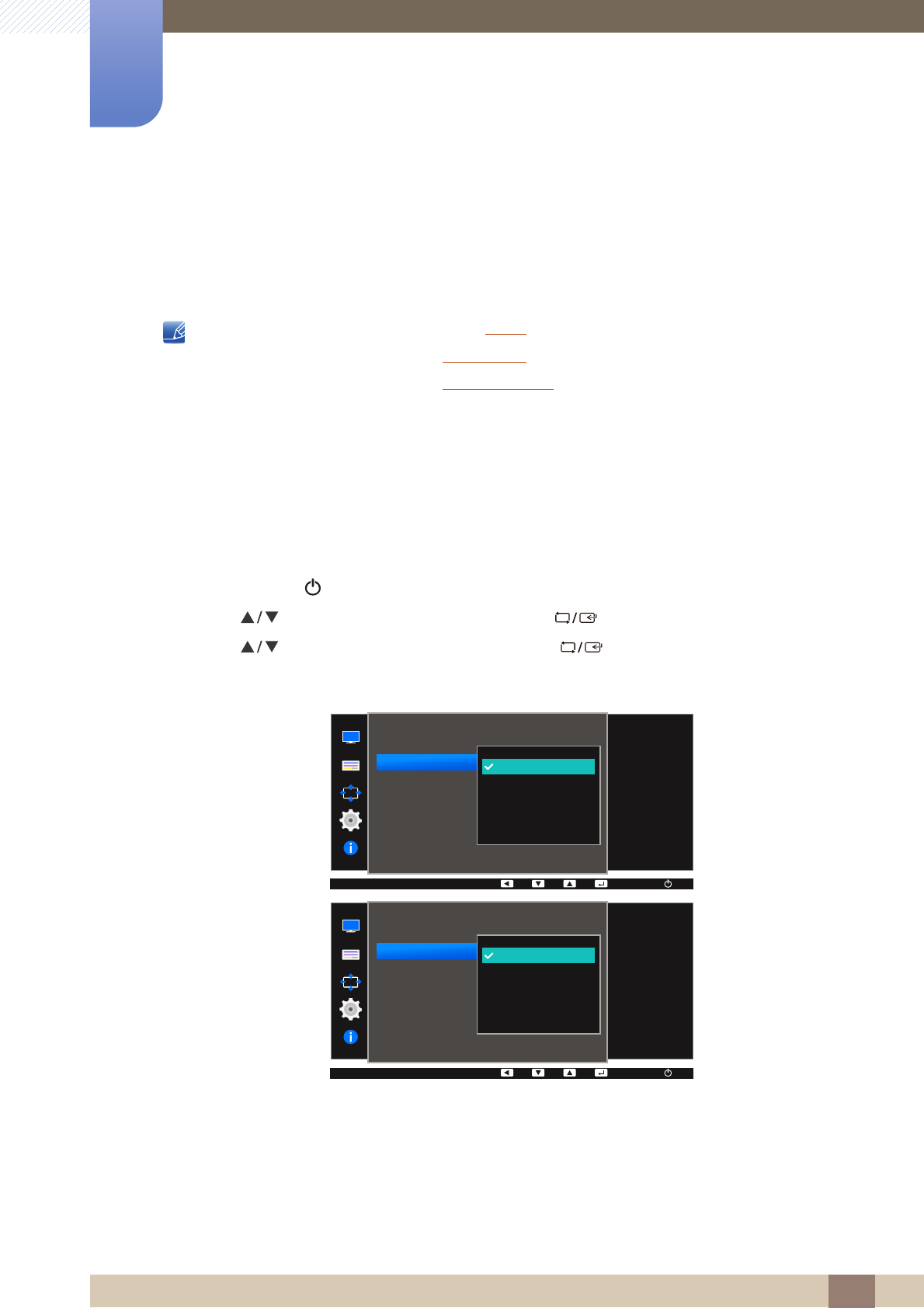

3.8.1 Configuring SAMSUNG MAGIC Upscale
1Press any button on the front of the product to display the Key Guide. Next, press [ ] to display
the corresponding menu screen.
2Press [ ] to move to PICTURE and press [ ] on the product.
3Press [ ] to move to Upscale and press [ ] on the product. The following screen
will appear.
Comparing with Mode1, Mode2 has a stronger effect.
4Press [ ] to move to the option you want and press [ ].
5The selected option will be applied.
SAMSUNG
MAGIC
SAMSUNG
MAGIC
MENU
SAMSUNG
MAGIC
100
75
60
50
50
2200
0
100
75
60
Custom
Off
Off
Wide
Enhance picture
detail and vividness.
AUTO
off
Mode1
Mode2
Brightness
Contrast
Sharpness
Eye Saver Mode
Game Mode
SAMSUNG
MAGICBright
SAMSUNG
MAGICUpscale
AUTO
AUTO
AUTO
Image Size
H-Position
V-Position
Coarse
Fine
SAMSUNG
MAGICUpscale
off
Mode1
Mode2
Enhance picture
detail and vividness.
AUTO
AUTO
44
Screen Setup
3
3 Screen Setup

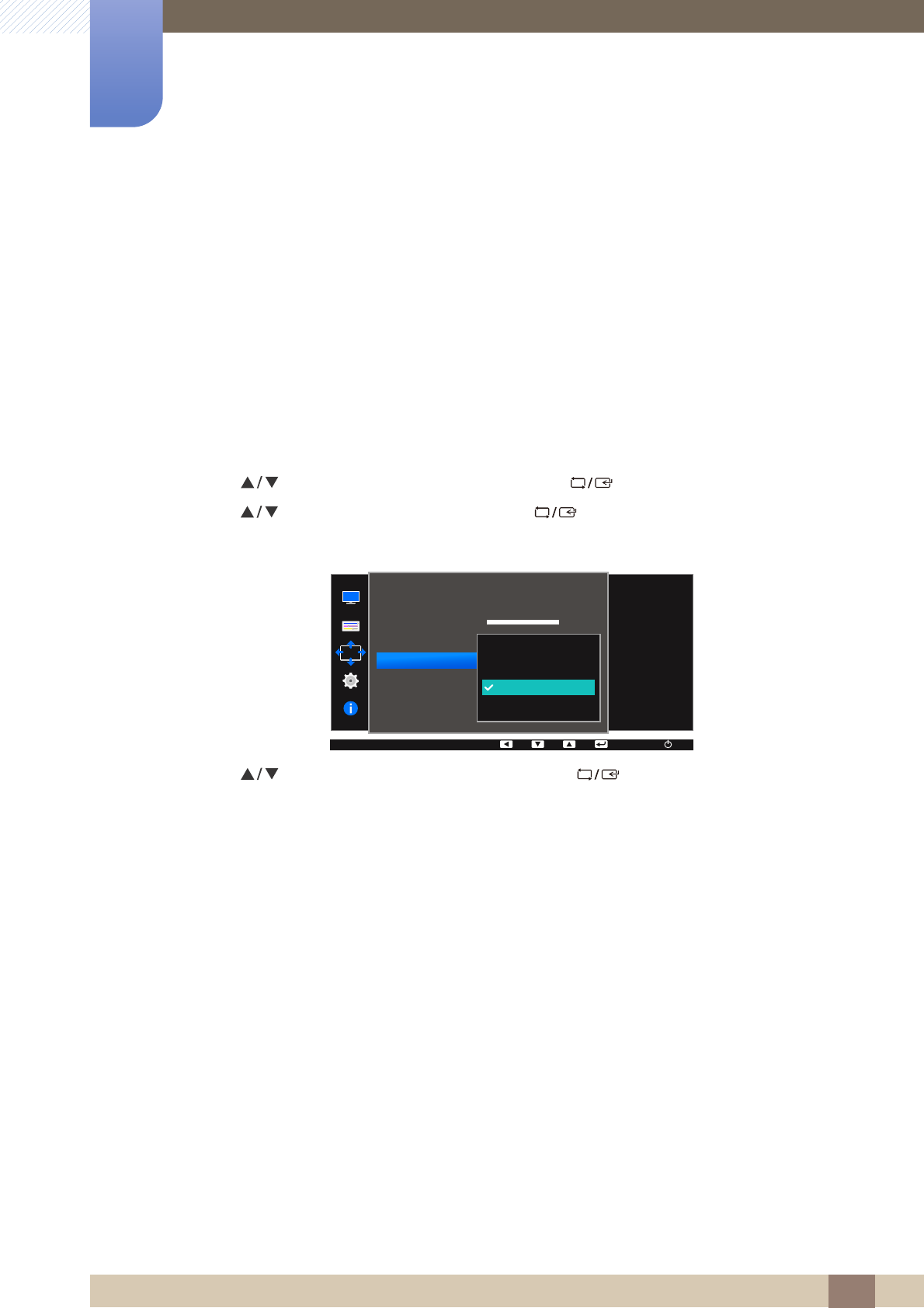

3.9 Image Size
Change the picture size.
The functions available on the monitor may vary depending on the model. Refer to the actual product.
3.9.1 Changing the Image Size
1Press any button on the front of the product to display the Key Guide. Next, press [ ] to display
the corresponding menu screen.
2Press [ ] to move to PICTURE and press [ ] on the product.
3Press [ ] to move to Image Size and press [ ] on the product. The following screen will
appear.
Auto: Display the picture according to the aspect ratio of the input source.
Wide: Display the picture in full screen regardless of the aspect ratio of the input source.
In PC mode
MENU
Auto
Wide
Choose the size and
aspect ratio of the
picture displayed on
screen.
AUTO
Image Size
H-Position
V-Position
Coarse
Fine
2200
0
AUTO
AUTO
Auto
Wide
Choose the size and
aspect ratio of the
picture displayed on
screen.
AUTO
SAMSUNG
MAGICUpscale
Image Size
H-Position
V-Position
Coarse
Fine
AUTO
AUTO
45
Screen Setup
3
3 Screen Setup
4:3: Display the picture with an aspect ratio of 4:3. Suitable for videos and standard broadcasts.
16:9: Display the picture with an aspect ratio of 16:9.
Screen Fit: Display the picture with the original aspect ratio without cutting off.
Wide: Display the picture in full screen regardless of the aspect ratio of the input source.(TBD /
TBD / TBD)
Changing the screen size is available when the following conditions are satisfied,except TBD and
TBD models.
A digital output device is connected using the DVI cable.
The input signal is 480p, 576p, 720p, or 1080p and monitor can display normally(not every
model can support all of these signals ).
This can only be set when the external input is connected through DVI and PC/AV Mode is
set to AV.
4Press [ ] to move to the option you want and press [ ].
5The selected option will be applied.
In AV mode (S19E200BR / S19E200BW / S22E200B / S22E200BW / S23E200B / S24E200BL)
Choose the size and
aspect ratio of the
picture displayed on
screen.
AUTO
4:3
16:9
Screen Fit
SAMSUNG
MAGICUpscale
Image Size
H-Position
V-Position
Coarse
Fine
AUTO
AUTO
Choose the size and
aspect ratio of the
picture displayed on
screen.
AUTO
4:3
Wide
Screen Fit
SAMSUNG
MAGICUpscale
Image Size
H-Position
V-Position
Coarse
Fine
AUTO
AUTO
46
Screen Setup
3
3 Screen Setup
3.10 H-Position & V-Position
H-Position: Move the screen to the left or right.
V-Position: Move the screen up or down.
This menu is available in Analog mode.
This menu is only available when Image Size is set to Screen Fit in AV Mode. When a 480P or
576P or 720P or 1080P signal is input in AV mode and the monitor can display normally ,select
Screen Fit to adjust horizontal position in 0-6 levels.
The functions available on the monitor may vary depending on the model. Refer to the actual
product.
3.10.1 Configuring H-Position & V-Position
1Press any button on the front of the product to display the Key Guide. Next, press [ ] to display
the corresponding menu screen.
2Press [ ] to move to PICTURE and press [ ] on the product.
3Press [ ] to move to H-Position or V-Position, and press [ ]. The following screen will
appear.
4Press [ ] to configure H-Position or V-Position.
MENU
Image Size
H-Position
V-Position
Coarse
Fine
Wide
50
50
2200
0
AUTO
Move the image
displayed on the
screen to the
left or right.
AUTO
AUTO
Image Size
H-Position
V-Position
Coarse
Fine
Wide
50
50
2200
0
AUTO
Move the image
displayed on the
screen up or down.
AUTO
AUTO
AUTO
AUTO
Move the image
displayed on the
screen to the
left or right.
Off
Wide
50
50
2200
0
Image Size
H-Position
V-Position
Coarse
Fine
SAMSUNG
MAGICUpscale
Move the image
displayed on the
screen up or down.
Off
Wide
50
50
2200
0
Image Size
H-Position
V-Position
Coarse
Fine
SAMSUNG
MAGICUpscale
AUTO
AUTO
47
Screen Setup
3
3 Screen Setup
3.11 Coarse
Adjust the screen frequency.
This menu is available in Analog mode only.
The functions available on the monitor may vary depending on the model. Refer to the actual
product.
3.11.1 Adjusting Coarse
1Press any button on the front of the product to display the Key Guide. Next, press [ ] to display
the corresponding menu screen.
2Press [ ] to move to PICTURE and press [ ] on the product.
3Press [ ] to move to Coarse and press [ ] on the product. The following screen will
appear.
4Adjust the Coarse using the [ ] buttons.
MENU
Image Size
H-Position
V-Position
Coarse
Fine
Wide
50
50
2200
0
AUTO
Adjust the screen
frequency.
AUTO
AUTO
AUTO
AUTO
Adjust the screen
frequency.
Off
Wide
50
50
2200
0
Image Size
H-Position
V-Position
Coarse
Fine
SAMSUNG
MAGICUpscale
AUTO
AUTO
48
Screen Setup
3
3 Screen Setup
3.12 Fine
Fine-adjust the screen to obtain a vivid picture.
This menu is available in Analog mode only.
The functions available on the monitor may vary depending on the model. Refer to the actual
product.
3.12.1 Adjusting Fine
1Press any button on the front of the product to display the Key Guide. Next, press [ ] to display
the corresponding menu screen.
2Press [ ] to move to PICTURE and press [ ] on the product.
3Press [ ] to move to Fine and press [ ] on the product. The following screen will appear.
4Adjust the Fine using the [ ] buttons.
MENU
Image Size
H-Position
V-Position
Coarse
Fine
Wide
50
50
2200
0
AUTO
Fine-tune the
screen
to get a vivid
picture.
AUTO
AUTO
AUTO
AUTO
Off
Wide
50
50
2200
0
Image Size
H-Position
V-Position
Coarse
Fine
SAMSUNG
MAGICUpscale
AUTO
AUTO
Fine-tune the
screen
to get a vivid
picture.
49
4 Configuring Tint
4 Configuring Tint
A detailed description of each function is provided. Refer to your product for details.
Adjust the tint of the screen. This menu is not available when Bright is set to Cinema or
Dynamic Contrast mode. This menu is not available when Game Mode or Eye Saver Mode
is enabled.
SAMSUNG
MAGIC
4.1 Red
Adjust the value of the color red in the picture. (Range: 0~100)
A higher value will increase the intensity of the color.
This menu is not available when Bright is in Web mode mode.
4.1.1 Configuring Red
1Press any button on the front of the product to display the Key Guide. Next, press [ ] to display
the corresponding menu screen.
2Press [ ] to move to COLOR and press [ ] on the product.
3Press [ ] to move to Red and press [ ] on the product. The following screen will appear.
4Adjust the Red using the [ ] buttons.
SAMSUNG
MAGIC
MENU
Red
Green
Blue
Color Tone
Gamma
Adjust the red
saturation level.
Values closer to 100
mean greater
intensity for the color.
50
50
50
Normal
Mode1
COLOR
AUTOAUTO
AUTO
AUTO
50
Configuring Tint
4
4 Configuring Tint
4.2 Green
Adjust the value of the color green in the picture. (Range: 0~100)
A higher value will increase the intensity of the color.
This menu is not available when Bright is in Web mode mode.
4.2.1 Configuring Green
1Press any button on the front of the product to display the Key Guide. Next, press [ ] to display
the corresponding menu screen.
2Press [ ] to move to COLOR and press [ ] on the product.
3Press [ ] to move to Green and press [ ] on the product. The following screen will appear.
4Adjust the Green using the [ ] buttons.
SAMSUNG
MAGIC
MENU
COLOR
Red
Green
Blue
Color Tone
Gamma
50
50
50
Normal
Mode1
Adjust the green
saturation level.
Values closer to 100
mean greater
intensity for the color.
AUTOAUTO
AUTO
AUTO
51
Configuring Tint
4
4 Configuring Tint

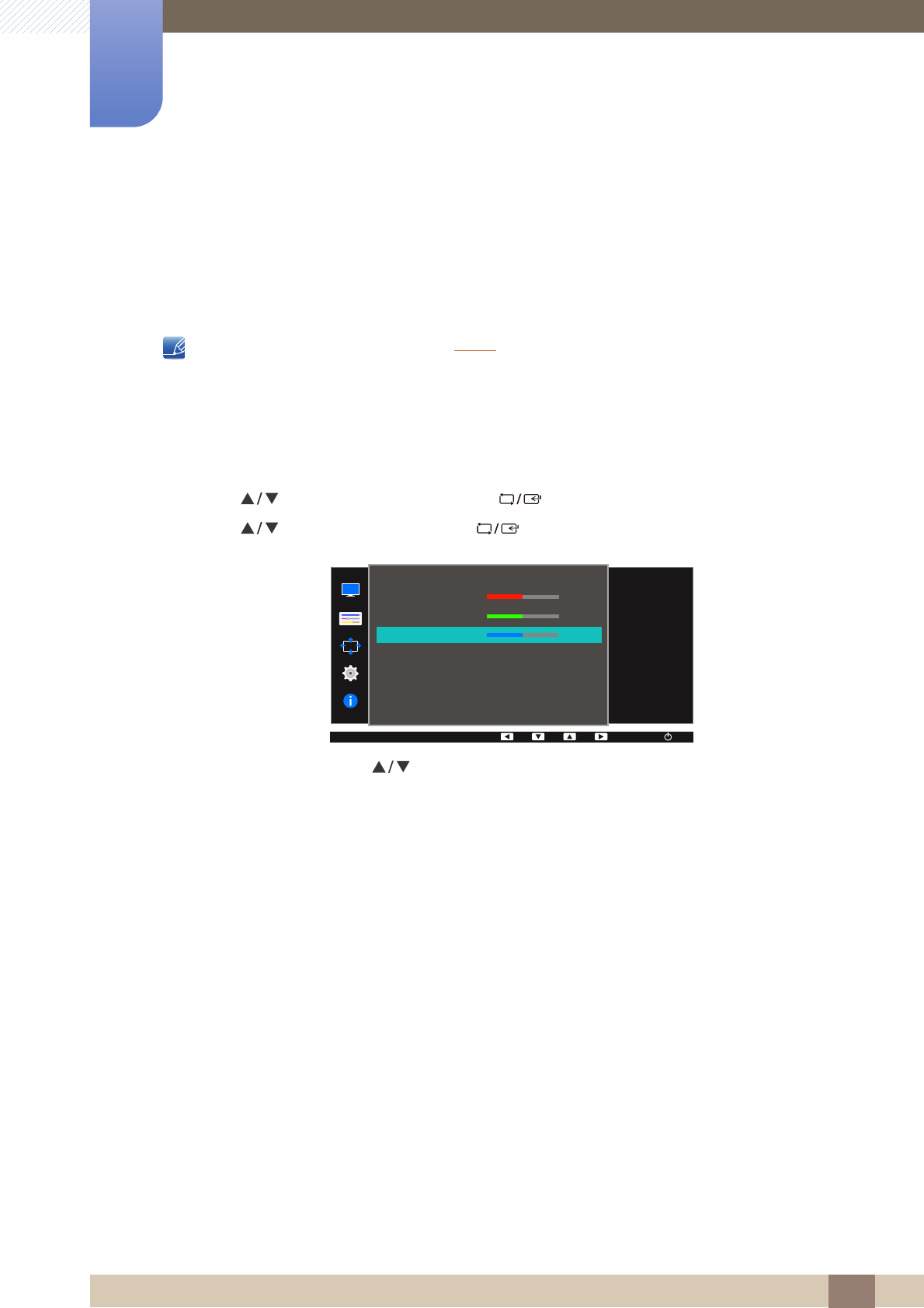

4.3 Blue
Adjust the value of the color blue in the picture. (Range: 0~100)
A higher value will increase the intensity of the color.
This menu is not available when Bright is in Web mode mode.
4.3.1 Configuring Blue
1Press any button on the front of the product to display the Key Guide. Next, press [ ] to display
the corresponding menu screen.
2Press [ ] to move to COLOR and press [ ] on the product.
3Press [ ] to move to Blue and press [ ] on the product. The following screen will appear.
4Adjust the Blue using the [ ] buttons.
SAMSUNG
MAGIC
MENU
Red
Green
Blue
Color Tone
Gamma
50
50
50
Normal
Mode1
AUTO
Adjust the blue
saturation level.
Values closer to 100
mean greater
intensity for the color.
COLOR
AUTO
AUTO
AUTO
52
Configuring Tint
4
4 Configuring Tint

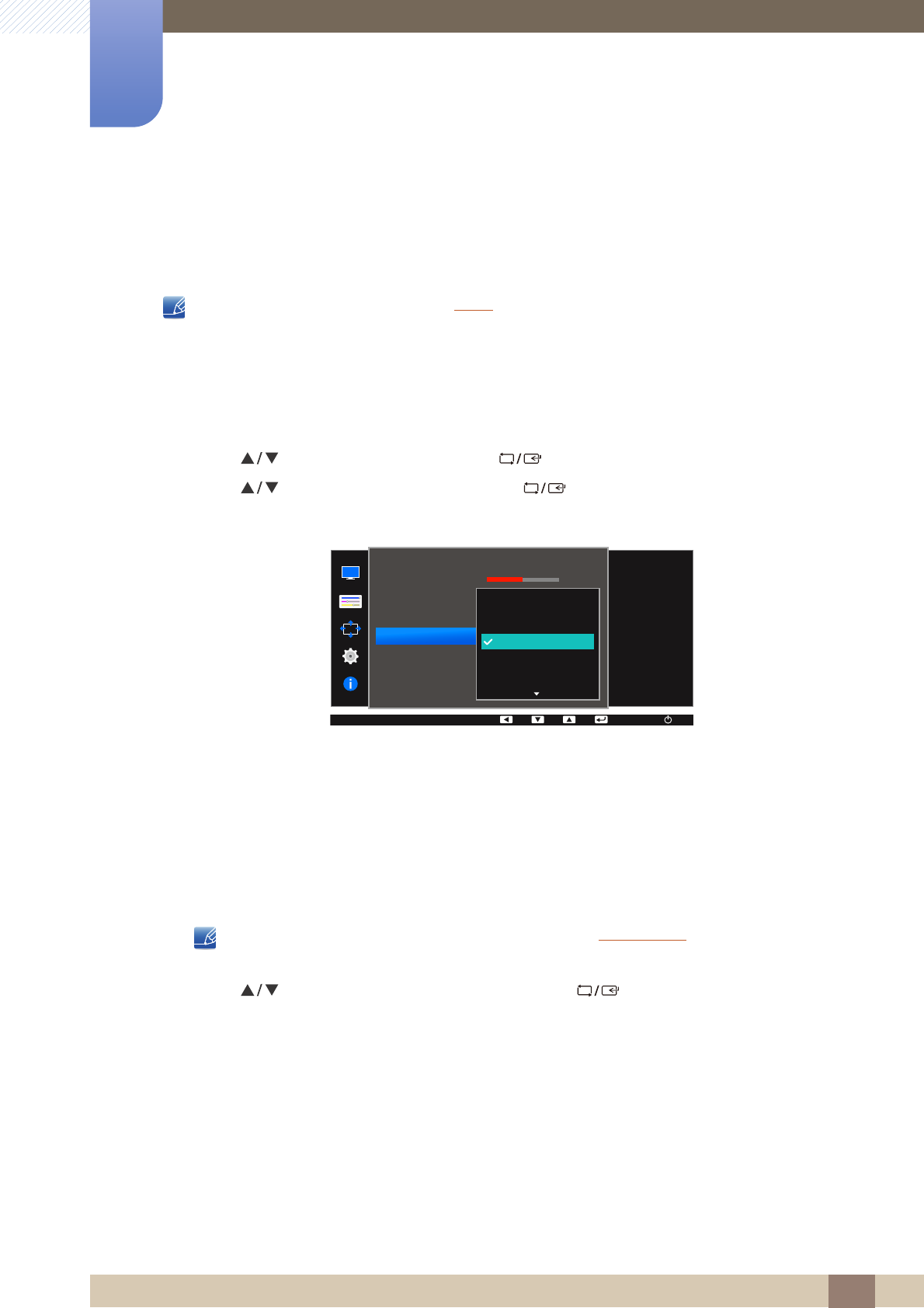

4.4 Color Tone
Adjust the general color tone of the picture.
This menu is not available when Angle is enabled.
4.4.1 Configuring the Color Tone Settings
1Press any button on the front of the product to display the Key Guide. Next, press [ ] to display
the corresponding menu screen.
2Press [ ] to move to COLOR and press [ ] on the product.
3Press [ ] to move to Color Tone and press [ ] on the product. The following screen will
appear.
Cool 2: Set the color temperature to be cooler than Cool 1.
Cool 1: Set the color temperature to be cooler than Normal mode.
Normal: Display the standard color tone.
Warm 1: Set the color temperature to be warmer than Normal mode.
Warm 2: Set the color temperature to be warmer than Warm 1.
Custom: Customize the color tone.
When the external input is connected through HDMI and PC/AV Mode is set to AV, Color Tone
has four color temperature settings (Cool, Normal, Warm and Custom).
4Press [ ] to move to the option you want and press [ ].
5The selected option will be applied.
SAMSUNG
MAGIC
MENU
Red
Green
Blue
Color Tone
Gamma
Cool 2
Cool 1
Normal
Warm 1
Warm 2
AUTO
Select a color tone
that best suits your
viewing needs.
COLOR
50
53
Configuring Tint
4
4 Configuring Tint

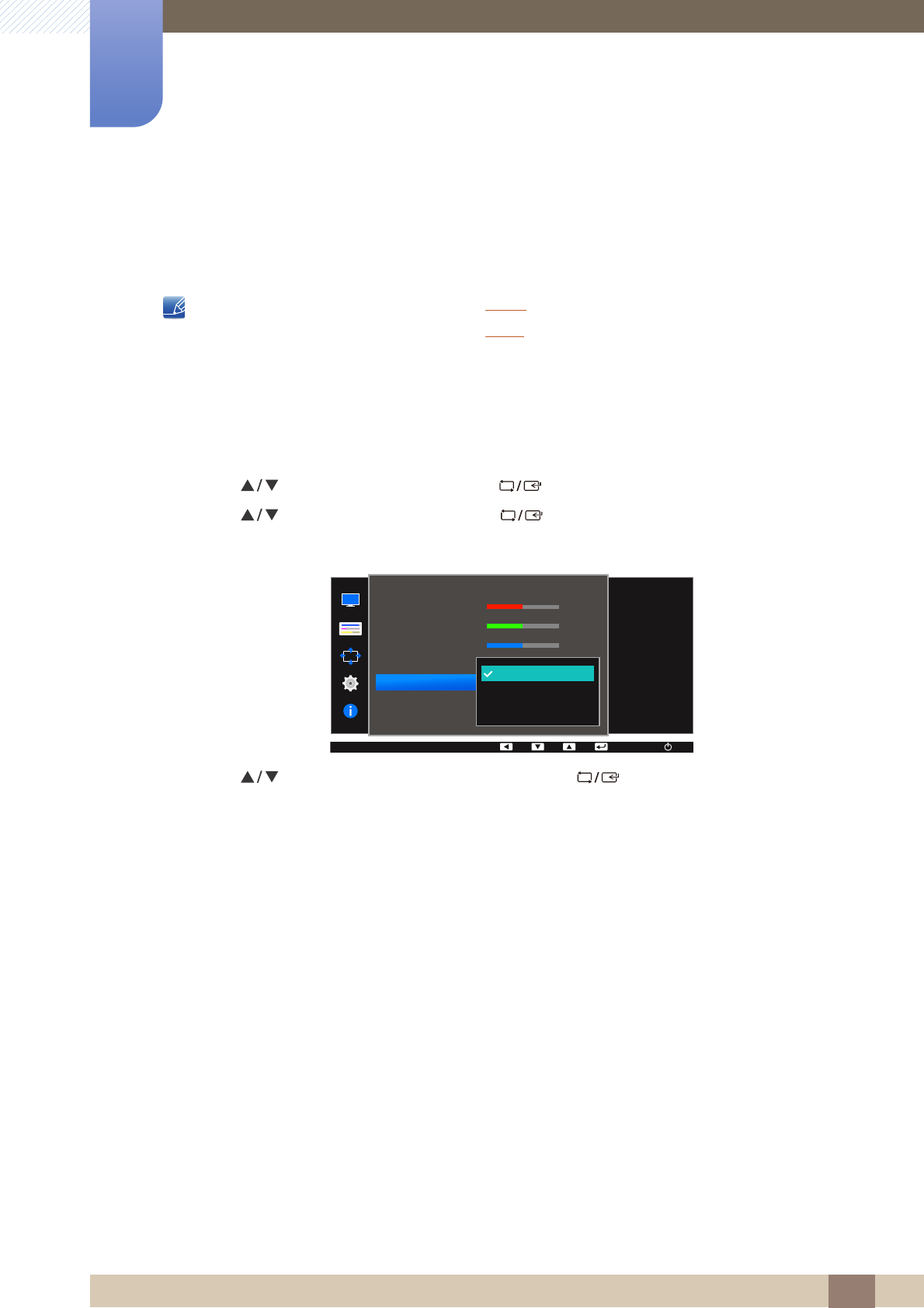

4.5 Gamma
Adjust the mid-range brightness (Gamma) of the picture.
This menu is not available when Bright is in Web mode mode.
This menu is not available when Angle is enabled.
4.5.1 Configuring Gamma
1Press any button on the front of the product to display the Key Guide. Next, press [ ] to display
the corresponding menu screen.
2Press [ ] to move to COLOR and press [ ] on the product.
3Press [ ] to move to Gamma and press [ ] on the product. The following screen will
appear.
4Press [ ] to move to the option you want and press [ ].
5The selected option will be applied.
SAMSUNG
MAGIC
SAMSUNG
MAGIC
MENU
50
50
50
Normal
Mode1
Red
Green
Blue
Color Tone
Gamma
AUTO
Mode1
Mode2
Mode3
Adjust the middle level
of luminance.
COLOR
54
5 Resizing or Relocating the Screen
5 Resizing or Relocating the Screen
5.1 Language
Set the menu language.
A change to the language setting will only be applied to the onscreen menu display.
It will not be applied to other functions on your PC.
5.1.1 Changing the Language
1Press any button on the front of the product to display the Key Guide. Next, press [ ] to display
the corresponding menu screen.
2Press [ ] to move to MENU SETTINGS and press [ ] on the product.
3Press [ ] to move to Language and press [ ] on the product. The following screen will
appear.
4Press [ ] to move to the language you want and press [ ].
5The selected option will be applied.
MENU
MENU SETTINGS
Deutsch
English
Español
Français
Italiano
Language
Menu H-Position
Menu V-Position
Display Time
Transparency
Set the menu
language.
AUTOAUTO
55
Resizing or Relocating the Screen
5
5 Resizing or Relocating the Screen

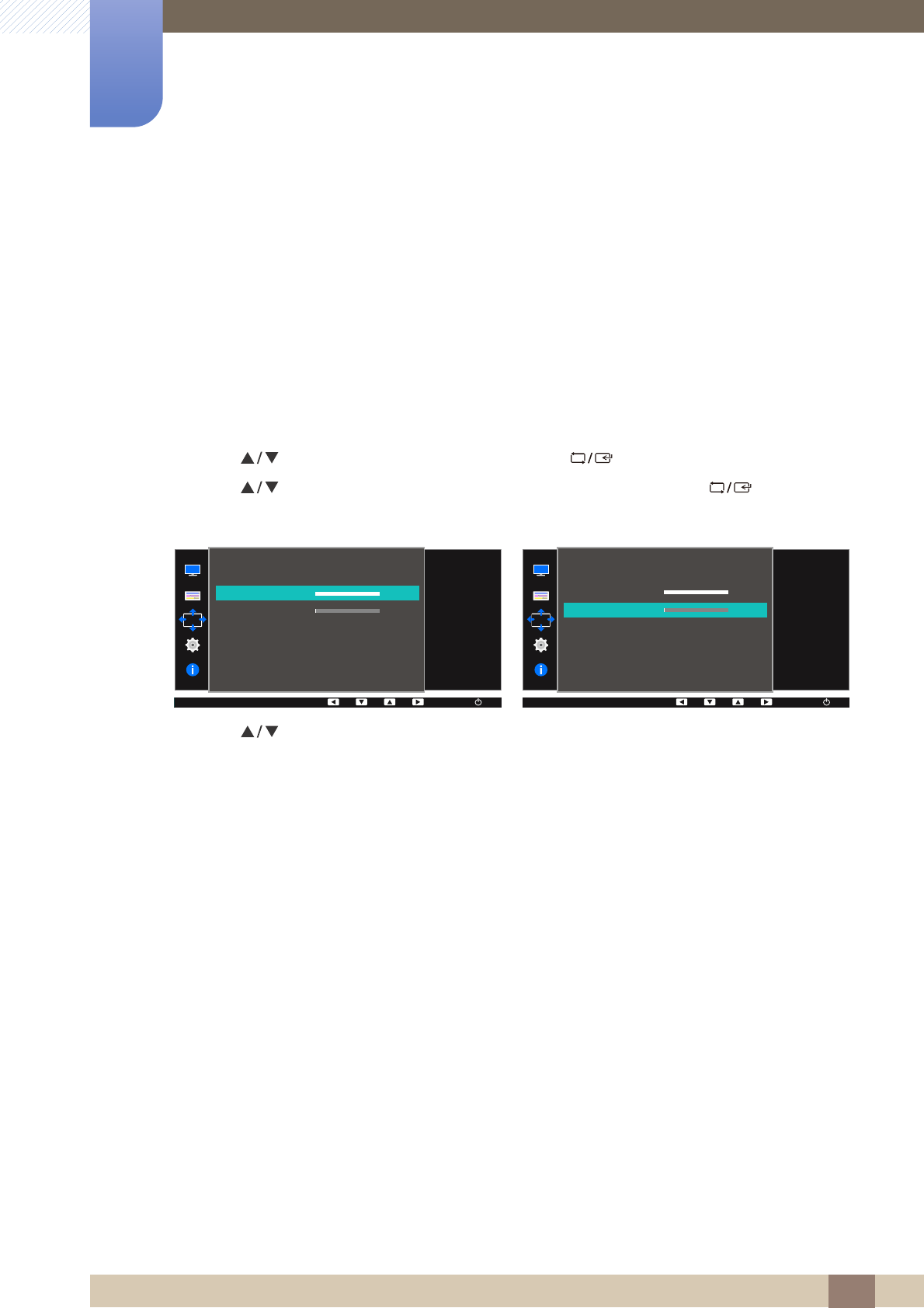

5.2 Menu H-Position & Menu V-Position
Menu H-Position: Move the menu position to the left or right.
Menu V-Position: Move the menu position up or down.
5.2.1 Configuring Menu H-Position & Menu V-Position
1Press any button on the front of the product to display the Key Guide. Next, press [ ] to display
the corresponding menu screen.
2Press [ ] to move to MENU SETTINGS and press [ ] on the product.
3Press [ ] to move to Menu H-Position or Menu V-Position, and press [ ]. The following
screen will appear.
4Press [ ] to configure Menu H-Position or Menu V-Position.
MENU
Language
Menu H-Position
Menu V-Position
Display Time
Transparency
English
100
1
20 sec
On
Move the menu
position to the left or
right.
AUTO
MENU SETTINGS
AUTOAUTO
AUTO
AUTO
Language
Menu H-Position
Menu V-Position
Display Time
Transparency
English
100
1
20 sec
On
Move the menu
position up or down.
AUTO
MENU SETTINGS
AUTOAUTO
AUTO
AUTO
56
Resizing or Relocating the Screen
5
5 Resizing or Relocating the Screen
5.3 Display Time
Set the on-screen display (OSD) menu to automatically disappear if the menu is not used for a specified
period of time.
Display Time can be used to specify the time after which you want the OSD menu to disappear.
5.3.1 Configuring Display Time
1Press any button on the front of the product to display the Key Guide. Next, press [ ] to display
the corresponding menu screen.
2Press [ ] to move to MENU SETTINGS and press [ ] on the product.
3Press [ ] to move to Display Time and press [ ] on the product. The following screen will
appear.
4Press [ ] to move to the option you want and press [ ].
5The selected option will be applied.
MENU
English
100
2
20 sec
On
Language
Menu H-Position
Menu V-Position
Display Time
Transparency
5 sec
10 sec
20 sec
200 sec
Set how long the menu
window will remain on
screen for when it is
not in use.
AUTO
MENU SETTINGS
AUTO
57
Resizing or Relocating the Screen
5
5 Resizing or Relocating the Screen
5.4 Transparency
Set the transparency for the menu windows:
5.4.1 Changing Transparency
1Press any button on the front of the product to display the Key Guide. Next, press [ ] to display
the corresponding menu screen.
2Press [ ] to move to MENU SETTINGS and press [ ] on the product.
3Press [ ] to move to Transparency and press [ ] on the product. The following screen will
appear.
4Press [ ] to move to the option you want and press [ ].
5The selected option will be applied.
MENU
MENU SETTINGS
English
100
1
20 sec
On
Language
Menu H-Position
Menu V-Position
Display Time
Transparency
Off
On
Configure the
transparency of the
menu windows.
AUTOAUTO
58
6 Setup and Reset
6 Setup and Reset
6.1 Reset
Return all the settings for the product to the default factory settings.
The functions available on the monitor may vary depending on the model. Refer to the actual product.
6.1.1 Initializing Settings (Reset)
1Press any button on the front of the product to display the Key Guide. Next, press [ ] to display
the corresponding menu screen.
2Press [ ] to move to SETUP&RESET and press [ ] on the product.
3Press [ ] to move to Reset and press [ ] on the product.
The following screen will appear.
4Press [ ] to move to the option you want and press [ ].
5The selected option will be applied.
MENU
SETUP&RESET
Off
Acceleration
Reset All
Eco Saving Plus
Off Timer
Key Repeat Time
AUTO
Return all the
settings for the
product to the
default factory
settings.
AUTO
AUTO
AUTO
SETUP&RESET
Off
Acceleration
Auto
Reset All
Eco Saving Plus
Off Timer
PC/AV Mode
Key Repeat Time
Source Detection
AUTO
Return all the
settings for the
product to the
default factory
settings.
AUTO
AUTO
AUTO
$OOWKHPHQXVHWWLQJVZLOOEHUHVHW
WRGHIDXOW
$UH\RXVXUH\RXZDQWWRUHVHW"
<HV 1R
AUTO
59
Setup and Reset
6
6 Setup and Reset
6.2 Eco Saving Plus
The Eco Saving Plus function reduces power consumption by controlling the electric current used by
the monitor panel.
This menu is not available when Bright is in Dynamic Contrast mode.
This menu is not available when Game Mode is enabled.
This menu is not available when Eye Saver Mode is enabled.
The functions available on the monitor may vary depending on the model. Refer to the actual
product.
6.2.1 Configuring Eco Saving Plus
1Press any button on the front of the product to display the Key Guide. Next, press [ ] to display
the corresponding menu screen.
Next, press the [ ] button.
2Press [ ] to move to SETUP&RESET and press [ ] on the product.
3Press [ ] to move to Eco Saving Plus and press [ ] on the product.
The following screen will appear.
Off: Deactivate the Eco Saving Plus function.
Auto: The power consumption will automatically be reduced by about 10% over the current
setting.
(The reduction of power consumption depends on the customer screen brightness condition.)
Low: The power consumption will be reduced by 25% over the default setting.
SAMSUNG
MAGIC
MENU
Off
Auto
Low
High
AUTO
SETUP&RESET
Reset All
Eco Saving Plus
Off Timer
Key Repeat Time
Adjust the power
consumption of the
product to save
energy.
AUTO
AUTO
AUTO
Off
Auto
Low
High
AUTO
SETUP&RESET
Adjust the power
consumption of the
product to save
energy.
Reset All
Eco Saving Plus
Off Timer
PC/AV Mode
Key Repeat Time
Source Detection
AUTO
AUTO
AUTO
60
Setup and Reset
6
6 Setup and Reset
High: The power consumption will be reduced by 50% over the default setting.
4Move the focus to the desired option by pressing [ ] button on the DOME Type JOG Button.
Press [ ] button.
5The selected option will be applied.
61
Setup and Reset
6
6 Setup and Reset
6.3 Off Timer
You can set the product to automatically turn off.
6.3.1 Configuring Off Timer
1Press any button on the front of the product to display the Key Guide. Next, press [ ] to display
the corresponding menu screen.
2Press [ ] to move to SETUP&RESET and press [ ] on the product.
3Press [ ] to move to Off Timer and press [ ] on the product.
4Press [ ] to move to Off Timer and press [ ] on the product.
The following screen will appear.
Off: Deactivate the off timer so that the product does not power off automatically.
On: Activate the off timer so that the product powers off automatically.
5Press [ ] to move to the option you want and press [ ].
6The selected option will be applied.
MENU
SETUP&RESET
Off
Acceleration
Reset All
Eco Saving Plus
Off Timer
Key Repeat Time
Enable or disable
the Off Timer.
AUTOAUTOAUTO
AUTO
AUTO
AUTO
SETUP&RESET
Enable or disable
the Off Timer.
Reset All
Eco Saving Plus
Off Timer
PC/AV Mode
Key Repeat Time
Source Detection
Off
Acceleration
Auto
AUTOAUTO
AUTO
AUTO
Off Timer
Off Timer
Turn Off After
Off
On
AUTO
Enable or disable
the Off Timer.
AUTOAUTOAUTO
AUTO
AUTO
62
Setup and Reset
6
6 Setup and Reset

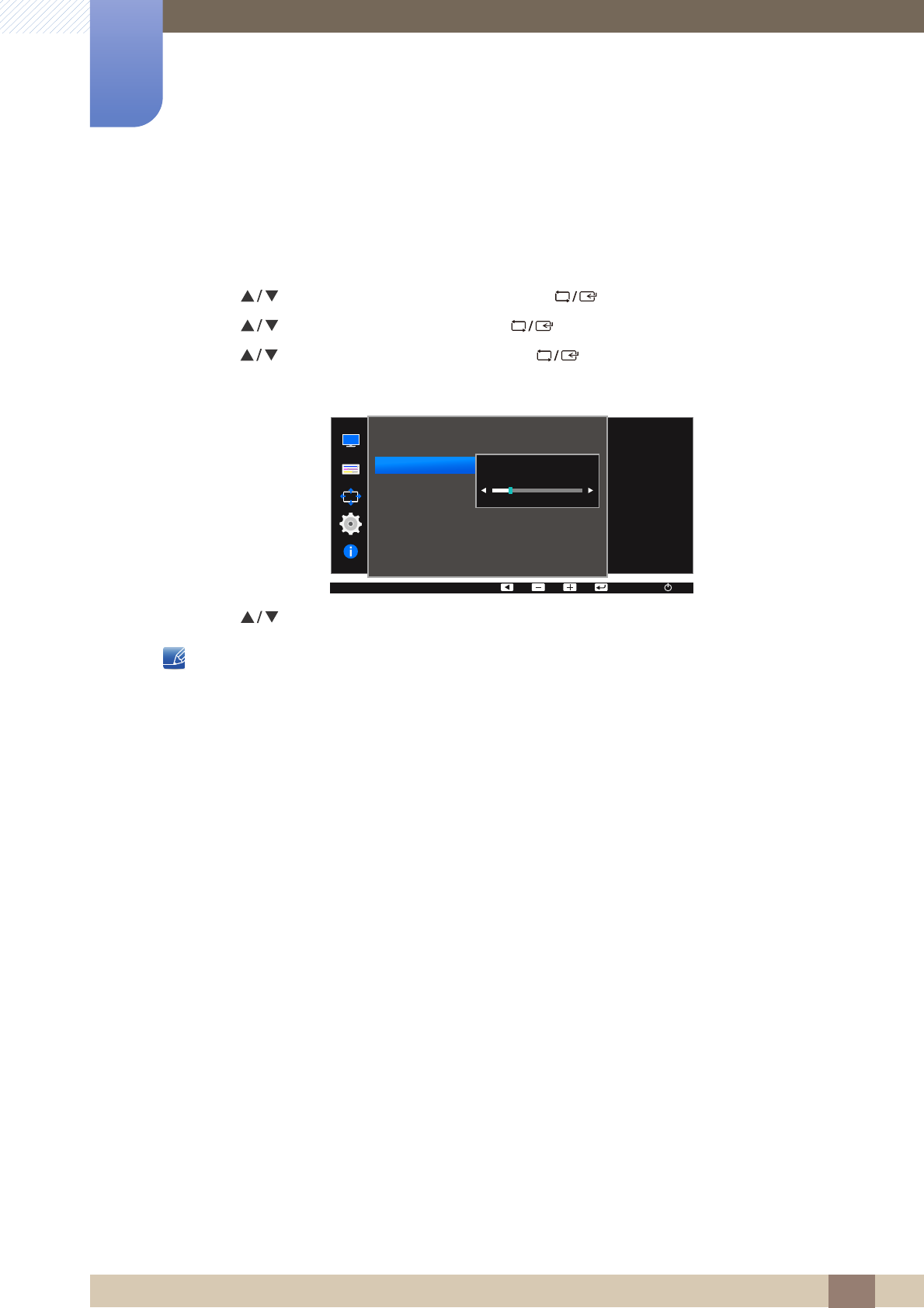

6.3.2 Configuring Turn Off After
1Press any button on the front of the product to display the Key Guide. Next, press [ ] to display
the corresponding menu screen.
2Press [ ] to move to SETUP&RESET and press [ ] on the product.
3Press [ ] to move to Off Timer and press [ ] on the product.
4Press [ ] to move to Turn Off After and press [ ] on the product. The following screen will
appear.
5Press [ ] to configure Turn Off After.
The off timer can be set within a range of 1 to 23 hours. The product will automatically power off
after the specified number of hours.
This option is only available when Off Timer is set to On.
For products for the market in some regions, the Off Timer is set to automatically activate 4 hours
after the product powers on. This is done in accordance with power supply regulations. If you do
not want the timer to activate, go to MENU SETUP&RESET and set Off Timer to Off.
MENU
Off Timer
Off Timer
Turn Off After
AUTO
Set the monitor to
automatically turn off
after a certain time
period.
AUTOAUTOAUTO
AUTO
AUTO
4h
→
63
Setup and Reset
6
6 Setup and Reset

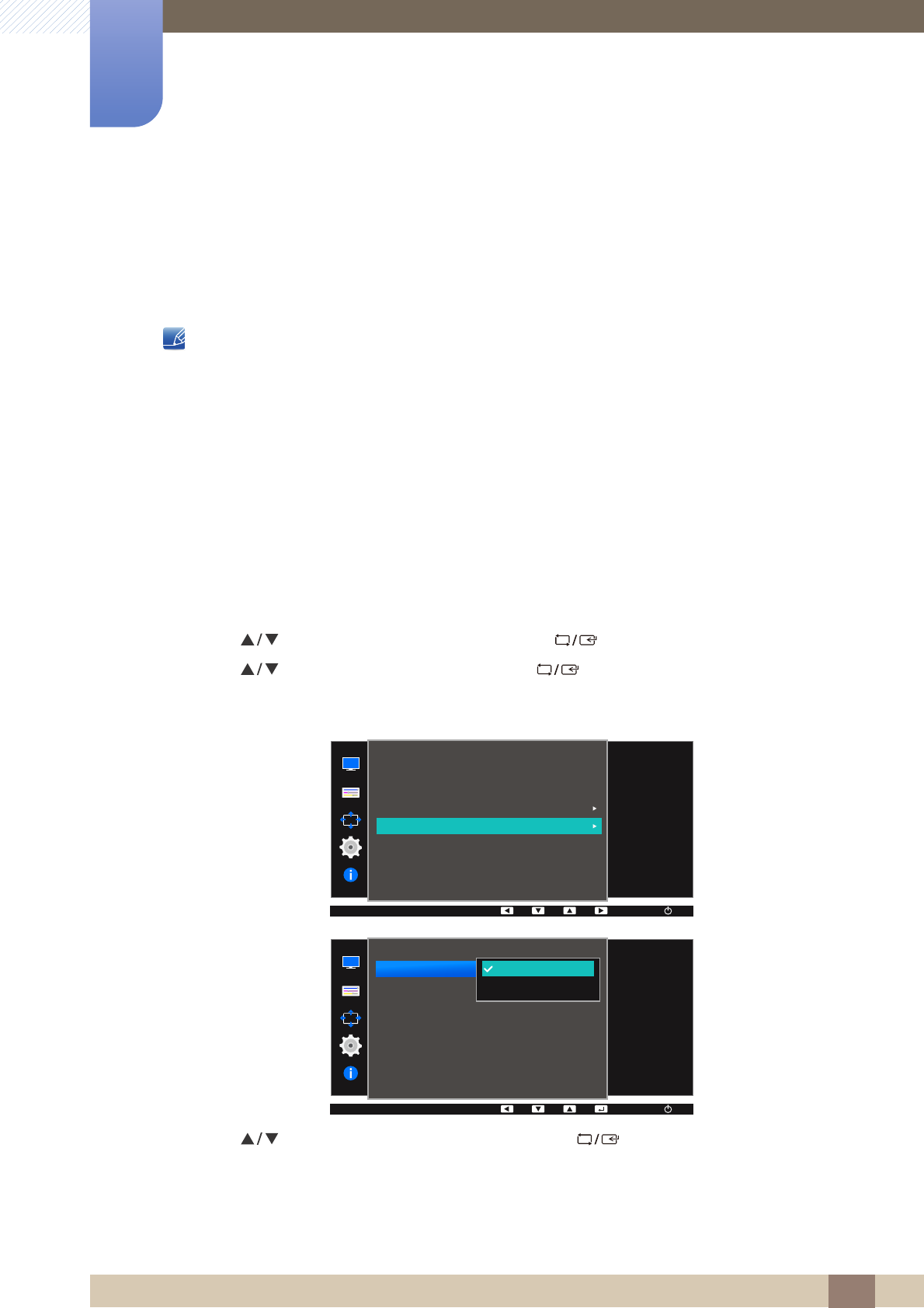

6.4 PC/AV Mode (S19E200BR / S19E200BW / S22E200B /
S22E200BW / S23E200B / S24E200BL)
Set PC/AV Mode to AV. The picture size will be enlarged. This option is useful when you view a movie.
This function does not support Analog mode.
Supplied for the wide models only such as 16:9 or 16:10.
If the monitor (when set to DVI) is in power saving mode or is displaying the message Check
Signal Cable, press the [ ] button to display the On Screen Display (OSD).
You can select PC or AV.
The functions available on the monitor may vary depending on the model. Refer to the actual
product.
6.4.1 Configuring PC/AV Mode
1Press any button on the front of the product to display the Key Guide. Next, press [ ] to display
the corresponding menu screen.
2Press [ ] to move to SETUP&RESET and press [ ] on the product.
3Press [ ] to move to PC/AV Mode and press [ ] on the product.
The following screen will appear.
4Press [ ] to move to the option you want and press [ ].
5The selected option will be applied.
MENU
MENU
AUTO
SETUP&RESET
Set to AV to enlarge
the picture.
Reset All
Eco Saving Plus
Off Timer
PC/AV Mode
Key Repeat Time
Source Detection
Off
Acceleration
Auto
AUTOAUTOAUTO
AUTO
AUTO
DVI
PC
AV
AUTO
PC/AV Mode
Select the PC/AV
mode for the DVI
source.
AUTOAUTO
AUTO
AUTO
64
Setup and Reset
6
6 Setup and Reset
6.5 Key Repeat Time
Control the response rate of a button when the button is pressed.
The functions available on the monitor may vary depending on the model. Refer to the actual product.
6.5.1 Configuring Key Repeat Time
1Press any button on the front of the product to display the Key Guide. Next, press [ ] to display
the corresponding menu screen.
2Press [ ] to move to SETUP&RESET and press [ ] on the product.
3Press [ ] to move to Key Repeat Time and press [ ] on the product.
The following screen will appear.
Acceleration, 1 sec, or 2 sec can be selected. If No Repeat is selected, a command responds
only once when a button is pressed.
4Press [ ] to move to the option you want and press [ ].
5The selected option will be applied.
MENU
Off
Acceleration
Auto
Acceleration
1 sec
2 sec
No Repeat
Reset All
Eco Saving Plus
Off Timer
Key Repeat Time
AUTO
SETUP&RESET
AUTO
AUTO
Configure the
response rate of a
button when the
button is pressed.
AUTO
SETUP&RESET
Configure the
response rate of a
button when the
button is pressed.
Off
Acceleration
Auto
AUTOAUTOAUTO
AUTO
AUTO
Acceleration
1 sec
2 sec
No Repeat
Reset All
Eco Saving Plus
Off Timer
PC/AV Mode
Key Repeat Time
Source Detection
AUTO
AUTO
65
Setup and Reset
6
6 Setup and Reset
6.6 Source Detection (S19E200BR / S19E200BW / S22E200B
/ S22E200BW / S23E200B / S24E200BL)
You can activate Source Detection.
6.6.1 Configuring Source Detection
1Press any button on the front of the product to display the Key Guide. Next, press [ ] to display
the corresponding menu screen.
2Press [ ] to move to SETUP&RESET and press [ ] on the product.
3Press [ ] to move to Source Detection and press [ ] on the product.
The following screen will appear.
Auto: The input source is automatically recognized.
Manual: Manually select an input source.
4Press [ ] to move to the option you want and press [ ].
5The selected option will be applied.
MENU
AUTO
SETUP&RESET
Decide how input
sources will be
detected.
Off
Acceleration
Auto
AUTOAUTOAUTO
AUTO
AUTO
AUTO
AUTO
Auto
Manual
Reset All
Eco Saving Plus
Off Timer
PC/AV Mode
Key Repeat Time
Source Detection
66
7 INFORMATION Menu and Others
7 INFORMATION Menu and Others
7.1 INFORMATION
View the current input source, frequency and resolution.
7.1.1 Displaying INFORMATION
1Press any button on the front of the product to display the Key Guide. Next, press [ ] to display
the corresponding menu screen.
2Press [ ] to move to INFORMATION. The current input source, frequency and resolution will
appear.
The displayed menu items may vary depending on the model.
MENU
INFORMATION
S / N : ***************
Analog
**kHz **Hz NN
**** x ****
Optimal Mode
**** x **** **Hz
COLOR
MENU SETTINGS
SETUP&RESET
INFORMATION
AUTO
67
INFORMATION Menu and Others
7
7 INFORMATION Menu and Others
7.2 Configuring Brightness, Contrast and Sharpness from the
Initial Screen
Adjust the Brightness, Contrast and Sharpness setting using the [ ] buttons in the initial screen
(where no OSD menu is displayed).
Brightness :
This menu is not available when Bright is set to Dynamic Contrast mode.
This menu is not available when Eco Saving Plus is enabled.
This menu is not available when Eye Saver Mode is enabled.
Contrast :
This option is not available when Bright is in Cinema or Dynamic Contrast mode.
This menu is not available when Game Mode is enabled.
Sharpness :
This option is not available when Bright is in Cinema or Dynamic Contrast mode.
This menu is not available when Game Mode is enabled.
1Press any button on the front of the product (when no menu screen is displayed) to display the Key
guide. Next, press [ ]. The following screen will appear.
2Press the [ ] button to alternate between the Brightness, Contrast and Sharpness settings.
3Adjust the Brightness, Contrast and Sharpness settings using the [ ] buttons.
SAMSUNG
MAGIC
SAMSUNG
MAGIC
SAMSUNG
MAGIC
Contrast
Sharpness
100
Brightness
68
8 Installing the Software
8 Installing the Software
8.1 Magic Tune
8.1.1 What is MagicTune?
MagicTune is a software program that helps with monitor adjustments by providing comprehensive
descriptions of monitor functions and easy-to-understand guidelines.
You can adjust the product with the mouse and the keyboard without using the operating buttons of the
product.
8.1.2 Installing the Software
1Insert the installation CD into the CD-ROM drive.
2Select the MagicTune setup program.
If the pop-up screen for the software installation does not appear on the main screen, find and
double-click the MagicTune setup file on the CD-ROM.
3Select the installation language and click [Next].
4Complete the remaining software installation steps according to the instructions displayed on the
screen.
The software may not work properly if you do not restart the computer after the installation.
The MagicTune icon may not appear depending on the computer system and the product
specifications.
If the shortcut icon does not appear, press the F5 key.
Restrictions and Problems with the Installation (MagicTune™)
The installation of MagicTune™may be affected byz the graphics card, motherboard and the networking
environment.
System Requirements
OS
Windows XP, Windows Vista, Windows 7, Windows 8
69
Installing the Software
8
8 Installing the Software
8.1.3 Removing the Software
You can only remove MagicTune™ through [Add or Remove Programs] in Windows.
To remove MagicTune™, complete the following steps.
1Click [Start] select [Settings], and select [Control Panel] from the menu.
For Windows XP, click [Start], and select [Control Panel] from the menu.
2Double-click the [Add or Remove Programs] icon in the Control Panel.
3In the [Add/Remove] window, find and select MagicTune™so that it is highlighted.
4Click [Change or Remove Programs] to remove the software.
5Select [Yes] to start removing MagicTune™.
6Wait until a message box appears informing you that the software has been removed completely.
For technical support, the FAQ (frequently asked questions) or information about the software
upgrade for MagicTune™, please visit our website(http://www.samsung.com/us/consumer/
learningresources/monitor/magetune/pop_intro.html).
70
Installing the Software
8
8 Installing the Software
8.2 MultiScreen
MultiScreen enables users to use the monitor by partitioning multiple sections.
8.2.1 Installing the Software
1Insert the installation CD into the [CD-ROM drive].
2Select the "MultiScreen" setup program.
If the pop-up screen for the software installation does not appear on the main screen, find and
double-click the "MultiScreen" setup file on the [CD-ROM].
3When the Installation Wizard appears, click [Next].
4Follow the instructions given on the screen to proceed with installation.
The software may not work properly if you do not restart the computer after the installation.
The "MultiScreen" icon may not appear depending on the computer system and the product
specifications.
If the shortcut icon does not appear, press the F5 key.
Restrictions and Problems with the Installation (MultiScreen)
The "MultiScreen" installation may be affected by the [Graphics card], [Motherboard] and the [Networking
environment].
Operating System
"OS"
"Windows 2000"
"Windows XP Home Edition"
"Windows XP Professional"
"Windows Vista 32bit"
"Windows 7 32bit"
"Windows 8 32bit"
For "MultiScreen", the operating systems "Windows 2000" or later is recommended.
"Hardware"
At least 32MB of memory
At least 60MB of free space on the hard disk drive
MultiScreen
71
Installing the Software
8
8 Installing the Software
8.2.2 Removing the Software
Click [Start], select [Settings]/[Control Panel], and then double-click [Add or Remove Programs].
Select "MultiScreen" from the program list and click the [Add/Delete] button.
72
9 Troubleshooting Guide
9 Troubleshooting Guide
9.1 Requirements Before Contacting Samsung Customer
Service Center
9.1.1 Testing the Product
Before calling Samsung Customer Service Center, test your product as follows. If the problem persists,
contact Samsung Customer Service Center.
Check if your product is operating normally by using the product test function.
If the screen is turned off and the power indicator blinks even though the product is properly connected
to a PC, perform a self-diagnosis test.
1Power off both the PC and product.
2Disconnect the cables from the product.
3Power on the product.
4If the message Check Signal Cable appears, the product is working normally.
If the screen remains blank, check the PC system, video controller and cable.
9.1.2 Checking the Resolution and Frequency
For a mode that exceeds the supported resolution (refer to "10.7 Standard Signal Mode Table"), the
message Not Optimum Mode will appear for a short time.
9.1.3 Check the following.
Installation issue (PC mode)
Issues Solutions
The screen keeps switching on and off. Check the cable connection between the product
and PC, and ensure the connectors are locked.
(Refer to "2.3 Connecting and Using a PC")
73
Troubleshooting Guide
9
9 Troubleshooting Guide
Screen issue
Issues Solutions
The power LED is off. The screen will not switch
on.
Check that the power cable is connected
properly. (Refer to "2.3 Connecting and Using a
PC")
The message Check Signal Cable appears. Check that the cable is properly connected to the
product. (Refer to "2.3 Connecting and Using a
PC")
Check that the device connected to the product is
powered on.
Not Optimum Mode is displayed. This message appears when the signal from the
graphics card exceeds the maximum resolution or
frequency for the product.
Change the maximum resolution and frequency to
suit the product performance, referring to
Standard Signal Mode Table (page 84).
The images on the screen look distorted. Check the cable connection to the product (Refer
to "2.3 Connecting and Using a PC")
The screen is not clear. The screen is blurry. Adjust Coarse (page 47) and Fine (page 48).
Remove any accessories (video extension cable,
etc.) and try again.
Set the resolution and frequency to the
recommended level.
The screen appears unstable and shaky. Check that the resolution and frequency for the
PC are within the range of resolution and
frequency compatible with the product. Next, if
required, change the settings, referring to
Standard Signal Mode Table (page 84) in this
manual and the INFORMATION menu on the
product.
There are shadows or ghost images left on the
screen.
The screen is too bright. The screen is too dark. Adjust Brightness (page 34) and Contrast (page
35).
Screen color is inconsistent. Change the COLOR settings. (Refer to "
Configuring Tint")
The colors on the screen have a shadow and are
distorted.
Change the COLOR settings.
(Refer to " Configuring Tint")
White does not really look white. Change the COLOR settings.
(Refer to " Configuring Tint")
74
Troubleshooting Guide
9
9 Troubleshooting Guide
Source device issue
The LED lights on the frame of the product may be seen depending on the user's viewing angle. The
light is harmless to people and has no bearing on product features and performance. The product is
safe to use.
There is no image on the screen and the power
LED blinks every 0.5 to 1 second.
The product is operating in power-saving mode.
Press any key on the keyboard or move the
mouse to return to normal operating mode.
Issues Solutions
A beeping sound is heard when my PC is booting. If a beeping sound is heard when your PC is
booting, have your PC serviced.
Issues Solutions
75
Troubleshooting Guide
9
9 Troubleshooting Guide
9.2 Q & A
Question Answer
How can I change the
frequency?
Set the frequency on your graphics card.
Windows XP: Go to Control Panel
Appearance and Themes Display Settings
Advanced Monitor, and adjust Refresh rate under
Monitor settings.
Windows ME/2000: Go to Control Panel Display
Settings Advanced Monitor, and adjust Refresh rate
under Monitor settings.
Windows Vista: Go to Control Panel Appearance and
Personalization Personalization Display Settings
Advanced Settings Monitor, and adjust Refresh rate
under Monitor settings.
Windows 7: Go to Control Panel Appearance and
Personalization Display Screen Resolution
Advanced settings Monitor, and adjust Refresh rate under
Monitor settings.
Windows 8: Go to Settings Control Panel
Appearance and Personalization Display
Screen Resolution Advanced settings Monitor, and
adjust Refresh rate under Monitor settings.
76
Troubleshooting Guide
9
9 Troubleshooting Guide
Refer to the user manual for your PC or graphics card for further instructions on adjustment.
How can I change the
resolution?
Windows XP: Go to Control Panel
Appearance and Themes Display Settings, and adjust
the resolution.
Windows ME/2000: Go to Control Panel Display
Settings, and adjust the resolution.
Windows Vista: Go to Control Panel
Appearance and Personalization Personalize
Display Settings, and adjust the resolution.
Windows 7: Go to Control Panel
Appearance and Personalization Display
Adjust Resolution, and adjust the resolution.
Windows 8: Go to Settings Control Panel
Appearance and Personalization Display
Adjust Resolution, and adjust the resolution.
How do I set power-saving
mode?
Windows XP: Set power-saving mode in Control Panel
Appearance and Themes Display
Screen Saver Settings or BIOS SETUP on the PC.
Windows ME/2000: Set power-saving mode in Control Panel
Display Screen Saver Settings or BIOS SETUP on the
PC.
Windows Vista: Set power-saving mode in Control Panel
Appearance and Personalization Personalize
Screen Saver Settings or BIOS SETUP on the PC.
Windows 7: Set power-saving mode in Control Panel
Appearance and Personalization Personalize
Screen Saver Settings or BIOS SETUP on the PC.
Windows 8: Set power-saving mode in Settings
Control Panel Appearance and Personalization
Personalize Screen Saver Settings or BIOS SETUP on the
PC.
Question Answer
77
10 Specifications
10 Specifications
10.1 General (S19E200NY / S19E200NW)
Plug-and-Play
This monitor can be installed and used with any Plug-and-Play compatible systems. Two-way data
exchange between the monitor and PC system optimizes the monitor settings. Monitor installation
takes place automatically. However, you can customize the installation settings if desired.
Panel Dots (Pixels)
Due to the nature of the manufacturing of this product, approximately 1 pixel per million (1ppm)
may be brighter or darker on the LCD panel. This does not affect product performance.
The above specifications are subject to change without notice to improve quality.
This device is a Class B digital apparatus.
Model Name S19E200NY S19E200NW
Panel
Size 18.5 Inches (47 cm) 19.0 Inches (48 cm)
Display area 409.8 mm (H) x 230.4 mm (V)
16.1 Inches (H) x 9.1 Inches (V)
408.24 mm (H) x 255.15 mm (V)
16.1 Inches (H) x 10.0 Inches (V)
Pixel Pitch
0.300 mm (H) x 0.300 mm (V)
0.011811 Inches (H) x
0.011811 Inches (V)
0.2835 mm (H) x 0.2835 mm (V)
0.011161 Inches (H) x
0.011161 Inches (V)
Power Supply
This product uses 100 to 240V.
Refer to the label at the back of the product as the standard voltage
can vary in different countries.
Dimensions
(W x H x D) /
Weight
Without
Stand
441.4 x 266.6 x 76.8 mm
17.4 x 10.5 x 3.0 Inches
439.4 x 289.9 x 76.2 mm
17.3 x 11.4 x 3.0 Inches
With Stand
441.4 x 348.8 x 170 mm / 2.8 kg
17.4 x 13.7 x 6.7 Inches / 6.2 lbs
439.4 x 373.6 x 170 mm / 3.1 kg
17.3 x 14.7 x 6.7 Inches / 6.8 lbs
Environmental
considerations
Operating Temperature : 50 °F – 104 °F (10 °C – 40 °C)
Humidity : 10% – 80%, non-condensing
Storage Temperature : -4 °F – 113 °F (-20 °C – 45 °C)
Humidity : 5% – 95%, non-condensing
(USA only)
Dispose unwanted electronics through an approved recycler.
To find the nearest recycling location, go to our website:
www.samsung.com/recyclingdirect or call, (877) 278 - 0799
78
Specifications
10
10 Specifications
10.2 General (S19E200BW / S19E200BR)
Plug-and-Play
This monitor can be installed and used with any Plug-and-Play compatible systems. Two-way data
exchange between the monitor and PC system optimizes the monitor settings. Monitor installation
takes place automatically. However, you can customize the installation settings if desired.
Panel Dots (Pixels)
Due to the nature of the manufacturing of this product, approximately 1 pixel per million (1ppm)
may be brighter or darker on the LCD panel. This does not affect product performance.
The above specifications are subject to change without notice to improve quality.
This device is a Class B digital apparatus.
Model Name S19E200BW S19E200BR
Panel
Size 19.0 Inches (48 cm) 19.0 Inches (48 cm)
Display area 408.24 mm (H) x 255.15 mm (V)
16.1 Inches (H) x 10.0 Inches (V)
376.32 mm (H) x 301.06 mm (V)
14.8 Inches (H) x 11.9 Inches (V)
Pixel Pitch
0.2835 mm (H) x 0.2835 mm (V)
0.011161 Inches (H) x
0.011161 Inches (V)
0.294 mm (H) x 0.294 mm (V)
0.011575 Inches (H) x
0.011575 Inches (V)
Power Supply
This product uses 100 to 240V.
Refer to the label at the back of the product as the standard voltage
can vary in different countries.
Dimensions (W x
H x D) / Weight
Without
Stand
439.4 x 289.9 x 76.2 mm
17.3 x 11.4 x 3.0 Inches
407 x 336 x 77 mm
16.0 x 13.2 x 3.0 Inches
With Stand
439.4 x 373.6 x 170 mm / 3.1 kg
17.3 x 14.7 x 6.7 Inches / 6.8 lbs
407 x 419 x 170 mm / 3.25 kg
16.0 x 16.5 x 6.7 Inches / 7.2 lbs
Environmental
considerations
Operating Temperature : 50 °F – 104 °F (10 °C – 40 °C)
Humidity : 10% – 80%, non-condensing
Storage Temperature : -4 °F – 113 °F (-20 °C – 45 °C)
Humidity : 5% – 95%, non-condensing
(USA only)
Dispose unwanted electronics through an approved recycler.
To find the nearest recycling location, go to our website:
www.samsung.com/recyclingdirect or call, (877) 278 - 0799
79
Specifications
10
10 Specifications
10.3 General (S22E200NY / S22E200N)
Plug-and-Play
This monitor can be installed and used with any Plug-and-Play compatible systems. Two-way data
exchange between the monitor and PC system optimizes the monitor settings. Monitor installation
takes place automatically. However, you can customize the installation settings if desired.
Panel Dots (Pixels)
Due to the nature of the manufacturing of this product, approximately 1 pixel per million (1ppm)
may be brighter or darker on the LCD panel. This does not affect product performance.
The above specifications are subject to change without notice to improve quality.
This device is a Class B digital apparatus.
Model Name S22E200NY / S22E200N
Panel
Size 21.5 Inches (54 cm)
Display area 476.64 mm (H) x 268.11 mm (V)
18.8 Inches (H) x 10.6 Inches (V)
Pixel Pitch 0.24825 mm (H) x 0.24825 mm (V)
0.009774 Inches (H) x 0.009774 Inches (V)
Power Supply
This product uses 100 to 240V.
Refer to the label at the back of the product as the standard voltage
can vary in different countries.
Dimensions
(W x H x D) /
Weight
Without
Stand
504.3 x 301.9 x 77.6 mm
19.9 x 11.9 x 3.1 Inches
With Stand
504.3 x 385.35 x 185.0 mm / 3.5 kg
19.9 x 15.2 x 7.3 Inches / 7.7 lbs
Environmental
considerations
Operating Temperature : 50 °F – 104 °F (10 °C – 40 °C)
Humidity : 10% – 80%, non-condensing
Storage Temperature : -4 °F – 113 °F (-20 °C – 45 °C)
Humidity : 5% – 95%, non-condensing
(USA only)
Dispose unwanted electronics through an approved recycler.
To find the nearest recycling location, go to our website:
www.samsung.com/recyclingdirect or call, (877) 278 - 0799
80
Specifications
10
10 Specifications
10.4 General (S22E200B / S22E200BW)
Plug-and-Play
This monitor can be installed and used with any Plug-and-Play compatible systems. Two-way data
exchange between the monitor and PC system optimizes the monitor settings. Monitor installation
takes place automatically. However, you can customize the installation settings if desired.
Panel Dots (Pixels)
Due to the nature of the manufacturing of this product, approximately 1 pixel per million (1ppm)
may be brighter or darker on the LCD panel. This does not affect product performance.
The above specifications are subject to change without notice to improve quality.
This device is a Class B digital apparatus.
Model Name S22E200B S22E200BW
Panel
Size 21.5 Inches (54 cm) 22.0 Inches (55 cm)
Display area
476.64 mm (H) x 268.11 mm (V)
18.8 Inches (H) x 10.6 Inches (V)
473.76 mm (H) x 296.1 mm (V)
18.7 Inches (H) x 11.7 Inches (V)
Pixel Pitch
0.24825 mm (H) x 0.24825 mm (V)
0.009774 Inches (H) x
0.009774 Inches (V)
0.282 mm (H) x 0.282 mm (V)
0.011102 Inches (H) x
0.011102 Inches (V)
Power Supply
This product uses 100 to 240V.
Refer to the label at the back of the product as the standard voltage
can vary in different countries.
Dimensions
(W x H x D) /
Weight
Without
Stand
504.3 x 301.9 x 77.6 mm
19.9 x 11.9 x 3.1 Inches
502.4 x 329.8 x 77.4 mm
19.8 x 13.0 x 3.0 Inches
With Stand
504.3 x 385.35 x 185.0 mm /
3.5 kg
19.9 x 15.2 x 7.3 Inches / 7.7 lbs
502.4 x 413.5 x 185 mm /
3.85 kg
19.8 x 16.3 x 7.3 Inches / 8.5 lbs
Environmental
considerations
Operating Temperature : 50 °F – 104 °F (10 °C – 40 °C)
Humidity : 10% – 80%, non-condensing
Storage Temperature : -4 °F – 113 °F (-20 °C – 45 °C)
Humidity : 5% – 95%, non-condensing
(USA only)
Dispose unwanted electronics through an approved recycler.
To find the nearest recycling location, go to our website:
www.samsung.com/recyclingdirect or call, (877) 278 - 0799
81
Specifications
10
10 Specifications
10.5 General (S23E200B / S24E200BL)
Plug-and-Play
This monitor can be installed and used with any Plug-and-Play compatible systems. Two-way data
exchange between the monitor and PC system optimizes the monitor settings. Monitor installation
takes place automatically. However, you can customize the installation settings if desired.
Panel Dots (Pixels)
Due to the nature of the manufacturing of this product, approximately 1 pixel per million (1ppm)
may be brighter or darker on the LCD panel. This does not affect product performance.
The above specifications are subject to change without notice to improve quality.
This device is a Class B digital apparatus.
Model Name S23E200B S24E200BL
Panel
Size 23.0 Inches (58 cm) 23.6 Inches (59 cm)
Display area 509.76 mm (H) x 286.74 mm (V)
20.1 Inches (H) x 11.3 Inches (V)
521.28 mm (H) x 293.22 mm (V)
20.5 Inches (H) x 11.5 Inches (V)
Pixel Pitch
0.2655 mm (H) x 0.2655 mm (V)
0.010453 Inches (H) x
0.010453 Inches (V)
0.2715 mm (H) x 0.2715 mm (V)
0.010689 Inches (H) x
0.010689 Inches (V)
Power Supply
This product uses 100 to 240V.
Refer to the label at the back of the product as the standard
voltage can vary in different countries.
Dimensions
(W x H x D) /
Weight
Without Stand 542.9 x 321.4 x 76.3 mm
21.4 x 12.7 x 3.0 Inches
554.6 x 330.5 x 78.2 mm
21.8 x 13.0 x 3.1 Inches
With Stand
542.9 x 404.65 x 185 mm /
3.25 kg
21.4 x 15.9 x 7.3 Inches / 7.2 lbs
554.6 x 412.35 x 185 mm /
4.1 kg
21.8 x 16.2 x 7.3 Inches / 9.0 lbs
Environmental
considerations
Operating Temperature : 50 °F – 104 °F (10 °C – 40 °C)
Humidity : 10% – 80%, non-condensing
Storage Temperature : -4 °F – 113 °F (-20 °C – 45 °C)
Humidity : 5% – 95%, non-condensing
(USA only)
Dispose unwanted electronics through an approved recycler.
To find the nearest recycling location, go to our website:
www.samsung.com/recyclingdirect or call, (877) 278 - 0799
82
Specifications
10
10 Specifications
10.6 PowerSaver
The power-saving function of this product reduces power consumption by switching off the screen and
changing the color of the power LED if the product is not used for a specified period of time. The power
is not turned off in power-saving mode. To switch the screen back on, press any key on the keyboard or
move the mouse. Power-saving mode functions only when the product is connected to a PC that has a
power-saving function.
PowerSaver Normal
operation mode
Energy Star
Power
Consumption
Power saving
mode
Power off
(Power button)
Power Indicator On On Blinking Off
Power
Consumption
(S19E200NY)
Typical 19 W Typical 13 W Less than 0.1 W Less than 0.1 W
Power
Consumption
(S19E200BR)
Power
Consumption
(S19E200NW)
Power
Consumption
(S19E200BW)
Power
Consumption
(S22E200NY)
Power
Consumption
(S22E200N)
Power
Consumption
(S22E200B)
Power
Consumption
(S22E200BW)
Typical 19 W Typical 16 W Less than 0.1 W Less than 0.1 W
Typical 19 W Typical 15 W Less than 0.1 W Less than 0.1 W
Typical 19 W Typical 15 W Less than 0.1 W Less than 0.1 W
Typical 24 W Typical 21 W Less than 0.1 W Less than 0.1 W
Typical 24 W Typical 21 W Less than 0.1 W Less than 0.1 W
Typical 24 W Typical 21 W Less than 0.1 W Less than 0.1 W
Typical 24 W Typical 19 W Less than 0.1 W Less than 0.1 W
83
Specifications
10
10 Specifications
The displayed power consumption level can vary in different operating conditions or when settings
are changed. (S**E200** Model Power saving mode / Power off (Power button) : Less than 0.1
watts (Analog Input Condition), Max 0.25watts )
ENERGY STAR® is a US registered mark of the United States Environmental Protection Agency.
Energy Star power is measured with the test method in the current Energy Star® Standard.
To reduce the power consumption to 0 watts, turn off the power switch on the back of the product
or disconnect the power cable. Be sure to disconnect the power cable when you will not be using
the product for an extended period of time. To reduce the power consumption to 0 watts when the
power switch is not available, disconnect the power cable.
Power
Consumption
(S23E200B)
Power
Consumption
(S24E200BL)
PowerSaver Normal
operation mode
Energy Star
Power
Consumption
Power saving
mode
Power off
(Power button)
Typical 25 W Typical 22 W Less than 0.1 W Less than 0.1 W
Typical 25 W Typical 22 W Less than 0.1 W Less than 0.1 W
84
Specifications
10
10 Specifications
10.7 Standard Signal Mode Table
This product can be set to only one resolution for each screen size to obtain the optimum picture
quality due to the nature of the panel. Therefore, a resolution other than the specified resolution
may degrade the picture quality. To avoid this, it is recommended that you select the optimum
resolution specified for the screen size of your product.
Check the frequency when you exchange a CDT monitor (connected to a PC) for an LCD monitor.
If the LCD monitor does not support 85Hz, change the vertical frequency to 60Hz using the CDT
monitor before you exchange it with the LCD monitor.
If a signal that belongs to the following standard signal modes is transmitted from your PC, the screen will
automatically be adjusted. If the signal transmitted from the PC does not belong to the standard signal
modes, the screen may be blank even though the power LED turns on. In such a case, change the
settings according to the following table by referring to the graphics card user manual.
Model
Name
Synchronization Resolution
Horizontal
Frequency
Vertical
Frequency Optimum Resolution Maximum Resolution
S19E200NY
30 – 81 kHz 56 – 75 Hz 1366 x 768 @ 60 Hz 1366 x 768 @ 60 Hz
S19E200NW /
S19E200BW
30 – 81 kHz 56 – 75 Hz 1440 x 900 @ 60 Hz 1440 x 900 @ 75 Hz
S19E200BR
30 – 81 kHz 56 – 75 Hz 1280 x 1024 @ 60 Hz 1280 x 1024 @ 75 Hz
S22E200BW
30 – 81 kHz 56 – 75 Hz 1680 x 1050 @ 60 Hz 1680 x 1050 @ 60 Hz
S22E200NY /
S22E200N /
S22E200B /
S23E200B /
S24E200BL
30 – 81 kHz 56 – 75 Hz 1920 x 1080 @ 60 Hz 1920 x 1080 @ 60 Hz
85
Specifications
10
10 Specifications
S19E200NY
Resolution
Horizontal
Frequency
(kHz)
Vertical
Frequency
(Hz)
Pixel Clock
(MHz)
Sync Polarity
(H/V)
IBM, 720 x 400 31.469 70.087 28.322 -/+
MAC, 640 x 480 35.000 66.667 30.240 -/-
MAC, 832 x 624 49.726 74.551 57.284 -/-
VESA, 640 x 480 31.469 59.940 25.175 -/-
VESA, 640 x 480 37.861 72.809 31.500 -/-
VESA, 640 x 480 37.500 75.000 31.500 -/-
VESA, 800 x 600 35.156 56.250 36.000 +/+
VESA, 800 x 600 37.879 60.317 40.000 +/+
VESA, 800 x 600 48.077 72.188 50.000 +/+
VESA, 800 x 600 46.875 75.000 49.500 +/+
VESA, 1024 x 768 48.363 60.004 65.000 -/-
VESA, 1024 x 768 56.476 70.069 75.000 -/-
VESA, 1024 x 768 60.023 75.029 78.750 +/+
VESA, 1280 x 720 45.000 60.000 74.250 +/+
VESA, 1366 x 768 47.712 59.790 85.500 +/+
86
Specifications
10
10 Specifications
S19E200NW
Resolution
Horizontal
Frequency
(kHz)
Vertical
Frequency
(Hz)
Pixel Clock
(MHz)
Sync Polarity
(H/V)
IBM, 720 x 400 31.469 70.087 28.322 -/+
MAC, 640 x 480 35.000 66.667 30.240 -/-
MAC, 832 x 624 49.726 74.551 57.284 -/-
MAC, 1152 x 870 68.681 75.062 100.000 -/-
VESA, 640 x 480 31.469 59.940 25.175 -/-
VESA, 640 x 480 37.861 72.809 31.500 -/-
VESA, 640 x 480 37.500 75.000 31.500 -/-
VESA, 800 x 600 35.156 56.250 36.000 +/+
VESA, 800 x 600 37.879 60.317 40.000 +/+
VESA, 800 x 600 48.077 72.188 50.000 +/+
VESA, 800 x 600 46.875 75.000 49.500 +/+
VESA, 1024 x 768 48.363 60.004 65.000 -/-
VESA, 1024 x 768 56.476 70.069 75.000 -/-
VESA, 1024 x 768 60.023 75.029 78.750 +/+
VESA, 1152 x 864 67.500 75.000 108.000 +/+
VESA, 1280 x 720 45.000 60.000 74.250 +/+
VESA, 1280 x 800 49.702 59.810 83.500 -/+
VESA, 1440 x 900 55.935 59.887 106.500 -/+
VESA, 1440 x 900 70.635 74.984 136.750 -/+
87
Specifications
10
10 Specifications
S19E200BW
Resolution
Horizontal
Frequency
(kHz)
Vertical
Frequency
(Hz)
Pixel Clock
(MHz)
Sync Polarity
(H/V)
IBM, 720 x 400 31.469 70.087 28.322 -/+
MAC, 640 x 480 35.000 66.667 30.240 -/-
MAC, 832 x 624 49.726 74.551 57.284 -/-
MAC, 1152 x 870 68.681 75.062 100.000 -/-
VESA, 640 x 480 31.469 59.940 25.175 -/-
VESA, 640 x 480 37.861 72.809 31.500 -/-
VESA, 640 x 480 37.500 75.000 31.500 -/-
VESA, 800 x 600 35.156 56.250 36.000 +/+
VESA, 800 x 600 37.879 60.317 40.000 +/+
VESA, 800 x 600 48.077 72.188 50.000 +/+
VESA, 800 x 600 46.875 75.000 49.500 +/+
VESA, 1024 x 768 48.363 60.004 65.000 -/-
VESA, 1024 x 768 56.476 70.069 75.000 -/-
VESA, 1024 x 768 60.023 75.029 78.750 +/+
VESA, 1152 x 864 67.500 75.000 108.000 +/+
VESA, 1280 x 720 45.000 60.000 74.250 +/+
VESA, 1280 x 800 49.702 59.810 83.500 -/+
VESA, 1440 x 900 55.935 59.887 106.500 -/+
VESA, 1440 x 900 70.635 74.984 136.750 -/+
88
Specifications
10
10 Specifications
S19E200BR
Resolution
Horizontal
Frequency
(kHz)
Vertical
Frequency
(Hz)
Pixel Clock
(MHz)
Sync Polarity
(H/V)
IBM, 720 x 400 31.469 70.087 28.322 -/+
MAC, 640 x 480 35.000 66.667 30.240 -/-
MAC, 832 x 624 49.726 74.551 57.284 -/-
MAC, 1152 x 870 68.681 75.062 100.000 -/-
VESA, 640 x 480 31.469 59.940 25.175 -/-
VESA, 640 x 480 37.861 72.809 31.500 -/-
VESA, 640 x 480 37.500 75.000 31.500 -/-
VESA, 800 x 600 35.156 56.250 36.000 +/+
VESA, 800 x 600 37.879 60.317 40.000 +/+
VESA, 800 x 600 48.077 72.188 50.000 +/+
VESA, 800 x 600 46.875 75.000 49.500 +/+
VESA, 1024 x 768 48.363 60.004 65.000 -/-
VESA, 1024 x 768 56.476 70.069 75.000 -/-
VESA, 1024 x 768 60.023 75.029 78.750 +/+
VESA, 1152 x 864 67.500 75.000 108.000 +/+
VESA, 1280 x 720 45.000 60.000 74.250 +/+
VESA, 1280 x 800 49.702 59.810 83.500 -/+
VESA, 1280 x 960 60.000 60.000 108.000 +/+
VESA, 1280 x 1024 63.981 60.020 108.000 +/+
VESA, 1280 x 1024 79.976 75.025 135.000 +/+
89
Specifications
10
10 Specifications
S22E200NY
Resolution
Horizontal
Frequency
(kHz)
Vertical
Frequency
(Hz)
Pixel Clock
(MHz)
Sync Polarity
(H/V)
IBM, 720 x 400 31.469 70.087 28.322 -/+
MAC, 640 x 480 35.000 66.667 30.240 -/-
MAC, 832 x 624 49.726 74.551 57.284 -/-
MAC, 1152 x 870 68.681 75.062 100.000 -/-
VESA, 640 x 480 31.469 59.940 25.175 -/-
VESA, 640 x 480 37.861 72.809 31.500 -/-
VESA, 640 x 480 37.500 75.000 31.500 -/-
VESA, 800 x 600 35.156 56.250 36.000 +/+
VESA, 800 x 600 37.879 60.317 40.000 +/+
VESA, 800 x 600 48.077 72.188 50.000 +/+
VESA, 800 x 600 46.875 75.000 49.500 +/+
VESA, 1024 x 768 48.363 60.004 65.000 -/-
VESA, 1024 x 768 56.476 70.069 75.000 -/-
VESA, 1024 x 768 60.023 75.029 78.750 +/+
VESA, 1152 x 864 67.500 75.000 108.000 +/+
VESA, 1280 x 720 45.000 60.000 74.250 +/+
VESA, 1280 x 800 49.702 59.810 83.500 -/+
VESA, 1280 x 1024 63.981 60.020 108.000 +/+
VESA, 1280 x 1024 79.976 75.025 135.000 +/+
VESA, 1440 x 900 55.935 59.887 106.500 -/+
VESA, 1600 x 900 60.000 60.000 108.000 +/+
VESA, 1680 x 1050 65.290 59.954 146.250 -/+
VESA, 1920 x 1080 67.500 60.000 148.500 +/+
90
Specifications
10
10 Specifications
S22E200N
Resolution
Horizontal
Frequency
(kHz)
Vertical
Frequency
(Hz)
Pixel Clock
(MHz)
Sync Polarity
(H/V)
IBM, 720 x 400 31.469 70.087 28.322 -/+
MAC, 640 x 480 35.000 66.667 30.240 -/-
MAC, 832 x 624 49.726 74.551 57.284 -/-
MAC, 1152 x 870 68.681 75.062 100.000 -/-
VESA, 640 x 480 31.469 59.940 25.175 -/-
VESA, 640 x 480 37.861 72.809 31.500 -/-
VESA, 640 x 480 37.500 75.000 31.500 -/-
VESA, 800 x 600 35.156 56.250 36.000 +/+
VESA, 800 x 600 37.879 60.317 40.000 +/+
VESA, 800 x 600 48.077 72.188 50.000 +/+
VESA, 800 x 600 46.875 75.000 49.500 +/+
VESA, 1024 x 768 48.363 60.004 65.000 -/-
VESA, 1024 x 768 56.476 70.069 75.000 -/-
VESA, 1024 x 768 60.023 75.029 78.750 +/+
VESA, 1152 x 864 67.500 75.000 108.000 +/+
VESA, 1280 x 720 45.000 60.000 74.250 +/+
VESA, 1280 x 800 49.702 59.810 83.500 -/+
VESA, 1280 x 1024 63.981 60.020 108.000 +/+
VESA, 1280 x 1024 79.976 75.025 135.000 +/+
VESA, 1440 x 900 55.935 59.887 106.500 -/+
VESA, 1600 x 900 60.000 60.000 108.000 +/+
VESA, 1680 x 1050 65.290 59.954 146.250 -/+
VESA, 1920 x 1080 67.500 60.000 148.500 +/+
91
Specifications
10
10 Specifications
S22E200B
Resolution
Horizontal
Frequency
(kHz)
Vertical
Frequency
(Hz)
Pixel Clock
(MHz)
Sync Polarity
(H/V)
IBM, 720 x 400 31.469 70.087 28.322 -/+
MAC, 640 x 480 35.000 66.667 30.240 -/-
MAC, 832 x 624 49.726 74.551 57.284 -/-
MAC, 1152 x 870 68.681 75.062 100.000 -/-
VESA, 640 x 480 31.469 59.940 25.175 -/-
VESA, 640 x 480 37.861 72.809 31.500 -/-
VESA, 640 x 480 37.500 75.000 31.500 -/-
VESA, 800 x 600 35.156 56.250 36.000 +/+
VESA, 800 x 600 37.879 60.317 40.000 +/+
VESA, 800 x 600 48.077 72.188 50.000 +/+
VESA, 800 x 600 46.875 75.000 49.500 +/+
VESA, 1024 x 768 48.363 60.004 65.000 -/-
VESA, 1024 x 768 56.476 70.069 75.000 -/-
VESA, 1024 x 768 60.023 75.029 78.750 +/+
VESA, 1152 x 864 67.500 75.000 108.000 +/+
VESA, 1280 x 720 45.000 60.000 74.250 +/+
VESA, 1280 x 800 49.702 59.810 83.500 -/+
VESA, 1280 x 1024 63.981 60.020 108.000 +/+
VESA, 1280 x 1024 79.976 75.025 135.000 +/+
VESA, 1440 x 900 55.935 59.887 106.500 -/+
VESA, 1600 x 900 60.000 60.000 108.000 +/+
VESA, 1680 x 1050 65.290 59.954 146.250 -/+
VESA, 1920 x 1080 67.500 60.000 148.500 +/+
92
Specifications
10
10 Specifications
S22E200BW
Resolution
Horizontal
Frequency
(kHz)
Vertical
Frequency
(Hz)
Pixel Clock
(MHz)
Sync Polarity
(H/V)
IBM, 720 x 400 31.469 70.087 28.322 -/+
MAC, 640 x 480 35.000 66.667 30.240 -/-
MAC, 832 x 624 49.726 74.551 57.284 -/-
MAC, 1152 x 870 68.681 75.062 100.000 -/-
VESA, 640 x 480 31.469 59.940 25.175 -/-
VESA, 640 x 480 37.861 72.809 31.500 -/-
VESA, 640 x 480 37.500 75.000 31.500 -/-
VESA, 800 x 600 35.156 56.250 36.000 +/+
VESA, 800 x 600 37.879 60.317 40.000 +/+
VESA, 800 x 600 48.077 72.188 50.000 +/+
VESA, 800 x 600 46.875 75.000 49.500 +/+
VESA, 1024 x 768 48.363 60.004 65.000 -/-
VESA, 1024 x 768 56.476 70.069 75.000 -/-
VESA, 1024 x 768 60.023 75.029 78.750 +/+
VESA, 1152 x 864 67.500 75.000 108.000 +/+
VESA, 1280 x 720 45.000 60.000 74.250 +/+
VESA, 1280 x 800 49.702 59.810 83.500 -/+
VESA, 1280 x 1024 63.981 60.020 108.000 +/+
VESA, 1280 x 1024 79.976 75.025 135.000 +/+
VESA, 1440 x 900 55.935 59.887 106.500 -/+
VESA, 1600 x 900 60.000 60.000 108.000 +/+
VESA, 1680 x 1050 65.290 59.954 146.250 -/+
93
Specifications
10
10 Specifications
S23E200B
Resolution
Horizontal
Frequency
(kHz)
Vertical
Frequency
(Hz)
Pixel Clock
(MHz)
Sync Polarity
(H/V)
IBM, 720 x 400 31.469 70.087 28.322 -/+
MAC, 640 x 480 35.000 66.667 30.240 -/-
MAC, 832 x 624 49.726 74.551 57.284 -/-
MAC, 1152 x 870 68.681 75.062 100.000 -/-
VESA, 640 x 480 31.469 59.940 25.175 -/-
VESA, 640 x 480 37.861 72.809 31.500 -/-
VESA, 640 x 480 37.500 75.000 31.500 -/-
VESA, 800 x 600 35.156 56.250 36.000 +/+
VESA, 800 x 600 37.879 60.317 40.000 +/+
VESA, 800 x 600 48.077 72.188 50.000 +/+
VESA, 800 x 600 46.875 75.000 49.500 +/+
VESA, 1024 x 768 48.363 60.004 65.000 -/-
VESA, 1024 x 768 56.476 70.069 75.000 -/-
VESA, 1024 x 768 60.023 75.029 78.750 +/+
VESA, 1152 x 864 67.500 75.000 108.000 +/+
VESA, 1280 x 720 45.000 60.000 74.250 +/+
VESA, 1280 x 800 49.702 59.810 83.500 -/+
VESA, 1280 x 1024 63.981 60.020 108.000 +/+
VESA, 1280 x 1024 79.976 75.025 135.000 +/+
VESA, 1440 x 900 55.935 59.887 106.500 -/+
VESA, 1600 x 900 60.000 60.000 108.000 +/+
VESA, 1680 x 1050 65.290 59.954 146.250 -/+
VESA, 1920 x 1080 67.500 60.000 148.500 +/+
94
Specifications
10
10 Specifications
S24E200BL
Horizontal Frequency
The time required to scan a single line from the left to the right side of the screen is called a
horizontal cycle. The reciprocal number of a horizontal cycle is called horizontal frequency.
Horizontal frequency is measured in kHz.
Vertical Frequency
Repeating the same picture dozens of times per second allows you to view natural pictures. The
repeat frequency is called "vertical frequency" or "refresh rate" and is indicated in Hz.
Resolution
Horizontal
Frequency
(kHz)
Vertical
Frequency
(Hz)
Pixel Clock
(MHz)
Sync Polarity
(H/V)
IBM, 720 x 400 31.469 70.087 28.322 -/+
MAC, 640 x 480 35.000 66.667 30.240 -/-
MAC, 832 x 624 49.726 74.551 57.284 -/-
MAC, 1152 x 870 68.681 75.062 100.000 -/-
VESA, 640 x 480 31.469 59.940 25.175 -/-
VESA, 640 x 480 37.861 72.809 31.500 -/-
VESA, 640 x 480 37.500 75.000 31.500 -/-
VESA, 800 x 600 35.156 56.250 36.000 +/+
VESA, 800 x 600 37.879 60.317 40.000 +/+
VESA, 800 x 600 48.077 72.188 50.000 +/+
VESA, 800 x 600 46.875 75.000 49.500 +/+
VESA, 1024 x 768 48.363 60.004 65.000 -/-
VESA, 1024 x 768 56.476 70.069 75.000 -/-
VESA, 1024 x 768 60.023 75.029 78.750 +/+
VESA, 1152 x 864 67.500 75.000 108.000 +/+
VESA, 1280 x 720 45.000 60.000 74.250 +/+
VESA, 1280 x 800 49.702 59.810 83.500 -/+
VESA, 1280 x 1024 63.981 60.020 108.000 +/+
VESA, 1280 x 1024 79.976 75.025 135.000 +/+
VESA, 1440 x 900 55.935 59.887 106.500 -/+
VESA, 1600 x 900 60.000 60.000 108.000 +/+
VESA, 1680 x 1050 65.290 59.954 146.250 -/+
VESA, 1920 x 1080 67.500 60.000 148.500 +/+
95
Appendix
Appendix
Contact SAMSUNG WORLD WIDE
If you have any questions or comments relating to Samsung products, please contact the SAMSUNG
customer care center.
NORTH AMERICA
U.S.A 1-800-SAMSUNG (726-7864) http://www.samsung.com/us/
support
CANADA 1-800-SAMSUNG (726-7864) http://www.samsung.com/ca/
support (English)
http://www.samsung.com/ca_fr/
support (French)
LATIN AMERICA
ARGENTINE 0800-555-SAMSUNG
(0800-555-7267)
http://www.samsung.com/ar/
support
BOLIVIA 800-10-7260 http://www.samsung.com/cl/
support
BRAZIL 0800-124-421
(Demais cidades e regiões)
4004-0000
(Capitais e grandes centros)
http://www.samsung.com/br/
support
CHILE 800-SAMSUNG (726-7864) http://www.samsung.com/cl/
support
COLOMBIA Bogotá 600 12 72
Gratis desde cualquier parte del
país 01 8000 112 112 ó desde su
celular #SAM(726)
http://www.samsung.com/co/
support
COSTA RICA 0-800-507-7267
00-800-1-SAMSUNG (726-7864)
http://www.samsung.com/latin/
support (Spanish)
http://www.samsung.com/latin_en/
support (English)
DOMINICAN REPUBLIC 1-800-751-2676 http://www.samsung.com/latin/
support (Spanish)
http://www.samsung.com/latin_en/
support (English)
ECUADOR 1-800-10-7267
1-800-SAMSUNG (72-6786)
http://www.samsung.com/latin/
support (Spanish)
http://www.samsung.com/latin_en/
support (English)
96
Appendix
Appendix
EL SALVADOR 800-6225
800-0726-7864
http://www.samsung.com/latin/
support (Spanish)
http://www.samsung.com/latin_en/
support (English)
GUATEMALA 1-800-299-0013
1-800-299-0033
http://www.samsung.com/latin/
support (Spanish)
http://www.samsung.com/latin_en/
support (English)
HONDURAS 800-2791-9267
800-2791-9111
http://www.samsung.com/latin/
support (Spanish)
http://www.samsung.com/latin_en/
support (English)
JAMAICA 1-800-234-7267
1-800-SAMSUNG (726-7864)
http://www.samsung.com/latin_en/
support (English)
MEXICO 01-800-SAMSUNG (726-7864) http://www.samsung.com/mx/
support
NICARAGUA 001-800-5077267 http://www.samsung.com/latin/
support (Spanish)
http://www.samsung.com/latin_en/
support (English)
PANAMA 800-7267
800-0101
http://www.samsung.com/latin/
support (Spanish)
http://www.samsung.com/latin_en/
support (English)
PARAGUAY 009-800-542-0001 http://www.samsung.com/latin/
support (Spanish)
http://www.samsung.com/latin_en/
support (English)
PERU 0800-777-08 http://www.samsung.com/pe/
support
PUERTO RICO 1-800-682-3180 http://www.samsung.com/latin/
support (Spanish)
http://www.samsung.com/latin_en/
support (English)
TRINIDAD & TOBAGO 1-800-SAMSUNG (726-7864) http://www.samsung.com/latin/
support (Spanish)
http://www.samsung.com/latin_en/
support (English)
LATIN AMERICA
97
Appendix
Appendix
URUGUAY 000-405-437-33 http://www.samsung.com/latin/
support (Spanish)
http://www.samsung.com/latin_en/
support (English)
VENEZUELA 0-800-SAMSUNG (726-7864) http://www.samsung.com/ve/
support
EUROPE
AUSTRIA 0800-SAMSUNG (0800-7267864) http://www.samsung.com/at/
support
BELGIUM 02-201-24-18 http://www.samsung.com/be/
support (Dutch)
http://www.samsung.com/be_fr/
support (French)
BOSNIA 055 233 999 http://www.samsung.com/support
BULGARIA http://www.samsung.com/bg/
support
CROATIA 072 726 786 http://www.samsung.com/hr/
support
CYPRUS 8009 4000 only from landline,
toll free
http://www.samsung.com/gr/
support
CZECH 800 - SAMSUNG
(800-726786)
http://www.samsung.com/cz/
support
DENMARK 70 70 19 70 http://www.samsung.com/dk/
support
EIRE 0818 717100 http://www.samsung.com/ie/
support
ESTONIA 800-7267 http://www.samsung.com/ee/
support
FINLAND 030-6227 515 http://www.samsung.com/fi/
support
FRANCE 01 48 63 00 00 http://www.samsung.com/fr/
support
GERMANY 0180 6 SAMSUNG bzw.
0180 6 7267864*
(*0,20 €/Anruf aus dem dt.
Festnetz, aus dem Mobilfunk max.
0,60 €/Anruf)
http://www.samsung.com/de/
support
LATIN AMERICA
800 111 31,
98
Appendix
Appendix
GREECE 80111-SAMSUNG (80111 726
7864) only from land line
(+30) 210 6897691 from mobile
and land line
http://www.samsung.com/gr/
support
HUNGARY 0680SAMSUNG (0680-726-786)
0680PREMIUM (0680-773-648)
http://www.samsung.com/hu/
support
ITALIA 800-SAMSUNG (800.7267864) http://www.samsung.com/it/
support
LATVIA 8000-7267 http://www.samsung.com/lv/
support
LITHUANIA 8-800-77777 http://www.samsung.com/lt/
support
LUXEMBURG 261 03 710 http://www.samsung.com/support
MONTENEGRO 020 405 888 http://www.samsung.com/support
NETHERLANDS 0900-SAMSUNG
(0900-7267864) (€ 0,10/Min)
http://www.samsung.com/nl/
support
NORWAY 815 56480 http://www.samsung.com/no/
support
POLAND http://www.samsung.com/pl/
support
PORTUGAL 808 20 7267 http://www.samsung.com/pt/
support
ROMANIA 08008 726 78 64
(08008 SAMSUNG)
Apel GRATUIT
http://www.samsung.com/ro/
support
SERBIA 011 321 6899 http://www.samsung.com/rs/
support
SLOVAKIA 0800 - SAMSUNG
(0800-726 786)
http://www.samsung.com/sk/
support
SLOVENIA 080 697 267 (brezplačna številka)
090 726 786 (0,39 EUR/min)
klicni center vam je na voljo od
ponedeljka do petka od 9. do 18.
ure.
http://www.samsung.com/si
SPAIN 0034902172678 http://www.samsung.com/es/
support
EUROPE
801-172-678*
lub +48 22 607-93-33 *
99
Appendix
Appendix
SWEDEN 0771 726 7864 (0771-SAMSUNG) http://www.samsung.com/se/
support
SWITZERLAND 0800 726 78 64 (0800-SAMSUNG) http://www.samsung.com/ch/
support (German)
http://www.samsung.com/ch_fr/
support (French)
UK 0330 SAMSUNG (7267864) http://www.samsung.com/uk/
support
CIS
ARMENIA 0-800-05-555 http://www.samsung.com/support
AZERBAIJAN 0-88-555-55-55 http://www.samsung.com/support
BELARUS 810-800-500-55-500 http://www.samsung.com/support
GEORGIA 0-800-555-555 http://www.samsung.com/support
KAZAKHSTAN 8-10-800-500-55-500
(GSM: 7799, VIP care 7700)
http://www.samsung.com/support
KYRGYZSTAN 00-800-500-55-500 http://www.samsung.com/kz_ru/
support
MOLDOVA 0-800-614-40 http://www.samsung.com/support
MONGOLIA +7-495-363-17-00 http://www.samsung.com/support
RUSSIA 8-800-555-55-55
(VIP care 8-800-555-55-88)
http://www.samsung.com/ru/
support
TAJIKISTAN 8-10-800-500-55-500 http://www.samsung.com/support
UKRAINE 0-800-502-000 http://www.samsung.com/ua/
support (Ukrainian)
http://www.samsung.com/ua_ru/
support (Russian)
UZBEKISTAN 8-10-800-500-55-500
(GSM: 7799)
http://www.samsung.com/support
CHINA
CHINA 400-810-5858 http://www.samsung.com/cn/
support
EUROPE
100
Appendix
Appendix
HONG KONG (852) 3698 4698 http://www.samsung.com/hk/
support (Chinese)
http://www.samsung.com/hk_en/
support (English)
MACAU 0800 333 http://www.samsung.com/support
S.E.A
AUSTRALIA 1300 362 603 http://www.samsung.com/au/
support
INDONESIA 021-56997777
08001128888
http://www.samsung.com/id/
support
JAPAN 0120-363-905 http://www.samsung.com/jp/
support
MALAYSIA 1800-88-9999
603-77137477 (Overseas contact)
http://www.samsung.com/my/
support
MYANMAR +95-01-2399-888 http://www.samsung.com/support
NEW ZEALAND 0800 726 786 http://www.samsung.com/nz/
support
PHILIPPINES 1-800-10-7267864 [PLDT]
1-800-8-7267864 [Globe landline
and Mobile]
02-4222111 [Other landline]
http://www.samsung.com/ph/
support
SINGAPORE 1800-SAMSUNG (726-7864) http://www.samsung.com/sg/
support
TAIWAN 0800-329999 http://www.samsung.com/tw/
support
THAILAND 0-2689-3232,
1800-29-3232
http://www.samsung.com/th/
support
VIETNAM 1800 588 889 http://www.samsung.com/vn/
support
S.W.A
BANGLADESH 09612300300 http://www.samsung.com/in/
support
INDIA 1800 3000 8282 - Toll Free
1800 266 8282 - Toll Free
http://www.samsung.com/in/
support
SRI LANKA 94117540540 http://www.samsung.com/support
CHINA
101
Appendix
Appendix
MENA
ALGERIA 021 36 11 00 http://www.samsung.com/n_africa/
support
BAHRAIN 8000-GSAM (8000-4726) http://www.samsung.com/ae/
support (English)
http://www.samsung.com/ae_ar/
support (Arabic)
EGYPT 08000-7267864
16580
http://www.samsung.com/eg/
support
IRAN 021-8255 [CE] http://www.samsung.com/iran/
support
JORDAN 0800-22273
06 5777444
http://www.samsung.com/Levant/
support (English)
KUWAIT 183-CALL (183-2255) http://www.samsung.com/ae/
support (English)
http://www.samsung.com/ae_ar/
support (Arabic)
MOROCCO 080 100 22 55 http://www.samsung.com/n_africa/
support
OMAN 800-SAMSUNG (800 - 726 7864) http://www.samsung.com/ae/
support (English)
http://www.samsung.com/ae_ar/
support (Arabic)
PAKISTAN 0800-Samsung (72678) http://www.samsung.com/pk/
support
QATAR 800-CALL (800-2255) http://www.samsung.com/ae/
support (English)
http://www.samsung.com/ae_ar/
support (Arabic)
SAUDI ARABIA 8002474357 http://www.samsung.com/sa/
support
http://www.samsung.com/sa_en/
support (English)
SYRIA 18252273 http://www.samsung.com/Levant/
support (English)
TUNISIA 80-1000-12 http://www.samsung.com/n_africa/
support
102
Appendix
Appendix
TURKEY 444 77 11 http://www.samsung.com/tr/
support
U.A.E 800-SAMSUNG (800 - 726 7864) http://www.samsung.com/ae/
support (English)
http://www.samsung.com/ae_ar/
support (Arabic)
AFRICA
BOTSWANA 8007260000 http://www.samsung.com/support
BURUNDI 200 http://www.samsung.com/support
CAMEROON 7095-0077 http://www.samsung.com/africa_fr/
support
COTE D’ IVOIRE 8000 0077 http://www.samsung.com/africa_fr/
support
DRC 499999 http://www.samsung.com/support
GHANA 0800-10077
0302-200077
http://www.samsung.com/
africa_en/support
KENYA 0800 545 545 http://www.samsung.com/support
MAURITIUS 23052574020 http://www.samsung.com/support
MOZAMBIQUE 847267864 / 827267864 http://www.samsung.com/support
NAMIBIA 08 197 267864 http://www.samsung.com/support
NIGERIA 0800-726-7864 http://www.samsung.com/
africa_en/support
REUNION 262508869 http://www.samsung.com/support
RWANDA 9999 http://www.samsung.com/support
SENEGAL 800-00-0077 http://www.samsung.com/africa_fr/
support
SOUTH AFRICA 0860 SAMSUNG (726 7864) http://www.samsung.com/support
SUDAN 1969 http://www.samsung.com/support
TANZANIA 0800 755 755 / 0685 889 900 http://www.samsung.com/support
UGANDA 0800 300 300 http://www.samsung.com/support
ZAMBIA 0211 350370 http://www.samsung.com/support
MENA
103
Appendix
Appendix
Responsibility for the Pay Service (Cost to Customers)
When the service is requested, in spite of in warranty, we may charge you for a visit from a service
technician in the following cases.
Not a product defect
Cleaning of the product, Adjustment, Explanation, Re-installation and etc.
If a service technician gives instructions on how to use product or simply adjusts options without
disassembling product.
If a defect is caused by external environmental factors. (Internet, Antenna, Wired Signal, etc.)
If a product is reinstalled or devices are connected additionally after installing the purchased product
for the first time.
If a product is reinstalled to move to a different spot or to move to a different house.
If customer requests instructions on how to use because of another company's product.
If customer requests instructions on how to use the network or another company's program.
If customer requests software installation and setup for the product.
If a service technician removes/cleans dusts or foreign materials inside of the product.
If customer requests an installation additionally after purchasing a product through home-shopping
or online.
A Product damage caused by customer's fault
Product damage caused by customer's mishandling or wrong repair
If a product damage is caused by;
external impact or drop.
use of supplies or separately sold product unspecified by Samsung.
repair from a person besides an engineer of outsourcing service company or partner of Samsung
Electronics Co., Ltd.
remodeling or repairing the product by customer.
using it with incorrect voltage or non-authorised electrical connections.
not following the "cautions" in User Manual.
Others
If product fails by natural disaster. (lightning, fire, earthquake, flood damage, etc)
If consumable components are all used up. (Battery, Toner, Fluorescent lights, Head, Vibrator,
Lamp, Filter, Ribbon, etc.)
If customer requests a service in case the product has no defect, service fee may be charged. So
please read User Manual first.
104
Appendix
Appendix
Correct Disposal
Correct Disposal of This Product (Waste Electrical & Electronic Equipment)
(Applicable in countries with separate collection systems)
This marking on the product, accessories or literature indicates that the product and its
electronic accessories (e.g. charger, headset, USB cable) should not be disposed of
with other household waste at the end of their working life. To prevent possible harm to
the environment or human health from uncontrolled waste disposal, please separate
these items from other types of waste and recycle them responsibly to promote the
sustainable reuse of material resources.
Household users should contact either the retailer where they purchased this product,
or their local government office, for details of where and how they can take these items
for environmentally safe recycling.
Business users should contact their supplier and check the terms and conditions of the
purchase contract. This product and its electronic accessories should not be mixed with
other commercial wastes for disposal.
105
Appendix
Appendix
Terminology
OSD (On Screen Display)
On screen display (OSD) allows you to customize on-screen settings to optimize the picture quality as
required. You can change the screen brightness, tint, size and many other settings using menus
displayed on the screen.
Gamma
The Gamma menu adjusts the grey scale that represents middle tones on the screen. Adjusting the
brightness brightens the whole screen, but adjusting Gamma only brightens the medium brightness.
Grey scale
Scale refers to levels of color intensity that show variations of color change from darker areas to
brighter areas on the screen. Changes to the screen brightness are expressed with black and white
variation, and grey scale refers to the medium area between black and white. Changing the grey scale
through Gamma adjustment will change the medium brightness on the screen.
Scanning rate
Scanning rate, or refresh rate, refers to the frequency of screen refreshes. Screen data is transmitted
as it refreshes to display an image, although the refreshing is invisible to the naked eye. The number of
screen refreshes is called scanning rate and is measured in Hz. A scanning rate of 60Hz means that
the screen refreshes 60 times per second. The screen scanning rate depends on the performance of
the graphics cards in your PC and monitor.
Horizontal Frequency
Characters or images displayed on the monitor screen consist of numerous dots (pixels). Pixels are
transmitted in horizontal lines, which are then arranged vertically to create an image. The horizontal
frequency is measured in kHz and represents how many times horizontal lines per second are
transmitted and displayed on the monitor screen. A horizontal frequency of 85 means that the
horizontal lines that make up an image are transmitted 85000 times per second. The horizontal
frequency is indicated in 85kHz.
Vertical Frequency
One image is made of numerous horizontal lines. The vertical frequency is measured in Hz and
represents how many images can be created per second by those horizontal lines. A vertical
frequency of 60 means that an image is transmitted 60 times per second. The vertical frequency is
also called "refresh rate" and affects screen flicker.
106
Appendix
Appendix
Resolution
Resolution is the number of horizontal pixels and vertical pixels that form a screen. It represents the
level of display detail.
A higher resolution displays a greater amount of information on the screen and is suitable for
performing multiple tasks at the same time.
E.g. A resolution of 1920 x 1080 consists of 1920 horizontal pixels (horizontal resolution) and 1080
vertical lines (vertical resolution).
Plug & Play
The Plug & Play feature allows the automatic exchange of information between a monitor and PC to
produce an optimum display environment.
The monitor uses VESA DDC (international standard) to execute Plug & Play.
Index 107
Index
B
Before Connecting 30
Blue 51
Brightness 34
C
Cleaning 8
Coarse 47
Color Tone 52
Connecting and Using a PC 31
Contact SAMSUNG WORLD WIDE 95
Contrast 35
Copyright 7
Correct Disposal 104
Correct posture to use the product 18
D
Display Time 56
E
Eco Saving Plus 59
Eye Saver Mode 37
F
Fine 48
G
Game Mode 38
Gamma 53
General 77, 78, 79, 80, 81
Green 50
I
Image Size 44
INFORMATION 66
Installation 25
K
Key Repeat Time 64
L
Language 54
M
MultiScreen 70
O
Off Timer 61
P
Parts 20
PC/AV Mode 63
Q
Q & A 75
R
Red 49
Requirements Before Contacting Samsung
Customer Service Center 72
Reset 58
Responsibility for the Pay Service (Cost to
Customers) 103
S
Safety Precautions 10
SAMSUNG MAGIC Angle 41
SAMSUNG MAGIC Bright 39
