iiiClass B Digital Device or PeripheralThis equipment has been tested and found to comply with the limits for aClass B digital device, pursuant to Part 15 of the FCC Rules. These limitsare designed to provide reasonable protection against harmful interferencein a residential installation. This equipment generates, uses and can radiateradio frequency energy and, if not installed and used in accordance with theinstructions, may cause harmful interference to radio communications.However, there is no guarantee that interference will not occur in aparticular installation. If this equipment does cause harmful interference toradio or television reception, which can be determined by turning theequipment off and on, the user is encouraged to try to correct theinterference by one or more of the following measures:!Reorient or relocate the receiving antenna.!Increase the separation between the equipment and receiver.!Connect the equipment into an outlet on a circuit different from that towhich the receiver is connected.!Consult the dealer or experienced radio TV technician for help.

vLimited Warranty1. What Is Covered And For How Long ? SAMSUNG TELECOMMUNICATIONS AMERICA,INC.(“SAMSUNG”)warrants to the original purchaser that SAMSUNG’s ADSL Modems are free from defects inmaterial and workmanship under normal use and service for the period commencing upon the date of purchaseand continuing for the following specified period of time after that date :AceLinkTM ADSL Modem 2 years2. What is not covered? This Limited Warranty is conditional upon proper use of the product by the purchaser.The Limited Warranty does not cover : (a) defects or damage resulting from accident, misuse, abuse, neglect,unusual physical, electrical or electromechanical stress, modification of any part of the product, or cosmeticdamage; (b) equipment that has the serial number removed or made illegible;(c) all plastic surfaces and otherexternally exposed parts that are scratched or damaged due to normal use;(d) malfunctions resulting from theuse of the product in conjunction with accessories, products or ancillary or peripheral equipment not authorizedand approval of by SAMSUNG; (e) defects or damage from improper testing, operation, maintenance, installation,or adjustment. Please call SAMSUNG’s customer care center at 1-888-987-4357 for updated pricing on non-warranty repairs.3. What Are SAMSUNG’s Obligations? During the applicable warranty period, SAMSUNG will repair or replace,at SAMSUNG’s sole option, without charge to purchaser, any defective component part of the ADSL Modem oraccessory. To obtain service under this Limited Warranty, purchaser must return the product to an authorizedSAMSUNG service facility in an adequate container for shipping, accompanied by purchaser’s sales receipt orcomparable substitute proof of purchase showing the date of purchase, the serial number of the product, and thesellers name and address. To obtain assistance on where to deliver the ADSL Modem, call SAMSUNG customercare at 1-888-987-4357. Upon receipt, SAMSUNG will promptly repair or replace the defective product.SAMSUNG may, at SAMSUNG’s sole option, use rebuilt, reconditioned, or new parts or components whenrepairing any product or replace a product with a rebuilt, reconditioned or new product. Repaired products will bewarranted for a period equal to the remainder of the original Limited Warranty on the original product or for 90days, which ever is longer. All replaced parts, components, boards and equipment shall become the property ofSAMSUNG. If SAMSUNG determines that the product is not covered by this Limited Warranty or that theproduct is not defective, the purchaser must pay all parts, shipping, and labor charge for the testing, repair andreturn of the product.4. What Are The Limits On SAMSUNG’s Liability? THE WARRANTIES GIVEN IN THIS WARRANTY ARELIMITED TO THE DURATION OF THIS LIMITED WARRANTY SET OUT ABOVE. EXCECT TO THEEXTENT PROHIBITED BY APPLICABLE LAW, SAMSUNG SHALL NOT BE LIABLE FOR ANY SPECIAL,INCIDENTAL, CONSEQUENTIAL, INDIRECT OR SIMILAR DAMAGES, LOSS OF PROFITS, DAMAGESTO PURCHASER PROPERTY, OR INJURY TO PURCHASER OR OTHERS ARISING OUT OF THE USE,MISUSE OR INABILITY TO USE ANY SAMSUNG ADSL MODEM, BREACH OF WARRANTY, BREACH OFCONTRACT, OR NEGLIGENCE, INCLUDING BUT NOT LIMITED TO SAMSUNG’S OWN NEGLIGENCE,EVEN IF SAMSUNG OR ITS AGENT HAS BEEN ADVISED OF SUCH DAMAGES, OR FOR ANY CLAIMBROUGHT AGAINST PURCHASER BY ANY OTHER PARTY.

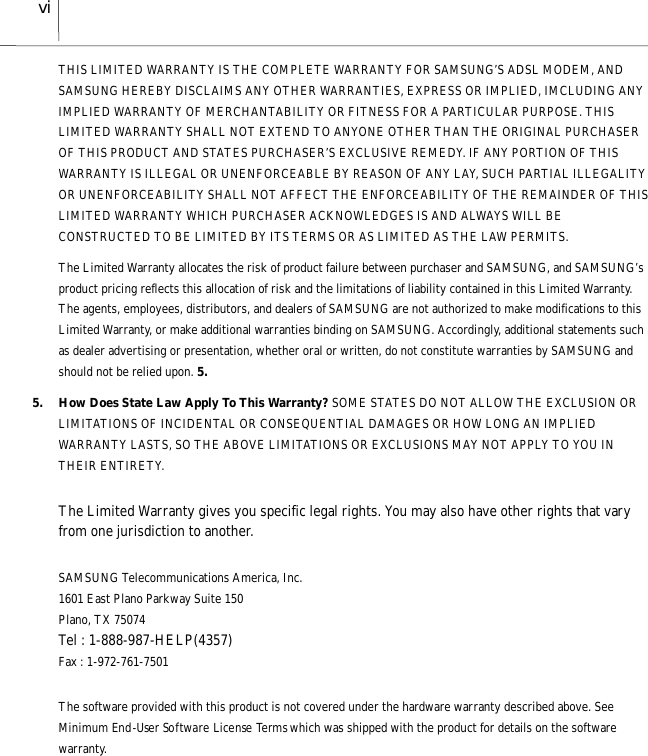

viTHIS LIMITED WARRANTY IS THE COMPLETE WARRANTY FOR SAMSUNG’S ADSL MODEM, ANDSAMSUNG HEREBY DISCLAIMS ANY OTHER WARRANTIES, EXPRESS OR IMPLIED, IMCLUDING ANYIMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. THISLIMITED WARRANTY SHALL NOT EXTEND TO ANYONE OTHER THAN THE ORIGINAL PURCHASEROF THIS PRODUCT AND STATES PURCHASER’S EXCLUSIVE REMEDY. IF ANY PORTION OF THISWARRANTY IS ILLEGAL OR UNENFORCEABLE BY REASON OF ANY LAY, SUCH PARTIAL ILLEGALITYOR UNENFORCEABILITY SHALL NOT AFFECT THE ENFORCEABILITY OF THE REMAINDER OF THISLIMITED WARRANTY WHICH PURCHASER ACKNOWLEDGES IS AND ALWAYS WILL BECONSTRUCTED TO BE LIMITED BY ITS TERMS OR AS LIMITED AS THE LAW PERMITS.The Limited Warranty allocates the risk of product failure between purchaser and SAMSUNG, and SAMSUNG’sproduct pricing reflects this allocation of risk and the limitations of liability contained in this Limited Warranty.The agents, employees, distributors, and dealers of SAMSUNG are not authorized to make modifications to thisLimited Warranty, or make additional warranties binding on SAMSUNG. Accordingly, additional statements suchas dealer advertising or presentation, whether oral or written, do not constitute warranties by SAMSUNG andshould not be relied upon. 5.5. How Does State Law Apply To This Warranty? SOME STATES DO NOT ALLOW THE EXCLUSION ORLIMITATIONS OF INCIDENTAL OR CONSEQUENTIAL DAMAGES OR HOW LONG AN IMPLIEDWARRANTY LASTS, SO THE ABOVE LIMITATIONS OR EXCLUSIONS MAY NOT APPLY TO YOU INTHEIR ENTIRETY.The Limited Warranty gives you specific legal rights. You may also have other rights that varyfrom one jurisdiction to another.SAMSUNG Telecommunications America, Inc.1601 East Plano Parkway Suite 150Plano, TX 75074Tel : 1-888-987-HELP(4357)Fax : 1-972-761-7501The software provided with this product is not covered under the hardware warranty described above. SeeMinimum End-User Software License Terms which was shipped with the product for details on the softwarewarranty.

viiIntellectual PropertyAll Intellectual Property, as defined below, owned by or which is otherwisethe property of Samsung or its suppliers relating to the AceLink™,including but not limited to, accessories, parts or software relating thereto(the ADSL Modem System), is proprietary to federal laws and state laws,and international treaty provisions. Intellectual Property includes, but isnot limited to, inventions (patentable or unpatentable), patents, tradesecrets, copyrights, software, computer programs, and relateddocumentation and other works of authorship.You may not infringe or otherwise violate the rights secured by theIntellectual Property. Moreover, you agree you will not (and will notattempt to) modify, prepare derivative works of, reverse engineer,decompile, disassemble, or otherwise attempt to create source code fromthe software.No title to or ownership in the Intellectual Property is transferred to you.All applicable rights of the Intellectual Property shall remain with Samsungand its suppliers.© 2001 Samsung Electronics Co., LTD. All rights reserved. Noreproduction in whole or in part allowed prior written approval.

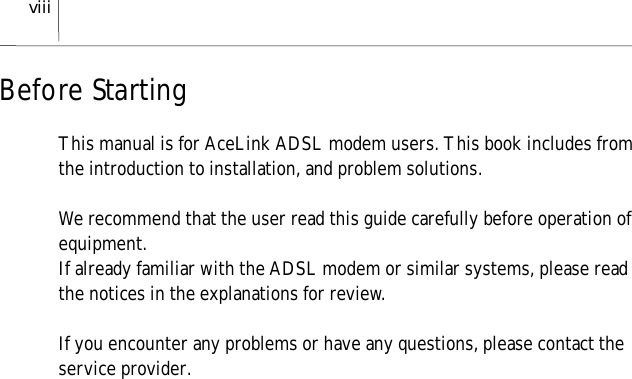

viiiBefore StartingThis manual is for AceLink ADSL modem users. This book includes fromthe introduction to installation, and problem solutions.We recommend that the user read this guide carefully before operation ofequipment.If already familiar with the ADSL modem or similar systems, please readthe notices in the explanations for review.If you encounter any problems or have any questions, please contact theservice provider.

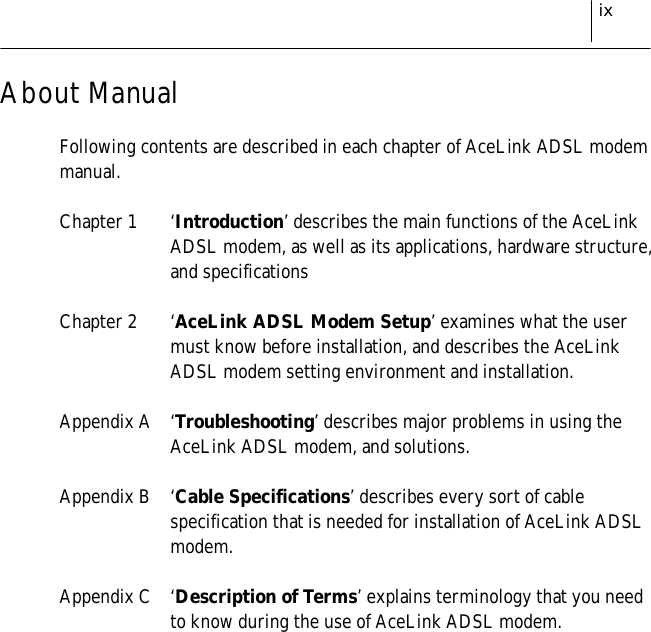

ixAbout ManualFollowing contents are described in each chapter of AceLink ADSL modemmanual.Chapter 1 ‘Introduction’ describes the main functions of the AceLinkADSL modem, as well as its applications, hardware structure,and specificationsChapter 2 ‘AceLink ADSL Modem Setup’ examines what the usermust know before installation, and describes the AceLinkADSL modem setting environment and installation.Appendix A ‘Troubleshooting’ describes major problems in using theAceLink ADSL modem, and solutions.Appendix B ‘Cable Specifications’ describes every sort of cablespecification that is needed for installation of AceLink ADSLmodem.Appendix C ‘Description of Terms’ explains terminology that you needto know during the use of AceLink ADSL modem.

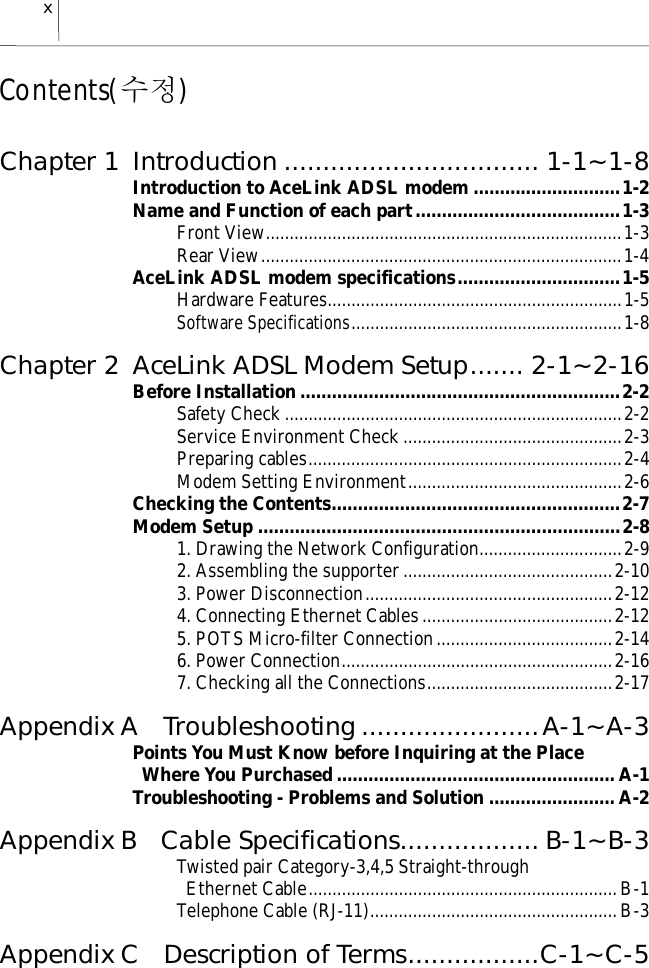

xContents(수정)Chapter 1 Introduction ................................. 1-1~1-8Introduction to AceLink ADSL modem ............................1-2Name and Function of each part.......................................1-3Front View...........................................................................1-3Rear View............................................................................1-4AceLink ADSL modem specifications...............................1-5Hardware Features..............................................................1-5Software Specifications.........................................................1-8Chapter 2 AceLink ADSL Modem Setup....... 2-1~2-16Before Installation .............................................................2-2Safety Check.......................................................................2-2Service Environment Check..............................................2-3Preparing cables..................................................................2-4Modem Setting Environment.............................................2-6Checking the Contents.......................................................2-7Modem Setup .....................................................................2-81. Drawing the Network Configuration..............................2-92. Assembling the supporter............................................2-103. Power Disconnection....................................................2-124. Connecting Ethernet Cables........................................2-125. POTS Micro-filter Connection.....................................2-146. Power Connection.........................................................2-167. Checking all the Connections.......................................2-17Appendix A Troubleshooting.......................A-1~A-3Points You Must Know before Inquiring at the Place Where You Purchased ..................................................... A-1Troubleshooting - Problems and Solution ........................ A-2Appendix B Cable Specifications.................. B-1~B-3Twisted pair Category-3,4,5 Straight-through Ethernet Cable.................................................................B-1Telephone Cable (RJ-11)....................................................B-3Appendix C Description of Terms.................C-1~C-5

xiFigure Contents(수정)Figure 1-1 Front view of AceLink ADSL modem......................................1-3Figure 1-2 Rear view of AceLink ADSL modem........................................1-4Figure 2-1 RJ-11 telephone cable................................................................2-4Figure 2-2 RJ-45 UTP Ethernet Cable .......................................................2-5Figure 2-3 AceLink modem package ..........................................................2-7Figure 2-4 Example of network configuration............................................2-9Figure 2-5 Fixing the protrusion on the front to the groove of the stand holder.............................................................................2-10Figure 2-6 Press the stand holer to the AceLink ADSL modem.............2-10Figure 2-7 AceLink ADSL modem with stand holder..............................2-11Figure 2-8 Ethernet Cable Connection.....................................................2-12Figure 2-9 POTS micro-filter connection.................................................2-14Figure 2-10 Power adapter connection.....................................................2-16Figure B-1 Twisted pair Category-3,4,5 Straight-through cable.............. B-1Figure B-2 Twisted pair Category-3,4,5 Straight-through cable connector signal.......................................................................B-2Figure B-3 Pin connection of Twisted pair Category-3,4,5 Straight-through cable connector............................................ B-2Figure B-4 RJ-11 telephone cable.............................................................. B-3

xiiTable Contents(수정)Table 1-1 AceLink ADSL modem's LED functions....................................1-3Table 1-2 AceLink ADSL modem's port functions.....................................1-4Table 1-3 Hardware specifications of AceLink ADSL modem...................1-5Table 1-4 DMT specifications of AceLink ADSL modem..........................1-6Table 1-5 Specifications of external connector ofAceLink ADSL modem...............................................................1-7Table 1-6 Specifications of external connector ofAceLink ADSL modem...............................................................1-7Table 1-7 Specifications of AceLink ADSL modem software....................1-8Table 2-1 Cables used by AceLink ADSL modem .....................................2-4Table B-1 Pin connection of RJ-11 telephone cable connector................. B-3

1-1Chapter 1 IntroductionThis chapter describes the main functions of the AceLink ADSL modem,as well as its applications, hardware structure, and specifications.!Introduction to the AceLink ADSL modem!Name and function of each component!AceLink ADSL modem specifications

1-2 Chapter 1IntroductionIntroduction to AceLink ADSL modemIt is possible to access the Internet and other multimedia service networksthrough an existing telephone line (PSTN) using AceLink ADSL modem.Unlike previous dial-up modems, AceLink ADSL modems provide thefastest speed available as well as allow use of the telephone at the sametime.Characteristics of AceLink ADSL modem;Various ApplicationsSome of the applications of AceLink ADSL modem include Internet access,chatting (real-time communication), file transfers, and datadownload/upload.Inexpensive PriceAceLink ADSL modem uses a pre-existing phone line (PSTN) instead ofusing a separate cable, which needs a great amount of money and time toinstall.Reliable Network ConnectionAceLink ADSL modem operates in connection with the master system inthe local telephone office letting the telephone office manage all of thenetworking services.Easy InstallationAceLink ADSL modem is easy install so that a popular user can easilyconnect to ISP(Internet Service Provider) and receive the internet service.Web-based ManagementAceLink ADSL modem provides a web environment management function.Whereby, the user can monitor the modem’s state and change the settingseasily.

1-3Name and Function of each partFront ViewFigure 1-1 Front view of AceLink ADSL modemNumberLabel Color Function❶PWR Green On, while AC power is provided.❷DSL GreenThis LED turns on while connecting withADSL main system of telephone office andblinks with amber color while sending orreceiving data with CO.❸LAN Green On, while connected to PC.❹ACT Green Flashing, when sending/receiving data throughPC.Table 1-1 AceLink ADSL modem's LED functions

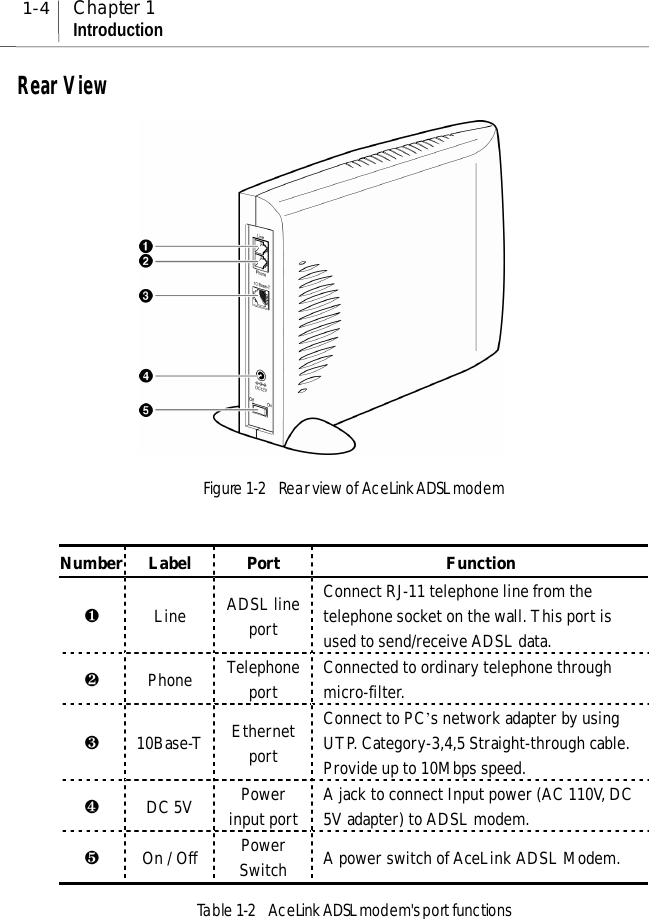

1-4 Chapter 1IntroductionRear ViewFigure 1-2 Rear view of AceLink ADSL modemNumber Label Port Function❶Line ADSL lineportConnect RJ-11 telephone line from thetelephone socket on the wall. This port isused to send/receive ADSL data.❷Phone Telephoneport Connected to ordinary telephone throughmicro-filter.❸10Base-T EthernetportConnect to PC’s network adapter by usingUTP. Category-3,4,5 Straight-through cable.Provide up to 10Mbps speed.❹DC 5V Powerinput port A jack to connect Input power (AC 110V, DC5V adapter) to ADSL modem.❺On / Off PowerSwitch A power switch of AceLink ADSL Modem.Table 1-2 AceLink ADSL modem's port functions

1-5AceLink ADSL modem specificationsHardware FeaturesCategory SpecificationPower Supplyof Main Board! Input Power : DC 5V (5V/1.5A)! Voltage usable : 3.3V and 12V! Power consumed : 4.5Watts (Max)Power SupplyAdapter! Rated Input : AC 110V, 60Hz! Rated Output : DC +5.0V 1.5AUser Interface! ADSL Interface(RJ-11) : ADSL Line! Telephone Interface(RJ-11) : Telephone Line! Ethernet Interface(RJ-45) : Connection to 10MbpsEthernet Port (Straight-through)LED! PWR : A green light is on during normal operation ofthe modem.! DSL : On, while connected to telephone office’s ADSLmaster system.! LAN : A green light is on when it is linked to Ethernetport of PC.! ACT : A green light is on during transmitting/receivingof data with PC.Package! Package Material : Plastic! Dimension : 38(width) x 178(length) x 153(height) mm! Weight : 1 Kg (modem, power supply device and cablesare included)! Installation : Vertical installation is available (aninstallation rack is provided).Table 1-3 Hardware specifications of AceLink ADSL modem

1-6 Chapter 1IntroductionDMT SpecificationsCategory Down Stream Up stream RemarksMax DataRate 8Mbps 800KbpsAeLink ADSLmodem's speed canvary depending onlength andcharacterics of theline betweenDSLAM andmodem.ADSLOverHead 96Kbps 32Kbps Frame Mode 3Bandwidth 0.11Mhz ~ 1.1Mhz 30Khz ~ 110KhzTX Power 20dBm 12dBmBin Width 4.3125Khz T1.413 standard(+/-50ppm)Max Sym/bin 16 BitLatency Fast channel : < 2ms, Interleaved <20msAppliedStandard ANSI/T1.413, ITU-T/G.992.1, ITU-T/G.992.2Table 1-4 DMT specifications of AceLink ADSL modem

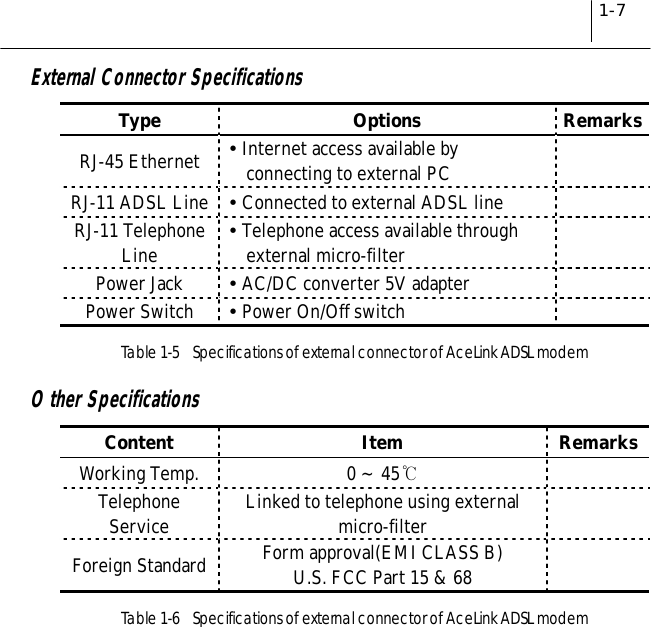

1-7External Connector SpecificationsType Options RemarksRJ-45 Ethernet ! Internet access available byconnecting to external PCRJ-11 ADSL Line ! Connected to external ADSL lineRJ-11 TelephoneLine! Telephone access available throughexternal micro-filterPower Jack ! AC/DC converter 5V adapterPower Switch ! Power On/Off switchTable 1-5 Specifications of external connector of AceLink ADSL modemOther SpecificationsContent Item RemarksWorking Temp. 0 ~ 45℃TelephoneService Linked to telephone using externalmicro-filterForeign Standard Form approval(EMI CLASS B)U.S. FCC Part 15 & 68Table 1-6 Specifications of external connector of AceLink ADSL modem

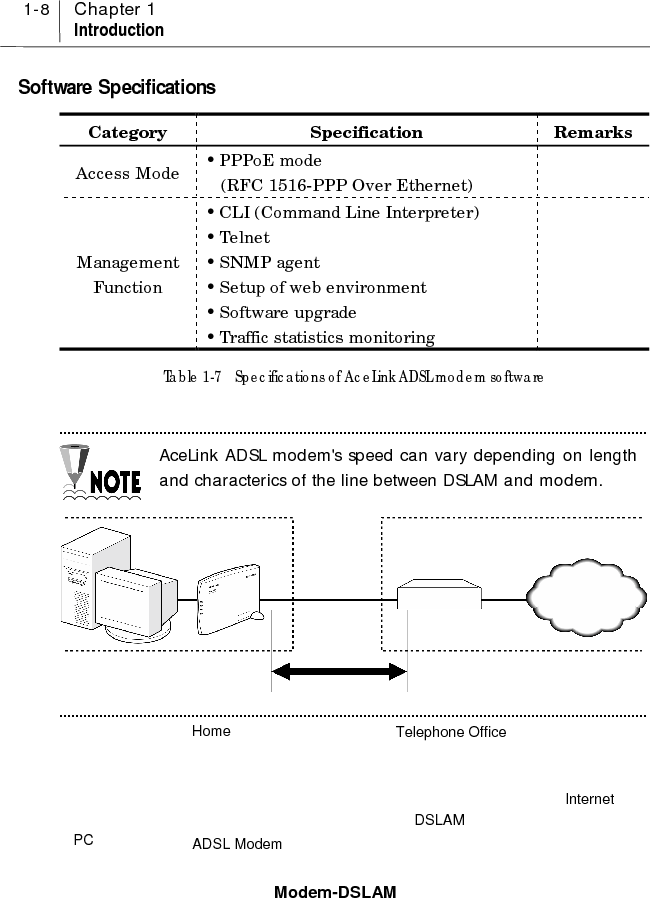

1-8 Chapter 1IntroductionSoftware SpecificationsCategory Specification RemarksAccess Mode ! PPPoE mode(RFC 1516-PPP Over Ethernet)ManagementFunction! CLI (Command Line Interpreter)! Telnet! SNMP agent! Setup of web environment! Software upgrade! Traffic statistics monitoringTable 1-7 Specifications of AceLink ADSL modem softwareAceLink ADSL modem's speed can vary depending on lengthand characterics of the line between DSLAM and modem.Home Telephone OfficePC ADSL ModemDSLAMModem-DSLAMInternet

2-1Chapter 2 AceLink ADSL Modem SetupThis chapter introduces the environment where AceLink ADSL modemcan be installed and explains how to install this product and link it to anetwork.This chapter consists of the following contents.!Before installation!Checking the Contents!Modem Setup

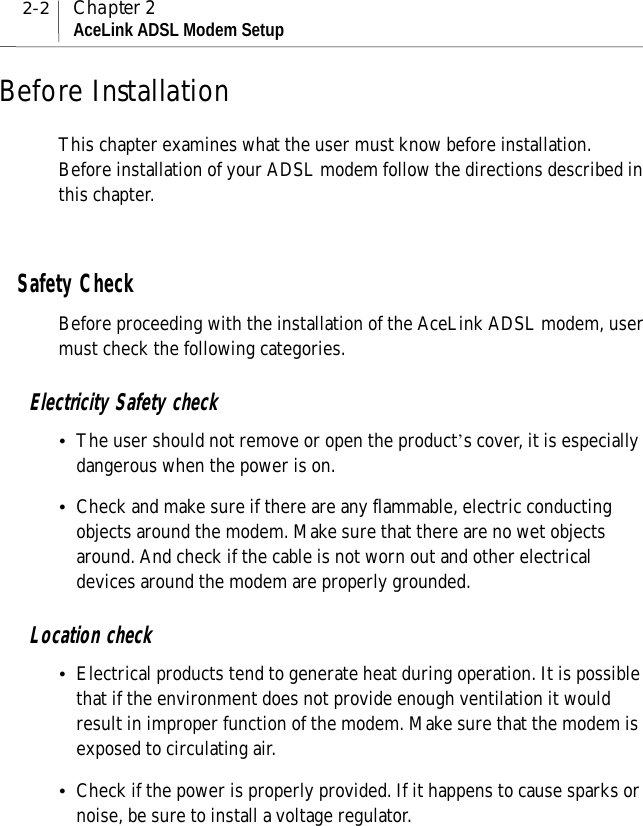

2-2 Chapter 2AceLink ADSL Modem SetupBefore InstallationThis chapter examines what the user must know before installation.Before installation of your ADSL modem follow the directions described inthis chapter.Safety CheckBefore proceeding with the installation of the AceLink ADSL modem, usermust check the following categories.Electricity Safety check!The user should not remove or open the product’s cover, it is especiallydangerous when the power is on.!Check and make sure if there are any flammable, electric conductingobjects around the modem. Make sure that there are no wet objectsaround. And check if the cable is not worn out and other electricaldevices around the modem are properly grounded.Location check!Electrical products tend to generate heat during operation. It is possiblethat if the environment does not provide enough ventilation it wouldresult in improper function of the modem. Make sure that the modem isexposed to circulating air.!Check if the power is properly provided. If it happens to cause sparks ornoise, be sure to install a voltage regulator.

2-3Service Environment CheckCheck the followings before installing your AceLink ADSL modem.Telephone network serviceThe AceLink ADSL modem should be installed where telephonenetwork service is available.If there is no telephone line available in your area, be sure to report to thelocal telephone office to construct a telephone line.The telephone network service must support ADSL modemconnection.Some of the telephone network services will support ADSL applications.Check with your local telephone office for subscription of ADSL.PC Specification CheckIn order to use AceLink ADSL modem by connecting to a PC, a LAN card(10Base-T or 10/100Base-T network adapter) must be installed in your PC.You can purchase the LAN card at any PC shop.

2-4 Chapter 2AceLink ADSL Modem SetupPreparing cablesYou must have all cables ready before connecting to the network. Thefollowing cables are needed to connect the AceLink ADSL modem to thenetwork.Port Required cableADSL/Telephone line port(Line, Phone) RJ-11 cables.Ethernet port (10BASE-T) RJ-45 UTP Category-3,4,5 Straight-through cable.Table 2-1 Cables used by AceLink ADSL modemMore detailed specification of each cable is described inAppendix C "Cable Specifications".RJ-11 cableOne end of the RJ-11 cable is connected to telephone line port (Phone) inthe back of the AceLink ADSL modem, and the other is connected to thePOTS micro-filter (LINE) which is provided separately. The specification ofRJ-11 cable should be 26AWG or higher.Figure 2-1 RJ-11 telephone cable

2-5RJ-45 UTP Ethernet cableConnect one end of the RJ-45 UTP Ethernet cable to the Ethernet port(10BASE-T) which is at the rear plane of AceLink ADSL modem andconnect the other end to the LAN card of the PC.Figure 2-2 RJ-45 UTP Ethernet CableCables may look alike, however they could be different, forexample they could have different inner pins. Therefore, inorder not to use them with other cables, it is recommended tolabel each cable.

2-6 Chapter 2AceLink ADSL Modem SetupModem Setting EnvironmentFor safe installation, let’s examine the AceLink ADSL modem settingenvironment.The AceLink ADSL modem should be kept at moderate temperature andhumidity.The recommended environment is as follows:! Temperature : 0 ~ 45℃! Relative humidity : 10 ~ 90% (uncondensed)! Power : 4.5 Watts (maximum)! Input power : AC 110V, DC 5V! Frequency : 60HzThe voltage variation of the power input during operationshould be within 5% of regulatory voltage. The electrical outletshould be grounded. Also, the AceLink ADSL modem's powerconnecter should not be used on the same outlet where a hairdryer, iron or refrigerator is connected. To provide a stablepower supply, an AVR (Automatic Voltage Regulator) isrecommended to be used.

2-7Checking the ContentsAfter purchasing your AceLink ADSL modem package, open the box andcheck if all the following contents are included.Figure 2-3 AceLink modem packageA POTS micro-filter is needed to use the ordinary telephoneservice and ADSL data service at the same time. You need toprepare a POTS micro-filter for each telephone used in yourhome. Ask your AceLink ADSL modem provider aboutpurchasing additional POTS micro-filters.AceLink ADSL ModemPOTS Micro-filterUser GuideRJ-11 Telephone CableY JackRJ-45 UTP Ethernet CablePower Adapter

2-8 Chapter 2AceLink ADSL Modem SetupModem SetupWe will go over how to configure your AceLink ADSL modem.Configuration procedures are as follows :1. Drawing the network configuration2. Assembling the supporter3. Power disconnection4. Ethernet Cable connection5. POTS micro-filter connection6. Power connection7. Checking all the connectionsEach step is described in detail below.

2-91. Drawing the Network ConfigurationFirst, it is better to draw a network configuration for the AceLink ADSLmodem. You must consider the following matters when drawing a networkconfiguration.!What will the AceLink ADSL modem are used for?!Are you going to use the AceLink ADSL modem and telephone at thesame time?!Have you prepared all the necessary equipment such as PC, POTSmicro-filter, telephone, and network cable?The diagram below is an example configuration of an AceLink modem toPC, POTS micro-filter and telephone. Draw your own configuration inreference with this diagram.Figure 2-4 Example of network configurationInternetPSTNPCTelephone #2POTS Micro-filter #1RouterLINELINE10Base-TADSL modemTelephone #1Switch SystemAceLink ADSL system(DSLAM)Subscriber's home telephone networkAC 110V

2-11❸The AceLink ADSL modem with stand holder is described below.Be sure to fix the stand holder into the AceLink ADSL modemwith the proper attention. Failure to fix the stand holder intothe AceLink ADSL modem accurately as is described in thischapter can break the stand holder.Figure 2-7 AceLink ADSL modem with stand holder

2-12 Chapter 2AceLink ADSL Modem Setup3. Power DisconnectionIf power is supplied to the AceLink ADSL modem, be sure to pull out thepower cord from the electrical outlet before connecting the modem to anyother device.4. RJ-11 Cable ConnectionIf power is supplied to the AceLink ADSL modem, be sure to pull out thepower cord from the electrical outlet before connecting the modem to anyother device.4. Connecting Ethernet CablesConnect one side of the RJ-45 UTP Ethernet cable to the AceLink ADSLmodem’s Ethernet port (Label:10Base-T) and connect the other side to thenetwork adapter installed in the PC.Figure 2-8 Ethernet Cable Connection

2-13In order to connect the AceLink ADSL modem to a PC, the PCmust have a 10Mbps or 10/100 Mbps speed networkadapter. For network adapter installation, refer to the manualprovided with the network adapter.

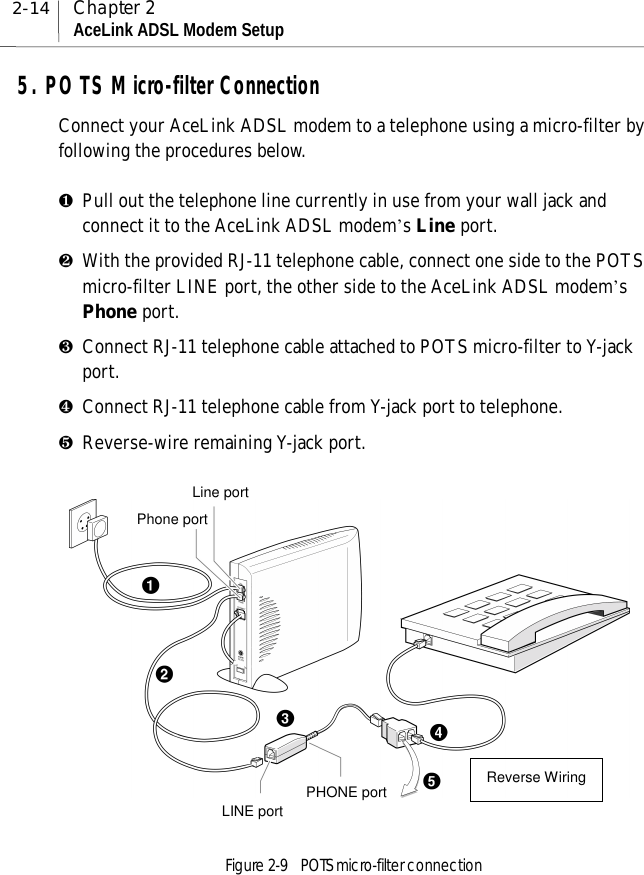

2-14 Chapter 2AceLink ADSL Modem Setup5. POTS Micro-filter ConnectionConnect your AceLink ADSL modem to a telephone using a micro-filter byfollowing the procedures below.❶Pull out the telephone line currently in use from your wall jack andconnect it to the AceLink ADSL modem’s Line port.❷With the provided RJ-11 telephone cable, connect one side to the POTSmicro-filter LINE port, the other side to the AceLink ADSL modem’sPhone port.❸Connect RJ-11 telephone cable attached to POTS micro-filter to Y-jackport.❹Connect RJ-11 telephone cable from Y-jack port to telephone.❺Reverse-wire remaining Y-jack port.Figure 2-9 POTS micro-filter connectionLine portPHONE portLINE portPhone portReverse Wiring

2-15If more than two telephones are used, more POTS micro-filters are needed. Ask your AceLink ADSL modem provider topurchase additional POTS micro-filters.If the telephone, used with AceLink ADSL modem, is notconnected through a POTS micro-filter, telephoneconversation quality will go down.

2-16 Chapter 2AceLink ADSL Modem Setup6. Power ConnectionConnect power adapter to AceLink ADSL modem’s power input port (DC5V). And then, connect power adapter to electrical outlet.Figure 2-10 Power adapter connectionInstallation of the AceLink ADSL modem has now been completed.The power adapter used with your ADSL modem must be theadapter provided with your ADSL modem package.

2-177. Checking all the ConnectionsUse the following method to check all the connections.Checking ADSL Line connectionIf the Line LED blinks and then is keeping up ON within seconds of powerconnection, the ADSL line is properly connected.Checking PC connectionIf network adapter’s Link LED and AceLink ADSL modem’s LAN LED aregreen, connection between PC and AceLink ADSL modem is properlyestablished.Checking telephone line connectionIf you hear a normal signal on your telephone, and have clear receptionwithout ghost voices, the telephone line is properly connected.The AceLink ADSL modem's power source does not affect theuse of telephone.

A-1Appendix A TroubleshootingIn appendix A, major problems in using the AceLink ADSL modem, andsolutions thereof will be described. Appendix A covers the following:!Points you must know before inquiring at the place where youpurchased!Troubleshooting - Problems and SolutionsPoints You Must Know before Inquiring at thePlace Where You PurchasedWhen a problem, which you cannot solve, occurs during use of the system,you will inevitably inquire at the place where you purchased it and havethem assist you.Before you inquire at the place where you purchased the system, prepare anote including the following product information :!Product model name (e.g.: External AceLink ADSL Modem - Modelname : SAM-335A)!Product serial number!Date when product was purchased!Memo about the problem!Memo about what you have sequentially done to solve the problem byyourself

A-2Appendix ATroubleshootingTroubleshooting - Problems and SolutionMany types of problems are proposed, and problems of each type that mayhappen are described in detail with solutions to the problems.Types of Problem That May HappenThe following types of problems may frequently occur when using theAceLink ADSL modem.!Problems related to power!Problems related to network connectionProblems Related to PowerThe following problems related to power may occur."Even when the power supply adapter is connected to the system andthe power supply cable connected to the power supply adapter iscoupled to an electrical plug socket, the PWR LED is not lit green.When this problem occurs, check the following :#Check that the electrical plug socket is working.#Remove the jack from the power input port (DC 5V) on the back ofthe AceLink ADSL modem. After about 10 seconds, connect the jackto the port again and restart the AceLink ADSL modem.If the problem is not solved with the above method, remove the jack fromthe power-input port of AceLink ADSL modem and inquire at the place youpurchased the product.

A-3Problems Related to Network ConnectionThe following problems related to network connection might occur."The modem is not connected to the Internet."LAN LED or ACT LED is not light.When this problem occurs, check the following :#Check the connection state of the cables connecting the AceLinkADSL modem, POTS micro-filter and PC.#Check the state of the network adapter installed in the PC.#Check the operating state of the PC.#Check whether an IP address is set to meet the connection serviceprovided.If the problem is not solved with the above method, remove the jack fromthe power-input port of AceLink ADSL modem and inquire throughISP(Internet Service Provider) or at the place you purchased the product.

B-1Appendix B Cable SpecificationsAppendix B explains the specifications of the cables connected to each portof AceLink ADSL modem, every connector signal, and pin connection.!Ethernet Cable!Telephone (RJ-11) CableTwisted pair Category-3,4,5 Straight-through Ethernet CableTwisted pair Category-3,4,5 Straight-through Ethernet is needed forconnecting AceLink ADSL modem to the LAN card of a PC.Make sure to use Category-5 cable in case of connection withdevices using 100Mbps Fast Ethernet.Cable DiagramFigure B-1 Twisted pair Category-3,4,5 Straight-through cable

B-2Appendix BCable SpecificationsConnector SignalADSL Modem PCFigure B-2 Twisted pair Category-3,4,5 Straight-through cable connector signalPin Connection< Pin constitution > < Actual pin connection >Figure B-3 Pin connection of Twisted pair Category-3,4,5 Straight-through cable connector

B-3Telephone Cable (RJ-11)We will examine the RJ-ll telephone cable connector that is used as aconnector between AceLink ADSL modem and a telephone line. Thespecification of RJ-11 cable should be 26AWG or higher.Connect one end (RJ-11 jack) of the telephone cable to the telephone portat the back of the modem and the other end (RJ-11 jack) to the RJ-11connector of the POTS micro-filter. Cable DiagramFigure B-4 RJ-11 telephone cablePin ConnectionRJ-11 RJ-111NC1NC2 (A)Tip 2 (A)Tip3 (B)Ring 3 (B)Ring4NC4NCTable B-1 Pin connection of RJ-11 telephone cable connector

C-1Appendix C Description of Terms10BASE-TAn Ethernet interface having a bandwidth, which provides a transmissionrate, that may go up to 10 Mbps using a Category 5 cable.ATU-C (ADSL Transceiver-Central Office)A central unit managed by an ISP(Internet Service Provider) forconnection of ADSL subscriber lines.ATU-R (ADSL Transceiver -Remote Terminal)A subscriber terminal which is connected to ATU-C through a telephoneline, which processes ADSL service.ADSL (Asymmetric Digital Subscriber Line)A device providing a high-speed data interface to the Internet, and otherservices, through a telephone network. This does not influence existingtelephone service. Data downloading rate can vary depending ontransmission distance, ATU-C, and subscribing services. Data downloadingrate is from 640Kbps to 8Mbps, and uploading rate is from 16Kbps to800Kbps.ATM (Asynchronous Transfer Mode)One of the communications transfer modes. A control mode in which aseries of terminals can simultaneously send data while a terminal issending data, thereby allowing a series of terminals to share a singletransmission line for communication.

C-2Appendix CDescription of TermsBridgeA functional unit interconnecting two or more local area networks (LANs)that uses the same link protocol. The bridge not only transmits but alsofilters packets. The bridge usually operates on a Data Link Layer when ittransmits packets.DMT (Discrete Multi-Tone)A modulation technique of segmenting and transmitting a large amount ofdata by way of Multi-carrier, in which a carrier frequency band ismultiplexed, thereby realizing optimal performance on a Loop.EthernetA representative method of interconnecting LANs was using atransmission cable of 10BASE standard. Three companies, i.e., Xerox, Inteland DEC develop this method, in cooperation. Its transmission rate isabout 10 Mbps, and employs a CSMA/CD access method in which a nodemonitors signals over a transmission line and sends data after confirmingthat the other nodes do not send signals.HubA communications interface used for interconnecting a series of devices ona network. This retransmits a signal, which is received from a device, orsegments a received signal and transmits the segmented signal.FTP (File Transfer Protocol)A protocol for transferring files from one host to another or from a host to apersonal computer over a network.

C-3GopherAn interface that has been used as the easiest interface before the WWWservice was developed. The gopher constructs a menu by classifying thecontents of information by topic or type, thereby allowing even people,whom is not familiar with the Internet, to easily search information. Inaddition, other functions of the Internet such as remote access, file transfer,news, etc. can be performed in the gopher menu. A series of gopherservers are interconnected so that a user can search for desiredinformation moving from one gopher server to another.IP (Internet Protocol) AddressAn address of a host or a device on the Internet. It is composed of 4 bytes.Each byte is divided by a period. An IP address is assigned by IANA(Internet Assigned Numbers Authority) to avoid duplication.PPPoA (Point-to-Point Protocol)The standard protocol for providing the serial interface between nodes, e.g.,between a PC and a RAS or between routers, on the Internet. PPPoAprovides an Internet access rate, and is widely used substituting for a SLIP(Serial Line Internet Protocol) which is a previously used serial interfaceprotocol. PPPoA is designed to transmit various network protocolsincluding IPX. PPPoA performs various and useful functions includingnegotiation of a receiving maximum packet size over a serial line.POTS (Plane Old Telephone Service) Micro filterA POTS micro filter separate a voice signal from a data signals not toinfluence an existing telephone service. By separating PSTN using a POTSmicro filter, network service such as Internet and telephone service can besimultaneously used.

C-4Appendix CDescription of TermsSwitchA network device for filtering and transmitting frames based on thedestination address of a frame. A switch operates at the Data Link Layer ofthe OSI-RM.TCP/IP (Transmission Control Protocol/Internet Protocol)One of the network protocols that are frequently used in a LAN. When datais transferred through a network, data is segmented into a series of packetsbefore transmission. IP moves a data packet from one place to another, andTCP manages the flow of data and checks whether data is correct.TelnetOne of the Internets services, which is used for connecting to anothercomputer on the Internet. Telnet is used for remote control of a computer.When a user accesses another computer, a user ID and a password arerequested for using the computer. Telnet is used for connecting todomestic communications on the Internet. Accordingly, a user having adomestic communications ID can immediately connect to a domesticcommunications network through ‘Telnet’.PSTN (Public Switched Telephone Network)A switching connection type provided by an ISP and a publiccommunications network premising the use by many and unspecifiedpersons. It was originally used for the telephone, but it is also used forcommunication among facsimiles and computers as more advancedcommunications equipment are developed. It is also referred to as POTS.POTS (Plain Old Telephone Service)A telephone network which does not provide additional services.

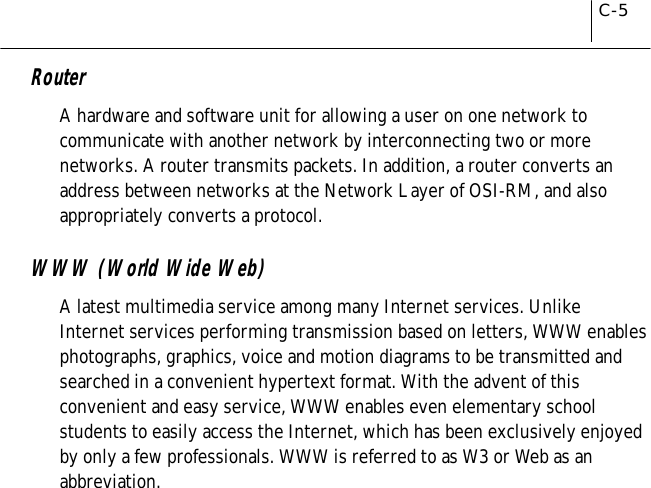

C-5RouterA hardware and software unit for allowing a user on one network tocommunicate with another network by interconnecting two or morenetworks. A router transmits packets. In addition, a router converts anaddress between networks at the Network Layer of OSI-RM, and alsoappropriately converts a protocol.WWW (World Wide Web)A latest multimedia service among many Internet services. UnlikeInternet services performing transmission based on letters, WWW enablesphotographs, graphics, voice and motion diagrams to be transmitted andsearched in a convenient hypertext format. With the advent of thisconvenient and easy service, WWW enables even elementary schoolstudents to easily access the Internet, which has been exclusively enjoyedby only a few professionals. WWW is referred to as W3 or Web as anabbreviation.

NOTICE! Samsung Electronics Co., Ltd. reserves the copyrights of thisbook.! This book or portions thereof may not be reproduced ortransmitted by any means, electronic, mechanical, or recording,without the permission of the Samsung Electronics Co., Ltd.! The content of this book may be modified due to the improvementof functions of the product, etc.Copyrightⓒ SAMSUNG All rights Reservedis the registered trademark of Samsung.AceLink ADSL modem is the registered trademark of Samsung Electronics.The pertinent company reserves all the other registered trademarks thathave been mentioned in this book.
