Samsung Electronics Co SBH700 Bluetooth Headset User Manual
Samsung Electronics Co Ltd Bluetooth Headset
Users Manual
World Wide Web
http://www.samsungmobile.com
Printed in Korea
Code No.:GH68-xxxxxA
01/2008. Rev. 1.0
English
/
1 차 검토의뢰
2008. 01. 09
1
English
Contents
Getting started
Checking phone compatibility ...........................................4
Checking the accessories .................................................5
Your headset overview.....................................................5
Button functions .............................................................6
Charging the headset ......................................................9
Wearing the headset...................................................... 11
Before using your headset
Turning the headset on or off.......................................... 12
Pairing the headset with a compatible phone..................... 13
Connecting the paired headset to your phone ................... 14
Using your headset
Using call functions ....................................................... 15
Using music control functions ......................................... 18
Answering a call while listening to music .......................... 20
Connecting the headset with other devices ....................... 20
2
Appendix
Storing the headset....................................................... 22
Frequently asked questions ............................................ 22
Certification ................................................................. 26
Warranty and parts replacement .................................... 27
Correct disposal of this product ...................................... 29
3
English
Thank you for purchasing the Samsung Bluetooth Stereo
Headset. We hope you will be satisfied with your new headset.
To get the best use of your headset, please take the time to
read through this guide before you start to use it.
Safety precautions
• Never disassemble or modify your headset for any
reason. Doing this may cause the headset to
malfunction or become combustible. Take the
headset to an authorised service centre for repair or
to replace the battery.
• When you are driving a car, driving is your first
responsibility.
• When using your headset while driving, follow local
regulations in the region you are in.
4
Getting started
This section explains what to remember for the proper use of
your Bluetooth headset.
Your headset is compatible with most Bluetooth
*
phones that
comply with Bluetooth version 2.0 or earlier and support
Advanced Audio Distribution Profile, Audio/Video Remote
Control Profile, Headset Profile and Hands-Free Profile. Check
your phone's Bluetooth capability by visiting your phone
manufacturer's website.
Checking phone compatibility
* Bluetooth is a radio technology developed to connect devices, such as
mobile phones and headsets, without wires or cords over a short
distance of approximately 10 metres. More information is available at
www.bluetooth.com
Some devices, especially those that are not tested or
approved by Bluetooth SIG, may be incompatible with your
headset.
5
English
Make sure you have the following items with your headset:
Travel Adapter, User’s Guide
Checking the accessories
The items supplied with your headset at Samsung dealer
may vary depending on your region.
Your headset overview
If your headset responds slowly, stops responding, or
freezes, press the reset on the back of the headset with
a pointed tool.
Talk button
Play/Pause/
Stop button
Microphone
Reset
Indicator light
Adapter socket
REW button/
FF button
Volume control
buttons
6
Talk button
In Standby mode
• Press to redial the last number.
For some phones, pressing this button opens the call log
list. Press it again to redial the last number.
• Press and hold to activate voice dialling.
This function may be available depending on the type of
your phone.
When a call comes in
• Press to answer the call.
• Press and hold to reject the call.
During a call
• Press to end the call.
• Press and hold to place the call on hold or retrieve the held
call.
• Press and hold to answer a second call.
• Press and hold to switch between the current call and the
held call.
Button functions
7
English
In Connectable mode
• Press to connect the headset to the phone, if they have
been paired, via Hands-Free Profile.
Volume control buttons
• Press to adjust the speaker volume during playback.
• Press to adjust the earpiece volume during a call.
• Press and hold to turn off or on the microphone during a
call.
Play/Pause/Stop button
In Standby mode
• Press to launch the music player.
When the music player is launched
• Press to begin playback.
• Press to pause or resume playback.
• Press and hold to stop playback.
In Connectable mode
• Press to connect the headset to the phone, if they have
been paired, via the Advanced Audio Distribution Profile.
8
REW button
• Press to skip backward.
• Press and hold to scan backward in a file.
FF button
• Press to skip forward.
• Press and hold to scan forward in a file.
9
English
This headset has a rechargeable internal battery which is non-
removable. Please make sure that you fully charge the battery
before using the headset for the first time.
1

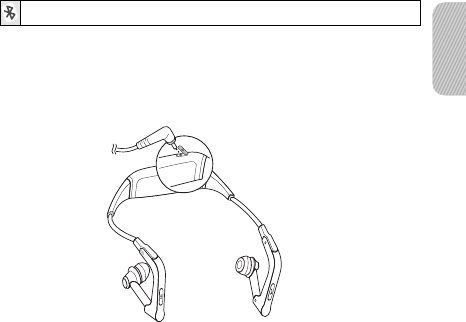

Plug the travel adapter into the adapter socket on the
headset.
2
Plug the travel adapter into a power outlet.
The indicator light flashes red. When the battery is fully
charged, the indicator light changes to blue.
Charging the headset
10
Battery charging and standard operation time
When the battery charge gets low
A warning sound beeps and the indicator light flashes red. If
you are on a call, switch the call from the headset to the phone
before the headset automatically turns off.
• Disconnect the travel adapter from the power outlet and
the headset after charging is complete.
• Use only a Samsung-approved travel adapter.
Unauthorised adapters may cause an explosion or
damage to the headset.
• The battery will gradually wear out while charging/
discharging because it is a consumable part.
• The headset is available while charging. However, we
recommand you to use the headset after charging is
complete.
Charging time Standard operation time
Battery
operation
time
Up to 3 hr Talk time Play time Standby time
Up to 8 hr Up to 7 hr Up to 140 hr
11
English

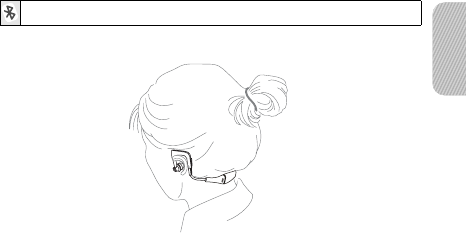

Place the headset on your ear. Be sure to put the correct (Left,
Right) earpiece on each ear.
Wearing the headset
12
Before using your headset
This section explains basic operation and the set-up of your
Bluetooth headset.
•
Press and hold [ ] for 4 seconds to turn the headset on.
The indicator light flashes blue 4 times.
• Press and hold [ ] for 4 seconds to turn the headset off.
The indicator light sequentially flashes blue, red.
Turning the headset on or off
13
English
Pairing will create a unique and encrypted wireless link
between two Bluetooth enabled devices, such as a Bluetooth
phone and a Bluetooth headset. To use the headset with other
Bluetooth devices, both devices must be paired. When trying
to pair the two devices, keep the headset and the phone
reasonably close together.
1
Get your headset ready to be paired.
There are 2 cases for being ready to be paired:
• When turning on the headset for the first time.
The blue indicator light remains lit.
• When turning on the headset with pressing and holding
[ ] for 8 seconds. The blue indicator light remains lit
after the indicator light sequentially flashes
blue 4 times
.
2
Search for the headset on your phone according to the
phone user’s guide.
Your phone will find your headset’s name.
3
Select your headset’s name.
4
When the phone asks if you want to pair with it, confirm by
selecting
Yes
or
OK
.
5
Enter the headset passkey or PIN, “0000 (4 zeros)”.
Pairing the headset with a compatible phone
14
If two Bluetooth devices are disconnected by a power failure,
you need to reconnect them. When you reconnect a paired
headset, you are not asked for its passkey.
1
Make sure that the headset is turned on.
2
Choose the connection method you want.
• To connect from the phone, follow the phone user’s
guide.
• To connect from the headset, your phone and the
headset have had to be connected more than once.
Press [ ] to connect via Hands-Free Profile or [ ] to
connect via the Advanced Audio Distribution Profile.
3
When the two devices are connected successfully, you can
make or answer a call on the headset and listen to music.
Connecting the paired headset to your phone
15
English
Using your headset
This section explains how to use various functions, such as
making or answering a call, using menus that you can use
during a call is in progress, and listening to music.
Making a call
Redialling the last number
Press [ ] to redial the last number.
For some phones, pressing the key opens the call log list.
Press [
+
] or [
-
] to scroll through the list, and then press [ ] to
dial the selected number.
Activated functions may differ depending on the type of
your phone. Please make sure that your phone supports all
the functions that your headset provides before registering
a fault.
Using call functions
16
Dialling a number by voice
Press and hold [ ] to dial a number by voice, and say a name
into the microphone.
Answering a call
When a call comes in, you may hear incoming call tones and
the indicator light will flash blue twice. Press [ ] to answer the
call.
Ending a call
Press [ ] to end a call.
Rejecting a call
Press and hold [ ] to reject a call when a call comes in.
This function is available only when your phone supports
the voice recognition function.
This function is available only when your phone supports
the incoming call rejecting function.
17
English
Using options during a call
You can use the following functions to control your call during
a call.
Adjusting the volume
Press [
+
] or [
-
] to adjust the earpiece volume.
Muting the microphone
Press and hold [
+
] or [
-
] to turn off the microphone so that
the person with whom you are speaking cannot hear you.
Press and hold [
+
] or [
-
] again to turn the microphone back
on.
Switching a call from the phone to the headset
Press [ ] to switch the call from the phone to the headset.
Placing a call on hold
Press and hold [ ] to place the current call on hold.
At very high volumes, prolonged listening to the
headset can damage your hearing.
18
Answering a second call
Press [ ] or press and hold [ ] to answer a second call when
you hear a call waiting tone. The first call is ended, press and
hold [ ]. The first call is placed on hold, press [ ].
To switch between the current call and the held call, press and
hold [ ].
Settings to play music files may differ depending on your
Bluetooth phone. Please make sure that you create the proper
settings for playback on your phone by following the phone
user’s guide.
Listening to music
Press [ ]. The music player launches and sound output
switches to the headset.
For some phones, the phone may ask you if you want to listen
to music via the headset. Confirm the message by selecting
Yes
or
OK
.
Using music control functions
Depending on the types of your Bluetooth phone, it may
read MP3 files only. Make sure that you have the right file
format (*.mp3).
19
English
Pausing and resuming playback
1
Press [ ] to pause playback.
2
Press [ ] to resume playback.
Stopping playback
Press and hold [ ].
Listening to the previous or next file
Press [ ] to skip backward or [ ] to skip forward.
Rewinding or fast forwarding
Press and hold [ ] to scan backward or [ ] to scan forward
in a file.
Adjusting the volume
Press [
+
] or [
-
] to increase or decrease the volume level.
At very high volumes, prolonged listening to the
headset can damage your hearing.
20
When a call comes in while listening to music, your headset
will alert you so that you can answer the call.
1
When the headset sounds the incoming call tones and the
indicator light flashes blue twice, press [ ]. The music
stops and you are connected with the caller.
2
When you have finished the conversation, press [ ].
3
Press [ ] to begin playback again.
Some phones may automatically begin playback after a call.
You can connect your headset to the phone and another
Bluetooth device that plays music files.
1
Pair the headset with a phone. See page 13.
2
If successful, turn the headset off.
Answering a call while listening to music
This function is available only when your phone supports
the Advanced Audio Distribution Profile, Audio/Video
Remote Control Profile, and Hands-Free Profile.
Connecting the headset with other devices
21
English
3
Turn on the headset with pressing and holding [ ]. The
blue indicator light remains lit after the indicator light
sequentially flashes blue, red, and purple twice.
4
Search for and pair with the device you want according to
the device user’s guide.
5
Press [ ] to connect with the paired phone.
6
When the phone and the device are successfully connected
with the headset, you can make or receive a call once you
have stopped listening to music.
• Using call functions and music control functions may
differ depending on the types of the phone and/or
device.
• There may be breaks in music being played on a
Bluetooth-enabled PC.
• You may not use the voice recognition function, although
the phone supports it.
22
Appendix
• Always store the headset with the power off.
• Avoid storage at high temperatures (above 50 °C / 122 °F),
such as in a hot vehicle or in direct sunlight. Storage at high
temperatures can impair performance and reduce battery
life.
• Do not expose the headset or any of its supplied parts to
rain or other liquids.
Storing the headset
Frequently asked questions
How far away from
my phone will my
headset work?
The operating range is typically up to 30
feet (10 metres).
Will my headset
work with my
cordless phone at
home?
Your headset is not designed for use with
cordless phones.
23
English
Will my headset
work with laptops,
PCs, and PDAs?
Your headset will work with devices that
are compliant with Bluetooth version 2.0
or earlier and support Advanced Audio
Distribution Profile, Audio/Video Remote
Control Profile, Headset Profile and
Hands-Free Profile.
Will anything
cause interference
with my
conversation when
I am using my
headset?
Appliances such as cordless phones and
wireless networking equipment may cause
interference with your conversation,
usually adding a crackling noise. To
reduce any interference, keep the headset
away from other devices that use or
produce radio waves.
Will my headset
interfere with my
car’s electronics,
radio, or
computer?
Your headset produces significantly less
power than a typical mobile phone. It also
only emits signals that are in compliance
with the international Bluetooth standard.
Therefore, you should not expect any
interference with standard consumer-
grade electronics equipment.
24
Can other
Bluetooth phone
users hear my
conversation?
When you pair your headset to your
Bluetooth phone, you are creating a
private link between only these two
Bluetooth devices. The wireless Bluetooth
technology used in your headset is not
easily monitored by third parties because
Bluetooth wireless signals are significantly
lower in radio frequency power than those
produced by a typical mobile phone.
Can I use the
headset while
charging?
Your headset is available while charging.
However, we recommand you to use the
headset after charging is complete.
Making/receiving a
call does not work
well and the call
ends often while
talking.
This is likely to be down to poor signal/
coverage from your mobile phone
network. Please move to another area and
try again.
Battery operation
time doesn’t match
the one stated in
the user’s guide.
• The battery will gradually wear out
because it is a consumable part.
• If you place the battery in extreme heat
or cold, the operation time is shortened.
25
English
The sound is
echoing while
talking.
Adjust the speaker volume, or move to
another area and try again.
Music files are not
playing!
Depending on the type of your device, it
may not support all music formats. Please
check that your music files are compatible
with the device you are using.
How do I take care
of my headset?
Wipe it with a soft dry cloth.
The headset does
not fully charge.
The headset and the travel adapter may
not have been connected properly.
Separate the headset from the travel
adapter and then reconnect and charge
the headset.
26
Certification
4#)
Position Only
27
English
Bluetooth
The Bluetooth
®
word mark and logos are owned by the
Bluetooth SIG, Inc. and any use of such marks by Samsung is
under license. Other trademarks and trade names are those of
their respective owners.
Bluetooth QD ID: B0xxxxx
Samsung warrants this product as free of defects in material,
design and workmanship for the period of one year from the
original date of purchase.
*
If during the period of warranty this product proves defective
under normal use and service you should return the product to
the retailer from whom it was originally purchased or qualified
service center. The liability of Samsung and its appointed
maintenance company is limited to the cost of repair and/or
replacement of the unit under warranty.
• The warranty is limited to the original purchaser
• A copy of your receipt or other proof of purchase is required
for a proper warranty service
Warranty and parts replacement
* Depending on your country, the length of warranty may vary.
28
• The warranty is void if the serial number, date code label or
product label is removed, or if the product has been subject
to physical abuse, improper installation, modification, or
repair by unauthorised third parties
• The responsibility of Samsung products shall be limited to
the repair or replacement of the product at its sole
discretion
• Specifically exempt from any warranty are limited-life
consumable components such as batteries and other
accessories
• Samsung is not liable for any incidental or consequential
damages arising from the use or misuse of any Samsung
product
• This warranty gives you specific rights and you may have
other rights which vary from area to area
• Unless instructed in the User Guide, the user may not,
under any circumstances, attempt to perform service,
adjustments or repairs on the unit, whether in or out of
warranty. It must be returned to the purchase point, factory
or authorised service agency for all such work
• Samsung will not assume any responsibility for any loss or
damage incurred in shipping. All repair work on Samsung
products by unauthorised third parties voids any warranty
29
English
Correct disposal of this product
(Waste Electrical & Electronic Equipment)
This marking shown on the product or its literature,
indicates that it should not be disposed with other
household wastes at the end of its working life.
To prevent possible harm to the environment or human
health from uncontrolled waste disposal, please separate
this from other types of wastes and recycle it responsibly
to promote the sustainable reuse of material resources.
Household users should contact either the retailer where
they purchased this product, or their local government
office, for details of where and how they can take this item
for environmentally safe recycling.
Business users should contact their supplier and check the
terms and conditions of the purchase contract. This
product should not be mixed with other commercial wastes
for disposal.
30
English
FCC
FCC ID: A3LSBH700
This device complies with part 15 of the FCC Rules. Operation is
subject to the following two conditions:
(1) This device may not cause harmful interference, and (2)
this device must accept any interference received, including
interference that may cause undesired operation.
The device and its antenna must not be co-located or operating
in conjunction with any other antenna or transmitter.
Users are not permitted to make changes or modify the device
in any way.
Changes or modifications not expressly approved by Samsung
will void the user’s authority to operate the equipment.
Safety approvals
31
DANGER - TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK,
CAREFULLY FOLLOW THESE INSTRUCTIONS.
FOR CONNECTION TO A SUPPLY NOT IN THE U.S.A., USE AN
ATTACHMENT PLUG ADAPTOR OF THE PROPER CONFIGURATION
FOR THE POWER OUTLET.
Cautions
Changes or modifications made in the radio phone, not
expressly approved by Samsung, will void the user’s authority
to operate the equipment.Only use approved batteries,
antennas and chargers. The use of any unauthorized
accessories may be dangerous and void the phone warranty if
said accessories cause damage or a defect to the phone.
Although your phone is quite sturdy, it is a complex piece of
equipment and can be broken. Avoid dropping, hitting, bending
or sitting on it.
Cautions
