CD-ROM DRIVESC-140/148User's Guide - ENGLISHWhen handling the drives, you may hear a slightrattle inside the unit.This is NOT a problem, it is simply the ballbearings of the Auto Balancer shifting.http://www.samsungelectronics.comBG68-00044A Rev 02

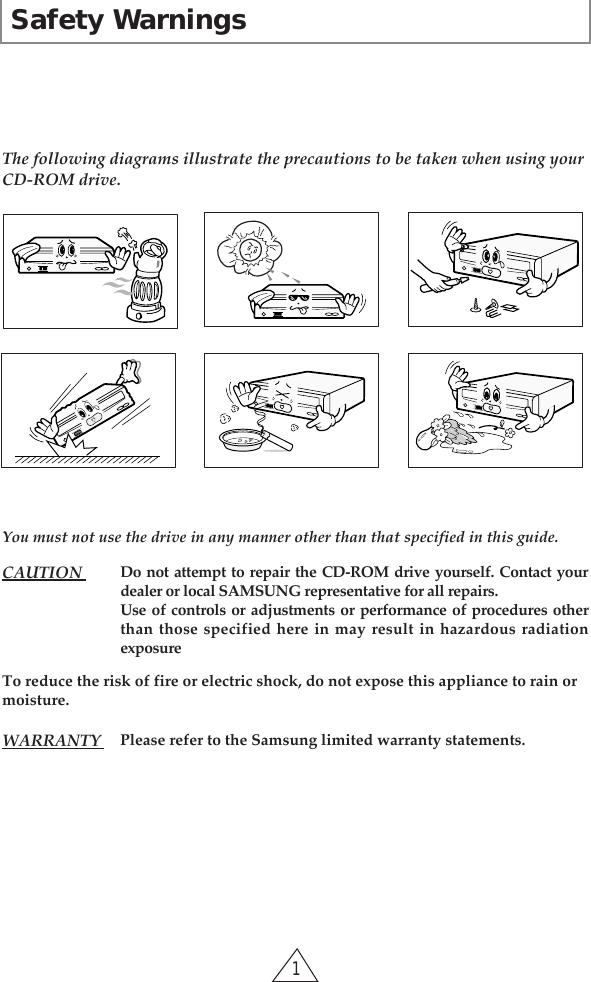

Safety Warnings1The following diagrams illustrate the precautions to be taken when using your CD-ROM drive. You must not use the drive in any manner other than that specified in this guide.To reduce the risk of fire or electric shock, do not expose this appliance to rain ormoisture.CAUTION Do not attempt to repair the CD-ROM drive yourself. Contact yourdealer or local SAMSUNG representative for all repairs.Use of controls or adjustments or performance of procedures otherthan those specified here in may result in hazardous radiationexposureWARRANTY Please refer to the Samsung limited warranty statements.
Front View of the CD-ROM Drive2COMPACT1123456Headphone ConnectorThe audio output connector enables you to plug stereo headphones into the drive. It requires a 3.6mm stereo mini-jack.6Stop/Open/Close-ButtonWhen in play, press the stop key and when in stop, press open/close key.4Disc TrayThe Disc Tray opens and closes automatically when you press the Open/Close button.◆ When you place a disc in the tray, make sure that the label on the disc is facing upwards. If you are not loading or unloading a disc, the disc tray should remain closed.5Emergency HoleIf the disc tray does not open when you press the Open/Closebutton, insert a small, metal rod(an unwound paper clip for example) into this hole to eject the disc.☛This function should only be performed when the computer is powered OFF.2Volume Control DialThis control dial adjusts the volume for your headphones. You can only use the headphone jack andvolume control when you have installed the required software utilities. For example, the MicrosoftWindows Media player can be used.3LED
Rear View of the CD-ROM Drive31123 4 5Digital AudioYou can connect a sound card or MPEG card which support Digital Audio to your drive using thistwo-pin connector. 2Audio Output ConnectorYou can connect a sound card to your drive using this four-pin connector. ☛This function is not covered in detail in this guide. Refer to the documentation supplied with your sound card.3Device Configuration JumperUsually, this is a pre-set configuration as illustrated below.☛ Verify that the setting is as illustrated. If it is not, simply remove the jumper and place it in the correct position.4Host IDE Interface connectorThis input/output interface connector is used to connect the 40-pin flat cable from the IDEinterface to the CD-ROM drive.5Power ConnectorThe power connector is a four-conductor male plug.CSSLMA
System Requirements41Turn OFF your computer. Remember to verify the configurationjumper on the rear of the CD-ROM drive.2Remove the cover of your PC(main unit of the computer)3Remove the blank cover panel of the 5.25 inch unit in which theCD-ROM drive is to be installed.6Put the cover back on your PC.5Install the CD-ROM drive into the unit and secure it with mountingscrews (recommended standard M3x6x4)☛ ◆ Depending on your PC model, you may need to attach guide rails to the drive, so that the drive is held firmly in place.☛◆ If you use screws that are longer than the recommended standard, you may damage the drive.Before you install the CD-ROM drive, we strongly recommend that youmake certain that your set-up meets the system requirements listed below.Installing the CD-ROM DriveInstall the CD-ROM drive in your computer horizontally, making sure that theTo install the drive, proceed as follows.4Connect the CD-ROM drive to the IDE interface and power cablesIocated inside your computer. ☛ Connectors are keyed so it is impossible to put them in an incorrect position. Do not force the connectors, if they do not seem to fit.ItemWindows versionMS-DOS versionDisk spaceFree expansion unitType of computerDescription3.1(or higher)5.0(or higher)100KB minimum5.25 inchIBM 486SX 20MHz (or higher) with an IDE interface(or a 100% IBM-compatible computer)
5Installing the SoftwareYou can install the device driver for DOS or for Windows¡Do not install DOS Driver when the program of Windows 95 is going on.(Remark CD-ROM Driver in the state of Config. Sys.)1Turn on your computer and wait for it to boot.2Insert the driver disk into a floppy disk drive(usually the A drive).3If you are a...DOS userWindows user Windows 95userThen :◆Type a: at the DOS prompt◆Press the RETURN key◆ Access the File Manager◆ Click on the Aicon.◆ Type CDSETUP after the a: prompt ◆ Press RETURNDouble-click CDSETUP.EXE from the WindowsFile Manager◆ When you are in Windows 95, it is not ◆ necessary to install Device Driver. ◆ Whereas, when you are in Dos Mode of ◆ Windows 95, then install as follows. ◆ Click on MY COMPUTER icon. ◆ Click on the Aicon.456Run the CDSETUP program:To...Confirm the installation YExit without installing NWhen the Setup Completed screen is displayed, remove theinstallation floppy disk from the drive.7Reboot your system.If you answer Y(Yes), the installation program automatically◆ Creates a SAMSUNG directory on your hard disk ◆ Copies the required softwares (mscdex.exe and sscdrom.sys)◆ Modifies the CONFIG.SYS and AUTOEXEC.BAT filesResult : ◆ The computer restarts◆ Both the device driver and MSCDEX are loadedResult : Then enter...If you are a... Then :DOS userWindows user
6Resolving Technical Problems☛ Please consult the following table BEFORE contacting your dealer or local SAMSUNG ☛ representative.The software installation failed ◆Check that your hard disk is not full◆The installation floppy disk may be corrupted. Repeat the installation with the backup floppy disk.After installing the device driver, your system start-upprogram may take more time than expected. If it does notstart-up after 60 seconds, verify your AUTOEXEC. BAT fileand, if necessary, contact your local computer dealer.I re-booted my PC and it paused duringthe start-up program.Problem Meaning / Solution◆When the program of Windows 95 is broken up, re-stall ◆it as the computer can not read the program anymore.◆Verify the connections between the drive and your PC.◆Check that the 40-pin flat cable is connected to an IDE ◆interface (some PCs are equipped with an SCSI disk ◆interface)◆Verify your AUTOEXEC. BAT file. Go to page 6 for ◆the verification procedure.◆Check the LASTDRIVE = command in the CONFIG. SYS ◆file. The specified letter must take the CD-ROM volume ◆into account. If you do not know which letter is assigned ◆to the CD-ROM, enter Z.◆Using the documentation provided with your PC, check ◆that the IDE hard disk is set up in MASTER mode.I installed the software and re-booted my PC. The CD-ROM driveicon/directory still does not appear.The drive may not be installed correctly. Verify the physical installation.The disc tray does not open.If you have installed theCD-ROM drive ... Then ...And the software Re-boot your PC.Install the softwarefollowing the instructionson page 5In the File Manager, the CD-ROM icondoes not display.And have not installed thesoftware
7Technical SpecificationsMax. 6000KB/s Max. 7200KB/sSC-140 SC-148SECTIONSDISCDRIVE PER -FORMANCEFRONT PANELREAR PANELOPERATINGENVIRONMENTGENERALRELIABILITYERROR RATEDisc types supportedDisc diameterData transfer rateAccess time (1/3 stroke)Data buffer capacityLaserSlide mechanismSpindle motorLoading typeButtonIndicator(LED)Headphone outputVolume controlRequired powerInterface connectorAudio outputJumper blockWork areaStorage areaDimensionsNet weightMTBFDisc compartment loadingCD-DA, CD-ROM Mode-1, CD-ROM XA Mode-2 Form-1,Form-2, CD-Plus, CD-Extra, Photo-CD(Single, Multi-session), VideoCD ready, Enhanced CD, CD-I/FMV, CD-R12cm or 8cmPIO Mode - 4. DMA MW2(option), Ultra DMA80ms(typical) 70ms(typical)128KBSemiconductor LaserGear motorBrushless motorTray Loading, DC motor(Soft Eject)Mode-1 : 1block / 10 bits, Mode-2 : 1 block/10 bitsPLAY(Open/Close)BusyStereo Mini - jack (Ø 3,6 mm) 0.60 ± 20% (Vrms) 33ΩDial type+5V DC 1.7A, +12V DC 1.0A (Max)ATAPILine out 0.70 ± 20%(Vrms), 47kΩDevice configuration jumperTemperature : 5~45 °C, Humidity : 8~80%Temperature : -40~60 °C, Humidity : 5~90% 950g125,000 POH(Duty 25%)30,000 times149(W) x 42.5(H) x 200(D)mm (Including bezel)SAMSUNG continually strives to improve its products. Both the designspecifications and these user instructions are thus subject to change withoutnotice.12 9
