Samsung Electronics Co SCH4000 SINGLE BAND PCS CDMA PHONE User Manual fcc final

Samsung Electronics Co Ltd SINGLE BAND PCS CDMA PHONE fcc final

USERS MANUAL

Gettingtoknowyourphone.(THIS SECTION WILL INCLUDE APHOTO OF THE PHONE, WITH CALL-OUTS,SIMILAR TOWHAT WE DID WITH THE SONY PHONE. PLEASE CONFIRM THAT NOTHING WAS LEFTOUT.)RedLight: Illuminates when END/(1) id pressed and when out have incoming calls and messages.Volume:Lets you adjust the sound level.TALK:Lets you place acall and answer Call Waiting.*,#:Allow you to scroll through the menu options and displays.CLR:Allows you to clear your last entry.END/(1): Lets you disconnect acall and return to standby mode.ENVELOPE:Lets you access your voicemail and listen to your messages.MENU:Lets you access the phone's menus.OK:Allows you to save phone numbers,along with any settings you select in the menus.Displayicons:What theytell you.Display icons are all the graphic symbols that show up on your display screen. In short,theytell you what's going on. They're shown below.Signal:Measures your current signal strength. The more lines there are,the stronger the signal.Messages:Indicates when you have messages waiting in voicemail.Battery:Shows the level of your battery charge. The more thick,diagonal lines you see,the more power you left.When the charge is low,the icon blinks.LockIcon:Displayed when the phone is locked;you must enter your four-digit lock code tounlock the phone.???whatother iconsare there? Whatdotheydo? Verifythat theseare correct.???BatteryPackYour new Sprint PCS Phone comes with arechargeable battery pack that is partially charged so you can use itimmediately after you activate,without any hassle. If you have the time, however,you should charge the battery as
soon as possible,to get the most out of it.Installing yourbatterypack.To install your battery,just follow these simple steps:1. Hold the battery with the label facing down.2. Lay it on the back of the phone with the top of the battery about aquarter of an inch fromthe latch.(The connectors at the base of the battery should line up with the connectors onthe base of the phone.???I didn't know what to call those little metal things in the battery andon the phone???)3. Gently slide the battery until it clicks into place.Turning yourphoneonand off.When you're ready to turn your Sprint PCS Phone on,check to see that the charged battery pack has beeninstalled in the back of the phone or that you have an external power source(the cigarette lighter adapter or the hands-free car kit). Then, simply press END/(1) until the red light at the topof the phone is lit. Now you're ready to make acall.Turning off the phone is just as simple. Press END/(1) for afew seconds.The display will by blank when thepower is off.Taking yourbatterypackout.1. First,turn the power off to avoid losing stored numbers and messages.2. Press the battery release latch on the back of the phone while sliding the battery out.Charging yourbatterypack.You can tell whether or not your battery needs to be recharged just by checking the???corner of your phone'sdisplay,where the battery charge indicator is located. When the battery charge level is low,the battery icon will???and the phone will sound atone.???Whatdoesthephonedoif the chargeislow???If you continue to use your phone without recharged and the battery level becomes too low,it will turn offautomatically. If this happens, unfortunately you'll lose whatever you were just doing. So,watch the indicator andmake sure your level is okay.???Is anyof thistruefortheSamsungphone???To charge your battery, you should use the Sprint PCS desktop charger, travel charger of cigarette lighter adapter
from Samsung.(The desktop charger is described in the next section.For more information on the travel charger and cigarette lighter adapter,see the product user guide for each.)Usingthedesktopcharger.First of all,a few words of wisdom of warning:You should only use the Samsung-approved desktop charger andAC adapter with this Sprint PCS Phone.Using the wrong one could cause damage.1. Plug one end of the AC adapter into the charger and the other end into awall outlet.2. Insert either the battery pack alone or the phone with the battery pack installed into the slot.A???light??? on the charger will let you know the battery is being charged. A???light???tells you when thebattery is at least 90 percent charged.If your battery's charge is completely run down,it will take about ??? hours to fully recharge it.With the Samsung-approved???name of battery type (like lithium ion was for Sony)battery pack you don't have to completely discharge the battery before discharging it. If you leave your phoneturned on while's in the charger,your battery will take longer to charge.Function keys:What theymakehappen.TALK:Press this key to place acall,to access asecond incoming call or to initiate Three-Way Calling.CLR:This key lets you do lots of things:-To erase one character from the display screen,briefly press it one.-To erase all of the them,hold it down.-To go back one level when you're accessing amenu,briefly press it once.-To revert back to the standby display, hold it down. ???Is this true???END/(1):Press this key to disconnect acall. You can also press it to exit out of amenu and return to thephone's standby display.MENU:Press this key to display the phone's main menu.OK:Press this key to store anumber in the phone's internal phone book.
ENVELOPEICON:Press this key to check your voicemail messages. (For more information on voicemail,seepage ???.)Phone calls:Howtomakeand receivethem.Whenever you make acall,follow these simple steps:1. First,check to see that your Sprint PCS Phone is turned on. If you see the display indicatorson the screen,that means the power is on.2. Enter the number you're calling.3. Press TALK.4. When you're finished with your call,just press END/(1) to disconnect.Correctingamisdial.If you make amistake while dialing aphone number,press CLR to erase the number one digit at atime. Youcan delete the entire number at once by pressing CLR and holding it down for at least one second.Remembering yourphonenumber.You probably don't call your own Sprint PCS Phone number very often,so you may forget it. If you do,here's aneasy way to get it:Turn your phone on and your number will be displayed briefly.If you miss it,press MENU,press2 to select "Phonebook"and then press2 to display your number.Answeringcalls.When your phone rings,simply press any key(other than END/(1)or the volume keys)to answer. To disconnectwhen you're through, press END/(1).UsingCaller ID.This feature tells you who is calling you on your Sprint PCS Phone by displaying the caller's number when the

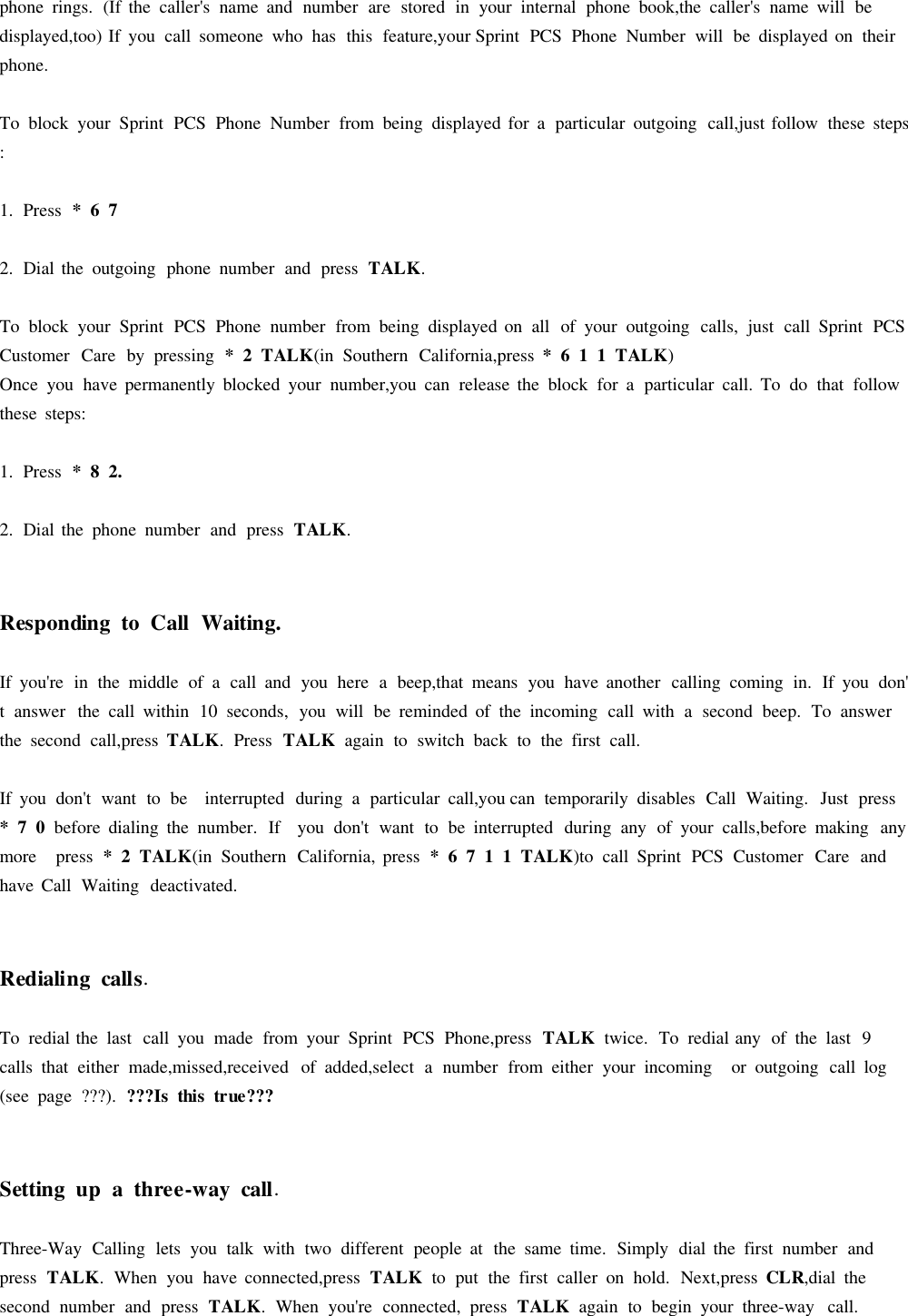

phone rings. (If the caller's name and number are stored in your internal phone book,the caller's name will bedisplayed,too) If you call someone who has this feature,your Sprint PCS Phone Number will be displayed on theirphone.To block your Sprint PCS Phone Number from being displayed for aparticular outgoing call,just follow these steps:1. Press *672. Dial the outgoing phone number and press TALK.To block your Sprint PCS Phone number from being displayed on all of your outgoing calls, just call Sprint PCSCustomer Care by pressing *2TALK(in Southern California,press *611TALK)Once you have permanently blocked your number,you can release the block for aparticular call. To do that followthese steps:1. Press * 8 2.2. Dial the phone number and press TALK.RespondingtoCall Waiting.If you're in the middle of acall and you here abeep,that means you have another calling coming in. If you don'tanswer the call within 10 seconds, you will be reminded of the incoming call with asecond beep. To answerthe second call,press TALK.Press TALKagain to switch back to the first call.If you don't want to be interrupted during aparticular call,you can temporarily disables Call Waiting. Just press*70before dialing the number. If you don't want to be interrupted during any of your calls,before making anymore press *2TALK(in Southern California, press *6711TALK)to call Sprint PCS Customer Care andhave Call Waiting deactivated.Redialingcalls.To redial the last call you made from your Sprint PCS Phone,press TALKtwice. To redial any of the last 9calls that either made,missed,received of added,select anumber from either your incoming or outgoing call log(see page ???). ???Is thistrue???Settingup athree-way call.Three-Way Calling lets you talk with two different people at the same time. Simply dial the first number andpress TALK.When you have connected,press TALKto put the first caller on hold. Next,press CLR,dial thesecond number and press TALK.When you're connected, press TALKagain to begin your three-way call.
UsingCall Forwarding.With Call Forwarding,you can have all of your incoming calls forwarded to another phone number-even if yourSprint PCS Phone is turned off. Even when Call Forwarding is activated,you still can make calls from yourSprint PCS Phone. To activate Call Forwarding, follow these steps:1. Press *72.2. Once you've decided where you want your calls forwarded, enter the area code and the seven-digit phonenumber.3. Then press TALK.You will hear atone that confirms you've activated Call Forwarding.To deactivate Call Forwarding,press *720TALK.Once again,you'll hear atone to confirm the deactivation.Saving or editing yourownemergencynumbers.You can save up to three emergency phone numbers on your Sprint PCS Phone, in addition to 911. To savethose numbers,follow the steps below.1. Press MENU.2. Press 5to select "Security".3. The phone prompts, "Lock Code:" Enter your four-digit lock code (typically this code is thelast four digits of your Sprint PCS Phone Number). Once you've successfully entered yourlock code,the phone displays the security menu.4. Press 4to select "Emergency#". The phone displays your security numbers(if no securitynumbers have been saved,"Empty"is displayed in each slot.5. Select an emergency number slot by pressing the appropriate number.6. Enter the 10-digit emergency number(area code +phone number)to be saved in that slot andpress OK.7. The phone displays the number and "Saved"to confirm that the number was stored correctly.The phone then redisplays the list of emergency numbers so you can make additionalchanges.
8. When you have finished storing numbers,press and hold CLRto exit and return to thestandby display.Dialing 911 orother emergencynumbers.If there's an emergency,you still can make calls even when your phone is locked. (For information on locking yourphone,see page ???) If your account is restricted,you still can call911 but no other emergency numbers. To make acall,follow these simple steps:1. Dial 911 or one of the other three emergency numbers stored in your emergency list.2. Press TALK.DialingSprintPCSDirectoryAssistanceDial 411TALKto obtain residential,business and government listings; to get help completing local or long-distance calls;or to obtain movie listings,hotel,restaurant and shopping information,and major local event information.DialingSprintPCSOperatorServicesDial 0to obtain assistance in placing collect call or call billed to alocal telephone calling card or athird party.Voicemail:Theinsand outs.Settingup yourvoicemail.The first time you call your voicemail box,which you do by pressing and holding ENVELOPE forat asecond,enter "SPRINT"(777468)as your temporary pass coed. We suggest you do this soon after you activateyour Sprint PCS Account.After entering that coed,the voicemail system will prompt you to do these things:-Create your own personal pass code. Make sure you pick anumber that you will remember.-Create the greeting that people will hear when they call you.-Initialize your name announcement.-Choose whether to activate One-Touch Access.After you've set up your voicemail,it will automatically record messages whenever someone calls and you don't
answer. Whenever you need to call your voicemail from your home or business phone,dial your Sprint PCS PhoneNumber,press* and enter your pass code.Finding outyou haveamessage.Your Sprint PCS Phone alerts you when you have new voicemail message in several ways:-By displaying amessage on the screen-By sounding five short beeps(if the ringer is turned on)-By flashing the red light at the top of the phone-By displaying the ENVELOPE icon at the top of your screenTo acknowledge anew message,you can press any key. The red light will continue to flash and areminder beepwill sound every two minutes until you do this.Once you've acknowledged amessage,your phone will then redisplay whatever was on the screen before the alert.The phone will display ENVELOPE until you save or erase your new messages. You can save up to 30 messagesand each can be stored for up to 30 days.Retrievingmessages.Whenever you access your voicemail,you'll be given the following options:-To listen to new or savedmessages, press 1.-To change your personal options,such as your personal greeting,press 3.When you listen to your messages,here are all the things you can do:To hear the date and timeof amessage,press 5.To erase a messages,press 7.To return a call,press 8.(You can do this only when acallback number is attached.) See page???for more information on the callback feature.To save a message,press 9.(You can save up to 30 messages and each can be saved for up to 30 days.)To skipto the next message, press #down arrow.

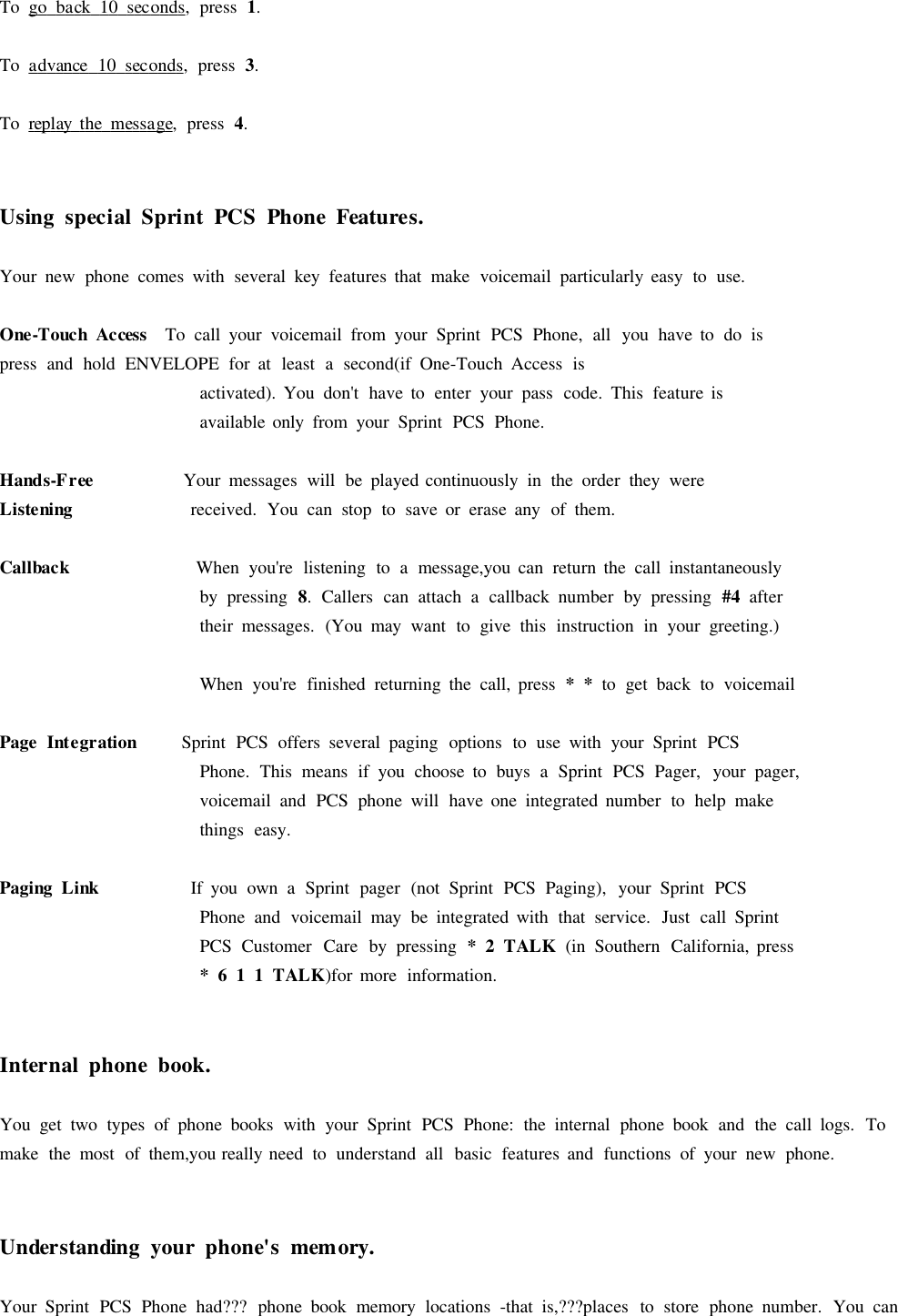

To go back 10 seconds,press 1.To advance 10 seconds,press 3.To replay the message,press 4.UsingspecialSprintPCSPhoneFeatures.Your new phone comes with several key features that make voicemail particularly easy to use.One-TouchAccess To call your voicemail from your Sprint PCS Phone, all you have to do ispress and hold ENVELOPE for at least asecond(if One-Touch Access isactivated). You don't have to enter your pass code. This feature isavailable only from your Sprint PCS Phone.Hands-Free Your messages will be played continuously in the order they wereListeningreceived. You can stop to save or erase any of them.CallbackWhen you're listening to amessage,you can return the call instantaneouslyby pressing 8.Callers can attach acallback number by pressing #4 aftertheir messages. (You may want to give this instruction in your greeting.)When you're finished returning the call, press **to get back to voicemailPageIntegrationSprint PCS offers several paging options to use with your Sprint PCSPhone. This means if you choose to buys aSprint PCS Pager, your pager,voicemail and PCS phone will have one integrated number to help makethings easy.PagingLinkIf you own aSprint pager (not Sprint PCS Paging), your Sprint PCSPhone and voicemail may be integrated with that service. Just call SprintPCS Customer Care by pressing *2TALK(in Southern California, press*611TALK)for more information.Internalphonebook.You get two types of phone books with your Sprint PCS Phone: the internal phone book and the call logs. Tomake the most of them,you really need to understand all basic features and functions of your new phone.Understanding yourphone'smemory.Your Sprint PCS Phone had??? phone book memory locations -that is,???places to store phone number. You can
store up to 32 digits within each of these memory locations and use up to 12 characters to give each entry aname.Saving and storingaphonenumber.When adding numbers to your internal phone book,keep in mind that memory locations 1through 9should beused for One-Touch Dialing???Icouldn't find anythingtosuggest that theSamsunginterface offersone-touchdialing??? or your most commonly used phone numbers. To save numbers,simply follow the directions below.1. Enter the number that you want to save and press OK.We suggest that you save numbersusing 10 digits (area code +number). The phone displays the next available memory locationalong with your entry.2. Press OK again to save the number in the memory location. To instead save the number toadifferent memory location,enter that location number and then press OK.???canIenterpauses,likeontheSonyphone???If that memory location already has anumber stored in it, the phone prompts,"Replace?"Press OK to replace it with the new number,or press CLRto enter adifferent memorylocation.3. Next,enter the name that goes with the number. ???isthere awaytoenter punctuation???Press the key of the first letter in the name,and continue until you've spelled the wholename. Pressing akey repeatedly will change the letter or number in the cursor position onthe screen. (For example,press 2once for "A". Press 2twice for "B".)As you press each key,the cursor will advance automatically. To enter aspace, press #.Press CLRor *or #to correct any mistakes.4. When the name is entered correctly, press OK.The phone displays the name, number and"Saved" to confirm that the number is stored. ???Canichangeuppercasetolowercase, andvice versa???Checking all yourstored numbers.Several methods can be used for checking numbers stored in your phone. You can look upanumber using aname,digits from the phone number,or memory location. Each is describedseparately below. Follow the steps described below to find stored numbers using the menuoptions.1. Press MENU.2. Press 2to select "Phone Book".
3. Press 1to select "Find name" or press 4to select "Find Entry".Shortcuts for looking up numbers by memory location and name also are available,as described in the nextsections.Findinganumber usingitsmemorylocation.1. Press MENU.2. Press 2to select "Phonebook"3. Press 4to select "Find Entry"4. Enter the two-digit memory location to display the number5. To call that number, press TALK.Findinganumber usingaperson'sname.1. Press MENU.2. Press 2to select "Phonebook"3. Press 1to select "Find Name"4. Enter as many consecutive letters of the name as you can remember(even if you rememberonly the first letter)and press OK. The phone briefly displays the number of matches foundand then displays the name and number of the first match. If the number displayed is notthe one you want, press *or #to scroll through the list until the appropriate number isdisplayed.3. When you have found the correct number, press TALKto dial it automatically.???Doweoffer speed dialontheSamsungphone?Editingaphonenumber.1. First,find the number that you want to edit,using one of the methods described in theprevious sections.2. ???Icouldn't figure outhowtoeditanexistingstored number???Erasingaphonenumber.
1. First, find the number that you want to erase2. Press MENU.3. Press 4to select "Erase"4. Press OK to erase the number from the phone book.???this seemsabitconvoluted.Is there afaster,more efficientway???Keepingtrackofyoucalls.Your Sprint PCS Phone keeps track of the last nine calls you made and the last nine calls youreceived. To display alist of recently made calls, follow these steps.1. Press MENU.2. Press 1to select "Call Logs".3. To display information on your last nine outgoing calls, press 1.To display informationon your last nine incoming calls, press 2.To display information on your last nine missedcalls4. The phone then displays the phone numbers of your calls, one at atime. To scroll throughthe list, press *or #.5. To dial adisplay number, simply press TALK.Otherwise, press and hold CLRto exitand return to the standby display.Dialingfromyourphonebooktoadifferentareacode.When you're traveling outside your home service, or when you're calling someone backfrom within voicemail, you may need to add an area code to the number. To temporarily adddigits to the beginning of aphone number, follow these steps:1. Find the number you want to call. This can be done in several ways. (See page ??? formore information.)2. Press MENU.3. Press 3to select "Prepend"
4. Enter the area code.3. Press TALKto dial the modified number.Mainmenu:Tailoringyourphone'sfeaturestoyourneeds.You can access all of your phone's features and settings through the main menu. Here's howto to about it.Navigatingthroughthemenu.To display the main menu, press MENU.To scroll through menu items,press *or #.To go back one step, press CLRbriefly.To select a menu item,press the number corresponding to it.To scroll through possible setting,press *or #.To save a setting,press OK.To exit the menu and return to the standby screen, press END/(1)or press and hold CLR.. No changes will besaved.Takingamenu shortcut.If you're in ahurry, just press MENU and the numbers on the menu screen. For example, ifyou press MENU, followed by 4and 1, the phone will display the volume setting for theringer.Understandingmenu items:Managing yourphone's settings.Keepingtrackofcalls.1: Call Logs. These options help you remember whom you called and who called you, alongwith how much airtime you have used. Times are displayed in hours, minutes and seconds(for example, 003h: 59m: 23s).
1: Outgoing.Lists, one at atime, the last nine numbers you called. Press *or #toscroll through the list.2: Incoming.Lists, one at atime, the numbers of the last nine callers to your SprintPCS Phone. Press *or #to scroll through the list.3. Missed. Lists, one at atime, the last nine numbers you missed. Press *or #toscroll through the list.4: AirTime.Check to see how much air time you have used by selecting this option.1: LastCall.Displays the phone number of your last call, the date and timethe call was made, and the duration of the call.2: Total.Displays the total number of calls made and received, along with thetotal amount of airtime used.3: EraseTotal.To reset your air time log to zero, press OK.To maintainthe log, press CLR.Maintaining yourinternalphonebook.2: PhoneBook.These options lets you manage the numbers stored in your phone's internalphone book.1: Find Name.Lets you look up numbers stored in your internal phone book.Enter as many consecutive letters of the name that you know andthen press OK.(Entering only the first letter of the name still helps narrowyour search.) The phone indicates how many matches were found and thendisplays the first number and name from the list of matches. To scroll throughthe list, press *or #.To dial adisplayed number, press TALK.2: MyPhone#. Displays your Sprint PCS Phone number.3: Add Entry.Lets you store aphone number in the phone's internal phone book. Enterthe number to be stored and then press OK.To store the number in the nextavailable memory location, press OK again. Next, enter the name that will be used toidentify the number and press OK.4. Find Entry:Enter the two-digit memory location code that corresponds to thenumber you want to find. To scroll through the entire list of stored numbers,press *or #.To dial adisplayed number, press TALK.5: Services.When you need assistance making calls or if you have questions about yourSprint PCS Phone or service, you can select this option.
1: DirAssist.Lets you connect to ??? a Sprintoperatorto get assistance in makingcalls.2: Customer.Dials Sprint PCS Customer Care.3: PrepaidAdjusting yourphone'svolume.3: Sounds.Here's how to adjust the volume of your phone's ringer and key beep.1: RingVol.To adjust the ringer, you can press either *or #, or the volume keys.Setting are "off," "low," "med" and "high." "1-beep" The default is ???.Once you select the level you want, press OK to set it.2: Ring Type. Determine the sounds your phone makes when you receive acall ormessages.Press *or #to scroll through the possible settings. As you scroll through the list, youwill hear asample of the ringer setting. When you find the ringer setting you want,press OK to save it. ??? Is there adefaultsetting???3: MSGRing. To adjust the message ringer,you can press either *or #, or the volume keys.Setting are "off," "low," "med" and "high." "1-beep" The default is ???.Once you select the level you want, press OK to set it.4: KeyVol.To adjust the beep your phone makes when you press akey, select thisoption. Press *or #or the volume keys. Setting are OFF, LOW, MED and HIGH.The default is ???. Once you select the level you want, press OK to set it.5: ToneLength.You can determine the length of the tone your phone makes whenyou press akey. Possible settings are "short" and "long". The default setting is"short".Determiningwhatisdisplayed.4: Display.Determine some of the attributes of your phone's display by modifying thesesettings.1: Backlight.You can manipulate the display and keypad backlighting. Possiblesettings are OFF 10 SECONDS, 30 SECONDS, and "FLIP OPEN".The default setting is ???.
2: Greeting. This option lets you put whatever you want on your phone's displayscreen just so long as it's no more than 12 characters. This banner will be displayed onthe top line whenever your phone is on. Enter text for your banner in the same wayyou enter names with stored phone numbers (see page ???).3: Version.Displays the version number of the software installed on your Sprint PCSPhone.MaintainingPhonesecurity.5: Security.You have the option to lock your Sprint PCS Phone to keep others from using itwhen you don't want them to. Locking your phone means that you can still receive incomingcalls or making emergency calls, but all other phone functions are disabled.Your lock code typically consists of the last four digits of your Sprint PCS Phone Number. Ifyou choose to change it, however, and then forget it, you will have to call Sprint PCSCustomer Care for assistance. Press *2TALKto call Customer Care (in Southern California,press *611TALK).To access the security menu and modify the settings, you must first enter your lock code.1: Lock.First, you should decide when you want your phone to be locked. Possiblesettings are "off", "til unlock" and "on power-up". If you choose "on power up" yourphone will be locked when you turn it on. If you select "til unlock", your phone willbe locked ??? Idon'tunderstand theseoptions??? Defaultsetting???2: Limituse.With restrict mode, you control what calls can be made from your phone.Regardless of the restriction setting you will always be able to receive calls.1: Outgoing. Determine whether outgoing calls can be made from yourSprint PCS Phone with this option. Possible settings are "No Limit", "Phonebook"and "Special #". The default setting is ???. Select an option by pressing*or #and then press OK to save your selection.2: Incoming. Determine whether incoming calls can be received on yourSprint PCS Phone. Possible settings are "No Limit" and "No Calls". Select anoption by pressing *or #and then press OK to save your selection.3: PhoneBook.Determine whether outgoing calls from your Sprint PCSPhone should be limited to numbers stored in the internal phone book.Possible settings are "Full Access", "Read only"and "No Access".The default setting is ???.Select and option by pressing *or #and then press OK to save your selection.4. Roaming. Determine whether your Sprint PCS Phone be limited in Roaming status.
Possible settings are "Full Access" ,"Incoming","Outgoing", and "No Access".The default setting is ???.Select and option by pressing *or #and then press OK to save your selection.3: LockCode.If you don't want to use your phone's original lock code, you can usethis option to enter your own new four-digit number. Be sure to pick anumber thateasy for you to remember.4: Emergency#. You can enter up to three emergency number and you can call all ofthem, along with 911, even when your phone is locked. When you dial an emergencynumber, it must exactly match the stored number in order to override the lock andrestriction settings.5. Erase1.Calls .Erase Select options is only outgoing, only incoming, only missed, and All logs.2.Phonebook. Erase Whole Phonebook.3.Message. Erase Page/Txt message.6: ResetPhone. ??? Whatdoesthisreset???Choosingthe rightalerts.6: Alert.Your Sprint PCS Phone comes with different options to keep you aware of what'sgoing on.1: MinuteBeep.This option is like aminute minder that beeps 10 seconds beforeeach minute is up during acall. Settings are "on" and "off". The default setting is ???.2: Service. Whatdoesthisdo??? Settings are "on" and "off". The default setting is ???.Customizingtheway yourphoneworks.7: Setup.With the help of the following features, you can make your phone work more likeyou do.1: AnyKeyAns.You can determine whether you can press any key to answerincoming calls. Possible settings are "yes" and "no". The default setting is "yes".2:Talk Key. when you press TALK in standby status, You can determine whether list isAccessed. Possible settings are "Calls" and "Phonebook"
