Users Manual
Printed in Korea
Code No. : GH68-XXXXXA
HonKong China.
2001/04. Rev.1.0
PORTABLE CELLULAR
TELEPHONE
SCH-A301
User’s Manual
ELECTRONICS
World Wide Web
http://www.samsungmobile.com
Draft version (2001.5.7)
* Some of the contents in this manual may differ from your phone
depending on the software of the phone or your service provider.
iii
CC RF EXPOSURE INFORMATION
In August 1996 the Federal Communications Commission (FCC)
of the United States with its action in Report and Order FCC 96-
326 adopted an updated safety standard for human exposure to
radio frequency electromagnetic energy emitted by FCC
regulated transmitters. Those guidelines are consistent with the
safety standard previously set by both U.S. and international
standards bodies. The design of this phone complies with the
FCC guidelines and these international standards.
Use only the supplied or an approved antenna. Unauthorized
antennas, modifications, or attachments could impair call
quality, damage the phone, or result in violation of FCC
regulations.
Do not use the phone with a damaged antenna. If a damaged
antenna comes into contact with the skin, a minor burn may
result. Please contact your local dealer for replacement
antenna.
Body-worn Operation
This device was tested for typical body-worn operations using
the optional belt-clip/holster placed 1.5cm from
the body. To comply with FCC RF exposure requirements, a
minimum separation distance of 1.5cm must be
maintained between the user’s body and the phone, including
the antenna, whether extended or retracted. The use of third-
party belt-clips/ holsters with no metallic components that
provide the minimum separation distance of 1.5cm
can be used to satisfy FCC RF exposure requirements. The use
of non-tested accessories or other body-worn operations may
not comply with FCC RF exposure requirements and should be
avoided. Contact your local dealer for optional accessory items.
Vehicle Mounted External Antenna (optional, if available.)
A minimum separation distance of 7.9 inches (20cm) must be
maintained Between a person and the vehicle mounted external
antenna to satisfy FCC RF exposure requirements.
For more information about RF exposure, please visit the FCC
website at www.fcc.gov
SAR Information & FCC ID Labeling
THIS MODEL PHONE MEETS THE GOVERNMENT’S
REQUIREMENTS FOR EXPOSURE TO RADIO WAVES.
Your wireless phone is a radio transmitter and receiver. It is
designed and manufactured not to exceed the emission limits
for exposure to radiofrequency (RF) energy set by the Federal
Communications Commission of the U.S. Government. These
limits are part of comprehensive guidelines and establish
permitted levels of RF energy for the general population. The
guidelines are based on standards that were developed by
independent scientific organizations through periodic and
thorough evaluation of scientific studies. The standards include
a substantial safety margin designed to assure the safety of all
persons, regardless of age and health.
The exposure standard for wireless mobile phones employs a
unit of measurement know as the Specific Absorption Rate, or
SAR. The SAR limit set by the FCC is 1.6W/kg.* Tests for SAR
are conducted using standard operating positions specified by
the FCC with the phone transmitting at its highest certified
power level in all tested frequency bands. Although the SAR is
determined at the highest certified power level, the actual SAR
level of the phone while operating can be well below the
maximum value. This is because the phone is designed to
operate at multiple power levels so as to use only the power
required to reach the network. In general, the closer you are to
a wireless base station antenna, the lower the power output.
Before a phone model is available for sale to the public, it
must be tested and certified to the FCC that it does not exceed
the limit established by the government-adopted requirement
for safe exposure. The tests are performed in positions and
locations (e.g., at the ear and worn on the body) as required by
the FCC for each model. The highest SAR value for this model
phone when tested for use at the ear is XXXXX and when worn
on the body, as described in this user guide, is XXXXX . (Body-
worn measurements differ among phone models, depending
upon available accessories and FCC requirements). While there
may be differences between the SAR levels of various phones
and at various positions, they all meet the government
requirement for safe exposure.
1iii
Contents
Unpacking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Your Phone
Phone Layout . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Backlight . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Service Light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Getting Started

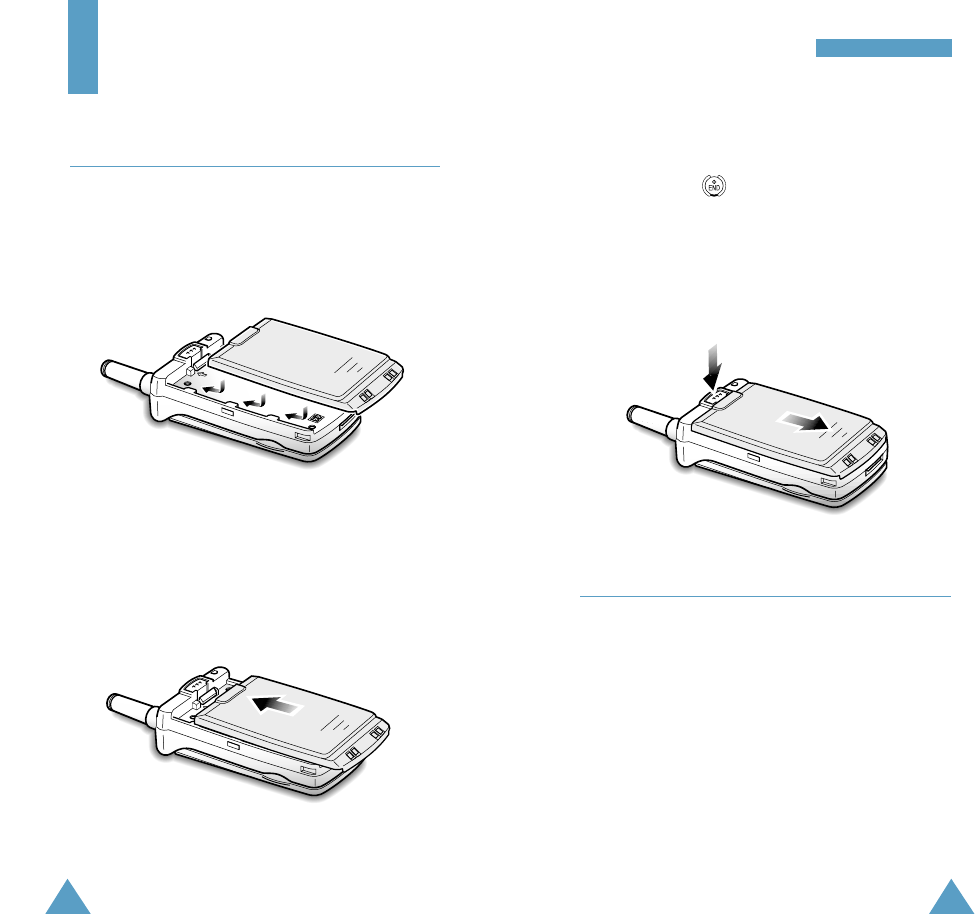

Installing Battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

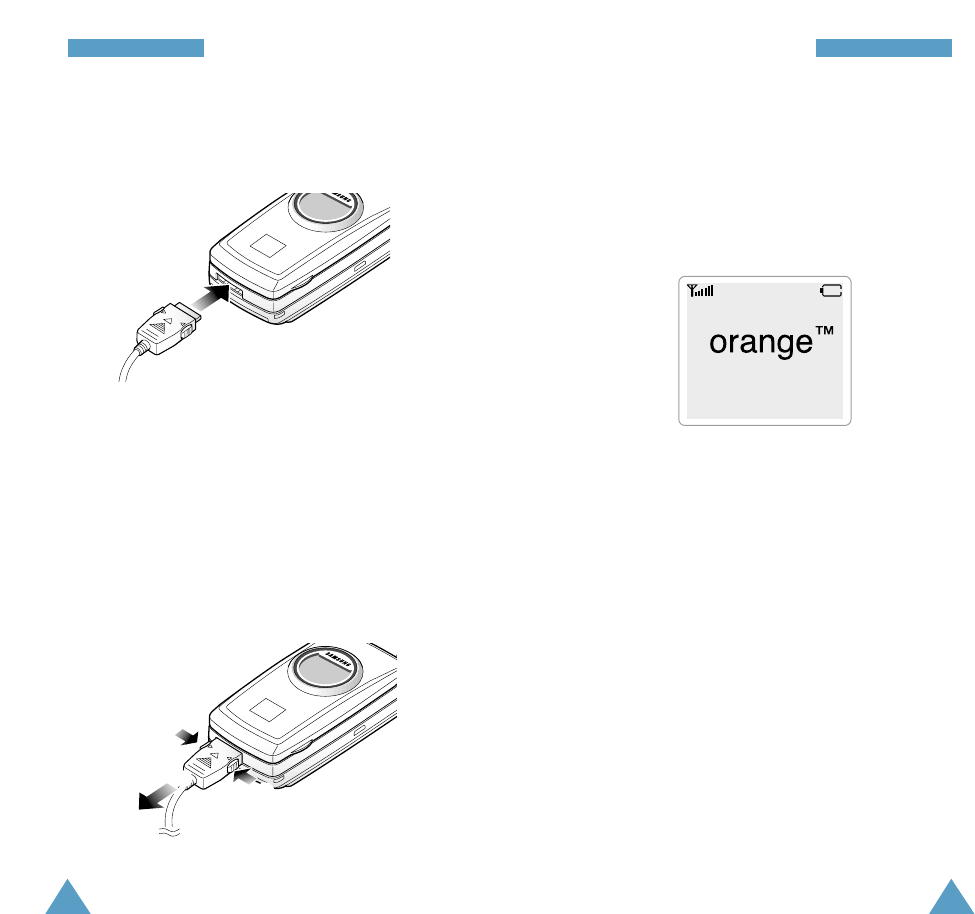

Charging a Battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Switching the Phone On/Off . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Your Phone’s Modes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Call Functions
Making a Call . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Correcting the Number . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Ending a Call . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Redialing Last Number . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Speed Dialing from Phone Book Memory . . . . . . . . . . . . . . . . 23
Four-Digit Dialing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Answering a Call . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Quick Switching to Vibrate Mode . . . . . . . . . . . . . . . . . . . . . . . 27
In-Use Menu Options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Viewing Missed Calls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Call Waiting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
Three-Way Calling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
Call Forwarding . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
Using the Display Notepad . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
Adjusting the Volume . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
The FCC has granted an Equipment Authorization for this model
phone with all reported SAR levels evaluated as in compliance
with the FCC RF emission guidelines. SAR information on this
model phone is on file with the FCC and can be found under
the Display Grant section of http://www.fcc.gov/oet/fccid after
searching on FCC ID XXX XXXX.
Additional information on Specific Absorption Rates (SAR) can
be found on the Cellular Telecommunications Industry
Association (CTIA) web-site at http://www.wow-com (see
note).
* In the United States and Canada, the SAR limit for mobile
phones used by the public is 1.6 watts/kg (W/kg) averaged
over one gram of tissue. The standard incorporates a
substantial margin of safety to give additional protection for
the public and to account for any variations in measurements.
Note: The URL http://phonefacts.net may be used in
place of http://www.wow-com for direct access to SAR
information.
32
PIM
Scheduler (MENU 5.1) . . . . . . . . . . . . . . . . . . . . . . . . . . . . 79
To Do List (MENU 5.2) . . . . . . . . . . . . . . . . . . . . . . . . . . . . 81
Calculator (MENU 5.3) . . . . . . . . . . . . . . . . . . . . . . . . . . . . 82
Set Time (MENU 5.4) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 83
Alarm (MENU 5.5) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 84
World Time (MENU 5.6) . . . . . . . . . . . . . . . . . . . . . . . . . . . 86
D-Day (MENU 5.7) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 87
Game (MENU 5.8) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 88
Lady Function (MENU 5.9) . . . . . . . . . . . . . . . . . . . . . . . . . 89
Message
Rx Message (MENU 6.1) . . . . . . . . . . . . . . . . . . . . . . . . . . 94
Display
Greetings (MENU 7.1) . . . . . . . . . . . . . . . . . . . . . . . . . . . . 98
Background (MENU 7.2) . . . . . . . . . . . . . . . . . . . . . . . . . . 99
Date (MENU 7.3) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 102
Back/SVC Light (MENU 7.4) . . . . . . . . . . . . . . . . . . . . . . . 103
Language (MENU 7.5) . . . . . . . . . . . . . . . . . . . . . . . . . . . 104
Sounds
Ring Type (MENU 8.1) . . . . . . . . . . . . . . . . . . . . . . . . . . . 105
Ring Tone (MENU 8.2) . . . . . . . . . . . . . . . . . . . . . . . . . . . 106
Ring Volume (MENU 8.3) . . . . . . . . . . . . . . . . . . . . . . . . . 106
Connect Tone (MENU 8.4) . . . . . . . . . . . . . . . . . . . . . . . . 107
Release Tone (MENU 8.5) . . . . . . . . . . . . . . . . . . . . . . . . . 107
DTMF Tone (MENU 8.6) . . . . . . . . . . . . . . . . . . . . . . . . . . 107
Contents(continued...)
Entering Text
Changing Text Input Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
T9 Stroke Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
T9 English Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42
Alpha(ABC) Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47
Symbol Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49
Number Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49
Using the Menus
Accessing a Menu Functions by Scrolling . . . . . . . . . . . . . . . . . . 50
Accessing a Menu Functions by Using its Shortcut . . . . . . . . . . . 53
List of the Menu Functions . . . . . . . . . . . . . . . . . . . . . . . . . . . 54
WAP Service
WAP Service (MENU 1.1) . . . . . . . . . . . . . . . . . . . . . . . . . 58
Modem Setting (MENU 1. ) . . . . . . . . . . . . . . . . . . . . . . . . 64
Orange Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 66
Calls
Outgoing (MENU 3.1) . . . . . . . . . . . . . . . . . . . . . . . . . . . . 67
Incoming (MENU 3.2) . . . . . . . . . . . . . . . . . . . . . . . . . . . . 68
Delete Number (MENU 3.3) . . . . . . . . . . . . . . . . . . . . . . . . 69
Air Time (MENU 3.4) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 69
Answer Mode (MENU 3.5) . . . . . . . . . . . . . . . . . . . . . . . . . 70
Phone Book
Find Name (MENU 4.1) . . . . . . . . . . . . . . . . . . . . . . . . . . . 71
Add Entry (MENU 4.2) . . . . . . . . . . . . . . . . . . . . . . . . . . . . 75
Edit Group (MENU 4.3) . . . . . . . . . . . . . . . . . . . . . . . . . . . 77
My Phone Number (MENU 4. ) . . . . . . . . . . . . . . . . . . . . . 78
54
Setup
Restrict (MENU 9.1) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 108
NAM Phone Number (MENU 9.2) . . . . . . . . . . . . . . . . . . . 109
Send PIN (MENU 9.3) . . . . . . . . . . . . . . . . . . . . . . . . . . . 110
Vocoder (MENU 9.4) . . . . . . . . . . . . . . . . . . . . . . . . . . . . 110
Auto Lock (MENU 9. ) . . . . . . . . . . . . . . . . . . . . . . . . . . 111
Initialize (MENU 9. ) . . . . . . . . . . . . . . . . . . . . . . . . . . . 122
Reference Information
Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 113
Using the Batteries . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 114
Precautions When Using Batteries . . . . . . . . . . . . . . . . . . . . 114
Safety Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 116
Road Safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 116
Operating Environment . . . . . . . . . . . . . . . . . . . . . . . . . . . . 117
Care and Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . 118
Emergency Calls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 120
Glossary . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 121
Safety Precautions and Important Notices
Read these simple guidelines. Failure to comply with
these guidelines may be dangerous or illegal. For
more detailed safety information, see “Safety
Information” on page 116.
Road safety comes first
Do not use a hand-held phone while driving; park the
vehicle first. Remember that in some countries, it is
illegal to use a hand-held phone while driving.
Switch off when refuelling
Do not use the phone at a refuelling point (service
station) or near fuels or chemicals.
Switch off in aircraft
Mobile phones can cause interference. Using them
on aircraft is both illegal and dangerous.
Switch off in hospital
Follow any regulations or rules. Switch the phone off
near medical equipment.
Respect special regulations
Follow any special regulations in force in any area
and always switch off your phone whenever it is
forbidden to use it, or when it may cause
interference or danger (in a hospital, for example).
76
SSaaffeettyy PPrreeccaauuttiioonnss
Interference
All mobile phone may be subject to radio
interference, which may affect their performance.
Use qualified service
Only qualified service personnel must install or repair
cellular equipment.
Use sensibly
Use only in the normal position (to ear). Do not touch
the antenna unnecessarily when the phone is
switched on.
IMPORTANT! Use only accessories approved by the
phone manufacturer. This apparatus is intended for
use when supplied with power from SAMSUNG
approved Travel charger. The use of any other types
will invalidate any approval or warranty applying to
the phone, and may be dangerous.
When you disconnect the power cord of any
accessory, grasp and pull the plug, not the cord.
Unpacking
Your package contains the following items.
Travel Charger
Handset
Hand Strap
Battery
User’s Manual
In addition, you can obtain the accessories for your
phone from your local SAMSUNG dealer. For
information on the accessories, see page 113.
9
YYoouurr PPhhoonnee
8
Your Phone
Phone Layout
The following illustrations shows the main elements
of your phone.
Microphone
Special
function keys
Display
Antenna
Service Light
External LCD
Clear key
Menu key
Alphanumeric
keys
OK/Messages
key
Navigation/
Hot keys
Send key
Earphone jack
Volume/Scroll
keys
Earpiece Enters the menu facility. Also, scrolls
through the main menus.
In the menu facility, confirms the
selection and input.
In Standby mode, enters the Messages
menu.
In the menu facility, scroll through the
menu options and phone book memory,
and select a menu function or stores
information that you have entered.
In Standby mode, allow you to enter the
following menus depending on the
direction.
• :Phone Book (listed by names)
• :Lady function
•:Scheduler
•:WAP Service
Keys Functions
With the phone open
With the phone close
End key
11
YYoouurr PPhhoonnee
10
YYoouurr PPhhoonnee
Keys Functions
~
Makes or answers a call.
In Standby mode, recalls the last number
dialed.
Deletes characters from the display.
In the menu facility, returns to the previous
menu level.
In Standby mode, displays the digital clock
while pressed and held.
Ends a call. Also switches the phone on and
off when pressed and held.
In the menu facility, cancels your input and
returns to Standby mode.
Enters numbers, letters and some special
characters.
Use these keys for various purpose in
different functions.
(on the side of the phone)
In Standby mode, adjust the key volume.
During a call, adjust the earpiece volume.
In the menu facility, scrolls through the
menu options.
Display
The display comprises two areas: an upper line of
icons, and the lower text and graphic area. The
following icons display at power-on:
Icons Text and graphic area
Signal strength : Shows the received
signal strength. The greater the number of
bars, the better the signal strength.
Service: Appears when a call is in
progress.
No service indicator: Appears when
you are outside a service area. When it
appears, you cannot make or receive
calls. Wait a little while for a signal or
move into an open area.
Alarm: Indicates that you have set an
alarm.
13
YYoouurr PPhhoonnee
12
YYoouurr PPhhoonnee
New message: Appears when a new
message has been received.
Text Input Mode: Indicates the current
text input mode when entering text.
For details on the text input modes, see
page 34.
Battery strength: Shows the level of
your battery power. The more bars you
see, the more power you have left.
Vibrator on: Appears when a vibrate
mode is on. An incoming call will vibrate
the phone rather than ring it.
To activate or deactivate use of the service light, set
the SVC LED menu option (7.4.3); see page 104 for
further details.
Backlight
The display and keypad are illuminated by a
backlight. When you press any key, the backlight
illuminates. It turns off if no key is pressed within a
given period of time, depending on the Backlight
option set in the Display menu. The backlight
remains on at all times when the phone is connected
to a Hands-Free Car Kit (optional).
To specify the length of time for which the backlight
is active, set the Backlight menu option (7.4.1) in
Display; see page 103 for further details.
Service light
The service light is at the top right of the phone. It
flashes to indicate incoming call or message. Also,
the service light flashes for a few seconds when you
turn on the phone.
Roaming: Appears when you are out of
your home area and have registered with
a different network (when travelling in
other countries, for example).
External LCD
Your phone has an external display on the cover. It
indicates that you have an incoming call or a
message, and notifies you at the specified time
when you have set an alarm.
When you press and hold down the volume keys on
the left side of the phone with the phone closed, the
backlight of the external display illuminates.
15
GGeettttiinngg SSttaarrtteedd
14
Getting Started
Installing Battery
To Install the Battery
1. Place the battery on the base of the phone, as
shown.
2. Slide the battery up towards the catch until it
snaps into place.
Make sure that you have installed the battery
correctly before switching the phone on.
To Remove the Battery
1. If necessary, switch off the phone by pressing and
holding down until the power-off animation
plays.
2. Push down the catch and hold it in the position.
(➀), then slide the battery away (➁).
Charging a Battery
Your phone is powered by a rechargeable Li-ion
battery.
A travel charger is provided with your phone. Use
only Samsung-approved batteries and chargers. Ask
you local SAMSUNG dealer for further details.
The phone can be used while the battery is charging.
Note: You must fully charge the battery before
using your phone for the first time. A
discharged battery is fully recharged in
approximately 180 minutes.
➀
➁
Low Battery Indicator
When the battery charge level is almost empty and
only a few minutes of talk time remain, an empty
battery icon (no bars displayed) blinks in the top right
corner of the display. You will hear a warning tone.
When the battery becomes too weak for the phone
to operate, it switches off automatically.
17
GGeettttiinngg SSttaarrtteedd
16
GGeettttiinngg SSttaarrtteedd
1. With the battery in position on the phone, connect
the lead from the travel charger to the jack on the
bottom of the phone.
2. Plug the power cord of the charger into a standard
wall outlet.
3. When charging finished (the indicator on the
connector of the charger turns green), disconnect
the charger from the power outlet and remove it
from the phone by squeezing the two tabs on the
lead(➀) and unplug the lead (➁).
SAMSUNG
05/03[THU] 10:08A
➀
➁➀
19
GGeettttiinngg SSttaarrtteedd
18
GGeettttiinngg SSttaarrtteedd
Switching the Phone On/Off
1. Open the phone.
2. Press and hold down to switch the phone on.
The service light of the phone flashes, and an alert
sounds. When the system locates services, the
greeting message displays along with the date and
time. The external LCD shows the signal strength,
battery strength and current time and date.
• If the phone is out of service, the icon
appears in the display. In this case, you cannot
place and receive calls. You can try again later
when service is available.
• If your phone is locked, the Lock icon
displays. Enter the four-digit lock code to use the
phone.
To unlock your phone, deactivate the Auto Lock
menu option (Menu 9- ). For details, see page
111.
3. When you wish to switch the phone off, press and
hold down until the power off animation
begins to play.
WARNING!
Do not switch on the phone when the mobile
phone use is prohibited or when it may cause
interference or danger.
Note: Your phone has a built-in antenna. As with
any other radio-transmitting device, do not
touch the antenna unnecessarily when the
phone is switched on. Contact with the
antenna affects call quality and may cause
the phone to operate at a higher power level
than otherwise needed.
Your Phone’s Modes
Standby Mode
Standby is the most basic state of your phone. The
phone goes into Standby mode soon after you turn it
on, or whenever you briefly press . When your
phone is in Standby mode, you will typically see the
greeting message and current date and time. If you
enter a phone number, you can press to dial it.
Press at any time to return to Standby mode. Be
careful; if you are on a call when you press , you
will return to Standby mode, but it also disconnects
the call. Press several times or hold it down to
return to Standby mode without ending the call.
SAMSUNG
05/03[THU] 12:25P
12:25 PM
5/03 THU
2120
GGeettttiinngg SSttaarrtteedd
Talk Mode
You can place and answer calls only when your
phone is turned on. During a call, the phone is in Talk
mode. While you are in Talk mode, pressing
gives you a list of options referred to as “In-Use
Menu Options.” See page 27 for details on the
options.
Power Save Mode
Your phone comes with a Power Save feature that
will automatically be activated if your phone is
unable to find a signal after 15 minutes of searching.
While this feature is active, the phone’s battery
charge is conserved. The phone will automatically
recheck for a signal periodically. To manually force
the phone to recheck for a signal, press any key. A
message on the display will let you know when your
phone is operating in Power Save Mode.
Lock Mode
You can lock your phone to keep your phone away
from an unauthorized use.
When your phone in Lock mode, you can see the Lock
icon in the idle screen and no key operates,
except and the numeric keys for entering the
lock code. You can unlock the phone temporarily by
entering the lock code and use the phone.
For details on locking and unlocking your phone,
page 111.
Call Functions
Making a Call
In Standby mode, enter the area code and phone
number, and press . The phone places the call to
the entered phone number.
When entering the phone number, pressing
allows you to access the following Dial options.
Phonebook: allows you to save the number in your
phone book. For details on saving a
numbers, see page 75.
Pose: inserts a pause. The numbers after a pause
will be dialed after a few seconds.
Press until the desired one is highlighted, and
press .
Correcting the Number
If you make a mistake while entering numbers, clear
the wrong number using and enter the correct
number.
To clear... Then press...
The last digit displayed .
The whole display and hold down for
more than one second.
23
CCaallll FFuunnccttiioonnss
22
CCaallll FFuunnccttiioonnss
Ending a Call
When you have finished your call, briefly press .
The call time (length of call) displays with the name
(if saved in phonebook) and number of the call party.
If the number is no stored in your Phone Book, your
phone prompts you to save the number. Press to
save the number. For further details on saving a
number, see page 75. If you do nothing, the phone
automatically returns to Standby mode after about
ten seconds.
Or, close the phone to end a call.
Redialing Last Number
To redial the last number you called, press
twice.
The phone stores the last 10 numbers dialed. To
recall any of these numbers, proceed as follows.
1. If necessary, press to return to Standby
mode.
2. Press to access the list of outgoing calls.
3. Press to scroll through the list until the
required number is displayed. Then, press
to dial the displayed number.
Speed Dialing from Phone Book Memory
Once you have stored phone numbers in the phone
book memory (001 through 199), you can dial them
easily whenever you want. See page 75 for details
on storing phone numbers.
One-Touch Dial
Memory locations 001 through 009 are special one-
touch locations. Press and hold the last digit of the
memory location containing the number to be dialed.
For example: Location no. 009
Press and hold.
The number (and name) stored is displayed, then
dialed.
Two-Touch Dial
Memory locations 010 through 099 are special two-
touch locations. Press the second digit briefly, then
hold down the third digit of the memory cell.
For example: Location no. 023
Press briefly and hold down .
The number (and name) stored is displayed, then
dialed.
25
CCaallll FFuunnccttiioonnss
24
CCaallll FFuunnccttiioonnss
Three-Touch Dial
Memory locations 100 through 199 are special three-
touch locations. Press the first and the second digit
briefly, then hold down the third digit of the memory
cell.
For example: Location no. 129
Press and briefly and hold
down .
The number (and name) stored is displayed, then
dialed.
Note: When several numbers are saved in one
location, only the first-saved number which
was automatically set as the speed dial
number for the location will be automatically
dialed. You can change the Speed Dial
number while editing. For details, see the
options in “Finding a Number by its Name”
on page 72.
Four-Digit Dialing
This feature allows you to enter any four consecutive
digits of a stored phone number, have your phone
remember the rest of the number and then dial the
entire number for you. This feature is convenient if
you have the number memorized, but you have
forgotten what Phone Book location the number is
stored in.
1. Enter any four digits of a phone number that you
have stored in Phone Book.
2. Press . The phone automatically dials the
entire number.
Note: If your Phone Book has more than one
phone number stored that contains the four
digits, The phone displays the number of the
phone numbers containing those four digits
with the name. Scroll through the listed
phone numbers using to select the
desired number.
27
CCaallll FFuunnccttiioonnss
26
CCaallll FFuunnccttiioonnss
Answering a Call
When somebody calls you, the phone rings and the
phone icon in the middle of the screen flashes.
If the caller can be identified, the caller’s phone
number (or name if stored in your phone book) is
displayed. If the caller cannot be identified, only the
phone icon flashes.
1. If necessary, open the phone and press to
answer a call.
If the Answer Mode menu (3.5) is set to
Anykey, you can press any key except .
2. End the call by closing the phone or pressing
.
Note: You can answer a call while using the Phone
Book or menu features. Your setting will be
canceled.
nnnn
Caller’s name or
number
Quick Switching to Vibrate Mode
You can quickly set your phone to vibrate when a call
comes in.
Press and hold in Standby mode.
If you press and hold the key again, the previously
set ring type will be resumed.
If you want to set the phone to ring or any other ring
type, see ‘Ring Type’ on page 105.
In-Use Menu Options
Your phone provides a number of functions that you
can use during a call. You cannot utilize all of these
functions at all times. Many of the In-Use Menu
Options are network services.
Press during a call to choose some or all of the
following In-Use Menu options:
Phone Book: allows you to access the Phone Book
menu (Menu 4).
Message: allows you to access the Messages menu
(Menu 6).
We cannot check this
screen from the phone.
29
CCaallll FFuunnccttiioonnss
28
CCaallll FFuunnccttiioonnss
(Un)Mute: allows you to switch your phone’s
microphone off, so that the other party
cannot hear you.
Example: You wish to say something to another
person in the room but do not want the
other party to hear you.
Silent Key: does not transmit the key tones. It
allows you to press keys without
hearing annoying key tones during a
call.
Note: To communicate with answering
machines or computerized telephony
systems, the Silent Keys option must be
disabled.
Send Tel #: sends DTMF tones of your number.
During a call, some keys have special functions.
: sends DTMF tones of the currently displayed
number. DTMF (Dual Tone Multi Frequency)
tones can be used to control electronic phone
services such as bank-by-phone or voice mail.
During a call, key in the digits you want to send
as DTMF tones, for example, the bank account
number and password. Then, press this key.
: increases reception of the microphone so that
the other party can hear your voice more loudly.
: decreases reception of the microphone so that
you can make your voice lower.
Viewing Missed Calls
Your phone keeps a list of calls that you do not
answer when the phone is on and service is
available. The phone indicates a missed call by
displaying a text notification on the screen.
Additionally, if caller information is available, the
phone displays the phone number of the most recent
missed call.
Press to call the displayed number, or to
clear the message and return to Standby mode.
Dropped Calls
A dropped call can occur during a conversation in
response to a signal fade or leaving a service area. In
this case, the call ends and “Signal Faded” displays.
Press to clear the message and return to
Standby mode.
Failed Calls
A failed call can occur if your phone is out of calling
range or the network is temporarily busy. Your phone
responds to a failed call by displaying an appropriate
message: “Call Failed Out of Range” or “Call Failed
Network Busy”.
Press to clear the message and return to
Standby mode.
31
CCaallll FFuunnccttiioonnss
30
CCaallll FFuunnccttiioonnss
Call Waiting
Call Waiting lets you receive a second call during
conversation. Your phone notifies you of a call
waiting by beeping an displaying “Call Waiting.”
Your phone provides the option of turning the Call
Waiting feature on and off (if you have subscribed to
the service). Call Waiting is on by default in the
phone. If you choose to have a undisturbed
conversation, simply turn off the feature for the
current call.
Note: Contact your service provider to activate the
Call Waiting service.
To answer a waiting call:
1. To answer the call, press . The phone
connects the calling party, and places the current
party on hold.
2. Press again to switch between two parties.
Note: If you do not respond to a Call Waiting
notification, the phone will forward the call to
voice mail or another number that you have
set up. Contact your service provider for more
details.
Three-Way Calling
This feature enables you to conduct conference calls
with two separate parties at the same time. The
phone records each party into the Outgoing Calls
Log. Also, you are billed airtime for each of the
outgoing calls separately.
Note: Contact your service provider to activate
Three-Way Calling.
To place a Three-Way call:
1. During a conversation, press . The phone
places the other party on hold.
2. Enter the phone number for the third party, and
then press . The phone dials the third party.
3. When you are connected to the third party, press
again to begin your three-way call.
If one of the callers (not you) hangs up, you and
remaining caller stay connected. If you initiated the
call and you hang up first, all three parties are
disconnected.
33
CCaallll FFuunnccttiioonnss
32
CCaallll FFuunnccttiioonnss
Call Forwarding
This feature provides the option of forwarding
incoming calls to another phone number, even while
your phone is off. Activating Call Forwarding does
not affect outgoing calls made from this phone.
Contact your service provider to activate Call
Forwarding.
Using the Display Notepad
Your phone has a really convenient feature for
entering a phone number while on a call as if it were
a note pad.
Say you are talking to a friend who wants to give you
a phone number. Just enter the number using the
keypad, and the number appears on the display.
Then, when you hang up, the number remains in the
display so that you can press to be immediately
connected to that party. Or press , select
Phonebook and follow the prompts to store the
number into your phone book. For details on saving a
number, see page 75.
In Standby mode, you can adjust the key volume
using these keys.
Adjusting the Volume
During a call, if you want to adjust the earpiece
volume, use the volume keys on the left side of the
phone. Press to increase and to decrease the
volume.
35
EEnntteerriinngg TTeexxtt
34
Changing Text Input Mode
When you are in a field that allows character entry,
you should notice the text input mode indicator in the
bottom of the display.
You can change between Chinese input methods, and
English or to numbers input. To change to another
text input mode:
1. Press to access the Input Mode menu.
2. Scroll to the desired mode by pressing or
repeatedly. The following options are
available; Symbol, Number, T9 Stroke, T9 English
and Alpha(ABC).
3. When the mode is highlighted, press to select
it.
4. You will find the selected text input mode
indicator in the top line of the display.
Note: If you want to exit the Input Mode menu
without changing the mode, press .
Text mode
indicator
Entering Text
The phone allows you to enter characters for
messages and names in Chinese and English. To
enter Chinese text, the phone provides character
shape based (Stroke) input method allowing for
greater convenience and ease of use.
You can also enter any combination of English
alphabets, numbers, and special symbols including
punctuation marks.
You are provided with the following text input
modes;
• Symbol: allows you to enter various symbols and
special characters.
• Number: allows you to enter numbers.
• T9 Stroke: allows you to enter the Chinese
character using the individual strokes labeled on
keys.
• T9 English: allows you to enter the English
characters with only one keypress per character.
• Alpha(ABC): allows you to enter English
characters by pressing the key labeled with the
desired character repeatedly until the character
displays.
Note: You can enter numbers in each mode by
pressing and holding the keys corresponding
to the desired digits.
Currently
selected mode:
T9 English
36
EEnntteerriinngg TTeexxtt
T9 Stroke Mode
This mode allows you to enter individual Chinese
strokes, in written order - from top to bottom, and
from left to right.
When the phone is in the T9 Stroke mode, keys
behave as follows:
37
EEnntteerriinngg TTeexxtt
Text Area
Displays the selected
characters.
Scroll Keys
and move the cursor left or right through your
text message. and scroll through text modes
available when you access the Input Mode menu.
Stroke Keys
Press keys to generate
strokes used to build
characters. When pressed
in the correct order,
appropriate characters are
displayed in the Character
Selection Map.
Keystroke Area
Displays the keystrokes you have entered to compose
the current character selections.
Character Selection Map
Displays possible
characters based on
keystrokes you have
entered.
Mode Indicator
Displays the current text input mode.
Clear Key
Deletes keystrokes from the Keystroke Area and/or
characters from the Text Area.
OK Key
Saves the entered text.
Wildcard Key
Press this key to add a stroke to a character when you
are not sure what stroke to add next.
MENU Key
Allows you to access Input
Mode menu to change the
text input mode.
39
EEnntteerriinngg TTeexxtt
38
EEnntteerriinngg TTeexxtt
Even though there are many different strokes used to
create Chinese characters, the strokes are classified
into 5 basic categories; heng, shu, pie, dian and zhe.
The basic strokes are printed on the keypad, on keys
to .
To enter a stroke, press the key printed with the
stroke that most closely represents the exact stroke
you desire. The table shows the stroke/key
relationship:
Typing Stokes and Characters in Stroke Mode
1. To type a character, press keys corresponding to
its component strokes. Press keys on the handset
in the order that you would write the strokes,
using one press per desired stroke.
Example: Typing ( ) in Stroke mode
2. The phone displays your strokes in the Key Stroke
Area and offers character choices in the Character
Selection Map. As you enter strokes, notice that
the choices in the Character Selection Map
change.
Key Stroke Area.
Press to enter ,
then to enter .
Character Selection Map.
To select , press .
Categories Keys Strokes represented in each categories
3. When the character you are typing appears in the
Character Selection Map, you may select it
without finishing the stroke sequence for the
character. The numbered Characters (1 ~ 5)
displayed in the Character Selection Map. To
select a character from the Character Selection
Map and add it to your message, press the
corresponding key to .
Note: If you are uncertain of the order of one or
more strokes, press in place of each
questionable stroke. Continue entering strokes
until the character is displayed in the
Character Selection Map or until you have
finished the character.
Clearing Strokes and Characters
Press one or more times to remove strokes to
the left. Once the Key Stroke Area is empty,
pressing removes characters from the Text
Area.
41
EEnntteerriinngg TTeexxtt
40
EEnntteerriinngg TTeexxtt
Rapid Character Entry
Rapid character entry is easy in any mode, using the
Character Selection Map. As you enter characters,
your phone predicts the next character you might
want and presents choices in the Character Selection
Map area. When a desired character appears, you
may select it as described above.
In most cases, you will see the desired character in
the Character Selection Map area before you have
entered all of the strokes to build it.
For example, try typing the twelve stroke character
pair “ “ using the following keystrokes; ,
, . Even though “ “ is a twelve stroke
character pair, your phone enables you to type it in
only three key presses!
Mode/Case Shift Indicator
Displays the current text input mode and shift mode;
indicates Initial Capital, indicates Capital Lock.
means Lower Case.
43
EEnntteerriinngg TTeexxtt
42
EEnntteerriinngg TTeexxtt
T9 English Mode
This mode allows you to enter English words with
only one keypress per letter. Each key on a keypad
has more than one letter - a single press on the
key could be J, K, or L. The T9 English mode
automatically compares your key presses to an
internal linguistic database to determine the correct
word.
The mode requires far fewer keystrokes than the
traditional multi-tap method; Alpha(ABC) mode.
When the phone is in the T9 English mode, keys
behave as follows:
Case Shift Key
Press this key repeatedly
to switch between Initial
Caps, Caps Lock, and
Lower Case letters.
“Smart” Period Key
Press this key to enter
a period (.) quickly.
Text Area
Displays the selected
characters you entered.
Space Key
Inserts a space into your message.
Letter keys
Alternate Word Key
Displays alternate word choices for the keys you have
typed.
Scroll Keys
and move the cursor left or right through your text
message. and scrolls through text modes
available when you access the Input Mode menu.
MENU Key
Allows you to access Input
Mode menu to change the
text input mode.
Clear key
Press this key to delete characters from the Text Area.
OK Key
Saves the entered text.
45
EEnntteerriinngg TTeexxtt
44
EEnntteerriinngg TTeexxtt
Typing English Words
To type a word, press keys corresponding to the letters
you need. Remember the following as you are typing:
1. Press keys on the handset just once per desired
letter. For example, to enter ‘hello’, press ,
, , , . .
2. The word you are typing appears in the display. It
may change with each key you press.
3. Type to the end of the word before editing or
deleting any keystrokes.
4. Complete each word with a space by pressing .
If the word that appears in the display is not the word
that you desire, press one or more times to
display alternate word choices for the keys you have
typed. (For example, ‘of’ and ‘me’ both shares the
sequence , . ) The phone displays the most
commonly used choice first.
To type words not found in the phone database,
change the text input mode to English mode. Words
typed in English mode are automatically added to the
phone database so you can type them using T9 English
mode the next time.
Upper Case Letters
There are three shift states:
• Lower Case ( indicator appears)
• Initial Cap ( indicator appears)
• Caps Lock ( indicator appears)
Press one or more times to display the
appropriate shift indicator, and begin typing normally.
Case shift
indicator
Smart Punctuations
Period, hyphen, and apostrophe are available on
. T9 applies rules of grammar to insert the
correct punctuation. Notice that is used twice
in this example to display two punctuation marks:
L E T ‘ S E A T .
47
EEnntteerriinngg TTeexxtt
46
EEnntteerriinngg TTeexxtt
Alpha(ABC) Mode
When typing in English mode, you should press key
labeled with the required character:
-Once for the first character
-Twice for the second character
and so on.
For example, you press three times quickly to
display the character “C” , two times quickly to
display the character “L”. So, this method is called
Multi-tap typing.
Refer to the table below for the list of characters
assigned on each key.
List of characters available:
Characters in the Order Displayed
. , ? ! - ‘ @ : 1
AB C2
DE F 3
GH I 4
JK L5
MN O 6
PQ RS7
TU V8
WX Y Z 9
0
Key
(Caps Lock mode)
Scrolling
• To view your message without moving the cursor,
press the volume keys on the left side of the
phone.
• To move the cursor left or right through your text
message, press or .
• To scroll through alternate word choices for the
keys you have entered, press .
Clearing Letters and Words
Press one or more times to remove letters to
the left. Press and hold to erase entire words.
49
EEnntteerriinngg TTeexxtt
48
EEnntteerriinngg TTeexxtt
Symbol Mode
Symbolic mode enables you to enter symbols into a
text message.
To scroll through the symbols available, press
or (or or on the left side of the phone).
Press the keys corresponding to the desired mark,
then the phone automatically switches back to the
text entry mode used just prior to selecting Symbol
mode.
Number Mode
Number mode enables you to enter numbers into a
text message. Press keys corresponding to the
desired digits, and manually switch back to the text
entry mode of choice.
Note: You can enter numbers in the other modes by
pressing and holding the keys corresponding
to the desired digits without changing to
Number mode.
To shift the case of the next character(s) that you
type, press one or more times. There are two
shift states:
Lower Case is indicated by in the display, and
Capitals Lock is indicated by .
The cursor moves to the right when you press a
different key. When entering the same character
twice (or a different character on the same key), just
wait for a few seconds for the cursor to move right
automatically, and then select the next character.
If you enter a specific word in this mode the first
time, the word is automatically added to your
phone’s database, and offers the new word as an
option for its keystroke sequence when you are in T9
English mode.
• To move the cursor left or right through your text
message, press or .
• To insert a space, press .
• Press one or more times to remove letters to
the left. Press and hold to erase entire words.
51
UUssiinngg tthhee MMeennuuss
50
Using the Menus
The phone offers a range of functions that allows
you to tailor the phone to your needs. These
functions are arranged in menus and submenus.
The menus and submenus can be accessed by
scrolling or using the shortcuts.
Accessing a Menu Functions by
Scrolling
The following keys are used to set the menu option
by scrolling then selecting an option.
To... Then press...
Enter the menu facility
Scroll to the desired
menu options
Enter the menu displayed
or the highlighted option
Move back to the previous
menu level
Exit the menu facility
without saving the setting
3. Scroll to Back/SVC Light by pressing . Then,
press to enter the menu.
2. Scroll to Display by pressing . Then, press
to enter the selected menu.
Example: Setting the SVC LED menu option.
1. In Standby mode, press to access the menu
facility.
1WAP Service
Display
1:Greetings
2:Background
3:Date
4:Back/SVC Light
5:Language
7Display
53
UUssiinngg tthhee MMeennuuss
52
UUssiinngg tthhee MMeennuuss
4. Select SVC LED by pressing and pressing
.
5. Select the desired setting by pressing .
6. Press to confirm your selection.
Your phone saves the setting and then returns to
Standby mode.
Accessing a Menu Functions by Using
its Shortcut
The menu items (menu, submenus and setting
options) are numbered and can be accessed quickly
by using their shortcut number.
1. In Standby mode, press .
2. Within three seconds, key in the first digit of the
shortcut number. Repeat this for each digit of the
shortcut number.
Example: Accessing the SVC LED menu
Press , and key in , , .
MENU for entering the menu facility, 7for
Display, 4for Back/SVC Light, 3for SVC LED.
3. Press to scroll to the desired setting, and
press to confirm the chosen setting.
Note: The numbers assigned to each menu
function are indicated on the list on page 54.
Back/SVC Light
1:Backlight
2:LCD Control
3:SVC LED
Set SVC LED?
Set Cancel
1. WAP Service
1-1: WAP Service
1. : Modem Setting
1- -1: Connect Sound
1- -2: Auto Connect
1- -3: High Rate Data
3. Calls 3-1: Outgoing
3-2: Incoming
3-3: Delete Number
3-3-1: Erase Outgoing
3-3-2: Erase Incoming
3-4: Air Time
3-5: Answer Mode
54
UUssiinngg tthhee MMeennuuss
55
UUssiinngg tthhee MMeennuuss
List of the Menu Functions
The list shows the menu structure available and
indicates the:
• Number assigned to each option
• Page on which you can find a description of each
feature
Page 67
Page 58
2. Orange Menu
This menu depends on what the
orange network provides you.
Page 66
4. Phone Book
4-1: Find Number
4-1-1: Name
4-1-2: Address
4-1-3: Group
4-2: Add Entry
4-3: Edit Group
2-3-1: Add
2-3-2: Edit
2-3-3: Erase
4-#: My Phone #
Page 71
5. PIM 5-1: Scheduler
5-2: To Do List
5-3: Calculator
5-4: Set Time
5-5: Alarm5-5-1: Morning Call
5-5-2: M.C. Release
5-5-3: Alarm
5-5-4: Alarm Release
5-5-5: Alarm Melody
5-6: World Time
5-7: D-Day
5-8: Game
5-9: Lady Function
5-9-1: Fatness Index
5-9-2: Calory
5-9-3: Pink Schedule
Page 79
8. Sounds
8-1: Ring Type
8-2: Ring Tone
8-2-1: Bell
8-2-1: Melody
8-2-1: CDMA Melody
8-2-1: My Melody
8-3: Ring Volume
8-4: Connect Tone
8-5: Release Tone
8-6: DTMF Tone
57
UUssiinngg tthhee MMeennuuss
56
UUssiinngg tthhee MMeennuuss
Page 105
9. Setup (Lock code required)
9-1: Restrict
9-1-1: Lock Code
9-1-2: Private Life
9-1-3: Memory
9-1-4: Receiving Call
9-1-5: Int. Call
9-1-6: Incoming Num.
9-2: NAM Phone#
9-3: Send PIN
9-4: Vocoder
9- : Auto Lock
9-#: Initialize
9-1-7: Clear All
9-1-7: Reset Phone
Page 108
7. Display
7-1: Greetings
7-2: Background
7-2-1: Power On/Off
7-2-2: Wall Paper
7-2-3: Screen Saver
7-2-4: Text Slide
7-3: Date
7-4: Back/SVC Light
7-4-1: Backlight
7-4-2: LCD Control
7-4-3: SVC LED
7-5: Language
Page 98
6. Message
6-1: Rx Message
6-1-1: Voice Mail
6-1-2: Text
6-1-3: Erase All
6-1-4: Alert
6-1-5: Display
Page 94
59
WWAAPP SSeerrvviiccee
58
WAP Service
You can use the WAP Service menu to:
• Launch the WAP browser to access the Internet
• Set the modem for network services
WAP Service Menu 1.1
Your phone comes equipped with a Web Browser
makes it possible for you to access the Wireless
Web.
The Web Browser allows you to access up-to-the
minute information through your phone. Browsing
the Wireless Web through your phone is unlike using
your computer in that site providers have selected
only the critical aspects of their site to present to
wireless phone users, and have removed most
graphics.
Each time you start the Web Browser, the phone will
connect to the Wireless Web and the service
indicator icon ( ) will appear on the display. Any
time the service indicator icon is visible on the
display, you are connected to the Wireless Web and
will be billed accordingly. Rates will vary according
to your service option.
The Web Browser will end the connection after a
certain period of network inactivity and will
automatically reconnect as necessary. For this
reason, you may find that you are billed for several
network connections within a single session. This is
normal and is designed to minimize your bill.
Launching the WAP Browser
Note: The first time you use the WAP Browser, you
will go through a security setup process that
takes 3 to 5 minutes. Please follow the on-
screen prompts to complete the security setup
process. This initial setup process occurs
only the first time you access the service.
1. Accessing the WAP Service menu connects your
phone to the Wireless Web.
You can quickly access WAP Service menu by
pressing in Standby mode.
2. Once connected, the Home page (or the last page
visited) will be displayed.
3. The opening page when accessing the WAP
Browser is dependent on the Wireless Web
service provider content. To scroll through the
screen, use or .
Exiting the WAP Browser
To exit the Browser, simply press at any time.
Using the WAP Browser Soft Keys
At the bottom of the browser display is a solid bar
which contains browser commands. “Soft” keys
( and ) below the solid bar are used to
execute the commands. These two keys are called
soft keys because their function changes depending
on where you are in the WAP Browser software.
61
WWAAPP SSeerrvviiccee
60
WWAAPP SSeerrvviiccee
Navigating the WAP Browser
When you use the WAP Browser, some keys on your
phone operate differently than on a normal phone
call. These keys are explained below. The Web
Browser presents on-screen items in one of the
following ways:
• text or numeric input
• links (embedded in content)
• numbered options (some options may not be
numbered)
• simple text
You can act on the options or links by making use of
the soft keys. The soft keys are located below the
bottom line of the display.
Here’s how the keys work in the Web Browser:
Up/Down Navigation Key: Use the
navigation key to scroll to and select
browser options. The currently selected
option is indicated by the symbol. You
can also use the navigation key to move
the cursor when editing text.
MENU Key: This is the left soft key. The
right soft key is used primarily for
secondary options, or a menu of secondary
options. For more information, see “Using
the WAP Browser Soft Keys.” on page 59.
OK Key: This is the right soft key. The left
soft key is used primarily for selecting the
highlighted item, but its function may
change depending on what you are doing
(see “Using the WAP Browser Soft Keys.”
on page 59).
END Key: Exits the browser and returns
the phone to Standby mode.
Right Cursor Key: Moves the cursor right
in a text entry.
Left Cursor Key: Moves the cursor left in
a text entry.
CLR Key: This key performs two important
functions:
• Backs you up in the browser. Pressing it
once backs you up one page. Pressing
and holding this key backs you up to the
Home page.
• Clears out entered text or numbers.
When entering numbers or text, press
this key to clear the last number, letter,
or symbol. Press and hold this key to
completely clear the input field.
Numbered Keys 0 - 9: If the items on a
page are numbered, you can use these
keys to select them.
Volume Key: Allows you to scroll up or
down by a page.
~
63
WWAAPP SSeerrvviiccee
62
WWAAPP SSeerrvviiccee
Entering Text, Numbers or Symbols in the
Web Browser
When prompted, you can enter text, numbers or
symbols using the same way as in the phone mode.
See page 34 on how to enter letters.
Using Links
Links have several purposes, including jumping to a
different page, jumping to a different site, or even
initiating a phone call from some sites. Links are
shown inside of brackets ( [ ] ), and you can
normally use the left soft key to select a link when it
is highlighted.
Initiating a Phone Call during a Web
Browser Session
You may initiate a phone call from the Web Browser
if the site you are using supports this feature (the
phone number may be highlighted and the left soft
key will appear as “Call.”). In most cases, you can
also use to call the number. The browser
connection will be terminated when you initiate the
call. After you end the call, your phone will return to
Standby mode.
Using Bookmarks
You can bookmark many individual pages for easy
access at a later time. Bookmarks save you time by
reducing the number of steps it takes to access a
desired page.
To Create a Bookmark
1. Go to the page that you want to mark.
2. Press and hold . A list of options appears.
3. Select Mark Site.
4. If the page has a title, it will be automatically used
for the name of the bookmark. You can also change
the bookmark name. Selecting Save will save the
name and add the page to your list of bookmarks.
5. A message will appear confirming that the bookmark
was added to the list. Select OK to return to the
screen that you marked to resume navigation within
the Web Browser.
6. The new bookmark is added to the bottom of your
bookmark list.
Finding a Bookmark
1. From the Home Page, select Bookmarks.
2. Select the bookmark you want and press .
Or, from the Home Page, press and hold the number
associated with the bookmark in the bookmark list.
65
WWAAPP SSeerrvviiccee
64
WWAAPP SSeerrvviiccee
Modem Setting Menu 1.
Your phone is capable of receiving digital data and
fax call when connected to a computing device
(laptop, desktop, handheld, palmtop, etc.) running
Windows 95, Windows 98, or Windows NT. The
phone functions just like a typical modem on your PC,
enabling you to use wireless data involving a side
variety of Windows software applications.
To use digital data or fax services with your phone,
you will need to obtain digital data/fax kit from your
service provider. This kit will contain the necessary
cables, software, and documentation required for
your to connect and use your phone with your
computing device. Refer to your data kit manual for
further details on setting up your computing device.
Note: The phone must be on a digital network to
receive fax and data.
Connect Sound
This option allows you to set how you are alerted
when the phone receives data or fax calls. You can
see the current setting marked with *. The following
options are available.
Bell: you can select the desired one of 5 bell types.
Melody: you can select the desired one of 15
melodies.
My Melody: you can select your favorite melodies
downloaded using your WAP service or
the PC Link program. You can download
up to three melodies.
Auto Connect
You can set the phone to functions as a modem to
receive data and fax calls.
Release: The reception mode for the data and fax is
released. Your phone only receive the
voice calls.
Modem Connect: The reception mode for data is
set. The phone automatically
receives incoming data when the
data cable is connected.
Fax Connect: The reception mode for fax calls is
set. The phone automatically receives
incoming fax calls when the data
cable is connected.
High Rate Data
You can set the transmission rate for data and fax to
high.
Select Set to receive data in high rate. If not, select
Cancel.
6766
Orange Menu
Using this menu, you can get various information
from the Orange network service, such as Stock,
Horse racing, Weather, Traffic, News, and so on.
Select an item about which you want to get
information, and you are now connected to the
Orange network and have a unique range of services
at your fingertips.
For details on the Orange menu, contact your service
provider.
Calls
You can use the Calls menu to:
• View the records of the last outgoing or incoming
calls.
• Erase the numbers in the Call log memory.
• View the duration of calls and specify the answer
mode.
Outgoing Menu 3.1
The phone stores up to 10 calls you dialed. When
you access this menu, the list of outgoing calls are
displayed.
To... Press...
Select an entry
Dial the selected entry
View the details on
the call
When you press , you can view the date/time
stamp for the selected entry. If there is a Phone Book
match, the name displays.
Press to access Options. Highlight the desired
one using , then press . The following
options are available:
Phonebook: saves the selected number in
Phonebook. For more details on saving
the number, see page 75.
Pose: allows you to insert a pause after the number.
69
CCaallllssCCaallllss
68
Incoming Menu 3.2
This option lets you view the last 10 calls placed to
your phone. When you access this menu, the list of
incoming calls are displayed.
To... Press...
Select an entry
Dial the selected entry
View the details on
the call
When you press , you can view the date/time
stamp for the selected entry. If there is a Phone Book
match, the name displays.
Press to access Options. Highlight the desired
one using , then press . The following
options are available:
Phonebook: saves the selected number in
Phonebook. For more details on saving
the number, see page 75.
Pose: allows you to insert a pause after the number.
Delete Number Menu 3.3
You can erase the entries stored in each of the Call
Logs.
Erase Outgoing: The calls you made are erased.
Erase Incoming: The calls you received are erased.
When a confirming message displays, highlight Yes
or No using , then press .
Air Time Menu 3.4
Your phone records the amount of air time (or talk
time) used. Using this option, you can view the air
time of the last call to or from your phone, and the
air time for all calls.
“Tot.” indicates the total length of all calls made to
or from your phone since the phone was shipped
from the factory and “Last” indicates the length of
the last call.
You can easily erase the airtime measurement by
pressing while the air time displays .
7170
CCaallllss
Answer Mode Menu 3.5
This menu option allows you to select how to answer
when an incoming call comes. It is preset to Anykey.
The following options are available:
SEND: To answer the incoming call, you must press
.
Anykey: To answer the incoming call, you can press
any key except .
Phone Book
The Phone book allows you to store frequently used
phone numbers and the associated names in your
personal directory to make it easy for you to make a
call without having to remember or enter the phone
number. You can store up to 199 numbers.
Find Number Menu 4.1
This option allows you to find the stored numbers in
the Phone Book by name, memory address and group
name.
Notes:
• You can locate Phone Book entries quickly when
the phone is in Standby mode. Press , and
the entries are listed in alphabetical order in the
display.
• When the selected entry is displayed, press
or to display to next or previous entry in the
phonebook.
• If more than one numbers are stored by the
different labels in the selected location, press
or to find the desired number.
72
PPhhoonnee BBooookk
73
PPhhoonnee BBooookk
Finding a Number by its Name
This option allows you to find a stored number by its
name.
1. Press when Name is highlighted
2. Enter the starting character(s) of the name by
pressing the associated alphanumeric key(s).
Using this method, the phone searches for the
names in the list beginning with that character(s),
and then displays the first name in that section of
the list.
3. Press or to scroll to the desired name.
4. When the desired entry displays, press to
place a call, or to display the name with the
number, label and speed dial number.
With an entry selected, if you press , you can
display the following options:
Edit: allows you to change phone number, name,
speed dial number (if multiple numbers are
saved) or group.
Add: allows you to add several different kind of
numbers into the name, such as work office
number or mobile number.
Del: deletes the number.
Highlight the desired one using , then press
.
Finding a Number by its Memory Location
This option allows you to find a stored number by its
memory address number.
1. Press to select Address, and press .
2. Enter the number of the desired memory address,
and press .
3. The phone displays the name with the number,
label and speed dial number. Press to place a
call.
With an entry selected, if you press , you can
display the options. For details, see the options in
“Finding a Number by its Name” on page 72.
74
PPhhoonnee BBooookk
75
PPhhoonnee BBooookk
Finding a Number by its Group
This option allows you to the stored number by its
group name.
1. Press to select Group, and press .
2. Press to scroll to the group containing the
number you want to find, and press .
3. Press until you find the desired name from
the list of the numbers in the group.
4. When the desired entry displays, press to
place a call, or to display the name with the
number, label and speed dial number.
With an entry selected, if you press , you can
display the options. For details, see the options in
“Finding a Number by its Name” on page 72.
Add Entry Menu 4.2
This menu allows you to store a number with a name
in your Phone Book. You can save a person’s different
kinds of numbers, such as workplace number, mobile
number and pager number, into one entry. Using this
feature, you can keep one’s information together. It
also helps you to find numbers easily in Phone Book.
Creating a New Entry
1. Enter the desired name for the entry, then press
. You can enter up to 10 characters for English
and 5 characters for Chinese. For details on how to
enter text, see page 34.
2. The first available location highlights. To accept
the displayed location, just go to next step. To
select another location, enter the location number
using the numeric keys.
3. Press , and enter the phone number you
want to store.
4. Press , and select a label using or .
The available labels are: Home ( ), Office ( ),
Mobile ( ), and Pager ( ).
5. Press to go to the Group item.
If you do not wan to set the group, press when
‘No Set’ is highlighted. The entry is saved.
To set a group for the entry, go to next step.
77
PPhhoonnee BBooookk
76
PPhhoonnee BBooookk
6. Highlight ‘Set’ by pressing , then .
7. Select desired group from the list using ,
then .
Note: You can edit an existing group or add a new
group. For details editing or adding a group,
see page 77.
Adding a Number in an Existing Entry
You can store more than one numbers in one Phone
Book location labeling each of the numbers.
1. Find the entry where you want to add a number.
When the entry is displayed, press to display
the options.
2. Press to select Add, and press .
3. Enter the number and press .
4. You are asked to select a label. After selecting a
label using or , press .
Note: You can only use each label one time for
each stored name. For example, you can only
have one number labeled Mobile( ) for a
name entry.
5. The number and its information are displayed.
Edit Group Menu 4.3
This menu allows you to add a new group and edit or
erase the exiting groups.
Adding a New Group
You can add up to three new groups.
1. Select Add using , then press .
2. Enter the name for the group. You can enter up to
10 characters for English and 5 characters for
Chinese. For details on entering text, see page 34.
3. When you are satisfied, press .
4. Select the ring type for the group using ,
then press .
5. Select the desired one of the bell tones or the
melody tones using , then press .
Editing an Existing Group
1. Select Edit using , then press .
2. Select the group you want to edit, and press .
3. Follow the steps 2 from 5 in “Adding a New
Group” above to edit the group.
7978
PPhhoonnee BBooookk
Erasing an Existing Group
1. Select Erase using , then press .
2. Select the group you want to erase, and press
.
My Phone Number Menu 4.#
You can display your phone number using this menu.
PIM
The PIM (Personal Information Management) feature
provides various convenient functions for your life,
such as scheduler, To do list, alarm, world time, and
so on. You can also enjoy several games with your
phone.
Scheduler Menu 5.1
This option allows you to view the current month, or a
past of future month in calendar format. In Scheduler,
the current date is highlighted on the calendar. Days
with the scheduled events are underlined.
Note: You can quickly access this menu by
pressing in Standby mode.
Selecting a Day in Calendar
• You can move up or down by one week by
pressing or .
• You can move right or left by one day by pressing
or .
• To display the next or previous month, press or
on the left side of the phone.
80
PPIIMM
81
PPIIMM
Creating a New Schedule
To create a new schedule on a specific date, proceed
as follows.
1. Scroll to the desired date in the calendar by using
, and press .
Note: To skip to the previous or next month, press
or on the left side of the phone.
2. Enter the time for the event and date, if necessary,
then press .
Note: You must enter for hour in 24-hour format.
3. Enter the contents of the schedule and press .
For details on entering text, see page 34.
4. Select the alarm type for the schedule between
Bell and Melody using .
If you select Off, the phone does not alarms you
the schedule.
5. Press to save the schedule.
You can see the day with the scheduled events are
underlined in the calendar.
Adding, Editing, or Deleting a Schedule
When a stored schedule is displayed, press to
display the following options.
Edit: allows you to edit the today’s schedule.
Add: allows you to add a new schedule on today.
Del: allows you to delete the schedule.
After you select an option by pressing ,
press . Then follow the screen prompt.
To Do List Menu 5.2
Creating the To Do List Item
1. If there is no To Do item previously set, the display
prompts you to add To Do item when you access
this menu. Skip to step 3.
If there are any To Do items you have previously
set, press to display the options.
2. Press to select Add. Then press .
3. Enter a task. For further details on how to enter
characters, see page 34.
4. Press , and enter the desired date and time
by when the task has to be done, then press .
5. You can view the To Do list.
83
PPIIMM
82
PPIIMM
Adding, Editing and Erasing an To Do Item
When a stored task is displayed, press to display
the following options.
Edit: allows you to edit the To Do item.
Add: allows you to add a To Do item.
Del: allows you to delete the To Do item.
After you select an option by pressing ,
press . Then follow the screen prompt.
Calculator Menu 5.3
Using this feature, you can use the phone as a
calculator. You can perform calculations including
addition, subtraction, multiplication and division on
your phone.
1. Enter the first number using the numeric keys.
2. Press to set the operator for your
calculation until the required arithmetic symbol
appears: + (addition), - (subtraction),
x (multiplication), / (division).
3. Enter the second number.
4. To perform calculation and see the result, press
.
5. Repeat steps 1 to 4 as many times as required.
Each time you change the operator, the previous
calculation is performed and the result is
displayed as the top number in the display.
Notes:
• To erase any mistakes and clear the display,
press .
• Use to enter a decimal point (.) and to
change the sign of a number to a negative (-).
Set Time Menu 5.4
The option enables you to set the current date and
time.
The current time, if set, displays. Enter the date and
time using the numeric keys.
The month, day, hour and minute must be entered
with 2 digits. The year requires all four digits. And
you must enter for the hour in 24-hour format.
If you do not input the time or you input the wrong
time, the phone prompts you to enter again.
84
PPIIMM
85
PPIIMM
Alarm Menu 5.5
You can set an alarm to sound at a specific time and
a morning call to sound to wake you up in the
morning.
Note: Keep in mind that if your phone is off at the
alarm set time, the alarm will not sound. In
order for the alarm to work, the phone must
be on, and you must be in a service area.
Setting a Morning Call
1. Press to select Morning Call, then press
.
2. Press to set the Call Repeat option, then
press . The available options are Daily,
Mon~Friday and Mon~Saturday.
3. Enter the time when the morning call work.
Note: You must enter for hour in 24-hour format.
4. When you have finished entering, press to
save the setting.
Releasing the morning call
To cancel the morning call, select M.C. Release by
pressing , then press .
Setting an Alarm
1. Press to select Alarm, then press .
2. Press to select the Alarm Repeat option,
then press .
If you select Daily, the alarm rings every day at
the same time.
If you select Once, the alarm rings only once and
then deactivates.
3. Enter the time when the alarm ring.
Note: You must enter for hour in 24-hour format.
4. When you have finished entering, press to
save the setting.
Releasing the Alarm
To cancel the alarm, select Alarm Release by
pressing , then press .
Selecting an Alarm Melody
You can select a ring melody for the alarm.
1. Press to scroll to Alarm Melody, and press
.
2. Press to select the desired one of three
melodies or Vibrator, then press . Selecting
Vibrator vibrates the phone instead of sounds the
melody.
87
PPIIMM
86
PPIIMM
World Time Menu 5.6
This menu tells you what time it is in 24 different
time zones around the world.
Use to find the current time in one of the
following 24 time zones. Time zones are identified by
one or more major cities, states, regions or countries
in a time zone.
• Hong Kong, Beijing • Seoul, Tokyo
• Guam, Sydney • Okhotsk
• Wellington • Samoa, Midway
• Honolulu, Hawaii • Alaska
• LA, San Francisco • Denver, Phoenix
• Chicago, Dallas • New York, Miami
• Caracas • Buenos Aires
• Mid Atlantic • Cape Verde
• London • Rome, Paris
• Athens, Helsinki • Moscow
• Abu Dabi • Tashkent
• Alma-ata • Bangkok, Jakarta
D-Day Menu 5.7
This menu help you know how much time it takes
you to do something, or how many months, days,
hours and minutes until a specific day. You can
create up to 5 Countdown timers using this menu.
Creating a D-Day item
1. Press to display the options.
2. Press to select Add, then press .
3. Enter a title for your D-Day item and press .
You can enter up to 16 characters for English and
8 characters for Chinese. For details on entering
text, see page 34.
4. Enter the date and time that you want to count
down to.
Note: You must enter for hour in 24-hour format.
5. Press to save the item.
The phone counts down to the defined day, and
displays the result.
Adding, Editing and Erasing an To Do Item
When a stored task is displayed, press to display
the following options.
Edit: allows you to edit the To Do item.
Add: allows you to add a To Do item.
Del: allows you to delete the To Do item.
After you select an option by pressing ,
press . Then follow the screen prompt.
Game Menu 5.8
This menu enables you to enjoy the games, such as
Push Push, F1 Racing, Flying tight, and Run to Money.
When the game start screen is displayed, press
( in Push Push) to get help in playing the game.
To start the selected game, press .
To end the game, press at any time.
89
PPIIMM
88
PPIIMM
Lady Function Menu 5.9
The Lady Function menu allows you to check your
physical condition, such as degree of fatness and the
physical schedule. This menu is helpful to keep your
health by checking and counting how much calories
of heat some foods generate or some exercises and
daily works consume.
Fatness Index
This menu allows you to check the fatness degree.
1. Select your gender, Male or Female, and press
.
2. Enter your weight using the numeric keys, and
press .
3. Enter your height using the numeric keys, and
press .
4. The phone calculates the percentage of your
fatness for your height and displays the result.
If the result is from 100 to 110%, you are normal.
5. Press to return to Standby mode.
91
PPIIMM
90
PPIIMM
Calory
You can check and count how much calories of heat
the selected foods yields or how much calories of
heat the selected exercise or daily work. This
feature can be useful for a diet.
The following options are available.
Food: allows you to check how much calories the
selected food generates. Foods are
categorized into 10 groups.
Exercise: allows you to check how much calories
the selected exercise consumes.
Daily Work: allows you to check how much calories
the selected exercise consumes.
Checking Calories for Food
1. Select Food and press .
2. Press to select a desired kind of food, and
press .
3. Press to scroll to a desired food.
4. Press and check the heat value which the
food represents.
If the heat value per a dish or an amount for one
person is displayed, enter the desired amount or
press to increase or decrease it by 1
increments. The phone immediately displays the
appropriate value.
5. Repeat steps 2 to 4 to add foods for your count.
6. When you have finished selecting food, select
Total to display the sum total and press .
7. Press to return to Standby mode.
Checking Calories for Exercise or Daily Work
1. Select Exercise or Daily work using and
press .
2. Press to select a desired exercise or daily
work, and press .
3. Check the heat value which the exercise or daily
work for 10 minute represents.
You can enter the desired length of time or press
to increase or decrease it by 10 increments. The
phone immediately displays the appropriate value.
4. Repeat steps 2 to 4 to add foods for your count.
5. When you have finished selecting, select Total to
display the sum total and press .
6. Press to return to Standby mode.
93
PPIIMM
92
PPIIMM
Checking Your Pink Schedule
After entering your period, you can check your
schedule at any time.
Select Show Schedule using , and press .
The phone displays your ovulation day and the
pregnancy period.
Checking Today’s Probability of Pregnancy
Select Today’s using , and press .
The phone displays the percentage of the probability.
Setting Pink Schedule of Your Friend’s
1. Press to select Friend’s, and press .
2. Enter her schedule as you do when entering your
schedule.
3. Press to return to Standby mode.
Pink Schedule
Using this feature, you can set your menstrual period
and check your physical schedule, such as the
ovulation day and the child-bearing period.
To access this menu, you must enter the four-digit
lock code. Your lock code is preset to “0000”.
Note: The schedule may be fit to your physical
condition. Therefore, use this Pink schedule
just for reference.
Entering Your Pink Schedule
1. Press to select Enter Schedule, and
press .
2. Enter the starting day of your last menstruation,
and press .
3. Enter your average menstrual period, and press
.
The phone displays the ovulation day and the
period when you are possible to be pregnant.
4. Press to return to Standby mode.
95
MMeessssaaggee
94
Voice Mail
Using this menu, you can access your voice mail box
and listen to your voice messages.
Accessing this menu plays back the latest voice mail
message.
While listening to a voice mail, you can use
following options.
To... Press...
Make a call
to the sender
Display next
message
Display previous
message
Erase the current
message
Message
Using the Message menu, you can read your text
message and listen to the voice mail message.
Note: You can quickly access this menu by
pressing in Standby mode.
RX Message Menu 6.1
Your phone receives voice mail and text messages.
When the phone receives a message, an alert
sounds, and a text notification displays with the
message icon . The icon remains on the screen
until you read the text messages or until you listen to
the voice mail notification messages.
You phone can receive incoming messages in both
Standby mode and Talk mode. The messages are
received even when the phone is locked. If this
happens, the time and date of the message displays,
but you can access the message. To review the
message, you must unlock the phone.
Your phone can store up to 25 messages, depending
on the length of the messages. If the message
memory is full, an error message is displayed and
you cannot receive any new message until you erase
the stored messages.
96
MMeessssaaggee
97
MMeessssaaggee
Text
An indexed list of text messages in the numeric order
displays. An exclamation point next to an entry
indicates an urgent message. A check mark next to an
entry indicates that you have read and stored the
message.
Select the desired message to review using ,
then press .
While reading a message, you can use following
options.
To... Press...
Make a call to the sender
Display next message
Display previous message
Send a reply message
to the sender
Erase the current message
Erase All
You can erase all voice mail or all text messages you
have received.
When a confirming message displays after selecting
the desired kind of the messages, highlight Yes (or
No not to erase) using , then press to
confirm your selection.
Alert
When your receive a new message in Standby mode,
the phone alerts you. You can set how frequently this
happens and which alert type sounds.
If you are on a call and receive a message, the phone
automatically mutes the ringer and provides the call
waiting tone (this is to avoid ringing in your ear while
you are trying to talk).
Interval: Set how often your phone alerts you that
there are new received messages between
Every 2 Min and Once. Selecting OFF
does not sound the message alert.
Sound Type: Set the alert type for the message alert
between Bell 1and Bell 2. Selecting
OFF does not sound the message alert.
Selecting Vibrator vibrates the phone
when a new message comes in.
Display
You can set the phone to display the contents of a
new text message in Standby mode when it comes
in.
Select Set to display the content of the message.
Otherwise, select Cancel.
99
DDiissppllaayy
98
Display
The Display menu enables you to:
• Change the greetings
• Set the back ground image or text
• Select date format to be displayed in Standby
mode
• Set the backlight and the service light
• Select the display language
Greetings Menu 7.1
This option allows you to change a greeting message
to be displayed under the background image in
Standby mode. The current message is displayed.
The default greetings is SAMSUNG.
1. Remove the old greetings by pressing
repeatedly.
2. Enter a new message, and press .
You can enter up to 14 characters for English and
8 characters for Chinese. For further details on
entering text, see page 34.
Background Menu 7.2
You can set the various images or text for the
background of the display.
Power On/Off
Your phone displays an image briefly when it is
switched on or off. This setting is just for fun and
grins. You have a few animations to select from for
these power on and off images.
The following options are available:
Power On: You can select an image to be displayed
when you switch the phone on. The
power-on animation can be Rose or
Orange Logo.
Power Off: You can select an image to be displayed
when you switch the phone off. The
power-off animation can be Rose or
Orange Logo.
101
DDiissppllaayy
100
DDiissppllaayy
Wall Paper
Your phone displays an image in Standby mode. You
have a few images to select from for wall paper. The
wall paper image can be Orange Logo, SAMSUNG
Logo,Olympic Logo, or Digital Clock. And you
can download three images using the PC Link
program or WAP service.
Selecting No Logo displays no image.
If you select Digital Clock, you are provided with the
following options:
Normal: displays the normal digital clock.
Note: While you press and hold in
Standby mode, you can see this clock.
World Clock: displays the time in the selected area
with the time in your area. Press
to select a city or country from the
world map, then press .
Screen Saver
Using screen saver displays a constantly shifting
pattern on a display screen, used to prevent damage
to the screen through continuous display of the same
image.
The following options are available.
LCD: allows you to select the image to be displayed
when the Screen Saver feature is turned on.
The phone comes with three images set at
factory. And you can download up to three
images using the PC Link program or WAP
service.
On/Off: allows you to turn the Screen Saver feature
on or off. Select Set to use the Screen Saver
feature. The phone displays the selected
image after a specified duration without
keypress. Pressing any key restores the
screen. Or, select Cancel not to use it.
Set Wait Time: allows you to specify the time
length the phone waits before using
the Screen Saver feature. Select
Short or Long.
103
DDiissppllaayy
102
DDiissppllaayy
Text Slide
You can display the sliding text in Standby.
The following options are available.
Enter Text: allows you to write and save text to be
slided on top line of text and graphic
area in the display. You can enter up to
14 characters for English and 8
characters for Chinese. For details on
entering text, see page 34.
Set On/Off: allows you to turn this feature on or off.
Date Menu 7.3
The current date and time appears on the bottom
line of f the display in Standby mode. You can set
the format in which the date and time is displayed.
The examples of the four format using the current
date and time are listed. Select the desired one from
the list.
Back/SVC Light Menu 7.4
Backlight
You can select whether or not the phone uses the
backlight. A marginal increase in standby/talk time
can be achieved by turning the backlight off or
setting the saving backlight.
The following options are available.
Interval: allows you to set the length of time the
phone waits until the backlight lights after
you press a last key. Select 8 sec or 20
sec. Selecting Off does not use the
backlight.
Set Backlight: allows you to set the backlight type
between Normal and Saving.
Select Saving uses the backlight
only from 5:00 PM to 8:00 AM.
Doing this saves the power of the
battery.
LCD Control
This option allows you to adjust the contrast of the
external LCD on the cover and main LCD.
Enter the value using the numeric keys or press
or (or, or on the left side of the phone)
repeatedly to increase or decrease the value.
105104
DDiissppllaayy
SVC LED
This option allows you to select whether or not the
service light in the top left-hand corner of the phone
is used.
The following options are available.
Set: the service light flashes when the phone is
ready for use.
Cancel: the service light is not used except when
you switch the phone on.
Language Menu 7.5
You can select a display language. Select the desired
language between English and Chinese.
Sounds
The Sounds menu enables you to:
• Set the ring type and tone
• Adjust the ring volume
• Set the alert tone to sound when you are
connected to or disconnected from the system.
• Set the length of the DTMF tone.
Ring Type Menu 8.1
This option allows you to indicate how you are to be
informed of any incoming calls.
The following options are available.
Bell: The phone rings using the ring tone selected
via the Ring Tone menu option (8-2).
Vibrator: The phone vibrates but does not ring.
Lamp: The backlight is switched on and the service
light blinks; the phone neither rings nor
vibrates.
Vib + Bell: The phone vibrates and rings.
Bell + Vib: The phone rings and vibrates.
Bell ++: The phone rings using the ring tone, but the
ring volume increase from the lowest.
Bell --: The phone rings using the ring tone, but the
ring volume decrease from the loudest.
106
SSoouunnddss
107
SSoouunnddss
Ring Tone Menu 8-2
This option allows you to select the required ringing
tone. Each time you select a tone, it sounds for a few
seconds.
The following options are available:
Bell: you can choose among 5 different bell tones.
Melody: you can choose among 15 different
melodies.
CDMA Melody: you can download your favorite
melodies using the SMS service For
details, contact your service
provider.
My Melody: you can download your favorite
melodies using the WAP service or the
PC Link program. You can download up
to 3 melodies.
Ring Volume Menu 8-3
This option allows you to adjust the ringing volume
to one of eight levels.
Press (or, or on the left side of the
phone) to adjust the volume. The more the bars, the
louder the volume.
Connect Tone Menu 8-4
With this menu option set, the phone sounds the
connect tone when your call is connected to the
system.
Release Tone Menu 8-5
With this menu option set, the phone sounds the
Release tone when a call is disconnected or dropped
from the system.
DTMF Tone Menu 8-6
The tone length setting enables you to select short
or long DTMF (dual-tone multi-frequency) tones.
DTMF tones are what is send by your phone to
access teleservices (such as a bank account). The
system used by the bank or other service determines
if you need short or long DTMF. If the service is
digital (which most are these days), short DTMF will
almost always works. However, some new systems
and almost all older (analog) system require you to
use long DTMF tones.
109
SSeettuupp
108
Setup
Many different features of your phone can be
customized to suit your preferences. You can:
• Restrict the unauthorized use.
• Check your NAM phone numbers.
• Set the phone to send PIN to prevent the
unauthorized use
• Reset your phone setting and clear the memory.
• Lock your phone
To access the Setup menu, you are required to enter
your four-digit lock code. It is preset to “0000”.
Restrict Menu 9.1
This feature provide you with the various option to
restrict the unauthorized use. You can:
The following options are available.
Lock Code: allows you to change your lock code.
Enter a new lock code and press .
Re-enter the lock code to confirm it and
press .
Private Life: protects your private information. If you
set this options, the lock code is
required to access your personal
information, such as the phone book,
scheduler, to do list, call logs and so
on.
Memory: restricts viewing all numbers in the Phone
Book and making a call using them.
Receiving Call: restricts all incoming calls.
Int. Call: restricts all overseas calls.
Incoming Num.: sets the phone shows or block the
caller’s number when a call comes
in, if available. Select Show to
display the caller’s number, or
Block not to display it.
NAM Phone Number Menu 9-2
Your Samsung phone can store four NAMs (NAM
stands for Numerical Assignment Module -
essentially your telephone number). This means you
can have four phone numbers on your phone, and you
can quickly and easily switch your service back and
forth among the numbers. Using this menu, you can
select the desired NAM phone number
Select desired one of the numbers. The phone will
reboot and acquire service using the new NAM
setting.
Auto Lock Menu 9-
This menu allows you to lock the phone. Locking the
phone limits all use of your phone.
Selecting Set immediately locks your phone and
stays locked until you cancel Auto Lock mode.
To use the phone in Lock mode:
Enter the four digits lock code. Your phone unlocks
temporarily and you can use it. If you switch the
phone off and back on, it locks again.
To cancel Auto Lock mode and unlock the phone:
Enter the four digits lock code in Lock mode. Access
the Auto Lock menu, and select Cancel to unlock
your phone.
111
SSeettuuppSSeettuupp
110
Send PIN Menu 9-3
Note: Your service provider must enable this feature
and assign you a PIN in order for this feature
to work.
This feature prevents your phone from being used by
unauthorized persons. The feature is only available if
your system supplier provides this service and you
have a PIN (Personal Identification Number) assigned
by the system supplier. Contact your service provider
for complete information on this feature. Your PIN is
programmable and can be up to 24 digits.
Select Set to activate this feature, and you are asked
to send PIN when you make a call. Select Cancel to
deactivate this feature.
For information about this service in detail, contact
your service provider.
Vocoder Menu 9-4
This phone is set to “EVRC FORCED” for the best
quality of your call. If you use this phone abroad,
please refer to the network service provider for
further details.
Initialize Menu 9-
You can initialize your phone to its factory default
status.
Clear All
This menu allows you to erase all data you have
stored in the phone’s memory, such as phonebook
entries, tasks, schedules, call logs and so on.
When a confirmation displays explaining that you
will clear all data in the phone memory, select Yes to
confirm. The phone reboots (turns itself off then on),
then returns to Standby mode.
Or, select No to cancel your selection and exit this
menu.
Reset Phone
Resetting the phone returns to all user-selectable
options to the default settings.
When a confirmation displays explaining that you
will clear all data in the phone memory, select Yes to
confirm. The phone reboots (turns itself off then on),
then returns to Standby mode.
Or, select No to cancel your selection and exit this
menu.
113112
SSeettuuppReference Information
Accessories
Batteries
Two types of Li-ion batteries are available for use with
your phone:
• STANDARD Battery
• EXTENDED Battery
Desktop Charger
Desktop charger allows you to recharge your battery
with the phone and also an extra battery
simultaneously.
Cigarette Lighter Adapter
The Cigarette Lighter Adapter charges your phone in a
vehicle while you drive and enables you to operate the
phone from a vehicle cigarette lighter socket.
Hands-Free Car Kit
The Hands-Free Car Kit provides safety, freedom and
convenience in your vehicle. (Kit includes Cradle and
Microphone.)
Ear-Microphone
The Ear-Microphone includes both the earpiece and
microphone in a convenient, lightweight unit.
RS-232C Cable
The RS-232C Cable connects your SCH-A301 to your
computer port, allowing you to use Internet or other
communication programs.
114
RReeffeerreennccee IInnffoorrmmaattiioonn
115
RReeffeerreennccee IInnffoorrmmaattiioonn
Using the Batteries
Your phone is powered by a rechargeable Li-ion
standard battery.
Additional batteries are also available (ask your
SAMSUNG dealer for further details):
Precautions When Using Batteries
• Never use any charger or battery that is damaged
in any way.
• Use the battery only for its intended purpose.
• If you use the phone near the network’s base
station, it uses less power; talk and standby times
are greatly affected by the signal strength on the
cellular network and the parameters set by the
network operator.
• Battery charging times depend on the remaining
battery charge and the type of battery and charger
used. The battery can be charged and discharged
hundreds of times, but it will gradually wear out.
When the operation time (talk time and standby
time) is noticeably shorter than normal, it is time
to buy a new battery.
• If left unused, a fully charged battery will
discharge itself over time.
• Use only Samsung-approved batteries and
recharge your battery only with Samsung-
approved chargers. When a charger is not in use,
disconnect it from the power source. Do not leave
the battery connected to a charger for more than
a week, since overcharging may shorten its life.
• Extreme temperatures will affect the charging
capacity of your battery: it may require cooling or
warming first.
• Do not leave the battery in hot or cold places,
such as in a car in summer or winter conditions,
as you will reduce the capacity and life-time of
the battery. Always try to keep the battery at
room temperature. A phone with a hot or cold
battery may temporarily not work, even when the
battery is fully charged. Li-ion batteries are
particularly affected by temperatures below 0 °C
(32 °F).
• Do not short-circuit the battery. Accidental short
circuiting can occur when a metallic object (coin,
clip or pen) causes a direct connection between
the + and - terminals of the battery (metal strips
on the back of the battery), for example when
you carry a spare battery in a pocket or bag.
Short-circuiting the terminals may damage the
battery or the object causing the short-circuit.
• Dispose of used batteries in accordance with local
regulations. Always recycle. Do not dispose of
batteries in a fire.
117
RReeffeerreennccee IInnffoorrmmaattiioonn
116
RReeffeerreennccee IInnffoorrmmaattiioonn
Safety Information
Road Safety
• Remember, road safety always comes first!
• Do not use a hand-held phone while driving a
vehicle. Always park the vehicle before having a
conversation.
• Make sure that the phone is stored safely and will
not fall or be broken in the event of a collision or
emergency stop.
• The use of an alert device to operate a vehicle’s
lights or horn on public roads is not permitted.
• Only qualified personnel should install or service
the phone in a vehicle. Faulty installation or
service may be dangerous and may invalidate any
warranty applicable to the unit.
• Electronic fuel injection, anti-skid braking,
electronic cruise control or any other electronic
systems may malfunction due to the lack of
protection from radio signals. Check regularly
that all cellular phone equipment in your vehicle is
mounted and operating correctly.
Operating Environment
• Remember to follow any special regulations in
force in any area and always switch off your
phone whenever it is forbidden to use it, or when
it may cause interference or danger (in a hospital
for example).
• Operation of any radio transmitting equipment,
including cellular phones, may interfere with
inadequately protected medical devices. Consult
a physician or the manufacturer of the medical
device if you have any questions. Other electronic
equipment may also be subject to interference.
• As with other mobile radio transmitting
equipment, you are advised that for satisfactory
operations and personal
safety, the equipment should only be used in the
normal operating position.
• Always switch off the phone when at a refuelling
point (service station). You are reminded of the
need to observe restrictions on the use of radio
equipment in fuel depots (fuel storage and
distribution areas), chemical plants or where
blasting operations are in progress.
• Do not store or carry flammable liquids, gases or
explosive materials in the same compartment as
the phone, its parts or accessories.
119
RReeffeerreennccee IInnffoorrmmaattiioonn
118
RReeffeerreennccee IInnffoorrmmaattiioonn
• Switch off your cellular phone when in an aircraft.
The use of cellular phones in an aircraft is illegal
and may be
dangerous to the operation of the aircraft or
disrupt the cellular network. Failure to observe
these instructions may lead to the suspension or
denial of cellular telephone services to the
offender, legal action or both.
Care and Maintenance
Your phone is a product of superior design and
craftsmanship and should be treated with care. The
suggestions below will help you fulfill the warranty
obligations and enjoy this product for many years.
• Keep the phone and all its parts and accessories
out of the reach of children.
• Keep the phone dry. Precipitation, humidity and
liquids containing minerals will corrode the
electronic circuits.
• Do not use or store the phone in dusty, dirty areas
as its components may be damaged.
• Do not store the phone in hot areas. High
temperatures can shorten the life of electronic
devices, damage batteries and warp or melt
certain plastics.
• Do not store the phone in cold areas. When the
phone warms up (to its normal temperature),
moisture can form inside the phone, which may
damage the electronic circuits.
• Do not attempt to open the phone. Non-expert
handling of the phone may damage it.
• Do not drop or knock the phone. Rough handling
may damage the internal circuits.
• Do not use harsh chemicals, cleaning solvents or
strong detergents to clean the phone. Wipe it
with a soft cloth slightly dampened in mild, soapy
water.
• If the phone or any of its accessories are not
working properly, take them to your nearest
qualified service centre. The personnel there will
assist you, and if necessary, arrange for the phone
to be repaired.
121120
RReeffeerreennccee IInnffoorrmmaattiioonn
Emergency Calls
Important! This phone, like any cellular phone, uses
radio signals, cellular and landline
networks, as well as user-programmed
functions that cannot guarantee
connection in all conditions. Therefore,
you should never rely solely on any
cellular phone for essential
communications (medical emergencies
for example).
Remember, to make or receive any calls, the phone
must be switched on and in a service area with
adequate cellular signal strength.
Emergency calls may not be possible on all cellular
phone networks or when certain network services
and/or phone features are in use. Check with local
cellular service providers.
Glossary
Airtime - Actual time spent talking on the wireless
phone. Most carriers bill customers based
on how many minutes of airtime they use
each month.
Antenna - A device for transmitting or receiving
signals. The size and shape of antennas
is determined, in part, by the frequency of
the signal they receive. Wireless phones
and the base station must have antennas.
Base Station - The fixed radio transmitter/receiver
that maintains communications with
mobile radio telephones within a
given area. (Typically seen as cell or
cell site)
CDMA - (Code Division Multiple Access) A spread-
spectrum approach to digital transmission.
With CDMA, each conversion is digitized
and then tagged with a code. The mobile
phone deciphers only a particular code to
pick the right conversation off the air. The
transmitted signal is just above noise level
across the available bandwidth.
Channel - Communications signals transmit along
paths called channels.
Codec - Compression & Decompression.
Call Waiting - Ability to inform users that they have
an incoming call when engaged on
another call.
122
GGlloossssaarryy
123
GGlloossssaarryy
Line Identification -Services allowing subscribers
Services (Caller ID to view or block the telephone
Display) numbers of callers.
Frequency - A measure based on time, as one or
more waves per second, in an electrical
or light wave information signal. A
signal’s frequency is stated in cycles-
per-second or Hertz (Hz).
Hands-Free - A feature that permits a driver to use
a wireless phone without lifting or
holding the handset - an important
safety feature for automobiles,
tractors and most other motorized
vehicles.
LCD - (Liquid Crystal Display) Commonly used to
refer to the screen display on the wireless
phone.
LED - (Light Emitting Diode) Commonly used to refer
to a small light on the wireless phone or on
the Desktop Charger. The LED lights on the
phone to indicate an incoming call. The lights
on the charger to indicate that battery
charging is taking place.
Prepend - The addition of a prefix, such as an area
code, to a phone number.
RF - Radio Frequency
Roaming - The ability to use a wireless phone to
make and receive calls in places outside
of the home service area.
Service Charge - The amount paid each month to
receive wireless service.
Standby Time - The amount of time a fully charged
wireless portable or transportable
phone can be on and idle without
being in use. (See Talk Time)
Talk Time - The length of time a person can talk on
a portable or transportable wireless
phone without recharging the battery.
Vocoder - Voice Coder. A device used to convert
speech into digital signals.
Voicemail - A computerized answering service that
answers a call, plays a greeting and
records a message. Depending on the
sophistication of the service, it can
notify the subscriber, via a pager, of an
incoming call or message. (Also called
voice messaging)
Wireless - Radio-based Systems that allow
transmission of telephone or data signals
through the air without a physical
connection, such as a metal wire
(copper) or fiber optic cable.
125124
SCH-A301 Quick Reference Card
BASIC OPERATION
Make a call Phone number + SEND
Receive a call SEND or Open the phone
Adjust speaker (in Talk mode)
volume / repeatedly
Adjust ring (in Standby mode)
volume / repeatedly
Redial last SEND twice
number
Scan the last SEND + Navigation /
calls and dial + SEND
INTERNAL PHONE BOOK
Store numbers Phone number + MENU +
into memory Select Phonebook + OK +
Enter Name + Navigation +
Enter location + Navigation
+ Select label + OK
Speed dial One Touch (001~009): Hold
down the third digit.
Two-Touch (010~099): Press
the second digit, then hold
down the third digit.
Three-Touch (100~199): Press
the first and the second digit ,
then hold down the third.
Scan memories Navigation + Navigation +
OK
Erasing a Navigation + Navigation +
specific entry OK + MENU + Select Del +
OK
5 : PIM 8 : Game
9 : Lady Function
6: Messages 1 : Rx Message
7 : Display 1 : Greetings
2 : Background
3 : Date
4 : Back/SVC Light
5 : Language
8 : Sounds 1 : Ring Type
2 : Ring Tone
3 : Ring Volume
4 : Connect Tone
5 : Release Tone
6 : DTMF Tone
9 : Setup 1 : Restrict
2 : NAM Phone#
3 : Send PIN
4 : Vocoder
* : Auto Lock
# : Initialize
126
MENU TREE
Main Menu (To access, press MENU)
1: WAP Service 1 : WAP Service
* : Modem Setting
2: Orange Menu : The contents may
vary depending on
the network.
3: Calls 1 : Outgoing
2 : Incoming
3 : Delete Number
4 : Air Time
5 : Answer Mode
4: Phone Book 1 : Find Number
2 : Add Entry
3 : Edit Group
# : My Phone #
5 : PIM 1 : Scheduler
2 : To Do List
3 : Calculator
4 : Set Time
5 : Alarm
6 : World Time
7 : D-Day
Licensed by QUALCOMM Incorporated under one or more
of the following Patents.
U.S Patent No. 4,901,307 5,056,109 5,099,204
5,101,501 5,103,459 5,107,225
5,109,390
