Samsung Electronics Co SCHA650 Tri-Mode Dual-Band Analog/ PCS Phone (AMPS/CDMA) User Manual

Samsung Electronics Co Ltd Tri-Mode Dual-Band Analog/ PCS Phone (AMPS/CDMA) Users Manual

Users Manual

ELECTRONICSWorld Wide Webhttp://www.samsungmobile.comCELLULAR PHONESCH-A650User’s ManualPrinted in KoreaCode No.: GH68-03XXXAEnglish. 06/2003.Rev.1.0Please read this manual before operating your phone, and keep itfor future reference.Draft version (2003/06/04)* Some contents of this manual may differ from your phonedepending upon the software of the phone or your serviceprovider.
3Important Safety Precautions .................................................. 7Unpacking ................................................................................... 9Your Phone Phone Layout ............................................................................... 10Display ......................................................................................... 13Backlight ...................................................................................... 15LED Indicator ................................................................................ 16Getting StartedUsing the Battery ......................................................................... 17Switching the Phone On or Off ...................................................... 21Using the Soft Keys ...................................................................... 22Your Phone’s Modes ...................................................................... 23Call FunctionsMaking a Call ............................................................................... 26Emergency Dialing ........................................................................ 27Redialing the Last Number ............................................................ 27Making a Call from Phonebook ..................................................... 28Prepend Dialing ............................................................................ 28Speed Dialing ............................................................................... 29Pause Dialing ............................................................................... 31Voice Dialing ................................................................................ 34Adjusting the Volume .................................................................... 35Answering a Call ........................................................................... 36Options During a Call .................................................................... 37Using Caller ID ............................................................................. 38Viewing Missed Calls ..................................................................... 38Call Waiting .................................................................................. 39Three-Way Calling ......................................................................... 40Table of ContentsFCC RF EXPOSURE INFORMATIONIn August 1996 the Federal Communications Commission (FCC) ofthe United States with its action in Report and Order FCC 96-326adopted an updated safety standard for human exposure to radiofrequency electromagnetic energy emitted by FCC regulatedtransmitters. Those guidelines are consistent with the safetystandards previously set by both U.S. and international standardsbodies. The design of this phone complies with the FCC guidelinesand these international standards. Use only the supplied antenna or one that is approved.Unauthorized antennas, modifications, or attachments could impaircall quality, damage the phone, or result in a violation of FCCregulations.Do not use the phone with a damaged antenna. If a damagedantenna comes into contact with the skin, a minor burn may result.Please contact your local dealer for a replacement antenna.Body-worn OperationThis device was tested for typical body-worn operations using the optional belt-clip/holster placed 1.8cm from the body. To comply with FCC RF exposure requirements, a minimumseparation distance of 1.8 cm must be maintained between the user’s body and the back of the phone, including the antenna, whether extended or retracted. The use of belt-clips, holsters or similiar accessories should not conatin metallic components. The use ofaccessories that do not satisfy the requirements may not complywith RF exposure requirements, and shgould be avoided.Vehicle Mounted External Antenna (optional, ifavailable.)A minimum separation distance of 7.9 inches (20cm) must bemaintained between a person and the vehicle mounted externalantenna to satisfy FCC RF exposure requirements.For more information about RF exposure, please visit the FCC website at www.fcc.gov
4 5Entering TextChanging the Text Input Mode ...................................................... 42Using the T9 (English) Mode ......................................................... 43Using the Alphabet Mode .............................................................. 45Using the Symbol Mode ................................................................ 47Using the Number Mode ............................................................... 47Using the MenusAccessing a Menu Function by Scrolling ......................................... 48Accessing a Menu Function by Using Its Shortcut ............................ 49List of Menu Functions .................................................................. 50CallsOutgoing (MENU 1-1) ............................................................. 53Incoming (MENU 1-2) ............................................................. 54Missed (MENU 1-3) ................................................................. 55Erase Logs (MENU 1-4) ............................................................ 55Call Timer (MENU 1-5) ............................................................ 56Phone BookFind (MENU 2-1) ..................................................................... 57Add New Entry (MENU 2-2) ..................................................... 59Rename Group (MENU 2-3) ..................................................... 61My Phone Number (MENU 2-4) ............................................... 62Memory (MENU 2-5) ............................................................... 62MessagesSend New Message (MENU 3-1) ................................................ 64Voice (MENU 3-2) .................................................................... 67Inbox (MENU 3-3) ................................................................... 68Outbox (MENU 3-4) ................................................................ 69Draft Message (MENU 3-5) ...................................................... 70Saved Message (MENU 3-6) ..................................................... 70Web Alert (MENU 3-7) ............................................................. 71Message Setting (MENU 3-8) ................................................... 72Wireless Web About the Web Browser ................................................................ 75Get In Web (MENU 4-1) ........................................................... 76Prompt (MENU 4-2) ................................................................ 81Get it Now .................................................................................... 82PlannerToday (MENU 5-1) .................................................................. 85Scheduler (MENU 5-2) .............................................................. 87Jump To Date (MENU 5-3) ...................................................... 89To Do List (MENU 5-4) ............................................................ 90Memo Pad (MENU 5-5) ........................................................... 91Count Down (MENU 5-6) ......................................................... 92Alarm Clock (MENU 5-7) ......................................................... 94World Time (MENU 5-8) .......................................................... 95Calculator (MENU 5-9) ............................................................ 96DisplayAnimation (MENU 6-1) ............................................................ 97Banner (MENU 6-2) ................................................................ 97Backlight (MENU 6-3) ............................................................. 98Contrast (MENU 6-4) .............................................................. 98Auto Hyphen (MENU 6-5) ...................................................... 98SoundsVolume/Vibrate (MENU 7-1) ................................................... 99Ringer Type (MENU 7-2) ....................................................... 100Key Beep (MENU 7-3) ........................................................... 101Alerts (MENU 7-4) ............................................................. 101Power On/Off (MENU 7-5) ..................................................... 102Roam Ringer (MENU 7-6) ..................................................... 103Whisper Mode (MENU 7-7) ................................................ 103Voice KitVoice Dial (MENU 8-1) .......................................................... 104Voice Memo (MENU 8-2) ....................................................... 107Call Screen (MENU 8-3) .......................................................... 108
7Important SafetyPrecautionsRead these guidelines before using your wirelessphone. Failure to comply with them may be dangerousor illegal. Road Safety at All TimesDo not use a hand-held phone while driving; park thevehicle first. Switching Off When RefuelingDo not use the phone at a refueling point (servicestation) or near fuels or chemicals.Switching Off in AircraftWireless phones can cause interference. Using themin aircraft is both illegal and dangerous.Switching Off in HospitalsSwitch your phone off near medical equipment.Follow any regulations or rules in force.InterferenceAll wireless phones may be subject to interference,which could affect their performance.Special RegulationsMeet any special regulations in force in any area andalways switch off your phone whenever it is forbiddento use it, or when it may cause interference or danger(in a hospital for example).6SetupLocation (MENU 9-1) ............................................................. 112Network (MENU 9-2) ............................................................. 112Data/Fax (MENU 9-3) .......................................................... 114Security (MENU 9-4) ......................................................... 115Call Answer (MENU 9-5) ........................................................ 119Auto Answer (MENU 9-6) ...................................................... 120Auto Retry (MENU 9-7) ......................................................... 120Language (MENU 9-8) .......................................................... 120Clock Set (MENU 9-9) ............................................................ 121Version (MENU 9-0) .............................................................. 122Health and Safety InformationExposure to Radio Frequency (RF) Signals ................................... 123For Body Operation .................................................................... 125Precautions When Using Batteries ............................................... 126Road Safety ................................................................................ 128Operating Environment................................................................ 130Potentially Explosive Environment................................................ 133Emergency Calls ......................................................................... 134Other Important Safety Information............................................. 135Care and Maintenance ................................................................. 136Acknowledging Special Precautions and the FCC and Industry Canada Notice ......................................................... 137Glossary ..................................................................... 139Index........................................................................... 142
8IImmppoorrttaanntt SSaaffeettyy PPrreeccaauuttiioonnss9Sensible UseUse only in the normal position (held to the ear). Avoidunnecessary contact with the antenna when the phoneis switched on.Emergency CallEnsure the phone is switched on and in service. Key in the emergency number for your presentlocation, then press the SEND key. You mustdeactivate any unnecessary features before you canmake an emergency call. Give all the necessaryinformation as accurately as possible. Do not cut offthe call until given permission to do so.Water ResistanceYour phone is not water-resistance. Keep it dry.Accessories and BatteriesUse only Samsung-approved accessories and batteries.Use of unauthorized accessories could damage yourphone and may be dangerous. Qualified ServiceOnly qualified service personnel may install or repairyour phone.For more detailed safety information, see “Health andSafety Information” on page xx.Travel AdapterHandset BatteryHand StrapUnpackingYour package contains the following items:In addition, you can obtain the following accessoriesfor your phone from your local Samsung dealer:• Ear-microphone• Travel adapter• Slim and standard batteries • Cigarette lighter adapter • Hands-free car kit • Data cable• Leather caseLeather CaseUser’s Manual Ear-microphonePlease Check!!!Position only!!!Position only!!!Position only!!!
11YYoouurr PPhhoonnee10Perform the functions indicated by thetext above them, on the bottom line ofthe display.In Menu Mode, scroll through the menuoptions and Phonebook memory.In Standby Mode, directly access you tothe following menus:• Up: Voice Memo• Down: Message• Left: Get In Web• Right: Get it Now For more informationabout this menu, see page 82.Key(s) FunctionsAntennaEar-microphonejackMicrophone(Navigationkeys)EarpieceFolder DisplayYour PhonePhone LayoutThe following illustrations shows the main elements ofyour phone:LED indicatorClosed ViewOpen ViewSelects the current menu or option.Adapter outletSpeaker(Soft keys)Volume keysMakes or answers a call.In Standby Mode, retrieves the lastoutgoing numbers you dialed. Redials thelast outgoing number when pressed twice.
Key Functions (continued...)13YYoouurr PPhhoonnee12YYoouurr PPhhoonneeDisplayLayoutThe display has three areas; an upper line of variousicons, the lower text and graphic area and the last linecontaining the soft key indicators.IconsText andgraphic areaIn Standby Mode, initiates the voicedialing feature when held down.While entering text, allows you to changethe case.Also, use this key for the special starcalling feature.Key(s) Functions (continued...)~Deletes characters from the display.In Menu Mode, returns to the previousmenu level.Ends a call. Also switches the phone onand off when held down. In Menu Mode, cancels your input andreturns to Standby Mode.Menu Contacts Soft keyindicatorsEnter numbers, letters and some specialcharacters.In Standby Mode, enters or exits the silentmode when held down.Also, use this key when you make a call toan automated system, especially whenusing teleservices.Position only!!!During a call, adjust the voice volume.In Standby Mode with the folder open,adjust the keypad tone volume. In Menu Mode, scroll through the menuoptions.
15YYoouurr PPhhoonnee14YYoouurr PPhhoonneeBacklightThe display and the keypad are illuminated by abacklight. When you press any key or open the folder,the backlight illuminates. It turns off if no key ispressed within a given period of time, depending onthe Backlight option set in the Display menu. Thebacklight remains on at all times when the phone isconnected to an optional car kit.To specify the length of time for which the backlight isactive, set the Backlight menu (MENU 6-3). Seepage xx for further details.YYoouurr PPhhoonneeRoaming: Appears when you are out ofyour home area and have logged onto adifferent network, when traveling in othercountries, for example.Ringer Off: Appears when the ringervolume is turned off.1x Mode: Indicates that your phone issending or receiving data at a high speed. Battery Status: Shows the level of yourbattery. The more bars you see, the morepower you have left.Alarm: Appears when you set an alarm toring at a specified time.Vibration: Appears when you set theringer volume for calls to Vibrate orHigh+Vib or when the phone is in thesilent mode.Signal Strength : Shows the receivedsignal strength. The greater the number ofbars, the better the signal.IconsService: Appears when a call is inprogress.No Service: Appears when you areoutside a service area. When it appears,you cannot make or receive calls. New Message: Appears when a newmessage is received.GPS (911 only): represents GlobalPositioning Service (GPS) for 911.GPS: Indicates GPS is on for location.Silent mode: Indicates when the phone isin the silent mode. Icon images required!!!

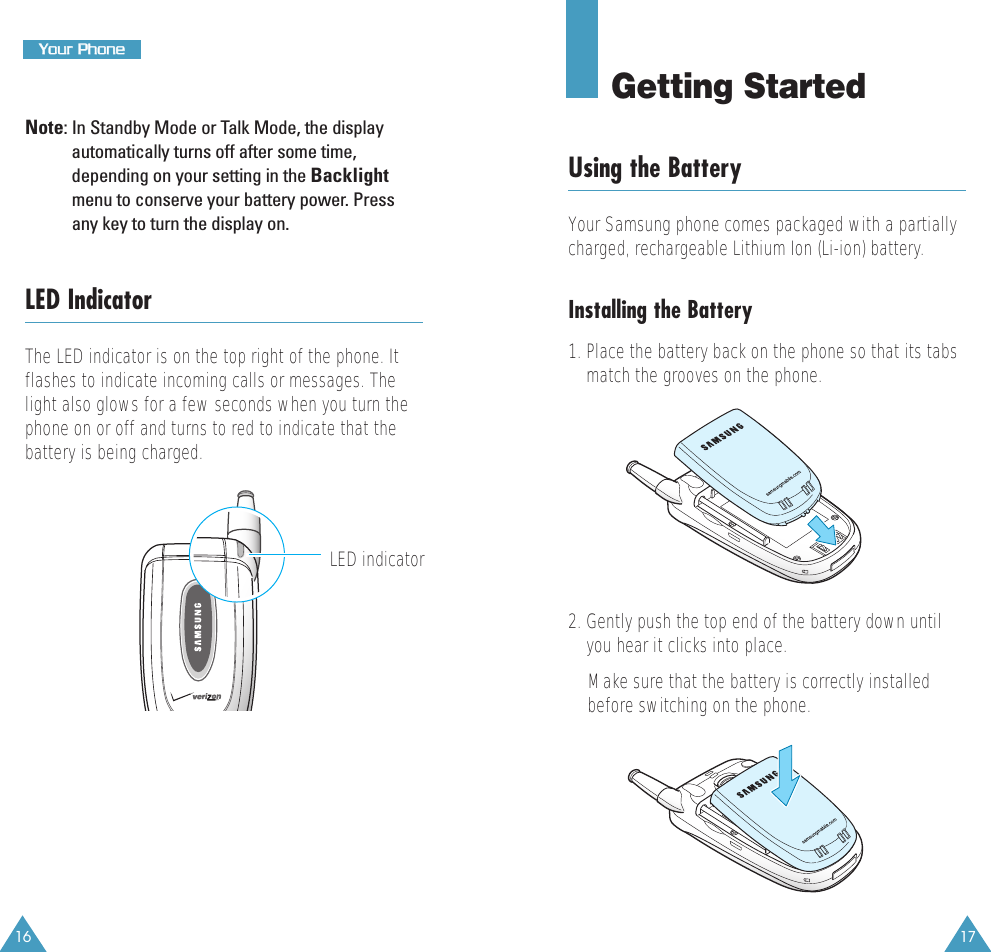

1716YYoouurr PPhhoonneeNote: In Standby Mode or Talk Mode, the displayautomatically turns off after some time,depending on your setting in the Backlightmenu to conserve your battery power. Pressany key to turn the display on.LED IndicatorThe LED indicator is on the top right of the phone. Itflashes to indicate incoming calls or messages. Thelight also glows for a few seconds when you turn thephone on or off and turns to red to indicate that thebattery is being charged.LED indicatorGetting StartedUsing the BatteryYour Samsung phone comes packaged with a partiallycharged, rechargeable Lithium Ion (Li-ion) battery.Installing the Battery 1. Place the battery back on the phone so that its tabsmatch the grooves on the phone.2. Gently push the top end of the battery down untilyou hear it clicks into place.Make sure that the battery is correctly installedbefore switching on the phone.

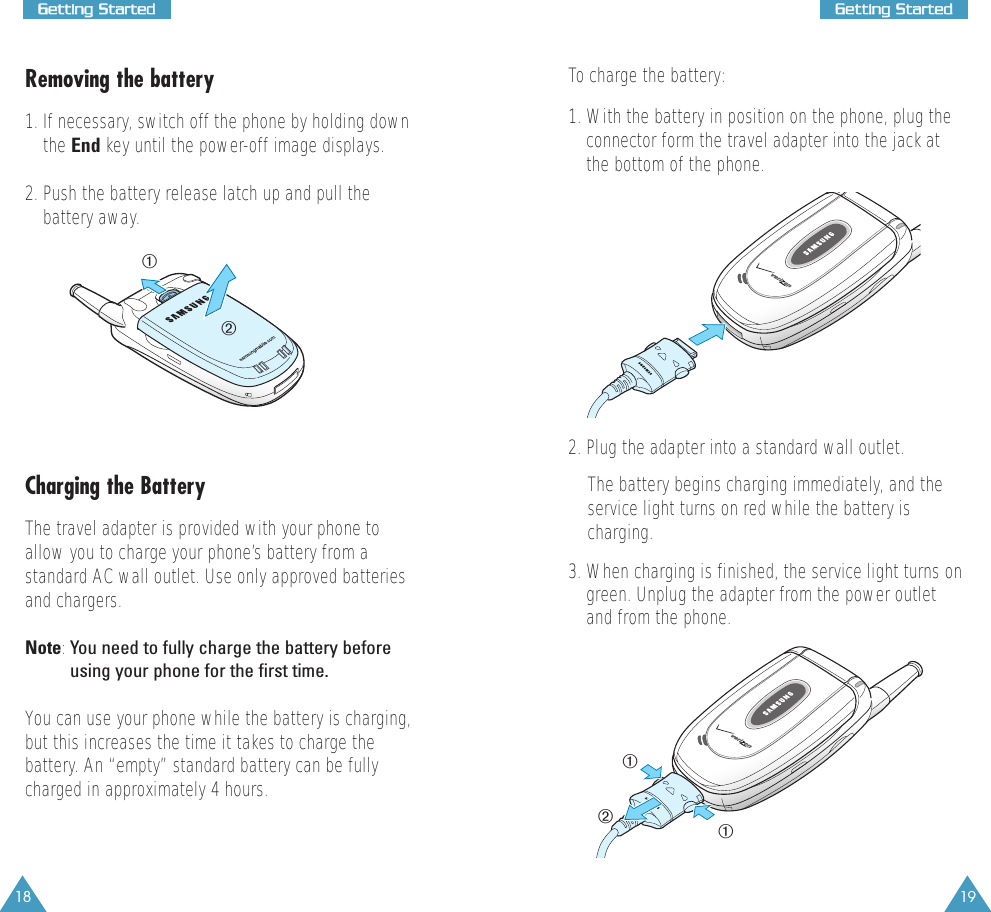

19GGeettttiinngg SSttaarrtteedd18GGeettttiinngg SSttaarrtteeddRemoving the battery1. If necessary, switch off the phone by holding down the End key until the power-off image displays.2. Push the battery release latch up and pull thebattery away.Charging the BatteryThe travel adapter is provided with your phone toallow you to charge your phone’s battery from astandard AC wall outlet. Use only approved batteriesand chargers.Note:You need to fully charge the battery beforeusing your phone for the first time.You can use your phone while the battery is charging,but this increases the time it takes to charge thebattery. An “empty” standard battery can be fullycharged in approximately 4 hours.➀➁To charge the battery:1. With the battery in position on the phone, plug theconnector form the travel adapter into the jack atthe bottom of the phone.2. Plug the adapter into a standard wall outlet. The battery begins charging immediately, and theservice light turns on red while the battery ischarging.3. When charging is finished, the service light turns ongreen. Unplug the adapter from the power outletand from the phone.➀➀➁
21GGeettttiinngg SSttaarrtteedd20GGeettttiinngg SSttaarrtteeddLow Battery IndicatorYou can easily tell if your battery needs to berecharged by checking the Battery Status icon ( ) atthe upper-right corner of your phone’s display. Thepresence of all three bars indicates a full charge, twobars indicates a smaller charge, and one bar indicatesan even smaller charge.When the battery charge level becomes low, thebattery sensor blinks an empty Battery Status icon() and sounds a warning tone. If the battery levelbecomes too low, the phone automatically turns off.When this happens, you lose whatever you are doingand your phone call cuts off. Watch the Battery Statusicon and make sure that your battery is adequatelycharged.Battery Talk Time and Standby timeBattery times can vary depending on operatingconditions, usage, signal strength and backlightsetting. Talk time usage decreases standby time.• Talk time: xx hours• Standby time : xx hoursSwitching the Phone On or Off1. Press and hold the END key until the power-onimage displays to switch the phone on.The LED indicator on the top right of the phoneturns on red and an alert sounds. When the systemlocates services, the greeting message displaysalong with the date and time. You can now placeand receive calls.If the phone is out of service, the No Service icon() appears on the display. In this case, youcannot make and receive calls. You can try againlater when service is available.Note: To change the language, use the Languagemenu (MENU 9-8). For further details, seepage xx.2. When you wish to switch the phone off, press andhold the END key more than two seconds.WARNING!Do not switch the phone on when mobile phone useis prohibited or when it may cause interference ordanger.Note:As with any other radio-transmitting device,do not touch the antenna unnecessarily whenthe phone is switched on. Contact with theantenna affects the call quality and may causethe phone to operate at a higher power levelthan otherwise needed.

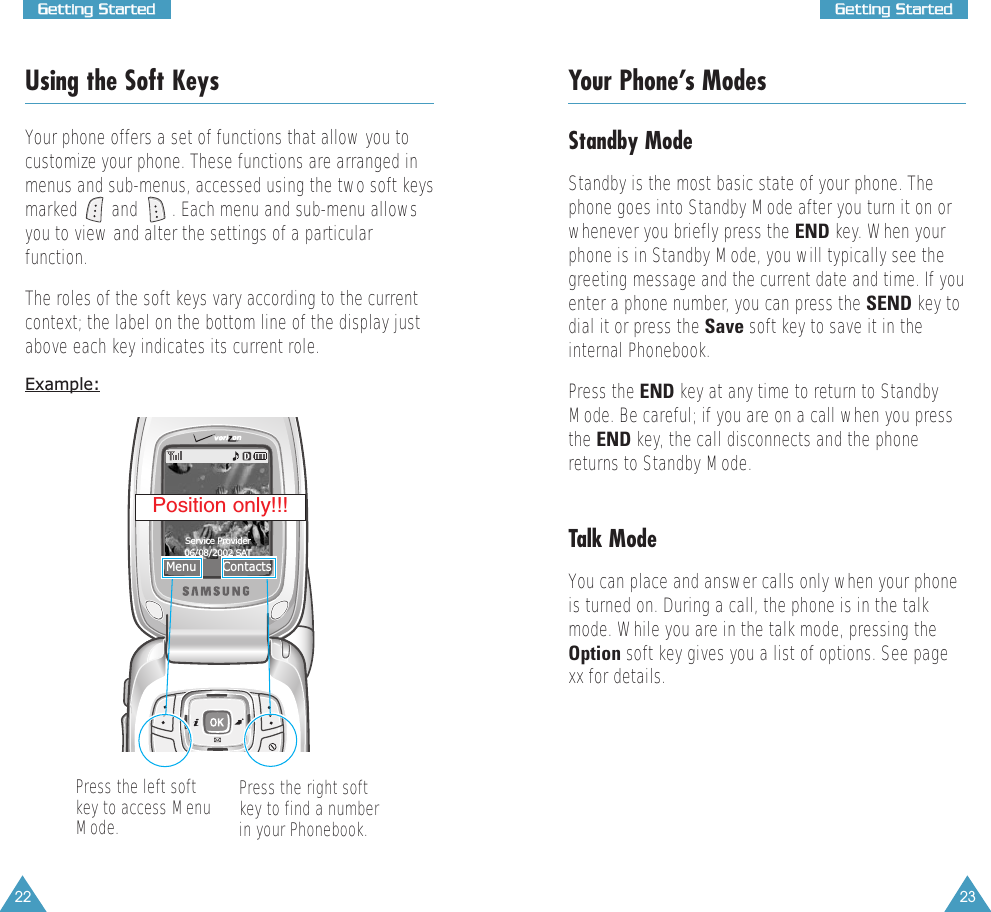

23GGeettttiinngg SSttaarrtteedd22GGeettttiinngg SSttaarrtteeddUsing the Soft KeysYour phone offers a set of functions that allow you tocustomize your phone. These functions are arranged inmenus and sub-menus, accessed using the two soft keysmarked and . Each menu and sub-menu allowsyou to view and alter the settings of a particularfunction.The roles of the soft keys vary according to the currentcontext; the label on the bottom line of the display justabove each key indicates its current role.Example:Service Provider06/08/2002 SATMenu ContactsPress the left softkey to access MenuMode.Press the right softkey to find a numberin your Phonebook.Your Phone’s ModesStandby ModeStandby is the most basic state of your phone. Thephone goes into Standby Mode after you turn it on orwhenever you briefly press the END key. When yourphone is in Standby Mode, you will typically see thegreeting message and the current date and time. If youenter a phone number, you can press the SEND key todial it or press the Save soft key to save it in theinternal Phonebook. Press the END key at any time to return to StandbyMode. Be careful; if you are on a call when you pressthe END key, the call disconnects and the phonereturns to Standby Mode. Talk ModeYou can place and answer calls only when your phoneis turned on. During a call, the phone is in the talkmode. While you are in the talk mode, pressing theOption soft key gives you a list of options. See pagexx for details.Position only!!!
25GGeettttiinngg SSttaarrtteedd24GGeettttiinngg SSttaarrtteeddPower Save ModeYour phone comes with a Power Save feature that isautomatically activated if your phone is unable to finda signal after 10 minutes of searching. While thisfeature is active, the phone’s battery charge isconserved. The phone automatically rechecks for asignal periodically. To manually force the phone torecheck for a signal, press any key. Lock ModeWhen you lock your phone using the Lock Phonemenu (MENU 9-4-1) in the Setup menu, you cannotuse the phone. In the lock mode, you can receivemessages and calls, but you cannot place an outgoingcall until you unlock the phone. To unlock the phone,you need to enter the lock code.For details about locking and unlocking your phone,see page xx. Silent ModeSilent Mode disables all of the sounds on the phone.This feature is best used in situations where the phonemight disturb others, such as in a meeting, at a libraryor in a theater. You can switch your phone to the silentmode with one touch of a key.In Standby Mode, press and hold the key until“Entering Silent Mode” and the Vibration indicator() display.To exit and reactivate the previous sound settings,press and hold the key again until “Exit SilentMode” appears. The Vibration indicator no longerdisplays. Note: When you turn the phone off, the silent mode isautomatically deactivated.
2726Call FunctionsMaking a CallIn Standby Mode, enter the area code and phonenumber and press the SEND key.Note: When the Auto Retry menu (MENU 9-7) havebeen enabled, the phone automatically retries tomake the call when the line is busy or theremote person does not answer. See page xx.While entering a number, press the Option soft key touse the following menu options:P pause: enters a hard pause.T pause: enters a 2-second pause.Correcting the NumberTo clear the Press thelast digit displayed CLR key.whole display CLR key for more thanone second.Cannot be checked withthe current phone!!!Ending a CallWhen you want to finish your call, briefly press theEND key or close the folder.If you end the call by pressing the END key, the calltime, or the length of the call, displays briefly and thephone returns to Standby Mode.Emergency DialingYou can place emergency calls from your emergencynumber list even if your phone is locked or all of theoutgoing calls are restricted. For further details about emergency numbers, seepage xx.Redialing the Last NumberTo redial the last call you made, press the SEND keytwice quickly.Your phone stores the last 10 numbers of the dialedcalls. To recall any of these numbers:1. In Standby Mode, press the SEND key. The list ofthe recent outgoing calls displays.2. Press the Up or Down key until you find the name ornumber you want.3. Press the SEND key to dial the number displayed.CCaallll FFuunnccttiioonnss
28CCaallll FFuunnccttiioonnss29CCaallll FFuunnccttiioonnssSpeed DialingOnce you have stored phone numbers in thePhonebook memory, you can dial them easilywhenever you want.Note: When several numbers are saved in one nameentry, the first number you entered isautomatically specified as a speed dial number.To change the speed dial number, use Speeddial of the Phonebook options; see page xx.One-Touch DialMemory locations 001 through 009 are special one-touch locations. You can dial the phone numbersstored in the Phonebook memory from 001 through 009simply by pressing one key. Press and hold the third digit of the memory location containing the number to be dialled.For example: Location no. 009Press the 9key and hold.The number (and name) stored displays, and thendialed.Making a Call from PhonebookYou can store the phone numbers you called regularlyin the phone’s memory, which is called Phonebook. Youthen simply recall the number to dial. For further details about the Phonebook feature, seepage xx.Prepend DialingThe prepend option lets you add digits, such as areacodes and network feature activation codes, to aphone number that is in your call logs. To prepend a phone number stored in your phone:1. Access outgoing call logs by pressing the SEND keyor Phonebook entries by referring to page xx.2. Scroll to the number you want to dial.3. Press the Option soft key to access the options.4. Press the 3key to select the Prepend option.5. Enter the area code or feature code.6. Press the SEND key to dial the number.
31CCaallll FFuunnccttiioonnss30CCaallll FFuunnccttiioonnssTwo-Touch DialMemory locations 010 through 099 are special two-touch locations.Press the second digit briefly, then hold down the thirddigit of the memory location.For example: Location no. 023Press the 2key briefly and hold down the 3key.The number (and name) stored displays, and thendialed.Three-Touch DialMemory locations 100 through 500 are special three-touch locations.Press the first two digits briefly, then hold down thethird digit of the memory location.For example: Location no. 123Press the 1key and the 2key briefly, thenhold down the 3key.The number (and name) stored displays, and thendialed.Pause DialingWhen you call an automated system, like a bankingservice, you are often required to enter a password oraccount number. Instead of manually entering thenumbers each time, you can store the numbers in yourPhonebook, separated by special characters which arecalled pauses.There are two kinds of pauses that can be entered onyour phone:• P pause: A hard pause stops the dialing sequenceuntil you press the SEND key.• T pause: A 2-second pause stops the dialingsequence for two seconds and then automaticallysends the remaining digits.Note:Multiple two second pauses can be entered toextend the length of a pause. Keep in mindthat pauses count as digits towards the 32digit dialing maximum.Storing Pauses in a Phonebook EntryTo store a number in your Phonebook that containspauses:1. Enter the phone number you want to store, such asthe bank’s teleservice phone number.2. Press the Option soft key to access the options.
33CCaallll FFuunnccttiioonnss32CCaallll FFuunnccttiioonnss3. Select the required pause type using the Navigationkeys, and then press the OK key.4. Enter the digits that need to follow the pause, suchas your account number.5. Repeat steps 2 through 4 to add more pauses andnumbers, if necessary.6. Store the number in your Phonebook as you normallywould by pressing the OK key and following fromstep 2 on page xx.Pause Dialing from a Stored Phonebook Entry1. Dial the number of the service from Phonebook.2. If you stored the number using a hard pause(s), waitfor the appropriate prompt from the number you arecalling. When prompted, press the SEND key tosend the DTMF (Dual tone multi-frequency) numberthat follows your pause.If you stored the number using a T pause(s), yourphone transmits the number that follows the “T”pause two seconds after the connection. 3. “SENDING DTMF” flashes on the display and thetransmitted tone sounds.4. Repeat from step 2, if necessary.Manual Pause DialingYou can enter pauses manually during the dialingprocess.1. Enter the phone number of the service you want tocall, such as a bank’s teleservice phone number.2. Press the Option soft key to access the options. 3. Select the required pause type using the Navigationkeys, and then press the OK key.4. Enter the number to be sent after the pause andthen press the SEND key to dial the first number. 5. For a hard pause, press the SEND key again at theprompt to send the additional number afterconnecting.If you enter the number using a T pause(s), thephone sends the number that follows the pause twoseconds after the connection.

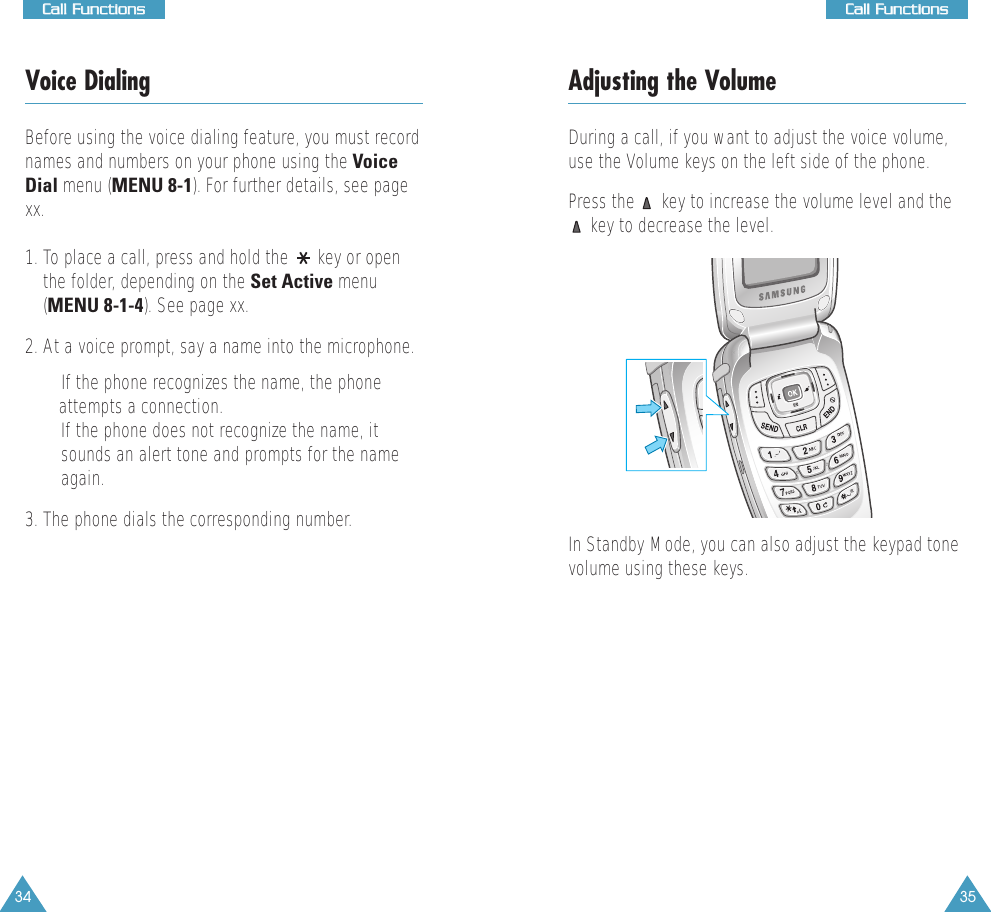

35CCaallll FFuunnccttiioonnss34CCaallll FFuunnccttiioonnssVoice DialingBefore using the voice dialing feature, you must recordnames and numbers on your phone using the VoiceDial menu (MENU 8-1). For further details, see pagexx.1. To place a call, press and hold the key or openthe folder, depending on the Set Active menu(MENU 8-1-4). See page xx.2. At a voice prompt, say a name into the microphone.• If the phone recognizes the name, the phone attempts a connection.• If the phone does not recognize the name, itsounds an alert tone and prompts for the nameagain.3. The phone dials the corresponding number.Adjusting the VolumeDuring a call, if you want to adjust the voice volume,use the Volume keys on the left side of the phone. Press the key to increase the volume level and thekey to decrease the level.In Standby Mode, you can also adjust the keypad tonevolume using these keys.
37CCaallll FFuunnccttiioonnss36CCaallll FFuunnccttiioonnssAnswering a CallWhen somebody calls you, the phone rings anddisplays the incoming call animation.If the caller can be identified, the caller’s phonenumber, or name if available in your Phonebook,displays. 1. To answer a call, open the folder and press theSEND key.If the Call Answer menu (MENU 9-5) is set toAny Key, you can answer a call by pressing any keyexcept for the END key.When the menu option is set to Folder Open, youcan simply open the folder to answer the call.For details about the Call Answer menu, see pagexx.2. To end the call, press the END key or simply closethe folder.Notes: • You can answer a call while using Phonebook ormenu functions. The current operation stops.• If you cannot answer incoming calls, you can set thephone to answer the call by playing a greetingmessage and record callers’ messages. For furtherdetails, see page xx.Options During a CallYour phone provides you with a number of functionsthat you can use during a call. Press the Option soft key during a call to access thefollowing options:Mute/Unmute: allows you to switch your phone’s microphone off, so that the other person cannot hearyou.Example: You wish to say something to another personin the room but do not want the other person to hearyou.Calls: allows you to access the Calls menu. Fordetails, see page xx.Phone Book: allows you to access the Phone Bookmenu. For details, see page xx.Silent/Quit: does not transmit the key tones. It allowsyou to press keys without hearing annoying key tonesduring a call.Send Tel #: sends your telephone number to the otherperson or automated services.My Phone #: displays the phone’s own number.Version: displays the version of the software andhardware that is being used on the phone.Voice Privacy: gives you the option of havingenhanced or standard privacy.
39CCaallll FFuunnccttiioonnss38CCaallll FFuunnccttiioonnssLocation: displays whether GPS is set to On or 911only.Send DTMF: allows you to manipulate the audiblekeypad tones.Using Caller IDThis feature tells you who is calling you by displayingthe caller’s number when the phone rings. If the nameand number are stored in your Phonebook, thecorresponding name is also displayed. If you callsomeone who has this feature, your phone numberdisplays on her/his phone.Note: Contact your service provider to set up theCaller Line Identification service.Viewing Missed CallsIf you fail to answer a call for any reason, the phoneindicates the missed call by displaying a textnotification on the screen. Additionally, if callerinformation is available, a Missed entry is created.Press the SEND key to access the recent calls list, orthe END key to clear the message and return toStandby Mode.To view missed calls, access the Missed menu(MENU 1-3). For details, see page xx.Call WaitingCall Waiting lets you receive a second call during aconversation. Your phone notifies you of a waiting callby beeping and displaying “Call Waiting.”Your network provides you with the option of turningthe Call Waiting feature on and off, if you havesubscribed to the service. Call Waiting is on by defaultin the phone. If you choose to have a undisturbedconversation, simply turn off the feature for the currentcall.Note: Contact your service provider to activate theCall Waiting service.To answer a waiting call during a call:1. When you hear a beep telling that you have awaiting call, press the SEND key. The phoneconnects the calling person and places the currentcall on hold.2. Press the SEND key again to switch between thetwo calls.Note: If you do not respond to a Call Waitingnotification, the phone will forward the call tovoice mail server or another number that youhave set up. Contact your service provider formore information.
41Entering TextAt many times when using your phone, you will needto enter text, such as when storing a name inPhonebook, creating your personal greeting orscheduling events on your calendar. You can enteralphanumeric characters into your phone using yourphone’s keypad.Your phone has the following text input modes:• T9(English):This mode allows you to enter wordswith only one key press per letter. Each key on akeypad has more than one letter - a single press onthe 5key could be J, K or L. The T9 modeautomatically compares your key presses to aninternal linguistic database to determine the correctword. The T9 mode requires far fewer keystrokesthan the traditional multi-tap method, Alphabetmode.• Alphabet: This mode allows you to enter letters bypressing the key labeled with the letter you want toenter once, twice, or three times until it appears onthe display.• Symbol:This mode allows you to enter specialcharacters.• Number: This mode allows you to enter numbers.Note: The T9 mode supplies an appropriate languagedatabase as your language setting menu(MENU 9-8).40CCaallll FFuunnccttiioonnssThree-Way CallingThis feature enables you to conduct conference callswith two separate people at the same time. The phonerecords each participant into the Outgoing Calls Log.Also, You are billed call time for each outgoing callseparately. Note:Contact your service provider to activate Three-Way Calling.To place a Three-Way call:1. During a conversation, press the SEND key. Thephone places the other person on hold.2. Enter the phone number for the third person, andthen press the SEND key. The phone dials the thirdperson.3. When you are connected to the person, press theSEND key again to begin your three-way call.If one of the callers (not you) hangs up, you andremaining caller stay connected. If you initiated thecall and you hang up first, all three participants aredisconnected.
43EEnntteerriinngg TTeexxtt42EEnntteerriinngg TTeexxttChanging the Text Input ModeWhen you are in a field that allows characters entry,you should notice the text input mode indicator on thedisplay.Example: Entering a name for a Phonebook entryTo change to another text input mode:1. Press the Option soft key.2. Scroll to the mode by pressing the Navigation keys.3. To select the highlighted mode, press the OK key. Ifyou want to exit the menu without changing to anew mode, press the CLR key.The selected text input mode indicator appears onthe display.MENUUsing the T9 (English) ModeTo type a word, press keys corresponding to the lettersyou need. Remember the following as you are typing:1. Press alphanumeric keys on the keypad just onceper letter. For example, to enter “Hello,” press the 4,3, 5, 5 and 6keys.The word you are typing appears on the display. Itmay change with each key press.2. Type to the end of the word before editing ordeleting any keystrokes.3. Put a space between words by pressing the key.If the word that appears on the display is not theone that you desire, press the 0key one or moretimes to display alternative word choices for thekeys you have typed. For example, both “of” and“me” use the 6and 3keys. The phone displays themost commonly used choice first.4. Continue entering the next word.Smart PunctuationPeriods, hyphens, and apostrophes are available bypressing the 1key. The T9 mode applies rules ofgrammar to insert the correct punctuation. Notice thatthe 1key is used twice in this example to display twopunctuation marks: L e t ‘ s e a t . Position onlyText input modeindicatorPosition only
45EEnntteerriinngg TTeexxtt44EEnntteerriinngg TTeexxttIncluding a NumberYou can include a number between letters withoutexiting the T9 input mode. Press and hold thecorresponding number key.Changing the CaseYour phone has three cases: • T9Word: the initial letter is capitalized.• T9WORD: all letters are capitalized.• T9word: all letters are lower case.Press the key one or more times to display theappropriate case indicator and begin typing normally.Other Usages• Press the key to insert a space.• To move the cursor to the left or right through yourtext, press the Left or Right key.• Press the CLR key one or more times to delete theletters one by one to the left. Press and hold theCLR key to clear the display.Using the Alphabet ModeWhen typing in the Alphabet mode, you need to pressthe keys labeled with the required letter:- Once for the first letter- Twice for the second letter- And so onThis method is called multi-tap typing.For example, you press the 2key three times to displaythe letter “C” and the 5key two times to display theletter “K.”The cursor moves to the right when you press adifferent key. When entering the same letter twice or adifferent letter on the same key, just wait for a fewseconds for the cursor to move to the rightautomatically, and then enter the next letter.Refer to the table below for the list of charactersassigned on each key.(Caps Lock mode). , - ? ! ’ @ : 1AB C2DE F 3GH I 4JK L5MN O 6PQ RS7TU V8WX Y Z 90Key Characters in the Order DisplayedThe characters listdisplayed in the Send Toand Message screen isdifferent.
47EEnntteerriinngg TTeexxtt46EEnntteerriinngg TTeexxttIncluding a NumberYou can quickly include a number between letters.Press and hold the corresponding number key.Changing the CaseYour phone has three cases:• Abc: the initial letter is capitalized.• ABC: all letters are capitalized.• abc: all letters are lower case.Press the key one or more times to display theappropriate case indicator, and begin typing normally.Other Usages• Press the key to insert a space.• To move the cursor to the left or right through yourtext, press the Left or Right key.• Press the CLR key one or more times to delete theletters one by one to the left. Press and hold theCLR key to clear the display.You can display more symbols by pressing the Left orRight key.Press the number key corresponding to the symbol youwant to enter. The phone automatically switches backto the text entry mode used just prior to selecting thesymbol mode.Using the Number ModeThe number mode enables you to enter numbers. Press the keys corresponding to the digits you want toenter and manually switch back to the text entry modeof choice. For details about changing the mode, seepage xx.Using the Symbol ModeThe symbol mode enables you to enter symbols.MENUPosition only
48 49UUssiinngg tthhee MMeennuussUsing the MenusYour phone offers a range of functions that allow youto tailor it to your needs. These functions are arrangedin menus and submenus.The menus and submenus can be accessed by scrollingor by using the shortcuts.Accessing a Menu Function by Scrolling1. In Standby Mode, press the Menu soft key toaccess Menu Mode.2. Scroll with the Navigation keys to reach the mainmenu; for example, Setup. Press the OK key toenter the menu.3. If the menu contains any submenus; for example,Language, find the one you want by scrolling withthe Up or Down key. Press the OK key to enter thesubmenu.If the menu you have selected contains submenus,repeat this step.4. Scroll with the Up or Down key to find the setting ofyour choice. 5. Press the OK key to confirm the chosen setting.Notes:• You can return to the previous menu level bypressing the Back key.• You can exit the menu without changing the menusettings by pressing the END key.Accessing a Menu Function by Using ItsShortcutMenu, submenus and setting options are numberedand can be quickly accessed by using their shortcutnumbers. Note:The numbers assigned to each menu functionare indicated on the list on page xx. 1. In Standby Mode, press the Menu soft key toaccess Menu Mode.2. Enter the first digit of the shortcut number. Repeatthis for each digit of the shortcut number.Example: Accessing the Language menuPress the 9and 8keys.9selects Setup and 8selects Language.3. Find the setting of your choice by pressing the Up orDown key.4. Press the OK key to confirm the chosen setting.
50 51UUssiinngg tthhee MMeennuussUUssiinngg tthhee MMeennuussList of Menu FunctionsMain menu Main menu 1 Main menu 21. Calls 1. Outgoing2. Incoming3. Missed4. Erase Logs 1. Outgoing2. Incoming3. Missed4. All Calls5. Call Timer 1. Last Call2. Total3. LifeTime4. Erase Total2. Phone Book 1. Find 2. Add3. Rename Group4. My Phone#5. Memory3. Message 1. Send New Msg2. Voice3. Inbox4. Outbox5. Draft Msg6. Saved Msg7. Web Alert8. Msg Setting 1. New Message2. Msg. Alert3. Scroll Timer4. Auto Delete5. Canned Msg.6. Voice Mail #9. Erase Msg 1. Voice2. OldInbox3. NewInbox4. Outbox5. Draft Msg6. Saved Msg7. All MessagesMain menu Main menu 1 Main menu 24. Mobile Web 1. Get In Web2. Prompt5. Planner 1. Today2. Scheduler3. Jump To Date4. To Do List5. Memo Pad6. Count Down7. Alarm Clock8. World Time9. Calculator6. Display 1. Animation 1. Opening2. Closing3. Wallpaper2. Banner3. Backlight4. Contrast5. Auto Hyphen7. Sounds 1. Volume/Vibrate 1. Calls2. Alarm2. Ringer Type 1. Calls2. Alarm3. Data/Fax In4. Planner3. Key Beep 1.Volume2. Tone Length4. Alerts 1. Minute Beep2. Service3. Connect4. Disconnect5. Fade6. Roam7. Privacy5. Power On/Off6. Roam Ringer7. Whisper Mode
5352UUssiinngg tthhee MMeennuussMain Main menu 1 Main menu 28. Voice Kit 1. Voice Dial 1. Record 2. Review3. Erase All 4. Set Active2. Voice Memo 1. Record 2. Review3. Erase All 3. Call Screen 1. On/Off 2. Inbox3. Greeting4. Call sound5. Wait Time9. Setup 1. Location2. Network 1. Set NAM2. Roam Option3. Data/Fax 1. Auto Detect2. Baud Rate4. Security 1. Lock Phone2. Change Lock3. Emergency # 4. Voice Privacy5. Restriction6. Erase Memory7. Reset Phone5. Call Answer6. Auto Answer7. Auto Retry8. Language9. Clock Set 1. Main Clock2. Dual Clock0: VersionCallsYou can use the Calls menu to:•view and dial the last calls you dialed, received ormissed. •erase the numbers in the call log memory.•view the length of calls.Outgoing MENU 1-1The phone stores up to 20 of the last calls you dialed.When you access this menu, a list of the outgoingcalls displays.1. Press the Navigation keys to find a number, orname if it is saved in Phonebook. 2. Press the OK key to confirm the highlightednumber. The dialed number, or name if it is saved inPhonebook, displays along with the date and timewhen the call was made.3. To Press theplace a call to SEND key.the selected numberuse the options Option soft key. For details, see the nextpage.exit the call log END key. Cannot be checked withthe current phone!!!
55CCaallllss54CCaallllssWhen you press the Option key on the call log screen,the following options are available:Talk: dials the number.Save: allows you to save the number in Phonebook.Prepend: allows to add an area code or feature codeto the number before dialing the number. See page xxfor details.Erase: erases the number.Incoming MENU 1-2This menu lets you view up to 20 of the last calls youreceived if you are subscribed to the Caller LineIdentification service. Contact your service provider forfurther details about this service. When you access this menu, a list of the incomingcalls displays.For more information about scrolling through the listand accessing the call log, see “Outgoing” on page xx.Missed MENU 1-3If Caller Line Identification service is available, yourphone keeps a list of the last 20 incoming calls thatyou failed to answer. Contact your service provider forfurther details about the service.When you access this menu, a list of the missed callsdisplays.For more information about scrolling through the listand accessing the call log, see “Outgoing” on page xx.Erase Logs MENU 1-4You can erase the entries stored in each of the threecall logs or all three logs at once.When a confirming message displays, select Yes toerase the selected log or all of the logs. If you want tocancel the selection, select No. Press the OK key toconfirm the selection.
5756CCaallllssCall Timer MENU 1-5Your phone records the amount of air time, or talktime, used. Using this menu, you can view the numberof the calls to or from your phone, and the air time forall of the calls. You can easily erase the call timerecord at any time. This menu is convenient forestimating your usage.Note: This feature is not intended to be used for billingpurposes.The following options are available:Last Call:shows the time of the last call.Total:shows the number of all calls made to or fromyour phone and the total duration of the calls since thetime counter was last set to zero by using the EraseTotal option.LifeTime: shows the number and total duration of allcalls made to or from your phone since the phone wasshipped from the factory.Erase Total:erases the “Total” time measurementand resets the air time counter.Phone BookPhonebook allows you to store frequently used phonenumbers and the associated names in your personaldirectory to make it easy for you to make a callwithout having to remember or enter the phonenumber. You can store up to 500 entries including E-mail and URL addresses.Note: You cannot store numbers in locations 0, 311 or411 of your Phone Book.Find MENU 2-1This menu allows you to find an entry in yourPhonebook.You can quickly access this menu by pressing theContacts soft key in Standby Mode.1. Press the Left or Right key to scroll to the methodyou want to use.• By Name:Enter the first few letters of the nameyou want with the Alphabet mode. The Phonebookentries are listed starting with the first entrymatching your input.• By Entry:Enter the location number of thenumber your want to find, using the numeric keys. • By Group:Press the Down key and select thegroup containing the entry you want to find, usingthe Left or Right key. The phone lists all of theentries in the selected group.
59PPhhoonnee BBooookk58PPhhoonnee BBooookk2. If necessary, press the Up or Down key to scrollthrough the entries.3. When the entry you want highlights, press the OKkey to access the entry. The phone shows thedetails about the name.4. To Press theplace a call to SEND key.the selected numberuse the options Option soft key. Fordetails about theoptions, see below.When you press the Option soft key on the detailsscreen, the following options are available:Talk: places a call to the number.Edit: allows you to change the phone number, name,location number, label category and so on. Erase: erases the selected entry.Add MENU 2-2This menu allows you to store a number with a namein your Phonebook. You can save a person’s numbers,such as workplace number, mobile number and faxnumber, into one entry. A Phonebook entry can containup to six numbers, one in each category.Creating a New Entry1. When the display screen prompts you to confirmNumber or E-mail, select one of them by using theNavigation keys, and then press the OK key.2. Enter a phone number or e-mail address and pressthe OK key. 3. Select New Entry by pressing the Navigation keysand press the OK key to confirm to add a new entry.4. Select the label to assign to the phone number bypressing the Navigation keys, and then press the OKkey. 5. Highlight the desired option you want to customizeby using the Up or Down key, and set each option asneeded by using the Left or Right key and thenumber keypad. The following options are available.• No Name: enter the desired name. You can enterup to 22 characters. For further information aboutentering characters, see page xx. • Location: the first available location displays. If necessary, enter the location number using thenumber keypad.

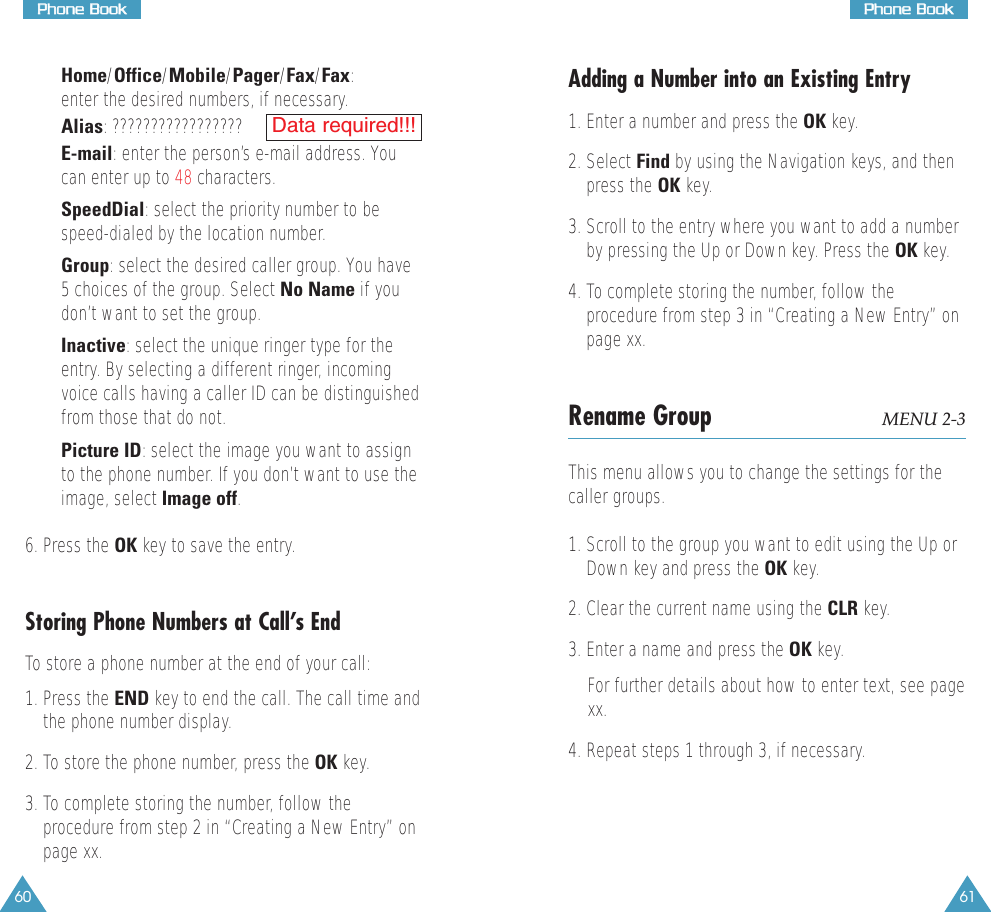

6160• Home/Office/Mobile/Pager/Fax/Fax:enter the desired numbers, if necessary. • Alias: ?????????????????• E-mail: enter the person’s e-mail address. Youcan enter up to 48 characters. • SpeedDial: select the priority number to bespeed-dialed by the location number.• Group: select the desired caller group. You have5 choices of the group. Select No Name if youdon’t want to set the group.• Inactive:select the unique ringer type for theentry. By selecting a different ringer, incomingvoice calls having a caller ID can be distinguishedfrom those that do not.• Picture ID: select the image you want to assignto the phone number. If you don’t want to use theimage, select Image off.6. Press the OK key to save the entry.Storing Phone Numbers at Call’s EndTo store a phone number at the end of your call:1. Press the END key to end the call. The call time andthe phone number display.2. To store the phone number, press the OK key. 3. To complete storing the number, follow theprocedure from step 2 in “Creating a New Entry” onpage xx.Data required!!!Adding a Number into an Existing Entry1. Enter a number and press the OK key.2. Select Find by using the Navigation keys, and thenpress the OK key.3. Scroll to the entry where you want to add a numberby pressing the Up or Down key. Press the OK key. 4. To complete storing the number, follow theprocedure from step 3 in “Creating a New Entry” onpage xx.Rename Group MENU 2-3This menu allows you to change the settings for thecaller groups.1. Scroll to the group you want to edit using the Up orDown key and press the OK key.2. Clear the current name using the CLR key.3. Enter a name and press the OK key.For further details about how to enter text, see pagexx.4. Repeat steps 1 through 3, if necessary.PPhhoonnee BBooookkPPhhoonnee BBooookk
6362PPhhoonnee BBooookkMy Phone Number MENU 2-4This menu shows you your phone number.After viewing, press the OK key to return to theprevious screen.Memory MENU 2-5This menu shows you how many Phonebook and VoiceDial locations are used or empty.After viewing, press the OK key to return to theprevious screen.MessagesYour phone can receive voice mail notification, text ormultimedia messages and pages. It also can sendmessages and pages if you system supplier providesthis service. Your phone can store up to 130 messages total in theInbox, the Outbox, the Draft and the Saved Messagebox. When the memory is full, a warning messagedisplays and the phone rejects additional messagesuntil you erase the obsolete ones.When the phone receives a message, an alert sounds,a text notification displays along with the name andphone number of the caller if available. The NewMessage icon ( ) remains on the screen until youread the new text messages or numeric pages, or youlisten to the new voice mail messages.Messages are received even when your phone is in thelock mode. However, the screen does not displayinformation about the message. To access a message,you must unlock the phone. During a conversation andyou receive an incoming message, your phoneautomatically mutes the ringer. This is to avoid ringingin your ear while you are trying to converse.You can quickly enter the Messages menu bypressing the Down key in Standby Mode.Cannot be checked withthe current phone!!!
MMeessssaaggeess6564Send New Message MENU 3-1 You can create a short text message and send it toother mobile phones. Note: Message transmission is available only whenyour phone is operating in a digital network andif service is supported by your service provider.1. Enter a destination number or an e-mail addressusing the numeric keys and press the OK key.Pressing Option soft key allows you to change theinput mode or enter .edu, .net or .com.2. Enter the message contents. For further detailsabout how to enter text, see page xx.When you press the Option key, you can changethe input mode and use the following options:• Text Format: allows you to format the style ofthe text. For the Size attribute, the Small,Medium and Large sizes are available. For theAlign attribute, you can select Right, Left,Center or Default. For the Bold, Italic,Underscore and Strikethrough attributes,select them by pressing the Check soft key.The attributes can be combined.• Add Media: allows you to add the requiredanimation, picture or melody to the message.Select the category of the object to be added. .Ineach category, you can select the various factory-set items or choose an item received from othersources, such as the Internet or other phones.• Canned Msg: allows you to use the ten cannedmessages preset in the Msg. Alert menu; fordetails, see page xx.3. When you finish entering the message, press the OKkey. 4. To select an option, press the Navigation keys, andthen press the OK key.The following options are displayed:• Edit Send To: allows you to change the send-tophone number.• Edit Text: allows you to change the messagecontents you’ve already entered.• Send Options: displays the following settingoptions. Scroll to an options using the Up or Downkey and change the setting using the Left or Rightkey.- Priority: selects the message priority.- Validity: selects how long your message is valid atthe SMS center while attempts are made todeliver them to the recipient.- Privacy: gives you the option of having enhanced orstandard privacy.- Delivery Ack: turns the delivery acknowledgementfeature on or off. When this is activated, thenetwork informs you whether or not your messagehas been read by the recipient.- Insert Sign.: allows you to attach your name toyour message.Message options cannot bechecked with the current phone!!!MMeessssaaggeess
MMeessssaaggeess67MMeessssaaggeess66- Call Back #: allows you to attach your phonenumber to the message.- Def. Delivery: selects how long the delivery ofthe message will be delayed at the SMS center,if you do not want to sent it immediately.• Save in Draft: allows you to save the draftmessage as a draft.• Save Text: sets whether or not the phone savesthe message in the Outbox after transmission. Note: Some options can be preset in the NewMessage menu option (MENU 3-8-1); fordetails, see page xx.5. Repeat step 4 to set the message options.6. After changing the setting options, press the SENDkey to send the message.7. When you set the Save Text option or Save InOutbox option (see page xx) to Prompt, the phoneasks if you want to save the message. Select Yes orNo and press the OK key.Note: Closing the folder or press the END key beforethe message is sent stops the transmission.Voice MENU 3-2When the voice mail list displays, press the Up orDown key to scroll to a voice message and press theOK key to listen to the message.If multiple new voice messages are received but notchecked, information of the last one will be displayed.The information display includes the time/date stamp,the number of new voice messages and the callbacknumber. Press the Option soft key to access the followingoptions:Listen: allows you to listen to the voice message. Thephone automatically dials the number of your voicemail center.Clear Icon: clears the New Message icon and resetsthe counter for a new voice message, if necessary. Thesystem resets the counter automatically after youlisten to all of the new messages.
MMeessssaaggeess69MMeessssaaggeess68Inbox MENU 3-3Your phone can store up to 50 messages in the Inbox. When you access the Inbox menu, the message listappears. To view details of a message, press the Up or Downkey to scroll to the message on the list and press theOK key. If necessary, press the Left or Right key toscan through the contents.While viewing a message, press the Option soft keyto use the following options:Forward: allows you to forward the message toanother person.Delete: deletes the message from the Inbox. Save Text: allows you to save the message in the ???Save addr: allows you to save the callback number ofthe message.To Saved Msg.: ???????????????Outbox MENU 3-4Your phone can store up to 50 messages in the Inbox.When you access the Outbox menu, the message listappears.To view details of a message, press the Up or Downkey to scroll to the message on the list and press theOK key. If necessary, press the Left or Right key toscan through the contents.While reviewing a message, press the Option soft keyto use the following options:Re-send: allows you to resend the message. Forfurther details, see page xx.Save Msg: allows you to save the message in ?????Cancel: cancels sending the message if it is sending.??????Delete: deletes the message from the Outbox.
MMeessssaaggeess71MMeessssaaggeess70Draft Message MENU 3-5Your phone can store draft messages that are yet to besent in the Draft Message box. If you save themessage contents using the Draft Msg menu beforesending it (see page xx), you can access them usingthis menu.To review a draft message, press the Up or Down keyto scroll to it and press the OK key.While reviewing a message, press the Option soft keyto use the following options:Edit: allows you to edit the message.Delete: deletes the message from the Draft Messagebox.Saved Message MENU 3-6When you save a message before sending it, or selectthe Save Msg option in the Inbox or Outbox, themessage is saved in this message box.To review a stored message, press the Up or Down keyto scroll to it and press the OK key.While reviewing a message, press the Option soft keyto use the following options:Edit: allows you to edit the message.Delete: deletes the message from the Saved Messagebox.Web Alert MENU 3-7When you receive a new Web message from the webserver, your phone alerts you and the following optionsdisplay: View:allows you to access the Web Inbox to displaythe web message.Clear: Select this option if you do not wish to read themessage at this time. You can press the CLR key.To select an option, scroll to it and press the OK key. Ifyou select Clear, the message is stored in the WebAlert menu.When you access the Web Alert menu (MENU 3-7), alist of the received web message displays. Press theUp or Down key to scroll to the message you want toview and press the OK key. The phone starts the webbrowser and displays the message contents. Ifnecessary, press the Up or Down key to scan throughthe contents.
MMeessssaaggeess72MMeessssaaggeess73Message Setting MENU 3-8In this menu, you can preset several options for usingthe messaging feature.New Message (MENU 3-8-1)You can set up the default settings of the options forcreating a new message. The following options areavailable:Save In Outbox: allows you to set whether or not youwant the transmitted message to be saved in theOutbox.- Not Save: The phone does not save the message.- Prompt: The phone asks you whether or not you wantto save the message.- Auto Save: The phone automatically saves themessage.Callback #: allows you to set the call back number. Itis preset to your phone number at the factory.Entry Mode: allows you to select the text input modebetween T9 Word (T9 English) and Alphabet.Delivery Ack: allows you to activate or deactivatethe delivery acknowledgement.My Signature: allows you to attach your name to themessage.Message Alert (MENU 3-8-2)This menu allows you to set alert settings for anincoming messages.Volume/Vibrate: allows you to adjust the alertvolume level or select the alert type.Type: allows you to select ringer type from VoiceMail, Page, Text and Web Alert.Reminder: allows you to set how many times thephone alerts you to an incoming message. Once,Every 2 min options are available. Select Off if you donot want to be alerted.Scroll Timer (MENU 3-8-3)If an incoming message is too long for the display, thephone displays it by scrolling the screen automatically.You can set how often the phone scrolls the messageto the next screen. If you select Off, you need to scroll to the next screenmanually using the Up and Down keys.Auto Delete (MENU 3-8-4)This option allows you to delete your messageautomatically after viewing it.To set the phone to warn you before your message isdeleted, select Warning Msg.
75MMeessssaaggeess74Canned Messages (MENU 3-8-5)This menu allows you to change the ten cannedmessages.1. Scroll to a message on the list by using theNavigation keys, and then press the OK key.2. Change the message as needed. For further detailsabout entering characters, see page xx.3. When you are finished, press the OK key.Voice Mail Number (MENU 3-8-6)All unanswered calls to your phone are automaticallytransferred to the voicemail center, even if your phoneis off or in use. You can store the number of the voicemail center in this menu.You can include a hard or 2-second pause in thenumber by pressing the Option soft key.Wireless WebAbout the Web BrowserYour phone comes equipped with a web browserwhich makes it possible for you to access the wirelessweb.The web browser allows you to access up-to-theminute information through your phone. Browsing thewireless web through your phone is unlike using yourcomputer; site providers have selected only the criticalaspects of their sites to present to wireless phoneusers and they have removed most of the graphics.Each time you start the web browser, the phone willconnect to the wireless web and the Service icon ( )will appear on the display. Any time this icon is visibleon the display, you are connected to the wireless weband will be billed accordingly. Rates will varyaccording to your service plan.The web browser will end the connection after acertain period of network inactivity and willautomatically reconnect as necessary. For this reason,you may find that you are billed for several networkconnections within a single session. This is normal andis designed to minimize your bill.Cannot be checked withthe current phone!!!
77WWiirreelleessss WWeebb76Get In Web MENU 4-1Note:The first time you use the web browser, you willgo through a security setup process that takes 3to 5 minutes. Please follow the on-screenprompts to complete the security setup process.This initial setup process occurs only the firsttime you access the service.1. Accessing the Get In Web menu (MENU 4-1)connects your phone to the wireless web. You canalso press the key in Standby Mode.2. If a reminder appears depending on your setting inthe Prompt menu (MENU 4-2), simply answer Yesor No by pressing the Left or Right key.3. Once you are connected, the home page or the lastpage you visited displays.The opening page contents may be differentaccording to your wireless web service provider. 4. To scroll through the screen, use the Up or Downkey.Exiting the Web BrowserTo exit the web browser, simply press the END key atany time.If the To End or Both option is set in the Promptmenu (MENU 4-2), you will be prompted whether youwant to end the browser call. Simply answer Yes orNo by pressing the Left or Right key.WWiirreelleessss WWeebbNavigating the Web BrowserWhen you use the web browser, some keys on yourphone operate differently than when on a normal phonecall. Here’s how the keys work in the Web Browser:Navigation key: Use these keys to scroll toand select browser options. The currentlyselected option is indicated by an arrow. Youcan also use them to move the cursor whenentering text.Clear key: This key performs two functions:• Sends you back in the browser. Pressing itonce sends you back one page. Pressing andholding this key sends you back to the homepage.• Clears out the entered text or numbers.When entering characters, press this key toclear the last number, letter or symbol. Pressand hold this key to completely clear theinput field.Asterisk/Shift key: Press this key beforeentering text to create upper case characters.You can also use this key to move back onespace on the display screen.0/Next key: Press this key to enter 0, or tomove to the next word when in T9 predictiveword entry mode.
Pound/Space key: Press this key to inserta space when entering text.Numbers keys 1~9: If items on a menu arenumbered, these keys can be entered toselect them.END key: Press this key to exit the WapBrowser and return to Standby Mode.Menu Key: This is the left soft key. This keyis also used for accessing the browser menu,secondary options or a menu of secondaryoptions. OK/Select Key: This is the right soft key.This key is also used for selecting thehighlighted item.SEND key: Press this key to send a call.78WWiirreelleessss WWeebb79WWiirreelleessss WWeebbUsing the Web Browser MenusOn the web browser, you can access the followingoptions by pressing the Option soft key:Reload: reloads the current web page.Home: takes you back at any time to the homepage ofthe wireless web service provider. Bookmarks: allows you to directly load a bookmarkedweb page.Mark Site: allows you to set a bookmark for mostpages; they can be accessed directly from any webpage. Bookmarks save you time by reducing thenumber of steps required to access a given page.About Openwave: provides you with informationabout Openwave and your version of the web browser.Advanced: gives you access the following advancedfeatures:- Show URL: displays the URL address of the sitewhere you are currently connected. It also enablesyou to declare the current site as the startuphomepage.- Homepage: allows you to change the startuphomepage manually. - Set WAP Proxy: allows you to configure the proxysettings required for connecting to the wireless web.~
81WWiirreelleessss WWeebb80WWiirreelleessss WWeebb- Offline Service: Most applications are stored on aserver that cannot be accessed outside your wirelesscoverage area. However, some applications can bestored in the cache of your phone, enabling you touse them offline. You can remove the associated sitefrom the cache at any time.- Outbox: stores outgoing requests from the browserso that they can be processed at a later date.- Restart Browser: restarts the browser without exitingit.- Encryption: This option is automatically set by theservice provider. You do not need to change it.Entering Text in the Web BrowserWhen prompted, you can enter letters, numbers orsymbols same way as in the phone mode. See page xxfor further details about how to enter characters.Prompt MENU 4-2Your phone can give you a prompt to confirm yourbrowser session. You can set the phone to display theprompt or not to display.The following options are available:None: You do not receive a prompt.To Start: This is the default setting. You will see theprompt when you enter the browser, but not when youexit it.To End: You will see the prompt only when you exitthe browser.Both: You will be prompted when you enter or exit thebrowser.
8382Get it NowWhen you press the Right key in Standby mode, youcan access the Get it Now menu which allows you topurchase and download various multimedia files fromthe wireless web.To download a multimedia files:1. In Standby mode, press the Right key.The menu icons appear on the display.2. Press the Right key when the MobileShop icon isselected.The following options are available:• Catalog: allows you to browse and purchaseapplications•Search: allows you to search for an applicationby entering a keyword.• MobileShop Help: provides you with the helpinformation about using the MobileShop menu.3. Press the Right key when the Catalog option isselected. You are accessed to the associated website given by your service provider and browse theavailable applications.4. Select the application you want to download andfollow the instructions on the screen.WWiirreelleessss WWeebbTo change the browser settings:1. In Standby mode, press the Right key.2. Press the Right key to select the Settings icon andpress the OK key.3. Select an setting option using the Up or Down keyand press the OK key.The following options are available:• Order Apps: allows you to change the order ofthe downloaded applications.• Move Apps: allows you to move an applicationto the other folder.• Manage Apps: allows you to move anapplication to the other folder.• Main Menu View: allows you to change theview mode of the main menu screen.• Screen Savers: allows you to activate theScreen Saver application, if downloaded.• View Log: shows the records of your browsing.4. When you are finished, press the CLR or END key.To view help information:1. In Standby mode, press the Right key.2. Press the Right key to select the Help icon andpress the OK key.3. Select a help item using the Up or Down key andpress the OK key.WWiirreelleessss WWeebb
85844. Press the Up or Down key to scroll through theinformation.5. To go back to the main help screen, press the OK orCLR key.WWiirreelleessss WWeebbPlannerThe Planner feature enables you to:• keep track of important dates and events.• create a list of things to do and memos.• set an alarm to ring at a specific time.• use the phone as a calculator.• check the time in another part of the world.• count down to a specific day.• set the current date and time.Today MENU 5-1You can schedule up to 9 events for the current day,indicating each event’s start and end time. You caneven have your phone's calendar alert you before anevent commences. Events scheduled for future datesautomatically appear on your Today events scheduleon that day. Scheduling a New Event1. Enter your event contents and press the OK key. For further details about entering characters, seepage xx.2. Enter the start time and date using the numerickeys.You need to enter the time in 12-hour format. Pressthe 2key for A(AM) or the 7key for P(PM).Note:You can move through the input fields usingthe Navigation keys.
87863. Enter the end time and date using the number keys.4. Select when an alarm will inform you of the event,by pressing the Left or Right key. Selecting Noalarm means that the phone does not ring thealarm.5. Press the OK key to store your event.Viewing Your Today’s ScheduleThe list of the events stored on the current daydisplays when you select the Today menu (MENU 5-1). While viewing the event list, press the Up or Downkey to scroll to an event and:• Press the OK key to view the event information. Toview the Start time and End time settings, use theUp and Down keys. You can move to the previous ornext event by pressing the Left or Right key. • Press the Option soft key to use the followingoptions:Add New: allows you to add a new event.Edit: allows you to change the event. Erase: allows you to erase the selected event. Erase All: allows you to erase all of the events.PPllaannnneerrScheduler MENU 5-2This menu allows you to view the current month, aswell as a past or future months, in calendar format. Onthe calendar, the current day is boldfaced and dayswith scheduled events are indicated by a colored boxinside the calendar day.Scrolling Through the Calendar• You can move by one day by pressing the Left orRight key.• You can move by one week by pressing the Up orDown key. • To display the next or previous month, press the or key.On the calendar, press the Option soft key to use thefollowing options: View: allows you to view the scheduled events of theday.Add New: allows you to add a new event on the day. PPllaannnneerr
89PPllaannnneerr88PPllaannnneerrCreating a New ScheduleYou can store up to 70 events total in the scheduler,with up to 9 events for one day.1. Select a day on the calendar, referring to “ScrollingThrough the Calendar” on page xx and press the OKkey. 2. Enter your event contents and press the OK key. For further details about entering letters, see pagexx.3. Enter the start time and date using the numerickeys.You need to enter the time in 12-hour format. Pressthe 2key for A(AM) or the 7key for P(PM).Note:You can move through the input fields usingthe Navigation keys.4. Enter the end time and date using the number keys.5. Select when an alarm will inform you of the event,by pressing the Left or Right key. Selecting No alarm means that the phone does notring the alarm.6. Press the OK key to store your event.Viewing Your ScheduleSelect a day with scheduled events on the calendar,referring to “Scrolling Through the Calendar” on pagexx and press the OK key. The first event stored on theday displays. Press the Left or Right key to view the previous andnext event. To view the start time and end time sets,use the Up and Down keys.While viewing the event, press the Option soft key touse the following options:Edit: allows you to edit the event. Erase: allows you to erase the event. Jump To Date MENU 5-3This feature allows you to specify the calendar dateyou want to view. You can enter, edit, and /or eraseevents in your calendar.To use jump to date, enter the date you want andpress the OK key.For further details about creating and viewing yourschedule, see page xx.Cannot be checked withthe current phone!!!

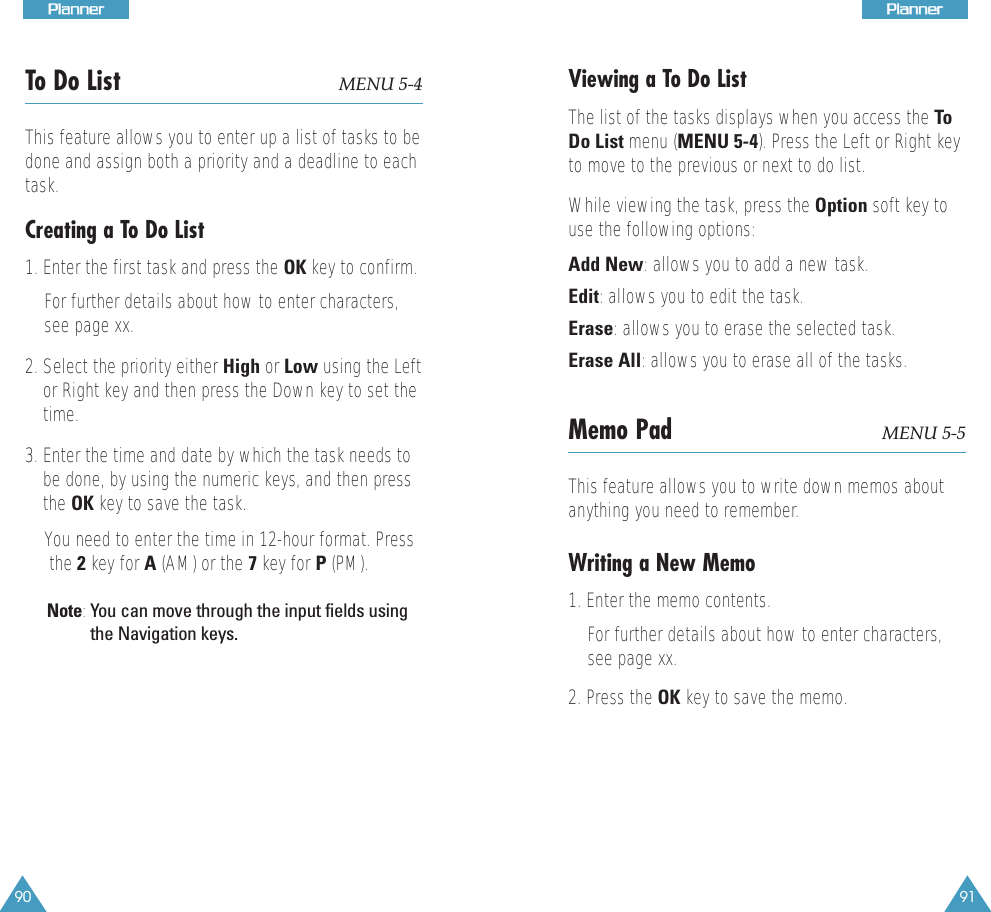

91PPllaannnneerr90PPllaannnneerrTo Do List MENU 5-4This feature allows you to enter up a list of tasks to bedone and assign both a priority and a deadline to eachtask. Creating a To Do List1. Enter the first task and press the OK key to confirm.For further details about how to enter characters,see page xx.2. Select the priority either High or Low using the Leftor Right key and then press the Down key to set thetime.3. Enter the time and date by which the task needs tobe done, by using the numeric keys, and then pressthe OK key to save the task.You need to enter the time in 12-hour format. Pressthe 2key for A(AM) or the 7key for P(PM).Note:You can move through the input fields usingthe Navigation keys.Viewing a To Do ListThe list of the tasks displays when you access the ToDo List menu (MENU 5-4). Press the Left or Right keyto move to the previous or next to do list.While viewing the task, press the Option soft key touse the following options:Add New: allows you to add a new task.Edit: allows you to edit the task. Erase: allows you to erase the selected task. Erase All: allows you to erase all of the tasks.Memo Pad MENU 5-5This feature allows you to write down memos aboutanything you need to remember. Writing a New Memo1. Enter the memo contents. For further details about how to enter characters,see page xx.2. Press the OK key to save the memo.
92PPllaannnneerr93PPllaannnneerrViewing a MemoThe list of your memosdisplays when you access theMemo Pad menu (MENU 5-5).While viewing the memo list, press the Navigationkeys to scroll to a memo and:• Press the OK key to view details. You can move tothe previous or next memo by pressing theNavigation keys.• Press the Option soft key to use the followingoptions:Add New: allows you to add a new memo.Edit: allows you to edit the selected memo.Erase: allows you to erase the selected memo. Erase All: allows you to erase all of the memos.Count Down MENU 5-6This menu helps you know how much time it takes foryou to do something, or how many months, days, hoursand minutes until a specific day arrives. You can createup to 20 counters using this menu. Creating a New Counter1. Enter the contents for your counter and press theOK key. For further details about entering text, see page xx.2. Enter the time and date you want to count downfrom.You need to enter the time in 12-hour format. Pressthe 2key for A(AM) or the 7key for P(PM).Notes:• You can move through the input fields using theLeft or Right key.•You can enter a year between 1981 and 2099.3. Press the OK key to store the counter.Viewing a CounterThe list of the counters displays when you access theCount Down menu (MENU 5-6). While viewing the counter contents, press the Left orRight key to move to previous or next counter:While viewing a counter, press the Option soft key touse the following options:Add New: allows you to add a new counter.Edit: allows you to edit the counter. Erase: allows you to erase the selected counter. Erase All: allows you to erase all of the counters.
95PPllaannnneerr94PPllaannnneerrAlarm Clock MENU 5-7This menu allows you to set an alarm to ring at aspecific time.To set an alarm:1. Select an alarm type, either Once, or Daily bypressing the Navigation keys, and then press the OKkey.2. Enter the time and date for the alarm to ring.You need to enter the time in 12-hour format. Pressthe 2key for A(AM) or the 7key for P(PM).6. Press the OK key to save the alarm setting.The Alarm icon ( ) appears on the display.To stop the alarm when it rings, press any key.To deactivate an alarm setting, access the AlarmClock menu and select Off.World Time MENU 5-8This menu allows you to check the current time for 12different time zones around the world.Select the city corresponding to your time zone bypressing the Navigation keys one or more times. Thelocal date and time display.To turn the DST (Daylight Saving Time) setting on:1. After selecting the time zone you want to apply theDST, press the Option soft key.2. When DST setting highlights, press the OK key.3. Select On and press the OK key. The DST iconappears on the left of the time.Note: The DST setting is not available for countriesother than the USA.Cannot be checked withthe current phone!!!
9796PPllaannnneerrCalculator MENU 5-9Using this feature, you can use the phone as a calculator. The calculator provides you with the basicarithmetic functions; addition, subtraction,multiplication and division. 1. Enter the first number on the first line using thenumeric keys. Notes:• To erase mistakes or clear the display, press the CLR key. • Use the key to enter a decimal point and the key to change the sign of a number to anegative (-).2. Enter the operation for your calculation on thesecond line by pressing the Navigation keys,according to the graphic on the display.3. Enter the second number. 4. Repeat steps 2 and 3 as many times as required. 5. To view the result, press the OK key.DisplayThe Display feature enables you to:• change the display style of the menus.• select an image to be displayed in Standby Mode orcreate your own greeting.• set the length of time for the backlight.• select the time zones for the dual clock.• turn the service light on or off.Animation MENU 6-1You can choose one of the animated images alreadyavailable on your phone. Opening, Closing, andWallpaper options are available.Banner MENU 6-2This menu allows you to set a banner message to bedisplayed at the bottom of the display in StandbyMode. 1. If necessary, press the CLR key to delete each letterof the old greeting. Press are hold the CLR key toclear the display.2. Enter your banner message. For further details abouthow to enter characters, see page xx.3. When you finish entering the message, press theOK key to save the new banner.

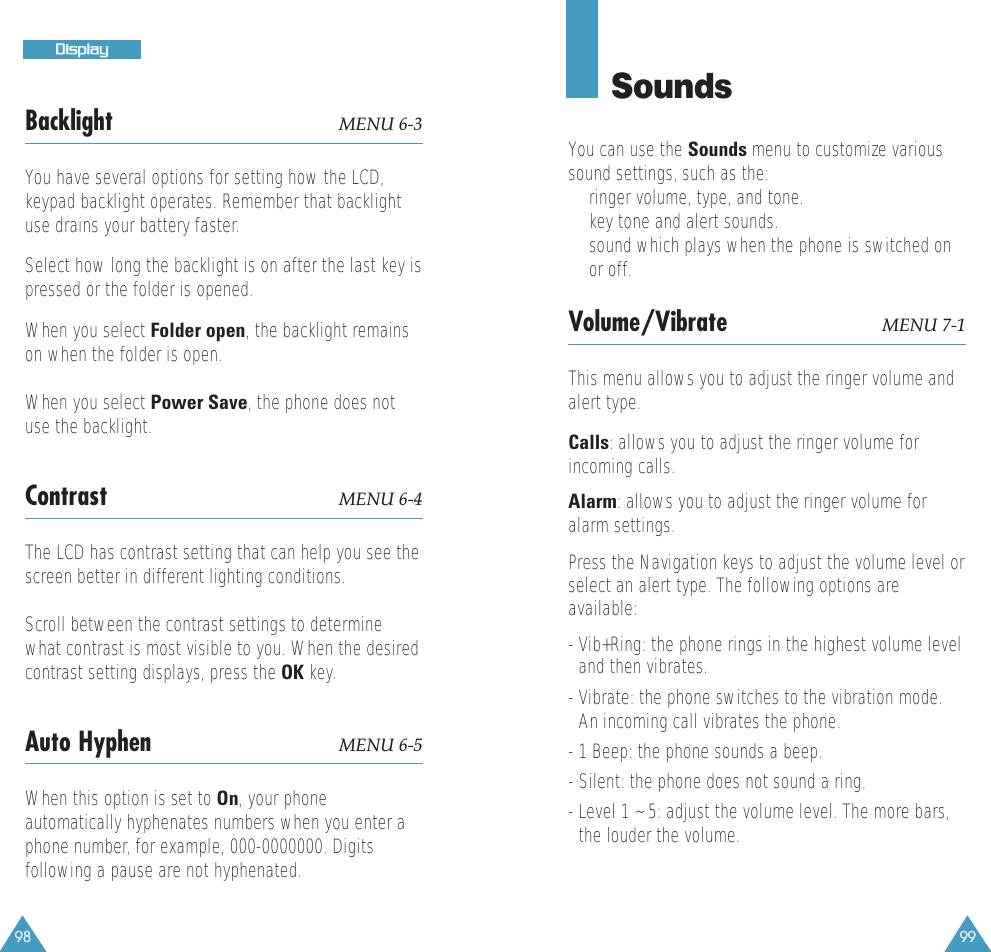

99SoundsYou can use the Sounds menu to customize varioussound settings, such as the:•ringer volume, type, and tone.•key tone and alert sounds.•sound which plays when the phone is switched onor off.Volume/Vibrate MENU 7-1This menu allows you to adjust the ringer volume andalert type.Calls: allows you to adjust the ringer volume forincoming calls.Alarm: allows you to adjust the ringer volume foralarm settings.Press the Navigation keys to adjust the volume level orselect an alert type. The following options areavailable:- Vib+Ring: the phone rings in the highest volume leveland then vibrates.- Vibrate: the phone switches to the vibration mode.An incoming call vibrates the phone.- 1 Beep: the phone sounds a beep.- Silent: the phone does not sound a ring.- Level 1 ~ 5: adjust the volume level. The more bars,the louder the volume.98Backlight MENU 6-3You have several options for setting how the LCD,keypad backlight operates. Remember that backlightuse drains your battery faster.Select how long the backlight is on after the last key ispressed or the folder is opened. When you select Folder open, the backlight remainson when the folder is open.When you select Power Save, the phone does notuse the backlight.Contrast MENU 6-4The LCD has contrast setting that can help you see thescreen better in different lighting conditions.Scroll between the contrast settings to determinewhat contrast is most visible to you. When the desiredcontrast setting displays, press the OK key.Auto Hyphen MENU 6-5When this option is set to On, your phoneautomatically hyphenates numbers when you enter aphone number, for example, 000-0000000. Digitsfollowing a pause are not hyphenated.DDiissppllaayy
101SSoouunnddss100Notes: • The options available may be different depending onthe selected ringer item.• When “Emergency call only” appears after you endan emergency call, the ringer volume for calls andmessages is automatically set to Level 4.Ringer Type MENU 7-2This menu allows you to set the unique ringermelodies for the following items: Calls: allows you to set a unique ringer for incomingcalls. Alarm: allows you to have a distinctive ring for analarm setting.Data/Fax In: allows you to be alerted with adistinctive ringer when you receive data or fax callsthrough the phone. This feature may not be availabledepending on your network.Planner: allows you to set a unique ringer forschedules.Key Beep MENU 7-3Using this menu, you can set up the keypad tone thatthe phone sounds when you press a key.The following options are available:Volume: allows you to adjust the volume of thekeypad tone using the Navigation keys or the Volumekeys on the left side of the phone.Tone Length: allows you to select Long or NormalDTMF (dual-tone multi-frequency) tones. DTMF tonesare sent by your phone to access teleservices, such asa bank account. The system used by the bank or otherservice determines if you need short or long DTMFtones. If the service is digital, as most are, short DTMFtones will almost always work.Alerts MENU 7-4Your phone gives audible alerts (beeps) at a specifiedtime to inform you that certain things have happened.The alerts only occur in your earpiece so that the otherperson does not hear them. The available alerts are:Minute Beep: When this option is set to On, thephone sounds an alert 50 seconds before each elapsedminute to remind you of the length of the current call.SSoouunnddss
103SSoouunnddss102SSoouunnddssRoam Ringer MENU 7-6You can set the phone to use a distinctive ring forincoming roaming calls. Select On to use a distinctive ringer or Off to use anormal ringer.Whisper Mode MENU 7-7Whisper mode automatically increases the receivingsensitivity of the microphone to obtain the maximumquality of a call even when you speak in a softer voiceso that the caller can hear you as if you are speakingnormally.Note: It is not recommended that the earpiece beused while using Whisper mode. Audio levelmay increase without notice depending on thesurrounding conditions.Select On to use this mode or Off not to use it.Service: When this option is set to On, the phonesounds an alert when you exit service area or whenyou return to a service area. Connect: When this option is set to On, the phonesounds the connect tone when your call is connectedto the system.Disconnect: When this option is set to On, the phonesounds the disconnect tone when a call isdisconnected.Fade: When this option is set to On, the phonesounds an alert when a dropped call occurs duringconversation in response to a signal fade.Roam: When this option is set to On, the phonesounds an alert when your phone starts roaming.Privacy: When this option is set to On, you can setthe security level of your phone to avoideavesdropping.Power On/Off MENU 7-5You can turn on or off the tone that the phone soundswhen it is switched on or off.Select On to use the power on/off sound or Off not touse it.
105VVooiiccee KKiitt104Tips for Recording a Name• Avoid recording similar names phonetically. If yourecord a similar name to one already in the memory,the phone requests another name.• Speak clearly and naturally.• The person who will use the phone should recordthe name. The phone does not recognize the name ifthe voice is different.• Avoid too long or too short a name. Names with twoto five syllables are recommended.•If this feature does not work properly, erase thename and try again with another name.•Practice several times to obtain the best result.•You can record up to 20 names. If you try to recordmore than that, the phone announces “Out of spaceto store voice dial!”Review (MENU 8-1-2)When a list of your stored voice dial numbers displays,scroll to a entry and press the OK key. The recordedname plays audibly. On the number list, press the Option soft key to usethe following options:Talk: places a call to the number.Erase: erases the number.Play All: plays back all of the recorded names.Voice KitIn this menu, you can use the phone’s voice features,allowing you to:• dial a number by saying an associated name.• record a voice memo.• set the phone to answer a call and record thecaller’s message.Voice Dial MENU 8-1When your phone is in the digital mode, you can callup to 20 stored entries by speaking the name into themicrophone. Using the voice dialing option requiresthat you first program the phone to recognize the nameof the person you are calling. Record (MENU 8-1-1)This menu allows you to record names and registernumbers for subsequent voice dialing. The phoneprovides voice prompts and screen displays to guideyou through the recording process.1. Say the name you want to program at the prompt.The phone stores the name as a first sample.2. Respond to the prompt by repeating the name afterthe beep. The phone stores the name as a secondsample, and then prompts you to enter the phonenumber.3. Enter the phone number by pressing the numberkeys and press the OK key.Cannot be checked withthe current phone!!!
107Voice Memo MENU 8-2Note: You can quickly enter this menu by pressing theUp key in Standby Mode.Record (MENU 8-2-1)You can record up to voice memos of 4 minutes total.This feature shares the memory with the Voice Answerfeature and the amount of time for memos aredependent on the available memory less any callers'messages; for example, if your phone has the callers'messages of 4 minutes total, you cannot record anyvoice memo. 1. Record a memo by speaking to the microphone. When you are recording, a timer displays to showyou the elapsed time. You can pause recording by pressing the Pause keyand then resume by pressing the Resume key.2. Press the Stop soft key to end recording. The screenprovides you with the following choices. Scroll to anoption and press the OK key.• Review: allows you to review the voice memo.The screen displays the length of the memo alongwith the date and time.• Rerecord: allows you to discard the currentmemo and record another one.• Save: allows you to save the voice memo.• Quit: allows you to quit recording the memo andexit the Record menu.106Erase All (MENU 8-1-3)This menu erases all of the entries on the Voice Diallist. When a confirming message displays, select Yesand press the OK key.Set Active (MENU 8-1-4)Voice Dialing is always active once you haveprogrammed the phone to accept voice dialing entriesand the associated phone numbers. To place a call using voice dialing, simply press andhold the key in Standby Mode and then say thename into the phone after you hear a prompt.Using the Set Active menu, you can set how toinitiate a voice dialing call. The following options areavailable:[] Only: enables voice dialing only by pressing andholding the key.[] / Folder: enables voice dialing by pressing andholding the key or by opening the folder.[] / EarMic: enables voice dialing by pressing andholding the key or the button on your ear-microphone.VVooiiccee KKiittVVooiiccee KKiitt
109108On/Off (MENU 8-3-1)This menu allows you to enable or disable the CallScreen mode.Inbox (MENU 8-3-2)You can listen to the callers’ messages recorded inyour phone. When you access this menu, a list of therecorded messages appears.Note: If the phone has the callers’ messages waitingto be checked, it displays the total number ofthe messages and the date and time when thelast message was recorded. Pressing the OKkey takes you to the Inbox.Press the Up or Down key to scroll to a message andpress the OK key to play it back.You can pause the playback by pressing the Pausesoft key and then resume by pressing the Resume softkey.In the message list, press the Option soft key to thefollowing options:Play: plays the selected message.Erase: erases the selected message.Info: shows detailed information about the message,such as caller’s number if identified, length, memorysize and date and time when the message wasrecorded.Talk: places a call to the caller’s number, if identified.3. When you are satisfied, select Save.4. Enter a title for the memo and press the OK key.Review (MENU 8-2-2)When a list of your voice memos displays, scroll to thememo you want to review and press the OK key. Thephone plays back the memo.On the memo list, press the Option soft key to use thefollowing options:Play: plays back the memo.Erase: erases the selected memo.Erase All (MENU 8-2-3)This menu allows you to erase all of the voice memos.When a confirming message displays, select Yes byusing the Navigation keys, and then press the OK key.Call Screen MENU 8-3If you are not able to answer an incoming call, you canset your phone to answer a call with the presetgreeting message and record the caller’s message. Asthis feature shares the memory with voice memos, thetotal length of messages is dependent on the availablememory less any voice memos.Note: The Call Screen feature does not work whenyour phone is in the analog mode.VVooiiccee KKiittVVooiiccee KKiitt
111110Call Sound (MENU 8-3-4)This menu allows you to enable or disable thescreening speaker which allows you to listen to thecaller’s message while the caller is leaving it.You can answer the call by pressing the SEND key.Wait Time (MENU 8-3-5)This menu allows you to set how long the phone waitsbefore answering a call with the greeting message.Selecting Off means that the phone plays back themessage as soon as a call comes in.Greeting (MENU 8-3-3)Your phone provides you with the default greetingmessage to be played when a call comes in. You canalso record your own greeting message.To record a greeting message:1. Select Record and press the OK key.2. Wait until a beeping prompt sounds and record agreeting message by speaking into the microphone.You can pause recording by pressing the Pause softkey and then resume by pressing the Resume softkey.3. When recording is complete, press the Stop softkey. The phone automatically saves and activatesthe message.If you want to play back the currently selectedmessage, highlight Play by using the Navigation keys,and then press the OK key.To enable or disable your own greeting message:1. Highlight Select by using the Navigation keys, andthen press the OK key.2. Select Recorded to use your message or Defaultto use the default message. 3. Press the OK key to save your selection.Note: Once you have recorded your own message andthen have changed the greeting to the defaultmessage, your message is deleted.VVooiiccee KKiittVVooiiccee KKiitt
113SSeettuupp112SetupMany different features of your phone can becustomized to suit your preferences.Location MENU 9-1This menu allows you to turn the Location On or 911Only. It is set to 911 Only, when you first use yourphone.This option is automatically turned on when you placea call to 911. However, this option is turned back offwhen your 911 calls is completed.Note: Contact your service provider to checkif/when/where location based services areavailable.Network MENU 9-2Your phone allows you to set the preferred system.Contact your service provider to determine the bestnetworking methods for you.Set NAM (MENU 9-2-1)NAM stands for numerical assignment module,essentially your phone number. Your phone can havetwo NAMs. This means that you can have two phonenumbers for using your phone and can quickly andeasily switch your service back and forth between thetwo numbers.If you change the NAM, the phone turns off by itselfand back on and acquires service using the new NAMsetting.Roam Option (MENU 9-2-2)Roaming is a feature which is only relevant in areaswhere there are at least two cellular service providershaving valid roaming agreements. Roaming allows youto register your phone on one of the networks, but usethe facilities of the other if your own network is notavailable. This system priority feature allows you toprogram your phone for optimum operation within oroutside your home service area.You should always check your phone’s display becauseit will let you know when you’re outside the serviceprovider network and whether your phone is operatingin another network; the Roaming icon ( ) appears.You have the following options which allows you tocontrol the phone’s roaming ability:Home only: With this setting, you cannot roam. Ifyour home system is not available, your call will not beconnected and the No Service indicator ( ) isdisplayed.Automatic: Your phone automatically search for afirst available one of all types of service according tothe Preferred Roaming List supplied by the serviceprovider.
Baud Rate: allows you to select the speed for thecommunication between the phone andthe computing device.Receiving a Fax or Data FileTo receive a fax or data, ensure that your phone isconnected to your PC and is powered on. Select one ofthe Data/Fax options. When you receive a fax call, set up the Answer modein the fax program on your PC and click on Receiveand select one of the following:•Automatic Receive (recommended)•Manual ReceiveSending a Fax or Data FileWhen connected to a computing device, your phoneallows wireless fax and data transmissions. Yourcomputing device software initiates the call to thedestination phone number. The phone functions as awireless modem to send the fax or data file to thenumber designated by your PC software.Security MENU 9-4Your phone provides you with many security options,including a user-programmable lock code and callrestriction features. To access the Security menu, you need to enter a lockcode. The lock code is preset to “0000” at the factory.Data/Fax MENU 9-3Your phone is capable of sending and receiving digitaldata and fax call when connected to a computing device(laptop, desktop, handheld, palmtop, etc.) runningWindows 95, Windows 98, Windows NT or laterversions. The phone functions just like a typical modemon your PC, enabling you to use wireless data involvinga wide variety of Windows software applications.To use digital data or fax services with your phone, youwill need to obtain a digital data/fax kit from yourservice provider. This kit contains the necessary cables,software, and user’s guide required for your to connectand use your phone with your computing device. Note:The phone must be on a digital network toreceive or send faxes and data.The following options are available:Auto Detect: allows you to set the phone toautomatically receive data or faxes. The followingoptions are available:Data/Fax off: your phone receives voice calls only.Fax for next call: your phone receives fax calls for thenext 10 minutes.Fax until powered off: your phone receives fax callsuntil you power the phone off and back on .Data for next call: your phone receives data calls forthe next 10 minutes.Data until powered off: your phone receives data callsuntil you power the phone off and back on.115114SSeettuuppSSeettuupp

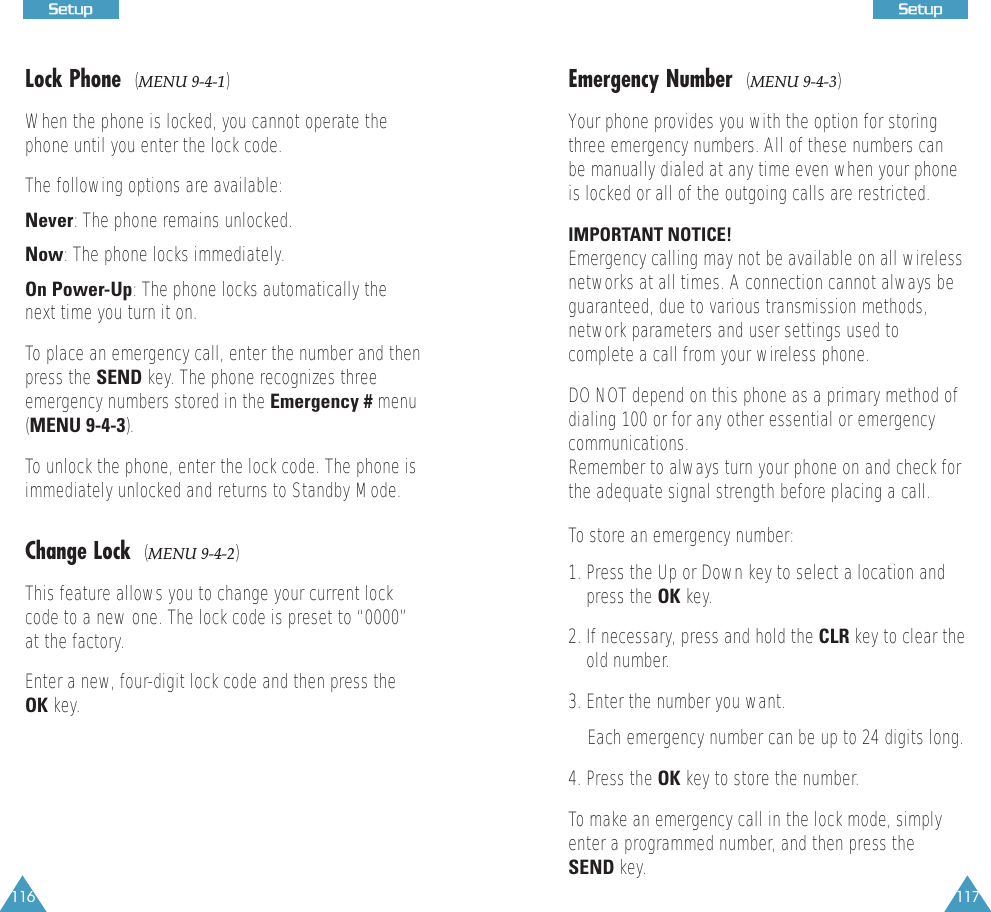

116 117SSeettuuppLock Phone (MENU 9-4-1)When the phone is locked, you cannot operate thephone until you enter the lock code. The following options are available:Never: The phone remains unlocked.Now: The phone locks immediately.On Power-Up: The phone locks automatically thenext time you turn it on.To place an emergency call, enter the number and thenpress the SEND key. The phone recognizes threeemergency numbers stored in the Emergency # menu(MENU 9-4-3).To unlock the phone, enter the lock code. The phone isimmediately unlocked and returns to Standby Mode.Change Lock (MENU 9-4-2)This feature allows you to change your current lockcode to a new one. The lock code is preset to “0000”at the factory.Enter a new, four-digit lock code and then press theOK key.SSeettuuppEmergency Number (MENU 9-4-3)Your phone provides you with the option for storingthree emergency numbers. All of these numbers canbe manually dialed at any time even when your phoneis locked or all of the outgoing calls are restricted. IMPORTANT NOTICE! Emergency calling may not be available on all wirelessnetworks at all times. A connection cannot always beguaranteed, due to various transmission methods,network parameters and user settings used tocomplete a call from your wireless phone.DO NOT depend on this phone as a primary method ofdialing 100 or for any other essential or emergencycommunications. Remember to always turn your phone on and check forthe adequate signal strength before placing a call. To store an emergency number:1. Press the Up or Down key to select a location andpress the OK key. 2. If necessary, press and hold the CLR key to clear theold number.3. Enter the number you want. Each emergency number can be up to 24 digits long. 4. Press the OK key to store the number.To make an emergency call in the lock mode, simplyenter a programmed number, and then press theSEND key.
119SSeettuupp118SSeettuuppVoice Privacy (MENU 9-4-4)Used only in digital networks, Voice Privacy encryptsthe voice channel so that people cannot eavesdrop onyour conversation.The following options are available:Standard: turns this feature off. The phone will use astandard line for calls.Enhanced: turns this feature on. The phone willmake and receive calls on an encrypted high securityline.Note: This feature may not be available in all areas.Contact Reliance for details and its availability.Restriction (MENU 9-4-5)This feature allows you to restrict all of the outgoingcalls.Select On to restrict the calls, or Off to deactivate therestriction.Erase Memory (MENU 9-4-6)This feature allows you to clear all of the numbers inyour Phonebook. When a confirming message displays, select Yes andpress the OK key.Reset Phone (MENU 9-4-7)Resetting the phone cancels all of your selection in theuser-selectable setting options and returns them to thefactory default settings.When a confirming message displays, select Yes andpress the OK key. The phone turns itself off and backon, then returns to Standby Mode.Call Answer MENU 9-5This menu allows you to select how to answer anincoming call. The following options are available:SEND Key: The phone answers only when you pressthe SEND key.Any Key: The phone answers when you press any keyexcept for the END key.Folder Open: The phone answers when you open thefolder.
121Auto Answer MENU 9-6With this menu activated, the phone automaticallyanswers calls after a specified time. This featureworks only when the phone is connected to anoptional hand-free car kit and is useful while driving,for instance.To activate this feature, set how long the phone waitsbefore answering. Select one from after 1 sec, after3 sec or after 5 sec.To deactivate the feature, select Off.Auto Retry MENU 9-7When this menu is activated, your phone automaticallyredials the call up to 10 times when a connection fails.To activate this feature, select how often the phonewill automatically retry the call; 10 Seconds, 30Seconds and 60 Seconds options are available.To deactivate the feature, select Off.Language MENU 9-8This menu allows you to change the language of voiceprompts, menus and key input. You can choose either English or Spanish.120SSeettuuppClock Set MENU 9-9Your phone is equipped with a standard clock and adual clock for setting time in multiple cities orcountries. Your phone automatically displays the time and datewhen in digital mode. This information is unavailableon the screen when your phone is out of service orwhen powered up. You can select Main Clock or DualClock for the Wallpaper image; for details, see pagexx.Main Clock (MENU 9-9-1)1. Enter the time and date.You need to enter the time in 12-hour format. Pressthe 2key for A(AM) or the 7key for P(PM).2. Press the OK key to save the setting.Dual Clock (MENU 9-9-2)To select time zones for the dual clock:1. When Location highlights, press the Down key.2. Select the time zone for the first clock by pressingthe Left or Right key and press the Down key.3. Select the time zone for the second clock bypressing the Left or Right key.SSeettuupp
1231224. Press the OK key to confirm the selection. To apply the daylight saving time:1. When Location highlights, press the Left or Right keyto display Summer Time. Press the Down key.2. Select On to use the daylight saving time for the firstclock. Otherwise, select Off. 3. Press the Down key and repeat step 2 for the secondclock. 4. Press the OK key to confirm the selection.Version MENU 9-0This menu allows you to view the software andhardware versions of your phone. This feature is helpfulif you need to the call customer care. SSeettuuppHealth and Safety InformationExposure to Radio Frequency (RF) SignalsYour wireless phone is a radio transmitter andreceiver. It is designed and manufactured not toexceed the emission limits for exposure to radiofrequency (RF) energy set by the FederalCommunications Commission (FCC) of the U.S.Government. These limits are part of comprehensiveguidelines and establish permitted levels of RF energyfor the general population. The guidelines are basedon the safety standards that were developed byindependent scientific organizations through periodicand through evaluation of scientific studies.The standards include a substantial safety margindesigned to assure the safety of all persons,regardless of age and health.The exposure standard for wireless phones employs aunit of measurement known as Specific AbsorptionRate (SAR). The SAR limit set by the FCC is 1.6W/kg *.* In the U.S. and Canada, the SAR limit for mobile phones used by thepublic is 1.6 watts/kg (W/kg) averaged over one gram of tissue. Thestandard incorporates a substantial margin of safety to give additionalprotection for the public and to account for any variations inmeasurements.

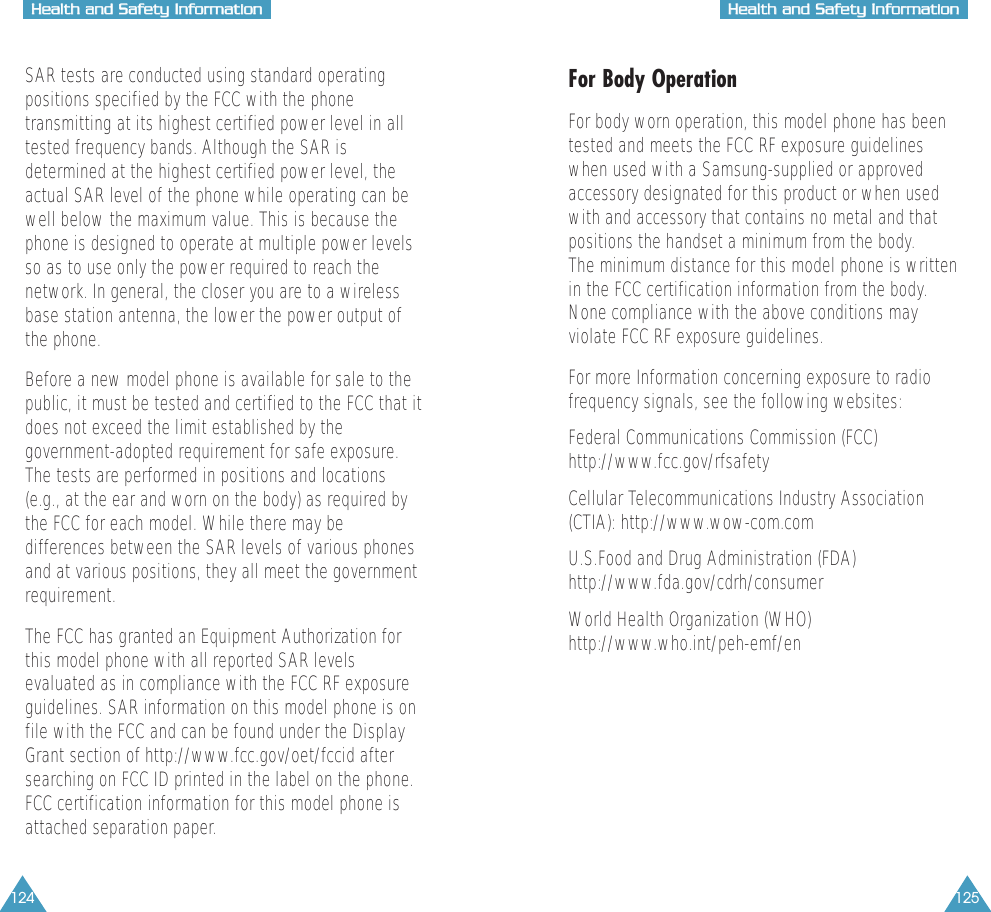

125HHeeaalltthh aanndd SSaaffeettyy IInnffoorrmmaattiioonn124SAR tests are conducted using standard operatingpositions specified by the FCC with the phonetransmitting at its highest certified power level in alltested frequency bands. Although the SAR isdetermined at the highest certified power level, theactual SAR level of the phone while operating can bewell below the maximum value. This is because thephone is designed to operate at multiple power levelsso as to use only the power required to reach thenetwork. In general, the closer you are to a wirelessbase station antenna, the lower the power output ofthe phone.Before a new model phone is available for sale to thepublic, it must be tested and certified to the FCC that itdoes not exceed the limit established by thegovernment-adopted requirement for safe exposure.The tests are performed in positions and locations(e.g., at the ear and worn on the body) as required bythe FCC for each model. While there may bedifferences between the SAR levels of various phonesand at various positions, they all meet the governmentrequirement.The FCC has granted an Equipment Authorization forthis model phone with all reported SAR levelsevaluated as in compliance with the FCC RF exposureguidelines. SAR information on this model phone is onfile with the FCC and can be found under the DisplayGrant section of http://www.fcc.gov/oet/fccid aftersearching on FCC ID printed in the label on the phone.FCC certification information for this model phone isattached separation paper. For Body Operation For body worn operation, this model phone has beentested and meets the FCC RF exposure guidelineswhen used with a Samsung-supplied or approvedaccessory designated for this product or when usedwith and accessory that contains no metal and thatpositions the handset a minimum from the body.The minimum distance for this model phone is writtenin the FCC certification information from the body.None compliance with the above conditions mayviolate FCC RF exposure guidelines.For more Information concerning exposure to radiofrequency signals, see the following websites:Federal Communications Commission (FCC) http://www.fcc.gov/rfsafetyCellular Telecommunications Industry Association(CTIA): http://www.wow-com.comU.S.Food and Drug Administration (FDA) http://www.fda.gov/cdrh/consumerWorld Health Organization (WHO) http://www.who.int/peh-emf/enHHeeaalltthh aanndd SSaaffeettyy IInnffoorrmmaattiioonn
127HHeeaalltthh aanndd SSaaffeettyy IInnffoorrmmaattiioonn126HHeeaalltthh aanndd SSaaffeettyy IInnffoorrmmaattiioonnPrecautions When Using Batteries• Never use any charger or battery that is damaged inany way.• Use the battery only for its intended purpose.• If you use the phone near the network’s basestation, it uses less power; talk and standby timeare greatly affected by the signal strength on thecellular network and the parameters set by thenetwork operator.• Battery charging time depends on the remainingbattery charge and the type of battery and chargerused. The battery can be charged and dischargedhundreds of times, but it will gradually wear out.When the operation time (talk time and standbytime) is noticeably shorter than normal, it is time tobuy a new battery.• If left unused, a fully charged battery will dischargeitself over time.• Use only Samsung-approved batteries and rechargeyour battery only with Samsung-approved chargers.When a charger is not in use, disconnect it from thepower source. Do not leave the battery connected toa charger for more than a week, since overchargingmay shorten its life.• Extreme temperatures will affect the chargingcapacity of your battery: it may require cooling orwarming first.• Do not leave the battery in hot or cold places, suchas in a car in summer or winter conditions, as youwill reduce the capacity and lifetime of the battery.Always try to keep the battery at room temperature.A phone with a hot or cold battery may temporarilynot work, even when the battery is fully charged. Li-ion batteries are particularly affected bytemperatures below 0 °C (32 °F).• Do not short-circuit the battery. Accidental short-circuiting can occur when a metallic object (coin,clip or pen) causes a direct connection between the+ and – terminals of the battery (metal strips on thebattery), for example when you carry a spare batteryin a pocket or bag. Short-circuiting the terminalsmay damage the battery or the object causing theshort-circuiting.• Dispose of used batteries in accordance with localregulations. Always recycle. Do not dispose ofbatteries in a fire.
129HHeeaalltthh aanndd SSaaffeettyy IInnffoorrmmaattiioonn128HHeeaalltthh aanndd SSaaffeettyy IInnffoorrmmaattiioonnRoad SafetyYour wireless phone gives you the powerful ability tocommunicate by voice, almost anywhere, anytime. Butan important responsibility accompanies the benefitsof wireless phones, one that every user must uphold.When driving a car, driving is your first responsibility.When using your wireless phone behind the wheel ofa car, practice good common sense and remember thefollowing tips.1. Get to know your wireless phone and its features,such as speed dial and redial. If available, thesefeatures help you to place your call without takingyour attention off the road.2. When available, use a hands-free device. Ifpossible, add an extra layer of convenience andsafety to your wireless phone with one of the manyhands-free accessories available today.3. Position your wireless phone within easy reach. Beable to access your wireless phone withoutremoving your eyes from the road. If you get anincoming call at an inconvenient time, let your voicemail answer it for you.4. Let the person you are speaking with know you aredriving; if necessary, suspend the call in heavytraffic or hazardous weather conditions. Rain, sleet,snow, ice and even heavy traffic can be hazardous.5. Do not take notes or look up phone numbers whiledriving. Jotting down a To Do list or flipping throughyour Phonebook takes your attention away from yourprimary responsibility-driving safely.6. Dial sensibly and assess the traffic; if possible,place calls when you are not moving or beforepulling into traffic. Try to plan calls when your carwill be stationary. If you need to make a call whilemoving, dial only a few numbers, check the roadand your mirrors, then continue.7. Do not engage in stressful or emotionalconversations that may be distracting. Make thepeople with whom you are talking aware that youare driving and suspend conversations that have thepotential to divert your attention from the road.8. Use your wireless phone to call for help. Dial theemergency number in the case of fire, trafficaccident or medical emergencies. Remember, it is afree call on your wireless phone!9. Use your wireless phone to help others inemergencies. If you see a car accident, crime inprogress or other serious emergency where lives arein danger, call the emergency number, as you wouldwant others to do for you.
130HHeeaalltthh aanndd SSaaffeettyy IInnffoorrmmaattiioonn131HHeeaalltthh aanndd SSaaffeettyy IInnffoorrmmaattiioonn10. Call roadside assistance or a special non-emergency wireless assistance number whennecessary. If you see a broken-down vehicle posingno serious hazard, a broken traffic signal, a minortraffic accident where no one appears injured, or avehicle you know to be stolen, call roadsideassistance or any other special non-emergencywireless number.Operating EnvironmentRemember to follow any special regulations in force inany area and always switch your phone off wheneverit is forbidden to use it, or when it may causeinterference or danger.When connecting the phone or any accessory toanother device, read its user’s guide for detailed safetyinstructions. Do not connect incompatible products.As with other mobile radio transmitting equipment,users are advised that for the satisfactory operation ofthe equipment and for the safety of personnel, it isrecommended that the equipment should only be usedin the normal operating position (held to your ear with the antenna pointing over your shoulder).Electronic DevicesMost modern electronic equipment is shielded fromradio frequency (RF) signals. However, certainelectronic equipment may not be shielded against theRF signals from your wireless phone. Consult themanufacturer to discuss alternatives.PacemakersPacemaker manufacturers recommend that a minimumdistance of 15 cm (6 inches) be maintained between awireless phone and a pacemaker to avoid potentialinterference with the pacemaker. Theserecommendations are consistent with the independentresearch and recommendations of Wireless TechnologyResearch.Persons with pacemakers:• Should always keep the phone more than 15 cm (6inches) from their pacemaker when the phone isswitched on• Should not carry the phone in a breast pocket• Should use the ear opposite the pacemaker tominimize potential interferenceIf you have any reason to suspect that interference istaking place, switch your phone off immediately.Hearing AidsSome digital wireless phones may interfere with somehearing aids. In the event of such interference, youmay wish to consult your hearing aid manufacturer todiscuss alternatives.
133HHeeaalltthh aanndd SSaaffeettyy IInnffoorrmmaattiioonn132HHeeaalltthh aanndd SSaaffeettyy IInnffoorrmmaattiioonnOther Medical DevicesIf you use any other personal medical devices, consultthe manufacturer of your device to determine if it isadequately shielded from external RF energy. Yourphysician may be able to assist you in obtaining thisinformation. Switch your phone off in health carefacilities when any regulations posted in these areasinstruct you to do so. Hospitals or health care facilitiesmay be using equipment that could be sensitive toexternal RF energy.VehiclesRF signals may affect improperly installed orinadequately shielded electronic systems in motorvehicles. Check with the manufacturer or itsrepresentative regarding your vehicle.You should also consult the manufacturer of anyequipment that has been added to your vehicle.Posted FacilitiesSwitch your phone off in any facility where postednotices require you to do so.Potentially Explosive EnvironmentSwitch your phone off when in any area with apotentially explosive atmosphere and obey all signsand instructions. Sparks in such areas could cause anexplosion or fire resulting in bodily injury or evendeath.Users are advised to switch the phone off while at arefueling point (service station). Users are reminded ofthe need to observe restrictions on the use of radioequipment in fuel depots (fuel storage and distributionareas), chemical plants or where blasting operationsare in progress.Areas with a potentially explosive atmosphere areoften but not always clearly marked. They includebelow deck on boats, chemical transfer or storagefacilities, vehicles using liquefied petroleum gas (suchas propane or butane), areas where the air containschemicals or particles, such as grain, dust or metalpowders, and any other area where you wouldnormally be advised to turn off your vehicle engine.

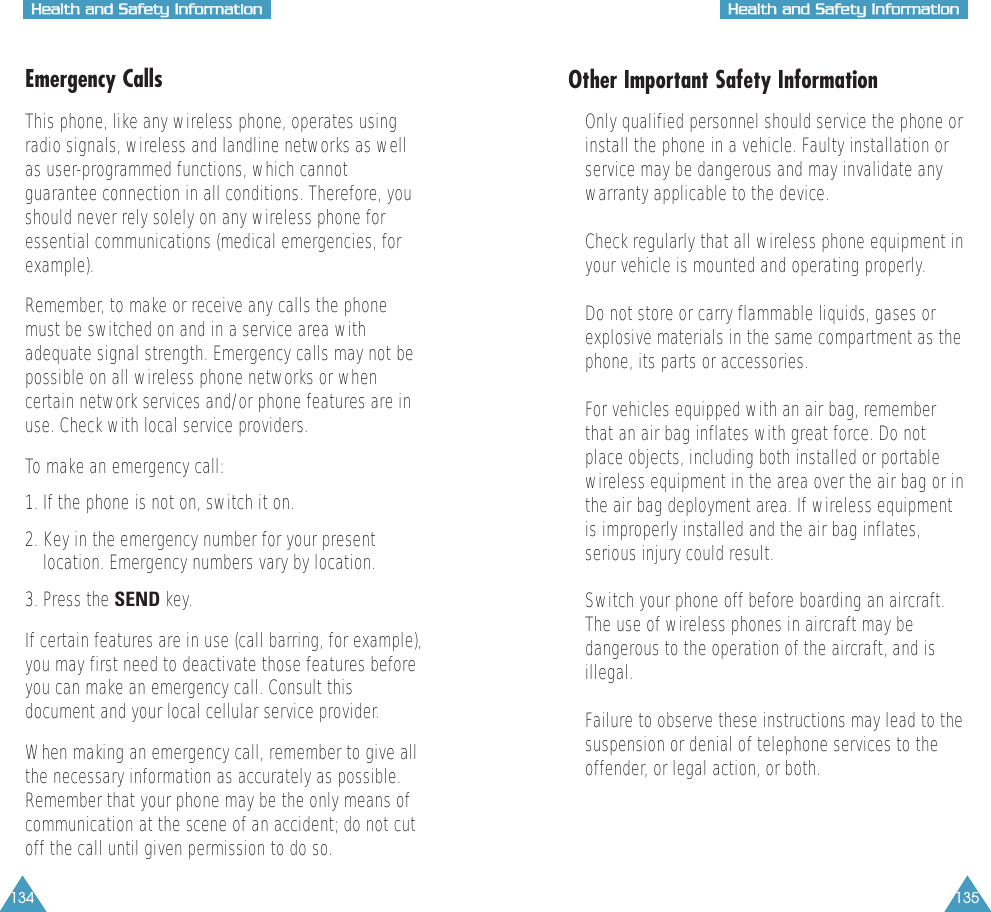

135HHeeaalltthh aanndd SSaaffeettyy IInnffoorrmmaattiioonn134HHeeaalltthh aanndd SSaaffeettyy IInnffoorrmmaattiioonnEmergency CallsThis phone, like any wireless phone, operates usingradio signals, wireless and landline networks as wellas user-programmed functions, which cannotguarantee connection in all conditions. Therefore, youshould never rely solely on any wireless phone foressential communications (medical emergencies, forexample).Remember, to make or receive any calls the phonemust be switched on and in a service area withadequate signal strength. Emergency calls may not bepossible on all wireless phone networks or whencertain network services and/or phone features are inuse. Check with local service providers.To make an emergency call:1. If the phone is not on, switch it on.2. Key in the emergency number for your presentlocation. Emergency numbers vary by location.3. Press the SEND key.If certain features are in use (call barring, for example),you may first need to deactivate those features beforeyou can make an emergency call. Consult thisdocument and your local cellular service provider.When making an emergency call, remember to give allthe necessary information as accurately as possible.Remember that your phone may be the only means ofcommunication at the scene of an accident; do not cutoff the call until given permission to do so.Other Important Safety Information• Only qualified personnel should service the phone orinstall the phone in a vehicle. Faulty installation orservice may be dangerous and may invalidate anywarranty applicable to the device.• Check regularly that all wireless phone equipment inyour vehicle is mounted and operating properly.• Do not store or carry flammable liquids, gases orexplosive materials in the same compartment as thephone, its parts or accessories.• For vehicles equipped with an air bag, rememberthat an air bag inflates with great force. Do notplace objects, including both installed or portablewireless equipment in the area over the air bag or inthe air bag deployment area. If wireless equipmentis improperly installed and the air bag inflates,serious injury could result.• Switch your phone off before boarding an aircraft.The use of wireless phones in aircraft may bedangerous to the operation of the aircraft, and isillegal.• Failure to observe these instructions may lead to thesuspension or denial of telephone services to theoffender, or legal action, or both.
137HHeeaalltthh aanndd SSaaffeettyy IInnffoorrmmaattiioonn136HHeeaalltthh aanndd SSaaffeettyy IInnffoorrmmaattiioonnCare and MaintenanceYour phone is a product of superior design andcraftsmanship and should be treated with care. Thesuggestions below will help you fulfill any warrantyobligations and allow you to enjoy this product formany years. • Keep the phone and all its parts and accessories outof the reach of small children’s.• Keep the phone dry. Precipitation, humidity andliquids contain minerals that will corrode electroniccircuits.• Do not use the phone with a wet hand. Doing somay cause an electric shock to you or damage to thephone. • Do not use or store the phone in dusty, dirty areas,as its moving parts may be damaged.• Do not store the phone in hot areas. Hightemperatures can shorten the life of electronicdevices, damage batteries, and warp or melt certainplastics.• Do not store the phone in cold areas. When thephone warms up to its normal operatingtemperature, moisture can form inside the phone,which may damage the phone’s electronic circuitboards.• Do not drop, knock or shake the phone. Roughhandling can break internal circuit boards.• Do not use harsh chemicals, cleaning solvents orstrong detergents to clean the phone. Wipe it with asoft cloth slightly dampened in a mild soap-and-water solution.• Do not paint the phone. Paint can clog the device’smoving parts and prevent proper operation.• Do not put the phone in or on heating devices, suchas a microwave oven, a stove or a radiator. Thephone may explode when overheated.• Use only the supplied or an approved replacementantenna. Unauthorized antennas or modifiedaccessories may damage the phone and violateregulations governing radio devices.• If the phone, battery, charger or any accessory is notworking properly, take it to your nearest qualifiedservice facility. The personnel there will assist you,and if necessary, arrange for service.Acknowledging Special Precautions and theFCC and Industry Canada NoticeCautionsModifications not expressly approved by the partyresponsible for compliance could void the user'sauthority to operate the equipment.
139138HHeeaalltthh aanndd SSaaffeettyy IInnffoorrmmaattiioonnFCC Compliance InformationThis device complies with Part 15 of FCC Rules.Operation is subject to the following two conditions:(1) This device may not cause harmful interference,and(2) This device must accept any interference received.Including interference that may cause undesiredoperation.Information to UserThis equipment has been tested and found to complywith the limits for a Class B digital device, pursuant topart 15 of the FCC Rules. These limits are designed toprovide reasonable protection against harmfulinterference in a residential installation. This equipment generates, uses and can radiate radiofrequency energy and, if not installed and used inaccordance with the instructions, may cause harmfulinterference to radio communications. However, thereis no guarantee that interference will not occur in aparticular installation. If this equipment does causeharmful interference to radio or television reception,which can be determined by turning the equipment offand on, the user is encouraged to try to correct theinterference by one or more of the following measures:• Reorient or relocate the receiving antenna.• Increase the separation between the equipment and receiver.• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.• Consult the dealer or an experienced radio/ TV technician for help.GlossaryAirtime - Actual time spent talking on the wirelessphone. Most carriers bill customers based on howmany minutes of airtime they use each month.Antenna - A device for transmitting or receivingsignals. The size and shape of antennas is determined,in part, by the frequency of the signal they receive.Wireless phones and the base station must haveantennas.Base Station - The fixed radio transmitter/receiverthat maintains communications with mobile radiotelephones within a given area. (Typically called a cellor cell site)CDMA (Code Division Multiple Access) A spread-spectrum approach to digital transmission. WithCDMA, each conversion is digitized and then taggedwith a code. The mobile phone deciphers only aparticular code to pick the right conversation off theair. The transmitted signal is just above noise levelacross the available bandwidth.Channel - Communications signals transmit alongpaths called channels.Codec - Compression & Decompression.Deactivation - The process of rendering a wirelessphone inactive.
141140DTMF - (Dual-tone Multi-Frequency ) You send DTMFsignals when you enter numbers by pressing the digitkeys.EVRC - (Enhanced Variable Rate Codec) EVRC is a newglobal standard for compressing and decompressingvoice signals. EVRC uses a lower bit rate (the numberof bits sent per second) than existing CDMA vocoders,while providing significant improvements in voicequality. This technology enables your phone to providesuperb voice quality while benefiting from the abilityto process more cellular voice calls using lessbandwidth than the voice codecs in CDMA networkstoday.Frequency - A measure based on time, as one ormore waves per second, in an electrical or light waveinformation signal. A signal’s frequency is stated incycles-per-second or Hertz (Hz).Hands-Free - A feature that permits a driver to use awireless phone without lifting or holding the handset -an important safety feature for automobiles, tractorsand most other motorized vehicles.LCD - (Liquid Crystal Display) Commonly used to referto the screen display on the wireless phone.LED - (Light Emitting Diode) Commonly used to refer toa small light on the wireless phone or on the DesktopCharger. The LED lights on the phone to indicate anincoming call. The lights on the charger indicate thatbattery charging is taking place.GGlloossssaarryyPrepend - The addition of a prefix, such as an areacode, to a phone number.RF - Radio FrequencyRoaming - The ability to use a wireless phone tomake and receive calls in places outside of the homeservice area.Service Charge - The amount paid each month toreceive wireless service.Standby Time - The amount of time a fully chargedwireless portable or transportable phone can be onand idle without being in use. (See Talk Time)Talk Time - The length of time a person can talk on aportable or transportable wireless phone withoutrecharging the battery.Vocoder - Voice Coder. A device used to convertspeech into digital signals.Wireless - Radio-based Systems that allowtransmission of telephone or data signals through theair without a physical connection, such as a metal wire(copper) or fiber optic cable.GGlloossssaarryy

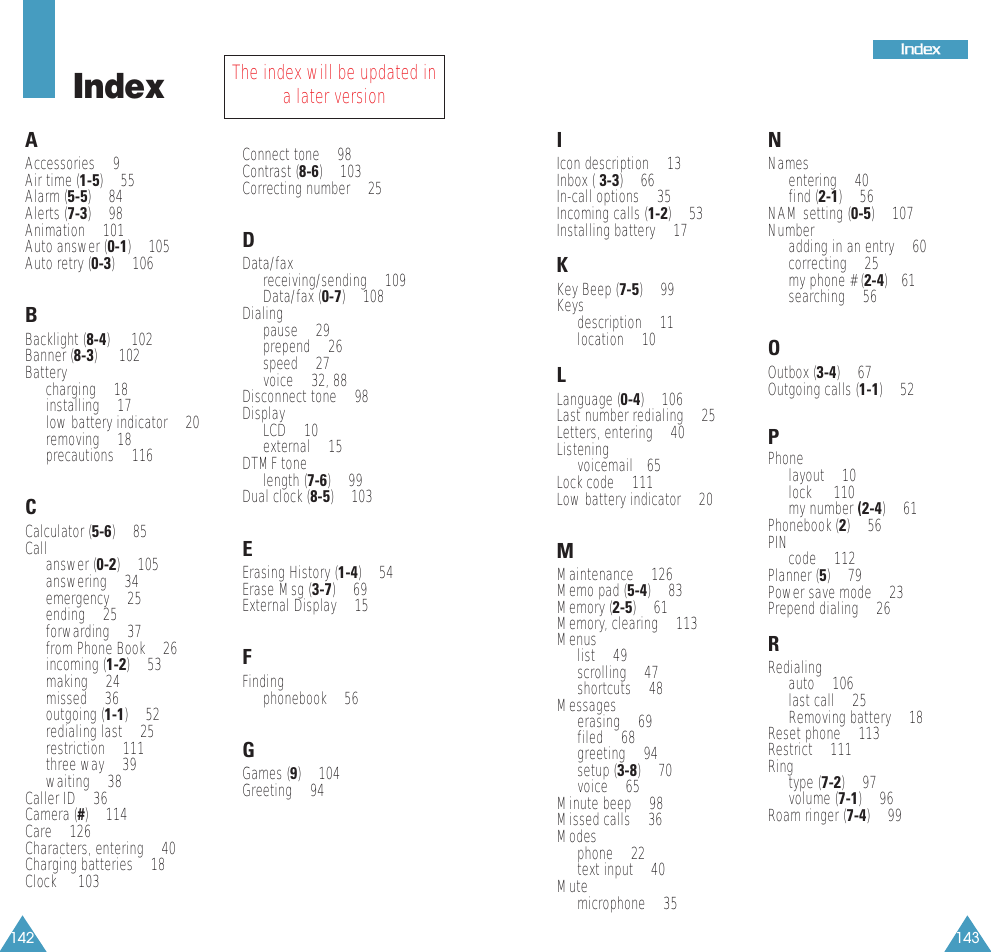

142 143IndexAAccessories • 9Air time (1-5) • 55Alarm (5-5) • 84Alerts (7-3) • 98Animation • 101Auto answer (0-1) • 105Auto retry (0-3) • 106BBacklight (8-4) • 102Banner (8-3) • 102Batterycharging • 18installing • 17low battery indicator • 20removing • 18precautions • 116CCalculator (5-6) • 85Callanswer (0-2) • 105answering • 34emergency • 25ending • 25forwarding • 37from Phone Book • 26incoming (1-2) • 53making • 24missed • 36outgoing (1-1) • 52redialing last • 25restriction • 111three way • 39waiting • 38Caller ID • 36Camera (#) • 114Care • 126Characters, entering • 40Charging batteries • 18Clock • 103Connect tone • 98Contrast (8-6) • 103Correcting number • 25DData/fax receiving/sending • 109Data/fax (0-7) • 108Dialingpause • 29 prepend • 26speed • 27voice • 32, 88Disconnect tone • 98Display LCD • 10external • 15DTMF tonelength (7-6) • 99Dual clock (8-5) • 103EErasing History (1-4) • 54Erase Msg (3-7) • 69External Display • 15FFindingphonebook • 56GGames (9) • 104Greeting • 94The index will be updated ina later versionIIcon description • 13Inbox ( 3-3) • 66In-call options • 35Incoming calls (1-2) • 53Installing battery • 17KKey Beep (7-5) • 99Keysdescription • 11location • 10LLanguage (0-4) • 106Last number redialing • 25Letters, entering • 40Listeningvoicemail •65Lock code • 111Low battery indicator • 20MMaintenance • 126Memo pad (5-4) • 83Memory (2-5) • 61Memory, clearing • 113Menuslist • 49scrolling • 47shortcuts • 48Messageserasing • 69filed • 68greeting • 94setup (3-8) • 70voice • 65Minute beep • 98Missed calls • 36Modesphone • 22text input • 40Mutemicrophone • 35NNamesentering • 40find (2-1) • 56NAM setting (0-5) • 107Numberadding in an entry • 60correcting • 25my phone # (2-4)• 61searching • 56OOutbox (3-4) • 67Outgoing calls (1-1) • 52PPhone layout • 10lock • 110my number (2-4) • 61Phonebook (2) • 56PINcode • 112Planner (5) • 79Power save mode • 23Prepend dialing • 26RRedialing auto • 106last call • 25Removing battery • 18Reset phone • 113Restrict • 111Ringtype (7-2)• 97volume (7-1) • 96Roam ringer (7-4)• 99IInnddeexx
145144IInnddeexxSSafetybatteries • 116information • 116precautions • 7Schedular (5-2) • 81Searchingphonebook • 56Security (0-9) • 110Service alert • 98Service light • 16Setting NAM (0-5) • 107Setting system (0-6) • 107Setting time (5-9) • 87Setup (0) • 105Sounds (7) • 96Speed dialing • 27Standby mode • 22Switching on/off phone • 21TTask List (5-3) • 82Text, entering • 40Today (5-1) • 79Tone length (7-6) • 99T9 text mode • 42UUnpacking • 9VVersion (0-8) • 110Voice answer (6-3) • 92Voice dial (6-1) • 88Voice memo (6-2) • 91Voice message (3-2) • 65Volume, adjustingring (7-1) • 96key (7-5) • 99WWeb Browserget in web (4-1) • 73prompt (4-2) • 78World time (5-7) • 86Writing new message • 62Make a call Phone number + SENDEnd a call ENDReceive a call SEND or open the phoneAdjust the key (in Standby Mode)beep volume / on the left sideAdjust the (during a conversation) speaker volume / on the left sideRedial the last call SEND twiceSwitch to the Hold silent modeVoice dialing Hold or open the folder+ Say a nameSave a Number Enter Number + OK + OK + Left/Right to select Home / Office /Pager / Fax + OK + Enter Name +OK + Option soft key to enterinformation + OKSpeed dialing Enter Memory Location of thenumber you want, holding the lastdigit to automatically dial.Phonebook Enter Phone Book →FindSearch menu + Up/Down + OKLaunch the web Press browserSCH-A650 Quick Reference CardBASIC OPERATIONS
146 147MENU TREEMain Menu (To access, press the Menu soft key)1 : Calls 1 : Outgoing2 : Incoming3 : Missed4 : Erase Logs5 : Call Timer2 : Phone Book 1 : Find 2 : Add3 : Rename Group4 : My Phone#5 : Memory3 : Message 1 : Send New Msg2 : Voice3 : Inbox4 : Outbox5 : Draft Msg6 : Saved Msg7 : Web Alert8 : Msg Setting9 : Erase Msg4 : Mobile Web 1 : Get In Web2 : Prompt5 : Planner 1 : Today2 : Scheduler3 : Jump To Date4 ; To Do List5 : Memo Pad6 : Count Down7 : Alarm Clock8 : World Time9 : Calculator6 : Display 1 : Animation2 : Banner3 : Backlight4 : Contrast5 : Auto Hyphen7 : Sounds 1 : Volume/Vibrate2 : Ringer Type 3 : Key Beep4 : Alerts5 : Power On/Off6 : Roam Ringer7 : Whisper Mode8 : Voice Kit 1 : Voice Dial2 : Voice Memo3 : Call Screen9 : Setup 1 : Location2 : Network 3 : Data/Fax4 : Security 5 : Call Answer6 : Auto Answer7 : Auto Retry8 : Language9 : Clock Set0 : VersionLicensed by QUALCOMM Incorporated under one or more of the following Patents.U.S Patent No. 4,901,307 5,056,109 5,099,2045,101,501 5,103,459 5,107,2255,109,390
