Users Manual
3
SCH-a770 Series
All Digital
Mobile Phone
User Guide
Please read this guide before operating your phone,
and keep it for future reference.
4
Intellectual property
All Intellectual Property, as defined below, owned by or which is
otherwise the property of Samsung or its respective suppliers
relating to the SAMSUNG Phone, including but not limited to,
accessories, parts, or software relating thereto (the “Phone
System”), is proprietary to Samsung and protected under federal
laws, state laws, and international treaty provisions. Intellectual
Property includes, but is not limited to, inventions (patentable or
unpatentable), patents, trade secrets, copyrights, software,
computer programs, and related
documentation and other works of authorship. You may not
infringe or otherwise violate the rights secured by the Intellectual
Property.
Moreover, you agree that you will not (and will not attempt to)
modify, prepare derivative works of, reverse engineer, decompile,
disassemble, or otherwise attempt to create source code from the
software. No title to or ownership in the Intellectual Property is
transferred to you. All applicable rights of the Intellectual Property
shall remain with SAMSUNG and its suppliers.
Samsung Telecommunications America, L.P.
Headquarters Customer care center
1301 East Lookout Drive 1601 E. Plano Parkway, Suite 150
Richardson, TX 75082 Plano, TX 75074
Tel: 972.761.7000 Toll Free Tel: 1.888.987.HELP (4357)
Fax: 972.761.7001 Fax: 972.761.7001 and 972.761.7501
Internet Address: http://www.samsungusa.com
©2004 Samsung Telecommunications America. Samsung is a
registered trademark of Samsung Electronics America, Inc. and its
related entities.
Licensed by Qualcomm Incorporated under one or more of the
following patents: U.S. Patent No. 4, 901, 307; 5, 056, 109; 5,
099, 204; 5, 101, 501; 5, 103, 459; 5, 107, 225; 5, 109, 390.
Printed in South Korea
Revised February 26, 2004
GH68-04440A
Openwave® is a registered Trademark of Openwave, Inc.
RSA® is a registered Trademark RSA Security, Inc.
5
Disclaimer of warranties;
exclusion of liability
EXCEPT AS SET FORTH IN THE EXPRESS WARRANTY
CONTAINED ON THE WARRANTY PAGE ENCLOSED WITH
THE PRODUCT, THE PURCHASER TAKES THE PRODUCT "AS
IS", AND SAMSUNG MAKES NO EXPRESS OR IMPLIED
WARRANTY OF ANY KIND WHATSOEVER WITH RESPECT TO
THE PRODUCT, INCLUDING BUT NOT LIMITED TO THE
MERCHANTABILITY OF THE PRODUCT OR ITS FITNESS FOR
ANY PARTICULAR PURPOSE OR USE; THE DESIGN,
CONDITION OR QUALITY OF THE PRODUCT; THE
PERFORMANCE OF THE PRODUCT; THE WORKMANSHIP OF
THE PRODUCT OR THE COMPONENTS CONTAINED
THEREIN; OR COMPLIANCE OF THE PRODUCT WITH THE
REQUIREMENTS OF ANY LAW, RULE, SPECIFICATION OR
CONTRACT PERTAINING THERETO. NOTHING CONTAINED
IN THE INSTRUCTION MANUAL SHALL BE CONSTRUED TO
CREATE AN EXPRESS OR IMPLIED WARRANTY OF ANY
KIND WHATSOEVER WITH RESPECT TO THE PRODUCT. IN
ADDITION, SAMSUNG SHALL NOT BE LIABLE FOR ANY
DAMAGES OF ANY KIND RESULTING FROM THE PURCHASE
OR USE OF THE PRODUCT OR ARISING FROM THE BREACH
OF THE EXPRESS WARRANTY, INCLUDING INCIDENTAL,
SPECIAL OR CONSEQUENTIAL DAMAGES, OR LOSS OF
ANTICIPATED PROFITS OR BENEFITS.
Contents
1
Contents
Contents ......................................................1
SCH-a770 open view ....................................6
SCH-a770 closed view ..................................7
Quick reference ............................................8
Quick reference ..........................................10
Introduction ...............................................12
Key features of the SCH-a770 ........................ 12

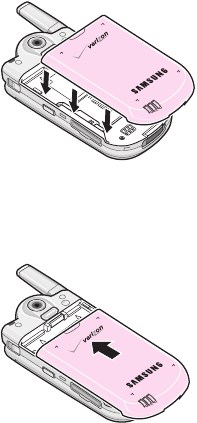

Install the battery ........................................ 13
Remove the battery ...................................... 14

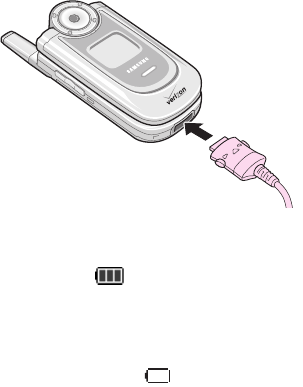

Charge the battery ....................................... 14
Understand your phone ..............................16
Antenna ...................................................... 16
Backlight features ........................................ 16
Power save mode ......................................... 17
Left soft key ................................................ 17
Right soft key .............................................. 18
Clear key .................................................... 18
End key ...................................................... 18
Headset connector ........................................ 19
Microphone ................................................. 19
Alpha-numeric keypad .................................. 19
Volume key ................................................. 19
SEND key .................................................... 20
Navigation key ............................................. 20
Your phone’s display ..................................... 20
Contents
2
Your phone’s modes ...................................23
Call answer mode ......................................... 23
Text input mode ........................................... 23
Lock mode .................................................. 23
Standby mode ............................................. 24
Receive messages in standby mode ................ 24
Talk mode ................................................... 24
Silent mode ................................................. 25
The ringer setting ......................................... 25
Getting started ...........................................26
Obtaining service ......................................... 26
Turn the phone on ........................................ 26
Turn the phone off ....................................... 27
Make and answer calls .................................. 27
Menus and sub menus ................................31
Menu navigation .........................................33
Navigate using keys ..................................... 33
Navigate using a shortcut .............................. 34
In-use menu ................................................ 35
Phone book ................................................37
Open the phone book .................................... 37
Find ............................................................ 38
Add new information to your phone book ......... 41
Add pauses ................................................. 42
Store pauses in a phone book entry ................ 43
Pause dial from the phone book ..................... 43
Manual pause calling ..................................... 44
Delete individual phone book entries ............... 45
Edit an existing e-mail address ....................... 46
Assign speed dial numbers ............................ 47
Store numbers after a call ............................. 48
Contents
3
Store numbers from call logs ......................... 50
Shortcuts to storing phone numbers ............... 50
One-touch dialing ......................................... 50
Two-touch dialing ......................................... 51
Three-touch dialing ...................................... 51
Group ......................................................... 51
Send v-card ................................................. 52
My phone # ................................................. 52
Memory info ................................................ 52
Delete all .................................................... 52
Recent call .................................................53
Received ..................................................... 53
Dialed ......................................................... 54
Missed ........................................................ 55
Delete call log .............................................. 56
Review the call log ....................................... 56
Call timer .................................................... 58
Call waiting ................................................. 59
Caller ID ..................................................... 59
Call block .................................................... 59
Three-way calling ......................................... 60
Message .....................................................61
Text entry modes ......................................... 61
New text msg .............................................. 66
New pix msg ................................................ 70
New flix msg ................................................ 70
Voicemail .................................................... 70
Inbox ......................................................... 71
Outbox ....................................................... 72
Saved/Draft ................................................. 73
Web alert .................................................... 76
Memory info ................................................ 77
Contents
4
Get it now ..................................................78
Mobile web .................................................83
Launch mobile web ....................................... 83
Exit mobile web ........................................... 84
Navigate the web ......................................... 84
Mobile web soft keys .................................... 84
How mobile web keys work ............................ 85
Using links .................................................. 86
Place a call while using mobile web ................. 86
Multimedia .................................................87
Camera ....................................................... 87
Take flix ...................................................... 91
Media gallery ............................................... 95
Settings ......................................................99
Profile ......................................................... 99
Volume/Vibrate ............................................ 99
Ringer type ................................................100
Display ......................................................104
Security .....................................................109
Call options ................................................115
Shortcut list ................................................119
Location .....................................................119
Phone info ..................................................120
Planner ....................................................121
Calendar ....................................................122
To do list ....................................................124
Alarm clock ................................................126
Time/Date ..................................................127
Memo pad ..................................................128
World time .................................................130
Calculator ..................................................131
Contents
5
Voice kit ...................................................132
Quick dial ...................................................132
Voice memo ...............................................134
Voice settings .............................................136
Usage guidelines:
All about performance and safety ............137
Getting the most out of your reception ...........137
Maintaining safe use of and access to your phone 139
Caring for the battery ..................................143
Acknowledging special precautions and FCC ....144
FDA consumer update ..................................147
Owner's record ...........................................161
User guide proprietary notice ........................162
Limited warranty ......................................163
Index .......................................................168
SCH-a770 open view
6
SCH-a770 open view
Cancel/correction
key
OK key
Camera key
Volume/menu
browser keys
Soft key (left)
Display
Navigation (Up/
Down/Left/Right)
keys
Power on/off/
menu exit key
Earpiece
Microphone
Special function
keys
Soft key (right)
Alphanumeric
keys
Dial/menu
confirmation
key
SCH-a770 closed view
7
SCH-a770 closed view
Ear-microphone
jack
Antenna
Service light
Camera key
External
display
Camera
Multimedia card
slot
Quick reference
8
Quick reference
Cut out and use this page as a handy quick reference for
several useful features in your phone.
1. Phone book
1) Find
2) New
3) Group
4) My name card
5) Send v-card
6) Send v-card
7) Memory info
8) Delete all
2. Recent calls
1) Received
2) Dialed
3) Missed
4) Delete call log
5) Call timers
3. Message
1) Send new msg
2) Voice
3) Inbox
4) Voicemail
5) Inbox
6) Outbox
7) Saved/Draft
8) Web alert
9) Message settings
0) Memory info
Quick reference
9
4. Get it now
1) Get it now
5. Mobile web
1) Get in web
6. Multimedia
1) Camera
2) Media gallery
7. Settings
1) Profile
2) Display
3) Security
4) Call options
5) Shortcut list
6) Location
7) Phone info
8. Planner
1) Calendar
2) To do list
3) Alarm clock
4) Time/Date
5) Memo pad
6) World time
7) Calculator
9. Voice kit
1) Quick dial
2) Voice memo
3) Voice settings
Quick reference
10
Turn the phone on and off
Press and hold to turn the phone on or off.
Enter/Exit silent mode
In Standby mode, press and hold . To exit, press and hold
.
Set call ringer volume
1. In Standby mode, press the volume key on the left side of
the phone.
2. Press the Volume keys up or down to set call ringer
volume as desired.
View recent calls
In Standby mode, press . Your recent calls appear in the
display.
Change the wallpaper
1. In Standby mode, press the left soft key ( )
Menu
,
then press , , , .
2. Use the Up or Down key to select your choice of wallpaper.
Quick reference
11
Save a number
1. In Standby mode, enter the number to save using the
keypad.
2. Press . With
New entry
highlighted, press again.
3. Select the number type using the Navigation keys, the
press .
4. Enter a name for the entry using the keypad, then press
.
View software and hardware information for
your phone
In Standby mode, press the left soft key ( )
Menu
, then
press , .
Navigation key shortcuts (in Standby mode)
Get it now
Mobile web
Voice memo
Message
Voice memo can be customized. Press the left soft key
()
Menu
, then press , , .
Introduction
12
Introduction
Congratulations on your purchase of the Samsung SCH-a770
mobile phone. The features listed below are a sample of what
SCH-a770 has to offer. We ask that you read this guide to
understand the many features that this phone supports and
keep it handy for reference.
Key features of the SCH-a770
•
128 x 160 pixel Liquid Crystal Display
•
High speed data (CDMA 2000 1X Technology)
•
Global Positioning Technology (GPS)
•
PIM functions (Scheduler, To Do List, etc.)
•
Short Message Service (SMS)
•
Voice Dial
•
16 Polyphonic Ringtones
How to use this guide
The chapters of this guide generally follow the same order as
the menus and sub menus in your phone. A robust index for
quick reference to most features begins on page 168.
Also
included is important safety information that you should
know
before using your phone. Most of this information is
near the
back of the guide, beginning on page 105.
Introduction
13
Install the battery
Note:
Your phone comes packaged with a partially charged
rechargeable standard Li-Ion battery and travel charger.
Important!
The phone can be used while the battery is charging,
but must be fully charged the first time you use your
phone otherwise you could damage the battery.
1. Insert the battery, taking care to match the tabs on the
battery with the grooves on the phone.
2. Slide the battery towards the top of the phone until it
clicks into place. Make sure that the battery is properly
installed before switching the power on.
Introduction
14
Remove the battery
1. Press and hold to turn off the phone (if on).
2. Press the catch above the battery and hold it in that
position.
3. Slide the battery and lift it away, as shown.
Charge the battery
Your phone is powered by a rechargeable standard Li-Ion
battery. Only use Samsung-approved charging devices and
batteries. Samsung accessories are designed to maximize
battery life. Using other accessories may invalidate your
warranty and may cause damage.
Introduction
15
Use the travel charger
The travel charger is a convenient, light-weight charger that
rapidly charges your phone from any 120/ 220 VAC outlet.
1. Plug the large end of the travel charger into a standard
120 or 220 VAC wall outlet.
2. Plug the connector of the travel adapter into the jack at
the bottom of the phone.
Low battery indicator
The battery indicator ( ) in the upper-right corner of the
display screen indicates the battery power level. Three bars
indicate a full charge, while an empty battery icon indicates
your battery is almost empty. Two to three minutes before the
battery charge level becomes too low to operate the phone, a
blinking empty battery icon ( ) appears in the display and
a tone sounds. If you continue to operate the phone without
charging the battery, the phone shuts down. Be sure to
monitor the battery strength icon and ensure your battery is
adequately charged.
Understand your phone
16
Understand your phone
Antenna
Avoid touching the antenna while the phone is powered up.
Contact with the antenna affects the quality of your calls and
may cause the phone to operate at a higher power level than
necessary.
Backlight features
You can choose the amount of time that the display and
backlight remain illuminated after a period of inactivity. Keep
in mind that increasing these settings reduces battery life.
1. In Standby mode, press the left soft key ( )
Menu
.
2. Press , , for
Backlight
. The following
backlight options appear in the display.
•
LCD
•
Keypad
•
Power save
3. Use the Up or Down key to highlight
LCD
or
Keypad
, then
press .
4. Use the Navigation keys to highlight the amount of time
that you wish the keypad or display to remain illuminated
after a period of inactivity, then press .
Note: Folder open
enables the keypad or display backlight to remain
on as long as the folder is open.
Understand your phone
17
Power save mode
Unless the backlight setting for the LCD has been changed,
the backlight dims after a minute of inactivity, and then turns
off. With
Power save
enabled, the backlight for the LCD is
always dim. After 15 seconds of inactivity, Power save turns
the backlight off. To enable or disable Power save:
1. In Standby mode, press the left soft key ( )
Menu
.
2. Press , , for
Backlight
. The following
backlight options appear in the display.
•
LCD
•
Keypad
•
Power save
3. Use the Up or Down key to highlight
Power save
, then
press .
4. Use the Navigation keys to highlight
On
or
Off
, then press
.
Left soft key
Functions for the left soft key ( ) are defined by what
appears above it in the display. Some functions of the left soft
key are as follows.
• Press the left soft key ( )
Menu
to enter the Main
menu.
• Press the left soft key ( )
Option
to view options in
some features.
• Press the left soft key ( ) to acknowledge browser
charges and other functions.
Understand your phone
18
Right soft key
Functions for the right soft key ( ) are defined by what
appears above it in the display. Some functions of the right
soft key are as follows:
• Press the right soft key ( )
Back
to return to Standby
mode from any main menu.
• Press the right soft key ( )
Back
to return to the
previous menu from a sub menu.
• In Standby mode, press the right soft key ( )
Contacts
to enter the Contacts list.
Clear key
The CLR key ( ) is used to erase or clear numbers from the
display. You can also use to return to a previous menu or
to return to Standby mode from any menu.
• If you enter an incorrect character, briefly press
to
backspace and delete.
• To erase all digits or characters from the display screen,
press and hold .
• To back up one menu level, briefly press .
• To return to Standby mode from any menu, press and hold
until you return to Standby mode.
End key
• Press and hold to turn off and on your phone.
• Press once to disconnect a call, return to Standby
mode, or cancel any input.
Understand your phone
19
Headset connector
The headset connector is the input jack for the optional
hands-free headset. The headset includes an earbud and
microphone in a convenient, lightweight unit so you can talk
without using your hands.
Before connecting the headset, gently pry open the input jack
cover to expose the connector inside.
Microphone
The microphone, located just beneath on the keypad, is used
for conversation, voice setup, and recording voice memos.
Alpha-numeric keypad
Use the alpha-numeric keypad to enter text, numbers, and
special characters.
Volume key
The volume key is on the left side of the phone. Use the
volume key to set the call ringer volume and earpiece volume
(while in a call). You can even use the volume key to scroll
through menus, sub menus, and lists.
Keypad
Microphone
Understand your phone
20
SEND key
The SEND key ( ) is used to answer calls, dial calls, and
to recall the last number (or list of numbers) dialed.
• Press once to answer calls.
• Enter a number and press once to connect a call.
• Press once in Standby mode to display the most
recently dialed number.
• Press twice in Standby mode to call the most
recently dialed number.
Navigation key
Use the Navigation keys to browse menus, sub menus, and
lists. Each of the four keys also act as a shortcut to launch
specific applications. The Up key is user definable, however.
Use the
OK
( ) key for such things as replying to or
confirming prompts, and jumping to highlighted links on the
web.
Your phone’s display
The top line of your phone’s display contains icons that
indicate network status, battery power, signal strength,
connection type, and more. The following list contains icons
that may appear in your display.
Understand your phone
21
Display screen icons
Icon Description
Signal strength
: Always appears when your phone is
on and indicates the current signal strength. More lines
indicate higher signal strength.
Ringer silent
: The ringer has been set to
Off
using
the volume key on the side of the phone.
Service indicator
: Indicates a call in progress. When
dialing a number, this icon flashes until the call
connects.
No service indicator
: Indicates your phone cannot
find a signal because you’re outside a service area. You
cannot make or receive calls. Wait for a signal or move
into an open area to try and find a signal. The no
service indicator always appears when you turn on
your phone and disappears once service is located.
Roam
: Extended roaming indicator. Roaming occurs
when you use your phone outside your home area.
While roaming, a wireless provider's system other than
Verizon Wireless handles your call, so the service rate
for the call may be higher than those made within your
home area. Please refer to information from Verizon
Wireless on roaming rates.
New message
: Indicates that you’ve received a new
voice, text, page or web alert message. You’re also
notified by a visual and audible alert.
1X protocol
: Indicates your phone is using the 1X
protocol.
Understand your phone
22
Battery strength
: Indicates the battery charge level.
The more bars, the greater the charge. When the
battery becomes very low, a flashing empty battery
icon displays and the phone sounds an audible alert,
which indicates your phone is about to shut down.
Alarm clock
: The alarm clock is set.
GPS
(911 only): This icon represents Global
Positioning
Service (GPS) for 911.
GPS
: Indicates GPS is on for location.
Silent mode
: Indicates your phone is in Silent mode.
Ringer
is silenced for all alerts, incoming calls, and
incoming
messages. The phone alerts you of incoming
calls, alerts,
and messages by vibration and a flashing
Service LED.
Vibrate mode
: Your phone is in Vibrate mode. When
you receive a call, the phone vibrates instead of ringing
Icon Description
(Continued)
Your phone’s modes
23
Your phone’s modes
Call answer mode
You can select the method for answering your phone when
you receive a call.
1. In Standby mode, press the left soft key ( )
Menu
,
then press , , , . The following call answer
options appear in the display.
•
Send key
•
Folder open
•
Any key
2. Use the Navigation keys to highlight an option.
3. Press to select the method for answering calls.
Text input mode
Use the text input mode (Abc, Symbol, 123, or T9 word) to
enter text, numbers, or symbols into messages, events, and
other functions. The text input mode is indicated in the right
lower part of the display.
Lock mode
When you lock the phone using the
Lock phone
menu
option, restrictions are placed on phone use. You can receive
messages and calls, but you cannot make outgoing calls
(except for emergency numbers) until you unlock the phone.
Lock phone
also restricts access to menus and the volume
key. Unlock your phone by following the prompts and entering
the lock code.
Your phone’s modes
24
Standby mode
Standby mode is the state of your phone once it has found
service and is in the idle state. Your phone goes into Standby
mode:
• After you power it on.
• When you press after a call.
When in Standby mode, you will see the time, day, and date
as well as all other active icons.
1. While in Standby mode, enter a phone number, and press
to place a call.
2. Press to return to Standby mode.
Receive messages in standby mode
You can receive messages while in Standby mode. An alert
tone sounds and a notification message appears in the display
when a new message arrives.
• Press the right soft key ( )
View
to view the message,
or press the left soft key ( )
Ignore
to view the
message later.
Talk mode
You can only place and receive calls when your phone is
powered on. While in a call your phone is in Talk mode. Press
the left soft key ( )
Option
to display a list of In-use
menu options. See “In-Use Menu” on page 45 for more
information.
Your phone’s modes
25
Silent mode
With a single press of the key you can silence the call ringer
and tones that your keypad makes whenever you press a key.
When you receive a call, the phone vibrates instead of
ringing.
Enter silent mode
• In Standby mode, press and hold . Entering silent
mode briefly appears in the display and your phone returns
to Standby mode. appears in the top line of the
display.
Exit silent mode
• In Standby mode, press and hold
. Exit silent mode
briefly appears in the display and your phone returns to
Standby mode.
The ringer setting
1. In Standby mode, repeatedly press the Volume keys on
the left side of the phone up or down. Options are:
2. Press once you’re satisfied with the setting. The phone
returns to Standby mode.
•Off •Level 3
• Level 1 • Level 4
• Level 2 • Level 5
Getting started
26
Getting started
Obtaining service
Contact Verizon Wireless and follow their instructions for
obtaining service, if necessary. We suggest that you read this
user guide to fully understand the services that your phone
supports.
Turn the phone on
1. Fully extend the antenna for the clearest reception, then
open the flip.
2. Press and hold for two or more seconds.
Note:
As with any other radio-transmitting device, do not touch the
antenna as it affects call quality and can cause the phone to
operate at a higher power level than is necessary.
3. Verizon Wireless momentarily appears in the display and
your phone begins searching for a network signal.
4. Once the phone finds a signal, the time, date, and day
appear in the bottom of the display.
5. You’re now ready to place and receive calls.
If the phone is outside of your carrier’s coverage or roaming
area, appears in the top of the display. If you cannot place
or receive calls, try later when service is available.
Getting started
27
Turn the phone off
Press and hold for two or more seconds. Your phone
powers off.
Note:
If your phone is on and you press for less than one
second, the phone will not power off. This feature prevents your
phone from being turned off accidentally.
Make and answer calls
Outgoing
1. With the phone on, enter the number you wish to call
using the keypad.
2. Press
to place the call.
Incoming
When you receive a call, the phone displays one of the
following:
• If the caller can be identified, the caller’s number (or name
if it’s in your Phone book) appears in the display.
• If the caller can’t be identified,
Call from unavailable
#
,
Call from restricted
#
, or no number appears in the
display.
Your phone continues to notify you of the call until one of the
following events occur:
• You answer the call.
• The calling party ends the call.
• The call is sent to voicemail.
Getting started
28
Call notification features
Your phone notifies you of a call in a variety of ways.
• Nine ring volume settings including
1- beep
,
Vibrate
,
Off
,
or
High+Vib
.
• Different ring types to distinguish callers.
• Name display with Caller ID. (If the caller’s name is
programmed into your Phone book).
• Incoming or missed calls are automatically stored to a call
log. The last 20 calls you answered are stored in an
Received call log list and the last 20 calls you missed are
stored in a Missed call log list.
Call answer
You can select from three methods for answering your calls.
You can change this option in the
Settings
menu.
1. In Standby mode, press the left soft key ( )
Menu
,
then press ,
, , . The following options
appear in the display:
•
Send key
•
Folder open
•
Any key
2. Use the Navigation keys to highlight the call answer option
of your choice.
3. Press
to select the highlighted option.
Getting started
29
Auto answer
You can enable your phone to automatically pick up any call
after a preset length of time.
1. In Standby mode, press the left soft key ( )
Menu
,
then press ,
, , to display the following
options:
•
Off
•
After 5 sec
•
After 3 sec
•
After 1 sec
2. Use the Navigation keys to highlight an option.
3. Press
to select the highlighted option.
LCD backlight setting
To prolong the life of your battery, the display goes blank
when your screen is idle after a period of time. The amount of
idle time allowed can be adjusted in the
Backlight
sub menu.
1. In Standby mode, press the left soft key ( )
Menu
,
then press , , . The following options appear in
the display:
•
5 seconds
(default setting)
•
10 seconds
•
15 seconds
•
Folder open
Note:
With
Folder open
selected, the LCD remains on as long as the
phone is open. This can drain your battery significantly.
Getting started
30
2. Use the Navigation keys to highlight an option.
3. Press
to select the highlighted option.
Step ringer
Step ringer can prevent injury to your hearing. When your
phone rings, it first begins to ring at the lowest volume level
(level 1), then gradually ascends to the set level.
Silence an incoming ringer
During an incoming call, press the Volume keys to silence the
ringer.
Ignore an incoming call
When you ignore an incoming call, the call is immediately
forwarded to your voice mail.
During an incoming call, press the left soft key ( )
Ignore
. The caller is forwarded to your voice mail.
Menus and sub menus
31
1) Phone book
1) Find
By name
By entry
By group
2) New
3) Group
1) No name
2) Family
3) Friends
4) Colleague
5) Business
4) My name card
5) Send v-card
6) My Phone #
7) Memory info
9) Delete all
2) Recent call
1) Received
2) Dialed
3) Missed
4) Delete call log
1) Received
2) Dialed
3) Missed
4) All calls
5) Call timers
1) Last call timer
2) Total received
3) Total dialed
4) Lifetime
5) Reset timer
3) Message
1) New text msg
2) New pix msg
3) New flix msg
4) Voicemail
5) Inbox
6) Outbox
7) Saved/Draft
8) Web alert
9) Message settings
0) Memory info
4) Get it now
1) Get it now
5) Mobile web
1) Get in web
6) Multimedia
1) Camera
1) Take pix
2) Take flix
3) Camera setting
4) Camcorder setting
5) Memory info
2) Media gallery
1) Photo gallery
2) Video gallery
3) Sounds
4)
Animelody gallery
5) Memory info
6) Delete all
7) Settings
1) Profile
2) Display
1) Language
2) Style
3) Animation
4) Banner
5) Backlight
6) Service LED
7) Auto hyphen
3) Security
1) Lock phone
2) Change lock
3) Emergency
number
4) Voice privacy
5) Restriction
6) Delete memory
7) Reset phone
8) FDN mode
Menus and sub menus
Menus and sub menus
32
7) Settings
(CONT.)
4) Call options
Answer options
Auto retry
Data option
Airplane mode
Roam option
TTY mode
5) Shortcut list
6) Location
7) Phone info
8) Planner
1) Calendar
2) To do list
3) Alarm clock
4) Time/Date
5) Memo pad
6) World time
7) Calculator
9) Voice kit
1) Quick dial
1) Record
2) Review
3) Delete all
2) Voice memo
1) Record
2) Review
3) Delete all
3) Voice settings
1) Voice kit active
2) Vsuite setting
Menu navigation
33
Menu navigation
Access the menus and sub menus in your phone using the
Navigation keys ( ) and soft keys ( ), or use a
shortcut.
Navigate using keys
1. In Standby mode, press the left soft key ( )
Menu
.
2. Use the Navigation keys to browse through the menus in
your phone.
3. Press to enter the menu or sub menu that appears in
the display.
4. Press the right soft key ( )
Back
to return to the
previous menu.
Return to the previous menu
There are two methods for exiting a menu or list.
•Press
Back
to return to the previous menu.
• When
Back
does not appear in the display, press ( ) to
return to the previous menu.
Menu navigation
34
Navigate using a shortcut
You can also access the menus and sub menus in your phone
using menu numbers. Using the menu number in conjunction
with the left soft key ( )
Menu
takes you directly to the
menu or sub menu of your choice. Before you can navigate
using a shortcut, you’ll need to know the menu or sub menu
number of the feature that you wish to access.
Tip:
Use the list of menus and sub menus, which begins on
page 31, to navigate using shortcuts.
1. In Standby mode, press the left soft key ( )
Menu
.
2. Press the number of the menu, sub menu, and so on for
the feature that you wish to access.
Example
: Press the left soft key ( )
Menu
, then press
, . This takes you to the
Planner
(Menu 8),
and then to the
To do list
(sub menu 2).
Navigation key shortcuts
Some applications can be launched by pressing one of the
four Navigation keys (see the illustration) while in Standby
mode. The up key (defaulted to
Voice memo
) can be
customized in the
Settings
menu (
Menu
, ).
Get it now
Mobile web
Voice memo
Message
Voice memo
can be customized. Press the left soft
key
()
Menu
, then press
(,
)
.
Menu navigation
35
In-use menu
Your phone includes both a standby menu and an In-use
menu. The In-use menu applies to when you are in a call.
1. Press the left soft key ( )
Menu
while in a call to
display the options listed in the following table
.
In-use menu Function
Mute/Unmute Mutes (caller cannot hear you) or Unmutes
the current call.
Calls Checks your call log for outgoing, incoming,
and missed calls. You can also erase your
call logs from this menu.
Phone book Accesses Phone book menu options.
Silent/Quit Activates or deactivates Silent mode. In
Silent
mode, your phone’s ringer is silent
and keypad tones are
also muted. This
feature should not be used when you access
automated services that require you to
select options, or enter numbers (such as
your voice mail password).
Send tel # Sends your phone number to the other party
of the call.
My phone # Shows the phone number assigned to your
phone by Verizon Wireless.
Version Shows the software and hardware versions
for your phone.
Voice privacy Sets
Voice privacy
to Enhanced or
Standard mode.
Voice privacy
prevents the
receiving party from seeing your number
when you call.
Menu navigation
36
2. Use the Navigation keys to highlight an option. Press
to select the In-use menu of your choice.
In-Use Menu Function
Location Enables the GPS setting for emergency calls
only, or fully enable GPS (always on).
Send DTMF Sends your phone number as tones (if
you’re the recipient of the call). Sends the
recipient’s phone number as tones (if you’re
the originator of the call).
In-use menu Function
(Continued)
Phone book
37
Phone book
Your Phone book can store up to 500 entries. Each entry can
have up to five associated phone numbers and two e-mail
addresses. Each phone number can be up to 32 digits in
length, including hard pauses, and associated names can be
up to 22 characters in length. The memory location for each
entry can be specified, and you can mark any entry secret to
prevent unauthorized viewing.
Tip:
One-touch, two-touch, and three-touch dialing allows
you to call numbers stored in your Phone book faster.
Open the phone book
1. In Standby mode, press the left soft key ( )
Menu
,
then press for the
Phone book
. The following Phone
book sub menus and options appear in the display
:
Menu Function
Find
Finds a phone number by name, by entry, or
by group.
New
Adds a number or e-mail to your Phone book.
Group
Changes the group settings.
My Phone #
Shows the 10-digit number assigned to your
phone by Verizon Wireless.
Memory info
Displays available memory for the total, used,
and free entries available in the phone’s
memory.
Delete all
Deletes all of the entries in the phone’s
memory.
Phone book
38
2. Use the Navigation keys to highlight the Phone book menu
of your choice, and press .
Tip:
You can also press the number on your alpha-numeric
keypad that corresponds to the Phone book menu
number.
Find
If you’ve stored a name entry in your Phone book,
Find
allows you to find it quickly.
1. In Standby mode, press the left soft key ( )
Menu
,
then press , for
Find
.
2. Use the Left or Right key to select the method by which to
find the entry. The options listed in the following table are
available.
Find by name
1. Enter the name of the person as they are entered in your
Phone book. For example, if you saved the name as Amy
Smith, begin the search pressing .
As you enter letters, the entry number and names of the
closest matches (thus far) appear in the display.
2. When the desired entry appears in the display, highlight
the number using the Up or Down key (if necessary).
Menu Function
By name
Searches the Phone book alphabetically by
name.
By entry
Searches the Phone book by entry number.
By group
Searches the Phone book by selecting from
one of the five available groups.
Phone book
39
3. Press to dial the number associated with the name.
4. Press to view information about the entry.
5. Press the left soft key ( )
Option
to display the
options listed in the following table:
6. Use the Up or Down key to
highlight an option, then press
to enter the highlighted option.
Find by entry
This option allows you to find a stored entry by location
number.
1. In Standby mode, press the left soft key ( )
Menu
,
then press , for
Find
.
2. Use the Up or Down key to highlight
By entry
.
3. Enter the location number.
4. When the desired entry highlights, press to display
information about the entry.
Option Description
Send text msg
Sends a text message to the number.
Send pix msg
Sends a multimedia message to the number.
Edit
Edits details of the highlighted name.
Delete
Deletes the name and associated information.
Add new
Adds a new entry to your Phone book.
Phone book
40
5. Press the left soft key ( )
Option
to display the
options listed in the following table.
6. Use the Up or Down key to highlight an option, then press
to enter the option.
Find by group
This option allows you to find a stored entry in a related
group.
1. In Standby mode, press the left soft key ( )
Menu
,
then press , for
Find
.
2. Use the Left or Right key to highlight
By group
.
3. Use the Navigation keys to display the group that you wish
to search. As each group appears in the display, entries
assigned to the group appear in the display beneath it.
4. Use the Up or Down key to highlight the desired entry.
5. Press to display information about the entry.
Option Description
Send text msg
Sends a text message to the number.
Send pix msg
Sends a multimedia message to the number.
Edit
Edits details of the highlighted name.
Delete
Deletes the name and associated information.
Add new
Adds a new entry to your Phone book.
Phone book
41
Add new information to your phone book
You can add an entirely new entry or add information to an
existing entry.
1. In Standby mode, press the left soft key ( )
Menu
,
then press , for
New
.
2. Enter a name and press the Down key.
3. Select the available memory location number by pressing
the Left or Right key.
4. Select the number type and enter the number.
Press the Down key repeatedly until you find the number
type, if necessary, and enter the number or e-mail
address. You can also select the caller group and alert
sound.
5. When you are finished, press to save the entry.
Edit phone book numbers
Once stored in the Phone book, an entry can be changed quite
easily.
1. In Standby mode, press the left soft key ( )
Menu
,
then press , for
Find
.
2. Use the Left or Right key to display the search method
that you wish to use (
By name, By entry
, or
By group
).
3. Enter information to find the entry, or use the Up or Down
key to highlight the entry containing the number that you
wish to edit.
4. Once the entry is highlighted, press .
Phone book
42
5. Use the Up or Down key to highlight the number within the
entry that you wish to edit, then press the left soft key
()
Option
. A pop-up menu appears in the display.
6. Use the Up or Down key to highlight
Edit
, then press .
•Press
to backspace and delete numbers.
• Press and hold
to clear all numbers in the highlighted
field.
7. When you’re finished editing the number, press . Your
changes are saved and a confirmation message appears in
the display.
Add pauses
When you call automated systems (like banking services),
you are often required to enter a password or account
number. Instead of manually entering the numbers each time,
you can store the numbers in your Phone book along with
special characters called pauses.
•
P pause
: A hard pause stops the calling sequence until
further input from you.
•
T pause
: A two-second pause stops the calling sequence
for two seconds and then automatically sends the
remaining digits.
Note:
You can enter multiple two-second pauses to extend the
length
of a pause. For example, two consecutive two-second pauses
cause a total pause time of four seconds. Keep in mind pauses
count as digits towards the 32-digit maximum.
Phone book
43
Store pauses in a phone book entry
1. In Standby mode, enter the number you wish to store
(such as your bank’s teleservice number).
2. Press the left soft key ( )
Option
. The following pause
menu options appear in the display.
•
P pause
•
T pause
•
Hyphen
Note:
P pause
is a hard pause (awaits input from you) and
T
pause
is a two-second pause.
3. Use the Up or Down key to highlight the pause option of
your choice.
4. Press to enter the highlighted pause into your number
sequence.
5. When you’re finished entering the number and pauses,
press the right soft key ( )
Save
to store the number
in your Phone book.
Pause dial from the phone book
1. If you stored the number using (two-second) T pause(s),
simply recall the number from the Phone book.
2. If you stored the number using (hard) P pause(s), recall
the number from the
Phone book
and wait for the
appropriate prompt from the number you are calling
(credit card number, bank account number, etc.).
3. Press to dial the number.
Phone book
44
Manual pause calling
To manually call a number with pause(s) without storing it to
the Phone book:
1. Enter the number you wish to call.
2. Press the left soft key ( )
Option
to display the pause
option pop-up menu.
3. Use the Up or Down key to highlight the desired pause
option.
4. Press to enter the highlighted pause into your number
sequence.
5. Press to call the number.
Tip:
Store pauses along with the number if you plan to call
the number frequently
.
Phone book
45
Delete individual phone book entries
1. In Standby mode, press the left soft key ( )
Menu
,
then press , for
Find
.
2. Use the Left or Right key to display the search method
that you wish to use (
By name, By entry
, or
By group
).
3. Enter information to find the entry, or use the Navigation
keys to highlight the entry that you wish to erase.
4. Once the entry is highlighted, press the left soft key
()
Option
. A pop-up menu with the following menu
items appears in the display
•
Send text msg
•
Sned pix msg
•
Edit
•
Delete
•
New
5. Use the Up or Down key to highlight
Delete
.
6. Press . The phone prompts you to confirm the erasure.
7. Press the left soft key ( )
Yes
. Otherwise, press the
right soft key ( )
No
.
Phone book
46
Edit an existing e-mail address
1. In Standby mode, press the left soft key ( )
Menu
,
then press , for
Find
.
2. Use the Navigation keys to display the search method that
you wish to use (
By name, By entry
, or
By group
).
3. Enter information to find the entry, or use the Navigation
keys to highlight the entry that you wish to edit.
4. Once the entry is highlighted, press the left soft key
()
Option
. A pop-up menu appears in the display
with
Edit
highlighted.
5. Press .
6. Use the Navigation keys to highlight the
E-mail
field.
7. Use the keypad to edit the e-mail address. To insert the @
symbol, press the left soft key ( )
Option
.
8. Use the Navigation keys to select
Symbol
, then press .
9. Press (@ symbol) and enter the remainder of the e-
mail address using the keypad.
10.Press the left soft key ( )
Option
.
11.Use the Navigation keys to highlight
.com
, then use the
Navigation keys to display the desired domain type
(.com,.edu, .net), then press .
12.Press to save your changes.
Phone book
47
Assign speed dial numbers
For each name entered in the Phone book, the option of
designating a Speed Dial number is available.
1. In Standby mode, press the left soft key ( )
Menu
,
then press , for
Find
.
2. Use the Navigation keys to select the find method (
By
name, By entry
, or
By group
).
3. Enter information to find the entry, or use the Navigation
keys to highlight the desired entry.
4. Press .
5. Use the Navigation keys to highlight
SpeedDial
.
6. With
SpeedDial
highlighted, press the left soft key ( )
Edit
.
7. Enter the SpeedDial number using the keypad.
8. Press to save your changes.
Phone book
48
Store numbers after a call
Once you’ve finished a call, you can store the number of the
caller to your Phone book.
Note:
If the call was incoming and Caller ID information was
unavailable, then the store option is also unavailable.
1. After you press to end your call, the call time, length
of call, phone number, and name of the party (if available)
appears in the display.
2. Press the right soft key ( )
Save
. You’re prompted to
confirm this as a
New entry
, or
Find
a name in your
Phone book with which to associate the number.
3. Follow the instructions in the upcoming sections depending
on whether the number is a new entry or you wish to add
it to an existing entry.
Add a new entry
1. With
New entry
highlighted, press . The following
(number type) icons appear in the display.
2. Use the Navigation keys to choose the number type, then
press .
3. Enter a name for the new entry and press . The new
entry is saved to your Phone book.
Home
Office
Mobile
Pager
Fax
Phone book
49
Add to an existing entry
1. Use the Navigation keys to highlight Find, then press .
2. Use the Navigation keys to display the search method that
you wish to use (
By name, By entry
, or
By group
).
3. Enter information to find the entry, or use the Navigation
keys to highlight the desired entry and press . The
following number types appear in the display.
4. Use the Navigation keys to highlight the number type that
matches the number you are adding, then press .
5. Press again at the
Phone book
menu. The number is
added to the existing entry.
Home
Office
Mobile
Pager
Fax
Phone book
50
Store numbers from call logs
Store numbers from call history logs to your Phone book.
1. In Standby mode, press the left soft key ( )
Menu
,
then press for
Recent
call
.
2. Press the corresponding number on the keypad to view
call logs for the following call types.
for
Received
, for
Dialed
, for
Missed
3. Use the Up or Down key to highlight the number you wish
to store in the Phone book, then press .
4. Press the left soft key ( )
Option
, then use the Up or
Down key to highlight
Save
.
5. Add the number as a
New entry
, or
Add existed entry
in your phone book
.
6. Follow the prompts to store the number to the Phone
book.
Shortcuts to storing phone numbers
You can store a phone number by entering the number, and
pressing the right soft key ( )
Save
. Follow the screen
prompts to designate other information. You can also save a
number after an incoming or outgoing call.
One-touch dialing
Memory locations 001 through 009 are special One-touch
dialing locations. You can call the phone numbers stored in
the Phone book memory from 001 through 009 by pressing
and holding a single key. For example, for location number
001, press and hold until the name and number appear in
the display and the number is dialed.
Phone book
51
Two-touch dialing
Memory locations 010 through 099 are special Two-touch
dialing locations. For example, for location number 013,
briefly press , then hold down until the name and
number appear in the display and the number is dialed.
Three-touch dialing
Memory locations 100 through 500 are special Three-touch
dialing locations. For example, to dial location number 113,
press , , then hold until the name and number
appear in the display and the number is dialed.
Group
Use this option to rename a group in your Phone book.
1. In Standby mode, press the left soft key ( )
Menu
,
then press , for
Group
.
2. Use the Up or Down key to highlight the group that you
want, then press .
3. Press the left soft key ( )
Option
to display the
options listed on the following table:
Note:
When you select
No name
,
New group
and
Send message
options are only available.
Option Description
New group
Makes a new group.
Rename group
Changes the group name.
Delete group
Deletes the group.
Send message
Sends a message to one of the entries in the
group.
Phone book
52
My name card
Please send the data!!!
Send v-card
Please send the data!!!
My phone #
My phone #
displays the ten-digit number assigned to your
phone by Verizon Wireless.
In Standby mode, press the left soft key ( )
Menu
, then
press , for
My phone #
. The phone number assigned
by Verizon Wireless appears in the display.
Memory info
Use the Memory sub menu to view the total, used, and free
entries available in the phone’s memory.
In Standby mode, press the left soft key ( )
Menu
, then
press , . The amount of memory total, used, and free
for Phone book entries appears in the display.
Delete all
You can delete all of the entries in the phone’s memory. In
Standby mode, press the left soft key ( )
Menu
, then
press , .
When a confirmation message appears, press the left soft key
()
Yes
. Otherwise, press the right soft key ( )
No
.
Recent call
53
Recent call
The calls menu retains information about
Received
,
Dialed
,
and
Missed
calls. You can also view times for your last call
and the total of all calls.
Received
Your phone retains information about the last 20 received
calls and stores them in the Received call log. You can review
the Incoming call log for the time and date of the call, as well
as other information.
1. In Standby mode, press the left soft key ( )
Menu
,
then press , . Your list of received calls appears in
the display.
2. Use the Navigation keys to highlight a call, then press
to view further information about the call.
3. Press the left soft key ( )
Option
to display a pop-up
menu containing the options listed in the following table.
4. Use the Up or Down key to highlight an option.
5. Press to perform the highlighted option’s function.
Option Function
Save
Saves the number to your Phone book.
Prepend
Adds a prefix to the number.
Delete
Deletes the selected call from your received
call list.
Send message
Sends a message to the number.
Recent call
54
Dialed
Your phone retains information about the last 20 dialed calls
and stores them in the Dialed call log. You can review the
Outgoing call log for the time and date of the call, as well as
other information.
Tip:
To quickly view your most recent outgoing calls, briefly
press ( ) in Standby mode. Up to 20 of your most
recent dialed calls appear in the display.
1. In Standby mode, press the left soft key ( )
Menu
,
then press , . Your list of dialed calls appears in
the display.
2. Use the Navigation keys to highlight a call, then press
to view further information about the call.
3. Press the left soft key ( )
Option
to display a pop-up
menu containing the options listed in the following table.
4. Use the Up or Down key to highlight an option.
5. Press to perform the highlighted option’s function.
Option Function
Save
Saves the number to your Phone book.
Prepend
Adds a prefix to the number.
Delete
Deletes the selected call from your
received call list.
Send message
Sends a message to the number.
Recent call
55
Missed
Your phone retains information about the last 20 missed calls
(calls that were never picked up) and stores them in the
Missed call log. You can review the Missed call log for the time
and date of the call, as well as other information.
1. In Standby mode, press the left soft key ( )
Menu
,
then press , . Your list of missed calls appears in
the display.
2. Use the Navigation key to highlight a call, then press
to view further information about the call.
3. Press the left soft key ( )
Option
to display a pop-up
menu that contains the following options:
4. Use the Up or Down key to highlight an option.
5. Press to perform the highlighted option’s function.
Option Function
Save
Saves the number to your Phone book.
Prepend
Adds a prefix to the number.
Delete
Deletes the selected call from your received
call list.
Send message
Sends a message to the number.
Recent call
56
Delete call log
You can delete the Received, Dialed, or Missed call log, or you
can delete
All calls
.
Delete all calls
1. In Standby mode, press the left soft key ( )
Menu
,
then press , , .
Delete all calls?
appears in
the display as well as the options
Yes
and
No
.
2. Use the Navigation keys to highlight
Yes
, then press ,
or select
No
to exit without erasing call logs.
Review the call log
1. In Standby mode, press the left soft key ( )
Menu
,
then press for the
Recent call
menu.
2. Press the number associated with the call log that you
wish to review:
• Press for
Received
calls.
• Press for
Dialed
calls.
• Press for
Missed
calls.
• Press for
Delete call log
.
• Press for
Call timer
.
Note:
In cases where there is a Phone book match for a call log entry,
the name associated with the number appears instead of the
number.
Recent call
57
Once your selection is highlighted, you can do the following:
• Press to dial the number.
• Press to review all available call information (name and
phone number [if available] and time/date stamp).
• Press , then press the left soft key ( )
Option
. A
pop up menu with the options listed in the following table
appears in the display.
• Press the number of the option you wish to enter/ activate,
or use the Up or Down key to highlight the option and
press .
• Press if you wish to exit the
Option
menu.
Option Function
Save
Saves the number to your Phone book.
Prepend
Adds a prefix to the number.
Delete
Deletes the selected call from your
received call list.
Send message
Sends a message to the number.
Recent call
58
Call timer
You can view the duration of your last call, total calls, and
calls made during the life of your phone using the Call timer
feature. Call timer is not for billing purposes.
1. In Standby mode, press the left soft key ( )
Menu
,
then press , . The options listed in the following
table appear in the display.
• Press the number of the option you wish enter, or use the
Up or Down key to highlight the option and press .
• Press if you wish to exit the
Option
menu.
Note:
Although
Total received
or
Total dialed
call timers can be
erased,
LifeTime
call timers can never be erased.
Option Function
Last call timer
Shows the duration of your last call.
Total received
Shows the duration of the received calls
made on your phone since the last
erasure.
Total dialed
Shows the duration of the dialed calls
made on your phone since the last
erasure.
LifeTime
Shows the duration of all calls on your
phone since activation (LifeTime timers
cannot be erased).
Reset timer
Deletes the counters for the Total call
timer.
Recent call
59
Call waiting
If you’re on a call, your phone beeps when another call is
incoming. Contact Verizon Wireless for availability of this
feature.
1. Press to connect and ask the calling party to remain
on the line.
2. Press and the second caller is placed on hold and
you’re returned to the original caller. Press to
alternate between calls.
Caller ID
Caller ID allows you to see who is calling you by displaying
the caller’s number when the phone rings. If the caller’s name
and number are stored in your Phone book, the name also
appears in the display.
Call block
You can block your number from being displayed on another
phone by enabling the call block feature.
1. In Standby mode, press , , .
2. Enter the phone number and press .
Recent call
60
Three-way calling
Call two other numbers and connect them to your call using
three-way calling.
1. In Standby mode, dial the number for the first party in
your call and press .
2. When connected, ask the other party to remain on the
line. Press to place them on hold.
3. Dial the second party’s phone number and press .
4. When the second party answers, press to connect all
three parties.
Message
61
Message
Your phone is able to send and receive text messages to
compatible phones and other devices. If a text message
exceeds 160 characters, it is broken up and delivered in
separate messages, which incur additional cost. Before you
learn to send text messages, it’s best to cover the basics of
composing a message using the various text entry modes of
T9 word
,
Abc
,
Symbol
, and
123.
Note:
Available memory is shared between all messages. You can
store up to 100 incoming and 100 outgoing messages. The
exact number that you can store is dependent upon message
length.
Text entry modes
You can compose text messages made up of alphabetical
characters, symbols, and numbers. Each method of character
entry (symbol, number, etc.) is called a text entry mode.
There are four such entry modes as indicated in the following
table:
Text Entry Mode Function
ABC
Alphabetical text entry mode. Options are:
ABC - All uppercase
Abc - Initial caps
abc - All lower case
Symbol
Symbol entry mode. Enter symbols into your
message by pressing the corresponding
number that appears above it in the display.
123
Number entry mode. Enter numbers by
pressing the corresponding key on the keypad.
T9 word
Predictive text mode. Press each key only once
to enter the letter of the word that you’re
spelling.
Message
62
Your current mode of text entry (
T9 word
,
ABC
,
Symbol
, or
123
) is indicated in the lower part of the display when
composing a text message.
Change text entry modes
1. While composing a text message, press the left soft key
()
Option
to display a pop-up menu containing the
following options:
•
ABC
•
Canned msg
•
Text format
•
Add media
•
Add number
•
Send options
•
Save in draft
•
Save text
•
Edit send to
2.
ABC
is highlighted. Use the navigation left/right keys to
choose from one of the other three text entry modes of
Symbol
,
123
, or
T9 word
. Each of the text entry modes
are explained in greater detail in the following sections.
Message
63
ABC mode
• Enter characters while in ABC mode by pressing the key
with the desired characters (such as for “h”).
• Press the key repeatedly until the desired character
appears in the display.
• Pause briefly and the displayed character is accepted and
inserted into your message.
• Press
to enter a space.
T9
®
word text entry
T9 word recognizes commonly used words for the numeric
sequence of keypresses and inserts the word into your
message. It’s much faster than the traditional method of text
entry (Abc) and requires only one key press per letter of the
word that you’re spelling.
1. In Standby mode, press the left soft key ( )
Menu
,
then press , to compose a new text message.
2. Enter the phone number of the recipient, then press .
3. Press the left soft key ( )
Option
to display a pop-up
menu containing the following options:
•
ABC
•
Canned msg
•
Text format
•
Add media
•
Add number
•
Send options
•
Save in draft
•
Save text
•
Edit send to
Message
64
4.
ABC
is highlighted. Use the Left or Right key to display
T9
word
, then press .
• Now, for practice, enter the word “Samsung” into your
message by pressing each of the following keys only once:
, , , , , ,
S
A
M
S
U
N
G
T9 word recognizes that the most commonly used word for
the numeric sequence you just entered is “Samsung.” If more
than one word shares the same numeric sequence, T9 word
provides the most commonly used word. Press
to display
other words, if any are available.
123 mode
Enter numbers into a text message while in Number mode
(
123
). See “Change text entry modes” on page 62 for
instructions on changing text entry modes.
While in 123 mode, press the key containing the
corresponding number that you wish to insert into your
message.
Message
65
Symbol mode
Symbol mode enables you to enter symbols such as @ or %
into a text message.
1. In Standby mode, press the left soft key ( )
Menu
,
then press , to compose a new text message.
2. Enter the phone number of the recipient, then press .
3. Press the left soft key ( )
Option
to display a pop-up
menu containing the following options:
•
ABC
•
Canned msg
•
Text format
•
Add media
•
Add number
•
Send options
•
Save in draft
•
Save text
•
Edit send to
4.
ABC
is highlighted. Use the Left or Right key to display
Symbol
, then press . The first of four screens of
symbols appear in the display.
5. Use the Navigation keys to page through the other
symbols, if necessary.
6. Enter the key that corresponds with the symbol that you
wish to enter. For example, press for an exclamation
point (!).
7. Repeat steps 3 through 6 to insert as many symbols into
your message as desired.
Message
66
New text msg
Send SMS text messages
1. In Standby mode, press the left soft key ( )
Menu
,
then press , .
2. Enter the phone number of the recipient, then press .
3. Enter the text for your message using the keypad.
4. At any point while composing a message, press the left
soft key ( )
Option
to display the options listed in the
following table.
Option Function
ABC
The entry mode for your message. Other
modes, which are hidden, are Symbol, 123,
and T9 word. Use the Left or Right key to
display each of the text entry modes.
Canned msg
Inserts a pre-composed message into the
body of your current message.
Text format
Chooses the size, alignment, bold, italic, and
other options for formatting your text.
Add media
Adds a picture, animation, or melody to your
message.
Add number
Adds a number stored in phone book.
Message
67
5. Once you’re finished entering your message, press .
6. To send your message, press the left soft key ( )
Send
.
Option Function
Send options
Chooses the Priority, Validity, Privacy,
whether you wish to have a Delivery
Acknowledgement, Insert a Signature or Call
Back #, and whether you wish to Defer
Delivery of the message. See “Message send
options” in the following section for more
information on these settings.
Save in draft
Saves the message to your Draft folder.
Save text
Saves the text in your message as a
canned message. Canned messages are
pre-composed messages that can be
inserted into
any message you choose.
Edit send to
Edits the recipient’s Send To number.
Message
68
Message send options
You can set priority, validity, privacy, and other options before
you send a message.
1. Press the left soft key ( )
Option
and select
Send
options
.
The following options are available:
Menu item Send options Function
Call
back #
Yes
No
Edit
Inserts a number into your
message
for the recipient to
call
you back.
Def.
delivery
Immediate
Set time
Chooses when you wish your
message to be sent.
Priority Normal
Urgent
Assigns a priority to
your message.
Validity
None
30 min
1 hour
2 hours
12 hours
1 day
2 days
3 days
Selects the period of time that
you wish the message to be
available to the recipient. After
the set period of time, your
message
is recalled.
Privacy
Not restricted
Restricted
Confidential
Chooses the desired level of
privacy for your message.
Insert
signature
Off
On
Inserts your pre-composed
signature
into the message.
Delivery
ack
Off
On
Requests confirmation for
when your message is
received.
Message
69
2. Use the Down key to display the various
Send options
for
each menu item.
3. When the desired send option is highlighted, press to
confirm the selection or to enter the send option’s sub
menu.
Receive text messages
When your phone receives a message in Standby mode, a
ringer sounds (unless turned off), and
New message
appears in the display along with the closed envelope icon
(). The date and time of the message also appear in the
display.
• Press the left soft key ( )
Ignore
to return your phone
to Standby mode. The message is saved to your inbox
where you can view it later.
• Press the right soft key ( )
View
to open the message,
and then press the right soft key ( )
Reply
to open the
message composer and respond to the message.
OR (NEXT PAGE)
• Press the left soft key ( )
Option
, where you have the
option to
Forward
,
Delete
,
Save text
,
Save msg
,
Save
addr
, or
Block addr
.
Receive messages while in a call
When your phone receives a message while in a call, the
ringer sounds, (unless turned off), and
New message
appears in the display along with the closed envelope icon
(). You can view the message without disconnecting your
call.
1. Press the left soft key ( )
Ignore
to ignore the
message. The message is saved to your inbox where you
can view it later.
Message
70
2. Press the right soft key ( )
View
to open the
message, your call remains connected.
Receive messages in lock mode
Your phone still receives messages while in Lock mode. The
time and date of the message appear in the display, but you
cannot access the message until you enter the lock code.
New pix msg
Data required!!!
New flix msg
Data required!!!
Voicemail
Messages in your Voice Mailbox are logged in the Voicemail
folder of the
Message
menu. Open the Voicemail folder to
view the
Callback #
(if available),
Urgency
, and other
details of the voice mail message.
1. In Standby mode, press the left soft key ( )
Menu
,
then press , .
2. Use the Up or Down key to highlight
Voicemail
, then
press . Details of your most recent voice mail message
appear in the display.
3. Press the left soft key ( )
SEND:Listen
to call your
voice mailbox and listen to the message.
Note:
You can also press and hold to dial your voice mailbox.
Message
71
Inbox
Received messages are stored in the Inbox folder.
1. In Standby mode, press the left soft key ( )
Menu
,
then press , to open the Inbox folder.
Tip:
Press the right soft key ( )
View
while in a call to
view a new message.
2. Use the Navigation keys to highlight the message that you
wish to view.
3. Press to view contents of the highlighted message.
4. While viewing your message press the left soft key ( )
Option
to display the options listed in the following table.
5. Use the Navigation keys to highlight an option. Press
to perform the function for the highlighted option.
Option Function
Forward
Forwards the message to another
recipient.
Delete
Saves only the text in the message.
Save text
Saves only the text in the message.
Save msg
Saves the message to the Saved message
folder.
Save addr
Saves the number of the sender to your
Phone book as a new entry or add to an
existing entry.
Block addr
Blocks future messages from the phone
number of the sender.
Message
72
Outbox
Your phone stores messages in the
Outbox
, regardless of
whether the message was successfully transmitted. You can
also verify if a message or e-mail was successfully
transmitted, and at what date and time by enabling the
Delivery ack
feature. See “Message send options” on
page 68 for more information on delivery acknowledgements.
Review messages in the outbox
1. In Standby mode, press the left soft key ( )
Menu
,
then press , for
Outbox
. Any sent messages
appear in the display.
2. Use the Navigation keys to highlight the message that you
wish to review, then press
.
3. Press the left soft key ( )
Option
to display the
options listed in the following table.
4. Use the Up or Down key to highlight the desired option.
5. Press to perform the function for the highlighted
option.
Option Function
Re-send
Resends the message.
Save msg
Saves the message to the Saved msg
folder.
Delete
Deletes the message.
Message
73
Saved/Draft
The saved folder
Saved messages are sent to the Saved folder.
1. In Standby mode, press the left soft key ( )
Menu
,
then press , , . Any saved messages appear in
the display.
2. Use the Navigation keys to highlight the message you wish
to view, then press .
3. Press the left soft key ( )
Option
to display the
message options
Edit
and
Delete
.
4. Use the Up or Down key to highlight the desired option.
Press to perform the highlighted option.
The draft folder
Draft messages are those that have been composed but never
sent. You can return to the Draft folder at any time to view,
edit, or send a draft message.
Create a draft text message
1. In Standby mode, press the left soft key ( )
Menu
,
then press , , for
New text msg
.
2. Enter the phone number of the recipient, then press .
3. Compose your message using the keypad, then press .
4. Use the Navigation keys to highlight
Save in draft
, then
press . A confirmation message appears in the display
and your message is saved to the Draft box.
Message
74
View and edit draft messages
1. In Standby mode, press the left soft key ( )
Menu
,
then press , , . Any draft messages that you’ve
composed appear as a list in the display.
2. Use the Navigation keys to highlight the message that you
wish to view and press .
3. Press the left soft key ( )
Option
. A pop-up menu
appears in the display with
Edit
highlighted.
4. Press . The options listed in the following table appear
in the display.
5. Use the Up or Down key to highlight an option. Press
to perform the function for the highlighted option.
Option Function
Edit send to
Edits the phone number of the
recipient.
Edit text
Edits the draft message text. You also
have options to format the text, add
media or a canned message.
Send options
Selects the priority, validity, privacy,
delivery acknowledgement,
signature, callb
ack #, deferred
delivery options.
Save in draft
Continues to save the message to the
Draft folder.
Save text
Saves only the text in the message, if
media or other content is contained
within the message.
Message
75
Edit text options
1. While editing the text of a draft message, press the left
soft key ( )
Option
.The options listed in the following
table appear in the display.
2. Use the Up or Down key to highlight an option. Press
to perform the function for the highlighted option.
Option Function
ABC, Symbol,
123, T9 word
Use the left and right keys on the
Navigation keys to display and select
one of four options for entering
numbers, symbols, and text.
Text format
Selects the size, alignment, weight, and
angle, and other format options.
Add media
Inserts a picture, animation, or melody
into your draft message.
Canned msg
Inserts a pre-composed message into
your draft message.
Message
76
Web alert
Occasionally, Verizon Wireless may send notifications to your
phone in the form of
Web alert
. Web alert may contain
information on new services or updates. When you receive an
alert, you’ll also receive a text notification and hear a tone.
In Standby mode, press the left soft key ( )
Menu
, then
press , . Any received Web alert appears in the
display.
Note:
Contact Verizon Wireless for availability.
Message settings
The Message settings folder allows you to define numerous
message settings such as ringer types and save options.
1. In Standby mode, press the left soft key )
Menu
,
then press , . The
Message settings
sub menus
in the following table appear in the display.
Sub Menu Function
Text msg
settings
Allows you to use the options, such as
Quick text, Options in outbox, Insert
signature, Auto play, and Direct view.
Pix/Flix msg
settings
Allows you to use the options, such as
Quick text, Save in outbox, Delivery ack,
and Retrieval mode.
Msg. alert
Sets ringer types and Reminders for
when you
receive messages.
Entry mode
Selects the text input mode between
Alphabet
and
T9 word
.
Callback #
Sets a callback number.
Message
77
2. Use the Navigation keys to highlight the desired sub
menu. Press to enter the sub menu and adjust
settings.
Memory info
This menu shows how many messages are currently stored in
the phone’s memory.
In Standby mode, press the left soft key ( )
Menu
, then
press , .
Auto delete
Deletes messages automatically after
they are read.
Delete all
Deletes all of the entries stored in each
message folder. You can also delete all
of your messages at one time by
selecting
All messages
.
Voice mail #
Edits your voice mail number.
Get it now
78
Get it now
With
Get it now
, you can download full featured applications
over the air including games, personalized ring tones,
pictures, and more. Send and receive instant messages and
email, or browse the web to catch up on all the latest news.
1. In Standby mode, press the Right key.
2. When
Get it now
highlights, press .
The Shopping cart icon ( ) appears in the display.
3. Press (
Start
). After a brief pause, the Get it now
options listed in the following table appear in the display.
Option Function
What’s new
Provides updates on the latest games,
information services, etc.
Get games
Selects from a broad category of games
that you
can play on your phone.
Get tones
Downloads your favorite ring tones.
Get going
Downloads applications that keep you in
touch with
the world, keep you organized,
and help you find
the coolest spots.
Get pix
Shows, shares your own pictures and
even saves
them as your phone's
wallpaper or screensaver.
Get fun
Block messages from a web address or
phone number.
Get messaging
Checks e-mail on some of the most
popular clients
on the Internet.
Search
Enters a keyword and search the Get It
Now catalogue.
Get it now
79
4. Use the Navigation keys to highlight the category of
your
choice, then press .
5. Select the application you wish to download and follow the
online directions.
Settings
Use the Settings sub menu within Get it now to manage,
move, order applications and much more.
1. In Standby mode, press the Right key.
2. When
Get it now
highlights, press .
3. Press the Right key once to highlight ( )
Settings
, then
press . The options listed in the following table appear
in the display.
4. Use the Up or Down key to highlight an option.
5. Press to enter the option’s sub menu and view or
change settings.
Option Function
Order apps
Adjusts the order of apps up and down
within a
specific folder.
Move apps
Moves previously downloaded
applications
between available folders.
Manage apps
Shows used and available memory.
Main menu view
Selects whether you wish to view the
main Get it
now menu in a list or icon
format.
View log
Shows the Get it now log, which displays
information about recent activity using
Get it now.
Get it now
80
Help
The Help sub menu within Get it now is a short tutorial on
several Get it now features. View information about charges,
cancelling subscriptions, buying apps, removing apps, and
more.
1. Within in the
Get it now
menu, press the Right key until
the question mark ( ) icon highlights.
2. Press . The Help subjects listed in the following
sections appear in the display.
Buying new apps
To buy new and exciting apps, visit the Get it now shop. It
provides you with a variety of apps you can choose from.
What do I pay?
When you buy an app, you will be changed for the purchase
cost of the app and the network connections to download it.
Charges will also apply when you use apps that require
network connections, such as downloading information and
sending text messages.
Charges
Charges will apply for network connections. A network
connection is used when you are browsing the Get it now
shop, downloading and restarting apps, or canceling
subscription apps. Charges will also apply when you use apps
that require network connections, such as downloading
information and sending text messages.
Get it now
81
Canceling subscription
1. To cancel a subscription to an app, choose
Settings
, then
Manage apps
.
2. Select the app subscription you want to cancel.
Demo apps
A Demo app is free and is designed to demonstrate the app’s
main features. It usually expires after a certain period of time
or a number of uses and often has limited functions. When
you run a demo app, you will be presented with a purchase
option so you won’t have to look for the app in the Get it now
shop.
Removing apps
You may remove apps that are no longer needed. When you
remove an app, you cannot use the application unless you
purchase it again.
1. To remove an app, choose
Settings
, then
Manage apps
.
2. Select the app you want to remove.
Disabled apps
You can install new apps even if the memory of your phone is
full by partially removing (disabling) apps you haven’t used
recently. When you need to use a disabled app, you can
restore it at no additional purchase cost.
Get it now
82
Restoring apps
Disabled apps can be quickly restored at no additional
purchase cost. To restore an app, run the application you
want to restore from the Main menu. You will be guided
through the restoration process.
Expired apps
Apps that were purchased based on the number of uses or
time expire. You can purchase additional uses from the Get it
now shop.
Mobile web
83
Mobile web
With
Get in web
in
Mobile web
, you can conveniently surf
the web using your phone.
Each time you launch
Get in web
,
your phone connects to the
Internet and the Service indicator icon ( ) appears in the
display.
Stored web content
Get in web
ends an Internet connection after a certain period
of inactivity, however some information from your session
remains stored in the phone (if you leave your phone turned
on). You can access this information without reconnecting to
the Internet. However, if you are viewing stored information,
and you select a link to a site that was not accessed in your
last session, you automatically re-connect to the Internet.
Launch mobile web
Note:
The first time you use
Get in web
in
Mobile web
,
you are
prompted to go through a setup process that takes
approximately three to five minutes.
1. In Standby mode, press the Left key. If this is the initial
launch of
Get in web
, you’re prompted to enable security
before proceeding.
2. Press the left soft key ( )
Yes
to proceed.
3.
VZW with MSN
and a list of categories (each
representing one or more web sites) appears in the
display.
4. Use the Navigation keys to browse the categories.
5. Once the desired category is highlighted, press the left
soft key ( )
Go
to enter the category list.
Mobile web
84
Exit mobile web
Press to exit
Mobile web
.
Navigate the web
When you use
Get in web
, some of the keys operate
differently than during a normal phone call.
Get in web
presents on-screen items in any of the following ways:
• Text or numeric input.
• Links (embedded in content).
• Numbered options (some may not be numbered).
• Simple text.
You can act upon options or links by using the soft keys.
Mobile web soft keys
At the bottom of the Get in web display is a bar that contains
browser commands. The left ( ) and right ( ) soft
keys on the keypad are used to execute the command that
appears above them in the display. These are called “soft
keys” because their function changes depending on the
application.
Mobile web
85
How mobile web keys work
The following table lists
Mobile web
keys and their functions.
Key Name Function
Navigation keys Browses lists and options.
CLR key A browser back-up key.
Press once to back up one
page. Press to clear the
last number, letter, or
symbol entered. Press and
hold to completely clear
the display.
Asterisk/Shift key Press and hold before
entering text to
enable
upper case characters (in
ABC
mode)
.
0/Next key Press to enter a zero (0),
or to display
another word
i
n the dictionary when in
T9 word entry mode.
Pound/Space key Press to insert a space
when entering text.
Numbers 1 through 9 Use the number keys to
select items in a menu if
they are numbered.
END key Press to exit the Mobile
web and return the phone
to Standby mode.
Mobile web
86
Using links
Links have several purposes, such as jumping to a different
page, to a different site, or even initiating a phone call. Links
are shown inside of brackets ([ ]). You can normally use the
left soft key ( ) to select a link when it is highlighted.
Place a call while using mobile web
You may initiate a phone call from Mobile web if the site you
are using supports this feature (the phone number may be
highlighted). Press the appropriate soft key to call the
number. In most cases you can also press to call the
number. The Internet connection terminates when you initiate
the call. After you end the call, your phone returns to Mobile
web.
Left soft key Press to activate the
command that appears
above it in the display.
Right soft key Press to activate the
command that appears
above it in the display.
SEND key Press to dial a highlighted
number.
Multimedia
87
Multimedia
Using the camera module embedded in your phone, you can
take photos of people or events while on the move. You can
also send them to other people in a multimedia message or
set one as a wallpaper.
You can also record videos using the phone as a camcorder.
Note:
You can quickly access the
Camera
menu by pressing the
Camera key ( ) in Standby mode.
CAUTION:
• Do not take photos of people without their permission.
• Do not take photos in a place where cameras are not allowed.
• Do not take photos in a place where you may interfere with another
person’s privacy.
Camera
Take pix
The camera produces JPEG photos. You can take a photo with
the phone open or reversed.
Note:
When you take a photo in direct sunlight or in bright conditions,
shadows may appear on the photo.
Taking a photo with the phone open
1. In Standby mode, press and hold the Camera key on the
right side of the phone.
The image to be captured appears on the display.
Multimedia
88
2. Adjust the image by aiming the camera at the subject.
• Press the lower Volume key to adjust the brightness of
the image.
• Press the upper Volume key to zoom to rotate 90 degree
clockwise.
You can also use the following options on the bottom of
the display:
To move to other options, press the Left or Right key. To
scroll through other settings in the selected option, press
the Up or Down key.
3. Press the Camera key or to take the photo.
4. Press the left soft key ( )
Save
.
To discard the photo and return to Capture mode, press
the right soft key ( )
Cancel
.
Option Function
Adjusts the image quality.
Zooms in or out.
Flips the image vertically or horizontally.
Allows you to use a decorated frame.
Adjusts the brightness of the image.
Allows you to change the color or apply
special effects to the photo.
Multimedia
89
When you press the left soft key ( )
Option
after saving
a photo, the following options are available:
Send
: allows you to send the photo to other people using a
multimedia message. For further details, see page 70. You
can also move it to the multimedia card or phone’s memory.
Set as
: allows you to set the image as your wallpaper for the
idle screen or a caller ID image for Phone book entries.
Rename
: allows you to change the name of the photo.
Delete
: deletes the photo.
Protection
: allows you to protect the photo from being
deleted.
Go to my album
: switches to the
Photo gallery
menu.
Properties
: shows the properties of the photo, such as the
file name, file size, time and date when it was saved,
resolution, quality, and protection status.
5.
To Press the
use the photo options left soft key
()
Option
. For
further details, see below.
return to Capture mode right soft key
()
Cancel
or
( )
key.
return to Standby mode key.
Multimedia
90
Using the camera with the folder reversed
Your phone’s folder can be reversed. When the folder is
reversed, you can take photos using the Camera key or .
To take a photo with the folder reversed:
1. Rotate the folder as shown.
You can then open the folder to
take a photo of yourself.
2. To turn the camera on, press and hold the Camera key on
the right side of the phone.
The image to be captured appears on the display.
Multimedia
91
3. Adjust the image by aiming the camera at the subject.
• Press the lower Volume key to adjust the brightness of
the image.
• Press the upper Volume key to zoom to rotate 90 degree
clockwise.
You can also use the following options on the bottom of
the display. For further details about the options, see
page 88.
4. Press the Camera key on the right side of the phone.
The phone saves the photo in
Photo gallery
and returns
to Capture mode.
Take flix
You can record a video that is currently displayed on the
camera screen and save it as an MPEG file.
1. When the camera turns on, adjust the image by aiming
the camera at the subject.
• Press the Up or Down key to adjust the brightness of the
image.
• Press the Left or Right key to zoom in or out.
• Press the Volume keys on the left side of the phone to
flip the image vertically or horizontally.
• Press the right soft key ( ) to switch to Capture
mode. See page 87.
• Press the left soft key ( )
Option
to use the camera
options. For details, see the next page.
2. Press the Camera key or to start recording.
Multimedia
92
3. When you are finished, press the Camera key or .
The phone automatically stops when the recording time
expires.
4. Press the left soft key ( )
Save
.
To discard the photo and return to Record mode, press the
right soft key ( )
Cancel
.
When you press the left soft key ( )
Option
after saving
a video, the following options are available:
Send
: allows you to send the video to other people using a
multimedia message. For further details, see page 70. You
can also move it to the multimedia card or phone’s memory.
Rename
: allows you to change the name of the video.
Delete
: deletes the video.
Protection
: allows you to protect the video from being
deleted.
Go to my album
: switches to the
Video gallery
menu.
Properties
: shows the properties of the video, such as the
file name, file size, time and date when it was saved,
resolution, quality, and protection status.
5.
To Press the
use the photo options left soft key
()
Option
.
For further details, see below.
return to Record mode right soft key
( )
Cancel
or key.
return to Standby mode key.
Multimedia
93
Using the number keys in record mode
You can use the number keys to customize your camera
settings when you are in Record mode.
Using the camera options in record mode
When you press the left soft key ( )
Option
in Record
mode, you can use the following options for recording a
video:
Mode
: allows you to select the maximum recording time for
the video. Select MMS to record a video for adding to an MMS
message. You can record a video of up to 95 KBytes.
Effects
: allows you to change the color tone or apply special
effects to the video.
Timer
: allows you to have a delay time before the camera
starts recording the video. Select the length of time you want.
key Function
1switches to Capture mode. See page 87.
2changes the image size.
3changes the image quality
5changes the color tone or applies special
effects to the video.
6removes the white lines or spots on the
display.
7sets the timer.
8records a video with sound.
9switches to the
Video gallery
menu.
Multimedia
94
Settings
: allows you to change the default settings for
recording a video.
Size: allows you to select an image size.
Audio: allows you to record audio with a video.
Go to my album
: switches to the
Video gallery
menu.
Help
: shows you the functions of the keys you can use. To
view the more key descriptions, press the
right soft key
()
Next
.
Camera setting
You can change the default settings for taking a photo.
Image size
: sets the image size to either
MegaPixel
(1152*86)
,
SVGA (800*600)
,
VGA (640*480)
,
QVGA
(320*240)
,
QQVGA (160*520)
, or
ID photo (128*96)
.
Image quality
: allows you to select the image quality from
Low
,
Medium
, and
High
.
Color
: allows you to change the color tone or apply special
effects to the photo.
Shutter sound
: allows you to select a sound when you press
the shutter, the Camera key, or
.
Auto save
: allows you to save the picture in
Photo gallery
automatically when you take a photo.
Camcorder setting
Data required!!!
Multimedia
95
Memory info
You can check the amount of memory being used and the
memory remaining in the camera.
The display shows the total, used, and free space for photos.
Media gallery
In this menu, you can review your photos and videos. You can
also view the images and listen to sounds preset in your
phone or downloaded from the web server.
Photo gallery
This menu allows you to review your photos. When you
access this menu, your phone displays them in Thumbnail
mode, which shows photos as small images.
Scroll through the photos by pressing the Navigation keys and
press the right soft key
() to view the photo on the full
screen. To go back to Thumbnail mode, press the right soft
key
()
View
again.
Press the left soft key ( )
Option
to use the following
options:
View mode
: allows you to change the view mode to
List
or
Thumbnail
.
Send
: allows you to send the photo to other people using a
multimedia message. For further details, see page 70. You
can also copy it to the multimedia card or phone’s memory.
Set as
: allows you to set the image as your wallpaper for the
idle screen or a caller ID image for Phone book entries.
Rename
: allows you to change the name of the photo.
Delete
: deletes the photo.
Multimedia
96
Protection
: allows you to protect the photo from being
deleted.
Sort
: allows you to set in which order the camera displays the
photos.
Properties
: shows the properties of the photo, such as the
file name, file size, time and date when it was saved,
resolution, quality, and protection status.
Go to photos
: switches to Capture mode.
Go to videos
: switches to Record mode.
Video gallery
When you access this menu, the thumbnail images of the
videos display.
To play a video:
1. Scroll to the video you want to view using the Navigation
keys and press the left soft key ( )
Play
.
2. Press the Camera key or key to start playing the video.
3.
To Press the
pause and resume key.
stop right soft key
()
.
search backward through a file Left key.
search forward through a file Right key.
mute sound
left soft key ( )
.
adjust the volume Volume keys.
return to Standby mode key.
Multimedia
97
Press the left soft key (
)
Option
to use the following
options:
View mode
: allows you to change the view mode to
List
or
Thumbnail
.
Send
: allows you to send the video to other people using a
multimedia message. For further details, see page 70. You
can also copy it to the multimedia card or phone’s memory.
Rename
: allows you to change the file name.
Delete
: deletes the current video file.
Protection
: allows you to protect the video from being
deleted.
Sort
: allows you to set in which order the camera displays the
videos.
Properties
: show the properties of the video file, such as the
file name, size, time and date when it was saved, resolution,
quality, and protection status.
Go to photos
: switches to Capture mode.
Go to videos
: switches to Record mode.
Sounds
In this menu, you can listen to the sounds downloaded from
the web server or received in multimedia messages. You can
set the downloaded sounds as the current ring tone or send
them to other people.
Set ring tone
: sets the sound as your ring tone.
Send message
: sends the sound to other people as a
message.
Multimedia
98
Animelody gallery
This menu allows you to view the animations and listen to the
melodies you downloaded.
Memory info
You can check the amount of the tone and free and the being
memories used for photos, images, sounds, animations, and
melodies. To scroll through the display, press the Up or Down
key.
Delete all
This menu allows you to delete all of each gallery items. You
can also delete all of them at one time by selecting
All
gallery
.
Press when the gallery you want to delete highlights.
Settings
99
Settings
Many different features, such as display, modify sounds that
your phone and keypad generate, security options, and more
can be customized to suit your preferences.
Profile
The
Profile
menu provides a variety of options to customize
audio properties for such things as ringers, keypad tones,
alerts, shut down sounds, and more.
Volume/Vibrate
Use the Volume/Vibrate sub menu to set the default volume
for incoming calls and alarms, or set the phone to vibrate.
1. In Standby mode, press the left soft key ( )
Menu
,
then press , , for the
Volume/Vibrate
sub
menu.
2. Use the Volume keys or Up and Down keys o highlight
Calls
or
Alarm
, then press .
3. Use the Left or Right key to select the volume level (or
Vibrate mode) for the selected setting.
4. Press to save the setting.
Settings
100
Ringer type
You can assign ringer types and melody tones for calls and
alarms.
1. In Standby mode, press the left soft key ( )
Menu
,
then press , , for the
Ringer type
sub menu.
2. Use the Up or Down key to highlight a ringer type, then
press . A list of bells and ringers (melodies) appears in
the display.
3. Use the Navigation keys to browse through available ring
tones. Each tone plays through the speaker as it is
highlighted.
4. When the desired ringer type plays, press to save the
setting.
Key beep
Use the
Key beep
menu to adjust the volume level and
length of tone that the keypad generates each time you press
a key.
Volume
1. In Standby mode, press the left soft key ( )
Menu
,
then press , , for
Key beep
.
Volume
is
highlighted.
2. Press .
3. Use the Volume keys or the Left and Right keys to set the
volume level for keypad tones. A tone sounds as you
increase or decrease the volume setting.
4. Press when the desired key beep volume setting is
reached. You’re returned to the
Key beep
sub menu.
Settings
101
Tone length
1. In Standby mode, press the left soft key ( )
Menu
,
then press , , for
Key beep
.
2. Use the Up or Down key to highlight
Tone length
, then
press .
3. Use the Navigation keys to highlight
Normal
or
Long
.
4. Press to save your setting.
Tone type
1. In Standby mode, press the left soft key ( )
Menu
,
then press , , for
Key beep
.
2. Use the Up or Down key to highlight
Tone type
, then
press .
3. Use the Navigation keys to highlight
Normal
,
Piano
, or
Beep
.
4. Press to save your setting.
Alerts
You can set your phone to sound an alert whenever you enter
or leave your service area, connect or disconnect a call, as
well as other options.
1. In Standby mode, press the left soft key ( )
Menu
,
then press , , for
Alerts
. The
Alerts
sub
menus in the following table appear in the display:
Settings
102
2. Use the Up or Down key to highlight a sub menu, then
press .
3. Use the Navigation keys to activate (or not activate) the
selected alerts.
4. Press to confirm your selection.
Power on/off
Set your phone to play a sound whenever you turn it on or off.
1. In Standby mode, press the left soft key ( )
Menu
,
then press , , for
Power on/off
.
2. Use the Navigation keys to highlight
On
or
Off
, then press
.
Sub Menu Function
Minute bee
Sounds an alert ten seconds before each
elapsed minute of a call.
Service
Sounds an alert when you go into and out
of
coverage areas.
Connect
Sounds an alert when you connect a call.
Disconnect
Sounds an alert when you disconnect a
call.
Fade
Sounds an alert when a dropped call occurs
during
a conversation.
Roaming
Sounds an alert when you leave your home
service
area while on a call.
Privacy
Emits a tone whenever you are in
Enhanced Privacy mode.
Settings
103
Roam ringer
Set your phone to sound a unique tone when a call is received
outside your home service area. This feature is set to Off by
default.
1. In Standby mode, press the left soft key ( )
Menu
,
then press , , for
Roam ringer
.
2. Use the Navigation keys to highlight
On
or
Off
, then press
.
Whisper mode
This feature allows you to talk in a low volume during a phone
conversation and still be heard by the other party.
1. In Standby mode, press the left soft key ( )
Menu
,
then press , , for
Whisper
.
2. Use the Navigation keys to highlight
On
or
Off
, then press
.
Folder sound
This menu allows you to select the tone that the phone
sounds when you open or close the folder.
1. In Standby mode, press the left soft key ( )
Menu
,
then press , , for
Folder sound
.
2. Use the Navigation keys to highlight
On
or
Off
, then press
.
Settings
104
Display
Set the menu style, standby mode animation, customize
backlight settings, and more using the Display menu.
1. In Standby mode, press the left soft key ( )
Menu
,
then press , for
Display
. The
Display
sub menus
listed in the following table appear in the display.
2. Use the Up or Down key to highlight a sub menu.
3. Press to enter the highlighted sub menu. The following
sections describe the above listed display sub menus in
greater detail.
Sub Menu Function
Language
Selects the language.
Style
Selects the menu display style.
Animation
Chooses the media that displays on
your phone
when you turn it on, turn
if off, and while in
Standby mode.
Banner
Creates your own personalized greeting
that
appears in the display when your
phone is i
n Standby mode.
Backlight
Sets backlight options for the LCD and
keypad.
Service LED
Turns the service LED on or off.
Auto hyphen
With
Auto hyphen
enabled, your
phone automatically
hyphenates
phone numbers as they
are entered.
Settings
105
Language
You can select a display language either
English
or
Spanish
.
1. In Standby mode, press the left soft key ( )
Menu
,
then press , , for
Language
.
2. Use the Navigation keys to select an option.
Style
This menu allows you to select the menu display style. You
can choose either
Basic
or
Dynamic
.
1. In Standby mode, press the left soft key ( )
Menu
,
then press , , for
Style
.
2. Use the Navigation keys to select an option.
Animation
Animation allows you to choose the multi-media or pictures
that appear in your phone’s display when you turn it on, turn
it off, and while in Standby mode (wallpaper).
1. In Standby mode, press the left soft key ( )
Menu
,
then press , , for
Animation
.
2. The options listed in the following table appear in the
display.
Sub Menu Function
Power
Chooses the animation that appears in your
display when you turn on your phone.
Power off
Chooses the animation that appears in your
display when you turn off your phone.
Wallpaper
Chooses the graphic or animation that
appears
i
n your display when the phone is in
Standby mode.
Settings
106
3. Use the Up or Down key to highlight the sub menu that
you wish to enter, then press .
4. Use the Navigation keys to browse available images and
animations for the selected sub menu.
5. Press to select the image or animation appearing in
the display.
Banner
Create your own personalized greeting that appears in the
display while your phone is in Standby mode.
1. In Standby mode, press the left soft key ( )
Menu
,
then press , , for
Banner
.
Note:
Press and hold to erase an existing banner, if
necessary.
2. Enter a word or short phrase to appear in your phone’s
display while in Standby mode.
3. Press to save the new banner.
Settings
107
Backlight
You can set the backlight for your display or keypad to remain
on for a specified period of time or remain on as long as the
flip is open.
Note:
Prolonged backlight use drains your battery faster.
1. In Standby mode, press the left soft key ( )
Menu
,
then press , , for
Backlight
. The following sub
menus appear in the display.
2. Use the Up or Down key to highlight a sub menu.
3. Press to enter the highlighted option’s sub menu and
change settings as desired.
Option Function
LCD
Sets the amount of time the backlight for
the LCD remains on after a period of
inactivity. Optional settings are 5, 10, and
15 seconds as well as Folder open.
Keypad
Sets the amount of time the backlight for
the keypad remains on after a period of
inactivity. Optional settings are 5, 10, and
15 seconds as well as Folder open.
Power save
Unless the backlight setting for the LCD has
been changed, the backlight dims after a
minute of inactivity, and then turns off. With
Power save enabled, the backlight for the
LCD is always dim. After 15 seconds of
inactivity, Power save turns the backlight
off.
Settings
108
Service LED
The Service LED, located on front of the phone, serves the
following functions.
• Flashes blue to indicate an incoming call or message.
• Lights briefly when you power the phone on and off.
• Flashes blue when the phone is in need of a charge.
Turn the service LED on or off
1. In Standby mode, press the left soft key ( )
Menu
,
then press , , .
On
and
Off
appear in the
display.
2. Use the Navigation keys to highlight your preference, then
press .
Auto hyphen
Auto Hyphen automatically hyphenates phone numbers as
they are entered. For example: 580-437-0000.
1. In Standby mode, press the left soft key ( )
Menu
,
then press , , for
Auto hyphen
.
Yes
and
No
appear in the display.
2. Use the Navigation keys to highlight the desired setting.
3. Press to confirm the setting.
Settings
109
Security
Use the
Security
menu to lock your phone, set up emergency
numbers, enable or disable voice privacy, set restrictions, as
well as other security options.
Lock phone
Locking the phone limits all outgoing calls except calls to 911
emergency and the three user-programmable emergency
numbers. You can lock the phone manually during use, or set
the phone to lock automatically when it is turned on. With the
phone in Lock mode, you can answer incoming calls, but you
must unlock the phone to place outgoing calls (except to
emergency and secret numbers).
1. In Standby mode, press the left soft key ( )
Menu
,
then press , for
Security
. You’re prompted to
enter the lock code. The default lock code is the last four
digits of your telephone number.
2. Press for
Lock phone
. The options listed in the
following table appear in the display.
3. Use the Navigation keys to highlight the option.
4. Press to perform the function for the highlighted
option.
Option Function
Unlocked
The phone remains unlocked.
On power-up
The phone locks automatically the next
time your phone is powered on and stays
locked until you enter the lock code.
Lock now
The phone locks immediately and stays
locked until you enter the lock code.
Settings
110
Change lock
The default lock code for your phone is generally the last four
digits of your phone number. It is advisable to change the
default lock code to a secret code for security purposes.
1. In Standby mode, press the left soft key ( )
Menu
,
then press , for
Security
. You’re prompted to
enter the lock code. The default lock code is the last four
digits of your telephone number.
2. Press for
Change lock
. You’re prompted to enter the
new lock code.
3. Enter the new lock code and press . You’re prompted to
re-enter the new lock code for verification.
4. Enter the new lock code again and press . Your changes
are stored.
Note:
Your phone does not allow you to view the lock code for obvious
security reasons. If you change the lock code, be sure to write
down or memorize the new code.
Emergency #
Your phone provides the option of storing three emergency
numbers. Each number can be up to 32 digits in length. All
emergency numbers can be manually called at any time, even
when your phone is locked or restricted. This can be a useful
feature for controlling outgoing calls from your phone.
Note:
Emergency number 911 is hard-coded into your phone. You can
dial this number any time, even when the phone is locked or
restricted. If you call 911 an audible tone is heard and an
Emergency prompt appears in the display for the duration of the
call.
Settings
111
Important!
• Because of various transmission methods, network
parameters, and user settings necessary to complete a call
from your wireless phone, a connection cannot always be
guaranteed. Therefore, emergency calling may not be
available on all wireless networks at all times.
• DO NOT depend on this phone as a primary method of
calling 911 or for any other essential or emergency
communications.
Remember to always turn your phone on and check for
adequate signal strength before placing a call.
Store emergency numbers
1. In Standby mode, press the left soft key ( )
Menu
,
then press , for
Security
. You’re prompted to
enter the lock code. The default lock code is the last four
digits of your telephone number.
2. Enter the lock code, then press for
Emergency #
.
3. Press , , or to select from the three entry
openings.
4. Enter the emergency number (up to 32 digits in length).
5. Press to save the number that you entered.
Call emergency numbers in lock mode
1. In Standby mode, enter the emergency number via the
keypad.
2. Press to place the call.
Settings
112
Voice privacy
Voice privacy
allows you to prevent those you call from
seeing your number in their display when receiving your call.
Voice privacy options are
Standard
and
Enhanced
.
1. In Standby mode, press the left soft key ( )
Menu
,
then press ,
Security
. You’re prompted to enter
the lock code.
2. Enter the lock code. The default lock code is the last four
digits of your phone number.
3. Press for
Voice privacy
. The options listed in the
following table appear in the display.
4. Use the Navigation keys to highlight the option, then press
.
Restriction
Restriction
allows you to restrict the use of your phone for
outgoing calls, incoming calls, and calls placed from your
Phone book.
1. In Standby mode, press the left soft key ( )
Menu
,
then press ,
Security
. You’re prompted to enter
the lock code.
2. Enter the lock code, then press for
Restriction
.
Option Function
Standard
Voice privacy is disabled.
Enhanced
Voice privacy is enabled.
Settings
113
3. Use the Up or Down key to select
Outgoing call
,
Incoming call
, or calls to anyone in your
Phone book
.
4. Press .
5. Use the Navigation keys to highlight
On
or
Off
, then press
.
Delete memory
Delete memory
erases your Phone book and Quick dial
recordings. This feature is useful if you want to give your
phone to a friend or family member.
1. In Standby mode, press the left soft key ( )
Menu
,
then press ,
Security
. You’re prompted to enter
the lock code.
2. Enter the lock code, then press for
Delete memory
.
3. Select the memory you want to delete by pressing the left
soft key ( )
Mark
. A mark displays on the left of the
memory.
4. Press .
5. When a confirmation message displays, press the left soft
key ( )
Yes
to delete. Otherwise, press the right soft
key ( )
No
.
Settings
114
Reset phone
Reset phone
returns all setup options to their factory
default.
1. In Standby mode, press the left soft key ( )
Menu
,
then press ,
Security
. You’re prompted to enter
the lock code.
2. Enter the lock code, then press for
Reset phone
.
3. Enter the lock code again to restore default settings
(except for the Phone book and Quick dial).
FDN mode
FDN (Fixed Dial Number) mode, if supported by your SIM
card, allows you to restrict your outgoing calls to a limited set
of phone numbers.
1. In Standby mode, press the left soft key ( )
Menu
,
then press ,
Security
. You’re prompted to enter
the lock code.
Enter the lock code, then press for
Reset phone
.The
following options are available:
Disable
: you can call any number.
Enable
: you can only call phone numbers stored in Phone
book. You must enter your PIN2.
Note:
Not all SIM cards have a PIN2. If your SIM card does not, this
menu does not display.
Settings
115
Call options
The
Call options
sub menu contains options for setting your
Answer options, Auto retry, and other call settings.
Answer options
Call answer
You can select a specific answer mode when you receive an
incoming call. Your phone can be preset to answer when you
do any of the following:
•
SEND key
: Press to answer an incoming call.
•
Folder open
: Open the flip to answer an incoming call.
•
Any key
: Press any key except to answer an
incoming call.
1. In Standby mode, press the left soft key ( )
Menu
,
then press , , , for
Call answer
. The
Call
answer
sub menu appears in the display with the
following options:
•
Send key
•
Folder open
•
Any key
2. Use the Navigation keys to highlight the method you wish
to use for answering calls, then press .
Settings
116
Auto answer
Auto answer
enables your phone to automatically answer
calls after a period of time that you specify.
1. In Standby mode, press the left soft key ( )
Menu
,
then press , , , for
Auto answer
. The
Auto answer
sub menu appears in the display with the
following options:
•
Off
•
After 5 sec
•
After 3 sec
•
After 1 sec
2. Use the Navigation keys to highlight the desired setting,
then press .
Auto retry
Auto retry
automatically re-dials a number if the connection
fails. Depending on your location, the number of times your
phone automatically dials the number may vary.
1. In Standby mode, press the left soft key ( )
Menu
,
then press , , for
Auto retry
. The
Auto retry
sub menu appears in the display with the following
options:
•
Off
•
After 10 sec
•
After 30 sec
•
After 60 sec
2. Use the Navigation keys to highlight the desired setting,
then press .
Settings
117
Data option
Use the
Data option
sub menu to configure data connection
speed and auto detect settings.
1. In Standby mode, press the left soft key ( )
Menu
,
then press , , . The sub menus listed in the
following table appear in the display.
2. Use the Navigation keys to highlight the sub menu, then
press .
3. Use the Navigation keys and to highlight and select
from available options.
Airplane mode
Data required!!!
Roam option
Roam is a feature which is only relevant in areas where there
are at least two cellular service providers having valid
roaming agreements. Roaming allows you to register your
phone on one of the other if your own network is not
available.
In Standby mode, press the left soft key ( )
Menu
, then
press , , . The sub menus listed in the following
table appear in the display.
Sub Menu Function
Data off
Data required!!!
Data for next call
Data required!!!
Data until powered
off
Data required!!!
Settings
118
You have the following options which allows you to control the
phone’s roaming ability:
TTY mode
Your phone is fully TTY compatible. TTY equipment is
connected to your phone through the headset connector on
the right side of the phone. TTY must be enabled before you
can use your phone with a TTY device.
1. In Standby mode, press the left soft key ( )
Menu
,
then press , , .
TTY mode
appears in the
display.
2. Enter the lock code. The default is , , , (or
#TTY).
On
and
Off
appear in the display.
3. Use the Navigation keys to highlight your selection and
press . You’re returned to the
Sounds
menu.
Note:
The TTY icon ( ) appears in the top of the display when the
phone is in Standby mode.
Option Function
Home only
With this setting, you cannot roam.
When your home system is not
available, your call is not be
connected and the No service
indicator displays.
Automatic A/B
Your phone automatically searches
for the first available one of all
types of services, according to the
preferred roaming list supplied by
the service provider.
Settings
119
Shortcut list
The Up key can be customized to launch any one of numerous
applications or functions from Standby mode. Use the
Shortcut list
sub menu to choose the application that you
wish the navigation up key to launch.
1. In Standby mode, press the left soft key ( )
Menu
,
then press , for
Shortcut
list
. The following
functions appear in the display:
•
Phone book
•
Recent call
•
Message
•
Multimedia
•
Setting
•
Planner
•
Voice
2. Press .
3. Use the Up or Down key to highlight the desired function,
then press .
You can now press the navigation up key in Standby mode to
launch the function selected in step two.
Settings
120
Location
Location
identifies your location to the network via GPS. You
can fully enable this setting or set GPS to work only in the
event that you dial 911.
Note:
Contact Verizon Wireless to determine if, when, or where
location-based services are available.
1. In Standby mode, press the left soft key ( )
Menu
,
then press , for
Location
. The Location settings
listed in the following table appear in the display.
2. Use the Navigation keys to highlight an option.
3. Press to select the desired
Location
setting. You’re
returned to the
Settings
menu.
Phone info
You can view both the software version and hardware version
running on your phone. This feature is helpful if you need to
contact Customer Service.
1. In Standby mode, press the left soft key ( )
Menu
,
then press , for
Phone info
. Hardware and
software information for your phone appears in the
display.
2. Press the right soft key ( )
Back
to return to the
Settings
menu.
Location setting Function
Location on
GPS location setting is on wherever
the feature is available.
911 only
GPS location setting is on whenever
you dial 911 only.
Planner
121
Planner
Your phone has a suite of PDA applications such as a
Calendar, To do list, and Memo pad. You can schedule events,
set reminders, create a to do list, perform calculations, and
more with the digital assistant functionality included in this
useful feature.
Open the planner
1. In Standby mode, press the left soft key ( )
Menu
,
then press . The
Planner
menu opens with the
following sub menus.
•
Calendar
•
To do list
•
Alarm clock
•
Time/Date
•
Memo pad
•
World time
•
Calculator
2. Use the Up or Down key to highlight an application. Press
to enter the application’s sub menu. The following
sections provide a detailed description of the applications
and their functions.
Planner
122
Calendar
Scheduler allows you to view the current, past, or future
month in a monthly calendar layout. While viewing the
calendar, the current date is highlighted and days with
scheduled events are surrounded by a box.
You can use the following options by pressing the left soft key
()
Option
:
Add a new event
1. In Standby mode, press the left soft key ( )
Menu
,
then press , for
Calendar
.
2. Select a date on the calendar, using the Navigation keys
and press .
Note:
To skip to the previous or next month, press the Volume
keys on the left side of the phone.
Option Function
New event
Allows you to make a new event for the
date.
Week view
Allows you to view the calendar entries for
the selected week in seven day boxes.
Go to date
Allows you to go to a certain date.
Go to today
Allows you to go to a current date.
Del past event
Allows you to delete the past events.
Delete all event
Allows you to delete all of the entries.
Planner
123
3. Use the Up or Down key to move between fields.
Press the Left or Right key to scroll through the options.
4. In the last field, enter your memo and then press .
The display shows the details of the event.
5. Press the left soft key ( )
Option
to use the following
options:
Field Function
Subject
Selects a subject for an event.
Start date, Start time, End date, and End time
Occurs
Selects the occurence.
Alarm
Activates an alarm to ring at a
specified time to remind you of the
event.
Reminder
Sets when the alert sound will happen.
Type
Selects the type how you are to be
informed of the event and a ringer.
Option Function
Edit
Allows you to edit the event.
New event
Allows you to add a new event for the
date.
Move to
Allows you to change the date of the
event.
Del this event
Allows you to delete the event.
Del day event
Allows you to delete all of the events
for the date.
Planner
124
View an event
1. In Standby mode, press the left soft key ( )
Menu
,
then press , for
Calendar
.
2. A calendar appears in the display with the current date
highlighted. The month and year also appear.
3. Use the Navigation keys to move around within the
calendar.
4. Press to open a date that is highlighted.
• Press the left soft key to display the options above.
• Press the Up or Down key to scroll events for the date, if
necessary.
• Press the Left or Right key to view the previous or next
events.
To do list
To do list
allows you to create a task list. You can store,
prioritize and manage up to twenty To do list tasks.
1. In Standby mode, press the left soft key ( )
Menu
,
then press , for
To do list
. The No to do list
screen appears in the display.
2. Press the left soft key ( )
New
and enter details of the
task using the keypad.
Press the left soft key ( )
Option
to change the text
entry mode, if necessary.
3. When you’re finished entering details for the task, press
the Down key.
Planner
125
4. Enter the end date and press the Down key.
5. Select the status of the task by pressing the Left or Right
key and press the Down key.
6. Select the priority by pressing the Left or Right key.
7. Press to store the task.
Add, edit, and delete to-do list tasks
1. In Standby mode, press the left soft key ( )
Menu
,
then press , for
To do list
.
2. Use the Navigation keys to browse tasks in your
To do
list
. Events are presented in order of priority.
3. Press the left soft key ( )
Option
while viewing your
To do list
. A pop-up menu with the options listed in the
following table appears in the display.
4. Use the Up or Down key to highlight an option.
5. Press
to perform the function for the highlighted
option.
Option Function
New to do
Adds a new task to the To do list.
Edit
Edits the task currently appearing in
the display.
Delete
Deletes the task currently appearing in
the display.
Mark&delete
Deletes all of the tasks you marked.
Planner
126
Alarm clock
Your phone has an alarm clock that can be set to go off once,
or daily at a specified time. Once set, the alarm clock is easy
to change or turn off completely.
Note:
The alarm doesn’t function when the phone is turned off. If the
time for an alarm that was set for Once has elapsed and the
phone is off, the alarm occurs at the same time on the following
day.
1. In Standby mode, press the left soft key ( )
Menu
,
then press
, for
Alarm clock
.
2. Select an alarm and press .
You can also press the left soft key ( )
Option
and
select
Set alarm
.
When you set
Auto power
to
On
in this step, the alarm
rings at the specified time, even if the phone is switched
off. If the phone is set to
Off
, and the phone is switched
off at the specified time, the alarm does not ring.
3. Enter the title of the alarm and press the Down key.
4. Enter the time for the alarm using the keypad and press
the Down key.
Press the Left or Right key to scroll through
AM
,
PM
, and
24H
.
5. Press when you’re finished entering the time for the
alarm. The alarm is set and the alarm icon ( ) appears in
the top of the display.
Planner
127
When an alarm sounds
An animated alarm clock appears in the display and an alert
sounds when the specified time for the alarm arrives.
• Press to silence the alarm.
• If the alarm was set as a Daily alarm, the alarm icon
remains in the top of the display.
• If the alarm was set as a Once alarm, the alarm icon
disappears from the top of the display.
Deactivate the alarm
1. In Standby mode, press the left soft key ( )
Menu
,
then press
, for
Alarm clock
.
2. Select an alarm you want to deactivate and press the left
soft key ( )
Option
.
3. Select
Reset alarm
. To deactivate all alarms, select
Reset all
.
Time/Date
This menu allows you to change the current time and date
displayed.
1. In Standby mode, press the left soft key ( )
Menu
,
then press
, for
Time/Date
.
2. In the Time field, enter the time using the keypad and
press the Down key.
Press the Left or Right key to scroll through
AM
,
PM
, and
24H
.
3. Press the Down key and enter the date.
4. When you’re finished entering time and date, press .
Planner
128
Memo pad
You can create a notes and store them in
Memo pad
. You
can’t prioritize or set an alert for stored notes. Return to
Memo pad
anytime you wish to review and edit your notes.
1. In Standby mode, press the left soft key ( )
Menu
,
then press
, for
Memo pad
.
2. If you have any stored memos, they appear as a list in the
display. If this is your first time in
Memo pad
, press the
left soft key ( )
New
.
3. Enter a memo using the keypad.
4. Press the left soft key ( )
Option
to display a pop-up
menu containing the following text entry mode options.
T9 word
ABC
Symbol
123
5. Use the Up or Down key to highlight the entry mode that
you wish to use, or press to exit the pop-up menu.
6. When you’re finished entering details for the memo, press
. The memo is stored.
Planner
129
Review, add, edit, and delete memos
1. In Standby mode, press the left soft key ( )
Menu
,
then press
, for
Memo pad
. Your list of stored
memos appears in the display.
2. Use the Navigation keys to browse memos. Press the left
soft key ( )
Option
to use the following options:
3. Press to open a highlighted memo
4. Press the left soft key ( )
Option
while viewing your
memos. A pop-up menu with the options listed in the
following table appears in the display
.
5. Use the Up or Down key to highlight an option.
6. Press to perform the function for the highlighted
option.
Option Function
New memo
Adds a new memo to Memo pad.
Edit
Edits the memo currently highlighted
or appearing in the display.
Delete
Deletes the memo currently
highlighted or appearing in the display.
Mark&delete
Deletes all of the memos you marked.
Option Function
Edit
Edits the memo currently highlighted
or appearing in the display.
Delete
Deletes the memo currently
highlighted or appearing in the
display.
Planner
130
World time
World Time allows you to view the time of day or night in
another part of the world.
1. In Standby mode, press the left soft key ( )
Menu
,
then press
, for
World time
. A world map
appears in the display.
2. Use the Navigation keys to display the city and time that
you wish to view. The following cities are supported.
To select your time zone:
1. Select the city corresponding to your time zone by
pressing the Navigation keys one or more times.
The local time and date display under the map.
2. Press the left soft key ( )
Option
and select
Set as
local
by pressing the Up or Down key.
3. Press .
4. When a confirmation message displays, press the left soft
key ( )
Yes
.
New York Caracas Brasilia
Mid Atlantic Cape Verde London
Paris, Berlin Athens, Helsinki Moscow
Abu Dhabi Tashkent Alma-ata
Bangkok, Jakarta Hong Kong, Beijing Seoul, Tokyo
Guam, Sydney Okhotsk Wellington
Samoa, Midway Honolulu, Hawaii Alaska
San Francisco Denver, Arizona Chicago, Mexico
Planner
131
To apply day light saving time:
1. After selecting the time zone to which you want to apply
Day light saving, press the left soft key ( )
Option
.
2. Select
Day light saving
by pressing the Up or Down key
and press the left soft key ( )
Select
.
3. Select
On
by pressing the Navigation keys and press .
The Day light saving icon appears on the left of the time.
Calculator
You can perform calculations, including addition, subtraction,
multiplication, and division using your phone.
1. In Standby mode, press the left soft key ( )
Menu
,
then press , for
Calculator
. The Calculator
appears in the display.
2. Enter the first number in your equation using the keypad
(numbers can be up to nine digits long).
Notes:
• To delete mistakes or clear the display, press the key.
• To include a decimal point or a bracket, press the left soft key
()
Option
and select the symbol you want.
• To change the sign for a number to a negative, press the
key.
3. Use the Navigation keys to set the type of calculation that
you wish to perform. Your choices are as follows.
4. Use the keypad to enter the second number into your
equation.
5. Press to perform the calculation and view the result.
• [+] Addition • [x] Multiplication
• [-] Subtraction •
[
÷] Division
Voice kit
132
Voice kit
Use Voice kit features to voice dial entries in your Phone book,
record memos, and screen callers by listening to messages as
they are being recorded.
Quick dial
Quick dial
lets you dial any person in your Phone book by
pronouncing that person’s name. To use Quick dial, you’ll first
need to record a voice tag for each contact that you wish to
dial by voice.
Recording a quick dial
1. In Standby mode, press the left soft key ( )
Menu
,
then press , , . After a brief pause, you’re
prompted to say the name.
2. Say the name of an entry in your Phone book that you
wish to assign a voice tag. Your recording is played back
through the earpiece.
Tip:
It’s best to use a name with several syllables, or say
the first and last name of the contact.
3. To save the voice, press the left soft key ( )
Save
.
4. Enter the phone number, then press .
5. Enter the name of the entry using the keypad, then press
. The voice tag is saved.
Voice kit
133
Place a call using quick dial
1. In Standby mode, press and hold .
“
Voice recognition!
” appears in the display and “
Please
say the name
” is pronounced through the earpiece.
2. Say the name of any entry that you have tagged.
“
Connecting
,” is pronounced through the earpiece and
your phone dials the number.
Review and delete a quick dial
1. In Standby mode, press the left soft key ( )
Menu
,
then press , , .
A list of quick dials display.
2. Use the Navigation keys to highlight a voice tag and press
to view the details of it.
3. When you press the left soft key ( )
Option
, the
following options are available:
Delete all of the quick dial
1. In Standby mode, press the left soft key ( )
Menu
,
then press , , .
2. When a confirmation message displays, press the left soft
key ( )
Yes
.
Option Function
Talk
Places a call to the voice tag.
Delete
Deletes the voice tag.
Play all
Plays the voice tag.
Voice kit
134
Voice memo
You can use your phone to record memos for later playback.
Note:
The maximum number of voice memos is thirty and the
maximum storage space for all voice memos is 4 minutes. After
30 voice memos have been recorded, you can no longer record
memos (even if total space is under
4 minutes).
Record a memo
1. In Standby mode, press the left soft key ( )
Menu
.
2. Press , , . The phone prompts, “
Please record
after the beep
.”
3. Wait for the beep, then start speaking. As it is recording
the phone displays the elapsed time.
To pause the memo, press the left soft key ( )
Pause
.
When a memo is paused, press the left soft key ( )
Resume
to resume recording.
4. Press the right soft key ( )
Stop
once you’re finished
recording. A pop-up menu appears in the display with
options listed in the following table
.
Option Function
Review
Replays the memo that you just
recorded.
Rerecord
Records over the memo that you just
recorded.
Save
Saves the memo that you just
recorded.
Quit
Exits to the previous menu.
Voice kit
135
5. Use the Up or Down key to highlight an option. Press
to perform the function for that option.
6. To save the memo, select
Save
from the pop-up menu,
then press .
7. Enter a name for the memo using the keypad.
8. Press to save the memo.
Review and delete memos
You can review saved memos anytime.
1. In Standby mode, press the left soft key ( )
Menu
.
2. Press , , . A list of saved memos appears in the
display.
3. Use the Navigation keys to highlight the memo you wish to
review, then press . The memo title, length, size, and
time/date the recording took place appear in the display.
4. Press the right soft key ( )
Play
to play the memo.
5. Press the left soft key ( )
Option
to play, edit, or
delete the memo.
Delete all of the voice memos
1. In Standby mode, press the left soft key ( )
Menu
,
then press , , .
2. When a confirmation message displays, press the left soft
key ( )
Yes
.
Voice kit
136
Voice settings
Voice settings provides a set of powerful voice-enabled
features that enhance the hands-free use of your phone.
Voice kit active
Data required!!!
Vsuite setting
Data required!!!
Usage guidelines: All about performance and safety
137
Usage guidelines:
All about performance and
safety
Getting the most out of your reception
The quality of each call you make or receive depends on the
signal strength in your area. Your phone informs you of the
current signal strength by displaying a number of bars next to
the signal strength icon. The more bars displayed, the
stronger the signal.
If you’re inside a building, being near a window may give you
better reception.
Understanding the power save feature
If your phone is unable to find a signal after 15 minutes of
searching, a Power Save feature is automatically activated. If
your phone is active, it periodically rechecks service
availability or you can check it yourself by pressing any key.
Anytime the Power Save feature is activated, a message
displays on the screen. When a signal is found, your phone
returns to Standby mode.
Understanding how your phone operates
Your phone is basically a radio transmitter and receiver. When
it’s turned on, it receives and transmits radio frequency (RF)
signals. When you use your phone, the system handling your
call controls the power level. This power can range from 0.006
watts to 0.2 watts in Digital mode.
Usage guidelines: All about performance and safety
138
Knowing radio frequency safety
The design of your phone complies with updated NCRP
standards described below. Usage guidelines: All about
performance and safety 105 In 1991-92, the Institute of
Electrical and Electronics Engineers (IEEE) and the American
National Standards Institute (ANSI) joined in updating ANSI’s
1982 standard for safety levels with respect to human
exposure to RF signals. More than 120 scientists, engineers
and physicians from universities, government health agencies
and industries developed this updated standard after
reviewing the available body of research. In 1993, the Federal
Communications Commission (FCC) adopted this updated
standard in a regulation. In August 1996, the FCC adopted
hybrid standard consisting of the existing ANSI/IEEE standard
and the guidelines published by the National Council of
Radiation Protection and Measurements (NCRP).
Maintaining your phone’s peak performance
Note:
For the best care of your phone, only authorized personnel
should service your phone and accessories. Faulty service may
void the warranty.
There are several simple guidelines to operating your phone
properly and maintaining safe, satisfactory service.
• Hold the phone with the antenna raised, fully-extended
and over your shoulder.
• Try not to hold, bend or twist the phone’s antenna.
• Don’t use the phone if the antenna is damaged.
• Speak directly into the phone’s receiver.
• Avoid exposing your phone and accessories to rain or liquid
spills. If your phone does get wet, immediately turn the
power off and remove the battery. If it is inoperable, return
it to Verizon Wireless or call Customer Care for service.
Usage guidelines: All about performance and safety
139
Maintaining safe use of and access to your
phone
FAILURE TO FOLLOW THE INSTRUCTIONS OUTLINED MAY
LEAD TO SERIOUS PERSONAL INJURY AND POSSIBLE
PROPERTY DAMAGE IMPORTANT SAFETY INSTRUCTIONS -
SAVE THESE INSTRUCTIONS.
DANGER - TO REDUCE THE RISK OF FIRE OR ELECTRIC
SHOCK, CAREFULLY FOLLOW THESE INSTRUCTIONS.
FOR CONNECTION TO A SUPPLY NOT IN THE U.S.A., USE AN
ATTACHMENT PLUG ADAPTOR OF THE PROPER
CONFIGURATION FOR THE POWER OUTLET.
10 driver safety tips
Your wireless telephone gives you the powerful ability to
communicate by voice - almost anywhere, anytime. But an
important responsibility accompanies the benefits of wireless
phones, one that every user must uphold.
When driving a car, driving is your first responsibility. When
using your wireless phone behind the wheel of a car, practice
good common sense and remember the following tips:
1. Get to know your wireless phone and its features such as
speed dial and redial. If available, these features help you
to place your call without taking your attention off the
road.
2. When available, use a hands free device. If possible, add
an additional layer of convenience and safety to your
wireless phone with one of the many hands free
accessories available today.
Usage guidelines: All about performance and safety
140
3. Position your wireless phone within easy reach. Be able to
access your wireless phone without removing your eyes
from the road. If you get an incoming call at an
inconvenient time, if possible, let your voice mail answer it
for you.
4. Let the person you are speaking with know you are
driving; if necessary, suspend the call in heavy traffic or
hazardous weather conditions. Rain, sleet, snow, ice, and
even heavy traffic can be hazardous.
5. Do not take notes or look up phone numbers while driving.
Jotting down a “to do” list or flipping through your address
book takes attention away from your primary
responsibility, driving safely.
6. Dial sensibly and assess the traffic; if possible, place calls
when you are not moving or before pulling into traffic. Try
to plan calls when your car will be stationary. If you need
to make a call while moving, dial only a few numbers,
check the road and your mirrors, then continue.
7. Do not engage in stressful or emotional conversations that
may be distracting. Make people you are talking with
aware you are driving and suspend conversations that
have the potential to divert your attention from the road.
8. Use your wireless phone to call for help. Dial 9-1-1 or
other local emergency number in the case of fire, traffic
accident or medical emergencies. Remember, it is a free
call on your wireless phone!
9. Use your wireless phone to help others in emergencies. If
you see an auto accident, crime in progress or other
serious emergency where lives are in danger, call 9-1-1 or
other local emergency number, as you would want others
to do for you.
Usage guidelines: All about performance and safety
141
10.Call roadside assistance or a special non-emergency
wireless assistance number when necessary. If you see a
broken-down vehicle posing no serious hazard, a broken
traffic signal, a minor traffic accident where no on appears
injured, or a vehicle you know to be stolen, call roadside
assistance or other special non-emergency number.
Following safety guidelines
Note:
Always turn off the phone in health care facilities and request
permission before using the phone near medical equipment.
To operate your phone safely and efficiently, always follow any
special regulations in a given area. Turn your phone off in
areas where use is forbidden or when it may cause
interference or danger.
Using your phone near other electronic devices
Most modern electronic equipment is shielded from radio
frequency (RF) signals. However, RF signals from wireless
phones may affect inadequately shielded electronic
equipment.
RF signals may affect improperly installed or inadequately
shielded electronic operating systems and/or entertainment
systems in motor vehicles. Check with the manufacturer or
their representative to determine if these systems are
adequately shielded from external RF signals. Also check with
the manufacturer regarding any equipment that has been
added to your vehicle.
Consult the manufacturer of any personal medical devices,
such as pacemakers and hearing aids, to determine if they
are adequately shielded from external RF signals.
Usage guidelines: All about performance and safety
142
Turning off your phone before flying
Turn off your phone before boarding any aircraft. To prevent
possible interference with aircraft systems, the U.S. Federal
Aviation Administration (FAA) regulations require you to have
permission from a crew member to use your phone while the
plane is on the ground. To prevent any risk of interference,
FCC regulations prohibit using your phone while the plane is
in the air.
Turning off your phone in dangerous areas
To avoid interfering with blasting operations, turn off your
phone when in a blasting area or in other areas with signs
indicating that two-way radios should be turned off.
Construction crews often use remote-control RF devices to set
off explosives.
Note:
Never transport or store flammable gas, liquid or explosives in
the compartment of your vehicle that contains your phone or
accessories.
Turn off your phone when you’re in any area that has a
potentially explosive atmosphere. Although it’s rare, your
phone or its accessories could generate sparks. Sparks could
cause an explosion or a fire resulting in bodily injury or even
death. These areas are often, but not always, clearly marked.
They include:
• Fueling areas such as gas stations.
• Below deck on boats.
• Fuel or chemical transfer or storage facilities.
• Areas where the air contains chemicals or particles such as
grain, dust or metal powders.
• Any other area where you would normally be advised to
turn off your vehicle’s engine.
Usage guidelines: All about performance and safety
143
Restricting children’s access to your phone
Your phone is not a toy. Children should not be allowed to play
with it because they could hurt themselves and others,
damage the phone or make calls that increase your phone
bill.
Caring for the battery
The guidelines listed below help you get the most out of your
battery’s performance.
• Use only Samsung-approved batteries and desktop
chargers. These chargers are designed to maximize
battery life. Using other batteries or chargers voids your
warranty and may cause damage.
• In order to avoid damage, charge the battery only in
temperatures that range from 32º F to 104º F (0º C to 40º
C).
• Don’t use the battery charger in direct sunlight or in high
humidity areas, such as the bathroom.
• Never dispose of the battery by incineration.
• Keep the metal contacts on top of the battery clean.
• Don’t attempt to disassemble or short-circuit the battery.
• The battery may need recharging if it has not been used
for a long period of time.
• It’s best to replace the battery when it no longer provides
acceptable performance. It can be recharged hundreds of
times before it needs replacing.
Usage guidelines: All about performance and safety
144
Don’t store the battery in high temperature areas for long
periods of time. It’s best to follow these storage rules:
Less than one month:
32º F to 131º F (0º C to 55º C)
More than one month:
32º F to 104º F (0º C to 40º C)
Disposal of lithium ion (Li-Ion) batteries
Note:
For safety, do not handle a damaged or leaking Li-Ion battery.
For safe disposal options of your Li-Ion batteries, contact your
nearest Samsung-authorized service center.
Special note: Be sure to dispose of your battery properly. In
some areas, the disposal of batteries in household or business
trash may be prohibited.
Acknowledging special precautions and
FCC
FCC notice
The phone may cause TV or radio interference if used in close
proximity to receiving equipment. The FCC can require you to
stop using the phone if such interference cannot be
eliminated.
Vehicles using liquefied petroleum gas (such as propane or
butane) must comply with the National Fire Protection
Standard (NFPA-58). For a copy of this standard, contact the
National Fire Protection Association, One Batterymarch Park,
Quincy, MA 02269, Attn: Publication Sales Division.
Usage guidelines: All about performance and safety
145
Cautions
Any changes or modifications to your phone not expressly
approved in this document could void your warranty for this
equipment, and void your authority to operate this
equipment. Only use approved batteries, antennas and
chargers. The use of any unauthorized accessories may be
dangerous and void the phone warranty if said accessories
cause damage or a defect to the phone.
Although your phone is quite sturdy, it is a complex piece of
equipment and can be broken. Avoid dropping, hitting,
bending or sitting on it.
Body-worn operation
SAR compliance for body-worn operating configurations is
limited to the specific belt-clip/holster supplied or approved by
Samsung, if available. End-users must be informed of the
body-worn operating requirements for satisfying RF exposure
compliance. The use of accessories that do not satisfy these
requirements may not comply with FCC RF exposure compliance
and should be avoided.
For more information about RF exposure, please visit the FCC
website at www.fcc.gov.
Usage guidelines: All about performance and safety
146
Specific absorption rates (SAR) for wireless
phones
The SAR is a value that corresponds to the relative amount of
RF energy absorbed in the head of a user of a wireless
handset.
The SAR value of a phone is the result of an extensive testing,
measuring and calculation process. It does not represent how
much RF the phone emits. All phone models are tested at
their highest value in strict laboratory settings. But when in
operation, the SAR of a phone can be substantially less that
the level reported to the FCC. This is because of a variety of
factors including its proximity to a base station antenna,
phone design and other factors. What is important to
remember is that each phone meets strict federal guidelines.
Variations in SARs do not represent a variation in safety.
All phones must meet the federal standard, which
incorporates a substantial margin of safety. As stated above,
variations in SAR values between different model phones do
not mean variations in safety. SAR values at or below the
federal standard of 1.6 W/kg are considered safe for use by
the public.
This wireless portable device has been shown to be capable of
compliance for localized specific absorption rate (SAR) for
uncontrolled environment/general population exposure limits
specified in ANSI/IEEE Std. C95.1-1999 and has been tested
in accordance with the measurement procedures specified in
ANSI/IEEE Std. C95.3-1992.
Part 24 CDMA 1900 MHz (PCS Mode):
Head max: 0.704 W/Kg
Body Max: 0.516 W/Kg
Part 22 CDMA 800 MHz
Head max: 0.495 W/Kg
Body Max: 0.846 W/Kg
Usage guidelines: All about performance and safety
147
FDA consumer update
Do wireless phones pose a health hazard?
The available scientific evidence does not show that any
health problems are associated with using wireless phones.
There is no proof, however, that wireless phones are
absolutely safe. Wireless phones emit low levels of radio
frequency energy (RF) in the microwave range while being
used. They also emit very low levels of RF when in Standby
mode. Whereas high levels of RF can produce health effects
(by heating tissue), exposure to low level RF that does not
produce heating effects causes no known adverse health
effects. Many studies of low level RF exposures have not
found any biological effects. Some studies have suggested
that some biological effects may occur, but such findings have
not been confirmed by additional research. In some cases,
other researchers have had difficulty in reproducing those
studies, or in determining the reasons for inconsistent results.
What is FDA’s role concerning the safety of
wireless phones?
Under the law, FDA does not review the safety of radiation
emitting consumer products such as wireless phones before
they can be sold, as it does with new drugs or medical
devices. However, the agency has authority to take action if
wireless phones are shown to emit radio frequency energy
(RF) at a level that is hazardous to the user. In such a case,
FDA could require the manufacturers of wireless phones to
notify users of the health hazard and to repair, replace or
recall the phones so that the hazard no longer exists.
Usage guidelines: All about performance and safety
148
Although the existing scientific data do not justify FDA
regulatory actions, FDA has urged the wireless phone industry
to take a number of steps, including the following:
• Support needed research into possible biological effects of
RF of the type emitted by wireless phones;
• Design wireless phones in a way that minimizes any RF
exposure to the user that it is not necessary for device
function; and
• Cooperate in providing users of wireless phones with the
best possible information on possible effects of wireless
phone use on human health.
FDA belongs to a interagency working group of the federal
agencies that have responsibility for different aspects of RF
safety to ensure coordinated efforts at the federal level. The
following agencies belong to this working group:
• National Institute for Occupational Safety and Health
• Environmental Protection Agency
• Federal Communications Committee
• Occupational Safety and Health Administration
The National Institutes of Health participates in some
interagency working group activities, as well.
FDA shares regulatory responsibilities about wireless phones
with the Federal Communications Commission (FCC). All
phones that are sold in the United States must comply with
FCC safety guidelines that limit RF exposure. FCC relies on
FDA and other health agencies for safety questions about
wireless phones.
Usage guidelines: All about performance and safety
149
FCC also regulates the base stations that the wireless phone
networks rely upon. While these base stations operate at
higher power than do the wireless phones themselves, the
wireless exposures that people get from these base stations
are typically thousands of times lower than those they get
from wireless phones. Base stations are thus not the subject
of the safety questions discussed in this document.
What kinds of phones are the subject of this
update?
The term “wireless phones” refers here to hand-held wireless
phones with built-in antennas, often called “cell,” “mobile,” or
“PCS”. These types of wireless phones can expose the user to
measurable radio frequency energy (RF) because of the short
distance between the phone and the user’s head.
These RF exposures are limited by Federal Communications
Commission safety guidelines that were developed with the
advice of FDA and other federal health and safety agencies.
When the phone is located at greater distances from the user,
the exposure to RF is drastically lower because a person’s RF
exposure decreases rapidly with increasing distance from the
source. The so-called “cordless phones” which have a base
unit connected to the phone wiring in a house, typically
operate at far lower per levels, and thus produce RF
exposures far below the FCC safety limits.
Usage guidelines: All about performance and safety
150
What are the results of the research done
already?
The research done thus far has produced conflicting results,
and many studies have suffered from flaws in their research
methods. Animal experiments investigating the effects of
radio frequency energy (RF) exposures characteristic of
wireless phones have yielded conflicting results that often
cannot be repeated in other laboratories. A few animal
studies, however, have suggested that low levels of RF could
Accelerate the development of cancer in laboratory animals.
However, many of the studies that showed increased tumor
development used animals that had been genetically
engineered or treated with cancer-causing chemicals so as to
be pre-disposed to develop cancer in absence of RF exposure.
Other studies exposed the animals to RF for up to 22 hours
per day. These conditions are not similar to the conditions
under which people use wireless phones, so we don’t know
with certainty what results of such studies mean for human
health.
Three large epidemiology studies have been published since
December 2000. Between them, the studies investigated any
possible association between the use of wireless phones and
primary brain cancer, glaucoma, meningioma, or acoustic
neuroma, tumors of the brain or salivary gland, leukemia, or
other cancers. None of the studies demonstrated the
existence of any harmful health effects from wireless phones
RF exposures. However, none of the studies can answer
questions about long-term exposures, since average period of
phone use in these studies was around three years.
Usage guidelines: All about performance and safety
151
What research is needed to decide whether RF
exposure from wireless phones poses a health
threat?
A combination of laboratory studies and epidemiological
studies of people actually using wireless phones would
provide some of the data that are needed. Lifetime animal
exposure studies could be completed in a few years. However,
very large numbers of animals would be needed to provide
reliable proof of a cancer promoting effect if one exists.
Epidemiological studies can provide data that is directly
applicable to human populations, but ten or more years’
follow-up may be needed to provide answers about some
health effects, such as cancer. This is because the interval
between the time of exposure to a cancer-causing agent and
the time tumors develop - if they do - may be many, many
years. The interpretation of epidemiological studies is
hampered by difficulties in measuring actual RF exposure
during day-to-day use of wireless phones. Many factors affect
this measurement, such as the angle at which the phone is
held, or which model of phone is used.
What is FDA doing to find out more about the
possible health effects of wireless phone RF?
FDA is working with the U.S. Toxicology Program and with
groups of investigators around the world to ensure that high
priority animal studies are conducted to address important
questions about the effects of exposure to radio frequency
energy (RF).
Usage guidelines: All about performance and safety
152
FDA has been a leading participant in the World Health
Organization International Electromagnetic Fields (EMF)
Project since its inception in 1996. An influential result of tis
work has been the development of a detailed agenda of
research needs that has driven the establishment of new
research programs around the world. The project has also
helped develop a series of public information documents on
EMF issues.
FDA and the Cellular Telecommunications & Internet
Association (CTIA) have a formal Cooperative Research and
Development Agreement (CRADA) to do research on wireless
phone safety. FDA provides the scientific oversight, obtaining
input from experts in government, industry, and academic
organizations. CTIA-funded research is conducted through
contracts to independent investigators. The initial research
will include both laboratory studies and studies of wireless
phone users. The CRADA will also include a broad assessment
of additional research needs in the context of the latest
research developments around the world.
How can I find out how much radio frequency
energy exposure I can get by using my wireless
phone?
All phones sold in the United States must comply with Federal
Communications Commission (FCC) guidelines that limit radio
frequency energy (RF) exposures. FCC established these
guidelines in consultation with FDA and other federal health
and safety agencies. The FCC limit for exposure from wireless
telephones is set at a Specific Absorption Rate (SAR) of 1.6
watts per kilogram (1.6 W/kg). The FCC limit is consistent
with the safety standards developed by the Institute of
Electrical and Electronic Engineering (IEEE) and the National
Council on Radiation Protection and Measurement.
Usage guidelines: All about performance and safety
153
The exposure limit takes into consideration the body’s ability
to remove heat from the tissue that absorb energy from the
wireless phone and is set well below levels known to have
effects.
Manufacturers of wireless phones must report the RF
exposure level for each model of phone to the FCC. The FCC
website (http://www.fcc.gov/oet/rfsafety) gives directions for
locating the FCC identification number on your phone so you
can find your phone’s RF exposure level in the online listing.
What has FDA done to measure the radio
frequency energy coming from wireless phones?
The Institute of Electrical and Electronic Engineers (IEEE) is
developing a technical standard for measuring the radio
frequency energy (RF) exposure from wireless phones and
other wireless hand sets with the participation and leadership
of FDA scientists and engineers. The standard,
“Recommended Practice for Determining the Spatial-Peak
Specific Absorption Rate (SAR) in the Human Body Due to
Wireless Communications Devices: Experimental Techniques,”
sets forth the first consistent test methodology for measuring
the rate at which RF is deposited in the heads of wireless
phone users. The test method uses a tissuesimulating model
of the human head. Standardized SAR test methodology is
expected to greatly improve the consistency of measurements
made at different laboratories on the same phone. SAR is the
measurement of the amount of energy absorbed in tissue,
either by the whole body or a small part of the body. It is
measured in watts/kg (or milliwatts/g) of matter. This
measurement is used to determine whether a wireless phone
complies with safety guidelines.
Usage guidelines: All about performance and safety
154
What steps can I take to reduce my exposure to
radio frequency energy from my wireless phone?
If there is a risk from these products--and at this point we do
not know that there is--it is probably very small. But if you
are concerned about avoiding even potential risks, you can
take a few simple steps to minimize your exposure to radio
frequency energy (RF). Since time is a key factor in how much
exposure a person receives, reducing the amount of time
spent using a wireless phone will reduce RF exposure.
If you must conduct extended conversations by wireless
phone every day, you could place more distance between your
body and the source of the RF, since the exposure level drops
off dramatically with distance. For example, you could use a
headset and carry the wireless phone away from your body or
use a wireless phone connected to a remote antenna.
Again, the scientific data do not demonstrate that wireless
phones are harmful. But if you are concerned about RF
exposure from these products, you can use measures like
those described above to reduce your RF exposure from
wireless phone use.
What about children using wireless phones?
The scientific evidence does not show a danger to users of
wireless phones, including children and teenagers. If you
want to take steps to lower exposure to radio frequency
energy (RF), the measured described above would apply to
children and teenagers using wireless phones. Reducing the
time of wireless phone use and increasing the distance
between the user and the RF source will reduce RF exposure.
Usage guidelines: All about performance and safety
155
Some groups sponsored by other national governments have
advised that children be discouraged from using wireless
phones at all. For example, the government in the United
Kingdom distributed leaflets containing such a
recommendation in December 2000. They noted that no
evidence exists that using a wireless phone causes brain
tumors or other ill effects. Their recommendation to limit
wireless phone use by children was strictly precautionary; it
was not based on scientific evidence that any health hazard
exists.
What about wireless phone interference with
medical equipment?
Radio frequency energy (RF) from wireless phones can
interact with some electronic devices. For this reason, FDA
helped develop a detailed test method to measure
electromagnetic interference (EMI) of implanted cardiac
pacemakers and defibrillators from wireless telephones. This
test method is now part of a standard sponsored by the
Association for the Advancement of Medical instrumentation
(AAMI). The final draft, a joint effort by FDA, medical device
manufacturers, and many other groups, was completed on
late 2000. This standard will allow manufacturers to ensure
that cardiac pacemakers and defibrillators are safe from
wireless phone EMI.
FDA has tested hearing aids for interference from handheld
wireless phones and helped develop a voluntary standard
sponsored by the Institute of Electrical and Electronic
Engineers (IEEE). This standard specifies test methods and
performance requirements for hearing aids and wireless
phones so that no interference occurs when a person uses a
“compatible” phone and a “compatible” hearing aid at the
same time. This standard was approved by the IEEE in 2000.
Usage guidelines: All about performance and safety
156
FDA continues to monitor the use of wireless phones for
possible interactions with other medical devices. Should
harmful interference be found to occur, FDA will conduct
testing to assess the interference and work to resolve the
problem.
Where can I find additional information?
For additional information, please refer to the following
resources:
• FDA web page on wireless phones
(http://www.fda.gov/cdrh/phones/index.html)
• Federal Communications Commission FCC) RF Safety
Program
(http://www.fda.gov/oet/rfsafety)
• International Commission on Non-Ionizing Radiation
Protection
(http://www.icnirp.de)
• World Health Organization (WHO) International EMF
Project
(http://www.who.int/emf)
• National Radiological Protection Board (UK)
(http://www.nrpb.org.uk)
Usage guidelines: All about performance and safety
157
CTIA safety information exposure to radio
frequency signals
Your wireless hand held portable telephone is a low power
radio transmitter and receiver. When it is ON, it receives and
also sends out radio frequency (RF) signals.
In August, 1996, the Federal Communications Commissions
(FCC) adopted RF exposure guidelines with safety levels for
hand-held wireless phones. Those guidelines are consistent
with the safety standards previously set by both U.S. and
international standard bodies:
• ANSI C95.1 (1992)
• NCRP Report 86 (1986)
• ICNIRP (1996)
Those standards were based on comprehensive and periodic
evaluations of the relevant scientific literature. For example,
over 120 scientists, engineers, and physicians from
universities, government health agencies, and industry
reviewed the available body of research to develop the ANSI
Standard (C95.1).
The design of your phone complies with the FCC guidelines
(and those standards).
Antenna care
Use only the specified of approved replacement antenna.
Unauthorized antennas, modifications, or attachments could
damage the phone and may violate FCC regulations.
Usage guidelines: All about performance and safety
158
Phone operation
NORMAL POSITION: Hold the phone as you would any other
telephone with the antenna pointed up and over your
shoulder.
Tips on efficient operation:
For your phone to operate most efficiently:
• Extend your antenna fully.
• Do not touch the antenna unnecessarily when the phone is
in use. Contact with the antenna affects call quality and
may cause the phone to operate at a higher power level
than otherwise needed.
Driving
Check the laws and regulations on the use of wireless
telephones in the areas where you drive. Always obey them.
Also, if using your phone while driving, please:
• Give full attention to driving--driving safety is your first
responsibility.
• Use hands-free operation, if available.
• Pull off the road and park before making or answering a
call if driving conditions so require.
Usage guidelines: All about performance and safety
159
Electronic devices
Most modern electronic equipment is shielded from RF
signals. However, certain electronic equipment may not be
shielded against RF signals from your wireless phone.
Pacemakers
• The Health Industry Manufacturers Association
recommends that a minimum separation of six (6”) inches
be maintained between a hand-held wireless phone and a
pacemaker to avoid potential interference with the
pacemaker. These recommendations are consistent with
the independent research by and recommendations of
Wireless Technology Research.
Persons with pacemakers:
• Should ALWAYS keep the phone more than six inches from
their pacemaker when the pacemaker is turned on;
• Should not carry the phone in a breast pocket;
• Should use the ear opposite the pacemaker to minimize
the potential for interference.
• If you have any reason to suspect that interference is
taking place, turn your phone OFF immediately.
Hearing aids
Some digital wireless phones may interfere with some hearing
aids. In the event of such interference, you may want to
consult your service provider (or call the customer service line
to discuss alternatives.) Optional for each phone
manufacturer.
Usage guidelines: All about performance and safety
160
Other medical devices
If you use any other personal medical device, consult the
manufacturer of your device to determine if they are
adequately shielded from external RF energy. Your physician
may be able to assist you in obtaining this information.
Turn your phone OFF in health care facilities when any
regulations posted in these areas instruct you to do so.
Hospitals or health care facilities may be using equipment
that could be sensitive to external RF energy.
Vehicles
RF signals may affect improperly installed or inadequately
shielded electronic systems in motor vehicles. Check with the
manufacturer or its representative regarding your vehicle. You
should also consult the manufacturer of any equipment that
has been added to your vehicle.
Posted facilities
Turn your phone OFF in any facility where posted notices so
require.
Aircraft
FCC regulations prohibit using your phone while in the air.
Switch OFF your phone before boarding an aircraft.
Blasting areas
To avoid interfering with blasting operations, turn your phone
OFF when in a “blasting area” or in areas posted: “Turn off
two-way radio”. Obey all signs and instructions.
Usage guidelines: All about performance and safety
161
Potentially explosive atmospheres
Turn your phone OFF when in any area with a potentially
explosive atmosphere and obey all signs and instructions.
Sparks in such areas could cause an explosion or fire resulting
in bodily injury of even death. Areas with a potentially
explosive atmosphere are often but not always clearly
marked. They include fueling areas such as gasoline stations;
below deck on boats; fuel or chemical transfer or storage
facilities; vehicles using liguefied petroleum gas (such as
propane or butane); areas where the air contains chemicals
or particles, such as grain, dust, or metal powders; and any
other area where you would normally be advised to turn off
your vehicle engine.
For vehicles equipped with an airbag
An airbag inflates with great force. DO NOT place objects,
including both installed or portable wireless equipment, in the
area over the air bag deployment area. If in-vehicle wireless
equipment is improperly installed and the air bag inflates,
serious injury could result.
Owner's record
The model number, regulatory number and serial number are
located on a nameplate inside the battery compartment.
Record the serial number in the space provided below. This
will be helpful if you need to contact us about your phone in
the future.
Model: SCH-a770
Serial No.:
Usage guidelines: All about performance and safety
162
User guide proprietary notice
CDMA Technology is licensed by QUALCOMM Incorporated
under one or more of the following patents:
4,901,3075,109,3905,267,2625,416,797
5,506,8655,544,1965,657,4205,101,501
5,267,2615,414,7965,504,7735,535,239
5,600,7545,778,338 5,228,054 5,337,338
5,710,7845,056,109 5,568,4835,659,569
5,490,1655,511,073
T9 Text Input is licensed by Tegic Communications and is
covered by U.S. Pat. 5,818,437, U.S. Pat. 5,953,541, U.S.
Pat. 6,011,554 and other patents pending.
Limited warranty
163
Limited warranty
1. What is covered and for how long?
SAMSUNG TELECOMMUNICATIONS AMERICA, L.P.
(“SAMSUNG”) warrants the original (“Purchaser”) that
SAMSUNG’s phones and accessories (“Products”) are free
from defects in material and workmanship under normal use
and service for a period commencing on the date of purchase
and continuing for the specified period of time after the date:
•
Phone - 1 year
•
Batteries - 1 year
•
Leather Case/Pouch/Holster - 90 Days
•
Game Pad - 90 Days
•
Other Phone Accessories - 1 year
2. What is not covered?
The limited warranty is conditioned upon proper use of
Product by Purchaser. This limited warranty does not cover:
(a) defects or damage resulting from accident, misuse, abuse,
neglect, unusual physical, electrical, or electromechanical
stress, modifications of any part of the Product, including
antenna, or cosmetic damage; (b) equipment that has the
serial number removed or made illegible; (c) any plastic
surfaces or other externally exposed parts that are scratched
or damaged due to normal usage; (d) malfunctions resulting
from the use of Product in conjunction with the accessories,
products, ancillary, or peripheral equipment not furnished or
approved by SAMSUNG; (e) defects or damage from improper
testing, operation, maintenance, installation, or adjustment;
(f) installation, maintenance, and service of product, or (g)
Product used or purchased outside the United States or
Canada. This Limited Warranty covers batteries only if the
Limited warranty
164
battery falls below 80% of rated capacity or the battery leaks,
and this Limited Warranty does not cover any battery if (i) the
battery has been charged by a battery charger not specified
or approved by SAMSUNG for charging the battery, (ii) any of
the seals on the battery are broken or show evidence of
tampering, or (iii) the battery has been used in equipment
other than the SAMSUNG phone for which it is specified.
3. What are SAMSUNG’s obligations?
During the applicable warranty period, SAMSUNG will repair
or replace at SAMSUNG’s sole option, without charge to
purchaser, any defective component part of the phone or
accessory. To obtain service under this limited warranty,
purchaser must return Product to an authorized phone service
facility in an adequate container for shipping, accompanied by
Purchaser’s sales receipt or comparable proof of sale showing
the date of purchase, the serial number of Product, and the
seller’s name and address. To obtain information on where to
deliver the phone or accessory, call your service provider or
Samsung Customer Care at (888) 987-4357. Upon receipt,
SAMSUNG will promptly repair the defective product.
SAMSUNG may, at SAMSUNG’s sole option, use rebuilt,
reconditioned, or new parts or components when repairing
any product or replace a product with a rebuilt, reconditioned,
or new product. Repaired products will be warranted for a
period equal to the remainder of the original limited warranty
on the original product or for 90 days, whatever is longer. All
replaced parts, components, boards, and equipment becomes
the property of SAMSUNG. If SAMSUNG determines that any
product is not covered by this limited warranty, purchaser
must pay all parts, shipping, and labor charges for the repair
or return of said product.
Limited warranty
165
4. What are the limits on SAMSUNG’s liability?
EXCEPT AS SET FORTH IN THE EXPRESS WARRANTY
CONTAINED HEREIN, PURCHASER TAKES THE PRODUCT “AS
IS,” AND SAMSUNG MAKES NO WARRANTY OR
REPRESENTATION AND THERE ARE NO CONDITIONS,
EXPRESS OR IMPLIED, STATUTORY OR OTHERWISE, OF ANY
KIND WHATSOEVER WITH RESPECT TO THE PRODUCT,
INCLUDING BUT NOT LIMITED TO:
• THE MERCHANTABILITY OF THE PRODUCT OR ITS FITNESS
FOR ANY PARTICULAR PURPOSE OR USE;
• WARRANTIES OF TITLE OR NON-INFRINGEMENT;
• DESIGN, CONDITION, QUALITY, OR PERFORMANCE OF
THE PRODUCT;
• THE WORKMANSHIP OF THE PRODUCT OR THE
COMPONENTS CONTAINED THEREIN; OR
• COMPLIANCE OF THE PRODUCT WITH THE
REQUIREMENTS OF ANY LAW, RULE, SPECIFICATION OR
CONTRACT PERTAINING THERETO.
NOTHING CONTAINED IN THE INSTRUCTION MANUAL SHALL
BE CONSTRUED TO CREATE AN EXPRESS WARRANTY OF ANY
KIND WHATSOEVER WITH RESPECT TO THE PRODUCT. ALL
IMPLIED WARRANTIES AND CONDITIONS THAT MAY ARISE
BY OPERATION OF LAW, INCLUDING IF APPLICABLE THE
IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS
FOR A PARTICULAR PURPOSE, ARE HEREBY LIMITED TO THE
SAME DURATION OF TIME AS THE EXPRESS WRITTEN
WARRANTY STATED HEREIN. SOME STATES/PROVINCES DO
NOT ALLOW LIMITATIONS ON HOW LONG AN IMPLIED
WARRANTY LASTS, SO THE ABOVE LIMITATION MAY NOT
APPLY TO YOU. IN ADDITION, SAMSUNG SHALL NOT BE
LIABLE FOR ANY DAMAGES OF ANY KIND RESULTING FROM
THE PURCHASE, USE, OR MISUSE OF, OR INABILITY TO USE
Limited warranty
166
THE PRODUCT OR ARISING DIRECTLY OR INDIRECTLY FROM
THE USE OR LOSS OF USE OF THE PRODUCT OR FROM THE
BREACH OF THE EXPRESS WARRANTY, INCLUDING
INCIDENTAL, SPECIAL, CONSEQUENTIAL OR SIMILAR
DAMAGES, OR LOSS OF ANTICIPATED PROFITS OR BENEFITS,
OR FOR DAMAGES ARISING FROM ANY TORT (INCLUDING
NEGLIGENCE OR GROSS NEGLIGENCE) OR FAULT
COMMITTED BY SAMSUNG, ITS AGENTS OR EMPLOYEES, OR
FOR ANY BREACH OF CONTRACT OR FOR ANY CLAIM
BROUGHT AGAINST PURCHASER BY ANY OTHER PARTY.
SOME STATES/PROVINCES DO NOT ALLOW THE EXCLUSION
OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL
DAMAGES, SO THE ABOVE LIMITATION OR EXCLUSION MAY
NOT APPLY TO YOU.
THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS, AND
YOU MAY ALSO HAVE OTHER RIGHTS, WHICH VARY FROM
STATE TO STATE/PROVINCE TO PROVINCE.
THIS LIMITED
WARRANTY SHALL NOT EXTEND TO ANYONE OTHER THAN
THE ORIGINAL PURCHASER OF THIS PRODUCT AND STATES
PURCHASER’S EXCLUSIVE REMEDY. IF ANY PORTION OF THIS
LIMITED WARRANTY IS HELD ILLEGAL OR UNENFORCEABLE
BY REASON OF ANY LAW, SUCH PARTIAL ILLEGALITY OR
UNENFORCEABILITY SHALL NOT AFFECT THE
ENFORCEABILITY FOR THE REMAINDER OF THIS LIMITED
WARRANTY WHICH PURCHASER ACKNOWLEDGES IS AND
WILL ALWAYS BE CONSTRUED TO BE LIMITED BY ITS TERMS
OR AS LIMITED AS THE LAW PERMITS.
THE PARTIES UNDERSTAND THAT THE PURCHASER MAY USE
THIRD-PARTY SOFTWARE OR EQUIPMENT IN CONJUNCTION
WITH THE PRODUCT. SAMSUNG MAKES NO WARRANTIES OR
REPRESENTATIONS AND THERE ARE NO CONDITIONS,
EXPRESS OR IMPLIED, STATUTORY OR OTHERWISE, AS TO
THE QUALITY, CAPABILITIES, OPERATIONS, PERFORMANCE
OR SUITABILITY OF ANY THIRD-PARTY SOFTWARE OR
EQUIPMENT, WHETHER SUCH THIRD-PARTY SOFTWARE OR
Limited warranty
167
EQUIPMENT IS INCLUDED WITH THE PRODUCT DISTRIBUTED
BY SAMSUNG OR OTHERWISE, INCLUDING THE ABILITY TO
INTEGRATE ANY SUCH SOFTWARE OR EQUIPMENT WITH THE
PRODUCT. THE QUALITY, CAPABILITIES, OPERATIONS,
PERFORMANCE AND SUITABILITY OF ANY SUCH THIRD-
PARTY SOFTWARE OR EQUIPMENT LIE SOLELY WITH THE
PURCHASER AND THE DIRECT VENDOR, OWNER OR
SUPPLIER OF SUCH THIRD-PARTY SOFTWARE OR
EQUIPMENT, AS THE CASE MAY BE.
This Limited Warranty allocates risk of Product failure
between Purchaser and SAMSUNG, and SAMSUNG’s Product
pricing reflects this allocation of risk and the limitations of
liability contained in this Limited Warranty. The agents,
employees, distributors, and dealers of SAMSUNG are not
authorized to make modifications to this Limited Warranty, or
make additional warranties binding on SAMSUNG.
Accordingly, additional statements such as dealer advertising
or presentation, whether oral or written, do not constitute
warranties by SAMSUNG and should not be relied upon.
Samsung Telecommunications America, L.P.
1301 E. Lookout Drive
Richardson, TX 75082
Phone: 1-800-SAMSUNG
Phone: 1-888-987-HELP (4357)
©2004 Samsung Telecommunications America, Inc. All rights
reserved. No reproduction in whole or in part allowed without
prior written approval. Specifications and availability subject
Index
168
Index
Index contents will be
inserted in the next version
Index
169
