1 SCH-i770 Series Portable Telephone Windows Mobile 6.1 User Manual Please read this manual before operating your phone, and keep it for future reference. Section 1: Today Screen This section describes the major plug-ins of Today screen and how to use or change the settings. 1) Clock Plug-in The long press (tap & hold) of Clock shows you an “Options…” menu and you can go into Clock Plug-in Settings. You can change the color, 12/24 hours and dual clock options for your convenience.
2 2) Message/Missed Calls Plug-in This Plug-in shows the count of unread E-mail, SMS, MMS, Voicemail and Missed calls. You can change the display by clicking the icon on the right end of this plug-in.
3 3) Device Lock Plug-in You can lock the device to prevent an unintentional touch by simply clicking this plug-in. This Plug-in shows the count of unread E-mail, SMS, MMS, Voicemail and Missed calls. Section 2: Call Functions This section describes how to make or answer calls. It also includes the features and functionality associated with using your phone. 1) Making a Call There are several ways to make calls on your SCH-i770. You can use speed dial, voice dial, call history, or simply enter the desired number and tap a green “talk” button or press “action” button on the middle of the navigation key. Place a Call Using Soft Keys 1. Tap Start and select Phone from the drop down menu. 2. Tap the desired number using the stylus. If you make a mistake while
4 dialing, tap Å key. If you tap and hold Å key, all digits are cleared and you can start over. 3. Tap a green “Talk” key. The number is dialed. Place a Call Using the keypad 1. Enter the number using the front keypad. 2. Press a green talk button on the left side. The number is dialed.
5 2) Answering a Call Make sure that the phone is turned on. When you receive an incoming call, the Phone Incoming screen appears in the display. z Press the left soft key, Answer, or a green Talk button on the left side to answer the call z Press the right soft key, Ignore, or a red End button on the left side to send the call to voicemail. 3) Display Your Phone Number 1. Tap Start and select Phone from the drop down menu. 2. Press the right soft key, Menu, and choose Options. 3. The Setting screen displays with your phone number at the top of the screen. 4. Tap “ok” to exit 4) Call History When a call is received, made, or missed a record of the call is saved with all the
6 available information in Call History. If you tap the entry, the time, date, and duration of the call appears in the display. To access the call History menu, follow these steps: 1. Tap Start and select Phone from the drop down menu. 2. Press “Call History” soft key to view your call history. Section 3: Programs SCH-i770 provides various programs including Multimedia, Messaging, Documents, Office Mobile and Utility programs. You can run these programs by clicking program icon under Start > Programs. Microsoft Office Mobile Suite is located in Start > Office Mobile.
7 Section 4: Settings SCH-i770 provides various settings for user’s better experiences. Settings are separated by 3 categories, Personal, System and Connections.
8 1) Personal You can change your personal options for Buttons, Input, Lock, Menus, Owner Information, Phone, Sound & Notifications, Today and Voice Command. 1-1) Buttons You can change the actions of Hot-keys with your preferred actions.
9 1-2) Lock You can lock the device with password. Password types should be “Simple PIN” or “Strong alphanumeric”.
10 1-3) Menus You can select programs shown in the Start Menu. Maximum 7 programs can be selected. 1-4) Owner Information
11 1-5) Phone – (Tab) Phone You can change Ring type, Ring tone, Keypad tone and Voice Privacy notification option. 1-6) Phone – (Tab) Services You can change Auto Answer, TTY, Alert, Networks, Data Mode, GPS and Voice Privacy options for your convenience.
12
13 1-7) Phone – (Tab) Security You can erase all user data, installed programs and user selectable phone settings, and register emergency numbers.
14 1-8) Sounds & Notifications You can change the option to enable/disable sound alerts and notifications. 1-9) Today You can change the Today Theme and preferred plug-ins shown in Today screen. The dedicated program for left soft-key can be changed in “Soft key” option.
15 1-10) Voice Command You can change the options and notifications for Voice Command. 2) System
16 You can change your device’s system options for Backlight, Clock & Alarms, Data Connection, Memory, Phone Display, Power, R2VS, Regional Settings and Screen. You can find the version information in “Version”. 2-1) About You can see the OS information like OS Build number. 2-2) Backlight You can change backlight options for your convenience. Changing these options can reduce/increase battery life.
17 2-3) Clock & Alarms You can change Home/Visiting timezone and set alarms.
18 2-4) Data Connection You can change USB path to “Internal Data Call” or “As the modem through USB”. You should set to “As the modem through USB” when you use i770 as an external modem.
19 2-5) Memory You can see used/free size of storage, program memory and storage card. You can see and stop running programs. 2-6) Phone Display
20 You can change the Phone Dialer skin and select a layout for right/left handed. 2-7) Power You can see a remaining battery status and change the power saving options.
21 2-8) R2VS R2VS can increase the sound effect when the headset is connected. 2-9) Screen You can change the display’s orientation and font size.
22 2-10) Version You can see the S/W, H/W, PRL/ERI, Bluetooth and W-Fi versions. 3) Connections You can set new connections for Bluetooth, Modem, Wi-Fi and Wireless. You can turn on or off for Wi-Fi, Bluetooth and Phone in Wireless Manager. 3-1) Bluetooth You can turn on the Bluetooth and connect i770 with Bluetooth devices.
23 3-2) Connections You can add new modem connection and manage existing connections.
24 3-3) Wi-Fi You can add new Wi-Fi connection.
25 3-4) Wireless Manager
26 SCH-i770 Start Menu (with Windows Mobile 6) Start Today : Messaging (Left Soft-key) / Menu (Right Soft-key) Office Mobile : Excel Mobile / PowerPoint Mobile / Word Mobile Calendar Contacts Internet Explorer Messaging Phone ----------------- <Recent Program> ----------------- Programs Settings Help Checking the package Make sure you have each items Device Battery (Std, 1040mAh, Ext, 1900mAh) USB Data Cable Travel Adapter (0.7A) Holster User Manual Quick Reference Guide Customer Care CD You can obtain the following accessories for your phone from your local Samsung dealer. Headset Bluetooth headset kit Desktop Travel Charger Quick Travel Adapter (1A) Data Link Cable for Desktop Travel Charger

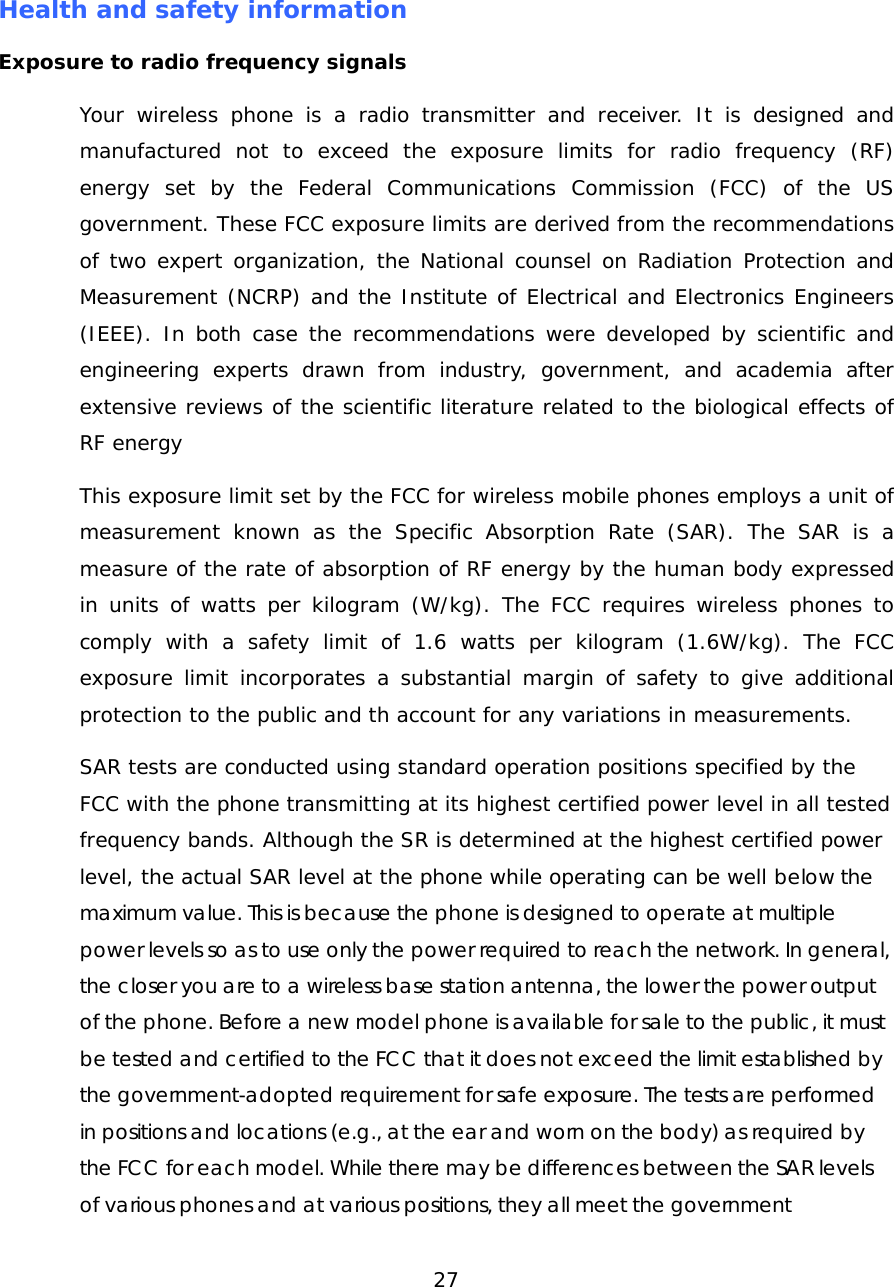

27 Health and safety information Exposure to radio frequency signals Your wireless phone is a radio transmitter and receiver. It is designed and manufactured not to exceed the exposure limits for radio frequency (RF) energy set by the Federal Communications Commission (FCC) of the US government. These FCC exposure limits are derived from the recommendations of two expert organization, the National counsel on Radiation Protection and Measurement (NCRP) and the Institute of Electrical and Electronics Engineers (IEEE). In both case the recommendations were developed by scientific and engineering experts drawn from industry, government, and academia after extensive reviews of the scientific literature related to the biological effects of RF energy This exposure limit set by the FCC for wireless mobile phones employs a unit of measurement known as the Specific Absorption Rate (SAR). The SAR is a measure of the rate of absorption of RF energy by the human body expressed in units of watts per kilogram (W/kg). The FCC requires wireless phones to comply with a safety limit of 1.6 watts per kilogram (1.6W/kg). The FCC exposure limit incorporates a substantial margin of safety to give additional protection to the public and th account for any variations in measurements. SAR tests are conducted using standard operation positions specified by the FCC with the phone transmitting at its highest certified power level in all tested frequency bands. Although the SR is determined at the highest certified power level, the actual SAR level at the phone while operating can be well below the maximum value. This is because the phone is designed to operate at multiple power levels so as to use only the power required to reach the network. In general, the closer you are to a wireless base station antenna, the lower the power output of the phone. Before a new model phone is available for sale to the public, it must be tested and certified to the FCC that it does not exceed the limit established by the government-adopted requirement for safe exposure. The tests are performed in positions and locations (e.g., at the ear and worn on the body) as required by the FCC for each model. While there may be differences between the SAR levels of various phones and at various positions, they all meet the government
28 requirement. The SAR tested with SCH-i770 is 0.687 – 0.533 mW/g (PCS, Head - Body Position), 0.651 – 0.561 mW/g(CDMA, Head – Body Position), 0.526 – 1.01 mW/g(GSM850, Head - Body Position), and 0.183 – 0.501 mW/g(GSM1900, Head - Body Position) which are below the regulation of FCC restriction of SAR, 1.6mW/g The FCC has granted an Equipment Authorization for this model phone with all reported SAR levels evaluated as in compliance with the FCC RF exposure guidelines. SAR information on this model phone is on file with the FCC and can be found under the Display Grant section of http://www.fcc.gov/oet/fccid after searching on FCC ID, which is A3LSCHI770, printed in the label on the phone. FCC certification information for this model phone is attached separation paper. For Body worn operations, this model phone has been tested and meets the FCC exposure guidelines when used with a Samsung accessory designated for this product or when used with an accessory that contains no metal and that positions the handset a minimum 1.5cm from the body HAC Mode To insure that the Hearing Aid Compatibility rating for your phone is maintained, secondary transmitters such as Bluetooth and WLAN components must be disabled during a call. See "Section 8: Changing Your Settings" on page XX for instructions to disable these components FCC Notice and Cautions FCC notice This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC rules. These limits are designed to
29 provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected - Consult the dealer or an experienced radio/TV technician for help Cautions Changes or modifications made in the radio phone, not expressly approved by Samsung will void the user’s authority to operate the equipment. Only use approved batteries, antennas and chargers. The use of any unauthorized accessories may be dangerous and void the phone warranty if said accessories cause damage or a defect to the phone. Although your phone is quite sturdy, it is a complex piece of equipment and can be broken. Avoid dropping, hitting, bending or sitting on it.
GH68-08136AHearing Aid Compatibility with Mobile PhonesWhen some mobile phones are used near some hearing devices (hearing aids and cochlear implants), users may detect a buzzing, humming, or whining noise. Some hearing devices are more immune than others to this interference noise, and phones also vary in the amount of interference they generate. The wireless telephone industry has developed ratings for some of their mobile phones, to assist hearing device users in finding phones that may be compatible with their hearing devices. Not all phones have been rated. Phones that are rated have the rating on their box or a label on the box. The ratings are not guarantees. Results will vary depending on the user’s hearing device and hearing loss. If your hearing device happens to be vulnerable to interfer-ence, you may not be able to use a rated phone successfully. Trying out the phone with your hearing device is the best way to evaluate it for your personal needs. M-Ratings: Phones rated M3 or M4 meet FCC requirements and are likely to gener-ate less interference to hearing devices than phones that are not labeled. M4 is the better/higher of the two ratings. T-Ratings: Phones rated T3 or T4 meet FCC requirements and are likely to be more usable with a hearing device’s telecoil (“T Switch” or “Telephone Switch”) than unrated phones. T4 is the better/higher of the two ratings. (Note that not all hearing devices have telecoils in them.) Hearing devices may also be measured for immunity to this type of interference. Your hearing device manufacturer or hearing health professional may help you find results for your hearing device. The more immune your hearing aid is, the less likely you are to experience interference noise from mobile phones.
