Samsung Electronics Co SCHR740C Cellular/ PCS/ AWS CDMA Phone with WLAN and Bluetooth User Manual r740

Samsung Electronics Co Ltd Cellular/ PCS/ AWS CDMA Phone with WLAN and Bluetooth r740

Users Manual

GH68_3XXXXA Printed in KoreaANDROID SMARTPHONEUser ManualPlease read this manual before operating yourphone and keep it for future reference.This document is watermarked because certain important information in the document has not yet been verified. This document has been sent to you as a draft and for informational purposes only. The document should only be used for internal purposes and may not be distributed outside of Samsung, except to Samsung's carrier customer for testing purposes. Distributing the document outside of Samsung, except to Samsung's carrier customer for testing purposes could result in legal exposure to the company if the preliminary, unverified information in the draft turns out to be inaccurate. DRAFT FOR INTERNAL USE ONLY
CRT_SCH-R740_UM_Eng_MA2_CB_030113_D1Intellectual PropertyAll Intellectual Property, as defined below, owned by or which is otherwise the property of Samsung or its respective suppliers relating to the SAMSUNG Phone, including but not limited to, accessories, parts, or software relating there to (the “Phone System”), is proprietary to Samsung and protected under federal laws, state laws, and international treaty provisions. Intellectual Property includes, but is not limited to, inventions (patentable or unpatentable), patents, trade secrets, copyrights, software, computer programs, and related documentation and other works of authorship. You may not infringe or otherwise violate the rights secured by the Intellectual Property. Moreover, you agree that you will not (and will not attempt to) modify, prepare derivative works of, reverse engineer, decompile, disassemble, or otherwise attempt to create source code from the software. No title to or ownership in the Intellectual Property is transferred to you. All applicable rights of the Intellectual Property shall remain with SAMSUNG and its suppliers.Open Source SoftwareSome software components of this product, including but not limited to 'PowerTOP' and 'e2fsprogs', incorporate source code covered under GNU General Public License (GPL), GNU Lesser General Public License (LGPL), OpenSSL License, BSD License and other open source licenses. To obtain the source code covered under the open source licenses, please visit:http://opensource.samsung.com.Disclaimer of Warranties; Exclusion of LiabilityEXCEPT AS SET FORTH IN THE EXPRESS WARRANTY CONTAINED ON THE WARRANTY PAGE ENCLOSED WITH THE PRODUCT, THE PURCHASER TAKES THE PRODUCT "AS IS", AND SAMSUNG MAKES NO EXPRESS OR IMPLIED WARRANTY OF ANY KIND WHATSOEVER WITH RESPECT TO THE PRODUCT, INCLUDING BUT NOT LIMITED TO THE MERCHANTABILITY OF THE PRODUCT OR ITS FITNESS FOR ANY PARTICULAR PURPOSE OR USE; THE DESIGN, CONDITION OR QUALITY OF THE PRODUCT; THE PERFORMANCE OF THE PRODUCT; THE WORKMANSHIP OF THE PRODUCT OR THE COMPONENTS CONTAINED THEREIN; OR COMPLIANCE OF THE PRODUCT WITH THE REQUIREMENTS OF ANY LAW, RULE, SPECIFICATION OR CONTRACT PERTAINING DRAFT FOR INTERNAL USE ONLY
THERETO. NOTHING CONTAINED IN THE INSTRUCTION MANUAL SHALL BE CONSTRUED TO CREATE AN EXPRESS OR IMPLIED WARRANTY OF ANY KIND WHATSOEVER WITH RESPECT TO THE PRODUCT. IN ADDITION, SAMSUNG SHALL NOT BE LIABLE FOR ANY DAMAGES OF ANY KIND RESULTING FROM THE PURCHASE OR USE OF THE PRODUCT OR ARISING FROM THE BREACH OF THE EXPRESS WARRANTY, INCLUDING INCIDENTAL, SPECIAL OR CONSEQUENTIAL DAMAGES, OR LOSS OF ANTICIPATED PROFITS OR BENEFITS.SAMSUNG IS NOT LIABLE FOR PERFORMANCE ISSUES OR INCOMPATIBILITIES CAUSED BY YOUR EDITING OF REGISTRY SETTINGS, OR YOUR MODIFICATION OF OPERATING SYSTEM SOFTWARE. USING CUSTOM OPERATING SYSTEM SOFTWARE MAY CAUSE YOUR DEVICE AND APPLICATIONS TO WORK IMPROPERLY.SAFE™: "SAFE™" (Samsung for Enterprise) is a mark for a Samsung device which has been tested against Samsung's own internal criteria for interoperability with certain third party security-related solutions for MDM and VPN. The testing includes field testing with local network connection and menu tree testing which tests functionality of the solutions in conjunction with the Samsung device. During the testing, the device is tested with the security solutions to see if the solutions work with the device as described by the third party security solution providers. The testing, for example, includes field testing with local network connection and menu tree testing which tests functionality of the solutions in conjunction with the Samsung device. For more information about Samsung's SAFE™ program, please refer to www.samsung.com/us/safe.Disclaimer of Warranties: EXCEPT AS OTHERWISE PROVIDED IN THEIR STANDARD END USER LICENSE AND WARRANTY, TO THE FULL EXTENT PERMITTED BY LAW SAMSUNG ELECTRONICS CO., LTD., SAMSUNG TELECOMMUNICATIONS AMERICA, LLC, AND THEIR AFFILIATES (COLLECTIVELY REFERRED TO HEREIN AS THE "SAMSUNG ENTITIES") EXPRESSLY DISCLAIM ANY AND ALL WARRANTIES, EXPRESS OR IMPLIED, INCLUDING ANY WARRANTY OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE, INTEROPERABILITY OR NON-INFRINGEMENT, WITH RESPECT TO INFORMATION TECHNOLOGY SECURITY PROTECTION, SAFE™ DEVICES AND APPLICATIONS TESTED WITH SAFE™ DEVICES. IN NO EVENT SHALL THE SAMSUNG ENTITIES BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL, PUNITIVE, OR CONSEQUENTIAL DAMAGES OF ANY KIND WHATSOEVER WITH RESPECT TO INFORMATION TECHNOLOGY SECURITY PROTECTION, SAFE™ DEVICES OR APPLICATIONS TESTED WITH SAFE™ DEVICES. In DRAFT FOR INTERNAL USE ONLY

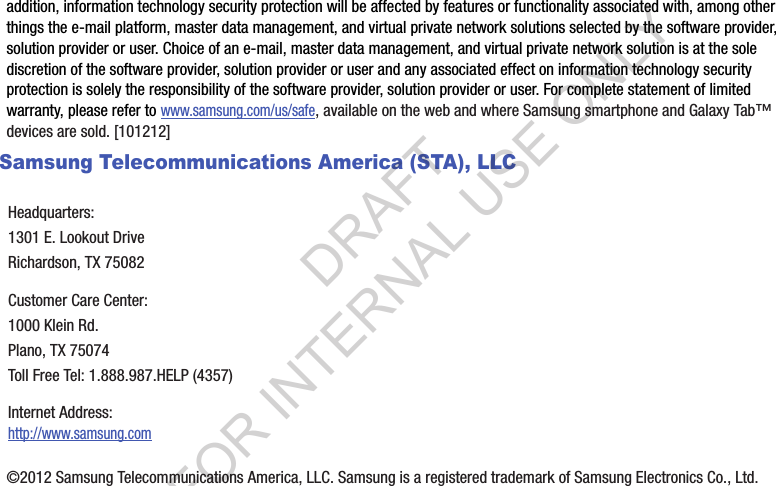

addition, information technology security protection will be affected by features or functionality associated with, among other things the e-mail platform, master data management, and virtual private network solutions selected by the software provider, solution provider or user. Choice of an e-mail, master data management, and virtual private network solution is at the sole discretion of the software provider, solution provider or user and any associated effect on information technology security protection is solely the responsibility of the software provider, solution provider or user. For complete statement of limited warranty, please refer to www.samsung.com/us/safe, available on the web and where Samsung smartphone and Galaxy Tab™ devices are sold. [101212] Samsung Telecommunications America (STA), LLC©2012 Samsung Telecommunications America, LLC. Samsung is a registered trademark of Samsung Electronics Co., Ltd.Headquarters:1301 E. Lookout DriveRichardson, TX 75082Customer Care Center:1000 Klein Rd.Plano, TX 75074Toll Free Tel: 1.888.987.HELP (4357)Internet Address: http://www.samsung.comDRAFT FOR INTERNAL USE ONLY
Do you have questions about your Samsung Mobile Phone? For 24 hour information and assistance, we offer a new FAQ/ARS System (Automated Response System) at:www.samsung.com/us/supportThe Bluetooth® word mark, figure mark (stylized “B Design”), and combination mark (Bluetooth word mark and “B Design”) are registered trademarks and are wholly owned by the Bluetooth SIG.Nuance®, VSuite™, T9® Text Input, and the Nuance logo are trademarks or registered trademarks of Nuance Communications, Inc., or its affiliates in the United States and/or other countries.microSD™, microSDHC™ and the microSD logo are Trademarks of the SD Card Association.Adobe and Flash are either registered trademarks or trademarks of Adobe Systems Incorporated in the United States and/or other countries.DivX®, DivX Certified® and associated logos are trademarks of Rovi Corporation or its subsidiaries and are used under license.DivX Certified® to play DivX® video up to HD 720p, including premium content.ABOUT DIVX VIDEO: DivX® is a digital video format created by DivX, LLC, a subsidiary of Rovi Corporation. This is an official DivX Certified® device that plays DivX video. Visit www.divx.com for more information and software tools to convert your files into DivX videos.ABOUT DIVX VIDEO-ON-DEMAND: This DivX Certified® device must be registered in order to play purchased DivX Video-on-Demand (VOD) movies. To obtain your registration code, locate the DivX VOD section in License settings under Settings > About device > Legal information. Go to vod.divx.com for more information on how to complete your registration.Wi-Fi®, the Wi-Fi CERTIFIED logo, and the Wi-Fi logo are registered trademarks of the Wi-Fi Alliance.LTE is a trademark of ETSI. Google, the Google logo, Google Search, Gmail, Maps, Navigation, Places, Google Talk, YouTube, Picasa, Android and Google Play are trademarks of Google, Inc.DRAFT FOR INTERNAL USE ONLY
©Samsung Telecommunications America, LLC (“Samsung”). Samsung and Super AMOLED are both trademarks of Samsung Electronics Co., Ltd. and/or its related entities. All product and brand names are trademarks or registered trademarks of their respective companies. Screen images simulated. Appearance of the phone may vary. DRAFT FOR INTERNAL USE ONLY
1Table of ContentsSection 1: Getting Started .......................... 4Understanding this User Manual . . . . . . . . . . . . 4Setting Up Your Phone . . . . . . . . . . . . . . . . . . . 6Turning Your Phone On . . . . . . . . . . . . . . . . . 12TTY Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . 14Voicemail . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14Displaying Your Phone Number . . . . . . . . . . . 14Your Google™ Account . . . . . . . . . . . . . . . . . 15Roaming . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16Securing Your Phone . . . . . . . . . . . . . . . . . . . 16Section 2: Understanding Your Phone ..... 18Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18Front View . . . . . . . . . . . . . . . . . . . . . . . . . . . 19Side Views . . . . . . . . . . . . . . . . . . . . . . . . . . . 20Back View . . . . . . . . . . . . . . . . . . . . . . . . . . . 21Navigation . . . . . . . . . . . . . . . . . . . . . . . . . . . 22Finger Motions . . . . . . . . . . . . . . . . . . . . . . . . 23Notifications . . . . . . . . . . . . . . . . . . . . . . . . . . 24Home Screen . . . . . . . . . . . . . . . . . . . . . . . . . 25Customizing the Home Screen . . . . . . . . . . . . 28Shortcuts . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30Wallpaper . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31Apps . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31Entering Text . . . . . . . . . . . . . . . . . . . . . . . . . 33Section 3: Accounts and Contacts ...........36Accounts . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36People . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38Section 4: Calling ......................................48Making Calls . . . . . . . . . . . . . . . . . . . . . . . . . 48Multi-party Calling . . . . . . . . . . . . . . . . . . . . . 50Answering Calls . . . . . . . . . . . . . . . . . . . . . . . 51Ending a Call . . . . . . . . . . . . . . . . . . . . . . . . . 52Recent Calls . . . . . . . . . . . . . . . . . . . . . . . . . . 52Call Settings . . . . . . . . . . . . . . . . . . . . . . . . . . 54DRAFT FOR INTERNAL USE ONLY
2Section 5: Messaging ................................59Types of Messages . . . . . . . . . . . . . . . . . . . . .59Text and Multimedia Messaging . . . . . . . . . . .59Emergency alerts . . . . . . . . . . . . . . . . . . . . . .63Email . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 64Gmail . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .65Google Talk . . . . . . . . . . . . . . . . . . . . . . . . . . .66Google + . . . . . . . . . . . . . . . . . . . . . . . . . . . . .67Messenger . . . . . . . . . . . . . . . . . . . . . . . . . . . 67Section 6: Applications and Widgets .......68Accessing Applications . . . . . . . . . . . . . . . . . .68Applications List . . . . . . . . . . . . . . . . . . . . . . .70Accessing Widgets . . . . . . . . . . . . . . . . . . . . .93Widgets List . . . . . . . . . . . . . . . . . . . . . . . . . .93Section 7: Connections .............................95Wi-Fi . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .95Wi-Fi Direct . . . . . . . . . . . . . . . . . . . . . . . . . . .96Bluetooth . . . . . . . . . . . . . . . . . . . . . . . . . . . . .97VPN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .98PC Connections . . . . . . . . . . . . . . . . . . . . . . . .98Tethering . . . . . . . . . . . . . . . . . . . . . . . . . . . .100Portable Wi-Fi Hotspot . . . . . . . . . . . . . . . . . .100Memory Card . . . . . . . . . . . . . . . . . . . . . . . . .102Section 8: Settings ..................................103Accessing Settings . . . . . . . . . . . . . . . . . . . .103WIRELESS & NETWORK . . . . . . . . . . . . . . . . .104DEVICE . . . . . . . . . . . . . . . . . . . . . . . . . . . . .114PERSONAL . . . . . . . . . . . . . . . . . . . . . . . . . . .122SYSTEM . . . . . . . . . . . . . . . . . . . . . . . . . . . . .138DRAFT FOR INTERNAL USE ONLY
3Section 9: Health and Safety Information 144Exposure to Radio Frequency (RF) Signals . . 144Specific Absorption Rate (SAR) Certification Information . . . . . . . . . . . . . . . . . . . . . . . . 149FCC Part 15 Information to User . . . . . . . . . . 151Commercial Mobile Alerting System (CMAS) . 151Smart Practices While Driving . . . . . . . . . . . 151Battery Use and Safety . . . . . . . . . . . . . . . . . 153Samsung Mobile Products and Recycling . . . 155UL Certified Travel Charger . . . . . . . . . . . . . 156Display / Touch-Screen . . . . . . . . . . . . . . . . 156GPS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 157Emergency Calls . . . . . . . . . . . . . . . . . . . . . 157Care and Maintenance . . . . . . . . . . . . . . . . . 158Responsible Listening . . . . . . . . . . . . . . . . . 159Operating Environment . . . . . . . . . . . . . . . . 161FCC Hearing Aid Compatibility (HAC) Regulations for Wireless Devices . . . . . . . 163Restricting Children's Access to Your Mobile Device . . . . . . . . . . . . . . . . . . 165FCC Notice and Cautions . . . . . . . . . . . . . . . 165Other Important Safety Information . . . . . . . 166Section 10: Warranty Information ..........168Standard Limited Warranty . . . . . . . . . . . . . . 168End User License Agreement for Software . . 173Index .........................................................181DRAFT FOR INTERNAL USE ONLY

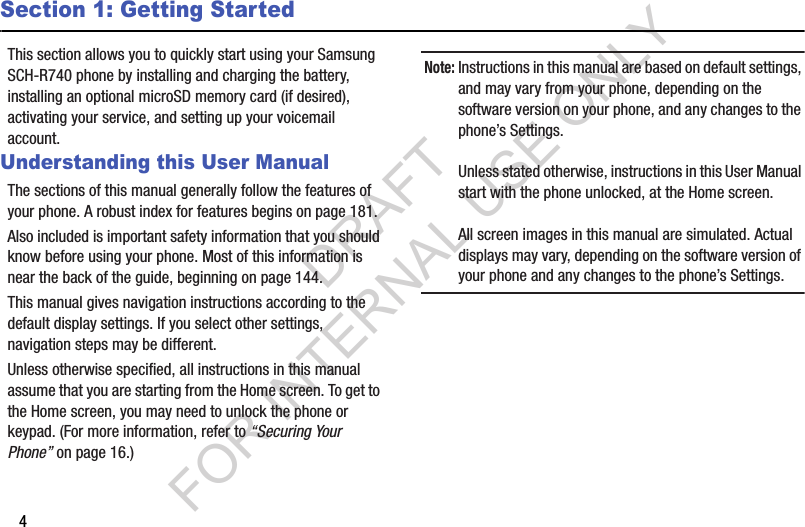

4Section 1: Getting StartedThis section allows you to quickly start using your Samsung SCH-R740 phone by installing and charging the battery, installing an optional microSD memory card (if desired), activating your service, and setting up your voicemail account. Understanding this User ManualThe sections of this manual generally follow the features of your phone. A robust index for features begins on page 181. Also included is important safety information that you should know before using your phone. Most of this information is near the back of the guide, beginning on page 144. This manual gives navigation instructions according to the default display settings. If you select other settings, navigation steps may be different. Unless otherwise specified, all instructions in this manual assume that you are starting from the Home screen. To get to the Home screen, you may need to unlock the phone or keypad. (For more information, refer to “Securing Your Phone” on page 16.) Note:Instructions in this manual are based on default settings, and may vary from your phone, depending on the software version on your phone, and any changes to the phone’s Settings.Unless stated otherwise, instructions in this User Manual start with the phone unlocked, at the Home screen.All screen images in this manual are simulated. Actual displays may vary, depending on the software version of your phone and any changes to the phone’s Settings.DRAFT FOR INTERNAL USE ONLY
Getting Started 5Special TextIn this manual, you’ll find text that is set apart from the rest. These are intended to point out important information, share quick methods for activating features, to define terms, and more. The definitions for these methods are as follows:• Notes: Presents alternative options for the current feature, menu, or sub-menu.• Tips: Provides quick or innovative methods, or useful shortcuts.• Example: Gives an example of the feature or procedure.• Important: Points out important information about the current feature that could affect performance.• Warning: Brings to your attention important information to prevent loss of data or functionality, or even prevent damage to your phone.Text ConventionsThis manual provides condensed information about how to use your phone. To make this possible, the following text conventions are used to represent often-used steps:Example:“Press Home, then touch Menu ➔ Settings ➔ Wi-Fi.” ➔ Arrows are used to represent the sequence of selecting successive options in longer, or repetitive, procedures. DRAFT FOR INTERNAL USE ONLY
6Setting Up Your PhoneBefore using your phone, you need to install the SIM card, the microSD™ card, and the battery into their respective internal slots and compartment. Important!Before removing or replacing the battery cover, make sure the phone is switched off. To turn the phone off, hold down the power key until the power-off image displays, then touch Power off.Removing the battery cover1. Locate the cover removal opening (1).2. Place your fingernail in the opening and pry the cover away from the device (2). Caution! Do not bend or twist the back cover excessively. Doing so may damage the cover. DRAFT FOR INTERNAL USE ONLY
Getting Started 7Installing the battery cover Align the cover (1) and press it firmly into place (2), making sure it snaps into place at the corners. Installing a Memory CardYour device lets you install a microSD (SD) or microSDHC memory card to expand available memory to store images, videos, music, applications, and data. 1. Remove the battery cover. (See “Removing the battery cover” on page 6.) 2. Locate the microSD card slot on the bottom inside of the phone.3. With the gold contacts facing down, carefully slide the memory card into the slot (as shown), pushing gently until it clicks into place. DRAFT FOR INTERNAL USE ONLY
8Important!Be sure to align the gold contact pins on the memory card with the phone’s contacts. Removing a Memory CardImportant!To prevent damage to information stored on the memory card, unmount the card before removing it from the phone.1. Press Home, then touch Menu ➔ Settings ➔ Storage ➔ Unmount SD card.2. Remove the battery cover. (See “Removing the battery cover” on page 6.) 3. Firmly press the Memory card into the slot and carefully release it. The card should pop partially out of the slot.4. Remove the card from the slot.5. Replace the battery cover. For more information, refer to “Installing the battery cover” on page 7.CorrectIncorrectDRAFT FOR INTERNAL USE ONLY
Getting Started 9BatteryYour phone is powered by a rechargeable, standard Li-Ion battery. A Wall/USB Charger (Charging Head and USB cable) is included with the phone, for charging the battery. Note:The battery comes partially charged. You must fully charge the battery before using your phone for the first time. A fully discharged battery requires up to 4 hours of charge time.After the first charge, you can use the phone while charging. Warning!Use only Samsung-approved charging devices and batteries. Samsung accessories are designed to maximize battery life. Using other accessories may invalidate your warranty and may cause damage. Note:Failure to unplug the wall charger before you remove the battery, can cause damage to the phone. Battery IndicatorThe battery icon in the Annunciator Line shows battery power level. Two to three minutes before the battery becomes too low to operate your phone, the empty battery icon will flash and a tone will sound. If you continue to operate the phone without charging the battery, the phone will power off. Installing the Battery1. Remove the battery cover. (See “Removing the battery cover” on page 6.) 2. Slide the battery into the compartment (1) so that the tabs on the end align with the slots at the bottom of the phone, making sure the connectors align.3. Gently press down to secure the battery (2). DRAFT FOR INTERNAL USE ONLY
10Removing the Battery1. Remove the battery cover. (See “Removing the battery cover” on page 6.) 2. Lift the battery up by the slot provided (1). 3. Lift the battery up and out of the phone (2). Charging the BatteryYour phone is powered by a rechargeable Li-ion battery. A wall charger, which is used for charging the battery, is included with your phone. Use only approved batteries and chargers. Ask your local Samsung dealer for further details.Before using your phone for the first time, you must fully charge the battery. A discharged battery recharges fully in approximately 4 hours.Note: Verify that the battery is installed prior to connecting the wall charger. If both the wall charger is connected and the battery is not installed, the handset will power cycle continuously and prevent proper operation. Failure to unplug the wall charger before you remove the battery, can cause the phone to become damaged.Important!: It is recommended you fully charge the battery before using your device for the first time.DRAFT FOR INTERNAL USE ONLY
Getting Started 111. Insert the USB cable into the device’s Charger/Accessory jack at the bottom of the device.Note: This illustration displays both the correct and incorrect orientation for connecting the USB cable to the phone. If the USB cable is incorrectly connected, damage to the accessory port will occur, therefore voiding the phone’s warranty. 2. Connect the USB cable to the charging head.3. Plug the charging head into a standard AC power outlet. The device turns on with the screen locked and indicates both its charge state and percent of charge.Warning!: While the device is charging, if the touch screen does not function due to an unstable power supply, unplug the USB power adapter from the power outlet or unplug the USB cable from the device. CorrectIncorrectCorrectIncorrectDRAFT FOR INTERNAL USE ONLY
124. When charging is finished, first unplug the charger’s power plug from the AC wall outlet, then disconnect the USB cable connector from the device. Important!If your handset has a touch screen display, please note that a touch screen responds best to a light touch from the pad of your finger or a non-metallic stylus. Using excessive force or a metallic object when pressing on the touch screen may damage the tempered glass surface and void the warranty. For more information, refer to “Standard Limited Warranty” on page 168. Turning Your Phone On Press and hold the Power/Lock key (on the upper right side of the phone) for three seconds. While powering on, the phone connects with the network, then displays the Locked screen and any active Notification alerts.Note:Your phone’s internal antenna is located along the bottom back of the phone. Do not block the antenna; doing so may affect call quality or cause the phone to operate at a higher power level than necessary.DRAFT FOR INTERNAL USE ONLY
Getting Started 13Unlocking Your Phone1. If needed, press Home to wake the screen. 2. If there are no Notification alerts on your phone, swipe the screen to unlock it. The Home screen appears. Note:If you have purchased your phone online, the first time you power your phone on and unlock the screen, the Activation Wizard Welcome screen appears. Follow the prompts to activate and setup your phone. Turning Your Phone Off1. Press and hold the Power/Lock Key (on the upper right side of the device) for two seconds. 2. At the prompt, touch Power off. The Power off pop-up appears. 3. At the prompt, touch OK. Emergency call2:33 PMRDRAFT FOR INTERNAL USE ONLY
14TTY ModeYour phone is fully TTY-compatible, allowing you to connect a TTY device to the phone’s headset jack. Before you can use your phone with a TTY device, you’ll need to enable TTY Mode. For more information, refer to “Other call settings” on page 58. VoicemailAll unanswered calls to your phone are sent to voicemail, even if your phone is turned off, so you’ll want to set up your voicemail and personal greeting as soon as you activate your phone. Setting up Voicemail1. Press Home, then touch Phone, then touch and hold . 2. Follow the automated instructions to set up your new password and record a greeting. Checking Voicemail1. Press Home, then touch Phone, then touch and hold . 2. Follow the automated instructions to manage voicemail.Tip:You can also access Voicemail by dialing your phone number from any touch-tone phone. Displaying Your Phone Number Press Home, then touch Menu ➔ Settings ➔ About device ➔ Status. Your phone number displays under My phone number. DRAFT FOR INTERNAL USE ONLY
Getting Started 15Your Google™ AccountYour new phone uses your Google account to fully utilize its Android features, including Gmail, Google Maps, Google Talk, and the Google™ Play. When you turn on your phone for the first time, you should set up a connection with your existing Google account, or create a new Google account. 1. Press Home, then touch Applications ➔ Gmail.The Add a Google Account screen displays.2. Touch Existing or New to continue. 3. Follow the on-screen instructions to sign in if you already have a Google account, or to create a Google Account. Resetting your Google Account PasswordA Google account password is required for Google applications. If you misplace or forget your Google Account password, follow these instructions to reset it:1. From your computer, use an Internet browser to navigate to http://google.com/accounts. 2. Once the Web Page loads, click on the Can’t access your account? link.3. Under Forgot your password?, follow the password reset prompts.DRAFT FOR INTERNAL USE ONLY
16RoamingWhen you travel outside your home network’s coverage area, your phone can roam to acquire service on other compatible digital networks. When Roaming is active, the Roaming icon ( ) appears in the Annunciator Line (Notification Bar) of the display. Tip:You can set your phone’s roaming behavior. (For more information, refer to “Mobile networks” on page 113.) During roaming, some services may not be available. Depending on your coverage area and service plan, extra charges may apply when making or receiving calls. Note:Contact your Wireless Provider for more information about your coverage area and service plan. Securing Your PhoneBy default, the phone locks automatically when the screen times out, or you can lock it manually. You can unlock the phone using one of the default Unlock screens, or for increased security, use a personal screen unlock pattern, a Personal Identification Number (PIN), or a password. For more information about creating and enabling a Screen unlock pattern, see “Lock screen” on page 130. Note:Unless stated otherwise, instructions in this User Manual start with the phone unlocked, at the Home screen.Locking the phone manually Press the Power/Lock key on the top right side of the phone.DRAFT FOR INTERNAL USE ONLY
Getting Started 17Unlocking the phoneFor information on unlocking your phone, see “Unlocking Your Phone” on page 13. Unlocking with a Personal Screen Unlock Pattern1. Press Home to wake the screen.2. Draw your personal unlock pattern on the screen. (For more information, refer to “Lock screen” on page 130.) Unlocking with a Password1. Press Home to wake the screen.2. Enter your Password. 3. Press OK.DRAFT FOR INTERNAL USE ONLY
18Section 2: Understanding Your PhoneFeatures• 3.5-inch (480x320 pixel) HVGA full-screen touch screen • 7-page Home screen, simplified main menu, and separate, 4-page Applications menu • High Speed Data [EVDO 3G - Rev B Capable Technology] • Android OS • Motion and position sensitivity • Play Store™, plus pre-loaded applications • Connections –Wi-Fi 802.11 b/g/n –Wireless Modem Service –Bluetooth 3.0 + EDR –Virtual Private Network (VPN) • Messaging Services (with on-screen QWERTY Keypads) –Text Messaging –Picture Messaging –Video Messaging –Voice Messaging –Email –Mobile Instant Messenger (IM) –Chat • Full-HTML Browser • Global Positioning (GPS) Technology • 8.0 Megapixel CMOS Camera-Camcorder, rear-facing • Picture Gallery, supporting JPG, PNG, GIF, and BMP formats • Music Player, supporting MP3 format • Video Player, supporting MP4, 3GP, WMV, AVI, MKV, FLV, and ASF formations • Speakerphone • Voice recognition by Vlingo® • Ringtone and Alert tone support for MP3, AAC, WMA, M4A, OGG, MID, and AMR formats • Support for microSD™ and microSDHC™ Memory Cards (up to 32 GB capacity)• Bluetooth® 3.0 + EDR Wireless Technology. (For more information, refer to “Bluetooth profiles” on page 105.) DRAFT FOR INTERNAL USE ONLY
Understanding Your Phone 19Front View1.Earpiece: Use during calls to listen to callers.2.Menu Key: Press to display options for the current screen.3.Microphone: Use during calls to allow callers to hear your voice, and when recording.4.Home Key: Press to display the Home screen, or Lock screen if the phone is locked. Press and hold to display recent applications or to launch Task Manager.5.Back Key: Press to return to the previous screen or option.6.Proximity and Light Sensors: Detect the presence of nearby objects to control device functions or blank the screen display, such as when you hold the phone to your ear during a phone call. Detect ambient light to determine screen brightness when Brightness is set to Automatic brightness (see “Brightness” on page 118), and when taking pictures with the Front camera. 123546DRAFT FOR INTERNAL USE ONLY
20Side Views1.Volume Key: From the Home screen, touch to adjust Master Volume. During calls or music playback, press to adjust volume. Press to mute the ringtone of an incoming call.2.USB Power/Accessory Port: Connect a USB cable for charging or to sync music and files.3.Power/Lock Key: Press and hold to turn the phone on or off. Press to lock the phone, or to wake the screen for unlocking.132DRAFT FOR INTERNAL USE ONLY
Understanding Your Phone 21Back View1.Noise cancelation microphone: Captures background noise that the phone uses to produce a quiet background during calls and video chats. 2.Camera Flash: Use when taking photos.3.8 Megapixel Camera Lens: Use when taking photos or recording videos.4.External Speaker: Play ringtones, call audio when in Speakerphone mode, media sounds (music and video), and other sounds.5.3.5mm Headset Jack: Plug in an optional headset or TTY equipment.12345DRAFT FOR INTERNAL USE ONLY
22NavigationNavigate your phone’s features using the command keys and the touch screen.Warning!Please note that a touch screen responds best to a light touch from the pad of your finger or a non-metallic stylus. Using excessive force or a metallic object when pressing on the touch screen may damage the tempered glass surface and void the warranty. For more information, see “Warranty Information” on page 168.Context-sensitive MenusWhile using your phone, context-sensitive menus offer options for the feature or screen currently in use. To access context-sensitive menus:•Touch Menu.•Touch and hold on an item. Command KeysMenu KeyTouch Menu to display a context-sensitive menu of options for the current screen or feature.Home KeyPress the Home Key to display the Home screen.Press and hold the Home Key to launch a menu of recent applications, or to launch Task Manager.Back KeyTouch Back to return to the previous screen, option or step.DRAFT FOR INTERNAL USE ONLY
Understanding Your Phone 23Finger MotionsTouchTouch items to select or launch them. For example:• Touch the on-screen keyboard to enter characters or text.• Touch an item to select it.• Touch an app’s icon to launch the application.Touch and HoldActivate on-screen items by a touch and hold gesture. For example: • Touch and hold a widget or icon on the Home screen to move it.• Touch and hold on a field to display a pop-up menu of options.SwipeSwipe your finger vertically or horizontally across the screen. For example:• Unlocking the screen• Scrolling the Home screen or a menu• Combine touch and hold with swipe to drag an item to a new location.PinchUsing two fingers, make a pinch motion on the screen. For example:• Pinch in to zoom in on pictures or screens.• Pinch out to zoom out on pictures or screens.DRAFT FOR INTERNAL USE ONLY
24NotificationsNotifications shows information about connections, alerts and other items. 1. Touch and drag downward from the top of the screen to display notifications.2. Touch an item to open that item, or to launch a related app or feature. 3. Touch Clear to clear all Notifications. Clearing Notifications1. Sweep your finger downward from the top of the screen to display Notifications.2. Touch a notification to clear it, or to launch an app.– or –Touch Clear to clear all notificationsDRAFT FOR INTERNAL USE ONLY
Understanding Your Phone 25Home ScreenThe Home screen is the starting point for using your phone. Note:Unless stated otherwise, instructions in this User Manual start with the phone unlocked, at the Home screen.All screen images in this manual are simulated. Actual displays may vary, depending on the software version of your phone and any changes to the phone’s Settings.1.Status Bar: Presents icons to show network status, battery power, and connection details. For a list of icons, see “Status Bar Icons” on page 26.2.Home screen: The starting point for using your phone. Place shortcut icons, widgets, and other items to customize your phone to your needs. For more information, see “Home Screen” on page 25.3.Primary Shortcuts: Shortcuts to your phone’s common apps. For more information, see “Primary Shortcuts” on page 29.4.Panel Indicator: Shows what panel of 7 available Home screen panels appears in the display. 5.Shortcuts: Shortcuts to common apps.These shortcuts are found on the Home screen by default, and you can add more shortcuts to your favorite apps. For more information, see “Shortcuts” on page 30.6.Widgets: Apps that run on the Home screen. These widgets are found on the Home screen by default, and you can add your favorites. For more information, see “Widgets” on page 29.123456DRAFT FOR INTERNAL USE ONLY
26Status Bar IconsThe Status Bar shows network and battery status and other details. Airplane Mode Active: All wireless communications are disabled. See “Airplane mode” on page 109. USB Connected: The phone is connected to a computer using a USB cable.Voice Call: A voice call is in progress. Speakerphone: Speakerphone is enabled. Missed Call: Displays when there is a missed call. Mute: Voice or playback volume is muted. Battery Level: Shown fully charged. Battery Charging: Battery is charging. Device Power Critical: Battery has very little power remaining. Charge immediately.GPS Location Active: One or more GPS location services are active. See “Location services” on page 128. Missing SIM: No LTE SIM is installed. No Network: No wireless network is available. 3G connection: Phone is active on a 3G system. 4G LTE Connection: Phone is active on a 4G LTE system. Signal Strength: Current signal strength. The greater the number of bars, the stronger the signal.New Message: You have new message(s). New Voicemail: You have new voicemail. A number indicates the number of new messages.DRAFT FOR INTERNAL USE ONLY
Understanding Your Phone 27New Email Message: You have new email. Silent mode: All sounds except media and alarms are silenced, and Vibrate is not active. See “Volumes” on page 114. Vibrate: All sounds are silenced, and Vibrate is active. See “Device vibration” on page 116. SD Card Ready: A memory card scan is underway, to prepare the card for use.SD Card Removed: A memory card was un-installed. Bluetooth Active: Bluetooth is turned on. Bluetooth Connected: Your device is connected with another Bluetooth device.Wi-Fi Active: Wi-Fi is active, and connected to a Wi-Fi network.Wi-Fi Action Needed: Action needed to connect to Wi-Fi network. For more information about configuring Wi-Fi, see “Wi-Fi Settings” on page 104. TTY: TTY Mode is active. DRAFT FOR INTERNAL USE ONLY
28Display settingsYou can customize display settings to your preferences. For more information, see “Display” on page 118.Extended Home ScreenThe Home screen consists of the Home panel, plus panels that extend beyond the display width to provide more space for adding shortcuts, widgets and folders.Slide your finger horizontally across the screen to scroll to the left or right side panels. As you scroll, the indicator at the bottom of the display shows your current position.Customizing the Home ScreenCustomize the Home screen to suit your preferences.• Add Shortcuts: For more information, see “Shortcuts” on page 30.• Add Widgets: For more information, see “Widgets” on page 29.• Add Folders: For more information, see “Folders” on page 30.• Change the Wallpaper: For more information, see “Wallpaper” on page 31.Adding and removing Home screen panelsYour phone comes with 7 Home screen panels. You can customize the Home screen to include up to the seven default panels, and set one panel as Home.1. From the Home screen, touch Menu, then touch Edit page.2. Slide your finger across the screen to scroll the panels, and use these controls to configure panels: Tip:You can also “pinch” the Home screen to display Edit options.Remove: Touch and hold on a panel, then drag it to Remove. Add: Touch a previously-removed panel to add it, up to the default total of seven. Set as Home: Touch to assign a panel as the Home screen. The panel set as Home will display when you press the Home key. DRAFT FOR INTERNAL USE ONLY
Understanding Your Phone 29Primary ShortcutsPrimary Shortcuts appear at the bottom of the display. You can edit the Primary Shortcuts, except for Apps. Editing the Primary ShortcutsTo add or remove shortcuts: Touch and hold a shortcut, then drag it from the Primary Shortcuts to the Home screen, or from the Home screen to the Primary Shortcuts.To remove shortcuts: Touch and hold the shortcut until Remove appears, then drag the shortcut to the Remove icon.WidgetsWidgets are self-contained applications that you can place on the Home screen for quick, direct access.Adding Widgets to the Home screen1. Press the Home key, swipe to a Home screen panel, then touch and hold on the screen to display the Home screen menu. 2. Touch Add to Home screen, then select Apps and widgets. 3. Touch the Widgets tab, then touch a widget and follow the prompts to configure the widget and place it on the Home screen.Adding Widgets from Apps1. Press the Home key, and swipe to a Home screen panel.2. Touch Apps, then touch the Widgets tab.3. Touch a widget, then follow the prompts to configure the widget and place it on the Home screen.Removing Widgets Touch and hold the widget until Remove appears, then drag the widget to the Remove icon.DRAFT FOR INTERNAL USE ONLY
30ShortcutsUse App shortcuts to launch applications from the Home screen. Your phone comes with app shortcuts already placed on the Home screen, and you can add your favorites.Adding Shortcuts to the Home ScreenAdding shortcuts from the Home screen1. Press the Home key, then touch and hold on the screen to display the Add to Home screen menu.2. Touch Apps and widgets ➔ Apps tab, then touch a selection.3. Follow the prompts to configure the shortcut and add it to the Home screen.Adding Shortcuts from Apps1. Press the Home key.2. Touch Apps.3. Touch and hold on an app until it appears on the Home screen.Removing Shortcuts Touch and hold the shortcut until Remove appears, then drag the shortcut to the Remove icon.FoldersPlace folders on the Home screen to organize items.Adding Folders1. Press the Home key.2. Touch and hold on the screen to display the Home screen menu, then select Add to Home screen ➔ Folder.– or –Touch Menu ➔ Create folder.3. The folder appears on the Home screen. Touch the folder to name it.Removing Folders Touch and hold the folder until Remove appears, then drag the folder to the Remove icon.DRAFT FOR INTERNAL USE ONLY
Understanding Your Phone 31WallpaperChoose a picture to display in the background of the Home screen. You can choose from pre-loaded wallpaper images, or select a picture you’ve taken with the Camera or downloaded.1. Touch Home, touch and hold on the screen to display the Home screen menu, then select Set wallpaper ➔ Home screen / Lock screen / Home and lock screens. 2. Choose a source:•Gallery: Choose a picture stored on your phone or on an optional installed memory card. Touch a picture to select it, then use the crop tool to resize the picture, if desired. Touch Done to save the picture as wallpaper.•Live wallpapers: Choose from pre-loaded animated wallpaper images. Touch a wallpaper, then touch Set wallpaper. • Wallpaper: Choose from pre-loaded wallpaper images. Touch a wallpaper, then touch Set wallpaper.Note:You can also set Wallpaper in Settings. For more information, see “Wallpaper” on page 118. AppsApps holds all applications installed on your phone. Applications that you download and install from the Google Play™ Store or from the web are also added to Apps. The Apps screen is like the Home screen, it consists of panels that extend beyond the display width to provide more space. Slide your finger horizontally across the screen to scroll to the left or right side panels. As you scroll, the indicator at the bottom of the display shows your current position.For more information about applications, see “Applications and Widgets” on page 68.You can place shortcuts to apps on the Home screen, for quick access to the app. For more information, see “Adding Shortcuts from Apps” on page 30.1. Touch Home ➔ Apps. 2. Slide your finger left or right to scroll the Apps screens.3. Touch an icon to launch the application.DRAFT FOR INTERNAL USE ONLY
32Customizing the Apps ScreensChoosing a viewBy default, app icons appear in Grid view. You can change the view to list view.1. Touch Home ➔ Apps. 2. Touch Menu ➔ View type.3. Choose an option: • Customizable Grid: The default view, which allows you to touch and hold on apps to move them from screen to screen.• Alphabetical grid: Icons are arranged in a grid, in A-Z order.• Alphabetical list: Icons display in a list, sorted from A-Z.Apps screen options1. Touch Home ➔ Apps. 2. Touch Menu for options: •Play Store: Launch Google Play™ Store, to browse for new apps to download. •Edit: Touch and hold an app icon for these options: –Drag it to a new location. –Drag it to to create a new folder to contain the icon. –Drag it to to create a new apps screen and place the icon on it. –Drag it to to launch Application manager to view information about the app. For more information, refer to “Apps” on page 121. –Drag to (if available) to remove the icon. The trashcan is only available for apps you’ve installed. Pre-loaded apps cannot be removed. • Create folder: Add folders in which to group your apps. • Uninstall: Remove an app that you downloaded from your phone. Pre-loaded apps cannot be un-installed. • Downloaded applications: Display all apps you’ve downloaded. DRAFT FOR INTERNAL USE ONLY
Understanding Your Phone 33•View type: Configure the apps screen. • Share apps: Select apps you’ve downloaded (not available for pre-loaded apps) to share via Bluetooth, Dropbox, Email, Flipboard, Gmail, Google+, Messaging, S Memo, Wi-Fi Direct. • Hide applications / Show hidden applications: Control whether app icons are visible in Apps. Hiding an icon does not remove the app from your phone. Entering TextVirtual QWERTY KeyboardYour phone uses a virtual QWERTY keyboard for text entry. Use the keyboard to enter letters, punctuation, numbers, and other characters into text entry fields or applications. Access the keyboard by touching any text entry field.The virtual QWERTY keyboard displays at the bottom of the screen. By default, when you rotate the phone, the screen orientation updates to display the keyboard at the bottom of the screen.DRAFT FOR INTERNAL USE ONLY
34Entering Text Using Samsung KeyboardThe Samsung keyboard is a custom virtual QWERTY keyboard, featuring optional XT9 predictive text. Input characters by touching the on-screen keys with your finger, or use speech recognition.You can enable XT9 predictive text, to have the Samsung keyboard match your key touches to common words and displays them. Select a word from the display to insert it into your text.Configuring Samsung keyboardConfigure the Samsung keyboard to your preferences. • For more information, refer to “Samsung keyboard: Touch beside Samsung keypad to configure the following options.” on page 133.• While entering text, touch and hold , then touch . Entering Upper and Lower Case LettersThe default case is lower case (abc). Enter upper and lower case alphabet letters by touching the Shift key ( ) to toggle the case, before touching the letter key(s).• Touch once to switch from abc to Abc mode. • Touch and hold to switch to ABC mode. Entering Symbols and NumbersTo enter common symbols, touch to switch to symbol mode, then touch the corresponding key. To enter less-common symbols, touch ➔ , then touch the corresponding key. Enter numbers by touching , then touching the number keys. DRAFT FOR INTERNAL USE ONLY
Understanding Your Phone 35Using Google voice typingEnter text by speaking. Google voice typing recognizes your speech and enters text for you.Note:Enable Google voice typing in Language and input settings, and Voice input in the Samsung keyboard settings, to have the input method icon appear on the Status Bar. For more information, see “Samsung keyboard: Touch beside Samsung keypad to configure the following options.” on page 133.1. Touch a text entry field (such as the “Enter message” field for a new message). The Input method icon ( ) appears on the left side of the Status Bar. 2. Touch and swipe the Status Bar downward. 3. Touch the Select input method Ongoing Notification.The following options pop-up: •Google voice typing •Samsung keyboard 4. Touch Google voice typing. The voice input screen appears at the bottom of the display. 5. Dictate your text in a clear, natural pace. 6. When you are finished dictating your text, touch Back. DRAFT FOR INTERNAL USE ONLY
36Section 3: Accounts and ContactsAccountsYour phone provides the ability to synchronize information, from a variety of accounts, including Email, Facebook, Google, and your Samsung account. Depending on the account, you can choose to synchronize your calendar, contacts, and other types of content. Contacts from your accounts appear in your phone’s Contacts. With synchronization, you can ensure that information on your phone is updated with any information that changes in your accounts. Setting Up Your AccountsSet up and manage your accounts with the Accounts settings. (For information about setting up other, non-synchronized email accounts, see “Configuring Email Accounts” on page 64.) Tip:For more information on setting up your email, contact your Wireless Provider. Adding an account1. From the Home screen, touch Menu ➔ System settings. 2. Under Personal, touch Accounts & sync ➔ ADD ACCOUNT. 3. Select an account type, then follow the prompts to enter your credentials and sign in. 4. The phone communicates with the provider’s server to set up your account on the phone. DRAFT FOR INTERNAL USE ONLY
Accounts and Contacts 37Controlling SynchronizationYou can choose to have your phone automatically synchronize with your accounts, or manually synchronize each account when you want to check messages.You may also choose to limit automatic or background synchronization to extend battery life.1. From the Home screen, touch Menu ➔ System settings. 2. Under Personal, touch Accounts & sync. The Accounts & sync screen appears. 3. To enable automatic synchronization, touch Accounts & sync . To disable automatic synchronization, touch Accounts & sync . 4. Touch the desired account ID. The Sync settings screen for the selected account appears listing some or all of the following synchronization settings: • Sync Browser •Sync Calendar •Sync Contacts •Sync Email •Sync Gmail • Sync Google Photos • Sync Google Play Books • Sync Google Play Magazines • Sync Google Play Movies & TV • Sync Google Play Music 5. Touch these settings to enable/disable synchronization of the associated file types. When enabled, a check mark appears in each setting check box. •With automatic synchronization enabled, your phone automatically synchronizes its related files with similar files on on-line file servers. • With automatic synchronization disabled, you can manually sync accounts by touching Menu ➔ Sync all in the Sync settings screen for each account. DRAFT FOR INTERNAL USE ONLY
38Managing accounts1. From the Home screen, touch Menu ➔ System settings. 2. Under Personal, touch Accounts & sync. The Accounts & sync screen appears. 3. Under Accounts, touch the desired account ID. The Sync settings screen for the selected account appears. (For more information, refer to “Controlling Synchronization” on page 37.) 4. To enable or disable a synchronization setting, touch it. When enabled, a check mark appears in the check box. 5. To invoke the enabled synchronization settings for the selected account, touch Sync now. 6. To remove the selected account from your phone, touch Remove account. A Delete account? pop-up prompts you to confirm the removal. To remove the selected account, touch Remove account.PeopleTo access People: From the Home screen, touch People. Contact tips:• Swipe your finger left-to-right across a contact to make a call to the contact. • Swipe right-to-left across a contact to create a message addressed to the contact. Adding People1. From the Home screen, touch People ➔ People list ➔ Add a person. •If you have defined accounts (Google, Samsung, and so on), the Save contact to pop-up appears. Select Phone or the account to receive the new Contact entry. •If you have not defined any accounts, the Save contact pop-up appears. The following options are available: –OK: Saves your contacts in “my device contacts”. –Add new account: Lets you define an account to which your device will save your contacts. The Add new account screen appears. (For more information, refer to “Setting Up Your Accounts” on page 36.) DRAFT FOR INTERNAL USE ONLY
Accounts and Contacts 392. Touch contact fields to select or enter information: •Touch Photo ID to choose a picture to identify the contact.•Touch Name to enter a name for the contact. Touch to enter Name prefix, First name, Middle name, Last name, or Name suffix.•Touch Phone number to enter a phone number, then touch the Label button to choose a label, from Mobile, Home, Work, Work Fax, Home Fax, Pager, Other, Custom, or Callback. To add another number, touch . •Touch Email address to enter an email address, then touch the Label button to choose a label, from Home, Work, Other, or Custom to create a new label. To add an address, touch . •Touch Address to enter a street or postal address, then touch the Label button to choose a label, from Home, Work, Other, or Custom to create a new label. To add an address, touch . •Touch next to Events to enter a special date, then touch the Label button to choose a label, from Birthday, Anniversary, Other, or Custom to create a new label.•Touch Groups to assign the contact to a group. For more information about Groups, see “Groups” on page 45. •Touch Ringtone to choose a ringtone for the contact. •Touch Message alert to select the alert tone to be played when you receive a message from this contact. •Touch Vibration pattern to choose a vibration pattern to play when you receive a call or message from this contact. •Touch Add another field to add more fields, including Phonetic Name, Organization, IM, Notes, Nickname, Website, or Relationship. 3. When you finish selecting and entering information, touch Save.DRAFT FOR INTERNAL USE ONLY
40Creating Contacts from Recent callsSave a phone number from a recent call to create a new contact, or update an existing contact. For more information, refer to “Creating or Updating Contacts Using Recent calls” on page 53. Creating Contacts from the Phone KeypadEnter a phone number with the Phone Keypad, then save it.1. From the Home screen, touch Phone.2. Touch the digits of the phone number on the Keypad.3. Touch Add to Contacts, then select Create contact from the pop-up menu.4. Continue entering contact information. (For more information, refer to “Adding People” on page 38.) Tip:While entering a phone number, you can add waits or pauses. Enter the number up to the pause or wait, then touch Menu to select Add 2 sec pause or Add wait.Updating ContactsMake changes to update an existing contact.1. From the Home screen, touch Contacts.2. Touch a contact to view its information, then touch Edit.– or –Touch and hold a contact, then select Edit from the menu.3. Continue entering contact information. (For more information, refer to “Adding People” on page 38.)Updating Contacts from the Phone KeypadEnter a phone number with the Phone Keypad, then save it.1. From the Home screen, touch Phone.2. Touch the digits of the phone number on the Keypad.3. Touch Add to Contacts, then select Update existing from the pop-up menu.4. Select a contact to update, then continue entering contact information. (For more information, refer to “Adding People” on page 38.) DRAFT FOR INTERNAL USE ONLY
Accounts and Contacts 41Updating Contacts from Recent callsSave a phone number from a recent call to create a new contact, or update an existing contact.For more information, refer to “Creating or Updating Contacts Using Recent calls” on page 53. Choosing Contacts to Display1. From the Home screen, touch Contacts.2. Touch Menu, then touch Contacts to display:•Choose All contacts to show all contacts.•Touch Phone to show only show contacts saved to the phone.•Choose an account to only display contacts from that account.•Choose Customized list to select contact types for each account, or the phone. Contacts Settings1. From the Home screen, touch Contacts.2. Touch Menu, then touch Settings:•Select Only contacts with phones to show contacts with at least one stored phone number.•Touch List by to sort contacts by first or last name.•Touch Display contacts by to list contacts by first or last name.•Touch Contact sharing settings to set your preference for sending contacts namecards to other accounts or devices. (For more information about sending contacts, see “Sending Namecards” on page 44.) DRAFT FOR INTERNAL USE ONLY
42Other Contacts Options1. From the Home screen, touch Contacts.2. Touch a contact to display it, then touch Menu:•History: View calls and messages to and from this contact.•Edit: Modify contact information. (For more information, refer to “Updating Contacts” on page 40.) •Delete: Erase the contact record.•Join contact / Separate contact: Manage multiple contacts as one. (For more information, refer to “Joining Contacts” on page 43.) • Mark as default: Set a default phone number or other field (such as IM or email address). Defaults are the contact method used when creating a message or calling a contact. You can also set a default by touching and holding on a contact field.• Share namecard via: Send the namecard. (For more information, refer to “Sending Namecards” on page 44.)• Add to reject list: Mark the contact so that calls or messages from the contact are rejected automatically. To remove a contact from the reject list, touch and hold on the contact in the main contacts screen, then choose Delete from reject list.• Print contact info: Print the namecard via Bluetooth to a compatible Samsung Bluetooth-enabled printer. • Add shortcut to Home: Add shortcut to this contact to Home screen. My Local ProfileMy local profile is your own contact record, listed under ME in Contacts. You can send My local profile as a vCard via Bluetooth or as an attachment. Creating My Local Profile1. From the Home screen, touch Contacts.2. Under ME touch Set up profile.3. Enter your information in the contact fields. (For more information, refer to “Adding People” on page 38.)Sending My Local ProfileYou can send your profile as a vCard via Bluetooth to other Bluetooth devices, or as an attachment.1. From the Home screen, touch Contacts.2. Touch your profile to display your contact information.3. Touch Menu, then touch Share namecard via. DRAFT FOR INTERNAL USE ONLY
Accounts and Contacts 434. Choose a sending method or app from the Complete action using pop-up, then follow the prompts to send the profile. Joining ContactsYour phone can synchronize with multiple accounts, including Google, Corporate, and other providers, plus social networking sites like Facebook. When you synchronize contacts from these accounts with your phone, you may have multiple contacts for one person. Joining contact records allows you to see all the contact’s numbers and addresses together. Joining also helps you keep your contacts updated, because any changes to information in the respective accounts is automatically updated the next time you synchronize with the account. Joining contacts1. From the Home screen, touch Contacts.2. Touch a contact to display its information.3. Touch Menu, then touch Join contact. A list of available contacts appears. 4. Select a contact to join to the displayed contact. The joined contact appears. 5. To join another contact, touch the Connection field. The Joined contact screen appears. Touch Join another contact. A list of available contacts appears. Select a contact to join to the displayed contact. The joined contact appears. Separating contacts1. From the Home screen, touch Contacts.2. Touch a contact to display its information.3. Touch the Connection field to display joined contacts.4. Touch to the right of a contact to remove it from the selected joined contact. DRAFT FOR INTERNAL USE ONLY
44Exporting and Importing ContactsYou can export your contact list to an installed memory card, or import a list of contacts (previously exported) from a memory card.1. From the Home screen, touch Contacts.2. Touch Menu, then touch Import/Export.3. Select an option, then follow the prompts to complete the operation:• Import from USB storage: Copy contacts that are saved in installed mass storage. • Export to USB storage: Copy contacts to installed mass storage. • Import from SD card: Copy contacts that are saved on an installed memory card. • Export to SD card: Copy contacts to an installed memory card.• Share namecard via: Share contacts as Namecards. (For more information, refer to “Sending Namecards” on page 44.) Sending NamecardsYou can send a contact entry as a namecard using a Bluetooth connection to another device, or as an attachment to a Gmail or Email message. Important!Not all Bluetooth devices will accept contacts, and not all devices support transfers of multiple contacts. Check the target device’s documentation.1. From the Home screen, touch Contacts.2. Touch Menu, then touch Import/Export ➔ Share namecard via.3. Touch contacts to mark them for sending, or touch Select all to mark all contacts. A check mark appears in the check box for marked contacts.4. Touch Done. 5. Choose a sending method or app from the Complete action using pop-up, then follow the prompts to send the profile. DRAFT FOR INTERNAL USE ONLY
Accounts and Contacts 45FavoritesMark contacts with a star to identify them as Favorites.Favorites display on the Favorites tab in the Phone and Contacts screens for fast dialing or messaging, and are indicated by the .Creating Favorites1. From the Home screen, touch Contacts.2. Touch and hold on a contact, then select Add to favorites from the pop-up menu. – or – Touch a contact to display it, then touch at the top right of the screen, it changes color to . GroupsAssign contacts to Groups to make searching for contacts faster, or to quickly call or send messages to group members. Your phone comes with pre-loaded groups you can use to add your contacts.Adding a New Group1. From the Home screen, touch Contacts ➔ Groups. 2. Touch Menu ➔ Create, then enter information:•Touch Group name to enter a Group Name.•Touch Group ringtone to choose a ringtone for calls from members of this group.•Touch Vibration pattern to choose a vibration to play for calls from members of this group.•Touch Add member to select members from Contacts.3. Touch Save to save the new group.DRAFT FOR INTERNAL USE ONLY
46Editing a Group1. From the Home screen, touch Contacts ➔ Groups.2. Touch a Group to display it.3. Touch Menu ➔ Edit, then update information for the group. For more information, see “Adding a New Group” on page 45.Deleting a GroupTip:You can only delete groups that you have created. 1. From the Home screen, touch Contacts ➔ Groups.2. Touch Menu ➔ Delete groups. 3. Touch a Group to mark it for deletion, or touch Select all to mark all groups. When selected, a check mark appears in the check box. You cannot delete pre-loaded groups.4. Touch Delete, then choose Group only or Group and group members.Adding Contacts to a Group1. From the Home screen, touch Contacts ➔ Groups.2. Touch a Group to display it, then touch . 3. Touch contact(s) to mark them for addition, or touch Select all to mark all contacts. When selected, a check mark appears in the check box.4. Touch Done to add the selected contact(s).Removing Contacts from a Group1. From the Home screen, touch Contacts ➔ Groups.2. Touch a Group to display it.3. Touch Menu ➔ Remove member. 4. Touch contact(s) to mark them for removal, or touch Select all to mark all contacts. When selected, a check mark appears in the check box.5. Touch Done to remove the selected contact(s).DRAFT FOR INTERNAL USE ONLY
Accounts and Contacts 47Sending a Message to Group MembersCreate a new text or email message, addressed to the group’s members.1. From the Home screen, touch Contacts ➔ Groups.2. Touch and hold a Group, then touch Send message or Send email. 3. Touch contacts to mark them as recipients for the new message, then touch Done.4. The new message opens, with the marked contacts as recipients. Continue creating the message, as desired. (For more information, refer to “Creating and Sending Messages” on page 59, or “Composing and Sending Email” on page 64.) Speed DialsSpeed dials are 1-, 2-, or 3-digit shortcuts (1 to 100) you assign to contacts, to allow you to quickly call the contact.For more information about calling using speed dials, see “Making Calls using Speed Dials” on page 48.Note:Speed dial 1 is reserved for Voicemail, and cannot be assigned. Assigning Speed Dials1. From the Home screen, touch Contacts.2. Touch Menu, then touch Speed dial setting.3. A list of speed dials displays.Touch a speed dial, then touch a contact to assign the speed dial to the contact. Removing or Reassigning a Speed Dial1. From the Home screen, touch Contacts.2. Touch Menu, then touch Speed dial setting.3. Touch and hold an assigned Speed dial setting, the following options pop-up:• Replace: Touch a new speed dial location to assign it to the contact. • Delete: Un-assign the speed dial from the contact. DRAFT FOR INTERNAL USE ONLY
48Section 4: CallingMaking CallsYour phone offers multiple ways to make calls:• Use the touch screen Phone Keypad to enter the phone number or speed dial.• Call a contact from Contacts.• Call a contact from Favorites.• Return a call, or call a recent caller, from Recent. • Voice dial using Voice Dialer. Making Calls Using the Phone Keypad1. From the Home screen, touch Phone.2. Touch the digits of the telephone number on the Keypad.3. Touch to place the call.Making Calls using Speed DialsSpeed Dials are 1-, 2-, or 3-digit shortcuts (1 to 100) you assign to contacts, to allow you to quickly call the contact.(For more information about setting speed dials, see “Speed Dials” on page 47.) 1. From the Home screen, touch Phone.2. Touch the digits of the speed dial number on the Keypad, holding the last digit until the number dials.DRAFT FOR INTERNAL USE ONLY
Calling 49Making Calls from PeopleA contact is an entry that you have created to store the name, numbers, and other information for people or groups of interest.(For more information, refer to “People” on page 38.) 1. From the Home screen, touch People.2. Find the contact and touch it to open the Contact entry.3. Swipe your finger from left to right across the contact to dial their default number.– or –Touch a contact, then touch to dial the number.Making Calls using Voice DialerPlace a call by speaking the name or number. 1. From the Home screen, touch Phone. then touch Voice Dialer.2. The first time you access S Voice, follow the prompts to confirm the license agreement, and view information about S Voice. 3. Follow the prompts to speak a command. You can say commands such as:• Call <Name >: Call an entry in your Contacts list.• Dial <Phone number>: Call a spoken phone number.•Redial: Repeat a recent call.DRAFT FOR INTERNAL USE ONLY
50Making Calls using FavoritesFavorites are contacts that you designate as favorites by starring them. (For more information about creating favorites, see “Favorites” on page 45.) 1. From the Home screen, touch People. 2. Touch Favorites to display favorites. 3. Find the desired contact and touch it to open the Contact entry. 4. Touch the contact’s number to dial it. Making Calls from Recent callsReturn a call, or call a number from a recent call stored in Recent calls. For more information, refer to “Recent Calls” on page 52.Multi-party CallingUse multi-party call features to set up a call between multiple callers, such as for a conference call. 1. Establish the first call, by answering an incoming call or making a call. 2. Touch Add call. The first call is placed on hold. 3. Make the second call by touching the phone number digits, then press . 4. Touch Merge to merge the calls into one conference call. 5. To end the call touch . DRAFT FOR INTERNAL USE ONLY
Calling 51Answering CallsYou can answer incoming calls when the phone is locked or unlocked. Touch and drag the Answer icon to the right. Tip:To silence the ringtone for an incoming call, press the Volume key Up or Down. Sending Calls to VoicemailWhen your phone alerts you to an incoming call, you can reject the call to send the caller to voice mail, or reject the call and send a message to the caller. Rejecting a call Touch and drag the Reject icon to the left.Rejecting a call with a message Touch and drag Reject call with message toward the middle of the screen, then select an existing message, or Create new message.Note:For more information about creating reject messages, see “Set reject messages” on page 55.Answering Call-Waiting CallsWhen you receive a call while on a call:• Touch and drag the Answer icon to the right to answer the incoming call. The original call is placed on hold, and remains on hold until you end the second call, or swap calls back to the original call.• Touch Swap to place a call on hold and return to the original call.DRAFT FOR INTERNAL USE ONLY
52Options During a CallWhile in a call, you can use these features: 1.End call: End the phone call. 2.Keypad: Display a keypad to enter numbers. 3.Speaker: Enable or disable speakerphone. 4.Mute: Mute or unmute your voice on the call. 5.Add call: Display the Dialer to set up a multi-party call. • Headset: Switch the call’s audio to a Bluetooth headset. Ending a Call Touch . Recent CallsWhen you place, answer, or miss a call, a record of the call is saved in Recent calls.Accessing Recent calls From the Home screen, touch Phone ➔ Recent to display recent calls. Making Calls using Recent calls1. From the Home screen, touch Phone.2. Touch Recent to list recent calls.3. Touch a number or contact to list calls. 4. Touch the number to call. 12 3 4 5DRAFT FOR INTERNAL USE ONLY
Calling 53Sending Messages using Recent calls1. From the Home screen, touch Phone ➔ Recent. 2. Touch a number or contact to list calls. 3. Touch to create a message to the number. Creating or Updating Contacts Using Recent calls1. From the Home screen, touch Phone ➔ Recent. 2. Touch a number to list calls to/from that number. 3. Touch Add to contacts. 4. Choose CREATE NEW CONTACT or touch an existing contact. 5. Continue entering contact information. (For more information, see “People” on page 38.) Managing Recent callsDeleting records1. From the Home screen, touch Phone ➔ Recent. 2. While viewing the calls, touch Menu, then touch Delete.3. Touch call records to mark them for deletion, or touch Select all. A check indicates marked records.4. Touch Delete to delete marked records.Filtering records1. From the Home screen, touch Phone ➔ Recent. 2. While viewing the calls, touch Menu, then touch View by.3. Select a filter type, from All calls and messages, All calls, Missed calls, Dialed calls, Received calls, Rejected calls, All messages, Sent messages, or Received messages.DRAFT FOR INTERNAL USE ONLY
54Viewing call durationsView the length of the Last call, all Dialed calls, all Received calls, or All calls.1. From the Home screen, touch Phone ➔ Recent. 2. While viewing calls, touch Menu, then touch Call duration.Call SettingsConfigure settings for calling with your phone.  To access Call settings, from the Home screen, touch Phone ➔ Menu ➔ Call Settings. Call rejectionCreate and manage a list of phone numbers, to have your phone automatically reject calls you receive from those numbers. From the Call Settings screen, touch Call rejection for these options: • Auto reject mode: Touch Auto reject mode to turn Auto reject On, or touch Auto reject mode to turn Auto reject Off. When On, calls from numbers on the Auto reject list will be rejected. • Auto reject list: Enter telephone numbers to be rejected when Auto reject mode is ON. Turn on Unavailable to reject calls with no caller ID. Touch Create, then follow the prompts to enter numbers to reject, or select them from Contacts. Touch Match criteria to set options for using the reject number list. DRAFT FOR INTERNAL USE ONLY
Calling 55Set reject messagesCreate and manage text messages to send to callers when you select Reject call with message in the Incoming call screen. 1. From the Call Settings screen, touch Set reject messages. 2. Manage messages: •To create new messages, touch Create, then follow the prompts. •To modify an existing message, touch the message, then edit the text. Ringtones and keypad tonesSelect incoming call ringtone and vibration, and enable or disable call vibration and keypad tones.  From the Call Settings screen, touch Ringtones and keypad tones. The following options are available: • Device ringtone: Select the ringtone your phone plays to alert you of incoming calls. •Device vibration: Select the vibration pattern your phone uses to alert you of incoming calls. • Incoming call vibration: Touch to enable/disable use of your selected Device vibration. When enabled, a check mark appears in the check box. •Keytones: Touch to enable/disable playing of DTMF tones when you enter numbers with the Phone keypad. When enabled, a check mark appears in the check box. DRAFT FOR INTERNAL USE ONLY
56Call alertsSet options for sounds and vibrations to occur during calls. From the Call Settings screen, touch Call alert. The following options are available: • Call vibrations: Enable Vibrate on connection to network to have your phone vibrate when it connects to the network. Enable on Call-end vibration to have the phone vibrate when the other caller ends the call. •Call status tones: Choose options for sounds to play during calls. Enable Call connect tone to have the phone play a tone when the other caller answers a call. Enable Minute minder to have a tone play once per minute during a call. Enable Call end tone to have the phone play a tone when the other caller ends the call. Touch OK to save the settings. • Alerts on call: Enable to have notifications for alarms and new messages play during phone calls. When disabled, these notifications will be muted during a call. Call answering/endingManage settings for answering and ending calls.1. From the Call Settings screen, touch Call answering/ending. The following options are available: • Answering key: When enabled, you can answer an incoming call by pressing Home. • The power key ends calls: When enabled, pressing Power/Lock ends a call. Auto screen off during callsWhen enabled, the screen automatically turns off during phone calls, and the proximity sensor on the front of the phone is used to turn the screen back on when the phone is moved or brought close to another surface, such as when you move the phone to your ear. From the Call Settings screen, touch Auto screen off during calls to enable or disable the option. DRAFT FOR INTERNAL USE ONLY
Calling 57Accessory setting for callConfigure headset options for calls. From the Call Settings screen, touch Accessory settings for call. The following options are available: • Headset settings for incoming calls: –Automatic answering: When enabled, and you have a headset connected to the Headset Jack, incoming calls are answered automatically after a delay, set at Automatic answering timer. –Automatic answering timer: Choose a time period to delay before automatically answering an incoming call when Automatic answering is enabled and a headset is connected to the phone. • BT (Bluetooth) headset settings for outgoing calls: –Outgoing call conditions: When the phone is paired with a Bluetooth headset, you can choose to make calls even when the phone is locked. Use extra volume for callsWhen enabled, the call screen displays a volume control, for adjusting call volume during calls. From the Call Settings screen, touch Use extra vol. for calls to enable or disable the option.Increase volume in pocketWhen enabled, the phone uses the proximity sensor to detect when the phone is in a pocket or other close-fitting location such as a purse or bag, and increases the volume for incoming call ringtones. From the Call Settings screen, touch Increase volume in pocket to enable or disable the option.Noise reductionWhen enabled, the phone uses both of its microphones to detect background noise from your environment and suppress it during calls.1. From the Call Settings screen, touch Additional settings. 2. Touch Noise reduction to enable or disable the option.DRAFT FOR INTERNAL USE ONLY
58VoicemailConfigure options for voicemail. From the Call Settings screen, under Voicemail, the following options are available: • Voicemail service: By default, your phone uses your wireless service provider’s voicemail service. If you have another option for voicemail installed, select it here.• Voicemail settings: By default, the speed dial for calling voicemail (speed dial 1) is set to your phone number. If you wish to use another Voicemail service, touch Voicemail number to set a new one. •Ringtone: Choose sound to play for a voicemail notification. •Vibrate: Choose an option for vibration to play for a voicemail notification.Other call settings From the Call Settings screen, under Other call settings, the following options are available: •Auto retry: When enabled, the phone will automatically redial a call if it receives a busy signal from the network.• TTY mode: Choose a TTY mode to enable TTY mode, for use with optional TTY equipment.•DTMF tones: Set the length of Dual-tone Multi-frequency tones, which play when you use the keypad during a call, such as when navigating phone menus.• Voice privacy: Enable or disable Enhanced voice privacy, to improve the security of phone calls. DRAFT FOR INTERNAL USE ONLY
Messaging 59Section 5: MessagingThis section describes how to send and receive messages, and other features associated with messaging.Types of MessagesYour phone supports these types of messages:• Text messages: Send and receive simple messages containing text to other mobile phones or email addresses (also known as SMS).• Multimedia messages: Send and receive text messages with pictures, video, and/or sound to other mobile phones or email addresses (also known as MMS).• Mobile IMs: Exchange Instant Messages with other users of popular messaging sites.• Email: Send and receive email from your email accounts, including Corporate mail.• Gmail: Send and receive Gmail from your Google account.• Voicemail: Retrieve voice messages from callers.• Google Talk: Chat with other Google Talk users.Text and Multimedia MessagingYour phone can send and receive text and multimedia messages. Creating and Sending Messages1. From the Home screen, touch Messaging ➔ New message.2. Touch Enter recipient and enter a name, phone number or email address, or touch to add recipients from Contacts. As you enter text, matching contacts appear. Touch a contact to add it to the list. 3. Touch Enter message, then enter the message text. The following options are available (which options are available depends on whether you include an attachment):•Touch Attach to add media (images, pictures, videos, audio files) or content (Memo text, Calendar events, Locations, Contacts) to the message (converts the message to MMS).•Touch Menu for options:–Insert smiley: Add a text emoticon to the message.DRAFT FOR INTERNAL USE ONLY
60–Add text: Select text from S Memo, Calendar, Location, Contacts or Text templates to add.–Preview: View the message and attachments before sending.–Add to Contacts: If the recipients are not saved in Contacts, save the info as a new contact, or update an existing contact.–Add slide / Delete slide: Add or remove a slide. Slides hold pictures or other media (adding a slide converts the message to MMS).–Add subject: Add a subject field (converts the message to MMS.)–Duration (5sec): Set the length of time the media on the slide displays.–Layout (bottom): Choose whether the message text appears above (Text on top) of the attachment(s), or after (Text on bottom).–Discard: Erase this message. 4. Touch to send the message. Managing MessagesMessages you send and receive to the same contact, number or address are grouped together as a “conversation”. Threads allow you to see all the messages you exchanged with a recipient in one place.1. From the Home screen, touch Messaging.2. Message threads display by contact, number, or address. While viewing message threads, you have these options:•Touch and hold a thread to choose options, including:–View Contact / Add to Contacts: View the contact record, or save the sender/recipient’s information.–Delete thread: Erase the entire message thread.–Register number as spam: Add this number to message reject list. Messages from this number are automatically placed in the Spam messages folder. •Touch Menu for options, including: –Search: Enter characters to search messages and recipients.–Delete threads: Touch message threads to mark them for erasure, or touch Select all to mark all message threads.DRAFT FOR INTERNAL USE ONLY
Messaging 61–Draft messages: Messages you have composed and saved for later reuse and/or to be sent to a recipient. –Locked messages: Messages you have locked to protect them from accidental deletion. –Spam messages: Messages received from numbers you have registered as spam senders. –Settings: Configure Messaging settings.Message SettingsConfigure settings for message storage, delivery, or alerts.1. From the Home screen, touch Messaging.2. Touch Menu, then touch Settings for options:•Display: –Bubble style: Choose the appearance of messages in a message thread. Touch a bubble style for each side of the conversation, then touch Save.–Background style: Choose the appearance of the screen behind message threads. Touch a style, then touch Save.–Use the volume key: When enabled, you can change the size of message text while viewing by pressing the Volume Key.• General settings:–Delete old messages: When enabled, messages are automatically erased when storage reaches default limits. When disabled, the phone will prompt you to delete old messages to make room.–Text message limit: Set the number of SMS messages per conversation.–Multimedia message limit: Set the number of MMS messages per thread.DRAFT FOR INTERNAL USE ONLY
62–Text templates: Text templates are phrases that you can add to your messages. Use a pre-loaded text template, or create your own.• Text message (SMS) settings:–Delivery reports: When enabled, you receive a delivery report for text messages you send. –Auto combination: When enabled, re-assembles multi-segment messages and shows them as a single message. • Multimedia message (MMS) settings:–Delivery reports: When enabled, you receive a delivery report for multimedia messages you send.–Auto-retrieve: When enabled, MMS messages download automatically. When disabled, the phone prompts for download.–Roaming auto-retrieve: When enabled, MMS messages download and display automatically when roaming. When disabled, the phone prompts you to download new MMS messages. –MMS alert: When enabled, alerts you when a message changes mode to MMS. • Notification settings: –Notifications: When enabled, message alerts display in the Status bar.–Select ringtone: Choose a sound for message alerts.–Vibrate: Configure vibration for message alerts. –Message alert repetition: Choose to have message alert repeat Once, Every 2 minutes, or Every 10 minutes. –Preview message: When enabled, a preview of a received message appears in the Status bar. • Emergency message settings: –Emergency alerts: This device is designed to receive Wireless Emergency Alerts from the Commercial Mobile Alert Service (CMAS), including Presidential Alerts, Imminent Alerts (Severe or Extreme), and AMBER Alerts (missing persons). You may choose not to receive Imminent and AMBER alerts, but Presidential Alerts cannot be disabled. All alerts are enabled by default (check mark shown). For more information about Emergency Alerts see “Emergency alerts” on page 63.–Emergency notification preview: Listen to an example of a Emergency Alert tone (and vibration, if enabled). The Emergency Alert tone plays at the same volume as your call ringtone.DRAFT FOR INTERNAL USE ONLY
Messaging 63–Vibrate: Configure vibration for Emergency Alerts. –Alert sound: When enabled, a sound plays for emergency alerts. –Alert reminder: Choose whether, and at what interval, your phone plays a sound to notify you of a Emergency Alert after the Emergency Alert tone has stopped. • Signature settings: –Add signature: When enabled, adds your signature text to the end of your outgoing messages. –Signature text: Enter text to be added to the end of your outgoing messages. • Spam message settings: –Spam settings: When enabled, the Spam message settings are activated. –Register number as spam: Enter sender numbers whose messages are blocked automatically. –Register phrase as spam: Enter message text phrases that will cause messages to be blocked automatically. –Block unknown senders: When enabled, messages from “Unknown” senders are blocked automatically. Emergency alertsThis device is designed to receive Wireless Emergency Alerts from the Commercial Mobile Alert Service (CMAS). Emergency Alerts are geographically-targeted, and alert customers of imminent threats to their safety within their area. There is no charge for receiving an Emergency Alert.There are four types of Emergency Alerts:• Presidential • Extreme • Severe • AMBER Alerts (missing person alert) You may choose not to receive Extreme Alerts, Sever Alerts, and AMBER Alerts. Presidential Alerts, however, cannot be disabled. To disable Extreme and Severe Threat Alerts and AMBER Alerts, do the following: 1. From the Home screen, touch Messaging.2. Touch Menu ➔ Settings ➔ Emergency alerts.3. All alerts are enabled by default (check mark showing). To disable alerts, touch an alert to remove the check mark.DRAFT FOR INTERNAL USE ONLY
64EmailSend and receive email using popular email services.Configuring Email AccountsYou can configure Email for most accounts in just a few steps.Configuring the first email account1. From the Home screen, select Apps ➔ Email.2. Select your email provider, then follow the prompts to set up your email account.Note:For more information on setting up your email, contact your Wireless Provider.Configuring additional email accounts1. From the Home screen, select Apps ➔ Email. 2. Touch Menu, then touch Settings.3. Select your email provider, then follow the prompts to set up your email account.Composing and Sending Email1. From the Home screen, select Apps ➔ Email ➔ Compose. 2. Touch fields to enter recipients and the email text.3. While composing a message, touch Menu for options.4. Touch Attach to add a file to the message.5. Touch Send to send the message.DRAFT FOR INTERNAL USE ONLY
Messaging 65Managing EmailsRefreshing Your Email AccountRefresh your account to update your phone from the servers.1. From the Home screen, select Apps ➔ Email.2. Touch Refresh. Email Account SettingsUse Account settings to configure handling of your email.Note:Available settings depend on the email provider.1. From the Home screen, select Apps ➔ Email.2. Touch an account to view it, then touch Menu ➔ Settings ➔ General preferences for options. GmailSend and receive emails via Gmail, Google’s web-based email. From the Home screen, select Apps ➔ Gmail.Setting Up Your Gmail AccountThe first time you launch Gmail, your phone will prompt you to set up your Google account.1. From the Home screen, select Apps ➔ Gmail.2. Follow the prompts to sign in, or create a new account.3. The phone communicates with the Google server to set up your account and synchronize your email.Note:You can use more than one Google account on your phone. To add another account, from within Gmail, touch Menu ➔ Settings ➔ ADD ACCOUNT option. DRAFT FOR INTERNAL USE ONLY
66Refreshing Your Gmail AccountRefresh your account to update messages on your phone.1. From the Home screen, touch Apps ➔ Gmail. 2. Touch Refresh.Managing Your Gmail AccountUse menu options to manage your Gmail.1. From the Home screen, touch Apps ➔ Gmail. 2. Touch Menu for options.Composing and Sending Gmail1. From the Home screen, touch Apps ➔ Gmail ➔ New message. 2. Touch fields and to compose the message. While composing, touch Menu for options. 3. When your message is complete, touch Send. Google TalkGoogle Talk is a free Windows and web-based application for instant messaging offered by Google. Conversation logs are automatically saved to a Chats area in your Gmail account. This allows you to search a chat log and store them in your Gmail accounts. 1. Log on to your Google account if you have not already done so. For more information, refer to “Your Google™ Account” on page 15. 2. From the Home screen, touch Apps ➔ Talk.3. Begin using Google Talk. 4. Press ➔ Help for more information on using Google Talk. Note: The Network confirms your login and processes. This could take up to 5 minutes to complete. DRAFT FOR INTERNAL USE ONLY
Messaging 67Google +Google+ makes messaging and sharing with your friends a lot easier. You can set up Circles of friends, visit the Stream to get updates from your Circles, use Messenger for fast messaging with everyone in your Circles, or use Instant Upload to automatically upload videos and photos to your own private album on Google+. 1. Sign on to your Google account. For more information, refer to “Your Google™ Account” on page 15. 2. From the Home screen, touch Apps ➔ Google+. 3. Select the account you want to use to sign in to Google+. – or – Touch Add account to create another account. 4. Follow the on-screen instructions to use Google+. 5. Visit www.google.com/mobile/+/ for more information. MessengerMessenger allows you to bring groups of friends together into a simple group conversation. When you get a new conversation in Messenger, Google+ sends an update to your phone.1. Sign on to your Google account. For more information, refer to “Your Google™ Account” on page 152. From the Home screen, touch Apps ➔ Messenger.– or –From the Google+ application, select Messenger.3. Select the account you want to use to sign in to Google+.– or –Touch Create a new account to create another account.4. At the Messenger screen, touch to start a new message.5. In the upper text field, enter a name, email address, or circle.6. In the bottom message field, enter a message then touch .7. From the Messenger screen, tap Learn more for more detailed information.DRAFT FOR INTERNAL USE ONLY
68Section 6: Applications and WidgetsThis section contains a description of each application and widget that is available in the Apps and Widget menus, the function, and how to navigate through that particular application or widget. If the application or widget is already described in another section of this user manual, then a cross reference to that particular section is provided. Tip:To open applications quickly, add the icons of frequently-used applications to one of the Home screens. (For details, see “Customizing the Home Screen” on page 28.)You can also add an application icon as a Primary Shortcut that will display on all Home screens. If you add an application as a primary shortcut, the application icon will not be displayed in the Apps menu. (For more information, refer to “Editing the Primary Shortcuts” on page 29.) Accessing Applications1. Touch Home ➔ Apps, and the Apps tab. The Apps screen appears in the display. 2. Sweep your finger right or left to scroll the Apps screens. 3. To launch an application, touch the application’s icon. Customizing the Applications ScreensChoosing a viewBy default, application icons appear in Customizable grid view. You can change the view to Alphabetical grid view or Alphabetical list view. 1. From the Apps screen, touch Menu ➔ View type. The available options are: • Customizable grid: Arrange application icons in the order you prefer. • Alphabetical grid: Application icons automatically arranged in alphabetical order. • Alphabetical list: Application icons automatically listed in alphabetical order. DRAFT FOR INTERNAL USE ONLY
Applications and Widgets 69Moving Application iconsWith the Apps screen in Customizable grid view, you can arrange the application icons to suit yourself. 1. From the Apps screen, touch Menu ➔ Edit. Note:The Edit option is not available with the Apps screen View type set to Alphabetical list. 2. Touch and hold an application icon, then drag it to a new location. 3. When you are finished, then touch Save. Filtering Application iconsYou can select which icons appear in the Apps screen.  From the Apps screen, touch Menu, then touch either of the following options: • Downloaded applications: Shows only those applications you have downloaded and installed on your phone. • Hide applications: Mark those applications you do not want to appear on the Apps screen by touching their icons (check marks appear in their check boxes), then touch Done. The Apps screen appears without the hidden applications. DRAFT FOR INTERNAL USE ONLY
70Applications ListBrowserYour phone is equipped with a full HTML Browser, which allows you to access the internet.  From the Home screen, select Browser. Your Wireless Provider’s mobile home page appears in the Internet screen. Navigating the webSelecting items on a pageWhile browsing web pages, use gestures and menus to navigate: • Touch an item to select it. • Touch a hyperlink to follow the link. • Touch and hold on a hyperlink for options. Command Keys• Touch Back to return to the previous page. • To go to the next page, touch Forward. Touching and dragging• Touch and drag your finger on the screen to navigate pages, and to reposition pages within the screen. Entering text in a field• While browsing, touch a text field to display the virtual QWERTY keyboard to enter text.ZoomNote:Some web pages do not support the Zoom function. • Using two fingers, make a pinch motion on the screen. –Pinch in to zoom in on a web page. –Pinch out to zoom out on a web page. • To return a web page to original size, double tap on it. Entering a URLAccess a web site quickly by entering the URL.1. Touch the URL field at the top of the Internet screen, then enter the URL using the virtual QWERTY keyboard. If the URL field is not visible, touch and swipe downward until the URL field appears. 2. As you enter characters, potential matches display. Continue entering characters, or touch a match to complete the URL, then touch Go to load the page. DRAFT FOR INTERNAL USE ONLY
Applications and Widgets 71Copying textCopy information from a web page.1. From the Internet screen, browse to the desired web site. 2. Touch and hold on the text to enable the text selector, then use the on-screen tools.Browser Options From the Internet screen, touch Menu for options:•New window: Displays a new window so you can browse multiple URLs. (For more information, refer to “Using Browser Windows” on page 72.) • Add bookmark: Lets you add a URL to your bookmark list• Add shortcut to home screen: Lets you add a shortcut to your Home screen. • Share page: Lets you share the page using Gmail or as a message.• Find on page: allows you to search in the current page.• Desktop view: allows you to assign the browser to display the current page in the desktop view (to closely mimic the display as it would appear on a desktop computer).• Save for offline reading: allows you to store the current page in memory so that it can be read later even if you loose your Internet connection.•Brightness: Lets you manually adjust screen brightness or select Automatic screen brightness. • Downloads: Displays the download history.•Print: Lets you print the screen or web page on a Samsung printer using Wi-Fi.•Settings: Lets you tailor the Internet browser to suit yourself. (For more information, refer to “Internet browser Settings” on page 73.) DRAFT FOR INTERNAL USE ONLY
72Using Browser WindowsYou can have multiple windows open at one time, and you can switch between windows.• To open a new window, on the Internet screen, touch Windows ➔ New window. • To switch to another open window, touch Windows. Touch and swipe to the desired window thumbnail, then touch it to display the window.• To close a window, touch Windows. Touch Close beside a window to close it. Going IncognitoThe Incognito feature lets you view Internet sites without leaving records in your browser history or search history, and without traces (such as cookies) being stored on your device. Note: Any downloaded files will be preserved and will stay on your device after you exit the incognito mode. To add an Incognito window:1. From your browser window, tap Windows ➔ Incognito. 2. A new Incognito window appears. Note: The incognito icon appears in the upper-left of the new browser window while you are in this mode. 3. Browse to the desired web site(s). To exit from the incognito window:1. From your browser window, tap (Windows). 2. Scroll across the available windows and locate the Incognito window. 3. Tap next to the incognito window to delete it.2DRAFT FOR INTERNAL USE ONLY
Applications and Widgets 73Using BookmarksWhile browsing, bookmark a site to quickly access it later.Creating a bookmark1. From the Internet screen, browse to the desired web site, then touch Bookmarks ➔ Add bookmark. The Add bookmark screen appears. 2. Edit the Name and Address of the new bookmark as needed, then select the Location where you want it added. 3. Touch Save to save the new bookmark. Accessing bookmarks and historyLaunch a bookmarked page, or reload recent pages.1. From the Internet screen, touch Bookmarks.2. On the tabs, use these options: •Touch an item to load the page.•Touch and hold on an item for options.•Touch Menu for more options.Deleting Bookmarks1. From the Bookmarks page, touch and hold the bookmark you want to delete.2. Touch Delete bookmark.3. In the Delete confirmation pop-up, touch OK.Internet browser SettingsTo make adjustments in your browser settings, follow these steps:1. From the Internet browser screen, touch Menu ➔ Settings. The following options are available:•General: –Set home page: Sets the current home page for the Web browser.–Form auto-fill: Lets you fill in web forms with a single touch.–Auto-fill text: Lets you enter text to be used in the Form auto-fill feature. DRAFT FOR INTERNAL USE ONLY
74• Privacy and security: –Clear cache: Deletes all currently cached data. Tap OK to complete the process.–Clear history: Clears the browser navigation history. Tap OK to complete the process.–Show security warnings: Notifies you if there is a security issue with the current web site.–Accept cookies: Allows sites, that require cookies, to save and read cookies from your device.–Clear all cookie data: Deletes all current browser cookie files.–Remember form data: Allows the device to store data from any previously filled out forms. Remove the check mark to disable this function.–Clear form data: Deletes any stored data from previously filled out forms. Tap OK to complete the process.–Enable location: Allows web sites to request access to your location.–Clear location access: Clears location access for all web sites. Tap OK to complete the process.–Remember passwords: Stores user names and passwords for visited sites. Remove the check mark to disable this function.–Clear passwords: Deletes any previously stored user names or passwords. Tap OK to complete the process.–Enable notifications: Allows web site notifications. Select Always on, On demand, or Off.–Clear notifications: Deletes web site notification access information.• Accessibility: –Force zoom: Lets you override the web site’s request to control zoom.–Text size: Lets you preview the text size, scale the text size using a slider bar, and minimize the font size using a slider bar.–Inverted rendering: Lets you preview a web page, select Inverted rendering (black becomes white and vice versa), and adjust the Contrast using a slider bar.• Advanced: –Select search engine: Lets you set your default search engine to Google, Yahoo!, or Bing.–Open in background: New pages are launched in a separate page and displayed behind the current one. Remove the check mark to disable this function.DRAFT FOR INTERNAL USE ONLY
Applications and Widgets 75–Enable JavaScript: Enables Javascript for the current Web page. Without this feature, some pages may not display properly. Remove the check mark to disable this function. –Allow multiple tabs per app: Lets you use multiple navigation tabs per application. –Enable plug-ins: Allows the download of plug-ins such as Adobe Flash.–Default storage: Lets you set your default storage to Phone or Memory Card.–Website settings: View advanced settings for individual web sites.–Default zoom: Adjusts the zoom feature. Set to Far, Medium, or Close.–Open pages in overview: Shows an overview of newly opened web pages.–Auto-fit pages: Allows web pages to be resized to fit as much of the screen as possible.–Block pop-ups: Prevents popup advertisement or windows from appearing on-screen. Remove the check mark to disable this function.–Text encoding: Adjusts the current text encoding.–Reset to default: Clears all browser data and resets all settings to default.• Bandwidth management: –Preload search results: Lets the browser preload high confidence search results in the background to help speed up searches.–Page preloading: Lets the browser preload web pages in background. (Options: Never, Only on Wi-Fi, or Always.) –Load images: Allows web page images to be loaded along with the other text components of a loaded website. •Labs: –Quick controls: Lets you open quick controls and hide the app and URL bars by swiping your thumb from the left or right edge of the screen. –Full screen: Lets you access Full screen mode and hide the status bar. DRAFT FOR INTERNAL USE ONLY
76CalculatorUse your phone’s Calculator to perform arithmetical calculations (addition, subtraction, multiplication, and division).  From the Apps screen, touch Calculator. CalendarRecord events and appointments to manage your schedule.Tip:A Calendar widget is available in Widgets. For more information about placing widgets on the Home screen, see “Widgets” on page 29.1. From the Apps screen, touch Calendar. 2. Touch a tab to choose a calendar view:•Year: Display the current year and scroll to other years.•Month: Display the current month and scroll to other months.• Week: Display the current week, and scroll to other weeks.•Day: Display today’s schedule, and scroll to other days.•List: Display events and tasks in a chronological list.•Task: Display tasks in a chronological list.3. Touch Menu for these options:•Go to: Display a specific date.•Delete: Delete an event.•Search: Search for calendar events.DRAFT FOR INTERNAL USE ONLY
Applications and Widgets 77•Sync: Synchronize your phones calendar with your account calendars. (For more information, refer to “Setting Up Your Accounts” on page 36.) •Settings: Customize the calendar.Customizing the Calendar1. From the Apps screen, touch Calendar. 2. Touch Menu, then touch Settings to configure these settings:•View settings: –Month view styles: Choose month view style (Calendar view + list, Calendar view +pop-up). –Week view: Choose Timeline or Analog view for a week’s events.–First day of week: Choose a day to begin each week.–Hide declined events: Enable or disable display of events.–Lock time zone: When enabled, sets event times and dates to a specified time zone, so that times and dates will not change if you move to another time zone.–Select time zone: When Lock time zone is enabled, specify the time zone for all events. –Show week number: Display the number of the week (1 – 52) in a W column to the left of Sun. –Calendars: Select calendars to display.• Event notification: –Set alerts & notifications: Choose Alert to receive alerts, Status bar notification to display notifications in the Status bar, or Off for no notifications or alerts.–Select Ringtone: Choose a ringtone for event notifications, then touch OK.–Vibration: Enable/disable vibration for event notifications. –Default reminder time: Choose a default reminder time for Calendar events (default time is 15 minutes). –Notifications while screen is off: Enable/disable display of notifications on the full screen while the screen is blanked. –Quick responses: Pre-composed text to include with email notifications to meeting attendees, guests, and so on. •Gesture: –Swipe with two fingers: Show animation demonstrating how to change the Calendar view with a simple swipe with two fingers. DRAFT FOR INTERNAL USE ONLY
78Sending EventsSend events as vCalendar files to other compatible devices.1. From the Apps screen, touch Calendar. 2. Touch an event to display its details.3. Touch Menu ➔ Share via. 4. Select the desired Sharing method from the Share via pop-up. 5. Follow the prompts to send a copy of a Calendar event to another device. (For more information, refer to “Connections” on page 95.) CameraUse your phone’s built-in Camera to take pictures and record video. From the Apps screen, touch Camera. Important!Do not take photos of people without their permission.Do not take photos in places where cameras are not allowed.Do not take photos in places where you may interfere with another person’s privacy.Options menuImage ViewerMode ButtonCameraButtonDRAFT FOR INTERNAL USE ONLY
Applications and Widgets 79Taking Pictures1. From the Apps screen, touch Camera. 2. Using the display as a viewfinder, compose your picture by aiming the lens at the subject. •Touch the screen to focus on the area you touched.•“Pinch” the screen, or press the Volume key, to zoom in or out.•To configure settings, see “Camera Options” on page 79. 3. To take the picture, touch the Camera button ( ). 4. After taking a picture, touch Image Viewer to view the picture. While viewing the picture, use these options: •“Pinch” the screen, or touch the zoom icons, to zoom in or out, or double-touch to zoom all the way in or out.•Touch Camera to return to the Camera viewfinder screen. •Touch Share to send the picture using Group Cast, Picasa, S Memo, Bluetooth, Wi-Fi Direct, Messaging, Dropbox, Google+, Email, or Gmail. •Touch Slideshow to view all of your pictures as a slideshow. •Touch Delete to erase the picture (only visible with the screen in landscape mode). •Touch Menu to access added options: Face tag, Copy to clipboard, Rotate left, Rotate right, Crop, Set as (Contact photo, Home and lock screens, Home/Lock screen wallpaper), Buddy photo share, Print, Rename, Scan for nearby devices, or Details.Camera Options While in Camera mode, touch the Options tab:• Self portrait: Switch to the front camera lens, for self-portraits.• Flash: Choose Off, On, or Auto flash.• Shooting mode: Choose an automatic shooting mode, from:–Single shot: Take a single photo. –Best photo: Takes 8 photos in quick succession, then you select and save the best. –Best face: Takes 5 photos in quick succession and selects the best photograph based on open eyes, smiles, sudden movement, and so on. –Face detection: Touch the Camera button to focus on and take a picture of the subject’s face. DRAFT FOR INTERNAL USE ONLY
80–Panorama: Takes a landscape photo by taking an initial photo and then adding additional images to itself. The guide box lets you view the area where the second part of the panoramic picture should fall within. –Share shot: Uses Wi-Fi Direct to share your pictures quickly with your friends. –HDR: Takes pictures in HDR (High Dynamic Range) mode to increase image detail. –Buddy photo share: Uses face recognition from pictures in your contacts to send your friends or family pictures of themselves.–Beauty: Adjust the contrast to create a smooth facial feature effect. –Smile shot: Touch the Camera button to focus on the subject’s face. If a smile is detected, the picture is taken automatically. –Low light: Take better pictures when the light is low. • Color effects: Choose color theme for the picture: No effect (normal color), Cold vintage, Warm vintage, Posterize, Solarize, Green point, Blue point, or Red-yellow point, Washed out, Cartoonify, Black and white, Sepia, or Negative. • Settings: –Edit shortcuts: Select which function shortcuts appear in the function menu. –Burst shot: Detects action to automatically take multiple pictures to create a panorama. –GPS Tag: Add GPS location information to photo details.–Self-portrait: Set the front camera so you can take pictures of yourself.–Flash: Choose Off, On, or Auto flash. –Shooting mode: Choose Single shot, Burst shot, Face detection, Panorama, Share shot, HDR, Buddy photo share, Beauty, Smile shot, Low light, or Cartoon. –Effects: Apply a color effect to pictures.–Scene mode: Choose a mode to match conditions.–Exposure value: Adjust the picture brightness level by moving the slider. –Focus mode: Choose a type of automatic focus.–Timer: Set a delay before taking a picture. –Resolution: Choose a size (in pixels) for the image.–White balance: Choose a setting for the light source.–ISO: Choose a setting for imaging sensitivity.DRAFT FOR INTERNAL USE ONLY
Applications and Widgets 81–Metering: Select a method for measuring light.–Auto contrast: Allow automatic light/dark adjustment.–Guidelines: Enable or disable an on-screen grid to aid in photo composition.–Auto share shot: Easily connect to the devices you want to share pictures with, then bring the devices back together (back-to-back) to connect them. –Anti-Shake: Enable Anti-Shake to minimize the effect of camera movement.–Contextual filename (requires GPS tagging): Lets you adjust the filename based on contextual information, such as your current GPS location. –Image quality: Choose a quality setting for photos.–Storage: Choose to store your pictures in Phone memory or on an optional Memory card. –Reset: Set all Camera settings to the defaults. CamcorderUse your phone’s built-in Camcorder to record video. From the Apps screen, touch Camera ➔ Mode.Important!Do not take videos of people without their permission. Do not take videos in places where cameras are not allowed. Do not take videos in places where you may interfere with another person’s privacy. Mode RecordOptions menuImage ViewerbuttonbuttonDRAFT FOR INTERNAL USE ONLY
82Capturing Video1. From the Apps screen, touch Camera ➔ Mode. 2. Using the display as a viewfinder, compose your shot by aiming the lens at the subject. •Touch the screen to focus on the area you touched.•“Pinch” the screen, or press the Volume key, to zoom in or out.•To configure settings, see “Camcorder Options” on page 82.3. To start recording, touch the Record button ( ). 4. To capture an image from the video while recording, touch . This feature is not available when the Anti-Shake feature is activated. 5. To stop recording, touch the Stop button ( ). 6. After recording, touch Image Viewer to view the video. While viewing the video, use these options: •Pinch the screen to zoom in or out, or double-touch to zoom all the way in or out. •Touch Play to review the video. •Touch Camera to return to the Camcorder viewfinder screen. •Touch Share to send the video. •Touch Slideshow to review all your videos in sequence. •Touch Delete to erase the video. •Touch Menu to rename the video or view details about the video. •Touch Back to return to the Camcorder to record more videos.Camcorder OptionsConfigure the camcorder.  While in Camcorder mode, touch the Options tab:• Self recording: Record video with the front lens.• Flash: Choose Off or On.• Recording mode: Choose a recording mode, from:–Normal: Record a video of any length.–Limit for MMS: Record a video of a size suitable for sending in a Video message.• Color effects: Choose color theme for the picture: No effect (normal color), Cold vintage, Warm vintage, Posterize, Solarize, Green point, Blue point, Red-yellow point, Washed out, Cartoonify, Black and white, Sepia, or Negative. DRAFT FOR INTERNAL USE ONLY
Applications and Widgets 83• Settings. –Edit shortcuts: Select which function shortcuts appear in the function menu. –GPS Tag: Add GPS location information to video details. –Self-recording: Set the front camera so you can take videos of yourself or video chat. –Flash: Choose Off or On. –Recording mode: Choose Normal or Limit for MMS recording mode. –Effects: Apply an effect to videos.–Exposure value: Adjust the picture brightness level by moving the slider. –Timer: Set a delay before starting recording. –Resolution: Choose a size (in pixels) for the recording.–White balance: Choose a setting for the light source.–Guidelines: Enable to display a grid to aid in video composition. –Anti-Shake: Enable Anti-Shake to minimize the effect of camcorder movement.–Contextual filename (requires GPS tagging): Lets you adjust the filename based on contextual information, such as your current GPS location. –Video quality: Choose a quality setting for videos.–Storage: Choose to store your videos in Phone memory or on an optional Memory card. –Reset: Set all Camcorder settings to the defaults. DRAFT FOR INTERNAL USE ONLY
84ChromeThe Google Chrome app allows you to use the Google Chrome web browser on your phone. 1. From the Apps screen, touch Chrome. 2. Read the Google Chrome Terms of Service and tap Accept and Continue.3. If you have an existing Chrome account, tap Sign in to bring your open tabs, bookmarks, and omnibox data from your computer to your phone, otherwise tap No thanks.4. Follow the on-screen instructions to use Google Chrome. ClockThe Clock application includes these features: • Alarm: Create alarms to go off once, or to repeat. • World clock: Display the time and date in any time zone. • Stopwatch: Record lap times. • Timer: Measure elapsed time. • Desk clock: Choose whether the clock calendar and weather appears on the display, and what outputs are active, when you connect your phone to an optional dock.  From the Apps screen, touch Clock.DRAFT FOR INTERNAL USE ONLY
Applications and Widgets 85DownloadsView and manage files and other items you download to your phone. 1. From the Apps screen, touch Downloads. 2. Touch an item to open it (if an appropriate application is installed.) Note:Applications you download from Google Play™ Store are managed with the Play Store app, and do not appear in Downloads. EmailSend and receive email using popular email services. For more information, see “Email” on page 64. From the Apps screen, touch Email. GalleryThe Gallery is where you view photos and videos. For photos, you can also perform basic editing tasks, view a slideshow, set photos as wallpaper or contact image, and share as a picture message. Note:You can increase Gallery photo and video storage by installing a memory card. For more information, see “Installing a Memory Card” on page 7. 1. From the Apps screen, touch Gallery. All of the Albums that hold your pictures and videos will be displayed with folder name(s) and number of files. 2. Tap an Album and thumbnails of the contents will be displayed. DRAFT FOR INTERNAL USE ONLY
86Viewing Pictures1. From the Gallery screen, select an album, then touch a picture to view it.2. While viewing a picture, touch on the screen or touch Menu for options. •Touch Camera to return to the Camera viewfinder screen. •Touch Share to send the picture using Group Play, Dropbox, Flipboard, Picasa, Google+, S Memo, Bluetooth, Wi-Fi Direct, Messaging, Gmail, or Email. •Touch Slideshow to view all of your pictures as a slideshow. •Touch Menu for the following additional options: –Delete: Erase the picture. –Face tag: When enabled, identifies faces with a yellow box, so you can touch to add tag information.–Copy to clipboard: Create a copy, to paste into other apps.–Rotate left / Rotate right: Change the picture’s orientation.–Crop: Change the picture’s size and/or remove portions of the picture. –Set as: Assign the picture as a Contact photo, or as wallpaper.–Buddy photo share: Send the picture to the Contacts whose Contact photos match faces in the picture. –Print: Print the picture via Wi-Fi to a compatible Samsung printer.–Rename: Change the picture’s filename.–Scan for nearby devices: Scan for in-range devices that can be connected with and sent the current image.–Details: View information about the picture.DRAFT FOR INTERNAL USE ONLY
Applications and Widgets 87Viewing Videos1. From the Gallery screen, then select an album. A matrix or list of available videos appears. 2. To play a video, touch its thumbnail or list entry. 3. The following options are available: •Touch Camera to take pictures or record videos. •Touch Share to send the picture using Dropbox, Picasa, Google+, Bluetooth, Wi-Fi Direct, Messaging, YouTube, Gmail, or Email. •Touch Slideshow to view all of your videos in sequence. •Touch Menu for the following additional options: –Delete: Erase the video. –Rename: Change the video’s filename.–Details: View information about the video. GmailSend and receive emails via Gmail, Google’s web-based email.For more information, see “Gmail” on page 65. From the Apps screen, touch Gmail. DRAFT FOR INTERNAL USE ONLY
88Google+Google+ makes messaging and sharing with your friends a lot easier. You can set up Circles of friends, visit the Stream to get updates from your Circles, use Messenger for fast messaging with everyone in your Circles, or use Instant Upload to automatically upload videos and photos to your own private album on Google+.  From the Apps screen, touch Google+. LatitudeWith Google Latitude, you can see the location of all of your friends on a list or on a map. You can also share or hide your location. You must first set up your phone to use wireless networks to help pinpoint your location. Also, Latitude works best when Wi-Fi is enabled. (For more information, refer to “Location and security” on page 137 and to “Wi-Fi” on page 94.) For more information, go to http://www.google.com/latitude. 1. Navigate to a Home screen panel, then touch Apps ➔ Latitude. The Maps screen appears. (For more information, refer to “Maps” on page 89.) 2. Touch Local. Your Local screen appears. 3. In the Local screen, touch the Local menu. 4. Select Lattitude. The Latitude screen appears. DRAFT FOR INTERNAL USE ONLY
Applications and Widgets 89LocalFind places of interest near your current location or a specified locations. Note:To use Local, enable location services. (For more information, refer to “Location services” on page 128.)1. From the Apps screen, touch Local. 2. For more information, touch Menu ➔ Help. MapsUse Google Maps to find your current location, get directions, and other location-based information. The Google Maps shortcut appears by default on the Home screen.Note:You must enable location services to use Maps, and some features require Standalone or Google location services. (For more information, see “Location services” on page 128.)  From the Apps screen, touch Maps.Navigating the MapZooming• Double-tap on the screen to zoom in.• Pinch to zoom out. • Pinch out (spread your fingers) to zoom in. Scrolling• Touch and drag on the screen to reposition the map in the display.Touch• Touch an icon on the map to display information about the location.DRAFT FOR INTERNAL USE ONLY
90MessagingMessaging lets you exchange text and multimedia messages with compatible device users. (For more information, refer to “Messaging” on page 59.)  From a Home screen, touch the Messaging shortcut. – or –From the Apps screen, touch Messaging. MessengerMessenger allows you to bring groups of friends together into a simple group conversation. When you get a new conversation in Messenger, Google+ sends an update to your phone. (For more information, refer to “Google+” on page 88.) From the Apps screen, touch Messenger. NavigationUse Google Navigation to search for locations, and get turn-by-turn directions.Note:You must enable location services to use Navigation, and some features require Standalone or Google location services. (For more information, see “Location services” on page 128.)  From the Apps screen, touch Navigation.PeoplePeople lets you access and manage your Contacts Groups, Contacts list, and Favorites list. (For more information, refer to “People” on page 38.)  From the Apps screen, touch People. DRAFT FOR INTERNAL USE ONLY
Applications and Widgets 91PhoneThe Phone application allows you to access the dialer keypad, call logs, and favorites. (For more information, refer to “Calling” on page 48.)  From a Home screen, touch the Phone shortcut. – or –From the Apps screen, touch Phone. Play BooksGoogle Books is now Google Play™ Books. Discovering your favorite books and authors has never been easier. With Google Play Books, you can shop the world's largest selection of ebooks and read them anywhere you like - on a tablet, phone, ereader, or the Web. From the Apps screen, touch Play Books. Play MagazinesWith Google Play Magazines, you can subscribe to your favorite magazines and have them available to read on your phone at any time or any place.  From the Apps screen, touch Play Magazines. Play Movies & TVWith Google Play Movies, you can rent thousands of different movies. You can watch instantly, or download your movie for offline viewing at a later time. 1. From the Apps screen, touch Play Movies & TV. 2. Log on to your Google account if you have not already done so. 3. Following the on-screen instructions for renting and viewing movies. Play MusicWith Google Play Music, you can play music that you have added to your music file as well as any music you copied from your PC. While offline, you can listen to music you have copied from your PC.1. From the Apps screen, touch Play Music.2. Follow the on-screen instructions to locate and play music. DRAFT FOR INTERNAL USE ONLY
92Play StoreAndroid Market is now Google Play™ Store, where all your favorite books, movies, apps, and games are all in one place that’s accessible from the Web and your Android device. You’ll need to have a Google account set up on your phone to download a new application.1. From the Apps screen, touch Play Store.2. The first time you open Play Store, read the Terms of Service, then touch Accept to continue.3. Browse for applications to download, then follow the prompts. SearchUse Google to search the Web.Tip:The Google Search widget is available by default on the Home screen. For more information Widgets, see “Adding Widgets to the Home screen” on page 29.1. From the Home screen, touch the Google Search widget. – or –From the Apps screen, touch Search. 2. Enter search criteria. Search results display automatically. Touch a search result to display it in a browser window. TalkUse Google Talk to chat with other Google Talk users. For more information, see “Google Talk” on page 66.  From the Apps screen, touch Talk.YouTubeAccess your YouTube™ account, and view and upload YouTube videos, right from your phone.  From the Apps screen, touch YouTube.DRAFT FOR INTERNAL USE ONLY
Applications and Widgets 93Accessing Widgets1. Press Home, then Sweep your finger right or left to scroll to a particular Home screen panel. 2. Touch Apps, then the Widgets tab. The Widgets screen appears in the display. – or –Touch and hold on the displayed Home screen panel until the Home screen menu pops-up, then touch Add to Home screen ➔ Apps and widgets, then the Widgets tab. The Widgets screen appears in the display. 3. Sweep your finger right or left to scroll through the Widgets screens and find the desired widget. 4. To place a widget on the selected Home screen panel, touch and hold the widget’s image or icon, then position the widget on the Home screen panel. 5. If needed, follow any prompts to configure the widget. Widgets ListThe following widgets are available for executing on your Home screen: • Analog clock 2 x 2: View the time on an analog clock face without numbers. • Book 1 x 1: Directly access one of your downloaded electronic books from Play Store. • Bookmark 1 x 1(red background): Directly access on of your Browser bookmarks. • Bookmark 1 x 1(white background): Directly access on of your Browser bookmarks. • Bookmarks 3 x 2: • Bookmarks 3 x 2: • Calendar 2 x 3: View your Calendar events scheduled for today. • Contact 4 x 1: Directly access a selected contact for calls or messaging. • Contact 1 x 1: Directly access a selected contact for calls or messaging. • Direct Dial 1 x 1: Immediately call a selected contact. • Direct Message 1 x 1: Immediately send a message to a selected contact. DRAFT FOR INTERNAL USE ONLY
94• Directions & Navigation 1 x 1: Immediately obtain directions to a selected location. • Email 3 x 2: View and directly access email messages in your Combined email box. • Gmail 3 x 3: View and directly access your Gmail messages. • Gmail label 1 x 1: Directly access Gmail messages with a selected Gmail label. • Google Play Books 2 x 3: Directly access your Google books. • Google Play Music 4 x 1: Directly access and play a selected music playbook. • Google Search 4 x 1 (transparent background): Perform and manage Internet searches. • Google+ posts 4 x 2: View and access your social media site accounts. • Home screen tips 4 x 2: . • Music playlist 1 x 1: Play a selected music playlist. • Photo Gallery 3 x 3: • Play Store 2 x 2: View recommendations from and access Google Play Store. • Power control 4 x 1: • Settings shortcut 1 x 1: Directly access selected settings for your phone. • Software update 1 x 1: Directly access your device software status information and access Software update. • Traffic 1 x 1: Directly access traffic information for a selected destination. • YouTube 3 x 2: Receive and view suggested videos. Directly access your YouTube account. DRAFT FOR INTERNAL USE ONLY
Connections 95Section 7: ConnectionsWi-FiWi-Fi is a wireless networking technology that provides access to local area networks.Wi-Fi communication requires access to an existing Wi-Fi network. Wi-Fi networks can be Open (unsecured), or Secured (requiring you to provide login credentials). Your phone supports the 802.11 a/b/g/n Wi-Fi protocols.Configuring Wi-Fi SettingsConfigure your phone’s Wi-Fi settings. For more information, see “Wi-Fi Settings” on page 104.Turning Wi-Fi On or OffWhen you turn Wi-Fi service on, your phone automatically searches for available, in-range “hotspots” [also termed WAPs (Wireless Access Points)]. Turning Wi-Fi On1. From the top of the Home screen, sweep your finger downward to display the Notifications screen. 2. At the top of the Notifications screen, touch Wi-Fi to turn Wi-Fi On. Turning Wi-Fi Off1. From the top of the Home screen, sweep your finger downward to display Notifications. 2. At the top of the Notifications screen, touch Wi-Fi to turn Wi-Fi Off.DRAFT FOR INTERNAL USE ONLY
96Scanning and Connecting to a Wi-Fi Network1. Turn Wi-Fi on (see “Turning Wi-Fi On” on page 95). Your phone scans for available hotspots and pops-up a list of any it finds. 2. To connect to a hotspot, touch it on the pop-up list. •If the Wi-Fi network is open, you will be automatically connected. •If the Wi-Fi network is secured, enter the password at the prompt to connect. Adding a Wi-Fi Network Manually1. From the Home screen, touch Menu ➔ Settings ➔ Wi-Fi. The Wi-Fi options screen appears. (For more information, refer to “Accessing Settings” on page 103.) 2. Touch Wi-Fi to turn on Wi-Fi. 3. Touch Add Wi-Fi network, then enter the following values: • Network SSID: Enter the name of the WAP (Wireless Access Point). • Security: Select the type of security used by the WAP.• Password: If the WAP is secured, enter the password or key. Wi-Fi DirectWi-Fi Direct allows devices to connect to each other directly via Wi-Fi, without a Wi-Fi network or hotspot, and without having to set up the connection. For example, some printers support Wi-Fi Direct, and you could print from your phone via Wi-Fi Direct.Establishing Wi-Fi Direct Connections1. From the Home screen, touch Menu ➔ Settings ➔ Wi-Fi ➔ Wi-Fi Direct. The Wi-Fi Direct screen appears, and your phone scans for available Wi-Fi Direct devices and lists them under Available devices. 2. To connect to a single Wi-Fi Direct device, touch its name in the list. 3. To connect to multiple Wi-Fi Direct devices, touch Multi-connect, next touch Select all or individual devices, then touch Done. DRAFT FOR INTERNAL USE ONLY
Connections 97BluetoothNote:For Hearing Aid Compatibility Information, see page 163.Bluetooth is a short-range wireless communications technology for exchanging information over a distance of about 30 feet.You don’t need to line up the devices to send information with Bluetooth. If the devices are in range, you can exchange information between them, even if they are in different rooms.Configuring Bluetooth SettingsConfigure your phone’s Bluetooth settings. For more information, see “Bluetooth settings” on page 106.Note:Bluetooth profiles are specifications for services supported by individual devices. For a list of profiles your phone supports, see “Bluetooth profiles” on page 105.Turning Bluetooth On or Off1. From the Home screen, sweep your finger from the top of the screen downward to display Notifications. 2. Touch Bluetooth to turn Bluetooth On. Touch Bluetooth to turn Bluetooth Off. Pairing with a Bluetooth DeviceSearch for a Bluetooth device and pair with it, to exchange information between your phone and the device. After pairing, your phone and the target device will connect with each other and exchange information without a passcode or PIN. Note:When connected, the Bluetooth connected icon displays in the Status Bar. If you receive a new request for connection while connected with a Bluetooth headset, a new Bluetooth icon displays at the left of the Status bar and Notifications displays the connection request. 1. Activate the target device’s discoverable mode. DRAFT FOR INTERNAL USE ONLY
982. On your phone, turn on Bluetooth (see “Turning Bluetooth On or Off” on page 97). A list of detected devices pops-up on your display. 3. From the list of detected devices, touch the target device, your phone attempts to automatically pair with the target device. If automatic pairing fails, then follow the prompts to complete manual pairing: •Enter a PIN for the target device and touch OK. Tip:Some devices use a default passcode of 0000. Refer to the target device’s user manual for more information. •When prompted to connect with the target device, touch OK to complete the connection, touch Cancel to retain the pairing only. Connecting with a Bluetooth Device1. From the Home screen, touch Menu ➔ Settings ➔ Bluetooth. The Bluetooth screen appears in the display. 2. Under Available devices, touch a previously paired device. The device connects with your phone. VPNYou can use your phone’s VPN (Virtual Private Network) feature to connect to VPNs. Configuring VPN SettingsFor information about configuring your phone’s VPN settings, see “VPN” on page 109. Accessing a VPN1. From the Home screen, touch Menu ➔ Settings. 2. Under Wireless and network, touch More settings ➔ VPN. The VPN screen appears, listing available VPN connections. 3. Touch a VPN and follow any prompts to access the network. PC ConnectionsYou can connect your device to a PC using an optional PC data cable using various USB connection modes. Storage: Lets you use the built-in mass storage and memory card capacity of the phone to store and upload files. This option lets your computer treat your phone’s installed and card memory as removable storage drives. DRAFT FOR INTERNAL USE ONLY
Connections 99Kies air: Lets you wirelessly synchronize files on your phone (in mass storage and on a memory card) with files on your Windows PC, provided they are both on the same Wi-Fi network. Note:To sync your device to your PC it is highly recommended that you install Samsung Kies which is available at http://www.samsung.com/kies (for Windows/Mac).Note:If you are a Windows XP user, ensure that you have Windows XP Service Pack 3 or higher installed on your computer. Also, ensure that you have Samsung Kies 2.5 or Windows Media Player 10 or higher installed on your computer. Connecting as a Storage DeviceYou can connect your device to a personal computer, have your device appear as a removable disk, and access your device’s file directory. If you insert a memory card in the device, you can also access the files directory on the memory card by using the device as a memory card reader. Note: The file directory of the memory card displays as a removable disk, separate from the internal memory.1. Connect the USB cable to the device and connect the cable to the computer. After a few seconds, a pop-up window displays on the PC, prompting you to choose how to access the new device.2. On the PC pop-up, click Open device to view files. You can now transfer files between the PC and your phone’s memory and memory card (if installed). DRAFT FOR INTERNAL USE ONLY
100TetheringUse Tethering to share your phone’s internet connection with a computer connected to your device using the USB data/charging cable, or using Bluetooth. For more information, refer to “Tethering” on page 110. 1. From the Settings screen, under WIRELESS & NETWORKS, touch More settings ➔ Tethering and portable hotspot. The Tethering & portable hotspot screen appears. 2. Choose a tethering method:• USB tethering: Connect the computer to the phone via USB cable, then touch USB Tethering to turn tethering On or Off. When On, a check appears in the check box.• Bluetooth tethering: Connect your phone with the computer using Bluetooth. Consult the computer’s documentation for more information about using your computer to make a Bluetooth connect. Touch Bluetooth Tethering to turn tethering On or Off. When On, a check appears in the check box.Note:Using Tethering requires a subscription to your Wireless Provider’s mobile data service. Portable Wi-Fi HotspotUse Portable Wi-Fi Hotspot to share your phone’s internet connection with a PC or other device through Wi-Fi, using your phone as the mobile hotspot. Note:Portable Wi-Fi Hotspot requires a subscription to the applicable service to use the application.Portable Wi-Fi Hotspot consumes battery power and uses data service. While the Portable Wi-Fi Hotspot is active, your phone’s applications will use the Portable Wi-Fi Hotspot data feature allowance.Configuring Portable Wi-Fi Hotspot SettingsConfigure your phone’s Portable Wi-Fi Hotspot settings, including your phone’s name and password, and set the visibility of your phone’s Wi-Fi hotspot. Tip: By default, your device’s mobile hotspot has no security applied, and any device can connect. For more information about configuring your mobile hotspot, see “Portable Wi-Fi Hotspot” on page 110. DRAFT FOR INTERNAL USE ONLY
Connections 101Activating Portable Wi-Fi hotspotActivate your phone’s Portable Wi-Fi Hotspot application to allow other devices to use your phone’s internet connection.1. From the Home screen, touch Menu ➔ Settings. The Settings screen appears. 2. Under WIRELESS & NETWORKS, touch More... ➔ Tethering & portable hotspot ➔ Portable Wi-Fi hotspot. When enabled, a check mark appears in the check box. Connecting a Device via Portable Wi-Fi HotspotUse the other device’s Wi-Fi control to connect to your phone’s Portable Wi-Fi Hotspot.1. Activate Portable Wi-Fi Hotspot on your phone. For more information, see “Activating Portable Wi-Fi hotspot” on page 101.2. Activate Wi-Fi on the other device, using that device’s Wi-Fi control.3. Scan for Wi-Fi hotspots, and select your phone from the list. To find your phone’s name, see “Configuring Portable Wi-Fi Hotspot” on page 111. 4. At the prompt, enter your phone’s Portable Wi-Fi Hotspot password. By default, the password is your phone’s telephone number. For information on changing your phone’s Portable Wi-Fi Hotspot password, see “Configuring Portable Wi-Fi Hotspot” on page 111. DRAFT FOR INTERNAL USE ONLY
102Memory CardYour phone supports removable microSD™ or microSDHC™ memory cards of up to 64GB capacity, for storage of music, pictures, videos, and other files.Installing and Removing a Memory CardFor more information about installing and removing a memory card, see “Installing a Memory Card” on page 7.Important!To prevent damage to information stored on the memory card, unmount the card before removing it from the phone.Formatting a Memory CardUse the Erase SD card setting to remove all content from an installed memory card.1. From the Home screen, touch Menu ➔ Settings. 2. Under Device, touch Storage. 3. Under SD card, touch Unmount SD card.4. After unmounting the SD card, touch Format SD card, then follow the prompts to confirm the deletion of information from the card. DRAFT FOR INTERNAL USE ONLY
Settings 103Section 8: SettingsAccessing Settings From the Home screen, touch Menu ➔ System settings.– or –From the Home screen, touch Apps ➔ Settings. The Settings menu appears. Using Setting Sliders To enable or disable a setting, touch the setting slider as shown. Accessing Additional Options To access additional setting options, touch the setting label. Note:This section does not include information about Call settings. For Call settings information, see “Call Settings” on page 54. DRAFT FOR INTERNAL USE ONLY
104WIRELESS & NETWORKWi-FiSet up and manage your phone’s connections to Wi-Fi networks. Your phone supports Wi-Fi a/b/g/n.For more information about using Wi-Fi, see “Wi-Fi” on page 95. Turning Wi-Fi On or OffTurn your phone’s Wi-Fi service on or off. When you turn Wi-Fi service on, your phone automatically searches for nearby available Wi-Fi networks.Tip:When you turn Wi-Fi service on, your phone automatically searches for available networks and displays them.You can also turn Wi-Fi On or Off from the Notifications panel.Turn Wi-Fi On:  From the Settings screen, touch Wi-Fi . Turn Wi-Fi Off:  From the Settings screen, touch Wi-Fi . Wi-Fi SettingsConfigure and manage connections to Wi-Fi access points. 1. From the Settings screen, touch Wi-Fi. The Wi-Fi options screen appears. 2. Touch options to configure: •SCAN: Search for available Wi-Fi networks. •ADD NETWORK: Connect to a new Wi-Fi network (see “Adding a Wi-Fi Network Manually” on page 96). 3. Touch Menu to access the following additional options: • Advanced: View and configure the following Advanced Wi-Fi settings: –Network notification: When enabled, your phone notifies you of nearby Wi-Fi networks when you launch a high data-usage application. –Keep Wi-Fi on during sleep: Specify when to switch from Wi-Fi to mobile data for data communications, when the phone goes to sleep (when the backlight goes out). This setting can affect your data usage, and the behavior of devices you connect to your phone, such as when tethering or using Mobile Hotspot.DRAFT FOR INTERNAL USE ONLY
Settings 105–MAC address: (Not configurable) View your phone’s MAC address, needed for connecting to some secured networks (only shows when Wi-Fi is active).–IP address: (Not configurable) View your phone’s IP address (only shows when connected to a Wi-Fi network). BluetoothYour phone supports Bluetooth® 4.0.Bluetooth profilesBluetooth profiles are specifications for services supported by individual devices. Profiles improve the ability of different devices to work together. Your phone supports these Bluetooth profiles:• Headset: HSP v1.2 profile supports use of compatible Bluetooth headsets for mono voice.• Handsfree: HFP v1.5 profile supports Bluetooth headsets, and may also support other compatible Bluetooth devices with speakerphone capabilities.• Stereo: A2DP v1.2, AVRCP v1.0, GAVDP 1.2, AVCTP 1.3 and AVDTP 1.2 profiles support delivery of stereo audio to compatible Bluetooth devices.• Object Exchange: OPP v1.0 profile allows sending and receiving of contact name cards (vCard 2.1) and calendar events (vCalendar) between devices. PBAP v1.2 supports exchange of Phone Book Objects.• Human Interface Devices: HID v1.0 profile supports certain interface devices.DRAFT FOR INTERNAL USE ONLY
106• Personal Area Networking: PAN 1.0 supports exchange of data with other devices.• Message Access Profile: MAP 1.0 allows exchange of messages between devices, such as with an automotive hands-free device.Turning Bluetooth On or OffTurn Bluetooth On:  From the Settings screen, touch Bluetooth . Turn Bluetooth Off:  From the Settings screen, touch Bluetooth . Tip:You can also turn Bluetooth On or Off at the Notifications Panel. Bluetooth settingsPair and connect with other Bluetooth devices, manage your Bluetooth connections, and control your device’s visibility to other devices.Note:Bluetooth must be turned On to access Bluetooth settings. 1. From the Settings screen, touch Bluetooth.2. Touch a setting to configure Bluetooth: •Touch Bluetooth to turn Bluetooth On, or touch Bluetooth to turn Bluetooth Off.•Touch your phone’s name to enable/disable its visibility to other devices’ Bluetooth searches. Available when Bluetooth is On. •Touch Scan to search for visible Bluetooth devices. Touch a detected device to pair with it (see “Pairing with a Bluetooth Device” on page 97). •Touch Menu to access the following options: –Rename device: Change your phone’s Bluetooth device name. –Visible time-out: Select how long your phone will remain visible to other devices. –Received files: Lists files received from other devices over Bluetooth connections. DRAFT FOR INTERNAL USE ONLY
Settings 107Data usageControl your device’s connection to your Wireless Provider’s data service, and monitor your data usage. Turning Mobile data On or Off1. From the Settings screen, under Wireless and network, touch Data usage. The Data usage screen appears. 2. Touch Mobile data to turn Mobile data On or Off. When Mobile data is on, check mark appears in the check box. Tip:You can also turn Mobile data On or Off at the Notifications panel. Setting a mobile data limitSetting a mobile data limit causes your phone to automatically disable the Mobile data connection when the limit is reached. You can set a warning threshold, to have your device alert you when data usage nears your set limit. Data usage is measure by your device, and your service provider may account for usage differently, so you may want to consider using a conservative limit. Contact your service provider for more information on actual data usage. 1. From the Settings screen, under Wireless and network, touch Data usage. The Data usage screen appears. 2. To enable mobile data, touch Mobile data.3. To enable the limit, touch Set mobile data limit. A red limit line appears in the Data usage screen. DRAFT FOR INTERNAL USE ONLY
1084. To adjust the mobile Data usage cycle, touch and drag the vertical usage cycle lines left or right on the graph. 5. To adjust the mobile data usage warning level, touch and drag the horizontal warning line up or down on the graph. 6. To adjust the mobile data usage limit level, touch and drag the horizontal limit line up or down on the graph. Viewing data usage by app or process1. From the Settings screen, under Wireless and network, touch Data usage. The Data usage screen appears. 2. Scroll down the page to see the top three processes or apps using mobile data service. Touch a process or app to see data usage for the process or app, and to configure specific settings. DRAFT FOR INTERNAL USE ONLY
Settings 109More Wireless and Network SettingsAirplane modeWhen airplane mode is enabled, all your phone’s wireless connections are disabled, and you cannot make or receive calls [except for Emergency (E911) calls] or messages. You can, however, make Wi-Fi and Bluetooth connections. While in airplane mode, you can use other features of your phone, such as playing music, watching videos, or using other applications. 1. From the Settings screen, under Wireless and network, touch More settings. The Wireless and network menu appears. 2. Touch Airplane mode to enable or disable airplane mode. When enabled, a check appears in the check box.VPNSet up and manage Virtual Private Networks (VPNs). For more information about using VPNs, see “VPN” on page 98Adding a VPN1. From the Settings screen, touch Wireless and network ➔ More settings ➔ VPN.2. Touch Add VPN network to set up a connection to a VPN, using the following settings:•Name: Enter a name for the VPN connection.•Type: Choose the type of VPN.• Server address: Enter the IP address of the VPN server.• PPP encryption (MPPE): Touch to enable or disable encryption.• Show advanced options: Touch to show more options. Available options depend on the type of VPN you are adding.Note:You must enable at least Pattern security before setting up a VPN. If you have not yet enabled security, you’ll be prompted to do so the first time you launch VPN settings.DRAFT FOR INTERNAL USE ONLY
110TetheringUse Tethering to share your phone’s internet connection with a computer that connects to your device via USB cable, or by Bluetooth.For more information about connecting computers to your phone via Tethering, see “Tethering” on page 100.1. From the Settings screen, under Wireless and network, touch More settings ➔ Tethering and portable hotspot. The Tethering and portable hotspot screen appears. 2. Choose a tethering method:• USB tethering: Connect the computer to the phone via USB cable, then touch USB Tethering to turn tethering On or Off. When On, a check appears in the check box.• Bluetooth tethering: Pair your phone with the computer via Bluetooth. Consult the computer’s documentation for more information about configuring your computer to pair via Bluetooth. Touch Bluetooth Tethering to turn tethering On or Off. When On, a check appears in the check box.Note:Using Tethering requires a subscription to your Wireless Provider’s mobile data service. Portable Wi-Fi HotspotUse Portable Wi-Fi Hotspot to share your phone’s internet connection with up to 5 other devices, through Wi-Fi. You can control whether devices connect to your Portable Wi-Fi Hotspot with the Allowed device list.For more information about using your phone as a mobile hotspot, see “Portable Wi-Fi Hotspot” on page 100. Note:Using Portable Wi-Fi Hotspot requires a subscription to data service. For more information, contact your Wireless Provider. Using your phone as a mobile hotspot consumes battery power and uses data service. While Portable Wi-Fi Hotspot is active, your phone’s applications will use your Wireless Provider’s data service. Roaming while using your phone as a mobile hotspot will incur extra data charges. DRAFT FOR INTERNAL USE ONLY
Settings 111Turning Portable Wi-Fi Hotspot On or Off1. From the Settings screen, under Wireless and network, touch More settings ➔ Tethering and portable hotspot ➔ Portable Wi-Fi hotspot.2. Touch Portable Wi-Fi Hotspot and follow the prompts to turn Portable Wi-Fi Hotspot On, or touch Portable Wi-Fi Hotspot to turn Portable Wi-Fi Hotspot Off.Note:Using your phone as a mobile hotspot consumes battery power and uses data service. While Portable Wi-Fi Hotspot is active, your phone’s applications will use your Wireless Provider’s data service. Roaming while using your phone as a mobile hotspot will incur extra data charges.Configuring Portable Wi-Fi Hotspot1. From the Settings screen, under Wireless and network, touch More settings ➔ Tethering and portable hotspot ➔ Portable Wi-Fi hotspot. The Portable Wi-Fi hotspot screen appears. 2. Touch Configure to access the following options:• Network SSID: View and change the name of your Mobile Hotspot.• Hide my device: When enabled, your Portable Wi-Fi Hotspot is not visible to other Wi-Fi devices during a scan. Other devices can still connect to your Portable Wi-Fi Hotspot, but will have to set up the connection manually with your Network SSID and Password.•Security: Choose the security level for your Portable Wi-Fi Hotspot.•Password: If you choose a security level that uses a password, enter the password. By default, the password is your mobile telephone number.• Show password: Enable to make the Password field visible.• Show advanced options: Enable to access advanced options, including Broadcast channel, to specify the channel your device uses for Portable Wi-Fi Hotspot.DRAFT FOR INTERNAL USE ONLY
112Allowed Device ListControl whether devices connect to your Portable Wi-Fi Hotspot with the Allowed device list. After you add devices to the list, they can scan for your device and connect using your device’s Wi-Fi hotspot name (SSID) and password. Note:Using your phone as a mobile hotspot consumes battery power and uses data service. While Portable Wi-Fi Hotspot is active, your phone’s applications will use your Wireless Provider’s data service. Roaming while using your phone as a mobile hotspot will incur extra data charges.1. From the Settings screen, under Wireless and network, touch More settings ➔ Tethering and portable hotspot ➔ Portable Wi-Fi hotspot. The Portable Wi-Fi hotspot screen appears.2. Touch Allowed device list ➔ , then enter the other device’s Device name and MAC address.3. Touch OK to add the device to the Allowed devices list.Tip:For information about connecting to your Portable Wi-Fi Hotspot, see “Connecting a Device via Portable Wi-Fi Hotspot” on page 101.Wi-Fi DirectWi-Fi Direct allows devices to connect to each other directly via Wi-Fi, without a Wi-Fi network or hotspot, and without having to set up the connection. For example, some printers support Wi-Fi Direct, and you could print from your phone via Wi-Fi Direct.Turning Wi-Fi Direct On or Off From the Settings screen, touch More ➔ Wi-Fi Direct. 1. If Wi-Fi is enabled, the Wi-Fi Direct pop-up appears. 2. To turn off Wi-Fi and enable Wi-Fi Direct, touch OK. A check mark appears in the check box. (For information on connecting your phone to other Wi-Fi Direct devices, see “Establishing Wi-Fi Direct Connections” on page 96.) DRAFT FOR INTERNAL USE ONLY
Settings 113Mobile networksSet options for network selection, data service, and roaming behavior.1. From the Settings screen, under Wireless and network, touch More settings ➔ Mobile networks. The Mobile networks screen appears. 2. Set these options:• Mobile data: Enable or disable your phone’s connection to the mobile data network. You can also control this setting at Notifications with the Mobile data toggle.• Data roaming: Enable or disable connection to data services when your device is roaming on another network. For more information about roaming, see “Roaming” on page 16. •Network mode: Configure roaming for CDMA, LTE, and EV-DO networks.–LTE/CDMA: Lets your phone automatically access LTE, CDMA, and/or EV-DO mobile networks when available. –CDMA: Restricts your phone to CDMA mobile networks. • System select: Configure CDMA roaming mode. –Home only: Restricts your phone to your Wireless Provider’s network. –Automatic: Permits your phone to automatically roam to networks other than that provided by your Wireless Provider. DRAFT FOR INTERNAL USE ONLY
114DEVICESound From the Settings screen, under Device, touch Sound. The Sound menu appears. VolumesSet the system volume level, and set default volume for call ringtones, notifications, and media playback.Note:You can also set System volume from the Home screen by pressing the Volume key Up or Down. 1. From the Sound menu, touch Volume. The Volume menu pops-up. 2. Touch and drag the sliders for:• Music, video, games, and other media: Set the default volume level for audio playback. You can also adjust volume from this default inside the apps.•Ringtone: Set the volume for incoming call ringtones.• Notifications: Set the volume for notifications, such as new messages and event reminders.• System: Set the volume for all other system sounds, such as keytones played for screen touches. You can control whether tones play for screen touches with other sound settings.3. Touch OK to save your settings.DRAFT FOR INTERNAL USE ONLY
Settings 115Silent Mode1. From the Sound menu, touch Silent mode. The following options pop-up: •Off: Your phone responds to calls and alerts by playing ringtones and alert tones. •Vibrate: Your phone responds to calls and alerts by vibrating. •Mute: Your phone responds to calls and alerts by neither ringing nor vibrating. 2. To discard your change, touch Cancel. Phone ringtoneChoose a ringtone for incoming calls.1. From the Sound menu, under RINGTONE & NOTIFICATIONS, touch Device ringtone. The Device ringtone menu pops-up. 2. Touch a ringtone to select it. When you touch a ringtone, a sample plays, unless you have a Silent mode enabled. 3. Touch OK to save your selection. DRAFT FOR INTERNAL USE ONLY
116Device vibrationChoose a vibration pattern to use when vibration is enabled.1. From the Sound menu, under RINGTONE & NOTIFICATIONS, touch Device vibration. The Device vibration menu pops-up. 2. Touch a vibration pattern to select it. When you touch a pattern, a sample plays. 3. To create your own pattern, touch Create. Touch Tap to create in the pattern, then touch Stop. Touch Save to save your pattern.4. Touch OK to save your selection. Default notificationChoose a default sound to play for notifications, such as for new messages and event reminders.1. From the Sound menu, under RINGTONE & NOTIFICATIONS, touch Default notification. The Default notification menu pops-up. 2. Touch a sound to select it. When you touch a sound, a sample plays. 3. Touch OK to save your selection. DRAFT FOR INTERNAL USE ONLY
Settings 117Vibrate and ringWhen enabled, vibration is played at the same time as sounds for calls and alerts. From the Sound menu, under RINGTONE & NOTIFICATIONS, touch Vibrate and ring to enable or disable the feature. When Vibrate when ringing is enabled, a check mark appears in the check box. Dial pad touch tonesDial pad touch tones are sounds that play when you touch keys on the Phone keypad. From the Sound menu, under SYSTEM, touch Dial pad touch tones to enable or disable key sounds.When Dial pad touch tones is enabled, a check mark appears in the check box. Touch soundsTouch sounds play when you touch items on the screen, such as when making a selection. From the Sound menu, under SYSTEM, touch Touch sounds to enable or disable touch sounds.When Touch sounds is enabled, a check mark appears in the check box. Screen lock soundScreen lock sound plays when you lock or unlock the screen. From the Sound menu, under SYSTEM, touch Screen lock sound to enable or disable the Screen lock sound.When Screen lock sound is enabled, a check mark appears in the check box. DRAFT FOR INTERNAL USE ONLY
118Vibrate on touchWhen turned On, the phone vibrates to indicate screen touches and other interactions.  From the Sound menu, under SYSTEM, touch Vibrate on touch to turn touch vibrations On or Off.Emergency toneYou can set your phone to play an alert tone or vibrate during an emergency call (for example, calls to 911).1. From the Sound menu, under SYSTEM, touch Emergency tone.2. Touch Alert or Vibrate, or touch Off for no emergency tone.Display From the Settings screen, under DEVICE, touch Display. The Display menu appears. BrightnessSet the default screen brightness.1. From the Display menu, touch Brightness.2. Touch and drag the slider to set the brightness, or touch Automatic brightness to allow the phone to adjust brightness in response to light conditions.3. Touch OK to save the setting.WallpaperSelect wallpaper(s) for the Home and Lock screens. 1. From the Display menu, touch Wallpaper. 2. Touch the screen for which you want to select wallpaper. (Options are: Home screen, Lock screen, and Home and lock screens.) 3. Touch the source of the wallpaper(s) you want to use. [Options are: Gallery, Live wallpapers (not for the Lock screen), and Wallpapers.) 4. Touch the desired image or wallpaper. DRAFT FOR INTERNAL USE ONLY
Settings 119Auto-rotate screenWhen enabled, the screen’s orientation automatically changes when you rotate the phone. From the Display menu, touch Auto-rotate screen to turn the feature On or Off.SleepSet the length of delay between the last key press or screen touch and the automatic screen timeout (dim and lock).1. From the Display menu, touch Sleep.2. Touch a setting to select it. Font sizeSet the size of the text that appears in screens. 1. From the Display menu, touch Font size. The Font size pop-up appears. 2. Select Small or Normal. 3. To discard your change, touch Cancel. StorageManage the use of memory resources in your phone’s Device memory, and on an installed memory card.1. From the Settings screen, under DEVICE, touch Storage. The Storage screen appears. The following options are available: • USB STORAGE: View usage for, and manage, your phone’s internal memory (For detailed information and to manage storage in use, touch any item except Total space or Available space.): –Total space: Shows the total installed device memory. –Apps: Shows the total device memory currently used to store applications. –Pictures, videos: Shows the total device memory currently used to store pictures and videos. –Audio: Shows the total device memory currently used to store music files, ringtones, and so on.) –Downloads: Shows the total device memory currently used to store recently downloaded files. –Miscellaneous files: Shows the total device memory currently used to store various application data and system data files. DRAFT FOR INTERNAL USE ONLY
120–Available space: Shows the total device memory available for use. •SD CARD: View usage for, and manage, storage space on an optional memory card. –Total space: Shows the total card memory. –Available space: Shows the total card memory available for use. –Unmount SD card: Deactivates the memory card so that you can safely remove it or format it. (For more information, see “Installing and Removing a Memory Card” on page 102) –Format SD card: Deletes all data from the memory card, including music, videos, and photos. (For more information, see “Formatting a Memory Card” on page 102.) BatterySee how much battery power is being used by device activities.1. From the Settings screen, under Device, touch Battery. The Battery screen appears. 2. View battery usage for applications and services currently running. The battery level displays in percentage. The amount of time the battery was used also displays. Battery usage displays in percentages per application.3. Touch Screen, Cell standby, Android System, or any other listed feature or application to view how it is affecting battery use. Note: Other applications may be running that affect battery use. DRAFT FOR INTERNAL USE ONLY
Settings 121AppsYou can download and install applications from the Google Play™ Store, or create applications using the Android SDK and install them on your phone. Use Application manager to manage applications on your phone.Warning!Because this device can be configured with system software not provided by or supported by Google or any other company, end-users operate these devices at their own risk. 1. From the Settings screen, under DEVICE, touch Apps. The Apps screen appears. 2. Touch DOWNLOADED, RUNNING, or ALL to list the statuses of applications and services. The graph at the bottom of the DOWNLOADED tab shows used and free Device memory. The graph at the bottom of the RUNNING tab shows used and free RAM. 3. Touch an app or service to display the App info or Active app screen which provides more detailed storage usage information, and lets you Stop/Force stop or Uninstall/Report and app or service. For Downloaded apps, you can also Clear data, Clear cache, and/or Clear defaults. DRAFT FOR INTERNAL USE ONLY
122PERSONALAccounts & SyncSet up and manage accounts, including your Samsung, Email, Google, and social networking accounts.  From the Settings screen, under Accounts & sync, touch the desired account. The related account type screen appears. Corporate1. From the Settings screen, under Accounts & sync, touch a Corporate account. The Sync settings screen appears. 2. Touch Account settings. The Settings screen appears. 3. Touch General. The APPLICATIONS options are the same as for Email accounts. 4. Under Added accounts, touch the desired account. The following options are available: • Common settings: –Account name: Enter a name to identify the account. –Signature: Enter or change signature text. –Default account: Touch to assign or un-assign this account as the default account for sending email from your phone.–Always Cc/Bcc myself: Adds your email address to None of send email messages or to Cc or Bcc field of send email messages. –Forward with attachment: Enables including copies of any attached files when forwarding a copy of an email message. –Show images: When enabled, images included in messages automatically display, without a confirmation pop-up. • Data usage: –Auto download attachments: When enabled, automatically downloads attachments to recent messages, but only when your device is connected to a Wi-Fi network. DRAFT FOR INTERNAL USE ONLY
Settings 123• Exchange ActiveSync settings: –Period to sync email: Choose the number days worth of email messages the phone and server will synchronize. Choose from: All, 1 day, 3 days, 1 week, 2 weeks, or 1 month. –Empty server trash: Delete your email account’s trash bin remotely. –Sync schedule Choose your email automatic synchronization schedule. –Folder sync settings: Choose email automatic synchronization schedules for individual folders. –Out of office settings: Enable/disable your account’s out of office settings, choose the start/end dates, and enter/change your outgoing messages. –Size to retrieve emails: Choose how much of each message your phone retrieves before you view it. –Period to sync Calendar: Choose the period of time for your phone to synchronize calendar events (2 weeks, 1 month, 3months, 6 months, or All calendar). –In case of Sync Conflict: Choose whether your Device has priority or the Server has priority during automatic synchronization. –Auto resend times.: Choose the number of times to automatically resend a message before marking it un-sent. • Notification settings–Email notifications: Enable or disable display of a new email icon in the Annunciator line when new mail arrives.–Select ringtone: Assign a ringtone for new email notifications.–Vibrate: Enable or disable vibration with new email notifications.• Server settings–Exchange server settings: Change the server link settings on your device. –Sync contacts: Synchronize your phone’s contacts list with the Exchange server’s contacts list. –Sync Calendar: Synchronize your phone’s calendar with the Exchange server’s calendar. –Sync Task: Synchronize your phone’s Task list with the Exchange server’s Task list. DRAFT FOR INTERNAL USE ONLY
124Email1. From the Settings screen, under Accounts, touch Email. The Email screen appears. 2. Under Common settings, touch Settings. The Settings screen appears. 3. Touch General preferences. The following options are available: • General preferences: –Auto-advance: Select which screen (Next message, Previous message, Message list) appears after you delete a message. –Message preview line: Number of message lines (None, 1 line, 2 lines, 3 lines) that appear in the folder message list. –Email title: Select which message header line (Subject, Sender) appears as the message title in the folder message list. –Confirm deletions: When enabled, you are prompted to confirm message deletions. –Quick responses: Edit pre-composed text you frequently include in your messages. • Priority sender inbox: –Priority senders: List those senders whose messages receive priority in your message list. –Email notifications: When enabled, an icon and the Email title appear in the status bar for new messages. –Select ringtone: Choose the ringtone that plays when you receive new messages. –Vibrate: When enabled, your phone vibrates when you receive new messages. 4. Under Added accounts, touch the desired account. The following options are available: • Common settings: –Account name: Enter a name to identify the account. –Signature: When On, adds pre-composed signature text to send messages. Touch to edit the signature text that appears at the end of email messages you send. –Default account: When active, sends email from this account by default. –Always Cc/Bcc myself: Adds your email address to None of send email messages or to Cc or Bcc field of send email messages. –Forward with attachment: Enables including copies of any attached files when forwarding a copy of an email message. DRAFT FOR INTERNAL USE ONLY
Settings 125–Recent messages: Select the number of messages (25, 50, 75, 100, 200, Total) that appear in your message list. –Show images: When enabled, images included in incoming messages are automatically downloaded and displayed. • Data usage: –Sync Email: When enabled, the contents of your phone’s email folder is synchronized with your account. –Auto download attachments: When enabled, items attached to incoming messages are automatically downloaded with the messages. –Size to retrieve emails: Select the amount of new incoming message contents to include in your message list. –Auto resend times: Select the number of times your phone is to attempt to send an outgoing message before marking it as un-sent. • Sync settings: –Sync schedule: Peak/Off-peak schedule control. • Notification settings –Email notifications: Enable or disable display of a new email icon in the Annunciator line when new mail arrives.–Select ringtone: Assign a ringtone for new email notifications.–Vibration: Enable or disable vibration with new email notifications.• Server settings–Incoming settings: Modify settings for accessing the email server to view incoming email messages. –Outgoing settings: Modify settings for accessing the email server to send email messages. DRAFT FOR INTERNAL USE ONLY
126GoogleAdding Google account1. From the Settings screen, under Accounts, touch Add account ➔ Google. The Add a Google Account screen appears. 2. Touch Existing or New. 3. Follow the prompts to set up a Google account link. Account Synchronization settings1. From the Settings screen, under Accounts, touch Gmail. The Google screen appears. 2. Under Accounts, touch the desired Google account. The Sync settings screen appears listing the following options: •Sync Calendar: Synchronize your phone’s calendar with your on-line calendar. •Sync Contacts: Synchronize your phone’s contacts list with your on-line contacts list. •Sync Gmail: Synchronize your phone’s Gmail inbox with your on-line Gmail inbox. • Sync Google Photos: Synchronize your phone’s gallery photos with your on-line Google Photos. • Sync Google Play Books: Synchronize your phone’s ebooks library with your on-line ebooks library. • Sync Google Play Magazines: Synchronize your phone’s emagazines library with your on-line emagazines library.• Sync Google Play Movies &: Synchronize your phone’s movies library with your on-line movies library. • Sync Google Play Music: Synchronize your phone’s music list with your on-line music list. • Sync Internet: Synchronize your phone’s Internet browser bookmarks with your on-line bookmarks list. •Sync now: Synchronize all enabled options immediately. • Remove account: Delete this account from your phone. DRAFT FOR INTERNAL USE ONLY
Settings 127General settings1. Press Home, then touch Apps, and the Apps tab. The Apps screen appears in the display. 2. Touch Gmail. The Gmail Inbox screen appears. 3. Touch Menu ➔ Settings ➔ General settings. The following options are available: • Confirm before deleting: When enabled, prompts you to confirm deletions of conversations or messages. • Confirm before archiving: When enabled, prompts you to confirm movement of conversations or messages to archive. • Confirm before sending: When enabled, prompts you to confirm sending of messages. •Reply all: When enabled, your message replies are automatically sent to all original message recipients. • Auto-fit messages: When enabled, messages are shrunk to fit your phone’s screen. Zoom is also enabled. • Auto-advance: When enabled, the conversation list is automatically updated and displayed after you delete or archive messages or conversations. • Hide checkboxes: When enabled, check boxes are not displayed. To select messages or conversations, you must touch and hold them. • Message actions: Allows you to configure how display message actions. Choose from: Always show, Only show in portrait, and Don’t show. • Clear search history: Remove previous searches you have performed. • Hide pictures in messages: Until you allow by sender, pictures do not display automatically. DRAFT FOR INTERNAL USE ONLY
128Account settings1. Press Home, then touch Apps, and the Apps tab. The Apps screen appears in the display. 2. Touch Gmail. The Gmail Inbox screen appears. 3. Touch Menu ➔ Settings and select an account. The following options are available: •Priority Inbox: When enabled, your Gmail account becomes your default inbox. • Notifications: When enabled, notifications for new email appears in the Notifications Panel. •Sound & vibrate: Select Sound (ringtone) to play when new messages arrive, whether to Vibrate to alert you to new messages, and whether to Notify you once for new email messages. •Signature: Create a text signature to add to outgoing messages. • DATA USAGE: –Gmail sync is ON: Enable or disable automatic synchronization, change synchronization settings for this account, remove this account (unless it is the only Gmail account), or add an account. –Days of mail to sync: Choose the number of days worth of Gmail messages to synchronize. –Manage labels: Choose which Gmail labels are synchronized, and access Sound & vibrate settings. –Download attachments: When enabled, automatically downloads attachments to recent messages, but only when your device is connected to a Wi-Fi network. Location servicesLocation services control your device's use of GPS signals. Some apps may require one or more location services be turned On for full app functionality.GPS signals may be affected by your surroundings, including:• Buildings • Tunnels or underground structures • Weather conditions • High-voltage or electromagnetic fields • Tinted windows 1. From the Settings screen, under PERSONAL, touch Locations services. The Location services screen appears. DRAFT FOR INTERNAL USE ONLY
Settings 1292. Touch the following options to enable/disable them. (When an option is enabled, a check mark appears in its check box.): • Google’s location service: allows applications to use data from mobile networks and Wi-Fi to help determine your location.• GPS satellites: allows applications to use GPS to pinpoint your location.Note: Use GPS satellites must be enabled to use some applications. You can also enable or disable GPS from the Notifications panel. For more information, refer to “Notifications” on page 24. Important!By selecting Use GPS satellites, you are allowing access to all location information by any third party through web access or any software or peripheral components you choose to install, download, add, or attach to the device or any other means. • Location and Google search: allows Google to use your location data for improved search results and other services. Note:Google location services must be enabled to use some applications.Important!By selecting Location and Google search, you are allowing Google’s location service to collect anonymous location data. Some data may be stored on your device. Collection may occur even when n o apps are running.DRAFT FOR INTERNAL USE ONLY
130Lock screenChoose settings for locking and unlocking your phone. For more information about using the lock and unlock features, see “Securing Your Phone” on page 16. From the Security screen, under SCREEN SECURITY, touch the following options to access additional options: • Screen lock: Touch one of the following options to select it as your custom screen lock/unlock method: –None: Disable all custom screen lock settings, to use the default swipe unlock screen. –Slide: When enabled, you unlock the phone by swiping your finger across the screen. This is the default screen lock, and offers no security.–Pattern: When enabled, you draw a pattern, which you create, on the screen to unlock the phone. Touch the option, then follow the prompts to create or change your screen unlock pattern.–PIN: When enabled, you enter a numeric PIN (Personal Identification Number), which you create, to unlock the phone.–Password: When enabled, you enter an alphanumeric password, which you create, to unlock the phone.Owner informationTouch this option to enter text you want displayed on the Lock screen. The following options are available: • Show owner info on lock screen: When enabled, displays text you enter in the text box on the Lock screen. • Enter text to display on lock screen: In this box, enter text you want displayed on the lock screen. (For more information about entering text, see “Entering Text” on page 33.) PasswordsWhen enabled, password characters display briefly as you enter them.  From the Security screen, under PASSWORDS, touch the following option to enable/disable it: (When the option is enabled, a check mark appears in the check box.) • Make passwords visible: When enabled, briefly displays password characters as you enter them.DRAFT FOR INTERNAL USE ONLY
Settings 131DEVICE ADMINISTRATIONView or disable device administrators. Some applications, such as corporate Email, may require you allow access to your device by device administrators in certain circumstances, such as if your phone is lost or stolen.Some features a device administrator might control include: • Setting the number of failed password attempts before the phone is restored to factory settings. • Automatically locking the phone. • Restoring factory settings on the phone.  From the Security screen, under DEVICE ADMINISTRATION, touch the following options to enable/disable them: (When an option is enabled, a check mark appears in its check box.) • Device administrators: View, add, or remove device administrators. • Unknown sources: When enabled, you can install applications from sources other than Google Play®. Warning!Because this device can be configured with system software not provided by or supported by Google or any other company, end-users operate these devices at their own risk. CREDENTIAL STORAGEYou can install credentials with an application, from device storage, or from an installed memory card, and use the Credential storage settings to allow applications to access the secure certificates and other credentials.  From the Security screen, under Credential storage, touch the following options to enable/disable them. (When an option is enabled, a check mark appears in its check box.): • Trusted credentials: View, enable, or disable trusted CA certificates. • Install from SD card: Install encrypted certificates from an installed memory card.Note:You must have installed a memory card containing encrypted certificates to use this feature. DRAFT FOR INTERNAL USE ONLY
132• Clear credentials: Clear stored credentials and reset the password.Note:This setting is only available if you have installed certificates.Language and input From the Settings screen, under PERSONAL, touch Language and input. The Language and input screen appears. LanguageSelect the language used in your phone’s screens. From the Language and input screen, touch Language to select the language used in your phone’s screens. Keyboards and input methodsConfigure text entry options to your preferences.  From the Language and input screen, under Keyboards and input methods, touch the check box next to each of the following options to enable it. (When enabled, a check mark appears in the check box.): •Default: Review the default method for manually entering text. Note:This option cannot be changed. DRAFT FOR INTERNAL USE ONLY
Settings 133• Google voice typing: Lets you vocally dictate the text entered into a field. Touch beside Google voice typing to configure the following options: –Choose input languages: Select languages for Google voice typing. Select Automatic to use the Default language exclusively, or choose other language(s). –Block offensive words: When enabled, words many people find offensive are not shown in results of Google voice searches. Offensive words are replaced in results with a placeholder (####). –Download offline speech recognition: Enables voice input using Google voice typing while your phone is offline. • Samsung keyboard: Touch beside Samsung keypad to configure the following options. Note:This option cannot be disabled. –Portrait keyboard types: Choose the default keypad when the screen is in portrait mode, from Qwerty or 3x4 keyboard (similar to a phone keypad).–Input languages: Select languages for the Samsung keyboard. Tip:When you have more than one language selected, you can slide your finger on the space bar while entering text to switch languages.–Predictive text: When enabled, T9 suggests words matching your text entries and optionally, complete common words automatically. Touch Predictive text to enable T9 predictive text, touch Predictive text to disable T9 predictive text. Touch Predictive text to configure the following options: Personalized data: When enabled, Predictive text uses personal language data you have entered. Learn from Gmail: Log in to let your device learn from your Gmail messages.Learn from Facebook: Log in to let your device learn from your Facebook entries.Learn from Twitter: Log in to let your device learn from your “tweets”.Learn from Messaging: Update to let your device learn from your message text entries. Learn from Contacts: Update to let your device learn from your Contacts style.DRAFT FOR INTERNAL USE ONLY
134Clear personalized data: Remove all the personal language data you have entered.–T9 Trace: When enabled, you can sweep your finger over keypad letters to enter words. When you lift your finger, a word matching your sweep is entered automatically. Available when Predictive text is turned On.–Handwriting: When in Handwriting mode, Samsung keyboard recognizes on-screen tracing of words. Touch Handwriting to configure the following options: Recognition type: Select Stroke recognition or Complete recognition. Recognition time: Select 100 ms, 300 ms, 500 ms, 1000 ms, or 2000 ms. Pen thickness: Select 1 pixel, 3 pixels, 5 pixels, 7 pixels, or 9pixels. Pen color: Select Black, Red, Blue, Green, or Brown. Gesture guide: Shows gestures for text editing functions. Tutorial: Shows explanation of how to write by hand so that the phone will accept your input. About: Lists the Build, DHWR, and DioWord+ release versions. –Advanced: Auto-capitalization: When enabled, T9 automatically capitalizes words in your text based on common usage, such as at the beginning of sentences.Auto-punctuate: When enabled, a period and space are automatically entered to end a sentence, when you tap the space bar twice.Character preview: When enabled, characters available on the key you touch display briefly as you enter text.Key-tap vibration: When enabled, a vibration plays for your key touches.Key-tap sound: When enabled, a sound plays for your key touches.–Tutorial: View help for using T9 predictive text.–Reset settings: Touch to reset Samsung keyboard settings to the defaults, except for My word list and the Auto substitution list.DRAFT FOR INTERNAL USE ONLY
Settings 135•Swype: Touch beside Swype to configure the following options. –How to Swype: Learn Swype through quick, easy-to-use steps. –Gestures: Learn about the gestures you can use to simplify accessing Swype features. –Preferences: Vibrate on keypress: When enabled, the phone vibrates on text entry.Sound on keypress: When enabled, plays sounds as you enter text.Show helpful tips: When enabled, displays a flashing indicator for quick help as you enter text.Auto-spacing: When enabled, inserts spaces automatically when you pause entering text.Auto-capitalization: When enabled, automatically capitalizes the first letter of the first word in a sentence.Show complete Trace: Choose whether to display the complete Swype path. Pop-up on keypress: Characters pop-up when you type them. Next word prediction: When enabled, suggests possible matching words as you enter text.Reset Swype’s dictionary: Delete all words you’ve added. Version: View the current Swype software version. –Language Options: English: Change current language. Living language: When enabled, automatically updates Swype with popular new words. Download languages: Select and download languages besides US English. Active: Enable or disable installed languages. –Swype Connect: Register now: Register your Swype Backup & Sync account. Backup & Sync: When enabled, your device automatically downloads popular, new words based on language and location; backs up your Swype dictionary, and synchronizes your Swype dictionary across multiple devices. Contribute usage data: When enabled, Nuance collects usage data to provide better word predictions. Cellular data: When enabled, Swype features can use your phone’s cellular network connection to download updates, languages, and so on. DRAFT FOR INTERNAL USE ONLY
136–Personalization:Edit Dictionary: Add and/or remove words in your personal dictionary.Facebook: Sign in to add contact names to your personal dictionary. Twitter: Sign in to add user names and new words from your public twitter feed to your personal dictionary. Gmail: Sign in to add recipient names to your personal dictionary. –Updates: Check for updates and download them to your device. SPEECH From the Language and input screen, under SPEECH, the following options are available: • Voice search: Configure how Voice search reacts to your speech. –Language: Choose a language for voice searching. –Speech output: Choose whether Speech is Always available or available with Hands-free only. –Block offensive words: When enabled, words many people find offensive are not shown in results of Google voice searches. Offensive words are replaced in results with a placeholder (####). –Hot word detection: When enabled, say “Google” to launch voice search. –Download offline speech recognition: Enables voice input while off-line. –Personalized recognition: Train Voice search to more accurately recognize your voice. –Google Account dashboard: Manage data collected under your Google account. DRAFT FOR INTERNAL USE ONLY
Settings 137• Text-to-speech output: Provides audible readout of text, for example, the contents of text messages, and the Caller ID for incoming calls. –Preferred TTS engine: Select Google Text-to-speech Engine, or Samsung TTS. –General: Speech rate: Choose a rate at which text readouts are spoken.Listen to an example: Play a sample of speech synthesis.Driving mode: When enabled, incoming calls and new notifications are read out automatically. Touch Driving mode to enable Driving mode. Touch Driving mode to disable Driving mode. Touch Driving mode to choose items to be read out when Driving mode is enabled (Incoming call, Message, New emails, New voicemail, Alarm, Schedule, and/or Unlock screen). Back up and resetSet options for backing up your information and resetting your device.  From the Settings screen, under PERSONAL, touch Backup and reset. The Backup and reset screen appears. BACKUP AND RESTORE From the Backup and reset screen, under BACKUP & RESTORE, touch the check box next to each of the following options to enable it: (When enabled, a check mark appears in the check box.) • Back up my data: Backs up app data, Wi-Fi passwords, and other phone settings to Google servers. • Backup account: Select or set-up a Google account your phone will use to backup your app data, Wi-Fi passwords, and other phone settings. • Automatic restore: Automatically restore app data, Wi-Fi passwords, and other phone settings from your automatic backup. DRAFT FOR INTERNAL USE ONLY
138PERSONAL DATAFactory data resetUse Factory data reset to return all settings to the defaults, and remove all data from the phone. From the Backup and reset screen, under PERSONAL DATA, touch Factory data reset to return all settings to the defaults, and remove all data from the phone.Important!Settings and data erased in a Factory data reset cannot be recovered. To save your settings, you can use Back up my data settings before a reset.SYSTEMDate and timeBy default, your phone receives date and time information from the wireless network. When you are outside network coverage, you may want to set date and time information manually using the Date & time settings.1. From the Settings screen, under SYSTEM, touch Date & time.2. Touch a setting to configure:• Automatic date and time: When enabled, the phone takes date and time updates from the wireless network (disables Set date, Set time, and Select time zone).• Automatic time zone: When enabled, the phone uses the network-provided time zone. •Set date: Enter the current date (only available when Automatic date and time is disabled).•Set time: Enter the current time (only available when Automatic date and time is disabled).• Select time zone: Choose your local time zone (only available when Automatic date and time is disabled).• Use 24-hour format: Set the format for time displays.DRAFT FOR INTERNAL USE ONLY
Settings 139• Select date format: Set the format for date displays.AccessibilityYour phone offers features to make using the phone easier for those with certain physical disabilities. Use the Accessibility settings to activate these services.  From the Settings screen, under SYSTEM, touch Accessibility. The Accessibility screen appears. SERVICESEnable or disable accessibility services. TalkBack From the Accessibility screen, under SERVICES, touch the following option: •TalkBack: When enabled in the TalkBack screen, recites menu options, application titles, contacts, and other items when scrolling and making selections, according to the Settings values you select. SYSTEM From the Accessibility screen, under SYSTEM, touch the check box next to each of the following options to enable it: (When enabled, a check mark appears in the check box.) • The power key ends calls When enabled, lets you end voice calls by pressing the Power/Lock key. • Auto-rotate screen: The screen’s orientation automatically changes when you rotate the phone. • Screen timeout: Set the length of delay between the last key press or screen touch and the automatic screen timeout (dim and lock). • Speak passwords: Lets you speak passwords for log-ins. • Touch & hold delay: • Install web scripts: DRAFT FOR INTERNAL USE ONLY
140Developer optionsUse the Developer options to set options for Android application development and testing.  From the Settings screen, under SYSTEM, touch Developer options. The Developer options screen appears. USB debuggingWhen enabled, allows debugging when the device is attached to a PC by a USB cable.  From the Developer options screen, touch USB debugging to enable or disable the setting. When enabled, a check mark appears in the check box. Stay awakeWhen enabled, this option blocks the screen from “sleeping” while the device is connected to a battery charger. Allow mock locationsThis setting is used by developers when developing location-based applications. From the Developer options screen, touch Allow mock locations to enable or disable the setting. When enabled, a check mark appears in the check box.Desktop backup passwordProtect the desktop with a backup password ID.1. From the Developer options screen, touch Desktop backup password. 2. In the Settings screen, enter the current full backup password, the new password for full backups, then enter the new password again.3. Touch Set backup password to save the password change.Select app to be debugged From the Developer options screen, touch Select app to be debugged to select one of the apps you are developing for debugging. Wait for debugger From the Developer options screen, touch Wait for debugger to delay launcing of the Select app to be debugged until the debugger has attached. DRAFT FOR INTERNAL USE ONLY
Settings 141USER INTERFACE From the Developer options screen, under USER INTERFACE, touch the check box next to each of the following options to enable it: (When enabled, a check mark appears in the check box.) • Strict mode enabled: The screen flashes when applications perform long operations on the main thread. • Pointer location: Highlights the data that was touched on the screen. • Show touches: Displays touch interactions on the screen.• Show screen updates: Areas of the screen flash when they update.• Show CPU usage: Screen highlights the current CPU usage.• GPU rendering profile: When enabled, rendering time is measured in adb shell dumpsys gfxinfo. • Window animation scale: Configure the scale for animation (ranges from off to 10x).• Transition animation scale: Configure the scale for transitioning when using animation (ranges from Off to 10x).APPS From the Developer options screen, under APPS, touch the check box next to each of the following options to enable it: (When enabled, a check mark appears in the check box.) • Do not keep activities: Destroys every activity as soon as the application is closed. • Background process limit: Set the number of processes that can run in background. Options are: Standard limit, No background processes, and 1 to 4 processes at most.• Show all ANRs: Displays a prompt when applications running in background are not responding. DRAFT FOR INTERNAL USE ONLY
142About phoneView information about your phone, including status, legal information, hardware and software versions, and a tutorial.Software updateSoftware update lets your phone connect to the network and download any new phone software directly to your phone. The phone automatically updates with the latest available software when you access this option.1. From the Settings screen, under System, touch About phone ➔ Software update. You are prompted to select your current country. 2. Select a Country, then touch OK. A Terms and Conditions screen appears. 3. To proceed to Software Update, touch I accept all the terms above, then touch Confirm. Your device registers itself with your Wireless Provider’s Software Update service, connects with your Wireless Provider’s server, and scans for software updates. 4. At the Software update prompt, touch OK to continue.5. The phone automatically updates the software (if available), otherwise, when the The latest updates have already been installed prompt is displayed, touch OK.6. When updating software, once the update file is downloaded, you can delay the update on the start screen by postponing it for a certain period of time. If you want to resume the update before the selected time, touch Continue update. StatusView Battery status, Battery level, Network, Signal strength, Mobile network type, Service state, Roaming, Mobile network state, My phone number, MIN, PRL version, MEID, IMEI, ICCID, IP address, Wi-Fi MAC address, Bluetooth address, Up time, and Device status. DRAFT FOR INTERNAL USE ONLY
Settings 143Legal informationDisplay open source licenses, configure license settings, including your DivX VOD registration, and Google info.Model numberView your phone’s model number.Android versionView the firmware version of your phone.Baseband versionView the baseband version of your phone.Kernel versionView the kernel version of your phone.Build numberView the build number of your phone.DRAFT FOR INTERNAL USE ONLY
144Section 9: Health and Safety InformationThis device is capable of operating in Wi-Fi mode in the 2.4 and 5 GHz bands. The FCC requires that devices operating within 5.15-5.25 GHz may only be used indoors, not outside, in order to avoid interference with Mobile Satellite Services (MSS). Therefore, do not use this device outside as a Wi-Fi hotspot or in Wi-Fi Direct mode outside when using the 5.15-5.25 GHz band.This section outlines the safety precautions associated with using your phone. The terms “mobile device” or “cell phone” are used in this section to refer to your phone. Read this information before using your mobile device.Exposure to Radio Frequency (RF) SignalsThe U.S. Food and Drug Administration (FDA) has published information for consumers relating to Radio Frequency (RF) exposure from wireless phones. The FDA publication includes the following information:Do cell phones pose a health hazard?Many people are concerned that cell phone radiation will cause cancer or other serious health hazards. The weight of scientific evidence has not linked cell phones with any health problems.Cell phones emit low levels of Radio Frequency (RF) energy. Over the past 15 years, scientists have conducted hundreds of studies looking at the biological effects of the radio frequency energy emitted by cell phones. While some researchers have reported biological changes associated with RF energy, these studies have failed to be replicated. The majority of studies published have failed to show an association between exposure to radio frequency from a cell phone and health problems.The low levels of RF cell phones emit while in use are in the microwave frequency range. They also emit RF at substantially reduced time intervals when in the stand-by mode. Whereas high levels of RF can produce health effects (by heating tissue), exposure to low level RF that does not produce heating effects causes no known adverse health effects.DRAFT FOR INTERNAL USE ONLY
Health and Safety Information 145The biological effects of radio frequency energy should not be confused with the effects from other types of electromagnetic energy.Very high levels of electromagnetic energy, such as is found in X-rays and gamma rays, can ionize biological tissues. Ionization is a process where electrons are stripped away from their normal locations in atoms and molecules. It can permanently damage biological tissues including DNA, the genetic material.The energy levels associated with radio frequency energy, including both radio waves and microwaves, are not great enough to cause ionization of atoms and molecules. Therefore, RF energy is a type of non-ionizing radiation. Other types of non-ionizing radiation include visible light, infrared radiation (heat), and other forms of electromagnetic radiation with relatively low frequencies.While RF energy does not ionize particles, large amounts can increase body temperatures and cause tissue damage. Two areas of the body, the eyes and the testes, are particularly vulnerable to RF heating because there is relatively little blood flow in them to carry away excess heat.Research Results to Date: Is there a connection between RF and certain health problems?The results of most studies conducted to date say no. In addition, attempts to replicate and confirm the few studies that have shown a connection have failed.The scientific community at large therefore believes that the weight of scientific evidence does not show an association between exposure to Radio Frequency (RF) from cell phones and adverse health outcomes. Still the scientific community has supported additional research to address gaps in knowledge. Some of these studies are described below.Interphone StudyInterphone is a large international study designed to determine whether cell phones increase the risk of head and neck cancer. A report published in the International Journal of Epidemiology (June, 2010) compared cell phone usage for more than 5,000 people with brain tumors (glioma and meningioma) and a similar number of healthy controls.Results of this study did NOT show that cell phones caused brain cancer. In this study, most people had no increased risk of brain cancer from using cell phones. For people with the heaviest use of cell phones (an average of more than ½ hour per day, every day, for over 10 years) the study suggested a DRAFT FOR INTERNAL USE ONLY
146slight increase in brain cancer. However, the authors determined that biases and errors prevented any conclusions being drawn from this data. Additional information about Interphone can be found at http://www.iarc.fr/en/media-centre/pr/2010/pdfs/pr200_E.pdf.Interphone is the largest cell phone study to date, but it did not answer all questions about cell phone safety. Additional research is being conducted around the world, and the FDA continues to monitor developments in this field.International Cohort Study on Mobile Phone Users (COSMOS)The COSMOS study aims to conduct long-term health monitoring of a large group of people to determine if there are any health issues linked to long-term exposure to radio frequency energy from cell phone use. The COSMOS study will follow approximately 300,000 adult cell phone users in Europe for 20 to 30 years. Additional information about the COSMOS study can be found at http://www.ukcosmos.org/index.html.Risk of Brain Cancer from Exposure to Radio Frequency Fields in Childhood and Adolescence (MOBI-KIDS)MOBI-KIDS is an international study investigating the relationship between exposure to radio frequency energy from communication technologies including cell phones and brain cancer in young people. This is an international multi-center study involving 14 European and non-European countries. Additional information about MOBI-KIDS can be found athttp://www.creal.cat/programes-recerca/en_projectes-creal/view.php?ID=39.Surveillance, Epidemiology, and End Results (SEER) Program of the National Cancer InstituteThe National Cancer Institute (NCI) actively follows cancer statistics in the United States to detect any change in rates of new cases for brain cancer. If cell phones play a role in risk for brain cancer, rates should go up, because heavy cell phone use has been common for quite some time in the U.S. Between 1987 and 2005, the overall age-adjusted incidence of brain cancer did not increase. Additional information about SEER can be found at http://seer.cancer.gov/.DRAFT FOR INTERNAL USE ONLY
Health and Safety Information 147Cell Phone Industry ActionsAlthough the existing scientific data do not justify FDA regulatory actions, the FDA has urged the cell phone industry to take a number of steps, including the following:•Support-needed research on possible biological effects of RF for the type of signal emitted by cell phones;•Design cell phones in a way that minimizes any RF exposure to the user; and•Cooperate in providing users of cell phones with the current information on cell phone use and human health concerns.The FDA also is working with voluntary standard-setting bodies such as the Institute of Electrical and Electronics Engineers (IEEE), the International Commission on Non-Ionizing Radiation Protection (ICNIRP), and others to assure that safety standards continue to adequately protect the public.Reducing Exposure: Hands-Free Kits and Other AccessoriesSteps to Reduce Exposure to Radio Frequency EnergyIf there is a risk from being exposed to radio frequency energy (RF) from cell phones - and at this point we do not know that there is - it is probably very small. But, if you are concerned about avoiding even potential risks, you can take a few simple steps to minimize your RF exposure.• Reduce the amount of time spent using your cell phone;• Use speaker mode or a headset to place more distance between your head and the cell phone.Hands-Free KitsHands-free kits may include audio or Bluetooth® headsets and various types of body-worn accessories such as belt-clips and holsters. Combinations of these can be used to reduce RF energy absorption from cell phones.Headsets can substantially reduce exposure because the phone is held away from the head in the user's hand or in approved body-worn accessories. Cell phones marketed in the U.S. are required to meet RF exposure compliance requirements when used against the head and against the body.DRAFT FOR INTERNAL USE ONLY
148Because there are no known risks from exposure to RF emissions from cell phones, there is no reason to believe that hands-free kits reduce risks. Hands-free kits can be used for convenience and comfort. They are also required by law in many states if you want to use your phone while driving.Cell Phone Accessories that Claim to Shield the Head from RF RadiationBecause there are no known risks from exposure to RF emissions from cell phones, there is no reason to believe that accessories which claim to shield the head from those emissions reduce risks. Some products that claim to shield the user from RF absorption use special phone cases, while others involve nothing more than a metallic accessory attached to the phone. Studies have shown that these products generally do not work as advertised. Unlike “hands-free” kits, these so-called “shields” may interfere with proper operation of the phone. The phone may be forced to boost its power to compensate, leading to an increase in RF absorption.Children and Cell PhonesThe scientific evidence does not show a danger to any users of cell phones from RF exposure, including children and teenagers. The steps adults can take to reduce RF exposure apply to children and teenagers as well.• Reduce the amount of time spent on the cell phone;• Use speaker mode or a headset to place more distance between the head and the cell phone.Some groups sponsored by other national governments have advised that children be discouraged from using cell phones at all. For example, The Stewart Report from the United Kingdom made such a recommendation in December 2000. In this report, a group of independent experts noted that no evidence exists that using a cell phone causes brain tumors or other ill effects. Their recommendation to limit cell phone use by children was strictly precautionary; it was not based on scientific evidence that any health hazard exists.Additional information on the safety of RF exposures from various sources can be obtained from the following organizations (updated 10/1/2010):• FCC RF Safety Program: http://www.fcc.gov/oet/rfsafety/.DRAFT FOR INTERNAL USE ONLY
Health and Safety Information 149• Environmental Protection Agency (EPA):http://www.epa.gov/radtown/wireless-tech.html.• Occupational Safety and Health Administration (OSHA): http://www.osha.gov/SLTC/radiofrequencyradiation/. (Note: This web address is case sensitive.)• National Institute for Occupational Safety and Health (NIOSH): http://www.cdc.gov/niosh/.• World Health Organization (WHO): http://www.who.int/peh-emf/en/.• International Commission on Non-Ionizing Radiation Protection: http://www.icnirp.de.• Health Protection Agency: http://www.hpa.org.uk/Topics/Radiation/.• US Food and Drug Administration: http://www.fda.gov/Radiation-EmittingProducts/RadiationEmittingProductsandProcedures/HomeBusinessandEntertainment/CellPhones/default.htm.Specific Absorption Rate (SAR) Certification InformationYour wireless phone is a radio transmitter and receiver. It is designed and manufactured not to exceed the exposure limits for Radio Frequency (RF) energy set by the Federal Communications Commission (FCC) of the U.S. Government.These FCC RF exposure limits are derived from the recommendations of two expert organizations: the National Council on Radiation Protection and Measurement (NCRP) and the Institute of Electrical and Electronics Engineers (IEEE). In both cases, the recommendations were developed by scientific and engineering experts drawn from industry, government, and academia after extensive reviews of the scientific literature related to the biological effects of RF energy.The RF exposure limit set by the FCC for wireless mobile phones employs a unit of measurement known as the Specific Absorption Rate (SAR). The SAR is a measure of the rate of absorption of RF energy by the human body expressed in units of watts per kilogram (W/kg). The FCC requires wireless phones to comply with a safety limit of 1.6 watts per kilogram (1.6 W/kg).DRAFT FOR INTERNAL USE ONLY
150The FCC SAR limit incorporates a substantial margin of safety to give additional protection to the public and to account for any variations in measurements.SAR tests are conducted using standard operating positions accepted by the FCC with the phone transmitting at its highest certified power level in all tested frequency bands. Although the SAR is determined at the highest certified power level, the actual SAR level of the phone while operating can be well below the maximum reported value. This is because the phone is designed to operate at multiple power levels so as to use only the power required to reach the network. In general, the closer you are to a wireless base station antenna, the lower the power output of the phone.Before a new model phone is available for sale to the public, it must be tested and certified to the FCC that it does not exceed the SAR limit established by the FCC. Tests for each model phone are performed in positions and locations (e.g. at the ear and worn on the body) as required by the FCC. For body-worn operation, this phone has been tested and meets FCC RF exposure guidelines when used with an accessory that contains no metal and that positions the mobile device a minimum of 1.0 cm from the body.Use of other accessories may not ensure compliance with FCC RF exposure guidelines. The FCC has granted an Equipment Authorization for this mobile device with all reported SAR levels evaluated as in compliance with the FCC RF exposure guidelines. This mobile phone has a FCC ID number: A3LSCHR740 [Model Number: SCH-R740] and the specific SAR levels for this mobile phone can be found at the following FCC website:http://www.fcc.gov/oet/ea/.The SAR information for this device can also be found on Samsung’s website: http://www.samsung.com/sar. SAR information on this and other model phones can be accessed online on the FCC's website through http://transition.fcc.gov/oet/rfsafety/sar.html. To find information that pertains to a particular model phone, this site uses the phone FCC ID number which is usually printed somewhere on the case of the phone. Sometimes it may be necessary to remove the battery pack to find the number. Once you have the FCC ID number for a particular phone, follow the instructions on the website and it should provide values for typical or maximum SAR for a particular phone. Additional DRAFT FOR INTERNAL USE ONLY
Health and Safety Information 151SAR information can also be obtained at http://www.fcc.gov/encyclopedia/specific-absorption-rate-sar-cellular-telephones.FCC Part 15 Information to UserPursuant to part 15.21 of the FCC Rules, you are cautioned that changes or modifications not expressly approved by Samsung could void your authority to operate the device.This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:• Reorient or relocate the receiving antenna.• Increase the separation between the equipment and receiver.• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.• Consult the dealer or an experienced radio/TV technician for help.Commercial Mobile Alerting System (CMAS)This device is designed to receive Wireless Emergency Alerts from CMAS. If your wireless provider has chosen to participate in CMAS, alerts are available while in the provider's coverage area. If you travel outside your provider's coverage area, wireless emergency alerts may not be available. For more information, please contact your wireless provider.Smart Practices While DrivingOn the Road - Off the PhoneThe primary responsibility of every driver is the safe operation of his or her vehicle.DRAFT FOR INTERNAL USE ONLY
152Responsible drivers understand that no secondary task should be performed while driving whether it be eating, drinking, talking to passengers, or talking on a mobile phone - unless the driver has assessed the driving conditions and is confident that the secondary task will not interfere with their primary responsibility. Do not engage in any activity while driving a moving vehicle which may cause you to take your eyes off the road or become so absorbed in the activity that your ability to concentrate on the act of driving becomes impaired. Samsung is committed to promoting responsible driving and giving drivers the tools they need to understand and address distractions.Check the laws and regulations on the use of mobile devices and their accessories in the areas where you drive. Always obey them. The use of these devices may be prohibited or restricted in certain areas. For example, only hands-free use may be permitted in certain areas.Before answering calls, consider your circumstances. Let the call go to voicemail when driving conditions require. Remember, driving comes first, not the call!If you consider a call necessary and appropriate, follow these tips:• Use a hands-free device;• Secure your phone within easy reach;• Place calls when you are not moving;• Plan calls when your car will be stationary;• Do not engage in stressful or emotional conversations;• Let the person with whom you are speaking know that you are driving and will suspend the call if necessary;• Do not take notes or look up phone numbers while driving;Notice regarding legal restrictions on mounting this device in an automobile:Laws in some states may prohibit mounting this device on or near the windshield of an automobile. In other states, the law may permit mounting this device only in specific locations in the automobile. Be sure to consult the state and local laws or ordinances where you drive before mounting this device in an automobile. Failure to comply with these restrictions could result in fines, penalties, or other damages.Never mount this device in a manner that will obstruct the driver's clear view of the street and traffic.DRAFT FOR INTERNAL USE ONLY
Health and Safety Information 153Never use wireless data services such as text messaging, Web browsing, or e-mail while operating a vehicle.Never watch videos, such as a movie or clip, or play video games while operating a vehicle.For more information, go to http://www.ctia.org.Battery Use and SafetyImportant! Handle and store batteries properly to avoid injury or damage. Most battery issues arise from improper handling of batteries and, particularly, from the continued use of damaged batteries.• Do not disassemble, crush, puncture, shred, or otherwise attempt to change the form of your battery. Do not put a high degree of pressure on the battery. This can cause leakage or an internal short-circuit, resulting in overheating.• Do not let the phone or battery come in contact with liquids. Liquids can get into the phone's circuits, leading to corrosion. Even when the phone appears to be dry and appears to operate normally, the circuitry could slowly corrode and pose a safety hazard. If the phone and/or battery get wet, have them checked by your service provider or contact Samsung, even if they appear to be working properly.• Do not place your battery in or near a heat source. Excessive heating can damage the phone or the battery and could cause the phone or the battery to explode. Do not dry a wet or damp battery with an appliance or heat source such as a microwave oven, hair dryer, iron, or radiator. Avoid leaving your phone in your car in high temperatures.• Do not dispose of the phone or the battery in a fire. The phone or the battery may explode when overheated.• Do not handle a damaged or leaking battery. Do not let leaking battery fluid come in contact with your eyes, skin or clothing. For safe disposal options, contact your nearest Samsung-authorized service center.DRAFT FOR INTERNAL USE ONLY
154• Avoid dropping the cell phone. Dropping the phone or the battery, especially on a hard surface, can potentially cause damage to the phone and battery. If you suspect damage to the phone or battery, take it to a service center for inspection.• Never use any charger or battery that is damaged in any way.• Do not allow the battery to touch metal objects. Accidental short-circuiting can occur when a metallic object (coin, key, jewelry, clip, or pen) causes a direct connection between the + and - terminals of the battery (metal strips on the battery), for example when you carry a spare battery in a pocket or bag. Short-circuiting the terminals may damage the battery or the object causing the short-circuiting.Important! Use only Samsung-approved batteries, and recharge your battery only with Samsung-approved chargers which are specifically designed for your phone.WARNING!Use of a non-Samsung-approved battery or charger may present a risk of fire, explosion, leakage, or other hazard. Samsung's warranty does not cover damage to the phone caused by non-Samsung-approved batteries and/or chargers.• Do not use incompatible cell phone batteries and chargers. Some websites and second-hand dealers not associated with reputable manufacturers and carriers, might be selling incompatible or even counterfeit batteries and chargers. Consumers should purchase manufacturer or carrier-recommended products and accessories. If unsure about whether a replacement battery or charger is compatible, contact the manufacturer of the battery or charger.• Misuse or use of incompatible phones, batteries, and charging devices could result in damage to the equipment and a possible risk of fire, explosion, or leakage, leading to serious injuries, damages to your phone, or other serious hazard.DRAFT FOR INTERNAL USE ONLY
Health and Safety Information 155Samsung Mobile Products and RecyclingSamsung cares for the environment and encourages its customers to recycle Samsung mobile devices and genuine Samsung accessories.Proper disposal of your mobile device and its battery is not only important for safety, it benefits the environment. Batteries must be recycled or disposed of properly.Recycling programs for your mobile device, batteries, and accessories may not be available in your area.We've made it easy for you to recycle your old Samsung mobile device by working with respected take-back companies in every state in the country.Drop It OffYou can drop off your Samsung-branded mobile device and batteries for recycling at one of our numerous Samsung Recycling Direct (SM) locations. A list of these locations may be found at: http://pages.samsung.com/us/recyclingdirect/usactivities_environment_samsungrecyclingdirect_locations.jsp.Samsung-branded devices and batteries will be accepted at these locations for no fee.Consumers may also recycle their used mobile device or batteries at many retail or carrier-provided locations where mobile devices and batteries are sold. Additional information regarding specific locations may be found at: http://www.epa.gov/epawaste/partnerships/plugin/cellphone/index.htm or at http://www.call2recycle.org/.Mail It InThe Samsung Mobile Take-Back Program will provide Samsung customers with a free recycling mailing label. Just go to http://www.samsung.com/us/aboutsamsung/citizenship/usactivities_environment_samsungrecyclingdirect.html?INT=STA_recyle_your_phone_page and follow the instructions to print out a free pre-paid postage label and then send your old mobile device or battery to the address listed, via U.S. Mail, for recycling.Dispose of unwanted electronics through an approved recycler.To find the nearest recycling location, go to our website:www.samsung.com/recyclingdirect Or call, (877) 278-0799.DRAFT FOR INTERNAL USE ONLY
156Follow local regulations regarding disposal of mobile devices and batteriesDispose of your mobile device and batteries in accordance with local regulations. In some areas, the disposal of these items in household or business trash may be prohibited. Help us protect the environment - recycle!Warning! Never dispose of batteries in a fire because they may explode.UL Certified Travel ChargerThe Travel Charger for this phone has met applicable UL safety requirements. Please adhere to the following safety instructions per UL guidelines:FAILURE TO FOLLOW THE INSTRUCTIONS OUTLINED MAY LEAD TO SERIOUS PERSONAL INJURY AND POSSIBLE PROPERTY DAMAGE.IMPORTANT SAFETY INSTRUCTIONS - SAVE THESE INSTRUCTIONS.DANGER - TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, CAREFULLY FOLLOW THESE INSTRUCTIONS.FOR CONNECTION TO A SUPPLY NOT IN NORTH AMERICA, USE AN ATTACHMENT PLUG ADAPTOR OF THE PROPER CONFIGURATION FOR THE POWER OUTLET.THIS POWER UNIT IS INTENDED TO BE CORRECTLY ORIENTED IN A VERTICAL OR HORIZONTAL OR FLOOR MOUNT POSITION.Display / Touch-ScreenPlease note the following information when using your mobile device:WARNING REGARDING DISPLAYThe display on your mobile device is made of glass or acrylic and could break if your mobile device is dropped or if it receives significant impact. Do not use if screen is broken or cracked as this could cause injury to you.DRAFT FOR INTERNAL USE ONLY
Health and Safety Information 157WARRANTY DISCLAIMER: PROPER USE OF A TOUCH-SCREEN MOBILE DEVICEIf your mobile device has a touch-screen display, please note that a touch-screen responds best to a light touch from the pad of your finger or a non-metallic stylus. Using excessive force or a metallic object when pressing on the touch-screen may damage the tempered glass surface and void the warranty. For more information, please refer to the “Standard Limited Warranty”.GPSCertain Samsung mobile devices can use a Global Positioning System (GPS) signal for location-based applications. A GPS uses satellites controlled by the U.S. Government that are subject to changes implemented in accordance with the Department of Defense policy and the 2008 Federal Radio navigation Plan (FRP). Changes may affect the performance of location-based technology on your mobile device.Even with GPS, when you make an emergency call:• Always tell the emergency responder your location to the best of your ability; and• Remain on the mobile device for as long as the emergency responder instructs you.NavigationMaps, directions, and other navigation-data, including data relating to your current location, may contain inaccurate or incomplete data, and circumstances can and do change over time. In some areas, complete information may not be available. Therefore, you should always visually confirm that the navigational instructions are consistent with what you see before following them. All users should pay attention to road conditions, closures, traffic, and all other factors that may impact safe driving or walking. Always obey posted road signs.Emergency CallsThis mobile device, like any wireless mobile device, operates using radio signals, wireless and landline networks, as well as user-programmed functions, which cannot guarantee connection in all conditions, areas, or circumstances. Therefore, you should never rely solely on any wireless mobile device for essential communications (medical emergencies, for example). Before traveling in remote or underdeveloped areas, plan an alternate method of contacting emergency services personnel. Remember, to DRAFT FOR INTERNAL USE ONLY
158make or receive any calls, the mobile device must be switched on and in a service area with adequate signal strength.Emergency calls may not be possible on all wireless mobile device networks or when certain network services and/or mobile device features are in use. Check with local service providers.To make an emergency call:1. If the mobile device is not on, switch it on.2. From the Home screen, touch to launch the Phone Dialer.3. Key in the emergency number for your present location (for example, 911 or other official emergency number). Emergency numbers vary by location.4. Touch to place the call.If certain features are in use (call blocking, for example), you may first need to deactivate those features before you can make an emergency call. Consult your User Manual and your local cellular service provider. When making an emergency call, remember to give all the necessary information as accurately as possible. Remember that your mobile device may be the only means of communication at the scene of an accident; do not cut off the call until given permission to do so.Care and MaintenanceYour mobile device is a product of superior design and craftsmanship and should be treated with care. The suggestions below will help you fulfill any warranty obligations and allow you to enjoy this product for many years:Keep your Samsung Mobile Device away from:Liquids of any kindKeep the mobile device dry. Precipitation, humidity, and liquids contain minerals that will corrode electronic circuits. If the mobile device does get wet, do not accelerate drying with the use of an oven, microwave, or dryer, because this may damage the mobile device and could cause a fire or explosion. Do not use the mobile device with a wet hand. Doing so may cause an electric shock to you or damage to the mobile device.DRAFT FOR INTERNAL USE ONLY
Health and Safety Information 159Extreme heat or coldAvoid temperatures below 0°C / 32°F or above 45°C / 113°F.MicrowavesDo not try to dry your mobile device in a microwave oven. Doing so may cause a fire or explosion.Dust and dirtDo not expose your mobile device to dust, dirt, or sand.Cleaning solutionsDo not use harsh chemicals, cleaning solvents, or strong detergents to clean the mobile device. Wipe it with a soft cloth slightly dampened in a mild soap-and-water solution.Shock or vibrationDo not drop, knock, or shake the mobile device. Rough handling can break internal circuit boards.PaintDo not paint the mobile device. Paint can clog the device’s moving parts or ventilation openings and prevent proper operation.Responsible ListeningCaution! Avoid potential hearing loss.Damage to hearing occurs when a person is exposed to loud sounds over time. The risk of hearing loss increases as sound is played louder and for longer durations. Prolonged exposure to loud sounds (including music) is the most common cause of preventable hearing loss. Some scientific research suggests that using portable audio devices, such as portable music players and cell phones, at high volume settings for long durations may lead to permanent noise-induced hearing loss. This includes the use of headphones (including headsets, earbuds, and Bluetooth® or other wireless devices). Exposure to very loud sound has also been associated in some studies with tinnitus (a ringing in the ear), hypersensitivity to sound, and distorted hearing. Individual susceptibility to noise-induced hearing loss and potential hearing problem varies. Additionally, the amount of sound produced by a portable audio device varies depending on the nature of the sound, the device settings, and the headphones DRAFT FOR INTERNAL USE ONLY
160that are used. As a result, there is no single volume setting that is appropriate for everyone or for every combination of sound, settings, and equipment.You should follow some common sense recommendations when using any portable audio device:• Always turn the volume down before plugging the earphones into an audio source.• Set the volume in a quiet environment and select the lowest volume at which you can hear adequately.• Be aware that you can adapt to higher volume settings over time, not realizing that the higher volume may be harmful to your hearing.• When using headphones, turn the volume down if you cannot hear the people speaking near you or if the person sitting next to you can hear what you are listening to.• Do not turn the volume up to block out noisy surroundings. If you choose to listen to your portable device in a noisy environment, use noise-cancelling headphones to block out background environmental noise. By blocking background environment noise, noise cancelling headphones should allow you to hear the music at lower volumes than when using earbuds.• Limit the amount of time you listen. As the volume increases, less time is required before you hearing could be affected.• Avoid using headphones after exposure to extremely loud noises, such as rock concerts, that might cause temporary hearing loss. Temporary hearing loss might cause unsafe volumes to sound normal.• Do not listen at any volume that causes you discomfort. If you experience ringing in your ears, hear muffled speech, or experience any temporary hearing difficulty after listening to your portable audio device, discontinue use and consult your doctor.You can obtain additional information on this subject from the following sources:American Academy of Audiology11730 Plaza American Drive, Suite 300Reston, VA 20190Voice: (800) 222-2336Email: info@audiology.orgInternet: http://www.audiology.org/Pages/default.aspxDRAFT FOR INTERNAL USE ONLY
Health and Safety Information 161Operating EnvironmentRemember to follow any special regulations in force in any area, and always switch your mobile device off whenever it is forbidden to use it, or when it may cause interference or danger. When connecting the mobile device or any accessory to another device, read its user's guide for detailed safety instructions. Do not connect incompatible products.Using Your Mobile Device Near Other Electronic DevicesMost modern electronic equipment is shielded from Radio Frequency (RF) signals. However, certain electronic equipment may not be shielded against the RF signals from your wireless mobile device. Consult the manufacturer to discuss alternatives.National Institute on Deafness and Other Communication DisordersNational Institutes of Health31 Center Drive, MSC 2320Bethesda, MD 20892-2320Email: nidcdinfo@nih.govInternet: http://www.nidcd.nih.gov/National Institute for Occupational Safety and Health (NIOSH)395 E Street, S.W., Suite 9200Patriots Plaza BuildingWashington, DC 20201Voice: 1-800-35-NIOSH (1-800-356-4674)1-800-CDC-INFO (1-800-232-4636)Outside the U.S. 513-533-8328Email: cdcinfo@cdc.govInternet:http://www.cdc.gov/niosh/topics/noise/default.html1-888-232-6348 TTYDRAFT FOR INTERNAL USE ONLY
162Implantable Medical DevicesA minimum separation of six (6) inches should be maintained between a handheld wireless mobile device and an implantable medical device, such as a pacemaker or implantable cardioverter defibrillator, to avoid potential interference with the device.Persons who have such devices:• Should ALWAYS keep the mobile device more than six (6) inches from their implantable medical device when the mobile device is turned ON;• Should not carry the mobile device in a breast pocket;• Should use the ear opposite the implantable medical device to minimize the potential for interference;• Should turn the mobile device OFF immediately if there is any reason to suspect that interference is taking place;• Should read and follow the directions from the manufacturer of your implantable medical device. If you have any questions about using your wireless mobile device with an implantable medical device, consult your health care provider.For more information see: http://www.fcc.gov/oet/rfsafety/rf-faqs.html#.Other Medical DevicesIf you use any other personal medical devices, consult the manufacturer of your device to determine if it is adequately shielded from external RF energy. Your physician may be able to assist you in obtaining this information. Switch your mobile device off in health care facilities when any regulations posted in these areas instruct you to do so. Hospitals or health care facilities may be using equipment that could be sensitive to external RF energy.VehiclesRF signals may affect improperly installed or inadequately shielded electronic systems in motor vehicles. Check with the manufacturer or its representative regarding your vehicle before using your mobile device in a motor vehicle. You should also consult the manufacturer of any equipment that has been added to your vehicle.Posted FacilitiesSwitch your mobile device off in any facility where posted notices require you to do so.Potentially Explosive EnvironmentsSwitch your mobile device off when in any area with a potentially explosive atmosphere and obey all signs and instructions. Sparks in such areas could cause an explosion DRAFT FOR INTERNAL USE ONLY
Health and Safety Information 163or fire resulting in bodily injury or even death. Users are advised to switch the mobile device off while at a refueling point (service station). Users are reminded of the need to observe restrictions on the use of radio equipment in fuel depots (fuel storage and distribution areas), chemical plants, or where blasting operations are in progress. Areas with a potentially explosive atmosphere are often, but not always, clearly marked. They include below deck on boats, chemical transfer or storage facilities, vehicles using liquefied petroleum gas (such as propane or butane), areas where the air contains chemicals or particles, such as grain, dust, or metal powders, and any other area where you would normally be advised to turn off your vehicle engine.When your Device is WetDo not turn on your device if it is wet. If your device is already on, turn it off and remove the battery immediately (if the device will not turn off or you cannot remove the battery, leave it as-is). Then, dry the device with a towel and take it to a service center.FCC Hearing Aid Compatibility (HAC) Regulations for Wireless DevicesThe U.S. Federal Communications Commission (FCC) has established requirements for digital wireless mobile devices to be compatible with hearing aids and other assistive hearing devices.When individuals employing some assistive hearing devices (hearing aids and cochlear implants) use wireless mobile devices, they may detect a buzzing, humming, or whining noise. Some hearing devices are more immune than others to this interference noise, and mobile devices also vary in the amount of interference they generate.The wireless telephone industry has developed a rating system for wireless mobile devices to assist hearing device users find mobile devices that may be compatible with their hearing devices. Not all mobile devices have been rated. Mobile devices that are rated have the rating on their box or a label located on the box.The ratings are not guarantees. Results will vary depending on the user's hearing device and hearing loss. If your hearing device happens to be vulnerable to interference, you may not DRAFT FOR INTERNAL USE ONLY
164be able to use a rated mobile device successfully. Trying out the mobile device with your hearing device is the best way to evaluate it for your personal needs.M-Ratings: Wireless mobile devices rated M3 or M4 meet FCC requirements and are likely to generate less interference to hearing devices than mobile devices that are not labeled. M4 is the better/higher of the two ratings. M-ratings refer to enabling acoustic coupling with hearing aids that do not operate in telecoil mode.T-Ratings: Mobile devices rated T3 or T4 meet FCC requirements and are likely to generate less interference to hearing devices than mobile devices that are not labeled. T4 is the better/higher of the two ratings. T-ratings refer to enabling inductive coupling with hearing aids operating in telecoil mode.Hearing devices may also be rated. Your hearing aid manufacturer or hearing health professional may help you find this rating. Higher ratings mean that the hearing device is relatively immune to interference noise. Under the current industry standard, American National Standards Institute (ANSI) C63.19, the hearing aid and wireless mobile device rating values are added together to indicate how usable they are together. For example, if a hearing aid meets the M2 level rating and the wireless mobile device meets the M3 level rating, the sum of the two values equals M5. Under the standard, this should provide the hearing aid user with normal use while using the hearing aid with the particular wireless mobile device. A sum of 6 or more would indicate excellent performance. However, these are not guarantees that all users will be satisfied. T ratings work similarly. M3 + M2 = 5T3 + T2 = 5DRAFT FOR INTERNAL USE ONLY
Health and Safety Information 165The HAC rating and measurement procedure are described in the American National Standards Institute (ANSI) C63.19 standard.HAC for Newer TechnologiesThis phone has been tested and rated for use with hearing aids for some of the wireless technologies that it uses. However, there may be some newer wireless technologies used in this phone that have not been tested yet for use with hearing aids. It is important to try the different features of this phone thoroughly and in different locations, using your hearing aid or cochlear implant, to determine if you hear any interfering noise. Consult your service provider or the manufacturer of this phone for information on hearing aid compatibility. If you have questions about return or exchange policies, consult your service provider or phone retailer.Restricting Children's Access to Your Mobile DeviceYour mobile device is not a toy. Do not allow children to play with it because they could hurt themselves and others, damage the mobile device, or make calls that increase your mobile device bill.Keep the mobile device and all its parts and accessories out of the reach of small children.FCC Notice and CautionsFCC NoticeThe mobile device may cause TV or radio interference if used in close proximity to receiving equipment. The FCC can require you to stop using the mobile device if such interference cannot be eliminated. Vehicles using liquefied petroleum gas (such as propane or butane) must comply with the National Fire Protection Standard (NFPA-58). For a copy of this standard, contact the National Fire Protection Association.CautionsAny changes or modifications to your mobile device not expressly approved in this document could void your warranty for this equipment and void your authority to operate this equipment. Only use approved batteries, antennas, and chargers. The use of any unauthorized accessories may be dangerous and void the mobile device warranty if said accessories cause damage or a defect to the mobile device. DRAFT FOR INTERNAL USE ONLY
166Although your mobile device is quite sturdy, it is a complex piece of equipment and can be broken. Avoid dropping, hitting, bending, or sitting on it.Other Important Safety Information• Only qualified personnel should service the mobile device or install the mobile device in a vehicle. Faulty installation or service may be dangerous and may invalidate any warranty applicable to the device.• Ensure that any mobile devices or related equipment installed in your vehicle are securely mounted.• Check regularly that all wireless mobile device equipment in your vehicle is mounted and operating properly.• When using a headset in dry environments, static electricity can build up in the headset and cause a small quick static electrical shock. To minimize the risk of electrostatic discharge from the headset avoid using the headset in extremely dry environments or touch a grounded unpainted metal object to discharge static electricity before inserting the headset.• Do not store or carry flammable liquids, gases, or explosive materials in the same compartment as the mobile device, its parts, or accessories.• For vehicles equipped with an air bag, remember that an air bag inflates with great force. Do not place objects, including installed or portable wireless equipment near or in the area over the air bag or in the air bag deployment area. If wireless equipment is improperly installed and the air bag inflates, serious injury could result.• Switch your mobile device off before boarding an aircraft. The use of wireless mobile devices in aircraft is illegal and may be dangerous to the aircraft's operation. Check with appropriate authorities before using any function of a mobile device while on an aircraft.• Failure to observe these instructions may lead to the suspension or denial of cell phone services to the offender, or legal action, or both.• While using your device, leave some lights on in the room and do not hold the screen too close to your eyes.• Seizures or blackouts can occur when you are exposed to flashing lights while watching videos or playing games for extended periods. If you feel any discomfort, stop using the device immediately.DRAFT FOR INTERNAL USE ONLY
Health and Safety Information 167• Reduce risk of repetitive motion injuries. When you repetitively perform actions, such as pressing keys, drawing characters on a touch screen with your fingers, or playing games, you may experience occasional discomfort in your hands, neck, shoulders, or other parts of your body. When using your device for extended periods, hold the device with a relaxed grip, press the keys lightly, and take frequent breaks. If you continue to have discomfort during or after such use, stop use and see a physician.• If your device has a camera flash or light, do not use the flash or light close to the eyes of people or pets. [122011]DRAFT FOR INTERNAL USE ONLY
168Section 10: Warranty InformationStandard Limited WarrantyWhat is covered and for how long?SAMSUNG TELECOMMUNICATIONS AMERICA, LLC (“SAMSUNG”) warrants that SAMSUNG’s handsets and accessories (“Products”) are free from defects in material and workmanship under normal use and service for the period commencing upon the date of purchase by the first consumer purchaser and continuing for the following specified period of time after that date:What is not covered?This Limited Warranty is conditioned upon proper use of the Product. This Limited Warranty does not cover: (a) defects or damage resulting from accident, misuse, abnormal use, abnormal conditions, improper storage, exposure to liquid, moisture, dampness, sand or dirt, neglect, or unusual physical, electrical or electromechanical stress; (b) scratches, dents and cosmetic damage, unless caused by SAMSUNG; (c) defects or damage resulting from excessive force or use of a metallic object when pressing on a touch screen; (d) equipment that has the serial number or the enhancement data code removed, defaced, damaged, altered or made illegible; (e) ordinary wear and tear; (f) defects or damage resulting from the use of Product in conjunction or connection with accessories, products, or ancillary/peripheral equipment not furnished or approved by SAMSUNG; (g) defects or damage resulting from improper testing, operation, maintenance, installation, service, or adjustment not furnished or approved by SAMSUNG; (h) defects or damage resulting from external causes such as collision with an object, fire, flooding, dirt, windstorm, lightning, earthquake, exposure to weather conditions, theft, blown fuse, or improper use of any electrical source; (i) defects or damage resulting from cellular signal reception Phone 1 YearBatteries 1 YearCase/Pouch/Holster 90 DaysOther Phone Accessories 1 YearDRAFT FOR INTERNAL USE ONLY
Warranty Information 169or transmission, or viruses or other software problems introduced into the Product; or (j) Product used or purchased outside the United States. This Limited Warranty covers batteries only if battery capacity falls below 80% of rated capacity or the battery leaks, and this Limited Warranty does not cover any battery if (i) the battery has been charged by a battery charger not specified or approved by SAMSUNG for charging the battery; (ii) any of the seals on the battery are broken or show evidence of tampering; or (iii) the battery has been used in equipment other than the SAMSUNG phone for which it is specified.What are SAMSUNG’s obligations?During the applicable warranty period, provided the Product is returned in accordance with the terms of this Limited Warranty, SAMSUNG will repair or replace the Product, at SAMSUNG’s sole option, without charge. SAMSUNG may, at SAMSUNG’s sole option, use rebuilt, reconditioned, or new parts or components when repairing any Product, or may replace the Product with a rebuilt, reconditioned or new Product. Repaired/replaced cases, pouches and holsters will be warranted for a period of ninety (90) days. All other repaired/replaced Products will be warranted for a period equal to the remainder of the original Limited Warranty on the original Product or for ninety (90) days, whichever is longer. All replaced Products, parts, components, boards and equipment shall become the property of SAMSUNG. Except to any extent expressly allowed by applicable law, transfer or assignment of this Limited Warranty is prohibited.What must you do to obtain warranty service?To obtain service under this Limited Warranty, you must return the Product to an authorized phone service facility in an adequate container for shipping, accompanied by the sales receipt or comparable proof of sale showing the original date of purchase, the serial number of the Product and the seller’s name and address. To obtain assistance on where to deliver the Product, please call SAMSUNG Customer Care at 1-888-987-4357. If SAMSUNG determines that any Product is not covered by this Limited Warranty, you must pay all parts, shipping, and labor charges for the repair or return of such Product.You should keep a separate backup copy of any contents of the Product before delivering the Product to SAMSUNG for warranty service, as some or all of the contents may be deleted or reformatted during the course of warranty service.DRAFT FOR INTERNAL USE ONLY
170What are the limits on SAMSUNG’s liability?THIS LIMITED WARRANTY SETS OUT THE FULL EXTENT OF SAMSUNG’S RESPONSIBILITIES, AND THE EXCLUSIVE REMEDY REGARDING THE PRODUCTS. ALL IMPLIED WARRANTIES, INCLUDING WITHOUT LIMITATION, IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, ARE LIMITED TO THE DURATION OF THIS LIMITED WARRANTY. IN NO EVENT SHALL SAMSUNG BE LIABLE FOR DAMAGES IN EXCESS OF THE PURCHASE PRICE OF THE PRODUCT OR FOR, WITHOUT LIMITATION, COMMERCIAL LOSS OF ANY SORT; LOSS OF USE, TIME, DATA, REPUTATION, OPPORTUNITY, GOODWILL, PROFITS OR SAVINGS; INCONVENIENCE; INCIDENTAL, SPECIAL, CONSEQUENTIAL OR PUNITIVE DAMAGES; OR DAMAGES ARISING FROM THE USE OR INABILITY TO USE THE PRODUCT. SOME STATES AND JURISDICTIONS DO NOT ALLOW LIMITATIONS ON HOW LONG AN IMPLIED WARRANTY LASTS, OR THE DISCLAIMER OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES, SO THE ABOVE LIMITATIONS AND DISCLAIMERS MAY NOT APPLY TO YOU.SAMSUNG MAKES NO WARRANTIES OR REPRESENTATIONS, EXPRESS OR IMPLIED, STATUTORY OR OTHERWISE, AS TO THE QUALITY, CAPABILITIES, OPERATIONS, PERFORMANCE OR SUITABILITY OF ANY THIRD-PARTY SOFTWARE OR EQUIPMENT USED IN CONJUNCTION WITH THE PRODUCT, OR THE ABILITY TO INTEGRATE ANY SUCH SOFTWARE OR EQUIPMENT WITH THE PRODUCT, WHETHER SUCH THIRD-PARTY SOFTWARE OR EQUIPMENT IS INCLUDED WITH THE PRODUCT DISTRIBUTED BY SAMSUNG OR OTHERWISE. RESPONSIBILITY FOR THE QUALITY, CAPABILITIES, OPERATIONS, PERFORMANCE AND SUITABILITY OF ANY SUCH THIRD-PARTY SOFTWARE OR EQUIPMENT RESTS SOLELY WITH THE USER AND THE DIRECT VENDOR, OWNER OR SUPPLIER OF SUCH THIRD-PARTY SOFTWARE OR EQUIPMENT.Nothing in the Product instructions or information shall be construed to create an express warranty of any kind with respect to the Products. No agent, employee, dealer, representative or reseller is authorized to modify or extend this Limited Warranty or to make binding representations or claims, whether in advertising, presentations or otherwise, on behalf of SAMSUNG regarding the Products or this Limited Warranty.This Limited Warranty gives you specific legal rights, and you may also have other rights that vary from state to state.DRAFT FOR INTERNAL USE ONLY

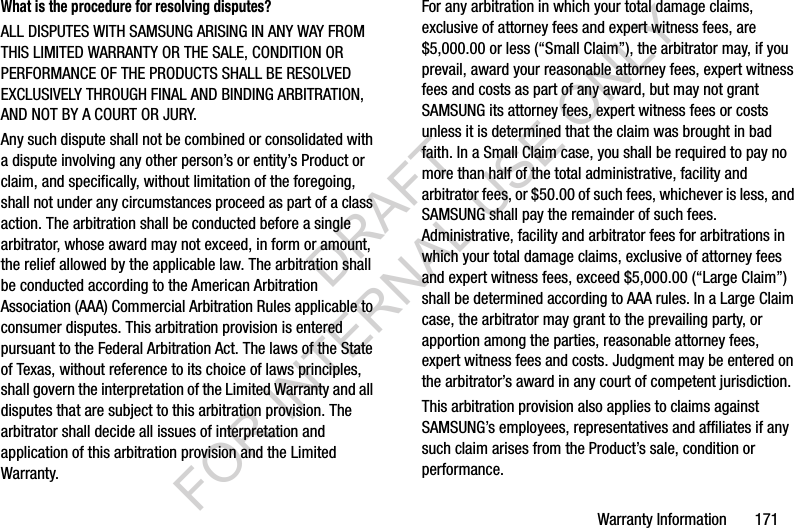

Warranty Information 171What is the procedure for resolving disputes?ALL DISPUTES WITH SAMSUNG ARISING IN ANY WAY FROM THIS LIMITED WARRANTY OR THE SALE, CONDITION OR PERFORMANCE OF THE PRODUCTS SHALL BE RESOLVED EXCLUSIVELY THROUGH FINAL AND BINDING ARBITRATION, AND NOT BY A COURT OR JURY. Any such dispute shall not be combined or consolidated with a dispute involving any other person’s or entity’s Product or claim, and specifically, without limitation of the foregoing, shall not under any circumstances proceed as part of a class action. The arbitration shall be conducted before a single arbitrator, whose award may not exceed, in form or amount, the relief allowed by the applicable law. The arbitration shall be conducted according to the American Arbitration Association (AAA) Commercial Arbitration Rules applicable to consumer disputes. This arbitration provision is entered pursuant to the Federal Arbitration Act. The laws of the State of Texas, without reference to its choice of laws principles, shall govern the interpretation of the Limited Warranty and all disputes that are subject to this arbitration provision. The arbitrator shall decide all issues of interpretation and application of this arbitration provision and the Limited Warranty.For any arbitration in which your total damage claims, exclusive of attorney fees and expert witness fees, are $5,000.00 or less (“Small Claim”), the arbitrator may, if you prevail, award your reasonable attorney fees, expert witness fees and costs as part of any award, but may not grant SAMSUNG its attorney fees, expert witness fees or costs unless it is determined that the claim was brought in bad faith. In a Small Claim case, you shall be required to pay no more than half of the total administrative, facility and arbitrator fees, or $50.00 of such fees, whichever is less, and SAMSUNG shall pay the remainder of such fees. Administrative, facility and arbitrator fees for arbitrations in which your total damage claims, exclusive of attorney fees and expert witness fees, exceed $5,000.00 (“Large Claim”) shall be determined according to AAA rules. In a Large Claim case, the arbitrator may grant to the prevailing party, or apportion among the parties, reasonable attorney fees, expert witness fees and costs. Judgment may be entered on the arbitrator’s award in any court of competent jurisdiction.This arbitration provision also applies to claims against SAMSUNG’s employees, representatives and affiliates if any such claim arises from the Product’s sale, condition or performance.DRAFT FOR INTERNAL USE ONLY
172You may opt out of this dispute resolution procedure by providing notice to SAMSUNG no later than 30 calendar days from the date of the first consumer purchaser’s purchase of the Product. To opt out, you must send notice by e-mail to optout@sta.samsung.com, with the subject line: “Arbitration Opt Out.” You must include in the opt out e-mail (a) your name and address; (b) the date on which the Product was purchased; (c) the Product model name or model number; and (d) the IMEI or MEID or Serial Number, as applicable, if you have it (the IMEI or MEID or Serial Number can be found (i) on the Product box; (ii) on the Product information screen, which can be found under “Settings;” (iii) on a label on the back of the Product beneath the battery, if the battery is removable; and (iv) on the outside of the Product if the battery is not removable). Alternatively, you may opt out by calling 1-888-987-4357 no later than 30 calendar days from the date of the first consumer purchaser’s purchase of the Product and providing the same information. These are the only two forms of notice that will be effective to opt out of this dispute resolution procedure. Opting out of this dispute resolution procedure will not affect the coverage of the Limited Warranty in any way, and you will continue to enjoy the benefits of the Limited Warranty.SeverabilityIf any portion of this Limited Warranty is held to be illegal or unenforceable, such partial illegality or unenforceability shall not affect the enforceability of the remainder of the Limited Warranty.Precautions for Transfer and DisposalIf data stored on this device is deleted or reformatted using the standard methods, the data only appears to be removed on a superficial level, and it may be possible for someone to retrieve and reuse the data by means of special software.To avoid unintended information leaks and other problems of this sort, it is recommended that the device be returned to Samsung’s Customer Care Center for an Extended File System (EFS) Clear which will eliminate all user memory and return all settings to default settings. Please contact the Samsung Customer Care Center for details.Important! Please provide warranty information (proof of purchase) to Samsung’s Customer Care Center in order to provide this service at no charge. If the warranty has expired on the device, charges may apply.DRAFT FOR INTERNAL USE ONLY
Warranty Information 173Samsung Telecommunications America, LLC1301 E. Lookout DriveRichardson, Texas 75082Phone: 1-800-SAMSUNGPhone: 1-888-987-HELP (4357)©2012 Samsung Telecommunications America, LLC. All rights reserved.No reproduction in whole or in part allowed without prior written approval. Specifications and availability subject to change without notice. [111611]End User License Agreement for SoftwareIMPORTANT. READ CAREFULLY: This End User License Agreement ("EULA") is a legal agreement between you (either an individual or a single entity) and Samsung Electronics Co., Ltd. ("Samsung Electronics Co.") for software, owned by Samsung Electronics Co. and its affiliated companies and its third party suppliers and licensors, that accompanies this EULA, which includes computer software and may include associated media, printed materials, "online" or electronic documentation ("Software"). Samsung Electronics Co. is a separate company from the company that provides the limited warranty for this mobile device, Samsung Telecommunications America, LLC.This device requires the use of preloaded software in its normal operation. BY USING THE DEVICE OR ITS PRELOADED SOFTWARE, YOU ACCEPT THE TERMS OF THIS EULA. IF YOU DO NOT ACCEPT THESE TERMS, DO NOT USE THE DEVICE OR THE SOFTWARE. INSTEAD, RETURN THE DEVICE TO THE RETAILER FOR A REFUND OR CREDIT. 1. GRANT OF LICENSE. Samsung Electronics Co. grants you the following rights provided that you comply with all terms and conditions of this EULA: You may install, use, access, display and run one copy of the Software on the local hard disk(s) or other permanent storage media of one computer and use the Software on a single computer or a mobile device at a time, and you may not make the Software available over a network where it could be used by multiple computers at the same time. You may make one copy of the Software in machine readable form for backup purposes only; provided that the backup copy must include all copyright or other proprietary notices contained on the original.DRAFT FOR INTERNAL USE ONLY
1742. RESERVATION OF RIGHTS AND OWNERSHIP. Samsung Electronics Co. reserves all rights not expressly granted to you in this EULA. The Software is protected by copyright and other intellectual property laws and treaties. Samsung Electronics Co. or its suppliers own the title, copyright and other intellectual property rights in the Software. The Software is licensed, not sold.3. LIMITATIONS ON END USER RIGHTS. You may not reverse engineer, decompile, disassemble, or otherwise attempt to discover the source code or algorithms of, the Software (except and only to the extent that such activity is expressly permitted by applicable law not withstanding this limitation), or modify, or disable any features of, the Software, or create derivative works based on the Software. You may not rent, lease, lend, sublicense or provide commercial hosting services with the Software.4. CONSENT TO USE OF DATA. You agree that Samsung Electronics Co. and its affiliates may collect and use technical information gathered as part of the product support services related to the Software provided to you, if any. Samsung Electronics Co. and its affiliates may use this information solely to improve their products or to provide customized services or technologies to you and will not disclose this information in a form that personally identifies you.5. UPGRADES. This EULA applies to updates, supplements and add-on components (if any) of the Software that Samsung Electronics Co. may provide to you or make available to you after the date you obtain your initial copy of the Software, unless we provide other terms along with such upgrade. To use Software identified as an upgrade, you must first be licensed for the Software identified by Samsung Electronics Co. as eligible for the upgrade. After upgrading, you may no longer use the Software that formed the basis for your upgrade eligibility.6. SOFTWARE TRANSFER. You may not transfer this EULA or the rights to the Software granted herein to any third party unless it is in connection with the sale of the mobile device which the Software accompanied. In such event, the transfer must include all of the Software (including all component parts, the media and printed materials, any upgrades, this EULA) and you may not retain any copies of the Software. The transfer may not be an indirect transfer, such as a consignment. Prior to the transfer, the end user receiving the Software must agree to all the EULA terms.DRAFT FOR INTERNAL USE ONLY
Warranty Information 1757. EXPORT RESTRICTIONS. You acknowledge that the Software is subject to export restrictions of various countries. You agree to comply with all applicable international and national laws that apply to the Software, including the U.S. Export Administration Regulations, as well as end user, end use, and destination restrictions issued by U.S. and other governments.8. TERMINATION. This EULA is effective until terminated. Your rights under this License will terminate automatically without notice from Samsung Electronics Co. if you fail to comply with any of the terms and conditions of this EULA. Upon termination of this EULA, you must cease all use of the Software and destroy all copies, full or partial, of the Software.9. Disclaimer of Warranty. ALL SOFTWARE PROVIDED BY SAMSUNG ELECTRONICS CO. WITH THIS MOBILE DEVICE IS PROVIDED "AS IS" AND ON AN "AS AVAILABLE" BASIS, WITHOUT WARRANTIES OF ANY KIND FROM SAMSUNG ELECTRONICS CO., EITHER EXPRESS OR IMPLIED. TO THE FULLEST EXTENT POSSIBLE PURSUANT TO APPLICABLE LAW, SAMSUNG ELECTRONICS CO. DISCLAIMS ALL WARRANTIES EXPRESS, IMPLIED, OR STATUTORY, INCLUDING, BUT NOT LIMITED TO, IMPLIED WARRANTIES OF MERCHANTABILITY, SATISFACTORY QUALITY OR WORKMANLIKE EFFORT, FITNESS FOR A PARTICULAR PURPOSE, RELIABILITY OR AVAILABILITY, ACCURACY, LACK OF VIRUSES, QUIET ENJOYMENT, NON INFRINGEMENT OF THIRD PARTY RIGHTS OR OTHER VIOLATION OF RIGHTS. SOME JURISDICTIONS DO NOT ALLOW EXCLUSIONS OR LIMITATIONS OF IMPLIED WARRANTIES, SO THE ABOVE EXCLUSIONS OR LIMITATIONS MAY NOT APPLY TO YOU. NO ADVICE OR INFORMATION, WHETHER ORAL OR WRITTEN, OBTAINED BY YOU FROM SAMSUNG ELECTRONICS CO. OR ITS AFFILIATES SHALL BE DEEMED TO ALTER THIS DISCLAIMER BY SAMSUNG ELECTRONICS CO. OF WARRANTY REGARDING THE SOFTWARE, OR TO CREATE ANY WARRANTY OF ANY SORT FROM SAMSUNG ELECTRONICS CO. 10. THIRD-PARTY APPLICATIONS. Certain third party applications may be included with, or downloaded to this mobile device. Samsung Electronics Co. makes no representations whatsoever about any of these applications. Since Samsung Electronics Co. has no control over such applications, you acknowledge and agree that Samsung Electronics Co. is not responsible for the availability of such applications and is not responsible or liable for any content, advertising, products, services, or other materials on or available from such applications. You expressly acknowledge and agree that use of third party applications is at your sole DRAFT FOR INTERNAL USE ONLY
176risk and that the entire risk of unsatisfactory quality, performance, accuracy and effort is with you. It is up to you to take precautions to ensure that whatever you select to use is free of such items as viruses, worms, Trojan horses, and other items of a destructive nature. References on this mobile device to any names, marks, products, or services of any third-parties are provided solely as a convenience to you, and do not constitute or imply an endorsement, sponsorship, or recommendation of, or affiliation with the third party or its products and services. You agree that Samsung Electronics Co. shall not be responsible or liable, directly or indirectly, for any damage or loss caused or alleged to be caused by, or in connection with, use of or reliance on any such third party content, products, or services available on or through any such application. You acknowledge and agree that the use of any third-party application is governed by such third party application provider's Terms of Use, License Agreement, Privacy Policy, or other such agreement and that any information or personal data you provide, whether knowingly or unknowingly, to such third-party application provider, will be subject to such third party application provider's privacy policy, if such a policy exists. SAMSUNG ELECTRONICS CO. DISCLAIMS ANY RESPONSIBILITY FOR ANY DISCLOSURE OF INFORMATION OR ANY OTHER PRACTICES OF ANY THIRD PARTY APPLICATION PROVIDER.11. Disclaimer of Warranty Regarding Third Party Applications. SAMSUNG ELECTRONICS CO. DOES NOT WARRANT OR MAKE ANY REPRESENTATIONS REGARDING THE AVAILABILITY, USE, TIMELINESS, SECURITY, VALIDITY, ACCURACY, OR RELIABILITY OF, OR THE RESULTS OF THE USE OF, OR OTHERWISE RESPECTING, THE CONTENT OF ANY THIRD PARTY APPLICATION WHETHER SUCH THIRD PARTY APPLICATION IS INCLUDED WITH THE PRODUCT DISTRIBUTED BY SAMSUNG ELECTRONICS CO., IS DOWNLOADED, OR OTHERWISE OBTAINED. USE OF ANY THIRD PARTY APPLICATION IS DONE AT YOUR OWN DISCRETION AND RISK AND YOU ARE SOLELY RESPONSIBLE FOR ANY DAMAGE TO THE MOBILE DEVICE OR LOSS OF DATA THAT RESULTS FROM THE DOWNLOADING OR USE OF SUCH THIRD PARTY APPLICATIONS. SAMSUNG ELECTRONICS CO. EXPRESSLY DISCLAIMS ANY WARRANTY REGARDING WHETHER YOUR PERSONAL INFORMATION IS CAPTURED BY ANY THIRD PARTY APPLICATION PROVIDER OR THE USE TO WHICH SUCH PERSONAL INFORMATION MAY BE PUT BY SUCH THIRD PARTY APPLICATION PROVIDER. ANY THIRD PARTY APPLICATIONS PROVIDED WITH THIS MOBILE DEVICE DRAFT FOR INTERNAL USE ONLY
Warranty Information 177ARE PROVIDED "AS IS" AND ON AN "AS AVAILABLE" BASIS, WITHOUT WARRANTIES OF ANY KIND FROM SAMSUNG ELECTRONICS CO., EITHER EXPRESS OR IMPLIED. TO THE FULLEST EXTENT POSSIBLE PURSUANT TO APPLICABLE LAW, SAMSUNG ELECTRONICS CO. DISCLAIMS ALL WARRANTIES EXPRESS, IMPLIED, OR STATUTORY, INCLUDING, BUT NOT LIMITED TO, IMPLIED WARRANTIES OF MERCHANTABILITY, SATISFACTORY QUALITY OR WORKMANLIKE EFFORT, FITNESS FOR A PARTICULAR PURPOSE, RELIABILITY OR AVAILABILITY, ACCURACY, LACK OF VIRUSES, QUIET ENJOYMENT, NON INFRINGEMENT OF THIRD PARTY RIGHTS OR OTHER VIOLATION OF RIGHTS. SAMSUNG ELECTRONICS CO. DOES NOT WARRANT AGAINST INTERFERENCE WITH YOUR ENJOYMENT OF THE THIRD PARTY APPLICATION, THAT THE FUNCTIONS CONTAINED IN THE THIRD PARTY APPLICATION WILL MEET YOUR REQUIREMENTS, THAT THE OPERATION OF THE THIRD PARTY APPLICATION WILL BE UNINTERRUPTED OR ERROR FREE, OR THAT DEFECTS IN THE THIRD PARTY APPLICATION WILL BE CORRECTED. YOU ASSUME THE ENTIRE COST OF ALL NECESSARY SERVICING, REPAIR, OR CORRECTION. SOME JURISDICTIONS DO NOT ALLOW EXCLUSIONS OR LIMITATIONS OF IMPLIED WARRANTIES, SO THE ABOVE EXCLUSIONS OR LIMITATIONS MAY NOT APPLY TO YOU. NO ADVICE OR INFORMATION, WHETHER ORAL OR WRITTEN, OBTAINED BY YOU FROM SAMSUNG ELECTRONICS CO. OR ANY OTHER PERSON OR ENTITY SHALL BE DEEMED TO ALTER THIS DISCLAIMER OF WARRANTY REGARDING THIRD PARTY APPLICATIONS, OR TO CREATE ANY WARRANTY BY SAMSUNG ELECTRONICS CO.12. Limitation of Liability. SAMSUNG ELECTRONICS CO. WILL NOT BE LIABLE FOR ANY DAMAGES OF ANY KIND ARISING OUT OF OR RELATING TO THE USE OR THE INABILITY TO USE THE SOFTWARE OR ANY THIRD PARTY APPLICATION, ITS CONTENT OR FUNCTIONALITY, INCLUDING BUT NOT LIMITED TO DAMAGES CAUSED BY OR RELATED TO ERRORS, OMISSIONS, INTERRUPTIONS, DEFECTS, DELAY IN OPERATION OR TRANSMISSION, COMPUTER VIRUS, FAILURE TO CONNECT, NETWORK CHARGES, IN-APP PURCHASES, AND ALL OTHER DIRECT, INDIRECT, SPECIAL, INCIDENTAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES EVEN IF SAMSUNG ELECTRONICS CO. HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. SOME JURISDICTIONS DO NOT ALLOW THE EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES, SO THE ABOVE EXCLUSIONS OR LIMITATIONS MAY NOT APPLY TO YOU. NOTWITHSTANDING THE FOREGOING, SAMSUNG ELECTRONIC CO.'S TOTAL LIABILITY TO YOU FOR ALL DRAFT FOR INTERNAL USE ONLY
178LOSSES, DAMAGES, CAUSES OF ACTION, INCLUDING BUT NOT LIMITED TO THOSE BASED ON CONTRACT, TORT, OR OTHERWISE, ARISING OUT OF YOUR USE OF THE SOFTWARE OR THIRD PARTY APPLICATIONS ON THIS MOBILE DEVICE, OR ANY OTHER PROVISION OF THIS EULA, SHALL NOT EXCEED THE AMOUNT PURCHASER PAID SPECIFICALLY FOR THIS MOBILE DEVICE OR ANY SUCH THIRD PARTY APPLICATION THAT WAS INCLUDED WITH THIS MOBILE DEVICE. THE FOREGOING LIMITATIONS, EXCLUSIONS, AND DISCLAIMERS (INCLUDING SECTIONS 9, 10, 11 AND 12) SHALL APPLY TO THE MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW, EVEN IF ANY REMEDY FAILS ITS ESSENTIAL PURPOSE.13. U.S. Government End Users Restricted Rights. The Software is licensed only with "restricted rights" and as "commercial items" consisting of "commercial software" and "commercial software documentation" with only those rights as are granted to all other end users pursuant to the terms and conditions herein. All Products are provided only with "restricted rights" with only those rights as are granted to all other end users pursuant to the terms and conditions herein. All Software and Products are provided subject to Federal Acquisition Regulation (FAR) 52.227.19. 14. APPLICABLE LAW. This EULA is governed by the laws of TEXAS, without regard to conflicts of laws principles. This EULA shall not be governed by the UN Convention on Contracts for the International Sale of Goods, the application of which is expressly excluded. 15. DISPUTE RESOLUTION. (a) Non-United States residents. If a dispute, controversy or difference is not amicably settled, it shall be finally resolved by arbitration in Seoul, Korea in accordance with the Arbitration Rules of the Korean Commercial Arbitration Board. The award of arbitration shall be final and binding upon the parties. (b) United States residents. ALL DISPUTES WITH SAMSUNG ELECTRONICS CO. ARISING IN ANY WAY FROM THIS EULA OR YOUR USE OF THE SOFTWARE SHALL BE RESOLVED EXCLUSIVELY THROUGH FINAL AND BINDING ARBITRATION, AND NOT BY A COURT OR JURY. Any such dispute shall not be combined or consolidated with any other person's or entity's claim or dispute, and specifically, without limitation of the foregoing, shall not under any circumstances proceed as part of a class action. The arbitration shall be conducted before a single arbitrator, whose award may not exceed, in form or amount, the relief allowed by the applicable law. The DRAFT FOR INTERNAL USE ONLY
Warranty Information 179arbitration shall be conducted according to the American Arbitration Association (AAA) Commercial Arbitration Rules applicable to consumer disputes. This arbitration provision is entered pursuant to the Federal Arbitration Act. The laws of the State of Texas, without reference to its choice of laws principles, shall govern the interpretation of the EULA and all disputes that are subject to this arbitration provision. The arbitrator shall decide all issues of interpretation and application of this arbitration provision and the EULA. For any arbitration in which your total damage claims, exclusive of attorney fees and expert witness fees, are $5,000.00 or less ("Small Claim"), the arbitrator may, if you prevail, award your reasonable attorney fees, expert witness fees and costs as part of any award, but may not grant Samsung Electronics Co. its attorney fees, expert witness fees or costs unless it is determined that the claim was brought in bad faith. In a Small Claim case, you shall be required to pay no more than half of the total administrative, facility and arbitrator fees, or $50.00 of such fees, whichever is less, and Samsung Electronics Co. shall pay the remainder of such fees. Administrative, facility and arbitrator fees for arbitrations in which your total damage claims, exclusive of attorney fees and expert witness fees, exceed $5,000.00 ("Large Claim") shall be determined according to AAA rules. In a Large Claim case, the arbitrator may grant to the prevailing party, or apportion among the parties, reasonable attorney fees, expert witness fees and costs. Judgment may be entered on the arbitrator's award in any court of competent jurisdiction. This arbitration provision also applies to claims against Samsung Electronics Co.'s employees, representatives and affiliates if any such claim arises from the licensing or use of the Software. You may opt out of this dispute resolution procedure by providing notice to Samsung Electronics Co. no later than 30 calendar days from the date of the first consumer purchaser's purchase of this device. To opt out, you must send notice by e-mail to optout@sta.samsung.com, with the subject line: "Arbitration Opt Out." You must include in the opt out e-mail (a) your name and address; (b) the date on which the device was purchased; (c) the device model name or model number; and (d) the IMEI or MEID or Serial Number, as applicable, if you have it (the IMEI or MEID or Serial Number can be found (i) on the device box; (ii) on the device information screen, which can be found under "Settings;" (iii) on a label on the back of the device beneath the battery, if the battery is removable; and (iv) on the outside of the device if the battery is not removable). Alternatively, you may opt out by calling 1-888-987-4357 no later than 30 calendar days from the DRAFT FOR INTERNAL USE ONLY
180date of the first consumer purchaser's purchase of the device and providing the same information. These are the only two forms of notice that will be effective to opt out of this dispute resolution procedure. Opting out of this dispute resolution procedure will not affect your use of the device or its preloaded Software, and you will continue to enjoy the benefits of this license.16. ENTIRE AGREEMENT; SEVERABILITY. This EULA is the entire agreement between you and Samsung Electronics Co. relating to the Software and supersedes all prior or contemporaneous oral or written communications, proposals and representations with respect to the Software or any other subject matter covered by this EULA. If any provision of this EULA is held to be void, invalid, unenforceable or illegal, the other provisions shall continue in full force and effect. [101212]DRAFT FOR INTERNAL USE ONLY
181IndexAAccessibility settingsservices 139Accountsadding a Google account 36setting up 36Airplane mode 109Applications 31downloading new 92Applications settingsallow mock locations 140USB debugging 140BBack key 22Batterycharging 10cover, installing 7cover, removing 6indicator 9installing 9removing 10Wall Charger 10Battery Use & Safety 153Bluetoothpairing with a device 97profiles 105settings 106turning on or off 97CCalculator 76Calendar 76Call logcreating/updating contacts 53managing 53sending messages 53Callsanswering 51call-waiting 51ending 52from Call log 50from Contacts 49from Favorites 50in-call options 52recent 52rejecting 51sending to voicemail 51settings 54silencing a ringer 51three-way 50using the Keypad 48DRAFT FOR INTERNAL USE ONLY
182Camcorderrecording video 82settings 82Camerasettings 79taking pictures 79Care and Maintenance 158Children and Cell Phones 148Clock 84Commercial Mobile Alerting System (CMAS) 151Contactscreating 38creating from Call log 40creating from the Keypad 40exporting and importing 44groups 45joining 43My Profile 42namecards 44speed dials 47starred contacts 45updating 40updating from Call log 41, 53updating from Keypad 40DDisplay / Touch-Screen 156Display settingsbrightness 118screen timeout 119Do cell phones pose a health hazard? 144EEmailaccount settings 65combined Inbox 65composing and sending 64configuring accounts 64refreshing your accounts 65Emergency Calls 157Exposure to Radio Frequency (RF) Signals 144FFCC Hearing Aid Compatibility (HAC) Regulations for Wireless Devices 163FCC Notice and Cautions 165DRAFT FOR INTERNAL USE ONLY
183GGalleryviewing pictures and video 86viewing videos 87Getting StartedSetting Up Your Phone 6Gmailcomposing and sending 66configuring your account 65managing your account 66refreshing your account 66GoogleGmail 65managing an account 38Maps 89Navigation 90Play Store 92setting up an account 36your account 15YouTube 92GPS 157Groupsadding contacts 46creating 45sending a message 47HHDMI Port 21Health and Safety Information 144Home key 22Home screen 25adding shortcuts 30adding widgets 29customizing 28folders 30primary shortcuts 29wallpaper 31IIconsStatus Bar 26Incognito 72Create Window 72Exit Window 72Internet 70LLocking and Unlockingunlocking the keypad 13, 17MMaps 89Memory Carderasing 102installing 7removing 8Memory cardinstalling 7removing 8Menucontext-sensitive 22key 22Messagescreating and sending 59email 64Gmail 65managing 60settings 61types 59Messenger 67microSDHC card 7DRAFT FOR INTERNAL USE ONLY
184Mobile Hotspotusing your phone as a hotspot 100Mobile networkssettings 113My Profile 42sending 42NNamecardssending 44Navigation 22command keys 29touch gestures 23Notification Panel 24OOperating Environment 161Other Important Safety Information 166Out of OfficeMessage 123Settings 123PPairing with Bluetooth 97PC Connections 98Phone settingsDate & time 138language 132Picturestaking 79Play Store 92Powering On and Off 12RReducing ExposureHands-Free Kits and Other Accessories 147Responsible Listening 159Restricting Children's Access to Your Mobile Device 165Roaming 16SSamsung keyboardconfiguring 34entering text 34Samsung Mobile Products and Recycling 155Securitylocking and unlocking 16locking the phone 16Security settingscredential storage 131Settings 103Smart Practices While Driving 151Software Update 142Specific Absorption Rate (SAR) Certification Information 149Speed Dialsassigning 47removing or reassigning 47Standard Limited Warranty 168DRAFT FOR INTERNAL USE ONLY
185TTextentering 33using Samsung keyboard 34virtual QWERTY keyboard 33Text settingsdefault 132Google voice typing 133Samsung keyboard 133TTY Mode 14Turning Your Phone On and Off 12UUL Certified Travel Charger 156Unlockingusing an unlock pattern 17USB Power/Accessory Port 20USB settingsmass storage device 99Using FavoritesDeleting a Favorite 73VVideosrecording 82Voicemailchecking 14setting up 14Volumekey 20VPNaccessing 98settings 109WWarranty Information 168Widgets 29Wi-Fiadding a connection manually 96scanning and connecting 96settings 104turning on or off 95using your phone as a hotspot 100Wireless NetworkingBluetooth 97VPN 98Wi-Fi 95YYouTube 92DRAFT FOR INTERNAL USE ONLY

Navigation menu
