Samsung Electronics Co SCHR740C Cellular/ PCS/ AWS CDMA Phone with WLAN and Bluetooth User Manual r740
Samsung Electronics Co Ltd Cellular/ PCS/ AWS CDMA Phone with WLAN and Bluetooth r740
Users Manual
GH68_3XXXXA Printed in Korea
ANDROID SMARTPHONE
User Manual
Please read this manual before operating your
phone and keep it for future reference.
This document is watermarked because
certain important information in the document
has not yet been verified. This document has
been sent to you as a draft and for
informational purposes only. The document
should only be used for internal purposes and
may not be distributed outside of Samsung,
except to Samsung's carrier customer for
testing purposes. Distributing the document
outside of Samsung, except to Samsung's
carrier customer for testing purposes could
result in legal exposure to the company if the
preliminary, unverified information in the
draft turns out to be inaccurate.
DRAFT
FOR INTERNAL USE ONLY
CRT_SCH-R740_UM_Eng_MA2_CB_030113_D1
Intellectual Property
All Intellectual Property, as defined below, owned by or which is otherwise the property of Samsung or its respective suppliers
relating to the SAMSUNG Phone, including but not limited to, accessories, parts, or software relating there to (the “Phone
System”), is proprietary to Samsung and protected under federal laws, state laws, and international treaty provisions. Intellectual
Property includes, but is not limited to, inventions (patentable or unpatentable), patents, trade secrets, copyrights, software,
computer programs, and related documentation and other works of authorship. You may not infringe or otherwise violate the
rights secured by the Intellectual Property. Moreover, you agree that you will not (and will not attempt to) modify, prepare
derivative works of, reverse engineer, decompile, disassemble, or otherwise attempt to create source code from the software. No
title to or ownership in the Intellectual Property is transferred to you. All applicable rights of the Intellectual Property shall remain
with SAMSUNG and its suppliers.
Open Source Software
Some software components of this product, including but not limited to 'PowerTOP' and 'e2fsprogs', incorporate source code
covered under GNU General Public License (GPL), GNU Lesser General Public License (LGPL), OpenSSL License, BSD License and
other open source licenses. To obtain the source code covered under the open source licenses, please visit:
http://opensource.samsung.com
.
Disclaimer of Warranties; Exclusion of Liability
EXCEPT AS SET FORTH IN THE EXPRESS WARRANTY CONTAINED ON THE WARRANTY PAGE ENCLOSED WITH THE PRODUCT, THE
PURCHASER TAKES THE PRODUCT "AS IS", AND SAMSUNG MAKES NO EXPRESS OR IMPLIED WARRANTY OF ANY KIND
WHATSOEVER WITH RESPECT TO THE PRODUCT, INCLUDING BUT NOT LIMITED TO THE MERCHANTABILITY OF THE PRODUCT OR
ITS FITNESS FOR ANY PARTICULAR PURPOSE OR USE; THE DESIGN, CONDITION OR QUALITY OF THE PRODUCT; THE
PERFORMANCE OF THE PRODUCT; THE WORKMANSHIP OF THE PRODUCT OR THE COMPONENTS CONTAINED THEREIN; OR
COMPLIANCE OF THE PRODUCT WITH THE REQUIREMENTS OF ANY LAW, RULE, SPECIFICATION OR CONTRACT PERTAINING
DRAFT
FOR INTERNAL USE ONLY
THERETO. NOTHING CONTAINED IN THE INSTRUCTION MANUAL SHALL BE CONSTRUED TO CREATE AN EXPRESS OR IMPLIED
WARRANTY OF ANY KIND WHATSOEVER WITH RESPECT TO THE PRODUCT. IN ADDITION, SAMSUNG SHALL NOT BE LIABLE FOR
ANY DAMAGES OF ANY KIND RESULTING FROM THE PURCHASE OR USE OF THE PRODUCT OR ARISING FROM THE BREACH OF
THE EXPRESS WARRANTY, INCLUDING INCIDENTAL, SPECIAL OR CONSEQUENTIAL DAMAGES, OR LOSS OF ANTICIPATED PROFITS
OR BENEFITS.
SAMSUNG IS NOT LIABLE FOR PERFORMANCE ISSUES OR INCOMPATIBILITIES CAUSED BY YOUR EDITING OF REGISTRY SETTINGS,
OR YOUR MODIFICATION OF OPERATING SYSTEM SOFTWARE.
USING CUSTOM OPERATING SYSTEM SOFTWARE MAY CAUSE YOUR DEVICE AND APPLICATIONS TO WORK IMPROPERLY.
SAFE™: "SAFE™" (Samsung for Enterprise) is a mark for a Samsung device which has been tested against Samsung's own
internal criteria for interoperability with certain third party security-related solutions for MDM and VPN. The testing includes field
testing with local network connection and menu tree testing which tests functionality of the solutions in conjunction with the
Samsung device. During the testing, the device is tested with the security solutions to see if the solutions work with the device as
described by the third party security solution providers. The testing, for example, includes field testing with local network
connection and menu tree testing which tests functionality of the solutions in conjunction with the Samsung device. For more
information about Samsung's SAFE™ program, please refer to
www.samsung.com/us/safe
.
Disclaimer of Warranties: EXCEPT AS OTHERWISE PROVIDED IN THEIR STANDARD END USER LICENSE AND WARRANTY, TO THE
FULL EXTENT PERMITTED BY LAW SAMSUNG ELECTRONICS CO., LTD., SAMSUNG TELECOMMUNICATIONS AMERICA, LLC, AND
THEIR AFFILIATES (COLLECTIVELY REFERRED TO HEREIN AS THE "SAMSUNG ENTITIES") EXPRESSLY DISCLAIM ANY AND ALL
WARRANTIES, EXPRESS OR IMPLIED, INCLUDING ANY WARRANTY OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE,
INTEROPERABILITY OR NON-INFRINGEMENT, WITH RESPECT TO INFORMATION TECHNOLOGY SECURITY PROTECTION, SAFE™
DEVICES AND APPLICATIONS TESTED WITH SAFE™ DEVICES. IN NO EVENT SHALL THE SAMSUNG ENTITIES BE LIABLE FOR ANY
DIRECT, INDIRECT, INCIDENTAL, PUNITIVE, OR CONSEQUENTIAL DAMAGES OF ANY KIND WHATSOEVER WITH RESPECT TO
INFORMATION TECHNOLOGY SECURITY PROTECTION, SAFE™ DEVICES OR APPLICATIONS TESTED WITH SAFE™ DEVICES. In
DRAFT
FOR INTERNAL USE ONLY
addition, information technology security protection will be affected by features or functionality associated with, among other
things the e-mail platform, master data management, and virtual private network solutions selected by the software provider,
solution provider or user. Choice of an e-mail, master data management, and virtual private network solution is at the sole
discretion of the software provider, solution provider or user and any associated effect on information technology security
protection is solely the responsibility of the software provider, solution provider or user. For complete statement of limited
warranty, please refer to
www.samsung.com/us/safe
, available on the web and where Samsung smartphone and Galaxy Tab™
devices are sold. [101212]
Samsung Telecommunications America (STA), LLC
©2012 Samsung Telecommunications America, LLC. Samsung is a registered trademark of Samsung Electronics Co., Ltd.
Headquarters:
1301 E. Lookout Drive
Richardson, TX 75082
Customer Care Center:
1000 Klein Rd.
Plano, TX 75074
Toll Free Tel: 1.888.987.HELP (4357)
Internet Address:
http://www.samsung.com
DRAFT
FOR INTERNAL USE ONLY
Do you have questions about your Samsung Mobile Phone?
For 24 hour information and assistance, we offer a new FAQ/ARS System (Automated Response System) at:
www.samsung.com/us/support
The Bluetooth® word mark, figure mark (stylized “B Design”), and combination mark (Bluetooth word mark and “B Design”) are
registered trademarks and are wholly owned by the Bluetooth SIG.
Nuance®, VSuite™, T9® Text Input, and the Nuance logo are trademarks or registered trademarks of Nuance Communications,
Inc., or its affiliates in the United States and/or other countries.
microSD™, microSDHC™ and the microSD logo are Trademarks of the SD Card Association.
Adobe and Flash are either registered trademarks or trademarks of Adobe Systems Incorporated in the United States and/or other
countries.
DivX®, DivX Certified® and associated logos are trademarks of Rovi Corporation or its subsidiaries and are used under license.
DivX Certified® to play DivX® video up to HD 720p, including premium content.
ABOUT DIVX VIDEO: DivX® is a digital video format created by DivX, LLC, a subsidiary of Rovi Corporation. This is an official DivX
Certified® device that plays DivX video. Visit
www.divx.com
for more information and software tools to convert your files into DivX
videos.
ABOUT DIVX VIDEO-ON-DEMAND: This DivX Certified® device must be registered in order to play purchased DivX Video-on-
Demand (VOD) movies. To obtain your registration code, locate the DivX VOD section in License settings under Settings > About
device > Legal information. Go to
vod.divx.com
for more information on how to complete your registration.
Wi-Fi®, the Wi-Fi CERTIFIED logo, and the Wi-Fi logo are registered trademarks of the Wi-Fi Alliance.
LTE is a trademark of ETSI.
Google, the Google logo, Google Search, Gmail, Maps, Navigation, Places, Google Talk, YouTube, Picasa, Android and Google Play
are trademarks of Google, Inc.
DRAFT
FOR INTERNAL USE ONLY
©Samsung Telecommunications America, LLC (“Samsung”). Samsung and Super AMOLED are both trademarks of Samsung
Electronics Co., Ltd. and/or its related entities. All product and brand names are trademarks or registered trademarks of their
respective companies. Screen images simulated. Appearance of the phone may vary.
DRAFT
FOR INTERNAL USE ONLY
1
Table of Contents
Section 1: Getting Started .......................... 4
Understanding this User Manual . . . . . . . . . . . . 4

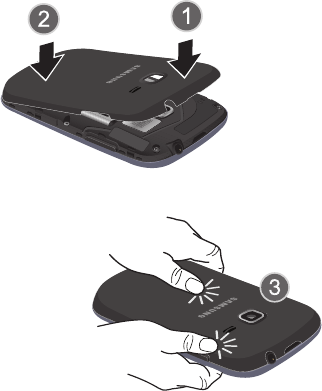

Setting Up Your Phone . . . . . . . . . . . . . . . . . . . 6
Turning Your Phone On . . . . . . . . . . . . . . . . . 12
TTY Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Voicemail . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Displaying Your Phone Number . . . . . . . . . . . 14
Your Google™ Account . . . . . . . . . . . . . . . . . 15
Roaming . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Securing Your Phone . . . . . . . . . . . . . . . . . . . 16
Section 2: Understanding Your Phone ..... 18
Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Front View . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Side Views . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Back View . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Navigation . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Finger Motions . . . . . . . . . . . . . . . . . . . . . . . . 23
Notifications . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Home Screen . . . . . . . . . . . . . . . . . . . . . . . . . 25
Customizing the Home Screen . . . . . . . . . . . . 28
Shortcuts . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
Wallpaper . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
Apps . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
Entering Text . . . . . . . . . . . . . . . . . . . . . . . . . 33
Section 3: Accounts and Contacts ...........36
Accounts . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
People . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
Section 4: Calling ......................................48
Making Calls . . . . . . . . . . . . . . . . . . . . . . . . . 48
Multi-party Calling . . . . . . . . . . . . . . . . . . . . . 50
Answering Calls . . . . . . . . . . . . . . . . . . . . . . . 51
Ending a Call . . . . . . . . . . . . . . . . . . . . . . . . . 52
Recent Calls . . . . . . . . . . . . . . . . . . . . . . . . . . 52
Call Settings . . . . . . . . . . . . . . . . . . . . . . . . . . 54
DRAFT
FOR INTERNAL USE ONLY
2
Section 5: Messaging ................................59
Types of Messages . . . . . . . . . . . . . . . . . . . . .59
Text and Multimedia Messaging . . . . . . . . . . .59
Emergency alerts . . . . . . . . . . . . . . . . . . . . . .63
Email . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 64
Gmail . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .65
Google Talk . . . . . . . . . . . . . . . . . . . . . . . . . . .66
Google + . . . . . . . . . . . . . . . . . . . . . . . . . . . . .67
Messenger . . . . . . . . . . . . . . . . . . . . . . . . . . . 67
Section 6: Applications and Widgets .......68
Accessing Applications . . . . . . . . . . . . . . . . . .68
Applications List . . . . . . . . . . . . . . . . . . . . . . .70
Accessing Widgets . . . . . . . . . . . . . . . . . . . . .93
Widgets List . . . . . . . . . . . . . . . . . . . . . . . . . .93
Section 7: Connections .............................95
Wi-Fi . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .95
Wi-Fi Direct . . . . . . . . . . . . . . . . . . . . . . . . . . .96
Bluetooth . . . . . . . . . . . . . . . . . . . . . . . . . . . . .97
VPN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .98
PC Connections . . . . . . . . . . . . . . . . . . . . . . . .98
Tethering . . . . . . . . . . . . . . . . . . . . . . . . . . . .100
Portable Wi-Fi Hotspot . . . . . . . . . . . . . . . . . .100
Memory Card . . . . . . . . . . . . . . . . . . . . . . . . .102
Section 8: Settings ..................................103
Accessing Settings . . . . . . . . . . . . . . . . . . . .103
WIRELESS & NETWORK . . . . . . . . . . . . . . . . .104
DEVICE . . . . . . . . . . . . . . . . . . . . . . . . . . . . .114
PERSONAL . . . . . . . . . . . . . . . . . . . . . . . . . . .122
SYSTEM . . . . . . . . . . . . . . . . . . . . . . . . . . . . .138
DRAFT
FOR INTERNAL USE ONLY
3
Section 9: Health and Safety Information 144
Exposure to Radio Frequency (RF) Signals . . 144
Specific Absorption Rate (SAR) Certification
Information . . . . . . . . . . . . . . . . . . . . . . . . 149
FCC Part 15 Information to User . . . . . . . . . . 151
Commercial Mobile Alerting System (CMAS) . 151
Smart Practices While Driving . . . . . . . . . . . 151
Battery Use and Safety . . . . . . . . . . . . . . . . . 153
Samsung Mobile Products and Recycling . . . 155
UL Certified Travel Charger . . . . . . . . . . . . . 156
Display / Touch-Screen . . . . . . . . . . . . . . . . 156
GPS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 157
Emergency Calls . . . . . . . . . . . . . . . . . . . . . 157
Care and Maintenance . . . . . . . . . . . . . . . . . 158
Responsible Listening . . . . . . . . . . . . . . . . . 159
Operating Environment . . . . . . . . . . . . . . . . 161
FCC Hearing Aid Compatibility (HAC)
Regulations for Wireless Devices . . . . . . . 163
Restricting Children's Access to
Your Mobile Device . . . . . . . . . . . . . . . . . . 165
FCC Notice and Cautions . . . . . . . . . . . . . . . 165
Other Important Safety Information . . . . . . . 166
Section 10: Warranty Information ..........168
Standard Limited Warranty . . . . . . . . . . . . . . 168
End User License Agreement for Software . . 173
Index .........................................................181
DRAFT
FOR INTERNAL USE ONLY
4
Section 1: Getting Started
This section allows you to quickly start using your Samsung
SCH-R740 phone by installing and charging the battery,
installing an optional microSD memory card (if desired),
activating your service, and setting up your voicemail
account.
Understanding this User Manual
The sections of this manual generally follow the features of
your phone. A robust index for features begins on page 181.
Also included is important safety information that you should
know before using your phone. Most of this information is
near the back of the guide, beginning on page 144.
This manual gives navigation instructions according to the
default display settings. If you select other settings,
navigation steps may be different.
Unless otherwise specified, all instructions in this manual
assume that you are starting from the Home screen. To get to
the Home screen, you may need to unlock the phone or
keypad. (For more information, refer to “Securing Your
Phone” on page 16.)
Note:
Instructions in this manual are based on default settings,
and may vary from your phone, depending on the
software version on your phone, and any changes to the
phone’s Settings.
Unless stated otherwise, instructions in this User Manual
start with the phone unlocked, at the Home screen.
All screen images in this manual are simulated. Actual
displays may vary, depending on the software version of
your phone and any changes to the phone’s Settings.
DRAFT
FOR INTERNAL USE ONLY
Getting Started 5
Special Text
In this manual, you’ll find text that is set apart from the rest.
These are intended to point out important information, share
quick methods for activating features, to define terms, and
more. The definitions for these methods are as follows:
•
Notes
: Presents alternative options for the current feature, menu,
or sub-menu.
•
Tips
: Provides quick or innovative methods, or useful shortcuts.
•
Example
: Gives an example of the feature or procedure.
•
Important
: Points out important information about the current
feature that could affect performance.
•
Warning
: Brings to your attention important information to
prevent loss of data or functionality, or even prevent damage to
your phone.
Text Conventions
This manual provides condensed information about how to
use your phone. To make this possible, the following text
conventions are used to represent often-used steps:
Example:
“Press
Home
, then touch
Menu
➔
Settings
➔
Wi-Fi
.”
➔
Arrows are used to represent the sequence of
selecting successive options in longer, or
repetitive, procedures.
DRAFT
FOR INTERNAL USE ONLY
6
Setting Up Your Phone
Before using your phone, you need to install the SIM card,
the microSD™ card, and the battery into their respective
internal slots and compartment.
Important!
Before removing or replacing the battery cover,
make sure the phone is switched off. To turn the
phone off, hold down the power key until the
power-off image displays, then touch
Power off
.
Removing the battery cover
1. Locate the cover removal opening (1).
2. Place your fingernail in the opening and pry the cover
away from the device (2).
Caution!
Do not bend or twist the back cover excessively.
Doing so may damage the cover.
DRAFT
FOR INTERNAL USE ONLY
Getting Started 7
Installing the battery cover
Align the cover (1) and press it firmly into place (2),
making sure it snaps into place at the corners.
Installing a Memory Card
Your device lets you install a microSD (SD) or microSDHC
memory card to expand available memory to store images,
videos, music, applications, and data.
1. Remove the battery cover. (See “Removing the battery
cover” on page 6.)
2. Locate the microSD card slot on the bottom inside of
the phone.
3. With the gold contacts facing down, carefully slide the
memory card into the slot (as shown), pushing gently
until it clicks into place.
DRAFT
FOR INTERNAL USE ONLY
8
Important!
Be sure to align the gold contact pins on the
memory card with the phone’s contacts.
Removing a Memory Card
Important!
To prevent damage to information stored on the
memory card, unmount the card before removing it
from the phone.
1. Press
Home
, then touch
Menu
➔
Settings
➔
Storage
➔
Unmount SD card
.
2. Remove the battery cover. (See “Removing the battery
cover” on page 6.)
3. Firmly press the Memory card into the slot and
carefully release it. The card should pop partially out of
the slot.
4. Remove the card from the slot.
5. Replace the battery cover. For more information, refer
to “Installing the battery cover” on page 7.
Correct
Incorrect
DRAFT
FOR INTERNAL USE ONLY
Getting Started 9
Battery
Your phone is powered by a rechargeable, standard Li-Ion
battery. A Wall/USB Charger (Charging Head and USB cable)
is included with the phone, for charging the battery.
Note:
The battery comes partially charged. You must fully
charge the battery before using your phone for the first
time. A fully discharged battery requires up to 4 hours of
charge time.
After the first charge, you can use the phone while
charging.
Warning!
Use only Samsung-approved charging devices and
batteries. Samsung accessories are designed to
maximize battery life. Using other accessories may
invalidate your warranty and may cause damage.
Note:
Failure to unplug the wall charger before you remove the
battery, can cause damage to the phone.
Battery Indicator
The battery icon in the Annunciator Line shows battery
power level. Two to three minutes before the battery
becomes too low to operate your phone, the empty battery
icon will flash and a tone will sound. If you continue to
operate the phone without charging the battery, the phone
will power off.
Installing the Battery
1. Remove the battery cover. (See “Removing the battery
cover” on page 6.)
2. Slide the battery into the compartment (1) so that the
tabs on the end align with the slots at the bottom of the
phone, making sure the connectors align.
3. Gently press down to secure the battery (2).
DRAFT
FOR INTERNAL USE ONLY
10
Removing the Battery
1. Remove the battery cover. (See “Removing the battery
cover” on page 6.)
2. Lift the battery up by the slot provided (1).
3. Lift the battery up and out of the phone (2).
Charging the Battery
Your phone is powered by a rechargeable Li-ion battery. A
wall charger, which is used for charging the battery, is
included with your phone. Use only approved batteries and
chargers. Ask your local Samsung dealer for further details.
Before using your phone for the first time, you must fully
charge the battery. A discharged battery recharges fully in
approximately 4 hours.
Note:
Verify that the battery is installed prior to connecting the
wall charger. If both the wall charger is connected and
the battery is not installed, the handset will power cycle
continuously and prevent proper operation. Failure to
unplug the wall charger before you remove the battery,
can cause the phone to become damaged.
Important!:
It is recommended you fully charge the battery
before using your device for the first time.
DRAFT
FOR INTERNAL USE ONLY
Getting Started 11
1. Insert the USB cable into the device’s Charger/
Accessory jack at the bottom of the device.
Note:
This illustration displays both the correct and incorrect
orientation for connecting the USB cable to the phone.
If the USB cable is incorrectly connected, damage to the
accessory port will occur, therefore voiding the phone’s
warranty.
2. Connect the USB cable to the charging head.
3. Plug the charging head into a standard AC power
outlet. The device turns on with the screen locked and
indicates both its charge state and percent of charge.
Warning!:
While the device is charging, if the touch screen
does not function due to an unstable power supply,
unplug the USB power adapter from the power outlet
or unplug the USB cable from the device.
Correct
Incorrect
Correct
Incorrect
DRAFT
FOR INTERNAL USE ONLY
12
4. When charging is finished, first unplug the charger’s
power plug from the AC wall outlet, then disconnect
the USB cable connector from the device.
Important!
If your handset has a touch screen display, please
note that a touch screen responds best to a light
touch from the pad of your finger or a non-metallic
stylus. Using excessive force or a metallic object
when pressing on the touch screen may damage
the tempered glass surface and void the warranty.
For more information, refer to “Standard Limited
Warranty” on page 168.
Turning Your Phone On
Press and hold the
Power/Lock
key (on the
upper right side of the phone) for three seconds.
While powering on, the phone connects with the
network, then displays the Locked screen and any
active Notification alerts.
Note:
Your phone’s internal antenna is located along the
bottom back of the phone. Do not block the antenna;
doing so may affect call quality or cause the phone to
operate at a higher power level than necessary.
DRAFT
FOR INTERNAL USE ONLY
Getting Started 13
Unlocking Your Phone
1. If needed, press
Home
to wake
the screen.
2. If there are no
Notification alerts on
your phone, swipe the
screen to unlock it.
The Home screen
appears.
Note:
If you have purchased your phone online, the first time
you power your phone on and unlock the screen, the
Activation Wizard
Welcome
screen appears.
Follow the prompts to activate and setup your phone.
Turning Your Phone Off
1. Press and hold the
Power/Lock
Key
(on the
upper right side of the device) for two seconds.
2. At the prompt, touch
Power off
. The
Power off
pop-up
appears.
3. At the prompt, touch
OK
.
Emergency call
2:33 PM
R
DRAFT
FOR INTERNAL USE ONLY
14
TTY Mode
Your phone is fully TTY-compatible, allowing you to connect a
TTY device to the phone’s headset jack. Before you can use
your phone with a TTY device, you’ll need to enable TTY
Mode.
For more information, refer to “Other call settings” on page
58.
Voicemail
All unanswered calls to your phone are sent to voicemail,
even if your phone is turned off, so you’ll want to set up your
voicemail and personal greeting as soon as you activate your
phone.
Setting up Voicemail
1. Press
Home
, then touch
Phone
, then touch
and hold .
2. Follow the automated instructions to set up your new
password and record a greeting.
Checking Voicemail
1. Press
Home
, then touch
Phone
, then touch
and hold .
2. Follow the automated instructions to manage
voicemail.
Tip:
You can also access
Voicemail
by dialing your phone
number from any touch-tone phone.
Displaying Your Phone Number
Press
Home
, then touch
Menu
➔
Settings
➔
About device
➔
Status
.
Your phone number displays under
My phone number
.
DRAFT
FOR INTERNAL USE ONLY
Getting Started 15
Your Google™ Account
Your new phone uses your Google account to fully utilize its
Android features, including Gmail, Google Maps, Google Talk,
and the Google™ Play. When you turn on your phone for the
first time, you should set up a connection with your existing
Google account, or create a new Google account.
1. Press
Home
, then touch
Applications
➔
Gmail
.
The
Add a Google Account
screen displays.
2. Touch
Existing
or
New
to continue.
3. Follow the on-screen instructions to sign in if you
already have a Google account, or to create a Google
Account.
Resetting your Google Account Password
A Google account password is required for Google
applications. If you misplace or forget your Google Account
password, follow these instructions to reset it:
1. From your computer, use an Internet browser to
navigate to
http://google.com/accounts
.
2. Once the Web Page loads, click on the
Can’t access
your account?
link.
3. Under
Forgot your password?
, follow the password
reset prompts.
DRAFT
FOR INTERNAL USE ONLY
16
Roaming
When you travel outside your home network’s coverage area,
your phone can roam to acquire service on other compatible
digital networks. When Roaming is active, the Roaming icon
( ) appears in the Annunciator Line (Notification Bar) of
the display.
Tip:
You can set your phone’s roaming behavior. (For more
information, refer to “Mobile networks” on page 113.)
During roaming, some services may not be available.
Depending on your coverage area and service plan, extra
charges may apply when making or receiving calls.
Note:
Contact your Wireless Provider for more information
about your coverage area and service plan.
Securing Your Phone
By default, the phone locks automatically when the screen
times out, or you can lock it manually. You can unlock the
phone using one of the default Unlock screens, or for
increased security, use a personal screen unlock pattern, a
Personal Identification Number (PIN), or a password.
For more information about creating and enabling a Screen
unlock pattern, see “Lock screen” on page 130.
Note:
Unless stated otherwise, instructions in this User Manual
start with the phone unlocked, at the Home screen.
Locking the phone manually
Press the
Power/Lock
key on the top right
side of the phone.
DRAFT
FOR INTERNAL USE ONLY
Getting Started 17
Unlocking the phone
For information on unlocking your phone, see “Unlocking
Your Phone” on page 13.
Unlocking with a Personal Screen Unlock Pattern
1. Press
Home
to wake the screen.
2. Draw your personal unlock pattern on the screen.
(For more information, refer to “Lock screen” on page 130.)
Unlocking with a Password
1. Press
Home
to wake the screen.
2. Enter your Password.
3. Press
OK
.
DRAFT
FOR INTERNAL USE ONLY
18
Section 2: Understanding Your Phone
Features
•
3.5-inch (480x320 pixel) HVGA full-screen touch screen
•
7-page Home screen, simplified main menu, and separate, 4-
page Applications menu
•
High Speed Data [EVDO 3G - Rev B Capable Technology]
•
Android OS
•
Motion and position sensitivity
•
Play Store
™
, plus pre-loaded applications
•
Connections
–
Wi-Fi 802.11 b/g/n
–
Wireless Modem Service
–
Bluetooth 3.0 + EDR
–
Virtual Private Network (VPN)
•
Messaging Services (with on-screen QWERTY Keypads)
–
Text Messaging
–
Picture Messaging
–
Video Messaging
–
Voice Messaging
–
Email
–
Mobile Instant Messenger (IM)
–
Chat
•
Full-HTML Browser
•
Global Positioning (GPS) Technology
•
8.0 Megapixel CMOS Camera-Camcorder, rear-facing
•
Picture Gallery, supporting JPG, PNG, GIF, and BMP formats
•
Music Player, supporting MP3 format
•
Video Player, supporting MP4, 3GP, WMV, AVI, MKV, FLV, and ASF
formations
•
Speakerphone
•
Voice recognition by Vlingo
®
•
Ringtone and Alert tone support for MP3, AAC, WMA, M4A, OGG,
MID, and AMR formats
•
Support for microSD™ and microSDHC™ Memory Cards (up to
32 GB capacity)
•
Bluetooth
®
3.0 + EDR Wireless Technology. (For more
information, refer to
“Bluetooth profiles”
on page 105.)
DRAFT
FOR INTERNAL USE ONLY
Understanding Your Phone 19
Front View
1.
Earpiece
:
Use during calls to listen to callers.
2.
Menu Key
: Press to display options for the current
screen.
3.
Microphone
: Use during calls to allow callers to hear
your voice, and when recording.
4.
Home Key
: Press to display the Home screen, or Lock
screen if the phone is locked. Press and hold to display
recent applications or to launch Task Manager.
5.
Back Key
: Press to return to the previous screen or
option.
6.
Proximity and Light Sensors
: Detect the presence of
nearby objects to control device functions or blank the
screen display, such as when you hold the phone to
your ear during a phone call. Detect ambient light to
determine screen brightness when
Brightness
is set to
Automatic brightness
(see “Brightness” on page 118),
and when taking pictures with the Front camera.
1
2
3
5
4
6
DRAFT
FOR INTERNAL USE ONLY
20
Side Views
1.
Volume Key
: From the Home screen, touch to adjust
Master Volume. During calls or music playback, press
to adjust volume. Press to mute the ringtone of an
incoming call.
2.
USB
Power/Accessory Port
: Connect a USB cable for
charging or to sync music and files.
3.
Power/Lock Key
: Press and hold to turn the phone on or
off. Press to lock the phone, or to wake the screen for
unlocking.
1
3
2
DRAFT
FOR INTERNAL USE ONLY
Understanding Your Phone 21
Back View
1.
Noise cancelation microphone
: Captures background
noise that the phone uses to produce a quiet
background during calls and video chats.
2.
Camera Flash
: Use when taking photos.
3.
8 Megapixel Camera Lens
: Use when taking photos or
recording videos.
4.
External Speaker
: Play ringtones, call audio when in
Speakerphone mode, media sounds (music and video),
and other sounds.
5.
3.5mm Headset Jack
: Plug in an optional headset or
TTY equipment.
1
2
3
4
5
DRAFT
FOR INTERNAL USE ONLY
22
Navigation
Navigate your phone’s features using the command keys and
the touch screen.
Warning!
Please note that a touch screen responds best to a
light touch from the pad of your finger or a non-
metallic stylus. Using excessive force or a metallic
object when pressing on the touch screen may
damage the tempered glass surface and void the
warranty. For more information, see “Warranty
Information” on page 168.
Context-sensitive Menus
While using your phone, context-sensitive menus offer
options for the feature or screen currently in use.
To access context-sensitive menus:
•
Touch
Menu
.
•
Touch and hold on an item.
Command Keys
Menu Key
Touch
Menu
to display a context-sensitive menu of
options for the current screen or feature.
Home Key
Press the
Home Key
to display the Home screen.
Press and hold the
Home Key
to launch a menu of
recent applications, or to launch Task Manager.
Back Key
Touch
Back
to return to the previous screen, option or
step.
DRAFT
FOR INTERNAL USE ONLY
Understanding Your Phone 23
Finger Motions
Touch
Touch items to select or launch them. For example:
•
Touch the on-screen keyboard to enter characters or text.
•
Touch an item to select it.
•
Touch an app’s icon to launch the application.
Touch and Hold
Activate on-screen items by a touch and hold gesture. For
example:
•
Touch and hold a widget or icon on the Home screen to move it.
•
Touch and hold on a field to display a pop-up menu of options.
Swipe
Swipe your finger vertically or horizontally across the screen.
For example:
•
Unlocking the screen
•
Scrolling the Home screen or a menu
•
Combine touch and hold with swipe to drag an item to a new
location.
Pinch
Using two fingers, make a pinch motion on the screen. For
example:
•
Pinch in to zoom in on pictures or screens.
•
Pinch out to zoom out on pictures or screens.
DRAFT
FOR INTERNAL USE ONLY
24
Notifications
Notifications shows information about connections, alerts
and other items.
1. Touch and drag downward from the top of the screen
to display notifications.
2. Touch an item to open that item, or to launch a related
app or feature.
3. Touch
Clear
to clear all Notifications.
Clearing Notifications
1. Sweep your finger downward from the top of the
screen to display Notifications.
2. Touch a notification to clear it, or to launch an app.
– or –
Touch
Clear
to clear all notifications
DRAFT
FOR INTERNAL USE ONLY
Understanding Your Phone 25
Home Screen
The Home screen is the starting point for using your phone.
Note:
Unless stated otherwise, instructions in this User Manual
start with the phone unlocked, at the Home screen.
All screen images in this manual are simulated. Actual
displays may vary, depending on the software version of
your phone and any changes to the phone’s Settings.
1.
Status Bar
: Presents icons to show network status,
battery power, and connection details. For a list of
icons, see “Status Bar Icons” on page 26.
2.
Home screen
: The starting point for using your phone.
Place shortcut icons, widgets, and other items to
customize your phone to your needs. For more
information, see “Home Screen” on page 25.
3.
Primary Shortcuts
: Shortcuts to your phone’s common
apps. For more information, see “Primary Shortcuts”
on page 29.
4.
Panel Indicator
: Shows what panel of 7 available Home
screen panels appears in the display.
5.
Shortcuts
: Shortcuts to common apps.These shortcuts
are found on the Home screen by default, and you can
add more shortcuts to your favorite apps. For more
information, see “Shortcuts” on page 30.
6.
Widgets
: Apps that run on the Home screen. These
widgets are found on the Home screen by default, and
you can add your favorites. For more information, see
“Widgets” on page 29.
1
2
3
4
5
6
DRAFT
FOR INTERNAL USE ONLY
26
Status Bar Icons
The Status Bar shows network and battery status and other
details.
Airplane Mode Active
: All wireless communications
are disabled. See “Airplane mode” on page 109.
USB Connected
: The phone is connected to a
computer using a USB cable.
Voice Call
: A voice call is in progress.
Speakerphone
: Speakerphone is enabled.
Missed Call
: Displays when there is a missed call.
Mute
: Voice or playback volume is muted.
Battery Level
: Shown fully charged.
Battery Charging
: Battery is charging.
Device Power Critical
: Battery has very little power
remaining. Charge immediately.
GPS Location Active
: One or more GPS location
services are active. See “Location services” on
page 128.
Missing SIM
: No LTE SIM is installed.
No Network
: No wireless network is available.
3G connection
: Phone is active on a 3G system.
4G LTE Connection
: Phone is active on a 4G LTE
system.
Signal Strength
: Current signal strength. The
greater the number of bars, the stronger the signal.
New Message
: You have new message(s).
New Voicemail
: You have new voicemail. A number
indicates the number of new messages.
DRAFT
FOR INTERNAL USE ONLY
Understanding Your Phone 27
New Email Message
: You have new email.
Silent mode
: All sounds except media and alarms
are silenced, and Vibrate is not active. See
“Volumes” on page 114.
Vibrate
: All sounds are silenced, and Vibrate is
active. See “Device vibration” on page 116.
SD Card Ready
: A memory card scan is underway,
to prepare the card for use.
SD Card Removed
: A memory card was un-installed.
Bluetooth Active
: Bluetooth is turned on.
Bluetooth Connected
: Your device is connected with
another Bluetooth device.
Wi-Fi Active
: Wi-Fi is active, and connected to a Wi-
Fi network.
Wi-Fi Action Needed
: Action needed to connect to
Wi-Fi network. For more information about
configuring Wi-Fi, see “Wi-Fi Settings” on
page 104.
TTY
: TTY Mode is active.
DRAFT
FOR INTERNAL USE ONLY
28
Display settings
You can customize display settings to your preferences. For
more information, see “Display” on page 118.
Extended Home Screen
The Home screen consists of the Home panel, plus panels
that extend beyond the display width to provide more space
for adding shortcuts, widgets and folders.
Slide your finger horizontally across the screen to scroll to
the left or right side panels. As you scroll, the indicator at the
bottom of the display shows your current position.
Customizing the Home Screen
Customize the Home screen to suit your preferences.
•
Add Shortcuts
: For more information, see
“Shortcuts”
on
page 30.
•
Add Widgets
: For more information, see
“Widgets”
on page 29.
•
Add Folders
: For more information, see
“Folders”
on page 30.
•
Change the Wallpaper
: For more information, see
“Wallpaper”
on page 31.
Adding and removing Home screen panels
Your phone comes with 7 Home screen panels. You can
customize the Home screen to include up to the seven
default panels, and set one panel as Home.
1. From the Home screen, touch
Menu
, then touch
Edit page
.
2. Slide your finger across the screen to scroll the panels,
and use these controls to configure panels:
Tip:
You can also “pinch” the Home screen to display Edit
options.
Remove
: Touch and hold on a panel, then drag
it
to
Remove
.
Add
: Touch a previously-removed panel to add
it, up to the default total of seven.
Set as Home
: Touch to assign a panel as the
Home screen. The panel set as Home will
display when you press the
Home
key.
DRAFT
FOR INTERNAL USE ONLY
Understanding Your Phone 29
Primary Shortcuts
Primary Shortcuts appear at the bottom of the display. You
can edit the Primary Shortcuts, except for
Apps
.
Editing the Primary Shortcuts
To add or remove shortcuts:
Touch and hold a shortcut, then drag it from the
Primary Shortcuts to the Home screen, or from the
Home screen to the Primary Shortcuts.
To remove shortcuts:
Touch and hold the shortcut until
Remove
appears,
then drag the shortcut to the
Remove
icon.
Widgets
Widgets are self-contained applications that you can place
on the Home screen for quick, direct access.
Adding Widgets to the Home screen
1. Press the
Home
key, swipe to a Home screen
panel, then touch and hold on the screen to display the
Home
screen
menu.
2. Touch
Add to Home screen
, then select
Apps and
widgets
.
3. Touch the
Widgets
tab, then touch a widget and follow
the prompts to configure the widget and place it on the
Home screen.
Adding Widgets from Apps
1. Press the
Home
key, and swipe to a Home
screen panel.
2. Touch
Apps
, then touch the
Widgets
tab.
3. Touch a widget, then follow the prompts to configure
the widget and place it on the Home screen.
Removing Widgets
Touch and hold the widget until
Remove
appears,
then drag the widget to the
Remove
icon.
DRAFT
FOR INTERNAL USE ONLY
30
Shortcuts
Use App shortcuts to launch applications from the Home
screen. Your phone comes with app shortcuts already placed
on the Home screen, and you can add your favorites.
Adding Shortcuts to the Home Screen
Adding shortcuts from the Home screen
1. Press the
Home
key, then touch and hold on
the screen to display the
Add to Home
screen
menu.
2. Touch
Apps and widgets
➔
Apps
tab, then touch a
selection.
3. Follow the prompts to configure the shortcut and add it
to the Home screen.
Adding Shortcuts from Apps
1. Press the
Home
key.
2. Touch
Apps
.
3. Touch and hold on an app until it appears on the Home
screen.
Removing Shortcuts
Touch and hold the shortcut until
Remove
appears,
then drag the shortcut to the Remove icon.
Folders
Place folders on the Home screen to organize items.
Adding Folders
1. Press the
Home
key.
2. Touch and hold on the screen to display the
Home
screen
menu, then select
Add to Home screen
➔
Folder
.
– or –
Touch
Menu
➔
Create folder
.
3. The folder appears on the Home screen. Touch the
folder to name it.
Removing Folders
Touch and hold the folder until
Remove
appears,
then drag the folder to the Remove icon.
DRAFT
FOR INTERNAL USE ONLY
Understanding Your Phone 31
Wallpaper
Choose a picture to display in the background of the Home
screen. You can choose from pre-loaded wallpaper images,
or select a picture you’ve taken with the Camera or
downloaded.
1. Touch
Home
, touch and hold on the screen to
display the
Home
screen
menu, then select
Set
wallpaper
➔
Home screen
/
Lock screen
/
Home and lock
screens
.
2. Choose a source:
•Gallery
: Choose a picture stored on your phone or on an
optional installed memory card. Touch a picture to select it,
then use the crop tool to resize the picture, if desired. Touch
Done
to save the picture as wallpaper.
•Live wallpapers
: Choose from pre-loaded animated wallpaper
images. Touch a wallpaper, then touch
Set wallpaper
.
• Wallpaper
: Choose from pre-loaded wallpaper images. Touch
a wallpaper, then touch
Set wallpaper
.
Note:
You can also set Wallpaper in Settings. For more
information, see “Wallpaper” on page 118.
Apps
Apps holds all applications installed on your phone.
Applications that you download and install from the Google
Play™ Store or from the web are also added to Apps.
The Apps screen is like the Home screen, it consists of
panels that extend beyond the display width to provide more
space. Slide your finger horizontally across the screen to
scroll to the left or right side panels. As you scroll, the
indicator at the bottom of the display shows your current
position.
For more information about applications, see “Applications
and Widgets” on page 68.
You can place shortcuts to apps on the Home screen, for
quick access to the app. For more information, see “Adding
Shortcuts from Apps” on page 30.
1. Touch
Home
➔
Apps
.
2. Slide your finger left or right to scroll the Apps screens.
3. Touch an icon to launch the application.
DRAFT
FOR INTERNAL USE ONLY
32
Customizing the Apps Screens
Choosing a view
By default, app icons appear in Grid view. You can change
the view to list view.
1. Touch
Home
➔
Apps
.
2. Touch
Menu
➔
View type
.
3. Choose an option:
• Customizable Grid
: The default view, which allows you to
touch and hold on apps to move them from screen to screen.
• Alphabetical grid
: Icons are arranged in a grid, in A-Z order.
• Alphabetical list
: Icons display in a list, sorted from A-Z.
Apps screen options
1. Touch
Home
➔
Apps
.
2. Touch
Menu
for options:
•Play Store
: Launch Google Play
™
Store, to browse for new
apps to download.
•Edit
: Touch and hold an app icon for these options:
–
Drag it to a new location.
–
Drag it to to create a new folder to contain the icon.
–
Drag it to to create a new apps screen and place the icon
on it.
–
Drag it to to launch Application manager to view information
about the app. For more information, refer to
“Apps”
on page
121.
–
Drag to (if available) to remove the icon. The trashcan is
only available for apps you’ve installed. Pre-loaded apps cannot
be removed.
• Create folder
: Add folders in which to group your apps.
• Uninstall
: Remove an app that you downloaded from your
phone. Pre-loaded apps cannot be un-installed.
• Downloaded applications
: Display all apps you’ve
downloaded.
DRAFT
FOR INTERNAL USE ONLY
Understanding Your Phone 33
•View type
: Configure the apps screen.
• Share apps
: Select apps you’ve downloaded (not available for
pre-loaded apps) to share via Bluetooth, Dropbox, Email,
Flipboard, Gmail, Google+, Messaging, S Memo, Wi-Fi Direct.
• Hide applications
/
Show hidden applications
: Control
whether app icons are visible in Apps. Hiding an icon does not
remove the app from your phone.
Entering Text
Virtual QWERTY Keyboard
Your phone uses a virtual QWERTY keyboard for text entry.
Use the keyboard to enter letters, punctuation, numbers, and
other characters into text entry fields or applications. Access
the keyboard by touching any text entry field.
The virtual QWERTY keyboard displays at the bottom of the
screen. By default, when you rotate the phone, the screen
orientation updates to display the keyboard at the bottom of
the screen.
DRAFT
FOR INTERNAL USE ONLY
34
Entering Text Using Samsung Keyboard
The Samsung keyboard is a custom virtual QWERTY
keyboard, featuring optional XT9 predictive text. Input
characters by touching the on-screen keys with your finger,
or use speech recognition.
You can enable XT9 predictive text, to have the Samsung
keyboard match your key touches to common words and
displays them. Select a word from the display to insert it into
your text.
Configuring Samsung keyboard
Configure the Samsung keyboard to your preferences.
•
For more information, refer to
“
Samsung keyboard
: Touch beside
Samsung keypad to configure the following options.”
on
page 133.
•
While entering text, touch and hold , then touch .
Entering Upper and Lower Case Letters
The default case is lower case (abc). Enter upper and lower
case alphabet letters by touching the Shift key ( ) to
toggle the case, before touching the letter key(s).
•
Touch once to switch from abc to Abc mode.
•
Touch and hold to switch to ABC mode.
Entering Symbols and Numbers
To enter common symbols, touch to switch to symbol
mode, then touch the corresponding key.
To enter less-common symbols, touch
➔
, then
touch the corresponding key.
Enter numbers by touching , then touching the number
keys.
DRAFT
FOR INTERNAL USE ONLY
Understanding Your Phone 35
Using Google voice typing
Enter text by speaking. Google voice typing recognizes your
speech and enters text for you.
Note:
Enable
Google voice typing
in
Language and input
settings, and
Voice input
in the
Samsung keyboard
settings
, to have the input method icon appear on the
Status Bar. For more information, see “
Samsung keyboard
:
Touch beside Samsung keypad to configure the
following options.” on page 133.
1. Touch a text entry field (such as the “
Enter message
”
field for a new message). The Input method icon
( ) appears on the left side of the Status Bar.
2. Touch and swipe the Status Bar downward.
3. Touch the
Select input method
Ongoing
Notification.The following options pop-up:
•
Google voice typing
•
Samsung keyboard
4. Touch
Google voice typing
. The voice input screen
appears at the bottom of the display.
5. Dictate your text in a clear, natural pace.
6. When you are finished dictating your text, touch
Back
.
DRAFT
FOR INTERNAL USE ONLY
36
Section 3: Accounts and Contacts
Accounts
Your phone provides the ability to synchronize information,
from a variety of accounts, including Email, Facebook,
Google, and your Samsung account. Depending on the
account, you can choose to synchronize your calendar,
contacts, and other types of content.
Contacts from your accounts appear in your phone’s
Contacts.
With synchronization, you can ensure that information on
your phone is updated with any information that changes in
your accounts.
Setting Up Your Accounts
Set up and manage your accounts with the
Accounts
settings.
(For information about setting up other, non-synchronized
email accounts, see “Configuring Email Accounts” on
page 64.)
Tip:
For more information on setting up your email, contact
your Wireless Provider.
Adding an account
1. From the Home screen, touch
Menu
➔
System settings
.
2. Under
Personal
, touch
Accounts & sync
➔
ADD ACCOUNT
.
3. Select an account type, then follow the prompts to
enter your credentials and sign in.
4. The phone communicates with the provider’s server to
set up your account on the phone.
DRAFT
FOR INTERNAL USE ONLY
Accounts and Contacts 37
Controlling Synchronization
You can choose to have your phone automatically
synchronize with your accounts, or manually synchronize
each account when you want to check messages.
You may also choose to limit automatic or background
synchronization to extend battery life.
1. From the Home screen, touch
Menu
➔
System settings
.
2. Under
Personal
, touch
Accounts & sync
. The
Accounts &
sync
screen appears.
3. To enable automatic synchronization, touch
Accounts & sync
.
To disable automatic synchronization, touch
Accounts & sync
.
4. Touch the desired account ID. The
Sync settings
screen
for the selected account appears listing some or all of
the following synchronization settings:
• Sync Browser
•Sync Calendar
•Sync Contacts
•Sync Email
•Sync Gmail
• Sync Google Photos
• Sync Google Play Books
• Sync Google Play Magazines
• Sync Google Play Movies & TV
• Sync Google Play Music
5. Touch these settings to enable/disable synchronization
of the associated file types. When enabled, a check
mark appears in each setting check box.
•
With automatic synchronization enabled, your phone
automatically synchronizes its related files with similar files on
on-line file servers.
•
With automatic synchronization disabled, you can manually
sync accounts by touching
Menu
➔
Sync all
in the
Sync settings
screen for each account.
DRAFT
FOR INTERNAL USE ONLY
38
Managing accounts
1. From the Home screen, touch
Menu
➔
System settings
.
2. Under
Personal
, touch
Accounts & sync
. The
Accounts &
sync
screen appears.
3. Under
Accounts
, touch the desired account ID. The
Sync settings
screen for the selected account appears.
(For more information, refer to “Controlling
Synchronization” on page 37.)
4. To enable or disable a synchronization setting, touch it.
When enabled, a check mark appears in the check box.
5. To invoke the enabled synchronization settings for the
selected account, touch
Sync now
.
6. To remove the selected account from your phone,
touch
Remove account
. A
Delete account?
pop-up
prompts you to confirm the removal.
To remove the selected account, touch
Remove
account
.
People
To access People:
From the Home screen, touch
People
.
Contact tips:
•
Swipe your finger left-to-right across a contact to make a call to
the contact.
•
Swipe right-to-left across a contact to create a message
addressed to the contact.
Adding People
1. From the Home screen, touch
People
➔
People list
➔
Add a person
.
•
If you have defined accounts (Google, Samsung, and so on),
the
Save contact to
pop-up appears. Select
Phone
or the
account to receive the new Contact entry.
•
If you have not defined any accounts, the
Save contact
pop-
up appears. The following options are available:
–
OK
: Saves your contacts in
“my device contacts”
.
–
Add new account
: Lets you define an account to which your
device will save your contacts. The
Add new account
screen
appears. (For more information, refer to
“Setting Up Your
Accounts”
on page 36.)
DRAFT
FOR INTERNAL USE ONLY
Accounts and Contacts 39
2. Touch contact fields to select or enter information:
•
Touch
Photo ID
to choose a picture to identify the
contact.
•
Touch
Name
to enter a name for the contact. Touch to
enter
Name prefix
,
First
name
,
Middle name
,
Last name,
or
Name suffix
.
•
Touch
Phone number
to enter a phone number, then touch the
Label
button to choose a label, from
Mobile
,
Home
,
Work
,
Work Fax
,
Home Fax
,
Pager
,
Other
,
Custom
, or
Callback
. To
add another number, touch .
•
Touch
Email address
to enter an email address, then touch the
Label
button to choose a label, from
Home
,
Work
,
Other
, or
Custom
to create a new label. To add an address, touch .
•
Touch
Address
to enter a street or postal address, then touch
the
Label
button to choose a label, from
Home
,
Work
,
Other
,
or
Custom
to create a new label. To add an address, touch
.
•
Touch next to
Events
to enter a special date, then touch
the
Label
button to choose a label, from
Birthday
,
Anniversary
,
Other
, or
Custom
to create a new label.
•
Touch
Groups
to assign the contact to a group. For more
information about Groups, see
“Groups”
on page 45.
•
Touch
Ringtone
to choose a ringtone for the contact.
•
Touch
Message alert
to select the alert tone to be played when
you receive a message from this contact.
•
Touch
Vibration pattern
to choose a vibration pattern to play
when you receive a call or message from this contact.
•
Touch
Add another field
to add more fields, including
Phonetic Name
,
Organization
,
IM
,
Notes
,
Nickname
,
Website
, or
Relationship
.
3. When you finish selecting and entering information,
touch
Save
.
DRAFT
FOR INTERNAL USE ONLY
40
Creating Contacts from Recent calls
Save a phone number from a recent call to create a new
contact, or update an existing contact.
For more information, refer to “Creating or Updating Contacts
Using Recent calls” on page 53.
Creating Contacts from the Phone Keypad
Enter a phone number with the Phone Keypad, then save it.
1. From the Home screen, touch
Phone
.
2. Touch the digits of the phone number on the
Keypad
.
3. Touch
Add to Contacts
, then select
Create contact
from
the pop-up menu.
4. Continue entering contact information. (For more
information, refer to “Adding People” on page 38.)
Tip:
While entering a phone number, you can add waits or
pauses. Enter the number up to the pause or wait, then
touch
Menu
to select
Add 2 sec pause
or
Add wait
.
Updating Contacts
Make changes to update an existing contact.
1. From the Home screen, touch
Contacts
.
2. Touch a contact to view its information, then touch
Edit
.
– or –
Touch and hold a contact, then select
Edit
from the
menu.
3. Continue entering contact information. (For more
information, refer to “Adding People” on page 38.)
Updating Contacts from the Phone Keypad
Enter a phone number with the Phone Keypad, then save it.
1. From the Home screen, touch
Phone
.
2. Touch the digits of the phone number on the
Keypad
.
3. Touch
Add to Contacts
, then select
Update existing
from
the pop-up menu.
4. Select a contact to update, then continue entering
contact information. (For more information, refer to
“Adding People” on page 38.)
DRAFT
FOR INTERNAL USE ONLY
Accounts and Contacts 41
Updating Contacts from Recent calls
Save a phone number from a recent call to create a new
contact, or update an existing contact.
For more information, refer to “Creating or Updating Contacts
Using Recent calls” on page 53.
Choosing Contacts to Display
1. From the Home screen, touch
Contacts
.
2. Touch
Menu
, then touch
Contacts to display
:
•
Choose
All contacts
to show all contacts.
•
Touch
Phone
to show only show contacts saved to the phone.
•
Choose an account to only display contacts from that account.
•
Choose
Customized list
to select contact types for each
account, or the phone.
Contacts Settings
1. From the Home screen, touch
Contacts
.
2. Touch
Menu
, then touch
Settings
:
•
Select
Only contacts with phones
to show contacts with at
least one stored phone number.
•
Touch
List by
to sort contacts by first or last name.
•
Touch
Display contacts by
to list contacts by first or last name.
•
Touch
Contact sharing settings
to set your preference for
sending contacts namecards to other accounts or devices. (For
more information about sending contacts, see
“Sending
Namecards”
on page 44.)
DRAFT
FOR INTERNAL USE ONLY
42
Other Contacts Options
1. From the Home screen, touch
Contacts
.
2. Touch a contact to display it, then touch
Menu
:
•History
: View calls and messages to and from this contact.
•Edit
: Modify contact information. (For more information, refer to
“Updating Contacts”
on page 40.)
•Delete
: Erase the contact record.
•Join contact
/
Separate contact
: Manage multiple contacts
as one. (For more information, refer to
“Joining Contacts”
on
page 43.)
• Mark as default
: Set a default phone number or other field
(such as IM or email address). Defaults are the contact method
used when creating a message or calling a contact. You can
also set a default by touching and holding on a contact field.
• Share namecard via
: Send the namecard. (For more
information, refer to
“Sending Namecards”
on page 44.)
• Add to reject list
: Mark the contact so that calls or messages
from the contact are rejected automatically. To remove a
contact from the reject list, touch and hold on the contact in the
main contacts screen, then choose
Delete from reject list
.
• Print contact info
: Print the namecard via Bluetooth to a
compatible Samsung Bluetooth-enabled printer.
• Add shortcut to Home
: Add shortcut to this contact to Home
screen.
My Local Profile
My local profile is your own contact record, listed under
ME
in Contacts. You can send My local profile as a vCard via
Bluetooth or as an attachment.
Creating My Local Profile
1. From the Home screen, touch
Contacts
.
2. Under
ME
touch
Set up profile
.
3. Enter your information
in the contact fields. (
For more
information, refer to “Adding People” on page 38.)
Sending My Local Profile
You can send your profile as a vCard via Bluetooth to other
Bluetooth devices, or as an attachment.
1. From the Home screen, touch
Contacts
.
2. Touch your profile to display your contact information.
3. Touch
Menu
, then touch
Share namecard via
.
DRAFT
FOR INTERNAL USE ONLY
Accounts and Contacts 43
4. Choose a sending method or app from the
Complete
action using
pop-up, then follow the prompts to send
the profile.
Joining Contacts
Your phone can synchronize with multiple accounts,
including Google, Corporate, and other providers, plus social
networking sites like Facebook. When you synchronize
contacts from these accounts with your phone, you may have
multiple contacts for one person.
Joining contact records allows you to see all the contact’s
numbers and addresses together. Joining also helps you
keep your contacts updated, because any changes to
information in the respective accounts is automatically
updated the next time you synchronize with the account.
Joining contacts
1. From the Home screen, touch
Contacts
.
2. Touch a contact to display its information.
3. Touch
Menu
, then touch
Join contact
. A list of
available contacts appears.
4. Select a contact to join to the displayed contact. The
joined contact appears.
5. To join another contact, touch the
Connection
field. The
Joined contact screen appears.
Touch
Join another contact
. A list of available contacts
appears.
Select a contact to join to the displayed contact. The
joined contact appears.
Separating contacts
1. From the Home screen, touch
Contacts
.
2. Touch a contact to display its information.
3. Touch the
Connection
field to display joined contacts.
4. Touch to the right of a contact to remove it from
the selected joined contact.
DRAFT
FOR INTERNAL USE ONLY
44
Exporting and Importing Contacts
You can export your contact list to an installed memory card,
or import a list of contacts (previously exported) from a
memory card.
1. From the Home screen, touch
Contacts
.
2. Touch
Menu
, then touch
Import/Export
.
3. Select an option, then follow the prompts to complete
the operation:
• Import from USB storage
: Copy contacts that are saved in
installed mass storage.
• Export to USB storage
: Copy contacts to installed mass
storage.
• Import from SD card
: Copy contacts that are saved on an
installed memory card.
• Export to SD card
: Copy contacts to an installed memory card.
• Share namecard via
: Share contacts as Namecards. (For
more information, refer to
“Sending Namecards”
on page
44.)
Sending Namecards
You can send a contact entry as a namecard using a
Bluetooth connection to another device, or as an attachment
to a Gmail or Email message.
Important!
Not all Bluetooth devices will accept contacts, and
not all devices support transfers of multiple
contacts. Check the target device’s documentation.
1. From the Home screen, touch
Contacts
.
2. Touch
Menu
, then touch
Import/Export
➔
Share
namecard via
.
3. Touch contacts to mark them for sending, or touch
Select all
to mark all contacts. A check mark appears in
the check box for marked contacts.
4. Touch
Done
.
5. Choose a sending method or app from the
Complete
action using
pop-up, then follow the prompts to send
the profile.
DRAFT
FOR INTERNAL USE ONLY
Accounts and Contacts 45
Favorites
Mark contacts with a
star to identify them as Favorites.
Favorites display on the
Favorites
tab in the
Phone
and
Contacts
screens for fast dialing or messaging, and are
indicated by the .
Creating Favorites
1. From the Home screen, touch
Contacts
.
2. Touch and hold on a contact, then select
Add to
favorites
from the pop-up menu.
– or –
Touch a contact to display it, then touch at the top
right of the screen, it changes color to .
Groups
Assign contacts to Groups to make searching for contacts
faster, or to quickly call or send messages to group
members. Your phone comes with pre-loaded groups you
can use to add your contacts.
Adding a New Group
1. From the Home screen, touch
Contacts
➔
Groups
.
2. Touch
Menu
➔
Create
, then enter information:
•
Touch
Group name
to enter a Group Name.
•
Touch
Group ringtone
to choose a ringtone for calls from
members of this group.
•
Touch
Vibration pattern
to choose a vibration to play for calls
from members of this group.
•
Touch
Add member
to select members from Contacts.
3. Touch
Save
to save the new group.
DRAFT
FOR INTERNAL USE ONLY
46
Editing a Group
1. From the Home screen, touch
Contacts
➔
Groups
.
2. Touch a Group to display it.
3. Touch
Menu
➔
Edit
, then update information for
the group. For more information, see “Adding a New
Group” on page 45.
Deleting a Group
Tip:
You can only delete groups that you have created.
1. From the Home screen, touch
Contacts
➔
Groups
.
2. Touch
Menu
➔
Delete groups
.
3. Touch a Group to mark it for deletion, or touch
Select all
to mark all groups. When selected, a check mark
appears in the check box. You cannot delete pre-
loaded groups.
4. Touch
Delete
, then choose
Group only
or
Group
and
group members
.
Adding Contacts to a Group
1. From the Home screen, touch
Contacts
➔
Groups
.
2. Touch a Group to display it, then touch .
3. Touch contact(s) to mark them for addition, or touch
Select all
to mark all contacts. When selected, a check
mark appears in the check box.
4. Touch
Done
to add the selected contact(s).
Removing Contacts from a Group
1. From the Home screen, touch
Contacts
➔
Groups
.
2. Touch a Group to display it.
3. Touch
Menu
➔
Remove member
.
4. Touch contact(s) to mark them for removal, or touch
Select all
to mark all contacts. When selected, a check
mark appears in the check box.
5. Touch
Done
to remove the selected contact(s).
DRAFT
FOR INTERNAL USE ONLY
Accounts and Contacts 47
Sending a Message to Group Members
Create a new text or email message, addressed to the
group’s members.
1. From the Home screen, touch
Contacts
➔
Groups
.
2. Touch and hold a Group, then touch
Send message
or
Send email
.
3. Touch contacts to mark them as recipients for the new
message, then touch
Done
.
4. The new message opens, with the marked contacts as
recipients. Continue creating the message, as desired.
(For more information, refer to “Creating and Sending
Messages” on page 59, or “Composing and Sending
Email” on page 64.)
Speed Dials
Speed dials are 1-, 2-, or 3-digit shortcuts (1 to 100) you
assign to contacts, to allow you to quickly call the contact.
For more information about calling using speed dials, see
“Making Calls using Speed Dials” on page 48.
Note:
Speed dial 1 is reserved for Voicemail, and cannot be
assigned.
Assigning Speed Dials
1. From the Home screen, touch
Contacts
.
2. Touch
Menu
, then touch
Speed dial setting
.
3. A list of speed dials displays.Touch a speed dial, then
touch a contact to assign the speed dial to the contact.
Removing or Reassigning a Speed Dial
1. From the Home screen, touch
Contacts
.
2. Touch
Menu
, then touch
Speed dial setting
.
3. Touch and hold an assigned Speed dial setting, the
following options pop-up:
• Replace
: Touch a new speed dial location to assign it to the
contact.
• Delete
: Un-assign the speed dial from the contact.
DRAFT
FOR INTERNAL USE ONLY
48
Section 4: Calling
Making Calls
Your phone offers multiple ways to make calls:
•
Use the touch screen
Phone Keypad
to enter the phone number
or speed dial.
•
Call a contact from
Contacts
.
•
Call a contact from
Favorites
.
•
Return a call, or call a recent caller, from
Recent
.
•
Voice dial using
Voice Dialer
.
Making Calls Using the Phone Keypad
1. From the Home screen, touch
Phone
.
2. Touch the digits of the telephone number on the
Keypad
.
3. Touch to place the call.
Making Calls using Speed Dials
Speed Dials are 1-, 2-, or 3-digit shortcuts (1 to 100) you
assign to contacts, to allow you to quickly call the contact.
(For more information about setting speed dials, see “Speed
Dials” on page 47.)
1. From the Home screen, touch
Phone
.
2. Touch the digits of the speed dial number on the
Keypad
, holding the last digit until the number dials.
DRAFT
FOR INTERNAL USE ONLY
Calling 49
Making Calls from People
A contact is an entry that you have created to store the
name, numbers, and other information for people or groups
of interest.
(For more information, refer to “People” on page 38.)
1. From the Home screen, touch
People
.
2. Find the contact and touch it to open the Contact entry.
3. Swipe your finger from left to right across the contact
to dial their default number.
– or –
Touch a contact, then touch to dial the number.
Making Calls using Voice Dialer
Place a call by speaking the name or number.
1. From the Home screen, touch
Phone
. then touch
Voice Dialer
.
2. The first time you access S Voice, follow the prompts to
confirm the license agreement, and view information
about S Voice.
3. Follow the prompts to speak a command. You can say
commands such as:
• Call <Name >
: Call an entry in your Contacts list.
• Dial <Phone number>
: Call a spoken phone number.
•Redial
: Repeat a recent call.
DRAFT
FOR INTERNAL USE ONLY
50
Making Calls using Favorites
Favorites are contacts that you designate as favorites by
starring them. (For more information about creating favorites,
see “Favorites” on page 45.)
1. From the Home screen, touch
People
.
2. Touch
Favorites
to display favorites.
3. Find the desired contact and touch it to open the
Contact entry.
4. Touch the contact’s number to dial it.
Making Calls from Recent calls
Return a call, or call a number from a recent call stored in
Recent calls.
For more information, refer to “Recent Calls” on page 52.
Multi-party Calling
Use multi-party call features to set up a call between multiple
callers, such as for a conference call.
1. Establish the first call, by answering an incoming call
or making a call.
2. Touch
Add call
. The first call is placed on hold.
3. Make the second call by touching the phone number
digits, then press .
4. Touch Merge to merge the calls into one conference
call.
5. To end the call touch
.
DRAFT
FOR INTERNAL USE ONLY
Calling 51
Answering Calls
You can answer incoming calls when the phone is locked or
unlocked.
Touch and drag the
Answer
icon to the right.
Tip:
To silence the ringtone for an incoming call, press the
Volume
key Up or Down.
Sending Calls to Voicemail
When your phone alerts you to an incoming call, you can
reject the call to send the caller to voice mail, or reject the
call and send a message to the caller.
Rejecting a call
Touch and drag the
Reject
icon to the left.
Rejecting a call with a message
Touch and drag
Reject call with message
toward the
middle of the screen, then select an existing message,
or
Create new message
.
Note:
For more information about creating reject messages,
see “Set reject messages” on page 55.
Answering Call-Waiting Calls
When you receive a call while on a call:
•
Touch and drag the
Answer
icon to the right to answer the
incoming call. The original call is placed on hold, and remains on
hold until you end the second call, or swap calls back to the
original call.
•
Touch
Swap
to place a call on hold and return to the original call.
DRAFT
FOR INTERNAL USE ONLY
52
Options During a Call
While in a call, you can use these features:
1.
End call
: End the phone call.
2.
Keypad
: Display a keypad to enter numbers.
3.
Speaker
: Enable or disable speakerphone.
4.
Mute
: Mute or unmute your voice on the call.
5.
Add call
: Display the Dialer to set up a multi-party call.
•
Headset
: Switch the call’s audio to a Bluetooth headset.
Ending a Call
Touch .
Recent Calls
When you place, answer, or miss a call, a record of the call is
saved in Recent calls.
Accessing Recent calls
From the Home screen, touch
Phone
➔
Recent
to display recent calls.
Making Calls using Recent calls
1. From the Home screen, touch
Phone
.
2. Touch
Recent
to list recent calls.
3. Touch a number or contact to list calls.
4. Touch the number to call.
1
2 3 4 5
DRAFT
FOR INTERNAL USE ONLY
Calling 53
Sending Messages using Recent calls
1. From the Home screen, touch
Phone
➔
Recent
.
2. Touch a number or contact to list calls.
3. Touch to create a message to the number.
Creating or Updating Contacts Using Recent
calls
1. From the Home screen, touch
Phone
➔
Recent
.
2. Touch a number to list calls to/from that number.
3. Touch
Add to contacts
.
4. Choose
CREATE NEW CONTACT
or touch an existing
contact.
5. Continue entering contact information. (For more
information, see “People” on page 38.)
Managing Recent calls
Deleting records
1. From the Home screen, touch
Phone
➔
Recent
.
2. While viewing the calls, touch
Menu
, then touch
Delete
.
3. Touch call records to mark them for deletion, or touch
Select all
. A check indicates marked records.
4. Touch
Delete
to delete marked records.
Filtering records
1. From the Home screen, touch
Phone
➔
Recent
.
2. While viewing the calls, touch
Menu
, then touch
View by
.
3. Select a filter type, from
All calls and messages
,
All calls
,
Missed calls
,
Dialed calls
,
Received calls
,
Rejected calls
,
All
messages
,
Sent messages
, or
Received messages
.
DRAFT
FOR INTERNAL USE ONLY
54
Viewing call durations
View the length of the Last call, all Dialed calls, all Received
calls, or All calls.
1. From the Home screen, touch
Phone
➔
Recent
.
2. While viewing calls, touch
Menu
, then touch
Call
duration
.
Call Settings
Configure settings for calling with your phone.
To access Call settings, from the Home screen, touch
Phone
➔
Menu
➔
Call Settings
.
Call rejection
Create and manage a list of phone numbers, to have your
phone automatically reject calls you receive from those
numbers.
From the
Call Settings
screen, touch
Call rejection
for
these options:
• Auto reject mode
: Touch
Auto reject mode
to
turn Auto reject On, or touch
Auto reject mode
to
turn Auto reject Off. When On, calls from numbers on the Auto
reject list will be rejected.
• Auto reject list
: Enter telephone numbers to be rejected when
Auto reject mode is ON. Turn on
Unavailable
to reject calls with
no caller ID. Touch
Create
, then follow the prompts to enter
numbers to reject, or select them from Contacts. Touch
Match
criteria
to set options for using the reject number list.
DRAFT
FOR INTERNAL USE ONLY
Calling 55
Set reject messages
Create and manage text messages to send to callers when
you select
Reject call with message
in the
Incoming call
screen.
1. From the
Call Settings
screen, touch
Set reject
messages
.
2. Manage messages:
•
To create new messages, touch
Create
, then follow the
prompts.
•
To modify an existing message, touch the message, then edit
the text.
Ringtones and keypad tones
Select incoming call ringtone and vibration, and enable or
disable call vibration and keypad tones.
From the
Call Settings
screen, touch
Ringtones and
keypad tones
. The following options are available:
• Device ringtone
: Select the ringtone your phone plays to alert
you of incoming calls.
•Device vibration
: Select the vibration pattern your phone uses
to alert you of incoming calls.
• Incoming call vibration
: Touch to enable/disable use of your
selected
Device vibration
. When enabled, a check mark
appears in the check box.
•Keytones
: Touch to enable/disable playing of DTMF tones
when you enter numbers with the Phone keypad. When
enabled, a check mark appears in the check box.
DRAFT
FOR INTERNAL USE ONLY
56
Call alerts
Set options for sounds and vibrations to occur during calls.
From the
Call Settings
screen, touch
Call alert
. The
following options are available:
• Call vibrations
: Enable
Vibrate on connection to network
to
have your phone vibrate when it connects to the network.
Enable on
Call-end vibration
to have the phone vibrate when
the other caller ends the call.
•Call status tones
: Choose options for sounds to play during
calls. Enable
Call connect tone
to have the phone play a tone
when the other caller answers a call. Enable
Minute minder
to
have a tone play once per minute during a call. Enable
Call end
tone
to have the phone play a tone when the other caller ends
the call. Touch
OK
to save the settings.
• Alerts on call
: Enable to have notifications for alarms and new
messages play during phone calls. When disabled, these
notifications will be muted during a call.
Call answering/ending
Manage settings for answering and ending calls.
1. From the
Call Settings
screen, touch
Call answering/
ending
. The following options are available:
• Answering key
: When enabled, you can answer an incoming
call by pressing
Home
.
• The power key ends calls
: When enabled, pressing
Power/Lock
ends a call.
Auto screen off during calls
When enabled, the screen automatically turns off during
phone calls, and the proximity sensor on the front of the
phone is used to turn the screen back on when the phone is
moved or brought close to another surface, such as when
you move the phone to your ear.
From the
Call Settings
screen, touch
Auto screen off
during calls
to enable or disable the option.
DRAFT
FOR INTERNAL USE ONLY
Calling 57
Accessory setting for call
Configure headset options for calls.
From the
Call Settings
screen, touch
Accessory settings
for call
. The following options are available:
• Headset settings for incoming calls
:
–
Automatic answering
: When enabled, and you have a
headset connected to the Headset Jack, incoming calls are
answered automatically after a delay, set at Automatic
answering timer.
–
Automatic answering timer
: Choose a time period to delay
before automatically answering an incoming call when
Automatic answering is enabled and a headset is connected to
the phone.
• BT (Bluetooth) headset settings for outgoing calls
:
–
Outgoing call conditions
: When the phone is paired with a
Bluetooth headset, you can choose to make calls even when the
phone is locked.
Use extra volume for calls
When enabled, the call screen displays a volume control, for
adjusting call volume during calls.
From the
Call Settings
screen, touch
Use extra vol. for
calls
to enable or disable the option.
Increase volume in pocket
When enabled, the phone uses the proximity sensor to detect
when the phone is in a pocket or other close-fitting location
such as a purse or bag, and increases the volume for
incoming call ringtones.
From the
Call Settings
screen, touch
Increase volume in
pocket
to enable or disable the option.
Noise reduction
When enabled, the phone uses both of its microphones to
detect background noise from your environment and
suppress it during calls.
1. From the
Call Settings
screen, touch
Additional settings
.
2. Touch
Noise reduction
to enable or disable the option.
DRAFT
FOR INTERNAL USE ONLY
58
Voicemail
Configure options for voicemail.
From the
Call Settings
screen, under
Voicemail
, the
following options are available:
• Voicemail service
: By default, your phone uses your wireless
service provider’s voicemail service. If you have another option
for voicemail installed, select it here.
• Voicemail settings
: By default, the speed dial for calling
voicemail (speed dial 1) is set to your phone number. If you wish
to use another Voicemail service, touch
Voicemail number
to
set a new one.
•Ringtone
: Choose sound to play for a voicemail notification.
•Vibrate
: Choose an option for vibration to play for a voicemail
notification.
Other call settings
From the
Call Settings
screen, under
Other call settings
,
the following options are available:
•Auto retry
: When enabled, the phone will automatically redial a
call if it receives a busy signal from the network.
• TTY mode
: Choose a TTY mode to enable TTY mode, for use
with optional TTY equipment.
•DTMF tones
: Set the length of Dual-tone Multi-frequency
tones, which play when you use the keypad during a call, such
as when navigating phone menus.
• Voice privacy
: Enable or disable Enhanced voice privacy, to
improve the security of phone calls.
DRAFT
FOR INTERNAL USE ONLY
Messaging 59
Section 5: Messaging
This section describes how to send and receive messages,
and other features associated with messaging.
Types of Messages
Your phone supports these types of messages:
•
Text messages
: Send and receive simple messages containing
text to other mobile phones or email addresses (also known as
SMS).
•
Multimedia messages
: Send and receive text messages with
pictures, video, and/or sound to other mobile phones or email
addresses (also known as MMS).
•
Mobile IMs
: Exchange Instant Messages with other users of
popular messaging sites.
•
Email
: Send and receive email from your email accounts,
including Corporate mail.
•
Gmail
: Send and receive Gmail from your Google account.
•
Voicemail
: Retrieve voice messages from callers.
•
Google Talk
: Chat with other Google Talk users.
Text and Multimedia Messaging
Your phone can send and receive text and multimedia
messages.
Creating and Sending Messages
1. From the Home screen, touch
Messaging
➔
New message
.
2. Touch
Enter recipient
and enter a name, phone number
or email address, or touch to add recipients from
Contacts. As you enter text, matching contacts appear.
Touch a contact to add it to the list.
3. Touch
Enter message
, then enter the message text. The
following options are available (which options are
available depends on whether you include an
attachment):
•
Touch
Attach
to add media (images, pictures, videos, audio
files) or content (Memo text, Calendar events, Locations, Contacts)
to the message (converts the message to MMS).
•
Touch
Menu
for options:
–
Insert smiley
: Add a text emoticon to the message.
DRAFT
FOR INTERNAL USE ONLY
60
–
Add text
: Select text from S Memo, Calendar, Location,
Contacts or Text templates to add.
–
Preview
: View the message and attachments before sending.
–
Add to Contacts
: If the recipients are not saved in Contacts,
save the info as a new contact, or update an existing contact.
–
Add slide
/
Delete slide
: Add or remove a slide. Slides hold
pictures or other media (adding a slide converts the message to
MMS).
–
Add subject
: Add a subject field (converts the message to
MMS.)
–
Duration (5sec)
: Set the length of time the media on the slide
displays.
–
Layout (bottom)
: Choose whether the message text appears
above (Text on top) of the attachment(s), or after (Text on
bottom).
–
Discard
: Erase this message.
4. Touch to send the message.
Managing Messages
Messages you send and receive to the same contact, number
or address are grouped together as a “conversation”.
Threads allow you to see all the messages you exchanged
with a recipient in one place.
1. From the Home screen, touch
Messaging
.
2. Message threads display by contact, number, or
address. While viewing message threads, you have
these options:
•
Touch and hold a thread to choose options, including:
–
View Contact
/
Add to Contacts
: View the contact record, or
save the sender/recipient’s information.
–
Delete thread
: Erase the entire message thread.
–
Register number as spam
: Add this number to message
reject list. Messages from this number are automatically placed
in the Spam messages folder.
•
Touch
Menu
for options, including:
–
Search
: Enter characters to search messages and recipients.
–
Delete threads
: Touch message threads to mark them for
erasure, or touch
Select all
to mark all message threads.
DRAFT
FOR INTERNAL USE ONLY
Messaging 61
–
Draft messages
: Messages you have composed and saved for
later reuse and/or to be sent to a recipient.
–
Locked messages
: Messages you have locked to protect
them from accidental deletion.
–
Spam messages
: Messages received from numbers you have
registered as spam senders.
–
Settings
: Configure Messaging settings.
Message Settings
Configure settings for message storage, delivery, or alerts.
1. From the Home screen, touch
Messaging
.
2. Touch
Menu
, then touch
Settings
for options:
•Display
:
–
Bubble style
: Choose the appearance of messages in a
message thread. Touch a bubble style for each side of the
conversation, then touch
Save
.
–
Background style
: Choose the appearance of the screen
behind message threads. Touch a style, then touch
Save
.
–
Use the volume key
: When enabled, you can change the size
of message text while viewing by pressing the Volume Key.
• General settings
:
–
Delete old messages
: When enabled, messages are
automatically erased when storage reaches default limits. When
disabled, the phone will prompt you to delete old messages to
make room.
–
Text message limit
: Set the number of SMS messages per
conversation.
–
Multimedia message limit
: Set the number of MMS
messages per thread.
DRAFT
FOR INTERNAL USE ONLY
62
–
Text templates
: Text templates are phrases that you can add
to your messages. Use a pre-loaded text template, or create
your own.
• Text message (SMS) settings
:
–
Delivery reports
: When enabled, you receive a delivery report
for text messages you send.
–
Auto combination
: When enabled, re-assembles multi-
segment messages and shows them as a single message.
• Multimedia message (MMS) settings
:
–
Delivery reports
: When enabled, you receive a delivery report
for multimedia messages you send.
–
Auto-retrieve
: When enabled, MMS messages download
automatically. When disabled, the phone prompts for download.
–
Roaming auto-retrieve
: When enabled, MMS messages
download and display automatically when roaming. When
disabled, the phone prompts you to download new MMS
messages.
–
MMS alert
: When enabled, alerts you when a message
changes mode to MMS.
• Notification settings
:
–
Notifications
: When enabled, message alerts display in the
Status bar.
–
Select ringtone
: Choose a sound for message alerts.
–
Vibrate
: Configure vibration for message alerts.
–
Message alert repetition
: Choose to have message alert
repeat Once, Every 2 minutes, or Every 10 minutes.
–
Preview message
: When enabled, a preview of a received
message appears in the Status bar.
• Emergency message settings
:
–
Emergency alerts
: This device is designed to receive Wireless
Emergency Alerts from the Commercial Mobile Alert Service
(CMAS), including Presidential Alerts, Imminent Alerts (Severe or
Extreme), and AMBER Alerts (missing persons). You may choose
not to receive Imminent and AMBER alerts, but Presidential
Alerts cannot be disabled. All alerts are enabled by default
(check mark shown). For more information about Emergency
Alerts see
“Emergency alerts”
on page 63.
–
Emergency notification preview
: Listen to an example of a
Emergency Alert tone (and vibration, if enabled). The Emergency
Alert tone plays at the same volume as your call ringtone.
DRAFT
FOR INTERNAL USE ONLY
Messaging 63
–
Vibrate
: Configure vibration for Emergency Alerts.
–
Alert sound
: When enabled, a sound plays for emergency
alerts.
–
Alert reminder
: Choose whether, and at what interval, your
phone plays a sound to notify you of a Emergency Alert after the
Emergency Alert tone has stopped.
• Signature settings
:
–
Add signature
: When enabled, adds your signature text to the
end of your outgoing messages.
–
Signature text
: Enter text to be added to the end of your
outgoing messages.
• Spam message settings
:
–
Spam settings
: When enabled, the Spam message settings
are activated.
–
Register number as spam
: Enter sender numbers whose
messages are blocked automatically.
–
Register phrase as spam
: Enter message text phrases that
will cause messages to be blocked automatically.
–
Block unknown senders
: When enabled, messages from
“Unknown” senders are blocked automatically.
Emergency alerts
This device is designed to receive Wireless Emergency Alerts
from the Commercial Mobile Alert Service (CMAS).
Emergency Alerts are geographically-targeted, and alert
customers of imminent threats to their safety within their
area. There is no charge for receiving an Emergency Alert.
There are four types of Emergency Alerts:
•
Presidential
•
Extreme
•
Severe
•
AMBER Alerts (missing person alert)
You may choose not to receive Extreme Alerts, Sever Alerts,
and AMBER Alerts. Presidential Alerts, however, cannot be
disabled. To disable Extreme and Severe Threat Alerts and
AMBER Alerts, do the following:
1. From the Home screen, touch
Messaging
.
2. Touch
Menu
➔
Settings
➔
Emergency alerts
.
3. All alerts are enabled by default (check mark showing).
To disable alerts, touch an alert to remove the check
mark.
DRAFT
FOR INTERNAL USE ONLY
64
Email
Send and receive email using popular email services.
Configuring Email Accounts
You can configure Email for most accounts in just a few
steps.
Configuring the first email account
1. From the Home screen, select
Apps
➔
Email
.
2. Select your email provider, then follow the prompts to
set up your email account.
Note:
For more information on setting up your email, contact
your Wireless Provider.
Configuring additional email accounts
1. From the Home screen, select
Apps
➔
Email
.
2. Touch
Menu
, then touch
Settings
.
3. Select your email provider, then follow the prompts to
set up your email account.
Composing and Sending Email
1. From the Home screen, select
Apps
➔
Email
➔
Compose
.
2. Touch fields to enter recipients and the email text.
3. While composing a message, touch
Menu
for
options.
4. Touch
Attach
to add a file to the message.
5. Touch
Send
to send the message.
DRAFT
FOR INTERNAL USE ONLY
Messaging 65
Managing Emails
Refreshing Your Email Account
Refresh your account to update your phone from the servers.
1. From the Home screen, select
Apps
➔
Email
.
2. Touch
Refresh
.
Email Account Settings
Use Account settings to configure handling of your email.
Note:
Available settings depend on the email provider.
1. From the Home screen, select
Apps
➔
Email
.
2. Touch an account to view it, then touch
Menu
➔
Settings
➔
General preferences
for options.
Gmail
Send and receive emails via Gmail, Google’s web-based
email.
From the Home screen, select
Apps
➔
Gmail
.
Setting Up Your Gmail Account
The first time you launch Gmail, your phone will prompt you
to set up your Google account.
1. From the Home screen, select
Apps
➔
Gmail
.
2. Follow the prompts to sign in, or create a new account.
3. The phone communicates with the Google server to set
up your account and synchronize your email.
Note:
You can use more than one Google account on your
phone. To add another account, from within Gmail, touch
Menu
➔
Settings
➔
ADD ACCOUNT
option.
DRAFT
FOR INTERNAL USE ONLY
66
Refreshing Your Gmail Account
Refresh your account to update messages on your phone.
1. From the Home screen, touch
Apps
➔
Gmail
.
2. Touch
Refresh
.
Managing Your Gmail Account
Use menu options to manage your Gmail.
1. From the Home screen, touch
Apps
➔
Gmail
.
2. Touch
Menu
for options.
Composing and Sending Gmail
1. From the Home screen, touch
Apps
➔
Gmail
➔
New message
.
2. Touch fields and to compose the message. While
composing, touch
Menu
for options.
3. When your message is complete, touch
Send
.
Google Talk
Google Talk is a free Windows and web-based application for
instant messaging offered by Google. Conversation logs are
automatically saved to a Chats area in your Gmail account.
This allows you to search a chat log and store them in your
Gmail accounts.
1. Log on to your Google account if you have not already
done so. For more information, refer to “Your Google™
Account” on page 15.
2. From the Home screen, touch
Apps
➔
Talk
.
3. Begin using Google Talk.
4. Press ➔
Help
for more information on using
Google Talk.
Note:
The Network confirms your login and processes. This
could take up to 5 minutes to complete.
DRAFT
FOR INTERNAL USE ONLY
Messaging 67
Google +
Google+ makes messaging and sharing with your friends a
lot easier. You can set up Circles of friends, visit the Stream
to get updates from your Circles, use Messenger for fast
messaging with everyone in your Circles, or use Instant
Upload to automatically upload videos and photos to your
own private album on Google+.
1. Sign on to your Google account. For more information,
refer to “Your Google™ Account” on page 15.
2. From the Home screen, touch
Apps
➔
Google+
.
3. Select the account you want to use to sign in to
Google+.
– or –
Touch
Add account
to create another account.
4. Follow the on-screen instructions to use Google+.
5. Visit
www.google.com/mobile/+/
for more information.
Messenger
Messenger allows you to bring groups of friends together into
a simple group conversation. When you get a new
conversation in Messenger, Google+ sends an update to your
phone.
1. Sign on to your Google account. For more information,
refer to “Your Google™ Account” on page 15
2. From the Home screen, touch
Apps
➔
Messenger
.
– or –
From the Google+ application, select
Messenger
.
3. Select the account you want to use to sign in to
Google+.
– or –
Touch
Create a new account
to create another account.
4. At the
Messenger
screen, touch to start a new
message.
5. In the upper text field, enter a name, email address, or
circle.
6. In the bottom message field, enter a message then
touch .
7. From the
Messenger
screen, tap
Learn more
for more
detailed information.
DRAFT
FOR INTERNAL USE ONLY
68
Section 6: Applications and Widgets
This section contains a description of each application and
widget that is available in the Apps and Widget menus, the
function, and how to navigate through that particular
application or widget. If the application or widget is already
described in another section of this user manual, then a
cross reference to that particular section is provided.
Tip:
To open applications quickly, add the icons of frequently-
used applications to one of the Home screens. (For
details, see “Customizing the Home Screen” on page 28.)
You can also add an application icon as a Primary
Shortcut that will display on all Home screens. If you add
an application as a primary shortcut, the application icon
will not be displayed in the Apps menu. (For more
information, refer to “Editing the Primary Shortcuts” on
page 29.)
Accessing Applications
1. Touch
Home
➔
Apps
, and the
Apps
tab.
The
Apps
screen appears in the display.
2. Sweep your finger right or left to scroll the Apps
screens.
3. To launch an application, touch the application’s icon.
Customizing the Applications Screens
Choosing a view
By default, application icons appear in Customizable grid
view. You can change the view to Alphabetical grid view or
Alphabetical list view.
1. From the
Apps
screen, touch
Menu
➔
View type
.
The available options are:
• Customizable grid
: Arrange application icons in the order you
prefer.
• Alphabetical grid
: Application icons automatically arranged in
alphabetical order.
• Alphabetical list
: Application icons automatically listed in
alphabetical order.
DRAFT
FOR INTERNAL USE ONLY
Applications and Widgets 69
Moving Application icons
With the
Apps
screen in Customizable grid view, you can
arrange the application icons to suit yourself.
1. From the
Apps
screen, touch
Menu
➔
Edit
.
Note:
The
Edit
option is not available with the
Apps
screen
View type
set to
Alphabetical list
.
2. Touch and hold an application icon, then drag it to a
new location.
3. When you are finished, then touch
Save
.
Filtering Application icons
You can select which icons appear in the
Apps
screen.
From the
Apps
screen, touch
Menu
, then touch
either of the following options:
• Downloaded applications
: Shows only those applications you
have downloaded and installed on your phone.
• Hide applications
: Mark those applications you do not want to
appear on the
Apps
screen by touching their icons (check
marks appear in their check boxes), then touch
Done
. The
Apps
screen appears without the hidden applications.
DRAFT
FOR INTERNAL USE ONLY
70
Applications List
Browser
Your phone is equipped with a full HTML Browser, which
allows you to access the internet.
From the Home screen, select
Browser
. Your
Wireless Provider’s mobile home page appears in the
Internet screen.
Navigating the web
Selecting items on a page
While browsing web pages, use gestures and menus to
navigate:
•
Touch an item to select it.
•
Touch a hyperlink to follow the link.
•
Touch and hold on a hyperlink for options.
Command Keys
•
Touch
Back
to return to the previous page.
•
To go to the next page,
touch
Forward
.
Touching and dragging
•
Touch and drag your finger on the screen to navigate pages, and
to reposition pages within the screen.
Entering text in a field
•
While browsing, touch a text field to display the virtual QWERTY
keyboard to enter text.
Zoom
Note:
Some web pages do not support the Zoom function.
•
Using two fingers, make a pinch motion on the screen.
–
Pinch in to zoom in on a web page.
–
Pinch out to zoom out on a web page.
•
To return a web page to original size, double tap on it.
Entering a URL
Access a web site quickly by entering the URL.
1. Touch the
URL
field at the top of the Internet screen,
then enter the URL using the virtual QWERTY keyboard.
If the
URL
field is not visible, touch and swipe
downward until the
URL
field appears.
2. As you enter characters, potential matches display.
Continue entering characters, or touch a match to
complete the URL, then touch
Go
to load the page.
DRAFT
FOR INTERNAL USE ONLY
Applications and Widgets 71
Copying text
Copy information from a web page.
1. From the Internet screen, browse to the desired web
site.
2. Touch and hold on the text to enable the text selector,
then use the on-screen tools.
Browser Options
From the Internet screen, touch
Menu
for options:
•New window
: Displays a new window so you can browse
multiple URLs. (For more information, refer to
“Using Browser
Windows”
on page 72.)
• Add bookmark
: Lets you add a URL to your bookmark list
• Add shortcut to home screen
: Lets you add a shortcut to your
Home screen.
• Share page
: Lets you share the page using Gmail or as a
message.
• Find on page
: allows you to search in the current page.
• Desktop view
: allows you to assign the browser to display the
current page in the desktop view (to closely mimic the display
as it would appear on a desktop computer).
• Save for offline reading
: allows you to store the current page
in memory so that it can be read later even if you loose your
Internet connection.
•Brightness
: Lets you manually adjust screen brightness or
select Automatic screen brightness.
• Downloads
: Displays the download history.
•Print
: Lets you print the screen or web page on a Samsung
printer using Wi-Fi.
•Settings
: Lets you tailor the Internet browser to suit yourself.
(For more information, refer to
“Internet browser Settings”
on page 73.)
DRAFT
FOR INTERNAL USE ONLY
72
Using Browser Windows
You can have multiple windows open at one time, and you
can switch between windows.
•
To open a new window, on the Internet screen,
touch
Windows
➔
New window
.
•
To switch to another open window, touch
Windows
. Touch
and swipe to the desired window thumbnail, then touch it to
display the window.
•
To close a window, touch
Windows
. Touch
Close
beside a window to close it.
Going Incognito
The Incognito feature lets you view Internet sites without
leaving records in your browser history or search history, and
without traces (such as cookies) being stored on your device.
Note:
Any downloaded files will be preserved and will stay on your
device after you exit the incognito mode.
To add an Incognito window:
1. From your browser window, tap
Windows
➔
Incognito
.
2. A new Incognito window appears.
Note:
The incognito icon appears in the upper-left of the new
browser window while you are in this mode.
3. Browse to the desired web site(s).
To exit from the incognito window:
1. From your browser window, tap (
Windows
).
2. Scroll across the available windows and locate the
Incognito window.
3. Tap next to the incognito window to delete it.
2
DRAFT
FOR INTERNAL USE ONLY
Applications and Widgets 73
Using Bookmarks
While browsing, bookmark a site to quickly access it later.
Creating a bookmark
1. From the Internet screen, browse to the desired web
site, then touch
Bookmarks
➔
Add
bookmark
. The
Add bookmark
screen appears.
2. Edit the
Name
and
Address
of the new bookmark as
needed, then select the
Location
where you want it
added.
3. Touch
Save
to save the new bookmark.
Accessing bookmarks and history
Launch a bookmarked page, or reload recent pages.
1. From the Internet screen, touch
Bookmarks
.
2. On the tabs, use these options:
•
Touch an item to load the page.
•
Touch and hold on an item for options.
•
Touch
Menu
for more options.
Deleting Bookmarks
1. From the Bookmarks page, touch and hold the
bookmark you want to delete.
2. Touch
Delete bookmark
.
3. In the
Delete
confirmation pop-up, touch
OK
.
Internet browser Settings
To make adjustments in your browser settings, follow these
steps:
1. From the Internet browser screen, touch
Menu
➔
Settings
. The following options are available:
•General
:
–
Set home page
: Sets the current home page for the Web
browser.
–
Form auto-fill
: Lets you fill in web forms with a single touch.
–
Auto-fill text
: Lets you enter text to be used in the Form auto-
fill feature.
DRAFT
FOR INTERNAL USE ONLY
74
• Privacy and security
:
–
Clear cache
: Deletes all currently cached data. Tap
OK
to
complete the process.
–
Clear history
: Clears the browser navigation history. Tap
OK
to
complete the process.
–
Show security warnings
: Notifies you if there is a security
issue with the current web site.
–
Accept cookies
: Allows sites, that require cookies, to save and
read cookies from your device.
–
Clear all cookie data
: Deletes all current browser cookie files.
–
Remember form data
: Allows the device to store data from
any previously filled out forms. Remove the check mark to
disable this function.
–
Clear form data
: Deletes any stored data from previously filled
out forms. Tap OK to complete the process.
–
Enable location
: Allows web sites to request access to your
location.
–
Clear location access
: Clears location access for all web
sites. Tap
OK
to complete the process.
–
Remember passwords
: Stores user names and passwords
for visited sites. Remove the check mark to disable this function.
–
Clear passwords
: Deletes any previously stored user names
or passwords. Tap
OK
to complete the process.
–
Enable notifications
: Allows web site notifications. Select
Always on, On demand, or Off.
–
Clear notifications
: Deletes web site notification access
information.
• Accessibility
:
–
Force zoom
: Lets you override the web site’s request to control
zoom.
–
Text size
: Lets you preview the text size, scale the text size
using a slider bar, and minimize the font size using a slider bar.
–
Inverted rendering
: Lets you preview a web page, select
Inverted rendering (black becomes white and vice versa), and
adjust the Contrast using a slider bar.
• Advanced
:
–
Select search engine
: Lets you set your default search engine
to Google, Yahoo!, or Bing.
–
Open in background
: New pages are launched in a separate
page and displayed behind the current one. Remove the check
mark to disable this function.
DRAFT
FOR INTERNAL USE ONLY
Applications and Widgets 75
–
Enable JavaScript
: Enables Javascript for the current Web
page. Without this feature, some pages may not display
properly. Remove the check mark to disable this function.
–
Allow multiple tabs per app
: Lets you use multiple navigation
tabs per application.
–
Enable plug-ins
: Allows the download of plug-ins such as
Adobe Flash.
–
Default storage
: Lets you set your default storage to Phone or
Memory Card.
–
Website settings
: View advanced settings for individual web
sites.
–
Default zoom
: Adjusts the zoom feature. Set to Far, Medium,
or Close.
–
Open pages in overview
: Shows an overview of newly
opened web pages.
–
Auto-fit pages
: Allows web pages to be resized to fit as much
of the screen as possible.
–
Block pop-ups
: Prevents popup advertisement or windows
from appearing on-screen. Remove the check mark to disable
this function.
–
Text encoding
: Adjusts the current text encoding.
–
Reset to default
: Clears all browser data and resets all settings
to default.
• Bandwidth management
:
–
Preload search results
: Lets the browser preload high
confidence search results in the background to help speed up
searches.
–
Page preloading
: Lets the browser preload web pages in
background. (Options: Never, Only on Wi-Fi, or Always.)
–
Load images
: Allows web page images to be loaded along
with the other text components of a loaded website.
•Labs
:
–
Quick controls
: Lets you open quick controls and hide the app
and URL bars by swiping your thumb from the left or right edge
of the screen.
–
Full screen
: Lets you access Full screen mode and hide the
status bar.
DRAFT
FOR INTERNAL USE ONLY
76
Calculator
Use your phone’s Calculator to perform arithmetical
calculations (addition, subtraction, multiplication, and
division).
From the
Apps
screen, touch
Calculator
.
Calendar
Record events and appointments to manage your schedule.
Tip:
A Calendar widget is available in Widgets. For more
information about placing widgets on the Home screen,
see “Widgets” on page 29.
1. From the
Apps
screen, touch
Calendar
.
2. Touch a tab to choose a calendar view:
•Year
: Display the current year and scroll to other years.
•Month
: Display the current month and scroll to other months.
• Week
: Display the current week, and scroll to other weeks.
•Day
: Display today’s schedule, and scroll to other days.
•List
: Display events and tasks in a chronological list.
•Task
: Display tasks in a chronological list.
3. Touch
Menu
for these options:
•Go to
: Display a specific date.
•Delete
: Delete an event.
•Search
: Search for calendar events.
DRAFT
FOR INTERNAL USE ONLY
Applications and Widgets 77
•Sync
: Synchronize your phones calendar with your account
calendars. (For more information, refer to
“Setting Up Your
Accounts”
on page 36.)
•Settings
: Customize the calendar.
Customizing the Calendar
1. From the
Apps
screen, touch
Calendar
.
2. Touch
Menu
, then touch
Settings
to configure
these settings:
•View settings
:
–
Month view styles
: Choose month view style (Calendar view +
list, Calendar view +pop-up).
–
Week view
: Choose Timeline or Analog view for a week’s
events.
–
First day of week
: Choose a day to begin each week.
–
Hide declined events
: Enable or disable display of events.
–
Lock time zone
: When enabled, sets event times and dates to
a specified time zone, so that times and dates will not change if
you move to another time zone.
–
Select time zone
: When Lock time zone is enabled, specify the
time zone for all events.
–
Show week number
: Display the number of the week (1 – 52)
in a
W
column to the left of
Sun
.
–
Calendars
: Select calendars to display.
• Event notification
:
–
Set alerts & notifications
: Choose Alert to receive alerts,
Status bar notification to display notifications in the Status bar, or
Off for no notifications or alerts.
–
Select Ringtone
: Choose a ringtone for event notifications,
then touch
OK
.
–
Vibration
: Enable/disable vibration for event notifications.
–
Default reminder time
: Choose a default reminder time for
Calendar events (default time is 15 minutes).
–
Notifications while screen is off
: Enable/disable display of
notifications on the full screen while the screen is blanked.
–
Quick responses
: Pre-composed text to include with email
notifications to meeting attendees, guests, and so on.
•Gesture
:
–
Swipe with two fingers
: Show animation demonstrating how
to change the Calendar view with a simple swipe with two
fingers.
DRAFT
FOR INTERNAL USE ONLY
78
Sending Events
Send events as vCalendar files to other compatible devices.
1. From the
Apps
screen, touch
Calendar
.
2. Touch an event to display its details.
3. Touch
Menu
➔
Share via
.
4. Select the desired Sharing method from the
Share via
pop-up.
5. Follow the prompts to send a copy of a Calendar event
to another device. (For more information, refer to
“Connections” on page 95.)
Camera
Use your phone’s built-in Camera to take pictures and record
video.
From the
Apps
screen, touch
Camera
.
Important!
Do not take photos of people without their
permission.
Do not take photos in places where cameras are
not allowed.
Do not take photos in places where you may
interfere with another person’s privacy.
Options menu
Image Viewer
Mode Button
Camera
Button
DRAFT
FOR INTERNAL USE ONLY
Applications and Widgets 79
Taking Pictures
1. From the
Apps
screen, touch
Camera
.
2. Using the display as a viewfinder, compose your
picture by aiming the lens at the subject.
•
Touch the screen to focus on the area you touched.
•
“Pinch” the screen, or press the
Volume
key, to zoom in or out.
•
To configure settings, see
“Camera Options”
on page 79.
3. To take the picture, touch the
Camera
button ( ).
4. After taking a picture, touch
Image Viewer
to view the
picture. While viewing the picture, use these options:
•
“Pinch” the screen, or touch the zoom icons, to zoom in or out,
or double-touch to zoom all the way in or out.
•
Touch
Camera
to return to the Camera viewfinder
screen.
•
Touch
Share
to send the picture using Group Cast,
Picasa, S Memo, Bluetooth, Wi-Fi Direct, Messaging, Dropbox,
Google+, Email, or Gmail.
•
Touch
Slideshow
to view all of your pictures as a
slideshow.
•
Touch
Delete
to erase the picture (only visible with the
screen in landscape mode).
•
Touch
Menu
to access added options: Face tag, Copy to
clipboard, Rotate left, Rotate right, Crop, Set as (Contact photo,
Home and lock screens, Home/Lock screen wallpaper), Buddy
photo share, Print, Rename, Scan for nearby devices, or
Details.
Camera Options
While in Camera mode, touch the
Options
tab:
•
Self portrait
: Switch to the front camera lens, for self-
portraits.
• Flash
: Choose Off, On, or Auto flash.
• Shooting mode
: Choose an automatic shooting mode,
from:
–
Single shot
: Take a single photo.
–
Best photo
: Takes 8 photos in quick succession, then you
select and save the best.
–
Best face
: Takes 5 photos in quick succession and selects the
best photograph based on open eyes, smiles, sudden
movement, and so on.
–
Face detection
: Touch the Camera button to focus on and take
a picture of the subject’s face.
DRAFT
FOR INTERNAL USE ONLY
80
–
Panorama
: Takes a landscape photo by taking an initial photo
and then adding additional images to itself. The guide box lets
you view the area where the second part of the panoramic
picture should fall within.
–
Share shot
: Uses Wi-Fi Direct to share your pictures quickly
with your friends.
–
HDR
: Takes pictures in HDR (High Dynamic Range) mode to
increase image detail.
–
Buddy photo share
: Uses face recognition from pictures in
your contacts to send your friends or family pictures of
themselves.
–
Beauty
: Adjust the contrast to create a smooth facial feature
effect.
–
Smile shot
: Touch the Camera button to focus on the subject’s
face. If a smile is detected, the picture is taken automatically.
–
Low light
: Take better pictures when the light is low.
• Color effects
: Choose color theme for the picture: No
effect (normal color), Cold vintage, Warm vintage, Posterize,
Solarize, Green point, Blue point, or Red-yellow point, Washed
out, Cartoonify, Black and white, Sepia, or Negative.
• Settings
:
–
Edit shortcuts
: Select which function shortcuts appear in the
function menu.
–
Burst shot
: Detects action to automatically take multiple
pictures to create a panorama.
–
GPS Tag
: Add GPS location information to photo details.
–
Self-portrait
: Set the front camera so you can take pictures of
yourself.
–
Flash
: Choose Off, On, or Auto flash.
–
Shooting mode
: Choose Single shot, Burst shot, Face
detection, Panorama, Share shot, HDR, Buddy photo share,
Beauty, Smile shot, Low light, or Cartoon.
–
Effects
: Apply a color effect to pictures.
–
Scene mode
: Choose a mode to match conditions.
–
Exposure value
: Adjust the picture brightness level by moving
the slider.
–
Focus mode
: Choose a type of automatic focus.
–
Timer
: Set a delay before taking a picture.
–
Resolution
: Choose a size (in pixels) for the image.
–
White balance
: Choose a setting for the light source.
–
ISO
: Choose a setting for imaging sensitivity.
DRAFT
FOR INTERNAL USE ONLY
Applications and Widgets 81
–
Metering
: Select a method for measuring light.
–
Auto contrast
: Allow automatic light/dark adjustment.
–
Guidelines
: Enable or disable an on-screen grid to aid in photo
composition.
–
Auto share shot
: Easily connect to the devices you want to
share pictures with, then bring the devices back together (back-
to-back) to connect them.
–
Anti-Shake
: Enable Anti-Shake to minimize the effect of
camera movement.
–
Contextual filename
(requires GPS tagging): Lets you adjust
the filename based on contextual information, such as your
current GPS location.
–
Image quality
: Choose a quality setting for photos.
–
Storage
: Choose to store your pictures in Phone memory or on
an optional Memory card.
–
Reset
: Set all Camera settings to the defaults.
Camcorder
Use your phone’s built-in Camcorder to record video.
From the
Apps
screen, touch
Camera
➔
Mode
.
Important!
Do not take videos of people without their
permission.
Do not take videos in places where cameras are
not allowed.
Do not take videos in places where you may
interfere with another person’s privacy.
Mode
Record
Options menu
Viewer
button
button
DRAFT
FOR INTERNAL USE ONLY
82
Capturing Video
1. From the
Apps
screen, touch
Camera
➔
Mode
.
2. Using the display as a viewfinder, compose your shot
by aiming the lens at the subject.
•
Touch the screen to focus on the area you touched.
•
“Pinch” the screen, or press the
Volume
key, to zoom in or out.
•
To configure settings, see
“Camcorder Options”
on page 82.
3. To start recording, touch the
Record
button ( ).
4. To capture an image from the video while recording,
touch . This feature is not available when the Anti-
Shake feature is activated.
5. To stop recording, touch the
Stop
button ( ).
6. After recording, touch
Image Viewer
to view the video.
While viewing the video, use these options:
•
Pinch the screen to zoom in or out, or double-touch to zoom all
the way in or out.
•
Touch
Play
to review the video.
•
Touch
Camera
to return to the Camcorder viewfinder
screen.
•
Touch
Share
to send the video.
•
Touch
Slideshow
to review all your videos in sequence.
•
Touch
Delete
to erase the video.
•
Touch
Menu
to rename the video or view details about
the video.
•
Touch
Back
to return to the Camcorder to record more
videos.
Camcorder Options
Configure the camcorder.
While in Camcorder mode, touch the
Options
tab:
• Self recording
: Record video with the front lens.
• Flash
: Choose Off or On.
• Recording mode
: Choose a recording mode, from:
–
Normal
: Record a video of any length.
–
Limit for MMS
: Record a video of a size suitable for sending in
a Video message.
•
Color effects
: Choose color theme for the picture: No
effect (normal color), Cold vintage, Warm vintage, Posterize,
Solarize, Green point, Blue point, Red-yellow point, Washed
out, Cartoonify, Black and white, Sepia, or Negative.
DRAFT
FOR INTERNAL USE ONLY
Applications and Widgets 83
• Settings
.
–
Edit shortcuts
: Select which function shortcuts appear in the
function menu.
–
GPS Tag
: Add GPS location information to video details.
–
Self-recording
: Set the front camera so you can take videos of
yourself or video chat.
–
Flash
: Choose Off or On.
–
Recording mode
: Choose Normal or Limit for MMS recording
mode.
–
Effects
: Apply an effect to videos.
–
Exposure value
: Adjust the picture brightness level by moving
the slider.
–
Timer
: Set a delay before starting recording.
–
Resolution
: Choose a size (in pixels) for the recording.
–
White balance
: Choose a setting for the light source.
–
Guidelines
: Enable to display a grid to aid in video composition.
–
Anti-Shake
: Enable Anti-Shake to minimize the effect of
camcorder movement.
–
Contextual filename
(requires GPS tagging): Lets you adjust
the filename based on contextual information, such as your
current GPS location.
–
Video quality
: Choose a quality setting for videos.
–
Storage
: Choose to store your videos in Phone memory or on
an optional Memory card.
–
Reset
: Set all Camcorder settings to the defaults.
DRAFT
FOR INTERNAL USE ONLY
84
Chrome
The Google Chrome app allows you to use the Google
Chrome web browser on your phone.
1. From the
Apps
screen, touch
Chrome
.
2. Read the
Google Chrome Terms of Service
and tap
Accept and Continue
.
3. If you have an existing Chrome account, tap
Sign in
to
bring your open tabs, bookmarks, and omnibox data
from your computer to your phone, otherwise tap
No
thanks
.
4. Follow the on-screen instructions to use Google
Chrome.
Clock
The Clock application includes these features:
•
Alarm
: Create alarms to go off once, or to repeat.
•
World clock
: Display the time and date in any time zone.
•
Stopwatch
: Record lap times.
•
Timer
: Measure elapsed time.
•
Desk clock
: Choose whether the clock calendar and weather
appears on the display, and what outputs are active, when you
connect your phone to an optional dock.
From the
Apps
screen, touch
Clock
.
DRAFT
FOR INTERNAL USE ONLY
Applications and Widgets 85
Downloads
View and manage files and other items you download to your
phone.
1. From the
Apps
screen, touch
Downloads
.
2. Touch an item to open it (if an appropriate application
is installed.)
Note:
Applications you download from Google Play™ Store
are managed with the Play Store app, and do not appear
in
Downloads
.
Email
Send and receive email using popular email services. For
more information, see “Email” on page 64.
From the
Apps
screen, touch
Email
.
Gallery
The Gallery is where you view photos and videos. For photos,
you can also perform basic editing tasks, view a slideshow,
set photos as wallpaper or contact image, and share as a
picture message.
Note:
You can increase Gallery photo and video storage by
installing a memory card. For more information, see
“Installing a Memory Card” on page 7.
1. From the
Apps
screen, touch
Gallery
.
All of the Albums that hold your pictures and videos will
be displayed with folder name(s) and number of files.
2. Tap an Album and thumbnails of the contents will be
displayed.
DRAFT
FOR INTERNAL USE ONLY
86
Viewing Pictures
1. From the Gallery screen, select an album, then touch a
picture to view it.
2. While viewing a picture, touch on the screen or touch
Menu
for options.
•
Touch
Camera
to return to the Camera viewfinder
screen.
•
Touch
Share
to send the picture using Group Play,
Dropbox, Flipboard, Picasa, Google+, S Memo, Bluetooth, Wi-
Fi Direct, Messaging, Gmail, or Email.
•
Touch
Slideshow
to view all of your pictures as a
slideshow.
•
Touch
Menu
for the following additional options:
–
Delete
: Erase the picture.
–
Face tag
: When enabled, identifies faces with a yellow box, so
you can touch to add tag information.
–
Copy to clipboard
: Create a copy, to paste into other apps.
–
Rotate left
/
Rotate right
: Change the picture’s orientation.
–
Crop
: Change the picture’s size and/or remove portions of the
picture.
–
Set as
: Assign the picture as a Contact photo, or as wallpaper.
–
Buddy photo share
: Send the picture to the Contacts whose
Contact photos match faces in the picture.
–
Print
: Print the picture via Wi-Fi to a compatible Samsung
printer.
–
Rename
: Change the picture’s filename.
–
Scan for nearby devices
: Scan for in-range devices that can
be connected with and sent the current image.
–
Details
: View information about the picture.
DRAFT
FOR INTERNAL USE ONLY
Applications and Widgets 87
Viewing Videos
1. From the Gallery screen, then select an album. A
matrix or list of available videos appears.
2. To play a video, touch its thumbnail or list entry.
3. The following options are available:
•
Touch
Camera
to take pictures or record videos.
•
Touch
Share
to send the picture using Dropbox, Picasa,
Google+, Bluetooth, Wi-Fi Direct, Messaging, YouTube, Gmail,
or Email.
•
Touch
Slideshow
to view all of your videos in sequence.
•
Touch
Menu
for the following additional options:
–
Delete
: Erase the video.
–
Rename
: Change the video’s filename.
–
Details
: View information about the video.
Gmail
Send and receive emails via Gmail, Google’s web-based
email.
For more information, see “Gmail” on page 65.
From the
Apps
screen, touch
Gmail
.
DRAFT
FOR INTERNAL USE ONLY
88
Google+
Google+ makes messaging and sharing with your friends a
lot easier. You can set up Circles of friends, visit the Stream
to get updates from your Circles, use Messenger for fast
messaging with everyone in your Circles, or use Instant
Upload to automatically upload videos and photos to your
own private album on Google+.
From the
Apps
screen, touch
Google+
.
Latitude
With Google Latitude, you can
see the location of all of your
friends on a list or on a map.
You can also share or hide
your location.
You must first set up your
phone to use wireless
networks to help pinpoint your
location. Also, Latitude works
best when Wi-Fi is enabled.
(For more information, refer to
“Location and security” on
page 137 and to “Wi-Fi” on page 94.)
For more information, go to
http://www.google.com/latitude
.
1. Navigate to a Home screen panel, then touch
Apps
➔
Latitude
. The
Maps
screen appears.
(For more information, refer to “Maps” on page 89.)
2. Touch
Local
. Your
Local
screen appears.
3. In the
Local
screen, touch the
Local
menu.
4. Select
Lattitude
. The
Latitude
screen appears.
DRAFT
FOR INTERNAL USE ONLY
Applications and Widgets 89
Local
Find places of interest near your current location or a
specified locations.
Note:
To use Local, enable location services. (For more
information, refer to “Location services” on page 128.)
1. From the
Apps
screen, touch
Local
.
2. For more information, touch
Menu
➔
Help
.
Maps
Use Google Maps to find your current location, get directions,
and other location-based information. The Google Maps
shortcut appears by default on the Home screen.
Note:
You must enable location services to use Maps, and
some features require Standalone or Google location
services. (For more information, see “Location services”
on page 128.)
From the
Apps
screen, touch
Maps
.
Navigating the Map
Zooming
•
Double-tap on the screen to zoom in.
•
Pinch to zoom out.
•
Pinch out (spread your fingers) to zoom in.
Scrolling
•
Touch and drag on the screen to reposition the map in the display.
Touch
•
Touch an icon on the map to display information about the
location.
DRAFT
FOR INTERNAL USE ONLY
90
Messaging
Messaging lets you exchange text and multimedia messages
with compatible device users. (For more information, refer to
“Messaging” on page 59.)
From a Home screen, touch the
Messaging
shortcut.
– or –
From the
Apps
screen, touch
Messaging
.
Messenger
Messenger allows you to bring groups of friends together into
a simple group conversation. When you get a new
conversation in Messenger, Google+ sends an update to your
phone. (For more information, refer to “Google+” on page
88.)
From the
Apps
screen, touch
Messenger
.
Navigation
Use Google Navigation to search for locations, and get turn-
by-turn directions.
Note:
You must enable location services to use Navigation,
and some features require Standalone or Google
location services. (For more information, see “Location
services” on page 128.)
From the
Apps
screen, touch
Navigation
.
People
People lets you access and manage your Contacts Groups,
Contacts list, and Favorites list. (For more information, refer
to “People” on page 38.)
From the
Apps
screen, touch
People
.
DRAFT
FOR INTERNAL USE ONLY
Applications and Widgets 91
Phone
The Phone application allows you to access the dialer
keypad, call logs, and favorites. (For more information, refer
to “Calling” on page 48.)
From a Home screen, touch the
Phone
shortcut.
– or –
From the
Apps
screen, touch
Phone
.
Play Books
Google Books is now Google Play™ Books. Discovering your
favorite books and authors has never been easier. With
Google Play Books, you can shop the world's largest
selection of ebooks and read them anywhere you like - on a
tablet, phone, ereader, or the Web.
From the
Apps
screen, touch
Play Books
.
Play Magazines
With Google Play Magazines, you can subscribe to your
favorite magazines and have them available to read on your
phone at any time or any place.
From the
Apps
screen, touch
Play Magazines
.
Play Movies & TV
With Google Play Movies, you can rent thousands of different
movies. You can watch instantly, or download your movie for
offline viewing at a later time.
1. From the
Apps
screen, touch
Play Movies & TV
.
2. Log on to your Google account if you have not already
done so.
3. Following the on-screen instructions for renting and
viewing movies.
Play Music
With Google Play Music, you can play music that you have
added to your music file as well as any music you copied
from your PC. While offline, you can listen to music you have
copied from your PC.
1. From the
Apps
screen, touch
Play Music
.
2. Follow the on-screen instructions to locate and play
music.
DRAFT
FOR INTERNAL USE ONLY
92
Play Store
Android Market is now Google Play™ Store, where all your
favorite books, movies, apps, and games are all in one place
that’s accessible from the Web and your Android device.
You’ll need to have a Google account set up on your phone to
download a new application.
1. From the
Apps
screen, touch
Play Store
.
2. The first time you open Play Store, read the Terms of
Service, then touch
Accept
to continue.
3. Browse for applications to download, then follow the
prompts.
Search
Use Google to search the Web.
Tip:
The Google Search widget is available by default on the
Home screen. For more information Widgets, see “Adding
Widgets to the Home screen” on page 29.
1. From the Home screen, touch the
Google Search
widget.
– or –
From the
Apps
screen, touch
Search
.
2. Enter search criteria. Search results display
automatically. Touch a search result to display it in a
browser window.
Talk
Use Google Talk to chat with other Google Talk users. For
more information, see “Google Talk” on page 66.
From the
Apps
screen, touch
Talk
.
YouTube
Access your YouTube™ account, and view and upload
YouTube videos, right from your phone.
From the
Apps
screen, touch
YouTube
.
DRAFT
FOR INTERNAL USE ONLY
Applications and Widgets 93
Accessing Widgets
1. Press
Home
, then Sweep your finger right or left
to scroll to a particular Home screen panel.
2. Touch
Apps
, then the
Widgets
tab. The
Widgets
screen appears in the display.
– or –
Touch and hold on the displayed
Home screen
panel
until the Home screen menu pops-up, then touch
Add
to Home screen
➔
Apps and widgets
, then the
Widgets
tab. The
Widgets
screen appears in the display.
3. Sweep your finger right or left to scroll through the
Widgets screens and find the desired widget.
4. To place a widget on the selected Home screen panel,
touch and hold the widget’s image or icon, then
position the widget on the Home screen panel.
5. If needed, follow any prompts to configure the widget.
Widgets List
The following widgets are available for executing on your
Home screen:
•
Analog clock 2 x 2
: View the time on an analog clock face
without numbers.
•
Book 1 x 1
: Directly access one of your downloaded electronic
books from
Play Store
.
•
Bookmark 1 x 1
(red background): Directly access on of your
Browser bookmarks.
•
Bookmark 1 x 1
(white background): Directly access on of your
Browser bookmarks.
•
Bookmarks 3 x 2
:
•
Bookmarks 3 x 2
:
•
Calendar 2 x 3
: View your Calendar events scheduled for today.
•
Contact 4 x 1
: Directly access a selected contact for calls or
messaging.
•
Contact 1 x 1
: Directly access a selected contact for calls or
messaging.
•
Direct Dial 1 x 1
: Immediately call a selected contact.
•
Direct Message 1 x 1
: Immediately send a message to a
selected contact.
DRAFT
FOR INTERNAL USE ONLY
94
•
Directions & Navigation 1 x 1
: Immediately obtain directions to
a selected location.
•
Email 3 x 2
: View and directly access email messages in your
Combined email box.
•
Gmail 3 x 3
: View and directly access your Gmail messages.
•
Gmail label 1 x 1
: Directly access Gmail messages with a
selected Gmail label.
•
Google Play Books 2 x 3
: Directly access your Google books.
•
Google Play Music 4 x 1
: Directly access and play a selected
music playbook.
•
Google Search 4 x 1
(transparent background): Perform and
manage Internet searches.
•
Google+ posts 4 x 2
: View and access your social media site
accounts.
•
Home screen tips 4 x 2
: .
•
Music playlist 1 x 1
: Play a selected music playlist.
•
Photo Gallery 3 x 3
:
•
Play Store 2 x 2
: View recommendations from and access Google
Play Store.
•
Power control 4 x 1
:
•
Settings shortcut 1 x 1
: Directly access selected settings for
your phone.
•
Software update 1 x 1
: Directly access your device software
status information and access
Software update
.
•
Traffic 1 x 1
: Directly access traffic information for a selected
destination.
•
YouTube 3 x 2
: Receive and view suggested videos. Directly
access your YouTube account.
DRAFT
FOR INTERNAL USE ONLY
Connections 95
Section 7: Connections
Wi-Fi
Wi-Fi is a wireless networking technology that provides
access to local area networks.
Wi-Fi communication requires access to an existing Wi-Fi
network. Wi-Fi networks can be Open (unsecured), or
Secured (requiring you to provide login credentials).
Your phone supports the 802.11 a/b/g/n Wi-Fi protocols.
Configuring Wi-Fi Settings
Configure your phone’s Wi-Fi settings. For more information,
see “Wi-Fi Settings” on page 104.
Turning Wi-Fi On or Off
When you turn Wi-Fi service on, your phone automatically
searches for available, in-range “hotspots” [also termed
WAPs (Wireless Access Points)].
Turning Wi-Fi On
1. From the top of the Home screen, sweep your finger
downward to display the Notifications screen.
2. At the top of the Notifications screen, touch
Wi-Fi
to turn Wi-Fi On.
Turning Wi-Fi Off
1. From the top of the Home screen, sweep your finger
downward to display Notifications.
2. At the top of the Notifications screen, touch
Wi-Fi
to turn Wi-Fi Off.
DRAFT
FOR INTERNAL USE ONLY
96
Scanning and Connecting to a Wi-Fi Network
1. Turn Wi-Fi on (see “Turning Wi-Fi On” on page 95).
Your phone scans for available hotspots and pops-up a
list of any it finds.
2. To connect to a hotspot, touch it on the pop-up list.
•
If the Wi-Fi network is open, you will be automatically
connected.
•
If the Wi-Fi network is secured, enter the password at the
prompt to connect.
Adding a Wi-Fi Network Manually
1. From the Home screen, touch
Menu
➔
Settings
➔
Wi-Fi
. The
Wi-Fi
options screen appears. (For more
information, refer to “Accessing Settings” on page
103.)
2. Touch
Wi-Fi
to turn on Wi-Fi.
3. Touch
Add Wi-Fi network
, then enter the following
values:
• Network SSID
: Enter the name of the WAP (Wireless Access
Point).
• Security
: Select the type of security used by the WAP.
• Password
: If the WAP is secured, enter the password or key.
Wi-Fi Direct
Wi-Fi Direct allows devices to connect to each other directly
via Wi-Fi, without a Wi-Fi network or hotspot, and without
having to set up the connection. For example, some printers
support Wi-Fi Direct, and you could print from your phone via
Wi-Fi Direct.
Establishing Wi-Fi Direct Connections
1. From the Home screen, touch
Menu
➔
Settings
➔
Wi-Fi
➔
Wi-Fi Direct
.
The
Wi-Fi Direct
screen appears, and your phone scans
for available Wi-Fi Direct devices and lists them under
Available devices
.
2. To connect to a single Wi-Fi Direct device, touch its
name in the list.
3. To connect to multiple Wi-Fi Direct devices, touch
Multi-connect
, next touch
Select all
or individual
devices, then touch
Done
.
DRAFT
FOR INTERNAL USE ONLY
Connections 97
Bluetooth
Note:
For Hearing Aid Compatibility Information, see page 163.
Bluetooth is a short-range wireless communications
technology for exchanging information over a distance of
about 30 feet.
You don’t need to line up the devices to send information
with Bluetooth. If the devices are in range, you can exchange
information between them, even if they are in different
rooms.
Configuring Bluetooth Settings
Configure your phone’s Bluetooth settings. For more
information, see “Bluetooth settings” on page 106.
Note:
Bluetooth profiles are specifications for services
supported by individual devices. For a list of profiles your
phone supports, see “Bluetooth profiles” on page 105.
Turning Bluetooth On or Off
1. From the Home screen, sweep your finger from the top
of the screen downward to display Notifications.
2. Touch
Bluetooth
to turn Bluetooth On.
Touch
Bluetooth
to turn Bluetooth Off.
Pairing with a Bluetooth Device
Search for a Bluetooth device and pair with it, to exchange
information between your phone and the device.
After pairing, your phone and the target device will connect
with each other and exchange information without a
passcode or PIN.
Note:
When connected, the
Bluetooth connected
icon
displays in the Status Bar. If you receive a new request
for connection while connected with a Bluetooth
headset, a new Bluetooth icon displays at the left of the
Status bar and Notifications displays the connection
request.
1. Activate the target device’s discoverable mode.
DRAFT
FOR INTERNAL USE ONLY
98
2. On your phone, turn on Bluetooth (see “Turning
Bluetooth On or Off” on page 97). A list of detected
devices pops-up on your display.
3. From the list of detected devices, touch the target
device, your phone attempts to automatically pair with
the target device.
If automatic pairing fails, then follow the prompts to
complete manual pairing:
•
Enter a PIN for the target device and touch OK.
Tip:
Some devices use a default passcode of 0000. Refer to
the target device’s user manual for more information.
•
When prompted to connect with the target device, touch
OK
to
complete the connection, touch
Cancel
to retain the pairing
only.
Connecting with a Bluetooth Device
1. From the Home screen, touch
Menu
➔
Settings
➔
Bluetooth
. The
Bluetooth
screen appears in the display.
2. Under
Available devices
, touch a previously paired
device. The device connects with your phone.
VPN
You can use your phone’s VPN (Virtual Private Network)
feature to connect to VPNs.
Configuring VPN Settings
For information about configuring your phone’s VPN settings,
see “VPN” on page 109.
Accessing a VPN
1. From the Home screen, touch
Menu
➔
Settings
.
2. Under
Wireless and network
, touch
More settings
➔
VPN
. The
VPN
screen appears, listing available VPN
connections.
3. Touch
a VPN and follow any prompts to access the
network.
PC Connections
You can connect your device to a PC using an optional PC
data cable using various USB connection modes.
Storage
: Lets you use the built-in mass storage and memory
card capacity of the phone to store and upload files. This
option lets your computer treat your phone’s installed and
card memory as removable storage drives.
DRAFT
FOR INTERNAL USE ONLY
Connections 99
Kies air
: Lets you wirelessly synchronize files on your phone
(in mass storage and on a memory card) with files on your
Windows PC, provided they are both on the same Wi-Fi
network.
Note:
To sync your device to your PC it is highly recommended
that you install Samsung Kies which is available at
http://www.samsung.com/kies
(for Windows/Mac).
Note:
If you are a Windows XP user, ensure that you have
Windows XP Service Pack 3 or higher installed on your
computer. Also, ensure that you have Samsung Kies 2.5
or Windows Media Player 10 or higher installed on your
computer.
Connecting as a Storage Device
You can connect your device to a personal computer, have
your device appear as a removable disk, and access your
device’s file directory. If you insert a memory card in the
device, you can also access the files directory on the
memory card by using the device as a memory card reader.
Note:
The file directory of the memory card displays as a
removable disk, separate from the internal memory.
1. Connect the USB cable to the device and connect the
cable to the computer. After a few seconds, a pop-up
window displays on the PC, prompting you to choose
how to access the new device.
2. On the PC pop-up, click
Open device to view files
.
You can now transfer files between the PC and your
phone’s memory and memory card (if installed).
DRAFT
FOR INTERNAL USE ONLY
100
Tethering
Use Tethering to share your phone’s internet connection with
a computer connected to your device using the USB data/
charging cable, or using Bluetooth.
For more information, refer to “Tethering” on page 110.
1. From the
Settings
screen, under
WIRELESS &
NETWORKS
, touch
More settings
➔
Tethering and
portable hotspot
. The
Tethering & portable hotspot
screen appears.
2. Choose a tethering method:
• USB tethering
: Connect the computer to the phone via USB
cable, then touch
USB Tethering
to turn tethering On or Off.
When On, a check appears in the check box.
• Bluetooth tethering
: Connect your phone with the computer
using Bluetooth. Consult the computer’s documentation for
more information about using your computer to make a
Bluetooth connect. Touch
Bluetooth Tethering
to turn tethering
On or Off. When On, a check appears in the check box.
Note:
Using Tethering requires a subscription to your Wireless
Provider’s mobile data service.
Portable Wi-Fi Hotspot
Use Portable Wi-Fi Hotspot to share your phone’s internet
connection with a PC or other device through Wi-Fi, using
your phone as the mobile hotspot.
Note:
Portable Wi-Fi Hotspot requires a subscription to the
applicable service to use the application.
Portable Wi-Fi Hotspot consumes battery power and
uses data service. While the Portable Wi-Fi Hotspot is
active, your phone’s applications will use the Portable
Wi-Fi Hotspot data feature allowance.
Configuring Portable Wi-Fi Hotspot Settings
Configure your phone’s Portable Wi-Fi Hotspot settings,
including your phone’s name and password, and set the
visibility of your phone’s Wi-Fi hotspot.
Tip:
By default, your device’s mobile hotspot has no security
applied, and any device can connect. For more
information about configuring your mobile hotspot, see
“Portable Wi-Fi Hotspot” on page 110.
DRAFT
FOR INTERNAL USE ONLY
Connections 101
Activating Portable Wi-Fi hotspot
Activate your phone’s Portable Wi-Fi Hotspot application to
allow other devices to use your phone’s internet connection.
1. From the Home screen, touch
Menu
➔
Settings
.
The
Settings
screen appears.
2. Under
WIRELESS & NETWORKS
, touch
More...
➔
Tethering & portable hotspot
➔
Portable Wi-Fi hotspot
.
When enabled, a check mark appears in the check box.
Connecting a Device via Portable Wi-Fi Hotspot
Use the other device’s Wi-Fi control to connect to your
phone’s Portable Wi-Fi Hotspot.
1. Activate Portable Wi-Fi Hotspot on your phone. For
more information, see “Activating Portable Wi-Fi
hotspot” on page 101.
2. Activate Wi-Fi on the other device, using that device’s
Wi-Fi control.
3. Scan for Wi-Fi hotspots, and select your phone from
the list. To find your phone’s name, see “Configuring
Portable Wi-Fi Hotspot” on page 111.
4. At the prompt, enter your phone’s Portable Wi-Fi
Hotspot password.
By default, the password is your phone’s telephone
number. For information on changing your phone’s
Portable Wi-Fi Hotspot password, see “Configuring
Portable Wi-Fi Hotspot” on page 111.
DRAFT
FOR INTERNAL USE ONLY
102
Memory Card
Your phone supports removable microSD™ or microSDHC™
memory cards of up to 64GB capacity, for storage of music,
pictures, videos, and other files.
Installing and Removing a Memory Card
For more information about installing and removing a
memory card, see “Installing a Memory Card” on page 7.
Important!
To prevent damage to information stored on the
memory card, unmount the card before removing it
from the phone.
Formatting a Memory Card
Use the Erase SD card setting to remove all content from an
installed memory card.
1. From the Home screen, touch
Menu
➔
Settings
.
2. Under
Device
, touch
Storage
.
3. Under
SD card
, touch
Unmount SD card
.
4. After unmounting the SD card, touch
Format SD card
,
then follow the prompts to confirm the deletion of
information from the card.
DRAFT
FOR INTERNAL USE ONLY
Settings 103
Section 8: Settings
Accessing Settings
From the Home screen, touch
Menu
➔
System settings
.
– or –
From the Home screen, touch
Apps
➔
Settings
.
The
Settings
menu appears.
Using Setting Sliders
To enable or disable a setting, touch the setting slider
as shown.
Accessing Additional Options
To access additional setting options, touch the setting
label.
Note:
This section does not include information about Call
settings. For Call settings information, see “Call
Settings” on page 54.
DRAFT
FOR INTERNAL USE ONLY
104
WIRELESS & NETWORK
Wi-Fi
Set up and manage your phone’s connections to Wi-Fi
networks. Your phone supports Wi-Fi a/b/g/n.
For more information about using Wi-Fi, see “Wi-Fi” on
page 95.
Turning Wi-Fi On or Off
Turn your phone’s Wi-Fi service on or off. When you turn Wi-
Fi service on, your phone automatically searches for nearby
available Wi-Fi networks.
Tip:
When you turn Wi-Fi service on, your phone automatically
searches for available networks and displays them.
You can also turn Wi-Fi On or Off from the Notifications
panel.
Turn Wi-Fi On:
From the
Settings
screen, touch
Wi-Fi
.
Turn Wi-Fi Off:
From the
Settings
screen, touch
Wi-Fi
.
Wi-Fi Settings
Configure and manage connections to Wi-Fi access points.
1. From the
Settings
screen, touch
Wi-Fi
. The
Wi-Fi
options screen appears.
2. Touch options to configure:
•SCAN
: Search for available Wi-Fi networks.
•ADD NETWORK
: Connect to a new Wi-Fi network (see
“Adding a Wi-Fi Network Manually”
on page 96).
3. Touch
Menu
to access the following additional
options:
• Advanced
: View and configure the following Advanced Wi-Fi
settings:
–
Network notification
: When enabled, your phone notifies you
of nearby Wi-Fi networks when you launch a high data-usage
application.
–
Keep Wi-Fi on during sleep
: Specify when to switch from
Wi-Fi to mobile data for data communications, when the phone
goes to sleep (when the backlight goes out). This setting can
affect your data usage, and the behavior of devices you connect
to your phone, such as when tethering or using Mobile Hotspot.
DRAFT
FOR INTERNAL USE ONLY
Settings 105
–
MAC address
: (Not configurable) View your phone’s MAC
address, needed for connecting to some secured networks (only
shows when Wi-Fi is active).
–
IP address
:
(Not configurable) View your phone’s IP address
(only shows when connected to a Wi-Fi network).
Bluetooth
Your phone supports Bluetooth® 4.0.
Bluetooth profiles
Bluetooth profiles are specifications for services supported
by individual devices. Profiles improve the ability of different
devices to work together. Your phone supports these
Bluetooth profiles:
•
Headset
: HSP v1.2 profile supports use of compatible Bluetooth
headsets for mono voice.
•
Handsfree
: HFP v1.5 profile supports Bluetooth headsets, and
may also support other compatible Bluetooth devices with
speakerphone capabilities.
•
Stereo
: A2DP v1.2, AVRCP v1.0, GAVDP 1.2, AVCTP 1.3 and
AVDTP 1.2 profiles support delivery of stereo audio to compatible
Bluetooth devices.
•
Object Exchange
: OPP v1.0 profile allows sending and receiving
of contact name cards (vCard 2.1) and calendar events
(vCalendar) between devices. PBAP v1.2 supports exchange of
Phone Book Objects.
•
Human Interface Devices
: HID v1.0 profile supports certain
interface devices.
DRAFT
FOR INTERNAL USE ONLY
106
•
Personal Area Networking
: PAN 1.0 supports exchange of data
with other devices.
•
Message Access Profile
: MAP 1.0 allows exchange of messages
between devices, such as with an automotive hands-free device.
Turning Bluetooth On or Off
Turn Bluetooth On:
From the
Settings
screen, touch
Bluetooth
.
Turn Bluetooth Off:
From the
Settings
screen, touch
Bluetooth
.
Tip:
You can also turn Bluetooth On or Off at the Notifications
Panel.
Bluetooth settings
Pair and connect with other Bluetooth devices, manage your
Bluetooth connections, and control your device’s visibility to
other devices.
Note:
Bluetooth must be turned On to access Bluetooth
settings.
1. From the
Settings
screen, touch
Bluetooth
.
2. Touch a setting to configure Bluetooth:
•
Touch
Bluetooth
to turn Bluetooth On, or touch
Bluetooth
to turn Bluetooth Off.
•
Touch your phone’s name to enable/disable its visibility to other
devices’ Bluetooth searches. Available when Bluetooth is On.
•
Touch
Scan
to search for visible Bluetooth devices. Touch a
detected device to pair with it (see
“Pairing with a Bluetooth
Device”
on page 97).
•
Touch
Menu
to access the following options:
–
Rename device
: Change your phone’s Bluetooth device name.
–
Visible time-out
: Select how long your phone will remain
visible to other devices.
–
Received files
: Lists files received from other devices over
Bluetooth connections.
DRAFT
FOR INTERNAL USE ONLY
Settings 107
Data usage
Control your device’s connection to your Wireless Provider’s
data service, and monitor your data usage.
Turning Mobile data On or Off
1. From the
Settings
screen, under
Wireless and network
,
touch
Data usage
. The
Data usage
screen appears.
2. Touch
Mobile data
to turn Mobile data On or Off. When
Mobile data is on, check mark appears in the check
box.
Tip:
You can also turn Mobile data On or Off at the Notifications
panel.
Setting a mobile data limit
Setting a mobile data limit causes your phone to
automatically disable the Mobile data connection when the
limit is reached. You can set a warning threshold, to have
your device alert you when data usage nears your set limit.
Data usage is measure by your device, and your service
provider may account for usage differently, so you may want
to consider using a conservative limit. Contact your service
provider for more information on actual data usage.
1. From the
Settings
screen, under
Wireless and network
,
touch
Data usage
. The
Data usage
screen appears.
2. To enable mobile data, touch
Mobile data
.
3. To enable the limit, touch
Set mobile data limit
. A red
limit line appears in the
Data usage
screen.
DRAFT
FOR INTERNAL USE ONLY
108
4. To adjust the mobile
Data usage cycle
, touch and drag
the vertical usage cycle lines left or right on the graph.
5. To adjust the mobile data usage warning level, touch
and drag the horizontal
warning
line up or down on the
graph.
6. To adjust the mobile data usage limit level, touch and
drag the horizontal
limit
line up or down on the graph.
Viewing data usage by app or process
1. From the
Settings
screen, under
Wireless and network
,
touch
Data usage
. The
Data usage
screen appears.
2. Scroll down the page to see the top three processes or
apps using mobile data service. Touch a process or
app to see data usage for the process or app, and to
configure specific settings.
DRAFT
FOR INTERNAL USE ONLY
Settings 109
More Wireless and Network Settings
Airplane mode
When airplane mode is enabled, all your phone’s wireless
connections are disabled, and you cannot make or receive
calls [except for Emergency (E911) calls] or messages. You
can, however, make Wi-Fi and Bluetooth connections.
While in airplane mode, you can use other features of your
phone, such as playing music, watching videos, or using
other applications.
1. From the
Settings
screen, under
Wireless and network
,
touch
More settings
. The
Wireless and network
menu
appears.
2. Touch
Airplane mode
to enable or disable airplane
mode. When enabled, a check appears in the check
box.
VPN
Set up and manage Virtual Private Networks (VPNs). For more
information about using VPNs, see “VPN” on page 98
Adding a VPN
1. From the
Settings
screen, touch
Wireless and network
➔
More settings
➔
VPN
.
2. Touch
Add VPN network
to set up a connection to a
VPN, using the following settings:
•Name
: Enter a name for the VPN connection.
•Type
: Choose the type of VPN.
• Server address
: Enter the IP address of the VPN server.
• PPP encryption (MPPE)
: Touch to enable or disable
encryption.
• Show advanced options
: Touch to show more options.
Available options depend on the type of VPN you are adding.
Note:
You must enable at least Pattern security before setting
up a VPN. If you have not yet enabled security, you’ll be
prompted to do so the first time you launch VPN
settings.
DRAFT
FOR INTERNAL USE ONLY
110
Tethering
Use Tethering to share your phone’s internet connection with
a computer that connects to your device via USB cable, or by
Bluetooth.
For more information about connecting computers to your
phone via Tethering, see “Tethering” on page 100.
1. From the
Settings
screen, under
Wireless and network
,
touch
More settings
➔
Tethering and portable hotspot
.
The
Tethering and portable hotspot
screen appears.
2. Choose a tethering method:
• USB tethering
: Connect the computer to the phone via USB
cable, then touch
USB Tethering
to turn tethering On or Off.
When On, a check appears in the check box.
• Bluetooth tethering
: Pair your phone with the computer via
Bluetooth. Consult the computer’s documentation for more
information about configuring your computer to pair via
Bluetooth. Touch
Bluetooth Tethering
to turn tethering On or
Off. When On, a check appears in the check box.
Note:
Using Tethering requires a subscription to your Wireless
Provider’s mobile data service.
Portable Wi-Fi Hotspot
Use Portable Wi-Fi Hotspot to share your phone’s internet
connection with up to 5 other devices, through Wi-Fi.
You can control whether devices connect to your Portable Wi-
Fi Hotspot with the Allowed device list.
For more information about using your phone as a mobile
hotspot, see “Portable Wi-Fi Hotspot” on page 100.
Note:
Using Portable Wi-Fi Hotspot requires a subscription to
data service. For more information, contact your
Wireless Provider.
Using your phone as a mobile hotspot consumes battery
power and uses data service. While Portable Wi-Fi
Hotspot is active, your phone’s applications will use your
Wireless Provider’s data service. Roaming while using
your phone as a mobile hotspot will incur extra data
charges.
DRAFT
FOR INTERNAL USE ONLY
Settings 111
Turning Portable Wi-Fi Hotspot On or Off
1. From the
Settings
screen, under
Wireless and network
,
touch
More settings
➔
Tethering and portable hotspot
➔
Portable Wi-Fi hotspot
.
2. Touch
Portable Wi-Fi Hotspot
and follow the
prompts to turn Portable Wi-Fi Hotspot On, or touch
Portable Wi-Fi Hotspot
to turn Portable Wi-Fi
Hotspot Off.
Note:
Using your phone as a mobile hotspot consumes battery
power and uses data service. While Portable Wi-Fi
Hotspot is active, your phone’s applications will use your
Wireless Provider’s data service. Roaming while using
your phone as a mobile hotspot will incur extra data
charges.
Configuring Portable Wi-Fi Hotspot
1. From the
Settings
screen, under
Wireless and network
,
touch
More settings
➔
Tethering and portable hotspot
➔
Portable Wi-Fi hotspot
. The
Portable Wi-Fi hotspot
screen appears.
2. Touch
Configure
to access the following options:
• Network SSID
: View and change the name of your Mobile
Hotspot.
• Hide my device
: When enabled, your Portable Wi-Fi Hotspot is
not visible to other Wi-Fi devices during a scan. Other devices
can still connect to your Portable Wi-Fi Hotspot, but will have to
set up the connection manually with your Network SSID and
Password.
•Security
: Choose the security level for your Portable Wi-Fi
Hotspot.
•Password
: If you choose a security level that uses a password,
enter the password. By default, the password is your mobile
telephone number.
• Show password
: Enable to make the Password field visible.
• Show advanced options
: Enable to access advanced options,
including Broadcast channel, to specify the channel your device
uses for Portable Wi-Fi Hotspot.
DRAFT
FOR INTERNAL USE ONLY
112
Allowed Device List
Control whether devices connect to your Portable Wi-Fi
Hotspot with the Allowed device list. After you add devices to
the list, they can scan for your device and connect using your
device’s Wi-Fi hotspot name (SSID) and password.
Note:
Using your phone as a mobile hotspot consumes battery
power and uses data service. While Portable Wi-Fi
Hotspot is active, your phone’s applications will use your
Wireless Provider’s data service. Roaming while using
your phone as a mobile hotspot will incur extra data
charges.
1. From the
Settings
screen, under
Wireless and network
,
touch
More settings
➔
Tethering and portable hotspot
➔
Portable Wi-Fi hotspot
. The
Portable Wi-Fi hotspot
screen appears.
2. Touch
Allowed device list
➔
, then enter the other
device’s Device name and MAC address.
3. Touch
OK
to add the device to the
Allowed devices
list.
Tip:
For information about connecting to your Portable Wi-Fi
Hotspot, see “Connecting a Device via Portable Wi-Fi
Hotspot” on page 101.
Wi-Fi Direct
Wi-Fi Direct allows devices to connect to each other directly
via Wi-Fi, without a Wi-Fi network or hotspot, and without
having to set up the connection. For example, some printers
support Wi-Fi Direct, and you could print from your phone via
Wi-Fi Direct.
Turning Wi-Fi Direct On or Off
From the
Settings
screen, touch
More
➔
Wi-Fi Direct
.
1. If Wi-Fi is enabled, the
Wi-Fi Direct
pop-up appears.
2. To turn off Wi-Fi and enable
Wi-Fi Direct
, touch
OK
. A
check mark appears in the check box.
(For information on connecting your phone to other Wi-Fi
Direct devices, see “Establishing Wi-Fi Direct Connections”
on page 96.)
DRAFT
FOR INTERNAL USE ONLY
Settings 113
Mobile networks
Set options for network selection, data service, and roaming
behavior.
1. From the
Settings
screen, under
Wireless and network
,
touch
More settings
➔
Mobile networks
. The
Mobile
networks
screen appears.
2. Set these options:
• Mobile data
: Enable or disable your phone’s connection to the
mobile data network. You can also control this setting at
Notifications with the Mobile data toggle.
• Data roaming
: Enable or disable connection to data services
when your device is roaming on another network. For more
information about roaming, see
“Roaming”
on page 16.
•Network mode
: Configure roaming for CDMA, LTE, and EV-DO
networks.
–
LTE/CDMA
: Lets your phone automatically access LTE, CDMA,
and/or EV-DO mobile networks when available.
–
CDMA
: Restricts your phone to CDMA mobile networks.
• System select
: Configure CDMA roaming mode.
–
Home only
: Restricts your phone to your Wireless Provider’s
network.
–
Automatic
: Permits your phone to automatically roam to
networks other than that provided by your Wireless Provider.
DRAFT
FOR INTERNAL USE ONLY
114
DEVICE
Sound
From the
Settings
screen, under
Device
, touch
Sound
.
The
Sound
menu appears.
Volumes
Set the system volume level, and set default volume for call
ringtones, notifications, and media playback.
Note:
You can also set System volume from the Home screen
by pressing the
Volume
key Up or Down.
1. From the
Sound
menu, touch
Volume
. The
Volume
menu pops-up.
2. Touch and drag the sliders for:
• Music, video, games, and other media
: Set the default
volume level for audio playback. You can also adjust volume
from this default inside the apps.
•Ringtone
: Set the volume for incoming call ringtones.
• Notifications
: Set the volume for notifications, such as new
messages and event reminders.
• System
: Set the volume for all other system sounds, such as
keytones played for screen touches. You can control whether
tones play for screen touches with other sound settings.
3. Touch
OK
to save your settings.
DRAFT
FOR INTERNAL USE ONLY
Settings 115
Silent Mode
1. From the
Sound
menu, touch
Silent mode
. The
following options pop-up:
•Off
: Your phone responds to calls and alerts by playing
ringtones and alert tones.
•Vibrate
: Your phone responds to calls and alerts by vibrating.
•Mute
: Your phone responds to calls and alerts by neither
ringing nor vibrating.
2. To discard your change, touch
Cancel
.
Phone ringtone
Choose a ringtone for incoming calls.
1. From the
Sound
menu, under
RINGTONE &
NOTIFICATIONS
, touch
Device ringtone
. The
Device
ringtone
menu pops-up.
2. Touch a ringtone to select it. When you touch a
ringtone, a sample plays, unless you have a Silent
mode enabled.
3. Touch
OK
to save your selection.
DRAFT
FOR INTERNAL USE ONLY
116
Device vibration
Choose a vibration pattern to use when vibration is enabled.
1. From the
Sound
menu, under
RINGTONE &
NOTIFICATIONS
, touch
Device vibration
. The
Device
vibration
menu pops-up.
2. Touch a vibration pattern to select it. When you touch a
pattern, a sample plays.
3. To create your own pattern, touch
Create
. Touch
Tap to
create
in the pattern, then touch
Stop
. Touch
Save
to
save your pattern.
4. Touch
OK
to save your selection.
Default notification
Choose a default sound to play for notifications, such as for
new messages and event reminders.
1. From the
Sound
menu, under
RINGTONE &
NOTIFICATIONS
, touch
Default notification
. The
Default
notification
menu pops-up.
2. Touch a sound to select it. When you touch a sound, a
sample plays.
3. Touch
OK
to save your selection.
DRAFT
FOR INTERNAL USE ONLY
Settings 117
Vibrate and ring
When enabled, vibration is played at the same time as
sounds for calls and alerts.
From the
Sound
menu, under
RINGTONE &
NOTIFICATIONS
, touch
Vibrate and ring
to enable or
disable the feature.
When
Vibrate when ringing
is enabled, a check mark
appears in the check box.
Dial pad touch tones
Dial pad touch tones are sounds that play when you touch
keys on the Phone keypad.
From the
Sound
menu, under
SYSTEM
, touch
Dial pad
touch tones
to enable or disable key sounds.
When
Dial pad touch tones
is enabled, a check mark
appears in the check box.
Touch sounds
Touch sounds play when you touch items on the screen, such
as when making a selection.
From the
Sound
menu, under
SYSTEM
, touch
Touch
sounds
to enable or disable touch sounds.
When
Touch sounds
is enabled, a check mark appears
in the check box.
Screen lock sound
Screen lock sound plays when you lock or unlock the screen.
From the
Sound
menu, under
SYSTEM
, touch
Screen
lock sound
to enable or disable the Screen lock sound.
When
Screen lock sound
is enabled, a check mark
appears in the check box.
DRAFT
FOR INTERNAL USE ONLY
118
Vibrate on touch
When turned On, the phone vibrates to indicate screen
touches and other interactions.
From the
Sound
menu, under
SYSTEM
, touch
Vibrate on
touch
to turn touch vibrations On or Off.
Emergency tone
You can set your phone to play an alert tone or vibrate during
an emergency call (for example, calls to 911).
1. From the
Sound
menu, under
SYSTEM
, touch
Emergency tone
.
2. Touch
Alert
or
Vibrate
, or touch
Off
for no emergency
tone.
Display
From the
Settings
screen, under
DEVICE
, touch
Display
.
The
Display
menu appears.
Brightness
Set the default screen brightness.
1. From the
Display
menu, touch
Brightness
.
2. Touch and drag the slider to set the brightness, or
touch
Automatic brightness
to allow the phone to adjust
brightness in response to light conditions.
3. Touch
OK
to save the setting.
Wallpaper
Select wallpaper(s) for the Home and Lock screens.
1. From the
Display
menu, touch
Wallpaper
.
2. Touch the screen for which you want to select
wallpaper. (Options are:
Home screen
,
Lock screen
, and
Home and lock screens
.)
3. Touch the source of the wallpaper(s) you want to use.
[Options are:
Gallery
,
Live wallpapers
(not for the Lock
screen), and
Wallpapers
.)
4. Touch the desired image or wallpaper.
DRAFT
FOR INTERNAL USE ONLY
Settings 119
Auto-rotate screen
When enabled, the screen’s orientation automatically
changes when you rotate the phone.
From the
Display
menu, touch
Auto-rotate screen
to
turn the feature On or Off.
Sleep
Set the length of delay between the last key press or screen
touch and the automatic screen timeout (dim and lock).
1. From the
Display
menu, touch
Sleep
.
2. Touch a setting to select it.
Font size
Set the size of the text that appears in screens.
1. From the
Display
menu, touch
Font size
. The
Font size
pop-up appears.
2. Select
Small
or
Normal
.
3. To discard your change, touch
Cancel
.
Storage
Manage the use of memory resources in your phone’s Device
memory, and on an installed memory card.
1. From the
Settings
screen, under
DEVICE
, touch
Storage
.
The
Storage
screen appears. The following options are
available:
• USB STORAGE
: View usage for, and manage, your phone’s
internal memory (For detailed information and to manage
storage in use, touch any item except
Total space
or
Available
space
.):
–
Total space
: Shows the total installed device memory.
–
Apps
: Shows the total device memory currently used to store
applications.
–
Pictures, videos
: Shows the total device memory currently
used to store pictures and videos.
–
Audio
: Shows the total device memory currently used to store
music files, ringtones, and so on.)
–
Downloads
: Shows the total device memory currently used to
store recently downloaded files.
–
Miscellaneous files
: Shows the total device memory currently
used to store various application data and system data files.
DRAFT
FOR INTERNAL USE ONLY
120
–
Available space
: Shows the total device memory available for
use.
•SD CARD
: View usage for, and manage, storage space on an
optional memory card.
–
Total space
: Shows the total card memory.
–
Available space
: Shows the total card memory available for
use.
–
Unmount SD card
: Deactivates the memory card so that you
can safely remove it or format it. (For more information, see
“Installing and Removing a Memory Card”
on
page 102
)
–
Format SD card
: Deletes all data from the memory card,
including music, videos, and photos. (For more information, see
“Formatting a Memory Card”
on page 102.)
Battery
See how much battery power is being used by device
activities.
1. From the
Settings
screen, under
Device
, touch
Battery
.
The
Battery
screen appears.
2. View battery usage for applications and services
currently running.
The battery level displays in percentage. The amount
of time the battery was used also displays. Battery
usage displays in percentages per application.
3. Touch
Screen
,
Cell standby
,
Android System
, or any
other listed feature or application to view how it is
affecting battery use.
Note:
Other applications may be running that affect battery
use.
DRAFT
FOR INTERNAL USE ONLY
Settings 121
Apps
You can download and install applications from the Google
Play™ Store, or create applications using the Android SDK
and install them on your phone. Use Application manager to
manage applications on your phone.
Warning!
Because this device can be configured with system
software not provided by or supported by Google or
any other company, end-users operate these devices
at their own risk.
1. From the
Settings
screen, under
DEVICE
, touch
Apps
.
The
Apps
screen appears.
2. Touch
DOWNLOADED
,
RUNNING
, or
ALL
to list the
statuses of applications and services. The graph at the
bottom of the
DOWNLOADED
tab shows used and free
Device memory. The graph at the bottom of the
RUNNING
tab shows used and free RAM.
3. Touch an app or service to display the
App info
or
Active
app
screen which provides more detailed storage
usage information, and lets you Stop/Force stop or
Uninstall/Report and app or service. For Downloaded
apps, you can also Clear data, Clear cache, and/or
Clear defaults.
DRAFT
FOR INTERNAL USE ONLY
122
PERSONAL
Accounts & Sync
Set up and manage accounts, including your Samsung,
Email, Google, and social networking accounts.
From the
Settings
screen, under
Accounts & sync
,
touch
the desired account. The related account type
screen appears.
Corporate
1. From the
Settings
screen, under
Accounts & sync
,
touch a
Corporate
account. The
Sync settings
screen
appears.
2. Touch
Account settings
. The
Settings
screen appears.
3. Touch
General
. The
APPLICATIONS
options are the same
as for Email accounts.
4. Under
Added accounts
, touch the desired account. The
following options are available:
• Common settings
:
–
Account name
: Enter a name to identify the account.
–
Signature
: Enter or change signature text.
–
Default account
: Touch to assign or un-assign this account as
the default account for sending email from your phone.
–
Always Cc/Bcc myself
: Adds your email address to None of
send email messages or to Cc or Bcc field of send email
messages.
–
Forward with attachment
: Enables including copies of any
attached files when forwarding a copy of an email message.
–
Show images
: When enabled, images included in messages
automatically display, without a confirmation pop-up.
• Data usage
:
–
Auto download attachments
: When enabled, automatically
downloads attachments to recent messages, but only when
your device is connected to a Wi-Fi network.
DRAFT
FOR INTERNAL USE ONLY
Settings 123
• Exchange ActiveSync settings
:
–
Period to sync email
: Choose the number days worth of email
messages the phone and server will synchronize. Choose from:
All, 1 day
,
3 days
,
1 week
,
2 weeks
, or
1 month
.
–
Empty server trash
: Delete your email account’s trash bin
remotely.
–
Sync schedule
Choose your email automatic synchronization
schedule.
–
Folder sync settings
: Choose email automatic synchronization
schedules for individual folders.
–
Out of office settings:
Enable/disable your account’s out of
office settings, choose the start/end dates, and enter/
change your outgoing messages.
–
Size to retrieve emails
: Choose how much of each message
your phone retrieves before you view it.
–
Period to sync Calendar:
Choose the period of time for your
phone to synchronize calendar events (
2 weeks, 1 month
,
3months
,
6 months
, or
All calendar
).
–
In case of Sync Conflict
: Choose whether your Device has
priority or the Server has priority during automatic
synchronization.
–
Auto resend times
.: Choose the number of times to
automatically resend a message before marking it un-sent.
• Notification settings
–
Email notifications
: Enable or disable display of a new email
icon in the Annunciator line when new mail arrives.
–
Select ringtone
: Assign a ringtone for new email notifications.
–
Vibrate
: Enable or disable vibration with new email notifications.
• Server settings
–
Exchange server settings
: Change the server link settings on
your device.
–
Sync contacts
:
Synchronize your phone’s contacts list with
the Exchange server’s contacts list.
–
Sync Calendar
:
Synchronize your phone’s calendar with the
Exchange server’s calendar.
–
Sync Task
:
Synchronize your phone’s Task list with the
Exchange server’s Task list.
DRAFT
FOR INTERNAL USE ONLY
124
Email
1. From the
Settings
screen, under
Accounts
, touch
Email
.
The
Email
screen appears.
2. Under
Common settings
, touch
Settings
. The
Settings
screen appears.
3. Touch
General preferences
. The following options are
available:
• General preferences
:
–
Auto-advance
: Select which screen (Next message, Previous
message, Message list) appears after you delete a message.
–
Message preview line
: Number of message lines (None,
1 line, 2 lines, 3 lines) that appear in the folder message list.
–
Email title
: Select which message header line (Subject,
Sender) appears as the message title in the folder message list.
–
Confirm deletions
: When enabled, you are prompted to
confirm message deletions.
–
Quick responses
: Edit pre-composed text you frequently
include in your messages.
• Priority sender inbox
:
–
Priority senders
: List those senders whose messages receive
priority in your message list.
–
Email notifications
: When enabled, an icon and the Email title
appear in the status bar for new messages.
–
Select ringtone
: Choose the ringtone that plays when you
receive new messages.
–
Vibrate
: When enabled, your phone vibrates when you receive
new messages.
4. Under
Added accounts
, touch the desired account. The
following options are available:
• Common settings
:
–
Account name
: Enter a name to identify the account.
–
Signature
: When On, adds pre-composed signature text to
send messages. Touch to edit the signature text that appears at
the end of email messages you send.
–
Default account
: When active, sends email from this account
by default.
–
Always Cc/Bcc myself
: Adds your email address to None of
send email messages or to Cc or Bcc field of send email
messages.
–
Forward with attachment
: Enables including copies of any
attached files when forwarding a copy of an email message.
DRAFT
FOR INTERNAL USE ONLY
Settings 125
–
Recent messages
: Select the number of messages (25, 50,
75, 100, 200, Total) that appear in your message list.
–
Show images
: When enabled, images included in incoming
messages are automatically downloaded and displayed.
• Data usage
:
–
Sync Email
: When enabled, the contents of your phone’s email
folder is synchronized with your account.
–
Auto download attachments
: When enabled, items attached
to incoming messages are automatically downloaded with the
messages.
–
Size to retrieve emails
: Select the amount of new incoming
message contents to include in your message list.
–
Auto resend times
: Select the number of times your phone is
to attempt to send an outgoing message before marking it as
un-sent.
• Sync settings
:
–
Sync schedule
: Peak/Off-peak schedule control.
• Notification settings
–
Email notifications
: Enable or disable display of a new email
icon in the Annunciator line when new mail arrives.
–
Select ringtone
: Assign a ringtone for new email notifications.
–
Vibration
: Enable or disable vibration with new email
notifications.
• Server settings
–
Incoming settings
: Modify settings for accessing the email
server to view incoming email messages.
–
Outgoing settings
: Modify settings for accessing the email
server to send email messages.
DRAFT
FOR INTERNAL USE ONLY
126
Google
Adding Google account
1. From the
Settings
screen, under
Accounts
, touch
Add
account
➔
Google
. The
Add a Google Account
screen
appears.
2. Touch
Existing
or
New
.
3. Follow the prompts to set up a Google account link.
Account Synchronization settings
1. From the
Settings
screen, under
Accounts
, touch
Gmail
.
The
Google
screen appears.
2. Under
Accounts
, touch the desired Google account. The
Sync settings
screen appears listing the following
options:
•Sync Calendar
: Synchronize your phone’s calendar with your
on-line calendar.
•Sync Contacts
: Synchronize your phone’s contacts list with
your on-line contacts list.
•Sync Gmail
: Synchronize your phone’s Gmail inbox with your
on-line Gmail inbox.
• Sync Google Photos
: Synchronize your phone’s gallery photos
with your on-line Google Photos.
• Sync Google Play Books
: Synchronize your phone’s ebooks
library with your on-line ebooks library.
• Sync Google Play Magazines
: Synchronize your phone’s
emagazines library with your on-line emagazines library.
• Sync Google Play Movies &
: Synchronize your phone’s movies
library with your on-line movies library.
• Sync Google Play Music
: Synchronize your phone’s music list
with your on-line music list.
• Sync Internet
: Synchronize your phone’s Internet browser
bookmarks with your on-line bookmarks list.
•Sync now
: Synchronize all enabled options immediately.
• Remove account
: Delete this account from your phone.
DRAFT
FOR INTERNAL USE ONLY
Settings 127
General settings
1. Press
Home
, then touch
Apps
, and the
Apps
tab. The
Apps
screen appears in the display.
2. Touch
Gmail
. The Gmail
Inbox
screen appears.
3. Touch
Menu
➔
Settings
➔
General settings
. The
following options are available:
• Confirm before deleting
: When enabled, prompts you to
confirm deletions of conversations or messages.
• Confirm before archiving
: When enabled, prompts you to
confirm movement of conversations or messages to archive.
• Confirm before sending
: When enabled, prompts you to
confirm sending of messages.
•Reply all
: When enabled, your message replies are
automatically sent to all original message recipients.
• Auto-fit messages
: When enabled, messages are shrunk to fit
your phone’s screen. Zoom is also enabled.
• Auto-advance
: When enabled, the conversation list is
automatically updated and displayed after you delete or archive
messages or conversations.
• Hide checkboxes
: When enabled, check boxes are not
displayed. To select messages or conversations, you must
touch and hold them.
• Message actions
: Allows you to configure how display
message actions. Choose from: Always show, Only show in
portrait, and Don’t show.
• Clear search history
: Remove previous searches you have
performed.
• Hide pictures in messages
: Until you allow by sender, pictures
do not display automatically.
DRAFT
FOR INTERNAL USE ONLY
128
Account settings
1. Press
Home
, then touch
Apps
, and the
Apps
tab. The
Apps
screen appears in the display.
2. Touch
Gmail
. The Gmail
Inbox
screen appears.
3. Touch
Menu
➔
Settings
and select an account.
The following options are available:
•Priority Inbox
: When enabled, your Gmail account becomes
your default inbox.
• Notifications
: When enabled, notifications for new email
appears in the Notifications Panel.
•Sound & vibrate
: Select Sound (ringtone) to play when new
messages arrive, whether to Vibrate to alert you to new
messages, and whether to Notify you once for new email
messages.
•Signature
: Create a text signature to add to outgoing
messages.
• DATA USAGE
:
–
Gmail sync is ON
: Enable or disable automatic
synchronization, change synchronization settings for this
account, remove this account (unless it is the only Gmail
account), or add an account.
–
Days of mail to sync
: Choose the number of days worth of
Gmail messages to synchronize.
–
Manage labels
: Choose which Gmail labels are synchronized,
and access
Sound & vibrate
settings.
–
Download attachments
: When enabled, automatically
downloads attachments to recent messages, but only when
your device is connected to a Wi-Fi network.
Location services
Location services control your device's use of GPS signals.
Some apps may require one or more location services be
turned On for full app functionality.
GPS signals may be affected by your surroundings, including:
•
Buildings
•
Tunnels or underground structures
•
Weather conditions
•
High-voltage or electromagnetic fields
•
Tinted windows
1. From the
Settings
screen, under
PERSONAL
, touch
Locations services
. The
Location services
screen
appears.
DRAFT
FOR INTERNAL USE ONLY
Settings 129
2. Touch the following options to enable/disable them.
(When an option is enabled, a check mark appears in
its check box.):
• Google’s location service
: allows applications to use data
from mobile networks and Wi-Fi to help determine your
location.
• GPS satellites
: allows applications to use GPS to pinpoint your
location.
Note: Use GPS satellites
must be enabled to use some
applications. You can also enable or disable
GPS
from
the Notifications panel. For more information, refer to
“Notifications” on page 24.
Important!
By selecting
Use GPS satellites
, you are allowing
access to all location information by any third party
through web access or any software or peripheral
components you choose to install, download, add,
or attach to the device or any other means.
• Location and Google search
: allows Google to use your
location data for improved search results and other services.
Note:
Google location services must be enabled to use some
applications.
Important!
By selecting
Location and Google search
, you are
allowing Google’s location service to collect
anonymous location data. Some data may be
stored on your device. Collection may occur even
when n o apps are running.
DRAFT
FOR INTERNAL USE ONLY
130
Lock screen
Choose settings for locking and unlocking your phone.
For more information about using the lock and unlock
features, see “Securing Your Phone” on page 16.
From the
Security
screen, under
SCREEN SECURITY
,
touch the following options to access additional
options:
• Screen lock
: Touch one of the following options to select it as
your custom screen lock/unlock method:
–
None
: Disable all custom screen lock settings, to use the default
swipe unlock screen.
–
Slide
: When enabled, you unlock the phone by swiping your
finger across the screen. This is the default screen lock, and
offers no security.
–
Pattern
: When enabled, you draw a pattern, which you create,
on the screen to unlock the phone. Touch the option, then follow
the prompts to create or change your screen unlock pattern.
–
PIN
: When enabled, you enter a numeric PIN (Personal
Identification Number), which you create, to unlock the phone.
–
Password
: When enabled, you enter an alphanumeric
password, which you create, to unlock the phone.
Owner information
Touch this option to enter text you want displayed on the
Lock screen. The following options are available:
•
Show owner info on lock screen
: When enabled, displays text you
enter in the text box on the Lock screen.
•
Enter text to display on lock screen
: In this box, enter text you
want displayed on the lock screen. (For more information about
entering text, see
“Entering Text”
on page 33.)
Passwords
When enabled, password characters display briefly as you
enter them.
From the
Security
screen, under
PASSWORDS
, touch
the following option to enable/disable it: (When the
option is enabled, a check mark appears in the check
box.)
• Make passwords visible
: When enabled, briefly displays
password characters as you enter them.
DRAFT
FOR INTERNAL USE ONLY
Settings 131
DEVICE ADMINISTRATION
View or disable device administrators. Some applications,
such as corporate Email, may require you allow access to
your device by device administrators in certain
circumstances, such as if your phone is lost or stolen.
Some features a device administrator might control include:
•
Setting the number of failed password attempts before the phone
is restored to factory settings.
•
Automatically locking the phone.
•
Restoring factory settings on the phone.
From the
Security
screen, under
DEVICE
ADMINISTRATION
, touch the following options to
enable/disable them: (When an option is enabled, a
check mark appears in its check box.)
• Device administrators
: View, add, or remove device
administrators.
• Unknown sources
: When enabled, you can install applications
from sources other than Google Play
®
.
Warning!
Because this device can be configured with system
software not provided by or supported by Google or
any other company, end-users operate these devices
at their own risk.
CREDENTIAL STORAGE
You can install credentials with an application, from device
storage, or from an installed memory card, and use the
Credential storage
settings to allow applications to access the
secure certificates and other credentials.
From the
Security
screen, under
Credential storage
,
touch the following options to enable/disable them.
(When an option is enabled, a check mark appears in
its check box.):
• Trusted credentials
: View, enable, or disable trusted CA
certificates.
• Install from SD card
: Install encrypted certificates from an
installed memory card.
Note:
You must have installed a memory card containing
encrypted certificates to use this feature.
DRAFT
FOR INTERNAL USE ONLY
132
• Clear credentials
: Clear stored credentials and reset the
password.
Note:
This setting is only available if you have installed
certificates.
Language and input
From the
Settings
screen, under
PERSONAL
, touch
Language and input
. The
Language and input
screen
appears.
Language
Select the language used in your phone’s screens.
From the
Language and input
screen, touch
Language
to select the language used in your phone’s screens.
Keyboards and input methods
Configure text entry options to your preferences.
From the
Language and input
screen, under
Keyboards
and input methods
, touch the check box next to each of
the following options to enable it. (When enabled, a
check mark appears in the check box.):
•Default
: Review the default method for manually entering text.
Note:
This option cannot be changed.
DRAFT
FOR INTERNAL USE ONLY
Settings 133
• Google voice typing
: Lets you vocally dictate the text entered
into a field. Touch beside Google voice typing to configure
the following options:
–
Choose input languages
: Select languages for Google voice
typing. Select
Automatic
to use the Default language
exclusively, or choose other language(s).
–
Block offensive words
: When enabled, words many people
find offensive are not shown in results of Google voice searches.
Offensive words are replaced in results with a placeholder
(####).
–
Download offline speech recognition
: Enables voice input
using Google voice typing while your phone is offline.
• Samsung keyboard
: Touch beside Samsung keypad to
configure the following options.
Note:
This option cannot be disabled.
–
Portrait keyboard types
: Choose the default keypad when the
screen is in portrait mode, from Qwerty or 3x4 keyboard (similar
to a phone keypad).
–
Input languages
: Select languages for the Samsung
keyboard.
Tip:
When you have more than one language selected, you can
slide your finger on the space bar while entering text to
switch languages.
–
Predictive text
: When enabled, T9 suggests words matching
your text entries and optionally, complete common words
automatically. Touch
Predictive text
to enable T9
predictive text, touch
Predictive text
to disable
T9 predictive text. Touch
Predictive text
to configure the
following options:
Personalized data
: When enabled, Predictive text uses
personal language data you have entered.
Learn from Gmail
: Log in to let your device learn from your
Gmail messages.
Learn from Facebook
: Log in to let your device learn from
your Facebook entries.
Learn from Twitter
: Log in to let your device learn from your
“tweets”.
Learn from Messaging
: Update to let your device learn from
your message text entries.
Learn from Contacts
: Update to let your device learn from
your Contacts style.
DRAFT
FOR INTERNAL USE ONLY
134
Clear personalized data
: Remove all the personal language
data you have entered.
–
T9 Trace
: When enabled, you can sweep your finger over
keypad letters to enter words. When you lift your finger, a word
matching your sweep is entered automatically. Available when
Predictive text is turned On.
–
Handwriting
: When in Handwriting mode, Samsung keyboard
recognizes on-screen tracing of words. Touch
Handwriting
to
configure the following options:
Recognition type
: Select Stroke recognition or Complete
recognition.
Recognition time
: Select 100 ms, 300 ms, 500 ms,
1000 ms, or 2000 ms.
Pen thickness
: Select 1 pixel, 3 pixels, 5 pixels, 7 pixels, or
9pixels.
Pen color
: Select Black, Red, Blue, Green, or Brown.
Gesture guide
: Shows gestures for text editing functions.
Tutorial
: Shows explanation of how to write by hand so that the
phone will accept your input.
About
: Lists the Build, DHWR, and DioWord+ release versions.
–
Advanced
:
Auto-capitalization
: When enabled, T9 automatically
capitalizes words in your text based on common usage, such as
at the beginning of sentences.
Auto-punctuate
: When enabled, a period and space are
automatically entered to end a sentence, when you tap the
space bar twice.
Character preview
: When enabled, characters available on
the key you touch display briefly as you enter text.
Key-tap vibration
: When enabled, a vibration plays for your
key touches.
Key-tap sound
: When enabled, a sound plays for your key
touches.
–
Tutorial
: View help for using T9 predictive text.
–
Reset settings
: Touch to reset Samsung keyboard settings to
the defaults, except for My word list and the Auto substitution
list.
DRAFT
FOR INTERNAL USE ONLY
Settings 135
•Swype
: Touch beside Swype to configure the following
options.
–
How to Swype
: Learn Swype through quick, easy-to-use
steps.
–
Gestures
: Learn about the gestures you can use to simplify
accessing Swype features.
–
Preferences
:
Vibrate on keypress
: When enabled, the phone vibrates on
text entry.
Sound on keypress
: When enabled, plays sounds as you
enter text.
Show helpful tips
: When enabled, displays a flashing indicator
for quick help as you enter text.
Auto-spacing
: When enabled, inserts spaces automatically
when you pause entering text.
Auto-capitalization
: When enabled, automatically capitalizes
the first letter of the first word in a sentence.
Show complete Trace
: Choose whether to display the
complete Swype path.
Pop-up on keypress
: Characters pop-up when you type them.
Next word prediction
: When enabled, suggests possible
matching words as you enter text.
Reset Swype’s dictionary
: Delete all words you’ve added.
Version
: View the current Swype software version.
–
Language Options
:
English
: Change current language.
Living language
: When enabled, automatically updates Swype
with popular new words.
Download languages
: Select and download languages
besides US English.
Active
: Enable or disable installed languages.
–
Swype Connect
:
Register now
: Register your Swype Backup & Sync account.
Backup & Sync
: When enabled, your device automatically
downloads popular, new words based on language and location;
backs up your Swype dictionary, and synchronizes your Swype
dictionary across multiple devices.
Contribute usage data
: When enabled, Nuance collects
usage data to provide better word predictions.
Cellular data
: When enabled, Swype features can use your
phone’s cellular network connection to download updates,
languages, and so on.
DRAFT
FOR INTERNAL USE ONLY
136
–
Personalization
:
Edit Dictionary
: Add and/or remove words in your personal
dictionary.
Facebook
: Sign in to add contact names to your personal
dictionary.
Twitter
: Sign in to add user names and new words from your
public twitter feed to your personal dictionary.
Gmail
: Sign in to add recipient names to your personal
dictionary.
–
Updates
: Check for updates and download them to your
device.
SPEECH
From the
Language and input
screen, under
SPEECH
,
the following options are available:
• Voice search
: Configure how
Voice search
reacts to your
speech.
–
Language
: Choose a language for voice searching.
–
Speech output
: Choose whether Speech is Always available or
available with Hands-free only.
–
Block offensive words
: When enabled, words many people
find offensive are not shown in results of Google voice searches.
Offensive words are replaced in results with a placeholder
(####).
–
Hot word detection
: When enabled, say “Google” to launch
voice search.
–
Download offline speech recognition
: Enables voice input
while off-line.
–
Personalized recognition
: Train
Voice search
to more
accurately recognize your voice.
–
Google Account dashboard
: Manage data collected under
your Google account.
DRAFT
FOR INTERNAL USE ONLY
Settings 137
• Text-to-speech output
: Provides audible readout of text, for
example, the contents of text messages, and the Caller ID for
incoming calls.
–
Preferred TTS engine
: Select
Google Text-to-speech
Engine
, or
Samsung TTS
.
–
General
:
Speech rate
: Choose a rate at which text readouts are spoken.
Listen to an example
: Play a sample of speech synthesis.
Driving mode
: When enabled, incoming calls and new
notifications are read out automatically.
Touch
Driving mode
to enable Driving mode.
Touch
Driving mode
to disable Driving mode.
Touch
Driving mode
to choose items to be read out when
Driving mode is enabled (Incoming call, Message, New
emails, New voicemail, Alarm, Schedule, and/or Unlock
screen).
Back up and reset
Set options for backing up your information and resetting
your device.
From the
Settings
screen, under
PERSONAL
, touch
Backup and reset
. The
Backup and reset
screen
appears.
BACKUP AND RESTORE
From the
Backup and reset
screen, under
BACKUP &
RESTORE
, touch the check box next to each of the
following options to enable it: (When enabled, a check
mark appears in the check box.)
• Back up my data
: Backs up app data, Wi-Fi passwords, and
other phone settings to Google servers.
• Backup account
: Select or set-up a Google account your
phone will use to backup your app data, Wi-Fi passwords, and
other phone settings.
• Automatic restore
: Automatically restore app data, Wi-Fi
passwords, and other phone settings from your automatic
backup.
DRAFT
FOR INTERNAL USE ONLY
138
PERSONAL DATA
Factory data reset
Use Factory data reset to return all settings to the defaults,
and remove all data from the phone.
From the
Backup and reset
screen, under
PERSONAL
DATA
, touch
Factory data reset
to return all settings to
the defaults, and remove all data from the phone.
Important!
Settings and data erased in a Factory data reset
cannot be recovered. To save your settings, you
can use Back up my data settings before a reset.
SYSTEM
Date and time
By default, your phone receives date and time information
from the wireless network. When you are outside network
coverage, you may want to set date and time information
manually using the Date & time settings.
1. From the
Settings
screen, under
SYSTEM
, touch
Date &
time
.
2. Touch a setting to configure:
• Automatic date and time
: When enabled, the phone takes
date and time updates from the wireless network (disables Set
date, Set time, and Select time zone).
• Automatic time zone
: When enabled, the phone uses the
network-provided time zone.
•Set date
: Enter the current date (only available when Automatic
date and time is disabled).
•Set time
: Enter the current time (only available when Automatic
date and time is disabled).
• Select time zone
: Choose your local time zone (only available
when Automatic date and time is disabled).
• Use 24-hour format
: Set the format for time displays.
DRAFT
FOR INTERNAL USE ONLY
Settings 139
• Select date format
: Set the format for date displays.
Accessibility
Your phone offers features to make using the phone easier
for those with certain physical disabilities. Use the
Accessibility settings to activate these services.
From the
Settings
screen, under
SYSTEM
, touch
Accessibility
. The
Accessibility
screen appears.
SERVICES
Enable or disable accessibility services.
TalkBack
From the
Accessibility
screen, under
SERVICES
, touch
the following option:
•TalkBack
: When enabled in the
TalkBack
screen, recites
menu options, application titles, contacts, and other items
when scrolling and making selections, according to the
Settings
values you select.
SYSTEM
From the
Accessibility
screen, under
SYSTEM
, touch
the check box next to each of the following options to
enable it: (When enabled, a check mark appears in the
check box.)
• The power key ends calls
When enabled, lets you end voice
calls by pressing the
Power/Lock
key.
• Auto-rotate screen
: The screen’s orientation automatically
changes when you rotate the phone.
• Screen timeout
: Set the length of delay between the last key
press or screen touch and the automatic screen timeout (dim
and lock).
• Speak passwords
: Lets you speak passwords for log-ins.
• Touch & hold delay
:
• Install web scripts
:
DRAFT
FOR INTERNAL USE ONLY
140
Developer options
Use the Developer options to set options for Android
application development and testing.
From the
Settings
screen, under
SYSTEM
, touch
Developer options
. The
Developer options
screen
appears.
USB debugging
When enabled, allows debugging when the device is
attached to a PC by a USB cable.
From the
Developer options
screen, touch
USB
debugging
to enable or disable the setting. When
enabled, a check mark appears in the check box.
Stay awake
When enabled, this option blocks the screen from “sleeping”
while the device is connected to a battery charger.
Allow mock locations
This setting is used by developers when developing location-
based applications.
From the
Developer options
screen, touch
Allow mock
locations
to enable or disable the setting.
When enabled, a check mark appears in the check box.
Desktop backup password
Protect the desktop with a backup password ID.
1. From the
Developer options
screen, touch
Desktop
backup password
.
2. In the Settings screen, enter the current full backup
password, the new password for full backups, then
enter the new password again.
3. Touch
Set backup password
to save the password
change.
Select app to be debugged
From the
Developer options
screen, touch
Select app to
be debugged
to select one of the apps you are
developing for debugging.
Wait for debugger
From the
Developer options
screen, touch
Wait for
debugger
to delay launcing of the Select app to be
debugged until the debugger has attached.
DRAFT
FOR INTERNAL USE ONLY
Settings 141
USER INTERFACE
From the
Developer options
screen, under
USER
INTERFACE
, touch the check box next to each of the
following options to enable it: (When enabled, a check
mark appears in the check box.)
• Strict mode enabled
: The screen flashes when applications
perform long operations on the main thread.
• Pointer location
: Highlights the data that was touched on the
screen.
• Show touches
: Displays touch interactions on the screen.
• Show screen updates
: Areas of the screen flash when they
update.
• Show CPU usage
: Screen highlights the current CPU usage.
• GPU rendering profile
: When enabled, rendering time is
measured in adb shell dumpsys gfxinfo.
• Window animation scale
: Configure the scale for animation
(ranges from off to 10x).
• Transition animation scale
: Configure the scale for
transitioning when using animation (ranges from Off to 10x).
APPS
From the
Developer options
screen, under
APPS
, touch
the check box next to each of the following options to
enable it: (When enabled, a check mark appears in the
check box.)
• Do not keep activities
: Destroys every activity as soon as the
application is closed.
• Background process limit
: Set the number of processes that
can run in background. Options are: Standard limit, No
background processes, and 1 to 4 processes at most.
• Show all ANRs
: Displays a prompt when applications running
in background are not responding.
DRAFT
FOR INTERNAL USE ONLY
142
About phone
View information about your phone, including status, legal
information, hardware and software versions, and a tutorial.
Software update
Software update lets your phone connect to the network and
download any new phone software directly to your phone.
The phone automatically updates with the latest available
software when you access this option.
1. From the
Settings
screen, under
System
, touch
About
phone
➔
Software update
. You are prompted to select
your current country.
2. Select a Country, then touch
OK
. A Terms and
Conditions screen appears.
3. To proceed to Software Update, touch
I accept all the
terms above
, then touch
Confirm
. Your device registers
itself with your Wireless Provider’s Software Update
service, connects with your Wireless Provider’s server,
and scans for software updates.
4. At the
Software update
prompt, touch
OK
to continue.
5. The phone automatically updates the software (if
available), otherwise, when the
The latest updates have
already been installed
prompt is displayed, touch
OK
.
6. When updating software, once the update file is
downloaded, you can delay the update on the start
screen by postponing it for a certain period of time. If
you want to resume the update before the selected
time, touch
Continue update
.
Status
View Battery status, Battery level, Network, Signal strength,
Mobile network type, Service state, Roaming, Mobile
network state, My phone number, MIN, PRL version, MEID,
IMEI, ICCID, IP address, Wi-Fi MAC address, Bluetooth
address, Up time, and Device status.
DRAFT
FOR INTERNAL USE ONLY
Settings 143
Legal information
Display open source licenses, configure license settings,
including your DivX VOD registration, and Google info.
Model number
View your phone’s model number.
Android version
View the firmware version of your phone.
Baseband version
View the baseband version of your phone.
Kernel version
View the kernel version of your phone.
Build number
View the build number of your phone.
DRAFT
FOR INTERNAL USE ONLY
144
Section 9: Health and Safety Information
This device is capable of operating in Wi-Fi mode in the 2.4
and 5 GHz bands. The FCC requires that devices operating
within 5.15-5.25 GHz may only be used indoors, not outside,
in order to avoid interference with Mobile Satellite Services
(MSS). Therefore, do not use this device outside as a Wi-Fi
hotspot or in Wi-Fi Direct mode outside when using the
5.15-5.25 GHz band.
This section outlines the safety precautions associated with
using your phone. The terms “mobile device” or “cell phone”
are used in this section to refer to your phone.
Read this
information before using your mobile device
.
Exposure to Radio Frequency (RF)
Signals
The U.S. Food and Drug Administration (FDA) has published
information for consumers relating to Radio Frequency (RF)
exposure from wireless phones. The FDA publication
includes the following information:
Do cell phones pose a health hazard?
Many people are concerned that cell phone radiation will
cause cancer or other serious health hazards. The weight of
scientific evidence has not linked cell phones with any health
problems.
Cell phones emit low levels of Radio Frequency (RF) energy.
Over the past 15 years, scientists have conducted hundreds
of studies looking at the biological effects of the radio
frequency energy emitted by cell phones. While some
researchers have reported biological changes associated
with RF energy, these studies have failed to be replicated.
The majority of studies published have failed to show an
association between exposure to radio frequency from a cell
phone and health problems.
The low levels of RF cell phones emit while in use are in the
microwave frequency range. They also emit RF at
substantially reduced time intervals when in the stand-by
mode. Whereas high levels of RF can produce health effects
(by heating tissue), exposure to low level RF that does not
produce heating effects causes no known adverse health
effects.
DRAFT
FOR INTERNAL USE ONLY
Health and Safety Information 145
The biological effects of radio frequency energy should not
be confused with the effects from other types of
electromagnetic energy.
Very high levels of electromagnetic energy, such as is found
in X-rays and gamma rays, can ionize biological tissues.
Ionization is a process where electrons are stripped away
from their normal locations in atoms and molecules. It can
permanently damage biological tissues including DNA, the
genetic material.
The energy levels associated with radio frequency energy,
including both radio waves and microwaves, are not great
enough to cause ionization of atoms and molecules.
Therefore, RF energy is a type of non-ionizing radiation.
Other types of non-ionizing radiation include visible light,
infrared radiation (heat), and other forms of electromagnetic
radiation with relatively low frequencies.
While RF energy does not ionize particles, large amounts can
increase body temperatures and cause tissue damage. Two
areas of the body, the eyes and the testes, are particularly
vulnerable to RF heating because there is relatively little
blood flow in them to carry away excess heat.
Research Results to Date: Is there a connection
between RF and certain health problems?
The results of most studies conducted to date say no. In
addition, attempts to replicate and confirm the few studies
that have shown a connection have failed.
The scientific community at large therefore believes that the
weight of scientific evidence does not show an association
between exposure to Radio Frequency (RF) from cell phones
and adverse health outcomes. Still the scientific community
has supported additional research to address gaps in
knowledge. Some of these studies are described below.
Interphone Study
Interphone is a large international study designed to
determine whether cell phones increase the risk of head and
neck cancer. A report published in the International Journal
of Epidemiology (June, 2010) compared cell phone usage for
more than 5,000 people with brain tumors (glioma and
meningioma) and a similar number of healthy controls.
Results of this study did NOT show that cell phones caused
brain cancer. In this study, most people had no increased risk
of brain cancer from using cell phones. For people with the
heaviest use of cell phones (an average of more than ½ hour
per day, every day, for over 10 years) the study suggested a
DRAFT
FOR INTERNAL USE ONLY
146
slight increase in brain cancer. However, the authors
determined that biases and errors prevented any conclusions
being drawn from this data. Additional information about
Interphone can be found at
http://www.iarc.fr/en/media-centre/pr/2010/pdfs/pr200_E.pdf.
Interphone is the largest cell phone study to date, but it did
not answer all questions about cell phone safety. Additional
research is being conducted around the world, and the FDA
continues to monitor developments in this field.
International Cohort Study on Mobile Phone Users
(COSMOS)
The COSMOS study aims to conduct long-term health
monitoring of a large group of people to determine if there
are any health issues linked to long-term exposure to radio
frequency energy from cell phone use. The COSMOS study
will follow approximately 300,000 adult cell phone users in
Europe for 20 to 30 years. Additional information about the
COSMOS study can be found at
http://www.ukcosmos.org/index.html
.
Risk of Brain Cancer from Exposure to Radio
Frequency Fields in Childhood and Adolescence
(MOBI-KIDS)
MOBI-KIDS is an international study investigating the
relationship between exposure to radio frequency energy
from communication technologies including cell phones and
brain cancer in young people. This is an international
multi-center study involving 14 European and non-European
countries. Additional information about MOBI-KIDS can be
found at
http://www.creal.cat/programes-recerca/en_projectes-creal/
view.php?ID=39.
Surveillance, Epidemiology, and End Results (SEER)
Program of the National Cancer Institute
The National Cancer Institute (NCI) actively follows cancer
statistics in the United States to detect any change in rates of
new cases for brain cancer. If cell phones play a role in risk
for brain cancer, rates should go up, because heavy cell
phone use has been common for quite some time in the U.S.
Between 1987 and 2005, the overall age-adjusted incidence
of brain cancer did not increase. Additional information about
SEER can be found at
http://seer.cancer.gov/
.
DRAFT
FOR INTERNAL USE ONLY
Health and Safety Information 147
Cell Phone Industry Actions
Although the existing scientific data do not justify FDA
regulatory actions, the FDA has urged the cell phone industry
to take a number of steps, including the following:
•
Support-needed research on possible biological effects of RF
for the type of signal emitted by cell phones;
•
Design cell phones in a way that minimizes any RF exposure to
the user; and
•
Cooperate in providing users of cell phones with the current
information on cell phone use and human health concerns.
The FDA also is working with voluntary standard-setting
bodies such as the Institute of Electrical and Electronics
Engineers (IEEE), the International Commission on
Non-Ionizing Radiation Protection (ICNIRP), and others to
assure that safety standards continue to adequately protect
the public.
Reducing Exposure: Hands-Free Kits and Other
Accessories
Steps to Reduce Exposure to Radio Frequency Energy
If there is a risk from being exposed to radio frequency
energy (RF) from cell phones - and at this point we do not
know that there is - it is probably very small. But, if you are
concerned about avoiding even potential risks, you can take
a few simple steps to minimize your RF exposure.
•
Reduce the amount of time spent using your cell phone;
•
Use speaker mode or a headset to place more distance between
your head and the cell phone.
Hands-Free Kits
Hands-free kits may include audio or Bluetooth® headsets
and various types of body-worn accessories such as
belt-clips and holsters. Combinations of these can be used to
reduce RF energy absorption from cell phones.
Headsets can substantially reduce exposure because the
phone is held away from the head in the user's hand or in
approved body-worn accessories. Cell phones marketed in
the U.S. are required to meet RF exposure compliance
requirements when used against the head and against the
body.
DRAFT
FOR INTERNAL USE ONLY
148
Because there are no known risks from exposure to RF
emissions from cell phones, there is no reason to believe that
hands-free kits reduce risks. Hands-free kits can be used for
convenience and comfort. They are also required by law in
many states if you want to use your phone while driving.
Cell Phone Accessories that Claim to Shield the Head
from RF Radiation
Because there are no known risks from exposure to RF
emissions from cell phones, there is no reason to believe that
accessories which claim to shield the head from those
emissions reduce risks. Some products that claim to shield
the user from RF absorption use special phone cases, while
others involve nothing more than a metallic accessory
attached to the phone.
Studies have shown that these products generally do not
work as advertised. Unlike “hands-free” kits, these so-called
“shields” may interfere with proper operation of the phone.
The phone may be forced to boost its power to compensate,
leading to an increase in RF absorption.
Children and Cell Phones
The scientific evidence does not show a danger to any users
of cell phones from RF exposure, including children and
teenagers. The steps adults can take to reduce RF exposure
apply to children and teenagers as well.
•
Reduce the amount of time spent on the cell phone;
•
Use speaker mode or a headset to place more distance between
the head and the cell phone.
Some groups sponsored by other national governments have
advised that children be discouraged from using cell phones
at all. For example, The Stewart Report from the United
Kingdom made such a recommendation in December 2000.
In this report, a group of independent experts noted that no
evidence exists that using a cell phone causes brain tumors
or other ill effects. Their recommendation to limit cell phone
use by children was strictly precautionary; it was not based
on scientific evidence that any health hazard exists.
Additional information on the safety of RF exposures from
various sources can be obtained from the following
organizations (updated 10/1/2010):
•
FCC RF Safety Program:
http://www.fcc.gov/oet/rfsafety/.
DRAFT
FOR INTERNAL USE ONLY
Health and Safety Information 149
•
Environmental Protection Agency (EPA):
http://www.epa.gov/radtown/wireless-tech.html.
•
Occupational Safety and Health Administration (OSHA):
http://www.osha.gov/SLTC/radiofrequencyradiation/.
(Note: This web address is case sensitive.)
•
National Institute for Occupational Safety and Health (NIOSH):
http://www.cdc.gov/niosh/.
•
World Health Organization (WHO):
http://www.who.int/peh-emf/en/.
•
International Commission on Non-Ionizing Radiation Protection:
http://www.icnirp.de.
•
Health Protection Agency:
http://www.hpa.org.uk/Topics/Radiation/.
•
US Food and Drug Administration:
http://www.fda.gov/Radiation-EmittingProducts/
RadiationEmittingProductsandProcedures/
HomeBusinessandEntertainment/CellPhones/default.htm.
Specific Absorption Rate (SAR)
Certification Information
Your wireless phone is a radio transmitter and receiver. It is
designed and manufactured not to exceed the exposure
limits for Radio Frequency (RF) energy set by the Federal
Communications Commission (FCC) of the U.S. Government.
These FCC RF exposure limits are derived from the
recommendations of two expert organizations: the National
Council on Radiation Protection and Measurement (NCRP)
and the Institute of Electrical and Electronics Engineers
(IEEE). In both cases, the recommendations were developed
by scientific and engineering experts drawn from industry,
government, and academia after extensive reviews of the
scientific literature related to the biological effects of RF
energy.
The RF exposure limit set by the FCC for wireless mobile
phones employs a unit of measurement known as the
Specific Absorption Rate (SAR). The SAR is a measure of the
rate of absorption of RF energy by the human body
expressed in units of watts per kilogram (W/kg). The FCC
requires wireless phones to comply with a safety limit of 1.6
watts per kilogram (1.6 W/kg).
DRAFT
FOR INTERNAL USE ONLY
150
The FCC SAR limit incorporates a substantial margin of safety
to give additional protection to the public and to account for
any variations in measurements.
SAR tests are conducted using standard operating positions
accepted by the FCC with the phone transmitting at its
highest certified power level in all tested frequency bands.
Although the SAR is determined at the highest certified
power level, the actual SAR level of the phone while
operating can be well below the maximum reported value.
This is because the phone is designed to operate at multiple
power levels so as to use only the power required to reach
the network. In general, the closer you are to a wireless base
station antenna, the lower the power output of the phone.
Before a new model phone is available for sale to the public,
it must be tested and certified to the FCC that it does not
exceed the SAR limit established by the FCC. Tests for each
model phone are performed in positions and locations (e.g. at
the ear and worn on the body) as required by the FCC. For
body-worn operation, this phone has been tested and meets
FCC RF exposure guidelines when used with an accessory
that contains no metal and that positions the mobile device a
minimum of 1.0 cm from the body.
Use of other accessories may not ensure compliance with
FCC RF exposure guidelines. The FCC has granted an
Equipment Authorization for this mobile device with all
reported SAR levels evaluated as in compliance with the FCC
RF exposure guidelines. This mobile phone has a FCC ID
number: A3LSCHR740 [Model Number: SCH-R740] and the
specific SAR levels for this mobile phone can be found at the
following FCC website:
http://www.fcc.gov/oet/ea/
.
The SAR information for this device can also be found on
Samsung’s website:
http://www.samsung.com/sar
.
SAR information on this and other model phones can be
accessed online on the FCC's website through
http://
transition.fcc.gov/oet/rfsafety/sar.html
. To find information that
pertains to a particular model phone, this site uses the phone
FCC ID number which is usually printed somewhere on the
case of the phone. Sometimes it may be necessary to
remove the battery pack to find the number. Once you have
the FCC ID number for a particular phone, follow the
instructions on the website and it should provide values for
typical or maximum SAR for a particular phone. Additional
DRAFT
FOR INTERNAL USE ONLY
Health and Safety Information 151
SAR information can also be obtained at
http://www.fcc.gov/encyclopedia/specific-absorption-rate-sar-
cellular-telephones
.
FCC Part 15 Information to User
Pursuant to part 15.21 of the FCC Rules, you are cautioned
that changes or modifications not expressly approved by
Samsung could void your authority to operate the device.
This device complies with part 15 of the FCC Rules.
Operation is subject to the following two conditions: (1) This
device may not cause harmful interference, and (2) this
device must accept any interference received, including
interference that may cause undesired operation.
Note: This equipment has been tested and found to comply
with the limits for a Class B digital device, pursuant to part
15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a
residential installation. This equipment generates, uses and
can radiate radio frequency energy and, if not installed and
used in accordance with the instructions, may cause harmful
interference to radio communications.
However, there is no guarantee that interference will not
occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception,
which can be determined by turning the equipment off and
on, the user is encouraged to try to correct the interference
by one or more of the following measures:
•
Reorient or relocate the receiving antenna.
•
Increase the separation between the equipment and receiver.
•
Connect the equipment into an outlet on a circuit different from
that to which the receiver is connected.
•
Consult the dealer or an experienced radio/TV technician for help.
Commercial Mobile Alerting System
(CMAS)
This device is designed to receive Wireless Emergency Alerts
from CMAS. If your wireless provider has chosen to
participate in CMAS, alerts are available while in the
provider's coverage area. If you travel outside your provider's
coverage area, wireless emergency alerts may not be
available. For more information, please contact your wireless
provider.
Smart Practices While Driving
On the Road - Off the Phone
The primary responsibility of every driver is the safe
operation of his or her vehicle.
DRAFT
FOR INTERNAL USE ONLY
152
Responsible drivers understand that no secondary task
should be performed while driving whether it be eating,
drinking, talking to passengers, or talking on a mobile phone
- unless the driver has assessed the driving conditions and is
confident that the secondary task will not interfere with their
primary responsibility.
Do not engage in any activity while
driving a moving vehicle which may cause you to take your
eyes off the road or become so absorbed in the activity that
your ability to concentrate on the act of driving becomes
impaired
. Samsung is committed to promoting responsible
driving and giving drivers the tools they need to understand
and address distractions.
Check the laws and regulations on the use of mobile devices
and their accessories in the areas where you drive. Always
obey them. The use of these devices may be prohibited or
restricted in certain areas. For example, only hands-free use
may be permitted in certain areas.
Before answering calls, consider your circumstances. Let the
call go to voicemail when driving conditions require.
Remember, driving comes first, not the call!
If you consider a call necessary and appropriate, follow these
tips:
•
Use a hands-free device;
•
Secure your phone within easy reach;
•
Place calls when you are not moving;
•
Plan calls when your car will be stationary;
•
Do not engage in stressful or emotional conversations;
•
Let the person with whom you are speaking know that you are
driving and will suspend the call if necessary;
•
Do not take notes or look up phone numbers while driving;
Notice regarding legal restrictions on mounting this device in
an automobile:
Laws in some states may prohibit mounting this device on or
near the windshield of an automobile. In other states, the law
may permit mounting this device only in specific locations in
the automobile. Be sure to consult the state and local laws or
ordinances where you drive before mounting this device in
an automobile. Failure to comply with these restrictions could
result in fines, penalties, or other damages.
Never mount this device in a manner that will obstruct the
driver's clear view of the street and traffic.
DRAFT
FOR INTERNAL USE ONLY
Health and Safety Information 153
Never use wireless data services such as text messaging, Web
browsing, or e-mail while operating a vehicle.
Never watch videos, such as a movie or clip, or play video
games while operating a vehicle.
For more information, go to
http://www.ctia.org
.
Battery Use and Safety
Important! Handle and store batteries properly to avoid injury or
damage
. Most battery issues arise from improper
handling of batteries and, particularly, from the
continued use of damaged batteries.
•
Do not disassemble, crush, puncture, shred, or otherwise
attempt to change the form of your battery
. Do not put a high
degree of pressure on the battery. This can cause leakage or an
internal short-circuit, resulting in overheating.
•
Do not let the phone or battery come in contact with liquids.
Liquids can get into the phone's circuits, leading to corrosion.
Even when the phone appears to be dry and appears to operate
normally, the circuitry could slowly corrode and pose a safety
hazard. If the phone and/or battery get wet, have them checked
by your service provider or contact Samsung, even if they appear
to be working properly.
•
Do not place your battery in or near a heat source
. Excessive
heating can damage the phone or the battery and could cause the
phone or the battery to explode. Do not dry a wet or damp battery
with an appliance or heat source such as a microwave oven, hair
dryer, iron, or radiator. Avoid leaving your phone in your car in
high temperatures.
•
Do not dispose of the phone or the battery in a fire
. The phone
or the battery may explode when overheated.
•
Do not handle a damaged or leaking battery
. Do not let leaking
battery fluid come in contact with your eyes, skin or clothing. For
safe disposal options, contact your nearest Samsung-authorized
service center.
DRAFT
FOR INTERNAL USE ONLY
154
•
Avoid dropping the cell phone
. Dropping the phone or the
battery, especially on a hard surface, can potentially cause
damage to the phone and battery. If you suspect damage to the
phone or battery, take it to a service center for inspection.
•
Never use any charger or battery that is damaged in any way
.
•
Do not allow the battery to touch metal objects
. Accidental
short-circuiting can occur when a metallic object (coin, key,
jewelry, clip, or pen) causes a direct connection between the +
and - terminals of the battery (metal strips on the battery), for
example when you carry a spare battery in a pocket or bag.
Short-circuiting the terminals may damage the battery or the
object causing the short-circuiting.
Important!
Use only Samsung-approved batteries, and
recharge your battery only with
Samsung-approved chargers which are
specifically designed for your phone.
WARNING!
Use of a non-Samsung-approved battery or charger may
present a risk of fire, explosion, leakage, or other hazard
.
Samsung's warranty does not cover damage to the phone
caused by non-Samsung-approved batteries and/or
chargers.
•
Do not use incompatible cell phone batteries and chargers
.
Some websites and second-hand dealers not associated with
reputable manufacturers and carriers, might be selling
incompatible or even counterfeit batteries and chargers.
Consumers should purchase manufacturer or
carrier-recommended products and accessories. If unsure about
whether a replacement battery or charger is compatible, contact
the manufacturer of the battery or charger.
•
Misuse or use of incompatible phones, batteries, and
charging devices could result in damage to the equipment
and a possible risk of fire, explosion, or leakage, leading to
serious injuries, damages to your phone, or other serious
hazard
.
DRAFT
FOR INTERNAL USE ONLY
Health and Safety Information 155
Samsung Mobile Products and
Recycling
Samsung cares for the environment and encourages its
customers to recycle Samsung mobile devices and genuine
Samsung accessories.
Proper disposal of your mobile device and its battery is not
only important for safety, it benefits the environment.
Batteries must be recycled or disposed of properly.
Recycling programs for your mobile device, batteries, and
accessories may not be available in your area.
We've made it easy for you to recycle your old Samsung
mobile device by working with respected take-back
companies in every state in the country.
Drop It Off
You can drop off your Samsung-branded mobile device
and batteries for recycling at one of our numerous
Samsung Recycling Direct (SM) locations. A list of these
locations may be found at:
http://pages.samsung.com/us/recyclingdirect/
usactivities_environment_samsungrecyclingdirect_locations.jsp
.
Samsung-branded devices and batteries will be accepted
at these locations for no fee.
Consumers may also recycle their used mobile device or
batteries at many retail or carrier-provided locations
where mobile devices and batteries are sold. Additional
information regarding specific locations may be found at:
http://www.epa.gov/epawaste/partnerships/plugin/cellphone/
index.htm
or at
http://www.call2recycle.org/
.
Mail It In
The Samsung Mobile Take-Back Program will provide
Samsung customers with a free recycling mailing label.
Just go to
http://www.samsung.com/us/aboutsamsung/citizenship/
usactivities_environment_samsungrecyclingdirect.html?INT=ST
A_recyle_your_phone_page
and follow the instructions to
print out a free pre-paid postage label and then send your
old mobile device or battery to the address listed, via U.S.
Mail, for recycling.
Dispose of unwanted electronics through an approved
recycler.
To find the nearest recycling location, go to our website:
www.samsung.com/recyclingdirect
Or call, (877) 278-0799.
DRAFT
FOR INTERNAL USE ONLY
156
Follow local regulations regarding disposal of mobile
devices and batteries
Dispose of your mobile device and batteries in accordance
with local regulations. In some areas, the disposal of these
items in household or business trash may be prohibited. Help
us protect the environment - recycle!
Warning!
Never dispose of batteries in a fire because they may
explode.
UL Certified Travel Charger
The Travel Charger for this phone has met applicable UL
safety requirements. Please adhere to the following safety
instructions per UL guidelines:
FAILURE TO FOLLOW THE INSTRUCTIONS OUTLINED MAY
LEAD TO SERIOUS PERSONAL INJURY AND POSSIBLE
PROPERTY DAMAGE.
IMPORTANT SAFETY INSTRUCTIONS - SAVE THESE
INSTRUCTIONS.
DANGER - TO REDUCE THE RISK OF FIRE OR
ELECTRIC SHOCK, CAREFULLY FOLLOW THESE
INSTRUCTIONS.
FOR CONNECTION TO A SUPPLY NOT IN NORTH
AMERICA, USE AN ATTACHMENT PLUG ADAPTOR
OF THE PROPER CONFIGURATION FOR THE
POWER OUTLET.
THIS POWER UNIT IS INTENDED TO BE
CORRECTLY ORIENTED IN A VERTICAL OR
HORIZONTAL OR FLOOR MOUNT POSITION.
Display / Touch-Screen
Please note the following information when using your
mobile device:
WARNING REGARDING DISPLAY
The display on your mobile device is made of glass or
acrylic and could break if your mobile device is
dropped or if it receives significant impact. Do not use
if screen is broken or cracked as this could cause
injury to you.
DRAFT
FOR INTERNAL USE ONLY
Health and Safety Information 157
WARRANTY DISCLAIMER: PROPER USE OF A
TOUCH-SCREEN MOBILE DEVICE
If your mobile device has a touch-screen display,
please note that a touch-screen responds best to a
light touch from the pad of your finger or a non-metallic
stylus. Using excessive force or a metallic object when
pressing on the touch-screen may damage the
tempered glass surface and void the warranty. For
more information, please refer to the “Standard
Limited Warranty”.
GPS
Certain Samsung mobile devices can use a Global Positioning
System (GPS) signal for location-based applications. A GPS
uses satellites controlled by the U.S. Government that are
subject to changes implemented in accordance with the
Department of Defense policy and the 2008 Federal Radio
navigation Plan (FRP). Changes may affect the performance
of location-based technology on your mobile device.
Even with GPS, when you make an emergency call:
•
Always tell the emergency responder your location to the best of
your ability; and
•
Remain on the mobile device for as long as the emergency
responder instructs you.
Navigation
Maps, directions, and other navigation-data, including data
relating to your current location, may contain inaccurate or
incomplete data, and circumstances can and do change over
time. In some areas, complete information may not be
available.
Therefore, you should always visually confirm that
the navigational instructions are consistent with what you see
before following them. All users should pay attention to road
conditions, closures, traffic, and all other factors that may
impact safe driving or walking. Always obey posted road signs.
Emergency Calls
This mobile device, like any wireless mobile device, operates
using radio signals, wireless and landline networks, as well
as user-programmed functions, which cannot guarantee
connection in all conditions, areas, or circumstances.
Therefore, you should never rely solely on any wireless
mobile device for essential communications (medical
emergencies, for example). Before traveling in remote or
underdeveloped areas, plan an alternate method of
contacting emergency services personnel. Remember, to
DRAFT
FOR INTERNAL USE ONLY
158
make or receive any calls, the mobile device must be
switched on and in a service area with adequate signal
strength.
Emergency calls may not be possible on all wireless mobile
device networks or when certain network services and/or
mobile device features are in use. Check with local service
providers.
To make an emergency call:
1. If the mobile device is not on, switch it on.
2. From the Home screen, touch to launch the Phone
Dialer.
3. Key in the emergency number for your present location
(for example, 911 or other official emergency number).
Emergency numbers vary by location.
4. Touch to place the call.
If certain features are in use (call blocking, for example), you
may first need to deactivate those features before you can
make an emergency call. Consult your User Manual and your
local cellular service provider. When making an emergency
call, remember to give all the necessary information as
accurately as possible. Remember that your mobile device
may be the only means of communication at the scene of an
accident; do not cut off the call until given permission to do
so.
Care and Maintenance
Your mobile device is a product of superior design and
craftsmanship and should be treated with care. The
suggestions below will help you fulfill any warranty
obligations and allow you to enjoy this product for many
years:
Keep your Samsung Mobile Device away from:
Liquids of any kind
Keep the mobile device dry. Precipitation, humidity, and
liquids contain minerals that will corrode electronic
circuits. If the mobile device does get wet, do not
accelerate drying with the use of an oven, microwave, or
dryer, because this may damage the mobile device and
could cause a fire or explosion.
Do not use the mobile device with a wet hand. Doing so
may cause an electric shock to you or damage to the
mobile device.
DRAFT
FOR INTERNAL USE ONLY
Health and Safety Information 159
Extreme heat or cold
Avoid temperatures below 0°C / 32°F or above 45°C /
113°F.
Microwaves
Do not try to dry your mobile device in a microwave oven.
Doing so may cause a fire or explosion.
Dust and dirt
Do not expose your mobile device to dust, dirt, or sand.
Cleaning solutions
Do not use harsh chemicals, cleaning solvents, or strong
detergents to clean the mobile device. Wipe it with a soft
cloth slightly dampened in a mild soap-and-water
solution.
Shock or vibration
Do not drop, knock, or shake the mobile device. Rough
handling can break internal circuit boards.
Paint
Do not paint the mobile device. Paint can clog the
device’s moving parts or ventilation openings and prevent
proper operation.
Responsible Listening
Caution! Avoid potential hearing loss
.
Damage to hearing occurs when a person is exposed to loud
sounds over time. The risk of hearing loss increases as
sound is played louder and for longer durations. Prolonged
exposure to loud sounds (including music) is the most
common cause of preventable hearing loss. Some scientific
research suggests that using portable audio devices, such as
portable music players and cell phones, at high volume
settings for long durations may lead to permanent
noise-induced hearing loss.
This includes the use of headphones (including headsets,
earbuds, and Bluetooth® or other wireless devices).
Exposure to very loud sound has also been associated in
some studies with tinnitus (a ringing in the ear),
hypersensitivity to sound, and distorted hearing. Individual
susceptibility to noise-induced hearing loss and potential
hearing problem varies. Additionally, the amount of sound
produced by a portable audio device varies depending on the
nature of the sound, the device settings, and the headphones
DRAFT
FOR INTERNAL USE ONLY
160
that are used. As a result, there is no single volume setting
that is appropriate for everyone or for every combination of
sound, settings, and equipment.
You should follow some common sense recommendations
when using any portable audio device:
•
Always turn the volume down before plugging the earphones into
an audio source.
•
Set the volume in a quiet environment and select the lowest
volume at which you can hear adequately.
•
Be aware that you can adapt to higher volume settings over time,
not realizing that the higher volume may be harmful to your
hearing.
•
When using headphones, turn the volume down if you cannot
hear the people speaking near you or if the person sitting next to
you can hear what you are listening to.
•
Do not turn the volume up to block out noisy surroundings. If you
choose to listen to your portable device in a noisy environment,
use noise-cancelling headphones to block out background
environmental noise. By blocking background environment noise,
noise cancelling headphones should allow you to hear the music
at lower volumes than when using earbuds.
•
Limit the amount of time you listen. As the volume increases, less
time is required before you hearing could be affected.
•
Avoid using headphones after exposure to extremely loud noises,
such as rock concerts, that might cause temporary hearing loss.
Temporary hearing loss might cause unsafe volumes to sound
normal.
•
Do not listen at any volume that causes you discomfort. If you
experience ringing in your ears, hear muffled speech, or
experience any temporary hearing difficulty after listening to your
portable audio device, discontinue use and consult your doctor.
You can obtain additional information on this subject from the
following sources:
American Academy of Audiology
11730 Plaza American Drive, Suite 300
Reston, VA 20190
Voice: (800) 222-2336
Email: info@audiology.org
Internet:
http://www.audiology.org/Pages/
default.aspx
DRAFT
FOR INTERNAL USE ONLY
Health and Safety Information 161
Operating Environment
Remember to follow any special regulations in force in any
area, and always switch your mobile device off whenever it is
forbidden to use it, or when it may cause interference or
danger. When connecting the mobile device or any accessory
to another device, read its user's guide for detailed safety
instructions. Do not connect incompatible products.
Using Your Mobile Device Near Other Electronic
Devices
Most modern electronic equipment is shielded from Radio
Frequency (RF) signals. However, certain electronic
equipment may not be shielded against the RF signals from
your wireless mobile device. Consult the manufacturer to
discuss alternatives.
National Institute on Deafness and Other
Communication Disorders
National Institutes of Health
31 Center Drive, MSC 2320
Bethesda, MD 20892-2320
Email: nidcdinfo@nih.gov
Internet:
http://www.nidcd.nih.gov/
National Institute for Occupational Safety
and Health (NIOSH)
395 E Street, S.W., Suite 9200
Patriots Plaza Building
Washington, DC 20201
Voice: 1-800-35-NIOSH
(1-800-356-4674)
1-800-CDC-INFO (1-800-232-4636)
Outside the U.S. 513-533-8328
Email: cdcinfo@cdc.gov
Internet:
http://www.cdc.gov/niosh/topics/noise/
default.html
1-888-232-6348 TTY
DRAFT
FOR INTERNAL USE ONLY
162
Implantable Medical Devices
A minimum separation of six (6) inches should be maintained
between a handheld wireless mobile device and an
implantable medical device, such as a pacemaker or
implantable cardioverter defibrillator, to avoid potential
interference with the device.
Persons who have such devices:
•
Should ALWAYS keep the mobile device more than six (6) inches
from their implantable medical device when the mobile device is
turned ON;
•
Should not carry the mobile device in a breast pocket;
•
Should use the ear opposite the implantable medical device to
minimize the potential for interference;
•
Should turn the mobile device OFF immediately if there is any
reason to suspect that interference is taking place;
•
Should read and follow the directions from the manufacturer of
your implantable medical device. If you have any questions about
using your wireless mobile device with an implantable medical
device, consult your health care provider.
For more information see:
http://www.fcc.gov/oet/rfsafety/rf-
faqs.html#
.
Other Medical Devices
If you use any other personal medical devices, consult the
manufacturer of your device to determine if it is adequately
shielded from external RF energy. Your physician may be able
to assist you in obtaining this information. Switch your
mobile device off in health care facilities when any
regulations posted in these areas instruct you to do so.
Hospitals or health care facilities may be using equipment
that could be sensitive to external RF energy.
Vehicles
RF signals may affect improperly installed or inadequately
shielded electronic systems in motor vehicles. Check with
the manufacturer or its representative regarding your vehicle
before using your mobile device in a motor vehicle. You
should also consult the manufacturer of any equipment that
has been added to your vehicle.
Posted Facilities
Switch your mobile device off in any facility where posted
notices require you to do so.
Potentially Explosive Environments
Switch your mobile device off when in any area with a
potentially explosive atmosphere and obey all signs and
instructions. Sparks in such areas could cause an explosion
DRAFT
FOR INTERNAL USE ONLY
Health and Safety Information 163
or fire resulting in bodily injury or even death. Users are
advised to switch the mobile device off while at a refueling
point (service station).
Users are reminded of the need to observe restrictions on the
use of radio equipment in fuel depots (fuel storage and
distribution areas), chemical plants, or where blasting
operations are in progress. Areas with a potentially explosive
atmosphere are often, but not always, clearly marked. They
include below deck on boats, chemical transfer or storage
facilities, vehicles using liquefied petroleum gas (such as
propane or butane), areas where the air contains chemicals
or particles, such as grain, dust, or metal powders, and any
other area where you would normally be advised to turn off
your vehicle engine.
When your Device is Wet
Do not turn on your device if it is wet. If your device is
already on, turn it off and remove the battery immediately (if
the device will not turn off or you cannot remove the battery,
leave it as-is). Then, dry the device with a towel and take it
to a service center.
FCC Hearing Aid Compatibility (HAC)
Regulations for Wireless Devices
The U.S. Federal Communications Commission (FCC) has
established requirements for digital wireless mobile devices
to be compatible with hearing aids and other assistive
hearing devices.
When individuals employing some assistive hearing devices
(hearing aids and cochlear implants) use wireless mobile
devices, they may detect a buzzing, humming, or whining
noise. Some hearing devices are more immune than others
to this interference noise, and mobile devices also vary in the
amount of interference they generate.
The wireless telephone industry has developed a rating
system for wireless mobile devices to assist hearing device
users find mobile devices that may be compatible with their
hearing devices. Not all mobile devices have been rated.
Mobile devices that are rated have the rating on their box or
a label located on the box.
The ratings are not guarantees. Results will vary depending
on the user's hearing device and hearing loss. If your hearing
device happens to be vulnerable to interference, you may not
DRAFT
FOR INTERNAL USE ONLY
164
be able to use a rated mobile device successfully. Trying out
the mobile device with your hearing device is the best way to
evaluate it for your personal needs.
M-Ratings
: Wireless mobile devices rated M3 or M4 meet
FCC requirements and are likely to generate less interference
to hearing devices than mobile devices that are not labeled.
M4 is the better/higher of the two ratings. M-ratings refer to
enabling acoustic coupling with hearing aids that do not
operate in telecoil mode.
T-Ratings
: Mobile devices rated T3 or T4 meet FCC
requirements and are likely to generate less interference to
hearing devices than mobile devices that are not labeled. T4
is the better/higher of the two ratings. T-ratings refer to
enabling inductive coupling with hearing aids operating in
telecoil mode.
Hearing devices may also be rated. Your hearing aid
manufacturer or hearing health professional may help you
find this rating. Higher ratings mean that the hearing device
is relatively immune to interference noise.
Under the current industry standard, American National
Standards Institute (ANSI) C63.19, the hearing aid and
wireless mobile device rating values are added together to
indicate how usable they are together. For example, if a
hearing aid meets the M2 level rating and the wireless
mobile device meets the M3 level rating, the sum of the two
values equals M5.
Under the standard, this should provide the hearing aid user
with normal use while using the hearing aid with the
particular wireless mobile device. A sum of 6 or more would
indicate excellent performance.
However, these are not guarantees that all users will be
satisfied. T ratings work similarly.
M3 + M2 = 5
T3 + T2 = 5
DRAFT
FOR INTERNAL USE ONLY
Health and Safety Information 165
The HAC rating and measurement procedure are described in
the American National Standards Institute (ANSI) C63.19
standard.
HAC for Newer Technologies
This phone has been tested and rated for use with hearing
aids for some of the wireless technologies that it uses.
However, there may be some newer wireless technologies
used in this phone that have not been tested yet for use with
hearing aids.
It is important to try the different features of this phone
thoroughly and in different locations, using your hearing aid
or cochlear implant, to determine if you hear any interfering
noise. Consult your service provider or the manufacturer of
this phone for information on hearing aid compatibility. If you
have questions about return or exchange policies, consult
your service provider or phone retailer.
Restricting Children's Access to Your
Mobile Device
Your mobile device is not a toy. Do not allow children to play
with it because they could hurt themselves and others,
damage the mobile device, or make calls that increase your
mobile device bill.
Keep the mobile device and all its parts and accessories out
of the reach of small children.
FCC Notice and Cautions
FCC Notice
The mobile device may cause TV or radio interference if used
in close proximity to receiving equipment. The FCC can
require you to stop using the mobile device if such
interference cannot be eliminated. Vehicles using liquefied
petroleum gas (such as propane or butane) must comply with
the National Fire Protection Standard (NFPA-58). For a copy
of this standard, contact the National Fire Protection
Association.
Cautions
Any changes or modifications to your mobile device not
expressly approved in this document could void your
warranty for this equipment and void your authority to
operate this equipment. Only use approved batteries,
antennas, and chargers. The use of any unauthorized
accessories may be dangerous and void the mobile device
warranty if said accessories cause damage or a defect to the
mobile device.
DRAFT
FOR INTERNAL USE ONLY
166
Although your mobile device is quite sturdy, it is a complex
piece of equipment and can be broken. Avoid dropping,
hitting, bending, or sitting on it.
Other Important Safety Information
•
Only qualified personnel should service the mobile device or
install the mobile device in a vehicle. Faulty installation or service
may be dangerous and may invalidate any warranty applicable to
the device.
•
Ensure that any mobile devices or related equipment installed in
your vehicle are securely mounted.
•
Check regularly that all wireless mobile device equipment in your
vehicle is mounted and operating properly.
•
When using a headset in dry environments, static electricity can
build up in the headset and cause a small quick static electrical
shock. To minimize the risk of electrostatic discharge from the
headset avoid using the headset in extremely dry environments or
touch a grounded unpainted metal object to discharge static
electricity before inserting the headset.
•
Do not store or carry flammable liquids, gases, or explosive
materials in the same compartment as the mobile device, its
parts, or accessories.
•
For vehicles equipped with an air bag, remember that an air bag
inflates with great force. Do not place objects, including installed
or portable wireless equipment near or in the area over the air
bag or in the air bag deployment area. If wireless equipment is
improperly installed and the air bag inflates, serious injury could
result.
•
Switch your mobile device off before boarding an aircraft. The use
of wireless mobile devices in aircraft is illegal and may be
dangerous to the aircraft's operation. Check with appropriate
authorities before using any function of a mobile device while on
an aircraft.
•
Failure to observe these instructions may lead to the suspension
or denial of cell phone services to the offender, or legal action, or
both.
•
While using your device, leave some lights on in the room and do
not hold the screen too close to your eyes.
•
Seizures or blackouts can occur when you are exposed to flashing
lights while watching videos or playing games for extended
periods. If you feel any discomfort, stop using the device
immediately.
DRAFT
FOR INTERNAL USE ONLY
Health and Safety Information 167
•
Reduce risk of repetitive motion injuries. When you repetitively
perform actions, such as pressing keys, drawing characters on a
touch screen with your fingers, or playing games, you may
experience occasional discomfort in your hands, neck, shoulders,
or other parts of your body. When using your device for extended
periods, hold the device with a relaxed grip, press the keys lightly,
and take frequent breaks. If you continue to have discomfort
during or after such use, stop use and see a physician.
•
If your device has a camera flash or light, do not use the flash or
light close to the eyes of people or pets. [122011]
DRAFT
FOR INTERNAL USE ONLY
168
Section 10: Warranty Information
Standard Limited Warranty
What is covered and for how long?
SAMSUNG TELECOMMUNICATIONS AMERICA, LLC
(“SAMSUNG”) warrants that SAMSUNG’s handsets and
accessories (“Products”) are free from defects in material
and workmanship under normal use and service for the
period commencing upon the date of purchase by the first
consumer purchaser and continuing for the following
specified period of time after that date:
What is not covered?
This Limited Warranty is conditioned upon proper use of the
Product.
This Limited Warranty does not cover: (a) defects or damage
resulting from accident, misuse, abnormal use, abnormal
conditions, improper storage, exposure to liquid, moisture,
dampness, sand or dirt, neglect, or unusual physical,
electrical or electromechanical stress; (b) scratches, dents
and cosmetic damage, unless caused by SAMSUNG;
(c) defects or damage resulting from excessive force or use
of a metallic object when pressing on a touch screen;
(d) equipment that has the serial number or the
enhancement data code removed, defaced, damaged,
altered or made illegible; (e) ordinary wear and tear;
(f) defects or damage resulting from the use of Product in
conjunction or connection with accessories, products, or
ancillary/peripheral equipment not furnished or approved by
SAMSUNG; (g) defects or damage resulting from improper
testing, operation, maintenance, installation, service, or
adjustment not furnished or approved by SAMSUNG;
(h) defects or damage resulting from external causes such as
collision with an object, fire, flooding, dirt, windstorm,
lightning, earthquake, exposure to weather conditions, theft,
blown fuse, or improper use of any electrical source;
(i) defects or damage resulting from cellular signal reception
Phone 1 Year
Batteries 1 Year
Case/Pouch/Holster 90 Days
Other Phone Accessories 1 Year
DRAFT
FOR INTERNAL USE ONLY
Warranty Information 169
or transmission, or viruses or other software problems
introduced into the Product; or (j) Product used or purchased
outside the United States. This Limited Warranty covers
batteries only if battery capacity falls below 80% of rated
capacity or the battery leaks, and this Limited Warranty does
not cover any battery if (i) the battery has been charged by a
battery charger not specified or approved by SAMSUNG for
charging the battery; (ii) any of the seals on the battery are
broken or show evidence of tampering; or (iii) the battery has
been used in equipment other than the SAMSUNG phone for
which it is specified.
What are SAMSUNG’s obligations?
During the applicable warranty period, provided the Product
is returned in accordance with the terms of this Limited
Warranty, SAMSUNG will repair or replace the Product, at
SAMSUNG’s sole option, without charge. SAMSUNG may, at
SAMSUNG’s sole option, use rebuilt, reconditioned, or new
parts or components when repairing any Product, or may
replace the Product with a rebuilt, reconditioned or new
Product.
Repaired/replaced cases, pouches and holsters will be
warranted for a period of ninety (90) days. All other repaired/
replaced Products will be warranted for a period equal to the
remainder of the original Limited Warranty on the original
Product or for ninety (90) days, whichever is longer. All
replaced Products, parts, components, boards and
equipment shall become the property of SAMSUNG. Except to
any extent expressly allowed by applicable law, transfer or
assignment of this Limited Warranty is prohibited.
What must you do to obtain warranty service?
To obtain service under this Limited Warranty, you must
return the Product to an authorized phone service facility in
an adequate container for shipping, accompanied by the
sales receipt or comparable proof of sale showing the
original date of purchase, the serial number of the Product
and the seller’s name and address.
To obtain assistance on where to deliver the Product, please
call SAMSUNG Customer Care at 1-888-987-4357. If
SAMSUNG determines that any Product is not covered by this
Limited Warranty, you must pay all parts, shipping, and labor
charges for the repair or return of such Product.
You should keep a separate backup copy of any contents of
the Product before delivering the Product to SAMSUNG for
warranty service, as some or all of the contents may be
deleted or reformatted during the course of warranty service.
DRAFT
FOR INTERNAL USE ONLY
170
What are the limits on SAMSUNG’s liability?
THIS LIMITED WARRANTY SETS OUT THE FULL EXTENT OF
SAMSUNG’S RESPONSIBILITIES, AND THE EXCLUSIVE
REMEDY REGARDING THE PRODUCTS.
ALL IMPLIED WARRANTIES, INCLUDING WITHOUT
LIMITATION, IMPLIED WARRANTIES OF MERCHANTABILITY
AND FITNESS FOR A PARTICULAR PURPOSE, ARE LIMITED TO
THE DURATION OF THIS LIMITED WARRANTY. IN NO EVENT
SHALL SAMSUNG BE LIABLE FOR DAMAGES IN EXCESS OF
THE PURCHASE PRICE OF THE PRODUCT OR FOR, WITHOUT
LIMITATION, COMMERCIAL LOSS OF ANY SORT; LOSS OF
USE, TIME, DATA, REPUTATION, OPPORTUNITY, GOODWILL,
PROFITS OR SAVINGS; INCONVENIENCE; INCIDENTAL,
SPECIAL, CONSEQUENTIAL OR PUNITIVE DAMAGES; OR
DAMAGES ARISING FROM THE USE OR INABILITY TO USE THE
PRODUCT. SOME STATES AND JURISDICTIONS DO NOT
ALLOW LIMITATIONS ON HOW LONG AN IMPLIED WARRANTY
LASTS, OR THE DISCLAIMER OR LIMITATION OF INCIDENTAL
OR CONSEQUENTIAL DAMAGES, SO THE ABOVE LIMITATIONS
AND DISCLAIMERS MAY NOT APPLY TO YOU.
SAMSUNG MAKES NO WARRANTIES OR REPRESENTATIONS,
EXPRESS OR IMPLIED, STATUTORY OR OTHERWISE, AS TO
THE QUALITY, CAPABILITIES, OPERATIONS, PERFORMANCE
OR SUITABILITY OF ANY THIRD-PARTY SOFTWARE OR
EQUIPMENT USED IN CONJUNCTION WITH THE PRODUCT, OR
THE ABILITY TO INTEGRATE ANY SUCH SOFTWARE OR
EQUIPMENT WITH THE PRODUCT, WHETHER SUCH
THIRD-PARTY SOFTWARE OR EQUIPMENT IS INCLUDED WITH
THE PRODUCT DISTRIBUTED BY SAMSUNG OR OTHERWISE.
RESPONSIBILITY FOR THE QUALITY, CAPABILITIES,
OPERATIONS, PERFORMANCE AND SUITABILITY OF ANY
SUCH THIRD-PARTY SOFTWARE OR EQUIPMENT RESTS
SOLELY WITH THE USER AND THE DIRECT VENDOR, OWNER
OR SUPPLIER OF SUCH THIRD-PARTY SOFTWARE OR
EQUIPMENT.
Nothing in the Product instructions or information shall be
construed to create an express warranty of any kind with
respect to the Products. No agent, employee, dealer,
representative or reseller is authorized to modify or extend
this Limited Warranty or to make binding representations or
claims, whether in advertising, presentations or otherwise,
on behalf of SAMSUNG regarding the Products or this Limited
Warranty.
This Limited Warranty gives you specific legal rights, and you
may also have other rights that vary from state to state.
DRAFT
FOR INTERNAL USE ONLY
Warranty Information 171
What is the procedure for resolving disputes?
ALL DISPUTES WITH SAMSUNG ARISING IN ANY WAY FROM
THIS LIMITED WARRANTY OR THE SALE, CONDITION OR
PERFORMANCE OF THE PRODUCTS SHALL BE RESOLVED
EXCLUSIVELY THROUGH FINAL AND BINDING ARBITRATION,
AND NOT BY A COURT OR JURY.
Any such dispute shall not be combined or consolidated with
a dispute involving any other person’s or entity’s Product or
claim, and specifically, without limitation of the foregoing,
shall not under any circumstances proceed as part of a class
action. The arbitration shall be conducted before a single
arbitrator, whose award may not exceed, in form or amount,
the relief allowed by the applicable law. The arbitration shall
be conducted according to the American Arbitration
Association (AAA) Commercial Arbitration Rules applicable to
consumer disputes. This arbitration provision is entered
pursuant to the Federal Arbitration Act. The laws of the State
of Texas, without reference to its choice of laws principles,
shall govern the interpretation of the Limited Warranty and all
disputes that are subject to this arbitration provision. The
arbitrator shall decide all issues of interpretation and
application of this arbitration provision and the Limited
Warranty.
For any arbitration in which your total damage claims,
exclusive of attorney fees and expert witness fees, are
$5,000.00 or less (“Small Claim”), the arbitrator may, if you
prevail, award your reasonable attorney fees, expert witness
fees and costs as part of any award, but may not grant
SAMSUNG its attorney fees, expert witness fees or costs
unless it is determined that the claim was brought in bad
faith. In a Small Claim case, you shall be required to pay no
more than half of the total administrative, facility and
arbitrator fees, or $50.00 of such fees, whichever is less, and
SAMSUNG shall pay the remainder of such fees.
Administrative, facility and arbitrator fees for arbitrations in
which your total damage claims, exclusive of attorney fees
and expert witness fees, exceed $5,000.00 (“Large Claim”)
shall be determined according to AAA rules. In a Large Claim
case, the arbitrator may grant to the prevailing party, or
apportion among the parties, reasonable attorney fees,
expert witness fees and costs. Judgment may be entered on
the arbitrator’s award in any court of competent jurisdiction.
This arbitration provision also applies to claims against
SAMSUNG’s employees, representatives and affiliates if any
such claim arises from the Product’s sale, condition or
performance.
DRAFT
FOR INTERNAL USE ONLY
172
You may opt out of this dispute resolution procedure by
providing notice to SAMSUNG no later than 30 calendar days
from the date of the first consumer purchaser’s purchase of the
Product. To opt out, you must send notice by e-mail to
optout@sta.samsung.com, with the subject line: “Arbitration
Opt Out.” You must include in the opt out e-mail (a) your name
and address; (b) the date on which the Product was purchased;
(c) the Product model name or model number; and (d) the IMEI
or MEID or Serial Number, as applicable, if you have it (the IMEI
or MEID or Serial Number can be found (i) on the Product box;
(ii) on the Product information screen, which can be found
under “Settings;” (iii) on a label on the back of the Product
beneath the battery, if the battery is removable; and (iv) on the
outside of the Product if the battery is not removable).
Alternatively, you may opt out by calling 1-888-987-4357 no
later than 30 calendar days from the date of the first consumer
purchaser’s purchase of the Product and providing the same
information. These are the only two forms of notice that will be
effective to opt out of this dispute resolution procedure. Opting
out of this dispute resolution procedure will not affect the
coverage of the Limited Warranty in any way, and you will
continue to enjoy the benefits of the Limited Warranty.
Severability
If any portion of this Limited Warranty is held to be illegal or
unenforceable, such partial illegality or unenforceability shall
not affect the enforceability of the remainder of the Limited
Warranty.
Precautions for Transfer and Disposal
If data stored on this device is deleted or reformatted using
the standard methods, the data only appears to be removed
on a superficial level, and it may be possible for someone to
retrieve and reuse the data by means of special software.
To avoid unintended information leaks and other problems of
this sort, it is recommended that the device be returned to
Samsung’s Customer Care Center for an Extended File
System (EFS) Clear which will eliminate all user memory and
return all settings to default settings. Please contact the
Samsung Customer Care Center
for details.
Important!
Please provide warranty information (proof of
purchase) to Samsung’s Customer Care Center in
order to provide this service at no charge. If the
warranty has expired on the device, charges may
apply.
DRAFT
FOR INTERNAL USE ONLY
Warranty Information 173
Samsung Telecommunications America, LLC
1301 E. Lookout Drive
Richardson, Texas 75082
Phone: 1-800-SAMSUNG
Phone: 1-888-987-HELP (4357)
©2012 Samsung Telecommunications America, LLC. All
rights reserved.
No reproduction in whole or in part allowed without prior
written approval. Specifications and availability subject to
change without notice. [111611]
End User License Agreement for
Software
IMPORTANT. READ CAREFULLY: This End User License
Agreement ("EULA") is a legal agreement between you
(either an individual or a single entity) and Samsung
Electronics Co., Ltd. ("Samsung Electronics Co.") for
software, owned by Samsung Electronics Co. and its
affiliated companies and its third party suppliers and
licensors, that accompanies this EULA, which includes
computer software and may include associated media,
printed materials, "online" or electronic documentation
("Software").
Samsung Electronics Co. is a separate company
from the company that provides the limited warranty for this
mobile device, Samsung Telecommunications America, LLC.
This device requires the use of preloaded software in its
normal operation. BY USING THE DEVICE OR ITS PRELOADED
SOFTWARE, YOU ACCEPT THE TERMS OF THIS EULA. IF YOU
DO NOT ACCEPT THESE TERMS,
DO NOT USE
THE DEVICE OR
THE SOFTWARE. INSTEAD, RETURN THE DEVICE TO THE
RETAILER FOR A REFUND OR CREDIT.
1. GRANT OF LICENSE. Samsung Electronics Co. grants you
the following rights provided that you comply with all terms
and conditions of this EULA: You may install, use, access,
display and run one copy of the Software on the local hard
disk(s) or other permanent storage media of one computer
and use the Software on a single computer or a mobile
device at a time, and you may not make the Software
available over a network where it could be used by multiple
computers at the same time. You may make one copy of the
Software in machine readable form for backup purposes
only; provided that the backup copy must include all
copyright or other proprietary notices contained on the
original.
DRAFT
FOR INTERNAL USE ONLY
174
2. RESERVATION OF RIGHTS AND OWNERSHIP. Samsung
Electronics Co. reserves all rights not expressly granted to
you in this EULA. The Software is protected by copyright and
other intellectual property laws and treaties. Samsung
Electronics Co. or its suppliers own the title, copyright and
other intellectual property rights in the Software. The
Software is licensed, not sold.
3. LIMITATIONS ON END USER RIGHTS. You may not reverse
engineer, decompile, disassemble, or otherwise attempt to
discover the source code or algorithms of, the Software
(except and only to the extent that such activity is expressly
permitted by applicable law not withstanding this limitation),
or modify, or disable any features of, the Software, or create
derivative works based on the Software. You may not rent,
lease, lend, sublicense or provide commercial hosting
services with the Software.
4. CONSENT TO USE OF DATA. You agree that Samsung
Electronics Co. and its affiliates may collect and use
technical information gathered as part of the product support
services related to the Software provided to you, if any.
Samsung Electronics Co. and its affiliates may use this
information solely to improve their products or to provide
customized services or technologies to you and will not
disclose this information in a form that personally identifies
you.
5. UPGRADES. This EULA applies to updates, supplements
and add-on components (if any) of the Software that
Samsung Electronics Co. may provide to you or make
available to you after the date you obtain your initial copy of
the Software, unless we provide other terms along with such
upgrade. To use Software identified as an upgrade, you must
first be licensed for the Software identified by Samsung
Electronics Co. as eligible for the upgrade. After upgrading,
you may no longer use the Software that formed the basis for
your upgrade eligibility.
6. SOFTWARE TRANSFER. You may not transfer this EULA or
the rights to the Software granted herein to any third party
unless it is in connection with the sale of the mobile device
which the Software accompanied. In such event, the transfer
must include all of the Software (including all component
parts, the media and printed materials, any upgrades, this
EULA) and you may not retain any copies of the Software.
The transfer may not be an indirect transfer, such as a
consignment. Prior to the transfer, the end user receiving the
Software must agree to all the EULA terms.
DRAFT
FOR INTERNAL USE ONLY
Warranty Information 175
7. EXPORT RESTRICTIONS. You acknowledge that the
Software is subject to export restrictions of various countries.
You agree to comply with all applicable international and
national laws that apply to the Software, including the U.S.
Export Administration Regulations, as well as end user, end
use, and destination restrictions issued by U.S. and other
governments.
8. TERMINATION. This EULA is effective until terminated. Your
rights under this License will terminate automatically without
notice from Samsung Electronics Co. if you fail to comply
with any of the terms and conditions of this EULA. Upon
termination of this EULA, you must cease all use of the
Software and destroy all copies, full or partial, of the
Software.
9. Disclaimer of Warranty. ALL SOFTWARE PROVIDED BY
SAMSUNG ELECTRONICS CO. WITH THIS MOBILE DEVICE IS
PROVIDED "AS IS" AND ON AN "AS AVAILABLE" BASIS,
WITHOUT WARRANTIES OF ANY KIND FROM SAMSUNG
ELECTRONICS CO., EITHER EXPRESS OR IMPLIED. TO THE
FULLEST EXTENT POSSIBLE PURSUANT TO APPLICABLE
LAW, SAMSUNG ELECTRONICS CO. DISCLAIMS ALL
WARRANTIES EXPRESS, IMPLIED, OR STATUTORY,
INCLUDING, BUT NOT LIMITED TO, IMPLIED WARRANTIES OF
MERCHANTABILITY, SATISFACTORY QUALITY OR
WORKMANLIKE EFFORT, FITNESS FOR A PARTICULAR
PURPOSE, RELIABILITY OR AVAILABILITY, ACCURACY, LACK
OF VIRUSES, QUIET ENJOYMENT, NON INFRINGEMENT OF
THIRD PARTY RIGHTS OR OTHER VIOLATION OF RIGHTS.
SOME JURISDICTIONS DO NOT ALLOW EXCLUSIONS OR
LIMITATIONS OF IMPLIED WARRANTIES, SO THE ABOVE
EXCLUSIONS OR LIMITATIONS MAY NOT APPLY TO YOU. NO
ADVICE OR INFORMATION, WHETHER ORAL OR WRITTEN,
OBTAINED BY YOU FROM SAMSUNG ELECTRONICS CO. OR
ITS AFFILIATES SHALL BE DEEMED TO ALTER THIS
DISCLAIMER BY SAMSUNG ELECTRONICS CO. OF WARRANTY
REGARDING THE SOFTWARE, OR TO CREATE ANY WARRANTY
OF ANY SORT FROM SAMSUNG ELECTRONICS CO.
10. THIRD-PARTY APPLICATIONS. Certain third party
applications may be included with, or downloaded to this
mobile device. Samsung Electronics Co. makes no
representations whatsoever about any of these applications.
Since Samsung Electronics Co. has no control over such
applications, you acknowledge and agree that Samsung
Electronics Co. is not responsible for the availability of such
applications and is not responsible or liable for any content,
advertising, products, services, or other materials on or
available from such applications. You expressly acknowledge
and agree that use of third party applications is at your sole
DRAFT
FOR INTERNAL USE ONLY
176
risk and that the entire risk of unsatisfactory quality,
performance, accuracy and effort is with you. It is up to you
to take precautions to ensure that whatever you select to use
is free of such items as viruses, worms, Trojan horses, and
other items of a destructive nature. References on this
mobile device to any names, marks, products, or services of
any third-parties are provided solely as a convenience to you,
and do not constitute or imply an endorsement, sponsorship,
or recommendation of, or affiliation with the third party or its
products and services. You agree that Samsung Electronics
Co. shall not be responsible or liable, directly or indirectly, for
any damage or loss caused or alleged to be caused by, or in
connection with, use of or reliance on any such third party
content, products, or services available on or through any
such application. You acknowledge and agree that the use of
any third-party application is governed by such third party
application provider's Terms of Use, License Agreement,
Privacy Policy, or other such agreement and that any
information or personal data you provide, whether knowingly
or unknowingly, to such third-party application provider, will
be subject to such third party application provider's privacy
policy, if such a policy exists. SAMSUNG ELECTRONICS CO.
DISCLAIMS ANY RESPONSIBILITY FOR ANY DISCLOSURE OF
INFORMATION OR ANY OTHER PRACTICES OF ANY THIRD
PARTY APPLICATION PROVIDER.
11. Disclaimer of Warranty Regarding Third Party
Applications. SAMSUNG ELECTRONICS CO. DOES NOT
WARRANT OR MAKE ANY REPRESENTATIONS REGARDING
THE AVAILABILITY, USE, TIMELINESS, SECURITY, VALIDITY,
ACCURACY, OR RELIABILITY OF, OR THE RESULTS OF THE
USE OF, OR OTHERWISE RESPECTING, THE CONTENT OF ANY
THIRD PARTY APPLICATION WHETHER SUCH THIRD PARTY
APPLICATION IS INCLUDED WITH THE PRODUCT
DISTRIBUTED BY SAMSUNG ELECTRONICS CO., IS
DOWNLOADED, OR OTHERWISE OBTAINED. USE OF ANY
THIRD PARTY APPLICATION IS DONE AT YOUR OWN
DISCRETION AND RISK AND YOU ARE SOLELY RESPONSIBLE
FOR ANY DAMAGE TO THE MOBILE DEVICE OR LOSS OF DATA
THAT RESULTS FROM THE DOWNLOADING OR USE OF SUCH
THIRD PARTY APPLICATIONS. SAMSUNG ELECTRONICS CO.
EXPRESSLY DISCLAIMS ANY WARRANTY REGARDING
WHETHER YOUR PERSONAL INFORMATION IS CAPTURED BY
ANY THIRD PARTY APPLICATION PROVIDER OR THE USE TO
WHICH SUCH PERSONAL INFORMATION MAY BE PUT BY
SUCH THIRD PARTY APPLICATION PROVIDER. ANY THIRD
PARTY APPLICATIONS PROVIDED WITH THIS MOBILE DEVICE
DRAFT
FOR INTERNAL USE ONLY
Warranty Information 177
ARE PROVIDED "AS IS" AND ON AN "AS AVAILABLE" BASIS,
WITHOUT WARRANTIES OF ANY KIND FROM SAMSUNG
ELECTRONICS CO., EITHER EXPRESS OR IMPLIED. TO THE
FULLEST EXTENT POSSIBLE PURSUANT TO APPLICABLE
LAW, SAMSUNG ELECTRONICS CO. DISCLAIMS ALL
WARRANTIES EXPRESS, IMPLIED, OR STATUTORY,
INCLUDING, BUT NOT LIMITED TO, IMPLIED WARRANTIES OF
MERCHANTABILITY, SATISFACTORY QUALITY OR
WORKMANLIKE EFFORT, FITNESS FOR A PARTICULAR
PURPOSE, RELIABILITY OR AVAILABILITY, ACCURACY, LACK
OF VIRUSES, QUIET ENJOYMENT, NON INFRINGEMENT OF
THIRD PARTY RIGHTS OR OTHER VIOLATION OF RIGHTS.
SAMSUNG ELECTRONICS CO. DOES NOT WARRANT AGAINST
INTERFERENCE WITH YOUR ENJOYMENT OF THE THIRD
PARTY APPLICATION, THAT THE FUNCTIONS CONTAINED IN
THE THIRD PARTY APPLICATION WILL MEET YOUR
REQUIREMENTS, THAT THE OPERATION OF THE THIRD PARTY
APPLICATION WILL BE UNINTERRUPTED OR ERROR FREE, OR
THAT DEFECTS IN THE THIRD PARTY APPLICATION WILL BE
CORRECTED. YOU ASSUME THE ENTIRE COST OF ALL
NECESSARY SERVICING, REPAIR, OR CORRECTION. SOME
JURISDICTIONS DO NOT ALLOW EXCLUSIONS OR
LIMITATIONS OF IMPLIED WARRANTIES, SO THE ABOVE
EXCLUSIONS OR LIMITATIONS MAY NOT APPLY TO YOU. NO
ADVICE OR INFORMATION, WHETHER ORAL OR WRITTEN,
OBTAINED BY YOU FROM SAMSUNG ELECTRONICS CO. OR
ANY OTHER PERSON OR ENTITY SHALL BE DEEMED TO
ALTER THIS DISCLAIMER OF WARRANTY REGARDING THIRD
PARTY APPLICATIONS, OR TO CREATE ANY WARRANTY BY
SAMSUNG ELECTRONICS CO.
12. Limitation of Liability. SAMSUNG ELECTRONICS CO. WILL
NOT BE LIABLE FOR ANY DAMAGES OF ANY KIND ARISING
OUT OF OR RELATING TO THE USE OR THE INABILITY TO USE
THE SOFTWARE OR ANY THIRD PARTY APPLICATION, ITS
CONTENT OR FUNCTIONALITY, INCLUDING BUT NOT LIMITED
TO DAMAGES CAUSED BY OR RELATED TO ERRORS,
OMISSIONS, INTERRUPTIONS, DEFECTS, DELAY IN
OPERATION OR TRANSMISSION, COMPUTER VIRUS, FAILURE
TO CONNECT, NETWORK CHARGES, IN-APP PURCHASES,
AND ALL OTHER DIRECT, INDIRECT, SPECIAL, INCIDENTAL,
EXEMPLARY, OR CONSEQUENTIAL DAMAGES EVEN IF
SAMSUNG ELECTRONICS CO. HAS BEEN ADVISED OF THE
POSSIBILITY OF SUCH DAMAGES. SOME JURISDICTIONS DO
NOT ALLOW THE EXCLUSION OR LIMITATION OF INCIDENTAL
OR CONSEQUENTIAL DAMAGES, SO THE ABOVE EXCLUSIONS
OR LIMITATIONS MAY NOT APPLY TO YOU.
NOTWITHSTANDING THE FOREGOING, SAMSUNG
ELECTRONIC CO.'S TOTAL LIABILITY TO YOU FOR ALL
DRAFT
FOR INTERNAL USE ONLY
178
LOSSES, DAMAGES, CAUSES OF ACTION, INCLUDING BUT
NOT LIMITED TO THOSE BASED ON CONTRACT, TORT, OR
OTHERWISE, ARISING OUT OF YOUR USE OF THE SOFTWARE
OR THIRD PARTY APPLICATIONS ON THIS MOBILE DEVICE, OR
ANY OTHER PROVISION OF THIS EULA, SHALL NOT EXCEED
THE AMOUNT PURCHASER PAID SPECIFICALLY FOR THIS
MOBILE DEVICE OR ANY SUCH THIRD PARTY APPLICATION
THAT WAS INCLUDED WITH THIS MOBILE DEVICE. THE
FOREGOING LIMITATIONS, EXCLUSIONS, AND DISCLAIMERS
(INCLUDING SECTIONS 9, 10, 11 AND 12) SHALL APPLY TO
THE MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW,
EVEN IF ANY REMEDY FAILS ITS ESSENTIAL PURPOSE.
13. U.S. Government End Users Restricted Rights. The
Software is licensed only with "restricted rights" and as
"commercial items" consisting of "commercial software"
and "commercial software documentation" with only those
rights as are granted to all other end users pursuant to the
terms and conditions herein. All Products are provided only
with "restricted rights" with only those rights as are granted
to all other end users pursuant to the terms and conditions
herein. All Software and Products are provided subject to
Federal Acquisition Regulation (FAR) 52.227.19.
14. APPLICABLE LAW. This EULA is governed by the laws of
TEXAS, without regard to conflicts of laws principles. This
EULA shall not be governed by the UN Convention on
Contracts for the International Sale of Goods, the application
of which is expressly excluded.
15. DISPUTE RESOLUTION.
(a) Non-United States residents. If a dispute, controversy or
difference is not amicably settled, it shall be finally resolved
by arbitration in Seoul, Korea in accordance with the
Arbitration Rules of the Korean Commercial Arbitration Board.
The award of arbitration shall be final and binding upon the
parties.
(b) United States residents. ALL DISPUTES WITH SAMSUNG
ELECTRONICS CO. ARISING IN ANY WAY FROM THIS EULA OR
YOUR USE OF THE SOFTWARE SHALL BE RESOLVED
EXCLUSIVELY THROUGH FINAL AND BINDING ARBITRATION,
AND NOT BY A COURT OR JURY. Any such dispute shall not
be combined or consolidated with any other person's or
entity's claim or dispute, and specifically, without limitation
of the foregoing, shall not under any circumstances proceed
as part of a class action. The arbitration shall be conducted
before a single arbitrator, whose award may not exceed, in
form or amount, the relief allowed by the applicable law. The
DRAFT
FOR INTERNAL USE ONLY
Warranty Information 179
arbitration shall be conducted according to the American
Arbitration Association (AAA) Commercial Arbitration Rules
applicable to consumer disputes. This arbitration provision is
entered pursuant to the Federal Arbitration Act. The laws of
the State of Texas, without reference to its choice of laws
principles, shall govern the interpretation of the EULA and all
disputes that are subject to this arbitration provision. The
arbitrator shall decide all issues of interpretation and
application of this arbitration provision and the EULA. For
any arbitration in which your total damage claims, exclusive
of attorney fees and expert witness fees, are $5,000.00 or
less ("Small Claim"), the arbitrator may, if you prevail, award
your reasonable attorney fees, expert witness fees and costs
as part of any award, but may not grant Samsung Electronics
Co. its attorney fees, expert witness fees or costs unless it is
determined that the claim was brought in bad faith. In a
Small Claim case, you shall be required to pay no more than
half of the total administrative, facility and arbitrator fees, or
$50.00 of such fees, whichever is less, and Samsung
Electronics Co. shall pay the remainder of such fees.
Administrative, facility and arbitrator fees for arbitrations in
which your total damage claims, exclusive of attorney fees
and expert witness fees, exceed $5,000.00 ("Large Claim")
shall be determined according to AAA rules. In a Large Claim
case, the arbitrator may grant to the prevailing party, or
apportion among the parties, reasonable attorney fees,
expert witness fees and costs. Judgment may be entered on
the arbitrator's award in any court of competent jurisdiction.
This arbitration provision also applies to claims against
Samsung Electronics Co.'s employees, representatives and
affiliates if any such claim arises from the licensing or use of
the Software. You may opt out of this dispute resolution
procedure by providing notice to Samsung Electronics Co. no
later than 30 calendar days from the date of the first
consumer purchaser's purchase of this device. To opt out,
you must send notice by e-mail to
optout@sta.samsung.com, with the subject line: "Arbitration
Opt Out." You must include in the opt out e-mail (a) your
name and address; (b) the date on which the device was
purchased; (c) the device model name or model number; and
(d) the IMEI or MEID or Serial Number, as applicable, if you
have it (the IMEI or MEID or Serial Number can be found (i) on
the device box; (ii) on the device information screen, which
can be found under "Settings;" (iii) on a label on the back of
the device beneath the battery, if the battery is removable;
and (iv) on the outside of the device if the battery is not
removable). Alternatively, you may opt out by calling
1-888-987-4357 no later than 30 calendar days from the
DRAFT
FOR INTERNAL USE ONLY
180
date of the first consumer purchaser's purchase of the
device and providing the same information. These are the
only two forms of notice that will be effective to opt out of
this dispute resolution procedure. Opting out of this dispute
resolution procedure will not affect your use of the device or
its preloaded Software, and you will continue to enjoy the
benefits of this license.
16. ENTIRE AGREEMENT; SEVERABILITY. This EULA is the
entire agreement between you and Samsung Electronics Co.
relating to the Software and supersedes all prior or
contemporaneous oral or written communications, proposals
and representations with respect to the Software or any other
subject matter covered by this EULA. If any provision of this
EULA is held to be void, invalid, unenforceable or illegal, the
other provisions shall continue in full force and effect.
[101212]
DRAFT
FOR INTERNAL USE ONLY
181
Index
A
Accessibility settings
services 139
Accounts
adding a Google account 36
setting up 36
Airplane mode 109
Applications 31
downloading new 92
Applications settings
allow mock locations 140
USB debugging 140
B
Back key 22
Battery
charging 10
cover, installing 7
cover, removing 6
indicator 9
installing 9
removing 10
Wall Charger 10
Battery Use & Safety 153
Bluetooth
pairing with a device 97
profiles 105
settings 106
turning on or off 97
C
Calculator 76
Calendar 76
Call log
creating/updating contacts 53
managing 53
sending messages 53
Calls
answering 51
call-waiting 51
ending 52
from Call log 50
from Contacts 49
from Favorites 50
in-call options 52
recent 52
rejecting 51
sending to voicemail 51
settings 54
silencing a ringer 51
three-way 50
using the Keypad 48
DRAFT
FOR INTERNAL USE ONLY
182
Camcorder
recording video 82
settings 82
Camera
settings 79
taking pictures 79
Care and Maintenance 158
Children and Cell Phones 148
Clock 84
Commercial Mobile Alerting System
(CMAS) 151
Contacts
creating 38
creating from Call log 40
creating from the Keypad 40
exporting and importing 44
groups 45
joining 43
My Profile 42
namecards 44
speed dials 47
starred contacts 45
updating 40
updating from Call log 41, 53
updating from Keypad 40
D
Display / Touch-Screen 156
Display settings
brightness 118
screen timeout 119
Do cell phones pose a health
hazard? 144
E
Email
account settings 65
combined Inbox 65
composing and sending 64
configuring accounts 64
refreshing your accounts 65
Emergency Calls 157
Exposure to Radio Frequency (RF)
Signals 144
F
FCC Hearing Aid Compatibility (HAC)
Regulations for Wireless
Devices 163
FCC Notice and Cautions 165
DRAFT
FOR INTERNAL USE ONLY
183
G
Gallery
viewing pictures and video 86
viewing videos 87
Getting Started
Setting Up Your Phone 6
Gmail
composing and sending 66
configuring your account 65
managing your account 66
refreshing your account 66
Google
Gmail 65
managing an account 38
Maps 89
Navigation 90
Play Store 92
setting up an account 36
your account 15
YouTube 92
GPS 157
Groups
adding contacts 46
creating 45
sending a message 47
H
HDMI Port 21
Health and Safety Information 144
Home key 22
Home screen 25
adding shortcuts 30
adding widgets 29
customizing 28
folders 30
primary shortcuts 29
wallpaper 31
I
Icons
Status Bar 26
Incognito 72
Create Window 72
Exit Window 72
Internet 70
L
Locking and Unlocking
unlocking the keypad 13, 17
M
Maps 89
Memory Card
erasing 102
installing 7
removing 8
Memory card
installing 7
removing 8
Menu
context-sensitive 22
key 22
Messages
creating and sending 59
email 64
Gmail 65
managing 60
settings 61
types 59
Messenger 67
microSDHC card 7
DRAFT
FOR INTERNAL USE ONLY
184
Mobile Hotspot
using your phone as a hotspot 100
Mobile networks
settings 113
My Profile 42
sending 42
N
Namecards
sending 44
Navigation 22
command keys 29
touch gestures 23
Notification Panel 24
O
Operating Environment 161
Other Important Safety
Information 166
Out of Office
Message 123
Settings 123
P
Pairing with Bluetooth 97
PC Connections 98
Phone settings
Date & time 138
language 132
Pictures
taking 79
Play Store 92
Powering On and Off 12
R
Reducing Exposure
Hands-Free Kits and Other
Accessories 147
Responsible Listening 159
Restricting Children's Access to Your
Mobile Device 165
Roaming 16
S
Samsung keyboard
configuring 34
entering text 34
Samsung Mobile Products and
Recycling 155
Security
locking and unlocking 16
locking the phone 16
Security settings
credential storage 131
Settings 103
Smart Practices While Driving 151
Software Update 142
Specific Absorption Rate (SAR)
Certification Information 149
Speed Dials
assigning 47
removing or reassigning 47
Standard Limited Warranty 168
DRAFT
FOR INTERNAL USE ONLY
185
T
Text
entering 33
using Samsung keyboard 34
virtual QWERTY keyboard 33
Text settings
default 132
Google voice typing 133
Samsung keyboard 133
TTY Mode 14
Turning Your Phone On and Off 12
U
UL Certified Travel Charger 156
Unlocking
using an unlock pattern 17
USB Power/Accessory Port 20
USB settings
mass storage device 99
Using Favorites
Deleting a Favorite 73
V
Videos
recording 82
Voicemail
checking 14
setting up 14
Volume
key 20
VPN
accessing 98
settings 109
W
Warranty Information 168
Widgets 29
Wi-Fi
adding a connection manually 96
scanning and connecting 96
settings 104
turning on or off 95
using your phone as a hotspot 100
Wireless Networking
Bluetooth 97
VPN 98
Wi-Fi 95
Y
YouTube 92
DRAFT
FOR INTERNAL USE ONLY
