Samsung Electronics Co SCX4720F Multi Function Printer User Manual 4x20 EN

Samsung Electronics Co Ltd Multi Function Printer 4x20 EN

Contents

Users Manual 1

iAbout the User’s GuideThis Laser MFP User’s Guide provides information you need for setting up your machine and installing the supplied software. It also provides all of the detailed instructions for using your machine as a printer, a scanner, a copier, and a facsimile, and information for maintaining and troubleshooting the machine.This guide also provides the basic description of the multi-function application, Samsung SmarThru. SmarThru allows you to scan and edit images and to scan for copying. SmarThru also lets you access scanned images that you can then email from your computer. The User’s Guide shows you how to use a USB flash drive with your machine for scanning and saving documents, and printing documents stored on the USB flash drive.This manual is provided for information purposes only. All information included herein is subject to change without notice. Samsung Electronics is not responsible for any changes, direct or indirect, arising from or related to use of this manual.© 2004 Samsung Electronics Co., Ltd. All rights reserved.• SCX-4520, SCX-4720F, and Samsung logo are trademarks of Samsung Electronics Co., Ltd.• Centronics is a trademark of Centronics Data Computer Corporation.• IBM and IBM PC are trademarks of International Business Machines Corporation.• PCL and PCL 6 are trademarks of Hewlett-Packard company.• Microsoft, Windows, Windows 9x, Window Me, Windows 2000, Windows NT 4.0 and Windows XP are registered trademarks of Microsoft Corporation.• All other brand or product names are trademarks of their respective companies or organizations.

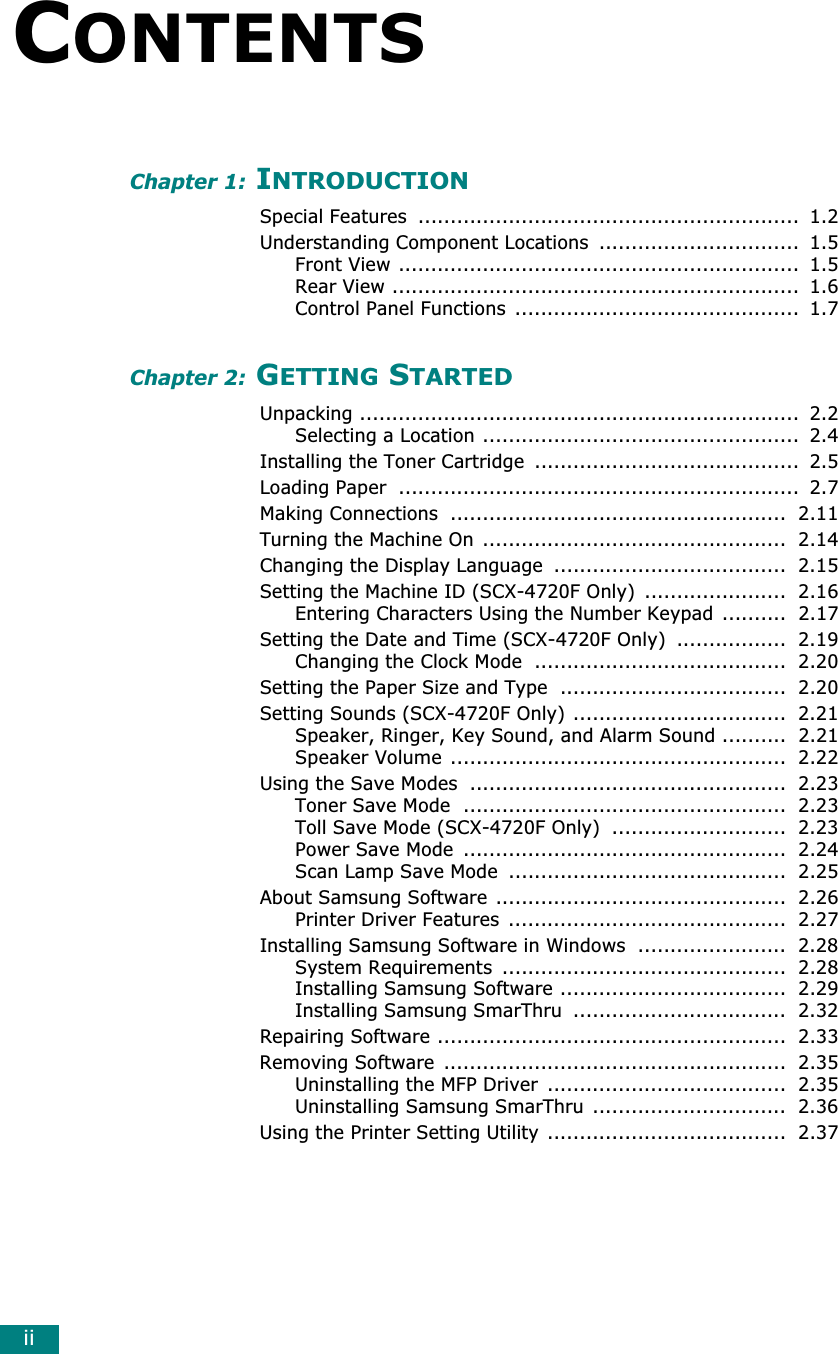

iiCONTENTSChapter 1: INTRODUCTIONSpecial Features ........................................................... 1.2Understanding Component Locations ............................... 1.5Front View .............................................................. 1.5Rear View ............................................................... 1.6Control Panel Functions ............................................ 1.7Chapter 2: GETTING STARTEDUnpacking .................................................................... 2.2Selecting a Location ................................................. 2.4Installing the Toner Cartridge ......................................... 2.5Loading Paper .............................................................. 2.7Making Connections .................................................... 2.11Turning the Machine On ............................................... 2.14Changing the Display Language .................................... 2.15Setting the Machine ID (SCX-4720F Only) ...................... 2.16Entering Characters Using the Number Keypad .......... 2.17Setting the Date and Time (SCX-4720F Only) ................. 2.19Changing the Clock Mode ....................................... 2.20Setting the Paper Size and Type ................................... 2.20Setting Sounds (SCX-4720F Only) ................................. 2.21Speaker, Ringer, Key Sound, and Alarm Sound .......... 2.21Speaker Volume .................................................... 2.22Using the Save Modes ................................................. 2.23Toner Save Mode .................................................. 2.23Toll Save Mode (SCX-4720F Only) ........................... 2.23Power Save Mode .................................................. 2.24Scan Lamp Save Mode ........................................... 2.25About Samsung Software ............................................. 2.26Printer Driver Features ........................................... 2.27Installing Samsung Software in Windows ....................... 2.28System Requirements ............................................ 2.28Installing Samsung Software ................................... 2.29Installing Samsung SmarThru ................................. 2.32Repairing Software ...................................................... 2.33Removing Software ..................................................... 2.35Uninstalling the MFP Driver ..................................... 2.35Uninstalling Samsung SmarThru .............................. 2.36Using the Printer Setting Utility ..................................... 2.37
iiiChapter 3: PAPER HANDLINGSelecting Print Materials ................................................. 3.2Paper Type, Input Sources, and Capacities .................. 3.2Guidelines for Paper and Special Materials .................. 3.3Loading Paper .............................................................. 3.4In the Standard Tray ............................................... 3.4In the Multipurpose Tray .......................................... 3.6Using the Manual Feed Mode ..................................... 3.8Selecting an Output Location ........................................ 3.10Printing to the Front Output Tray (Face down) ........... 3.10Printing to the Rear Output Slot (Face up) ................ 3.11Chapter 4: PRINTING TASKSPrinting a Document in Windows ..................................... 4.2Canceling a Print Job ................................................ 4.3Printer Settings ............................................................ 4.4Layout tab .............................................................. 4.5Paper Tab ............................................................... 4.6Graphic Tab ............................................................ 4.8Extras Tab ............................................................ 4.10About Tab ............................................................ 4.11Printer Tab ........................................................... 4.11Using a Favorite Setting ......................................... 4.12Using Help ............................................................ 4.12Printing Multiple Pages on One Sheet of Paper ................ 4.13Printing Posters .......................................................... 4.14Fitting Your Document to a Selected Paper Size .............. 4.16Printing a Reduced or Enlarged Document ...................... 4.17Using Watermarks ...................................................... 4.18Using an Existing Watermark .................................. 4.18Creating a Watermark ............................................ 4.19Editing a Watermark .............................................. 4.20Deleting a Watermark ............................................ 4.20Using Overlays ........................................................... 4.21What is an Overlay? ............................................... 4.21Creating a New Page Overlay .................................. 4.21Using a Page Overlay ............................................. 4.23Deleting a Page Overlay ......................................... 4.25Chapter 5: COPYINGLoading Paper for Copying ............................................. 5.2Selecting the Paper Tray ................................................ 5.2Preparing a Document ................................................... 5.3Making Copies on the Document Glass ............................. 5.4Making Copies from the Automatic Document Feeder ......... 5.5Setting Copy Options ..................................................... 5.7Darkness ................................................................ 5.7Original Type .......................................................... 5.7Reduced/Enlarged Copy ........................................... 5.8Number of Copies .................................................... 5.9
ivUsing Special Copy Features ........................................... 5.9Clone Copying ....................................................... 5.10Collation Copying .................................................. 5.10Auto Fit Copying .................................................... 5.112 Sides on 1 Page Copying ...................................... 5.112 Up or 4 Up Copying ............................................. 5.12Poster Copying ...................................................... 5.13Changing the Default Settings ...................................... 5.14Setting the Time Out Option ......................................... 5.15Chapter 6: SCANNINGScanning Basics ............................................................ 6.2Scanning From the Control Panel to an Application ............ 6.3Scanning Using Samsung SmarThru ................................ 6.4Using Onscreen Help File .......................................... 6.6Scanning Using the WIA Driver ....................................... 6.7Scanning to USB Flash Drive .......................................... 6.8Chapter 7: FAXING (SCX-4720F ONLY)Changing the Fax Setup options ...................................... 7.2Available Fax Setup Options ........................................... 7.3Loading a Document ..................................................... 7.6Selecting the Paper Tray ................................................ 7.9Adjusting the Document Resolution ................................. 7.9Sending a Fax Automatically ......................................... 7.11Sending a Fax Manually ............................................... 7.12Redialing the Last Number ........................................... 7.12Confirming Transmission .............................................. 7.13Automatic Redialing .................................................... 7.13About Receiving Modes ................................................ 7.14Loading Paper for Receiving Faxes ................................. 7.15Receiving Automatically in Fax Mode ............................. 7.15Receiving Manually in Tel Mode ..................................... 7.15Receiving Automatically in Ans/Fax Mode ....................... 7.16Receiving Manually Using an Extension Telephone ........... 7.16Receiving Faxes Using the DRPD Mode ........................... 7.17Receiving Faxes in the Memory ..................................... 7.18One-touch Dialing ....................................................... 7.19Storing a Number for One-touch Dialing ................... 7.19Sending a Fax using a One-touch Number ................. 7.20Speed Dialing ............................................................. 7.21Storing a Number for Speed Dialing ......................... 7.21Sending a Fax using a Speed Dial Number ................ 7.22Group Dialing ............................................................. 7.23Setting a Group Dial Number .................................. 7.23Editing Group Dial Numbers .................................... 7.24Sending a Fax Using Group Dialing (Multi-address Transmission) .................................. 7.25Searching for a Number in Memory ............................... 7.26Searching Sequentially through the Memory .............. 7.26Searching with a Particular First Letter ..................... 7.26
vPrinting a Phonebook List ............................................. 7.27Sending Broadcast Faxes ............................................. 7.28Sending a Delayed Fax ................................................ 7.29Sending a Priority Fax ................................................. 7.31Adding Documents To a Scheduled Fax .......................... 7.33Canceling a Scheduled Fax ........................................... 7.34Using Secure Receiving Mode ....................................... 7.35Printing Reports .......................................................... 7.36Using Advanced Fax Settings ........................................ 7.38Changing Setting Options ....................................... 7.38Advanced Fax Setting Options ................................. 7.39Chapter 8: MAINTENANCEClearing the Memory ..................................................... 8.2Cleaning Your Machine ................................................... 8.3Cleaning the Outside ................................................ 8.3Cleaning the Inside .................................................. 8.3Cleaning the Scan Unit ............................................. 8.5Maintaining the Toner Cartridge ...................................... 8.6Redistributing Toner ................................................ 8.7Replacing the Toner Cartridge ................................... 8.8Setting the Notify Toner Option (SCX-4720F Only) ..... 8.10Cleaning the Drum ................................................ 8.11Printing When Toner is Low ..................................... 8.11Consumables and Replacement Parts ............................. 8.12Replacing the ADF Rubber Pad ...................................... 8.13Chapter 9: TROUBLESHOOTINGClearing Document Jams ................................................ 9.2Input Misfeed .......................................................... 9.2Exit Misfeed ............................................................ 9.3Roller Misfeed ......................................................... 9.4Clearing Paper Jams ...................................................... 9.5In Tray 1 ................................................................ 9.5In Optional Tray 2 ................................................... 9.6In the Paper Exit Area .............................................. 9.7In the Fuser Area or Around the Toner Cartridge .......... 9.9In the Multipurpose Tray ........................................ 9.10Tips for Avoiding Paper Jams ................................... 9.11Clearing LCD Error Messages ........................................ 9.12Solving Other Problems ............................................... 9.16Paper Feeding Problems ......................................... 9.16Printing Problems .................................................. 9.17Printing Quality Problems ....................................... 9.19Copying Problems .................................................. 9.24Scanning Problems ................................................ 9.25Fax Problems (SCX-4720F Only) .............................. 9.26Common Linux Problems ........................................ 9.28
viChapter 10: USING USB FLASH DRIVEAbout USB Flash Drives ............................................... 10.2Installing a USB Flash Drive ......................................... 10.2Scanning to USB Flash Drive ........................................ 10.3Scanning With Default Settings ............................... 10.3Scanning With Your Own Settings ............................ 10.4Managing the USB Flash Drive ...................................... 10.6Changing the Default Settings ................................. 10.6Deleting an Image File ........................................... 10.7Formatting the USB Flash Drive ............................... 10.8Viewing the USB Memory Status .............................. 10.9Printing From the USB Flash Drive ................................ 10.10Backing Up Data ........................................................ 10.11Appendix A: USING YOUR MACHINE IN LINUXGetting Started ............................................................. A.2Installing the MFP Driver ................................................ A.3System Requirements .............................................. A.3Installing the MFP Driver .......................................... A.4Uninstalling the MFP Driver ....................................... A.6Using the MFP Configurator ............................................ A.7Opening the MFP Configurator ................................... A.7Printers Configuration .............................................. A.8Scanners Configuration ............................................ A.9MFP Ports Configuration ......................................... A.10Configuring Printer Properties ....................................... A.11Printing a Document .................................................... A.12Printing from Applications ....................................... A.12Printing Files ......................................................... A.13Scanning a Document .................................................. A.14Using the Image Editor .......................................... A.17Appendix B: USING YOUR MACHINE ON A NETWORKAbout Sharing the Machine on a Network ......................... B.2Setting Up a Locally-Shared Machine ............................... B.3In Windows 95/98/Me .............................................. B.3In Windows NT 4.0/2000/XP ..................................... B.4Setting Up a Network-Connected Machine ........................ B.5Configuring Network Parameters on the Control Panel .......................................................... B.5Appendix C: INSTALLING MACHINE OPTIONSInstalling Memory DIMM ................................................ C.2Removing the Memory DIMM .................................... C.5Installing a Network Interface Card ................................. C.6Installing an Optional Tray ........................................... C.10Setting Tray 2 in the Printer Properties ..................... C.12
viiAppendix D: SPECIFICATIONSGeneral Specifications ................................................... D.2Scanner and Copier Specifications ................................... D.3Printer Specifications ..................................................... D.4Facsimile Specifications (For the SCX-4720F) .................... D.5Paper Specifications ...................................................... D.6Overview ................................................................ D.6Supported Sizes of Paper .......................................... D.6Guidelines for Using Paper ........................................ D.7Paper Specifications ................................................. D.8Paper Output Capacity ............................................. D.8Paper Storage Environment ...................................... D.9
ixImportant Precautions and Safety InformationWhen using this machine, these basic safety precautions should always be followed to reduce risk of fire, electric shock and injury to people:1. Read and understand all instructions.2. Use common sense whenever operating electrical appliances.3. Follow all warnings and instructions marked on the machine and in the literature accompanying the machine.4. If an operating instruction appears to conflict with safety information, heed the safety information. You may have misunderstood the operating instruction. If you cannot resolve the conflict, contact your sales or service representative for assistance.5. Unplug the machine from the AC wall socket and/or telephone jack before cleaning. Do not use liquid or aerosol cleaners. Use only a damp cloth for cleaning.6. Do not place the machine on an unstable cart, stand or table. It may fall, causing serious damage.7. Your machine should never be placed on, near or over a radiator, heater, air conditioner or ventilation duct.8. Do not allow anything to rest on the power. Do not locate your machine where the cords will be abused by persons walking on them.9. Do not overload wall outlets and extension cords. This can diminish performance, and may result in the risk of fire or electric shock.10. Do not allow pets to chew on the AC power, telephone or PC interface cords.11. Never push objects of any kind into the machine through case or cabinet openings. They may touch dangerous voltage points, creating a risk of fire or shock. Never spill liquid of any kind onto or into the machine.12. You machine may have a heavy cover for optimal pressure on the document for the best scanning and/or faxing (usually the flatbed-type machine). In this case, replace the cover after placing document on the scan glass, by holding and moving it down slowly until it seats on its location.13. To reduce the risk of electric shock, do not disassemble the machine. Take it to a qualified service technician when repair work is required. Opening or removing covers may expose you to dangerous voltages or other risks. Incorrect reassembly could cause electric shock when the unit is subsequently used. 14. Unplug the machine from the telephone jack, PC and AC wall outlet and refer servicing to qualified service personnel under the following conditions:• When any part of the power cord, plug or connecting cable is damaged or frayed.• If liquid has been spilled into the machine.
x• If the machine has been exposed to rain or water.• If the machine does not operate properly after instructions have been followed.• If the machine has been dropped, or the cabinet appears damaged.• If the machine exhibits a sudden and distinct change in performance.15. Adjust only those controls covered by the operating instructions. Improper adjustment of other controls may result in damage, and may require extensive work by a qualified service technician to restore the machine to normal operation.16. Avoid using this machine during a lightning storm. There may be a remote risk of electric shock from lightning. If possible, unplug the AC power and telephone cord for the duration of the lightning storm.17. SAVE THESE INSTRUCTIONS.Laser Safety StatementThe printer is certified in the U.S. to conform to the requirements of DHHS 21 CFR, chapter 1 Subchapter J for Class I(1) laser products, and elsewhere is certified as a Class I laser product conforming to the requirements of IEC 825.Class I laser products are not considered to be hazardous. The laser system and printer are designed so there is never any human access to laser radiation above a Class I level during normal operation, user maintenance or prescribed service condition.WARNING Never operate or service the printer with the protective cover removed from Laser/Scanner assembly. The reflected beam, although invisible, can damage your eyes.CAUTION - INVISIBLE LASER RADIATION WHEN THIS COVER OPEN. DO NOT OPEN THIS COVER.VORSICHT - UNSICHTBARE LASERSTRAHLUNG, WENN ABDECKUNG GE…FFNET. NICHT DEM STRAHL AUSSETZEN.ATTENTION - RAYONNEMENT LASER INVISIBLE EN CAS DÕOUVERTURE. EXPOSITION DANGEREUSE AU FAISCEAU.ATTENZIONE - RADIAZIONE LASER INVISIBILE IN CASO DI APERTURA. EVITARE LÕESPOSIZIONE AL FASCIO.PRECAUCIîN - RADIACIîN LASER INVISIBLE CUANDO SE ABRE. EVITAR EXPONERSE AL RAYO.ADVARSEL. - USYNLIG LASERSTR LNING VED BNING, N R SIKKERHEDSBRYDERE ER UDE AF FUNKTION. UNDG UDSAETTELSE FOR STR LNING.ADVARSEL. - USYNLIG LASERSTR LNING N R DEKSEL PNES. STIRR IKKE INN I STR LEN. UNNG EKSPONERING FOR STR LEN.VARNING - OSYNLIG LASERSTR LNING N R DENNA DEL R …PPEN OCH SP RREN R URKOPPLAD. BETRAKTA EJ STR LEN. STR LEN R FARLIG.VARO! - AVATTAESSA JA SUOJALUKITUS OHITETTAESSA OLET ALTTIINA N KYM TT…M LLE LASER-S TEILYLLE L KATSO S TEESEEN.PERIGO - RADIA‚ÌO LASER INVISêVEL AO ABRIR. EVITE EXPOSI‚ÌO DIRECTA AO FEIXE.GEVAAR - ONZICHTBARE LASERSTRALEN BIJ GEOPENDE KLEP. DEZE KLEP NIET OPENEN.
xiOzone SafetyDuring normal operation, this machine produces ozone. The ozone produced does not present a hazard to the operator. However, it is advisable that the machine be operated in a well ventilated area.If you need additional information about ozone, please request your nearest Samsung dealer.Power SaverThis machine contains advanced energy conservation technology that reduces power consumption when it is not in active use.When the machine does not receive data for an extended period of time, power consumption is automatically lowered. The energy star emblem does not represent EPA endorsement of any machine or service.RecyclingPlease recycle or dispose of the packaging material for this product in an environmentally responsible manner.Radio Frequency EmissionsFCC Information to the UserThis equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:• Reorient or relocate the receiving antenna.• Increase the separation between the equipment and receiver.• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
xii• Consult the dealer or experienced radio TV technician for help.CAUTION: Change or modifications not expressly approved by the manufacturer responsible for compliance could void the user's authority to operate the equipment.United States of AmericaFederal Communications Commission (FCC)Intentional emitter per FCC Part 15Low power, Radio LAN type devices (radio frequency (RF) wireless communication devices), operating in the 2.4 GHz Band, may be present (embedded) in your printer system. This section is only applicable if these devices are present. Refer to the system label to verify the presence of wireless devices.Wireless devices that may be in your system are only qualified for use in the United States of America if an FCC ID number is on the system label.The FCC has set a general guideline of 20 cm (8 inches) separation between the device and the body, for use of a wireless device near the body (this does not include extremities). This device should be used more than 20 cm (8 inches) from the body when wireless devices are on. The power output of the wireless device (or devices), which may be embedded in your printer, is well below the RF exposure limits as set by the FCC.This transmitter must not be collocated or operation in conjunction with any other antenna or transmitter.Operation of this device is subject to the following two conditions:(1) This device may not cause harmful interference, and(2) this device must accept any interference received, including interference that may cause undesired operation of the device.Wireless devices are not user serviceable. Do not modify them in any way. Modification to a wireless device will void the authorization to use it. Contact manufacturer for service.FCC Statement for Wireless LAN use:“While installing and operating this transmitter and antenna combination the radio frequency exposure limit of 1mW/cm2 may be exceeded at distances close to the antenna installed. Therefore, the user must maintain a minimum distance of 20cm from the antenna at all times. This device can not be colocated with another transmitter and transmitting antenna.”
xiiiCanadian Radio Interference RegulationsThis digital apparatus does not exceed the Class B limits for radio noise emissions from digital apparatus as set out in the interference-causing equipment standard entitled “Digital Apparatus”, ICES-003 of the Industry and Science Canada.Cet appareil numérique respecte les limites de bruits radioélectriques applicables aux appareils numériques de Classe B prescrites dans la norme sur le matériel brouilleur: “Appareils Numériques”, ICES-003 édictée par l’Industrie et Sciences Canada.Fax BrandingThe Telephone Consumer Protection Act of 1991 makes it unlawful for any person to use a computer or other electronic device to send any message via a telephone facsimile machine unless such message clearly contains in a margin at the top or bottom of each transmitted page or on the first page of the transmission the following information:(1) the date and time of transmission(2) identification of either business, business entity or individual sending the message; and(3) telephone number of either the sending machine, business, business entity or individual.The Telephone Company may make changes in its communications facilities, equipment operations or procedures where such action is reasonably required in the operation of its business and is not inconsistent with the rules and regulations in FCC Part 68. If such changes can be reasonably expected to render any customer terminal equipment incompatible with telephone company communications facilities, or require modification or alteration of such terminal equipment, or otherwise materially affect its use or performance, the customer shall be given adequate notice in writing, to allow the customer an opportunity to maintain uninterrupted service.Ringer Equivalence NumberThe Ringer Equivalence Number and FCC Registration Number for this machine may be found on the label located on the bottom or rear of the machine. In some instances you may need to provide these numbers to the telephone company.The Ringer Equivalence Number (REN) is a measure of the electrical load placed on the telephone line, and is useful for determining whether you have “overloaded” the line. Installing several types of equipment on the same telephone line may result in problems making and receiving telephone calls, especially ringing when your line is called. The sum of all Ringer Equivalence Numbers of the equipment on your telephone line should be less than five in order to assure proper service from the telephone company. In some cases, a sum of five may not be usable on your line. If any of your telephone equipment is not operating properly, you should immediately remove it from your telephone line, as it may cause harm to the telephone network.
xivWARNING:FCC Regulations state that changes or modifications to this equipment not expressly approved by the manufacturer could void the user’s authority to operate this equipment. In the event that terminal equipment causes harm to the telephone network, the telephone company should notify the customer that service may be stopped. However, where prior notice is impractical, the company may temporarily cease service, providing that they:a) promptly notify the customer.b) give the customer an opportunity to correct the equipment problem.c) inform the customer of the right to bring a complaint to the Federal Communication Commission pursuant to procedures set out in FCC Rules and Regulations Subpart E of Part 68.You should also know that:• Your machine is not designed to be connected to a digital PBX system.• If you intend to use a computer modem or fax modem on the same phone line as your machine, you may experience transmission and reception problems with all the equipment. It is recommended that no other equipment, except for a regular telephone, share the line with your machine.• If your area experiences a high incidence of lightning or power surges, we recommend that you install surge protectors for both the power and the telephone lines. Surge protectors can be purchased from your dealer or telephone and electronic specialty stores.• When programming emergency numbers and/or making test calls to emergency numbers, use a non-emergency number to advise the emergency service dispatcher of your intentions. The dispatcher will give you further instructions on how to actually test the emergency number.• This machine may not be used on coin service or party lines.• This machine provides magnetic coupling to hearing aids.• You may safely connect this equipment to the telephone network by means of a standard modular jack, USOC RJ-11C.
xvDeclaration of Conformity (European Countries)Approvals and CertificationsThe CE marking applied to this product symbolizes Samsung Electronics Co., Ltd. Declaration of Conformity with the following applicable 93/68/EEC Directives of the European Union as of the dates indicated:January 1, 1995: Council Directive 73/23/EEC Approximation of the laws of the member states related to low voltage equipment.January 1, 1996: Council Directive 89/336/EEC (92/31/EEC), approximation of the laws of the Member States related to electromagnetic compatibility.March 9, 1999: Council Directive 1999/5/EC on radio equipment and telecommunications terminal equipment and the mutual recognition of their conformity.A full declaration, defining the relevant Directives and referenced standards can be obtained from your Samsung Electronics Co., Ltd. representative.EC CertificationCertification to 1999/5/EC Radio Equipment & Telecommunications Terminal Equipment Directive (FAX)This Samsung product has been self-certified by Samsung for pan-European single terminal connection to the analogue public switched telephone network (PSTN) in accordance with Directive 1999/5/EC. The product has been designed to work with the national PSTNs and compatible PBXs of the European countries:In the event of problems, you should contact the Euro QA Lab of Samsung Electronics Co., Ltd. in the first instance.The product has been tested against TBR21. To assist in the use and application of terminal equipment which complies with this standard, the European Telecommunication Standards Institute (ETSI) has issued an advisory document (EG 201 121) which contains notes and additional requirements to ensure network compatibility of TBR21 terminals. The product has been designed against, and is fully compliant with, all of the relevant advisory notes contained in this document. European Radio Approval Information(for products fitted with EU-approved radio devices)This Product is a printer; low power, Radio LAN type devices (radio frequency (RF) wireless communication devices), operating in the 2.4 GHz band, may be present (embedded) in your printer system which is intended for home or office use. This section is only applicable if these devices are present. Refer to the system label to verify the presence of wireless devices.
xviWireless devices that may be in your system are only qualified for use in the European Union or associated areas if a CE mark with a Notified Body Registration Number and the Alert Symbol is on the system label.The power output of the wireless device or devices that may be embedded in you printer is well below the RF exposure limits as set by the European Commission through the R&TTE directive.European States qualified under wireless approvals:EU Austria, Belgium, Denmark, Finland, France (with frequency restrictions), Germany, Greece, Ireland, Italy, Luxembourg, The Netherlands, Portugal, Spain, Sweden and the UnitedAccept EU Iceland, Liechtenstein, Norway and SwitzerlandEuropean States with restrictions on use:EU In France, the frequency range is restricted to 2446.5-2483.5 MHz for devices above 10 mW transmitting power such as wirelessAccept EU No limitations at this time.Regulatory Compliance StatementsWireless GuidanceLow power, Radio LAN type devices (radio frequency (RF) wireless communication devices), operating in the 2.4 GHz Band, may be present (embedded) in your printer system. The following section is a general overview of considerations while operating a wireless device.Additional limitations, cautions, and concerns for specific countries are listed in the specific country sections (or country group sections). The wireless devices in your system are only qualified for use in the countries identified by the Radio Approval Marks on the system rating label. If the country you will be using the wireless device in, is not listed, please contact your local Radio Approval agency for requirements. Wireless devices are closely regulated and use may not be allowed.The power output of the wireless device or devices that may be embedded in your printer is well below the RF exposure limits as known at this time. Because the wireless devices (which may be embedded into your printer) emit less energy than is allowed in radio frequency safety standards and recommendations, manufacturer believes these devices are safe for use. Regardless of the power levels, care should be taken to minimize human contact during normal operation.As a general guideline, a separation of 20 cm (8 inches) between the wireless device and the body, for use of a wireless device near the body (this does not include extremities) is typical. This device should be used more than 20 cm (8 inches) from the body when wireless devices are on and transmitting.
xviiThis transmitter must not be collocated or operation in conjunction with any other antenna or transmitter.Some circumstances require restrictions on wireless devices. Examples of common restrictions are listed below:Radio frequency wireless communication can interfere with equipment on commercial aircraft. Current aviation regulations require wireless devices to be turned off while traveling in an airplane. 802.11B (also known as wireless Ethernet) and Bluetooth communication devices are examples of devices that provide wireless communication.In environments where the risk of interference to other devices or services is harmful or perceived as harmful, the option to use a wireless device may be restricted or eliminated. Airports, Hospitals, and Oxygen or flammable gas laden atmospheres are limited examples where use of wireless devices may be restricted or eliminated. When in environments where you are uncertain of the sanction to use wireless devices, ask the applicable authority for authorization prior to use or turning on the wireless device.Every country has different restrictions on the use of wireless devices. Since your system is equipped with a wireless device, when traveling between countries with your system, check with the local Radio Approval authorities prior to any move or trip for any restrictions on the use of a wireless device in the destination country.If your system came equipped with an internal embedded wireless device, do not operate the wireless device unless all covers and shields are in place and the system is fully assembled.Wireless devices are not user serviceable. Do not modify them in any way. Modification to a wireless device will void the authorization to use it. Please contact manufacturer for service.Only use drivers approved for the country in which the device will be used. See the manufacturer System Restoration Kit, or contact manufacturer Technical Support for additional information.
xviiiReplacing the Fitted Plug (for UK Only)IMPORTANTThe mains lead for this machine is fitted with a standard (BS 1363) 13 amp plug and has a 13 amp fuse. When you change or examine the fuse, you must re-fit the correct 13 amp fuse. You then need to replace the fuse cover. If you have lost the fuse cover, do not use the plug until you have another fuse cover. Please contact the people from you purchased the machine.The 13 amp plug is the most widely used type in the UK and should be suitable. However, some buildings (mainly old ones) do not have normal 13 amp plug sockets. You need to buy a suitable plug adaptor. Do not remove the moulded plug.WARNINGIf you cut off the moulded plug, get rid of it straight away.You cannot rewire the plug and you may receive an electric shock if you plug it into a socket.IMPORTANT WARNING: You must earth this machine.The wires in the mains lead have the following color code:• Green and Yellow: Earth• Blue: Neutral• Brown: LiveIf the wires in the mains lead do not match the colors marked in your plug, do the following:You must connect the green and yellow wire to the pin marked by the letter “E” or by the safety ‘Earth symbol’ or colored green and yellow or green.You must connect the blue wire to the pin which is marked with the letter “N” or colored black.You must connect the brown wire to the pin which is marked with the letter “L” or colored red.You must have a 13 amp fuse in the plug, adaptor, or at the distribution board.
xix
xxDifferences Between British and American EnglishBritish English American English(Re)dialling(Re)dialingColourColorEmphasiseEmphasizeRecogniseRecognizeOrganiseOrganizeAuthoriseAuthorizeCancellingCancelingCustomiseCustomize
xxiMEMO
INTRODUCTIONThank you for purchasing this Samsung multifunctional product. Your machine provides printing, copying, scanning, and faxing (SCX-4720F only) functions!This chapter includes:• Special Features• Understanding Component Locations
INTRODUCTION1.2Special FeaturesYour new machine is equipped with special features that improve the print quality. You can:Print in color with excellent quality and speed• You can print up to 1200 dpi [Best]. See page 4.8.• Your machine prints A4-sized paper at up to 20 ppm and letter-sized paper at up to 22 ppm (pages per minute).Handle paper flexibly•Multipurpose Tray supports letterhead, envelopes, labels, transparencies, custom-sized materials, postcards, and heavy paper. A 50-sheet Multipurpose Tray supports plain paper.•The Standard 250-sheet input tray (Tray1) and optional 250-sheet input tray (Tray2) supports A4/letter-sized paper.Create professional documents• Print Watermarks. You can customize your documents with words, such as “Confidential.” See page 4.18.• Print Posters. The text and pictures of each page of your document are magnified and printed across the sheet of paper and taped together to form a poster. See page 4.14.Save time and money • You can print multiple pages on one single sheet of paper to save paper.• You can use preprinted forms and letterhead on plain paper. See “Using Overlays” on page 4.21• This machine automatically conserves electricity by substantially reducing power consumption when not printing.• This machine meets Energy Star guidelines for energy efficiency.
INTRODUCTION11.3Expand the machine capacity• This machine has 32 MB of memory which can be expanded to 160 MB. • You can install an optional 250-sheet tray in your machine. This tray reduces how often you have to add paper to the machine. • A Network interface enables network printing. You can add the optional network interface card.You can also use an optional wireless network interface.Print in various environments• You can print in Windows 95/98/Me/NT 4.0/2000/XP.• Your machine is compatible with various Linux.• Your machine comes with both the USB and Parallel interface. The Parallel interface is available depending on your country.• You can also use a Network interface. You can also use an optional wireless network interface, but, you need to add the optional network interface card.Use a USB flash driveIf you have a USB flash drive, you can use it in various ways with your machine.• You can scan documents and save them on the USB flash drive.• You can directly print data stored on the USB flash drive.• You can manage the USB flash drive.• You can back up data and restore backup files to the machine’s memory.
INTRODUCTION1.4Machine FeaturesThe table below lists a general overview of features supported by your machine.(S: Standard, O: Option)Features SCX-4520 SCX-4720FIEEE 1284 Parallel S SUSB 2.0 S SNetwork Interface(Ethernet 10/100 Base TX) OOWireless LAN(802.11b Wireless LAN) OO

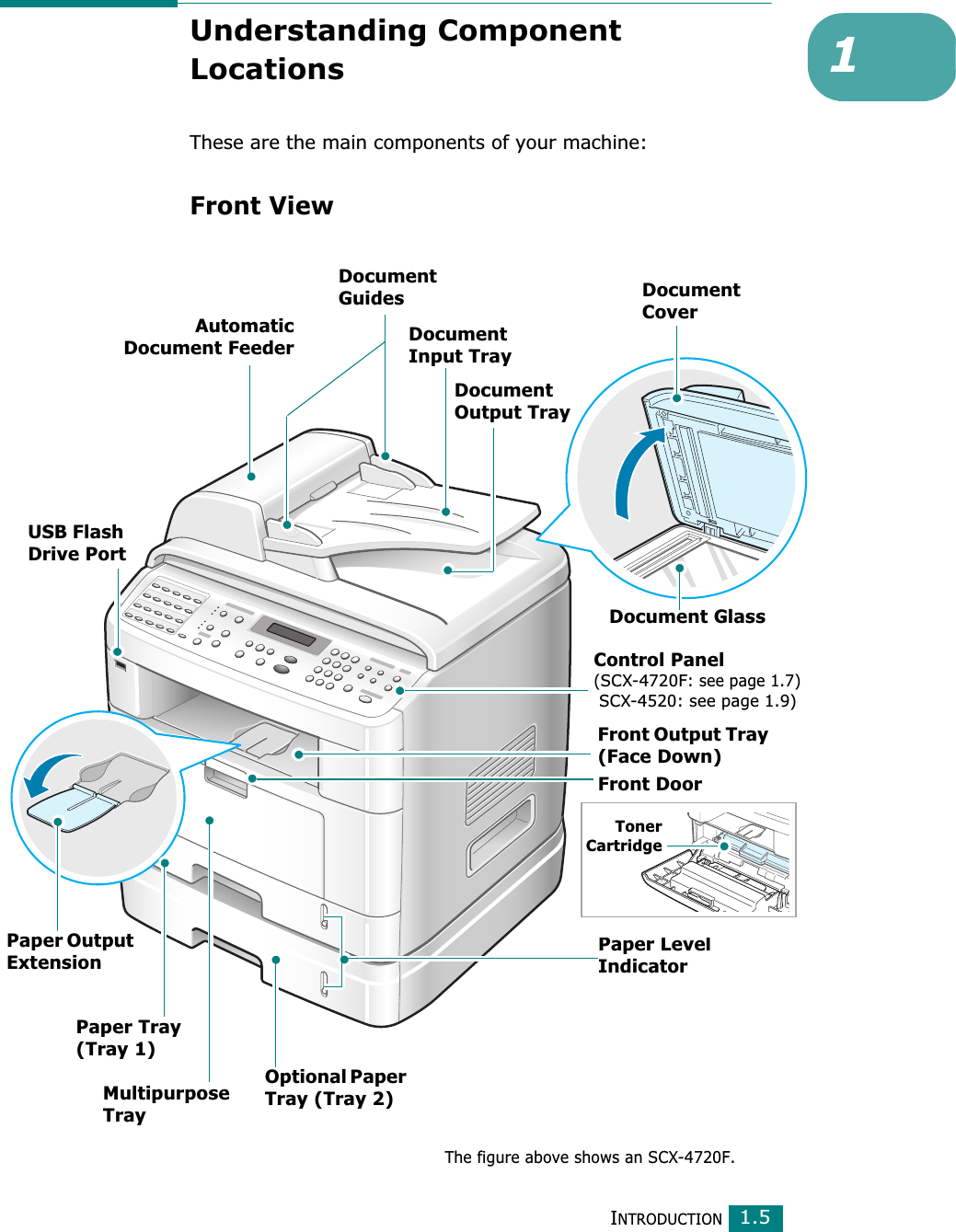

INTRODUCTION11.5Understanding Component LocationsThese are the main components of your machine:Front ViewDocument GuidesDocument Input TrayDocument CoverDocument GlassAutomaticDocument FeederControl Panel(SCX-4720F: see page 1.7) SCX-4520: see page 1.9)Front DoorPaper Level IndicatorPaper Output Extension TonerCartridgeMultipurpose Tray Front Output Tray (Face Down)Paper Tray(Tray 1)Optional Paper Tray (Tray 2)The figure above shows an SCX-4720F.USB Flash Drive PortDocument Output Tray
INTRODUCTION1.6Rear ViewRear DoorRear Output Slot(Face Up)Power SwitchControl Board CoverWireless Network Antenna*Parallel ConnectorUSB ConnectorNetwork Port**Tray 2 Cable ConnectorAC Power CordConnectorLine Jack(for the SCX-4720F)EXT Jack***(for the SCX-4720F)The figure above shows an SCX-4720F.* This wireless network antenna is not supplied with the machine. It is an option that must be purchased and installed separately.** The network port is not fitted as standard on the machine. You can purchase an optional Network Card and install it separately. For details, see page C.6.*** If your country has a different telephone connection system, this socket may be blocked.
INTRODUCTION11.7Control Panel FunctionsSCX-4720F1Allows you to store frequently-dialed fax numbers and dial them with the touch of a few buttons.Allows you to shift the one-touch buttons to the numbers 21 through 40.2SCANAllows you to access a list of your PC software programs that an image can be scanned to. You must create the scan list using the Samsung software (Printer Setting Utility) provided with this machine.Also allows you to scan and save documents in a USB flash drive, and manage it when it is inserted into the USB port of your machine. See Chapter 10, Installing a USB Flash Drive. 3COPYAdjusts the brightness of the documents for the current copy job. Selects the document type for the current copy job. Selects the number of copies.Allows you to use special copy features, such as Clone, Collation, Auto Fit, 2Sides on 1pg, 2/4 Up (multiple pages on a sheet), and Poster copying.Makes a copy smaller or larger than the original.4Displays the current status and prompts during an operation. Turns on when the toner cartridge is empty.5Uses to scroll through the available options for the selected menu item.
INTRODUCTION1.85Confirms the selection on the display.Enters Menu mode and scrolls through the menus available.Sends you back to the upper menu level.Stops an operation at any time.In Standby mode, clears/cancels the copy options, such as the darkness, the document type setting, the copy size, and the number of copies. Starts a job.6Dials a number or enters alphanumeric characters.7FAXAdjusts the resolution of the documents for the current fax job.Allows you to send a fax to multiple destinations.Allows you to store frequently-dialed fax numbers as one or two-digit speed dial or group dial numbers for automatic dialing and edit the stored numbers. Also allows you to print a Phonebook list.In Standby mode, redials the last number or in Edit mode, inserts a pause into a fax number.Engages the telephone line.8Allows you to directly print files stored on a USB flash drive when it is inserted into the USB port in the front of your machine.9SAVEAllows you to save on toner by using less toner to print a document.Allows you to save on call costs by sending a fax at a preset toll-saving time. Using this feature, you can take advantage of lower long distance rates at night, for example.
INTRODUCTION11.9SCX-45201Adjusts the brightness of the documents for the current copy job. Selects the document type for the current copy job. 2SCANAllows you to access a list of your PC software programs that an image can be scanned to. You must create the scan list using the Samsung software (Printer Setting Utility) provided with this machine.Also allows you to scan and save documents in a USB flash drive, and manage it when it is inserted into the USB port of your machine. See Chapter 10, Installing a USB Flash Drive. 3Displays the current status and prompts during an operation. Turns on when the toner cartridge is empty.4Uses to scroll through the available options for the selected menu item.Confirms the selection on the display.Enters Menu mode and scrolls through the menus available.Sends you back to the upper menu level.Stops an operation at any time.In Standby mode, clears/cancels the copy options, such as the darkness, the document type setting, the copy size, and the number of copies. Starts a job.
INTRODUCTION1.105Selects the number of copies.Allows you to use special copy features, such as Clone, Collation, Auto Fit, 2Sides on 1pg, 2/4 Up (multiple pages on a sheet), and Poster copying.Makes a copy smaller or larger than the original.6Allows you to save on toner by using less toner to print a document.7Allows you to directly print files stored on a USB flash drive when it is inserted into the USB port in front of your machine.

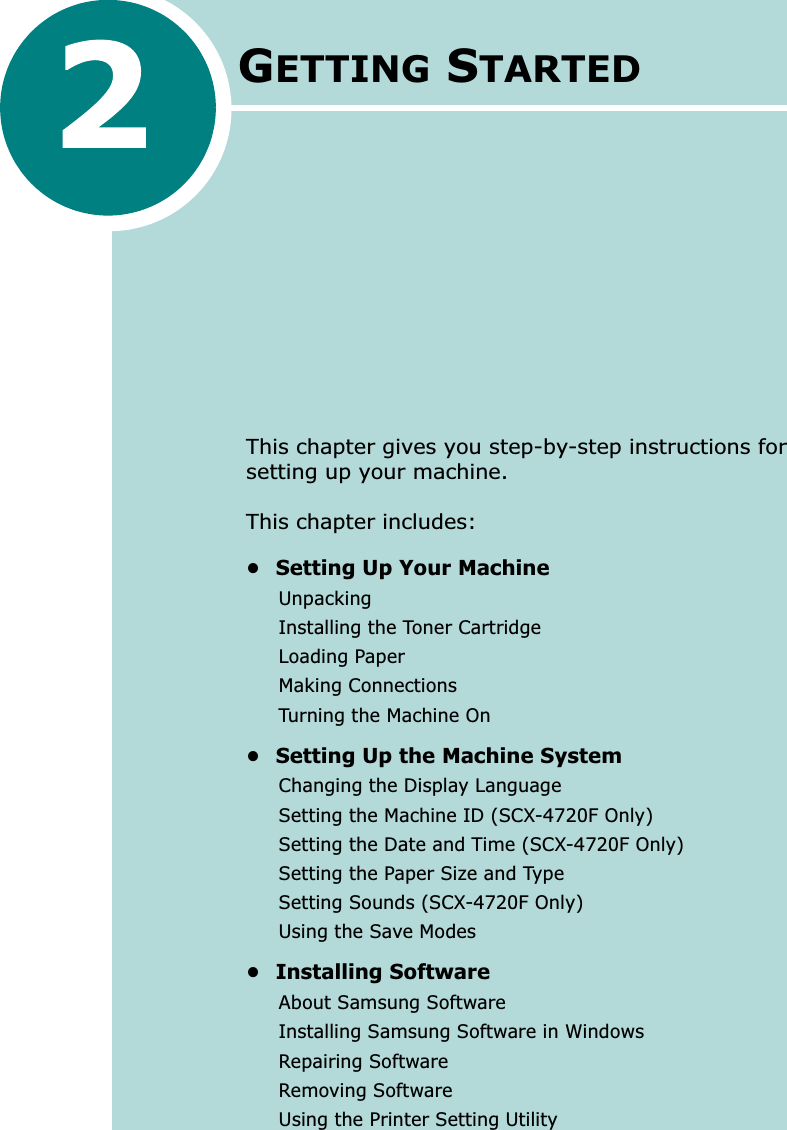

GETTING STARTEDThis chapter gives you step-by-step instructions for setting up your machine.This chapter includes:• Setting Up Your MachineUnpackingInstalling the Toner CartridgeLoading PaperMaking ConnectionsTurning the Machine On• Setting Up the Machine SystemChanging the Display LanguageSetting the Machine ID (SCX-4720F Only)Setting the Date and Time (SCX-4720F Only)Setting the Paper Size and TypeSetting Sounds (SCX-4720F Only)Using the Save Modes• Installing SoftwareAbout Samsung SoftwareInstalling Samsung Software in WindowsRepairing SoftwareRemoving SoftwareUsing the Printer Setting Utility
GETTING STARTED2.2Setting Up Your MachineUnpacking1Remove the machine and all accessories from the packing carton. Make sure that the machine has been packed with the following items:Starter Toner Cartridge AC Power Cord**The appearance of the power cord and the telephone line cord may differ depending on your country’s specifications. CD-ROM****The CD-ROM contains the Samsung printer drivers, Scan drivers, Printer Setting Utility, SmarThru software, the user’s guide, and the Adobe Acrobat Reader program.NOTES: • Components may differ from country to country.• You should use the telephone line cord which is supplied with your machine. If you are replacing it with another vendor’s, it should be AWG #26 or lower gauge.• Power cord must be plugged into a grounded power socket.Quick Install GuideTelephone Line Cord*(for SCX-4720F only)TAM Lead(for UK only)
GETTING STARTED22.32Remove the packing tape from the front, back, and sides of the machine.3Remove the label completely from the scanner module by gently pulling it. The scan unlock switch automatically moves FORWARD to the unlock position.NOTE: When you are moving the machine or do not intend to use it for a long period of time, move the switch BACKWARD to the lock position, as shown. To scan or copy a document, the switch must be unlocked.Ta p e
GETTING STARTED2.4Selecting a LocationSelect a level, stable place with adequate space for air circulation. Allow extra space for opening doors and trays. The area should be well-ventilated and away from direct sunlight or sources of heat, cold, and humidity. Do not set the machine close to the edge of your desk or table. Clearance Space•Front: 482.6 mm (enough space so that the paper tray can be removed)•Back: 100 mm (enough space for ventilation)•Right: 100 mm•Left: 100 mm (enough space for ventilation)Position Only
GETTING STARTED22.5Installing the Toner Cartridge1Open the front door.2Remove the starter toner cartridge from its bag. Gently roll the cartridge 5 or 6 times to distribute the toner.Thoroughly rolling the cartridge will assure maximum copies per cartridge.NOTE: If toner gets on your clothing, wipe it off with a dry cloth and wash clothing in cold water. Hot water sets toner into fabric.CAUTIONS:• To prevent damage, do not expose the toner cartridge to light for more than a few minutes. Cover it with a piece of paper, if left exposed for more than a few minutes.• Do not touch the green underside of the toner cartridge. Use the handle on the cartridge to avoid touching this area.
GETTING STARTED2.63Hold the toner cartridge by the handle. Slowly insert the cartridge into the opening in the machine. Tabs on the sides of the cartridge and corresponding grooves within the machine will guide the cartridge into the correct position until it locks into place completely.4Close the front door. Make sure that the door is securely closed.NOTE: When printing text at 5% coverage, you can expect a toner cartridge life of approximately 5,000 pages. (3,000 pages for the toner cartridge that is shipped with the machine.)GrooveTab
GETTING STARTED22.7Loading PaperThe paper tray can hold a maximum of 250 sheets of 20 lb plain paper. To load a stack of Letter-sized paper:1Pull open the paper tray and remove it from the machine.2Fan the edges of the paper stack to separate the pages. Then tap the stack on a flat surface to even it up.3Insert the paper stack into the paper tray with the side to be printed on facing down.
GETTING STARTED2.8NOTE: If you want to load a different sized paper, you need to adjust the paper guides. For details, see page 2.9.4Pay attention to the paper limit mark on both inside walls of the tray. Paper overloading may cause paper jams.5Insert and slide the paper tray back into the machine.NOTE: After you load paper, you need to set up your machine for the paper type and size you loaded. See page 2.20 for copying and faxing, or page 4.6 for PC-printing. The settings made from the printer driver override the settings on the control panel.
GETTING STARTED22.9Changing the Paper Size in the Paper TrayTo load longer sizes of paper, such as Legal-sized paper, you need to adjust the paper guides to extend the paper tray.1After pressing and unlatching the guide lock, slide the paper length guide out completely to extend the paper tray to its full length.2After inserting paper into the tray, squeeze the length guide and slide it until it lightly touches the end of the paper stack. For paper smaller than Letter size, adjust the front paper length guide so that it lightly touches the paper stack.
GETTING STARTED2.103Squeeze the width guide, as shown and slide it to the stack of paper until it lightly touches the side of the stack.NOTES:• Do not push the paper width guide far enough to cause the materials to warp.• If you do not adjust the paper width guide, it may cause paper jams.
GETTING STARTED22.11Making Connections1If you have SCX-4520:Skip this step and proceed to step 2.If you have SCX-4720F:Plug the supplied telephone line cord into the LINE jack and the other end into the wall jack.If you want to use your machine for receiving both faxes and voice calls, you will need to connect a telephone and/or answering machine to your machine. Plug the cord of your extension phone or answering machine into the EXT jack.To the wall jackTo an extension phone or answering machine
GETTING STARTED2.12UK users should plug the cord of the extension phone into the supplied TAM lead and plug the cord of the TAM lead into the EXT jack on the back of your machine.NOTES: • Use the TAM lead and the telephone line cord supplied with your machine.• In the United Kingdom, if a three-wire type (SHUNT-wire, older equipment) telephone or answering machine is connected to the EXT jack on the machine, the external equipment will fail to ring when receiving an incoming call as the machine is designed to operate with the latest technology. To prevent this incompatibility, use two-wire (newer equipment) telephones or answering machines.2Connect a USB cable to the USB connector on your machine. You need to buy a USB 2.0 compliant cable that is within 3 m in lengthTAM lead(For UK users only)To the USB port on your computer
GETTING STARTED22.13If you want to use a parallel printer cable, purchase only an IEEE-1284 compliant parallel cable and connect it to the parallel connector on your machine.Push the metal clips down to fit inside the notches on the cable plug.NOTES:• You only need to connect one of the cables mentioned above. Do not use the parallel and the USB cables at the same time.• If you are using a USB cable, you must be running Windows 98/Me/2000/XP. • The parallel port may not be available depending on your country.To the parallel port on your computer
GETTING STARTED2.14Turning the Machine On1Plug one end of the supplied three-pronged electrical cord into the AC socket on the machine and the other end into a properly grounded AC outlet. 2Press the power switch to turn the machine on. “Warming Up Please Wait” appears on the display indicating that the machine is now on. To view your display text in another language, see page 2.15.CAUTIONS:• The fusing areas at the rear part of the inside of your machine are hot when powered. Be careful not to be burned when you access this area.• Do not disassemble the machine when it is powered. If you do, it may give you an electric shock.To the AC wall jack
GETTING STARTED22.15Setting Up the Machine SystemChanging the Display LanguageTo change the language that displays on the control panel, follow these steps:1Press Menu until “Machine Setup” appears on the top line of the display.2Press the scroll button ( or ) until “Language” appears on the bottom line of the display. 3Press Enter. The current setting appears on the bottom line of the display.4Press the scroll button ( or ) until the language you want appears on the display.5Press Enter to save the selection. 6To return to Standby mode, press Stop/Clear.
GETTING STARTED2.16Setting the Machine ID (SCX-4720F Only)In some countries, you are required by law to indicate your fax number on any fax you send. The Machine ID, containing your telephone number and name (or company name), will be printed at the top of each page sent from your machine.1Press Menu until “Machine Setup” appears on the top line of the display. The first available menu item, “Machine Id,” displays on the bottom line. 2Press Enter. The display asks you to enter the fax number.If there is a number already set, the number appears.3Enter your fax number using the number keypad.NOTE: If you make a mistake while entering numbers, press the button to delete the last digit. 4Press Enter when the number on the display is correct. The display asks you to enter an ID.5Enter your name or the company name using the number keypad.You can enter alphanumeric characters using the number keypad, and include special symbols by pressing the 0 button.For details on how to use the number keypad to enter alphanumeric characters, see “Entering Characters Using the Number Keypad” on page 2.17.If you want to enter the same letter or number in succession (e.g. SS, AA, 777), enter one digit, move the cursor by pressing the button and enter the next digit.If you want to insert a space in the name, you can also use the button to move the cursor to skip the position.6Press Enter when the name on the display is correct.7To return to Standby mode, press Stop/Clear.
GETTING STARTED22.17Entering Characters Using the Number KeypadAs you perform various tasks, you need to enter names and numbers. For example, when you set up your machine, you enter your name (or your company’s name) and telephone number. When you store one-, two-, or three-digit speed dial or group dial numbers, you may also enter the corresponding names.To enter alphanumeric characters:1When you are prompted to enter a letter, locate the button labeled with the character you want. Press the button until the correct letter appears on the display.For example, to enter the letter O, press 6, labeled with “MNO.”Each time you press 6, the display shows a different letter, M, N, O, and finally 6.You can enter special characters, such as space, plus sign, and etc.. For details, see “Keypad Letters and Numbers” on page 2.18.2To enter additional letters, repeat step 1.If the next letter is printed on the same button, move the cursor by pressing the button and then press the button labeled with the letter you want. The cursor will move to the right and the next letter will appear on the display.You can enter a space by pressing the button.3When you finish entering letters, press Enter.
GETTING STARTED2.18Keypad Letters and NumbersChanging Numbers or NamesIf you make a mistake while entering a number or name, press the button to delete the last digit or character. Then enter the correct number or character.Inserting a PauseWith some telephone systems, you must dial an access code (9, for example) and listen for a second dial tone. In such cases, you must insert a pause in the telephone number. You can insert a pause while you are setting up one-touch or speed dial numbers.To insert a pause, press Redial/Pause at the appropriate place while entering the telephone number. A “−” appears on the display at the corresponding location.Key Assigned numbers, letters, or characters1 1 Space 2 A B C 23 D E F 34 G H I 45 J K L 56 M N O 6 7 P Q R S 78 T U V 8 9 W X Y Z 90 + - , . ‘ / * # & 0
GETTING STARTED22.19Setting the Date and Time (SCX-4720F Only)The current date and time are shown on the display when your machine is on and ready to work. All of your faxes will have the date and time printed on them.NOTE: If power to the machine is cut off, you need to reset the correct time and date once the power has been restored.1Press Menu until “Machine Setup” appears on the top line of the display. 2Press the scroll button ( or ) to display “Date & Time” on the bottom line and press Enter.3Enter the correct time and date using the number keypad.Month = 01 ~ 12Day = 01 ~ 31Year = requires four digitsHour = 01 ~ 12 (12-hour mode) 00 ~ 23 (24-hour mode)Minute = 00 ~ 59NOTE: The date format may differ from country to country.You can also use the scroll button ( or ) to move the cursor under the digit you want to correct and enter a new number.4To select “Am” or “Pm” for 12-hour format, press the or button or any number button.When the cursor is not under the AM or PM indicator, pressing the or button immediately moves the cursor to the indicator.You can change the clock mode to 24-hour format (e.g. 01:00 PM as 13:00). For details, see page 2.20.
GETTING STARTED2.205Press Enter when the time and date on the display is correct. When you enter a wrong number, the machine beeps and does not proceed to the next step. If this happens, just reenter the correct number.Changing the Clock ModeYou can set your machine to display the current time using either a 12-hour or 24-hour format.1Press Menu until “Machine Setup” appears on the top line of the display. 2Press the scroll button ( or ) until you see “Clock Mode” on the bottom line and press Enter. The clock mode currently set for the machine displays.3Press the scroll button ( or ) to select the other mode and then press Enter to save the selection.4To return to Standby mode, press Stop/Clear.Setting the Paper Size and TypeAfter loading paper in the paper tray, the standard Tray1, Multipurpose tray, or optional Tray2, you need to set the paper size and type using the control panel buttons. These settings will apply to copy and fax modes. For PC-printing, you need to select the paper size and type in the application program you use on your PC.1Press Menu.The display shows “Paper Setting” on the top line of the display.2Press the scroll button ( or ) to display “Paper Size” on the bottom line and press Enter to access the menu item.The first item, “Tray Paper,” displays on the bottom line. If the optional Tray 2 is installed, “Tray1” displays on the bottom line.

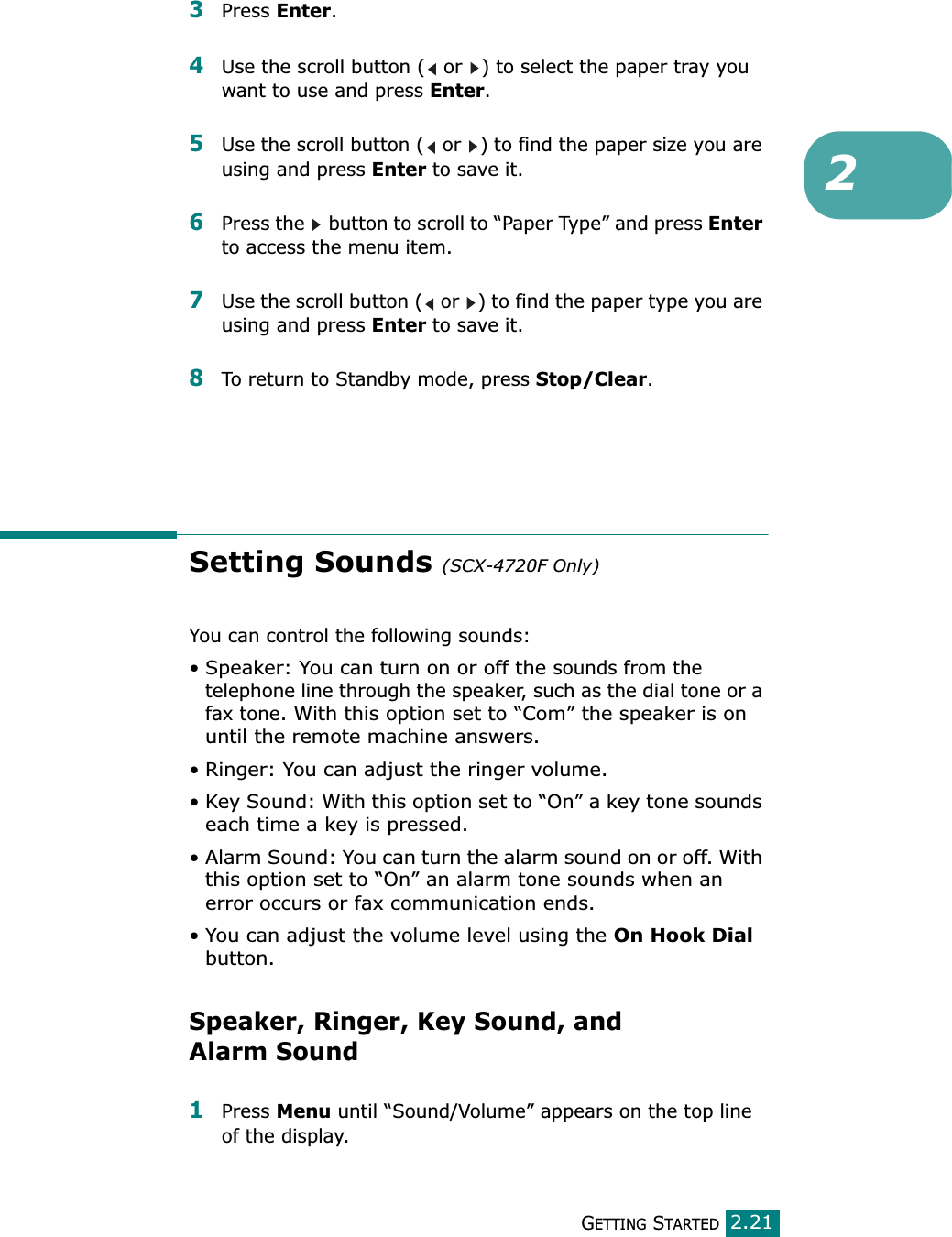

GETTING STARTED22.213Press Enter.4Use the scroll button ( or ) to select the paper tray you want to use and press Enter. 5Use the scroll button ( or ) to find the paper size you are using and press Enter to save it. 6Press the button to scroll to “Paper Type” and press Enter to access the menu item.7Use the scroll button ( or ) to find the paper type you are using and press Enter to save it. 8To return to Standby mode, press Stop/Clear.Setting Sounds (SCX-4720F Only)You can control the following sounds:• Speaker: You can turn on or off the sounds from the telephone line through the speaker, such as the dial tone or a fax tone. With this option set to “Com” the speaker is on until the remote machine answers. • Ringer: You can adjust the ringer volume.• Key Sound: With this option set to “On” a key tone sounds each time a key is pressed.• Alarm Sound: You can turn the alarm sound on or off. With this option set to “On” an alarm tone sounds when an error occurs or fax communication ends.• You can adjust the volume level using the On Hook Dial button.Speaker, Ringer, Key Sound, and Alarm Sound1Press Menu until “Sound/Volume” appears on the top line of the display.
GETTING STARTED2.222Press the scroll button ( or ) to scroll through the options. Press Enter when you see the desired sound option.3Press the scroll button ( or ) to display the desired status or volume for the option you have selected.You will see the selection on the bottom line of the display. For the ringer volume, you can select “Off,” “Low,” “Mid,” and “High.” Setting “Off” means that the ringer does not sound. The machine works normally even if the ringer is turned off.4Press Enter to save the selection. The next sound option appears.5If necessary, repeat steps 2 through 4.6To return to Standby mode, press Stop/Clear.Speaker Volume1Press On Hook Dial. A dial tone sounds from the speaker.2Press the scroll button ( or ) until you hear the volume you want. The display shows the current volume level.3Press On Hook Dial to save the change and return to Standby mode.NOTE: You can adjust the speaker volume only when the telephone line is connected.
GETTING STARTED22.23Using the Save ModesToner Save ModeToner Save mode allows your machine to use less toner on each page. Activating this mode extends the life of the toner cartridge beyond what one would experience in the normal mode, but it reduces print quality.To turn the toner save mode on or off, press Toner Save. • If the button backlight is on, the mode is active and the machine uses less toner when printing a document.• If the button backlight is off, the mode is deactivated and the machine prints with the normal quantity of toner.NOTE: When PC-printing, you can also turn on or off the toner save mode in the printer properties. See page 4.8.Toll Save Mode (SCX-4720F Only)Using the Toll Save button on the control panel, you can quickly set your machine to send the document(s) stored in memory during a preset time slot, when the call charge is lower. This Toll Save mode helps you to take advantage of lower long distance rates at night, for example.NOTE: The toll-saving time slot may vary depending on your contract with your long distance phone company.To turn the toll save mode on:1Press Toll Save. The button backlight turns on.2Press Enter when “Start Time” displays on the bottom line. 3Enter the time and date when your machine starts sending toll save faxes, using the number keypad.To select “AM” or “PM” for 12-hour format, press the or button or any number button.4Press Enter when the start time and date on the display is correct.
GETTING STARTED2.245Press the scroll button ( or ) to display “End Time” and press Enter. 6Enter the time and date when the toll save transmission ends, using the number keypad.7Press Enter to save the setting.8To return to Standby mode, press Stop/Clear.Once Toll Save mode is activated, your machine stores into memory all of the documents to be faxed and sends them at the programed time. To turn Toll Save mode off, press Toll Save again. The button backlight turns off and the mode is deactivated. NOTE: Once the toll-saving time is set, the Toll Save button allows you only to enable or disable the toll save mode. To change the time setting, use the Toll Save item in the Advanced Fax menu. See page 7.38.Power Save ModePower Save mode allows your machine to reduce power consumption when it is not in actual use. You can turn this mode on and select a length of time for which the machine waits after a job is printed before it switches to a reduced power state.1Press Menu until “Machine Setup” appears on top line of the display.2Press the scroll button ( or ) until “Power Save” appears on the bottom line. Press Enter.3Press the scroll button ( or ) to display “On” on the bottom line and press Enter.Selecting “Off” means that the power save mode is deactivated.4Press the scroll button ( or ) until the time setting you want appears.The available options are 5, 10, 15, 30, and 45 (minutes).
GETTING STARTED22.255Press Enter to save the selection.6To return to Standby mode, press Stop/Clear.Scan Lamp Save ModeScan Lamp Save mode allows you to save the scan lamp. The scan lamp under the document glass automatically turns off when it is not in actual use to reduce power consumption and extend the life of the lamp. The lamp automatically wakes up after some warm-up time when you start scanning.You can set the length of time for which the scan lamp waits after a scan job is completed before it switches to the power save mode. 1Press Menu until “Machine Setup” appears on top line of the display.2Press the scroll button ( or ) until “Scan PWR Save” appears on the bottom line. Press Enter.3Press the scroll button ( or ) until the time setting you want appears on the bottom line.The available time options are 0.5, 1, 4, 8, and 12 (hours). 4Press Enter to save the selection.5To return to Standby mode, press Stop/Clear.
GETTING STARTED2.26Installing SoftwareAbout Samsung SoftwareYou must install the printer software using the supplied CD-ROM after you have set up your machine and connected it to your computer. The CD-ROM provides you with the following software:Programs for Windows To use your machine as a printer and scanner in Windows, you must install the MFP driver. You can install selectively or all the following components: •Printer driver- Use this driver to take full advantage of your printer’s features.•Scanner driver- TWAIN and Windows Image Acquisition (WIA) driver are available for scanning documents on your machine.•Printer Setting Utility- This program is automatically installed when you install the MFP driver. For information about using the program, see page 2.37.•SmarThru- It is the accompanying Windows-based software for your multifunctional machine. SmarThru contains a powerful image editor that allows you to edit images in many ways and also includes powerful Internet mail client software. For details, please refer to the onscreen help supplied on the SmarThru program.Linux DriverYou can print and scan in Linux using your machine. For information about installing the MFP driver in Linux, see page A.3.
GETTING STARTED22.27Printer Driver FeaturesYour printer drivers support the following standard features:• Paper source selection• Paper size, orientation and media type• number of copiesThe following table lists a general overview of features supported by your printer drivers. FeaturePCL 6 Printer DriverWin 9x/Me/NT4.0/2000/XP LinuxToner Save Y YPrint quality option Y YPoster printing Y NMultiple pages per sheet (N-up) Y Y(2,4)Fit to page printing Y YScale printing Y YDifferent source for first page Y YWatermark Y NOverlay Y NTrueType fonts option Y N
GETTING STARTED2.28Installing Samsung Software in WindowsSystem RequirementsBefore you begin, ensure that your system meets the minimum requirements.Supported Operating System• Windows 95 OSR2• Windows 98/Windows 98 SE•Windows Me• Windows NT 4 Workstation or Server with Service Pack 3• Windows 2000 Professional or Advanced Server• Windows XP Home edition or Professional.Minimal Requirements• Disk space: 120 MB for installation • Memory: 64 MB • CPU: Pentium II 233 or higher• Required software: Internet Explorer 5.0Recommended• Disk space: 300 MB for installation• Memory: 128 MB• CPU: Pentium II 400 or higher• Required software: Internet Explorer 5.5NOTE: For Windows NT 4.0/2000/XP, the system administrator should install the software.
GETTING STARTED22.29Installing Samsung SoftwareNOTES: • Cancel the “New Hardware Found” window when your computer boots up.• Make sure that your machine is turned on and connected to your computer’s parallel port or USB port before installing software. Windows 95 and Windows NT 4.0 do not support the USB connection.1Insert the supplied CD-ROM into your CD-ROM drive.The CD-ROM should automatically run, and an installation window appears.If the installation window does not appear, click Start and then Run. Type X:Setup.exe, replacing “X” with the letter of your drive and click OK.2If your machine is not already connected to the computer, when the following window opens, connect your machine to the computer and turn the machine on. Then click Next.If the machine is already connected and turned on, this screen will not appear. Skip to the next step.
GETTING STARTED2.303Choose the installation type. •Typical: Installs the most common software for your machine, such as the PCL 6 printer driver, scan driver, and Printer Setting Utility. This is recommended for most users.•Custom: Allows you to choose the language of the software and the components you want to install. After selecting the language and the component(s), click Next.•Install SmarThru: Installs the SmarThru program. If you select to install SmarThru on this screen, follow from step 3 on page 2.32. •View User’s Guide: Allows you to view this User’s Guide. If your computer does not have Adobe Acrobat, click on this option and it will automatically install Adobe Acrobat Reader for you.4After the installation is finished, the window asking you to print a test page appears. If you choose to print a test page, select the check box and click Next. Otherwise, just click Next and skip to step 6.
GETTING STARTED22.315When the test page prints out correctly, click Yes. If not, click No to reprint it.6To register yourself as a user of Samsung Printers to receive information from Samsung, select the checkbox and click Finish. You are now sent to the Samsung web site.Otherwise, just click Finish.NOTES:• When you want to use your machine with the parallel cable, remove the USB cable and connect the parallel cable. Then reinstall the printer driver; select Start → Programs → Samsung SCX-4x20 Series → Maintenance → Repair → Printer. If you have replaced the parallel cable with the USB cable, do the same to reinstall the driver.• If your machine doesn’t work properly, reinstall the printer driver.
GETTING STARTED2.32Installing Samsung SmarThruNOTE: SmarThru 4 does not support Windows 95.1Insert the supplied CD-ROM into your CD-ROM drive.2Click Install SmarThru.3Click Next.4Follow the on-screen instructions and click Next.5Click Next.6Select the installation type and click Next.The software installation supports two types of setup:•Typical: The program will be installed with the most common options and is recommended for most users.
GETTING STARTED22.33•Custom: You may choose the options you want to install.If you select the Custom installation, you may choose the components you want to install. Click Next.•Basic SmarThru components: to use the basic SmarThru 4 applications and core service.•Scan: to scan the original document and save it in an application or folder, email it, or publish it on a web site. •Image: to edit an images you have saved as a graphic file.•Copy: to produce professional quality copies.•Print: to print images you have saved.7Follow the on-screen instructions to complete the installation. 8When the installation is finished, click Finish.Repairing SoftwareRepair is required if your installation fails or the software does not work properly. This Repair procedure does not physically repair SmarThru software.1You can select Start → Programs → Samsung SCX-4x20 Series → Maintenance.
GETTING STARTED2.342Select Repair and then click Next.NOTE: If your machine is not connected to the computer, the Connect Samsung SCX-4x20 Series window opens. After connecting the machine, click Next.3Select the components you want to reinstall and click Next.4When the reinstallation is done, click Finish.
GETTING STARTED22.35Removing SoftwareUninstall is required if you are upgrading the software or if your installation fails. You can uninstall the item you want using the Windows uninstallShield.Uninstalling the MFP Driver1You can select Start → Programs → Samsung SCX-4x20 Series → Maintenance → Remove.2Select a component in the MFP driver to uninstall individually:If you want to uninstall the PCL printer driver, select Printer.If you want to uninstall the twain and wia driver, select Scanner. If you want to uninstall the Printer Setting Utility, select Printer Setting Utility.3Select the components you want to remove and then click Next.4When your computer asks you to confirm your selection, click Yes. The selected driver and all of its components are removed from your computer. 5When the uninstallation is done, click Finish.
GETTING STARTED2.36Uninstalling Samsung SmarThruNOTE: Before beginning uninstallation, ensure that all applications are closed on your computer. A system reboot is required after the software is uninstalled.1From the Start menu, select Programs.2Select SmarThru 4, and then select Uninstall SmarThru 4.3When your computer asks you to confirm, click OK. 4Click Finish.When your computer doesn’t shut down and restart automatically, you must shut it down manually and restart it before the changes will be saved.

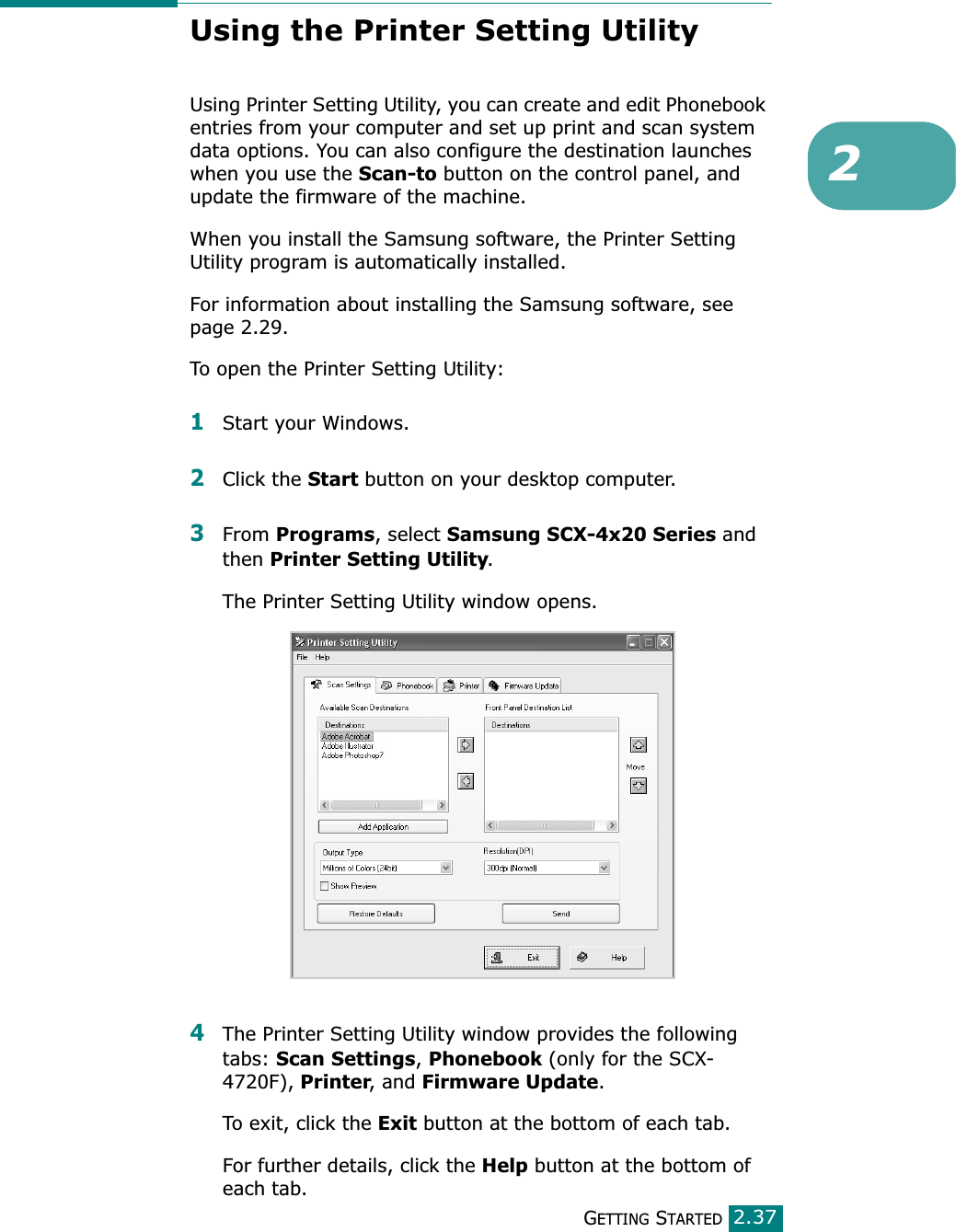

GETTING STARTED22.37Using the Printer Setting UtilityUsing Printer Setting Utility, you can create and edit Phonebook entries from your computer and set up print and scan system data options. You can also configure the destination launches when you use the Scan-to button on the control panel, and update the firmware of the machine. When you install the Samsung software, the Printer Setting Utility program is automatically installed. For information about installing the Samsung software, see page 2.29.To open the Printer Setting Utility:1Start your Windows.2Click the Start button on your desktop computer.3From Programs, select Samsung SCX-4x20 Series and then Printer Setting Utility.The Printer Setting Utility window opens. 4The Printer Setting Utility window provides the following tabs: Scan Settings, Phonebook (only for the SCX-4720F), Printer, and Firmware Update.To exit, click the Exit button at the bottom of each tab.For further details, click the Help button at the bottom of each tab.
GETTING STARTED2.38The Scan Settings TabClick the Scan Settings tab to configure the scan destination list that appears on the control panel display when you press Scan-to on the control panel. Using the destination list, you can select a software program that an image can be scanned to.You can also configure the scan settings, such as the output type and resolution.The Phonebook Tab (SCX-4720F Only)Click the Phonebook tab to create and edit Phonebook entriesDownloads the settings made in Printer Setting Utility to your machine.Click to restore thedefault settings.Select the programyou want from theAvailable ScanDestinations and click to add it to theFront PanelDestination List. Todelete the selectedprogram, click .Reads the Phonebook entries from the machine to the Printer Setting Utility.Downloads the Phonebook entries from the Printer Setting Utility to the machine.Phonebook entriesDeletes all Phonebook entries.Allows you to edita selectedPhonebook entryin a separate Editwindow.Deletes a selected Phonebook entry.Allows you to set up group dial numbers. See page 2.39.
GETTING STARTED22.39When you click Group Dial, the following window opens.The Printer TabClick the Printer tab to configure print system settings.Shows the Phonebook entries you can include in the group. After selecting a number, click Add to move it to the Included numbers list.Enter a name forthe group.Shows the numbersincluded in the group.To remove a number,select it and clickRemove.Click to save the group dial number after adding or removing numbers for the group.Downloads the settings made in Printer Setting Utility to your machine.Allows you to selectthe defaultorientation of printimage on the page.Allows you to set the margin of print materials.Allows you to set the PCL emulation configuration.
GETTING STARTED2.40The Firmware Update TabClick the Firmware Update tab to update the firmware of your machine. This feature should be used by an authorized technician. Please consult with the purchase point.
PAPER HANDLINGThis chapter introduces you to the basics of selecting print materials and loading them into your machine.This chapter includes:• Selecting Print Materials• Loading Paper• Selecting an Output Location
PAPER HANDLING3.2Selecting Print MaterialsYou can print on a variety of print materials, such as plain paper, envelopes, labels, transparencies, and etc.. Always use print materials that meet the guidelines for use with this machine. See “Paper Specifications” on page D.6. To get the best possible print quality, use only high-quality copier-grade paper.When you choose print materials, consider the following:• Desired outcome: The paper you choose should be appropriate for your project.• Size: You can use any size paper that fits easily within the paper adjusters of the paper tray.• Weight: Your machine supports paper weights as follows:- 16 ~ 24 lb (60 ~ 90 g/m2) bond for the standard paper tray (Tray 1) and optional paper tray (Tray 2)- 16 ~ 43 lb (60 ~ 163 g/m2) bond for the Multipurpose tray• Brightness: Some papers are whiter than others and produce sharper, more vibrant images.• Surface smoothness: The smoothness of the paper affects how crisp the printing looks on the paper.CAUTION: Using print materials that dose not conform to the specifications listed on page D.4 may cause problems that may require service. This service is not covered by the warranty or service agreements.Paper Type, Input Sources, and CapacitiesPaper TypeInput Source/Capacity** Maximum capacity may differ depending on media weight, thickness, and environmental conditions.Tray 1 Optional Tray 2Multipurpose trayPlain paper250 250 50Envelopes- - 5Labels****If you experience excessive jamming, load one sheet at a time through the Multipurpose tray.- - 5Transparencies**- - 5Card stock**- - 5
PAPER HANDLING3.33Guidelines for Paper and Special MaterialsWhen selecting or loading paper, envelopes, or other special material, keep these guidelines in mind:• Always use paper and other materials that conform with the specifications listed under “Paper Specifications” on page D.6.• Attempting to print on damp, curled, wrinkled, or torn paper can cause paper jams and poor print quality.• Use only high quality copier grade paper for the best print quality. • Avoid paper with embossed lettering, perforations, or a texture that is too smooth or too rough. Paper jams may occur.• Store paper in its ream wrapper until you are ready to use. Place cartons on pallets or shelves, not on the floor. Do not place heavy objects on top of the paper, whether it is packaged or unpackaged. Keep it away from moisture, or other conditions that can cause it to wrinkle or curl.• Store unused materials at temperatures between 15 oC and 30 oC (59 oF to 86 oF). The relative humidity should be between 10 % and 70 %.• During storage, you should use a moisture-proof wrap, such as a plastic container or bag, to prevent dust and moisture from contaminating your paper.• Load special paper types one sheet at a time through the Multipurpose tray to avoid paper jams.• Only use materials specifically recommended for use in laser printers.• To prevent special materials, such as transparencies and label sheets from sticking together, remove them as they print out.• For envelopes:- Use only well-constructed envelopes with sharp, well creased folds.- Do not use envelopes with clasps and snaps.- Do not use envelopes with windows, coated lining, self-adhesive seals or other synthetic materials.- Do not use damaged or poorly made envelopes.• For transparencies:- Place them on a flat surface after removing them from the machine.- Do not leave them in the paper tray for long periods of time. Dust and dirt may accumulate on them, resulting in spotty printing.
PAPER HANDLING3.4- To avoid smudging caused by fingerprints, handle them carefully.- To avoid fading, do not expose printed transparencies to prolonged sunlight.• For labels:- Verify that their adhesive material can tolerate a fusing temperature of 200 oC (392 o F) for 0.1 second.- Make sure that there is no exposed adhesive material between them. Exposed areas can cause labels to peel off during printing, which can cause paper jams. Exposed adhesive can also cause damage to machine components.- Do not load a sheet of them through the machine more than once. The adhesive backing is designed for one pass through the machine.- Do not use labels that are separating from the backing sheet or are wrinkled, bubbled or otherwise damaged.• Do not use Carbonless paper and Tracing paper. Use of these types of paper could result in chemical smells and could damage your machine.Loading PaperIn the Standard TrayLoad the print material you use for the majority of your print jobs in the standard tray.The standard tray can hold a maximum of 250 sheets of 20 lb plain paper. You can purchase an optional paper tray (Tray 2) and attach it below the standard tray to load an additional 250 sheets of paper. See page C.10 for more information about installing the optional Tray 2.
PAPER HANDLING3.53The paper level indicator on the front of the paper tray shows the amount of paper currently left in the tray. When the tray is empty, the indicator of the bar is completely lowered.To load paper, pull open the paper tray and load paper with the side to be printed on face down.You can load letterhead paper with the design side face down. The top edge of the sheet with the logo should be placed at the front of the tray.For details about loading paper in the paper tray, see “Loading Paper” on page 2.7.NOTES: • If you experience problems with paper feed, place one sheet at a time in the Multipurpose tray.• You can load up to 150 sheets of previously printed paper. The printed side should be facing up with an uncurled edge at the front. If you experience problems with paper feed, turn the paper around. Note that the print quality is not guaranteed.Paper emptyPaper full
PAPER HANDLING3.6In the Multipurpose TrayThe Multipurpose tray can hold several sizes and types of print material, such as transparencies, postcards, note cards, and envelopes. It is useful for single page printing on letterhead or colored paper. You can load approximately 50 sheets of plain paper, 5 envelopes, 5 transparencies, 5 sheets of card stock, or 5 labels at a time.To load print material in the Multipurpose tray:1Lower the Multipurpose tray and unfold the paper support extension, as shown. 2If you are using paper, flex or fan the edge of the paper stack to separate the pages before loading.For transparencies, hold them by the edges and avoid touching the print side. Oils from your fingers can cause print quality problems.
PAPER HANDLING3.733Load the print material with the side to be printed on facing up.For envelopes, load them with the flap side down and with the stamp area on the top left side.NOTES: • If envelopes jam while printing, try reducing the number of envelopes in the Multipurpose tray.• If you want to print on previously printed paper from the Multipurpose tray, the printed side should be facing down with an uncurled edge towards the machine. If you experience problems with the paper feeding, turn the paper around.4Squeeze the width guide and adjust it to the width of the print material without bending it.5After loading paper, you need to set the paper type and size for the Multipurpose tray. See page 2.20 for copying and faxing or page 4.6 for PC-printing.NOTE: The settings made from the printer driver override the settings on the control panel.
PAPER HANDLING3.86If you want the machine to stack the printed pages on the rear output slot, open the rear door to use the rear output slot.CAUTION: Make sure to open the rear output slot when you print on transparencies. If not, they may tear while exiting the machine.7After printing, fold away the paper support extension and close the Multipurpose tray.Using the Manual Feed ModeYou can manually load a sheet of print material in the Multipurpose tray if you select Manual Feed in the Source option from the Paper tab when changing print settings to print a document. For details about changing print settings, see page 4.6. Manually loading paper can be helpful when you want to check the print quality after each page is printed. This loading procedure is almost the same as the procedure for loading in the Multipurpose tray, except you load paper sheet-by-sheet in the standard tray, send print data to print the first page, and press Enter on the control panel to print each following page.1Lower the Multipurpose tray and unfold the paper support extension.2Load a sheet of print material with the side to be printed on facing up.
PAPER HANDLING3.933Squeeze the width guide and adjust it to the width of the print material without bending it.4If you want the machine to stack the printed pages on the rear output slot, open the rear door to use the rear output slot.CAUTION: Make sure to open the rear output slot when you print on transparencies. If not, they may tear while exiting the machine.5After printing, fold away the paper support extension and close the Multipurpose tray.Tips on Using the Multipurpose Tray • Load only one size of print material at a time in the Multipurpose tray.• To prevent paper jams, do not add paper when there is still paper in the Multipurpose tray. This also applies to other types of print materials.• Print materials should be loaded face up with the top edge going into the Multipurpose tray first and be placed in the center of the tray.• Always load only the print materials specified in the Specifications on page D.6 to avoid paper jams and print quality problems.• Flatten any curl on postcards, envelopes, and labels before loading them into the Multipurpose tray.• When you print on 76 mm X 127 mm (3 X 5 in.) sized media on the Multipurpose tray, open the rear output tray.• Make sure to open the rear output slot when you print on transparencies. If not, they may tear while exiting the machine.
PAPER HANDLING3.10Selecting an Output LocationThe machine has two output locations: the rear output slot (face up) and the front output tray (face down). To use the front output tray, make sure that the rear door is closed. To use the rear output slot, open the door.NOTES:• If paper coming out of the front output tray has problems, such as excessive curl, try printing to the rear output slot.• To avoid paper jams, do not open or close the rear door while the machine is printing.Printing to the Front Output Tray (Face down)The front output tray collects printed paper face down, in the order in which the sheets were printed. The tray should be used for most print jobs.Rear output slotFront outputtray
PAPER HANDLING3.113Printing to the Rear Output Slot (Face up)Using the rear output slot, paper comes out of the machine face up.Printing from the Multipurpose tray to the rear output slot provides a straight paper path. Using the rear output slot might improve the output quality with the following:•envelopes•labels• small custom-sized paper• postcards• transparenciesTo use the rear output slot:1Open the rear door by pulling it upward. CAUTION: The fusing area at the rear part of the inside of your machine is hot when powered. Be careful not to be burned when you access this area.
PAPER HANDLING3.122If you do not want to stack the printed pages on the rear output slot, close the rear door. The pages stack on the front output tray.
PRINTING TASKSThis chapter explains how to print your documents in Windows and how to use the print settings. This chapter includes:• Printing a Document in Windows• Printer Settings• Printing Multiple Pages on One Sheet of Paper• Printing Posters• Fitting Your Document to a Selected Paper Size• Printing a Reduced or Enlarged Document• Using Watermarks• Using Overlays
PRINTING TASKS4.2Printing a Document in WindowsThe following procedure describes the general steps required for printing from various Windows applications. The exact steps for printing a document may vary depending on the application program you are using. Refer to the User’s Guide of your software application for the exact printing procedure. NOTE: For detailed information about printing from a Linux system, see Appendix A.1Open the document you want to print.2Select Print from the File menu. The Print window opens. It may look slightly different depending on your application. You can select the basic print settings within the Print window. These settings include the number of copies and the print range.3To take advantage of the printer features provided by your machine, click Properties or Preferences in the application’s Print window. Go to step 4.If you see a Setup, Printer, or Options button in your Print window, click it instead. Then click Properties on the next screen.4Click OK to close the printer properties window.5To start the print job, click OK or Print in the Print window.Make sure that your machine is selected. Windows XP
PRINTING TASKS4.34Canceling a Print JobThere are two ways to cancel a print job:To stop a print job from the control panel:Press the Stop/Clear button. Your machine finishes printing the page that is moving through the machine and deletes the rest of the print job. Pressing the button cancels only the current job. If more than one print job is in the machine’s memory, you need to press the button once for each job.To stop a print job from the Printers folder:If the print job is waiting in a print queue or print spooler, such as the Printer group in Windows, delete the job as follows: 1Click the Windows Start menu.2For Windows 9x/NT4.0/2000/Me, Select Settings and then Printers.For Windows XP, select Printers and Faxes. 3Double-click the Samsung SCX-4x20 Series PCL 6 icon.4From the Document menu:For Windows 9x/Me, select Cancel Printing.For Windows NT4.0/2000/XP, select Cancel.NOTE: You can access this window simply by double-clicking the machine icon at the bottom right corner of the Windows desktop.
PRINTING TASKS4.4Printer SettingsYou can use the Samsung SCX-4x20 Series printer properties window, which allows you to access all of the printer options you need when using your machine. When the printer properties are displayed, you can review and change whatever settings are needed for your print job. The printer’s properties window may differ, depending on your operating system. This User’s Guide shows the Printing Preferences window for Windows XP.Your printer’s Printing Preferences window consists of 5 tabs: Layout, Paper, Graphics, Extras, and About.If you access printer properties through the Printers folder, you can view additional Windows-based tabs (refer to your Windows User’s Guide) and the Printer tab (see page 4.11).NOTES:• Most Windows applications will override the settings you specify in the printer driver. Change all of the print settings available in the software application first, and change any remaining settings using the printer driver. • The settings you change remain in effect only while you are using the current program. To make your changes permanent, make them in the Printers folder. Follow this procedure:1. Click the Windows Start menu.2. For Windows 95/98/Me/NT 4.0/2000, select Settings and then Printers.For Windows XP, select Printers and Faxes.3. Select the Samsung SCX-4x20 Series PCL 6 printer.4. Click the right mouse button on the printer icon and: • In Windows 95/98/Me, select Properties.• In Windows 2000/XP, select Printing Preferences.• In Windows NT 4.0, select Document Default.5. Change the settings on each tab, and click OK.
PRINTING TASKS4.54Layout tabThe Layout tab provides options to adjust how the document appears on the printed page. The Layout Options includes Multiple Pages per Side and Poster. See page 4.2 for more information on accessing printer properties. Property DescriptionOrientation Orientation allows you to select the direction in which information is printed on a page. •Portrait prints across the width of the page, letter style. •Landscape prints across the length of the page, spreadsheet style. If you want to turn the page upside down, select Rotate 180 Degrees.Layout OptionsLayout Options allows you to select advanced printing options. For details, see page 4.13~4.14. 21The preview image shows the sample page with the settings you specified.1 Landscape portrait2
PRINTING TASKS4.6Paper TabUse the following options for paper handling. See page 4.2 for more information about accessing printer properties. Click the Paper tab to access many paper properties. Property DescriptionCopies Copies allows you to choose the number of copies to be printed. You can enter up to 999. Size Size allows you to choose the size of the paper loaded in the tray. If the required size is not listed in the Size box, click Custom. When the Custom Page Size window appears, set the size and click OK. The setting appears on the list so that you can select it. 13456212Enter the custom name you want to use. Enter the paper size.
PRINTING TASKS4.74SourceMake sure that Source is set to the appropriate paper tray.Use the Manual Feed source when printing to special material. You need to load one sheet at a time into the Multipurpose tray. See page 3.8.If you install an optional Tray 2 and set the Tray 2 in printer properties (see page C.12), you can select Tray2.If the paper source is set to Auto Select, the machine automatically picks up print material in the following order: the Multipurpose tray, Tray 1, and optional Tray 2.TypeMake sure that Type is set to Printer Default. If you load a different type of print material, select the corresponding paper type. For more information about print materials, see Chapter 3, Paper Handling.If you use cotton paper, set the paper type to Thick for the best printing.To use recycled paper, which weighs from 75g/m2 to 90g/m2 (20lb to 24lb), or colored paper, select Color Paper.First PageThis property allows you to print the first page using a different paper type from the rest of the document. You can select the paper source for the first page. For example, load thick stock for the first page into the Multipurpose tray, and plain paper into Tray1. Then, select Tray1 in the Source option and Multi-Purpose Tray in the First Page option.Scaling Scaling allows you to automatically or manually scale your print job on a page.You can choose from None, Fit to Page, and Reduce/Enlarge. For details, see page 4.16~4.17.Property Description3456
PRINTING TASKS4.8Graphic TabUse the following graphic options to adjust the print quality for your specific printing needs. See page 4.2 for more information about accessing printer properties.Click the Graphics tab to display the properties shown below. Property DescriptionResolutionYou can select the printing resolution by choosing from 1200 dpi [Best], 600 dpi [Normal], or 300 dpi [Draft]. The higher the setting, the sharper the printed characters and graphics. Higher settings may increase the time it takes to print a document.Image ModeSome printed characters or images appear to have jagged or uneven edges. Set this Image Mode option to improve the print quality of your text and image, and make the characters and images appear smoother. •Printer Setting: When you select this option, this feature is determined by the setting you’ve made on the control panel of the machine, affecting print quality accordingly.•Normal: This setting prints images in the normal mode. •Text Enhance: This setting refines the print quality of characters by smoothing out jagged edges that can occur on the angles and curves of each character. •Image Enhance: This setting refines the print quality of photo images. 123412
PRINTING TASKS4.94Toner Save ModeSelecting this option extends the life of your toner cartridge and reduces your cost per page without a significant reduction in the print quality. •Printer Setting: When you select this option, the Toner Save feature is determined by the setting you’ve made on the control panel of the machine affecting print quality accordingly.•On: Select this option to allow the machine to use less toner on each page.•Off: When you do not need to save toner to print a document, select this option.TrueType Options You can use advanced settings by clicking the TrueType Options button. Property Description34TrueType OptionsThis option determines how the driver tells the machine to image the text in your document. Select the appropriate setting according to the status of your document. •Download as Outline: When this option is selected, the driver will download any TrueType fonts that are used in your document that are not already stored (resident) in your machine. If, after printing a document, you find that the fonts did not print correctly, choose Download as Bit Image and resubmit your print job. The Download as Bit Image setting is often useful when printing Adobe.•Download as Bit Image: When this option is selected, the driver downloads the font data as bitmap images. Documents with complicated fonts, such as Korean or Chinese, or various other types of fonts, print faster in this setting.
PRINTING TASKS4.10Extras TabSee page 4.2 for more information about accessing printer properties. Click the Extras tab to access the following features: TrueType Options (continued)Option DescriptionWatermarkYou can create a background image of text to print on each page of your document. See “Using Watermarks” on page 4.18.Property Description4•Print as Graphics: When this option is selected, the driver downloads any fonts as graphics. When printing documents with high graphic content and relatively few TrueType fonts, printing performance (speed) may be enhanced in this setting.Print All Text BlackWhen the Print All Text Black option is checked, all text in your document prints in solid black, regardless of the color it appears on the screen. When this option is not checked, colored text prints in shades of gray.2311
PRINTING TASKS4.114About TabUse the About tab to display the copyright notice and the version number of the driver. If you have an Internet browser, you can connect to the Internet by clicking on the web site icon. See page 4.2 for more information about accessing printer properties.Printer TabIf you access printer properties through the Printers folder, you can view the Printer tab. Click the Printer tab to access the following properties:•Optional Tray: If you install an optional Tray 2, in the printer properties window, you can tell the machine to recognize and use it for PC-printing by selecting Tray 2 in the Optional Tray drop down list.•High Altitude Correction: If your machine is going to be used at an altitude above 1,500 m, checking this option will optimize the print quality for those circumstances.OverlayOverlays are often used to take the place of preprinted forms and letterhead paper. See “Using Overlays” on page 4.21.Output OptionsPrint Order: You can set the sequence for the pages to print. Select the print order from the drop-down list.•Normal: Your machine prints all pages from the first page to the last page.•Reverse All Pages: Your machine prints all pages from the last page to the first page.•Print Odd Pages: Your machine prints only the odd numbered pages of the document.•Print Even Pages: Your machine prints only the even numbered pages of the document.Use Printer Fonts: When this option is checked, the machine uses the fonts that are stored in its memory (resident fonts) to print your document, rather than downloading the fonts used in your document. Because downloading fonts takes time, selecting this option can speed up your printing time.Option Description23
PRINTING TASKS4.12Using a Favorite SettingThe Favorites option, which is visible on each tab, allows you to save the current properties settings for future use. To save a Favorites item:1Change the settings on each tab, as needed. 2Enter a name for the item in the Favorites input box. 3Click Save. To use a saved setting, select it from the Favorites drop-down list. To delete a favorite setting item, select it from the list and click Delete. You can also restore the printer driver’s default settings by selecting Printer Default from the list. Using HelpYour machine has a help screen that can be activated using the Help button in the printer properties window. The help screen gives detailed information about the printer features provided by the printer driver.You can also click in the upper right hand corner, and then click on any setting.
PRINTING TASKS4.134Printing Multiple Pages on One Sheet of Paper You can select the number of pages to print on a single sheet of paper. To print more than one page per sheet, the pages are reduced in size and arranged in the order you specify. You can print up to 16 pages on one sheet. 1To change the print settings from your software application, access printer properties. See page 4.2.2From the Layout tab, choose Multiple Pages per Side from the Type drop-down list. NOTE: This feature is not available when you select Fit to Page or Reduce/Enlarge from the Paper tab.3Select the number of pages you want to print per sheet (1, 2, 4, 6, 9, or 16) on the Pages per Side drop-down list.4Select the page order on the Page Order drop-down list, if necessary.1 23 4Right, Then DownDown, Then RightLeft, Then DownDown, Then Left
PRINTING TASKS4.14Check Print Page Border to print a border around each page on the sheet. NOTE: Page Order and Print Page Border are enabled only when the number of pages per side is 2, 4, 6, 9, or 16.5Click the Paper tab and select the paper source, size, and type.6Click OK and print the document.Printing PostersYou can print a single-page document onto 4, 9, or 16 sheets of paper, for the purpose of pasting the sheets together to form one poster-sized document.1To change the print settings from your software application, access printer properties. See page 4.2.2From the Layout tab, select Poster on the Type drop-down list. NOTE: This feature is not available when you select Fit to Page or Reduce/Enlarge from the Paper tab.
PRINTING TASKS4.1543Configure the poster option:You can select the page layout from 2x2, 3x3, 4x4, or Custom. If you select 2x2, the image is automatically stretched to cover 4 physical pages. If you select Custom, you can manually set the scale rate of the image in the Scale Factor input box.Specify an overlap in millimeters or inches to make it easier to reconstruct the resulting poster. 4Click the Paper tab and select the paper source, size, and type.5Click OK and print the document. You can complete the poster by pasting the sheets together. 2 x 2 3 x 30.15 inches0.15 inches
PRINTING TASKS4.16Fitting Your Document to a Selected Paper SizeYou can scale your print job to any paper size regardless of the original document size. This can be useful when you want to check the fine details on a small document. 1To change the print settings from your software application, access printer properties. See page 4.2.2From the Paper tab, select Fit to Page on the Type drop-down list. NOTE: This feature is not available when you select Poster or Multiple Pages per Side from the Layout tab.3Select the correct size from the Target Page drop-down list.4Click the Paper tab and select the paper source and type.5Click OK and print the document. A
PRINTING TASKS4.174Printing a Reduced or Enlarged DocumentYou can change the size of a page’s content to appear larger or smaller on the printed page. 1To change the print settings from your software application, access printer properties. See page 4.2.2From the Paper tab, select Reduce/Enlarge on the Type drop-down list. 3Enter the scaling rate in the Percentage input box.You can also click the or button.NOTE: This feature is not available when you select Poster or Multiple Pages per Side from the Layout tab.4Click the Paper tab and select the paper source, size, and type. 5Click OK and print the document.
PRINTING TASKS4.18Using WatermarksThe Watermark option allows you to print text over an existing document. For example, you may want to have large gray letters reading “DRAFT” or “CONFIDENTIAL” printed diagonally across the first page or all of the pages of a document. There are several predefined watermarks that come with your machine, and they can be modified or you can add new ones to the list. Using an Existing Watermark1To change the print settings from your software application, access printer properties. See page 4.2. 2Click the Extras tab and select a watermark on the Watermark drop-down list. It appears in the preview image window. 3Click OK and start printing. Preview image
PRINTING TASKS4.194Creating a Watermark1To change the print settings from your software application, access printer properties. See page 4.2. 2Click the Extras tab and click Edit in the Watermark section. The Edit Watermark window appears. 3Enter the text message you want to print in the Watermark Message box. The message displays in the preview image window.When the First Page Only box is checked, the watermark prints on the first page only.4Select the watermark options. You can select the font name, style, size, and gray scale level from the Font Attributes section and set the angle of the watermark from the Message Angle section. 5Click Add to add the new watermark to the list. 6When you finish creating, click OK and start printing. To stop printing the watermark, select [No Watermark] on the Watermark drop-down list.
PRINTING TASKS4.20Editing a Watermark1To change the print settings from your software application, access printer properties. See page 4.2.2Click the Extras tab and click Edit in the Watermark section. The Edit Watermark window appears.3Select the watermark you want to edit on the Current Watermarks list. You can change the watermark message and the options. Refer to page 4.19.4Click Update to save the changes.5Click OK.Deleting a Watermark1To change the print settings from your software application, access printer properties. See page 4.2.2From the Extras tab, click Edit in the Watermark section. The Edit Watermark window appears.3Select the watermark you want to delete on the Current Watermarks list and click Delete.4Click OK.
PRINTING TASKS4.214Using OverlaysWhat is an Overlay?An overlay is text and/or images stored on the computer hard disk drive (HDD) as a special file format that can be printed on any document. Overlays are often used to take the place of preprinted forms and letterhead paper. Rather than using preprinted letterhead, you can create an overlay containing the exact same information that is currently on your letterhead. To print a letter with your company’s letterhead, you need only tell the machine to print the letterhead overlay on your document.Creating a New Page OverlayTo use a page overlay, you must create a page overlay containing a logo or image.1Create or open a document containing text or an image for use in a new page overlay. Position the items exactly as you wish them to appear when printed as an overlay. If needed, save the file for later use.2To change the print settings from your software application, access printer properties. See page 4.2.3Click the Extras tab and click Edit in the Overlay section. WORLD BESTDear ABCRegardsWORLD BEST
PRINTING TASKS4.224In the Edit Overlay window, click Create Overlay. 5In the Create Overlay window, type a name of up to eight characters in the File name box. Select the destination path, if necessary. (The default is C:\Formover).6Click Save. The name appears on the Overlay List. 7Click OK or Yes to finish creating. The file is not printed out. Instead it is stored in your computer HDD disk. NOTE: The overlay document size must be the same as the documents you print with the overlay. Do not create an overlay with a watermark.
PRINTING TASKS4.234Using a Page OverlayAfter an overlay has been created, it is ready to be printed with your document. To print an overlay with a document:1Create or open the document you want to print. 2To change the print settings from your software application, access printer properties. See page 4.2. 3Click the Extras tab. 4Select the overlay you want to print from the Overlay drop-down list box. 5If the overlay file you want doesn’t appear on the Overlay List, click Edit and Load Overlay, and select the overlay file. If you have stored the overlay file you want to use in an external source, you can also load the file when you access this Load Overlay window.
PRINTING TASKS4.24After you select the file, click Open. The file appears on the Overlay List and is available for printing. Select the overlay from the Overlay List box. 6If necessary, click Confirm Page Overlay When Printing. When this box is checked, a message window appears each time you submit a document for printing, asking you to confirm your wish to print an overlay on the document.Answering Yes in the window means that the selected overlay prints with your document. Answering No to the window cancels overlay printing.If this box is empty and an overlay has been selected, the overlay will be automatically printed with your document.7Click OK or Yes until the printing starts.The overlay downloads with your print job and prints on your document.NOTE: The resolution of the overlay document must be the same as that of the document you will print with the overlay.
PRINTING TASKS4.254Deleting a Page OverlayYou can delete page overlays that you no longer use.1In the printer properties window, click the Extras tab.2Click Edit in the Overlay section.3Select the overlay you want to delete from the Overlay List box.4Click Delete Overlay.5When a confirmation message window appears, click Yes.6Click OK until you exit the Print window.
PRINTING TASKS4.26MEMO
COPYINGThis chapter gives you step-by-step instructions for copying documents.This chapter includes:• Loading Paper for Copying• Selecting the Paper Tray• Preparing a Document• Making Copies on the Document Glass• Making Copies from the Automatic Document Feeder• Setting Copy Options• Using Special Copy Features• Changing the Default Settings• Setting the Time Out Option
COPYING5.2Loading Paper for CopyingThe instructions for loading print materials are the same whether you are printing, faxing, or copying. For further details, see page 2.7 for loading in the paper tray and page 3.6 for loading in the Multipurpose tray.NOTE: For copying, you can only use Letter-, A4-, Legal-, Folio-, Executive-, B5-, A5-, or A6-sized print materials.Selecting the Paper TrayAfter loading the print media for copy output, you have to select the paper tray you will use for the copy job.1Press Menu on the control panel. The first available menu item, “Paper Setting,” appears on the top line of the display and “Copy Tray” appears on the bottom line of the display. 2Press Enter.3Press the scroll button ( or ) until the paper tray you want appears on the display.You can select Tray1, Tray2, MP Tray, Tray1/2, or Auto. If you do not install the optional Tray 2, the Tray2 and Tray1/2 menu item will not appear on the display.4Press Enter to save the selection.5To return to Standby mode, press Stop/Clear.
COPYING55.3Preparing a DocumentYou can use the document glass or the Automatic Document Feeder (ADF) to load an original document for copying, scanning, and sending a fax. Using the ADF, you can load up to 50 documents (47~ 105 g/m2, 12.5 ~ 28 lb) for one job. You can, of course, place only one sheet at a time on the document glass.When you use the ADF:• Do not load documents smaller than 142 x 127 mm or larger than 216 x 356 mm.• Do not attempt to feed the following types of documents:- carbon-paper or carbon-backed paper- coated paper- onion skin or thin paper- wrinkled or creased paper- curled or rolled paper- torn paper• Remove all staples and paper clips before loading documents.• Make sure any glue, ink, or correction fluid on the paper is completely dry before loading documents.• Do not load documents that include different sizes or weights of paper.• Do not load booklet, pamphlet, transparencies, or documents having other unusual characteristics.
COPYING5.4Making Copies on the Document Glass1Lift and open the document cover.2Place the document face down on the document glass and align it with the registration guide at the top left corner of the glass.NOTE: Make sure that no documents are in the ADF (Automatic Document Feeder). If a document is detected in the ADF, the machine gives it priority over the document on the document glass.3Close the document cover.NOTES: • Leaving the cover open while copying may affect copy quality and toner consumption.• If you are copying a page from a book or magazine, lift the cover until its hinges are caught by the stopper and then close the cover. If the book or magazine is thicker than 30 mm, start copying with the cover open.
COPYING55.54Customize the copy settings including number of copies, copy size, darkness, and original type, by using the control panel buttons. See “Setting Copy Options” on page 5.7.To clear the settings, use the Stop/Clear button.5If necessary, you can use special copy features, such as Poster, Auto Fit, Clone, and 2Sides on 1pg copying.6Press Start to begin copying. The display shows the copy processing.NOTES: • You can cancel the copy job during an operation. Press Stop/Clear, and the copying will stop.• Dust on the document glass may cause black spots on the printout. Always keep it clean.• To get the best scan quality, especially for colored or gray-scaled images, use the document glass.Making Copies from the Automatic Document Feeder1Load the document face up into the ADF (Automatic Document Feeder). You can insert up to 50 sheets at a time. Make sure that the bottom of the document stack matches the paper size marked on the document tray.
COPYING5.62Adjust the document guides to the document size.3Customize the copy settings including number of copies, copy size, darkness, and original type, by using the control panel buttons. See “Setting Copy Options” on page 5.7.To clear the settings, use the Stop/Clear button.4If necessary, you can use special copy features, such as Collation and 2 or 4 Up-copying. 5Press Start to begin copying. The display shows the copy processing.NOTE: Dust on the ADF glass may cause black lines on the printout. Always keep it clean.
COPYING55.7Setting Copy OptionsThe buttons on the control panel let you select all basic copy options: darkness, document type, copy size, and number of copies. Set the following options for the current copy job before pressing Start to make copies.NOTE: If you press Stop/Clear while setting the copy options, all of the options you have set for the current copy job will be canceled and returned to their default status. Or, they will automatically return to their default status after the machine completes the copy in progress. DarknessIf you have an original document containing faint markings and dark images, you can adjust the brightness to make a copy that is easier to read. To adjust the contrast, press Darkness. Each time you press the button, the LED labeled with the selected mode lights. You can choose from the following contrast modes:•Light: works well with dark print.•Normal: works well with standard typed or printed documents.•Dark: works well with light print or faint pencil markings. Original TypeThe Original Type setting is used to improve the copy quality by selecting the document type for the current copy job. To select the document type, press Original Type.Each time you press the button, the LED labeled with the selected mode lights.You can choose from the following image modes:•Text: Use for documents containing mostly text.•Text/Photo: Use for documents with mixed text and photographs.•Photo: Use when the originals are photographs.NOTE: When you copy a document containing color on the background, such as a newspaper or a catalog, the background will appear on your copy. If you want to reduce the background, change the Darkness setting to Light and/or the Original Type setting to Text.
COPYING5.8Reduced/Enlarged CopyUsing the Reduce/Enlarge button, you can reduce or enlarge the size of a copied image from 25% to 400% when you copy original documents from the document glass or from 25% to 100% from the ADF. Note that the zoom rate available is different depending on the document loading method.To select from the predefined copy sizes:1Press Reduce/Enlarge. The default setting appears on the bottom line of the display.2Press Reduce/Enlarge or the scroll button ( or ) to find the size setting you want. 3Press Enter to save the selection.To fine-tune the size of copies:1Press Reduce/Enlarge. 2Press Reduce/Enlargee or the scroll button ( or ) until “Custom:25-100%” or “Custom:25-400%” displays on the bottom line. Press Enter.3Press the scroll button ( or ) until the copy size you want appears on the display.Pressing and holding the button allows you to quickly scroll to the number you want.For the SCX-4720F, you can enter the value using the number keypad.4Press Enter to save the selection.NOTE: When you make a reduced copy, black lines may appear at the bottom of your copy.
COPYING55.9Number of CopiesUsing the No. of Copies button, you can select the number of copies from 1 to 99. 1Press No. of Copies.2Press the scroll button ( or ) until the number you want appears on the display.Pressing and holding the button allows you to quickly scroll to the number you want.For the SCX-4720F, you can enter the value using the number keypad.3Press Enter to save the selection.Using Special Copy FeaturesYou can use the following copy features using the Special Copy button on the control panel:•Off: Prints in normal mode.•Clone: Prints multiple image copies from the original document on a single page. The number of images is automatically determined by the original image and paper size. See page 5.10.•Copy Collate: Sorts the copy job. For example, if you make 2 copies of 3 page documents, one complete 3 page document will print followed by the second complete document. See page 5.10.•Auto Fit: Automatically reduces or enlarges the original image to fit on the paper currently loaded in the machine. See page 5.11.•2Sides in 1pg: Prints 2-sided original document on one sheet of paper. See page 5.11.•2/4 Up: Prints 2/4 original images reduced to fit onto one sheet of paper. See page 5.12.•Poster: Prints an image onto 9 sheets of paper (3x3). You can paste the printed pages together to make one poster-sized document. See page 5.13.NOTE: Some features may not be available depending on where you loaded the document, on the document glass or in the Automatic Document Feeder.
COPYING5.10Clone CopyingThis special copy feature can be applied only when you place a document on the document glass. If a document is detected in the ADF, Clone copying feature does not work.1Place the document to be copied on the document glass, and close the cover. 2Press Special Copy. 3Press Special Copy or the scroll button ( or ) until “Clone” displays on the bottom line.4Press Enter to make your selection.5If necessary, customize the copy settings, including number of copies, darkness, and original type, by using the control panel buttons. See “Setting Copy Options” on page 5.7.NOTE: You cannot adjust the copy size using the Reduce/Enlarge button while making a clone copy.6Press Start begin copying.Collation CopyingThis special copy feature is available only when you load documents in the ADF.1Load the documents to be copied in the ADF.2Press Special Copy. 3Press Special Copy or the scroll button ( or ) until “Copy Collate” displays on the bottom line.4Press Enter to make your selection.5If necessary, customize the copy settings, including number of copies, darkness, and original type, by using the control panel buttons. See “Setting Copy Options” on page 5.7.6Press Start to begin copying.123123
COPYING55.11Auto Fit CopyingThis special copy feature can be applied only when you place a document on the document glass. If a document is detected in the ADF, Auto Fit copying does not work.1Place the document to be copied on the document glass, and close the cover. 2Press Special Copy. 3Press Special Copy or the scroll button ( or ) until “Auto Fit” appears on the bottom line.4Press Enter to make your selection.5If necessary, customize the copy settings, including number of copies, darkness, and original type, by using the control panel buttons. See “Setting Copy Options” on page 5.7.NOTE: You cannot adjust the copy size using the Reduce/Enlarge button while Auto Fit copying is enabled.6Press Start to begin copying.2 Sides on 1 Page CopyingYou can copy a 2-sided document on one side of one page of A4-, Letter-, Legal-, Folio-, Executive-, B5-, A5-, or A6-sized paper. When you copy using this feature, the machine prints one side of the document on the upper half of the paper and the other side on the lower half without reducing the size of the original. This feature is helpful for copying a small-sized document, such as a name card. If the original document is larger than the printable area, some portions may not be printed.This special copy feature can be applied only when you place a document on the document glass. If a document is detected in the ADF, 2 Sides on 1 Page copying feature does not work.1Place the document to be copied on the document glass and close the cover. 2Press Special Copy. A
COPYING5.123Press Special Copy or the scroll button ( or ) until “2Sides in 1pg” displays on the bottom line.4Press Enter to make your selection.5If necessary, customize the copy settings, including number of copies, darkness, and original type, by using the control panel buttons. See “Setting Copy Options” on page 5.7.6Press Start to begin copying.Your machine begins scanning the front side.7When “Set Backside” displays on the bottom line, open the document cover and flip the document over. Close the cover.NOTE: If you press the Stop/Clear button or if no buttons are pressed for approximately 30 seconds, the machine cancels the copy job and returns to Standby mode.8Press Start again.2 Up or 4 Up CopyingThis copy feature is available only when you load documents in the ADF.1Load the documents to be copied in the ADF.2Press Special Copy. 3Press Special Copy or the scroll button ( or ) until “2 UP” or “4 UP” displays on the bottom line.4Press Enter to make your selection.5If necessary, customize the copy settings, including number of copies, darkness, and original type, by using the control panel buttons. See “Setting Copy Options” on page 5.7.NOTE: You cannot adjust the copy size using the Reduce/Enlarge button for making a 2 or 4 Up copy.6Press Start to begin copying.1 23 41 2 2-up copying4-up copying
COPYING55.13Poster CopyingThis special copy feature can be applied only when you place a document on the document glass. If a document is detected in the ADF, the Poster copying feature does not work.1Place the document to be copied on the document glass and close the cover.2Press Special Copy. 3Press Special Copy or the scroll button ( or ) until “Poster” displays on the bottom line.4Press Enter to make your selection.5If necessary, customize the copy settings, including number of copies, darkness, and original type, by using the control panel buttons. See “Setting Copy Options” on page 5.7.NOTE: You cannot adjust the copy size using the Reduce/Enlarge button when making a poster.6Press Start to begin copying.Your original document is divided into 9 portions. Each portion is scanned and printed one by one in the following order:
COPYING5.14Changing the Default SettingsThe copy options, including darkness, original type, copy size and number of copies, can be set to the most frequently used modes. When you copy a document, the default settings are used unless they are changed by using the corresponding buttons on the control panel.To create your own default settings:1Press Menu on the control panel until “Copy Setup” appears on the top line of the display. The first menu item, “Default-Change,” appears on the bottom line.2Press Enter to access the menu item. The first setup option, “Darkness,” appears on the bottom line.3Press the scroll button ( or ) to scroll through the setup options.4When the option you want to set appears, press Enter to access the option.5Change the setting using the scroll button ( or ).For the SCX-4720F, you can enter the value using the number keypad.6Press Enter to save the selection.7Repeat steps 3 through 6, as needed.8To return to Standby mode, press Stop/Clear.NOTE: While you are setting copy options, pressing Stop/Clear cancels the changed settings and restores their default status.
COPYING55.15Setting the Time Out OptionYou can set the time the machine waits before it restores the default copy settings, if you do not start copying after changing them on the control panel.1Press Menu on the control panel until “Copy Setup” appears on the top line of the display. 2Press the scroll button ( or ) to display “Timeout” on the bottom line.3Press Enter to access the menu item.4Press the scroll button ( or ) until the status you want appears on the display.You can select from 15, 30, 60, 120, and 180 (seconds). Selecting “Off” means that the machine does not restore the default settings until you press Start to begin copying, or Stop/Clear to cancel.5Press Enter to make your selection.6To return to Standby mode, press Stop/Clear.
COPYING5.16MEMO
SCANNINGScanning with your machine lets you turn pictures and text into digital files on your computer. Then you can fax or e-mail the files, display them on your web site or use them to create projects that you can print using Samsung SmarThru software or the WIA driver.This chapter includes:• Scanning Basics• Scanning From the Control Panel to an Application• Scanning Using Samsung SmarThru• Scanning Using the WIA Driver• Scanning to USB Flash Drive
SCANNING6.2Scanning BasicsYour SCX-4x20 Series offers four ways to scan. These are:• From the control panel on your machine to an application: Use the Scan-to button on the control panel to initiate scanning. Assign the TWAIN-compliant software, such as Adobe PhotoDeluxe or Adobe Photoshop, to the machine by selecting it from the list of available applications via the Scan-to button. Before assigning the software program, you must configure the scan list using the Printer Setting Utility. For details, see page 2.37. • From the Samsung SmarThru software: Launch Samsung SmarThru and open Scan To to begin scanning. See page 6.4.• From the Windows Images Acquisition (WIA) driver: Your machine also supports the WIA driver for scanning images. See page 6.7.• From a USB flash drive: When you insert a USB flash drive into the USB port in the front of your machine, you can scan and save documents in the USB flash drive by pressing Scan-to. For details, see page 6.8.NOTES:• To scan with your machine, you must install the MFP driver. • Scanning is done through the same LPT or USB port currently assigned for your printer port.
SCANNING66.3Scanning From the Control Panel to an Application1Make sure that your machine and computer are turned on and properly connected to each other.2Load the document(s) face up into the ADF.ORPlace a single document face down on the document glass.For details about loading a document, see page 7.6.3Press Scan-to. The first available menu item, “Application,” appears on the bottom line.If you have inserted a USB flash drive into the machine, the first available menu item will be “USB Memory.” Press the scroll button ( or ) to select “Application”.4Press Enter and press the scroll button ( or ) to select an application to which you want to send the scanned image.5Press Start. The selected application window opens. Adjust the scan settings and start scan. For details, please refer to the User’s Guide of the application.
SCANNING6.4Scanning Using Samsung SmarThruSamsung SmarThru is the accompanying software for your machine. With SmarThru, scanning is the proverbial piece of cake.NOTE: SmarThru 4 does not support Windows 95.Follow these steps to start scanning using the SmarThru:1Make sure that your machine and computer are turned on and properly connected to each other. 2Load the document(s) face up into the ADF.ORPlace a single document face down on the document glass.For details about loading a document, see page 7.6.3Once you have installed Samsung SmarThru, you will see the SmarThru 4 icon on your desktop. Double-click the SmarThru 4 icon.The SmarThru 4 window opens.•Scan ToAllows you to scan an image and save it to an application or folder, email it, or publish it on a web site. •ImageAllows you to edit an image you have saved as a graphic file and send it to a selected application or folder, email it, or publish it on a web site. Double-click this icon.
SCANNING66.5•CopyAllows you to produce professional quality copies. You can make black and white or color copies of an image if your machine supports it, and customize the copy settings. •PrintAllows you to print images you have saved. You can print images in black and white or color mode if your machine supports it, and customize the print settings.4Click Scan To. The Scan To menu bar appears on the SmarThru 4 window.Scan To lets you use the following services:•ApplicationScanning an image and placing it in an application. Allows you to scan an image, preview it, and place it in the application of your choice. •E-mailScanning an image and emailing it. Allows you to scan an image, preview it, and email it.•FolderScanning an image and saving it to a folder. Allows you to scan an image, preview it, and save it to the folder of your choice.Adjust the scan settings.Scan Tomenu barClick to start scanning.
SCANNING6.6•OCRScanning an image and performing text recognition. Allows you to scan an image, preview it, and send it to the OCR program for text recognition. - Recommended Scan Option for OCR- Resolution: 200 or 300 dpi- Image Type: Mono (Black & White)•WebScanning an image, previewing it, and publishing it on a web site, using the specified file format for the image you want to publish.•SettingsCustomizing settings of Scan To basic functions. Allows you to customize settings for Application, E-mail, OCR, and Web functions.5Click the service icon according to your job.6SmarThru 4 opens for the selected service. Adjust the scan settings. 7To start scanning, click Scan. NOTE: If you want to cancel the scan job, press the Stop/Clear button on the control panel.Using Onscreen Help FileFor more information about SmarThru, click at the top right corner of the window. The SmarThru Help window opens and allows you to view onscreen help supplied on the SmarThru program.
SCANNING66.7Scanning Using the WIA DriverYour machine also supports the Windows Image Acquisition (WIA) driver for scanning images. WIA is one of the standard components provided by Microsoft Windows XP and works with digital cameras and scanners. Unlike the TWAIN driver, the WIA driver allows you to scan and easily manipulate images without using additional software.NOTE: The WIA driver works only on Windows XP.1Load the document(s) face up into the ADF.ORPlace a single document face down on the document glass.For details about loading a document, see page 7.6.2From the Start menu on your desktop window, select Settings, Control Panel, and then Scanners and Cameras.3Double click your machine icon. The Scanner and Camera Wizard launches.4Choose your scanning preferences and click Preview to see how your preferences affect the picture.5Enter a picture name, and select a file format and destination to save the picture.
SCANNING6.86Follow the on-screen instructions to edit the picture after it is copied to your computer.NOTE: If you want to cancel the scan job, press the Stop/Clear button on the control panel.Scanning to USB Flash DriveUsing a USB flash drive, you can scan and save documents in the USB flash drive by pressing Scan-to on the control panel. For details about scanning, see “Scanning to USB Flash Drive” on page 10.3.
FAXING (SCX-4720F ONLY)The fax feature is only available on the SCX-4720F. This chapter gives you information about using your machine as a fax machine. This chapter includes:• Setting Up the Fax System• Sending a Fax• Receiving a Fax• Automatic Dialing• Other Ways to Fax• Additional Features
FAXING (SCX-4720F ONLY)7.2Setting Up the Fax SystemChanging the Fax Setup options1Press Menu until “Fax Setup” appears on the top line of the display. The first available menu item, “Receive Mode,” displays on the bottom line.2Press the scroll button ( or ) until you see the desired menu item on the bottom line and press Enter. 3Use the scroll button ( or ) to find the desired status or use the number keypad to enter the value for the option you have selected.4Press Enter to make your selection. The next Fax Setup option appears.5If necessary, repeat steps 2 through 4.6To return to Standby mode, press Stop/Clear.
FAXING (SCX-4720F ONLY)7.37Available Fax Setup OptionsOption DescriptionReceive ModeYou can select the default fax receiving mode.•In Tel mode, you can receive a fax by picking up the handset of the extension phone and then pressing the remote receive code (see page 7.4). Alternatively, you can press On Hook Dial (you can hear a fax tone from the remote machine) and then press Start on the control panel of your machine. •In the Fax mode, the machine answers an incoming call and immediately goes into fax reception mode. •In Ans/Fax mode, the answering machine answers an incoming call, and the caller can leave a message on the answering machine. If the fax machine senses a fax tone on the line, the call automatically switches to Fax mode. •In DRPD mode, you can receive a call using the Distinctive Ring Pattern Detection (DRPD) feature. This option is available only when you set up the DRPD Mode. For further details, see page 7.17.Ring To AnswerYou can specify the number of times the machine rings, from 1 to 7, before answering an incoming call.DarknessYou can select the default contrast mode to fax your documents lighter or darker.•Light works well with dark print.•Normal works well with standard typed or printed documents.•Dark works well with light print or faint pencil markings. Redial TermYour machine can automatically redial a remote fax machine if it was busy. Intervals from 1 to 15 minutes can be entered.RedialsYou can specify the number of redial attempts, from 0 to 13. If you enter 0, the machine will not redial.
FAXING (SCX-4720F ONLY)7.4MSG ConfirmYou can set your machine to print a report showing whether a transmission was successful, how many pages were sent, and more. The available options are On, Off, and On-Err, which prints only when a transmission is not successful.Auto ReportThis produces a report with detailed information about the previous 50 communications operations, including time and dates. The available options are On or Off.Auto ReductionWhen receiving a document containing pages as long as or longer than the paper loaded in the paper tray, the machine can reduce the size of the document to fit the size of the paper loaded in the machine. Select On if you want to automatically reduce an incoming page. With this feature set to Off, the machine cannot reduce the document to fit onto one page. The document will be divided and printed in actual size on two or more pages.Discard SizeWhen receiving a document containing pages as long as or longer than the paper installed in your machine, you can set the machine to discard any excess at the bottom of the page. If the received page is outside the margin you set, it will print in actual size on two or more sheets of paper.When the document is within the margin and the Auto Reduction feature is turned on, the machine reduces the document to fit it onto the appropriately-sized paper and discard does not occur. If the Auto Reduction feature is turned off or fails, data outside the margin will be discarded. Settings range from 0 to 30 mm.RCV Start CodeThe Receive Start Code allows you to initiate fax reception from an extension phone plugged into the EXT jack on the back of the machine. If you pick up the extension phone and hear fax tones, enter the Receive Start Code. The Receive Start Code is preset to *9* at the factory. Settings range from 0 to 9. See page 7.16 for more information about using the code.Option Description
FAXING (SCX-4720F ONLY)7.57DRPD ModeYou can receive a call using the Distinctive Ring Pattern Detection (DRPD) feature, which enables a user to use a single telephone line to answer several different telephone numbers. In this menu, you can set the machine to recognize which ring patterns to answer. For details about this feature, see page 7.17.Option Description
FAXING (SCX-4720F ONLY)7.6Sending a FaxLoading a DocumentYou can use the Automatic Document Feeder (ADF) or the document glass to load an original document for faxing. Using the ADF, you can load up to 50 sheets of 75 g/m2 (20 lb) paper at a time. You can, of course, place only one sheet at a time on the document glass. For details about preparing a document, see page 5.3.To fax a document using the Automatic Document Feeder (ADF):1Load the document face up into the ADF. You can insert up to 50 sheets at a time. Make sure that the bottom of the document stack matches the paper size marked on the document tray.
FAXING (SCX-4720F ONLY)7.772Adjust the document guide on the ADF to match the width of the document.NOTE: Dust on the ADF glass may cause black lines on the printout. Keep it always clean.To fax a document from the document glass: 1Lift and open the document cover.
FAXING (SCX-4720F ONLY)7.82Place the document face down on the document glass and align it with the registration guide at the top left corner of the glass.NOTE: Make sure that no other documents are in the ADF (Automatic Document Feeder). If a document is detected in the ADF, the machine gives it priority over the document on the document glass.3Close the document cover.NOTES: • If you are copying a page from a book or magazine, lift the cover until its hinges are caught by the stopper and then close the cover. If the book or magazine is thicker than 30 mm, start copying with the cover open. • To get the best scan quality, especially for colored or gray-scaled images, use the document glass.
