Media and tray 462. Menu overview and basic setupPreprinted paperWhen loading preprinted paper, the printed side should be facing up with an uncurled edge at the front. If you experience problems with paper feeding, turn the paper around. Note that print quality is not guaranteed.• Must be printed with heat-resistant ink that will not melt, vaporize, or release hazardous emissions when subjected to the machine’s fusing temperature for 0.1 second (about 170°C (338°F)).• Must be non-flammable and should not adversely affect machine rollers.• Before you load preprinted paper, verify that the ink on the paper is dry. During the fusing process, wet ink can come off preprinted paper, reducing print quality.6 Setting the paper size and typeAfter loading paper in the paper tray, set the paper size and type using the control panel buttons. • Accessing menus may differ from model to model (see "Accessing the menu" on page 29).• It may be necessary to press OK to navigate to lower-level menus for some models. 1Select (Menu) > System Setup > Paper Setup > Paper Size or Paper Type on the control panel.2 Select the tray and the option you want.3 Press OK to save the selection.
Media and tray 472. Menu overview and basic setup • The settings set from the machine driver override the settings on the control panel.a To print from an application, open an application and start the print menu.b Open Printing Preferences (see "Opening printing preferences" on page 52).c Press the Paper tabGand select an appropriate paper type. • If you want to use special-sized paper such as billing paper, select the Paper tab > Size > Edit... and set CustomGPaper Size Settings in the Printing Preferences (see "Opening printing preferences" on page 52). 7 Preparing originals type• Do not load paper smaller than 142 x 148 mm (5.6 x 5.8 inches) or larger than 216 x 356 mm (8.5 x 14 inches).• Do not attempt to load the following types of paper, in order to prevent paper jam, low print quality and machine damage.- Carbon-paper or carbon-backed paper- Coated paper- Onion skin or thin paper- Wrinkled or creased paper- Curled or rolled paper- Torn paper• Remove all staples and paper clips before loading.• Make sure any glue, ink, or correction fluid on the paper is completely dry before loading.• Do not load originals that include different sizes or weights of paper.• Do not load booklets, pamphlets, transparencies, or documents with other unusual characteristics.

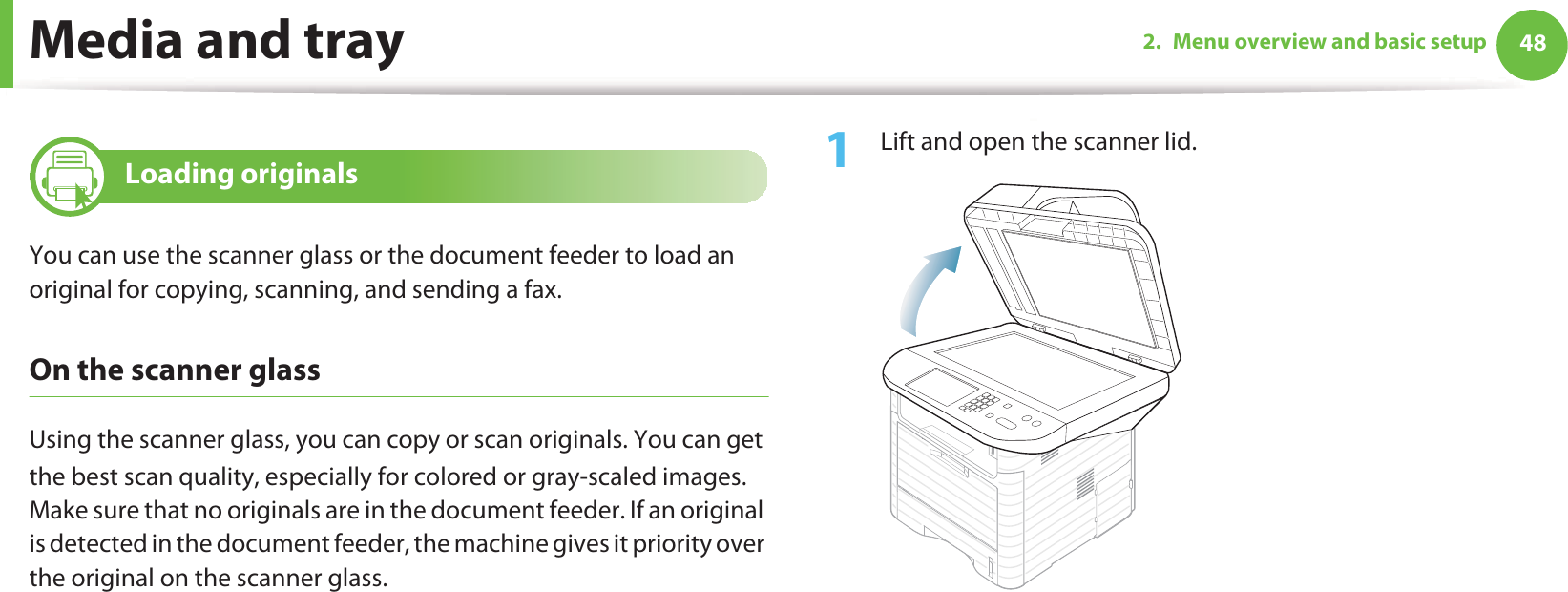

Media and tray 482. Menu overview and basic setup8 Loading originalsYou can use the scanner glass or the document feeder to load an original for copying, scanning, and sending a fax.On the scanner glassUsing the scanner glass, you can copy or scan originals. You can get the best scan quality, especially for colored or gray-scaled images.GMake sure that no originals are in the document feeder. If an original is detected in the document feeder, the machine gives it priority over the original on the scanner glass.1Lift and open the scanner lid.
Media and tray 492. Menu overview and basic setup2 Place the original face down on the scanner glass. Align it with the registration guide at the top left corner of the glass.3 Close the scanner lid. • Leaving the scanner lid open while copying may affect copy quality and toner consumption.• Dust on the scanner glass may cause black spots on the printout. Always keep it clean (see "Cleaning the machine" on page 88).• If you are copying a page from a book or magazine, lift the scanner lid until its hinges are caught by the stopper and then close the lid. If the book or magazine is thicker than 30 mm, start copying with the scanner lid open. • Be careful not to break the scanner glass. You may get hurt.• Do not put hands while closing the scanner lid. The scanner lid may fall on your hands and get hurt.• Do not look the light from inside of the scanner while copying or scanning. It is harmful to eyes. In the document feeder Using the document feeder, you can load up to 50 sheets of paper (75 g/m2, 20 lbs bond) for one job.1Flex or fan the edge of the paper stack to separate the pages before loading originals.
Media and tray 502. Menu overview and basic setup2 Load the original face up into the document feeder. Make sure that the bottom of the original stack matches the paper size marked on the document input tray.3 Adjust the document feeder width guides to the paper size. Dust on the document feeder glass may cause black lines on the printout. Always keep the glass clean (see "Cleaning the machine" on page 88).
512. Menu overview and basic setupBasic printing 9 Printing If you are a Macintosh, Linux, or Unix OS user, refer to the Advanced Guide. The following Printing Preferences window is for Notepad in Windows 7.1Open the document you want to print.2 Select Print from the File menu.3 Select your machine from the Select Printer list.4 The basic print settings including the number of copies and print range are selected within the Print window. To take advantage of the advanced printing features, click Properties or Preferences from the Print window (see "Opening printing preferences" on page 52). 5 To start the print job, click OK or Print in the Print window.10 Canceling a print jobIf the print job is waiting in the print queue or print spooler, cancel the job as follows:• You can access this window by simply double-clicking the machine icon ( ) in the Windows task bar. • You can also cancel the current job by pressing (Stop/Clear) on the control panel.
Basic printing 522. Menu overview and basic setup11 Opening printing preferences •The Printing Preferences window that appears in this user’s guide may differ depending on the machine in use. However, the composition of the Printing Preferences window is similar.• When you select an option in Printing Preferences, you may see a warning mark or . An mark means you can select that certain option but it is not recommended, and an mark means you cannot select that option due to the machine’s setting or environment. 1Open the document you want to print.2 Select Print from the file menu. The Print window appears. 3 Select your machine from the Select Printer. 4 Click Properties or Preferences. You can check the machine’s current status pressing the Printer Status button (see Advanced Guide).
Basic printing 532. Menu overview and basic setupUsing a favorite settingThe Presets option, which is visible on each preferences tab except for the Samsung tab, allows you to save the current preferences for future use.To save a Presets item, follow these steps:1Change the settings as needed on each tab. 2 Enter a name for the item in the Presets input box.3 Click (Add). When you save Presets, all current driver settings are saved. Select more options and click (Update), settings will be added to the Presets you made. To use a saved setting, select it from the Presets drop-down list. The machine is now set to print according to the settings you have selected.To delete saved settings, select it from the Presets drop-down list and click (Delete). You can also restore the printer driver’s default settings by selecting Default Preset from the Presets drop-down list. 12 Using helpClick the option you want to know on the Printing Preferences window and press F1 on your keyboard.
Basic printing 542. Menu overview and basic setup13 Eco printingThe Eco function cuts toner consumption and paper usage. You can configure Eco function to adjust your paper savings and save the setting you want to use.If you press the Eco button from the control panel, eco mode is enabled.Setting eco mode on the control panel • The settings set from the machine’s driver override the settings on the control panel.• Accessing menus may differ from model to model (see "Accessing the menu" on page 29).• It may be necessary to press OK to navigate to lower-level menus for some models. 1Select (Menu) > System Setup > Machine Setup > Eco Settings on the control panel.2 Select the option you want and press OK.•Default Mode: Select this to turn on or off the eco mode. (Duplex (long edge)/Toner save/2-up/Skip blank pages)-Off: Set the eco mode off.-On: Set the eco mode on. If you set the eco mode on with a password from the SyncThru™ Web Service ( Settings tab > Machine Settings > System > Eco > Settings), the On force message appears. You have to enter the password to change the eco mode status. •Change Template: Follow the settings from Syncthru™ Web Service. Before you select this item, you must set the eco function in SyncThru™ Web Service> Settings tab > Machine Settings > System > Eco > Settings.3 Press OK to save the selection.

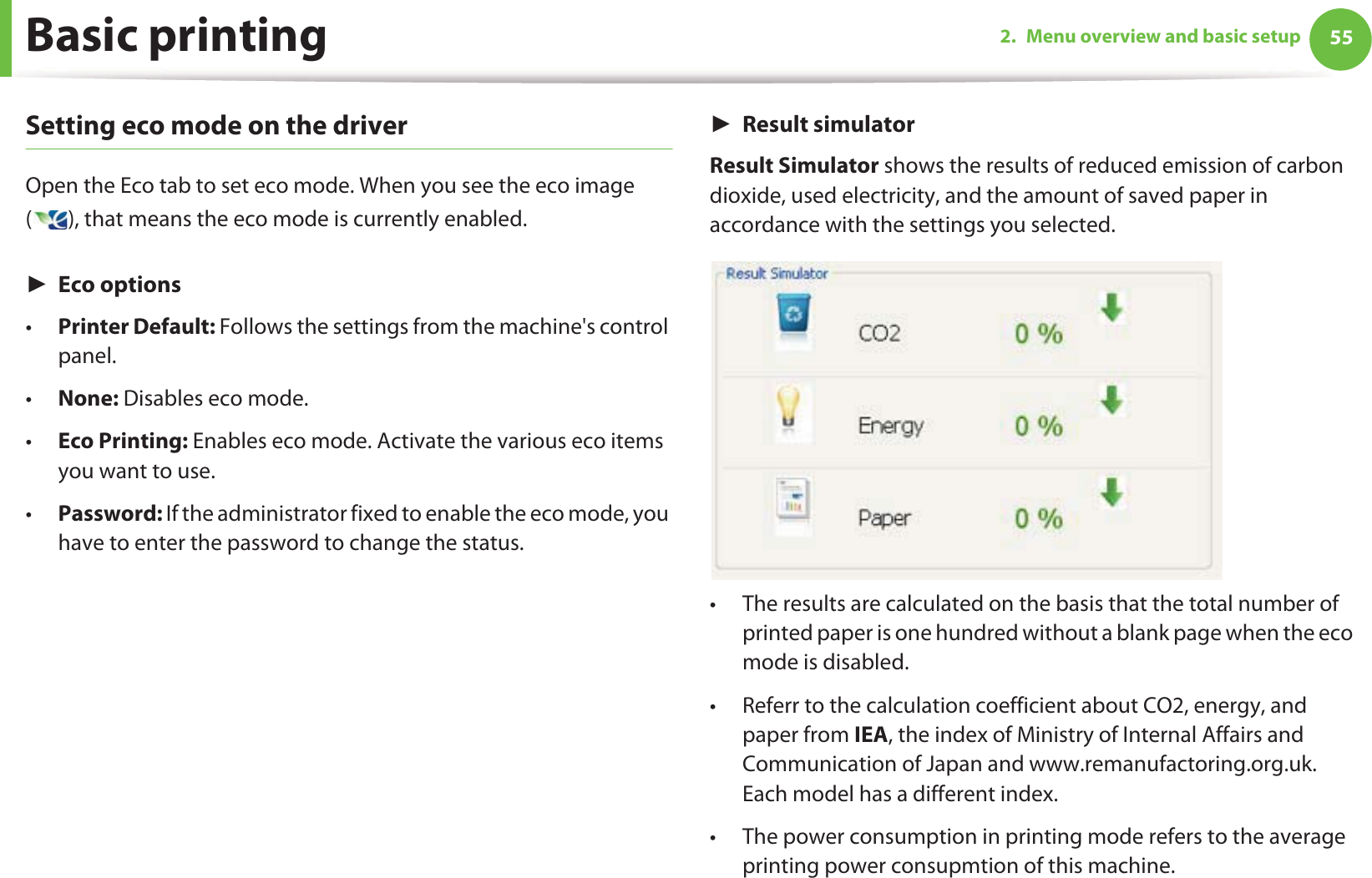

Basic printing 552. Menu overview and basic setupSetting eco mode on the driverOpen the Eco tab to set eco mode. When you see the eco image ( ), that means the eco mode is currently enabled.ŹEco options•Printer Default: Follows the settings from the machine's control panel.•None: Disables eco mode.•Eco Printing: Enables eco mode. Activate the various eco items you want to use.•Password: If the administrator fixed to enable the eco mode, you have to enter the password to change the status. ŹResult simulatorResult Simulator shows the results of reduced emission of carbon dioxide, used electricity, and the amount of saved paper in accordance with the settings you selected.• The results are calculated on the basis that the total number of printed paper is one hundred without a blank page when the eco mode is disabled.• Referr to the calculation coefficient about CO2, energy, and paper from IEA, the index of Ministry of Internal Affairs and Communication of Japan and www.remanufactoring.org.uk. Each model has a different index. • The power consumption in printing mode refers to the average printing power consupmtion of this machine.
Basic printing 562. Menu overview and basic setup• The actual saved or reduced amount may differ depending on the operating system used, computing performance, application software, connection method, media type, media size, job complexity, etc.
572. Menu overview and basic setupBasic copying14 Basic copy1Select (copy) on the control panel.2 Place a single document face down on the document glass, or load the documents face up into the document feeder (see "Loading originals" on page 48).3 If you want to customize the copy settings including Reduce/Enlarge, Darkness, Contrast, Original Type and more by using the control panel buttons (see "Changing the settings for each copy" on page 57). 4 Enter the number of copies using the arrow or number keypad, if necessary.5 Press Start. If you need to cancel the copying job during the operation, press (Stop/Clear) and the copying will stop. 15 Changing the settings for each copyYour machine provides default settings for copying so that you can quickly and easily make a copy. However, if you want to change the options for each copy, use the copy function buttons on the control panel. • If you press (Stop/Clear) while setting the copy options, all of the options you have set for the current copy job will be canceled and returned to their default status. Or, they will automatically return to their default status after the machine completes the copy in progressU• Accessing menus may differ from model to model (see "Accessing the menu" on page 29).• It may be necessary to press OK to navigate to lower-level menus for some models.
Basic copying 582. Menu overview and basic setupDarknessIf you have an original containing faint marking and dark images, you can adjust the brightness to make a copy that is easier to read.1Select (copy) > (Menu) > Copy Feature > Darkness on the control panel.2 Select the option you want and press OK.For example, the Light+5 being the lightest, and the Dark+5 being the darkest.3 Press (Stop/Clear) to return to ready mode.ContrastSet this parameter to adjust the contrast between light and dark.1Select (copy) > (Menu) > Copy Feature > Contrast on the control panel.2 Select the option you want and press OK.For example, the Light+5 being the lightest, and the Dark+5 being the darkest.3 Press (Stop/Clear) to return to ready mode.Original TypeThe original type setting is used to improve the copy quality by selecting the document type for the current copy job.1Select (copy) > (Menu) > Copy Feature > Original Type on the control panel.2 Select the option you want and press OK.•Text: Use for originals containing mostly text.•Text/Photo: Use for originals with mixed text and photographs. If texts in the printout is blurry, select Text to get the clear texts. •Photo: Use when the originals are photographs.3 Press (Stop/Clear) to return to ready mode.
Basic copying 592. Menu overview and basic setupReduced or enlarged copyYou can reduce or enlarge the size of a copied image from 25% to 400% when you copy original documents from the scanner glass.ŹTo select from the predefined copy sizes1Select (copy) > (Menu) > Copy Feature > Reduce/Enlarge on the control panel.2 Select the option you want and press OK.3 Press (Stop/Clear) to return to ready mode.ŹTo scale the copy by directly entering the scale rate1Select (copy) > (Menu) > Copy Feature > Reduce/Enlarge > Custom on the control panel.2 Enter the copy size you want using the numeric keypad.3 Press OK to save the selection.4 Press (Stop/Clear) to return to ready mode. When you make a reduced copy, black lines may appear at the bottom of your copy.
Basic copying 602. Menu overview and basic setup16 ID card copyingYour machine can print 2-sided originals on one sheet.The machine prints one side of the original on the upper half of the paper and the other side on the lower half without reducing the size of the original. This feature is helpful for copying a small-sized item such as business card. The original must be placed on the scanner glass to use this feature. 1Press ID Copy on the control panel. 2 Place the front side of an original facing down on the scanner glass where arrows indicate as shown. Then, close the scanner lid.3 Place Front Side and Press [Start] appears on the display.4 Press Start.Your machine begins scanning the front side and shows Place Back Side and Press [Start].5 Turn the original over and place it on the scanner glass where arrows indicate as shown. Then, close the scanner lid.6 Press Start.
Basic copying 612. Menu overview and basic setup • If you do not press the Start button, only the front side will be copied.• If the original is larger than the printable area, some portions may not be printed.
622. Menu overview and basic setupBasic scanning17 Scanning using the contorl panelThis is the normal and usual procedure for scanning originals. • Accessing menus may differ from model to model.• It may be necessary to press OK to navigate to lower-level menus for some models. For USB connected machineThis is a basic scanning method for USB-connected machine.1Place a single document face down on the document glass, or load the documents face up into the document feeder (see "Loading originals" on page 48 ).2 Select (scan) > Scan to PC > Local PC on the control panel. If you see Not Available message, check the port connectionSGor select Enable Scan from Device Panel in 5COUWPI'CU[2TKPVGT/CPCIGT!Switch to advanced mode.!Scan to 2% Settings. 3 Select the application program you want and press OK.Default setting is My Documents. You can add or delete the folder where the scanned file is saved in 5COUWPI'CU[2TKPVGT/CPCIGT!Switch to advanced mode.!Scan to 2% Settings. 4 Select the option you want and press OK. •Scan Format appears only when you selected the Scan destination to My Documents.• If you want to scan from the default setting, press Start. 5 Scanning begins. • Scanned image is saved in computer’s My Documents folder.• You can use Twain driver to scan quickly in Scan Assistant program (see Advanced Guide).
632. Menu overview and basic setupBasic faxing • You cannot use this machine as a fax via the internet phone. For more information ask your internet service provider.• We recommend using traditional analog phone services (PSTN: Public Switched Telephone Network) when connecting telephone lines to use a fax machine. If you use other Internet services (DSL, ISDN, VolP), you can improve the connection quality by using the Micro-filter. The Micro-filter eliminates unnecessary noise signals and improves connection quality or Internet quality. Since the DSL Micro-filter is not provided with the machine, contact your Internet service provider for use on DSL Micro-filter.1Line port2Micro filter3DSL modem / Telephone line 18 Preparing to faxBefore you send or receive a fax, you need to connect the supplied line cord to your telephone wall jack. Refer to the Quick Installation Guide how to make a connection. The method of making a telephone connection is different from one country to another.19 Sending a fax When you place the originals, you can use either the document feeder or the scanner glass. If the originals are placed on both the document feeder and the scanner glass, the machine will read the originals on the document feeder first, which has higher priority in scanning. 1Place a single document face down on the document glass, or load the documents face up into the document feeder (see "Loading originals" on page 48 ).2 Select (fax) on the control panel.3 Adjust the resolution and the darkness to suit your fax needs (see "Adjusting the document settings" on page 66).
Basic faxing 642. Menu overview and basic setup4 Enter the receiving fax machine’s number.5 Press Start on the control panel. The machine starts to scan and send a fax to destinations. • If you want to send fax directly from your computer, use Samsung Network PC Fax (see Advanced Guide).• When you want to cancel a fax job, press (Stop/Clear) before the machine start transmission.• If you used the scanner glass, the machine shows the message asking to place another page. Sending a fax manuallyThis method is sending a fax using On Hook Dial on the control panel. If your machine is SCX-4833HD or SCX-5637HR, you can send a fax using the handset.1Place a single document face down on the document glass, or load the documents face up into the document feeder (see "Loading originals" on page 48 ).2 Select (fax) on the control panel.3 Adjust the resolution and the darkness to suit your fax needs (see "Adjusting the document settings" on page 66).4 Press On Hook Dial on the control panel or lift the handset.5 Enter a fax number using the number keypad on the control panel.6 Press Start on the control panel when you hear a high-pitched fax signal from the remote fax machine.Sending a fax to multiple destinationsYou can use the Multiple Send feature, which allows you to send a fax to multiple locations. Originals are automatically stored in memory and sent to a remote station. After transmission, the originals are automatically erased from memory.1Place a single document face down on the document glass, or load the documents face up into the document feeder (see "Loading originals" on page 48 ).2 Select (fax) on the control panel.3 Adjust the resolution and the darkness to suit your fax needs (see "Adjusting the document settings" on page 66).4 Select (Menu) > Fax Feature > Multi Send on the control panel.
Basic faxing 652. Menu overview and basic setup5 Enter the number of the first receiving fax machine and press OK.You can press speed dial numbers or select group dial number using Address book button (see Advanced Guide).6 Enter the second fax number and press OK.The display asks you to enter another fax number to send the document.7 To enter more fax numbers, press OK when Yes appears and repeat steps 5 and 6. You can add up to 10 destinations. Once you entered a group dial number, you cannot enter another group dial numbers anymore. 8 When you have finished entering fax numbers, select No at the Another No.? prompt and press OK.The machine begins sending the fax to the numbers you entered in the order in which you entered them.20 Receiving a faxYour machine is preset Fax mode at the factory. When you receive a fax, the machine answers the call on a specified number of rings and automatically receives the fax.

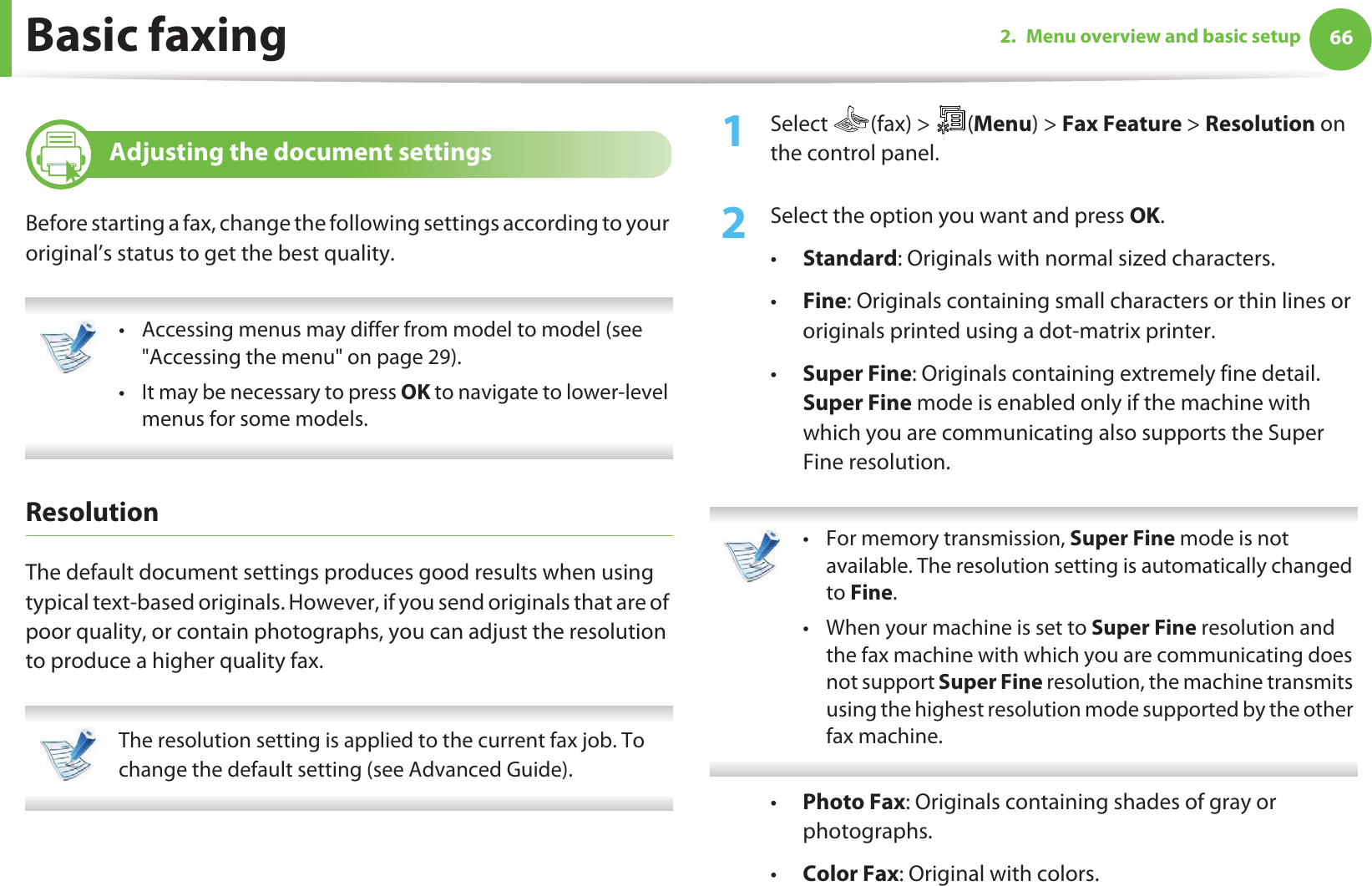

Basic faxing 662. Menu overview and basic setup21 Adjusting the document settingsBefore starting a fax, change the following settings according to your original’s status to get the best quality. • Accessing menus may differ from model to model (see "Accessing the menu" on page 29).• It may be necessary to press OK to navigate to lower-level menus for some models. ResolutionThe default document settings produces good results when using typical text-based originals. However, if you send originals that are of poor quality, or contain photographs, you can adjust the resolution to produce a higher quality fax. The resolution setting is applied to the current fax job. To change the default setting (see Advanced Guide). 1Select (fax) > (Menu) > Fax Feature > Resolution on the control panel.2 Select the option you want and press OK.•Standard: Originals with normal sized characters.•Fine: Originals containing small characters or thin lines or originals printed using a dot-matrix printer.•Super Fine: Originals containing extremely fine detail. Super Fine mode is enabled only if the machine with which you are communicating also supports the Super Fine resolution. • For memory transmission, Super Fine mode is not available. The resolution setting is automatically changed to Fine.• When your machine is set to Super Fine resolution and the fax machine with which you are communicating does not support Super Fine resolution, the machine transmits using the highest resolution mode supported by the other fax machine. •Photo Fax: Originals containing shades of gray or photographs.•Color Fax: Original with colors.
Basic faxing 672. Menu overview and basic setup • Memory transmission is not available in this mode.• You can only sending a color fax if the machine you are communicating with supports color fax reception and you send the fax manually. 3 Press (Stop/Clear) to return to ready mode.DarknessYou can select the degree of darkness of the original document. The darkness setting is applied to the current fax job. To change the default setting (see Advanced Guide). 1Select (fax) > (Menu) > Fax Feature > Darkness on the control panel.2 Select a dakness level you want.3 Press (Stop/Clear) to return to ready mode.
682. Menu overview and basic setupUsing USB memory deviceThis chapter explains how to use a USB memory device with your machine.22 About USB memoryUSB memory devices are available with a variety of memory capacities to give you more room for storing documents, presentations, downloaded music and videos, high resolution photographs or whatever other files you want to store or move.You can do the following on your machine using a USB memory device.• Scan documents and save them on a USB memory device• Print data stored on a USB memory device• Restore backup files to the machine’s memory• Format the USB memory device• Check the available memory space23 Plugging in a USB memory deviceThe USB memory port on the front of your machine is designed for USB V1.1 and USB V2.0 memory devices. Your machine supports USB memory devices with FAT16/FAT32 and sector size of 512 bytes.Check your USB memory device’s file system from your dealer.You must use only an authorized USB memory device with an A plug type connector.Use only a metal-shielded USB memory device.Only use a USB memory device that has obtained compatibility certification; otherwise, the machine might not recognize it. • Do not remove the USB memory device while the machine is in operation or writing to or reading from USB memory. The machine warranty does not cover damage caused by user’s misuse. • If your USB memory device has certain features such as security settings and password settings, your machine may not automatically detect it. For details about these features, see the user’s guide of the USB memory device. A B
Using USB memory device 692. Menu overview and basic setup24 Scanning to a USB memory device • Accessing menus may differ from model to model (see "Accessing the menu" on page 29)• It may be necessary to press OK to navigate to lower-level menus for some models. You can scan a document and save the scanned image onto a USB memory device.Scanning1Insert a USB memory device into the USB memory port on your machine.2 Place a single document face down on the document glass, or load the documents face up into the document feeder (see "Loading originals" on page 48 ).3 Select (scan) > Scan to USB > OK on the control panel.The machine begins scanningAfter scanning is complete, you can remove the USB memory device from the machine.
Using USB memory device 702. Menu overview and basic setupCustomizing Scan to USB You can specify image size, file format, or color mode for each scanning to USB job.1Select (scan) > (Menu) > Scan Feature > USB Feature on the control panel.2 Select the setting option you want appears.•Scan Size: Sets the image size.•Original Type: Sets the original document’s type.•Resolution: Sets the image resolution.•Color Mode: Sets the color mode. If you select Mono in this option, you cannot select JPEG in File Format.•File Format: Sets the file format in which the image is to be saved. When you select TIFF or PDF, you can select to scan multiple pages. If you select JPEG in this option, you cannot select Mono in ColorGMode.•Duplex: Sets the duplex mode.•Darkness: Sets the brightness level to scan an original.•Contrast: Sets the contrast level to scan an original.3 Select the desired status you want and press OK.4 Repeat steps 2 and 3 to set other setting options.5 Press (Stop/Clear) to return to ready mode.You can change the default scan settings. Refer to the Advanced Guide.25 Printing from a USB memory deviceYou can directly print files stored on a USB memory device. You can print TIFF, BMP, JPEG and PRN files.File types supported by Direct Print option.• PRN: Only files created by provided driver with your machine are compatible. • PRN files can be created by selecting the Print to file check box when you print a document. The document will be saved as a PRN file, rather than printed on paper. Only PRN files created in this fashion can be printed directly from USB memory. Refer to the Advanced Guide to learn how to create a PRN file.• BMP: BMP Uncompressed• TIFF: TIFF 6.0 Baseline•JPEG: JPEG Baseline

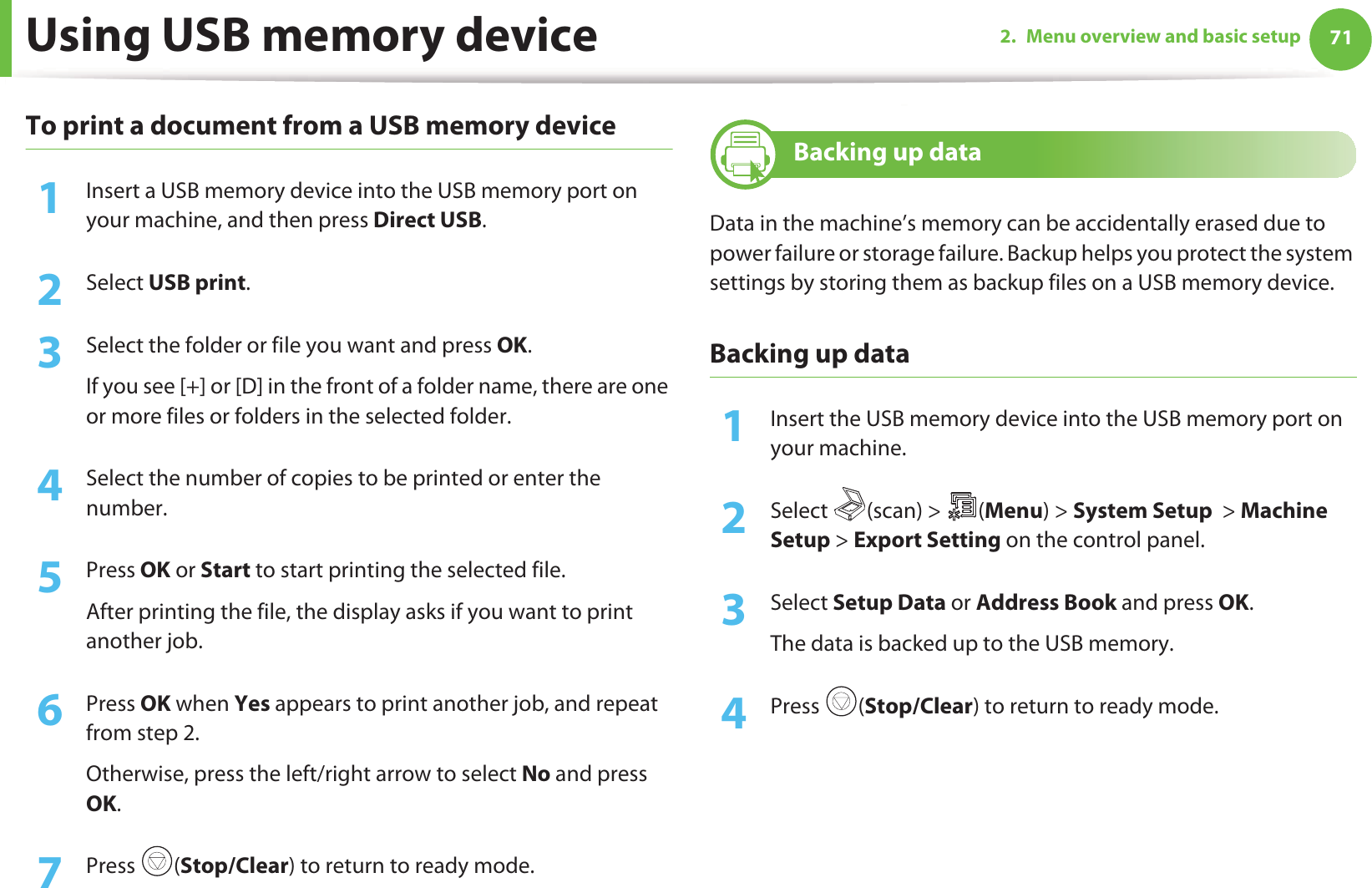

Using USB memory device 712. Menu overview and basic setupTo print a document from a USB memory device1Insert a USB memory device into the USB memory port on your machine, and then press Direct USB.2 Select USB print.3 Select the folder or file you want and press OK.If you see [+] or [D] in the front of a folder name, there are one or more files or folders in the selected folder.4 Select the number of copies to be printed or enter the number.5 Press OK or Start to start printing the selected file. After printing the file, the display asks if you want to print another job.6 Press OK when Yes appears to print another job, and repeat from step 2. Otherwise, press the left/right arrow to select No and press OK.7 Press (Stop/Clear) to return to ready mode.26 Backing up data Data in the machine’s memory can be accidentally erased due to power failure or storage failure. Backup helps you protect the system settings by storing them as backup files on a USB memory device.Backing up data1Insert the USB memory device into the USB memory port on your machine.2 Select (scan) > (Menu) > System Setup > Machine Setup > Export Setting on the control panel.3 Select Setup Data or Address Book and press OK. The data is backed up to the USB memory.4 Press (Stop/Clear) to return to ready mode.
Using USB memory device 722. Menu overview and basic setupRestoring data1Insert the USB memory device on which the backup data is stored in to the USB memory port.2 Select (scan) > (Menu) > System Setup > Machine Setup > Import Setting on the control panel.3 Select Setup Data or Address Book and press OK. 4 Select the file you want to restore and press OK.5 Press OK when Yes appears to restore the backup file to the machine.6 Press (Stop/Clear) to return to ready mode.27 Managing USB memoryYou can delete image files stored on a USB memory device one by one or all at once by reformatting the device. After deleting files or reformatting a USB memory device, files cannot be restored. Therefore, confirm that you no longer need the data before deleting it. Deleting an image file1Insert a USB memory device into the USB memory port on your machine, and then press Direct USB.2 Select File Manage > Delete and press OK.3 Select the file you want to delete and press OK.If you see [+] in the front of a folder name, there are one or more files or folders in the selected folder.4 Select Yes.5 Press (Stop/Clear) to return to ready mode.
Using USB memory device 732. Menu overview and basic setupFormatting a USB memory device1Insert a USB memory device into the USB memory port on your machine, and then press Direct USB.2 Select File Manage > Format and press OK.3 Select Yes.4 Press (Stop/Clear) to return to ready mode.Viewing the USB memory statusYou can check the amount of memory space available for scanning and saving documents.1Insert a USB memory device into the USB memory port on your machine, and then press Direct USB.2 Select Check Space .3 The available memory space appears on the display.4 Press (Stop/Clear) to return to ready mode.
3. MaintenanceThis chapter provides information about purchasing supplies, accessories and maintenance parts available for your machine.• Ordering supplies and accessories 75• Available supplies 76• Available accessories 77• Available maintenance parts 79• Redistributing toner 80• Replacing the toner cartridge 82• Upgrading a memory module 84• Monitoring the supplies life 86• Setting the toner low alert 87• Cleaning the machine 88
753. MaintenanceOrdering supplies and accessories Available accessories may differ from country to country. Contact your sales representatives to obtain the list of available supplies, and maintenance parts. To order Samsung-authorized supplies, accessories, and maintenance parts, contact your local Samsung dealer or the retailer where you purchased your machine. You can also visit www.samsung.com/supplies, and then select your country/region to obtain the contact information for service.
763. MaintenanceAvailable suppliesWhen supplies reach the end of their life spans, you can order the following types of supplies for your machine: Depending on the options and job mode used, the toner cartridge’s lifespan may differ. When purchasing new toner cartridges or other supplies, these must be purchased in the same country as the machine you are using. Otherwise, new toner cartridges or other supplies will be incompatible with your machine due to different configurations of toner cartridges and other supplies according to the specific country conditions. Samsung does not recommend using non-genuine Samsung toner cartridge such as refilled or remanufactured toner. Samsung cannot guarantee non-genuine Samsung toner cartridge's quality. Service or repair required as a result of using non-genuine Samsung toner cartridges will not be covered under the machine’s warranty. Type Average yieldaa. Declared yield value in accordance with ISO/IEC 19752.Part nameStandard yield toner cartridgeApprox. 2,000 pages MLT-D205SHigh yield toner cartridgeApprox. 5,000 pages MLT-D205LExtra high yield toner cartridgebb. The toner cartridge is available only SCX-5637FR, SCX-5637HR or SCX-5737FW.Approx. 10,000 pages MLT-D205E
773. MaintenanceAvailable accessoriesYou can purchase and install accessories to enhance your machine’s performance and capacity. Some features and optional goods may not be available depending on model or country (see "Features by models" on page 7). Accessory Function Part nameMemory module Extends your machine’s memory capacity. • SCX-4833FD/SCX-4835FD/SCX-4833HD- CLP-MEM201: 128 MB- CLP-MEM202: 256 MB• SCX-4833FR/SCX-4835FRSCX-563x Series/SCX-573x Series- ML-MEM150: 128 MB- ML-MEM160: 256 MB- ML-MEM170: 512 MBTray 2 If you are experiencing frequent paper supply problems, you can attach an additional tray.ML-S3710A
Available accessories 783. Maintenance IEEE 1284 Parallel Connector Allows you to use various interface. • When installing the printer driver with an IEEE1284 parallel connector, the machine might not be found and after installing the printer driver, only basic printing features are available.• If you want to check the machine's status or set the settings, connect the machine to a computer with a USB cable or a network.• If you use the IEEE 1284 parallel connector, you can not use the USB cable. ML-PAR100Accessory Function Part name
793. MaintenanceAvailable maintenance partsTo purchase maintenance parts, contact the source where you bought the machine. Replacing maintenance parts can be performed only by an authorized service provider, dealer, or the retailer where you bought the machine. The warranty does not cover the replacement of any maintenance parts once it has reached its “Average yield”.Maintenance parts are replaced at specific intervals to avoid print quality and paper feed problems resulting from worn parts, see table below. The purpose of which is to maintain your machine in top working condition. The maintenance parts below should be replaced when the life span of each item has been met.parts Average yieldaa. It will be affected by the operating system used, computing performance, application software, connecting method, media type, media size and job complexity.Document feeder rubber pad Approx. 20,000 pagesTransfer roller Approx. 100,000 pages Fuser unit Approx. 90,000 pagesPickup roller Approx. 90,000 pagesRetard roller Approx. 60,000 pages
803. MaintenanceRedistributing tonerWhen the toner cartridge is near the end of its life:• White streaks or light printing occurs and/or density variation side to side. •The Status LED blinks red. If this happens, you can temporarily improve print quality by redistributing the remaining toner in the cartridge. In some cases, white streaks or light printing will still occur even after you have redistributed the toner.1Open the front cover and pull the toner cartridge out.2 Thoroughly shake side to side the cartridge five or six times to distribute the toner evenly inside the cartridge. If toner gets on your clothing, wipe it off with a dry cloth and wash clothing in cold water: hot water sets toner into fabric. Do not touch the green underside of the toner cartridge. Use the handle on the cartridge to avoid touching this area. 3
Redistributing toner 813. Maintenance3 Hold the toner cartridge by the handle and slowly insert the cartridge into the opening in the machine. 4 Close the front cover. Ensure that the cover is securely closed.
823. MaintenanceReplacing the toner cartridge Click this link to open an animation about replacing a toner cartridge. When a toner cartridge has reached the end of life, the machine will stop printing.1Open the front cover and pull the toner cartridge out.2 Remove the new toner cartridge from its bag. 3 Remove the label from the toner cartridge as shown below.4 Thoroughly roll the cartridge five or six times to distribute the toner evenly inside the cartridge. If toner gets on your clothing, wipe it off with a dry cloth and wash clothing in cold water; hot water sets toner into fabric. Do not touch the green underside of the toner cartridge. Use the handle on the cartridge to avoid touching this area. 3
Replacing the toner cartridge 833. Maintenance5 Hold the toner cartridge by the handle and slowly insert the cartridge into the opening in the machine. 6 Close the front cover. Make sure that the cover is securely closed.
843. MaintenanceUpgrading a memory moduleYour machine has a dual in-line memory module (DIMM). Use this memory module slot to install additional memory.Order information is provided for additional memory module. (See "Available accessories" on page 77.)1 Installing a memory module1Turn the machine off and unplug all cables from the machine.2 Grasp the control board cover and remove it.3 Remove the new memory module from its bag. 4 Holding the memory module by the edges, align the memory module on the slot at about a 30-degree tilt. Make sure that the notches of the module and the grooves on the slot fit each other. The notches and grooves illustrated above may not match those on an actual memory module and its slot. 5 Press the memory module into the slot with care until you hear a ‘click’. Do not press the memory module strongly or the module may be damaged. If the module does not seem to fit into the slot properly, carefully try the previous procedure again.
Upgrading a memory module 853. Maintenance6 Replace the control board cover.7 Reconnect the power cord and machine cable and turn the machine on.

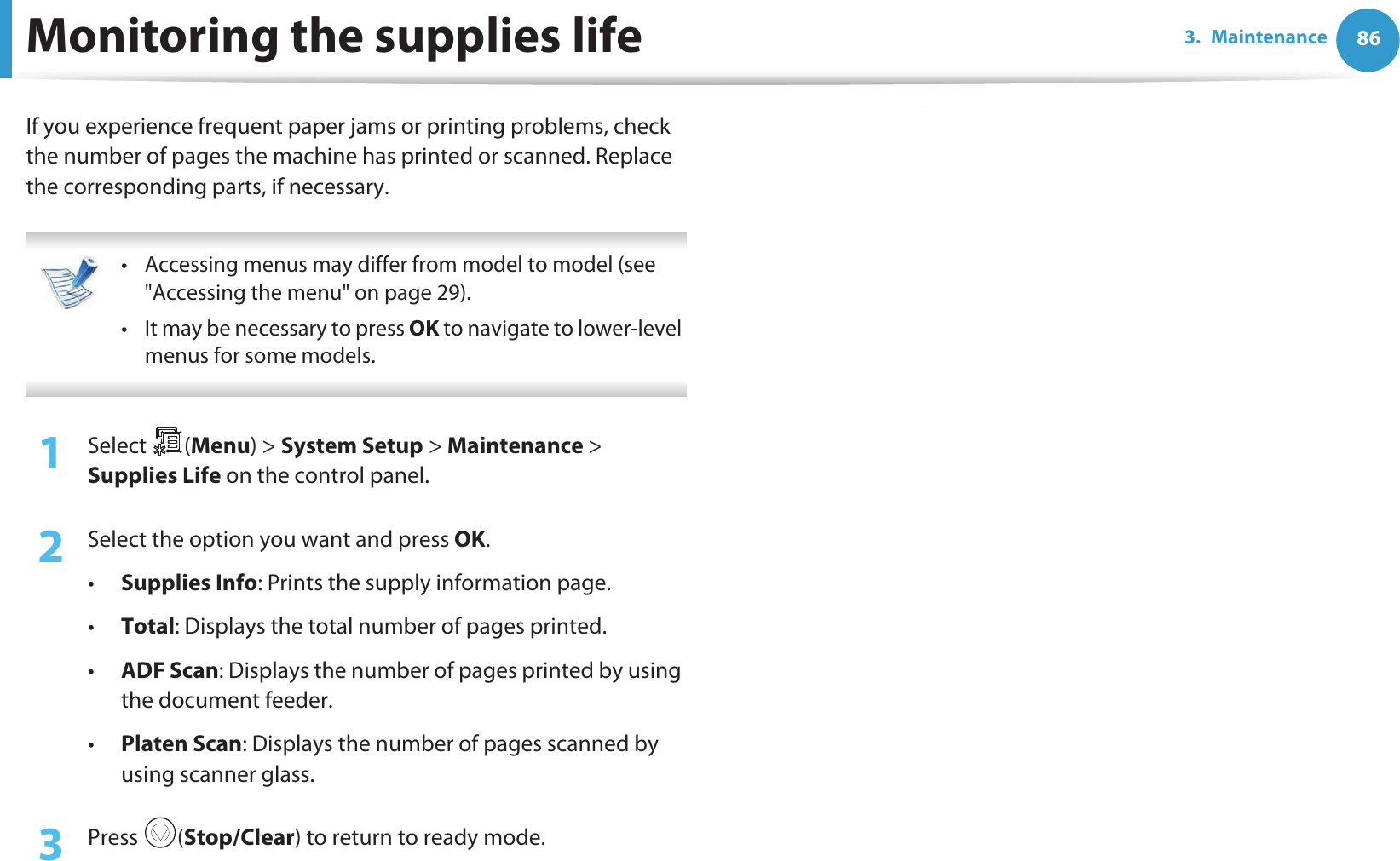

863. MaintenanceMonitoring the supplies lifeIf you experience frequent paper jams or printing problems, check the number of pages the machine has printed or scanned. Replace the corresponding parts, if necessary. • Accessing menus may differ from model to model (see "Accessing the menu" on page 29).• It may be necessary to press OK to navigate to lower-level menus for some models. 1Select (Menu) > System Setup > Maintenance > Supplies Life on the control panel.2 Select the option you want and press OK.•Supplies Info: Prints the supply information page.•Total: Displays the total number of pages printed.•ADF Scan: Displays the number of pages printed by using the document feeder.•Platen Scan: Displays the number of pages scanned by using scanner glass.3 Press (Stop/Clear) to return to ready mode.
873. MaintenanceSetting the toner low alertIf the amount of toner in the cartridge is low, a message or LED informing the user to change the toner cartridge appears. You can set the option for whether or not this message or LED appears. Accessing menus may differ from model to model (see "Accessing the menu" on page 29) 1Select (Menu) > System Setup > Maintenance > Toner Low Alert on the control panel.2 Select the option you want.3 Press OK to save the selection.
883. MaintenanceCleaning the machineIf printing quality problems occur or if you use your machine in a dusty enviroment, you need to clean your machine regularly to keep it in the best printing condition and use your machine longer. • Cleaning the cabinet of the machine with cleaning materials containing large amounts of alcohol, solvents, or other strong substances can discolor or distort the cabinet. • If your machine or the surrounding area is contaminated with toner, we recommend you use a cloth or tissue dampened with water to clean it. If you use a vacuum cleaner, toner blows in the air and might be harmful to you. 2 Cleaning the outsideClean the machine cabinet with a soft, lint-free cloth. Dampen the cloth slightly with water, but be careful not to let any water drip onto or into the machine.3 Cleaning the insideDuring the printing process, paper, toner, and dust particles can accumulate inside the machine. This buildup can cause print quality problems, such as toner specks or smearing. Cleaning the inside of the machine clears and reduces these problems.1Turn the machine off and unplug the power cord. Wait for the machine to cool down.2 Open the front cover and pull the toner cartridge out. Set it on a clean flat surface.3
Cleaning the machine 893. Maintenance • To prevent damage to the toner cartridge, do not expose it to light for more than a few minutes. Cover it with a piece of paper, if necessary. • Do not touch the green surface underside of the toner cartridge. Use the handle on the cartridge to avoid touching this area. 3 With a dry, lint-free cloth, wipe away any dust and spilled toner from the toner cartridge area. While cleaning the inside of the machine, be careful not to damage the transfer roller or any other inside parts. Do not use solvents such as benzene or thinner. Printing quality problems can occur and cause damage to the machine. 4 Reinsert the toner cartridge and close the front cover.
Cleaning the machine 903. Maintenance4 Cleaning the pickup roller1Turn the machine off and unplug the power cord. Wait for the machine to cool down.2 Pull out tray 1.3 Clean the pickup roller with a soft, lint-free cloth.4 Insert the tray back into the machine.
Cleaning the machine 913. Maintenance5 Cleaning the scan unitKeeping the scan unit clean helps ensure the best possible copies. We suggest that you clean the scan unit at the start of each day and during the day as needed.1Slightly dampen a soft, lint-free cloth or paper towel with water.2 Lift and open the scanner lid.3 Wipe the surface of the scanner glass until it is clean and dry.4 Wipe the underside of the scanner lid and white sheet until it is clean and dry.5 Close the scanner lid.1Scanner lid2Scanner glass3White sheet123
4. TroubleshootingThis chapter gives helpful information for what to do if you encounter an error.• Tips for avoiding paper jams 93• Clearing original document jams 94• Clearing paper jams 101• Understanding the status LED 108• Understanding display messages 110 This chapter gives helpful information for what to do if you encounter an error. If your machine has a display screen, check the message on the display screen first to solve the error.If you cannot find a solution to your problem in this chapter, refer to the Troubleshooting chapter in the Advanced User's Guide.If you cannot find a solution in the User's Guide or the problem persists, call for service.

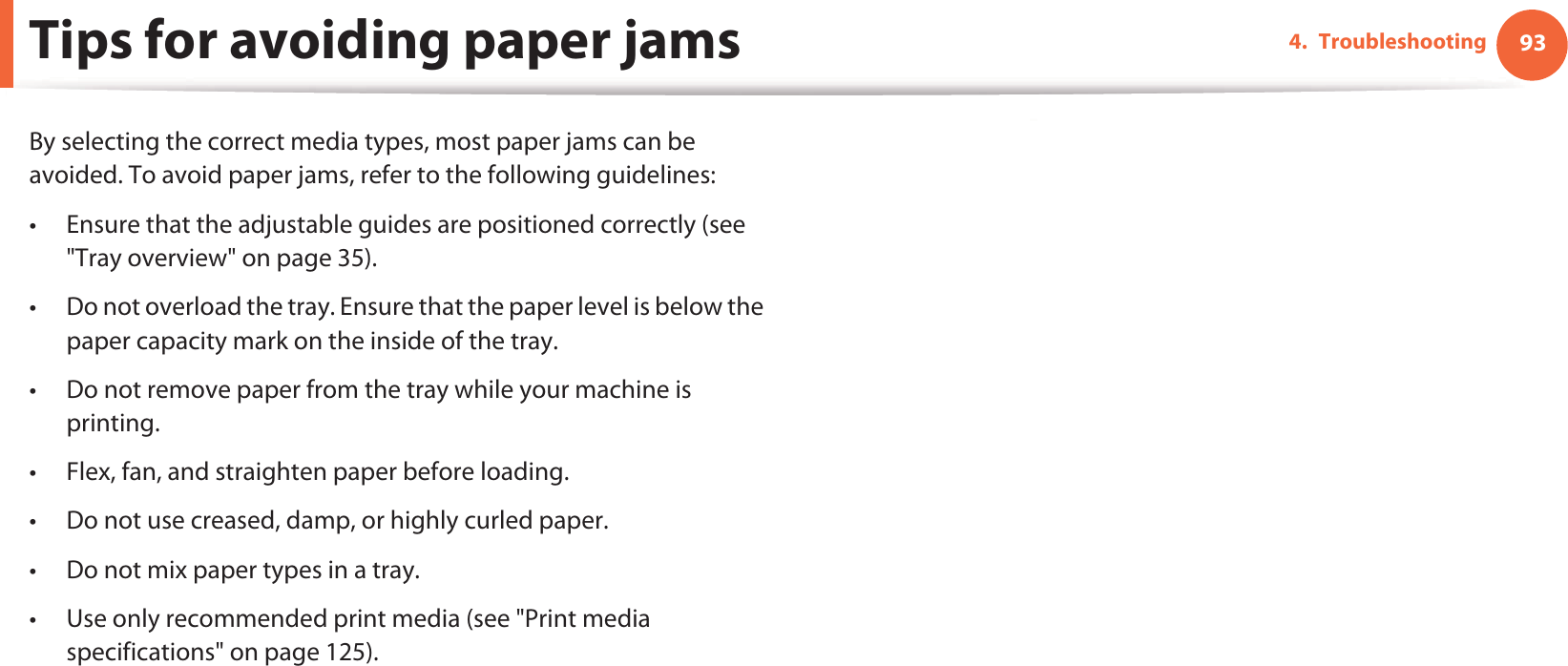

934. TroubleshootingTips for avoiding paper jamsBy selecting the correct media types, most paper jams can be avoided. To avoid paper jams, refer to the following guidelines:• Ensure that the adjustable guides are positioned correctly (see "Tray overview" on page 35).• Do not overload the tray. Ensure that the paper level is below the paper capacity mark on the inside of the tray.• Do not remove paper from the tray while your machine is printing.• Flex, fan, and straighten paper before loading. • Do not use creased, damp, or highly curled paper.• Do not mix paper types in a tray.• Use only recommended print media (see "Print media specifications" on page 125).
944. TroubleshootingClearing original document jamsWhen an original document jams in the document feeder, a warning message appears on the display. To avoid tearing the document, remove the jammed document slowly and carefully. To prevent document jams, use the scanner glass for thick, thin or mixed paper-type originals. 1 Original paper jam in front of scanner1Remove any remaining pages from the document feeder.2 Open the document feeder cover.
Clearing original document jams 954. Troubleshooting3 Gently remove the jammed paper from the document feeder. 4 Close the document feeder cover.
Clearing original document jams 964. Troubleshooting2 Original paper jam inside of scanner1Remove any remaining pages from the document feeder.2 Open the document feeder cover.3 Gently remove the jammed paper from the document feeder.If you see no paper in this area, go to next step.
Clearing original document jams 974. Troubleshooting4 Open the document feeder. 5 Grasp the misfeed paper, and remove the paper from the feed area by carefully pulling it.6 Close the document feeder.
Clearing original document jams 984. Troubleshooting3 Original paper jam in exit area of scanner1Remove any remaining pages from the document feeder.2 Gently remove the jammed paper from the document feeder.4 Original paper jam in scanner duplex path For SCX-4833FR, SCX-4835FR, SCX-563x Series and SCX-573x Series. 1Remove any remaining pages from the document feeder.2 Open the document feeder cover.
Clearing original document jams 994. Troubleshooting3 Open the duplex jam cover. 4 Pull the jammed paper gently out of the document feeder.Close the duplex jam cover and the document feeder cover. If you do not see paper in this area, go to the next step.
Clearing original document jams 1004. Troubleshooting5 Open the document feeder. 6 Grasp the misfeed paper, and remove the paper from the feed area by carefully pulling it.7 Close the document feeder.

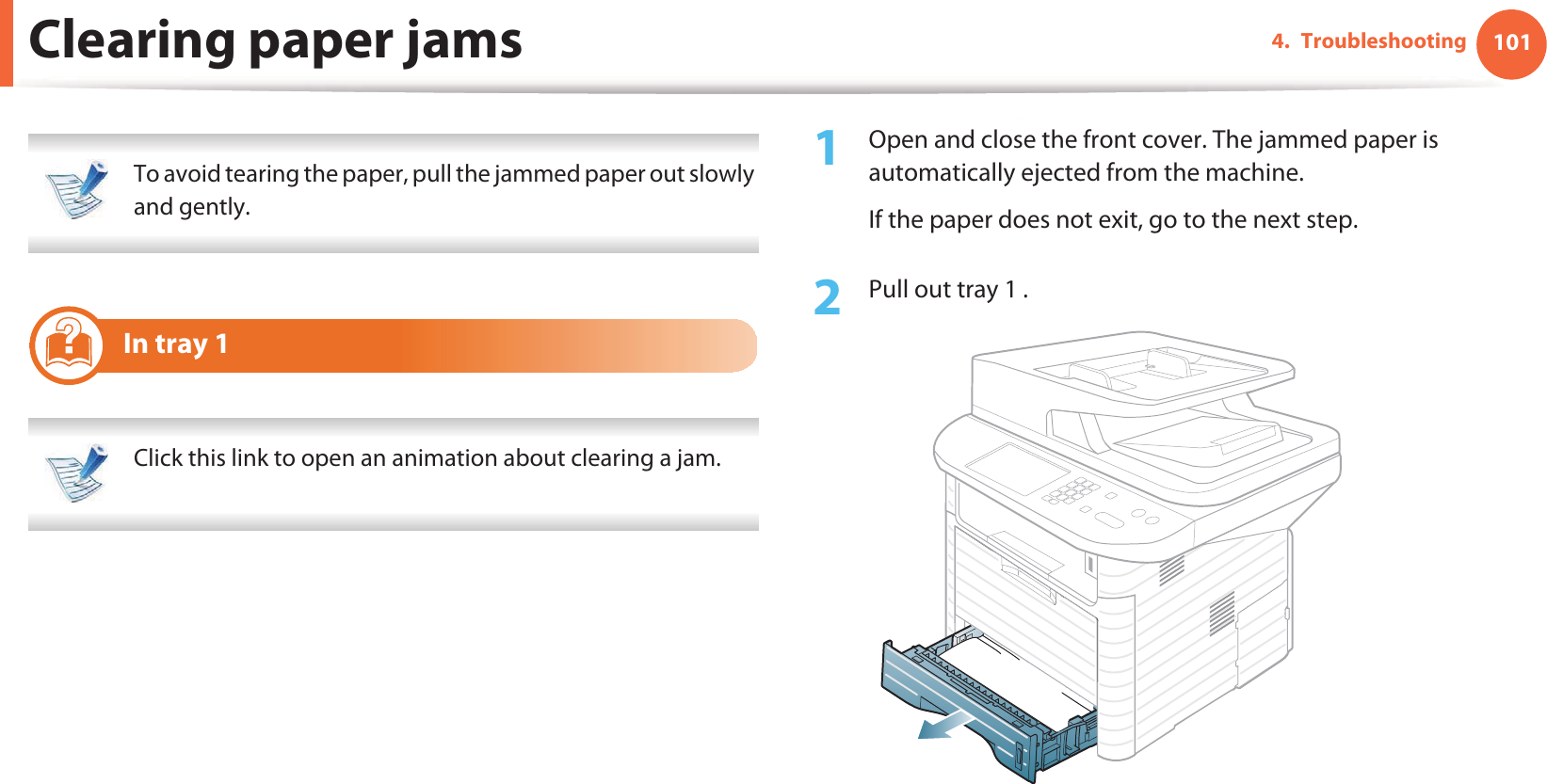

1014. TroubleshootingClearing paper jams To avoid tearing the paper, pull the jammed paper out slowly and gently. 5 In tray 1 Click this link to open an animation about clearing a jam. 1Open and close the front cover. The jammed paper is automatically ejected from the machine.If the paper does not exit, go to the next step.2 Pull out tray 1 .
Clearing paper jams 1024. Troubleshooting3 Remove the jammed paper by gently pulling it straight out.If the paper does not move when you pull, or if you do not see the paper in this area, check the fuser area around the toner cartridge (see "Inside the machine" on page 104).4 Insert tray 1 back into the machine until it snaps into place. Printing automatically resumes.6 In optional tray2 Click this link to open an animation about clearing a jam. 1Pull out optional tray 2.2 Remove the jammed paper from the machine.
Clearing paper jams 1034. TroubleshootingIf the paper does not move when you pull or if you do not see the paper in this area, stop and go to the next step.3 Pull tray 1 half-way out.4 Pull the paper straight up and out.5 Insert the trays back into the machine. Printing automatically resumes.7 In the multi-purpose tray Click this link to open an animation about clearing a jam. 1If the paper is not feeding properly, pull the paper out of the machine.2 Open and close the front cover to resume printing.
Clearing paper jams 1044. Troubleshooting8 Inside the machine Click this link to open an animation about clearing a jam. The fuser area is hot. Take care when removing paper from the machine. 1Open the front cover and pull the toner cartridge out.2 Remove the jammed paper by gently pulling it straight out.3 Replace the toner cartridge and close the front cover. Printing automatically resumes.3
Clearing paper jams 1054. Troubleshooting9 In the exit area Click this link to open an animation about clearing a jam. 1Open and close the front cover. The jammed paper is automatically ejected from the machine.If you do not see the jammed paper, go to the next step.2 Gently pull the paper out of the output tray.If you do not see the jammed paper or if there is any resistance when you pull, stop and go to the next step.3 Open the rear cover.4 Remove the jammed paper as shown in the following figure.5 Close the rear cover. Printing automatically resumes.1fuser door33
Clearing paper jams 1064. Troubleshooting10 In the duplex unit area Click this link to open an animation about clearing a jam. 1Pull the duplex unit out of the machine.2 Remove the jammed paper from the duplex unit.If the paper does not come out with the duplex unit, remove the paper from the bottom of the machine. If you still do not see the paper, go to the next step.
Clearing paper jams 1074. Troubleshooting3 Insert the duplex unit into the machine.4 Open the rear cover.5 Remove the jammed paper as shown in the following figure.6 Close the rear cover. Printing automatically resumes.1fuser door33
1084. TroubleshootingUnderstanding the status LEDThe color of the LED indicates the machine's current status. • Some LEDs may not be available depending on model or country.• To resolve the error, look at the error message and its instructions from the troubleshooting part. • You also can resolve the error with the guideline from the computers’s Printing Stauts or Smart Panel program window. • If the problem persists, call a service representative.
Understanding the status LED 1094. Troubleshooting Status DescriptionStatus LED Off The machine is off-line.Green Blinking When the backlight blinks, the machine is printing data. On • The machine is on-line and can be used.Red Blinking • A minor error has occurred and the machine is waiting for the error to be cleared. Check the display message. When the problem is cleared, the machine resumes. For some models that does not support the display screen on the control panel, this feature is not applicable.• Small amount of toner is left in the cartridge. The estimated cartridge life of toner is close. Prepare a new cartridge for replacement. You may temporarily increase the printing quality by redistributing the toner (see "Redistributing toner" on page 80).On • A toner cartridge has almost reached its estimated cartridge lifea. It is recommended to replace the toner cartridge (see "Replacing the toner cartridge" on page 82).• The cover is opened. Close the cover.• There is no paper in the tray. Load paper in the tray.• The machine has stopped due to a major error. Check the display message (see "Understanding display messages" on page 110). a. Estimated cartridge life means the expected or estimated toner cartridge life, which indicates the average capacity of print-outs and is designed pursuant to ISO/IEC 19752. The number of pages may be affected by operating environment, printing interval, graphics, media type and media size. Some amount of toner may remain in the cartridge even when red LED is on and the printer stops printing.Wireless LEDBlue On When the machine is connected to a wireless network, Wireless LED lights on blue.
1104. TroubleshootingUnderstanding display messagesMessages appear on the control panel display to indicate the machine’s status or errors. Refer to the tables below to understand the messages’ and their meaning, and correct the problem, if necessary. • If a message is not in the table, reboot the power and try the printing job again. If the problem persists, call a service representative.• When you call for service, provide the service representative with the contents of display message.• Some messages may not appear on the display depending on the options or models.• [error number] indicates the error number.
Understanding display messages 1114. Troubleshooting11 SCX-4833FDPaper Jam-related messagesMessage Meaning Suggested solutionsDocument jamRemove jamThe loaded original document has jammed in the document feeder.Clear the jam (see "Clearing original document jams" on page 94).Paper Jamin Tray 1Paper has jammed in the paper feed area. Clear the jam (see "In tray 1" on page 101).Paper Jamin Tray 2Paper has jammed in the optional tray. Clear the jam (see "In optional tray2" on page 102).Paper Jamin MP trayPaper has jammed in the multi-purpose tray. Clear the jam (see "In the multi-purpose tray" on page 103).Paper Jaminside machinePaper has jammed in the inside machine. Clear the jam (see "Inside the machine" on page 104).Paper Jamin exit areaPaper has jammed in the paper exit area. Clear the jam (see "In the exit area" on page 105).Paper Jambottom of duplexPaper has jammed in the duplex area. Clear the jam (see "In the duplex unit area" on page 106).
Understanding display messages 1124. TroubleshootingToner-related messages Message Meaning Suggested solutionsInstall Toner A toner cartridge is not installed. Install a toner cartridge.Not CompatibleToner cartridgeThe toner cartridge you have installed is not for your machine.Install a Samsung-genuine toner cartridge, designed for your machine.Prepare new cartridge Small amount of toner is left in the indicated cartridge. The estimated cartridge life of toner is close.Prepare a new cartridge for a replacement. You may temporarily increase the printing quality by redistributing the toner (see "Redistributing toner" on page 80).
Understanding display messages 1134. Troubleshooting Replacenew cartridgeA toner cartridge has reached its estimated cartridge life. The machine stops printing. Estimated cartridge life means the expected or estimated toner cartridge life, which indicates the average capacity of print-outs and is designed pursuant to ISO/IEC 19752 (see "Available supplies" on page 76). The number of pages may be affected by operating environment, printing interval, media type, percentage of image area, and media size. Some amount of toner may remain in the cartridge even when replace new cartridge appears and the machine stops printing. • You can choose Stop or Continue as shown on the control panel. If you select Stop, the printer stops printing and you cannot print any more without changing the cartridge. If you select Continue, the printer keeps printing but the printing quality cannot be guaranteed.• Replace the toner cartridge for the best print quality when this message appears. Using a cartridge beyond this stage can result in printing quality issues (see "Replacing the toner cartridge" on page 82). Samsung does not recommend using a non-genuine Samsung toner cartridge such as refilled or remanufactured. Samsung cannot guarantee a non-genuine Samsung toner cartridge's quality. Service or repair required as a result of using non-genuine Samsung toner cartridges will not be covered under the machine warranty. • If the machine stops printing, replace the toner cartridge (see "Replacing the toner cartridge" on page 82).Message Meaning Suggested solutions
Understanding display messages 1144. TroubleshootingTray-related messagesMessage Meaning Suggested solutionsOutput bin fullRemove paperThe output tray is full. Remove papers from the output tray, the printer resumes printing. Paper Emptyin Tray 1There is no paper in tray 1. Load paper in tray 1 (see "Loading paper in the tray/ optional tray" on page 37).Paper Emptyin Tray 2There is no paper in tray 2. Load paper in tray 2 (see "Loading paper in the tray/ optional tray" on page 37).Paper Emptyin MP trayThere is no paper in the multi-purpose tray. Load paper in the multi-purpose tray (see "Loading in multi-purpose tray" on page 39).Pulled OutTray 1 CassetteThe tray is not securely latched. Close the tray until it locks into place.Pulled OutTray 2 CassetteThe tray is not securely latched. Close the tray until it locks into place.Paper mismatch The paper sizespecified in the printer properties does not match the paper you are loading.Load the required size paper.
Understanding display messages 1154. TroubleshootingNetwork-related messagesMisc. messagesMessage Meaning Suggested solutionsNetwork ProblemIP ConflictThe network IP address you have set is being used by someone else. Check the IP address and reset it if necessary (see Advanced Guide).802.1xNetwork ErrorFail to authenticate. Check the network authentication protocol. If the problem persists, contact your network administrator.Message Meaning Suggested solutionsDoor Open Close itThe front cover or rear cover is not securely latched. Close the cover until it locks into place. Door of scanner is open The document feeder cover is not securely latched. Close the cover until it locks into place. Error [error number]Turn off then onThe machine unit cannot be controlled. Reboot the power and try the printing job again. If the problem persists, please call for service. Memory FullRemove JobThe memory is full. Print or remove the received fax job in Secure Receive (see Advanced Guide).Scanner Locked The scanner is locked. Reboot the power. If the problem persists, please call for service.
Understanding display messages 1164. Troubleshooting12 SCX-4833FR/SCX-5637FRPaper Jam-related messagesMessage Meaning Suggested solutionsOriginal paper jamOriginal paper jam inside of scanner.Remove jam.The loaded original document has jammed in the document feeder.Clear the jam (see "Clearing original document jams" on page 94).Paper Jamin Tray 1Paper has jammed in the paper feed area. Clear the jam (see "In tray 1" on page 101).Paper Jamin Tray 2Paper has jammed in the optional tray. Clear the jam (see "In optional tray2" on page 102).Paper Jamin MP trayPaper has jammed in the multi-purpose tray. Clear the jam (see "In the multi-purpose tray" on page 103).Jam inside machine Paper has jammed in the inside machine. Clear the jam (see "Inside the machine" on page 104).Jam in exit area Paper has jammed in the paper exit area. Clear the jam (see "In the exit area" on page 105).Jam bottom of duplex Paper has jammed in the duplex area. Clear the jam (see "In the duplex unit area" on page 106).
Understanding display messages 1174. TroubleshootingToner-related messages Message Meaning Suggested solutionsToner not installedToner cartridge is not installed. Install it.A toner cartridge is not installed. Install a toner cartridge.Toner Not CompatibleToner cartridge is not compatible. Check guideThe toner cartridge you have installed is not for your machine.Install a Samsung-genuine toner cartridge, designed for your machine.Prepare new tonerPrepare new toner cartridgeSmall amount of toner is left in the indicated cartridge. The estimated cartridge life of toner is close.Prepare a new cartridge for a replacement. You may temporarily increase the printing quality by redistributing the toner (see "Redistributing toner" on page 80).Replace new tonerEnd of life, Replace with new toner cartridgeA toner cartridge has reached its estimated cartridge life. The machine stops printing.Replace the toner cartridge (see "Replacing the toner cartridge" on page 82).
Understanding display messages 1184. Troubleshooting Replace new tonerReplace with new toner cartridgeA toner cartridge has reached its estimated cartridge life. The machine stops printing. Estimated cartridge life means the expected or estimated toner cartridge life, which indicates the average capacity of print-outs and is designed pursuant to ISO/IEC 19752 (see "Available supplies" on page 76). The number of pages may be affected by operating environment, printing interval, media type, percentage of image area, and media size. Some amount of toner may remain in the cartridge even when replace new cartridge appears and the machine stops printing. • You can choose Stop or Continue as shown on the control panel. If you select Stop, the printer stops printing and you cannot print any more without changing the cartridge. If you select Continue, the printer keeps printing but the printing quality cannot be guaranteed.• Replace the toner cartridge for the best print quality when this message appears. Using a cartridge beyond this stage can result in printing quality issues (see "Replacing the toner cartridge" on page 82). Samsung does not recommend using a non-genuine Samsung toner cartridge such as refilled or remanufactured. Samsung cannot guarantee a non-genuine Samsung toner cartridge's quality. Service or repair required as a result of using non-genuine Samsung toner cartridges will not be covered under the machine warranty. Message Meaning Suggested solutions
Understanding display messages 1194. TroubleshootingTray-related messagesMessage Meaning Suggested solutionsOutput bin fullOutput bin full. Remove printed paperThe output tray is full. Remove papers from the output tray, the printer resumes printing. Paper Empty in tray 1Paper is empty in tray 1.Load paperThere is no paper in tray 1. Load paper in tray 1 (see "Loading paper in the tray/ optional tray" on page 37).Paper Empty in tray 2Paper is empty in tray 2.Load paperThere is no paper in tray 2. Load paper in tray 2 (see "Loading paper in the tray/ optional tray" on page 37).Paper Empty in MPPaper is empty in MP tray.Load paperThere is no paper in the multi-purpose tray. Load paper in the multi-purpose tray (see "Loading in multi-purpose tray" on page 39).Tray 1 cassette OutTray 1 cassette is pulled out.Insert it properlyThe tray is not securely latched. Close the tray until it locks into place.
Understanding display messages 1204. TroubleshootingNetwork-related messagesTray 2 cassette OutTray 2 cassette is pulled out.Insert it properlyThe tray is not securely latched. Close the tray until it locks into place.Paper mismatch The paper sizespecified in the printer properties does not match the paper you are loading.Load the required size paper.Message Meaning Suggested solutionsIP ConflictThis IP address conflicts with that of other systemThe network IP address you have set is being used by someone else. Check the IP address and reset it if necessary (see Advanced Guide).802.1x Network Error802.1x Network ErrorContact the Admin.Fail to authenticate. Check the network authentication protocol. If the problem persists, contact your network administrator.Message Meaning Suggested solutions
Understanding display messages 1214. TroubleshootingMisc. messagesMessage Meaning Suggested solutionsDoor is open Close itThe front cover or rear cover is not securely latched. Close the cover until it locks into place. Error [error number]Turn off then onThe machine unit cannot be controlled. Reboot the power and try the printing job again. If the problem persists, please call for service. Memory FullFax memory is almost full.Print or remove received fax jobThe fax memory is almost full. Print or remove the received fax job in Secure Receive (see Advanced Guide).Memory FullFax memory is full.Print or remove received fax jobThe fax memory is full. Print or remove the received fax job in Secure Receive (see Advanced Guide).Scanner Locked The scanner is locked. Reboot the power. If the problem persists, please call for service.Scanner door openDoor of scanner is open.Close the doorThe document feeder cover is not securely latched. Close the cover until it locks into place.
5. AppendixThis chapter provides product specifications and information concerning applicable regulations.• Specifications 123• Regulatory information 133• Copyright 146
1235. AppendixSpecifications1 General specifications The specification values listed below are subject to change without notice. See www.samsung.com/printer for possible changes in information. Items DescriptionDimension Width x Length x Height • SCX-4833FD, SCX-4833HD and SCX-4835FD: 424 x 382 x 407 mm (16.69 x 15.04 x 16.02 inches) • SCX-4833FR, SCX-4835FR, SCX-5637FR, SCX-5637HR, SCX-5639FR, SCX-5737FW and SCX-5739FW: 469 x 438 x 447 mm (18.46 x 17.24 x 17.60 inches)Weight Machine with consumables• SCX-4833FD, SCX-4833HD and SCX-4835FD: 14 kg (30.86 lbs) • SCX-4833FR, SCX-4835FR, SCX-5637FR, SCX-5637HR, SCX-5639FR, SCX-5737FW and SCX-5739FW: 16 kg (35.27 lbs)Noise LevelaReady mode 30 dB (A)Print mode • SCX-4833FD, SCX-4833HD, SCX-4835FD, SCX-4833FR and SCX-4835FR: 52dB (A) • SCX-5637FR, SCX-5637HR, SCX-5639FR, SCX-5737FW and SCX-5739FW: 53 dB (A)Copy mode 54 dB (A)Scan mode (scanner glass) 50 dB (A)Scan mode (document feeder)51 dB (A)
Specifications 1245. AppendixTemperature Operation 10 to 32°C (50 to 89.6°F)Storage (packed) -20 to 40°C (-4 to 104°F)Humidity Operation 20 to 80% RHStorage (packed) 10 to 90% RHPower ratingb110 volt models AC 110 - 127 V220 volt models AC 220 - 240 VPower consumption Average operating mode • SCX-4833FD, SCX-4833HD and SCX-4835FD: Less than 600 W• SCX-4833FR, SCX-4835FR, SCX-5637FR, SCX-5637HR, SCX-5639FR, SCX-5737FW and SCX-5739FW: Less than 650 WReady mode • SCX-4833FD, SCX-4833HD and SCX-4835FD: Less than 40 W• SCX-4833FR, SCX-4835FR, SCX-5637FR, SCX-5637HR, SCX-5639FR, SCX-5737FW and SCX-5739FW: Less than 80 WPower save mode • SCX-4833FD, SCX-4833HD and SCX-4835FD: Less than 8 W• SCX-4833FR, SCX-4835FR, SCX-5637FR, SCX-5637HR, SCX-5639FR, SCX-5737FW and SCX-5739FW: Less than 10 WPower off mode 0 WWirelesscModule U98Z058a. Sound Pressure Level, ISO 7779. Configuration tested: basic machine installation, A4 paper, simplex printing.b. See the rating label on the machine for the correct voltage (V), frequency (hertz) and type of current (A) for your machine.c. SCX-5737FW and SCX-5739FW only.Items Description
Specifications 1255. Appendix 2 Print media specifications Type Size Dimensions Print media weight/CapacityaTray1 / Optional tray Multi-purpose trayPlain paper Letter 216 x 279 mm (8.5 x 11 inches) 70 to 90 g/m2 (19 to 24 lbs bond) • 250 sheets of 80 g/m2 (20 lbs bond)70 to 90 g/m2 (19 to 24 lbs bond)• 50 sheets of 80 g/m2 (20 lbs bond)Legal 216 x 356 mm (8.5 x 14 inches)US Folio 216 x 330 mm (8.5 x 13 inches)A4 210 x 297 mm (8.26 x 11.69 inches)Oficio 216 x 343 mm (8.5 x 13.5 inches)JIS B5 182 x 257 mm (7.16 x 10.11 inches)ISO B5 176 x 250 mm (6.93 x 9.84 inches) Executive 184 x 267 mm (7.25 x 10.5 inches)A5 148 x 210 mm (5.82 x 8.26 inches)A6 105 x 148 mm (4.13 x 5.82 inches) • 150 sheets of 75 g/m2 (20 lbs bond)
Specifications 1265. AppendixEnvelope Envelope Monarch98 x 191 mm (3.87 x 7.5 inches) Not available in tray1/optional tray.75 to 90 g/m2 (20 to 24 lbs bond)Envelope No. 10105 x 241 mm (4.12 x 9.5 inches)Envelope DL 110 x 220 mm (4.33 x 8.66 inches)Envelope C5 162 x 229 mm (6.37 x 9.01 inches)Envelope C6 114 x 162 mm (4.48 x 6.38 inches)Thick paper Refer to the Plain paper section Refer to the Plain paper section 91 to 105 g/m2 (24 to 28 lbs bond)91 to 105 g/m2 (24 to 28 lbs bond)Thicker paper Refer to the Plain paper section Refer to the Plain paper section Not available in tray1/optional tray.164 to 220 g/m2 (44 to 58 lbs bond)Thin paper Refer to the Plain paper section Refer to the Plain paper section 60 to 70 g/m2 (16 to 19 lbs bond) 60 to 70 g/m2 (16 to 19 lbs bond)Transparency Letter, A4 Refer to the Plain paper section Not available in tray1/optional tray.138 to 146 g/m2 (36.81 to 38.91 lbs bond)Type Size Dimensions Print media weight/CapacityaTray1 / Optional tray Multi-purpose tray
Specifications 1275. Appendix LabelsbLetter, Legal, US Folio, A4, JIS B5, ISO B5, Executive, A5Refer to the Plain paper section Not available in tray1/optional tray.120 to 150 g/m2 (32 to 40 lbs bond)Card stock Letter, Legal, US Folio, A4, JIS B5, ISO B5, Executive, A5Refer to the Plain paper section 121 to 163 g/m2 ( 32 to 43 lbs bond)121 to 163 g/m2 ( 32 to 43 lbs bond)Bond paper Refer to the Plain paper section Refer to the Plain paper section 106 to 120 g/m2 (28 to 32 lbs bond)106 to 120 g/m2 (28 to 32 lbs bond)Minimum size (custom) •Multi-purpose tray: 76 x 127 mm (2.99 x 5 inches)•Tray 1: 105 x 148.5 mm (4.13 x 5.85 inches)60 to 163 g/m2 (16 to 43 lbs bond) c, dNot available in optional tray.Maximum size (custom) 216 x 356 mm (8.5 x 14 inches)a. Maximum capacity may differ depending on media weight, thickness, and environmental conditions. b. The smoothness of the labels used in this machine is 100 to 250 (sheffield). This means the numeric level of smoothness.c. The paper types available in multi-purpose tray: Plan, Thick, Thicker, Thin, Cotton, Colored, Pre-printed, Recycled, Envelope, Transparency, Labels, Cardstock, Bond, Archived. The paper types available in tray 1: Plan, Thick, Thin, Recycled, Cardstock, Bond, ArchiveType Size Dimensions Print media weight/CapacityaTray1 / Optional tray Multi-purpose tray
Specifications 1285. Appendix3 System requirementsMicrosoft® Windows® Operating systemRequirement (recommended)CPU RAM free HDD spaceWindows® 2000 Intel® Pentium® II 400 MHz (Pentium III 933 MHz) 64 MB (128 MB) 600 MBWindows® XP Intel® Pentium® III 933 MHz (Pentium IV 1 GHz) 128 MB (256 MB) 1.5 GBWindows Server® 2003 Intel® Pentium® III 933 MHz (Pentium IV 1 GHz) 128 MB (512 MB) 1.25 GB to 2 GBWindows Server® 2008 Intel® Pentium® IV 1 GHz (Pentium IV 2 GHz) 512 MB (2 GB) 10 GBWindows Vista® Intel® Pentium® IV 3 GHz 512 MB (1 GB) 15 GBWindows® 7 Intel® Pentium® IV 1 GHz 32-bit or 64-bit processor or higher 1 GB (2 GB) 16 GB• Support for DirectX® 9 graphics with 128 MB memory (to enable the Aero theme).•DVD-R/W DriveWindows Server® 2008 R2 Intel® Pentium® IV 1 GHz (x86) or 1.4 GHz (x64) processors (2 GHz or faster) 512 MB (2 GB) 10 GB
Specifications 1295. Appendix • Internet Explorer 6.0 or higher is the minimum requirement for all Windows operating systems.• Users who have administrator rights can install the software.•Windows Terminal Services is compatible with your machine. Macintosh Operating systemRequirements (Recommended)CPU RAM Free HDD spaceMac OS X 10.3 ~ 10.4 • Intel® processors• PowerPC G4/ G5• 128 MB for a powerPC based Mac (512 MB)• 512 MB for an Intel-based Mac (1 GB)1 GBMac OS X 10.5 • Intel® processors• 867 MHz or faster Power PC G4/ G5512 MB (1 GB) 1 GBMac OS X 10.6 • Intel® processors 1 GB (2 GB) 1 GB
Specifications 1305. AppendixLinux UnixItems RequirementsOperating system Redhat® Enterprise Linux WS 4, 5 (32/64 bit)Fedora 5 ~ 13 (32/ 64 bit)SuSE Linux 10.1 (32 bit)OpenSuSE® 10.2, 10.3, 11.0, 11.1, 11.2 (32/64 bit)Mandriva 2007, 2008, 2009, 2009.1, 2010 (32/64 bit)Ubuntu 6.06, 6.10, 7.04, 7.10, 8.04, 8.10, 9.04, 9.10, 10.04 (32/64 bit)SuSE Linux Enterprise Desktop 10, 11 (32/64 bit)Debian 4.0, 5.0 (32/64 bit)CPU Pentium IV 2.4GHz (Intel Core™2)RAM 512 MB (1 GB)Free HDD space 1 GB (2 GB)Items RequirementsOperating system Sun Solaris 9, 10 (x86, SPARC)HP-UX 11.0, 11i v1, 11i v2, 11i v3 (PA-RISC, Itanium)IBM AIX 5.1, 5.2, 5.3, 5.4
Specifications 1315. Appendix4 Network environment Network and wireless models only (see "Features by models" on page 7) You need to set up the network protocols on the machine to use it as your network machine. The following table shows the network environments supported by the machine. Free HDD space Up to 100 MBItems SpecificationsNetwork interface • Ethernet 10/100/1000 Base-TX• 802.11b/g/n Wireless LANNetwork operating system • Windows 2000/Server 2003 /Server 2008/XP/Vista/7/Server 2008 R2•Various Linux OS• Mac OS X 10.3 ~ 10.6•UnixItems Requirements

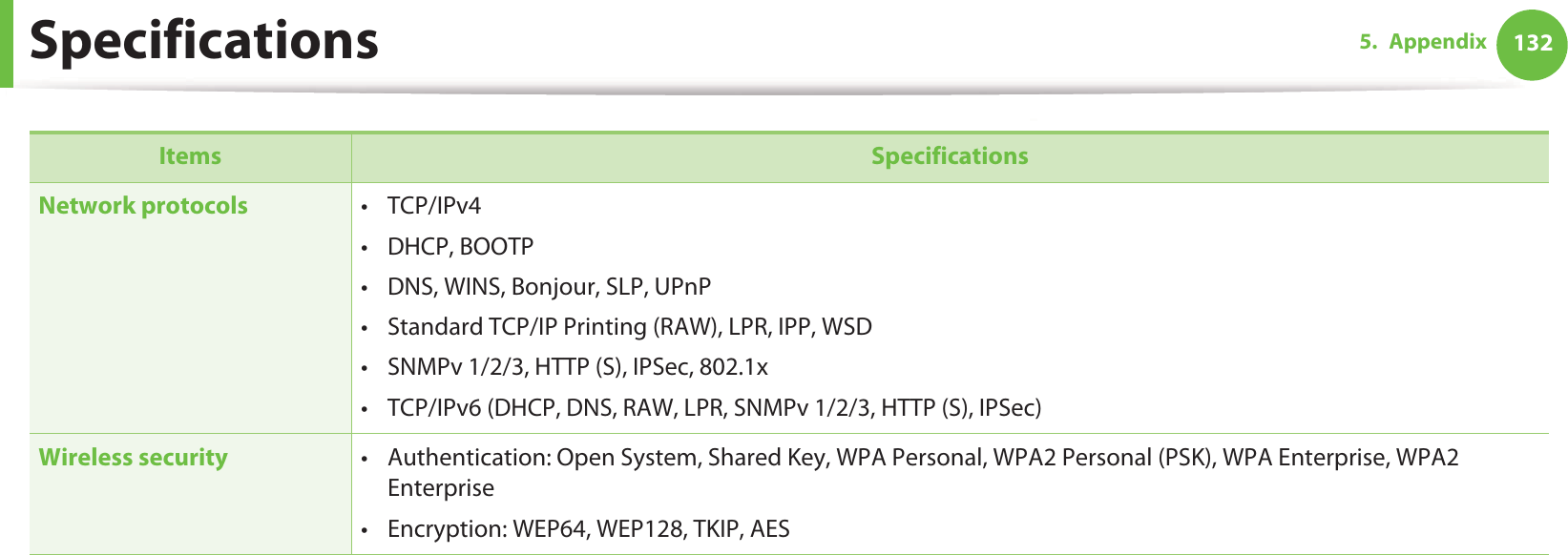

Specifications 1325. Appendix Network protocols •TCP/IPv4• DHCP, BOOTP• DNS, WINS, Bonjour, SLP, UPnP• Standard TCP/IP Printing (RAW), LPR, IPP, WSD• SNMPv 1/2/3, HTTP (S), IPSec, 802.1x• TCP/IPv6 (DHCP, DNS, RAW, LPR, SNMPv 1/2/3, HTTP (S), IPSec)Wireless security • Authentication: Open System, Shared Key, WPA Personal, WPA2 Personal (PSK), WPA Enterprise, WPA2 Enterprise• Encryption: WEP64, WEP128, TKIP, AESItems Specifications
1335. AppendixRegulatory informationThis machine is designed for a normal work environment and certified with several regulatory statements.5 Laser safety statementThe printer is certified in the U.S. to conform to the requirements of DHHS 21 CFR, chapter 1 Subchapter J for Class I(1) laser products, and elsewhere is certified as a Class I laser product conforming to the requirements of IEC 60825-1:1993 + A1:1997 + A2:2001.Class I laser products are not considered to be hazardous. The laser system and printer are designed so there is never any human access to laser radiation above a Class I level during normal operation, user maintenance or prescribed service condition.•Wavelength: 800 nm•Beam divergence-Paraller: 12 degrees-Perpendicular: 35 degrees•Maximum power or energy output: 15 mWWarning Never operate or service the printer with the protective cover removed from laser/scanner assembly. The reflected beam, although invisible, can damage your eyes.When using this product, these basic safety precautions should always be followed to reduce risk of fire, electric shock, and injury to persons:E n g lis hGermanFrenchIta lia nSpanishPortuguesDutchDanishNorwegianSwedishFinnish
Regulatory information 1345. Appendix6 Ozone safety7 Mercury Safety8 Power saver9 RecyclingThis product’s ozone emission rate is under 0.1 ppm. Because ozone is heavier than air, keep the product in a place with good ventilation.Contains Mercury, Dispose According to Local, State or Federal Laws.(U.S.A. only)This printer contains advanced energy conservation technology that reduces power consumption when it is not in active use.When the printer does not receive data for an extended period of time, power consumption is automatically lowered. ENERGY STAR and the ENERGY STAR mark are registered U.S. marks. For more information on the ENERGY STAR program see http://www.energystar.govRecycle or dispose of the packaging material for this product in an environmentally responsible manner.
Regulatory information 1355. Appendix10 China only11 Correct disposal of this product (Waste electrical & electronic equipment)(Applicable in the european union and other european countries with separate collection systems)This marking on the product, accessories or literature indicates that the product and its electronic accessories (e.g. charger, headset, USB cable) should not be disposed of with other household waste at the end of their working life. To prevent possible harm to the environment or human health from uncontrolled waste disposal, please separate these items from other types of waste and recycle them responsibly to promote the sustainable reuse of material resources.Household users should contact either the retailer where they purchased this product, or their local government office, for details of where and how they can take these items for environmentally safe recycling.Business users should contact their supplier and check the terms and conditions of the purchase contract. This product and its electronic accessories should not be mixed with other commercial wastes for disposal.
Regulatory information 1365. Appendix12 Correct disposal of batteries in this product(Applicable in the European Union and other European countries with separate battery return systems.)13 Taiwan only14 Radio frequency emissionsFCC information to the userThis device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: • This device may not cause harmful interference, and• This device must accept any interference received, including interference that may cause undesired operation.This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:• Reorient or relocate the receiving antenna.• Increase the separation between the equipment and receiver.This marking on the battery, manual or packaging indicates that the batteries in this product should not be disposed with other household waste at the end of their working life. Where marked, the chemical symbols Hg, Cd or Pb indicate that the battery contains mercury, cadmium or lead above the reference levels in EC Directive 2006/66. If batteries are not properly disposed of, these substances can cause harm to human health or the environment. To protect natural resources and to promote material reuse, please separate batteries from other types of waste and recycle them through your local, free battery return system.
Regulatory information 1375. Appendix• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.• Consult the dealer or experienced radio TV technician for help. Change or modifications not expressly approved by the manufacturer responsible for compliance could void the user's authority to operate the equipment. Canadian radio interference regulationsThis digital apparatus does not exceed the Class B limits for radio noise emissions from digital apparatus as set out in the interference-causing equipment standard entitled “Digital Apparatus”, ICES-003 of the Industry and Science Canada.Cet appareil numérique respecte les limites de bruits radioélectriques applicables aux appareils numériques de Classe B prescrites dans la norme sur le matériel brouilleur: “Appareils Numériques”, ICES-003 édictée par l’Industrie et Sciences Canada.15 United States of AmericaFederal Communications Commission (FCC)ŹIntentional emitter per FCC Part 15Low power, Radio LAN type devices (radio frequency (RF) wireless communication devices), operating in the 2.4 GHz/5 GHz Band, may be present (embedded) in your printer system. This section is only applicable if these devices are present. Refer to the system label to verify the presence of wireless devices.Wireless devices that may be in your system are only qualified for use in the United States of America if an FCC ID number is on the system label.The FCC has set a general guideline of 20 cm (8 inches) separation between the device and the body, for use of a wireless device near the body (this does not include extremities). This device should be used more than 20 cm (8 inches) from the body when wireless devices are on. The power output of the wireless device (or devices), which may be embedded in your printer, is well below the RF exposure limits as set by the FCC.This transmitter must not be collocated or operation in conjunction with any other antenna or transmitter.
Regulatory information 1385. AppendixOperation of this device is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation of the device. Wireless devices are not user serviceable. Do not modify them in any way. Modification to a wireless device will void the authorization to use it. Contact manufacturer for service. FCC Statement for Wireless LAN use: While installing and operating this transmitter and antenna combination the radio frequency exposure limit of 1m W/cm2 may be exceeded at distances close to the antenna installed. Therefore, the user must maintain a minimum distance of 20cm from the antenna at all times. This device cannot be colocated with another transmitter and transmitting antenna. 16 Russia only17 Germany only18 Turkey only
Regulatory information 1395. Appendix19 Canada onlyThis product meets the applicable Industry Canada technical specifications. / Le present materiel est conforme aux specifications techniques applicables d’Industrie Canada.The Ringer Equivalence Number (REN) is an indication of the maximum number of devices allowed to be connected to a telephone interface. The termination of an interface may consist of any combination of devices subject only to the requirement that the sum of the RENs of all the devices not exceed five. / L’indice d’equivalence de la sonnerie (IES) sert a indiquer le nombre maximal de terminaux qui peuvent etre raccordes a une interface telephonique. La terminaison d’une interface peut consister en une combinaison quelconque de dispositifs, a la seule condition que la somme d’indices d’equivalence de la sonnerie de tous les dispositifs n’excede pas cinq.20 Fax BrandingThe Telephone Consumer Protection Act of 1991 makes it unlawful for any person to use a computer or other electronic device to send any message via a telephone facsimile machine unless such message clearly contains in a margin at the top or bottom of each transmitted page or on the first page of the transmission the following information:1 the date and time of transmission2 identification of either business, business entity or individual sending the message; and3 telephone number of either the sending machine, business, business entity or individual.The Telephone Company may make changes in its communications facilities, equipment operations or procedures where such action is reasonably required in the operation of its business and is not inconsistent with the rules and regulations in FCC Part 68. If such changes can be reasonably expected to render any customer terminal equipment incompatible with telephone company communications facilities, or require modification or alteration of such terminal equipment, or otherwise materially affect its use or performance, the customer shall be given adequate notice in writing, to allow the customer an opportunity to maintain uninterrupted service
Regulatory information 1405. Appendix21 Ringer Equivalence NumberThe Ringer Equivalence Number and FCC Registration Number for this machine may be found on the label located on the bottom or rear of the machine. In some instances you may need to provide these numbers to the telephone company.The Ringer Equivalence Number (REN) is a measure of the electrical load placed on the telephone line, and is useful for determining whether you have “overloaded” the line. Installing several types of equipment on the same telephone line may result in problems making and receiving telephone calls, especially ringing when your line is called. The sum of all Ringer Equivalence Numbers of the equipment on your telephone line should be less than five in order to assure proper service from the telephone company. In some cases, a sum of five may not be usable on your line. If any of your telephone equipment is not operating properly, you should immediately remove it from your telephone line, as it may cause harm to the telephone network.The equipment complies with Part 68 of the FCC rules and the requirements adopted by the ACTA. On the rear of this equipment is a label that contains, among other information, a product identifier in the format US:AAAEQ##TXXXX. If requested, this number must be provided to the telephone company. FCC Regulations state that changes or modifications to this equipment not expressly approved by the manufacturer could void the user’s authority to operate this equipment. In the event that terminal equipment causes harm to the telephone network, the telephone company should notify the customer that service may be stopped. However, where prior notice is impractical, the company may temporarily cease service, providing that they:a promptly notify the customer.b give the customer an opportunity to correct the equipment problem.c inform the customer of the right to bring a complaint to the Federal Communication Commission pursuant to procedures set out in FCC Rules and Regulations Subpart E of Part 68. You should also know that:• Your machine is not designed to be connected to a digital PBX system.• If you intend to use a computer modem or fax modem on the same phone line as your machine, you may experience transmission and reception problems with all the equipment. It is recommended that no other equipment, except for a regular telephone, share the line with your machine.
Regulatory information 1415. Appendix• If your area experiences a high incidence of lightning or power surges, we recommend that you install surge protectors for both the power and the telephone lines. Surge protectors can be purchased from your dealer or telephone and electronic specialty stores.• When programming emergency numbers and/or making test calls to emergency numbers, use a non-emergency number to advise the emergency service dispatcher of your intentions. The dispatcher will give you further instructions on how to actually test the emergency number.• This machine may not be used on coin service or party lines.• This machine provides magnetic coupling to hearing aids.You may safely connect this equipment to the telephone network by means of a standard modular jack, USOC RJ-11C.22 Replacing the Fitted Plug (for UK Only)ImportantThe mains lead for this machine is fitted with a standard (BS 1363) 13 amp plug and has a 13 amp fuse. When you change or examine the fuse, you must re-fit the correct 13 amp fuse. You then need to replace the fuse cover. If you have lost the fuse cover, do not use the plug until you have another fuse cover. Contact the people from you purchased the machine.The 13 amp plug is the most widely used type in the UK and should be suitable. However, some buildings (mainly old ones) do not have normal 13 amp plug sockets. You need to buy a suitable plug adaptor. Do not remove the moulded plug. If you cut off the moulded plug, get rid of it straight away.You cannot rewire the plug and you may receive an electric shock if you plug it into a socket. Important warning: If the wires in the mains lead do not match the colors marked in your plug, do the following:You must connect the green and yellow wire to the pin marked by the letter “E” or by the safety ‘Earth symbol’ or colored green and yellow or green.You must earth this machine.The wires in the mains lead have the following color code:•Green and Yellow: Earth•Blue: Neutral•Brown: Live
Regulatory information 1425. AppendixYou must connect the blue wire to the pin which is marked with the letter “N” or colored black.You must connect the brown wire to the pin which is marked with the letter “L” or colored red.You must have a 13 amp fuse in the plug, adaptor, or at the distribution board.23 Declaration of conformity (European countries)Approvals and CertificationsHereby, Samsung Electronics declare that this product is in compliance with the essential requirements and other relevant provisions of:•SCX-483x Series, SCX-563x Series: Low Voltage Directive (2006/95/EC), EMC Directive (2004/108/EC)•SCX-573x Series: R&TTE Directive (1999/5/EC)The declaration of conformity may be consulted at www.samsung.com/printer, go to Support > Download center and enter your printer (MFP) name to browse the EuDoC. January 1, 1995: Council Directive 2006/95/EC Approximation of the laws of the member states related to low voltage equipment.January 1, 1996: Council Directive 2004/108/EC (92/31/EEC), approximation of the laws of the Member States related to electromagnetic compatibility.March 9, 1999: Council Directive 1999/5/EC on radio equipment and telecommunications terminal equipment and the mutual recognition of their conformity. A full declaration, defining the relevant Directives and referenced standards can be obtained from your Samsung Electronics Co., Ltd. representative.European radio approval information (for products fitted with EU-approved radio devices)Low power, Radio LAN type devices (radio frequency (RF) wireless communication devices), operating in the 2.4 GHz/5 GHz band, may be present (embedded) in your printer system which is intended for home or office use. This section is only applicable if these devices are present. Refer to the system label to verify the presence of wireless devices.The CE marking applied to this product symbolizes Samsung Electronics Co., Ltd. Declaration of Conformity with the following applicable 93/68/EEC Directives of the European Union as of the dates indicated:
Regulatory information 1435. AppendixWireless devices that may be in your system are only qualified for use in the European Union or associated areas if a CE mark with a Notified Body Registration Number and the Alert Symbol is on the system label.The power output of the wireless device or devices that may be embedded in you printer is well below the RF exposure limits as set by the European Commission through the R&TTE directive.ŹEuropean states qualified under wireless approvals:EUAustria, Belgium, Cyprus, Czech Republic, Denmark, Estonia, Finland, France (with frequency restrictions), Germany, Greece, Hungary, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, The Netherlands, Poland, Portugal, Slovakia, Slovenia, Spain, Sweden and the U.K.EEA/EFTA countriesIceland, Liechtenstein, Norway and SwitzerlandŹEuropean states with restrictions on use:EUIn France, the frequency range is restricted to 2446.5-2483.5 MHz for devices above 10 mW transmitting power such as wirelessEEA/EFTA countriesNo limitations at this time24 Regulatory compliance statementsWireless guidanceLow power, Radio LAN type devices (radio frequency (RF) wireless communication devices), operating in the 2.4 GHz/5 GHz Band, may be present (embedded) in your printer system. The following section is a general overview of considerations while operating a wireless device.Additional limitations, cautions, and concerns for specific countries are listed in the specific country sections (or country group sections). The wireless devices in your system are only qualified for use in the countries identified by the Radio Approval Marks on the system rating label. If the country you will be using the wireless device in, is not listed, contact your local Radio Approval agency for requirements. Wireless devices are closely regulated and use may not be allowed.The power output of the wireless device or devices that may be embedded in your printer is well below the RF exposure limits as known at this time. Because the wireless devices (which may be embedded into your printer) emit less energy than is allowed in radio frequency safety standards and recommendations, manufacturer believes these devices are safe for use. Regardless of the power levels, care should be taken to minimize human contact during normal operation.
Regulatory information 1445. AppendixAs a general guideline, a separation of 20 cm (8 inches) between the wireless device and the body, for use of a wireless device near the body (this does not include extremities) is typical. This device should be used more than 20 cm (8 inches) from the body when wireless devices are on and transmitting.This transmitter must not be collocated or operation in conjunction with any other antenna or transmitter.Some circumstances require restrictions on wireless devices. Examples of common restrictions are listed below:Radio frequency wireless communication can interfere with equipment on commercial aircraft. Current aviation regulations require wireless devices to be turned off while traveling in an airplane. IEEE 802.11 (also known as wireless Ethernet) and Bluetooth communication devices are examples of devices that provide wireless communication.In environments where the risk of interference to other devices or services is harmful or perceived as harmful, the option to use a wireless device may be restricted or eliminated. Airports, Hospitals, and Oxygen or flammable gas laden atmospheres are limited examples where use of wireless devices may be restricted or eliminated. When in environments where you are uncertain of the sanction to use wireless devices, ask the applicable authority for authorization prior to use or turning on the wireless device.Every country has different restrictions on the use of wireless devices. Since your system is equipped with a wireless device, when traveling between countries with your system, check with the local Radio Approval authorities prior to any move or trip for any restrictions on the use of a wireless device in the destination country.If your system came equipped with an internal embedded wireless device, do not operate the wireless device unless all covers and shields are in place and the system is fully assembled.Wireless devices are not user serviceable. Do not modify them in any way. Modification to a wireless device will void the authorization to use it. Contact manufacturer for service.Only use drivers approved for the country in which the device will be used. See the manufacturer System Restoration Kit, or contact manufacturer Technical Support for additional information.
Regulatory information 1455. Appendix25 China only

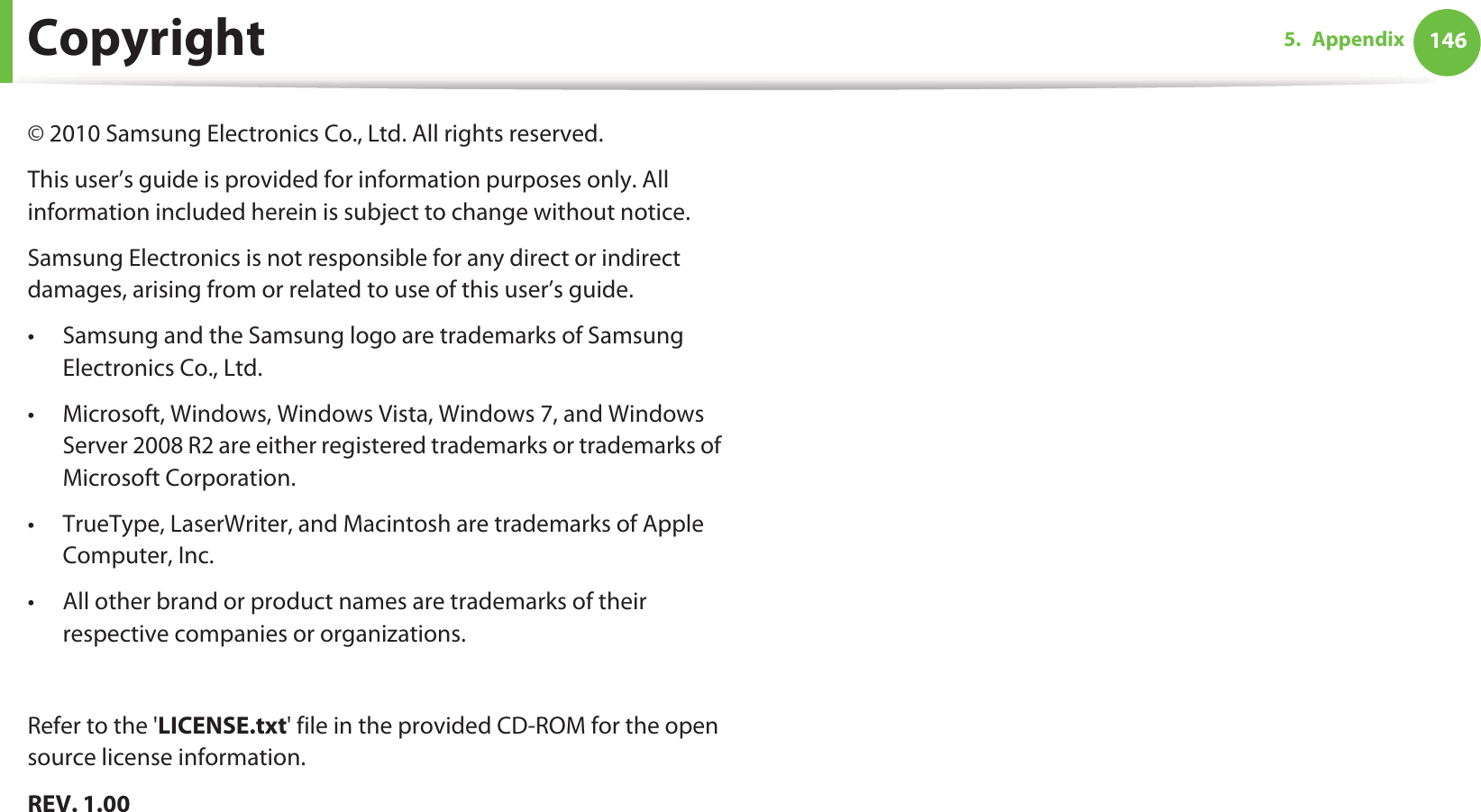

1465. AppendixCopyright© 2010 Samsung Electronics Co., Ltd. All rights reserved.This user’s guide is provided for information purposes only. All information included herein is subject to change without notice.Samsung Electronics is not responsible for any direct or indirect damages, arising from or related to use of this user’s guide.• Samsung and the Samsung logo are trademarks of Samsung Electronics Co., Ltd.• Microsoft, Windows, Windows Vista, Windows 7, and Windows Server 2008 R2 are either registered trademarks or trademarks of Microsoft Corporation.• TrueType, LaserWriter, and Macintosh are trademarks of Apple Computer, Inc.• All other brand or product names are trademarks of their respective companies or organizations.Refer to the 'LICENSE.txt' file in the provided CD-ROM for the open source license information.REV. 1.00
