Users Manual

* Some of the contents of this manual may differ from your phone, depending on the software installed or your service provider.* Depending on your country, your phone and accessories may appear different from the illustrations in this manual.World Wide Webhttp://www.samsungmobile.comPrinted in KoreaCode No.:GH68-xxxxxAEnglish. 03/2005. Rev 1.0
SGH-C230User’s Guide
Use road safety at all timesDo not use a hand-held phone while driving. Park the vehicle first. Switch off the phone when refuellingDo not use the phone at a refuelling point (service station) or near fuels or chemicals.Switch off in an aircraftWireless phones can cause interference. Using them in an aircraft is both illegal and dangerous.Switch off the phone near all medical equipmentHospitals or health care facilities may be using equipment that could be sensitive to external radio frequency energy. Follow any regulations or rules in force.ImportantsafetyprecautionsFailure to comply with the following precautions may be dangerous or illegal.
Important safety precautions1InterferenceAll wireless phones may be subject to interference, which could affect their performance.Be aware of special regulationsMeet any special regulations in force in any area and always switch off your phone whenever it is forbidden to use it, or when it may cause interference or danger.Water resistanceYour phone is not water-resistant. Keep it dry. Sensible useUse only in the normal position (held to the ear). Avoid unnecessary contact with the antenna when the phone is switched on.Emergency callKey in the emergency number for your present location, then press [ ].Keep your phone away from small children Keep the phone and all its parts, including accessories, out of the reach of small children.Accessories and batteriesUse only Samsung-approved accessories and batteries. Use of any unauthorised accessories could damage your phone and may be dangerous.Qualified serviceOnly qualified service personnel may repair your phone.For more detailed safety information, see "Health and safety information" on page 62.• The phone could explode if the battery is replaced with an incorrect type.• Dispose of used batteries according to the manufacturer’s instructions.
2About this GuideThis User’s Guide provides you with condensed information about how to use your phone. To quickly learn the basics for your phone, please refer to “Getting started and Step outside the phone.”In this guide, the following instruction icons appear:Indicates that you need to pay careful attention to the subsequent information regarding safety or phone features.Indicates that you can get more information on the referenced page. →Indicates that you need to press the Navigation keys to scroll to the specified option and then select it.[key name] Indicates a key on the phone. For example, []<soft key> Indicates a soft key, whose function is displayed on the phone screen. For example, <Menu>•Tri-band operationUse your phone in worldwide GSM networks, in any of 900, 1800, and 1900 bands.Special features of your phone• Simple, compact design with IntennaSamsung’s powerful intenna technology allows the best call quality without an annoying external antenna.•WAP browserAccess the wireless web and access various services and up-to-the-minute information.
3Special features of your phone•PhonebookStore up to 2000 contact numbers.• Multimedia Message Service (MMS)Send and receive MMS messages with a combination of text, images, and sounds.•FM radioListen to your favourite radio channels using the headset.• Calendar and To do listKeep track of your daily, weekly, and monthly schedules and tasks.• Voice recorderRecord memos or sounds.•JavaEnjoy Java™-based embedded games and download new games.•IrDASend and receive Phonebook and Organiser data via an infrared port.
4ContentsUnpack 6Make sure you have each itemYour phone 6Buttons, features, and locationsGet started 7First steps to operate your phoneInstall and charge the phone ................................... 7Power on or off...................................................... 8Keys and display.................................................... 9Access menu functions.......................................... 11Customise your phone .......................................... 12Make/Answer calls................................................ 13Step outside the phone 14Begin with your WAP, messages, FM radio, and other special featuresBrowse WAP........................................................ 14Use Phonebook .................................................... 14Send messages.................................................... 15View messages .................................................... 16Listen to the FM radio ........................................... 17Enter text 18ABC, T9, Number, and Symbol modeCall functions 21Advanced calling featuresMenu functions 25All menu options listedSolve problems 60Health and safety information 62Index 68
5Overview of menu functionsTo access Menu mode, press <Menu> in Idle mode.1 SIM ATp. 282 2 Call recordsp. 291 Missed calls2 Received calls3 Dialled calls4 Delete all5 Call time6 Call costs*p. 29p. 29p. 29p. 29p. 29p. 303 Network servicesp. 301 Call diverting2 Call barring3 Call waiting4 Network selection5 Caller ID6 Closed user group7 Band selectionp. 30p. 31p. 32p. 32p. 32p. 33p. 334 Sound settingsp. 341 Ring tone2 Ring volume3 Alert type4 Keypad tone5 Message tone6 Alert on call7 Power on/off8 Extra tonesp. 34p. 34p. 34p. 34p. 34p. 35p. 35p. 355 Messagesp. 351 Text messages2 Multimedia messages3 Push messagesp. 35p. 40p. 446 Funboxp. 451 WAP browser2 Games3 Sounds4 Images5 Delete all6 Memory statusp. 45p. 47p. 48p. 48p. 49p. 497 Organiserp. 491 Alarm2 Calendar3 Time & Date4 Calculator5 To do list6 Voice memo7 Currency exchangep. 49p. 50p. 51p. 51p. 52p. 53p. 548 FM radiop. 549 Phone settingsp. 561 Infrared activate2 Display settings3 Greeting message4 Own number5 Language6 Security7 Extra settings8 Short cut9 Reset settingsp. 56p. 56p. 57p. 57p. 57p. 57p. 59p. 59p. 59*Shows only if supported by yourSIM card.
6UnpackMake sure you have each itemYou can obtain various accessories from your local Samsung dealer.Your phoneButtons, features, and locations Phone Travel adapter Battery User’s manualThe items supplied with your phone and the accessories at your Samsung dealer may vary, depending on your country or service provider.Specialfunction keysCancel/Correct keyAlphanumeric keysNavigation keys(Up/Down/Left/Right)WAP access/Confirm keyInfrared portLeft soft keyDial keyVolume keysMicrophonePower on/off/ Menu exit keyRight soft keyHeadset jackDisplayEarpiece
7Get startedFirst steps to operate your phoneSIM card informationWhen you subscribe to a cellular network, you receive a plug-in SIM (Subscriber Identity Module) card loaded with your subscription details, such as your PIN, and available optional services.Install and charge the phone Remove the battery.If the phone is already on, first turn it off by holding [ ]. Insert the SIM card.Make sure that the gold-coloured contacts on the card face down into the phone.1 2 Install the battery. Plug the travel adapter into the phone. Plug the adapter into a standard AC wall outlet. When the phone is completely charged (the battery icon stops blinking), unplug the adapter from the power outlet.3 456
8Get startedLow battery indicatorWhen the battery is low:• a warning tone sounds,• the battery low message displays, and• the empty battery icon [ ] blinks.If the battery level becomes too low, the phone automatically turns off. Recharge your battery. Power on or off Remove the adapter from the phone.7Power onDo not turn on the phone when mobile phone use is prohibited.1. Open the phone.2. Press and hold [ ] to turn on the phone.3. If necessary, enter the PIN and press <OK>.Power off1. Open the phone.2. Press and hold [ ].

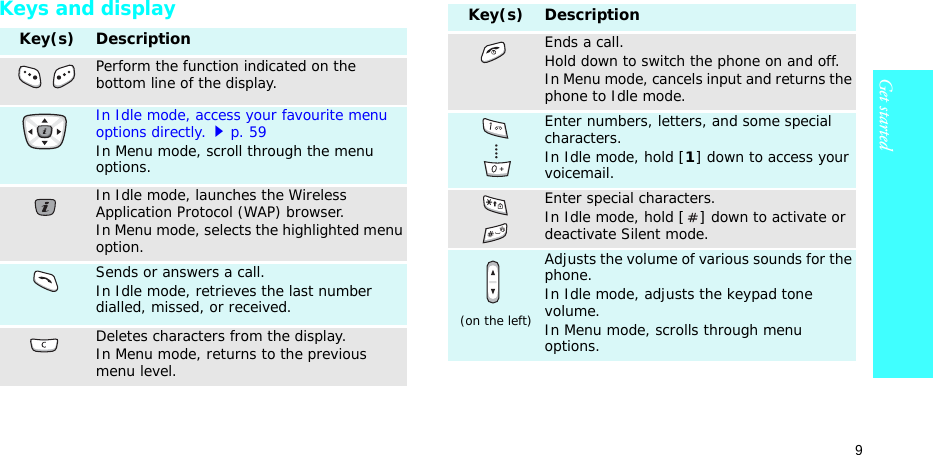

9Get startedKeys and displayKey(s) DescriptionPerform the function indicated on the bottom line of the display.In Idle mode, access your favourite menu options directly.p. 59In Menu mode, scroll through the menu options.In Idle mode, launches the Wireless Application Protocol (WAP) browser.In Menu mode, selects the highlighted menu option.Sends or answers a call.In Idle mode, retrieves the last number dialled, missed, or received.Deletes characters from the display.In Menu mode, returns to the previous menu level.Key(s) DescriptionEnds a call. Hold down to switch the phone on and off. In Menu mode, cancels input and returns the phone to Idle mode.Enter numbers, letters, and some special characters.In Idle mode, hold [1] down to access your voicemail.Enter special characters.In Idle mode, hold [] down to activate or deactivate Silent mode.(on the left)Adjusts the volume of various sounds for the phone.In Idle mode, adjusts the keypad tone volume.In Menu mode, scrolls through menu options.
10Get startedDisplayLayoutThe display has the three areas.IconsReceived signal strengthKey Lock mode is activep. 56Call in progressOut of your service area; you cannot send or receive callsText and graphicsdisplays messages, instructions, and information you enter.Soft key function indicatorsshows the current functions assigned to the two soft keys.Iconsdisplays various icons. Menu PhonebookIcons (continued)Call diverting feature is activep. 32GPRS networkRoamingNew text messageNew voicemail messageNew multimedia messageIrDA port is activeMute mode is activep. 23Silent mode is active or the call ringer is set to vibratep. 12, p. 34Alarm setBattery power level
11Get startedAccess menu functionsUse the soft keysThe roles of the soft keys vary depending on the function you are using. The bottom line of the display indicates their current role.Press the left softkey to accessMenu mode.Press the right soft key to access the Phonebook menu.Menu PhonebookSelect an option1. Press the appropriate soft key.2. Press the Navigation keys to move to the next or previous option.3. Press <Select> or [ ] to confirm the function displayed or option highlighted.4. To exit, choose either of the following methods:• Press < > or [C] to move up one level.• Press [ ] to return to Idle mode.Use shortcutsPress the number key corresponding to the option you want.
12Get startedCustomise your phone1. In Idle mode, press <Menu> and select Phone settings → Language.2. Select a language.1. In Idle mode, press <Menu> and select Sound settings → Ring tone.2. Select a ringer melody.You can set a wallpaper for the idle screen.1. In Idle mode, press <Menu> and select Phone settings → Display settings → Wallpaper → Wallpaper list.2. Scroll to the image you want.3. Press <Select>.Display languageCall ringer melodyIdle mode wallpaperYou can switch the phone to Silent mode to avoid disturbing other people with your phone sounds.Press and hold [ ] in Idle mode.You can protect the phone against unauthorised use with a phone password. 1. In Idle mode, press <Menu> and select Phone settings → Security → Change password.2. Enter the default password, “00000000” and press <OK>.3. Enter a new 4- to 8- digit password and press <OK>.4. Enter the new password again and press <OK>.Switch to Silent modePhone lock
13Get startedMake/Answer calls5. Select Phone lock.6. Select Enable.7. Enter the password and press <OK>.You can lock the keypad to prevent accidental key presses from affecting phone operations.In Idle mode, press and hold [ ] and select Yes. To unlock it, press <Unlock> and then press [ ].You can also set the phone to automatically lock the keypad.p. 56Phone lock(continued)Key lock1. Enter an area code and phone number.2. Press [ ].3. To end the call, press [ ].1. When the phone is ringing, press [ ].2. To end the call, press [ ].Press [ / ].Make a callAnswer a callAdjust the volume during a call
14Step outside the phoneBegin with your WAP, messages, FM radio, and other special featuresBrowse WAPUsing a built-in WAP (Wireless Access Protocol) browser, you can get easy access to the wireless web to receive a variety of updated services and information and to enjoy download of web contents.Use PhonebookIn Idle mode, press [ ].• To scroll through browser items, press [Up] or [Down]. • To select an item, press [ ].• To return to the previous page, press [C].• To return to the homepage, press <Menu> and select Home.• To access browser options, press <Menu> and select Menu.Launch the browserNavigate the browserTo the phone’s memory1. In Idle mode, enter a phone number and press <Save>.2. Select a number type. 3. Select Phone.4. Enter a name and press <OK>.5. Press <OK> to save the entry.To the SIM card1. In Idle mode, enter a phone number and press <Save>.2. Select a number type. 3. Select SIM.4. Enter a name and press <OK>.5. Press <OK> to save the entry.Add an entry
15Step outside the phoneSend messages1. In Idle mode, press <Phonebook> and select Search.2. Select an entry.3. Select a number.4. Press [ ] to dial, or <Options> to access options.1. In Idle mode, press <Menu> and select Messages → Text messages → Write new.2. Enter the message text.3. Press <Options> and select Save and send or Send only.4. If you selected Save and send, select a memory location.5. Enter a destination number and press <OK>.Find an entrySend a text message (SMS)1. In Idle mode, press <Menu> and select Messages → Multimedia messages → Write new.2. Enter the message subject press <OK>.3. Select Add here and add message contents.4. When you finish, press <Options> and select Send.5. Select a destination type.6. Select one of Phone number, E-mail address, or Phonebook.7. Enter a destination number or an e-mail address, or select from Phonebook and press <OK>.Send a multimedia message (MMS)
16Step outside the phoneView messages8. To add other destinations, select Add destination and repeat from step 6. 9. To add destinations of other types, press < > and repeat from step 5.10.When you finish, select Send message.When a notification appears:Press <View>. The message displays.From the Inbox:1. In Idle mode, press <Menu> and select Messages → Text messages → Inbox.2. Select a message.Send a multimedia message (MMS) (continued)View a text messageWhen a notification appears:1. Press <View>.2. Press <Options> and select Retrieve. The message displays.From the Inbox:1. In Idle mode, press <Menu> and select Messages → Multimedia messages → Inbox.2. Select a message.View a multimedia message
17Step outside the phoneListen to the FM radio1. Plug the connector of the headset into the jack on the left side of the phone.2. In Idle mode, press <Menu> and select FM radio.3. Press [Left] or [Right] to manually find the frequency of a radio channel you want.4. Press <Options> and select Add.5. Enter a name for the channel and press <OK> twice.6. Select an empty location.Finding and setting radio channels1. Plug the connector of the headset into the jack on the left side of the phone.2. In Idle mode, press <Menu> and select FM radio.3. Press [Up] or [Down] to scroll to the channel you want.4. Press <Options> and select Power on/off → On.5. To turn off the radio, disconnect the headset.Listening to the radio
18Enter textABC, T9, Number, and Symbol modeYou can enter text for some features such as messaging, Phonebook, or Organiser, using T9 mode, ABC mode, Number mode, and Symbol mode.Changing the text input modeThe text input mode indicator displays when the cursor is in a text field. Press the right soft key to change the input mode.Example: Writing a text messageUsing T9 modeT9 is a predictive text input mode that allows you to key in any character using single keystrokes.Entering a word in T9 mode1. Press [2] to [9] to start entering a word. Press each key once for each letter. For example, press [4], [3], [5], [5], and [6] to enter Hello in T9 mode. T9 predicts the word that you are typing, and it may change with each key that you press.2. Enter the whole word before editing or deleting characters.3. When the word displays correctly, go to step 4. Otherwise, press [0] to display alternative word choices for the keys that you have pressed.For example, Of and Me use [6] and [3].4. Press [ ] to insert a space and enter the next word.Text input mode indicatorT9 modeABC modeNumber modeSymbol modeNoneWrite new
Enter text 19Tips for using T9 mode•Press [1] to enter periods or apostrophes automatically.• Press [ ] to change case. Initial capital ( ), Capital lock ( ), and Lower case ( ) are available.• Press [Left] or [Right] to move the cursor. •Press [C] to delete characters one by one. Press and hold [C] to clear the display.Adding a new word to the T9 dictionaryThis feature may not be available for some languages.1. Enter the word that you want to add.2. Press [0] to display alternative words for your key presses. When there are no more alternative words, Add displays on the bottom line. 3. Press <Add>.4. Enter the word you want using ABC mode and press <OK>.Using ABC modePress the appropriate key until the character you want appears on the screen.Characters in order displayedKey Upper case Lower casespace
20Enter textTips for using ABC mode• To enter the same letter twice or to enter a different letter on the same key, wait for the cursor to move to the right automatically or press [Right]. Then, enter the next letter.• Press [ ] to insert a space.• Press [ ] to change case. Initial capital ( ), Capital lock ( ), and Lower case ( ) are available.•Press the Navigation keys to move the cursor. •Press [C] to delete characters one by one. Press and hold [C] to clear the display.• Depending on your country, you may be able to access an input mode for your specific language by holding [ ].Using Number modeNumber mode enables you to enter numbers. Press the keys corresponding to the digits you want.Using Symbol modeSymbol mode enables you to insert symbols.To Pressdisplay more symbols [Up] or [Down]. select a symbol the corresponding number key.clear the symbol(s) [C]. insert the symbol(s) <OK>.
21Call functionsAdvanced calling featuresMaking a call1. In Idle mode, enter the area code and phone number.2. Press [ ].Making an international call1. In Idle mode, press and hold [0]. The + character appears.2. Enter the country code, area code, and phone number, then press [ ].Redialling recent numbers1. In Idle mode, press [ ] to display the list of recent numbers.2. Scroll to the number you want and press [ ].Making a call from PhonebookOnce you have stored a number in Phonebook, you can dial the number by selecting it from Phonebook.p. 25You can also use the speed dial feature to assign your most frequently called numbers to specific number keys.p. 27Dialling a number from the phone’s memory1. In Idle mode, press and hold [0]. A + appears.2. Enter the location number for the phone number you want and press [ ].3. Press [Up] or [Down] to scroll through other numbers.4. Press <Dial> or [ ] to dial the number you want.Dialling a number from the SIM card1. In Idle mode, enter the location number for the phone number you want and press [ ].Press [C] to clear the last digit or press and hold [C] to clear the whole display. You can move the cursor to edit an incorrect digit.
22Call functions2. Press [Up] or [Down] to scroll through other numbers.3. Press <Dial> or [ ] to dial the number you want.Ending a callPress [ ].Answering a callWhen you receive an incoming call, the phone rings and displays the incoming call image. Press <Accept> or [ ] to answer the call.Tips for answering a call• When Anykey answer in the Extra settings menu is active, you can press any key to answer a call, except for <Reject> and [ ].p. 59•Press <Reject> or [ ] to reject a call. Viewing missed callsIf you have missed calls, the screen displays how many calls you have missed.1. Press <View>.2. If necessary, scroll through the missed calls.3. Press [ ] to dial the number you want.Using the headsetUse the headset to make or answer calls without holding the phone. Connect the headset to the jack on the left side of the phone. The buttons on the headset work as listed below:To Pressredial the last call the button twice.answer a call and hold the button.end a call and hold the button.
Call functions 23Options during a callYou can access a number of functions during a call.Adjusting the volume during a callUse [ / ] to adjust the earpiece volume during a call.Press [ ] to increase the volume level and [ ] to decrease the volume level.Placing a call on hold/RetrievingPress <Hold> or <Unhold> to place the call on hold or retrieve the call.Using the menu functionsPress <Options> and select Menu.Switching off the microphone (Mute mode)You can temporarily switch off your phone’s microphone so that the other person on the phone cannot hear you.Press <Options> and select Mute or Unmute.Muting or sending key tonesYou can turn the key tones off or on.Press <Options> and select Mute keys or Send keys.Sending a sequence of DTMF tonesDual tone multi-frequency (DTMF) tones are the tones used in phones for tone dialling.You can send DTMF tones as a group after entering the entire number you need to send or retrieving a number from Phonebook. This feature is helpful for entering a password or an account number when you call an automated system, like a banking service.1. When connected with a teleservice system, press <Options> and select Send DTMF.2. Enter the number you need to send and press <OK>.To communicate with answering machines or computerised telephone systems, Send keys must be selected.
24Call functionsUsing PhonebookYou can access the Phonebook menu to locate or store entries.p. 25Press <Options> and select Phonebook.Answering a second callYou can answer an incoming call, if your network supports it and you have activated the call waiting feature.p. 32 1. Press [ ] to answer the call. The first call is automatically put on hold.2. Press <Swap> to switch between the calls.3. Press <Options> and select End held call to end the call on hold.4. To end the current call, press [ ].Making a multi-party call Use this feature to allow as many as six people to join a multi-party call, or conference call.Your service provider must support multi-party calls for you to use this feature.Setting up a multi-party call1. Call the first participant.2. Call the second participant. The first call is automatically put on hold.3. Press <Options> and select Join. The first participant is added to the multi-party call.4. If desired, call another person or answer an incoming call.5. Press <Options> and select Join.6. Repeat steps 4 and 5 as desired.Having a private conversation with one participant1. Press <Options> and select Select one. 2. Select a name or number from the participant list.3. Select Private.You can talk privately with that person, while the other participants converse with each other.4. To return to the multi-party call, press <Options> and select Join.
25Dropping one participant1. Press <Options> and select Select one. 2. Select a name or number from the participant list.3. Press [Down] and select Remove. The participant is dropped from the call, but the call continues with the other parties.4. Press [ ] to end the multi-party call.Menu functionsAll menu options listedPhonebookYou can store phone numbers on your SIM card and in your phone’s memory. The SIM card and phone’s memory are physically separate, but they are used as a single entity called Phonebook.To access this menu, press <Phonebook> in Idle mode.SearchUse this menu to search for numbers in Phonebook.Finding an entry1. Enter the first few letters of the name that you want to find.2. Select the name you want from the list.3. Press [ ] to dial the number, or <Options> to access Phonebook options.
26Menu functionsUsing Phonebook optionsWhile viewing an entry in Phonebook, press <Options> to access the following options:•Paste: paste the number into the normal dialling mode.•Edit: edit the entry information.•Delete: delete the number from Phonebook.•Copy: copy the number to the phone’s memory or SIM card.•Caller group: assign a caller group.•Add entry: add a new entry.New entryUse this menu to add a new entry to Phonebook.Storing a number or an e-mail address in the phone’s memory1. Select a number type.2. Select Phone.3. Enter a name and press <OK>.4. Enter a number or an e-mail address and press <Save>.5. Change the location number, if you want, and press <OK>.Storing a number on the SIM card1. Select a number type.2. Select SIM.3. Enter a name and press <OK>.4. Enter a number and press <Save>5. Change the location number, if you want, and press <OK>.Group searchUse this menu to search your entries in Phonebook in caller groups.1. Enter the first few letters of the group name.2. Select a group.3. Select the name you want.4. Press [ ] to dial the number or <Options> to access Phonebook options.
Menu functions Phonebook27Edit groupUse this menu to edit your caller groups’ properties.From the group list, press <Options> to access the following options:•Call ring tone: set a ring tone for incoming calls from the group.•SMS tone: set a ring tone for incoming messages from the group.•Graphic: set a graphic icon for incoming calls from the group.•Group name: assign a name to the group.Speed dialUse this menu to assign speed dial numbers (2 to 9) to eight of your most frequently called numbers.Assigning speed dial entries1. Select a key location from 2 to 9. Key 1 is reserved for your voice mail server.2. Select the name you want from the Phonebook list.3. Select the number you want.Managing speed dial entriesWhile viewing the Speed dial screen, press <Options> to access the following options:•Change: assign a different number to an assigned key.•Delete: delete the setting for the key.•Delete all: delete the settings for all the keys.•Number: view the number assigned to the key.Dialling speed dial entriesPress and hold the appropriate key in Idle mode.Delete allUse this menu to delete all of the entries from Phonebook.1. Press [ ] to check the location(s) to be cleared.2. Press <Delete>.3. Enter the phone password and press <OK>.4. Press <Yes> twice to confirm the deletion.
28Menu functionsMemory statusUse this menu to check the total number of entries you can store and the number of the entries you have stored in Phonebook.SDNThis menu is available if your SIM card supports Service Dialling Numbers (SDN). Use this menu to view the list of SDNs assigned by your service provider, including emergency numbers, directory enquiries, and voice mail numbers.Scroll to the number you want and press <Dial> or [].SIM AT (Menu 1)This menu is available if you use a SIM AT card that provides additional services, such as news, weather, sports, entertainment, and location services. Available services may vary, depending on your service provider’s plans.For details, see your SIM card instructions or contact your service provider.
Menu functions Call records (Menu 2)29Call records (Menu 2)Use this menu to view the calls you have dialled, received, or missed, the length of your calls, and the cost of your calls.To access this menu, press <Menu> in Idle mode and select Call records.Missed calls (Menu 2.1)This menu displays the most recently received calls that you did not answer.Received calls (Menu 2.2) This menu displays the most recent calls you have received.Dialled calls (Menu 2.3)This menu displays the most recent calls you have dialled.Delete all (Menu 2.4) Use this menu to delete all of the records in each call type.1. Press [ ] to check the call type(s) to be cleared. 2. Press <Delete>. 3. Press <Yes> twice to confirm the deletion.Call time (Menu 2.5) This menu displays the time log for calls made and received. The actual time invoiced by your service provider will vary.•Last call time: check the length of your last call.•Total sent: check the total length of all the calls you have dialled.•Total received: check the total length of all the calls you have received.•Reset timers: reset the call timers. You need to enter the phone password.The password is preset to 00000000. You can change this password.p. 58
30Menu functionsCall costs (Menu 2.6) This network feature displays the cost of calls. This menu is available only if your SIM card supports this feature. Note that this is not intended to be used for billing purposes.•Last call cost: check the cost of your last call.•Total cost: check the total cost of all of your calls since your last reset the cost counter. If the total cost exceeds the maximum cost set in Set max cost, you must reset the counter before you can make another call.•Max cost: check the maximum cost limit set in Set max cost.•Reset counters: reset the cost counters. You need to enter your PIN2.•Set max cost: set the maximum cost authorised for your calls. You need to enter your PIN2.•Price/Unit: set the price per unit that is applied when the cost of your calls is calculated. You need to enter your PIN2.Network services (Menu 3)Use this menu to access network services. Please contact your service provider to check their availability and subscribe to them, if you wish.To access this menu, press <Menu> in Idle mode and select Network services.Call diverting (Menu 3.1)This network service reroutes incoming calls to a phone number that you specify.1. Select a call diverting option:•Divert always: divert all calls.•Busy: diver calls when you are on another call.•No reply: divert calls when you do not answer the phone.•Unreachable: divert calls when you are not in an area covered by your service provider or when your phone is switched off.•Cancel all: cancel all call diverting options.
Menu functions Network services (Menu 3)312. Select the type of calls to be diverted.3. To activate call diverting, press <Activate>. Otherwise, press <Options> and select Remove.4. Enter the number to which calls are to be diverted and press <OK>.5. If you selected No reply, select the length of time the network delays before diverting a call and press <Select>.Call barring (Menu 3.2)This network service allows you to restrict your calls.1. Select a call barring option:•All outgoing: prohibit all outgoing calls.•International: prohibit international calls.•International except to home: only allow calls to numbers within the current country when you are abroad, and to your home country, defined as where your home network provider is located.•All incoming: prohibit incoming calls.•Incoming while abroad: prohibit incoming calls when you use your phone outside of your home country.•Cancel all: cancel all call barring settings, allowing calls to be sent and received normally.•Change barring password: change the call barring password obtained from your service provider.2. Select the type of calls to be barred. 3. Press <Activate>. To deactivate call barring, press <Deactivate>.4. Enter the call barring password supplied by your service provider and press <OK>.
32Menu functionsCall waiting (Menu 3.3)This network service informs you when someone is trying to reach you while you are on another call.1. Select the type of calls to which the call waiting option will apply.2. Press <Activate>. To deactivate call waiting, press <Deactivate>. Network selection (Menu 3.4)This network service allows you to either automatically or manually select the network used when roaming outside of your home area. You can select a network other than your home network only if there is a valid roaming agreement between the two.•Automatic: connect to the first available network when roaming.•Manual: select the network you want.Caller ID (Menu 3.5)This network service allows you to prevent your phone number from being displayed on the phone of the person being called. However, some networks do not allow the user to change this setting.•Default: use the default setting provided by the network.•Hide number: ensure your number does not display on the other person’s phone.•Send number: send your number each time you make a call.
Menu functions Network services (Menu 3)33Closed user group (Menu 3.6)Use this menu to set incoming and outgoing calls to be restricted to a selected user group. For details about how to create a closed user group, contact your service provider.•Index list: list, add, or delete CUG index numbers. Press <Options> to access the options for setting up an index list.•Outside access: enable calls to numbers other than those in the Closed user group. This feature depends on the nature of your CUG subscription. •Default group: enable the default CUG, if you have set one with your service provider. When making a call, you are given the option of using your default CUG, instead of selecting one from the list.•Deactivate: deactivate the CUG function, if the default group is enabled or a CUG index is selected.Band selection (Menu 3.7)For the phone to make and receive phone calls, it must register with an available network. Your phone can handle any of the following types of networks: GSM 1900 and Combined GSM 900/1800.The country where you purchased your phone determines the default band that it uses. When you travel abroad, you must remember to change to an appropriate band. When you select a new band, your phone automatically searches for all available networks. Your phone registers with a preferred network within the band.
34Menu functionsSound settings (Menu 4)Use this menu to customise various sound settings.To access this menu, press <Menu> in Idle mode and select Sound settings.Ring tone (Menu 4.1)Use this menu to select a ring tone for the call ringer. You can select one of the default ring melodies and downloaded sounds.Ring volume (Menu 4.2)Use this menu to adjust the ringer volume.Alert type (Menu 4.3)Use this menu to specify how you are to be informed of incoming calls.•Melody: the phone rings using the selected ring tone.•Vibration: the phone vibrates but not rings.•Vibra+melody: the phone vibrates three times and then starts ringing.Keypad tone (Menu 4.4)Use this menu to select the tone that the phone sounds when you press a key. Message tone (Menu 4.5) Use this menu to select a ring tone or alert type for incoming messages. •SMS tone: specify how you are informed of a new SMS message.•SMS-CB tone: specify how you are informed of a new cell broadcast (CB) message.•MMS tone: specify how you are informed of a new MMS message.You can adjust the keypad tone volume using [/] in Idle mode.
Menu functions Messages (Menu 5)35Alert on call (Menu 4.6)Use this menu to select whether or not the phone informs you when you receive a new message or when the time for an alarm comes during a call.Power on/off (Menu 4.7)Use this menu to select the melody that the phone plays when it is switched on or off.Extra tones (Menu 4.8) Use this menu to customise additional tones for the phone. •Error tone: set the phone to beep when you make a mistake.•Minute minder: set the phone to beep every minute during an outgoing call to keep you informed of the length of your call.•Connect tone: set the phone to beep when it is connected to the system.Messages (Menu 5)Use the Messages menu to send and receive short messages, and multimedia messages. You can also use the WAP push message, Voice mail, and Cell broadcast message features.To access this menu, press <Menu> in Idle mode and select Messages.Text messages (Menu 5.1)Short Message Service (SMS) allows you to send or receive text messages including pictures, melodies, and animated images. The maximum number of characters allowed in a short message varies by service provider. If your message exceeds the maximum number of characters, the phone will split the message.
36Menu functionsInbox (Menu 5.1.1)You can view received text messages in this menu.While viewing a message, press <Options> to access the following options:•Delete: delete the message.•Send: forward the message.•Text reply: reply to the sender. •Call back: call the sender.•Cut address: extract URLs, e-mail addresses, or phone numbers from the message.•Move to phone: move the message from the SIM card to the phone’s memory.•Move to SIM: move the message from the phone’s memory to the SIM card.•Select objects: save images or sounds from the message into your phone.Outbox (Menu 5.1.2)You can view sent or saved text messages.While viewing a message, press <Options> to access the following options: •Delete: delete the message.•Send: forward the message.•Cut address: extract URLs, e-mail addresses, or phone numbers from the message.•Move to phone: move the message from the SIM card to the phone’s memory.•Move to SIM: move the message from the phone’s memory to the SIM card.•Select objects: save images or sounds from the message into your phone.
Menu functions Messages (Menu 5)37Write new (Menu 5.1.3)You can create and send a text message.1. Enter your message.You can enter up to 918 standard characters, or approximately 402 Unicode characters, such as ‘â’.2. Press <Options> to access the following options:•Text formatting: change the text attributes.•Add objects: add a sound, melody, picture, or animation to the message.•Add templates: retrieve a text template.•Add emoticon: retrieve an emoticon.•Add phonebook: add a Phonebook entry.•Add bookmark: add a web page’s address.•Language: change the language used in T9 input mode.3. Press <Options> and select Save and send or Send only.4. If you select Save and send or Save only, select a memory location.5. Enter a destination number.6. Press <OK> to send the message.Templates (Menu 5.1.4)You can preset maximum 5 templates to write a text message.While viewing the templates list, press <Options> to access the following options:•Edit: edit the template.•Send message: send the template as an SMS message.•Delete: delete the template.Emoticon templates (Menu 5.1.5)You can preset emoticon templates and retrieve them to use in a message.While viewing the emoticon list, press <Options> to access the following options:•Add: add a new emoticon.•Edit: edit the selected emoticon.
38Menu functions•Send: send a message using the emoticon.•Delete: delete the emoticon.Settings (Menu 5.1.6)Use this menu to customise the SMS settings.•Setting x (where x is the setting group number): each group has its own submenu.Service centre: store or changes the number of your message centre.Default destination: store a default destination number.Default type: set the default message type.Default validity: set the length of time your messages are stored in the message centre while the network attempts to deliver them.Setting name: change the name of the setting group.•Common settings: The following options are available.Reply path: allow the recipient to reply to you through your message centre.Delivery reports: set the network to inform you when your message has been delivered.Bearer selection: select the GSM or GPRS preferred bearer type.Character support: select a character encoding type. If you select Automatic, the phone switches the encoding type from GSM-alphabet to Unicode if you enter a Unicode character. Use of Unicode encoding will reduce the maximum number of characters in a message to about half. If this menu is not shown, your phone provides the Automatic character encoding by default.The setting options available in this menu may vary depending on your service provider.
Menu functions Messages (Menu 5)39Delete all (Menu 5.1.7)Use this menu to delete all of the text messages in each message box.1. Press [ ] to check the message box(es) to be cleared.2. Press <Delete>.3. Press <Yes> twice to confirm the deletion.Memory status (Menu 5.1.8)Use this menu to view the total number of text messages you can store and the number of text messages you have stored on the SIM card, in the phone’s memory, or in the CB memory.Voice mail (Menu 5.1.9)Use this menu to store the number of the voice mail server and access your voice mails.•Connect to voice server: connect to the voice server to allow you to listen to your messages. You can also connect to the voice mail server by pressing and holding [1] in Idle mode.•Voice server number: change the voice mail server name or number.Broadcast (Menu 5.1.0)The Cell Broadcast service delivers short messages on various topics such as the weather or traffic. Use this menu to change the settings for the service and access broadcast messages.•Read: open received messages.The Volatile box saves network messages until the phone is switched off. The Archive box saves network messages indefinitely. Press <Options> and select Save when a text notification appears. The message is saved in the Archive box. •Receive: enable or disable the reception of broadcast messages.You must enter the voice server number before you can access your voice mails. Your service provider can give the voice server number.
40Menu functions•Channel list: specify the channels from which you receive broadcast messages.•Language: select the language in which broadcast messages display.Please contact your service provider for details.Multimedia messages (Menu 5.2)Multimedia Message Service (MMS) delivers messages containing a combination of text, picture, and sound, from phone to phone or from phone to e-mail.Inbox (Menu 5.2.1)This menu displays MMS messages that you have received. The following icons tell you the message status:• notification that you have read• notification that you have not read• you are retrieving from the server• the server is processing your request• the server is failed to send• you have read• you have not readWhile viewing a message, press <Options> to access the following message options: •Delete: delete the message.•Reply: reply to the sender. •Callback: call the sender.•Cut address: extract URLs, e-mail addresses, or phone numbers from the message.•Forward: forward the message to another person.•Save picture: save an image from the message into the Images folder.•Save sound: save a sound from the message into the Sounds folder.•Properties: view the properties of the message.When you select a notification, you can access Retrieve to retrieve the message from the MMS server.
Menu functions Messages (Menu 5)41Outbox (Menu 5.2.2)This menu displays MMS messages that you have sent. The following icons tell you the message status:• currently being sent• sent• your phone couldn’t send• to be sent• deferredWhile viewing a message, press <Options> to access the following options:•Delete: delete the message.•Cut address: extract URLs, e-mail addresses, or phone numbers from the message.•Send: send or resend the message.•Edit message: edit the message.•Properties: view the properties of the message.Draft (Menu 5.2.3)After creating a multimedia message, you can store it in this message box for sending later.You can view a message and use the options the same as in the Outbox.Write new (Menu 5.2.4) You can create and send an MMS message.1. Enter a message subject and press <OK>. 2. Press <Options> and add message contents using one of the following options:•Add text: add message text.•Add picture: add pictures to the message.•Add sound: add sounds to the message.•Send: send the message.•Save: save the message in the Draft or Templates box.•Settings: change the message settings.•Add destination: enter destination numbers or addresses.
42Menu functions•Preview: view the message you created.3. If you want to change the added items, highlight one and press <Options> to access the following options:•Edit text/picture/sound: edit the text, picture, or sound.•Add page: add pages. Move to each page by pressing the Left or Right key on the message screen.•Delete: delete the item from your message.•Duration: set how long one page displays. After the specified time, the display automatically scrolls to the next page.4. When you have finished, select Send from the options.5. Select a destination type (To, Cc, Bcc).6. Select one of Phone number, E-mail address, or Phonebook.7. Enter a destination number or an e-mail address, or select a number from Phonebook and press <OK>.8. To add more destinations, select Add destination and repeat from step 6. 9. To enter additional numbers or addresses to other destination types, press < >and repeat from step 5.10. When you have finished, select Send message.Templates (Menu 5.2.5)This menu stores messages you saved as templates so that you can use them to create new messages.While viewing a message template, press <OK> to access the following options:•Edit message: send the message using the template.•Delete: delete the template.The maximum size allowed for an MMS message can differ depending on the country. If you cannot attach another file, add another page.

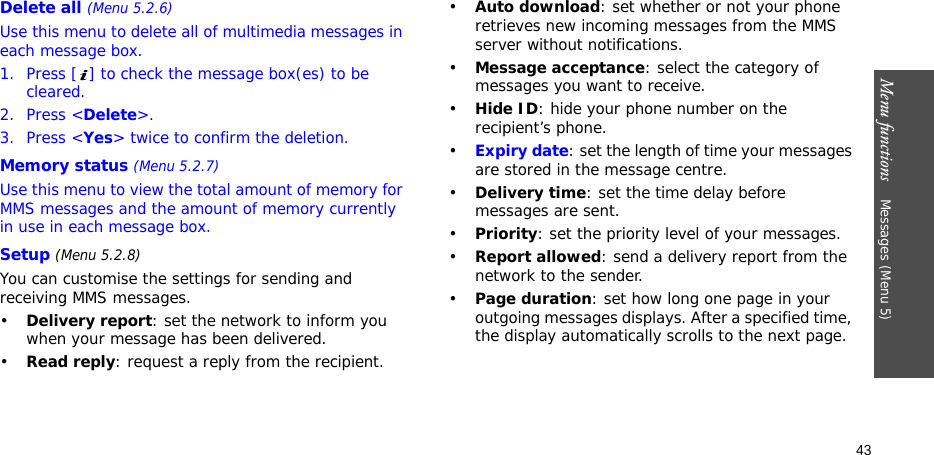

Menu functions Messages (Menu 5)43Delete all (Menu 5.2.6)Use this menu to delete all of multimedia messages in each message box.1. Press [ ] to check the message box(es) to be cleared.2. Press <Delete>.3. Press <Yes> twice to confirm the deletion.Memory status (Menu 5.2.7)Use this menu to view the total amount of memory for MMS messages and the amount of memory currently in use in each message box.Setup (Menu 5.2.8)You can customise the settings for sending and receiving MMS messages.•Delivery report: set the network to inform you when your message has been delivered. •Read reply: request a reply from the recipient.•Auto download: set whether or not your phone retrieves new incoming messages from the MMS server without notifications.•Message acceptance: select the category of messages you want to receive.•Hide ID: hide your phone number on the recipient’s phone.•Expiry date: set the length of time your messages are stored in the message centre.•Delivery time: set the time delay before messages are sent.•Priority: set the priority level of your messages.•Report allowed: send a delivery report from the network to the sender.•Page duration: set how long one page in your outgoing messages displays. After a specified time, the display automatically scrolls to the next page.
44Menu functionsMMS profile (Menu 5.2.9)You can configure required network settings for MMS. The last profile accessed is automatically activated for sending or receiving subsequent messages.•Profile name: assign a name to the MMS profile. •Connection URL: enter the address of your MMS server.•Security: select a data transmission mode.•IP address: enter the gateway address.•User name: assign the user ID.•Password: enter the password.•APN: enter the access point name used for the address of the MMS server.Push messages (Menu 5.3)Use this menu to access messages from the WAP server.•Inbox: view push messages you have received.•Receive: determine whether or not your phone receives push messages.Never: the phone rejects push messages.Always: the phone receives all push messages.•Delete all: delete all push messages.Check with your service provider before you change any MMS settings on your phone.
Menu functions Funbox (Menu 6)45Funbox (Menu 6)The Funbox menu allows you to use the WAP browser, play Java games, and access images and sounds stored in the phone’s memory.To access this menu, press <Menu> in Idle mode and select Funbox.WAP browser (Menu 6.1)The Wireless Application Protocol (WAP) browser on your phone allows you to access the wireless web. Using the WAP browser, you can access updated information and a wide variety of media content, such as wallpapers and ring tones.Home (Menu 6.1.1)Use this menu to connect your phone to the network and load the homepage of the wireless web service provider. You can also press [ ] in Idle mode.Navigating with the WAP browserSelecting and using browser menu options1. Press <Menu> and select Menu. 2. Select one of the following browser options:•Bookmarks: open the bookmarks list.•Reload: reload the current page.•Home: go back to the homepage.•Go to URL: enter a URL address manually.•Show URL: view the URL address of the current web page.To Pressscroll through browser items [Up] or [Down]. select a browser item [ ].return to the previous page [C].return to the homepage <Menu> and select Home.
46Menu functions•Clear cache: delete information stored in the cache.•Security info: view security information.•Inbox: read messages received from a web server.•Show image: view the image on the current web page in order.Exiting the WAP browserPress [ ] to exit the browser.Favorite (Menu 6.1.2)Use this menu to save URL addresses to quickly access a website.Adding a bookmark1. Select an empty location. 2. Enter a URL address and press <Enter>.3. Enter a name for the bookmark and press <Enter>.Accessing a bookmarked pageScroll to a bookmark item and press [ ].Using bookmark optionsAfter saving an item, press <Options> to access the following options:•Go to URL: access the website.•Edit: edit the address and name of the bookmark.•Delete: delete the bookmark.http:// (Menu 6.1.3)Use this menu to manually enter the URL address of a website and access the website.Settings (Menu 6.1.4)Use this menu to set up servers for the WAP browser. Contact your service provider for details about your settings options.
Menu functions Funbox (Menu 6)47For each server, the following options are available:•Profile name: assign a name to the server profile. •Homepage URL: set the address of your homepage.•Security: select a data transmission mode.•Bearer: select a bearer for each type of network address accessed; GPRS or Data.When the bearer is set to GPRS:•IP address: enter the WAP gateway address.•User name: enter the user ID.•Password: enter the password.•APN: enter the access point name of the GPRS network gateway.When the bearer is set to Data:•IP address: enter the WAP gateway address.•Login name: enter the user ID.•Password: enter the password.•Dial-up number: enter the PPP server phone number.•Data call type: select a data call type.Clear cache (Menu 6.1.5)Use this menu to clear the cache, which is the temporary memory that stores the web pages you have recently accessed.Games (Menu 6.2)You can download MIDlets (Java applications that run on mobile phones) from various sources using the WAP browser, and store them in your phone.Launching a MIDlet1. Select the MIDlet you want on the games list.2. On the startup screen of the MIDlet, you can access the following options:Java services may not available, depending on your service provider.
48Menu functions•START GAME: start a new game.•CONTINUE: continue the last game you played.•HIGH SCORE: view the high score table. This option may not be available for some games.•HOW TO PLAY: view how to play the game and the key functions for the game.•OPTION: switch on or off the game sound.3. Press [ ] to confirm your selection.Viewing MIDlet informationScroll to the MIDlet you want and press <Info>.Changing DNS settingsYou may need to change the DNS setting of the Java server at your service provider’s instructions.1. Select Setting on the Games list.2. Enter the primary address and press <OK>.3. Enter the secondary address and press <OK>.Sounds (Menu 6.3)This menu displays sounds downloaded from the wireless web or received in messages.While accessing a sound, press <Options> to access the following options:•Rename: change the name of the sound.•Delete: delete the sound.•Set as ringtone: set the sound as your ring tone.Images (Menu 6.4)This menu displays images downloaded from the wireless web or received in messages.While accessing an image, press <Options> to access the following options:•Rename: change the name of the image.•Delete: delete the image.•Set as wallpaper: set the image as your wallpaper for the idle screen.
Menu functions Organiser (Menu 7)49Delete all (Menu 6.5)You can delete all of the downloaded items in the Games, Sounds, and Images folders.1. Press [ ] to check the folder(s) to be cleared.2. Press <Delete>.3. Press <Yes> twice to confirm the deletion.Memory status (Menu 6.6)You can check the total amount of memory for media items and the amount of memory currently in use in each media folder.Organiser (Menu 7)The Organiser feature enables you to keep track of your schedule and tasks, and to make a voice memo. You can also set the time and date and use convenient features, such as alarms, calculator, and currency exchange.To access this menu, press <Menu> in Idle mode and select Organiser.Alarm (Menu 7.1) Use this menu to set alarms to ring at a specific time.Setting an alarm1. Select the type of alarm.2. Enter the time for the alarm to sound. 3. Select AM or PM in 12-hour time format.Your phone is preset to a 24-hour format. You can change the time format.p. 51
50Menu functions4. If you selected Morning call in step 1, choose Monday to friday or Monday to saturday.Stopping an alarm• When the alarm sounds, press any key.• To remove an alarm set, access it, press <Options> and select Remove alarm.• To remove all alarm sets, select Remove alarm from the Alarm menu.Setting the alarm to ring even if the phone is offFrom the Alarm screen, select Autopower → Enable.If the phone is off when it is time for the alarm to ring, the phone switches on and sounds the alarm.Calendar (Menu 7.2)Use this menu to consult the calendar, write memos, or set alarms to act as a reminder.Writing a memo1. Select a date on the calendar.2. Enter your memo and press <OK>.3. Press [ ] to set an alarm to ring on the chosen day.Otherwise, press <Skip>.4. Enter the time for the alarm and press <OK>.To select an alarm melody, press <Melody>.5. Select AM or PM in 12-hour format.The colour of the date on the calendar changes to pink to indicate that a memo exists for that date.Press [/] to move to the next or previous month.Your phone is set to a 24-hour format. You can change the format.p. 51
Menu functions Organiser (Menu 7)51Viewing a memoOn the calendar screen, press <Options> to access the following options:•Search all: view all of the memos you created. •Delete all: delete all memos.•Go to date: go to a specific date.•Exit: exit the calendar feature.While viewing a memo, press <Options> to access the following options:•New: add a new memo.•Edit: edit the memo.•Alarm: set an alarm for the memo.•Delete: delete the memo.•Copy to: copy the memo to another date.•Move to: change the date of the memo.Time & Date (Menu 7.3)Use this menu to change the time and date displayed on your phone. Before setting the time and date, specify your time zone in World time. •Set time: enter the current time.•Set date: enter the current date.•World time: set your local time zone and find out what time it is in another part of the world.•Time format: select 12-hour or 24-hour time format.Calculator (Menu 7.4) Use this menu to perform basic arithmetic functions such as addition, subtraction, multiplication, and division.1. Enter the first number. Press the left soft key to insert a decimal point and a bracket.Press [] or [ ] to move the cursor.

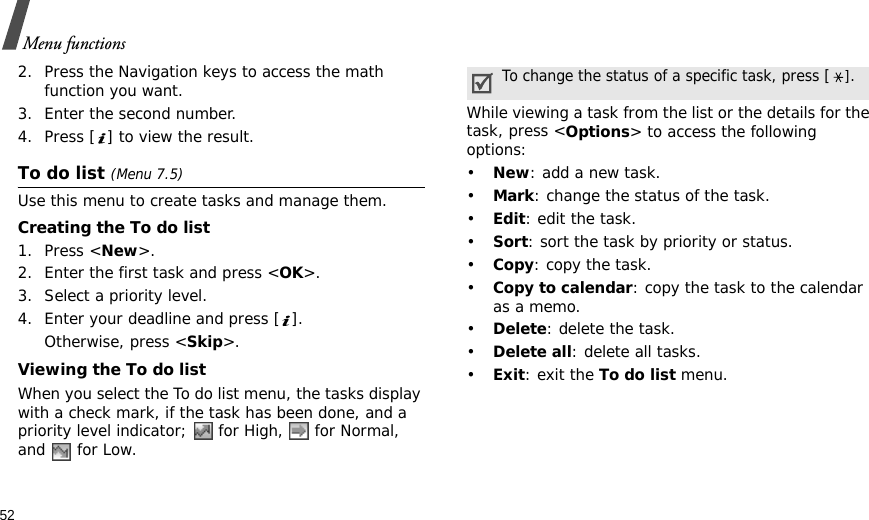

52Menu functions2. Press the Navigation keys to access the math function you want.3. Enter the second number.4. Press [ ] to view the result.To do list (Menu 7.5)Use this menu to create tasks and manage them.Creating the To do list1. Press <New>.2. Enter the first task and press <OK>. 3. Select a priority level.4. Enter your deadline and press [ ].Otherwise, press <Skip>.Viewing the To do listWhen you select the To do list menu, the tasks display with a check mark, if the task has been done, and a priority level indicator; for High, for Normal, and for Low.While viewing a task from the list or the details for the task, press <Options> to access the following options:•New: add a new task.•Mark: change the status of the task.•Edit: edit the task.•Sort: sort the task by priority or status.•Copy: copy the task.•Copy to calendar: copy the task to the calendar as a memo.•Delete: delete the task.•Delete all: delete all tasks.•Exit: exit the To do list menu.To change the status of a specific task, press [].
Menu functions Organiser (Menu 7)53Voice memo (Menu 7.6)Use this menu to record voice memos. A voice memo can be up to 30 seconds.Voice record (Menu 7.6.1)1. Press <Record> to start recording. 2. Speak into the microphone.3. When you press <Stop>, or if the recording time expires, the following options display:•Replay: play back your memo.•Re-record: discard the memo and record another one.•Save: save the memo.•Quit: cancel your recording and exit the Voice record menu.4. Select Save to save the voice memo.5. Enter a name of the voice memo and press <OK>.Memo list (Menu 7.6.2)Use this menu to access the list of voice memos you have recorded.Press <Options> to access the following options:•Play: play back your voice memo.•Send: send the voice memo via MMS.•Rename: change the name of the voice memo.•Information: view the properties of the voice memo.•Delete: delete the voice memo.Delete all (Menu 7.6.3)Use this menu to delete all of the voice memos you have recorded at one time.Memory status (Menu 7.6.4)You can check the total amount of memory and the amount of memory currently in use for voice memos.
54Menu functionsCurrency exchange (Menu 7.7)Use this menu to do currency conversions.1. Enter the rate of foreign currency and press <OK>.You can enter a decimal point (.) using the [ ] key.2. Enter the amount of the source currency you want to convert and press <OK>.The amount you entered and its equivalent value in the foreign currency display.FM radio (Menu 8)Use this menu to listen to the FM radio on your phone using the headset.To access this menu, press <Menu> in Idle mode and select FM radio.Finding and setting radio channels1. Plug the connector of the headset into the jack on the left side of the phone.2. Access the FM radio menu.3. Press [Left] or [Right] to manually find the frequency of a radio channel you want.4. Press <Options> and select Add.5. Enter a name for the channel and press <OK> twice.6. Select an empty location.
Menu functions FM radio (Menu 8)55Listening to the radio1. From the FM radio screen, press [Up] or [Down] to scroll to the radio channel.2. Press <Options> and select Power on/off → On.Press [ / ] to adjust the volume.3. To turn off the radio, press <Options> and use the Power on/off option.Otherwise, just disconnect the headset.Using radio optionsOn the FM radio screen, press <Options> to access the following radio options:•Power on/off: turn the radio on or off.•Add: store up to 30 radio channels.•Edit: edit the name and frequency of the channel.•Auto save: let the phone automatically scan through and save available radio frequencies.•Remove: remove the selected channel or all channels.•Pop-up alert: set the phone to alert you to listen to the radio at a specific time. When the pop-up notification appears on the screen, press <Listen> to turn on the specified radio channel.•Settings: configure the settings for using an FM radio.Volume: set the radio volume.Mode: select an audio mode, Speaker or Earphone.• You can answer an incoming call or use other phone functions while listening to the radio.• The quality of the radio broadcast depends on the radio station’s coverage in that particular area.
56Menu functionsPhone settings (Menu 9)Use this menu to customise your phone settings. You can also reset the settings to their default values.To access this menu, press <Menu> in Idle mode and select Phone settings.Infrared activate (Menu 9.1)This feature allows you to send or receive data through the infrared port. To use an infrared connection to your computer, you must:• Configure and activate an IrDA-compliant infrared port on the computer.• Activate the infrared feature on the phone (the IrDA icon ( ) appears on the top line).• Align the IrDA port on the phone with the IrDA port on the your computer.If there is no communication between your phone and the IrDA-compliant device within 30 seconds of activating the feature, it is automatically deactivated.Display settings (Menu 9.2)Use this menu to change settings for the display and light.Wallpaper (Menu 9.2.1)You can change the background image and the settings for the text in Idle mode.•Wallpaper list: select a background image.•Text display: determine the phone displays the time and date.•Text colour: select a colour of the text.Keypad lock (Menu 9.2.2)You can set the phone to lock the keypad manually or automatically.
Menu functions Phone settings (Menu 9)57Contrast (Menu 9.2.3)You can adjust the brightness of the display for varying lighting conditions.Backlight (Menu 9.2.4) You can select the length of time the backlight and the display stay on.•On: select the length of time the backlight is on. •Dim: select the length of time the display is in Dimming mode after the backlight turns off. After a specified time, the display turns off.Graphic logo (Menu 9.2.5)Use this menu to display your service provider’s logo instead of its name.Greeting message (Menu 9.3)Use this menu to enter the greeting that is displayed briefly when the phone is switched on.Own number (Menu 9.4) Use this feature to check your phone numbers, or to assign a name to each of the numbers. Changes made here do not affect the actual subscriber numbers on your SIM card.Language (Menu 9.5)Use this menu to select one of several languages for the display text.Security (Menu 9.6)Use this menu to protect the phone against unauthorised use by managing the several access codes of your phone and SIM card.If you enter an incorrect PIN /PIN 2 three times in succession, the SIM card is blocked. To unblock it you need to enter your PUK/PUK2 (Personal Unblocking Key). The codes are supplied by your network operator.
58Menu functionsPIN check (Menu 9.6.1)The 4-to 8-digit PIN (Personal Identification Number) protects your SIM card against unauthorised use. When this feature is enabled, the phone requires your PIN each time it is switched on.Change PIN (Menu 9.6.2) Use this menu to change your PIN. The PIN Check feature must be enabled to use this feature.Phone lock (Menu 9.6.3) The Phone lock feature locks the phone from unauthorised use. When this feature is enabled, you must enter a 4- to 8-digit phone password each time the phone is switched on.The password is preset to 00000000. To change the password, use the Change password menu.Change password (Menu 9.6.4)Use this menu to change your phone password. The password is preset to 00000000.Privacy (Menu 9.6.5)Use this menu to lock your media contents, including MMS messages, voice memos, images, and sounds. 1. Press [ ] to check the item(s) to be locked. 2. Press <OK> to lock the marked items.3. Enter the phone password and press <OK>.To access a locked item, you need to enter the phone password.SIM lock (Menu 9.6.6)The SIM lock feature allows your phone to work only with the current SIM by assigning a SIM lock code. You must enter the SIM lock code to use a different SIM card.
Menu functions Phone settings (Menu 9)59FDN mode (Menu 9.6.7) If supported by your SIM card, Fixed Dialing Number (FDN) mode restricts your outgoing calls to a limited set of phone numbers. When this feature is enabled, you can make calls only to phone numbers stored in Phonebook. To use this feature, you must enter your PIN2.Change PIN2 (Menu 9.6.8)If supported by your SIM card, the Change PIN2 feature changes your current PIN2.Extra settings (Menu 9.7)You can turn the automatic redialling or answering features on or off.•Auto redial: make up to ten attempts to redial a phone number after an unsuccessful call.•Anykey answer: answer an incoming call by pressing any key, except <Reject> and [ ]. When this option is set to Off, you must press <Accept> or [ ] to answer a call.Short cut (Menu 9.8)You can use the Navigation keys as shortcut keys to access specific menus directly from Idle mode. Use this menu to change these shortcut assignments.1. Select the key to be used as a shortcut key.2. Scroll to the menu that will be assigned to the key.3. Press <Select>.Reset settings (Menu 9.9) Use this menu to reset the phone to its default settings. Enter the 4- to 8-digit phone password and press <OK>.The password is preset to 00000000. You can change this password.p. 58
60Solve problemsTo save the time and expense of an unnecessary service call, perform the simple checks in this section before contacting a service professional.When you switch on your phone, the following messages may appear:“Insert SIM card”• Be sure that the SIM card is correctly installed.“Phone locked enter password”• The automatic locking function has been enabled. You must enter the phone’s password before you can use the phone.“Enter PIN”• You are using your phone for the first time. You must enter the PIN supplied with the SIM card.• The PIN Check feature is enabled. Every time the phone is switched on, the PIN has to be entered. To disable this feature, use the PIN check menu.“Enter PUK”• The PIN code has been entered incorrectly three times in succession, and the phone is now blocked. Enter the PUK supplied by your service provider.“No Service,” “Network Failure,” or “Not Done” displays• The network connection has been lost. You may be in a weak signal area. Move and try again.• You are trying to access an option for which you have no subscription with your service provider. Contact the service provider for further details.You have entered a number but it was not dialled• Be sure that you have pressed [ ].• Be sure you have accessed the right cellular network.• Be sure that you have not set an outgoing call barring option.
Solve problems 61Your correspondent cannot reach you• Be sure your phone is switched on. ([ ] pressed for more than one second.)• Be sure you are accessing the correct cellular network.• Be sure that you have not set an incoming call barring option.Your correspondent cannot hear you speaking• Be sure you have switched on the microphone.• Be sure you are holding the phone close enough to your mouth. The microphone is located at the bottom of the phone.The phone starts beeping and “Battery low” flashes on the display• Your battery is insufficiently charged. Recharge the battery.The audio quality of the call is poor• Check the signal strength indicator on the display ( ). The number of bars indicates the signal strength from strong ( ) to weak ( ).• Try moving the phone slightly or moving closer to a window if you are in a building.No number is dialled when you re-call a Contacts entry• Use the Phonebook Search feature to ensure the number has been stored correctly.• Re-store the number, if necessary.If the above guidelines do not help you to solve the problem, take note of:• The model and serial numbers of your phone•Your warranty details• A clear description of the problemThen contact your local dealer or Samsung after-sales service.
125Health and Safety InformationExposure to Radio Frequency (RF) SignalsYour wireless phone is a radio transmitter and receiver.It is designed and manufactured not to exceed theemission limits for exposure to radio frequency (RF)energy set by the Federal Communications Commission(FCC) of the U.S. Government. These limits are part ofcomprehensive guidelines and establish permittedlevels of RF energy for the general population. Theguidelines are based on the safety standards that weredeveloped by independent scientific organizationsthrough periodic and through evaluation of scientificstudies.The standards include a substantial safety margindesigned to assure the safety of all persons, regardlessof age and health.The exposure standard for wireless phones employs aunit of measurement known as Specific AbsorptionRate (SAR). The SAR limit set by the FCC is 1.6W/kg *.*In the U.S. and Canada, the SAR limit for mobile phones used by the public is 1.6 watts/kg (W/kg)averaged over one gram of tissue. The standard incorporates a substantial margin of safety to giveadditional protection for the public and to account for any variations in measurements.safety-end-NorthA 1/27/03 2:05 PM Page 125
126HHeeaalltthh aanndd SSaaffeettyy IInnffoorrmmaattiioonn127HHeeaalltthh aanndd SSaaffeettyy IInnffoorrmmaattiioonnSAR tests are conducted using standard operatingpositions specified by the FCC with the phonetransmitting at its highest certified power level in alltested frequency bands. Although the SAR isdetermined at the highest certified power level, theactual SAR level of the phone while operating can bewell below the maximum value. This is because thephone is designed to operate at multiple power levelsso as to use only the power required to reach thenetwork. In general, the closer you are to a wirelessbase station antenna, the lower the power output ofthe phone. Before a new model phone is available for sale to thepublic, it must be tested and certified to the FCC thatit does not exceed the limit established by thegovernment-adopted requirement for safe exposure.The tests are performed in positions and locations(e.g., at the ear and worn on the body) as required bythe FCC for each model. While there may bedifferences between the SAR levels of various phonesand at various positions, they all meet the governmentrequirement.The FCC has granted an Equipment Authorization for thismodel phone with all reported SAR levels evaluated as incompliance with the FCC RF exposure guidelines. SARinformation on this model phone is on file with the FCCand can be found under the Display Grant section ofhttp://www.fcc.gov/oet/fccid after searching on FCC IDprinted in the label on the phone.FCC certification information for this model phone isattached separation paper.For Body OperationTo maintain compliance with FCC RF exposure require-ments, use only belt-clips, holsters or similar accessoriesthat maintain a 1.5 cm. separation distance between the user's body and the back of the phone, including the antenna. The use of belt-clips, holsters and similar accessories should not contain metallic componentsin its assembly. The use of accessories that do notsatisfy these requirements may not comply with FCCRF exposure requirements, and should be avoided.For more Information concerning exposure to radiofrequency signals, see the following websites:Federal Communications Commission (FCC) http://www.fcc.gov/rfsafetyCellular Telecommunications Industry Association (CTIA):http://www.wow-com.comU.S.Food and Drug Administration (FDA) http://www.fda.gov/cdrh/consumerWorld Health Organization (WHO) http://www.who.int/peh-emf/ensafety-end-NorthA 1/27/03 2:05 PM Page 126
129HHeeaalltthh aanndd SSaaffeettyy IInnffoorrmmaattiioonn• Do not leave the battery in hot or cold places, suchas in a car in summer or winter conditions, as youwill reduce the capacity and lifetime of the battery.Always try to keep the battery at roomtemperature. A phone with a hot or cold batterymay temporarily not work, even when the batteryis fully charged. Li-ion batteries are particularlyaffected by temperatures below 0 °C (32 °F).• Do not short-circuit the battery. Accidental short-circuiting can occur when a metallic object (coin,clip or pen) causes a direct connection betweenthe + and – terminals of the battery (metal stripson the battery), for example when you carry aspare battery in a pocket or bag. Short-circuitingthe terminals may damage the battery or theobject causing the short-circuiting.• Dispose of used batteries in accordance with localregulations. Always recycle. Do not dispose ofbatteries in a fire.Road SafetyYour wireless phone gives you the powerful ability tocommunicate by voice, almost anywhere, anytime.But an important responsibility accompanies thebenefits of wireless phones, one that every usermust uphold.When driving a car, driving is your first responsibility.When using your wireless phone behind the wheel ofa car, practice good common sense and rememberthe following tips.128HHeeaalltthh aanndd SSaaffeettyy IInnffoorrmmaattiioonnPrecautions When Using Batteries• Never use any charger or battery that is damaged inany way.• Use the battery only for its intended purpose.• If you use the phone near the network’s basestation, it uses less power; talk and standby timeare greatly affected by the signal strength on thecellular network and the parameters set by thenetwork operator.• Battery charging time depends on the remainingbattery charge and the type of battery and chargerused. The battery can be charged and dischargedhundreds of times, but it will gradually wear out.When the operation time (talk time and standbytime) is noticeably shorter than normal, it is time tobuy a new battery.• If left unused, a fully charged battery will dischargeitself over time.• Use only Samsung-approved batteries and rechargeyour battery only with Samsung-approved chargers.When a charger is not in use, disconnect it from thepower source. Do not leave the battery connected toa charger for more than a week, since overchargingmay shorten its life.• Extreme temperatures will affect the chargingcapacity of your battery: it may require cooling orwarming first.safety-end-NorthA 1/27/03 2:05 PM Page 128
131HHeeaalltthh aanndd SSaaffeettyy IInnffoorrmmaattiioonn130HHeeaalltthh aanndd SSaaffeettyy IInnffoorrmmaattiioonn7. Do not engage in stressful or emotionalconversations that may be distracting. Make thepeople with whom you are talking aware that youare driving and suspend conversations that havethe potential to divert your attention from theroad.8. Use your wireless phone to call for help. Dial theemergency number in the case of fire, trafficaccident or medical emergencies. Remember, it isa free call on your wireless phone!9. Use your wireless phone to help others inemergencies. If you see a car accident, crime inprogress or other serious emergency where livesare in danger, call the emergency number, as youwould want others to do for you.10. Call roadside assistance or a special non-emergency wireless assistance number whennecessary. If you see a broken-down vehicleposing no serious hazard, a broken traffic signal,a minor traffic accident where no one appearsinjured, or a vehicle you know to be stolen, callroadside assistance or any other special non-emergency wireless number.1. Get to know your wireless phone and its features,such as speed dial and redial. If available, thesefeatures help you to place your call without takingyour attention off the road.2. When available, use a hands-free device. Ifpossible, add an extra layer of convenience andsafety to your wireless phone with one of themany hands-free accessories available today.3. Position your wireless phone within easy reach. Beable to access your wireless phone withoutremoving your eyes from the road. If you get anincoming call at an inconvenient time, let yourvoice mail answer it for you.4. Let the person you are speaking with know you aredriving; if necessary, suspend the call in heavytraffic or hazardous weather conditions. Rain,sleet, snow, ice and even heavy traffic can behazardous.5. Do not take notes or look up phone numbers whiledriving. Jotting down a To Do list or flippingthrough your phonebook takes your attention awayfrom your primary responsibility, driving safely.6. Dial sensibly and assess the traffic; if possible,place calls when you are not moving or beforepulling into traffic. Try to plan calls when your carwill be stationary. If you need to make a call whilemoving, dial only a few numbers, check the roadand your mirrors, then continue.safety-end-NorthA 1/27/03 2:05 PM Page 130
133HHeeaalltthh aanndd SSaaffeettyy IInnffoorrmmaattiioonn132HHeeaalltthh aanndd SSaaffeettyy IInnffoorrmmaattiioonnWireless Technology Research.Persons with pacemakers:• Should always keep the phone more than 15 cm (6inches) from their pacemaker when the phone isswitched on• Should not carry the phone in a breast pocket• Should use the ear opposite the pacemaker tominimize potential interferenceIf you have any reason to suspect that interference istaking place, switch off your phone immediately.Hearing AidsSome digital wireless phones may interfere withsome hearing aids. In the event of such interference,you may wish to consult your hearing aidmanufacturer to discuss alternatives.Other Medical DevicesIf you use any other personal medical devices,consult the manufacturer of your device to determineif it is adequately shielded from external RF energy.Your physician may be able to assist you in obtainingthis information. Switch off your phone in health carefacilities when any regulations posted in these areasinstruct you to do so. Hospitals or health carefacilities may be using equipment that could besensitive to external RF energy.VehiclesRF signals may affect improperly installed orinadequately shielded electronic systems in motorvehicles. Check with the manufacturer or itsOperating EnvironmentRemember to follow any special regulations in forcein any area and always switch off your phonewhenever it is forbidden to use it, or when it maycause interference or danger.When connecting the phone or any accessory toanother device, read its user’s guide for detailedsafety instructions. Do not connect incompatibleproducts.As with other mobile radio transmitting equipment,users are advised that for the satisfactory operationof the equipment and for the safety of personnel, it isrecommended that the equipment should only beused in the normal operating position (held to your ear with the antenna pointing over your shoulder).Electronic DevicesMost modern electronic equipment is shielded fromradio frequency (RF) signals. However, certainelectronic equipment may not be shielded againstthe RF signals from your wireless phone. Consult themanufacturer to discuss alternatives.PacemakersPacemaker manufacturers recommend that aminimum distance of 15 cm (6 inches) be maintainedbetween a wireless phone and a pacemaker to avoidpotential interference with the pacemaker. Theserecommendations are consistent with theindependent research and recommendations ofsafety-end-NorthA 1/27/03 2:05 PM Page 132
135HHeeaalltthh aanndd SSaaffeettyy IInnffoorrmmaattiioonn134HHeeaalltthh aanndd SSaaffeettyy IInnffoorrmmaattiioonnEmergency CallsThis phone, like any wireless phone, operates usingradio signals, wireless and landline networks as wellas user-programmed functions, which cannot guaranteeconnection in all conditions. Therefore, you shouldnever rely solely on any wireless phone for essentialcommunications (medical emergencies, for example).Remember, to make or receive any calls the phonemust be switched on and in a service area withadequate signal strength. Emergency calls may not bepossible on all wireless phone networks or whencertain network services and/or phone features are inuse. Check with local service providers.To make an emergency call, proceed as follows.1. If the phone is not on, switch it on.2. Key in the emergency number for your present location. Emergency numbers vary by location.3. Press the <SEND> key.If certain features are in use (call barring, for example),you may first need to deactivate those features beforeyou can make an emergency call. Consult thisdocument and your local cellular service provider.When making an emergency call, remember to give allthe necessary information as accurately as possible.Remember that your phone may be the only means ofcommunication at the scene of an accident; do not cutoff the call until given permission to do so.representative regarding your vehicle.You should also consult the manufacturer of anyequipment that has been added to your vehicle.Posted FacilitiesSwitch off your phone in any facility where postednotices require you to do so.Potentially Explosive AtmospheresSwitch off your phone when in any area with apotentially explosive atmosphere and obey all signsand instructions. Sparks in such areas could cause anexplosion or fire resulting in bodily injury or evendeath.Users are advised to switch off the phone while at arefueling point (service station). Users are remindedof the need to observe restrictions on the use ofradio equipment in fuel depots (fuel storage anddistribution areas), chemical plants or where blastingoperations are in progress.Areas with a potentially explosive atmosphere areoften but not always clearly marked. They includebelow deck on boats, chemical transfer or storagefacilities, vehicles using liquefied petroleum gas(such as propane or butane), areas where the aircontains chemicals or particles, such as grain, dustor metal powders, and any other area where youwould normally be advised to turn off your vehicleengine.safety-end-NorthA 1/27/03 2:05 PM Page 134
137HHeeaalltthh aanndd SSaaffeettyy IInnffoorrmmaattiioonn136HHeeaalltthh aanndd SSaaffeettyy IInnffoorrmmaattiioonnCare and MaintenanceYour phone is a product of superior design andcraftsmanship and should be treated with care. Thesuggestions below will help you fulfill any warrantyobligations and allow you to enjoy this product formany years. • Keep the phone and all its parts and accessoriesout of the reach of small children’s.• Keep the phone dry. Precipitation, humidity andliquids contain minerals that will corrodeelectronic circuits.• Do not touch the phone with a wet hand while it ischarging. Doing so may cause an electric shock toyou or damage to the phone. • Do not use or store the phone in dusty, dirty areas,as its moving parts may be damaged.• Do not store the phone in hot areas. Hightemperatures can shorten the life of electronicdevices, damage batteries, and warp or meltcertain plastics.• Do not store the phone in cold areas. When thephone warms up to its normal operatingtemperature, moisture can form inside the phone,which may damage the phone’s electronic circuitboards.Other Important Safety Information• Only qualified personnel should service the phone orinstall the phone in a vehicle. Faulty installation orservice may be dangerous and may invalidate anywarranty applicable to the device.• Check regularly that all wireless phone equipment inyour vehicle is mounted and operating properly.• Do not store or carry flammable liquids, gases orexplosive materials in the same compartment as thephone, its parts or accessories.• For vehicles equipped with an air bag, rememberthat an air bag inflates with great force. Do notplace objects, including both installed or portablewireless equipment in the area over the air bag or inthe air bag deployment area. If wireless equipmentis improperly installed and the air bag inflates,serious injury could result.• Switch off your phone before boarding an aircraft.The use of wireless phones in aircraft may bedangerous to the operation of the aircraft, and isillegal.• Failure to observe these instructions may lead to thesuspension or denial of telephone services to theoffender, or legal action, or both.safety-end-NorthA 1/27/03 2:05 PM Page 136
139HHeeaalltthh aanndd SSaaffeettyy IInnffoorrmmaattiioonn138HHeeaalltthh aanndd SSaaffeettyy IInnffoorrmmaattiioonn• Do not drop, knock or shake the phone. Roughhandling can break internal circuit boards.• Do not use harsh chemicals, cleaning solvents orstrong detergents to clean the phone. Wipe it with asoft cloth slightly dampened in a mild soap-and-watersolution.• Do not paint it. Paint can clog the device’s movingparts and prevent proper operation.• Do not put the phone in or on heating devices, such asa microwave oven, a stove or a radiator. The phonemay explode when overheated.• Use only the supplied or an approved replacementantenna. Unauthorized antennas or modifiedaccessories may damage the phone and violateregulations governing radio devices.• If the phone, battery, charger or any accessory is notworking properly, take it to your nearest qualifiedservice facility. The personnel there will assist you,and if necessary, arrange for service.Acknowledging Special Precautions and the FCCand Industry Canada NoticeCautionsModifications not expressly approved by the partyresponsible for compliance could void the user's authorityto operate the equipment. FCC Compliance InformationThis device complies with Part 15 of FCC Rules.Operation is subject to the following two conditions:(1) This device may not cause harmful interference, and(2) This device must accept any interference received.Including interference that may cause undesiredoperation.Information to UserThis equipment has been tested and found to comply withthe limits for a Class B digital device, pursuant to part 15of the FCC Rules. These limits are designed to providereasonable protection against harmful interference in aresidential installation. This equipment generates, uses and can radiate radiofrequency energy and, if not installed and used inaccordance with the instructions, may cause harmfulinterference to radio communications. However, there isno guarantee that interference will not occur in aparticular installation. If this equipment does causeharmful interference to radio or television reception,which can be determined by turning the equipment off andon, the user is encouraged to try to correct theinterference by one or more of the following measures: safety-end-NorthA 1/27/03 2:05 PM Page 138
141AAppppeennddiixxAppendix A: CERTIFICATION INFORMATION (SAR)THIS MODEL PHONE MEETS THE GOVERNMENT’SREQUIREMENTS FOR EXPOSURE TO RADIO WAVES.Your wireless phone is a radio transmitter and receiver.It is designed and manufactured not to exceed theemission limits for exposure to radio frequency(RF)energy set by the Federal Communications Commissionof the U.S. Government. These limits are part ofcomprehensive guidelines and establish permittedlevels of RF energy for the general population. Theguidelines are based on safety standards that weredeveloped by independent scientific organizationsthrough periodic and thorough evaluation of scientificstudies. The standards include a substantial safetymargin designed to assure the safety of all persons,regardless of age and health. The exposure standard for wireless mobile phonesemploys a unit of measurement known as the SpecificAbsorption Rate(SAR). The SAR limit set by the FCC is1.6 W/kg. SAR Tests are conducted using standardoperating positions accepted by the FCC with thephone transmitting at its highest certified power levelin all tested frequency bands. Although the SAR isdetermined at the highest certified power level, theactual SAR level of the phone while operating can bewell below the maximum value. This is because thephone is designed to operate at multiple power levelsso as to use only the power required to reach thenetwork. In general, the closer you are to a wirelessbase station antenna, the lower the power output.140HHeeaalltthh aanndd SSaaffeettyy IInnffoorrmmaattiioonn• Reorient or relocate the receiving antenna.• Increase the separation between the equipment and receiver.• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.• Consult the dealer or an experienced radio/ TV technician for help.safety-end-NorthA 1/27/03 2:05 PM Page 140
143Appendix B: Guide to Safe and Responsible WirelessPhone UseCellular Telecommunications & Internet Association“Safety is the most important call you will ever make.”A Guide to Safe and Responsible Wireless Phone UseTENS OF MILLIONS OF PEOPLE IN THE U.S. TODAY TAKEADVANTAGE OF THE UNIQUE COMBINATION OFCONVENIENCE, SAFETY AND VALUE DELIVERED BY THEWIRELESS TELEPHONE. QUITE SIMPLY, THE WIRELESSPHONE GIVES PEOPLE THE POWERFUL ABILITY TOCOMMUNICATE BY VOICE-ALMOST ANYWHERE,ANYTIME-WITH THE BOSS, WITH A CLIENT, WITH THEKIDS, WITH EMERGENCY PERSONNEL OR EVEN WITHTHE POLICE. EACH YEAR, AMERICANS MAKE BILLIONSOF CALLS FROM THEIR WIRELESS PHONES, AND THENUMBERS ARE RAPIDLY GROWING. But an important responsibility accompanies thosebenefits, one that every wireless phone user mustuphold. When driving a car, driving is your firstresponsibility. A wireless phone can be an invaluabletool, but good judgment must be exercised at all timeswhile driving a motor vehicle-whether on the phone ornot. The basic lessons are ones we all learned as teenagers.Driving requires alertness, caution and courtesy. Itrequires a heavy dose of basic common sense-keep yourhead up, keep your eyes on the road, check your mirrorsfrequently and watch out for other drivers. It requiresobeying all traffic signs and signals and staying withinthe speed limit. It means using seatbelts and requiringother passengers to do the same. 142Before a new model phone is available for sale to thepublic, it must be tested and certified to the FCC that itdoes not exceed the limit established by the government-adopted requirement for safe exposure. The tests areperformed in positions and locations(e.g., at the ear andworn on the body) as required by the FCC for eachmodel. The highest SAR values for this model phone as reportedto the FCC are Head: 0.266W/Kg, Body-worn: 0.307W/Kg. The FCC has granted an Equipment Authorization for thismodel phone with all reported SAR levels evaluated asin compliance with the FCC RF exposure guidelines. SARinformation on this model phone is on file with the FCCand can be found under the Display Grant section ofhttp://www.fcc.gov/oet/fccid after searching on FCC IDA3LSGHC230.In the United States and Canada, the SAR limit formobile phones used by the public is 1.6watts/kilogram(W/kg) averaged over one gram of tissue.The standard incorporates a substantial margin of safetyto give additional protection for the public and toaccount for any variations in measurements. AAppppeennddiixxAAppppeennddiixxsafety-end-NorthA 1/27/03 2:05 PM Page 142
1454. Suspend conversations during hazardous drivingconditions or situations. Let the person you are speakingwith know you are driving; if necessary, suspend the callin heavy traffic or hazardous weather conditions. Rain,sleet, snow and ice can be hazardous, but so is heavytraffic. As a driver, your first responsibility is to payattention to the road. 5. Do not take notes or look up phone numbers whiledriving. If you are reading an address book or businesscard, or writing a “to do” list while driving a car, you arenot watching where you are going. It’s common sense.Don’t get caught in a dangerous situation because youare reading or writing and not paying attention to theroad or nearby vehicles. 6. Dial sensibly and assess the traffic; if possible, placecalls when you are not moving or before pulling intotraffic. Try to plan your calls before you begin your trip orattempt to coincide your calls with times you may bestopped at a stop sign, red light or otherwise stationary.But if you need to dial while driving, follow this simpletip-dial only a few numbers, check the road and yourmirrors, then continue. 7. Do not engage in stressful or emotional conversationsthat may be distracting. Stressful or emotionalconversations and driving do not mix-they are distractingand even dangerous when you are behind the wheel of acar. Make people you are talking with aware you aredriving and if necessary, suspend conversations whichhave the potential to divert your attention from the road. 144But with wireless phone use, driving safely means alittle more. This brochure is a call to wireless phoneusers everywhere to make safety their first priority whenbehind the wheel of a car. Wireless telecommunicationsis keeping us in touch, simplifying our lives, protecting usin emergencies and providing opportunities to helpothers in need. When it comes to the use of wirelessphones, safety is your most important call. Wireless Phone “Safety Tips” Below are safety tips to follow while driving and using awireless phone which should be easy to remember.1. Get to know your wireless phone and its features suchas speed dial and redial. Carefully read your instructionmanual and learn to take advantage of valuable featuresmost phones offer, including automatic redial andmemory. Also, work to memorize the phone keypad soyou can use the speed dial function without taking yourattention off the road. 2. When available, use a hands free device. A number ofhands free wireless phone accessories are readilyavailable today. Whether you choose an installedmounted device for your wireless phone or a speakerphone accessory, take advantage of these devices ifavailable to you. 3. Position your wireless phone within easy reach. Makesure you place your wireless phone within easy reachand where you can grab it without removing your eyesfrom the road. If you get an incoming call at aninconvenient time, if possible, let your voice mail answerit for you. AAppppeennddiixxAAppppeennddiixxsafety-end-NorthA 1/27/03 2:05 PM Page 144
1468. Use your wireless phone to call for help. Your wirelessphone is one of the greatest tools you can own toprotect yourself and your family in dangerous situations-with your phone at your side, help is only three numbersaway. Dial 9-1-1 or other local emergency number in thecase of fire, traffic accident, road hazard or medicalemergency. Remember, it is a free call on your wirelessphone! 9. Use your wireless phone to help others inemergencies. Your wireless phone provides you a perfectopportunity to be a “Good Samaritan” in your community.If you see an auto accident, crime in progress or otherserious emergency where lives are in danger, call 9-1-1or other local emergency number, as you would wantothers to do for you. 10. Call roadside assistance or a special wireless non-emergency assistance number when necessary. Certainsituations you encounter while driving may requireattention, but are not urgent enough to merit a call foremergency services. But you still can use your wirelessphone to lend a hand. If you see a broken-down vehicleposing no serious hazard, a broken traffic signal, a minortraffic accident where no one appears injured or avehicle you know to be stolen, call roadside assistanceor other special non-emergency wireless number.Careless, distracted individuals and people drivingirresponsibly represent a hazard to everyone on the road.Since 1984, the Cellular Telecommunications IndustryAssociation and the wireless industry have conductededucational outreach to inform wireless phone users of147their responsibilities as safe drivers and good citizens.As we approach a new century, more and more of us willtake advantage of the benefits of wireless telephones.And, as we take to the roads, we all have aresponsibility to drive safely.“The wireless industry reminds you to use your phonesafely when driving.”Cellular Telecommunications & Internet AssociationFor more information, please call 1-888-901-SAFE. For updates: http://www.wow-com.com/consumer/issues/driving/articles.cfm?ID=85AAppppeennddiixxAAppppeennddiixxsafety-end-NorthA 1/27/03 2:05 PM Page 146
149low level RF that does not produce heating effectscauses no known adverse health effects. Many studiesof low level RF exposures have not found any biologicaleffects. Some studies have suggested that somebiological effects may occur, but such findings have notbeen confirmed by additional research. In some cases,other researchers have had difficulty in reproducingthose studies, or in determining the reasons forinconsistent results.3. What is FDA’s role concerning the safety of wirelessphones?Under the law, FDA does not review the safety ofradiation-emitting consumer products such as wirelessphones before they can be sold, as it does with newdrugs or medical devices. However, the agency hasauthority to take action if wireless phones are shown toemit radiofrequency energy (RF) at a level that ishazardous to the user. In such a case, FDA could requirethe manufacturers of wireless phones to notify users ofthe health hazard and to repair, replace or recall thephones so that the hazard no longer exists.Although the existing scientific data do not justify FDAregulatory actions, FDA has urged the wireless phoneindustry to take a number of steps, including thefollowing:Support needed research into possible biological effectsof RF of the type emitted by wireless phones; Design wireless phones in a way that minimizes any RFexposure to the user that is not necessary for devicefunction; and Cooperate in providing users of wireless phones with the148Appendix C: Consumer Update on Wireless PhonesU.S. Food and Drug Administration1. What kinds of phones are the subject of this update?The term wireless phone refers here to hand-heldwireless phones with built-in antennas, often called cell,mobile, or PCS phones. These types of wireless phonescan expose the user to measurable radiofrequencyenergy (RF) because of the short distance between thephone and the user s head. These RF exposures arelimited by Federal Communications Commission safetyguidelines that were developed with the advice of FDAand other federal health and safety agencies. When thephone is located at greater distances from the user, theexposure to RF is drastically lower because a person’s RFexposure decreases rapidly with increasing distancefrom the source. The so-called “cordless phones,” whichhave a base unit connected to the telephone wiring in ahouse, typically operate at far lower power levels, andthus produce RF exposures well within the FCC’scompliance limits.2. Do wireless phones pose a health hazard?The available scientific evidence does not show that anyhealth problems are associated with using wirelessphones. There is no proof, however, that wireless phonesare absolutely safe. Wireless phones emit low levels ofradiofrequency energy (RF) in the microwave range whilebeing used. They also emit very low levels of RF when inthe stand-by mode. Whereas high levels of RF canproduce health effects (by heating tissue), exposure toAAppppeennddiixxAAppppeennddiixxsafety-end-NorthA 1/27/03 2:05 PM Page 148
1514. What is FDA doing to find out more about the possiblehealth effects of wireless phone RF?FDA is working with the U.S. National ToxicologyProgram and with groups of investigators around theworld to ensure that high priority animal studies areconducted to address important questions about theeffects of exposure to radiofrequency energy (RF).FDA has been a leading participant in the World HealthOrganization International Electromagnetic Fields (EMF)Project since its inception in 1996. An influential resultof this work has been the development of a detailedagenda of research needs that has driven theestablishment of new research programs around theworld. The Project has also helped develop a series ofpublic information documents on EMF issues.FDA and the Cellular Telecommunications & InternetAssociation (CTIA) have a formal Cooperative Researchand Development Agreement (CRADA) to do research onwireless phone safety. FDA provides the scientificoversight, obtaining input from experts in government,industry, and academic organizations. CTIA-fundedresearch is conducted through contracts to independentinvestigators. The initial research will include bothlaboratory studies and studies of wireless phone users.The CRADA will also include a broad assessment ofadditional research needs in the context of the latestresearch developments around the world.5. What steps can I take to reduce my exposure toradiofrequency energy from my wireless phone?150best possible information on possible effects of wirelessphone use on human health FDA belongs to an interagency working group of thefederal agencies that have responsibility for differentaspects of RF safety to ensure coordinated efforts at thefederal level. The following agencies belong to thisworking group:National Institute for Occupational Safety and Health Environmental Protection Agency Federal Communications Commission Occupational Safety and Health Administration National Telecommunications and InformationAdministration The National Institutes of Health participates in someinteragency working group activities, as well.FDA shares regulatory responsibilities for wirelessphones with the Federal Communications Commission(FCC). All phones that are sold in the United States mustcomply with FCC safety guidelines that limit RF exposure.FCC relies on FDA and other health agencies for safetyquestions about wireless phones.FCC also regulates the base stations that the wirelessphone networks rely upon. While these base stationsoperate at higher power than do the wireless phonesthemselves, the RF exposures that people get from thesebase stations are typically thousands of times lower thanthose they can get from wireless phones. Base stationsare thus not the primary subject of the safety questionsdiscussed in this document.AAppppeennddiixxAAppppeennddiixxsafety-end-NorthA 1/27/03 2:05 PM Page 150
153Some groups sponsored by other national governmentshave advised that children be discouraged from usingwireless phones at all. For example, the government inthe United Kingdom distributed leaflets containing sucha recommendation in December 2000. They noted that noevidence exists that using a wireless phone causes braintumors or other ill effects. Their recommendation to limitwireless phone use by children was strictlyprecautionary; it was not based on scientific evidencethat any health hazard exists.7. Do hands-free kits for wireless phones reduce risksfrom exposure to RF emissions?Since there are no known risks from exposure to RFemissions from wireless phones, there is no reason tobelieve that hands-free kits reduce risks. Hands-free kitscan be used with wireless phones for convenience andcomfort. These systems reduce the absorption of RFenergy in the head because the phone, which is thesource of the RF emissions, will not be placed againstthe head. On the other hand, if the phone is mountedagainst the waist or other part of the body during use,then that part of the body will absorb more RF energy.Wireless phones marketed in the U.S. are required tomeet safety requirements regardless of whether they areused against the head or against the body. Eitherconfiguration should result in compliance with the safetylimit.8. Do wireless phone accessories that claim to shield thehead from RF radiation work?152If there is a risk from these products—and at this pointwe do not know that there is—it is probably very small.But if you are concerned about avoiding even potentialrisks, you can take a few simple steps to minimize yourexposure to radiofrequency energy (RF). Since time is akey factor in how much exposure a person receives,reducing the amount of time spent using a wirelessphone will reduce RF exposure.If you must conduct extended conversations by wirelessphone every day, you could place more distance betweenyour body and the source of the RF, since the exposurelevel drops off dramatically with distance. For example,you could use a headset and carry the wireless phoneaway from your body or use a wireless phone connectedto a remote antenna Again, the scientific data do not demonstrate thatwireless phones are harmful. But if you are concernedabout the RF exposure from these products, you can usemeasures like those described above to reduce your RFexposure from wireless phone use.6. What about children using wireless phones?The scientific evidence does not show a danger to usersof wireless phones, including children and teenagers. Ifyou want to take steps to lower exposure toradiofrequency energy (RF), the measures describedabove would apply to children and teenagers usingwireless phones. Reducing the time of wireless phoneuse and increasing the distance between the user andthe RF source will reduce RF exposure.AAppppeennddiixxAAppppeennddiixxsafety-end-NorthA 1/27/03 2:05 PM Page 152
155FDA has tested hearing aids for interference fromhandheld wireless phones and helped develop avoluntary standard sponsored by the Institute ofElectrical and Electronic Engineers (IEEE). This standardspecifies test methods and performance requirements forhearing aids and wireless phones so that that nointerference occurs when a person uses a compatiblephone and a compatible hearing aid at the same time.This standard was approved by the IEEE in 2000.FDA continues to monitor the use of wireless phones forpossible interactions with other medical devices. Shouldharmful interference be found to occur, FDA will conducttesting to assess the interference and work to resolvethe problem.10. What are the results of the research done already?The research done thus far has produced conflictingresults, and many studies have suffered from flaws intheir research methods. Animal experimentsinvestigating the effects of radiofrequency energy (RF)exposures characteristic of wireless phones have yieldedconflicting results that often cannot be repeated in otherlaboratories. A few animal studies, however, havesuggested that low levels of RF could accelerate thedevelopment of cancer in laboratory animals. However,many of the studies that showed increased tumordevelopment used animals that had been geneticallyengineered or treated with cancer-causing chemicals soas to be pre-disposed to develop cancer in the absenceof RF exposure. Other studies exposed the animals to RFfor up to 22 hours per day. These conditions are notsimilar to the conditions under which people usewireless phones, so we don t know with certainty what154Since there are no known risks from exposure to RFemissions from wireless phones, there is no reason tobelieve that accessories that claim to shield the headfrom those emissions reduce risks. Some products thatclaim to shield the user from RF absorption use specialphone cases, while others involve nothing more than ametallic accessory attached to the phone. Studies haveshown that these products generally do not work asadvertised. Unlike “hand-free” kits, these so-called“shields” may interfere with proper operation of thephone. The phone may be forced to boost its power tocompensate, leading to an increase in RF absorption. InFebruary 2002, the Federal trade Commission (FTC)charged two companies that sold devices that claimed toprotect wireless phone users from radiation with makingfalse and unsubstantiated claims. According to FTC,these defendants lacked a reasonable basis tosubstantiate their claim.9. What about wireless phone interference with medicalequipment?Radiofrequency energy (RF) from wireless phones caninteract with some electronic devices. For this reason,FDA helped develop a detailed test method to measureelectromagnetic interference (EMI) of implanted cardiacpacemakers and defibrillators from wireless telephones.This test method is now part of a standard sponsored bythe Association for the Advancement of Medicalinstrumentation (AAMI). The final draft, a joint effort byFDA, medical device manufacturers, and many othergroups, was completed in late 2000. This standard willallow manufacturers to ensure that cardiac pacemakersand defibrillators are safe from wireless phone EMI.AAppppeennddiixxAAppppeennddiixxsafety-end-NorthA 1/27/03 2:05 PM Page 154
157156the results of such studies mean for human health.Three large epidemiology studies have been publishedsince December 2000. Between them, the studiesinvestigated any possible association between the use ofwireless phones and primary brain cancer, glioma,meningioma, or acoustic neuroma, tumors of the brain orsalivary gland, leukemia, or other cancers. None of thestudies demonstrated the existence of any harmfulhealth effects from wireless phone RF exposures.However, none of the studies can answer questionsabout long-term exposures, since the average period ofphone use in these studies was around three years.11. What research is needed to decide whether RFexposure from wireless phones poses a health risk?A combination of laboratory studies and epidemiologicalstudies of people actually using wireless phones wouldprovide some of the data that are needed. Lifetimeanimal exposure studies could be completed in a fewyears. However, very large numbers of animals would beneeded to provide reliable proof of a cancer promotingeffect if one exists. Epidemiological studies can providedata that is directly applicable to human populations, but10 or more years follow-up may be needed to provideanswers about some health effects, such as cancer. Thisis because the interval between the time of exposure toa cancer-causing agent and the time tumors develop - ifthey do - may be many, many years. The interpretation ofepidemiological studies is hampered by difficulties inmeasuring actual RF exposure during day-to-day use ofwireless phones. Many factors affect this measurement,such as the angle at which the phone is held, or whichmodel of phone is used.12. Which other federal agencies have responsibilitiesrelated to potential RF health effects?Additional information on the safety of RF exposures fromvarious sources can be obtained from the followingorganizations.FCC RF Safety Program: http://www.fcc.gov/oet/rfsafety/Environmental Protection Agency (EPA): http://www.epa.gov/radiation/ Occupational Safety and Health Administration’s (OSHA): http://www.osha-slc.gov/SLTC/radiofrequencyradiation/index.htmlNational Institute for Occupational Safety and Health(NIOSH): http://www.cdc.gov/niosh/emfpg.htmlWorld health Organization (WHO): http://www.who.int/peh-emf/ International Commission on Non-Ionizing RadiationProtection: http://www.icnirp.deNational Radiation Protection Board (UK): http://www.nrpb.org.uk Updated 4/3/2002: US Food and Drug Administrationhttp://www.fda.gov/cellphonesAAppppeennddiixxAAppppeennddiixxsafety-end-NorthA 1/27/03 2:05 PM Page 156
68IndexAABC mode, text input • 19Alarm • 49Alert • 34, 35Answeringcall • 22second call • 24Anykey answer • 59Auto redial • 59BBacklight time, set • 57Band selection • 33Barring, calls • 31Batterycharging • 7low indicator • 8precautions • 63Broadcast messages • 39Browser, WAP • 45CCalculator • 51Call costs • 30Call recordsdialled • 29missed • 29received • 29Call time • 29Caller ID • 32Calls answering • 22barring • 31diverting • 30holding • 23redialling • 21rejecting • 22waiting • 32CB (Cell Broadcast) messages • 39Characters, enter • 18Conference call • 24Connection tone • 35DDeletingcall records • 29MMS • 40, 41phonebook • 27SMS • 36Delivery reports, message • 43Dialled calls • 29Displaylayout • 10settings • 56Diverting, calls • 30DTMF tones, send • 23EEmergency calls • 66Extra tones 35FFDN (Fixed Dial Number) mode • 59Funbox • 45GGames • 47Greeting message • 57HHolding, call • 23IIcons, description • 10Images, downloaded • 48Inbox, messagesMMS • 40SMS • 36International calls • 21Internet • 45IrDA • 56KKey tonessending • 23setting • 34Keys, description • 9
69Index LLanguage, select • 57Last number, redial • 21Listening, radio • 55Lockingkeypad • 56phone • 58SIM card • 58Low battery indicator • 8MMemory statusdownloaded items • 49messages • 39, 43phonebook • 28Message tone • 34Messagescell broadcast • 39greeting • 57MMS • 40SMS • 35voice • 39web • 44Minute minder • 35Missed calls • 29MMS messagescreating/sending • 41deleting • 41setting • 43viewing • 40, 41Multi-party calls • 24Mutingkey tones • 23microphone • 23NNamesentering • 18searching • 25Network selection • 32Network services • 30Numberdialling/searching • 21storing • 26OOrganiser • 49Outbox, messagesMMS • 41SMS • 36Own number • 57PPasswordcall barring • 31phone • 58Phonecare and maintenance • 67display • 10icons • 10locking • 58resetting • 59switching on/off • 8unpacking • 6Phonebookcopying • 26deleting • 27editing • 26options • 26speed-dialling • 27PIN changing • 58locking • 58PIN2, change • 59Power on/off tone • 35Privacy • 58RRadio • 54Received calls • 29Recordingvoice memos • 53Rediallingautomatically • 59manually • 21Resetting phone • 59Ring tone • 34volume • 34Road safety • 64SSafetyinformation • 62precautions • 3SDN (Service Dialling Num-bers) • 28Security, calls • 57Sent messagesMMS • 40, 41SMS • 36
70IndexSIM cardinserting • 7locking • 58SMS messagesviewing • 36Sound settings • 34Sounds, downloaded • 48Speed-dial • 27Switching on/offmicrophone • 23phone • 8TTemplatesMMS • 41SMS • 37Text input mode, change • 18Text, enter • 18Tone call ringer • 34connect • 35extra • 35keypad • 34message • 34power on/off • 35VVoice mail • 39Voice memosrecording • 53Voicemail server • 39WWaiting call • 32WAP browseraccess • 45cache, clear • 47World time • 49
