World Wide Webhttp://www.samsungmobile.comPrinted in KoreaCode No.: GH68-xxxxxAEnglish. 01/2006. Rev. 1.0* Depending on the software installed or your service provider or country, some of the descriptions in this guide may not match your phone exactly.* Depending on your country, your phone and accessories may appear different from the illustrations in this guide.

Draft2006. 01. 18SGH-E540User’s Guide

ImportantsafetyprecautionsFailure to comply with the following precautions may be dangerous or illegal.Drive safely at all timesDo not use a hand-held phone while driving. Park the vehicle first. Switch off the phone when refuellingDo not use the phone at a refuelling point (service station) or near fuels or chemicals.Switch off in an aircraftWireless phones can cause interference. Using them in an aircraft is both illegal and dangerous.Switch off the phone near all medical equipmentHospitals or health care facilities may be using equipment that could be sensitive to external radio frequency energy. Follow any regulations or rules in force.

Important safety precautions1InterferenceAll wireless phones may be subject to interference, which could affect their performance.Be aware of special regulationsMeet any special regulations in force in any area and always switch off your phone whenever it is forbidden to use it, or when it may cause interference or danger.Water resistanceYour phone is not water-resistant. Keep it dry. Sensible useUse only in the normal position (held to the ear). Avoid unnecessary contact with the antenna when the phone is switched on.Emergency callKey in the emergency number for your present location, then press . Keep your phone away from small children Keep the phone and all its parts, including accessories, out of the reach of small children.Accessories and batteriesUse only Samsung-approved accessories and batteries. Use of any unauthorised accessories could damage your phone and may be dangerous.Qualified serviceOnly qualified service personnel may repair your phone.For more detailed safety information, see "Health and safety information" on page 101.• The phone could explode if the battery is replaced with an incorrect type.• Dispose of used batteries according to the manufacturer’s instructions.

2About this GuideThis User’s Guide provides you with condensed information about how to use your phone. To quickly learn the basics for your phone, please refer to “Get started” and “Step outside the phone.”In this guide, the following instruction icons appear:Indicates that you need to pay careful attention to the subsequent information regarding safety or phone features.Indicates that you can get more information on the referenced page. →Indicates that you need to press the Navigation keys to scroll to the specified option and then select it.[ ]Indicates a key on the phone. For example, []< >Indicates a soft key, whose function is displayed on the phone screen. For example, <Menu>• Camera and camcorderUse the camera module on your phone to take a photo or record a video.Special features of your phone•Music playerPlay MP3 music files using your phone as a music player.• File viewerOpen documents in various formats on the phone without corruption.• Voice recognitionJust say a command to dial a phone number or access a menu function.

4ContentsUnpack 6Make sure you have each itemYour phone 6Buttons, features, and locationsGet started 7First steps to operating your phoneInstall and charge the phone ..................................... 7Power on or off........................................................ 8Keys and display ..................................................... 9Access menu functions ............................................ 11Customise your phone............................................. 12Make/Answer calls .................................................. 14Step outside the phone 15Begin with your camera, the music player, and other special featuresUse the camera ...................................................... 15Play music files....................................................... 16Browse the web...................................................... 17Use Phonebook ...................................................... 17Send messages ...................................................... 18View messages....................................................... 20Use Bluetooth wirelsess ........................................... 21Quickly launch menus by number ............................. 22Use voice recognition .............................................. 22Enter text 24ABC, T9, Number, and Symbol modesCall functions 26Advanced calling featuresMenu functions 30All menu options listedSolve problems 99Help and personal needsHealth and safety information 102

6UnpackMake sure you have each itemYou can obtain various accessories from your local Samsung dealer.Phone Travel AdapterBattery User’s GuideThe items supplied with your phone and the accessories at your Samsung dealer may vary, depending on your country or service provider.Your phoneButtons, features, and locationsLeft soft key Power on/off/ Menu exit keyAlphanumerickeysRight soft keyMicrophoneNavigation keys(Up/Down/Left/Right)Web access/Confirm keyDelete keyDial keyDisplayEarpieceVolume keysCamera lensExternal displayCamera keySpecialfunction keys Headset jack

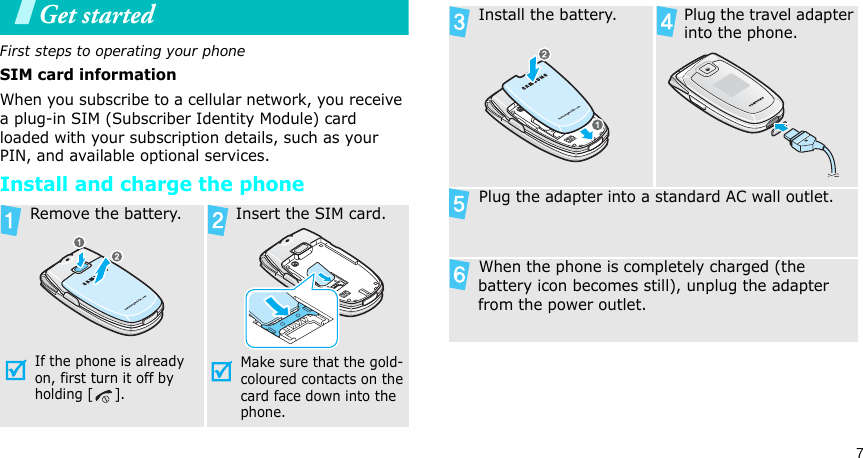

7Get startedFirst steps to operating your phoneSIM card informationWhen you subscribe to a cellular network, you receive a plug-in SIM (Subscriber Identity Module) card loaded with your subscription details, such as your PIN, and available optional services.Install and charge the phone Remove the battery.If the phone is already on, first turn it off by holding [ ]. Insert the SIM card.Make sure that the gold-coloured contacts on the card face down into the phone. Install the battery. Plug the travel adapter into the phone. Plug the adapter into a standard AC wall outlet. When the phone is completely charged (the battery icon becomes still), unplug the adapter from the power outlet.

8Get startedLow battery indicatorWhen the battery is low:• a warning tone sounds,• the battery low message displays, and• the empty battery icon blinks.If the battery level becomes too low, the phone automatically turns off. Recharge your battery. Power on or off Remove the adapter from the phone.Power onDo not turn on the phone when mobile phone use is prohibited.1. Open the phone.2. Press and hold [] to turn on the phone.3. If necessary, enter the PIN and press <OK>.Power off1. Open the phone.2. Press and hold [].

9Get startedKeys and displayKeysPerform the function indicated on the bottom line of the display.In Idle mode, access menu options directly.p. 90In Menu mode, scroll through the menu options.In Idle mode, launch the web browser.In Menu mode, select the highlighted menu option or confirm input.Send or answer a call.In Idle mode, retrieve numbers recently dialled, missed, or received.Delete characters from the display and selected item in an application.End a call. Press and hold to switch the phone on and off. In Menu mode, cancel input and return the phone to Idle mode.Enter numbers, letters, and some special characters.In Idle mode, press and hold [1] to access your voicemail. Press and hold [0] to enter an international call prefix.Enter special characters.In Idle mode, press and hold [] to activate or deactivate Quiet mode. Press and hold [] to enter a pause between numbers.Adjust the phone volume.In Idle mode, with the phone open, adjust the keypad tone volume. With the phone closed, press and hold to turn on the display.In Menu mode, scroll through the menu options.In Idle mode, press and hold to turn on the camera.In Camera mode, take a photo or record a video.

10Get startedDisplayLayoutThe display has three areas.Icons*Received signal strengthCall in progressOut of your service area; you cannot send or receive callsAlarm setp. 77New text messageNew voicemailNew multimedia messageNew e-mailText and graphicsdisplays messages, instructions, and information you enter.Soft key function indicatorsshows the current functions assigned to the two soft keys.Iconsdisplays various icons.Menu ContactsOne of the message Inboxes is fullCall diverting feature active p. 95Bluetooth activep. 47Synchronised with a PCGPRS networkHome Zone, if registered for the appropriate serviceOffice Zone, if registered for the appropriate serviceRinger type p. 93• None: Melody•: Vibration• : Melody and vibration• : Vibration then melody• : Melody then vibrationQuiet modep. 13Battery power level* Depending on your country or service provider, the icons shown on the display may vary.

11Get startedAccess menu functionsUse the soft keysThe roles of the soft keys vary depending on the function you are using. The bottom line of the display indicates their current role.Press the left soft key to select the highlighted option.Press the right soft key to return to the previous menu level.Select BackSelect an option1. Press the appropriate soft key.2. Press the Navigation keys to move to the next or previous option.3. Press <Select> or [ ] to confirm the function displayed or option highlighted.4. To exit, choose either of the following methods:•Press <Back> to move up one level.• Press [ ] to return to Idle mode.Use shortcutsPress the number key corresponding to the option you want.

12Get startedCustomise your phone1. In Idle mode, press <Menu> and select Settings → Phone settings → Language.2. Select a language.1. In Idle mode, press <Menu> and select Settings → Sound settings → Incoming call → Ring tone.2. Select a ringtone category.3. Select a ringtone.4. Press <Save>.Display languageCall ringer melodyYou can set a wallpaper for the idle screen on each display.From the main display:1. In Idle mode, press <Menu> and select Settings → Display settings → Wallpaper → Main display → Wallpaper.2. Select an image category.3. Select an image.From the external display:1. In Idle mode, press <Menu> and select Settings → Display settings → Wallpaper → Cover display.2. Select an image type.Idle mode Wallpaper

13Get started3. For Clock, scroll to a clock type and press <Save>.For Cover title, enter a greeting and press [].For Wallpaper images, select an image category and then an image. Press <Save>.You can change the colour for the display components, such as title bars and highlight bars.1. In Idle mode, press <Menu> and select Settings → Display settings → Skin.2. Select a colour pattern.Menu mode skin colourYou can set the Navigation keys to function as shortcuts to access your favourite menus.1. In Idle mode, press <Menu> and select Settings → Phone settings → Short cut.2. Select a key.3. Select a menu to be assigned to the key.You can switch the phone to Quiet mode to avoid disturbing other people.Press and hold [] in Idle mode.Menu shortcuts Quiet mode

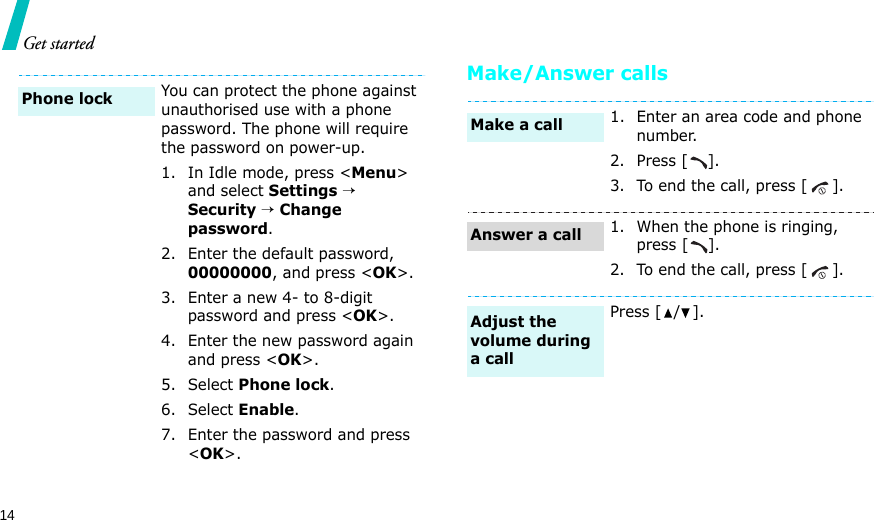

14Get startedMake/Answer callsYou can protect the phone against unauthorised use with a phone password. The phone will require the password on power-up.1. In Idle mode, press <Menu> and select Settings → Security → Change password.2. Enter the default password, 00000000, and press <OK>.3. Enter a new 4- to 8-digit password and press <OK>.4. Enter the new password again and press <OK>.5. Select Phone lock.6. Select Enable.7. Enter the password and press <OK>.Phone lock1. Enter an area code and phone number.2. Press [ ].3. To end the call, press [ ].1. When the phone is ringing, press [ ].2. To end the call, press [ ].Press [ / ].Make a callAnswer a callAdjust the volume during a call

15Step outside the phoneStep outside the phoneBegin with your camera, the music player, and other special featuresUse the camera1. In Idle mode, press and hold [ ] to turn on the camera.2. Aim the lens at the subject and make any desired adjustments.3. Press [] to take a photo. The photo is saved automatically.4. Press <Back> to take another photo.1. In Idle mode, press <Menu> and select My files → Images → Photos.2. Select the photo you want.Take a photoView a photo1. In Idle mode, press and hold [ ] turn on the camera.2. Press [1] to switch to Record mode.3. Press [] to start recording.4. Press < > to stop recording. The video is automatically saved.5. Press < > to record another video.1. In Idle mode, press <Menu> and select My files → Videos → Videos.2. Select the video clip you want.Record a videoPlay a video

16Step outside the phonePlay music filesUse these methods:• Download from the wireless webp. 52• Download from a computer using Samsung PC Studio Samsung PC Studio User’s Guide• Receive via Bluetooth p. 491. In Idle mode, press <Menu> and select Applications → Music Player.2. Press <Options> and select Add music.3. Press [] to select the files you want and press <Add>.Copy music files to the phoneCreate a play list1. From the music player screen, press [].2. During playback, use the following keys:• : pauses or resumes playback.• Up: accesses the current play list.• Left: moves back to the previous file. Moves backward in a file when held down.• Right: skips to the next file. Skips forward in a file when held down.• / : adjusts the volume.• Down: stops playback.Play music files

17Step outside the phoneBrowse the webUsing a built-in web browser, you can easily access the wireless web to get a variety of up-to-date services and information and to download web content.Use PhonebookIn Idle mode, press [].• To scroll through browser items, press [Up] or [Down]. • To select an item, press < > or [].• To return to the previous page, press <Back> or [C].• To return to the homepage, press and hold [C].• To use browser menu options, select or press [].• To use web page options, press [].Launch the web browserNavigate the webTo the phone’s memory:1. In Idle mode, enter a phone number and press [].2. Select Phone → New → a number type.3. Specify the contact information: First name, Last name, Mobile, Home, Office, Fax, Other, Email, Graphic ID, Alert, Group, and Notes.4. Press <Options> and select Save to save the entry.To t he SI M c ar d:1. In Idle mode, enter a phone number and press [].2. Select SIM.3. Enter a name.4. Press <Options> and select Save to save the entry.Add an entry

18Step outside the phoneSend messages1. In Idle mode, press <Contacts>.2. Enter the first few letters of the name you want.3. Select an entry.4. Scroll to a number and press [] to dial, or [] to edit the contact information.1. In Idle mode, press <Menu> and select Phonebook → My name card.2. Specify your contact information.3. Press <Options> and select Save to save the name card.4. To send the name card, press <Options> and select Send via → a sending method.Find an entryCreate and send a name card1. In Idle mode, press <Menu> and select Messages → Create new message → Text message.2. Enter the message text and press [].3. Enter destination numbers.4. Press [] to send the message.1. In Idle mode, press <Menu> and select Messages → Create new message → Multimedia message.2. Select Subject.3. Enter the message subject and press [].Send a text message (SMS)Send a multimedia message (MMS)

19Step outside the phone4. Select Picture & Video or Sound.5. For Picture & Video, select Add image or Add video and add an image or video clip.For Sound, select Add sound and add a sound clip.6. Select Message.7. Enter the message text and press [].8. Press <Options> and select Send.9. Enter destination numbers or e-mail addresses.10. Press [] to send the message.1. In Idle mode, press <Menu> and select Messages → Create new message → Email.2. Select Subject.3. Enter the e-mail subject and press [].4. Select Message.5. Enter the e-mail text and press [].6. Select File attach.7. Add image, video, sound, music files, or document files.8. Press <Options> and select Send.9. Enter e-mail addresses.10. Press [] to send the e-mail.Send an e-mail

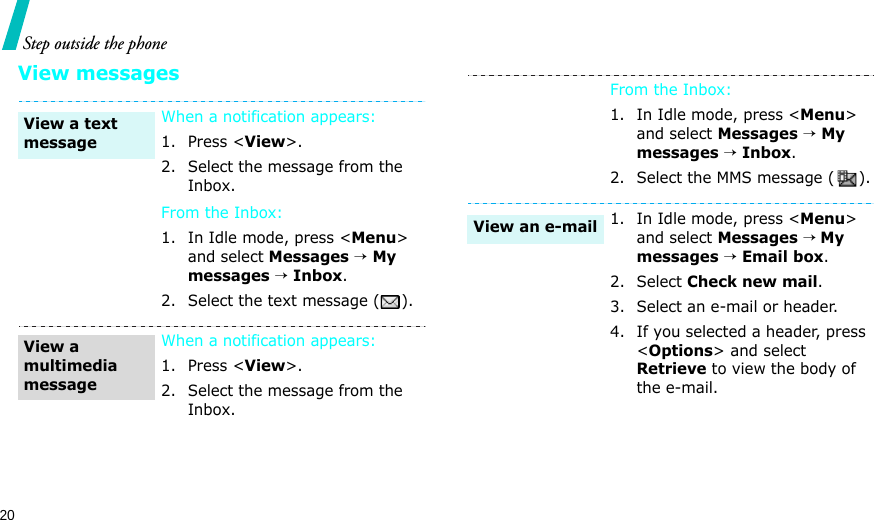

20Step outside the phoneView messagesWhen a notification appears:1. Press <View>.2. Select the message from the Inbox.From the Inbox:1. In Idle mode, press <Menu> and select Messages → My messages → Inbox.2. Select the text message ( ).When a notification appears:1. Press <View>.2. Select the message from the Inbox.View a text messageView a multimedia messageFrom the Inbox:1. In Idle mode, press <Menu> and select Messages → My messages → Inbox.2. Select the MMS message ( ).1. In Idle mode, press <Menu> and select Messages → My messages → Email box.2. Select Check new mail.3. Select an e-mail or header.4. If you selected a header, press <Options> and select Retrieve to view the body of the e-mail.View an e-mail

21Step outside the phoneUse Bluetooth wirelsessYour phone is equipped with Bluetooth technology, enabling you to connect the phone wirelessly to other Bluetooth devices and exchange data with them, talk hands-free, or control the phone remotely.In Idle mode, press <Menu> and select Applications → Bluetooth → Activation → On.1. In Idle mode, press <Menu> and select Settings → Bluetooth → My devices → Search new device.2. Select a device.3. Enter a Bluetooth PIN or the other device’s Bluetooth PIN, if it has one, and press <OK>. When the owner of the other device enters the same code, the pairing is complete.Turn on BluetoothSearch for and pair with a Bluetooth device1. Access an application, Phonebook, My files, Calendar, or Memo.2. Select the item you want to send.3. Press <Options> and select Send via → Bluetooth. 4. Select a device.5. If necessary, enter the Bluetooth PIN and press <OK>.To receive data via Bluetooth, your phone’s Bluetooth feature must be active.If necessary, press <Yes> to confirm that you are willing to receive.Send dataReceive data

22Step outside the phoneQuickly launch menus by number Use voice recognitionYour phone can recognise specific voice commands in order to dial a number or search for a name in Phonebook, access menus, or check your phone’s status.You can quickly access the text message, alarm, calendar, and convertor applications from the dialling screen.p. 741. For an alarm or scheduled event, enter the time you want as 4-digit in Idle mode.For the convertor, enter the first number you want to use.2. Press one of the Navigation keys.You can access the following applications:Access applicationsKey ApplicationUp Alarmp. 77Down Convertorp. 83Left Text messagep. 55Right Calendarp. 781. In Idle mode, press <Menu> and select Applications → Voice commands.2. At the voice prompt, say “Call.”3. Say a name or phone number. 4. If the name or phone number you hear is not what you want, say “No.”5. Say “Yes” when you hear what you want.6. Say the number type you want if the name has more than one number type.Dial a name

23Step outside the phone1. In Idle mode, press <Menu> and select Applications → Voice commands.2. At the voice prompt, say one of the following commands.•Call: dial a number by saying a name or phone number in Phonebook.•Send SMS: send an SMS message.•Lookup: access contact details.•Go To: access a menu.•Check: check the signal status, remaining battery power, or your phone number.3. Follow the corresponding menu procedure. Access features

24Enter textABC, T9, Number, and Symbol modesYou can enter text in some features such as Messages, Phonebook, or Calendar, using ABC mode, T9 mode, Number mode, and Symbol mode.Changing the text input modeThe text input mode indicator displays when the cursor is in a text field.•Press and hold [] to switch between T9 ( ) and ABC ( ) modes.•Press [] to change case or to switch to Number mode ( ).•Press and hold [] to switch to Symbol mode ().Using ABC modePress the appropriate key until the character you want appears on the screen.(creating an SMS message with GSM-alphabet encoding)Characters in order displayedKey Upper case Lower case

Enter text 25Other ABC mode operations• To enter the same letter twice or to enter a different letter on the same key, wait for the cursor to move to the right automatically or press [Right]. Then, enter the next letter.•Press [] to insert a space.• Press the Navigation keys to move the cursor. •Press [C] to delete characters one by one. Press and hold [C] to clear the display.Using T9 modeT9 is a predictive text input mode that allows you to key in any character using single keystrokes.Entering a word in T9 mode1. Press [2] to [9] to start entering a word. Press each key once for each letter. For example, press [4], [3], [5], [5], and [6] to enter HELLO in T9 mode. T9 predicts the word that you are typing, and it may change with each key that you press.2. Enter the whole word before editing or deleting characters.3. When the word displays correctly, go to step 4. Otherwise, press [0] to display alternative word choices for the keys that you have pressed. For example, OF and ME use [6] and [3].4. Press [] to insert a space and enter the next word.Other T9 mode operations• Press [1] to enter periods or apostrophes automatically.• Press the Navigation keys to move the cursor. • Press [C] to delete characters one by one. Press and hold [C] to clear the display.Adding a new word to the T9 dictionaryThis feature may not be available for some languages.1. Enter the word that you want to add.2. Press [0] to display alternative words for your key presses. When there are no more alternative words, Spell displays on the bottom line.

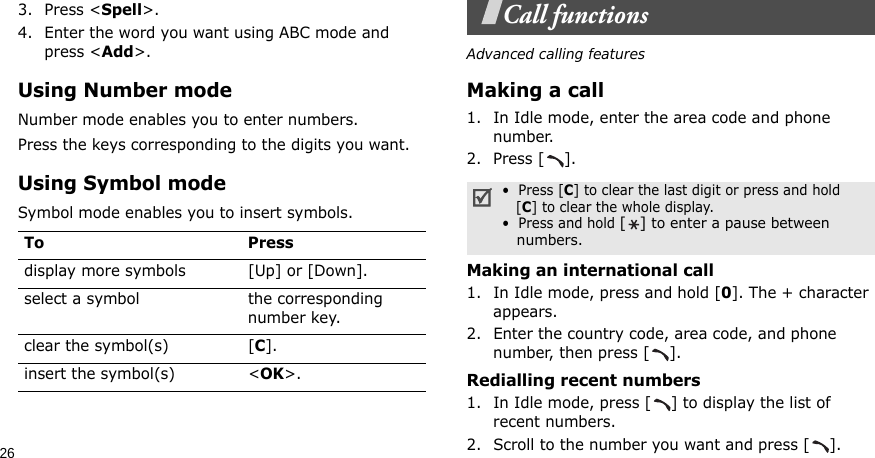

263. Press <Spell>.4. Enter the word you want using ABC mode and press <Add>.Using Number modeNumber mode enables you to enter numbers. Press the keys corresponding to the digits you want.Using Symbol modeSymbol mode enables you to insert symbols.Call functionsAdvanced calling featuresMaking a call1. In Idle mode, enter the area code and phone number.2. Press [ ].Making an international call1. In Idle mode, press and hold [0]. The + character appears.2. Enter the country code, area code, and phone number, then press [ ].Redialling recent numbers1. In Idle mode, press [ ] to display the list of recent numbers.2. Scroll to the number you want and press [ ].To Pressdisplay more symbols [Up] or [Down]. select a symbol the corresponding number key.clear the symbol(s) [C]. insert the symbol(s) <OK>.• Press [C] to clear the last digit or press and hold [C] to clear the whole display.• Press and hold [] to enter a pause between numbers.

Call functions 27Making a call from PhonebookOnce you have stored a number in Phonebook, you can dial the number by selecting it from Phonebook.p. 32You can also use the speed dial feature to assign your most frequently called numbers to specific number keys.p. 35You can quickly dial a number from the SIM card using the location number assigned when stored.1. In Idle mode, enter the location number for the phone number you want and press [].2. Scroll through other numbers, if necessary.3. Press <Dial> or [ ] to dial the number you want.Ending a callClose the phone or press [ ].Answering a callWhen you receive an incoming call, the phone rings and displays the incoming call image. Press [ ] or <Accept> to answer the call.Tips for answering a call• When Anykey answer is active, you can press any key to answer a call, except for [ ] and <Reject>.p. 92• When Active folder is active, you can simply open the phone.p.xx• Press <Reject> or [ ] to reject a call.• Press and hold [ / ] to reject a call or mute the ringer, depending on the Volume key setting.p. 91Viewing missed callsIf you have missed calls, the screen displays how many calls you have missed.1. Press <View>.2. If necessary, scroll through the missed calls.3. Press [ ] to dial the number you want.

28Call functionsUsing the headsetUse the headset to make or answer calls without holding the phone. Connect the headset to the jack on the bottom of the phone. The button on the headset works as follows:Options during a callYou can access a number of functions during a call.Adjusting the volume during a callUse [ / ] to adjust the earpiece volume during a call.Press [ ] to increase the volume level and [ ] to decrease the volume level.Placing a call on hold/RetrievingPress <Hold> or <Retrieve> to place the call on hold or retrieve the call.Making a second callYou can make another call if your network supports this function.1. Press <Hold> to put the call on hold.2. Make the second call in the normal way.3. Press <Swap> to switch between the calls.4. Press <Options> and select End held call to end the call on hold.5. To end the current call, press [ ].Answering a second callYou can answer an incoming call while already on the phone, if your network supports this function and you have activated the call waiting feature.p. 96 1. Press [ ] to answer the call. The first call is automatically put on hold.2. Press <Swap> to switch between the calls.To Pressredial the last call the button and then press and hold it again.answer a call the button and hold.end a call the button and hold.

Call functions 29Using the speakerphone featureUse the speakerphone feature to talk and listen with the phone a short distance away.Press [] to activate the speakerphone feature. Press the key again to switch back to the earpiece.Using In-call optionsPress <Options> to access the following options during a call:•Voice clarity on/Voice clarity off: remove extraneous noise and increase call quality so that the person with whom you are speaking can hear you clearly even if you are in a noise place.•Mute/Unmute: switch off the phone's microphone so that the other person on the phone cannot hear you, or switch it back on.•Mute keys/Send keys: switch the key tones on or off.•Phonebook: access the contact list.•Send DTMF: send the DTMF (Dual tone multi-frequency) tones as a group. The DTMF tones are the tones used in phones for tone dialling, sounding when you press the number keys. This option is helpful for entering a password or an account number when you call an automated system, like a banking service.•Message: read an incoming message and send a new message.p. 55•Join: set up a multi-party call by adding a caller on hold to a currently active call. You can include up to five people on a multi-party call.•Split: have a private conversation with one multi-party call participant. The other participants can converse with each other. After the private conversation, select Join to return both all private participants to the multi-party call.•Transfer: transfer the currently active call to a caller on hold. The two callers can talk to each other, but you are disconnected from the call.To communicate with answering machines or computerised telephone systems, Send keys must be selected.

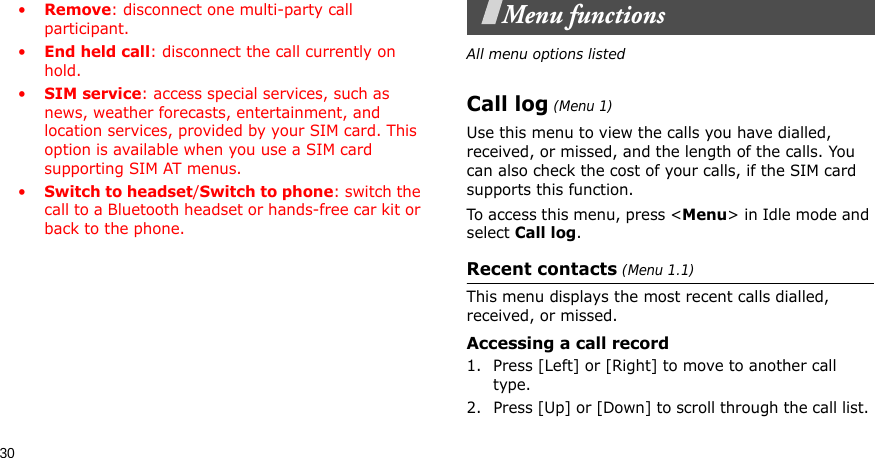

30•Remove: disconnect one multi-party call participant.•End held call: disconnect the call currently on hold.•SIM service: access special services, such as news, weather forecasts, entertainment, and location services, provided by your SIM card. This option is available when you use a SIM card supporting SIM AT menus.•Switch to headset/Switch to phone: switch the call to a Bluetooth headset or hands-free car kit or back to the phone.Menu functionsAll menu options listedCall log (Menu 1) Use this menu to view the calls you have dialled, received, or missed, and the length of the calls. You can also check the cost of your calls, if the SIM card supports this function.To access this menu, press <Menu> in Idle mode and select Call log.Recent contacts (Menu 1.1)This menu displays the most recent calls dialled, received, or missed. Accessing a call record1. Press [Left] or [Right] to move to another call type.2. Press [Up] or [Down] to scroll through the call list.

Menu functions Call log (Menu 1)313. Press [ ] to dial a number, or [] to view the details of a call.Using call record optionsWhile viewing call details, press <Options> to access the following options:•Call: edit the number and dial it.•View contact details: access the call details.•Add to phonebook: save the number in Phonebook.•Send message: send an SMS or MMS message to the selected number.•Delete: delete the selected call record or all records.•Add to reject list: add the number to the Block list.Missed calls (Menu 1.2)This menu displays the most recent received calls that you did not answer.Dialled calls (Menu 1.3)This menu displays the most recent calls you have dialled.Received calls (Menu 1.4) This menu displays the most recent calls you have received.Delete all (Menu 1.5) Use this menu to delete all of the records in each call type.1. Press [] to check the call types to clear. 2. Press <Delete>. 3. Press <Yes> to confirm the deletion.Call time (Menu 1.6) This menu displays the time log for calls made and received. The actual time invoiced by your service provider will vary.•Last call time: check the length of your last call.

32Menu functions•Total sent: check the total length of all the calls you have dialled.•Total received: check the total length of all the calls you have received.•Reset timers: reset the call timers. You need to enter the phone password.Call costs (Menu 1.7)This network feature displays the cost of calls. This menu is available only if your SIM card supports this feature. Note that this is not intended to be used for billing purposes.•Last call cost: check the cost of your last call.•Total cost: check the total cost of all your calls. If the total cost exceeds the maximum cost set in Set max cost, you must reset the counter before you can make another call.•Max cost: check the maximum cost limit set in Set max cost.•Reset counters: reset the cost counters.•Set max cost: set the maximum cost authorised for your calls.•Price/Unit: set the price per unit that is applied when the cost of your calls is calculated.Phonebook (Menu 2)You can store phone numbers on your SIM card and in your phone’s memory. The SIM card and phone’s memory are physically separate, but they are used as a single entity called Phonebook.To access this menu, press <Menu> in Idle mode and select Phonebook.Contact list (Menu 2.1)Use this menu to search for numbers in Phonebook.Finding an entry1. Enter the first few letters of the name that you want to find.The password is preset to 00000000. You can change this password.p. 98

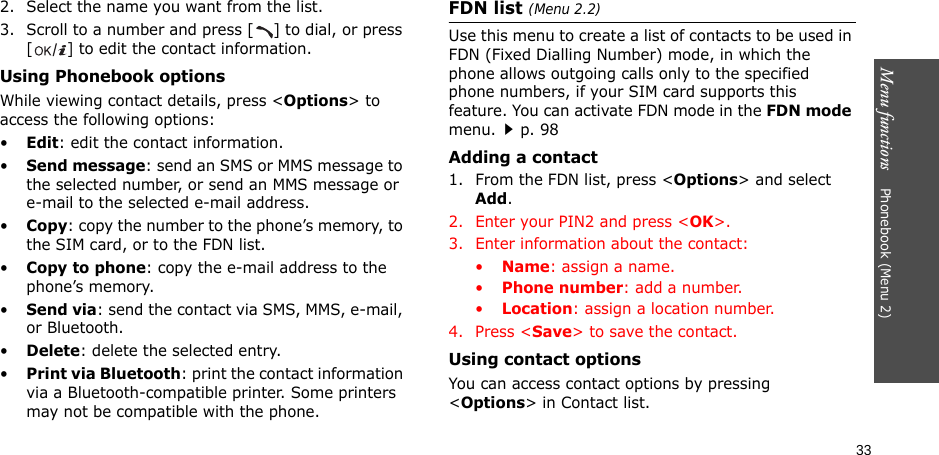

Menu functions Phonebook (Menu 2)332. Select the name you want from the list.3. Scroll to a number and press [ ] to dial, or press [] to edit the contact information.Using Phonebook optionsWhile viewing contact details, press <Options> to access the following options:•Edit: edit the contact information.•Send message: send an SMS or MMS message to the selected number, or send an MMS message or e-mail to the selected e-mail address.•Copy: copy the number to the phone’s memory, to the SIM card, or to the FDN list.•Copy to phone: copy the e-mail address to the phone’s memory.•Send via: send the contact via SMS, MMS, e-mail, or Bluetooth. •Delete: delete the selected entry.•Print via Bluetooth: print the contact information via a Bluetooth-compatible printer. Some printers may not be compatible with the phone.FDN list (Menu 2.2)Use this menu to create a list of contacts to be used in FDN (Fixed Dialling Number) mode, in which the phone allows outgoing calls only to the specified phone numbers, if your SIM card supports this feature. You can activate FDN mode in the FDN mode menu.p. 98Adding a contact1. From the FDN list, press <Options> and select Add.2. Enter your PIN2 and press <OK>.3. Enter information about the contact:•Name: assign a name.•Phone number: add a number.•Location: assign a location number.4. Press <Save> to save the contact.Using contact optionsYou can access contact options by pressing <Options> in Contact list.

34Menu functionsAdd new contact (Menu 2.3)Use this menu to add a new contact to Phonebook.Storing a number in the phone’s memory1. Select Phone.2. Change the settings or enter information about the contact:•First name/Last name: assign a name.•Mobile/Home/Office/Fax/Other: add a number in any category.•Email: assign an e-mail address.•Graphic ID: assign a caller ID image to alert you to a call from the person.•Alert: assign a ringtone to alert you to a call from the person.•Group: assign the number to a caller group.•Notes: add a memo about the person.3. Press <Options> and select Save to save the contact.Storing a number on the SIM card1. Select SIM.2. Enter information about the contact:•Name: assign a name.•Phone number: add a number.•Location: assign a location number.3. Press <Save> to save the contact.Group (Menu 2.4)Use this menu to organise your contacts in caller groups.Adding members to a caller group1. Select a group.2. Press <Add>.3. Press [] to check the contacts you want.4. Press <Add>.The settings specified in Graphic ID and Alert are given priority over group settings.To assign a caller ID image, ringtone, or group, the contact must be saved to the phone’s memory.

Menu functions Phonebook (Menu 2)35Managing caller groupsWhile viewing the group list, press <Options> to access the following options:•View: display the members of the selected group.•Add: add a new group.•Edit: change the properties of the selected group.•Send message: send an SMS, MMS, or e-mail to the members you want.•Delete: delete the selected group. Group members, however, will not be deleted from Phonebook.Speed dial (Menu 2.5)Use this menu to assign speed dial numbers (2 to 9) for 8 of your most frequently called numbers.Assigning speed dial entries1. Select a key location from 2 to 9. Key 1 is reserved for your voice mail server.2. Select a contact from the contact list.3. Select a number, if it has more than one number.Managing speed dial entriesFrom the Speed dial screen, press <Options> to access the following options:•Add: assign a number to an unassigned key. You can select a contact from Phonebook or the FDN list.•View: check the name and number assigned to the key.•Change: assign a different number to a key.•Remove: clear the speed dial setting for a key.Dialling speed dial entriesIn Idle mode, press and hold the appropriate key.My name card (Menu 2.6)Use this menu to create a name card and send it to other people.Saving your name cardThe procedure for creating your name card is the same as the one for saving a number in the phone’s memory.p. 34

36Menu functionsUsing name card optionsAfter saving your name card, press <Options> to access the following options:•Edit: edit the name card. •Send via: send the name card via SMS, MMS, e-mail, or Bluetooth.•Exchange namecard: exchange the name card with another person’s name card via Bluetooth.•Remove: delete the name card.•Print via Bluetooth: print your contact information via a Bluetooth-compatible printer. Some printers may not be compatible with the phone.Own number (Menu 2.7) Use this feature to check your phone numbers, or to assign a name to each of the numbers. Changes made here do not affect the actual subscriber numbers on your SIM card.Management (Menu 2.8)Use this menu to manage Phonebook.•Default saving: select a default memory location for saving contacts. If you select Ask on saving, the phone will ask you to select a memory location each time you save a number.•Copy all: copy all of the contacts stored on the SIM card to the phone’s memory, or vice versa.•Sort by contacts: sort your contacts by the first name or last name.•Delete all: delete all of the contacts from your phone’s memory, your SIM card, or the FDN list.•Memory status: display the number of contacts you have stored in Phonebook.Service number (Menu 2.9)Use this menu to view the list of Service Dialling Numbers (SDN) assigned by your service provider, including emergency numbers and numbers for directory enquiries. This menu is available if your SIM card supports SDN.

38Menu functionsSettings (Menu 3.1.5)You can change the settings for using the Lover’s Menu feature.•Couple event: •Register lover’s phone number: pair your phone with your lover’s phone.p. 47Music Player (Menu 3.2)Use this menu to enjoy music. First, you need to save music files in your phone’s memory. To enjoy high quality music, you can use an optional Bluetooth stereo headset.Downloading or receiving music filesUse the following methods to save music files to your phone:• Download from the wireless webp. 52• Download from a computer using the Samsung PC Studio programmeSamsung PC Studio User’s Guide• Receive via Bluetoothp. 49Creating a play listAdd the music files to the play list so you can play them.1. From the music player screen, press <Options> and select Add music.2. Press [] to select the files you want and press <Add>.Playing music files1. From the music player screen, press <Options> and select Play via.2. Select Phone to use the phone speaker. Select Bluetooth stereo headset to use a Bluetooth stereo headset and then search for and connect to the headset.During playback, use the following keys:Normal headsets are not compatible with the music player. Key FunctionPauses or resumes playback.Up Accesses the current play list.

Menu functions Applications(Menu 3)39Using music player optionsWhile playing a music file, press <Options> to access the following options:•Play/Pause: begin or pause playback.•Transfer to A/V headset/Transfer to phone: switch the sound output to a Bluetooth headset or the phone speaker.•Open: access the current play list or all play lists.•Remove from play list: remove the selected file from the play list.•Settings: change the default settings for playing music files. Repeat: select a repeat mode.Shuffle: set the music player to play tracks in random order.Equalize: change the equaliser setting.3D sound: turn 3D sound on or offVisualization: change the playback animation.Music Skin: select a skin typeVolume: select a volume level.•Details: access the file properties.•Music short cuts: view the functions of the keys you can use during playback.Left Moves back to the previous file. Moves backward in a file when held down.Right Skips to the next file. Skips forward in a file when held down./ Adjusts the volume.2Changes the playback animation.3Changes the repeat mode.5Changes the skin image.6Sets the music player to play tracks in random order.Down Stops playback.Key Function

40Menu functionsAccessing the play listFrom the music player screen, press [Up].Press <Options> to access the following options:•Play via: select a sound output mode, Phone or Bluetooth stereo headset. If you selected Bluetooth stereo headset, you can use a Bluetooth stereo headset and then search for and connect to the headset. •Add music: add files to the play list.•Go to Album list: access the album list.•Move to: move the selected file to another play list.•Copy to: copy the selected file to another play list.•Change order: move the selected file to the position you want within the play list.•Remove: remove the selected file or all files from the play list.•Details: access the file properties.Voice recorder(Menu 3.3)Use this menu to record voice memos. A voice memo can be up to one hour long.Recording a voice memo1. Press [] to start recording. 2. Speak into the microphone.Press [] to pause or resume the recording.3. When you have finished, press <Save> or [Down]. The voice memo is automatically saved.4. Press [] to review the voice memo, or [Up] to record additional memos.Playing a voice memo1. From the voice recorder screen, press <Options> and select Go to voice list.2. Select a voice memo. The memo plays.During playback, use the following keys:You can try a Bluetooth connection from the headset. To do this, the phone must be in Idle mode.Key FunctionPauses or resumes playback.Left Moves backward in a file.

Menu functions Applications(Menu 3)41Using voice recorder optionsFrom the voice recorder screen, press <Options> to access the following options:•Record: record a new voice memo.•Go to voice list: access the voice memo list.•Settings: customise the default settings for the voice recorder:Recording time: select a recording time.- Limit for multimedia messages: record a voice memo for adding to an MMS message.- Limit for emails: record a voice memo for adding to an e-mail- 1 hour: record a voice memo of up to one hour.Volume: select a volume level.Default name: change the default prefix of file names.Visualization: select an equalizer image.Image editor(Menu 3.4)Use this menu to edit your photos using an assortment of editing tools.Applying an effect1. Press <Options> and select New image → Open or Take a photo.2. Select a photo or take a new photo.3. Press <Load>, or press <Options> and select Load.4. Press <Options> and select Effects → an effect option.5. Press <Done>.6. Press <Options> and select Save as.7. Press <Yes>.8. Enter a new file name and press []. Right Skips forward in a file./ Adjusts the volume.Down Stops playback.Key Function

42Menu functionsAdding visual featuresYou can decorate photos by adding a frame, an image, or a note.1. Select a photo or take a new photo.2. Press <Load>, or press <Options> and select Load.3. Press <Options> and select Insert → a feature type.•Frames: add a decorative frame.•Emoticons: add an emoticon.•Clip Art: add an image.4. Select an item.5. Adjust the position of the inserted item and press <Done>.6. Press <Options> and select Save as.7. Press <Yes>.8. Enter a new file name and press [].Beauty box (Menu 3.5)Use this menu to edit photos using various editing tools.Beauty kits (Menu 3.5.1)Use this menu to decorate the appearance of the person on the image by using various tools.1. Press <Options> and select New image → Open or Take a photo.2. Select an image or take a new photo.3. Press <Options> and select one of the following options:•New image: select an image or take a new photo.•Beauty accessory: change a hair style, beard, fashion style, and background image.•Make-up: change the appearance of the image by using various make-up tools. •Merge: merge the image.•Undo: cancel your selection.

Menu functions Applications(Menu 3)434. When you have finished, press <Options> and select Save as.5. Enter a name for the image and press [].Foresee my child (Menu 3.5.2)Use this menu to predict your child appearance using your photo and your lover’s photo.1. When the left image field highlights, press <Options> and select Add image → Open or Take a photo.2. Select a photo or take a new photo.3. When the selected image appears on the left image field, press [Right].4. Press <Options> and select Add image → Open or Take a photo.5. Select a photo or take a new photo.The selected image displays on the right image field.6. Press [Down] and select the merge ratio you want.7. Press <Options> and select Foresee. The two images merge.8. If you want to apply special effect, press <Options> and select Beauty accessory.9. Change the hair or fashion style or background image and press <Done>.10. When you have finished, press <Options> and select Save as.11. Enter a name for the image and press <Save>.Women’s life (Menu 3.6)Your phone has special menus, which can be useful for women in modern world. Fragrance type (Menu 3.6.1)Use this menu to help you choose the fragrance type best suited for your personal image according to your own preferences, such as your favourite food and music, your hobbies, fashion sense, and the places you love to go.Creating a profile1. Press <Create>, or press <Options> and select Create new.

Menu functions Applications(Menu 3)454. To send the biorhythm via SMS, press <Options> and select Send via SMS.Checking your biorhythm for the current month1. From the Biorhythm screen, select Month view.2. Enter your birth date and press <OK>.Setting the alarm for your biorhythm1. From the Biorhythm screen, select Biorhythm alarm.2. Set each alarm option:•Set biorhythm alarm: activate the alarm.•Birthday: enter your birth date.•Alarm time: enter the time for the alarm to ring.•AM/PM: set AM or PM in 12-hour format.•Alarm day: check the days for the alarm.•Alarm tone: select an alarm tone.3. When you have finished, press <Save>.Height/Weight ratio (Menu 3.6.3)Use this menu to measure the percentage by which you are over or under the ideal weight for your height.1. Press [Left] or [Right] to select your gender.2. Enter your height.3. Enter your weight.4. Press <OK> to view the result.Press <Help> to understand the significance of the percentage.Calories (Menu 3.6.4)Use this menu to measure calories you have consumed and burned, based on the amount of work and/or exercise you have done. You can also check the total calories consumed for a day. Saving a calorie item1. Select a day on the calendar.2. Press <Options> and select Create.3. Press [Left] or [Right] to select your work category for each option. As you change a category, the following categories are displayed differently.4. Move to the How long field and enter the length of work time.

46Menu functions5. Press <Save>.Accessing a calorie itemWhen you enter the Calories menu, the total calories consumed for the selected day are displayed at the bottom of the calendar.Select a day to view the details.While viewing the calorie list, press <Options> to access the following options:•Change time: enter the length of work time.•Create: add a new calorie item.•Delete: delete the selected calorie item or all calorie items.Pink schedule (Menu 3.6.5)Use this menu to check the date of your next ovulation and the period during which you are most likely to get pregnant.1. Enter the first day of your last menstrual period.2. Enter the average length (in days) of your menstrual cycle.3. Press <OK>. 4. Press [Left] or [Right] to move the calendar.Shopping list (Menu 3.6.6)Use this menu to make a shopping list by entering information on items that you want or need to buy and calculate the total expense. 1. Select a shopping bag.2. Press <Add>.3. Set the following options for the item:•Photos: assign an image to the item.•Item: enter a name for the item.•How much?: enter the item price. Press [ ] to insert a decimal point.•How many?: enter the number of the items.4. When you have finished, press <Save> to add the item to the bag.From the item list on a shopping bag, press <Options> to access the following options:•Edit: edit information on the item.•Add: add a new item to the bag.

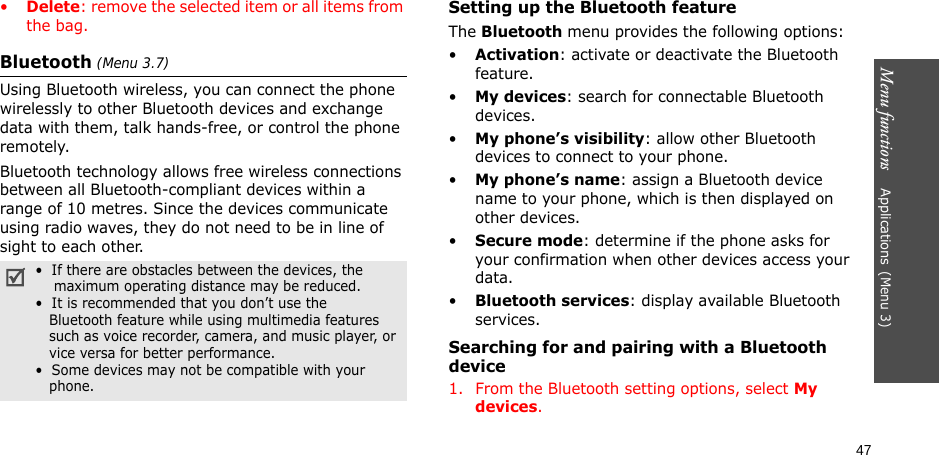

Menu functions Applications(Menu 3)47•Delete: remove the selected item or all items from the bag.Bluetooth (Menu 3.7) Using Bluetooth wireless, you can connect the phone wirelessly to other Bluetooth devices and exchange data with them, talk hands-free, or control the phone remotely.Bluetooth technology allows free wireless connections between all Bluetooth-compliant devices within a range of 10 metres. Since the devices communicate using radio waves, they do not need to be in line of sight to each other.Setting up the Bluetooth featureThe Bluetooth menu provides the following options:•Activation: activate or deactivate the Bluetooth feature.•My devices: search for connectable Bluetooth devices.•My phone’s visibility: allow other Bluetooth devices to connect to your phone.•My phone’s name: assign a Bluetooth device name to your phone, which is then displayed on other devices.•Secure mode: determine if the phone asks for your confirmation when other devices access your data.•Bluetooth services: display available Bluetooth services. Searching for and pairing with a Bluetooth device1. From the Bluetooth setting options, select My devices.• If there are obstacles between the devices, the maximum operating distance may be reduced.• It is recommended that you don’t use the Bluetooth feature while using multimedia features such as voice recorder, camera, and music player, or vice versa for better performance.• Some devices may not be compatible with your phone.

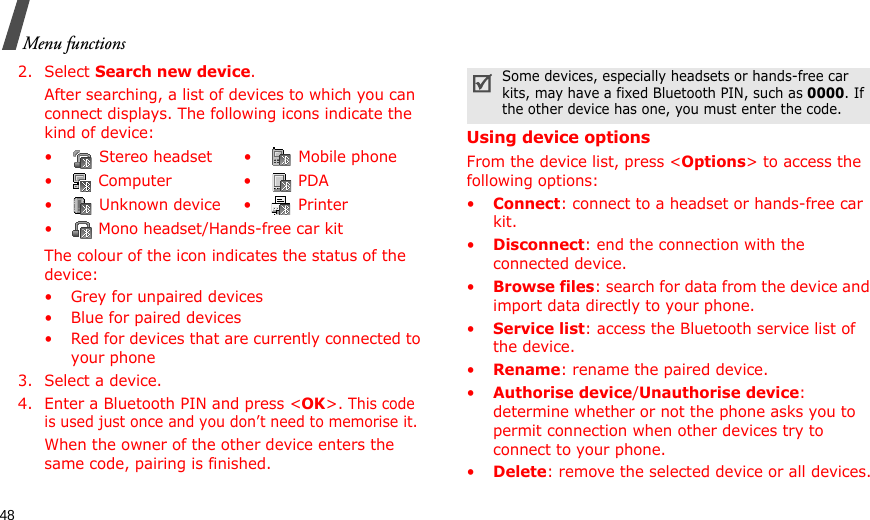

48Menu functions2. Select Search new device.After searching, a list of devices to which you can connect displays. The following icons indicate the kind of device:The colour of the icon indicates the status of the device:• Grey for unpaired devices• Blue for paired devices• Red for devices that are currently connected to your phone3. Select a device.4. Enter a Bluetooth PIN and press <OK>. This code is used just once and you don’t need to memorise it.When the owner of the other device enters the same code, pairing is finished.Using device optionsFrom the device list, press <Options> to access the following options:•Connect: connect to a headset or hands-free car kit.•Disconnect: end the connection with the connected device.•Browse files: search for data from the device and import data directly to your phone.•Service list: access the Bluetooth service list of the device.•Rename: rename the paired device.•Authorise device/Unauthorise device: determine whether or not the phone asks you to permit connection when other devices try to connect to your phone.•Delete: remove the selected device or all devices.• Stereo headset • Mobile phone• Computer • PDA• Unknown device • Printer• Mono headset/Hands-free car kitSome devices, especially headsets or hands-free car kits, may have a fixed Bluetooth PIN, such as 0000. If the other device has one, you must enter the code.

Menu functions Applications(Menu 3)49Sending data via Bluetooth1. Activate the Bluetooth feature.2. Select the application in which the item you want to send is stored. 3. Scroll to the item you want and press <Options>.4. Select Send via → Bluetooth.The phone searches for devices within range and displays a list of available devices.5. Select a device.6. If necessary, enter the Bluetooth PIN needed for pairing and press <OK>.Receiving data via BluetoothTo receive data via Bluetooth, your phone’s Bluetooth feature must be active.If an unauthorised Bluetooth device sends data to your phone, the phone displays a confirmation message. To receive data, press <Yes>.Java world(Menu 3.8)Use this menu to access the embedded Java games and downloaded Java applications.Playing a gameSelect a game from the game list and follow the onscreen instructions. The procedure may differ from game to game.Using Java application optionsFrom the application list, press <Options> to access the following options:•Start: launch the selected application.•Delete: delete the selected application.•Details: access the application properties.•Permission: set permission settings for services charging you additional costs, such as network access and SMS.•Lock/Unlock: lock the application to protect it from being deleted, or unlock the application.

Menu functions Applications(Menu 3)51•Go To: access a menu.•Check: check the signal status, remaining battery power, and your phone number.3. Follow the corresponding menu procedure.Setting up options You can customise various options for the voice recognition feature.From the Voice commands menu, press <Settings> to access the following options:•Choice lists: set the phone to require confirmation of your voice commands when using voice dialling or accessing Phonebook.Automatic: the phone asks for confirmation when results are not clear.Always on: the phone asks for confirmation at all times.Always off: the phone does not require confirmation.•Sensitivity: adjust the sensitivity level of your phone to better recognise your voice.•Digit dialling: set the phone to recognise your voice for voice recognition, and also to reset settings.Select location: select a location which you speak a language.Adapt digits: adapt your phone to recognise your vocal style and pronunciation for each digit. Follow the voice prompts to adapt the phone.Reset digits: return to default settings.•Sound: configure sound settings for voice dialling.Prompts: turn on or off audio prompts.Digits: turn on or off audio playback for digit dialling.Names: turn on or off audio playback for name dialling.Name settings: adjust settings for the speed and volume for name dialling.•About: display information about the voice command programme.

52Menu functionsViewing help informationYou can view onscreen help information for using the voice recognition feature. From the Voice commands menu, press <Help>.SIM-AT(Menu 3.10) This menu is available if you use a SIM-AT card that supports SIM Application Toolkit menus and provides additional services, such as news, weather, sports, entertainment, and location services. Available services may vary, depending on your service provider’s plans. For details, see your SIM card instructions or contact your service provider.Browser(Menu 4)The Wireless Application Protocol (WAP) on your phone allows you to access the wireless web. Using the web browser, you can access up-to-date information and a wide variety of media content, such as wallpapers, ringtones, and music files.To access this menu, press <Menu> in Idle mode and select Browser.Home(Menu 4.1)Use this menu to connect your phone to the network and load the homepage of the wireless web service provider. You can also press [] in Idle mode.Navigating the web browserTo Pressscroll through browser items [Up] or [Down]. select a browser item < > or [].return to the previous page <Back> or [C].return to the homepage [C] and hold.

Menu functions Browser(Menu 4)53Using browser menu options1. Select or press [].2. Select one of the following browser options:•Back: go back to the previous page.•Home: go back to the homepage.•Exit: exit the web browser.•Reload: reload the current page.•Show URL: display the URL address of the current web page.•About...: access version and copyright information about the browser.Using web page optionsFrom any web page, press [] to access the following options:•Enter URL: enter a URL address manually.•Bookmarks: switch to the Bookmarks menu.•Messages: check the messages stored in the My messages folder. You can also create and send a new SMS message.•My files: switch to the My files menu.Exiting the browserPress [ ] to end the network connection and exit the browser.Bookmarks(Menu 4.2)Use this menu to access the embedded URL addresses to quickly access one of websites.Accessing a bookmarked pageSelecting a bookmark item launches the web browser and access the associated web page.Using bookmark optionsFrom the bookmark list, press <Options> to access the following options:•Open: access the website.•Edit: edit the address and name of the bookmark.•Delete: delete the selected bookmark or all bookmarks.

56Menu functions2. Press <Options> to access the following options:•Send only: just send the message.•Save and send: save the message in Outbox and then send it.•Preview by vivid message: view the message as it will be shown on the reciprent’s phone.•Insert: add a template, Phonebook entry, or bookmark.•Add picture/Add animation/Add melody: attach a simple image, animated image, or a melody.•Attach: add name cards or calendar data as data format attachments.•Save in: save the message in another folder.•Language select: change the language to be used in T9 input mode.•Text style: change the text attributes.3. When you have finished, press <Options> and select Send only or Save and send.4. Enter a destination number.To send the message to more than one recipient, fill in the destination fields.5. Press [] to send the message.Multimedia message (Menu 5.1.2)Multimedia Message Service (MMS) delivers messages containing a combination of text, image, video, and audio, from phone to phone or from phone to e-mail. 1. Select the Subject line.2. Enter the subject and press []. 3. Select the Picture & Video or Sound line and add an image, a video, or a sound file. 4. Select the Message line.5. Enter the message text.Press <Options> to access the following options:• The maximum size allowed for a message can differ, depending on the your service provider.• Depending on the file type or DRM (Digital Rights Management) system, some files may not be able to be forwarded.

58Menu functions2. Enter the subject of your e-mail and press [].3. Select the Message line.4. Enter the e-mail text.Press <Options> to access the following options:•Save: save the message in the Drafts box.•Insert: add a template, Phonebook entry, or bookmark.•Save to: save the e-mail in another folder.•Language select: change the language used in T9 input mode.5. When you have finished, press [].6. Select the File attach line and select one of the following options:•Add image/Add videos/Add sounds/Add music: add items stored in the phone’s memory.•Add other files: add document files stored in the Other files folder.•Send: send the message.•Save to: save the e-mail in another folder.•Attach: attach name cards or calender data as data format attachments.7. After adding items, press <Options> to access the following options to edit the e-mail:•Edit: edit the subject or text.•View: open the selected file.•Remove subject/Remove message: clear the subject or text.•Remove: delete the selected attachment or all attachments.•Remove all attachments: delete all attachments.8. When you have finished, press <Options> and select Send.9. Enter an e-mail address.To send the e-mail to more than one recipient, fill in additional destination fields. Depending on the file type or DRM (Digital Rights Management) system, some files may not be able to be forwarded.

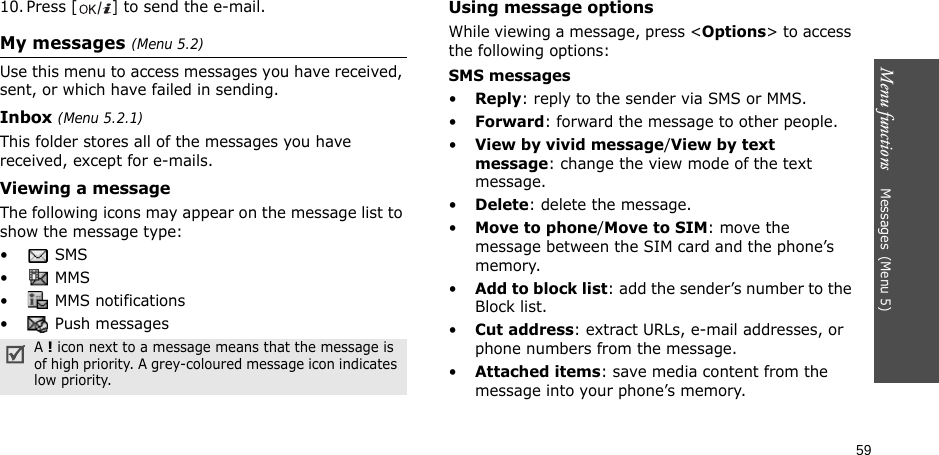

Menu functions Messages(Menu 5)5910. Press [] to send the e-mail.My messages (Menu 5.2)Use this menu to access messages you have received, sent, or which have failed in sending.Inbox (Menu 5.2.1)This folder stores all of the messages you have received, except for e-mails.Viewing a messageThe following icons may appear on the message list to show the message type:• SMS• MMS• MMS notifications• Push messagesUsing message optionsWhile viewing a message, press <Options> to access the following options:SMS messages•Reply: reply to the sender via SMS or MMS. •Forward: forward the message to other people.•View by vivid message/View by text message: change the view mode of the text message.•Delete: delete the message.•Move to phone/Move to SIM: move the message between the SIM card and the phone’s memory.•Add to block list: add the sender’s number to the Block list.•Cut address: extract URLs, e-mail addresses, or phone numbers from the message.•Attached items: save media content from the message into your phone’s memory.A ! icon next to a message means that the message is of high priority. A grey-coloured message icon indicates low priority.

60Menu functions•Print via Bluetooth: print the message via a Bluetooth-compatible printer. Some printers may not be compatible with the phone.•Lock/Unlock: lock the message to protect it from being deleted, or unlock the message.MMS notifications/MMS messages•Retrieve: retrieve the MMS message from the server.•Reply via SMS: send a reply message via SMS.•Reply via MMS to: send a reply message via MMS to the sender or all recipients.•Forward: forward the message to other people. •Delete: delete the message.•Add to block list: add the sender’s number to the Block list.•Cut address: extract URLs, e-mail addresses, or phone numbers from the message.•Cut media: save media content from the message into your phone’s memory.•Details: access the message properties.Push messages•Go to URL: connect to the URL specified in the message.•Delete: delete the message.•Cut address: extract URLs, e-mail addresses, or phone numbers from the message.Configuration messages•Install: apply the configuration value in the message to the phone.•Cut address: extract URLs, e-mail addresses, or phone numbers from the message.•Delete: delete the message.•Lock/Unlock: lock the message to protect it from being deleted, or unlock the message.Draft (Menu 5.2.2)This folder stores messages you have saved to send at a later time.

Menu functions Messages(Menu 5)61When you select an SMS or e-mail message, it opens in Edit mode so that you can edit and/or send the message.When you select an MMS message, it opens in Preview mode as would a message from the Inbox. To edit the MMS message, press <Options> and select Edit.Outbox (Menu 5.2.3)This folder stores messages that the phone is attempting to send or has failed to send.While viewing a message, press <Options> to access the following options:•Open file: open the selected file.•Save file: save the selected file.•Send again: retry sending the message.•Forward: forward the message to other people.•Delete: delete the message.•Move to phone/Move to SIM: move the message between the SIM card and the phone’s memory.•Print via Bluetooth: print the message via a Bluetooth-compatible printer. Some printers may not be compatible with the phone.•Protection: protect the message from being deleted.•Details: access the message properties.Sentbox (Menu 5.2.4)This folder stores messages that you have sent successfully.While viewing a message, press <Options> to access the following options:•Open file: open the selected file.•Save file: save the selected file.•Forward: forward the message to other people.•Delete: delete the selected message.•Move to phone/Move to SIM: move the message between the SIM card and the phone’s memory.•Print via Bluetooth: print the message via a Bluetooth-compatible printer. Some printers may not be compatible with the phone.

62Menu functions•Protection: protect the message from being deleted.•Details: access the message properties.Email box (Menu 5.2.5)This folder stores e-mails that you have received.Viewing an e-mail1. Press <Select> when Check new mail displays, or press <Options> and select Retrieve. The phone checks the e-mail server and downloads new e-mails. The following icons may appear on the list to show the e-mail status:• Retrieved from the server• Being retrieved• Failed to retrieve2. Select an e-mail or header.3. Press [ / ] to view other pages in the e-mail. Press and hold [ / ] to move to the first or last page in the e-mail.4. Press [] or [] to view the next or previous e-mail.Using e-mail optionsWhile viewing the e-mail or header, press <Options> to access the following options:•Retrieve: retrieve the body of the e-mail from the e-mail server.•Open file: open the selected file.•Save file: save the selected file.•Reply to: send a reply to the sender or all recipients.•Forward: forward the e-mail to other people.•Delete: delete the e-mail from the phone’s memory or from both the phone’s memory and the e-mail server.•Add to block list: add the sender’s e-mail address or subjects to the Block list.•Cut address: extract URLs, e-mail addresses, and phone numbers.A ! icon next to a message means that the e-mail is of high priority. A grey-coloured e-mail icon indicates low priority.

Menu functions Messages(Menu 5)63•Cut attachment: save the selected attachment or all attachments from the e-mail to your phone’s memory.•Print via Bluetooth: print the e-mail via a Bluetooth-compatible printer. Some printers may not be compatible with the phone.•Protection: protect the e-mail from being deleted. •Details: access the e-mail properties.My folder (Menu 5.2.6)Use this menu to view the messages you have moved to this folder using the Move to my folder option while viewing a message list.Templates (Menu 5.3)Use this menu to make and use templates of frequently used messages.Text template (Menu 5.3.1)You can create SMS templates with the sentences you use frequently so that you can retrieve and insert them when composing an SMS message.Creating a template1. Select an empty location.2. Enter a message and press [].Using template optionsFrom the template list, press <Options> to access the following options:•Edit: edit the template.•Send: create and send a new message via SMS, MMS, or e-mail.•Delete: delete the selected template.Multimedia message template (Menu 5.3.2)You can access embedded MMS templates or ones you have saved so that you can use them in composing an MMS message.Creating a template1. Press <Options> and select Add new.2. Create a template as you would when creating an MMS message.

64Menu functions3. Press <Options> and select Save to → Templates.Using template optionsFrom the template list, press <Options> to access the following options:•View: open the selected template.•Send message: create and send a new message via MMS.•Edit: edit the selected template.•Add new: add a new template.•Delete: delete the selected template or all templates. You cannot delete the embedded templates.Delete all (Menu 5.4)Use this menu to delete all messages in each message type at once.1. Press [] to select the message folders you want.2. Press <Delete>.3. Press <Yes> to confirm the deletion.Settings (Menu 5.5)Use this menu to set up various options for using the messaging service.Text messages (Menu 5.5.1)You can configure SMS settings.•Sending options: set up the options for sending SMS messages:Send read receipt: send a read reply request along with your message. Send delivery receipt: set the network to inform you when messages have been delivered. Character support: select a character encoding type. If you select Auto, the phone switches the encoding type from GSM-alphabet to Unicode if you enter an unicode character. Use of Unicode encoding will reduce the maximum number of characters in a message to about half. If this menu is not shown, your phone provides the automatic character encoding by default.

Menu functions Messages(Menu 5)65Validity period: set the length of time your messages are stored in the SMS server.Message type: set the default message type. The network can convert messages into the selected format.Service centre: store or change the number of SMS server.•Receiving options: activate 3D vivid mode for displaying received SMS messages on your phone. The phone will convert message text to 3D vivid graphics and display it in 3D view mode.•Block number: set the Blocked number list to reject SMS messages from specific phone numbers.Multimedia message (Menu 5.5.2)You can configure MMS settings.•Send settings: set up the options for sending MMS messages:Delivery report: set the network to inform you when your messages have been delivered.Address hiding: set your address to be hidden from the recipient’s phone.Read reply: send a read-reply request along with your messages.Priority: set the priority level of your messages.Expiry date: set the length of time your messages are stored in the MMS server.Delivery after: set a time delay before messages are sent.•Receive settings: set up the options for receiving MMS messages:Anonymous reject: reject messages from unknown senders.Advert allowed: accept advertisements.Report allowed: set the network to inform the sender when a message has been delivered to you.Home reception: determine if your phone retrieves new messages automatically when you are in your home service area.

68Menu functionsDelivery confirm: set the network to inform you when e-mails have been delivered.Read confirm: send a read-reply request for a reply along with e-mails.Priority: select the priority level of your e-mail.Include signature: attach your name, phone number, or a simple memo to e-mails.Edit name: edit the name in your signature.Edit telephone number: edit the phone number in your signature.Edit note: edit the tag line in your signature.•Receive settings: set up the options for receiving e-mails:Check interval: determine how often the phone checks the server for incoming e-mails.If you select Not used, you can use the Check new mail feature to check your e-mail manually.Read reply: determine whether or not the phone sends a read-reply for incoming e-mails. If you select Announce, the phone asks you to send a read-reply.Retrieve option: set whether the phone downloads e-mail headers only or e-mail headers and bodies both.Delete option: determine whether e-mails are deleted immediately or the next time you connect to the server.Reject if over: determine the maximum size for incoming e-mails. Your phone will reject e-mails that exceed the specified size.Leave a copy of messages on the server: leave the copies of e-mails in the server after retrieving.•Email account: set up an e-mail account and select an account to be used:Current account: select an account.Account settings: configure e-mail accounts using different e-mail servers. Press <Options> and select Create:- In use: select this option to use the account and to display the account in Email box.- Account name: enter a name for the currently selected account.

Menu functions Messages(Menu 5)69To access the following options, press <Options> and select Next.- User name: enter a user name.- Email address: enter your e-mail address.- Reply address: enter your e-mil address to be used when the recipient sends a reply.To access the following options, press <Options>, and select Next.- Secure connection (SMTP): activate the use of the SSL (Secured Sockets Layer) protocol.- SMTP server: enter the IP address or host name of the outgoing e-mail server. - SMTP port: enter the SMTP port number.- SMTP User ID: enter the SMTP user ID.- SMTP password: enter the SMTP user password.- Retrieve server type: select the protocol for the incoming e-mail server. The remaining options depend on the protocol type setting. When the protocol type is POP3:- Secure connection (POP3): use a secure connections for e-mail service.- POP3 server: enter the IP address or host name of the server that receives your e-mail.- POP3 port: enter the POP3 port number.- Same ID and password: select to use the same SMTP server user ID and password with incoming server.- POP3 user ID: enter the POP3 user ID.- POP3 password: enter the POP3 password.- APOP login: connect to the server by using the APOP login scheme when this option is selected.When the protocol type is IMAP4:- Secure connection (IMAP4): use a secure connections for e-mail service.- IMAP4 server: enter the IP address or host name of the server that receives your e-mail.- IMAP4 port: enter the IMAP4 port number.

Menu functions Messages(Menu 5)71Broadcast messages(Menu 5.6)The cell broadcast service delivers short messages on various topics such as the weather or traffic.Use this menu to change the settings for the service and to access broadcast messages.•Read: open received messages.The Temporary box saves network messages until the phone is switched off.The Archive box saves network messages indefinitely. Press <Options> and select Save when a text notification appears to save to the Archive box.•Activation: enable or disable the reception of broadcast messages. You can also add a new channel.•Receiving channels: access the following channel options:All channels: enable or disable all channels from which you receive broadcast messages.My channels: add, edit, or delete your own channels.•Language: select the languages in which broadcast messages display.Please contact your service provider for details.Memory status(Menu 5.7)Use this menu to view the memory status for text, multimedia, e-mail, or push messages.

72Menu functionsMy files(Menu 6)The My files menu allows you to access images, videos, voice memos, music files, sounds, and other files stored in the phone’s memory.To access this menu, press <Menu> in Idle mode and select My files. Images(Menu 6.1)This menu displays photos you have taken and images you have downloaded, received in messages, or imported from your computer.Viewing an image1. Select an image folder.2. Select an image.Viewing a slide showYou can view your images as a slide show, a sequential presentation of each image in the current folder.1. Select an image folder.2. While viewing an image, press <Options> and select Slide show.3. Select a time interval. The slide show begins.4. Press <Back> to stop the slide show.Using image optionsWhile viewing an image, press <Options> to access the following options:•List: return to the image list.•Send via: send the file via MMS, e-mail, or Bluetooth.•Set as: set the file as your wallpaper or as a caller ID image for a Phonebook entry.•Edit: edit the image and save it as a different file.•Move to favourite images/Move to: move the file to another folder.As a result of the Digital Rights Management (DRM) system, some of the media items you download from the Internet or receive by MMS may require a license key to access them.

Menu functions My files(Menu 6)73•Delete: delete the selected file.•Rename: change the file name.•Slide show: view all image as a slide show.•Bluetooth visibility: share the file with other Bluetooth devices.•Print via: print the file by connecting the phone to a printer via Bluetooth or USB. Some printers may not be compatible with the phone.•Protection: protect the file from being deleted.•Details: access the file properties.Videos (Menu 6.2)This menu displays video clips you have recorded, downloaded, or received in messages, or imported from your computer.Playing a video clip1. Select a video folder.2. Select a video clip.During playback, use the following keys:From a file list, press <Options> to access the following options:•Play: play the selected file.•Display mode: select the view mode of the file list.•Send via: send the selected file via MMS, e-mail, or Bluetooth.Video clips recorded on other devices, such as camcorders, may not play correctly.Key FunctionPauses or resumes playback.Up Accesses the file list.Left Moves back to the previous file. Moves backward in a file when held down.Right Skips to the next file. Skips forward in a file when held down./ Adjusts the volume.Down Stops playback.

74Menu functions•Move to favourite videos/Move to: move the file to another folder.•Delete: delete the selected file or all files.•Rename: change the file name.•Sort by: change the sort order of the list.•Bluetooth visibility: share the selected file or all files with other Bluetooth devices.•Print via: print the image by connecting the phone to printer via USB or Bluetooth. Some printers may not be compatible with the phone.•Protection: protect the file from being deleted.•Details: access the file properties.Music (Menu 6.3)This menu displays MP3 music files you have downloaded, or imported from your computer.1. Select Music.2. Select a file. The music player opens.p. 38Sounds (Menu 6.4)This menu displays the voice memos you have recorded, and sound files you have downloaded, received in messages, or imported from your computer.Playing a sound clip1. Select a sound folder.2. Select a sound clip. For a voice memo, see Voice recorder.p. 40While playing a sound clip, press <Options> to access the following options:•List: return to the sound list.•Send via: send the selected file via MMS, e-mail, or Bluetooth.•Set as: set the file as your ringtone, as a ringtone for a Phonebook entry, or a ringtone for alarms.•Move to favourite videos/Move to: move the file to another folder.•Delete: delete the file.•Rename: change the file name.

Menu functions My files(Menu 6)75•Bluetooth visibility: share the selected file or files with other Bluetooth devices.•Protection: protect the file from being deleted.•Details: access the file properties.Other files (Menu 6.5)Use this menu to view, without corruption, various document files and files stored in the phone’s memory, or a memory card. Available file formats are Microsoft Word, Adobe PDF, Plain text, and so on. Viewing a fileSelect a file. The Picsel File Viewer opens.Use the following keys to view the document: • Depending on the file size or memory capacity of Picsel File Viewer, some files may not open properly.• If a document file contains languages unsupported by the Picsel File Viewer, the content of the document will not display correctly.Keys Function/ Zooms in or out.Up/Down Scrolls through pages.Left/Right Pans around the page.Fits the document to the page size.1Changes the panning mode.2Returns to the first page.4Goes to the previous page.5Rotates the page.6Goes to the next page.7Changes the view mode to the screen width.8Moves to the last page.9Changes the view mode to the screen height.

76Menu functionsUsing document optionsWhile viewing a document, press <Options> to access the following options:•Normal screen view/Full screen view: change the view mode.•Zoom: zoom in or out.•Fit to: fit the document to the page size, screen width, or screen height.•Go to: move to another page of the document.•Rotate: rotate the document.•Screen panning/Normal panning: change the panning mode to by screen or by preset pixel.•Show control bar/Hide control bar: show or hide shortcut tool bar in Full screen view.•Send via: send the file via MMS, e-mail, or Bluetooth.•Delete: delete the selected file.•Rename: change the file name.•Bluetooth visibility: share the file with other Bluetooth devices.•Print via: print the file by connecting the phone to a printer via Bluetooth or USB. Some printers may not be compatible with the phone.•Protection: protect the file from being deleted.•Details: access the file properties.Memory status (Menu 6.7)You can check the total amount of memory for media items and the amount of memory currently in use in each media box.Changes the view mode.Hides or displays the shortcut tool bar in Full screen view.Keys Function

Menu functions Planner(Menu 7)77Planner(Menu 7) Use this menu to keep track of your schedule. You can also use convenient features, such as an alarm clock, calculator, converter, timer, and stopwatch.To access this menu, press <Menu> in Idle mode and select Planner.Alarm(Menu 7.1) Use this menu to set alarms. The alert type for a normal alarm corresponds to the call alert type settings. A wake up alarm is not affected by your sound settings.Setting an alarm1. Select the type of alarm.2. Select an alarm option.•Alarm: activate the alarm.•Alarm time: enter the time for the alarm to ring.•AM/PM: set AM or PM in 12-hour format.•Alarm day: check the days for the alarm.•Alarm tone: select an alarm tone.3. Press <Save>.Stopping an alarm• For an alarm, press any key.• For a wake-up alarm, press <OK> or []. Press any key, except <OK> and [], to cause it to sound again after 5 minutes. You can do this a maximum of 5 times.Deactivating an alarm1. Select the alarm you want to deactivate.2. Select Off on the Alarm lines and press <Save>.Setting the alarm to sound even if the phone is offFrom the Alarm screen, select Auto power-up → On.If the phone is off when it is time for the alarm to sound, the phone switches on and sounds the alarm.

78Menu functionsCalendar (Menu 7.2)Use this menu to keep track of your monthly schedule.Consulting the calendarWhen you access the Calendar menu, the calendar in Month view appears with today’s date indicated by a blue box. Selecting a day• Press [Left] or [Right] to move by day.• Press [Up] or [Down] to move by week.• Press [ / ] to move by month.Using calendar optionsPress <Options> to access the following options:•View by: change the view mode of the calendar.•Create: add a new item.next section•Go to: select today’s date or enter a specific date.•Event list: sort items by type of item.•Delete: delete items stored on the calendar by using various deleting options.•Settings: change the default settings for the calendar.Week starts on: select which day of the week the calendar starts with.Default view by: select the default calendar view mode.•Missed alarm events: access items whose alarms you have missed.•Memory status: access the memory information for the items stored on the calendar.Creating an itemYou can store appointments, anniversaries, miscellaneous items, and tasks on the calendar. More than one item per day can be stored.Entering a new scheduled item or miscellaneous item1. Select a date on the calendar.2. Press <Options> and select Create → Appointments or Miscellaneous.3. Enter information or change the settings:

Menu functions Planner(Menu 7)79•Subject: enter a title for the item.•Details: enter item details.•Start date and Start time: enter the starting date and time for the item.•AM/PM: select AM or PM in 12-hour time format.•End date and End time: enter the ending date and time for the item.•AM/PM: select AM or PM in 12-hour time format.•Location: (for Appointments) enter information about the item location. •Alarm: select to set an alarm for the item. •before: set how long before the item the alarm is to alert you.•Alarm tone: select an alarm tone.•Repeat: (for Appointments) select to set the item to recur.•until: select a repeat unit and set the date to end repeating.4. Press <Save> to save the item.Entering a new anniversary1. Select a date on the calendar.2. Press <Options> and select Create → Anniversaries.3. Enter information or change the settings:•Occasion: enter information about the anniversary.•Date: enter the date.•Alarm: select to set an alarm for the anniversary. •before: set how long before the anniversary the alarm is to alert you.•Alarm time: enter the time for the alarm to ring.•AM/PM: select AM or PM in 12-hour time format.•Alarm tone: select an alarm tone.•Repeat every year: set the phone to remind you of the anniversary every year.4. Press <Save> to save the anniversary.

80Menu functionsEntering a task1. Select a date on the calendar.2. Press <Options> and select Create → Tasks.3. Enter information or change the settings:•Tasks: enter information about the task.•Start date: enter the starting date.•Due date: enter the ending date.•Priority: select a priority level.•Alarm: select to set an alarm for the task.•Before: set how long before the task the alarm is to alert you.•Alarm time: enter the time for the alarm to ring.•AM/PM: select AM or PM in 12-hour time format.•Alarm tone: select an alarm tone.4. Press <Save> to save the task.Viewing an itemOnce you have scheduled things, the item icons and the number of items for a specific day appears at the bottom of the calendar.Accessing an item1. Select a date on the calendar to display the items for that day. 2. Select an item to view its details.3. Press [Left] or [Right] to access the other items scheduled for the selected day.Using optionsWhile viewing an item, press <Options> to access the following options:•Edit: edit the item.•Create: add a new item.•Send via: send the item via SMS, MMS, e-mail, or Bluetooth.• Appointments • Anniversaries• Tasks • Miscellaneous items

Menu functions Planner(Menu 7)81•View by: change the view mode of the calendar.•Done/Not done: change the status of the task item.•Delete: delete the item.•Print via Bluetooth: print the item details via a Bluetooth-compatible printer. Some printers may not be compatible with the phone.Viewing an item in a different modeYou can change the calendar display to Day view or Week view. Press <Options> and select View by → a view mode.Day viewYou can view items for the selected date. Select an item to view its details. For an anniversary, you can view the remaining dates.The following icons will be displayed according to the items type and status:• Alarm set • Recurring item• Completed task• Task priority (Red: high, Blue: normal, and Grey: low)Week viewYou can view items for the selected week. A cell on the timetable indicates the presence of item information. Select the cell that contains the item you want.Memo (Menu 7.3)You can create a list of memos.Creating a memo1. Press <Options> and select Create.2. Enter the memo contents and press [].Viewing a memoSelect a memo from the list.Using memo optionsFrom the memo list, press <Options> to access the following options: •View: access the selected memo.•Create: add a new memo.

82Menu functions•Send via: send the memo as a data file via Bluetooth, SMS, or e-mail.•Delete: delete the selected memo or all memos.•Memory status: check the number of memos you have stored.World time(Menu 7.4)Use this menu to find out what time it is in another part of the world. Viewing world time1. From the world map, press [Left] or [Right] to scroll to the city you want on the upper line ( ). As the time line moves, the time and date of the given zone displays.2. To set another time zone, press [Down] to move to the lower line ( ).3. Press [Left] or [Right] to scroll to the city you want.4. Press [] to save the time zone.Applying Daylight Savings Time1. From the world map, press <Options> and select Set daylight saving time.2. Press [] to check the time zones you want. 3. Press <Save>.Calculator(Menu 7.5) Use this menu to perform basic arithmetic functions such as addition, subtraction, multiplication, and division.1. Enter the first number. • Press [ ] to insert a demical point.•Press [] to insert a bracket.•Press <Options> to use additional arithmetic functions.2. Enter the operation for your calculation by pressing the Navigation keys.3. Enter the second number.4. Press [] to view the result.

Menu functions Planner(Menu 7)835. If necessary, repeat from step 2 to continue the calculation.Convertor(Menu 7.6)Use this menu for common conversions, such as currency and temperature.Performing a conversion1. Select the convertor type you want.2. Press [Left] or [Right] to select the original unit and press [Down].3. Enter the value to be converted and press [Down].•Press [] to insert a decimal point.•Press [] to change the temperature to above zero (+) or below zero (-).4. Press [Left] or [Right] to select the unit to which you want to convert.The equivalent value for the amount you entered displays.Using converter optionsPress <Options> to access the following options:•Clear: clear the current values.•Reverse: reverse the conversion.•Currency rates: edit the currency rate list.Timer(Menu 7.7)Use this menu to set a period of time for the phone to count down. The phone will sound an alarm when the specified period of time has expired.Starting the timer1. Press <Set>.2. Enter the length of time you want to count down and press <OK>.3. Press [] to start counting down.Stopping the timer• Press any key to stop the timer when it rings.• Press [] on the Timer screen to stop the timer before it rings.

84Menu functionsStopwatch(Menu 7.8)Use this menu to measure elapsed time. The maximum time is 10 hours.1. Press [] to start the stopwatch.2. Press [] to check an interval. You can repeat this step for a total of 4 intervals.3. To reset the stopwatch, press <Reset>.Camera(Menu 8) You can use the camera module embedded in your phone to take photos and record videos.To access this menu, press <Menu> in Idle mode and select Camera.Take a photo (Menu 8.1)The camera produces JPEG photos. Taking a photo with the phone closed1. Access the Take a photo menu to turn on the camera and switch the display to Capture mode.2. Make any desired adjustments.• Press < > to use the camera options. next section• Use the keypad to change the camera settings or switch to other modes.p. 863. Press [] to take a photo. The photo is saved in the Photos folder.• Do not take photos of people without their permission.• Do not take photos in a place where cameras are not allowed.• Do not take photos in a place where you may interfere with another person’s privacy.When you take a photo in direct sunlight or in bright conditions, shadows may appear on the photo.4.To Pressuse photo options <Options>.p. 87delete the photo [C] and then <Yes>.return to Capture mode <Back> or [].

Menu functions Camera(Menu 8)85Using camera options in Capture modeIn Capture mode, press < > to access the following options:•Record video: switch to Record mode.•Shooting mode: take a photo in the following modes:Single shot: take a photo in Normal mode. You can select whether or not the camera automatically saves a photo.Multi shot: take a series of action stills. You can select the number of photos the camera will take.Mosaic shot: take several stills and save them in one frame. You can select the layout.•Effects: change the colour tone or apply a special effect.•Frames: apply a decorative frame.•Timer: set a time delay before the camera takes a photo.•Go to photos: access the Photos folder.•Settings: change the default settings for taking a photo.Function: change the following image settings:- Size: select an image size. - Quality: select an image quality.- View finder: select a preview screen.- Scene programs: set whether or not to use Night shot mode.- Metering exposure: select a method to determine the exposure of an image, based on a specific area of the image.- White balance: adjust the colour balance of the photo. You can make your photo appear warmer or cooler.- ISO: change the ISO setting, which controls the sensitivity of your camera. For low light situations, select a higher ISO number. The higher the ISO number, the faster the camera shutter functions and the more sensitive the camera is to light. Higher ISO settings may bring some distortion to an image.

86Menu functionsSetup: change the following camera settings:- Shutter sound: select the sound that you hear when you press the shutter.- Zoom sound: turn the sound effect for zooming on or off.- Brightness sound: turn the sound effect for brightness adjustment on or off.- Default name: change the default prefix of file names.•Camera short cuts: view the functions of the keys you can use in Capture mode.Using the keypad in Capture modeYou can use the keypad to customise your camera settings in Capture mode.Key FunctionFlips the image vertically.Shows the mirror image.Left/Right Adjusts the brightness.Up/Down Zooms in or out.1Switches to Record mode.p. 872Changes the image size.3Changes the image quality.4Changes the shooting mode.5Changes the colour tone or applies a special effect.6Changes the white balance setting.7Selects a decorative frame.8Sets the timer.9Goes to the Photos folder.p. 72Changes the preview screen.Changes the ISO setting.Key Function

Menu functions Camera(Menu 8)87Using photo optionsAfter saving a photo, press <Options> to access the following options:•Take another: return to Capture mode.•View: access one of the multi-shot photos.•Send via: send the file via MMS, e-mail, or Bluetooth.•Set as: set the photo as your wallpaper or as a caller ID image for a Phonebook entry.•Edit: edit the image using the Image editor. p. 41•Delete: delete the file.•Multi shot delete all: delete one of multi-shot photos.•Rename: change the file name.•Go to photos: access the Photos folder.•Bluetooth visibility: share the selected file with other Bluetooth devices.•Print via: print the image by connecting the phone to a printer via Bluetooth or USB. Some printers may not be compatible with the phone.•Protection: protect the file from being deleted.•Details: access the file properties.Taking a photo with the phone closed1. Press and hold [].•Press [] to flip the image vertically.•Press [] to show the mirror image.2. Press [] to take a photo. The photo is automatically saved.Record video (Menu 8.2)You can record a video of what is displayed on the camera screen and save it.Recording a video1. Access the Record video menu to turn on the camera and switch the display to Record mode.2. Make any desired adjustments. • Press < > to use the camera options. next section• Use the keypad to change the camera settings or switch to other modes.p. 89

88Menu functions3. Press [] to start recording.4. Press < > to stop recording. The video is saved in the Videos folder.Using camera options in Record modeIn Record mode, press < > to access the following options:•Take a photo: switch to Capture mode.•Effects: change the colour tone or apply a special effect.•Timer: set a time delay before the camera starts recording a video.•Go to videos: access the Videos folder.•Settings: change the following settings for recording a video:Recording mode: select a video recording mode.Select Normal to record a video within the limit of the currently available memory. The video clip is saved in MP4 format.Select Limit for multimedia message or Limit of emails to record a video suitable for an MMS message or an e-mail. The video clip is saved in 3GP format.Size: select a frame size.Quality: select an image quality.Audio rec.: record audio with a video clip.Zoom sound: turn the sound effect for zooming on or off.Brightness sound: turn the sound effect for brightness adjustment on or off.Default name: change the default prefix of file names.•Camcorder short cuts: view the functions of the keys you can use in Record mode.5.To Pressplay back the video clip[].use video options < >.p. 89delete the video [C] and then <Yes>.return to Record mode < >.

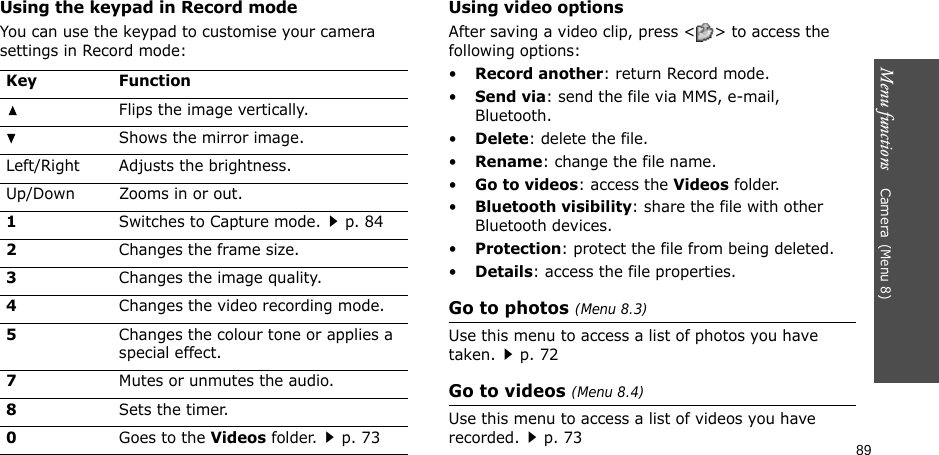

Menu functions Camera(Menu 8)89Using the keypad in Record modeYou can use the keypad to customise your camera settings in Record mode:Using video optionsAfter saving a video clip, press < > to access the following options:•Record another: return Record mode.•Send via: send the file via MMS, e-mail, Bluetooth.•Delete: delete the file.•Rename: change the file name.•Go to videos: access the Videos folder.•Bluetooth visibility: share the file with other Bluetooth devices.•Protection: protect the file from being deleted.•Details: access the file properties.Go to photos (Menu 8.3)Use this menu to access a list of photos you have taken.p. 72Go to videos (Menu 8.4)Use this menu to access a list of videos you have recorded.p. 73Key FunctionFlips the image vertically.Shows the mirror image.Left/Right Adjusts the brightness.Up/Down Zooms in or out.1Switches to Capture mode.p. 842Changes the frame size.3Changes the image quality.4Changes the video recording mode.5Changes the colour tone or applies a special effect.7Mutes or unmutes the audio.8Sets the timer.0Goes to the Videos folder.p. 73

90Menu functionsSettings(Menu 9) The Settings menu provides you with various setting options to customise the phone to your preferences and needs. You can also reset the settings to their default values.To access this menu, press <Menu> in Idle mode and select Settings.Time & Date(Menu 9.1)Use this menu to set the current time and date on your phone.•Set time: enter the current time.•Home zone: set the home time zone. Select the city that corresponds to your home zone. To set the daylight saving time, select Set daylight saving time.•AM/PM: select AM or PM in 12-hour time format.•Time format: select the time format.•Set date: enter the current date.•Date format: select the date format.•Auto update: select to apply daylight savings time to the current time.Phone settings(Menu 9.2)Many different features of your phone’s system can be customised to suit your preferences.Language (Menu 9.2.1)Use this menu to select one of several languages for the display text. If you select Automatic, the phone uses the same language as the SIM card.Greeting message (Menu 9.2.2)Use this menu to enter the greeting that is displayed briefly when the phone is switched on.Short cut (Menu 9.2.3)You can use the Navigation keys as shortcut keys to access specific menus directly from Idle mode. Use this menu to assign a shortcut to a key.Assigning a shortcut to a key1. Select the key to be used as a shortcut key.

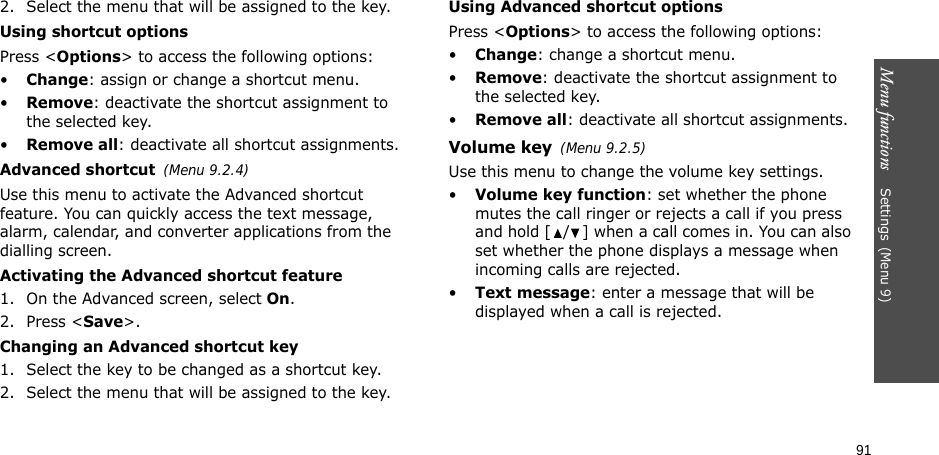

Menu functions Settings(Menu 9)912. Select the menu that will be assigned to the key.Using shortcut optionsPress <Options> to access the following options:•Change: assign or change a shortcut menu.•Remove: deactivate the shortcut assignment to the selected key.•Remove all: deactivate all shortcut assignments.Advanced shortcut(Menu 9.2.4)Use this menu to activate the Advanced shortcut feature. You can quickly access the text message, alarm, calendar, and converter applications from the dialling screen.Activating the Advanced shortcut feature1. On the Advanced screen, select On.2. Press <Save>.Changing an Advanced shortcut key1. Select the key to be changed as a shortcut key.2. Select the menu that will be assigned to the key.Using Advanced shortcut optionsPress <Options> to access the following options:•Change: change a shortcut menu.•Remove: deactivate the shortcut assignment to the selected key.•Remove all: deactivate all shortcut assignments.Volume key(Menu 9.2.5)Use this menu to change the volume key settings.•Volume key function: set whether the phone mutes the call ringer or rejects a call if you press and hold [ / ] when a call comes in. You can also set whether the phone displays a message when incoming calls are rejected.•Text message: enter a message that will be displayed when a call is rejected.

92Menu functionsExtra settings (Menu 9.2.6)You can turn the automatic redialing or answering features on or off.•Auto redial: set the phone to make up to ten attempts to redial a phone number after an unsuccessful call.•Anykey answer: answer an incoming call by pressing any key, except [ ] and <Reject>. •Voice clarity: remove extraneous noise and increase call quality so that the person with whom you are speaking can hear you clearly even if you are in a noisy place.•Active folder: answer an incoming call by opening.Offline mode (Menu 9.2.7)Use this menu to turn on or off the network features such as call functions, so that you can use the phone in a flight.Display settings(Menu 9.3)Use this menu to change settings for the display and light.Wallpaper(Menu 9.3.1)You can change the background image that is displayed on each display:•Main display: select a background image. If you want the selected image to display on Menu mode, select Menu background.•Cover display: select an image or text to be displayed on the external display.Clock: select a clock type:Cover title: enter the text you want.Wallpaper images: select an image.Text display(Menu 9.3.2) You can change the display settings for the text displayed on the idle screen.•Text position: select a position. If you do not want text to display in Idle mode, select Off.

Menu functions Settings(Menu 9)93•Text style: select a font style.•Text colour: select a font colour.Skin(Menu 9.3.3) You can select a skin colour pattern for Menu mode.LCD brightness(Menu 9.3.4)You can adjust the brightness of the display for varying lighting conditions.Dialling display(Menu 9.3.5)Use this menu to select a font colour and size for the numbers entered and the background colour of the display while dialling.Calendar(Menu 9.3.6)Use this menu to display the calendar of the current month on the idle screen.Show caller information(Menu 9.3.7)Use this menu to set the phone to display missed call notifications with the most recently missed caller’s information. To set the external display to show caller information, select With cover display.Sound settings(Menu 9.4)Use this menu to customise various sound settings.Incoming call(Menu 9.4.1)Use this menu to select a volume level and alert type for incoming calls.•Alert type: specify how you are to be informed of incoming calls.•Ring tone: select a ringtone for the call ringer.•Volume: select a ringer volume.Keypad tone(Menu 9.4.2)Use this menu to select the tone that the phone sounds when you press a key. Message tone(Menu 9.4.3) Use this menu to set up the ringtone for incoming messages. •Tone: select one of several message tones. You can adjust the keypad tone volume using [/] in Idle mode.

94Menu functions•Alert type: specify how you are informed when a message comes in. •Repetition: specify how often the phone informs you of a new message.Power on/off(Menu 9.4.4)Use this menu to select the melody that the phone sounds when it is switched on or off. Folder tone(Menu 9.4.5)Use this menu to select the tone that the phone sounds when you open or close the phone. Silent mode(Menu 9.4.6)Use this menu to set how the phone acts to alert you to a specific event in Silent mode. Extra tones(Menu 9.4.7) Use this menu to customise additional tones for the phone. •Minute minder: set the phone to beep every minute during an outgoing call to keep you informed of the length of your call.•Connection tone: set the phone to beep when an outgoing call is connected to the system.•Alerts on call: set the phone to beep when you receive a new message or when the time for an alarm comes during a call.•Indicative tones: set the phone to beep when a pop-up window displays.Light settings (Menu 9.5)Use this menu to change settings for the light.Backlight(Menu 9.5.1)You can change the settings for backlight or icons for the external display.•Main display on: select the length of time the backlight stays on.•Main display dim: select the length of time the display stays on in Dim mode after the backlight turns off. After a specified time, the display turns off.

Menu functions Settings(Menu 9)95•Show cover indicators: set whether or not the icons are shown on the external display after the display turns off.Keypad light (Menu 9.5.2)You can set how the phone controls the use of the keypad light.•Use at any time: the keypad light is always used.•Use at night time: the keypad light is used only between 5:00 PM and 9:00 AM.•Use at custom time: specify the time period that the keypad light is used.Network services(Menu 9.6)Use this menu to access network services. Please contact your service provider to check their availability and subscribe to them, if you wish.Call diverting(Menu 9.6.1)This network service reroutes incoming calls to a phone number that you specify.1. Select a call diverting option:•Divert always: divert calls.•Busy: divert calls when you are on another call.•No reply: divert calls when you do not answer the phone.•Unreachable: divert calls when you are not in an area covered by your service provider or when your phone is switched off.•Cancel all: cancel all call diverting options.2. Select the type of calls to be diverted.3. Press <Activate>. To deactivate call diverting, Press <Deactivate>.4. Move to the Divert to line.5. Enter the number to which calls are to be diverted and press <OK>.6. If you selected No reply, move to the Sec line and select the length of time the network delays before diverting a call.

96Menu functionsCall barring (Menu 9.6.2)This network service allows you to restrict your calls.1. Select a call barring option:•All outgoing: prohibit outgoing calls.•International: prohibit international calls.•International except home: only allow calls to numbers within the current country when you are abroad, and to your home country.•All incoming: prohibit incoming calls.•Incoming while abroad: prohibit incoming calls when you use your phone outside of your home country.•Cancel all: cancel all call barring settings, allowing to be sent and received normally.•Change barring password: change the call barring password obtained from your service provider.2. Select the type of calls to be barred. 3. Press <Activate>. To deactivate call barring, press <Deactivate>.4. Enter the call barring password supplied by your service provider and press <OK>.Call waiting(Menu 9.6.3)This network service informs you when someone is trying to reach you while you are on another call.1. Select the type of calls to which the call waiting option will apply.2. Press <Activate>. To deactivate call waiting, press <Deactivate>. Network selection(Menu 9.6.4)This network service allows you to manually select the network to be used while roaming outside of your home area, or to let the network be chosen automatically. You can select a network other than your home network only if there is a valid roaming agreement between the two.

Menu functions Settings(Menu 9)97Caller image(Menu 9.6.5)This network service allows you to prevent your phone number from being displayed on the phone of the person being called. However, some networks do not allow the user to change this setting. If you select Default, the phone will use the default setting provided by the network.Voice mail server(Menu 9.6.6)Use this menu to store the number of the voice mail server and access your voice mails.•Connect to voice mail: connect to the voice mail server to allow you to listen to your messages.•Voice server number: enter the voice mail server number.Band selection(Menu 9.6.7)For the phone to make and receive phone calls, it must register with an available network. Your phone can handle any of the following types of networks: GSM 1900, Combined GSM 900/1800, and GSM 900/1800/1900.The country where you purchased your phone determines the default band that it uses. When you travel abroad, you must remember to change to an appropriate band. Security(Menu 9.7)Use this menu to protect the phone against unauthorised use by managing the several access codes of your phone and SIM card.Your service provider can give you the voice mail server number.If you enter an incorrect PIN/PIN2 three times in succession, the SIM card is blocked. To unblock it, you need to enter your PUK/PUK2 (Personal Unblocking Key). The codes are supplied by your network operator.

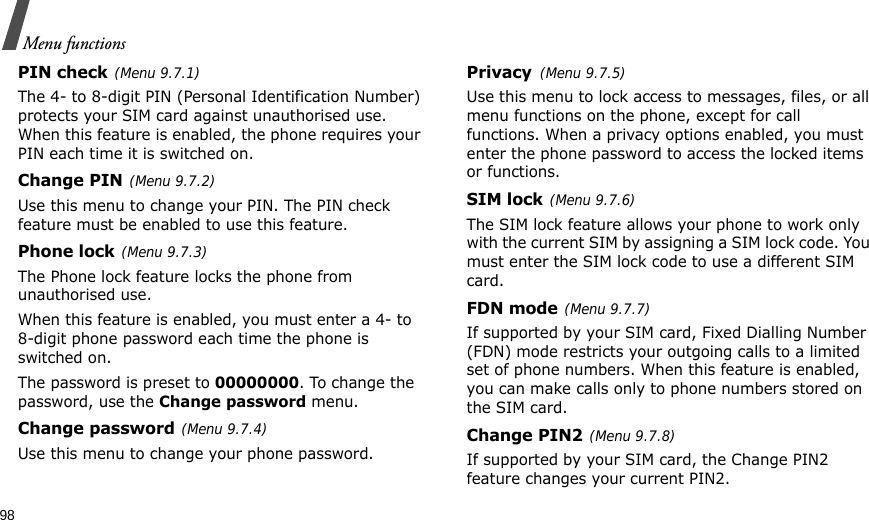

98Menu functionsPIN check(Menu 9.7.1)The 4- to 8-digit PIN (Personal Identification Number) protects your SIM card against unauthorised use. When this feature is enabled, the phone requires your PIN each time it is switched on.Change PIN(Menu 9.7.2) Use this menu to change your PIN. The PIN check feature must be enabled to use this feature.Phone lock(Menu 9.7.3)The Phone lock feature locks the phone from unauthorised use. When this feature is enabled, you must enter a 4- to 8-digit phone password each time the phone is switched on.The password is preset to 00000000. To change the password, use the Change password menu.Change password(Menu 9.7.4)Use this menu to change your phone password.Privacy(Menu 9.7.5)Use this menu to lock access to messages, files, or all menu functions on the phone, except for call functions. When a privacy options enabled, you must enter the phone password to access the locked items or functions. SIM lock(Menu 9.7.6)The SIM lock feature allows your phone to work only with the current SIM by assigning a SIM lock code. You must enter the SIM lock code to use a different SIM card.FDN mode(Menu 9.7.7) If supported by your SIM card, Fixed Dialling Number (FDN) mode restricts your outgoing calls to a limited set of phone numbers. When this feature is enabled, you can make calls only to phone numbers stored on the SIM card.Change PIN2(Menu 9.7.8)If supported by your SIM card, the Change PIN2 feature changes your current PIN2.

100Solve problems“Enter PUK”• The PIN code has been entered incorrectly three times in succession, and the SIM card is now blocked. Enter the PUK supplied by your service provider.“No Service,” “Network Failure,” or “Not Done” displays• The network connection has been lost. You may be in a weak signal area. Move and try again.• You are trying to access an option for which you have no subscription with your service provider. Contact the service provider for further details.You have entered a number but it was not dialled• Be sure that you have pressed [ ].• Be sure that you have accessed the right cellular network.• Be sure that you have not set an outgoing call barring option.Your correspondent cannot reach you• Be sure that your phone is switched on. ([ ] pressed for more than one second.)• Be sure that you are accessing the correct cellular network.• Be sure that you have not set an incoming call barring option.Your correspondent cannot hear you speaking• Be sure that you have switched off the microphone.• Be sure that you are holding the phone close enough to your mouth. The microphone is located at the bottom of the phone.The phone starts beeping and “Battery low” flashes on the display• Your battery is insufficiently charged. Recharge the battery.The audio quality of the call is poor• Check the signal strength indicator on the display ( ). The number of bars indicates the signal strength from strong ( ) to weak ( ).

101• Try moving the phone slightly or moving closer to a window if you are in a building.No number is dialled when you re-call a Contacts entry•Use the Contact list feature to ensure the number has been stored correctly.• Re-store the number, if necessary.The battery doesn’t charge properly or the phone sometimes turns itself off• Wipe the charging contacts both on the phone and on the battery with a clean soft cloth.If the above guidelines do not help you to solve the problem, take note of:• The model and serial numbers of your phone•Your warranty details• A clear description of the problemThen contact your local dealer or Samsung after-sales service.Health and safety information

102Health and safety informationExposure to Radio Frequency (RF) SignalsCertification Information (SAR)Your wireless phone is a radio transmitter and receiver. It is designed and manufactured not to exceed the exposure limits for radio frequency (RF) energy set by the Federal Communications Commission (FCC) of the U.S. government. These FCC exposure limits are derived from the recommendations of two expert organizations, the National Counsel on Radiation Protection and Measurement (NCRP) and the Institute of Electrical and Electronics Engineers (IEEE). In both cases, the recommendations were developed by scientific and engineering experts drawn from industry, government, and academia after extensive reviews of the scientific literature related to the biological effects of RF energy.The exposure limit set by the FCC for wireless mobile phones employs a unit of measurement known as the Specific Absorption Rate (SAR). The SAR is a measure of the rate of absorption of RF energy by the human body expressed in units of watts per kilogram (W/kg). The FCC requires wireless phones to comply with a safety limit of 1.6 watts per kilogram (1.6 W/kg). The FCC exposure limit incorporates a substantial margin of safety to give additional protection to the public and to account for any variations in measurements.SAR tests are conducted using standard operating positions accepted by the FCC with the phone transmitting at its highest certified power level in all tested frequency bands. Although the SAR is determined at the highest certified power level, the actual SAR level of the phone while operating can be well below the maximum value. This is because the phone is designed to operate at multiple power levels so as to use only the power required to reach the network. In general, the closer you are to a wireless base station antenna, the lower the power output.

Before a new model phone is available for sale to the public, it must be tested and certified to the FCC that it does not exceed the exposure limit established by the FCC. Tests for each model phone are performed in positions and locations (e.g. at the ear and worn on the body) as required by the FCC. The highest SAR values for this model phone has reported to the FCC are head 1.44 W/Kg, Body-worn: 0.220W/Kg. For Body-worn operations, this model phone has been tested and meets the FCC RF exposure guidelines whenused with a Samsung accessory designated for this product or when used with an accessory thatcontains no metal and that positions the handset a minimum 1.5 cm from the body. Non-compliance with the above restrictions may result in violation of FCC RF exposure guidelines. SAR information on this and other model phones can be viewed on-line at www.fcc.gov/oet/fccid. This site uses the phone FCC ID number, A3LSGHE540. Sometimes it may be necessary to remove then battery pack to find the number. Once you have the FCC ID number for a particular phone, follow the instructions on the website and it should provide values for typical or maximum SAR for a particular phone. Additional product specific SAR information can also be obtained at www.fcc.gov/cgb/sar. 103Health and safety information

For body operationThe minimum distance for this model phone is written in the FCC certification information from the body. None compliance with the above conditions may violate FCC RF exposure guidelines.For more Information concerning exposure to radio frequency signals, see the following websites:Federal Communications Commission (FCC) http://www.fcc.govCellular Telecommunications Industry Association (CTIA): http://www.wow-com.comU.S.Food and Drug Administration (FDA) http://www.fda.gov/cdrh/consumer World Health Organization (WHO) http://www.who.int/peh-emf/en Precautions when using batteries• Never use any charger or battery that is damaged in any way.• Use the battery only for its intended purpose.• If you use the phone near the network’s base station, it uses less power; talk and standby time are greatly affected by the signal strength on the cellular network and the parameters set by the network operator.• Battery charging time depends on the remaining battery charge, the type of battery and the charger used. The battery can be charged and discharged hundreds of times, but it will gradually wear out. When the operation time (talk time and standby time) is noticeably shorter than normal, it is time to buy a new battery.• If left unused, a fully charged battery will discharge itself over time.104Health and safety information

• Use only Samsung-approved batteries and recharge your battery only with Samsung-approved chargers. When a charger is not in use, disconnect it from the power source. Do not leave the battery connected to a charger for more than a week, since overcharging may shorten its life.• Extreme temperatures will affect the charging capacity of your battery: it may require cooling or warming first.• Do not leave the battery in hot or cold places, such as in a car in summer or winter conditions, as you will reduce the capacity and lifetime of the battery. Always try to keep the battery at room temperature. A phone with a hot or cold battery may temporarily not work, even when the battery is fully charged. Li-ion batteries are particularly affected by temperatures below 0 °C (32 °F).• Do not short-circuit the battery. Accidental short- circuiting can occur when a metallic object (coin, clip or pen) causes a direct connection between the + and – terminals of the battery (metal strips on the battery), for example when you carry a spare battery in a pocket or bag. Short-circuiting the terminals may damage the battery or the object causing the short-circuiting.• Dispose of used batteries in accordance with local regulations. Always recycle. Do not dispose of batteries in a fire.Road safetyYour wireless phone gives you the powerful ability to communicate by voice, almost anywhere, anytime. But an important responsibility accompanies the benefits of wireless phones, one that every user must uphold.When driving a car, driving is your first responsibility. When using your wireless phone behind the wheel of a car, make sure that you are following the special regulations in a given area or country.Operating environmentRemember to follow any special regulations in force in any area and always switch your phone off whenever it is forbidden to use it, or when it may cause interference or danger.When connecting the phone or any accessory to another device, read its user’s guide for detailed safety instructions. Do not connect incompatible products. Health and safety information 105

Health and safety information 105As with other mobile radio transmitting equipment, users are advised that for the satisfactory operation of the equipment and for the safety of personnel, it is recommended that the equipment should only be used in the normal operating position (held to your ear with the antenna pointing over your shoulder).Electronic devicesMost modern electronic equipment is shielded from radio frequency (RF) signals. However, certain electronic equipment may not be shielded against the RF signals from your wireless phone. Consult the manufacturer to discuss alternatives.PacemakersPacemaker manufacturers recommend that a minimum distance of 15 cm (6 inches) be maintained between a wireless phone and a pacemaker to avoid potential interference with the pacemaker. These recommendations are consistent with the independent research and recommendations of Wireless Technology Research.Persons with pacemakers:• should always keep the phone more than 15 cm (6 inches) from their pacemaker when the phone is switched on• should not carry the phone in a breast pocket• should use the ear opposite the pacemaker to minimize potential interferenceIf you have any reason to suspect that interference is taking place, switch your phone off immediately.Hearing aidsSome digital wireless phones may interfere with some hearing aids. In the event of such interference, you may wish to consult your hearing aid manufacturer to discuss alternatives.Other medical devicesIf you use any other personal medical devices, consult the manufacturer of your device to determine if it is adequately shielded from external RF energy. Your physician may be able to assist you in obtaining this information. Switch your phone off in health care facilities when any regulations posted in these areas instruct you to do so. Hospitals or health care facilities may be using equipment that could be sensitive to external RF energy.106Health and safety information

VehiclesRF signals may affect improperly installed or inadequately shielded electronic systems in motor vehicles. Check with the manufacturer or its representative regarding your vehicle.You should also consult the manufacturer of any equipment that has been added to your vehicle.You should also consult the manufacturer of any equipment that has been added to your vehicle.Posted facilitiesSwitch your phone off in any facility where posted notices require you to do so.Potentially explosive environmentsSwitch your phone off when in any area with a potentially explosive atmosphere and obey all signs and instructions. Sparks in such areas could cause an explosion or fire resulting in bodily injury or even death.Users are advised to switch the phone off while at a refueling point (service station). Users are reminded of the need to observe restrictions on the use of radio equipment in fuel depots (fuel storage and distribution areas), chemical plants or where blasting operations are in progress.Areas with a potentially explosive atmosphere are often but not always clearly marked. They include the areas below deck on boats, chemical transfer or storage facilities, vehicles using liquefied petroleum gas (such as propane or butane), areas where the air contains chemicals or particles, such as grain, dust or metal powders, and any other area where you would normally be advised to turn off your vehicle engine.Emergency callsThis phone, like any wireless phone, operates using radio signals, wireless and landline networks as well as user-programmed functions, which cannot guarantee connection in all conditions. Therefore, you should never rely solely on any wireless phone for essential communications (medical emergencies, for example).Remember, to make or receive any calls the phone must be switched on and in a service area with adequate signal strength. Emergency calls may not be possible on all wireless phone networks or when certain network services and/or phone features are in use. Check with local service providers.Health and safety information 107

Health and safety information 1 07To make an emergency call:1. If the phone is not on, switch it on.2. Key in the emergency number for your present location (for example, 911 or other official emergency number). Emergency numbers vary by location.3. Press [SEND].If certain features are in use (call barring, for example), you may first need to deactivate those features before you can make an emergency call. Consult this document and your local cellular service provider.When making an emergency call, remember to give all the necessary information as accurately as possible. Remember that your phone may be the only means of communication at the scene of an accident; do not cut off the call until given permission to do so.Other important safety informationOnly qualified personnel should service the phone or install the phone in a vehicle. Faulty installation or service may be dangerous and may invalidate any warranty applicable to the device.Check regularly that all wireless phone equipment in your vehicle is mounted and operating properly.Do not store or carry flammable liquids, gases or explosive materials in the same compartment as the phone, its parts or accessories.For vehicles equipped with an air bag, remember that an air bag inflates with great force. Do not place objects, including both installed or portable wireless equipment in the area over the air bag or in the air bag deployment area. If wireless equipment is improperly installed and the air bag inflates, serious injury could result.Switch your phone off before boarding an aircraft. The use of wireless phones in aircraft may be dangerous to the operation of the aircraft, and is illegal.Failure to observe these instructions may lead to the suspension or denial of telephone services to the offender, or legal action, or both.Care and maintenanceYour phone is a product of superior design and craftsmanship and should be treated with care. The suggestions below will help you fulfill any warranty obligations and allow you to enjoy this product for many years. 108Health and safety information

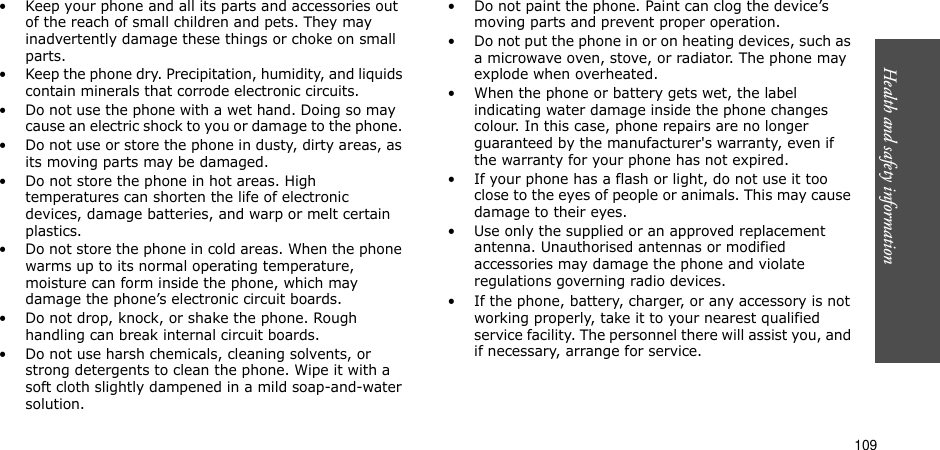

• Keep your phone and all its parts and accessories out of the reach of small children and pets. They may inadvertently damage these things or choke on small parts.• Keep the phone dry. Precipitation, humidity, and liquids contain minerals that corrode electronic circuits.• Do not use the phone with a wet hand. Doing so may cause an electric shock to you or damage to the phone. • Do not use or store the phone in dusty, dirty areas, as its moving parts may be damaged.• Do not store the phone in hot areas. High temperatures can shorten the life of electronic devices, damage batteries, and warp or melt certain plastics.• Do not store the phone in cold areas. When the phone warms up to its normal operating temperature, moisture can form inside the phone, which may damage the phone’s electronic circuit boards.• Do not drop, knock, or shake the phone. Rough handling can break internal circuit boards.• Do not use harsh chemicals, cleaning solvents, or strong detergents to clean the phone. Wipe it with a soft cloth slightly dampened in a mild soap-and-water solution.• Do not paint the phone. Paint can clog the device’s moving parts and prevent proper operation.• Do not put the phone in or on heating devices, such as a microwave oven, stove, or radiator. The phone may explode when overheated.• When the phone or battery gets wet, the label indicating water damage inside the phone changes colour. In this case, phone repairs are no longer guaranteed by the manufacturer's warranty, even if the warranty for your phone has not expired. • If your phone has a flash or light, do not use it too close to the eyes of people or animals. This may cause damage to their eyes.• Use only the supplied or an approved replacement antenna. Unauthorised antennas or modified accessories may damage the phone and violate regulations governing radio devices.• If the phone, battery, charger, or any accessory is not working properly, take it to your nearest qualified service facility. The personnel there will assist you, and if necessary, arrange for service.Health and safety information 109

Health and safety information 1Acknowledging Special Precautionsand the FCC and Industry Canada NoticeCautionsModifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. FCC Compliance informationThis device complies with Part 15 of FCC Rules. Operation is subject to the following two conditions:1. This device may not cause harmful interference, and2. This device must accept any interference received.Including interference that may cause undesired operation.Information to userThis equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna.• Increase the separation between the equipment and receiver.• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.• Consult the dealer or an experienced radio/ TV technician for help.110Health and safety information
