Samsung Electronics Co SGHE900 Single-Band PCS GSM/ EDGE Phone with Bluetooth User Manual

Samsung Electronics Co Ltd Single-Band PCS GSM/ EDGE Phone with Bluetooth

Contents

Users Manual 1

World Wide Webhttp://www.samsungmobile.comPrinted in KoreaCode No.:GH68-0XXXXAEnglish. 03/2006. Rev. 1.0.* Depending on the software installed or your service provider or country, some of the descriptions in this guide may not match your phone exactly.* Depending on your country, your phone and accessories may appear

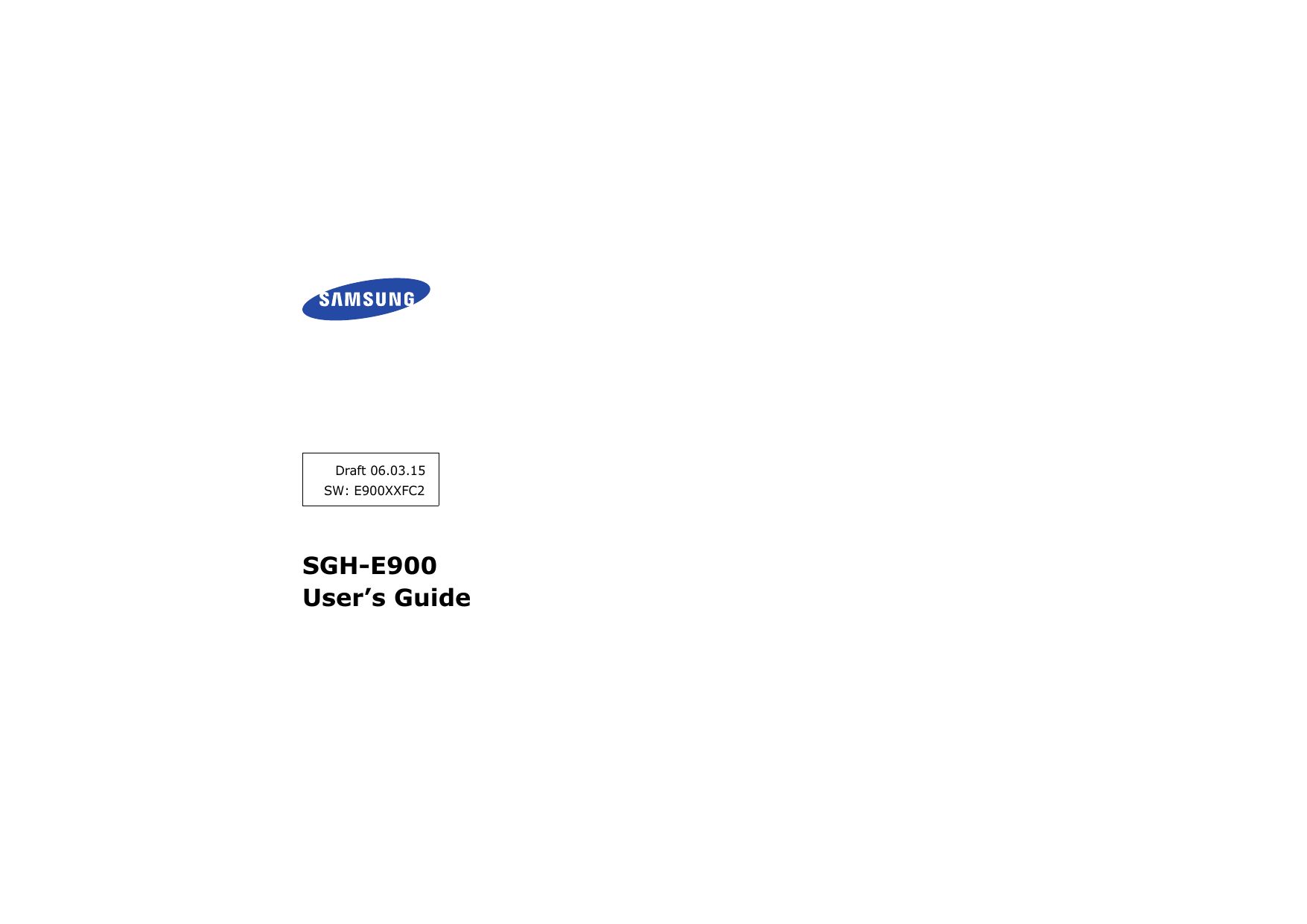

SGH-E900User’s GuideDraft 06.03.15 SW: E900XXFC2

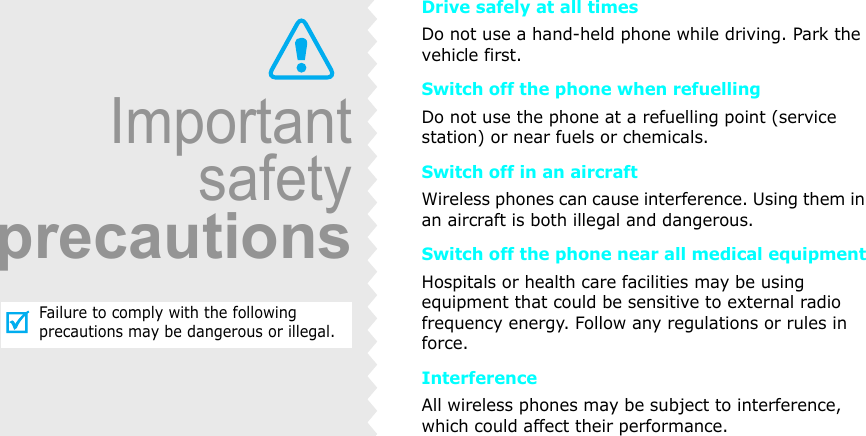

ImportantsafetyprecautionsFailure to comply with the following precautions may be dangerous or illegal.Drive safely at all timesDo not use a hand-held phone while driving. Park the vehicle first. Switch off the phone when refuellingDo not use the phone at a refuelling point (service station) or near fuels or chemicals.Switch off in an aircraftWireless phones can cause interference. Using them in an aircraft is both illegal and dangerous.Switch off the phone near all medical equipmentHospitals or health care facilities may be using equipment that could be sensitive to external radio frequency energy. Follow any regulations or rules in force.InterferenceAll wireless phones may be subject to interference, which could affect their performance.

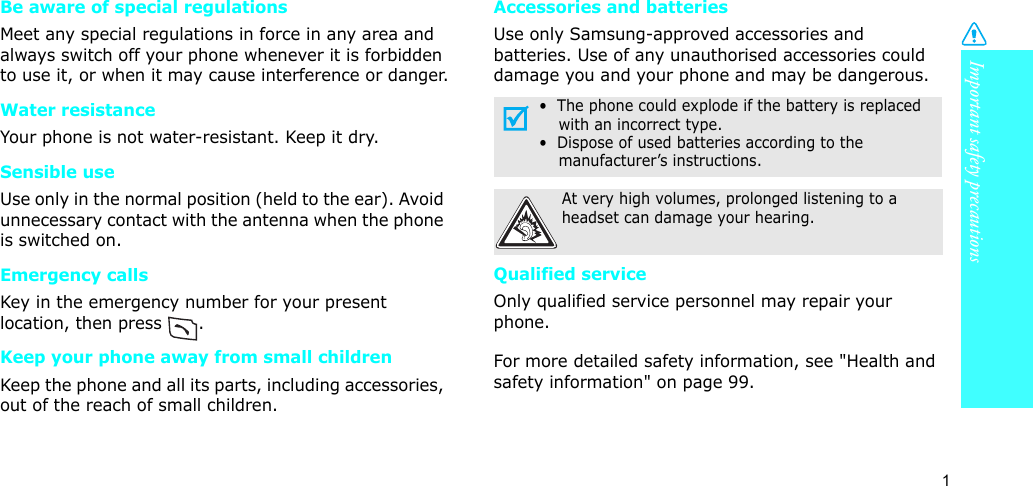

1Important safety precautionsBe aware of special regulationsMeet any special regulations in force in any area and always switch off your phone whenever it is forbidden to use it, or when it may cause interference or danger.Water resistanceYour phone is not water-resistant. Keep it dry. Sensible useUse only in the normal position (held to the ear). Avoid unnecessary contact with the antenna when the phone is switched on.Emergency callsKey in the emergency number for your present location, then press . Keep your phone away from small children Keep the phone and all its parts, including accessories, out of the reach of small children.Accessories and batteriesUse only Samsung-approved accessories and batteries. Use of any unauthorised accessories could damage you and your phone and may be dangerous.Qualified serviceOnly qualified service personnel may repair your phone.For more detailed safety information, see "Health and safety information" on page 99.• The phone could explode if the battery is replaced with an incorrect type.• Dispose of used batteries according to the manufacturer’s instructions.At very high volumes, prolonged listening to a headset can damage your hearing.

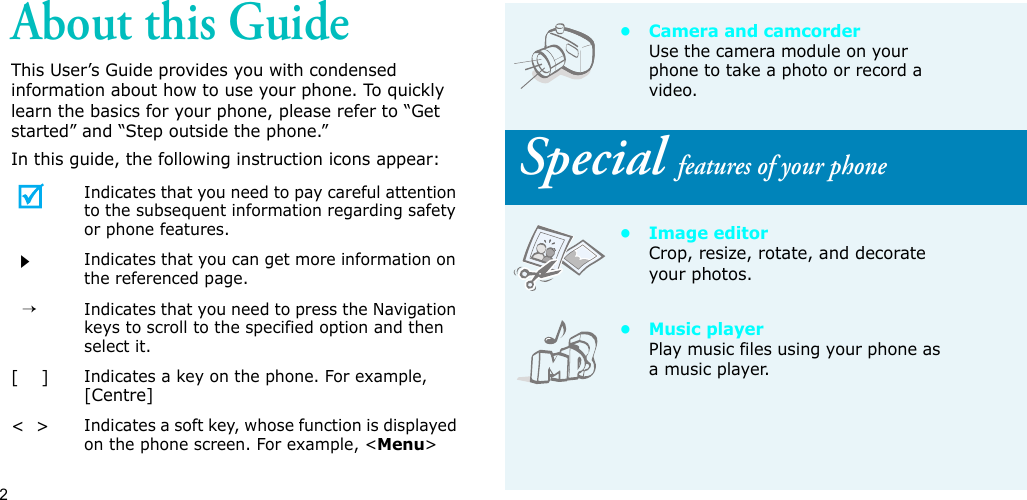

2About this GuideThis User’s Guide provides you with condensed information about how to use your phone. To quickly learn the basics for your phone, please refer to “Get started” and “Step outside the phone.”In this guide, the following instruction icons appear:Indicates that you need to pay careful attention to the subsequent information regarding safety or phone features.Indicates that you can get more information on the referenced page. →Indicates that you need to press the Navigation keys to scroll to the specified option and then select it.[ ]Indicates a key on the phone. For example, [Centre]< >Indicates a soft key, whose function is displayed on the phone screen. For example, <Menu>• Camera and camcorderUse the camera module on your phone to take a photo or record a video. Special features of your phone• Image editorCrop, resize, rotate, and decorate your photos.•Music playerPlay music files using your phone as a music player.

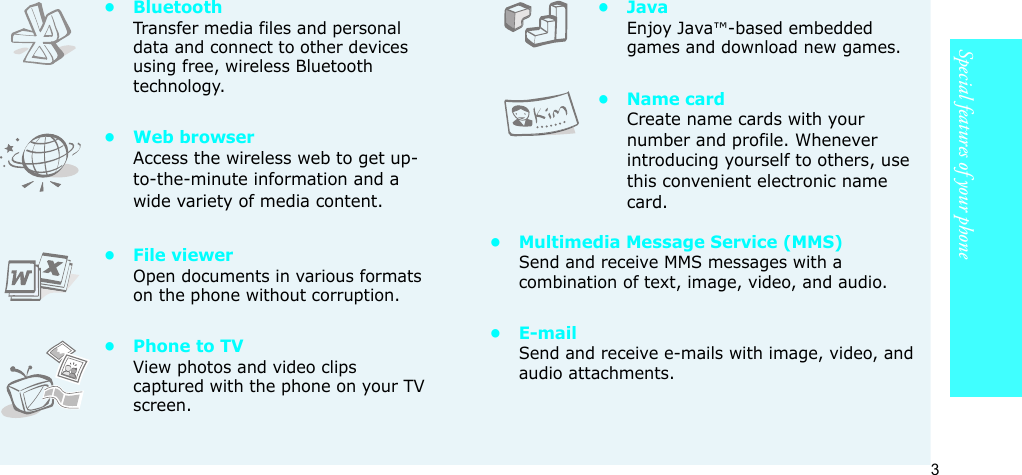

3Special features of your phone•BluetoothTransfer media files and personal data and connect to other devices using free, wireless Bluetooth technology.•Web browserAccess the wireless web to get up-to-the-minute information and a wide variety of media content.• File viewerOpen documents in various formats on the phone without corruption.• Phone to TVView photos and video clips captured with the phone on your TV screen.•JavaEnjoy Java™-based embedded games and download new games.• Name cardCreate name cards with your number and profile. Whenever introducing yourself to others, use this convenient electronic name card.• Multimedia Message Service (MMS)Send and receive MMS messages with a combination of text, image, video, and audio.•E-mailSend and receive e-mails with image, video, and audio attachments.

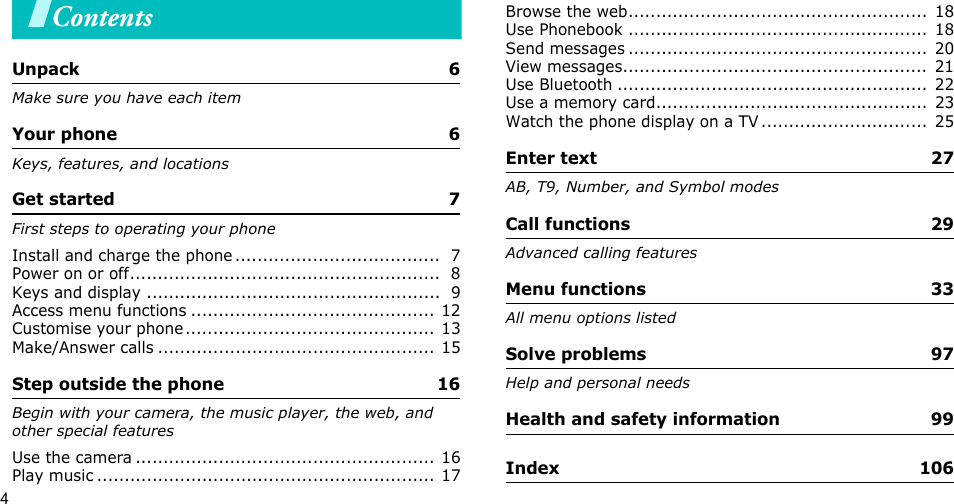

4ContentsUnpack 6Make sure you have each itemYour phone 6Keys, features, and locationsGet started 7First steps to operating your phoneInstall and charge the phone ..................................... 7Power on or off........................................................ 8Keys and display ..................................................... 9Access menu functions ............................................ 12Customise your phone............................................. 13Make/Answer calls .................................................. 15Step outside the phone 16Begin with your camera, the music player, the web, and other special featuresUse the camera ...................................................... 16Play music ............................................................. 17Browse the web...................................................... 18Use Phonebook ...................................................... 18Send messages ...................................................... 20View messages....................................................... 21Use Bluetooth ........................................................ 22Use a memory card................................................. 23Watch the phone display on a TV .............................. 25Enter text 27AB, T9, Number, and Symbol modesCall functions 29Advanced calling featuresMenu functions 33All menu options listedSolve problems 97Help and personal needsHealth and safety information 99Index 106

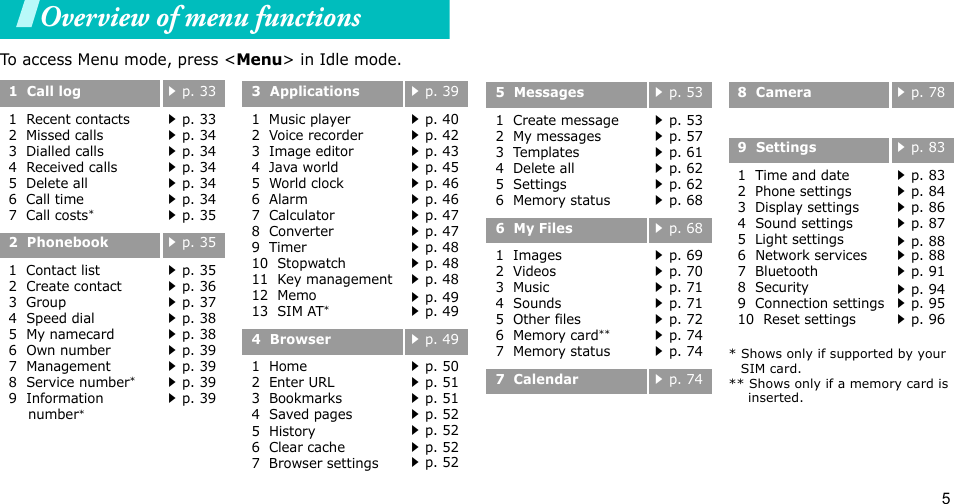

5Overview of menu functionsTo access Menu mode, press <Menu> in Idle mode.1 Call logp. 331 Recent contacts2 Missed calls3 Dialled calls4 Received calls5 Delete all6 Call time7 Call costs*p. 33p. 34p. 34p. 34p. 34p. 34p. 352 Phonebookp. 351 Contact list2 Create contact3 Group4 Speed dial5 My namecard6 Own number7 Management8 Service number*9 Information number*p. 35p. 36p. 37p. 38p. 38p. 39p. 39p. 39p. 393 Applicationsp. 391 Music player2 Voice recorder3 Image editor4 Java world5 World clock6 Alarm7 Calculator 8 Converter 9 Timer10 Stopwatch11 Key management12 Memo13 SIM AT*p. 40p. 42p. 43p. 45p. 46p. 46p. 47p. 47p. 48p. 48p. 48p. 49p. 494 Browserp. 491 Home2 Enter URL3 Bookmarks4 Saved pages5 History6 Clear cache7 Browser settingsp. 50p. 51p. 51p. 52p. 52p. 52p. 525 Messagesp. 531 Create message2 My messages3 Templates4 Delete all5 Settings6 Memory statusp. 53p. 57p. 61p. 62p. 62p. 686 My Filesp. 681 Images2 Videos3 Music4 Sounds5 Other files6 Memory card**7 Memory statusp. 69p. 70p. 71p. 71p. 72p. 74p. 747 Calendarp. 748 Camerap. 789 Settingsp. 831 Time and date2 Phone settings3 Display settings4 Sound settings5 Light settings6 Network services7 Bluetooth8 Security9 Connection settings10 Reset settingsp. 83p. 84p. 86p. 87p. 88p. 88p. 91p. 94p. 95p. 96* Shows only if supported by your SIM card.** Shows only if a memory card is inserted.

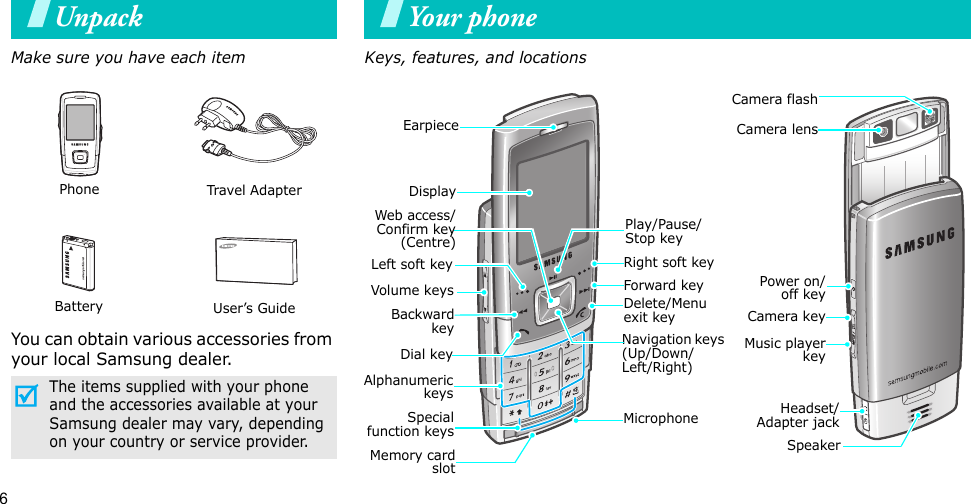

6UnpackMake sure you have each itemYou can obtain various accessories from your local Samsung dealer. Phone Travel Adap ter Battery User’s GuideThe items supplied with your phone and the accessories available at your Samsung dealer may vary, depending on your country or service provider.Your phoneKeys, features, and locationsSpecialfunction keysEarpieceDisplayVolume keysDial keyAlphanumerickeysWeb access/Confirm key(Centre)Left soft keyMicrophonePlay/Pause/Stop keyNavigation keys (Up/Down/Left/Right)Right soft keyCamera flashCamera lensPower on/off keyCamera keyHeadset/Adapter jackSpeakerBackwardkeyMemory cardslotForward keyDelete/Menu exit keyMusic playerkey

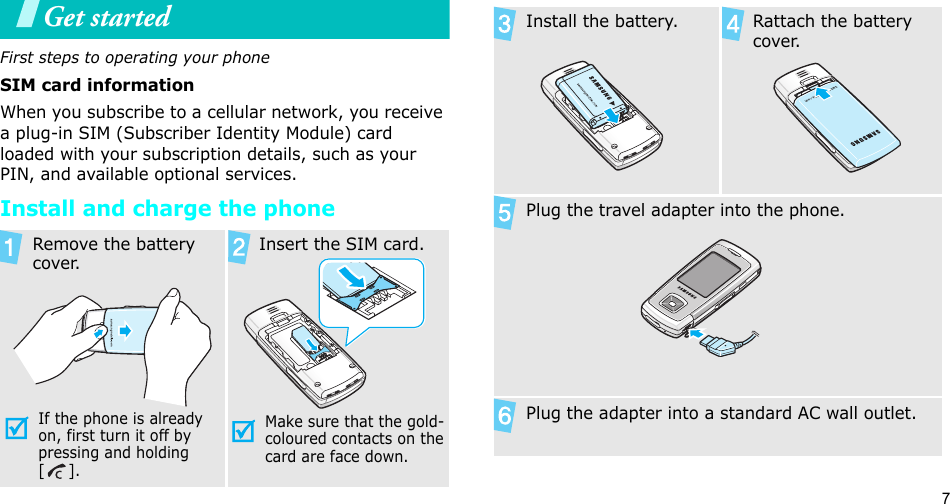

7Get startedFirst steps to operating your phoneSIM card informationWhen you subscribe to a cellular network, you receive a plug-in SIM (Subscriber Identity Module) card loaded with your subscription details, such as your PIN, and available optional services.Install and charge the phoneRemove the battery cover.If the phone is already on, first turn it off by pressing and holding []. Insert the SIM card.Make sure that the gold-coloured contacts on the card are face down.Install the battery. Rattach the battery cover.Plug the travel adapter into the phone.Plug the adapter into a standard AC wall outlet.

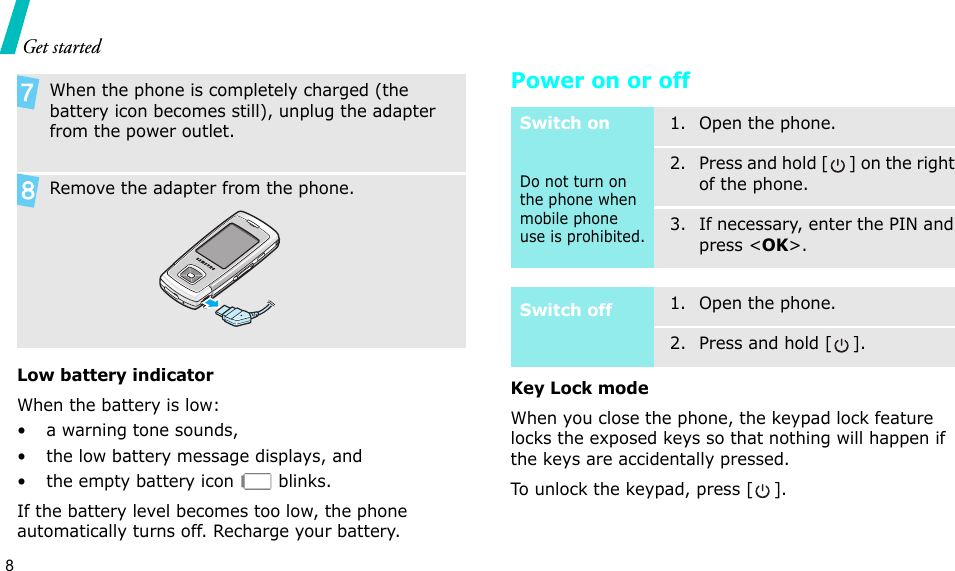

8Get startedLow battery indicatorWhen the battery is low:• a warning tone sounds,• the low battery message displays, and• the empty battery icon blinks.If the battery level becomes too low, the phone automatically turns off. Recharge your battery. Power on or offKey Lock modeWhen you close the phone, the keypad lock feature locks the exposed keys so that nothing will happen if the keys are accidentally pressed.To unlock the keypad, press [ ].When the phone is completely charged (the battery icon becomes still), unplug the adapter from the power outlet.Remove the adapter from the phone.Switch onDo not turn on the phone when mobile phone use is prohibited.1. Open the phone.2. Press and hold [ ] on the right of the phone.3. If necessary, enter the PIN and press <OK>.Switch off1. Open the phone.2. Press and hold [ ].

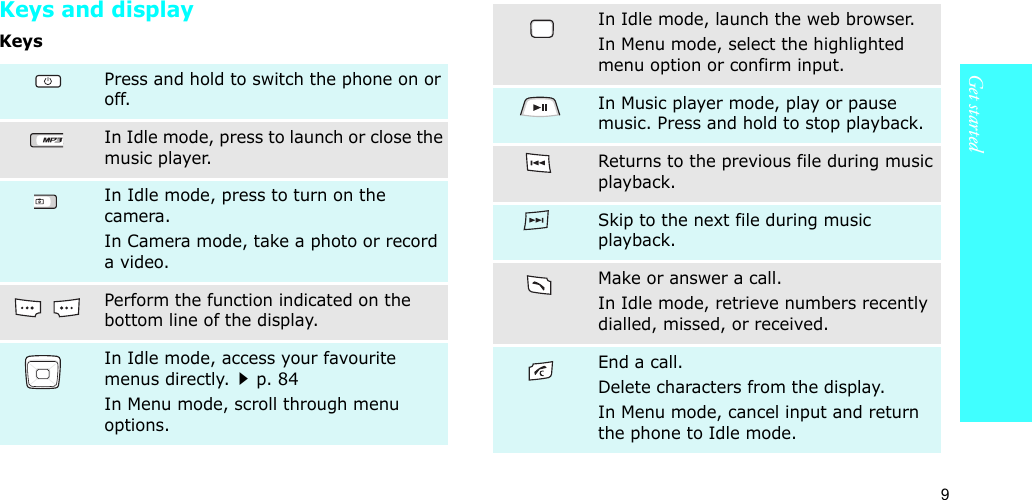

9Get startedKeys and displayKeysPress and hold to switch the phone on or off.In Idle mode, press to launch or close the music player.In Idle mode, press to turn on the camera. In Camera mode, take a photo or record a video.Perform the function indicated on the bottom line of the display.In Idle mode, access your favourite menus directly.p. 84In Menu mode, scroll through menu options.In Idle mode, launch the web browser.In Menu mode, select the highlighted menu option or confirm input.In Music player mode, play or pause music. Press and hold to stop playback.Returns to the previous file during music playback.Skip to the next file during music playback.Make or answer a call.In Idle mode, retrieve numbers recently dialled, missed, or received.End a call. Delete characters from the display.In Menu mode, cancel input and return the phone to Idle mode.

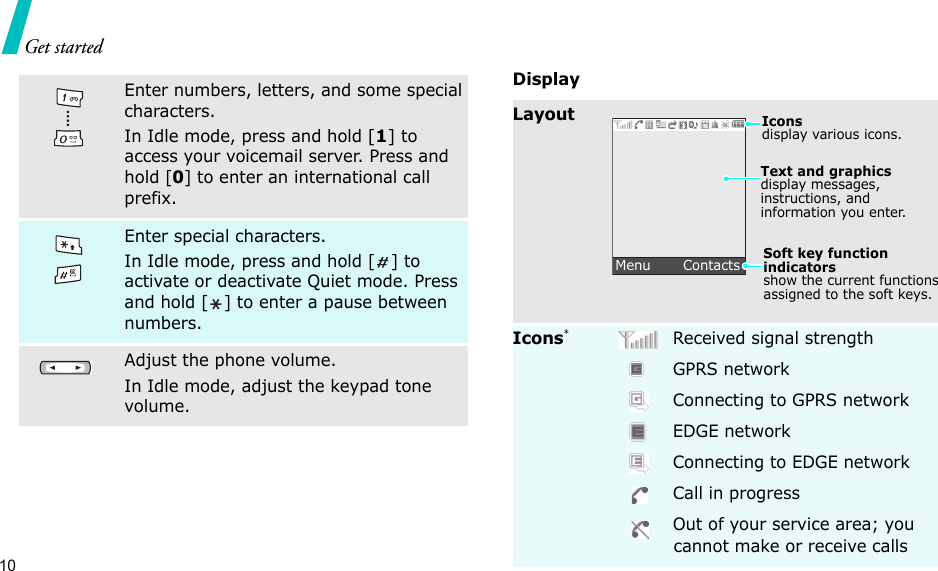

10Get startedDisplayEnter numbers, letters, and some special characters.In Idle mode, press and hold [1] to access your voicemail server. Press and hold [0] to enter an international call prefix.Enter special characters.In Idle mode, press and hold [ ] to activate or deactivate Quiet mode. Press and hold [ ] to enter a pause between numbers.Adjust the phone volume.In Idle mode, adjust the keypad tone volume.LayoutIcons*Received signal strengthGPRS networkConnecting to GPRS networkEDGE networkConnecting to EDGE networkCall in progressOut of your service area; you cannot make or receive callsText and graphicsdisplay messages, instructions, and information you enter.Soft key function indicatorsshow the current functions assigned to the soft keys.Menu ContactsIconsdisplay various icons.

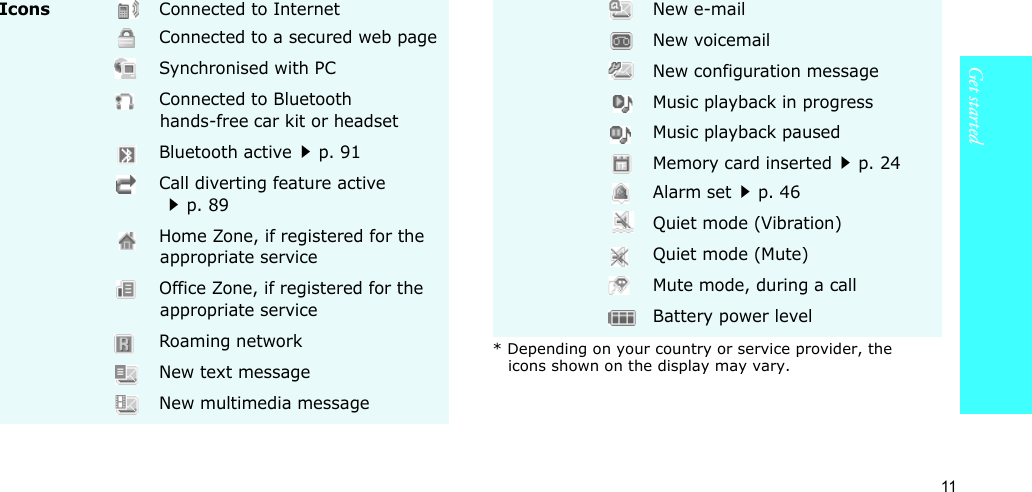

11Get startedIconsConnected to InternetConnected to a secured web pageSynchronised with PCConnected to Bluetooth hands-free car kit or headsetBluetooth activep. 91Call diverting feature activep. 89Home Zone, if registered for the appropriate serviceOffice Zone, if registered for the appropriate serviceRoaming networkNew text messageNew multimedia messageNew e-mailNew voicemail New configuration messageMusic playback in progressMusic playback pausedMemory card insertedp. 24Alarm setp. 46Quiet mode (Vibration)Quiet mode (Mute)Mute mode, during a callBattery power level* Depending on your country or service provider, the icons shown on the display may vary.

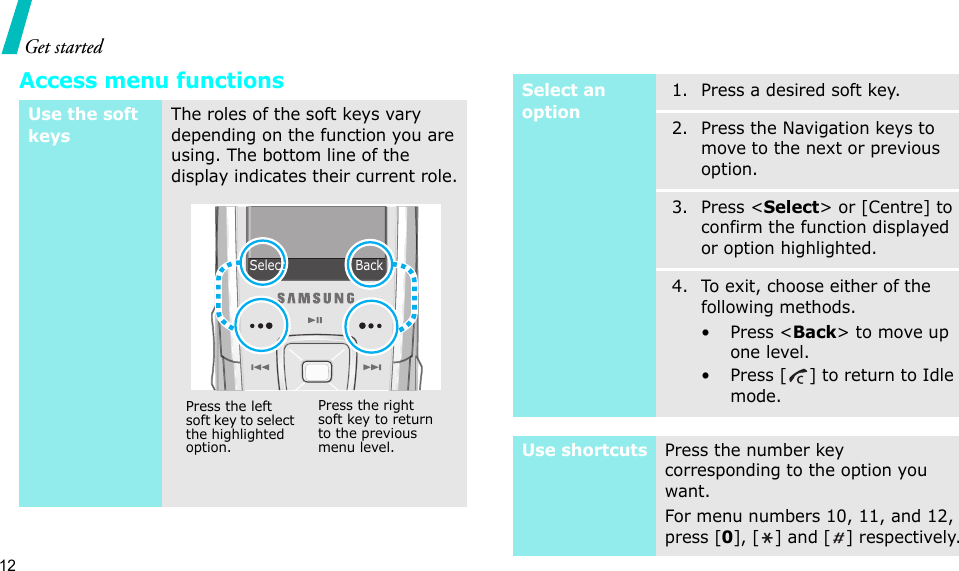

12Get startedAccess menu functionsUse the soft keysThe roles of the soft keys vary depending on the function you are using. The bottom line of the display indicates their current role.Press the left soft key to select the highlighted option.Press the right soft key to return to the previous menu level.Select BackSelect an option1. Press a desired soft key.2. Press the Navigation keys to move to the next or previous option.3. Press <Select> or [Centre] to confirm the function displayed or option highlighted.4. To exit, choose either of the following methods.• Press <Back> to move up one level.• Press [ ] to return to Idle mode.Use shortcutsPress the number key corresponding to the option you want.For menu numbers 10, 11, and 12, press [0], [] and [] respectively.

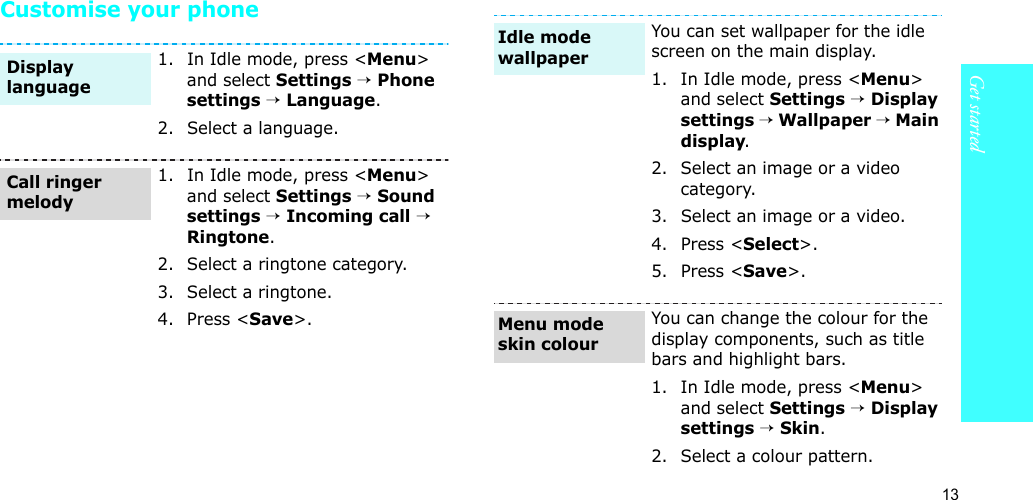

13Get startedCustomise your phone1. In Idle mode, press <Menu> and select Settings → Phone settings → Language.2. Select a language.1. In Idle mode, press <Menu> and select Settings → Sound settings → Incoming call → Ringtone.2. Select a ringtone category.3. Select a ringtone.4. Press <Save>.Display languageCall ringer melodyYou can set wallpaper for the idle screen on the main display.1. In Idle mode, press <Menu> and select Settings → Display settings → Wallpaper → Main display.2. Select an image or a video category.3. Select an image or a video.4. Press <Select>.5. Press <Save>.You can change the colour for the display components, such as title bars and highlight bars.1. In Idle mode, press <Menu> and select Settings → Display settings → Skin.2. Select a colour pattern.Idle mode wallpaperMenu mode skin colour

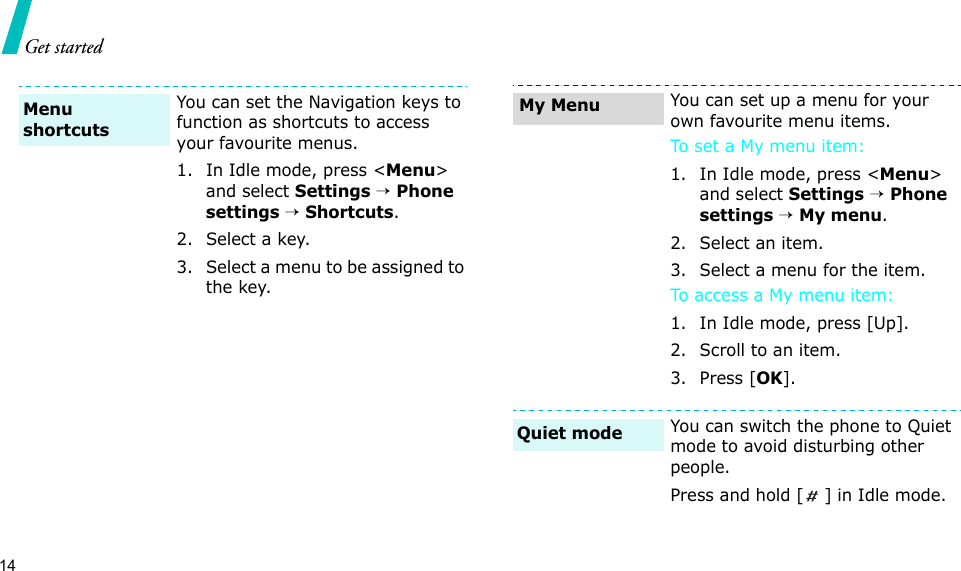

14Get startedYou can set the Navigation keys to function as shortcuts to access your favourite menus.1. In Idle mode, press <Menu> and select Settings → Phone settings → Shortcuts.2. Select a key.3. Select a menu to be assigned to the key.Menu shortcutsYou can set up a menu for your own favourite menu items.To set a My menu item:1. In Idle mode, press <Menu> and select Settings → Phone settings → My menu.2. Select an item.3. Select a menu for the item.To access a My menu item:1. In Idle mode, press [Up].2. Scroll to an item.3. Press [OK].You can switch the phone to Quiet mode to avoid disturbing other people.Press and hold [ ] in Idle mode.My MenuQuiet mode

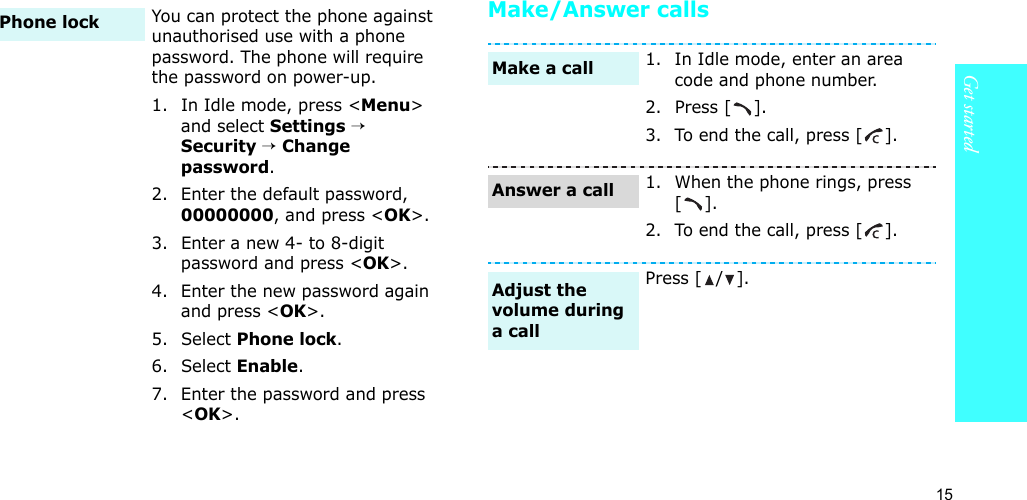

15Get startedMake/Answer callsYou can protect the phone against unauthorised use with a phone password. The phone will require the password on power-up.1. In Idle mode, press <Menu> and select Settings → Security → Change password.2. Enter the default password, 00000000, and press <OK>.3. Enter a new 4- to 8-digit password and press <OK>.4. Enter the new password again and press <OK>.5. Select Phone lock.6. Select Enable.7. Enter the password and press <OK>.Phone lock1. In Idle mode, enter an area code and phone number.2. Press [ ].3. To end the call, press [ ].1. When the phone rings, press [].2. To end the call, press [ ].Press [ / ].Make a callAnswer a callAdjust the volume during a call

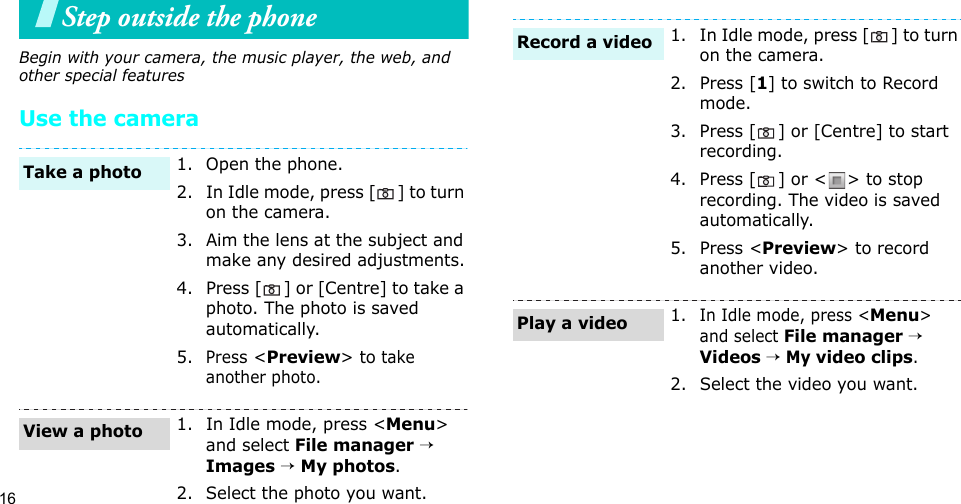

16Step outside the phoneBegin with your camera, the music player, the web, and other special featuresUse the camera1. Open the phone.2. In Idle mode, press [ ] to turn on the camera.3. Aim the lens at the subject and make any desired adjustments.4. Press [ ] or [Centre] to take a photo. The photo is saved automatically.5.Press <Preview> to take another photo.1. In Idle mode, press <Menu> and select File manager → Images → My photos.2. Select the photo you want.Take a photoView a photo1. In Idle mode, press [ ] to turn on the camera.2. Press [1] to switch to Record mode.3. Press [ ] or [Centre] to start recording.4. Press [ ] or < > to stop recording. The video is saved automatically.5. Press <Preview> to record another video.1.In Idle mode, press <Menu> and select File manager → Videos → My video clips.2. Select the video you want.Record a videoPlay a video

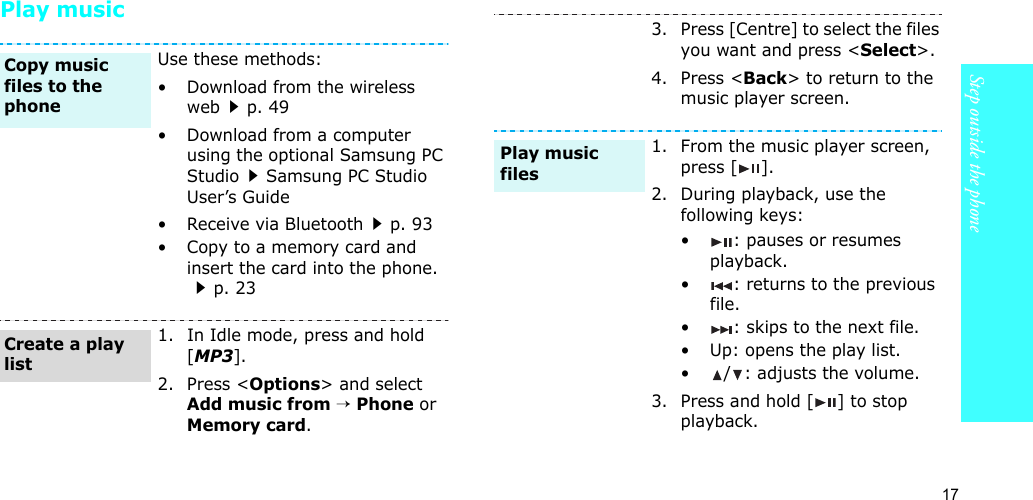

17Step outside the phonePlay musicUse these methods:• Download from the wireless webp. 49• Download from a computer using the optional Samsung PC StudioSamsung PC Studio User’s Guide• Receive via Bluetoothp. 93• Copy to a memory card and insert the card into the phone.p. 231. In Idle mode, press and hold [MP3].2. Press <Options> and select Add music from → Phone or Memory card.Copy music files to the phoneCreate a play list3. Press [Centre] to select the files you want and press <Select>.4. Press <Back> to return to the music player screen.1. From the music player screen, press [ ].2. During playback, use the following keys:• : pauses or resumes playback.• : returns to the previous file.• : skips to the next file.• Up: opens the play list.• / : adjusts the volume.3. Press and hold [ ] to stop playback.Play music files

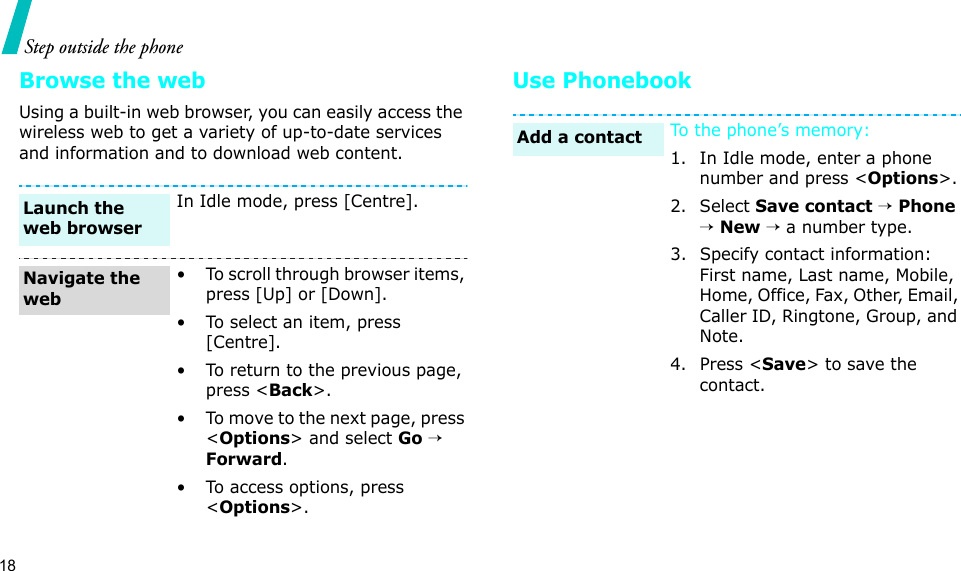

18Step outside the phoneBrowse the webUsing a built-in web browser, you can easily access the wireless web to get a variety of up-to-date services and information and to download web content.Use PhonebookIn Idle mode, press [Centre].• To scroll through browser items, press [Up] or [Down]. • To select an item, press [Centre].• To return to the previous page, press <Back>.• To move to the next page, press <Options> and select Go → Forward.• To access options, press <Options>.Launch the web browserNavigate the webTo the phone’s memory:1. In Idle mode, enter a phone number and press <Options>.2. Select Save contact → Phone → New → a number type.3. Specify contact information: First name, Last name, Mobile, Home, Office, Fax, Other, Email, Caller ID, Ringtone, Group, and Note.4. Press <Save> to save the contact.Add a contact

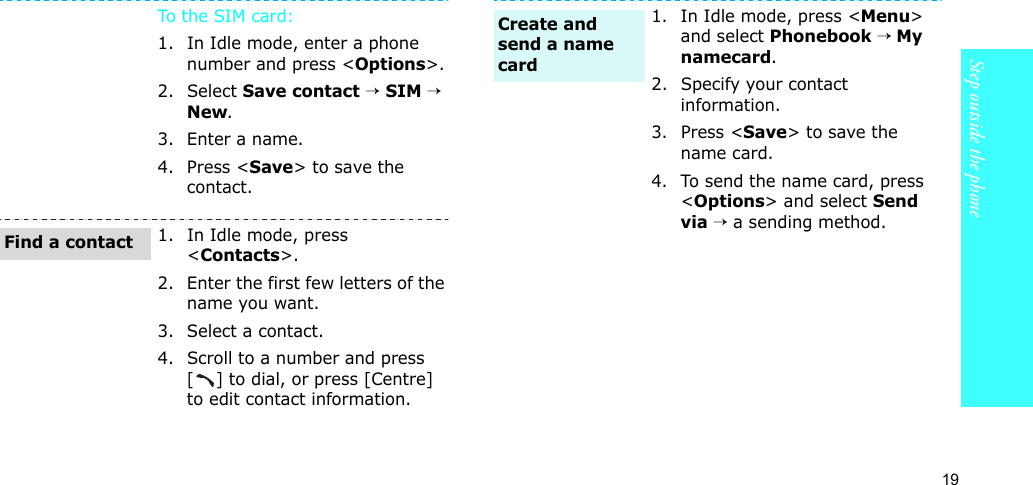

19Step outside the phoneTo th e SIM c a r d:1. In Idle mode, enter a phone number and press <Options>.2. Select Save contact → SIM → New.3. Enter a name.4. Press <Save> to save the contact.1. In Idle mode, press <Contacts>.2. Enter the first few letters of the name you want.3. Select a contact.4. Scroll to a number and press [] to dial, or press [Centre] to edit contact information.Find a contact1. In Idle mode, press <Menu> and select Phonebook → My namecard.2. Specify your contact information.3. Press <Save> to save the name card.4. To send the name card, press <Options> and select Send via → a sending method.Create and send a name card

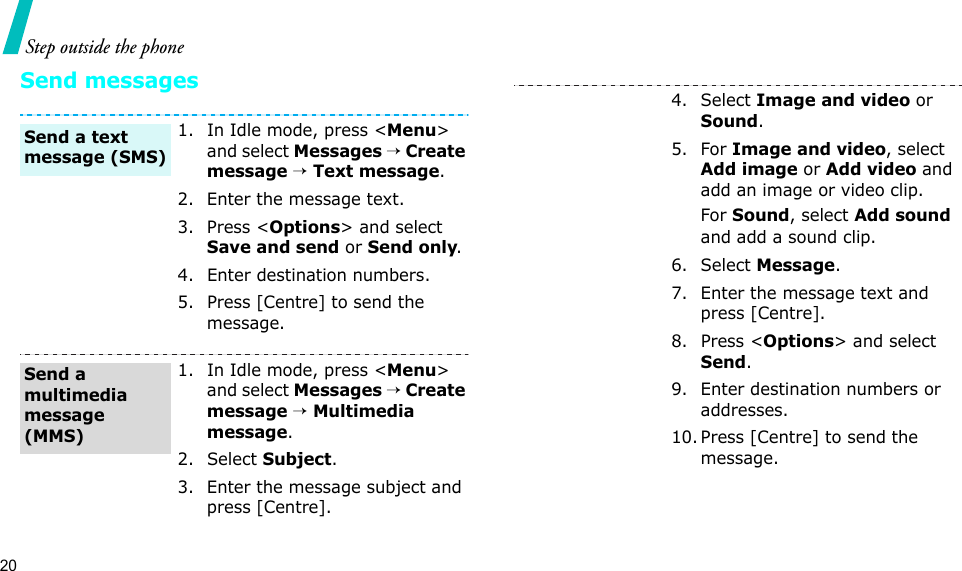

20Step outside the phoneSend messages1. In Idle mode, press <Menu> and select Messages → Create message → Text message.2. Enter the message text.3. Press <Options> and select Save and send or Send only.4. Enter destination numbers.5. Press [Centre] to send the message.1. In Idle mode, press <Menu> and select Messages → Create message → Multimedia message.2. Select Subject.3. Enter the message subject and press [Centre].Send a text message (SMS)Send a multimedia message (MMS)4. Select Image and video or Sound.5. For Image and video, select Add image or Add video and add an image or video clip.For Sound, select Add sound and add a sound clip.6. Select Message.7. Enter the message text and press [Centre].8. Press <Options> and select Send.9. Enter destination numbers or addresses.10. Press [Centre] to send the message.

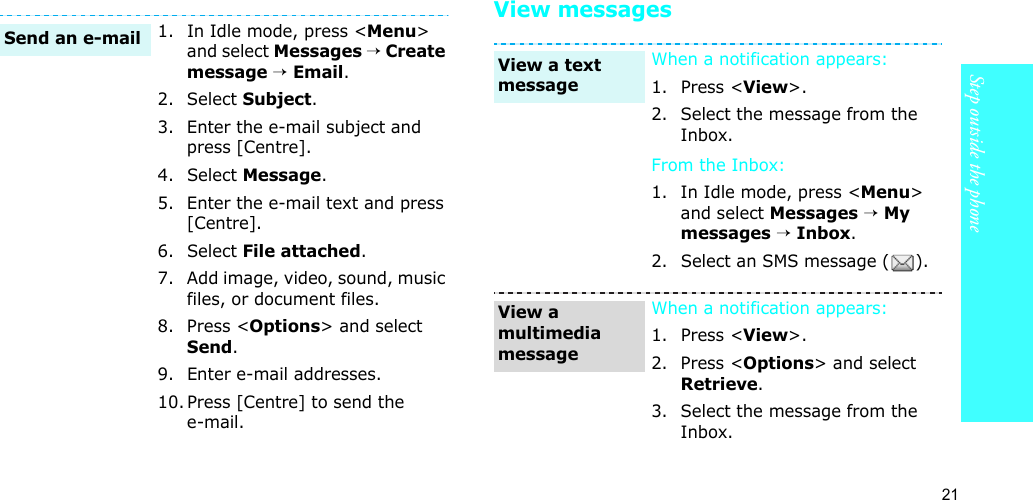

21Step outside the phoneView messages1. In Idle mode, press <Menu> and select Messages → Create message → Email.2. Select Subject.3. Enter the e-mail subject and press [Centre].4. Select Message.5. Enter the e-mail text and press [Centre].6. Select File attached.7. Add image, video, sound, music files, or document files.8. Press <Options> and select Send.9. Enter e-mail addresses.10. Press [Centre] to send the e-mail.Send an e-mailWhen a notification appears: 1. Press <View>. 2. Select the message from the Inbox.From the Inbox:1. In Idle mode, press <Menu> and select Messages → My messages → Inbox.2. Select an SMS message ( ).When a notification appears:1. Press <View>.2. Press <Options> and select Retrieve. 3. Select the message from the Inbox.View a text messageView a multimedia message

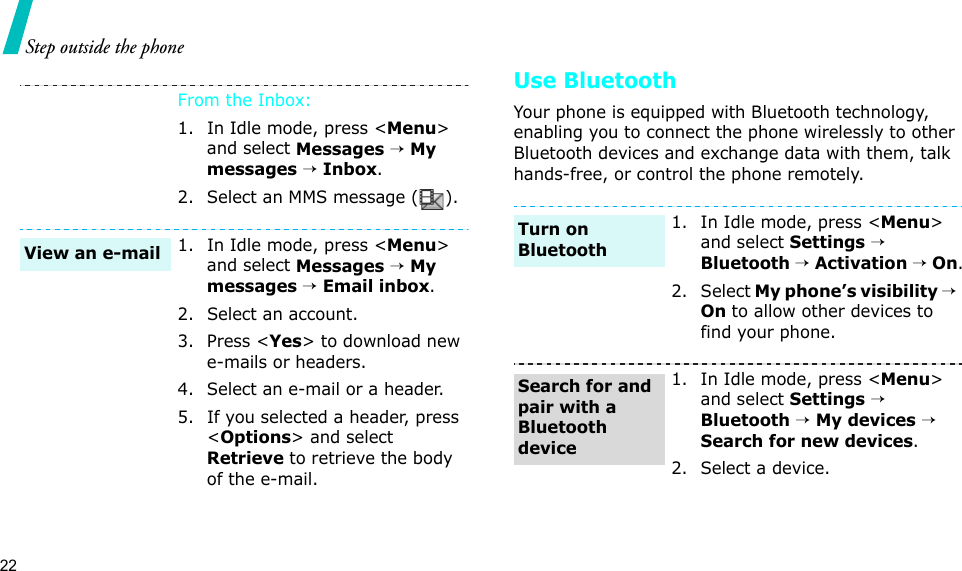

22Step outside the phoneUse BluetoothYour phone is equipped with Bluetooth technology, enabling you to connect the phone wirelessly to other Bluetooth devices and exchange data with them, talk hands-free, or control the phone remotely.From the Inbox:1. In Idle mode, press <Menu> and select Messages → My messages → Inbox.2. Select an MMS message ( ).1. In Idle mode, press <Menu> and select Messages → My messages → Email inbox.2. Select an account.3. Press <Yes> to download new e-mails or headers.4. Select an e-mail or a header.5. If you selected a header, press <Options> and select Retrieve to retrieve the body of the e-mail.View an e-mail1. In Idle mode, press <Menu> and select Settings → Bluetooth → Activation → On.2. Select My phone’s visibility → On to allow other devices to find your phone.1. In Idle mode, press <Menu> and select Settings → Bluetooth → My devices → Search for new devices.2. Select a device.Turn on BluetoothSearch for and pair with a Bluetooth device

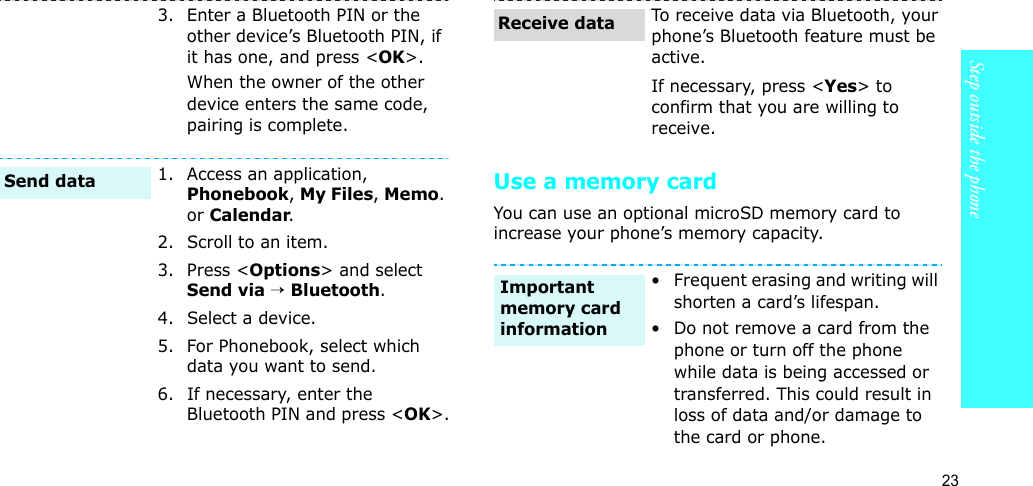

23Step outside the phoneUse a memory cardYou can use an optional microSD memory card to increase your phone’s memory capacity. 3. Enter a Bluetooth PIN or the other device’s Bluetooth PIN, if it has one, and press <OK>.When the owner of the other device enters the same code, pairing is complete.1. Access an application, Phonebook, My Files, Memo. or Calendar.2. Scroll to an item.3. Press <Options> and select Send via → Bluetooth. 4. Select a device.5. For Phonebook, select which data you want to send.6. If necessary, enter the Bluetooth PIN and press <OK>.Send dataTo receive data via Bluetooth, your phone’s Bluetooth feature must be active.If necessary, press <Yes> to confirm that you are willing to receive.• Frequent erasing and writing will shorten a card’s lifespan.• Do not remove a card from the phone or turn off the phone while data is being accessed or transferred. This could result in loss of data and/or damage to the card or phone.Receive dataImportant memory card information

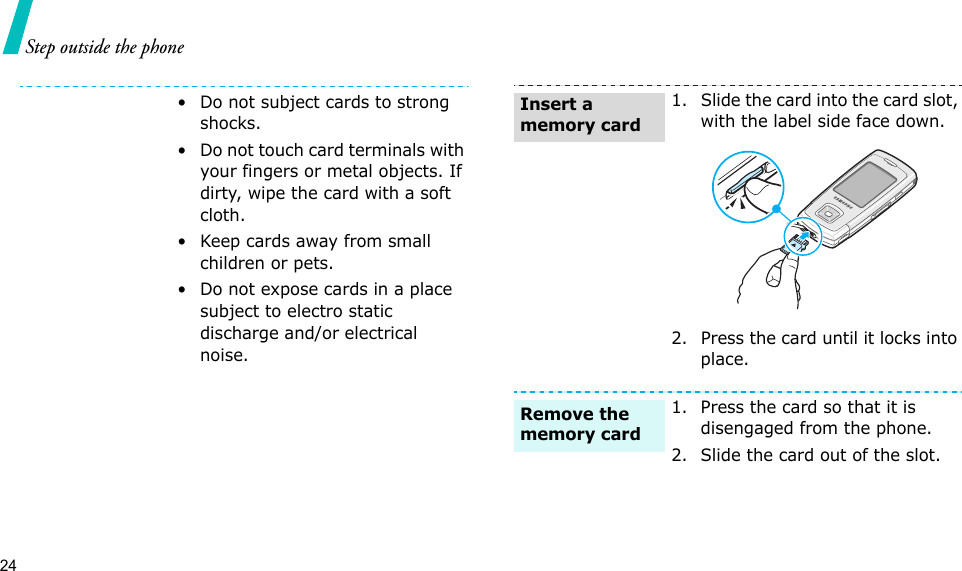

24Step outside the phone• Do not subject cards to strong shocks.• Do not touch card terminals with your fingers or metal objects. If dirty, wipe the card with a soft cloth.• Keep cards away from small children or pets.• Do not expose cards in a place subject to electro static discharge and/or electrical noise.1. Slide the card into the card slot, with the label side face down.2. Press the card until it locks into place.1. Press the card so that it is disengaged from the phone.2. Slide the card out of the slot.Insert a memory cardRemove the memory card

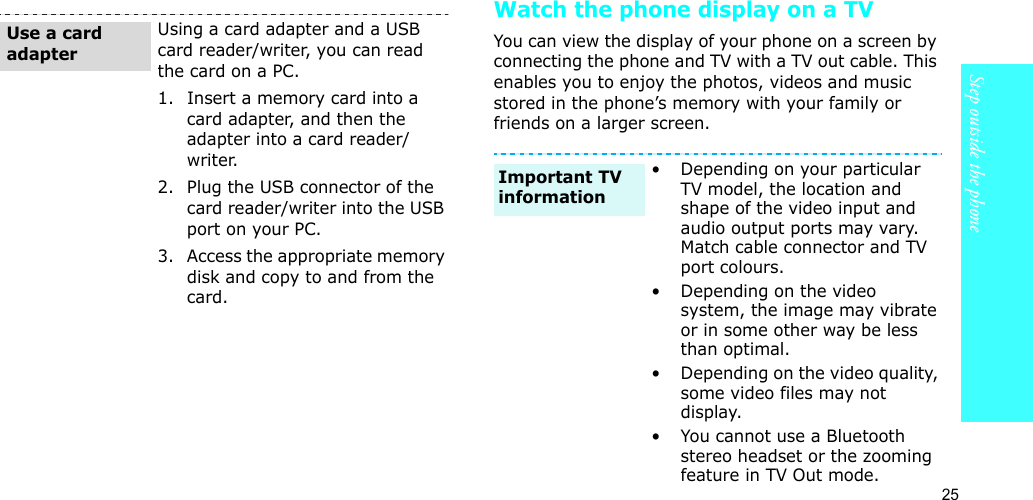

25Step outside the phoneWatch the phone display on a TVYou can view the display of your phone on a screen by connecting the phone and TV with a TV out cable. This enables you to enjoy the photos, videos and music stored in the phone’s memory with your family or friends on a larger screen.Using a card adapter and a USB card reader/writer, you can read the card on a PC.1. Insert a memory card into a card adapter, and then the adapter into a card reader/writer.2. Plug the USB connector of the card reader/writer into the USB port on your PC.3. Access the appropriate memory disk and copy to and from the card.Use a card adapter• Depending on your particular TV model, the location and shape of the video input and audio output ports may vary. Match cable connector and TV port colours.• Depending on the video system, the image may vibrate or in some other way be less than optimal.• Depending on the video quality, some video files may not display.• You cannot use a Bluetooth stereo headset or the zooming feature in TV Out mode.Important TV information

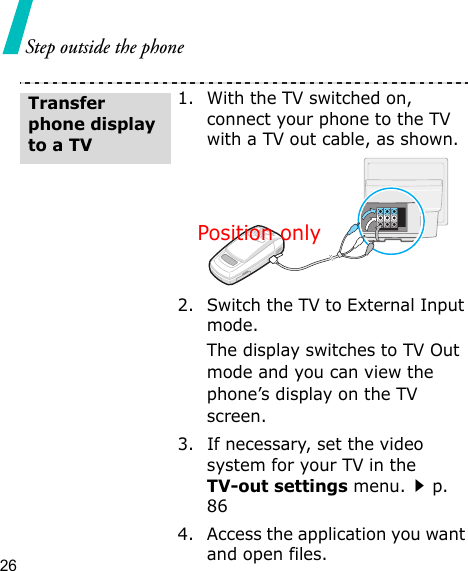

26Step outside the phone1. With the TV switched on, connect your phone to the TV with a TV out cable, as shown.2. Switch the TV to External Input mode.The display switches to TV Out mode and you can view the phone’s display on the TV screen.3. If necessary, set the video system for your TV in the TV-out settings menu.p. 864. Access the application you want and open files.Transfer phone display to a TVPosition only

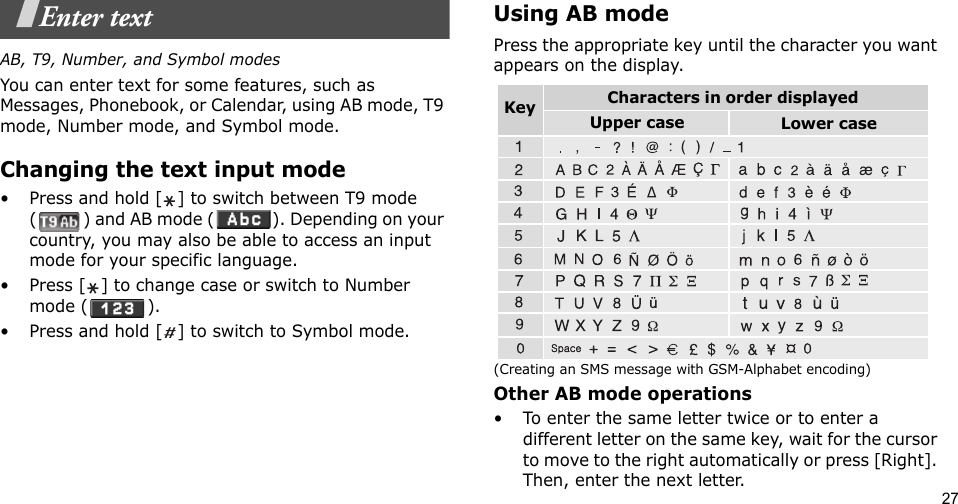

27Enter textAB, T9, Number, and Symbol modesYou can enter text for some features, such as Messages, Phonebook, or Calendar, using AB mode, T9 mode, Number mode, and Symbol mode.Changing the text input mode• Press and hold [ ] to switch between T9 mode ( ) and AB mode ( ). Depending on your country, you may also be able to access an input mode for your specific language.• Press [ ] to change case or switch to Number mode ( ).• Press and hold [ ] to switch to Symbol mode.Using AB modePress the appropriate key until the character you want appears on the display.(Creating an SMS message with GSM-Alphabet encoding)Other AB mode operations• To enter the same letter twice or to enter a different letter on the same key, wait for the cursor to move to the right automatically or press [Right]. Then, enter the next letter.Characters in order displayedKey Upper case Lower case

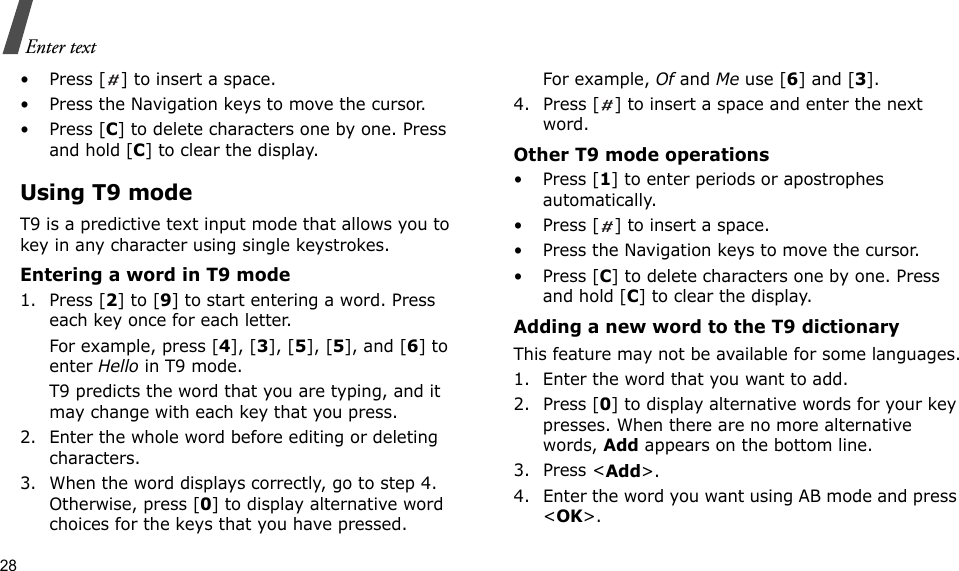

28Enter text• Press [ ] to insert a space.• Press the Navigation keys to move the cursor. • Press [C] to delete characters one by one. Press and hold [C] to clear the display.Using T9 modeT9 is a predictive text input mode that allows you to key in any character using single keystrokes.Entering a word in T9 mode1. Press [2] to [9] to start entering a word. Press each key once for each letter. For example, press [4], [3], [5], [5], and [6] to enter Hello in T9 mode. T9 predicts the word that you are typing, and it may change with each key that you press.2. Enter the whole word before editing or deleting characters.3. When the word displays correctly, go to step 4. Otherwise, press [0] to display alternative word choices for the keys that you have pressed. For example, Of and Me use [6] and [3].4. Press [ ] to insert a space and enter the next word.Other T9 mode operations• Press [1] to enter periods or apostrophes automatically.• Press [ ] to insert a space.• Press the Navigation keys to move the cursor. • Press [C] to delete characters one by one. Press and hold [C] to clear the display.Adding a new word to the T9 dictionaryThis feature may not be available for some languages.1. Enter the word that you want to add.2. Press [0] to display alternative words for your key presses. When there are no more alternative words, Add appears on the bottom line. 3. Press <Add>.4. Enter the word you want using AB mode and press <OK>.

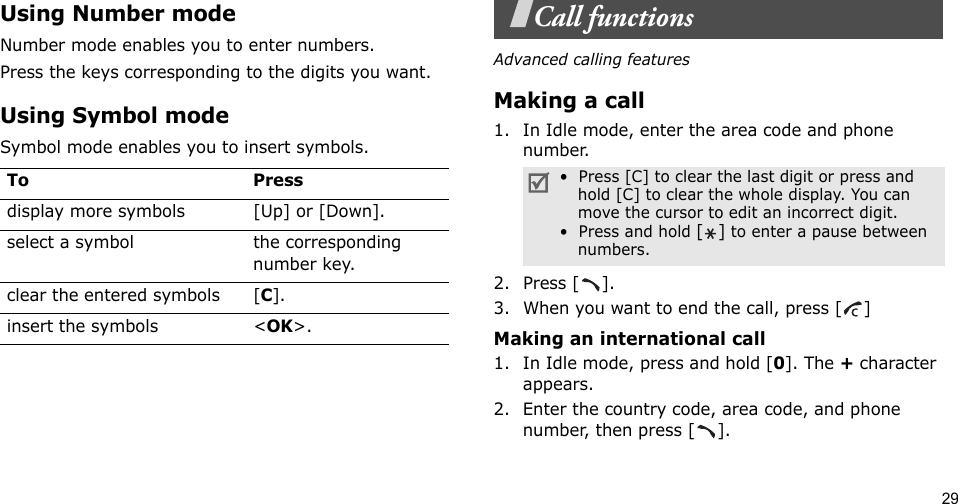

29Using Number modeNumber mode enables you to enter numbers. Press the keys corresponding to the digits you want.Using Symbol modeSymbol mode enables you to insert symbols.Call functionsAdvanced calling featuresMaking a call1. In Idle mode, enter the area code and phone number.2. Press [ ].3. When you want to end the call, press [ ]Making an international call1. In Idle mode, press and hold [0]. The + character appears.2. Enter the country code, area code, and phone number, then press [ ].To Pressdisplay more symbols [Up] or [Down]. select a symbol the corresponding number key.clear the entered symbols [C]. insert the symbols <OK>.• Press [C] to clear the last digit or press and hold [C] to clear the whole display. You can move the cursor to edit an incorrect digit.• Press and hold [] to enter a pause between numbers.

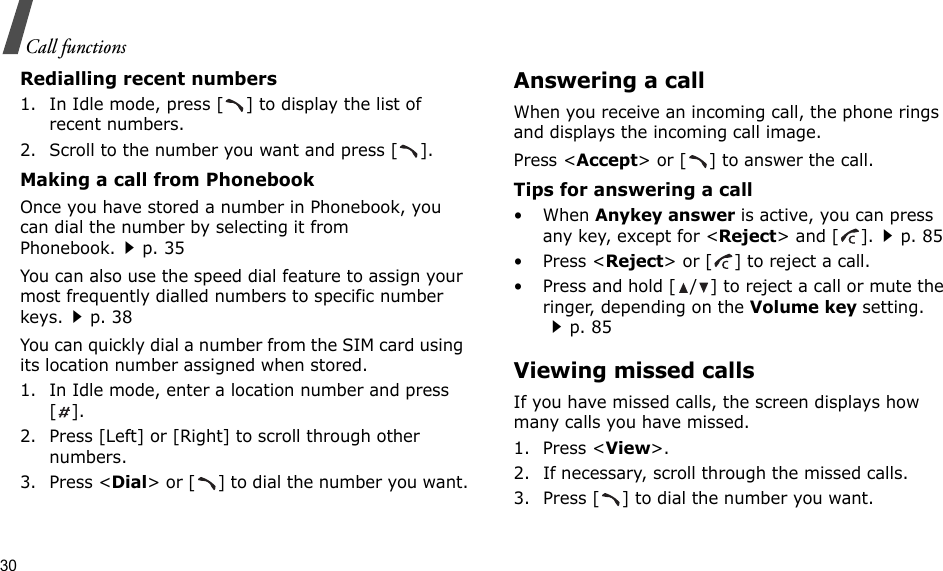

30Call functionsRedialling recent numbers1. In Idle mode, press [ ] to display the list of recent numbers.2. Scroll to the number you want and press [ ].Making a call from PhonebookOnce you have stored a number in Phonebook, you can dial the number by selecting it from Phonebook.p. 35You can also use the speed dial feature to assign your most frequently dialled numbers to specific number keys.p. 38You can quickly dial a number from the SIM card using its location number assigned when stored.1. In Idle mode, enter a location number and press [].2. Press [Left] or [Right] to scroll through other numbers.3. Press <Dial> or [ ] to dial the number you want.Answering a callWhen you receive an incoming call, the phone rings and displays the incoming call image. Press <Accept> or [ ] to answer the call.Tips for answering a call•When Anykey answer is active, you can press any key, except for <Reject> and [ ].p. 85• Press <Reject> or [ ] to reject a call.• Press and hold [ / ] to reject a call or mute the ringer, depending on the Volume key setting.p. 85Viewing missed callsIf you have missed calls, the screen displays how many calls you have missed.1. Press <View>.2. If necessary, scroll through the missed calls.3. Press [ ] to dial the number you want.

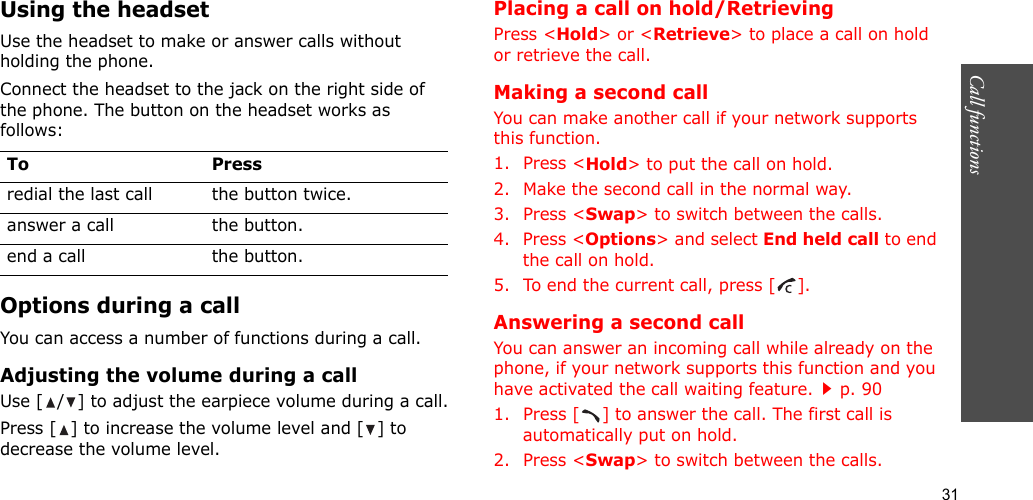

31Call functions Using the headsetUse the headset to make or answer calls without holding the phone. Connect the headset to the jack on the right side of the phone. The button on the headset works as follows:Options during a callYou can access a number of functions during a call.Adjusting the volume during a callUse [ / ] to adjust the earpiece volume during a call.Press [ ] to increase the volume level and [ ] to decrease the volume level.Placing a call on hold/RetrievingPress <Hold> or <Retrieve> to place a call on hold or retrieve the call.Making a second callYou can make another call if your network supports this function.1. Press <Hold> to put the call on hold.2. Make the second call in the normal way.3. Press <Swap> to switch between the calls.4. Press <Options> and select End held call to end the call on hold.5. To end the current call, press [ ].Answering a second callYou can answer an incoming call while already on the phone, if your network supports this function and you have activated the call waiting feature.p. 90 1. Press [ ] to answer the call. The first call is automatically put on hold.2. Press <Swap> to switch between the calls.To Pressredial the last call the button twice.answer a call the button.end a call the button.

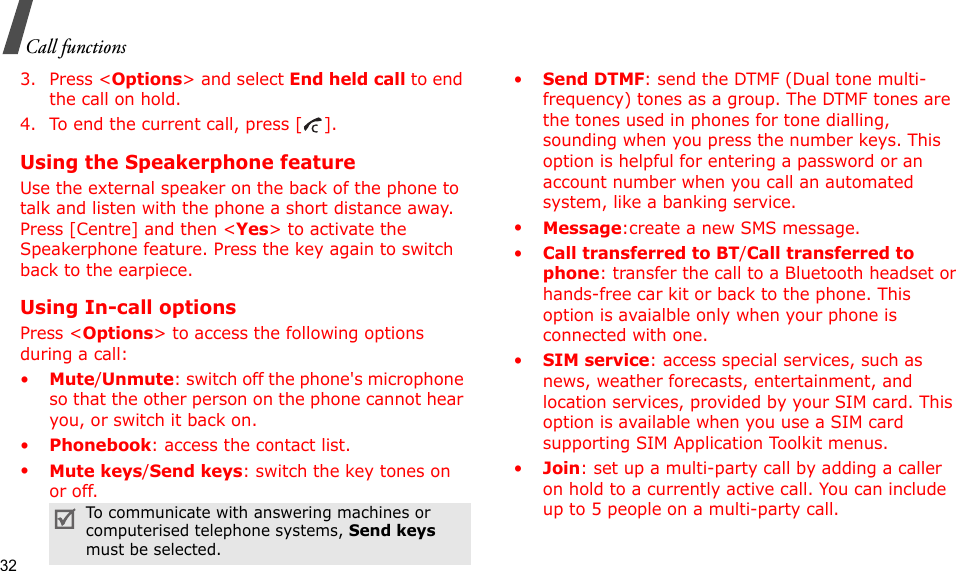

32Call functions3. Press <Options> and select End held call to end the call on hold.4. To end the current call, press [ ].Using the Speakerphone featureUse the external speaker on the back of the phone to talk and listen with the phone a short distance away. Press [Centre] and then <Yes> to activate the Speakerphone feature. Press the key again to switch back to the earpiece.Using In-call optionsPress <Options> to access the following options during a call:•Mute/Unmute: switch off the phone's microphone so that the other person on the phone cannot hear you, or switch it back on.•Phonebook: access the contact list.•Mute keys/Send keys: switch the key tones on or off.•Send DTMF: send the DTMF (Dual tone multi-frequency) tones as a group. The DTMF tones are the tones used in phones for tone dialling, sounding when you press the number keys. This option is helpful for entering a password or an account number when you call an automated system, like a banking service.•Message:create a new SMS message.•Call transferred to BT/Call transferred to phone: transfer the call to a Bluetooth headset or hands-free car kit or back to the phone. This option is avaialble only when your phone is connected with one.•SIM service: access special services, such as news, weather forecasts, entertainment, and location services, provided by your SIM card. This option is available when you use a SIM card supporting SIM Application Toolkit menus.•Join: set up a multi-party call by adding a caller on hold to a currently active call. You can include up to 5 people on a multi-party call.To communicate with answering machines or computerised telephone systems, Send keys must be selected.

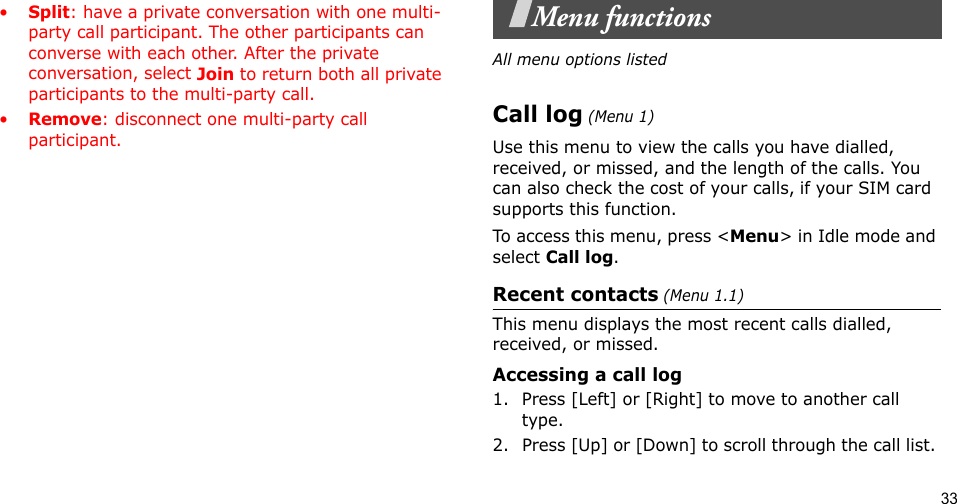

33•Split: have a private conversation with one multi-party call participant. The other participants can converse with each other. After the private conversation, select Join to return both all private participants to the multi-party call.•Remove: disconnect one multi-party call participant.Menu functionsAll menu options listedCall log (Menu 1)Use this menu to view the calls you have dialled, received, or missed, and the length of the calls. You can also check the cost of your calls, if your SIM card supports this function.To access this menu, press <Menu> in Idle mode and select Call log.Recent contacts (Menu 1.1)This menu displays the most recent calls dialled, received, or missed. Accessing a call log1. Press [Left] or [Right] to move to another call type.2. Press [Up] or [Down] to scroll through the call list.

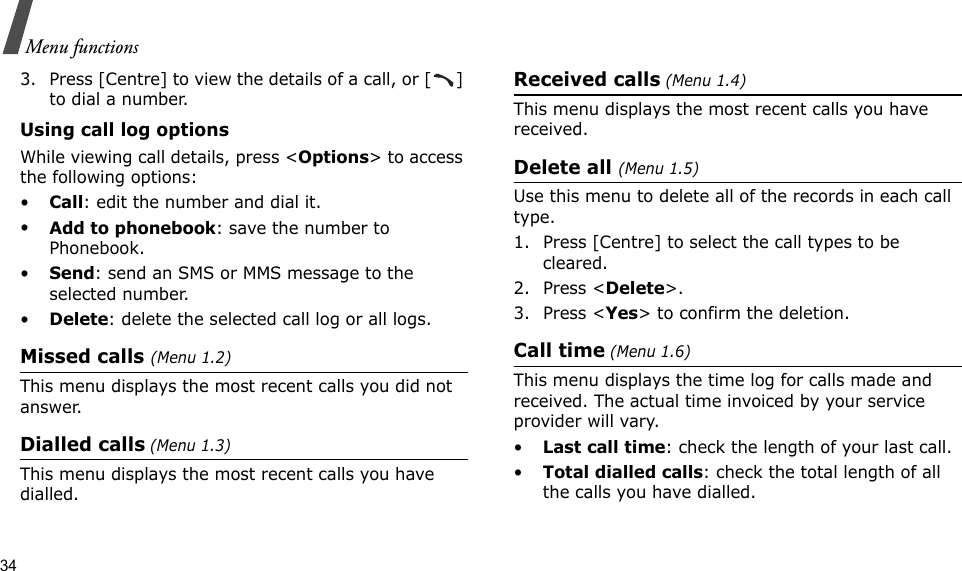

34Menu functions3. Press [Centre] to view the details of a call, or [ ] to dial a number.Using call log optionsWhile viewing call details, press <Options> to access the following options:•Call: edit the number and dial it.•Add to phonebook: save the number to Phonebook.•Send: send an SMS or MMS message to the selected number.•Delete: delete the selected call log or all logs.Missed calls (Menu 1.2)This menu displays the most recent calls you did not answer.Dialled calls (Menu 1.3)This menu displays the most recent calls you have dialled.Received calls (Menu 1.4)This menu displays the most recent calls you have received. Delete all (Menu 1.5) Use this menu to delete all of the records in each call type.1. Press [Centre] to select the call types to be cleared. 2. Press <Delete>. 3. Press <Yes> to confirm the deletion.Call time (Menu 1.6)This menu displays the time log for calls made and received. The actual time invoiced by your service provider will vary.•Last call time: check the length of your last call.•Total dialled calls: check the total length of all the calls you have dialled.

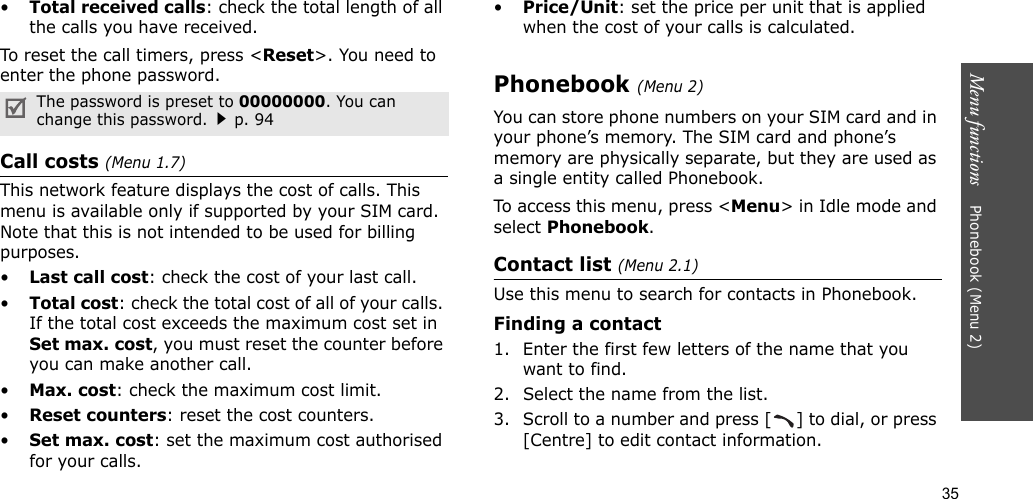

35Menu functions Phonebook (Menu 2)•Total received calls: check the total length of all the calls you have received.To reset the call timers, press <Reset>. You need to enter the phone password.Call costs (Menu 1.7) This network feature displays the cost of calls. This menu is available only if supported by your SIM card. Note that this is not intended to be used for billing purposes.•Last call cost: check the cost of your last call.•Total cost: check the total cost of all of your calls. If the total cost exceeds the maximum cost set in Set max. cost, you must reset the counter before you can make another call.•Max. cost: check the maximum cost limit.•Reset counters: reset the cost counters.•Set max. cost: set the maximum cost authorised for your calls.•Price/Unit: set the price per unit that is applied when the cost of your calls is calculated.Phonebook (Menu 2)You can store phone numbers on your SIM card and in your phone’s memory. The SIM card and phone’s memory are physically separate, but they are used as a single entity called Phonebook.To access this menu, press <Menu> in Idle mode and select Phonebook.Contact list (Menu 2.1)Use this menu to search for contacts in Phonebook.Finding a contact1. Enter the first few letters of the name that you want to find.2. Select the name from the list.3. Scroll to a number and press [ ] to dial, or press [Centre] to edit contact information.The password is preset to 00000000. You can change this password.p. 94

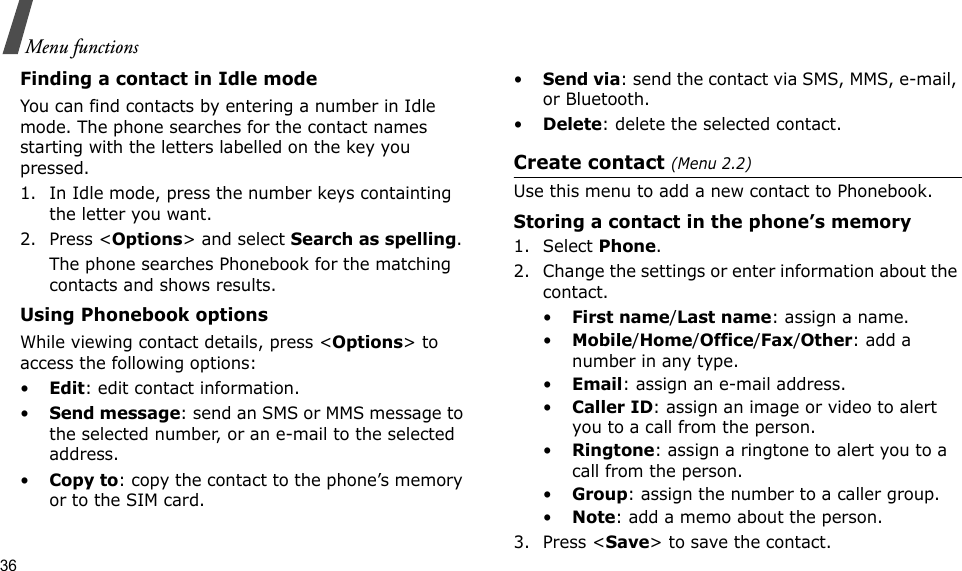

36Menu functionsFinding a contact in Idle modeYou can find contacts by entering a number in Idle mode. The phone searches for the contact names starting with the letters labelled on the key you pressed.1. In Idle mode, press the number keys containting the letter you want.2. Press <Options> and select Search as spelling.The phone searches Phonebook for the matching contacts and shows results.Using Phonebook optionsWhile viewing contact details, press <Options> to access the following options:•Edit: edit contact information.•Send message: send an SMS or MMS message to the selected number, or an e-mail to the selected address.•Copy to: copy the contact to the phone’s memory or to the SIM card.•Send via: send the contact via SMS, MMS, e-mail, or Bluetooth. •Delete: delete the selected contact.Create contact (Menu 2.2)Use this menu to add a new contact to Phonebook.Storing a contact in the phone’s memory1. Select Phone.2. Change the settings or enter information about the contact.•First name/Last name: assign a name.•Mobile/Home/Office/Fax/Other: add a number in any type.•Email: assign an e-mail address.•Caller ID: assign an image or video to alert you to a call from the person.•Ringtone: assign a ringtone to alert you to a call from the person.•Group: assign the number to a caller group.•Note: add a memo about the person.3. Press <Save> to save the contact.

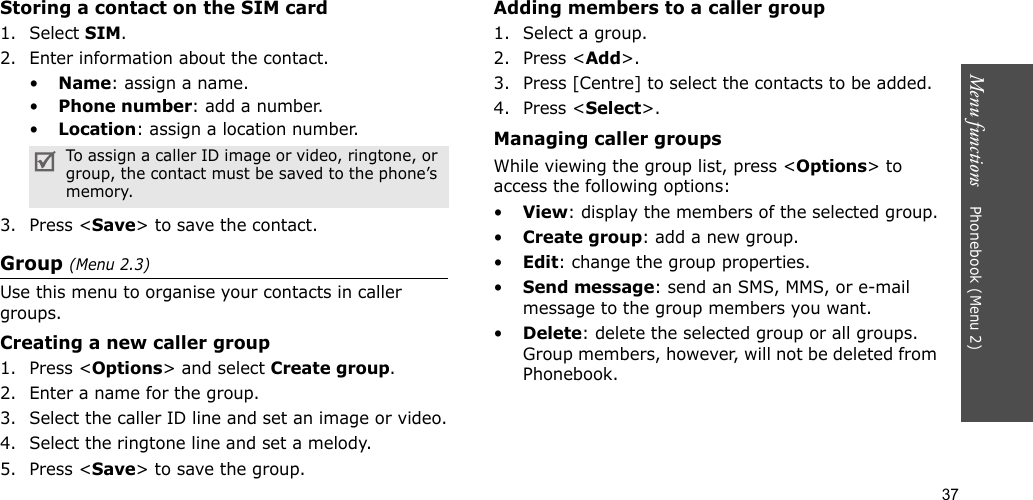

37Menu functions Phonebook (Menu 2)Storing a contact on the SIM card1. Select SIM.2. Enter information about the contact.•Name: assign a name.•Phone number: add a number.•Location: assign a location number.3. Press <Save> to save the contact.Group (Menu 2.3)Use this menu to organise your contacts in caller groups.Creating a new caller group1. Press <Options> and select Create group.2. Enter a name for the group.3. Select the caller ID line and set an image or video.4. Select the ringtone line and set a melody.5. Press <Save> to save the group.Adding members to a caller group1. Select a group.2. Press <Add>.3. Press [Centre] to select the contacts to be added.4. Press <Select>.Managing caller groupsWhile viewing the group list, press <Options> to access the following options:•View: display the members of the selected group.•Create group: add a new group.•Edit: change the group properties.•Send message: send an SMS, MMS, or e-mail message to the group members you want.•Delete: delete the selected group or all groups. Group members, however, will not be deleted from Phonebook.To assign a caller ID image or video, ringtone, or group, the contact must be saved to the phone’s memory.

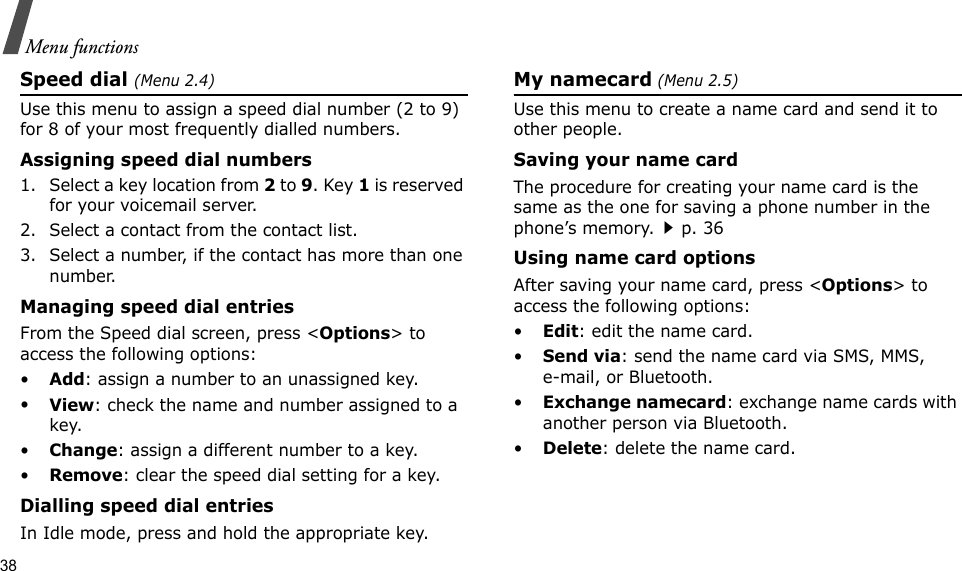

38Menu functionsSpeed dial (Menu 2.4)Use this menu to assign a speed dial number (2 to 9) for 8 of your most frequently dialled numbers.Assigning speed dial numbers1. Select a key location from 2 to 9. Key 1 is reserved for your voicemail server.2. Select a contact from the contact list.3. Select a number, if the contact has more than one number.Managing speed dial entriesFrom the Speed dial screen, press <Options> to access the following options:•Add: assign a number to an unassigned key.•View: check the name and number assigned to a key.•Change: assign a different number to a key.•Remove: clear the speed dial setting for a key.Dialling speed dial entriesIn Idle mode, press and hold the appropriate key.My namecard (Menu 2.5)Use this menu to create a name card and send it to other people.Saving your name cardThe procedure for creating your name card is the same as the one for saving a phone number in the phone’s memory.p. 36 Using name card optionsAfter saving your name card, press <Options> to access the following options:•Edit: edit the name card. •Send via: send the name card via SMS, MMS, e-mail, or Bluetooth.•Exchange namecard: exchange name cards with another person via Bluetooth.•Delete: delete the name card.

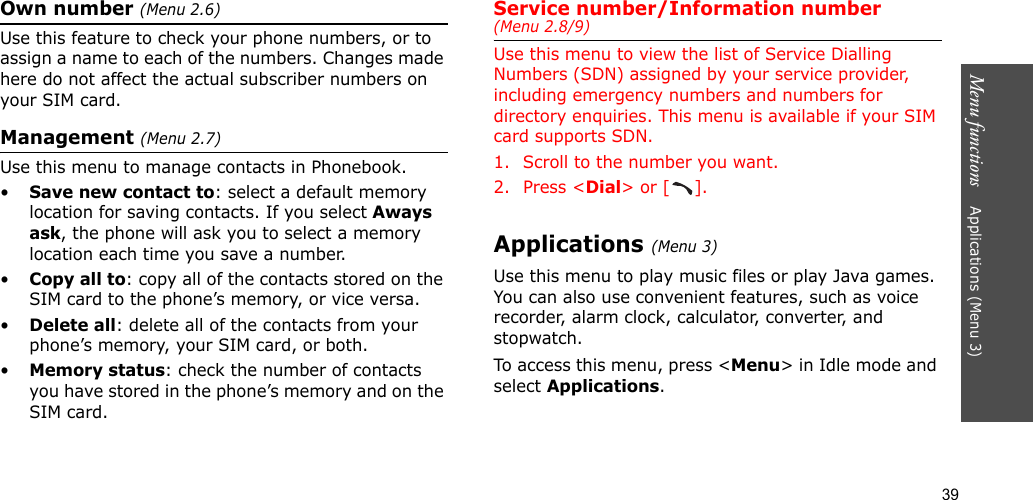

39Menu functions Applications (Menu 3)Own number (Menu 2.6) Use this feature to check your phone numbers, or to assign a name to each of the numbers. Changes made here do not affect the actual subscriber numbers on your SIM card.Management (Menu 2.7)Use this menu to manage contacts in Phonebook.•Save new contact to: select a default memory location for saving contacts. If you select Aways ask, the phone will ask you to select a memory location each time you save a number.•Copy all to: copy all of the contacts stored on the SIM card to the phone’s memory, or vice versa.•Delete all: delete all of the contacts from your phone’s memory, your SIM card, or both.•Memory status: check the number of contacts you have stored in the phone’s memory and on the SIM card.Service number/Information number (Menu 2.8/9)Use this menu to view the list of Service Dialling Numbers (SDN) assigned by your service provider, including emergency numbers and numbers for directory enquiries. This menu is available if your SIM card supports SDN.1. Scroll to the number you want.2. Press <Dial> or [ ].Applications (Menu 3)Use this menu to play music files or play Java games. You can also use convenient features, such as voice recorder, alarm clock, calculator, converter, and stopwatch.To access this menu, press <Menu> in Idle mode and select Applications.

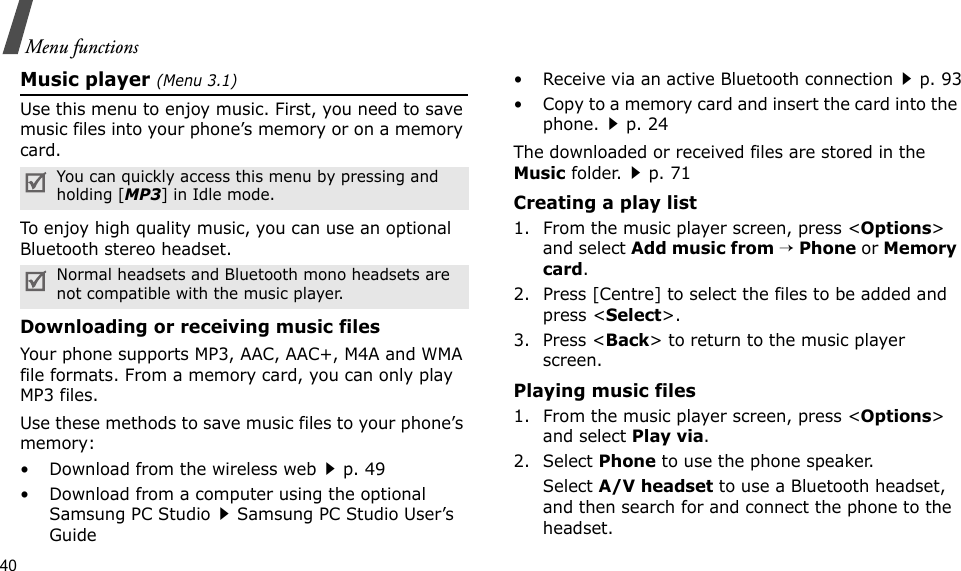

40Menu functionsMusic player (Menu 3.1)Use this menu to enjoy music. First, you need to save music files into your phone’s memory or on a memory card.To enjoy high quality music, you can use an optional Bluetooth stereo headset.Downloading or receiving music filesYour phone supports MP3, AAC, AAC+, M4A and WMA file formats. From a memory card, you can only play MP3 files.Use these methods to save music files to your phone’s memory:• Download from the wireless webp. 49• Download from a computer using the optional Samsung PC StudioSamsung PC Studio User’s Guide• Receive via an active Bluetooth connectionp. 93• Copy to a memory card and insert the card into the phone.p. 24The downloaded or received files are stored in the Music folder.p. 71Creating a play list1. From the music player screen, press <Options> and select Add music from → Phone or Memory card.2. Press [Centre] to select the files to be added and press <Select>.3. Press <Back> to return to the music player screen.Playing music files1. From the music player screen, press <Options> and select Play via.2. Select Phone to use the phone speaker.Select A/V headset to use a Bluetooth headset, and then search for and connect the phone to the headset.You can quickly access this menu by pressing and holding [MP3] in Idle mode.Normal headsets and Bluetooth mono headsets are not compatible with the music player.

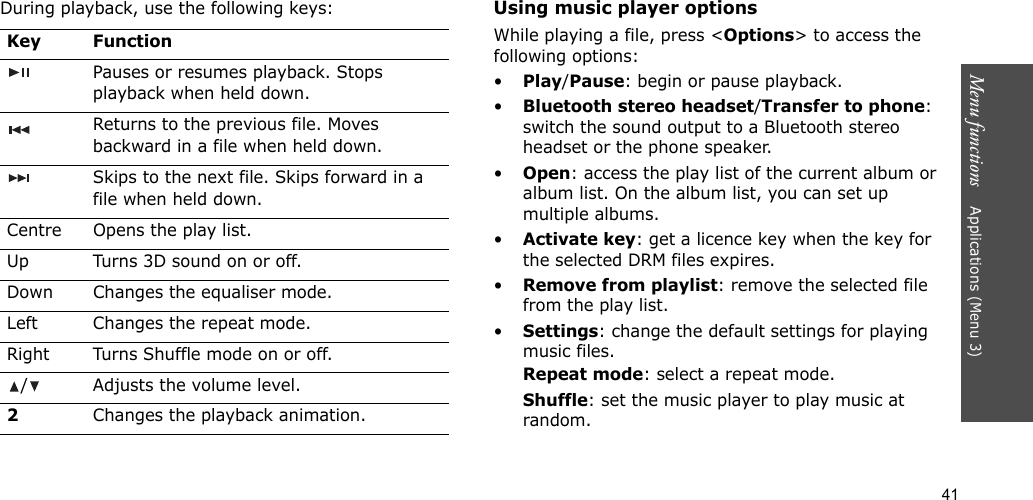

41Menu functions Applications (Menu 3)During playback, use the following keys:Using music player optionsWhile playing a file, press <Options> to access the following options:•Play/Pause: begin or pause playback.•Bluetooth stereo headset/Transfer to phone: switch the sound output to a Bluetooth stereo headset or the phone speaker.•Open: access the play list of the current album or album list. On the album list, you can set up multiple albums.•Activate key: get a licence key when the key for the selected DRM files expires.•Remove from playlist: remove the selected file from the play list.•Settings: change the default settings for playing music files. Repeat mode: select a repeat mode.Shuffle: set the music player to play music at random.Key FunctionPauses or resumes playback. Stops playback when held down.Returns to the previous file. Moves backward in a file when held down.Skips to the next file. Skips forward in a file when held down.Centre Opens the play list.Up Turns 3D sound on or off.Down Changes the equaliser mode.Left Changes the repeat mode.Right Turns Shuffle mode on or off./ Adjusts the volume level.2Changes the playback animation.

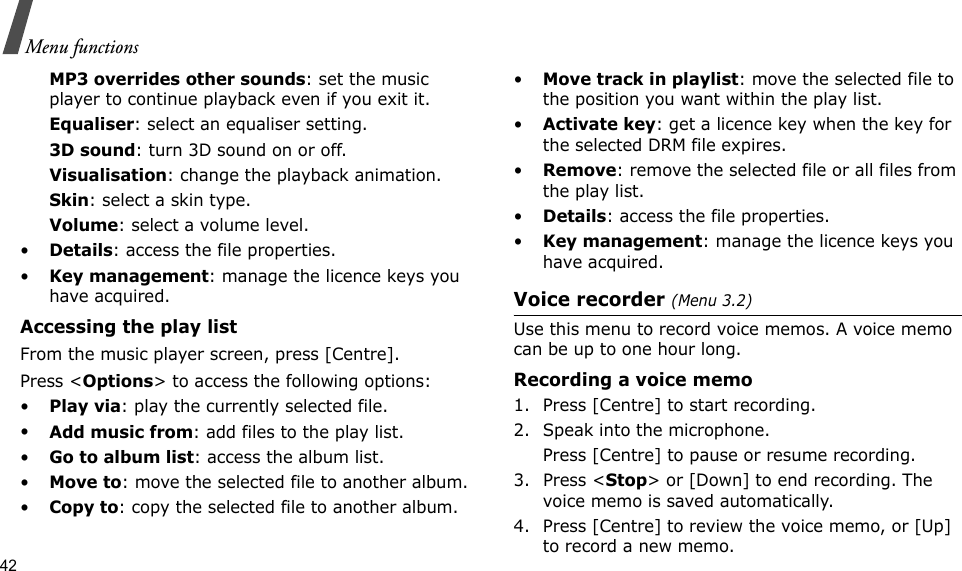

42Menu functionsMP3 overrides other sounds: set the music player to continue playback even if you exit it.Equaliser: select an equaliser setting.3D sound: turn 3D sound on or off.Visualisation: change the playback animation.Skin: select a skin type.Volume: select a volume level.•Details: access the file properties.•Key management: manage the licence keys you have acquired.Accessing the play listFrom the music player screen, press [Centre].Press <Options> to access the following options:•Play via: play the currently selected file.•Add music from: add files to the play list.•Go to album list: access the album list.•Move to: move the selected file to another album.•Copy to: copy the selected file to another album.•Move track in playlist: move the selected file to the position you want within the play list.•Activate key: get a licence key when the key for the selected DRM file expires.•Remove: remove the selected file or all files from the play list.•Details: access the file properties.•Key management: manage the licence keys you have acquired.Voice recorder (Menu 3.2)Use this menu to record voice memos. A voice memo can be up to one hour long.Recording a voice memo1. Press [Centre] to start recording.2. Speak into the microphone. Press [Centre] to pause or resume recording.3. Press <Stop> or [Down] to end recording. The voice memo is saved automatically.4. Press [Centre] to review the voice memo, or [Up] to record a new memo.

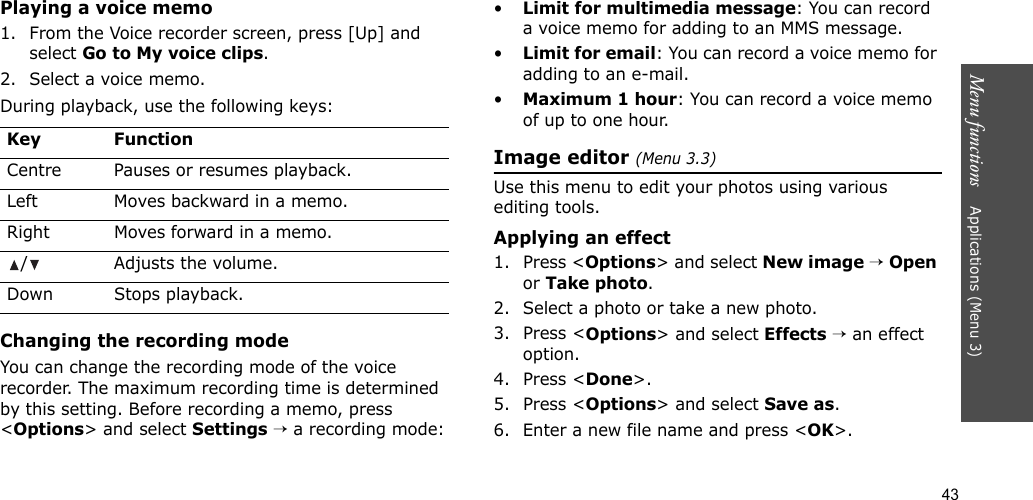

43Menu functions Applications (Menu 3)Playing a voice memo1. From the Voice recorder screen, press [Up] and select Go to My voice clips.2. Select a voice memo.During playback, use the following keys:Changing the recording modeYou can change the recording mode of the voice recorder. The maximum recording time is determined by this setting. Before recording a memo, press <Options> and select Settings → a recording mode:•Limit for multimedia message: You can record a voice memo for adding to an MMS message.•Limit for email: You can record a voice memo for adding to an e-mail.•Maximum 1 hour: You can record a voice memo of up to one hour.Image editor (Menu 3.3)Use this menu to edit your photos using various editing tools.Applying an effect1. Press <Options> and select New image → Open or Take photo.2. Select a photo or take a new photo.3. Press <Options> and select Effects → an effect option.4. Press <Done>.5. Press <Options> and select Save as.6. Enter a new file name and press <OK>. Key FunctionCentre Pauses or resumes playback.Left Moves backward in a memo.Right Moves forward in a memo./ Adjusts the volume.Down Stops playback.

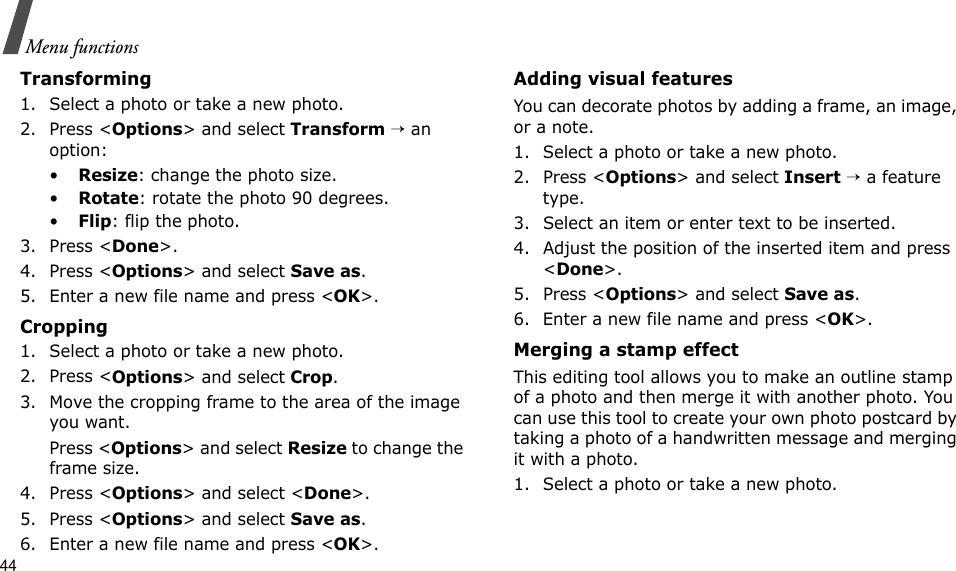

44Menu functionsTransforming1. Select a photo or take a new photo.2. Press <Options> and select Transform → an option:•Resize: change the photo size.•Rotate: rotate the photo 90 degrees.•Flip: flip the photo.3. Press <Done>.4. Press <Options> and select Save as.5. Enter a new file name and press <OK>. Cropping1. Select a photo or take a new photo.2. Press <Options> and select Crop.3. Move the cropping frame to the area of the image you want. Press <Options> and select Resize to change the frame size.4. Press <Options> and select <Done>.5. Press <Options> and select Save as.6. Enter a new file name and press <OK>. Adding visual featuresYou can decorate photos by adding a frame, an image, or a note.1. Select a photo or take a new photo.2. Press <Options> and select Insert → a feature type.3. Select an item or enter text to be inserted.4. Adjust the position of the inserted item and press <Done>.5. Press <Options> and select Save as.6. Enter a new file name and press <OK>. Merging a stamp effectThis editing tool allows you to make an outline stamp of a photo and then merge it with another photo. You can use this tool to create your own photo postcard by taking a photo of a handwritten message and merging it with a photo.1. Select a photo or take a new photo.

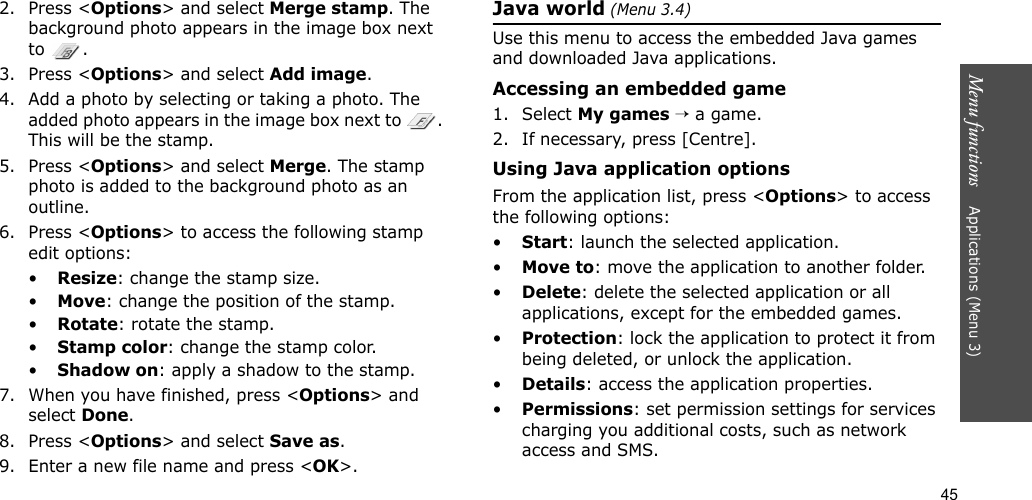

45Menu functions Applications (Menu 3)2. Press <Options> and select Merge stamp. The background photo appears in the image box next to .3. Press <Options> and select Add image. 4. Add a photo by selecting or taking a photo. The added photo appears in the image box next to . This will be the stamp.5. Press <Options> and select Merge. The stamp photo is added to the background photo as an outline.6. Press <Options> to access the following stamp edit options:•Resize: change the stamp size.•Move: change the position of the stamp.•Rotate: rotate the stamp.•Stamp color: change the stamp color.•Shadow on: apply a shadow to the stamp.7. When you have finished, press <Options> and select Done.8. Press <Options> and select Save as.9. Enter a new file name and press <OK>. Java world (Menu 3.4)Use this menu to access the embedded Java games and downloaded Java applications.Accessing an embedded game1. Select My games → a game.2. If necessary, press [Centre].Using Java application optionsFrom the application list, press <Options> to access the following options:•Start: launch the selected application.•Move to: move the application to another folder.•Delete: delete the selected application or all applications, except for the embedded games.•Protection: lock the application to protect it from being deleted, or unlock the application.•Details: access the application properties.•Permissions: set permission settings for services charging you additional costs, such as network access and SMS.

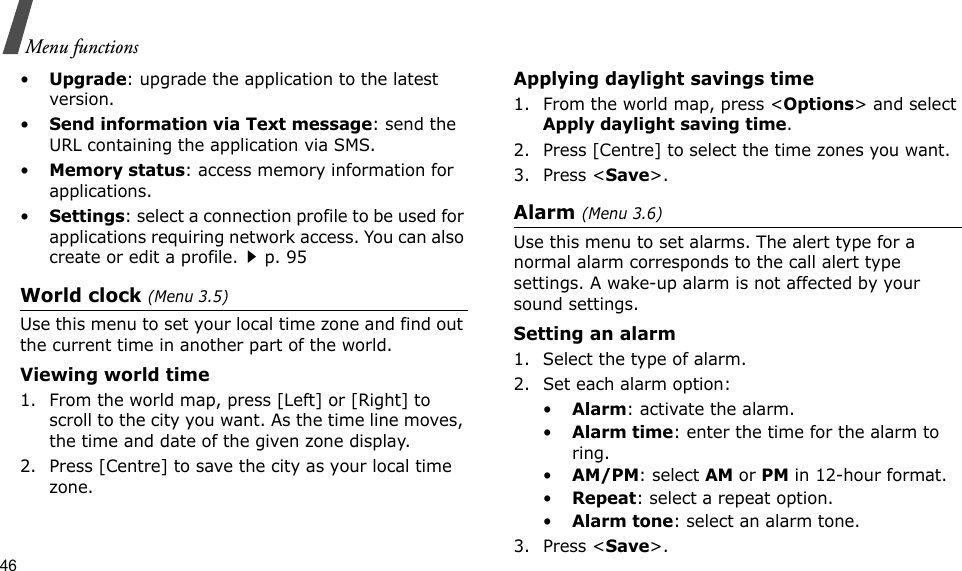

46Menu functions•Upgrade: upgrade the application to the latest version.•Send information via Text message: send the URL containing the application via SMS.•Memory status: access memory information for applications.•Settings: select a connection profile to be used for applications requiring network access. You can also create or edit a profile.p. 95World clock (Menu 3.5)Use this menu to set your local time zone and find out the current time in another part of the world. Viewing world time1. From the world map, press [Left] or [Right] to scroll to the city you want. As the time line moves, the time and date of the given zone display.2. Press [Centre] to save the city as your local time zone.Applying daylight savings time1. From the world map, press <Options> and select Apply daylight saving time.2. Press [Centre] to select the time zones you want. 3. Press <Save>.Alarm (Menu 3.6) Use this menu to set alarms. The alert type for a normal alarm corresponds to the call alert type settings. A wake-up alarm is not affected by your sound settings.Setting an alarm1. Select the type of alarm.2. Set each alarm option:•Alarm: activate the alarm.•Alarm time: enter the time for the alarm to ring.•AM/PM: select AM or PM in 12-hour format.•Repeat: select a repeat option.•Alarm tone: select an alarm tone.3. Press <Save>.

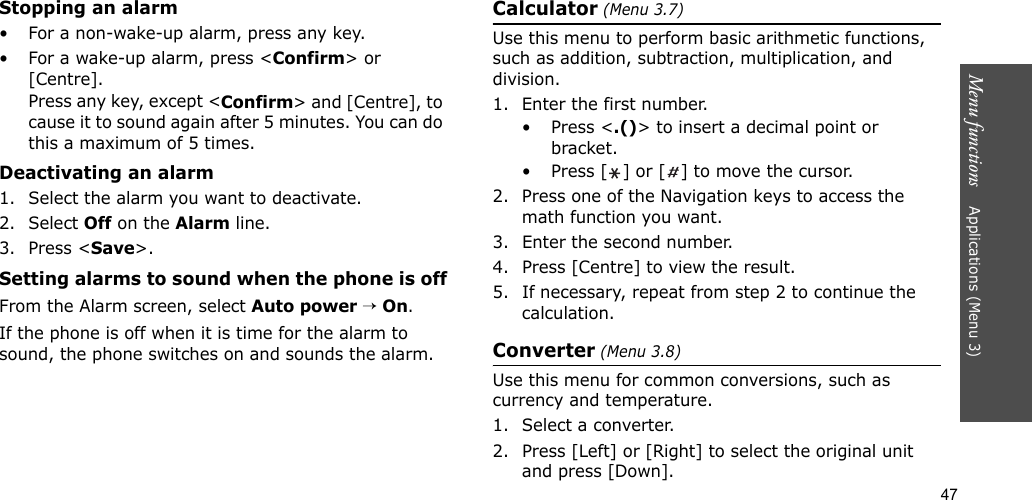

47Menu functions Applications (Menu 3)Stopping an alarm• For a non-wake-up alarm, press any key.• For a wake-up alarm, press <Confirm> or [Centre]. Press any key, except <Confirm> and [Centre], to cause it to sound again after 5 minutes. You can do this a maximum of 5 times.Deactivating an alarm1. Select the alarm you want to deactivate.2. Select Off on the Alarm line.3. Press <Save>.Setting alarms to sound when the phone is offFrom the Alarm screen, select Auto power → On.If the phone is off when it is time for the alarm to sound, the phone switches on and sounds the alarm.Calculator (Menu 3.7) Use this menu to perform basic arithmetic functions, such as addition, subtraction, multiplication, and division.1. Enter the first number. • Press <.()> to insert a decimal point or bracket.• Press [ ] or [ ] to move the cursor.2. Press one of the Navigation keys to access the math function you want.3. Enter the second number.4. Press [Centre] to view the result.5. If necessary, repeat from step 2 to continue the calculation.Converter (Menu 3.8)Use this menu for common conversions, such as currency and temperature.1. Select a converter.2. Press [Left] or [Right] to select the original unit and press [Down].

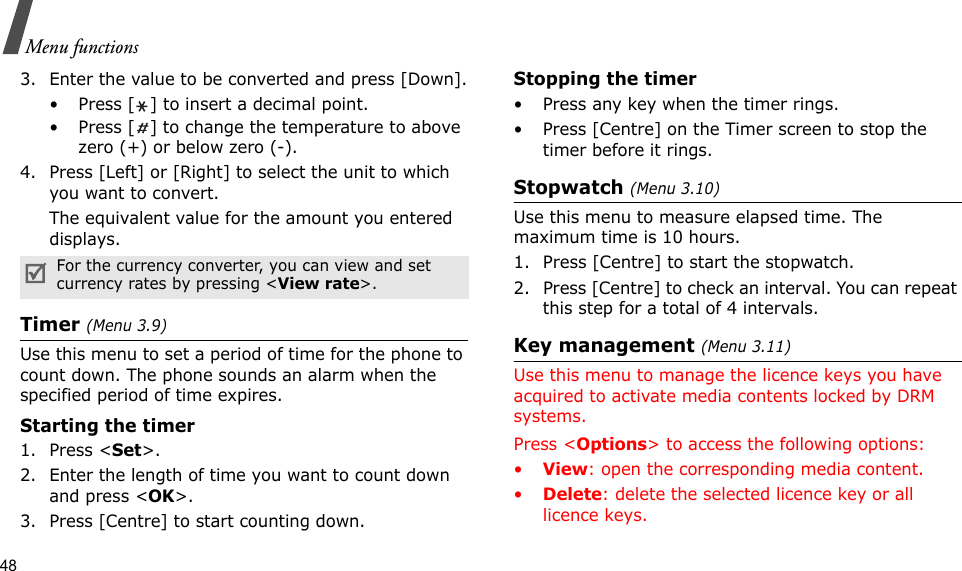

48Menu functions3. Enter the value to be converted and press [Down].• Press [ ] to insert a decimal point.• Press [ ] to change the temperature to above zero (+) or below zero (-).4. Press [Left] or [Right] to select the unit to which you want to convert.The equivalent value for the amount you entered displays.Timer (Menu 3.9)Use this menu to set a period of time for the phone to count down. The phone sounds an alarm when the specified period of time expires.Starting the timer1. Press <Set>.2. Enter the length of time you want to count down and press <OK>.3. Press [Centre] to start counting down.Stopping the timer• Press any key when the timer rings.• Press [Centre] on the Timer screen to stop the timer before it rings.Stopwatch (Menu 3.10)Use this menu to measure elapsed time. The maximum time is 10 hours.1. Press [Centre] to start the stopwatch.2. Press [Centre] to check an interval. You can repeat this step for a total of 4 intervals.Key management (Menu 3.11)Use this menu to manage the licence keys you have acquired to activate media contents locked by DRM systems.Press <Options> to access the following options:•View: open the corresponding media content.•Delete: delete the selected licence key or all licence keys.For the currency converter, you can view and set currency rates by pressing <View rate>.

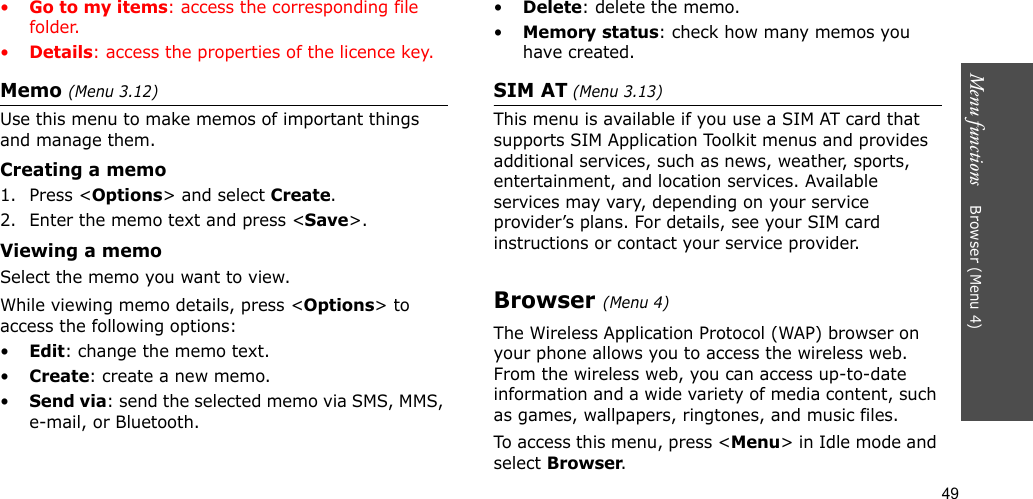

49Menu functions Browser (Menu 4)•Go to my items: access the corresponding file folder.•Details: access the properties of the licence key.Memo (Menu 3.12) Use this menu to make memos of important things and manage them.Creating a memo1. Press <Options> and select Create.2. Enter the memo text and press <Save>.Viewing a memoSelect the memo you want to view. While viewing memo details, press <Options> to access the following options:•Edit: change the memo text.•Create: create a new memo.•Send via: send the selected memo via SMS, MMS, e-mail, or Bluetooth.•Delete: delete the memo.•Memory status: check how many memos you have created.SIM AT (Menu 3.13) This menu is available if you use a SIM AT card that supports SIM Application Toolkit menus and provides additional services, such as news, weather, sports, entertainment, and location services. Available services may vary, depending on your service provider’s plans. For details, see your SIM card instructions or contact your service provider.Browser (Menu 4)The Wireless Application Protocol (WAP) browser on your phone allows you to access the wireless web. From the wireless web, you can access up-to-date information and a wide variety of media content, such as games, wallpapers, ringtones, and music files.To access this menu, press <Menu> in Idle mode and select Browser.

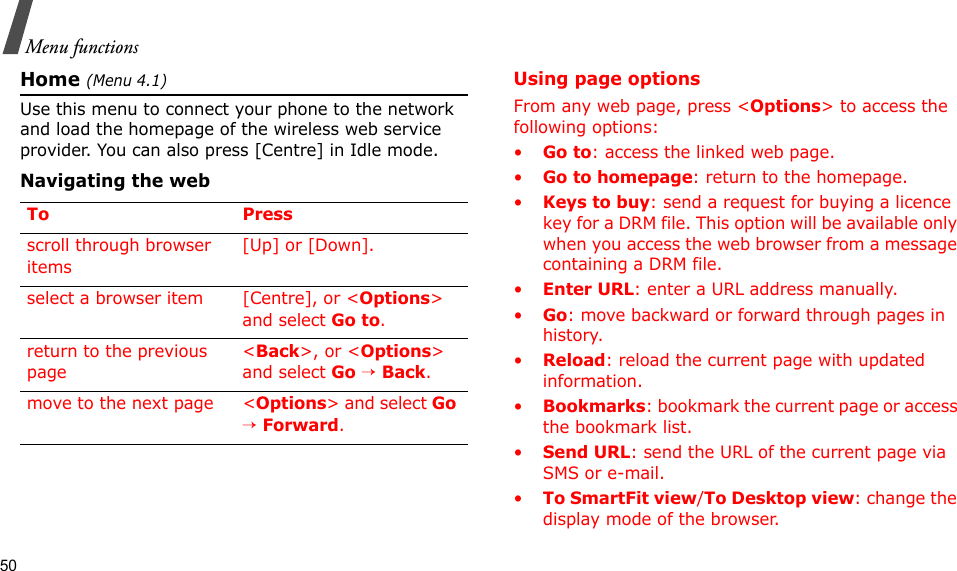

50Menu functionsHome (Menu 4.1)Use this menu to connect your phone to the network and load the homepage of the wireless web service provider. You can also press [Centre] in Idle mode.Navigating the webUsing page optionsFrom any web page, press <Options> to access the following options:•Go to: access the linked web page.•Go to homepage: return to the homepage.•Keys to buy: send a request for buying a licence key for a DRM file. This option will be available only when you access the web browser from a message containing a DRM file.•Enter URL: enter a URL address manually.•Go: move backward or forward through pages in history.•Reload: reload the current page with updated information.•Bookmarks: bookmark the current page or access the bookmark list.•Send URL: send the URL of the current page via SMS or e-mail.•To SmartFit view/To Desktop view: change the display mode of the browser.To Pressscroll through browser items [Up] or [Down]. select a browser item [Centre], or <Options> and select Go to.return to the previous page<Back>, or <Options> and select Go → Back.move to the next page <Options> and select Go → Forward.

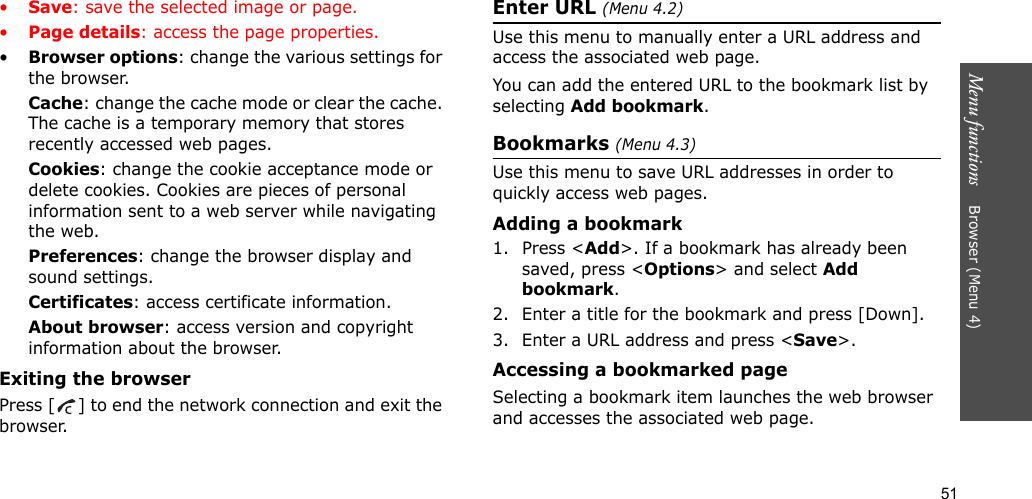

51Menu functions Browser (Menu 4)•Save: save the selected image or page.•Page details: access the page properties.•Browser options: change the various settings for the browser.Cache: change the cache mode or clear the cache. The cache is a temporary memory that stores recently accessed web pages.Cookies: change the cookie acceptance mode or delete cookies. Cookies are pieces of personal information sent to a web server while navigating the web.Preferences: change the browser display and sound settings.Certificates: access certificate information.About browser: access version and copyright information about the browser.Exiting the browserPress [ ] to end the network connection and exit the browser.Enter URL (Menu 4.2)Use this menu to manually enter a URL address and access the associated web page.You can add the entered URL to the bookmark list by selecting Add bookmark.Bookmarks (Menu 4.3)Use this menu to save URL addresses in order to quickly access web pages.Adding a bookmark1. Press <Add>. If a bookmark has already been saved, press <Options> and select Add bookmark. 2. Enter a title for the bookmark and press [Down].3. Enter a URL address and press <Save>.Accessing a bookmarked pageSelecting a bookmark item launches the web browser and accesses the associated web page.

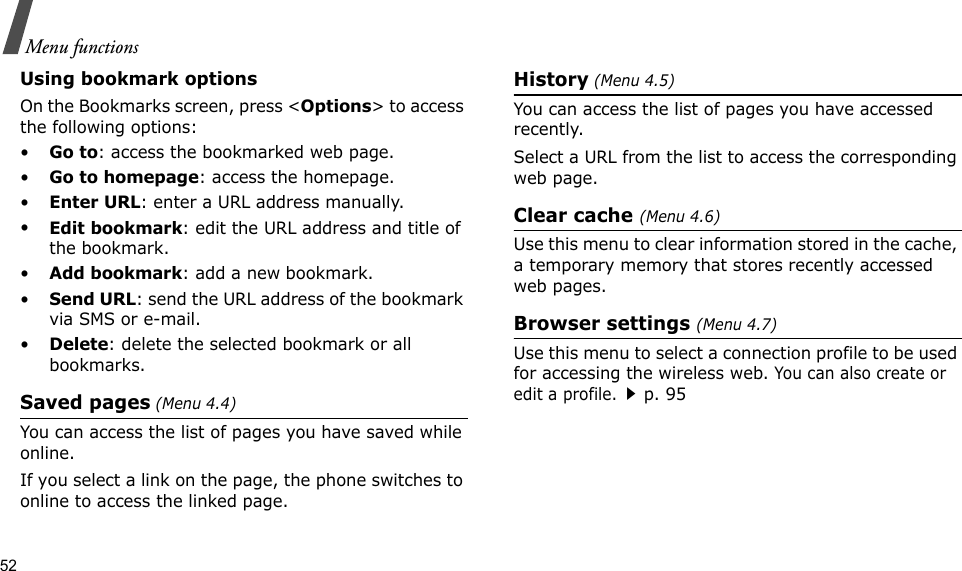

52Menu functionsUsing bookmark optionsOn the Bookmarks screen, press <Options> to access the following options:•Go to: access the bookmarked web page.•Go to homepage: access the homepage.•Enter URL: enter a URL address manually.•Edit bookmark: edit the URL address and title of the bookmark.•Add bookmark: add a new bookmark.•Send URL: send the URL address of the bookmark via SMS or e-mail.•Delete: delete the selected bookmark or all bookmarks.Saved pages (Menu 4.4)You can access the list of pages you have saved while online. If you select a link on the page, the phone switches to online to access the linked page.History (Menu 4.5)You can access the list of pages you have accessed recently.Select a URL from the list to access the corresponding web page. Clear cache (Menu 4.6)Use this menu to clear information stored in the cache, a temporary memory that stores recently accessed web pages.Browser settings (Menu 4.7)Use this menu to select a connection profile to be used for accessing the wireless web. You can also create or edit a profile.p. 95

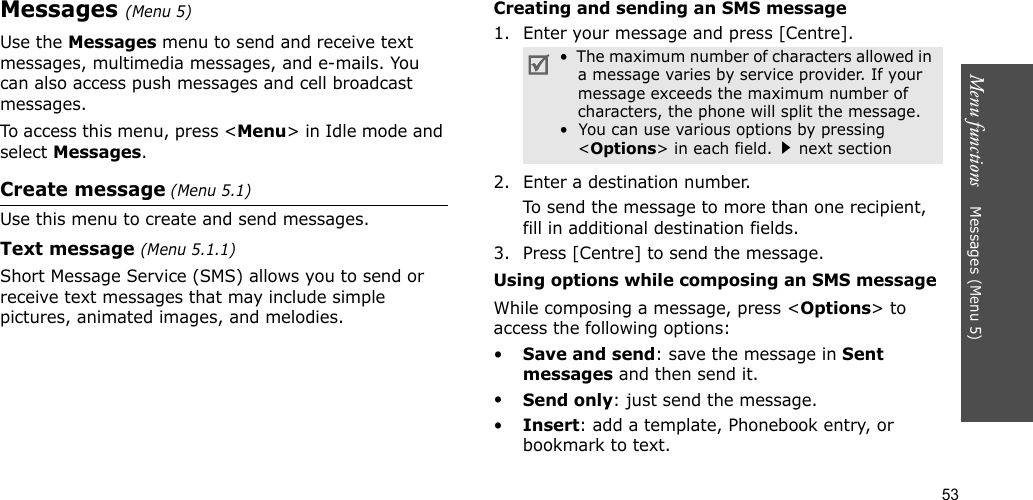

53Menu functions Messages (Menu 5)Messages (Menu 5)Use the Messages menu to send and receive text messages, multimedia messages, and e-mails. You can also access push messages and cell broadcast messages.To access this menu, press <Menu> in Idle mode and select Messages.Create message (Menu 5.1)Use this menu to create and send messages.Text message (Menu 5.1.1)Short Message Service (SMS) allows you to send or receive text messages that may include simple pictures, animated images, and melodies.Creating and sending an SMS message1. Enter your message and press [Centre].2. Enter a destination number.To send the message to more than one recipient, fill in additional destination fields.3. Press [Centre] to send the message.Using options while composing an SMS messageWhile composing a message, press <Options> to access the following options: •Save and send: save the message in Sent messages and then send it.•Send only: just send the message.•Insert: add a template, Phonebook entry, or bookmark to text. • The maximum number of characters allowed in a message varies by service provider. If your message exceeds the maximum number of characters, the phone will split the message.• You can use various options by pressing <Options> in each field.next section

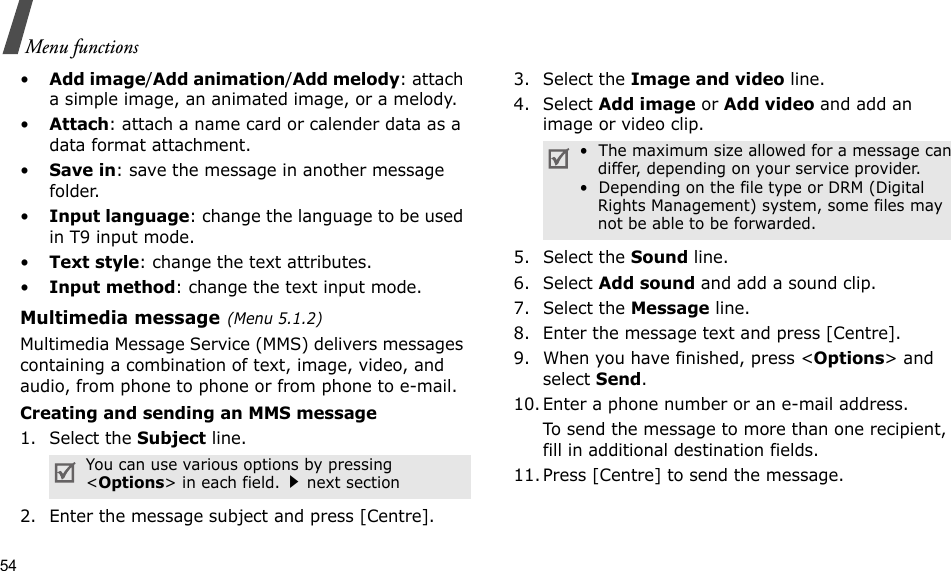

54Menu functions•Add image/Add animation/Add melody: attach a simple image, an animated image, or a melody.•Attach: attach a name card or calender data as a data format attachment.•Save in: save the message in another message folder.•Input language: change the language to be used in T9 input mode.•Text style: change the text attributes.•Input method: change the text input mode.Multimedia message(Menu 5.1.2)Multimedia Message Service (MMS) delivers messages containing a combination of text, image, video, and audio, from phone to phone or from phone to e-mail.Creating and sending an MMS message1. Select the Subject line.2. Enter the message subject and press [Centre].3. Select the Image and video line.4. Select Add image or Add video and add an image or video clip.5. Select the Sound line.6. Select Add sound and add a sound clip.7. Select the Message line.8. Enter the message text and press [Centre].9. When you have finished, press <Options> and select Send.10. Enter a phone number or an e-mail address.To send the message to more than one recipient, fill in additional destination fields.11. Press [Centre] to send the message.You can use various options by pressing <Options> in each field.next section• The maximum size allowed for a message can differ, depending on your service provider.• Depending on the file type or DRM (Digital Rights Management) system, some files may not be able to be forwarded.

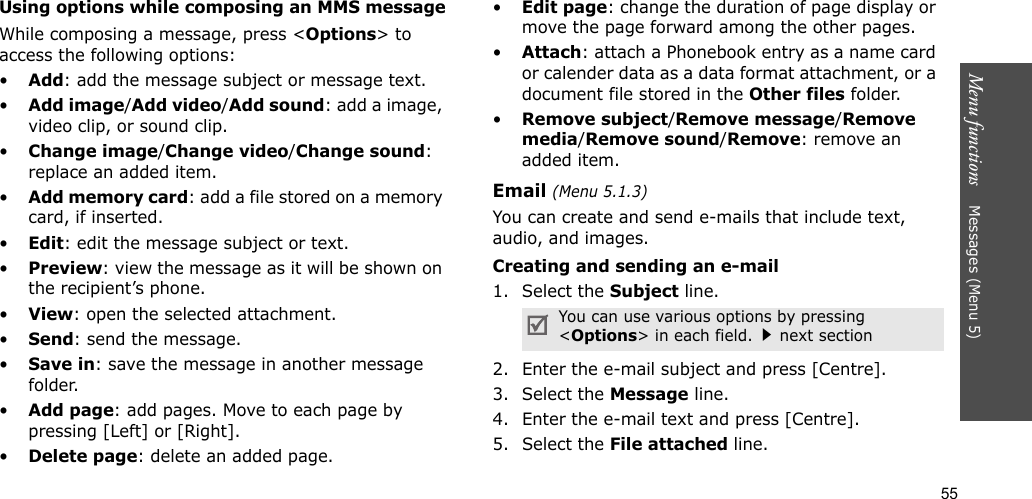

55Menu functions Messages (Menu 5)Using options while composing an MMS messageWhile composing a message, press <Options> to access the following options: •Add: add the message subject or message text.•Add image/Add video/Add sound: add a image, video clip, or sound clip.•Change image/Change video/Change sound: replace an added item.•Add memory card: add a file stored on a memory card, if inserted.•Edit: edit the message subject or text.•Preview: view the message as it will be shown on the recipient’s phone.•View: open the selected attachment.•Send: send the message.•Save in: save the message in another message folder.•Add page: add pages. Move to each page by pressing [Left] or [Right].•Delete page: delete an added page.•Edit page: change the duration of page display or move the page forward among the other pages.•Attach: attach a Phonebook entry as a name card or calender data as a data format attachment, or a document file stored in the Other files folder.•Remove subject/Remove message/Remove media/Remove sound/Remove: remove an added item.Email (Menu 5.1.3)You can create and send e-mails that include text, audio, and images. Creating and sending an e-mail1. Select the Subject line.2. Enter the e-mail subject and press [Centre].3. Select the Message line.4. Enter the e-mail text and press [Centre].5. Select the File attached line.You can use various options by pressing <Options> in each field.next section

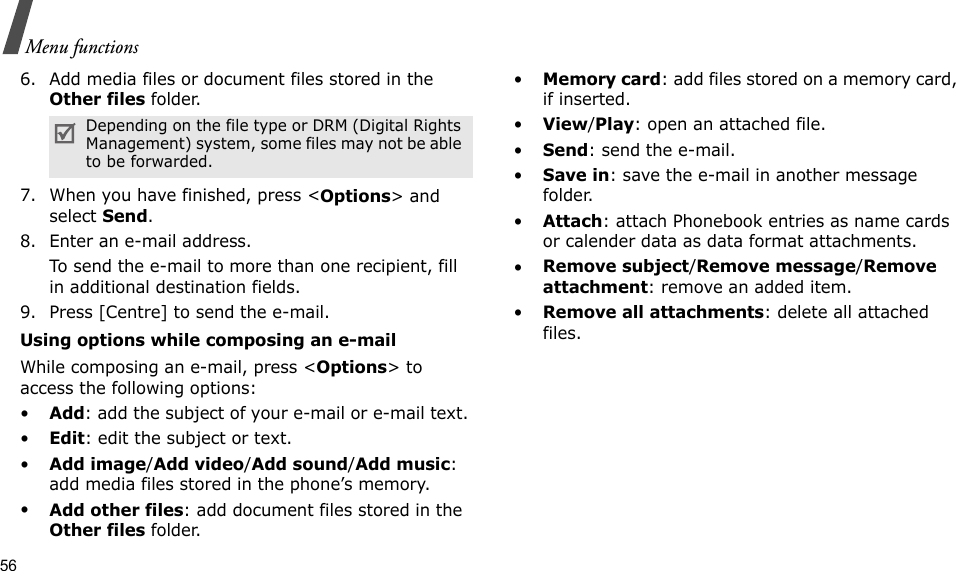

56Menu functions6. Add media files or document files stored in the Other files folder.7. When you have finished, press <Options> and select Send.8. Enter an e-mail address.To send the e-mail to more than one recipient, fill in additional destination fields. 9. Press [Centre] to send the e-mail.Using options while composing an e-mailWhile composing an e-mail, press <Options> to access the following options: •Add: add the subject of your e-mail or e-mail text.•Edit: edit the subject or text.•Add image/Add video/Add sound/Add music: add media files stored in the phone’s memory.•Add other files: add document files stored in the Other files folder. •Memory card: add files stored on a memory card, if inserted.•View/Play: open an attached file.•Send: send the e-mail.•Save in: save the e-mail in another message folder.•Attach: attach Phonebook entries as name cards or calender data as data format attachments.•Remove subject/Remove message/Remove attachment: remove an added item.•Remove all attachments: delete all attached files.Depending on the file type or DRM (Digital Rights Management) system, some files may not be able to be forwarded.

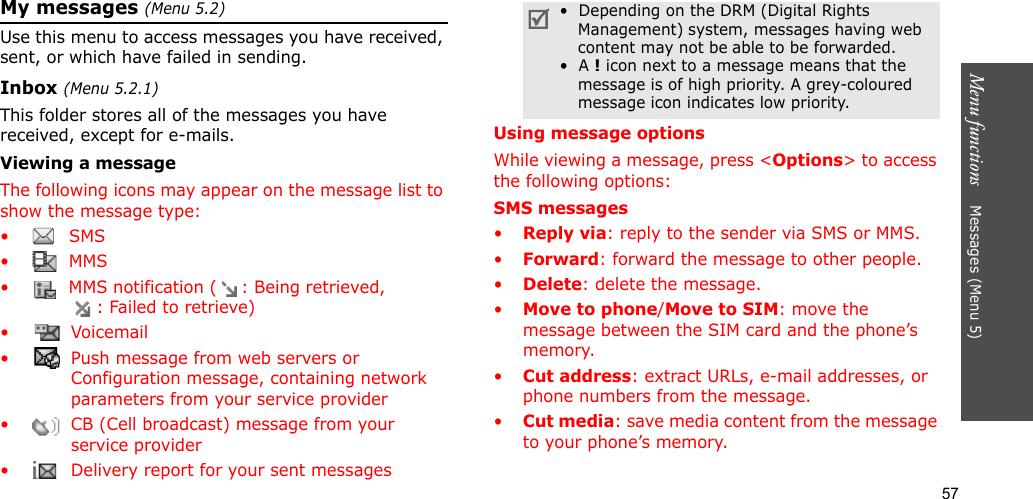

57Menu functions Messages (Menu 5)My messages (Menu 5.2)Use this menu to access messages you have received, sent, or which have failed in sending.Inbox (Menu 5.2.1)This folder stores all of the messages you have received, except for e-mails.Viewing a messageThe following icons may appear on the message list to show the message type: • SMS• MMS• MMS notification ( : Being retrieved, : Failed to retrieve)• Voicemail• Push message from web servers or Configuration message, containing network parameters from your service provider• CB (Cell broadcast) message from your service provider• Delivery report for your sent messagesUsing message optionsWhile viewing a message, press <Options> to access the following options:SMS messages•Reply via: reply to the sender via SMS or MMS. •Forward: forward the message to other people.•Delete: delete the message.•Move to phone/Move to SIM: move the message between the SIM card and the phone’s memory.•Cut address: extract URLs, e-mail addresses, or phone numbers from the message.•Cut media: save media content from the message to your phone’s memory.• Depending on the DRM (Digital Rights Management) system, messages having web content may not be able to be forwarded.• A ! icon next to a message means that the message is of high priority. A grey-coloured message icon indicates low priority.

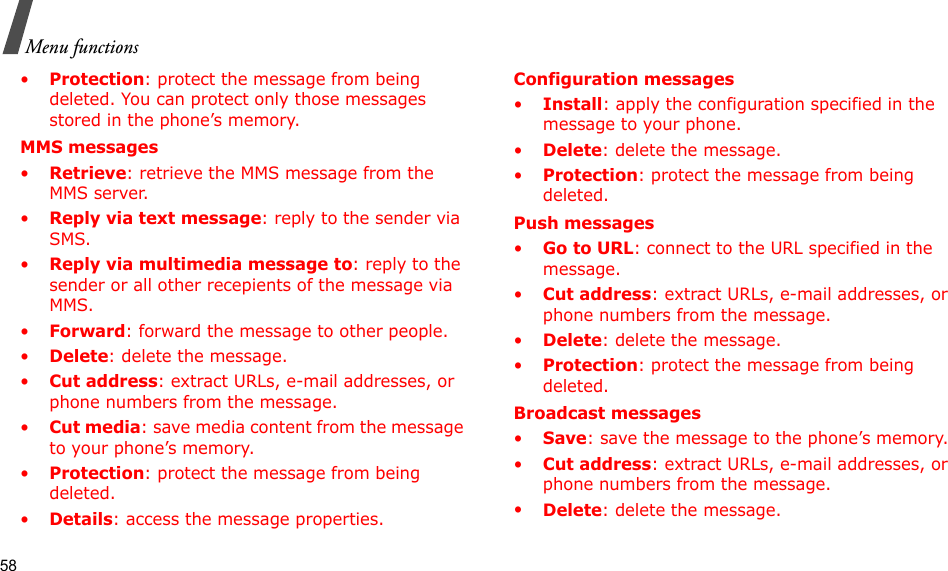

58Menu functions•Protection: protect the message from being deleted. You can protect only those messages stored in the phone’s memory.MMS messages•Retrieve: retrieve the MMS message from the MMS server.•Reply via text message: reply to the sender via SMS.•Reply via multimedia message to: reply to the sender or all other recepients of the message via MMS.•Forward: forward the message to other people. •Delete: delete the message.•Cut address: extract URLs, e-mail addresses, or phone numbers from the message.•Cut media: save media content from the message to your phone’s memory.•Protection: protect the message from being deleted. •Details: access the message properties.Configuration messages•Install: apply the configuration specified in the message to your phone.•Delete: delete the message.•Protection: protect the message from being deleted.Push messages•Go to URL: connect to the URL specified in the message.•Cut address: extract URLs, e-mail addresses, or phone numbers from the message.•Delete: delete the message.•Protection: protect the message from being deleted.Broadcast messages•Save: save the message to the phone’s memory.•Cut address: extract URLs, e-mail addresses, or phone numbers from the message.•Delete: delete the message.

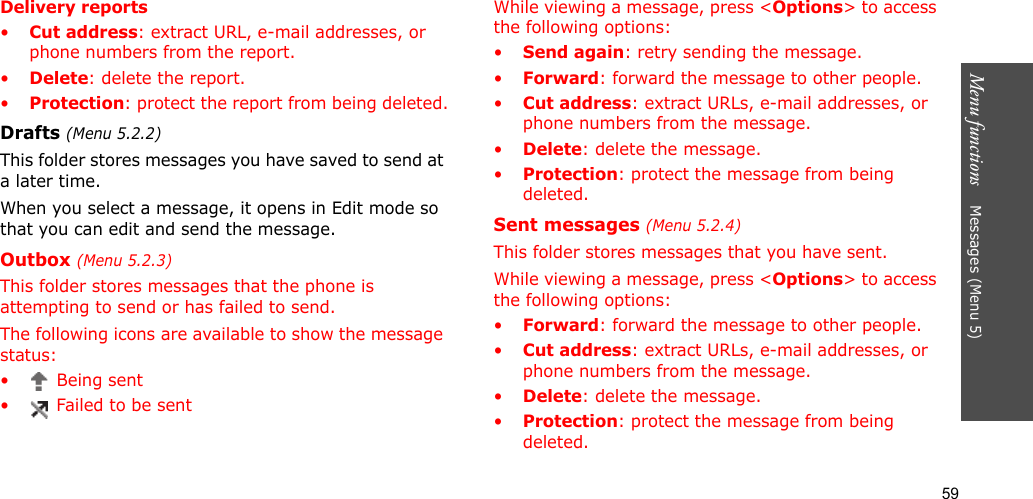

59Menu functions Messages (Menu 5)Delivery reports•Cut address: extract URL, e-mail addresses, or phone numbers from the report.•Delete: delete the report.•Protection: protect the report from being deleted.Drafts (Menu 5.2.2)This folder stores messages you have saved to send at a later time. When you select a message, it opens in Edit mode so that you can edit and send the message.Outbox (Menu 5.2.3)This folder stores messages that the phone is attempting to send or has failed to send.The following icons are available to show the message status:• Being sent• Failed to be sentWhile viewing a message, press <Options> to access the following options:•Send again: retry sending the message.•Forward: forward the message to other people. •Cut address: extract URLs, e-mail addresses, or phone numbers from the message.•Delete: delete the message.•Protection: protect the message from being deleted.Sent messages (Menu 5.2.4)This folder stores messages that you have sent.While viewing a message, press <Options> to access the following options:•Forward: forward the message to other people. •Cut address: extract URLs, e-mail addresses, or phone numbers from the message.•Delete: delete the message.•Protection: protect the message from being deleted.
