Contents

Users Manual 1

DRAFT Internal Use OnlyPORTABLE QUAD-BANDMOBILE PHONEUser ManualPlease read this manual before operating yourphone and keep it for future reference. This document is watermarked because certain important information in the document has not yet been verified. This document has been sent to you as a draft and for informational purposes only. The document should only be used for internal purposes and may not be distributed outside of Samsung, except to Samsung's carrier customer for testing purposes. Distributing the document outside of Samsung, except to Samsung's carrier customer for testing purposes could result in legal exposure to the company if the preliminary, unverified information in the draft turns out to be inaccurate.

DRAFT Internal Use OnlyM919_UM_English_MC8_031813_D4Intellectual PropertyAll Intellectual Property, as defined below, owned by or which is otherwise the property of Samsung or its respective suppliers relating to the SAMSUNG Phone, including but not limited to, accessories, parts, or software relating there to (the “Phone System”), is proprietary to Samsung and protected under federal laws, state laws, and international treaty provisions. Intellectual Property includes, but is not limited to, inventions (patentable or unpatentable), patents, trade secrets, copyrights, software, computer programs, and related documentation and other works of authorship. You may not infringe or otherwise violate the rights secured by the Intellectual Property. Moreover, you agree that you will not (and will not attempt to) modify, prepare derivative works of, reverse engineer, decompile, disassemble, or otherwise attempt to create source code from the software. No title to or ownership in the Intellectual Property is transferred to you. All applicable rights of the Intellectual Property shall remain with SAMSUNG and its suppliers.Open Source SoftwareSome software components of this product incorporate source code covered under GNU General Public License (GPL), GNU Lesser General Public License (LGPL), OpenSSL License, BSD License and other open source licenses. To obtain the source code covered under the open source licenses, please visit:http://opensource.samsung.com.Disclaimer of Warranties; Exclusion of LiabilityEXCEPT AS SET FORTH IN THE EXPRESS WARRANTY CONTAINED ON THE WARRANTY PAGE ENCLOSED WITH THE PRODUCT, THE PURCHASER TAKES THE PRODUCT "AS IS", AND SAMSUNG MAKES NO EXPRESS OR IMPLIED WARRANTY OF ANY KIND WHATSOEVER WITH RESPECT TO THE PRODUCT, INCLUDING BUT NOT LIMITED TO THE MERCHANTABILITY OF THE PRODUCT OR ITS FITNESS FOR ANY PARTICULAR PURPOSE OR USE; THE DESIGN, CONDITION OR QUALITY OF THE PRODUCT; THE PERFORMANCE OF THE PRODUCT; THE WORKMANSHIP OF THE PRODUCT OR THE COMPONENTS CONTAINED THEREIN; OR COMPLIANCE OF THE PRODUCT WITH THE REQUIREMENTS OF ANY LAW, RULE, SPECIFICATION OR CONTRACT PERTAINING

DRAFT Internal Use OnlyTHERETO. NOTHING CONTAINED IN THE INSTRUCTION MANUAL SHALL BE CONSTRUED TO CREATE AN EXPRESS OR IMPLIED WARRANTY OF ANY KIND WHATSOEVER WITH RESPECT TO THE PRODUCT. IN ADDITION, SAMSUNG SHALL NOT BE LIABLE FOR ANY DAMAGES OF ANY KIND RESULTING FROM THE PURCHASE OR USE OF THE PRODUCT OR ARISING FROM THE BREACH OF THE EXPRESS WARRANTY, INCLUDING INCIDENTAL, SPECIAL OR CONSEQUENTIAL DAMAGES, OR LOSS OF ANTICIPATED PROFITS OR BENEFITS.Modification of SoftwareSAMSUNG IS NOT LIABLE FOR PERFORMANCE ISSUES OR INCOMPATIBILITIES CAUSED BY YOUR EDITING OF REGISTRY SETTINGS, OR YOUR MODIFICATION OF OPERATING SYSTEM SOFTWARE. USING CUSTOM OPERATING SYSTEM SOFTWARE MAY CAUSE YOUR DEVICE AND APPLICATIONS TO WORK IMPROPERLY. YOUR CARRIER MAY NOT PERMIT USERS TO DOWNLOAD CERTAIN SOFTWARE, SUCH AS CUSTOM OS.SAFE™ (Samsung Approved For Enterprise) SAFE™: "SAFE™" (Samsung for Enterprise) is a mark for a Samsung device which has been tested against Samsung's own internal criteria for interoperability with certain third party security-related solutions for MDM and VPN. The testing includes field testing with local network connection and menu tree testing which tests functionality of the solutions in conjunction with the Samsung device. During the testing, the device is tested with the security solutions to see if the solutions work with the device as described by the third party security solution providers. The testing, for example, includes field testing with local network connection and menu tree testing which tests functionality of the solutions in conjunction with the Samsung device. For more information about Samsung's SAFE™ program, please refer to www.samsung.com/us/safe.Disclaimer of Warranties: EXCEPT AS OTHERWISE PROVIDED IN THEIR STANDARD END USER LICENSE AND WARRANTY, TO THE FULL EXTENT PERMITTED BY LAW SAMSUNG ELECTRONICS CO., LTD., SAMSUNG TELECOMMUNICATIONS AMERICA, LLC, AND THEIR AFFILIATES (COLLECTIVELY REFERRED TO HEREIN AS THE "SAMSUNG ENTITIES") EXPRESSLY DISCLAIM ANY AND ALL WARRANTIES, EXPRESS OR IMPLIED, INCLUDING ANY WARRANTY OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE, INTEROPERABILITY OR NON-INFRINGEMENT, WITH RESPECT TO INFORMATION TECHNOLOGY SECURITY PROTECTION, SAFE™

DRAFT Internal Use OnlyDEVICES AND APPLICATIONS TESTED WITH SAFE™ DEVICES. IN NO EVENT SHALL THE SAMSUNG ENTITIES BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL, PUNITIVE, OR CONSEQUENTIAL DAMAGES OF ANY KIND WHATSOEVER WITH RESPECT TO INFORMATION TECHNOLOGY SECURITY PROTECTION, SAFE™ DEVICES OR APPLICATIONS TESTED WITH SAFE™ DEVICES. In addition, information technology security protection will be affected by features or functionality associated with, among other things the e-mail platform, master data management, and virtual private network solutions selected by the software provider, solution provider or user. Choice of an e-mail, master data management, and virtual private network solution is at the sole discretion of the software provider, solution provider or user and any associated effect on information technology security protection is solely the responsibility of the software provider, solution provider or user. For complete statement of limited warranty, please refer to www.samsung.com/us/safe, available on the web and where Samsung smartphone and Galaxy Tab™ devices are sold. [101212] Samsung Telecommunications America (STA), LLCHeadquarters:1301 E. Lookout DriveRichardson, TX 75082Customer Care Center:1000 Klein Rd.Plano, TX 75074Toll Free Tel: 1.888.987.HELP (4357)

DRAFT Internal Use OnlyDivX Certified® to play DivX® video up to HD 720p, including premium content.ABOUT DIVX VIDEO: DivX® is a digital video format created by DivX, LLC, a subsidiary of Rovi Corporation. This is an official DivX Certified® device that has passed rigorous testing to verify that it plays DivX video. Visit www.divx.com for more information and software tools to convert your files into DivX videos.ABOUT DIVX VIDEO-ON-DEMAND: This DivX Certified® device must be registered in order to play purchased DivX Video-on-Demand (VOD) movies. To obtain your registration code, locate the DivX VOD section in your device setup menu (tap Apps > Settings > About device > Legal information > License settings > DivX® VOD > Register). Go to vod.divx.com for more information on how to complete your registration.Dynamic Noise Suppression from AudienceYour phone is equipped with an advanced voice processing chip that delivers clear mobile calls by suppressing background noise, intermittent sounds (like a siren or nearby conversation), and echoes, allowing you to hear and be heard nearly anywhere. How Does It Work?Based on the intelligence of the human hearing system, the technology:• Captures, evaluates and distinguishes all the sound signals surrounding your phone, and the person you're speaking with. • Then isolates the primary voice in conversation and filters out the background noise - so the person you're calling hears only your voice, without disturbing background noise.• Dynamically equalizes and adjusts voice volume to optimize your calling experience, so you can hear clearly and don't need to speak louder to overcome surrounding noise. The noise suppression technology is built-in and already enabled in your new mobile phone. So it's ready to provide unsurpassed voice clarity with every call.

DRAFT Internal Use Only 1Table of ContentsSection 1: Getting Started .......................... 7Understanding this User Manual . . . . . . . . . . . . 7Battery Cover . . . . . . . . . . . . . . . . . . . . . . . . . . 8Battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12Extending Your Battery Life . . . . . . . . . . . . . . 15Initial Device Configuration . . . . . . . . . . . . . . . 16Switching the Device On or Off . . . . . . . . . . . . 18Restarting the Device . . . . . . . . . . . . . . . . . . . 18Locking and Unlocking the Device . . . . . . . . . 18Creating a New Google Account . . . . . . . . . . . 19Signing into Your Google Account . . . . . . . . . . 19Retrieving your Google Account Password . . . 20Confirming the Default Image and Video Storage Location . . . . . . . . . . . . . . . . . . . . 20Creating a Samsung Account . . . . . . . . . . . . . 21Voice Mail . . . . . . . . . . . . . . . . . . . . . . . . . . . 22Visual Voicemail . . . . . . . . . . . . . . . . . . . . . . . 23Task Manager . . . . . . . . . . . . . . . . . . . . . . . . 24Google Now . . . . . . . . . . . . . . . . . . . . . . . . . . 25Section 2: Understanding Your Device .....26Features of Your Device . . . . . . . . . . . . . . . . . 26Front View . . . . . . . . . . . . . . . . . . . . . . . . . . . 27Back View . . . . . . . . . . . . . . . . . . . . . . . . . . . 29Side Views . . . . . . . . . . . . . . . . . . . . . . . . . . . 30Device Display . . . . . . . . . . . . . . . . . . . . . . . . 31Status Bar . . . . . . . . . . . . . . . . . . . . . . . . . . . 32Function Keys . . . . . . . . . . . . . . . . . . . . . . . . . 39Home Screen . . . . . . . . . . . . . . . . . . . . . . . . . 40Applications . . . . . . . . . . . . . . . . . . . . . . . . . . 42Screen Navigation . . . . . . . . . . . . . . . . . . . . . 53Using Motions and Gestures . . . . . . . . . . . . . . 56Menu Navigation . . . . . . . . . . . . . . . . . . . . . . 58Customizing the Screens . . . . . . . . . . . . . . . . 60Section 3: Memory Card ............................67Using the SD Card . . . . . . . . . . . . . . . . . . . . . 67SD card Overview . . . . . . . . . . . . . . . . . . . . . . 67

DRAFT Internal Use Only2Section 4: Call Functions and Contacts List ..............................................71Displaying Your Phone Number . . . . . . . . . . . .71Making a Call . . . . . . . . . . . . . . . . . . . . . . . . .71Ending a Call . . . . . . . . . . . . . . . . . . . . . . . . . .72Making Emergency Calls . . . . . . . . . . . . . . . . . 73Dialing Options . . . . . . . . . . . . . . . . . . . . . . . .74Answering a Call . . . . . . . . . . . . . . . . . . . . . . .75Managing Reject Calls . . . . . . . . . . . . . . . . . . . 76International Calls . . . . . . . . . . . . . . . . . . . . . .77Pause Dialing . . . . . . . . . . . . . . . . . . . . . . . . .78Wait Dialing . . . . . . . . . . . . . . . . . . . . . . . . . . .78Redialing the Last Number . . . . . . . . . . . . . . .79Speed Dialing . . . . . . . . . . . . . . . . . . . . . . . . . 79Wi-Fi Calling . . . . . . . . . . . . . . . . . . . . . . . . . .81In Call Options . . . . . . . . . . . . . . . . . . . . . . . . . 84Using S Voice . . . . . . . . . . . . . . . . . . . . . . . . .90Logs Tab . . . . . . . . . . . . . . . . . . . . . . . . . . . . .91Section 5: Entering Text ............................95Text Input Methods . . . . . . . . . . . . . . . . . . . . .95Selecting the Text Input Method . . . . . . . . . . . 95Entering Text Using Swype . . . . . . . . . . . . . . .96Using the Samsung Keyboard . . . . . . . . . . . .102Samsung Keyboard Settings . . . . . . . . . . . . .105Using the Google Voice Typing . . . . . . . . . . . .107CUT COPY PASTE and TRANSLATE XXXXXX????? . . . . . . . . . . . . . . . . . . . . . . . . . . .108Section 6: Contacts .................................109Accounts . . . . . . . . . . . . . . . . . . . . . . . . . . . .109Contacts List . . . . . . . . . . . . . . . . . . . . . . . . .109Finding a Contact . . . . . . . . . . . . . . . . . . . . . .113Contact List Options . . . . . . . . . . . . . . . . . . . .116Contact Menu Options . . . . . . . . . . . . . . . . . .117Contact Entry Options . . . . . . . . . . . . . . . . . .118Joining Contact Information . . . . . . . . . . . . . .118Sending a Namecard . . . . . . . . . . . . . . . . . . .121Copying Contact Information . . . . . . . . . . . . .122Synchronizing Contacts . . . . . . . . . . . . . . . . .123Display Options . . . . . . . . . . . . . . . . . . . . . . .124Adding more Contacts via Accounts and Sync . . . . . . . . . . . . . . . . . . . . . . . . . .125Additional Contact Options . . . . . . . . . . . . . . .126Groups . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .128The Favorites Tab . . . . . . . . . . . . . . . . . . . . .130

DRAFT Internal Use Only 3Section 7: Messages .............................. 131Types of Messages . . . . . . . . . . . . . . . . . . . 131Creating and Sending Messages . . . . . . . . . 132Message Options . . . . . . . . . . . . . . . . . . . . . 133Viewing Newly Received Messages . . . . . . . 136Deleting Messages . . . . . . . . . . . . . . . . . . . . 138Message Search . . . . . . . . . . . . . . . . . . . . . 139Messaging Settings . . . . . . . . . . . . . . . . . . . 139Assigning Messages as Spam . . . . . . . . . . . 143Accessing Your Spam Folder . . . . . . . . . . . . 144Text Templates . . . . . . . . . . . . . . . . . . . . . . 144Using Email . . . . . . . . . . . . . . . . . . . . . . . . . 145Microsoft Exchange Email (Outlook) . . . . . . . 150Using Google Mail . . . . . . . . . . . . . . . . . . . . 155Google Talk . . . . . . . . . . . . . . . . . . . . . . . . . 157ChatON . . . . . . . . . . . . . . . . . . . . . . . . . . . . 158Section 8: Multimedia ............................ 161Assigning the Default Storage Location . . . . 161Using the Camera . . . . . . . . . . . . . . . . . . . . 162Camera Options . . . . . . . . . . . . . . . . . . . . . . 163Quick Settings . . . . . . . . . . . . . . . . . . . . . . . 165Camera and Camcorder Settings . . . . . . . . . 166Using the Camcorder . . . . . . . . . . . . . . . . . . 169Sharing Pictures XXXXX . . . . . . . . . . . . . . . . 171The Gallery . . . . . . . . . . . . . . . . . . . . . . . . . . 178Using Samsung Video . . . . . . . . . . . . . . . . . . 179Samsung HubXXX . . . . . . . . . . . . . . . . . . . . 182Play Movies & TV . . . . . . . . . . . . . . . . . . . . . 185Play Music XXX . . . . . . . . . . . . . . . . . . . . . . 186Music Player XXX . . . . . . . . . . . . . . . . . . . . . 191Using Playlists . . . . . . . . . . . . . . . . . . . . . . . 194Creating a Playlist . . . . . . . . . . . . . . . . . . . . 194Transferring Music Files . . . . . . . . . . . . . . . . 195Removing Music Files . . . . . . . . . . . . . . . . . 195Samsung Link . . . . . . . . . . . . . . . . . . . . . . . 196AllShare Cast Hub . . . . . . . . . . . . . . . . . . . . 200T-Mobile TV . . . . . . . . . . . . . . . . . . . . . . . . . 205YouTube . . . . . . . . . . . . . . . . . . . . . . . . . . . . 206Section 9: Applications and Development ............................................207Applications . . . . . . . . . . . . . . . . . . . . . . . . . 207Calculator . . . . . . . . . . . . . . . . . . . . . . . . . . . 207Calendar . . . . . . . . . . . . . . . . . . . . . . . . . . . 208Camera . . . . . . . . . . . . . . . . . . . . . . . . . . . . 210

DRAFT Internal Use Only4ChatON . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 210Chrome . . . . . . . . . . . . . . . . . . . . . . . . . . . . .211Clock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 211Contacts . . . . . . . . . . . . . . . . . . . . . . . . . . . .214Downloads . . . . . . . . . . . . . . . . . . . . . . . . . . 215Dropbox . . . . . . . . . . . . . . . . . . . . . . . . . . . .215Email . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 217Flipboard . . . . . . . . . . . . . . . . . . . . . . . . . . . .217Gallery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .218Gmail . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .218Google . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .218Group Play . . . . . . . . . . . . . . . . . . . . . . . . . .219Help . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 220Internet . . . . . . . . . . . . . . . . . . . . . . . . . . . . .221Local . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 221Lookout Security . . . . . . . . . . . . . . . . . . . . . . 222Maps . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .222Messaging . . . . . . . . . . . . . . . . . . . . . . . . . . 225Mobile HotSpot . . . . . . . . . . . . . . . . . . . . . . .225Music Player . . . . . . . . . . . . . . . . . . . . . . . . . 225My Files . . . . . . . . . . . . . . . . . . . . . . . . . . . . 226Navigation . . . . . . . . . . . . . . . . . . . . . . . . . . . 228Phone . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .230Photo Reader . . . . . . . . . . . . . . . . . . . . . . . . .230Play Books . . . . . . . . . . . . . . . . . . . . . . . . . . .230Play Magazines . . . . . . . . . . . . . . . . . . . . . . .231Play Movies & TV . . . . . . . . . . . . . . . . . . . . . .231Play Music . . . . . . . . . . . . . . . . . . . . . . . . . . .232Play Store . . . . . . . . . . . . . . . . . . . . . . . . . . .232Downloading a New Google Application . . . . .232Launching an Installed Google Application . . .234Polaris Office 5.0 . . . . . . . . . . . . . . . . . . . . . .235S Health . . . . . . . . . . . . . . . . . . . . . . . . . . . . .236S Memo . . . . . . . . . . . . . . . . . . . . . . . . . . . . .236S Translator . . . . . . . . . . . . . . . . . . . . . . . . . .239S Voice . . . . . . . . . . . . . . . . . . . . . . . . . . . . .239Samsung Apps . . . . . . . . . . . . . . . . . . . . . . .240Samsung Hub . . . . . . . . . . . . . . . . . . . . . . . .240Samsung Link . . . . . . . . . . . . . . . . . . . . . . . .241Samsung Video . . . . . . . . . . . . . . . . . . . . . . .242Samsung WatchON . . . . . . . . . . . . . . . . . . . .243Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . .243Story Album . . . . . . . . . . . . . . . . . . . . . . . . . .243T-Mobile My Account . . . . . . . . . . . . . . . . . . .244

DRAFT Internal Use Only 5T-Mobile Name ID . . . . . . . . . . . . . . . . . . . . 244T-Mobile TV . . . . . . . . . . . . . . . . . . . . . . . . . 244TecTiles XXX . . . . . . . . . . . . . . . . . . . . . . . . 245Talk . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 248TripAdvisor . . . . . . . . . . . . . . . . . . . . . . . . . 248Task Manager . . . . . . . . . . . . . . . . . . . . . . . 248Visual Voicemail . . . . . . . . . . . . . . . . . . . . . . 249Voice Recorder . . . . . . . . . . . . . . . . . . . . . . . 249Voice Search . . . . . . . . . . . . . . . . . . . . . . . . 251VPN Client . . . . . . . . . . . . . . . . . . . . . . . . . . 251YouTube . . . . . . . . . . . . . . . . . . . . . . . . . . . 251Section 10: Connections ........................ 254Internet . . . . . . . . . . . . . . . . . . . . . . . . . . . . 254Bluetooth . . . . . . . . . . . . . . . . . . . . . . . . . . . 262Enable Downloading for Web Applications . . 266PC Connections . . . . . . . . . . . . . . . . . . . . . . 267Wi-Fi . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 268USB Tethering . . . . . . . . . . . . . . . . . . . . . . . 271Mobile HotSpot . . . . . . . . . . . . . . . . . . . . . . 272Section 11: Changing Your Settings .......275Accessing the Settings Tabs . . . . . . . . . . . . . 275Settings Tabs - Overview . . . . . . . . . . . . . . . 275Wi-Fi Settings . . . . . . . . . . . . . . . . . . . . . . . 276Bluetooth settings . . . . . . . . . . . . . . . . . . . . 282Airplane Mode . . . . . . . . . . . . . . . . . . . . . . . 284Data Usage . . . . . . . . . . . . . . . . . . . . . . . . . 284More Settings . . . . . . . . . . . . . . . . . . . . . . . . 285Lock Screen . . . . . . . . . . . . . . . . . . . . . . . . . 294Display Settings . . . . . . . . . . . . . . . . . . . . . . 299Sound Settings . . . . . . . . . . . . . . . . . . . . . . . 302Home Screen Mode . . . . . . . . . . . . . . . . . . . 305Call Settings . . . . . . . . . . . . . . . . . . . . . . . . . 305Blocking Mode . . . . . . . . . . . . . . . . . . . . . . . 314Accessory . . . . . . . . . . . . . . . . . . . . . . . . . . 315Accessibility Settings . . . . . . . . . . . . . . . . . . 315Language and Input Settings . . . . . . . . . . . . 318Motions and Gestures Settings . . . . . . . . . . . 324Smart screen . . . . . . . . . . . . . . . . . . . . . . . . 328Air view . . . . . . . . . . . . . . . . . . . . . . . . . . . . 328Voice control . . . . . . . . . . . . . . . . . . . . . . . . 329Add Account . . . . . . . . . . . . . . . . . . . . . . . . . 330

DRAFT Internal Use Only6Cloud . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 331Backup and Reset . . . . . . . . . . . . . . . . . . . . . 332Location Services . . . . . . . . . . . . . . . . . . . . .334Security . . . . . . . . . . . . . . . . . . . . . . . . . . . . .335Application Manager . . . . . . . . . . . . . . . . . . .338Battery Usage . . . . . . . . . . . . . . . . . . . . . . . .341Power Saving Mode . . . . . . . . . . . . . . . . . . . .341SD Card & Device Storage . . . . . . . . . . . . . . .342Date and Time . . . . . . . . . . . . . . . . . . . . . . . .342About Device . . . . . . . . . . . . . . . . . . . . . . . . . 343Software Update . . . . . . . . . . . . . . . . . . . . . .344Section 12: Health and Safety Information ...............................................345Exposure to Radio Frequency (RF) Signals . . . 345Specific Absorption Rate (SAR) Certification Information . . . . . . . . . . . . . . . . . . . . . . . . 350FCC Part 15 Information to User . . . . . . . . . . 352Commercial Mobile Alerting System (CMAS) .352Smart Practices While Driving . . . . . . . . . . . .352Battery Use and Safety . . . . . . . . . . . . . . . . .354Samsung Mobile Products and Recycling . . .355UL Certified Travel Charger . . . . . . . . . . . . . . 357Display / Touch-Screen . . . . . . . . . . . . . . . . .357GPS & AGPS . . . . . . . . . . . . . . . . . . . . . . . . .358Emergency Calls . . . . . . . . . . . . . . . . . . . . . .359Care and Maintenance . . . . . . . . . . . . . . . . . .360Responsible Listening . . . . . . . . . . . . . . . . . .361Operating Environment . . . . . . . . . . . . . . . . .363FCC Hearing Aid Compatibility (HAC) Regulations for Wireless Devices . . . . . . . .365Restricting Children's Access to Your Mobile Device . . . . . . . . . . . . . . . . . . . . . .366FCC Notice and Cautions . . . . . . . . . . . . . . . .367Other Important Safety Information . . . . . . . .367Section 13: Warranty Information ..........369Standard Limited Warranty . . . . . . . . . . . . . .369End User License Agreement for Software . . .374Index .........................................................382

DRAFT Internal Use OnlyGetting Started 7Section 1: Getting StartedThis section explains how to get started with your phone by installing and charging the battery, installing the micro SIM card and optional memory card, and setting up your voice mail.Before using your device for the first time, you’ll need to install and charge the battery and install the micro SIM card. The micro SIM card is loaded with your subscription details, such as your PIN, available optional services, and many other features. If desired, you can also install an SD card to store media for use with your phone.Understanding this User ManualThe sections of this manual generally follow the features of your phone. A robust index for features begins on page 382.Also included is important safety information that you should know before using your phone. This information is available near the back of the guide, beginning on page 345.This manual provides navigation instructions according to the default display settings. If you select other settings, navigation may be different.Unless otherwise specified, all instructions in this manual assume you are starting from the Home screen and using the available keys. Note: Instructions in this manual are based on default settings, and may vary from your device, depending on the software version on your device, and any changes to the device’s Settings.Unless stated otherwise, instructions in this User Manual start with the device unlocked, at the Home screen.All screen images in this manual are simulated. Actual displays may vary, depending on the software version of your device and any changes to the device’s Settings.

DRAFT Internal Use Only8Special TextThroughout this manual, you’ll find text that is set apart from the rest. These are intended to point out important information, share quick methods for activating features, to define terms, and more. The definitions for these methods are as follows:• Notes: Presents alternative options for the current feature, menu, or sub-menu.• Tips: Provides quick or innovative methods, or useful shortcuts.• Important: Points out important information about the current feature that could affect performance.• Warning: Brings to your attention important information to prevent loss of data or functionality, or even prevent damage to your phone.Text ConventionsThis manual provides condensed information about how to use your phone. To make this possible, the following text conventions are used to represent often-used steps:Example: From the Home screen, press (Menu) ➔ Settings ➔ Bluetooth.Battery CoverThe battery, micro SIM card and SD card are installed under the battery cover.Important! Before removing or replacing the battery cover, make sure the device is switched off. To turn the device off, hold down the key until the power-off image displays, then tap Power off.Caution! Do not bend or twist the back cover excessively during installation or removal. Doing so may damage the cover.To remove the battery cover:1. Hold the device firmly and locate the cover release latch.2. Place your fingernail in the opening and firmly “pop” the cover off the device (similar to a soda can). ➔ Arrows are used to represent the sequence of selecting successive options in longer, or repetitive, procedures.

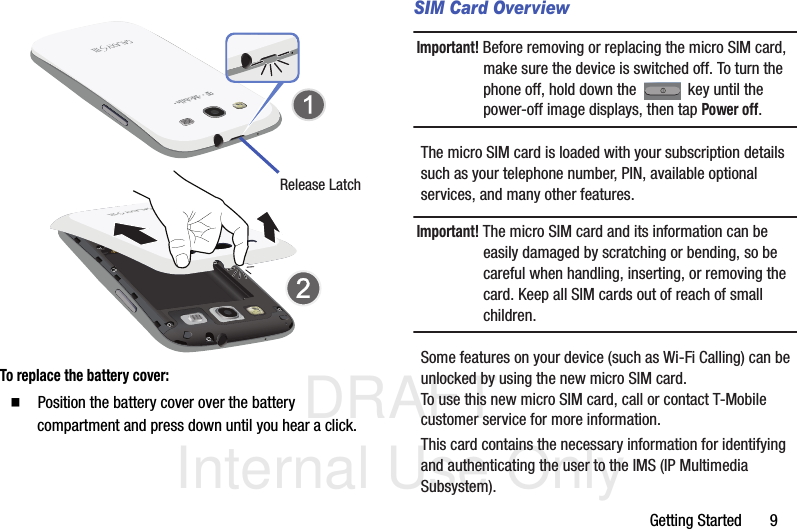

DRAFT Internal Use OnlyGetting Started 9 To replace the battery cover: Position the battery cover over the battery compartment and press down until you hear a click. SIM Card OverviewImportant! Before removing or replacing the micro SIM card, make sure the device is switched off. To turn the phone off, hold down the key until the power-off image displays, then tap Power off.The micro SIM card is loaded with your subscription details such as your telephone number, PIN, available optional services, and many other features.Important! The micro SIM card and its information can be easily damaged by scratching or bending, so be careful when handling, inserting, or removing the card. Keep all SIM cards out of reach of small children.Some features on your device (such as Wi-Fi Calling) can be unlocked by using the new micro SIM card. To use this new micro SIM card, call or contact T-Mobile customer service for more information.This card contains the necessary information for identifying and authenticating the user to the IMS (IP Multimedia Subsystem). Release Latch

DRAFT Internal Use Only10Installing and Removing the SIM cardThis device uses a different type of SIM card called a “micro SIM”. Other larger SIM cards will not function or fit within this slot. To install the SIM card:1. Carefully slide the micro SIM card into the SIM card socket until it clicks into place. 2. Make sure that the card’s gold contacts face into the phone and that the upper-left angled corner of the card is positioned as shown. To remove the micro SIM card:1. Remove the battery cover.2. Carefully place your fingernail into the end of the micro SIM slot and push the card slightly out.3. Carefully slide the card out of the micro SIM card socket.Note: If the card is not inserted correctly, the device will not detect it and no service will be available. If this happens, turn off the device, remove the card, and reinstall the card in the correct orientation.IncorrectCorrectMicro SIM card

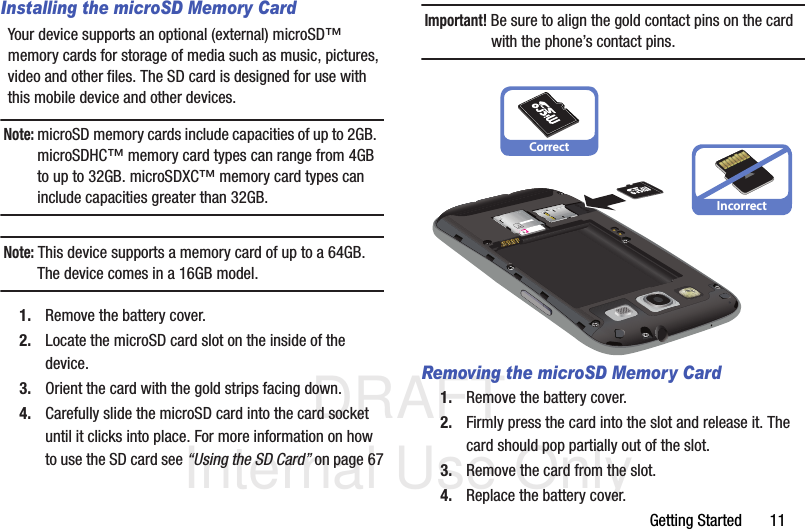

DRAFT Internal Use OnlyGetting Started 11Installing the microSD Memory CardYour device supports an optional (external) microSD™ memory cards for storage of media such as music, pictures, video and other files. The SD card is designed for use with this mobile device and other devices.Note: microSD memory cards include capacities of up to 2GB. microSDHC™ memory card types can range from 4GB to up to 32GB. microSDXC™ memory card types can include capacities greater than 32GB. Note: This device supports a memory card of up to a 64GB. The device comes in a 16GB model.1. Remove the battery cover.2. Locate the microSD card slot on the inside of the device.3. Orient the card with the gold strips facing down.4. Carefully slide the microSD card into the card socket until it clicks into place. For more information on how to use the SD card see “Using the SD Card” on page 67Important! Be sure to align the gold contact pins on the card with the phone’s contact pins.Removing the microSD Memory Card1. Remove the battery cover.2. Firmly press the card into the slot and release it. The card should pop partially out of the slot.3. Remove the card from the slot.4. Replace the battery cover.CorrectIncorrect

DRAFT Internal Use Only12BatteryBefore using your device for the first time, install the battery and charge it fully.Important! Before removing or replacing the battery, make sure the device is switched off. To turn the device off, hold down the key until the power-off image displays, then tap Power off.Installing the Battery1. Slide the battery into the compartment (1) so that the tabs on the end align with the slots at the bottom of the phone, making sure the connectors align. 2. Gently press down to secure the battery (2).Removing the Battery Grip the battery at the top end (3) and lift it up and out of the battery compartment (4). Installing BatteryRemoving Battery

DRAFT Internal Use OnlyGetting Started 13Charging the BatteryYour device is powered by a rechargeable Li-ion battery. A wall charger, which is used for charging the battery, is included with your device. Use only approved batteries and chargers. Ask your local Samsung dealer for further details.Before using your device for the first time, you must fully charge the battery. A discharged battery recharges fully in approximately 4 hours.Note: Verify that the battery is installed prior to connecting the wall charger. If both the wall charger is connected and the battery is not installed, the handset will power cycle continuously and prevent proper operation. Failure to unplug the wall charger before you remove the battery, can cause the device to become damaged.Important! It is recommended you fully charge the battery before using your device for the first time.1. Connect the USB cable to the charging head.2. Locate the Charger/Accessory jack.3. Insert the USB cable into the device’s Charger/Accessory jack.4. Plug the charging head into a standard AC power outlet. The device turns on with the screen locked and indicates both its charge state and percent of charge.CorrectIncorrectCharging HeadUSB Cable

DRAFT Internal Use Only14Warning! While the device is charging, if the touch screen does not function due to an unstable power supply unplug the USB power adapter from the power outlet or unplug the USB cable from the device. Note: This illustration displays both the correct and incorrect orientation for connecting the charger. If the charger is incorrectly connected, damage to the accessory port will occur therefore voiding the phone’s warranty.5. When charging is finished, first unplug the charger’s power plug from the AC wall outlet, then disconnect the charger’s connector from the phone.Important! If your handset has a touch screen display, please note that a touch screen responds best to a light touch from the pad of your finger or a non-metallic stylus. Using excessive force or a metallic object when pressing on the touch screen may damage the tempered glass surface and void the warranty. For more information, refer to “Standard Limited Warranty” on page 369.CorrectIncorrect

DRAFT Internal Use OnlyGetting Started 15Low Battery IndicatorWhen the battery level is low and only a few minutes of talk time remain (~15% charge), a warning tone sounds and the “Battery low” message repeats at regular intervals on the display. In this condition, your device conserves its remaining battery power, by dimming the backlight.When the battery level becomes too low, the device automatically turns off.The on-screen battery charge is represented (by default) as a colored battery icon. You can also choose to display a percentage value. Having a percentage value on-screen can provide a better idea of the remaining charge on the battery. Press ➔ and then tap Settings ➔ My device ➔ Display ➔ Display battery percentage. For more information, refer to “Display Settings” on page 299.Extending Your Battery LifeActive applications, light levels, Bluetooth usage, and GPS functionality all act to drain your battery. The following is a list of helpful tips that can help conserve your battery power:• Reduce your backlight on time. • Turn Bluetooth off when not in use.• Turn Wi-Fi off when not in use. • Deactivate the GPS when not needed. Most applications using this function will periodically query the GPS satellites for your current location; each query drains your battery. • Do not wait until your battery is completely depleted before charging your device. Repeating this process of a complete discharge and recharge can over time reduce the storage capacity of any battery. • Turn off Automatic application sync. • Use the Power Saving feature to deactivate some hardware and interface functions. • Check the Battery use screen to review what features or functions have been consuming your battery resources.• Check the Running Services and close any unnecessary applications.

DRAFT Internal Use Only16• Use the Task Manager feature to end/shutdown background applications that are still running. These minimized applications can, over time, cause your device to “slow down”. • Turn off any streaming services after use (see Running Services).• Animated wallpapers use processing power, memory, and more power. Change your Live Wallpaper to a non-animated Wallpaper gallery or Gallery image. Initial Device Configuration1. Select a language from the associated field. English is the default language.Note: If you are visually impaired or have difficulty hearing, tap Accessibility to configure the accesibility settings.2. Tap Next.Note: You may be prompted with a notification that your activation is completed.3. At the Wi-Fi screen, connect to either an existing Wireless Access Point (WAP) or tap Next to continue.4. At the Samsung account screen, select one of the following options:•If this is your first time, tap Create new account.•If you have previously created a Samsung account, tap Sign in.– or –Tap Next to continue with the setup process and create an account later. For more information, refer to “Creating a Samsung Account” on page 21.5. At the Got Google? screen, choose either Yes to log into your existing Google account or No to continue.•If you selected Yes, on the Sign in screen, enter your current Google Email and Password information and tap ( ) Next.•Tap OK to agree to the Google legal agreements.•If prompted to enable purchases, tap Set up credit card and enter your credit card information and click Save.•Click Skip to continue without entering this information.6. If you indicated that you did not have a current Google account, then at the Make it Google screen, choose either Get an account to create a new account or Not now to continue.

DRAFT Internal Use OnlyGetting Started 177. Select/deselect the desired Google & location services and tap (Next).Note: Enabling Google location services can drain battery power. 8. When prompted, enter a First and Last name then tap (Next). This will help to identify this as your device.9. When prompted with the Dropbox activation screen, you can choose to either: Create account, Sign in, Disclaimer, or tap Skip to continue.Note: For more information, refer to “Dropbox” on page 215.10. From the Learn about key features screen:•Tap an available field to display an on-screen tutorial.•Turn on a feature by sliding the activation slider to the ON position ( ).11. Tap Next.12. Accept the current device name.– or –Tap the Device name field and use the on-screen keyboard to rename your device.13. Tap Finish to complete the setup process.14. Read the on-screen Collect diagnostics information. Note: This software collects only diagnostic data from your device so that T-Mobile technicians can better troubleshoot issues with your device.15. Select either More Info (to read additional information) or Finish to close the message screen.Important! Selecting Finish only closes the current description screen and does not disable data collection.To disable data collection, go to Settings ➔ Accounts ➔ Backup and reset ➔ Collect diagnostics and turn off the Allow diagnostics to be collected feature. For more information, refer to “Collect Diagnostics” on page 333.ONON

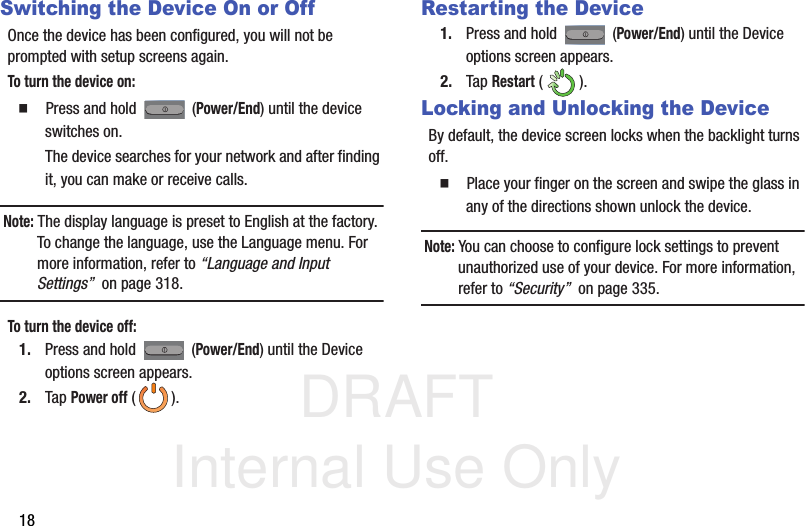

DRAFT Internal Use Only18Switching the Device On or OffOnce the device has been configured, you will not be prompted with setup screens again.To turn the device on: Press and hold (Power/End) until the device switches on.The device searches for your network and after finding it, you can make or receive calls.Note: The display language is preset to English at the factory. To change the language, use the Language menu. For more information, refer to “Language and Input Settings” on page 318.To turn the device off:1. Press and hold (Power/End) until the Device options screen appears.2. Tap Power off ().Restarting the Device1. Press and hold (Power/End) until the Device options screen appears.2. Tap Restart ().Locking and Unlocking the DeviceBy default, the device screen locks when the backlight turns off.  Place your finger on the screen and swipe the glass in any of the directions shown unlock the device.Note: You can choose to configure lock settings to prevent unauthorized use of your device. For more information, refer to “Security” on page 335.

DRAFT Internal Use OnlyGetting Started 19Creating a New Google AccountYou should create a Google™ Account when you first use your device in order to fully utilize the functionality. This account provides access to several device features such as Gmail™, Talk™, and the Google Play Store™ applications. Before you are able to access Google applications, you must enter your account information. These applications sync between your device and your online Google account.To create a new Google Account from your device:1. From the Home screen, tap (Play Store). 2. Read the introduction and tap New to begin.3. Follow the on-screen instructions to create a Google Account.– or –If this is not the first time you are starting the device, tap ➔ (Gmail).Note: If you already have a Google account, you only need to sign in.To create a new Google Account from the Web:1. From a computer, launch a Web browser and navigate to www.google.com.2. On the main page, click Sign-in ➔ Create an account for free.3. Follow the on-screen prompts to create your free account.4. Look for an email from Google in the email box you provided, and respond to the email to confirm and activate your new account.Signing into Your Google Account1. Launch an application that requires a Google account (such as Play Store or Gmail).2. Click Existing.3. Tap the Email and Password fields and enter your information. 4. Tap Sign in. Your device communicates with the Google servers to confirm your information.5. If prompted, create a new Gmail username by entering a prefix for your @gmail.com email address.

DRAFT Internal Use Only20Retrieving your Google Account PasswordA Google account password is required for Google applications. If you misplace or forget your Google Account password, follow these instructions to retrieve it:1. From your computer, use an Internet browser and navigate to http://google.com/accounts.2. Click on the Can’t access your account? link.3. Follow the on-screen password recovery procedure.Confirming the Default Image and Video Storage LocationAlthough the device is configured to store new pictures and videos to the Memory card, it is a very good idea to confirm this location before using your device.Important! Too many users can overlook this storage destination until something goes wrong. It is recommended that you verify this location or change it before initiating the use of the camera or camcorder features.1. From the Home screen, tap (Apps) ➔ (Camera).2. Press and then tap Settings ➔ (Settings) and scroll down to the Storage entry.3. Tap this entry and select the desired default storage location for newly taken pictures or videos. Choose from: Phone or Memory card.Note: It is recommended that you set the option to Memory card.4. Press to return to the Home screen.

DRAFT Internal Use OnlyGetting Started 21Creating a Samsung AccountJust as important as setting up and activating a Google account to help provide access to Play Store, etc.. An active Samsung account is required to begin accessing applications such as Media Hub.Note: The Samsung account application will manage your access to the previously mentioned applications, and there is no longer a need to remember different passwords for each application.1. Press ➔ and then tap Settings ➔ Accounts ➔ Add account ➔ Samsung account.2. If you have previously created a Samsung account, tap Sign in.– or –If this is your first time, tap Create new account.3. Tap Terms and conditions and Privacy policy to read the legal disclaimers and related information.4. If you agree to the terms, place a green check mark in the I accept all the terms above field and tap Agree.5. Enter your the required information and tap Sign up.Note: You may be prompted to confirm your credentials via email.6. Verify your account via email by accessing the email address provided during setup and following the steps outlined to complete your registration.– or –If you have already setup your email account on the device, tap Go to Mailbox and follow the on-screen instructions.– or –If you have already verified your email address, tap Activate account.7. Confirm the Samsung account icon no longer appears in the Notifications area at the top of the screen.Note: Without confirming your email address and following the documented procedures, related applications will not function properly since it is Samsung account that is managing their username and password access.

DRAFT Internal Use Only22Voice MailSetting Up Your Voice MailYour device automatically transfers all unanswered calls to voicemail, even if your device is in use or turned off. As soon as your battery is charged and the micro SIM card inserted, activate your voicemail account.Important! Always use a password to protect against unauthorized access.For new users, follow the instructions below to set up voice mail:Note: Voicemail setup may be different depending on your network.1. From the Home screen, tap and then touch and hold the key until the device dials voicemail.You may be prompted to enter a password.2. Follow the tutorial to create a password, a greeting, and a display name.Accessing Your Voice MailYou can access your Voice Mail by either pressing and holding on the keypad, or by using the phone’s Application icon, then tapping the Voice Mail application. To access Voice Mail using the menu:1. From the Home screen, tap and then touch and hold until the device dials voicemail.Note: Touching and holding will launch the voicemail application.2. When connected, follow the voice prompts from the voicemail center.Accessing Your Voice Mail From Another Phone1. Dial your wireless phone number.2. When you hear your voicemail greeting, press the asterisk key on the phone you are using.3. Enter your passcode.

DRAFT Internal Use OnlyGetting Started 23Visual VoicemailVisual Voicemail enables users to view a list of people who left a voicemail message, and listen to the any message they want without being limited to chronological order.1. From the Home screen, tap (Apps) ➔ (Visual Voicemail).2. Read the on-screen information and tap Next. Note: You must subscribe to the Visual Voicemail service to use this feature. Charges may apply. Please contact your service provider for further details.3. Tap an on-screen voicemail message to play it back.To check Visual Voicemail messages:1. From the Home screen, tap (Apps) ➔ (Visual Voicemail).2. Tap the voicemail message you want to play.3. Tap (Play).To delete Visual Voicemail messages:1. From the Home screen, tap (Apps) ➔ (Visual Voicemail).2. Tap the voicemail message you want to delete.3. Tap (Delete) ➔ OK.

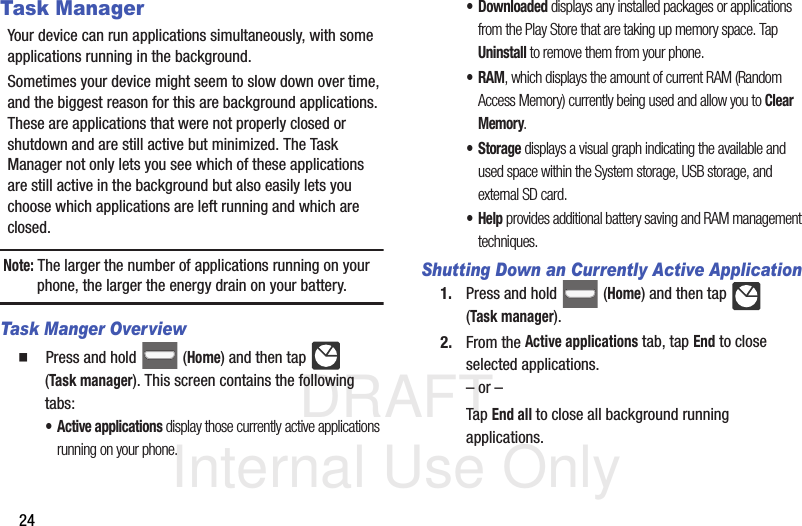

DRAFT Internal Use Only24Task ManagerYour device can run applications simultaneously, with some applications running in the background.Sometimes your device might seem to slow down over time, and the biggest reason for this are background applications. These are applications that were not properly closed or shutdown and are still active but minimized. The Task Manager not only lets you see which of these applications are still active in the background but also easily lets you choose which applications are left running and which are closed.Note: The larger the number of applications running on your phone, the larger the energy drain on your battery.Task Manger Overview Press and hold (Home) and then tap (Task manager). This screen contains the following tabs:• Active applications display those currently active applications running on your phone.•Downloaded displays any installed packages or applications from the Play Store that are taking up memory space. Tap Uninstall to remove them from your phone.•RAM, which displays the amount of current RAM (Random Access Memory) currently being used and allow you to Clear Memory.•Storage displays a visual graph indicating the available and used space within the System storage, USB storage, and external SD card.•Help provides additional battery saving and RAM management techniques.Shutting Down an Currently Active Application1. Press and hold (Home) and then tap (Task manager).2. From the Active applications tab, tap End to close selected applications.– or –Tap End all to close all background running applications.

DRAFT Internal Use OnlyGetting Started 25Google NowGoogle Now® recognizes a users’ repeated actions performed on the device (including access of common locations, repeated calendar appointments, search queries, etc.). This information is then used to display more relevant information to the user in the form of “cards”. These scrollable on-screen cards are displayed when the Google Now application is launched.These cards are not manually added.The service uses your GPS, Google Search, and usage information to generate these cards automatically.To initially set up Google Now:1. Press and hold (Home) and then tap (Google Now). 2. Follow the on-screen instructions to review the available information.3. When prompted, agree to launch the application. Some initial on-screen “cards” are shown. A default is the Weather card that provides updated weather information in your area.To configure the Google Now settings:1. Press and hold (Home) and then tap (Google Now). 2. Press and select Settings.3. Access each desired Settings page and configure it as desired.When these condition are met, new card information will begin to appear in the Google Now list of cards.

DRAFT Internal Use Only26Section 2: Understanding Your DeviceThis section outlines key features of your device. It also describes the device’s keys, screen and the icons that display when the device is in use.Features of Your DeviceYour device is lightweight, easy-to-use and offers many significant features. The following list outlines a few of the features included in your device.• Touch screen with virtual (on-screen) QWERTY keyboard• Brilliant 4.99” HD Super AMOLED® screen (1280x720)• 1.9 gigahertz quad-core processor• Delivering data speeds faster than the current 3G network technology by using 4G LTE and High Speed Packet Access Plus (HSPA+).• Android 4.1.2, Jelly Bean Platform• TecTile™ compliant• Support for Motions such as Direct call, Smart alert, etc..• Wi-Fi ® Capability• Smart Remote – Rich TV experience with Infrared (IR)• Over 700,000 Apps available to download from the Google Play™ Store and Cento™ Store• Access to Movies and TV Shows with Samsung Cento Store• Samsung Link® to share your media content across DLNA certified device. • Cloud connectivity enabled via the use of an external Web storage service• Compliant with AllShare Cast Hub® • 13 Megapixel Camera and Camcorder with autofocus and digital zoom• 2 Megapixel Front Facing camera for Video Chat• Share Shot picture sharing functionality• S-Beam file transfer technology• Share Shot camera sharing-capable via multi-connect Wi-Fi Direct connection• Bluetooth enabled• NFC-compatible• Full Integration of Google Mobile™ Services (Gmail, YouTube, Google Maps, Google Voice Search)

DRAFT Internal Use OnlyUnderstanding Your Device 27• Multiple Messaging Options: Text/Picture/Video Messaging and Google Talk™• Corporate and Personal Email• Music Player with multitasking features• Pre-loaded e-reader applications such as: Play Books™ and Play Magazines™• Assisted GPS (Google Navigation)• Webkit-based browser• Expandable memory slot - supports up to 64GB microSD• Mobile HotSpot Capability• USB Tethering-capable• T-Mobile® TV• Video Chat via Google Talk• Google Play™ Music• Wi-Fi ® Calling via the use of a micro SIM card• HD Video Player 1080p– Codec: MPEG4, H.264, H.263, VC-1, WMV7/8, VP8, MP43– Format: 3GP (MP4), WMV (ASF), AVI, and DivX • Video Player support for PIP (Picture in Picture) viewing• DivX Certified® to play DivX® video up to HD 720p, including premium contentFront ViewThe following illustrations show the main elements of your device. The following list correlates to the illustrations.1.Headset jack allows you to connect a hands-free headset so you can listen to music.2.Indicator light illuminates with a series of distinct colors and flashing patterns to indicate different notifications and statuses. Events include Charging, Low battery, and Missed event: •Powering on - blue blinks/animates•Battery Charging - red remains on•Battery Fully Charged - green remains on.•Low Battery or Charging Error- red blinks/animates•Missed Notification (Call or Messaging) - blue blinks/animatesFor more information, refer to “LED Indicator” on page 301.

DRAFT Internal Use Only283.Menu key displays a list of options available for the current screen. From the Home screen it displays Add apps and widgets, Create folder, Set wallpaper, Edit page, Search, and Settings options.4.Home key displays the Home screen when pressed. Press and hold to display your recent apps, Task manager, and Remove all option. Double-press to activate S Voice.5.Microphone is used during phone calls and allows other callers to hear you clearly when you are speaking to them. There are two microphones on the device:•Bottom microphone: used during handset mode.•Top microphone: used while an active call is in the speakerphone mode and assists in noise cancellation (2 microphone solution).6.USB Power/Accessory connector allows you to connect a power cable or optional accessories such as a USB/data cable.7891011431125 62613

DRAFT Internal Use OnlyUnderstanding Your Device 297.Back key redisplays the previous screen or clears entries.8.Display shows all the information needed to operate your phone, such as the connection status, received signal strength, phone battery level, and time.9.Front Facing Camera allows you to take pictures while facing the screen and allows you to video conference.10.Proximity Sensor detects how close an object is to the surface of the screen. This is typically used to detect when your face is pressed up against the screen, such as during a phone call.•While talking on the phone, the sensor detects talk activity and locks the keypad to prevent accidental key presses.11.Light Sensor lets you use the ambient light level to adjust the screen brightness/contrast. This sensor decreases screen brightness in dim light.•In a bright light condition (outdoors), the sensors cause the device to increase the brightness and contrast for better viewing. •In dim light conditions, the device increases the screen brightness to compensate.12.Receiver allows you to hear the other caller and the different ring tones or sounds offered by your device.13.Air Gestures Sensor used to detect Air View and Air Gesture motions.Back ViewThe following illustration shows the external elements of your Device:1.microSD Card Slot (internal) allows you use a microSD card to expand the memory of your device. 2.External speaker allows you to hear ringers, music, and other sounds offered by your phone.

DRAFT Internal Use Only303.micro SIM Card Slot (internal) Installation location for SIM card. 4.Flash is used to take photos in low-light conditions.5.Camera lens is used to take photos.6.IR Transmitter is used to transmit IR signals to compatible devices.Side ViewsThe following illustration shows the side elements of your device: 1.Volume key allows you to adjust the ringer volume in standby mode (with the phone open) or adjust the voice volume during a call. When receiving an incoming call:•Pressing the volume key down mutes the ring tone. 3 452 1621

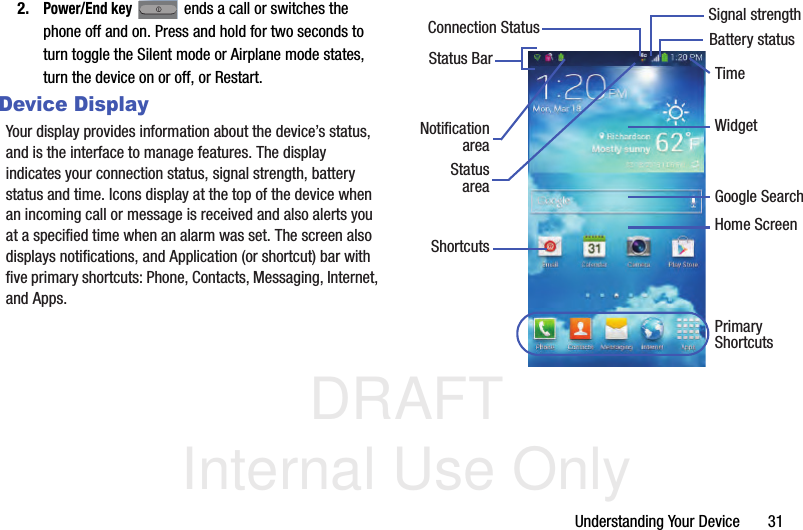

DRAFT Internal Use OnlyUnderstanding Your Device 312.Power/End key ends a call or switches the phone off and on. Press and hold for two seconds to turn toggle the Silent mode or Airplane mode states, turn the device on or off, or Restart.Device DisplayYour display provides information about the device’s status, and is the interface to manage features. The display indicates your connection status, signal strength, battery status and time. Icons display at the top of the device when an incoming call or message is received and also alerts you at a specified time when an alarm was set. The screen also displays notifications, and Application (or shortcut) bar with five primary shortcuts: Phone, Contacts, Messaging, Internet, and Apps.WidgetHome ScreenPrimaryNotificationShortcutsStatus BarareaStatusareaShortcutsBattery statusConnection StatusTimeSignal strengthGoogle Search

DRAFT Internal Use Only32Display settingsIn this menu, you can change various settings for the for the wallpaper, cube, brightness or backlight. From the Home screen, tap (Apps) ➔ (Settings) ➔ My device ➔ Display. For more information, refer to “Display Settings” on page 299.Status BarThe Status Bar shows information about the connection status, signal strength, phone battery level, and time, and displays notifications about incoming messages, calls and other actions.This list identifies the icons you see on your phone’s display screen:Indicator IconsThis list identifies the symbols you’ll see on your device’s display and Indicator area:Note: Some Notification icons can be hidden manually by toggling the status of the Notification panel function. For more information, refer to “Accessing Additional Screen Functions” on page 38. Displays your current signal strength. The greater the number of bars, the stronger the signal.Indicates that the Airplane Mode is active. You cannot send or receive any calls or access online information.Indicates there is no signal available.Displays when there is no SIM card in the phone.Displays when there is a system error or alert.Displays to indicate a security warning. You are prompted to set a screen lock password.Displays when a call is in progress. Icon is displayed in the Status bar area.Displays when a call is on hold. Icon is displayed in the Status bar area.Displays when an active call is routed through a Bluetooth headset. Icon is displayed in the Status bar area.

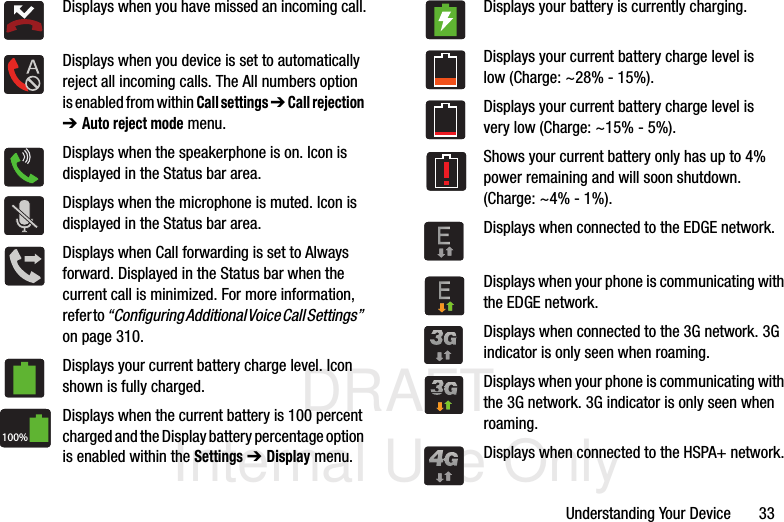

DRAFT Internal Use OnlyUnderstanding Your Device 33Displays when you have missed an incoming call.Displays when you device is set to automatically reject all incoming calls. The All numbers option is enabled from within Call settings ➔ Call rejection ➔ Auto reject mode menu.Displays when the speakerphone is on. Icon is displayed in the Status bar area.Displays when the microphone is muted. Icon is displayed in the Status bar area.Displays when Call forwarding is set to Always forward. Displayed in the Status bar when the current call is minimized. For more information, refer to “Configuring Additional Voice Call Settings” on page 310.Displays your current battery charge level. Icon shown is fully charged.Displays when the current battery is 100 percent charged and the Display battery percentage option is enabled within the Settings ➔ Display menu. 100%Displays your battery is currently charging.Displays your current battery charge level is low (Charge: ~28% - 15%).Displays your current battery charge level is very low (Charge: ~15% - 5%).Shows your current battery only has up to 4% power remaining and will soon shutdown. (Charge: ~4% - 1%).Displays when connected to the EDGE network.Displays when your phone is communicating with the EDGE network.Displays when connected to the 3G network. 3G indicator is only seen when roaming.Displays when your phone is communicating with the 3G network. 3G indicator is only seen when roaming.Displays when connected to the HSPA+ network.

DRAFT Internal Use Only34Displays when your phone is communicating with the HSPA+ network.Displays when your phone is communicating with the 4G LTE network.Displays when the phone has detected an active USB connection and is in a USB Debugging mode.Displays when there is a new text message.Displays when an outgoing text message has failed to be delivered.Displays when an incoming text message content has failed to be downloaded.Displays when there is a new voicemail message. Displays when there is a new visual voicemail message. Displays in the notifications window when there is a new Email message.Displays in the notifications window when there is a new Gmail message.Displays when the user is prompted to set up a new Dropbox account.Displays when the user is prompted with a Lookout Security notification.Displays when the T-Mobile Name ID application did not recognize a recent number and would like to know whether you wish to Not add, or add as a New or Existing number.Displays when the time and date for a Calendar Event has arrived. For more information, refer to “Calendar” on page 208.Displays when an alarm is set. For more information, refer to “Setting an Alarm” o n page 211.Displays when the device is in Silent mode. All sounds except media and alarms are silenced, and Silent mode is set to Vibrate. For more information, refer to “Silent mode via Device Options Screen” on page 302.

DRAFT Internal Use OnlyUnderstanding Your Device 35Displays when the device is in Silent mode. All sounds are silenced, and Silent mode is set to Mute.Displays when data synchronization and application sync is active and synchronization is in progress for Gmail, Calendar, and Contacts.Displays when the Blocking mode feature is active. For more information, refer to “Blocking Mode” on page 314.Displays when Bluetooth technology is active and enabled.Displays when the Bluetooth technology is active and communicating with an external device.Displays when the an outbound file transfer is in progress. Displays when a file or application download is in progress. Displays when the Share shot option is enabled from within the Camera Shooting mode menu and images and being shared via Wi-Fi Direct. For more information, refer to “Camera Options” on page 163.Displays when a screen capture has been taken and stored in the clipboard. For more information, refer to “Using Motions and Gestures” on page 56.Displays when your device is connected being used to control streaming media and is connected to a Digital Living Network Alliance (DLNA) certified device using the AllShare Play application.Displays when your device is currently sharing/streaming media to paired device using the AllShare Play application.Displays when AllShare Cast Hub is active, connected to your device, and communicating. For more information, refer to “AllShare Cast Hub” on page 200.

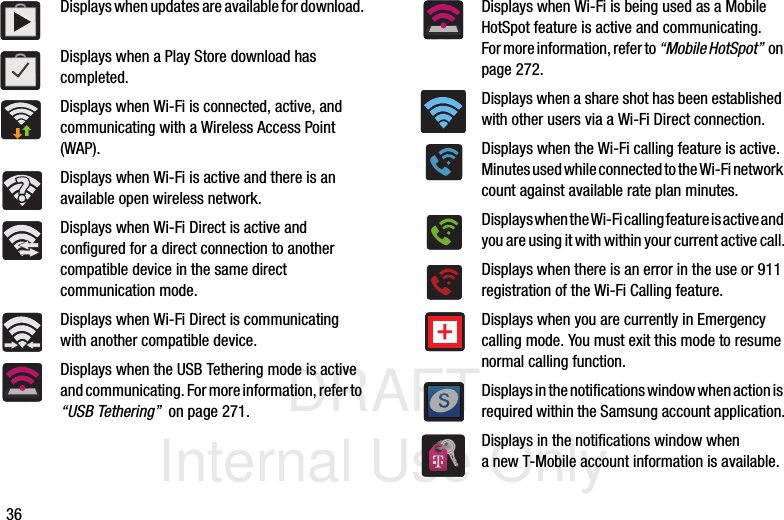

DRAFT Internal Use Only36Displays when updates are available for download.Displays when a Play Store download has completed.Displays when Wi-Fi is connected, active, and communicating with a Wireless Access Point (WAP).Displays when Wi-Fi is active and there is an available open wireless network.Displays when Wi-Fi Direct is active and configured for a direct connection to another compatible device in the same direct communication mode.Displays when Wi-Fi Direct is communicating with another compatible device.Displays when the USB Tethering mode is active and communicating. For more information, refer to “USB Tethering” on page 271.Displays when Wi-Fi is being used as a Mobile HotSpot feature is active and communicating. For more information, refer to “Mobile HotSpot” o n page 272.Displays when a share shot has been established with other users via a Wi-Fi Direct connection.Displays when the Wi-Fi calling feature is active. Minutes used while connected to the Wi-Fi network count against available rate plan minutes.Displays when the Wi-Fi calling feature is active and you are using it with within your current active call.Displays when there is an error in the use or 911 registration of the Wi-Fi Calling feature.Displays when you are currently in Emergency calling mode. You must exit this mode to resume normal calling function.Displays in the notifications window when action is required within the Samsung account application.Displays in the notifications window when a new T-Mobile account information is available.

DRAFT Internal Use OnlyUnderstanding Your Device 37For more details on configuring your phone’s settings, see “Changing Your Settings” on page 275.Notification BarThe Notification area indicates new message events (data sync status, new messages, calendar events, call status, etc). You can expand this area to display the Notification screen that provides more detailed information about the current on-screen notification icons.Displays in the notifications window when there are too many on-screen notification icons to display. Tap to show more notifications.Tap to select a text input method.Displays in the notifications window when a song is currently playing within the Music Player.Displays in the notifications window when a song is currently playing within the Play Music application.Displays when your device’s GPS is on and communicating.Displays when the external SD card (internal microSD) has been disconnected (unmounted) from the phone and is now ready for either removal or formatting.Displays when the External SD card is being prepared for mounting to the device. This is required for communication with the External SD card.Displays when the microSD card has been improperly removed or unexpectedly.Displays when storage within either the internal location or the external SD card has reached its capacity. It is recommended you either move files off or delete them to make additional room.Displays when Power saving mode is enabled.Displays when the Power saving alert notification has been activated. You are then prompted to view your current battery level.Displays when TTY device has been inserted.

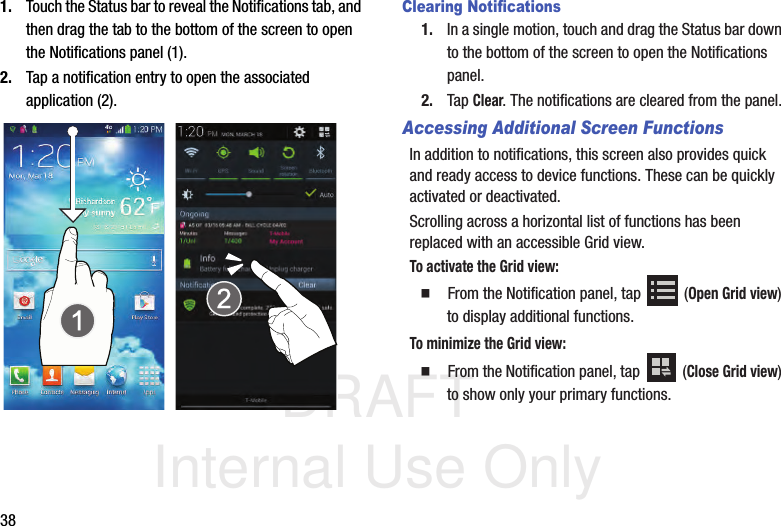

DRAFT Internal Use Only381. Touch the Status bar to reveal the Notifications tab, and then drag the tab to the bottom of the screen to open the Notifications panel (1).2. Tap a notification entry to open the associated application (2). Clearing Notifications1. In a single motion, touch and drag the Status bar down to the bottom of the screen to open the Notifications panel.2. Tap Clear. The notifications are cleared from the panel.Accessing Additional Screen FunctionsIn addition to notifications, this screen also provides quick and ready access to device functions. These can be quickly activated or deactivated.Scrolling across a horizontal list of functions has been replaced with an accessible Grid view. To activate the Grid view: From the Notification panel, tap (Open Grid view) to display additional functions.To minimize the Grid view: From the Notification panel, tap (Close Grid view) to show only your primary functions.

DRAFT Internal Use OnlyUnderstanding Your Device 39Note: You can now select the function buttons you see at the top of the Notifications panel. The top 5 buttons are shown at the top (8 are shown when in Landscape view).To customize the functions displayed:1. From the Notification screen, tap (Open Grid view) to display additional functions.2. Tap (Edit) then locate the Notifications panel area located at the bottom of the Notifications panel screen.3. In a single motion, touch and hold a desired function then drag it to the top row. Function KeysYour device comes equipped with three main function keys that can be used on any screen: Home, Menu, and Back.Home KeyThe Home key ( ) takes you back to your Home screen (indicated by a white Home icon). Press and hold to launch the Recent apps/Task manager screen. For more information, refer to “Accessing Recently-Used Applications” on page 60.Menu KeyThe Menu key ( ) activates an available menu function for the current screen or application. Back KeyThe Back key ( ) returns you to the previously active screen. If the on-screen keyboard is currently open, this key closes the keyboard.

DRAFT Internal Use Only40Home ScreenThe Home screen is the starting point for using the applications on your phone. There are initially seven available panels, each populated with default shortcuts or applications. You can customize each of these panels. • Notification area displays those icons associated with end-user notifications such as: email messages, calls (missed, call in progress), new voicemail, upcoming event, USB connection, Emails, and Text/MMS messages.–These notifications appear at the top-left of the screen (within the Status bar area) and display important user information.–This information can be accessed by swiping down from the Status bar (page 37).• Status area displays those icons associated with the status of the device such as communication, coverage, Bluetooth, 4G/3G, Wi-Fi communication, battery levels, GPS, etc.• Home Screen is a customizable screen that provides information about notifications and device status, and allows access to application Widgets. • Extended Home Screens extend beyond the current visible screen width to provide more space for adding icons, widgets, and other customization features.–There are six available extended screens (panels) each of which may be populated with its own shortcuts or widgets. These screens share the use of the five Primary Shortcuts.–The current screen is indicated at the bottom by a white square. Up to seven (7) total screens are available. WidgetHome ScreenPrimaryNotificationShortcutsStatus BarareaStatusareaShortcutsBattery statusConnection StatusTimeSignal strengthGoogle Search

DRAFT Internal Use OnlyUnderstanding Your Device 41Note: Both the status bar and primary shortcuts are visible across all screens.• Google search is an on-screen Internet search engine powered by Google™. Tap to access the Voice Actions feature where you can verbally enter a search term and initiate an online search.–Tap (Voice Actions) to launch the function from within this Google widget. • Widgets are self-contained on-screen applications (not shortcuts). These can be placed onto any of the available screens (Home or extended). • Shortcuts are icons that launch available device applications such as Camera, YouTube, Contacts, Phone, Email, Play Store, etc. These function the same as shortcuts on your computer.–Although some may already be found on the Extended Home screens, the majority can also be found within the Applications screens.–The Application screens can be accessed by tapping (Apps) from the Primary shortcuts area.–Shortcuts can be removed from a screen and added back any number of times.• Primary Shortcuts: are four shortcuts present throughout all of the available screens and can be used to both navigate within the device or launch any of the following functions:–Phone ( ) launches the phone-related screen functions (Keypad, Logs, Favorites, and Contacts). –Contacts ( ) launches the Contacts-related screens (Phone, Groups, Contacts, and Favorites). –Messaging ( ) launches the Messaging menu (create new messages or open an existing message string).–Internet ( ) launches the built-in Web browser.–Apps launches the Applications page.•Tap (Apps) to access the Applications screens.•While in the Applications screens, tap (Back) to easily return to the Home screen.As you transition from screen to screen, a screen indicator (located at the bottom) displays the currently active panel.

DRAFT Internal Use Only42Home Screen Menu SettingsWhen on the Home screen, press and then select any of the following menu options:• Add apps and widgets allows you to quickly access the Widget tab where you can then drag a selected widget to an available area on a selected screen. • Create folder allows you to create on-screen folders to help organize files of application shortcuts.• Set wallpaper allows you to assign the current wallpaper for the Home screen, Lock screen, or Home screen and lock screens. Choose from Gallery, Live wallpapers, or Wallpapers.• Edit page allows you to add or remove extended screens from your device. You can have up to six extended screens (one Home screen and six Extended screens). • Search displays the Google Search box that you can use to search for a key term online.• Settings provides quick access to the device’s settings menu.–The Settings menu can also be accessed by pressing and then tapping ➔ Settings.ApplicationsThe Application menu provides quick access to the most frequently used applications. Applications display on each of the three panels on the Applications screens.Important! Once you log into your Google account. All previously downloaded apps should now be populated within the Application screens.Application Screen Menu SettingsWhen on the Apps screen, the following menu options are available:1. Press and then tap (Apps).2. Press and then select from the following options:•Play Store: provides quick access to the Play Store (page 232). •Edit: allows you to organize your current applications by moving them around the screen, edit or delete existing App folders.• Create folder: allows you to create an application folder where you can better organize and group desired apps.

DRAFT Internal Use OnlyUnderstanding Your Device 43• Uninstall: allows you to uninstall a user-downloaded application. Only those applications that are not default to the device can be downloaded. Tap to remove the selected app.• Downloaded applications: allows you to filter the view of apps to only those applications that you have downloaded. •View type: allows you to customize the way the Apps menu listing is shown (page 63).• Share apps: allows you to share information about selected applications with external users (page 61). • Hide applications: allows you to specify which current applications are hidden from view in this menu. Once you have selected the apps, tap Done.• Show hidden applications: allows you to specify which previously hidden applications are can be made visible again for viewing in this menu. Once you have selected the apps, tap Done.3. Press to return to the Home screen.The following table contains a description of each application available via both the Primary shortcuts area and via the Applications screens. If the application is already described in another section of this user manual, then a cross reference to that particular section is provided. For information on navigating through the Applications icons, see “Navigating Through the Application Menus” on page 58. CalculatorLaunches the on-screen calculator application. The calculator provides the basic arithmetic functions; addition, subtraction, multiplication, and division. You can also use this as a scientific calculator.For more information, refer to “Calculator” on page 207.CalendarLaunches a calendar application that syncs to your Facebook™, Google™, or Microsoft Exchange work calendars. For more information, refer to “Calendar” on page 208.

DRAFT Internal Use Only44CameraLaunches the built-in 13.0 megapixel camera application from where you can take a picture with either the front or rear facing cameras.Note: A micro SD card is no longer needed to take pictures or shoot video due to built-in storage.Note: The default storage location is your phone. It is recommended that you store your pictures and videos on a microSD card. If something were to occur to the device, your files are still protected.In addition to taking photos, the built-in camera also doubles as a camcorder that also allows you to record, view, and send high definition videos. For more information, refer to “Using the Camera” o n page 162. For more information, refer to “Using the Camcorder” on page 169.ChatONProvides a global mobile communication service where you can chat with more than 2 buddies via a group chat. Share things such as pictures, videos, animation messages (Scribbles), audio, Contacts, Calendar entries, and Location information. For more information, refer to “ChatON” on page 158.ChromeAllows you to use the Google Chrome web browser on your device.For more information, refer to “Chrome” on page 211.ClockAllows you to set an alarm, configure and view the World clock, use a Stopwatch, set a Timer, or Desk clock. The applications display in a tabular format and quickly accessed with the touch of a finger. For more information, refer to “Clock” on page 211.

DRAFT Internal Use OnlyUnderstanding Your Device 45ContactsThe default storage location for saving phone numbers to your Contacts List is your phone’s built-in memory.For more information, refer to “Contacts List” o n p a g e 109.DownloadsProvides quick access to tabs containing a list of your current downloaded files (Internet and Other).For more information, refer to “Downloads” on page 215.DropboxProvides access to your desktop files directly from your device. For more information, refer to “Dropbox” on page 215.EmailProvides access to both your Outlook (Exchange Server-based) work email and Internet email accounts (such as Gmail and Yahoo! Mail). For more information, refer to “Using Email” on page 145.FlipboardThis application creates a personalized digital magazine out of everything being shared with you. Access news stories, personal feeds and other related material. For more information, refer to “Flipboard” on page 217.GalleryDisplays a Gallery of camera images and video stored in the microSD card. For more information, refer to “The Gallery” on page 178.

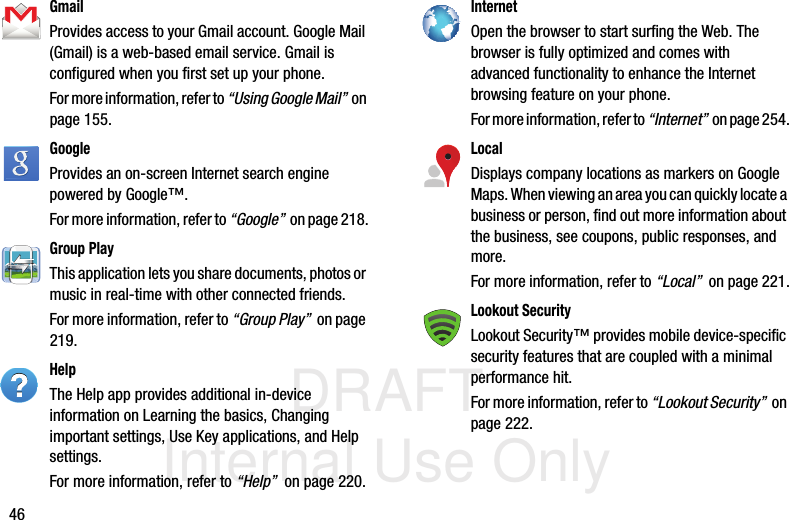

DRAFT Internal Use Only46GmailProvides access to your Gmail account. Google Mail (Gmail) is a web-based email service. Gmail is configured when you first set up your phone. For more information, refer to “Using Google Mail” on page 155.GoogleProvides an on-screen Internet search engine powered by Google™. For more information, refer to “Google” on page 218.Group PlayThis application lets you share documents, photos or music in real-time with other connected friends.For more information, refer to “Group Play” on page 219.HelpThe Help app provides additional in-device information on Learning the basics, Changing important settings, Use Key applications, and Help settings. For more information, refer to “Help” on page 220.InternetOpen the browser to start surfing the Web. The browser is fully optimized and comes with advanced functionality to enhance the Internet browsing feature on your phone.For more information, refer to “Internet” on page 254.LocalDisplays company locations as markers on Google Maps. When viewing an area you can quickly locate a business or person, find out more information about the business, see coupons, public responses, and more.For more information, refer to “Local” on page 221.Lookout SecurityLookout Security™ provides mobile device-specific security features that are coupled with a minimal performance hit. For more information, refer to “Lookout Security” on page 222.

DRAFT Internal Use OnlyUnderstanding Your Device 47MapsLaunches a Web-based dynamic map that helps you find local businesses, locate friends, view maps and get driving directions. For more information, refer to “Maps” on page 222.MessagingProvides access to text and multimedia messaging (SMS and MMS). For more information, refer to “Creating and Sending Messages” on page 132.Mobile HotSpotProvides access to the Tethering and Mobile HotSpot menu where you can use either the USB tethering or Mobile HotSpot functionality.For more information, refer to “Mobile HotSpot” on page 225.Music playerLaunches the built-in Music player that allows you to play music files that you have stored on your microSD card. You can also create playlists. For more information, refer to “Music Player XXX” on page 191.My filesLets you view supported image files and text files on both your internal storage and microSD card. Organize and store data, images, and more in your own personal file folders. Files are stored to either the internal storage or memory card in separate (user defined) folders.For more information, refer to “My Files” on page 226.

DRAFT Internal Use Only48Navigation Launches a Web-based navigation application.Caution! Traffic data is not real-time and directions may be wrong, dangerous, prohibited, or involve ferries.For more information, refer to “Navigation” on page 228.PhoneProvides the ability to make or answering calls, access the Contacts list, which is used to store contact information.For more information, refer to “Call Functions and Contacts List” on page 71.Photo Reader Allows you to use your camera to identify text and extract useful information. For more information, refer to “Photo Reader” on page 230.Play BooksProvides access to read over 3 million ebooks on the go.For more information, refer to “Play Books” on page 230.Play MagazinesWith Google Play Magazines, you can subscribe to your favorite magazines and have them available to read on your phone at any time or any place. For more information, refer to “Play Magazines” on page 231.Play Movies & TVRent movies and TV shows on Google Play™ and watch instantly using the Google Play Movies app.For more information, refer to “Play Movies & TV” on page 185.

DRAFT Internal Use OnlyUnderstanding Your Device 49Play Music (Google Music)Launches the built-in Google Music Player that allows you to play music files that you have both downloaded from Google Music and stored on your microSD card. For more information, refer to “Play Music XXX” on page 186.Play StoreFormerly known as the “Android Market”, it provides access to downloadable applications, games, music, and movies. The Play Store also allows you to provide feedback and comments about an application, or flag an application that might be incompatible with your phone. For more information, refer to “Play Store” on page 232.Polaris Office 5.0This application is a Microsoft Office compatible office suite. This application provides a central place for managing your documents online or offline.For more information, refer to “Polaris Office 5.0” on page 235.S HealthS Health is a wellness application that allows you to better manage your health by providing you with relavant information. For more information, refer to “S Health” o n p a g e 2 3 6 .S MemoThis application allows you to create memos using the keypad, your finger, or both. You can add images, voice recordings, and text all in one place. For more information, refer to “S Memo” on page 236.

DRAFT Internal Use Only50S TranslatorAllows you can easily translate words and phrases (verbal or text meesages) into many different languages. For more information, refer to “S Translator” on page 239.S VoiceLaunches your phone’s built-in voice recognition system that allows you to initiate several common tasks without having to touch the phone. Features include: Call, Text, Navigate, Play music, Memo, and Driving mode. For more information, refer to “Using S Voice” on page 90.Samsung AppsAllows you to easily download an abundance of applications to your device. This includes games, news, reference, social networking, navigation, and more. For more information, refer to “Samsung Apps” on page 240.Samsung HubThis is Samsung’s integrated store for media content that offers a comprehensive and consistent media service experience. You can browse and purchase all media content within a single store front. For more information, refer to “Samsung Hub” on page 240.Samsung LinkAllows you to share your on-device media content with other external devices using DLNA (Digital Living Network Alliance) and built-in AllShare Play™ technology. For more information, refer to “Samsung Link” on page 241.Samsung VideoLaunches your device’s built-in video application that plays video files stored on your microSD card. For more information, refer to “Using Samsung Video” on page 179.

DRAFT Internal Use OnlyUnderstanding Your Device 51Samsung WatchONThis application, you can use your phone as a remote control for your TV. For more information, refer to “Samsung WatchON” on page 243.SettingsAccesses the device’s built-in Settings menu. For more information, refer to “Changing Your Settings” on page 275.Story AlbumAllows you to create a digital Album of your story in media. Special moments will be on a timeline, and if you wish, you can have your album published as a hard copy.For more information, refer to “Story Album” on page 243.T-Mobile My AccountThis application provides you online access to account information such as your current activity, billing information, service plans, downloads, and other information.For more information, refer to “T-Mobile My Account” on page 244.T-Mobile Name IDAllows you to modify the on-screen Caller ID information. T-Mobile TVAllows you to watch live mobile TV on your device. This application is a subscription service. For more information, refer to “T-Mobile TV” on page 244.TalkLaunches a Web-based Google Talk application that lets you chat and video conference with family and friends over the Internet for free. For more information, refer to “Google Talk” on page 157.

DRAFT Internal Use Only52Important! For help closing any or all current applications, use the Task manager. For more information, refer to “Task Manager” on page 248.TripAdvisorAllows you to watch live mobile TV on your device. This application is a subscription service. For more information, refer to “TripAdvisor” on page 248.Visual VoicemailVisual Voicemail enables users to view a list of people who left a voicemail message, and listen to the any message they want without being limited to chronological order.For more information, refer to “Visual Voicemail” on page 23.Voice RecorderAllows you to record an audio file up to one minute long and then immediately send it as a message. For more information, refer to “Voice Recorder” on page 249.Voice SearchLaunches the Google Now application that is used for voice to text Internet searching.For more information, refer to “Voice Search” on page 251.VPN ClientThis is a full-featured VPN Client that provides support for the latest IPSec VPN standards and provides interoperability with support for all major VPN Gateways.For more information, refer to “VPN Client” on page 251.YouTubeLaunches the YouTube Web page via the browser. For more information, refer to “YouTube” on page 251.

DRAFT Internal Use OnlyUnderstanding Your Device 53Screen NavigationUsing the touch screen display and the keys, you can navigate the features of your device and enter characters. The following conventions are used in this manual to describe the navigation action in the procedures.Navigating Through the ScreensThe following terms describe the most common hardware and on-screen actions.• Press and hold: Pressing relates to use of the hardware keys and buttons to select or activate an item. For example: press the Navigation key to scroll through a menu. Some buttons and keys require you to press and hold them to activate a feature, for example, you press the Lock key to lock and unlock the phone. • Tap: Use a brief touch to select items on the display or to enter text on the virtual QWERTY keyboard. For example: touch an Application icon to open the application. A light touch works best.• Touch and hold: Touch and hold an icon or key to open the available options, or to access a pop-up menu. For example: touch and hold from the Home screen to access a menu of customization options. Press and hold Tap Touch and hold

DRAFT Internal Use Only54• Flick: Move your finger in lighter, quicker strokes than swiping. This finger gesture is always used in a vertical motion, such as when flicking through contacts or a message list.• Swipe or slide: Quickly drag your finger vertically or horizontally across the screen. This allows you to move the area of focus or to scroll through a list. For example: slide your finger left or right on the Home screen to scroll among the seven panels.• Drag: Press and hold your finger with some pressure before you start to move it. Do not release your finger until you have reached the target position.• Rotate: Automatically change the screen orientation from portrait to landscape by turning the device sideways. For example: rotate to landscape orientation when entering text, to provide a larger keyboard, or when viewing web content to minimize scrolling. Flick Swipe or slideRotateand Drag

DRAFT Internal Use OnlyUnderstanding Your Device 55• Pinch: “Pinch” the screen using your thumb and forefinger to zoom out when viewing a picture or a Web page. (Move fingers inward to zoom out.)• Spread: “Spread” the screen using your thumb and forefinger to zoom in when viewing a picture or a Web page. (Move fingers outward to zoom in.) Note: These screens can be re-arranged in any desired order. For more information, refer to “Customizing the Screens” on page 60.• Motion Navigation and Activation: The device comes equipped with the ability to assign specific functions to certain device actions that are detected by both the accelerometer and gyroscope. Note: Motion must be enabled for this feature to be active. For more information, refer to “Motions and Gestures Settings” on page 324.Pinch (Zoom Out)Spread (Zoom In)

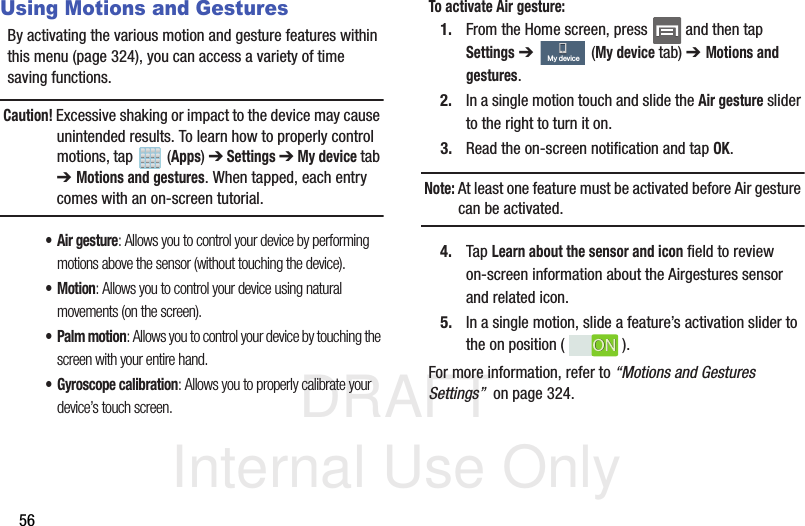

DRAFT Internal Use Only56Using Motions and GesturesBy activating the various motion and gesture features within this menu (page 324), you can access a variety of time saving functions.Caution! Excessive shaking or impact to the device may cause unintended results. To learn how to properly control motions, tap (Apps) ➔ Settings ➔ My device tab ➔ Motions and gestures. When tapped, each entry comes with an on-screen tutorial.• Air gesture: Allows you to control your device by performing motions above the sensor (without touching the device).•Motion: Allows you to control your device using natural movements (on the screen).• Palm motion: Allows you to control your device by touching the screen with your entire hand.• Gyroscope calibration: Allows you to properly calibrate your device’s touch screen.To activate Air gesture:1. From the Home screen, press and then tap Settings ➔ (My device tab) ➔ Motions and gestures.2. In a single motion touch and slide the Air gesture slider to the right to turn it on. 3. Read the on-screen notification and tap OK.Note: At least one feature must be activated before Air gesture can be activated.4. Tap Learn about the sensor and icon field to review on-screen information about the Airgestures sensor and related icon.5. In a single motion, slide a feature’s activation slider to the on position ( ). For more information, refer to “Motions and Gestures Settings” on page 324.My deviceONON

DRAFT Internal Use OnlyUnderstanding Your Device 57To activate Motion:1. From the Home screen, press and then tap Settings ➔ (My device tab) ➔ Motions and gestures.2. In a single motion touch and slide the Motion slider to the right to turn it on. 3. Read the on-screen notification and tap OK.Note: At least one feature must be activated before Motion can be activated.4. In a single motion, slide a feature’s activation slider to the on position ( ). For more information, refer to “Motions and Gestures Settings” on page 324.To activate Palm Motion:1. From the Home screen, press and then tap Settings ➔ (My device tab) ➔ Motions and gestures.2. In a single motion touch and slide the Palm motion slider to the right to turn it on. 3. Read the on-screen notification and tap OK.Note: At least one feature must be activated before Palm motion can be activated.4. In a single motion, slide a feature’s activation slider to the on position ( ). For more information, refer to “Motions and Gestures Settings” on page 324.My deviceONONMy deviceONON

DRAFT Internal Use Only58Gyroscope CalibrationCalibrate your device by using the built-in gyroscope.1. From the Home screen, press and then tap Settings ➔ (My device tab) ➔ Motions and gestures ➔ Gyroscope calibration.2. Place the device on a level surface and tap Calibrate. The device adjusts the level of the accelerometer. During the calibration process a green circle appears on-screen and the center circle adjusts to the center position.Menu NavigationYou can tailor the device’s range of functions to fit your needs using both menus and applications. Menus, sub-menus, and features are accessed by scrolling through the available on-screen menus. Your device defaults with seven screens.Navigating Through the Application MenusThere are three default Application Menu screens available. As you add more applications from the Play Store, more screens are created to house these new apps.1. From the Home screen, tap (Apps). The first Application Menu screen displays.•To close the Applications screen, press (Home).2. Sweep the screen to access the other menus.3. Tap any of the on-screen icons to launch the associated application.My device

DRAFT Internal Use OnlyUnderstanding Your Device 59Using Sub-MenusSub-menus are available from within most screen and applications. 1. Press . A sub-menu displays at the bottom of the screen.2. Tap an available on-screen option. Using Context MenusContext menus (also called pop-up menus) contain options that apply to a specific item on the screen. They function similarly to menu options that appear when you right click your mouse on your desktop computer. Touch and hold an item on-screen to open its context menu. Sub-Menu itemsContextMenu

DRAFT Internal Use Only60Accessing Recently-Used Applications1. Press and hold to open the recently-used applications window.Note: This recent applications screen also provides access to the Task manager.2. A pop-up displays the six most recently used applications.3. Tap an icon to open the recent application.Customizing the ScreensYou can customize the Home screens (panels) to display the Widgets, Shortcuts, Folders, or Wallpapers. For example, one screen could contain the Music Player shortcut and other forms of media, while another screen might contain communication apps such as Gmail.You can customize your Home screen by doing the following:• Adding, Deleting, and Rearranging screens• Assigning a New Home screen• Adding and Removing Primary Shortcuts• Sharing Application Information• Managing Shortcuts• Adding and Removing Widgets• Changing the Background (Wallpapers)Adding and Deleting ScreensYour phone comes with seven screens. You can delete these screens and then add them back later.Note: These screens can be deleted and re-arranged.

DRAFT Internal Use OnlyUnderstanding Your Device 61Important! Your phone can only contain at most seven screens and at least one screen.To delete a screen:1. From the Home screen, press and then tap Edit page. 2. Touch and hold, then drag the undesired screen down to the Remove tab ( ).3. Press to return to the main Home screen.To add a screen:1. From the Home screen, press and then tap Edit page. 2. Tap (Add screen). The newly added screen appears as the last page.3. Press to return to the main Home screen.Rearranging the Screens1. From the Home screen, press and then tap Edit page. 2. Touch and hold a screen and then drag it into its new location. Upper-left is screen position #1 and bottom-right is screen last screen.Assigning a New Home Screen1. From the Home screen, press and then tap Edit page. 2. Tap . The new Home screen then indicates this (Home screen) icon at the top of the selected screen.Sharing an AppThe device’s Applications menu now comes with a feature that allows you to share information about your selected applications with external users.1. Press and then tap (Apps).2. Press and then tap Share apps.3. Place a check mark alongside those applications you wish to share information about and tap Done.

DRAFT Internal Use Only62Note: Shared applications consist of those that have previously been downloaded from the Play Store.4. Select a sharing method. Choose from: Bluetooth, ChatON, Dropbox, Email, Flipboard, Gmail, Messaging, S Memo, and Wi-Fi Direct. XXX????5. The recipient will be notified about the receipt of the new information.Managing ShortcutsNote: To move a shortcut from one screen to another, you must carefully touch and hold the shortcut and slowly drag it to the edge of the screen. As the shortcut turns light blue, you can begin to move it to the adjacent screen.If this does not work, delete it from its current screen. Activate the new screen and then add the selected shortcut.To add a shortcut from the Applications screen:1. Press to go to the Home screen.2. Select a screen location for your new shortcut by scrolling across your available screens until you reach the desired one.3. Tap Apps ( ) to reveal all your current available applications. By default, applications are displayed as an Alphabetical grid.4. Scroll across the screens and locate your desired application.5. Touch and hold the on-screen icon. The new shortcut then appears to hover over the current screen.6. While still holding the on-screen icon, position it on the current screen. Once complete, release the screen to lock the shortcut into its new position.To add a shortcut via the Add to Home screen:1. Press to go to the Home screen. 2. Navigate to a screen with an empty area.3. Touch and hold an empty area of the screen.4. From the Home screen window, tap Apps and widgets ➔ Apps.

DRAFT Internal Use OnlyUnderstanding Your Device 635. Scroll across the pages and in a single motion, touch and hold an application to place a copy on the current screen.To delete a shortcut:1. Press to go to the Home screen.2. Touch and hold the desired shortcut. This unlocks it from its location on the current screen.3. Drag the shortcut over the Remove tab ( ) and release it.Adding and Removing Primary ShortcutsNote: You can change any of your primary shortcuts with the exception of the Apps shortcut.To remove a primary shortcut:1. Press to go to the Home screen. 2. Touch and hold the primary shortcut you want to replace, then drag it to an empty space on any available screen. The primary shortcuts are now updated to show an empty slot.To insert a new primary shortcut:1. Press and then tap (Apps).2. Locate your desired application, then touch and hold the on-screen icon to position it on a desired screen. For more information, refer to “Managing Shortcuts” on page 62.3. Locate the screen with the desired shortcut you want to add as the new primary shortcut.4. Touch and hold the shortcut until it detaches from the screen.5. In a single motion, touch and hold the new shortcut, then drag it into the empty space within the row of primary shortcuts. The new primary shortcut will now appear on both the Home and Extended screens.

DRAFT Internal Use Only64Adding and Removing WidgetsWidgets are self-contained applications that can be placed on any screen. Unlike shortcuts, widgets appear as applications.To add a Widget:1. Press and then tap (Apps) ➔ Widgets tab.2. Scroll across the Widget pages and locate a desired Widget. 3. Touch and hold an available Widget until it detaches from the screen.4. While still holding the Widget, scroll left or right across the available screens and let go of the Widget to place it on your current screen.To remove a Widget:1. Touch and hold a Widget until it unlocks from the current screen.2. Drag the widget over the Remove tab ( ) and release it.•As you place the Widget into the Trash, both items turn red.•This action doesn’t delete the Widget, it just removes it from the current screen.To place a widget onto a different screen:1. Touch and hold the widget until it becomes transparent.2. Slowly drag it past the edge of the screen until the adjacent page appears highlighted and it then snaps onto the new page.3. Drag the widget to its desired position on the new screen.4. Repeat these steps to continue moving it to other screens.

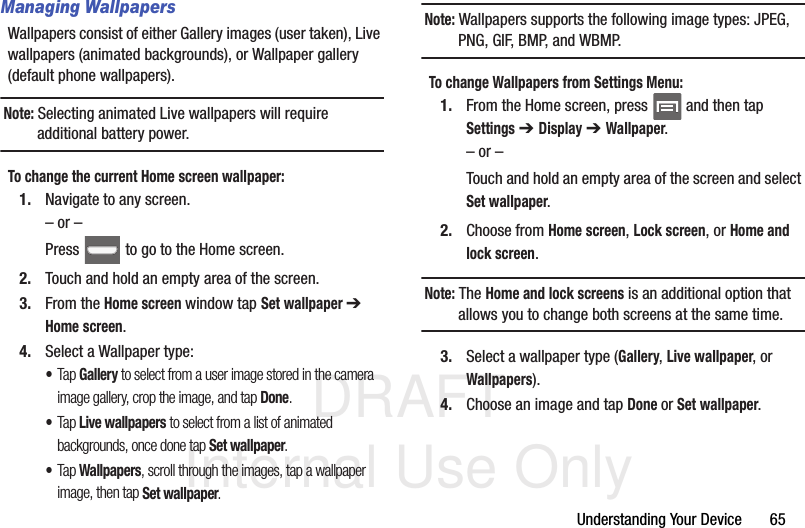

DRAFT Internal Use OnlyUnderstanding Your Device 65Managing WallpapersWallpapers consist of either Gallery images (user taken), Live wallpapers (animated backgrounds), or Wallpaper gallery (default phone wallpapers).Note: Selecting animated Live wallpapers will require additional battery power.To change the current Home screen wallpaper:1. Navigate to any screen. – or –Press to go to the Home screen. 2. Touch and hold an empty area of the screen.3. From the Home screen window tap Set wallpaper ➔ Home screen.4. Select a Wallpaper type:•Tap Gallery to select from a user image stored in the camera image gallery, crop the image, and tap Done.•Tap Live wallpapers to select from a list of animated backgrounds, once done tap Set wallpaper. •Tap Wallpapers, scroll through the images, tap a wallpaper image, then tap Set wallpaper.Note: Wallpapers supports the following image types: JPEG, PNG, GIF, BMP, and WBMP.To change Wallpapers from Settings Menu:1. From the Home screen, press and then tap Settings ➔ Display ➔ Wallpaper.– or –Touch and hold an empty area of the screen and select Set wallpaper.2. Choose from Home screen, Lock screen, or Home and lock screen.Note: The Home and lock screens is an additional option that allows you to change both screens at the same time.3. Select a wallpaper type (Gallery, Live wallpaper, or Wallpapers).4. Choose an image and tap Done or Set wallpaper.

DRAFT Internal Use Only66To change the current Lock screen wallpaper:1. Navigate to any screen, touch and hold an empty area of the screen, and tap Set wallpaper ➔ Lock screen.– or –From the Home screen, press and then tap Settings ➔ Display ➔ Wallpaper ➔ Lock screen.2. Select a Wallpaper type:•Tap Gallery to select from a user image stored in the camera image gallery, crop the image, and tap Done.•Tap Wallpaper, scroll through the images, tap a wallpaper image, then tap Set wallpaper.

DRAFT Internal Use OnlyMemory Card 67Section 3: Memory CardYour device lets you use a microSD card (also referred to as a memory card) to expand available memory space. This secure digital card enables you to exchange images, music, and data between SD-compatible devices. This section addresses the features and options of your device’s SD functionality. The device has a USB SD card mode.• microSD memory cards include capacities of up to 2GB.• microSDHC™ memory card types can range from 4GB to up to 32GB. • microSDXC™ memory card types can include capacities greater than 32GB.Using the SD CardThere are several methods for using the SD card:1. Connecting to your PC to store files (such as music, videos, or other types of files and media).2. To activate the camera, video, music player, and other dependant media or applications.Important! Your device can support SDHC cards up to 64GB capacity.SD card OverviewAfter mounting an SD card in the device you can use your computer to access and manage the SD card.Important! If access to the external SD card is not available, download and install the USB drivers.microSD Icon IndicatorsThe following icons show your microSD card connection status at a glance:the card can now safely be removed.the card is being prepared for use and for mounting.the card has been improperly removed.

DRAFT Internal Use Only68Important! DO NOT remove a microSD card while the device is accessing or transferring files. Doing so will result in loss or damage of data. Make sure your battery is fully charged before using the microSD card. Your data may become damaged or lost if the battery runs out while you are using the microSD card.Mounting the SD CardTo store photos, music, videos, and other applications. You must mount (install) the SD card prior to use. Mounting the SD card establishes a USB connection with your computer.1. From the Home screen, press and then tap Settings ➔ (More tab) ➔ Storage.2. Tap Mount SD card.Communicating with the SD card1. Insert the SD card into the external, SD card slot (For more information, refer to “Installing the microSD Memory Card” on page 11.)2. Verify the card is properly mounted.Note: Your device is configured to be used as a storage/media device by default. If it does not respond properly, you will need to verify the Debugging mode is not enabled.3. Connect the USB cable to the phone and connect the cable to the computer.4. Confirm the new mounted drive appears as a new drive on your computer. As soon as the connection is established a drive letter is assigned to the phone’s storage device.5. To disconnect the new drive, simply remove the USB cable from your device.

DRAFT Internal Use OnlyMemory Card 69Unmounting the SD cardUnmounting the SD card prevents corruption and damage to the SD card while removing it from the slot.1. From the Home screen, press and then tap Settings ➔ More tab ➔ Storage.2. Tap Unmount SD card ➔ OK.3. After the “SD card will be unmounted” message displays and the Mount SD card now appears in the menu list, remove the SD card. For more information, refer to “Removing the microSD Memory Card” on page 11.SD card Memory StatusTo view the memory allocation for your external SD card: From the Home screen, press and then tap Settings ➔ More tab ➔ Storage. The available memory displays under both the Device memory and SD card headings.Erasing Files from the SD cardTo erase files from the SD card using the device:1. Ensure the SD card is mounted. 2. From the Home screen, press and then tap Settings ➔ More tab ➔ Storage ➔ Mount SD card.3. Tap Format SD card ➔ Format SD card ➔ Delete all to format the SD card. The SD card formats and erases all the data stored on it.

DRAFT Internal Use Only70Factory Data ResetFrom this menu you can reset your phone and sound settings to the factory default settings.1. From the Home screen, press and then tap Settings ➔ (Accounts tab) ➔ Backup and reset.2. Tap Factory data reset. This action erases all data from your device except current system software and bundled applications, or SD card files such as music or photos.Note: This feature provides an option to format the internal USB storage, not the microSD card.3. Tap Reset device ➔ Delete all.

DRAFT Internal Use OnlyCall Functions and Contacts List 71Section 4: Call Functions and Contacts ListThis section describes features and functionality associated with making or answering calls, and the Contacts list, which is used to store contact information.Displaying Your Phone Number From the Home screen, press and then tap Settings ➔ (More tab) ➔ About device ➔ Status. Your phone number displays in the My phone number field. Note: The device’s Settings menu can also be activated by pressing and then tapping (Apps) ➔ (Settings).Making a CallYou can store phone numbers that are regularly used to the SIM card or to the device’s memory. These entries are referred to as the Contacts list.1. From the Home screen, tap (Phone).2. Enter the phone number and then tap . If you make a mistake while dialing, tap to clear the last digit. Touch and hold to clear the entire sequence.Note: When you activate the Auto redial option in the Call settings ➔ Additional settings menu, the device automatically redials up to 10 times when the person does not answer the call or is already on the phone, provided your call is not sent to voicemail.Note: If your screen goes black during your interaction with the device (launching Keypad, etc.), you might be accidentally swiping over the front sensors.

DRAFT Internal Use Only72Quick Dialing a Number from the Contacts List1. From the Home screen, tap (Contacts).2. Locate a contact from the list.3. In a single motion, touch and drag your finger over the number by going to the right. This action places a call to the recipient. Running a Call in the BackgroundIf you exit the current call screen and return to the Home screen, you are visually notified that you are still on an active call by the green phone icon within the Status bar. This is the best way to stay on your current call and do something else (multi-task) such as access the Contacts list, view a recent email, locate a picture, etc.. Ending a Call Briefly tap key to end the call.Note: To redial a recent number, tap at the end of the call or locate the number from the Logs list, tap the entry and tap Call.QuickQuickTextingCallingIn Call NotificationCall

DRAFT Internal Use OnlyCall Functions and Contacts List 73Ending a Call from the Status Bar1. From an active call, you can launch a separate application or return to the Home screen. The current call is kept active in the background.2. Tap the Status bar to reveal the Notifications tab, and then drag the tab to the bottom of the screen to open the Notifications panel (1).3. Tap End to end the currently active call (2). Making Emergency CallsIf you do not have a SIM card installed the first time you turn on the phone, the Insert SIM card to make calls message displays and an animated tutorial shows you how to install the SIM card.Without a SIM card, you can only make an emergency call with the phone; normal cell phone service is not available. Making an Emergency Call Without a SIM card installed1. Tap Emergency call from the on-screen display to make an emergency call.2. Enter 9-1-1 and tap . Complete your call. During this type of call, you will have access to the Speaker mode, Keypad, and End Call features.Note: Selecting Location consent may drain battery power. For more information, refer to “Power Saving Mode” on page 341.3. Tap to exit this calling mode.

DRAFT Internal Use Only74Making an Emergency Call With a SIM card installedThe Emergency calling mode makes redialing an emergency number a 1-tap process. Before you can resume normal calling operations, you should first exit this mode.1. Swipe the Lock screen to unlock the device.2. From the Home screen, tap . 3. Enter the emergency number (ex: 911) and then tap .4. Complete your call. During this type of call, you will have access to the Speaker mode, Keypad, and End Call features. Note: This mode can drain your battery power more rapidly than a normal calling mode. 5. At the Emergency Callback screen, follow the on-screen instructions.Dialing OptionsWhen you enter numbers on the Keypad, you will see three on-screen options. From the keypad screen, use one of the following options:• Voicemail ( ) to access your Voicemail service.• Call ( ) to call the entered number.• Delete ( ) to delete digits from the current number.

DRAFT Internal Use OnlyCall Functions and Contacts List 75To view additional dialing options: After entering a number, tap :• Send message to send the current caller a text message while still maintaining the current call active.• Add to Contacts to add the current number to either a new or existing Contacts entry. • Speed dial setting to access the Speed dialing setting menu where you can assign a speed dial location to a current Contacts entry. • Add 2-sec pause to insert a two-second pause to enter a 2-second delay within a number string (the phone continues dialing after 2 seconds without any additional keys being pressed.Tip: You can create pauses longer than two seconds by entering multiple 2 second pauses.• Add wait to insert a hard pause within the number string (the phone waits for your input). A wait requires that any consecutive numbers be manually sent by tapping Yes.• Ripple effect to enable/disable the on-screen ripple effect that occurs when you tap the screen.• Call settings to provide you access to the Call settings screen.Answering a CallWhen somebody calls you, the phone rings and displays the incoming call image. The caller's phone number, picture, or name if stored in Contacts List, displays. At the incoming call screen:•Touch and slide in any direction to answer the call.•Touch and slide in any direction to reject the call.•Touch and drag the Reject call with message tab upward and tap a predefined rejection message or tap Create new message to create a new custom outgoing response.Pressing the Volume down button mutes the ringer.If the incoming call is from a number stored in your Contacts, the entry’s name is displayed. You may also see the caller’s phone number, if available.

DRAFT Internal Use Only76Managing Reject CallsThis feature allows you to categorize both known and unknown callers as rejected contacts. These Contacts are then added to you Rejection list which can be managed for individual entries from within the Contacts list or as a whole from the Call rejection screen.1. From the Home screen, tap . 2. Press and then tap Call settings ➔ Call rejection.3. Tap the Auto reject mode field to configure your automatic rejection settings. Rejected calls are routed automatically to your voicemail. Choose from:•Off: disbales the auto rejection feature.• All numbers: enables the features for all known and unknown numbers, including those contacts that are not assigned to the rejection list.• Auto reject numbers: automatically rejects all entries assigned to the Reject list/Blacklist.Touch andslide in anydirection to Touch and slidein any directionto reject the callTouch and dragupward to rejectwith a messageanswer thecall

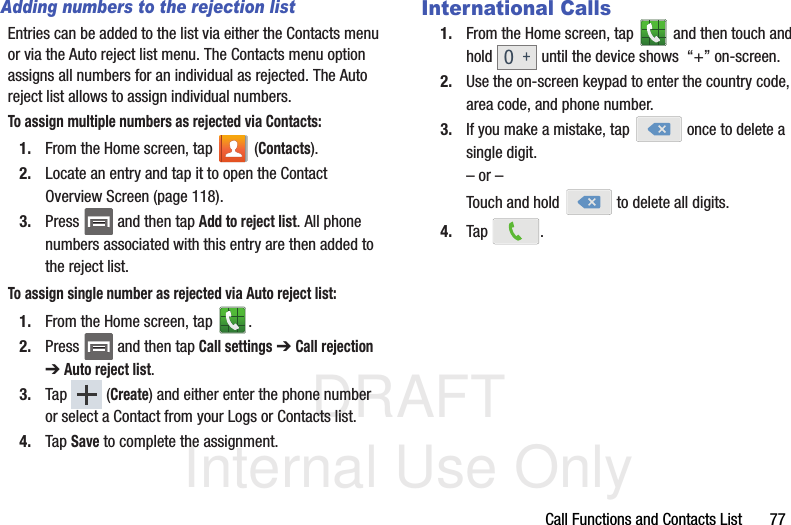

DRAFT Internal Use OnlyCall Functions and Contacts List 77Adding numbers to the rejection listEntries can be added to the list via either the Contacts menu or via the Auto reject list menu. The Contacts menu option assigns all numbers for an individual as rejected. The Auto reject list allows to assign individual numbers.To assign multiple numbers as rejected via Contacts:1. From the Home screen, tap (Contacts).2. Locate an entry and tap it to open the Contact Overview Screen (page 118).3. Press and then tap Add to reject list. All phone numbers associated with this entry are then added to the reject list.To assign single number as rejected via Auto reject list:1. From the Home screen, tap . 2. Press and then tap Call settings ➔ Call rejection ➔ Auto reject list. 3. Tap (Create) and either enter the phone number or select a Contact from your Logs or Contacts list.4. Tap Save to complete the assignment.International Calls1. From the Home screen, tap and then touch and hold until the device shows “+” on-screen.2. Use the on-screen keypad to enter the country code, area code, and phone number.3. If you make a mistake, tap once to delete a single digit.– or –Touch and hold to delete all digits.4. Tap .

DRAFT Internal Use Only78Pause DialingYou can dial or save phone numbers with pauses for use with automated systems, such as voicemail or financial phone numbers.• 2-Second Pause automatically sends the next set of numbers after a two-second pause. This is indicated in the number string as a comma (,).1. From the Home screen, tap and use the on-screen keypad to enter the phone number.2. Press and then tap Add 2-sec pause. This feature adds an automatic two-second pause.3. Use the keypad to enter the additional numbers that will be dialed automatically after the second pause.Tip: You can create pauses longer than three seconds by entering multiple 2 second pauses.4. Tap .Wait DialingInserting a Wait into your dialing sequence means that the phone waits until it hears a dial tone before proceeding with the next sequence of numbers.• Wait sends the next set of numbers only after tapping . This is indicated in the number string as a semicolon (;).Note: Do not add multiple Waits (;) to a number string as this will continue to prompt you after each sequence.1. From the Home screen, tap and use the on-screen keypad to enter the phone number.2. Press and then tap Add wait. This feature causes the phone to require your acceptance before sending the next set of entered digits.3. Tap .4. Once prompted to Send the following tones?, tap to dial the remaining digits.YesYes

DRAFT Internal Use OnlyCall Functions and Contacts List 79Redialing the Last NumberThe device stores the numbers of the calls you’ve dialed, received, or missed if the caller is identified.To recall any of these numbers:1. From the Home screen, tap . 2. Tap the (Logs tab) to display the list of recent calls. 3. Tap the name/number and tap .Speed DialingOnce you have stored phone numbers from your Contacts List, you can set up to 99 speed dial entries (2-100) and then dial them easily whenever you want, simply by touching the associated numeric key.Note: Speed dial location #1 must be reserved for Voicemail use.Setting Up Speed Dial EntriesImportant! Speed dial location #1 is reserved for Voicemail. No other number can be assigned to this slot.1. From the Home screen, tap ➔ (Keypad tab). 2. Press and then tap Speed dial setting. The Speed dial setting screen displays a virtual list of locations with the numbers 2 through 100. 3. Tap an unassigned number slot. The Select contact screen displays.4. Tap a contact and select a number to assign it to the speed dial location. The selected contact number/image is displayed in the speed dial number box.

DRAFT Internal Use Only80Changing a Speed Dial Entry Order1. From the Home screen, tap ➔ (Keypad tab).2. Press and then tap Speed dial setting.Important! The number 1 is reserved for Voicemail and another number cannot be assigned to this slot.3. Press and then tap Change order.4. Tap the current entry then tap the new target speed dial location.Note: Tapping 2 existing speed dial locations causes the entries to switch positions.5. Tap Done. to store the change.6. Press to return to the previous screen.Removing a Speed Dial Entry1. From the Home screen, tap ➔ Keypad tab.2. Press and then tap Speed dial setting.3. Touch and hold a existing on-screen speed dial location and select Remove from the context menu.– or –Press and then tap Remove. Tap an entry and select (Remove entry). Select either Done (to complete the deletion) or Cancel (to exit).4. Press to return to the previous screen.Making a Call Using Speed DialYou can assign a short cut number to a phone number in the Contacts List for speed dialing.1. From the Home screen, tap .2. Touch and hold a previously created speed dial location (numbers 2-100, or 1 if you are dialing voice mail) until the number begins to dial.3. If you are not certain of the speed dial location, tap ➔ ➔ Speed dial setting and tap a speed dial number to view the assigned phone number.

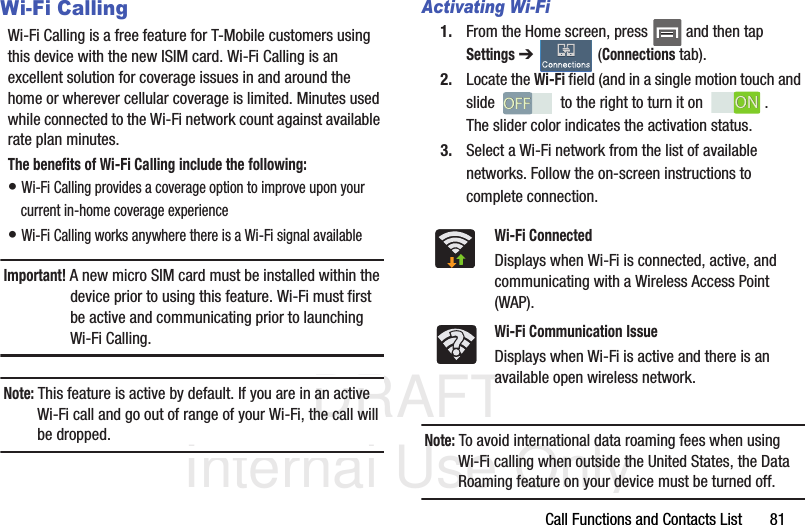

DRAFT Internal Use OnlyCall Functions and Contacts List 81Wi-Fi CallingWi-Fi Calling is a free feature for T-Mobile customers using this device with the new ISIM card. Wi-Fi Calling is an excellent solution for coverage issues in and around the home or wherever cellular coverage is limited. Minutes used while connected to the Wi-Fi network count against available rate plan minutes. The benefits of Wi-Fi Calling include the following:• Wi-Fi Calling provides a coverage option to improve upon your current in-home coverage experience • Wi-Fi Calling works anywhere there is a Wi-Fi signal available Important! A new micro SIM card must be installed within the device prior to using this feature. Wi-Fi must first be active and communicating prior to launching Wi-Fi Calling. Note: This feature is active by default. If you are in an active Wi-Fi call and go out of range of your Wi-Fi, the call will be dropped.Activating Wi-Fi1. From the Home screen, press and then tap Settings ➔ (Connections tab).2. Locate the Wi-Fi field (and in a single motion touch and slide to the right to turn it on . The slider color indicates the activation status.3. Select a Wi-Fi network from the list of available networks. Follow the on-screen instructions to complete connection. Note: To avoid international data roaming fees when using Wi-Fi calling when outside the United States, the Data Roaming feature on your device must be turned off.Wi-Fi ConnectedDisplays when Wi-Fi is connected, active, and communicating with a Wireless Access Point (WAP).Wi-Fi Communication IssueDisplays when Wi-Fi is active and there is an available open wireless network.OFFOFFONON

DRAFT Internal Use OnlyCall Functions and Contacts List 837. Tap OK to save the setting.8. From the Home screen, press and then tap Settings ➔ Connections tab ➔ More settings. 9. Tap Wi-Fi Calling slider to toggle off the feature, then tap it again to reactivate the feature and re-register your device with the T-Mobile Network.10. Confirm (Wi-Fi Calling Ready) displays in the Status Bar.Launching Wi-Fi CallingNote: Verify you are currently connected to a Wireless Access Point.1. Ensure that the Wi-Fi connected icon displays on the status bar. 2. Confirm (Wi-Fi Calling Ready) displays in the Status Bar. 3. Use the phone Dialer, Logs, or Contacts list to make a call. 4. Go to the dialer and make a call. Make sure (Wi-Fi Calling in use) appears during the call. While Wi-Fi Calling mode is active, the call button shows a Wi-Fi indicator .When Wi-Fi Calling is disabled, the call button goes back to show normal operation .When Action Then Displays on the screen status bar.You are connected to the T-Mobile network and can make Wi-Fi calls.Displays on the screen status bar.The Wi-Fi calling feature is active and in use within an active call.Does not display on the screen status bar.You are charged normal calling rate minutes. For more information, refer to “Activating Wi-Fi Calling” on page 82. Displays on the screen status bar.There is an error in the use or 911 registration of the Wi-Fi Calling feature.

DRAFT Internal Use Only84In Call OptionsYour device provides a number of features that are available for use during a call.Note: Noise reduction and Extra volume features are disabled while using Wi-Fi Calling.Adjusting the Call VolumeDuring a call, use the Volume keys on the left side of the device, to adjust the earpiece volume. During a call, press the Up volume key to increase the volume level and the Down volume key to decrease the level.– or –Adjust the audio by enabling selecting an audio preset. Tap the on-screen Personalize call sound button select an equalizer setting for the incoming call. •Enabled/disabled via the Call settings menu (Call settings ➔ Personalize call sound). For more information, refer to “Configuring General Call Settings” on page 305.– or –Quickly add more volume to the incoming audio by tapping the on-screen Extra volume buttonFrom the Home screen, you can also adjust the ring volume using these keys.DialerAdds aActivates orDeactivatesEnds thecallPlaces acall on holdMutes or UnmutesActivates orDeactivatesBluetooththe call Headset speakerphonePersonalizedcall soundnew callNoiseReductionCall durationExtra volume

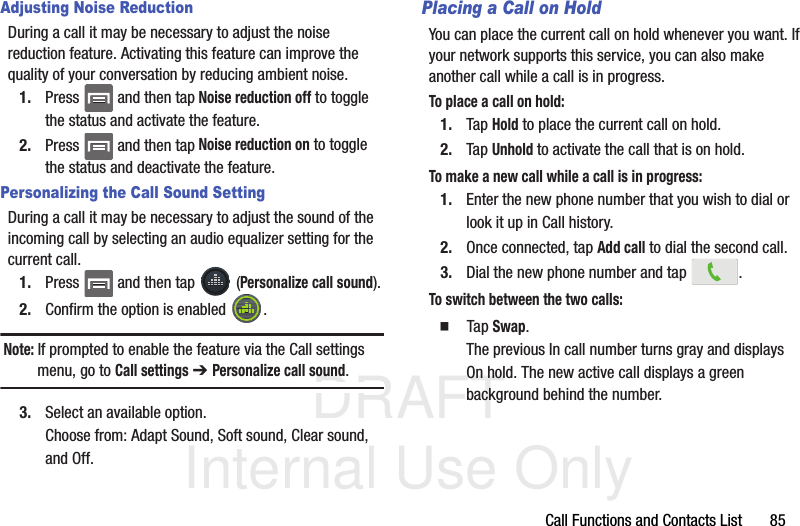

DRAFT Internal Use OnlyCall Functions and Contacts List 85Adjusting Noise ReductionDuring a call it may be necessary to adjust the noise reduction feature. Activating this feature can improve the quality of your conversation by reducing ambient noise.1. Press and then tap Noise reduction off to toggle the status and activate the feature.2. Press and then tap Noise reduction on to toggle the status and deactivate the feature.Personalizing the Call Sound SettingDuring a call it may be necessary to adjust the sound of the incoming call by selecting an audio equalizer setting for the current call.1. Press and then tap (Personalize call sound).2. Confirm the option is enabled . Note: If prompted to enable the feature via the Call settings menu, go to Call settings ➔ Personalize call sound.3. Select an available option. Choose from: Adapt Sound, Soft sound, Clear sound, and Off.Placing a Call on HoldYou can place the current call on hold whenever you want. If your network supports this service, you can also make another call while a call is in progress.To place a call on hold:1. Tap Hold to place the current call on hold.2. Tap Unhold to activate the call that is on hold.To make a new call while a call is in progress:1. Enter the new phone number that you wish to dial or look it up in Call history.2. Once connected, tap Add call to dial the second call.3. Dial the new phone number and tap .To switch between the two calls: Tap Swap.The previous In call number turns gray and displays On hold. The new active call displays a green background behind the number.

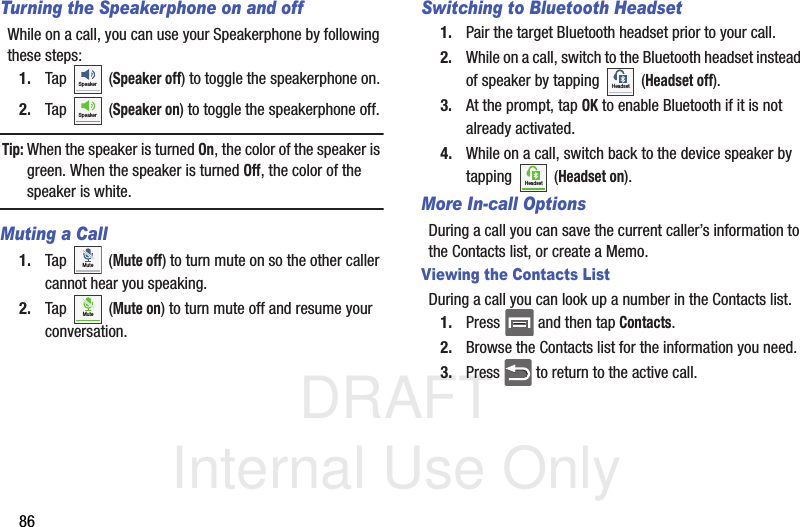

DRAFT Internal Use Only86Turning the Speakerphone on and offWhile on a call, you can use your Speakerphone by following these steps:1. Tap (Speaker off) to toggle the speakerphone on.2. Tap (Speaker on) to toggle the speakerphone off.Tip: When the speaker is turned On, the color of the speaker is green. When the speaker is turned Off, the color of the speaker is white.Muting a Call1. Tap (Mute off) to turn mute on so the other caller cannot hear you speaking.2. Tap (Mute on) to turn mute off and resume your conversation.Switching to Bluetooth Headset1. Pair the target Bluetooth headset prior to your call.2. While on a call, switch to the Bluetooth headset instead of speaker by tapping (Headset off).3. At the prompt, tap OK to enable Bluetooth if it is not already activated.4. While on a call, switch back to the device speaker by tapping (Headset on).More In-call OptionsDuring a call you can save the current caller’s information to the Contacts list, or create a Memo.Viewing the Contacts ListDuring a call you can look up a number in the Contacts list.1. Press and then tap Contacts.2. Browse the Contacts list for the information you need.3. Press to return to the active call.SpeakerSpeakerMuteMuteHeadsetHeadset

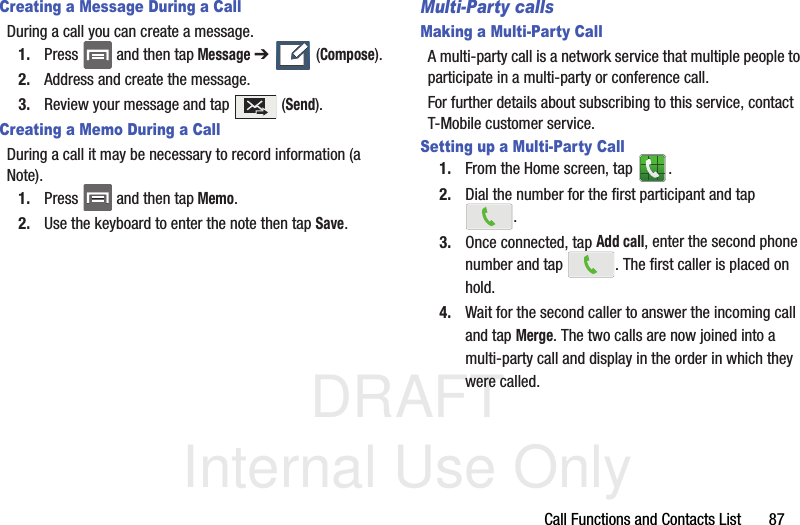

DRAFT Internal Use OnlyCall Functions and Contacts List 87Creating a Message During a CallDuring a call you can create a message.1. Press and then tap Message ➔ (Compose).2. Address and create the message.3. Review your message and tap (Send).Creating a Memo During a CallDuring a call it may be necessary to record information (a Note).1. Press and then tap Memo.2. Use the keyboard to enter the note then tap Save.Multi-Party callsMaking a Multi-Party CallA multi-party call is a network service that multiple people to participate in a multi-party or conference call.For further details about subscribing to this service, contact T-Mobile customer service.Setting up a Multi-Party Call1. From the Home screen, tap .2. Dial the number for the first participant and tap .3. Once connected, tap Add call, enter the second phone number and tap . The first caller is placed on hold.4. Wait for the second caller to answer the incoming call and tap Merge. The two calls are now joined into a multi-party call and display in the order in which they were called.

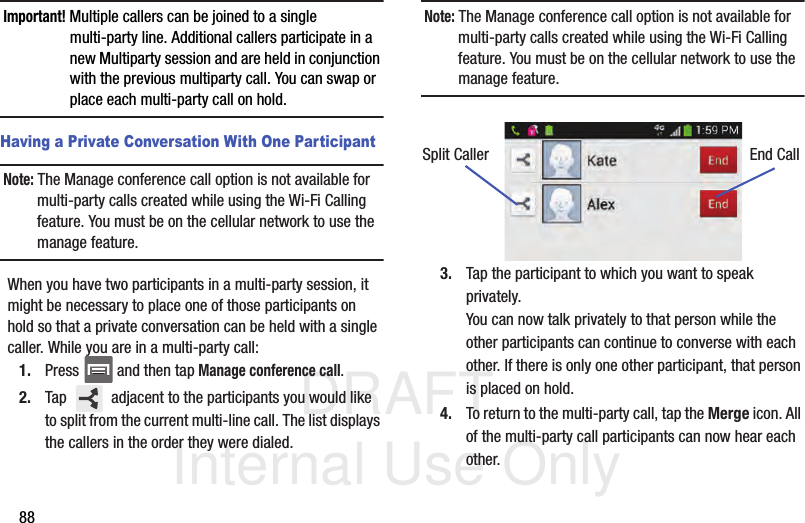

DRAFT Internal Use Only88Important! Multiple callers can be joined to a single multi-party line. Additional callers participate in a new Multiparty session and are held in conjunction with the previous multiparty call. You can swap or place each multi-party call on hold.Having a Private Conversation With One ParticipantNote: The Manage conference call option is not available for multi-party calls created while using the Wi-Fi Calling feature. You must be on the cellular network to use the manage feature.When you have two participants in a multi-party session, it might be necessary to place one of those participants on hold so that a private conversation can be held with a single caller. While you are in a multi-party call:1. Press and then tap Manage conference call. 2. Tap adjacent to the participants you would like to split from the current multi-line call. The list displays the callers in the order they were dialed. Note: The Manage conference call option is not available for multi-party calls created while using the Wi-Fi Calling feature. You must be on the cellular network to use the manage feature.3. Tap the participant to which you want to speak privately.You can now talk privately to that person while the other participants can continue to converse with each other. If there is only one other participant, that person is placed on hold.4. To return to the multi-party call, tap the Merge icon. All of the multi-party call participants can now hear each other.Split Caller End Call

DRAFT Internal Use OnlyCall Functions and Contacts List 89Dropping One Participant1. Press and then tap Manage conference call ➔ to the right of the number to drop.The participant is disconnected and you can continue the call with the other participant.2. Tap to end your conversation with the remaining caller.Call WaitingYou can answer an incoming call while you have a call in progress, if this service is supported by the network and you have previously set the Call waiting option to Activate. You are notified of an incoming call by a call waiting tone. For more information, refer to “Configuring Additional Voice Call Settings” on page 310.To answer a new call while you have a call in progress:1. In a single motion, touch and slide it in any direction to answer the new incoming call. 2. Tap an option from the Accept call after menu:• Putting xxx on hold to place the previous caller on hold while you answer the new incoming call.• Ending call with xxx to end the previous call and answer the new call.Note: The new caller appears at the top of the list. The previous caller is placed on hold and appears at the bottom of the list.3. Tap Swap to switch between the two calls. This places the new caller on hold and activates the previous call. Important! The currently active call is displayed with a green background.4. Tap Swap again to switch back.End

DRAFT Internal Use Only90Using S VoiceThis is a voice recognition application used to activate a wide variety of functions on your device. This is a natural language recognition application. This goes beyond the Google Search Voice Actions feature that simply recognizes Google commands and search terms. You can ask it questions (Is it raining in Dallas?) or give it commands (Show my where to find cheap gas).1. From the Home screen, tap (Apps) ➔ (S Voice).2. Read the on-screen disclaimer information and tap Confirm to continue.3. Review the Terms of Service and tap Agree to continue.4. Navigate through the following on-screen tutorial screens by reading the information and tapping Next, or tap Skip to continue without reading the information.5. Wake up the application by repeating the phrase Hi Galaxy.Note: The wake-up command/phrase can be changed from “Hi Galaxy” to anything else. 6. Tap (Speak) if the device does not hear you or to give it a command.Example 1:•I want to find the best pizza online.•Tap and say “Find me the best Pizza”. This launches an Internet search.Example 2:•I want to go to Cambridge.•Tap and say “Navigate to Cambridge”. This launches the Map application and indicates where these are in relation to your current position.

DRAFT Internal Use OnlyCall Functions and Contacts List 91Logs TabThe Logs tab is a list of the phone numbers (or Contacts entries) for calls you placed, accepted, or missed. The Logs tab makes redialing a number fast and easy. It is continually updated as your device automatically adds new numbers to the beginning of the list and removes the oldest entries from the bottom of the list. The Notification area of the Home screen (upper-left) displays phone notifications, status, or alerts such as: Accessing the Logs Tab1. From the Home screen, tap ➔ (Logs tab).2. Tap an entry to view available options.Note: The Logs tab only records calls that occur while the phone is turned on. If a call is received while it is turned off, it will not be included in your calling history.Each entry contains the phone number (if it is available) and Contacts entry name (if the number is in your Contacts). Displays when a call is in progress.Displays when a call was missed.Indicates all outgoing calls made from your device.Indicates any received calls that were answered.Indicates a missed call.Indicates any received calls that were rejected.Indicates auto rejected calls.

DRAFT Internal Use Only92Accessing Call log from The Notifications Area1. Locate from the Notifications area of the Status bar. 2. Tap the Status bar to reveal the Notifications tab, and then drag the tab to the bottom of the screen to open the Notifications panel.3. Tap the Missed call entry to open the Logs screen. This list provides easy access to redial an entry, or you can also choose to access two types of history entry lists depending on how they are touched. Call logs - Caller Overview • Tap a contact entry name or number to reveal the Call options screen:• Create contact to save the number if it is not already in your Contacts.•View contact to view the Contact details for the current entry.•Update existing to update an existing Contacts entry with the current number.•Call allows you to redial the entry by name or number.• Send message allows you to create a new text message to the selected entry.•Time provides the time and date of the call and its duration.• Copy to dialing screen press to pass the current number to your dialer and then edit the selected number before you place your next outbound call.•Delete press to delete the Contacts entry.• Send number press to send the current Contacts entry information to an external recipient.• Add to reject list press to add the current phone number to an automatic rejection list. Similar to a block list, the selected caller will be blocked from making an incoming calls to your phone.• Touch and hold an entry to display the entry-specific context menu:• Copy to dialing screen to make alterations to the current phone number prior to redial. • Add to Contacts to save the number if it is not already in your Contacts.•View contact to view the information for the currently stored Contacts entry.• Send number to send the current Contacts entry information to an external recipient.

DRAFT Internal Use OnlyCall Functions and Contacts List 93• Add to reject list to add the current phone number to an automatic rejection list. Similar to a block list, the selected caller will be blocked from making an incoming calls to your phone.•Delete to delete the entry from the Logs list.Altering Numbers from the Logs ListIf you need to make a call from the Logs screen and you need to alter the number prior to dialing, you can add the appropriate prefix by prepending the number.1. From the Home screen, tap ➔ (Logs tab).2. Touch and hold an entry to access the entry-specific context menu.3. Tap Copy to dialing screen.4. Edit the number using the on-screen keypad or delete digits by pressing to erase the numbers.5. Tap once the number has been changed.Erasing the Call logs ListYou can delete either an individual call log entry or all current entries from the Logs list.To clear a single entry from the list:1. From the Home screen, tap ➔ (Logs tab).2. Touch and hold an entry and select Delete ➔ Delete.To clear all entries from the list:1. From the Home screen, tap ➔ (Logs tab).2. Press and then tap Delete.3. Tap Select all.4. Tap Delete ➔ Delete to continue with the erasure.– or –Tap Cancel to stop the current process.

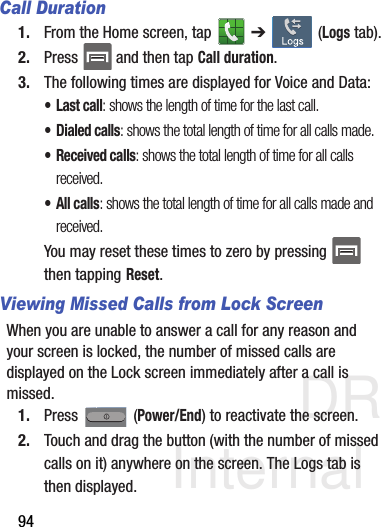

DRAFT Internal Use Only94Call Duration1. From the Home screen, tap ➔ (Logs tab).2. Press and then tap Call duration.3. The following times are displayed for Voice and Data: •Last call: shows the length of time for the last call.• Dialed calls: shows the total length of time for all calls made.• Received calls: shows the total length of time for all calls received.• All calls: shows the total length of time for all calls made and received.You may reset these times to zero by pressing then tapping Reset.Viewing Missed Calls from Lock ScreenWhen you are unable to answer a call for any reason and your screen is locked, the number of missed calls are displayed on the Lock screen immediately after a call is missed.1. Press (Power/End) to reactivate the screen.2. Touch and drag the button (with the number of missed calls on it) anywhere on the screen. The Logs tab is then displayed.

DRAFT Internal Use OnlyEntering Text 95Section 5: Entering TextThis section describes how to select the desired text input method when entering characters into your device. This section also describes the predictive text entry system that reduces the amount of key strokes associated with entering text.Your device comes equipped with an orientation detector that can tell if the phone is being held in an upright (Portrait) or sideways (Landscape) orientation. This is useful when entering text.Your device also provides several on-screen keypad text entry options to make the task of text entry that much easier.Text Input MethodsThere are three text input methods available:• Google voice typing: provides a voice to text interface.• Samsung keyboard (default): an on-screen QWERTY keyboard that can be used in both portrait and landscape orientation.• Swype: is enabled so as you can enter text as you swipe across the on-screen keyboard. Instead of tapping each key, use your finger to trace over each letter of a word.The on-screen QWERTY keypad works the same in both portrait and landscape mode.Selecting the Text Input MethodThe Text Input Method can be assigned from within one of two locations:Settings Menu: From the Home screen, press and then tap Settings ➔ (My device tab) ➔ Language and input ➔ Default and select an input method.Text Input field:1. From a screen where you can enter text, in a single motion, touch and drag the Status bar down to the bottom of the screen to open the Notifications screen.2. Tap (Choose input method) and select an available input method. My device

DRAFT Internal Use Only96Entering Text Using SwypeSwype™ is the default text input method that allows you to enter a word by sliding your finger or stylus from letter to letter, lifting your finger between words. Swype uses error correcting algorithms and a language model to predict the next word. Swype also includes a touch predictive text system.The on-screen keyboard options are different between the Android keyboard and Swype on-screen input methods.Note: During its initial use, you may be prompted by a series of Swype Connect set up screens. Follow the initial on-screen set up instructions.Enabling and Configuring SwypeIf you configure another text input method (Samsung keyboard) you must re-enable Swype before using the Swype keyboard.When Swype is enabled there can also be normal keyboard functionality.1. From the Home screen, press and then tap Settings ➔ My device tab ➔ Language and input.2. Tap Default ➔ Swype.Swype SettingsTo configure Swype settings:1. From the Home screen, press and then tap Settings ➔ My device tab ➔ Language and input ➔ (adjacent to the Swype field).2. Tap How to Swype to view an on-screen manual for Swype.3. Tap Gestures to view an on-screen reference page related to Gesture usage.4. Tap Preferences to alter these settings:• Vibrate on keypress: activates a vibration sensation as you enter text using the keypad.• Sound on keypress: turns on sounds generated by the Swype application.• Show helpful tips: turns on a flashing indicator for quick help.

DRAFT Internal Use OnlyEntering Text 97•Auto-spacing: automatically inserts a space between words. When you finish a word, just lift your finger or stylus and start the next word.•Auto-capitalization: automatically capitalizes the first letter of a sentence.• Show complete trace: once enabled, sets wether or not to display the complete Swype path.• Pop-up on keypress: once enabled, displays a character above an on-screen key while typing.• Next word prediction: once enabled, predicts the next word in your text string based on your current text entries.Note: If incorrect words are being entered as you type, disabled this feature.• Reset Swype’s dictionary: once enabled, deletes any words you have added to Swype’s dictionary.•Version: displays the software version information.5. Tap Language Options to activate and select the current text input language. Default language is US English.• Living language: allows you to automatically update Swype with popular new words. Tap Accept to continue the process.6. Tap Swype Connect to activate social media personalization and configure data settings.•Register now: allows you register for the Swype Connect service which allows you to backup your Swype dictionary and sync your Swype dictionary across multiple devices.–Follow the on-screen instructions to backup and sync your dictionary based on an email address.–Enter the activation code received after your email has been confirmed.• Backup & Sync: when active, allows you to backup your Swype dictionary and sync your Swype dictionary across multiple devices.• Contribute usage data: when enabled, allows the Nuance® application to collect usage data for better word predictions.• Cellular data: when enabled, activates cellular data usage by the Swype application so it can receive program updates, language downloads, and other related features via your existing data connection.

DRAFT Internal Use Only987. Tap Personalization to access and manage your personal dictionary. Log into the available accounts to add help personalize your personal dictionary with commonly used words or names from your available accounts.• Edit Dictionary: allows you to edit your current personal Swype dictionary.• Facebook: allows you to log into your current Facebook account from where contact names are added to your Swype’s personal dictionary for later use when you enter names into text fields. Helps recognize familiar names.• Twitter: allows you to sign into your existing Twitter account from where names and words are added to your personal dictionary. Helps recognize familiar names and words.•Gmail: allows you to sign in to your existing Gmail account from where existing contact information is added to your personal dictionary. Helps recognize familiar names.8. Tap Updates to update the application if new software is available.Swype Text Entry TipsYou can access the SwypeTips application and watch a video or tutorial on using Swype. You can also use the following Swype text entry tips. • Create a squiggle (like an S shape) to create a double letter (such as pp in apple).• Touch and hold a key to view the punctuation menu then make a selection.• Move your finger or stylus over the apostrophe to enter contractions.• Double-touch on the word you want to change to correct a misspelled word, then touch the delete key to erase one character. Touch and hold the delete key to erase an entire word.

DRAFT Internal Use OnlyEntering Text 99Selecting a Text Input Mode in Swype1. From a screen where you can enter text, tap the text input field to reveal the on-screen keyboard.2. With Swype as your text entry method, select one of the following text mode options:•ABC to use Swype with alphanumeric characters from the on-screen keyboard. •SYM (Symbol) to enter numbers and symbols from the on-screen keyboard.Note: After typing an initial uppercase character, the key changes to and all letters that follow are in lower case.Swype Keyboard Overview• Recipients: a field where you can enter the recipients of the current message. You can choose from Groups, Favorites, Contacts, or Logs.• Text Input field: a field where text, number, or other characters can be entered.•CAPS/ALT key: When in 123ABC mode, this key changes the capitalization of the subsequent entered characters. When in SYM mode, this key can show additional symbol characters.•SWYPE settings: Touch and hold this button to access the Swype settings screen. • Text Input mode: There are two available modes: 123ABC and SYM.–123ABC mode contains alphanumeric characters and a few common punctuation marks. Text mode button indicates SYM.–SYM mode contains only symbols and numbers. Text mode button indicates 123ABC.EditABC123+!=

DRAFT Internal Use Only100Using 123ABC Mode in SWYPEIn 123ABC mode, you can enter only letters and a few common punctuation marks from the on-screen keyboard. The text mode key shows .1. From a screen where you can enter text, tap the text input field to reveal the on-screen keyboard.2. Tap to configure the keyboard for 123ABC mode (showing letters and numbers on the on-screen keys). Once in this mode, the text input type shows .Note: After typing an initial uppercase character, the key changes to and all letters that follow are in lower case.3. Swipe your finger continuously over the letters to form a word.–If you make a mistake, tap to erase a single character. Touch and hold to erase an entire word.4. Tap (Send) to deliver the message.Text input fieldCAPS/ALTText Input modeDeleteCurrentSWYPE SettingskeyRecipientsModeSuggestions123+!=EditABC123+!=

DRAFT Internal Use OnlyEntering Text 101 By default, the first letter of an entry is capitalized and the following letters are lower case. After a word is entered and you lift your finger, the cursor automatically adds a space after the word.Note: If multiple word choices exist for your Swype entry, an on-screen popup appears to provide additional word choices.Entering Numbers and Symbols in SWYPEBy using the on-screen keyboard in portrait mode, some symbols are not available (such as Emoticons or Smileys). In SYM mode using Swype, you can only enter symbols and numbers from the on-screen keyboard. Once in SYM mode, the text mode key shows .1. From a screen where you can enter text, tap the text input field to reveal the on-screen keyboard.2. Tap to configure the keyboard for SYM mode. Once in this mode, the text input type shows .3. Tap the on-screen key for the number or symbol you want to enter.4. Tap to select from additional symbols.For example:•To enter ®: tap ➔ and select the ® key. All lowercaseDisplays when the next character is entered in lowercase. Pressing this while in 123SYM mode, reveals additional numeric-symbols keys.Initial UppercaseDisplays when the first character of each word is entered as uppercase but all subsequent characters are lowercase.All UppercaseDisplays when all characters will be entered as uppercase characters.EditABC123+!=EditABC21123+!=21

DRAFT Internal Use Only102Using the Samsung KeyboardThis QWERTY keyboard can be used to enter text in either a Portrait or landscape orientation. The only difference between the two orientations are the sizes of the keys. From a screen where you enter text, rotate your phone counterclockwise to a landscape orientation. The on-screen QWERTY keyboard displays.The Samsung KeyboardThis device has a built-in, QWERTY keypad (portrait mode) or keyboard (landscape mode). Using the QWERTY keypad/ keyboard, you can type letter, numbers, punctuation, and other characters.To use the Samsung keyboard you must first configure the settings to default to the Samsung keyboard.1. From the Home screen, press and then tap Settings ➔ (My device tab) ➔ Language and input ➔ Default ➔ Samsung keyboard.– or –From a screen where you can enter text, in a single motion, touch and drag the Status bar down to the bottom of the screen, then select (Choose input method) ➔ Samsung keyboard.2. The virtual keyboard is then assigned to the Samsung keyboard configuration for all subsequent text input. My deviceText input fieldShift keyInput ModeInput OptionsDeleteCurrent ModeIndicator Send/Settings

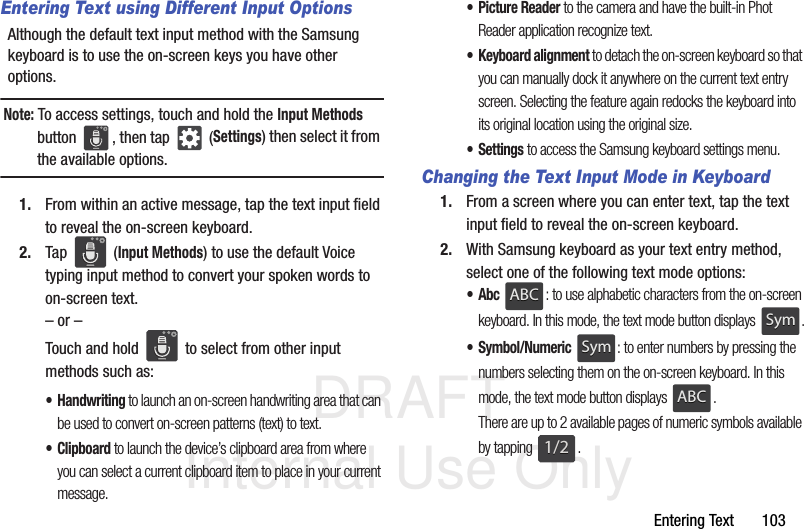

DRAFT Internal Use OnlyEntering Text 103Entering Text using Different Input OptionsAlthough the default text input method with the Samsung keyboard is to use the on-screen keys you have other options.Note: To access settings, touch and hold the Input Methods button , then tap (Settings) then select it from the available options.1. From within an active message, tap the text input field to reveal the on-screen keyboard.2. Tap (Input Methods) to use the default Voice typing input method to convert your spoken words to on-screen text.– or –Touch and hold to select from other input methods such as:• Handwriting to launch an on-screen handwriting area that can be used to convert on-screen patterns (text) to text.•Clipboard to launch the device’s clipboard area from where you can select a current clipboard item to place in your current message.• Picture Reader to the camera and have the built-in Phot Reader application recognize text.• Keyboard alignment to detach the on-screen keyboard so that you can manually dock it anywhere on the current text entry screen. Selecting the feature again redocks the keyboard into its original location using the original size.•Settings to access the Samsung keyboard settings menu.Changing the Text Input Mode in Keyboard1. From a screen where you can enter text, tap the text input field to reveal the on-screen keyboard.2. With Samsung keyboard as your text entry method, select one of the following text mode options:•Abc : to use alphabetic characters from the on-screen keyboard. In this mode, the text mode button displays .•Symbol/Numeric : to enter numbers by pressing the numbers selecting them on the on-screen keyboard. In this mode, the text mode button displays . There are up to 2 available pages of numeric symbols available by tapping .ABCABCSymSymSymSymABCABC1/21/2

DRAFT Internal Use Only104Note: After typing an initial uppercase character, tap to toggle capitalization. By default, the first letter of a new entry is capitalized and the following letters are lowercased. After a character is entered, the cursor automatically advances to the next space.Using ABC Mode in Samsung Keyboard1. From a screen where you can enter text, tap the text input field to reveal the on-screen keyboard.2. Tap to configure the keyboard for ABC mode. Once in this mode, the text input type shows .Note: After typing an initial uppercase character, the key changes to and all letters that follow are in lower case.3. Enter your text using the on-screen keyboard.–If you make a mistake, tap to erase a single character. Touch and hold to erase an entire word.4. Tap (Send) to deliver the message.All lowercaseDisplays when the next character is entered in lowercase.Initial UppercaseDisplays when the first character of each word is entered as uppercase but all subsequent characters are lowercase.All UppercaseDisplays when all characters will be entered as uppercase characters.ABCABCSymSym

DRAFT Internal Use OnlyEntering Text 105Using Symbol/Numeric ModeUse the Symbol/Numeric Mode to add numbers, symbols, or emoticons. While in this mode, the text mode key displays .1. From a screen where you can enter text, tap the text input field to reveal the on-screen keyboard. Rotate the phone counterclockwise to a landscape orientation, if desired.2. Tap to configure the keyboard for Symbol mode. Once in this mode, the text input type shows . 3. Tap a number, symbol, or emoticon character.4. Tap to return to ABC mode.To enter symbols:1. Tap to configure the keyboard for Symbol mode.2. Tap the appropriate symbol key.– or –Tap button to cycle through additional pages.•The first number on this key indicates which page (1 or 2) of additional characters is active.Samsung Keyboard Settings1. From the Home screen, press and then tap Settings ➔ (My device tab) ➔ Language and input ➔ (adjacent to the Samsung keyboard field).– or –From within an active text entry screen, touch and hold (Input Methods), drag across the icons, and select (Settings) to reveal the Samsung keyboard settings screen.2. Set any of the following options:• Portrait keyboard types allows you to choose a keyboard configuration (Qwerty keyboard [default] or 3x4 keyboard).• Input language sets the input language. Tap a language from the available list. The keyboard is updated to the selected language.• Predictive text enables predictive text entry mode. This must be enabled to gain access to the advanced settings. Touch and hold to access the advanced settings.ABCABCSymSymABCABCABCABCSymSym1/21/2My device

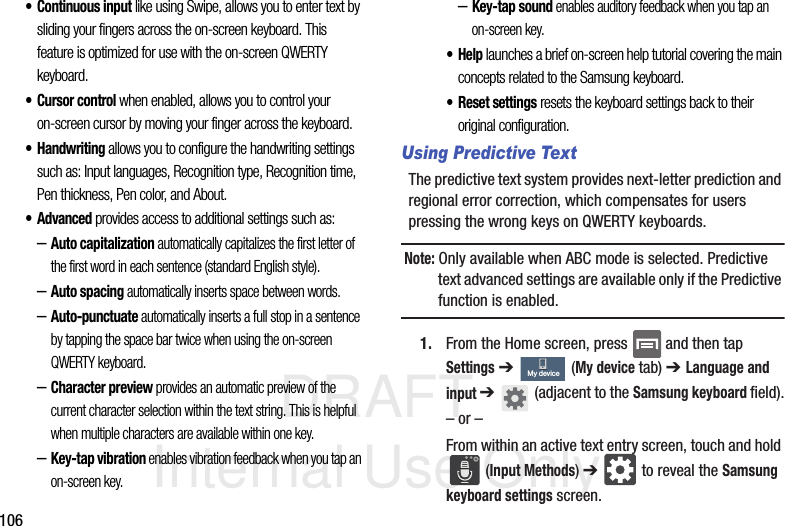

DRAFT Internal Use Only106• Continuous input like using Swipe, allows you to enter text by sliding your fingers across the on-screen keyboard. This feature is optimized for use with the on-screen QWERTY keyboard. • Cursor control when enabled, allows you to control your on-screen cursor by moving your finger across the keyboard.• Handwriting allows you to configure the handwriting settings such as: Input languages, Recognition type, Recognition time, Pen thickness, Pen color, and About. • Advanced provides access to additional settings such as: –Auto capitalization automatically capitalizes the first letter of the first word in each sentence (standard English style). –Auto spacing automatically inserts space between words.–Auto-punctuate automatically inserts a full stop in a sentence by tapping the space bar twice when using the on-screen QWERTY keyboard. –Character preview provides an automatic preview of the current character selection within the text string. This is helpful when multiple characters are available within one key.–Key-tap vibration enables vibration feedback when you tap an on-screen key.–Key-tap sound enables auditory feedback when you tap an on-screen key.•Help launches a brief on-screen help tutorial covering the main concepts related to the Samsung keyboard.• Reset settings resets the keyboard settings back to their original configuration.Using Predictive TextThe predictive text system provides next-letter prediction and regional error correction, which compensates for users pressing the wrong keys on QWERTY keyboards.Note: Only available when ABC mode is selected. Predictive text advanced settings are available only if the Predictive function is enabled.1. From the Home screen, press and then tap Settings ➔ (My device tab) ➔ Language and input ➔ (adjacent to the Samsung keyboard field).– or –From within an active text entry screen, touch and hold (Input Methods) ➔ to reveal the Samsung keyboard settings screen.My device

DRAFT Internal Use OnlyEntering Text 1072. In a single motion touch and slide the Predictive text slider to the right to turn it on . 3. Tap the Predictive text field and configure any of the following advanced options:• Personalized data activate this feature to use the personal language data that you have entered and selected to make your text entry prediction results better. By enabling this feature you can choose from the following personalization features:• Learn from Facebook allows you to log into your current Facebook account and add used text to your personal dictionary. •Learn from Gmail: allows you to sign in to your existing Gmail account from where your style and existing contact information is added to your personal dictionary. Helps recognize familiar names.• Learn from Twitter allows you to sign into your existing Twitter account and add used text to your personal dictionary. • Learn from Messaging allows your device to learn your messaging style by using your Messaging information.• Learn from Contacts updates predictive style by learning your Contacts style.• Clear remote data allows you to delete your anonymous data stored on the personlaization server.• Clear personalized data removes all personalized data entered by the user.4. Press to return to the previous screen.Using the Google Voice TypingThis feature uses Google voice recognition to convert your spoken words into on-screen text. You can use your voice to enter text using the Google Voice typing feature.1. From the keyboard, touch the top of the screen and drag it down to display your notification panel.2. Tap (Choose input method) ➔ Google voice typing.3. At the Listening prompt (Speak now), speak clearly and distinctly into the microphone. The text is displayed in the message as you are speaking. ONON

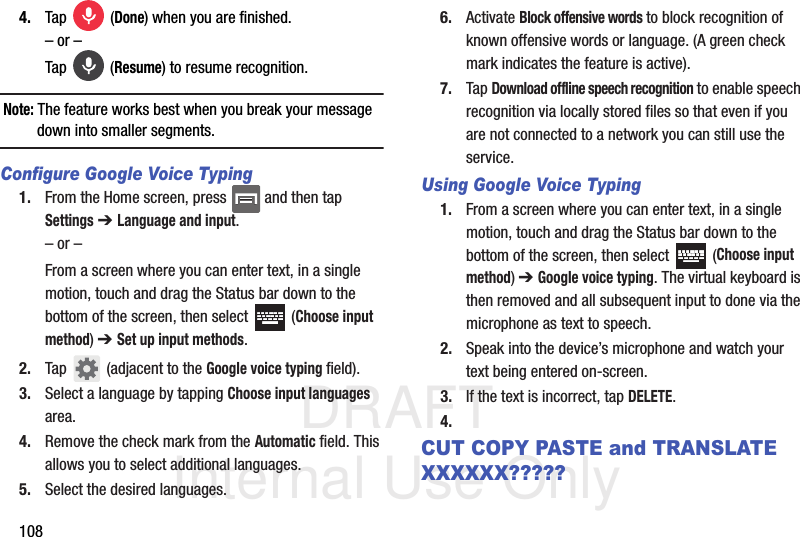

DRAFT Internal Use Only1084. Tap (Done) when you are finished.– or –Tap (Resume) to resume recognition.Note: The feature works best when you break your message down into smaller segments.Configure Google Voice Typing1. From the Home screen, press and then tap Settings ➔ Language and input.– or –From a screen where you can enter text, in a single motion, touch and drag the Status bar down to the bottom of the screen, then select (Choose input method) ➔ Set up input methods.2. Tap (adjacent to the Google voice typing field).3. Select a language by tapping Choose input languages area.4. Remove the check mark from the Automatic field. This allows you to select additional languages.5. Select the desired languages.6. Activate Block offensive words to block recognition of known offensive words or language. (A green check mark indicates the feature is active).7. Tap Download offline speech recognition to enable speech recognition via locally stored files so that even if you are not connected to a network you can still use the service.Using Google Voice Typing1. From a screen where you can enter text, in a single motion, touch and drag the Status bar down to the bottom of the screen, then select (Choose input method) ➔ Google voice typing. The virtual keyboard is then removed and all subsequent input to done via the microphone as text to speech.2. Speak into the device’s microphone and watch your text being entered on-screen.3. If the text is incorrect, tap DELETE.4.CUT COPY PASTE and TRANSLATE XXXXXX?????
