Samsung Electronics Co SGHT609 Dual-Band GSM/ EDGE Phone with Bluetooth User Manual 2

Samsung Electronics Co Ltd Dual-Band GSM/ EDGE Phone with Bluetooth Users Manual 2

Contents

Users Manual 2

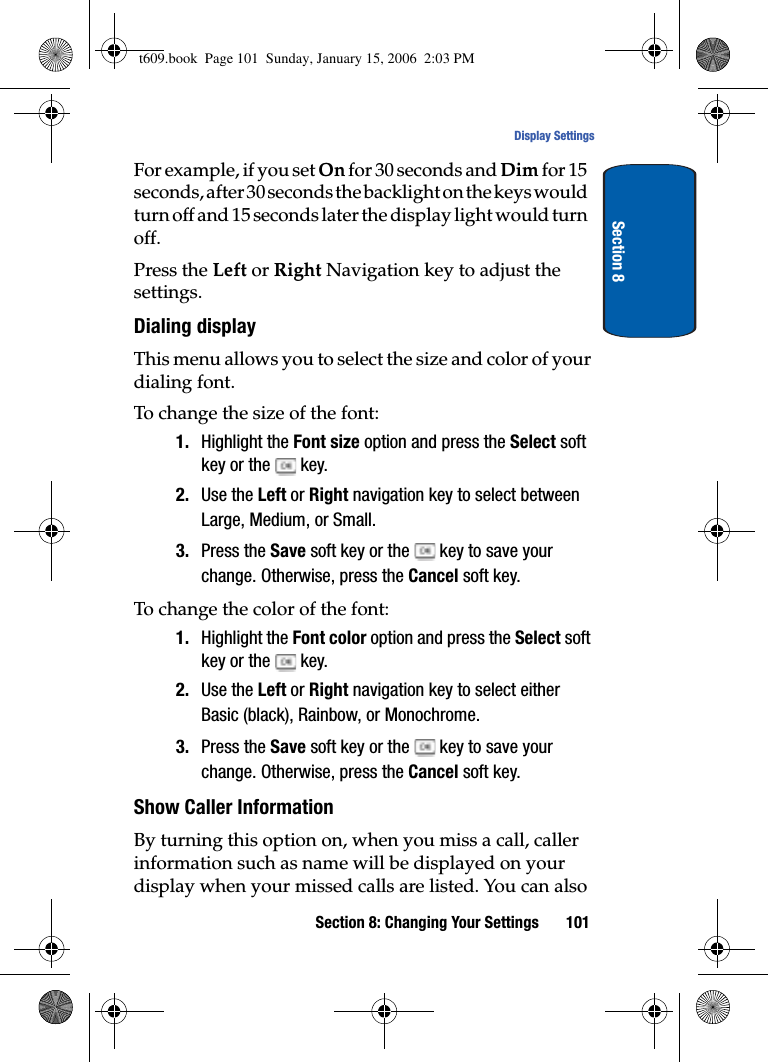

Section 8: Changing Your Settings 101Display SettingsSection 8For example, if you set On for 30 seconds and Dim for 15 seconds, after 30 seconds the backlight on the keys would turn off and 15 seconds later the display light would turn off.Press the Left or Right Navigation key to adjust the settings.Dialing displayThis menu allows you to select the size and color of your dialing font.To change the size of the font:1. Highlight the Font size option and press the Select soft key or the key.2. Use the Left or Right navigation key to select between Large, Medium, or Small.3. Press the Save soft key or the key to save your change. Otherwise, press the Cancel soft key.To change the color of the font:1. Highlight the Font color option and press the Select soft key or the key.2. Use the Left or Right navigation key to select either Basic (black), Rainbow, or Monochrome.3. Press the Save soft key or the key to save your change. Otherwise, press the Cancel soft key.Show Caller InformationBy turning this option on, when you miss a call, caller information such as name will be displayed on your display when your missed calls are listed. You can also t609.book Page 101 Sunday, January 15, 2006 2:03 PM

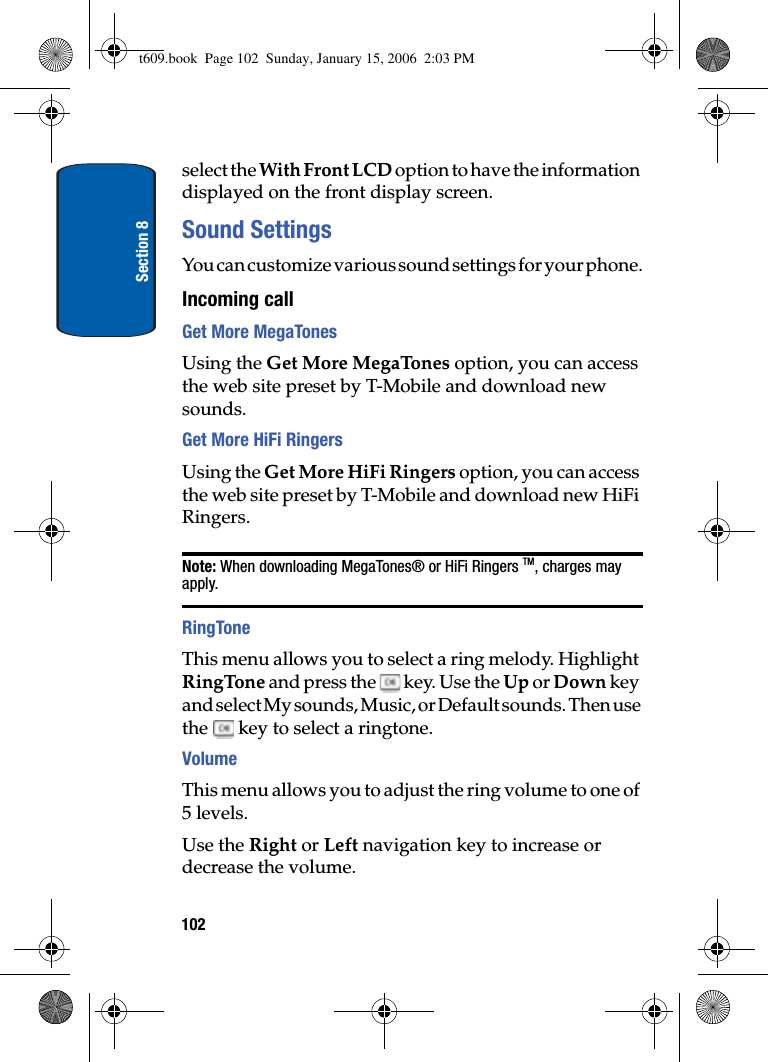

Section 8102select the With Front LCD option to have the information displayed on the front display screen.Sound SettingsYou can customize various sound settings for your phone.Incoming callGet More MegaTonesUsing the Get More MegaTones option, you can access the web site preset by T-Mobile and download new sounds.Get More HiFi RingersUsing the Get More HiFi Ringers option, you can access the web site preset by T-Mobile and download new HiFi Ringers.Note: When downloading MegaTones® or HiFi Ringers TM, charges may apply.RingToneThis menu allows you to select a ring melody. Highlight RingTone and press the key. Use the Up or Down key and select My sounds, Music, or Default sounds. Then use the key to select a ringtone.Volume This menu allows you to adjust the ring volume to one of 5 levels.Use the Right or Left navigation key to increase or decrease the volume.t609.book Page 102 Sunday, January 15, 2006 2:03 PM

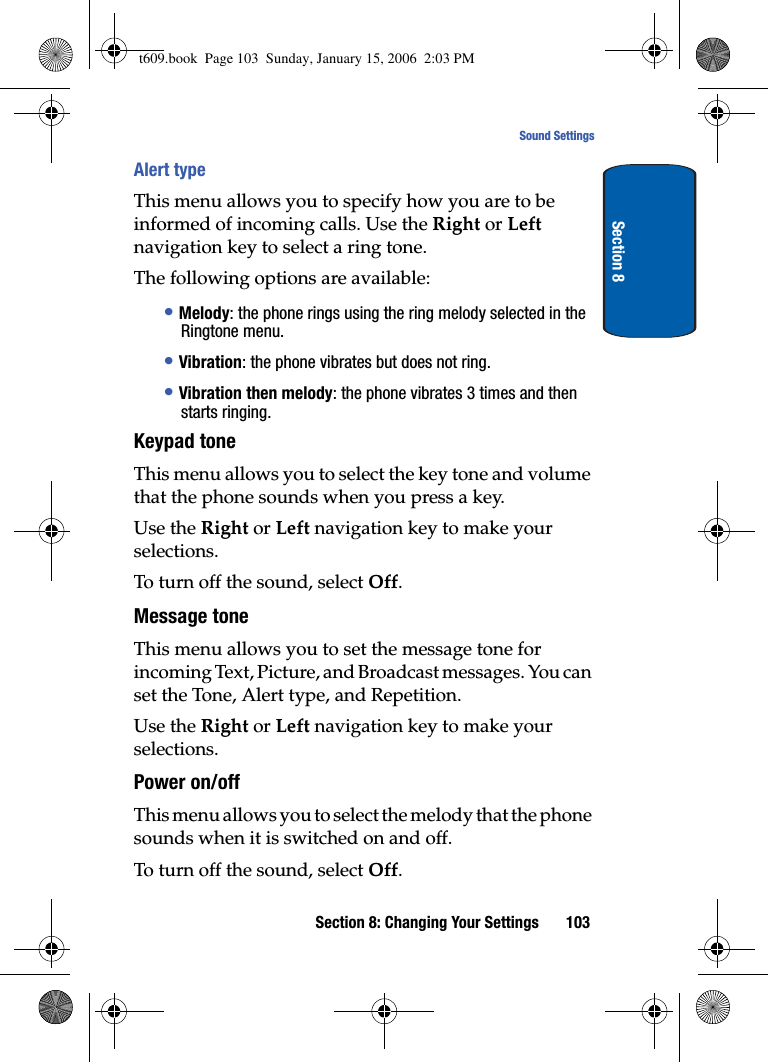

Section 8: Changing Your Settings 103Sound SettingsSection 8Alert typeThis menu allows you to specify how you are to be informed of incoming calls. Use the Right or Left navigation key to select a ring tone.The following options are available:•Melody: the phone rings using the ring melody selected in the Ringtone menu.•Vibration: the phone vibrates but does not ring. •Vibration then melody: the phone vibrates 3 times and then starts ringing.Keypad toneThis menu allows you to select the key tone and volume that the phone sounds when you press a key. Use the Right or Left navigation key to make your selections.To turn off the sound, select Off.Message toneThis menu allows you to set the message tone for incoming Text, Picture, and Broadcast messages. You can set the Tone, Alert type, and Repetition.Use the Right or Left navigation key to make your selections.Power on/offThis menu allows you to select the melody that the phone sounds when it is switched on and off. To turn off the sound, select Off.t609.book Page 103 Sunday, January 15, 2006 2:03 PM

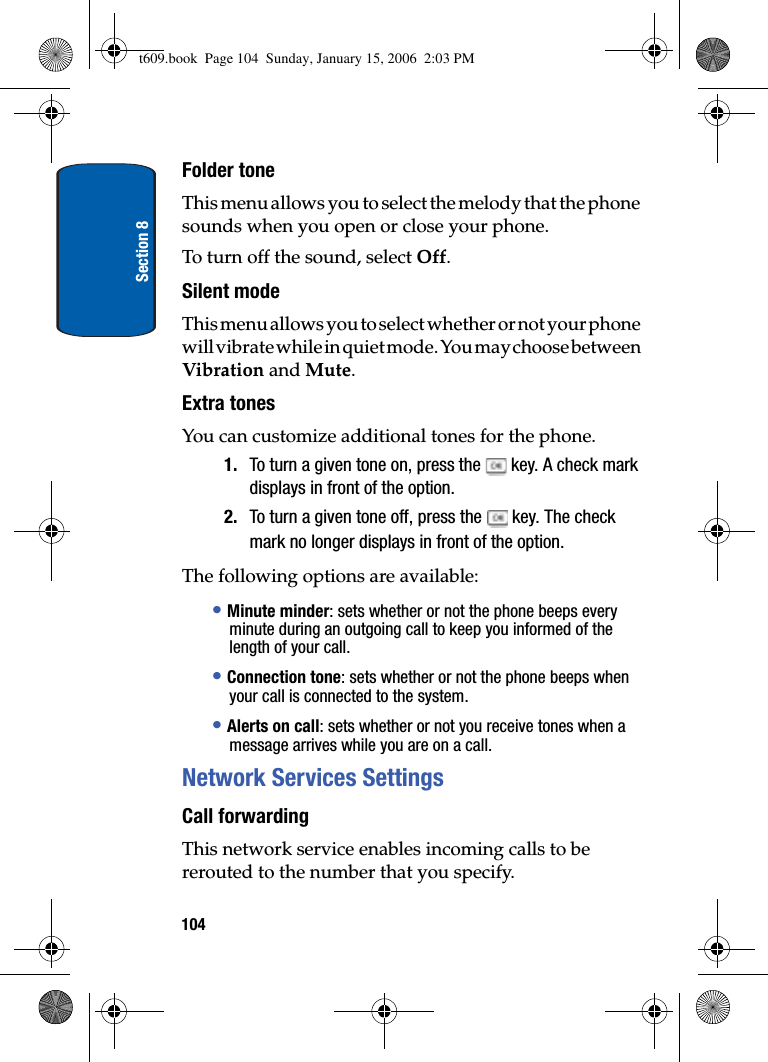

Section 8104Folder toneThis menu allows you to select the melody that the phone sounds when you open or close your phone. To turn off the sound, select Off.Silent modeThis menu allows you to select whether or not your phone will vibrate while in quiet mode. You may choose between Vibration and Mute.Extra tonesYou can customize additional tones for the phone.1. To turn a given tone on, press the key. A check mark displays in front of the option.2. To turn a given tone off, press the key. The check mark no longer displays in front of the option.The following options are available:•Minute minder: sets whether or not the phone beeps every minute during an outgoing call to keep you informed of the length of your call.•Connection tone: sets whether or not the phone beeps when your call is connected to the system. •Alerts on call: sets whether or not you receive tones when a message arrives while you are on a call.Network Services SettingsCall forwardingThis network service enables incoming calls to be rerouted to the number that you specify.t609.book Page 104 Sunday, January 15, 2006 2:03 PM

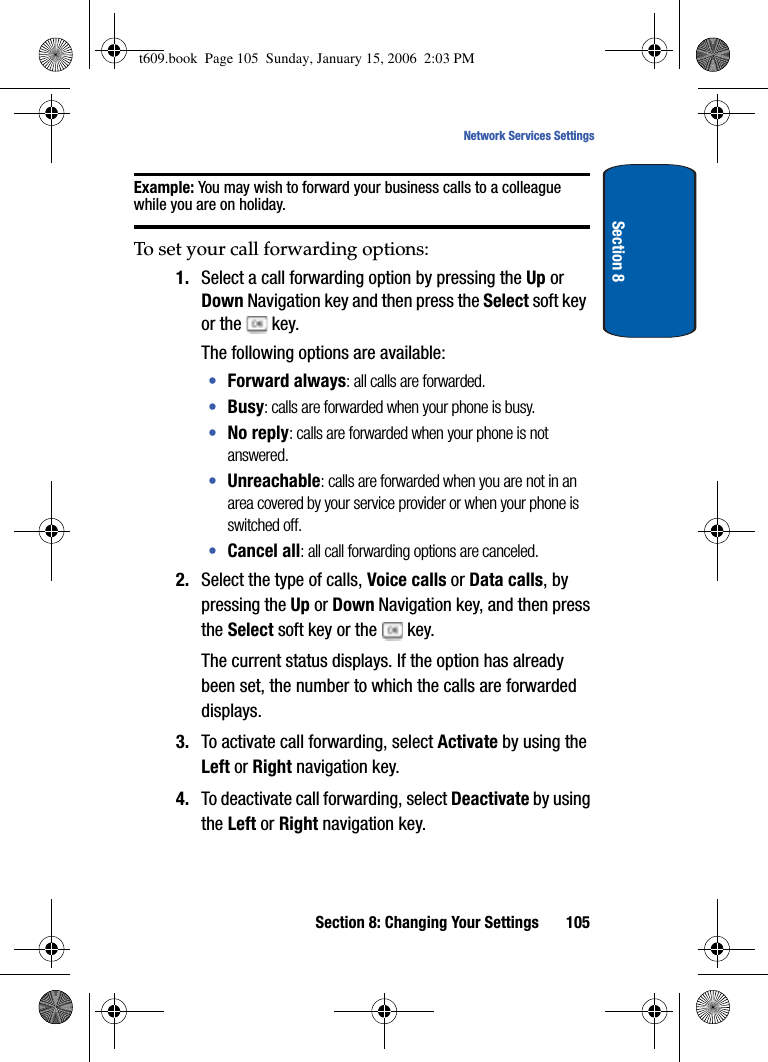

Section 8: Changing Your Settings 105Network Services SettingsSection 8Example: You may wish to forward your business calls to a colleague while you are on holiday.To set your call forwarding options:1. Select a call forwarding option by pressing the Up or Down Navigation key and then press the Select soft key or the key. The following options are available:•Forward always: all calls are forwarded.•Busy: calls are forwarded when your phone is busy.•No reply: calls are forwarded when your phone is not answered.•Unreachable: calls are forwarded when you are not in an area covered by your service provider or when your phone is switched off.•Cancel all: all call forwarding options are canceled.2. Select the type of calls, Voice calls or Data calls, by pressing the Up or Down Navigation key, and then press the Select soft key or the key.The current status displays. If the option has already been set, the number to which the calls are forwarded displays.3. To activate call forwarding, select Activate by using the Left or Right navigation key.4. To deactivate call forwarding, select Deactivate by using the Left or Right navigation key. t609.book Page 105 Sunday, January 15, 2006 2:03 PM

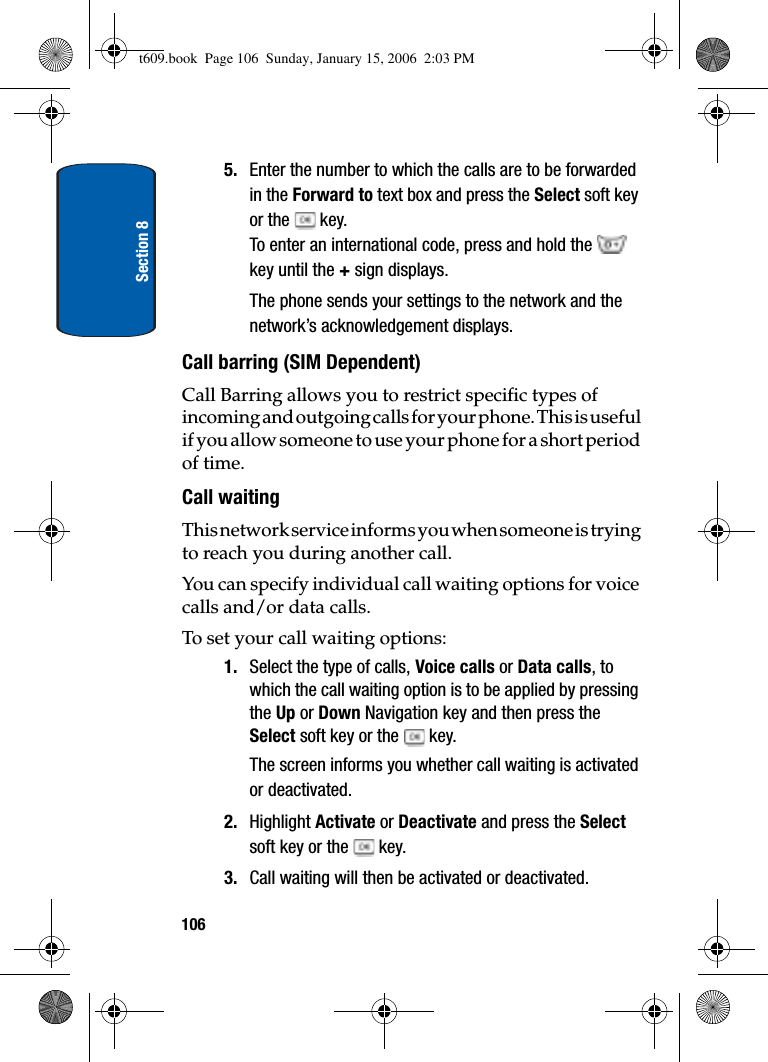

Section 81065. Enter the number to which the calls are to be forwarded in the Forward to text box and press the Select soft key or the key.To enter an international code, press and hold the key until the + sign displays.The phone sends your settings to the network and the network’s acknowledgement displays.Call barring (SIM Dependent)Call Barring allows you to restrict specific types of incoming and outgoing calls for your phone. This is useful if you allow someone to use your phone for a short period of time.Call waitingThis network service informs you when someone is trying to reach you during another call.You can specify individual call waiting options for voice calls and/or data calls.To set your call waiting options:1. Select the type of calls, Voice calls or Data calls, to which the call waiting option is to be applied by pressing the Up or Down Navigation key and then press the Select soft key or the key.The screen informs you whether call waiting is activated or deactivated. 2. Highlight Activate or Deactivate and press the Selectsoft key or the key. 3. Call waiting will then be activated or deactivated.t609.book Page 106 Sunday, January 15, 2006 2:03 PM
Section 8: Changing Your Settings 107Network Services SettingsSection 84. Select the Cancel all option to deactivate Call waiting on all voice and data calls.Network selectionThe Network Selection feature enables you to automatically or manually select the network used when roaming outside of your home area.Note: You can select a network other than your home network only if there is a valid roaming agreement between the two.To change Network Selection mode:1. Highlight the Search now option and press the Selectsoft key or the key.2. Press the Up or Down Navigation key until the network you want highlights and then press the Select soft key or the key.The phone will scan for that network and you will be connected.To change you Default setup:1. Highlight the Default setup option and press the Selectsoft key or the key.2. Highlight either the Automatic or Manual option and press the Select soft key or the key.If you select Automatic, you are connected to the first available network when roaming.3. If you select Manual, press the Up or Down Navigation key until the network you want highlights and then press the Select soft key or the key.t609.book Page 107 Sunday, January 15, 2006 2:03 PM

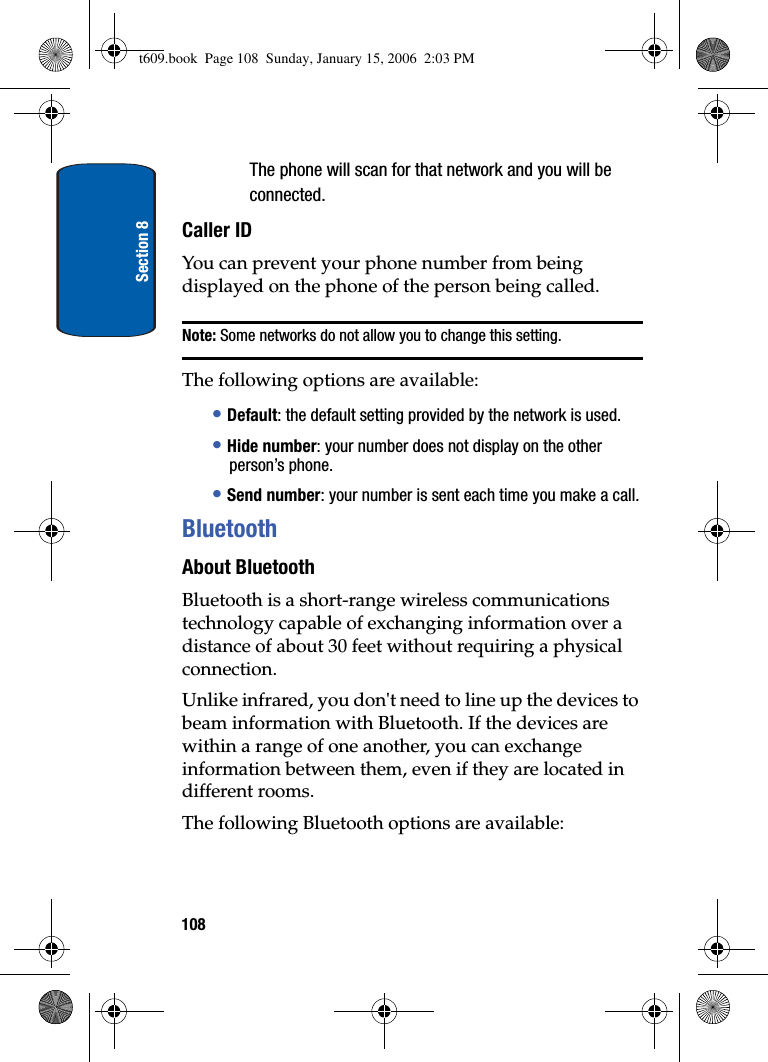

Section 8108The phone will scan for that network and you will be connected.Caller IDYou can prevent your phone number from being displayed on the phone of the person being called.Note: Some networks do not allow you to change this setting.The following options are available:•Default: the default setting provided by the network is used.•Hide number: your number does not display on the other person’s phone.•Send number: your number is sent each time you make a call.BluetoothAbout BluetoothBluetooth is a short-range wireless communications technology capable of exchanging information over a distance of about 30 feet without requiring a physical connection.Unlike infrared, you don't need to line up the devices to beam information with Bluetooth. If the devices are within a range of one another, you can exchange information between them, even if they are located in different rooms.The following Bluetooth options are available:t609.book Page 108 Sunday, January 15, 2006 2:03 PM

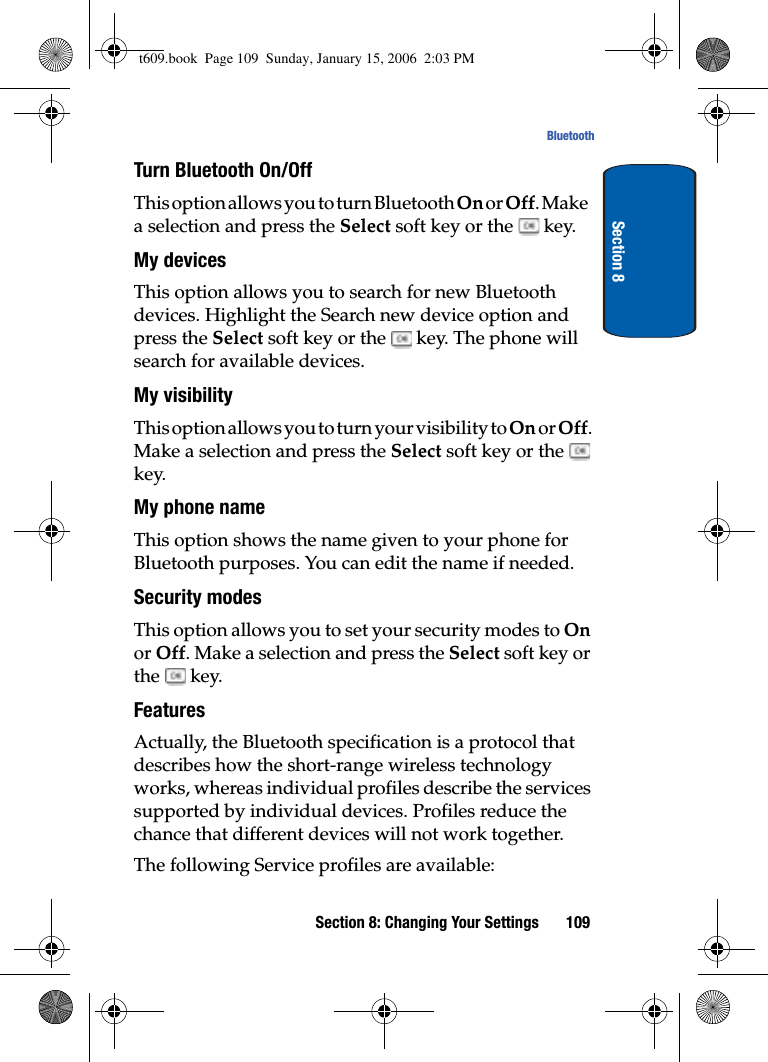

Section 8: Changing Your Settings 109BluetoothSection 8Turn Bluetooth On/OffThis option allows you to turn Bluetooth On or Off. Make a selection and press the Select soft key or the key.My devicesThis option allows you to search for new Bluetooth devices. Highlight the Search new device option and press the Select soft key or the key. The phone will search for available devices.My visibilityThis option allows you to turn your visibility to On or Off.Make a selection and press the Select soft key or the key.My phone nameThis option shows the name given to your phone for Bluetooth purposes. You can edit the name if needed.Security modesThis option allows you to set your security modes to Onor Off. Make a selection and press the Select soft key or the key.FeaturesActually, the Bluetooth specification is a protocol that describes how the short-range wireless technology works, whereas individual profiles describe the services supported by individual devices. Profiles reduce the chance that different devices will not work together.The following Service profiles are available: t609.book Page 109 Sunday, January 15, 2006 2:03 PM

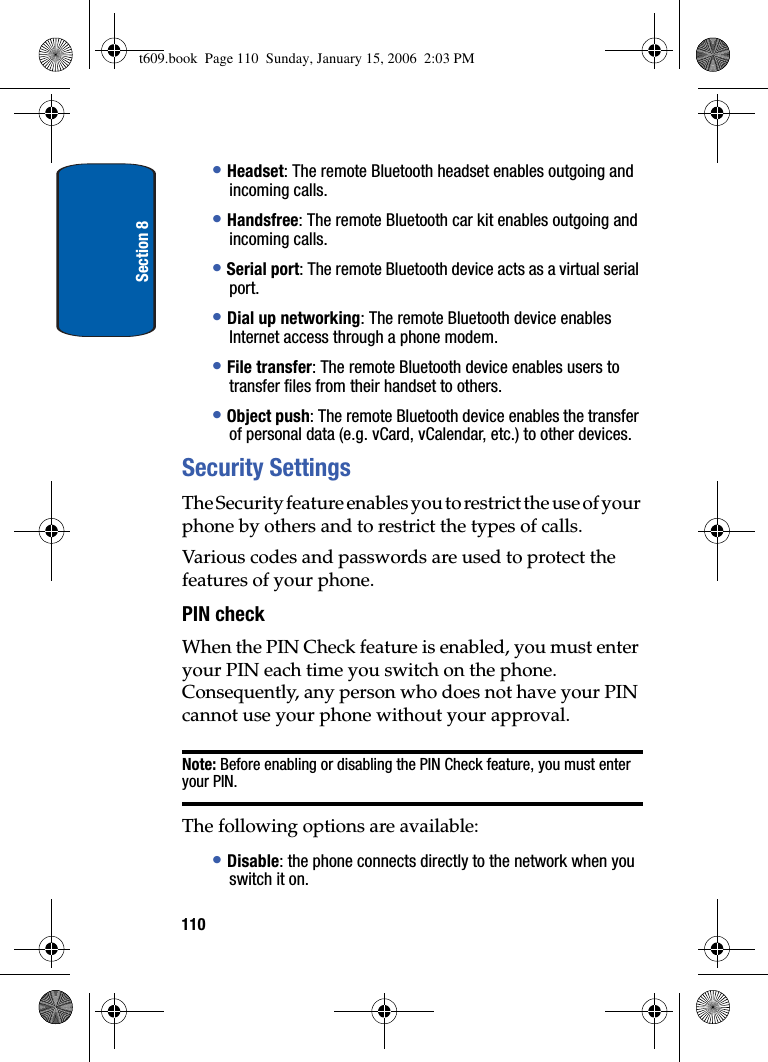

Section 8110•Headset: The remote Bluetooth headset enables outgoing and incoming calls.•Handsfree: The remote Bluetooth car kit enables outgoing and incoming calls.•Serial port: The remote Bluetooth device acts as a virtual serial port.•Dial up networking: The remote Bluetooth device enables Internet access through a phone modem.•File transfer: The remote Bluetooth device enables users to transfer files from their handset to others.•Object push: The remote Bluetooth device enables the transfer of personal data (e.g. vCard, vCalendar, etc.) to other devices.Security SettingsThe Security feature enables you to restrict the use of your phone by others and to restrict the types of calls.Various codes and passwords are used to protect the features of your phone. PIN check When the PIN Check feature is enabled, you must enter your PIN each time you switch on the phone. Consequently, any person who does not have your PIN cannot use your phone without your approval.Note: Before enabling or disabling the PIN Check feature, you must enter your PIN.The following options are available:•Disable: the phone connects directly to the network when you switch it on.t609.book Page 110 Sunday, January 15, 2006 2:03 PM

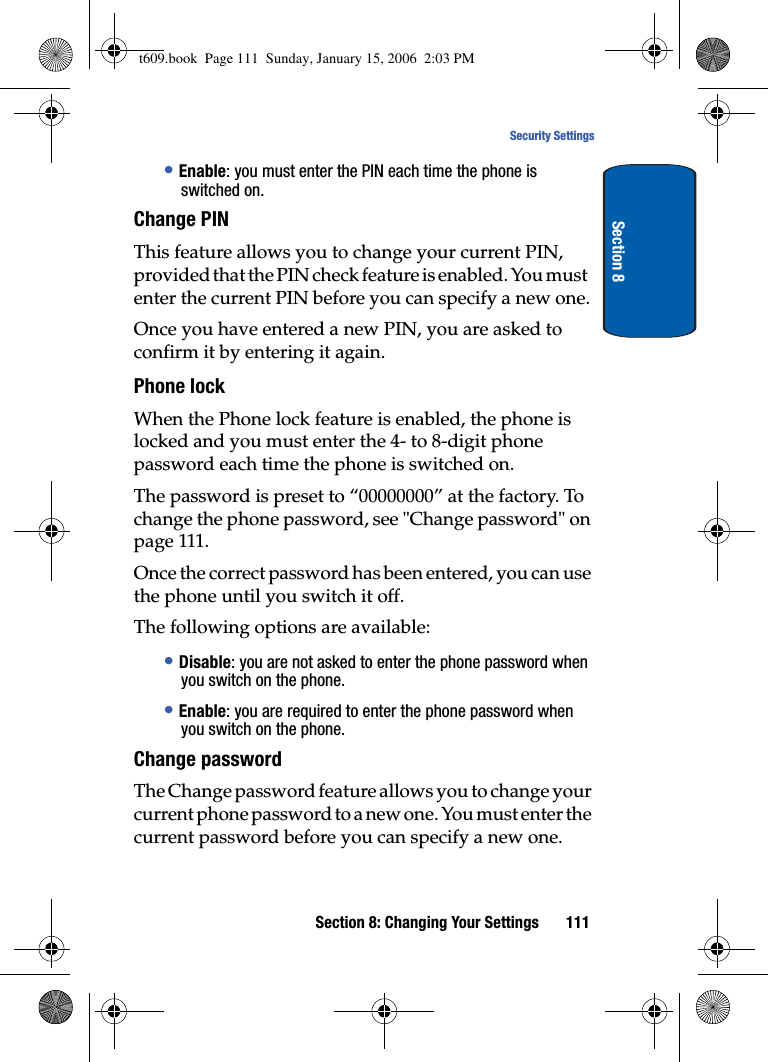

Section 8: Changing Your Settings 111Security SettingsSection 8•Enable: you must enter the PIN each time the phone is switched on.Change PINThis feature allows you to change your current PIN, provided that the PIN check feature is enabled. You must enter the current PIN before you can specify a new one.Once you have entered a new PIN, you are asked to confirm it by entering it again.Phone lock When the Phone lock feature is enabled, the phone is locked and you must enter the 4- to 8-digit phone password each time the phone is switched on.The password is preset to “00000000” at the factory. To change the phone password, see "Change password" on page 111.Once the correct password has been entered, you can use the phone until you switch it off.The following options are available:•Disable: you are not asked to enter the phone password when you switch on the phone.•Enable: you are required to enter the phone password when you switch on the phone.Change passwordThe Change password feature allows you to change your current phone password to a new one. You must enter the current password before you can specify a new one.t609.book Page 111 Sunday, January 15, 2006 2:03 PM
Section 8112The password is preset to “00000000” at the factory. Once you have entered a new password, you are asked to confirm it by entering it again.Note: If you change your password, be sure to write it down and keep it in a safe place. If you forget your password, your phone will require service to have it unlocked.PrivacyUsing the Privacy option, you can lock everything on your phone with the exception of making a call. The password must be entered to access Menu mode or t-zones.To enable Privacy:1. Highlight the Enable option and press the Select soft key or the key.2. Enter your password and press the OK soft key or the key.3. “Privacy Activated” will appear on your screen.To disable Privacy:1. Highlight the Disable option and press the Select soft key or the key.2. Enter your password and press the OK soft key or the key.3. “Privacy Deactivated” will appear on your screen.Note: The password is preset to “00000000” at the factory. To change this password, see "Change password" on page 111.t609.book Page 112 Sunday, January 15, 2006 2:03 PM

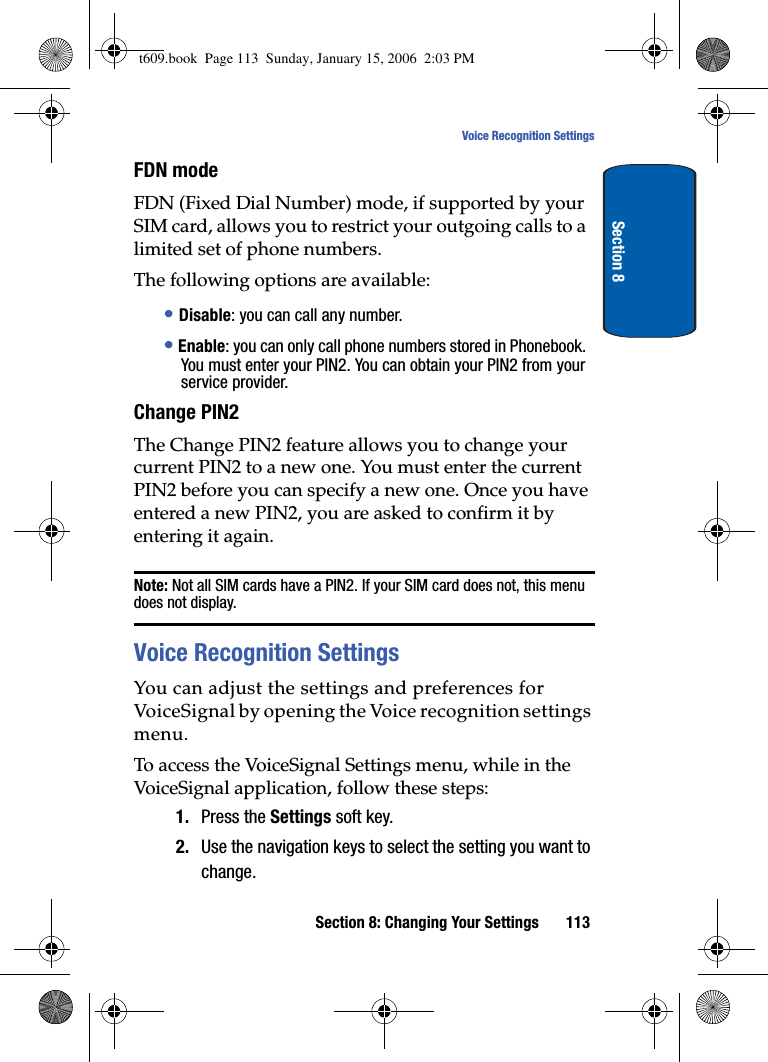

Section 8: Changing Your Settings 113Voice Recognition SettingsSection 8FDN modeFDN (Fixed Dial Number) mode, if supported by your SIM card, allows you to restrict your outgoing calls to a limited set of phone numbers.The following options are available:•Disable: you can call any number.•Enable: you can only call phone numbers stored in Phonebook. You must enter your PIN2. You can obtain your PIN2 from your service provider.Change PIN2The Change PIN2 feature allows you to change your current PIN2 to a new one. You must enter the current PIN2 before you can specify a new one. Once you have entered a new PIN2, you are asked to confirm it by entering it again.Note: Not all SIM cards have a PIN2. If your SIM card does not, this menu does not display.Voice Recognition SettingsYou can adjust the settings and preferences for VoiceSignal by opening the Voice recognition settings menu.To access the VoiceSignal Settings menu, while in the VoiceSignal application, follow these steps:1. Press the Settings soft key.2. Use the navigation keys to select the setting you want to change.t609.book Page 113 Sunday, January 15, 2006 2:03 PM

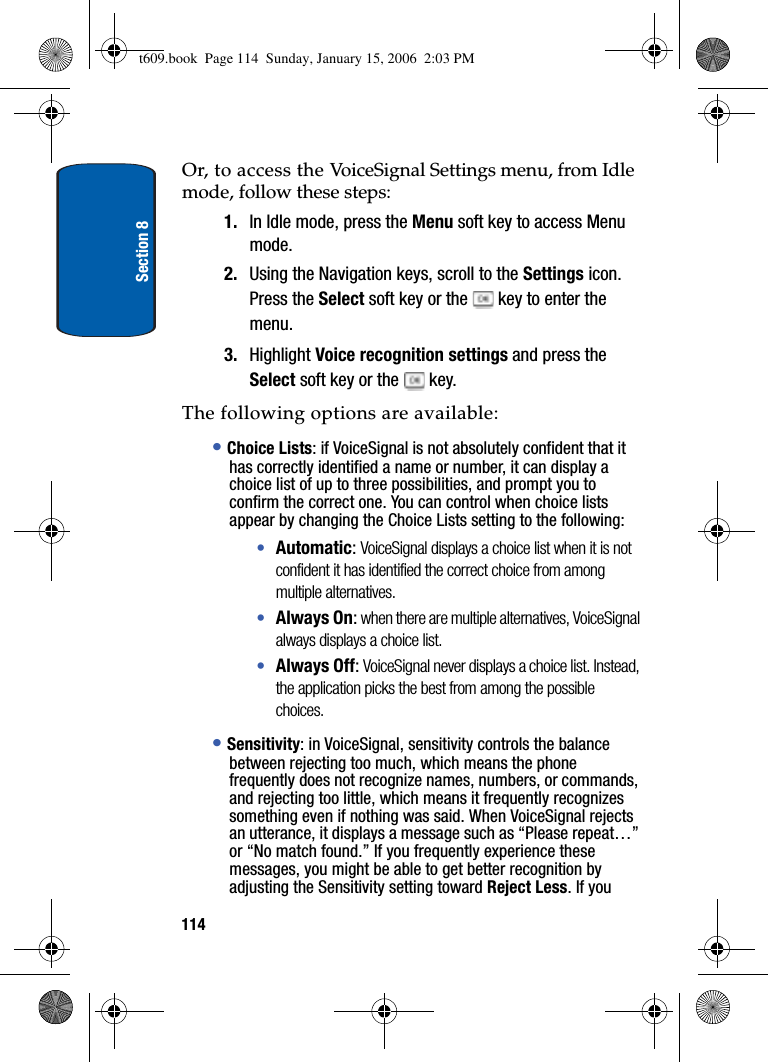

Section 8114Or, to access the VoiceSignal Settings menu, from Idle mode, follow these steps:1. In Idle mode, press the Menu soft key to access Menu mode.2. Using the Navigation keys, scroll to the Settings icon. Press the Select soft key or the key to enter the menu.3. Highlight Voice recognition settings and press the Select soft key or the key.The following options are available:•Choice Lists: if VoiceSignal is not absolutely confident that it has correctly identified a name or number, it can display a choice list of up to three possibilities, and prompt you to confirm the correct one. You can control when choice lists appear by changing the Choice Lists setting to the following:•Automatic: VoiceSignal displays a choice list when it is not confident it has identified the correct choice from among multiple alternatives.•Always On: when there are multiple alternatives, VoiceSignal always displays a choice list.•Always Off: VoiceSignal never displays a choice list. Instead, the application picks the best from among the possible choices.•Sensitivity: in VoiceSignal, sensitivity controls the balance between rejecting too much, which means the phone frequently does not recognize names, numbers, or commands, and rejecting too little, which means it frequently recognizes something even if nothing was said. When VoiceSignal rejects an utterance, it displays a message such as “Please repeat…” or “No match found.” If you frequently experience these messages, you might be able to get better recognition by adjusting the Sensitivity setting toward Reject Less. If you t609.book Page 114 Sunday, January 15, 2006 2:03 PM

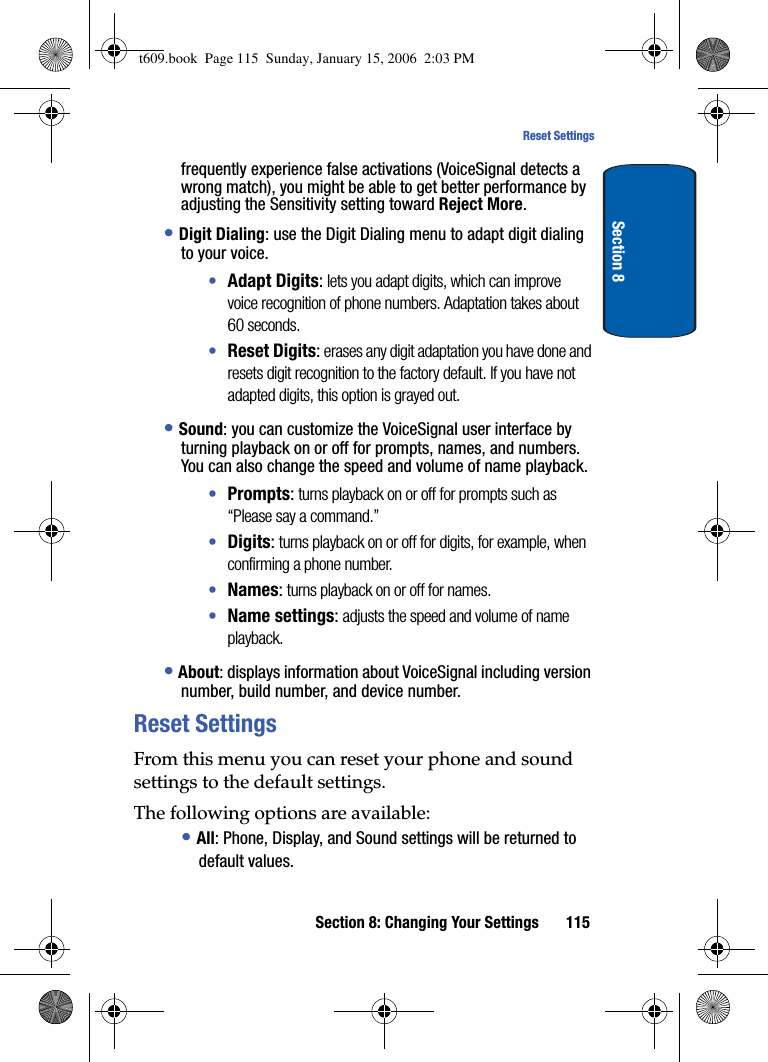

Section 8: Changing Your Settings 115Reset SettingsSection 8frequently experience false activations (VoiceSignal detects a wrong match), you might be able to get better performance by adjusting the Sensitivity setting toward Reject More.•Digit Dialing: use the Digit Dialing menu to adapt digit dialing to your voice.•Adapt Digits: lets you adapt digits, which can improve voice recognition of phone numbers. Adaptation takes about 60 seconds.•Reset Digits: erases any digit adaptation you have done and resets digit recognition to the factory default. If you have not adapted digits, this option is grayed out.•Sound: you can customize the VoiceSignal user interface by turning playback on or off for prompts, names, and numbers. You can also change the speed and volume of name playback. •Prompts: turns playback on or off for prompts such as “Please say a command.”•Digits: turns playback on or off for digits, for example, when confirming a phone number.•Names: turns playback on or off for names.•Name settings: adjusts the speed and volume of name playback.•About: displays information about VoiceSignal including version number, build number, and device number.Reset SettingsFrom this menu you can reset your phone and sound settings to the default settings.The following options are available:•All: Phone, Display, and Sound settings will be returned to default values.t609.book Page 115 Sunday, January 15, 2006 2:03 PM

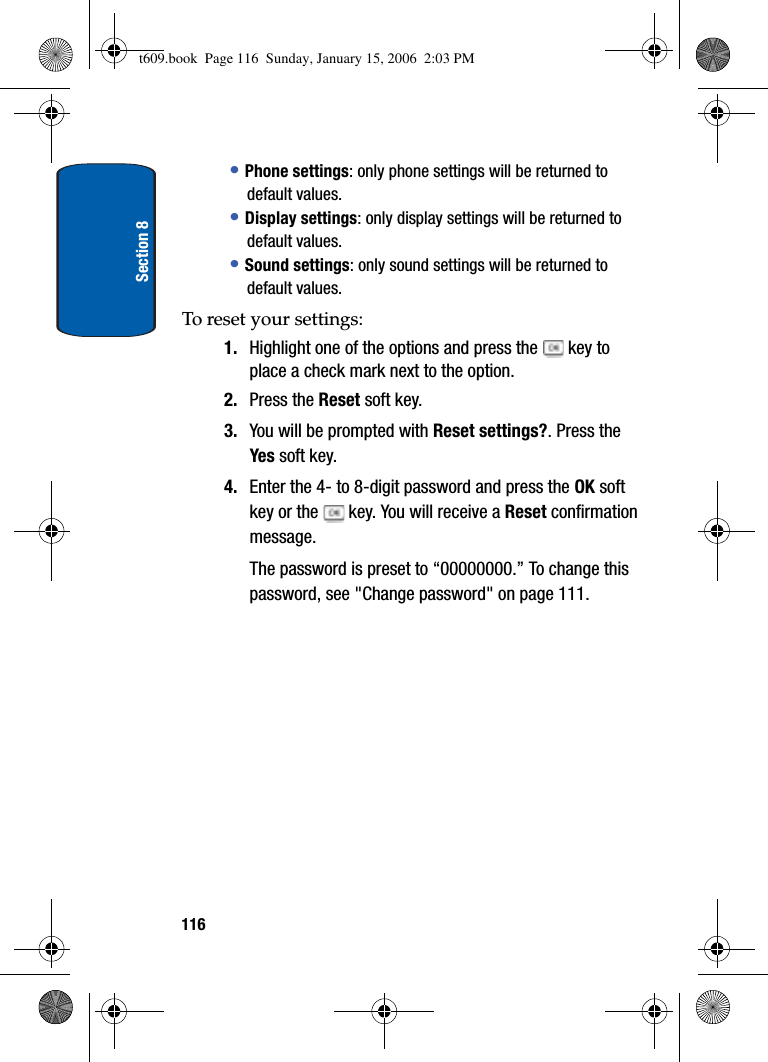

Section 8116•Phone settings: only phone settings will be returned to default values.•Display settings: only display settings will be returned to default values.•Sound settings: only sound settings will be returned to default values.To reset your settings:1. Highlight one of the options and press the key to place a check mark next to the option.2. Press the Reset soft key. 3. You will be prompted with Reset settings?. Press the Yes soft key.4. Enter the 4- to 8-digit password and press the OK soft key or the key. You will receive a Reset confirmation message.The password is preset to “00000000.” To change this password, see "Change password" on page 111.t609.book Page 116 Sunday, January 15, 2006 2:03 PM

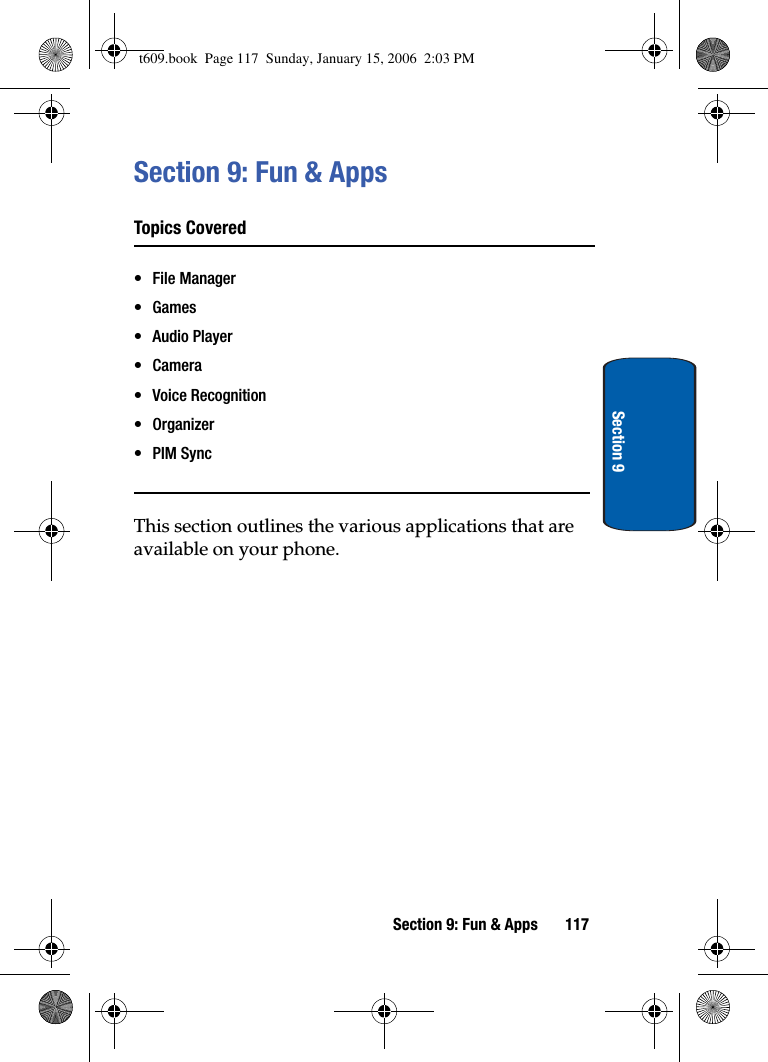

Section 9: Fun & Apps 117Section 9Section 9: Fun & AppsTopics Covered• File Manager• Games• Audio Player•Camera• Voice Recognition•Organizer•PIM SyncThis section outlines the various applications that are available on your phone.t609.book Page 117 Sunday, January 15, 2006 2:03 PM

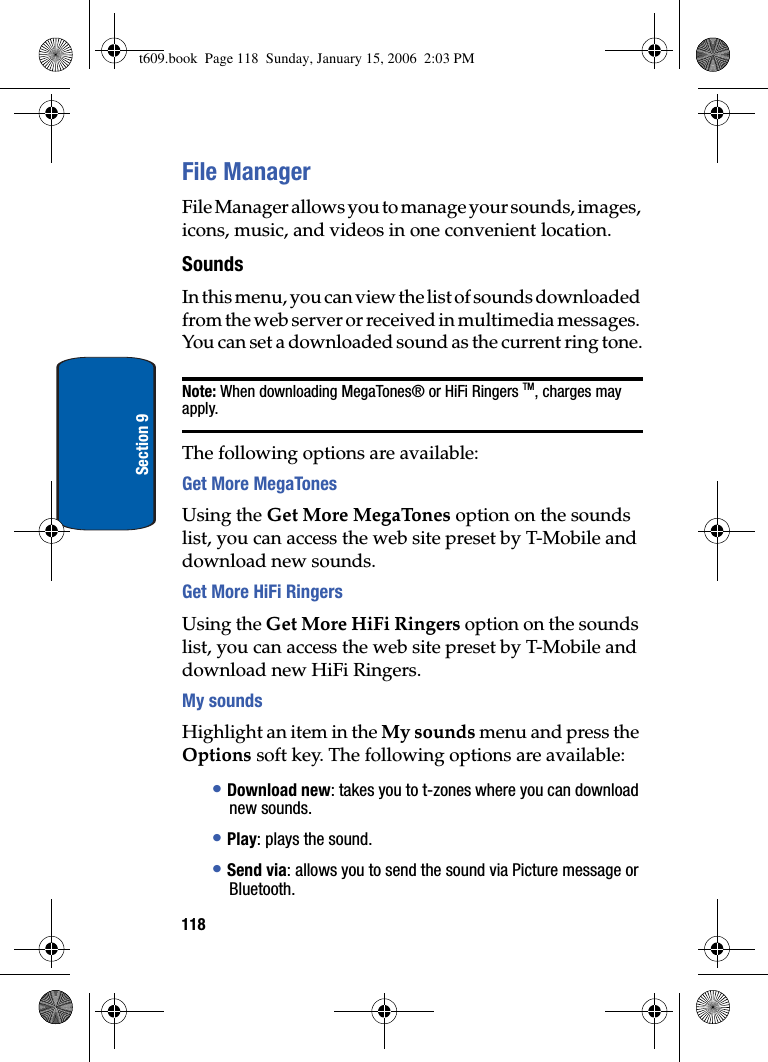

118Section 9File ManagerFile Manager allows you to manage your sounds, images, icons, music, and videos in one convenient location.SoundsIn this menu, you can view the list of sounds downloaded from the web server or received in multimedia messages. You can set a downloaded sound as the current ring tone.Note: When downloading MegaTones® or HiFi Ringers TM, charges may apply.The following options are available:Get More MegaTonesUsing the Get More MegaTones option on the sounds list, you can access the web site preset by T-Mobile and download new sounds.Get More HiFi RingersUsing the Get More HiFi Ringers option on the sounds list, you can access the web site preset by T-Mobile and download new HiFi Ringers.My soundsHighlight an item in the My sounds menu and press the Options soft key. The following options are available:•Download new: takes you to t-zones where you can download new sounds.•Play: plays the sound.•Send via: allows you to send the sound via Picture message or Bluetooth.t609.book Page 118 Sunday, January 15, 2006 2:03 PM
Section 9: Fun & Apps 119File ManagerSection 9•Set as: allows you to set the sound as your Ringtone, a Caller ringtone, or an Alarm tone.•Move to memory card: allows you to move the sound to your TransFlash memor y card.•Copy to memory card: allows you to copy the sound to your TransFlash memory card.•Delete: allows you to delete the sound or delete all sounds.•Rename: allows you to change the name of the sound.•Share for Bluetooth: allows the sound to be shared or released for the use of another Bluetooth device.•Protection: allows you to lock the sound to protect it from deletion.•Properties: displays the sound name, date, format, length, size, and protection.Voice listThe Voice list contains your recorded audio messages. Highlight an item in the Voice list menu and press the Options soft key. The following options are available:•Play: plays the audio message.•Send via: allows you to send the audio message via Picture message or Bluetooth.•Move to memory card: allows you to move the audio message to your TransFlash memory card.•Copy to memory card: allows you to copy the audio message to your TransFlash memory card.•Delete: allows you to delete the audio message or delete all audio messages.•Rename: allows you to change the name of the audio message.t609.book Page 119 Sunday, January 15, 2006 2:03 PM

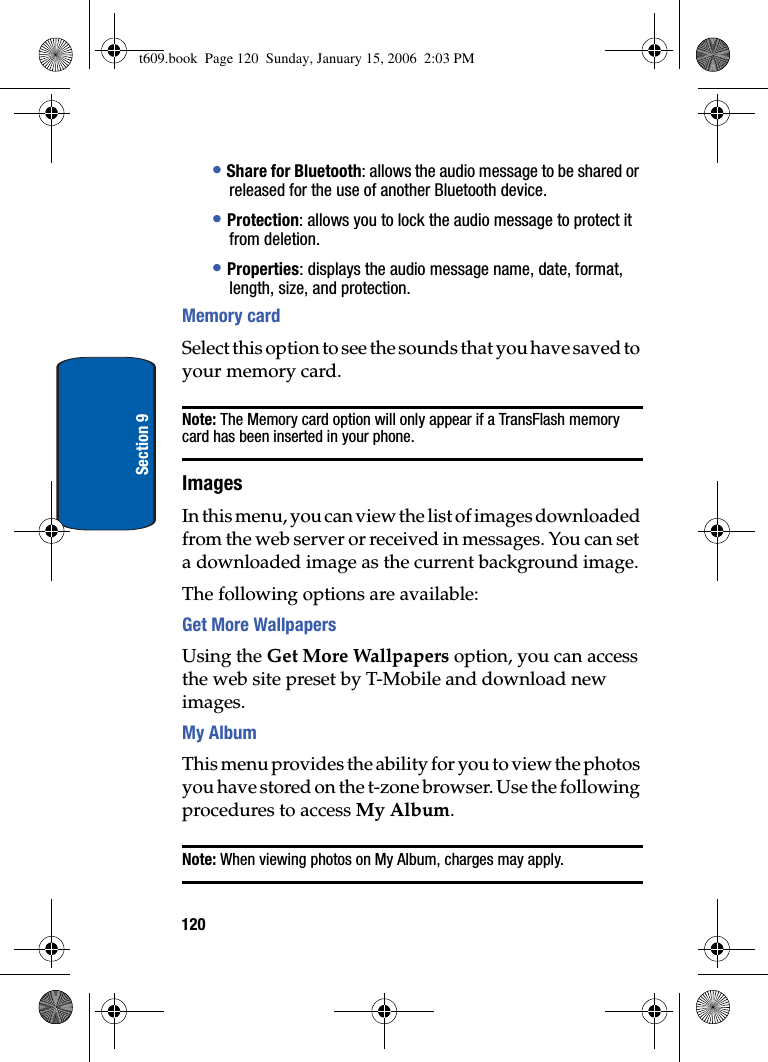

120Section 9•Share for Bluetooth: allows the audio message to be shared or released for the use of another Bluetooth device.•Protection: allows you to lock the audio message to protect it from deletion.•Properties: displays the audio message name, date, format, length, size, and protection.Memory cardSelect this option to see the sounds that you have saved to your memory card.Note: The Memory card option will only appear if a TransFlash memory card has been inserted in your phone.ImagesIn this menu, you can view the list of images downloaded from the web server or received in messages. You can set a downloaded image as the current background image.The following options are available:Get More WallpapersUsing the Get More Wallpapers option, you can access the web site preset by T-Mobile and download new images.My AlbumThis menu provides the ability for you to view the photos you have stored on the t-zone browser. Use the following procedures to access My Album.Note: When viewing photos on My Album, charges may apply.t609.book Page 120 Sunday, January 15, 2006 2:03 PM

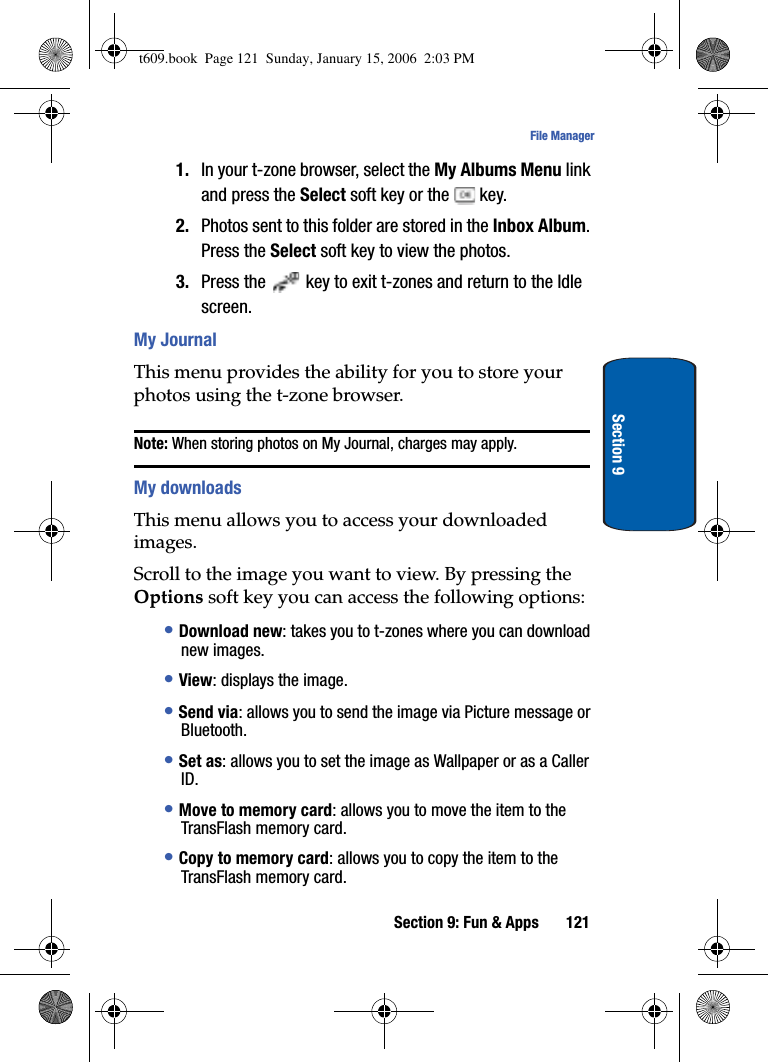

Section 9: Fun & Apps 121File ManagerSection 91. In your t-zone browser, select the My Albums Menu link and press the Select soft key or the key.2. Photos sent to this folder are stored in the Inbox Album.Press the Select soft key to view the photos.3. Press the key to exit t-zones and return to the Idle screen.My JournalThis menu provides the ability for you to store your photos using the t-zone browser. Note: When storing photos on My Journal, charges may apply.My downloadsThis menu allows you to access your downloaded images. Scroll to the image you want to view. By pressing the Options soft key you can access the following options:•Download new: takes you to t-zones where you can download new images.•View: displays the image.•Send via: allows you to send the image via Picture message or Bluetooth.•Set as: allows you to set the image as Wallpaper or as a Caller ID.•Move to memory card: allows you to move the item to the TransFlash memory card.•Copy to memory card: allows you to copy the item to the TransFlash memory card.t609.book Page 121 Sunday, January 15, 2006 2:03 PM

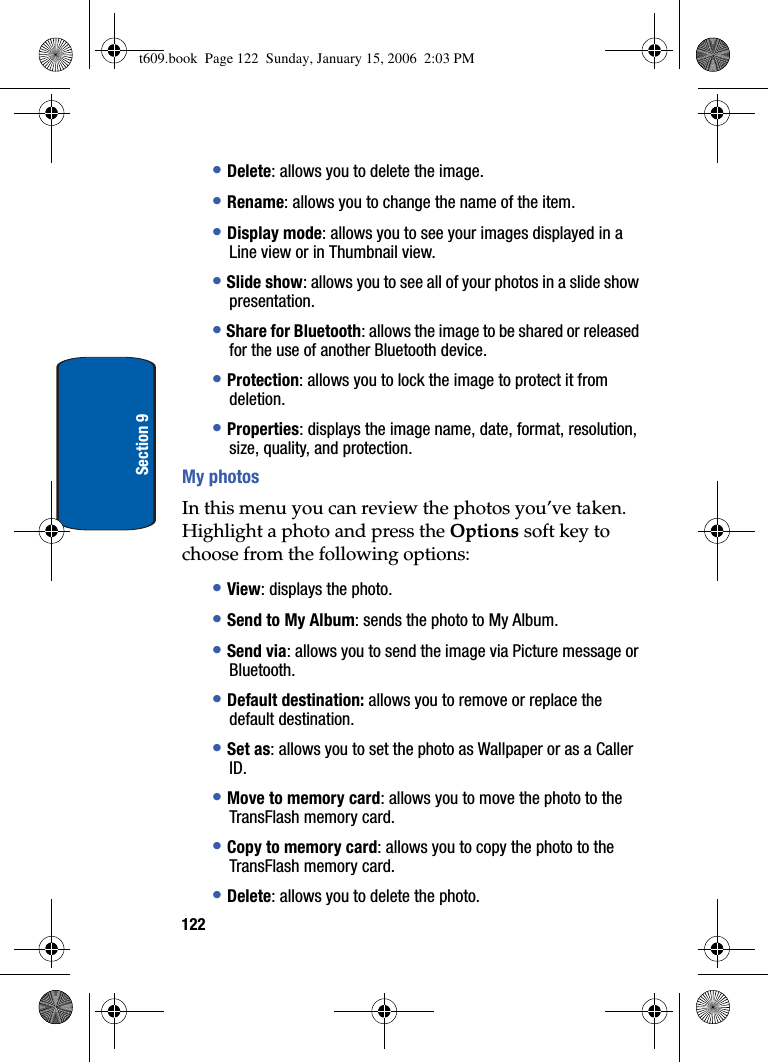

122Section 9•Delete: allows you to delete the image.•Rename: allows you to change the name of the item.•Display mode: allows you to see your images displayed in a Line view or in Thumbnail view.•Slide show: allows you to see all of your photos in a slide show presentation. •Share for Bluetooth: allows the image to be shared or released for the use of another Bluetooth device.•Protection: allows you to lock the image to protect it from deletion.•Properties: displays the image name, date, format, resolution, size, quality, and protection.My photosIn this menu you can review the photos you’ve taken. Highlight a photo and press the Options soft key to choose from the following options:•View: displays the photo.•Send to My Album: sends the photo to My Album.•Send via: allows you to send the image via Picture message or Bluetooth.•Default destination: allows you to remove or replace the default destination.•Set as: allows you to set the photo as Wallpaper or as a Caller ID.•Move to memory card: allows you to move the photo to the TransFlash memory card.•Copy to memory card: allows you to copy the photo to the TransFlash memory card.•Delete: allows you to delete the photo.t609.book Page 122 Sunday, January 15, 2006 2:03 PM

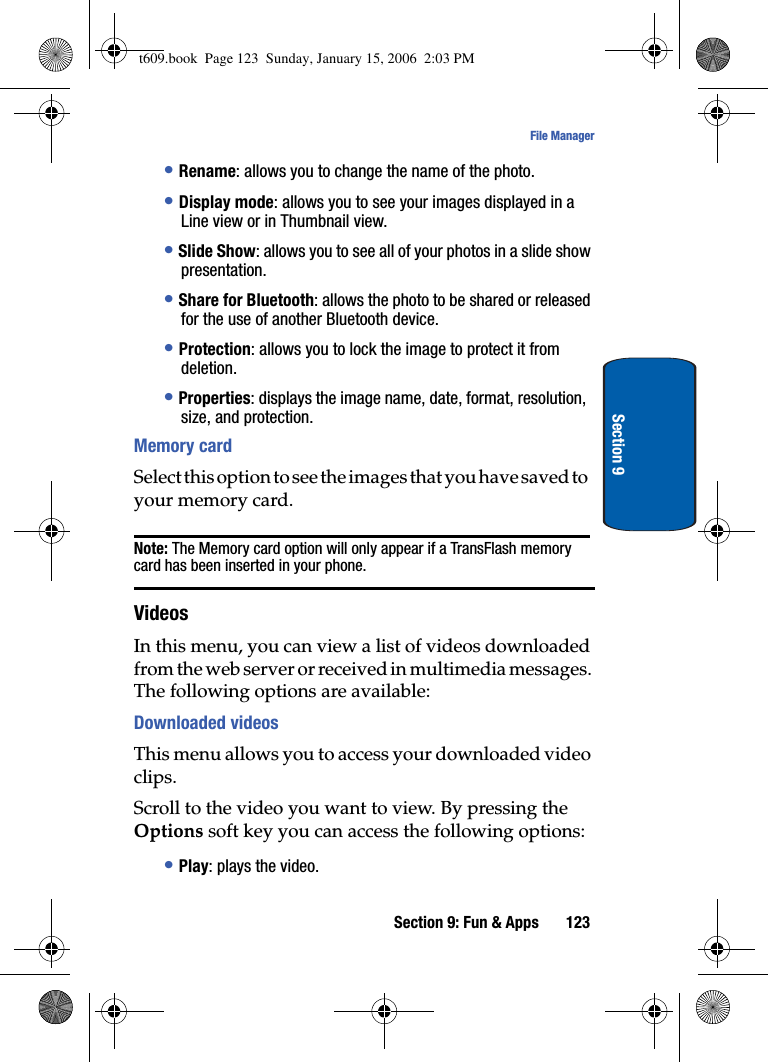

Section 9: Fun & Apps 123File ManagerSection 9•Rename: allows you to change the name of the photo.•Display mode: allows you to see your images displayed in a Line view or in Thumbnail view.•Slide Show: allows you to see all of your photos in a slide show presentation. •Share for Bluetooth: allows the photo to be shared or released for the use of another Bluetooth device.•Protection: allows you to lock the image to protect it from deletion.•Properties: displays the image name, date, format, resolution, size, and protection.Memory cardSelect this option to see the images that you have saved to your memory card.Note: The Memory card option will only appear if a TransFlash memory card has been inserted in your phone.VideosIn this menu, you can view a list of videos downloaded from the web server or received in multimedia messages. The following options are available:Downloaded videosThis menu allows you to access your downloaded video clips. Scroll to the video you want to view. By pressing the Options soft key you can access the following options:•Play: plays the video.t609.book Page 123 Sunday, January 15, 2006 2:03 PM

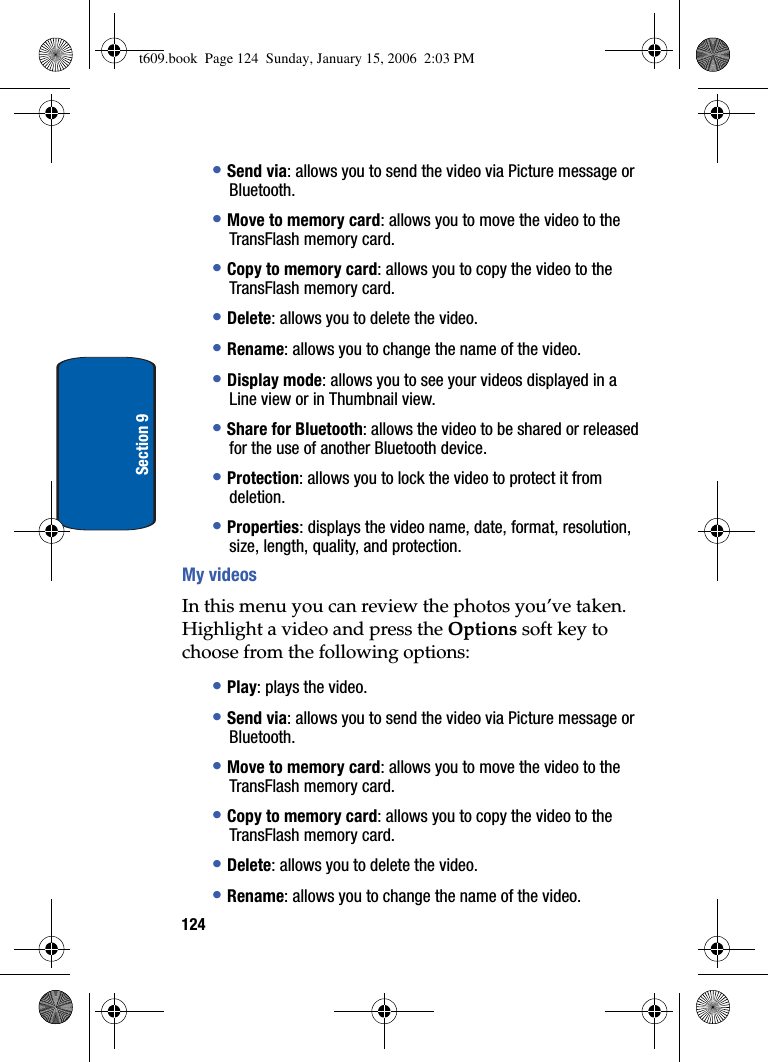

124Section 9•Send via: allows you to send the video via Picture message or Bluetooth.•Move to memory card: allows you to move the video to the TransFlash memory card.•Copy to memory card: allows you to copy the video to the TransFlash memory card.•Delete: allows you to delete the video.•Rename: allows you to change the name of the video.•Display mode: allows you to see your videos displayed in a Line view or in Thumbnail view.•Share for Bluetooth: allows the video to be shared or released for the use of another Bluetooth device.•Protection: allows you to lock the video to protect it from deletion.•Properties: displays the video name, date, format, resolution, size, length, quality, and protection.My videosIn this menu you can review the photos you’ve taken. Highlight a video and press the Options soft key to choose from the following options:•Play: plays the video.•Send via: allows you to send the video via Picture message or Bluetooth.•Move to memory card: allows you to move the video to the TransFlash memory card.•Copy to memory card: allows you to copy the video to the TransFlash memory card.•Delete: allows you to delete the video.•Rename: allows you to change the name of the video.t609.book Page 124 Sunday, January 15, 2006 2:03 PM

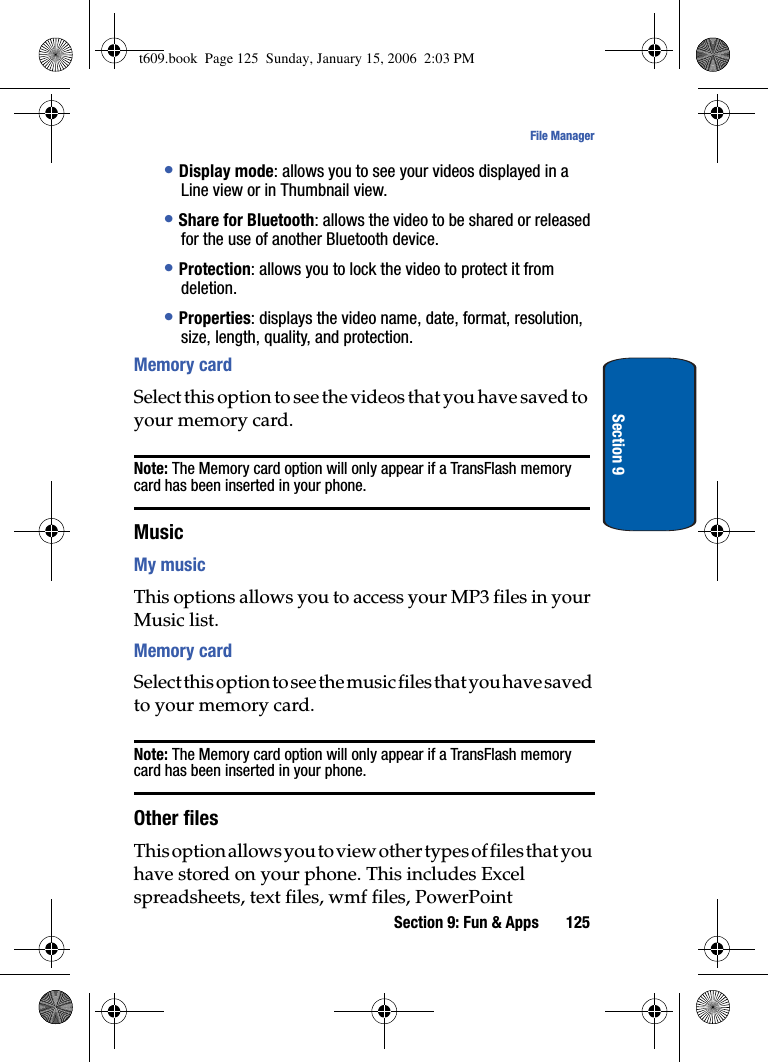

Section 9: Fun & Apps 125File ManagerSection 9•Display mode: allows you to see your videos displayed in a Line view or in Thumbnail view.•Share for Bluetooth: allows the video to be shared or released for the use of another Bluetooth device.•Protection: allows you to lock the video to protect it from deletion.•Properties: displays the video name, date, format, resolution, size, length, quality, and protection.Memory cardSelect this option to see the videos that you have saved to your memory card.Note: The Memory card option will only appear if a TransFlash memory card has been inserted in your phone.MusicMy musicThis options allows you to access your MP3 files in your Music list.Memory cardSelect this option to see the music files that you have saved to your memory card.Note: The Memory card option will only appear if a TransFlash memory card has been inserted in your phone.Other filesThis option allows you to view other types of files that you have stored on your phone. This includes Excel spreadsheets, text files, wmf files, PowerPoint t609.book Page 125 Sunday, January 15, 2006 2:03 PM

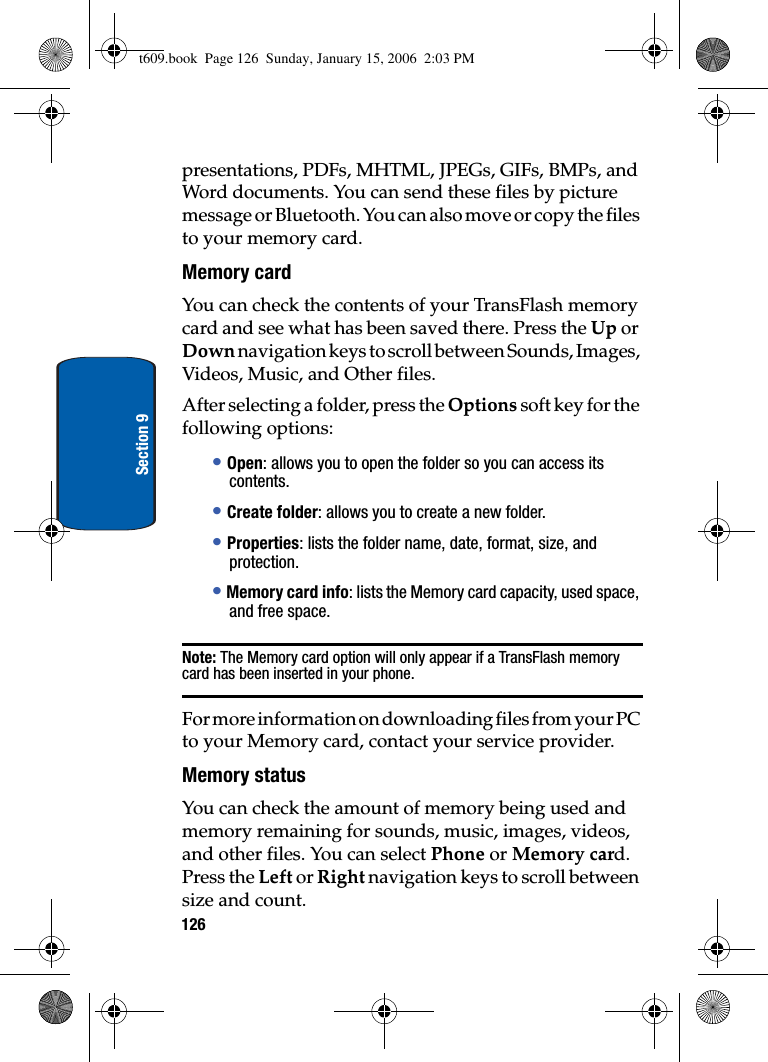

126Section 9presentations, PDFs, MHTML, JPEGs, GIFs, BMPs, and Word documents. You can send these files by picture message or Bluetooth. You can also move or copy the files to your memory card. Memory cardYou can check the contents of your TransFlash memory card and see what has been saved there. Press the Up or Down navigation keys to scroll between Sounds, Images, Videos, Music, and Other files.After selecting a folder, press the Options soft key for the following options:•Open: allows you to open the folder so you can access its contents.•Create folder: allows you to create a new folder. •Properties: lists the folder name, date, format, size, and protection.•Memory card info: lists the Memory card capacity, used space, and free space.Note: The Memory card option will only appear if a TransFlash memory card has been inserted in your phone.For more information on downloading files from your PC to your Memory card, contact your service provider.Memory statusYou can check the amount of memory being used and memory remaining for sounds, music, images, videos, and other files. You can select Phone or Memory card. Press the Left or Right navigation keys to scroll between size and count.t609.book Page 126 Sunday, January 15, 2006 2:03 PM

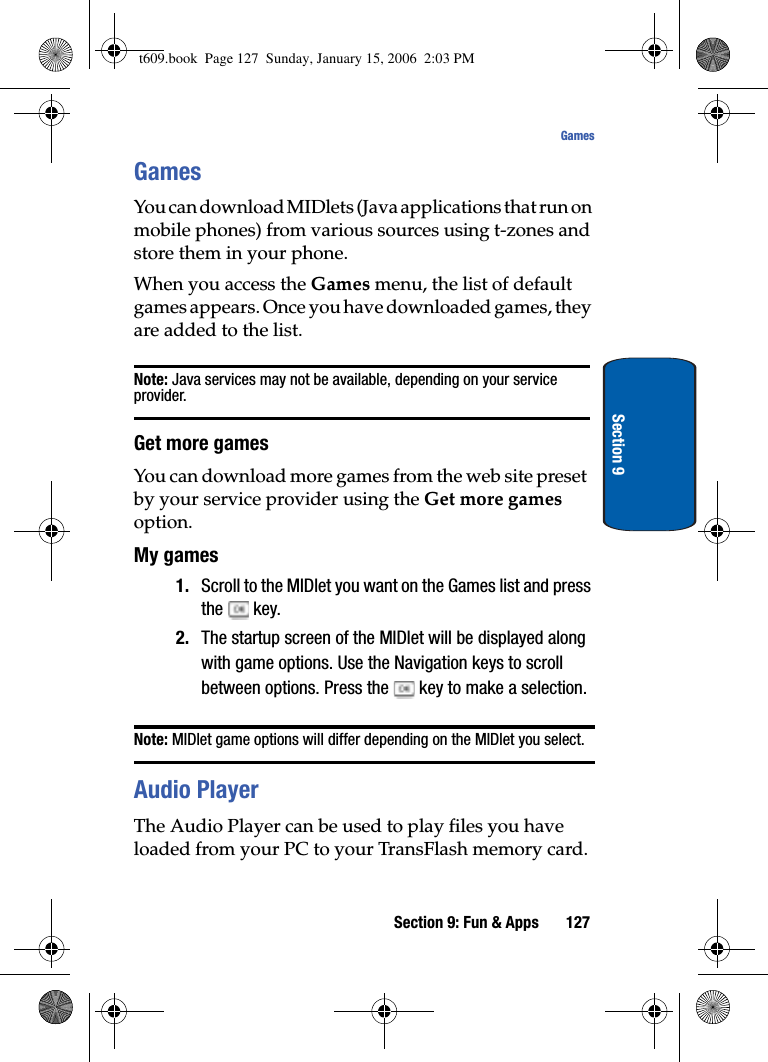

Section 9: Fun & Apps 127GamesSection 9GamesYou can download MIDlets (Java applications that run on mobile phones) from various sources using t-zones and store them in your phone. When you access the Games menu, the list of default games appears. Once you have downloaded games, they are added to the list.Note: Java services may not be available, depending on your service provider.Get more gamesYou can download more games from the web site preset by your service provider using the Get more gamesoption.My games1. Scroll to the MIDlet you want on the Games list and press the key.2. The startup screen of the MIDlet will be displayed along with game options. Use the Navigation keys to scroll between options. Press the key to make a selection.Note: MIDlet game options will differ depending on the MIDlet you select.Audio PlayerThe Audio Player can be used to play files you have loaded from your PC to your TransFlash memory card. t609.book Page 127 Sunday, January 15, 2006 2:03 PM

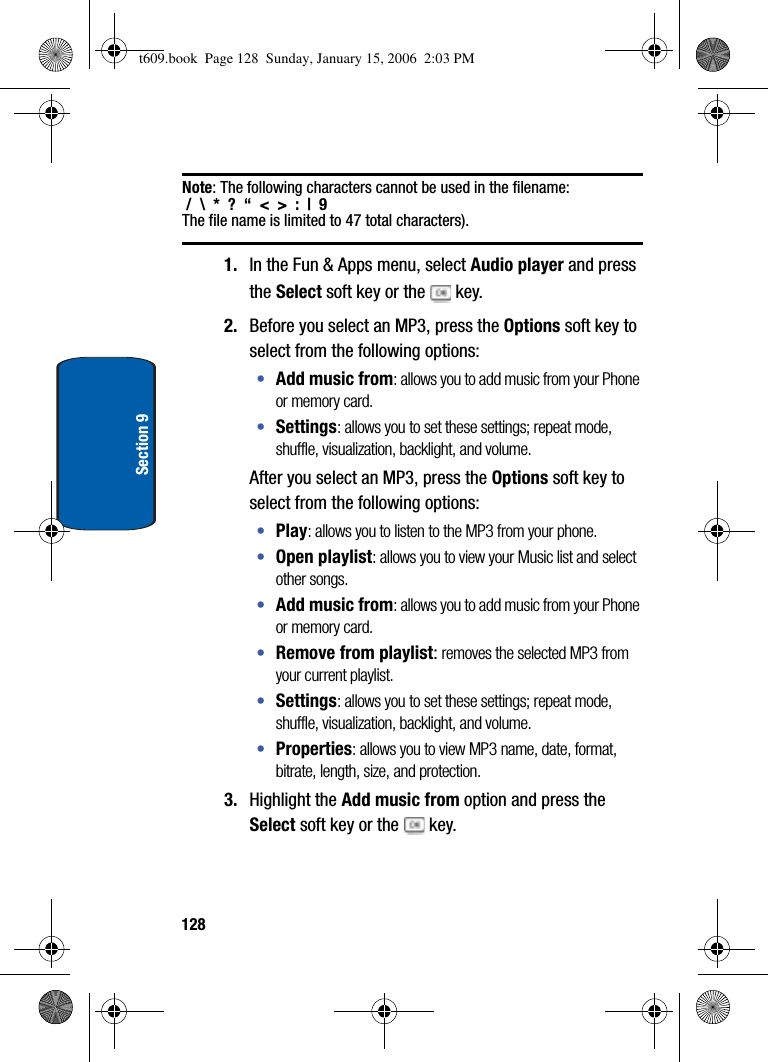

128Section 9Note: The following characters cannot be used in the filename:/ \ * ? “ < > : | 9The file name is limited to 47 total characters).1. In the Fun & Apps menu, select Audio player and press the Select soft key or the key. 2. Before you select an MP3, press the Options soft key to select from the following options:•Add music from: allows you to add music from your Phone or memory card.•Settings: allows you to set these settings; repeat mode, shuffle, visualization, backlight, and volume.After you select an MP3, press the Options soft key to select from the following options:•Play: allows you to listen to the MP3 from your phone.•Open playlist: allows you to view your Music list and select other songs.•Add music from: allows you to add music from your Phone or memory card.•Remove from playlist: removes the selected MP3 from your current playlist.•Settings: allows you to set these settings; repeat mode, shuffle, visualization, backlight, and volume.•Properties: allows you to view MP3 name, date, format, bitrate, length, size, and protection.3. Highlight the Add music from option and press the Select soft key or the key. t609.book Page 128 Sunday, January 15, 2006 2:03 PM

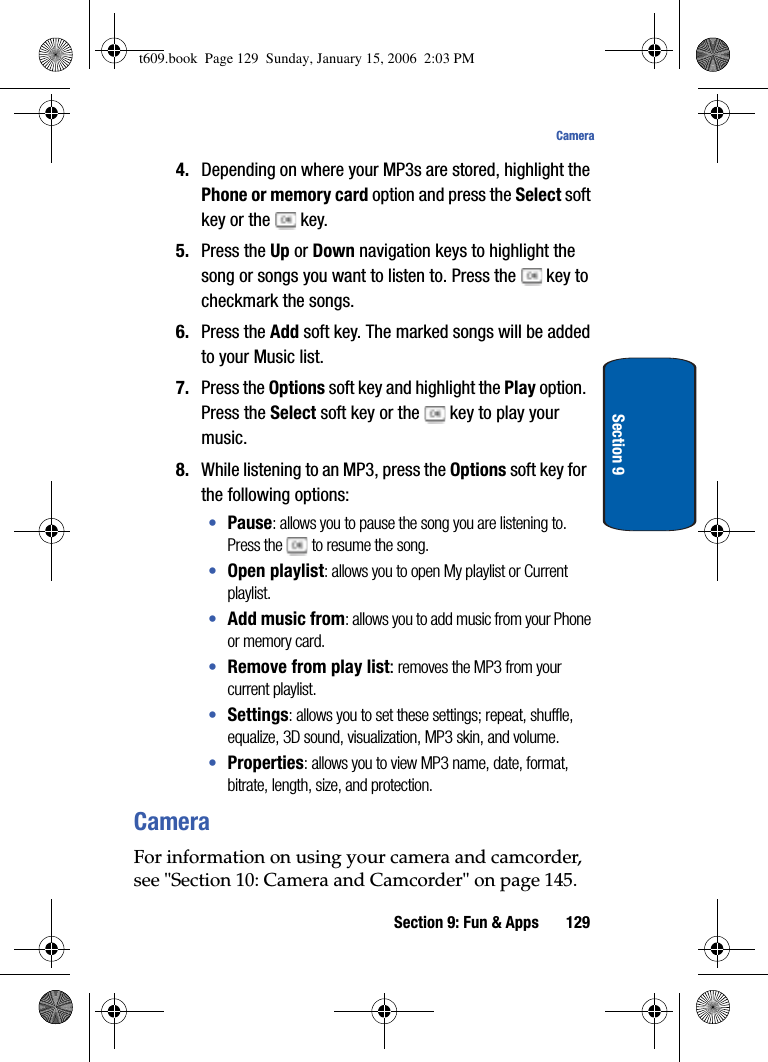

Section 9: Fun & Apps 129CameraSection 94. Depending on where your MP3s are stored, highlight the Phone or memory card option and press the Select soft key or the key. 5. Press the Up or Down navigation keys to highlight the song or songs you want to listen to. Press the key to checkmark the songs.6. Press the Add soft key. The marked songs will be added to your Music list.7. Press the Options soft key and highlight the Play option. Press the Select soft key or the key to play your music.8. While listening to an MP3, press the Options soft key for the following options:•Pause: allows you to pause the song you are listening to. Press the to resume the song.•Open playlist: allows you to open My playlist or Current playlist. •Add music from: allows you to add music from your Phone or memory card.•Remove from play list: removes the MP3 from your current playlist. •Settings: allows you to set these settings; repeat, shuffle, equalize, 3D sound, visualization, MP3 skin, and volume.•Properties: allows you to view MP3 name, date, format, bitrate, length, size, and protection.CameraFor information on using your camera and camcorder, see "Section 10: Camera and Camcorder" on page 145.t609.book Page 129 Sunday, January 15, 2006 2:03 PM

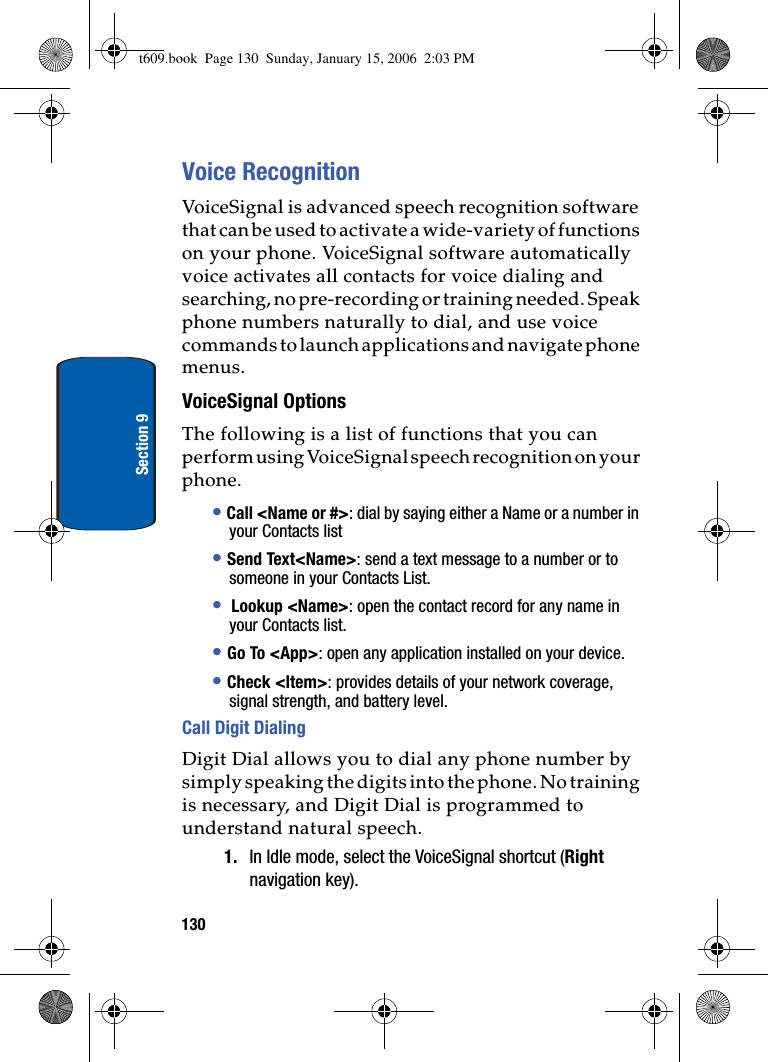

130Section 9Voice RecognitionVoiceSignal is advanced speech recognition software that can be used to activate a wide-variety of functions on your phone. VoiceSignal software automatically voice activates all contacts for voice dialing and searching, no pre-recording or training needed. Speak phone numbers naturally to dial, and use voice commands to launch applications and navigate phone menus.VoiceSignal OptionsThe following is a list of functions that you can perform using VoiceSignal speech recognition on your phone.•Call <Name or #>: dial by saying either a Name or a number in your Contacts list•Send Text<Name>: send a text message to a number or to someone in your Contacts List.• Lookup <Name>: open the contact record for any name in your Contacts list.•Go To <App>: open any application installed on your device.•Check <Item>: provides details of your network coverage, signal strength, and battery level.Call Digit DialingDigit Dial allows you to dial any phone number by simply speaking the digits into the phone. No training is necessary, and Digit Dial is programmed to understand natural speech.1. In Idle mode, select the VoiceSignal shortcut (Rightnavigation key). t609.book Page 130 Sunday, January 15, 2006 2:03 PM

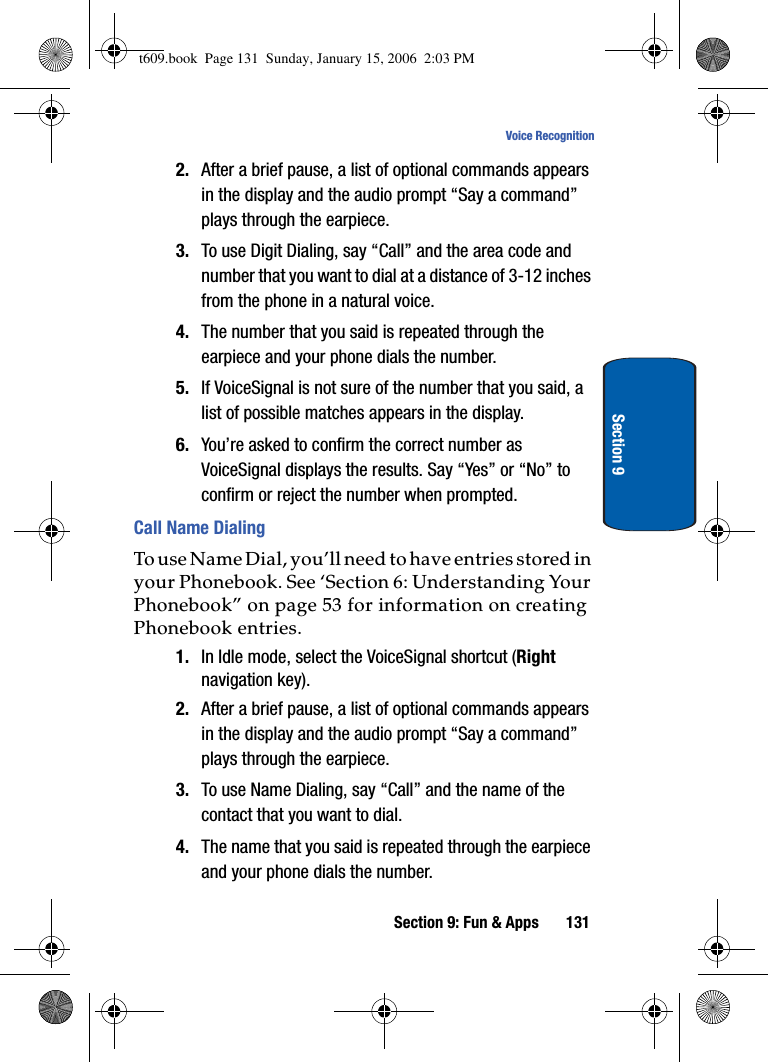

Section 9: Fun & Apps 131Voice RecognitionSection 92. After a brief pause, a list of optional commands appears in the display and the audio prompt “Say a command” plays through the earpiece.3. To use Digit Dialing, say “Call” and the area code and number that you want to dial at a distance of 3-12 inches from the phone in a natural voice.4. The number that you said is repeated through the earpiece and your phone dials the number.5. If VoiceSignal is not sure of the number that you said, a list of possible matches appears in the display.6. You’re asked to confirm the correct number as VoiceSignal displays the results. Say “Yes” or “No” to confirm or reject the number when prompted.Call Name DialingTo use Name Dial, you’ll need to have entries stored in your Phonebook. See ‘Section 6: Understanding Your Phonebook” on page 53 for information on creating Phonebook entries.1. In Idle mode, select the VoiceSignal shortcut (Rightnavigation key). 2. After a brief pause, a list of optional commands appears in the display and the audio prompt “Say a command” plays through the earpiece.3. To use Name Dialing, say “Call” and the name of the contact that you want to dial.4. The name that you said is repeated through the earpiece and your phone dials the number.t609.book Page 131 Sunday, January 15, 2006 2:03 PM

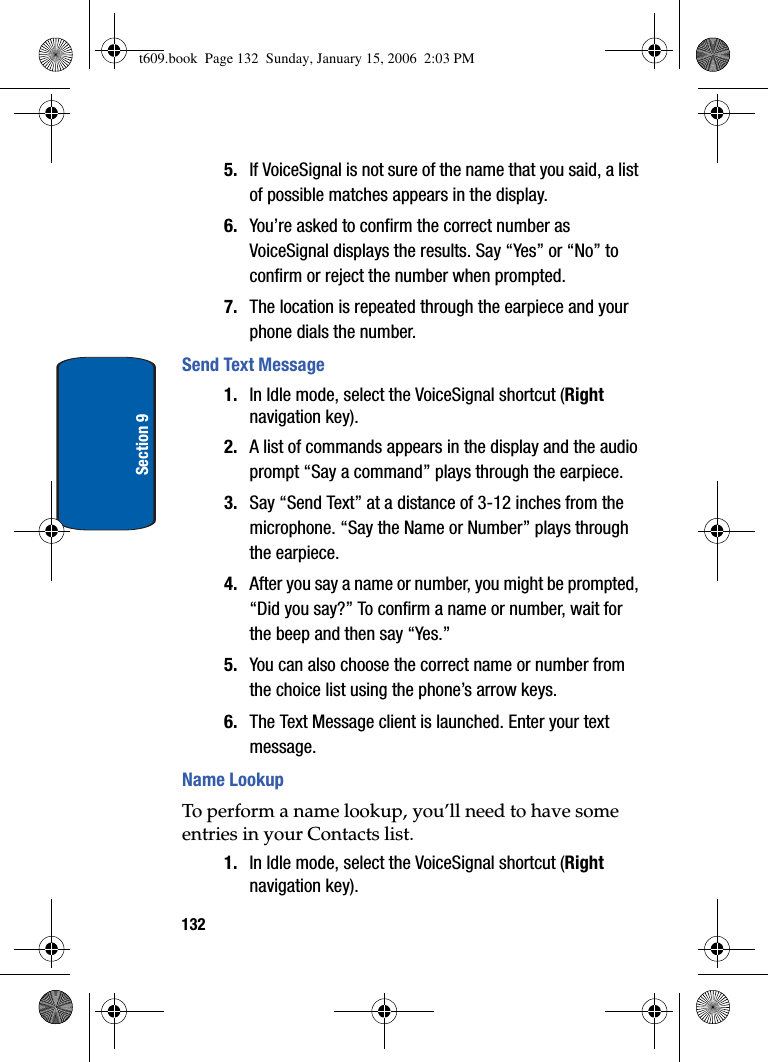

132Section 95. If VoiceSignal is not sure of the name that you said, a list of possible matches appears in the display.6. You’re asked to confirm the correct number as VoiceSignal displays the results. Say “Yes” or “No” to confirm or reject the number when prompted.7. The location is repeated through the earpiece and your phone dials the number.Send Text Message1. In Idle mode, select the VoiceSignal shortcut (Rightnavigation key). 2. A list of commands appears in the display and the audio prompt “Say a command” plays through the earpiece.3. Say “Send Text” at a distance of 3-12 inches from the microphone. “Say the Name or Number” plays through the earpiece.4. After you say a name or number, you might be prompted, “Did you say?” To confirm a name or number, wait for the beep and then say “Yes.”5. You can also choose the correct name or number from the choice list using the phone’s arrow keys. 6. The Text Message client is launched. Enter your text message.Name LookupTo perform a name lookup, you’ll need to have some entries in your Contacts list. 1. In Idle mode, select the VoiceSignal shortcut (Rightnavigation key). t609.book Page 132 Sunday, January 15, 2006 2:03 PM

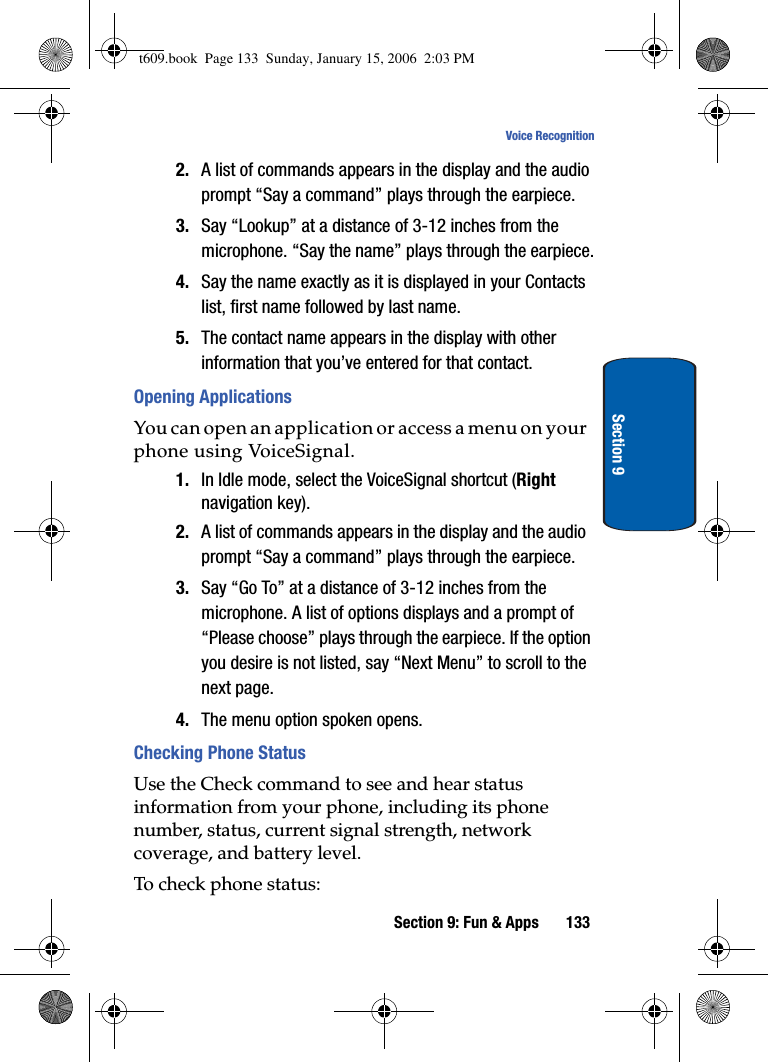

Section 9: Fun & Apps 133Voice RecognitionSection 92. A list of commands appears in the display and the audio prompt “Say a command” plays through the earpiece.3. Say “Lookup” at a distance of 3-12 inches from the microphone. “Say the name” plays through the earpiece.4. Say the name exactly as it is displayed in your Contacts list, first name followed by last name.5. The contact name appears in the display with other information that you’ve entered for that contact.Opening ApplicationsYou can open an application or access a menu on your phone using VoiceSignal.1. In Idle mode, select the VoiceSignal shortcut (Rightnavigation key). 2. A list of commands appears in the display and the audio prompt “Say a command” plays through the earpiece.3. Say “Go To” at a distance of 3-12 inches from the microphone. A list of options displays and a prompt of “Please choose” plays through the earpiece. If the option you desire is not listed, say “Next Menu” to scroll to the next page.4. The menu option spoken opens.Checking Phone StatusUse the Check command to see and hear status information from your phone, including its phone number, status, current signal strength, network coverage, and battery level. To check phone status:t609.book Page 133 Sunday, January 15, 2006 2:03 PM

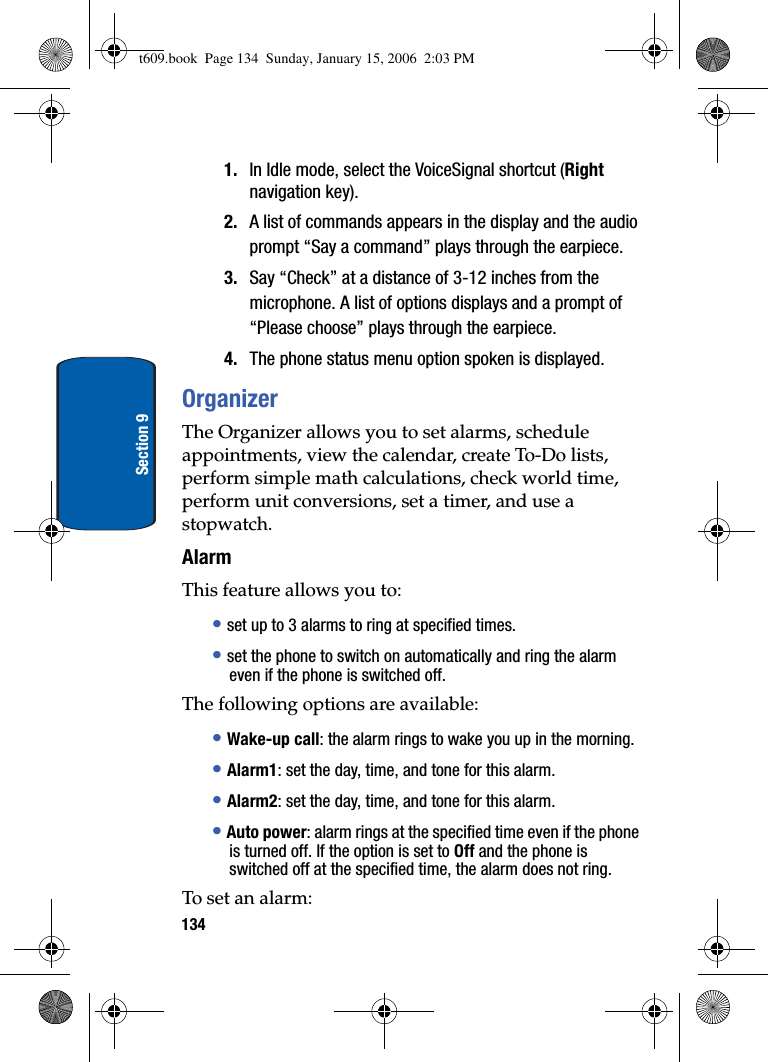

134Section 91. In Idle mode, select the VoiceSignal shortcut (Rightnavigation key). 2. A list of commands appears in the display and the audio prompt “Say a command” plays through the earpiece.3. Say “Check” at a distance of 3-12 inches from the microphone. A list of options displays and a prompt of “Please choose” plays through the earpiece.4. The phone status menu option spoken is displayed.OrganizerThe Organizer allows you to set alarms, schedule appointments, view the calendar, create To-Do lists, perform simple math calculations, check world time, perform unit conversions, set a timer, and use a stopwatch.AlarmThis feature allows you to:•set up to 3 alarms to ring at specified times.•set the phone to switch on automatically and ring the alarm even if the phone is switched off.The following options are available:•Wake-up call: the alarm rings to wake you up in the morning.•Alarm1: set the day, time, and tone for this alarm. •Alarm2: set the day, time, and tone for this alarm. •Auto power: alarm rings at the specified time even if the phone is turned off. If the option is set to Off and the phone is switched off at the specified time, the alarm does not ring.To set an alarm:t609.book Page 134 Sunday, January 15, 2006 2:03 PM

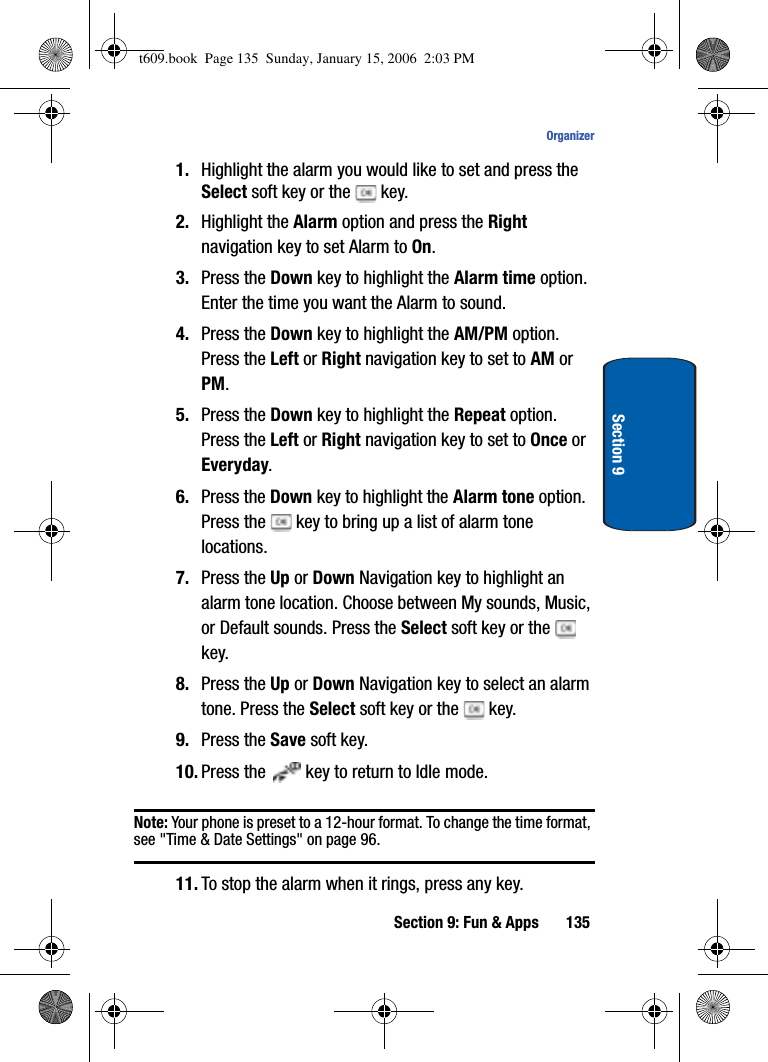

Section 9: Fun & Apps 135OrganizerSection 91. Highlight the alarm you would like to set and press the Select soft key or the key.2. Highlight the Alarm option and press the Rightnavigation key to set Alarm to On.3. Press the Down key to highlight the Alarm time option. Enter the time you want the Alarm to sound.4. Press the Down key to highlight the AM/PM option. Press the Left or Right navigation key to set to AM or PM.5. Press the Down key to highlight the Repeat option. Press the Left or Right navigation key to set to Once or Everyday.6. Press the Down key to highlight the Alarm tone option. Press the key to bring up a list of alarm tone locations.7. Press the Up or Down Navigation key to highlight an alarm tone location. Choose between My sounds, Music, or Default sounds. Press the Select soft key or the key.8. Press the Up or Down Navigation key to select an alarm tone. Press the Select soft key or the key.9. Press the Save soft key.10. Press the key to return to Idle mode.Note: Your phone is preset to a 12-hour format. To change the time format, see "Time & Date Settings" on page 96.11. To stop the alarm when it rings, press any key.t609.book Page 135 Sunday, January 15, 2006 2:03 PM

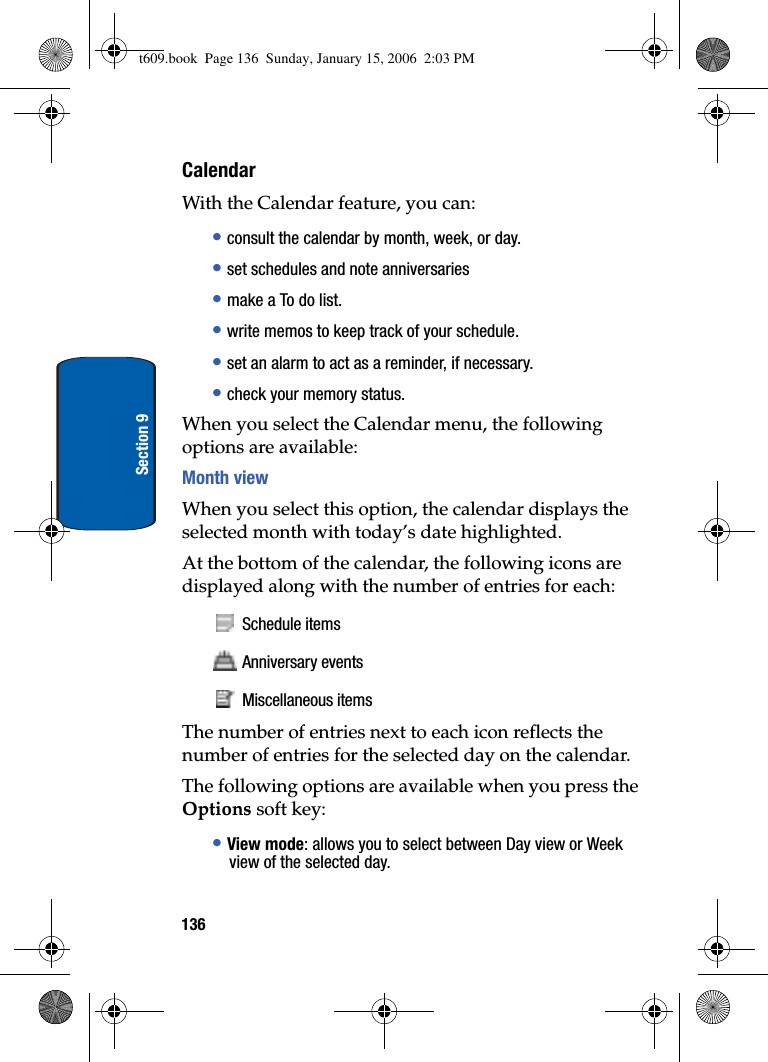

136Section 9CalendarWith the Calendar feature, you can: •consult the calendar by month, week, or day.•set schedules and note anniversaries•make a To do list.•write memos to keep track of your schedule.•set an alarm to act as a reminder, if necessary.•check your memory status.When you select the Calendar menu, the following options are available:Month viewWhen you select this option, the calendar displays the selected month with today’s date highlighted. At the bottom of the calendar, the following icons are displayed along with the number of entries for each: Schedule items Anniversary events Miscellaneous itemsThe number of entries next to each icon reflects the number of entries for the selected day on the calendar.The following options are available when you press the Options soft key:•View mode: allows you to select between Day view or Week view of the selected day.t609.book Page 136 Sunday, January 15, 2006 2:03 PM

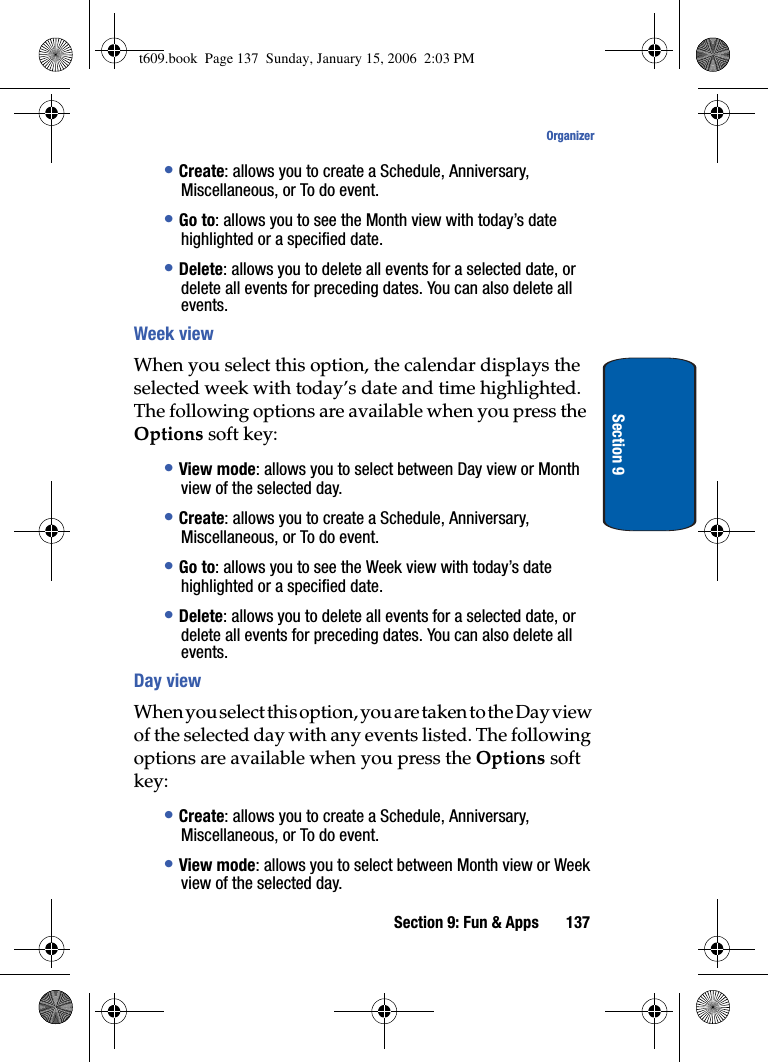

Section 9: Fun & Apps 137OrganizerSection 9•Create: allows you to create a Schedule, Anniversary, Miscellaneous, or To do event.•Go to: allows you to see the Month view with today’s date highlighted or a specified date.•Delete: allows you to delete all events for a selected date, or delete all events for preceding dates. You can also delete all events.Week viewWhen you select this option, the calendar displays the selected week with today’s date and time highlighted. The following options are available when you press the Options soft key:•View mode: allows you to select between Day view or Month view of the selected day.•Create: allows you to create a Schedule, Anniversary, Miscellaneous, or To do event.•Go to: allows you to see the Week view with today’s date highlighted or a specified date.•Delete: allows you to delete all events for a selected date, or delete all events for preceding dates. You can also delete all events.Day viewWhen you select this option, you are taken to the Day view of the selected day with any events listed. The following options are available when you press the Options soft key:•Create: allows you to create a Schedule, Anniversary, Miscellaneous, or To do event.•View mode: allows you to select between Month view or Week view of the selected day.t609.book Page 137 Sunday, January 15, 2006 2:03 PM

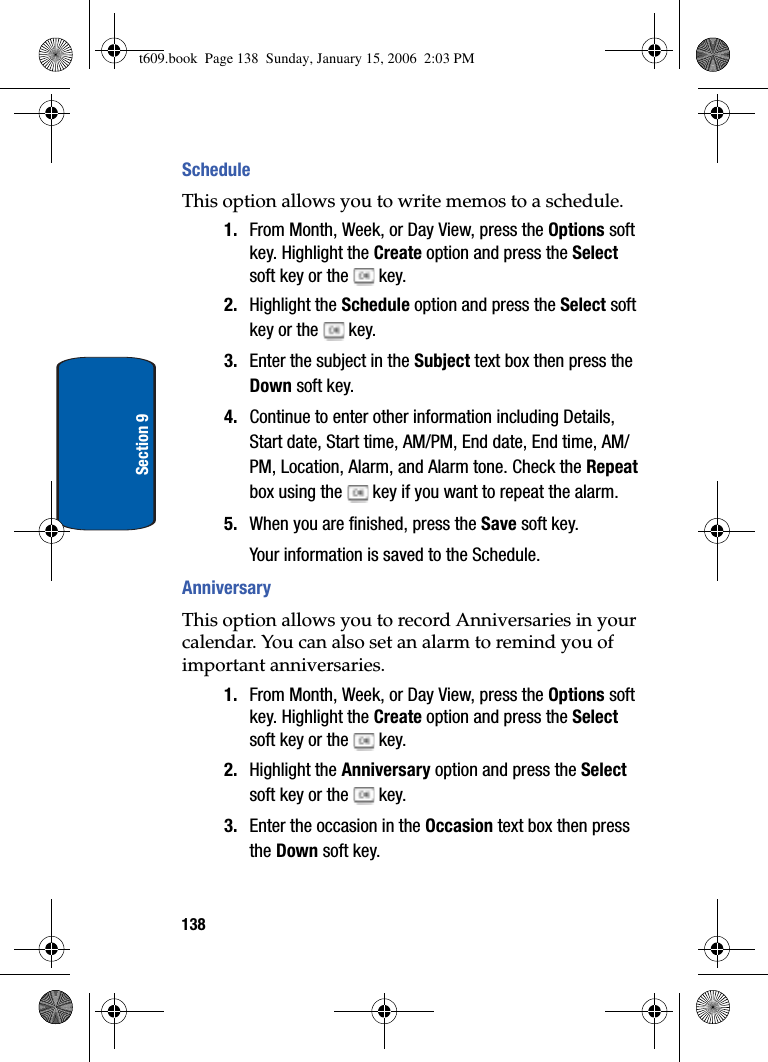

138Section 9ScheduleThis option allows you to write memos to a schedule.1. From Month, Week, or Day View, press the Options soft key. Highlight the Create option and press the Selectsoft key or the key.2. Highlight the Schedule option and press the Select softkey or the key.3. Enter the subject in the Subject text box then press the Down soft key.4. Continue to enter other information including Details, Start date, Start time, AM/PM, End date, End time, AM/PM, Location, Alarm, and Alarm tone. Check the Repeatbox using the key if you want to repeat the alarm.5. When you are finished, press the Save soft key.Your information is saved to the Schedule.AnniversaryThis option allows you to record Anniversaries in your calendar. You can also set an alarm to remind you of important anniversaries.1. From Month, Week, or Day View, press the Options soft key. Highlight the Create option and press the Selectsoft key or the key.2. Highlight the Anniversary option and press the Select soft key or the key.3. Enter the occasion in the Occasion text box then press the Down soft key.t609.book Page 138 Sunday, January 15, 2006 2:03 PM

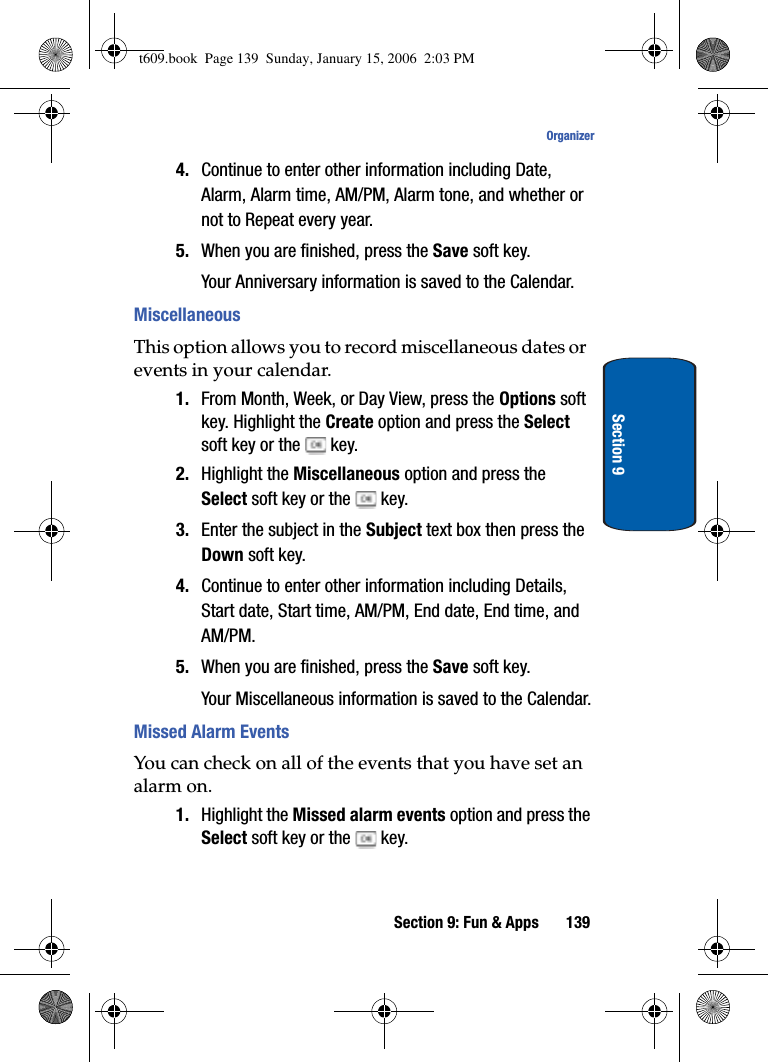

Section 9: Fun & Apps 139OrganizerSection 94. Continue to enter other information including Date, Alarm, Alarm time, AM/PM, Alarm tone, and whether or not to Repeat every year.5. When you are finished, press the Save soft key.Your Anniversary information is saved to the Calendar.MiscellaneousThis option allows you to record miscellaneous dates or events in your calendar.1. From Month, Week, or Day View, press the Options soft key. Highlight the Create option and press the Selectsoft key or the key.2. Highlight the Miscellaneous option and press the Select soft key or the key.3. Enter the subject in the Subject text box then press the Down soft key.4. Continue to enter other information including Details, Start date, Start time, AM/PM, End date, End time, and AM/PM.5. When you are finished, press the Save soft key.Your Miscellaneous information is saved to the Calendar.Missed Alarm EventsYou can check on all of the events that you have set an alarm on. 1. Highlight the Missed alarm events option and press the Select soft key or the key.t609.book Page 139 Sunday, January 15, 2006 2:03 PM

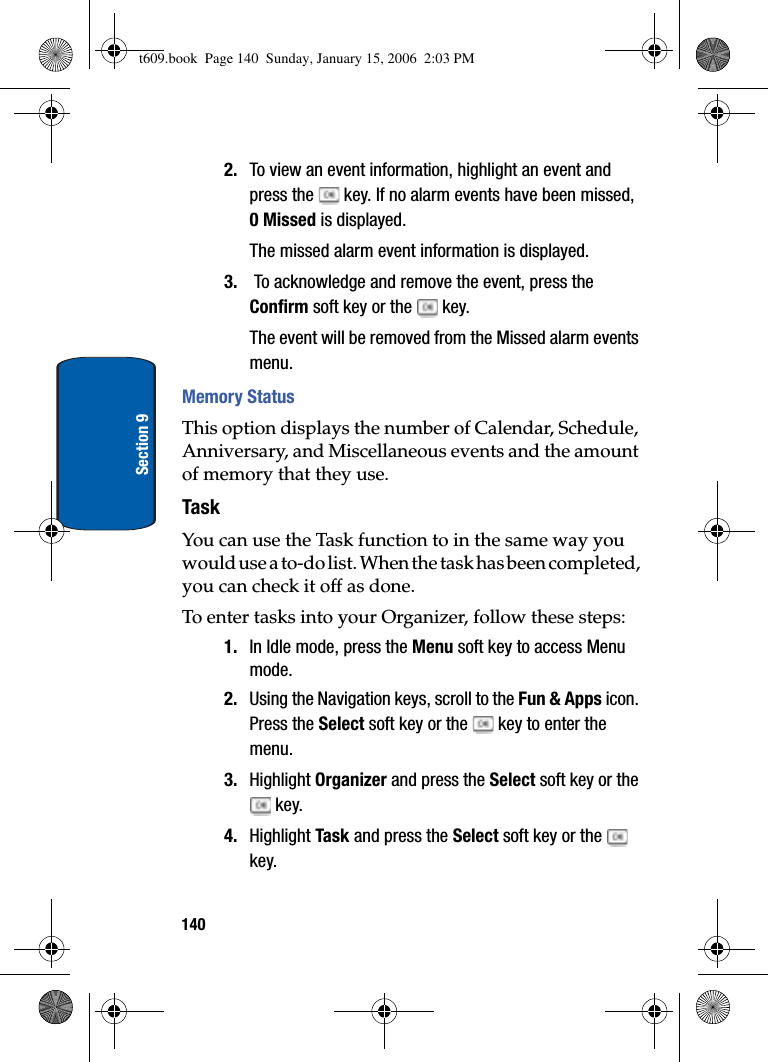

140Section 92. To view an event information, highlight an event and press the key. If no alarm events have been missed, 0 Missed is displayed.The missed alarm event information is displayed.3. To acknowledge and remove the event, press the Confirm soft key or the key.The event will be removed from the Missed alarm events menu.Memory StatusThis option displays the number of Calendar, Schedule, Anniversary, and Miscellaneous events and the amount of memory that they use.TaskYou can use the Task function to in the same way you would use a to-do list. When the task has been completed, you can check it off as done. To enter tasks into your Organizer, follow these steps:1. In Idle mode, press the Menu soft key to access Menu mode.2. Using the Navigation keys, scroll to the Fun & Apps icon. Press the Select soft key or the key to enter the menu.3. Highlight Organizer and press the Select soft key or the key.4. Highlight Task and press the Select soft key or the key.t609.book Page 140 Sunday, January 15, 2006 2:03 PM
Section 9: Fun & Apps 141OrganizerSection 95. The first time you enter the task menu, it will be empty. Press the Options soft key and highlight the Createoption. Press the Select soft key or the key.6. In the Task text box, enter your task. It can be up to 100 characters long.7. Press the Down Navigation key and highlight the StartDate option. If you want to have a start date, press the key to check the box then use the Down key to highlight the Start date text box. Enter the start date.8. Scroll down and repeat step 7 for the End date.9. Scroll down and highlight the Select priority option. Use the Left or Right Navigation keys to select High, Normal, or Low.10. Press the Save soft key.To see your Task list, you can go to the Tas k option in the Organizer or you can see each task under Day view of the calendar for the day it was started.To mark a task as Done:1. Select the task in the task list.2. Press the Options soft key and highlight the Doneoption. Press the Select soft key or the key.3. The task will have a check mark after it in the Task list.CalculatorWith this feature, you can use the phone as a calculator. The calculator provides the basic arithmetic functions; addition, subtraction, multiplication, and division.1. Enter the first number using the numeric keys.t609.book Page 141 Sunday, January 15, 2006 2:03 PM

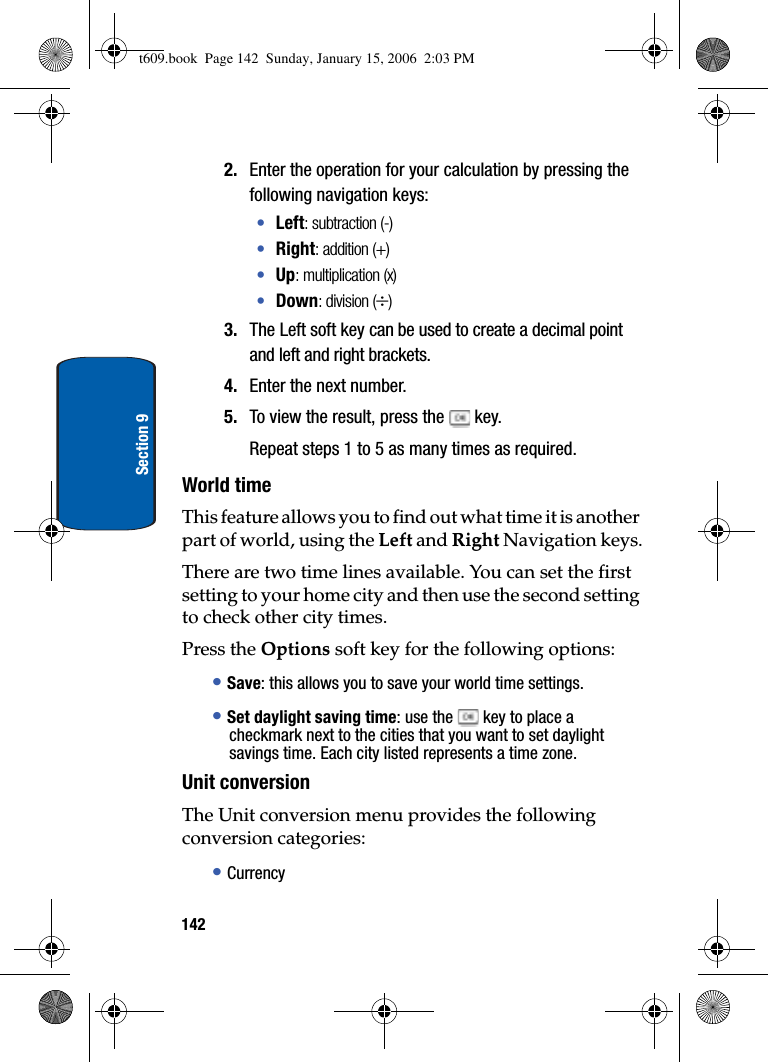

142Section 92. Enter the operation for your calculation by pressing the following navigation keys:•Left: subtraction (-)•Right: addition (+)•Up: multiplication (x)•Down: division (y)3. The Left soft key can be used to create a decimal point and left and right brackets.4. Enter the next number.5. To view the result, press the key.Repeat steps 1 to 5 as many times as required.World timeThis feature allows you to find out what time it is another part of world, using the Left and Right Navigation keys.There are two time lines available. You can set the first setting to your home city and then use the second setting to check other city times. Press the Options soft key for the following options:•Save: this allows you to save your world time settings.•Set daylight saving time: use the key to place a checkmark next to the cities that you want to set daylight savings time. Each city listed represents a time zone.Unit conversionThe Unit conversion menu provides the following conversion categories:•Currencyt609.book Page 142 Sunday, January 15, 2006 2:03 PM

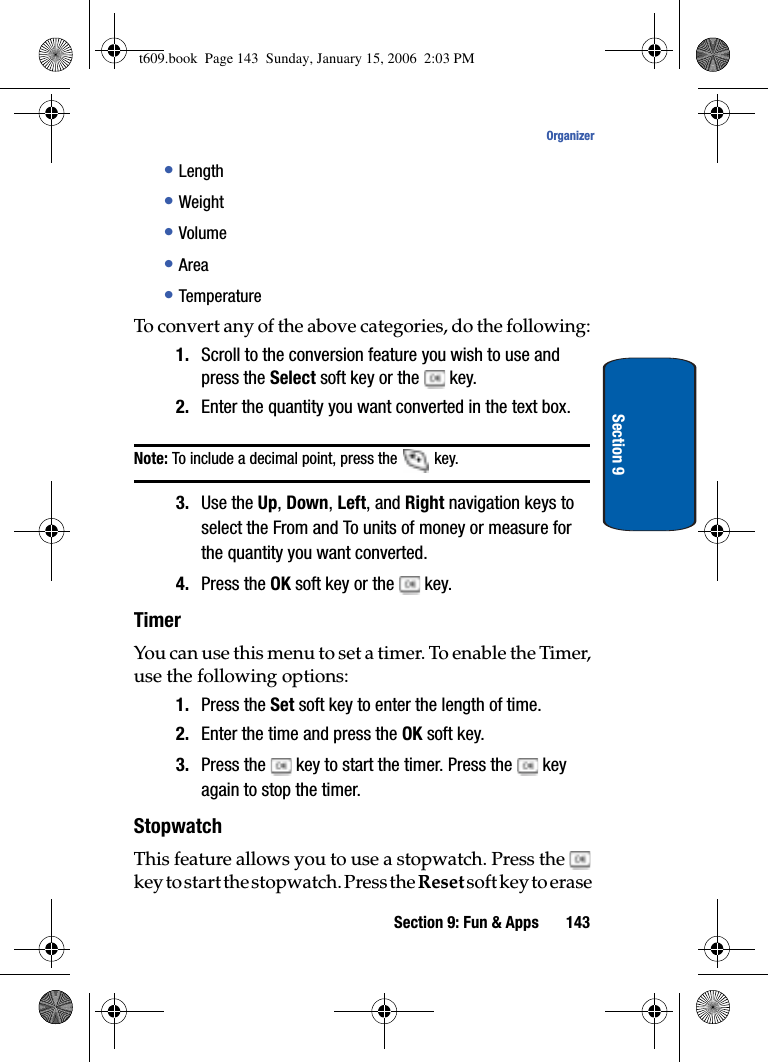

Section 9: Fun & Apps 143OrganizerSection 9•Length•Weight•Volume•Area•TemperatureTo convert any of the above categories, do the following: 1. Scroll to the conversion feature you wish to use and press the Select soft key or the key. 2. Enter the quantity you want converted in the text box. Note: To include a decimal point, press the key. 3. Use the Up,Down,Left, and Right navigation keys to select the From and To units of money or measure for the quantity you want converted. 4. Press the OK soft key or the key. TimerYou can use this menu to set a timer. To enable the Timer, use the following options:1. Press the Set soft key to enter the length of time. 2. Enter the time and press the OK soft key.3. Press the key to start the timer. Press the key again to stop the timer.StopwatchThis feature allows you to use a stopwatch. Press the key to start the stopwatch. Press the Reset soft key to erase t609.book Page 143 Sunday, January 15, 2006 2:03 PM

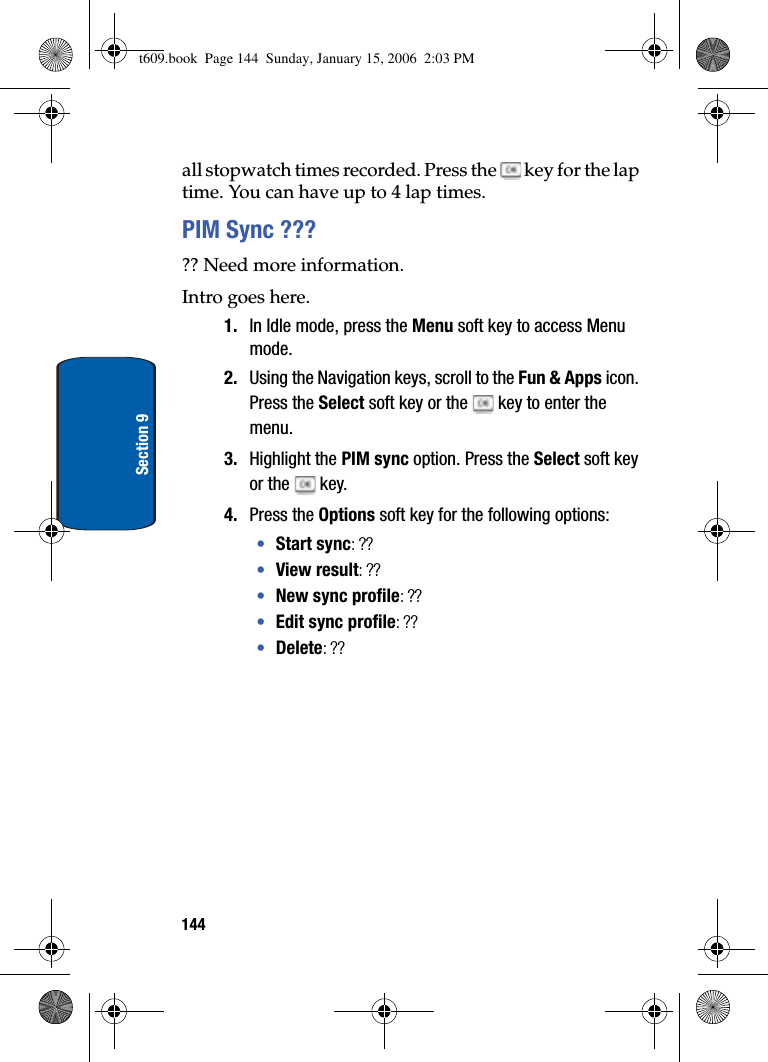

144Section 9all stopwatch times recorded. Press the key for the lap time. You can have up to 4 lap times.PIM Sync ????? Need more information.Intro goes here.1. In Idle mode, press the Menu soft key to access Menu mode.2. Using the Navigation keys, scroll to the Fun & Apps icon. Press the Select soft key or the key to enter the menu.3. Highlight the PIM sync option. Press the Select soft key or the key.4. Press the Options soft key for the following options:•Start sync: ??•View result: ??•New sync profile: ??•Edit sync profile: ??•Delete: ??t609.book Page 144 Sunday, January 15, 2006 2:03 PM

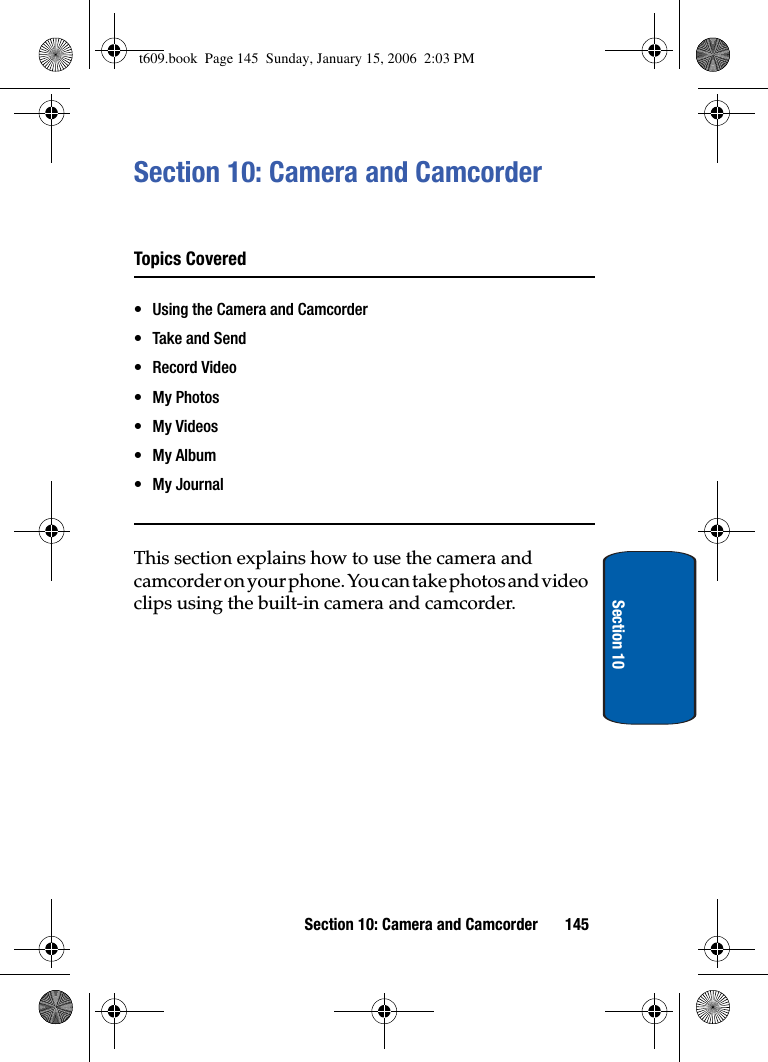

Section 10: Camera and Camcorder 145Section 10Section 10: Camera and CamcorderTopics Covered• Using the Camera and Camcorder• Take and Send• Record Video• My Photos• My Videos• My Album• My JournalThis section explains how to use the camera and camcorder on your phone. You can take photos and video clips using the built-in camera and camcorder. t609.book Page 145 Sunday, January 15, 2006 2:03 PM

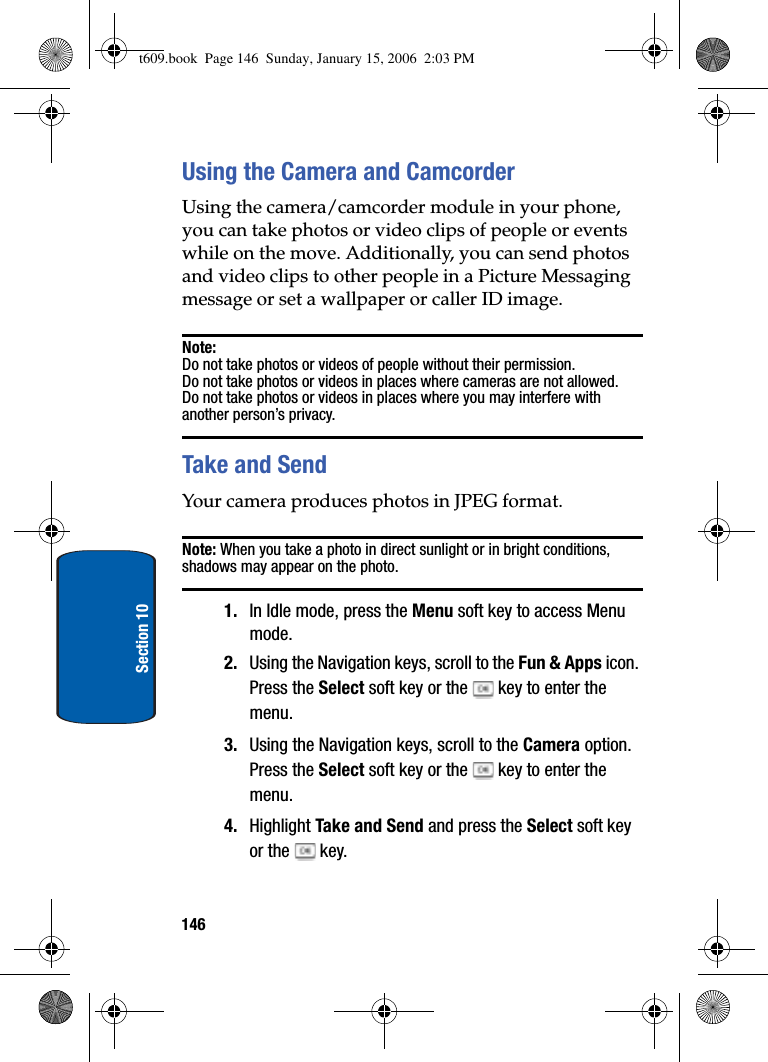

146Section 10Using the Camera and CamcorderUsing the camera/camcorder module in your phone, you can take photos or video clips of people or events while on the move. Additionally, you can send photos and video clips to other people in a Picture Messaging message or set a wallpaper or caller ID image.Note:Do not take photos or videos of people without their permission.Do not take photos or videos in places where cameras are not allowed.Do not take photos or videos in places where you may interfere with another person’s privacy.Take and SendYour camera produces photos in JPEG format.Note: When you take a photo in direct sunlight or in bright conditions, shadows may appear on the photo.1. In Idle mode, press the Menu soft key to access Menu mode.2. Using the Navigation keys, scroll to the Fun & Apps icon. Press the Select soft key or the key to enter the menu. 3. Using the Navigation keys, scroll to the Camera option. Press the Select soft key or the key to enter the menu. 4. Highlight Take and Send and press the Select soft key or the key.t609.book Page 146 Sunday, January 15, 2006 2:03 PM

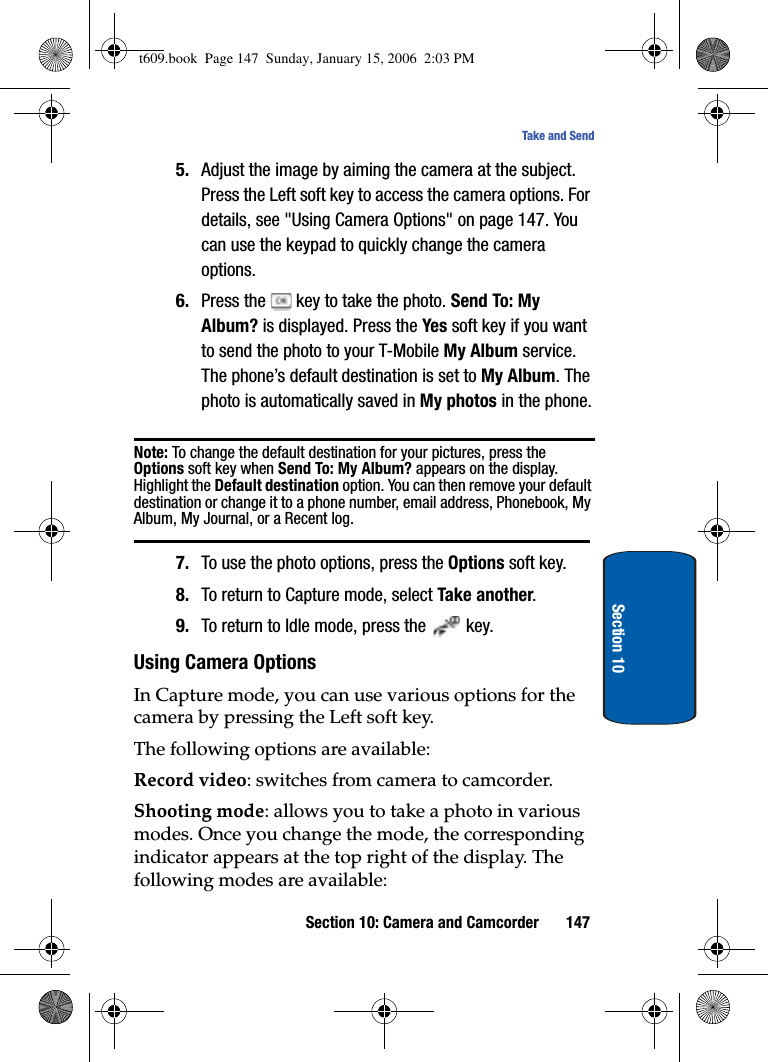

Section 10: Camera and Camcorder 147Take and SendSection 105. Adjust the image by aiming the camera at the subject. Press the Left soft key to access the camera options. For details, see "Using Camera Options" on page 147. You can use the keypad to quickly change the camera options. 6. Press the key to take the photo. Send To: My Album? is displayed. Press the Yes soft key if you want to send the photo to your T-Mobile My Album service. The phone’s default destination is set to My Album. The photo is automatically saved in My photos in the phone.Note: To change the default destination for your pictures, press the Options soft key when Send To: My Album? appears on the display. Highlight the Default destination option. You can then remove your default destination or change it to a phone number, email address, Phonebook, My Album, My Journal, or a Recent log.7. To use the photo options, press the Options soft key.8. To return to Capture mode, select Take another.9. To return to Idle mode, press the key.Using Camera OptionsIn Capture mode, you can use various options for the camera by pressing the Left soft key.The following options are available:Record video: switches from camera to camcorder.Shooting mode: allows you to take a photo in various modes. Once you change the mode, the corresponding indicator appears at the top right of the display. The following modes are available:t609.book Page 147 Sunday, January 15, 2006 2:03 PM

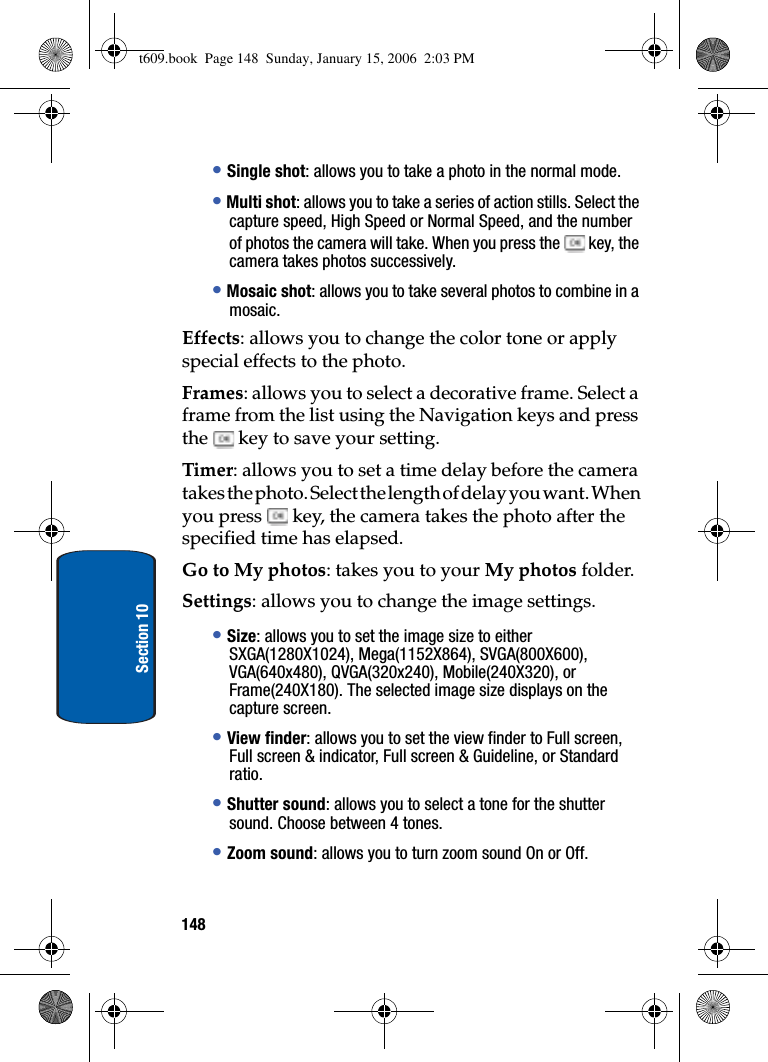

148Section 10•Single shot: allows you to take a photo in the normal mode.•Multi shot: allows you to take a series of action stills. Select the capture speed, High Speed or Normal Speed, and the number of photos the camera will take. When you press the key, the camera takes photos successively.•Mosaic shot: allows you to take several photos to combine in a mosaic.Effects: allows you to change the color tone or apply special effects to the photo.Frames: allows you to select a decorative frame. Select a frame from the list using the Navigation keys and press the key to save your setting.Timer: allows you to set a time delay before the camera takes the photo. Select the length of delay you want. When you press key, the camera takes the photo after the specified time has elapsed.Go to My photos: takes you to your My photos folder.Settings: allows you to change the image settings.•Size: allows you to set the image size to either SXGA(1280X1024), Mega(1152X864), SVGA(800X600), VGA(640x480), QVGA(320x240), Mobile(240X320), or Frame(240X180). The selected image size displays on the capture screen.•View finder: allows you to set the view finder to Full screen, Full screen & indicator, Full screen & Guideline, or Standard ratio.•Shutter sound: allows you to select a tone for the shutter sound. Choose between 4 tones.•Zoom sound: allows you to turn zoom sound On or Off.t609.book Page 148 Sunday, January 15, 2006 2:03 PM

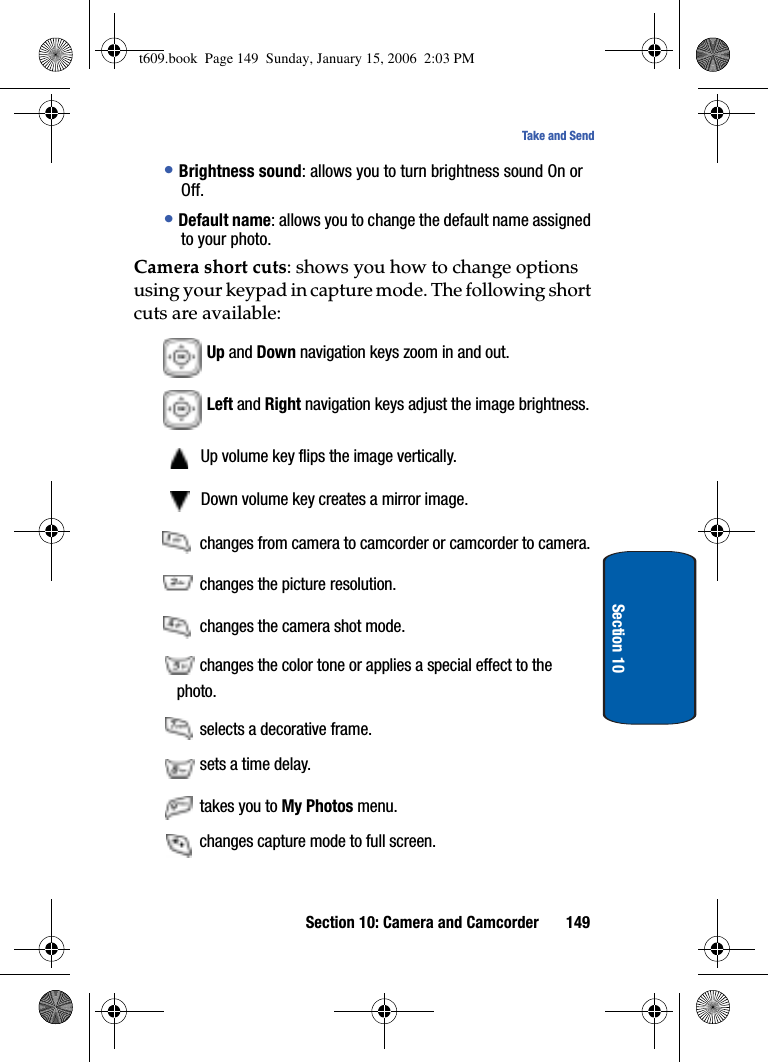

Section 10: Camera and Camcorder 149Take and SendSection 10•Brightness sound: allows you to turn brightness sound On or Off.•Default name: allows you to change the default name assigned to your photo.Camera short cuts: shows you how to change options using your keypad in capture mode. The following short cuts are available:Up and Down navigation keys zoom in and out.Left and Right navigation keys adjust the image brightness. Up volume key flips the image vertically. Down volume key creates a mirror image. changes from camera to camcorder or camcorder to camera. changes the picture resolution. changes the camera shot mode. changes the color tone or applies a special effect to the photo. selects a decorative frame. sets a time delay. takes you to My Photos menu. changes capture mode to full screen.t609.book Page 149 Sunday, January 15, 2006 2:03 PM

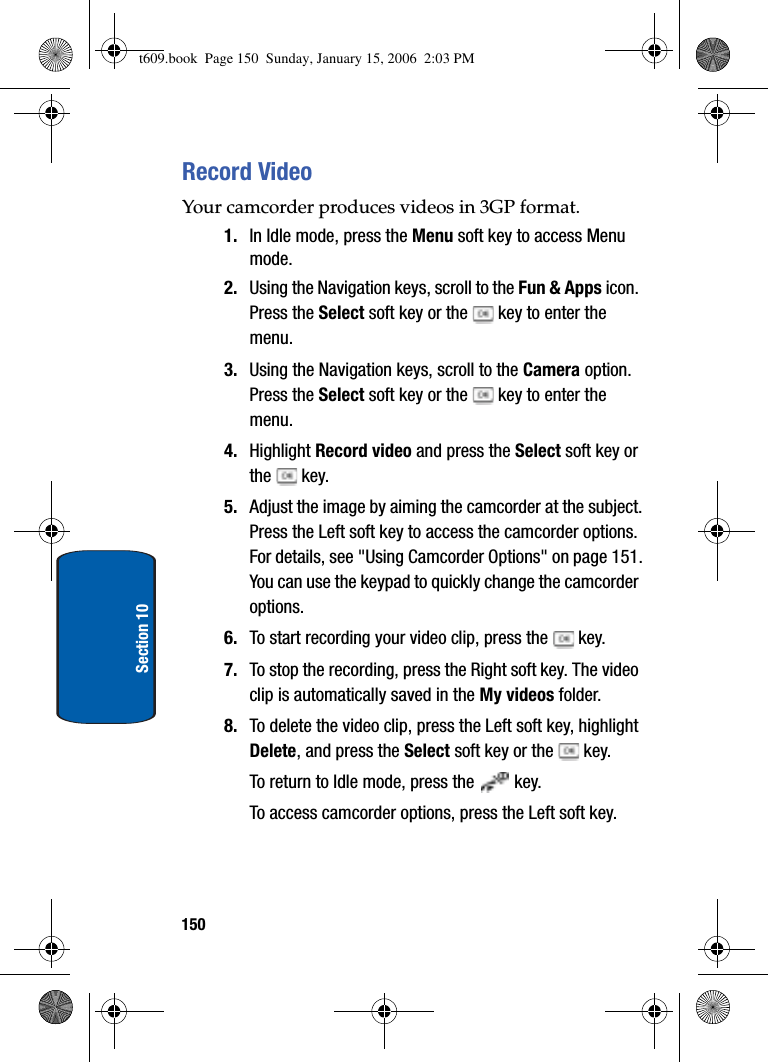

150Section 10Record VideoYour camcorder produces videos in 3GP format.1. In Idle mode, press the Menu soft key to access Menu mode.2. Using the Navigation keys, scroll to the Fun & Apps icon. Press the Select soft key or the key to enter the menu. 3. Using the Navigation keys, scroll to the Camera option. Press the Select soft key or the key to enter the menu. 4. Highlight Record video and press the Select soft key or the key.5. Adjust the image by aiming the camcorder at the subject.Press the Left soft key to access the camcorder options. For details, see "Using Camcorder Options" on page 151.You can use the keypad to quickly change the camcorder options. 6. To start recording your video clip, press the key.7. To stop the recording, press the Right soft key. The video clip is automatically saved in the My videos folder.8. To delete the video clip, press the Left soft key, highlight Delete, and press the Select soft key or the key.To return to Idle mode, press the key.To access camcorder options, press the Left soft key.t609.book Page 150 Sunday, January 15, 2006 2:03 PM

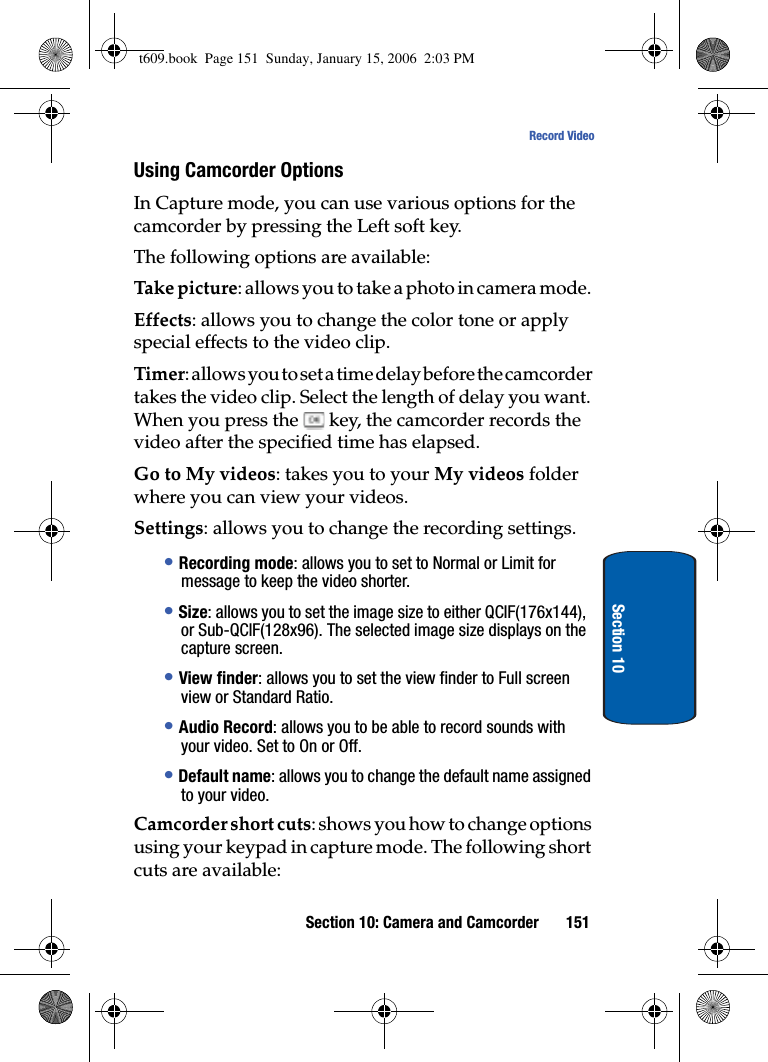

Section 10: Camera and Camcorder 151Record VideoSection 10Using Camcorder OptionsIn Capture mode, you can use various options for the camcorder by pressing the Left soft key.The following options are available:Take picture: allows you to take a photo in camera mode. Effects: allows you to change the color tone or apply special effects to the video clip.Timer: allows you to set a time delay before the camcorder takes the video clip. Select the length of delay you want. When you press the key, the camcorder records the video after the specified time has elapsed.Go to My videos: takes you to your My videos folder where you can view your videos.Settings: allows you to change the recording settings.•Recording mode: allows you to set to Normal or Limit for message to keep the video shorter.•Size: allows you to set the image size to either QCIF(176x144), or Sub-QCIF(128x96). The selected image size displays on the capture screen.•View finder: allows you to set the view finder to Full screen view or Standard Ratio.•Audio Record: allows you to be able to record sounds with your video. Set to On or Off.•Default name: allows you to change the default name assigned to your video.Camcorder short cuts: shows you how to change options using your keypad in capture mode. The following short cuts are available:t609.book Page 151 Sunday, January 15, 2006 2:03 PM

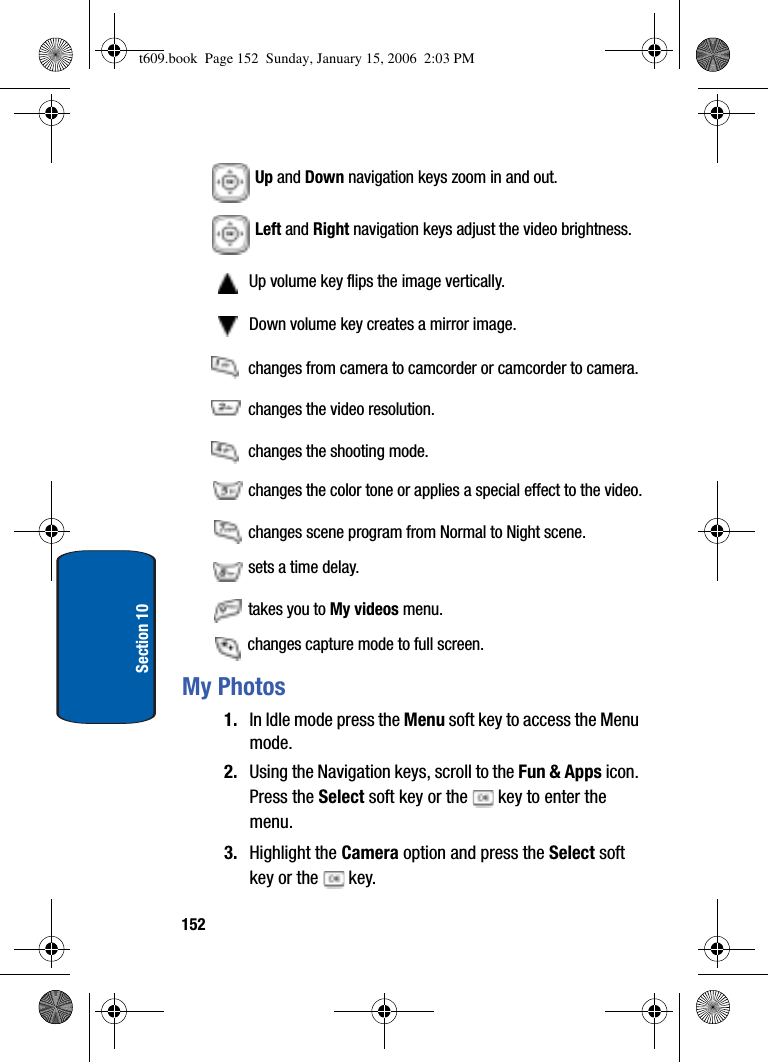

152Section 10Up and Down navigation keys zoom in and out.Left and Right navigation keys adjust the video brightness. Up volume key flips the image vertically. Down volume key creates a mirror image. changes from camera to camcorder or camcorder to camera. changes the video resolution. changes the shooting mode. changes the color tone or applies a special effect to the video. changes scene program from Normal to Night scene. sets a time delay. takes you to My videos menu. changes capture mode to full screen.My Photos1. In Idle mode press the Menu soft key to access the Menu mode.2. Using the Navigation keys, scroll to the Fun & Apps icon. Press the Select soft key or the key to enter the menu. 3. Highlight the Camera option and press the Select soft key or the key. t609.book Page 152 Sunday, January 15, 2006 2:03 PM

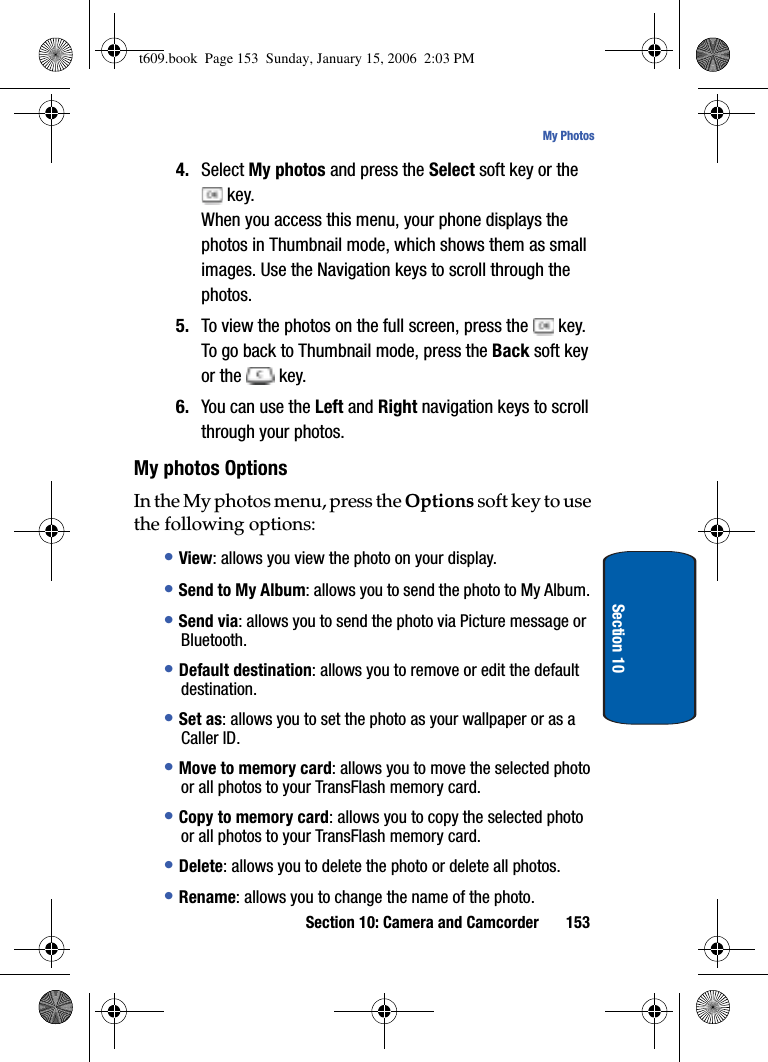

Section 10: Camera and Camcorder 153My PhotosSection 104. Select My photos and press the Select soft key or the key.When you access this menu, your phone displays the photos in Thumbnail mode, which shows them as small images. Use the Navigation keys to scroll through the photos.5. To view the photos on the full screen, press the key. To go back to Thumbnail mode, press the Back soft key or the key.6. You can use the Left and Right navigation keys to scroll through your photos.My photos OptionsIn the My photos menu, press the Options soft key to use the following options:•View: allows you view the photo on your display.•Send to My Album: allows you to send the photo to My Album.•Send via: allows you to send the photo via Picture message or Bluetooth.•Default destination: allows you to remove or edit the default destination.•Set as: allows you to set the photo as your wallpaper or as a Caller ID.•Move to memory card: allows you to move the selected photo or all photos to your TransFlash memory card.•Copy to memory card: allows you to copy the selected photo or all photos to your TransFlash memory card.•Delete: allows you to delete the photo or delete all photos.•Rename: allows you to change the name of the photo.t609.book Page 153 Sunday, January 15, 2006 2:03 PM

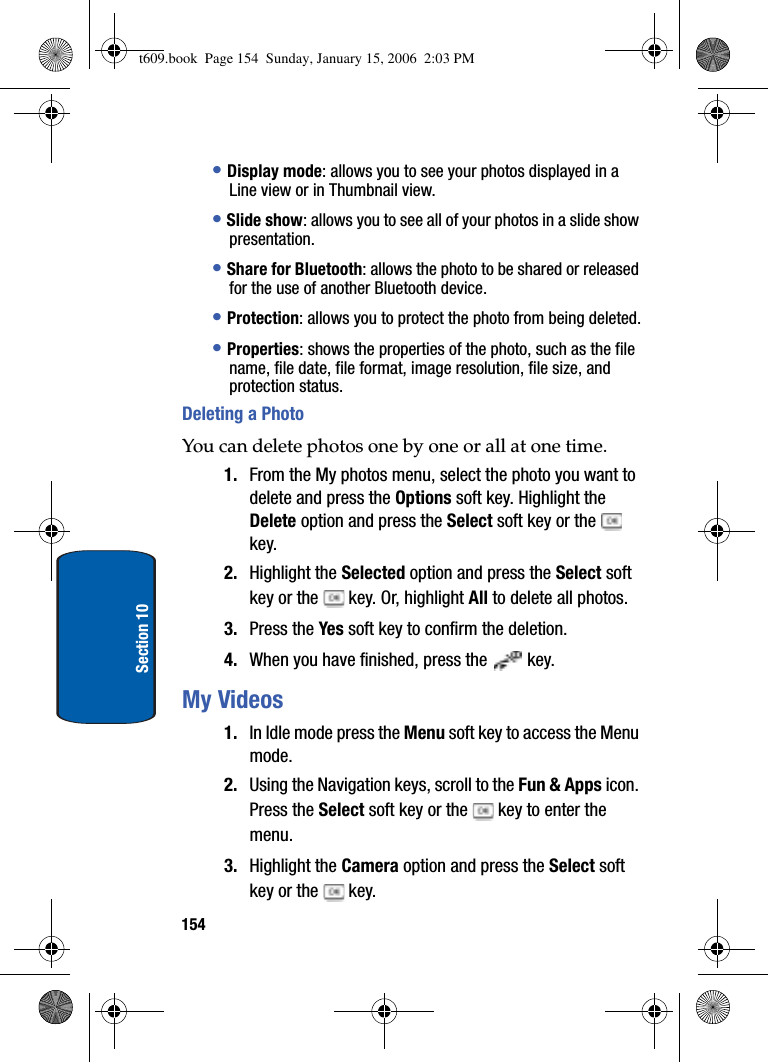

154Section 10•Display mode: allows you to see your photos displayed in a Line view or in Thumbnail view.•Slide show: allows you to see all of your photos in a slide show presentation. •Share for Bluetooth: allows the photo to be shared or released for the use of another Bluetooth device.•Protection: allows you to protect the photo from being deleted.•Properties: shows the properties of the photo, such as the file name, file date, file format, image resolution, file size, and protection status.Deleting a PhotoYou can delete photos one by one or all at one time. 1. From the My photos menu, select the photo you want to delete and press the Options soft key. Highlight the Delete option and press the Select soft key or the key.2. Highlight the Selected option and press the Select soft key or the key. Or, highlight All to delete all photos.3. Press the Yes soft key to confirm the deletion.4. When you have finished, press the key.My Videos1. In Idle mode press the Menu soft key to access the Menu mode.2. Using the Navigation keys, scroll to the Fun & Apps icon. Press the Select soft key or the key to enter the menu. 3. Highlight the Camera option and press the Select soft key or the key. t609.book Page 154 Sunday, January 15, 2006 2:03 PM

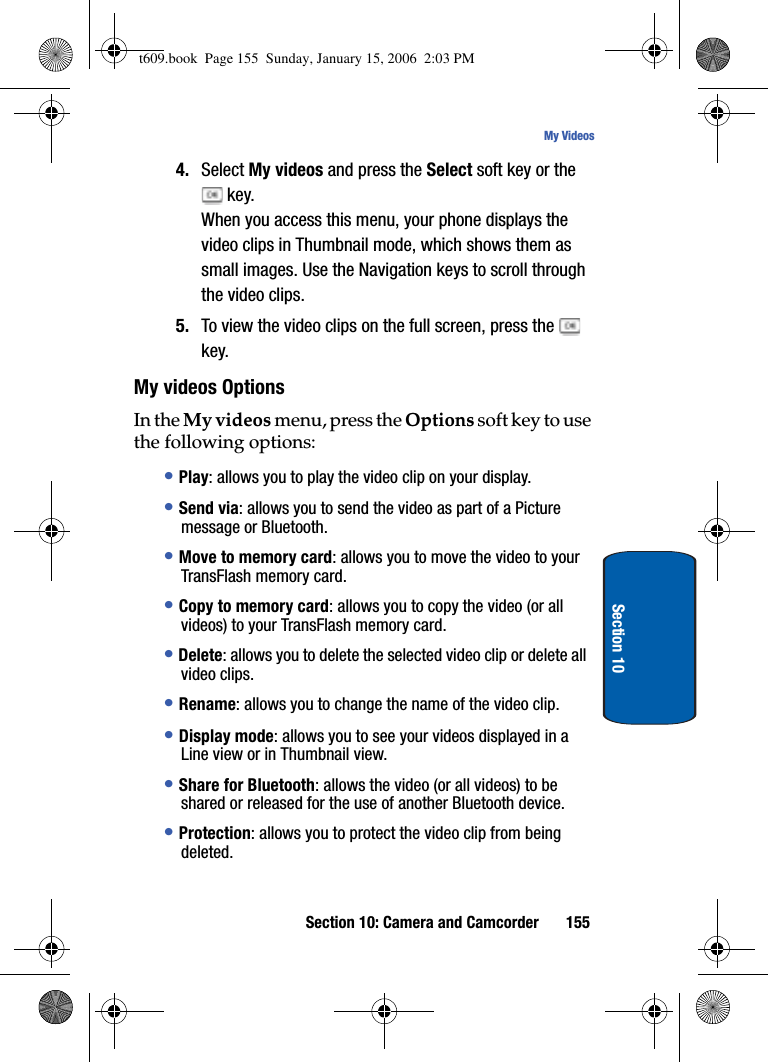

Section 10: Camera and Camcorder 155My VideosSection 104. Select My videos and press the Select soft key or the key.When you access this menu, your phone displays the video clips in Thumbnail mode, which shows them as small images. Use the Navigation keys to scroll through the video clips.5. To view the video clips on the full screen, press the key.My videos OptionsIn the My videos menu, press the Options soft key to use the following options:•Play: allows you to play the video clip on your display.•Send via: allows you to send the video as part of a Picture message or Bluetooth. •Move to memory card: allows you to move the video to your TransFlash memory card.•Copy to memory card: allows you to copy the video (or all videos) to your TransFlash memory card.•Delete: allows you to delete the selected video clip or delete all video clips.•Rename: allows you to change the name of the video clip.•Display mode: allows you to see your videos displayed in a Line view or in Thumbnail view.•Share for Bluetooth: allows the video (or all videos) to be shared or released for the use of another Bluetooth device.•Protection: allows you to protect the video clip from being deleted.t609.book Page 155 Sunday, January 15, 2006 2:03 PM

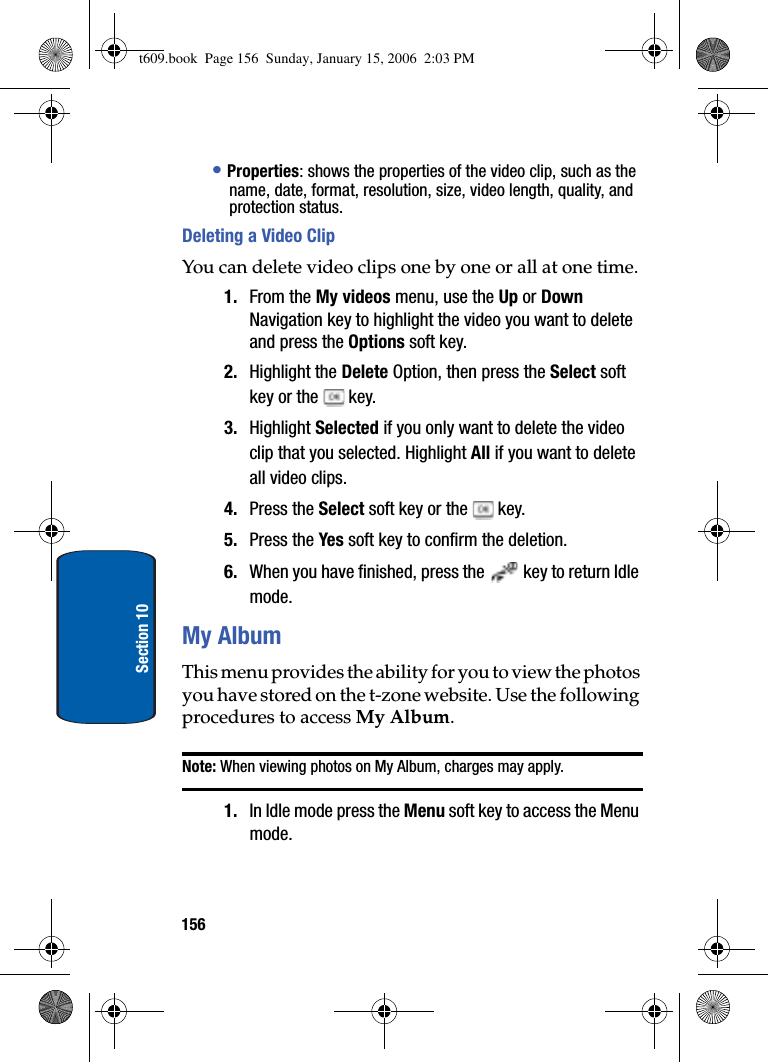

156Section 10•Properties: shows the properties of the video clip, such as the name, date, format, resolution, size, video length, quality, and protection status.Deleting a Video ClipYou can delete video clips one by one or all at one time. 1. From the My videos menu, use the Up or DownNavigation key to highlight the video you want to delete and press the Options soft key.2. Highlight the Delete Option, then press the Select soft key or the key.3. Highlight Selected if you only want to delete the video clip that you selected. Highlight All if you want to delete all video clips.4. Press the Select soft key or the key.5. Press the Yes soft key to confirm the deletion.6. When you have finished, press the key to return Idle mode.My AlbumThis menu provides the ability for you to view the photos you have stored on the t-zone website. Use the following procedures to access My Album.Note: When viewing photos on My Album, charges may apply.1. In Idle mode press the Menu soft key to access the Menu mode.t609.book Page 156 Sunday, January 15, 2006 2:03 PM

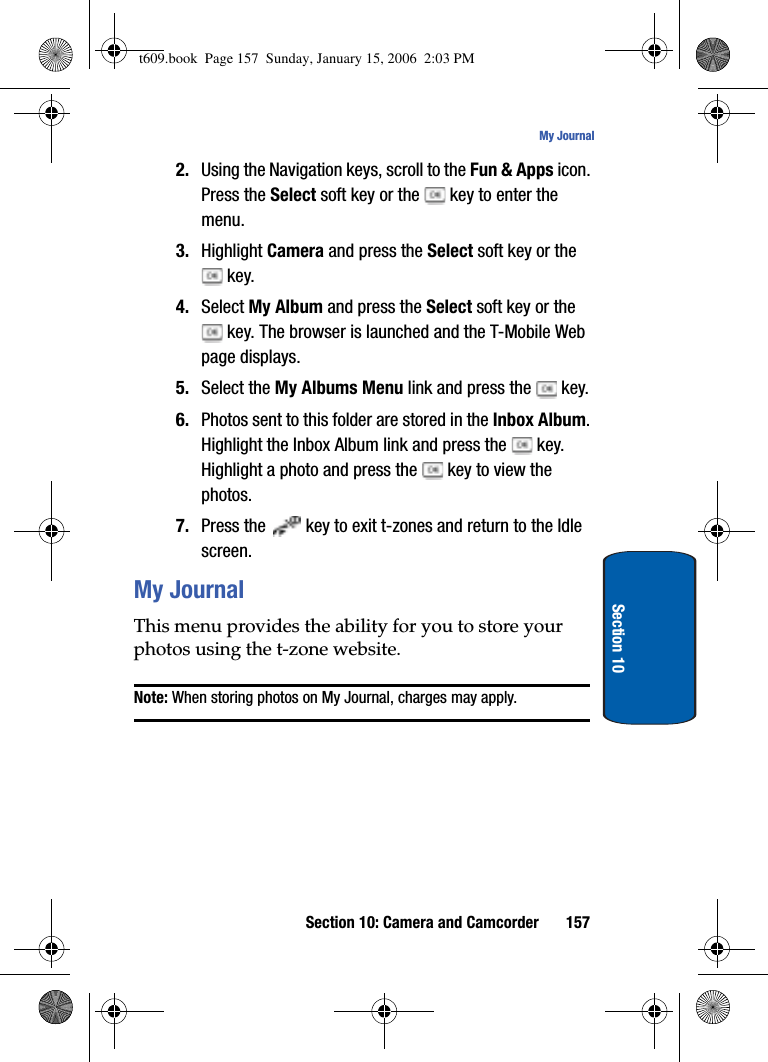

Section 10: Camera and Camcorder 157My JournalSection 102. Using the Navigation keys, scroll to the Fun & Apps icon. Press the Select soft key or the key to enter the menu. 3. Highlight Camera and press the Select soft key or the key.4. Select My Album and press the Select soft key or the key. The browser is launched and the T-Mobile Web page displays.5. Select the My Albums Menu link and press the key.6. Photos sent to this folder are stored in the Inbox Album.Highlight the Inbox Album link and press the key. Highlight a photo and press the key to view the photos.7. Press the key to exit t-zones and return to the Idle screen.My JournalThis menu provides the ability for you to store your photos using the t-zone website.Note: When storing photos on My Journal, charges may apply.t609.book Page 157 Sunday, January 15, 2006 2:03 PM

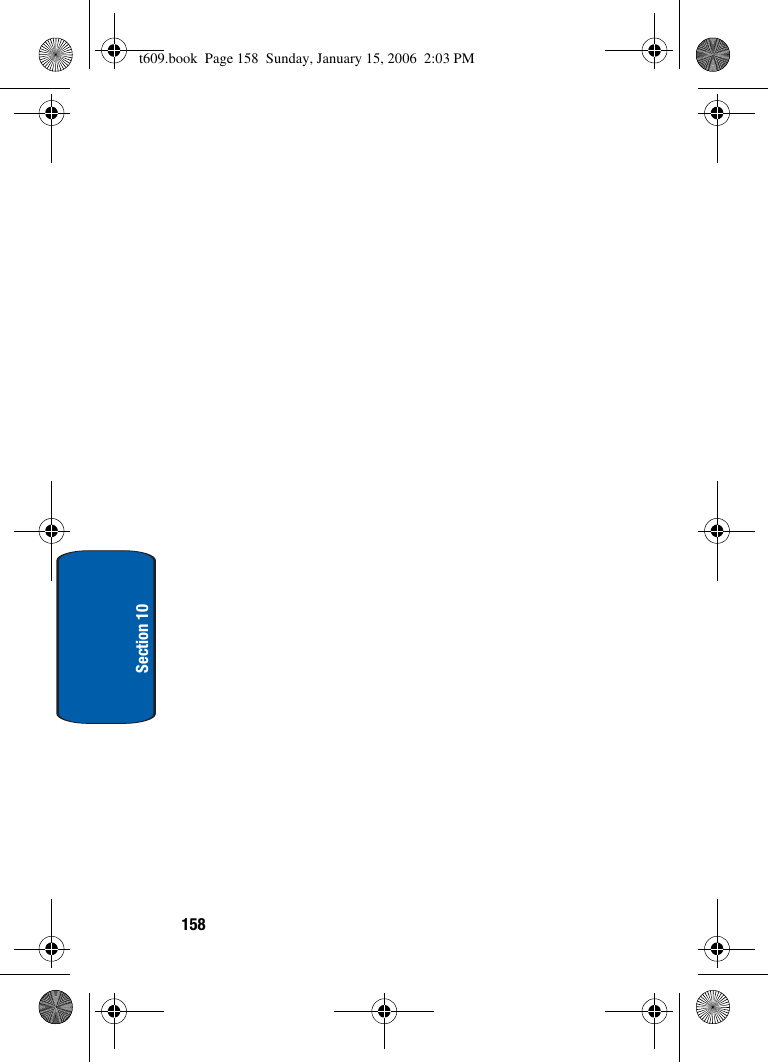

158Section 10t609.book Page 158 Sunday, January 15, 2006 2:03 PM

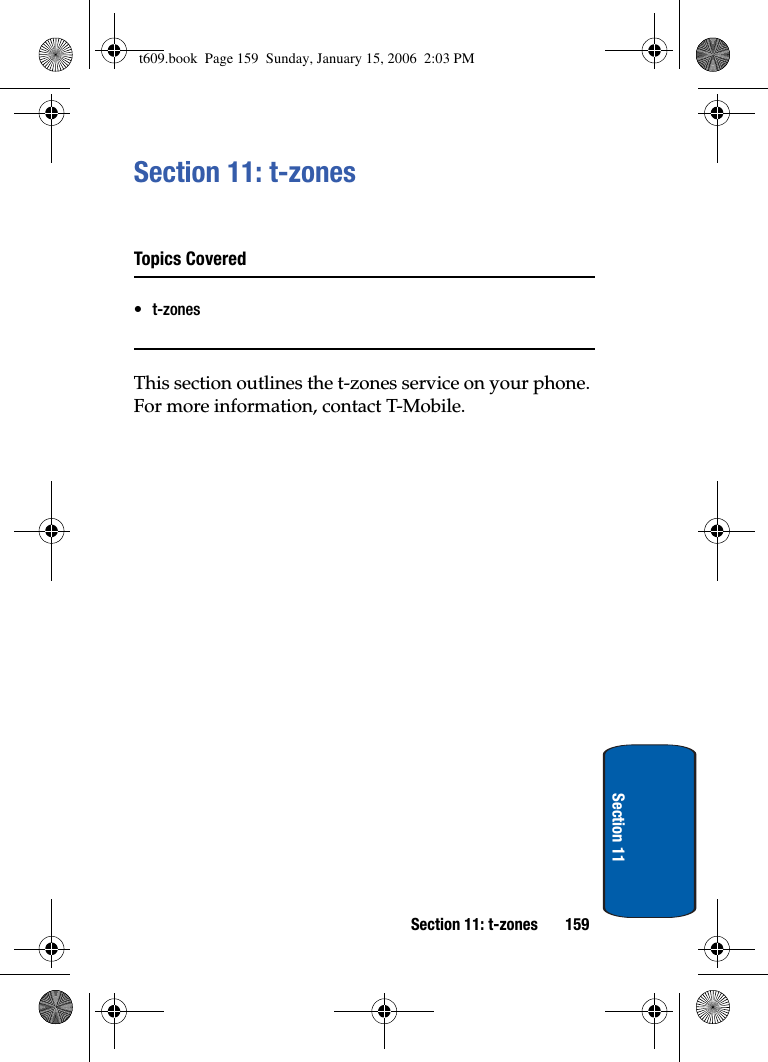

Section 11: t-zones 159Section 11Section 11: t-zonesTopics Covered•t-zonesThis section outlines the t-zones service on your phone. For more information, contact T-Mobile.t609.book Page 159 Sunday, January 15, 2006 2:03 PM

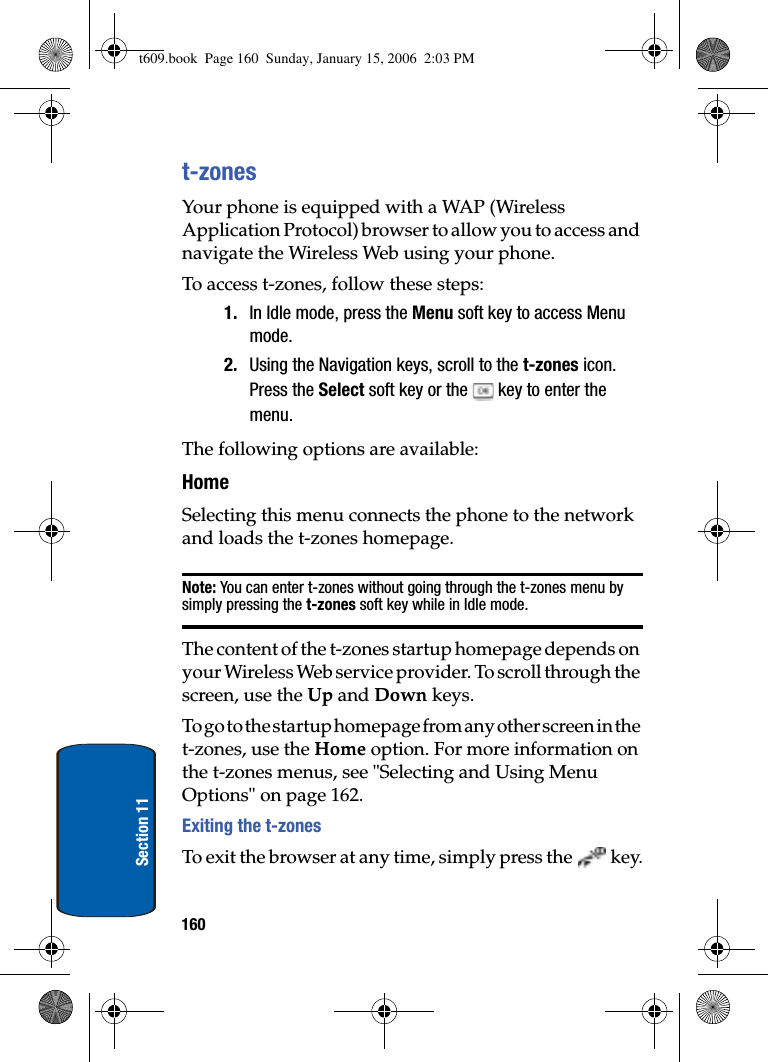

160Section 11t-zonesYour phone is equipped with a WAP (Wireless Application Protocol) browser to allow you to access and navigate the Wireless Web using your phone.To access t-zones, follow these steps:1. In Idle mode, press the Menu soft key to access Menu mode.2. Using the Navigation keys, scroll to the t-zones icon. Press the Select soft key or the key to enter the menu.The following options are available:HomeSelecting this menu connects the phone to the network and loads the t-zones homepage.Note: You can enter t-zones without going through the t-zones menu by simply pressing the t-zones soft key while in Idle mode.The content of the t-zones startup homepage depends on your Wireless Web service provider. To scroll through the screen, use the Up and Down keys.To go to the startup homepage from any other screen in the t-zones, use the Home option. For more information on the t-zones menus, see "Selecting and Using Menu Options" on page 162.Exiting the t-zonesTo exit the browser at any time, simply press the key.t609.book Page 160 Sunday, January 15, 2006 2:03 PM

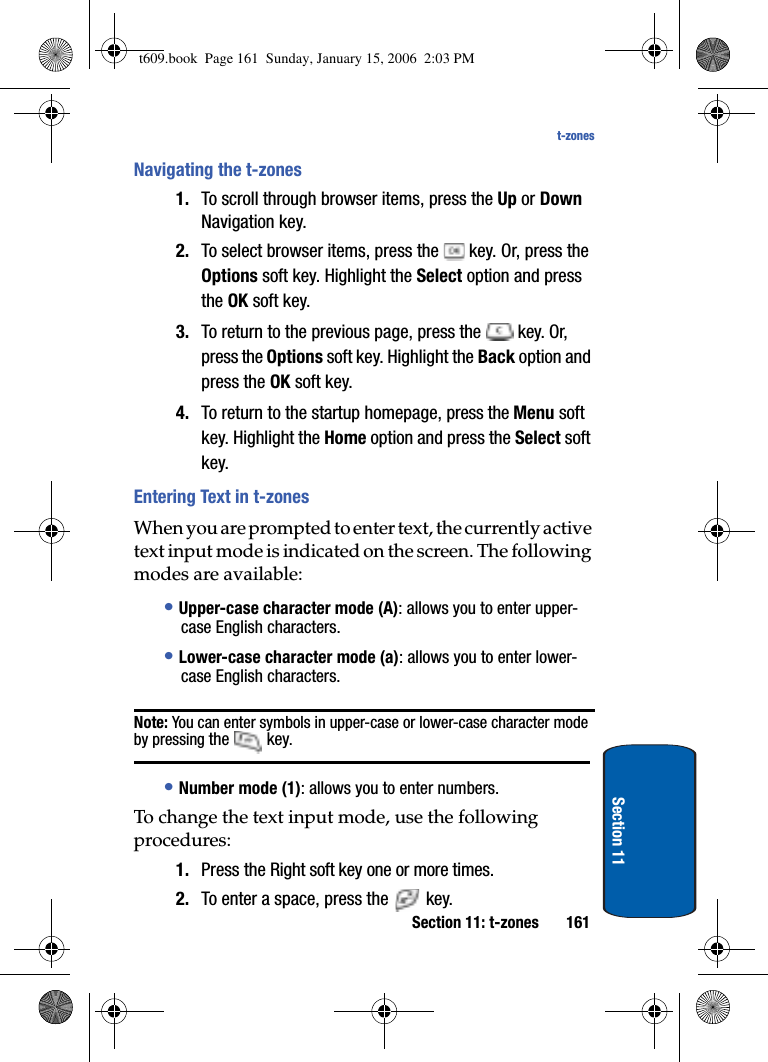

Section 11: t-zones 161t-zonesSection 11Navigating the t-zones1. To scroll through browser items, press the Up or DownNavigation key.2. To select browser items, press the key. Or, press the Options soft key. Highlight the Select option and press the OK soft key. 3. To return to the previous page, press the key. Or, press the Options soft key. Highlight the Back option and press the OK soft key. 4. To return to the startup homepage, press the Menu soft key. Highlight the Home option and press the Select soft key.Entering Text in t-zonesWhen you are prompted to enter text, the currently active text input mode is indicated on the screen. The following modes are available: •Upper-case character mode (A): allows you to enter upper-case English characters.•Lower-case character mode (a): allows you to enter lower-case English characters. Note: You can enter symbols in upper-case or lower-case character mode by pressing the key.•Number mode (1): allows you to enter numbers. To change the text input mode, use the following procedures: 1. Press the Right soft key one or more times.2. To enter a space, press the key.t609.book Page 161 Sunday, January 15, 2006 2:03 PM

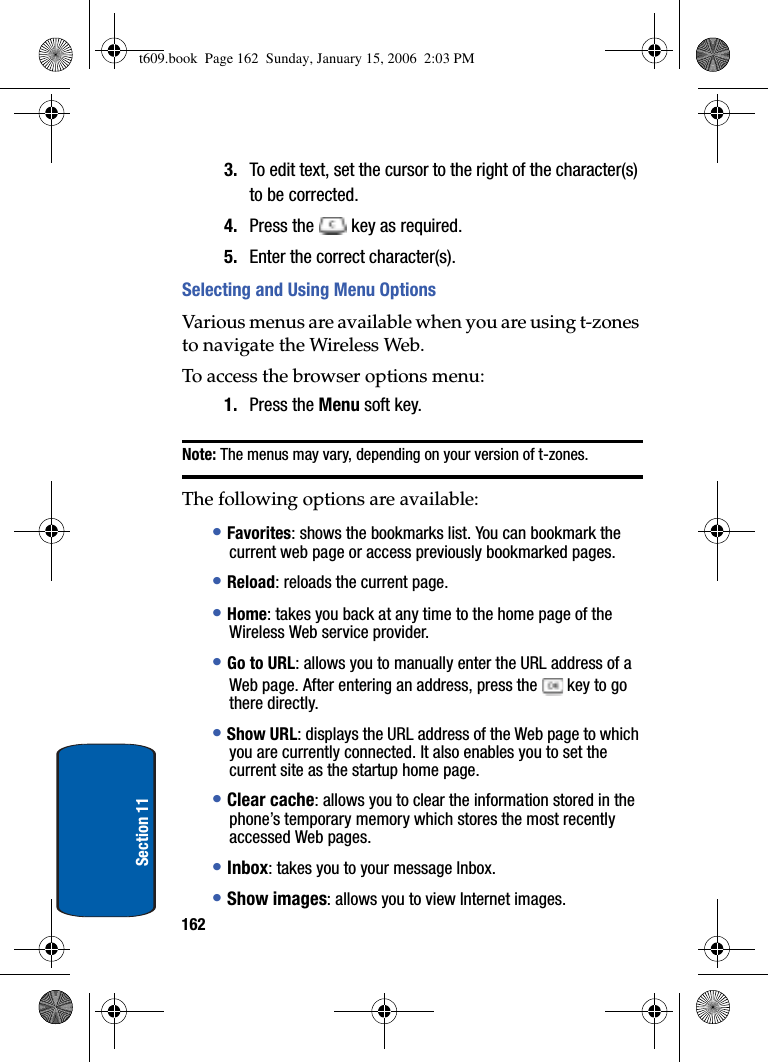

162Section 113. To edit text, set the cursor to the right of the character(s) to be corrected.4. Press the key as required.5. Enter the correct character(s).Selecting and Using Menu OptionsVarious menus are available when you are using t-zones to navigate the Wireless Web.To access the browser options menu:1. Press the Menu soft key. Note: The menus may vary, depending on your version of t-zones.The following options are available:•Favorites: shows the bookmarks list. You can bookmark the current web page or access previously bookmarked pages.•Reload: reloads the current page.•Home: takes you back at any time to the home page of the Wireless Web service provider.•Go to URL: allows you to manually enter the URL address of a Web page. After entering an address, press the key to go there directly.•Show URL: displays the URL address of the Web page to which you are currently connected. It also enables you to set the current site as the startup home page.•Clear cache: allows you to clear the information stored in the phone’s temporary memory which stores the most recently accessed Web pages.•Inbox: takes you to your message Inbox.•Show images: allows you to view Internet images.t609.book Page 162 Sunday, January 15, 2006 2:03 PM

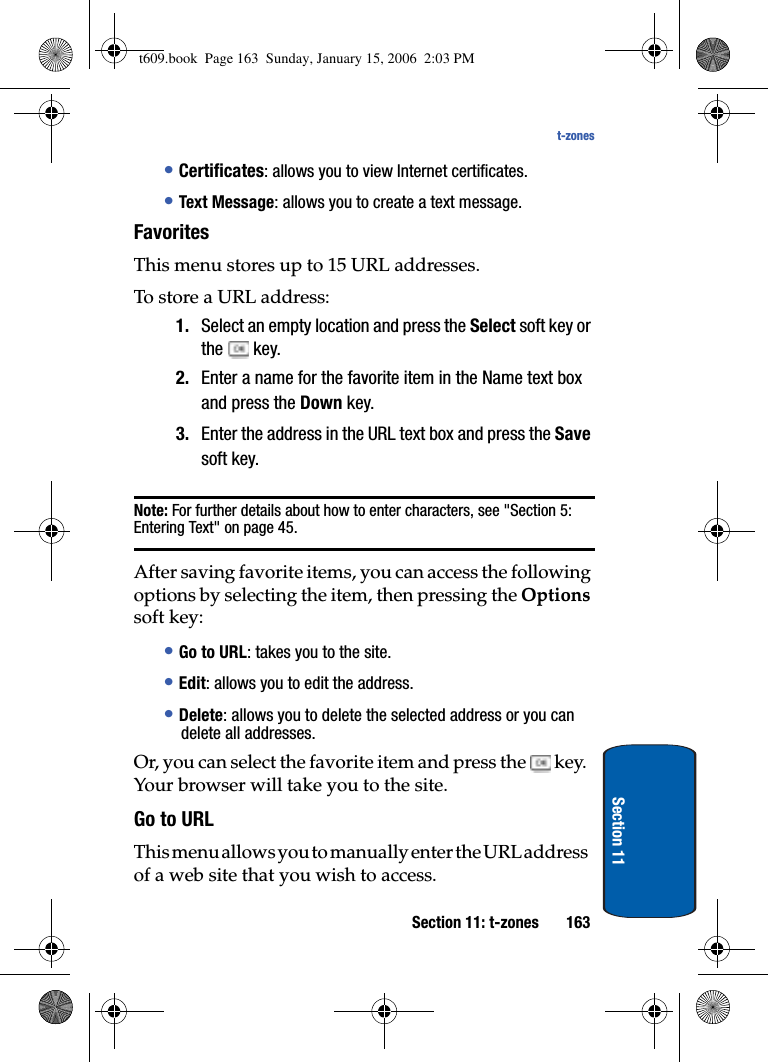

Section 11: t-zones 163t-zonesSection 11•Certificates: allows you to view Internet certificates.•Text Message: allows you to create a text message.Favorites This menu stores up to 15 URL addresses.To store a URL address:1. Select an empty location and press the Select soft key or the key.2. Enter a name for the favorite item in the Name text box and press the Down key.3. Enter the address in the URL text box and press the Savesoft key.Note: For further details about how to enter characters, see "Section 5: Entering Text" on page 45.After saving favorite items, you can access the following options by selecting the item, then pressing the Optionssoft key:•Go to URL: takes you to the site.•Edit: allows you to edit the address.•Delete: allows you to delete the selected address or you can delete all addresses.Or, you can select the favorite item and press the key. Your browser will take you to the site.Go to URLThis menu allows you to manually enter the URL address of a web site that you wish to access.t609.book Page 163 Sunday, January 15, 2006 2:03 PM

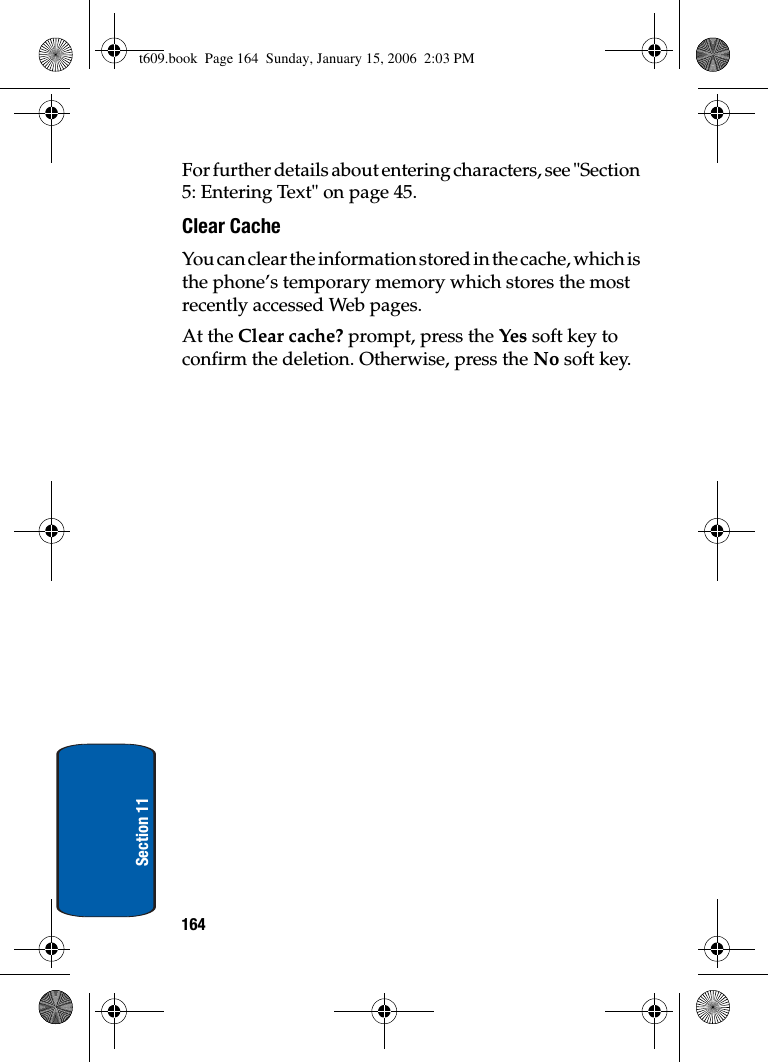

164Section 11For further details about entering characters, see "Section 5: Entering Text" on page 45.Clear Cache You can clear the information stored in the cache, which is the phone’s temporary memory which stores the most recently accessed Web pages.At the Clear cache? prompt, press the Yes soft key to confirm the deletion. Otherwise, press the No soft key.t609.book Page 164 Sunday, January 15, 2006 2:03 PM

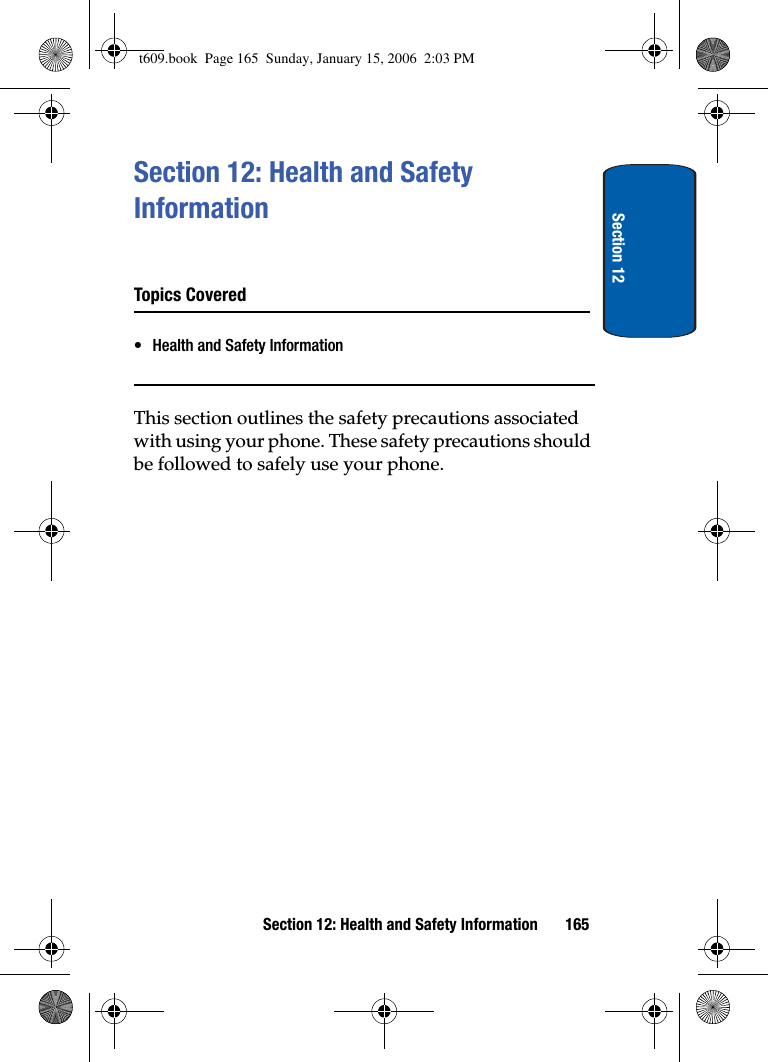

Section 12Section 12: Health and Safety Information 165Section 12: Health and Safety InformationTopics Covered• Health and Safety InformationThis section outlines the safety precautions associated with using your phone. These safety precautions should be followed to safely use your phone.t609.book Page 165 Sunday, January 15, 2006 2:03 PM

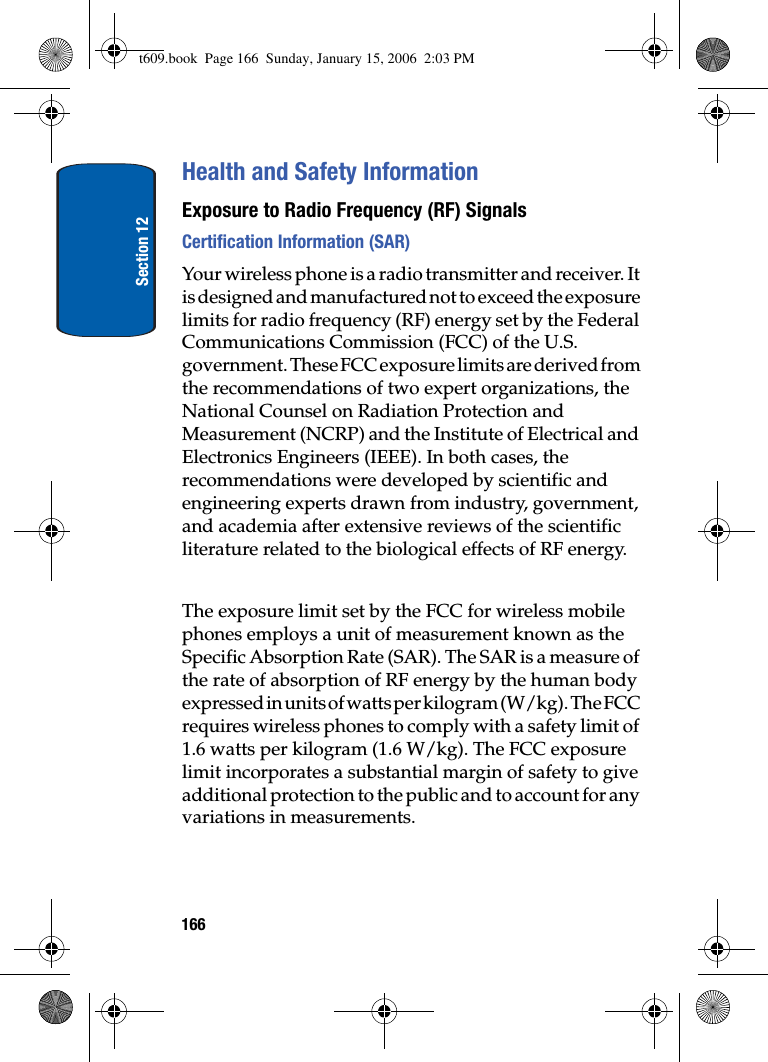

Section 12166Health and Safety InformationExposure to Radio Frequency (RF) SignalsCertification Information (SAR)Your wireless phone is a radio transmitter and receiver. It is designed and manufactured not to exceed the exposure limits for radio frequency (RF) energy set by the Federal Communications Commission (FCC) of the U.S. government. These FCC exposure limits are derived from the recommendations of two expert organizations, the National Counsel on Radiation Protection and Measurement (NCRP) and the Institute of Electrical and Electronics Engineers (IEEE). In both cases, the recommendations were developed by scientific and engineering experts drawn from industry, government, and academia after extensive reviews of the scientific literature related to the biological effects of RF energy.The exposure limit set by the FCC for wireless mobile phones employs a unit of measurement known as the Specific Absorption Rate (SAR). The SAR is a measure of the rate of absorption of RF energy by the human body expressed in units of watts per kilogram (W/kg). The FCC requires wireless phones to comply with a safety limit of 1.6 watts per kilogram (1.6 W/kg). The FCC exposure limit incorporates a substantial margin of safety to give additional protection to the public and to account for any variations in measurements. t609.book Page 166 Sunday, January 15, 2006 2:03 PM
Section 12: Health and Safety Information 167Health and Safety InformationOPJUDF45#4VGUVUCTGEQPFWEVGFWUKPIUVCPFCTFQRGTCVKPIRQUKVKQPUCEEGRVGFD[VJG(%%YKVJVJGRJQPGVTCPUOKVVKPICVKVUJKIJGUVEGTVKHKGFRQYGTNGXGNKPCNNVGUVGFHTGSWGPE[DCPFU#NVJQWIJVJG5#4KUFGVGTOKPGFCVVJGJKIJGUVEGTVKHKGFRQYGTNGXGNVJGCEVWCN5#4NGXGNQHVJGRJQPGYJKNGQRGTCVKPIECPDGYGNNDGNQYVJGOCZKOWOXCNWG6JKUKUDGECWUGVJGRJQPGKUFGUKIPGFVQQRGTCVGCVOWNVKRNGRQYGTNGXGNUUQCUVQWUGQPN[VJGRQYGTTGSWKTGFVQTGCEJVJGPGVYQTM+PIGPGTCNVJGENQUGT[QWCTGVQCYKTGNGUUDCUGUVCVKQPCPVGPPCVJGNQYGTVJGRQYGTQWVRWV$GHQTGCPGYOQFGNRJQPGKUCXCKNCDNGHQTUCNGVQVJGRWDNKEKVOWUVDGVGUVGFCPFEGTVKHKGFVQVJG(%%VJCVKVFQGUPQVGZEGGFVJGGZRQUWTGNKOKVGUVCDNKUJGFD[VJG(%%6GUVUHQTGCEJOQFGNRJQPGCTGRGTHQTOGFKPRQUKVKQPUCPFNQECVKQPUGICVVJGGCTCPFYQTPQPVJGDQF[CUTGSWKTGFD[VJG(%%(QTDQF[YQTPQRGTCVKQPVJKUOQFGNRJQPGJCUDGGPVGUVGFCPFOGGVU(%%4(GZRQUWTGIWKFGNKPGUYJGPWUGFYKVJC5COUWPICEEGUUQT[FGUKIPCVGFHQTVJKURTQFWEVQTYJGPWUGFYKVJCPCEEGUUQT[VJCVEQPVCKPUPQOGVCNCPFVJCVRQUKVKQPUVJGJCPFUGVCOKPKOWOQHEOHTQOVJGDQF[7UGQHQVJGTCEEGUUQTKGUOC[PQVGPUWTGEQORNKCPEGYKVJ(%%4(GZRQUWTGIWKFGNKPGU6JG(%%JCUITCPVGFCP'SWKROGPV#WVJQTK\CVKQPHQTVJKUOQDKNGRJQPGYKVJCNNTGRQTVGF5#4NGXGNUGXCNWCVGFCUKPEQORNKCPEGYKVJVJG(%%4(GZRQUWTGIWKFGNKPGU6JGOCZKOWO5#4XCNWGUHQTVJKUOQFGNRJQPGCUT)5/Ŗ*GCF9-IŖ$QF[YQTP9-IGRQTVGFVQVJG(%%CTGt609.book Page 167 Sunday, January 15, 2006 2:03 PM

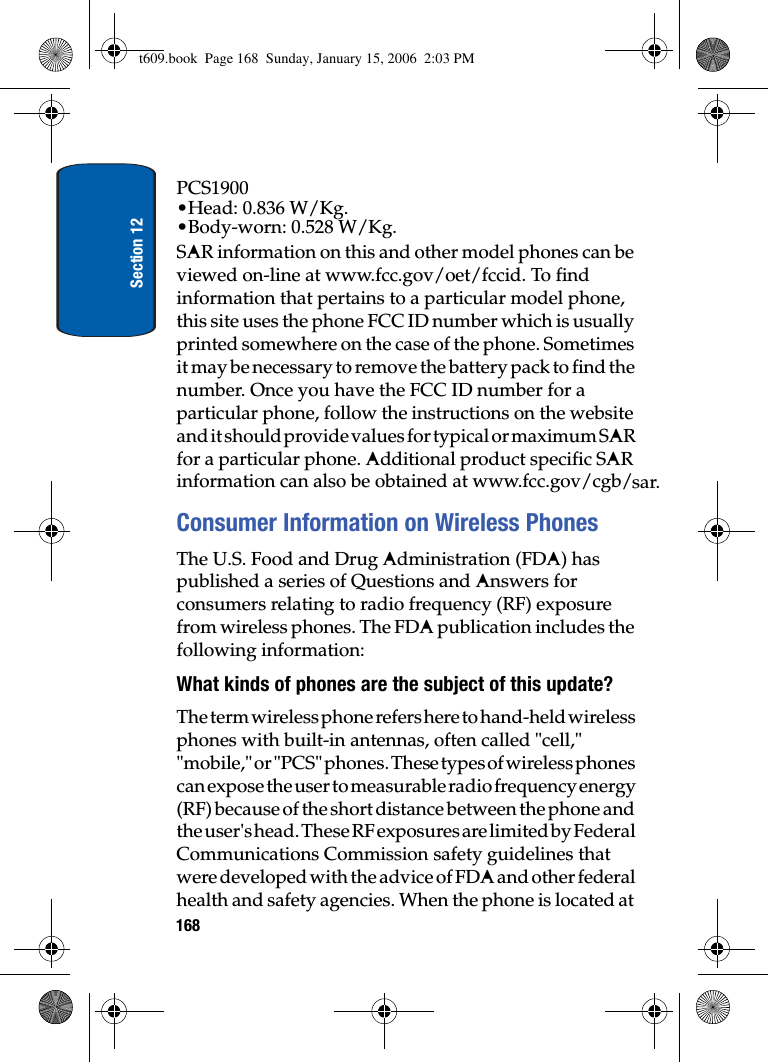

OPJUDF45#4KPHQTOCVKQPQPVJKUCPFQVJGTOQFGNRJQPGUECPDG2%5Ŗ*GCF9-IŖ$QF[YQTP9-IXKGYGFQPNKPGCVYYYHEEIQXQGVHEEKF6QHKPFKPHQTOCVKQPVJCVRGTVCKPUVQCRCTVKEWNCTOQFGNRJQPGVJKUUKVGWUGUVJGRJQPG(%%+&PWODGTYJKEJKUWUWCNN[RTKPVGFUQOGYJGTGQPVJGECUGQHVJGRJQPG5QOGVKOGUKVOC[DGPGEGUUCT[VQTGOQXGVJGDCVVGT[RCEMVQHKPFVJGPWODGT1PEG[QWJCXGVJG(%%+&PWODGTHQTCRCTVKEWNCTRJQPGHQNNQYVJGKPUVTWEVKQPUQPVJGYGDUKVGCPFKVUJQWNFRTQXKFGXCNWGUHQTV[RKECNQTOCZKOWO5#4HQTCRCTVKEWNCTRJQPG#FFKVKQPCNRTQFWEVURGEKHKE5#4KPHQTOCVKQPECPCNUQDGQDVCKPGFCVYYYHEEIQXEIDUCT$POTVNFS*OGPSNBUJPOPO8JSFMFTT1IPOFT6JG75(QQFCPF&TWI#FOKPKUVTCVKQP(&#JCURWDNKUJGFCUGTKGUQH3WGUVKQPUCPF#PUYGTUHQTEQPUWOGTUTGNCVKPIVQTCFKQHTGSWGPE[4(GZRQUWTGHTQOYKTGNGUURJQPGU6JG(&#RWDNKECVKQPKPENWFGUVJGHQNNQYKPIKPHQTOCVKQP8IBULJOETPGQIPOFTBSFUIFTVCKFDUPGUIJTVQEBUF 6JGVGTOYKTGNGUURJQPGTGHGTUJGTGVQJCPFJGNFYKTGNGUURJQPGUYKVJDWKNVKPCPVGPPCUQHVGPECNNGFEGNNOQDKNGQT2%5RJQPGU6JGUGV[RGUQHYKTGNGUURJQPGUECPGZRQUGVJGWUGTVQOGCUWTCDNGTCFKQHTGSWGPE[GPGTI[4(DGECWUGQHVJGUJQTVFKUVCPEGDGVYGGPVJGRJQPGCPFVJGWUGTUJGCF6JGUG4(GZRQUWTGUCTGNKOKVGFD[(GFGTCN%QOOWPKECVKQPU%QOOKUUKQPUCHGV[IWKFGNKPGUVJCVYGTGFGXGNQRGFYKVJVJGCFXKEGQH(&#CPFQVJGTHGFGTCNJGCNVJCPFUCHGV[CIGPEKGU9JGPVJGRJQPGKUNQECVGFCVt609.book Page 168 Sunday, January 15, 2006 2:03 PM

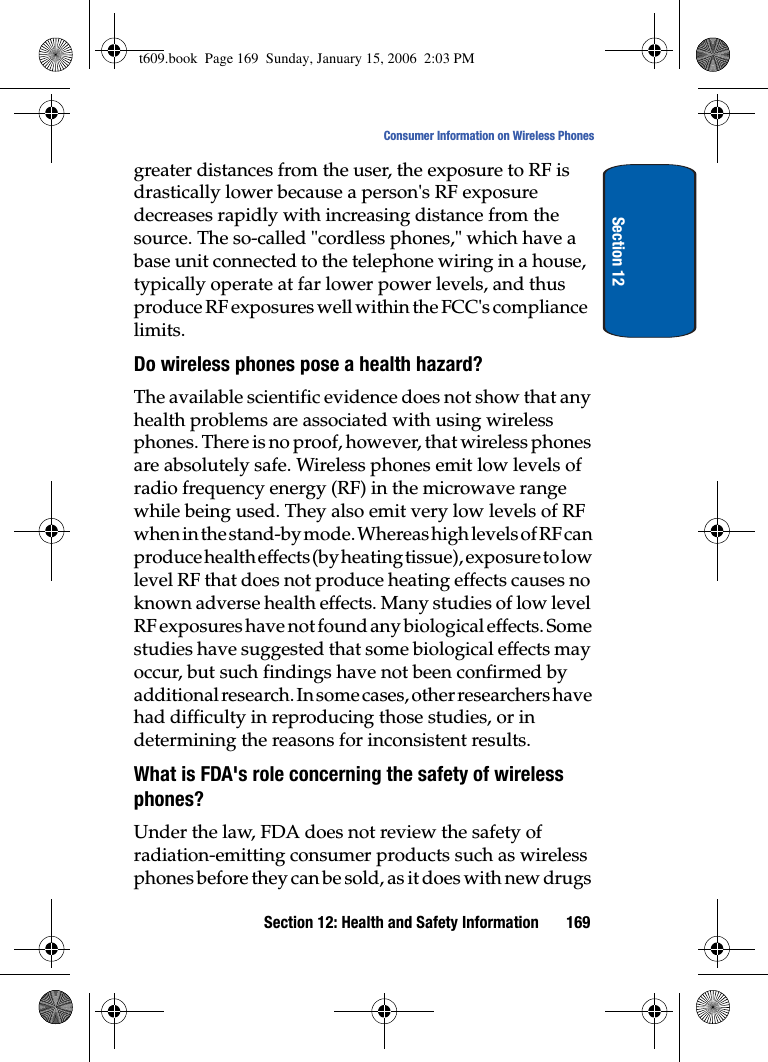

Section 12: Health and Safety Information 169Consumer Information on Wireless PhonesSection 12greater distances from the user, the exposure to RF is drastically lower because a person's RF exposure decreases rapidly with increasing distance from the source. The so-called "cordless phones," which have a base unit connected to the telephone wiring in a house, typically operate at far lower power levels, and thus produce RF exposures well within the FCC's compliance limits.Do wireless phones pose a health hazard?The available scientific evidence does not show that any health problems are associated with using wireless phones. There is no proof, however, that wireless phones are absolutely safe. Wireless phones emit low levels of radio frequency energy (RF) in the microwave range while being used. They also emit very low levels of RF when in the stand-by mode. Whereas high levels of RF can produce health effects (by heating tissue), exposure to low level RF that does not produce heating effects causes no known adverse health effects. Many studies of low level RF exposures have not found any biological effects. Some studies have suggested that some biological effects may occur, but such findings have not been confirmed by additional research. In some cases, other researchers have had difficulty in reproducing those studies, or in determining the reasons for inconsistent results.What is FDA's role concerning the safety of wireless phones?Under the law, FDA does not review the safety of radiation-emitting consumer products such as wireless phones before they can be sold, as it does with new drugs t609.book Page 169 Sunday, January 15, 2006 2:03 PM

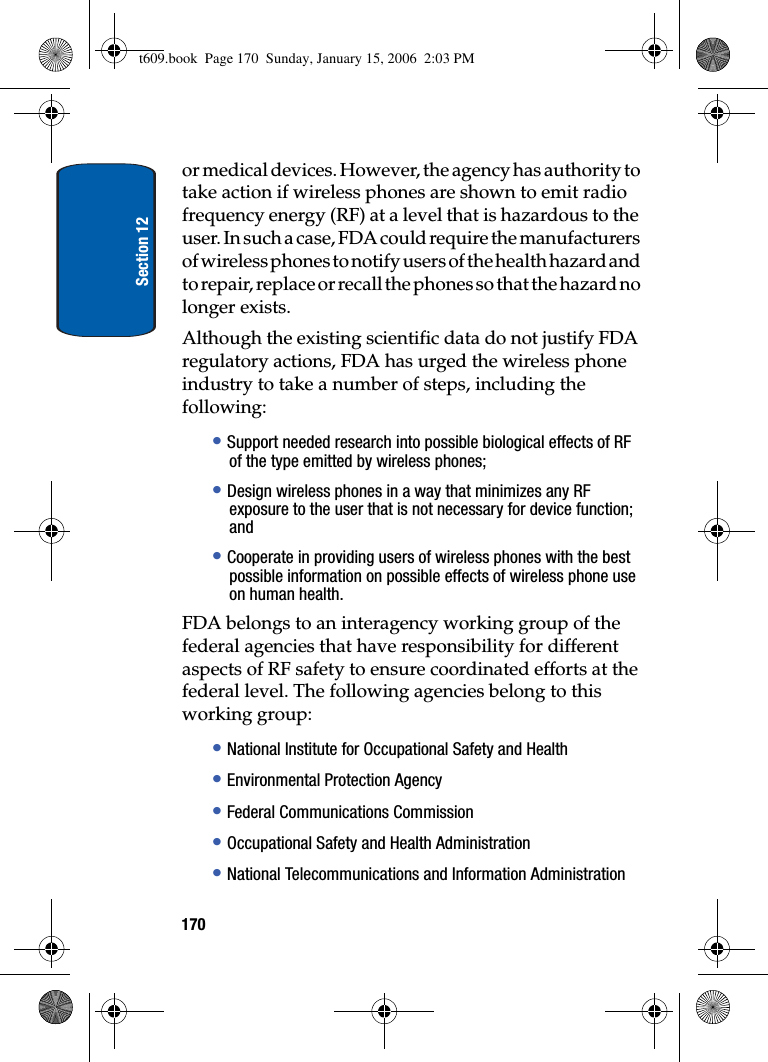

Section 12170or medical devices. However, the agency has authority to take action if wireless phones are shown to emit radio frequency energy (RF) at a level that is hazardous to the user. In such a case, FDA could require the manufacturers of wireless phones to notify users of the health hazard and to repair, replace or recall the phones so that the hazard no longer exists.Although the existing scientific data do not justify FDA regulatory actions, FDA has urged the wireless phone industry to take a number of steps, including the following:•Support needed research into possible biological effects of RF of the type emitted by wireless phones;•Design wireless phones in a way that minimizes any RF exposure to the user that is not necessary for device function; and•Cooperate in providing users of wireless phones with the best possible information on possible effects of wireless phone use on human health.FDA belongs to an interagency working group of the federal agencies that have responsibility for different aspects of RF safety to ensure coordinated efforts at the federal level. The following agencies belong to this working group:•National Institute for Occupational Safety and Health •Environmental Protection Agency•Federal Communications Commission•Occupational Safety and Health Administration•National Telecommunications and Information Administrationt609.book Page 170 Sunday, January 15, 2006 2:03 PM
Section 12: Health and Safety Information 171Consumer Information on Wireless PhonesSection 12The National Institutes of Health participates in some interagency working group activities, as well.FDA shares regulatory responsibilities for wireless phones with the Federal Communications Commission (FCC). All phones that are sold in the United States must comply with FCC safety guidelines that limit RF exposure. FCC relies on FDA and other health agencies for safety questions about wireless phones.FCC also regulates the base stations that the wireless phone networks rely upon. While these base stations operate at higher power than do the wireless phones themselves, the RF exposures that people get from these base stations are typically thousands of times lower than those they can get from wireless phones. Base stations are thus not the primary subject of the safety questions discussed in this document.What are the results of the research done already?The research done thus far has produced conflicting results, and many studies have suffered from flaws in their research methods. Animal experiments investigating the effects of radio frequency energy (RF) exposures characteristic of wireless phones have yielded conflicting results that often cannot be repeated in other laboratories. A few animal studies, however, have suggested that low levels of RF could accelerate the development of cancer in laboratory animals. However, many of the studies that showed increased tumor development used animals that had been genetically engineered or treated with cancer-causing chemicals so as to be pre-disposed to develop cancer in absence of RF exposure. Other studies exposed the animals to RF for up t609.book Page 171 Sunday, January 15, 2006 2:03 PM
Section 12172to 22 hours per day. These conditions are not similar to the conditions under which people use wireless phones, so we don't know with certainty what the results of such studies mean for human health.Three large epidemiology studies have been published since December 2000. Between them, the studies investigated any possible association between the use of wireless phones and primary brain cancer, glioma, meningioma, or acoustic neuroma, tumors of the brain or salivary gland, leukemia, or other cancers. None of the studies demonstrated the existence of any harmful health effects from wireless phones RF exposures. However, none of the studies can answer questions about long-term exposures, since the average period of phone use in these studies was around three years.What research is needed to decide whether RF exposure from wireless phones poses a health risk?A combination of laboratory studies and epidemiological studies of people actually using wireless phones would provide some of the data that are needed. Lifetime animal exposure studies could be completed in a few years. However, very large numbers of animals would be needed to provide reliable proof of a cancer promoting effect if one exists. Epidemiological studies can provide data that is directly applicable to human populations, but ten or more years' follow-up may be needed to provide answers about some health effects, such as cancer. This is because the interval between the time of exposure to a cancer-causing agent and the time tumors develop - if they do - may be many, many years. The interpretation of epidemiological studies is hampered by difficulties in t609.book Page 172 Sunday, January 15, 2006 2:03 PM

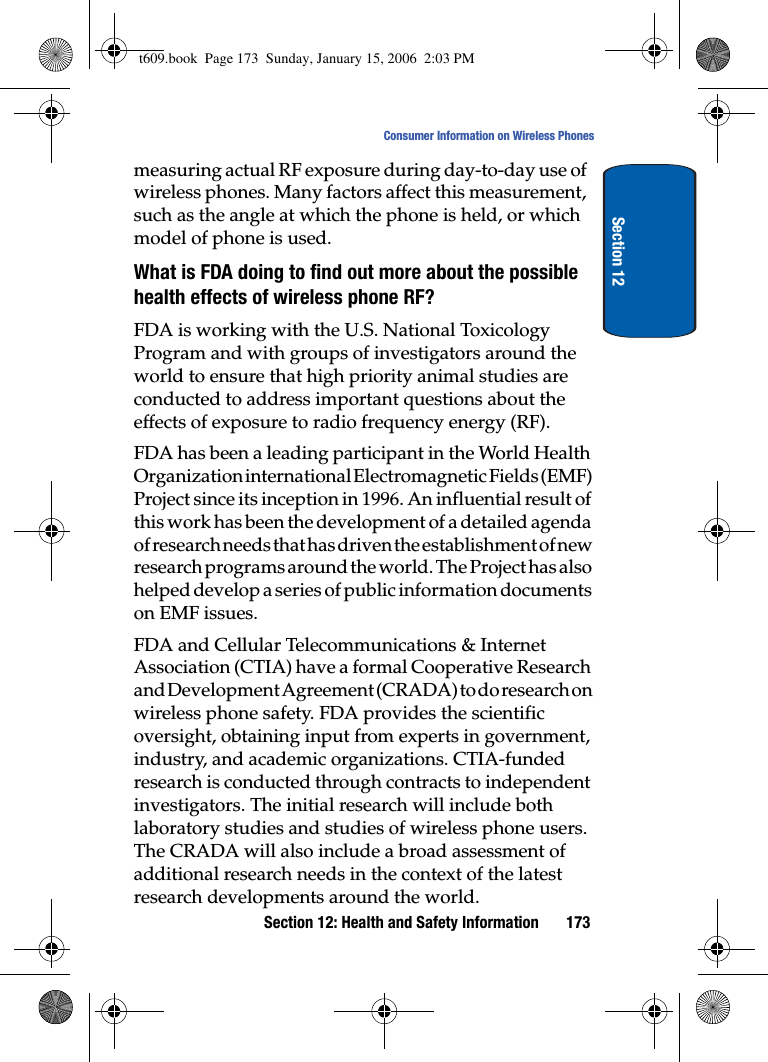

Section 12: Health and Safety Information 173Consumer Information on Wireless PhonesSection 12measuring actual RF exposure during day-to-day use of wireless phones. Many factors affect this measurement, such as the angle at which the phone is held, or which model of phone is used.What is FDA doing to find out more about the possible health effects of wireless phone RF?FDA is working with the U.S. National Toxicology Program and with groups of investigators around the world to ensure that high priority animal studies are conducted to address important questions about the effects of exposure to radio frequency energy (RF).FDA has been a leading participant in the World Health Organization international Electromagnetic Fields (EMF) Project since its inception in 1996. An influential result of this work has been the development of a detailed agenda of research needs that has driven the establishment of new research programs around the world. The Project has also helped develop a series of public information documents on EMF issues.FDA and Cellular Telecommunications & Internet Association (CTIA) have a formal Cooperative Research and Development Agreement (CRADA) to do research on wireless phone safety. FDA provides the scientific oversight, obtaining input from experts in government, industry, and academic organizations. CTIA-funded research is conducted through contracts to independent investigators. The initial research will include both laboratory studies and studies of wireless phone users. The CRADA will also include a broad assessment of additional research needs in the context of the latest research developments around the world.t609.book Page 173 Sunday, January 15, 2006 2:03 PM

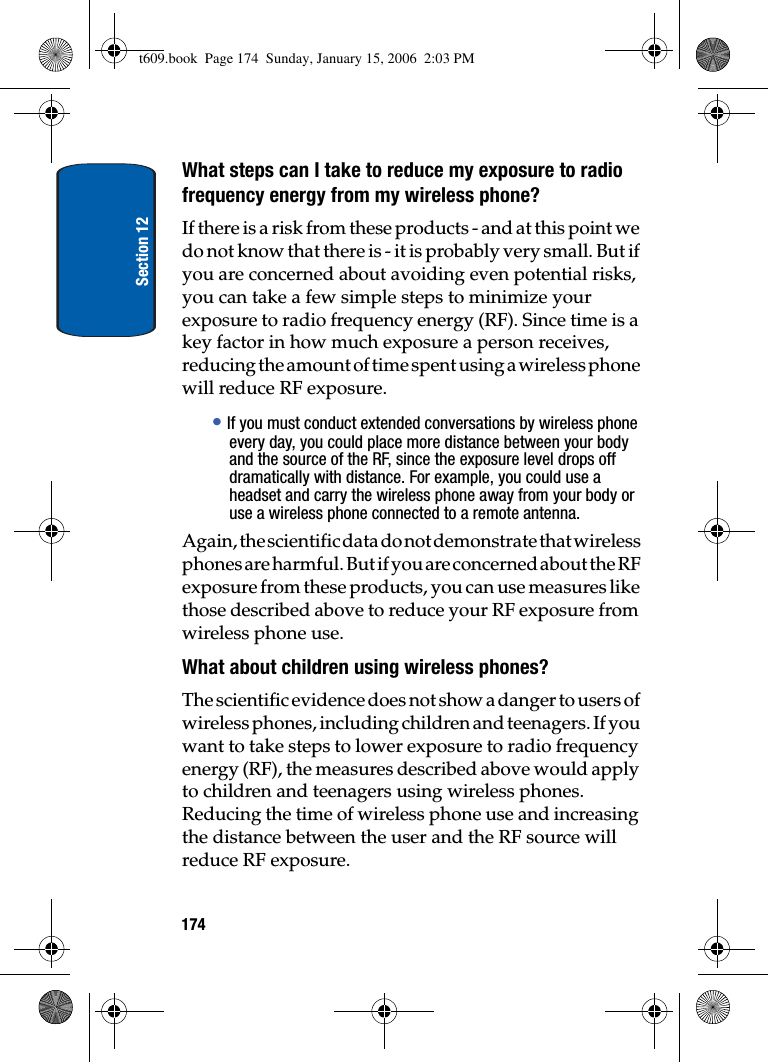

Section 12174What steps can I take to reduce my exposure to radio frequency energy from my wireless phone?If there is a risk from these products - and at this point we do not know that there is - it is probably very small. But if you are concerned about avoiding even potential risks, you can take a few simple steps to minimize your exposure to radio frequency energy (RF). Since time is a key factor in how much exposure a person receives, reducing the amount of time spent using a wireless phone will reduce RF exposure.•If you must conduct extended conversations by wireless phone every day, you could place more distance between your body and the source of the RF, since the exposure level drops off dramatically with distance. For example, you could use a headset and carry the wireless phone away from your body or use a wireless phone connected to a remote antenna.Again, the scientific data do not demonstrate that wireless phones are harmful. But if you are concerned about the RF exposure from these products, you can use measures like those described above to reduce your RF exposure from wireless phone use.What about children using wireless phones?The scientific evidence does not show a danger to users of wireless phones, including children and teenagers. If you want to take steps to lower exposure to radio frequency energy (RF), the measures described above would apply to children and teenagers using wireless phones. Reducing the time of wireless phone use and increasing the distance between the user and the RF source will reduce RF exposure.t609.book Page 174 Sunday, January 15, 2006 2:03 PM

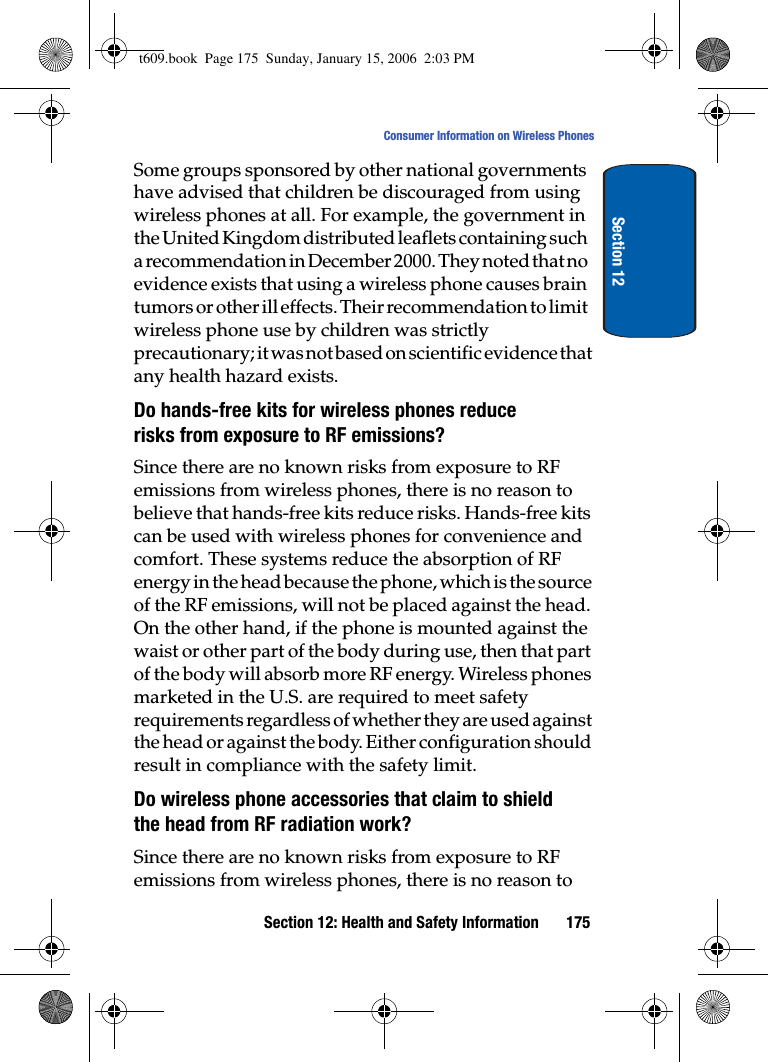

Section 12: Health and Safety Information 175Consumer Information on Wireless PhonesSection 12Some groups sponsored by other national governments have advised that children be discouraged from using wireless phones at all. For example, the government in the United Kingdom distributed leaflets containing such a recommendation in December 2000. They noted that no evidence exists that using a wireless phone causes brain tumors or other ill effects. Their recommendation to limit wireless phone use by children was strictly precautionary; it was not based on scientific evidence that any health hazard exists.Do hands-free kits for wireless phones reduce risks from exposure to RF emissions?Since there are no known risks from exposure to RF emissions from wireless phones, there is no reason to believe that hands-free kits reduce risks. Hands-free kits can be used with wireless phones for convenience and comfort. These systems reduce the absorption of RF energy in the head because the phone, which is the source of the RF emissions, will not be placed against the head. On the other hand, if the phone is mounted against the waist or other part of the body during use, then that part of the body will absorb more RF energy. Wireless phones marketed in the U.S. are required to meet safety requirements regardless of whether they are used against the head or against the body. Either configuration should result in compliance with the safety limit.Do wireless phone accessories that claim to shield the head from RF radiation work?Since there are no known risks from exposure to RF emissions from wireless phones, there is no reason to t609.book Page 175 Sunday, January 15, 2006 2:03 PM

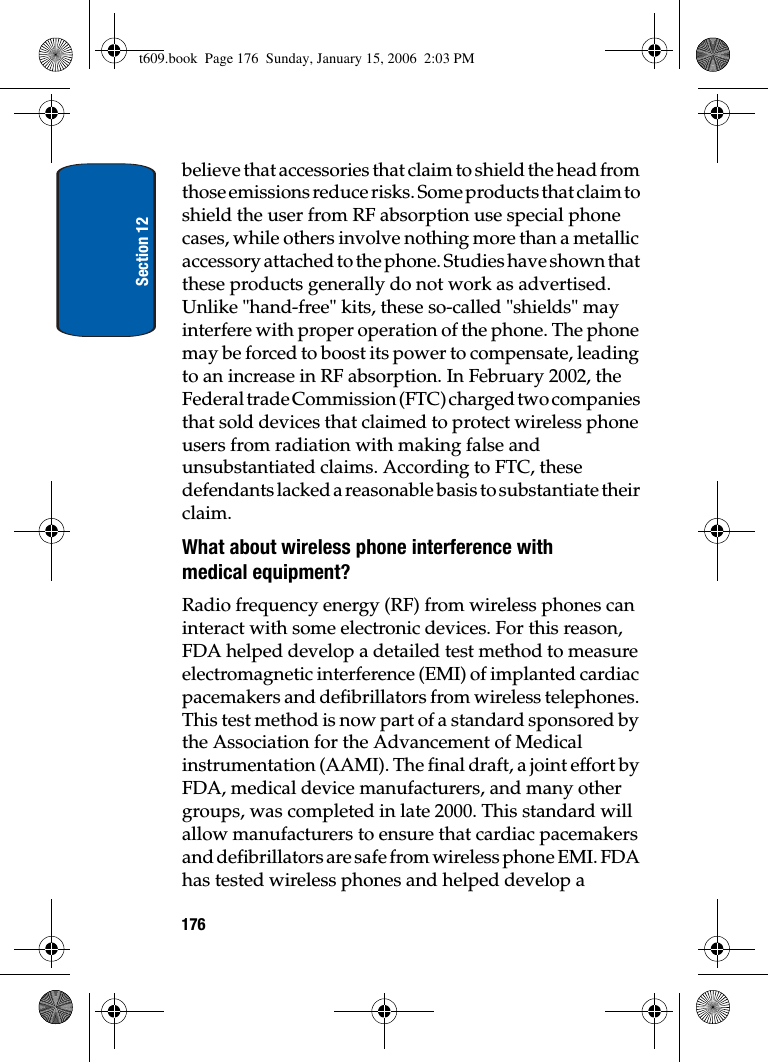

Section 12176believe that accessories that claim to shield the head from those emissions reduce risks. Some products that claim to shield the user from RF absorption use special phone cases, while others involve nothing more than a metallic accessory attached to the phone. Studies have shown that these products generally do not work as advertised. Unlike "hand-free" kits, these so-called "shields" may interfere with proper operation of the phone. The phone may be forced to boost its power to compensate, leading to an increase in RF absorption. In February 2002, the Federal trade Commission (FTC) charged two companies that sold devices that claimed to protect wireless phone users from radiation with making false and unsubstantiated claims. According to FTC, these defendants lacked a reasonable basis to substantiate their claim.What about wireless phone interference with medical equipment?Radio frequency energy (RF) from wireless phones can interact with some electronic devices. For this reason, FDA helped develop a detailed test method to measure electromagnetic interference (EMI) of implanted cardiac pacemakers and defibrillators from wireless telephones. This test method is now part of a standard sponsored by the Association for the Advancement of Medical instrumentation (AAMI). The final draft, a joint effort by FDA, medical device manufacturers, and many other groups, was completed in late 2000. This standard will allow manufacturers to ensure that cardiac pacemakers and defibrillators are safe from wireless phone EMI. FDA has tested wireless phones and helped develop a t609.book Page 176 Sunday, January 15, 2006 2:03 PM

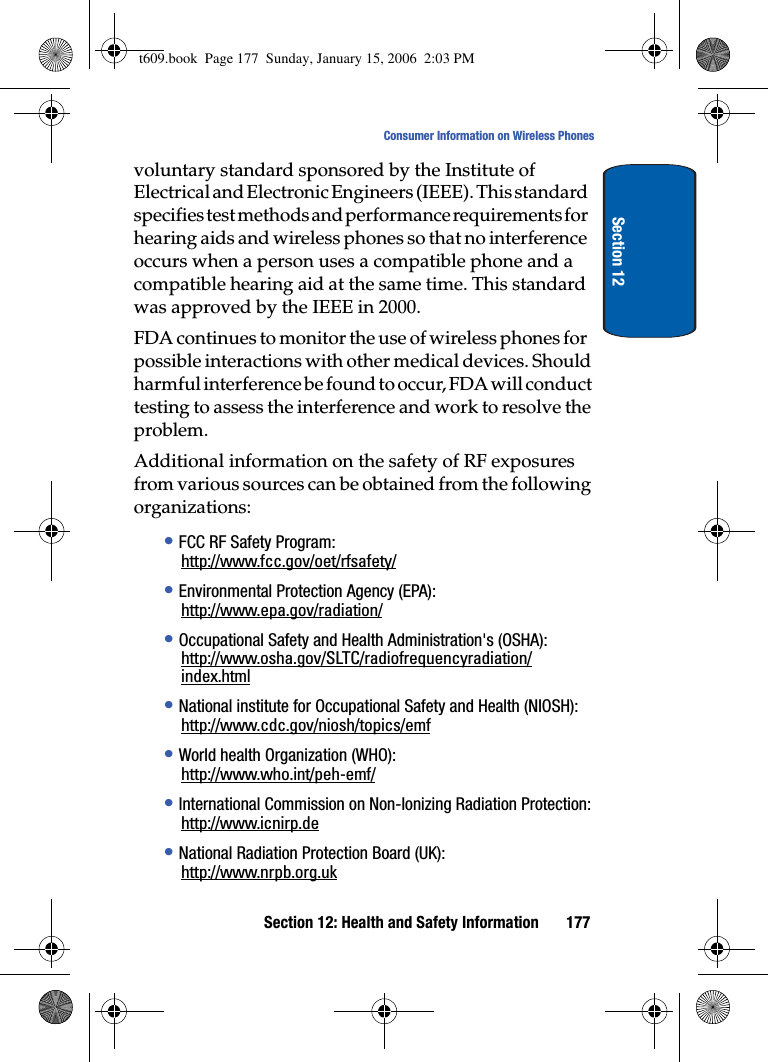

Section 12: Health and Safety Information 177Consumer Information on Wireless PhonesSection 12voluntary standard sponsored by the Institute of Electrical and Electronic Engineers (IEEE). This standard specifies test methods and performance requirements for hearing aids and wireless phones so that no interference occurs when a person uses a compatible phone and a compatible hearing aid at the same time. This standard was approved by the IEEE in 2000.FDA continues to monitor the use of wireless phones for possible interactions with other medical devices. Should harmful interference be found to occur, FDA will conduct testing to assess the interference and work to resolve the problem.Additional information on the safety of RF exposures from various sources can be obtained from the following organizations:•FCC RF Safety Program:http://www.fcc.gov/oet/rfsafety/•Environmental Protection Agency (EPA):http://www.epa.gov/radiation/•Occupational Safety and Health Administration's (OSHA):http://www.osha.gov/SLTC/radiofrequencyradiation/index.html•National institute for Occupational Safety and Health (NIOSH):http://www.cdc.gov/niosh/topics/emf•World health Organization (WHO):http://www.who.int/peh-emf/•International Commission on Non-Ionizing Radiation Protection:http://www.icnirp.de•National Radiation Protection Board (UK):http://www.nrpb.org.ukt609.book Page 177 Sunday, January 15, 2006 2:03 PM

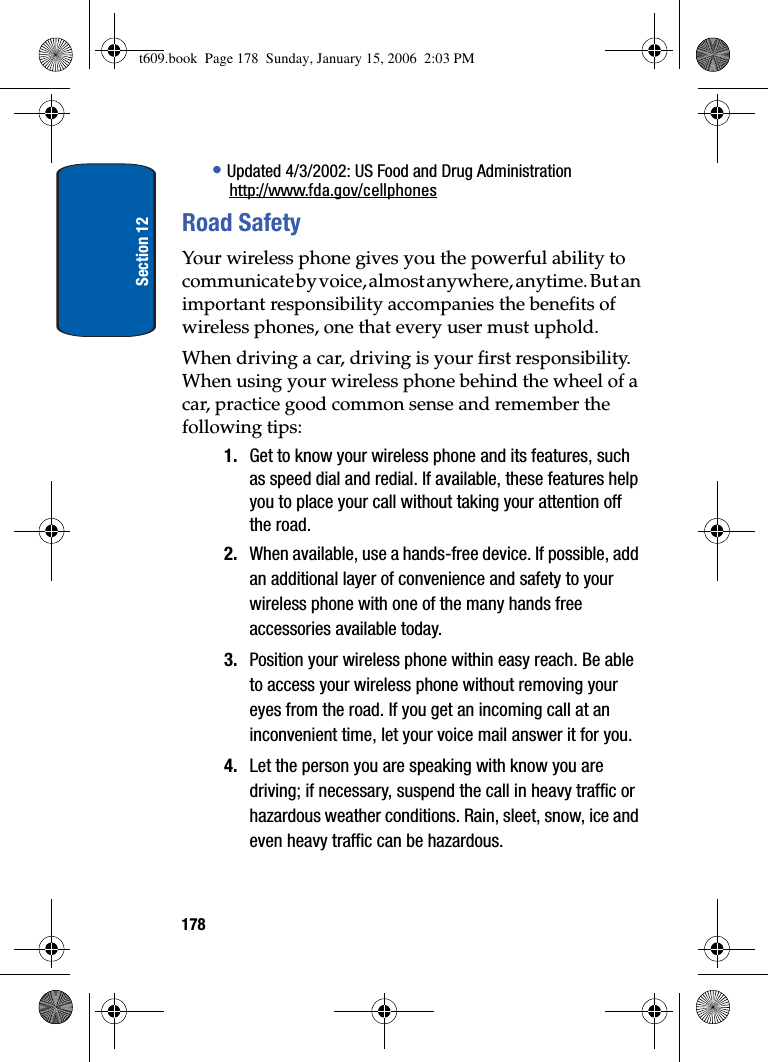

Section 12178•Updated 4/3/2002: US Food and Drug Administrationhttp://www.fda.gov/cellphonesRoad SafetyYour wireless phone gives you the powerful ability to communicate by voice, almost anywhere, anytime. But an important responsibility accompanies the benefits of wireless phones, one that every user must uphold.When driving a car, driving is your first responsibility. When using your wireless phone behind the wheel of a car, practice good common sense and remember the following tips:1. Get to know your wireless phone and its features, such as speed dial and redial. If available, these features help you to place your call without taking your attention off the road.2. When available, use a hands-free device. If possible, add an additional layer of convenience and safety to your wireless phone with one of the many hands free accessories available today.3. Position your wireless phone within easy reach. Be able to access your wireless phone without removing your eyes from the road. If you get an incoming call at an inconvenient time, let your voice mail answer it for you.4. Let the person you are speaking with know you are driving; if necessary, suspend the call in heavy traffic or hazardous weather conditions. Rain, sleet, snow, ice and even heavy traffic can be hazardous.t609.book Page 178 Sunday, January 15, 2006 2:03 PM

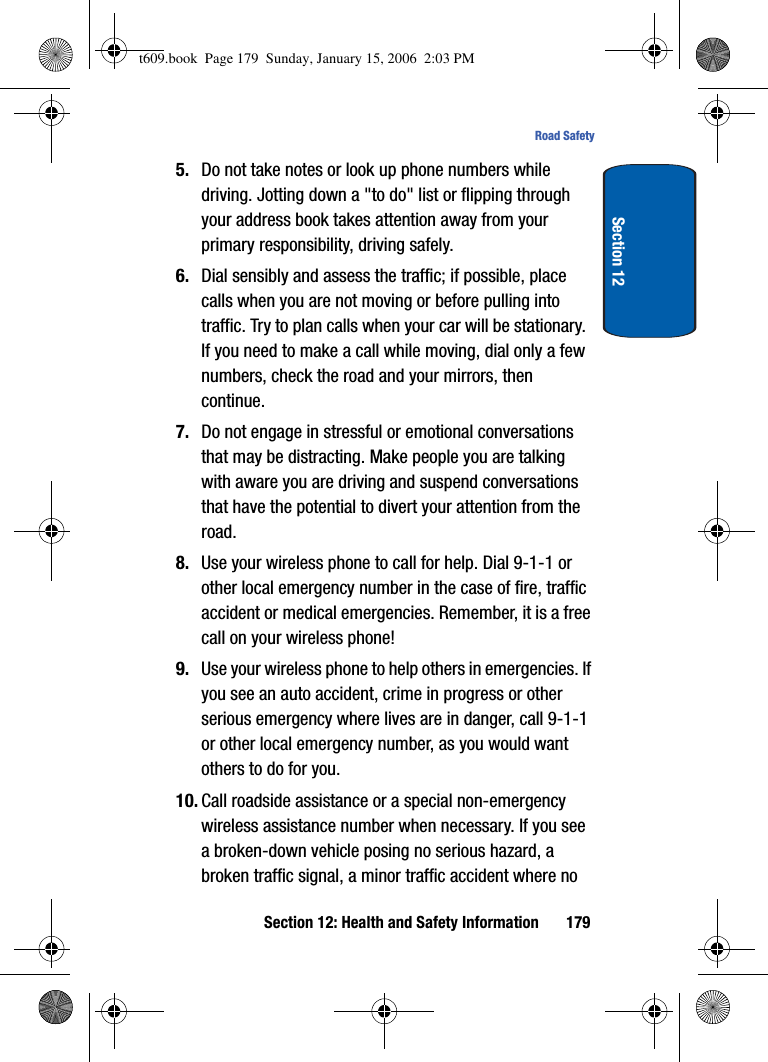

Section 12: Health and Safety Information 179Road SafetySection 125. Do not take notes or look up phone numbers while driving. Jotting down a "to do" list or flipping through your address book takes attention away from your primary responsibility, driving safely.6. Dial sensibly and assess the traffic; if possible, place calls when you are not moving or before pulling into traffic. Try to plan calls when your car will be stationary. If you need to make a call while moving, dial only a few numbers, check the road and your mirrors, then continue.7. Do not engage in stressful or emotional conversations that may be distracting. Make people you are talking with aware you are driving and suspend conversations that have the potential to divert your attention from the road.8. Use your wireless phone to call for help. Dial 9-1-1 or other local emergency number in the case of fire, traffic accident or medical emergencies. Remember, it is a free call on your wireless phone!9. Use your wireless phone to help others in emergencies. If you see an auto accident, crime in progress or other serious emergency where lives are in danger, call 9-1-1 or other local emergency number, as you would want others to do for you.10. Call roadside assistance or a special non-emergency wireless assistance number when necessary. If you see a broken-down vehicle posing no serious hazard, a broken traffic signal, a minor traffic accident where no t609.book Page 179 Sunday, January 15, 2006 2:03 PM

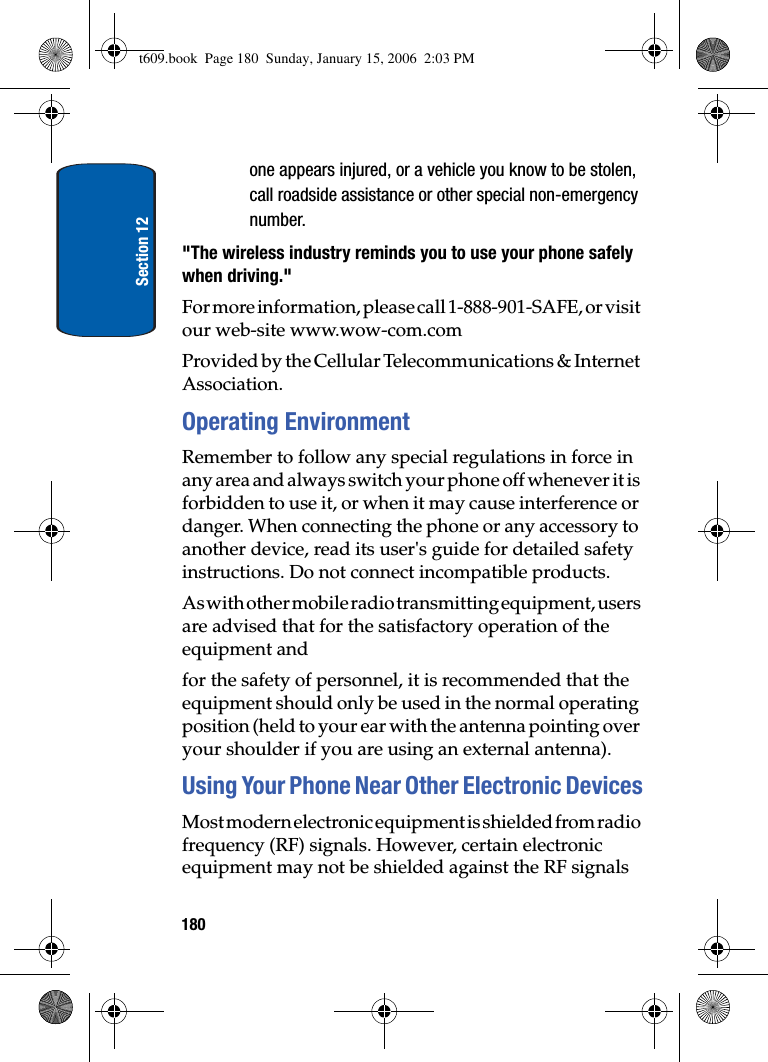

Section 12180one appears injured, or a vehicle you know to be stolen, call roadside assistance or other special non-emergency number."The wireless industry reminds you to use your phone safely when driving."For more information, please call 1-888-901-SAFE, or visit our web-site www.wow-com.com Provided by the Cellular Telecommunications & Internet Association.Operating EnvironmentRemember to follow any special regulations in force in any area and always switch your phone off whenever it is forbidden to use it, or when it may cause interference or danger. When connecting the phone or any accessory to another device, read its user's guide for detailed safety instructions. Do not connect incompatible products.As with other mobile radio transmitting equipment, users are advised that for the satisfactory operation of the equipment andfor the safety of personnel, it is recommended that the equipment should only be used in the normal operating position (held to your ear with the antenna pointing over your shoulder if you are using an external antenna).Using Your Phone Near Other Electronic DevicesMost modern electronic equipment is shielded from radio frequency (RF) signals. However, certain electronic equipment may not be shielded against the RF signals t609.book Page 180 Sunday, January 15, 2006 2:03 PM

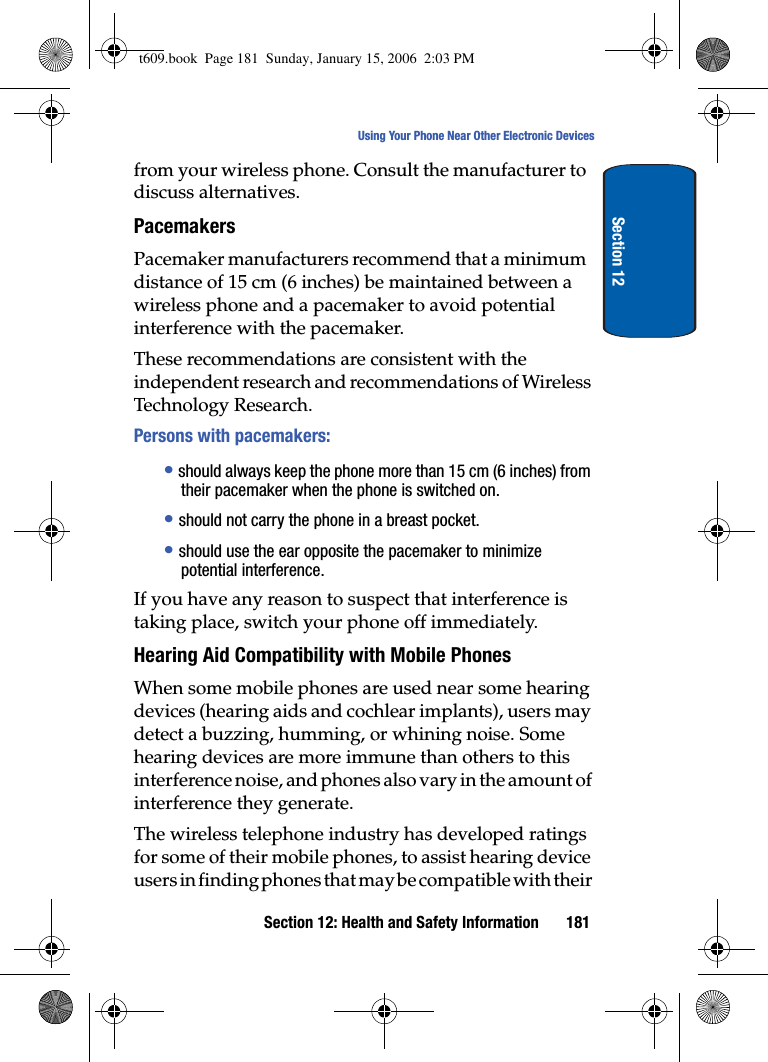

Section 12: Health and Safety Information 181Using Your Phone Near Other Electronic DevicesSection 12from your wireless phone. Consult the manufacturer to discuss alternatives.PacemakersPacemaker manufacturers recommend that a minimum distance of 15 cm (6 inches) be maintained between a wireless phone and a pacemaker to avoid potential interference with the pacemaker.These recommendations are consistent with the independent research and recommendations of Wireless Technology Research.Persons with pacemakers:•should always keep the phone more than 15 cm (6 inches) from their pacemaker when the phone is switched on.•should not carry the phone in a breast pocket.•should use the ear opposite the pacemaker to minimize potential interference.If you have any reason to suspect that interference is taking place, switch your phone off immediately.Hearing Aid Compatibility with Mobile PhonesWhen some mobile phones are used near some hearing devices (hearing aids and cochlear implants), users may detect a buzzing, humming, or whining noise. Some hearing devices are more immune than others to this interference noise, and phones also vary in the amount of interference they generate.The wireless telephone industry has developed ratings for some of their mobile phones, to assist hearing device users in finding phones that may be compatible with their t609.book Page 181 Sunday, January 15, 2006 2:03 PM
Section 12182hearing devices. Not all phones have been rated. Phones that are rated have the rating on their box or a label on the box.The ratings are not guarantees. Results will vary depending on the user’s hearing device and hearing loss. If your hearing device happens to be vulnerable to interference, you may not be able to use a rated phone successfully. Trying out the phone with your hearing device is the best way to evaluate it for your personal needs.M-Ratings: Phones rated M3 or M4 meet FCC requirements and are likely to generate less interference to hearing devices than phones that are not labeled. M4 is the better/higher of the two ratings.T-Ratings: P ho nes ra te d T 3 or T4 m ee t FC C req ui re men ts and are likely to be more usable with a hearing device’s telecoil (“T Switch” or “Telephone Switch”) than unrated phones. T4 is the better/higher of the two ratings. (Note that not all hearing devices have telecoils in them.)Hearing devices may also be measured for immunity to this type of interference. Your hearing device manufacturer or hearing health professional may help you find results for your hearing device. The more immune your hearing aid is, the less likely you are to experience interference noise from mobile phones.Other Medical DevicesIf you use any other personal medical devices, consult the manufacturer of your device to determine if it is adequately shielded from external RF energy. Your physician may be able to assist you in obtaining this t609.book Page 182 Sunday, January 15, 2006 2:03 PM

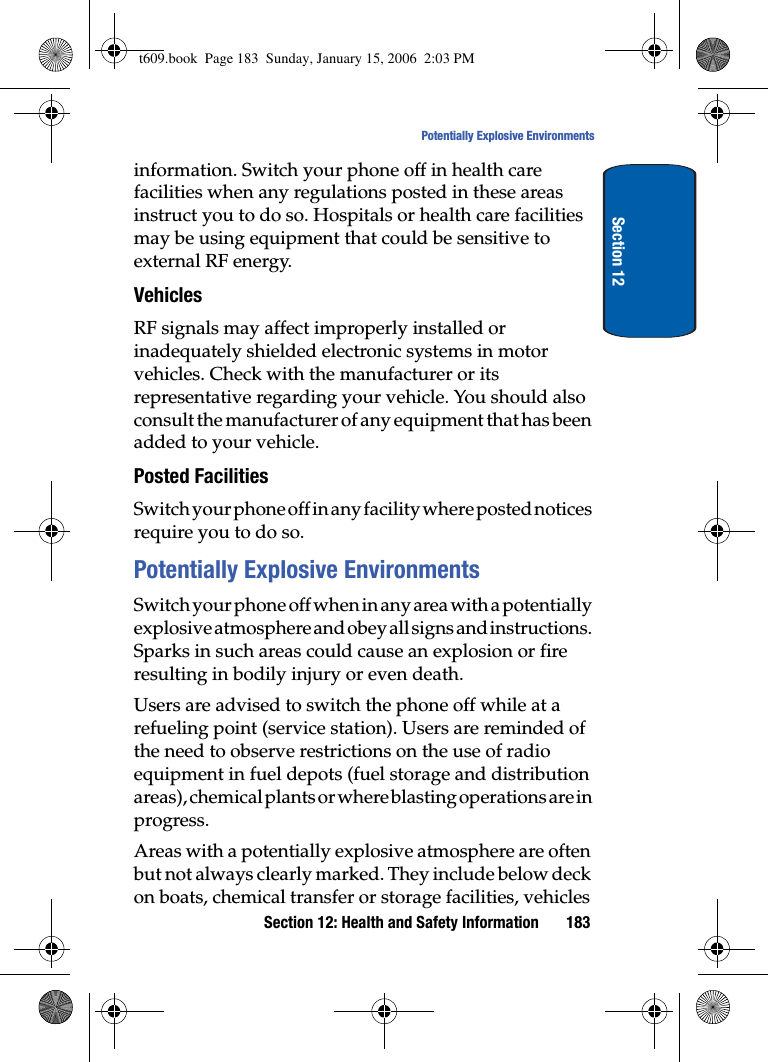

Section 12: Health and Safety Information 183Potentially Explosive EnvironmentsSection 12information. Switch your phone off in health care facilities when any regulations posted in these areas instruct you to do so. Hospitals or health care facilities may be using equipment that could be sensitive to external RF energy.VehiclesRF signals may affect improperly installed or inadequately shielded electronic systems in motor vehicles. Check with the manufacturer or its representative regarding your vehicle. You should also consult the manufacturer of any equipment that has been added to your vehicle.Posted FacilitiesSwitch your phone off in any facility where posted notices require you to do so.Potentially Explosive EnvironmentsSwitch your phone off when in any area with a potentially explosive atmosphere and obey all signs and instructions. Sparks in such areas could cause an explosion or fire resulting in bodily injury or even death.Users are advised to switch the phone off while at a refueling point (service station). Users are reminded of the need to observe restrictions on the use of radio equipment in fuel depots (fuel storage and distribution areas), chemical plants or where blasting operations are in progress.Areas with a potentially explosive atmosphere are often but not always clearly marked. They include below deck on boats, chemical transfer or storage facilities, vehicles t609.book Page 183 Sunday, January 15, 2006 2:03 PM

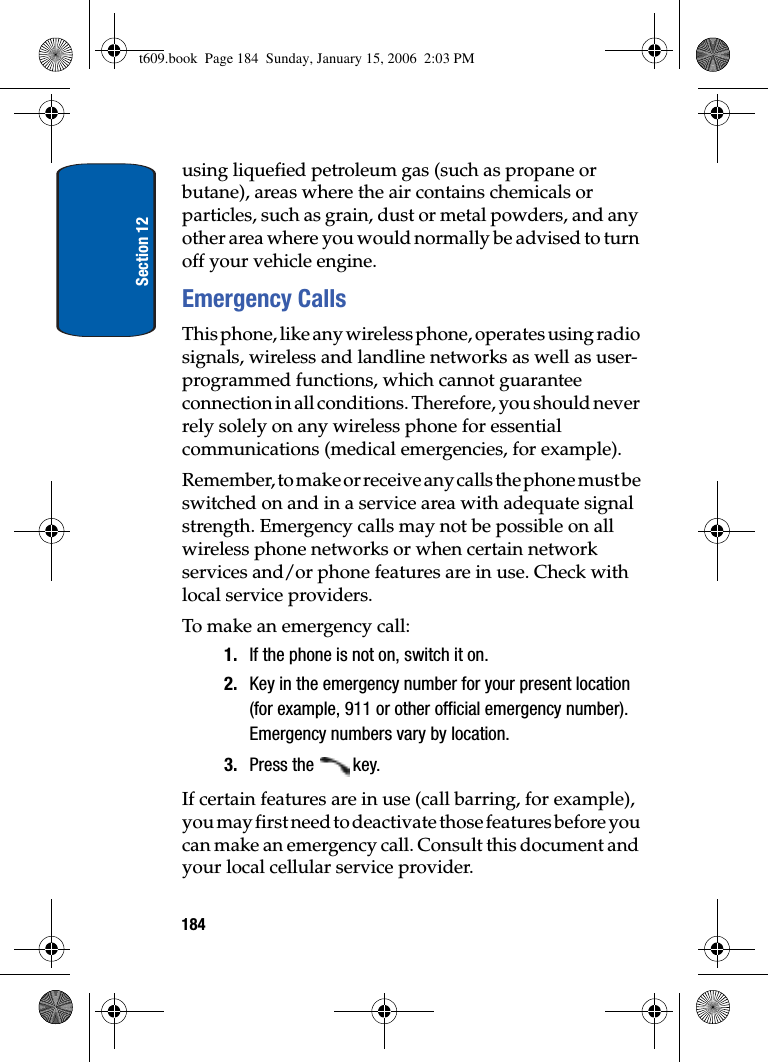

Section 12184using liquefied petroleum gas (such as propane or butane), areas where the air contains chemicals or particles, such as grain, dust or metal powders, and any other area where you would normally be advised to turn off your vehicle engine.Emergency CallsThis phone, like any wireless phone, operates using radio signals, wireless and landline networks as well as user-programmed functions, which cannot guarantee connection in all conditions. Therefore, you should never rely solely on any wireless phone for essential communications (medical emergencies, for example).Remember, to make or receive any calls the phone must be switched on and in a service area with adequate signal strength. Emergency calls may not be possible on all wireless phone networks or when certain network services and/or phone features are in use. Check with local service providers.To make an emergency call:1. If the phone is not on, switch it on.2. Key in the emergency number for your present location (for example, 911 or other official emergency number). Emergency numbers vary by location.3. Press the key.If certain features are in use (call barring, for example), you may first need to deactivate those features before you can make an emergency call. Consult this document and your local cellular service provider.t609.book Page 184 Sunday, January 15, 2006 2:03 PM

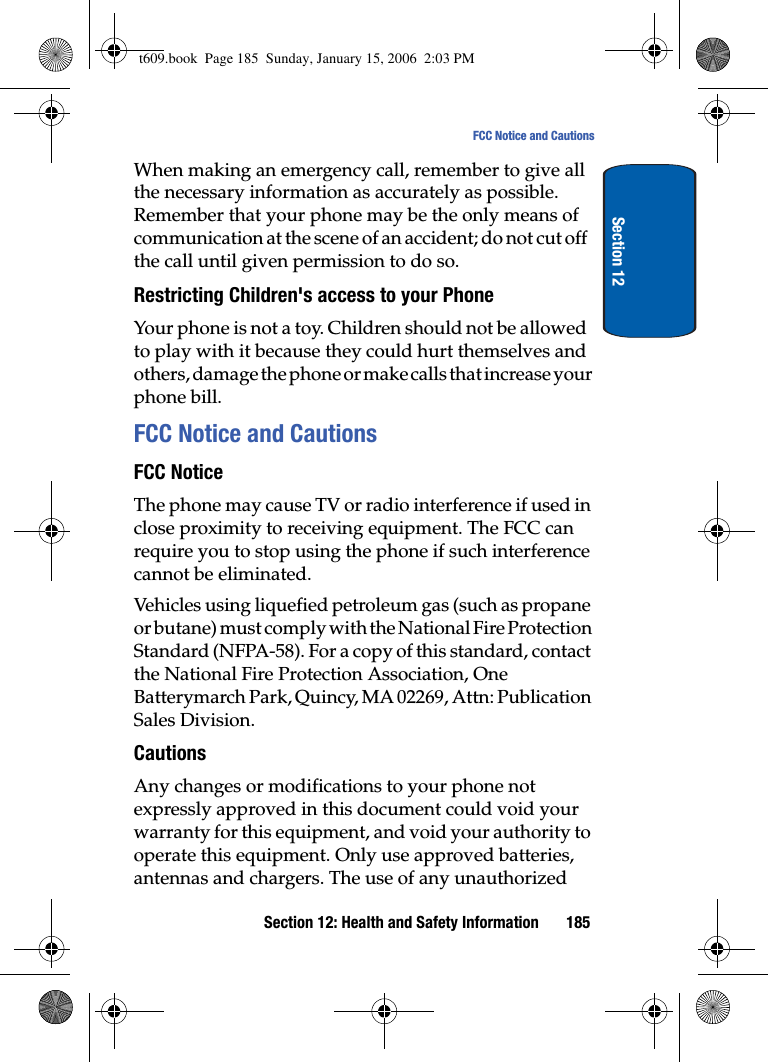

Section 12: Health and Safety Information 185FCC Notice and CautionsSection 12When making an emergency call, remember to give all the necessary information as accurately as possible. Remember that your phone may be the only means of communication at the scene of an accident; do not cut off the call until given permission to do so.Restricting Children's access to your PhoneYour phone is not a toy. Children should not be allowed to play with it because they could hurt themselves and others, damage the phone or make calls that increase your phone bill.FCC Notice and CautionsFCC NoticeThe phone may cause TV or radio interference if used in close proximity to receiving equipment. The FCC can require you to stop using the phone if such interference cannot be eliminated.Vehicles using liquefied petroleum gas (such as propane or butane) must comply with the National Fire Protection Standard (NFPA-58). For a copy of this standard, contact the National Fire Protection Association, One Batterymarch Park, Quincy, MA 02269, Attn: Publication Sales Division.CautionsAny changes or modifications to your phone not expressly approved in this document could void your warranty for this equipment, and void your authority to operate this equipment. Only use approved batteries, antennas and chargers. The use of any unauthorized t609.book Page 185 Sunday, January 15, 2006 2:03 PM

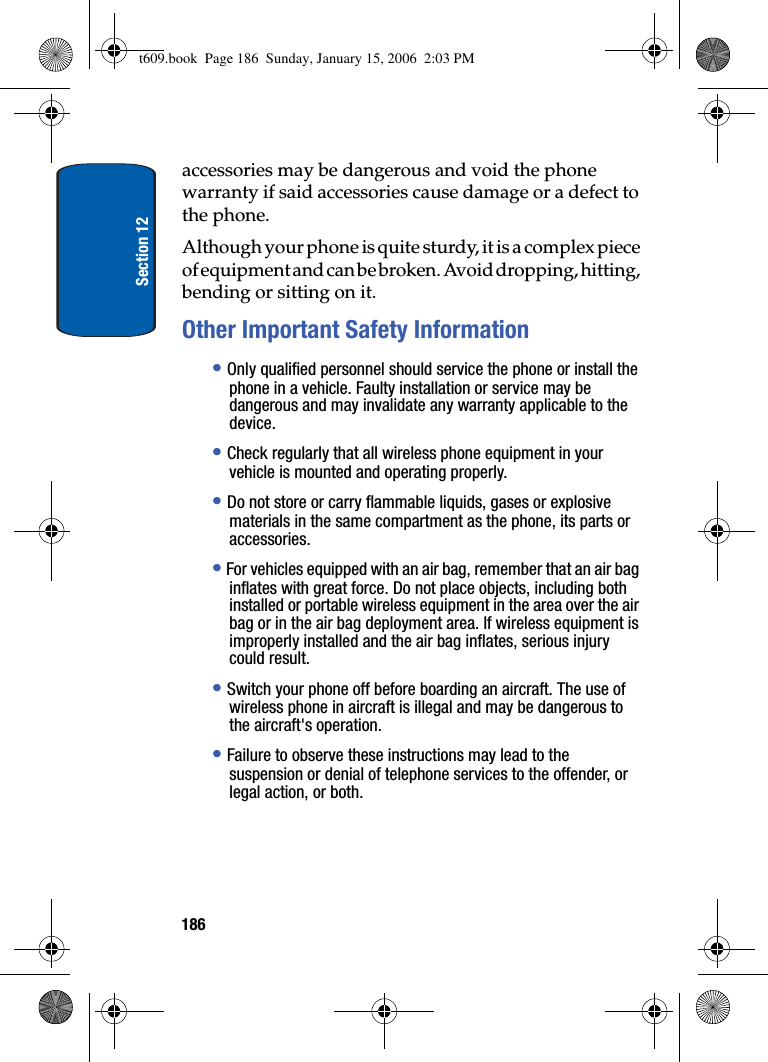

Section 12186accessories may be dangerous and void the phone warranty if said accessories cause damage or a defect to the phone.Although your phone is quite sturdy, it is a complex piece of equipment and can be broken. Avoid dropping, hitting, bending or sitting on it.Other Important Safety Information•Only qualified personnel should service the phone or install the phone in a vehicle. Faulty installation or service may be dangerous and may invalidate any warranty applicable to the device.•Check regularly that all wireless phone equipment in your vehicle is mounted and operating properly.•Do not store or carry flammable liquids, gases or explosive materials in the same compartment as the phone, its parts or accessories.•For vehicles equipped with an air bag, remember that an air bag inflates with great force. Do not place objects, including both installed or portable wireless equipment in the area over the air bag or in the air bag deployment area. If wireless equipment is improperly installed and the air bag inflates, serious injury could result.•Switch your phone off before boarding an aircraft. The use of wireless phone in aircraft is illegal and may be dangerous to the aircraft's operation.•Failure to observe these instructions may lead to the suspension or denial of telephone services to the offender, or legal action, or both.t609.book Page 186 Sunday, January 15, 2006 2:03 PM

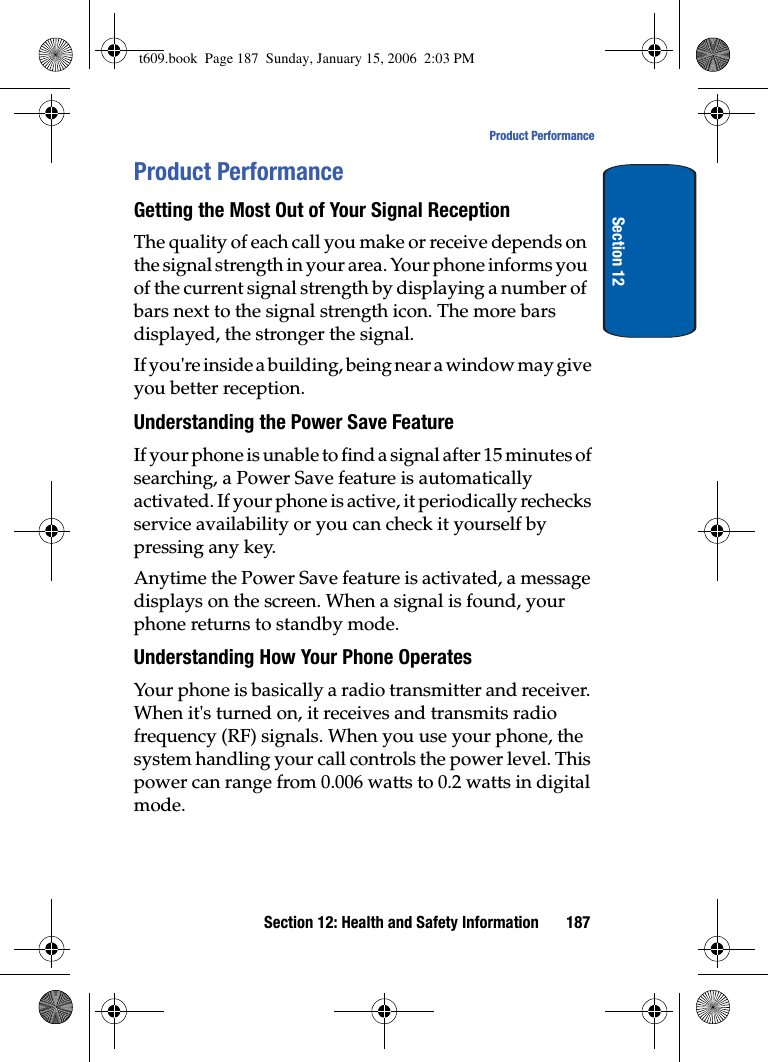

Section 12: Health and Safety Information 187Product PerformanceSection 12Product PerformanceGetting the Most Out of Your Signal ReceptionThe quality of each call you make or receive depends on the signal strength in your area. Your phone informs you of the current signal strength by displaying a number of bars next to the signal strength icon. The more bars displayed, the stronger the signal.If you're inside a building, being near a window may give you better reception.Understanding the Power Save FeatureIf your phone is unable to find a signal after 15 minutes of searching, a Power Save feature is automatically activated. If your phone is active, it periodically rechecks service availability or you can check it yourself by pressing any key.Anytime the Power Save feature is activated, a message displays on the screen. When a signal is found, your phone returns to standby mode.Understanding How Your Phone OperatesYour phone is basically a radio transmitter and receiver. When it's turned on, it receives and transmits radio frequency (RF) signals. When you use your phone, the system handling your call controls the power level. This power can range from 0.006 watts to 0.2 watts in digital mode.t609.book Page 187 Sunday, January 15, 2006 2:03 PM

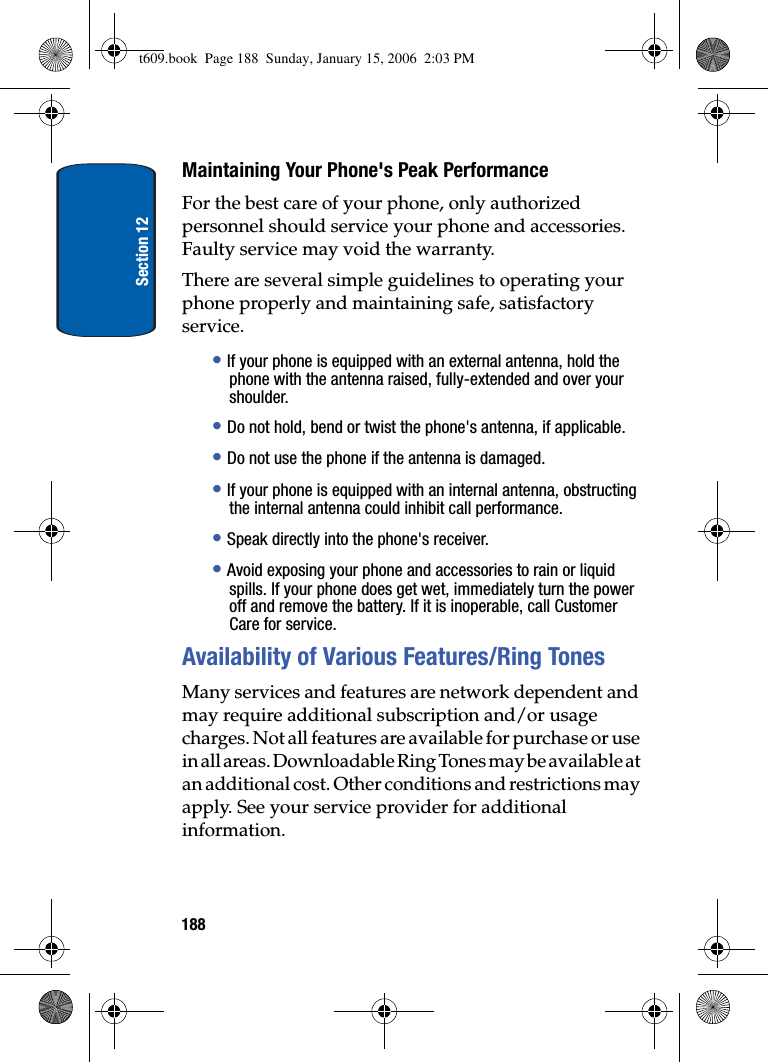

Section 12188Maintaining Your Phone's Peak PerformanceFor the best care of your phone, only authorized personnel should service your phone and accessories. Faulty service may void the warranty.There are several simple guidelines to operating your phone properly and maintaining safe, satisfactory service.•If your phone is equipped with an external antenna, hold the phone with the antenna raised, fully-extended and over your shoulder.•Do not hold, bend or twist the phone's antenna, if applicable.•Do not use the phone if the antenna is damaged.•If your phone is equipped with an internal antenna, obstructing the internal antenna could inhibit call performance.•Speak directly into the phone's receiver.•Avoid exposing your phone and accessories to rain or liquid spills. If your phone does get wet, immediately turn the power off and remove the battery. If it is inoperable, call Customer Care for service.Availability of Various Features/Ring TonesMany services and features are network dependent and may require additional subscription and/or usage charges. Not all features are available for purchase or use in all areas. Downloadable Ring Tones may be available at an additional cost. Other conditions and restrictions may apply. See your service provider for additional information.t609.book Page 188 Sunday, January 15, 2006 2:03 PM

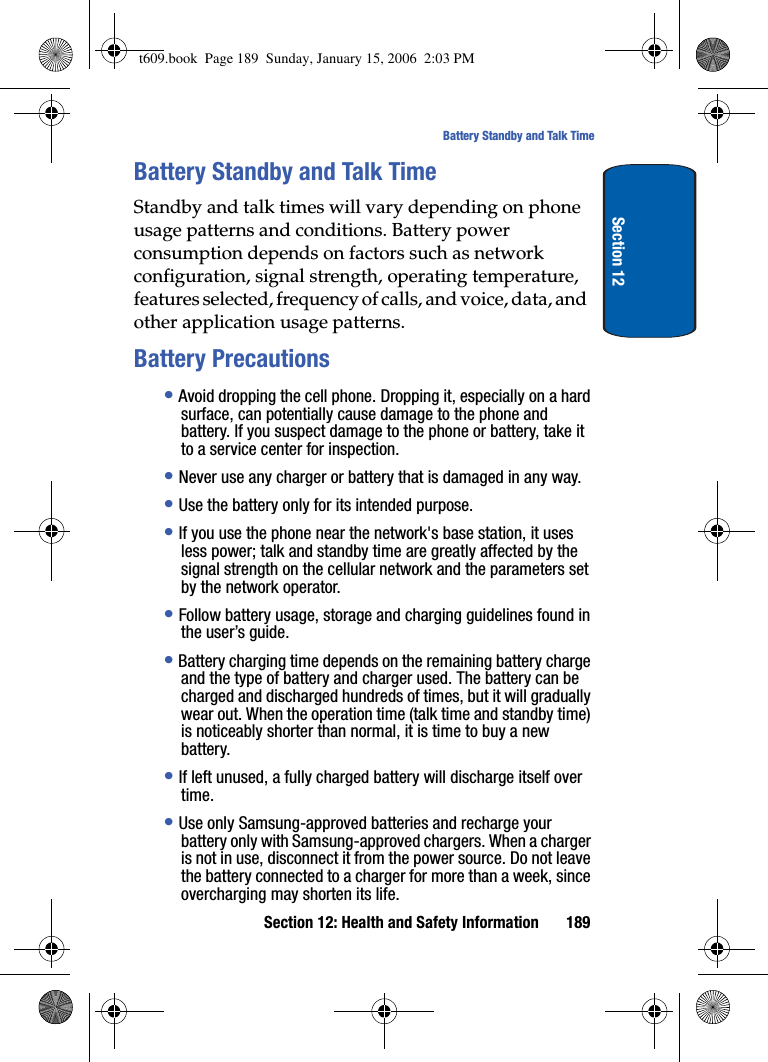

Section 12: Health and Safety Information 189Battery Standby and Talk TimeSection 12Battery Standby and Talk TimeStandby and talk times will vary depending on phone usage patterns and conditions. Battery power consumption depends on factors such as network configuration, signal strength, operating temperature, features selected, frequency of calls, and voice, data, and other application usage patterns.Battery Precautions•Avoid dropping the cell phone. Dropping it, especially on a hard surface, can potentially cause damage to the phone and battery. If you suspect damage to the phone or battery, take it to a service center for inspection. •Never use any charger or battery that is damaged in any way.•Use the battery only for its intended purpose.•If you use the phone near the network's base station, it uses less power; talk and standby time are greatly affected by the signal strength on the cellular network and the parameters set by the network operator.•Follow battery usage, storage and charging guidelines found in the user’s guide. •Battery charging time depends on the remaining battery charge and the type of battery and charger used. The battery can be charged and discharged hundreds of times, but it will gradually wear out. When the operation time (talk time and standby time) is noticeably shorter than normal, it is time to buy a new battery.•If left unused, a fully charged battery will discharge itself over time.•Use only Samsung-approved batteries and recharge your battery only with Samsung-approved chargers. When a charger is not in use, disconnect it from the power source. Do not leave the battery connected to a charger for more than a week, since overcharging may shorten its life.t609.book Page 189 Sunday, January 15, 2006 2:03 PM

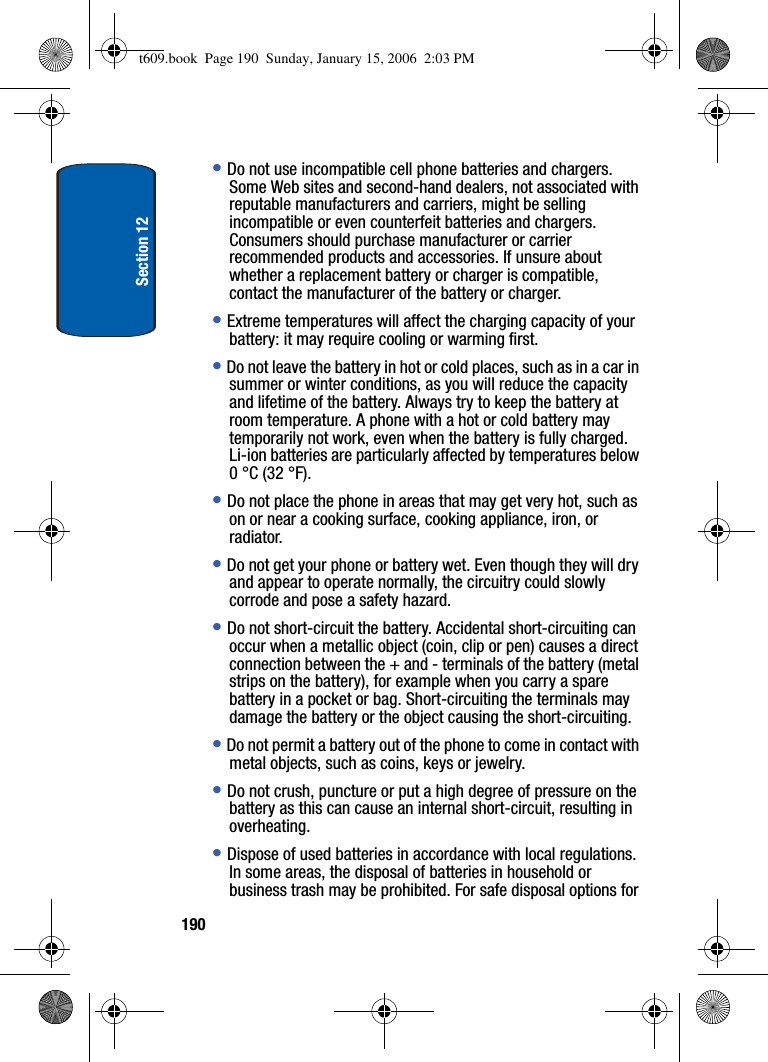

Section 12190•Do not use incompatible cell phone batteries and chargers. Some Web sites and second-hand dealers, not associated with reputable manufacturers and carriers, might be selling incompatible or even counterfeit batteries and chargers. Consumers should purchase manufacturer or carrier recommended products and accessories. If unsure about whether a replacement battery or charger is compatible, contact the manufacturer of the battery or charger. •Extreme temperatures will affect the charging capacity of your battery: it may require cooling or warming first.•Do not leave the battery in hot or cold places, such as in a car in summer or winter conditions, as you will reduce the capacity and lifetime of the battery. Always try to keep the battery at room temperature. A phone with a hot or cold battery may temporarily not work, even when the battery is fully charged. Li-ion batteries are particularly affected by temperatures below 0 °C (32 °F).•Do not place the phone in areas that may get very hot, such as on or near a cooking surface, cooking appliance, iron, or radiator. •Do not get your phone or battery wet. Even though they will dry and appear to operate normally, the circuitry could slowly corrode and pose a safety hazard. •Do not short-circuit the battery. Accidental short-circuiting can occur when a metallic object (coin, clip or pen) causes a direct connection between the + and - terminals of the battery (metal strips on the battery), for example when you carry a spare battery in a pocket or bag. Short-circuiting the terminals may damage the battery or the object causing the short-circuiting.•Do not permit a battery out of the phone to come in contact with metal objects, such as coins, keys or jewelry. •Do not crush, puncture or put a high degree of pressure on the battery as this can cause an internal short-circuit, resulting in overheating. •Dispose of used batteries in accordance with local regulations. In some areas, the disposal of batteries in household or business trash may be prohibited. For safe disposal options for t609.book Page 190 Sunday, January 15, 2006 2:03 PM

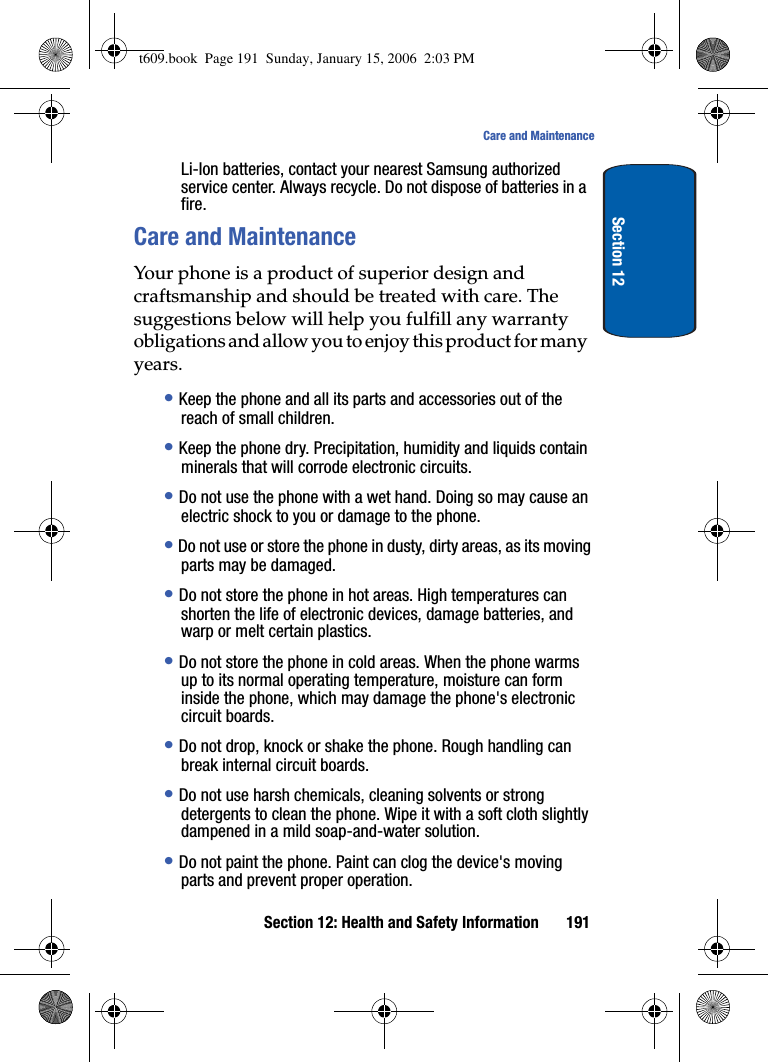

Section 12: Health and Safety Information 191Care and MaintenanceSection 12Li-Ion batteries, contact your nearest Samsung authorized service center. Always recycle. Do not dispose of batteries in a fire.Care and MaintenanceYour phone is a product of superior design and craftsmanship and should be treated with care. The suggestions below will help you fulfill any warranty obligations and allow you to enjoy this product for many years.•Keep the phone and all its parts and accessories out of the reach of small children.•Keep the phone dry. Precipitation, humidity and liquids contain minerals that will corrode electronic circuits.•Do not use the phone with a wet hand. Doing so may cause an electric shock to you or damage to the phone.•Do not use or store the phone in dusty, dirty areas, as its moving parts may be damaged.•Do not store the phone in hot areas. High temperatures can shorten the life of electronic devices, damage batteries, and warp or melt certain plastics.•Do not store the phone in cold areas. When the phone warms up to its normal operating temperature, moisture can form inside the phone, which may damage the phone's electronic circuit boards.•Do not drop, knock or shake the phone. Rough handling can break internal circuit boards.•Do not use harsh chemicals, cleaning solvents or strong detergents to clean the phone. Wipe it with a soft cloth slightly dampened in a mild soap-and-water solution.•Do not paint the phone. Paint can clog the device's moving parts and prevent proper operation.t609.book Page 191 Sunday, January 15, 2006 2:03 PM

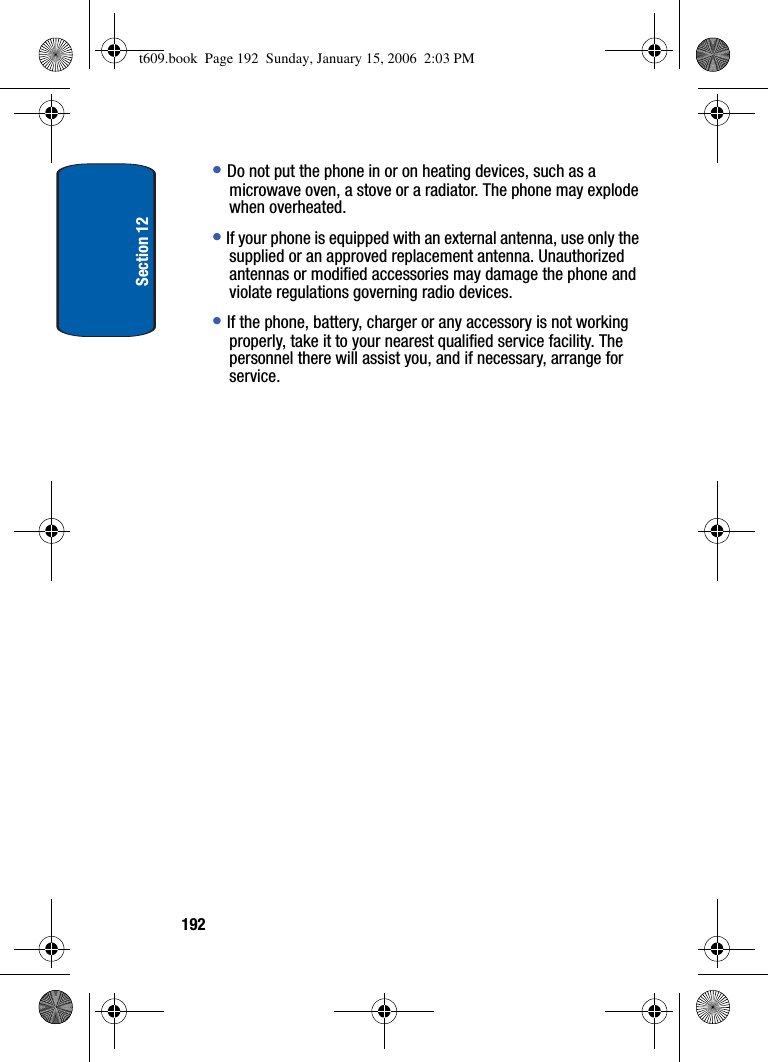

Section 12192•Do not put the phone in or on heating devices, such as a microwave oven, a stove or a radiator. The phone may explode when overheated.•If your phone is equipped with an external antenna, use only the supplied or an approved replacement antenna. Unauthorized antennas or modified accessories may damage the phone and violate regulations governing radio devices.•If the phone, battery, charger or any accessory is not working properly, take it to your nearest qualified service facility. The personnel there will assist you, and if necessary, arrange for service.t609.book Page 192 Sunday, January 15, 2006 2:03 PM

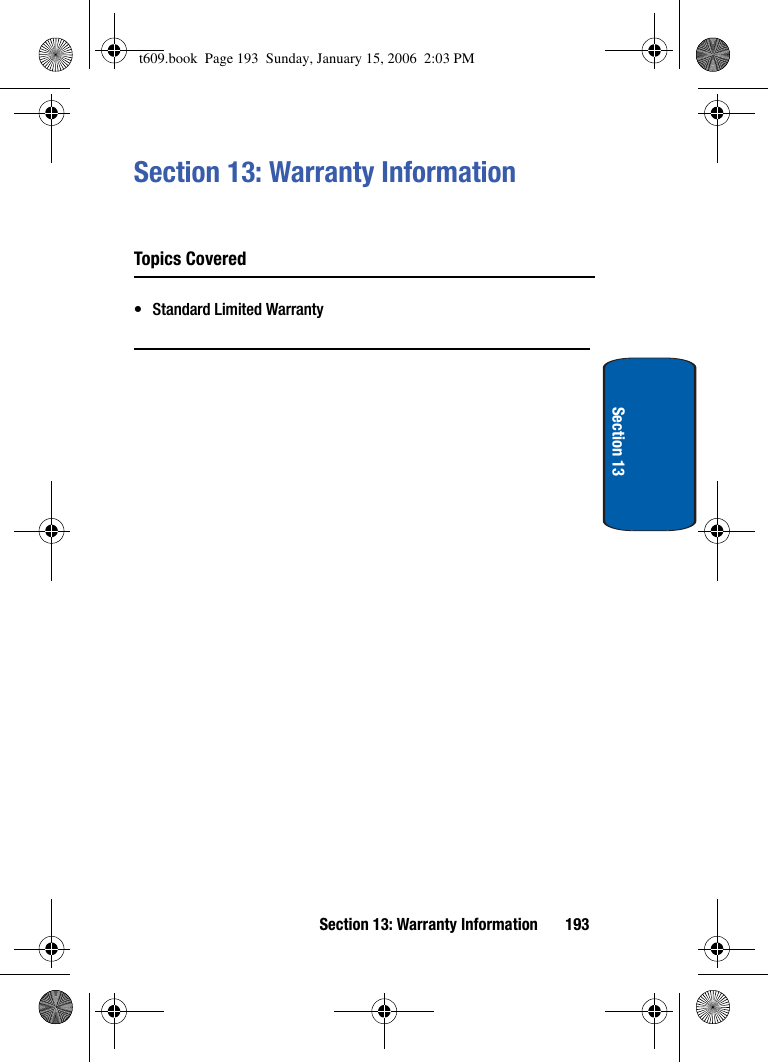

Section 13: Warranty Information 193Section 13Section 13: Warranty InformationTopics Covered• Standard Limited Warrantyt609.book Page 193 Sunday, January 15, 2006 2:03 PM

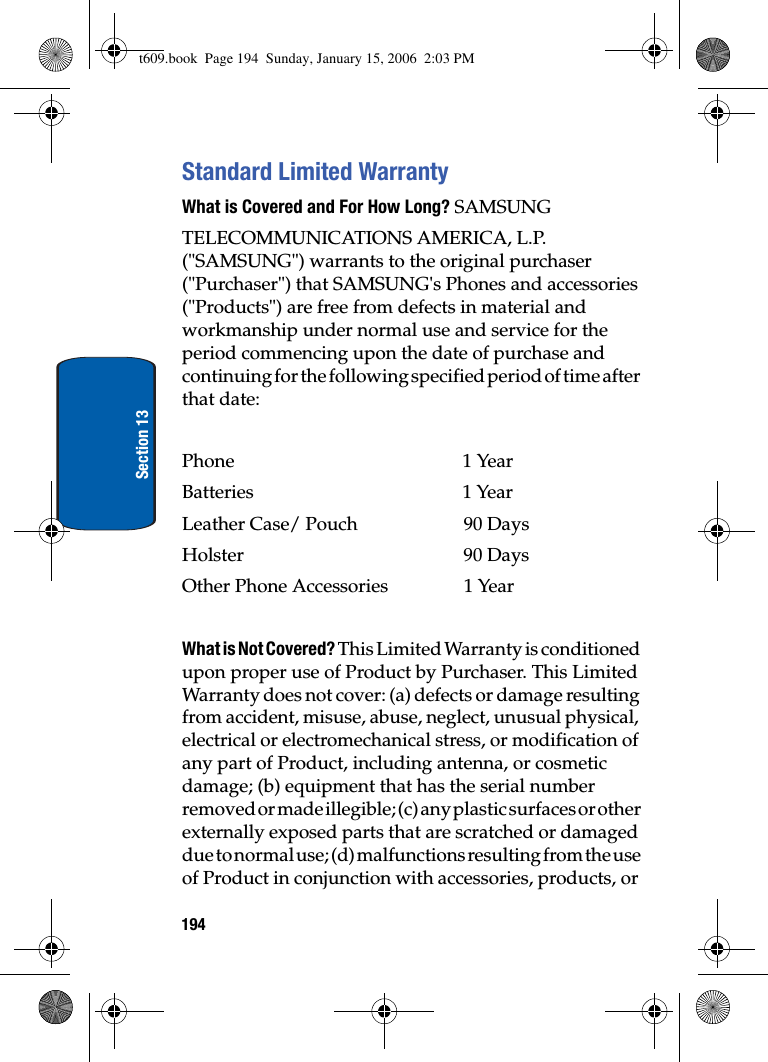

194Section 13Standard Limited WarrantyWhat is Covered and For How Long? SAMSUNGTELECOMMUNICATIONS AMERICA, L.P. ("SAMSUNG") warrants to the original purchaser ("Purchaser") that SAMSUNG's Phones and accessories ("Products") are free from defects in material and workmanship under normal use and service for the period commencing upon the date of purchase and continuing for the following specified period of time after that date:Phone 1 YearBatteries 1 YearLeather Case/ Pouch 90 DaysHolster 90 DaysOther Phone Accessories 1 YearWhat is Not Covered? This Limited Warranty is conditioned upon proper use of Product by Purchaser. This Limited Warranty does not cover: (a) defects or damage resulting from accident, misuse, abuse, neglect, unusual physical, electrical or electromechanical stress, or modification of any part of Product, including antenna, or cosmetic damage; (b) equipment that has the serial number removed or made illegible; (c) any plastic surfaces or other externally exposed parts that are scratched or damaged due to normal use; (d) malfunctions resulting from the use of Product in conjunction with accessories, products, or t609.book Page 194 Sunday, January 15, 2006 2:03 PM

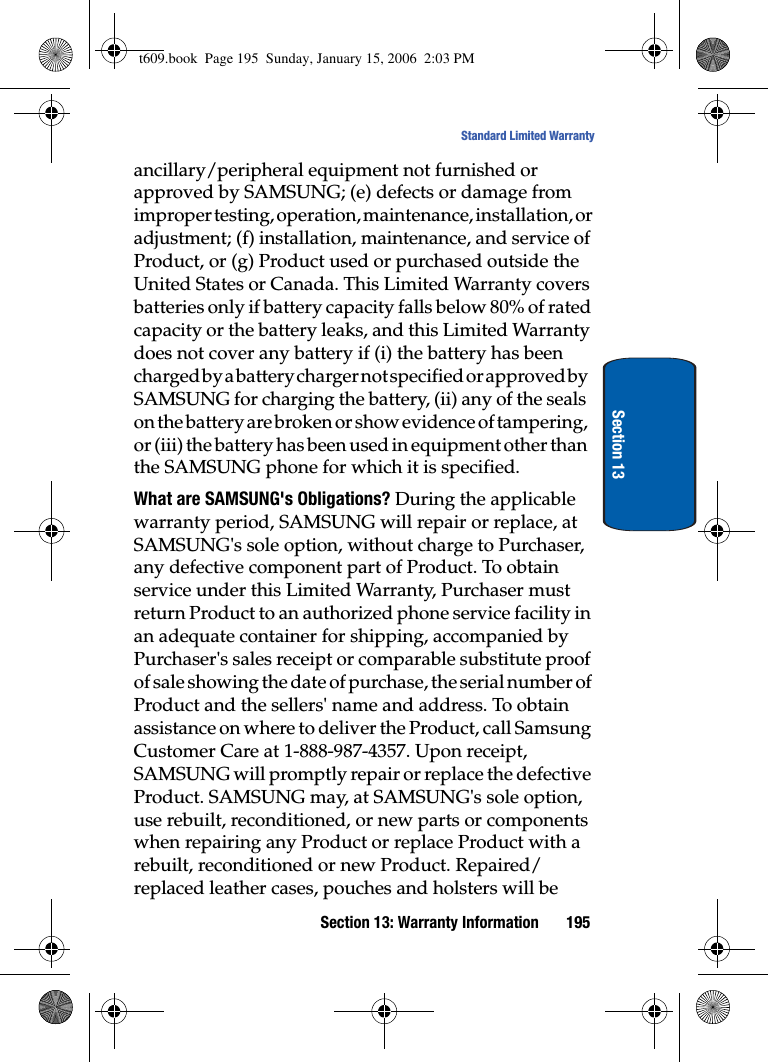

Section 13: Warranty Information 195Standard Limited WarrantySection 13ancillary/peripheral equipment not furnished or approved by SAMSUNG; (e) defects or damage from improper testing, operation, maintenance, installation, or adjustment; (f) installation, maintenance, and service of Product, or (g) Product used or purchased outside the United States or Canada. This Limited Warranty covers batteries only if battery capacity falls below 80% of rated capacity or the battery leaks, and this Limited Warranty does not cover any battery if (i) the battery has been charged by a battery charger not specified or approved by SAMSUNG for charging the battery, (ii) any of the seals on the battery are broken or show evidence of tampering, or (iii) the battery has been used in equipment other than the SAMSUNG phone for which it is specified.What are SAMSUNG's Obligations? During the applicable warranty period, SAMSUNG will repair or replace, at SAMSUNG's sole option, without charge to Purchaser, any defective component part of Product. To obtain service under this Limited Warranty, Purchaser must return Product to an authorized phone service facility in an adequate container for shipping, accompanied by Purchaser's sales receipt or comparable substitute proof of sale showing the date of purchase, the serial number of Product and the sellers' name and address. To obtain assistance on where to deliver the Product, call Samsung Customer Care at 1-888-987-4357. Upon receipt, SAMSUNG will promptly repair or replace the defective Product. SAMSUNG may, at SAMSUNG's sole option, use rebuilt, reconditioned, or new parts or components when repairing any Product or replace Product with a rebuilt, reconditioned or new Product. Repaired/replaced leather cases, pouches and holsters will be t609.book Page 195 Sunday, January 15, 2006 2:03 PM

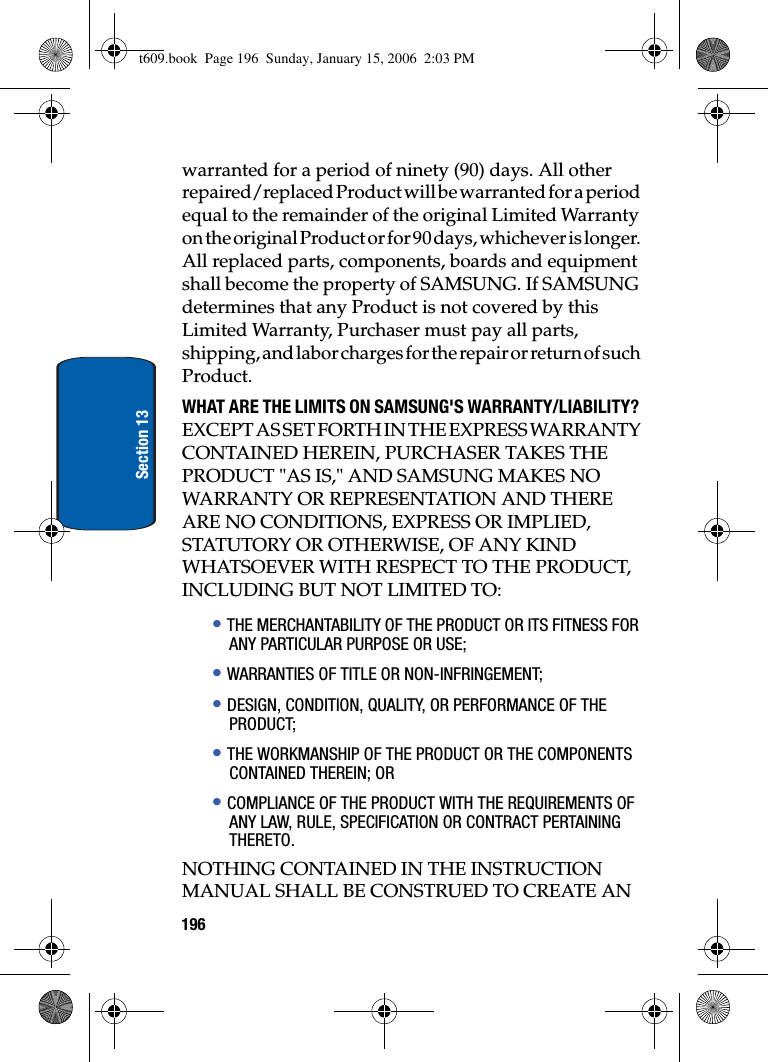

196Section 13warranted for a period of ninety (90) days. All other repaired/replaced Product will be warranted for a period equal to the remainder of the original Limited Warranty on the original Product or for 90 days, whichever is longer. All replaced parts, components, boards and equipment shall become the property of SAMSUNG. If SAMSUNG determines that any Product is not covered by this Limited Warranty, Purchaser must pay all parts, shipping, and labor charges for the repair or return of such Product.WHAT ARE THE LIMITS ON SAMSUNG'S WARRANTY/LIABILITY? EXCEPT AS SET FORTH IN THE EXPRESS WARRANTY CONTAINED HEREIN, PURCHASER TAKES THE PRODUCT "AS IS," AND SAMSUNG MAKES NO WARRANTY OR REPRESENTATION AND THERE ARE NO CONDITIONS, EXPRESS OR IMPLIED, STATUTORY OR OTHERWISE, OF ANY KIND WHATSOEVER WITH RESPECT TO THE PRODUCT, INCLUDING BUT NOT LIMITED TO:•THE MERCHANTABILITY OF THE PRODUCT OR ITS FITNESS FOR ANY PARTICULAR PURPOSE OR USE;•WARRANTIES OF TITLE OR NON-INFRINGEMENT;•DESIGN, CONDITION, QUALITY, OR PERFORMANCE OF THE PRODUCT;•THE WORKMANSHIP OF THE PRODUCT OR THE COMPONENTS CONTAINED THEREIN; OR•COMPLIANCE OF THE PRODUCT WITH THE REQUIREMENTS OF ANY LAW, RULE, SPECIFICATION OR CONTRACT PERTAINING THERETO.NOTHING CONTAINED IN THE INSTRUCTION MANUAL SHALL BE CONSTRUED TO CREATE AN t609.book Page 196 Sunday, January 15, 2006 2:03 PM

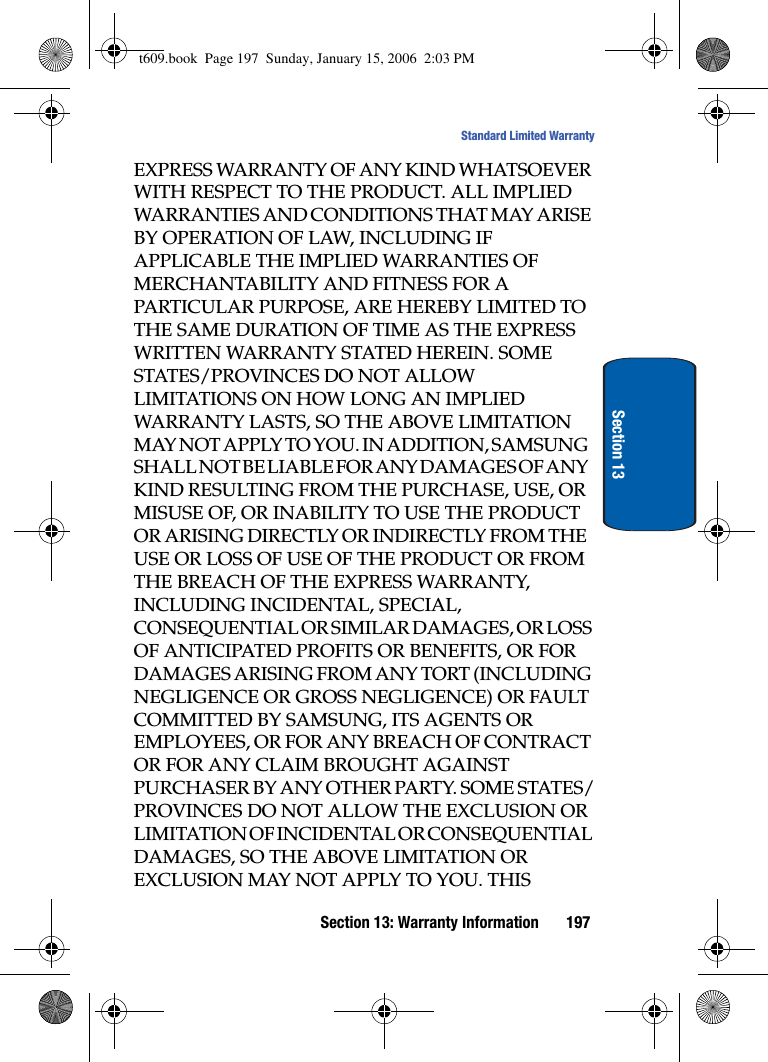

Section 13: Warranty Information 197Standard Limited WarrantySection 13EXPRESS WARRANTY OF ANY KIND WHATSOEVER WITH RESPECT TO THE PRODUCT. ALL IMPLIED WARRANTIES AND CONDITIONS THAT MAY ARISE BY OPERATION OF LAW, INCLUDING IF APPLICABLE THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, ARE HEREBY LIMITED TO THE SAME DURATION OF TIME AS THE EXPRESS WRITTEN WARRANTY STATED HEREIN. SOME STATES/PROVINCES DO NOT ALLOW LIMITATIONS ON HOW LONG AN IMPLIED WARRANTY LASTS, SO THE ABOVE LIMITATION MAY NOT APPLY TO YOU. IN ADDITION, SAMSUNG SHALL NOT BE LIABLE FOR ANY DAMAGES OF ANY KIND RESULTING FROM THE PURCHASE, USE, OR MISUSE OF, OR INABILITY TO USE THE PRODUCT OR ARISING DIRECTLY OR INDIRECTLY FROM THE USE OR LOSS OF USE OF THE PRODUCT OR FROM THE BREACH OF THE EXPRESS WARRANTY, INCLUDING INCIDENTAL, SPECIAL, CONSEQUENTIAL OR SIMILAR DAMAGES, OR LOSS OF ANTICIPATED PROFITS OR BENEFITS, OR FOR DAMAGES ARISING FROM ANY TORT (INCLUDING NEGLIGENCE OR GROSS NEGLIGENCE) OR FAULT COMMITTED BY SAMSUNG, ITS AGENTS OR EMPLOYEES, OR FOR ANY BREACH OF CONTRACT OR FOR ANY CLAIM BROUGHT AGAINST PURCHASER BY ANY OTHER PARTY. SOME STATES/PROVINCES DO NOT ALLOW THE EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES, SO THE ABOVE LIMITATION OR EXCLUSION MAY NOT APPLY TO YOU. THIS t609.book Page 197 Sunday, January 15, 2006 2:03 PM

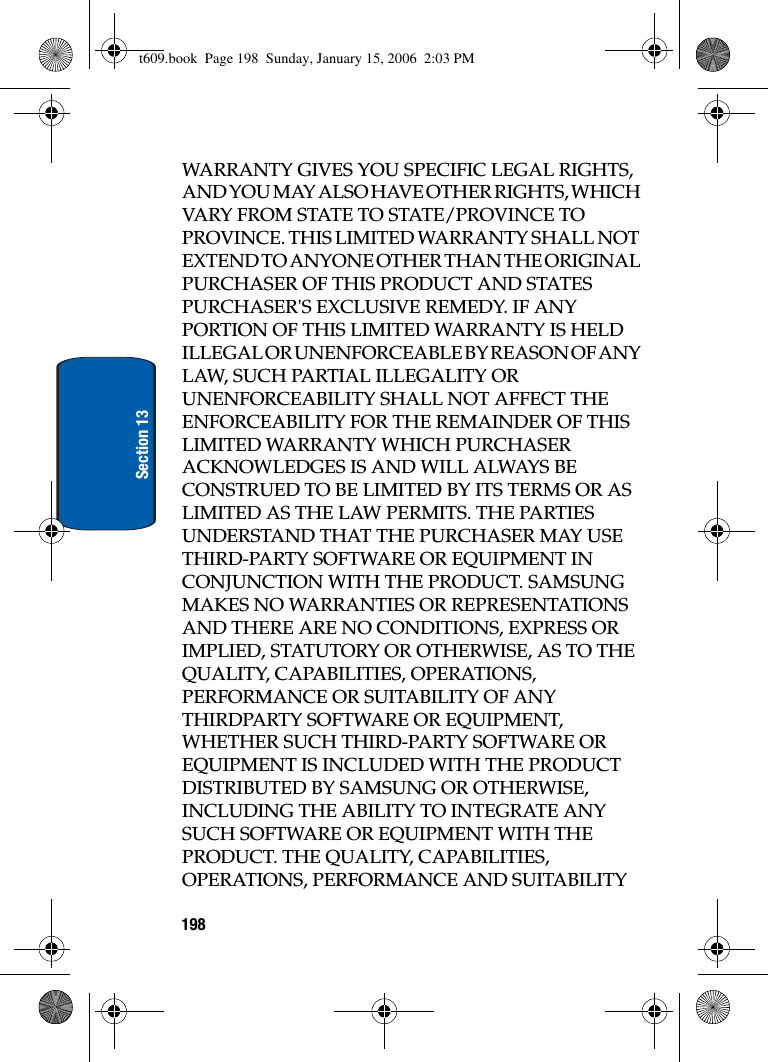

198Section 13WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS, AND YOU MAY ALSO HAVE OTHER RIGHTS, WHICH VARY FROM STATE TO STATE/PROVINCE TO PROVINCE. THIS LIMITED WARRANTY SHALL NOT EXTEND TO ANYONE OTHER THAN THE ORIGINAL PURCHASER OF THIS PRODUCT AND STATES PURCHASER'S EXCLUSIVE REMEDY. IF ANY PORTION OF THIS LIMITED WARRANTY IS HELD ILLEGAL OR UNENFORCEABLE BY REASON OF ANY LAW, SUCH PARTIAL ILLEGALITY OR UNENFORCEABILITY SHALL NOT AFFECT THE ENFORCEABILITY FOR THE REMAINDER OF THIS LIMITED WARRANTY WHICH PURCHASER ACKNOWLEDGES IS AND WILL ALWAYS BE CONSTRUED TO BE LIMITED BY ITS TERMS OR AS LIMITED AS THE LAW PERMITS. THE PARTIES UNDERSTAND THAT THE PURCHASER MAY USE THIRD-PARTY SOFTWARE OR EQUIPMENT IN CONJUNCTION WITH THE PRODUCT. SAMSUNG MAKES NO WARRANTIES OR REPRESENTATIONS AND THERE ARE NO CONDITIONS, EXPRESS OR IMPLIED, STATUTORY OR OTHERWISE, AS TO THE QUALITY, CAPABILITIES, OPERATIONS, PERFORMANCE OR SUITABILITY OF ANY THIRDPARTY SOFTWARE OR EQUIPMENT, WHETHER SUCH THIRD-PARTY SOFTWARE OR EQUIPMENT IS INCLUDED WITH THE PRODUCT DISTRIBUTED BY SAMSUNG OR OTHERWISE, INCLUDING THE ABILITY TO INTEGRATE ANY SUCH SOFTWARE OR EQUIPMENT WITH THE PRODUCT. THE QUALITY, CAPABILITIES, OPERATIONS, PERFORMANCE AND SUITABILITY t609.book Page 198 Sunday, January 15, 2006 2:03 PM

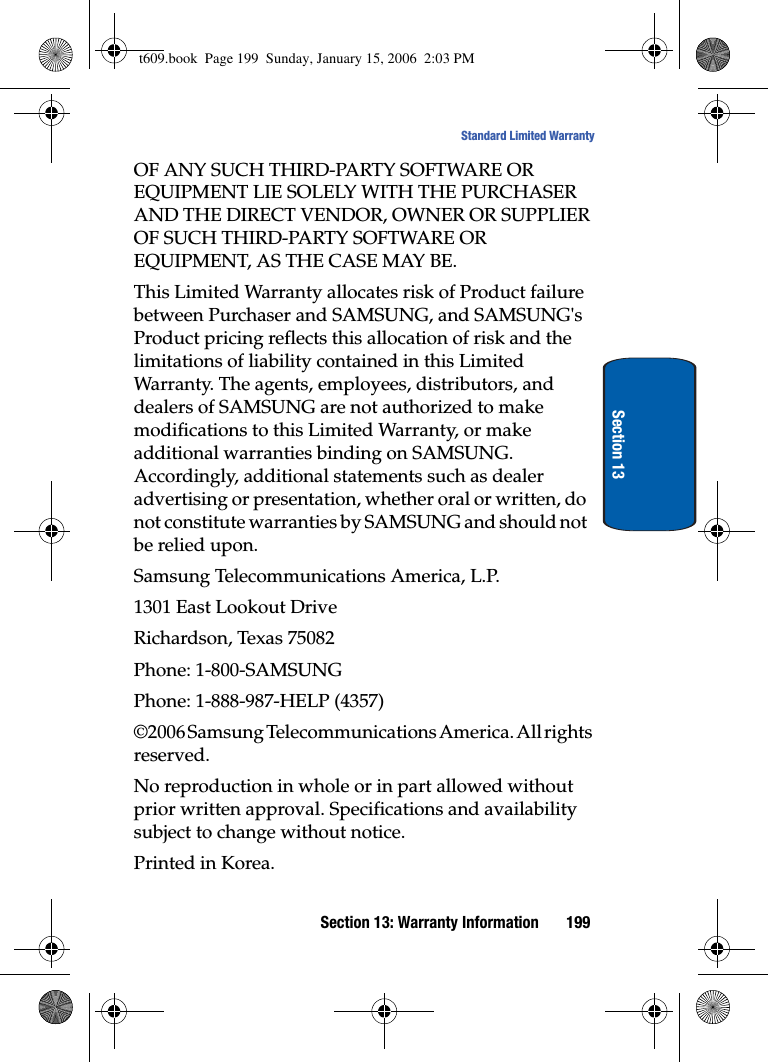

Section 13: Warranty Information 199Standard Limited WarrantySection 13OF ANY SUCH THIRD-PARTY SOFTWARE OR EQUIPMENT LIE SOLELY WITH THE PURCHASER AND THE DIRECT VENDOR, OWNER OR SUPPLIER OF SUCH THIRD-PARTY SOFTWARE OR EQUIPMENT, AS THE CASE MAY BE.This Limited Warranty allocates risk of Product failure between Purchaser and SAMSUNG, and SAMSUNG's Product pricing reflects this allocation of risk and the limitations of liability contained in this Limited Warranty. The agents, employees, distributors, and dealers of SAMSUNG are not authorized to make modifications to this Limited Warranty, or make additional warranties binding on SAMSUNG. Accordingly, additional statements such as dealer advertising or presentation, whether oral or written, do not constitute warranties by SAMSUNG and should not be relied upon.Samsung Telecommunications America, L.P.1301 East Lookout DriveRichardson, Texas 75082Phone: 1-800-SAMSUNGPhone: 1-888-987-HELP (4357)©2006 Samsung Telecommunications America. All rights reserved.No reproduction in whole or in part allowed without prior written approval. Specifications and availability subject to change without notice.Printed in Korea.t609.book Page 199 Sunday, January 15, 2006 2:03 PM

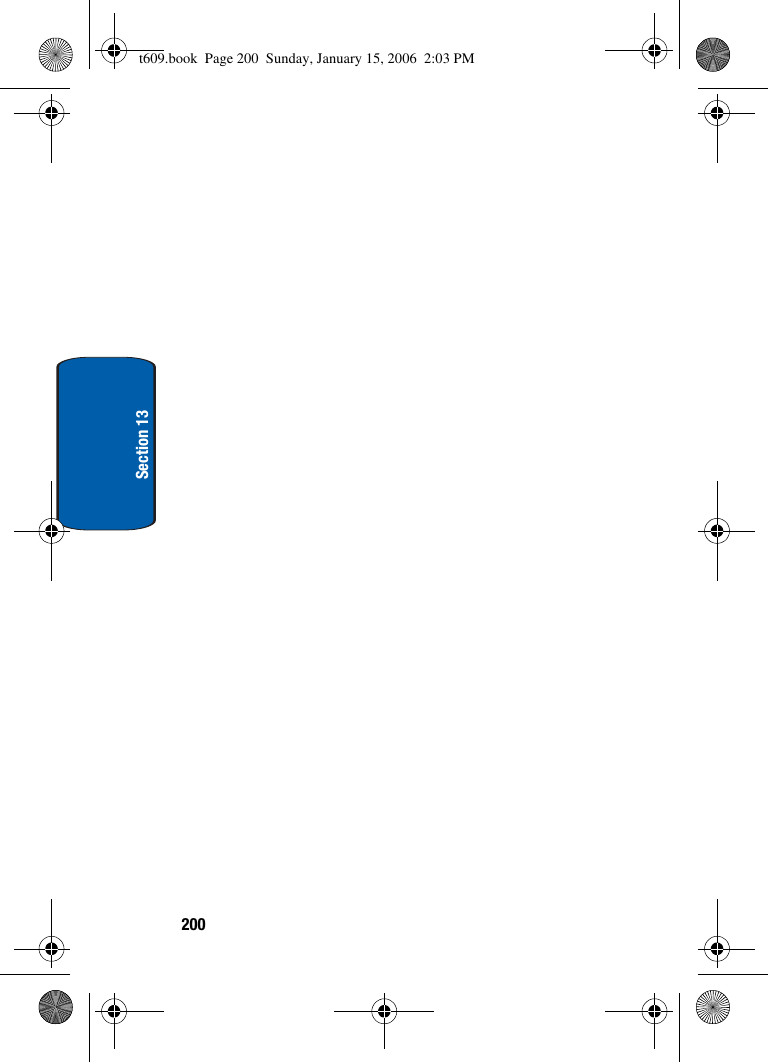

200Section 13t609.book Page 200 Sunday, January 15, 2006 2:03 PM

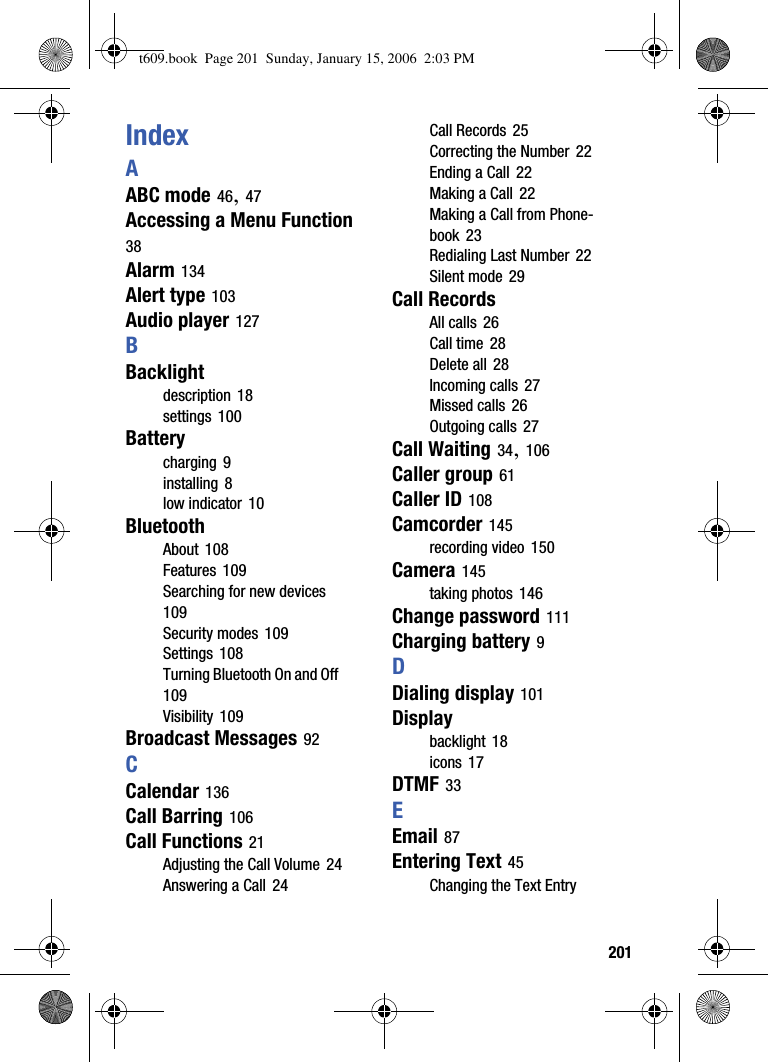

201IndexAABC mode 46,47Accessing a Menu Function38Alarm 134Alert type 103Audio player 127BBacklightdescription 18settings 100Batterycharging 9installing 8low indicator 10BluetoothAbout 108Features 109Searching for new devices109Security modes 109Settings 108Turning Bluetooth On and Off109Visibility 109Broadcast Messages 92CCalendar 136Call Barring 106Call Functions 21Adjusting the Call Volume 24Answering a Call 24Call Records 25Correcting the Number 22Ending a Call 22Making a Call 22Making a Call from Phone-book 23Redialing Last Number 22Silent mode 29Call RecordsAll calls 26Call time 28Delete all 28Incoming calls 27Missed calls 26Outgoing calls 27Call Waiting 34,106Caller group 61Caller ID 108Camcorder 145recording video 150Camera 145taking photos 146Change password 111Charging battery 9DDialing display 101Displaybacklight 18icons 17DTMF 33EEmail 87Entering Text 45Changing the Text Entry t609.book Page 201 Sunday, January 15, 2006 2:03 PM

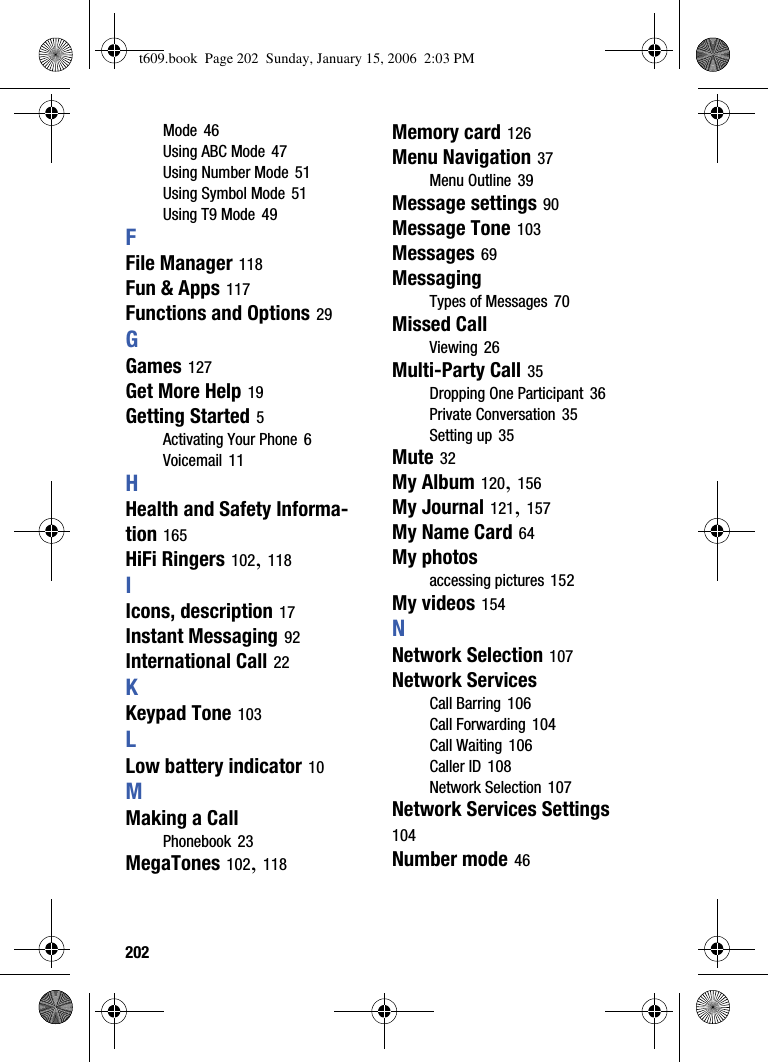

202Mode 46Using ABC Mode 47Using Number Mode 51Using Symbol Mode 51Using T9 Mode 49FFile Manager 118Fun & Apps 117Functions and Options 29GGames 127Get More Help 19Getting Started 5Activating Your Phone 6Voicemail 11HHealth and Safety Informa-tion 165HiFi Ringers 102,118IIcons, description 17Instant Messaging 92International Call 22KKeypad Tone 103LLow battery indicator 10MMaking a CallPhonebook 23MegaTones 102,118Memory card 126Menu Navigation 37Menu Outline 39Message settings 90Message Tone 103Messages 69MessagingTypes of Messages 70Missed CallViewing 26Multi-Party Call 35Dropping One Participant 36Private Conversation 35Setting up 35Mute 32My Album 120,156My Journal 121,157My Name Card 64My photosaccessing pictures 152My videos 154NNetwork Selection 107Network ServicesCall Barring 106Call Forwarding 104Call Waiting 106Caller ID 108Network Selection 107Network Services Settings104Number mode 46t609.book Page 202 Sunday, January 15, 2006 2:03 PM

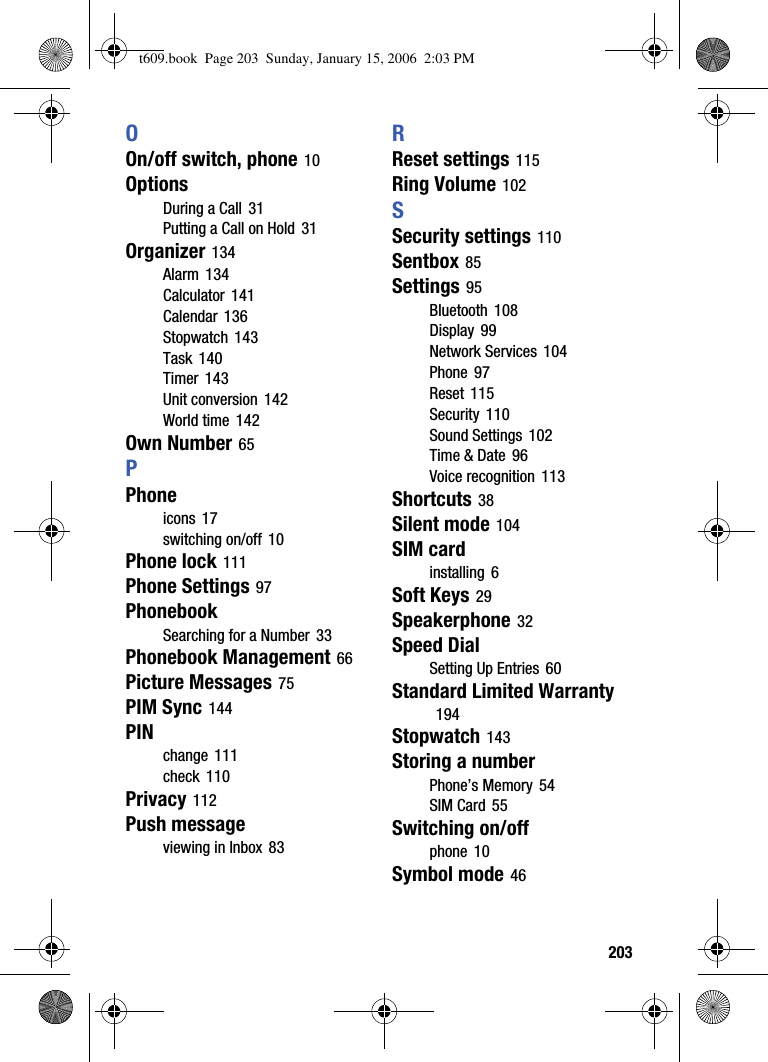

203OOn/off switch, phone 10OptionsDuring a Call 31Putting a Call on Hold 31Organizer 134Alarm 134Calculator 141Calendar 136Stopwatch 143Task 140Timer 143Unit conversion 142World time 142Own Number 65PPhoneicons 17switching on/off 10Phone lock 111Phone Settings 97PhonebookSearching for a Number 33Phonebook Management 66Picture Messages 75PIM Sync 144PINchange 111check 110Privacy 112Push messageviewing in Inbox 83RReset settings 115Ring Volume 102SSecurity settings 110Sentbox 85Settings 95Bluetooth 108Display 99Network Services 104Phone 97Reset 115Security 110Sound Settings 102Time & Date 96Voice recognition 113Shortcuts 38Silent mode 104SIM cardinstalling 6Soft Keys 29Speakerphone 32Speed DialSetting Up Entries 60Standard Limited Warranty194Stopwatch 143Storing a numberPhone’s Memory 54SIM Card 55Switching on/offphone 10Symbol mode 46t609.book Page 203 Sunday, January 15, 2006 2:03 PM

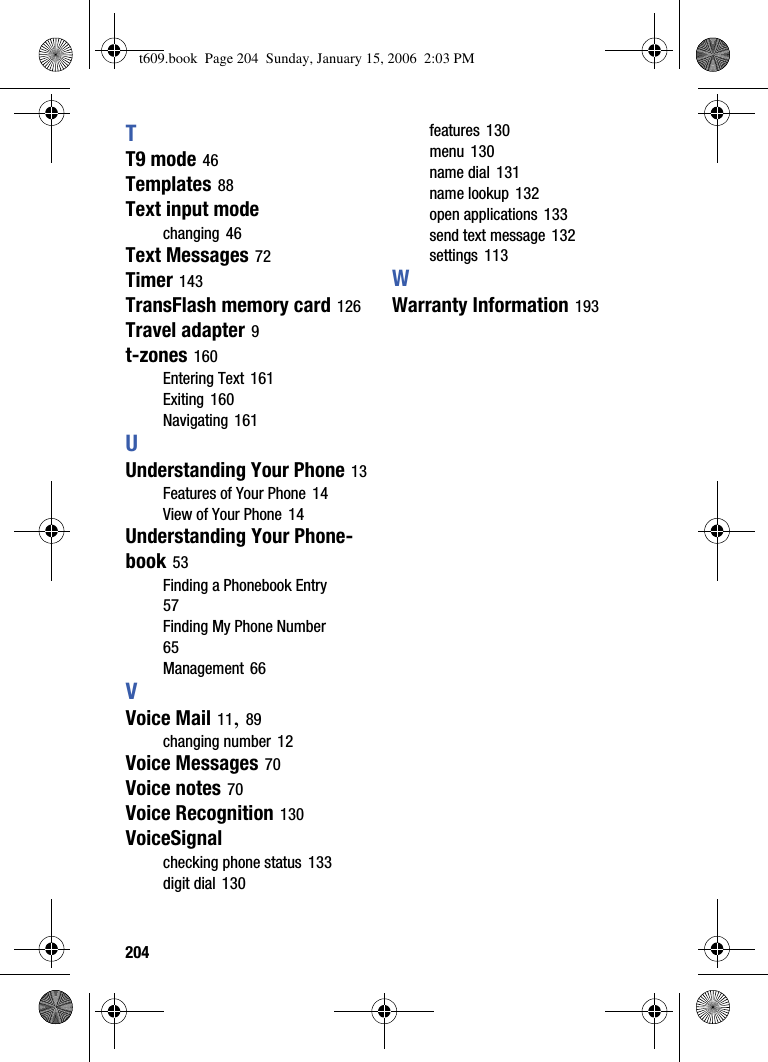

204TT9 mode 46Templates 88Text input modechanging 46Text Messages 72Timer 143TransFlash memory card 126Travel adapter 9t-zones 160Entering Text 161Exiting 160Navigating 161UUnderstanding Your Phone 13Features of Your Phone 14View of Your Phone 14Understanding Your Phone-book 53Finding a Phonebook Entry57Finding My Phone Number65Management 66VVoice Mail 11,89changing number 12Voice Messages 70Voice notes 70Voice Recognition 130VoiceSignalchecking phone status 133digit dial 130features 130menu 130name dial 131name lookup 132open applications 133send text message 132settings 113WWarranty Information 193t609.book Page 204 Sunday, January 15, 2006 2:03 PM
