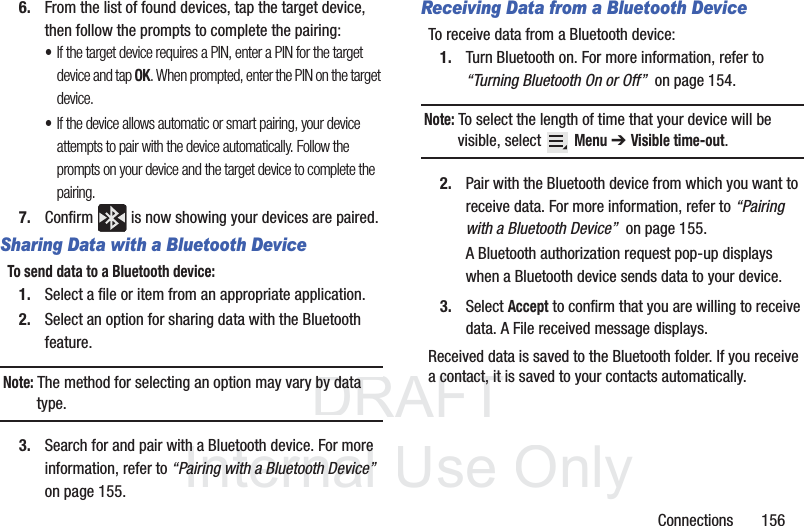

DRAFT InternalUse OnlyConnections 1566. From the list of found devices, tap the target device, then follow the prompts to complete the pairing:•If the target device requires a PIN, enter a PIN for the target device and tap OK. When prompted, enter the PIN on the target device.•If the device allows automatic or smart pairing, your device attempts to pair with the device automatically. Follow the prompts on your device and the target device to complete the pairing.7. Confirm is now showing your devices are paired.Sharing Data with a Bluetooth DeviceTo send data to a Bluetooth device:1. Select a file or item from an appropriate application.2. Select an option for sharing data with the Bluetooth feature.Note: The method for selecting an option may vary by data type.3. Search for and pair with a Bluetooth device. For more information, refer to “Pairing with a Bluetooth Device” on page 155.Receiving Data from a Bluetooth DeviceTo receive data from a Bluetooth device:1. Turn Bluetooth on. For more information, refer to “Turning Bluetooth On or Off” on page 154.Note: To select the length of time that your device will be visible, select Menu ➔ Visible time-out.2. Pair with the Bluetooth device from which you want to receive data. For more information, refer to “Pairing with a Bluetooth Device” on page 155.A Bluetooth authorization request pop-up displays when a Bluetooth device sends data to your device.3. Select Accept to confirm that you are willing to receive data. A File received message displays.Received data is saved to the Bluetooth folder. If you receive a contact, it is saved to your contacts automatically.

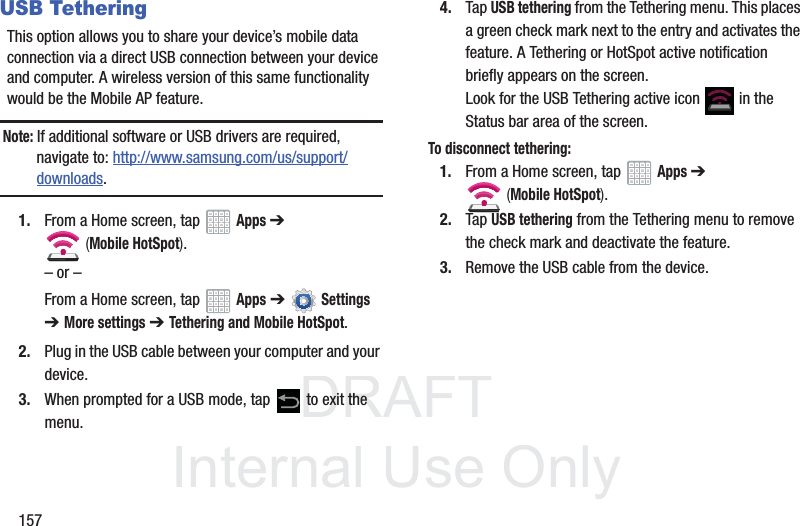

DRAFT InternalUse Only157USB TetheringThis option allows you to share your device’s mobile data connection via a direct USB connection between your device and computer. A wireless version of this same functionality would be the Mobile AP feature.Note: If additional software or USB drivers are required, navigate to: http://www.samsung.com/us/support/downloads.1. From a Home screen, tap Apps ➔ (Mobile HotSpot). – or –From a Home screen, tap Apps ➔ Settings ➔ More settings ➔ Tethering and Mobile HotSpot. 2. Plug in the USB cable between your computer and your device.3. When prompted for a USB mode, tap to exit the menu.4. Tap USB tethering from the Tethering menu. This places a green check mark next to the entry and activates the feature. A Tethering or HotSpot active notification briefly appears on the screen.Look for the USB Tethering active icon in the Status bar area of the screen.To disconnect tethering:1. From a Home screen, tap Apps ➔ (Mobile HotSpot). 2. Tap USB tethering from the Tethering menu to remove the check mark and deactivate the feature.3. Remove the USB cable from the device.

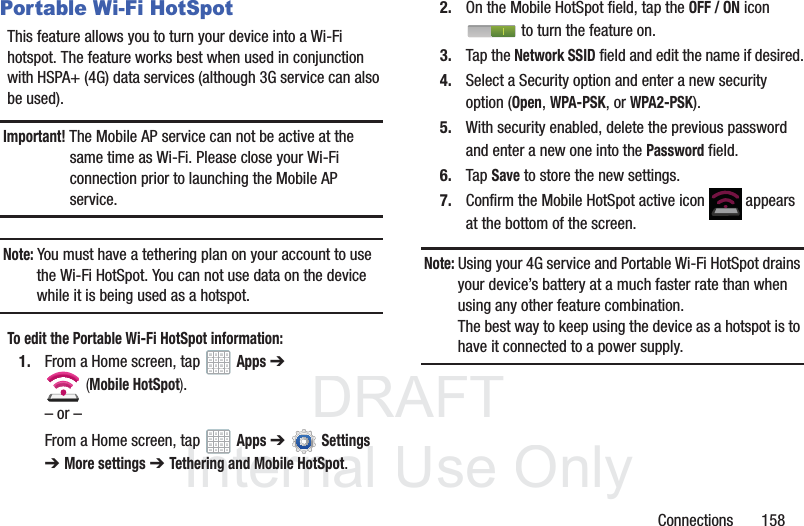

DRAFT InternalUse OnlyConnections 158Portable Wi-Fi HotSpotThis feature allows you to turn your device into a Wi-Fi hotspot. The feature works best when used in conjunction with HSPA+ (4G) data services (although 3G service can also be used).Important! The Mobile AP service can not be active at the same time as Wi-Fi. Please close your Wi-Fi connection prior to launching the Mobile AP service.Note: You must have a tethering plan on your account to use the Wi-Fi HotSpot. You can not use data on the device while it is being used as a hotspot.To edit the Portable Wi-Fi HotSpot information:1. From a Home screen, tap Apps ➔ (Mobile HotSpot). – or –From a Home screen, tap Apps ➔ Settings ➔ More settings ➔ Tethering and Mobile HotSpot. 2. On the Mobile HotSpot field, tap the OFF / ON icon to turn the feature on.3. Tap the Network SSID field and edit the name if desired.4. Select a Security option and enter a new security option (Open, WPA-PSK, or WPA2-PSK).5. With security enabled, delete the previous password and enter a new one into the Password field. 6. Tap Save to store the new settings.7. Confirm the Mobile HotSpot active icon appears at the bottom of the screen.Note: Using your 4G service and Portable Wi-Fi HotSpot drains your device’s battery at a much faster rate than when using any other feature combination.The best way to keep using the device as a hotspot is to have it connected to a power supply.

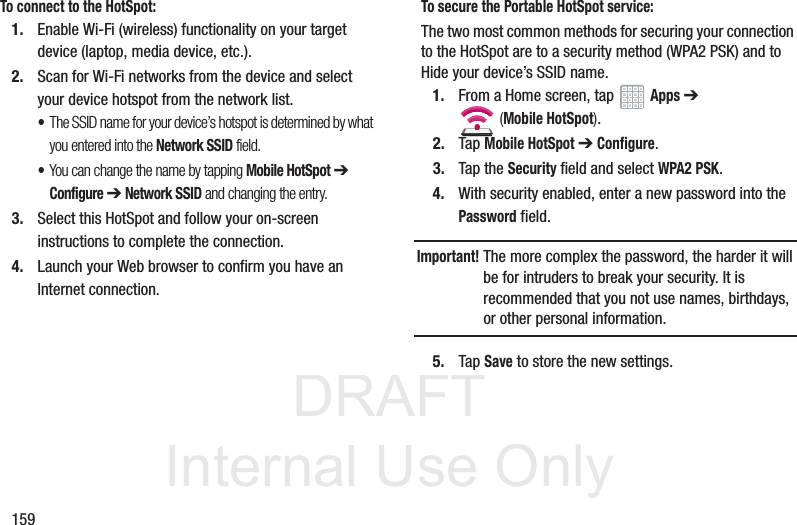

DRAFT InternalUse Only159To connect to the HotSpot:1. Enable Wi-Fi (wireless) functionality on your target device (laptop, media device, etc.).2. Scan for Wi-Fi networks from the device and select your device hotspot from the network list.•The SSID name for your device’s hotspot is determined by what you entered into the Network SSID field. •You can change the name by tapping Mobile HotSpot ➔ Configure ➔ Network SSID and changing the entry.3. Select this HotSpot and follow your on-screen instructions to complete the connection.4. Launch your Web browser to confirm you have an Internet connection.To secure the Portable HotSpot service:The two most common methods for securing your connection to the HotSpot are to a security method (WPA2 PSK) and to Hide your device’s SSID name.1. From a Home screen, tap Apps ➔ (Mobile HotSpot). 2. Tap Mobile HotSpot ➔ Configure.3. Tap the Security field and select WPA2 PSK.4. With security enabled, enter a new password into the Password field. Important! The more complex the password, the harder it will be for intruders to break your security. It is recommended that you not use names, birthdays, or other personal information.5. Tap Save to store the new settings.

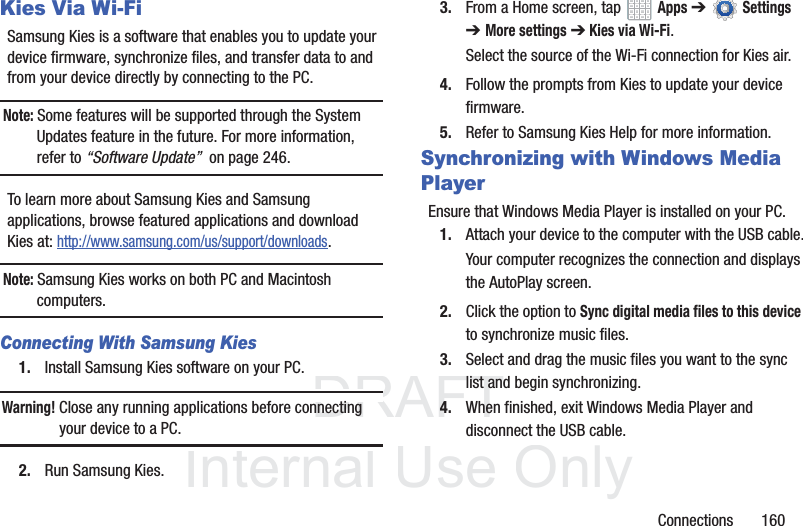

DRAFT InternalUse OnlyConnections 160Kies Via Wi-FiSamsung Kies is a software that enables you to update your device firmware, synchronize files, and transfer data to and from your device directly by connecting to the PC.Note: Some features will be supported through the System Updates feature in the future. For more information, refer to “Software Update” on page 246.To learn more about Samsung Kies and Samsung applications, browse featured applications and download Kies at: http://www.samsung.com/us/support/downloads.Note: Samsung Kies works on both PC and Macintosh computers.Connecting With Samsung Kies1. Install Samsung Kies software on your PC.Warning! Close any running applications before connecting your device to a PC.2. Run Samsung Kies.3. From a Home screen, tap Apps ➔Settings ➔More settings ➔ Kies via Wi-Fi.Select the source of the Wi-Fi connection for Kies air.4. Follow the prompts from Kies to update your device firmware.5. Refer to Samsung Kies Help for more information.Synchronizing with Windows Media PlayerEnsure that Windows Media Player is installed on your PC.1. Attach your device to the computer with the USB cable.Your computer recognizes the connection and displays the AutoPlay screen.2. Click the option to Sync digital media files to this device to synchronize music files.3. Select and drag the music files you want to the sync list and begin synchronizing.4. When finished, exit Windows Media Player and disconnect the USB cable.

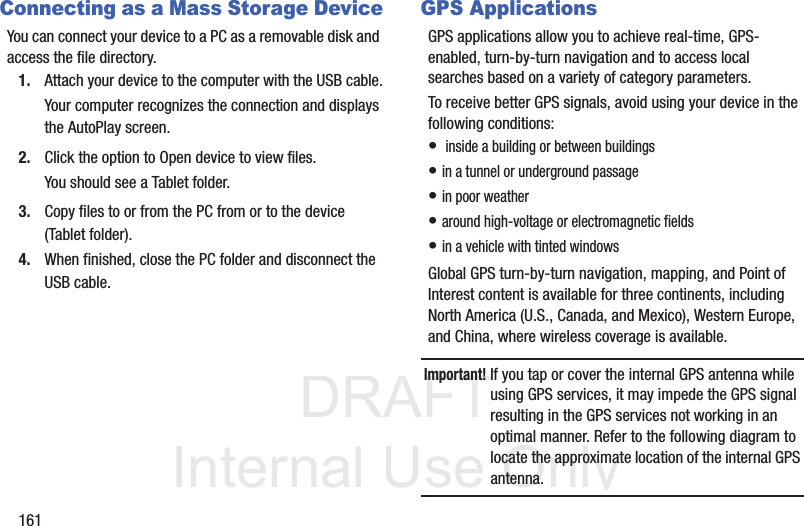

DRAFT InternalUse Only161Connecting as a Mass Storage DeviceYou can connect your device to a PC as a removable disk and access the file directory. 1. Attach your device to the computer with the USB cable.Your computer recognizes the connection and displays the AutoPlay screen.2. Click the option to Open device to view files.You should see a Tablet folder.3. Copy files to or from the PC from or to the device (Tablet folder).4. When finished, close the PC folder and disconnect the USB cable.GPS ApplicationsGPS applications allow you to achieve real-time, GPS-enabled, turn-by-turn navigation and to access local searches based on a variety of category parameters.To receive better GPS signals, avoid using your device in the following conditions:• inside a building or between buildings• in a tunnel or underground passage• in poor weather• around high-voltage or electromagnetic fields• in a vehicle with tinted windowsGlobal GPS turn-by-turn navigation, mapping, and Point of Interest content is available for three continents, including North America (U.S., Canada, and Mexico), Western Europe, and China, where wireless coverage is available.Important! If you tap or cover the internal GPS antenna while using GPS services, it may impede the GPS signal resulting in the GPS services not working in an optimal manner. Refer to the following diagram to locate the approximate location of the internal GPS antenna.

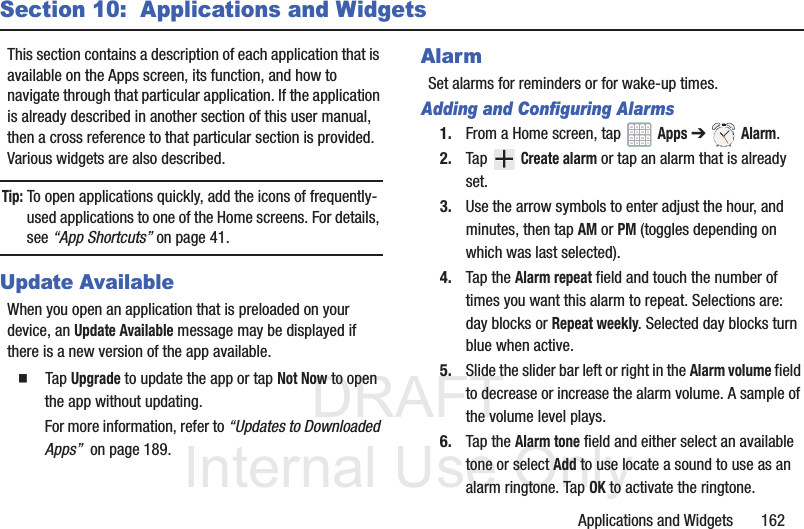

DRAFT InternalUse OnlyApplications and Widgets 162Section 10: Applications and WidgetsThis section contains a description of each application that is available on the Apps screen, its function, and how to navigate through that particular application. If the application is already described in another section of this user manual, then a cross reference to that particular section is provided. Various widgets are also described.Tip: To open applications quickly, add the icons of frequently-used applications to one of the Home screens. For details, see “App Shortcuts” on page 41.Update AvailableWhen you open an application that is preloaded on your device, an Update Available message may be displayed if there is a new version of the app available. Tap Upgrade to update the app or tap Not Now to open the app without updating.For more information, refer to “Updates to Downloaded Apps” on page 189.AlarmSet alarms for reminders or for wake-up times.Adding and Configuring Alarms1. From a Home screen, tap Apps ➔ Alarm.2. Tap Create alarm or tap an alarm that is already set.3. Use the arrow symbols to enter adjust the hour, and minutes, then tap AM or PM (toggles depending on which was last selected).4. Tap the Alarm repeat field and touch the number of times you want this alarm to repeat. Selections are: day blocks or Repeat weekly. Selected day blocks turn blue when active.5. Slide the slider bar left or right in the Alarm volume field to decrease or increase the alarm volume. A sample of the volume level plays.6. Tap the Alarm tone field and either select an available tone or select Add to use locate a sound to use as an alarm ringtone. Tap OK to activate the ringtone.

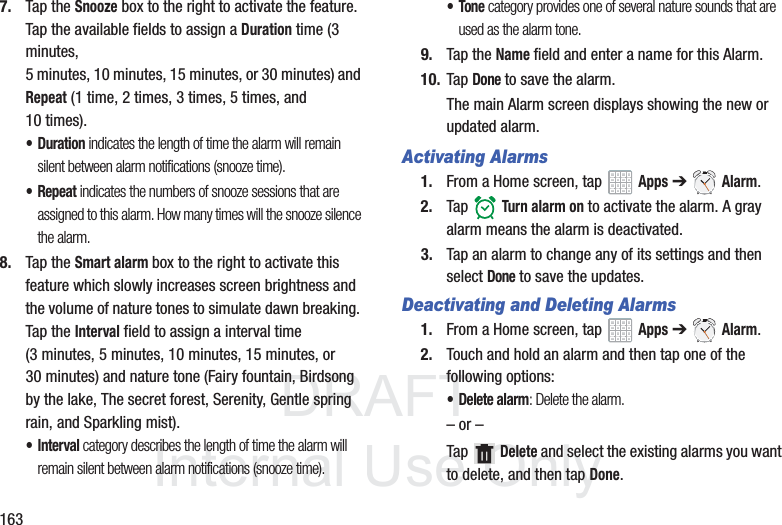

DRAFT InternalUse Only1637. Tap the Snooze box to the right to activate the feature. Tap the available fields to assign a Duration time (3 minutes, 5 minutes, 10 minutes, 15 minutes, or 30 minutes) and Repeat (1 time, 2 times, 3 times, 5 times, and 10 times).•Duration indicates the length of time the alarm will remain silent between alarm notifications (snooze time).• Repeat indicates the numbers of snooze sessions that are assigned to this alarm. How many times will the snooze silence the alarm.8. Tap the Smart alarm box to the right to activate this feature which slowly increases screen brightness and the volume of nature tones to simulate dawn breaking. Tap the Interval field to assign a interval time (3 minutes, 5 minutes, 10 minutes, 15 minutes, or 30 minutes) and nature tone (Fairy fountain, Birdsong by the lake, The secret forest, Serenity, Gentle spring rain, and Sparkling mist).•Interval category describes the length of time the alarm will remain silent between alarm notifications (snooze time).•Tone category provides one of several nature sounds that are used as the alarm tone.9. Tap the Name field and enter a name for this Alarm.10. Tap Done to save the alarm.The main Alarm screen displays showing the new or updated alarm.Activating Alarms1. From a Home screen, tap Apps ➔ Alarm.2. Tap Turn alarm on to activate the alarm. A gray alarm means the alarm is deactivated.3. Tap an alarm to change any of its settings and then select Done to save the updates.Deactivating and Deleting Alarms1. From a Home screen, tap Apps ➔ Alarm.2. Touch and hold an alarm and then tap one of the following options:• Delete alarm: Delete the alarm.– or –Tap Delete and select the existing alarms you want to delete, and then tap Done.

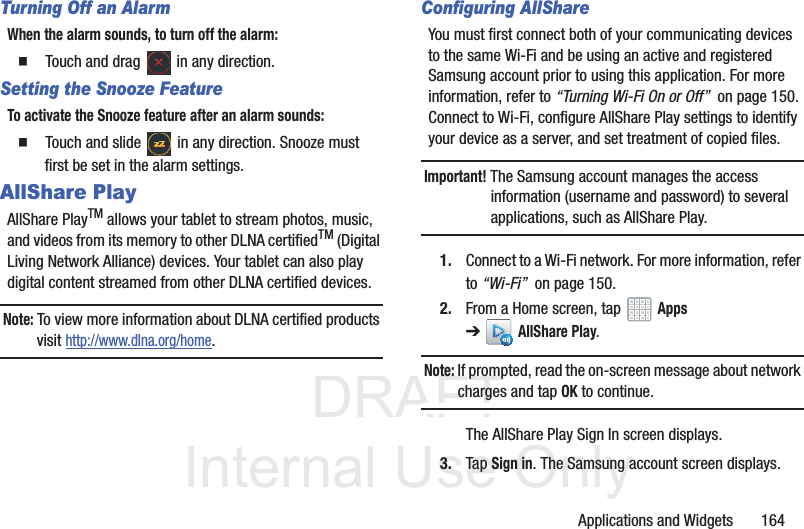

DRAFT InternalUse OnlyApplications and Widgets 164Turning Off an AlarmWhen the alarm sounds, to turn off the alarm: Touch and drag in any direction.Setting the Snooze FeatureTo activate the Snooze feature after an alarm sounds: Touch and slide in any direction. Snooze must first be set in the alarm settings.AllShare PlayAllShare PlayTM allows your tablet to stream photos, music, and videos from its memory to other DLNA certifiedTM (Digital Living Network Alliance) devices. Your tablet can also play digital content streamed from other DLNA certified devices.Note: To view more information about DLNA certified products visit http://www.dlna.org/home.Configuring AllShareYou must first connect both of your communicating devices to the same Wi-Fi and be using an active and registered Samsung account prior to using this application. For more information, refer to “Turning Wi-Fi On or Off” on page 150. Connect to Wi-Fi, configure AllShare Play settings to identify your device as a server, and set treatment of copied files.Important! The Samsung account manages the access information (username and password) to several applications, such as AllShare Play.1. Connect to a Wi-Fi network. For more information, refer to “Wi-Fi” on page 150.2. From a Home screen, tap Apps ➔AllShare Play.Note: If prompted, read the on-screen message about network charges and tap OK to continue.The AllShare Play Sign In screen displays.3. Tap Sign in. The Samsung account screen displays.

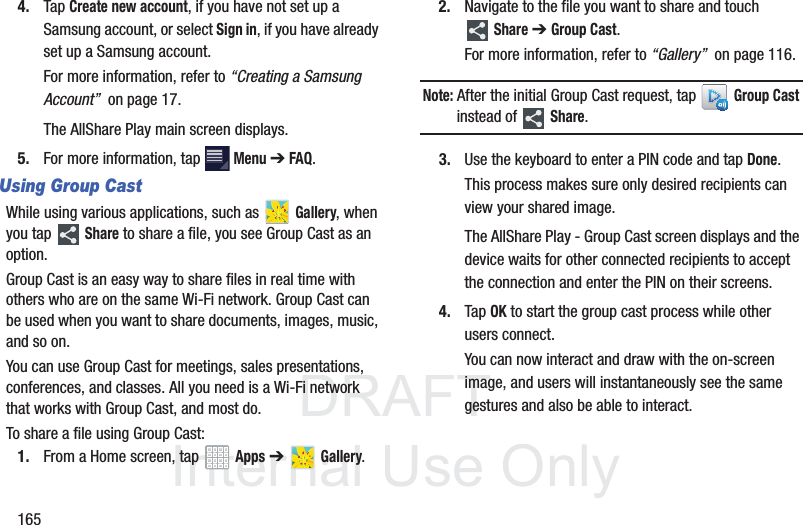

DRAFT InternalUse Only1654. Tap Create new account, if you have not set up a Samsung account, or select Sign in, if you have already set up a Samsung account.For more information, refer to “Creating a Samsung Account” on page 17.The AllShare Play main screen displays.5. For more information, tap Menu ➔ FAQ.Using Group CastWhile using various applications, such as Gallery, when you tap Share to share a file, you see Group Cast as an option.Group Cast is an easy way to share files in real time with others who are on the same Wi-Fi network. Group Cast can be used when you want to share documents, images, music, and so on.You can use Group Cast for meetings, sales presentations, conferences, and classes. All you need is a Wi-Fi network that works with Group Cast, and most do.To share a file using Group Cast:1. From a Home screen, tap Apps ➔ Gallery.2. Navigate to the file you want to share and touch Share ➔ Group Cast.For more information, refer to “Gallery” on page 116.Note: After the initial Group Cast request, tap Group Cast instead of Share.3. Use the keyboard to enter a PIN code and tap Done.This process makes sure only desired recipients can view your shared image.The AllShare Play - Group Cast screen displays and the device waits for other connected recipients to accept the connection and enter the PIN on their screens.4. Tap OK to start the group cast process while other users connect.You can now interact and draw with the on-screen image, and users will instantaneously see the same gestures and also be able to interact.

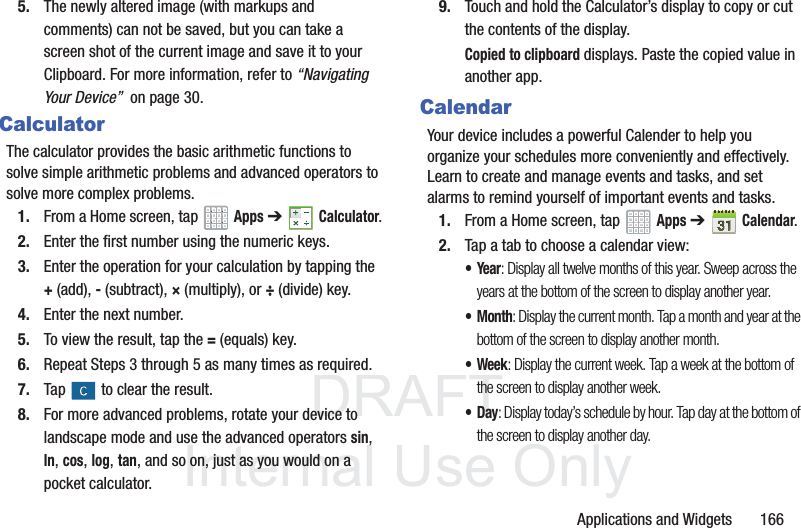

DRAFT InternalUse OnlyApplications and Widgets 1665. The newly altered image (with markups and comments) can not be saved, but you can take a screen shot of the current image and save it to your Clipboard. For more information, refer to “Navigating Your Device” on page 30.CalculatorThe calculator provides the basic arithmetic functions to solve simple arithmetic problems and advanced operators to solve more complex problems.1. From a Home screen, tap Apps➔Calculator.2. Enter the first number using the numeric keys.3. Enter the operation for your calculation by tapping the +(add), - (subtract), × (multiply), or ÷ (divide) key.4. Enter the next number.5. To view the result, tap the = (equals) key.6. Repeat Steps 3 through 5 as many times as required.7. Tap to clear the result.8. For more advanced problems, rotate your device to landscape mode and use the advanced operators sin, ln, cos, log, tan, and so on, just as you would on a pocket calculator.9. Touch and hold the Calculator’s display to copy or cut the contents of the display.Copied to clipboard displays. Paste the copied value in another app.CalendarYour device includes a powerful Calender to help you organize your schedules more conveniently and effectively. Learn to create and manage events and tasks, and set alarms to remind yourself of important events and tasks.1. From a Home screen, tap Apps ➔Calendar.2. Tap a tab to choose a calendar view:•Year: Display all twelve months of this year. Sweep across the years at the bottom of the screen to display another year.•Month: Display the current month. Tap a month and year at the bottom of the screen to display another month.• Week: Display the current week. Tap a week at the bottom of the screen to display another week.•Day: Display today’s schedule by hour. Tap day at the bottom of the screen to display another day.

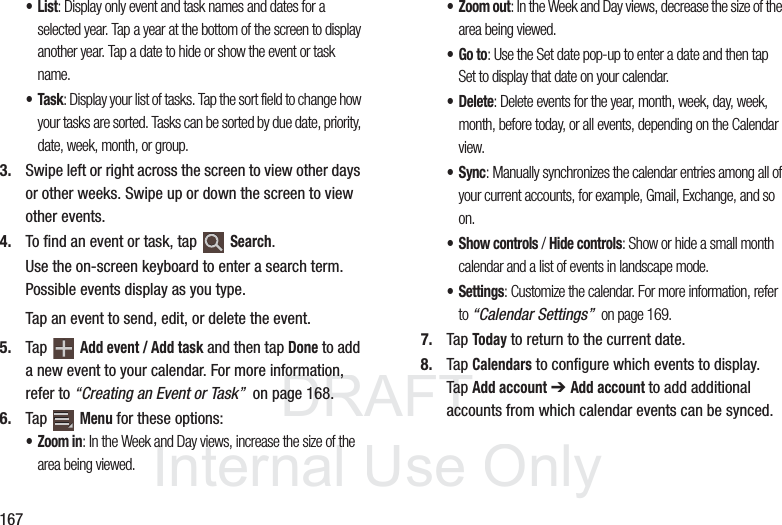

DRAFT InternalUse Only167•List: Display only event and task names and dates for a selected year. Tap a year at the bottom of the screen to display another year. Tap a date to hide or show the event or task name.•Task: Display your list of tasks. Tap the sort field to change how your tasks are sorted. Tasks can be sorted by due date, priority, date, week, month, or group.3. Swipe left or right across the screen to view other days or other weeks. Swipe up or down the screen to view other events.4. To find an event or task, tap Search.Use the on-screen keyboard to enter a search term. Possible events display as you type.Tap an event to send, edit, or delete the event.5. Tap Add event / Add task and then tap Done to add a new event to your calendar. For more information, refer to “Creating an Event or Task” on page 168.6. Tap Menu for these options:•Zoom in: In the Week and Day views, increase the size of the area being viewed.• Zoom out: In the Week and Day views, decrease the size of the area being viewed.•Go to: Use the Set date pop-up to enter a date and then tap Set to display that date on your calendar.•Delete: Delete events for the year, month, week, day, week, month, before today, or all events, depending on the Calendar view.• Sync: Manually synchronizes the calendar entries among all of your current accounts, for example, Gmail, Exchange, and so on.• Show controls / Hide controls: Show or hide a small month calendar and a list of events in landscape mode.• Settings: Customize the calendar. For more information, refer to “Calendar Settings” on page 169.7. Tap Today to return to the current date.8. Tap Calendars to configure which events to display. Tap Add account ➔ Add account to add additional accounts from which calendar events can be synced.

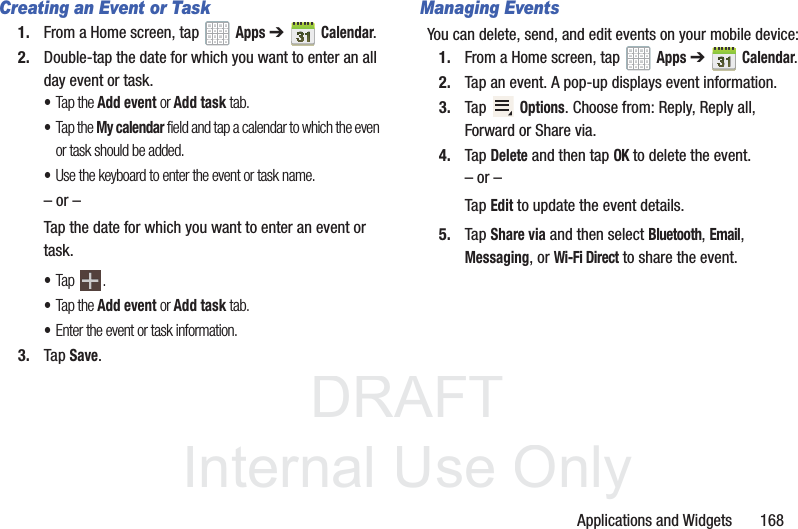

DRAFT InternalUse OnlyApplications and Widgets 168Creating an Event or Task1. From a Home screen, tap Apps ➔Calendar.2. Double-tap the date for which you want to enter an all day event or task.•Tap the Add event or Add task tab.•Tap the My calendar field and tap a calendar to which the even or task should be added.•Use the keyboard to enter the event or task name.– or –Tap the date for which you want to enter an event or task.•Tap .•Tap the Add event or Add task tab.•Enter the event or task information.3. Tap Save.Managing EventsYou can delete, send, and edit events on your mobile device:1. From a Home screen, tap Apps ➔Calendar.2. Tap an event. A pop-up displays event information.3. Tap Options. Choose from: Reply, Reply all, Forward or Share via.4. Tap Delete and then tap OK to delete the event.– or –Tap Edit to update the event details.5. Tap Share via and then select Bluetooth, Email, Messaging, or Wi-Fi Direct to share the event.

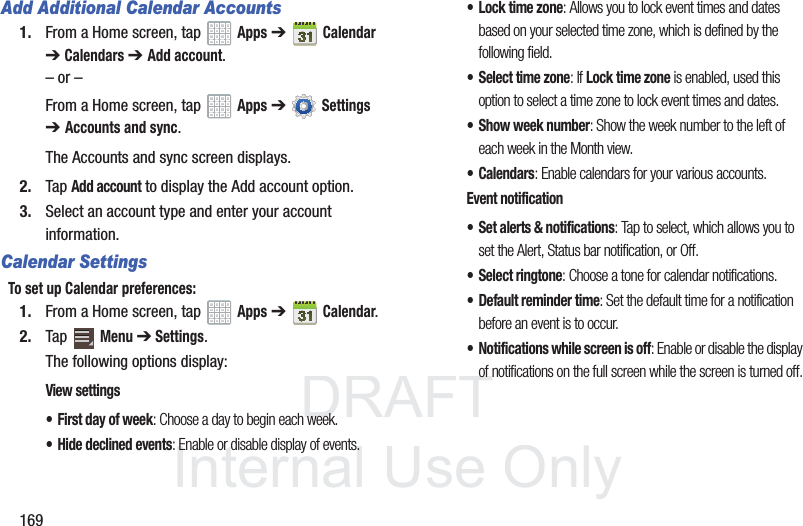

DRAFT InternalUse Only169Add Additional Calendar Accounts1. From a Home screen, tap Apps ➔Calendar ➔Calendars ➔ Add account.– or –From a Home screen, tap Apps ➔ Settings ➔Accounts and sync.The Accounts and sync screen displays.2. Tap Add account to display the Add account option.3. Select an account type and enter your account information.Calendar SettingsTo set up Calendar preferences:1. From a Home screen, tap Apps ➔Calendar.2. Tap Menu ➔ Settings.The following options display:View settings• First day of week: Choose a day to begin each week.• Hide declined events: Enable or disable display of events.• Lock time zone: Allows you to lock event times and dates based on your selected time zone, which is defined by the following field.• Select time zone: If Lock time zone is enabled, used this option to select a time zone to lock event times and dates.• Show week number: Show the week number to the left of each week in the Month view.•Calendars: Enable calendars for your various accounts.Event notification• Set alerts & notifications: Tap to select, which allows you to set the Alert, Status bar notification, or Off.• Select ringtone: Choose a tone for calendar notifications.• Default reminder time: Set the default time for a notification before an event is to occur.• Notifications while screen is off: Enable or disable the display of notifications on the full screen while the screen is turned off.

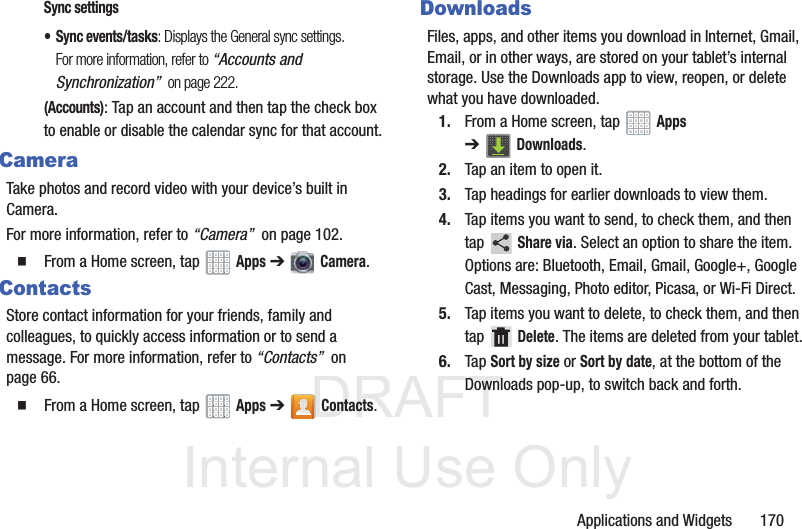

DRAFT InternalUse OnlyApplications and Widgets 170Sync settings• Sync events/tasks: Displays the General sync settings. For more information, refer to “Accounts and Synchronization” on page 222.(Accounts): Tap an account and then tap the check box to enable or disable the calendar sync for that account.CameraTake photos and record video with your device’s built in Camera. For more information, refer to “Camera” on page 102. From a Home screen, tap Apps ➔ Camera.ContactsStore contact information for your friends, family and colleagues, to quickly access information or to send a message. For more information, refer to “Contacts” on page 66. From a Home screen, tap Apps ➔Contacts.DownloadsFiles, apps, and other items you download in Internet, Gmail, Email, or in other ways, are stored on your tablet’s internal storage. Use the Downloads app to view, reopen, or delete what you have downloaded.1. From a Home screen, tap Apps ➔Downloads.2. Tap an item to open it.3. Tap headings for earlier downloads to view them.4. Tap items you want to send, to check them, and then tap Share via. Select an option to share the item. Options are: Bluetooth, Email, Gmail, Google+, Google Cast, Messaging, Photo editor, Picasa, or Wi-Fi Direct.5. Tap items you want to delete, to check them, and then tap Delete. The items are deleted from your tablet.6. Tap Sort by size or Sort by date, at the bottom of the Downloads pop-up, to switch back and forth.

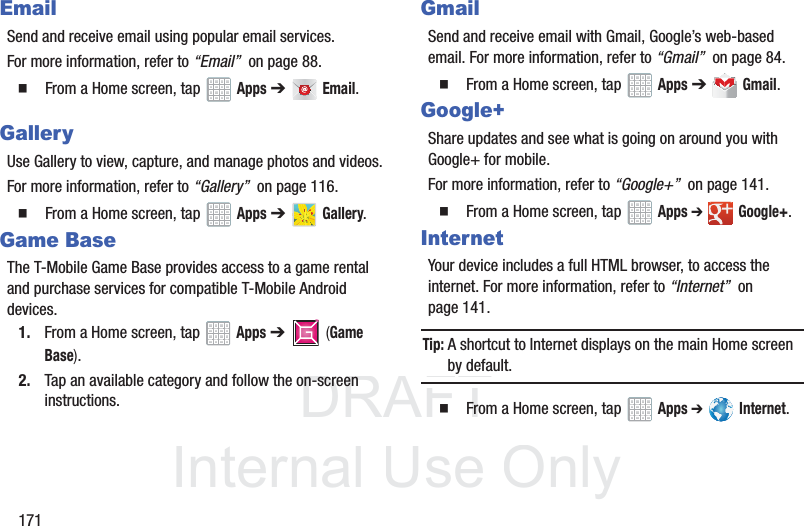

DRAFT InternalUse Only171EmailSend and receive email using popular email services.For more information, refer to “Email” on page 88. From a Home screen, tap Apps ➔ Email.GalleryUse Gallery to view, capture, and manage photos and videos.For more information, refer to “Gallery” on page 116. From a Home screen, tap Apps ➔ Gallery.Game BaseThe T-Mobile Game Base provides access to a game rental and purchase services for compatible T-Mobile Android devices.1. From a Home screen, tap Apps ➔ (Game Base).2. Tap an available category and follow the on-screen instructions.GmailSend and receive email with Gmail, Google’s web-based email. For more information, refer to “Gmail” on page 84. From a Home screen, tap Apps ➔ Gmail.Google+Share updates and see what is going on around you with Google+ for mobile.For more information, refer to “Google+” on page 141. From a Home screen, tap Apps ➔ Google+.InternetYour device includes a full HTML browser, to access the internet. For more information, refer to “Internet” on page 141.Tip: A shortcut to Internet displays on the main Home screen by default. From a Home screen, tap Apps ➔ Internet.TMTM

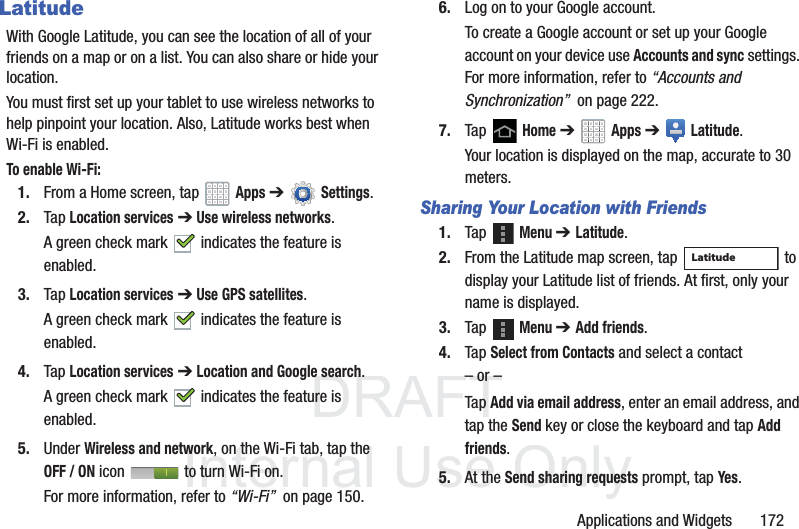

DRAFT InternalUse OnlyApplications and Widgets 172LatitudeWith Google Latitude, you can see the location of all of your friends on a map or on a list. You can also share or hide your location.You must first set up your tablet to use wireless networks to help pinpoint your location. Also, Latitude works best when Wi-Fi is enabled.To enable Wi-Fi:1. From a Home screen, tap Apps ➔Settings.2. Tap Location services ➔ Use wireless networks.A green check mark indicates the feature is enabled.3. Tap Location services ➔ Use GPS satellites.A green check mark indicates the feature is enabled.4. Tap Location services ➔ Location and Google search.A green check mark indicates the feature is enabled.5. Under Wireless and network, on the Wi-Fi tab, tap the OFF / ON icon to turn Wi-Fi on.For more information, refer to “Wi-Fi” on page 150.6. Log on to your Google account.To create a Google account or set up your Google account on your device use Accounts and sync settings. For more information, refer to “Accounts and Synchronization” on page 222.7. Tap Home ➔ Apps ➔ Latitude.Your location is displayed on the map, accurate to 30 meters.Sharing Your Location with Friends1. Tap Menu ➔ Latitude.2. From the Latitude map screen, tap to display your Latitude list of friends. At first, only your name is displayed.3. Tap Menu ➔ Add friends.4. Tap Select from Contacts and select a contact– or –Tap Add via email address, enter an email address, and tap the Send key or close the keyboard and tap Add friends.5. At the Send sharing requests prompt, tap Yes.Latitude

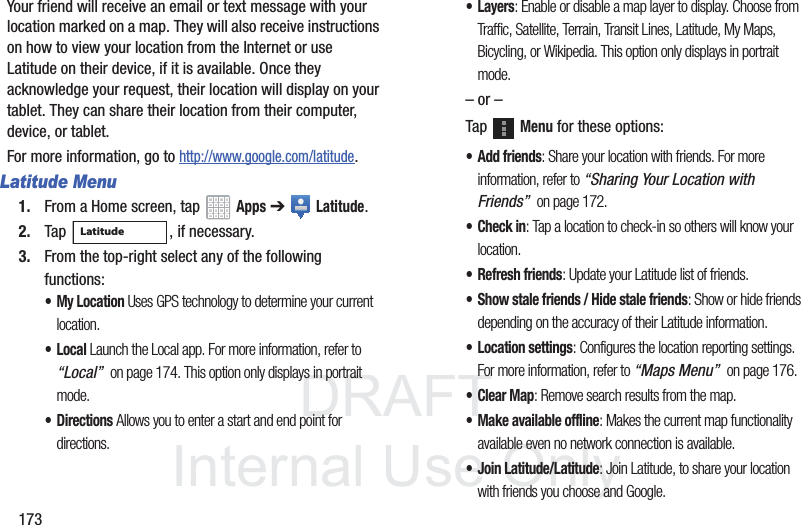

DRAFT InternalUse Only173Your friend will receive an email or text message with your location marked on a map. They will also receive instructions on how to view your location from the Internet or use Latitude on their device, if it is available. Once they acknowledge your request, their location will display on your tablet. They can share their location from their computer, device, or tablet.For more information, go to http://www.google.com/latitude.Latitude Menu1. From a Home screen, tap Apps ➔ Latitude.2. Tap , if necessary.3. From the top-right select any of the following functions:• My Location Uses GPS technology to determine your current location.•Local Launch the Local app. For more information, refer to “Local” on page 174. This option only displays in portrait mode.• Directions Allows you to enter a start and end point for directions.•Layers: Enable or disable a map layer to display. Choose from Traffic, Satellite, Terrain, Transit Lines, Latitude, My Maps, Bicycling, or Wikipedia. This option only displays in portrait mode.– or –Tap Menu for these options:• Add friends: Share your location with friends. For more information, refer to “Sharing Your Location with Friends” on page 172.• Check in: Tap a location to check-in so others will know your location.• Refresh friends: Update your Latitude list of friends.• Show stale friends / Hide stale friends: Show or hide friends depending on the accuracy of their Latitude information.• Location settings: Configures the location reporting settings. For more information, refer to “Maps Menu” on page 176.•Clear Map: Remove search results from the map.• Make available offline: Makes the current map functionality available even no network connection is available.• Join Latitude/Latitude: Join Latitude, to share your location with friends you choose and Google.Latitude

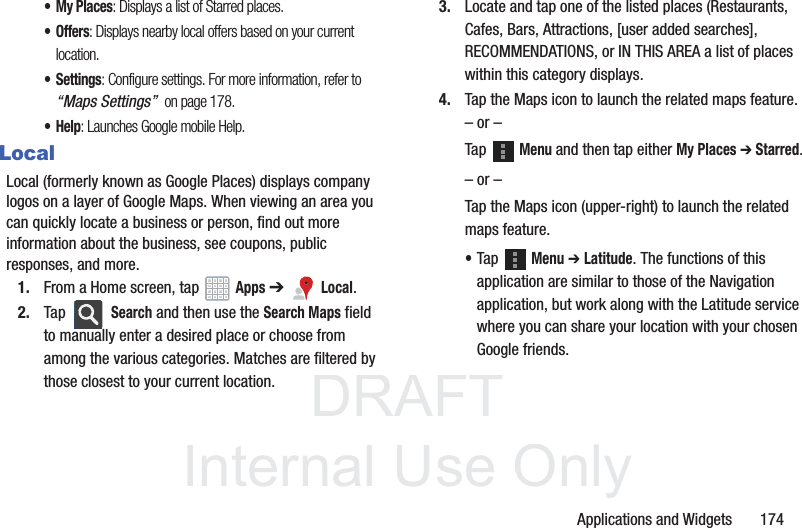

DRAFT InternalUse OnlyApplications and Widgets 174• My Places: Displays a list of Starred places.• Offers: Displays nearby local offers based on your current location.•Settings: Configure settings. For more information, refer to “Maps Settings” on page 178.•Help: Launches Google mobile Help.LocalLocal (formerly known as Google Places) displays company logos on a layer of Google Maps. When viewing an area you can quickly locate a business or person, find out more information about the business, see coupons, public responses, and more.1. From a Home screen, tap Apps ➔ Local.2. Tap Search and then use the Search Maps field to manually enter a desired place or choose from among the various categories. Matches are filtered by those closest to your current location.3. Locate and tap one of the listed places (Restaurants, Cafes, Bars, Attractions, [user added searches], RECOMMENDATIONS, or IN THIS AREA a list of places within this category displays.4. Tap the Maps icon to launch the related maps feature.– or –Tap Menu and then tap either My Places ➔ Starred.– or –Tap the Maps icon (upper-right) to launch the related maps feature.•Tap Menu ➔ Latitude. The functions of this application are similar to those of the Navigation application, but work along with the Latitude service where you can share your location with your chosen Google friends.

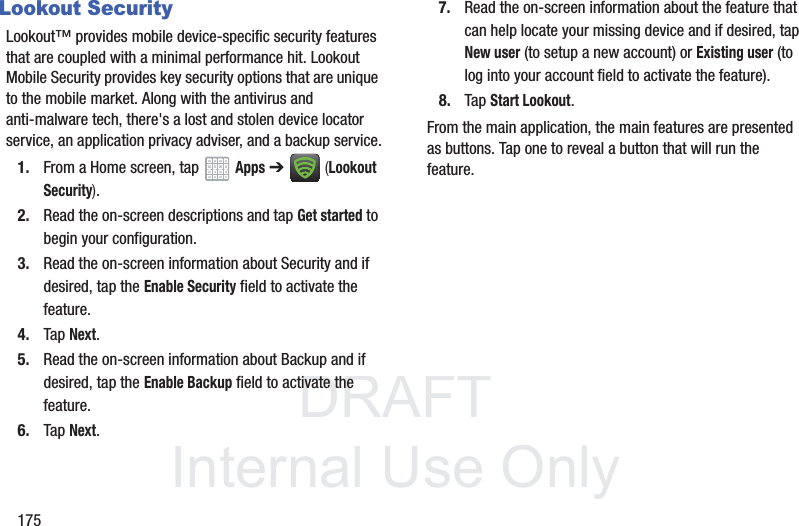

DRAFT InternalUse Only175Lookout SecurityLookout™ provides mobile device-specific security features that are coupled with a minimal performance hit. Lookout Mobile Security provides key security options that are unique to the mobile market. Along with the antivirus and anti-malware tech, there's a lost and stolen device locator service, an application privacy adviser, and a backup service.1. From a Home screen, tap Apps ➔ (Lookout Security).2. Read the on-screen descriptions and tap Get started to begin your configuration.3. Read the on-screen information about Security and if desired, tap the Enable Security field to activate the feature. 4. Tap Next.5. Read the on-screen information about Backup and if desired, tap the Enable Backup field to activate the feature. 6. Tap Next.7. Read the on-screen information about the feature that can help locate your missing device and if desired, tap New user (to setup a new account) or Existing user (to log into your account field to activate the feature).8. Tap Start Lookout.From the main application, the main features are presented as buttons. Tap one to reveal a button that will run the feature.

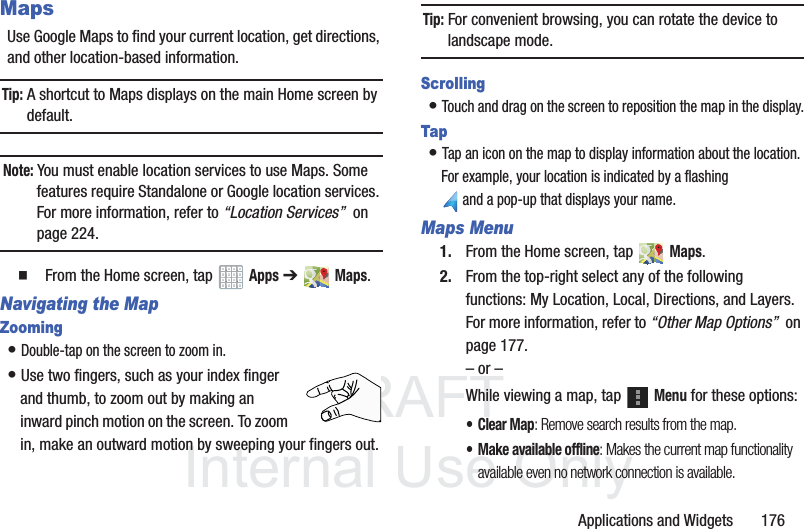

DRAFT InternalUse OnlyApplications and Widgets 176MapsUse Google Maps to find your current location, get directions, and other location-based information.Tip: A shortcut to Maps displays on the main Home screen by default.Note: You must enable location services to use Maps. Some features require Standalone or Google location services. For more information, refer to “Location Services” on page 224. From the Home screen, tap Apps ➔ Maps.Navigating the MapZooming• Double-tap on the screen to zoom in.• Use two fingers, such as your index finger and thumb, to zoom out by making an inward pinch motion on the screen. To zoom in, make an outward motion by sweeping your fingers out.Tip: For convenient browsing, you can rotate the device to landscape mode.Scrolling• Touch and drag on the screen to reposition the map in the display.Tap• Tap an icon on the map to display information about the location. For example, your location is indicated by a flashing and a pop-up that displays your name.Maps Menu1. From the Home screen, tap Maps.2. From the top-right select any of the following functions: My Location, Local, Directions, and Layers. For more information, refer to “Other Map Options” on page 177.– or –While viewing a map, tap Menu for these options:• Clear Map: Remove search results from the map.• Make available offline: Makes the current map functionality available even no network connection is available.

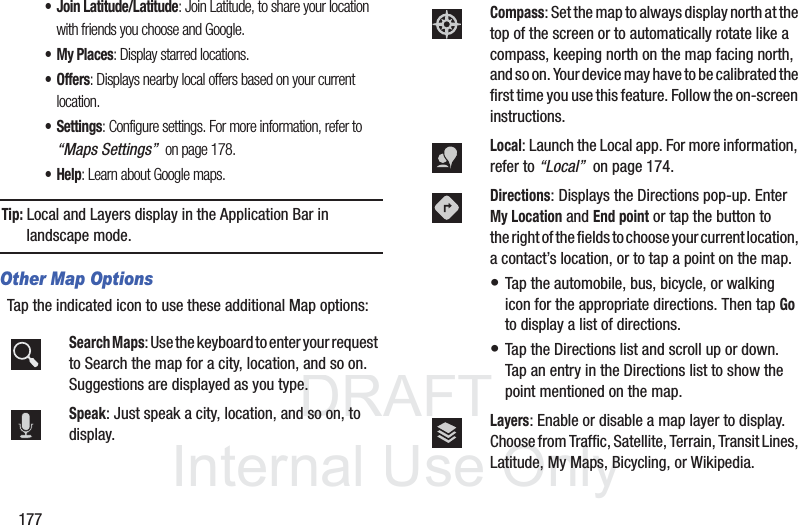

DRAFT InternalUse Only177• Join Latitude/Latitude: Join Latitude, to share your location with friends you choose and Google.• My Places: Display starred locations.• Offers: Displays nearby local offers based on your current location.• Settings: Configure settings. For more information, refer to “Maps Settings” on page 178.•Help: Learn about Google maps.Tip: Local and Layers display in the Application Bar in landscape mode.Other Map OptionsTap the indicated icon to use these additional Map options:Search Maps: Use the keyboard to enter your request to Search the map for a city, location, and so on. Suggestions are displayed as you type.Speak: Just speak a city, location, and so on, to display.Compass: Set the map to always display north at the top of the screen or to automatically rotate like a compass, keeping north on the map facing north, and so on. Your device may have to be calibrated the first time you use this feature. Follow the on-screen instructions.Local: Launch the Local app. For more information, refer to “Local” on page 174.Directions: Displays the Directions pop-up. Enter My Location and End point or tap the button to the right of the fields to choose your current location, a contact’s location, or to tap a point on the map. • Tap the automobile, bus, bicycle, or walking icon for the appropriate directions. Then tap Go to display a list of directions. • Tap the Directions list and scroll up or down. Tap an entry in the Directions list to show the point mentioned on the map.Layers: Enable or disable a map layer to display. Choose from Traffic, Satellite, Terrain, Transit Lines, Latitude, My Maps, Bicycling, or Wikipedia.

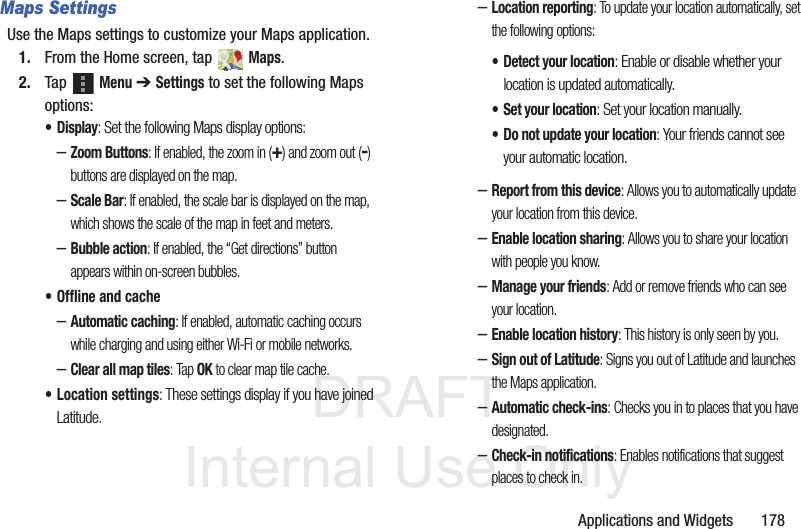

DRAFT InternalUse OnlyApplications and Widgets 178Maps SettingsUse the Maps settings to customize your Maps application.1. From the Home screen, tap Maps.2. Tap Menu ➔ Settings to set the following Maps options:•Display: Set the following Maps display options:–Zoom Buttons: If enabled, the zoom in (+) and zoom out (-) buttons are displayed on the map.–Scale Bar: If enabled, the scale bar is displayed on the map, which shows the scale of the map in feet and meters.–Bubble action: If enabled, the “Get directions” button appears within on-screen bubbles.• Offline and cache–Automatic caching: If enabled, automatic caching occurs while charging and using either Wi-Fi or mobile networks.–Clear all map tiles: Tap OK to clear map tile cache.• Location settings: These settings display if you have joined Latitude.–Location reporting: To update your location automatically, set the following options:–Report from this device: Allows you to automatically update your location from this device.–Enable location sharing: Allows you to share your location with people you know.–Manage your friends: Add or remove friends who can see your location.–Enable location history: This history is only seen by you.–Sign out of Latitude: Signs you out of Latitude and launches the Maps application.–Automatic check-ins: Checks you in to places that you have designated.–Check-in notifications: Enables notifications that suggest places to check in.• Detect your location: Enable or disable whether your location is updated automatically.• Set your location: Set your location manually.• Do not update your location: Your friends cannot see your automatic location.

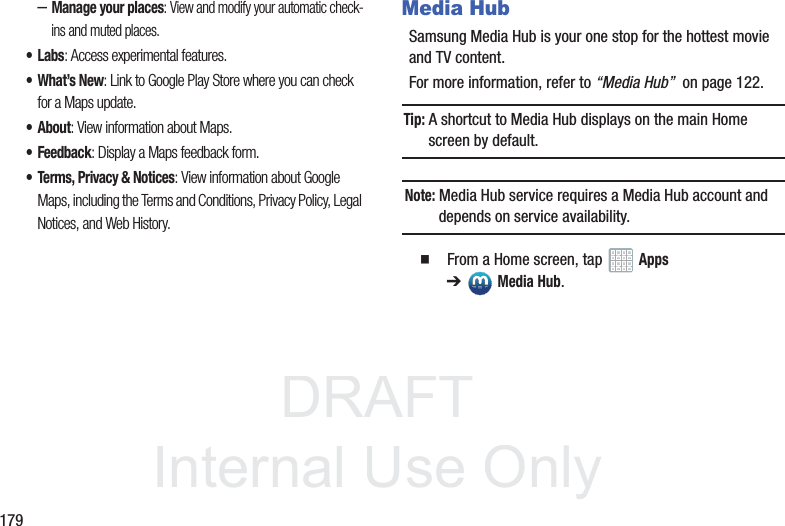

DRAFT InternalUse Only179–Manage your places: View and modify your automatic check-ins and muted places.•Labs: Access experimental features.•What’s New: Link to Google Play Store where you can check for a Maps update.• About: View information about Maps.• Feedback: Display a Maps feedback form.• Terms, Privacy & Notices: View information about Google Maps, including the Terms and Conditions, Privacy Policy, Legal Notices, and Web History.Media HubSamsung Media Hub is your one stop for the hottest movie and TV content.For more information, refer to “Media Hub” on page 122.Tip: A shortcut to Media Hub displays on the main Home screen by default.Note: Media Hub service requires a Media Hub account and depends on service availability. From a Home screen, tap Apps ➔Media Hub.

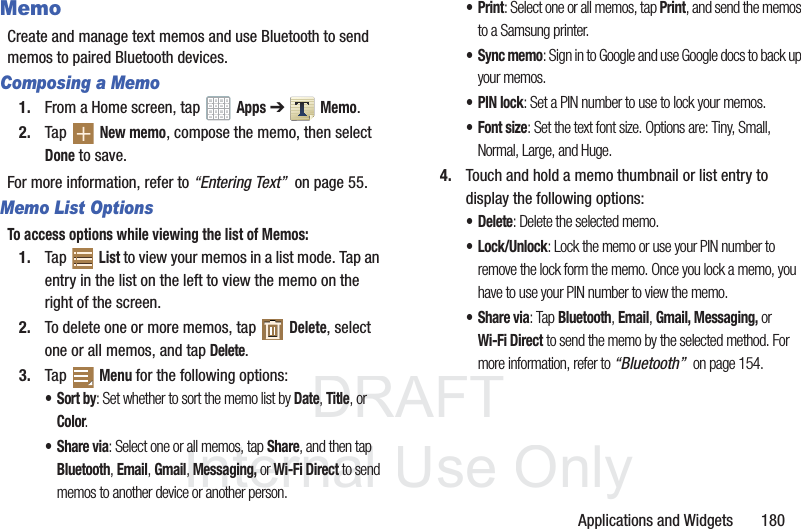

DRAFT InternalUse OnlyApplications and Widgets 180MemoCreate and manage text memos and use Bluetooth to send memos to paired Bluetooth devices.Composing a Memo1. From a Home screen, tap Apps ➔ Memo.2. Tap New memo, compose the memo, then select Done to save.For more information, refer to “Entering Text” on page 55.Memo List OptionsTo access options while viewing the list of Memos:1. Tap List to view your memos in a list mode. Tap an entry in the list on the left to view the memo on the right of the screen.2. To delete one or more memos, tap Delete, select one or all memos, and tap Delete.3. Tap Menu for the following options:•Sort by: Set whether to sort the memo list by Date, Title, or Color.•Share via: Select one or all memos, tap Share, and then tap Bluetooth, Email, Gmail, Messaging, or Wi-Fi Direct to send memos to another device or another person.•Print: Select one or all memos, tap Print, and send the memos to a Samsung printer.• Sync memo: Sign in to Google and use Google docs to back up your memos.• PIN lock: Set a PIN number to use to lock your memos.•Font size: Set the text font size. Options are: Tiny, Small, Normal, Large, and Huge.4. Touch and hold a memo thumbnail or list entry to display the following options:• Delete: Delete the selected memo.• Lock/Unlock: Lock the memo or use your PIN number to remove the lock form the memo. Once you lock a memo, you have to use your PIN number to view the memo.•Share via: Tap Bluetooth, Email, Gmail, Messaging, or Wi-Fi Direct to send the memo by the selected method. For more information, refer to “Bluetooth” on page 154.

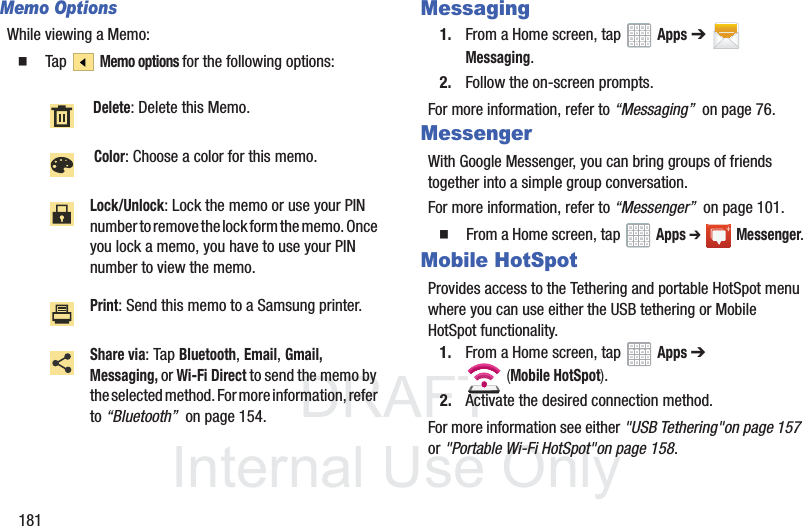

DRAFT InternalUse Only181Memo OptionsWhile viewing a Memo: Tap Memo options for the following options: Messaging1. From a Home screen, tap Apps ➔ Messaging.2. Follow the on-screen prompts.For more information, refer to “Messaging” on page 76.MessengerWith Google Messenger, you can bring groups of friends together into a simple group conversation.For more information, refer to “Messenger” on page 101. From a Home screen, tap Apps ➔Messenger.Mobile HotSpotProvides access to the Tethering and portable HotSpot menu where you can use either the USB tethering or Mobile HotSpot functionality.1. From a Home screen, tap Apps ➔ (Mobile HotSpot). 2. Activate the desired connection method.For more information see either "USB Tethering"on page 157 or "Portable Wi-Fi HotSpot"on page 158. Delete: Delete this Memo. Color: Choose a color for this memo.Lock/Unlock: Lock the memo or use your PIN number to remove the lock form the memo. Once you lock a memo, you have to use your PIN number to view the memo.Print: Send this memo to a Samsung printer.Share via: Tap Bluetooth, Email, Gmail, Messaging, or Wi-Fi Direct to send the memo by the selected method. For more information, refer to “Bluetooth” on page 154.

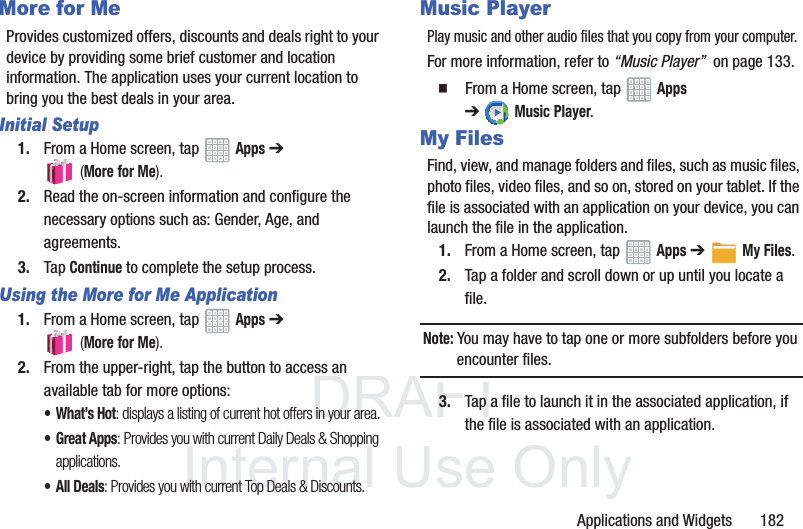

DRAFT InternalUse OnlyApplications and Widgets 182More for MeProvides customized offers, discounts and deals right to your device by providing some brief customer and location information. The application uses your current location to bring you the best deals in your area.Initial Setup1. From a Home screen, tap Apps ➔ (More for Me).2. Read the on-screen information and configure the necessary options such as: Gender, Age, and agreements.3. Tap Continue to complete the setup process.Using the More for Me Application1. From a Home screen, tap Apps ➔ (More for Me).2. From the upper-right, tap the button to access an available tab for more options:•What’s Hot: displays a listing of current hot offers in your area.•Great Apps: Provides you with current Daily Deals & Shopping applications.• All Deals: Provides you with current Top Deals & Discounts.Music PlayerPlay music and other audio files that you copy from your computer.For more information, refer to “Music Player” on page 133. From a Home screen, tap Apps ➔Music Player.My FilesFind, view, and manage folders and files, such as music files, photo files, video files, and so on, stored on your tablet. If the file is associated with an application on your device, you can launch the file in the application.1. From a Home screen, tap Apps ➔My Files.2. Tap a folder and scroll down or up until you locate a file.Note: You may have to tap one or more subfolders before you encounter files.3. Tap a file to launch it in the associated application, if the file is associated with an application.

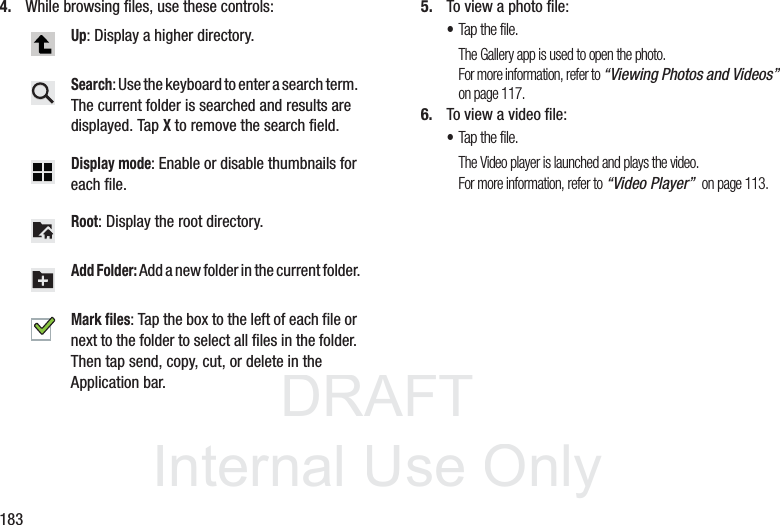

DRAFT InternalUse Only1834. While browsing files, use these controls: 5. To view a photo file:•Tap the file.The Gallery app is used to open the photo.For more information, refer to “Viewing Photos and Videos” on page 117.6. To view a video file:•Tap the file.The Video player is launched and plays the video.For more information, refer to “Video Player” on page 113.Up: Display a higher directory.Search: Use the keyboard to enter a search term. The current folder is searched and results are displayed. Tap X to remove the search field.Display mode: Enable or disable thumbnails for each file.Root: Display the root directory.Add Folder: Add a new folder in the current folder.Mark files: Tap the box to the left of each file or next to the folder to select all files in the folder. Then tap send, copy, cut, or delete in the Application bar.

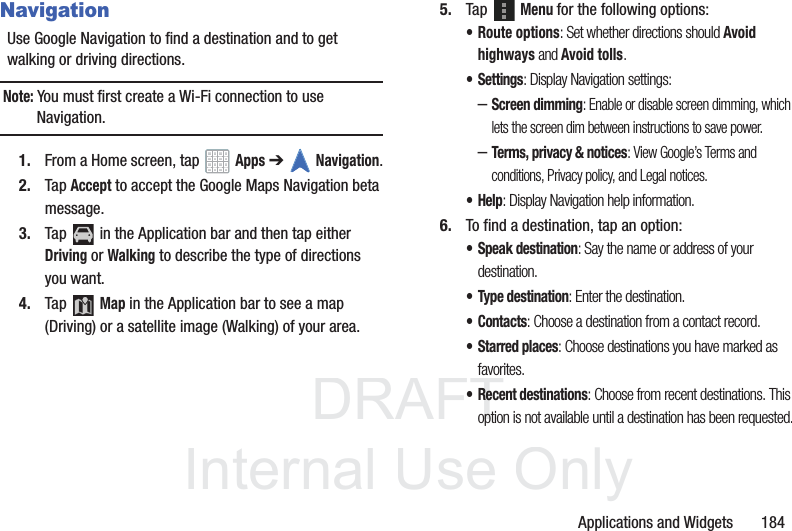

DRAFT InternalUse OnlyApplications and Widgets 184NavigationUse Google Navigation to find a destination and to get walking or driving directions.Note: You must first create a Wi-Fi connection to use Navigation.1. From a Home screen, tap Apps ➔Navigation.2. Tap Accept to accept the Google Maps Navigation beta message.3. Tap in the Application bar and then tap either Driving or Walking to describe the type of directions you want.4. Tap Map in the Application bar to see a map (Driving) or a satellite image (Walking) of your area.5. Tap Menu for the following options:• Route options: Set whether directions should Avoid highways and Avoid tolls.•Settings: Display Navigation settings:–Screen dimming: Enable or disable screen dimming, which lets the screen dim between instructions to save power.–Terms, privacy & notices: View Google’s Terms and conditions, Privacy policy, and Legal notices.•Help: Display Navigation help information.6. To find a destination, tap an option:• Speak destination: Say the name or address of your destination.• Type destination: Enter the destination.•Contacts: Choose a destination from a contact record.•Starred places: Choose destinations you have marked as favorites.• Recent destinations: Choose from recent destinations. This option is not available until a destination has been requested.

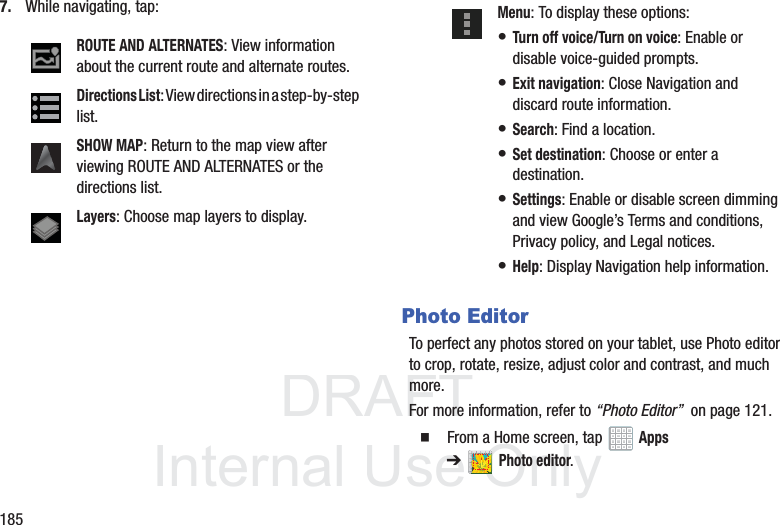

DRAFT InternalUse Only1857. While navigating, tap:Photo EditorTo perfect any photos stored on your tablet, use Photo editor to crop, rotate, resize, adjust color and contrast, and much more.For more information, refer to “Photo Editor” on page 121. From a Home screen, tap Apps ➔Photo editor.ROUTE AND ALTERNATES: View information about the current route and alternate routes.Directions List: View directions in a step-by-step list.SHOW MAP: Return to the map view after viewing ROUTE AND ALTERNATES or the directions list.Layers: Choose map layers to display.Menu: To display these options:• Turn off voice/Turn on voice: Enable or disable voice-guided prompts.• Exit navigation: Close Navigation and discard route information.• Search: Find a location.• Set destination: Choose or enter a destination.• Settings: Enable or disable screen dimming and view Google’s Terms and conditions, Privacy policy, and Legal notices.• Help: Display Navigation help information.

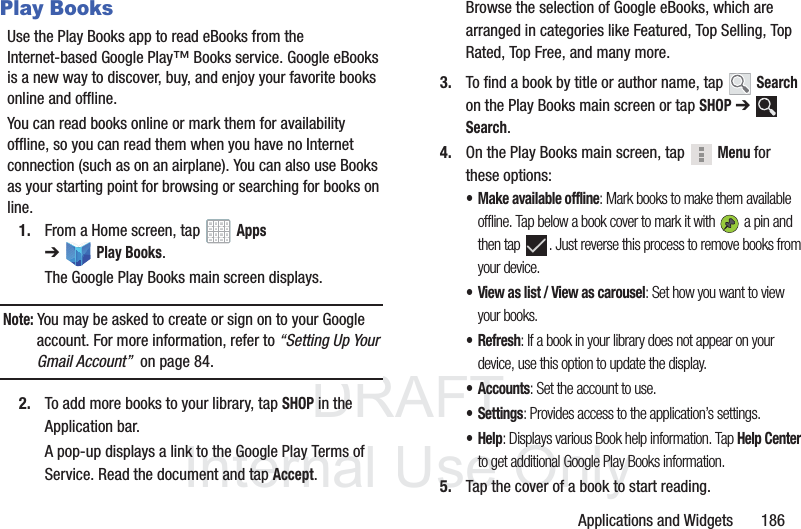

DRAFT InternalUse OnlyApplications and Widgets 186Play BooksUse the Play Books app to read eBooks from the Internet-based Google Play™ Books service. Google eBooks is a new way to discover, buy, and enjoy your favorite books online and offline.You can read books online or mark them for availability offline, so you can read them when you have no Internet connection (such as on an airplane). You can also use Books as your starting point for browsing or searching for books on line.1. From a Home screen, tap Apps ➔Play Books.The Google Play Books main screen displays.Note: You may be asked to create or sign on to your Google account. For more information, refer to “Setting Up Your Gmail Account” on page 84.2. To add more books to your library, tap SHOP in the Application bar.A pop-up displays a link to the Google Play Terms of Service. Read the document and tap Accept.Browse the selection of Google eBooks, which are arranged in categories like Featured, Top Selling, Top Rated, Top Free, and many more.3. To find a book by title or author name, tap Search on the Play Books main screen or tap SHOP ➔ Search.4. On the Play Books main screen, tap Menu for these options:• Make available offline: Mark books to make them available offline. Tap below a book cover to mark it with a pin and then tap . Just reverse this process to remove books from your device.• View as list / View as carousel: Set how you want to view your books.•Refresh: If a book in your library does not appear on your device, use this option to update the display.• Accounts: Set the account to use.•Settings: Provides access to the application’s settings.•Help: Displays various Book help information. Tap Help Center to get additional Google Play Books information.5. Tap the cover of a book to start reading.

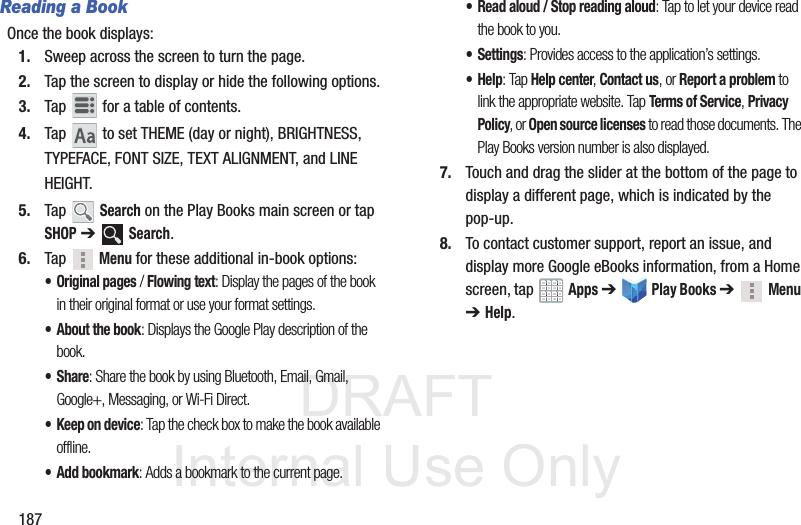

DRAFT InternalUse Only187Reading a BookOnce the book displays:1. Sweep across the screen to turn the page.2. Tap the screen to display or hide the following options.3. Tap for a table of contents.4. Tap to set THEME (day or night), BRIGHTNESS, TYPEFACE, FONT SIZE, TEXT ALIGNMENT, and LINE HEIGHT.5. Tap Search on the Play Books main screen or tap SHOP ➔ Search.6. Tap Menu for these additional in-book options:• Original pages / Flowing text: Display the pages of the book in their original format or use your format settings.• About the book: Displays the Google Play description of the book.•Share: Share the book by using Bluetooth, Email, Gmail, Google+, Messaging, or Wi-Fi Direct.• Keep on device: Tap the check box to make the book available offline.• Add bookmark: Adds a bookmark to the current page.• Read aloud / Stop reading aloud: Tap to let your device read the book to you.• Settings: Provides access to the application’s settings.•Help: Tap Help center, Contact us, or Report a problem to link the appropriate website. Tap Terms of Service, Privacy Policy, or Open source licenses to read those documents. The Play Books version number is also displayed.7. Touch and drag the slider at the bottom of the page to display a different page, which is indicated by the pop-up.8. To contact customer support, report an issue, and display more Google eBooks information, from a Home screen, tap Apps ➔ Play Books ➔Menu ➔ Help.

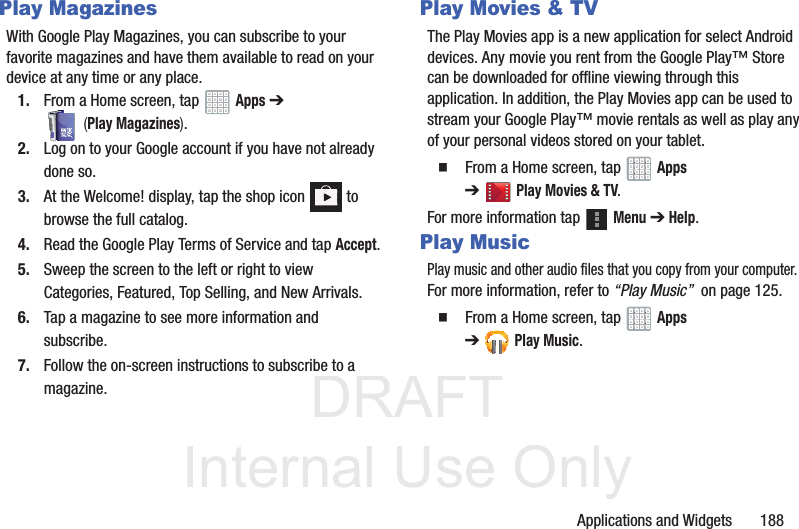

DRAFT InternalUse OnlyApplications and Widgets 188Play MagazinesWith Google Play Magazines, you can subscribe to your favorite magazines and have them available to read on your device at any time or any place.1. From a Home screen, tap Apps ➔ (Play Magazines).2. Log on to your Google account if you have not already done so. 3. At the Welcome! display, tap the shop icon to browse the full catalog.4. Read the Google Play Terms of Service and tap Accept.5. Sweep the screen to the left or right to view Categories, Featured, Top Selling, and New Arrivals.6. Tap a magazine to see more information and subscribe.7. Follow the on-screen instructions to subscribe to a magazine.Play Movies & TVThe Play Movies app is a new application for select Android devices. Any movie you rent from the Google Play™ Store can be downloaded for offline viewing through this application. In addition, the Play Movies app can be used to stream your Google Play™ movie rentals as well as play any of your personal videos stored on your tablet. From a Home screen, tap Apps ➔Play Movies & TV.For more information tap Menu ➔ Help.Play MusicPlay music and other audio files that you copy from your computer. For more information, refer to “Play Music” on page 125. From a Home screen, tap Apps ➔Play Music.

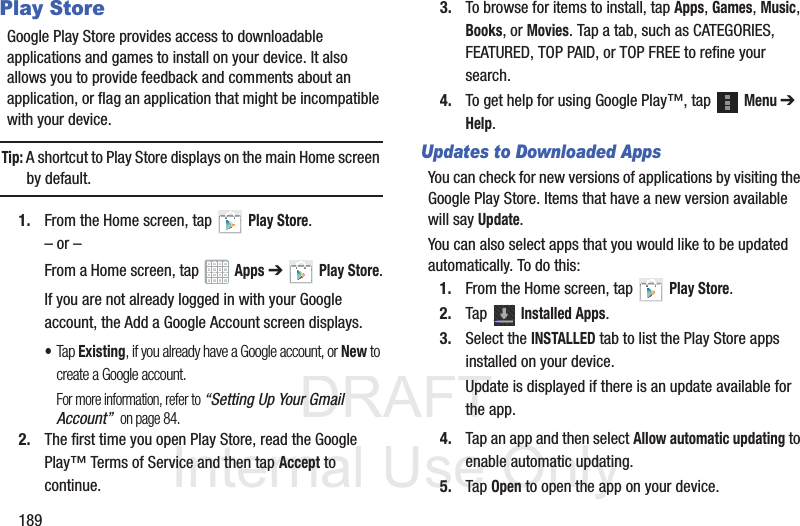

DRAFT InternalUse Only189Play StoreGoogle Play Store provides access to downloadable applications and games to install on your device. It also allows you to provide feedback and comments about an application, or flag an application that might be incompatible with your device.Tip: A shortcut to Play Store displays on the main Home screen by default.1. From the Home screen, tap Play Store.– or –From a Home screen, tap Apps ➔Play Store.If you are not already logged in with your Google account, the Add a Google Account screen displays.•Tap Existing, if you already have a Google account, or New to create a Google account.For more information, refer to “Setting Up Your Gmail Account” on page 84.2. The first time you open Play Store, read the Google Play™ Terms of Service and then tap Accept to continue.3. To browse for items to install, tap Apps, Games, Music, Books, or Movies. Tap a tab, such as CATEGORIES, FEATURED, TOP PAID, or TOP FREE to refine your search.4. To get help for using Google Play™, tap Menu ➔ Help.Updates to Downloaded AppsYou can check for new versions of applications by visiting the Google Play Store. Items that have a new version available will say Update.You can also select apps that you would like to be updated automatically. To do this:1. From the Home screen, tap Play Store.2. Tap Installed Apps.3. Select the INSTALLED tab to list the Play Store apps installed on your device.Update is displayed if there is an update available for the app.4. Tap an app and then select Allow automatic updating to enable automatic updating.5. Tap Open to open the app on your device.

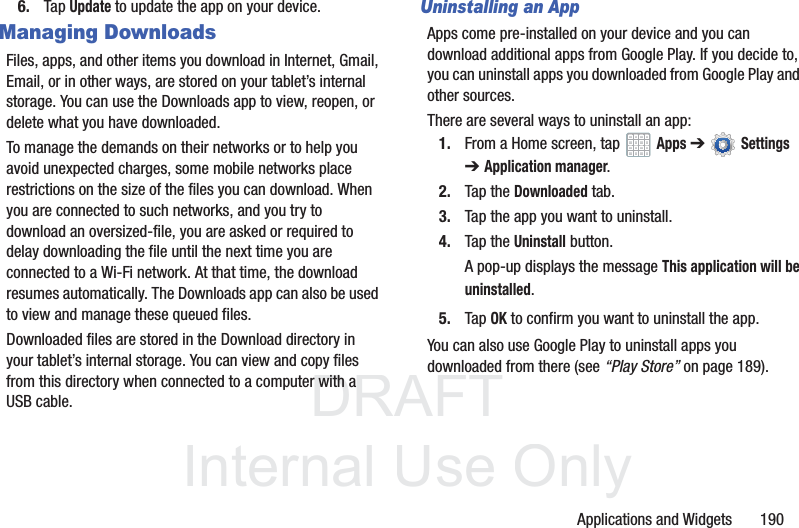

DRAFT InternalUse OnlyApplications and Widgets 1906. Tap Update to update the app on your device.Managing DownloadsFiles, apps, and other items you download in Internet, Gmail, Email, or in other ways, are stored on your tablet’s internal storage. You can use the Downloads app to view, reopen, or delete what you have downloaded.To manage the demands on their networks or to help you avoid unexpected charges, some mobile networks place restrictions on the size of the files you can download. When you are connected to such networks, and you try to download an oversized-file, you are asked or required to delay downloading the file until the next time you are connected to a Wi-Fi network. At that time, the download resumes automatically. The Downloads app can also be used to view and manage these queued files.Downloaded files are stored in the Download directory in your tablet’s internal storage. You can view and copy files from this directory when connected to a computer with a USB cable.Uninstalling an AppApps come pre-installed on your device and you can download additional apps from Google Play. If you decide to, you can uninstall apps you downloaded from Google Play and other sources.There are several ways to uninstall an app:1. From a Home screen, tap Apps ➔ Settings ➔Application manager.2. Tap the Downloaded tab.3. Tap the app you want to uninstall.4. Tap the Uninstall button.A pop-up displays the message This application will be uninstalled.5. Tap OK to confirm you want to uninstall the app.You can also use Google Play to uninstall apps you downloaded from there (see “Play Store” on page 189).

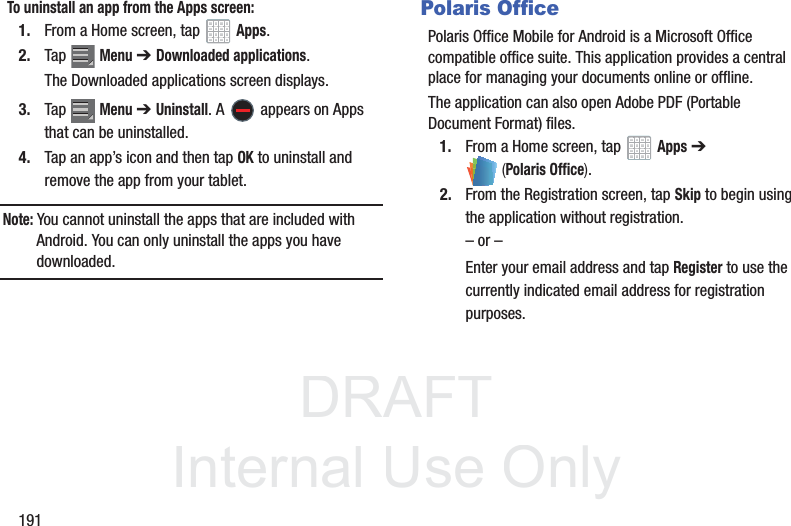

DRAFT InternalUse Only191To uninstall an app from the Apps screen:1. From a Home screen, tap Apps.2. Tap Menu ➔Downloaded applications.The Downloaded applications screen displays.3. Tap Menu ➔Uninstall. A appears on Apps that can be uninstalled.4. Tap an app’s icon and then tap OK to uninstall and remove the app from your tablet.Note: You cannot uninstall the apps that are included with Android. You can only uninstall the apps you have downloaded.Polaris OfficePolaris Office Mobile for Android is a Microsoft Office compatible office suite. This application provides a central place for managing your documents online or offline.The application can also open Adobe PDF (Portable Document Format) files.1. From a Home screen, tap Apps ➔ (Polaris Office).2. From the Registration screen, tap Skip to begin using the application without registration.– or –Enter your email address and tap Register to use the currently indicated email address for registration purposes.

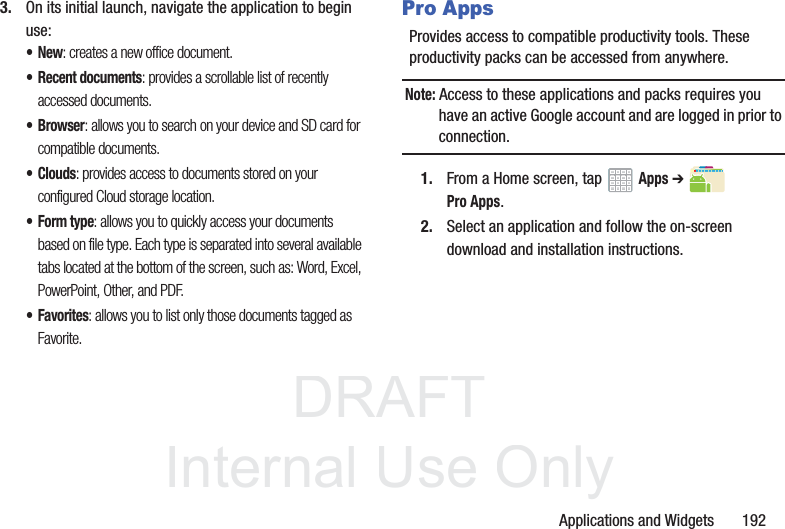

DRAFT InternalUse OnlyApplications and Widgets 1923. On its initial launch, navigate the application to begin use:•New: creates a new office document.• Recent documents: provides a scrollable list of recently accessed documents.• Browser: allows you to search on your device and SD card for compatible documents.•Clouds: provides access to documents stored on your configured Cloud storage location.• Form type: allows you to quickly access your documents based on file type. Each type is separated into several available tabs located at the bottom of the screen, such as: Word, Excel, PowerPoint, Other, and PDF.•Favorites: allows you to list only those documents tagged as Favorite.Pro AppsProvides access to compatible productivity tools. These productivity packs can be accessed from anywhere.Note: Access to these applications and packs requires you have an active Google account and are logged in prior to connection.1. From a Home screen, tap Apps ➔ Pro Apps.2. Select an application and follow the on-screen download and installation instructions.

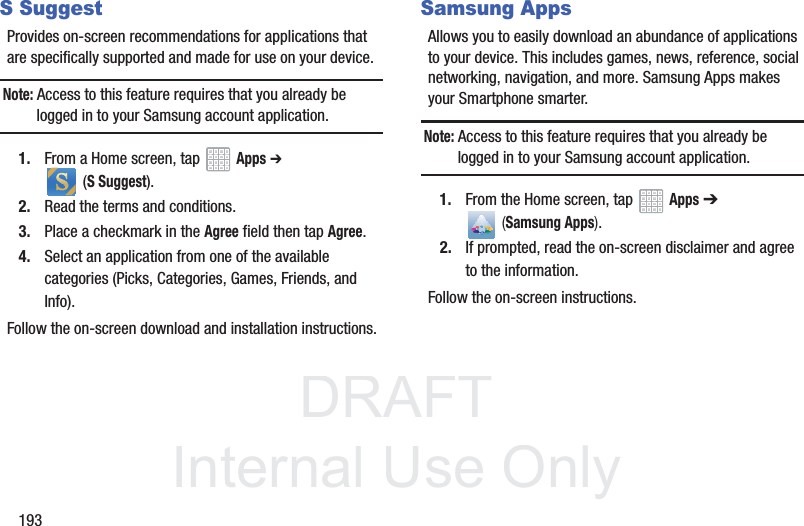

DRAFT InternalUse Only193S SuggestProvides on-screen recommendations for applications that are specifically supported and made for use on your device.Note: Access to this feature requires that you already be logged in to your Samsung account application. 1. From a Home screen, tap Apps ➔ (S Suggest).2. Read the terms and conditions.3. Place a checkmark in the Agree field then tap Agree.4. Select an application from one of the available categories (Picks, Categories, Games, Friends, and Info).Follow the on-screen download and installation instructions.Samsung AppsAllows you to easily download an abundance of applications to your device. This includes games, news, reference, social networking, navigation, and more. Samsung Apps makes your Smartphone smarter.Note: Access to this feature requires that you already be logged in to your Samsung account application. 1. From the Home screen, tap Apps ➔ (Samsung Apps).2. If prompted, read the on-screen disclaimer and agree to the information.Follow the on-screen instructions.

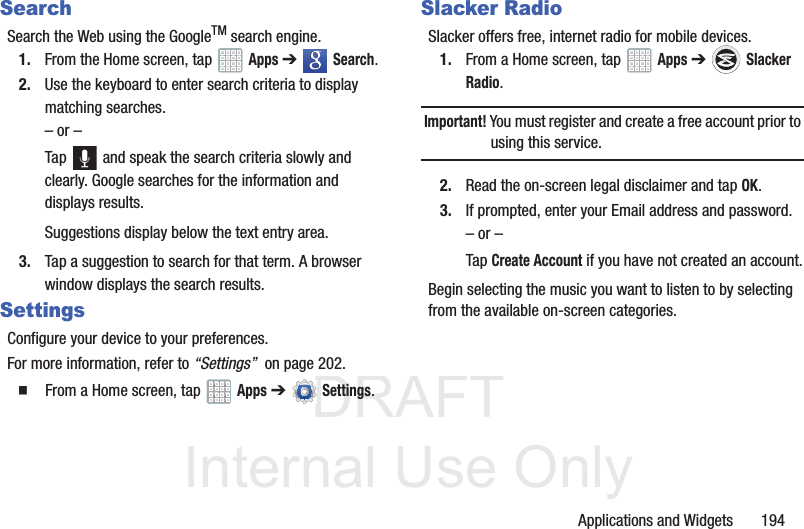

DRAFT InternalUse OnlyApplications and Widgets 194SearchSearch the Web using the GoogleTM search engine.1. From the Home screen, tap Apps ➔ Search.2. Use the keyboard to enter search criteria to display matching searches.– or –Tap and speak the search criteria slowly and clearly. Google searches for the information and displays results.Suggestions display below the text entry area.3. Tap a suggestion to search for that term. A browser window displays the search results.SettingsConfigure your device to your preferences.For more information, refer to “Settings” on page 202. From a Home screen, tap Apps ➔Settings.Slacker RadioSlacker offers free, internet radio for mobile devices.1. From a Home screen, tap Apps ➔ Slacker Radio.Important! You must register and create a free account prior to using this service.2. Read the on-screen legal disclaimer and tap OK.3. If prompted, enter your Email address and password.– or –Tap Create Account if you have not created an account.Begin selecting the music you want to listen to by selecting from the available on-screen categories.

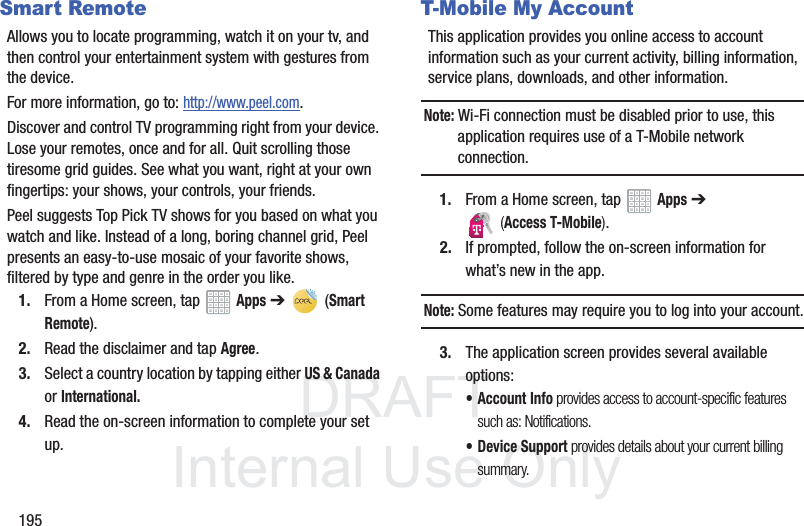

DRAFT InternalUse Only195Smart RemoteAllows you to locate programming, watch it on your tv, and then control your entertainment system with gestures from the device.For more information, go to: http://www.peel.com.Discover and control TV programming right from your device. Lose your remotes, once and for all. Quit scrolling those tiresome grid guides. See what you want, right at your own fingertips: your shows, your controls, your friends.Peel suggests Top Pick TV shows for you based on what you watch and like. Instead of a long, boring channel grid, Peel presents an easy-to-use mosaic of your favorite shows, filtered by type and genre in the order you like.1. From a Home screen, tap Apps ➔ (Smart Remote).2. Read the disclaimer and tap Agree.3. Select a country location by tapping either US & Canada or International.4. Read the on-screen information to complete your set up.T-Mobile My AccountThis application provides you online access to account information such as your current activity, billing information, service plans, downloads, and other information.Note: Wi-Fi connection must be disabled prior to use, this application requires use of a T-Mobile network connection.1. From a Home screen, tap Apps ➔ (Access T-Mobile).2. If prompted, follow the on-screen information for what’s new in the app.Note: Some features may require you to log into your account.3. The application screen provides several available options:• Account Info provides access to account-specific features such as: Notifications.• Device Support provides details about your current billing summary.

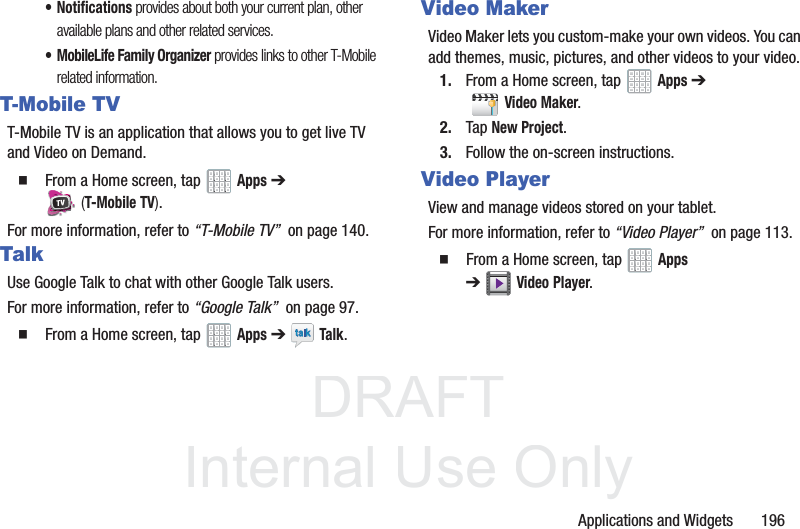

DRAFT InternalUse OnlyApplications and Widgets 196• Notifications provides about both your current plan, other available plans and other related services.• MobileLife Family Organizer provides links to other T-Mobile related information.T-Mobile TVT-Mobile TV is an application that allows you to get live TV and Video on Demand. From a Home screen, tap Apps ➔ (T-Mobile TV).For more information, refer to “T-Mobile TV” on page 140.TalkUse Google Talk to chat with other Google Talk users.For more information, refer to “Google Talk” on page 97. From a Home screen, tap Apps ➔ Talk.Video MakerVideo Maker lets you custom-make your own videos. You can add themes, music, pictures, and other videos to your video.1. From a Home screen, tap Apps ➔ Video Maker.2. Tap New Project.3. Follow the on-screen instructions.Video PlayerView and manage videos stored on your tablet.For more information, refer to “Video Player” on page 113. From a Home screen, tap Apps ➔Video Player.

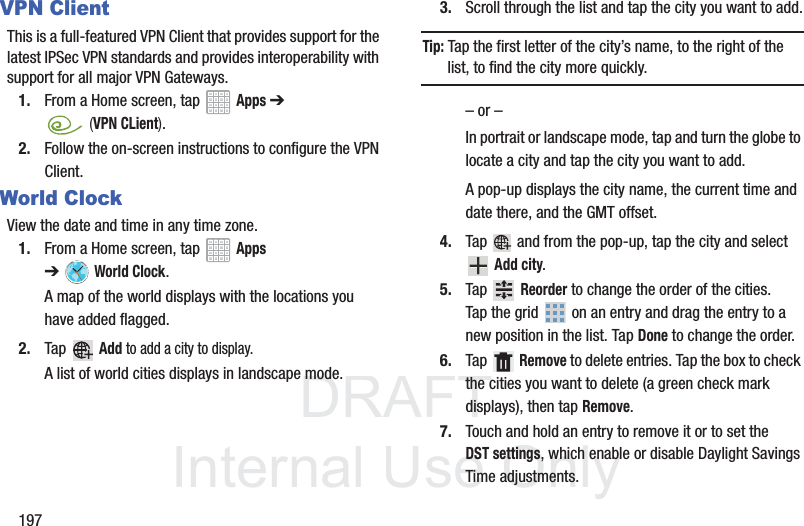

DRAFT InternalUse Only197VPN ClientThis is a full-featured VPN Client that provides support for the latest IPSec VPN standards and provides interoperability with support for all major VPN Gateways.1. From a Home screen, tap Apps ➔ (VPN CLient).2. Follow the on-screen instructions to configure the VPN Client.World ClockView the date and time in any time zone.1. From a Home screen, tap Apps ➔World Clock.A map of the world displays with the locations you have added flagged.2. Tap Add to add a city to display.A list of world cities displays in landscape mode.3. Scroll through the list and tap the city you want to add.Tip: Tap the first letter of the city’s name, to the right of the list, to find the city more quickly.– or –In portrait or landscape mode, tap and turn the globe to locate a city and tap the city you want to add.A pop-up displays the city name, the current time and date there, and the GMT offset.4. Tap and from the pop-up, tap the city and select Add city.5. Tap Reorder to change the order of the cities. Tap the grid on an entry and drag the entry to a new position in the list. Tap Done to change the order.6. Tap Remove to delete entries. Tap the box to check the cities you want to delete (a green check mark displays), then tap Remove.7. Touch and hold an entry to remove it or to set the DST settings, which enable or disable Daylight Savings Time adjustments.

DRAFT InternalUse OnlyApplications and Widgets 198Yahoo! FinanceStay on top of the markets with the Yahoo! Finance app for Android devices. Get real-time quotes, follow the market, or check out a particular stock. View headline news, top stories, and videos from Tech Ticker. Yahoo! Finance lets you keep up with the market movers from your Android device.To add the Yahoo! Finance widget to a Home screen, see “Adding Widgets to a Home screen” on page 38.Adding Your First StockTo add your first stock:1. From a Home screen, tap Apps ➔ Widgets.2. Touch and drag the Yahoo! Finance widget onto an available area of the screen.The Yahoo! Finance main screen displays with Samsung and Yahoo stocks listed by default.3. Tap the widget and from the full application, tap Add.4. Type in a stock name and select an entry in the list of stocks that is displayed.5. The Yahoo! Finance widget displays with information about the stock just added.Managing StocksOnce you add a stock, there are additional Yahoo! Finance options you can use to add more stocks and set up how they are displayed and refreshed.1. From a Home screen, tap an entry in the Yahoo! Finance widget.Information about the stock displays.2. Tap Refresh to update the information.3. Tap Add to add another stock. For more information, refer to “Adding Your First Stock” on page 198.4. Tap Menu to display the following options:• Delete: Tap to delete the stock being displayed.• Change order: Displays your stocks list. Tap and drag stocks to change the order in which they are displayed.•Search: Tap to search for a new stock.•Settings: Displays the following option:

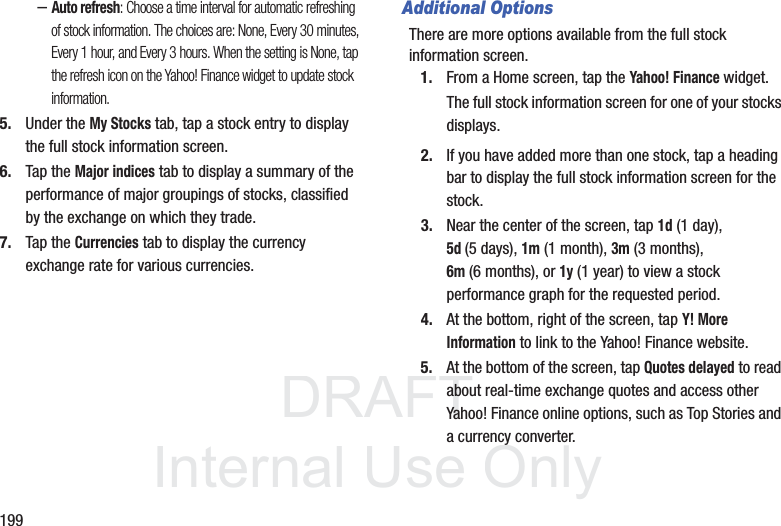

DRAFT InternalUse Only199–Auto refresh: Choose a time interval for automatic refreshing of stock information. The choices are: None, Every 30 minutes, Every 1 hour, and Every 3 hours. When the setting is None, tap the refresh icon on the Yahoo! Finance widget to update stock information.5. Under the My Stocks tab, tap a stock entry to display the full stock information screen.6. Tap the Major indices tab to display a summary of the performance of major groupings of stocks, classified by the exchange on which they trade.7. Tap the Currencies tab to display the currency exchange rate for various currencies.Additional OptionsThere are more options available from the full stock information screen.1. From a Home screen, tap the Yahoo! Finance widget.The full stock information screen for one of your stocks displays.2. If you have added more than one stock, tap a heading bar to display the full stock information screen for the stock.3. Near the center of the screen, tap 1d (1 day), 5d(5 days), 1m (1 month), 3m (3 months), 6m (6 months), or 1y (1 year) to view a stock performance graph for the requested period.4. At the bottom, right of the screen, tap Y! More Information to link to the Yahoo! Finance website.5. At the bottom of the screen, tap Quotes delayed to read about real-time exchange quotes and access other Yahoo! Finance online options, such as Top Stories and a currency converter.

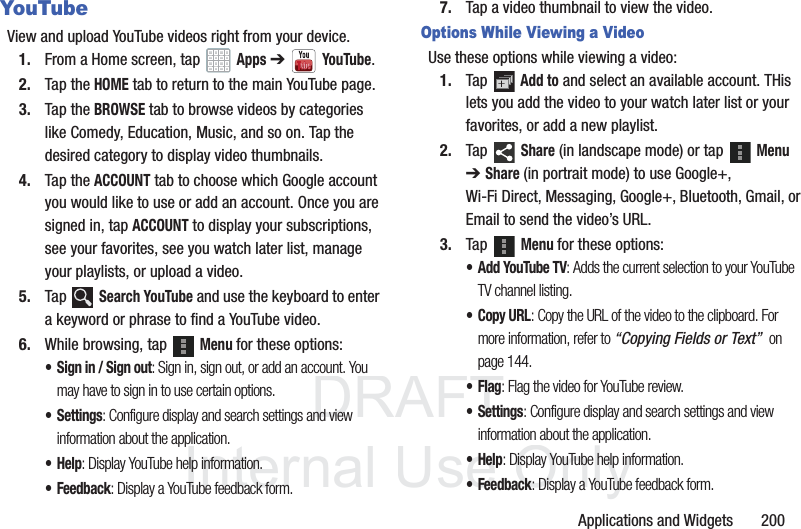

DRAFT InternalUse OnlyApplications and Widgets 200YouTubeView and upload YouTube videos right from your device.1. From a Home screen, tap Apps ➔YouTube.2. Tap the HOME tab to return to the main YouTube page.3. Tap the BROWSE tab to browse videos by categories like Comedy, Education, Music, and so on. Tap the desired category to display video thumbnails.4. Tap the ACCOUNT tab to choose which Google account you would like to use or add an account. Once you are signed in, tap ACCOUNT to display your subscriptions, see your favorites, see you watch later list, manage your playlists, or upload a video.5. Tap Search YouTube and use the keyboard to enter a keyword or phrase to find a YouTube video. 6. While browsing, tap Menu for these options:• Sign in / Sign out: Sign in, sign out, or add an account. You may have to sign in to use certain options.•Settings: Configure display and search settings and view information about the application.•Help: Display YouTube help information.• Feedback: Display a YouTube feedback form.7. Tap a video thumbnail to view the video.Options While Viewing a VideoUse these options while viewing a video:1. Tap Add to and select an available account. THis lets you add the video to your watch later list or your favorites, or add a new playlist.2. Tap Share (in landscape mode) or tap Menu ➔ Share (in portrait mode) to use Google+, Wi-Fi Direct, Messaging, Google+, Bluetooth, Gmail, or Email to send the video’s URL.3. Tap Menu for these options:• Add YouTube TV: Adds the current selection to your YouTube TV channel listing.•Copy URL: Copy the URL of the video to the clipboard. For more information, refer to “Copying Fields or Text” on page 144.•Flag: Flag the video for YouTube review.•Settings: Configure display and search settings and view information about the application.•Help: Display YouTube help information.•Feedback: Display a YouTube feedback form.

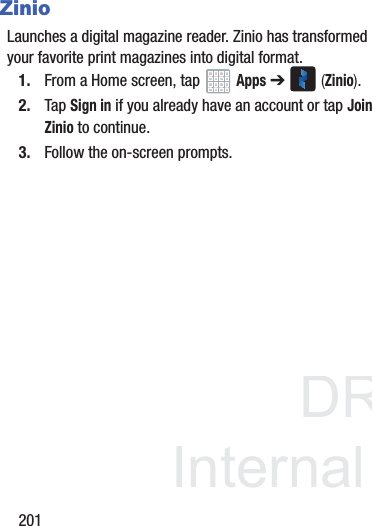

DRAFT InternalUse Only201ZinioLaunches a digital magazine reader. Zinio has transformed your favorite print magazines into digital format.1. From a Home screen, tap Apps ➔ (Zinio).2. Tap Sign in if you already have an account or tap Join Zinio to continue.3. Follow the on-screen prompts.

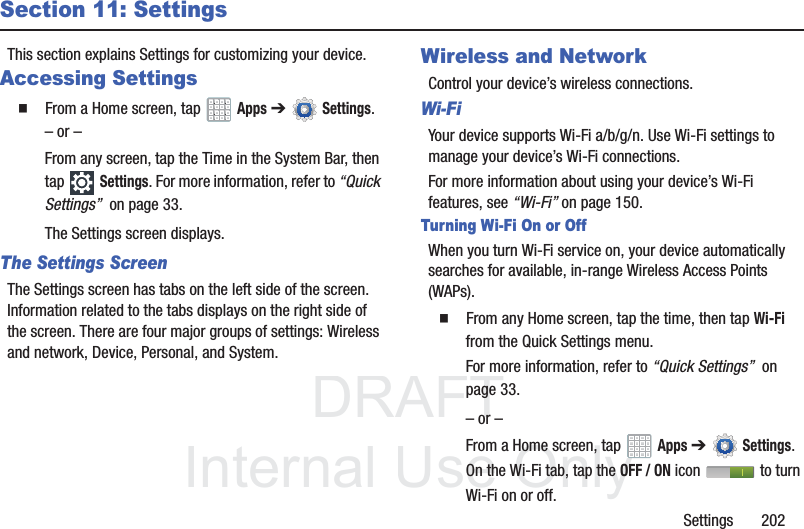

DRAFT InternalUse OnlySettings 202Section 11: SettingsThis section explains Settings for customizing your device.Accessing Settings From a Home screen, tap Apps ➔Settings.– or –From any screen, tap the Time in the System Bar, then tap Settings. For more information, refer to “Quick Settings” on page 33.The Settings screen displays.The Settings ScreenThe Settings screen has tabs on the left side of the screen. Information related to the tabs displays on the right side of the screen. There are four major groups of settings: Wireless and network, Device, Personal, and System.Wireless and NetworkControl your device’s wireless connections.Wi-FiYour device supports Wi-Fi a/b/g/n. Use Wi-Fi settings to manage your device’s Wi-Fi connections.For more information about using your device’s Wi-Fi features, see “Wi-Fi” on page 150.Turning Wi-Fi On or OffWhen you turn Wi-Fi service on, your device automatically searches for available, in-range Wireless Access Points (WAPs). From any Home screen, tap the time, then tap Wi-Fi from the Quick Settings menu.For more information, refer to “Quick Settings” on page 33.– or –From a Home screen, tap Apps ➔Settings. On the Wi-Fi tab, tap the OFF / ON icon to turn Wi-Fi on or off.

DRAFT InternalUse Only203Add Wi-Fi NetworkTo open a dialog where you can add a Wi-Fi network by entering its Network SSID (the name it broadcasts), security type, and other properties:1. From a Home screen, tap Apps ➔ Settings ➔ Wi-Fi, and then select Add Wi-Fi network.2. Use the keyboard to enter Network SSID.3. Tap the Security field and then select a security type.Note: Depending on the Security protocol used by the WAP, additional network information may be required, such as a Password.4. If necessary, tap Password and enter the password or hex key.Note: COnfirm you have entered the correct password by placing a green check mark in the Show password field.5. Select Save.Advanced SettingsSet up and manage wireless access points.1. From a Home screen, tap Apps ➔ Settings ➔ Wi-Fi.2. Tap Menu ➔ Advanced.The following options display:• Network notification: Have your device alert you to new Wireless Access Points (WAPs). Tap Network notification to turn notifications On or Off. When enabled, a check mark appears in the check box.• Keep Wi-Fi on during sleep: Specify when to disconnect from Wi-Fi. Option are: Always, Only when plugged in, or Never.•MAC address: View your device’s MAC address, required when connecting to some secured networks (not configurable).•IP address: View your device’s IP address.

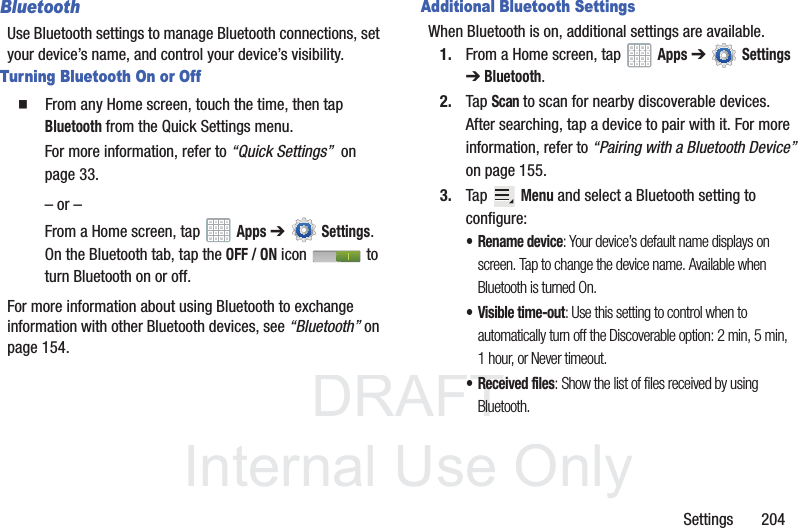

DRAFT InternalUse OnlySettings 204BluetoothUse Bluetooth settings to manage Bluetooth connections, set your device’s name, and control your device’s visibility.Turning Bluetooth On or Off From any Home screen, touch the time, then tap Bluetooth from the Quick Settings menu.For more information, refer to “Quick Settings” on page 33.– or –From a Home screen, tap Apps ➔Settings. On the Bluetooth tab, tap the OFF / ON icon to turn Bluetooth on or off.For more information about using Bluetooth to exchange information with other Bluetooth devices, see “Bluetooth” on page 154.Additional Bluetooth SettingsWhen Bluetooth is on, additional settings are available.1. From a Home screen, tap Apps ➔ Settings ➔ Bluetooth.2. Tap Scan to scan for nearby discoverable devices. After searching, tap a device to pair with it. For more information, refer to “Pairing with a Bluetooth Device” on page 155.3. Tap Menu and select a Bluetooth setting to configure:• Rename device: Your device’s default name displays on screen. Tap to change the device name. Available when Bluetooth is turned On.• Visible time-out: Use this setting to control when to automatically turn off the Discoverable option: 2 min, 5 min, 1 hour, or Never timeout.• Received files: Show the list of files received by using Bluetooth.

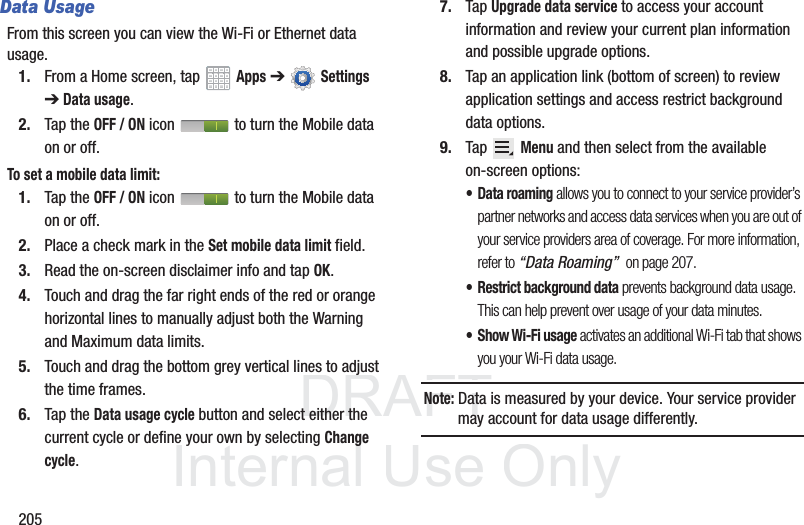

DRAFT InternalUse Only205Data UsageFrom this screen you can view the Wi-Fi or Ethernet data usage.1. From a Home screen, tap Apps ➔ Settings ➔ Data usage.2. Tap the OFF / ON icon to turn the Mobile data on or off.To set a mobile data limit:1. Tap the OFF / ON icon to turn the Mobile data on or off.2. Place a check mark in the Set mobile data limit field.3. Read the on-screen disclaimer info and tap OK. 4. Touch and drag the far right ends of the red or orange horizontal lines to manually adjust both the Warning and Maximum data limits.5. Touch and drag the bottom grey vertical lines to adjust the time frames.6. Tap the Data usage cycle button and select either the current cycle or define your own by selecting Change cycle.7. Tap Upgrade data service to access your account information and review your current plan information and possible upgrade options.8. Tap an application link (bottom of screen) to review application settings and access restrict background data options.9. Tap Menu and then select from the available on-screen options:• Data roaming allows you to connect to your service provider’s partner networks and access data services when you are out of your service providers area of coverage. For more information, refer to “Data Roaming” on page 207.• Restrict background data prevents background data usage. This can help prevent over usage of your data minutes.• Show Wi-Fi usage activates an additional Wi-Fi tab that shows you your Wi-Fi data usage.Note: Data is measured by your device. Your service provider may account for data usage differently.

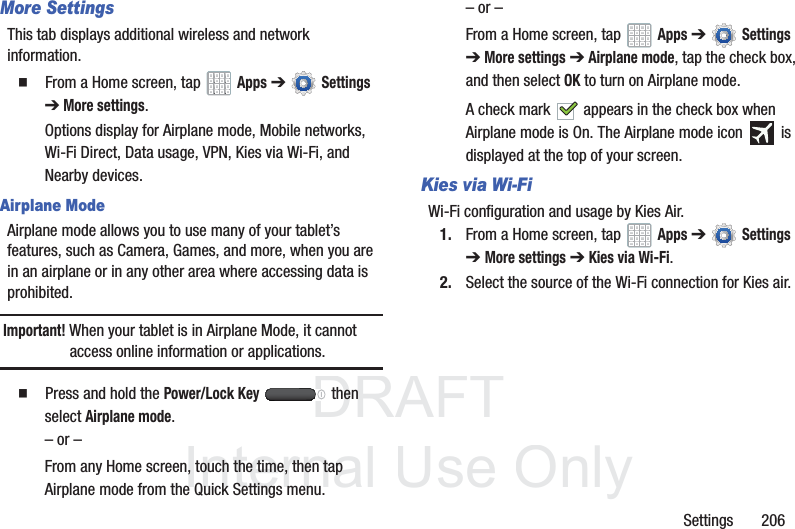

DRAFT InternalUse OnlySettings 206More SettingsThis tab displays additional wireless and network information. From a Home screen, tap Apps ➔ Settings ➔ More settings.Options display for Airplane mode, Mobile networks, Wi-Fi Direct, Data usage, VPN, Kies via Wi-Fi, and Nearby devices.Airplane ModeAirplane mode allows you to use many of your tablet’s features, such as Camera, Games, and more, when you are in an airplane or in any other area where accessing data is prohibited.Important! When your tablet is in Airplane Mode, it cannot access online information or applications. Press and hold the Power/Lock Key then select Airplane mode.– or –From any Home screen, touch the time, then tap Airplane mode from the Quick Settings menu. – or –From a Home screen, tap Apps ➔ Settings ➔ More settings ➔ Airplane mode, tap the check box, and then select OK to turn on Airplane mode.A check mark appears in the check box when Airplane mode is On. The Airplane mode icon is displayed at the top of your screen.Kies via Wi-FiWi-Fi configuration and usage by Kies Air.1. From a Home screen, tap Apps ➔ Settings ➔ More settings ➔ Kies via Wi-Fi.2. Select the source of the Wi-Fi connection for Kies air.

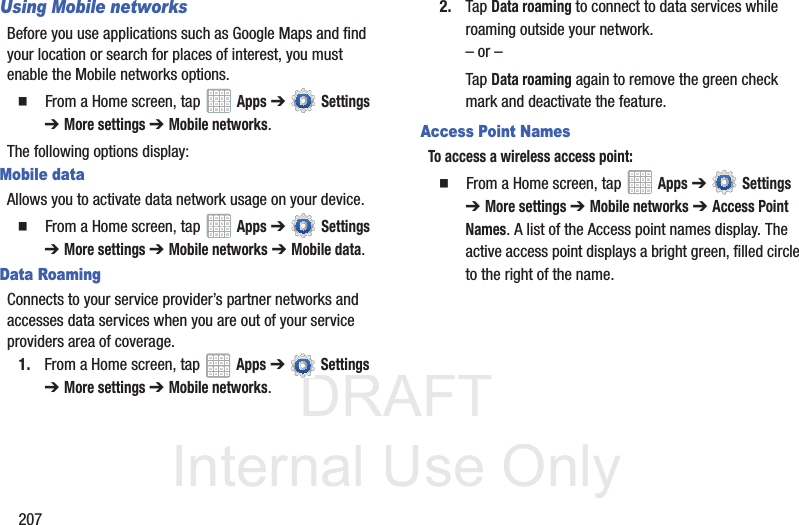

DRAFT InternalUse Only207Using Mobile networksBefore you use applications such as Google Maps and find your location or search for places of interest, you must enable the Mobile networks options. From a Home screen, tap Apps ➔ Settings ➔ More settings ➔ Mobile networks.The following options display:Mobile dataAllows you to activate data network usage on your device. From a Home screen, tap Apps ➔ Settings ➔ More settings ➔ Mobile networks ➔ Mobile data.Data RoamingConnects to your service provider’s partner networks and accesses data services when you are out of your service providers area of coverage.1. From a Home screen, tap Apps ➔ Settings ➔ More settings ➔ Mobile networks.2. Tap Data roaming to connect to data services while roaming outside your network. – or –Tap Data roaming again to remove the green check mark and deactivate the feature.Access Point NamesTo access a wireless access point: From a Home screen, tap Apps ➔ Settings ➔ More settings ➔ Mobile networks ➔ Access Point Names. A list of the Access point names display. The active access point displays a bright green, filled circle to the right of the name.

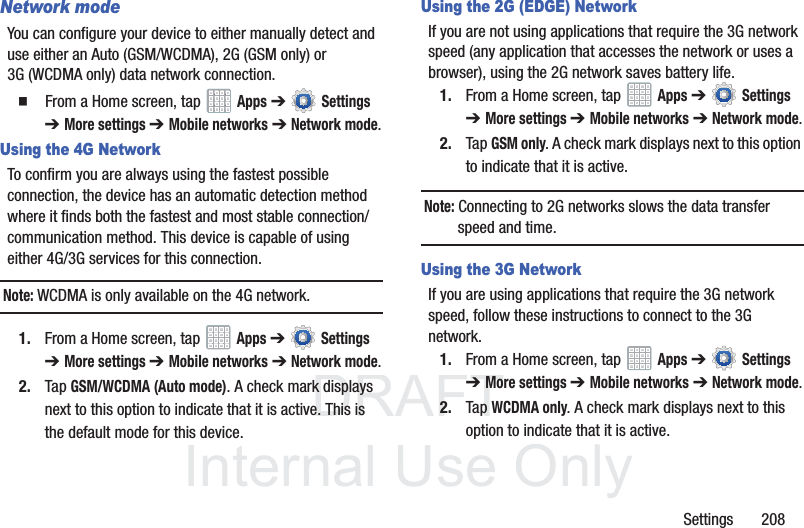

DRAFT InternalUse OnlySettings 208Network modeYou can configure your device to either manually detect and use either an Auto (GSM/WCDMA), 2G (GSM only) or 3G (WCDMA only) data network connection. From a Home screen, tap Apps ➔ Settings ➔ More settings ➔ Mobile networks ➔ Network mode.Using the 4G NetworkTo confirm you are always using the fastest possible connection, the device has an automatic detection method where it finds both the fastest and most stable connection/communication method. This device is capable of using either 4G/3G services for this connection.Note: WCDMA is only available on the 4G network.1. From a Home screen, tap Apps ➔ Settings ➔ More settings ➔ Mobile networks ➔ Network mode.2. Tap GSM/WCDMA (Auto mode). A check mark displays next to this option to indicate that it is active. This is the default mode for this device.Using the 2G (EDGE) NetworkIf you are not using applications that require the 3G network speed (any application that accesses the network or uses a browser), using the 2G network saves battery life.1. From a Home screen, tap Apps ➔ Settings ➔ More settings ➔ Mobile networks ➔ Network mode.2. Tap GSM only. A check mark displays next to this option to indicate that it is active.Note: Connecting to 2G networks slows the data transfer speed and time.Using the 3G NetworkIf you are using applications that require the 3G network speed, follow these instructions to connect to the 3G network.1. From a Home screen, tap Apps ➔ Settings ➔ More settings ➔ Mobile networks ➔ Network mode.2. Tap WCDMA only. A check mark displays next to this option to indicate that it is active.

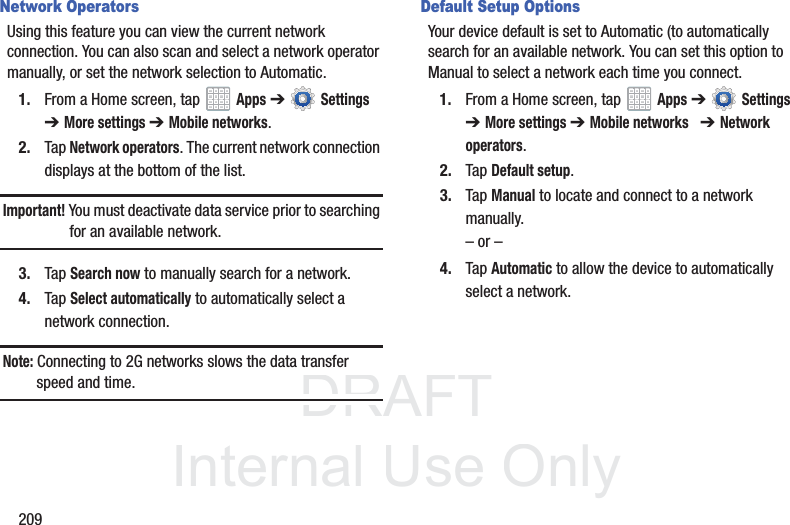

DRAFT InternalUse Only209Network OperatorsUsing this feature you can view the current network connection. You can also scan and select a network operator manually, or set the network selection to Automatic.1. From a Home screen, tap Apps ➔ Settings ➔ More settings ➔ Mobile networks.2. Tap Network operators. The current network connection displays at the bottom of the list.Important! You must deactivate data service prior to searching for an available network.3. Tap Search now to manually search for a network.4. Tap Select automatically to automatically select a network connection.Note: Connecting to 2G networks slows the data transfer speed and time.Default Setup OptionsYour device default is set to Automatic (to automatically search for an available network. You can set this option to Manual to select a network each time you connect.1. From a Home screen, tap Apps ➔ Settings ➔ More settings ➔ Mobile networks ➔ Network operators.2. Tap Default setup.3. Tap Manual to locate and connect to a network manually.– or –4. Tap Automatic to allow the device to automatically select a network.

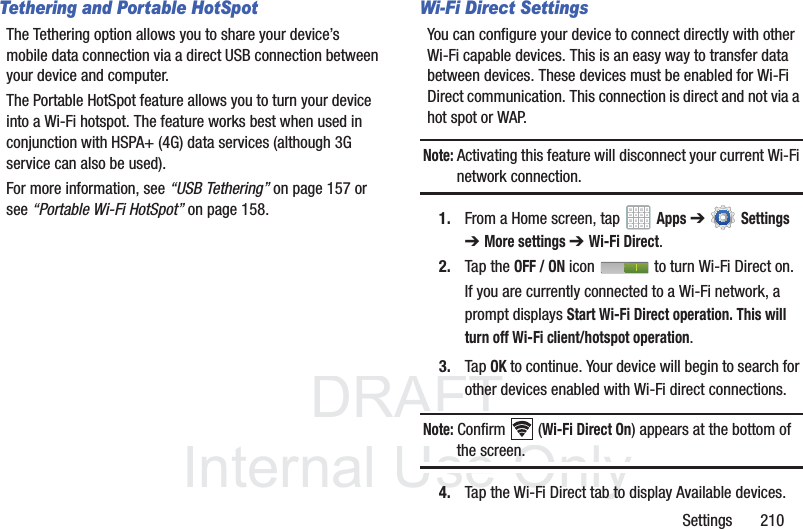

DRAFT InternalUse OnlySettings 210Tethering and Portable HotSpotThe Tethering option allows you to share your device’s mobile data connection via a direct USB connection between your device and computer. The Portable HotSpot feature allows you to turn your device into a Wi-Fi hotspot. The feature works best when used in conjunction with HSPA+ (4G) data services (although 3G service can also be used).For more information, see “USB Tethering” on page 157 or see “Portable Wi-Fi HotSpot” on page 158.Wi-Fi Direct SettingsYou can configure your device to connect directly with other Wi-Fi capable devices. This is an easy way to transfer data between devices. These devices must be enabled for Wi-Fi Direct communication. This connection is direct and not via a hot spot or WAP.Note: Activating this feature will disconnect your current Wi-Fi network connection.1. From a Home screen, tap Apps ➔ Settings ➔ More settings ➔ Wi-Fi Direct.2. Tap the OFF / ON icon to turn Wi-Fi Direct on.If you are currently connected to a Wi-Fi network, a prompt displays Start Wi-Fi Direct operation. This will turn off Wi-Fi client/hotspot operation.3. Tap OK to continue. Your device will begin to search for other devices enabled with Wi-Fi direct connections.Note: Confirm (Wi-Fi Direct On) appears at the bottom of the screen.4. Tap the Wi-Fi Direct tab to display Available devices.

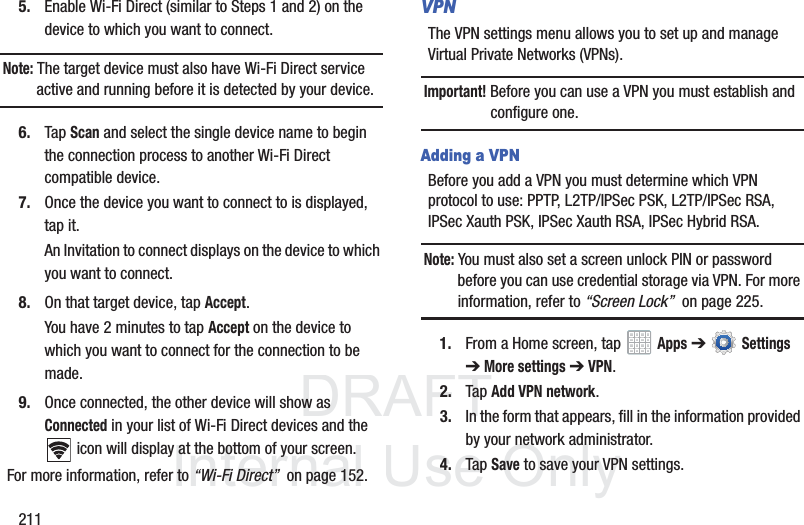

DRAFT InternalUse Only2115. Enable Wi-Fi Direct (similar to Steps 1 and 2) on the device to which you want to connect.Note: The target device must also have Wi-Fi Direct service active and running before it is detected by your device.6. Tap Scan and select the single device name to begin the connection process to another Wi-Fi Direct compatible device.7. Once the device you want to connect to is displayed, tap it.An Invitation to connect displays on the device to which you want to connect.8. On that target device, tap Accept.You have 2 minutes to tap Accept on the device to which you want to connect for the connection to be made.9. Once connected, the other device will show as Connected in your list of Wi-Fi Direct devices and the icon will display at the bottom of your screen.For more information, refer to “Wi-Fi Direct” on page 152.VPNThe VPN settings menu allows you to set up and manage Virtual Private Networks (VPNs).Important! Before you can use a VPN you must establish and configure one.Adding a VPNBefore you add a VPN you must determine which VPN protocol to use: PPTP, L2TP/IPSec PSK, L2TP/IPSec RSA, IPSec Xauth PSK, IPSec Xauth RSA, IPSec Hybrid RSA.Note: You must also set a screen unlock PIN or password before you can use credential storage via VPN. For more information, refer to “Screen Lock” on page 225.1. From a Home screen, tap Apps ➔ Settings ➔ More settings ➔ VPN.2. Tap Add VPN network.3. In the form that appears, fill in the information provided by your network administrator.4. Tap Save to save your VPN settings.

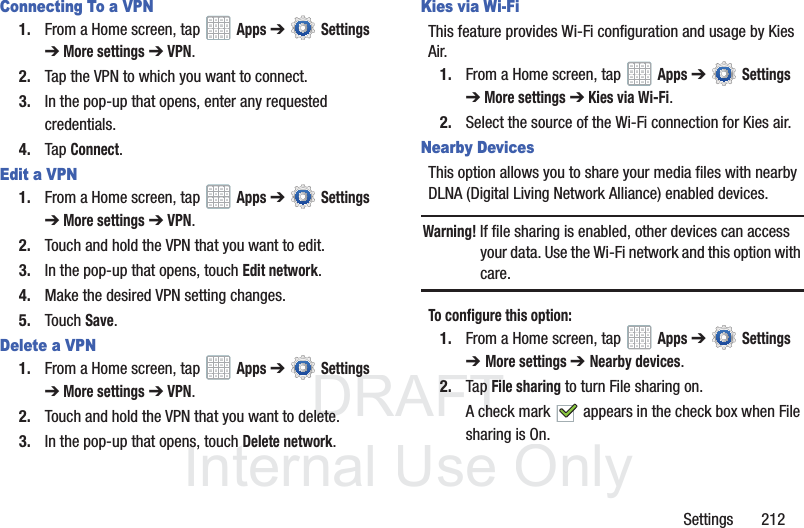

DRAFT InternalUse OnlySettings 212Connecting To a VPN1. From a Home screen, tap Apps ➔ Settings ➔ More settings ➔ VPN.2. Tap the VPN to which you want to connect. 3. In the pop-up that opens, enter any requested credentials.4. Tap Connect.Edit a VPN1. From a Home screen, tap Apps ➔ Settings ➔ More settings ➔ VPN.2. Touch and hold the VPN that you want to edit.3. In the pop-up that opens, touch Edit network. 4. Make the desired VPN setting changes. 5. Touch Save. Delete a VPN1. From a Home screen, tap Apps ➔ Settings ➔ More settings ➔ VPN.2. Touch and hold the VPN that you want to delete.3. In the pop-up that opens, touch Delete network.Kies via Wi-FiThis feature provides Wi-Fi configuration and usage by Kies Air.1. From a Home screen, tap Apps ➔ Settings ➔ More settings ➔ Kies via Wi-Fi.2. Select the source of the Wi-Fi connection for Kies air.Nearby DevicesThis option allows you to share your media files with nearby DLNA (Digital Living Network Alliance) enabled devices.Warning! If file sharing is enabled, other devices can access your data. Use the Wi-Fi network and this option with care.To configure this option:1. From a Home screen, tap Apps ➔ Settings ➔ More settings ➔ Nearby devices.2. Tap File sharing to turn File sharing on.A check mark appears in the check box when File sharing is On.

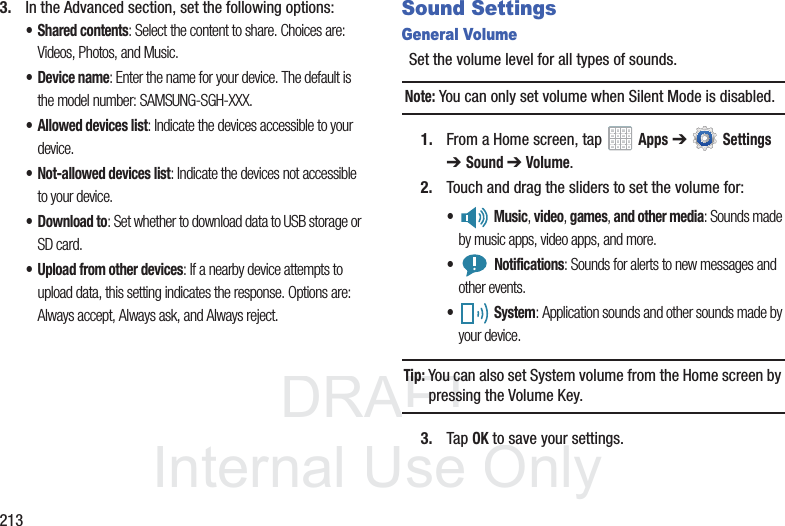

DRAFT InternalUse Only2133. In the Advanced section, set the following options:• Shared contents: Select the content to share. Choices are: Videos, Photos, and Music.• Device name: Enter the name for your device. The default is the model number: SAMSUNG-SGH-XXX.• Allowed devices list: Indicate the devices accessible to your device.• Not-allowed devices list: Indicate the devices not accessible to your device.•Download to: Set whether to download data to USB storage or SD card.• Upload from other devices: If a nearby device attempts to upload data, this setting indicates the response. Options are: Always accept, Always ask, and Always reject.Sound SettingsGeneral VolumeSet the volume level for all types of sounds.Note: You can only set volume when Silent Mode is disabled.1. From a Home screen, tap Apps ➔ Settings ➔Sound ➔ Volume.2. Touch and drag the sliders to set the volume for:• Music, video, games, and other media: Sounds made by music apps, video apps, and more.• Notifications: Sounds for alerts to new messages and other events.• System: Application sounds and other sounds made by your device.Tip: You can also set System volume from the Home screen by pressing the Volume Key.3. Tap OK to save your settings.

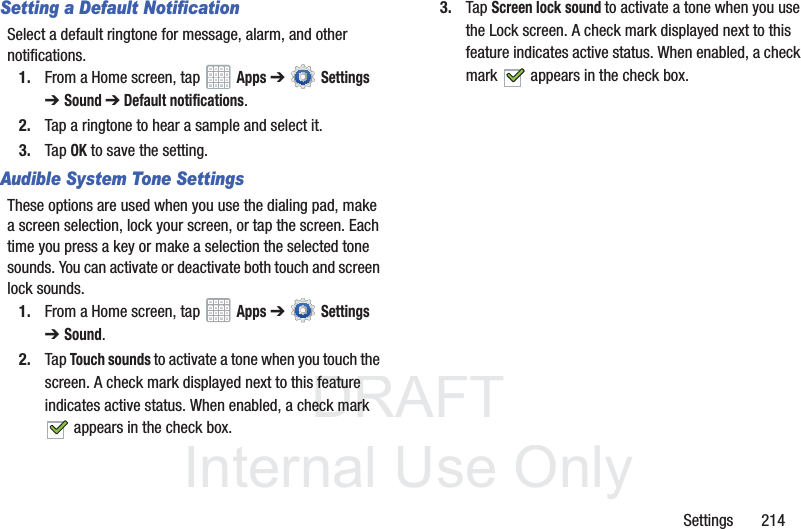

DRAFT InternalUse OnlySettings 214Setting a Default NotificationSelect a default ringtone for message, alarm, and other notifications.1. From a Home screen, tap Apps ➔ Settings ➔Sound ➔ Default notifications.2. Tap a ringtone to hear a sample and select it.3. Tap OK to save the setting.Audible System Tone SettingsThese options are used when you use the dialing pad, make a screen selection, lock your screen, or tap the screen. Each time you press a key or make a selection the selected tone sounds. You can activate or deactivate both touch and screen lock sounds.1. From a Home screen, tap Apps ➔ Settings ➔Sound.2. Tap Touch sounds to activate a tone when you touch the screen. A check mark displayed next to this feature indicates active status. When enabled, a check mark appears in the check box.3. Tap Screen lock sound to activate a tone when you use the Lock screen. A check mark displayed next to this feature indicates active status. When enabled, a check mark appears in the check box.

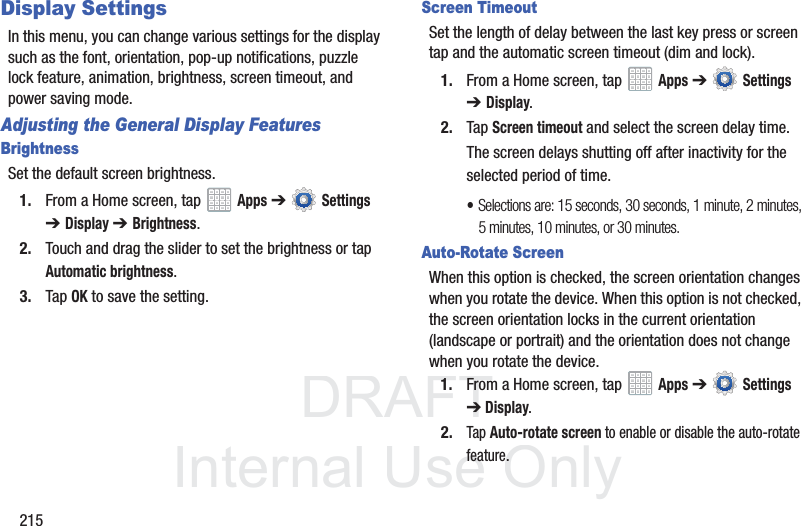

DRAFT InternalUse Only215Display SettingsIn this menu, you can change various settings for the display such as the font, orientation, pop-up notifications, puzzle lock feature, animation, brightness, screen timeout, and power saving mode.Adjusting the General Display FeaturesBrightnessSet the default screen brightness.1. From a Home screen, tap Apps ➔ Settings ➔Display ➔ Brightness.2. Touch and drag the slider to set the brightness or tap Automatic brightness.3. Tap OK to save the setting.Screen TimeoutSet the length of delay between the last key press or screen tap and the automatic screen timeout (dim and lock).1. From a Home screen, tap Apps ➔ Settings ➔Display.2. Tap Screen timeout and select the screen delay time.The screen delays shutting off after inactivity for the selected period of time.•Selections are: 15 seconds, 30 seconds, 1 minute, 2 minutes, 5 minutes, 10 minutes, or 30 minutes.Auto-Rotate ScreenWhen this option is checked, the screen orientation changes when you rotate the device. When this option is not checked, the screen orientation locks in the current orientation (landscape or portrait) and the orientation does not change when you rotate the device.1. From a Home screen, tap Apps ➔ Settings ➔Display.2.Tap Auto-rotate screen to enable or disable the auto-rotate feature.

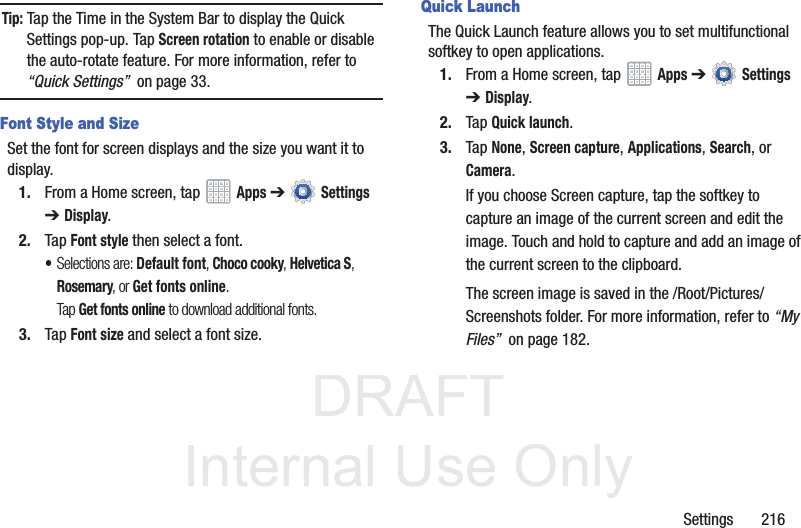

DRAFT InternalUse OnlySettings 216Tip: Tap the Time in the System Bar to display the Quick Settings pop-up. Tap Screen rotation to enable or disable the auto-rotate feature. For more information, refer to “Quick Settings” on page 33.Font Style and SizeSet the font for screen displays and the size you want it to display.1. From a Home screen, tap Apps ➔ Settings ➔Display.2. Tap Font style then select a font.•Selections are: Default font, Choco cooky, Helvetica S, Rosemary, or Get fonts online. Tap Get fonts online to download additional fonts.3. Tap Font size and select a font size.Quick LaunchThe Quick Launch feature allows you to set multifunctional softkey to open applications.1. From a Home screen, tap Apps ➔ Settings ➔Display.2. Tap Quick launch.3. Tap None, Screen capture, Applications, Search, or Camera.If you choose Screen capture, tap the softkey to capture an image of the current screen and edit the image. Touch and hold to capture and add an image of the current screen to the clipboard.The screen image is saved in the /Root/Pictures/Screenshots folder. For more information, refer to “My Files” on page 182.

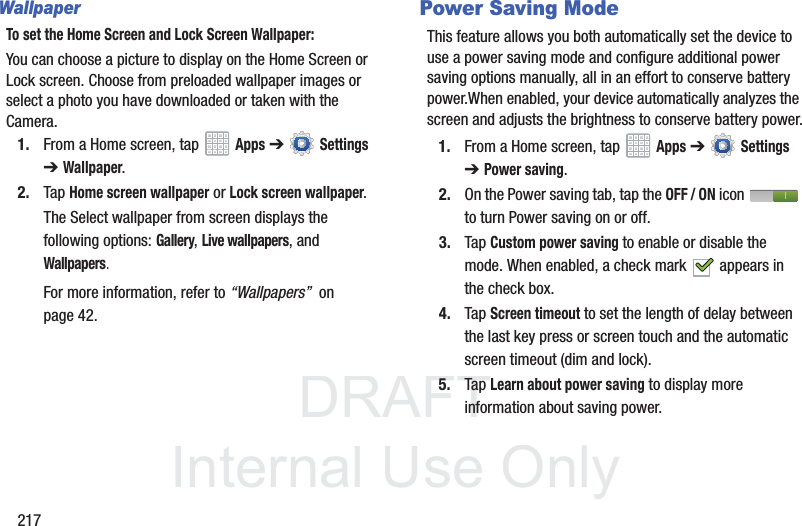

DRAFT InternalUse Only217WallpaperTo set the Home Screen and Lock Screen Wallpaper:You can choose a picture to display on the Home Screen or Lock screen. Choose from preloaded wallpaper images or select a photo you have downloaded or taken with the Camera.1. From a Home screen, tap Apps ➔ Settings ➔Wallpaper.2. Tap Home screen wallpaper or Lock screen wallpaper.The Select wallpaper from screen displays the following options: Gallery, Live wallpapers, and Wallpapers.For more information, refer to “Wallpapers” on page 42.Power Saving ModeThis feature allows you both automatically set the device to use a power saving mode and configure additional power saving options manually, all in an effort to conserve battery power.When enabled, your device automatically analyzes the screen and adjusts the brightness to conserve battery power.1. From a Home screen, tap Apps ➔ Settings ➔Power saving.2. On the Power saving tab, tap the OFF / ON icon to turn Power saving on or off.3. Tap Custom power saving to enable or disable the mode. When enabled, a check mark appears in the check box.4. Tap Screen timeout to set the length of delay between the last key press or screen touch and the automatic screen timeout (dim and lock).5. Tap Learn about power saving to display more information about saving power.

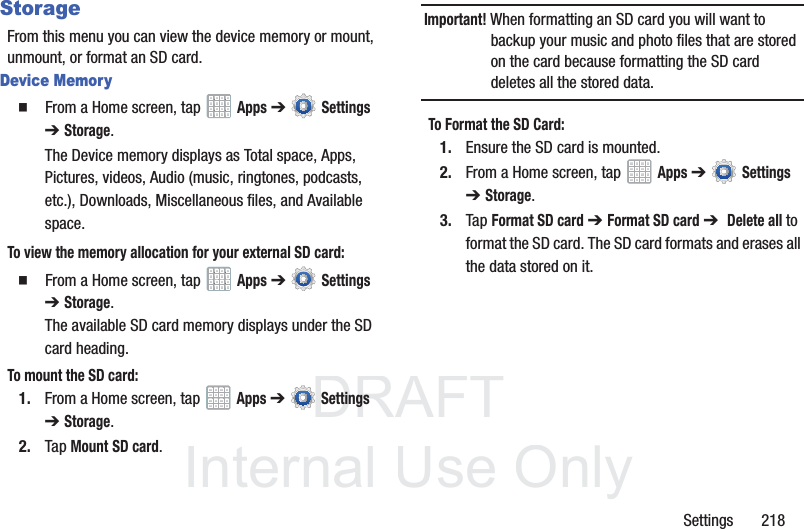

DRAFT InternalUse OnlySettings 218StorageFrom this menu you can view the device memory or mount, unmount, or format an SD card.Device Memory From a Home screen, tap Apps ➔ Settings ➔Storage.The Device memory displays as Total space, Apps, Pictures, videos, Audio (music, ringtones, podcasts, etc.), Downloads, Miscellaneous files, and Available space.To view the memory allocation for your external SD card: From a Home screen, tap Apps ➔ Settings ➔Storage. The available SD card memory displays under the SD card heading.To mount the SD card:1. From a Home screen, tap Apps ➔ Settings ➔Storage.2. Tap Mount SD card.Important! When formatting an SD card you will want to backup your music and photo files that are stored on the card because formatting the SD card deletes all the stored data.To Format the SD Card:1. Ensure the SD card is mounted. 2. From a Home screen, tap Apps ➔ Settings ➔Storage.3. Tap Format SD card ➔ Format SD card ➔ Delete all to format the SD card. The SD card formats and erases all the data stored on it.

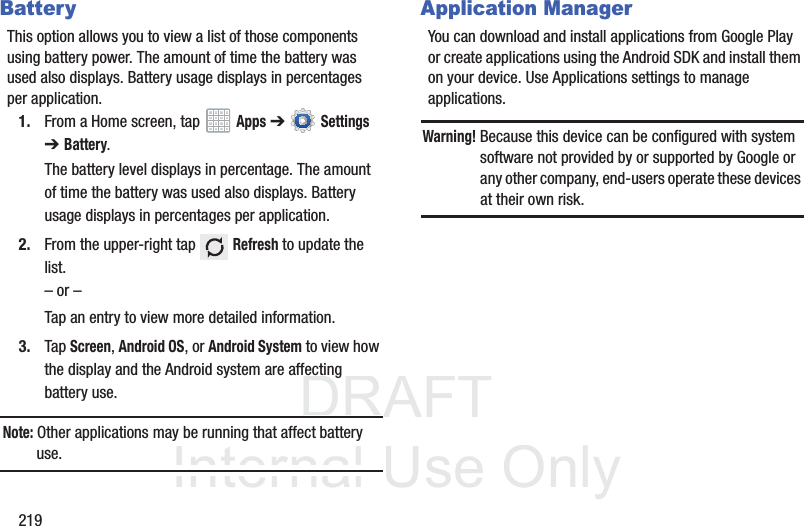

DRAFT InternalUse Only219BatteryThis option allows you to view a list of those components using battery power. The amount of time the battery was used also displays. Battery usage displays in percentages per application.1. From a Home screen, tap Apps ➔ Settings ➔Battery.The battery level displays in percentage. The amount of time the battery was used also displays. Battery usage displays in percentages per application.2. From the upper-right tap Refresh to update the list.– or –Tap an entry to view more detailed information.3. Tap Screen, Android OS, or Android System to view how the display and the Android system are affecting battery use.Note: Other applications may be running that affect battery use.Application ManagerYou can download and install applications from Google Play or create applications using the Android SDK and install them on your device. Use Applications settings to manage applications.Warning! Because this device can be configured with system software not provided by or supported by Google or any other company, end-users operate these devices at their own risk.

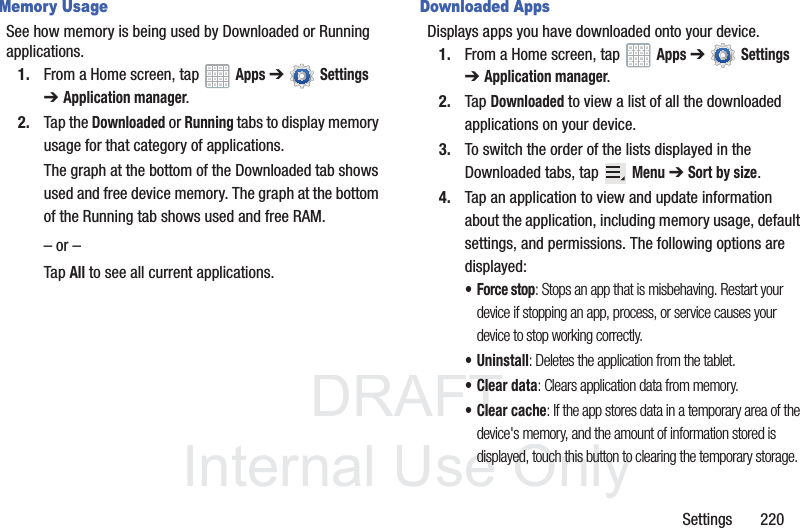

DRAFT InternalUse OnlySettings 220Memory UsageSee how memory is being used by Downloaded or Running applications.1. From a Home screen, tap Apps ➔ Settings ➔Application manager.2. Tap the Downloaded or Running tabs to display memory usage for that category of applications.The graph at the bottom of the Downloaded tab shows used and free device memory. The graph at the bottom of the Running tab shows used and free RAM.– or –Tap All to see all current applications.Downloaded AppsDisplays apps you have downloaded onto your device.1. From a Home screen, tap Apps ➔ Settings ➔Application manager.2. Tap Downloaded to view a list of all the downloaded applications on your device.3. To switch the order of the lists displayed in the Downloaded tabs, tap Menu ➔ Sort by size.4. Tap an application to view and update information about the application, including memory usage, default settings, and permissions. The following options are displayed:• Force stop: Stops an app that is misbehaving. Restart your device if stopping an app, process, or service causes your device to stop working correctly.• Uninstall: Deletes the application from the tablet.• Clear data: Clears application data from memory.• Clear cache: If the app stores data in a temporary area of the device's memory, and the amount of information stored is displayed, touch this button to clearing the temporary storage.

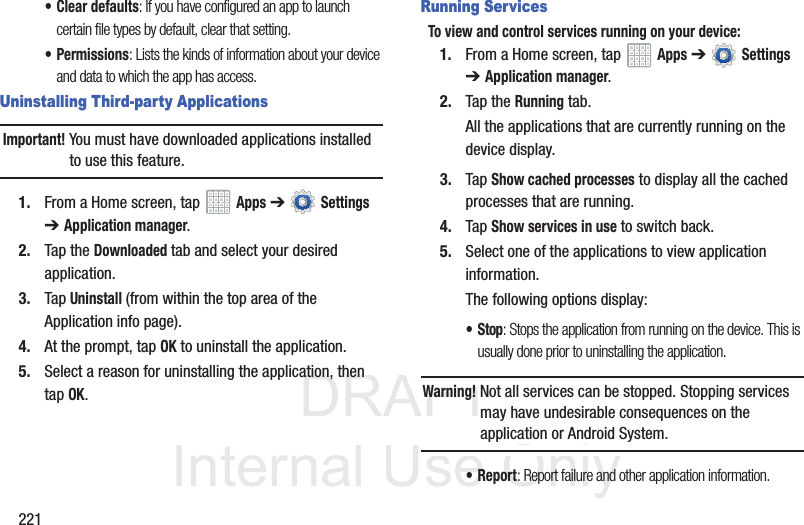

DRAFT InternalUse Only221• Clear defaults: If you have configured an app to launch certain file types by default, clear that setting.•Permissions: Lists the kinds of information about your device and data to which the app has access.Uninstalling Third-party ApplicationsImportant! You must have downloaded applications installed to use this feature.1. From a Home screen, tap Apps ➔ Settings ➔Application manager.2. Tap the Downloaded tab and select your desired application.3. Tap Uninstall (from within the top area of the Application info page).4. At the prompt, tap OK to uninstall the application.5. Select a reason for uninstalling the application, then tap OK.Running ServicesTo view and control services running on your device:1. From a Home screen, tap Apps ➔ Settings ➔Application manager.2. Tap the Running tab.All the applications that are currently running on the device display.3. Tap Show cached processes to display all the cached processes that are running. 4. Tap Show services in use to switch back.5. Select one of the applications to view application information.The following options display:•Stop: Stops the application from running on the device. This is usually done prior to uninstalling the application.Warning! Not all services can be stopped. Stopping services may have undesirable consequences on the application or Android System.•Report: Report failure and other application information.

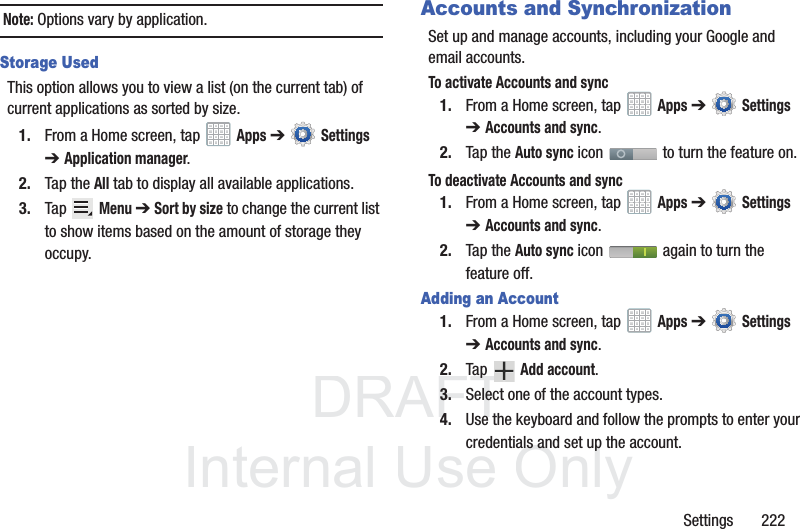

DRAFT InternalUse OnlySettings 222Note: Options vary by application.Storage UsedThis option allows you to view a list (on the current tab) of current applications as sorted by size.1. From a Home screen, tap Apps ➔ Settings ➔Application manager.2. Tap the All tab to display all available applications.3. Tap Menu ➔ Sort by size to change the current list to show items based on the amount of storage they occupy.Accounts and SynchronizationSet up and manage accounts, including your Google and email accounts.To activate Accounts and sync1. From a Home screen, tap Apps ➔ Settings ➔Accounts and sync. 2. Tap the Auto sync icon to turn the feature on.To deactivate Accounts and sync1. From a Home screen, tap Apps ➔ Settings ➔Accounts and sync. 2. Tap the Auto sync icon again to turn the feature off.Adding an Account1. From a Home screen, tap Apps ➔ Settings ➔Accounts and sync.2. Tap Add account.3. Select one of the account types.4. Use the keyboard and follow the prompts to enter your credentials and set up the account.

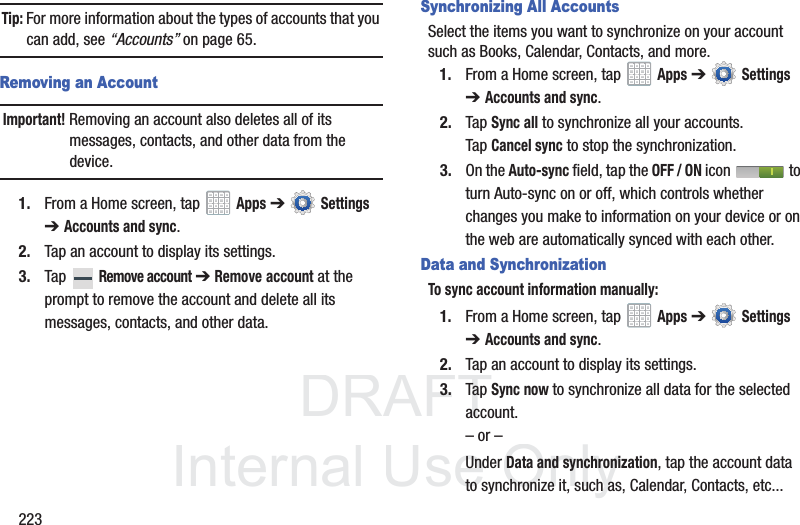

DRAFT InternalUse Only223Tip: For more information about the types of accounts that you can add, see “Accounts” on page 65.Removing an AccountImportant! Removing an account also deletes all of its messages, contacts, and other data from the device.1. From a Home screen, tap Apps ➔ Settings ➔Accounts and sync.2. Tap an account to display its settings.3. Tap Remove account ➔ Remove account at the prompt to remove the account and delete all its messages, contacts, and other data.Synchronizing All AccountsSelect the items you want to synchronize on your account such as Books, Calendar, Contacts, and more.1. From a Home screen, tap Apps ➔ Settings ➔Accounts and sync.2. Tap Sync all to synchronize all your accounts. Tap Cancel sync to stop the synchronization.3. On the Auto-sync field, tap the OFF / ON icon to turn Auto-sync on or off, which controls whether changes you make to information on your device or on the web are automatically synced with each other.Data and SynchronizationTo sync account information manually:1. From a Home screen, tap Apps ➔ Settings ➔Accounts and sync.2. Tap an account to display its settings.3. Tap Sync now to synchronize all data for the selected account.– or –Under Data and synchronization, tap the account data to synchronize it, such as, Calendar, Contacts, etc...

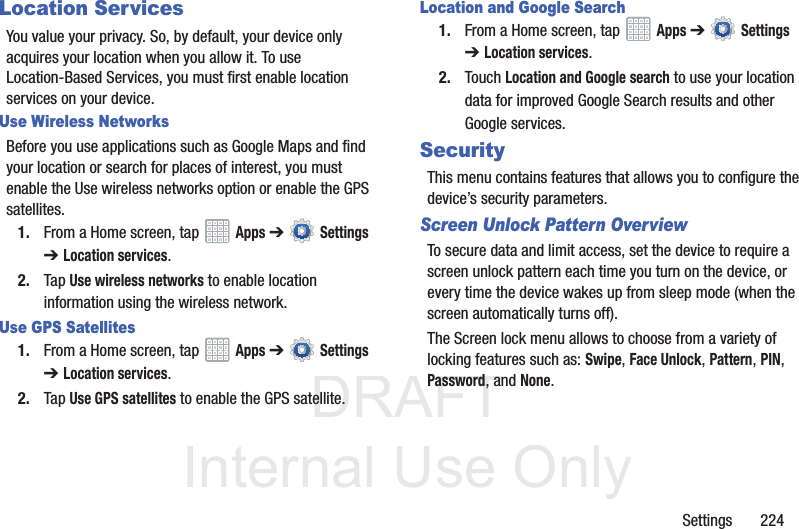

DRAFT InternalUse OnlySettings 224Location ServicesYou value your privacy. So, by default, your device only acquires your location when you allow it. To use Location-Based Services, you must first enable location services on your device.Use Wireless NetworksBefore you use applications such as Google Maps and find your location or search for places of interest, you must enable the Use wireless networks option or enable the GPS satellites.1. From a Home screen, tap Apps ➔ Settings ➔Location services.2. Tap Use wireless networks to enable location information using the wireless network.Use GPS Satellites1. From a Home screen, tap Apps ➔ Settings ➔Location services.2. Tap Use GPS satellites to enable the GPS satellite.Location and Google Search1. From a Home screen, tap Apps ➔ Settings ➔Location services.2. Touch Location and Google search to use your location data for improved Google Search results and other Google services.SecurityThis menu contains features that allows you to configure the device’s security parameters.Screen Unlock Pattern OverviewTo secure data and limit access, set the device to require a screen unlock pattern each time you turn on the device, or every time the device wakes up from sleep mode (when the screen automatically turns off).The Screen lock menu allows to choose from a variety of locking features such as: Swipe, Face Unlock, Pattern, PIN, Password, and None.

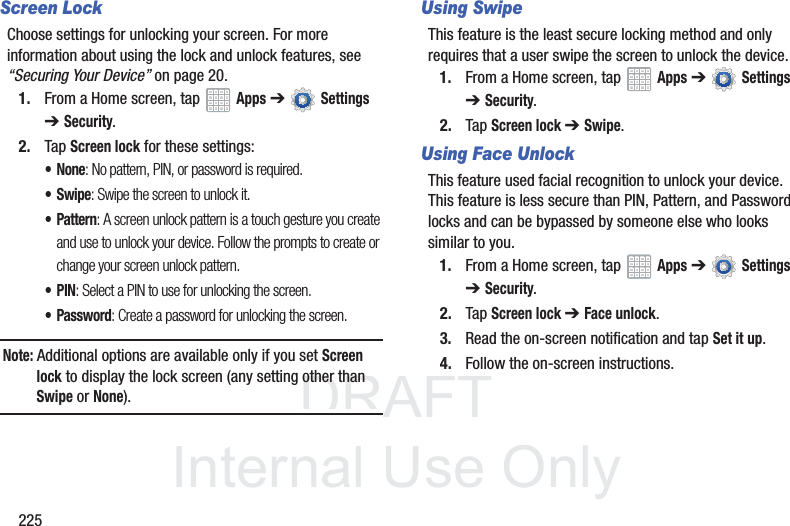

DRAFT InternalUse Only225Screen LockChoose settings for unlocking your screen. For more information about using the lock and unlock features, see “Securing Your Device” on page 20.1. From a Home screen, tap Apps ➔ Settings ➔Security.2. Tap Screen lock for these settings:•None: No pattern, PIN, or password is required.• Swipe: Swipe the screen to unlock it.• Pattern: A screen unlock pattern is a touch gesture you create and use to unlock your device. Follow the prompts to create or change your screen unlock pattern.•PIN: Select a PIN to use for unlocking the screen.• Password: Create a password for unlocking the screen.Note: Additional options are available only if you set Screen lock to display the lock screen (any setting other than Swipe or None).Using SwipeThis feature is the least secure locking method and only requires that a user swipe the screen to unlock the device.1. From a Home screen, tap Apps ➔ Settings ➔Security.2. Tap Screen lock ➔ Swipe.Using Face UnlockThis feature used facial recognition to unlock your device. This feature is less secure than PIN, Pattern, and Password locks and can be bypassed by someone else who looks similar to you.1. From a Home screen, tap Apps ➔ Settings ➔Security.2. Tap Screen lock ➔ Face unlock.3. Read the on-screen notification and tap Set it up.4. Follow the on-screen instructions.

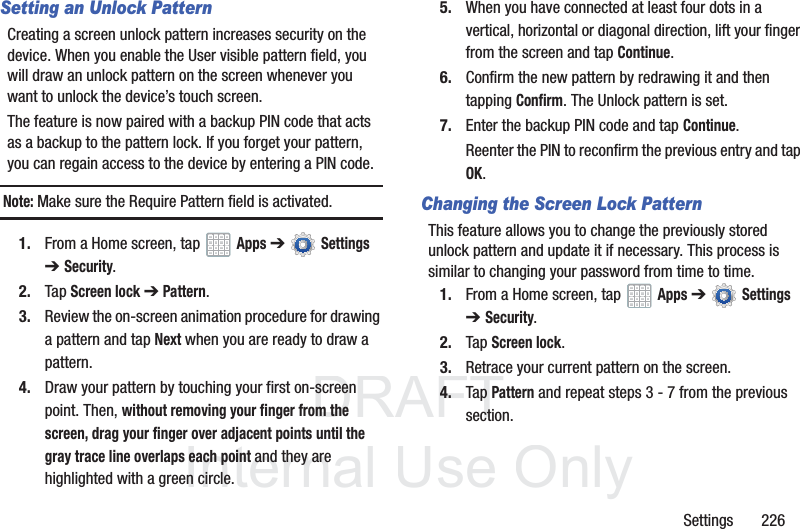

DRAFT InternalUse OnlySettings 226Setting an Unlock PatternCreating a screen unlock pattern increases security on the device. When you enable the User visible pattern field, you will draw an unlock pattern on the screen whenever you want to unlock the device’s touch screen. The feature is now paired with a backup PIN code that acts as a backup to the pattern lock. If you forget your pattern, you can regain access to the device by entering a PIN code.Note: Make sure the Require Pattern field is activated.1. From a Home screen, tap Apps ➔ Settings ➔Security.2. Tap Screen lock ➔ Pattern.3. Review the on-screen animation procedure for drawing a pattern and tap Next when you are ready to draw a pattern.4. Draw your pattern by touching your first on-screen point. Then, without removing your finger from the screen, drag your finger over adjacent points until the gray trace line overlaps each point and they are highlighted with a green circle.5. When you have connected at least four dots in a vertical, horizontal or diagonal direction, lift your finger from the screen and tap Continue.6. Confirm the new pattern by redrawing it and then tapping Confirm. The Unlock pattern is set.7. Enter the backup PIN code and tap Continue.Reenter the PIN to reconfirm the previous entry and tap OK.Changing the Screen Lock PatternThis feature allows you to change the previously stored unlock pattern and update it if necessary. This process is similar to changing your password from time to time.1. From a Home screen, tap Apps ➔ Settings ➔Security.2. Tap Screen lock.3. Retrace your current pattern on the screen.4. Tap Pattern and repeat steps 3 - 7 from the previous section.

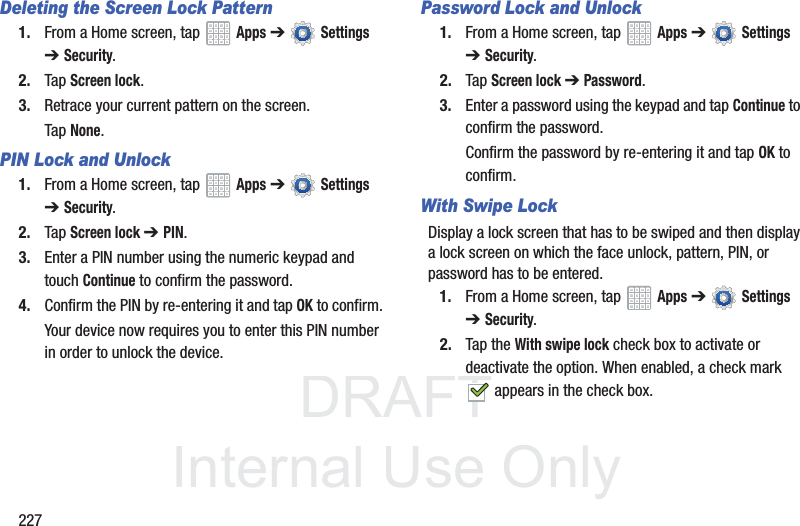

DRAFT InternalUse Only227Deleting the Screen Lock Pattern1. From a Home screen, tap Apps ➔ Settings ➔Security.2. Tap Screen lock.3. Retrace your current pattern on the screen.Tap None.PIN Lock and Unlock1. From a Home screen, tap Apps ➔ Settings ➔Security.2. Tap Screen lock ➔ PIN.3. Enter a PIN number using the numeric keypad and touch Continue to confirm the password.4. Confirm the PIN by re-entering it and tap OK to confirm.Your device now requires you to enter this PIN number in order to unlock the device.Password Lock and Unlock1. From a Home screen, tap Apps ➔ Settings ➔Security.2. Tap Screen lock ➔ Password.3. Enter a password using the keypad and tap Continue to confirm the password.Confirm the password by re-entering it and tap OK to confirm.With Swipe LockDisplay a lock screen that has to be swiped and then display a lock screen on which the face unlock, pattern, PIN, or password has to be entered.1. From a Home screen, tap Apps ➔ Settings ➔Security.2. Tap the With swipe lock check box to activate or deactivate the option. When enabled, a check mark appears in the check box.

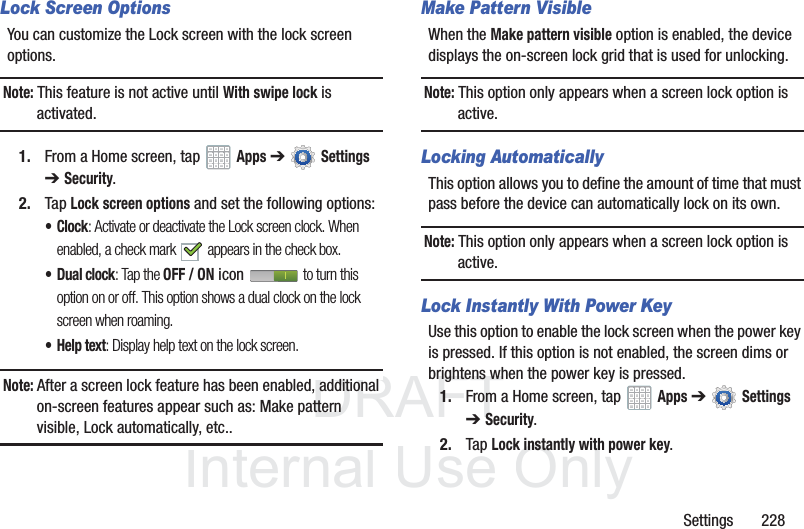

DRAFT InternalUse OnlySettings 228Lock Screen OptionsYou can customize the Lock screen with the lock screen options.Note: This feature is not active until With swipe lock is activated.1. From a Home screen, tap Apps ➔ Settings ➔Security.2. Tap Lock screen options and set the following options:•Clock: Activate or deactivate the Lock screen clock. When enabled, a check mark appears in the check box.• Dual clock: Tap the OFF / ON icon to turn this option on or off. This option shows a dual clock on the lock screen when roaming.• Help text: Display help text on the lock screen.Note: After a screen lock feature has been enabled, additional on-screen features appear such as: Make pattern visible, Lock automatically, etc..Make Pattern VisibleWhen the Make pattern visible option is enabled, the device displays the on-screen lock grid that is used for unlocking.Note: This option only appears when a screen lock option is active.Locking AutomaticallyThis option allows you to define the amount of time that must pass before the device can automatically lock on its own.Note: This option only appears when a screen lock option is active.Lock Instantly With Power KeyUse this option to enable the lock screen when the power key is pressed. If this option is not enabled, the screen dims or brightens when the power key is pressed.1. From a Home screen, tap Apps ➔ Settings ➔Security.2. Tap Lock instantly with power key.

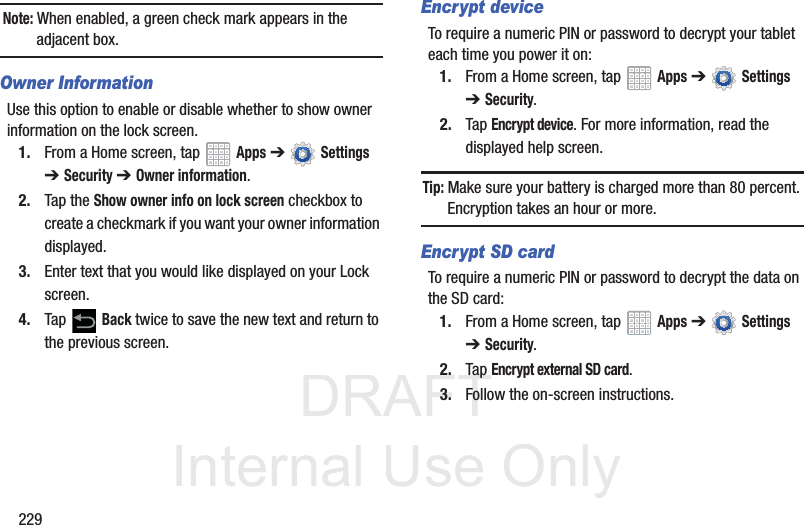

DRAFT InternalUse Only229Note: When enabled, a green check mark appears in the adjacent box.Owner InformationUse this option to enable or disable whether to show owner information on the lock screen.1. From a Home screen, tap Apps ➔ Settings ➔Security ➔ Owner information.2. Tap the Show owner info on lock screen checkbox to create a checkmark if you want your owner information displayed.3. Enter text that you would like displayed on your Lock screen.4. Tap Back twice to save the new text and return to the previous screen.Encrypt deviceTo require a numeric PIN or password to decrypt your tablet each time you power it on:1. From a Home screen, tap Apps ➔ Settings ➔Security.2. Tap Encrypt device. For more information, read the displayed help screen.Tip: Make sure your battery is charged more than 80 percent. Encryption takes an hour or more.Encrypt SD cardTo require a numeric PIN or password to decrypt the data on the SD card:1. From a Home screen, tap Apps ➔ Settings ➔Security.2. Tap Encrypt external SD card. 3. Follow the on-screen instructions.

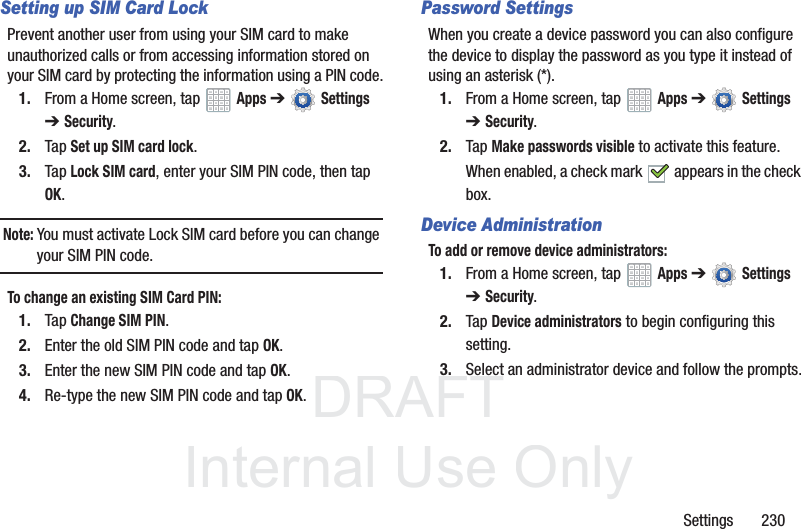

DRAFT InternalUse OnlySettings 230Setting up SIM Card LockPrevent another user from using your SIM card to make unauthorized calls or from accessing information stored on your SIM card by protecting the information using a PIN code.1. From a Home screen, tap Apps ➔ Settings ➔Security.2. Tap Set up SIM card lock.3. Tap Lock SIM card, enter your SIM PIN code, then tap OK.Note: You must activate Lock SIM card before you can change your SIM PIN code.To change an existing SIM Card PIN:1. Tap Change SIM PIN.2. Enter the old SIM PIN code and tap OK.3. Enter the new SIM PIN code and tap OK.4. Re-type the new SIM PIN code and tap OK.Password SettingsWhen you create a device password you can also configure the device to display the password as you type it instead of using an asterisk (*).1. From a Home screen, tap Apps ➔ Settings ➔Security.2. Tap Make passwords visible to activate this feature.When enabled, a check mark appears in the check box.Device AdministrationTo add or remove device administrators:1. From a Home screen, tap Apps ➔ Settings ➔Security.2. Tap Device administrators to begin configuring this setting.3. Select an administrator device and follow the prompts.

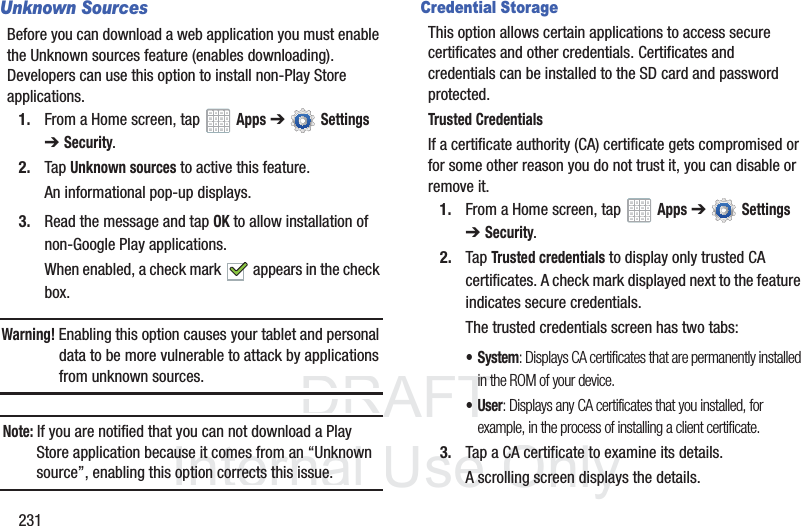

DRAFT InternalUse Only231Unknown SourcesBefore you can download a web application you must enable the Unknown sources feature (enables downloading). Developers can use this option to install non-Play Store applications.1. From a Home screen, tap Apps ➔ Settings ➔Security.2. Tap Unknown sources to active this feature.An informational pop-up displays.3. Read the message and tap OK to allow installation of non-Google Play applications.When enabled, a check mark appears in the check box.Warning! Enabling this option causes your tablet and personal data to be more vulnerable to attack by applications from unknown sources.Note: If you are notified that you can not download a Play Store application because it comes from an “Unknown source”, enabling this option corrects this issue.Credential StorageThis option allows certain applications to access secure certificates and other credentials. Certificates and credentials can be installed to the SD card and password protected.Trusted CredentialsIf a certificate authority (CA) certificate gets compromised or for some other reason you do not trust it, you can disable or remove it.1. From a Home screen, tap Apps ➔ Settings ➔Security.2. Tap Trusted credentials to display only trusted CA certificates. A check mark displayed next to the feature indicates secure credentials.The trusted credentials screen has two tabs:• System: Displays CA certificates that are permanently installed in the ROM of your device.•User: Displays any CA certificates that you installed, for example, in the process of installing a client certificate.3. Tap a CA certificate to examine its details.A scrolling screen displays the details.

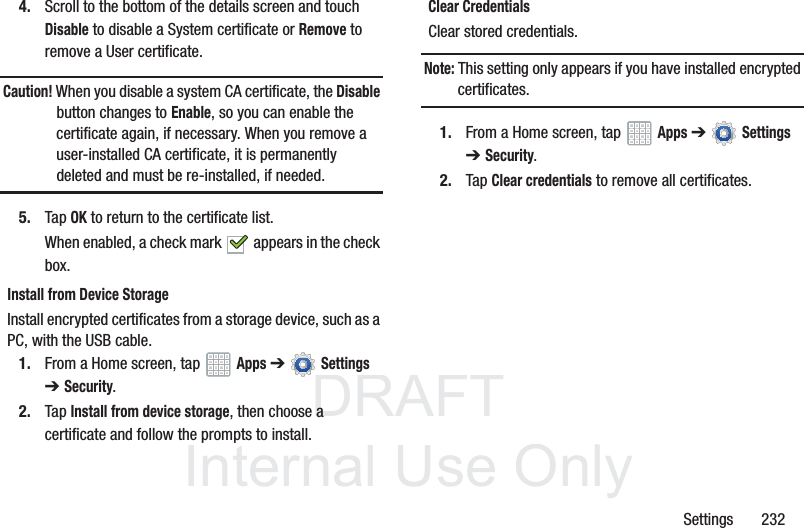

DRAFT InternalUse OnlySettings 2324. Scroll to the bottom of the details screen and touch Disable to disable a System certificate or Remove to remove a User certificate.Caution! When you disable a system CA certificate, the Disable button changes to Enable, so you can enable the certificate again, if necessary. When you remove a user-installed CA certificate, it is permanently deleted and must be re-installed, if needed.5. Tap OK to return to the certificate list.When enabled, a check mark appears in the check box.Install from Device StorageInstall encrypted certificates from a storage device, such as a PC, with the USB cable.1. From a Home screen, tap Apps ➔ Settings ➔Security.2. Tap Install from device storage, then choose a certificate and follow the prompts to install.Clear CredentialsClear stored credentials.Note: This setting only appears if you have installed encrypted certificates.1. From a Home screen, tap Apps ➔ Settings ➔Security.2. Tap Clear credentials to remove all certificates.

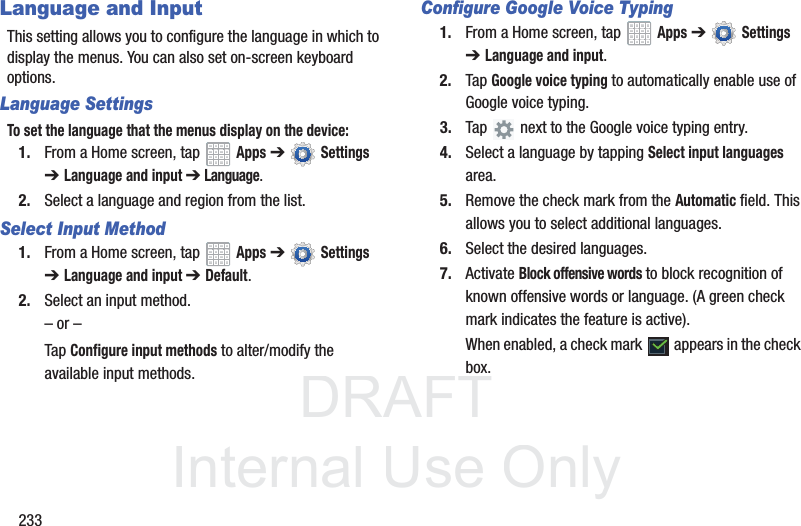

DRAFT InternalUse Only233Language and InputThis setting allows you to configure the language in which to display the menus. You can also set on-screen keyboard options.Language SettingsTo set the language that the menus display on the device:1. From a Home screen, tap Apps ➔ Settings ➔Language and input ➔ Language.2. Select a language and region from the list.Select Input Method1. From a Home screen, tap Apps ➔ Settings ➔Language and input ➔Default.2. Select an input method.– or –Tap Configure input methods to alter/modify the available input methods.Configure Google Voice Typing1. From a Home screen, tap Apps ➔ Settings ➔Language and input.2. Tap Google voice typing to automatically enable use of Google voice typing.3. Tap next to the Google voice typing entry.4. Select a language by tapping Select input languagesarea.5. Remove the check mark from the Automatic field. This allows you to select additional languages.6. Select the desired languages.7. Activate Block offensive words to block recognition of known offensive words or language. (A green check mark indicates the feature is active).When enabled, a check mark appears in the check box.

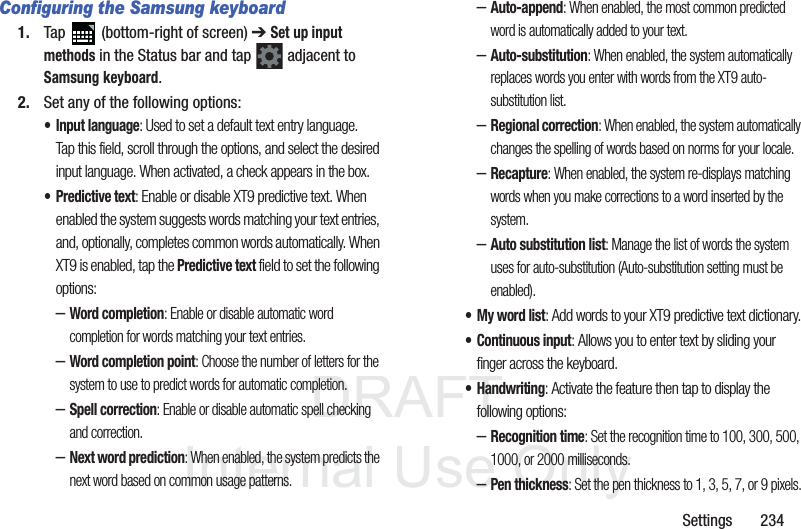

DRAFT InternalUse OnlySettings 234Configuring the Samsung keyboard1. Tap (bottom-right of screen) ➔ Set up input methods in the Status bar and tap adjacent to Samsung keyboard. 2. Set any of the following options:• Input language: Used to set a default text entry language. Tap this field, scroll through the options, and select the desired input language. When activated, a check appears in the box.• Predictive text: Enable or disable XT9 predictive text. When enabled the system suggests words matching your text entries, and, optionally, completes common words automatically. When XT9 is enabled, tap the Predictive text field to set the following options:–Word completion: Enable or disable automatic word completion for words matching your text entries.–Word completion point: Choose the number of letters for the system to use to predict words for automatic completion.–Spell correction: Enable or disable automatic spell checking and correction.–Next word prediction: When enabled, the system predicts the next word based on common usage patterns.–Auto-append: When enabled, the most common predicted word is automatically added to your text.–Auto-substitution: When enabled, the system automatically replaces words you enter with words from the XT9 auto-substitution list.–Regional correction: When enabled, the system automatically changes the spelling of words based on norms for your locale.–Recapture: When enabled, the system re-displays matching words when you make corrections to a word inserted by the system.–Auto substitution list: Manage the list of words the system uses for auto-substitution (Auto-substitution setting must be enabled).•My word list: Add words to your XT9 predictive text dictionary.• Continuous input: Allows you to enter text by sliding your finger across the keyboard.• Handwriting: Activate the feature then tap to display the following options:–Recognition time: Set the recognition time to 100, 300, 500, 1000, or 2000 milliseconds.–Pen thickness: Set the pen thickness to 1, 3, 5, 7, or 9 pixels.

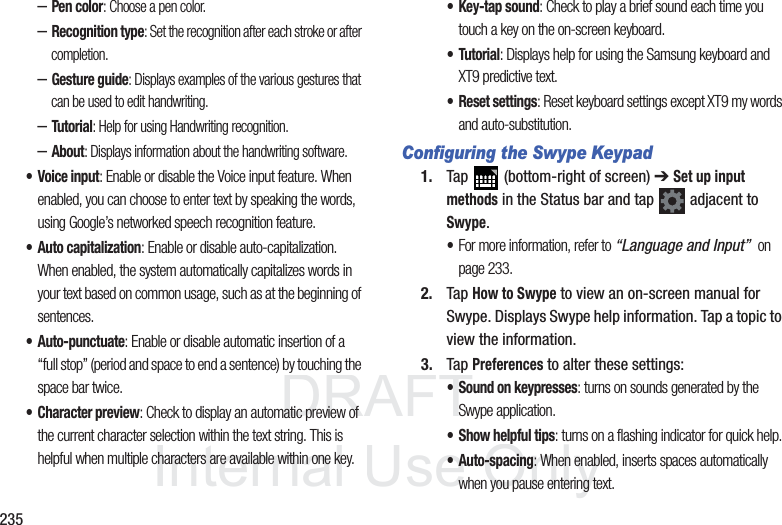

DRAFT InternalUse Only235–Pen color: Choose a pen color.–Recognition type: Set the recognition after each stroke or after completion.–Gesture guide: Displays examples of the various gestures that can be used to edit handwriting.–Tutorial: Help for using Handwriting recognition.–About: Displays information about the handwriting software.• Voice input: Enable or disable the Voice input feature. When enabled, you can choose to enter text by speaking the words, using Google’s networked speech recognition feature.• Auto capitalization: Enable or disable auto-capitalization. When enabled, the system automatically capitalizes words in your text based on common usage, such as at the beginning of sentences.• Auto-punctuate: Enable or disable automatic insertion of a “full stop” (period and space to end a sentence) by touching the space bar twice.• Character preview: Check to display an automatic preview of the current character selection within the text string. This is helpful when multiple characters are available within one key.• Key-tap sound: Check to play a brief sound each time you touch a key on the on-screen keyboard.• Tutorial: Displays help for using the Samsung keyboard and XT9 predictive text.• Reset settings: Reset keyboard settings except XT9 my words and auto-substitution. Configuring the Swype Keypad1. Tap (bottom-right of screen) ➔ Set up input methods in the Status bar and tap adjacent to Swype. •For more information, refer to “Language and Input” on page 233.2. Tap How to Swype to view an on-screen manual for Swype. Displays Swype help information. Tap a topic to view the information.3. Tap Preferences to alter these settings:• Sound on keypresses: turns on sounds generated by the Swype application.• Show helpful tips: turns on a flashing indicator for quick help.• Auto-spacing: When enabled, inserts spaces automatically when you pause entering text.

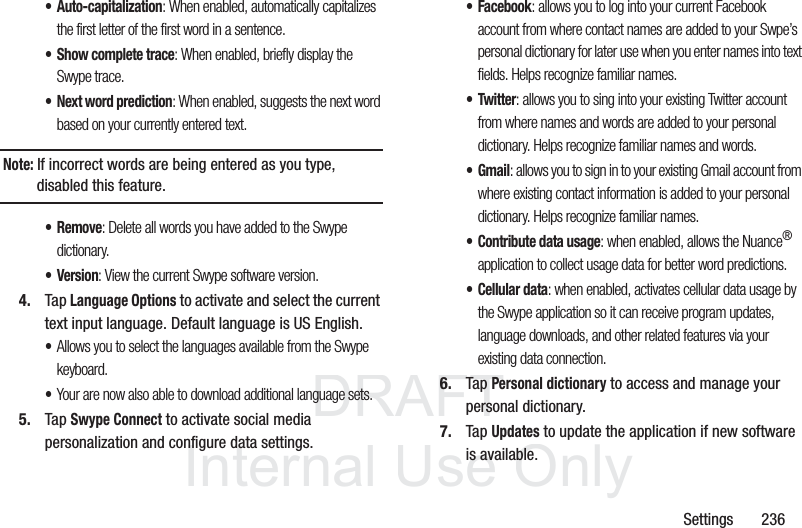

DRAFT InternalUse OnlySettings 236• Auto-capitalization: When enabled, automatically capitalizes the first letter of the first word in a sentence.• Show complete trace: When enabled, briefly display the Swype trace.• Next word prediction: When enabled, suggests the next word based on your currently entered text.Note: If incorrect words are being entered as you type, disabled this feature.•Remove: Delete all words you have added to the Swype dictionary.• Version: View the current Swype software version.4. Tap Language Options to activate and select the current text input language. Default language is US English.•Allows you to select the languages available from the Swype keyboard. •Your are now also able to download additional language sets.5. Tap Swype Connect to activate social media personalization and configure data settings.• Facebook: allows you to log into your current Facebook account from where contact names are added to your Swpe’s personal dictionary for later use when you enter names into text fields. Helps recognize familiar names.• Twitter: allows you to sing into your existing Twitter account from where names and words are added to your personal dictionary. Helps recognize familiar names and words.•Gmail: allows you to sign in to your existing Gmail account from where existing contact information is added to your personal dictionary. Helps recognize familiar names.• Contribute data usage: when enabled, allows the Nuance® application to collect usage data for better word predictions.• Cellular data: when enabled, activates cellular data usage by the Swype application so it can receive program updates, language downloads, and other related features via your existing data connection.6. Tap Personal dictionary to access and manage your personal dictionary.7. Tap Updates to update the application if new software is available.

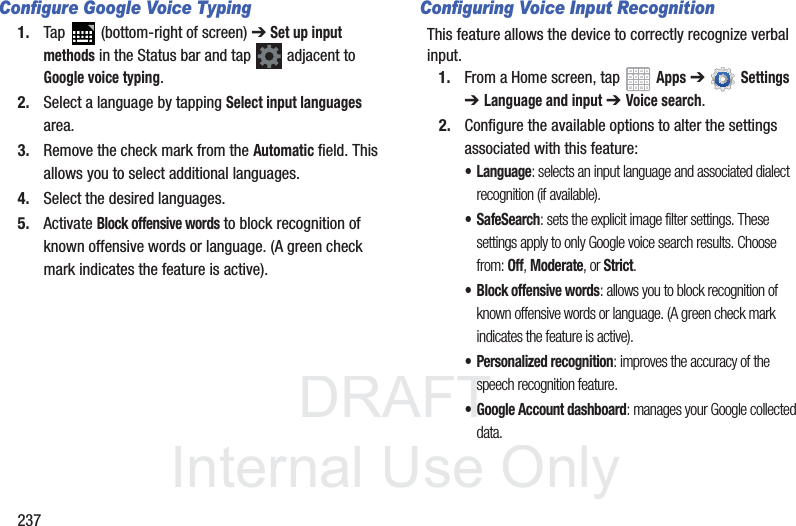

DRAFT InternalUse Only237Configure Google Voice Typing1. Tap (bottom-right of screen) ➔ Set up input methods in the Status bar and tap adjacent to Google voice typing. 2. Select a language by tapping Select input languages area.3. Remove the check mark from the Automatic field. This allows you to select additional languages.4. Select the desired languages.5. Activate Block offensive words to block recognition of known offensive words or language. (A green check mark indicates the feature is active).Configuring Voice Input RecognitionThis feature allows the device to correctly recognize verbal input.1. From a Home screen, tap Apps ➔ Settings ➔Language and input ➔ Voice search.2. Configure the available options to alter the settings associated with this feature:• Language: selects an input language and associated dialect recognition (if available).• SafeSearch: sets the explicit image filter settings. These settings apply to only Google voice search results. Choose from: Off, Moderate, or Strict.• Block offensive words: allows you to block recognition of known offensive words or language. (A green check mark indicates the feature is active).• Personalized recognition: improves the accuracy of the speech recognition feature.• Google Account dashboard: manages your Google collected data.

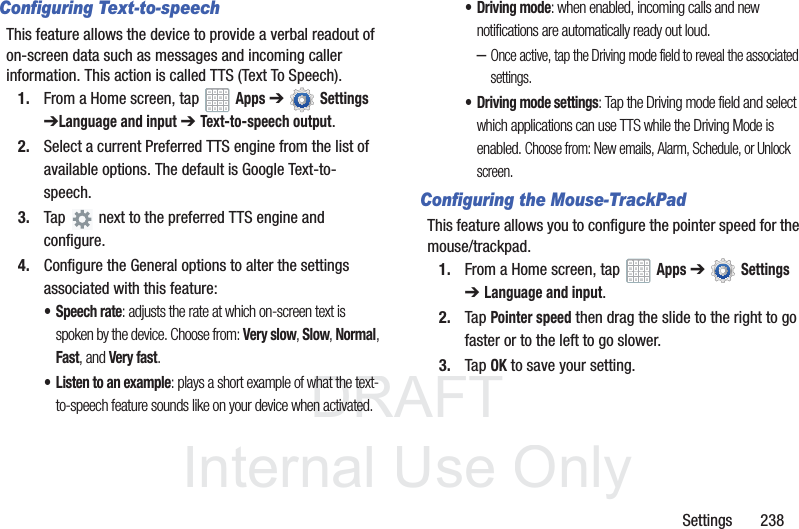

DRAFT InternalUse OnlySettings 238Configuring Text-to-speechThis feature allows the device to provide a verbal readout of on-screen data such as messages and incoming caller information. This action is called TTS (Text To Speech).1. From a Home screen, tap Apps ➔ Settings ➔Language and input ➔ Text-to-speech output.2. Select a current Preferred TTS engine from the list of available options. The default is Google Text-to-speech.3. Tap next to the preferred TTS engine and configure.4. Configure the General options to alter the settings associated with this feature:• Speech rate: adjusts the rate at which on-screen text is spoken by the device. Choose from: Very slow, Slow, Normal, Fast, and Very fast.• Listen to an example: plays a short example of what the text-to-speech feature sounds like on your device when activated.• Driving mode: when enabled, incoming calls and new notifications are automatically ready out loud. –Once active, tap the Driving mode field to reveal the associated settings.• Driving mode settings: Tap the Driving mode field and select which applications can use TTS while the Driving Mode is enabled. Choose from: New emails, Alarm, Schedule, or Unlock screen. Configuring the Mouse-TrackPadThis feature allows you to configure the pointer speed for the mouse/trackpad.1. From a Home screen, tap Apps ➔ Settings ➔Language and input.2. Tap Pointer speed then drag the slide to the right to go faster or to the left to go slower.3. Tap OK to save your setting.

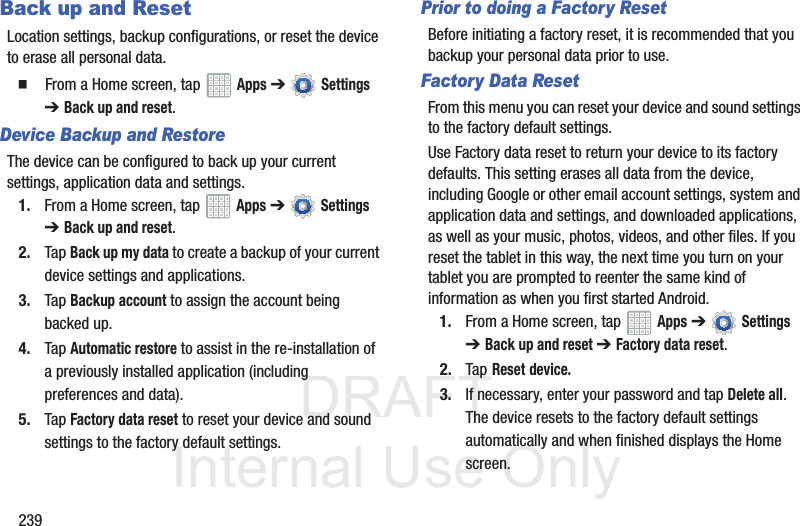

DRAFT InternalUse Only239Back up and ResetLocation settings, backup configurations, or reset the device to erase all personal data. From a Home screen, tap Apps ➔ Settings ➔ Back up and reset.Device Backup and RestoreThe device can be configured to back up your current settings, application data and settings.1. From a Home screen, tap Apps ➔ Settings ➔Back up and reset.2. Tap Back up my data to create a backup of your current device settings and applications.3. Tap Backup account to assign the account being backed up.4. Tap Automatic restore to assist in the re-installation of a previously installed application (including preferences and data).5. Tap Factory data reset to reset your device and sound settings to the factory default settings. Prior to doing a Factory ResetBefore initiating a factory reset, it is recommended that you backup your personal data prior to use. Factory Data ResetFrom this menu you can reset your device and sound settings to the factory default settings.Use Factory data reset to return your device to its factory defaults. This setting erases all data from the device, including Google or other email account settings, system and application data and settings, and downloaded applications, as well as your music, photos, videos, and other files. If you reset the tablet in this way, the next time you turn on your tablet you are prompted to reenter the same kind of information as when you first started Android.1. From a Home screen, tap Apps ➔ Settings ➔Back up and reset ➔Factory data reset.2. Tap Reset device.3. If necessary, enter your password and tap Delete all.The device resets to the factory default settings automatically and when finished displays the Home screen.

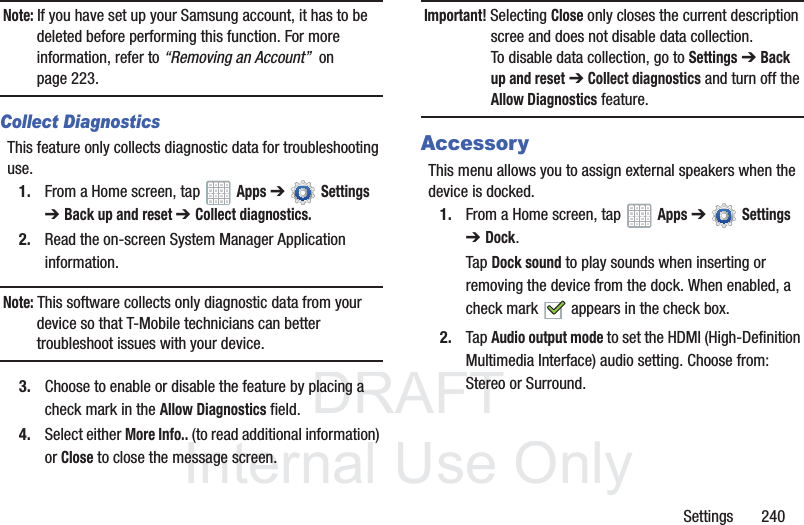

DRAFT InternalUse OnlySettings 240Note: If you have set up your Samsung account, it has to be deleted before performing this function. For more information, refer to “Removing an Account” on page 223.Collect DiagnosticsThis feature only collects diagnostic data for troubleshooting use.1. From a Home screen, tap Apps ➔ Settings ➔ Back up and reset ➔ Collect diagnostics.2. Read the on-screen System Manager Application information. Note: This software collects only diagnostic data from your device so that T-Mobile technicians can better troubleshoot issues with your device.3. Choose to enable or disable the feature by placing a check mark in the Allow Diagnostics field.4. Select either More Info.. (to read additional information) or Close to close the message screen.Important! Selecting Close only closes the current description scree and does not disable data collection.To disable data collection, go to Settings ➔ Back up and reset ➔ Collect diagnostics and turn off the Allow Diagnostics feature. AccessoryThis menu allows you to assign external speakers when the device is docked.1. From a Home screen, tap Apps ➔ Settings ➔Dock.Tap Dock sound to play sounds when inserting or removing the device from the dock. When enabled, a check mark appears in the check box.2. Tap Audio output mode to set the HDMI (High-Definition Multimedia Interface) audio setting. Choose from: Stereo or Surround.

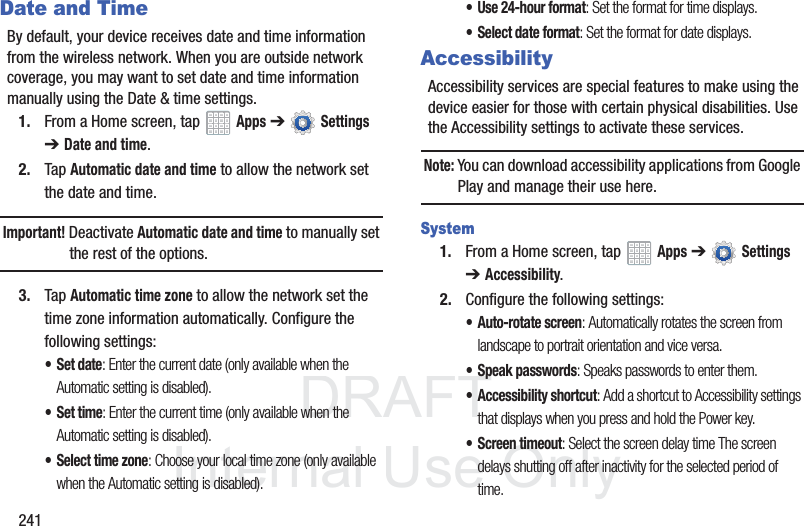

DRAFT InternalUse Only241Date and TimeBy default, your device receives date and time information from the wireless network. When you are outside network coverage, you may want to set date and time information manually using the Date & time settings.1. From a Home screen, tap Apps ➔ Settings ➔Date and time.2. Tap Automatic date and time to allow the network set the date and time.Important! Deactivate Automatic date and time to manually set the rest of the options.3. Tap Automatic time zone to allow the network set the time zone information automatically. Configure the following settings:•Set date: Enter the current date (only available when the Automatic setting is disabled).•Set time: Enter the current time (only available when the Automatic setting is disabled).• Select time zone: Choose your local time zone (only available when the Automatic setting is disabled).• Use 24-hour format: Set the format for time displays.• Select date format: Set the format for date displays.AccessibilityAccessibility services are special features to make using the device easier for those with certain physical disabilities. Use the Accessibility settings to activate these services.Note: You can download accessibility applications from Google Play and manage their use here.System1. From a Home screen, tap Apps ➔ Settings ➔Accessibility.2. Configure the following settings:• Auto-rotate screen: Automatically rotates the screen from landscape to portrait orientation and vice versa.• Speak passwords: Speaks passwords to enter them.• Accessibility shortcut: Add a shortcut to Accessibility settings that displays when you press and hold the Power key.• Screen timeout: Select the screen delay time The screen delays shutting off after inactivity for the selected period of time.

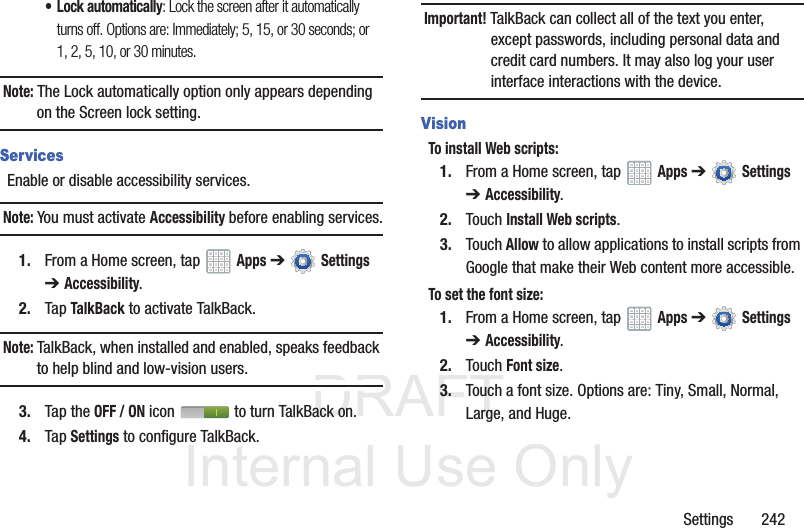

DRAFT InternalUse OnlySettings 242• Lock automatically: Lock the screen after it automatically turns off. Options are: Immediately; 5, 15, or 30 seconds; or 1, 2, 5, 10, or 30 minutes.Note: The Lock automatically option only appears depending on the Screen lock setting.ServicesEnable or disable accessibility services.Note: You must activate Accessibility before enabling services.1. From a Home screen, tap Apps ➔ Settings ➔Accessibility.2. Tap TalkBack to activate TalkBack.Note: TalkBack, when installed and enabled, speaks feedback to help blind and low-vision users.3. Tap the OFF / ON icon to turn TalkBack on.4. Tap Settings to configure TalkBack.Important! TalkBack can collect all of the text you enter, except passwords, including personal data and credit card numbers. It may also log your user interface interactions with the device.VisionTo install Web scripts:1. From a Home screen, tap Apps ➔ Settings ➔Accessibility.2. Touch Install Web scripts.3. Touch Allow to allow applications to install scripts from Google that make their Web content more accessible.To set the font size:1. From a Home screen, tap Apps ➔ Settings ➔Accessibility.2. Touch Font size.3. Touch a font size. Options are: Tiny, Small, Normal, Large, and Huge.

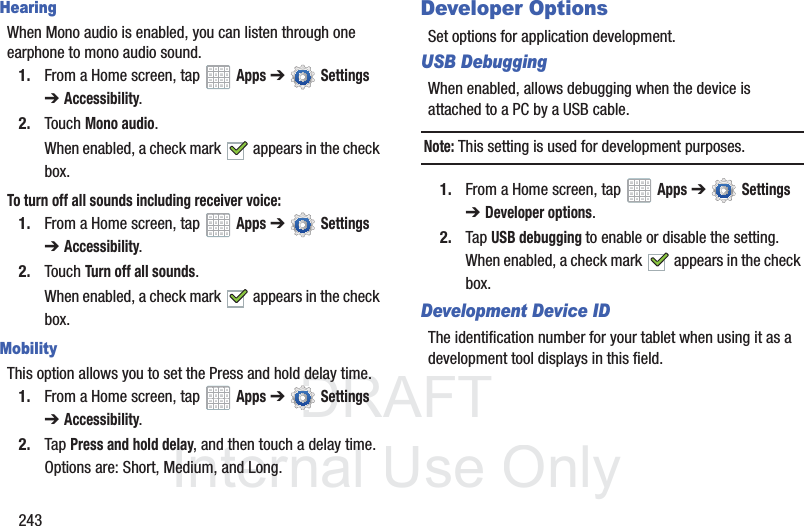

DRAFT InternalUse Only243HearingWhen Mono audio is enabled, you can listen through one earphone to mono audio sound.1. From a Home screen, tap Apps ➔ Settings ➔Accessibility.2. Touch Mono audio.When enabled, a check mark appears in the check box.To turn off all sounds including receiver voice:1. From a Home screen, tap Apps ➔ Settings ➔Accessibility.2. Touch Turn off all sounds.When enabled, a check mark appears in the check box.MobilityThis option allows you to set the Press and hold delay time.1. From a Home screen, tap Apps ➔ Settings ➔Accessibility.2. Tap Press and hold delay, and then touch a delay time. Options are: Short, Medium, and Long.Developer OptionsSet options for application development.USB DebuggingWhen enabled, allows debugging when the device is attached to a PC by a USB cable.Note: This setting is used for development purposes.1. From a Home screen, tap Apps ➔ Settings ➔ Developer options.2. Tap USB debugging to enable or disable the setting. When enabled, a check mark appears in the check box.Development Device IDThe identification number for your tablet when using it as a development tool displays in this field.

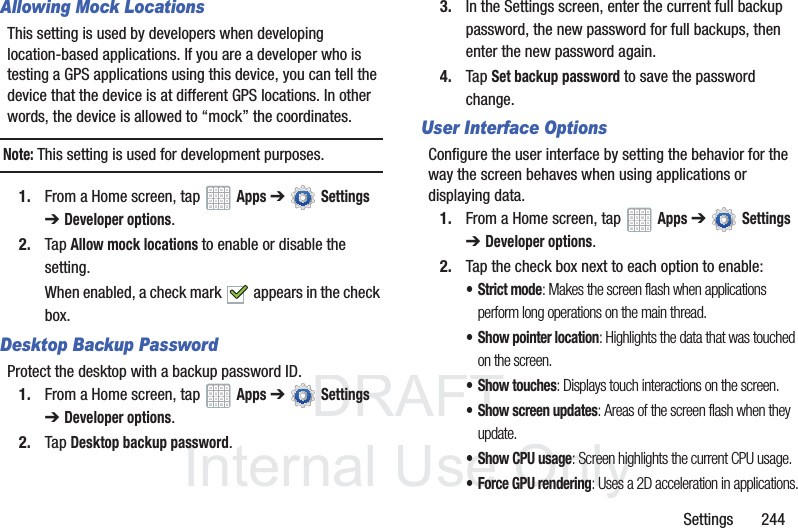

DRAFT InternalUse OnlySettings 244Allowing Mock LocationsThis setting is used by developers when developing location-based applications. If you are a developer who is testing a GPS applications using this device, you can tell the device that the device is at different GPS locations. In other words, the device is allowed to “mock” the coordinates.Note: This setting is used for development purposes.1. From a Home screen, tap Apps ➔ Settings ➔ Developer options.2. Tap Allow mock locations to enable or disable the setting. When enabled, a check mark appears in the check box.Desktop Backup PasswordProtect the desktop with a backup password ID.1. From a Home screen, tap Apps ➔ Settings ➔ Developer options.2. Tap Desktop backup password.3. In the Settings screen, enter the current full backup password, the new password for full backups, then enter the new password again.4. Tap Set backup password to save the password change.User Interface OptionsConfigure the user interface by setting the behavior for the way the screen behaves when using applications or displaying data.1. From a Home screen, tap Apps ➔ Settings ➔ Developer options.2. Tap the check box next to each option to enable:• Strict mode: Makes the screen flash when applications perform long operations on the main thread.• Show pointer location: Highlights the data that was touched on the screen.• Show touches: Displays touch interactions on the screen.• Show screen updates: Areas of the screen flash when they update.• Show CPU usage: Screen highlights the current CPU usage.• Force GPU rendering: Uses a 2D acceleration in applications.

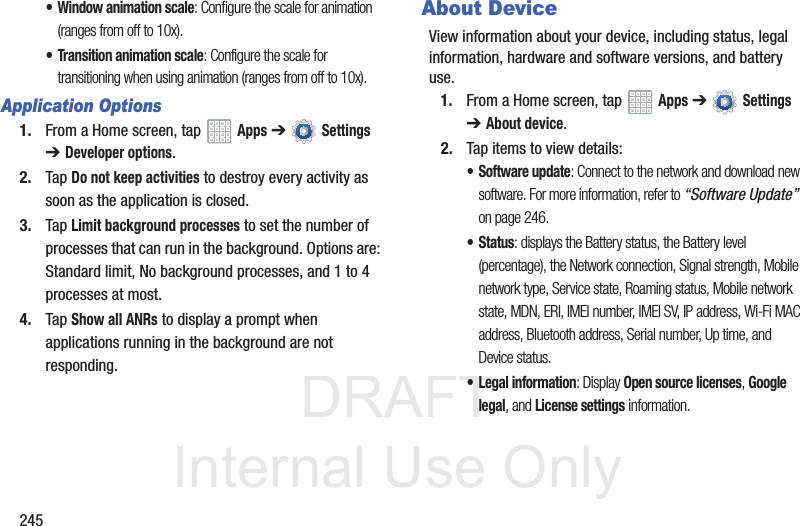

DRAFT InternalUse Only245• Window animation scale: Configure the scale for animation (ranges from off to 10x).• Transition animation scale: Configure the scale for transitioning when using animation (ranges from off to 10x).Application Options1. From a Home screen, tap Apps ➔ Settings ➔ Developer options.2. Tap Do not keep activities to destroy every activity as soon as the application is closed.3. Tap Limit background processes to set the number of processes that can run in the background. Options are: Standard limit, No background processes, and 1 to 4 processes at most.4. Tap Show all ANRs to display a prompt when applications running in the background are not responding.About DeviceView information about your device, including status, legal information, hardware and software versions, and battery use.1. From a Home screen, tap Apps ➔ Settings ➔ About device.2. Tap items to view details:• Software update: Connect to the network and download new software. For more information, refer to “Software Update” on page 246.• Status: displays the Battery status, the Battery level (percentage), the Network connection, Signal strength, Mobile network type, Service state, Roaming status, Mobile network state, MDN, ERI, IMEI number, IMEI SV, IP address, Wi-Fi MAC address, Bluetooth address, Serial number, Up time, and Device status.• Legal information: Display Open source licenses, Google legal, and License settings information.

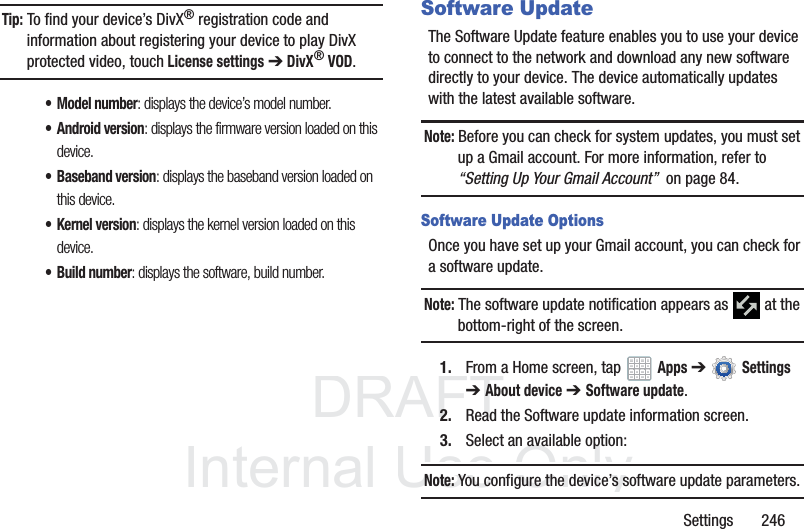

DRAFT InternalUse OnlySettings 246Tip: To find your device’s DivX® registration code and information about registering your device to play DivX protected video, touch License settings ➔ DivX® VOD.• Model number: displays the device’s model number.• Android version: displays the firmware version loaded on this device.• Baseband version: displays the baseband version loaded on this device.• Kernel version: displays the kernel version loaded on this device.• Build number: displays the software, build number.Software UpdateThe Software Update feature enables you to use your device to connect to the network and download any new software directly to your device. The device automatically updates with the latest available software.Note: Before you can check for system updates, you must set up a Gmail account. For more information, refer to “Setting Up Your Gmail Account” on page 84.Software Update OptionsOnce you have set up your Gmail account, you can check for a software update.Note: The software update notification appears as at the bottom-right of the screen.1. From a Home screen, tap Apps ➔ Settings ➔About device ➔ Software update.2. Read the Software update information screen.3. Select an available option:Note: You configure the device’s software update parameters.

DRAFT InternalUse Only247• Cancel: Tap this option to cancel the operation.• Wi-Fi settings: Enable this option to only download available updates via an active Wi-Fi connection. If disabled, the device will begin available downloads via its’ T-Mobile connection.•OK: Tap this option to connect to the remote server, detect if there is an available update, the begin the download over your existing data connection.–Software updates can include bug fixes, enhancements to services, to the device or currently installed software.

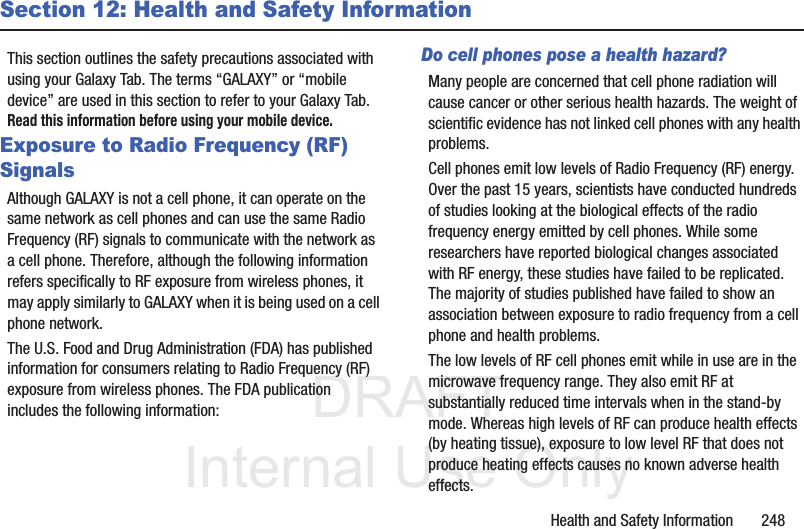

DRAFT InternalUse OnlyHealth and Safety Information 248Section 12: Health and Safety InformationThis section outlines the safety precautions associated with using your Galaxy Tab. The terms “GALAXY” or “mobile device” are used in this section to refer to your Galaxy Tab. Read this information before using your mobile device.Exposure to Radio Frequency (RF) SignalsAlthough GALAXY is not a cell phone, it can operate on the same network as cell phones and can use the same Radio Frequency (RF) signals to communicate with the network as a cell phone. Therefore, although the following information refers specifically to RF exposure from wireless phones, it may apply similarly to GALAXY when it is being used on a cell phone network.The U.S. Food and Drug Administration (FDA) has published information for consumers relating to Radio Frequency (RF) exposure from wireless phones. The FDA publication includes the following information:Do cell phones pose a health hazard?Many people are concerned that cell phone radiation will cause cancer or other serious health hazards. The weight of scientific evidence has not linked cell phones with any health problems.Cell phones emit low levels of Radio Frequency (RF) energy. Over the past 15 years, scientists have conducted hundreds of studies looking at the biological effects of the radio frequency energy emitted by cell phones. While some researchers have reported biological changes associated with RF energy, these studies have failed to be replicated. The majority of studies published have failed to show an association between exposure to radio frequency from a cell phone and health problems.The low levels of RF cell phones emit while in use are in the microwave frequency range. They also emit RF at substantially reduced time intervals when in the stand-by mode. Whereas high levels of RF can produce health effects (by heating tissue), exposure to low level RF that does not produce heating effects causes no known adverse health effects.

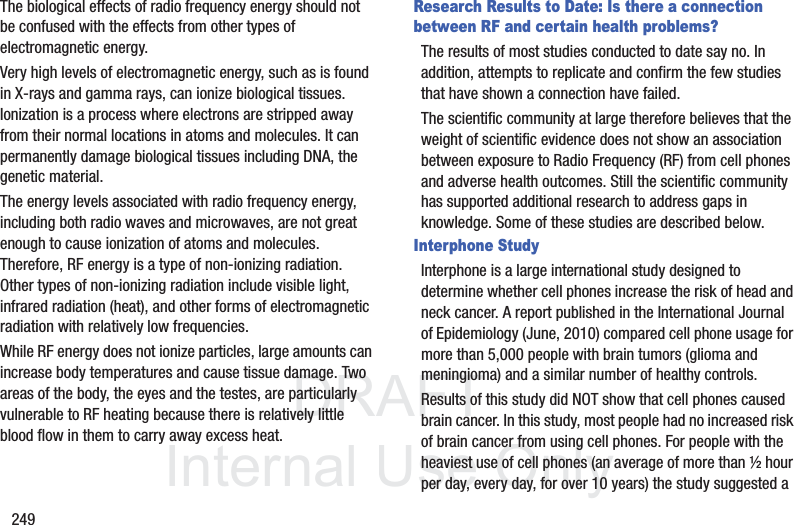

DRAFT InternalUse Only249The biological effects of radio frequency energy should not be confused with the effects from other types of electromagnetic energy.Very high levels of electromagnetic energy, such as is found in X-rays and gamma rays, can ionize biological tissues. Ionization is a process where electrons are stripped away from their normal locations in atoms and molecules. It can permanently damage biological tissues including DNA, the genetic material.The energy levels associated with radio frequency energy, including both radio waves and microwaves, are not great enough to cause ionization of atoms and molecules. Therefore, RF energy is a type of non-ionizing radiation. Other types of non-ionizing radiation include visible light, infrared radiation (heat), and other forms of electromagnetic radiation with relatively low frequencies.While RF energy does not ionize particles, large amounts can increase body temperatures and cause tissue damage. Two areas of the body, the eyes and the testes, are particularly vulnerable to RF heating because there is relatively little blood flow in them to carry away excess heat.Research Results to Date: Is there a connection between RF and certain health problems?The results of most studies conducted to date say no. In addition, attempts to replicate and confirm the few studies that have shown a connection have failed.The scientific community at large therefore believes that the weight of scientific evidence does not show an association between exposure to Radio Frequency (RF) from cell phones and adverse health outcomes. Still the scientific community has supported additional research to address gaps in knowledge. Some of these studies are described below.Interphone StudyInterphone is a large international study designed to determine whether cell phones increase the risk of head and neck cancer. A report published in the International Journal of Epidemiology (June, 2010) compared cell phone usage for more than 5,000 people with brain tumors (glioma and meningioma) and a similar number of healthy controls.Results of this study did NOT show that cell phones caused brain cancer. In this study, most people had no increased risk of brain cancer from using cell phones. For people with the heaviest use of cell phones (an average of more than ½ hour per day, every day, for over 10 years) the study suggested a

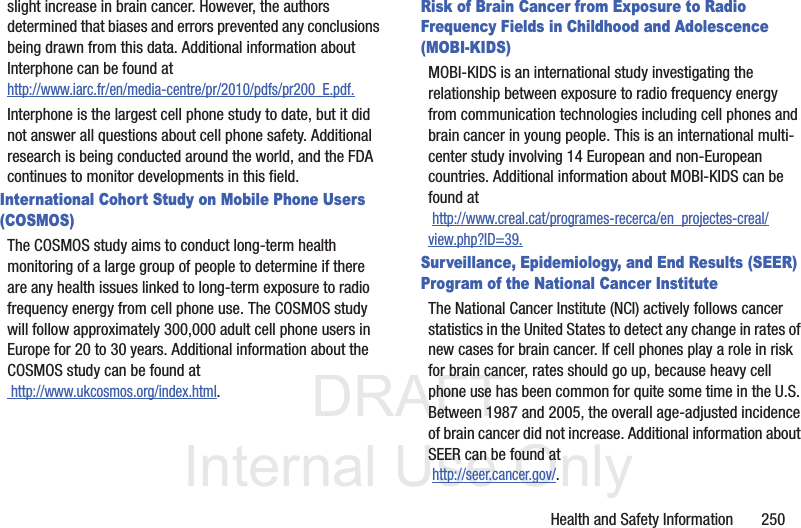

DRAFT InternalUse OnlyHealth and Safety Information 250slight increase in brain cancer. However, the authors determined that biases and errors prevented any conclusions being drawn from this data. Additional information about Interphone can be found at http://www.iarc.fr/en/media-centre/pr/2010/pdfs/pr200_E.pdf.Interphone is the largest cell phone study to date, but it did not answer all questions about cell phone safety. Additional research is being conducted around the world, and the FDA continues to monitor developments in this field.International Cohort Study on Mobile Phone Users (COSMOS)The COSMOS study aims to conduct long-term health monitoring of a large group of people to determine if there are any health issues linked to long-term exposure to radio frequency energy from cell phone use. The COSMOS study will follow approximately 300,000 adult cell phone users in Europe for 20 to 30 years. Additional information about the COSMOS study can be found at http://www.ukcosmos.org/index.html.Risk of Brain Cancer from Exposure to Radio Frequency Fields in Childhood and Adolescence (MOBI-KIDS)MOBI-KIDS is an international study investigating the relationship between exposure to radio frequency energy from communication technologies including cell phones and brain cancer in young people. This is an international multi-center study involving 14 European and non-European countries. Additional information about MOBI-KIDS can be found at http://www.creal.cat/programes-recerca/en_projectes-creal/view.php?ID=39.Surveillance, Epidemiology, and End Results (SEER) Program of the National Cancer InstituteThe National Cancer Institute (NCI) actively follows cancer statistics in the United States to detect any change in rates of new cases for brain cancer. If cell phones play a role in risk for brain cancer, rates should go up, because heavy cell phone use has been common for quite some time in the U.S. Between 1987 and 2005, the overall age-adjusted incidence of brain cancer did not increase. Additional information about SEER can be found at http://seer.cancer.gov/.

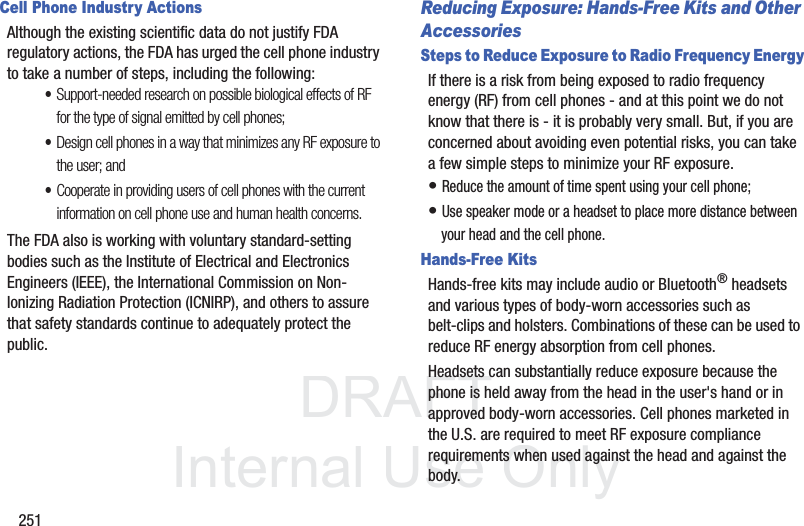

DRAFT InternalUse Only251Cell Phone Industry ActionsAlthough the existing scientific data do not justify FDA regulatory actions, the FDA has urged the cell phone industry to take a number of steps, including the following:•Support-needed research on possible biological effects of RF for the type of signal emitted by cell phones;•Design cell phones in a way that minimizes any RF exposure to the user; and•Cooperate in providing users of cell phones with the current information on cell phone use and human health concerns.The FDA also is working with voluntary standard-setting bodies such as the Institute of Electrical and Electronics Engineers (IEEE), the International Commission on Non-Ionizing Radiation Protection (ICNIRP), and others to assure that safety standards continue to adequately protect the public.Reducing Exposure: Hands-Free Kits and Other AccessoriesSteps to Reduce Exposure to Radio Frequency EnergyIf there is a risk from being exposed to radio frequency energy (RF) from cell phones - and at this point we do not know that there is - it is probably very small. But, if you are concerned about avoiding even potential risks, you can take a few simple steps to minimize your RF exposure.• Reduce the amount of time spent using your cell phone;• Use speaker mode or a headset to place more distance between your head and the cell phone.Hands-Free KitsHands-free kits may include audio or Bluetooth® headsets and various types of body-worn accessories such as belt-clips and holsters. Combinations of these can be used to reduce RF energy absorption from cell phones.Headsets can substantially reduce exposure because the phone is held away from the head in the user's hand or in approved body-worn accessories. Cell phones marketed in the U.S. are required to meet RF exposure compliance requirements when used against the head and against the body.

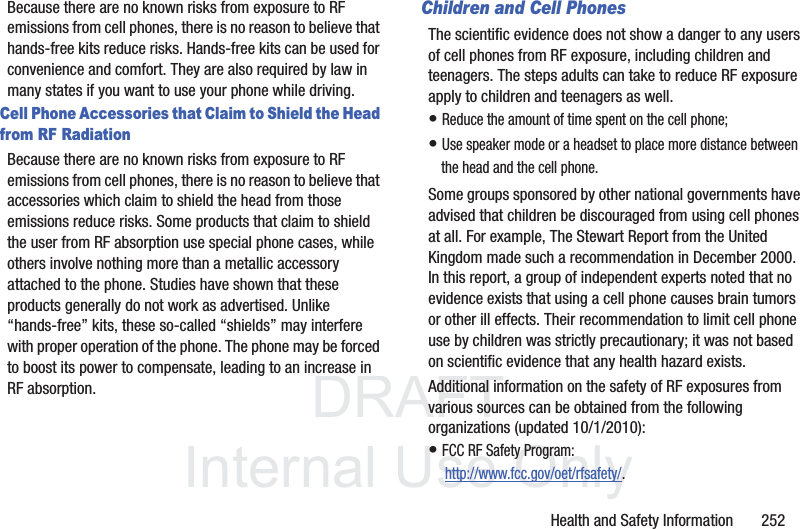

DRAFT InternalUse OnlyHealth and Safety Information 252Because there are no known risks from exposure to RF emissions from cell phones, there is no reason to believe that hands-free kits reduce risks. Hands-free kits can be used for convenience and comfort. They are also required by law in many states if you want to use your phone while driving.Cell Phone Accessories that Claim to Shield the Head from RF RadiationBecause there are no known risks from exposure to RF emissions from cell phones, there is no reason to believe that accessories which claim to shield the head from those emissions reduce risks. Some products that claim to shield the user from RF absorption use special phone cases, while others involve nothing more than a metallic accessory attached to the phone. Studies have shown that these products generally do not work as advertised. Unlike “hands-free” kits, these so-called “shields” may interfere with proper operation of the phone. The phone may be forced to boost its power to compensate, leading to an increase in RF absorption.Children and Cell PhonesThe scientific evidence does not show a danger to any users of cell phones from RF exposure, including children and teenagers. The steps adults can take to reduce RF exposure apply to children and teenagers as well.• Reduce the amount of time spent on the cell phone;• Use speaker mode or a headset to place more distance between the head and the cell phone.Some groups sponsored by other national governments have advised that children be discouraged from using cell phones at all. For example, The Stewart Report from the United Kingdom made such a recommendation in December 2000. In this report, a group of independent experts noted that no evidence exists that using a cell phone causes brain tumors or other ill effects. Their recommendation to limit cell phone use by children was strictly precautionary; it was not based on scientific evidence that any health hazard exists.Additional information on the safety of RF exposures from various sources can be obtained from the following organizations (updated 10/1/2010):• FCC RF Safety Program: http://www.fcc.gov/oet/rfsafety/.

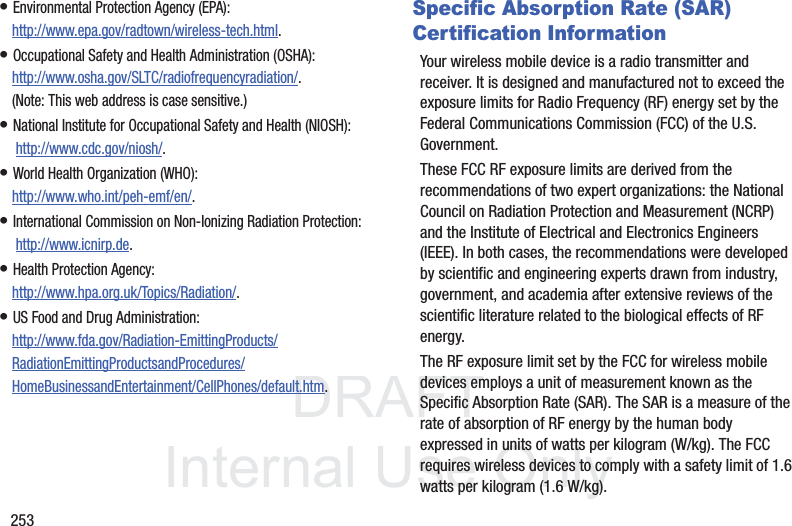

DRAFT InternalUse Only253• Environmental Protection Agency (EPA):http://www.epa.gov/radtown/wireless-tech.html.• Occupational Safety and Health Administration (OSHA): http://www.osha.gov/SLTC/radiofrequencyradiation/. (Note: This web address is case sensitive.)• National Institute for Occupational Safety and Health (NIOSH): http://www.cdc.gov/niosh/.• World Health Organization (WHO): http://www.who.int/peh-emf/en/.• International Commission on Non-Ionizing Radiation Protection: http://www.icnirp.de.• Health Protection Agency: http://www.hpa.org.uk/Topics/Radiation/.• US Food and Drug Administration: http://www.fda.gov/Radiation-EmittingProducts/RadiationEmittingProductsandProcedures/HomeBusinessandEntertainment/CellPhones/default.htm.Specific Absorption Rate (SAR) Certification InformationYour wireless mobile device is a radio transmitter and receiver. It is designed and manufactured not to exceed the exposure limits for Radio Frequency (RF) energy set by the Federal Communications Commission (FCC) of the U.S. Government.These FCC RF exposure limits are derived from the recommendations of two expert organizations: the National Council on Radiation Protection and Measurement (NCRP) and the Institute of Electrical and Electronics Engineers (IEEE). In both cases, the recommendations were developed by scientific and engineering experts drawn from industry, government, and academia after extensive reviews of the scientific literature related to the biological effects of RF energy.The RF exposure limit set by the FCC for wireless mobile devices employs a unit of measurement known as the Specific Absorption Rate (SAR). The SAR is a measure of the rate of absorption of RF energy by the human body expressed in units of watts per kilogram (W/kg). The FCC requires wireless devices to comply with a safety limit of 1.6 watts per kilogram (1.6 W/kg).

DRAFTInternal UseOnlyHealth and Safety Information 254The FCC SAR limit incorporates a substantial margin of safety to give additional protection to the public and to account for any variations in measurements.SAR tests are conducted using standard operating positions accepted by the FCC with the mobile device transmitting at its highest certified power level in all tested frequency bands. Although the SAR is determined at the highest certified power level, the actual SAR level of the mobile device while operating can be well below the maximum reported value. This is because the mobile device is designed to operate at multiple power levels so as to use only the power required to reach the network. In general, the closer you are to a wireless base station antenna, the lower the power output of the mobile device.Before a new model mobile device is available for sale to the public, it must be tested and certified to the FCC that it does not exceed the SAR limit established by the FCC. Tests for each model mobile device are performed in positions and locations (e.g. near the body) as required by the FCC.For typical operations, this mobile device has been tested and meets FCC SAR guidelines.Use of other accessories may not ensure compliance with FCC RF exposure guidelines. The FCC has granted an Equipment Authorization for this mobile device with all reported SAR levels evaluated as in compliance with the FCC RF exposure guidelines. The maximum SAR values for this model device as reported in the FCC equipment authorization grant is:• Body: 1.55 W/kg.SAR information on this and other model mobile devices can be accessed online on the FCC's website through http://transition.fcc.gov/oet/rfsafety/sar.html. To find information that pertains to a particular model mobile device, this site uses the mobile device FCC ID number, which is usually printed somewhere on the case of the mobile device. Once you have the FCC ID number for a particular mobile device, follow the instructions on the website and it should provide values for typical or maximum SAR for a particular

DRAFT InternalUse Only255mobile device. Additional SAR information can also be obtained at http://www.fcc.gov/encyclopedia/specific-absorption-rate-sar-cellular-telephones.FCC Part 15 Information to UserPursuant to part 15.21 of the FCC Rules, you are cautioned that changes or modifications not expressly approved by Samsung could void your authority to operate the device.This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:• Reorient or relocate the receiving antenna.• Increase the separation between the equipment and receiver.• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.• Consult the dealer or an experienced radio/TV technician for help.Smart Practices While DrivingOn the Road - Off the TabletThe primary responsibility of every driver is the safe operation of his or her vehicle.Responsible drivers understand that no secondary task should be performed while driving whether it be eating, drinking, talking to passengers, or using a mobile device - unless the driver has assessed the driving conditions and is confident that the secondary task will not interfere with their primary responsibility. Do not engage in any activity while driving a moving vehicle which may cause you to take your eyes off the road or become so absorbed in the activity that your ability to concentrate on the act of driving becomes

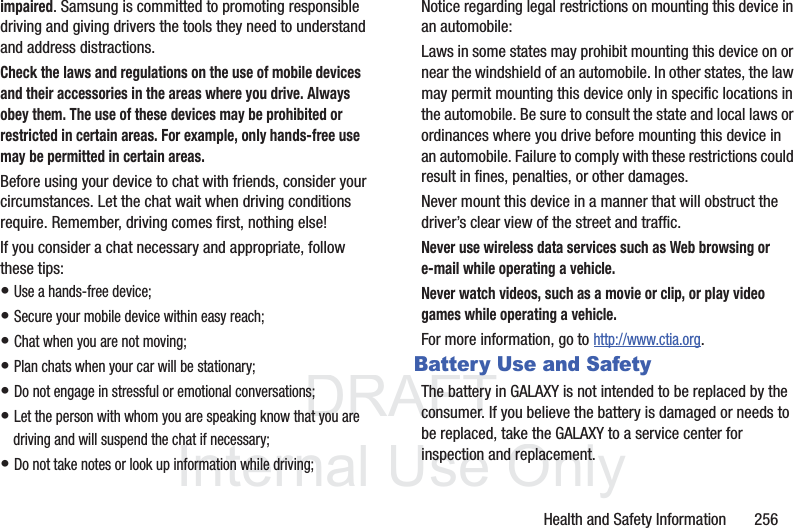

DRAFT InternalUse OnlyHealth and Safety Information 256impaired. Samsung is committed to promoting responsible driving and giving drivers the tools they need to understand and address distractions.Check the laws and regulations on the use of mobile devices and their accessories in the areas where you drive. Always obey them. The use of these devices may be prohibited or restricted in certain areas. For example, only hands-free use may be permitted in certain areas.Before using your device to chat with friends, consider your circumstances. Let the chat wait when driving conditions require. Remember, driving comes first, nothing else!If you consider a chat necessary and appropriate, follow these tips:• Use a hands-free device;• Secure your mobile device within easy reach;• Chat when you are not moving;• Plan chats when your car will be stationary;• Do not engage in stressful or emotional conversations;• Let the person with whom you are speaking know that you are driving and will suspend the chat if necessary;• Do not take notes or look up information while driving;Notice regarding legal restrictions on mounting this device in an automobile:Laws in some states may prohibit mounting this device on or near the windshield of an automobile. In other states, the law may permit mounting this device only in specific locations in the automobile. Be sure to consult the state and local laws or ordinances where you drive before mounting this device in an automobile. Failure to comply with these restrictions could result in fines, penalties, or other damages.Never mount this device in a manner that will obstruct the driver’s clear view of the street and traffic.Never use wireless data services such as Web browsing or e-mail while operating a vehicle.Never watch videos, such as a movie or clip, or play video games while operating a vehicle.For more information, go to http://www.ctia.org.Battery Use and SafetyThe battery in GALAXY is not intended to be replaced by the consumer. If you believe the battery is damaged or needs to be replaced, take the GALAXY to a service center for inspection and replacement.

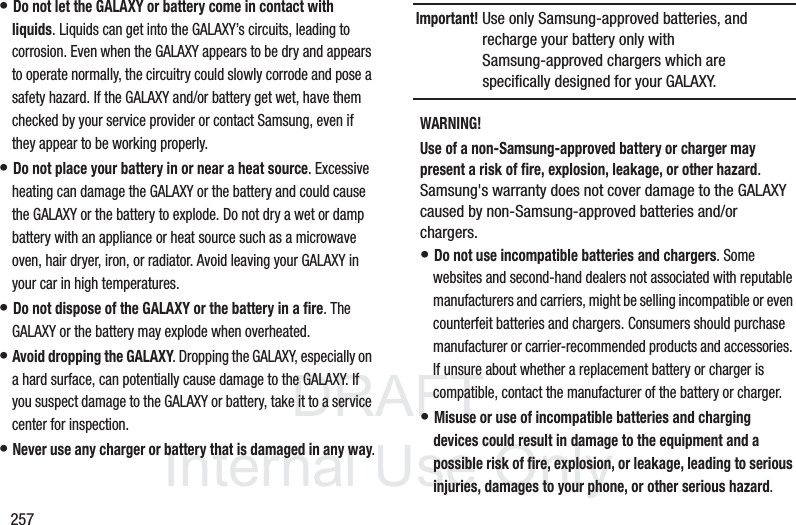

DRAFT InternalUse Only257• Do not let the GALAXY or battery come in contact with liquids. Liquids can get into the GALAXY’s circuits, leading to corrosion. Even when the GALAXY appears to be dry and appears to operate normally, the circuitry could slowly corrode and pose a safety hazard. If the GALAXY and/or battery get wet, have them checked by your service provider or contact Samsung, even if they appear to be working properly.• Do not place your battery in or near a heat source. Excessive heating can damage the GALAXY or the battery and could cause the GALAXY or the battery to explode. Do not dry a wet or damp battery with an appliance or heat source such as a microwave oven, hair dryer, iron, or radiator. Avoid leaving your GALAXY in your car in high temperatures.• Do not dispose of the GALAXY or the battery in a fire. The GALAXY or the battery may explode when overheated.• Avoid dropping the GALAXY. Dropping the GALAXY, especially on a hard surface, can potentially cause damage to the GALAXY. If you suspect damage to the GALAXY or battery, take it to a service center for inspection.• Never use any charger or battery that is damaged in any way.Important! Use only Samsung-approved batteries, and recharge your battery only with Samsung-approved chargers which are specifically designed for your GALAXY.WARNING!Use of a non-Samsung-approved battery or charger may present a risk of fire, explosion, leakage, or other hazard. Samsung's warranty does not cover damage to the GALAXY caused by non-Samsung-approved batteries and/or chargers.• Do not use incompatible batteries and chargers. Some websites and second-hand dealers not associated with reputable manufacturers and carriers, might be selling incompatible or even counterfeit batteries and chargers. Consumers should purchase manufacturer or carrier-recommended products and accessories. If unsure about whether a replacement battery or charger is compatible, contact the manufacturer of the battery or charger.• Misuse or use of incompatible batteries and charging devices could result in damage to the equipment and a possible risk of fire, explosion, or leakage, leading to serious injuries, damages to your phone, or other serious hazard.

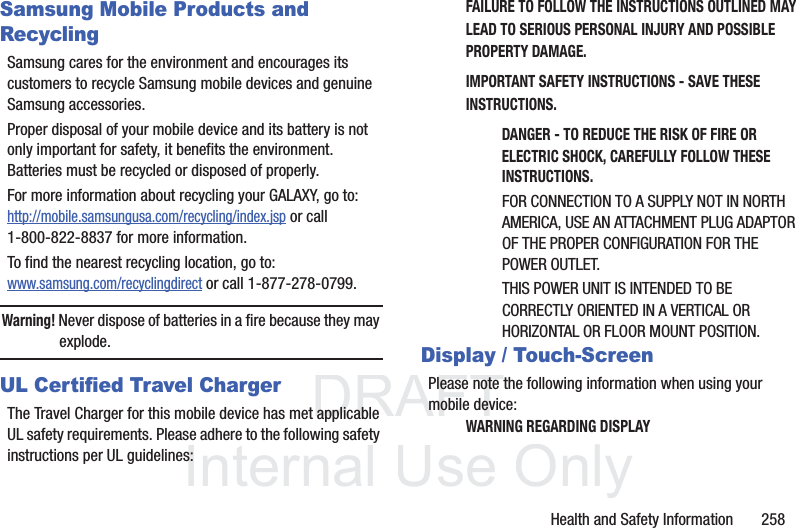

DRAFT InternalUse OnlyHealth and Safety Information 258Samsung Mobile Products and RecyclingSamsung cares for the environment and encourages its customers to recycle Samsung mobile devices and genuine Samsung accessories.Proper disposal of your mobile device and its battery is not only important for safety, it benefits the environment. Batteries must be recycled or disposed of properly.For more information about recycling your GALAXY, go to: http://mobile.samsungusa.com/recycling/index.jsp or call1-800-822-8837 for more information.To find the nearest recycling location, go to:www.samsung.com/recyclingdirect or call 1-877-278-0799.Warning! Never dispose of batteries in a fire because they may explode.UL Certified Travel ChargerThe Travel Charger for this mobile device has met applicable UL safety requirements. Please adhere to the following safety instructions per UL guidelines:FAILURE TO FOLLOW THE INSTRUCTIONS OUTLINED MAY LEAD TO SERIOUS PERSONAL INJURY AND POSSIBLE PROPERTY DAMAGE.IMPORTANT SAFETY INSTRUCTIONS - SAVE THESE INSTRUCTIONS.DANGER - TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, CAREFULLY FOLLOW THESE INSTRUCTIONS.FOR CONNECTION TO A SUPPLY NOT IN NORTH AMERICA, USE AN ATTACHMENT PLUG ADAPTOR OF THE PROPER CONFIGURATION FOR THE POWER OUTLET.THIS POWER UNIT IS INTENDED TO BE CORRECTLY ORIENTED IN A VERTICAL OR HORIZONTAL OR FLOOR MOUNT POSITION.Display / Touch-ScreenPlease note the following information when using your mobile device:WARNING REGARDING DISPLAY

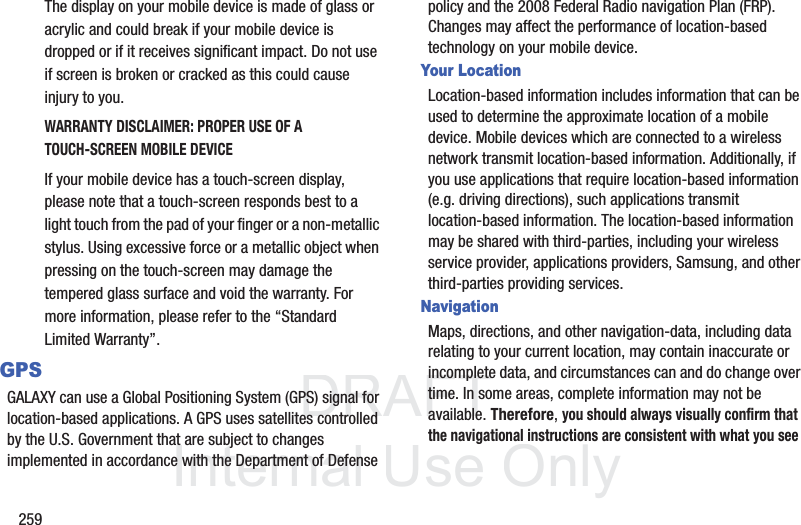

DRAFT InternalUse Only259The display on your mobile device is made of glass or acrylic and could break if your mobile device is dropped or if it receives significant impact. Do not use if screen is broken or cracked as this could cause injury to you.WARRANTY DISCLAIMER: PROPER USE OF A TOUCH-SCREEN MOBILE DEVICEIf your mobile device has a touch-screen display, please note that a touch-screen responds best to a light touch from the pad of your finger or a non-metallic stylus. Using excessive force or a metallic object when pressing on the touch-screen may damage the tempered glass surface and void the warranty. For more information, please refer to the “Standard Limited Warranty”.GPSGALAXY can use a Global Positioning System (GPS) signal for location-based applications. A GPS uses satellites controlled by the U.S. Government that are subject to changes implemented in accordance with the Department of Defense policy and the 2008 Federal Radio navigation Plan (FRP). Changes may affect the performance of location-based technology on your mobile device.Your LocationLocation-based information includes information that can be used to determine the approximate location of a mobile device. Mobile devices which are connected to a wireless network transmit location-based information. Additionally, if you use applications that require location-based information (e.g. driving directions), such applications transmit location-based information. The location-based information may be shared with third-parties, including your wireless service provider, applications providers, Samsung, and other third-parties providing services.NavigationMaps, directions, and other navigation-data, including data relating to your current location, may contain inaccurate or incomplete data, and circumstances can and do change over time. In some areas, complete information may not be available. Therefore, you should always visually confirm that the navigational instructions are consistent with what you see

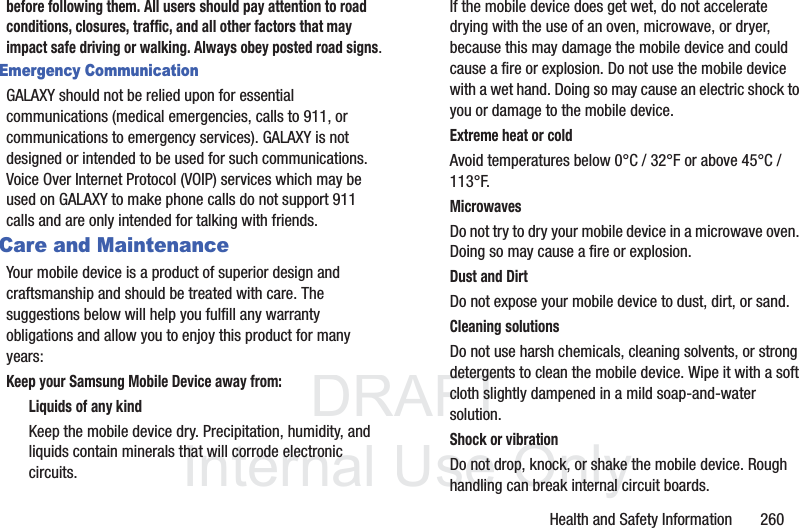

DRAFT InternalUse OnlyHealth and Safety Information 260before following them. All users should pay attention to road conditions, closures, traffic, and all other factors that may impact safe driving or walking. Always obey posted road signs.Emergency CommunicationGALAXY should not be relied upon for essential communications (medical emergencies, calls to 911, or communications to emergency services). GALAXY is not designed or intended to be used for such communications. Voice Over Internet Protocol (VOIP) services which may be used on GALAXY to make phone calls do not support 911 calls and are only intended for talking with friends.Care and MaintenanceYour mobile device is a product of superior design and craftsmanship and should be treated with care. The suggestions below will help you fulfill any warranty obligations and allow you to enjoy this product for many years:Keep your Samsung Mobile Device away from:Liquids of any kindKeep the mobile device dry. Precipitation, humidity, and liquids contain minerals that will corrode electronic circuits. If the mobile device does get wet, do not accelerate drying with the use of an oven, microwave, or dryer, because this may damage the mobile device and could cause a fire or explosion. Do not use the mobile device with a wet hand. Doing so may cause an electric shock to you or damage to the mobile device.Extreme heat or coldAvoid temperatures below 0°C / 32°F or above 45°C / 113°F.MicrowavesDo not try to dry your mobile device in a microwave oven. Doing so may cause a fire or explosion.Dust and DirtDo not expose your mobile device to dust, dirt, or sand.Cleaning solutionsDo not use harsh chemicals, cleaning solvents, or strong detergents to clean the mobile device. Wipe it with a soft cloth slightly dampened in a mild soap-and-water solution.Shock or vibrationDo not drop, knock, or shake the mobile device. Rough handling can break internal circuit boards.

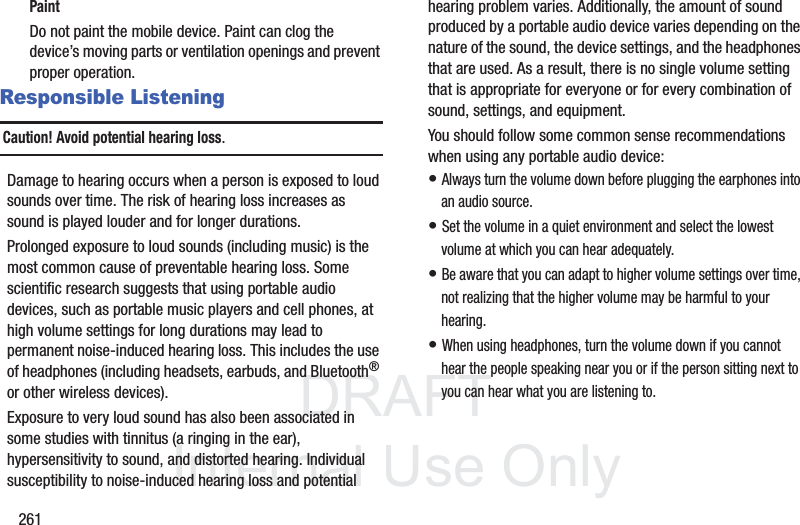

DRAFT InternalUse Only261PaintDo not paint the mobile device. Paint can clog the device’s moving parts or ventilation openings and prevent proper operation.Responsible ListeningCaution! Avoid potential hearing loss.Damage to hearing occurs when a person is exposed to loud sounds over time. The risk of hearing loss increases as sound is played louder and for longer durations. Prolonged exposure to loud sounds (including music) is the most common cause of preventable hearing loss. Some scientific research suggests that using portable audio devices, such as portable music players and cell phones, at high volume settings for long durations may lead to permanent noise-induced hearing loss. This includes the use of headphones (including headsets, earbuds, and Bluetooth® or other wireless devices). Exposure to very loud sound has also been associated in some studies with tinnitus (a ringing in the ear), hypersensitivity to sound, and distorted hearing. Individual susceptibility to noise-induced hearing loss and potential hearing problem varies. Additionally, the amount of sound produced by a portable audio device varies depending on the nature of the sound, the device settings, and the headphones that are used. As a result, there is no single volume setting that is appropriate for everyone or for every combination of sound, settings, and equipment.You should follow some common sense recommendations when using any portable audio device:• Always turn the volume down before plugging the earphones into an audio source.• Set the volume in a quiet environment and select the lowest volume at which you can hear adequately.• Be aware that you can adapt to higher volume settings over time, not realizing that the higher volume may be harmful to your hearing.• When using headphones, turn the volume down if you cannot hear the people speaking near you or if the person sitting next to you can hear what you are listening to.

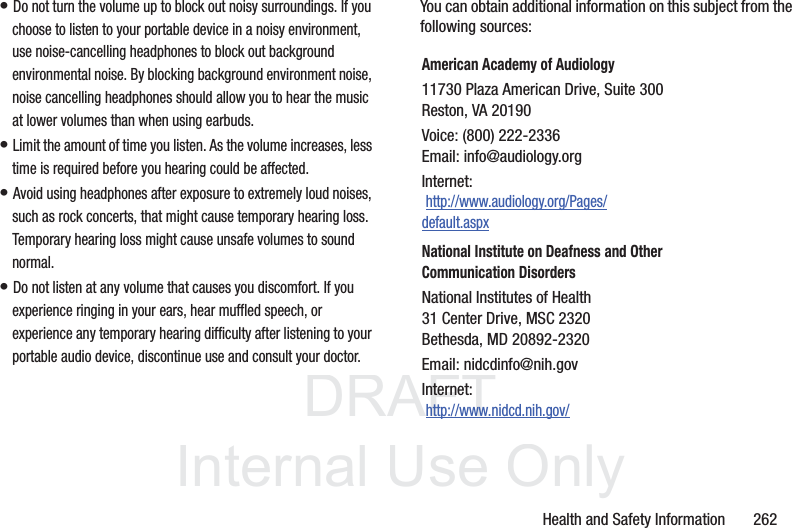

DRAFT InternalUse OnlyHealth and Safety Information 262• Do not turn the volume up to block out noisy surroundings. If you choose to listen to your portable device in a noisy environment, use noise-cancelling headphones to block out background environmental noise. By blocking background environment noise, noise cancelling headphones should allow you to hear the music at lower volumes than when using earbuds.• Limit the amount of time you listen. As the volume increases, less time is required before you hearing could be affected.• Avoid using headphones after exposure to extremely loud noises, such as rock concerts, that might cause temporary hearing loss. Temporary hearing loss might cause unsafe volumes to sound normal.• Do not listen at any volume that causes you discomfort. If you experience ringing in your ears, hear muffled speech, or experience any temporary hearing difficulty after listening to your portable audio device, discontinue use and consult your doctor.You can obtain additional information on this subject from the following sources:American Academy of Audiology11730 Plaza American Drive, Suite 300Reston, VA 20190Voice: (800) 222-2336Email: info@audiology.orgInternet: http://www.audiology.org/Pages/default.aspxNational Institute on Deafness and Other Communication DisordersNational Institutes of Health31 Center Drive, MSC 2320Bethesda, MD 20892-2320Email: nidcdinfo@nih.govInternet: http://www.nidcd.nih.gov/

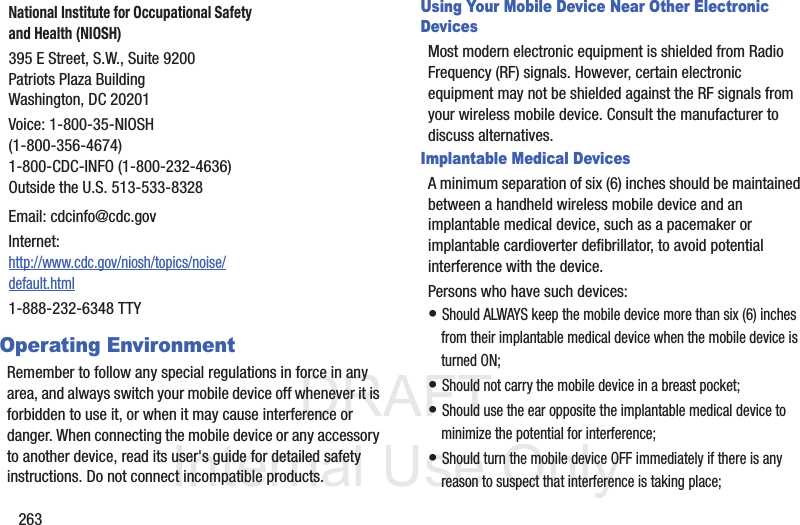

DRAFT InternalUse Only263Operating EnvironmentRemember to follow any special regulations in force in any area, and always switch your mobile device off whenever it is forbidden to use it, or when it may cause interference or danger. When connecting the mobile device or any accessory to another device, read its user's guide for detailed safety instructions. Do not connect incompatible products.Using Your Mobile Device Near Other Electronic DevicesMost modern electronic equipment is shielded from Radio Frequency (RF) signals. However, certain electronic equipment may not be shielded against the RF signals from your wireless mobile device. Consult the manufacturer to discuss alternatives.Implantable Medical DevicesA minimum separation of six (6) inches should be maintained between a handheld wireless mobile device and an implantable medical device, such as a pacemaker or implantable cardioverter defibrillator, to avoid potential interference with the device.Persons who have such devices:• Should ALWAYS keep the mobile device more than six (6) inches from their implantable medical device when the mobile device is turned ON;• Should not carry the mobile device in a breast pocket;• Should use the ear opposite the implantable medical device to minimize the potential for interference;• Should turn the mobile device OFF immediately if there is any reason to suspect that interference is taking place;National Institute for Occupational Safety and Health (NIOSH)395 E Street, S.W., Suite 9200Patriots Plaza BuildingWashington, DC 20201Voice: 1-800-35-NIOSH (1-800-356-4674)1-800-CDC-INFO (1-800-232-4636)Outside the U.S. 513-533-8328Email: cdcinfo@cdc.govInternet:http://www.cdc.gov/niosh/topics/noise/default.html1-888-232-6348 TTY

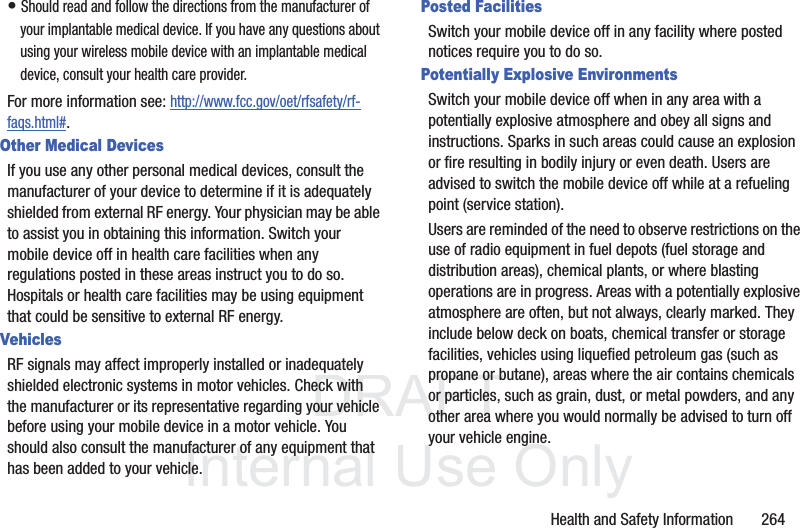

DRAFT InternalUse OnlyHealth and Safety Information 264• Should read and follow the directions from the manufacturer of your implantable medical device. If you have any questions about using your wireless mobile device with an implantable medical device, consult your health care provider.For more information see: http://www.fcc.gov/oet/rfsafety/rf-faqs.html#.Other Medical DevicesIf you use any other personal medical devices, consult the manufacturer of your device to determine if it is adequately shielded from external RF energy. Your physician may be able to assist you in obtaining this information. Switch your mobile device off in health care facilities when any regulations posted in these areas instruct you to do so. Hospitals or health care facilities may be using equipment that could be sensitive to external RF energy.VehiclesRF signals may affect improperly installed or inadequately shielded electronic systems in motor vehicles. Check with the manufacturer or its representative regarding your vehicle before using your mobile device in a motor vehicle. You should also consult the manufacturer of any equipment that has been added to your vehicle.Posted FacilitiesSwitch your mobile device off in any facility where posted notices require you to do so.Potentially Explosive EnvironmentsSwitch your mobile device off when in any area with a potentially explosive atmosphere and obey all signs and instructions. Sparks in such areas could cause an explosion or fire resulting in bodily injury or even death. Users are advised to switch the mobile device off while at a refueling point (service station). Users are reminded of the need to observe restrictions on the use of radio equipment in fuel depots (fuel storage and distribution areas), chemical plants, or where blasting operations are in progress. Areas with a potentially explosive atmosphere are often, but not always, clearly marked. They include below deck on boats, chemical transfer or storage facilities, vehicles using liquefied petroleum gas (such as propane or butane), areas where the air contains chemicals or particles, such as grain, dust, or metal powders, and any other area where you would normally be advised to turn off your vehicle engine.

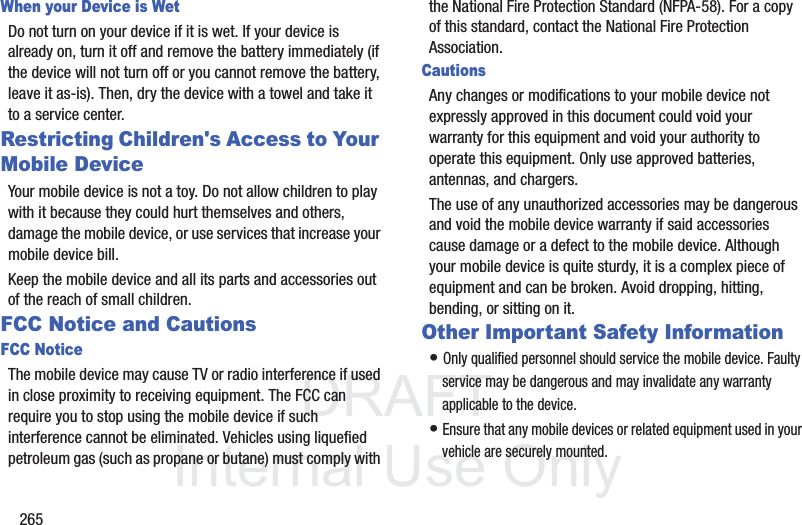

DRAFT InternalUse Only265When your Device is WetDo not turn on your device if it is wet. If your device is already on, turn it off and remove the battery immediately (if the device will not turn off or you cannot remove the battery, leave it as-is). Then, dry the device with a towel and take it to a service center.Restricting Children's Access to Your Mobile DeviceYour mobile device is not a toy. Do not allow children to play with it because they could hurt themselves and others, damage the mobile device, or use services that increase your mobile device bill.Keep the mobile device and all its parts and accessories out of the reach of small children.FCC Notice and CautionsFCC NoticeThe mobile device may cause TV or radio interference if used in close proximity to receiving equipment. The FCC can require you to stop using the mobile device if such interference cannot be eliminated. Vehicles using liquefied petroleum gas (such as propane or butane) must comply with the National Fire Protection Standard (NFPA-58). For a copy of this standard, contact the National Fire Protection Association.CautionsAny changes or modifications to your mobile device not expressly approved in this document could void your warranty for this equipment and void your authority to operate this equipment. Only use approved batteries, antennas, and chargers. The use of any unauthorized accessories may be dangerous and void the mobile device warranty if said accessories cause damage or a defect to the mobile device. Although your mobile device is quite sturdy, it is a complex piece of equipment and can be broken. Avoid dropping, hitting, bending, or sitting on it.Other Important Safety Information• Only qualified personnel should service the mobile device. Faulty service may be dangerous and may invalidate any warranty applicable to the device.• Ensure that any mobile devices or related equipment used in your vehicle are securely mounted.

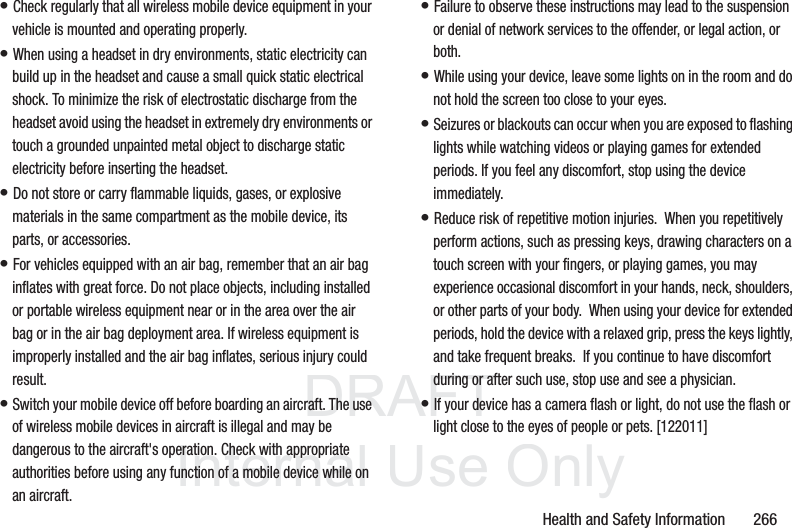

DRAFT InternalUse OnlyHealth and Safety Information 266• Check regularly that all wireless mobile device equipment in your vehicle is mounted and operating properly.• When using a headset in dry environments, static electricity can build up in the headset and cause a small quick static electrical shock. To minimize the risk of electrostatic discharge from the headset avoid using the headset in extremely dry environments or touch a grounded unpainted metal object to discharge static electricity before inserting the headset.• Do not store or carry flammable liquids, gases, or explosive materials in the same compartment as the mobile device, its parts, or accessories.• For vehicles equipped with an air bag, remember that an air bag inflates with great force. Do not place objects, including installed or portable wireless equipment near or in the area over the air bag or in the air bag deployment area. If wireless equipment is improperly installed and the air bag inflates, serious injury could result.• Switch your mobile device off before boarding an aircraft. The use of wireless mobile devices in aircraft is illegal and may be dangerous to the aircraft's operation. Check with appropriate authorities before using any function of a mobile device while on an aircraft.• Failure to observe these instructions may lead to the suspension or denial of network services to the offender, or legal action, or both.• While using your device, leave some lights on in the room and do not hold the screen too close to your eyes.• Seizures or blackouts can occur when you are exposed to flashing lights while watching videos or playing games for extended periods. If you feel any discomfort, stop using the device immediately.• Reduce risk of repetitive motion injuries. When you repetitively perform actions, such as pressing keys, drawing characters on a touch screen with your fingers, or playing games, you may experience occasional discomfort in your hands, neck, shoulders, or other parts of your body. When using your device for extended periods, hold the device with a relaxed grip, press the keys lightly, and take frequent breaks. If you continue to have discomfort during or after such use, stop use and see a physician.• If your device has a camera flash or light, do not use the flash or light close to the eyes of people or pets. [122011]

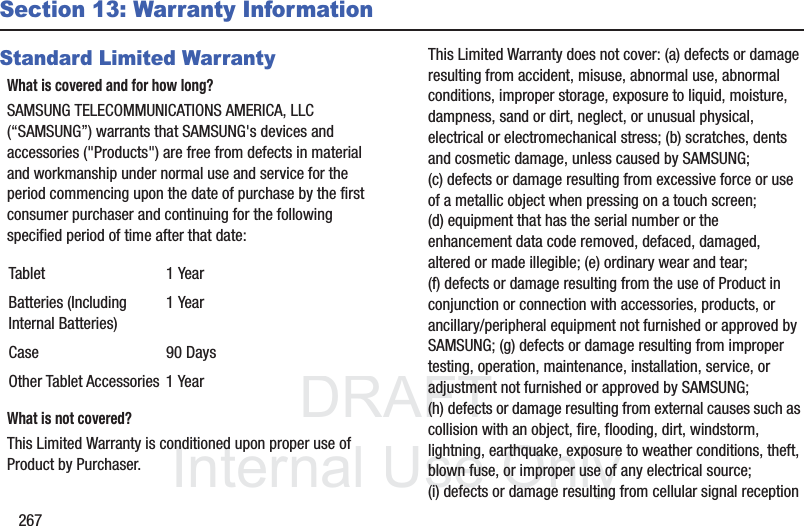

DRAFT InternalUse Only267Section 13: Warranty InformationStandard Limited WarrantyWhat is covered and for how long?SAMSUNG TELECOMMUNICATIONS AMERICA, LLC (“SAMSUNG”) warrants that SAMSUNG's devices and accessories ("Products") are free from defects in material and workmanship under normal use and service for the period commencing upon the date of purchase by the first consumer purchaser and continuing for the following specified period of time after that date: What is not covered?This Limited Warranty is conditioned upon proper use of Product by Purchaser. This Limited Warranty does not cover: (a) defects or damage resulting from accident, misuse, abnormal use, abnormal conditions, improper storage, exposure to liquid, moisture, dampness, sand or dirt, neglect, or unusual physical, electrical or electromechanical stress; (b) scratches, dents and cosmetic damage, unless caused by SAMSUNG; (c) defects or damage resulting from excessive force or use of a metallic object when pressing on a touch screen; (d) equipment that has the serial number or the enhancement data code removed, defaced, damaged, altered or made illegible; (e) ordinary wear and tear; (f) defects or damage resulting from the use of Product in conjunction or connection with accessories, products, or ancillary/peripheral equipment not furnished or approved by SAMSUNG; (g) defects or damage resulting from improper testing, operation, maintenance, installation, service, or adjustment not furnished or approved by SAMSUNG; (h) defects or damage resulting from external causes such as collision with an object, fire, flooding, dirt, windstorm, lightning, earthquake, exposure to weather conditions, theft, blown fuse, or improper use of any electrical source; (i) defects or damage resulting from cellular signal reception Tablet 1 YearBatteries (Including Internal Batteries)1 YearCase 90 DaysOther Tablet Accessories 1 Year

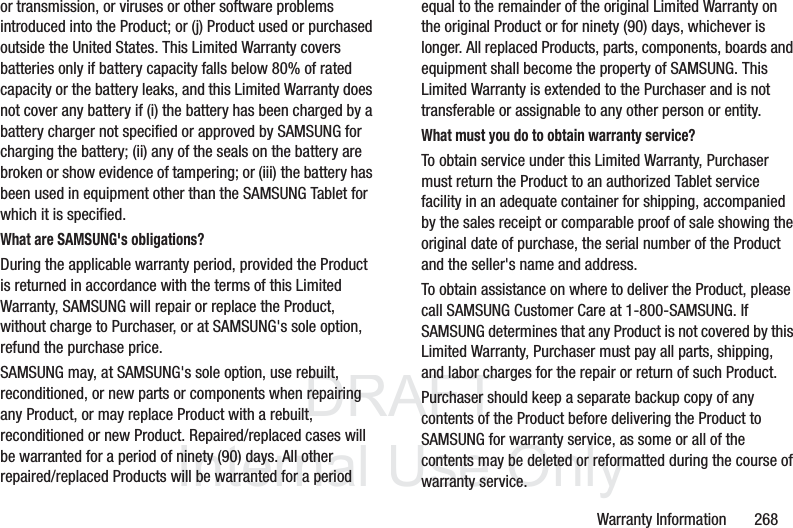

DRAFT InternalUse OnlyWarranty Information 268or transmission, or viruses or other software problems introduced into the Product; or (j) Product used or purchased outside the United States. This Limited Warranty covers batteries only if battery capacity falls below 80% of rated capacity or the battery leaks, and this Limited Warranty does not cover any battery if (i) the battery has been charged by a battery charger not specified or approved by SAMSUNG for charging the battery; (ii) any of the seals on the battery are broken or show evidence of tampering; or (iii) the battery has been used in equipment other than the SAMSUNG Tablet for which it is specified.What are SAMSUNG's obligations?During the applicable warranty period, provided the Product is returned in accordance with the terms of this Limited Warranty, SAMSUNG will repair or replace the Product, without charge to Purchaser, or at SAMSUNG's sole option, refund the purchase price. SAMSUNG may, at SAMSUNG's sole option, use rebuilt, reconditioned, or new parts or components when repairing any Product, or may replace Product with a rebuilt, reconditioned or new Product. Repaired/replaced cases will be warranted for a period of ninety (90) days. All other repaired/replaced Products will be warranted for a period equal to the remainder of the original Limited Warranty on the original Product or for ninety (90) days, whichever is longer. All replaced Products, parts, components, boards and equipment shall become the property of SAMSUNG. This Limited Warranty is extended to the Purchaser and is not transferable or assignable to any other person or entity.What must you do to obtain warranty service?To obtain service under this Limited Warranty, Purchaser must return the Product to an authorized Tablet service facility in an adequate container for shipping, accompanied by the sales receipt or comparable proof of sale showing the original date of purchase, the serial number of the Product and the seller's name and address. To obtain assistance on where to deliver the Product, please call SAMSUNG Customer Care at 1-800-SAMSUNG. If SAMSUNG determines that any Product is not covered by this Limited Warranty, Purchaser must pay all parts, shipping, and labor charges for the repair or return of such Product.Purchaser should keep a separate backup copy of any contents of the Product before delivering the Product to SAMSUNG for warranty service, as some or all of the contents may be deleted or reformatted during the course of warranty service.

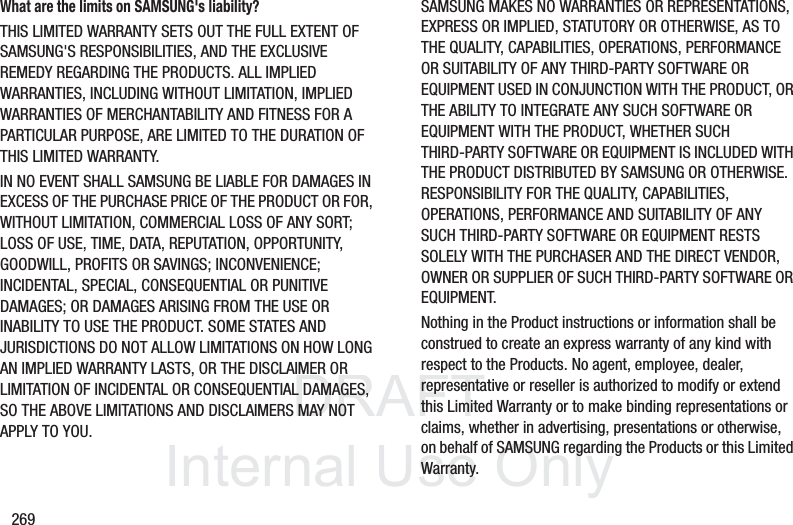

DRAFT InternalUse Only269What are the limits on SAMSUNG's liability?THIS LIMITED WARRANTY SETS OUT THE FULL EXTENT OF SAMSUNG'S RESPONSIBILITIES, AND THE EXCLUSIVE REMEDY REGARDING THE PRODUCTS. ALL IMPLIED WARRANTIES, INCLUDING WITHOUT LIMITATION, IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, ARE LIMITED TO THE DURATION OF THIS LIMITED WARRANTY. IN NO EVENT SHALL SAMSUNG BE LIABLE FOR DAMAGES IN EXCESS OF THE PURCHASE PRICE OF THE PRODUCT OR FOR, WITHOUT LIMITATION, COMMERCIAL LOSS OF ANY SORT; LOSS OF USE, TIME, DATA, REPUTATION, OPPORTUNITY, GOODWILL, PROFITS OR SAVINGS; INCONVENIENCE; INCIDENTAL, SPECIAL, CONSEQUENTIAL OR PUNITIVE DAMAGES; OR DAMAGES ARISING FROM THE USE OR INABILITY TO USE THE PRODUCT. SOME STATES AND JURISDICTIONS DO NOT ALLOW LIMITATIONS ON HOW LONG AN IMPLIED WARRANTY LASTS, OR THE DISCLAIMER OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES, SO THE ABOVE LIMITATIONS AND DISCLAIMERS MAY NOT APPLY TO YOU.SAMSUNG MAKES NO WARRANTIES OR REPRESENTATIONS, EXPRESS OR IMPLIED, STATUTORY OR OTHERWISE, AS TO THE QUALITY, CAPABILITIES, OPERATIONS, PERFORMANCE OR SUITABILITY OF ANY THIRD-PARTY SOFTWARE OR EQUIPMENT USED IN CONJUNCTION WITH THE PRODUCT, OR THE ABILITY TO INTEGRATE ANY SUCH SOFTWARE OR EQUIPMENT WITH THE PRODUCT, WHETHER SUCH THIRD-PARTY SOFTWARE OR EQUIPMENT IS INCLUDED WITH THE PRODUCT DISTRIBUTED BY SAMSUNG OR OTHERWISE. RESPONSIBILITY FOR THE QUALITY, CAPABILITIES, OPERATIONS, PERFORMANCE AND SUITABILITY OF ANY SUCH THIRD-PARTY SOFTWARE OR EQUIPMENT RESTS SOLELY WITH THE PURCHASER AND THE DIRECT VENDOR, OWNER OR SUPPLIER OF SUCH THIRD-PARTY SOFTWARE OR EQUIPMENT.Nothing in the Product instructions or information shall be construed to create an express warranty of any kind with respect to the Products. No agent, employee, dealer, representative or reseller is authorized to modify or extend this Limited Warranty or to make binding representations or claims, whether in advertising, presentations or otherwise, on behalf of SAMSUNG regarding the Products or this Limited Warranty.

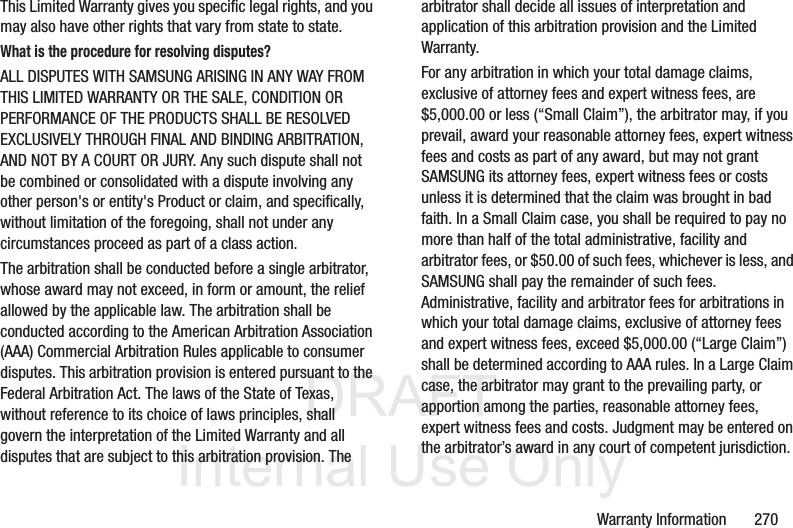

DRAFT InternalUse OnlyWarranty Information 270This Limited Warranty gives you specific legal rights, and you may also have other rights that vary from state to state.What is the procedure for resolving disputes?ALL DISPUTES WITH SAMSUNG ARISING IN ANY WAY FROM THIS LIMITED WARRANTY OR THE SALE, CONDITION OR PERFORMANCE OF THE PRODUCTS SHALL BE RESOLVED EXCLUSIVELY THROUGH FINAL AND BINDING ARBITRATION, AND NOT BY A COURT OR JURY. Any such dispute shall not be combined or consolidated with a dispute involving any other person's or entity's Product or claim, and specifically, without limitation of the foregoing, shall not under any circumstances proceed as part of a class action. The arbitration shall be conducted before a single arbitrator, whose award may not exceed, in form or amount, the relief allowed by the applicable law. The arbitration shall be conducted according to the American Arbitration Association (AAA) Commercial Arbitration Rules applicable to consumer disputes. This arbitration provision is entered pursuant to the Federal Arbitration Act. The laws of the State of Texas, without reference to its choice of laws principles, shall govern the interpretation of the Limited Warranty and all disputes that are subject to this arbitration provision. The arbitrator shall decide all issues of interpretation and application of this arbitration provision and the Limited Warranty.For any arbitration in which your total damage claims, exclusive of attorney fees and expert witness fees, are $5,000.00 or less (“Small Claim”), the arbitrator may, if you prevail, award your reasonable attorney fees, expert witness fees and costs as part of any award, but may not grant SAMSUNG its attorney fees, expert witness fees or costs unless it is determined that the claim was brought in bad faith. In a Small Claim case, you shall be required to pay no more than half of the total administrative, facility and arbitrator fees, or $50.00 of such fees, whichever is less, and SAMSUNG shall pay the remainder of such fees. Administrative, facility and arbitrator fees for arbitrations in which your total damage claims, exclusive of attorney fees and expert witness fees, exceed $5,000.00 (“Large Claim”) shall be determined according to AAA rules. In a Large Claim case, the arbitrator may grant to the prevailing party, or apportion among the parties, reasonable attorney fees, expert witness fees and costs. Judgment may be entered on the arbitrator’s award in any court of competent jurisdiction.

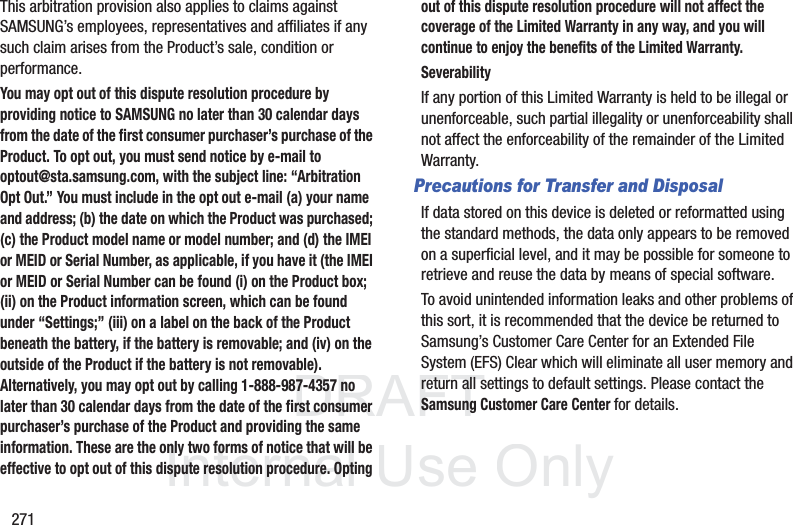

DRAFT InternalUse Only271This arbitration provision also applies to claims against SAMSUNG’s employees, representatives and affiliates if any such claim arises from the Product’s sale, condition or performance.You may opt out of this dispute resolution procedure by providing notice to SAMSUNG no later than 30 calendar days from the date of the first consumer purchaser’s purchase of the Product. To opt out, you must send notice by e-mail to optout@sta.samsung.com, with the subject line: “Arbitration Opt Out.” You must include in the opt out e-mail (a) your name and address; (b) the date on which the Product was purchased; (c) the Product model name or model number; and (d) the IMEI or MEID or Serial Number, as applicable, if you have it (the IMEI or MEID or Serial Number can be found (i) on the Product box; (ii) on the Product information screen, which can be found under “Settings;” (iii) on a label on the back of the Product beneath the battery, if the battery is removable; and (iv) on the outside of the Product if the battery is not removable). Alternatively, you may opt out by calling 1-888-987-4357 no later than 30 calendar days from the date of the first consumer purchaser’s purchase of the Product and providing the same information. These are the only two forms of notice that will be effective to opt out of this dispute resolution procedure. Opting out of this dispute resolution procedure will not affect the coverage of the Limited Warranty in any way, and you will continue to enjoy the benefits of the Limited Warranty.SeverabilityIf any portion of this Limited Warranty is held to be illegal or unenforceable, such partial illegality or unenforceability shall not affect the enforceability of the remainder of the Limited Warranty.Precautions for Transfer and DisposalIf data stored on this device is deleted or reformatted using the standard methods, the data only appears to be removed on a superficial level, and it may be possible for someone to retrieve and reuse the data by means of special software.To avoid unintended information leaks and other problems of this sort, it is recommended that the device be returned to Samsung’s Customer Care Center for an Extended File System (EFS) Clear which will eliminate all user memory and return all settings to default settings. Please contact the Samsung Customer Care Center for details.

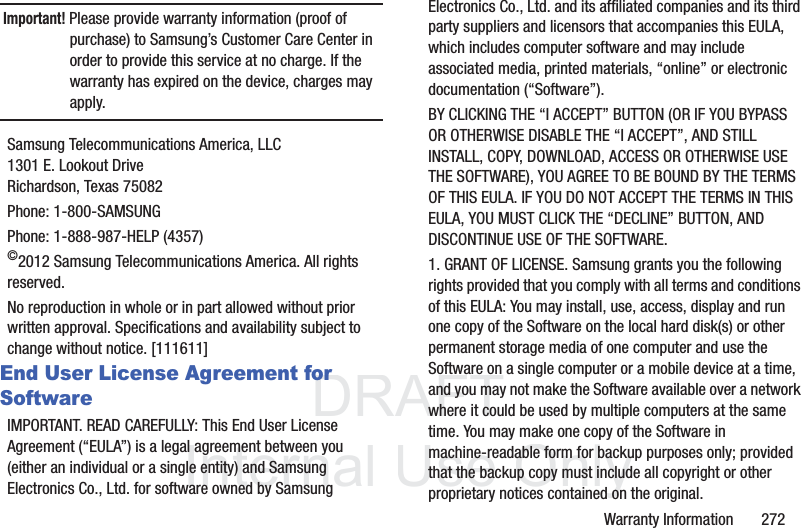

DRAFT InternalUse OnlyWarranty Information 272Important! Please provide warranty information (proof of purchase) to Samsung’s Customer Care Center in order to provide this service at no charge. If the warranty has expired on the device, charges may apply.Samsung Telecommunications America, LLC1301 E. Lookout DriveRichardson, Texas 75082Phone: 1-800-SAMSUNGPhone: 1-888-987-HELP (4357)©2012 Samsung Telecommunications America. All rights reserved.No reproduction in whole or in part allowed without prior written approval. Specifications and availability subject to change without notice. [111611]End User License Agreement for SoftwareIMPORTANT. READ CAREFULLY: This End User License Agreement (“EULA”) is a legal agreement between you (either an individual or a single entity) and Samsung Electronics Co., Ltd. for software owned by Samsung Electronics Co., Ltd. and its affiliated companies and its third party suppliers and licensors that accompanies this EULA, which includes computer software and may include associated media, printed materials, “online” or electronic documentation (“Software”). BY CLICKING THE “I ACCEPT” BUTTON (OR IF YOU BYPASS OR OTHERWISE DISABLE THE “I ACCEPT”, AND STILL INSTALL, COPY, DOWNLOAD, ACCESS OR OTHERWISE USE THE SOFTWARE), YOU AGREE TO BE BOUND BY THE TERMS OF THIS EULA. IF YOU DO NOT ACCEPT THE TERMS IN THIS EULA, YOU MUST CLICK THE “DECLINE” BUTTON, AND DISCONTINUE USE OF THE SOFTWARE.1. GRANT OF LICENSE. Samsung grants you the following rights provided that you comply with all terms and conditions of this EULA: You may install, use, access, display and run one copy of the Software on the local hard disk(s) or other permanent storage media of one computer and use the Software on a single computer or a mobile device at a time, and you may not make the Software available over a network where it could be used by multiple computers at the same time. You may make one copy of the Software in machine-readable form for backup purposes only; provided that the backup copy must include all copyright or other proprietary notices contained on the original.

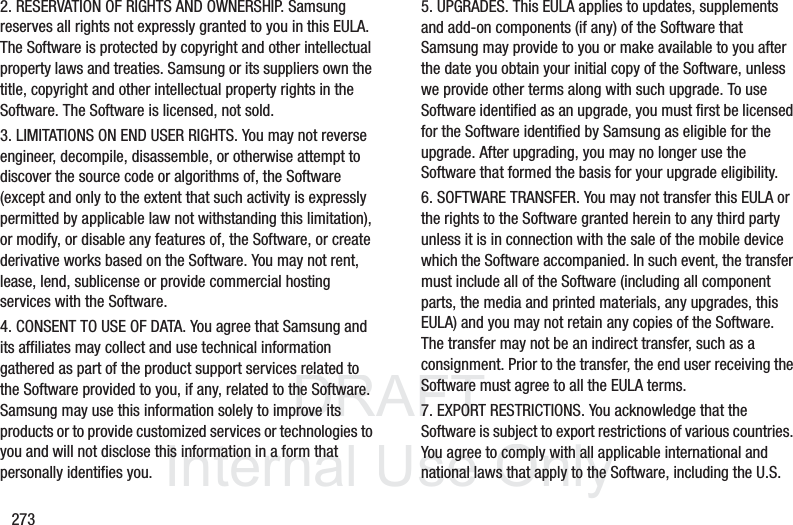

DRAFT InternalUse Only2732. RESERVATION OF RIGHTS AND OWNERSHIP. Samsung reserves all rights not expressly granted to you in this EULA. The Software is protected by copyright and other intellectual property laws and treaties. Samsung or its suppliers own the title, copyright and other intellectual property rights in the Software. The Software is licensed, not sold.3. LIMITATIONS ON END USER RIGHTS. You may not reverse engineer, decompile, disassemble, or otherwise attempt to discover the source code or algorithms of, the Software (except and only to the extent that such activity is expressly permitted by applicable law not withstanding this limitation), or modify, or disable any features of, the Software, or create derivative works based on the Software. You may not rent, lease, lend, sublicense or provide commercial hosting services with the Software.4. CONSENT TO USE OF DATA. You agree that Samsung and its affiliates may collect and use technical information gathered as part of the product support services related to the Software provided to you, if any, related to the Software. Samsung may use this information solely to improve its products or to provide customized services or technologies to you and will not disclose this information in a form that personally identifies you.5. UPGRADES. This EULA applies to updates, supplements and add-on components (if any) of the Software that Samsung may provide to you or make available to you after the date you obtain your initial copy of the Software, unless we provide other terms along with such upgrade. To use Software identified as an upgrade, you must first be licensed for the Software identified by Samsung as eligible for the upgrade. After upgrading, you may no longer use the Software that formed the basis for your upgrade eligibility.6. SOFTWARE TRANSFER. You may not transfer this EULA or the rights to the Software granted herein to any third party unless it is in connection with the sale of the mobile device which the Software accompanied. In such event, the transfer must include all of the Software (including all component parts, the media and printed materials, any upgrades, this EULA) and you may not retain any copies of the Software. The transfer may not be an indirect transfer, such as a consignment. Prior to the transfer, the end user receiving the Software must agree to all the EULA terms.7. EXPORT RESTRICTIONS. You acknowledge that the Software is subject to export restrictions of various countries. You agree to comply with all applicable international and national laws that apply to the Software, including the U.S.

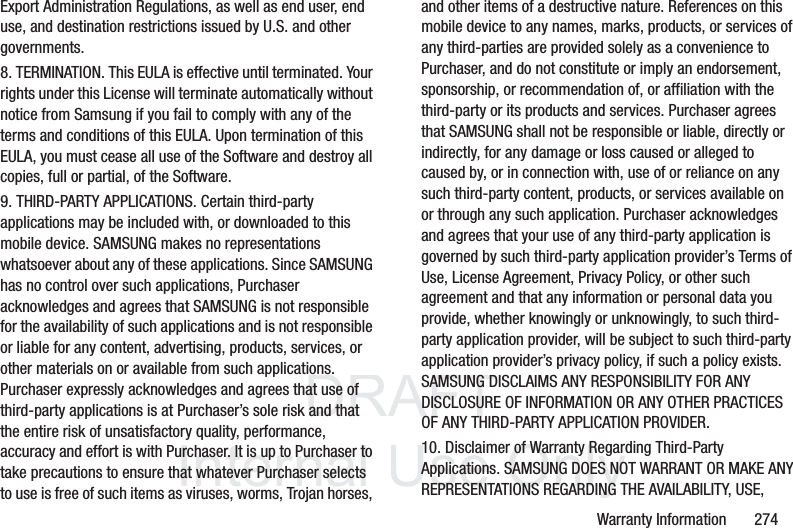

DRAFT InternalUse OnlyWarranty Information 274Export Administration Regulations, as well as end user, end use, and destination restrictions issued by U.S. and other governments.8. TERMINATION. This EULA is effective until terminated. Your rights under this License will terminate automatically without notice from Samsung if you fail to comply with any of the terms and conditions of this EULA. Upon termination of this EULA, you must cease all use of the Software and destroy all copies, full or partial, of the Software.9. THIRD-PARTY APPLICATIONS. Certain third-party applications may be included with, or downloaded to this mobile device. SAMSUNG makes no representations whatsoever about any of these applications. Since SAMSUNG has no control over such applications, Purchaser acknowledges and agrees that SAMSUNG is not responsible for the availability of such applications and is not responsible or liable for any content, advertising, products, services, or other materials on or available from such applications. Purchaser expressly acknowledges and agrees that use of third-party applications is at Purchaser’s sole risk and that the entire risk of unsatisfactory quality, performance, accuracy and effort is with Purchaser. It is up to Purchaser to take precautions to ensure that whatever Purchaser selects to use is free of such items as viruses, worms, Trojan horses, and other items of a destructive nature. References on this mobile device to any names, marks, products, or services of any third-parties are provided solely as a convenience to Purchaser, and do not constitute or imply an endorsement, sponsorship, or recommendation of, or affiliation with the third-party or its products and services. Purchaser agrees that SAMSUNG shall not be responsible or liable, directly or indirectly, for any damage or loss caused or alleged to caused by, or in connection with, use of or reliance on any such third-party content, products, or services available on or through any such application. Purchaser acknowledges and agrees that your use of any third-party application is governed by such third-party application provider’s Terms of Use, License Agreement, Privacy Policy, or other such agreement and that any information or personal data you provide, whether knowingly or unknowingly, to such third-party application provider, will be subject to such third-party application provider’s privacy policy, if such a policy exists. SAMSUNG DISCLAIMS ANY RESPONSIBILITY FOR ANY DISCLOSURE OF INFORMATION OR ANY OTHER PRACTICES OF ANY THIRD-PARTY APPLICATION PROVIDER.10. Disclaimer of Warranty Regarding Third-Party Applications. SAMSUNG DOES NOT WARRANT OR MAKE ANY REPRESENTATIONS REGARDING THE AVAILABILITY, USE,

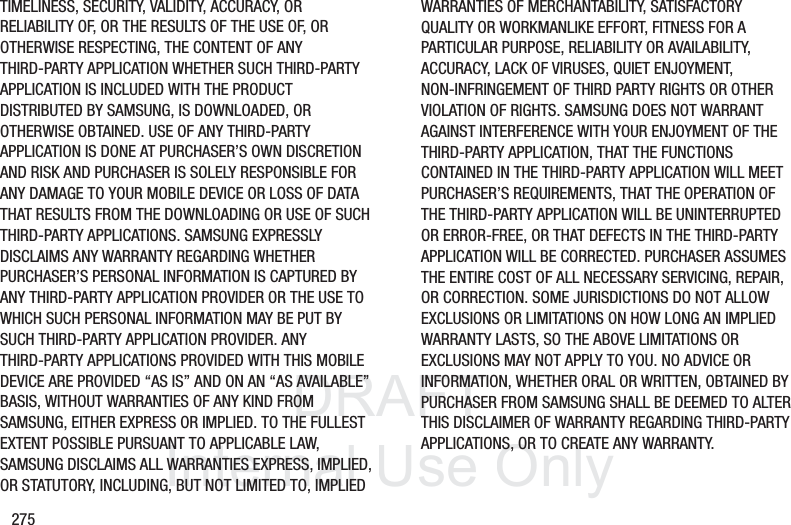

DRAFT InternalUse Only275TIMELINESS, SECURITY, VALIDITY, ACCURACY, OR RELIABILITY OF, OR THE RESULTS OF THE USE OF, OR OTHERWISE RESPECTING, THE CONTENT OF ANY THIRD-PARTY APPLICATION WHETHER SUCH THIRD-PARTY APPLICATION IS INCLUDED WITH THE PRODUCT DISTRIBUTED BY SAMSUNG, IS DOWNLOADED, OR OTHERWISE OBTAINED. USE OF ANY THIRD-PARTY APPLICATION IS DONE AT PURCHASER’S OWN DISCRETION AND RISK AND PURCHASER IS SOLELY RESPONSIBLE FOR ANY DAMAGE TO YOUR MOBILE DEVICE OR LOSS OF DATA THAT RESULTS FROM THE DOWNLOADING OR USE OF SUCH THIRD-PARTY APPLICATIONS. SAMSUNG EXPRESSLY DISCLAIMS ANY WARRANTY REGARDING WHETHER PURCHASER’S PERSONAL INFORMATION IS CAPTURED BY ANY THIRD-PARTY APPLICATION PROVIDER OR THE USE TO WHICH SUCH PERSONAL INFORMATION MAY BE PUT BY SUCH THIRD-PARTY APPLICATION PROVIDER. ANY THIRD-PARTY APPLICATIONS PROVIDED WITH THIS MOBILE DEVICE ARE PROVIDED “AS IS” AND ON AN “AS AVAILABLE” BASIS, WITHOUT WARRANTIES OF ANY KIND FROM SAMSUNG, EITHER EXPRESS OR IMPLIED. TO THE FULLEST EXTENT POSSIBLE PURSUANT TO APPLICABLE LAW, SAMSUNG DISCLAIMS ALL WARRANTIES EXPRESS, IMPLIED, OR STATUTORY, INCLUDING, BUT NOT LIMITED TO, IMPLIED WARRANTIES OF MERCHANTABILITY, SATISFACTORY QUALITY OR WORKMANLIKE EFFORT, FITNESS FOR A PARTICULAR PURPOSE, RELIABILITY OR AVAILABILITY, ACCURACY, LACK OF VIRUSES, QUIET ENJOYMENT, NON-INFRINGEMENT OF THIRD PARTY RIGHTS OR OTHER VIOLATION OF RIGHTS. SAMSUNG DOES NOT WARRANT AGAINST INTERFERENCE WITH YOUR ENJOYMENT OF THE THIRD-PARTY APPLICATION, THAT THE FUNCTIONS CONTAINED IN THE THIRD-PARTY APPLICATION WILL MEET PURCHASER’S REQUIREMENTS, THAT THE OPERATION OF THE THIRD-PARTY APPLICATION WILL BE UNINTERRUPTED OR ERROR-FREE, OR THAT DEFECTS IN THE THIRD-PARTY APPLICATION WILL BE CORRECTED. PURCHASER ASSUMES THE ENTIRE COST OF ALL NECESSARY SERVICING, REPAIR, OR CORRECTION. SOME JURISDICTIONS DO NOT ALLOW EXCLUSIONS OR LIMITATIONS ON HOW LONG AN IMPLIED WARRANTY LASTS, SO THE ABOVE LIMITATIONS OR EXCLUSIONS MAY NOT APPLY TO YOU. NO ADVICE OR INFORMATION, WHETHER ORAL OR WRITTEN, OBTAINED BY PURCHASER FROM SAMSUNG SHALL BE DEEMED TO ALTER THIS DISCLAIMER OF WARRANTY REGARDING THIRD-PARTY APPLICATIONS, OR TO CREATE ANY WARRANTY.

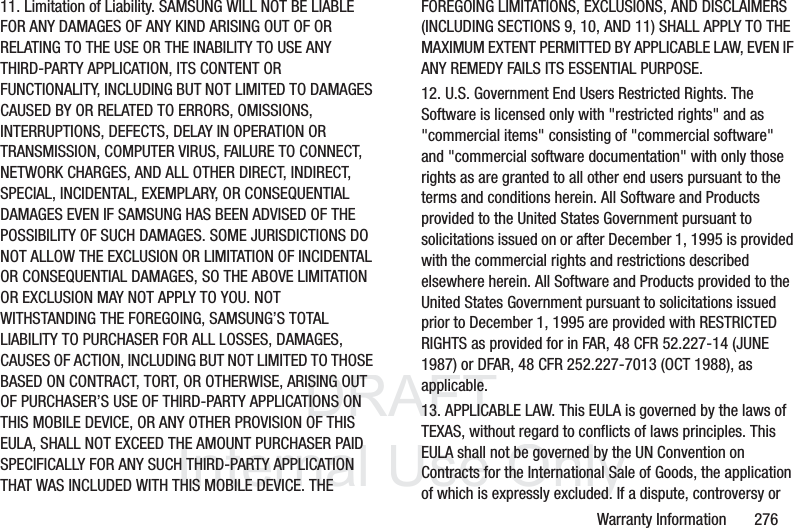

DRAFT InternalUse OnlyWarranty Information 27611. Limitation of Liability. SAMSUNG WILL NOT BE LIABLE FOR ANY DAMAGES OF ANY KIND ARISING OUT OF OR RELATING TO THE USE OR THE INABILITY TO USE ANY THIRD-PARTY APPLICATION, ITS CONTENT OR FUNCTIONALITY, INCLUDING BUT NOT LIMITED TO DAMAGES CAUSED BY OR RELATED TO ERRORS, OMISSIONS, INTERRUPTIONS, DEFECTS, DELAY IN OPERATION OR TRANSMISSION, COMPUTER VIRUS, FAILURE TO CONNECT, NETWORK CHARGES, AND ALL OTHER DIRECT, INDIRECT, SPECIAL, INCIDENTAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES EVEN IF SAMSUNG HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. SOME JURISDICTIONS DO NOT ALLOW THE EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES, SO THE ABOVE LIMITATION OR EXCLUSION MAY NOT APPLY TO YOU. NOT WITHSTANDING THE FOREGOING, SAMSUNG’S TOTAL LIABILITY TO PURCHASER FOR ALL LOSSES, DAMAGES, CAUSES OF ACTION, INCLUDING BUT NOT LIMITED TO THOSE BASED ON CONTRACT, TORT, OR OTHERWISE, ARISING OUT OF PURCHASER’S USE OF THIRD-PARTY APPLICATIONS ON THIS MOBILE DEVICE, OR ANY OTHER PROVISION OF THIS EULA, SHALL NOT EXCEED THE AMOUNT PURCHASER PAID SPECIFICALLY FOR ANY SUCH THIRD-PARTY APPLICATION THAT WAS INCLUDED WITH THIS MOBILE DEVICE. THE FOREGOING LIMITATIONS, EXCLUSIONS, AND DISCLAIMERS (INCLUDING SECTIONS 9, 10, AND 11) SHALL APPLY TO THE MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW, EVEN IF ANY REMEDY FAILS ITS ESSENTIAL PURPOSE.12. U.S. Government End Users Restricted Rights. The Software is licensed only with "restricted rights" and as "commercial items" consisting of "commercial software" and "commercial software documentation" with only those rights as are granted to all other end users pursuant to the terms and conditions herein. All Software and Products provided to the United States Government pursuant to solicitations issued on or after December 1, 1995 is provided with the commercial rights and restrictions described elsewhere herein. All Software and Products provided to the United States Government pursuant to solicitations issued prior to December 1, 1995 are provided with RESTRICTED RIGHTS as provided for in FAR, 48 CFR 52.227-14 (JUNE 1987) or DFAR, 48 CFR 252.227-7013 (OCT 1988), as applicable.13. APPLICABLE LAW. This EULA is governed by the laws of TEXAS, without regard to conflicts of laws principles. This EULA shall not be governed by the UN Convention on Contracts for the International Sale of Goods, the application of which is expressly excluded. If a dispute, controversy or

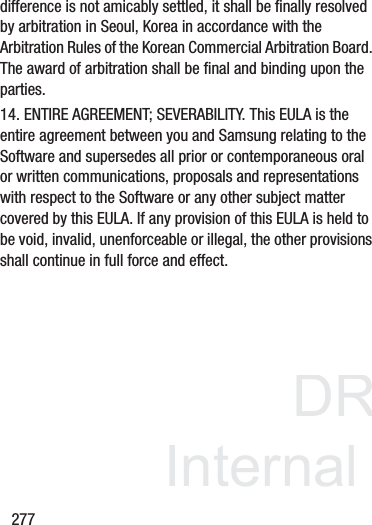

DRAFT InternalUse Only277difference is not amicably settled, it shall be finally resolved by arbitration in Seoul, Korea in accordance with the Arbitration Rules of the Korean Commercial Arbitration Board. The award of arbitration shall be final and binding upon the parties.14. ENTIRE AGREEMENT; SEVERABILITY. This EULA is the entire agreement between you and Samsung relating to the Software and supersedes all prior or contemporaneous oral or written communications, proposals and representations with respect to the Software or any other subject matter covered by this EULA. If any provision of this EULA is held to be void, invalid, unenforceable or illegal, the other provisions shall continue in full force and effect.

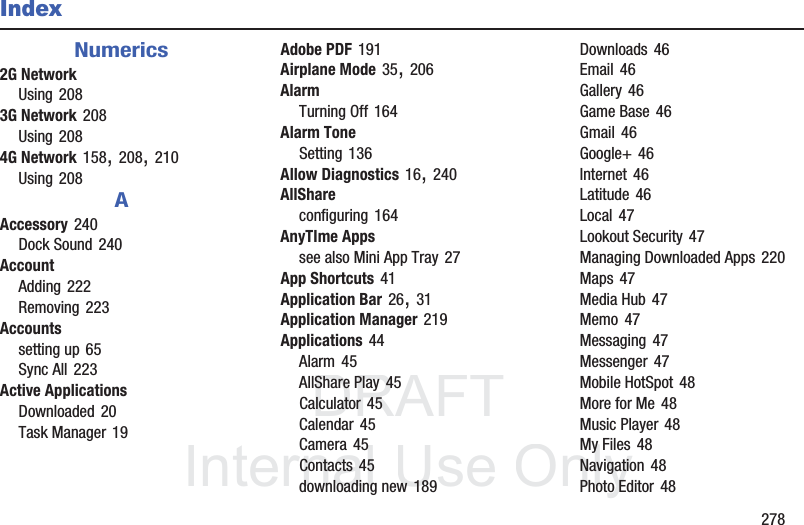

DRAFT InternalUse Only 278IndexNumerics2G NetworkUsing 2083G Network 208Using 2084G Network 158, 208, 210Using 208AAccessory 240Dock Sound 240AccountAdding 222Removing 223Accountssetting up 65Sync All 223Active ApplicationsDownloaded 20Task Manager 19Adobe PDF 191Airplane Mode 35, 206AlarmTurning Off 164Alarm ToneSetting 136Allow Diagnostics 16, 240AllShareconfiguring 164AnyTIme Appssee also Mini App Tray 27App Shortcuts 41Application Bar 26, 31Application Manager 219Applications 44Alarm 45AllShare Play 45Calculator 45Calendar 45Camera 45Contacts 45downloading new 189Downloads 46Email 46Gallery 46Game Base 46Gmail 46Google+ 46Internet 46Latitude 46Local 47Lookout Security 47Managing Downloaded Apps 220Maps 47Media Hub 47Memo 47Messaging 47Messenger 47Mobile HotSpot 48More for Me 48Music Player 48My Files 48Navigation 48Photo Editor 48

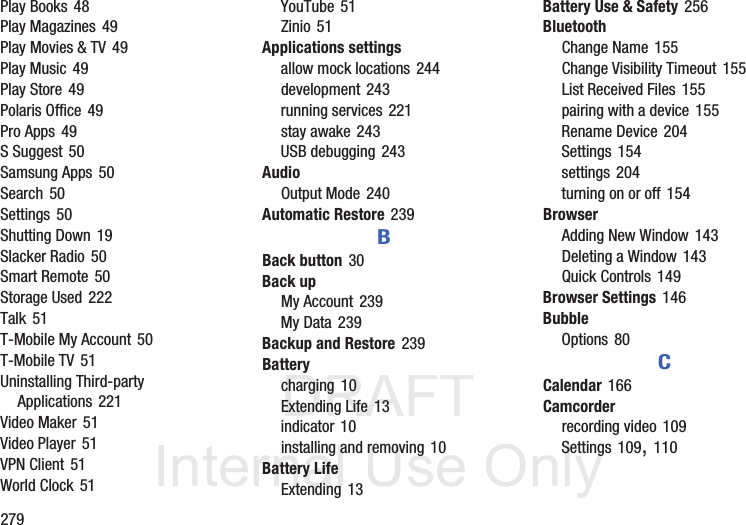

DRAFT InternalUse Only279Play Books 48Play Magazines 49Play Movies & TV 49Play Music 49Play Store 49Polaris Office 49Pro Apps 49S Suggest 50Samsung Apps 50Search 50Settings 50Shutting Down 19Slacker Radio 50Smart Remote 50Storage Used 222Talk 51T-Mobile My Account 50T-Mobile TV 51Uninstalling Third-party Applications 221Video Maker 51Video Player 51VPN Client 51World Clock 51YouTube 51Zinio 51Applications settingsallow mock locations 244development 243running services 221stay awake 243USB debugging 243AudioOutput Mode 240Automatic Restore 239BBack button 30Back upMy Account 239My Data 239Backup and Restore 239Batterycharging 10Extending Life 13indicator 10installing and removing 10Battery LifeExtending 13Battery Use & Safety 256BluetoothChange Name 155Change Visibility Timeout 155List Received Files 155pairing with a device 155Rename Device 204Settings 154settings 204turning on or off 154BrowserAdding New Window 143Deleting a Window 143Quick Controls 149Browser Settings 146BubbleOptions 80CCalendar 166Camcorderrecording video 109Settings 109, 110

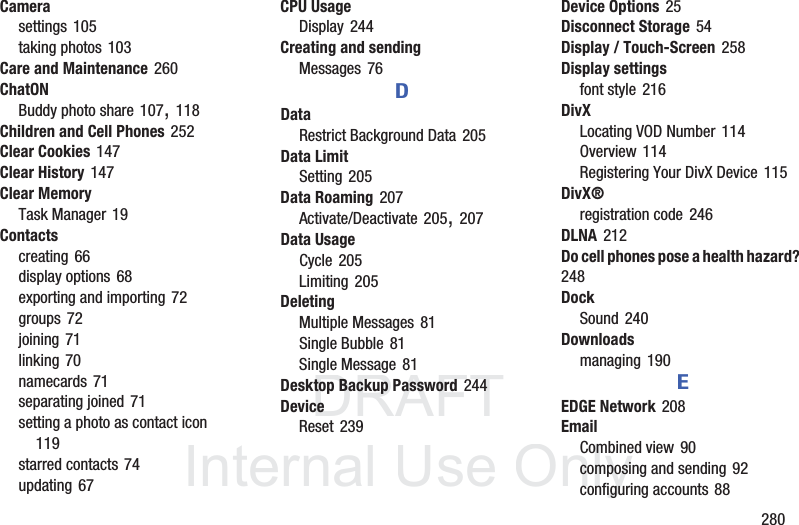

DRAFT InternalUse Only 280Camerasettings 105taking photos 103Care and Maintenance 260ChatONBuddy photo share 107, 118Children and Cell Phones 252Clear Cookies 147Clear History 147Clear MemoryTask Manager 19Contactscreating 66display options 68exporting and importing 72groups 72joining 71linking 70namecards 71separating joined 71setting a photo as contact icon 119starred contacts 74updating 67CPU UsageDisplay 244Creating and sendingMessages 76DDataRestrict Background Data 205Data LimitSetting 205Data Roaming 207Activate/Deactivate 205, 207Data UsageCycle 205Limiting 205DeletingMultiple Messages 81Single Bubble 81Single Message 81Desktop Backup Password 244DeviceReset 239Device Options 25Disconnect Storage 54Display / Touch-Screen 258Display settingsfont style 216DivXLocating VOD Number 114Overview 114Registering Your DivX Device 115DivX®registration code 246DLNA 212Do cell phones pose a health hazard? 248DockSound 240Downloadsmanaging 190EEDGE Network 208EmailCombined view 90composing and sending 92configuring accounts 88

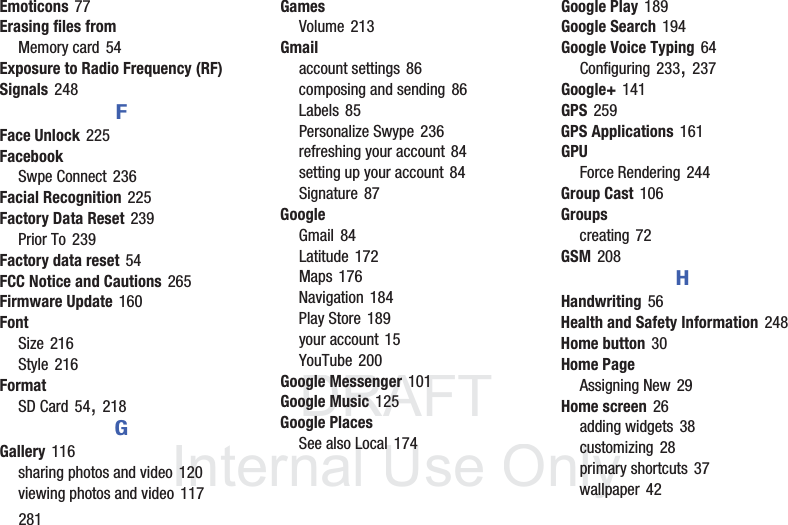

DRAFT InternalUse Only281Emoticons 77Erasing files fromMemory card 54Exposure to Radio Frequency (RF) Signals 248FFace Unlock 225FacebookSwpe Connect 236Facial Recognition 225Factory Data Reset 239Prior To 239Factory data reset 54FCC Notice and Cautions 265Firmware Update 160FontSize 216Style 216FormatSD Card 54, 218GGallery 116sharing photos and video 120viewing photos and video 117GamesVolume 213Gmailaccount settings 86composing and sending 86Labels 85Personalize Swype 236refreshing your account 84setting up your account 84Signature 87GoogleGmail 84Latitude 172Maps 176Navigation 184Play Store 189your account 15YouTube 200Google Messenger 101Google Music 125Google PlacesSee also Local 174Google Play 189Google Search 194Google Voice Typing 64Configuring 233, 237Google+ 141GPS 259GPS Applications 161GPUForce Rendering 244Group Cast 106Groupscreating 72GSM 208HHandwriting 56Health and Safety Information 248Home button 30Home PageAssigning New 29Home screen 26adding widgets 38customizing 28primary shortcuts 37wallpaper 42

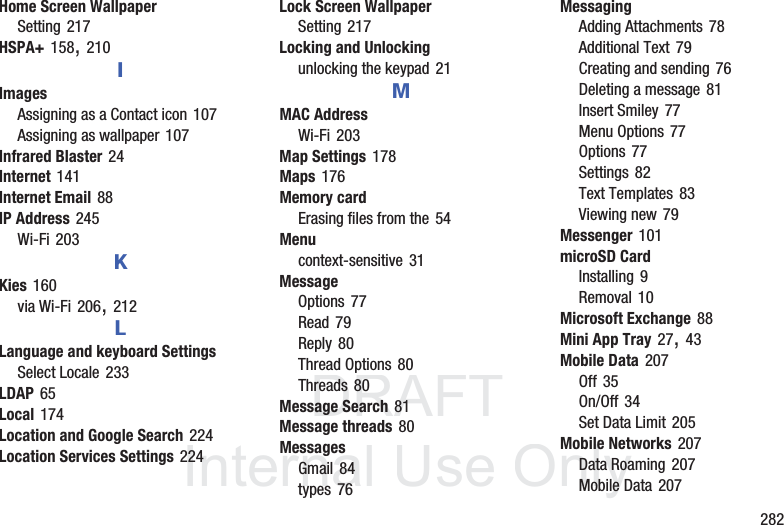

DRAFT InternalUse Only 282Home Screen WallpaperSetting 217HSPA+ 158, 210IImagesAssigning as a Contact icon 107Assigning as wallpaper 107Infrared Blaster 24Internet 141Internet Email 88IP Address 245Wi-Fi 203KKies 160via Wi-Fi 206, 212LLanguage and keyboard SettingsSelect Locale 233LDAP 65Local 174Location and Google Search 224Location Services Settings 224Lock Screen WallpaperSetting 217Locking and Unlockingunlocking the keypad 21MMAC AddressWi-Fi 203Map Settings 178Maps 176Memory cardErasing files from the 54Menucontext-sensitive 31MessageOptions 77Read 79Reply 80Thread Options 80Threads 80Message Search 81Message threads 80MessagesGmail 84types 76MessagingAdding Attachments 78Additional Text 79Creating and sending 76Deleting a message 81Insert Smiley 77Menu Options 77Options 77Settings 82Text Templates 83Viewing new 79Messenger 101microSD CardInstalling 9Removal 10Microsoft Exchange 88Mini App Tray 27, 43Mobile Data 207Off 35On/Off 34Set Data Limit 205Mobile Networks 207Data Roaming 207Mobile Data 207

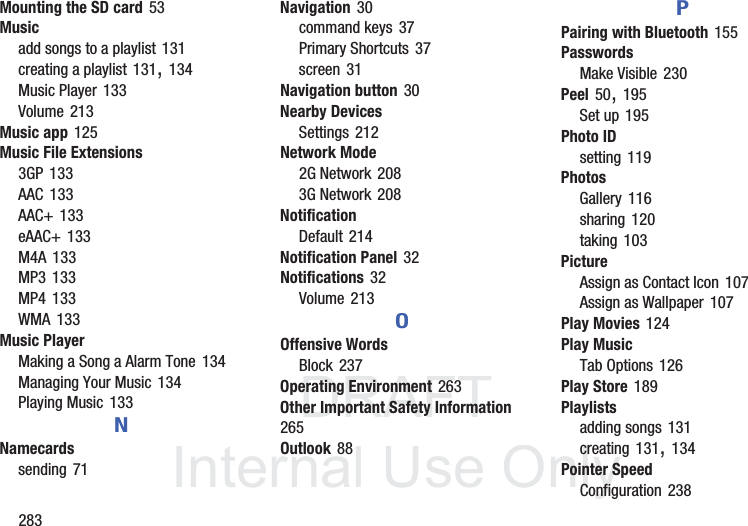

DRAFT InternalUse Only283Mounting the SD card 53Musicadd songs to a playlist 131creating a playlist 131, 134Music Player 133Volume 213Music app 125Music File Extensions3GP 133AAC 133AAC+ 133eAAC+ 133M4A 133MP3 133MP4 133WMA 133Music PlayerMaking a Song a Alarm Tone 134Managing Your Music 134Playing Music 133NNamecardssending 71Navigation 30command keys 37Primary Shortcuts 37screen 31Navigation button 30Nearby DevicesSettings 212Network Mode2G Network 2083G Network 208NotificationDefault 214Notification Panel 32Notifications 32Volume 213OOffensive WordsBlock 237Operating Environment 263Other Important Safety Information 265Outlook 88PPairing with Bluetooth 155PasswordsMake Visible 230Peel 50, 195Set up 195Photo IDsetting 119PhotosGallery 116sharing 120taking 103PictureAssign as Contact Icon 107Assign as Wallpaper 107Play Movies 124Play MusicTab Options 126Play Store 189Playlistsadding songs 131creating 131, 134Pointer SpeedConfiguration 238

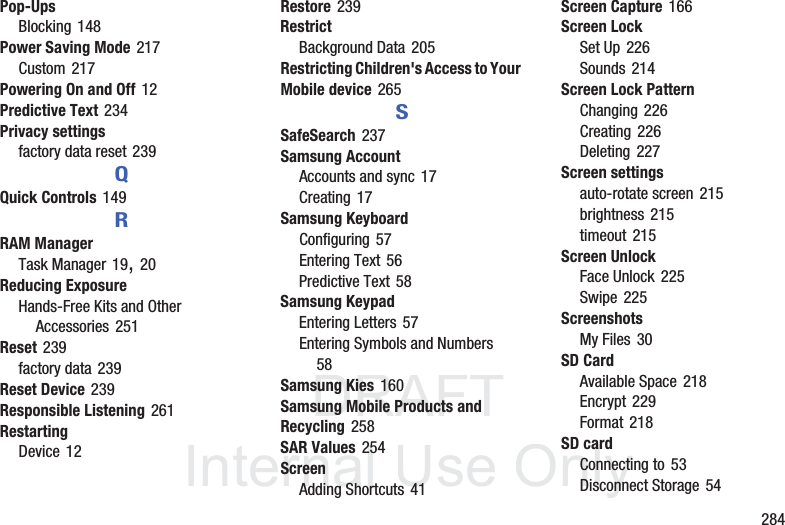

DRAFT InternalUse Only 284Pop-UpsBlocking 148Power Saving Mode 217Custom 217Powering On and Off 12Predictive Text 234Privacy settingsfactory data reset 239QQuick Controls 149RRAM ManagerTask Manager 19, 20Reducing ExposureHands-Free Kits and Other Accessories 251Reset 239factory data 239Reset Device 239Responsible Listening 261RestartingDevice 12Restore 239RestrictBackground Data 205Restricting Children's Access to Your Mobile device 265SSafeSearch 237Samsung AccountAccounts and sync 17Creating 17Samsung KeyboardConfiguring 57Entering Text 56Predictive Text 58Samsung KeypadEntering Letters 57Entering Symbols and Numbers 58Samsung Kies 160Samsung Mobile Products and Recycling 258SAR Values 254ScreenAdding Shortcuts 41Screen Capture 166Screen LockSet Up 226Sounds 214Screen Lock PatternChanging 226Creating 226Deleting 227Screen settingsauto-rotate screen 215brightness 215timeout 215Screen UnlockFace Unlock 225Swipe 225ScreenshotsMy Files 30SD CardAvailable Space 218Encrypt 229Format 218SD cardConnecting to 53Disconnect Storage 54

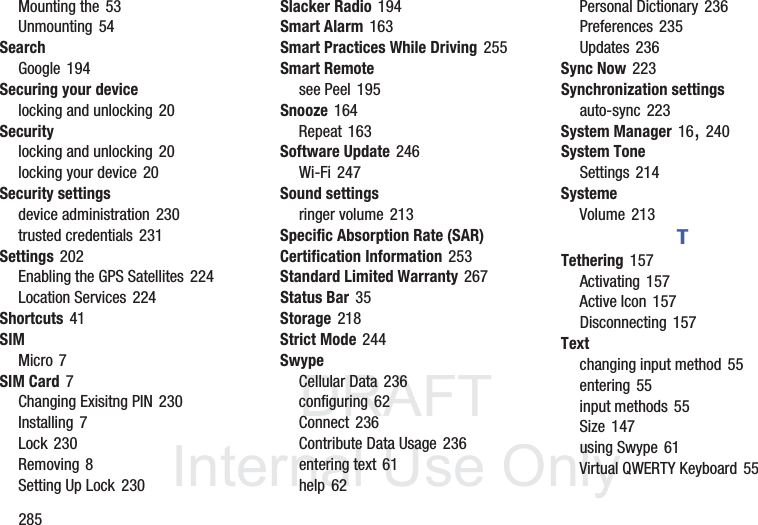

DRAFT InternalUse Only285Mounting the 53Unmounting 54SearchGoogle 194Securing your devicelocking and unlocking 20Securitylocking and unlocking 20locking your device 20Security settingsdevice administration 230trusted credentials 231Settings 202Enabling the GPS Satellites 224Location Services 224Shortcuts 41SIMMicro 7SIM Card 7Changing Exisitng PIN 230Installing 7Lock 230Removing 8Setting Up Lock 230Slacker Radio 194Smart Alarm 163Smart Practices While Driving 255Smart Remotesee Peel 195Snooze 164Repeat 163Software Update 246Wi-Fi 247Sound settingsringer volume 213Specific Absorption Rate (SAR) Certification Information 253Standard Limited Warranty 267Status Bar 35Storage 218Strict Mode 244SwypeCellular Data 236configuring 62Connect 236Contribute Data Usage 236entering text 61help 62Personal Dictionary 236Preferences 235Updates 236Sync Now 223Synchronization settingsauto-sync 223System Manager 16, 240System ToneSettings 214SystemeVolume 213TTethering 157Activating 157Active Icon 157Disconnecting 157Textchanging input method 55entering 55input methods 55Size 147using Swype 61Virtual QWERTY Keyboard 55

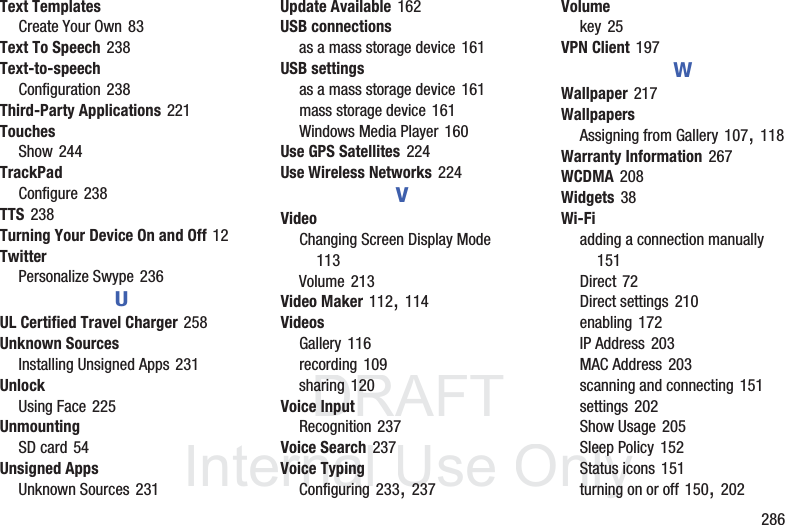

DRAFT InternalUse Only 286Text TemplatesCreate Your Own 83Text To Speech 238Text-to-speechConfiguration 238Third-Party Applications 221TouchesShow 244TrackPadConfigure 238TTS 238Turning Your Device On and Off 12TwitterPersonalize Swype 236UUL Certified Travel Charger 258Unknown SourcesInstalling Unsigned Apps 231UnlockUsing Face 225UnmountingSD card 54Unsigned AppsUnknown Sources 231Update Available 162USB connectionsas a mass storage device 161USB settingsas a mass storage device 161mass storage device 161Windows Media Player 160Use GPS Satellites 224Use Wireless Networks 224VVideoChanging Screen Display Mode 113Volume 213Video Maker 112, 114VideosGallery 116recording 109sharing 120Voice InputRecognition 237Voice Search 237Voice TypingConfiguring 233, 237Volumekey 25VPN Client 197WWallpaper 217WallpapersAssigning from Gallery 107, 118Warranty Information 267WCDMA 208Widgets 38Wi-Fiadding a connection manually 151Direct 72Direct settings 210enabling 172IP Address 203MAC Address 203scanning and connecting 151settings 202Show Usage 205Sleep Policy 152Status icons 151turning on or off 150, 202

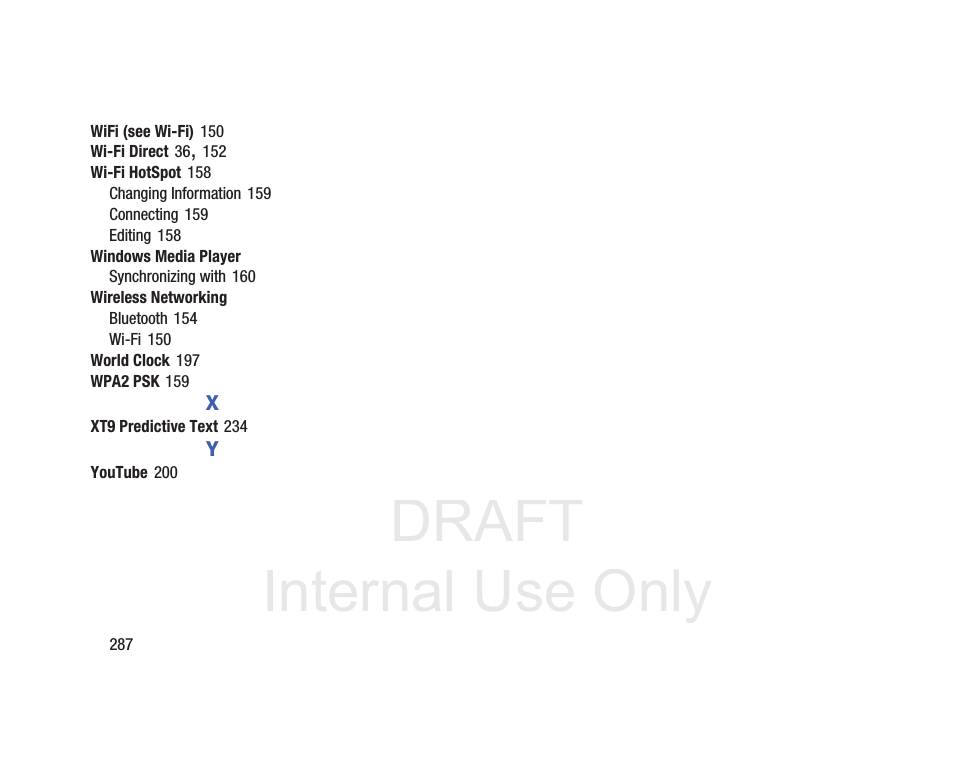

DRAFT InternalUse Only287WiFi (see Wi-Fi) 150Wi-Fi Direct 36, 152Wi-Fi HotSpot 158Changing Information 159Connecting 159Editing 158Windows Media PlayerSynchronizing with 160Wireless NetworkingBluetooth 154Wi-Fi 150World Clock 197WPA2 PSK 159XXT9 Predictive Text 234YYouTube 200
