Samsung Electronics Co SGHZ310 Single-Band PCS GSM/ EDGE Phone with Bluetooth User Manual Z110VEng4Vodafone
Samsung Electronics Co Ltd Single-Band PCS GSM/ EDGE Phone with Bluetooth Z110VEng4Vodafone
Users Manual
* Depending on the software installed or your service provider or country, some of the
descriptions in this manual may not match your phone exactly.
* Depending on your country, your phone and accessories may appear different from
the illustrations in this manual.
World Wide Web
http://www.samsungmobile.com
Printed in Korea
Code No.:GH68-00000A
English. 10/2005. Drf. 1.0
SGH-Z310
User’s Manual
Important
safety
precautions
Failure to comply with the following
precautions may be dangerous or illegal.
Use road safety at all times
Do not use a hand-held phone while driving.
Park the vehicle first.
Switch off the phone when refuelling
Do not use the phone at a refuelling point
(service station) or near fuels or chemicals.
Switch off in an aircraft
Wireless phones can cause interference. Using
them in an aircraft is both illegal and
dangerous.
Switch off the phone near all medical
equipment
Hospitals or health care facilities may be using
equipment that could be sensitive to external
radio frequency energy. Follow any regulations
or rules in force.
Interference
All wireless phones may be subject to
interference, which could affect their
performance.
1
Important safety precautions
Be aware of special regulations
Meet any special regulations in force in any area and
always switch off your phone whenever it is
forbidden to use it, or when it may cause
interference or danger.
Water resistance
Your phone is not water-resistant. Keep it dry.
Sensible use
Use only in the normal position (held to the ear).
Avoid unnecessary contact with the antenna when
the phone is switched on.
Emergency calls
Key in the emergency number for your present
location, then press .
Keep your phone away from small children
Keep the phone and all its parts, including
accessories, out of the reach of small children.
Accessories and batteries
Use only Samsung-approved accessories and
batteries. Use of any unauthorised accessories could
damage your phone and may be dangerous.
Qualified service
Only qualified service personnel may repair your
phone.
For more detailed safety information, see "Health
and safety information" on page 78.
• The phone could explode if the battery is
replaced with an incorrect type.
• Dispose of used batteries according to the
manufacturer’s instructions.
2
About this Guide
This User’s Guide provides you with condensed
information about how to use your phone. To quickly
learn the basics for your phone, please refer to “Get
started” and “Step outside the phone.”
In this guide, the following instruction icons appear:
Indicates that you need to pay careful
attention to the subsequent
information regarding safety or phone
features.
Indicates that you can get more
information on the referenced page.
→
Indicates that you need to press the
Navigation keys to scroll to the
specified option and then select it.
[
] Indicates a key on the phone. For
example,
[
OK
]
<
> Indicates a soft key, whose function is
displayed on the phone screen. For
example, <
Msg.
>
•3G
Your phone is capable of operating
in a 3G environment, allowing
much greater data transfer speed,
video streaming, and video
conferencing.
Special
features of your phone
• Camera and camcorder
Use the camera module on your
phone to take a photo or record a
video.
•Media player
Play media files on your phone. You
can enjoy high quality videos and
music.

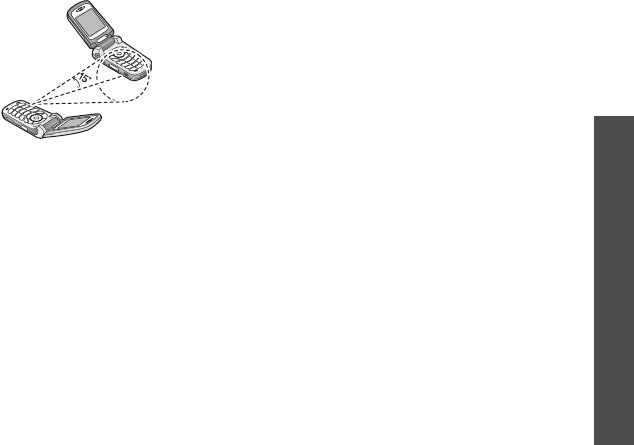

•IrDA
Send and receive Phonebook and
Oganiser data and media files via
an infrared port.
3
Special features of your phone
•Bluetooth
Send photos, images, videos, and
other personal data, and connect to
other devices using free, wireless
Bluetooth technology.
•WAP browser
Access the wireless web to get
up-to-the-minute information and
a wide variety of media content.
• Name card
Create name cards with your
number and profile whenever
introducing yourself to others use
this convenient electronic name
card.
• Get personal with photo caller
ID
See who’s calling you with their
very own photo displays.
• Multimedia Message Service (MMS)
Deliver MMS messages with a combination of
text, images, and audio.
•E-mail
Deliver e-mails with images, video, and audio
attachments.
•Java
Enjoy Java
™
-based embedded
games and download new games.
• Organiser
Keep track of your daily, weekly,
and monthly schedule.
• Voice recorder
Record memos or sounds.
4
Contents
Unpack 6
Make sure you have each item
Your phone 6
Buttons, features, and locations
Get started 7
First steps to operating your phone
Install and charge the phone .............................. 7
Power on or off................................................. 8
Keys and display............................................... 9
Access menu functions...................................... 11
Customise your phone ...................................... 12
Make/Answer calls............................................ 14
Step outside the phone 14
Begin with your camera, Media player, games, WAP, and
other special features
Use camera..................................................... 14
Play media files ............................................... 15
Play games ..................................................... 16
Browse the web............................................... 17
Use Contacts ................................................... 17
Send messages................................................ 18
View messages................................................ 20
Use Bluetooth wireless...................................... 20
Enter text 22
ABC, T9, Number, and Symbol mode
Call functions 24
Advanced calling features
Menu functions 28
All menu options listed
Solve problems 77
Help and personal needs
Health and safety information 79
Index 93
5
1 Call log
p. 28
1 Missed calls
2 Dialled calls
3 Received calls
4 Current contacts
5 Delete all
6 Data calls
7 Calls cost
*
8 Calls time
p. 28
p. 29
p. 29
p. 29
p. 29
p. 29
p. 29
p. 30
2 Contacts
p. 30
1 Search contact
2 New contact
3 Groups
4 Speed dial
5 My name card
6 Copy all
7 Own number
8 Service number*
9 Settings
0 Memory status
p. 30
p. 31
p. 32
p. 32
p. 33
p. 33
p. 33
p. 33
p. 34
p. 34
3 Applications
p. 34
1 SAT*
2 Medial player
3 Voice memo
4 World clock
5 Calculator
6 Converter
p. 34
p. 34
p. 36
p. 37
p. 38
p. 38
4 Internet
p. 39
1 Go to homepage
2 Enter URL
3 Favorites
4 History
5 Browser settings
6 Network settings
p. 39
p. 40
p. 40
p. 40
p. 40
p. 40
5 Messages
p. 41
1 Create new
2 Inbox
3 Drafts
4 Outbox
5 Sent box
6 Email inbox
7 Media album
**
8 Templates
9 Broadcast
0 Delete all
Settings
Memory status
p. 41
p. 43
p. 45
p. 45
p. 45
p. 46
p. 47
p. 47
p. 47
p. 48
p. 48
p. 51
6 File manager
p. 52
Images
Videos
Music
Sounds
Games & More
Other files
Memory card
***
p. 52
p. 53
p. 55
p. 56
p. 56
p. 57
p. 58
7 Organiser
p. 58
1 Alarm
2 Calendar
3 Week view
4 Today’s events
5 Schedule
6 Anniversary
7 Task
8 Memo
9 Missed event alarm
0 Memory status
p. 58
p. 59
p. 61
p. 61
p. 61
p. 61
p. 61
p. 61
p. 61
p. 61
8 Camera
p. 62
9 Settings
p. 66
1 Profiles
2 Time & date
3 Phone
4 Display
5 Call
6 Connectivity
7 Application settings
8 Security
9 Memory status
0 Reset settings
p. 66
p. 67
p. 67
p. 68
p. 69
p. 71
p. 74
p. 75
p. 76
p. 76
* Shows only if supported by your USIM/SIM
card.
** Shows only if supported by your service
provider.
*** Shows only if a memory card is inserted
into the phone.
Overview of menu functions
To access Menu mode, press [
OK
] in Idle mode.
6
Unpack
Make sure you have each item
You can obtain various accessories
from your local Samsung dealer.
Phone Travel Charger
Battery PC Data Cable
PC Link CD User’s Manual
The items supplied with your
phone and the accessories at
your Samsung dealer may vary,
depending on your country or
service provider.
Your phone
Buttons, features, and locations
Microphone
Headset jack
Navigation
keys
Dial key
Earpiece
Display
Volume keys
Interior
camera lens Camera
key
Memory
card slot
Left soft key
Application
switch key
Menu access/
confirm key
Delete key
Alphanumeric keys
External
display
Infrared port
Special
function keys
Right soft key
Video call key
Power On/Off/
Menu exit key
Exterior
camera
lens
7
Get started
First steps to operating your phone
USIM/SIM card information
When you subscribe to a cellular network, you
receive a plug-in SIM (Subscriber Identity Module)
card loaded with your subscription details, such as
your PIN and available optional services. For 3G
services, you can purchase a USIM (Universal
Subscriber Identity Module) card.
Install and charge the phone
Remove the battery.
If the
phone is already
on, first turn it off by
holding [ ].
Insert the USIM/SIM
card.
Make sure that the
gold-coloured contacts
on the card face down
into the phone.
1 2
Install the battery. Plug the travel
charger into the
phone.
Plug the charger into a standard AC wall outlet.
The LED on the charger indicates the charging
progress.
• Red: the battery is being charged.
• Green: the battery is completely charged.
• Orange: the battery is not correctly installed
or is operating at a too high or too low
temperature.
When the phone is completely charged (green
charger LED), unplug the charger from the
power outlet.
3 4
5
6
Get started
8
Low battery indicator
When the battery is low:
• a warning tone sounds,
• the battery low message displays, and
• the empty battery icon blinks.
If the battery level becomes too low, the phone
automatically turns off. Recharge your battery.
Power on or off
Remove the charger from the phone.
7
Power on
Do not turn on the
phone when
mobile phone use
is prohibited.
1. Open the phone.
2. Press and hold [ ] to turn
on the phone.
3. If necessary, enter the PIN
and press <
Confirm
>.
Power off
1. Open the phone.
2. Press and hold [ ].
9
Get started
Keys and display
Key(s) Description
Perform the function indicated on the
bottom line of the display.
Opens the Media player.
In Idle mode, access menu options
directly.
p. 67
In Menu mode, scroll through the
menu options.
In Idle mode, accesses Menu mode.
In Menu mode, select a highlighted
menu option.
Opens the application switch window
to open
Call
,
Messages
, and
Internet
without exiting the current
application.
Makes a video call.
Makes or answers a call.
In Idle mode, retrieves the recent
number dialled, missed, or received.
Key(s) Description
Deletes characters from the display or
an item in an application.
Ends a call.
Hold down to switch the phone on and
off.
In Menu mode, cancel input and
return the phone to Idle mode.
Enter numbers, letters, and some
special characters.
In Idle mode, hold [
1
] down to access
your voicemail. Hold [
0
] down to enter
an international call prefix.
Enter special characters.
Hold [ ] down to activate or
deactivate the Silent profile. Hold [ ]
down to enter a pause between
numbers.
(
on the left)
Adjust the phone volume.
In Idle mode, adjust the keypad tone
volume. With the phone closed, hold
down to activate the external display.
(on the right)
Hold down to turn on the camera.
In Camera mode, switches the camera
lens.
Get started
10
Display
Layout
The display has three areas.
Icons
Received signal strength
Accessing services in a 2.5G
network; when transferring
data, this icon animates
Accessing services in a 3G
network; when transferring
data, this icon animates
Active roaming feature
Voice call in progress
Out of your service area; you
cannot send or receive voice
calls
Video call in progress
Text and graphics
displays messages,
instructions, and
information you enter.
Soft key function
indicators
shows the current
functions assigned to
the two soft keys.
Icons
displays various icons.
Select Back
Icons
(continued)
Out of your service area; you
cannot send or receive video
calls
Bluetooth feature is active;
when transferring data, this
icon blinks red and blue
p. 71
Connected with a Bluetooth
headset or hands-free kit
IrDA port is active
p. 72
Memory card inserted
Connected with a computer
via a USB port
Browsing the Internet on a PC
using the phone as a modem
Connected to a secured web
page
New message; depending on
the message type, the
following icons may appear.
•: SMS
• : MMS or MMS with
attachments
•: E-mail
•: Voicemail
•: WAP push
• : Configuration message
11
Get started
Access menu functions
Icons
(continued)
Inbox full; depending on the
message type, the following
icons may appear.
•: SMS
• : MMS or MMS with
attachments
•: E-mail
•: Voicemail
•: WAP push
• : Configuration message
Profile setting
p. 67
•: Normal
• : Meeting
•: Car
•: Silent
• : Outdoor
Battery power level
Use the soft
keys
The roles of the soft keys vary
depending on the function you are
using. The bottom line of the
display indicates their current
role.
In each main menu, one of the
most popular sub menu is
assigned to the left soft key.
This allows you to quickly
access the most popular
menus.
Press the left soft
key to confirm the
function displayed
or option
highlighted.
Press the right soft
key to move up
one level.
Select Back
Get started
12
Customise your phone
Select an
option
1. Press the appropriate soft
key or [
OK
] to access Menu
mode.
2. Press the Navigation keys to
move to the next or previous
option.
3. Press <
Select
>, <
OK
>, or
[
OK
] to confirm the function
displayed or option
highlighted.
4. To exit, choose either of the
following methods:
• Press <
Back
> to move
up one level.
• Press [ ] to return to
Idle mode.
Use shortcuts
Press the number key
corresponding to the option you
want.
1. In Idle mode, press [
OK
] and
select
Settings
→
Phone
→
Language
→
Screen text
.
2. Select a language.
3. Press <
Save
>.
You can change the call ringer by
changing the properties of the
currently active sound profile.
To change the profile properties:
1. In Idle mode, press [
OK
] and
select
Settings
→
Profiles
.
2. Scroll the sound profile you
are using.
3. Press <
Options
> and select
Edit
.
4. Select
Voice call ringtone
and select a ringer for voice
calls.
5. Press <
Select
>.
6. Select
Video call ringtone
and select a ringer for video
calls.
7. Press <
Select
>.
8. Press <
Options
> and select
Save
.
Display
language
Call ringer
melody
13
Get started
To change the sound profile:
1. In Idle mode, press [
OK
] and
select
Settings
→
Profiles
.
2. Select the profile you want.
You can set a wallpaper for the
idle screen.
1. In Idle mode, press [
OK
] and
select
Settings
→
Display
→
Wallpaper
.
2. Press [Left] or [Right] to
scroll to an image box
.
3. Select an image and press
<
Set
>.
You can quickly activate the
Silent profile to avoid disturbing
other people.
Press and hold [ ] in Idle mode.
Idle mode
Wallpaper
Silent mode
You can protect the phone
against unauthorised use with a
phone password. The phone will
require the password on
power-up.
1. In Idle mode, press [
OK
] and
select
Settings
→
Security
→
Change phone
password
.
2. Enter the default password,
00000000
, and press
<
Confirm
>.
3. Enter a new 4- to 8-digit
password and press
<
Confirm
>.
4. Enter the new password
again and press <
Confirm
>.
5. Select
Phone lock
.
6. Select
Enable
.
7. Enter the password and press
<
Confirm
>.
Phone lock
Step outside the phone
14
Make/Answer calls
Step outside the phone
Begin with your camera, Media player, games, WAP, and
other special features
Use camera
To make a voice call:
1. Enter an area code and
phone number.
2. Press [ ].
3. To end the call, press [ ].
To make a video call:
1. Enter an area code and
phone number.
2. Press [ ], and the other
person appears on the
screen.
1. When the phone is ringing,
press [ ].
2. For a video call, press
<
Show me
> to allow the
other person to see you.
3. To end the call, press [ ].
Press [ / ].
Make a call
Answer a call
Adjust the
volume during
a call
1. In Idle mode, press and hold
[ ] to turn on the camera.
2. Press [ ] to switch between
the interior lens and exterior
lens.
3. Aim the camera lens at the
subject and adjust the image.
4. Press [
OK
] to take a photo.
The photo is saved
automatically.
5. Press [
OK
] to take another
photo.
1. In Idle mode, press [
OK
] and
select
File manager
→
Images
.
2. Select the photo you want.
Take a photo
View a photo
15
Step outside the phone
Play media files
1. In Idle mode, press and hold
[ ] to turn on the camera.
2. Press [
1
] to switch to Record
mode.
3. Press [ ] to switch between
the interior lens and exterior
lens.
4. Press [
OK
] to start recording.
5. Press [
OK
] to stop recording.
The video is automatically
saved.
6. Press [
OK
]
to record another
video.
1. In Idle mode, press [
OK
] and
select
File manager
→
Videos
.
2. Select the video you want.
Record a video
Play a video
Use these methods:
• Download from the wireless
web
p. 39
• Download from a computer
using Samsung PC Studio
Samsung PC Studio User’s
Guide
• Copy files to a memory card
and insert the card into the
phone.
• Receive via IrDA or
Bluetooth
p. 72, p. 71
1. In Idle mode, press [ ].
2. Press <
Options
> and select
Open play list
.
3. Press <
Options
> and select
Add
→
Folder
or
Files
.
4. Press [
OK
] to check the files
you want or scroll to the
folder you want.
5. Press <
Add
> or <
Select
>.
6. Press [
OK
] to start playing
the files.
Copy media
files to the
phone
Create a play
list
Step outside the phone
16
Play games
1. From the Media player
screen, press [
OK
].
2. Press [
OK
] to start playing.
3. During playback, use the
following keys:
•
OK
: Pauses or resumes
playback.
• Up: Opens the play list.
• Left: Goes to the previous
file. Moves backward in a
file when held down.
• Right: Skips to the next
file. Skips forward in a file
when held down.
• / : Adjusts the volume.
• Down: Stops playback.
Play media files
1. In Idle mode, press [
OK
]
and
select
File manager
→
Games & More
→
the game
you want.
2. Press any key, except for
[ ], to launch the game.
1. Select
PLAY
.
2. Select a character.
3. Press <
OK
> to start a game.
4. Press [Up] to make the
character move forward.
5. Press the Navigation keys to
change the direction.
1. Select
START GAME
.
2. Select
New Game
.
3. Press <
SKIP
>, then <
OK
>.
4. Press [Up] to make the
machine move forward.
5. Press the Navigation keys to
change the direction.
Select a game
Play
Powerinlinex
Play
TheLastAge
17
Step outside the phone
Browse the web
Using a built-in WAP (Wireless Application Protocol)
browser, you can get easy access to the wireless
web to receive a variety of up-to-date information
and services and to enjoy downloads of web
contents.
Use Contacts
In Idle mode, press [
OK
] and
select
Internet
→
Go to
homepage
.
• To scroll through browser
items, press [Up] or [Down].
• To select an item, press [
OK
].
• To return to the previous
page, press <
Back
>.
• To use browser options, press
<
Options
>.
Launch the
browser
Navigate the
web
To the phone’s memory:
1. In Idle mode, enter a phone
number.
2. Press <
Options
> and select
Save to Contacts
→
Phone
→
New
→
a number type.
3. Specify the contact
information: First name, Last
name, Work email, Home
email, Group, Homepage,
Birthday, and More
information (Job title,
Department, Company,
Nickname, and Notes).
4. Press <
Options
> and select
Save
to save the entry.
To the USIM/SIM card:
1. In Idle mode, enter a phone
number.
2. Press <
Options
> and select
Save to Contacts
→
SIM
→
New
.
Add an entry
Step outside the phone
18
Send messages
3. Specify the contact
information, depending on
your card type: Name, Email,
Group, and Location number.
4. Press <
Save
> to save the
entry.
1. In Idle mode, press
<
Contacts
>.
2. Select an entry.
3. Select a number and press
[] to dial, or [
OK
] to edit
the contact information.
1. In Idle mode, press [
OK
] and
select
Contacts
→
My name
card
.
2. Specify your contact
information.
3. Press <
Options
> and select
Save
to save the name card.
4. To send the name card to
other people, access the
My
name card
menu again.
5. Press <
Options
> and select
Send
name card
→
the
sending method you want.
Find an entry
Create and
send your
name card
1. In Idle mode, press <
Msg.
>
and select
Create new
→
Text message
.
2. Enter the message text.
3. Press [
OK
].
4. Enter destination numbers.
5. Press [
OK
] to send the
message.
1. In Idle mode, press <
Msg.
>
and select
Create new
→
Multimedia message
.
2. Enter the message subject.
3. Select
Text
.
4. Enter the message text and
press [
OK
].
5. Select
Picture or video
or
Audio
.
6. Add a media file.
7. Press [
OK
].
8. Enter destination numbers or
e-mail addresses.
9. Press [
OK
] to send the
message.
Send a text
message (SMS)
Send a
multimedia
message
(MMS)
19
Step outside the phone
1. In Idle mode, press <
Msg.
>
and select
Create new
→
File messenger
.
2. Enter the message subject.
3. Move to the
Message
field.
4. Enter the message text.
5. Move to the
Attach files
line.
6. Press <
Options
> and select
Add files
,
Add name card
,
or
Add v-calendar
.
7. Select images, videos,
sounds, name cards,
schedule items, or tasks.
8. Press <
Options
> and select
Attach
.
9. Press [
OK
].
10.Enter destination numbers or
e-mail addresses.
11.Press [
OK
] to send the
message.
Send flies by
MMS
1. In Idle mode, press <
Msg.
>
and select
Create new
→
Email
.
2. Enter the e-mail subject.
3. Move to the
Message
field.
4. Enter the e-mail text.
5. Move to the
Attach files
line.
6. Press <
Options
> and select
Add files
,
Add name card
,
or
Add v-calendar
.
7. Select images, videos,
sounds, name cards,
schedule items, or tasks.
8. Press <
Options
> and select
Attach
.
9. Press [
OK
].
10.Enter e-mail addresses.
11.Press [
OK
] to send the
e-mail.
Send an e-mail
Step outside the phone
20
View messages
Use Bluetooth wireless
Your phone is equipped with Bluetooth technology
which enables you to connect the phone wirelessly
to other Bluetooth devices and exchange data with
them, talk hands-free, or control the phone
remotely.
When a notification appears:
1. Press <
View
>.
2. Select the message from the
Inbox.
From the Inbox:
1. In Idle mode, press <
Msg.
>
and select
Inbox
.
2. Select an SMS message
().
When a notification appears:
1. Press <
View
>.
2. Press <
Options
> and select
Retrieve
.
3. Select the message from the
Inbox.
From the Inbox:
1. In Idle mode, press <
Msg.
>
and select
Inbox
.
2. Select an MMS message
().
View text
message
View a
multimedia
message
1. In Idle mode, press <
Msg.
>
and select
Email
inbox
.
2. Press <
Options
> and select
Download
.
3. Select an e-mail or header.
4. If you selected a header,
press <
Options
> and select
Retrieve
.
In Idle mode, press [
OK
]
and
select
Settings
→
Connectivity
→
Bluetooth
→
Activation
→
On
.
1. In Idle mode, press [
OK
]
and
select
Settings
→
Connectivity
→
Bluetooth
→
My devices
→
Search new
device
.
2. Select a device.
View an e-mail
Turn on
Bluetooth
Search for and
pair with a
Bluetooth
device
21
Step outside the phone
3. Enter a Bluetooth PIN code or
the other device’s Bluetooth
PIN code, if it has, and press
<
OK
>.
When the owner of the other
device enters the same code,
the pairing is complete.
1. Access an application,
Contacts
,
File manager
, or
Organiser
.
2. Select the item you want to
send.
3. Press <
Options
> and select
Send
(
name card
/
schedule
/
task
)
→
Via
bluetooth
.
4. Select a device.
5. If necessary, enter the
Bluetooth PIN and press
<
OK
>.
To receive data via Bluetooth,
your phone’s Bluetooth feature
must be active.
If necessary, press <
Yes
> to
confirm the reception.
Send data
Receive data
22
Enter text
ABC, T9, Number, and Symbol mode
You can enter text for some features such as
Messages, Phonebook, or Organiser, using ABC
mode, T9 mode, Number mode, and Symbol mode.
Changing the text input mode
The text input mode indicator displays when the
cursor is in a text input field.
• Press and hold [ ] to switch between T9 ( )
and ABC ( ) modes.
• Press [ ] to change case ( / / ) or
to switch to Number mode ( ).
• Press and hold [ ] to switch to Symbol mode
().
Using T9 mode
T9 is a predictive text input mode that allows you to
key in any character using single keystrokes.
Entering a word in T9 mode
1. Press [
2
] to [
9
] to start entering a word. Press
each key once for each letter.
For example, press [
4
], [
3
], [
5
], [
5
], and [
6
] to
enter Hello in T9 mode.
T9 predicts the word that you are typing, and it
may change with each key that you press.
2. Enter the whole word before editing or deleting
characters.
3. When the word displays correctly, go to step 4.
Otherwise, press [
0
] to display alternative word
choices for the keys that you have pressed.
For example, Of and Me use [
6
] and [
3
].
4. Press [ ] to insert a space and enter the next
word.
Tips for using T9 mode
• Press [
1
] to enter periods or apostrophes
automatically.
• Press the Navigation keys to move the cursor.
• Press [
C
] to delete characters one by one. Press
and hold [
C
] to clear the entire display.
Adding a new word to the T9 dictionary
This feature may not be available for some
languages.
1. Enter the word that you want to add.
2. Press [
0
] to display alternative words for your
key presses. When there are no more alternative
words,
Spell
displays on the bottom line.
3. Press <
Spell
>.
4. Enter the word you want using ABC mode and
press <
Add
>.
23
Enter text
Using ABC mode
Press the appropriate key until the character you
want appears on the screen.
Tips for using ABC mode
• To enter the same letter twice or to enter a
different letter on the same key, wait for the
cursor to move to the right automatically or
press [Right]. Then, enter the next letter.
• Press [ ] to insert a space.
• Press the Navigation keys to move the cursor.
•Press [
C
] to delete characters one by one. Press
and hold [
C
] to clear the entire display.
Using Number mode
Number mode enables you to enter numbers. Press
the keys corresponding to the digits you want.
Using Symbol mode
Symbol mode enables you to insert symbols.
Upper case Lower case
Key Characters in order displayed
To Press
display more symbols [Up] or [Down].
select a symbol the corresponding
number key.
clear the symbol(s) [
C
].
insert the symbol(s) <
OK
>.
24
Call functions
Advanced calling features
Making a call
1. In Idle mode, enter the area code and phone
number.
2. Press [ ].
Making an international call
1. In Idle mode, press and hold [
0
]. The
+
character appears.
2. Enter the country code, area code, and phone
number, then press [ ].
Redialling recent numbers
1. In Idle mode, press [ ] to display the list of
recent numbers.
2. Scroll to the number you want and press [ ].
Making a call from Contacts
Once you have stored a number in Phonebook, you
can dial the number by selecting it from
Phonebook.
p. 30
You can also use the speed dial feature to assign
your most frequently called numbers to specific
number keys.
p. 32
Dialling a number from the USIM/SIM card
1. In Idle mode, enter the location number for the
phone number you want and press [ ].
2. Find the number you want.
3. Press <
Call
> or [ ] to make a voice call, or
<
V-Call
> to make a video call to the number.
Ending a call
Press [ ] or close the phone.
Answering a call
When you receive an incoming call, the phone rings
and displays the incoming call image.
Press [ ] or <
Accept
> to answer the call.
Tips for answering a call
• When
Anykey
answer
is active, you can press
any key to answer a call, except for [ ] and
<
Reject
>.
p. 68
• When
Active folder
is active, you can answer a
call by opening the phone.
p. 68
• Press <
Reject
> or [ ] to reject a call.
• Press and hold [ / ] to reject an incoming call
or mute the ringer, depending on the
Side key
setting.
p. 68
• Press
[
C
]
to clear the last digit or press and
hold
[
C
]
to clear the whole display. You can
move the cursor to edit an incorrect digit.
• Press and hold
[]
to enter a pause between
numbers.
25
Call functions
Viewing missed calls
If you have missed calls, the screen displays how
many calls you have missed.
1. Press <
View
>.
2. If necessary, scroll through the missed calls.
3. Press [ ] to dial the number you want.
Using the headset
Use the headset to make or answer calls without
holding the phone.
Connect the headset to the jack on the left side of
the phone.
The button on the headset work as listed below:
Options during a call
You can access a number of functions during a call.
Adjusting the volume during a call
Use [ / ] to adjust the earpiece volume during a
call.
Press [ ] to increase the volume level and [ ] to
decrease the volume level.
Placing a call on hold/Retrieving
Press <
Hold
> or <
Unhold
> to place the call on
hold or retrieve the call.
Making a second call
You can make another call if your network supports
it.
1. Press <
Hold
> to put the call on hold.
2. Make the second call in the normal way.
3. Press <
Swap
> to switch between the calls.
4. Press <
Options
> and select
Drop
→
Drop
held
call
to end the call on hold.
5. To end the current call, press [ ].
Answering a second call
You can answer an incoming call while already on
the phone, if your network supports it and you have
activated the call waiting feature.
p. 70
1. Press [ ] to answer the call. The first call is
automatically put on hold.
2. Press <
Swap
> to switch between the calls.
3. Press <
Options
> and select
Drop
→
Drop held
call
to end the call on hold.
4. To end the current call, press [ ].
To Press
redial the last call the button twice.
answer a call the button.
end a call and hold the button.
Call functions
26
Transferring a call
You can transfer the currently active call to a caller
on hold, if your network supports it. With this
option, the two callers can talk to each other, but
you are disconnected from the call.
Press <
Options
> and select
Transfer
.
Using the loudspeaker feature
Use the speaker to talk and listen with the phone a
short distance away. Press <
Options
> and select
Loudspeaker
, or press [
OK
].
Using a Bluetooth headset
Use an optional Bluetooth headset to talk on the
phone without holding the phone to your ear. To use
this feature, you first need to register your headset
and connect it to the phone.
p. 71
Press <
Options
> and select
Switch to headset
. To
switch the call back to the phone, press <
Options
>
and select
Switch to phone
.
Switching off the microphone
(Mute mode)
You can temporarily switch off your phone’s
microphone so that the person on the phone cannot
hear you.
Press <
Options
> and select
Mute
. To turn the
microphone back on, press <
Options
> and select
Unmute
.
Muting or sending key tones
You can turn the key tones off or on.
Press <
Options
> and select
Mute key tone
or
Unmute key tone
.
Using Phonebook
You can access the
Contacts
menu to locate or
store contacts in Phonebook.
p. 30
Press <
Options
> and select
Contacts
.
Sending an SMS message
You can create and send an SMS message to other
people as well as to your current call participants.
Press <
Options
> and select
Send text message
.
p. 41
Sending a sequence of DTMF tones
Dual tone multi-frequency (DTMF) tones are the
tones used in phones for tone dialling.
You can send DTMF tones as a group after entering
the entire number you need to send or retrieving a
number from Phonebook. This feature is helpful for
entering a password or an account number when
you call an automated system, like a banking
service.
To communicate with answering machines or
computerised telephone systems,
Unmute key
tone
must be selected.
27
Call functions
1. When connected with a teleservice system, press
<
Options
> and select
Send
DTMF
.
2. Enter the number you need to send and press
<
Send
>.
Adding a memo
You can add a memo during a call.
Press <
Options
> and select
Memo
.
p. 60
Making a multi-party call
Use this feature to allow as many as six people to
join a multi-party call, or conference call.
Your service provider must support multi-party calls
for you to use this feature.
Setting up a multi-party call
1. Call the first participant.
2. Call the second participant. The first call is
automatically put on hold.
3. Press <
Options
> and select
Join
. The first
participant is added to the multi-party call.
4. If desired, call another person or answer an
incoming call.
5. Press <
Options
> and select
Join
.
6. Repeat steps 4 and 5 as desired.
Having a private conversation with one
participant
1. Press <
Options
> and select
Split
.
2. Select a name or number from the participant
list.
You can talk privately with that person, while the
other participants converse with each other.
3. To return to the multi-party call, press
<
Options
> and select
Join
.
Disconnecting one participant
1. Press <
Options
> and select
Drop call
.
2. Select a name or number from the participant
list.
The participant is disconnected from the call, but
the call continues with the other parties.
3. Press [ ] to end the multiparty call.
Using the video call feature
In a 3G (UMTS) service area, your phone can make
or receive a video call which allows you to see
another person on the screen during a conversation.
The other person’s phone must support the video
call feature.
Making a video call
1. In Idle mode, enter the area code and phone
number.
2. Press [ ].
Answering a video call
When you receive a video call, answer a video call as
receiving a voice call. Press <
Show me
> to allow
the caller to see you.
28
Using video call options
During a video call, press <
Options
> to access the
following options:
•
Loudspeaker
/
Loudspeaker off
: turns the
loudspeaker on or off.
•
Switch to headset
/
Switch to phone
: switch
the call to a Bluetooth headset or back to the
phone.
•
Mute camera
: turn the camera off.
•
Mute voice
: turn the microphone off.
•
Mute camera & voice
: turn the camera and the
microphone off.
•
Mute key tone
: turn the key tones off.
•
Zoom
: display the zoom control bar.
•
Brightness
: display the brightness control bar.
•
Effects
: change the colour tone of the image.
•
Hide information
/
Show information
: hide or
display information about the video call.
•
Send DTMF
: send dual tone multi-frequency
(DTMF) tones as a group after entering the entire
number you need to send or retrieving a number
from Phonebook.
•
Video quality
: change the image quality of the
camera.
•
End call
: end the video call.
Menu functions
All menu options listed
Call log
(OK 1)
The
Call log
menu enables you to view the calls you
have dialled, received, or missed, the length of your
calls, and the cost of your calls.
To access this menu, press [
OK
] in Idle mode and
select
Call log
.
Missed calls
(OK 1.1)
This menu displays the most recently received calls
that you did not answer.
Accessing a call record
1. Scroll to the name or number you want. The call
list also shows the number of call repetition.
2. Press [ ] to dial the number, or [
OK
] to view
the details of a call.
Using call record options
While viewing the call list, press <
Options
> to
access the following options:
•
Details
: access information about the selected
call record.
•
Voice call
: place a voice call.
•
Video call
: place a video call.
29
Menu functions
Call log
(OK 1)
•
Use number
: paste the selected number to the
normal dialling screen.
•
Save to Contacts
:
save the selected number in
Phonebook.
•
Send message
: send a message to the selected
number using SMS, MMS, or file messenger.
•
Delete
: delete the call record.
•
Delete all
: delete all records.
Dialled calls
(OK 1.2)
This menu displays the most recent calls you have
dialled.
Received calls
(OK 1.3)
This menu displays the most recent calls you have
received.
Current contacts
(OK 1.4)
This menu displays all of the calls you have dialled,
received, or missed.
Delete all
(OK 1.5)
Use this menu to delete all of the records in each call
type.
1. Press [
OK
] to check the call type(s) to clear.
2. Press <
Delete
>.
3. Press <
Yes
> to confirm the deletion.
Data calls
(OK 1.6)
Use this menu to view the total amount of sent or
received data.
To reset a counter or all of the counters, press
<
Options
> and select
Reset
or
Reset all
.
Calls cost
(OK 1.7)
This network feature displays the cost of calls. This
menu is available only if your USIM/SIM card
supports this feature. Note that this is not intended
to be used for billing purposes.
•
Total
costs
: check the total cost of all your
calls. If the total cost exceeds the maximum cost
set in
Edit cost limit
, you must reset the
counter before you can make another call.
•
Last
call
cost
: check the cost of your last call.
•
Max cost
: check the maximum cost set.
Press <
Options
> to access the following options:
•
Reset call
cost
: reset the cost counters.
•
Edit cost limit
: set the maximum cost
authorised for your calls.
•
Setup currency
: set the price per unit that is
applied when the cost of your call is calculated.
Menu functions
30
Calls time
(OK 1.8)
This menu displays the time log for voice and video
calls made and received. The actual time invoiced by
your service provider will vary.
•
Total
dialled
: check the total length of voice
calls dialled.
•
Total
received
: check the total length of
voice calls received.
•
Total dialled
: check the total length of video
calls dialled.
•
Total received
: check the total length of
video calls received.
To reset a counter or all of the counters, press
<
Options
> and select
Reset
or
Reset all
.
Contacts
(OK 2)
You can store phone numbers on your USIM/SIM
card and in your phone’s memory. The USIM/SIM
card and phone’s memory are physically separate,
but they are used as a single entity called
Phonebook. In the
Contacts
menu, you can manage
your Phonebook entries.
To access this menu, press
[
OK
]
in Idle mode and
select
Contacts
.
Search contact
(OK 2.1)
Use this menu to search for numbers in Phonebook.
Finding an entry
1. Enter the first few letters of the name that you
want to find.
2. Select the name you want from the list.
3. Press [ ] to dial the number, or [
OK
] to edit the
contact information.
Using contact options
While viewing the contact list, press <
Options
> to
access the following options:
•
Details
: access detailed information about the
currently selected contact.
•
Edit
: edit the contact information.
•
Video call
: make a video call.
You can quickly access this menu by pressing
<
Contacts
>
in Idle mode.
31
Menu functions
Contacts
(OK 2)
•
New
: add a new contact.
•
Delete
: delete the selected contact.
•
Search groups
: access the caller group list.
•
Service number
: access service numbers
preset by your service provider.
•
Delete all
: delete all contacts.
While viewing details of a contact, press <
Options
>
to access the following options:
•
Edit
: edit the contact information.
•
Send message
: send a message to the selected
number using SMS, MMS, or file messenger.
•
Special options
: set the following options:
: assign a caller ID image to alert you to
a call from the person.
Ringtone
: assign a ringer melody to alert you to
a call from the person.
Msg.
alert tone
: select a tone to alert you to an
incoming message from the person.
•
Add to speed dial
: set the selected number as
a speed dial number.
•
Video call
: make a video call.
•
Copy to SIM
/
Copy to phone
: copy the selected
contact to the phone’s memory or USIM/SIM
card or vice versa.
•
Send name card
: send the contact via SMS, e-
mail, file messenger, Bluetooth, or infrared port.
•
Use number
: paste the number to the normal
dialling screen.
•
Delete
: delete the contact.
New contact
(OK 2.2)
Use this menu to add a new contact to Phonebook.
Storing a number in the phone’s memory
1. Select
Phone
.
2. Change the settings or enter information about
the contact.
•
First name
/
Last name
: assign a name.
•
Phone number
: add a mobile phone
number.
•
Work email
: assign a business e-mail
address.
•
Home email
: assign a personal e-mail
address.
•
Group
: assign a caller group.
•
Homepage
: enter a homepage address.
•
Birthday
: enter the person’s birthday.
•
More information
: enter the job title,
department, company, nickname, and
additional note about the person.
3. Press <
Options
> and access the following
options to add additional information:
•
Special options
: assign a caller ID image,
call ringer, or message ringer for the contact.
•
Add phone number
: add a number
category to the contact.
•
Delete phone number
: remove the
selected number category from the contact
entry.
Menu functions
32
•
Change type
: change the type of the
selected number.
•
Mark video call
/
Unmark video call
: set
the selected number as a video call number.
4. Press <
Options
> and select
Save
.
Storing a number on the USIM/SIM card
1. Select
SIM
.
2. Press [Down] and change the settings or enter
information about the contact.
•
Name
: assign a name.
•
Phone number
: add a mobile phone
number.
•
Email
: (for USIM) assign an e-mail address.
•
Group
: (for USIM) assign a caller group.
•
Location number
: enter a location number.
3. Press <
Save
>.
Groups
(OK 2.3)
Use this menu to organise your contacts in caller
groups.
Adding members to a caller group
1. Select a group.
2. Press [
OK
] to check the contacts you want.
3. Press <
Save
>.
Managing caller groups
From the group list, press <
Options
> to access the
following options:
•
View members
: display the members of the
select group.
•
Add member
: add contacts to the selected
group.
•
Add group
: add a new group.
•
Rename group
: change the group name.
•
Delete group
: delete the selected group.
•
Delete all groups
: delete all groups, including
the default groups.
Speed dial
(OK 2.4)
Use this menu to assign speed dial numbers (2 to 9)
to eight of your most frequently called numbers.
Assigning speed dial entries
1. Select a key location from
2
to
9
. Key
1
is
reserved for your voicemail server.
2. Select the contact you want from the contact list.
3. Scroll to a number, if the contact has more than
one number.
4. Press <
Select
>.
When you are using a USIM card, press
<
Options
> and select
Add item
to enter
additional numbers.
33
Menu functions
Contacts
(OK 2)
Managing speed dial entries
While viewing the Speed dial screen, press
<
Options
> to access the following options:
•
Add
: assign a number to an unassigned key.
•
Details
: display details about the speed dial
entry.
•
Video call
: make a video call.
•
Change
: assign a different number to an
assigned key.
•
Remove
: clear the speed dial setting for the
selected key.
Dialling speed dial entries
Press and hold the appropriate key in Idle mode.
My name card
(OK 2.5)
Use this menu to create your name card and send it
to other people.
Saving your name card
The procedure for creating your name card is the
same as the one for saving a number in the phone’s
memory.
p. 31
Using name card options
After saving your name card, press <
Options
> to
access the following options:
•
Edit
: edit the name card.
•
Send name card
: send the name card via SMS,
e-mail, file messenger, Bluetooth, or infrared
port.
•
Delete
: delete the name card.
Copy all
(OK 2.6)
Use this menu to copy all of the contacts stored on
the USIM/SIM card to the phone’s memory, or vice
versa.
Own number
(OK 2.7)
Use this feature to check your phone numbers, or to
assign a name to each of the numbers. Changes
made here do not affect the actual subscriber
numbers on your USIM/SIM card.
Service number
(OK 2.8)
This menu is available if your USIM/SIM card
supports Service Dialling Numbers (SDN). Use this
menu to view the list of SDNs assigned by your
service provider, including emergency numbers,
directory enquiries, and voicemail numbers.
1. Scroll to the number you want.
2. Press <
Dial
> or [ ].
Menu functions
34
Settings
(OK 2.9)
Use this menu to change the default settings for
Phonebook.
•
Viewing settings
: select whether the contact
list is sorted by last name or by first name.
•
Default storage settings
: select a default
memory location to save contacts. If you select
Optionally
, the phone will ask you to select a
memory location when saving a number.
Memory status
(OK 2.0)
Use this menu to view the number of contacts you
have stored and total number of contacts you can
store in Phonebook.
Applications
(OK 3)
Use this menu to play media files, to record a voice
memo, to set time zones, or to use the phone as a
calculator or converter.
To access this menu, press [
OK
] in Idle mode and
select
Applications
.
SAT
(OK 3.1)
This menu is available if you use a USIM/SIM card
that supports SIM Application Toolkit menus and
provides additional services, such as news, weather,
sports, entertainment, and location services.
Available services may vary, depending on your
service provider’s plans.
For details, see your USIM/SIM card instructions or
contact your service provider.
Media player
(OK 3.2)
Use this menu to enjoy media files, such as video
clips and music files. You can also play streaming
contents.
Downloading or receiving media files
Use this method to save media files to your phone:
• Download from the wireless web
p. 39
• Download from a computer using Samsung PC
Studio
Samsung PC Studio User’s Guide
You can quickly access the Media player by
pressing [
]
in Idle mode.
35
Menu functions
Applications
(OK 3)
• Receive via IrDA or Bluetooth
p. 72, p. 71
• Copy files to a memory card and insert the card
into the phone
Creating the play list
Add the media files to the play list so you can play
them.
1. From the Media player screen, press [
OK
].
2. Press <
Options
> and select
Add
.
3. Select
Folder
or
Files
.
4. Press [
OK
] to check the files you want, or scroll
to the folder you want.
5. Press <
Add
> or <
Select
>.
6. To play files, press [
OK
].
Playing media files
1. From the Media player screen, press [
OK
].
2. Select a file. The file plays.
During playback, you can use the following keys:
Using Media player options
From the Media player screen during playback, press
<
Options
> to access the following options:
•
Pause
/
Resume
: pause or resume playback.
•
Stop
: stop playback.
•
Send
: send the selected file via MMS, e-mail, file
messenger, Bluetooth, infrared port, or online
album, if provided.
•
Open play list
: display the play list.
•
Activate key
: get a new license key when the
key for the selected DRM file expires.
•
Reactivate key
: get another key even when the
key for the selected DRM file has not expired.
•
Go to file Manger
: go to the media file list.
•
Hidden from bluetooth
: hide the file so that
other Bluetooth devices cannot access it.
•
Visible to bluetooth
: share the file with other
Bluetooth devices.
•
Show controller
/
Hide controller
: display or
hide the control bar of the Media player.
•
Details
: access the file properties.
Key Function
OK
Pauses or resumes playback.
Left Goes to the previous file. Moves backward
in a file when held down.
Right Skips to the next file. Skips forward in a
file when held down.
Up Opens the play list.
/ Adjusts the volume.
Down Stops playback.
Key Function
Menu functions
36
•
Player settings
: change the default settings for
playing media files.
Play options
: select a repeat mode.
Volume
: select a volume level.
Controller
: display the control bar of the Media
player.
Audio player skin
: select a skin image.
•
VOD settings
:
select a connection profile to be
used for accessing a video streaming server. You
can also make or edit a profile.
p. 73
•
Key management
: manage the licence keys
you have acquired.
Using play list options
From the Media player screen, press [Up] to access
the play list and press <
Options
> to access the
following options:
•
Play
: play the currently selected file.
•
Add
: add files or a folder to the play list.
•
Remove
: remove the selected file or all of the
files from the play list.
•
Move
: move the selected file to the position you
want within the current play list or another play
list.
•
Copy
: make a copy of the selected file in the
current play list or another play list.
•
Delete list
: delete the current play list.
•
Rename list
: change the name of the play list.
•
New list
: add a new play list.
Voice memo
(OK 3.3)
Use this menu to record voice memos.
Recording a voice memo
1. Press [
OK
] to start recording.
2. Speak into the microphone.
Press [
OK
] to pause or resume the recording.
3. When you finish, press <
Stop
>. The voice
memo is automatically saved.
Playing a voice memo
1. From the voice recorder screen, press
<
Options
> and select
Go to sounds
.
2. Select the
Voice memos
folder.
3. Select a voice memo. The memo plays.
On the player screen, you can use the following
keys:
Key Function
OK
Pauses or resumes playback.
Up Switches to Play mode (
)
or back to
Record mode ( ).
Left Moves backward.
Right Skips forward.
/ Adjusts the volume.
Down Stops playback.
37
Menu functions
Applications
(OK 3)
Using voice memo options
From the player screen, press <
Options
> to access
the following options:
•
Play
: play the voice memo.
•
Resume
: resume playback.
•
Stop
: stop playback.
•
Record
: record a new voice memo.
•
Send
: send the selected file via MMS, e-mail, file
messenger, Bluetooth, or infrared port.
•
Go to sounds
: go to the
Sounds
folder.
•
Rename
: change the name of the file.
•
Delete
: delete the selected file.
•
Hidden from bluetooth
: hide the file so that
other Bluetooth devices cannot access it.
•
Visible to bluetooth
: share the file with other
Bluetooth devices.
•
Details
: access the file properties.
•
Record settings
: change the default settings
for recording a voice memo.
Default name
: change the default prefix of the
voice memo.
Recording time
:
select a maximum recording
time.
World clock
(OK 3.4)
Use this menu to set your local time zone and find
out what time it is in another part of the world.
Setting your local time zone
1. From the world map, press [Left] or [Right] to
select the city that corresponds to your home
time zone. As the time line moves, the time and
date of the given zone display.
2. Press [
OK
] to save the time zone.
Viewing and setting a foreign time zone
1. From the world map, press [Down].
2. Press [Left] or [Right] to select the foreign time
zone you want to view.
3. Press [
OK
] to save the time zone.
Applying Daylight Savings Time
1. From the world map, press <
Options
> and
select
Summer time
.
2. Press [
OK
] to check the time zone(s) you want.
3. Press <
Select
>.
4. Press <
Options
> and select
Save
.
Menu functions
38
Calculator
(OK 3.5)
Use this menu to perform basic arithmetic functions
such as addition, subtraction, multiplication, and
division.
Preforming a calculation
1. Enter the first number.
Press [ ] to include a decimal point.
2. Enter the operation for your calculation by
pressing the Navigation keys.
3. Enter the second number.
4. Press [
OK
] to view the result.
Using calculator options
Press <
Options
> to access the following options:
•
Equal
: view the result.
•
Recent calculation
: display the last result you
calculated.
•
Save to memory
: save a value into the
calculator memory.
•
Recall memory
: retrieve the saved value.
•
Clear memory
: clear the saved values.
Converter
(OK 3.6)
Use this menu for common conversions, such as
currency and temperature.
Preforming a conversion
1. Select the converter type you want.
2. Press [Left] or [Right] to select the original unit
and press [Down].
3. Enter the value to be converted.
• Press [ ] to insert a decimal point.
• Press [ ] to change the temperature to
above zero (+) or below zero (-).
4. Press [Down].
5. Press [Left] or [Right] to select the unit you want
to convert to.
The equivalent value for the amount you entered
displays.
Using converter options
Press <
Options
> to access the following options:
•
Clear
: clear the current values.
•
Reverse
: reverse the conversion.
•
Currency rates
: edit the currency rate list.
39
Menu functions
Internet
(OK 4)
Internet
(OK 4)
The Wireless Application Protocol (WAP) browser on
your phone allows you to access the wireless web.
Using the WAP browser, you can access up-to-the-
minute information and a wide variety of media
contents, such as wallpapers, ringtones, and music
files.
To access this menu, press [
OK
] in Idle mode and
select
Internet
.
Go to homepage
(OK 4.1)
Selecting this menu connects your phone to the
network and loads the homepage of the wireless
web service provider.
Navigating the WAP browser
In the WAP browser:
Using WAP page options
From any WAP page, press <
Options
> to access
the following browser options:
•
Go to homepage
: send you back to the
homepage.
•
Enter URL
: manually enter the URL address of
the web page you want to access.
•
Reload
: reload the current page with updated
information.
•
Add favorite
: add the current page to your
bookmark list.
•
Favorites
: access the bookmark list.
•
History
: show URLs previously visited.
•
Send link
: send the URL via SMS, e-mail, or file
messenger.
•
Save
: save the image of the current WAP page
or the current page.
•
Advanced
: clear browser information and
access the browser settings.
Search text
: search for a specific word or
phrase from the current WAP page.
Clear history
: delete the URLs stored in the
history.
Clear cookies
: delete cookies.
Clear cache
: delete information stored in the
cache.
Details
: access information about the current
page.
Browser settings
: change the settings for the
browser display, security, and certificates.
Network settings
: select a connection profile
to be used for connecting to the Internet. You
can also make or edit a profile.
p. 73
To Press
scroll through browser items [Up] or [Down].
select a browser item <
Select
> or [
OK
].
return to the previous page <
Back
>.
Menu functions
40
About
: access version and copyright information
of the WAP browser.
Exiting the WAP browser
Press [ ] to exit the browser.
Enter URL
(OK 4.2)
You can enter the URL of a WAP page in order to
quickly access the page.
Favorites
(OK 4.3)
You can add and manage the URLs of the WAP pages
you frequently access as bookmarked items. You can
also manage URLs you have bookmarked while
navigating the Internet.
Adding a new bookmark
1. Press <
New
> and select
Favorite
.
If the saved bookmark items already exists,
press <
Options
> and select
New
→
Favorite
.
2. Enter a URL and press [
OK
].
3. Enter a name for the item and press <
OK
>.
4. Press [
OK
] to save the item.
Using bookmark options
From the bookmark list, press <
Options
> to access
the following options:
•
Open
: open the selected folder.
•
Select
: access the page of the selected
bookmark.
•
Details
: access the details of the bookmark.
•
Send link
: send the bookmark via SMS, e-mail,
or file messenger.
•
New
: add a new bookmark or folder.
•
Edit
: change the selected bookmark.
•
Move
: move the bookmark to another folder.
•
Rename
: change the folder name.
•
Delete
: delete the selected bookmark or all
bookmarks.
History
(OK 4.4)
You can access the list of pages you have accessed
recently.
Browser settings
(OK 4.5)
You can customise the various settings for the
browser display, security, certificates.
Network settings
(OK 4.6)
You can select a connection profile to be used for
accessing the Internet. You can also make or edit a
profile.
p. 73
41
Menu functions
Messages
(OK 5)
Messages
(OK 5)
Use the
Messages
menu to send and receive short
text messages, multimedia messages, and e-mails.
You can also use WAP push message, voicemail, and
cell broadcast message features.
To access this menu, press [
OK
] in Idle mode and
select
Messages
, or press <
Msg.
> in Idle mode.
Create new
(OK 5.1)
Use this menu to create and send text messages,
multimedia messages, or e-mails. You can also send
files using MMS.
Text message
(OK 5.1.1)
Short Message Service (SMS) allows you to send or
receive text messages.
1. Enter your message.
Press <
Options
> and select
Insert
to retrieve a
text template, contact entry, or bookmark.
2. Press [
OK
].
3. Enter a destination number.
To send the message to more than one recipient,
press [Down] and fill in additional destination
fields.
4. Press [
OK
] to send the message.
Multimedia message
(OK 5.1.2)
Multimedia Message Service (MMS) delivers
messages containing a combination of text, image,
video, and audio, from phone to phone or from
phone to e-mail.
1. Enter the message subject.
2. Select the
Text
line.
3. Enter the message text and press [
OK
].
4. Select the
Picture or video
or
Audio
line.
5. Select an image or audio file, press <
Add
>.
6. Press <
Options
> to access the following
options:
•
Preview
: display the message you created.
•
Edit
text
/
Change file
: edit the added text,
picture, or sound clip.
•
Delete
text
/
Delete
file
: delete the added
text, picture, or sound clip.
•
Save to Drafts
: save the message in the
Drafts
box.
•
Add page
: add a page. Move to each page
by pressing [Left] or [Right] on the message
screen.
The maximum number of characters allowed in a
short message varies by your service provider. If
your message exceeds the maximum number of
characters, the phone will split the message.
The maximum size allowed for an MMS
message can differ depending on the country.
If you cannot attach another file, add a new
page.
Menu functions
42
•
Move page
: move the current page to the
next or previous page.
•
Delete page
: delete the added page.
•
Edit style
: change the page properties.
This page
: set the page duration and
change the font colour and style for the
selected page.
All page
: change the background colour and
page layout.
•
Save as template
: save the message as a
template in the
Multimedia templates
folder.
7. When you have finished, press [
OK
].
8. Enter a phone number or e-mail address.
To send the message to more than one recipient,
press [Down] and fill in additional destination
fields.
9. Press [
OK
] to send the message.
File messenger
(OK 5.1.3)
Use this menu to send multiple media files by
attaching them to an MMS message.
1. Enter the message subject in the
Subject
line.
2. Move to the
Message
field and enter the
message text.
3. Select the
Attach files
line.
4. Press [
OK
] to check the files you want.
5. Press <
Options
> and select
Attach
.
6. Press <
Options
> to access the following
options:
•
Attached file list
: display the file list you
attached.
•
Add name card
: add a contact as a Vcard
format.
•
Add v-calendar
: add a calendar memo.
•
Delete all attachments
: delete all of the
attached files.
•
Save to Drafts
: save the message in the
Drafts
box.
7. When you have finished, press [
OK
].
8. Enter a phone number or e-mail address.
To send the message to more than one recipient,
press [Down] and fill in additional destination
fields.
9. Press [
OK
] to send the message.
Email
(OK 5.1.4)
You can send and receive e-mails that include text,
audio, and images. To use this feature, you need to
set up your e-mail account.
p. 50
1. Enter the e-mail subject in the
Subject
line.
2. Move to the
Message
field.
3. Enter the message text.
4. Select the
Attach files
line.
43
Menu functions
Messages
(OK 5)
5. Press [
OK
] to check the files you want.
6. Press <
Options
> and select
Attach
.
7. Press <
Options
> to access the following
options:
•
Attached file list
: display the file list you
attached.
•
Add name card
: add a contact as a Vcard
format.
•
Add v-calendar
: add a calendar memo.
•
Delete all attachments
: delete all of the
attached files.
•
Save to Drafts
: save the e-mail in the
Drafts
box.
8. When you have finished, press [
OK
].
9. Enter an e-mail address.
To send the e-mail to more than one recipient,
press [Down] and fill in additional destination
fields.
10.Press [
OK
] to send the e-mail.
Inbox
(OK 5.2)
This folder stores all types of messages you have
received, except for e-mails. MMS, SMS, voicemail,
WAP push messages from the WAP server, and
configuration messages are stored here.
Configuration messages, which are sent from your
service provider, contain network parameters to let
you easily apply network settings to your phone.
Viewing a message at the time of its receipt
When a message has been received, the phone
alerts you by:
• Displaying a message icon and text notification
• Sounding or vibrating, depending on the
message alert setting
To read a message immediately, press <
View
>. To
read it later, press <
Exit
>.
For an MMS notification, press <
Options
> and
select
Retrieve
. The message is downloaded from
the MMS server to the phone’s memory.
Viewing a message in Inbox
On the message list, the following icons are
available, depending on the message type:
While viewing the message list, press <
Options
> to
access the following options:
• SMS • MMS
• MMS notification • Configuration
• WAP push • SIM
• Depending on the DRM (Digital Rights
Management), you may not be able to forward
some messages. They are indicated by the
icon.
• An
!
icon shows that a message was sent with
high priority. A grey icon means that the
message is of low priority.
Menu functions
44
•
View
: display the selected message. For MMS
notifications, you can access the file properties.
•
Retrieve
: retrieve the MMS message from the
server.
•
Reject
: reject the MMS message.
•
Cancel retrieving
: cancel retrieving the MMS
message from the server.
•
Reply
: send a reply to the sender.
•
Reply to all
: send a reply to the sender and all
recipients.
•
Forward
: forward the message to other people.
•
Install
: apply the configuration value in the
message to the phone.
•
Sort by
: change the sort order of the message
list.
•
Delete
: delete the currently selected message.
•
Delete all
: delete all messages.
•
Details
: access the message properties.
Using message options
While viewing a message, press <
Options
> to
access the following options:
SMS messages
•
Call
: dials the highlighted phone number.
•
Create email
: send an e-mail t the highlighted
e-mail address.
•
Reply
: reply to the sender.
•
Forward
: forward the message.
•
Call back
: dial the phone number of the sender.
•
Save to Contacts
: extract phone numbers or
e-mail addresses from the message and saves
them in Phonebook.
•
Move to SIM
/
Move to phone
: move the
message between the phone’s memory and the
USIM/SIM card.
•
Delete
: delete the message.
MMS messages
•
Play
:
play the message.
•
Call
/
Go to URL
/
Go to RTSP
: dials the
highlighted phone number or access the
highlighted web link.
•
Open file
: open the selected media files.
•
Add to bookmarks
: save the highlighted web
link to the bookmark list.
•
Create email
: send an e-mail to the highlighted
e-mail address.
•
Create multimedia message
: send an MMS
message to the highlighted address.
•
Reply
: send a reply to the sender.
•
Reply to all
: send a reply to the sender and all
of the recipients.
•
Forward
: forward the message to another
person.
•
Send to Album
: send the message to the online
media album, if provided.
•
Call back
: dial the phone number of the sender.
45
Menu functions
Messages
(OK 5)
•
Save as template
: save the message as a
template in the
Multimedia templates
folder.
•
Save files
: save media items from the message
into your phone’s memory or a memory card.
•
Save to Contacts
: extract phone numbers or
e-mail addresses from the message and save
them in Phonebook.
•
Delete
: delete the message.
•
Details
: access the message properties.
WAP push messages
•
Go to URL
: connect to the URL specified in the
message.
•
Delete
: delete the message.
Drafts
(OK 5.3)
This folder stores messages you have saved to send
them at a later time while creating the message.
On the message list, press <
Options
> to access the
following options:
•
View
: open the selected message.
•
Edit
: edit the selected message.
•
Send
: send the selected message.
•
Sort by
: change the sort order of the list.
•
Delete
: delete the selected message.
•
Delete all
: delete all messages.
Outbox
(OK 5.4)
This folder stores messages you have tried to send
or have being sent.
The following icons on the message icons indicates
the sending status:
• indicates the message is being sent.
• indicates the message is failed to send.
While viewing the message list, press <
Options
> to
access the following options:
•
View
: display the selected message.
•
Send again
: resend the message.
•
Edit
: edit the selected message.
•
Cancel sending
: cancels sending the message.
•
Sort by
: change the sort order of the list.
•
Delete
: delete the message.
•
Delete all
: delete all messages.
•
Details
: access the message properties.
Sent box
(OK 5.5)
This folder stores messages that you have sent
successfully.
While viewing the message list, press <
Options
> to
access the following options:
•
View
: display the selected message.
•
Forward
: forward the message to other people.
•
Edit
: edit the selected message.
•
Sort by
: change the sort order of the list.
Menu functions
46
•
Delete
: delete the message.
•
Delete all
: delete all messages.
•
Details
: access the message properties.
Email inbox
(OK 5.6)
This folder stores e-mails that you have received.
Viewing received e-mails
1. From the e-mail folder, press <
Options
>.
2. Select
Download
to get new e-mails from your
server.
The phone checks for new e-mails and retrieve
received e-mails. The icons tell you the status of
each e-mail:
•: Retrieved e-mail
• : Retrieved e-mail with attachments
• : E-mail not retrieved
3. Select an e-mail or header.
4. If the e-mail has more than one page, press
[ / ] to scroll through pages one by one.
5. Select an attached file to view or play it.
Using e-mail options
While viewing the e-mail list or an e-mail, press
<
Options
> to access the following options:
•
View
: open the selected e-mail.
•
Retrieve
: retrieve the body of the selected e-
mail header from the e-mail server.
•
Reply
: send a reply to the sender.
•
Reply to all
: send a reply to the sender and all
recipients.
•
Forward
: forward the e-mail.
•
Save files
: save media items from the message
into your phone’s memory or a memory card.
•
Download
: download new e-mails or headers
from the e-mail server.
•
Sort by
: change the sort order of the list.
•
Save to Contacts
: extract phone numbers or
e-mail addresses from the e-mail and save them
in Phonebook.
•
Block
:
add the sender’s e-mail address or e-mail
subject to the Block list.
•
Delete from phone
: delete the selected e-mail
or all e-mails from the phone’s memory.
•
Delete permanently
: delete the selected
e-mail or all of the e-mails from both the phone’s
memory and the e-mail server.
•
E-mail accounts
: change the active e-mail
account.
•
Details
: access the e-mail properties.
• Depending on the DRM (Digital Rights
Management), you may not be able to
forward some messages. They are
indicated by the
icon.
• An
!
icon shows that an e-mail was sent
with high priority. A grey icon means that
the e-mail is of low priority.
47
Menu functions
Messages
(OK 5)
Media album
(OK 5.7)
Use this menu to access the Media Album service,
with which you can organise your own online media
album, adding media content and messages via the
wireless web. This menu is available only if
supported by your service provider.
Templates
(OK 5.8)
Use this menu to create, edit, and send text
templates and MMS templates.
Text templates
(OK 5.8.1)
Use this menu to preset frequently used messages.
Press <
New
> to create a new text template.
From the template list, press <
Options
> to access
the following options:
•
Send
:
send the template as an SMS, MMS, file
messenger, or e-mail.
•
New
: add a new template.
•
Edit
: change the selected template.
•
Delete
: delete the template.
•
Delete all
: delete all templates.
Multimedia templates
(OK 5.8.2)
When you access this menu, you can view the list of
templates you have saved.
From the template list, press <
Options
> to access
the following options:
•
View
: open the template.
•
Send
:
send the template as an MMS message.
•
New
: add a new template.
•
Edit
: change the selected template.
•
Delete
: delete the template.
•
Delete all
: delete all templates.
Broadcast
(OK 5.9)
Your phone receives Cell Broadcast (CB) messages,
which are text messages related to various topics,
such as weather forecast, traffic, and news report,
from networks. Use this menu to access received CB
messages.
All CB messages are stored in the
Temporary
folder
and will be deleted after a period of time. If you
don’t want a message to be deleted, save it to the
Archive
folder. While viewing the message, press
<
Options
> and select
Save
.
On the message list, press <
Options
> to access the
following options:
•
View
: open the selected message.
•
Delete
: delete the selected message.
•
Delete all
: delete all of the messages in the
selected folder.
Menu functions
48
Delete all
(OK 5.0)
Use this menu to delete all of the messages in each
message folder at once.
1. Press [
OK
] to check the message box(es) you
want.
2. Press <
Delete
>.
3. Press <
Yes
> to confirm the deletion.
Settings
(OK 5. )
Use this menu to set up various options for using
messaging service.
Text message
(OK 5. .1)
You can configure default SMS settings.
•
Settings x
: set the following properties in a
profile:
Centre address
: store or change the number of
your message centre.
Expiration
: set the length of time your
messages are stored in the SMS centre.
Default type
: set the default message type. The
network can convert messages into the selected
format.
Name
: enter a profile name.
•
Sending settings
: set up the following options
for sending an SMS message:
Reply path
: allow the recipient to reply to you
through your SMS centre.
Delivery report
: set the network to inform you
when your message has been delivered.
Network selection
: select a preferred data
transmission method, either GSM (CS) or GPRS
(PS) network.
Keep a copy
: leave the copies of your messages
in the
Sent box
folder after sending.
Character support
: select a character encoding
type. If you select
Automatic
, the phone
switches the encoding type from GSM-alphabet
to Unicode if you enter a unicode character. Use
of unicode encoding will reduce the maximum of
number of the characters in a message to about
half. If this menu is not shown, your phone
provides the Automatic encoding by default.
Multimedia message
(OK 5. .2)
You can configure default MMS settings.
•
Sending options
: set up the following options
for sending MMS messages:
Priority
: set the priority level of your messages.
Expiration
: set the length of time your
messages are stored in the MMS centre.
Delivery
: set a time delay before messages are
sent.
Hide address
: set your address to be hidden
from the recipients’ phones.
Request delivery report
: set the network to
inform you when your message has been
delivered.
49
Menu functions
Messages
(OK 5)
Request read report
: request a report from
each recipient as to when your message was
read by the recipient.
Keep a copy
: leave the copies of your messages
in the
Sent box
folder after sending.
Add my name card
: allow your contact
information to be attached to your messages via
the file messenger.
Add signature
: edit and attach your signature
to messages via the file messenger.
•
Receiving options
: set up the following options
for receiving MMS messages:
Home network
: determine if your phone
retrieves new messages automatically when you
are in your home service area.
Roaming network
: determine if your phone
retrieves new messages automatically when you
are roaming in another network.
Home network and Roaming network have the
following options:
-
Auto download
: the phone automatically
retrieves messages from the server.
-
Manual
: the phone receives notifications first
from the server. Use the
Retrieve
option to
manually download new messages.
-
Restricted
: the phone receives notifications
first from the server. When you attempt to
download messages, the phone informs you of
additional charges.
-
Reject
: the phone rejects all messages.
Send delivery report
: set the network to send
a delivery report to a sender.
Send read report
: determine whether or not
the phone sends a read-report to a sender.
Reject anonymous
: reject messages from
anonymous senders.
Reject advertisement
: reject advertisements.
•
MMS profiles
: select a connection profile to be
used for MMS. You can also make or edit a new
profile.
p. 73
•
Message size
: select the maximum file size of
MMS attachment. This file size may vary,
depending on your country.
•
Creation mode
: select an MMS creation mode.
Warning
: the phone informs you when you
create and send a message using unsupported
file formats.
Free
: you can create and send messages using
unsupported file formats.
Restricted
: you are not able to create and send
messages using unsupported file formats.
•
Slide interval
: select the length of time the
display shows each page in a message.
Email
(OK 5. .3)
You can configure default e-mail settings.
•
Sending options
: set up the following options
for sending an e-mail:
Menu functions
50
From
: set the sender name.
Sending account
: select the default account.
Priority
: change the priority level of your
e-mails.
Keep a copy
: leave the copies of your e-mails in
the
Sent box
folder after sending.
Include body when replying
: set whether or
not the phone includes the original e-mail text in
a reply.
Delivery report
: set the network to inform you
when your e-mail has been delivered.
Add my name card
: allow your contact
information to be attached to e-mails.
Add signature
: attach your signature to
e-mails.
Input signature
: edit your signature.
•
Receiving options
: set up the following options
for receiving an e-mail:
Set download limit
: determine the maximum
size for incoming e-mails. Your phone will reject
e-mails that exceed the specified size.
Auto polling
: set the phone to automatically
check the e-mail server to download new e-mails
at the specified time intervals.
Polling frequency
: set how often the phone
checks the e-mail server for automatic polling.
Block address
: specify e-mail addresses to
reject e-mails from those addresses.
Block subject
: specify subjects to reject e-mails
which contain those subjects.
•
Email profiles
: select a network connection
profile to be used for sending and receiving
e-mail. You can also make or edit a profile.
p. 73
•
Email accounts
: select an account to be used
and set up e-mail accounts. Press <
Options
>
and select
Edit
to access the following options:
Account name
: enter a name for the currently
selected account.
SMTP server
: enter the IP address or domain
name of the outgoing e-mail server.
SMTP port
: enter the SMTP port number.
Retrieving server type
: select the protocol for
the incoming e-mail server. The remaining
options depend on the protocol type setting.
POP3 server
/
IMAP4 server
: enter the IP
address or domain name of the POP3 or IMAP4
server.
POP3 port
/
IMAP4 port
: enter the POP3 or
IMAP4 port number.
IMAP4 retrieving option
: (only for IMAP4
protocol): set whether the phone retrieves only
new messages or all messages.
Retrieving option
: set which part of e-mails
the phone retrieves from the server.
You cannot change e-mail profile settings
while an e-mail is being sent or retrieved.
51
Menu functions
Messages
(OK 5)
Keep in server
: leave the copies of e-mails in
the server after retrieving.
My Address
: set your e-mail address.
User name
: set the user name for POP3 or
IMAP4 server connections.
Password
: set the password for POP3 or IMAP4
server connections.
Use SMTP Authentication
: activate the SMTP
authentication.
Same as POP3
/
IMAP4
: select if you want the
SMTP server to have the same parameters as the
POP3 or IMAP4 server.
User name
: enter the SMTP user name.
Password
: set the SMTP password.
Voice mail
(OK 5. .4)
You can change the number of the voicemail centre.
Push message
(OK 5. .5)
You can determine whether or not your phone
receives push messages.
Broadcast
(OK 5. .6)
Use this menu to change the settings for the
broadcast message service.
•
Receive
: enable or disable the reception of
broadcast messages.
•
Channel
: specify the channels from which you
receive broadcast messages.
When you select
Respective channels
, you can
set up a list of active CB channels.
•
Language
: select the languages in which
broadcast messages display.
Memory status
(OK 5. )
Use this menu to view the memory status for SMS,
MMS, e-mail, and push messages.
Menu functions
52
File manager
(OK 6)
The
File manager
menu allows you to access
images, videos, ringtones, sounds, and other files
stored in the phone’s memory or a memory card.
To access this menu, press [
OK
] in Idle mode and
select
File manager
.
Images
This menu displays the default wallpapers and
photos you have taken and images downloaded or
received in messages. You can also edit an image
using various editing options.
Viewing an image
1. Press [Left] or [Right] to scroll to an image
folder.
2. Select an image.
3. Press [Left] or [Right] to view other images.
Editing an image
1. Select a image.
2. Press <
Options
> and select
Edit
.
3. Change the photo using the following options:
•
Resize
: change the image size.
•
Effects
: change the colour tone or apply a
special effect to the photo.
•
Adjust
: adjust the image brightness,
contrast, or colour balance.
•
Frames
: apply a decorative frame to the
photo.
•
Cliparts
: add an image clip to the photo.
•
Insert text
: add text to the photo.
•
Rotate
: rotate the photo clockwise or
counterclockwise.
•
Flip
: flip the photo vertically or horizontally.
•
Crop
: select a variously sized and shaped
section of the photo.
4. When you have finished, press [
OK
].
5. Enter a photo name and press <
Save
>.
Using image options
While viewing an image, press <
Options
> to access
the following options:
•
Send
: send the selected file via MMS, e-mail, file
messenger, Bluetooth, infrared port, or online
media album, if provided.
•
Hidden from bluetooth
: hide the file so that
other Bluetooth devices cannot access it.
•
Visible to bluetooth
: share the file with other
Bluetooth devices.
As a result of the DRM (Digital Rights
Management) system, some of the media items
you download from the Internet or receive by
MMS may require a license key to access them or
forward them to other people. You can acquire the
key from the website which owns the rights to the
content; use the
Activate key
option in the item
options.
53
Menu functions
File manager
(OK 6)
•
Activate key
: get a new license key when the
key for the selected DRM file expires.
•
Reactivate key
: get another key even when the
key for the selected DRM file has not expired.
•
Set as
: set the image as your wallpaper for the
main display or external display, or a caller ID
image for a contact.
•
Move
: move the file to another folder.
•
Copy
: copy the file to another folder.
•
Real size
: show the image in the real size or
display size.
•
Slide show
: set all images to display as a slide
show.
•
Edit
: edit the image and save as a different file.
•
Delete
: delete the selected file.
•
Rename
: change the name of the file.
•
Details
: access the file properties.
•
Key management
: manage the license keys
you have acquired.
While viewing the image list, press <
Options
> to
access the following options:
•
View
: open the selected image.
•
Send
: send the file via MMS, e-mail, file
messenger, Bluetooth, infrared port, or online
media album, if provided.
•
Hidden from bluetooth
: hide the file so that
other Bluetooth devices cannot access it.
•
Visible to bluetooth
: share the file with other
Bluetooth devices.
•
Set as
: set the image as your wallpaper for the
main display or external display, or a caller ID
image for a contact.
•
Move
: move the file to another folder.
•
Copy
: copy the file to another folder.
•
Delete
: delete the selected file or all files.
•
Rename
: change the name of the file.
•
Lock
/
Unlock
: lock the file to prevent it from
being deleted, or unlock the file.
•
New folder
: add a new folder.
•
Details
: access the file properties.
•
Memory status
: access memory information for
each folder in
File manager
.
Downloading images
1. Press [Left] or [Right] to scroll to
Downloads
.
2. Select
More pictures
. You are connected to a
preset website.
3. Search for an image and follow the onscreen
instructions to download it.
Videos
This menu displays video clips you have recorded,
downloaded, or received in messages.
Playing a video clip
1. Press [Left] or [Right] to scroll to a video folder.
Menu functions
54
2. Select a video clip.
During playback, use the following keys:
Using video options
During playback, press <
Options
> to access the
following options:
•
Pause
/
Resume
: pause or resume playback.
•
Stop
: stop playback.
•
Send
: send the selected file via MMS, e-mail, file
messenger, Bluetooth, infrared port, or online
album, if provided.
•
Add to play list
: add the video clip to a play list.
•
Open play list
: open the current active play list.
•
Activate key
: get a new license key when the
key for the selected DRM file expires.
•
Reactivate key
: get another key even when the
key for the selected DRM file has not expired.
•
Hidden from bluetooth
: hide the file so that
other Bluetooth devices cannot access it.
•
Visible to bluetooth
: share the file with other
Bluetooth devices.
•
Show controller
/
Hide controller
: show or
hide the control bar of the Media player.
•
Details
: access the file properties.
•
Player settings
: change the default settings for
playing files.
Play options
: select a repeat mode.
Volume
: select a volume level.
Controller
: show or hide the control bar of
Media player.
Audio player skin
: select a skin image.
•
VOD settings
: activate a connection profile to
be used for accessing a streaming server. You
can also make or edit a profile.
p. 73
•
Key management
: manage the license keys
you have acquired.
Downloading video clips
1. Press [Left] or [Right] to scroll to
Downloads
.
2. Select
More videos
. You are connected to a
preset website.
3. Search for a video clip and follow the onscreen
instructions to download it.
Key Description
OK
Pauses or resumes playback.
Up Opens the play list.
Left Goes to the previous file. Moves
backward in a file when held down.
Right Skips to the next file. Skips forward in
a file when held down.
/ Adjusts the volume.
Down Stops playback.
55
Menu functions
File manager
(OK 6)
Music
This menu displays AAC or MP3 music files you have
downloaded or received in messages. You can also
play streaming contents.
Playing music
Select a music file. The selected music plays.
During playback, use the following keys:
Using music options
During playback, press <
Options
> to access the
following options:
•
Pause
/
Resume
: pause or resume playback.
•
Stop
: stop playback.
•
Send
: send the selected file via MMS, e-mail, file
messenger, Bluetooth, infrared port, or online
album, if provided.
•
Add to play list
: add the music to a play list.
•
Open play list
: open the play list.
•
Activate key
: get a new license key when the
key for the selected DRM file expires.
•
Reactivate key
: get another key even when the
key for the selected DRM file has not expired.
•
Hidden from bluetooth
: hide the file so that
other Bluetooth devices cannot access it.
•
Visible to bluetooth
:
share the file with other
Bluetooth devices.
•
Details
: access the file properties.
•
Player settings
: change the default settings for
playing files.
Play options
: select a repeat mode.
Volume
: select a volume level.
Audio player skin
: select a skin image.
•
VOD settings
: activate a connection profile to
be used for accessing a streaming server. You
can also make or edit a profile.
p. 73
•
Key management
: manage the license keys
you have acquired.
Downloading music files
1. Select
More music
. You are connected to a
preset website.
2. Search for a music file and follow the onscreen
instructions to download it.
Key Description
OK
Pauses or resumes playback.
Up Opens the play list.
Left Goes to the previous file. Moves
backward in a file when held down.
Right Skips to the next file. Skips forward
in a file when held down.
/ Adjusts the volume.
Down Stops playback.
Menu functions
56
Sounds
This menu displays the default ringtones and sound
files you have recorded, downloaded, or received in
messages. You can also access voice memos you
have recorded.
Playing a sound clip
1. Press [Left] or [Right] to scroll to a sound folder.
To access voice memos, scroll to the
Voice
memos
folder.
p. 36
2. Select a sound clip. The sound is played.
During playback, you can use the following keys:
Using sound options
During playback, press <
Options
> to access the
following options:
•
Send
: send the selected file via MMS, e-mail, file
messenger, Bluetooth, infrared port, or online
album, if provided.
•
Hidden from bluetooth
: hide the file so that
other Bluetooth devices cannot access it.
•
Visible to bluetooth
:
share the file with other
Bluetooth devices.
•
Set as ringtone
: set the selected sound clip as
your call ringer.
•
Set as caller ID
: set the selected sound clip as
a caller ID ringer for a contact.
•
Delete
: delete the selected file or all files.
•
Rename
: change the name of the file.
•
Details
: access the file properties.
Downloading ringtones
1. From the
Ringtones
folder, select
More sound
.
You are connected to a preset website.
2. Search for a ringtone and follow the onscreen
instructions to download it.
Games & More
Use this menu to download Java games and play
them.
Playing Powerinlinex
1. From the
Games & More
folder, select
Powerinlinex
.
2. Press any key, except for [ ].
3. Select
PLAY
or press <
PLAY
>.
4. Select a character.
5. Press <
OK
> to start a game.
6. Press [Up] to make the character move forward.
Key Description
Left Goes to the previous file.
Right Skips to the next file.
Up/Down/
/Adjusts the volume.
OK
Allows you to send the sound clip to
other people.
57
Menu functions
File manager
(OK 6)
7. Press the Navigation keys to change the
direction.
Playing TheLastAge
1. From the
Games & More
folder, select
TheLastAge
.
2. Press any key, except for [ ].
3. Select
START GAME
or press <
PLAY
>.
4. Select
New Game
or
Load Game
.
5. Press <
SKIP
> and then <
OK
>.
6. Press [Up]
to make your machine to move
forward.
7. Press the Navigation keys to change the
direction.
Using Java game options
While viewing the game list, press <
Options
> to
access the following options:
•
Play
: launch the selected game.
•
Move
: move to the game to another folder.
•
Delete
: delete the selected game or all games.
•
Rename
: change the name of the game.
•
New folder
: add a new game folder.
•
Lock
/
Unlock
: lock the game to prevent it from
being deleted, moved, and renamed, or unlock
the game.
•
Details
:
access the game properties.
•
Network settings
: activate a connection profile
to be used for accessing a Java server. You can
also make or edit a profile.
p. 73
•
Memory status
: access memory information for
each folder in
File manager
.
Downloading new games
1. Select
More games
. You are connected to a
preset website.
2. Search for a game and follow the onscreen
instructions to download it.
Other files
Files that you have received but which are not
supported by your phone are stored in this folder.
You cannot open these files on the phone.
Unsupported file formats include *.doc, *.ppt, *.txt,
and so on.
While viewing the file list, press <
Options
> to
access the following options:
During a game, press <
Options
> to access game
options.
During a game, press <
Options
> to access game
options.
Menu functions
58
•
Move
: move the file to another folder.
•
Copy
: copy the file to another folder.
•
Delete
: delete the selected file or all files.
•
Rename
: change the name of the file or folder.
•
Lock
/
Unlock
: lock the file to keep it from being
deleted, or unlock the file.
•
Details
: access the file properties.
•
New folder
: add a new folder.
•
Memory status
: access memory information for
each folder in
File manager
.
Memory card
Use this menu to access the media files stored on
the memory card. This option is only available when
you insert a memory card into the phone.
For details about using files, see the corresponding
menu.
Organiser
(OK 7)
The Organiser feature enables you to create and
manage your schedule, anniversaries, tasks, and
memos. You can also set alarms.
To access this menu, press [
OK
] in Idle mode and
select
Organiser
.
Alarm
(OK 7.1)
Use this menu to set alarms. The alert type for a
normal alarm corresponds to the call alert type
settings in the currently selected profile. A wake-up
alarm is not affected by your profile setting.
Setting an alarm
1. Select the type of alarm.
2. Scroll to
On
on the
Alarm
line and press
[Down].
3. Enter the time for the alarm to sound and press
[Down].
4. Set the repeat option.
5. Select the
Alert tone
line.
6. Select an alarm melody.
7. Press <
Options
> and select
Save
.
Stopping an alarm
When the alarm sounds, choose either of the
following options to stop the alarm:
• Press <
OK
> to confirm the alarm.
59
Menu functions
Organiser
(OK 7)
•Press <
Snooze
> to stop the wake-up alarm for
5 minutes. You can do this a maximum of 5
times.
Deactivating an alarm
1. Select the alarm you want to deactivate.
2. Select
Off
on the
Alarm
line.
3. Press <
Options
> and select
Save
.
Calendar
(OK 7.2)
Use this menu to keep track of your monthly
schedule.
Consulting the calendar
When you open the calendar, today’s date is marked
with a blue box. Scroll to the date you want. You can
move to the next or previous month by pressing
[/].
Press <
Options
> to access the following options:
•
View
: display the stored events for that date.
•
New
: add a new event, anniversary, task, or
memo. You can schedule more than one event
per day.
•
Week view
: display the week view screen.
•
Go to today
:
display the current date.
•
Go to date
:
display a specific date.
•
Start date
: set whether the calendar starts with
Sunday or Monday.
•
Delete
: delete the events for a specific period.
•
Delete all
: delete all of the events in the
calendar.
Entering a new schedule item
1. Select a date on the calendar.
2. Press <
Options
> and select
New
→
Schedule
.
3. Enter information or change the settings in the
following entry fields:
•
Title
: enter the title of the event.
•
Details
: enter the event details.
•
Start
/
End
: enter the starting or ending
times for the event.
•
Start date
/
End date
: enter the starting or
ending dates for the event.
•
Location
: enter information about the event
location.
•
Alarm
: select to set an alarm for the event
and set the time for the alarm.
•
Repeat
: select to set the event to recur. You
can select a repeat unit and set the date to
end repeating.
•
Expiry
: set when the event will be deleted
from the calendar.
4. Press <
Options
> and select
Save
.
Entering a new anniversary
1. Select a date on the calendar.
2. Press <
Options
> and select
New
→
Anniversary
.
Menu functions
60
3. Enter information or change the settings in the
following entry fields:
•
Occasion
: enter information about the
anniversary.
•
Date
: enter the date.
•
Alarm
: select to set an alarm for the
anniversary. You can set the number of days
before the event date and the time for the
alarm to sound.
•
Repeat every year
: select to set the phone
to remind you of the anniversary every year.
4. Press <
Options
> and select
Save
.
Entering a task
1. Select a date on the calendar.
2. Press <
Options
> and select
New
→
Task
.
3. Enter information or change the settings in the
following entry fields:
•
Title
: enter the title for the task.
•
Task
: enter the task content.
•
Start date
: enter the starting date.
•
Due date
: enter the ending date.
•
Priority
: select a priority level.
4. Press <
Options
> and select
Save
.
Entering a memo
1. Press <
Options
> and select
New
→
Memo
.
2. Enter the memo text and press [Down].
3. Enter the date.
4. Press <
Options
> and select
Save
.
Viewing an event
1. Select a date on the calendar to display the
events for that day. The list of events displays.
The following icons indicate the type of event:
2. Select an event to view its details.
Using event options
From the event list, press <
Options
> to access the
following options:
•
View
: access the selected event.
•
New
: add a new event.
•
Completed
/
To do
: change the status of the
selected task.
•
Month view
: switch to the month view screen.
•
Week view
: switch to the week view screen.
•
Change date
/
Change due date
/
Reschedule
:
change the date of the event.
•
Delete
: delete the selected event.
•
Delete all
: delete all of the events for the
selected day.
•
Send schedule
/
Send task
: send the event via
SMS, e-mail, file messenger, Bluetooth, or
infrared port.
•
Send memo
: send the memo via SMS.
• Scheduled events • Anniversaries
• Tasks • Memos
61
Menu functions
Organiser
(OK 7)
Week view
(OK 7.3)
Use this menu to view events for the selected week.
The current date is marked in blue. Square brackets
on a calendar date indicate the types of events
scheduled for that day.
1. Scroll up to the date line and press [Left] or
[Right] to access another week.
2. Select the time cell that contains the event you
want.
Today’s events
(OK 7.4)
Use this menu to view events for the selected date.
Select an event to view its details. The event opens
in Edit mode.
Schedule
(OK 7.5)
This menu displays the scheduled events. If you
have set the Repeat and Alarm options, the and
icons display.
Select a schedule item to view its details.
Anniversary
(OK 7.6)
This menu displays anniversaries you have created.
If you have set the Repeat and Alarm options, the
and icons display.
Select an anniversary item to view its details.
Task
(OK 7.7)
Use this menu to display tasks you have created.
The icons on the right indicate the importance; the
lower the number on the icon, the higher the
priority. A check mark appears in the status check
box if the task has been completed.
Select a task to view its details.
Memo
(OK 7.8)
This menu displays memos you have created.
Select a memo to view its details.
Missed event alarm
(OK 7.9)
When you are unable to acknowledge an alarm for a
scheduled event or anniversary, the phone stores
the event alarm until you confirm it.
1. Select an event.
2. Press <
Confirm
> to confirm and delete the
event.
Memory status
(OK 7.0)
This menu displays the number of events of each
type you have created, and the total number of
events you can store.
Menu functions
62
Camera
(OK 8)
You can use the camera module embedded in your
phone to take photos and record videos. Using the
Camera
menu, you can turn on the camera and
manage your photos and video clips.
To access this menu, press [
OK
] in Idle mode and
select
Camera
,
or press and hold [ ].
Taking a photo
The camera will produce JPEG photos.
1. To turn on the camera, access the
Camera
menu
or press and hold [ ].
2. Press [ ] to switch between the interior lens
below the display and the exterior lens on the
external of the phone.
3. Adjust the image by aiming the lens at the
subject.
• Press <
Options
> to use the camera options.
See the next section.
• Use the keypad to change the camera
settings or switch to other modes.
p. 63
4. Press [
OK
] to take a photo. The photo is saved in
the
Pictures
folder.
Using camera options in Capture mode
In Capture mode, press <
Options
> to access the
following options:
•
Take photo
: take a photo.
•
Record video
: switch to Record mode.
•
Switch camera
: switch between the interior
lens and the exterior lens.
•
Go to photos
: display the photos stored in the
Pictures
folder.
p. 52
•
Shooting mode
: take a photo in the following
modes:
Single shot
: take a photo in the normal mode.
Multi shot
: take several action stills. You can
select the number of still images the camera will
take.
• Do not take photos of people without their
permission.
• Do not take photos in a place where cameras
are not allowed.
• Do not take photos in a place where you may
interfere with another person’s privacy.
When you take a photo in direct sunlight or in
bright conditions, shadows may appear on the
photo.
Hold the phone still for one or two seconds
after pressing the camera shutter key to allow
the image data to process.
5.
To Press
use photo options <
Options
>.
p. 64
delete the photo <
Delete
> or [
C
].
return to Capture mode [
OK
].
63
Menu functions
Camera
(OK 8)
Mosaic shot
: take several stills and saves them
in one frame. You can select the layout.
•
Effects
: change the colour tone of the image.
•
Frames
: apply a decorative frame.
•
Flash
: set the flash setting.
•
Timer
: set a time delay before the camera takes
a photo.
•
Zoom
: display the zoom control bar.
•
Brightness
: display the brightness control bar.
•
Camera settings
: change the default settings
for taking a photo.
Default name
: change the default prefix of the
file name.
Default storage
: select a memory location to
store photos.
Viewfinder
:
select a preview mode, either Full
Screen mode or Normal mode with actual ratio.
Shutter sound
: select a camera shutter sound.
Capture quality
:
select an image quality.
Image size
: select an image size.
Multi shot speed
: select the shutter speed
between each shot in Multi Shot mode.
Spot metering
: adjust the exposure based on a
specific area of the image. Select
On
to display
the spot focus frame in the middle of the image,
and change the exposure according to the
brightness of the image fragment in the frame.
ISO
: change the ISO setting, which controls the
sensitivity of your camera. For low light
situations, lower the ISO number to increase the
quality. The higher the ISO number, the faster
the camera shutter functions and the more
sensitive the camera is to light. Higher ISO
settings may bring some distortion to an image.
White balance
: adjust the colour balance of the
photo. You can make your photo appear warmer
or cooler.
•
Camera shortcuts
: view the functions of the
keys you can use in Capture mode.
Using the keypad in Capture mode
You can use the keypad to customise your camera
settings in Capture mode.
Key Function
Flips the image vertically.
Shows the mirror image.
Left/
Right Adjusts the brightness of the image.
Up/
Down Zooms in or out.
1
Switches to Record mode.
p. 64
2
Changes the image size.
3
Changes the image quality.
Menu functions
64
Using photo options
After saving a photo, press <
Options
> to access
the following options:
•
Viewfinder
: return to Capture mode.
•
View
: open the selected photo when you take
multiple photos.
•
Send
: send the photo via MMS, e-mail, file
messenger, Bluetooth, or infrared port.
•
Delete
: delete the photo.
•
Set as
:
set the photo as your wallpaper for main
or external display, or as a caller ID image for a
contact.
•
Go to photos
: display the photos stored in the
Pictures
folder.
p. 52
•
Rename
:
change the name of the photo.
Recording a video
You can use your phone just like a camcorder to
record what is currently displayed on the camera
screen and save it as a video file. The camera will
produce 3gp video clips.
1. To turn on the camera, access the
Camera
menu
or press and hold [ ].
2. Press [
1
] to switch to Record mode.
3. Press [ ] to switch between the interior lens
below the display and the exterior lens on the
external of the phone.
4. Adjust the image by aiming the lens at the
subject.
•Press <
Options
> to use the camera
options.
p. 65
• Use the keypad to change the camera
settings or switch to other modes.
p. 65
5. Press [
OK
] to start recording.
To pause, press <
Pause
>.
6. When you have finished, press [
OK
]. The video
automatically saves in the
Videos
folder.
4
Changes the shooting mode and the
number of photos.
5
Changes the colour tone of the image.
7
Adds a decorative frame.
8
Sets the timer.
9
Goes to the
Pictures
folder.
p. 52
Changes the preview mode.
0
Turns the flash on or off.
Key Function
7.
To Press
use the video options <
Options
>.
p. 65
delete the video clip <
Delete
> or [
C
].
return to Record mode [
OK
].
65
Menu functions
Camera
(OK 8)
Using camera options in Record mode
In Record mode, press <
Options
> to access the
following options:
•
Record
: start recording.
•
Take photo
: switch to Capture mode.
•
Switch camera
: switch between the interior
lens or exterior lens.
•
Go to videos
:
display the video clips stored in
the
Videos
folder.
p. 53
•
Effects
:
change the colour tone of the image.
•
Flash
: change the flash setting.
•
Zoom
: display the zoom control bar.
•
Brightness
: display the brightness control bar.
•
Video settings
: change the following settings
for recording a video:
Default name
: change the default prefix of the
video name.
Default storage
: select a memory location to
store video clips.
Quality
: select an image quality.
Recording time
: select a video recording mode.
Select
Normal
to record a video within the limit
of the currently available memory. The length of
your video is determined by how much memory
has been used.
Select
Limit for
MMS
to record a video suitable
for an MMS message.
Size
: select an image size.
Audio record
: record audio with a video clip.
•
Camcorder shortcuts
: view the functions of
the keys you can use in Record mode.
Using the keypad in Record mode
Using video options
After saving a video clip, press <
Options
> to access
the following options:
•
Play
:
play back the video clip.
•
Viewfinder
: return to Record mode.
Key Function
Flips the image vertically.
Shows the mirror image.
Left/
Right Adjusts the image brightness.
Up/Down Zooms in or out.
1
Switches to Capture mode.
p. 62
2
Changes the frame size.
3
changes the image quality.
4
Changes the video recording mode.
5
Changes the colour tone of the image.
7
Turns the audio on or off.
9
Goes to the
Videos
folder.
p. 53
0
Turns the flash on or off.
Menu functions
66
•
Send
:
send the video clip via MMS, e-mail, file
messenger, Bluetooth, or infrared port.
•
Delete
: delete the video clip.
•
Go to videos
: display the video clips stored in
the
Videos
folder.
p. 53
•
Rename
: change the name of the video clip.
Settings
(OK 9)
Use this menu to customise your phone settings.
You can also reset the settings to their default
values.
To access this menu, press [
OK
] in Idle mode and
select
Settings
.
Profiles
(OK 9.1)
Your phone provides you with sound profiles that
allow you to quickly and easily change the sound
settings of the phone for different events or
situations. Use this menu to adjust the properties of
each profile and activate the profile you need.
Editing a profile
1. Select the profile you want.
2. Press <
Options
> and select
Edit
.
3. Change the sound settings:
•
Call alert type
: press [
OK
] and select an
alert type for the call ringer.
•
Voice call ringtone
: press [
OK
] and select
a ringtone for the voice call ringer.
•
Video call ringtone
: press [
OK
] and select
a ringtone for the video call ringer.
•
Tone volume
: adjust the volume for the call
ringer.
•
Message alert type
: press [
OK
] and select
an alert type for the message ringer.
•
Message alert tone
: press [
OK
] and select
a ringtone for the message ringer.
•
Message alert repetition
: select if the
phone repeats reminding you of a new
message.
•
Phone sounds
: press [
OK
] and turn the
various sounds on the phone on or off.
All on
: enable all tones.
Popup box alerts
: cause the phone to beep
when a pop-up window displays.
Minute minder
: cause the phone to beep
every minute during an outgoing call to keep
you informed of the length of your call.
Call connect tone
: cause the phone to beep
when a call is connected to the system.
Call end tone
: cause the phone to beep
when a call is disconnected by the other
person or the faded signal.
Power on/off
: cause the phone to beep
when you turn on the phone.
Folder open/close
: cause the phone to
sound when you open or close the phone.
67
Menu functions
Settings
(OK 9)
Alerts on call
: cause the phone to beep
when you receive a new message or when
the time for an alarm comes during a call.
•
Key tones
: press [
OK
] and select a tone
which sounds when you press a key.
•
Key tone volume
: adjust the volume of the
key tones.
•
Call answer mode
: (for Car) press [
OK
]
and select how to answer an incoming call
when the phone is connected to a hands-free
car kit.
4. When you have finished, press <
Options
> and
select
Save
.
Changing the active profile
From the profile list, select the profile you want.
Time & date
(OK 9.2)
Use this menu to change the time and date
displayed on your phone. Before setting the time
and date, specify your time zone in the
World clock
menu.
p. 37
•
Time
: enter the current time.
•
Date
:
enter the current date.
•
Time format
: select a 12-hour or 24-hour time
format.
•
Date format
:
select a date format.
•
Summer time
: activate daylight savings time.
•
Auto update
: select to receive time information
from your network.
Phone
(OK 9.3)
Many different features of your phone’s system can
be customised to suit your preferences.
Language
(OK 9.3.1)
Use this menu to select one of several languages for
the display text or T9 input mode.
Shortcuts
(OK 9.3.2)
You can use the Navigation keys as shortcut keys to
access specific menus directly from Idle mode. Use
this menu to change these shortcut assignments.
Assigning a shortcut to a key
1. Select the key to be used as a shortcut key.
2. Select the menu that will be assigned to the key.
3. Press <
Save
>.
Using the shortcut options
From the Shortcuts screen, press <
Options
> to
access the following options:
•
Assign
: assign a shortcut menu to an empty
location.
•
Change
: change a shortcut menu.
•
Remove
: deactivate the shortcut assignment to
the selected key.
•
Remove all
: deactivate all of the shortcut
assignments.
Menu functions
68
Active folder
(OK 9.3.3)
Use this menu to answer incoming calls by opening
the phone.
Anykey answer
(OK 9.3.4)
Use this menu to answer an incoming call by
pressing any key, except [ ] or <
Reject
>.
Side key
(OK 9.3.5)
Use this menu to set how the phone reacts when
you press and hold [ / ] when a call comes in.
•
Reject
: the keys rejects the call.
•
Silence
: the keys mutes the call ringer.
Key management
(OK 9.3.6)
Use this menu to manage the license keys you have
acquired to activate media contents locked by DRM
systems.
Display
(OK 9.4)
Use this menu to change settings for the display and
the light.
Greeting message
(OK 9.4.1)
Use this menu to enter the greeting that is displayed
on the main display or external display.
Wallpaper
(OK 9.4.2)
You can change the background image that is
displayed on the main display in Idle mode.
Cover LCD
(OK 9.4.3)
Use this menu to change the settings for the
external display.
1. Select a display item type.
•
Clock
: you can select a clock type.
•
Cover title
: you can set a banner message.
•
Wallpaper
: you can select a wallpaper
image.
2. Select the image you want or enter the banner
message.
For
Wallpaper
, you can select a section of an
image.
3. Press <
Save
> or [
OK
].
4. Press <
Change
>.
LCD brightness
(OK 9.4.4)
Use this menu to adjust the brightness of the main
display.
Backlight
(OK 9.4.5)
You can select the length of time the backlight and
the display stays on.
•
On
: select the length of time the backlight stays
on in times of inactivity.
•
Dim
: select the length of time the display is in
Dimming mode after the backlight turns off.
•
Sub LCD indicator
: set whether or not the
icons are shown on the external display after the
display turns off.
69
Menu functions
Settings
(OK 9)
Dialing display
(OK 9.4.6)
Use this menu to customise the settings for the
screen when entering a phone number for dialling.
•
Font size
: select a font size.
•
Font colour
: select a font colour.
•
Background colour
: select a background
colour.
Call
(OK 9.5)
Use this menu to set options for call functions.
Caller ID
(OK 9.5.1)
Use this menu to prevent your phone number from
being displayed on the phone of the person being
called.
•
By network
: use the default setting provided by
the network.
•
Send
: send your number each time you make a
call.
•
Hide
: ensure your number does not display on
the other person’s phone.
Diverting
(OK 9.5.2)
This network service reroutes incoming calls to a
different phone number that you specify.
1. Select the type of calls to be diverted.
2. Select a call diverting option:
•
Always
: divert all calls.
•
Busy
: divert calls when you are on another
call.
•
No
reply
: divert calls when you do not
answer the phone.
•
Unreachable
: divert calls when you are not
in an area covered by your service provider
or when your phone is switched off.
•
Cancel
all
: cancel all of the call diverting
options.
3. Enter the number to which the calls will be
diverted in the
Divert to
line.
4. If you selected
No reply
, move to the
Waiting
time
line and select the length of time the
network delays before diverting a call.
5. Press <
Options
> and select
Activate
. To
deactivate the call diverting, select
Deactivate
.
Barring
(OK 9.5.3)
This network service allows you to restrict your calls.
1. Select the type of calls to be barred.
2. Select a call barring option:
•
All
outgoing calls
: prohibit outgoing calls.
•
Outgoing int’l calls
: prohibit international
calls.
•
Int’l calls exc.
Home
: only allow calls to
numbers within the current country when you
are abroad, and to your home country.
•
All
incoming calls
: prohibit incoming calls.
Some networks do not allow the user to change
this setting.
Menu functions
70
•
Incoming calls when roaming
: prohibit
incoming calls when you use your phone
outside of your home country.
•
Cancel
all
: cancel all of the call barring
settings, allowing calls to be sent and
received normally.
3. Enter the call barring password supplied by your
service provider.
4. Press <
Options
> and select
Activate
. To
deactivate the call barring, select
Deactivate
.
Waiting
(OK 9.5.4)
This network service informs you when someone is
trying to reach you while you are on another call.
1. Select the type of calls to which the call waiting
option will apply.
2. Press <
Options
> and select
Activate
. To
deactivate the call waiting, select
Deactivate
.
Auto redial
(OK 9.5.5)
Use this menu to make up to ten attempts to redial
a phone number after an unsuccessful call.
Closed user group
(OK 9.5.6)
Use this menu to set incoming and outgoing calls to
be restricted to a selected user group. For details
about how to create a closed user group, contact
your service provider.
•
Use user group
: activate CUG index numbers.
•
Outside access
: enable calls to numbers other
than those in the Closed user group. This feature
depends on the nature of your CUG subscription.
•
Default group
: enable the default CUG, if you
have set one with your service provider. When
making a call, you are given the option of using
your default CUG, instead of selecting one from
the list.
•
Group index
: add, delete, or activate CUG
index numbers.
Video call
(OK 9.5.7)
Use this menu to change the default settings for
using the video call feature.
•
Show me
: change the video camera settings for
receipt of video calls.
Optionally
: you can select whether or not the
video camera is used each time you answer a
video call.
Always
: the camera is always used.
•
Retry by
: set how to retry when the phone fails
to make a video call, by MMS or voice call.
You can change the call barring password
obtained from your service provider. From the call
type list, press <
Options
> and select
Change
password
.
71
Menu functions
Settings
(OK 9)
Connectivity
(OK 9.6)
Use this menu to set options for connection available
on your phone.
Bluetooth
(OK 9.6.1)
Using Bluetooth wireless, you can connect the phone
wirelessly to other Bluetooth devices and exchange
data with them, talk hands-free, or control the
phone remotely.
Bluetooth technology allows free wireless
connections between all Bluetooth-compliant
devices within a range of 10 metres. Since the
devices communicate using radio waves, they do not
need to be in line of sight to each other.
Setting up the Bluetooth feature
The
Bluetooth
menu provides the following
options:
•
Activation
: activate or deactivate the Bluetooth
feature.
•
My devices
:
search for connectable Bluetooth
devices. See the next section.
•
My phone’s visibility
: allow other Bluetooth
devices to connect to your phone.
•
My phone’s name
: assign a Bluetooth device
name to your phone, which is then displayed on
other devices.
•
Secure mode
: determine if the phone asks for
your confirmation when other devices access
your data.
•
Bluetooth service
: display available Bluetooth
services.
Searching for and pairing with a Bluetooth
device
1. From the Bluetooth setting options, select
My
devices
.
2. Select
Search new device
.
After searching, a list of devices to which you can
connect is displayed. The following icons indicate
the type of device:
• Hands-free or headset
• Mobile phone
• Computer
• PDA
• Unknown device
The colour of the icon indicates the status of the
device:
• Grey for unpaired devices
• Blue for paired devices
• Red for devices that are currently connected
to your phone
• It is recommended that you don’t use the
Bluetooth feature while using multimedia
features such as voice recorder, camera, and
Media player, or vice versa, for a good
performance.
• Some devices may not be compatible with your
phone.
Menu functions
72
3. Select a device.
4. Enter a Bluetooth PIN code and press <
OK
>.
This code is used just once and you don’t need to
memorise it.
When the owner of the other device enter the
same code, pairing is finished.
Using device options
From the device list, press <
Options
> to access the
following options:
•
Connect
: connect to the currently selected
device. You need to enter the Bluetooth PIN.
•
Disconnect
: end the connection with the
device.
•
Browse device
: search for data from the
selected device and import data directly to your
phone.
•
Authorised device
/
Unauthorised device
:
determine if the phone asks you to permit
connection when other devices try to connect to
your phone.
•
Delete
: delete the device or all devices.
•
Rename
: rename the selected device.
Sending data via Bluetooth
1. Activate the Bluetooth feature.
2. Select the application in which the item you want
to send is stored.
3. Scroll to the item and press <
Options
>.
4. Select
Send
→
Via
bluetooth
.
The phone searches for devices within range and
displays a list of available devices.
5. Select a device.
6. If necessary, enter the Bluetooth PIN needed for
pairing and press <
OK
>.
Receiving data via Bluetooth
To receive data via Bluetooth, your phone’s
Bluetooth feature must be active.
If an unauthorised Bluetooth device sends data to
your phone, the phone displays a confirmation
message. To receive data, press <
Yes
>.
Infrared
(OK 9.6.2)
Use this feature to send and receive data through
the infrared port. To use an infrared connection, you
must do the following:
• Configure and activate an IrDA-compliant
infrared port on the other device.
• Activate the infrared feature on your phone;
select
Infrared
→
On
.
Some devices, especially headsets or hands-free
car kits, may have a fixed Bluetooth PIN, such as
0000
. If the other device has one, you must
enter the code.
73
Menu functions
Settings
(OK 9)
• Align the IrDA port on the
phone with the IrDA port
on the other device.
If there is no communication
between your phone and the
other IrDA-compliant device
within 60 seconds of
activating the feature, it is
automatically deactivated.
Network
(OK 9.6.3)
Use this menu to change the settings for connecting
to your cellular network.
•
Network selection
: select to either
automatically or manually select the network
used when roaming outside of your home area.
You can select a network other than your home
network only if there is a valid roaming
agreement between the two.
•
Network mode
: select the network you use.
Automatic
: the phone scans for available
networks.
GSM 900/1800
: the phone operates in the
combined GSM 900/1800 network.
GSM 1900
: the phone operates in the GSM
1900 network. This option is only available in
USA.
UMTS
: the phone operates in UMTS (3G
network) networks. You can get a higher speed
quality than on lower generation networks, and
use advanced data and information services,
such as video calls.
Connections
(OK 9.6.4)
You can set up information about your network
connection. In most cases, you don’t need to change
the settings. In case of problems, please contact
your service provider.
Creating or editing a connection profile
Press <
Options
> and select
New
, or select the
connection profile you want to edit. The following
options are available:
•
Set name
: edit the name of the network setting.
•
Access name
: edit the access point name used
for the address of the GPRS network gateway.
•
Auth type
: choose the type of authentication
used.
•
User ID
: edit the server login ID.
•
Password
: edit the server password.
•
Protocol
: select the protocol from among
WAP
,
HTTP
, and
Other
.
•
Home URL
: enter your homepage address.
•
Proxy address
/
Port
: (for the HTTP protocol)
set the proxy server address and port.
•
Gateway address
: (for the WAP protocol) set
the gateway address.
Menu functions
74
•
Secure connection
: (for the WAP protocol) turn
the secure mode on or off.
•
Linger time (sec.)
: set a time period after
which the network is disconnected if there has
been no new data traffic in that time.
•
Advanced settings
:
provide you with the
following options:
Static IP
: specify if you want to manually enter
an IP address; see the Local phone IP option. If
you want the IP address to be automatically
assigned by the server, remove the check mark.
Local phone IP
: enter the IP address obtained
from the network operator, if you checked the
Static IP option.
Static DNS
: specify if you want to manually
enter the DNS (Domain Name Server) address;
see the Server 1/2 option. If you want the
address to be automatically assigned by the
server, remove the check mark.
Server 1
/
2
: enter the Domain Name Server
addresses.
Traffic class
: select the traffic class, if you
selected the PS network.
Managing connection profiles
On the list of connection profiles, scroll to a profile
and press <
Options
> to access the following
options:
•
Edit
: edit the selected connection profile.
•
New
: add a new connection profile.
•
Rename
: change the name of the selected
connection profile.
•
Delete
: delete the selected connection profile.
•
Restore
: restore the changed settings to the
default status.
Application settings
(OK 9.7)
You can customise the settings for using applications
available on the phone.
Internet
(OK 9.7.1)
Use this menu to select a connection profile to be
used for accessing the Internet. You can also make
or edit a profile.
p. 73
Messages
(OK 9.7.2)
Use this menu to change the default settings for
using the message feature.
p. 48
Contacts
(OK 9.7.3)
Use this menu to change the settings for using
Phonebook.
p. 34
Camera
(OK 9.7.4)
Use this menu to change the default settings for
taking photos.
p. 63
You cannot edit or delete the default connection
profiles.
75
Menu functions
Settings
(OK 9)
Video recorder
(OK 9.7.5)
Use this menu to change the default settings for
recording video clips.
p. 65
Voice recorder
(OK 9.7.6)
Use this menu to change the default settings for the
voice recorder.
p. 37
Media player
(OK 9.7.7)
Use this menu to change the default settings for
playing media files in the Media player.
p. 36
VOD
(OK 9.7.8)
Use this menu to activate a connection profile to be
used for accessing streaming servers to use VOD
services. You can also make or edit a profile.
p. 73
Security
(OK 9.8)
Use this menu to protect the phone against
unauthorised use by managing the several access
codes of your phone and USIM/SIM card.
Phone lock
(OK 9.8.1)
The Phone lock feature locks the phone from
unauthorised use.
When this feature is enabled, you must enter a 4- to
8-digit phone password each time the phone is
switched on.
The password is preset to
00000000
. To change the
password, use the
Change phone password
menu.
SIM lock
(OK 9.8.2)
The SIM lock feature allows your phone to work only
with the current USIM/SIM by assigning a SIM lock
code. You must enter the SIM lock code to use a
different SIM card.
PIN lock
(OK 9.8.3)
The 4- to 8-digit PIN (Personal Identification
Number) protects your USIM/SIM card against
unauthorised use. When this feature is enabled, the
phone requires your PIN each time it is switched on.
Fixed dialling mode
(OK 9.8.4)
If supported by your USIM/SIM card, Fixed Dialling
Number (FDN) mode restricts your outgoing calls to
a limited set of phone numbers. When this feature is
enabled, you can make calls only to phone numbers
stored on the USIM/SIM card. To use this feature,
you must enter your PIN2.
If you enter an incorrect PIN/PIN2 three times in
succession, the USIM/SIM card is blocked. To
unblock it you need to enter your PUK/PUK2
(Personal Unblocking Key). The codes are
supplied by your network operator.
Menu functions
76
Change phone password
(OK 9.8.5)
Use this menu to change your phone password. The
password is preset to
00000000
.
Privacy lock
(OK 9.8.6)
Use this menu to lock your messages, media
contents, contacts, and call logs.
1. Press [
OK
] to check the item(s) to lock.
2. Press <
Save
> to lock the marked items.
3. Enter the phone password and press
<
Confirm
>.
To access a locked item, you need to enter the
phone password.
Change PIN code
(OK 9.8.7)
Use this menu to change your PIN. The PIN lock
feature must be enabled to use this feature.
Change PIN2 code
(OK 9.8.8)
If supported by your USIM/SIM card, the Change
PIN2 feature changes your current PIN2.
Memory status
(OK 9.9)
Use this menu to check the amount of memory
being used for storing data, such as SMS, MMS,
Email, Push messages, File manager, Contacts, and
Organiser items. You can also view the amount of
shared memory or a memory card.
Reset settings
(OK 9.0)
Use this menu to reset the phone to its default
settings.
1. Enter the phone password and press
<
Confirm
>.
2. Press <
Yes
>. The phone automatically turns
itself off and then back on.
The password is preset to
00000000
. You
can change this password
p. 75
77
Solve problems
Help and personal needs
To save the time and expense of an unnecessary service
call, perform the simple checks in this section before
contacting a service professional.
When you switch on your phone, the
following messages may appear:
“Please insert SIM card”
• Be sure that the USIM/SIM card is correctly
installed.
“Phone lock”
• The automatic locking function has been
enabled. You must enter the phone’s password
before you can use the phone.
“PIN lock”
• You are using your phone for the first time. You
must enter the PIN supplied with the USIM/SIM
card.
• The PIN lock feature is enabled. Every time the
phone is switched on, the PIN has to be entered.
To disable this feature, use the
PIN lock
menu.
“PUK lock”
• The PIN code was entered incorrectly three times
in succession, and the phone is now blocked.
Enter the PUK supplied by your service provider.
“No service,” “Network failure,” or “Not
done” displays
• The network connection has been lost. You may
be in a weak signal area. Move and try again.
• You are trying to access an option for which you
have no subscription with your service provider.
Contact the service provider for further details.
You have entered a number but it was not
dialled
• Be sure that you have pressed [ ].
• Be sure that you have accessed the right cellular
network.
• Be sure that you have not set an outgoing call
barring option.
Your correspondent cannot reach you
• Be sure that your phone is switched on. ([ ]
pressed for more than one second.)
• Be sure that you are accessing the correct
cellular network.
• Be sure that you have not set an incoming call
barring option.
Your correspondent cannot hear you
speaking
• Be sure that you have switched on the
microphone.
• Be sure that you are holding the phone close
enough to your mouth. The microphone is
located at the bottom of the phone.
78
The phone starts beeping and “Low battery”
flashes on the display
• Your battery is insufficiently charged. Recharge
the battery.
The audio quality of the call is poor
• Check the signal strength indicator on the
display ( ). The number of bars indicates the
signal strength from strong ( ) to weak ( ).
• Try moving the phone slightly or moving closer
to a window if you are in a building.
No number is dialled when you re-call a
Phonebook entry
• Use the contact search feature to ensure the
number has been stored correctly.
• Re-store the number, if necessary.
The battery doesn't charge properly or the
phone sometimes turns itself off
• Wipe the charging contacts both on the phone
and on the battery with a clean soft cloth.
If the above guidelines do not help you to
solve the problem, take note of:
• The model and serial numbers of your phone
•Your warranty details
• A clear description of the problem
Then contact your local dealer or Samsung after-
sales service.
Health and safety information
79
Health and safety information
Exposure to Radio Frequency (RF) Signals
Certification Information (SAR)
Your wireless phone is a radio transmitter and receiver.
It is designed and manufactured not to exceed the
exposure limits for radio frequency (RF) energy set by
the Federal Communications Commission (FCC) of the
U.S. government. These FCC exposure limits are
derived from the recommendations of two expert
organizations, the National Counsel on Radiation
Protection and Measurement (NCRP) and the Institute
of Electrical and Electronics Engineers (IEEE). In both
cases, the recommendations were developed by
scientific and engineering experts drawn from
industry, government, and academia after extensive
reviews of the scientific literature related to the
biological effects of RF energy.
The exposure limit set by the FCC for wireless mobile
phones employs a unit of measurement known as the
Specific Absorption Rate (SAR). The SAR is a measure
of the rate of absorption of RF energy by the human
body expressed in units of watts per kilogram (W/kg).
The FCC requires wireless phones to comply with a
safety limit of 1.6 watts per kilogram (1.6 W/kg). The
FCC exposure limit incorporates a substantial margin
of safety to give additional protection to the public and
to account for any variations in measurements.
SAR tests are conducted using standard operating
positions accepted by the FCC with the phone
transmitting at its highest certified power level in all
tested frequency bands. Although the SAR is
determined at the highest certified power level, the
actual SAR level of the phone while operating can be
well below the maximum value. This is because the
phone is designed to operate at multiple power levels
so as to use only the power required to reach the
network. In general, the closer you are to a wireless
base station antenna, the lower the power output.
Before a new model phone is available for sale to the
public, it must be tested and certified to the FCC that
it does not exceed the exposure limit established by
the FCC. Tests for each model phone are performed in
positions and locations (e.g. at the ear and worn on
the body) as required by the FCC. Body-worn
operations are restricted to Samsung-supplied,
approved, or non- Samsung designated accessories
that have no metal and must provide at least 1.5 cm
separation between the device, including its antenna
(whether extended or retracted) and the user's body.
Non-compliance with the above restrictions may result
in violation of FCC RF exposure guidelines.
NorthAmerica_Cingular_T-mobile.fm Page 79 Thursday, October 13, 2005 2:14 PM
80
Health and safety information
The FCC has granted an Equipment Authorization for
this mobile phone with all reported SAR levels
evaluated as in compliance with the FCC RF exposure
guidelines. The maximum SAR values for this model
phone as reported to the FCC are:
1900
• Head: 0.551 W/Kg.
• Body-worn: 0.337 W/Kg.
SAR information on this and other model phones can
be viewed on-line at www.fcc.gov/oet/fccid. This site
uses the phone FCC ID number A3LSGHZ310.
Sometimes it may be necessary to remove the battery
pack to find the number. Once you have the FCC ID
number for a particular phone, follow the instructions
on the website and it should provide values for typical
or maximum SAR for a particular phone. Additional
product specific SAR information can also be obtained
at www.fcc.gov/cgb/sar.
Consumer Information on Wireless Phones
The U.S. Food and Drug Administration (FDA) has
published a series of Questions and Answers for
consumers relating to radio frequency (RF) exposure
from wireless phones. The FDA publication includes
the following information:
What kinds of phones are the subject of this
update?
The term wireless phone refers here to hand-held
wireless phones with built-in antennas, often called
“cell,” “mobile,” or “PCS” phones. These types of
wireless phones can expose the user to measurable
radio frequency energy (RF) because of the short
distance between the phone and the user's head.
These RF exposures are limited by Federal
Communications Commission safety guidelines that
were developed with the advice of FDA and other
federal health and safety agencies. When the phone is
located at greater distances from the user, the
exposure to RF is drastically lower because a person's
RF exposure decreases rapidly with increasing
distance from the source. The so-called “cordless
phones,” which have a base unit connected to the
telephone wiring in a house, typically operate at far
lower power levels, and thus produce RF exposures
well within the FCC's compliance limits.
NorthAmerica_Cingular_T-mobile.fm Page 80 Thursday, October 13, 2005 2:14 PM
Health and safety information
81
Do wireless phones pose a health hazard?
The available scientific evidence does not show that
any health problems are associated with using
wireless phones. There is no proof, however, that
wireless phones are absolutely safe. Wireless phones
emit low levels of radio frequency energy (RF) in the
microwave range while being used. They also emit
very low levels of RF when in the stand-by mode.
Whereas high levels of RF can produce health effects
(by heating tissue), exposure to low level RF that does
not produce heating effects causes no known adverse
health effects. Many studies of low level RF exposures
have not found any biological effects. Some studies
have suggested that some biological effects may
occur, but such findings have not been confirmed by
additional research. In some cases, other researchers
have had difficulty in reproducing those studies, or in
determining the reasons for inconsistent results.
What is FDA's role concerning the safety of
wireless phones?
Under the law, FDA does not review the safety of
radiation-emitting consumer products such as wireless
phones before they can be sold, as it does with new
drugs or medical devices. However, the agency has
authority to take action if wireless phones are shown
to emit radio frequency energy (RF) at a level that is
hazardous to the user. In such a case, FDA could
require the manufacturers of wireless phones to notify
users of the health hazard and to repair, replace or
recall the phones so that the hazard no longer exists.
Although the existing scientific data do not justify FDA
regulatory actions, FDA has urged the wireless phone
industry to take a number of steps, including the
following:
• “Support needed research into possible biological
effects of RF of the type emitted by wireless
phones;
• “Design wireless phones in a way that minimizes
any RF exposure to the user that is not necessary
for device function; and
• “Cooperate in providing users of wireless phones
with the best possible information on possible
effects of wireless phone use on human health.
FDA belongs to an interagency working group of the
federal agencies that have responsibility for different
aspects of RF safety to ensure coordinated efforts at
the federal level. The following agencies belong to this
working group:
• “National Institute for Occupational Safety and
Health
• “Environmental Protection Agency
• “Federal Communications Commission
• “Occupational Safety and Health Administration
• “National Telecommunications and Information
Administration
The National Institutes of Health participates in some
interagency working group activities, as well.
FDA shares regulatory responsibilities for wireless
phones with the Federal Communications Commission
(FCC). All phones that are sold in the United States
NorthAmerica_Cingular_T-mobile.fm Page 81 Thursday, October 13, 2005 2:14 PM
82
Health and safety information
must comply with FCC safety guidelines that limit RF
exposure. FCC relies on FDA and other health agencies
for safety questions about wireless phones.
FCC also regulates the base stations that the wireless
phone networks rely upon. While these base stations
operate at higher power than do the wireless phones
themselves, the RF exposures that people get from
these base stations are typically thousands of times
lower than those they can get from wireless phones.
Base stations are thus not the primary subject of the
safety questions discussed in this document.
What are the results of the research done
already?
The research done thus far has produced conflicting
results, and many studies have suffered from flaws in
their research methods. Animal experiments
investigating the effects of radio frequency energy
(RF) exposures characteristic of wireless phones have
yielded conflicting results that often cannot be
repeated in other laboratories. A few animal studies,
however, have suggested that low levels of RF could
accelerate the development of cancer in laboratory
animals. However, many of the studies that showed
increased tumor development used animals that had
been genetically engineered or treated with cancer-
causing chemicals so as to be pre-disposed to develop
cancer in absence of RF exposure. Other studies
exposed the animals to RF for up to 22 hours per day.
These conditions are not similar to the conditions
under which people use wireless phones, so we don't
know with certainty what the results of such studies
mean for human health.
Three large epidemiology studies have been published
since December 2000. Between them, the studies
investigated any possible association between the use
of wireless phones and primary brain cancer, glioma,
meningioma, or acoustic neuroma, tumors of the brain
or salivary gland, leukemia, or other cancers. None of
the studies demonstrated the existence of any harmful
health effects from wireless phones RF exposures.
However, none of the studies can answer questions
about long-term exposures, since the average period
of phone use in these studies was around three years.
What research is needed to decide whether RF
exposure from wireless phones poses a health
risk?
A combination of laboratory studies and
epidemiological studies of people actually using
wireless phones would provide some of the data that
are needed. Lifetime animal exposure studies could be
completed in a few years. However, very large
numbers of animals would be needed to provide
reliable proof of a cancer promoting effect if one
exists. Epidemiological studies can provide data that is
directly applicable to human populations, but ten or
more years' follow-up may be needed to provide
answers about some health effects, such as cancer.
This is because the interval between the time of
exposure to a cancer-causing agent and the time
tumors develop - if they do - may be many, many
years. The interpretation of epidemiological studies is
hampered by difficulties in measuring actual RF
exposure during day-to-day use of wireless phones.
Many factors affect this measurement, such as the
NorthAmerica_Cingular_T-mobile.fm Page 82 Thursday, October 13, 2005 2:14 PM
Health and safety information
83
angle at which the phone is held, or which model of
phone is used.
What is FDA doing to find out more about the
possible health effects of wireless phone RF?
FDA is working with the U.S. National Toxicology
Program and with groups of investigators around the
world to ensure that high priority animal studies are
conducted to address important questions about the
effects of exposure to radio frequency energy (RF).
FDA has been a leading participant in the World Health
Organization international Electromagnetic Fields
(EMF) Project since its inception in 1996. An influential
result of this work has been the development of a
detailed agenda of research needs that has driven the
establishment of new research programs around the
world. The Project has also helped develop a series of
public information documents on EMF issues.
FDA and Cellular Telecommunications & Internet
Association (CTIA) have a formal Cooperative
Research and Development Agreement (CRADA) to do
research on wireless phone safety. FDA provides the
scientific oversight, obtaining input from experts in
government, industry, and academic organizations.
CTIA-funded research is conducted through contracts
to independent investigators. The initial research will
include both laboratory studies and studies of wireless
phone users. The CRADA will also include a broad
assessment of additional research needs in the
context of the latest research developments around
the world.
What steps can I take to reduce my exposure
to radio frequency energy from my wireless
phone?
If there is a risk from these products - and at this
point we do not know that there is - it is probably very
small. But if you are concerned about avoiding even
potential risks, you can take a few simple steps to
minimize your exposure to radio frequency energy
(RF). Since time is a key factor in how much exposure
a person receives, reducing the amount of time spent
using a wireless phone will reduce RF exposure.
• “If you must conduct extended conversations by
wireless phone every day, you could place more
distance between your body and the source of the
RF, since the exposure level drops off dramatically
with distance. For example, you could use a
headset and carry the wireless phone away from
your body or use a wireless phone connected to a
remote antenna.
Again, the scientific data do not demonstrate that
wireless phones are harmful. But if you are concerned
about the RF exposure from these products, you can
use measures like those described above to reduce
your RF exposure from wireless phone use.
What about children using wireless phones?
The scientific evidence does not show a danger to
users of wireless phones, including children and
teenagers. If you want to take steps to lower exposure
to radio frequency energy (RF), the measures
described above would apply to children and
NorthAmerica_Cingular_T-mobile.fm Page 83 Thursday, October 13, 2005 2:14 PM
84
Health and safety information
teenagers using wireless phones. Reducing the time of
wireless phone use and increasing the distance
between the user and the RF source will reduce RF
exposure.
Some groups sponsored by other national
governments have advised that children be
discouraged from using wireless phones at all. For
example, the government in the United Kingdom
distributed leaflets containing such a recommendation
in December 2000. They noted that no evidence exists
that using a wireless phone causes brain tumors or
other ill effects. Their recommendation to limit
wireless phone use by children was strictly
precautionary; it was not based on scientific evidence
that any health hazard exists.
Do hands-free kits for wireless phones reduce
risks from exposure to RF emissions?
Since there are no known risks from exposure to RF
emissions from wireless phones, there is no reason to
believe that hands-free kits reduce risks. Hands-free
kits can be used with wireless phones for convenience
and comfort. These systems reduce the absorption of
RF energy in the head because the phone, which is the
source of the RF emissions, will not be placed against
the head. On the other hand, if the phone is mounted
against the waist or other part of the body during use,
then that part of the body will absorb more RF energy.
Wireless phones marketed in the U.S. are required to
meet safety requirements regardless of whether they
are used against the head or against the body. Either
configuration should result in compliance with the
safety limit.
Do wireless phone accessories that claim to
shield the head from RF radiation work?
Since there are no known risks from exposure to RF
emissions from wireless phones, there is no reason to
believe that accessories that claim to shield the head
from those emissions reduce risks. Some products
that claim to shield the user from RF absorption use
special phone cases, while others involve nothing
more than a metallic accessory attached to the phone.
Studies have shown that these products generally do
not work as advertised. Unlike “hand-free” kits, these
so-called “shields” may interfere with proper operation
of the phone. The phone may be forced to boost its
power to compensate, leading to an increase in RF
absorption. In February 2002, the Federal trade
Commission (FTC) charged two companies that sold
devices that claimed to protect wireless phone users
from radiation with making false and unsubstantiated
claims. According to FTC, these defendants lacked a
reasonable basis to substantiate their claim.
What about wireless phone interference with
medical equipment?
Radio frequency energy (RF) from wireless phones can
interact with some electronic devices. For this reason,
FDA helped develop a detailed test method to measure
electromagnetic interference (EMI) of implanted
cardiac pacemakers and defibrillators from wireless
telephones. This test method is now part of a standard
sponsored by the Association for the Advancement of
NorthAmerica_Cingular_T-mobile.fm Page 84 Thursday, October 13, 2005 2:14 PM
Health and safety information
85
Medical instrumentation (AAMI). The final draft, a joint
effort by FDA, medical device manufacturers, and
many other groups, was completed in late 2000. This
standard will allow manufacturers to ensure that
cardiac pacemakers and defibrillators are safe from
wireless phone EMI. FDA has tested wireless phones
and helped develop a voluntary standard sponsored by
the Institute of Electrical and Electronic Engineers
(IEEE). This standard specifies test methods and
performance requirements for hearing aids and
wireless phones so that no interference occurs when a
person uses a compatible phone and a compatible
hearing aid at the same time. This standard was
approved by the IEEE in 2000.
FDA continues to monitor the use of wireless phones
for possible interactions with other medical devices.
Should harmful interference be found to occur, FDA
will conduct testing to assess the interference and
work to resolve the problem.
Additional information on the safety of RF exposures
from various sources can be obtained from the
following organizations:
• FCC RF Safety Program:
http://www.fcc.gov/oet/rfsafety/
• Environmental Protection Agency (EPA):
http://www.epa.gov/radiation/
• Occupational Safety and Health Administration's
(OSHA):
http://www.osha.gov/SLTC/
radiofrequencyradiation/index.html
• National institute for Occupational Safety and
Health (NIOSH):
http://www.cdc.gov/niosh/emfpg.html
• World health Organization (WHO):
http://www.who.int/peh-emf/
• International Commission on Non-Ionizing
Radiation Protection:
http://www.icnirp.de
• National Radiation Protection Board (UK):
http://www.nrpb.org.uk
• Updated 4/3/2002: US food and Drug
Administration
http://www.fda.gov/cellphones
NorthAmerica_Cingular_T-mobile.fm Page 85 Thursday, October 13, 2005 2:14 PM
86
Health and safety information
Road Safety
Your wireless phone gives you the powerful ability to
communicate by voice, almost anywhere, anytime.
But an important responsibility accompanies the
benefits of wireless phones, one that every user must
uphold.
When driving a car, driving is your first responsibility.
When using your wireless phone behind the wheel of a
car, practice good common sense and remember the
following tips:
1. Get to know your wireless phone and its features,
such as speed dial and redial. If available, these
features help you to place your call without taking
your attention off the road.
2. When available, use a hands-free device. If
possible, add an additional layer of convenience
and safety to your wireless phone with one of the
many hands free accessories available today.
3. Position your wireless phone within easy reach. Be
able to access your wireless phone without
removing your eyes from the road. If you get an
incoming call at an inconvenient time, let your
voice mail answer it for you.
4. Let the person you are speaking with know you are
driving; if necessary, suspend the call in heavy
traffic or hazardous weather conditions. Rain,
sleet, snow, ice and even heavy traffic can be
hazardous.
5. Do not take notes or look up phone numbers while
driving. Jotting down a “to do” list or flipping
through your address book takes attention away
from your primary responsibility, driving safely.
6. Dial sensibly and assess the traffic; if possible,
place calls when you are not moving or before
pulling into traffic. Try to plan calls when your car
will be stationary. If you need to make a call while
moving, dial only a few numbers, check the road
and your mirrors, then continue.
7. Do not engage in stressful or emotional
conversations that may be distracting. Make
people you are talking with aware you are driving
and suspend conversations that have the potential
to divert your attention from the road.
8. Use your wireless phone to call for help. Dial 9-1-1
or other local emergency number in the case of
fire, traffic accident or medical emergencies.
Remember, it is a free call on your wireless phone!
9. Use your wireless phone to help others in
emergencies. If you see an auto accident, crime in
progress or other serious emergency where lives
are in danger, call 9-1-1 or other local emergency
number, as you would want others to do for you.
10. Call roadside assistance or a special non-
emergency wireless assistance number when
necessary. If you see a broken-down vehicle
posing no serious hazard, a broken traffic signal, a
minor traffic accident where no one appears
injured, or a vehicle you know to be stolen, call
roadside assistance or other special non-
emergency number.
NorthAmerica_Cingular_T-mobile.fm Page 86 Thursday, October 13, 2005 2:14 PM
Health and safety information
87
“The wireless industry reminds you to use your
phone safely when driving.”
For more information, please call 1-888-901-SAFE, or
visit our web-site www.wow-com.com
Provided by the Cellular Telecommunications &
Internet Association
Operating Environment
Remember to follow any special regulations in force in
any area and always switch your phone off whenever it
is forbidden to use it, or when it may cause
interference or danger. When connecting the phone or
any accessory to another device, read its user's guide
for detailed safety instructions. Do not connect
incompatible products.
As with other mobile radio transmitting equipment,
users are advised that for the satisfactory operation of
the equipment and for the safety of personnel, it is
recommended that the equipment should only be used
in the normal operating position (held to your ear with
the antenna pointing over your shoulder).
Using Your Phone Near Other Electronic
Devices
Most modern electronic equipment is shielded from
radio frequency (RF) signals. However, certain
electronic equipment may not be shielded against the
RF signals from your wireless phone. Consult the
manufacturer to discuss alternatives.
Pacemakers
Pacemaker manufacturers recommend that a
minimum distance of 15 cm (6 inches) be maintained
between a wireless phone and a pacemaker to avoid
potential interference with the pacemaker.
These recommendations are consistent with the
independent research and recommendations of
Wireless Technology Research.
Persons with pacemakers:
• should always keep the phone more than 15 cm
(6 inches) from their pacemaker when the phone is
switched on.
• should not carry the phone in a breast pocket.
• should use the ear opposite the pacemaker to
minimize potential interference.
If you have any reason to suspect that interference is
taking place, switch your phone off immediately.
Hearing Aids
Some digital wireless phones may interfere with some
hearing aids. In the event of such interference, you
may wish to consult your hearing aid manufacturer to
discuss alternatives.
Other Medical Devices
If you use any other personal medical devices, consult
the manufacturer of your device to determine if it is
adequately shielded from external RF energy. Your
physician may be able to assist you in obtaining this
information. Switch your phone off in health care
NorthAmerica_Cingular_T-mobile.fm Page 87 Thursday, October 13, 2005 2:14 PM
88
Health and safety information
facilities when any regulations posted in these areas
instruct you to do so. Hospitals or health care facilities
may be using equipment that could be sensitive to
external RF energy.
Vehicles
RF signals may affect improperly installed or
inadequately shielded electronic systems in motor
vehicles. Check with the manufacturer or its
representative regarding your vehicle. You should also
consult the manufacturer of any equipment that has
been added to your vehicle.
Posted Facilities
Switch your phone off in any facility where posted
notices require you to do so.
Potentially Explosive Environments
Switch your phone off when in any area with a
potentially explosive atmosphere and obey all signs
and instructions. Sparks in such areas could cause an
explosion or fire resulting in bodily injury or even
death.
Users are advised to switch the phone off while at a
refueling point (service station). Users are reminded of
the need to observe restrictions on the use of radio
equipment in fuel depots (fuel storage and distribution
areas), chemical plants or where blasting operations
are in progress.
Areas with a potentially explosive atmosphere are
often but not always clearly marked. They include
below deck on boats, chemical transfer or storage
facilities, vehicles using liquefied petroleum gas (such
as propane or butane), areas where the air contains
chemicals or particles, such as grain, dust or metal
powders, and any other area where you would
normally be advised to turn off your vehicle engine.
Emergency Calls
This phone, like any wireless phone, operates using
radio signals, wireless and landline networks as well as
user programmed functions, which cannot guarantee
connection in all conditions. Therefore, you should
never rely solely on any wireless phone for essential
communications (medical emergencies, for example).
Remember, to make or receive any calls the phone
must be switched on and in a service area with
adequate signal strength. Emergency calls may not be
possible on all wireless phone networks or when
certain network services and/or phone features are in
use. Check with local service providers.
To make an emergency call:
1. If the phone is not on, switch it on.
2. Key in the emergency number for your present
location (for example, 911 or other official
emergency number). Emergency numbers vary by
location.
3. Press[ ].
If certain features are in use (call barring, for
example), you may first need to deactivate those
features before you can make an emergency call.
Consult this document and your local cellular service
provider.
NorthAmerica_Cingular_T-mobile.fm Page 88 Thursday, October 13, 2005 2:14 PM
Health and safety information
89
When making an emergency call, remember to give all
the necessary information as accurately as possible.
Remember that your phone may be the only means of
communication at the scene of an accident; do not cut
off the call until given permission to do so.
Restricting Children's access to your Phone
Your phone is not a toy. Children should not be allowed
to play with it because they could hurt themselves and
others, damage the phone or make calls that increase
your phone bill.
FCC Notice and Cautions
FCC Notice
The phone may cause TV or radio interference if used
in close proximity to receiving equipment. The FCC
can require you to stop using the phone if such
interference cannot be eliminated.
Vehicles using liquefied petroleum gas (such as
propane or butane) must comply with the National Fire
Protection Standard (NFPA-58). For a copy of this
standard, contact the National Fire Protection
Association, One Battery march Park, Quincy, MA
02269, Attn: Publication Sales Division.
Cautions
Changes or modifications made in the radio phone, not
expressly approved by Samsung, will void the user’s
authority to operate the equipment.
Only use approved batteries, antennas and chargers.
The use of any unauthorized accessories may be
dangerous and void the phone warranty if said
accessories cause damage or a defect to the phone.
Although your phone is quite sturdy, it is a complex
piece of equipment and can be broken. Avoid
dropping, hitting, bending or sitting on it.
Other Important Safety Information
• Only qualified personnel should service the phone
or install the phone in a vehicle. Faulty installation
or service may be dangerous and may invalidate
any warranty applicable to the device.
• Check regularly that all wireless phone equipment
in your vehicle is mounted and operating properly.
• Do not store or carry flammable liquids, gases or
explosive materials in the same compartment as
the phone, its parts or accessories.
• For vehicles equipped with an air bag, remember
that an air bag inflates with great force. Do not
place objects, including both installed or portable
wireless equipment in the area over the air bag or
in the air bag deployment area. If wireless
equipment is improperly installed and the air bag
inflates, serious injury could result.
This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two
conditions: (1) this device may not cause harmful
interference, and (2) this device must accept any
interference received, including interference that
may cause undesired operation.
NorthAmerica_Cingular_T-mobile.fm Page 89 Thursday, October 13, 2005 2:14 PM
90
Health and safety information
• Switch your phone off before boarding an aircraft.
The use of wireless phone in aircraft is illegal and
may be dangerous to the aircraft's operation.
• Failure to observe these instructions may lead to
the suspension or denial of telephone services to
the offender, or legal action, or both.
Product Performance
Getting the Most Out of Your Signal Reception
The quality of each call you make or receive depends
on the signal strength in your area. Your phone
informs you of the current signal strength by
displaying a number of bars next to the signal strength
icon. The more bars displayed, the stronger the signal.
If you're inside a building, being near a window may
give you better reception.
Understanding the Power Save Feature
If your phone is unable to find a signal after 15
minutes of searching, a Power Save feature is
automatically activated. If your phone is active, it
periodically rechecks service availability or you can
check it yourself by pressing any key.
Anytime the Power Save feature is activated, a
message displays on the screen. When a signal is
found, your phone returns to standby mode.
Understanding How Your Phone Operates
Your phone is basically a radio transmitter and
receiver. When it's turned on, it receives and transmits
radio frequency (RF) signals. When you use your
phone, the system handling your call controls the
power level. This power can range from 0.006 watts to
0.2 watts in digital mode.
Maintaining Your Phone's Peak Performance
For the best care of your phone, only authorized
personnel should service your phone and accessories.
Faulty service may void the warranty.
There are several simple guidelines to operating your
phone properly and maintaining safe, satisfactory
service.
• Hold the phone with the antenna raised, fully-
extended and over your shoulder.
• Try not to hold, bend or twist the phone's antenna.
• Don't use the phone if the antenna is damaged.
• Speak directly into the phone's receiver.
• Avoid exposing your phone and accessories to rain
or liquid spills. If your phone does get wet,
immediately turn the power off and remove the
battery. If it is inoperable, call Customer Care for
service.
Availability of Various Features/Ring
Tones
Many services and features are network dependent
and may require additional subscription and/or usage
charges. Not all features are available for purchase or
use in all areas. Downloadable Ring Tones may be
available at an additional cost. Other conditions and
restrictions may apply. See your service provider for
additional information.
NorthAmerica_Cingular_T-mobile.fm Page 90 Thursday, October 13, 2005 2:14 PM
Health and safety information
91
Battery Standby and Talk Time
Standby and talk times will vary depending on phone
usage patterns and conditions. Battery power
consumption depends on factors such as network
configuration, signal strength, operating temperature,
features selected, frequency of calls, and voice, data,
and other application usage patterns.
Battery Precautions
• Never use any charger or battery that is damaged
in any way.
• Use the battery only for its intended purpose.
• If you use the phone near the network's base
station, it uses less power; talk and standby time
are greatly affected by the signal strength on the
cellular network and the parameters set by the
network operator.
• Battery charging time depends on the remaining
battery charge and the type of battery and charger
used. The battery can be charged and discharged
hundreds of times, but it will gradually wear out.
When the operation time (talk time and standby
time) is noticeably shorter than normal, it is time
to buy a new battery.
• If left unused, a fully charged battery will
discharge itself over time.
• Use only Samsung-approved batteries and
recharge your battery only with Samsung-
approved chargers. When a charger is not in use,
disconnect it from the power source. Do not leave
the battery connected to a charger for more than a
week, since overcharging may shorten its life.
• Extreme temperatures will affect the charging
capacity of your battery: it may require cooling or
warming first.
• Do not leave the battery in hot or cold places, such
as in a car in summer or winter conditions, as you
will reduce the capacity and lifetime of the battery.
Always try to keep the battery at room
temperature. A phone with a hot or cold battery
may temporarily not work, even when the battery
is fully charged. Li-ion batteries are particularly
affected by temperatures below 0 °C (32 °F).
• Do not short-circuit the battery. Accidental short-
circuiting can occur when a metallic object (coin,
clip or pen) causes a direct connection between the
+ and - terminals of the battery (metal strips on
the battery), for example when you carry a spare
battery in a pocket or bag. Short-circuiting the
terminals may damage the battery or the object
causing the short-circuiting.
• Dispose of used batteries in accordance with local
regulations. In some areas, the disposal of
batteries in household or business trash may be
prohibited. For safe disposal options for Li-Ion
batteries, contact your nearest Samsung
authorized service center. Always recycle. Do not
dispose of batteries in a fire.
NorthAmerica_Cingular_T-mobile.fm Page 91 Thursday, October 13, 2005 2:14 PM
92
Health and safety information
Care and Maintenance
Your phone is a product of superior design and
craftsmanship and should be treated with care. The
suggestions below will help you fulfill any warranty
obligations and allow you to enjoy this product for
many years.
• Keep the phone and all its parts and accessories
out of the reach of small children.
• Keep the phone dry. Precipitation, humidity and
liquids contain minerals that will corrode electronic
circuits.
• Do not use the phone with a wet hand. Doing so
may cause an electric shock to you or damage to
the phone.
• Do not use or store the phone in dusty, dirty areas,
as its moving parts may be damaged.
• Do not store the phone in hot areas. High
temperatures can shorten the life of electronic
devices, damage batteries, and warp or melt
certain plastics.
• Do not store the phone in cold areas. When the
phone warms up to its normal operating
temperature, moisture can form inside the phone,
which may damage the phone's electronic circuit
boards.
• Do not drop, knock or shake the phone. Rough
handling can break internal circuit boards.
• Do not use harsh chemicals, cleaning solvents or
strong detergents to clean the phone. Wipe it with
a soft cloth slightly dampened in a mild soap-and-
water solution.
• Do not paint the phone. Paint can clog the device's
moving parts and prevent proper operation.
• Do not put the phone in or on heating devices,
such as a microwave oven, a stove or a radiator.
The phone may explode when overheated.
• When the phone or battery gets wet, the label
indicating water damage inside the phone changes
color. In this case, phone repairs are no longer
guaranteed by the manufacturer's warranty, even
if the warranty for your phone has not expired.
• If your phone has a flash or light, do not use it too
close to the eyes of people or animals. This may
cause damage to their eyes.
• Use only the supplied or an approved replacement
antenna. Unauthorized antennas or modified
accessories may damage the phone and violate
regulations governing radio devices.
• If the phone, battery, charger or any accessory is
not working properly, take it to your nearest
qualified service facility. The personnel there will
assist you, and if necessary, arrange for service.
NorthAmerica_Cingular_T-mobile.fm Page 92 Thursday, October 13, 2005 2:14 PM
93
Index
A
ABC mode, text input • 23
Active folder • 68
Alarm • 58
Answering
call • 24, 27
second call • 25
Anykey answer • 68
Auto redial • 70
B
Backlight time, set • 68
Barring, calls • 69
Battery
charging • 7
low indicator • 8
precautions • 79
Bluetooth
receiving, data • 72
sending, data • 72
settings • 71
Broadcast messages • 47
Browser, WAP • 39
C
Calculator • 38
Call costs • 29
Call records
dialled • 29
missed • 28
received • 29
Call time • 30
Caller group • 32
Caller ID • 69
Calls
answering • 24, 27
barring • 69
diverting • 69
holding • 25
redialling • 24
rejecting • 24
waiting • 70
Camera
photos • 62
videos • 64
Characters, enter • 22
Conference call • 27
Configuration messages • 43
Connect tone • 66
Connection settings • 73
Contacts
copying • 33
deleting • 31
editing • 30, 31
options • 30
setting • 34
speed-dialling • 32
Converter • 38
Creating messages
e-mail • 42
MMS with attachments • 42
MMS • 41
SMS • 41
Creating organiser
anniversaries • 59
events • 59
memos • 60
tasks • 60
D
Deleting
contacts • 31
e-mails • 46
events • 60
MMS messages • 45
photos • 53, 64
SMS messages • 44
video clips • 66
Delivery reports, message • 48
Dialled calls • 29
Display
brightness • 68
icons 10
language • 67
settings • 68
Diverting, calls • 69
DTMF tones, send • 26
E
E-mails
creating/sending • 42
deleting • 46
settings • 49
viewing • 46
Emergency calls • 82
F
FDN (Fixed Dialling Number) mode •
75
File manager • 52
File messenger • 42
Folder tone • 66
Forwarding
e-mails • 46
MMS messages • 44
SMS messages • 44
G
Games • 56
Greeting message • 68
94
Index
H
Health and safety • 78
Holding, call • 25
I
Icons, description • 10
Images, downloaded • 52
Inbox, messages
e-mail • 46
MMS • 44
SMS • 44
web • 45
Infrared, connect • 72
International calls • 24
Internet • 39
K
key tone volume • 66
Keypad tones
selecting • 67
sending • 26
L
Language, select • 67
Last number, redial • 24
LCD brightness • 68
Locking
media contents • 76
phone • 75
SIM card • 75
Loudspeaker • 26
Low battery indicator • 8
M
Media files • 52
Media player • 34
Memory status
contacts • 34
messages • 51
phone • 76
scheduled events • 61
Message tone • 66
Messages
CB • 47
greeting • 68
MMS with attachments • 42
MMS • 41
SMS • 41
web • 45
Minute minder • 66
Missed alarm events • 61
Missed calls • 28
MMS messages
creating/sending • 41
deleting • 45
settings • 48
viewing • 44
Multi-party calls • 27
Muting
key tones • 26
microphone • 26
N
Name card • 33
Names
entering • 22
searching • 30
Network selection • 73
O
Organiser • 58
Outbox, messages • 45
Own number • 33
P
Password
barring • 70
phone • 76
Phonecare and maintenance • 83
display • 10
icons • 10
locking • 75
password • 76
resetting • 76
switching on/off • 8
unpacking • 6
Photos
deleting • 53, 64
taking • 62
viewing • 52
PIN, change • 76
PIN2, change • 76
Power on/off tone • 66
Privacy • 76
Problems, solve • 77
Profiles • 66
R
Received calls • 29
Received messages
e-mail • 46
MMS • 44
SMS • 44
web • 45
Recording
videos • 64
voice memos • 36
Redialling
automatically • 70
95
Index
manually • 24
Resetting phone • 76
Ringtones, downloaded • 55
Road safety • 80
Roaming • 73
S
Safety
information • 78
precautions • 1
Sent messages • 45
Shortcuts • 67
Side key, set • 68
SIM card
inserting • 7
locking • 75
SMS messages
creating/sending • 41
deleting • 44
settings • 48
viewing • 44
Sound setting • 66
Sounds, downloaded • 56
Speed-dial • 32
Switching on/off
microphone • 26
phone • 8
T
Templates
MMS • 47
text • 47
Text input mode, change • 22
Text, enter • 22
Tone connect • 66
folder • 66
keypad • 67
message • 66
minute minder • 66
power on/off • 66
V
Video calls
making • 27
setting • 70
Video clips
playing • 53
recording • 64
Voice memos
deleting • 37
playing • 36
recording • 36
Voicemail server • 51
W
Waiting call • 70
Wallpaper
external display • 68
main display • 68
WAP browser • 39
World time • 37
