Users Manual

* Depending on the software installed or Vodafone, some of the descriptions in this manual

may match from your phone.

* Depending on your country, your phone and accessories may appear different from

the illustrations in this manual.

World Wide Web

http://www.samsungmobile.com

Printed in Korea

Code No.:GH68-XXXXXA

English. 04/2005. Rev 1.0

SGH-ZV30

User’s Guide

Important

safety

precautions

Failure to comply with the following

precautions may be dangerous or illegal.

Use road safety at all times

Do not use a hand-held phone while driving. Park

the vehicle first.

Switch off the phone when refuelling

Do not use the phone at a refuelling point (service

station) or near fuels or chemicals.

Switch off in an aircraft

Wireless phones can cause interference. Using them

in an aircraft is both illegal and dangerous.

Switch off the phone near all medical

equipment

Hospitals or health care facilities may be using

equipment that could be sensitive to external radio

frequency energy. Follow any regulations or rules in

force.

Important safety precautions

Be aware of special regulations

Meet any special regulations in force in any area and

always switch off your phone whenever it is

forbidden to use it, or when it may cause

interference or danger.

Water resistance

Your phone is not water-resistant. Keep it dry.

Sensible use

Use only in the normal position (held to the ear).

Avoid unnecessary contact with the antenna when

the phone is switched on.

Emergency calls

Key in the emergency number for your present

location, then press .

Keep your phone away from small children

Keep the phone and all its parts, including

accessories, out of the reach of small children.

Accessories and batteries

Use only Samsung-approved accessories and

batteries. Use of any unauthorised accessories could

damage your phone and may be dangerous.

Qualified service

Only qualified service personnel may repair your

phone.

For more detailed safety information, see "Health

and safety information" on page 74.

• The phone could explode if the battery is

replaced with an incorrect type.

• Dispose of used batteries according to the

manufacturer’s instructions.

About this Guide

This User’s Guide provides you with condensed

information about how to use your phone. To quickly

learn the basics for your phone, please refer to “Get

started” and “Step outside the phone.”

In this guide, the following instruction icons appear:

Indicates that you need to pay careful

attention to the subsequent

information regarding safety or phone

features.



Indicates that you can get more

information on the referenced page.

→

Indicates that you need to press the

Navigation keys to scroll to the

specified option and then select it.

[

] Indicates a key on the phone. For

example,

[]

> Indicates a soft key, whose function is

displayed on the phone screen. For

example, < >

•3G

Your phone is capable of operating

in a 3G environment, allowing much

greater data transfer speed, video

streaming, and video conferencing.

Special

features of your phone

• Camera and camcorder

Use the camera module on your

phone to take a photo or record a

video.

•Media player

Play media files on your phone.

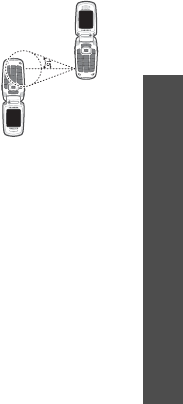

•IrDA

Send and receive Phonebook and

Organiser data and media files via

an infrared port.

Special features of your phone

•Bluetooth

Send photos, images, videos, and

other personal data, and connect to

other devices using free, wireless

Bluetooth technology.

•WAP browser

Access the wireless web and access

various services and current

information.

• Get personal with photo caller

See who’s calling you with their

very own photo displays.

• Name card

Create name cards with your

number and profile whenever

introducing yourself to others use

this convenient electronic name

card.

• Multimedia message service (MMS)

Deliver MMS messages with a combination of

text, images, and audio.

•E-mail

Deliver e-mails with images, video, and audio

attachments.

•Java

Enjoy Java

™

-based embedded

games and download new games.

• Organiser

Keep track of your daily, weekly,

and monthly schedule.

• Voice recorder

Record memos or sounds.

Contents

Unpack 6

Make sure you have each item

Your phone 6

Buttons, features, and locations

Get started 7

First steps to operating your phone

Install and charge the phone .............................. 7

Power on or off................................................. 8

Keys and display............................................... 9

Display ........................................................... 10

Access menu functions...................................... 11

Customise your phone ...................................... 12

Make/Answer calls............................................ 14

Step outside the phone 14

Begin with your camera, games, WAP, and other special

features

Use camera..................................................... 14

Play media files ............................................... 15

Play games ..................................................... 16

Browse the web............................................... 17

Use Contacts ................................................... 17

Send messages ............................................... 18

View messages................................................ 19

Use Bluetooth wireless...................................... 20

Use a memory card.......................................... 21

Enter text 23

ABC, T9, Number, and Symbol mode

Call functions 25

Advanced calling features

Menu functions 29

All menu options listed

Solve problems 73

Help and personal needs

Health and safety information 74

Index 81

1 Entertainment



p. 29

2 Vodefone live!



p. 30

3 Media player



p. 32

Music

Video



p. 32



p. 32

4 Camera



p. 34

5 Messaging



p. 38

1 Create message

2 Inbox

3 Drafts

4 Outbox

5 Sentbox

6 Email inbox

7 Call voicemail

8 Templates

9 Broadcast

0 Delete all

* Settings

# Memory status



p. 38



p. 39



p. 41



p. 41



p. 41



p. 42



p. 43



p. 43



p. 43



p. 44



p. 44



p. 47

6 My files



p. 47

Pictures

Videos

Sound and Ringtones

Music

Games

Applications

Themes

most popular sub menu is

assigned to the left soft key.

This allows you to quickly

access the most popular

menus.

Press the left soft

key to access the

Messages

menu.

Press the right soft

key to access the

Vodafone live!

menu.

Get started

Customise your phone

Select an

option

1. Press the appropriate soft

key or to access Menu

mode.

2. Press the Navigation keys to

move to the next or previous

option.

3. Press <

Select

>, <

>, or

to confirm the function

displayed or option

highlighted.

4. To exit, choose either of the

following methods:

• Press <

Back

> to move

up one level.

• Press [ ] to return to

Idle mode.

Use shortcuts

Press the number key

corresponding to the option you

want.

1. In Idle mode, press and

select

Settings

→

Phone

settings

→

Phone language

→

Screen text

2. Select a language.

3. Press <

Save

You can change the call ringer by

changing the properties of the

currently active sound profile.

To change the profile properties:

1. In Idle mode, press and

select

Settings

→

Phone

profiles

2. Scroll to the sound profile you

are using.

3. Press <

Options

> and select

Edit

4. Select

Voice call ringtone

and select a ringer for voice

calls.

5. Press <

Select

Display

language

Call ringer

melody

Get started

6. Select

Video call ringtone

and select a ringer for video

calls.

7. Press <

Select

8. Press <

Options

> and select

Save

To change the sound profile:

1. In Idle mode, press and

select

Settings

→

Phone

profiles

2. Scroll to the profile you want.

3. Press <

Options

> and select

Change

You can set a wallpaper for the

idle screen.

1. In Idle mode, press and

select

Settings

→

Display

settings

→

Wallpaper

2. Press [Left] or [Right] to

scroll to an image box

3. Select an image and press

Set

Idle mode

Wallpaper

You can quickly activate the

Silent profile to avoid disturbing

other people.

Press and hold [ ] in Idle mode.

You can protect the phone

against unauthorised use with a

phone password.

1. In Idle mode, press and

select

Settings

→

Security

→

Change phone

password

2. Enter the default password,

“00000000,” and press

Confirm

3. Enter a new 4- to 8-digit

password and press

Confirm

4. Enter the new password

again and press <

Confirm

5. Select

Phone lock

6. Select

Enabled

7. Enter the password and press

Confirm

Silent mode

Phone lock

Step outside the phone

Make/Answer calls

Step outside the phone

Begin with your camera, games, WAP, and other special

features

Use camera

To make a voice call:

1. Enter an area code and

phone number.

2. Press [ ].

3. To end the call, press [ ].

To make a video call:

1. Enter an area code and

phone number.

2. Press [ ], and the other

person appears on the

screen.

1. When the phone is ringing,

press [ ] or <

2. For a video call, press

Show me

> to allow the

other person to see you.

3. To end the call, press [ ].

Press [ / ].

Make a call

Answer a call

Adjust the

volume during

a call

1. In Idle mode, press and hold

[ ] to turn on the camera.

2. Press [ ] to switch between

the interior lens and exterior

lens.

3. Aim the camera lens at the

subject and adjust the image.

4. Press to take a photo. The

photo is saved automatically.

5. Press <

Back

> to take

another photo.

1. In Idle mode, press and

select

My files

→

Pictures

2. Select the photo you want.

Take a photo

View a photo

Step outside the phone

Play media files

1. In Idle mode, press and hold

[ ] to turn on the camera.

2. Press [

] to switch to Record

mode.

3. Press [ ] to switch between

the interior lens and exterior

lens.

4. Press to start recording.

5. Press to stop recording.

The video is automatically

saved.

6. Press <

Back

to record

another video.

1. In Idle mode, press and

select

My files

→

Videos

2. Select the video you want.

Record a video

Play a video

Use these methods:

• Download from the wireless

web



p. 30

• Download from a computer

using EasyStudio II



EasyStudio User’s Guide

• Copy files to an optional

memory card and insert the

card into the phone.

• Receive via IrDA or

Bluetooth



p. 69, p. 67

1. In Idle mode, press and

select

Media player

2. Press <

Options

> and select

Open play list

3. Press <

Options

> and select

Add

→

Folder

Files

4. Check the files you want or

scroll to the folder you want.

5. Press <

Add

> or <

Select

Copy media

files to the

phone

Create a play

list

Step outside the phone

Play games

1. From the Media player

screen, press .

2. Select the file you want.

3. During playback, use the

following keys:

• : Pauses or resumes

playback.

• Up: Opens the play list.

• Left: Goes to the previous

file. Moves backward in a

file when held down.

• Right: Skips to the next

file. Skips forward in a file

when held down.

•/: Adjusts the volume.

• Down: Stops playback.

Play media files

1. In Idle mode, press

and

select

My files

→

Games

→

the game you want.

2. Press any key except [ ] to

launch the game.

1. Press <

Play

2. Select a character.

3. Press <

> to start a game.

1. Press <

Play

2. Select

New Game

3. Press <

> and then

Skip

4. Press <

Select a game

Play

Powerinlinex

Play

TheLastAge

Step outside the phone

Browse the web

Using a built-in WAP (Wireless Access Protocol)

browser, you can get easy access to the wireless

web to receive a variety of up-to-date information

and services and to enjoy downloads of web

contents.

Use Contacts

In Idle mode, press < >.

• To scroll through browser

items, press [Up] or [Down].

•To select an item, press .

• To return to the previous

page, press <

Back

• To use browser options, press

Options

Launch the

browser

Navigate the

web

To the phone’s memory:

1. In Idle mode, enter a phone

number.

2. Press <

Options

> and select

Save contact to

→

Phone

→

New

→

a number type.

3. Specify the contact

information: First name, Last

name, Email work, Email

home, Group, Homepage,

Birthday, and More

information (Job title,

Department, Company,

Nickname, and Notes).

4. Press <

Options

> and select

Save

to save the entry.

To the USIM/SIM card:

1. In Idle mode, enter a phone

number.

2. Press <

Options

> and select

Save contact to

→

SIM

→

New

3. Specify the contact

information: Name, Phone

number, Group, and Location.

4. Press to save the entry.

Add an entry

Step outside the phone

Send messages

1. In Idle mode, press and

select

Contacts

2. Select an entry.

3. Select a number and press

[] to dial, or <

Options

> to

access options.

1. In Idle mode, press and

select

Contacts

2. Specify your contact

information.

3. Press <

Options

> and select

Save

to save the name card.

4. To send the name card to

other people, access the

contact details

menu again.

5. Press <

Options

> and select

Send

contact details

→

the

sending method you want.

Find an entry

Create and

send your

name card

1. In Idle mode, press < >

and select

Create message

→

SMS

2. Enter the message text.

3. Press .

4. Enter destination numbers.

5. Press to send the

message.

1. In Idle mode, press < >

and select

Create message

→

MMS

2. Enter the message subject.

3. Select

Text

4. Enter the message text and

press .

5. Select


Audio

6. Add a media file.

7. Press <

Options

> and select

Send

8. Enter destination numbers or

e-mail addresses.

9. Press to send the

message.

Send a text

message (SMS)

Send a

multimedia

message

(MMS)

Step outside the phone

View messages

1. In Idle mode, press < >

and select

Create message

→

2. Enter the e-mail text.

3. Move to the

Attach files

line.

4. Press <

Options

> and select

Add files

Add contact

details

, or

Add v-calendar

5. Select images, sounds, name

cards, schedule items, or

tasks.

6. Press <

Options

> and select

Attach

7. Move the

Subject

line.

8. Enter the e-mail subject and

press

9. Enter e-mail address.

10.Press to send the e-mail.

Send an e-mail

When a notification appears:

1. Press <

View

2. Select a message from the

Inbox.

From the Inbox:

1. In Idle mode, press < >

and select

Inbox

2. Select a text message ( ).

When a notification appears:

1. Press <

View

2. Press <

Options

> and select

Retrieve

3. Select a message from the

Inbox.

From the Inbox:

1. In Idle mode, press < >

and select

Inbox

2. Select an MMS ( ).

View a text

message

View a

multimedia

message

Step outside the phone

Use Bluetooth wireless

Your phone is equipped with Bluetooth technology

which enables you to connect the phone wirelessly

to other Bluetooth devices and exchange data with

them, talk hands-free, or control the phone

remotely.

1. In Idle mode, press < >

and select

Email inbox

2. Press <

Options

> and select

Download

3. Select an e-mail or header.

4. If you selected a header,

press <

Options

> and select

Retrieve

In Idle mode, press

and

select

Settings

→

Connectivity

→

Bluetooth

→

Activation

→

View an e-mail

Turn on

Bluetooth

1. In Idle mode, press

and

select

Settings

→

Connectivity

→

Bluetooth

→

My devices

→

new device

2. Select a device.

3. Enter a Bluetooth PIN code or

the other device’s Bluetooth

PIN code, if it has, and press

When the owner of the other

device enters the same code,

the pairing is complete.

1. Access an application,

Contacts

My items

, or

Organiser

2. Select the item you want to

send.

3. Press <

Options

> and select

Send

(

name card

)

→

Via

bluetooth

4. Select a device.

5. If necessary, enter the

Bluetooth PIN and press

Search for and

pair with a

Bluetooth

device

Send data

Step outside the phone

Use a memory card

You can use an optional memory card to enlarge

your phone’s memory capacity.

To receive data via Bluetooth,

your phone’s Bluetooth feature

must be active.

If necessary, press <

Yes

> to

confirm the reception.

• Frequent erasing and writing will

shorten a memory card’s

lifespan.

• Do not remove a memory card

from the phone or turn off the

phone while data is being

accessed or transferred. This

could result in loss of data and/

or damage to the card or phone.

• Do not subject memory cards to

strong shocks.

• Do not touch memory card

terminals with your fingers or

metal objects. If dirty, wipe the

card with a soft cloth.

• Keep memory cards away from

small children or pets.

• Do not expose memory cards in

a place subject to electro static

discharge and/or electrical

noise.

Receive data

Important

memory card

information

• Use the memory card supplied

with your phone or ones

purchased from a Samsung

dealer.

1. Slide a memory card into the

memory card slot, with the

label side face down.

2. Press the card until it locks

into place.

Insert a

memory card

Step outside the phone

1. Press the memory card so

that it is disengaged from the

phone.

2. Slide the card out of the slot.

Using an optional card adaptor

and a USB card reader/writer,

you can read the card on a PC.

1. Insert an optional memory

card into a card adaptor, and

then the adaptor into a card

reader/writer.

2. Plug the USB connector into

the USB port on your PC.

Remove the

memory card

Use a card

adapter

Enter text

ABC, T9, Number, and Symbol mode

You can enter text for some features such as

Messages, Phonebook, or Organiser, using ABC

mode, T9 mode, Number mode, and Symbol mode.

Changing the text input mode

The text input mode indicator displays when the

cursor is in a text input field.

• Press and hold [ ] to switch between T9 ( )

and ABC ( ) modes.

• Press [ ] to change case ( / / ) or

to switch to Number mode ( ).

• Press and hold [ ] to switch to Symbol mode

().

Using T9 mode

T9 is a predictive text input mode that allows you to

key in any character using single keystrokes.

Entering a word in T9 mode

1. Press [

] to [

] to start entering a word. Press

each key once for each letter.

For example, press [

], [

], and [

] to

enter Hello in T9 mode.

T9 predicts the word that you are typing, and it

may change with each key that you press.

2. Enter the whole word before editing or deleting

characters.

3. When the word displays correctly, go to step 4.

Otherwise, press [

] to display alternative word

choices for the keys that you have pressed.

For example, Of and Me use [

] and [

4. Press [ ] to insert a space and enter the next

word.

Tips for using T9 mode

• Press [

] to enter periods or apostrophes

automatically.

• Press [Left] or [Right] to move the cursor.

• Press [

] to delete characters one by one. Press

and hold [

] to clear the entire display.

Adding a new word to the T9 dictionary

This feature may not be available for some

languages.

1. Enter the word that you want to add.

2. Press [

] to display alternative words for your

key presses. When there are no more alternative

words,

Spell

displays on the bottom line.

3. Press <

Spell

4. Enter the word you want using ABC mode and

press <

Add

Enter text

Using ABC mode

Press the appropriate key until the character you

want appears on the screen.

Tips for using ABC mode

• To enter the same letter twice or to enter a

different letter on the same key, wait for the

cursor to move to the right automatically or

press [Right]. Then, enter the next letter.

• Press [ ] to insert a space.

• Press [Left] or [Right] to move the cursor.

•Press [

] to delete characters one by one. Press

and hold [

] to clear the entire display.

Using Number mode

Number mode enables you to enter numbers. Press

the keys corresponding to the digits you want.

Using Symbol mode

Symbol mode enables you to insert symbols.

Upper case Lower case

Key Characters in order displayed

To Press

display more symbols [Up] or [Down].

select a symbol the corresponding

number key.

clear the symbol(s) [

insert the symbol(s) <

Call functions

Advanced calling features

Making a call

1. In Idle mode, enter the area code and phone

number.

2. Press [ ].

Making an international call

1. In Idle mode, press and hold [

]. The

character appears.

2. Enter the country code, area code, and phone

number, then press [ ].

Redialling recent numbers

1. In Idle mode, press [ ] to display the list of

recent numbers.

2. Scroll to the number you want and press [ ].

Making a call from Contacts

Once you have stored a number in Phonebook, you

can dial the number by selecting it from

Phonebook.



p. 58

You can also use the speed dial feature to assign

your most frequently called numbers to specific

number keys.



p. 60

Dialling a number from the USIM/SIM card

1. In Idle mode, enter the location number for the

phone number you want and press [ ].

2. Find the number you want.

3. Press <

Call

> or [ ] to make a voice call, or

V-call

> to make a video call.

Ending a call

Press [ ] or close the phone.

Answering a call

When you receive an incoming call, the phone rings

and displays the incoming call image.

Press [ ] or <

> to answer the call.

Tips for answering a call

• When

Anykey

answer

is active, you can press

any key to answer a call, except for [ ] and

Reject



p. 63

• When

Active folder

is active, you can answer a

call by opening the phone.



p. 63

• Press <

Reject

> or [ ] to reject a call.

• Press [ / ] to reject a call or mute the ringer,

depending on the side key setting.



p. 63

• Press

[

]

to clear the last digit or press and

hold

[

]

to clear the whole display. You can

move the cursor to edit an incorrect digit.

• Press and hold

[]

to enter a pause between

numbers.

Call functions

Viewing missed calls

If you have missed calls, the screen displays how

many calls you have missed.

1. Press <

View

2. If necessary, scroll through the missed calls.

3. Press [ ] to dial the number you want.

Using the headset

Use the headset to make or answer calls without

holding the phone.

Connect the headset to the jack on the left side of

the phone.

The buttons on the headset work as listed below:

Options during a call

You can access a number of functions during a call.

Adjusting the volume during a call

Use [ / ] to adjust the earpiece volume during a

call.

Press [ ] to increase the volume level and [ ] to

decrease the volume level.

Placing a call on hold/Retrieving

Press <

Hold

> or <

Unhold

> to place the call on

hold or retrieve the call.

Making a second call

You can make another call if your network supports

it.

1. Press <

Hold

> to put the call on hold.

2. Make the second call in the normal way.

3. Press <

Swap

> to switch between the calls.

4. Press <

Options

> and select

End

held

call

end the call on hold.

5. To end the current call, press [ ].

Answering a second call

You can answer an incoming call while already on

the phone, if your network supports it and you have

activated the call waiting feature.



p. 66

1. Press [ ] to answer the call. The first call is

automatically put on hold.

2. Press <

Swap

> to switch between the calls.

3. Press <

Options

> and select

End held call

end the call on hold.

4. To end the current call, press [ ].

Using the loudspeaker feature

Use the speaker feature to talk and listen with the

phone a short distance away. Press <

Options

> and

select

Loudspeaker

or press .

To Press

redial the last call the button twice.

answer a call the button.

end a call the button.

Call functions

Using a Bluetooth headset

Use an optional Bluetooth headset to talk on the

phone without holding the phone to your ear. To use

this feature, you first need to register your headset

and connect it to the phone.



p. 67

Press <

Options

> and select

Switch to headset

To switch the call back to the phone, press

Options

> and select

Switch to phone

Switching off the microphone

(Mute mode)

You can temporarily switch off your phone’s

microphone so that the person on the phone cannot

hear you.

Press <

Options

> and select

Mute

To turn the microphone back on, press <

Options

and select

Unmute

Muting or sending key tones

You can turn the key tones off or on.

Press <

Options

> and select

Mute key tone

Unmute key tone

Using Phonebook

You can access the

Contacts

menu to locate or

store contacts in Phonebook.



p. 58

Press <

Options

> and select

Contacts

Sending a text message

You can create and send a text message to other

people as well as to your current call participants.

Press <

Options

> and select

Send SMS



p. 38

Sending a sequence of DTMF tones

Dual tone multi-frequency (DTMF) tones are the

tones used in phones for tone dialling.

You can send DTMF tones as a group after entering

the entire number you need to send or retrieving a

number from Phonebook. This feature is helpful for

entering a password or an account number when

you call an automated system, like a banking

service.

1. When connected with a teleservice system, press

Options

> and select

Send

DTMF

2. Enter the number you need to send and press

Send

Adding a memo

You can add a memo during a call.

Press <

Options

> and select

Memo



p. 54

To communicate with answering machines or

computerised telephone systems,

Unmute key

tone

must be selected.

Call functions

Making a multi-party call

Use this feature to allow as many as six people to

join a multi-party call, or conference call.

Vodafone must support multi-party calls for you to

use this feature.

Setting up a multi-party call

1. Call the first participant.

2. Call the second participant. The first call is

automatically put on hold.

3. Press <

Options

> and select

Join

. The first

participant is added to the multi-party call.

4. If desired, call another person or answer an

incoming call.

5. Press <

Options

> and select

Join

6. Repeat steps 4 and 5 as desired.

Having a private conversation with one

participant

1. Press <

Options

> and select

Split

2. Select a name or number from the participant

list.

You can talk privately with that person, while the

other participants converse with each other.

3. To return to the multi-party call, press

Options

> and select

Join

Dropping one participant

1. Press <

Options

> and select

Drop call

2. Select a name or number from the participant

list.

The participant is dropped from the call, but the

call continues with the other parties.

3. Press [ ] to end the multiparty call.

Using the video call feature

In a 3G (UMTS) service area, your phone can make

or receive a video call which allows you to see

another person on the screen during a conversation.

The other person’s phone must support the video

call feature.

Making a video call

1. In Idle mode, enter the area code and phone

number.

2. Press [ ].

Answering a video call

When you receive a video call, answer a video call as

receiving a voice call. Press <

Show me

> to allow

the caller to see you.

Using video call options

During a video call, press <

Options

> to access the

following options:

•

Loudspeaker

Loudspeaker off

: turn the

Loudspeaker on or off.

•

Switch to headset

Switch to phone

: switch

the call to a Bluetooth headset or back to the

phone.

•

Mute camera

: turn off the camera.

•

Mute voice

: mute the microphone.

•

Mute camera&voice

: turn off the camera and

mute the microphone.

•

Mute key tone

: mute key tones.

•

Zoom

: display the zoom control bar.

•

Brightness

: display the brightness control bar.

•

Effects

: change the colour tone of the image.

•

Hide information

Show information

: hide or

display information about the video call.

•

Send a sequence of DTMF

: send Dual tone

multi-frequency (DTMF) tones as a group after

entering the entire number you need to send or

retrieving a number from Phonebook.

•

End call

: end the video call.

Menu functions

All menu options listed

Entertainment

(Menu 1)

Use this menu to download Java games and play

them.

To access this menu, press in Idle mode and

select

Entertainment

Playing Powerinlinex

1. From the

Games & More

menu, select

Powerinlinex

2. Press any key except [ ].

3. Select

PLAY

or press <

Play

4. Select a character.

5. Press <

> to start a game.

Playing TheLastAge

1. From the

Games & More

menu, select

TheLastAge

2. Press any key except [ ].

3. Select

START GAME

or press <

PLAY

4. Select

New Game

Load Game

During a game, press <

Options

> to access game

options.

Menu functions

5. Press <

> and then <

Skip

6. Press <

Downloading new games

1. Select

More games

2. Search for a game and follow the onscreen

instructions to download it.

Using Java game options

While viewing the game list, press <

Options

> to

access the following options:

•

Download

: connect the preset website.

•

Start

: launch the selected game.

•

Permissions

: set whether or not the phone

displays a security warning message when you

use security functions and reset the permission

setting.

•

Details

access information about the selected

game.

•

Delete folder

: delete the selected game folder.

•

Rename folder

: change the name of created

game folder.

•

Create folder

: add a new game folder.

•

Network settings

: activate a connection profile

to be used for accessing a Java server. You can

also make or edit a profile.



p. 70

•

Memory status

: display the amount of total and

used memory Java games.

Vodafone live!

(Menu 2)

The Wireless Application Protocol (WAP) browser on

your phone allows you to access the wireless web.

Using the WAP browser, you can access up-to-the-

minute information and a wide variety of media

contents, such as wallpapers, ring tones, and music

files.

To access this menu, press in Idle mode and

select

Vodafone live!

Go to homepage

(Menu 2.1)

You can launch the WAP browser and access the

homepage of the WAP service provided by Vodafone.

Navigating the WAP browser

In the WAP browser:

During a game, press <

Options

> to access game

options.

To Press

scroll through browser items [Up] or [Down].

select a browser item .

return to the previous page <

Back

Menu functions

Vodafone live!

(Menu 2)

Using browser menu options

From any WAP page, press <

Options

> to access

the following browser options:

•

Go to homepage

: send you back to the

homepage.

•

Enter URL

: manually enter the URL address of

the web page you want to access.

•

Reload

: reload the current page with updated

information.

•

Add favorite

: add the current page to your

bookmark list.

•

Favorites

: access the bookmark list.

•

History

: show URLs previously visited.

•

Send link

: send the URL via SMS, e-mail, or file

messenger.

•

Save

: save the image of the current WAP page

or the current page.

•

Advanced

: clear browser information and

access the browser settings.

Search text

: search for a specific word or

phrase from the current WAP page.

Clear history

: delete the URLs stored in the

history.

Clear cookies

: delete cookies.

Clear cache

: delete information stored in the

cache.

Details

: access information about the current

page.

Browser settings

: change the settings for

multimedia, browser display, security, and

certificates.

Network settings

: select a connection profile

to be used for connecting to the Internet. You

can also make or edit a profile.



p. 70

Exiting the WAP browser

Press [ ] to exit the browser.

Enter URL

(Menu 2.2)

You can enter the URL of the WAP page you want in

order to quickly access the page.

Favorites

(Menu 2.3)

You can add and manage the URLs of the WAP pages

you frequently access as bookmark item. You can

also manage URLs you have bookmarked while

navigating the Internet.

Adding a new bookmark

1. Press <

New

> and select

Favorite

2. Enter a URL and press .

3. Enter a name for the item and press <

4. Press to save the item.

Menu functions

Using boomark options

From the bookmark list, press <

Options

> to access

the following options:

•

Open

: access the page of the selected

bookmark.

•

Details

: access the details of the bookmark

item.

•

Send link

: send the bookmark via SMS, e-mail,

or file messenger.

•

New

: add a new bookmark.

•

Edit

: change the selected bookmark.

•

Delete

: delete the selected bookmark or all

bookmarks.

History

(Menu 2.4)

You can access the list of pages you have accessed

recently.

Browser settings

(Menu 2.5)

Use this menu to change the settings for

multimedia, browser display, security, and

certificates.

Network settings

(Menu 2.6)

Use this menu to select a connection profile to be

used for connecting to the Internet. You can also

make or edit a profile.



p. 70

Media player

(Menu 3)

Use this menu to enjoy media files, such as video

clips and music files. You can also play streaming

contents.

To access this menu, press in Idle mode and

select

Media player

Downloading or receiving media files

Use this method to save media files to your phone:

• Download from the wireless web



p. 30

• Download from a computer using EasyStudio II



EasyStudio II User’s Guide

• Receive via IrDA or Bluetooth



p. 69, p. 67

Creating the play list

Add the media files to the play list so you can play

them.

1. From the media player screen, press .

2. Press <

Options

> and select

Add

3. Select

Folder

Files

4. Check the files you want or scroll to the folder

you want.

5. Press <

Add

> or <

Select

Playing media files

1. From the media player screen, press .

2. Select the file you want.

Menu functions

Media player

(Menu 3)

During playback, you can use the following keys:

Using media player options

From the Media player screen, press <

Options

> to

access the following options:

•

Pause

Resume

: pause or resume playback.

•

Stop

: stop playback.

•

Send

: send the file via MMS, Buletooth, or

infrared port.

•

Open play list

: go to the media file list.

•

My videos

: go to the

Videos

folder.

•

Hidden from bluetooth

: hide the selected file

so that other bluetooth devices cannot access it.

•

Visible to bluetooth

: share the selected file

with other Bluetooth devices.

•

Show controller

Hide controller

: display the

control bar of Media player.

•

Details

: display details about the file.

•

Player settings

: change the default settings for

playing media files.

Play options

: select a repeat mode.

Volume

: select a volume level.

Controller

: display the control bar of Media

player.

Audio player

: select a skin image.

•

VOD settings

select one of preset websites to

download media files.

Using play list options

From the Media player screen, press [Up] to access

the play list and press <

Options

> to access the

following options:

•

Play

: play the currently selected file.

•

Add

: add files or a folder to the play list.

•

Remove

: remove the selected file or all files

from the play list.

•

Move

: move the selected file to the position you

want within the current playlist or another play

list.

•

Copy

: make a copy of the selected file in the

current play list or another play list.

•

Rename list

: change the name of the play list.

•

New list

: add a new play list.

Keys Function

Pauses or resumes playback.

Left Goes to the previous file. Moves backward

in a file when held down.

Right Skips to the next file. Skips forward in a

file when held down.

Up Opens the play list.

/ Adjusts the volume.

Down Stops playback.

Menu functions

Camera

(Menu 4)

You can use the camera module embedded in your

phone to take photos and record videos. Using the

Camera

menu, you can turn on the camera and

manage your photos and video clips.

To access this menu, press in Idle mode and

select

Camera

or press and hold [ ] in Idle mode.

Taking a photo

The camera will produce JPEG photos.

1. To turn on the camera, access the

Camera

or press and hold [ ].

2. Press [ ] to switch between the interior lens

below the display and the exterior lens on the

external of the phone.

3. Adjust the image by aiming the lens at the

subject, as shown.

• Press <

Options

> to use the camera options.

See the next section.

• Use the keypad to change the camera

settings or switch to other modes.



p. 35

4. Press to take a photo. The photo is saved in

the

Pictures

folder.

Using camera options in Capture mode

In Capture mode, press <

Options

> to access the

following options:

•

Take photo

: take a photo.

•

Record video

: switch to Record mode.

•

Switch camera

: switch between the interior

lens and the exterior lens.

•

My photos

: display the photos stored in the

Pictures

folder.



p. 47

•

Shooting mode

: take a photo in the following

modes:

Single shot

: take a photo in the normal mode.

• Do not take photos of people without their

permission.

• Do not take photos in a place where cameras

are not allowed.

• Do not take photos in a place where you may

interfere with another person’s privacy.

When you take a photo in direct sunlight or in

bright conditions, shadows may appear on the

photo.

Hold the phone still for one or two seconds

after pressing the camera shutter key to allow

the image data to process.

To Press

use photo options <

Options



p. 36

delete the photo [

] and then <

Yes

send the photo to

another person

return to Capture mode <

Back

Menu functions

Camera

(Menu 4)

Multi shot

: take several action stills. You can

select the number of shots.

Mosaic shot

: take several stills and save them

in one frame. Select the number of still images

the camera will take.

•

Effects

: change the colour tone of the image.

•

Frames

: apply a decorative frame.

•

Timer

: set a time delay before the camera takes

a photo.

•

Zoom

: display the zoom control bar.

•

Brightness

: display the brightness control bar.

•

Camera settings

: change the default settings

for taking a photo.

Default name

: change the default prefix of the

file name.

Default storage

: select a memory location to

store photos.

Viewfinder

select a preview mode, either Full

Screen mode or Normal mode with actual radio.

Shutter sound

: select a camera shutter sound.

Capture quality

select an image quality.

Image size

: select an image size.

Multi shot speed

: select the shutter speed

between each shot in Multi Shot mode.

Spot metering

: adjust the exposure based on a

specific area of the image. Select

to display

the spot focus frame in the middle of the image,

and change the exposure according to the

brightness of the image fragment in the frame.

ISO

: change the ISO setting, which controls the

sensitivity of your camera. For low light

situations, lower the ISO number to increase the

quality.

The higher the ISO number, the faster the

camera shutter functions and the more sensitive

the camera is to light. Higher ISO settings may

bring some distortion to an image.

White balance

: adjust the colour balance of the

photo. You can make your photo appear warmer

or cooler.

Using the keypad in Capture mode

You can use the keypad to customise your camera

settings in Capture mode.

Key Function

Flips the image vertically.

Shows the mirror image.

Left/

Right Adjusts the image brightness.

Up/

Down Zooms in or out.

Switches to Record mode.



p. 36

Changes the image size.

Menu functions

Using photo options

After saving a photo, press <

Options

> to access

the following options:

•

Viewfinder

: return to Capture mode.

•

Send

: send the photo via MMS, Bluetooth, or

infrared port.

•

Delete

: delete the photo.

•

Set as

set the photo as your wallpaper for main

or external display, or as a caller ID image for a

Phonebook entry.

•

My photos

: display the photos stored in the

Pictures

folder.



p. 47

•

Rename

change the name of the photo.

Recording a video

You can use your phone just like a camcorder to

record what is currently displayed on the camera

screen and save it as a video file. The camera will

produce mp4 video clips.

1. To turn on the camera, access the

Camera

or press and hold [ ].

2. Press [

] to switch to Record mode.

3. Press [ ] to switch between the interior lens

below the display and the exterior lens on the

external of the phone.

4. Adjust the image by aiming the lens at the

subject.

•Press <

Options

> to use the camera options.

See the next section.

• Use the keypad to change the camera

settings or switch to other modes.



p. 37

5. Press to start recording.

To pause, press <

Pause

6. When you have finished, press . The video

automatically saves in the

Videos

folder.

Changes the image quality or switch to

the memory card where the photos are

saved.

Changes the shooting mode and the

number of photos for multi shots.

Changes the colour tone of the image.

Adds a decorative frame.

Sets the timer.

Goes to the

Pictures

folder.



p. 47

Changes the preview mode.

Key Function

To Press

play back the video clip .

use the video options <

Options



p. 37

delete the video clip [

] and then <

Yes

return to Record mode <

Back

Menu functions

Camera

(Menu 4)

Using camera options in Record mode

In Record mode, press <

Options

> to access the

following options:

•

Record

: start recording.

•

Take photo

: switch to Capture mode.

•

Switch camera

: switch between the interior

lens or exterior lens.

•

My videos

display the video clips stored in the

Videos

folder.



p. 48

•

Effects

changes the colour tone of the image.

•

Zoom

: display the zoom control bar.

•

Brightness

: display the brightness control bar.

•

Video settings

: change the following settings

for recording a video:

Default name

: change the default prefix of the

video name.

Default storage

: select a memory location to

store video clips.

Quality

: select an image quality.

Recording time

: select a video recording mode.

Select

Normal

to record a video within the limit

of the currently available memory. The length of

your video is determined by how much memory

has been used.

Select

Limit for

MMS

to record a video suitable

for an MMS message.

Size

: select an image size.

Audio record

: record audio with a video clip.

Using the keypad in Record mode

Using video options

After saving a video clip, press <

Options

> to access

the following options:

•

Play

play back the video clip.

•

Viewfinder

: return to Record mode.

•

Send

send the video clip via MMS, e-mail, file

messenger, Bluetooth, or infrared port.

•

Delete

: delete the video clip.

•

My videos

: display the video clips stored in the

Videos

folder.



p. 48

•

Rename

: change the name of the video clip.

Key Function

Flips the image vertically.

Shows the mirror image.

Left/Right Adjusts the image brightness.

Up/Down Zooms in or out.

Switches to Capture mode.



p. 34

Changes the frame size.

Changes the image quality

Changes the video recording mode.

Changes the colour tone of the

image.

Record audio with a video clip.

Goes to the

Videos

folder.



p. 48

Menu functions

Messaging

(Menu 5)

Use the

Messaging

menu to send and receive short

text messages, multimedia messages, and e-mails.

You can also use WAP push message, Voice mail

features.

To access this menu, press in Idle mode and

select

Messaging

or press < > in Idle mode.

Create message

(Menu 5.1)

Use this menu to create and send text messages,

multimedia messages, or e-mails.

Messages

(Menu 5.1.1)

Multimedia Message Service (MMS) delivers

messages containing a combination of text, image,

video, and audio, from phone to phone or from

phone to e-mail.

1. Enter the message subject.

2. Select the

Text

line.

3. Enter the message text and press .

4. Select the


Audio

line.

5. Select an image or audio file and press <

Add

6. Press <

Options

> to access the following

options:

•

Preview

: display the message you created.

•

Edit

text

: edit the added text.

•

Change picture

Change sound

: change

the added picture or sound to another one.

•

Remove text

Remove picture

Remove

sound

: delete the added text.

•

Save to Drafts

: save the message in the

Drafts

box.

•

Add page

: add a page. Move to each page

by pressing [Left] or [Right] on the message

screen.

•

Move page

: move the current page to the

next or previous page.

•

Delete page

: delete the added page.

•

Edit style

: change the page profiles.

This page

: set the page duration and

change font colour and style for the

selected page.

All page

: change the background colour

and page layout.

•

Save as template

: save the message as a

template in the

MMS templates

folder.

7. When you have finished, press <

Options

> and

select

Send

8. Enter a phone number or e-mail address.

To send the message to more than one recipient,

press [Down] and fill in additional destination

fields.

The maximum size allowed for an MMS

message can differ depending on the country.

If you cannot attach another file, add another

page.

Menu functions

Messaging

(Menu 5)

9. Press to send the message.

(Menu 5.1.3)

You can send and receive e-mails that include text,

audio, and images. To use this feature, you need to

subscribe to an e-mail service and set up your

e-mail account.



p. 46

1. Enter the e-mail text.

2. Select the

Attach files

line.

3. Scroll to a media file folder and press to

check files.

4. Press <

Options

> and select

Attach

5. Press <

Options

> to access the following

options:

•

Attached file list

: display the file list you

attached.

•

Add contact details

add a contact as a

Vcard format.

•

Add v-calendar

: add a calendar memo.

•

Save to Drafts

: save message in the

Drafts

box.

6. When you have finished, press <

Options

> and

select

Send

7. Enter an e-mail address.

To send the e-mail to more than one recipient,

press [Down] and fill in additional destination

fields.

8. Press to send the e-mail.

Inbox

(Menu 5.2)

This folder stores all types of messages you have

received, except for e-mails, MMS, SMS, voicemail,

WAP push messages from the WAP server, and

configuration messages.

Configuration messages, which are sent from

Vodafone, contains network parameters to let you

easily apply the network settings to your phone.

Viewing a message at the time of its receipt

When a message has been received, the phone

alerts you by:

• Displaying a message icon and text notification

• Sounding or vibrating, depending on the

message alert setting

To read a message immediately, press <

View

> and

select a message from the Inbox. To read it later,

press <

Exit

For an MMS message, press <

Options

> and select

Retrieve

. The message is downloaded from the

MMS server to the phone’s memory.

Viewing a message in Inbox

On the message list, the following icons are

available; depending on the message type.

• SMS • MMS

• MMS notification • Configuration

• WAP push • Voice mail

• Cell broadcast

Menu functions

While viewing the message list, press <

Options

> to

access the following options:

•

View

: display the message.

•

: send a reply to the sender.

•

Reply all

: send a reply to the sender and all

recipients.

•

Forward

: forward the message to other people.

•

Install

: apply the configuration value in the

message to the phone.

•

Sort by

: change the sort order in the message

list.

•

Retrieve

: retrieve the MMS message from the

server.

•

Reject

: reject the message.

•

Delete

: delete the message or all messages.

•

Details

: access information about the message.

Using message options

While viewing a message, press <

Options

> to

access the following options:

SMS messages

•

: reply to the sender.

•

Forward

: forward the message.

•

Save contact to

: extract phone numbers or

e-mail addresses from the message and save

them in Phonebook.

•

Move to SIM

phone

: move the message

between the phone’s memory and the USIM/SIM

card.

•

Delete

: delete the message.

MMS notifications/messages

•

Retrieve

: retrieve the message from the server.

This option is only available when you select a

MMS notification.

•

Play

play the message.

•

: send a reply to the sender.

•

Reply all

: send a reply to the sender and all

recipients.

•

Forward

: forward the message to another

person.

•

Save as template

: save the message as a

template in the

MMS templates

folder.

•

Save media items

: save media items from the

message into your phone’s memory.

•

Save contact to

: extract phone numbers or

e-mail addresses from the message and save

them in Phonebook.

•

Delete

: delete the message.

•

Details

: access information about the message.

• Depending on the DRM (Digital Right

Management), you may not be able to forward

some messages. They are indicated by the

icon.

• An

icon shows that a message was sent with

high priority. A grey icon means that the

message is of low priority.

Menu functions

Messaging

(Menu 5)

WAP push messages

•

Go to URL

: connect to the URL specified in the

message.

•

Delete

: delete the message.

Configuration message

•

Install

: apply the configuration value in the

message to the phone.

•

Delete

: delete the message.

Drafts

(Menu 5.3)

This folder stores messages you have saved to send

them at a later time or tried to send while creating

the message.

On the message list, press <

Options

> to access the

following options:

•

View

: open the selected message.

•

Edit

: edit the selected message.

•

Send

Send again

: send the message.

•

Sort by

: change the sort order of the message

list.

•

Delete

: delete the selected message.

•

Delete all

: delete all messages.

•

Details

: access information about the message.

Outbox

(Menu 5.4)

This folder stores messages that you have failed or

tried to send.

While viewing the message list, press <

Options

> to

access the following options:

•

View

: display the selected message.

•

Forward

: forward the message to other people.

•

Sort by

: change the sort order of the message

list.

•

Delete

: delete the message.

•

Delete all

: delete all messages.

•

Details

: access information about the message.

Sentbox

(Menu 5.5)

This folder stores messages that you have sent

successfully or tried to send.

While viewing the message list, press <

Options

> to

access the following options:

•

View

: display the selected message.

•

Forward

: forward the message to other people.

•

Sort by

: change the sort order of the message

list.

•

Delete

: delete the message.

•

Delete all

: delete all messages.

•

Details

: access information about the message.

Menu functions

Email inbox

(Menu 5.6)

This folder stores e-mails that you have received.

Viewing received e-mails

1. From the e-mail folder, press <

Options

2. Select

Download

to get new e-mails from your

server.

The phone checks for new e-mails and retrieve

received e-mails. The icons tell you the status of

each e-mail:

•: Retrieved e-mail

• : Retrieved e-mail with attachments.

• : E-mail not retrieved

3. Select an e-mail or header.

4. If the e-mail has more than one page, press

[ / ] to scroll through pages one by one.

5. Select an attached file to view or play it.

Using e-mail options

While viewing the e-mail list or an e-mail, press

Options

> to access the following options:

•

View

: open the selected item.

•

Retrieve

: retrieve the body of the selected

e-mail header from the e-mail server.

•

: send a reply to the sender.

•

Reply to all

: send a reply to the sender and all

recipients.

•

Forward

: forward the e-mail.

•

Download

: retrieve new e-mails or headers

from the e-mail server.

•

Sort by

: change the sort order of the message

list.

•

Save media items

: save the files attached to

the e-mail in the phone’s memory or on the

memory card.

•

Save contact to

: extract phone numbers or

e-mail addresses from the e-mail and save them

in Phonebook.

•

Block

add the sender’s e-mail address to the

Block number list.

•

Delete from phone selected

: delete the

selected e-mail from the phone’s memory.

•

Delete from phone all

: delete all e-mails from

the phone’s memory.

•

Delete permanently selected

: delete the

selected e-mail from both the phone’s memory

and the e-mail server.

•

Delete permanently all

: delete all e-mails from

both the phone’s memory and the e-mail server.

•

Details

: access information about the e-mail.

• Depending on the DRM (Digital Right

Management), you may not be able to

forward some messages. They are

indicated by the

icon.

• An

icon shows that an e-mail was sent

with high priority. A grey icon means that

the e-mail is of low priority.

Menu functions

Messaging

(Menu 5)

Call voicemail

(Menu 5.7)

Use this menu to access your voice mailbox, if your

network supports this service.

You can quickly connect to voice mail server by

pressing and holding [

] in Idle mode.

Templates

(Menu 5.8)

Use this menu to create, edit, and send text

templates and MMS templates.

MMS templates

(Menu 5.8.1)

When you access this menu, you can view the list of

templates you have saved.

From the MMS template list, press <

Options

> to

access the following options:

•

View

: open the template message.

•

Send

send the template as an MMS message.

•

Add new

: add a new template.

•

Edit

: change the selected template.

•

Delete

: delete the template.

•

Delete all

: delete all templates.

Text templates

(Menu 5.8.2)

Use this menu to preset frequently used messages.

Press <

Add new

> to create a new text template.

From the text template list, press <

Options

> to

access the following options:

•

Send

send the template as an MMS, SMS, or

e-mail message.

•

Add new

: add a new template.

•

Edit

: change the selected template.

•

Delete

: delete the template.

•

Delete all

: delete all templates.

Broadcast

(Menu 5.9)

The Cell Broadcast service delivers short messages

on various topics, such as weather, sports, or traffic.

Use this menu to change the settings for the service

and to access broadcast messages.

•

Read

: open received messages.

The

Temporary

box saves network messages

until the phone is switched off.

The

Other documents

Files that you have received but which are not

supported by your phone are stored in this folder.

You cannot open these files on the phone.

Unsupported file formats include *.doc, *.ppt, *.txt,

and so on.

Memory card

Use this menu to access the media files stored on

the memory card. This option is only available when

the memory card is inserted into the phone.

For details about using files, see the corresponding

menu.

Organiser & Tools

(Menu 7)

The Organiser feature enables you to create and

manage your schedule, anniversaries, tasks, and

memos.

To access this menu, press in Idle mode and

select

Organiser

Vodafone

(Menu 7.1)

If you use a USIM/SIM card that provides additional

services, the Vodafone menu displays.

For further details, see your USIM/SIM card

instructions.

Applications

(Menu 7.2)

Use this menu to store applications downloaded.

Alarm

(Menu 7.3)

Use this menu to set alarms to ring at specific times.

The alert type for a normal alarm corresponds to the

call alert type settings in the currently selected

profile. A wake-up alarm does not be affected by

your profile setting.

Menu functions

Organiser & Tools

(Menu 7)

Setting an alarm

1. Select the type of alarm.

2. Scroll to

on the

Alarm

line and press

[Down].

3. Enter the time for the alarm to sound and press

[Down].

4. Set the repeat option.

5. Select the

Alert tone

line.

6. Select an alarm melody.

7. Press <

Options

> and select

Save

Stopping an alarm

When the alarm sounds, choose either of the

following options to stop the alarm:

•Press <

> to confirm the alarm.

•Press <

Snooze

> to stop the wake-up alarm for

5 minutes. You can do this a maximum of 5

times.

Deactivating an alarm

1. Select the alarm you want to deactivate.

2. Select

Off

on the

Alarm

line.

Press <

Options

> and select

Save

Calendar

(Menu 7.4)

Use this menu to keep track of your monthly

schedule.

Consulting the calendar

When you open the calendar, today’s date is marked

with a red box. Scroll to the date you want. You can

move to the next or previous month by pressing

[/]

Press <

Options

> to access the following options:

•

View

: display the stored events for that date.

•

Add new

: add a new event, anniversary, task,

or memo. You can schedule up to 100 schedule

items, 50 anniversaries, 20 tasks, and 20

memos on the calendar, and schedule more than

one event per day.

•

Week view

: display the week view screen.

•

Go to today

display the current date.

•

Go to day

display a specific date.

•

Starting day

: set whether the calendar starts

with Sunday or Monday.

•

Delete

: delete the events for the specified

period.

•

Delete all

: delete all events in the calendar.

Entering a new schedule item

1. Select a date on the calendar.

2. Press <

Options

> and select

Add new

→

Schedule

3. Press [Down] and enter information or change

the settings in the following entry fields:

•

Title

: enter the title of the event.

•

Details

: enter the event details.

Your phone is preset to a 24-hour format. You

can change the time format.



p. 63

Menu functions

•

Start

and

End

: enter the starting and ending

times for the event.

•

Start date

and

End date

: enter the starting

and ending dates for the event.

•

Location

: enter information about the event

location.

•

Alarm

: select to set an alarm for the event

and set the time for the alarm.

•

Repeat

: select to set the event to recur. You

can select a repeat unit and set the date to

end repeating.

•

Expiry

: set when the event will be deleted

from the calendar.

4. Press <

Options

> and select

Save

Entering a new anniversary

1. Select a date on the calendar.

2. Press <

Options

> and select

Add new

→

Anniversary

3. Press [Down] and enter information or change

the settings in the following entry fields:

•

Occasion

: enter information about the

anniversary.

•

Date

: enter the date.

•

Alarm

: select to set an alarm for the

anniversary. You can set the number of days

before the event date and the time for the

alarm to sound.

•

Repeat every year

: select to set the phone

to remind you of the anniversary every year.

4. Press <

Options

> and select

Save

Entering a task

1. Select a date on the calendar.

2. Press <

Options

> and select

Add new

→

Task

3. Press [Down] and enter information or change

the settings in the following entry fields:

•

Title

: enter the title for the task.

•

Task

: enter the task content.

•

Start date

: enter the starting date.

•

Due date

: enter the ending date.

•

Priority

: select a priority level.

4. Press <

Options

> and select

Save

Entering a memo

1. Press <

Options

> and select

Add new

→

Memo

2. Enter the memo text and press [Down].

3. Enter the date and press .

4. Press <

Options

> and select

Save

Viewing an event

Square brackets on a calendar date indicate the type

of events scheduled for that day:

1. Select a date on the calendar to display the

events for that day. The list of events displays.

The following icons indicate the type of event:

• Green: schedule • Red: anniversary

• Blue: task • Orange: memo

• Scheduled events • Anniversaries

• Tasks • Memos

Menu functions

Organiser & Tools

(Menu 7)

2. Select an event to view its details.

Using event options

From the event list, press <

Options

> to access the

following options:

•

View

: access the selected event.

•

Add new

: add a new event.

•

Completed

: change the status of the selected

task.

•

Month view

: switch to the month view screen.

•

Week view

: switch to the week view screen.

•

Change date

Change due date

Reschedule

change the date of the event.

•

Delete

: delete the selected event.

•

Delete all

: delete all events for the selected day.

•

Send schedule

Send task

: send the event via

Bluetooth or infrared port.

Missed event alarm

When you are unable to acknowledge an alarm for a

scheduled event or anniversary, the phone displays

a missed alarm notification.

•Press <

View

> to view the corresponding event.

•Press <

Exit

Viewing a missed event alarm

1. From the

Organiser

menu, select

Missed event

alarm

2. Select an event.

3. Press <

Confirm

> to confirm and delete the

event.

Using missed alarm options

From the event list, press <

Options

> to access the

following options:

•

View

: display the missed event.

•

Delete

: delete the missed event.

•

Delete all

: delete all missed events.

Voice memo

(Menu 7.5)

Use this menu to record voice memos.

Recording a voice memo

1. Press to start recording.

2. Speak into the microphone.

Press to pause or resume the recording.

3. When you finish, press <

Stop

>. The voice

memo is automatically saved.

Playing a voice memo

1. From the voice recorder screen, press

Options

> and select

My sounds

2. Select a voice memo. The memo plays.

On the player screen, you can use the following

keys:

keys Function

starts playback.

Up Switches to Play mode (

)

or back to

Record mode ( ).

Left Moves backward.

Menu functions

Using voice memo options

From the player screen, press <

Options

> to access

the following options:

•

Play

: play the voice memo.

•

Resume

: resume playback.

•

Stop

: stop playback.

•

Record

: record a new voice memo.

•

Send

: send the voice memo via MMS, e-mail,

file sender, Bluetooth, or infrared port.

•

My sounds

: display the list of voice memos you

have recorded.

•

Rename

: change the name of the voice memo.

•

Delete

: delete the voice memo.

•

Hidden from bluetooth

: hide the voice memo

so that other Bluetooth devices cannot access it.

•

Visible to bluetooth

: share the selected file

with other Bluetooth devices.

•

Details

: access information about the selected

voice memo.

•

Record settings

: change the default settings

for recording a voice memo.

Default name

: change the default prefix of the

voice memo.

Recording time

select a maximum recording

time.

World clock

(Menu 7.6)

Use this menu to set your local time zone and find

out what time it is in another part of the world.

Setting your local time zone

1. From the world map, press [Left] or [Right] to

select the city that corresponds to your home

time zone. As the time line moves, the time and

date of the given zone display.

2. Press to save the time zone.

Viewing and setting a foreign time zone

1. From the world map, press [Down].

2. Press [Left] or [Right] to select the foreign time

zone you want to view.

3. Press to save the time zone.

Applying Daylight Savings Time

1. From the world map, press <

Options

> and

select

Summer time

2. Press to check the time zone(s) you want.

3. Press <

Select

4. Press <

Options

> and select

Save

Right Skips forward.

/ Adjusts the volume.

Down Stops playback.

keys Function

Menu functions

Organiser & Tools

(Menu 7)

PIM sync

(Menu 7.7)

Use this menu to synchronise personal data with

corresponding PC applications by using the

WideSync program supplied with your phone.

Creating a synchronisation profile

1. Press <

Add

2. Specify the following information for the profile:

•

Profile name

: enter the profile name.

•

Sync category

: select the applications you

want to synchronise.

•

Sync type

: select a synchronisation type.

•

Sync protocol

: select a connection method.

3. Press <

Save

> to save the profile.

4. To create more profiles, press <

Options

> and

select

New sync profile

5. Repeat step 4 as desired.

Starting synchronisation

1. Make sure that your PC has MS Outlook and the

WideSync program installed, and the phone and

the PC are connected by a USB cable or an active

Bluetooth connection.

2. Open MS Outlook.

3. From the PIM sync screen, select a profile.

4. Press [

Using synchronisation options

From the PIM sync screen, press <

Options

> to

access the following options:

•

Start sync

: start a synchronisation for the

selected profile.

•

View result

: show the result of the last

synchronisation.

•

New sync profile

: add a new profile.

•

Edit sync profile

: change the properties of the

profile.

•

Delete

: delete the selected profile or all profiles.

Calculator

(Menu 7.8)

Use this menu to perform basic arithmetic functions

such as addition, subtraction, multiplication, and

division.

Performing a calculation

1. Enter the first number.

Press [ ] to include a decimal point.

2. Enter the operation for your calculation by

pressing the Navigation keys.

3. Enter the second number.

4. Press to view the result.

Using calculator options

Press <

Options

> to access the following options:

•

Equal

: view the result.

•

Last result

: display the last result you

calculated.

•

Save to memory

: save a value into the

calculator memory.

•

Clear memory

: clear the saved values.

Menu functions

Converter

(Menu 7.9)

Use this menu for common conversions, such as

currency and temperature.

Performing a conversion

1. Select the converter type you want.

2. Press [Left] or [Right] to select the original unit

and press [Down].

3. Enter the value to be converted.

• Press [ ] to insert a decimal point.

• Press [ ] to change the temperature to

above zero (+) or below zero (-).

4. Press [Down].

5. Press [Left] or [Right] to select the unit you want

to convert to.

The equivalent value for the amount you entered

displays.

Using converter options

Press <

Options

> to access the following options:

•

Clear

: clear the current values.

•

Reverse

: reverse the conversion.

•

Currency rates

: display the currency rate list.

Memory status

(Menu 7.0)

This menu displays the number of events of each

type you have created, and the total number of

events you can store.

Contacts

(Menu 8)

You can store phone numbers on your USIM/SIM

card and in your phone’s memory. The USIM/SIM

card and phone’s memory are physically separate,

but they are used as a single entity called

Phonebook. In the

Contacts

menu, you can manage

your Phonebook entries.

To access this menu, press

in Idle mode

and select

Contacts

(Menu 8.1)

Use this menu to search for numbers in Phonebook.

Finding an entry

1. Enter the first few letters of the name that you

want to find.

2. Select the name you want from the list.

3. Press [ ] to dial the number, or to edit the

contact information.

Using contact options

While viewing the contact list, press <

Options

> to

access the following options:

•

View

: access the contact information.

•

Edit

: edit the contact information.

•

Call

: make a voice call.

•

V-call

: make a video call.

•

Add new contact

: add a new contact.

Menu functions

Contacts

(Menu 8)

•

Add to speed dial

: set the number as a speed

dial number.

•

Delete

: delete the contact.

•

Search groups

: access the caller group list.

•

Delete all

: delete all contacts.

While viewing details of a contact, press <

Options

to access the following options:

•

Edit

: edit the contact information.

•

Call

: make a voice call.

•

V-Call

: make a video call.

•

Send message

: send an SMS or MMS message.

•

Special options

: set the following options:


: assign a caller ID image to alert you to

a call from the number.

Ring tone

: assign a ringer melody to alert you

to a call from the number.

Msg.

alert tone

: select a melody or tone to

alert you an incoming message from the number.

•

Add to speed dial

: set the selected number as

a speed dial number.

•

Copy to SIM

Copy to phone

: copy the number

to the phone’s memory or USIM/SIM card or vice

versa.

•

Send contact details

: send the contact via

Bluetooth or infrared port.

•

Set as default

: set the number as your default

number for the contact.

•

Duplicate

: duplicate the number.

•

Paste

: copy the number to the normal dialling

screen.

•

Delete

: delete the contact.

Storing a number in the phone’s memory

1. Select

Phone

2. Press [Down] and change the settings or enter

information about the contact.

•

First name

Last name

: assign a name.

•

Phone number

: add a mobile phone

number.

•

Email work

: assign a business e-mail

address.

•

Email home

: assign a personal e-mail

address.

•

Group

: assign a caller group.

•

Homepage

: enter a homepage address.

•

Birthday

: enter the person’s birthday.

•

More information

: enter the job title,

department, company, nickname, and

additional note of the person.

3. Press <

Options

> and access the following

options to add additional information.

•

Special options

: assign a caller ID image, call

ringer, or message ringer for the contact.

•

Add item

: add a number category to the

contact.

•

Change type

: change the number type.

•

Mark video call

: set the selected number as a

video call number.

4. Press <

Options

> and select

Save

Menu functions

Storing a number on the USIM/SIM card

1. Select

SIM

2. Press [Down] and change the settings or enter

information about the contact.

•

Name

: assign name.

•

Phone number

: enter a phone number.

•

Group

: assign a caller group.

•

Location

: assign a location number.

3. Press to save the contact.

Groups

(Menu 8.2)

Use this menu to organise your contacts in caller

groups.

Adding members to a caller group

1. Select a group.

2. Press to check the contacts you want.

3. Press <

Save

Managing caller groups

From the group list, press <

Options

> to access the

following options:

•

View members

: display the members of the

selected group.

•

Add member

: add contacts to the selected

group.

•

Add group

: add a new group.

•

Rename group

: change the group name.

•

Delete group

: delete the selected group.

•

Delete all groups

: delete all groups including

default groups.

Speed dial

(Menu 8.5)

Use this menu to assign speed dial numbers (2 to 9)

to eight of your most frequently called numbers.

Assigning speed dial entries

1. Select a key location from

. Key

reserved for your voice mail server.

2. Select the contact you want from the contact list.

3. Scroll to a number, if it has more than one

number.

4. Press <

Select

Managing speed dial entries

From the Speed dial screen, press <

Options

> to

access the following options:

•

Assign

: assign a number to an unassigned key.

•

View

: display details about the speed dial entry.

•

Call

: make a voice call.

•

V-call

: make a video call.

•

Change

: assign a different number to an

assigned key.

•

Remove

: clear the speed dial setting.

Dialling speed dial entries

Press and hold the appropriate key in Idle mode.

Menu functions

Settings

(Menu 9)

Saving your name card

The procedure for creating your name card is the

same as the one for saving a number in the phone’s

memory.



p. 59

Using name card options

After saving your name card, press <

Options

> to

access the following options:

•

Edit

: edit the name card.

•

Send contact details

: send the name card via

Bluetooth or infrared port.

•

Delete

: delete the name card.

Copy all

(Menu 8.7)

Use this menu to copy all of the contacts stored on

the USIM/SIM card to the phone’s memory, or vice

versa.

Settings

(Menu 8.8)

Use this menu to change the default settings for

Phonebook entries.

•

Viewing settings

: select whether the contact

list is sorted by last name or by first name.

•

Default storage settings

: select a default

memory location to save contacts. If you select

Optionally

, the phone will ask you to select a

memory location when saving a number.

Memory status

(Menu 8.9)

Use this menu to view the number of contacts you

have stored and total number of contacts you can

store in Phonebook.

Settings

(Menu 9)

Use this menu to customise your phone settings.

You can also reset the settings to their default

values.

To access this menu, press in Idle mode and

select

Settings

Phone settings

(Menu 9.1)

Many different features of your phone’s system can

be customised to suit your preferences.

Phone profiles

(Menu 9.1.1)

Use this menu to adjust and customise the phone

tone for different events or situations.

Editing a profile

1. Scroll to the profile you want.

2. Press <

Options

> and select

Edit

3. Change the sound settings:

•

Call alert type

: press and select an alert

type for the call ringer.

•

Voice call ringtone

: press and select a

ring tone for the call ringer of voice calls.

Menu functions

•

Video call ringtone

: press and select a

ring tone for the call ringer of video calls.

•

Tone volume

: adjust the volume for the call

ringer.

•

Msg. alert type

: press and select an

alert type for the message ringer.

•

Msg. alert tone

: press and select a ring

tone for the message ringer.

•

Msg. alert repetition

: select if the phone

repeats reminding you of a new message.

•

Phone sounds

: press and turn the

various sounds on the phone on or off.

All on

: enable all tones.

Popup box alerts

: cause the phone to beep

when a pop-up window displays.

Minute minder

: cause the phone to beep

every minute during an outgoing call to keep

you informed of the length of your call.

Call connect tone

: cause the phone to beep

when a call is connected to the system.

Call end tone

: cause the phone to beep

when a call is disconnected by the other

person or the faded signal.

Power on

: cause the phone to beep when

you turn on the phone.

Folder open/close

: cause the phone to

sound when you open or close the phone.

Alerts on call

: cause the phone to beep

when you receive a new message or when

the time for an alarm comes during a call.

•

Key tones

: press and select a tone which

sounds when you press a key.

•

Key tone volume

: adjust the volume of the

key tones.

•

Call answer mode

(for Car): Press and

select how to answer an incoming call when

the phone is connected to a hans-free car kit.

4. When you have finished, press <

Options

> and

select

Save

Changing an active profile

Select the profile you want.

Assign ringtone

(Menu 9.1.2)

Use this menu to select a volume and alert type for

incoming calls.

•

Call alert type

: specify how you are to be

informed of incoming calls.

Melody

: the phone rings using the selected ring

tone.

Vibration

: the phone vibrates but not rings.

Vibration then melody

: the phone vibrates

three times and then starts ringing.

•

Voice call ringtone

: select a ring tone for the

voice call ringer.

•

V-call ringtone

: select a ring tone for the video

call ringer.

•

Tone volume

: select a ringer volume.

Menu functions

Settings

(Menu 9)

Phone anguage

(Menu 9.1.3)

Use this menu to select one of several languages for

the display text or T9 input mode.

Shortcuts

(Menu 9.1.4)

You can use the Navigation keys as shortcut keys to

access specific menus directly from Idle mode. Use

this menu to change these shortcut assignments.

Assigning a shortcut to a key

1. Select the key to be used as a shortcut key.

2. Select the menu that will be assigned to the key.

3. Press <

Save

Using the shortcut options

From the Shortcuts screen, press <

Options

> to

access the following options:

•

Assign

: assign a shortcut menu to an empty

location.

•

Change

: change a shortcut menu.

•

Remove

: deactivate the shortcut assignment to

the selected key.

•

Remove all

: deactivate all shortcut

assignments.

Time & date

(

9.1.5)

Use this menu to change the time and date

displayed on your phone. Before setting the time

and date, specify your time zone in the

World clock

menu.



p. 61

•

Time

: enter the current time.

•

Date

enter the current date.

•

Time format

: select a 12-hour or 24-hour time

format.

•

Date format

select a date format.

•

Summer time

: activate daylight savings time.

•

Auto update

: select to receive time information

from your network.

Side key

(Menu 9.1.6)

Use this menu to set how the phone reacts when

you press [ / ] when a call comes in.

•

Reject

: the keys rejects the call.

•

Silence

: the keys mutes the call ringer.

Anykey answer

(Menu 9.1.7)

Use this menu to answer an incoming call by

pressing any key, except [ ] or <

Reject

Active folder

(Menu 9.1.8)

Use this menu to answer incoming calls by opening

the phone.

Display settings

(Menu 9.2)

Use this menu to change settings for the display.

Greeting message

(Menu 9.2.1)

Use this menu to enter the greeting that is displayed

on the main display or external display.

Wallpaper

(Menu 9.2.2)

You can change the background image that is

displayed on the main display in Idle mode.

Menu functions

External display

(Menu 9.2.3)

Use this menu to change the settings for the

external display.

1. Select a display item type.

•

Clock

: you can select a clock type.

•

Sub title

: you can set a banner message.

•

Wallpaper

: you can change the wallpaper

image.

2. Select the image you want or enter the banner

message.

For

Wallpaper

, you can select a section of an

image.

3. Press <

Save

> or .

4. Press <

Change

LCD brightness

(Menu 9.2.4)

Use this menu to adjust the brightness of the main

display.

Backlight time

(Menu 9.2.5)

You can select the length of time the backlight and

the display stay on.

: select the length of time the backlight is on in

times of inactivity.

Dim

: select the length of time the display is in

Dimming mode after the backlight turns off. After a

specified time, the display turns off.

Dialing display

(Menu 9.2.6)

Use this menu to customise the settings for the

screen when entering a phone number for dialling.

•

Font size

: select a font size.

•

Font colour

: select a font colour.

•

Background colour

: select a background

colour.

Messaging settings

(Menu 9.3)

Use this menu to change the default settings for

using the message feature.



p. 44

Call settings

(Menu 9.4)

Use this menu to set options for call functions.

All calls

(Menu 9.4.1)

Use this menu to change the default settings for

using the call feature.

•

Show my number

: prevent your phone number

from being displayed on the phone of the person

being called.

By network

: use the default setting provided by

the network.

Send

: send your number each time you make a

call.

Hide

: ensure your number does not display on

the other person’s phone.

some networks do not allow the user to

change this setting.

Menu functions

Settings

(Menu 9)

•

Closed user group

: set incoming and outgoing

calls to be restricted to a selected user group.

For details about how to create a closed user

group, contact Vodafone.

Use user group

: activate CUG index numbers.

Outside access

: enable calls to numbers other

than those in the Closed user group. This feature

depends on the nature of your CUG subscription.

Default group

: enable the default CUG, if you

have set one with Vodafone. When making a call,

you are given the option of using your default

CUG, instead of selecting one from the list.

Group index

: add, delete, or activate CUG

index numbers.

•

Auto redial

: make up to ten attempts to redial a

phone number after an unsuccessful call.

Voice call

(Menu 9.4.2)

Use this menu to change the default settings for

using the voice call feature.

Setting a call diverting option

This network service reroutes incoming calls to a

different phone number that you specify.

1. From the

Voice call

menu, select

Diverts

2. Select the type of calls to be diverted.

3. Select a call diverting option:

•

Always

: divert all calls.

•

Busy

: divert calls when you are on another

call.

•

: divert calls when you do not

answer the phone.

•

Unreachable

: divert calls when you are not

in an area covered by Vodafone or when your

phone is switched off.

•

Cancel

all

: cancel all call diverting options.

4. Enter the number to which the calls will be

diverted in the

Divert to

line.

5. If you selected

No reply

, move to the

Waiting

time

line and select the length of time the

network delays before diverting a call.

6. Press <

Options

> and select

Activate

To deactivate the call diverting, select

Deactivate

Setting a call restriction option

This network service allows you to restrict your calls.

1. From the

Voice call

menu, select

Restrict

calls

2. Select the type of calls to be barred.

3. Select a call restriction option:

•

All

outgoing calls

: prohibit all outgoing

calls.

•

Outgoing int’l calls

: prohibit international

calls.

•

Int’l calls exc.

home

: only allow calls to

numbers within the current country.

•

All

incoming calls

: prohibit incoming calls.

Menu functions

•

Incoming calls when roaming

: prohibit

incoming calls when you use your phone

outside of your home country.

•

Cancel

all

: cancel all call barring settings,

allowing calls to be sent and received

normally.

4. Enter the call barring password.

5. Press <

Options

> and select

Activate

. To

deactivate the call barring, select

Deactivate

Setting a waiting call option

This network service informs you when someone is

trying to reach you while you are on another call.

1. From the

Voice call

menu, select

Diverts

2. Select the type of calls to which the call waiting

option will apply.

3. Press <

Options

> and select

Activate

. To

deactivate the call waiting, select

Deactivate

Video call

(Menu 9.4.3)

Use this menu to change the default settings for

using the video call feature.

•

Show my image

: change the video camera

settings for receipt of video calls.

Optionally

: you can select whether or not the

video camera is used each time you answer a

video call.

Always

: the camera is always used.

•

Select still image

: select an image to be

displayed on the other person’s phone.

•

Retry with

: set how to retry when the phone

fails to make a video call, by MMS or voice call.

•

Diverts

: reroute incoming calls to a different

phone number that you specify.



p. 65

•

Restrict calls

: restrict your calls.



p. 65

Data call

(Menu 9.4.31)

•

Diverts

: reroute incoming calls to a different

phone number that you specify.



p. 65

•

Restrict calls

: restrict your calls.



p. 65

•

Waiting

: set to inform you when someone is

trying to reach you while you are on another

call.



p. 66

Contacts settings

(Menu 9.5)

Use this menu to configure contact settings.

Speed dial

(Menu 9.5.1)

Use this menu to assign speed dial numbers (2 to 9)

to eight of your most frequently called numbers.

Assigning speed dial entries

1. Select a key location from

. Key

reserved for your voice mail server.

2. Select the contact you want from the contact list.

3. Scroll to a number, if it has more than one

number.

4. Press <

Select

You can change the call barring password

obtained from Vodafone. From the call type list,

press <

Options

> and select

Change password

Menu functions

Settings

(Menu 9)

Managing speed dial entries

From the Speed dial screen, press <

Options

> to

access the following options:

•

Assign

: assign a number to an unassigned key.

•

View

: display details about the speed dial entry.

•

Call

: make a voice call.

•

V-call

: make a video call.

•

Change

: assign a different number to an

assigned key.

•

Remove

: clear the speed dial setting.

Dialling speed dial entries

Press and hold the appropriate key in Idle mode.

Sort contacts by

(Menu 9.5.2)

Use this menu to change the contact order by first

name or by last name.

Save new contacts to

(Menu 9.5.3)

Use this menu to set the default memory location

when saving a new contact.

View contacts from

(Menu 9.5.4)

Use this menu to set the default memory to be

displayed when accessing Phonebook.

Own number

(Menu 9.5.5)

Use this feature to check your phone numbers, or to

assign a name to each of the numbers.

Changes made here do not affect the actual

subscriber numbers on your USIM/SIM card.

Calendar settings

(Menu 9.6)

Use this menu to configure calendar settings.

Starting day

(Menu 9.6.1)

Use this menu to set which day of the week the

calendar starts with.

Default view mode

(Menu 9.6.2)

Use this menu to select the default view mode when

entering the

Calendar

menu.

Connectivity

(Menu 9.7)

Use this menu to set options for connection available

on your phone.

Bluetooth

(Menu 9.7.1)

Using Bluetooth wireless, you can connect the phone

wirelessly to other Bluetooth devices and exchange

data with them, talk hands-free, or control the

phone remotely.

Bluetooth technology allows free wireless

connections between all Bluetooth-compliant

devices within a range of 10 metres. Since the

devices communicate using radio waves, they do not

need to be in line of sight to each other.

• You cannot use the Bluetooth feature while

using multimedia features such as voice

recorder, camera, and Media player, or vice

versa.

• Some devices may not be compatible with your

phone.

Menu functions

Setting up the Bluetooth feature

The

Bluetooth

menu provides the following

options:

•

Activation

: activate or deactivate the Bluetooth

feature.

•

My devices

search for connectable Bluetooth

devices.



See the next section.

•

My phone’s visibility

: allow other Bluetooth

devices to connect to your phone.

•

My phone’s name

: assign a Bluetooth device

name to your phone, which is then displayed on

other devices.

•

Secure mode

: determine if the phone asks for

your confirmation when other devices access

your data.

•

Bluetooth service

: display available Bluetooth

services.

Searching for and pairing with a Bluetooth

device

1. From the Bluetooth setting options, select

devices

2. Select

Search new device

After searching, a list of devices to which you can

connect displays. The following icons indicate the

kind of device:

• Hands-free or headset

• Mobile phone

• Computer

• PDA

• Unknown device

The colour of the icon indicates the status of the

device:

• Grey for unpaired devices

• Blue for paired devices

• Red for devices that are currently connected

to your phone

3. Select a device.

4. Enter a Bluetooth PIN code of up to 16 digits and

press <

This code is used just once and you

don’t need to memorise it.

When the owner of the other device enter the

same code, pairing is finished.

Using device options

From the device list, press <

Options

> to access the

following options:

•

Connect

: connect to the currently selected

device. You need to enter the Bluetooth PIN.

•

Disconnect

: end the connection with the

device.

•

Browse device

: search for data from the

selected device and import data directly to your

phone.

•

Authorise

Unauthorise device

: determine if

the phone asks you to permit connection when

other devices try to connect to your phone.

Some devices, especially headsets or hands-free

car kits, may have a fixed Bluetooth PIN, such as

0000

. If the other device has one, you must

enter the code.

Menu functions

Settings

(Menu 9)

•

Delete

: delete the device or all devices.

•

Rename

: rename the selected device.

Sending data via Bluetooth

1. Activate the Bluetooth feature.

2. Select the application in which the item you want

to send is stored.

3. Scroll to the item you want and press

Options

4. Select

Send

→

Via

bluetooth

The phone searches for devices within range and

displays a list of available devices.

5. Select a device.

6. If necessary, enter the Bluetooth PIN needed for

pairing and press <

Receiving data via Bluetooth

To receive data via Bluetooth, your phone’s

Bluetooth feature must be active.

If an unauthorised Bluetooth device sends data to

your phone, the phone displays a confirmation

message.

To receive data, press <

Yes

Infrared

(Menu 9.7.2)

Use this feature to send and receive data through

the infrared port. To use an infrared connection, you

must do the following:

• Configure and activate an IrDA-compliant

infrared port on the other device.

• Activate the infrared feature on your phone;

select

Infrared

→

• Align the IrDA port on the

phone with the IrDA port on

the other device.

If there is no communication

between your phone and the

other IrDA-compliant device

within 60 seconds of activating

the feature, it is automatically

deactivated.

Synchronize

(Menu 9.7.3)

Use this menu to synchronise personal data with

corresponding PC applications by using the

WideSync program supplied with your phone.

•

Sync mode

: set the phone to start

synchronisation automatically or manually.

•

Sync frequency

: select how often the phone

will synchronise.

•

Sync direction

: select which device is

synchronised.

•

Allow server alerted sync

: allow the server to

synchronise with your phone when asked or deny

the synchronisation request.

Network selection

(Menu 9.7.4)

Use this menu to select to either automatically or

manually select the network used when roaming

outside of your home area. You can select a network

other than your home network only if there is a valid

roaming agreement between the two.

Menu functions

Network mode

(Menu 9.7.5)

Use this menu to select the network you use.

•

Automatic

: the phone scans for available

networks.

•

GSM 900/1800

: the phone operates in the

combined GSM 900/1800 network.

•

GSM 1900

: the phone operates in the GSM

1900 network. This option is only available in

USA.

•

UMTS

: the phone operates in UMTS (3G

network) networks. You can get a higher speed

quality than on lower generation networks, and

use advanced data and information services,

such as video calls.

Connections

(Menu 9.7.6)

You can set up information about your network

connection. In most cases, you don’t need to change

the settings. In case of problems, please contact

Vodafone.

Creating or editing a connection profile

Press <

Options

> and select

New

, or select the

connection profile you want to edit. The following

options are available:

•

Set name

: edit the name of the network setting.

•

Access name

: edit the access point name used

for the address of the GPRS network gateway.

•

Auth type

: choose the type of authentication

used.

•

User ID

: edit the server login ID.

•

Password

: edit the server password.

•

Protocol

: select the protocol from among

WAP

HTTP

, and

Other

•

Home URL

: enter your homepage address.

•

Proxy address

Port

: (for the HTTP protocol)

set the proxy server address and port.

•

Gateway address

: (for the WAP protocol) set

the gateway address.

•

Secure connection

: (for the WAP protocol) turn

the secure mode on or off.

•

Linger time (sec.)

: set a time period after

which the network is disconnected if there has

been no new data traffic in that time.

•

Advanced settings

provide you with the

following options:

Static IP

: specify if you want to manually enter

an IP address; see the Local phone IP option. If

you want the IP address to be automatically

assigned by the server, remove the check mark.

Local phone IP

: enter the IP address obtained

from the network operator, if you checked the

Static IP option.

Static DNS

: specify if you want to manually

enter the DNS (Domain Name Server) address;

see the Server 1/2 option. If you want the

address to be automatically assigned by the

server, remove the check mark.

Menu functions

Settings

(Menu 9)

Server 1

Server 2

: enter the Domain Name

Server addresses.

Traffic class

: select the traffic class, if you

selected the PS network.

Managing connection profiles

On the list of connection profiles, scroll to a profile

and press <

Options

> to access the following

options:

•

Edit

: edit the selected connection profile.

•

New

: add a new connection profile.

•

Rename

: change the name of the selected

connection profile.

•

Delete

: delete the selected connection profile.

•

Restore

: restore the changed settings to the

default status.

Browser profiles

(Menu 9.7.7)

Use this menu to select a connection profile to be

used for accessing the Internet. You can also make

or edit a profile.



p. 70

Streaming settings

(Menu 9.7.8)

Use this menu to activate a connection profile to be

used for accessing streaming servers to use VOD

(Video on Demand) services. You can also make or

edit a profile.



p. 70

Security

(Menu 9.8)

Use this menu to protect the phone against

unauthorised use by managing the several access

codes of your phone and USIM/SIM card.

Phone lock

(Menu 9.8.1)

The Phone Lock feature locks the phone from

unauthorised use.

When this feature is enabled, you must enter a 4- to

8-digit phone password each time the phone is

switched on.

The password is preset to

00000000

. To change the

password, use the

Change phone password

menu.

SIM lock

(Menu 9.8.2)

The SIM Lock feature allows your phone to work only

with the current USIM/SIM by assigning a USIM/SIM

lock code. You must enter the USIM/SIM lock code

to use a different USIM/SIM card.

PIN lock

(Menu 9.8.3)

The 4- to 8-digit PIN (Personal Identitication

Number) protects your USIM/SIM card against

unauthorised use. When this feature is enabled, the

phone requires your PIN each time it is switched on.

You cannot edit or delete the default connection

profiles.

If you enter an incorrect PIN/PIN2 three times in

succession, the USIM/SIM card is blocked. To

unblock it, you need to enter your PUK/PUK2

(Personal Unblocking Key). The codes are

supplied by your network operator.

Menu functions

Change phone password

(Menu 9.8.4)

Use this menu to change your phone password. The

password is preset to

00000000

Privacy lock

(Menu 9.8.5)

Use this menu to lock your messages media

contents, contacts and call logs.

1. Press to check the item(s) to lock.

2. Press <

Save

> to lock the marked items.

3. Enter the phone password and press

Confirm

To access a locked item, you need to enter the

phone password.

Change PIN code

(Menu 9.8.6)

Use this menu to change your PIN. The PIN Check

feature must be enabled to use this feature.

Change PIN2 code

(Menu 9.8.7)

If supported by your USIM/SIM card, the Change

PIN2 feature changes your current PIN2.

Memory status

(Menu 9.0)

Use this menu to check the amount of memory

being used for storing data, such as SMS, MMS,

Email, Push messages, My items, Game & More,

Contacts, and Organiser items. You can also view

the amount of shared memory or the memory card.

Reset settings

(Menu 9. )

Use this menu to reset the phone to its default

settings.

1. Enter the phone password and press

Confirm

2. Press <

Yes

>. The phone automatically turns

itself off and then back on.

The password is preset to

00000000

. You

can change this password



p. 72

Solve problems

Help and personal needs

To save the time and expense of an unnecessary service

call, perform the simple checks in this section before

contacting a service professional.

When you switch on your phone, the

following messages may appear:

“Insert SIM card”

• Be sure that the USIM/SIM card is correctly

installed.

“Phone lock”

• The automatic locking function has been

enabled. You must enter the phone’s password

before you can use the phone.

“Enter PIN”

• You are using your phone for the first time. You

must enter the PIN supplied with the USIM/SIM

card.

• The PIN Check feature is enabled. Every time the

phone is switched on, the PIN has to be entered.

To disable this feature, use the

PIN lock

menu.

“Enter PUK”

• The PIN code was entered incorrectly three times

in succession, and the phone is now blocked.

Enter the PUK supplied by Vodafone.

“No service,” “Network failure,” or “Not

done” displays

• The network connection has been lost. You may

be in a weak signal area. Move and try again.

• You are trying to access an option for which you

have no subscription with Vodafone. Contact

Vodafone for further details.

You have entered a number but it was not

dialled

• Be sure that you have pressed [ ].

• Be sure that you have accessed the right cellular

network.

Your correspondent cannot reach you

• Be sure that your phone is switched on. ([ ]

pressed for more than one second.)

• Be sure that you are accessing the correct

cellular network.

• Be sure that you have not set an incoming call

barring option.

Your correspondent cannot hear you

speaking

• Be sure that you have switched on the

microphone.

• Be sure that you are holding the phone close

enough to your mouth. The microphone is

located at the bottom of the phone.

The phone starts beeping and “Low battery”

flashes on the display

• Your battery is insufficiently charged. Recharge

the battery.

The audio quality of the call is poor

• Check the signal strength indicator on the

display ( ). The number of bars indicates the

signal strength from strong ( ) to weak ( ).

• Try moving the phone slightly or moving closer

to a window if you are in a building.

No number is dialled when you re-call a

Phonebook entry

• Use the Contacts Search feature to ensure the

number has been stored correctly.

• Re-store the number, if necessary.

If the above guidelines do not help you to

solve the problem, take note of:

• The model and serial numbers of your phone

•Your warranty details

• A clear description of the problem

Then contact your local dealer or Samsung after-

sales service.

Health and safety information

Exposure to Radio Frequency

(RF) Signals

Your wireless phone is a radio transmitter and

receiver. It is designed and manufactured not

to exceed the emission limits for exposure to

radio frequency (RF) energy set by the Federal

Communications Commission (FCC) of the U.S.

Government. These limits are part of

comprehensive guidelines and establish

permitted levels of RF energy for the general

population. The guidelines are based on the

safety standards that were developed by

independent scientific organizations through

periodic and through evaluation of scientific

studies.

The standards include a substantial safety

margin designed to assure the safety of all

persons, regardless of age and health.

The exposure standard for wireless phones

employs a unit of measurement known as

Specific Absorption Rate (SAR). The SAR limit

set by the FCC is 1.6W/kg

Health and safety information

SAR tests are conducted using standard

operating positions specified by the FCC with the

phone transmitting at its highest certified power

level in all tested frequency bands. Although the

SAR is determined at the highest certified power

level, the actual SAR level of the phone while

operating can be well below the maximum value.

This is because the phone is designed to operate

at multiple power levels so as to use only the

power required to reach the network. In general,

the closer you are to a wireless base station

antenna, the lower the power output of the

phone. Before a new model phone is available for

sale to the public, it must be tested and certified

to the FCC that it does not exceed the limit

established by the government-adopted

requirement for safe exposure. The tests are

performed in positions and locations (e.g., at the

ear and worn on the body) as required by the

FCC for each model. While there may be

differences between the SAR levels of various

phones and at various positions, they all meet

the government requirement.

The FCC has granted an Equipment Authorization

for this model phone with all reported SAR levels

evaluated as in compliance with the FCC RF

exposure guidelines. SAR information on this

model phone is on file with the FCC and can be

found under the Display Grant section of http://

www.fcc.gov/oet/fccid after searching on FCC ID

printed in the label on the phone.

FCC certification information for this model

phone is attached separation paper.

For Body Operation

To maintain compliance with FCC RF exposure

requirements, use only belt-clips, holsters or

similar accessories that maintain a 1.5 cm.

separation distance between the user's body

and the back of the phone, including the antenna.

The use of belt-clips, holsters and similar

accessories should not contain metallic components

in its assembly. The use of accessories that do

not satisfy these requirements may not comply

with FCC RF exposure requirements, and should

be avoided.

*In the U.S. and Canada, the SAR limit for mobile

phones used by the public is 1.6 watts/kg (W/kg)

averaged over one gram of tissue. The standard

incorporates a substantial margin of safety to give

additional protection for the public and to account for

any variations in measurements.

Health and safety information

For more Information concerning exposure to

radio frequency signals, see the following

websites:

Federal Communications Commission (FCC)

http://www.fcc.gov/rfsafety

Cellular Telecommunications Industry Association

(CTIA):

http://www.wow-com.com

U.S.Food and Drug Administration (FDA)

http://www.fda.gov/cdrh/consumer

World Health Organization (WHO)

http://www.who.int/peh-emf/en

Precautions When Using Batteries

• Never use any charger or battery that is

damaged in any way.

• Use the battery only for its intended purpose.

• If you use the phone near the network’s base

station, it uses less power; talk and standby

time are greatly affected by the signal strength

on the cellular network and the parameters set

by the network operator.

• Battery charging time depends on the

remaining battery charge and the type of

battery and charger used. The battery can be

charged and discharged hundreds of times, but

it will gradually wear out. When the operation

time (talk time and standby time) is noticeably

shorter than normal, it is time to buy a new

battery.

• If left unused, a fully charged battery will

discharge itself over time.

• Use only Samsung-approved batteries and

recharge your battery only with Samsung-

approved chargers. When a charger is not in

use, disconnect it from the power source. Do

not leave the battery connected to a charger

for more than a week, since overcharging may

shorten its life.

• Extreme temperatures will affect the charging

capacity of your battery: it may require cooling

or warming first.

• Do not leave the battery in hot or cold places,

such as in a car in summer or winter

conditions, as you will reduce the capacity and

lifetime of the battery. Always try to keep the

battery at room temperature. A phone with a

hot or cold battery may temporarily not work,

even when the battery is fully charged. Li-ion

Health and safety information

batteries are particularly affected by

temperatures below 0 °ýC (32 °ýF).

• Do not short-circuit the battery. Accidental

shortcircuiting can occur when a metallic

object (coin, clip or pen) causes a direct

connection between the + and . terminals of

the battery (metal strips on the battery), for

example when you carry a spare battery in a

pocket or bag. Short-circuiting the terminals

may damage the battery or the object causing

the short-circuiting.

• Dispose of used batteries in accordance with

local regulations. Always recycle. Do not

dispose of batteries in a fire.

Road Safety

Your wireless phone gives you the powerful

ability to communicate by voice, almost

anywhere, anytime. But an important

responsibility accompanies the benefits of

wireless phones, one that every user must

uphold.

When driving a car, driving is your first

responsibility. When using your wireless phone

behind the wheel of a car, practice good common

sense and remember the following tips.

1. Get to know your wireless phone and its

features, such as speed dial and redial. If

available, these features help you to place

your call without taking your attention off the

road.

2. When available, use a hands-free device. If

possible, add an extra layer of convenience

and safety to your wireless phone with one of

the many hands-free accessories available

today.

3. Position your wireless phone within easy

reach. Be able to access your wireless phone

without removing your eyes from the road. If

you get an incoming call at an inconvenient

time, let your voice mail answer it for you.

4. Let the person you are speaking with know

you are driving; if necessary, suspend the call

in heavy traffic or hazardous weather

conditions. Rain, sleet, snow, ice and even

heavy traffic can be hazardous.

5. Do not take notes or look up phone numbers

while driving. Jotting down a To Do list or

flipping through your phonebook takes your

attention away from your primary

responsibility, driving safely.

Health and safety information

6. Dial sensibly and assess the traffic; if

possible, place calls when you are not moving

or before pulling into traffic. Try to plan calls

when your car will be stationary. If you need

to make a call while moving, dial only a few

numbers, check the road and your mirrors,

then continue.

7. Do not engage in stressful or emotional

conversations that may be distracting. Make

the people with whom you are talking aware

that you are driving and suspend

conversations that have the potential to

divert your attention from the road.

8. Use your wireless phone to call for help. Dial

the emergency number in the case of fire,

traffic accident or medical emergencies.

Remember, it is a free call on your wireless

phone!

9. Use your wireless phone to help others in

emergencies. If you see a car accident, crime

in progress or other serious emergency where

lives are in danger, call the emergency

number, as you would want others to do for

you.

10.Call roadside assistance or a special

nonemergency wireless assistance number

when necessary. If you see a broken-down

vehicle posing no serious hazard, a broken

traffic signal, a minor traffic accident where

no one appears injured, or a vehicle you know

to be stolen, call roadside assistance or any

other special nonemergency wireless number.

Operating Environment

Remember to follow any special regulations in

force in any area and always switch off your

phone whenever it is forbidden to use it, or when

it may cause interference or danger.

When connecting the phone or any accessory to

another device, read its user’s guide for detailed

safety instructions. Do not connect incompatible

products.

As with other mobile radio transmitting

equipment, users are advised that for the

satisfactory operation of the equipment and for

the safety of personnel, it is recommended that

the equipment should only be used in the normal

operating position (held to your ear with the

antenna pointing over your shoulder).

Health and safety information

Electronic Devices

Most modern electronic equipment is shielded

from radio frequency (RF) signals. However,

certain electronic equipment may not be shielded

against the RF signals from your wireless phone.

Consult the manufacturer to discuss alternatives.

Pacemakers

Pacemaker manufacturers recommend that a

minimum distance of 15 cm (6 inches) be

maintained between a wireless phone and a

pacemaker to avoid potential interference with

the pacemaker. These recommendations are

consistent with the independent research and

recommendations of Wireless Technology

Research.

Persons with pacemakers:

• Should always keep the phone more than 15

cm (6 inches) from their pacemaker when the

phone is switched on

• Should not carry the phone in a breast pocket

• Should use the ear opposite the pacemaker to

minimize potential interference

If you have any reason to suspect that

interference is taking place, switch off your

phone immediately.

Hearing Aids

Some digital wireless phones may interfere with

some hearing aids. In the event of such

interference, you may wish to consult your

hearing aid manufacturer to discuss alternatives.

Other Medical Devices If you use any other

personal medical devices, consult the

manufacturer of your device to determine if it is

adequately shielded from external RF energy.

Your physician may be able to assist you in

obtaining this information. Switch off your phone

in health care facilities when any regulations

posted in these areas instruct you to do so.

Hospitals or health care facilities may be using

equipment that could be sensitive to external RF

energy.

Vehicles

RF signals may affect improperly installed or

inadequately shielded electronic systems in

motor vehicles. Check with the manufacturer or

its

Health and safety information

representative regarding your vehicle. You

should also consult the manufacturer of any

equipment that has been added to your vehicle.

Posted Facilities

Switch off your phone in any facility where

posted notices require you to do so.

Potentially Explosive Atmospheres

Switch off your phone when in any area with a

potentially explosive atmosphere and obey all

signs and instructions. Sparks in such areas

could cause an explosion or fire resulting in

bodily injury or even death. Users are advised to

switch off the phone while at a refueling point

(service station).

Users are reminded of the need to observe

restrictions on the use of radio equipment in fuel

depots (fuel storage and distribution areas),

chemical plants or where blasting operations are

in progress.

Areas with a potentially explosive atmosphere

are often but not always clearly marked. They

include below deck on boats, chemical transfer or

storage facilities, vehicles using liquefied

petroleum gas (such as propane or butane),

areas where the air contains chemicals or

particles, such as grain, dust or metal powders,

and any other area where you would normally be

advised to turn off your vehicle engine.

Emergency calls

This phone, like any wireless phone, operates

using radio signals, wireless and landline

networks, as well as user-programmed functions,

which cannot guarantee connection in all

conditions. Therefore, you should never rely

solely on any wireless phone for essential

communications (medical emergencies, for

example).

Remember, to make or receive any calls the

phone must be switched on and in a service area

with adequate signal strength. Emergency calls

may not be possible on all wireless phone

networks or when certain network services and/

or phone features are in use. Check with local

service providers.

To make an emergency call, proceed as follows.

1. If the phone is not on, switch it on.

Health and safety information

Settings

(Menu

2. Key in the emergency number for your

present location (for example, 112 or any

other official emergency number). Emergency

numbers vary by location.

3. Press the key.

If certain features are in use (call barring, for

example), you may first need to deactivate those

features before you can make an emergency call.

Consult this document and your local cellular

service provider.

When making an emergency call, remember to

give all the necessary information as accurately

as possible. Remember that your phone may be

the only means of communication at the scene of

an accident; do not end the call until given

permission to do so.

Other important safety information

• Only qualified personnel should service the

phone or install the phone in a vehicle. Faulty

installation or service may be dangerous and

may invalidate any warranty applicable to the

device.

• Check regularly that all wireless phone

equipment in your vehicle is mounted and

operating properly.

• Do not store or carry flammable liquids, gases,

or explosive materials in the same

compartment as the phone, its parts, or

accessories.

• For vehicles equipped with an air bag,

remember that an air bag inflates with great

force. Do not place objects, including both

installed or portable wireless equipment in the

area over the air bag or in the air bag

deployment area. If wireless equipment is

improperly installed and the air bag inflates,

serious injury could result.

• Switch off your phone before boarding an

aircraft. The use of wireless phones in aircraft

may be dangerous to the operation of the

aircraft, and is illegal.

• Failure to observe these instructions may lead

to the suspension or denial of telephone

services to the offender, or legal action, or

both.

Care and maintenance

Health and safety information

Your phone is a product of superior design and

craftsmanship and should be treated with care.

The suggestions below will help you fulfill any

warranty obligations and allow you to enjoy this

product for many years.

• Keep the phone and all its parts and

accessories out of the reach of small children.

• Keep the phone dry. Precipitation, humidity,

and liquids contain minerals that will corrode

electronic circuits.

• Do not use the phone with a wet hand. Doing

so may cause an electric shock to you or

damage to the phone.

• Do not use or store the phone in dusty, dirty

areas, as its moving parts may be damaged.

• Do not store the phone in hot areas. High

temperatures can shorten the life of electronic

devices, damage batteries, and warp or melt

certain plastics.

• Do not store the phone in cold areas. When the

phone warms up to its normal operating

temperature, moisture can form inside the

phone, which may damage the phone’s

electronic circuit boards.

• Do not drop, knock, or shake the phone.

Rough handling can break internal circuit

boards.

• Do not use harsh chemicals, cleaning solvents,

or strong detergents to clean the phone. Wipe

it with a soft cloth slightly dampened in a mild

soap-and-water solution.

• Do not paint the phone. Paint can clog the

device’s moving parts and prevent proper

operation.

• Do not put the phone in or on heating devices,

such as a microwave oven, a stove, or a

radiator. The phone may explode when

overheated.

• Use only the supplied or an approved

replacement antenna. Unauthorised antennas

or modified accessories may damage the

phone and violate regulations governing radio

devices.

• If the phone, battery, charger, or any

accessory is not working properly, take it to

your nearest qualified service facility. The

personnel there will assist you, and if

necessary, arrange for service.

Health and safety information

Settings

(Menu

Acknowledging Special Precautions and

the FCC and Industry Canada Notice

Cautions

Modifications not expressly approved by the party

responsible for compliance could void the user's

authority to operate the equipment.

FCC Compliance Information

This device complies with Part 15 of FCC Rules.

Operation is subject to the following two conditions:

1. This device may not cause harmful

interference, and

2. This device must accept any interference

received.

Including interference that may cause undesired

operation.

Information to User

This equipment has been tested and found to

comply with the limits for a Class B digital device,

pursuant to part 15 of the FCC Rules. These limits

are designed to provide reasonable protection

against harmful interference in a residential

installation.

This equipment generates, uses and can radiate

radio frequency energy and, if not installed and used

in accordance with the instructions, may cause

harmful interference to radio communications.

However, there is no guarantee that interference will

not occur in a particular installation. If this

equipment does cause harmful interference to radio

or television reception, which can be determined by

turning the equipment off and on, the user is

encouraged to try to correct the interference by one

or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the

equipment and receiver.

• Connect the equipment into an outlet on a

circuit different from that to which the receiver

is connected.

• Consult the dealer or an experienced radio/ TV

technician for help.

Appendix A: CERTIFICATION

INFORMATION (SAR)

THIS MODEL PHONE MEETS THE GOVERNMENT’S

REQUIREMENTS FOR EXPOSURE TO RADIO

WAVES.

Your wireless phone is a radio transmitter and

receiver. It is designed and manufactured not to

exceed the emission limits for exposure to radio

frequency(RF) energy set by the Federal

Communications Commission of the U.S.

Health and safety information

Government. These limits are part of

comprehensive guidelines and establish

permitted levels of RF energy for the general

population. The guidelines are based on safety

standards that were developed by independent

scientific organizations through periodic and

thorough evaluation of scientific studies. The

standards include a substantial safety margin

designed to assure the safety of all persons,

regardless of age and health.

The exposure standard for wireless mobile

phones employs a unit of measurement known

as the Specific Absorption Rate(SAR). The SAR

limit set by the FCC is 1.6 W/kg. SAR Tests are

conducted using standard operating positions

accepted by the FCC with the phone transmitting

at its highest certified power level in all tested

frequency bands. Although the SAR is

determined at the highest certified power level,

the actual SAR level of the phone while operating

can be well below the maximum value. This is

because the phone is designed to operate at

multiple power levels so as to use only the power

required to reach the network. In general, the

closer you are to a wireless base station antenna,

the lower the power output.

Before a new model phone is available for sale to

the public, it must be tested and certified to the

FCC that it does not exceed the limit established

by the governmentadopted requirement for safe

exposure. The tests are performed in positions

and locations(e.g., at the ear and worn on the

body) as required by the FCC for each model.

The highest SAR values for this model phone as

reported to the FCC are Head: 0.937 W/Kg,

Body-worn: 0.452 W/Kg.

The FCC has granted an Equipment Authorization

for this model phone with all reported SAR levels

evaluated as in compliance with the FCC RF

exposure guidelines. SAR information on this

model phone is on file with the FCC and can be

found under the Display Grant section of http://

www.fcc.gov/oet/fccid after searching on FCC ID

A3LSGHZV30.

Health and safety information

Settings

(Menu

Appendix B: Guide to Safe and

Responsible Wireless Phone Use

Cellular Telecommunications & Internet Association

“Safety is the most important call you will ever

make.”

A Guide to Safe and Responsible Wireless

Phone Use

TENS OF MILLIONS OF PEOPLE IN THE U.S. TODAY

TAKE ADVANTAGE OF THE UNIQUE COMBINATION

OF CONVENIENCE, SAFETY AND VALUE DELIVERED

BY THE WIRELESS TELEPHONE. QUITE SIMPLY, THE

WIRELESS PHONE GIVES PEOPLE THE POWERFUL

ABILITY TO COMMUNICATE BY VOICE-ALMOST

ANYWHERE, ANYTIME-WITH THE BOSS, WITH A

CLIENT, WITH THE KIDS, WITH EMERGENCY

PERSONNEL OR EVEN WITH THE POLICE. EACH

YEAR, AMERICANS MAKE BILLIONS OF CALLS FROM

THEIR WIRELESS PHONES, AND THE NUMBERS ARE

RAPIDLY GROWING.

But an important responsibility accompanies those

benefits, one that every wireless phone user must

uphold. When driving a car, driving is your first

responsibility. A wireless phone can be an invaluable

tool, but good judgment must be exercised at all

times while driving a motor vehicle whether on the

phone or not.

The basic lessons are ones we all learned as

teenagers. Driving requires alertness, caution and

courtesy. It requires a heavy dose of basic common

sense-keep your head up, keep your eyes on the

road, check your mirrors frequently and watch out

for other drivers. It requires obeying all traffic signs

and signals and staying within the speed limit. It

means using seat belts and requiring other

passengers to do the same.

But with wireless phone use, driving safely means a

little more. This brochure is a call to wireless phone

users everywhere to make safety their first priority

when behind the wheel of a car. Wireless

telecommunications is keeping us in touch,

simplifying our lives, protecting us in emergencies

and providing opportunities to help others in need.

When it comes to the use of wireless phones, safety

is your most important call.

Wireless Phone “Safety Tips”

Below are safety tips to follow while driving and

using a wireless phone which should be easy to

remember:

1. Get to know your wireless phone and its

features such as speed dial and redial.

Carefully read your instruction manual and

learn to take advantage of valuable features

most phones offer, including automatic redial

and memory. Also, work to memorize the

phone keypad so you can use the speed dial

function without taking your attention off the

road.

Health and safety information

2. When available, use a hands free device. A

number of hands free wireless phone

accessories are readily available today.

Whether you choose an installed mounted

device for your wireless phone or a speaker

phone accessory, take advantage of these

devices if available to you.

3. Position your wireless phone within easy

reach. Make sure you place your wireless

phone within easy reach and where you can

grab it without removing your eyes from the

road. If you get an incoming call at an

inconvenient time, if possible, let your voice

mail answer it for you.

4. Suspend conversations during hazardous

driving conditions or situations. Let the

person you are speaking with know you are

driving; if necessary, suspend the call in

heavy traffic or hazardous weather

conditions. Rain, sleet, snow and ice can be

hazardous, but so is heavy traffic. As a driver,

your first responsibility is to pay attention to

the road.

5. Do not take notes or look up phone numbers

while driving. If you are reading an address

book or business card, or writing a “to do” list

while driving a car, you are not watching

where you are going. It’s common sense.

Don’t get caught in a dangerous situation

because you are reading or writing and not

paying attention to the road or nearby

vehicles.

6. Dial sensibly and assess the traffic; if

possible, place calls when you are not moving

or before pulling into traffic. Try to plan your

calls before you begin your trip or attempt to

coincide your calls with times you may be

stopped at a stop sign, red light or otherwise

stationary. But if you need to dial while

driving, follow this simple tip-dial only a few

numbers, check the road and your mirrors,

then continue.

7. Do not engage in stressful or emotional

conversations that may be distracting.

Stressful or emotional conversations and

driving do not mix-they are distracting and

even dangerous when you are behind the

wheel of a car. Make people you are talking

with aware you are driving and if necessary,

suspend conversations which have the

potential to divert your attention from the

road.

Health and safety information

Settings

(Menu

8. Use your wireless phone to call for help. Your

wireless phone is one of the greatest tools

you can own to protect yourself and your

family in dangerous situations-with your

phone at your side, help is only three

numbers away. Dial 9-1-1 or other local

emergency number in the case of fire, traffic

accident, road hazard or medical emergency.

Remember, it is a free call on your wireless

phone!

9. Use your wireless phone to help others in

emergencies. Your wireless phone provides

you a perfect opportunity to be a “Good

Samaritan” in your community. If you see an

auto accident, crime in progress or other

serious emergency where lives are in danger,

call 9-1-1 or other local emergency number,

as you would want others to do for you.

10.Call roadside assistance or a special wireless

non emergency assistance number when

necessary. Certain situations you encounter

while driving may require attention, but are

not urgent enough to merit a call for

emergency services. But you still can use

your wireless phone to lend a hand. If you see

a broken-down vehicle posing no serious

hazard, a broken traffic signal, a minor traffic

accident where no one appears injured or a

vehicle you know to be stolen, call roadside

assistance or other special non-emergency

wireless number.

Careless, distracted individuals and people driving

irresponsibly represent a hazard to everyone on the

road. Since 1984, the Cellular Telecommunications

Industry Association and the wireless industry have

conducted educational outreach to inform wireless

phone users of their responsibilities as safe drivers

and good citizens. As we approach a new century,

more and more of us will take advantage of the

benefits of wireless telephones. And, as we take to

the roads, we all have a responsibility to drive

safely.

“The wireless industry reminds you to use your

phone safely when driving.”

Cellular Telecommunications & Internet Association

For more information, please call 1-888-901-SAFE.

For updates: http://www.wow-com.com/consumer/

issues/driving/articles.cfm?ID =85

Appendix C: Consumer Update on

Wireless Phones

U.S. Food and Drug Administration

1. What kinds of phones are the subject of this

update?

Health and safety information

The term wireless phone refers here to hand-held

wireless phones with built-in antennas, often called

cell, mobile, or PCS phones. These types of wireless

phones can expose the user to measurable radio

frequency energy (RF) because of the short distance

between the phone and the user s head. These RF

exposures are limited by Federal Communications

Commission safety guidelines that were developed

with the advice of FDA and other federal health and

safety agencies. When the phone is located at

greater distances from the user, the exposure to RF

is drastically lower because a person’s RF exposure

decreases rapidly with increasing distance from the

source. The so-called “cordless phones,” which have

a base unit connected to the telephone wiring in a

house, typically operate at far lower power levels,

and thus produce RF exposures well within the FCC’s

compliance limits.

2. Do wireless phones pose a health hazard?

The available scientific evidence does not show that

any health problems are associated with using

wireless phones. There is no proof, however, that

wireless phones are absolutely safe. Wireless

phones emit low levels of radio frequency energy

(RF) in the microwave range while being used. They

also emit very low levels of RF when in the stand-by

mode. Whereas high levels of RF can produce health

effects (by heating tissue), exposure to low level RF

that does not produce heating effects causes no

known adverse health effects. Many studies of low

level RF exposures have not found any biological

effects. Some studies have suggested that some

biological effects may occur, but such findings have

not been confirmed by additional research. In some

cases, other researchers have had difficulty in

reproducing those studies, or in determining the

reasons for inconsistent results.

3. What is FDA’s role concerning the safety of

wireless phones?

Under the law, FDA does not review the safety of

radiation emitting consumer products such as

wireless phones before they can be sold, as it does

with new drugs or medical devices. However, the

agency has authority to take action if wireless

phones are shown to emit radio frequency energy

(RF) at a level that is hazardous to the user. In such

a case, FDA could require the manufacturers of

wireless phones to notify users of the health hazard

and to repair, replace or recall the phones so that

the hazard no longer exists.

Although the existing scientific data do not justify

FDA regulatory actions, FDA has urged the wireless

phone industry to take a number of steps, including

the following:

• Support needed research into possible

biological effects of RF of the type emitted by

wireless phones;

Health and safety information

Settings

(Menu

• Design wireless phones in a way that

minimizes any RF exposure to the user that is

not necessary for device function; and

• Cooperate in providing users of wireless

phones with the best possible information on

possible effects of wireless phone use on

human health

FDA belongs to an interagency working group of the

federal agencies that have responsibility for different

aspects of RF safety to ensure coordinated efforts at

the federal level. The following agencies belong to

this working group:

• National Institute for Occupational Safety and

Health

• Environmental Protection Agency Federal

Communications Commission

• Occupational Safety and Health Administration

• National Telecommunications and Information

Administration

• The National Institutes of Health participates in

some interagency working group activities, as

well.

FDA shares regulatory responsibilities for wireless

phones with the Federal Communications

Commission (FCC). All phones that are sold in the

United States must comply with FCC safety

guidelines that limit RF exposure. FCC relies on FDA

and other health agencies for safety questions about

wireless phones.

FCC also regulates the base stations that the

wireless phone networks rely upon. While these

base stations operate at higher power than do the

wireless phones themselves, the RF exposures that

people get from these base stations are typically

thousands of times lower than those they can get

from wireless phones. Base stations are thus not the

primary subject of the safety questions discussed in

this document.

4. What is FDA doing to find out more about the

possible health effects of wireless phone RF?

FDA is working with the U.S. National Toxicology

Program and with groups of investigators around the

world to ensure that high priority animal studies are

conducted to address important questions about the

effects of exposure to radio frequency energy (RF).

FDA has been a leading participant in the World

Health Organization International Electromagnetic

Fields (EMF) Project since its inception in 1996. An

influential result of this work has been the

development of a detailed agenda of research needs

that has driven the establishment of new research

programs around the world. The Project has also

helped develop a series of public information

documents on EMF issues.

Health and safety information

FDA and the Cellular Telecommunications & Internet

Association (CTIA) have a formal Cooperative

Research and Development Agreement (CRADA) to

do research on wireless phone safety. FDA provides

the scientific oversight, obtaining input from experts

in government, industry, and academic

organizations. CTIA-funded research is conducted

through contracts to independent investigators. The

initial research will include both laboratory studies

and studies of wireless phone users. The CRADA will

also include a broad assessment of additional

research needs in the context of the latest research

developments around the world.

5. What steps can I take to reduce my exposure to

radio frequency energy from my wireless phone?

If there is a risk from these products—and at this

point we do not know that there is—it is probably

very small. But if you are concerned about avoiding

even potential risks, you can take a few simple steps

to minimize your exposure to radio frequency

energy (RF). Since time is a key factor in how much

exposure a person receives, reducing the amount of

time spent using a wireless phone will reduce RF

exposure.

If you must conduct extended conversations by

wireless phone every day, you could place more

distance between your body and the source of the

RF, since the exposure level drops off dramatically

with distance. For example, you could use a headset

and carry the wireless phone away from your body

or use a wireless phone connected to a remote

antenna

Again, the scientific data do not demonstrate that

wireless phones are harmful. But if you are

concerned about the RF exposure from these

products, you can use measures like those described

above to reduce your RF exposure from wireless

phone use.

6. What about children using wireless phones?

The scientific evidence does not show a danger to

users of wireless phones, including children and

teenagers. If you want to take steps to lower

exposure to radio frequency energy (RF), the

measures described above would apply to children

and teenagers using wireless phones. Reducing the

time of wireless phone use and increasing the

distance between the user and the RF source will

reduce RF exposure.

Some groups sponsored by other national

governments have advised that children be

discouraged from using wireless phones at all. For

example, the government in the United Kingdom

distributed leaflets containing such a

recommendation in December 2000. They noted

that no evidence exists that using a wireless phone

causes brain tumors or other ill effects. Their

recommendation to limit wireless phone use by

children was strictly precautionary; it was not based

on scientific evidence that any health hazard exists.

Health and safety information

Settings

(Menu

7. Do hands-free kits for wireless phones reduce

risks from exposure to RF emissions?

Since there are no known risks from exposure to RF

emissions from wireless phones, there is no reason

to believe that hands-free kits reduce risks. Hands-

free kits can be used with wireless phones for

convenience and comfort. These systems reduce the

absorption of RF energy in the head because the

phone, which is the source of the RF emissions, will

not be placed against the head. On the other hand,

if the phone is mounted against the waist or other

part of the body during use, then that part of the

body will absorb more RF energy. Wireless phones

marketed in the U.S. are required to meet safety

requirements regardless of whether they are used

against the head or against the body. Either

configuration should result in compliance with the

safety limit.

8. Do wireless phone accessories that claim to

shield the head from RF radiation work?

Since there are no known risks from exposure to RF

emissions from wireless phones, there is no reason

to believe that accessories that claim to shield the

head from those emissions reduce risks. Some

products that claim to shield the user from RF

absorption use special phone cases, while others

involve nothing more than a metallic accessory

attached to the phone. Studies have shown that

these products generally do not work as advertised.

Unlike “hand-free” kits, these so-called “shields”

may interfere with proper operation of the phone.

The phone may be forced to boost its power to

compensate, leading to an increase in RF

absorption. In February 2002, the Federal trade

Commission (FTC) charged two companies that sold

devices that claimed to protect wireless phone users

from radiation with making false and

unsubstantiated claims. According to FTC, these

defendants lacked a reasonable basis to substantiate

their claim.

9. What about wireless phone interference with

medical equipment?

Radio frequency energy (RF) from wireless phones

can interact with some electronic devices. For this

reason, FDA helped develop a detailed test method

to measure electromagnetic interference (EMI) of

implanted cardiac pacemakers and defibrillators

from wireless telephones. This test method is now

part of a standard sponsored by the Association for

the Advancement of Medical instrumentation

(AAMI). The final draft, a joint effort by FDA,

medical device manufacturers, and many other

groups, was completed in late 2000. This standard

will allow manufacturers to ensure that cardiac

pacemakers and defibrillators are safe from wireless

phone EMI.

FDA has tested hearing aids for interference from

handheld wireless phones and helped develop a

voluntary standard sponsored by the Institute of

Electrical and Electronic Engineers (IEEE). This

Health and safety information

standard specifies test methods and performance

requirements for hearing aids and wireless phones

so that no interference occurs when a person uses a

compatible phone and a compatible hearing aid at

the same time. This standard was approved by the

IEEE in 2000.

FDA continues to monitor the use of wireless phones

for possible interactions with other medical devices.

Should harmful interference be found to occur, FDA

will conduct testing to assess the interference and

work to resolve the problem.

10.What are the results of the research done

already?

The research done thus far has produced conflicting

results, and many studies have suffered from flaws

in their research methods. Animal experiments

investigating the effects of radio frequency energy

(RF) exposures characteristic of wireless phones

have yielded conflicting results that often cannot be

repeated in other laboratories. A few animal studies,

however, have suggested that low levels of RF could

accelerate the development of cancer in laboratory

animals. However, many of the studies that showed

increased tumor development used animals that had

been genetically engineered or treated with cancer

causing chemicals so as to be pre-disposed to

develop cancer in the absence of RF exposure. Other

studies exposed the animals to RF for up to 22 hours

per day. These conditions are not similar to the

conditions under which people use wireless phones,

so we don t know with certainty what the results of

such studies mean for human health.

Three large epidemiology studies have been

published since December 2000. Between them, the

studies investigated any possible association

between the use of wireless phones and primary

brain cancer, gioma, meningioma, or acoustic

neuroma, tumors of the brain or salivary gland,

leukemia, or other cancers. None of the studies

demonstrated the existence of any harmful health

effects from wireless phone RF exposures. However,

none of the studies can answer questions about

long-term exposures, since the average period of

phone use in these studies was around three years.

11.What research is needed to decide whether RF

exposure from wireless phones poses a health

risk?

A combination of laboratory studies and

epidemiological studies of people actually using

wireless phones would provide some of the data that

are needed. Lifetime animal exposure studies could

be completed in a few years. However, very large

numbers of animals would be needed to provide

reliable proof of a cancer promoting effect if one

exists. Epidemiological studies can provide data that

is directly applicable to human populations, but 10

or more years follow-up may be needed to provide

answers about some health effects, such as cancer.

This is because the interval between the time of

exposure to a cancer-causing agent and the time

Health and safety information

Settings

(Menu

tumors develop - if they do - may be many, many

years. The interpretation of epidemiological studies

is hampered by difficulties in measuring actual RF

exposure during day-to-day use of wireless phones.

Many factors affect this measurement, such as the

angle at which the phone is held, or which model of

phone is used.

12.Which other federal agencies have

responsibilities related to potential RF health

effects?

Additional information on the safety of RF exposures

from various sources can be obtained from the

following organizations.

FCC RF Safety Program:

http://www.fcc.gov/oet/rfsafety/

Environmental Protection Agency (EPA):

http://www.epa.gov/radiation/

Occupational Safety and Health Administration’s

(OSHA):

http://www.osha-slc.gov/SLTC/

radiofrequencyradiation/index.html

National Institute for Occupational Safety and Health

(NIOSH):

http://www.cdc.gov/niosh/emfpg.html

World health Organization (WHO):

http://www.who.int/peh-emf/

International Commission on Non-Ionizing Radiation

Protection:

http://www.icnirp.de

National Radiation Protection Board (UK):

http://www.nrpb.org.uk

*Updated 4/3/2002: US Food and Drug Administration

http://www.fda.gov/cellphones

Index

ABC mode, text input • 24

Answering

call • 25, 28

second call • 26

Anykey answer • 63

Auto redial • 65

Backlight time, set • 64

Battery

charging • 7

low indicator • 8

precautions • 75

Bluetooth

receiving, data • 69

sending, data • 69

settings • 68

Browser, WAP • 30

Calculator • 57

Caller group, managing • 60

Calls answering • 25, 28

holding • 26

redialling • 25

rejecting • 25

Camera

photos • 34

videos • 36

Characters, enter • 23

Conference call • 28

Configuration • 41

Connection tone • 62

Contacts

copying • 61

editing • 58, 59

options • 58

setting • 61

speed-dialling • 60, 66

Conversion • 58

Creating messages

e-mail • 39

MMS • 38

Creating organiser

anniversaries • 54

events • 53

memos • 54

tasks • 54

Deleting

contacts • 59

e-mails • 42

events • 55

missed alarms • 55

MMS messages • 40

SMS messages • 40

video clips • 37

Delivery reports, message • 45

Display

language • 63

settings • 63

DTMF tones, send • 27

E-mails

creating/sending • 39

deleting • 42

settings • 45

viewing • 42

Emergency calls • 78

Forwarding

e-mails • 42

MMS messages • 40

Games • 29

Greeting message • 63

Health and safety • 74

Holding, call • 26

Icons, description • 10

Images, downloaded • 47

Inbox, messages

configuration • 41

e-mail • 42

MMS • 39

SMS • 39

web • 41

Infrared, connect • 69

International calls • 25

Internet • 30

key tone volume • 62

Keypad tones

sending • 27

setting • 62

Language, select • 63

Last number, redial • 25

Locking

media contents • 72

phone • 72

SIM card • 71

Index

Loudspeaker • 26

Low battery indicator • 8

Memory status

contacts • 61

messages • 47

phone • 72

scheduled events • 58

Message tone • 62

Messages

configuration • 41

greeting • 63

MMS • 38

web • 41

Minute minder • 62

Missed alarm events • 55

MMS messages

creating/sending • 38

deleting • 40

settings • 44

viewing • 40

Multi-party calls • 28

Muting

key tones • 27

microphone • 27

Names

entering • 23

searching • 58

Network selection • 69

Organiser • 52

Password

barring • 66

phone • 72

Phonecare and maintenance • 79

display • 10

icons • 10

locking • 72

password • 72

resetting • 72

switching on/off • 8

unpacking • 6

Photos

deleting • 36

editing • 47

taking • 34

viewing • 47

PIM sync

creating a profile • 57

starting • 57

PIN, change • 72

PIN2, change • 72

Power on/off tone • 62

Privacy • 72

Problems, solve • 73

Profiles • 61

Received messages

configuration • 41

e-mail • 42

MMS • 39

SMS • 39

web • 41

Recording

vidoes • 36

voice memos • 55

Redialling

automatically • 65

manually • 25

Resetting phone • 72

Ringtones, downloaded • 50

Road safety • 76

Roaming • 69

Safety

information • 74

SIM card

inserting • 7

locking • 71

SMS messages

creating/sending • 39

deleting • 40

settings • 45

viewing • 39

Sound settings • 61

Sounds, downloaded • 51

Speed-dial • 60, 66

Switching on/off

microphone • 27

phone • 8

Templates

MMS • 43

text • 43

Text input mode, change • 23

Text, enter • 23

Tone connect • 62

keypad • 62

message • 62

minute minder • 62

power on • 62

Video calls

making • 28

setting • 66

Video clips

deleting • 49

playing • 49

recording • 36

Voice mail server • 47

Voice memos

playing • 55

recording • 55

Wallpaper • 63

WAP browser • 30

World time • 57

Declaration of Conformity (R&TTE)

For the following product:

GSM900/GSM1800/WCDMA

Portable Cellular Telephone

(Product Name)

SGH-ZV30

(Model Number)

Manufactured at:

Samsung Electronics Co., Ltd, 94-1 Imsu-Dong, Gumi City, Kyung Buk, Korea, 730-350

(factory name, address

)

to which this declaration relates, is in conformity with the following standards and/or other

normative documents.

Safety

EMC

SAR

Network

We hereby declare the [all essential radio test suites have been carried out and that] the above

named product is in conformity to all the essential requirements of Directive 1999/5/EC.

The conformity assessment procedure referred to in Article 10 and detailed in Annex[

] of

Directive 1999/5/EC has been followed with the involvement of the following Notified Body(ies):

BABT, Claremont House, 34 Molesey Road,

Walton-on-Thames, KT12 4RQ, UK

Identification mark: 168

The technical documentation kept at:

Samsung Electronics Euro QA Lab.

which will be made available upon request.

(Representative in the EU)

Samsung Electronics Euro QA Lab.

Blackbushe Business Park, Saxony Way,

Yateley, Hampshire, GU46 6GG, UK

(place and date of issue) (name and signature of authorised person)

*This is not the address of the Samsung Service Centre. For the address or the phone number of the Samsung Service

Centre, see the warranty card or contact the retailer where you purchased your phone.

Samsung Electronics Co SGHZV30 PCS GSM Phone with Bluetooth Transmitter User Manual

Samsung Electronics Co Ltd PCS GSM Phone with Bluetooth Transmitter Users Manual

Users Manual

Navigation menu

Namespaces

Views

Navigation
