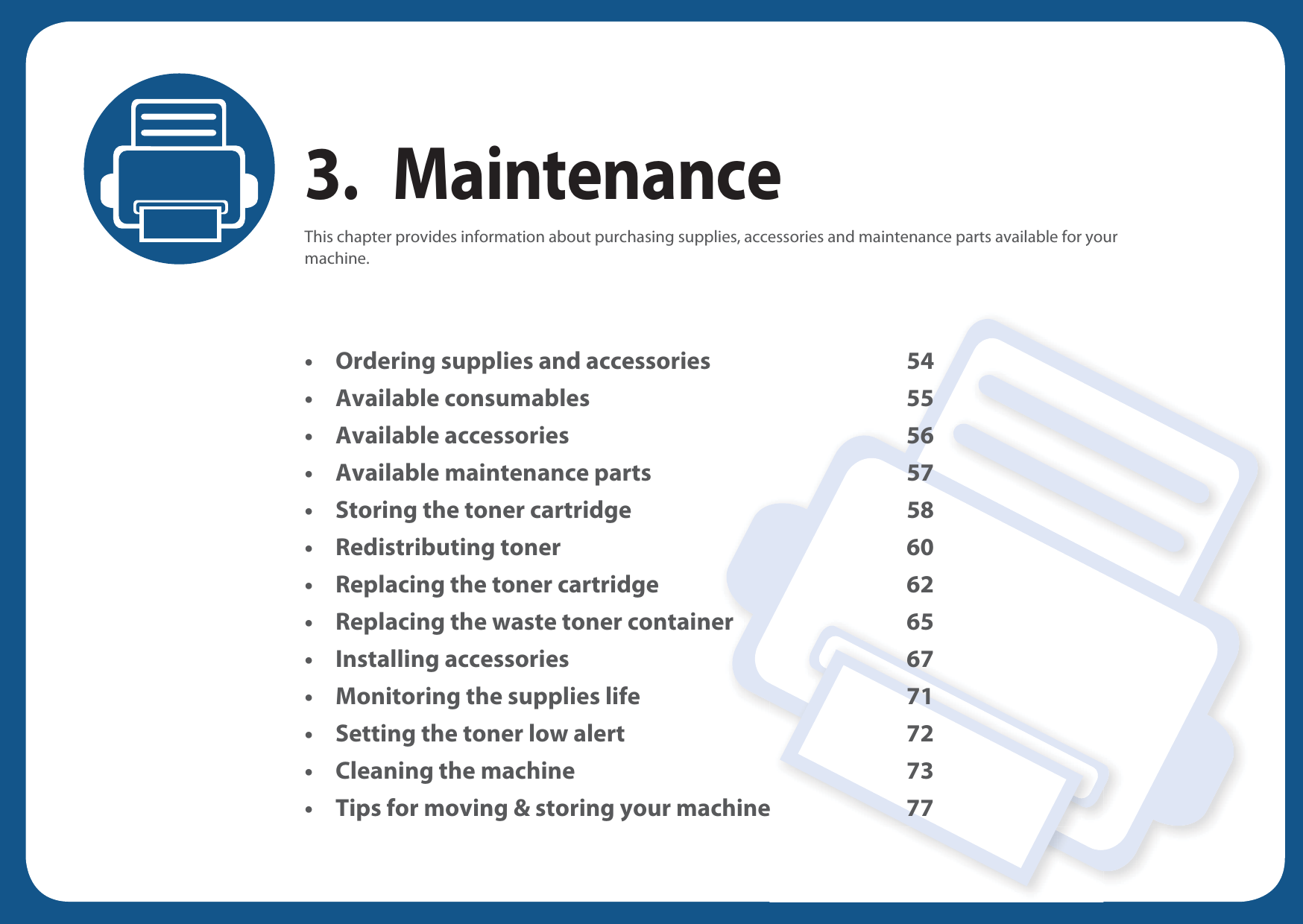

3. MaintenanceThis chapter provides information about purchasing supplies, accessories and maintenance parts available for your machine.• Ordering supplies and accessories 54• Available consumables 55• Available accessories 56• Available maintenance parts 57• Storing the toner cartridge 58• Redistributing toner 60• Replacing the toner cartridge 62• Replacing the waste toner container 65• Installing accessories 67• Monitoring the supplies life 71• Setting the toner low alert 72• Cleaning the machine 73• Tips for moving & storing your machine 77

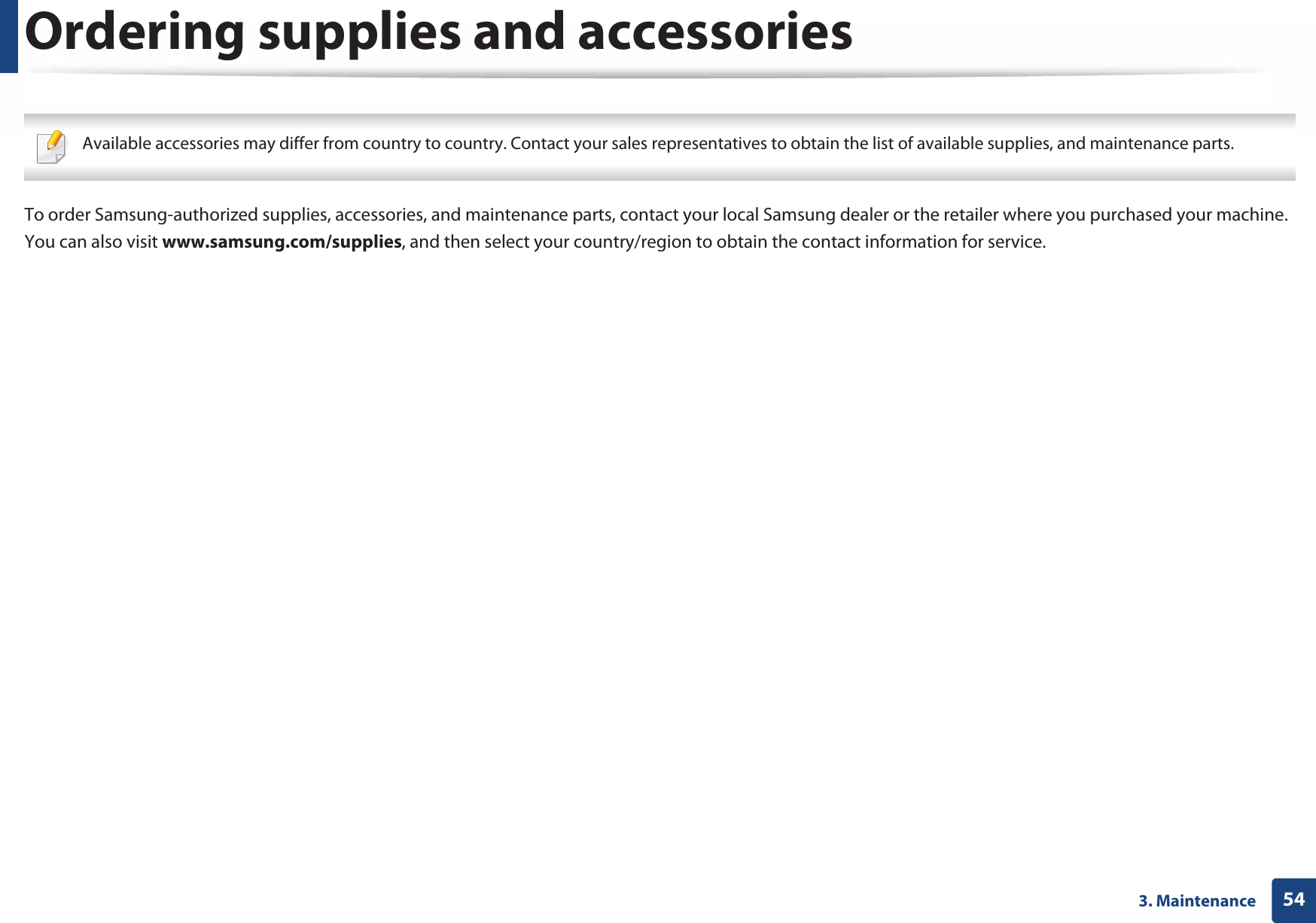

543. MaintenanceOrdering supplies and accessories Available accessories may differ from country to country. Contact your sales representatives to obtain the list of available supplies, and maintenance parts. To order Samsung-authorized supplies, accessories, and maintenance parts, contact your local Samsung dealer or the retailer where you purchased your machine. You can also visit www.samsung.com/supplies, and then select your country/region to obtain the contact information for service.

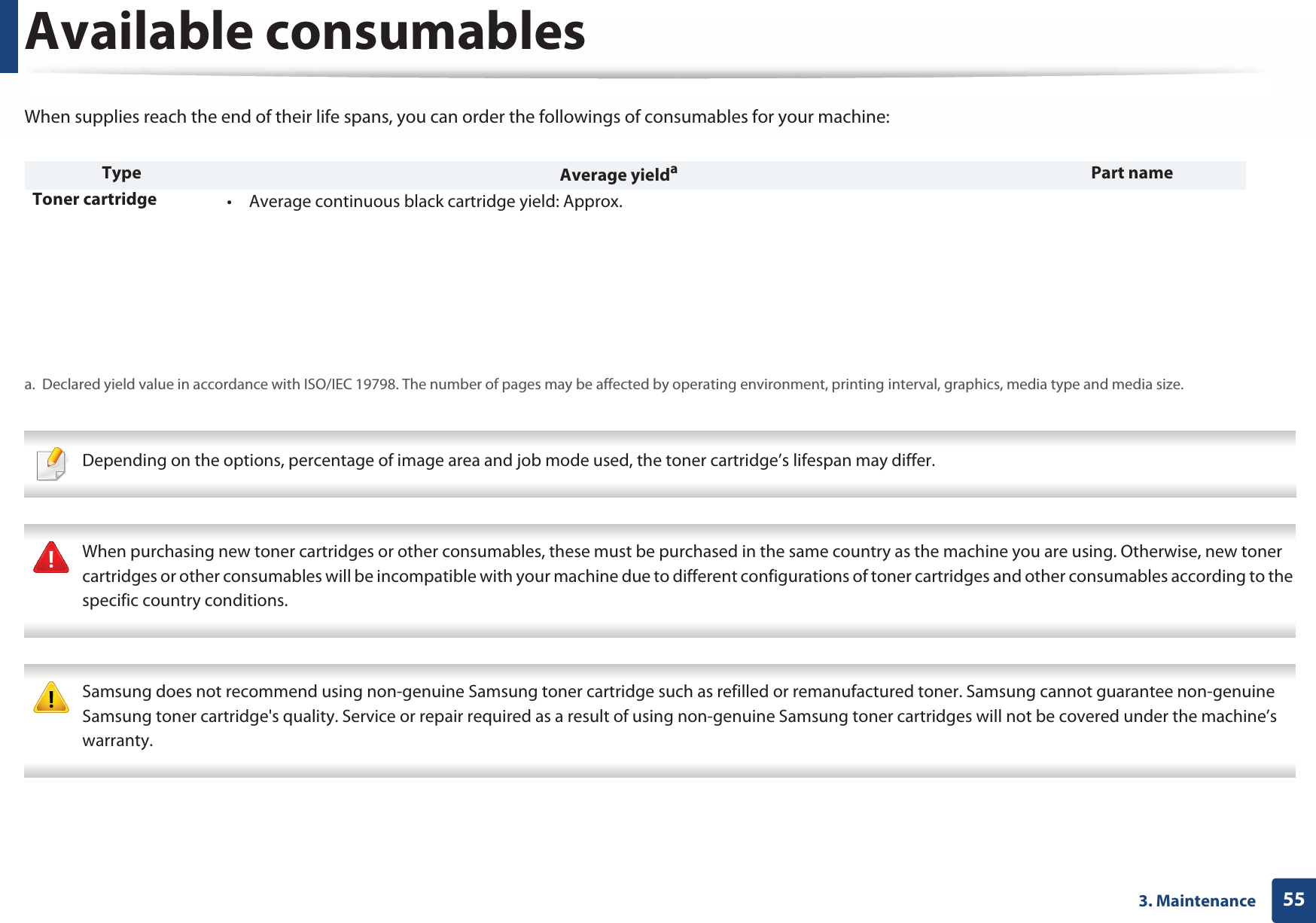

553. MaintenanceAvailable consumablesWhen supplies reach the end of their life spans, you can order the followings of consumables for your machine: Depending on the options, percentage of image area and job mode used, the toner cartridge’s lifespan may differ. When purchasing new toner cartridges or other consumables, these must be purchased in the same country as the machine you are using. Otherwise, new toner cartridges or other consumables will be incompatible with your machine due to different configurations of toner cartridges and other consumables according to the specific country conditions. Samsung does not recommend using non-genuine Samsung toner cartridge such as refilled or remanufactured toner. Samsung cannot guarantee non-genuine Samsung toner cartridge's quality. Service or repair required as a result of using non-genuine Samsung toner cartridges will not be covered under the machine’s warranty. Type Average yieldaa. Declared yield value in accordance with ISO/IEC 19798. The number of pages may be affected by operating environment, printing interval, graphics, media type and media size.Part nameToner cartridge • Average continuous black cartridge yield: Approx. 6,000 standard pages (Black)• Average continuous color cartridge yield: Approx. 3,500 standard pages (Yellow/Magenta/Cyan)• CLT-K505L: Black• CLT-Y505L: Yellow• CLT-M505L: Magenta• CLT-C505L: CyanWaste toner container • Approx. 14,000 pages (Black)• Approx. 3,500 pages (Yellow/Magenta/Cyan)CLT-W506

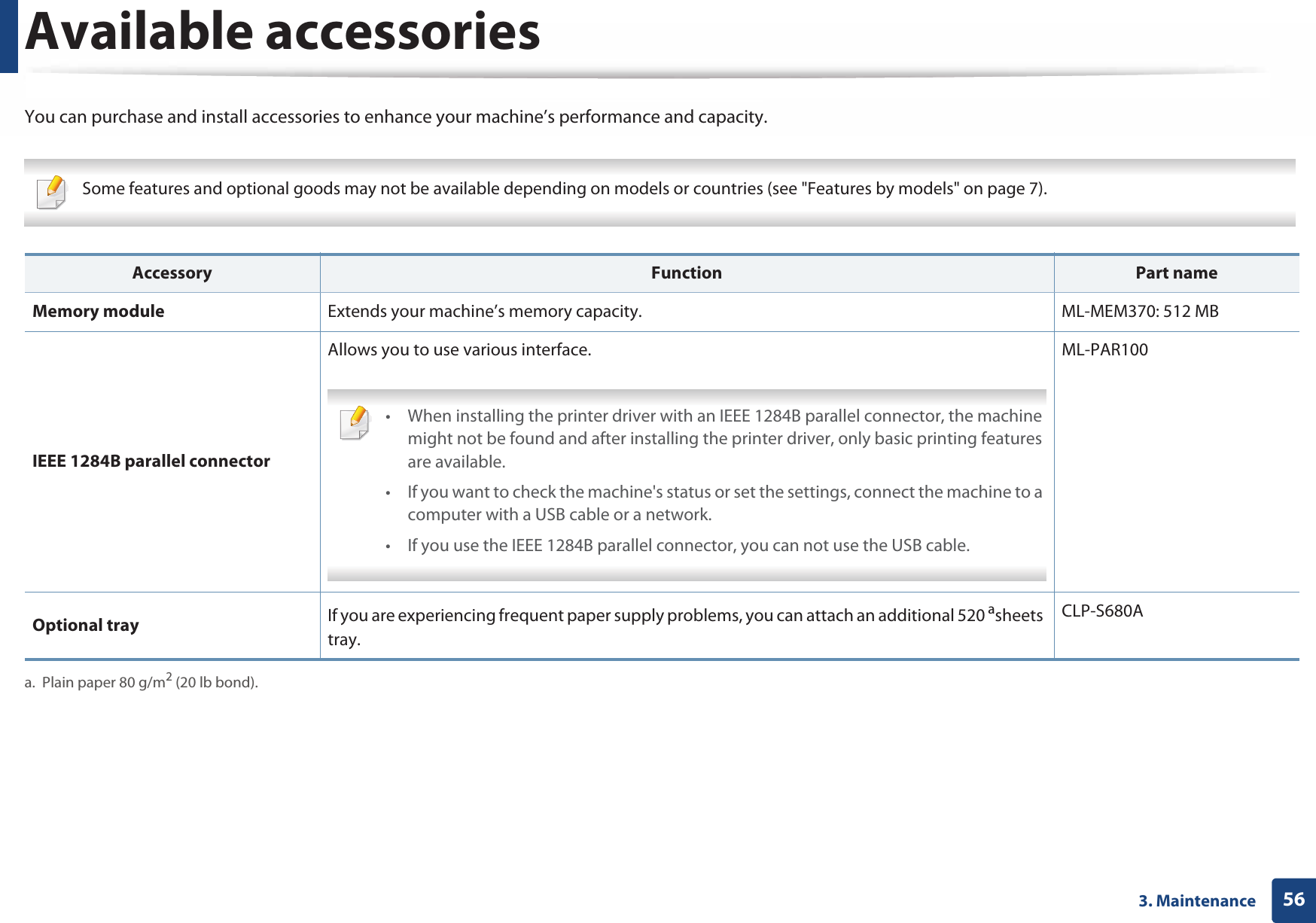

563. MaintenanceAvailable accessoriesYou can purchase and install accessories to enhance your machine’s performance and capacity. Some features and optional goods may not be available depending on models or countries (see "Features by models" on page 7). Accessory Function Part nameMemory module Extends your machine’s memory capacity. ML-MEM370: 512 MBIEEE 1284B parallel connectorAllows you to use various interface. • When installing the printer driver with an IEEE 1284B parallel connector, the machine might not be found and after installing the printer driver, only basic printing features are available.• If you want to check the machine's status or set the settings, connect the machine to a computer with a USB cable or a network.• If you use the IEEE 1284B parallel connector, you can not use the USB cable. ML-PAR100Optional tray If you are experiencing frequent paper supply problems, you can attach an additional 520 asheets tray. a. Plain paper 80 g/m2 (20 lb bond).CLP-S680A

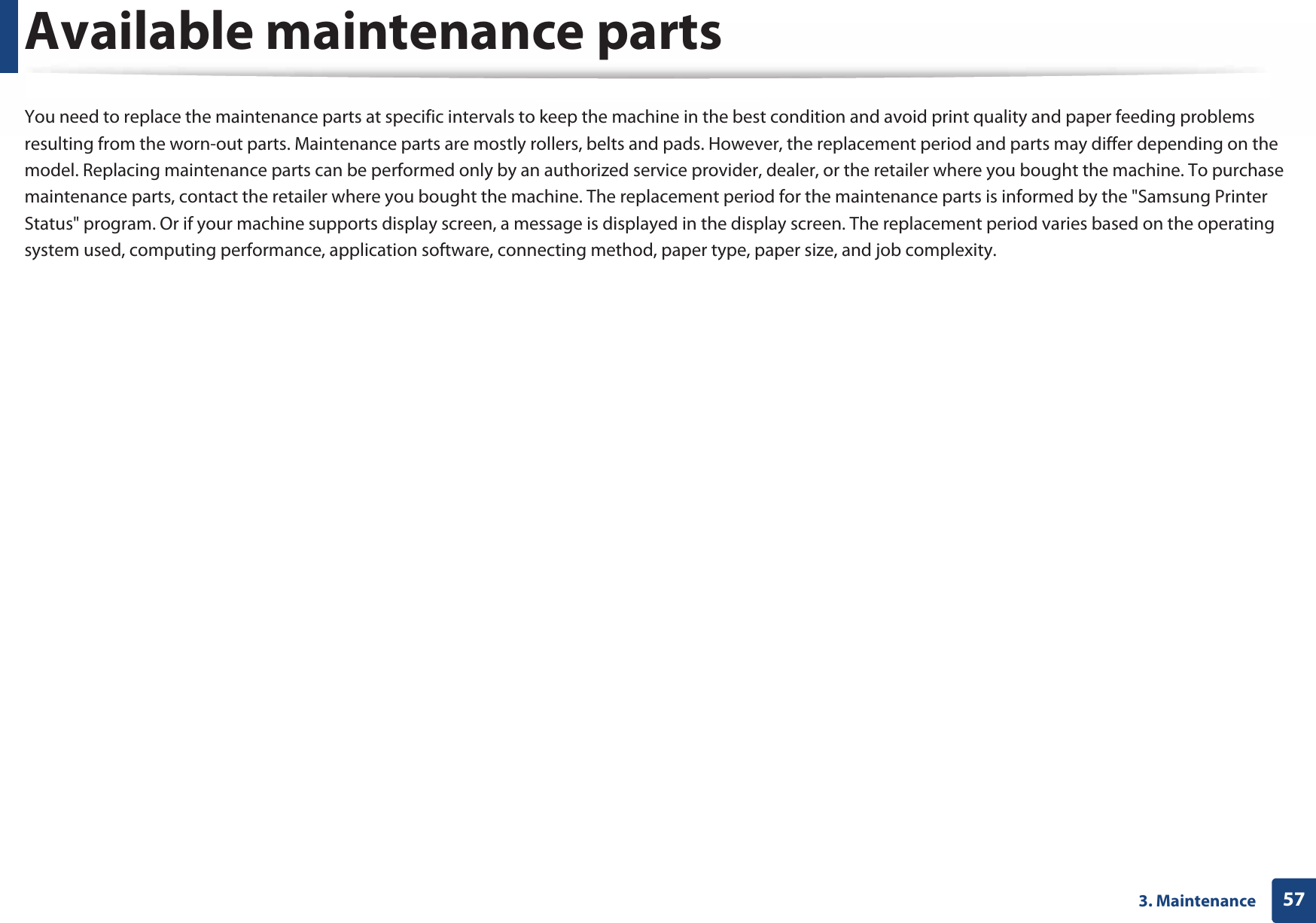

573. MaintenanceAvailable maintenance partsYou need to replace the maintenance parts at specific intervals to keep the machine in the best condition and avoid print quality and paper feeding problems resulting from the worn-out parts. Maintenance parts are mostly rollers, belts and pads. However, the replacement period and parts may differ depending on the model. Replacing maintenance parts can be performed only by an authorized service provider, dealer, or the retailer where you bought the machine. To purchase maintenance parts, contact the retailer where you bought the machine. The replacement period for the maintenance parts is informed by the "Samsung Printer Status" program. Or if your machine supports display screen, a message is displayed in the display screen. The replacement period varies based on the operating system used, computing performance, application software, connecting method, paper type, paper size, and job complexity.

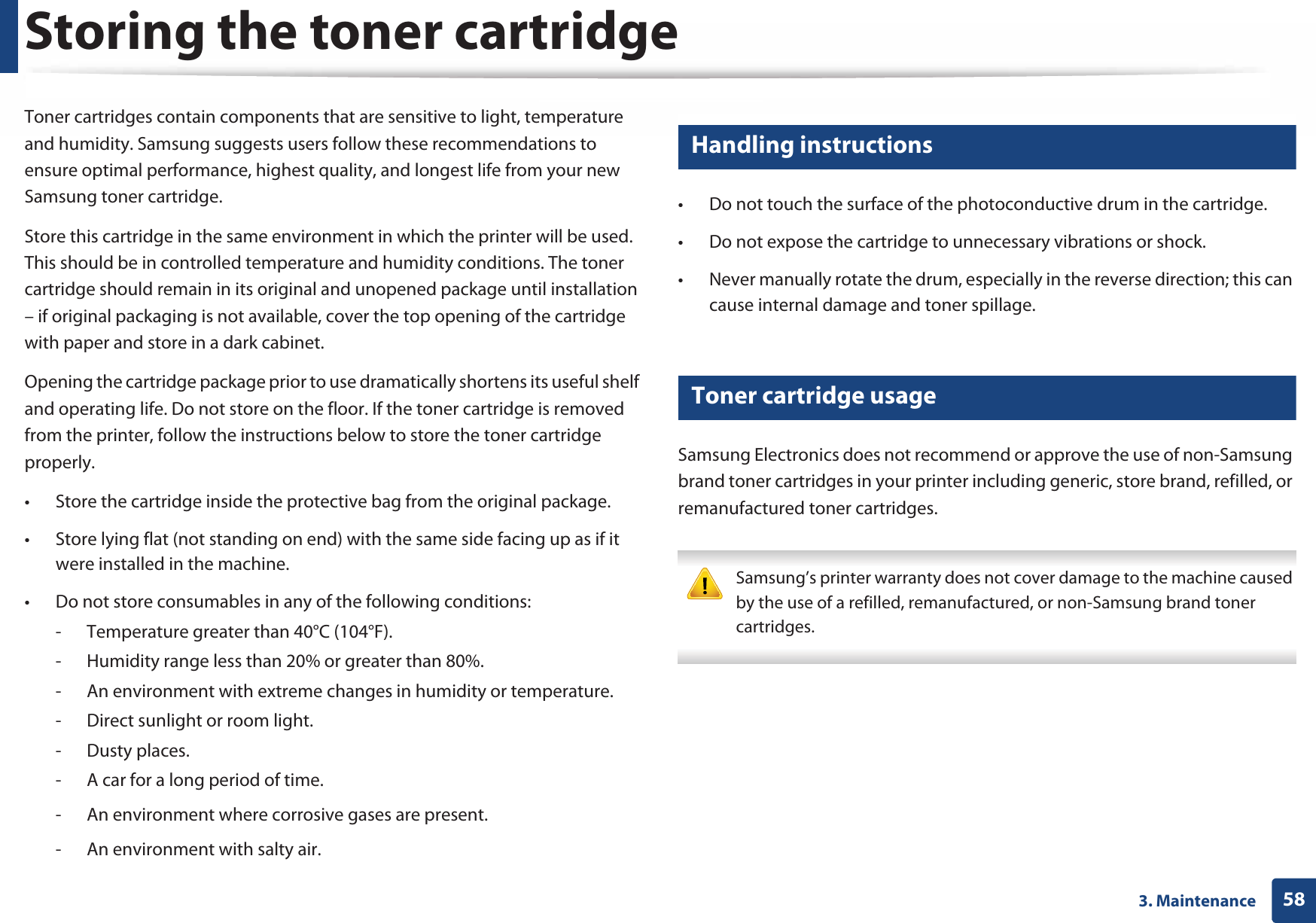

583. MaintenanceStoring the toner cartridgeToner cartridges contain components that are sensitive to light, temperature and humidity. Samsung suggests users follow these recommendations to ensure optimal performance, highest quality, and longest life from your new Samsung toner cartridge.Store this cartridge in the same environment in which the printer will be used. This should be in controlled temperature and humidity conditions. The toner cartridge should remain in its original and unopened package until installation – if original packaging is not available, cover the top opening of the cartridge with paper and store in a dark cabinet.Opening the cartridge package prior to use dramatically shortens its useful shelf and operating life. Do not store on the floor. If the toner cartridge is removed from the printer, follow the instructions below to store the toner cartridge properly.• Store the cartridge inside the protective bag from the original package. • Store lying flat (not standing on end) with the same side facing up as if it were installed in the machine.• Do not store consumables in any of the following conditions:- Temperature greater than 40°C (104°F).- Humidity range less than 20% or greater than 80%.- An environment with extreme changes in humidity or temperature.- Direct sunlight or room light.- Dusty places.- A car for a long period of time.- An environment where corrosive gases are present.- An environment with salty air.1 Handling instructions• Do not touch the surface of the photoconductive drum in the cartridge.• Do not expose the cartridge to unnecessary vibrations or shock.• Never manually rotate the drum, especially in the reverse direction; this can cause internal damage and toner spillage.2 Toner cartridge usageSamsung Electronics does not recommend or approve the use of non-Samsung brand toner cartridges in your printer including generic, store brand, refilled, or remanufactured toner cartridges. Samsung’s printer warranty does not cover damage to the machine caused by the use of a refilled, remanufactured, or non-Samsung brand toner cartridges.

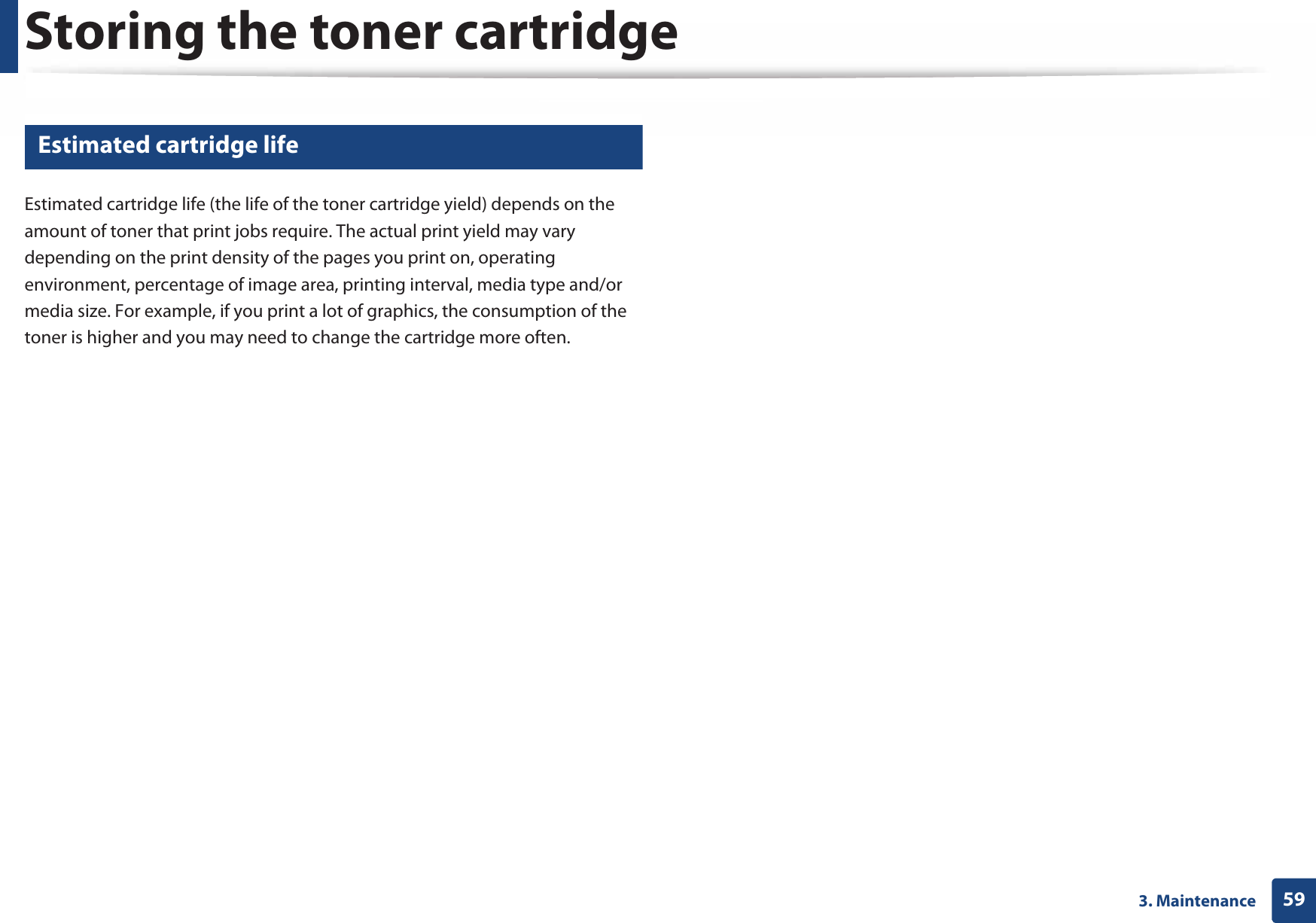

Storing the toner cartridge593. Maintenance3 Estimated cartridge lifeEstimated cartridge life (the life of the toner cartridge yield) depends on the amount of toner that print jobs require. The actual print yield may vary depending on the print density of the pages you print on, operating environment, percentage of image area, printing interval, media type and/or media size. For example, if you print a lot of graphics, the consumption of the toner is higher and you may need to change the cartridge more often.

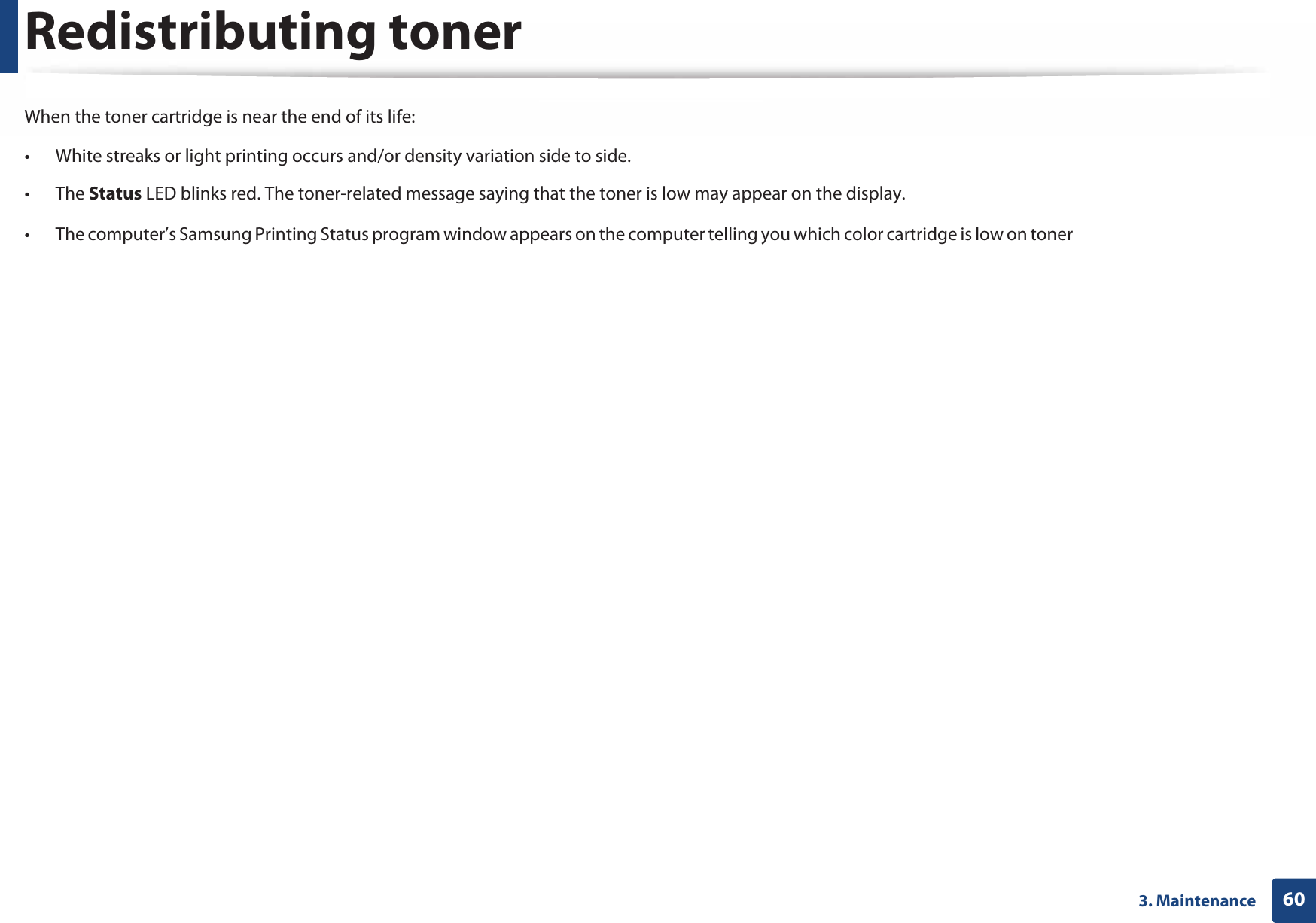

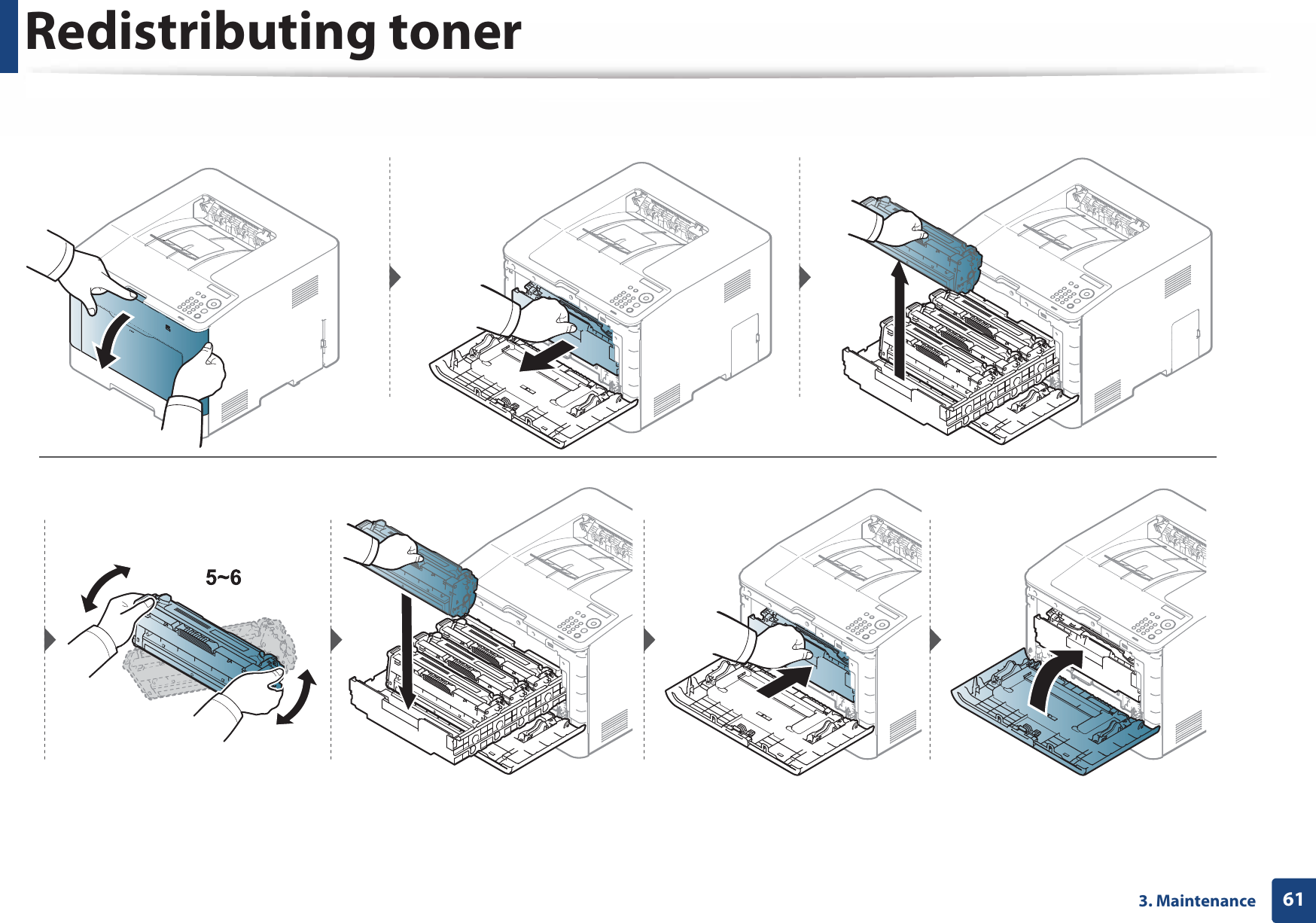

603. MaintenanceRedistributing tonerWhen the toner cartridge is near the end of its life:• White streaks or light printing occurs and/or density variation side to side. • The Status LED blinks red. The toner-related message saying that the toner is low may appear on the display.• The computer’s Samsung Printing Status program window appears on the computer telling you which color cartridge is low on toner (see "Using Samsung Printer Status" on page 240).If this happens, you can temporarily improve print quality by redistributing the remaining toner in the cartridge. In some cases, white streaks or light printing will still occur even after you have redistributed the toner. Check the type of the toner cartridge for your machine (see "Available consumables" on page 55). Illustrations on this user’s guide may differ from your machine depending on its options or models. Check your machine type (see "Front view" on page 18). • To prevent damage to the toner cartridge, do not expose it to light for more than a few minutes. Cover it with a piece of paper, if necessary. • Do not touch the green area of the toner cartridge. Use the handle on the cartridge to avoid touching this area. • Do not use sharp objects such as a knife or scissors to open the toner cartridge package. They might scratch the drum of the cartridge.• If toner gets on your clothing, wipe it off with a dry cloth and wash clothing in cold water. Hot water sets toner into fabric.
Redistributing toner613. Maintenance

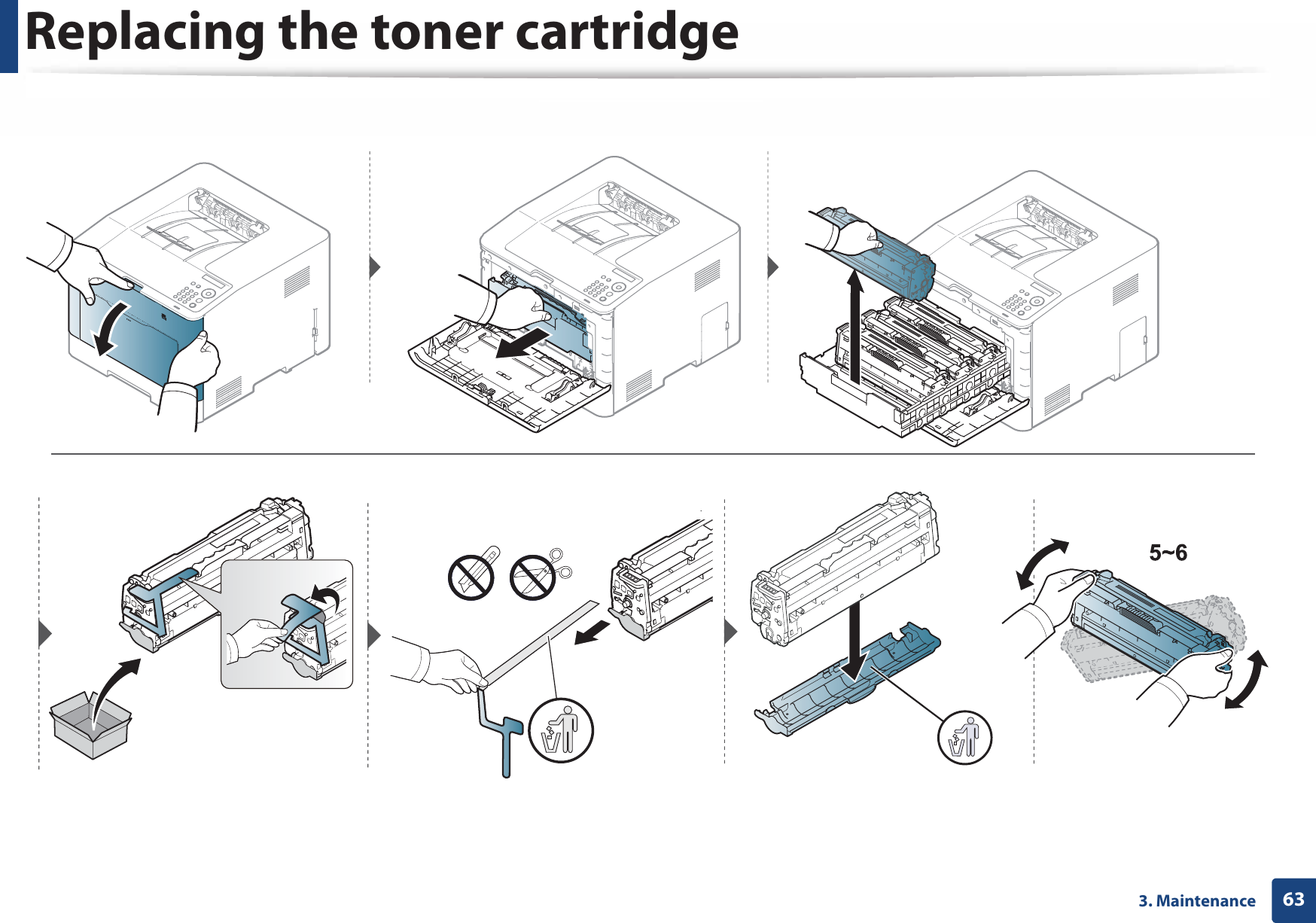

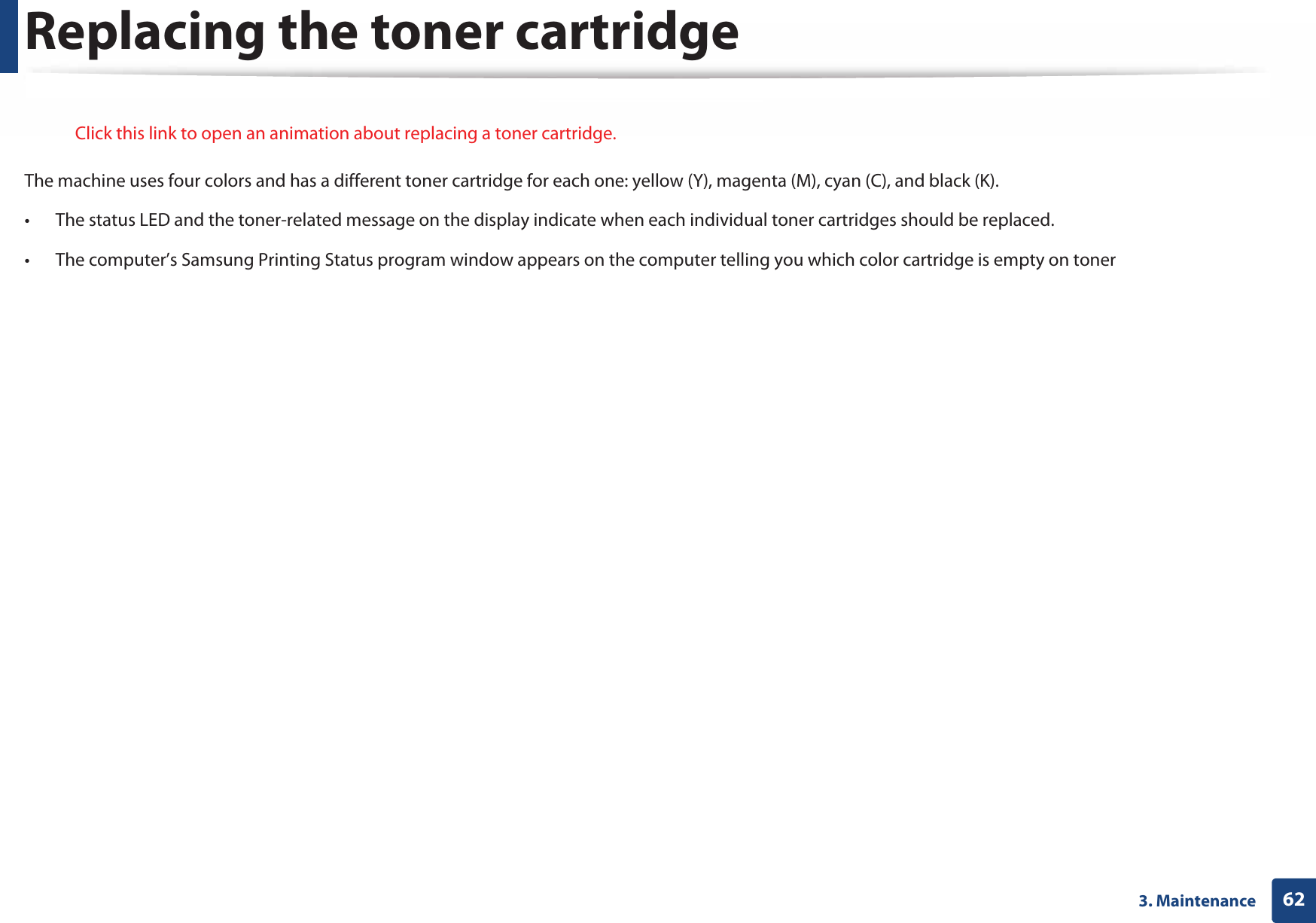

623. MaintenanceReplacing the toner cartridge Click this link to open an animation about replacing a toner cartridge.The machine uses four colors and has a different toner cartridge for each one: yellow (Y), magenta (M), cyan (C), and black (K).• The status LED and the toner-related message on the display indicate when each individual toner cartridges should be replaced. • The computer’s Samsung Printing Status program window appears on the computer telling you which color cartridge is empty on toner (see "Using Samsung Printer Status" on page 240).Check the type of the toner cartridge for your machine (see "Available consumables" on page 55). • Shake the toner cartridge thoroughly, it will increase the initial print quality.• Illustrations on this user’s guide may differ from your machine depending on its options or models. Check your machine type (see "Front view" on page 18). • To prevent damage to the toner cartridge, do not expose it to light for more than a few minutes. Cover it with a piece of paper, if necessary. • Do not touch the green area of the toner cartridge. Use the handle on the cartridge to avoid touching this area. • Do not use sharp objects such as a knife or scissors to open the toner cartridge package. They might scratch the drum of the cartridge.• If toner gets on your clothing, wipe it off with a dry cloth and wash clothing in cold water. Hot water sets toner into fabric.
Replacing the toner cartridge633. Maintenance

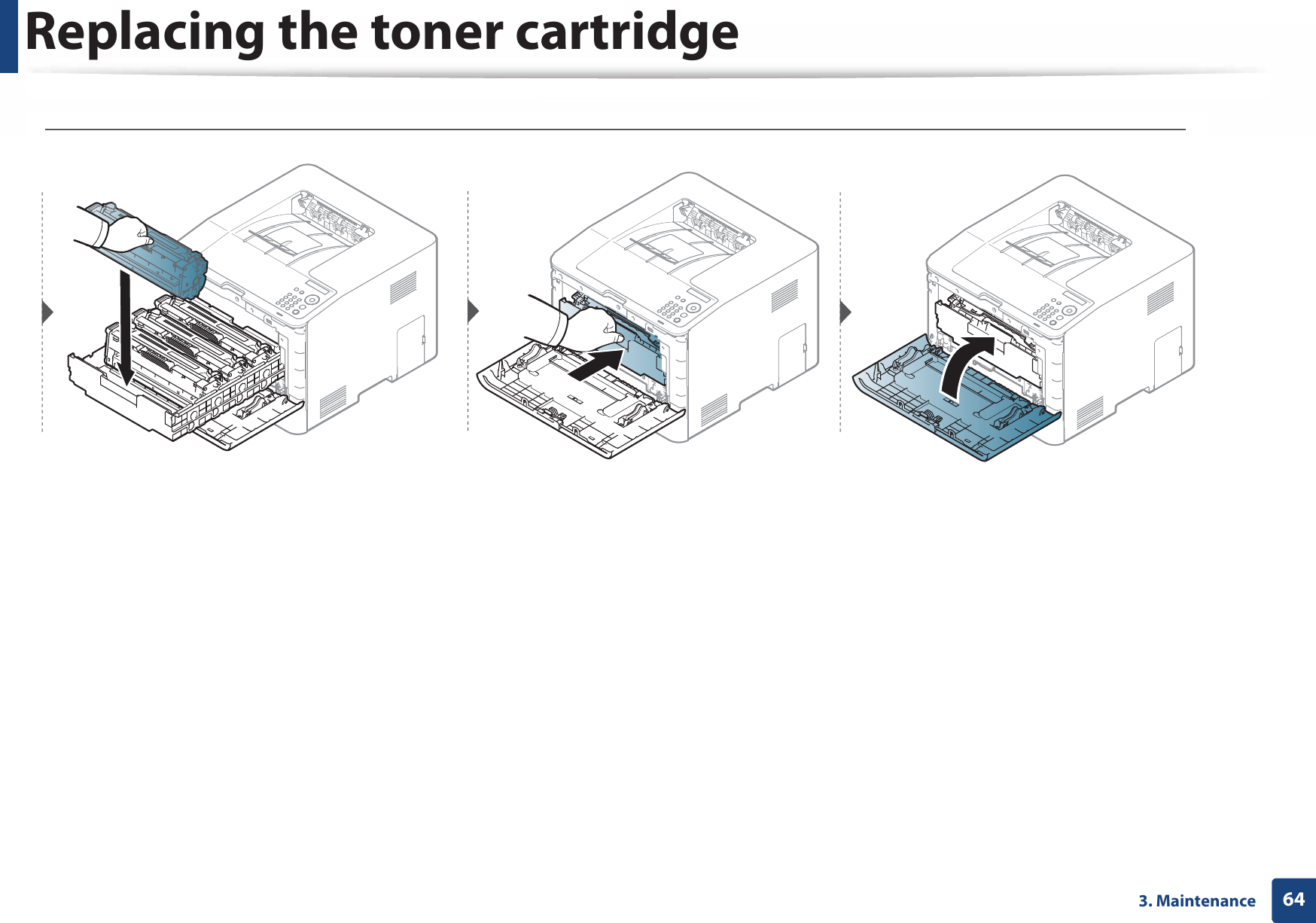

Replacing the toner cartridge643. Maintenance

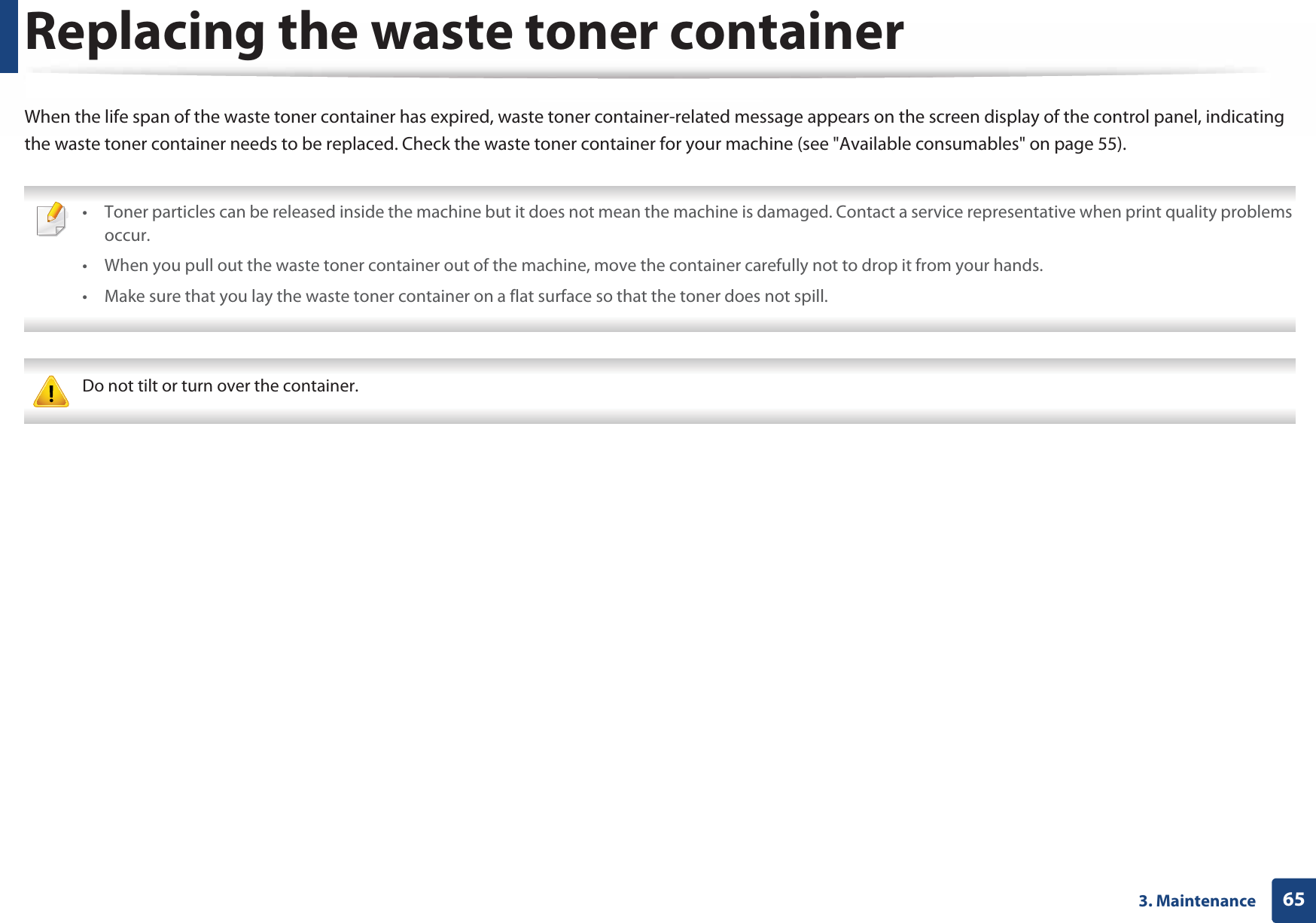

653. MaintenanceReplacing the waste toner containerWhen the life span of the waste toner container has expired, waste toner container-related message appears on the screen display of the control panel, indicating the waste toner container needs to be replaced. Check the waste toner container for your machine (see "Available consumables" on page 55). • Toner particles can be released inside the machine but it does not mean the machine is damaged. Contact a service representative when print quality problems occur.• When you pull out the waste toner container out of the machine, move the container carefully not to drop it from your hands.• Make sure that you lay the waste toner container on a flat surface so that the toner does not spill. Do not tilt or turn over the container.

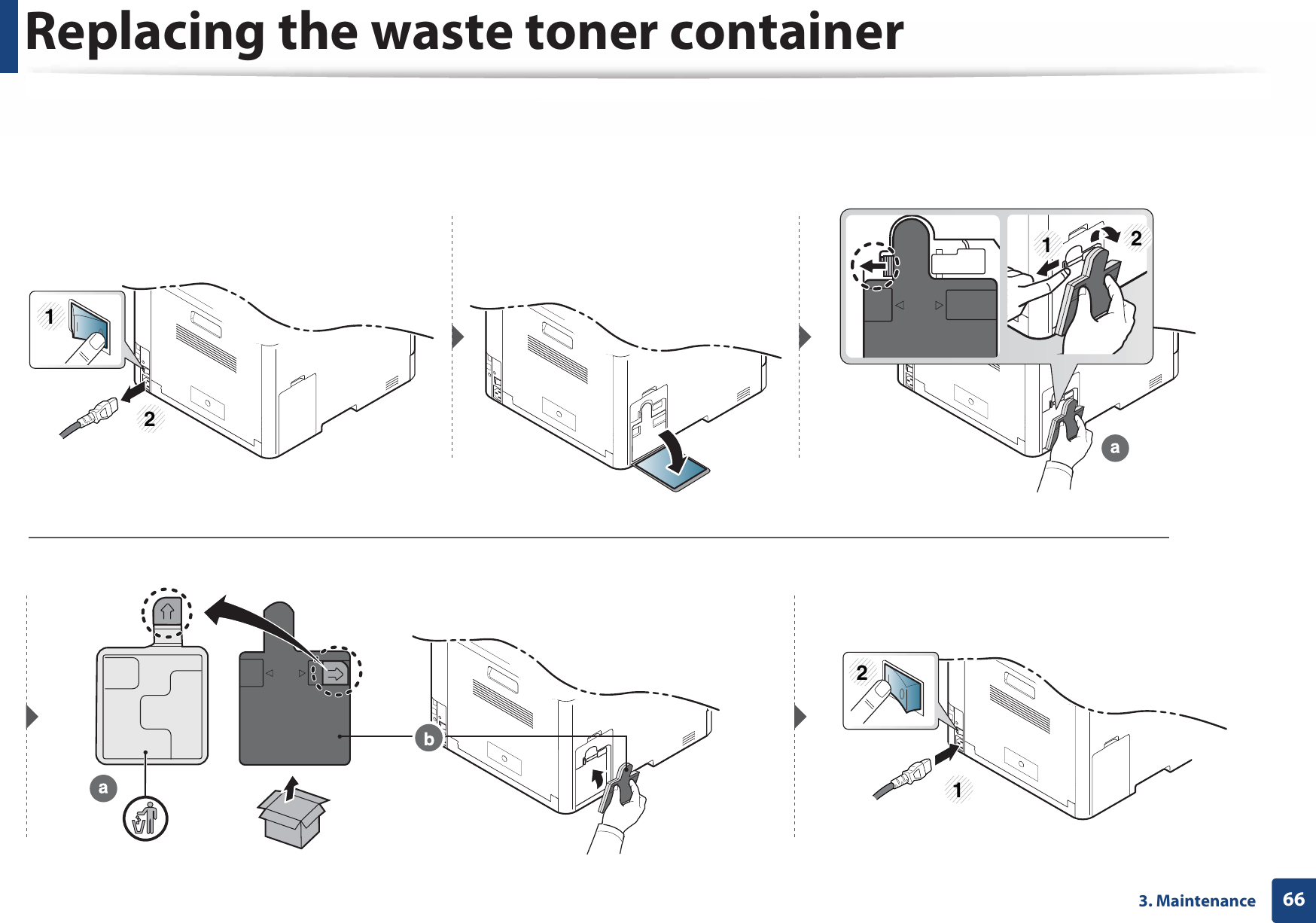

Replacing the waste toner container663. Maintenance121212

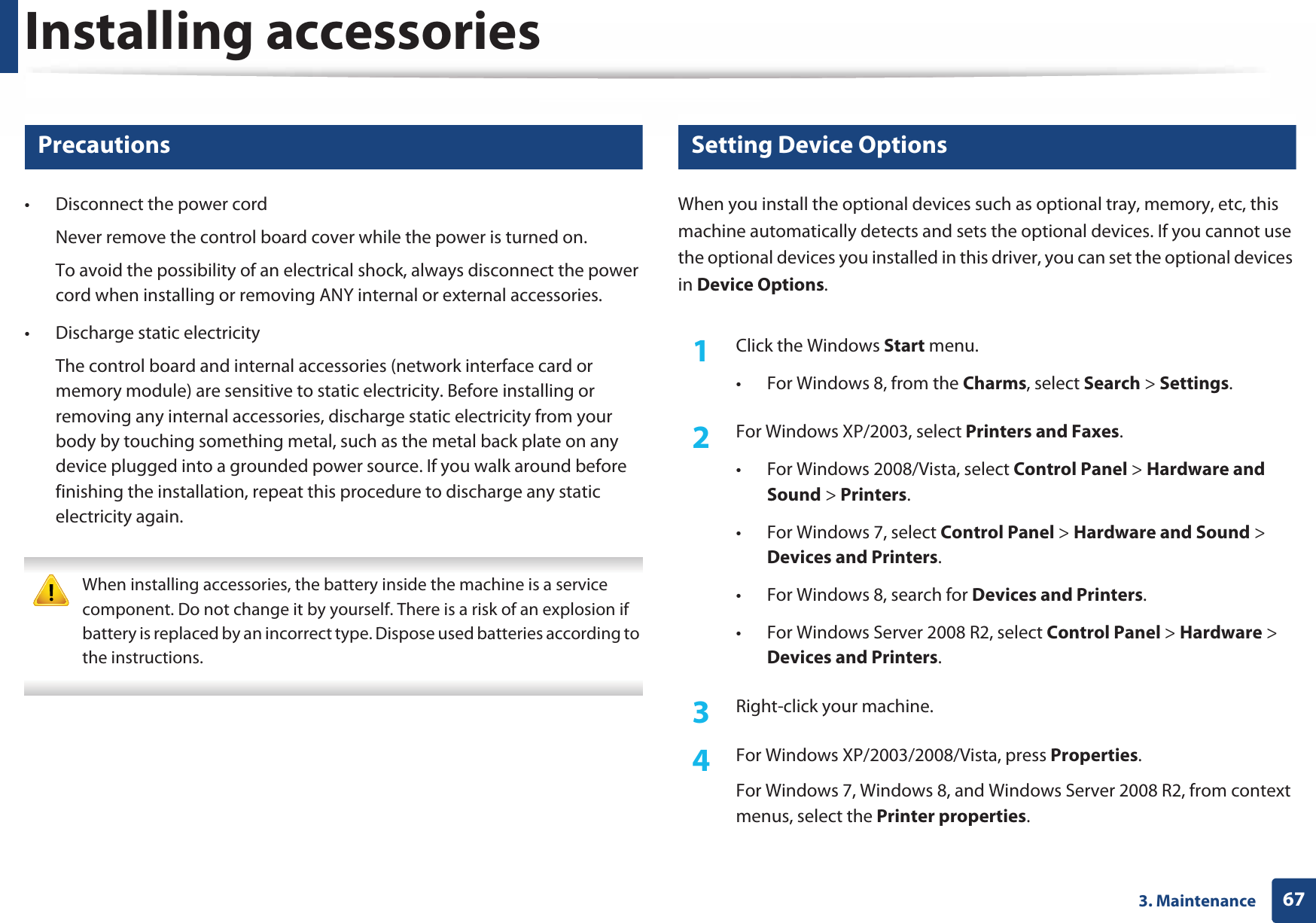

673. MaintenanceInstalling accessories4 Precautions• Disconnect the power cordNever remove the control board cover while the power is turned on.To avoid the possibility of an electrical shock, always disconnect the power cord when installing or removing ANY internal or external accessories.• Discharge static electricityThe control board and internal accessories (network interface card or memory module) are sensitive to static electricity. Before installing or removing any internal accessories, discharge static electricity from your body by touching something metal, such as the metal back plate on any device plugged into a grounded power source. If you walk around before finishing the installation, repeat this procedure to discharge any static electricity again. When installing accessories, the battery inside the machine is a service component. Do not change it by yourself. There is a risk of an explosion if battery is replaced by an incorrect type. Dispose used batteries according to the instructions. 5 Setting Device OptionsWhen you install the optional devices such as optional tray, memory, etc, this machine automatically detects and sets the optional devices. If you cannot use the optional devices you installed in this driver, you can set the optional devices in Device Options.1Click the Windows Start menu.• For Windows 8, from the Charms, select Search > Settings.2 For Windows XP/2003, select Printers and Faxes.• For Windows 2008/Vista, select Control Panel > Hardware and Sound > Printers.• For Windows 7, select Control Panel > Hardware and Sound > Devices and Printers.• For Windows 8, search for Devices and Printers.• For Windows Server 2008 R2, select Control Panel > Hardware > Devices and Printers.3 Right-click your machine. 4 For Windows XP/2003/2008/Vista, press Properties.For Windows 7, Windows 8, and Windows Server 2008 R2, from context menus, select the Printer properties.
Installing accessories683. Maintenance If Printer properties item has ▶ mark, you can select other printer drivers connected with selected printer. 5 Select Device Options. The Properties window may differ depending on the driver or operating system you are using. 6 Select the appropriate option. Some menus may not appear in the display depending on options or models. if so, it is not applicable to your machine. •Tray Options: Select the optional tray you installed. You can select the tray. •Storage Options: Select the optional memory you installed. If this feature is checked, you can select the Print Mode.•Printer Configuration: Select the printer language for the print job. •Administrator Settings: You can select the Printer Status and EMF Spooling.•Admin Job Accounting: Allows you to associate user and account identification information with each document you print.-User permission: If you check this option, only users with user permission can start a print job.-Group permission: If you check this option, only groups with group permission can start a print job. If you want to encrypt job accounting password, check Job Accounting Password Encryption. •Custom Paper Size Settings: You can specify custom paper size.7 Click OK until you exit the Properties or Printer properties window.

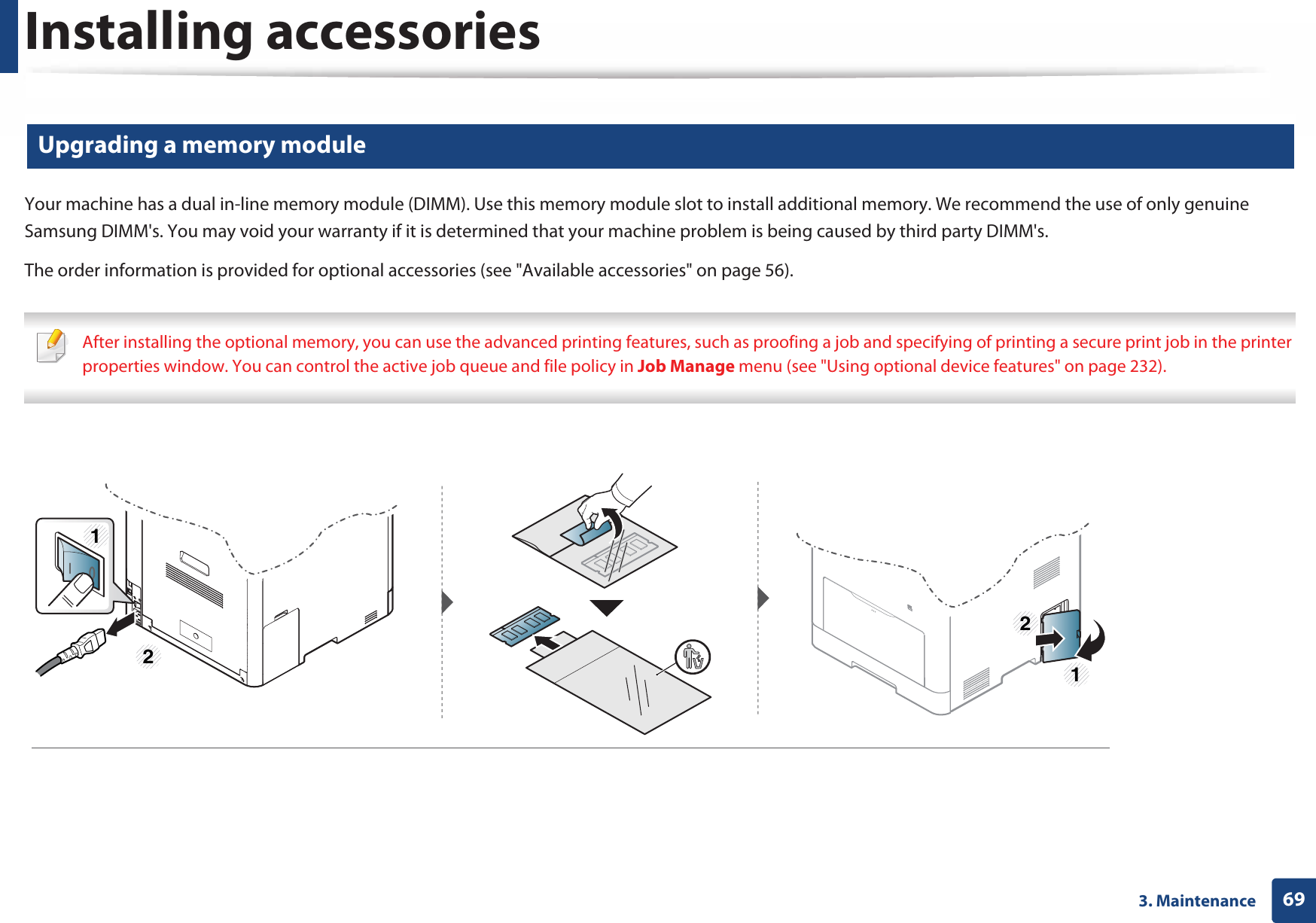

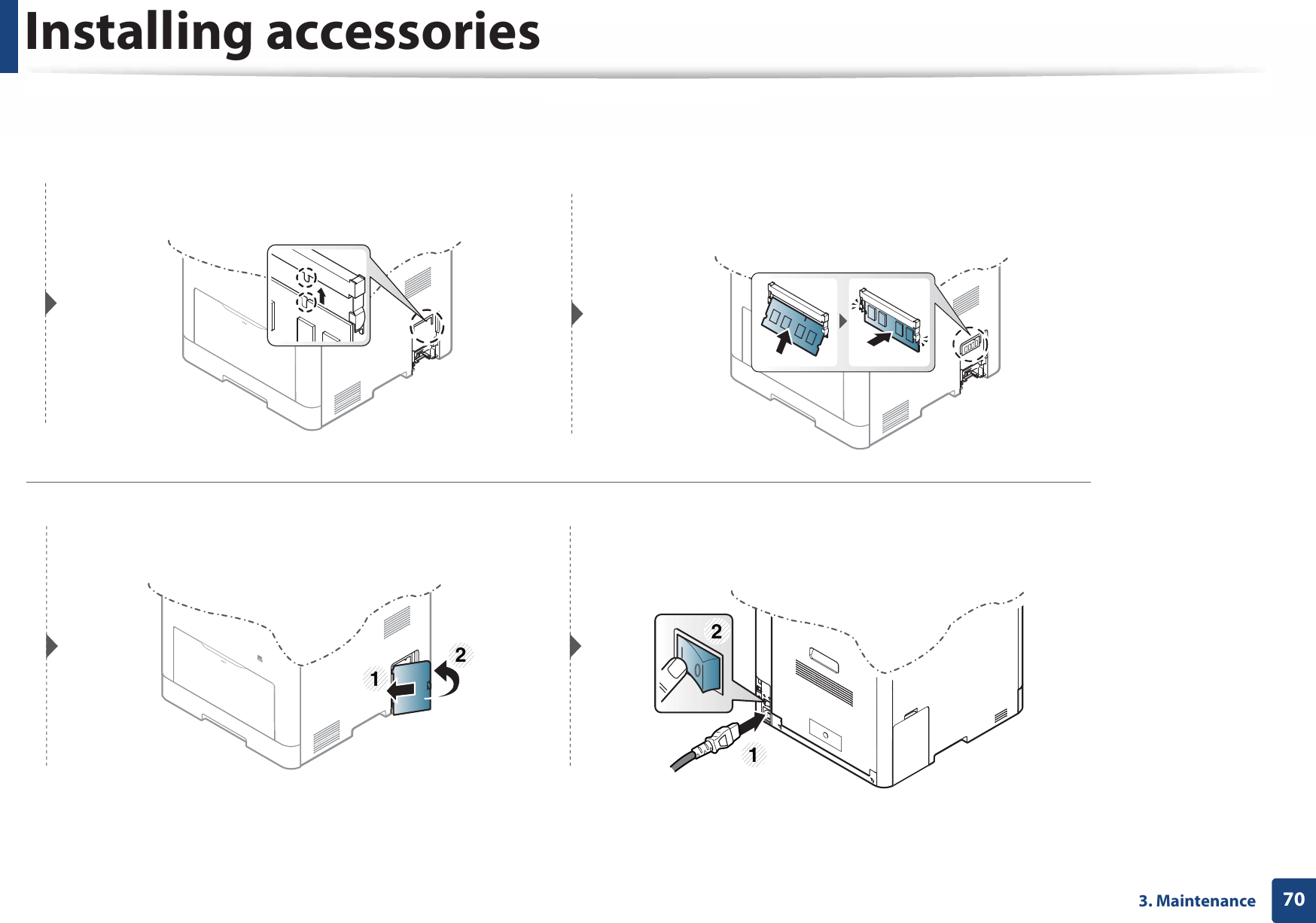

Installing accessories693. Maintenance6 Upgrading a memory moduleYour machine has a dual in-line memory module (DIMM). Use this memory module slot to install additional memory. We recommend the use of only genuine Samsung DIMM's. You may void your warranty if it is determined that your machine problem is being caused by third party DIMM's.The order information is provided for optional accessories (see "Available accessories" on page 56). After installing the optional memory, you can use the advanced printing features, such as proofing a job and specifying of printing a secure print job in the printer properties window. You can control the active job queue and file policy in Job Manage menu (see "Using optional device features" on page 232). 1212
Installing accessories703. Maintenance1212

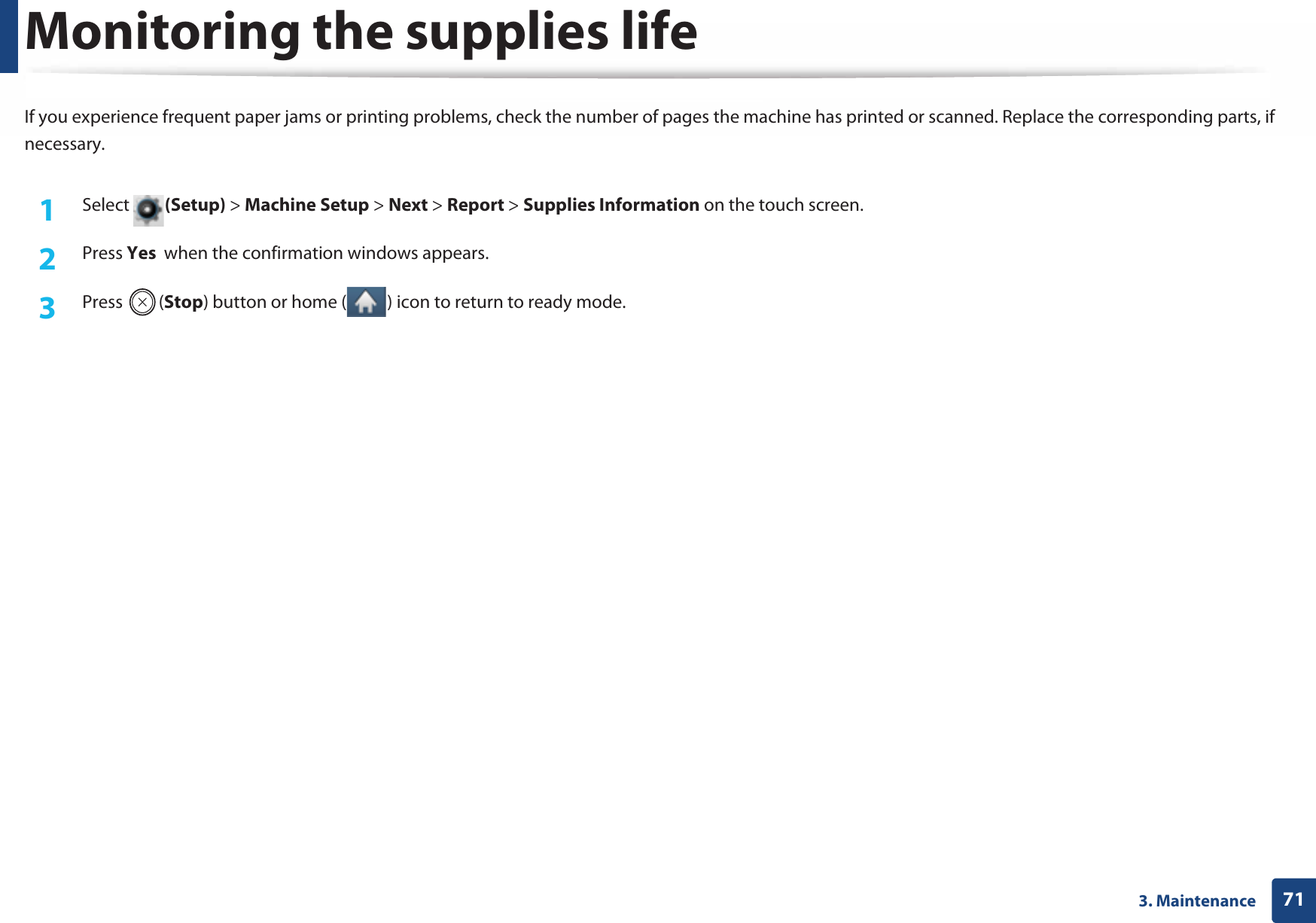

713. MaintenanceMonitoring the supplies lifeIf you experience frequent paper jams or printing problems, check the number of pages the machine has printed or scanned. Replace the corresponding parts, if necessary.1Select (Setup) > Machine Setup > Next > Report > Supplies Information on the touch screen.2 Press Yes when the confirmation windows appears.3 Press (Stop) button or home ( ) icon to return to ready mode.
723. MaintenanceSetting the toner low alertIf the amount of toner in the cartridge is low, a message or LED informing the user to change the toner cartridge appears. You can set the option for whether or not this message or LED appears. You can set the machine’s settings by using the Device Settings in Samsung Easy Printer Manager program.• For Windows and Mac users, you set from Samsung Easy Printer Manager > (Switch to advanced mode) > Device Settings, see "Device Settings" on page 239. 1Select (Setup) > Machine Setup > Next > Initial Setup > Toner Status Alert on the touch screen.2 Select the option you want.3 Press (back) to save the selection.4 Press (Stop) button or home ( ) icon to return to ready mode.

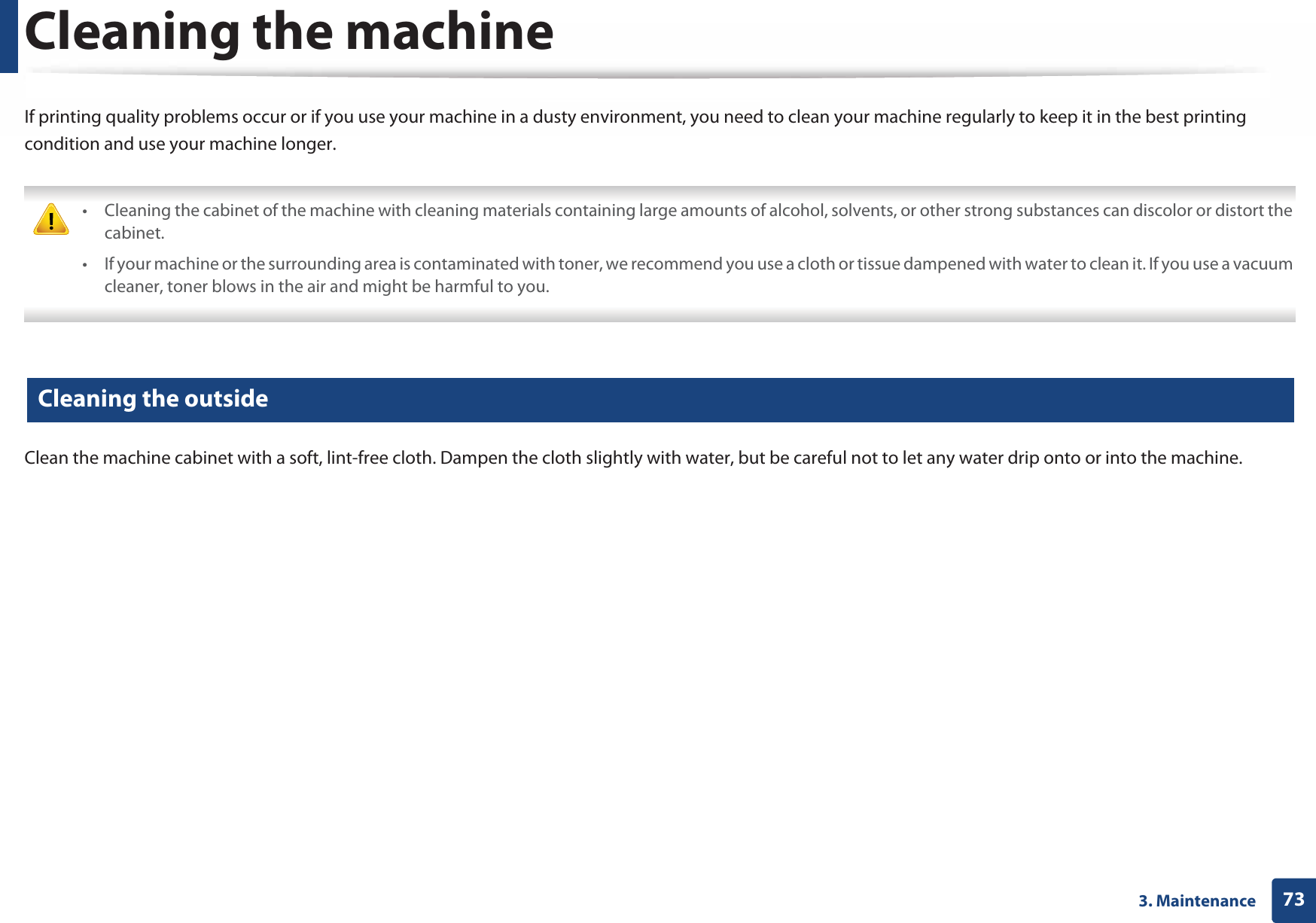

733. MaintenanceCleaning the machineIf printing quality problems occur or if you use your machine in a dusty environment, you need to clean your machine regularly to keep it in the best printing condition and use your machine longer. • Cleaning the cabinet of the machine with cleaning materials containing large amounts of alcohol, solvents, or other strong substances can discolor or distort the cabinet. • If your machine or the surrounding area is contaminated with toner, we recommend you use a cloth or tissue dampened with water to clean it. If you use a vacuum cleaner, toner blows in the air and might be harmful to you. 7 Cleaning the outsideClean the machine cabinet with a soft, lint-free cloth. Dampen the cloth slightly with water, but be careful not to let any water drip onto or into the machine.

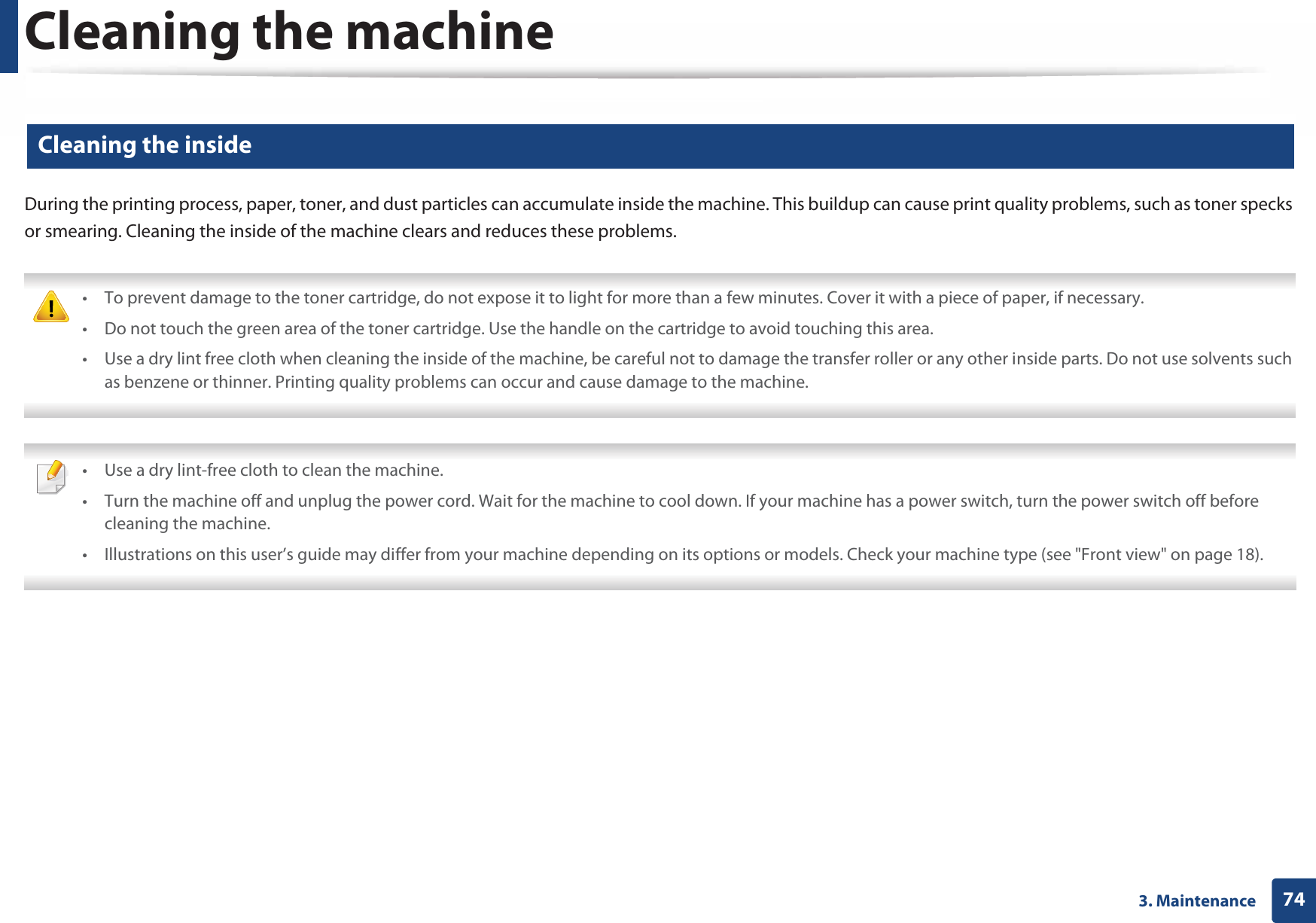

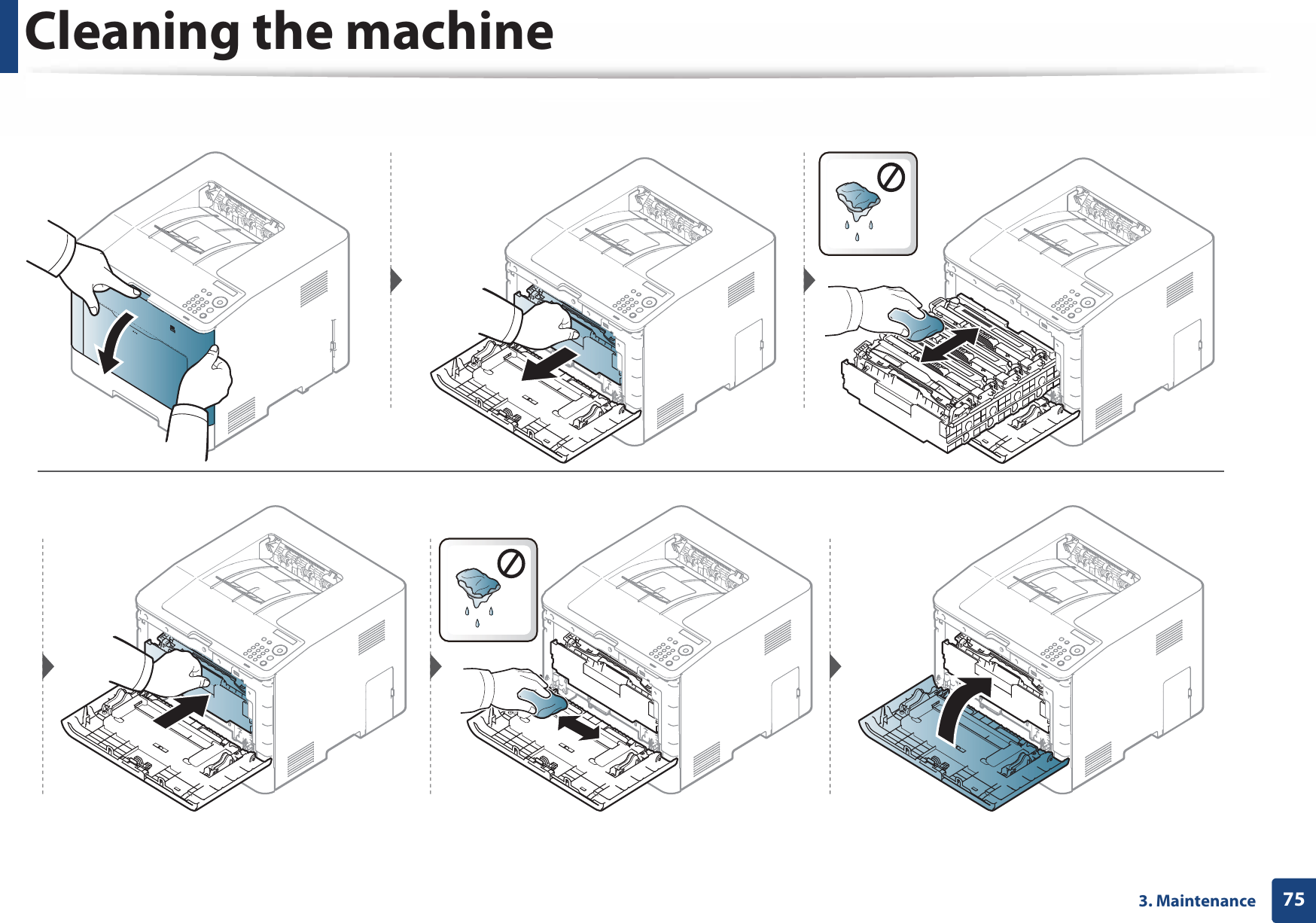

Cleaning the machine743. Maintenance8 Cleaning the insideDuring the printing process, paper, toner, and dust particles can accumulate inside the machine. This buildup can cause print quality problems, such as toner specks or smearing. Cleaning the inside of the machine clears and reduces these problems. • To prevent damage to the toner cartridge, do not expose it to light for more than a few minutes. Cover it with a piece of paper, if necessary. • Do not touch the green area of the toner cartridge. Use the handle on the cartridge to avoid touching this area. • Use a dry lint free cloth when cleaning the inside of the machine, be careful not to damage the transfer roller or any other inside parts. Do not use solvents such as benzene or thinner. Printing quality problems can occur and cause damage to the machine. • Use a dry lint-free cloth to clean the machine.• Turn the machine off and unplug the power cord. Wait for the machine to cool down. If your machine has a power switch, turn the power switch off before cleaning the machine.• Illustrations on this user’s guide may differ from your machine depending on its options or models. Check your machine type (see "Front view" on page 18).
Cleaning the machine753. Maintenance

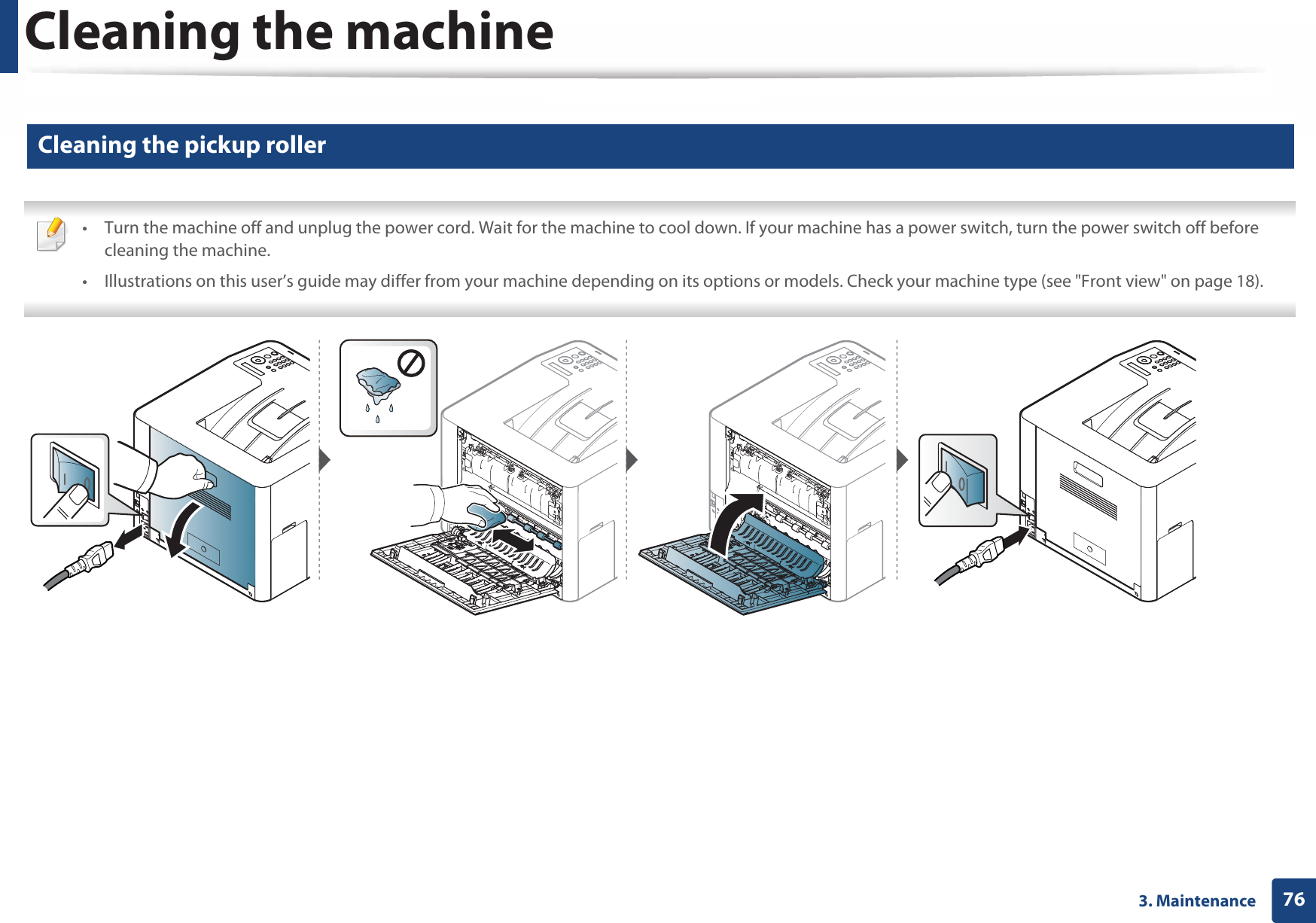

Cleaning the machine763. Maintenance9 Cleaning the pickup roller • Turn the machine off and unplug the power cord. Wait for the machine to cool down. If your machine has a power switch, turn the power switch off before cleaning the machine.• Illustrations on this user’s guide may differ from your machine depending on its options or models. Check your machine type (see "Front view" on page 18).

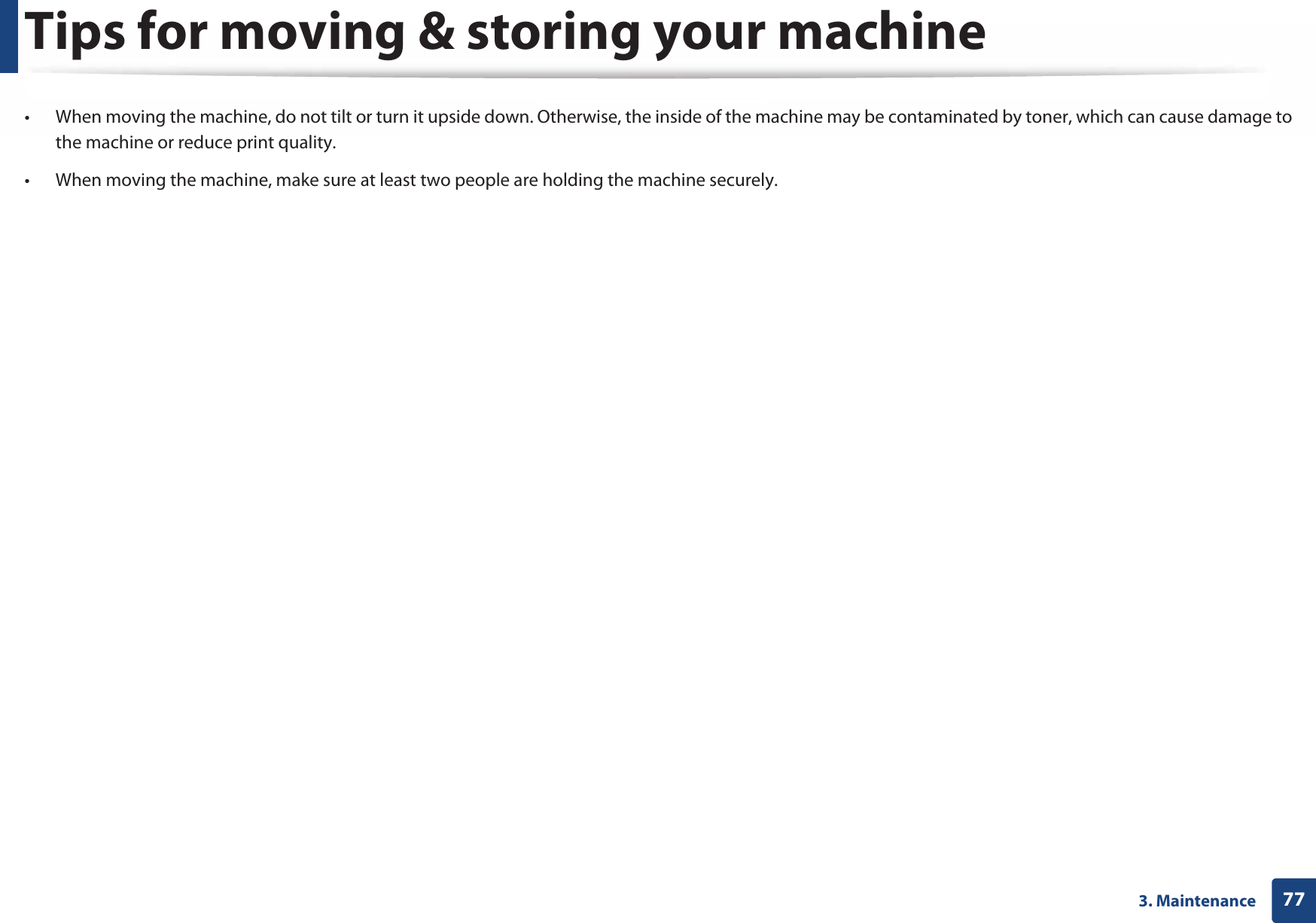

773. MaintenanceTips for moving & storing your machine• When moving the machine, do not tilt or turn it upside down. Otherwise, the inside of the machine may be contaminated by toner, which can cause damage to the machine or reduce print quality.• When moving the machine, make sure at least two people are holding the machine securely.
