BASICUser’s GuideBASICUser’s GuideThis guide provides information concerning installation, basic operation and troubleshooting on windows.ADVANCEDThis guide provides information about installation, advanced configuration, operation and troubleshooting on various OS environments. Some features may not be available depending on models or countries.
2BASIC1. IntroductionKey benefits 4Features by models 6Useful to know 8About this user’s guide 9Safety information 10Machine overview 15Control panel overview 17Turning on the machine 19Installing the driver locally 20Reinstalling the driver 222. Basic setupPrinting a demo page 24Media and tray 25Basic printing 363. MaintenanceOrdering consumables and option 42Available consumables 43Available maintenance parts 44Storing the toner cartridge 45Redistributing toner 47Replacing the toner cartridge 49Replacing the imaging unit 52Cleaning the machine 53Tips for moving & storing your machine 574. TroubleshootingTips for avoiding paper jams 59Clearing paper jams 60Understanding the LED 685. AppendixSpecifications 71Regulatory information 80Copyright 90
1. IntroductionThis chapter provides information you need to know before using the machine.• Key benefits 4• Features by models 6• Useful to know 8• About this user’s guide 9• Safety information 10• Machine overview 15• Control panel overview 17• Turning on the machine 19• Installing the driver locally 20• Reinstalling the driver 22
Key benefitsEnvironmentally friendly• To save toner and paper, this machine supports the Eco feature.• To save paper, you can print multiple pages on a single sheet of paper (see "Using advanced print features" on page 154).• To save paper, you can print on both sides of the paper (double-sided printing) (see "Using advanced print features" on page 154).• To save electricity, this machine automatically conserves electricity by substantially reducing power consumption when not in use.• We recommend using recycled paper for saving energy.Print with excellent quality and speed• You can print with a resolution of up to 4,800 x 600 dpi effective (600 x 600 x 3 bit) output.• Fast, on-demand printing.- Samsung Printer Xpress M262x seriesƒFor single-side printing, 26 ppm (A4) or 27 ppm (Letter).- Samsung Printer Xpress M282x SeriesƒFor single-sde printing, 28 ppm (A4) or 29 ppm (Letter).Convenience• You can print on the go from your smartphone or computer using Google Cloud Print™ enabled appsG(see "Google Cloud Print™" on page 146).• Easy Capture Manager allows you to easily edit and print whatever you captured using the Print Screen key on the keyboardG(see "Easy Capture Manager" on page 171).• Samsung Easy Printer Manager and Samsung Printer Status are a program that monitors and informs you of the machine’s status and allows you to customize the machine’s settings (see "Using Samsung Easy Printer Manager" on page 177 or "Using Samsung Printer Status" on page 180).• AnyWeb Print helps you screen-capture, preview, scrap, and print the screen more easily than when you use the ordinary program (see "Samsung AnyWeb Print" on page 172).• Smart Update allows you to check for the latest software and install the latest version during the printer driver installation process. This is available only for Windows OS users.• If you have Internet access, you can get help, support application, machine drivers, manuals, and order information from the Samsung website, www.samsung.com > find your product > Support or Downloads.
Key benefitsWide range of functionality and application support• Supports various paper sizes (see "Print media specifications" on page 73).• Print watermark: You can customize your documents with words, such as “CONFIDENTIAL” (see "Using advanced print features" on page 154).• Print posters: The text and pictures of each page of your document are magnified and printed across the multiple sheets of paper and can then be taped together to form a poster (see "Using advanced print features" on page 154).• You can print in various operating systems (see "System requirements" on page 76).• Your machine is equipped with a USB interface and/or a network interface.Supports various wireless network setting method • Using the WPS (Wi-Fi Protected Setup™) button- You can easily connect to a wireless network using the WPS button on the machine and the access point (a wireless router).• Using the USB cable or a network cable- You can connect and set various wireless network settings using a USB cable or a network cable.• Using the Wi-Fi Direct- You can conveniently print from your mobile device using the Wi-Fi or Wi-Fi Direct feature. See "Introducing wireless set up methods" on page 116.

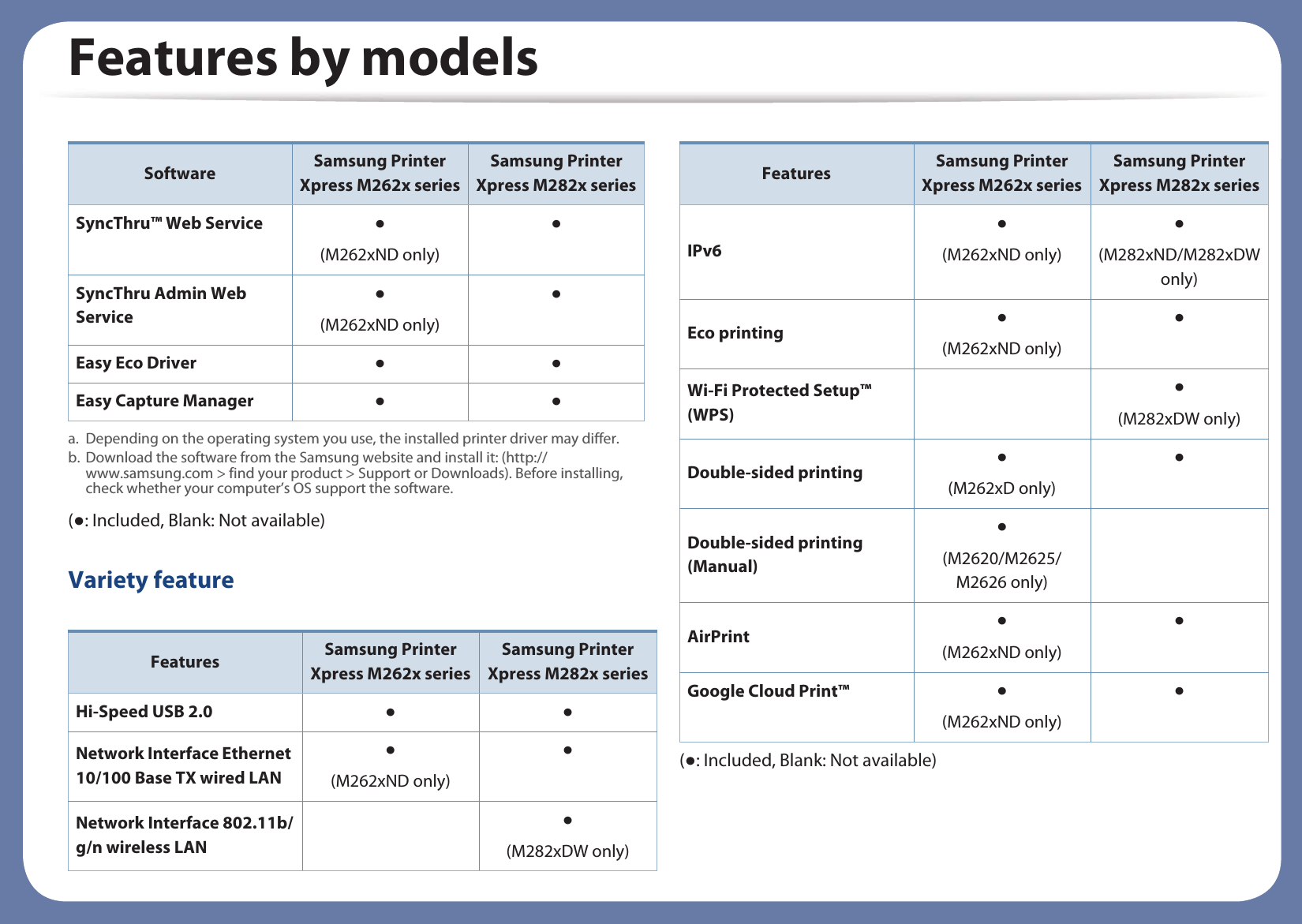

Features by modelsSome features and optional goods may not be available depending on model or country.Operating System(Ɣ: Included, Blank: Not available) Software You can install the printer driver and software when you isnsert the software CD into your CD-ROM drive.For Windows, select the printer driver and software in the Select Software to Install window. Operating System Samsung Printer Xpress M262x seriesSamsung Printer Xpress M282x seriesWindows Ɣ ƔMac Ɣ ƔLinux Ɣ ƔUnix ƔSoftware Samsung Printer Xpress M262x seriesSamsung Printer Xpress M282x seriesSPL printer driveraƔ ƔPCL printer driverƔ(M262xND only)ƔPS printer driverXPS printer driverbƔ ƔSamsung Easy Printer ManagerDevice SettingsƔ ƔSamsung Printer Status Ɣ ƔDirect Printing UtilitybSamsung AnyWeb PrintbƔ Ɣ
Features by models(Ɣ: Included, Blank: Not available) Variety feature(Ɣ: Included, Blank: Not available) SyncThru™ Web Service Ɣ(M262xND only)ƔSyncThru Admin Web ServiceƔ(M262xND only)ƔEasy Eco Driver Ɣ ƔEasy Capture Manager Ɣ Ɣa. Depending on the operating system you use, the installed printer driver may differ.b. Download the software from the Samsung website and install it: (http://www.samsung.com > find your product > Support or Downloads). Before installing, check whether your computer’s OS support the software.Features Samsung Printer Xpress M262x seriesSamsung Printer Xpress M282x seriesHi-Speed USB 2.0 Ɣ ƔNetwork Interface Ethernet 10/100 Base TX wired LANƔ(M262xND only)ƔNetwork Interface 802.11b/g/n wireless LANƔ(M282xDW only)Software Samsung Printer Xpress M262x seriesSamsung Printer Xpress M282x seriesIPv6Ɣ(M262xND only)Ɣ(M282xND/M282xDW only)Eco printingƔ(M262xND only)ƔWi-Fi Protected Setup™ (WPS)Ɣ(M282xDW only)Double-sided printingƔ(M262xD only)ƔDouble-sided printing (Manual)Ɣ(M2620/M2625/M2626 only)AirPrintƔ(M262xND only)ƔGoogle Cloud Print™ Ɣ(M262xND only)ƔFeatures Samsung Printer Xpress M262x seriesSamsung Printer Xpress M282x series
Useful to knowThe machine does not print.• Open the print queue list and remove the document from the list (see "Canceling a print job" on page 37).• Remove the driver and install it again (see "Installing the driver locally" on page 20).• Select your machine as your default machine in your Windows.Where can I purchase option or consumables?• Inquire at a Samsung distributor or your retailer.• Visit www.samsung.com/supplies. Select your country/region to view product service information.The status LED flashes or remains constantly on.• Turn the product off and on again.• Check the meanings of LED indications in this manual and troubleshoot accordingly (see "Understanding the LED" on page 68).A paper jam has occurred.• Open and close the front door.• Check the instructions on removing jammed paper in this manual and troubleshoot accordingly (see "Clearing paper jams" on page 60).Printouts are blurry.• The toner level might be low or uneven. Shake the toner cartridge.• Try a different print resolution setting.• Replace the toner cartridge.Where can I download the machine’s driver?• Visit www.samsung.com/printer to download the latest machine’s driver, and install it on your system.
91. IntroductionAbout this user’s guideThis user's guide provides information for your basic understanding of the machine as well as detailed steps to explain machine usage.• Read the safety information before using the machine.• If you have a problem using the machine, refer to the troubleshooting chapter.• Terms used in this user’s guide are explained in the glossary chapter.• All illustrations in this user’s guide may differ from your machine depending on its options or model you purchased.• The screenshots in this user's guide may differ from your machine depending on the machine’s firmware/driver version.• The procedures in this user’s guide are mainly based on Windows 7.1 ConventionsSome terms in this guide are used interchangeably, as below:• Document is synonymous with original.• Paper is synonymous with media, or print media.• Machine refers to printer or MFP.2 General iconsIcon Text DescriptionCaution Gives users information to protect the machine from possible mechanical damage or malfunction.Note Provides additional information or detailed specification of the machine function and feature.

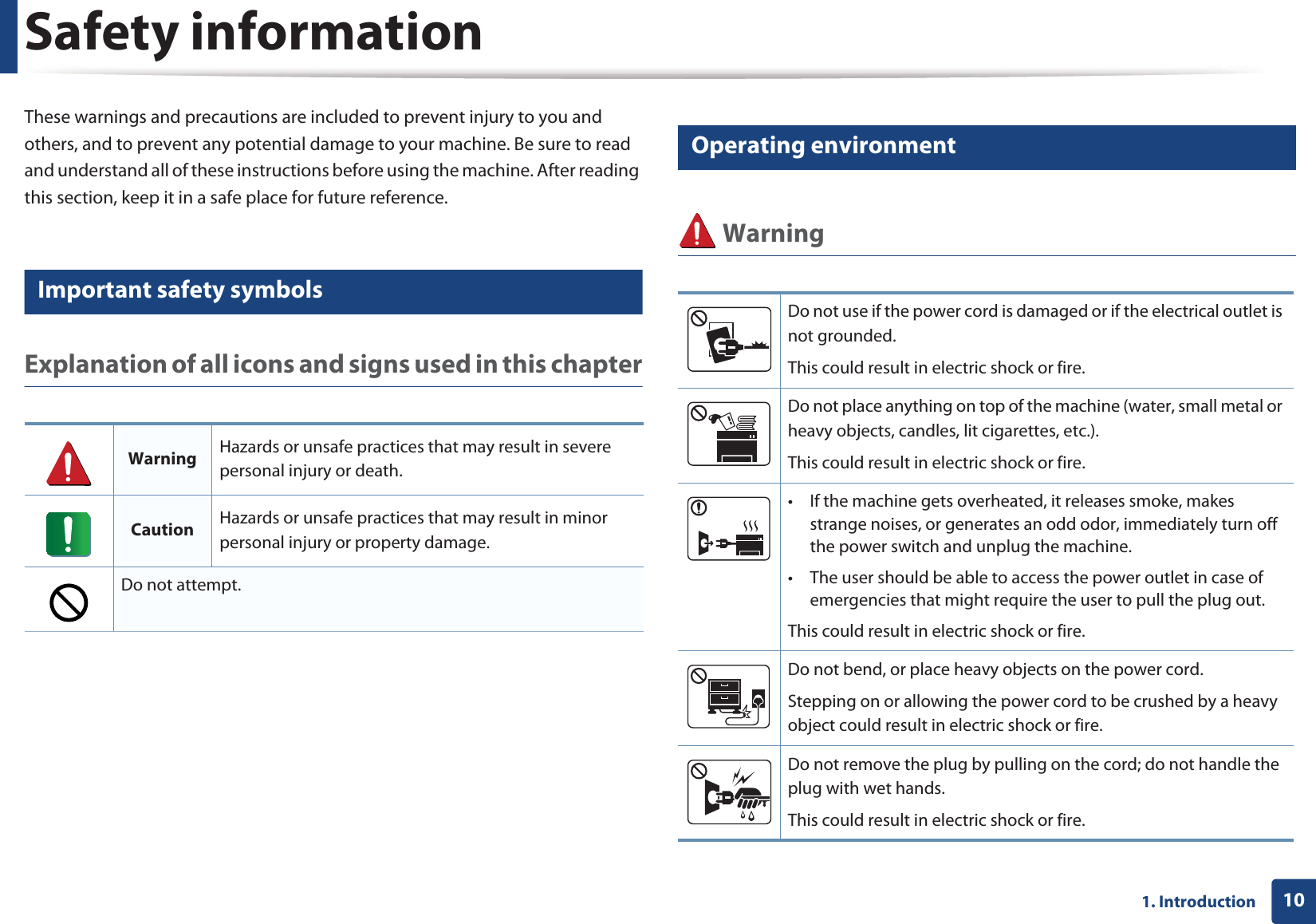

101. IntroductionSafety informationThese warnings and precautions are included to prevent injury to you and others, and to prevent any potential damage to your machine. Be sure to read and understand all of these instructions before using the machine. After reading this section, keep it in a safe place for future reference.3 Important safety symbolsExplanation of all icons and signs used in this chapter4 Operating environment WarningWarning Hazards or unsafe practices that may result in severe personal injury or death.Caution Hazards or unsafe practices that may result in minor personal injury or property damage.Do not attempt.Do not use if the power cord is damaged or if the electrical outlet is not grounded.This could result in electric shock or fire. Do not place anything on top of the machine (water, small metal or heavy objects, candles, lit cigarettes, etc.).This could result in electric shock or fire. • If the machine gets overheated, it releases smoke, makes strange noises, or generates an odd odor, immediately turn off the power switch and unplug the machine.• The user should be able to access the power outlet in case of emergencies that might require the user to pull the plug out.This could result in electric shock or fire. Do not bend, or place heavy objects on the power cord. Stepping on or allowing the power cord to be crushed by a heavy object could result in electric shock or fire. Do not remove the plug by pulling on the cord; do not handle the plug with wet hands. This could result in electric shock or fire.
Safety information111. Introduction Caution5 Operating method CautionDuring an electrical storm or for a period of non-operation, remove the power plug from the electrical outlet. This could result in electric shock or fire. Be careful, the paper output area is hot. Burns could occur. If the machine has been dropped, or if the cabinet appears damaged, unplug the machine from all interface connections and request assistance from qualified service personnel.Otherwise, this could result in electric shock or fire.If the machine does not operate properly after these instructions have been followed, unplug the machine from all interface connections and request assistance from qualified service personnel.Otherwise, this could result in electric shock or fire.If the plug does not easily enter the electrical outlet, do not attempt to force it in. Call an electrician to change the electrical outlet, or this could result in electric shock.Do not allow pets to chew on the AC power, telephone or PC interface cords.This could result in electric shock or fire and/or injury to your pet. Do not forcefully pull the paper out during printing. It can cause damage to the machine.Be careful not to put your hand between the machine and paper tray.You may get injured.Be careful when replacing paper or removing jammed paper. New paper has sharp edges and can cause painful cuts.When printing large quantities, the bottom part of the paper output area may get hot. Do not allow children to touch. Burns can occur.When removing jammed paper, do not use tweezers or sharp metal objects. It can damage the machine.Do not allow too many papers to stack up in the paper output tray.It can damage the machine.

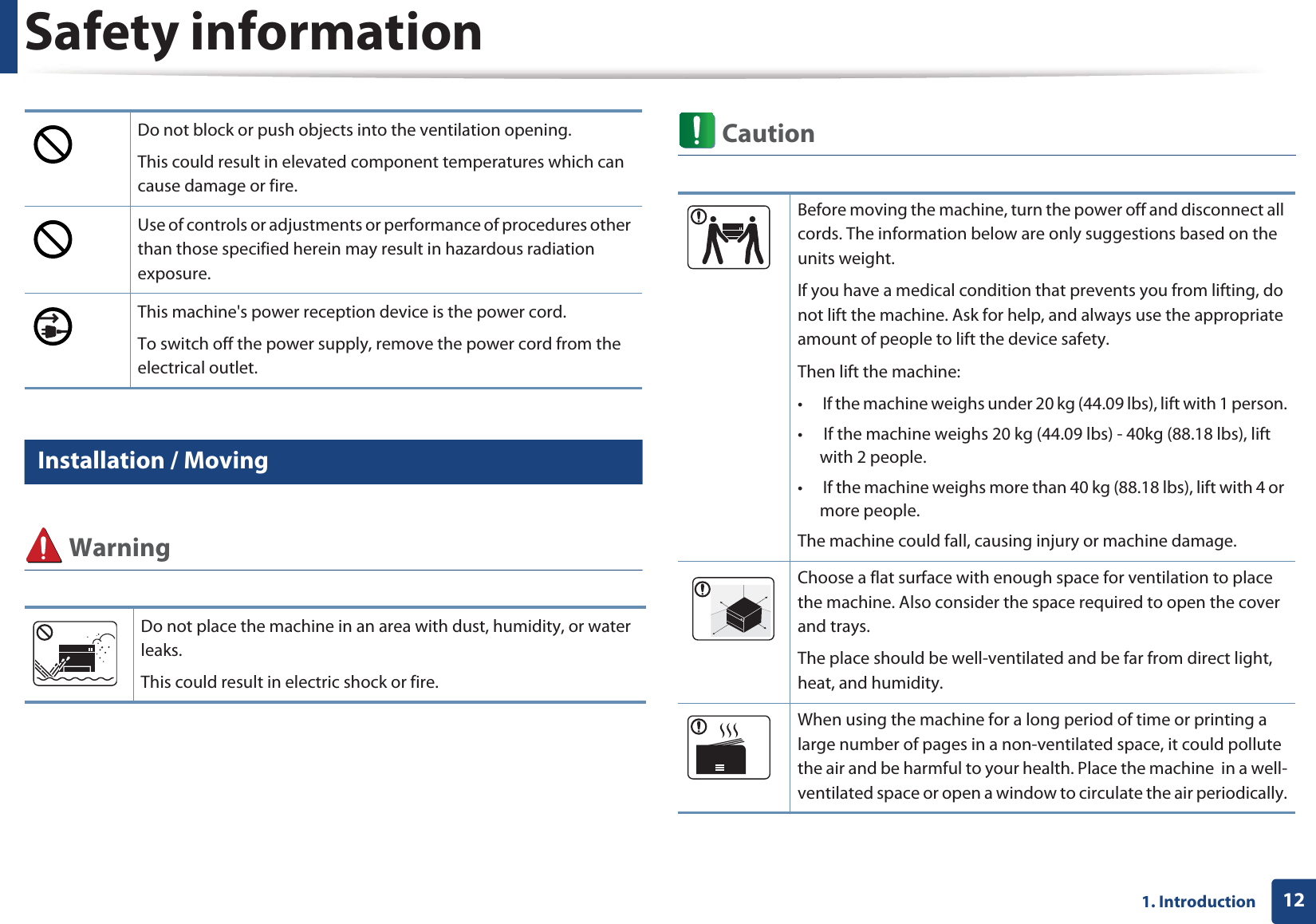

Safety information121. Introduction6 Installation / Moving Warning CautionDo not block or push objects into the ventilation opening.This could result in elevated component temperatures which can cause damage or fire.Use of controls or adjustments or performance of procedures other than those specified herein may result in hazardous radiation exposure.This machine's power reception device is the power cord. To switch off the power supply, remove the power cord from the electrical outlet. Do not place the machine in an area with dust, humidity, or water leaks. This could result in electric shock or fire. Before moving the machine, turn the power off and disconnect all cords. The information below are only suggestions based on the units weight.If you have a medical condition that prevents you from lifting, do not lift the machine. Ask for help, and always use the appropriate amount of people to lift the device safety.Then lift the machine:• If the machine weighs under 20 kg (44.09 lbs), lift with 1 person.• If the machine weighs 20 kg (44.09 lbs) - 40kg (88.18 lbs), lift with 2 people.• If the machine weighs more than 40 kg (88.18 lbs), lift with 4 or more people.The machine could fall, causing injury or machine damage.Choose a flat surface with enough space for ventilation to place the machine. Also consider the space required to open the cover and trays. The place should be well-ventilated and be far from direct light, heat, and humidity. When using the machine for a long period of time or printing a large number of pages in a non-ventilated space, it could pollute the air and be harmful to your health. Place the machine in a well-ventilated space or open a window to circulate the air periodically.
Safety information131. Introduction7 Maintenance / Checking CautionDo not place the machine on an unstable surface.The machine could fall, causing injury or machine damage.Use only No.26 AWGa or larger, telephone line cord, if necessary.Otherwise, it can cause damage to the machine.Make sure you plug the power cord into a grounded electrical outlet.Otherwise, this could result in electric shock or fire.Use the power cord supplied with your machine for safe operation. If you are using a cord which is longer than 2 meters (6 feet) with a 110V machine, then the gauge should be 16 AWG or larger.Otherwise, it can cause damage to the machine, and could result in electric shock or fire.Do not put a cover over the machine or place it in an airtight location, such as a closet.If the machine is not well-ventilated, this could result in fire.Do not overload wall outlets and extension cords.This can diminish performance, and could result in electric shock or fire.The machine should be connected tothe power level which is specified on the label.If you are unsure and want to check the power level you are using, contact the electrical utility company.a. AWG: American Wire GaugeUnplug this product from the wall outlet before cleaning the inside of the machine. Do not clean the machine with benzene, paint thinner or alcohol; do not spray water directly into the machine. This could result in electric shock or fire. When you are working inside the machine replacing consumables or cleaning the inside, do not operate the machine.You could get injured.Keep cleaning consumables away from children. Children could get hurt.Do not disassemble, repair or rebuild the machine by yourself. It can damage the machine. Call a certified technician when the machine needs repairing.To clean and operate the machine, strictly follow the user's guide provided with the machine.Otherwise, you could damage the machine.
Safety information141. Introduction8 Supply usage CautionKeep the power cable and the contact surface of the plug clean from dust or water.Otherwise, this could result in electric shock or fire. • Do not remove any covers or guards that are fastened with screws. • Fuser units should only be repaired by a certified service technician. Repair by non-certified technicians could result in fire or electric shock.• The machine should only be repaired by a Samsung service technician.Do not disassemble the toner cartridge.Toner dust can be dangerous if inhaled or ingested.Do not burn any of the consumables such as toner cartridge or fuser unit.This could cause an explosion or uncontrollable fire.When storing consumables such as toner cartridges, keep them away from children.Toner dust can be dangerous if inhaled or ingested.Using recycled consumables, such as toner, can cause damage to the machine.In case of damage due to the use of recycled consumables, a service fee will be charged.For consumables that contain toner dust (toner cartridge, waste toner bottle, imaging unit, etc.) follow the instructions below.• When disposing of the consumables, follow the instructions for disposal. Refer to the reseller for disposal instructions.• Do not wash the consumables.•For a waste toner bottle, do not reuse it after emptying the bottle.If you do not follow the instructions above, it may cause machine malfunction and environmental pollution. The warranty does not cover damages caused by a user's carelessness.When toner gets on your clothing, do not use hot water to wash it.Hot water sets toner into fabric. Use cold water.When changing the toner cartridge or removing jammed paper, be careful not to let toner dust touch your body or clothes.Toner dust can be dangerous if inhaled or ingested.
151. IntroductionMachine overview9 Accessories Power cord Software CDaa. The software CD contains the printer drivers, user’s guide, and software applications.Misc. accessoriesbb. Miscellaneous accessories included with your machine may vary by country of purchase and specific model.
Machine overview161. Introduction10 Front view • This illustration may differ from your machine depending on its model.• Some features and optional goods may not be available depending on model or country. 11 Rear view • This illustration may differ from your machine depending on its model.• Some features and optional goods may not be available depending on model or country. 1 Output tray 7 Paper width guides on a manual feeder2 Control panel 8 Output support3Front cover 9Toner cartridgeaa. Samsung Printer Xpress M2620 M2820 series only.4Paper level indicator 10 Toner cartridgebb. Samsung Printer Xpress M2625 M2626 M2825 M2826 series only.5Tray 1 11 Imaging unitb6 Manual feeder12345678101191Network portaa. Network and wireless models only (see "Features by models" on page 6).4Power receptacle2 USB port 5 Rear cover3Power-switchbb. Only if the machine has a power switch.51234

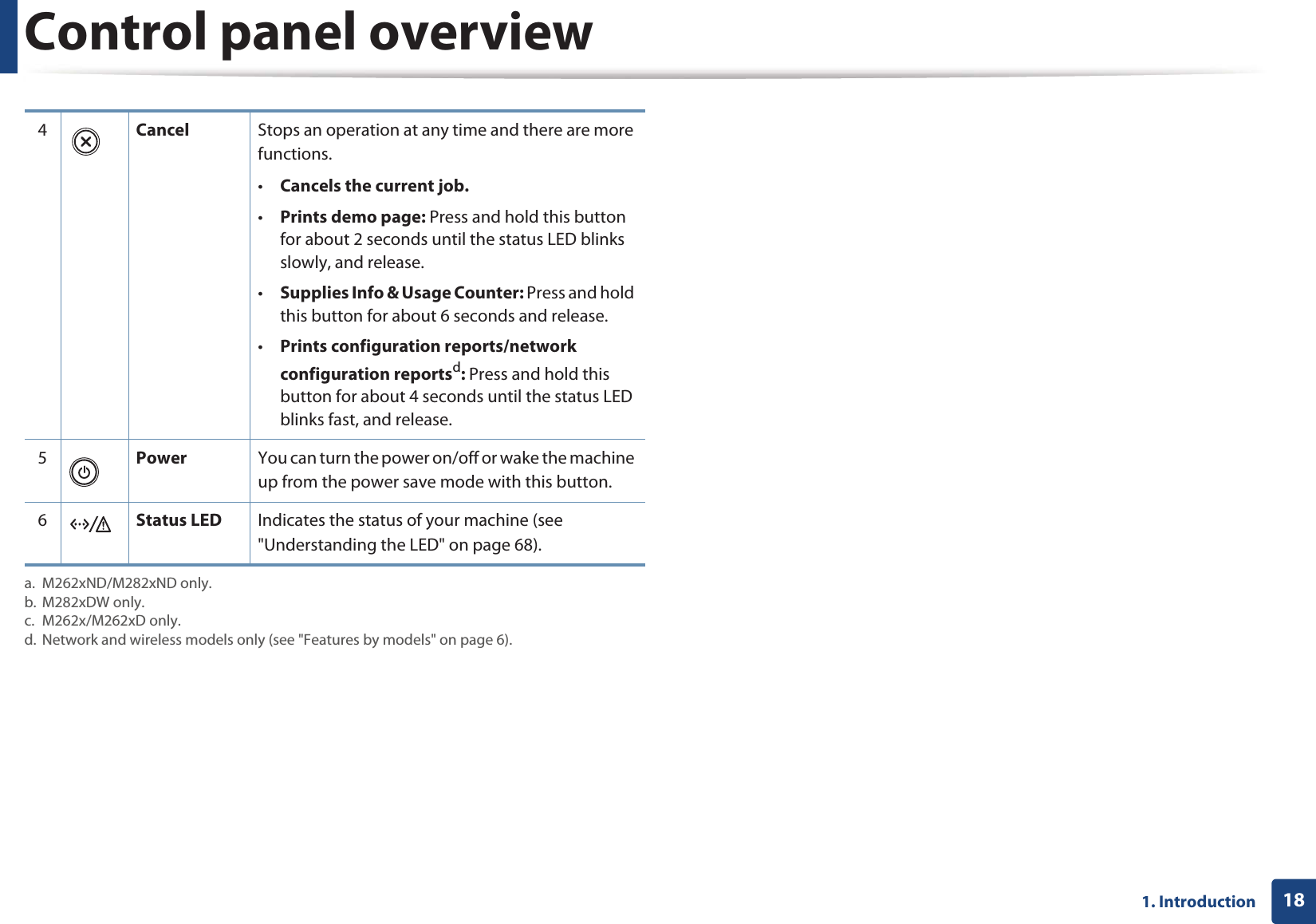

171. IntroductionControl panel overview This control panel may differ from your machine depending on its model. There are various types of control panels. 1Toner Shows the status of the toner (see "Toner LED/ Wireless LED/ Power LED/ Eco LED" on page 69).2EcoEnters Eco mode to reduce toner consumption and paper usage (see "Eco options" on page 40). 3Info sheetaPrints a demo page and network configuration report (see "Printing a demo page" on page 24).WPSbConfigures the wireless network connection easily without a computer (see "Wireless network setup" on page 115).Print screencPress this button and the green LED will start blinking. If you want to print only the active screen, release the button when the green LED stops blinking. If you want to print the whole screen, release the button while it’s blinking. •Print Screen can only be used in the Windows and Mac operating systems.• You can only use this function with USB-connected machine.• When printing the active window/whole monitor screen using the print screen button, the machine may use more toner depending on what is being printed.• You can only use this function if the machine’s Easy Printer Manager program is installed. If you are a Mac OS user, you need to enable Screen Print Settings from the Easy Printer Manager to use the Print Screen feature.
Control panel overview181. Introduction4 Cancel Stops an operation at any time and there are more functions.•Cancels the current job.•Prints demo page: Press and hold this button for about 2 seconds until the status LED blinks slowly, and release. •Supplies Info & Usage Counter: Press and hold this button for about 6 seconds and release. •Prints configuration reports/network configuration reportsd: Press and hold this button for about 4 seconds until the status LED blinks fast, and release.5 Power You can turn the power on/off or wake the machine up from the power save mode with this button.6Status LED Indicates the status of your machine (see "Understanding the LED" on page 68). a. M262xND/M282xND only.b. M282xDW only.c. M262x/M262xD only.d. Network and wireless models only (see "Features by models" on page 6).

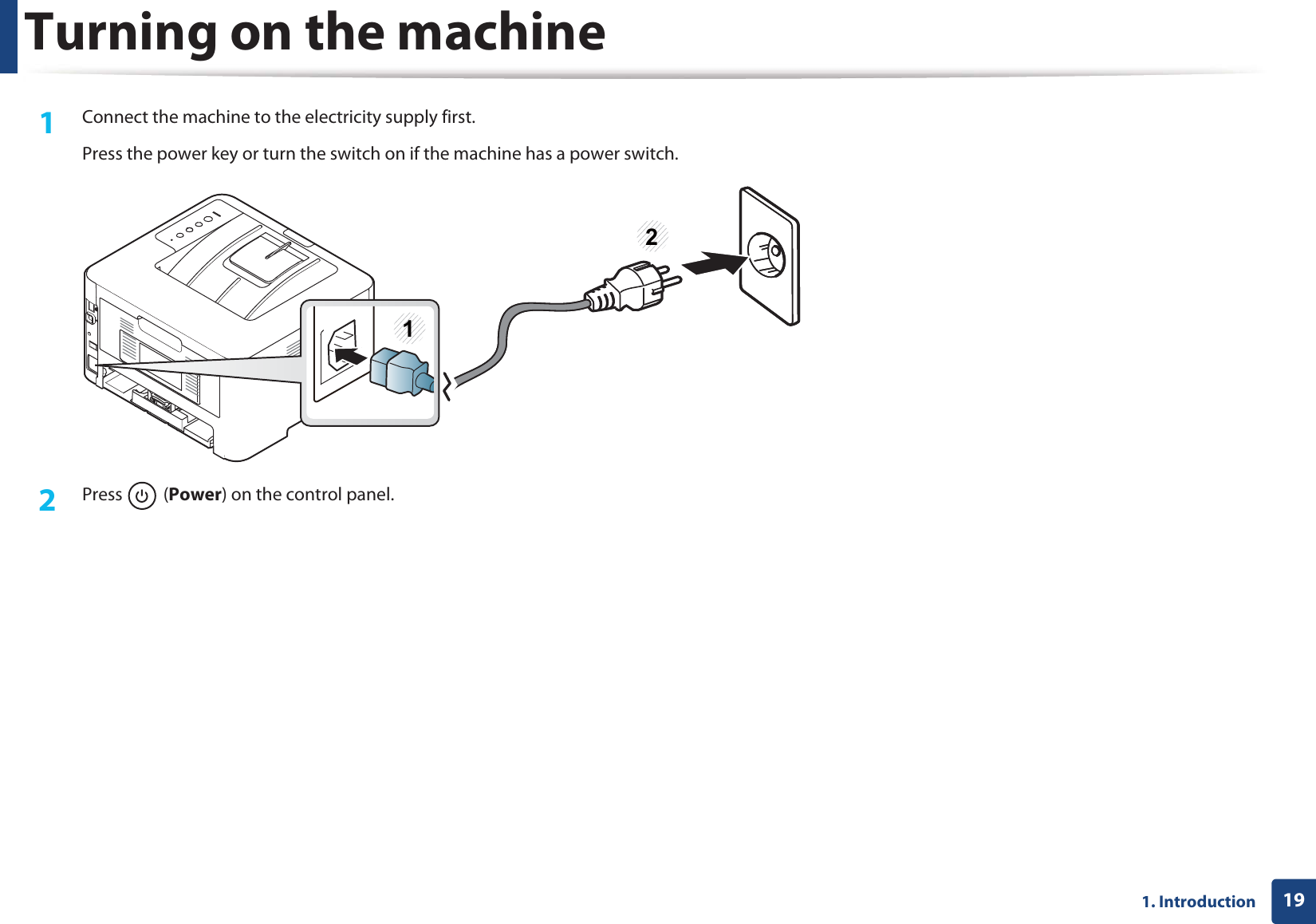

191. IntroductionTurning on the machine1Connect the machine to the electricity supply first.Press the power key or turn the switch on if the machine has a power switch.2 Press (Power) on the control panel.12
201. IntroductionInstalling the driver locallyA locally connected machine is a machine directly attached to your computer using the cable. If your machine is attached to a network, skip the following steps below and go on to installing a network connected machine’s driver (see "Installing driver over the network" on page 106). • If you are a Mac, Linux, or Unix OS user, refer to the "Software installation" on page 94. • The installation window in this User’s Guide may differ depending on the machine and interface in use.• Only use a USB cable no longer than 3 meters (118 inches). 12 Windows1Make sure that the machine is connected to your computer and powered on.2 Insert the supplied software CD into your CD-ROM drive.If the installation window does not appear, click Start > All programs > Accessories > Run.X:\Setup.exe replacing “X” with the letter, which represents your CD-ROM drive and click OK.• For Windows 8,If the installation window does not appear, from Charms, select Search > Apps and search for Run. Type in X:\Setup.exe, replacing “X” with the letter that represents your CD-ROM drive and click OK.If “Tap to choose what happens with this disc.” pop-up window appears, click the window and select Run Setup.exe.3 Read and check The software End User License Agreement and Using Enhanced Features and Participating in Printer Usage Information Collection Program (optional). Then, click Next.4 Follow the instructions in the installation window.
Installing the driver locally211. IntroductionFrom the Windows 8 Start Screen •Samsung Printer Experience app can only be used in the Start screen when V4 driver is installed. The V4 driver is automatically downloaded from the Windows Update if your computer is connected to the Internet. If not, you can manually download the V4 driver from Samsung website, www.samsung.com > find your product > Support or downloads. • You can download Samsung Printer Experience app from the Windows Store. You need have a Microsoft account to use the Windows Store.1 From Charms, select Search. 2 Click Store.3 Search and click Samsung Printer Experience.4 Click Install.• If you install the driver using the supplied software CD, V4 driver is not installed. If you want to use the V4 driver in the Desktop screen, you can download from the Samsung website, www.samsung.com >find your product > Support or downloads.• If you want to install Samsung’s printer management tools, you need to install them using the supplied software CD . 1Make sure that your computer is connected to the Internet and powered on.2 Make sure that the machine is powered on.3 Connect the computer and the machine with a USB cable.The driver is automatically installed from the Windows Update.
221. IntroductionReinstalling the driverIf the printer driver does not work properly, follow the steps below to reinstall the driver.13 Windows1Make sure that the machine is connected to your computer and powered on.2 From the Start menu, select Programs or All Programs > Samsung Printers > Uninstall Samsung Printer Software.• For Windows 8,1 From Charms, select Search > Apps. 2 Search and click Control Panel.3 Click Programs and Features.4 Right-click the driver you want to uninstall and select Uninstall. 5 Follow the instructions in the window.3 Follow the instructions in the installation window.4 Insert the software CD into your CD-ROM drive and install the driver again (see "Installing the driver locally" on page 20).From the Windows 8 Start Screen1Make sure that the machine is connected to your computer and powered on.2 Click on the Uninstall Samsung Printer Software tile in the Start screen.3 Follow the instructions in the window. • If you cannot find a Samsung Printer Software tile, unintstall from the desktop screen mode. • If you want to uninstall Samsung’s printer management tools, from the Start screen, right-click the app > Uninstall > right-click the program you want to delete e Uninstall and follow the instruction in the window.
2. Basic setupAfter installation is complete, you may want to set the machine’s default settings. Refer to the next section if you would like to set or change values. • Printing a demo page 24• Media and tray 25• Basic printing 36
242. Basic setupPrinting a demo pagePrint a demo page to make sure that the machine is operating correctly.To print a demo page:In ready mode, press and hold (Cancel) button for about 2 seconds until the status LED blinks, and release. For a model with a Info sheet ( ) button, press the button to print a demo page.
252. Basic setupMedia and trayThis chapter provides information on how to load print media into your machine. • Using print media that does not meet these specifications may cause problems or require repairs. Such repairs are not covered by Samsung’s warranty or service agreements.• Make sure not to use the inkjet photo paper with this machine. It could cause damage to the machine. • Using inflammable print media can cause a fire.• Use designated print mediaG(see "Print media specifications" on page 73). The use of inflammable media or foreign materials left in the printer may lead to overheating of the unit andS in rare cases may cause a fire. 1 Tray overviewTo change the size, you need to adjust the paper guides. If you do not adjust the guide, it may cause paper registration, image skew, or jamming of the paper. 1Tray extention guide2Paper length guide3Paper width guide312

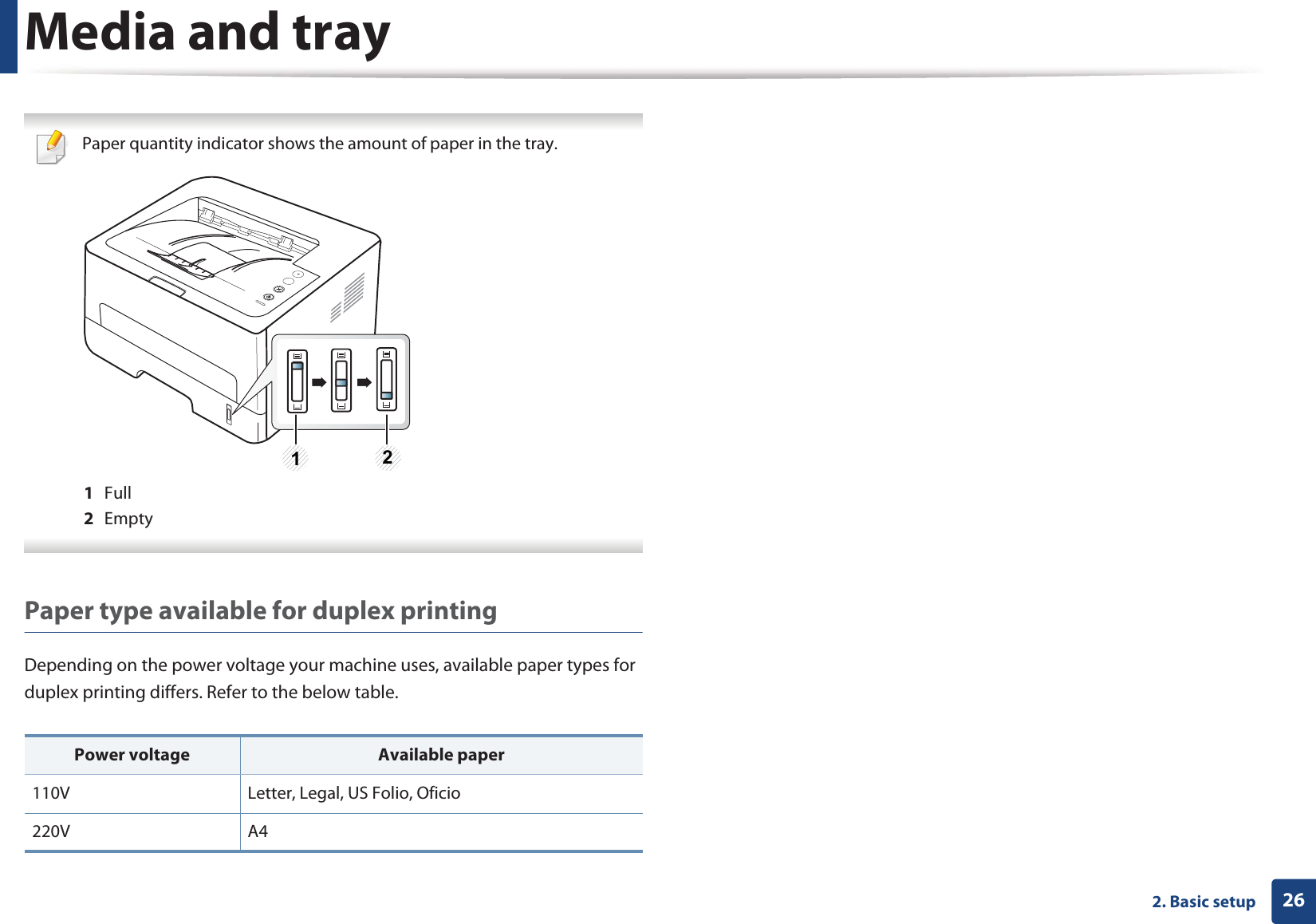

Media and tray262. Basic setup Paper quantity indicator shows the amount of paper in the tray. 1 Full2 Empty Paper type available for duplex printingDepending on the power voltage your machine uses, available paper types for duplex printing differs. Refer to the below table. Power voltage Available paper110V Letter, Legal, US Folio, Oficio220V A4 1 2
Media and tray272. Basic setup2 Loading paper in the tray When printing using the tray, do not load paper on the manual feeder, it may cause a paper jam.
Media and tray282. Basic setup3 Loading in manual feederThe manual feeder can hold special sizes and types of print material, such as postcards, note cards, and envelopes. Tips on using the manual feeder• Load only one type, size and weight of print media at time in the manual feeder.• If you select Manual Feeder for the paper source in your software application, you need to press Print screen or Demo page, or WPS button each time you print a page and load only one type, size and weight of print media at a time on the manual tray.• To prevent paper jams, do not add paper while printing when there is still paper in the manual feeder.• Print media should be loaded face up with the top edge going into the manual feeder first and be placed in the center of the tray.• To ensure printing quality and to prevent paper jams, only load the available paper (see "Print media specifications" on page 73).• Flatten any curl on postcards, envelopes, and labels before loading them into the manual feeder.• When printing on special media, you must follow the loading guidelines (see "Printing on special media" on page 30).• When papers overlap when printing using the manual feeder, open tray 1 and remove the overlapping papers then try printing again. • When paper does not feed well while printing, push the paper in manually until it starts feeding automatically. • When the machine is in a power save mode, the machine does not feed paper from the manual feeder. Wake up the machine by pressing the power button before using the manual feeder.
Media and tray292. Basic setup
Media and tray302. Basic setup4 Printing on special mediaThe table below shows the special media usable in each tray.The media types are shown in the Printing Preferences. To get the highest printing quality, select the proper media type from the Printing Preferences window > Paper tab > Paper Type (see "Opening printing preferences" on page 38).For example, if you want to print on labels, select Labels for Paper Type. • When using special media, we recommend you feed one sheet at a time (see "Print media specifications" on page 73).•Printing the special media (Face up)If special media are printed out with curl, wrinkles, crease, or black bold lines, open the rear cover and try printing again. Keep the rear cover opened during printing. To see for paper weights for each sheet, refer to "Print media specifications" on page 73.(Ɣ: Included, Blank: Not available) Types Tray Manual feederPlain ƔƔThick ƔƔThicker ƔThin ƔƔBond ƔƔColor ƔCardStock ƔƔLabels ƔTransparency ƔEnvelope ƔThick Envelope ƔPreprinted ƔCotton ƔRecycled ƔƔArchive ƔƔ
Media and tray312. Basic setupEnvelopePrinting successfully on envelopes depends upon the quality of the envelopes.To print an envelope, place it as shown in the following figure.If envelopes are printed out with wrinkles, crease, or black bold lines, open the rear cover and try printing again. Keep the rear cover opened during printing. If you select Envelope from the Printing Preferences window, but the printed images get easily erased, select Thick Envelope and try printing again. However, this might cause some noise when printing.• When selecting envelopes, consider the following factors:-Weight: should not exceed 90 g/m2 otherwise; jams may occur.-Construction: should lie flat with less than 6 mm curl and should not contain air.-Condition: should not be wrinkled, nicked, nor damaged.-Temperature: should resist the heat and pressure of the machine during operation.• Use only well-constructed envelopes with sharp and well-creased folds.• Do not use stamped envelopes.• Do not use envelopes with clasps, snaps, windows, coated lining, self-adhesive seals, or other synthetic materials.• Do not use damaged or poorly made envelopes.• Be sure the seam at both ends of the envelope extends all the way to the corner of the envelope.1 Acceptable2 Unacceptable• Envelopes with a peel-off adhesive strip or with more than one flap that folds over to seal must use adhesives compatible with the machine’s fusing temperature for 0.1 second (about 170°C (338 °F)). The extra flaps and strips might cause wrinkling, creasing, or jams, and may even damage the fuser.• For the best print quality, position margins no closer than 15 mm from the edges of the envelope.• Avoid printing over the area where the envelope’s seams meet.1 2
Media and tray322. Basic setupTransparencyTo avoid damaging the machine, use only transparencies designed for use in laser printers.• Must withstand the machine’s fusing temperature.• Place them on a flat surface after removing them from the machine.• Do not leave unused transparencies in the paper tray for long. Dust and dirt may accumulate on them, resulting in spotty printing.• To avoid smudging caused by fingerprints, handle them carefully.• To avoid fading, do not expose printed transparencies to prolonged sunlight.• Ensure that transparencies are not wrinkled, curled, or have any torn edges.• Do not use transparencies that separate from the backing sheet.• To prevent transparencies from sticking to each other, do not let the printed sheets stack up as they are being printed out. • Recommended media: Transparency for a color laser printer by Xerox, such as 3R 91331(A4), 3R 2780 (Letter)LabelsTo avoid damaging the machine, use only labels designed for use in laser printers.• When selecting labels, consider the following factors:-Adhesives: Should be stable at your machine’s fusing temperature. Check your machine’s specifications to view the fusing temperature (about 170°C (338°F)).
Media and tray332. Basic setup-Arrangement: Only use labels with no exposed backing between them. Labels can peel off sheets that have spaces between the labels, causing serious jams.-Curl: Must lie flat with no more than 13 mm of curl in any direction.-Condition: Do not use labels with wrinkles, bubbles, or other indications of separation.• Make sure that there is no exposed adhesive material between labels. Exposed areas can cause labels to peel off during printing, which can cause paper jams. Exposed adhesive can also cause damage to machine components.• Do not run a sheet of labels through the machine more than once. The adhesive backing is designed for only a single pass through the machine.• Do not use labels that are separating from the backing sheet or are wrinkled, bubbled, or otherwise damaged.Card stock/ Custom-sized paper• In the software application, set margins at least 6.4 mm (0.25 inches) away from the edges of the material.
Media and tray342. Basic setupPreprinted paperWhen loading preprinted paper, the printed side should be facing up with an uncurled edge at the front. If you experience problems with paper feeding, turn the paper around. Note that print quality is not guaranteed.• Must be printed with heat-resistant ink that will not melt, vaporize, or release hazardous emissions when subjected to the machine’s fusing temperature for 0.1 second (about 170°C (338°F)).• Preprinted paper ink must be non-flammable and should not adversely affect machine rollers.• Before you load preprinted paper, verify that the ink on the paper is dry. During the fusing process, wet ink can come off preprinted paper, reducing print quality.5 Setting the paper size and typeAfter loading paper in the paper tray, set the paper size and type.Open the Printing Preferences (see "Opening printing preferences" on page 38) and set the paper size and type in the Paper tab. If you want to use special-sized paper such as billing paper, select Custom in the Paper tab in the Printing Preferences (see "Opening printing preferences" on page 38).

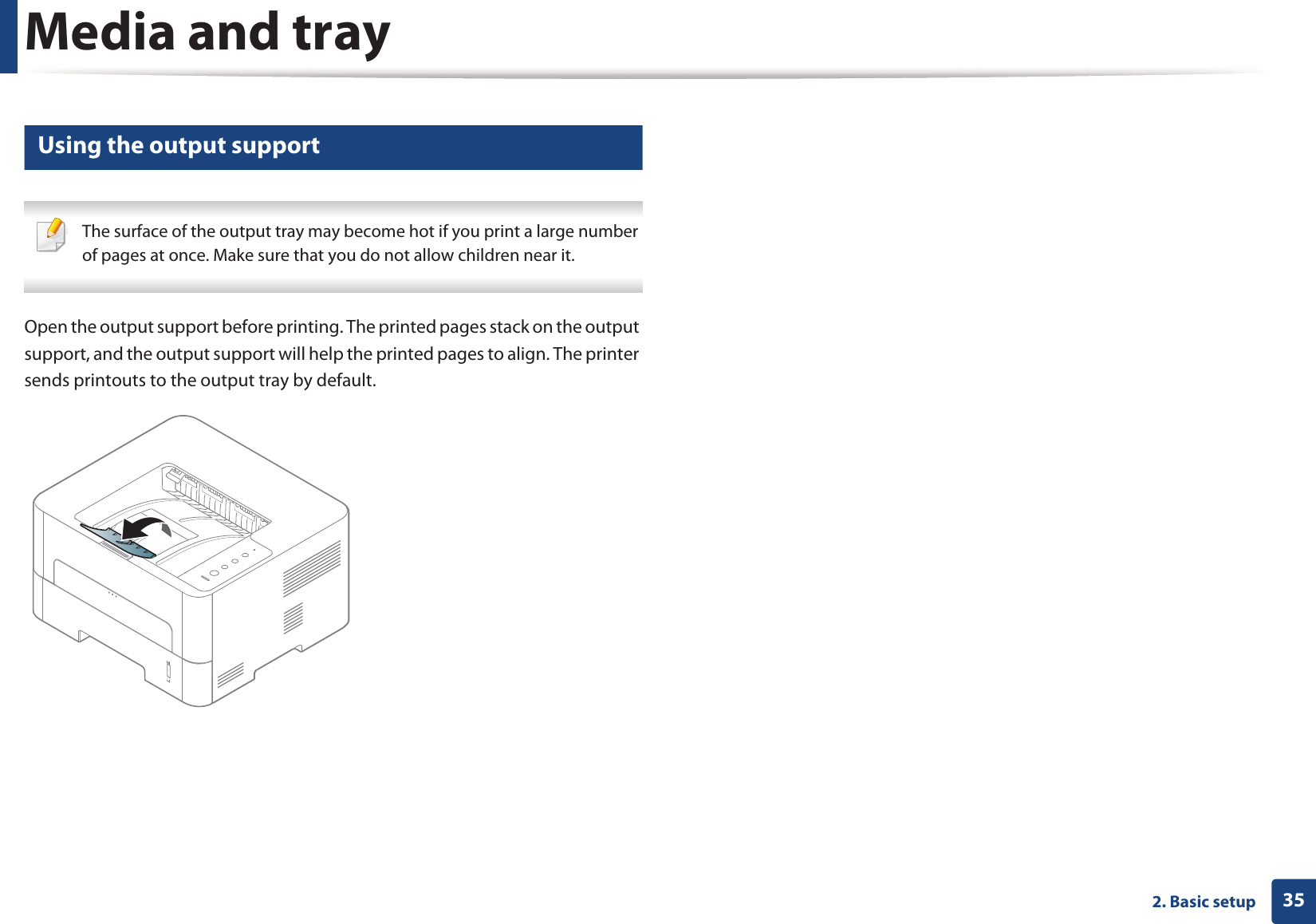

Media and tray352. Basic setup6 Using the output support The surface of the output tray may become hot if you print a large number of pages at once. Make sure that you do not allow children near it. Open the output support before printing. The printed pages stack on the output support, and the output support will help the printed pages to align. The printer sends printouts to the output tray by default.
362. Basic setupBasic printing 7 Printing • If you are a Mac, Linux, or Unix OS user, refer to the "Software installation" on page 94. The following Printing Preferences window is for Notepad in Windows 7.1Open the document you want to print.2 Select Print from the File menu.3 Select your machine from the Select Printer list.4 The basic print settings including the number of copies and print range are selected within the Print window. To take advantage of the advanced printing features, click Properties or Preferences from the Print window (see "Opening printing preferences" on page 38). 5 To start the print job, click OK or Print in the Print window.

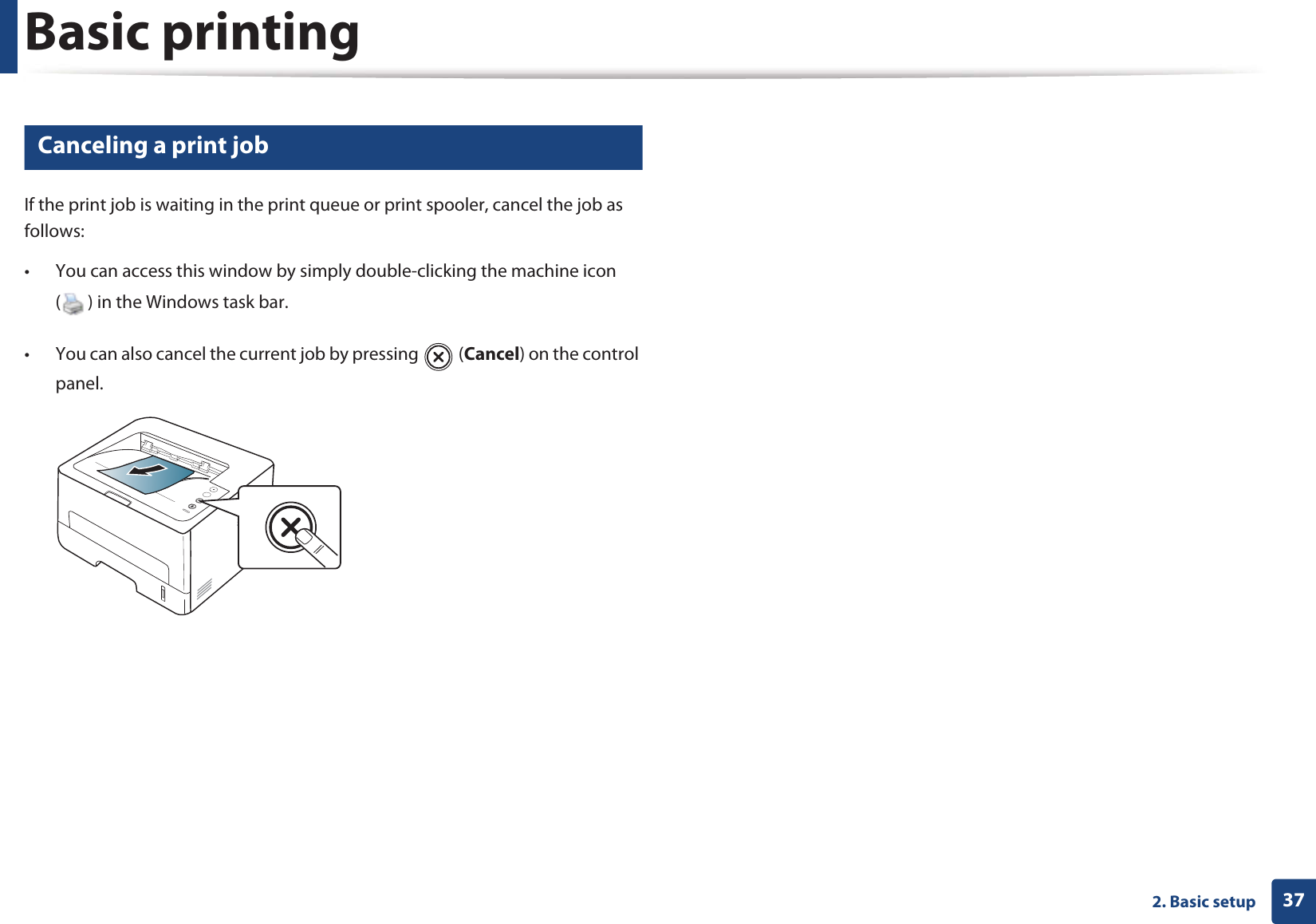

Basic printing372. Basic setup8 Canceling a print jobIf the print job is waiting in the print queue or print spooler, cancel the job as follows:• You can access this window by simply double-clicking the machine icon ( ) in the Windows task bar. • You can also cancel the current job by pressing (Cancel) on the control panel.

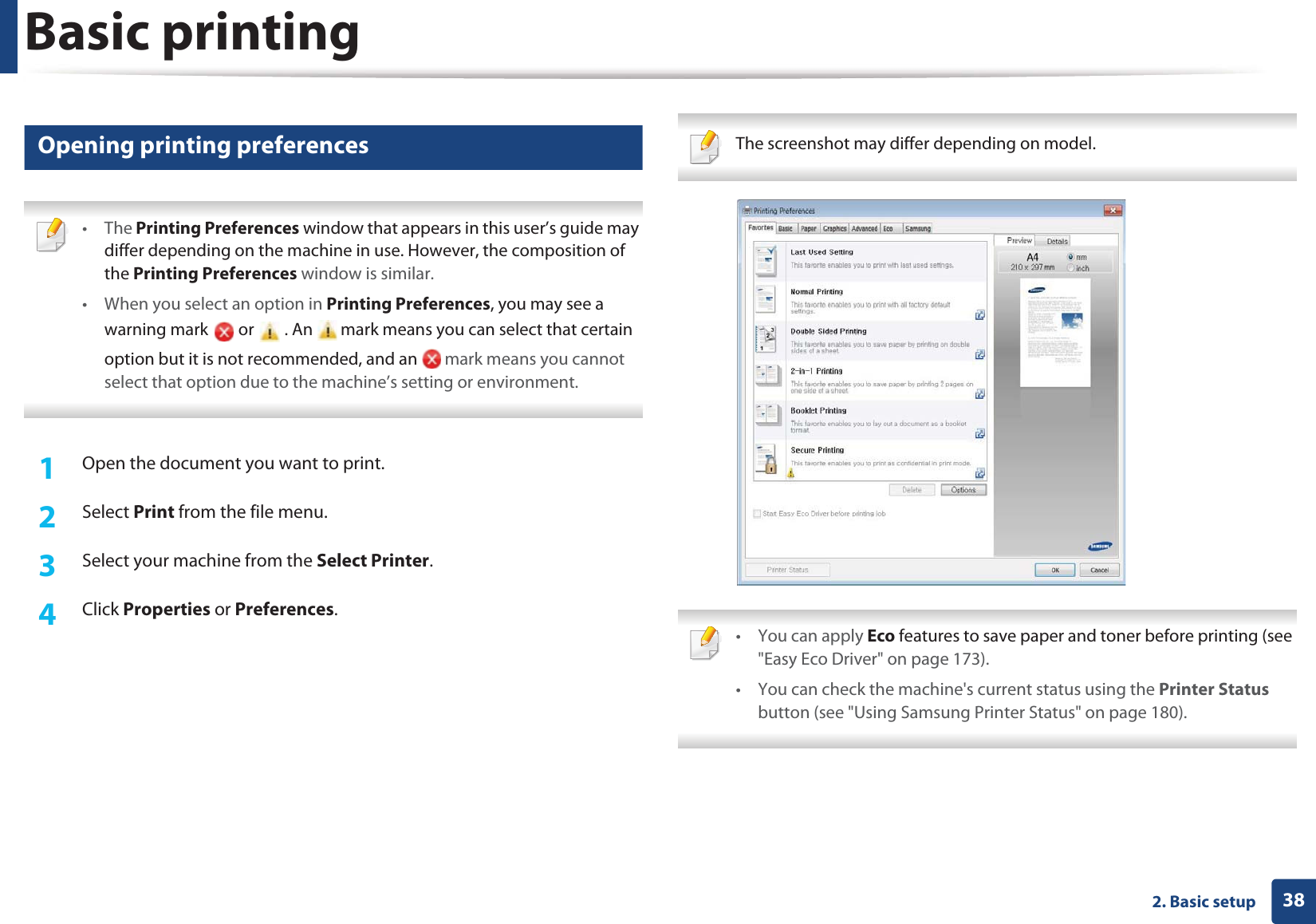

Basic printing382. Basic setup9 Opening printing preferences • The Printing Preferences window that appears in this user’s guide may differ depending on the machine in use. However, the composition of the Printing Preferences window is similar.• When you select an option in Printing Preferences, you may see a warning mark or . An mark means you can select that certain option but it is not recommended, and an mark means you cannot select that option due to the machine’s setting or environment. 1Open the document you want to print.2 Select Print from the file menu.3 Select your machine from the Select Printer. 4 Click Properties or Preferences. The screenshot may differ depending on model. • You can apply Eco features to save paper and toner before printing (see "Easy Eco Driver" on page 173).• You can check the machine's current status using the Printer Status button (see "Using Samsung Printer Status" on page 180).
Basic printing392. Basic setupUsing a favorite settingThe Favorites option, which is visible on each preferences tab except for the Samsung tab, allows you to save the current preferences for future use.To save a Favorites item, follow these steps:1Change the settings as needed on each tab. 2 Enter a name for the item in the Favorites input box.3 Click Save. 4 Enter name and description, and then select the desired icon.5 Click OK. When you save Favorites, all current driver settings are saved. To use a saved setting, select it in the Favorites tab. The machine is now set to print according to the settings you have selected.To delete saved settings, select it in the Favorites tab and click Delete. 10 Using helpClick the option you want to know on the Printing Preferences window and press F1 on your keyboard.11 Eco printingThe Eco function cuts toner consumption and paper usage. The Eco function allows you to save print resources and lead you to eco-friendly printing.If you press the Eco button from the control panel, Eco mode is enabled. The default setting of Eco mode is Double-sided printing (Long Edge), Multiple Pages per Side (2), Skip blank pages, and Toner Save. Some features may not be available depending on model.

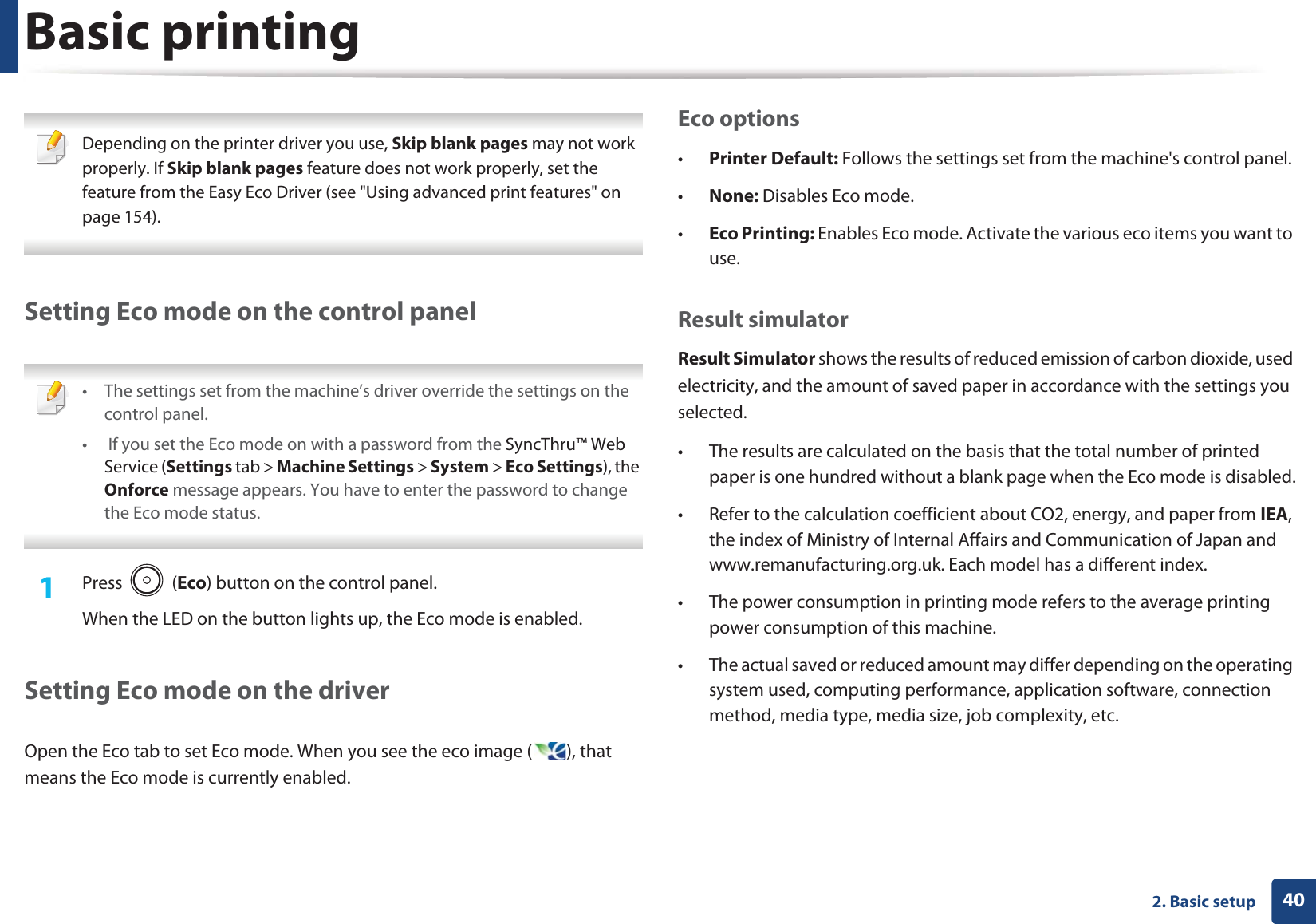

Basic printing402. Basic setup Depending on the printer driver you use, Skip blank pages may not work properly. If Skip blank pages feature does not work properly, set the feature from the Easy Eco Driver (see "Using advanced print features" on page 154). Setting Eco mode on the control panel • The settings set from the machine’s driver override the settings on the control panel.• If you set the Eco mode on with a password from the SyncThru™ Web Service (Settings tab > Machine Settings > System > Eco Settings), the Onforce message appears. You have to enter the password to change the Eco mode status. 1Press (Eco) button on the control panel. When the LED on the button lights up, the Eco mode is enabled.Setting Eco mode on the driverOpen the Eco tab to set Eco mode. When you see the eco image ( ), that means the Eco mode is currently enabled.Eco options•Printer Default: Follows the settings set from the machine's control panel. •None: Disables Eco mode.•Eco Printing: Enables Eco mode. Activate the various eco items you want to use.Result simulatorResult Simulator shows the results of reduced emission of carbon dioxide, used electricity, and the amount of saved paper in accordance with the settings you selected.• The results are calculated on the basis that the total number of printed paper is one hundred without a blank page when the Eco mode is disabled.• Refer to the calculation coefficient about CO2, energy, and paper from IEA, the index of Ministry of Internal Affairs and Communication of Japan and www.remanufacturing.org.uk. Each model has a different index. • The power consumption in printing mode refers to the average printing power consumption of this machine. • The actual saved or reduced amount may differ depending on the operating system used, computing performance, application software, connection method, media type, media size, job complexity, etc.
3. MaintenanceThis chapter provides information about purchasing consumables, option and maintenance parts available for your machine.• Ordering consumables and option 42• Available consumables 43• Available maintenance parts 44• Storing the toner cartridge 45• Redistributing toner 47• Replacing the toner cartridge 49• Replacing the imaging unit 52• Cleaning the machine 53• Tips for moving & storing your machine 57

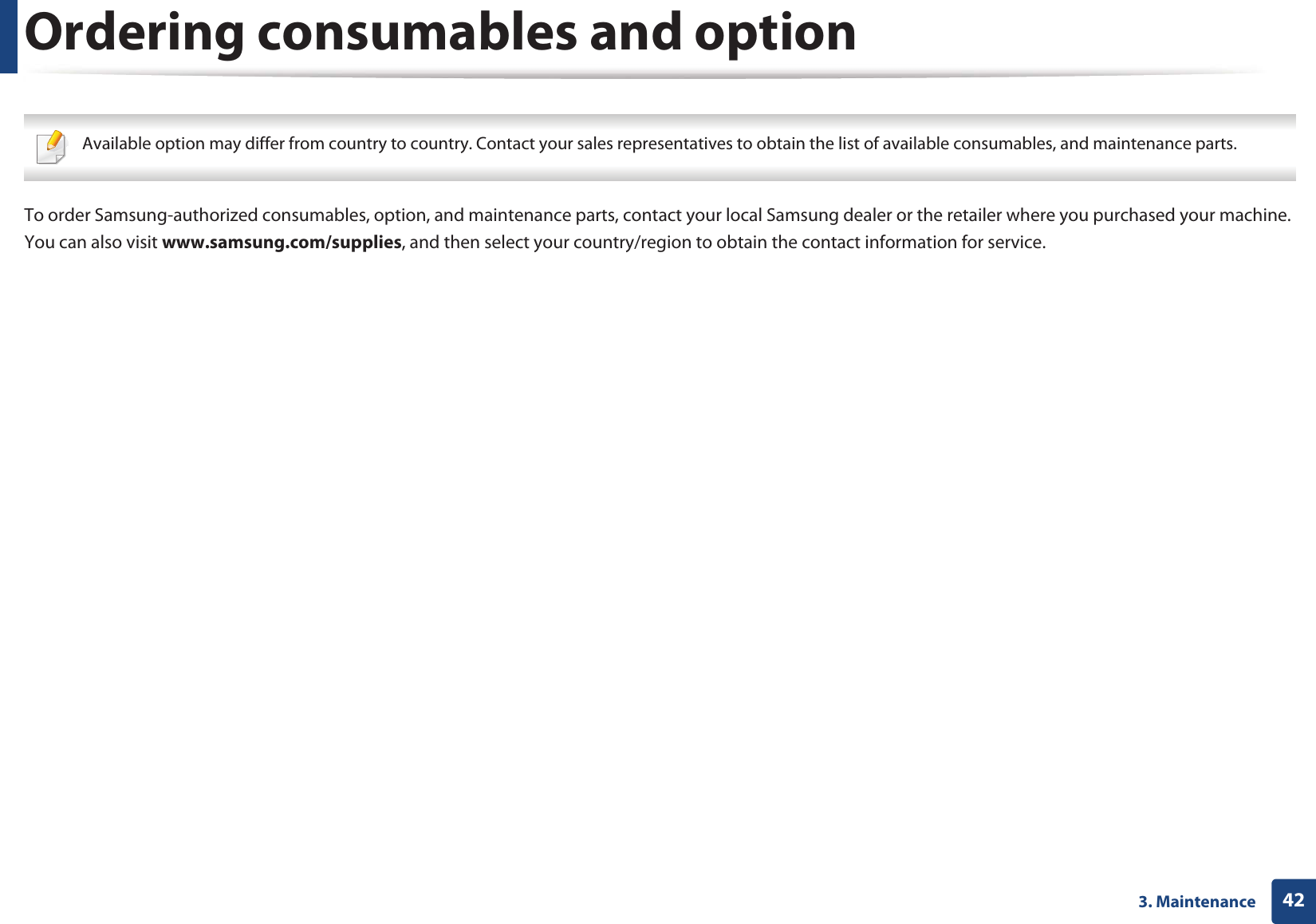

423. MaintenanceOrdering consumables and option Available option may differ from country to country. Contact your sales representatives to obtain the list of available consumables, and maintenance parts. To order Samsung-authorized consumables, option, and maintenance parts, contact your local Samsung dealer or the retailer where you purchased your machine. You can also visit www.samsung.com/supplies, and then select your country/region to obtain the contact information for service.
433. MaintenanceAvailable consumablesWhen consumables reach the end of their life spans, you can order the following types of consumables for your machine: Depending on the options, percentage of image area, and job mode used, the toner cartridge’s lifespan may differ. When purchasing new toner cartridges or other consumables, these must be purchased in the same country as the machine you are using. Otherwise, new toner cartridges or other consumables will be incompatible with your machine due to different configurations of toner cartridges and other consumables according to the specific country conditions. Samsung does not recommend using non-genuine Samsung toner cartridge such as refilled or remanufactured toner. Samsung cannot guarantee non-genuine Samsung toner cartridge's quality. Service or repair required as a result of using non-genuine Samsung toner cartridges will not be covered under the machine’s warranty. Type Model Average yieldaa. Declared yield value in accordance with ISO/IEC 19752.Part nameToner cartridgeSamsung Printer Xpress M2620 M2820 series Approx. 1,500 pages MLT-D115SApprox. 3,000 pages MLT-D115LSamsung Printer Xpress M2625 M2626 M2825 M2826 series Approx. 1,000 pages MLT-D116SApprox. 2,500 pages MLT-D116Lbb. China and India onlyImaging unit Samsung Printer Xpress M2625 M2626 M2825 M2826 series Approx. 9,000 pages MLT-R116
443. MaintenanceAvailable maintenance partsTo purchase maintenance parts, contact the source where you bought the machine. Replacing maintenance parts can be performed only by an authorized service provider, dealer, or the retailer where you bought the machine. The warranty does not cover the replacement of any maintenance parts once it has reached its “Average yield”.Maintenance parts are replaced at specific intervals to avoid print quality and paper feed problems resulting from worn parts, see table below. The purpose of which is to maintain your machine in top working condition. The maintenance parts below should be replaced when the life span of each item has been met.Parts Average yieldaa. It will be affected by the operating system used, computing performance, application software, connecting method, media type, media size and job complexity.Fuser unit Approx. 100,000 pagesTransfer roller Approx. 100,000 pages Forward roller Approx. 50,000 pages Pick-Up roller Approx. 50,000 pagesSemi-Reverse roller Approx. 50,000 pages
453. MaintenanceStoring the toner cartridgeToner cartridges contain components that are sensitive to light, temperature and humidity. Samsung suggests users follow these recommendations to ensure optmal performance, highest quality, and longest life from your new Samsung toner cartridge.Store this cartridge in the same environment in which the printer will be used. This should be in controlled temperature and humidity conditions. The toner cartridge should remain in its original and unopened package until installation – if original packaging is not available, cover the top opening of the cartridge with paper and store in a dark cabinet.Opening the cartridge package prior to use dramatically shortens its useful shelf and operating life. Do not store on the floor. If the toner cartridge is removed from the printer, follow the instructions below to store the toner cartridge properly.• Store the cartridge inside the protective bag from the original package. • Store lying flat (not standing on end) with the same side facing up as if it were installed in the machine.• Do not store consumables in any of the following conditions:- Temperature greater than 40°C (104°F).- Humidity range less than 20% and greater than 80%.- An environment with extreme changes in humidity or temperature.- Direct sunlight or room light.- Dusty places.- A car for a long period of time.- An environment where corrosive gases are present.- An environment with salty air.1 Handling instructions• Do not touch the surface of the photoconductive drum in the cartridge.• Do not expose the cartridge to unnecessary vibrations or shock.• Never manually rotate the drum, especially in the reverse direction; this can cause internal damage and toner spillage.2 Toner cartridge usageSamsung Electronics does not recommend or approve the use of non-Samsung brand toner cartridges in your printer including generic, store brand, refilled, or remanufactured toner cartridges. Samsung’s printer warranty does not cover damage to the machine caused by the use of a refilled, remanufactured, or non-Samsung brand toner cartridges.
Storing the toner cartridge463. Maintenance3 Estimated cartridge lifeEstimated cartridge life the life of the toner cartridge (or imaging unit) yield depends on the amount of toner that print jobs require. The actual print yield may vary depending on the print density of the pages you print on, operating environment, percentage of image area, printing interval, media type and/or media size. For example, if you print a lot of graphics, the consumption of the toner is higher and you may need to change the cartridge more often.
473. MaintenanceRedistributing tonerWhen the toner cartridge is near the end of its life:• White streaks or light printing occurs and/or density variation side to side.• The Toner LED blinks orange. If this happens, you can temporarily improve print quality by redistributing the remaining toner in the cartridge. In some cases, white streaks or light printing will still occur even after you have redistributed the toner. • Before opening the front cover, close the output support first.• If toner gets on your clothing, wipe it off with a dry cloth and wash clothing in cold water. Hot water sets toner into fabric. 4 Samsung Printer Xpress M2620 M2820 series12

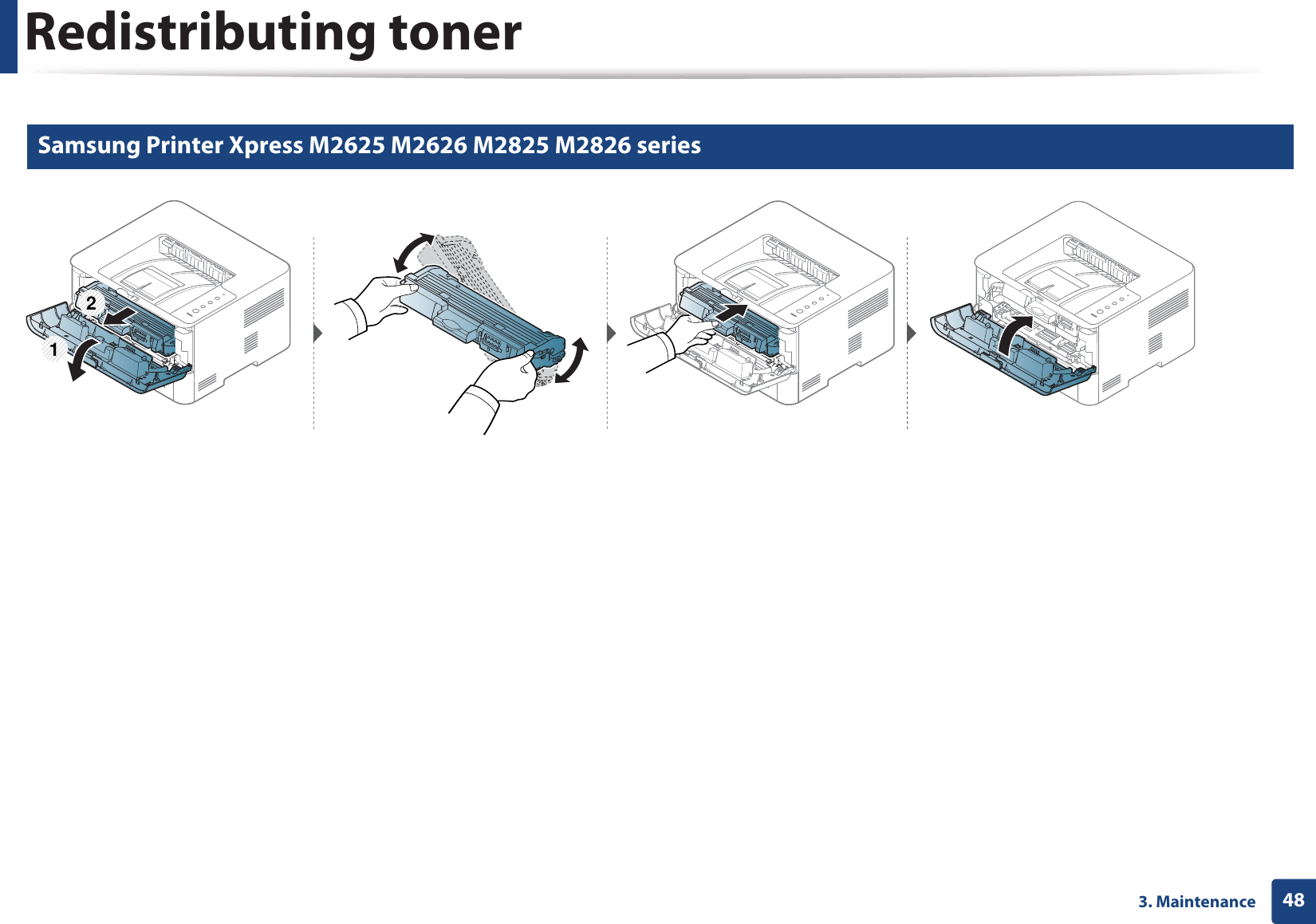

Redistributing toner483. Maintenance5 Samsung Printer Xpress M2625 M2626 M2825 M2826 series 12
493. MaintenanceReplacing the toner cartridge • Before opening the front cover, close the output support first.• Do not use sharp objects such as a knife or scissors to open the toner cartridge package. They might scratch the drum of the cartridge.• If toner gets on your clothing, wipe it off with a dry cloth and wash clothing in cold water. Hot water sets toner into fabric.• Shake the toner cartridge thoroughly, it will increase the initial print quality.• Do not touch the green underside of the toner cartridge. Use the handle on the cartridge to avoid touching this area. When a toner cartridge has reached the end of life, the machine will stop printing.
Replacing the toner cartridge503. Maintenance6 Samsung Printer Xpress M2620 M2820 series Click this link to open an animation about replacing a toner cartridge.
