Contents

Users Manual 2

Replacing the toner cartridge513. Maintenance7 Samsung Printer Xpress M2625 M2626 M2825 M2826 series Click this link to open an animation about replacing a toner cartridge.

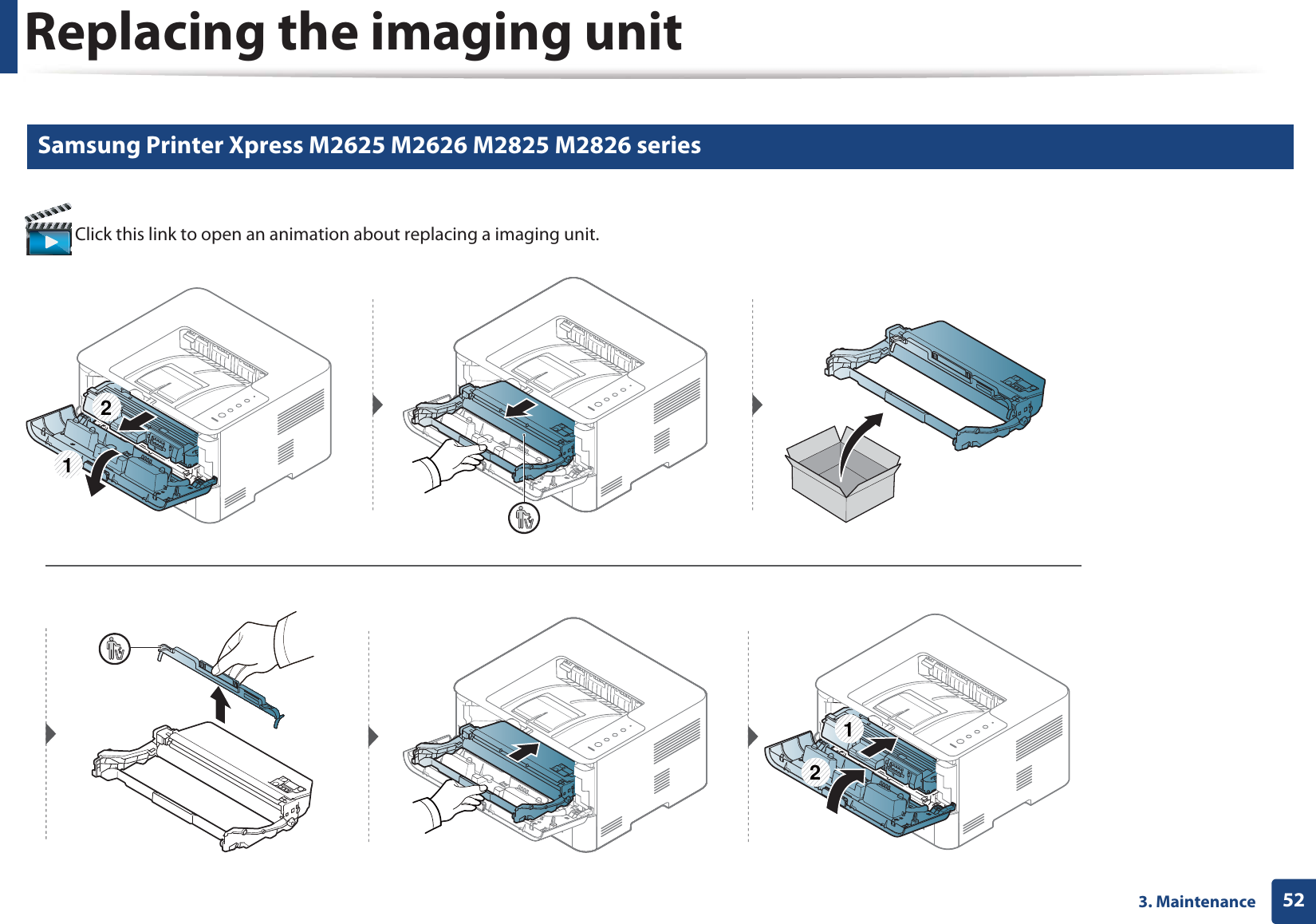

523. MaintenanceReplacing the imaging unit 8 Samsung Printer Xpress M2625 M2626 M2825 M2826 series Click this link to open an animation about replacing a imaging unit.1212

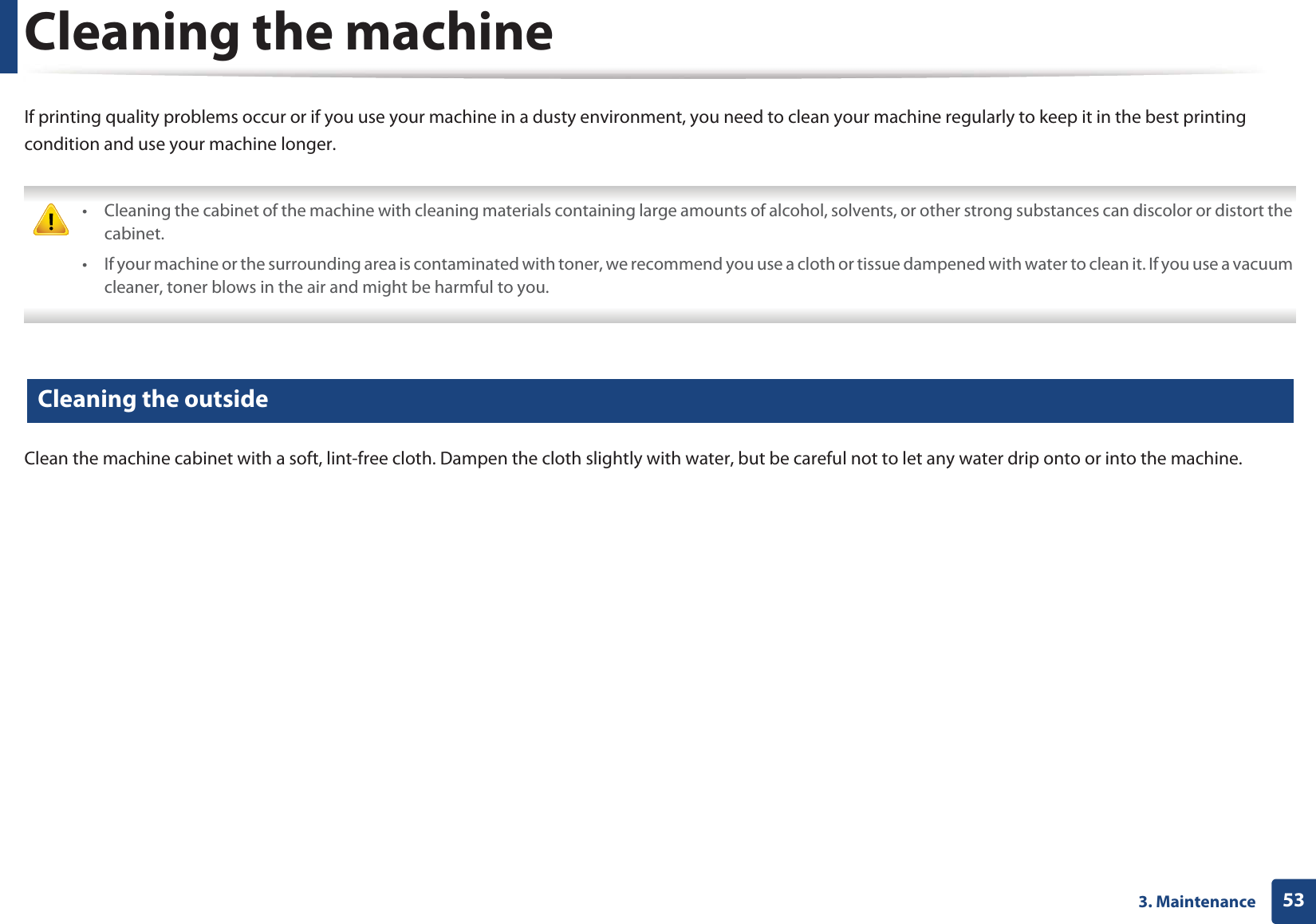

533. MaintenanceCleaning the machineIf printing quality problems occur or if you use your machine in a dusty environment, you need to clean your machine regularly to keep it in the best printing condition and use your machine longer. • Cleaning the cabinet of the machine with cleaning materials containing large amounts of alcohol, solvents, or other strong substances can discolor or distort the cabinet. • If your machine or the surrounding area is contaminated with toner, we recommend you use a cloth or tissue dampened with water to clean it. If you use a vacuum cleaner, toner blows in the air and might be harmful to you. 9 Cleaning the outsideClean the machine cabinet with a soft, lint-free cloth. Dampen the cloth slightly with water, but be careful not to let any water drip onto or into the machine.

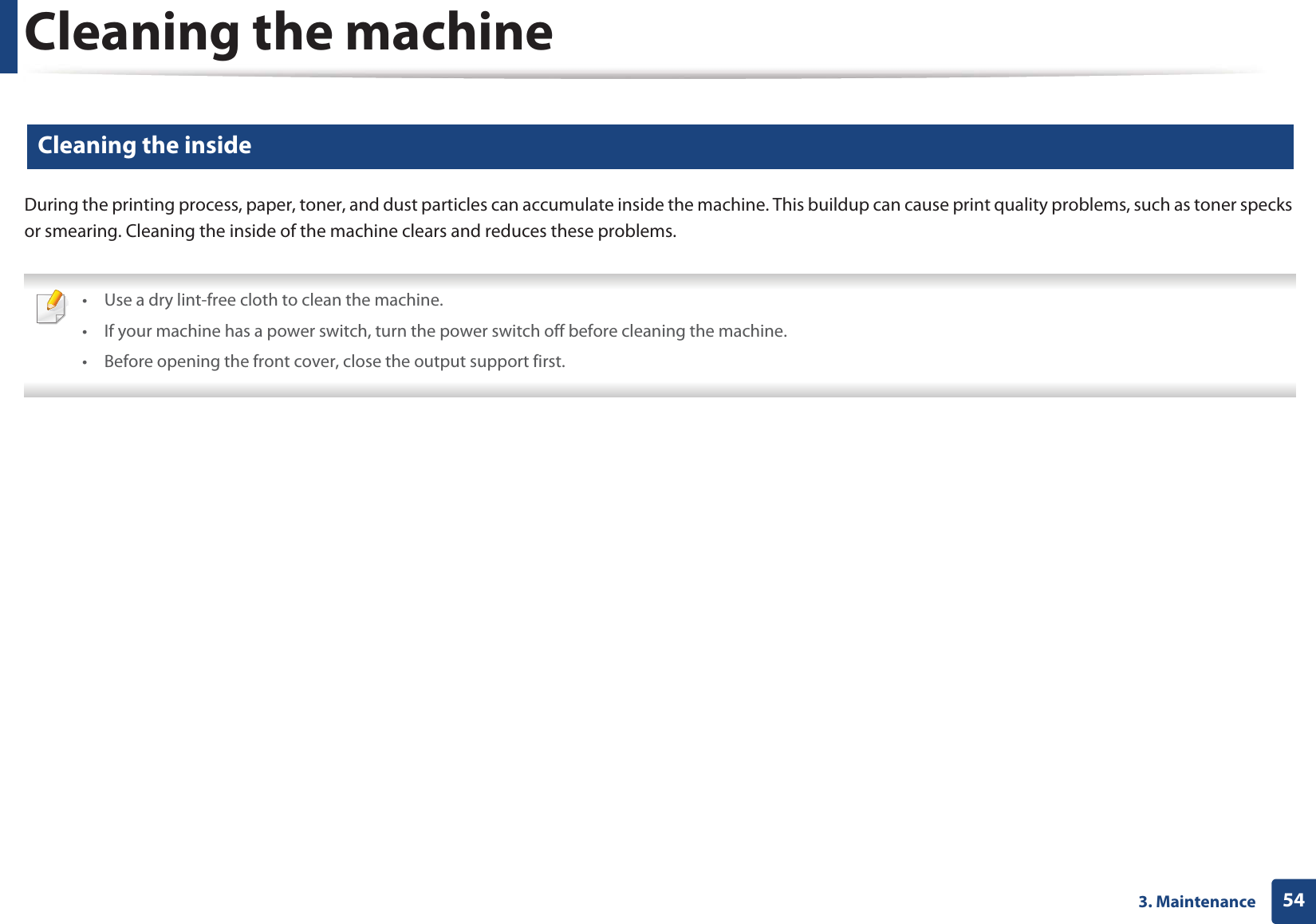

Cleaning the machine543. Maintenance10 Cleaning the insideDuring the printing process, paper, toner, and dust particles can accumulate inside the machine. This buildup can cause print quality problems, such as toner specks or smearing. Cleaning the inside of the machine clears and reduces these problems. • Use a dry lint-free cloth to clean the machine.• If your machine has a power switch, turn the power switch off before cleaning the machine.• Before opening the front cover, close the output support first.

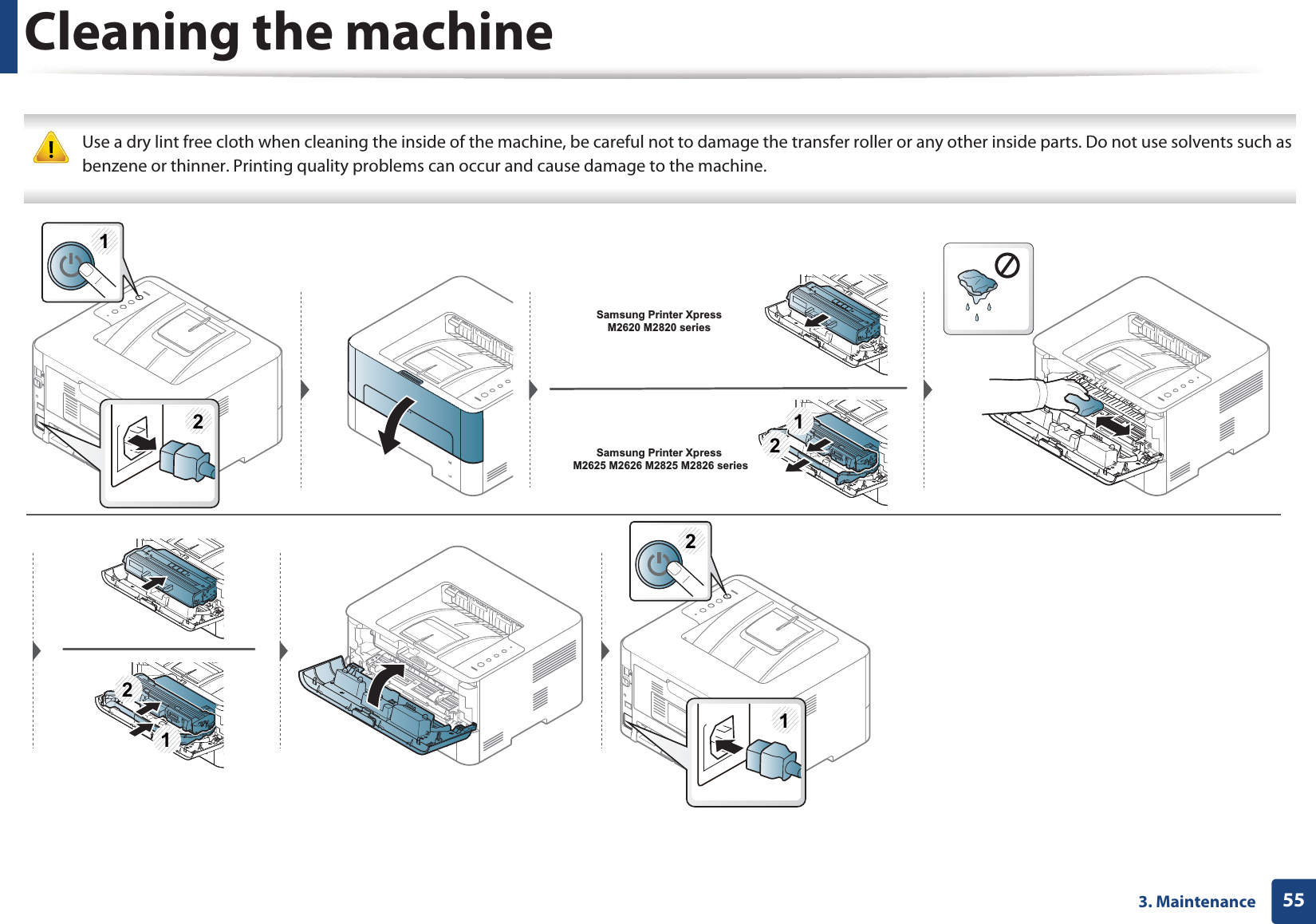

Cleaning the machine553. Maintenance Use a dry lint free cloth when cleaning the inside of the machine, be careful not to damage the transfer roller or any other inside parts. Do not use solvents such as benzene or thinner. Printing quality problems can occur and cause damage to the machine. 1221Samsung Printer Xpress M2620 M2820 series Samsung Printer Xpress M2625 M2626 M2825 M2826 series1221

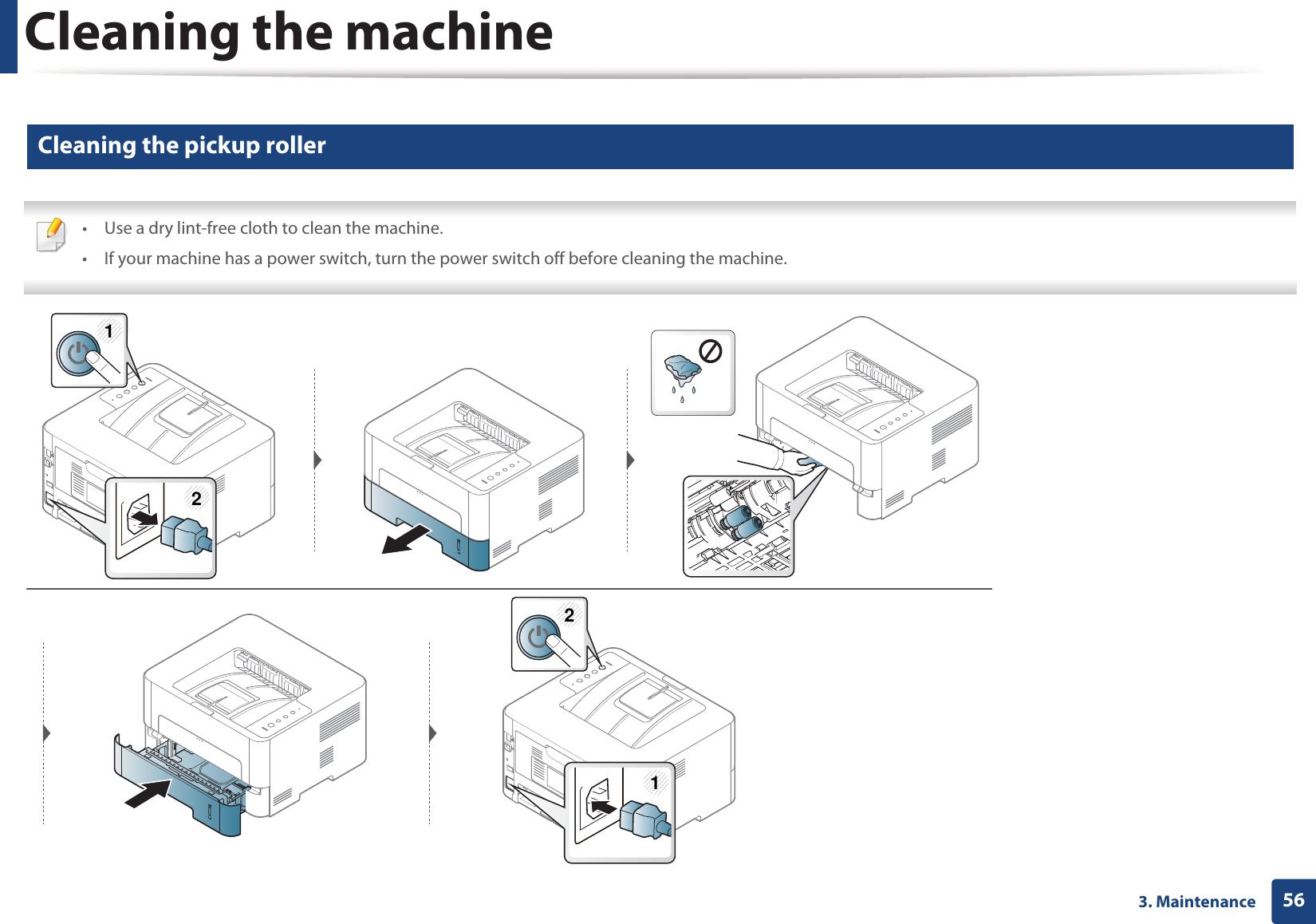

Cleaning the machine563. Maintenance11 Cleaning the pickup roller • Use a dry lint-free cloth to clean the machine.• If your machine has a power switch, turn the power switch off before cleaning the machine. 1212

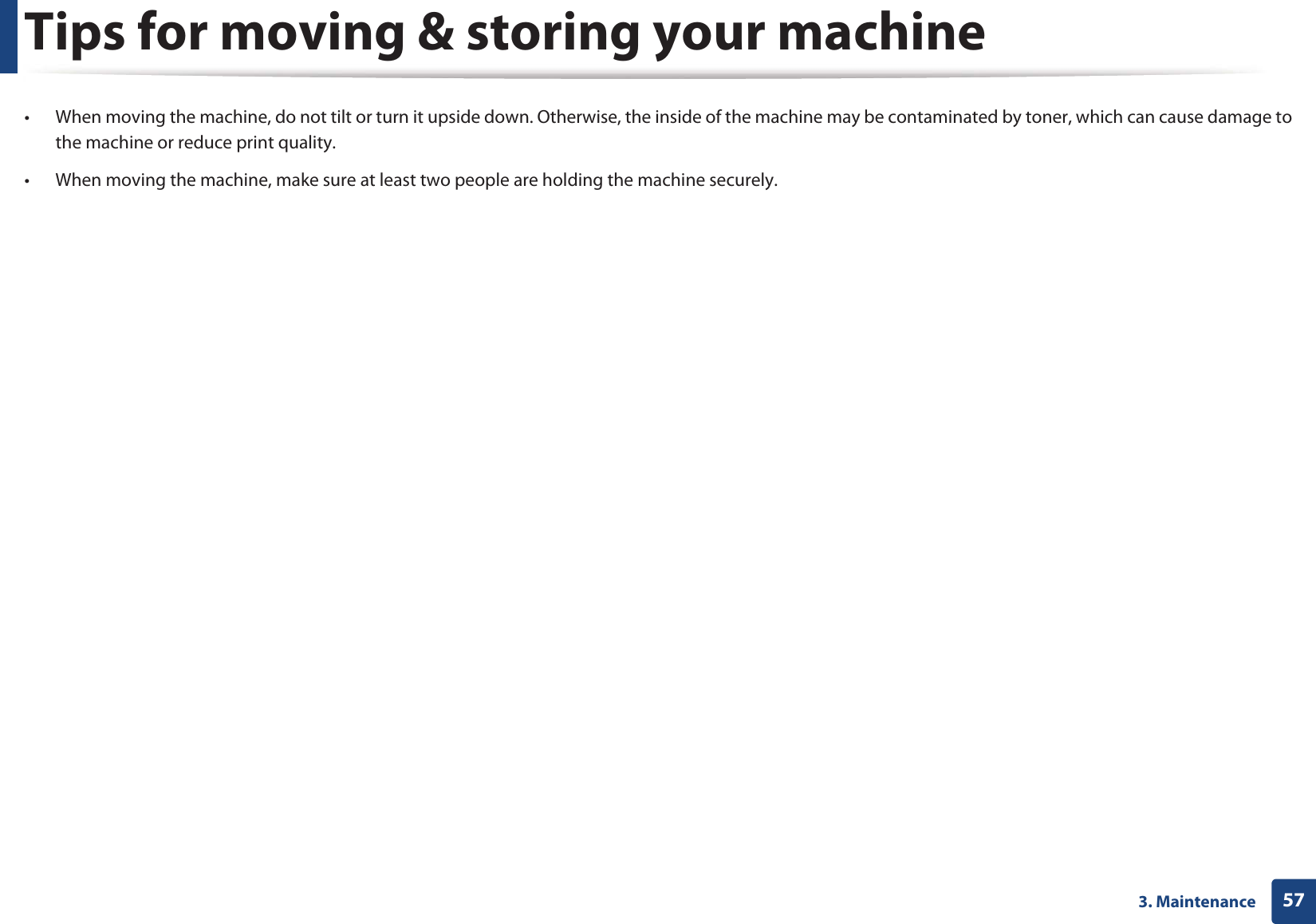

573. MaintenanceTips for moving & storing your machine• When moving the machine, do not tilt or turn it upside down. Otherwise, the inside of the machine may be contaminated by toner, which can cause damage to the machine or reduce print quality.• When moving the machine, make sure at least two people are holding the machine securely.

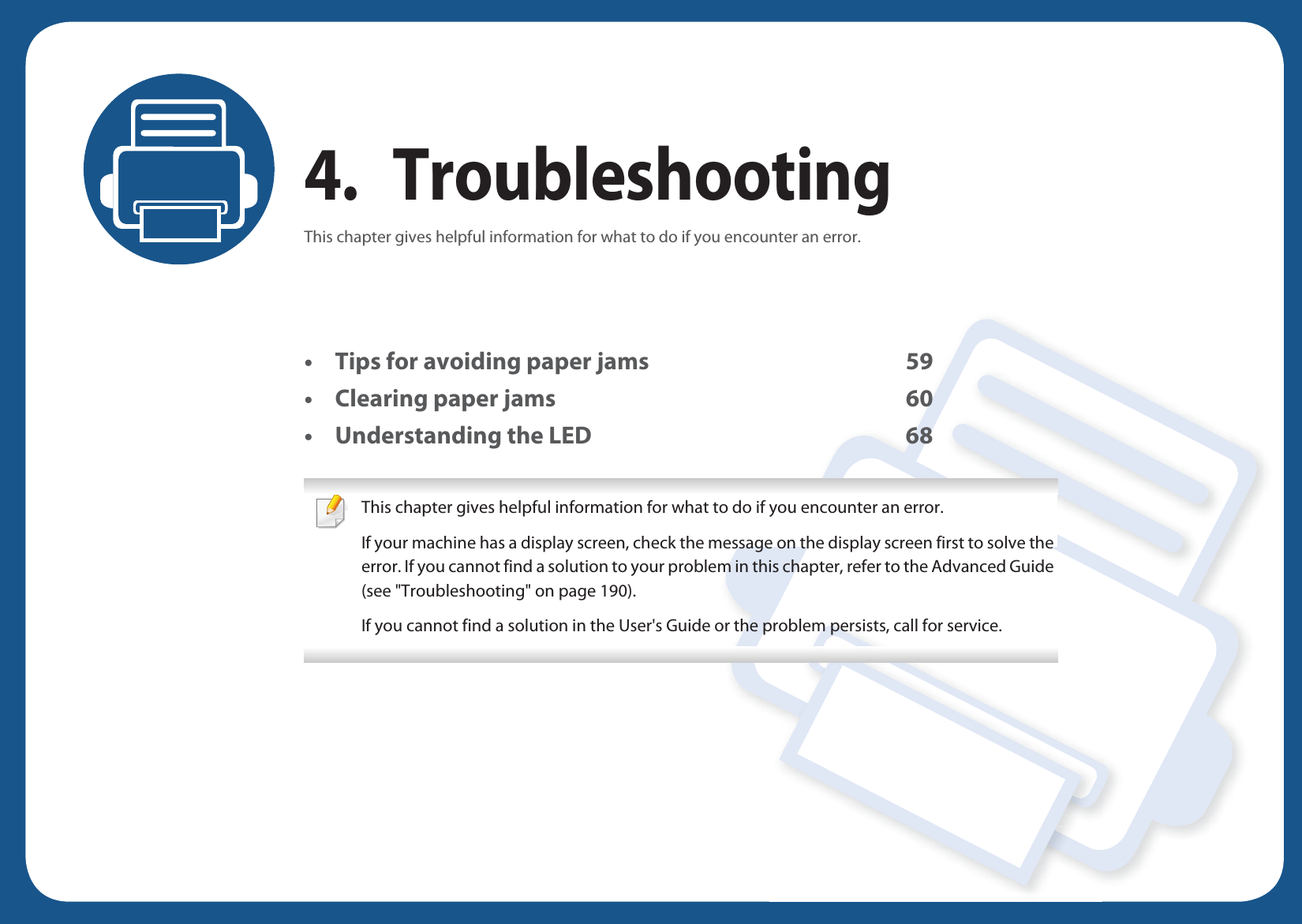

4. TroubleshootingThis chapter gives helpful information for what to do if you encounter an error.• Tips for avoiding paper jams 59• Clearing paper jams 60• Understanding the LED 68 This chapter gives helpful information for what to do if you encounter an error.If your machine has a display screen, check the message on the display screen first to solve the error. If you cannot find a solution to your problem in this chapter, refer to the Advanced Guide (see "Troubleshooting" on page 190).If you cannot find a solution in the User's Guide or the problem persists, call for service.

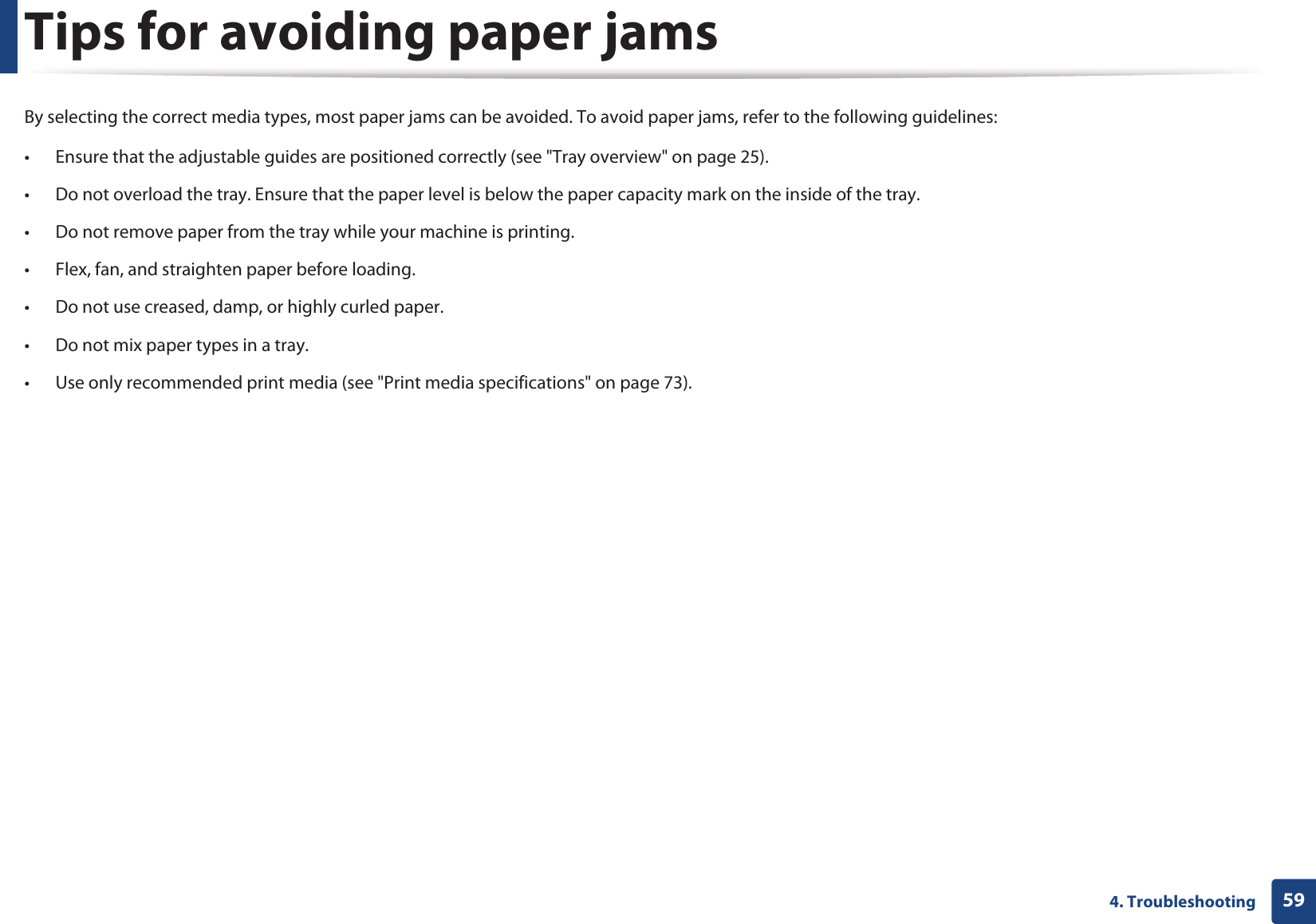

594. TroubleshootingTips for avoiding paper jamsBy selecting the correct media types, most paper jams can be avoided. To avoid paper jams, refer to the following guidelines:• Ensure that the adjustable guides are positioned correctly (see "Tray overview" on page 25).• Do not overload the tray. Ensure that the paper level is below the paper capacity mark on the inside of the tray.• Do not remove paper from the tray while your machine is printing.• Flex, fan, and straighten paper before loading. • Do not use creased, damp, or highly curled paper.• Do not mix paper types in a tray.• Use only recommended print media (see "Print media specifications" on page 73).

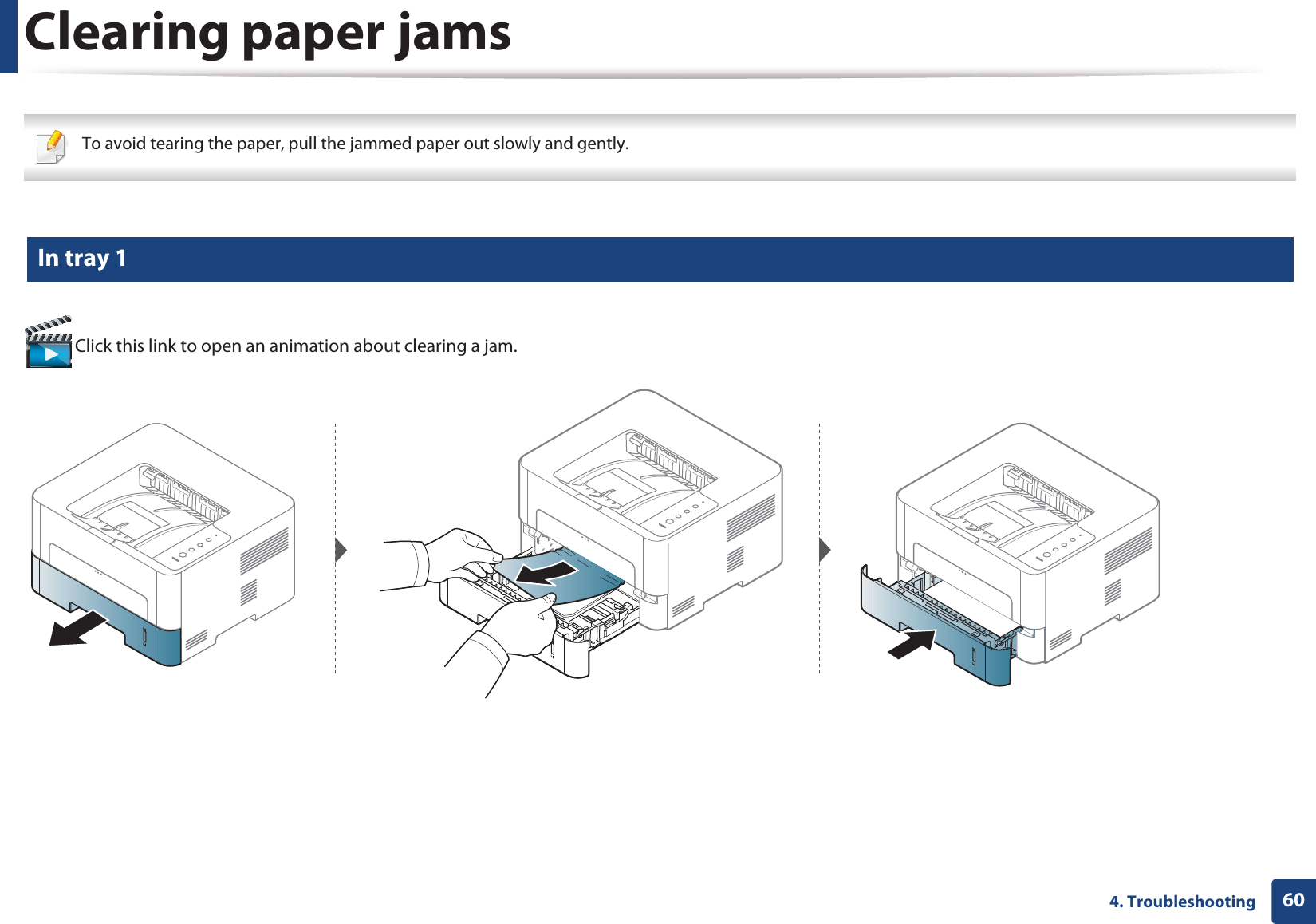

604. TroubleshootingClearing paper jams To avoid tearing the paper, pull the jammed paper out slowly and gently. 1 In tray 1 Click this link to open an animation about clearing a jam.

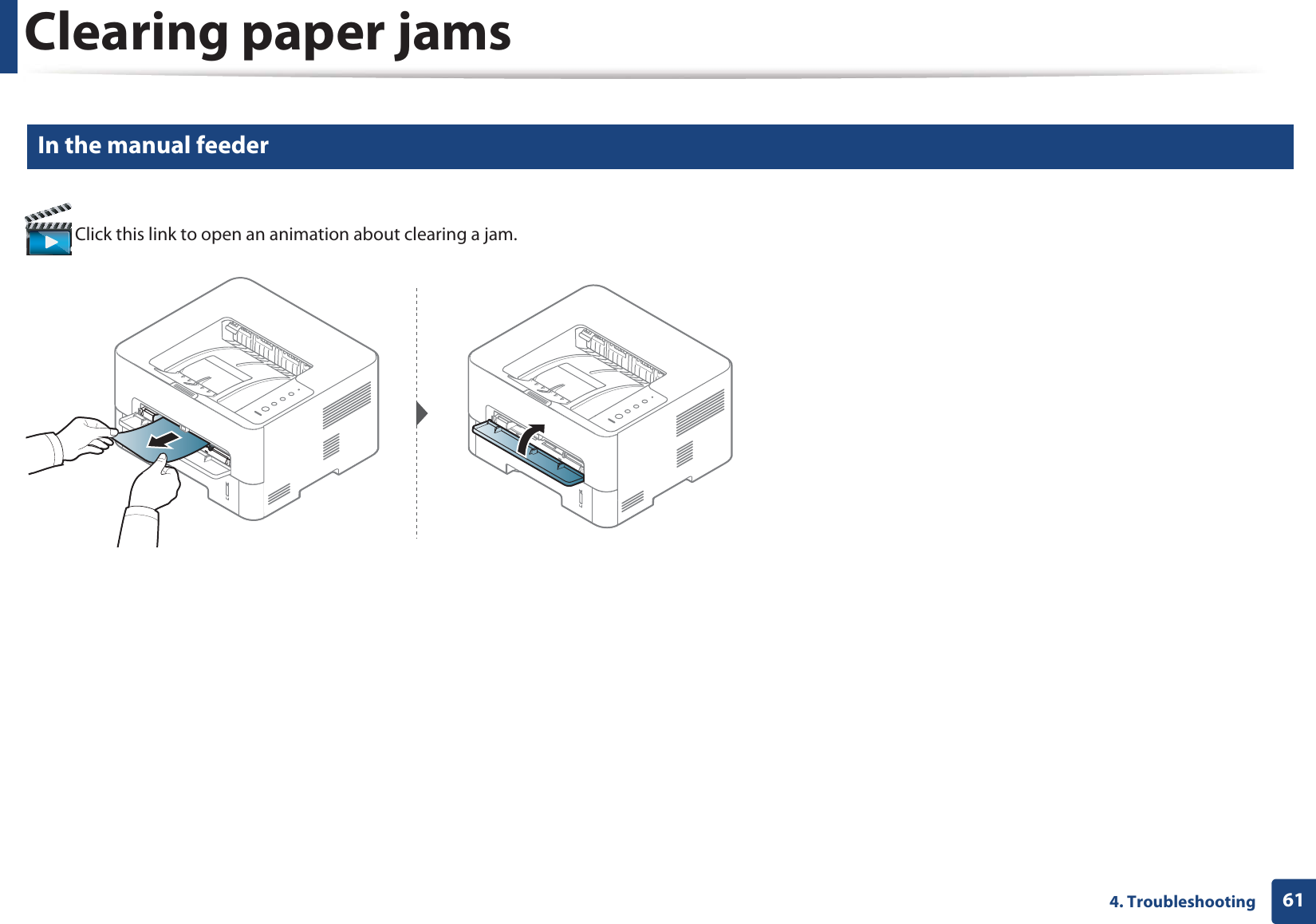

Clearing paper jams614. Troubleshooting2 In the manual feeder Click this link to open an animation about clearing a jam.

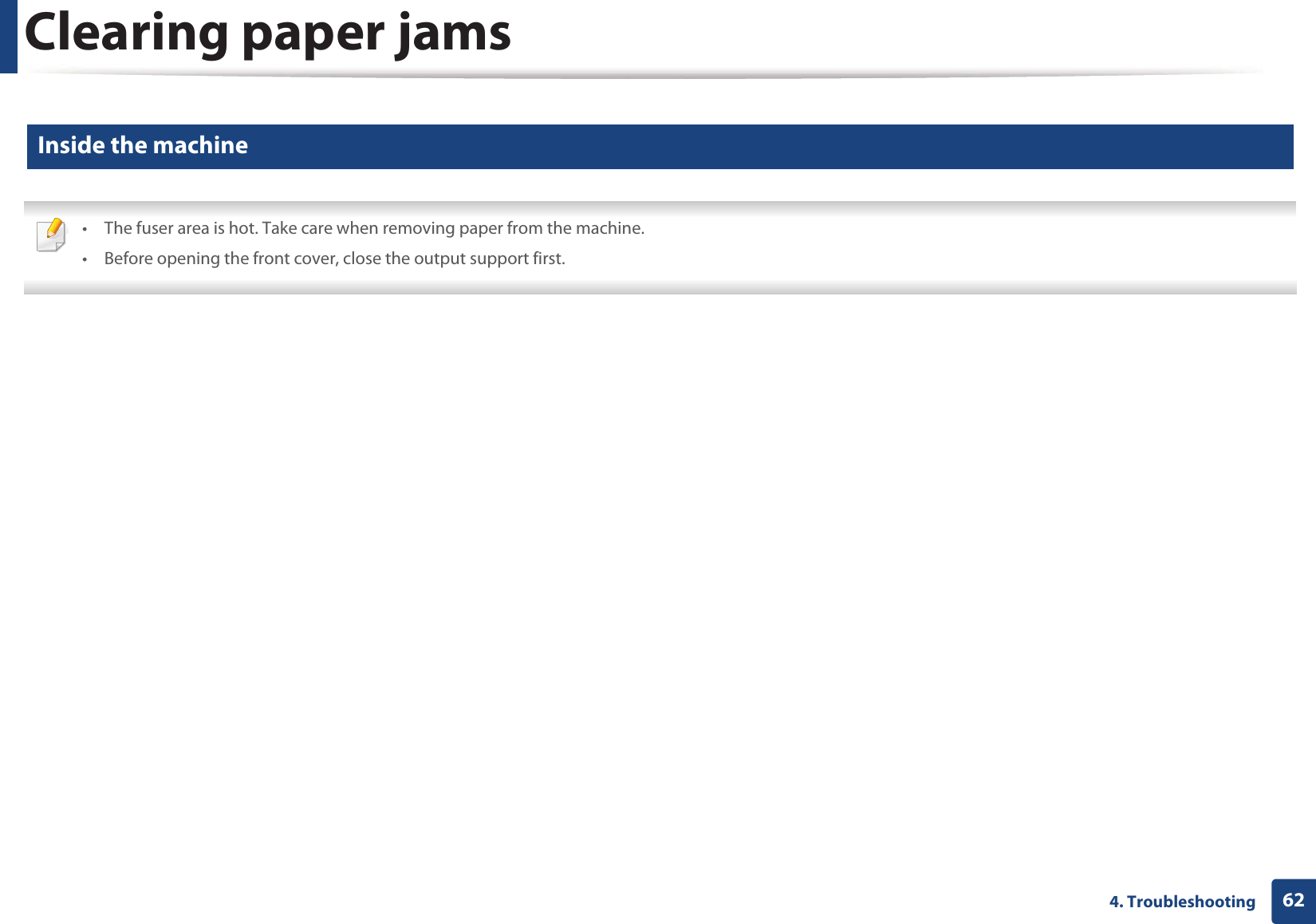

Clearing paper jams624. Troubleshooting3 Inside the machine • The fuser area is hot. Take care when removing paper from the machine.• Before opening the front cover, close the output support first.

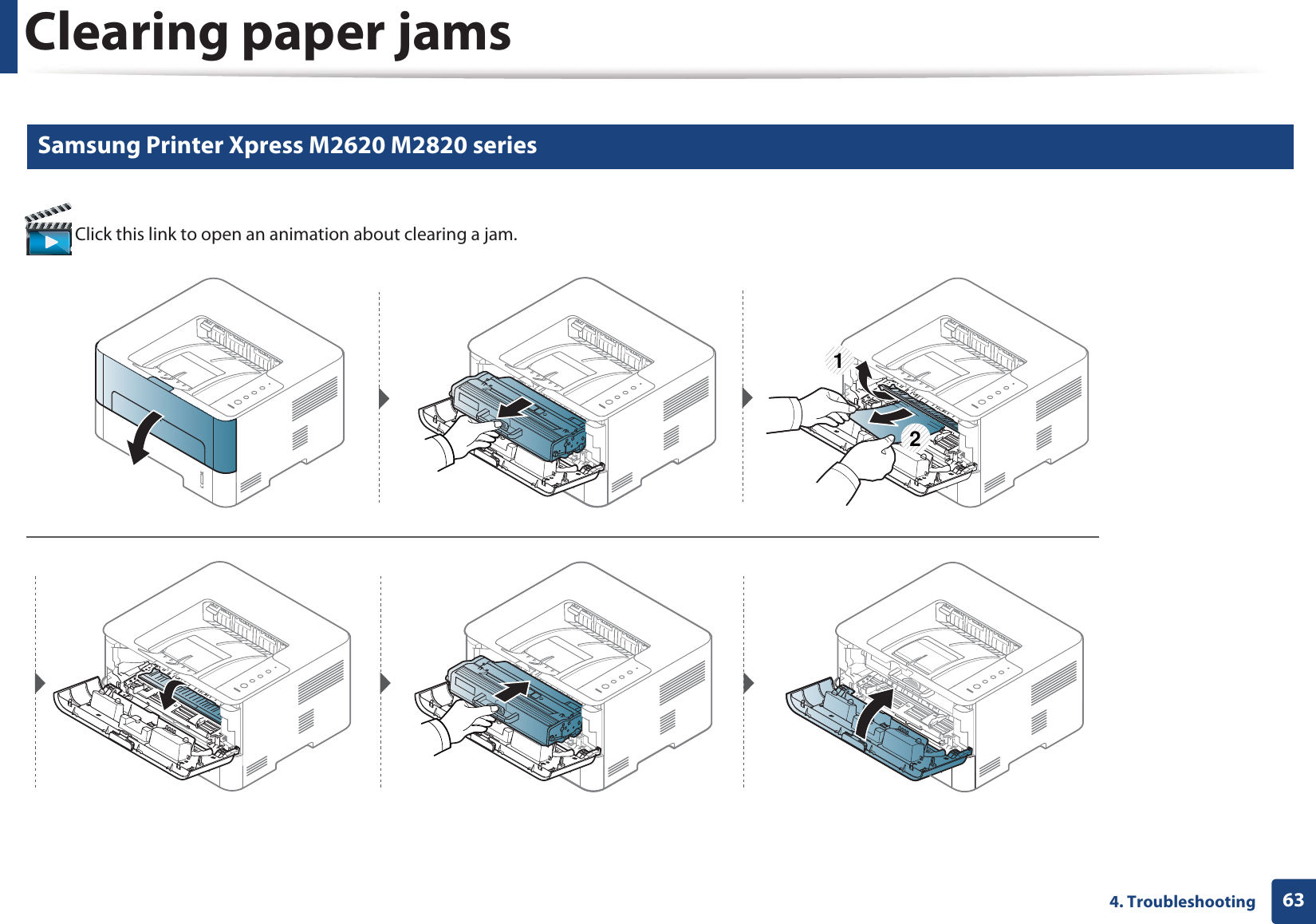

Clearing paper jams634. Troubleshooting4 Samsung Printer Xpress M2620 M2820 series Click this link to open an animation about clearing a jam.122

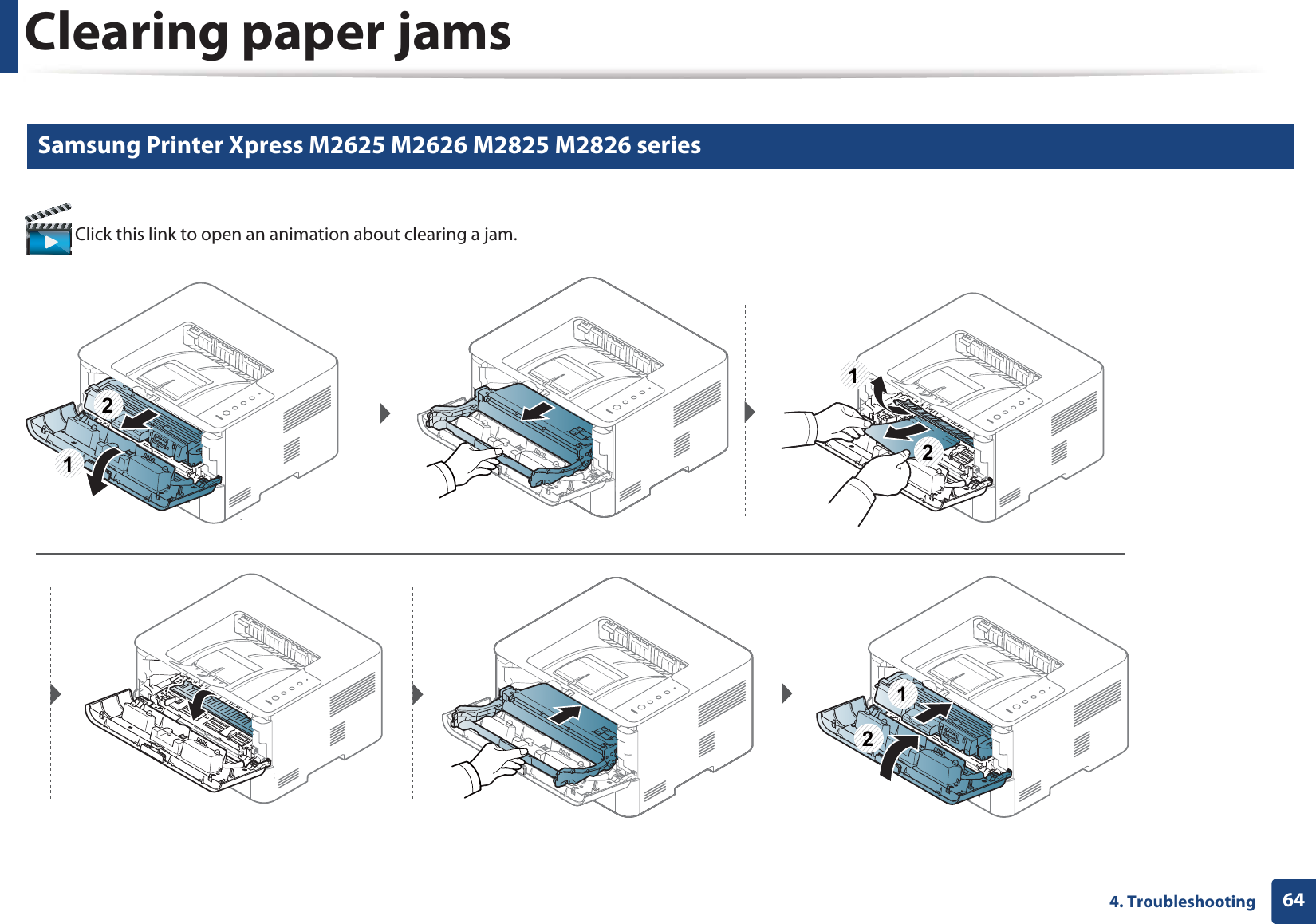

Clearing paper jams644. Troubleshooting5 Samsung Printer Xpress M2625 M2626 M2825 M2826 series Click this link to open an animation about clearing a jam.121212

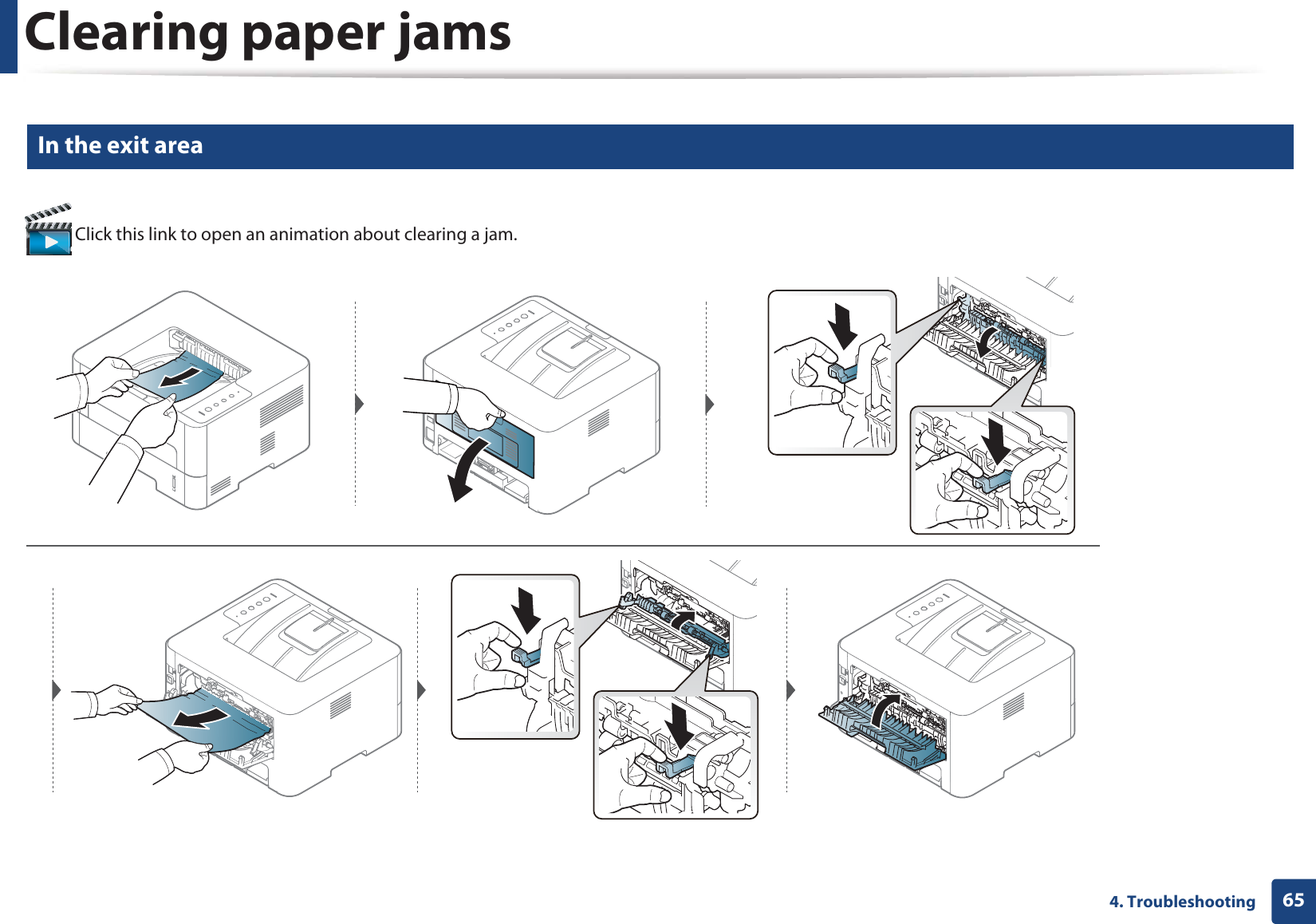

Clearing paper jams654. Troubleshooting6 In the exit area Click this link to open an animation about clearing a jam.
