Samsung Electronics Co SLS-BU10B sFemto 2 User Manual A3LSLS BU10B Part2 Quick Start Guide

Samsung Electronics Co Ltd sFemto 2 A3LSLS BU10B Part2 Quick Start Guide

Contents

A3LSLS-BU10B_User Manual_Part2_Quick Start Guide

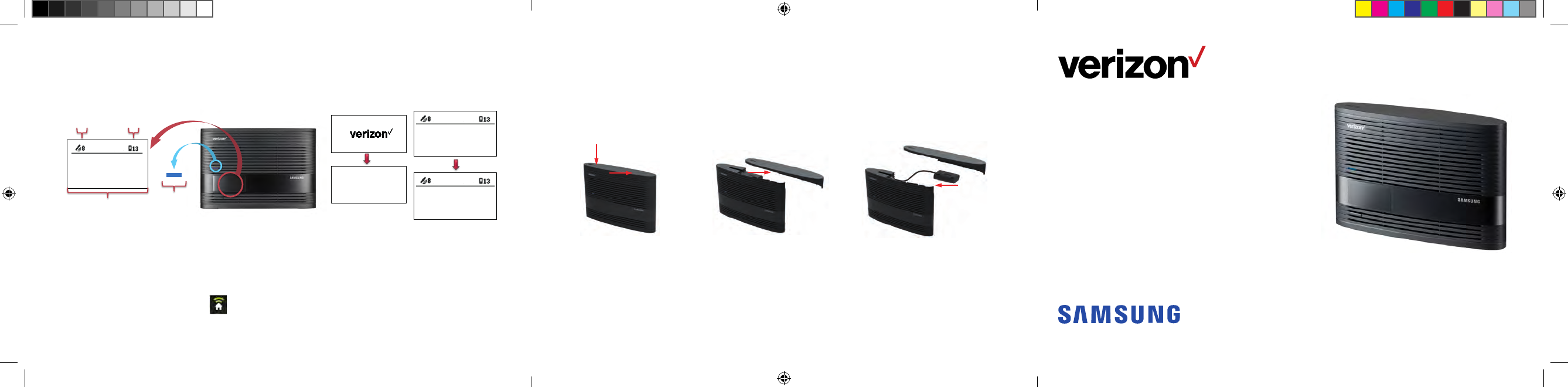

Confirm Your 4G LTE Network Extender in Service Troubleshooting
What if my Display still shows “Searching for GPS” after one hour?
If necessary, use the included 23’ GPS extension cable, so that the GPS antenna can be placed as close to a window
as possible. Follow the steps below to attach the GPS extension cable.
1. Firmly press down on and slide the protective cover as shown to expose the rectangular GPS antenna.
2. Pull the GPS antenna out and attach GPS extension cable and reattach GPS antenna in line.
3. Replace the GPS cover and place the GPS antenna in a new location close to a window.
SLS-BU10B
When the Network Extender powers on, the Power / Status Indicator LED will be solid blue. During start-up and
self-configuration, the LED will blink. After successful start-up, the LED will return to solid blue and the display
will show “In Service.” Pressing the button below the display will show additional information about your Network
Extender.
Make a Call on Your 4G LTE Network Extender
Once the Network Extender is in service, your phone must be within 50 feet horizontally of the unit.
To verify your Verizon phones are connected to the Network Extender:
1. Ensure your Verizon Wireless 4G LTE mobile handset is enabled for Advanced Calling.
2. Dial #48 from your mobile phone and listen for the following confirmation: “You are under 4G LTE Network
Extender coverage …”
3. Some phones may show a home icon.
Note: The range of the Network Extender is dependent on the strength of the existing Verizon Wireless network
coverage. The use of this unit is recommended for areas where 1 bar or less is observed on your phone.
Verizon 4G LTE
Network Extender
Quick Start Guide
EP68-00554A Revision 1
What if my display still shows ‘Connecting to the Verizon Network’ after one hour?
You may have to change the settings on your router. Please refer to the Troubleshooting section of the User Guide
before calling Verizon or go to www.verizonwireless.com/support/network-extender-router-configuration/.
For More Information
• For the latest documentation, additional troubleshooting steps, or to learn more about advanced settings and the
device’s web interface, find the downloadable User Guide at www.verizonwireless.com/support/4g-lte-network-
extender/.
• Call customer support toll free at 800-922-0204.
GPS Antenna Cover GPS Antenna Cover
External GPS Cable
In Service
Verizon 4G LTE
Push Buon for More
Device Display Power/Status
Indicator
GPS Indicator Call Indicator
Starng UP…
(Step 2 of 14)
︙
Seng up Device
Please Wait…
(Step 11d of 14)
In Service
Verizon 4G LTE
Push Buon for More
sFemto QSG.indd 3 3/22/2017 11:14:57 AM
Verizon Wireless 4G LTE Network Extender Before You Begin Setup Instructions
Go to www.verizonwireless.com/support/4g-lte-network-extender/ and print the User Guide.
4G LTE Network Extender Requirements
• Internet Access: High speed wired broadband with minimum download speed of 10 Mbps and upload speed of
5 Mbps, 20 Mbps down and 10 Mbps up or higher is recommended.
٤Home satellite broadband access is not supported.
• A Router: The Network Extender must be connected to an available LAN port on a router or modem with always-on
Internet access.
• GPS signal: The Network Extender requires a continuous GPS signal from the provided GPS antenna.
Placement
• Identify a location near a window for the Network Extender where a strong GPS signal can be acquired.
٤A GPS signal is necessary for the Network Extender to work properly and to provide your location in the event of
an emergency and 911 is dialed.
• Place your Network Extender at least 10 feet away from products that generate electromagnetic radiation
(e.g., microwave oven).
• Identify a power source for your Network Extender.
• The 4G LTE Network Extender can be installed vertically, horizontally or mounted to a wall.
٤Optional wall mount and ceiling mount brackets sold separately.
Connect Your 4G LTE Network Extender to the Internet
1. Plug one end of the provided Ethernet cable into an available LAN port on your router and the other end to the LAN
port on your Network Extender.
2. Plug the power supply connector into the DC 12V power port located at the rear of the Network Extender (2).
3. Insert one end of the power cord into the power supply and then plug the other end into an available outlet (3).
Thank you for purchasing a Network Extender to provide enhanced coverage for your Verizon Wireless devices.
Use this guide to help you set up your Network Extender for first use, learn how to connect to it, and verify that you
are under Network Extender coverage.

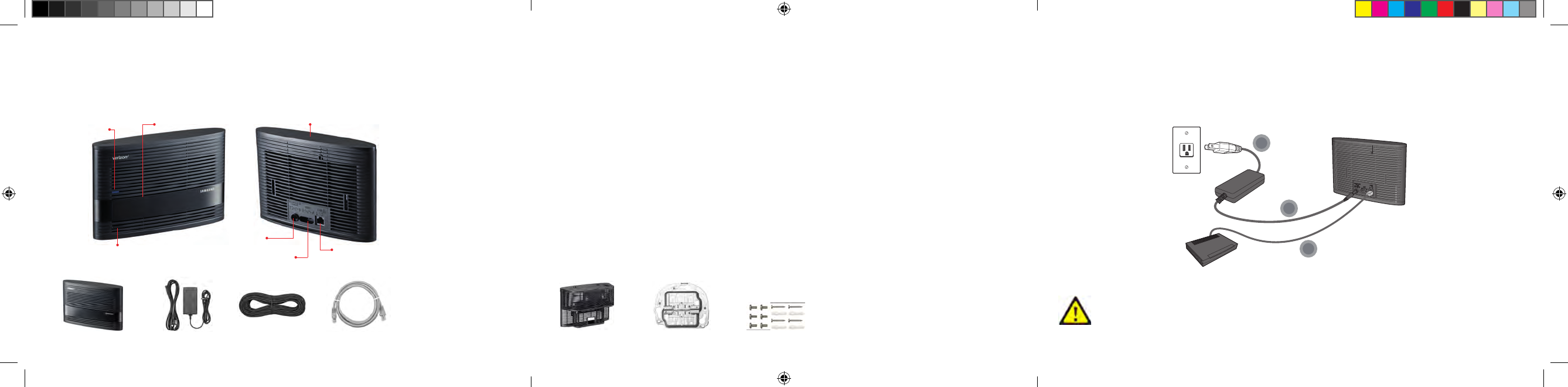

Get to Know Your Device
© 2017 Verizon Wireless. All rights reserved. Verizon Wireless is a trademark of Verizon Trademark Services LLC.
In the Box Automatic startup and self-configuration will begin on power up and will take between 30 - 60 minutes the first
time the Network Extender is powered on!
For general safety and precautions, see Product Safety and Warranty Manual.
Power/Status
Indicator
Display
GPS Antenna
12V DC
Power Input LAN Port
Reset Buon
Display Buon
4G LTE Network Extender Power Adaptor GPS Antenna Cable Ethernet Cable
Quick Start Guide and
Product Safety and
Warranty Manual
Wall Mount Bracket Ceiling Mount Bracket Mounting Hardware
For advanced use only.
Depress the Reset button for 10 seconds
to reset to factory default. Please see
the User Guide.
4G LTE Network Extender
Router
Power
Adaptor
Ethernet
Cable
1
2
3
sFemto QSG.indd 6 3/22/2017 11:15:00 AM
