Samsung Electronics Co SMC115 GSM/WCDMA/LTE Phone + Bluetooth, DTS/UNII a/b/g/n & NFC User Manual 1

Samsung Electronics Co Ltd GSM/WCDMA/LTE Phone + Bluetooth, DTS/UNII a/b/g/n & NFC 1

Contents

User manual-1

User manual SM-C115 This device is capable of operating in Wi-Fi mode in the 2.4 and 5 GHz bands. The FCC requires that devices operating within 5.15-5.25 GHz may only be used indoors, not outside, in order to avoid interference with MobileSatellite Services (MSS). Therefore, do not use this device outside as a Wi-Fi hotspot or in Wi-Fi Direct mode outside when using the 5.15-5.25 GHz frequencies. Draft 6.1 2012-09-08 Only for Approval
2Table of ContentsRead me firstGetting started8 Device layout9 Buttons10 Package contents11 Installing the SIM or USIM card and battery14 Charging the battery17 Inserting a memory card19 Attaching a hand strap19 Turning the device on and off20 Holding the device20 Locking and unlocking the deviceBasics21 Using the touch screen24 Indicator icons25 Notifications and quick setting panels29 Home and Apps screens33 Opening apps33 Installing or uninstalling apps35 Entering text37 Using the power saving feature39 Accessing help informationPersonalising40 Switching to easy mode40 Managing the Home and Apps screens43 Changing the screen lock method44 Setting wallpaper44 Changing ringtones45 Setting up accounts45 Moving contacts from other devices to your deviceNetwork connectivity48 Connecting to a mobile network48 Connecting to a Wi-Fi network50 Using Smart network switch50 Tethering devices and using mobile hotspotsPhone53 Making calls56 Receiving calls57 During a call
Table of Contents3Studio106 Using Photo studio107 Using Collage studio108 Using Shot & more109 Using Video clip studio110 Using Video trimmerInternet & SNS111 Internet112 Chrome113 Hangouts113 ChatONVoice features115 S Voice117 Voice Recorder119 Voice SearchMultimedia120 Music123 Video125 YouTube126 Flipboard126 Google+126 Photos127 Play Games127 Play Music127 Play NewsstandMotions & usability features59 Control motions62 Toolbox63 Increasing touch screen sensitivityContacts64 Adding contacts65 Managing contactsMessages & email68 Messages71 Email73 Google MailCamera75 Launching Camera81 Using the camera studio widget82 Separating the exposure area and the focus area83 Using the shooting mode93 Configuring settings101 Configuring general settingsGallery102 Viewing content on the device104 Accessing additional options104 Tagging faces105 Using Tag buddy
Table of Contents4Device & data manager158 Upgrading the device159 Transferring files between the device and a computer160 Backing up and restoring data161 Performing a data resetSettings162 About Settings162 QUICK SETTINGS162 NETWORK CONNECTIONS167 CONNECT AND SHARE168 SOUND AND DISPLAY172 PERSONALISATION173 MOTION174 USER AND BACKUP175 SYSTEM182 APPLICATIONS189 Google SettingsAccessibility190 Accessibility191 Using the Home button to open accessibility menus191 TalkBack202 Changing the font size203 Magnifying the screen203 Setting notification reminders203 Turning off all sounds204 Customising caption settingsSafety128 Emergency mode130 Sending help messages131 Severe weather notification (Geo News)Utilities133 S Finder134 S Planner137 Calculator137 Clock139 Drive139 Dropbox140 Google141 Maps141 Memo142 My Files144 TorchConnecting with other devices145 NFC147 Bluetooth150 S Beam151 Quick connect155 Screen mirroring157 Using the mobile printing feature
Table of Contents5205 Adjusting the sound balance205 Using mono audio205 Using auto haptic206 Using the assistive menus208 Using the smart scroll feature208 Setting tap and hold delay options209 Using interaction control mode209 Answering or ending calls210 Using single tap mode210 Configuring accessibility settings211 Using other useful featuresTroubleshooting
6Read me firstThis device provides mobile communication and media services using Samsung’s latest standards and technological expertise. This user manual and the information available at www.samsung.com contain details about the device’s functions and features.•Please read this manual before using the device to ensure safe and proper use.•Descriptions are based on the device’s default settings.•Some content may differ from your device depending on the region, service provider, or device’s software.•Content (high quality content) that requires high CPU and RAM usage will affect the overall performance of the device. Apps related to the content may not work properly depending on the device’s specifications and the environment that it is used in.•Samsung is not liable for performance issues caused by apps supplied by providers other than Samsung.•Samsung is not liable for performance issues or incompatibilities caused by edited registry settings or modified operating system software. Attempting to customise the operating system may cause the device or apps to work improperly.•Software, sound sources, wallpapers, images, and other media provided with this device are licensed for limited use. Extracting and using these materials for commercial or other purposes is an infringement of copyright laws. Users are entirely responsible for illegal use of media.•You may incur additional charges for data services, such as messaging, uploading and downloading, auto-syncing, or using location services. To avoid additional charges, select an appropriate data tariff plan. For details, contact your service provider.•Default apps that come with the device are subject to updates and may no longer be supported without prior notice. If you have questions about an app provided with the device, contact a Samsung Service Centre. For user-installed apps, contact service providers.•Modifying the device’s operating system or installing softwares from unofficial sources may result in device malfunctions and data corruption or loss. These actions are violations of your Samsung licence agreement and will void your warranty.
Read me first7Instructional iconsWarning: situations that could cause injury to yourself or othersCaution: situations that could cause damage to your device or other equipmentNote: notes, usage tips, or additional information
8Getting startedDevice layoutShutter buttonMicrophoneEarpieceMultipurpose jackFront cameraPower buttonHome buttonBack buttonVolume buttonProximity/Light sensorRecent apps buttonTouch screenSpeakerEyelet for strapGPS antennaLensMicrophoneAF-assist lightFlashMemory card slotMain antennaHeadset jackNFC antenna (on the battery)
Getting started9The microphone at the top of the device is active only when you use the speakerphone or take videos.•Do not cover the antenna area with your hands or other objects, except when you are taking photos or videos. This may cause connectivity problems or drain the battery.•Do not use a screen protector. This causes sensor malfunctions.•Do not allow water to contact the touch screen. The touch screen may malfunction in humid conditions or when exposed to water.Do not subject the lens to impacts. Doing so may cause the lens to malfunction.ButtonsButton FunctionPower•Press and hold to turn the device on or off.•Press to lock or unlock the device. The device goes into lock mode when the touch screen turns off.Recent apps•Tap to open the list of recent apps.•Tap and hold to access additional options for the current screen.Home•Press to return to the Home screen.•Press twice to launch S Voice.•Press and hold to launch Google.Back•Tap to return to the previous screen.Volume•Press to adjust the device volume.
Getting started10Package contentsCheck the product box for the following items:•Device•Battery•Quick start guide•The items supplied with the device and any available accessories may vary depending on the region or service provider.•The supplied items are designed only for this device and may not be compatible with other devices.•Appearances and specifications are subject to change without prior notice.•You can purchase additional accessories from your local Samsung retailer. Make sure they are compatible with the device before purchase.•Use only Samsung-approved accessories. Some accessories, such as docking devices, may not have the same water- and dust-resistance certification. Before purchasing accessories, ensure that they are compatible with the device.•Availability of all accessories is subject to change depending entirely on manufacturing companies. For more information about available accessories, refer to the Samsung website.

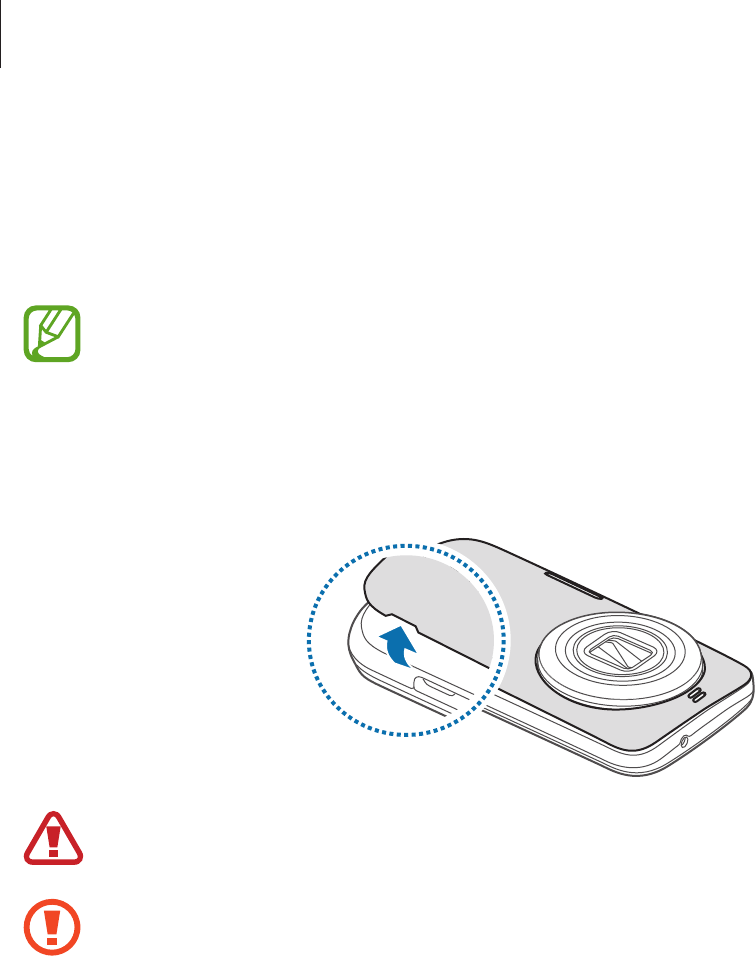

Getting started11Installing the SIM or USIM card and batteryInsert the SIM or USIM card provided by the mobile telephone service provider, and the included battery.•Only microSIM cards work with the device.•Some LTE services may not be available depending on the service provider. For details about service availability, contact your service provider.1 Remove the back cover.Be careful not to damage your fingernails when you remove the back cover.Do not bend or twist the back cover excessively. Doing so may damage the cover.

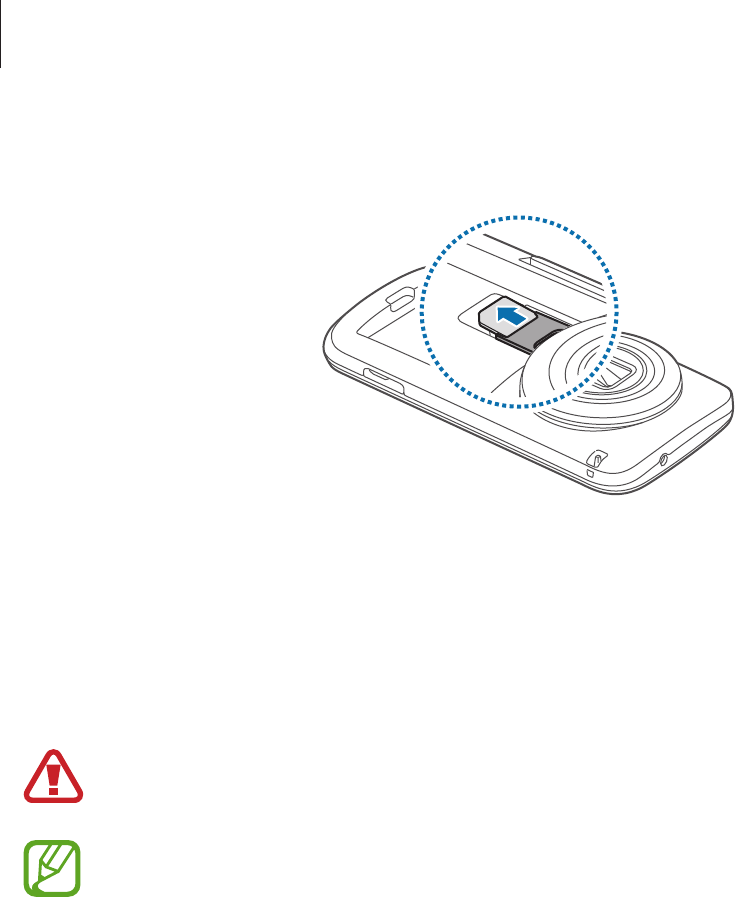

Getting started122 Insert the SIM or USIM card with the gold-coloured contacts facing downwards.•Do not insert a memory card into the SIM card slot. If a memory card happens to be lodged in the SIM card slot, take the device to a Samsung Service Centre to remove the memory card.•Use caution not to lose or let others use the SIM or USIM card. Samsung is not responsible for any damages or inconveniences caused by lost or stolen cards.3 Insert the battery.21

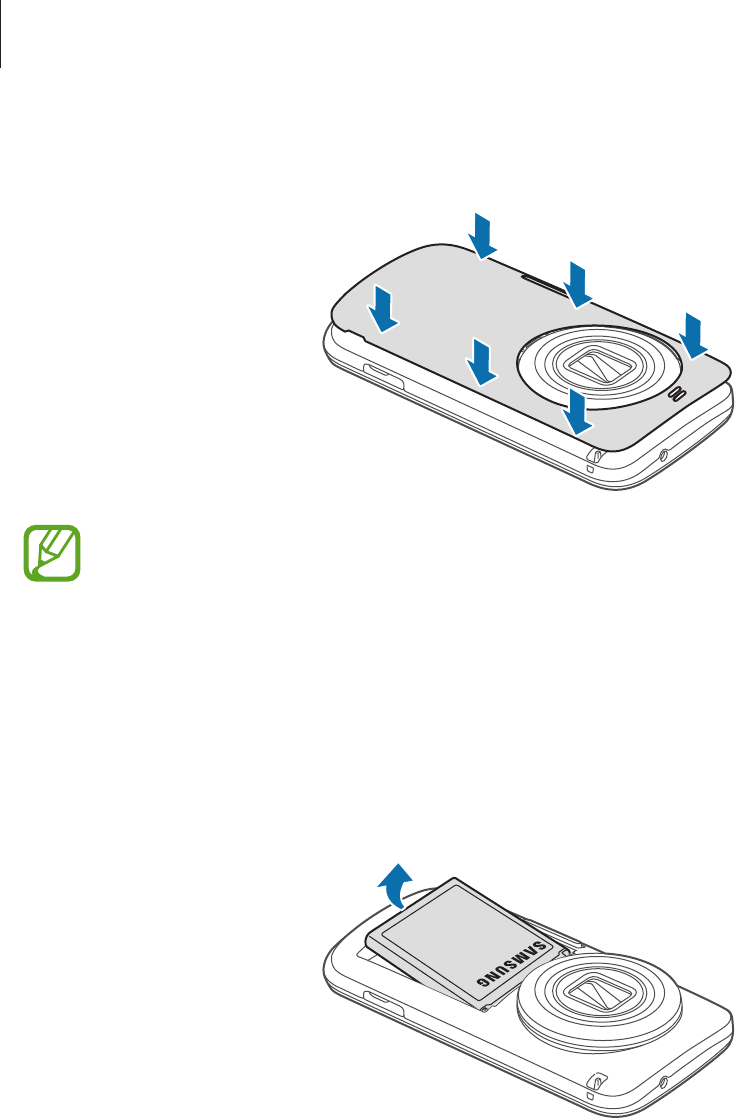

Getting started134 Replace the back cover.•Ensure that the back cover is closed tightly.•Use only Samsung-approved back covers and accessories with the device.Removing the SIM or USIM card and battery1 Remove the back cover.2 Pull out the battery.
Getting started143 Pull out the SIM or USIM card.Charging the batteryUse the charger to charge the battery before using it for the first time. A computer can be also used to charge the device by connecting them via the USB cable.Use only Samsung-approved chargers, batteries, and cables. Unapproved chargers or cables can cause the battery to explode or damage the device.•When the battery power is low, the battery icon appears empty.•If the battery is completely discharged, the device cannot be turned on immediately when the charger is connected. Allow a depleted battery to charge for a few minutes before turning on the device.•If you use multiple apps at once, network apps, or apps that need a connection to another device, the battery will drain quickly. To avoid disconnecting from the network or losing power during a data transfer, always use these apps after fully charging the battery.
Getting started151 Connect the USB cable to the USB power adaptor.2 Plug the end of the USB cable into the multipurpose jack.Connecting the charger improperly may cause serious damage to the device. Any damage caused by misuse is not covered by the warranty.3 Plug the USB power adaptor into an electric socket.•The device can be used while it is charging, but it may take longer to fully charge the battery.•If the device receives an unstable power supply while charging, the touch screen may not function. If this happens, unplug the charger from the device.•While charging, the device may heat up. This is normal and should not affect the device’s lifespan or performance. If the battery gets hotter than usual, the charger may stop charging.•If the device is not charging properly, take the device and the charger to a Samsung Service Centre.
Getting started164 After fully charging, disconnect the device from the charger. First unplug the charger from the device, and then unplug it from the electric socket.Do not remove the battery before removing the charger. This may damage the device.To save energy, unplug the charger when not in use. The charger does not have a power switch, so you must unplug the charger from the electric socket when not in use to avoid wasting power. The charger should remain close to the electric socket and easily accessible while charging.Reducing the battery consumptionYour device provides options that help you save battery power. By customising these options and deactivating features in the background, you can use the device longer between charges:•When you are not using the device, switch to sleep mode by pressing the Power button.•Close unnecessary apps with the task manager.•Deactivate the Bluetooth feature.•Deactivate the Wi-Fi feature.•Deactivate auto-syncing of apps.•Decrease the backlight time.•Decrease the brightness of the display.
Getting started17Inserting a memory cardYour device accepts memory cards with maximum capacities of 64 GB. Depending on the memory card manufacturer and type, some memory cards may not be compatible with your device.•Some memory cards may not be fully compatible with the device. Using an incompatible card may damage the device or the memory card, or corrupt the data stored in it.•Use caution to insert the memory card right-side up.•The device supports the FAT and the exFAT file systems for memory cards. When inserting a card formatted in a different file system, the device asks to reformat the memory card.•Frequent writing and erasing of data shortens the lifespan of memory cards.•When inserting a memory card into the device, the memory card’s file directory appears in the My Files → SD card folder.1 Open the cover of the memory card slot.2 Insert a memory card with the gold-coloured contacts facing downwards.3 Push the memory card into the slot until it locks in place.4 Close the cover of the memory card slot.
Getting started18Removing the memory cardBefore removing the memory card, first unmount it for safe removal. On the Home screen, tap Apps → Settings → Storage → Unmount SD card.1 Open the cover of the memory card slot.2 Push the memory card until it disengages from the device, and then pull it out.3 Close the cover of the memory card slot.Do not remove the memory card while the device is transferring or accessing information. Doing so can cause data to be lost or corrupted or damage to the memory card or device. Samsung is not responsible for losses that result from the misuse of damaged memory cards, including the loss of data.Formatting the memory cardA memory card formatted on a computer may not be compatible with the device. Format the memory card on the device.On the Home screen, tap Apps → Settings → Storage → Format SD card → Format SD card → Erase everything.Before formatting the memory card, remember to make backup copies of all important data stored on the device. The manufacturer’s warranty does not cover loss of data resulting from user actions.

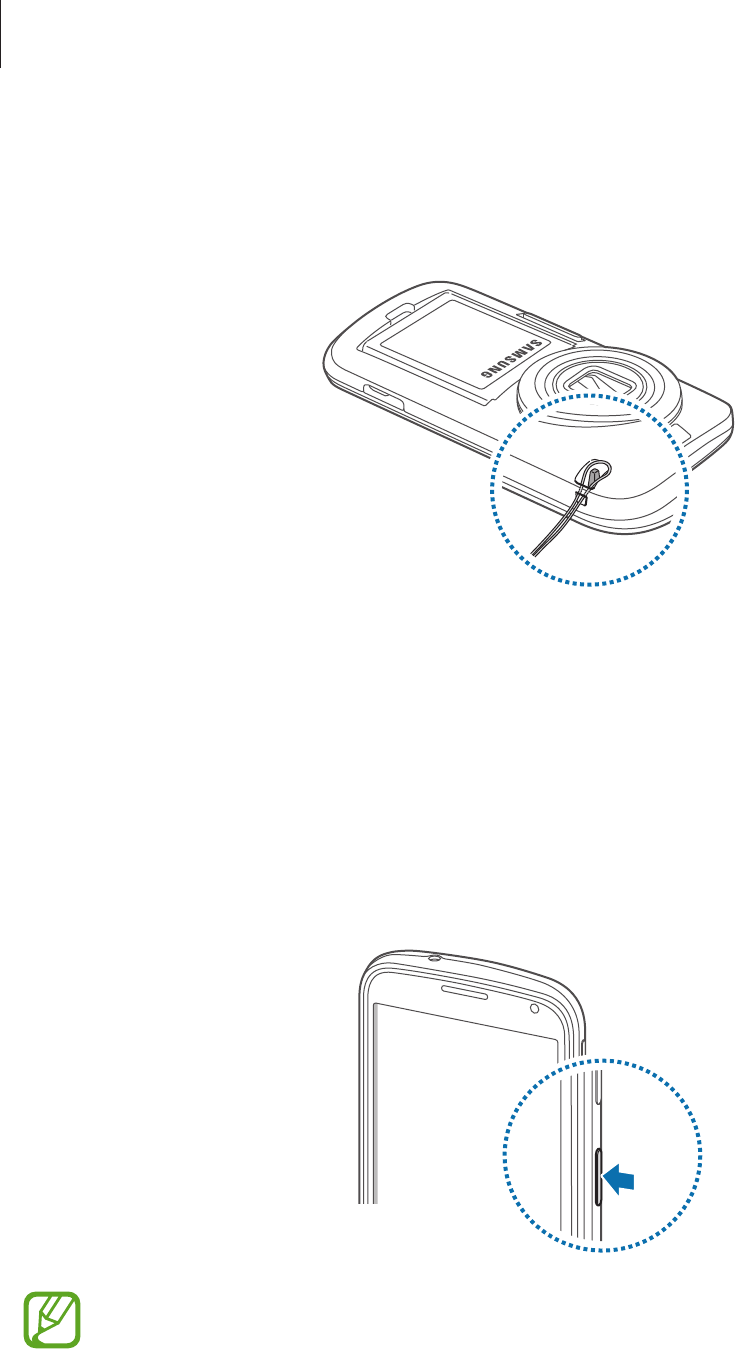

Getting started19Attaching a hand strapSlide a hand strap through the slot and hook it over the small projection.Turning the device on and offWhen turning on the device for the first time, follow the on-screen instructions to set up your device.Press and hold the Power button for a few seconds to turn on the device.To turn off the device, press and hold the Power button, and then tap Power off.•Follow all posted warnings and directions from authorised personnel in areas where the use of wireless devices is restricted, such as aeroplanes and hospitals.•Press and hold the Power button and tap Flight mode to disable the wireless features.
Getting started20Holding the deviceDo not cover the antenna area with your hands or other objects. This may cause connectivity problems or drain the battery.Locking and unlocking the devicePressing the Power button turns off the screen and puts the device into lock mode. The device automatically gets locked if it is not used for a specified period.To unlock the device, press the Power button or the Home button and flick your finger in any direction within the unlock screen area.You can change the unlock code to unlock the device. Refer to Changing the screen lock method for details.

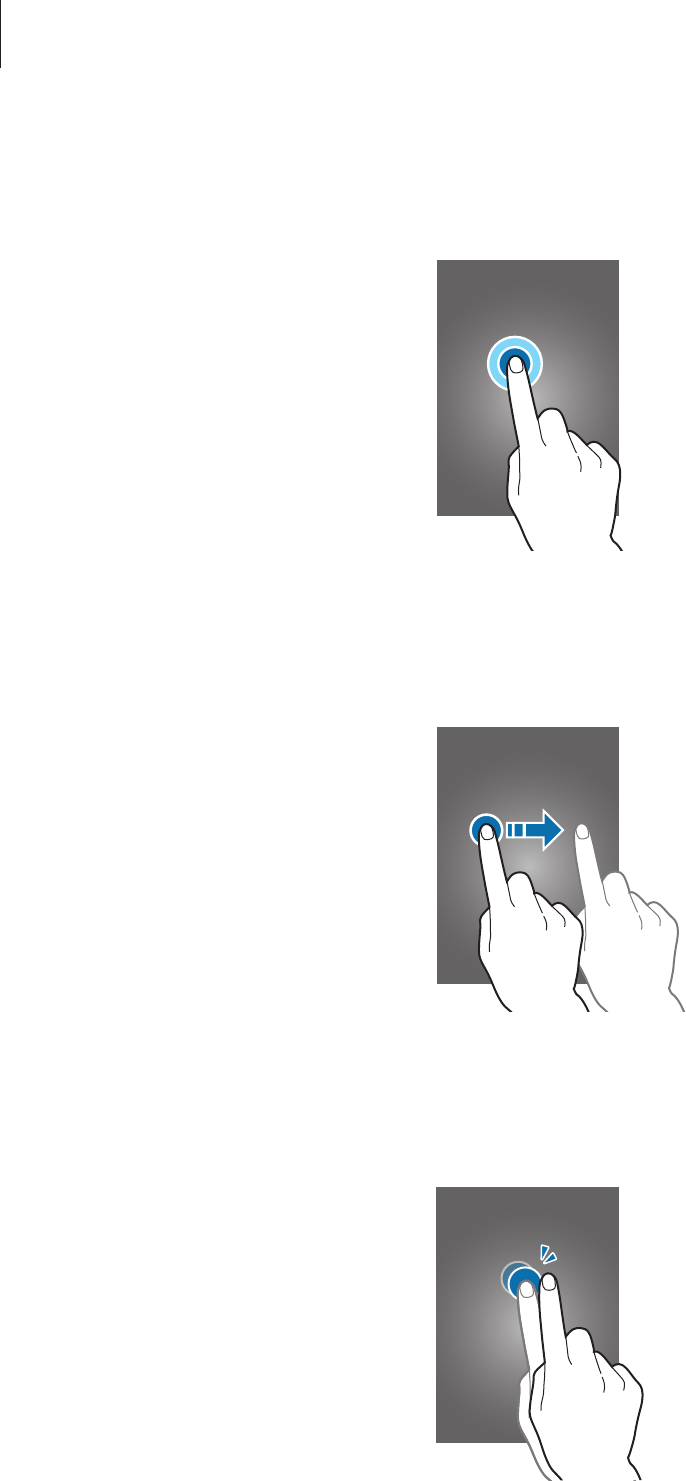

21BasicsUsing the touch screen•Do not allow the touch screen to come into contact with other electrical devices. Electrostatic discharges can cause the touch screen to malfunction.•To avoid damaging the touch screen, do not tap it with anything sharp or apply excessive pressure to it with your fingertips.•The device may not recognise touch inputs close to the edges of the screen, which are outside of the touch input area.•Leaving the touch screen idle for extended periods may result in afterimages (screen burn-in) or ghosting. Turn off the touch screen when you do not use the device.•It is recommended to use fingers when you use the touch screen.TappingTo open an app, to select a menu item, to press an on-screen button, or to enter a character using the keyboard on the screen tap it with a finger.

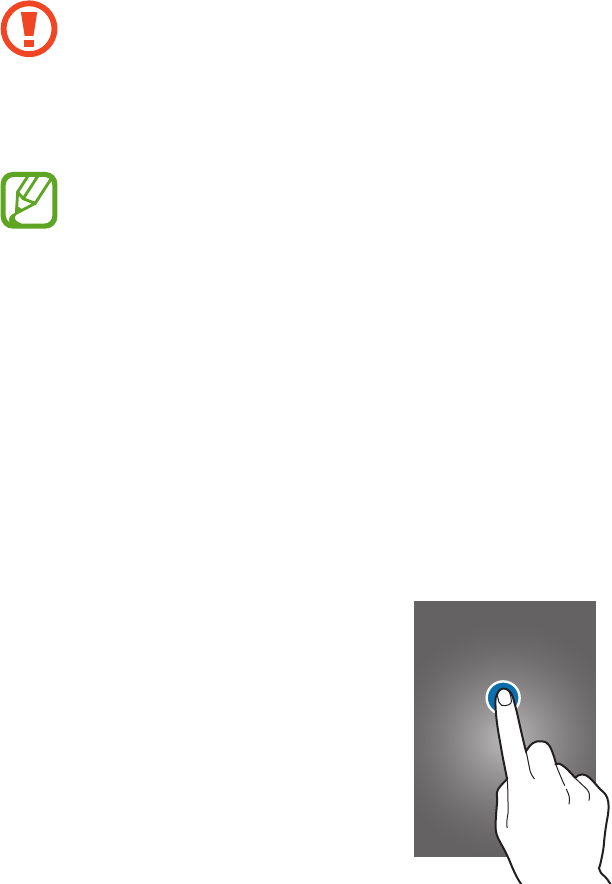

Basics22Tapping and holdingTap and hold an item for more than 2 seconds to access available options.DraggingTo move an icon or thumbnail, tap and hold it and drag it to the target position.Double-tappingDouble-tap on a webpage or image to zoom in a part. Double-tap again to return.

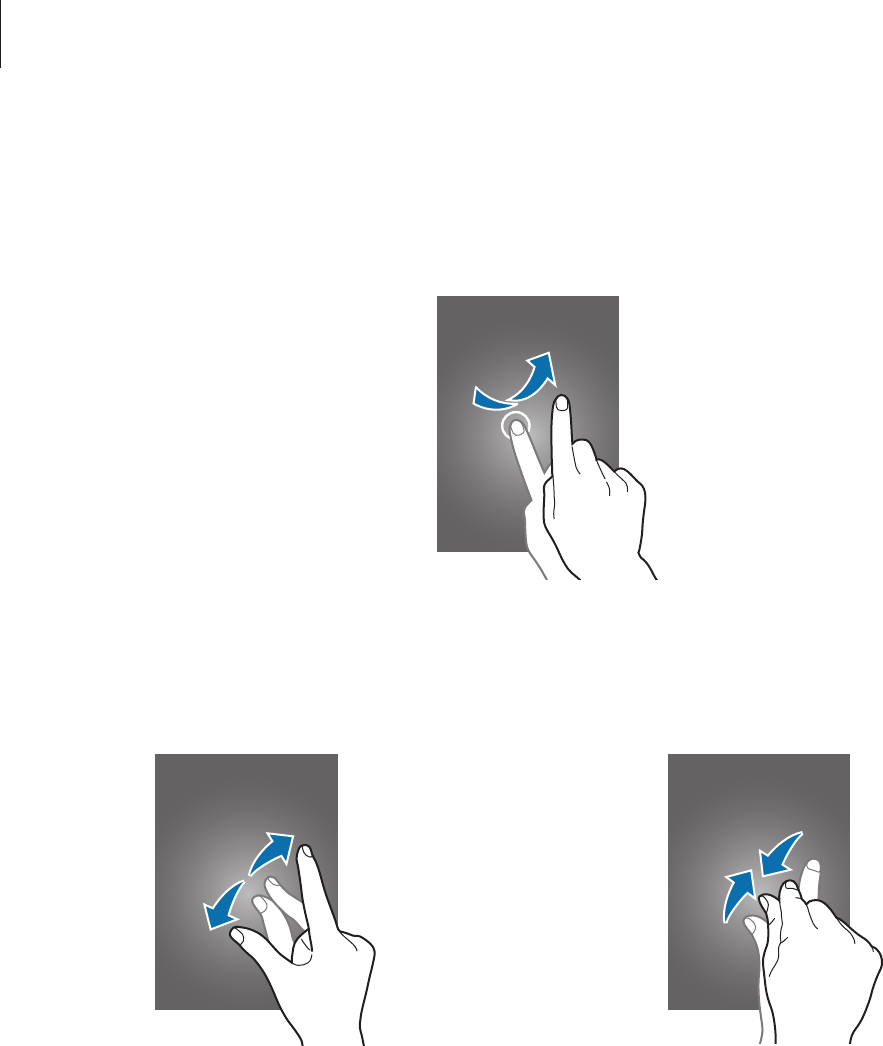

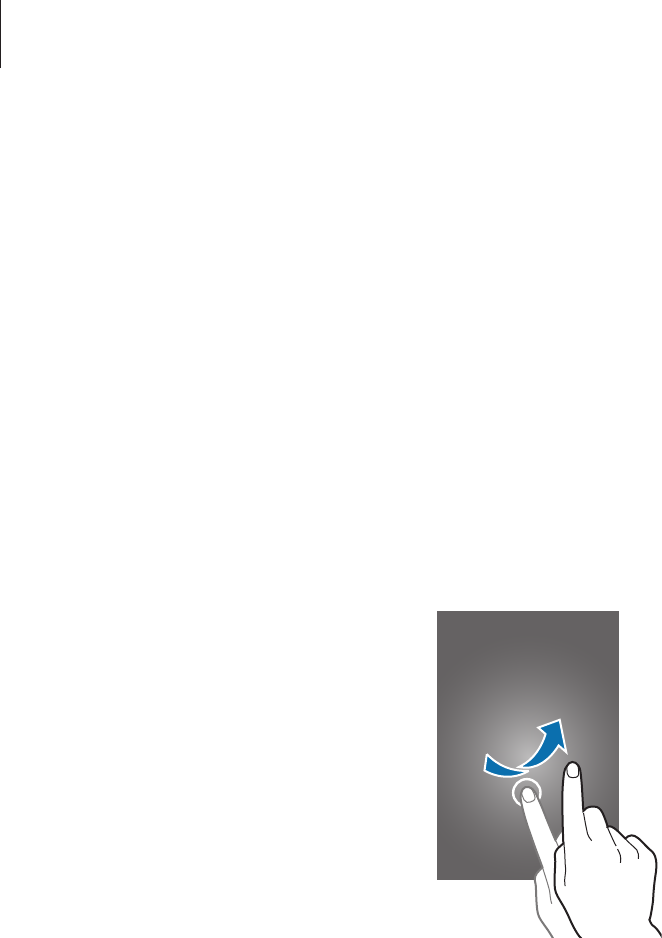

Basics23FlickingFlick left or right on the Home screen or the Apps screen to see another panel. Flick up or down to scroll through a webpage or a list, such as contacts.Spreading and pinchingSpread two fingers apart on a webpage, map, or image to zoom in a part. Pinch to zoom out.
Basics24Indicator iconsThe icons displayed on the status bar provide information about the status of the device. The icons listed in the table below are most common.The status bar may not appear at the top of the screen in some apps. To display the status bar, drag down from the top of the screen.Icon MeaningNo signalSignal strengthRoaming (outside of normal service area)GPRS network connectedEDGE network connectedUMTS network connectedHSDPA network connectedHSPA+ network connectedLTE network connectedWi-Fi connectedBluetooth feature activatedGPS activatedCall in progressMissed callSmart screen feature activatedSynced with the webConnected to computerNo SIM or USIM cardNew text or multimedia messageAlarm activatedMute mode activated
Basics25Icon MeaningVibration mode activatedFlight mode activatedError occurred or caution requiredBattery power levelNotifications and quick setting panelsUsing the notifications panelWhen you receive new notifications, such as messages or missed calls, indicator icons appear on the status bar. To see more information about the icons, open the notifications panel and view the details.To open the notifications panel, drag the status bar downwards.To close the notifications panel, drag the bar from the bottom of the screen upwards.

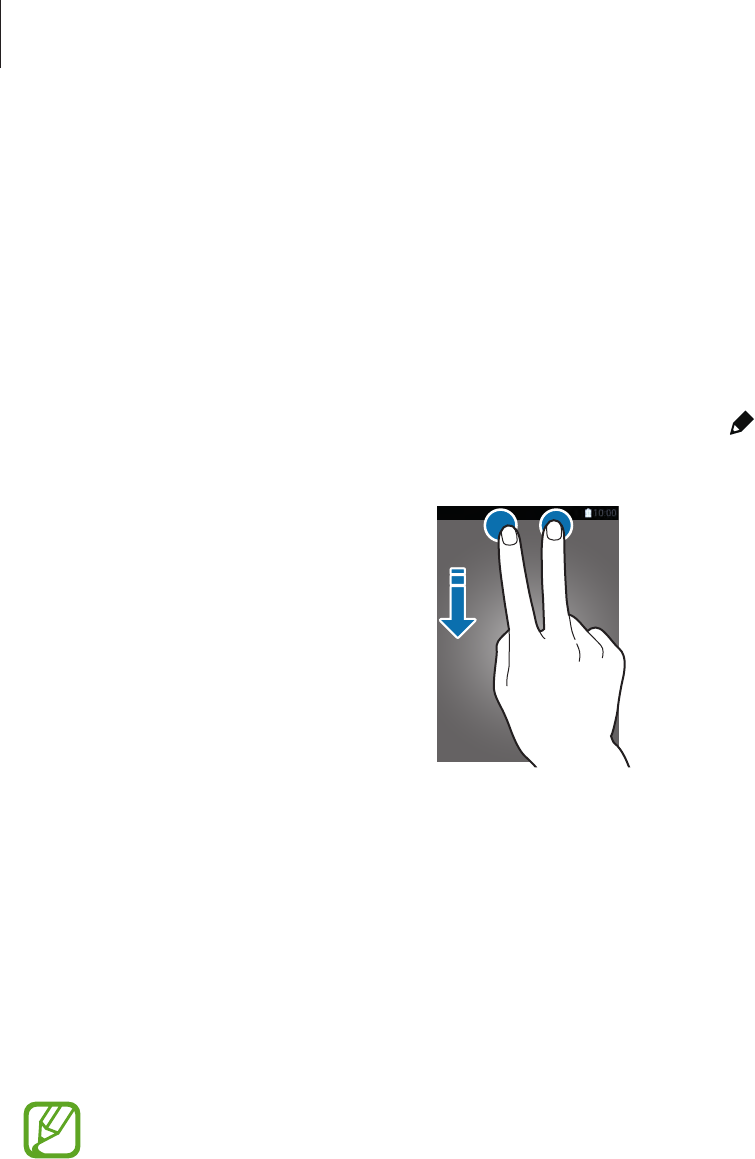

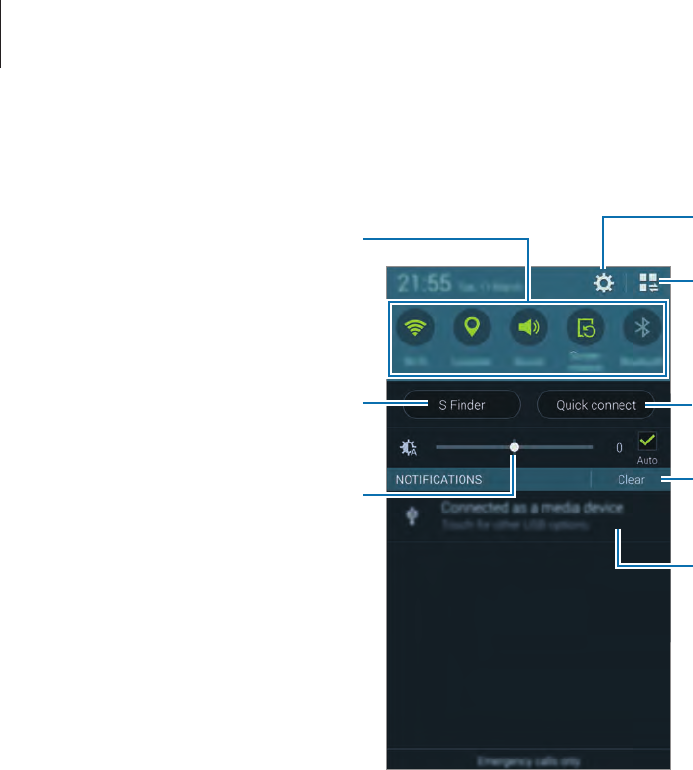

Basics26You can use the following functions on the notifications panel.Launch Settings.Launch S Finder.Tap a notification and perform various actions.Clear all notifications.Adjust the brightness.View all quick setting buttons.Activate or deactivate options. Tap and hold options to view more detailed settings.Launch Quick connect.Adjusting the brightnessTo set the device to adjust the brightness automatically, tick Auto. To manually adjust the brightness from the automatic level, drag the brightness adjustment bar to the left or right.When battery power is low, the brightness adjustment bar disappears from the notifications panel.
Basics27Using the quick setting panelA number of quick setting buttons are available on the notifications panel. To view or access more quick setting buttons, open the quick setting panel. When you open the quick setting panel, you can activate or deactivate various features or configure settings.To open the quick setting panel, drag the status bar downwards with two fingers.To close the quick setting panel, drag the bar from the bottom of the screen upwards.To rearrange quick setting buttons on the notifications panel, tap , tap and hold an item, and then drag the item to another location.Use the following options:•Wi-Fi: Activate or deactivate the Wi-Fi feature. Refer to Connecting to a Wi-Fi network for details.•Location: Activate or deactivate the GPS feature.•Sound / Vibrate / Mute: Activate or deactivate sound mode and silent mode. You can set the device to vibrate or mute all sound in silent mode.•Screen rotation: Allow or prevent the interface from rotating when you rotate the device.Some apps do not allow screen rotation.•Bluetooth: Activate or deactivate the Bluetooth feature.•Mobile data: Activate or deactivate the mobile data connection.
Basics28•U.power saving: Activate or deactivate ultra power-saving mode. Refer to Using the power saving feature for details.•Toolbox: Hide or show the toolbox icon. Refer to Toolbox for details.•Mobile hotspot: Activate or deactivate the Wi-Fi tethering feature. Refer to Tethering devices and using mobile hotspots for details.•Screen Mirroring: Activate or deactivate the screen mirroring feature. Refer to Screen mirroring for details.•NFC: Activate or deactivate the NFC feature. Refer to NFC for details.•Sync: Activate or deactivate auto-syncing of apps.•Smart stay: Activate or deactivate the smart stay feature. When you activate this feature, the screen stays on as long as you look at it.•Smart pause: Activate or deactivate the smart pause feature. When you activate this feature, playback pauses when you look away from the screen.•Power saving: Activate or deactivate power-saving mode. Refer to Using the power saving feature for details.•Blocking mode: Activate or deactivate blocking mode. In blocking mode, your device will block notifications. To select which notifications will be blocked, tap Settings → Blocking mode.•Flight mode: Activate or deactivate flight mode.•Touch sensitivity: Activate or deactivate the touch sensitivity feature. Refer to Increasing touch screen sensitivity for details.

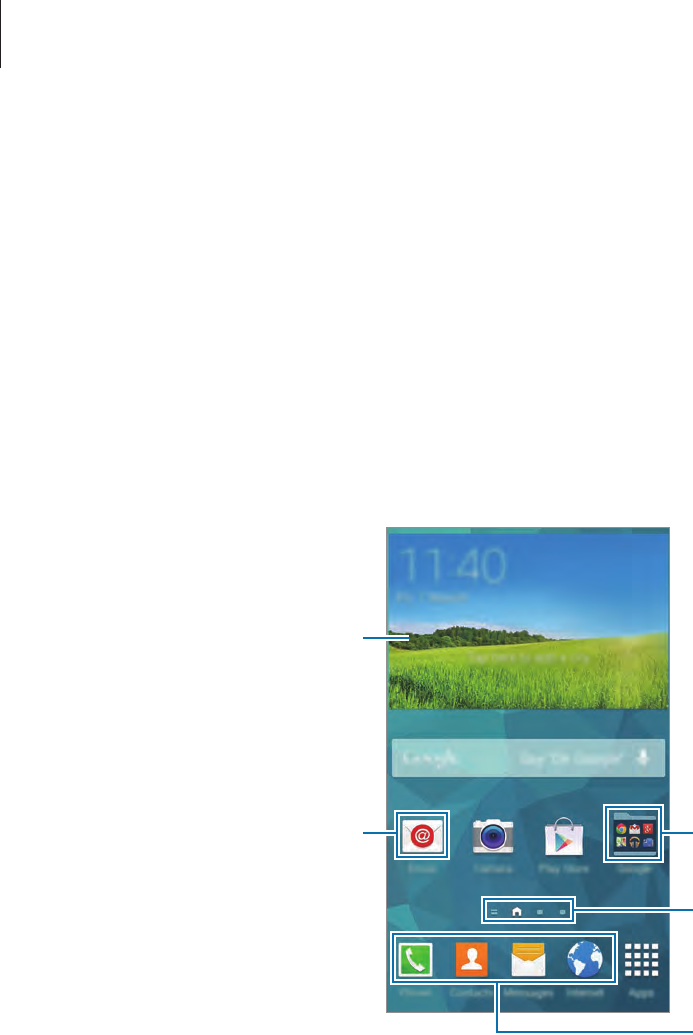

Basics29Home and Apps screensHome screenThe Home screen is the starting point to access all of the device’s features. It displays widgets, shortcuts to apps, and more. Widgets are small apps that launch specific app functions to provide information and convenient access on your Home screen.The Home screen can have multiple panels. To view other panels, scroll left or right. To customise the Home screen, refer to Managing the Home and Apps screens for details.A widgetAn app A folderScreen indicatorsFavourite apps

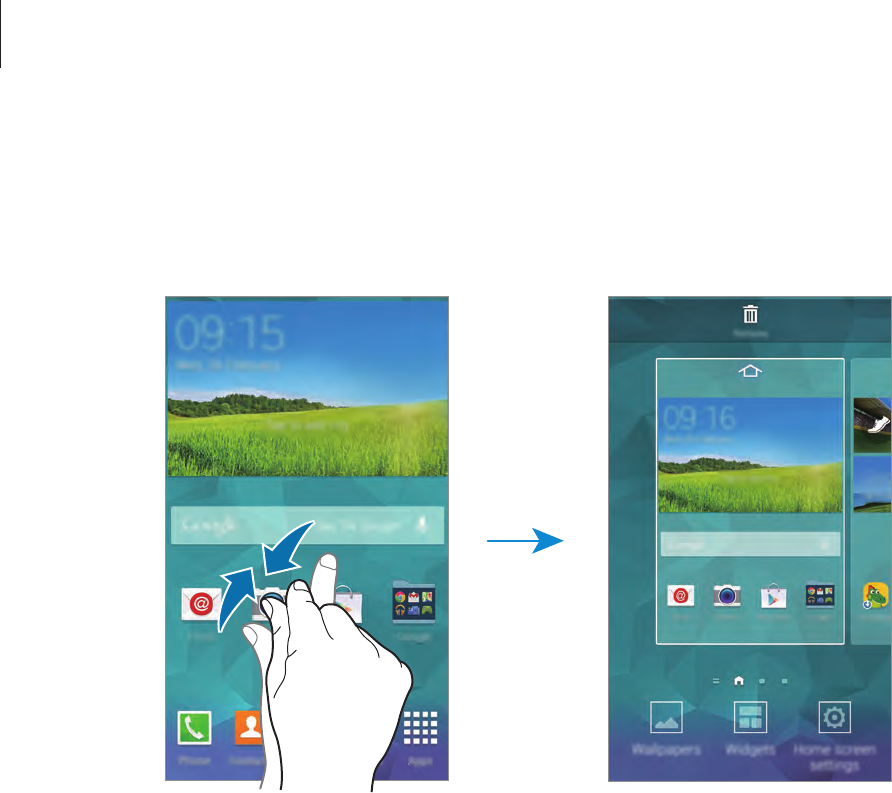

Basics30Home screen optionsTap and hold an area, or pinch your fingers together on the Home screen to access the options available on the Home screen.

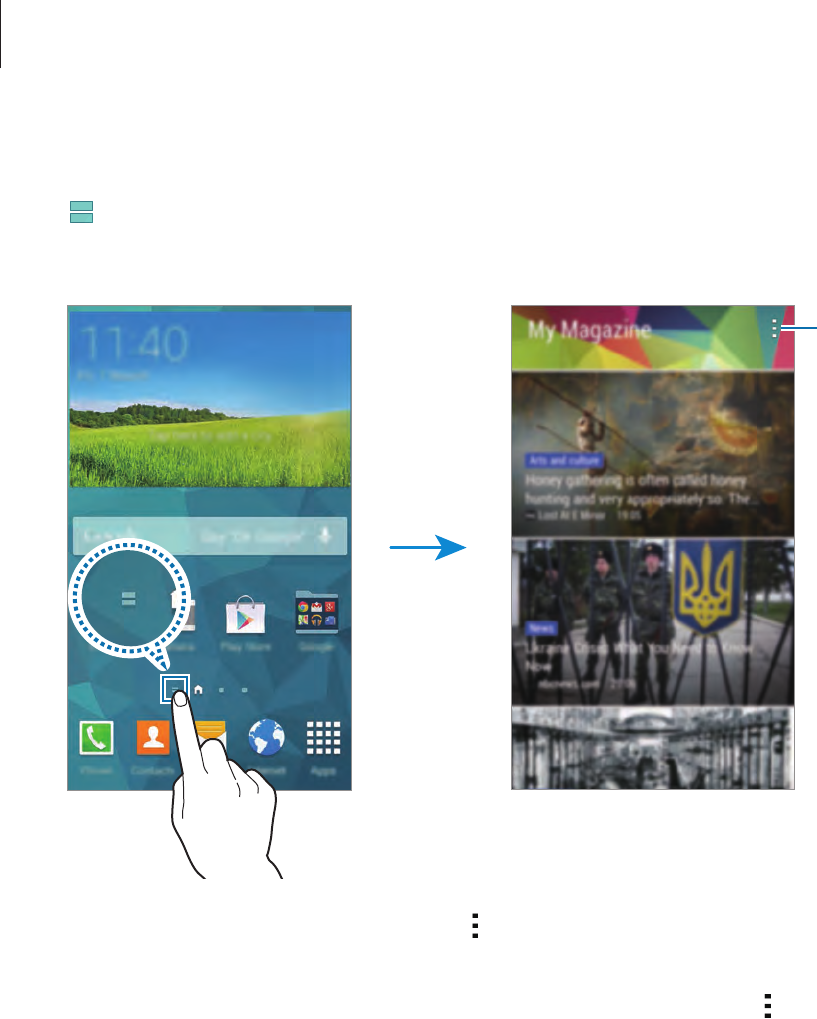

Basics31Using My MagazineTap or scroll right on the Home screen to open My Magazine.My Magazine displays live social network updates and news that you are interested in.Access additional options.To select the content to be displayed, tap → Settings, and then select the categories that interest you.To update the content automatically when My Magazine opens, tap → Settings, and then tick Auto refresh on opening.To deactivate My Magazine, on the Home screen, tap and hold an empty area or pinch your fingers together on the screen. Then, tap Home screen settings and deselect My Magazine.

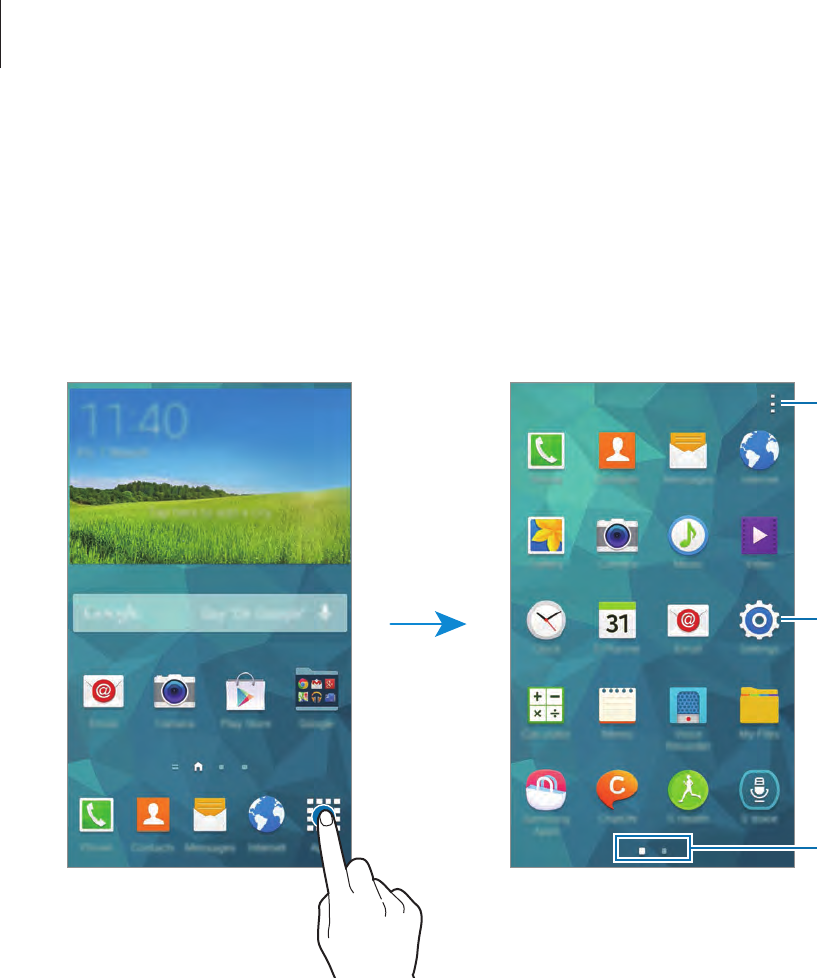

Basics32Apps screenThe Apps screen displays icons for all apps, including any new apps installed.On the Home screen, tap Apps to open the Apps screen. To view other panels, scroll left or right, or select a screen indicator at the bottom of the screen. To customise the Apps screen, refer to Managing the Home and Apps screens for details.Access additional options.An appScreen indicators
Basics33Opening appsOn the Home screen or the Apps screen, select an app icon to open it.To open the list of recently-used apps, tap and select an app icon to open.Closing an appClose apps not in use to save battery power and maintain device performance.Tap → , and then tap End next to an app to close it. To close all running apps, tap End all. Alternatively, tap → .Installing or uninstalling appsSamsung AppsUse this app to purchase and download dedicated Samsung apps.Tap Samsung Apps on the Apps screen.This app may not be available depending on the region or service provider.Installing appsBrowse apps by category or tap to search for a keyword.Select an app to view information about it. To download free apps, tap Free. To purchase and download apps where charges apply, tap the button that shows the app’s price.By default, the device automatically updates any installed app when a new version is available. To change the default setting or to update apps manually, tap → Settings → Auto update apps, and then select an option.
Basics34Play StoreUse this app to purchase and download apps and games that are able to run on the device.Tap Play Store on the Apps screen.This app may not be available depending on the region or service provider.Installing appsBrowse apps by category or tap to search for a keyword.Select an app to view information about it. To download free apps, tap INSTALL. To purchase and download apps where charges apply, tap the price and follow the on-screen instructions.•To install apps that you download from other sources, on the Apps screen, tap Settings → Security → Unknown sources.•By default, the device automatically updates any installed app when a new version is available. To change the default setting or to update apps manually, tap → Settings → Auto-update apps, and then select an option.Downloading suggested appsYou can view and download dedicated Galaxy device apps.On the Apps screen, tap → GALAXY Essentials.To download all apps in the list, tap Download all.Managing appsUninstalling or disabling appsTo disable default apps, on the Apps screen, tap → Uninstall/disable apps. appears on apps that you can disable. Select an app and tap Disable.To uninstall downloaded apps, on the Apps screen, tap → Downloaded apps → → Uninstall. Alternatively, on the Apps screen, tap Settings → Application manager, select an app, and then tap Uninstall.
Basics35Enabling appsOn the Apps screen, tap → Show disabled apps, select apps, and then tap Done.Alternatively, on the Apps screen, tap Settings → Application manager, scroll to DISABLED, select an app, and then tap Enable.•Hiding apps: Hide apps in the Apps screen only. You can continue to use hidden apps.•Disabling apps: Disable selected default apps that cannot be uninstalled from the device. You cannot use disabled apps.•Uninstalling apps: Uninstall downloaded apps.Entering textA keyboard appears automatically when you enter text to send messages, create memos, and more.Text entry is not supported in some languages. To enter text, you must change the input language to one of the supported languages.Break to the next line.Suggested keywordsDelete a preceding character.Enter punctuation marks.Enter uppercase.Set options for the Samsung keyboard.Enter a space.Setting input languagesTap → Select input languages, and then select the languages to use. If you select two or more languages, you can change the languages by sliding the space key left or right.
Basics36Changing the keyboard layoutTap , select a language under INPUT LANGUAGES, and then select a keyboard layout to use.On the 3x4 keyboard, a key has three or four characters. To enter a character, tap repeatedly the key corresponding to the character.Using additional keyboard functionsTap and hold to use the following functions. Other icons may appear instead of the icon depending on the last function that was used.• : Enter text by voice.Change the language.Open the keyboard.Start or pause entering text by voice.Ensure that the Wi-Fi or mobile network is connected before using this feature. You may incur additional charges when using this feature via the mobile network.• : Add an item from the clipboard.• : Set options for the keyboard.• : Enter emoticons.
Basics37Copying and pasting1 Tap and hold over text.2 Drag or to select the desired text, or tap Select all to select all text.3 Tap Copy or Cut. The selected text is copied to the clipboard.4 Place the cursor where the text is to be inserted and tap → Paste. To paste text that you have previously copied, tap → Clipboard and select the text.Using the power saving featurePower saving modeSave battery power by limiting the device’s functions.On the Apps screen, tap Settings → Power saving → Power saving mode, and then drag the Power saving mode switch to the right. Alternatively, open the quick setting panel and tap Power saving to activate it.Select from the following options:•Block background data: Prevent apps that are running in the background from using a mobile data connection.•Restrict performance: Limit various options, such as turning off the Recent apps and Back buttons’ backlight.•Greyscale mode: Display colours on the screen as grey tones.
Basics38Ultra power saving modeUse this mode to extend the device’s battery power. In ultra power saving mode the device performs the following:•Displays colours on the screen as grey tones.•Restricts the available apps to essential and selected apps only.•Deactivates the mobile data connection when the screen turns off.•Deactivates the Wi-Fi and Bluetooth features.On the Apps screen, tap Settings → Power saving → Ultra power saving mode, and drag the Ultra power saving mode switch to the right. Alternatively, open the quick setting panel and tap U. power saving to activate it.Launch Messages.Add more apps to use.Remaining battery powerLaunch Internet.Access additional options.Launch Phone.Estimated battery running time
Basics39To add an app on the Home screen, tap and select an app.To remove an app from the Home screen, tap → Remove, select an app with , and then tap OK.To change network connectivity settings and more, tap → Settings.To deactivate the ultra power saving feature, tap → Disable ultra power saving mode.The maximum standby time is the estimated time that the device will maintain a battery charge. The standby time is the time taken for the battery to fully discharge if the device is not used. Standby time may vary depending on device settings and operating conditions.Accessing help informationTo access help information for an app while you are using the app, tap → Help.To access help information to learn how to use the device and apps, on the Apps screen, tap Settings → Help.•Some apps may not support this feature.•To use the feature, connect to a Wi-Fi or mobile network.
40PersonalisingSwitching to easy modeEasy mode provides an easier user experience by using a simpler layout and bigger icons on the Home screen. You can access the most popular apps and frequently-used settings, and add shortcuts to your favourite contacts.On the Apps screen, tap Settings → Easy mode → Easy mode, select apps to apply simpler layout, and then tap Done.To return to standard mode, on the Home screen, tap Easy settings → Easy mode → Standard mode → Done.Managing shortcutsTo add a shortcut to an app to the Home screen, scroll left, tap , and then select an app.To add a shortcut to a contact on the Home screen, scroll right, tap .To delete a shortcut from the Home screen, tap → Edit, select an app or contact with .Managing the Home and Apps screensManaging the Home screenAdding itemsTap and hold an app or a folder from the Apps screen, and then drag it to the Home screen.To add widgets, on the Home screen, tap and hold an empty area, tap Widgets, tap and hold a widget, and then drag it to the Home screen.
Personalising41Moving and removing an itemTap and hold an item on the Home screen, and then drag it to a new location.To move the item to another panel, drag it to the side of the screen.You can also move frequently-used apps to the shortcuts area at the bottom of the Home screen.To remove an item, tap and hold the item. Then, drag it to Remove that appears at the top of the screen.Creating a folder1 On the Home screen, tap and hold an app, and then drag it to Create folder that appears at the top of the screen.2 Enter a folder name.3 Tap , select the apps to move to the folder, and then tap Done.Managing panelsOn the Home screen, tap and hold an empty area to add, move, or remove a panel.To add a panel, scroll left to the last panel, and then tap .To move a panel, tap and hold a panel preview, and then drag it to a new location.To remove a panel, tap and hold a panel preview, and then drag it to Remove at the top of the screen.To set a panel as the main Home screen, tap .
Personalising42Managing the Apps screenChanging view modeOn the Apps screen, tap → View as and select a sorting method.Hiding appsHide apps that you do not want to see on the Apps screen.On the Apps screen, tap → Hide apps, select apps, and then tap Done.To display hidden apps, tap → Show hidden apps, select apps, and then tap Done.Moving itemsOn the Apps screen, tap → Edit. Tap and hold an item and drag it to a new location.To move the item to another panel, drag it to the side of the screen.To move an item to a new panel, drag it to Create page that appears at the top of the screen.Creating folders1 On the Apps screen, tap → Create folder. Alternatively, tap → Edit, tap and hold an app, and then drag it to Create folder that appears at the top of the screen.2 Enter a folder name.3 Tap , select the apps to move to the folder, and then tap Done.
Personalising43Changing the screen lock methodYou can change the way that you lock the screen to prevent others accessing your personal information.On the Apps screen, tap Settings → Lock screen → Screen lock, and then select a screen lock method. The device requires an unlock code whenever unlocking it.If the unlock code is forgotten, take the device to a Samsung Service Centre to reset it.PatternDraw a pattern by connecting four dots or more, and then draw the pattern again to verify it. Set a backup PIN to unlock the screen when you forget the pattern.PINA PIN consists of numbers only. Enter at least four numbers, and then enter the password again to verify it.PasswordA password consists of characters and numbers. Enter at least four characters including numbers and symbols, and then enter the password again to verify it.
Personalising44Setting wallpaperSet an image or photo stored in the device as wallpaper for the Home screen or the locked screen.1 On the Apps screen, tap Settings → Wallpaper. Alternatively, on the Home screen, tap and hold an empty area or pinch your fingers together on the screen, and then tap Wallpapers.2 Select a screen to change or apply wallpaper to.3 Scroll left or right and select from images displayed at the bottom of the screen.To select photos taken by the device’s camera or other images, tap More images.4 Tap Set wallpaper or Done.Changing ringtonesChange ringtones for incoming calls and notifications.On the Apps screen, tap Settings → Sound.To set a ringtone for incoming calls, tap Ringtones, select a ringtone, and then tap OK. To use a song stored on the device or in your account as a ringtone, tap Add.To set a ringtone for notifications, tap Notifications, select a ringtone, and then tap OK.
Personalising45Setting up accountsAdding accountsSome apps used on your device require a registered account. Create accounts to have the best experience with your device.On the Apps screen, tap Settings → Accounts → Add account and select an account service. Then, follow the on-screen instructions to complete the account setup.To sync content with your accounts, select an account and tick items to sync.Removing accountsOn the Apps screen, tap Settings → Accounts, select the account, and then tap → Remove account.Moving contacts from other devices to your deviceMoving contacts using Samsung Smart SwitchYou can move contacts to your device from other devices and computers using Samsung Smart Switch.Samsung Smart Switch is not supported on some devices or computers.Using Smart Switch MobileYou can use this app to transfer contacts from one mobile device to another. This feature is supported when transferring contacts between selected Samsung mobile devices only.
Personalising46Before using this featureEnsure that the Smart Switch Mobile app is installed on the two devices. You can download the app from Samsung Apps or Play Store.1 On the two devices, launch Smart Switch Mobile.2 On both devices, read and agree to the terms and conditions, and then tap Confirm.3 Bring the devices close together, and then tap Connect on either device.4 On the device you are transferring contacts from, tick Contacts and tap Transfer.5 On the device to transfer contacts to, tap OK to start transferring contacts from the other device.Using Smart Switch with computersUse this feature to transfer a backup of your contacts from a computer to your device. You can also transfer contacts from selected manufacturer’s mobile devices to your device.Before using this featureEnsure that the Smart Switch for computers is installed on the computer. You can download the app from the Samsung Smart Switch website (www.samsungsmartswitch.com).1 Back up contacts from a previous device to the computer. For details, contact the device’s manufacturer.2 On the computer, launch Smart Switch.3 On the computer, read and agree to the terms and conditions, and then click Agree.4 Connect your current device to the computer using the USB cable.5 On the computer, click the manufacturer of the previous device and follow the on-screen instructions to transfer contacts to your device.
Personalising47Moving contacts using Samsung KiesImport a backup contacts file from your computer via Samsung Kies to restore contacts on your device. You can also back up contacts to the computer via Samsung Kies. Refer to Connecting with Samsung Kies for details.
48Network connectivityConnecting to a mobile networkConnect the device to a mobile network to use the Internet when a Wi-Fi network is not available.On the Apps screen, tap Settings → Data usage, and then tick Mobile data. Alternatively, open the quick setting panel and tap Mobile data to activate it.Connecting to a Wi-Fi networkConnect the device to a Wi-Fi network to use the Internet or share media files with other devices. Refer to Wi-Fi for additional options.•Your device uses a non-harmonised frequency and is intended for use in all European countries. The WLAN can be operated in the EU without restriction indoors, but cannot be operated outdoors.•Turn off Wi-Fi to save the battery when not in use.1 On the Apps screen, tap Settings → Wi-Fi. Alternatively, open the quick setting panel and tap and hold Wi-Fi.2 Drag the Wi-Fi switch to the right.3 Select a network from the list of detected Wi-Fi networks. Networks that require a password appear with a lock icon.4 Tap Connect. After the device connects to a Wi-Fi network, the device will automatically connect to it any time it is available.
Network connectivity49Adding Wi-Fi networksIf the desired network does not appear in the networks list, tap Add Wi-Fi network at the bottom of the networks list. Enter the network name in Network SSID, select the security type and enter the password if it is not an open network, and then tap Connect.Activating Wi-Fi PasspointWi-Fi Passpoint enables the device to search for and connect to a certified Wi-Fi network. You can use the Passpoint feature to connect to public Wi-Fi networks that support automated authentication. When you move to a new location it will search for and connect to another certified Wi-Fi network.This feature may not be available depending on the region.Tap → Advanced, and then tick Passpoint.Forgetting Wi-Fi networksAny network that has ever been used, including the current network, can be forgotten so the device will not automatically connect to it. Select the network in the networks list and tap Forget.
Network connectivity50Using Smart network switchUse this feature to maintain a stable network connection when you browse webpages, download content, and more. Before using this feature, ensure that the mobile data connection and Wi-Fi features are activated.You may incur additional charges when using this feature via a mobile network.On the Apps screen, tap Settings → Wi-Fi, and then tick Smart network switch. The device automatically switches from a Wi-Fi network to a mobile network when the current Wi-Fi network is weak or unstable. When the Wi-Fi network signal becomes strong, the device switches from the mobile network back to the Wi-Fi network.Tethering devices and using mobile hotspotsAbout tethering and mobile hotspotsUse this feature to share the device’s mobile data connection with computers and other devices if an Internet connection is unavailable. Connections can be made via the Wi-Fi feature, USB, or the Bluetooth feature.You may incur additional charges when using this feature.
Network connectivity51Using the mobile hotspotUse your device as a mobile hotspot to share your device’s mobile data connection with other devices.Before using this feature•Ensure that the Wi-Fi feature is deactivated.•Ensure that the device’s mobile data connection is activated.1 On the Apps screen, tap Settings → Tethering and mobile hotspot → Mobile hotspot.2 Drag the Mobile hotspot switch to the right.• appears on the status bar. Other devices can find your device on the Wi-Fi networks list.•To set a password for the hotspot, tap → Configure and select the level of security. Then, enter a password and tap Save.3 On the other device’s screen, search for and select your device from the Wi-Fi networks list.Using USB tetheringShare the device’s mobile data connection with a computer via a USB cable.1 On the Apps screen, tap Settings → Tethering and mobile hotspot.2 Connect your device to the computer via the USB cable.3 Tick USB tethering. appears on the status bar when the two devices are connected.4 On the computer, use your device’s mobile data connection.
Network connectivity52Using Bluetooth tetheringShare the device’s mobile data connection with connected computers and other devices via Bluetooth.Before using this feature•Ensure that your device is paired with the other device via Bluetooth. Refer to Bluetooth for details.•Ensure that the computer that you connect to supports the Bluetooth feature.1 On your device, on the Apps screen, tap Settings → Tethering and mobile hotspot.2 Tick Bluetooth tethering.3 On the connected device, open the Bluetooth settings screen, tap → Internet access. appears on the status bar when the two devices are connected.4 On the connected device, use the device’s mobile data connection to access the Internet.The connection methods may vary depending on the connected devices.
53PhoneMaking callsTap Phone on the Apps screen.Tap Keypad, enter a phone number, and then tap to make a voice call, or tap to make a video call. You can also make calls to phone numbers listed in Logs, Favourites, and Contacts.Access additional options.Add the number to the contacts list.Preview the phone number.View favourite contacts.Delete a preceding character.View the contacts list.View call and message logs.Enter the number using the keypad.
Phone54Making calls from call logs or contact listsTap Logs or Contacts, and then drag a contact or a phone number to the right to make a call.To deactivate the call by dragging an icon to the right feature, tap → Settings → Contacts, and then deselect Swipe to call or send msg.Making calls from the favourites listYou can easily call contacts that you communicate with frequently by adding them to the favourite contacts list.To add contacts to the favourites list, tap Contacts, select a contact, and then tap .To make a call to a favourite contact, tap Favourites and select a contact.
Phone55Number predictionTap Keypad.When entering numbers on the keypad, automatic predictions appear. Select one of these to make a call.Speed dial numbersTap Keypad.For speed dial numbers, tap and hold the corresponding digit.To assign a contact to a speed dial number, tap and hold an available speed dial number on the keypad, tap OK, and then select a contact. Or, tap Contacts → → Speed dial, select a number, and then select a contact.Making an international callTap Keypad.Tap and hold 0 until the + sign appears. Enter the country code, area code, and phone number, and then tap .To block outgoing international calls, tap → Settings → Call → More settings → Call barring. Then, select a call type and deselect International calls.
Phone56Receiving callsAnswering a callWhen a call comes in, drag outside the large circle.If you are using an app when a call comes in, tap Answer in a pop-up window.If the call waiting service is activated, another call can be made. When the second call is answered, the first call is put on hold.Rejecting a callWhen a call comes in, drag outside the large circle.If you are using an app when a call comes in, tap Reject in the pop-window.To send a message when rejecting an incoming call, drag the reject message bar upwards.To create various rejection messages, on the Apps screen, tap Phone → → Settings → Call → Call rejection → Rejection messages → Create.Automatically rejecting calls from unwanted numbers1 Tap Phone on the Apps screen.2 Tap → Settings → Call → Call rejection → Auto reject mode → Auto reject numbers.3 Tap Auto reject list → Create, enter a number, and then assign a category.4 Tap Save.Missed callsIf a call is missed, appears on the status bar. Open the notifications panel to view the list of missed calls. Alternatively, on the Apps screen, tap Phone → Logs to view missed calls.
Phone57During a callDuring a voice callThe following actions are available:• : Increase the volume.•Add call: Dial a second call.•Keypad: Open the keypad.•End call: End the current call.•Speaker: Activate the speakerphone. Keep the device away from your ears when using the speakerphone.•Mute: Turn off the microphone so that the other party cannot hear you.•Bluetooth: Switch to a Bluetooth headset if it is connected to the device.• → Hold: Hold a call. Tap Unhold to retrieve the held call.• → Contacts: Open the contacts list.• → Memo: Create a memo.• → Messages: Send a message.• → Personalise call sound: Select a type of call sound to use with a headset.• → Settings: Change the call settings.When you launch apps during a call, a pop-up window for the call screen ( ) appears. You can continue your phone conversation while using apps.To move the pop-up window, drag it to another location.To delete the pop-up window, tap and hold it, and then tap OK.To return to the call screen, tap the pop-up window.
Phone58During a video callThe following actions are available:• → Hide me: Hide your image from the other party.• → Outgoing image: Select an image to show it to the other party.• → Capture image: Capture the other party’s image.• → Record video: Take a video of the other party’s images.• → Memo: Create a memo.• → Message: Send a message.• → Keypad: Open the keypad.• → Speaker off / Speaker on: Activate or deactivate the speakerphone. Keep the device away from your ears when using the speakerphone.• → Switch to headset: Switch to a Bluetooth headset if it is connected to the device.• → Enable dual camera / Disable dual camera: Enable or disable the dual camera feature. Use the front and rear cameras so that the other party can see you and your surroundings.Video calling with dual camera mode will be provided for up to 3 minutes. After 3 minutes the device will turn off the rear camera for optimal performance.Tap the screen to use the following options:•Switch: Switch between the front and rear camera.•Mute: Turn off the microphone so that the other party cannot hear you.•End call: End the current call.
59Motions & usability featuresControl motionsExcessive shaking or impact to the device may result in unintended inputs. Control motions properly.Direct callOn the Apps screen, tap Settings → Motions and gestures → Direct call, and then drag the Direct call switch to the right.While viewing call, message, or contact details, pick up and hold the device to your ear to make a call.
Motions & usability features60Smart alertOn the Apps screen, tap Settings → Motions and gestures → Smart alert, and then drag the Smart alert switch to the right.When you pick up the device after it has been idle for some time or when the screen has turned off, it vibrates if you have missed calls or new messages.Mute/PauseOn the Apps screen, tap Settings → Motions and gestures → Mute/Pause, and then drag the Mute/Pause switch to the right.Covering screen with handCover the screen with a palm to mute incoming calls or alarms, or to pause media playback.
Motions & usability features61Turning device overTurn the device over to mute incoming calls or alarms, or to pause media playback.Smart pausePlayback pauses automatically when you look away from the screen. It resumes when you look at the screen again.

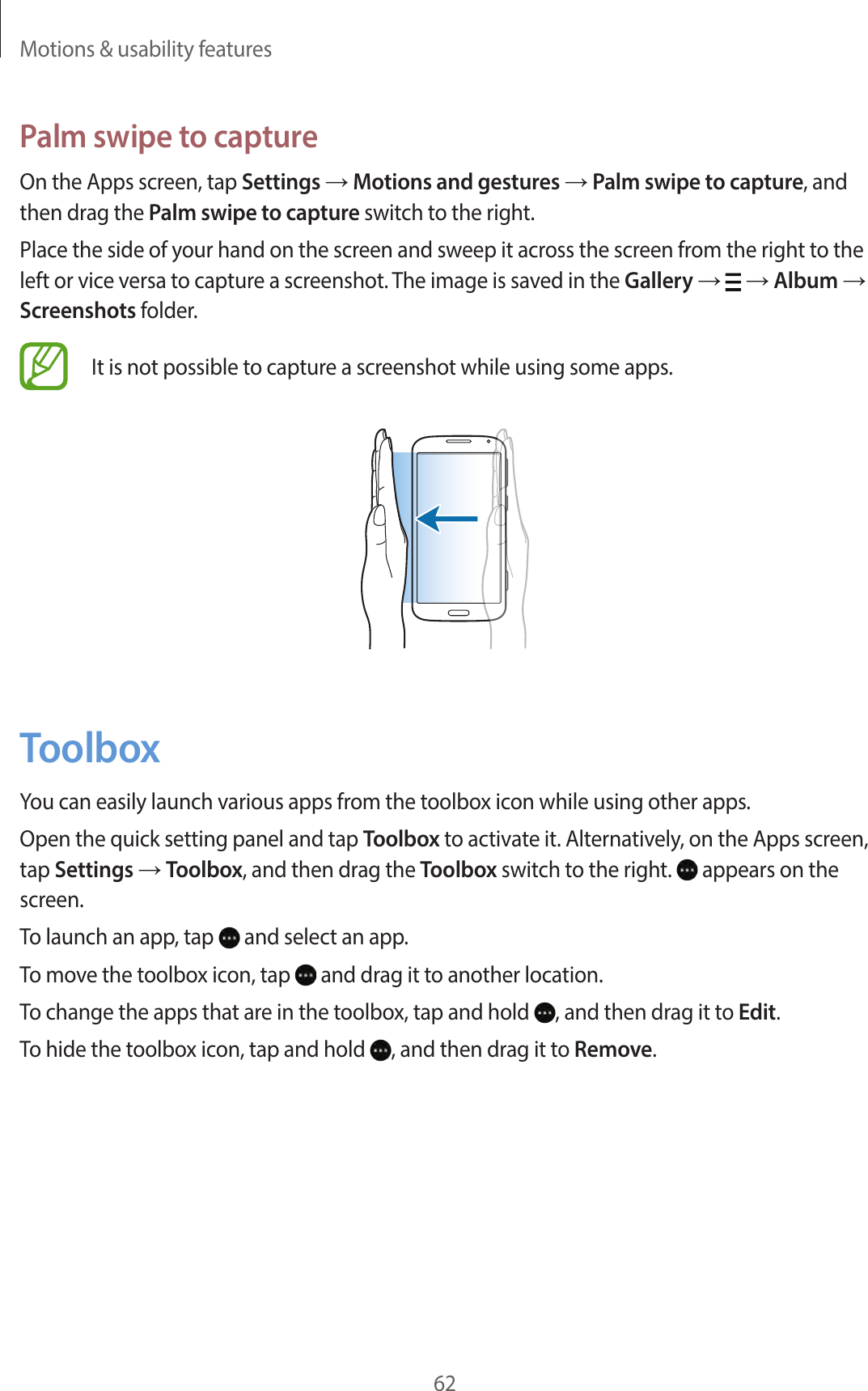

Motions & usability features62Palm swipe to captureOn the Apps screen, tap Settings → Motions and gestures → Palm swipe to capture, and then drag the Palm swipe to capture switch to the right.Place the side of your hand on the screen and sweep it across the screen from the right to the left or vice versa to capture a screenshot. The image is saved in the Gallery → → Album → Screenshots folder.It is not possible to capture a screenshot while using some apps.ToolboxYou can easily launch various apps from the toolbox icon while using other apps.Open the quick setting panel and tap Toolbox to activate it. Alternatively, on the Apps screen, tap Settings → Toolbox, and then drag the Toolbox switch to the right. appears on the screen.To launch an app, tap and select an app.To move the toolbox icon, tap and drag it to another location.To change the apps that are in the toolbox, tap and hold , and then drag it to Edit.To hide the toolbox icon, tap and hold , and then drag it to Remove.
Motions & usability features63Increasing touch screen sensitivityUse this feature to operate the screen while wearing gloves.On the Apps screen, tap Settings → Display, and then tick Increase touch sensitivity. Alternatively, open the quick setting panel and tap Increase touch sensitivity to activate it.•Use leather gloves for better recognition while touching the screen. Other types of material may not be recognised.•For best results, tap the screen firmly while wearing gloves.
64ContactsAdding contactsMoving contacts from other devicesYou can move contacts from other devices to your device. Refer to Moving contacts from other devices to your device for details.Creating contacts manually1 On the Apps screen, tap Contacts → Contacts.2 Tap and enter contact information.• : Add an image.• / : Add or delete a contact field.3 Tap Save.To add a phone number to the contacts list from the keypad, tap Keypad, enter the number, and then tap Add to contacts.
Contacts65Managing contactsEditing a contact1 On the Apps screen, tap Contacts → Contacts.2 Select a contact to edit and tap .3 Edit the contact information or tap Add another field to add more contact information.4 Tap Save.Deleting a contactSelect a contact to delete, tap → Delete.Sharing a contactSelect a contact to share, tap → Share name card, and then select a sharing method.Managing groupsOn the Apps screen, tap Contacts → Contacts.Tap .Creating a new groupTap , enter a group name, and then tap Save.Adding contacts to a groupSelect a group, and then tap . Select contacts to add, and then tap Done.
Contacts66Deleting a groupTap → Delete group, select user-added groups, and then tap Done.Sending a message or email to group’s membersSelect a group, tap → Send message or email → Message or Email, select members, tap Done, enter a message, and then tap the send button.Merge contacts with accountsMerge contacts that are saved in the device with your accounts.On the Apps screen, tap Contacts → Contacts.Tap → Merge accounts → Google or Samsung account.Importing and exporting contactsImport contacts from storage services to your device or export contacts from the device to storage services.On the Apps screen, tap Contacts → Contacts.Tap → Settings → Contacts → Import/export, and then select an import or export option.
Contacts67Searching for contactsOn the Apps screen, tap Contacts → Contacts.Use one of the following search methods:•Scroll up or down the contacts list.•Drag a finger along the index at the right side of the contacts list to scroll through it quickly.•Tap the search field at the top of the contacts list and enter search criteria.Once a contact is selected, take one of the following actions:• : Add to favourite contacts.• / : Make a voice or video call.• : Compose a message.• : Compose an email.Adding shortcuts for contacts to the Home screenAdd shortcuts to contacts that you frequently communicate with on the Home screen.1 On the Apps screen, tap Contacts → Contacts.2 Select a contact.3 Tap → Add shortcut to home screen.
68Messages & emailMessagesSending messagesSend text messages (SMS) or multimedia messages (MMS).You may incur additional charges for sending or receiving messages while you are outside your home service area.1 Tap Messages on the Apps screen.2 Tap .3 Add recipients and enter a message.Access additional options.Enter a message.Select contacts from the contacts list.Enter emoticons.Enter recipients.Attach files.Send the message.4 Tap to send the message.
Messages & email69While composing a message, tap to use one of the following options:•Quick responses: Select a message template and enter a message.•Insert smiley: Enter emoticons.•Add subject: Enter a subject.•Add slide: Add message slides.•Schedule message: Set a specified time and date for a message to be sent.•Discard: Cancel composing the message.•Font size: Change the font size of text in the text field.Sending scheduled messagesWhile composing a message, tap → Schedule message. Set a time and date and tap Done.•If the device is turned off at the scheduled time, is not connected to the network, or the network is unstable, the message will not be sent.•This feature is based on the time and date set on the device. The time and date may be incorrect if you move across time zones and the network does not update the information.Adding contacts to the priority listSet contacts that you communicate with frequently as priority contacts. Send them messages by selecting a contact icon from above the messages list.Tap Tap to add priority senders. → Inbox or Contacts, select contacts to add, and then tap Done. To add more contacts, tap .To remove contacts from the priority list, tap and hold a contact, and then tap Manage priority senders → → Done.
Messages & email70Viewing incoming messagesIncoming messages are grouped into message threads by contact. Select a contact to view the person’s messages.You may incur additional charges for sending or receiving messages while you are outside your home service area.While viewing a message, tap to use one of the following options:•Video call: Make a video call to the contact.•View contact: View the contact’s information.•Add to Contacts: Add the contact to the contacts list.•Quick responses: Enter a message by selecting one from message templates.•Add recipient: Add recipients to send the message to.•Insert smiley: Enter emoticons.•Add subject: Enter a subject.•Add slide: Add message slides.•Schedule message: Set a specified time and date from a message to be sent.•Add to priority senders / Remove from priority senders: Add contacts to or remove them from the priority senders list.•Add to spam numbers / Remove from spam numbers: Identify a phone number as spam or remove a phone number from the spam list.•Discard: Cancel composing the message.•Font size: Change the font size of text in the text field.
Messages & email71Managing messagesWhile viewing the list of messages, tap and use the following options:•Select: Select messages to delete or to identify them as spam.•Delete: Delete all or selected messages.•Draft messages: View messages saved for later delivery.•Locked messages: View locked messages.•Scheduled messages: View scheduled messages.•Spam messages: View spam messages.•Font size: Change the font size.•Settings: Change message settings.•Help: Access help information about sending and managing messages.EmailSetting up email accountsTap Email on the Apps screen.Set up an email account when opening Email for the first time.Enter the email address and password. Tap Next for a private email account, such as Google Mail, or tap Manual setup for a company email account. After that, follow the on-screen instructions to complete the setup.To set up another email account, tap → Manage accounts → .Sending messagesTap Email on the Apps screen.Tap at the bottom of the screen. Enter recipients, subject, and message, and then tap .Tap to add a recipient from the contacts list.Tap to attach images, videos, and others.Tap → to insert images, events, and others into the message.
Messages & email72Sending scheduled messagesWhile composing a message, tap → Schedule email. Tick Schedule email, set a time and date, and then tap Done.•If the device is turned off at the scheduled time, is not connected to the network, or the network is unstable, the message will not be sent.•This feature is based on the time and date set on the device. The time and date may be incorrect if you move across time zones and the network does not update the information.Reading messagesTap Email on the Apps screen.Tap , select an email account to use, and new messages are retrieved. To manually retrieve new messages, tap .Tap a message to read.Open attachments.Reply to the message.Add this email address to the contacts list.Mark the message as a reminder.Reply to all recipients.Forward the message.Go to the previous or next message.Delete the message.Access additional options.
Messages & email73Adding contacts to the priority listSet contacts that you communicate with frequently as priority contacts.Tap → Priority senders → Tap to add priority senders → Enter email or Contacts, enter email addresses or select contacts to add, and then tap OK or Done.To add more contacts to the priority list, tap .To remove contacts from the priority list, tap and hold a contact, tap Edit list of priority senders, tap on each contact, and then tap Done.Google MailUse this app to quickly and directly access the Google Mail service.Tap Google Mail on the Apps screen.•This app may not be available depending on the region or service provider.•This app may be labelled differently depending on the region or service provider.Sending messagesTap , enter recipients, a subject, and a message, and then tap .
Messages & email74Reading messagesTap a message to read.Preview attachment.Keep the message for long-term storage.Mark the message as a reminder.Delete the message.Reply to the message.Mark the message as unread.Access additional options.
75CameraLaunching CameraUse this application to take photos or videos.Tap Camera on the Apps screen. Alternatively, press and hold the Shutter button.Use Gallery to view photos and videos taken with the device.•The camera automatically shuts off when unused.•Make sure that the lens is clean. Otherwise, the device may not work properly in some modes that require high resolutions.Camera etiquette•Do not take photos or videos of other people without their permission.•Do not take photos or videos where legally prohibited.•Do not take photos or videos in places where you may violate other people’s privacy.Launching Camera on the locked screenTo quickly take photos of special moments, launch Camera on the locked screen.On the locked screen, drag outside the large circle.If you launch Camera from the locked screen, you can only view the photos taken from the locked screen.
