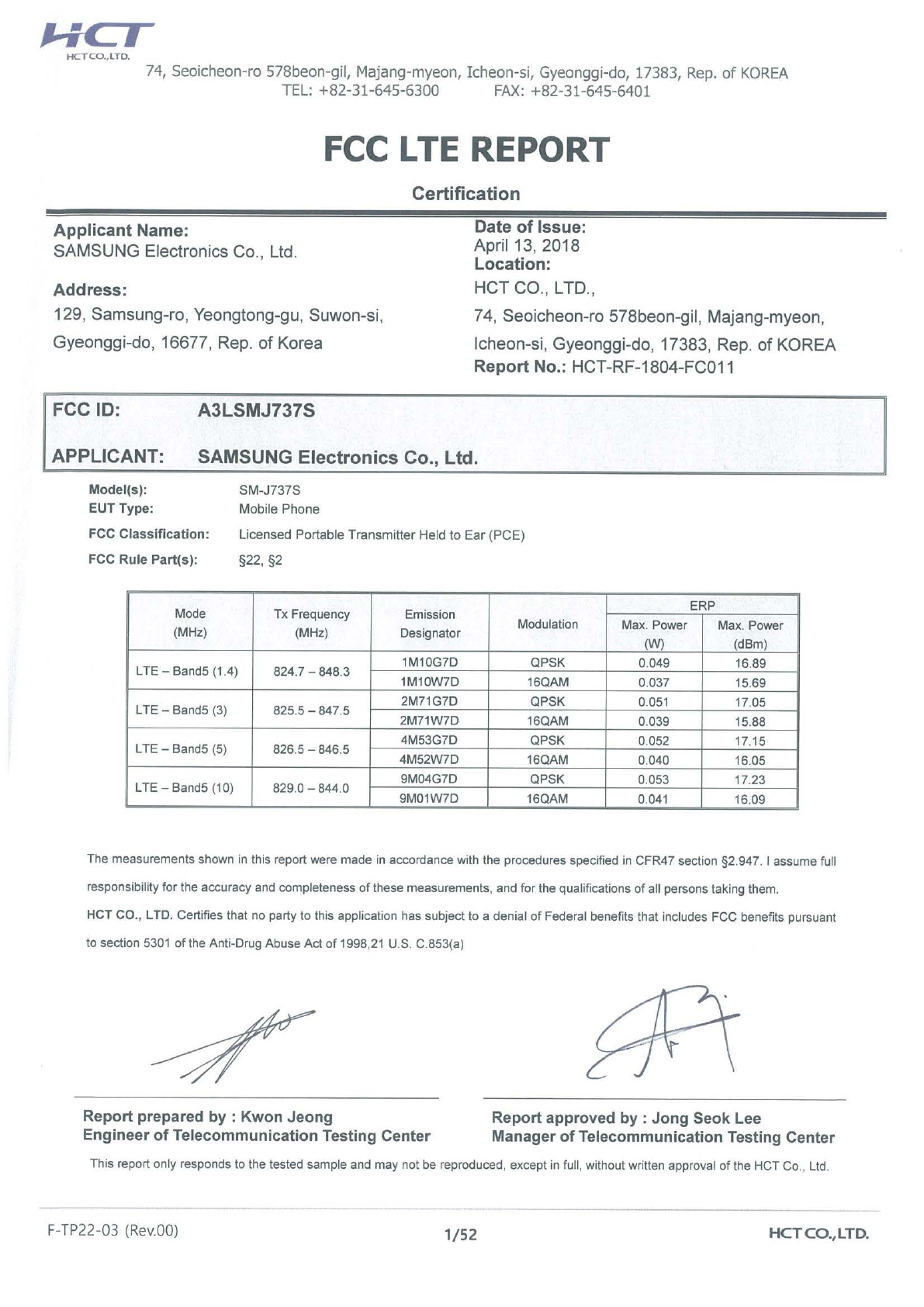

Test Report_20180417_v1 - SM-J737S Test Report LTE5

Report No.: HCT-RF-1804-FC011 FCC ID: A3LSMJ737S
F-TP22-03 (Rev.00)
2/52
Version
TEST REPORT NO. DATE DESCRIPTION
HCT-RF-1804-FC011 April 13, 2018 - First Approval Report
Report No.: HCT-RF-1804-FC011 FCC ID: A3LSMJ737S
F-TP22-03 (Rev.00)
3/52
Table of Contents
1. GENERAL INFORMATION ........................................................................................................................... 4
2. INTRODUCTION ........................................................................................................................................... 5
2.1. DESCRIPTION OF EUT ...................................................................................................................... 5
2.2. MEASURING INSTRUMENT CALIBRATION .................................................................................... 5
2.3. TEST FACILITY .................................................................................................................................. 5
3. DESCRIPTION OF TESTS ........................................................................................................................... 6
3.1 TEST PROCEDURE ............................................................................................................................ 6
3.2 RADIATED POWER ............................................................................................................................ 7
3.3 RADIATED SPURIOUS EMISSIONS .................................................................................................. 8
3.4 OCCUPIED BANDWIDTH. .................................................................................................................. 9
3.5 SPURIOUS AND HARMONIC EMISSIONS AT ANTENNA TERMINAL .......................................... 10
3.6 BAND EDGE ....................................................................................................................................... 11
3.7 FREQUENCY STABILITY / VARIATION OF AMBIENT TEMPERATURE ...................................... 12
4. LIST OF TEST EQUIPMENT ...................................................................................................................... 13
5. MEASUREMENT UNCERTAINTY .............................................................................................................. 14
6. SUMMARY OF TEST RESULTS ................................................................................................................ 15
7. SAMPLE CALCULATION ........................................................................................................................... 16
8. TEST DATA ................................................................................................................................................. 18
8.1 EFFECTIVE RADIATED POWER ..................................................................................................... 18
8.2 RADIATED SPURIOUS EMISSIONS ................................................................................................ 20
8.3 OCCUPIED BANDWIDTH ................................................................................................................. 24
8.4 CONDUCTED SPURIOUS EMISSIONS ........................................................................................... 25
8.5 BAND EDGE ...................................................................................................................................... 25
8.6 FREQUENCY STABILITY / VARIATION OF AMBIENT TEMPERATURE ...................................... 26
9. TEST PLOTS ............................................................................................................................................... 30
Report No.: HCT-RF-1804-FC011 FCC ID: A3LSMJ737S
F-TP22-03 (Rev.00)
4/52
MEASUREMENT REPORT
1. GENERAL INFORMATION
Applicant Name: SAMSUNG Electronics Co., Ltd.
Address: 129, Samsung-ro, Yeongtong-gu, Suwon-si, Gyeonggi-do, 16677, Rep. of
Korea
FCC ID: A3LSMJ737S
Application Type: Certification
FCC Classification: Licensed Portable Transmitter Held to Ear (PCE)
FCC Rule Part(s): §22, §2
EUT Type: Mobile Phone
Model(s): SM-J737S
Tx Frequency: 824.7 MHz – 848.3 MHz (LTE – Band 5 (1.4 MHz))
825.5 MHz – 847.5 MHz (LTE – Band 5 (3 MHz))
826.5 MHz – 846.5 MHz (LTE – Band 5 (5 MHz))
829.0 MHz – 844.0 MHz (LTE – Band 5 (10 MHz))
Date(s) of Tests: March 21, 2018 ~ April 09, 2018
Report No.: HCT-RF-1804-FC011 FCC ID: A3LSMJ737S
F-TP22-03 (Rev.00)
5/52
2. INTRODUCTION
2.1. DESCRIPTION OF EUT
The EUT was a Mobile Phone with GSM/GPRS/EGPRS/UMTS and LTE.
It also supports IEEE 802.11a/b/g/n/ac (HT20/40/80), Bluetooth, NFC and ANT+.
2.2. MEASURING INSTRUMENT CALIBRATION
The measuring equipment, which was utilized in performing the tests documented herein, has been
calibrated in accordance with the manufacturer's recommendations for utilizing calibration equipment, which
is traceable to recognized national standards.
2.3. TEST FACILITY
The Fully-anechoic chamber and conducted measurement facility used to collect the radiated data are
located at the 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, 17383, Rep. of
KOREA.
Report No.: HCT-RF-1804-FC011 FCC ID: A3LSMJ737S
F-TP22-03 (Rev.00)
6/52
3. DESCRIPTION OF TESTS
3.1 TEST PROCEDURE
Test Description Test Procedure Used
Occupied Bandwidth
- KDB 971168 D01 v03 – Section 4.2
- ANSI C63.26-2015 – Section 5.4.4
Band Edge
- KDB 971168 D01 v03 – Section 6.0
- ANSI C63.26-2015 – Section 5.7
Spurious and Harmonic Emissions at Antenna
Terminal
- KDB 971168 D01 v03 – Section 6.0
- ANSI C63.26-2015 – Section 5.7
Conducted Output Power - N/A (See SAR Report)
Peak- to- Average Ratio
- KDB 971168 D01 v03 – Section 5.7
- ANSI C63.26-2015 – Section 5.2.3.4
- ANSI C63.26-2015 – Section 5.2.6(only GSM)
Frequency stability - ANSI C63.26-2015 – Section 5.6
Effective Radiated Power/
Effective Isotropic Radiated Power
- KDB 971168 D01 v03 – Section 5.2
- ANSI C63.26-2015 – Section 5.2
- ANSI/TIA-603-E-2016 – Section 2.2.17
Radiated Spurious and Harmonic Emissions
- KDB 971168 D01 v03 – Section 5.8
- ANSI/TIA-603-E-2016 – Section 2.2.12
Report No.: HCT-RF-1804-FC011 FCC ID: A3LSMJ737S
F-TP22-03 (Rev.00)
7/52
3.2 RADIATED POWER
Test Overview
Radiated tests are performed in the Fully-anechoic chamber.
The equipment under test is placed on a non-conductive table 3-meters away from the receive antenna in
accordance with ANSI/TIA-603-E-2016 Clause 2.2.17.
Test Settings
1. Radiated power measurements are performed using the signal analyzer’s “channel power”
measurement capability for signals with continuous operation.
2. RBW = 1 – 5% of the expected OBW, not to exceed 1MHz
3. VBW ≥ 3 x RBW
4. Span = 1.5 times the OBW
5. No. of sweep points > 2 x span / RBW
6. Detector = RMS
7. Trigger is set to “free run” for signals with continuous operation with the sweep times set to “auto”.
8. The integration bandwidth was roughly set equal to the measured OBW of the signal for signals with
continuous operation.
9. Trace mode = trace averaging (RMS) over 100 sweeps
10. The trace was allowed to stabilize
Test Note
1. The turntable is rotated through 360 degrees, and the receiving antenna scans in order to determine the
level of the maximized emission.
2. A half wave dipole is then substituted in place of the EUT. For emissions above 1GHz, a horn antenna is
substituted in place of the EUT. The substitute antenna is driven by a signal generator and the previously
recorded signal was duplicated.
The power is calculated by the following formula;
Pd(dBm) = Pg(dBm) – cable loss (dB) + antenna gain (dB)
Where: Pdis the dipole equivalent power and Pgis the generator output power into the substitution antenna.
3. The maximum value is calculated by adding the forward power to the calibrated source plus its
appropriate gain value.
These steps are repeated with the receiving antenna in both vertical and horizontal polarization. the
difference between the gain of the horn and an isotropic antenna are taken into consideration
4. The EUT was tested in three orthogonal planes(X, Y, Z) and in all possible test configurations and
positioning.
5. All measurements are performed as RMS average measurements while the EUT is operating at its
maximum duty cycle, at maximum power, and at the appropriate frequencies.
Report No.: HCT-RF-1804-FC011 FCC ID: A3LSMJ737S
F-TP22-03 (Rev.00)
8/52
3.3 RADIATED SPURIOUS EMISSIONS
Test Overview
Radiated tests are performed in the Fully-anechoic chamber.
Radiated Spurious Emission Measurements at 3 meters by Substitution Method according to
ANSI/TIA-603-E-2016.
Test Settings
1. RBW = 100kHz for emissions below 1GHz and 1MHz for emissions above 1GHz
2. VBW ≥ 3 x RBW
3. Span = 1.5 times the OBW
4. No. of sweep points > 2 x span / RBW
5. Detector = Peak
6. Trace mode = Max Hold
7. The trace was allowed to stabilize
8. Test channel : Low/ Middle/ High
9. Frequency range : We are performed all frequency to 10th harmonics from 9 kHz.
Test Note
1. Measurements value show only up to 3 maximum emissions noted, or would be lesser
if no specific emissions from the EUT are recorded (ie: margin > 20 dB from the applicable limit)
and considered that's already beyond the background noise floor.
2. The EUT was tested in three orthogonal planes(X, Y, Z) and in all possible test configurations and
positioning.
The worst case emissions are reported with the EUT positioning, modulations, RB sizes and offsets,
and channel bandwidth configurations shown in the test data
Report No.: HCT-RF-1804-FC011 FCC ID: A3LSMJ737S
F-TP22-03 (Rev.00)
9/52

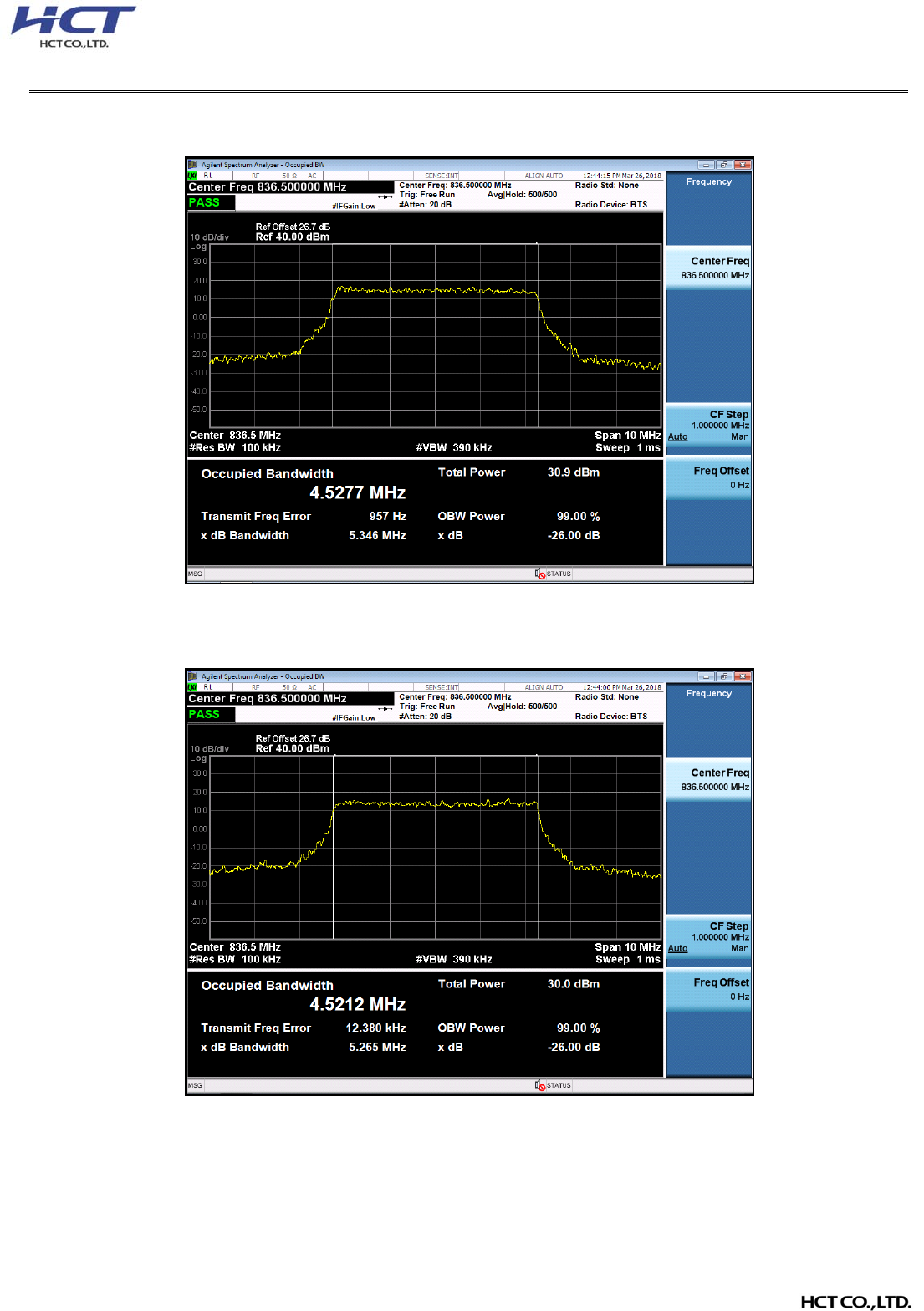

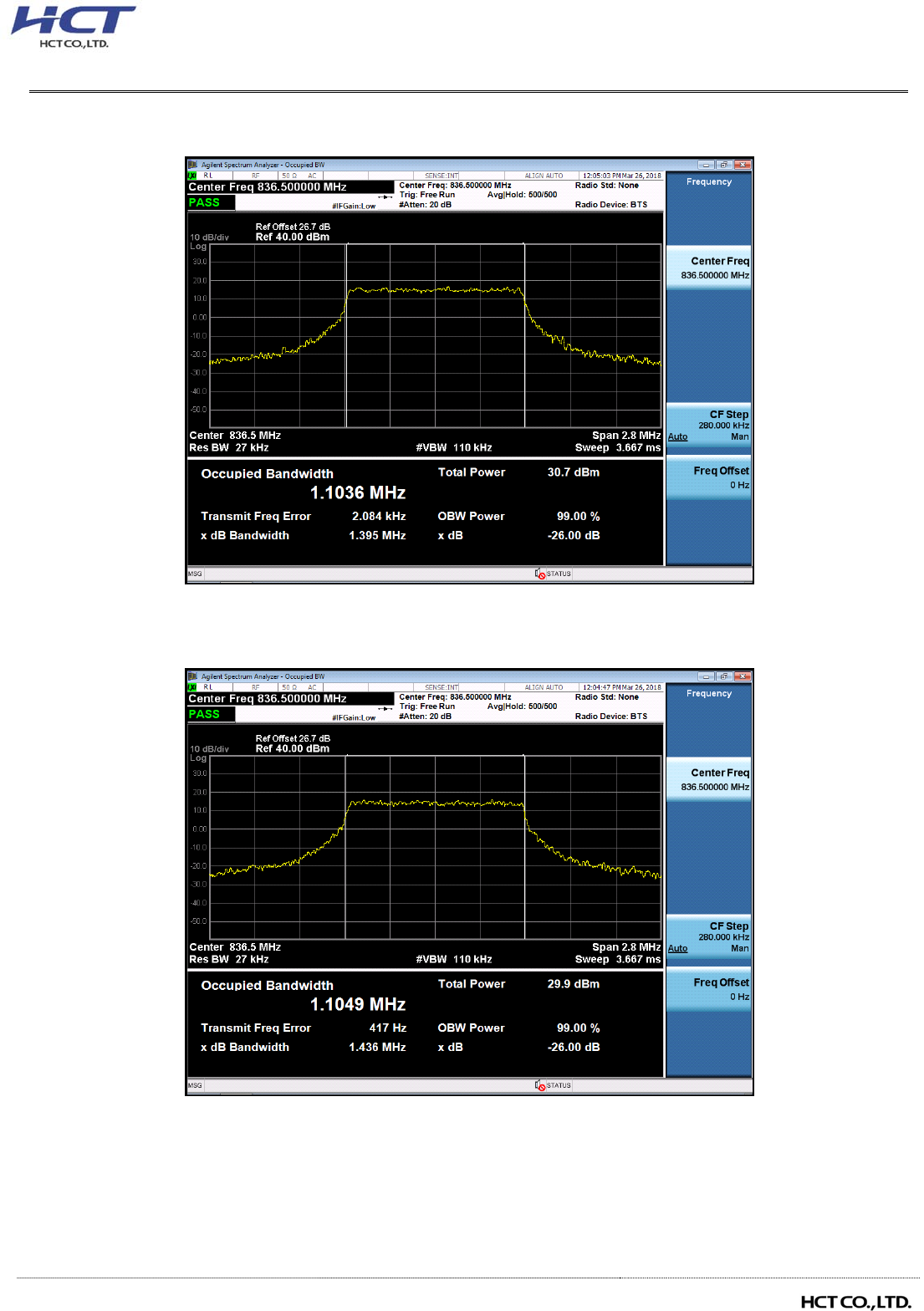

3.4 OCCUPIED BANDWIDTH.
Test setup
The width of a frequency band such that, below the lower and above the upper frequency limits, the mean
powers emitted are each equal to a specified percentage 0.5 % of the total mean power of a given emission.
The EUT makes a call to the communication simulator.
The conducted occupied bandwidth used the power splitter via EUT RF power connector between simulation
base station and spectrum analyzer.
The communication simulator station system controlled a EUT to export maximum output power under
transmission mode and specific channel frequency. Use OBW measurement function of Spectrum analyzer
to measure 99 % occupied bandwidth
Test Settings
1. The signal analyzer’s automatic bandwidth measurement capability was used to perform the 99%
occupied bandwidth and the 26dB bandwidth. The bandwidth measurement was not influenced by
any intermediate power nulls in the fundamental emission.
2. RBW = 1 – 5% of the expected OBW
3. VBW ≥ 3 x RBW
4. Detector = Peak
5. Trace mode = max hold
6. Sweep = auto couple
7. The trace was allowed to stabilize
8. If necessary, steps 2 – 7 were repeated after changing the RBW such that it would be within
1 – 5% of the 99% occupied bandwidth observed in Step 7
Report No.: HCT-RF-1804-FC011 FCC ID: A3LSMJ737S
F-TP22-03 (Rev.00)
10/52

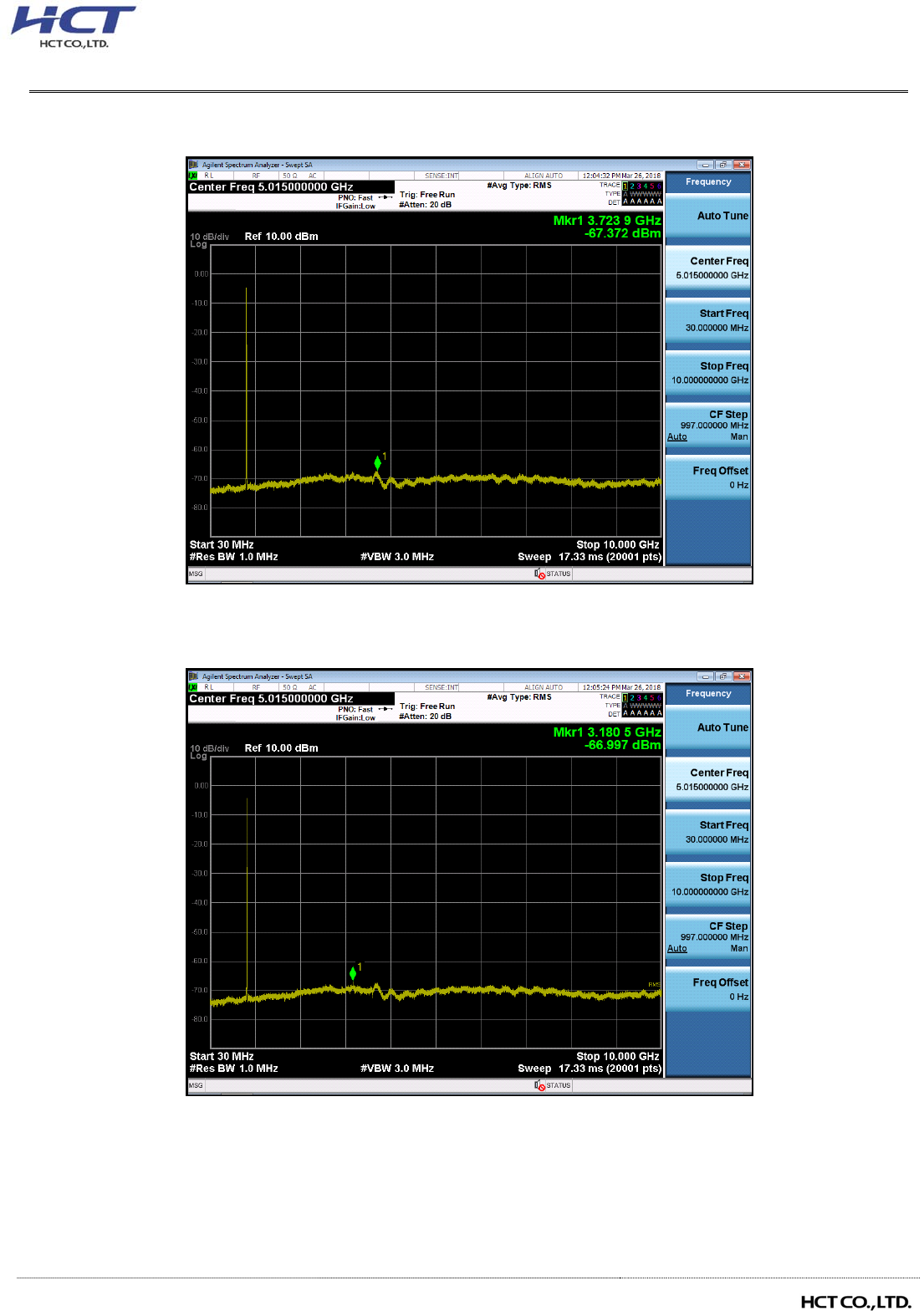

3.5 SPURIOUS AND HARMONIC EMISSIONS AT ANTENNA TERMINAL

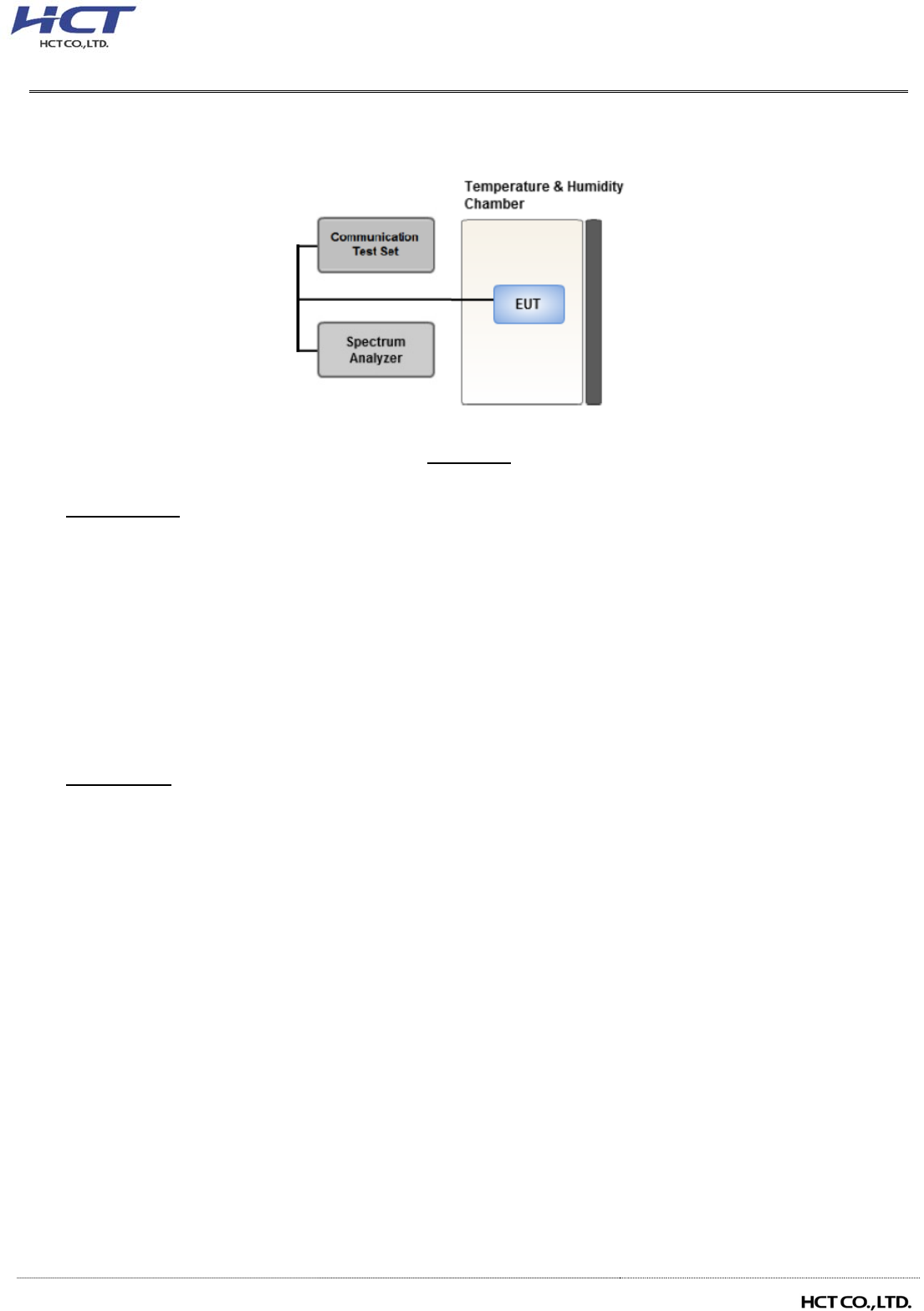

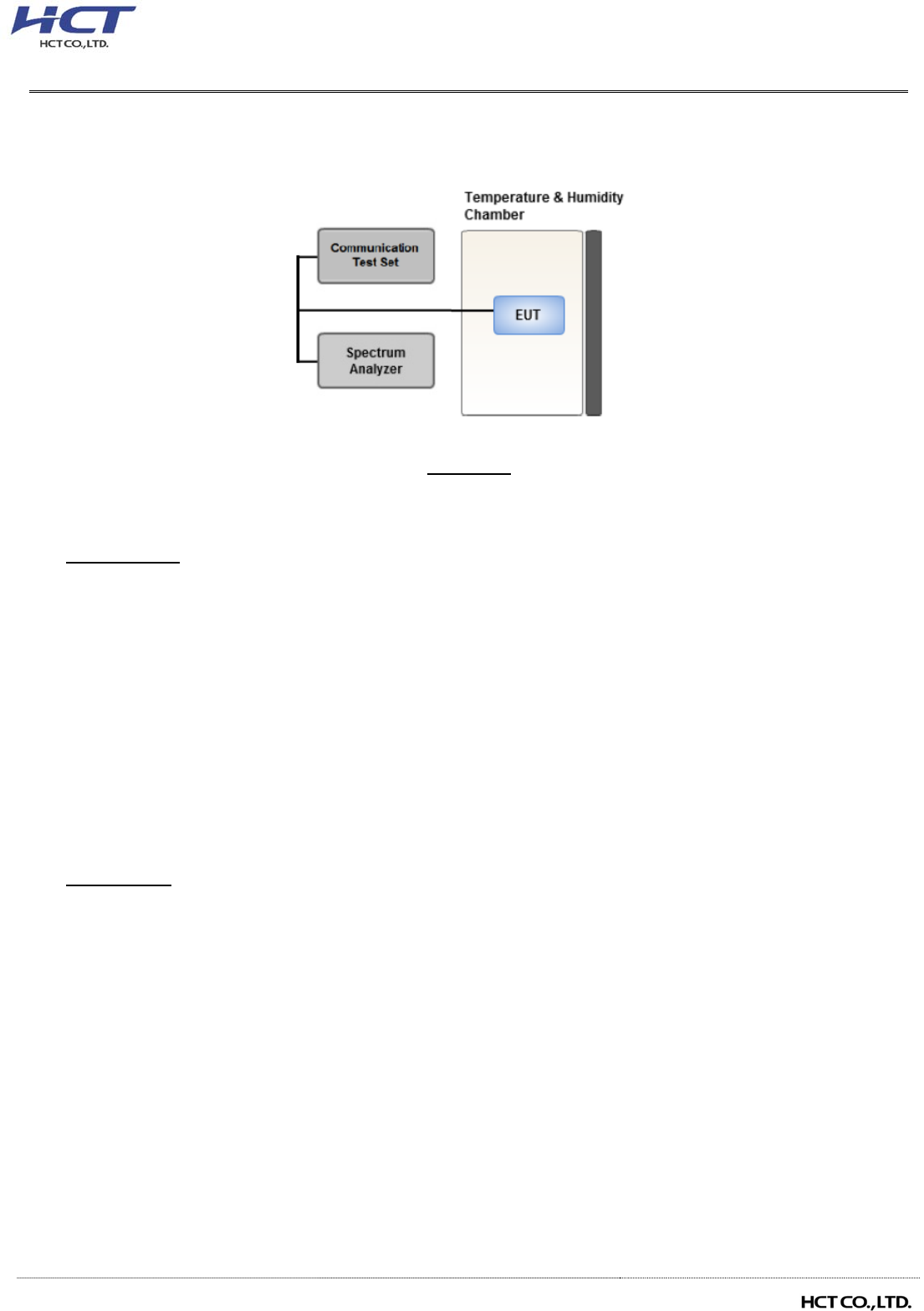

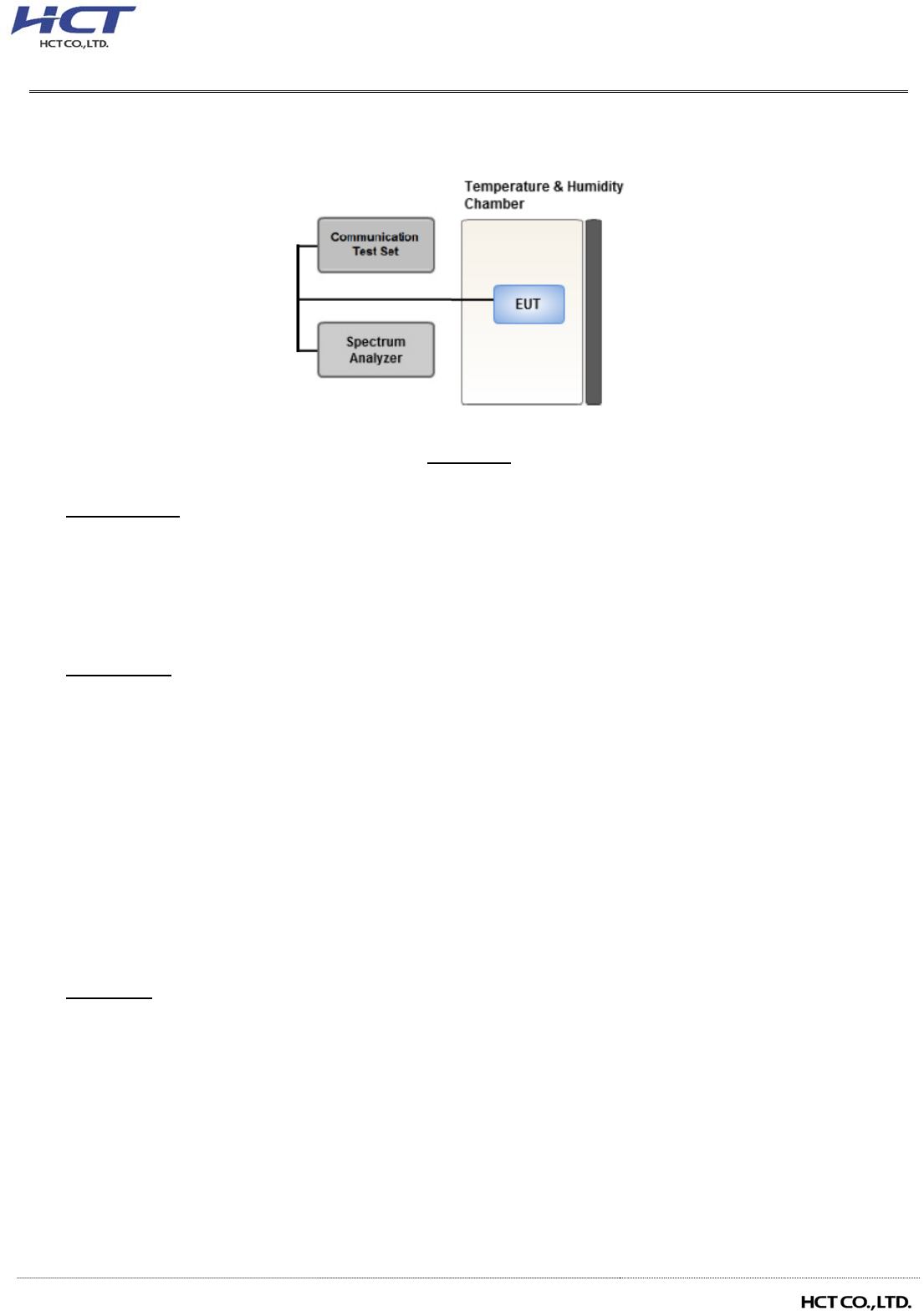

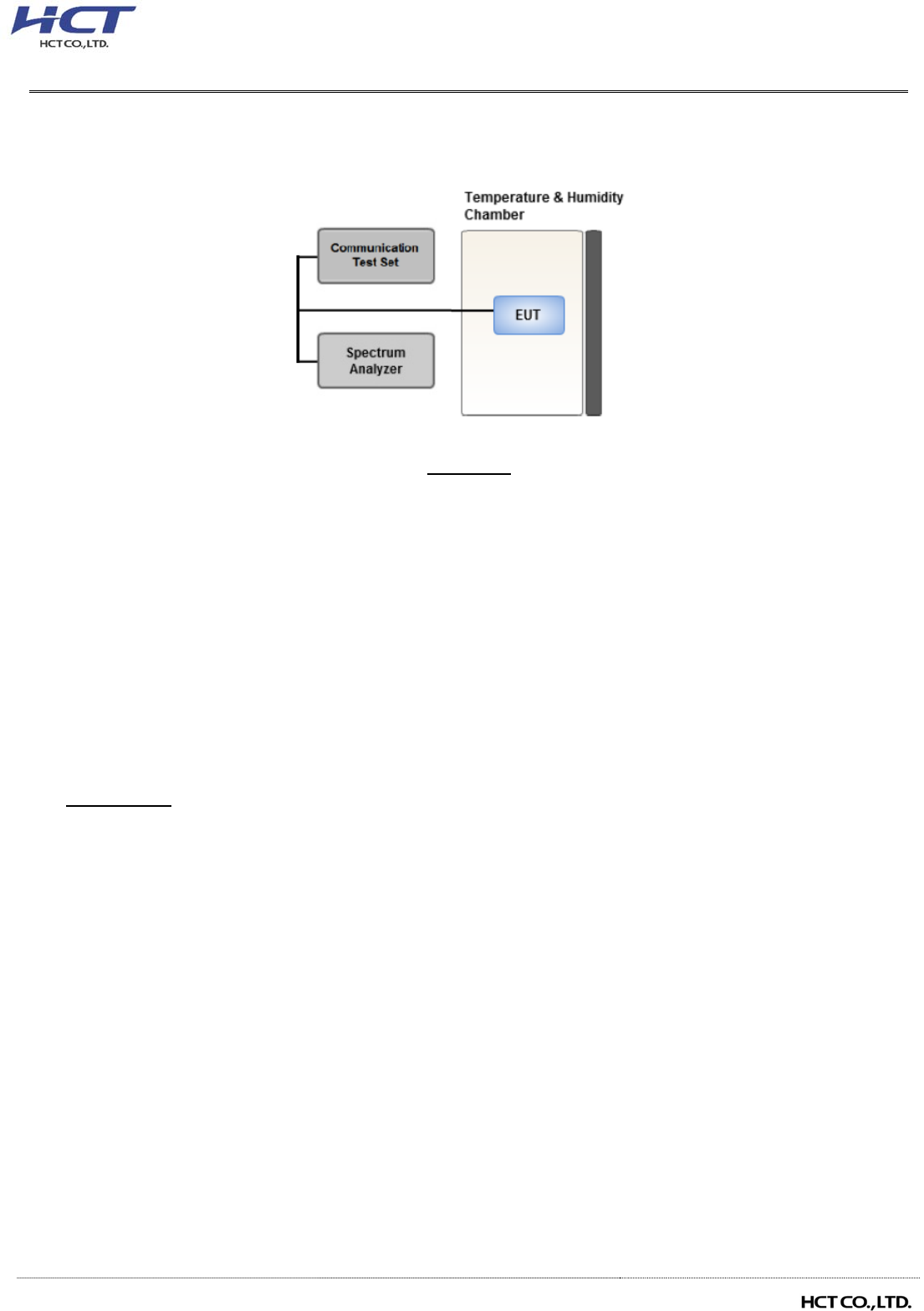

Test setup
Test Overview
The level of the carrier and the various conducted spurious and harmonic frequencies is measured by means
of a calibrated spectrum analyzer. The spectrum is scanned from the lowest frequency generated in the
equipment up to a frequency including its 10th harmonic. All out of band emissions are measured with a
spectrum analyzer connected to the antenna terminal of the EUT while the EUT is operating at its maximum
duty cycle, at maximum power, and at the appropriate frequencies. All data rates were investigated to
determine the worst case configuration. All modes of operation were investigated and the worst case
configuration results are reported in this section.
Test Settings
1. RBW = 1 MHz
2. VBW ≥ 3 MHz
3. Detector = RMS
4. Trace Mode = Average
5. Sweep time = auto
6. Number of points in sweep ≥ 2 * Span / RBW
Report No.: HCT-RF-1804-FC011 FCC ID: A3LSMJ737S
F-TP22-03 (Rev.00)
11/52

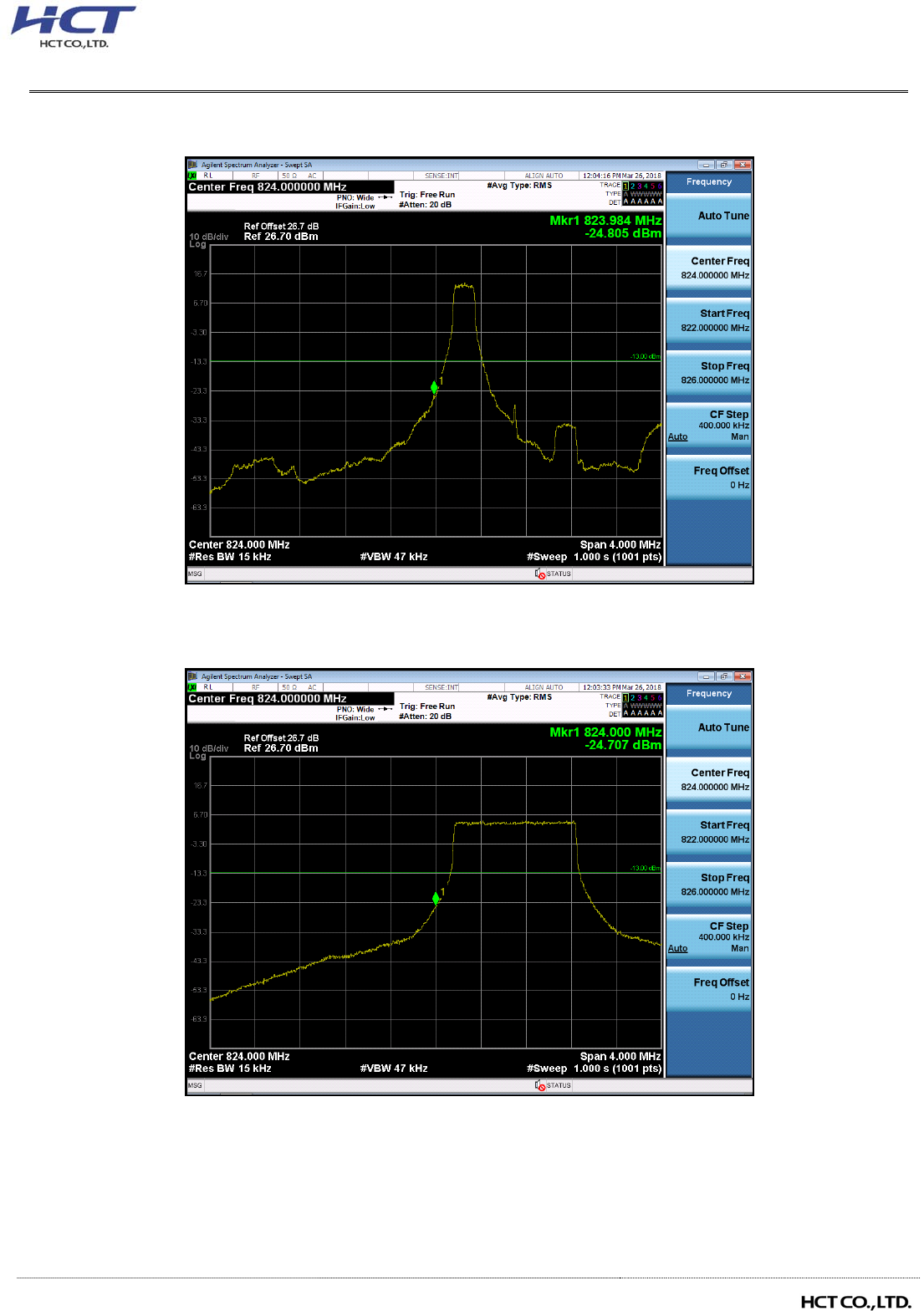

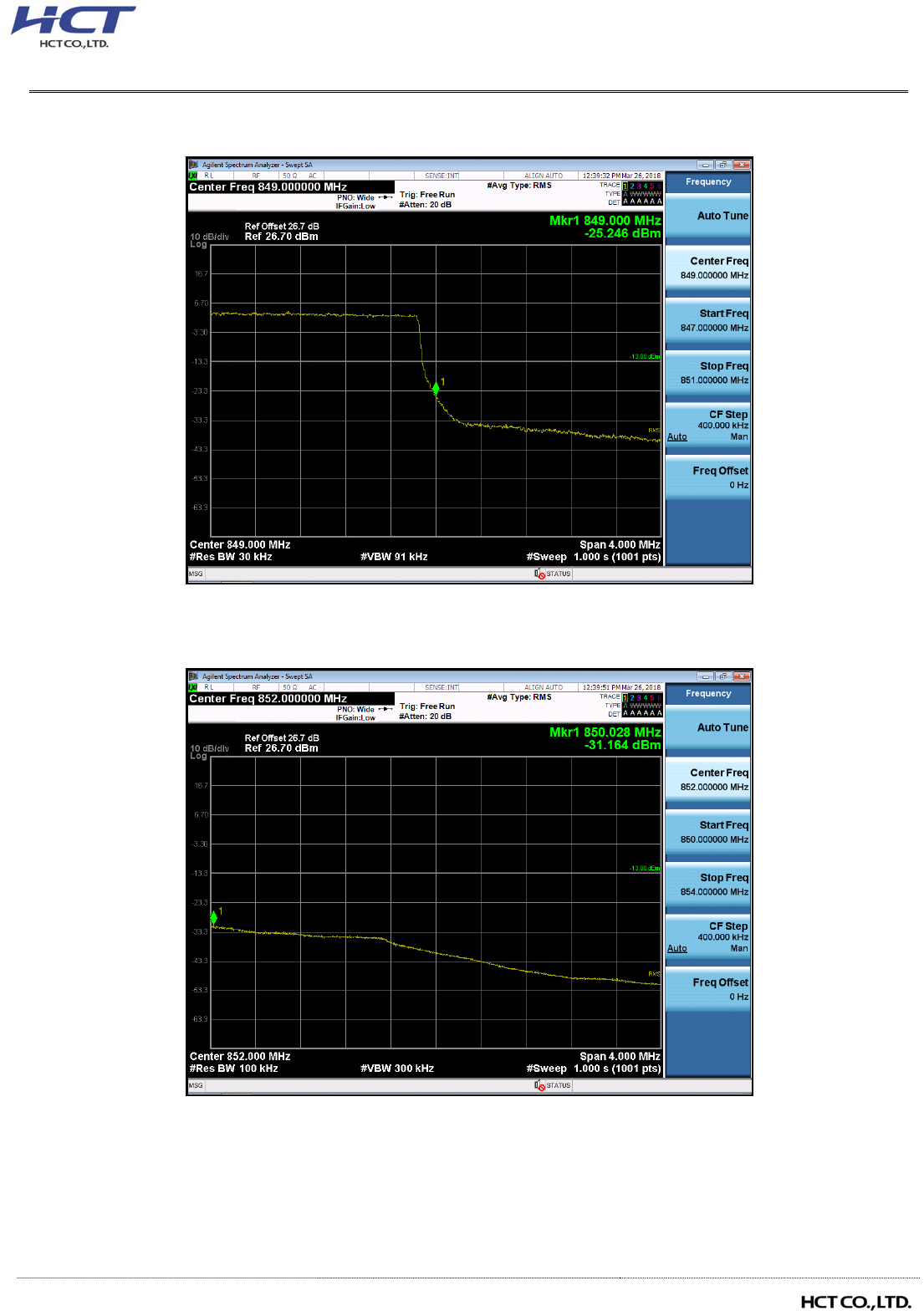

3.6 BAND EDGE
Test setup
Test Overview
All out of band emissions are measured with a spectrum analyzer connected to the antenna terminal of the
EUT while the EUT is operating at its maximum duty cycle, at maximum power, and at the appropriate
frequencies. All data rates were investigated to determine the worst case configuration. All modes of
operation were investigated and the worst case configuration results are reported in this section.
Test Settings
1. Start and stop frequency were set such that the band edge would be placed in the center of the plot
2. Span was set large enough so as to capture all out of band emissions near the band edge
3. RBW > 1% of the emission bandwidth
4. VBW > 3 x RBW
5. Detector = RMS
6. Number of sweep points ≥ 2 x Span/RBW
7. Trace mode = trace average
8. Sweep time = auto couple
9. The trace was allowed to stabilize
Test Notes
According to FCC 22.917, 24.238, 27.53 specified that power of any emission outside of The authorized
operating frequency ranges must be attenuated below the transmitting power (P) by a factor of at least 43 +
10 log(P) dB. In the 1 MHz bands immediately outside and adjacent to the frequency block a resolution
bandwidth of at least one percent of the emission bandwidth of the fundamental emission of the transmitter
may be employed.
All measurements were done at 2 channels(low and high operational frequency range.)
The band edge measurement used the power splitter via EUT RF power connector between simulation base
station and spectrum analyzer.
Report No.: HCT-RF-1804-FC011 FCC ID: A3LSMJ737S
F-TP22-03 (Rev.00)
12/52

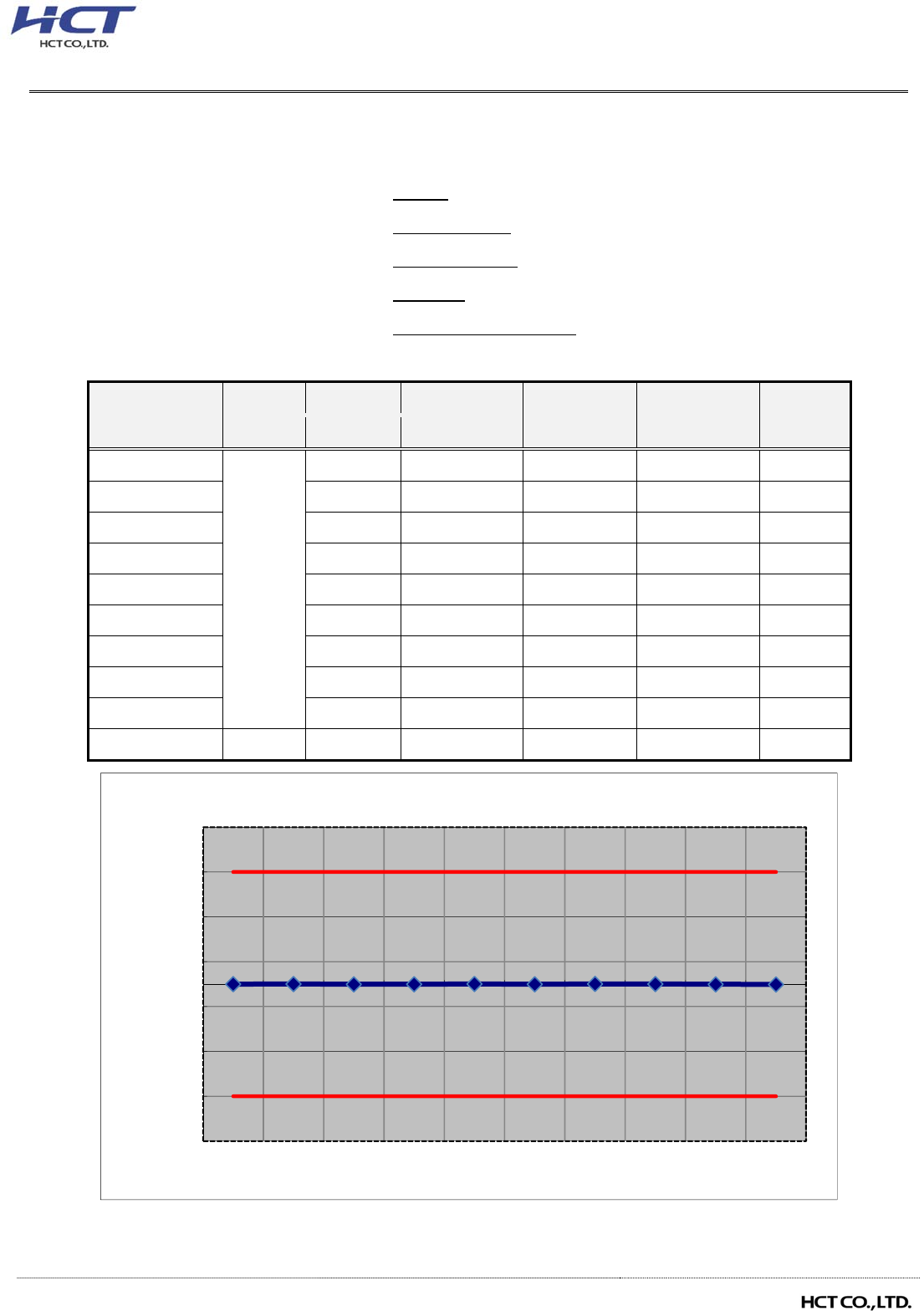

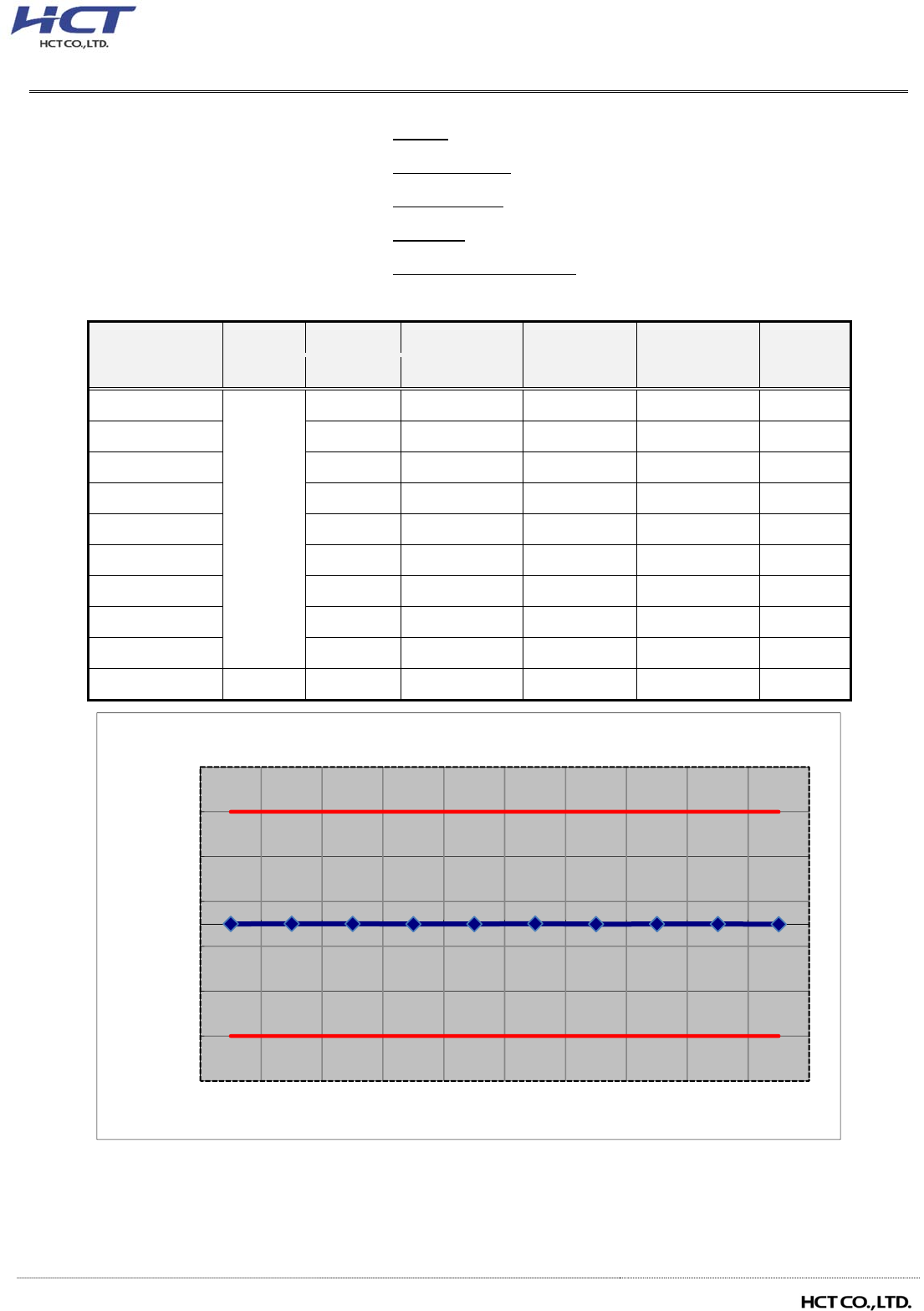

3.7 FREQUENCY STABILITY / VARIATION OF AMBIENT TEMPERATURE
Test setup
Test Overview
Frequency stability testing is performed in accordance with the guidelines of ANSI C63.26-2015.
The frequency stability of the transmitter is measured by:
1. Temperature:
The temperature is varied from -30°C to +50°C in 10°C increments using an environmental chamber.
2. Primary Supply Voltage:
.- Unless otherwise specified, vary primary supply voltage from 85% to 115% of the nominal value
for other than hand carried battery equipment.
.- For hand carried, battery powered equipment, reduce the primary ac or dc supply voltage to the
battery operating end point, which shall be specified by the manufacturer.
Test Settings
1. The carrier frequency of the transmitter is measured at room temperature
(20°C to provide a reference).
2. The equipment is turned on in a “standby” condition for fifteen minutes before applying power to the
transmitter. Measurement of the carrier frequency of the transmitter is made within one minute after
applying power to the transmitter.
3. Frequency measurements are made at 10°C intervals ranging from -30°C to +50°C. A period of at
least one half-hour is provided to allow stabilization of the equipment at each temperature level.
Report No.: HCT-RF-1804-FC011 FCC ID: A3LSMJ737S
F-TP22-03 (Rev.00)
13/52
4. LIST OF TEST EQUIPMENT
Manufacture Model/ Equipment Serial
Number
Calibration
Date
Calibration
Interval
Calibration
Due
REOHDE &
SCHWARZ SCU 18 / AMPLIFIER 10094 04/24/2017 Annual 04/24/2018
Wainwright WHK1.2/15G-10EF/H.P.F 4 04/04/2018 Annual 04/04/2019
Wainwright WHK3.3/18G-10EF/H.P.F 2 04/04/2018 Annual 04/04/2019
Hewlett Packard 11667B / Power Splitter(DC~26.5 GHz) 11275 05/04/2017 Annual 05/04/2018
Agilent E3632A/DC Power Supply KR75303243 07/18/2017 Annual 07/18/2018
Schwarzbeck UHAP/ Dipole Antenna 557 03/31/2017 Biennial 03/31/2019
Schwarzbeck UHAP/ Dipole Antenna 558 03/31/2017 Biennial 03/31/2019
ESPEC SU-642 / Chamber 93000718 07/21/2017 Annual 07/21/2018
Schwarzbeck BBHA 9120D/ Horn Antenna(1~18GHz) 147 09/09/2016 Biennial 09/09/2018
Schwarzbeck BBHA 9120D/ Horn Antenna(1~18GHz) 9120D-1298 10/14/2016 Biennial 10/14/2018
Schwarzbeck BBHA 9170/ Horn Antenna(15~40GHz) BBHA9170342 04/25/2017 Biennial 04/25/2019
Schwarzbeck BBHA 9170/ Horn Antenna(15~40GHz) BBHA9170124 04/25/2017 Biennial 04/25/2019
Agilent N9020A/Signal Analyzer(10Hz~26.5GHz) MY52090906 06/01/2017 Annual 06/01/2018
Hewlett Packard 8493C/ATTENUATOR(20dB) 17280 06/22/2017 Annual 06/22/2018
REOHDE &
SCHWARZ FSV40/Spectrum Analyzer(10Hz~40GHz) 100931 10/30/2017 Annual 10/30/2018
Agilent 8960 (E5515C)/ Base Station MY48360800 09/26/2017 Annual 09/26/2018
Schwarzbeck FMZB1513/ Loop Antenna(9kHz~30MHz) 1513-175 04/19/2017 Biennial 04/19/2019
Schwarzbeck VULB9160/ Bilog Antenna 3150 09/30/2016 Biennial 09/30/2018
Schwarzbeck VULB9160/ Bilog Antenna 9360-3368 10/14/2016 Biennial 10/14/2018
Anritsu Corp. MT8820C/Wideband Radio Communication
Tester 6200863156 02/13/2018 Annual 02/13/2019
Anritsu Corp. MT8820C/Wideband Radio Communication
Tester 6201026545 02/08/2018 Annual 02/08/2019
REOHDE &
SCHWARZ
SMB100A/ SIGNAL GENERATOR
(100kHz~40GHz) 177633 07/18/2017 Annual 07/18/2018
REOHDE &
SCHWARZ FSV40/Spectrum Analyzer 100931 10/30/2017 Annual 10/30/2018
REOHDE &
SCHWARZ ESU40 / EMI TEST RECEIVER 100524 08/16/2017 Annual 08/16/2018
HCT CO., LTD., FCC LTE Mobile Conducted RF Automation
Test Software - - - -
Report No.: HCT-RF-1804-FC011 FCC ID: A3LSMJ737S
F-TP22-03 (Rev.00)
14/52
5. MEASUREMENT UNCERTAINTY
The measurement uncertainties shown below were calculated in accordance with the requirements of ANSI
C63.4:2014.
All measurement uncertainty values are shown with a coverage factor of k = 2 to indicate a 95 % level of
confidence. The measurement data shown herein meets or exceeds the UCISPR measurement uncertainty
values specified in CISPR 16-4-2 and, thus, can be compared directly to specified limits to determine
compliance.
Parameter Expanded Uncertainty (±dB)
Conducted Disturbance (150 kHz ~ 30 MHz) 1.82
Radiated Disturbance (9 kHz ~ 30 MHz) 3.40
Radiated Disturbance (30 MHz ~ 1 GHz) 4.80
Radiated Disturbance (1 GHz ~ 18 GHz) 6.07
Report No.: HCT-RF-1804-FC011 FCC ID: A3LSMJ737S
F-TP22-03 (Rev.00)
15/52
6. SUMMARY OF TEST RESULTS
6.1 Test Condition : Conducted Test
Test Description
FCC Part
Section(s)
Test Limit Test Result
Occupied Bandwidth §2.1049 N/A PASS
Band Edge / Spurious and
Harmonic Emissions at Antenna
Terminal.
§2.1051,
§22.917(a)
< 43 + 10log10 (P[Watts]) at Band Edge
and for all out-of-band emissions
PASS
Conducted Output Power §2.1046 N/A See Note1
Frequency stability / variation of
ambient temperature
§2.1055,
§22.355
< 2.5 ppm PASS
Note:
1. See SAR Report
6.2 Test Condition : Radiated Test
Test Description
FCC Part
Section(s)
Test Limit Test Result
Effective Radiated Power §22.913(a)(5) < 7 Watts max. ERP PASS
Radiated Spurious and Harmonic
Emissions
§2.1053,
§22.917(a)
< 43 + 10log10 (P[Watts]) for
all out-of band emissions
PASS
Report No.: HCT-RF-1804-FC011 FCC ID: A3LSMJ737S
F-TP22-03 (Rev.00)
16/52
7. SAMPLE CALCULATION
7.1 ERP Sample Calculation
Ch./ Freq. Measured
Level(dBm)
Substitute
Level(dBm)
Ant. Gain
(dBd)
C.L Pol.
ERP
channel Freq.(MHz) W dBm
128 824.20 -21.37 38.40 -10.61 0.95 H 0.483 26.84
ERP = Substitute LEVEL(dBm) + Ant. Gain – CL(Cable Loss)
1) The EUT mounted on a non-conductive turntable is 2.5 meter above test site ground level.
2) During the test , the turn table is rotated until the maximum signal is found.
3) Record the field strength meter’s level.
4) Replace the EUT with dipole/Horn antenna that is connected to a calibrated signal generator.
5) Increase the signal generator output till the field strength meter’s level is equal to the item (3).
6) The signal generator output level with Ant. Gain and cable loss are the rating of effective radiated power.
7.2 EIRP Sample Calculation
Ch./ Freq. Measured
Level(dBm)
Substitute
Level(dBm)
Ant. Gain
(dBi)
C.L Pol.
EIRP
channel Freq.(MHz) W dBm
20175 1,732.50 -15.75 18.45 9.90 1.76 H 0.456 26.59
EIRP = Substitute LEVEL(dBm) + Ant. Gain – CL(Cable Loss)
1) The EUT mounted on a non-conductive turntable is 2.5 meter above test site ground level.
2) During the test , the turn table is rotated until the maximum signal is found.
3) Record the field strength meter’s level.
4) Replace the EUT with dipole/Horn antenna that is connected to a calibrated signal generator.
5) Increase the signal generator output till the field strength meter’s level is equal to the item (3).
6) The signal generator output level with Ant. Gain and cable loss are the rating of equivalent isotropic
radiated power.
Report No.: HCT-RF-1804-FC011 FCC ID: A3LSMJ737S
F-TP22-03 (Rev.00)
17/52
7.3. Emission Designator
GSM Emission Designator EDGE Emission Designator
Emission Designator = 249KGXW
GSM BW = 249 kHz
G = Phase Modulation
X = Cases not otherwise covered
W = Combination (Audio/Data)
Emission Designator = 249KG7W
GSM BW = 249 kHz
G = Phase Modulation
7 = Quantized/Digital Info
W = Combination (Audio/Data)
WCDMA Emission Designator QPSK Modulation
Emission Designator = 4M17F9W
WCDMA BW = 4.17 MHz
F = Frequency Modulation
9 = Composite Digital Info
W = Combination (Audio/Data)
Emission Designator = 4M48G7D
LTE BW = 4.48 MHz
G = Phase Modulation
7 = Quantized/Digital Info
D = Data transmission; telemetry; telecommand
16QAM Modulation
Emission Designator = 4M48W7D
LTE BW = 4.48 MHz
W = Amplitude/Angle Modulated
7 = Quantized/Digital Info
D = Data transmission; telemetry; telecommand
Report No.: HCT-RF-1804-FC011 FCC ID: A3LSMJ737S
F-TP22-03 (Rev.00)
18/52
8. TEST DATA
8.1 EFFECTIVE RADIATED POWER
Freq
(MHz)
Mod/
Bandwidth Modulation Measured
Level (dBm)
Substitute
Level (dBm)
Ant.
Gain(dBd) C.L Pol Limit ERP
W W dBm
824.7
LTE B5/
1.4 MHz
QPSK -33.43 28.79 -10.59 1.31 V
< 7.00
0.049 16.89
16-QAM -34.63 27.59 -10.59 1.31 V 0.037 15.69
836.5
QPSK -34.25 28.31 -10.54 1.32 V 0.044 16.45
16-QAM -35.36 27.20 -10.54 1.32 V 0.034 15.34
848.3
QPSK -34.48 27.58 -10.49 1.33 V 0.038 15.76
16-QAM -35.65 26.41 -10.49 1.33 V 0.029 14.59
Freq
(MHz)
Mod/
Bandwidth Modulation Measured
Level (dBm)
Substitute
Level (dBm)
Ant.
Gain(dBd) C.L Pol Limit ERP
W W dBm
825.5
LTE B5/
3 MHz
QPSK -33.32 28.95 -10.59 1.31 V
< 7.00
0.051 17.05
16-QAM -34.49 27.78 -10.59 1.31 V 0.039 15.88
836.5
QPSK -34.15 28.41 -10.54 1.32 V 0.045 16.55
16-QAM -35.18 27.38 -10.54 1.32 V 0.036 15.52
847.5
QPSK -34.33 27.76 -10.49 1.33 V 0.039 15.94
16-QAM -35.33 26.76 -10.49 1.33 V 0.031 14.94
Report No.: HCT-RF-1804-FC011 FCC ID: A3LSMJ737S
F-TP22-03 (Rev.00)
19/52
Freq
(MHz)
Mod/
Bandwidth Modulation Measured
Level (dBm)
Substitute
Level (dBm)
Ant.
Gain(dBd) C.L Pol Limit ERP
W W dBm
826.5
LTE B5/
5 MHz
QPSK -33.27 29.04 -10.58 1.31 V
< 7.00
0.052 17.15
16-QAM -34.37 27.94 -10.58 1.31 V 0.040 16.05
836.5
QPSK -33.82 28.74 -10.54 1.32 V 0.049 16.88
16-QAM -34.89 27.67 -10.54 1.32 V 0.038 15.81
846.5
QPSK -34.25 27.88 -10.50 1.33 V 0.040 16.05
16-QAM -35.34 26.79 -10.50 1.33 V 0.031 14.96
Freq
(MHz)
Mod/
Bandwidth Modulation Measured
Level (dBm)
Substitute
Level (dBm)
Ant.
Gain(dBd) C.L Pol Limit ERP
W W dBm
829.0
LTE B5/
10 MHz
QPSK -33.28 29.11 -10.57 1.31 V
< 7.00
0.053 17.23
16-QAM -34.42 27.97 -10.57 1.31 V 0.041 16.09
836.5
QPSK -33.59 28.97 -10.54 1.32 V 0.051 17.11
16-QAM -34.75 27.81 -10.54 1.32 V 0.039 15.95
844.0
QPSK -34.18 28.08 -10.51 1.33 V 0.042 16.24
16-QAM -35.31 26.95 -10.51 1.33 V 0.032 15.11
Report No.: HCT-RF-1804-FC011 FCC ID: A3LSMJ737S
F-TP22-03 (Rev.00)
20/52
8.2 RADIATED SPURIOUS EMISSIONS
▣ OPERATING FREQUENTY: 824.70 MHz
▣ MEASURED OUTPUT POWER: 16.89 dBm = 0.049 W
▣ MOD: LTE B5
▣ MODULATION SIGNAL: 1.4 MHz QPSK
▣ DISTANCE: 3 meters
▣ LIMIT: 43 + 10 lo
g10
(W) = 29.89 dBc
Ch Freq (MHz) Measured
Level (dBm)
Ant. Gain
(dBd)
Substitute
Level (dBm) C.L Pol Result
(dBm) dBc
20407
(824.7)
1,649.40 -48.09 9.16 -60.51 1.88 V -53.23 70.12
2,474.10 -55.33 10.93 -64.32 2.33 H -55.72 72.61
3,298.80 -57.41 11.94 -66.68 2.72 H -57.46 74.35
20525
(836.5)
1,673.00 -47.90 9.23 -60.37 1.90 V -53.04 69.93
2,509.50 -56.81 10.96 -66.07 2.36 V -57.47 74.36
3,346.00 -56.75 12.04 -66.32 2.74 H -57.02 73.91
20643
(848.3)
1,696.60 -47.06 9.32 -59.52 1.91 V -52.11 69.00
2,544.90 -57.15 10.99 -66.14 2.39 V -57.54 74.43
3,393.20 -56.99 12.14 -66.46 2.77 V -57.09 73.98
Report No.: HCT-RF-1804-FC011 FCC ID: A3LSMJ737S
F-TP22-03 (Rev.00)
21/52
▣ OPERATING FREQUENTY: 825.50 MHz
▣ MEASURED OUTPUT POWER: 17.05 dBm = 0.051 W
▣ MOD: LTE B5
▣ MODULATION SIGNAL: 3 MHz QPSK
▣ DISTANCE: 3 meters
▣ LIMIT: 43 + 10 lo
g10
(W) = 30.05 dBc
Ch Freq (MHz) Measured
Level (dBm)
Ant. Gain
(dBd)
Substitute
Level (dBm) C.L Pol Result
(dBm) dBc
20415
(825.5)
1,651.00 -47.34 9.16 -59.76 1.88 V -52.48 69.53
2,476.50 -57.84 10.92 -66.94 2.33 H -58.35 75.40
3,302.00 -57.11 11.94 -66.37 2.72 H -57.15 74.20
20525
(836.5)
1,673.00 -49.89 9.23 -62.36 1.90 V -55.03 72.08
2,509.50 -57.62 10.96 -66.88 2.36 H -58.28 75.33
3,346.00 -57.28 12.03 -66.84 2.74 V -57.55 74.60
20635
(847.5)
1,695.00 -49.65 9.30 -62.10 1.91 V -54.71 71.76
2,542.50 -57.97 10.98 -66.83 2.39 V -58.24 75.29
3,390.00 -57.64 12.13 -67.18 2.77 V -57.82 74.87
Report No.: HCT-RF-1804-FC011 FCC ID: A3LSMJ737S
F-TP22-03 (Rev.00)
22/52
▣ OPERATING FREQUENTY: 826.50 MHz
▣ MEASURED OUTPUT POWER: 17.15 dBm = 0.052 W
▣ MOD: LTE B5
▣ MODULATION SIGNAL: 5 MHz QPSK
▣ DISTANCE: 3 meters
▣ LIMIT: 43 + 10 lo
g10
(W) = 30.15 dBc
Ch Freq (MHz) Measured
Level (dBm)
Ant. Gain
(dBd)
Substitute
Level (dBm) C.L Pol Result
(dBm) dBc
20425
(826.5)
1,653.00 -47.90 9.17 -60.36 1.88 V -53.07 70.22
2,479.50 -52.11 10.92 -61.37 2.33 V -52.78 69.93
3,306.00 -56.99 11.95 -66.26 2.72 V -57.03 74.18
20525
(836.5)
1,673.00 -50.93 9.23 -63.40 1.90 H -56.07 73.22
2,509.50 -58.30 10.96 -67.56 2.36 H -58.96 76.11
3,346.00 -57.44 10.03 -65.00 2.74 V -57.71 74.86
20625
(846.5)
1,693.00 -50.54 9.31 -63.02 1.91 H -55.62 72.77
2,539.50 -56.36 10.98 -65.14 2.38 V -56.54 73.69
3,386.00 -57.81 12.11 -67.35 2.77 V -58.01 75.16
Report No.: HCT-RF-1804-FC011 FCC ID: A3LSMJ737S
F-TP22-03 (Rev.00)
23/52
▣ OPERATING FREQUENTY: 829.00 MHz
▣ MEASURED OUTPUT POWER: 17.23 dBm = 0.053 W
▣ MOD: LTE B5
▣ MODULATION SIGNAL: 10 MHz QPSK
▣ DISTANCE: 3 meters
▣ LIMIT: 43 + 10 lo
g10
(W) = 30.23 dBc
Ch Freq (MHz) Measured
Level (dBm)
Ant. Gain
(dBd)
Substitute
Level (dBm) C.L Pol Result
(dBm) dBc
20450
(829.0)
1,658.00 -48.18 9.18 -60.72 1.88 H -53.42 70.65
2,487.00 -54.09 10.93 -63.14 2.34 H -54.55 71.78
3,316.00 -58.16 11.96 -67.47 2.71 V -58.22 75.45
20525
(836.5)
1,673.00 -53.64 9.23 -66.11 1.90 H -58.78 76.01
2,509.50 -57.31 10.96 -66.57 2.36 H -57.97 75.20
3,346.00 -58.46 10.03 -66.02 2.74 V -58.73 75.96
20600
(844.0)
1,688.00 -46.90 9.28 -59.39 1.91 V -52.02 69.25
2,532.00 -57.10 10.98 -66.35 2.38 H -57.75 74.98
3,376.00 -57.04 12.10 -66.65 2.77 V -57.32 74.55
Report No.: HCT-RF-1804-FC011 FCC ID: A3LSMJ737S
F-TP22-03 (Rev.00)
24/52
8.3 OCCUPIED BANDWIDTH
Band Band
Width
Frequency
(MHz) Modulation Resource
Block Size
Resource
Block
Offset
Data ( MHz )
5
1.4 MHz
836.5
QPSK 6 0 1.1036
16-QAM 6 0 1.1049
3 MHz
QPSK 15 0 2.7055
16-QAM 15 0 2.7148
5 MHz
QPSK 25 0 4.5277
16-QAM 25 0 4.5212
10 MHz
QPSK 50 0 9.0428
16-QAM 50 0 9.0102
Note:
1. Plots of the EUT’s Occupied Bandwidth are shown Page 31 ~ 34.
Report No.: HCT-RF-1804-FC011 FCC ID: A3LSMJ737S
F-TP22-03 (Rev.00)
25/52
8.4 CONDUCTED SPURIOUS EMISSIONS
Band
Band
Width
(MHz)
Frequency
(MHz)
Frequency of
Maximum Harmonic
(GHz)
Factor
(dB)
Measurement
Maximum Data
(dBm)
Result
(dBm)
Limit
(dBm)
5
1.4
824.7 3.7239 27.976 -67.372 -39.396
-13.00
836.5 3.1805 27.976 -66.997 -39.021
848.3 3.7010 27.976 -67.305 -39.329
3
825.5 3.7114 27.976 -67.127 -39.151
836.5 3.7010 27.976 -67.095 -39.119
847.5 3.7069 27.976 -67.046 -39.070
5
826.5 3.7134 27.976 -67.299 -39.323
836.5 3.7005 27.976 -67.058 -39.082
846.5 3.7104 27.976 -67.234 -39.258
10
829.0 3.6930 27.976 -67.127 -39.151
836.5 3.6840 27.976 -67.136 -39.160
844.0 3.6985 27.976 -67.320 -39.344
Note:
1. Plots of the EUT’s Conducted Spurious Emissions are shown Page 47 ~ 52.
2. Conducted Spurious Emissions was Tested QPSK Modulation, Resource Block Size 1 and Resource Block Offset 0
3. Result (dBm) = Measurement Maximum Data (dBm) + Factor (dB)
4. Factor(dB) = Cable Loss + Attenuator + Power Splitter
Frequency Range (GHz) Factor [dB]
0.03 – 1 25.270
1 – 5 27.976
5 – 10 28.591
10 – 15 29.116
15 – 20 29.489
Above 20 30.131
8.5 BAND EDGE
- Plots of the EUT’s Band Edge are shown Page 35 ~ 46.
Report No.: HCT-RF-1804-FC011 FCC ID: A3LSMJ737S
F-TP22-03 (Rev.00)
26/52
8.6 FREQUENCY STABILITY / VARIATION OF AMBIENT TEMPERATURE
▣ MODE: LTE B5
▣ O
PERATING FREQUENCY:
836,500,000 Hz
▣ C
HANNEL:
20525 (1.4 MHz)
▣ R
EFERENCE VOLTAGE:
3.85 VDC
▣ D
EVIATION LIMIT:
± 0.000 25 % or 2.5 ppm
-3.5
-2.5
-1.5
-0.5
0.5
1.5
2.5
3.5
+20(Ref) -30 -20 -10 0 +10 +30 +40 +50 +20
Deviation (ppm)
Temperature (℃)
Frequency Stability
Voltage Power Temp. Frequency Frequency Deviation
ppm
(%) (VDC) (℃) (Hz) Error (Hz) (%)
100%
3.85
+20(Ref) 836 500 002 0.0 0.000 000 0.000
100% -30 836 500 004 2.4 0.000 000 0.003
100% -20 836 499 999 -2.9 0.000 000 -0.003
100% -10 836 499 999 -2.4 0.000 000 -0.003
100% 0 836 500 004 2.6 0.000 000 0.003
100% +10 836 499 999 -3.2 0.000 000 -0.004
100% +30 836 500 005 3.5 0.000 000 0.004
100% +40 836 500 005 2.7 0.000 000 0.003
100% +50 836 499 999 -3.0 0.000 000 -0.004
Batt. Endpoint 3.40 +20 836 499 997 -4.5 -0.000 001 -0.005
Report No.: HCT-RF-1804-FC011 FCC ID: A3LSMJ737S
F-TP22-03 (Rev.00)
27/52
▣ MODE: LTE B5
▣ O
PERATING FREQUENCY:
836,500,000 Hz
▣ C
HANNEL:
20525 (3 MHz)
▣ R
EFERENCE VOLTAGE:
3.85 VDC
▣ D
EVIATION LIMIT:
± 0.000 25 % or 2.5 ppm
-3.5
-2.5
-1.5
-0.5
0.5
1.5
2.5
3.5
+20(Ref) -30 -20 -10 0 +10 +30 +40 +50 +20
Deviation (ppm)
Temperature (℃)
Frequency Stability
Voltage Power Temp. Frequency Frequency Deviation
ppm
(%) (VDC) (℃) (Hz) Error (Hz) (%)
100%
3.85
+20(Ref) 836 499 997 0.0 0.000 000 0.000
100% -30 836 499 994 -2.6 0.000 000 -0.003
100% -20 836 499 999 2.2 0.000 000 0.003
100% -10 836 499 991 -5.7 -0.000 001 -0.007
100% 0 836 499 992 -4.5 -0.000 001 -0.005
100% +10 836 499 993 -4.2 -0.000 001 -0.005
100% +30 836 499 994 -2.6 0.000 000 -0.003
100% +40 836 499 994 -3.0 0.000 000 -0.004
100% +50 836 500 000 3.2 0.000 000 0.004
Batt. Endpoint 3.40 +20 836 499 994 -3.2 0.000 000 -0.004
Report No.: HCT-RF-1804-FC011 FCC ID: A3LSMJ737S
F-TP22-03 (Rev.00)
28/52
▣ MODE: LTE B5
▣ O
PERATING FREQUENCY:
836,500,000 Hz
▣ C
HANNEL:
20525 (5 MHz)
▣ R
EFERENCE VOLTAGE:
3.85 VDC
▣ D
EVIATION LIMIT:
± 0.000 25 % or 2.5 ppm
-3.5
-2.5
-1.5
-0.5
0.5
1.5
2.5
3.5
+20(Ref) -30 -20 -10 0 +10 +30 +40 +50 +20
Deviation (ppm)
Temperature (℃)
Frequency Stability
Voltage Power Temp. Frequency Frequency Deviation
ppm
(%) (VDC) (℃) (Hz) Error (Hz) (%)
100%
3.85
+20(Ref) 836 500 002 0.0 0.000 000 0.000
100% -30 836 500 006 3.5 0.000 000 0.004
100% -20 836 500 004 2.2 0.000 000 0.003
100% -10 836 500 000 -2.6 0.000 000 -0.003
100% 0 836 499 999 -3.2 0.000 000 -0.004
100% +10 836 500 007 5.2 0.000 001 0.006
100% +30 836 499 999 -3.6 0.000 000 -0.004
100% +40 836 500 000 -2.3 0.000 000 -0.003
100% +50 836 500 000 -2.6 0.000 000 -0.003
Batt. Endpoint 3.40 +20 836 499 997 -5.1 -0.000 001 -0.006
Report No.: HCT-RF-1804-FC011 FCC ID: A3LSMJ737S
F-TP22-03 (Rev.00)
29/52
▣ MODE: LTE B5
▣ O
PERATING FREQUENCY:
836,500,000 Hz
▣ C
HANNEL:
20525 (10 MHz)
▣ R
EFERENCE VOLTAGE:
3.85 VDC
▣ D
EVIATION LIMIT:
± 0.000 25 % or 2.5 ppm
-3.5
-2.5
-1.5
-0.5
0.5
1.5
2.5
3.5
+20(Ref) -30 -20 -10 0 +10 +30 +40 +50 +20
Deviation (ppm)
Temperature (℃)
Frequency Stability
Voltage Power Temp. Frequency Frequency Deviation
ppm
(%) (VDC) (℃) (Hz) Error (Hz) (%)
100%
3.85
+20(Ref) 836 500 005 0.0 0.000 000 0.000
100% -30 836 500 001 -3.6 0.000 000 -0.004
100% -20 836 500 008 3.0 0.000 000 0.004
100% -10 836 500 007 2.4 0.000 000 0.003
100% 0 836 500 008 3.0 0.000 000 0.004
100% +10 836 500 001 -3.4 0.000 000 -0.004
100% +30 836 500 001 -3.5 0.000 000 -0.004
100% +40 836 500 002 -3.1 0.000 000 -0.004
100% +50 836 500 001 -3.5 0.000 000 -0.004
Batt. Endpoint 3.40 +20 836 500 008 3.4 0.000 000 0.004
Report No.: HCT-RF-1804-FC011 FCC ID: A3LSMJ737S
F-TP22-03 (Rev.00)
30/52
9. TEST PLOTS
Report No.: HCT-RF-1804-FC011 FCC ID: A3LSMJ737S
F-TP22-03 (Rev.00)
31/52
BAND 5. Occupied Bandwidth Plot (1.4M BW Ch.20525 QPSK_RB6_0)
BAND 5. Occupied Bandwidth Plot (1.4M BW Ch.20525 16QAM_RB6_0)
Report No.: HCT-RF-1804-FC011 FCC ID: A3LSMJ737S
F-TP22-03 (Rev.00)
32/52
BAND 5. Occupied Bandwidth Plot (3M BW Ch.20525 QPSK_RB15_0)
BAND 5. Occupied Bandwidth Plot (3M BW Ch.20525 16QAM_RB15_0)
Report No.: HCT-RF-1804-FC011 FCC ID: A3LSMJ737S
F-TP22-03 (Rev.00)
33/52
BAND 5. Occupied Bandwidth Plot (5M BW Ch.20525 QPSK_RB25_0)
BAND 5. Occupied Bandwidth Plot (5M BW Ch.20525 16QAM_RB25_0)
Report No.: HCT-RF-1804-FC011 FCC ID: A3LSMJ737S
F-TP22-03 (Rev.00)
34/52

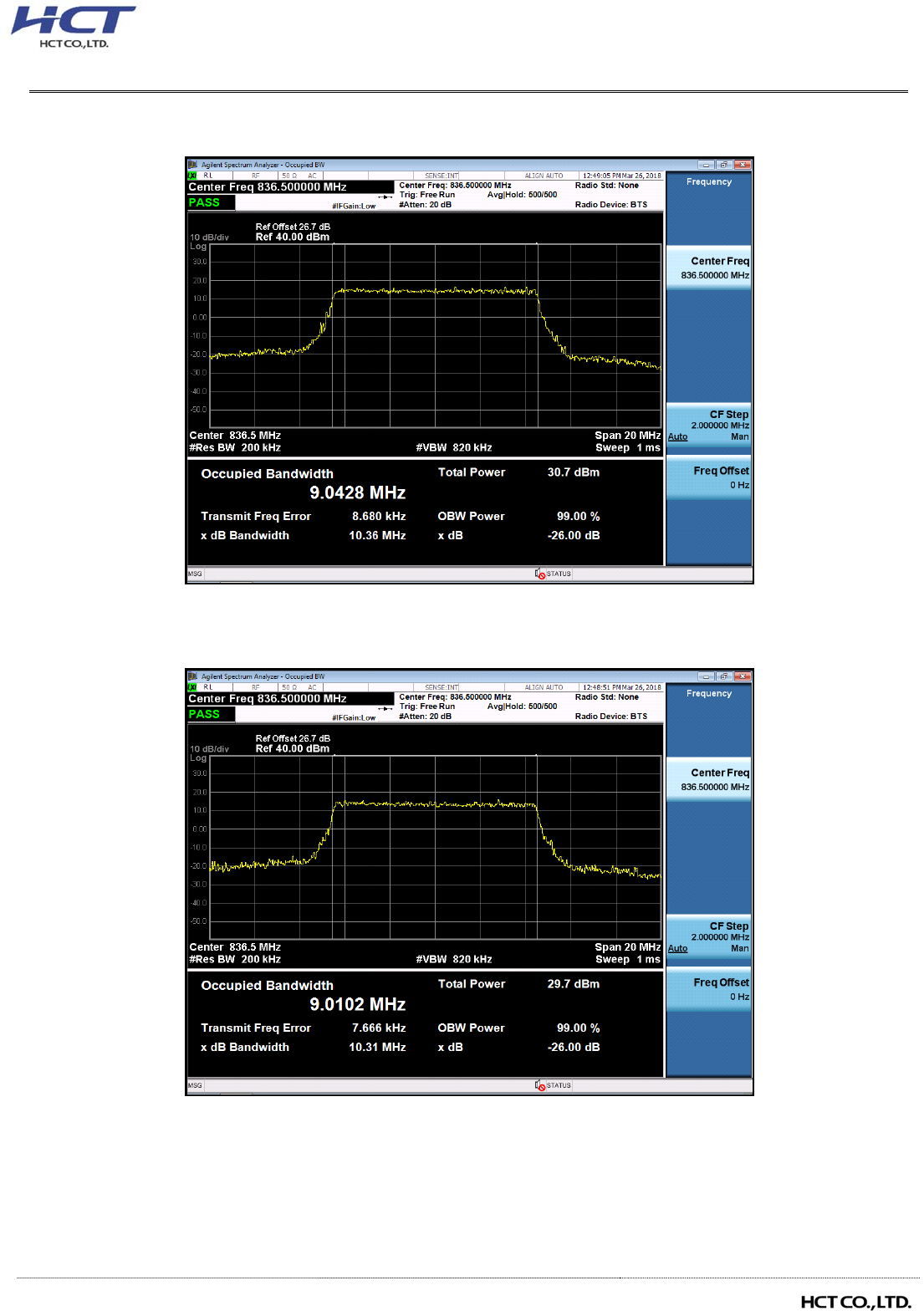

BAND 5. Occupied Bandwidth Plot (10M BW Ch.20525 QPSK_RB50_0)
BAND 5. Occupied Bandwidth Plot (10M BW Ch.20525 16QAM_RB50_0)
Report No.: HCT-RF-1804-FC011 FCC ID: A3LSMJ737S
F-TP22-03 (Rev.00)
35/52

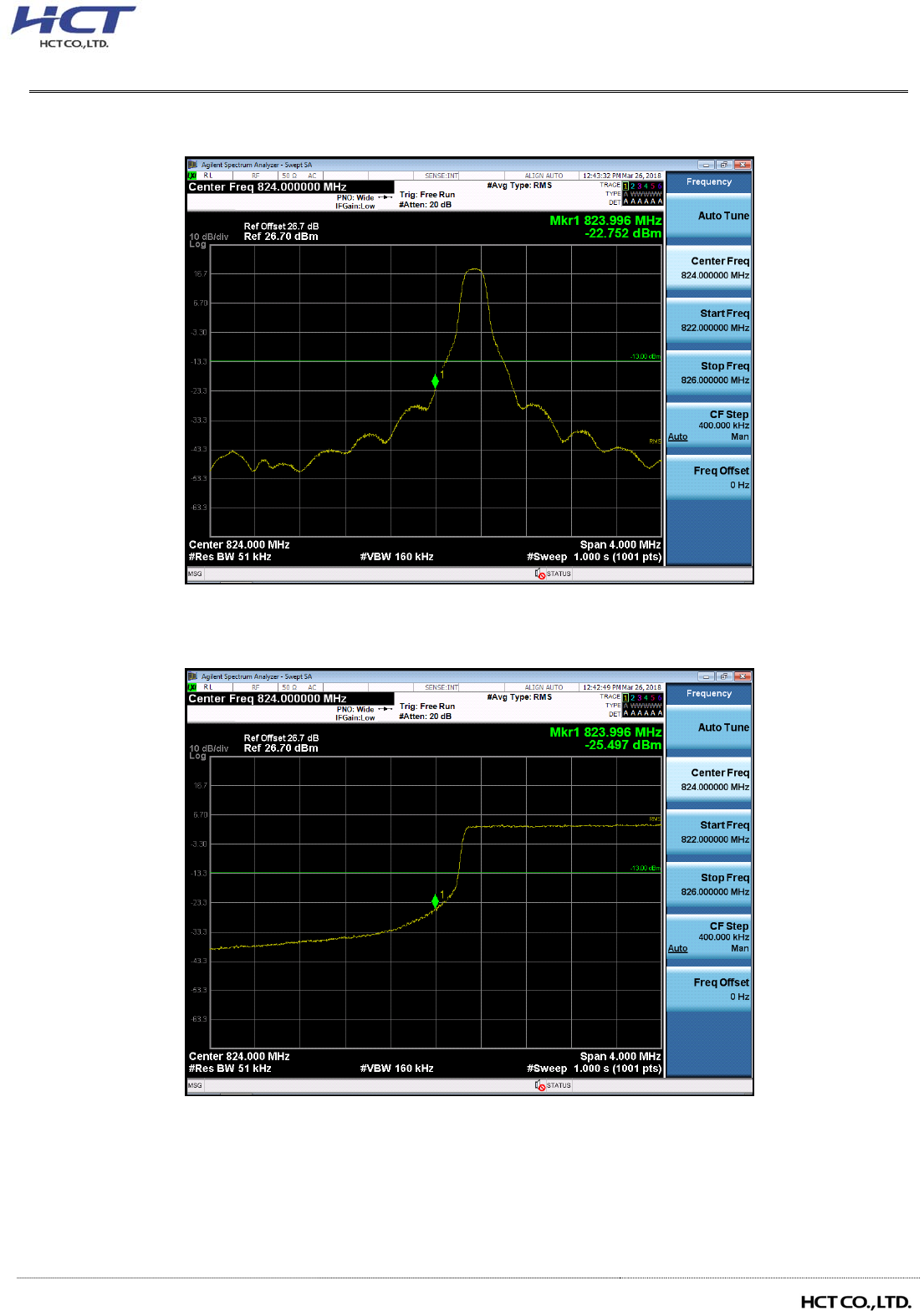

BAND 5. Lower Band Edge Plot (1.4M BW Ch.20407 QPSK_RB1_Offset 0)
BAND 5. Lower Band Edge Plot (1.4M BW Ch.20407 QPSK_RB6_Offset 0)
Report No.: HCT-RF-1804-FC011 FCC ID: A3LSMJ737S
F-TP22-03 (Rev.00)
36/52
BAND 5. Lower Extended Band Edge Plot (1.4M BW Ch.20407 QPSK_RB6_0)
BAND 5. Lower Band Edge Plot (3M BW Ch.20415 QPSK_RB1_Offset 0)
Report No.: HCT-RF-1804-FC011 FCC ID: A3LSMJ737S
F-TP22-03 (Rev.00)
37/52
BAND 5. Lower Band Edge Plot (3M BW Ch.20415 QPSK_RB15_Offset 0)
BAND 5. Lower Extended Band Edge Plot (3M BW Ch.20415 QPSK_RB15_0)
Report No.: HCT-RF-1804-FC011 FCC ID: A3LSMJ737S
F-TP22-03 (Rev.00)
38/52
BAND 5. Lower Band Edge Plot (5M BW Ch.20425 QPSK_RB1_Offset 0)
BAND 5. Lower Band Edge Plot (5M BW Ch.20425 QPSK_RB25_Offset 0)
Report No.: HCT-RF-1804-FC011 FCC ID: A3LSMJ737S
F-TP22-03 (Rev.00)
39/52
BAND 5. Lower Extended Band Edge Plot (5M BW Ch.20425 QPSK_RB25_0)
BAND 5. Lower Band Edge Plot (10M BW Ch.20450 QPSK_RB1_Offset 0)
Report No.: HCT-RF-1804-FC011 FCC ID: A3LSMJ737S
F-TP22-03 (Rev.00)
40/52
BAND 5. Lower Band Edge Plot (10M BW Ch.20450 QPSK_RB50_Offset 0)
BAND 5. Lower Extended Band Edge Plot (10M BW Ch.20450 QPSK_RB50_0)
Report No.: HCT-RF-1804-FC011 FCC ID: A3LSMJ737S
F-TP22-03 (Rev.00)
41/52

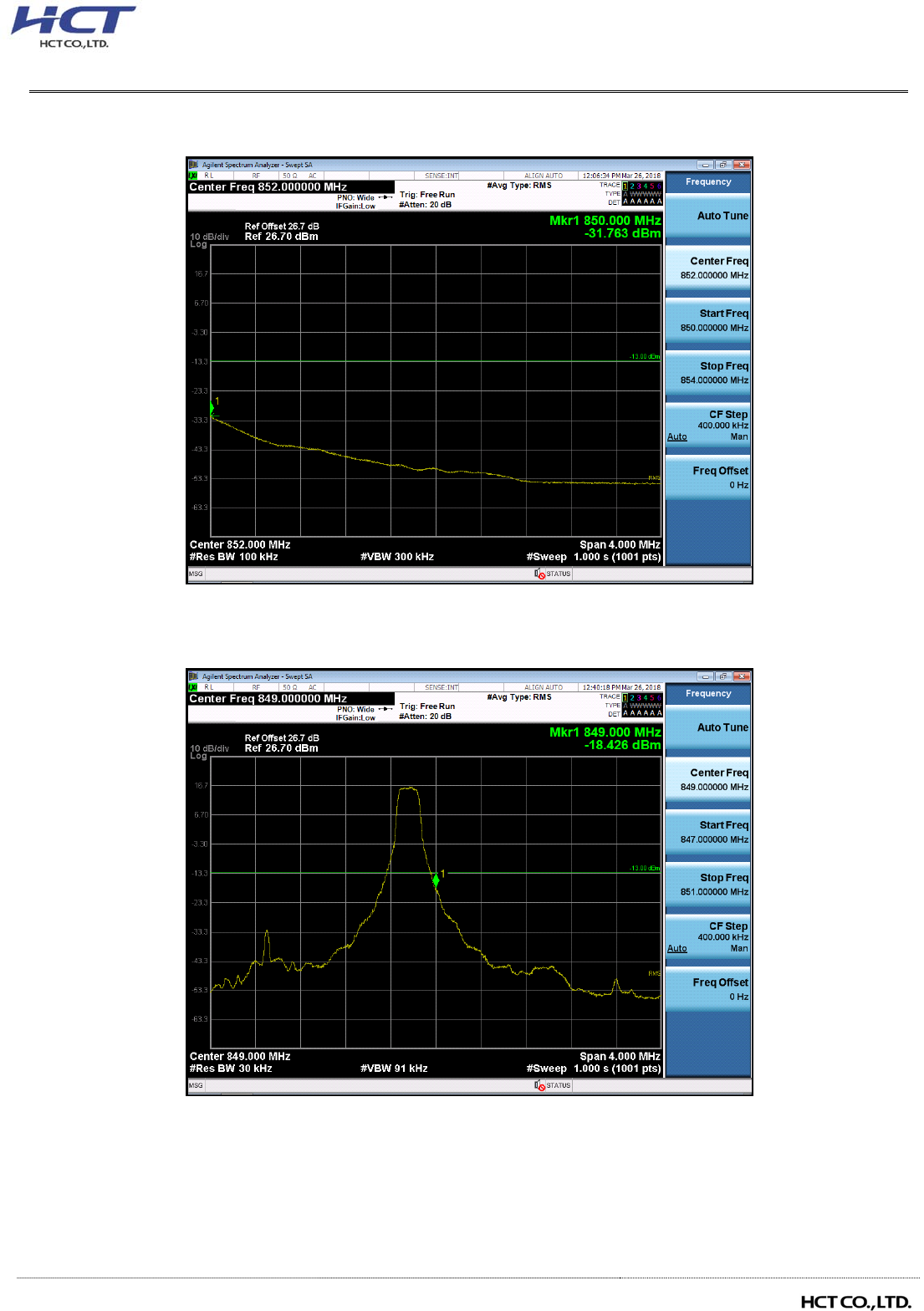

BAND 5. Upper Band Edge Plot (1.4M BW Ch.20643 QPSK_RB1_Offset 5)
BAND 5. Upper Band Edge Plot (1.4M BW Ch.20643 QPSK_RB6_Offset 0)
Report No.: HCT-RF-1804-FC011 FCC ID: A3LSMJ737S
F-TP22-03 (Rev.00)
42/52
BAND 5. Upper Extended Band Edge Plot (1.4M BW Ch.20643 QPSK_RB6_0)
BAND 5. Upper Band Edge Plot (3M BW Ch.20635 QPSK_RB1_Offset 14)
Report No.: HCT-RF-1804-FC011 FCC ID: A3LSMJ737S
F-TP22-03 (Rev.00)
43/52
BAND 5. Upper Band Edge Plot (3M BW Ch.20635 QPSK_RB15_Offset 0)
BAND 5. Upper Extended Band Edge Plot (3M BW Ch.20635 QPSK_RB15_0)
Report No.: HCT-RF-1804-FC011 FCC ID: A3LSMJ737S
F-TP22-03 (Rev.00)
44/52
BAND 5. Upper Band Edge Plot (5M BW Ch.20625 QPSK_RB1_Offset 24)
BAND 5. Upper Band Edge Plot (5M BW Ch.20625 QPSK_RB25_Offset 0)
Report No.: HCT-RF-1804-FC011 FCC ID: A3LSMJ737S
F-TP22-03 (Rev.00)
45/52
BAND 5. Upper Extended Band Edge Plot (5M BW Ch.20625 QPSK_RB25_0)
BAND 5. Upper Band Edge Plot (10M BW Ch.20600 QPSK_RB1_Offset 49)
Report No.: HCT-RF-1804-FC011 FCC ID: A3LSMJ737S
F-TP22-03 (Rev.00)
46/52
BAND 5. Upper Band Edge Plot (10M BW Ch.20600 QPSK_RB50_Offset 0)
BAND 5. Upper Extended Band Edge Plot (10M BW Ch.20600 QPSK_RB50_0)
Report No.: HCT-RF-1804-FC011 FCC ID: A3LSMJ737S
F-TP22-03 (Rev.00)
47/52

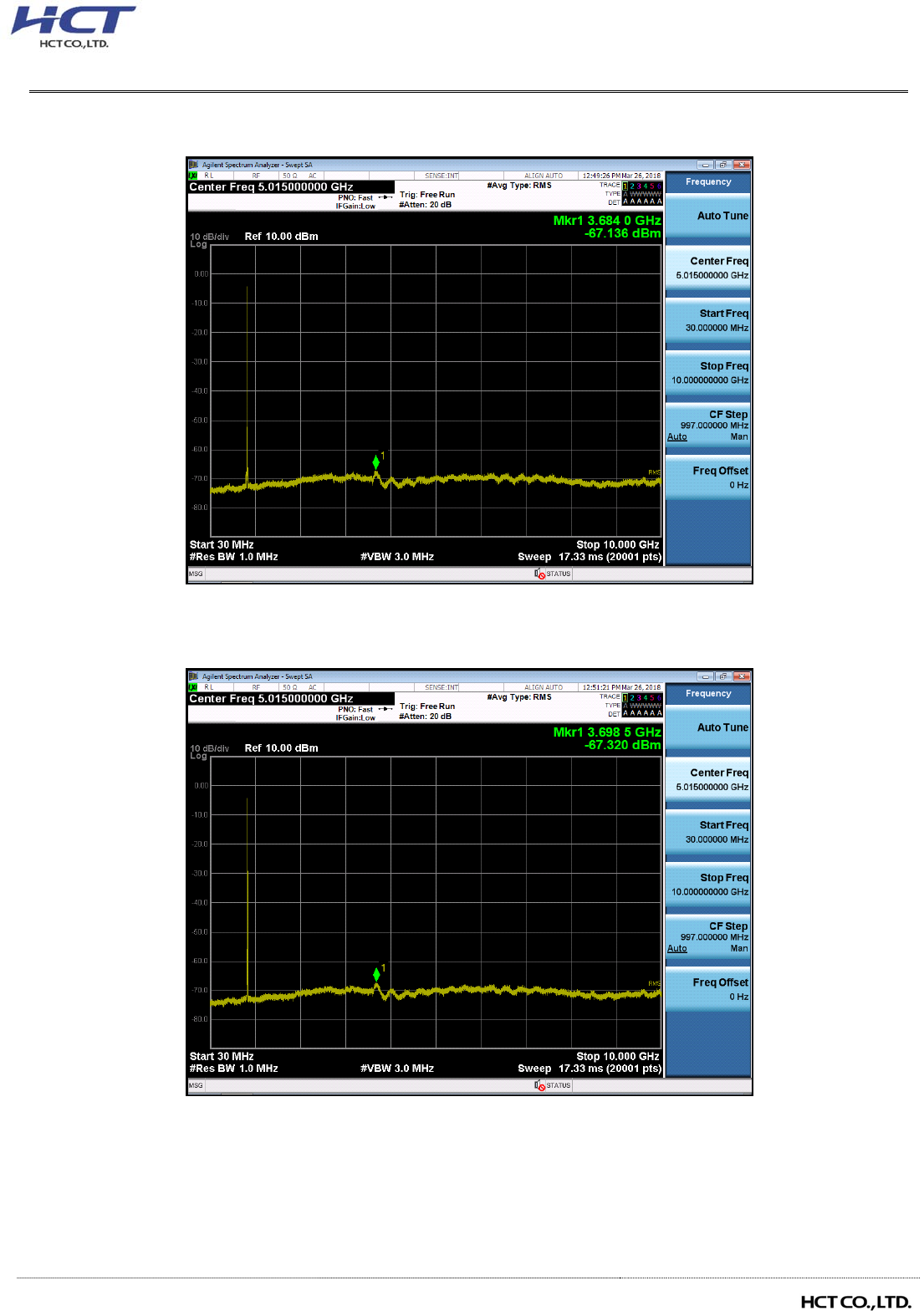

BAND 5. Conducted Spurious Plot (20407ch_1.4MHz_QPSK_RB 1_0)
BAND 5. Conducted Spurious Plot (20525ch_1.4MHz_QPSK_RB 1_0)
Report No.: HCT-RF-1804-FC011 FCC ID: A3LSMJ737S
F-TP22-03 (Rev.00)
48/52
BAND 5. Conducted Spurious Plot (20643ch_1.4MHz_QPSK_RB 1_0)
BAND 5. Conducted Spurious Plot (20415ch_3MHz_QPSK_RB 1_0)
Report No.: HCT-RF-1804-FC011 FCC ID: A3LSMJ737S
F-TP22-03 (Rev.00)
49/52
BAND 5. Conducted Spurious Plot (20525ch_3MHz_QPSK_RB 1_0)
BAND 5. Conducted Spurious Plot (20635ch_3MHz_QPSK_RB 1_0)
Report No.: HCT-RF-1804-FC011 FCC ID: A3LSMJ737S
F-TP22-03 (Rev.00)
50/52
BAND 5. Conducted Spurious Plot (20425ch_5MHz_QPSK_RB 1_0)
BAND 5. Conducted Spurious Plot (20525ch_5MHz_QPSK_RB 1_0)
Report No.: HCT-RF-1804-FC011 FCC ID: A3LSMJ737S
F-TP22-03 (Rev.00)
51/52
BAND 5. Conducted Spurious Plot (20625ch_5MHz_QPSK_RB 1_0)
BAND 5. Conducted Spurious Plot (20450ch_10MHz_QPSK_RB 1_0)
Report No.: HCT-RF-1804-FC011 FCC ID: A3LSMJ737S
F-TP22-03 (Rev.00)
52/52
BAND 5. Conducted Spurious Plot (20525ch_10MHz_QPSK_RB 1_0)
BAND 5. Conducted Spurious Plot (20600ch_10MHz_QPSK_RB 1_0)

Navigation menu
