Users Manual 1

DRAFT Internal Use Only4G LTE SMARTPHONEUser ManualPlease read this manual before operating yourphone and keep it for future reference. HThis document is watermarked because certain important information in the document has not yet been verified. This document has been sent to you as a draft and for informational purposes only. The document should only be used for internal purposes and may not be distributed outside of Samsung, except to Samsung's carrier customer for testing purposes. Distributing the document outside of Samsung, except to Samsung's carrier customer for testing purposes could result in legal exposure to the company if the preliminary, unverified information in the draft turns out to be inaccurate.
DRAFT Internal Use OnlySM-NXXX_UM_English_MHR_082613_F1Intellectual PropertyAll Intellectual Property, as defined below, owned by or which is otherwise the property of Samsung or its respective suppliers relating to the SAMSUNG Phone, including but not limited to, accessories, parts, or software relating there to (the “Phone System”), is proprietary to Samsung and protected under federal laws, state laws, and international treaty provisions. Intellectual Property includes, but is not limited to, inventions (patentable or unpatentable), patents, trade secrets, copyrights, software, computer programs, and related documentation and other works of authorship. You may not infringe or otherwise violate the rights secured by the Intellectual Property. Moreover, you agree that you will not (and will not attempt to) modify, prepare derivative works of, reverse engineer, decompile, disassemble, or otherwise attempt to create source code from the software. No title to or ownership in the Intellectual Property is transferred to you. All applicable rights of the Intellectual Property shall remain with SAMSUNG and its suppliers.Open Source SoftwareSome software components of this product incorporate source code covered under GNU General Public License (GPL), GNU Lesser General Public License (LGPL), OpenSSL License, BSD License and other open source licenses. To obtain the source code covered under the open source licenses, please visit:http://opensource.samsung.com.Disclaimer of Warranties; Exclusion of LiabilityEXCEPT AS SET FORTH IN THE EXPRESS WARRANTY CONTAINED ON THE WARRANTY PAGE ENCLOSED WITH THE PRODUCT, THE PURCHASER TAKES THE PRODUCT "AS IS", AND SAMSUNG MAKES NO EXPRESS OR IMPLIED WARRANTY OF ANY KIND WHATSOEVER WITH RESPECT TO THE PRODUCT, INCLUDING BUT NOT LIMITED TO THE MERCHANTABILITY OF THE PRODUCT OR ITS FITNESS FOR ANY PARTICULAR PURPOSE OR USE; THE DESIGN, CONDITION OR QUALITY OF THE PRODUCT; THE PERFORMANCE OF THE PRODUCT; THE WORKMANSHIP OF THE PRODUCT OR THE COMPONENTS CONTAINED THEREIN; OR COMPLIANCE OF THE PRODUCT WITH THE REQUIREMENTS OF ANY LAW, RULE, SPECIFICATION OR CONTRACT PERTAINING
DRAFT Internal Use OnlyTHERETO. NOTHING CONTAINED IN THE INSTRUCTION MANUAL SHALL BE CONSTRUED TO CREATE AN EXPRESS OR IMPLIED WARRANTY OF ANY KIND WHATSOEVER WITH RESPECT TO THE PRODUCT. IN ADDITION, SAMSUNG SHALL NOT BE LIABLE FOR ANY DAMAGES OF ANY KIND RESULTING FROM THE PURCHASE OR USE OF THE PRODUCT OR ARISING FROM THE BREACH OF THE EXPRESS WARRANTY, INCLUDING INCIDENTAL, SPECIAL OR CONSEQUENTIAL DAMAGES, OR LOSS OF ANTICIPATED PROFITS OR BENEFITS.Modification of SoftwareSAMSUNG IS NOT LIABLE FOR PERFORMANCE ISSUES OR INCOMPATIBILITIES CAUSED BY YOUR EDITING OF REGISTRY SETTINGS, OR YOUR MODIFICATION OF OPERATING SYSTEM SOFTWARE. USING CUSTOM OPERATING SYSTEM SOFTWARE MAY CAUSE YOUR DEVICE AND APPLICATIONS TO WORK IMPROPERLY. YOUR CARRIER MAY NOT PERMIT USERS TO DOWNLOAD CERTAIN SOFTWARE, SUCH AS CUSTOM OS.SAFE™ (Samsung Approved For Enterprise) SAFE™: "SAFE™" (Samsung for Enterprise) is a mark for a Samsung device which has been tested against Samsung's own internal criteria for interoperability with certain third party security-related solutions for MDM and VPN. The testing includes field testing with local network connection and menu tree testing which tests functionality of the solutions in conjunction with the Samsung device. During the testing, the device is tested with the security solutions to see if the solutions work with the device as described by the third party security solution providers. The testing, for example, includes field testing with local network connection and menu tree testing which tests functionality of the solutions in conjunction with the Samsung device. For more information about Samsung's SAFE™ program, please refer to www.samsung.com/us/safe.Disclaimer of Warranties: EXCEPT AS OTHERWISE PROVIDED IN THEIR STANDARD END USER LICENSE AND WARRANTY, TO THE FULL EXTENT PERMITTED BY LAW SAMSUNG ELECTRONICS CO., LTD., SAMSUNG TELECOMMUNICATIONS AMERICA, LLC, AND THEIR AFFILIATES (COLLECTIVELY REFERRED TO HEREIN AS THE "SAMSUNG ENTITIES") EXPRESSLY DISCLAIM ANY AND ALL WARRANTIES, EXPRESS OR IMPLIED, INCLUDING ANY WARRANTY OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE, INTEROPERABILITY OR NON-INFRINGEMENT, WITH RESPECT TO INFORMATION TECHNOLOGY SECURITY PROTECTION, SAFE™
DRAFT Internal Use OnlyDEVICES AND APPLICATIONS TESTED WITH SAFE™ DEVICES. IN NO EVENT SHALL THE SAMSUNG ENTITIES BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL, PUNITIVE, OR CONSEQUENTIAL DAMAGES OF ANY KIND WHATSOEVER WITH RESPECT TO INFORMATION TECHNOLOGY SECURITY PROTECTION, SAFE™ DEVICES OR APPLICATIONS TESTED WITH SAFE™ DEVICES. In addition, information technology security protection will be affected by features or functionality associated with, among other things the e-mail platform, master data management, and virtual private network solutions selected by the software provider, solution provider or user. Choice of an e-mail, master data management, and virtual private network solution is at the sole discretion of the software provider, solution provider or user and any associated effect on information technology security protection is solely the responsibility of the software provider, solution provider or user. For complete statement of limited warranty, please refer to www.samsung.com/us/safe, available on the web and where Samsung smartphone and Galaxy Tab™ devices are sold. [101212] Samsung Telecommunications America (STA), LLCHeadquarters:1301 E. Lookout DriveRichardson, TX 75082Customer Care Center:1000 Klein Rd.Plano, TX 75074Toll Free Tel: 1.888.987.HELP (4357)
DRAFT Internal Use Only©2013 Samsung Telecommunications America, LLC. Samsung is a registered trademark of Samsung Electronics Co., Ltd.Do you have questions about your Samsung Mobile Device?For 24 hour information and assistance, we offer a new FAQ/ARS System (Automated Response System) at:www.samsung.com/us/supportNuance®, VSuite™, T9® Text Input, and the Nuance logo are trademarks or registered trademarks of Nuance Communications, Inc., or its affiliates in the United States and/or other countries.ACCESS® and NetFront™ are trademarks or registered trademarks of ACCESS Co., Ltd. in Japan and other countries.The Bluetooth® word mark, figure mark (stylized “B Design”), and combination mark (Bluetooth word mark and “B Design”) are registered trademarks and are wholly owned by the Bluetooth SIG.microSD™ and the microSD logo are Trademarks of the SD Card Association.Openwave® is a registered Trademark of Openwave, Inc.Google, the Google logo, Android, the Android logo, Google Play, Gmail, Google Mail, Google Maps, Google Music, Google Talk, Hangouts, Picasa, YouTube and other marks are trademarks of Google Inc.Wi-Fi is a registered trademark of the Wireless Fidelity Alliance, Inc.LTE is a trademark of ETSISwype and the Swype logos are trademarks of Swype, Inc. © 2010 Swype, Inc. All rights reserved., DivX®, DivX Certified® and associated logos are trademarks of Rovi Corporation or its subsidiaries and are used under license.Internet Address: http://www.samsung.com
DRAFT Internal Use OnlyDivX Certified® to play DivX® video up to HD 720p, including premium content.ABOUT DIVX VIDEO: DivX® is a digital video format created by DivX, LLC, a subsidiary of Rovi Corporation. This is an official DivX Certified® device that has passed rigorous testing to verify that it plays DivX video. Visit www.divx.com for more information and software tools to convert your files into DivX videos.ABOUT DIVX VIDEO-ON-DEMAND: This DivX Certified® device must be registered in order to play purchased DivX Video-on-Demand (VOD) movies. To obtain your registration code, locate the DivX VOD section in your device setup menu (tap Apps > Settings > More tab > About device > Legal information > License settings > DivX® VOD > Register). Go to vod.divx.com for more information on how to complete your registration.Dynamic Noise Suppression from AudienceYour phone is equipped with an advanced voice processing chip that delivers clear mobile calls by suppressing background noise, intermittent sounds (like a siren or nearby conversation), and echoes, allowing you to hear and be heard nearly anywhere. How Does It Work?Based on the intelligence of the human hearing system, the technology:• Captures, evaluates and distinguishes all the sound signals surrounding your phone, and the person you're speaking with. • Then isolates the primary voice in conversation and filters out the background noise - so the person you're calling hears only your voice, without disturbing background noise.• Dynamically equalizes and adjusts voice volume to optimize your calling experience, so you can hear clearly and don't need to speak louder to overcome surrounding noise. The noise suppression technology is built-in and already enabled in your new mobile phone. So it's ready to provide unsurpassed voice clarity with every call.
DRAFT Internal Use Only 1Table of ContentsSection 1: Getting Started .......................... 7Understanding this User Manual . . . . . . . . . . . . 7Removing the Battery Cover . . . . . . . . . . . . . . . 8Installing and Removing the SIM card . . . . . . . 9Installing the microSD Memory Card . . . . . . . 11Installing the Battery . . . . . . . . . . . . . . . . . . . 12Replacing the Battery Cover . . . . . . . . . . . . . . 12Charging the Battery . . . . . . . . . . . . . . . . . . . 13Extending Your Battery Life . . . . . . . . . . . . . . 15Switching the Device On or Off . . . . . . . . . . . . 15Initial Device Configuration . . . . . . . . . . . . . . . 16Restarting the Device . . . . . . . . . . . . . . . . . . . 17Locking and Unlocking the Device . . . . . . . . . 17Voicemail . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17Section 2: Understanding Your Device .... 19Features of Your Device . . . . . . . . . . . . . . . . . 19Front View . . . . . . . . . . . . . . . . . . . . . . . . . . . 20Back View . . . . . . . . . . . . . . . . . . . . . . . . . . . 22Side Views . . . . . . . . . . . . . . . . . . . . . . . . . . . 23Status Bar . . . . . . . . . . . . . . . . . . . . . . . . . . . 24Home Screen . . . . . . . . . . . . . . . . . . . . . . . . . 30Customizing the Screens . . . . . . . . . . . . . . . . 34Screen Navigation . . . . . . . . . . . . . . . . . . . . . 40S Pen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41Using Motions and Gestures . . . . . . . . . . . . . . 46Using the Multi Window . . . . . . . . . . . . . . . . . 47Menu Navigation . . . . . . . . . . . . . . . . . . . . . . 54Section 3: Call Functions and Contacts List ..............................................56Displaying Your Phone Number . . . . . . . . . . . 56Making a Call . . . . . . . . . . . . . . . . . . . . . . . . . 56Ending a Call . . . . . . . . . . . . . . . . . . . . . . . . . 57Making Emergency Calls . . . . . . . . . . . . . . . . 58Dialing Options . . . . . . . . . . . . . . . . . . . . . . . . 59Answering a Call . . . . . . . . . . . . . . . . . . . . . . 60Managing Reject Calls . . . . . . . . . . . . . . . . . . 60International Calls . . . . . . . . . . . . . . . . . . . . . 61Pause Dialing . . . . . . . . . . . . . . . . . . . . . . . . . 62
DRAFT Internal Use Only2Wait Dialing . . . . . . . . . . . . . . . . . . . . . . . . . . .62Redialing the Last Number . . . . . . . . . . . . . . .63Speed Dialing . . . . . . . . . . . . . . . . . . . . . . . . . 63In Call Options . . . . . . . . . . . . . . . . . . . . . . . . . 65Logs Tab . . . . . . . . . . . . . . . . . . . . . . . . . . . . .69Section 4: Entering Text ............................73Text Input Methods . . . . . . . . . . . . . . . . . . . . .73Selecting the Text Input Method . . . . . . . . . . .73Using the Google Voice Typing . . . . . . . . . . . . . 74Using the Samsung Keyboard . . . . . . . . . . . . . 75Section 5: Contacts ...................................79Accounts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 79Contacts List . . . . . . . . . . . . . . . . . . . . . . . . . .79Finding a Contact . . . . . . . . . . . . . . . . . . . . . . 82Contact List Options . . . . . . . . . . . . . . . . . . . . 84Contact Menu Options . . . . . . . . . . . . . . . . . . . 85Contact Entry Options . . . . . . . . . . . . . . . . . . . 86Linking Contact Information . . . . . . . . . . . . . . .86Sending a Namecard . . . . . . . . . . . . . . . . . . . .89Copying Contact Information . . . . . . . . . . . . . . 90Synchronizing Contacts . . . . . . . . . . . . . . . . . .91Display Options . . . . . . . . . . . . . . . . . . . . . . . . 92Additional Contact Options . . . . . . . . . . . . . . . .92Groups . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .94The Favorites Tab . . . . . . . . . . . . . . . . . . . . . .96Section 6: Messages .................................97Types of Messages . . . . . . . . . . . . . . . . . . . . .97Creating and Sending Messages . . . . . . . . . . .98Message Options . . . . . . . . . . . . . . . . . . . . . . .99Viewing Newly Received Messages . . . . . . . .103Deleting Messages . . . . . . . . . . . . . . . . . . . .105Message Search . . . . . . . . . . . . . . . . . . . . . .105Messaging Settings . . . . . . . . . . . . . . . . . . . .106Assigning Messages as Spam . . . . . . . . . . . .109Accessing Your Spam Folder . . . . . . . . . . . . .111Text Templates . . . . . . . . . . . . . . . . . . . . . . .111Using Email . . . . . . . . . . . . . . . . . . . . . . . . . .111Microsoft Exchange Email (Outlook) . . . . . . . .117Section 7: Multimedia .............................122Assigning the Default Storage Location . . . . .122Using the Camera . . . . . . . . . . . . . . . . . . . . .123Camera Options . . . . . . . . . . . . . . . . . . . . . . .124Quick Settings . . . . . . . . . . . . . . . . . . . . . . . .126Camera and Camcorder Settings . . . . . . . . . .128
DRAFT Internal Use Only 3Using the Camcorder . . . . . . . . . . . . . . . . . . 131Sharing Pictures . . . . . . . . . . . . . . . . . . . . . 134Editing a Photo . . . . . . . . . . . . . . . . . . . . . . . 140The Gallery . . . . . . . . . . . . . . . . . . . . . . . . . 142AllShare Cast Hub . . . . . . . . . . . . . . . . . . . . 143Section 8: Applications and Development ............................................ 145Applications . . . . . . . . . . . . . . . . . . . . . . . . . 145Application Folders . . . . . . . . . . . . . . . . . . . 147Action Memo . . . . . . . . . . . . . . . . . . . . . . . . 148Bloomberg+ . . . . . . . . . . . . . . . . . . . . . . . . . 149Calculator . . . . . . . . . . . . . . . . . . . . . . . . . . 150Calendar . . . . . . . . . . . . . . . . . . . . . . . . . . . 150Camera . . . . . . . . . . . . . . . . . . . . . . . . . . . . 153ChatON . . . . . . . . . . . . . . . . . . . . . . . . . . . . 153Chrome . . . . . . . . . . . . . . . . . . . . . . . . . . . . 155Clock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 156Contacts . . . . . . . . . . . . . . . . . . . . . . . . . . . 158Downloads . . . . . . . . . . . . . . . . . . . . . . . . . . 159Dropbox . . . . . . . . . . . . . . . . . . . . . . . . . . . . 159Email . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 161Evernote . . . . . . . . . . . . . . . . . . . . . . . . . . . 162Flipboard . . . . . . . . . . . . . . . . . . . . . . . . . . . 162Gallery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 162Gmail . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 163Google . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 165Google Settings . . . . . . . . . . . . . . . . . . . . . . 166Google + . . . . . . . . . . . . . . . . . . . . . . . . . . . 167Group Play . . . . . . . . . . . . . . . . . . . . . . . . . . 167Hangouts . . . . . . . . . . . . . . . . . . . . . . . . . . . 170Help . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 170Internet . . . . . . . . . . . . . . . . . . . . . . . . . . . . 171KNOX . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 178Lookout Security . . . . . . . . . . . . . . . . . . . . . 178Maps . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 179Messages . . . . . . . . . . . . . . . . . . . . . . . . . . . 182Messenger . . . . . . . . . . . . . . . . . . . . . . . . . . 182Mobile HotSpot . . . . . . . . . . . . . . . . . . . . . . . 183Music . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 183Using Playlists . . . . . . . . . . . . . . . . . . . . . . . 186Creating a Playlist . . . . . . . . . . . . . . . . . . . . 186Transferring Music Files . . . . . . . . . . . . . . . . 187Removing Music Files . . . . . . . . . . . . . . . . . 187My Files . . . . . . . . . . . . . . . . . . . . . . . . . . . . 187
DRAFT Internal Use Only4Navigation . . . . . . . . . . . . . . . . . . . . . . . . . . . 189PEN.UP . . . . . . . . . . . . . . . . . . . . . . . . . . . . .191Phone . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .191Play Books . . . . . . . . . . . . . . . . . . . . . . . . . .191Play Games . . . . . . . . . . . . . . . . . . . . . . . . . .192Play Magazines . . . . . . . . . . . . . . . . . . . . . . .192Play Movies & TV . . . . . . . . . . . . . . . . . . . . . .193Play Music . . . . . . . . . . . . . . . . . . . . . . . . . .193Play Store . . . . . . . . . . . . . . . . . . . . . . . . . . . 199Downloading a New Google Application . . . . . 200Launching an Installed Google Application . . . 201POLARIS Office 5 . . . . . . . . . . . . . . . . . . . . . . 202S Health . . . . . . . . . . . . . . . . . . . . . . . . . . . .203S Note . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .204S Translator . . . . . . . . . . . . . . . . . . . . . . . . .204S Voice . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 205Samsung Apps . . . . . . . . . . . . . . . . . . . . . . .206Samsung Hub . . . . . . . . . . . . . . . . . . . . . . . .207Samsung Link . . . . . . . . . . . . . . . . . . . . . . . .210Scrapbook . . . . . . . . . . . . . . . . . . . . . . . . . . . 214Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . .214SketchBook for Galaxy . . . . . . . . . . . . . . . . .214Spotify . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .215Story Album . . . . . . . . . . . . . . . . . . . . . . . . . .215T-Mobile My Account . . . . . . . . . . . . . . . . . . .215T-Mobile Name ID . . . . . . . . . . . . . . . . . . . . .216T-Mobile TV . . . . . . . . . . . . . . . . . . . . . . . . . .216TripAdvisor . . . . . . . . . . . . . . . . . . . . . . . . . .217Video . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .217Visual Voicemail . . . . . . . . . . . . . . . . . . . . . .221Voice Recorder . . . . . . . . . . . . . . . . . . . . . . .222Voice Search . . . . . . . . . . . . . . . . . . . . . . . . .223VPN Client . . . . . . . . . . . . . . . . . . . . . . . . . . .223WatchON . . . . . . . . . . . . . . . . . . . . . . . . . . . .224YouTube . . . . . . . . . . . . . . . . . . . . . . . . . . . .228Section 9: Connections ...........................230PC Connections . . . . . . . . . . . . . . . . . . . . . . .230USB Tethering . . . . . . . . . . . . . . . . . . . . . . . .231Mobile HotSpot . . . . . . . . . . . . . . . . . . . . . . .232Section 10: Changing Your Settings ......235Accessing the Settings Tabs . . . . . . . . . . . . .235Settings Tabs - Overview . . . . . . . . . . . . . . . .235Wi-Fi Settings . . . . . . . . . . . . . . . . . . . . . . . .236Bluetooth settings . . . . . . . . . . . . . . . . . . . . .243
DRAFT Internal Use Only 5Tethering and Mobile HotSpot . . . . . . . . . . . 248Airplane Mode . . . . . . . . . . . . . . . . . . . . . . . 252Data Usage . . . . . . . . . . . . . . . . . . . . . . . . . 253Location Services . . . . . . . . . . . . . . . . . . . . . 254More Networks . . . . . . . . . . . . . . . . . . . . . . 255Near Field Communication . . . . . . . . . . . . . . 262S Beam . . . . . . . . . . . . . . . . . . . . . . . . . . . . 263Nearby Devices . . . . . . . . . . . . . . . . . . . . . . 263Screen Mirroring . . . . . . . . . . . . . . . . . . . . . 264Sound Settings . . . . . . . . . . . . . . . . . . . . . . 265Display Settings . . . . . . . . . . . . . . . . . . . . . . 268Multi window . . . . . . . . . . . . . . . . . . . . . . . . 269LED Indicator . . . . . . . . . . . . . . . . . . . . . . . . 269Lock Screen . . . . . . . . . . . . . . . . . . . . . . . . . 269Wallpaper . . . . . . . . . . . . . . . . . . . . . . . . . . 274Font . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 275Notification Panel . . . . . . . . . . . . . . . . . . . . . 275Easy Mode . . . . . . . . . . . . . . . . . . . . . . . . . . 276Accessibility Settings . . . . . . . . . . . . . . . . . . 276Call Settings . . . . . . . . . . . . . . . . . . . . . . . . 279Blocking Mode . . . . . . . . . . . . . . . . . . . . . . . 288Language and Input Settings . . . . . . . . . . . . 289Voice control . . . . . . . . . . . . . . . . . . . . . . . . 294Hands-free Mode . . . . . . . . . . . . . . . . . . . . . 295S Pen Settings . . . . . . . . . . . . . . . . . . . . . . . 295One-Handed Operation . . . . . . . . . . . . . . . . . 296Motions and Gestures Settings . . . . . . . . . . . 297Add Account . . . . . . . . . . . . . . . . . . . . . . . . . 302Cloud . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 304Backup and Reset . . . . . . . . . . . . . . . . . . . . 305Backing up Your Data Before Factory Reset . 306Date and Time . . . . . . . . . . . . . . . . . . . . . . . 310Accessory . . . . . . . . . . . . . . . . . . . . . . . . . . 310Application Manager . . . . . . . . . . . . . . . . . . 311Battery Usage . . . . . . . . . . . . . . . . . . . . . . . . 313Power Saving Mode . . . . . . . . . . . . . . . . . . . 314SD Card & Device Storage . . . . . . . . . . . . . . 314Security . . . . . . . . . . . . . . . . . . . . . . . . . . . . 316About Device . . . . . . . . . . . . . . . . . . . . . . . . 318Software Update . . . . . . . . . . . . . . . . . . . . . 319

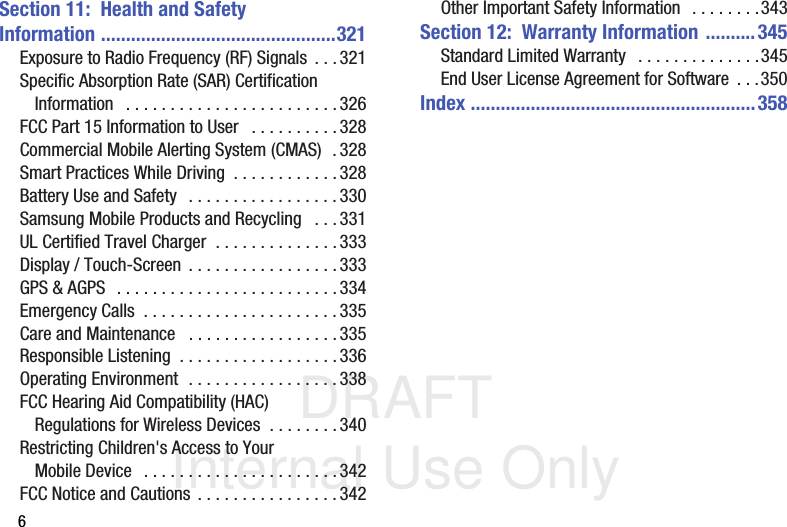

DRAFT Internal Use Only6Section 11: Health and Safety Information ...............................................321Exposure to Radio Frequency (RF) Signals . . . 321Specific Absorption Rate (SAR) Certification Information . . . . . . . . . . . . . . . . . . . . . . . . 326FCC Part 15 Information to User . . . . . . . . . . 328Commercial Mobile Alerting System (CMAS) . 328Smart Practices While Driving . . . . . . . . . . . .328Battery Use and Safety . . . . . . . . . . . . . . . . .330Samsung Mobile Products and Recycling . . . 331UL Certified Travel Charger . . . . . . . . . . . . . . 333Display / Touch-Screen . . . . . . . . . . . . . . . . . 333GPS & AGPS . . . . . . . . . . . . . . . . . . . . . . . . .334Emergency Calls . . . . . . . . . . . . . . . . . . . . . . 335Care and Maintenance . . . . . . . . . . . . . . . . .335Responsible Listening . . . . . . . . . . . . . . . . . .336Operating Environment . . . . . . . . . . . . . . . . . 338FCC Hearing Aid Compatibility (HAC) Regulations for Wireless Devices . . . . . . . .340Restricting Children's Access to Your Mobile Device . . . . . . . . . . . . . . . . . . . . . . 342FCC Notice and Cautions . . . . . . . . . . . . . . . . 342Other Important Safety Information . . . . . . . .343Section 12: Warranty Information ..........345Standard Limited Warranty . . . . . . . . . . . . . .345End User License Agreement for Software . . .350Index .........................................................358
DRAFT Internal Use OnlyGetting Started 7Section 1: Getting StartedThis section explains how to get started with your phone by installing and charging the battery, installing the micro SIM card and optional memory card, and setting up your voice mail.Before using your device for the first time, you’ll need to install and charge the battery and install the micro SIM card. The micro SIM card is loaded with your subscription details, such as your PIN, available optional services, and many other features. If desired, you can also install an SD card to store media for use with your phone.Understanding this User ManualThe sections of this manual generally follow the features of your phone. A robust index for features begins on page 358.Also included is important safety information that you should know before using your device. This information is available near the back of the guide, beginning on page 321.This manual provides navigation instructions according to the default display settings. If you select other settings, navigation may be different.Unless otherwise specified, all instructions in this manual assume you are starting from the Home screen and using the available keys. Note: Instructions in this manual are based on default settings, and may vary from your device, depending on the software version on your device, and any changes to the device’s Settings.Unless stated otherwise, instructions in this User Manual start with the device unlocked, at the Home screen.All screen images in this manual are simulated. Actual displays may vary, depending on the software version of your device and any changes to the device’s Settings.
DRAFT Internal Use Only8Special TextThroughout this manual, you’ll find text that is set apart from the rest. These are intended to point out important information, share quick methods for activating features, to define terms, and more. The definitions for these methods are as follows:• Notes: Presents alternative options for the current feature, menu, or sub-menu.• Tips: Provides quick or innovative methods, or useful shortcuts.• Important: Points out important information about the current feature that could affect performance.• Warning: Brings to your attention important information to prevent loss of data or functionality, or even prevent damage to your phone.Text ConventionsThis manual provides condensed information about how to use your phone. To make this possible, the following text conventions are used to represent often-used steps:Example: From the Home screen, press (Menu) ➔ Settings ➔ Connections tab ➔ Bluetooth.Removing the Battery CoverThe battery, micro SIM card and SD card are installed under the battery cover.Important! Before removing or replacing the battery cover, make sure the device is switched off. To turn the device off, hold down the key until the Device options pop up displays, then tap Power off.Caution! Do not bend or twist the back cover excessively during installation or removal. Doing so may damage the cover.To remove the battery cover:1. Hold the device firmly and locate the cover release latch (1).2. Place your fingernail in the opening (2) and firmly “pop” the cover off the device (similar to a soda can). ➔ Arrows are used to represent the sequence of selecting successive options in longer, or repetitive, procedures.
DRAFT Internal Use OnlyGetting Started 9 Installing and Removing the SIM cardThis device uses a different type of SIM card called a “micro SIM”. Other larger SIM cards will not function or fit within this slot. SIM Card OverviewImportant! Before removing or replacing the micro SIM card, make sure the device is switched off. To turn the phone off, hold down the key until the Device options pop up displays, then tap Power off.The micro SIM card is loaded with your subscription details such as your telephone number, PIN, available optional services, and many other features.Important! The micro SIM card and its information can be easily damaged by scratching or bending, so be careful when handling, inserting, or removing the card. Keep all SIM cards out of reach of small children.Release LatchFPO
DRAFT Internal Use Only10Some features on your device (such as Wi-Fi Calling) can be unlocked by using the new micro SIM card. To use this new micro SIM card, call or contact T-Mobile customer service for more information.This card contains the necessary information for identifying and authenticating the user to the IMS (IP Multimedia Subsystem). To install the SIM card:1. Carefully slide the micro SIM card into the SIM card socket until it clicks into place. 2. Make sure that the card’s gold contacts face into the device and that the upper-left angled corner of the card is positioned as shown. To remove the micro SIM card:1. Remove the battery cover.2. Remove the battery (page 12).3. Carefully place your fingernail into the end of the micro SIM slot and begin to pull the card slightly out.4. Carefully slide the card out of the micro SIM card socket.Note: If the card is not inserted correctly, the device will not detect it and no service will be available. If this happens, turn off the device, remove the card, and reinstall the card in the correct orientation.Micro SIM cardFPO
DRAFT Internal Use OnlyGetting Started 11Installing the microSD Memory CardYour device supports an optional (external) microSD™ memory cards for storage of media such as music, pictures, video and other files. The SD card is designed for use with this mobile device and other devices.Note: This device supports a memory card of up to a 64GB.Important! The microSD memory card is inserted just above the micro SIM card. Take care not to dislodge the micro SIM card during the installation of the microSD card.1. Remove the battery cover.2. Locate the microSD card slot on the inside of the device and just above the micro SIM card.3. Orient the card with the gold strips facing down.4. Carefully slide the microSD card into the card socket until it is securely installed. Important! Be sure to align the gold contact pins on the card with the device’s contact pins.Note: MicroSD cards should be formatted within the Storage menu. Using an older or slow microSD card can affect camera performance, especially for video recording. To remove the microSD Memory Card:1. Remove the battery cover.2. Remove the battery (page 12).3. Carefully place your fingernail into the end of the micro SIM slot and begin to pull the card slightly out.4. Replace the battery cover.FPO
DRAFT Internal Use Only12Installing the BatteryBefore using your device for the first time, install the battery and charge it fully.Important! Before removing or replacing the battery, make sure the device is switched off. To turn the device off, hold down the key until the Device options pop up displays, then tap Power off.To install the battery:1. Slide the battery into the compartment (1) so that the tabs on the end align with the slots at the bottom of the phone, making sure the connectors align. 2. Gently press down to secure the battery (2).To remove the battery: Grip the battery at the top end and lift it up and out of the battery compartment. Replacing the Battery Cover Position the battery cover over the battery compartment and press down until you hear a click. When replacing the battery cover, do not apply pressure to the screen (“squeeze”) as this can damage the screen.Installing BatteryFPO
DRAFT Internal Use OnlyGetting Started 13Charging the BatteryYour device is powered by a rechargeable Li-ion battery. A wall charger, which is used for charging the battery, is included with your device. Use only approved batteries and chargers. Ask your local Samsung dealer for further details.Before using your device for the first time, you should fully charge the battery. Note: Verify that the battery is installed prior to connecting the wall charger. If both the wall charger is connected and the battery is not installed, the handset will power cycle continuously and prevent proper operation. Failure to unplug the wall charger before you remove the battery, can cause the device to become damaged.Important! It is recommended you fully charge the battery before using your device for the first time.1. Connect the USB cable to the charging head.2. Locate the Charger/Accessory jack.3. Insert the USB cable into the device’s Charger/Accessory jack.4. Plug the charging head into a standard AC power outlet. The device turns on with the screen locked and indicates both its charge state and percent of charge.Warning! While the device is charging, if the touch screen does not function due to an unstable power supply unplug the USB power adapter from the power outlet or unplug the USB cable from the device.Charging HeadUSB Cable
DRAFT Internal Use Only14 5. When charging is finished, first unplug the charger’s power plug from the AC wall outlet, then disconnect the charger’s connector from the phone.Important! If your handset has a touch screen display, please note that a touch screen responds best to a light touch from the pad of your finger or a non-metallic stylus. Using excessive force or a metallic object when pressing on the touch screen may damage the tempered glass surface and void the warranty. For more information, refer to “Standard Limited Warranty” on page 345.Low Battery IndicatorWhen the battery level is low and only a few minutes of talk time remain (~15% charge), a warning tone sounds and the “Battery low” message repeats at regular intervals on the display. In this condition, your device conserves its remaining battery power, by dimming the backlight.When the battery level becomes too low, the device automatically turns off.The on-screen battery charge is represented (by default) as a colored battery icon. You can also choose to display a percentage value. Having a percentage value on-screen can provide a better idea of the remaining charge on the battery. Press ➔ and then tap Settings ➔ Device tab ➔ Display ➔ Show battery percentage. Display SettingsFPO
DRAFT Internal Use OnlyGetting Started 15Extending Your Battery LifeActive applications, light levels, Bluetooth usage, and GPS functionality all act to drain your battery. The following is a list of helpful tips that can help conserve your battery power:• Reduce your backlight on time. • Turn Bluetooth off when not in use.• Turn Wi-Fi off when not in use. • Deactivate the GPS when not needed. Most applications using this function will periodically query the GPS satellites for your current location; each query drains your battery. • Do not wait until your battery is completely depleted before charging your device. Repeating this process of a complete discharge and recharge can over time reduce the storage capacity of any battery. • Use the Power Saving feature to deactivate some hardware and interface functions. • Check the Battery use screen to review what features or functions have been consuming your battery resources.• Check the Running Services and close any unnecessary applications.• Use the Task Manager feature to end/shutdown background applications that are still running. These minimized applications can, over time, cause your device to “slow down”. • Turn off any streaming services after use (see Running Services).• Animated wallpapers use processing power, memory, and more power. Change your Live Wallpaper to a non-animated Wallpaper gallery or Gallery image. Switching the Device On or OffOnce the device has been configured, you will not be prompted with setup screens again.To turn the device on: Press and hold (Power/End) until the device switches on.Note: The display language is preset to English at the factory. To change the language, use the Language menu. For more information, refer to “Language and Input Settings” on page 289.
DRAFT Internal Use Only16To turn the device off:1. Press and hold (Power/End) until the Device options screen appears.2. Tap Power off ().Initial Device Configuration1. Select a language from the associated field. English is the default language.Note: If you are visually impaired or have difficulty hearing, tap Accessibility to configure the accessibility settings.2. Tap Next.Note: You may be prompted with a notification that your activation is completed.3. Follow the on-screen setup instructions.Note: Enabling Google location services can drain battery power. For more information, refer to “Creating a Samsung Account” on page 303.Important! The device name is also used to provide an identification for your device’s Bluetooth and Wi-Fi Direct names.4. Tap Finish to complete the setup process.5. Read the on-screen Collect diagnostics information. Note: This software collects only diagnostic data from your device so that T-Mobile technicians can better troubleshoot issues with your device.6. Select either More Info... (to read additional information) or Close to close the message screen.Important! Selecting Close only closes the current description screen and does not disable data collection.To disable data collection, go to Settings ➔ General tab ➔ Backup and reset ➔ Collect diagnostics and turn off the Allow Diagnostics feature. For more information, refer to “Collect Diagnostics” on page 309.\
DRAFT Internal Use OnlyGetting Started 17Restarting the Device1. Press and hold (Power/End) until the Device options screen appears.2. Tap Restart ().Locking and Unlocking the DeviceBy default, the device screen locks when the backlight turns off.  Place your finger on the screen and swipe the glass in any of the directions shown unlock the device.Note: You can choose to configure lock settings to prevent unauthorized use of your device. For more information, refer to “Security” on page 316.VoicemailSetting Up Your VoicemailYour device automatically transfers all unanswered calls to voicemail, even if your device is in use or turned off. As soon as your battery is charged and the micro SIM card inserted, activate your voicemail account.Important! Always use a password to protect against unauthorized access.For new users, follow the instructions below to set up voice mail:Note: Voicemail setup may be different depending on your network.1. From the Home screen, tap and then touch and hold the key until the device dials voicemail.You may be prompted to enter a password.2. Follow the tutorial to create a password, a greeting, and a display name.
DRAFT Internal Use Only18Accessing Your VoicemailTo access Voicemail using the menu:1. From the Home screen, tap and then touch and hold until the device dials voicemail.2. When connected, follow the voice prompts from the voicemail center.
DRAFT Internal Use OnlyUnderstanding Your Device 19Section 2: Understanding Your DeviceThis section outlines key features of your device. It also describes the device’s keys, screen and the icons that display when the device is in use.Features of Your DeviceYour device is lightweight, easy-to-use and offers many significant features. The following list outlines a few of the features included in your device.• Touch screen with virtual (on-screen) QWERTY keyboard• Brilliant 4.99XX??” HD Super AMOLED® screen (1920 x 1080)• 1.9XX?? GHz quad-core processor• 4G LTE and High Speed Packet Access Plus (HSPA+).• Android 4.3, Jelly Bean Platform• USB 3.0 connector for fast transfer speeds• Smart Switch™ compliant. For more information, see www.samsungsmartswitch.com• Support for Air View® and Air Gestures®.• S Pen functionality• Wi-Fi ® Capability• WatchON® – Rich TV experience with Infrared (IR) remote• Access Movies, TV Shows, Music, Games, and Books with Samsung Hub™ • Samsung Link™ to share your media content across connected devices. Cloud connectivity is enabled via the use of an external Web storage service• Compliant with AllShare Cast Hub® • 13 Megapixel Camera and Camcorder with autofocus and digital zoom XX??• 2 Megapixel Front Facing camera for Video Chat XX??• Share Shot picture sharing functionality, Camera sharing via multi-connect Wi-Fi Direct connection• S-Beam file transfer technology• Bluetooth enabled• NFC-compatible• Full Integration of Google Mobile™ Services (Gmail, YouTube, Google Maps, Google Voice Search)• Multiple Messaging Options: Text/Picture/Video Messaging and Google Hangouts™• Corporate and Personal Email
DRAFT Internal Use Only20• Music Player with multitasking features• Pre-loaded e-reader applications such as: Play Books™ and Play Magazines™• Assisted GPS (Google Navigation)• Webkit-based browser• Expandable memory slot - supports up to 64GB microSD• Mobile HotSpot and USB Tethering-capability• T-Mobile® TV• Video Chat via Google Hangouts• Google Play™ Music• Wi-Fi ® Calling via the use of a micro SIM card• HD Video Player 1080p– Codec: MPEG4, H.264, H.263, VC-1, WMV7/8, VP8, MP43– Format: 3GP (MP4), WMV (ASF), AVI, and DivX • Video Player support for PIP (Picture in Picture) viewing• DivX Certified® to play DivX® video up to HD 720p, including premium contentFront ViewThe following illustrations show the main elements of your device. The following list correlates to the illustrations.1.Indicator light illuminates with a series of distinct colors and flashing patterns to indicate different notifications and statuses. Events include Charging, Low battery, and Missed event: •Powering on - blue blinks/animates•Battery Charging - red remains on•Battery Fully Charged - green remains on.•Low Battery or Charging Error- red blinks/animates•Missed Notification (Call or Messaging) - blue blinks/animatesFor more information, refer to “LED Indicator” on page 269.
DRAFT Internal Use OnlyUnderstanding Your Device 212.Light (RGB) Sensor lets you use the ambient light level to adjust the screen brightness/contrast. This sensor decreases screen brightness in dim light.•In a bright light condition (outdoors), the sensors cause the device to increase the brightness and contrast for better viewing. •In dim light conditions, the device decreases the screen brightness to compensate.3.Menu key displays a list of options available for the current screen. From the Home screen it displays Add apps and widgets, Create folder, Set wallpaper, Edit page, Search, and Settings options.4.Home key displays the Home screen when pressed. Press and hold to display your recent apps, Task manager, and Remove all option. Double-press to activate S Voice.810111243135 61 527FPO
DRAFT Internal Use Only225.Microphones are used during phone calls and allow other callers to hear you clearly when you are speaking to them. There are two microphones on the device:•Bottom microphone: used during handset mode.•Top microphone: used while an active call is in the speakerphone mode and assists in noise cancellation (2 microphone solution).6.USB Power/Accessory connector allows you to connect a power cable or optional accessories such as a USB/data cable.7.Back key redisplays the previous screen or clears entries.8.Display shows all the information needed to operate your phone, such as the connection status, received signal strength, phone battery level, and time.9.Front Facing Camera allows you to take pictures while facing the screen and allows you to video conference.10.Gestures Sensor used to detect Air View and Air Gesture motions.11.Proximity Sensor detects how close an object is to the surface of the screen. This is typically used to detect when your face is pressed up against the screen, such as during a phone call.•While talking on the phone, the sensor detects talk activity and locks the keypad to prevent accidental key presses.12.Receiver allows you to hear the other caller.Back ViewThe following illustration shows the external elements of your Device:1.Flash is used to take photos in low-light conditions.2.S Pen provides a stylus that assists you in performing different functions.3.External speaker allows you to hear ringers, music, and other sounds offered by your device.4.micro SIM Card Slot (internal) Installation location for SIM card.
DRAFT Internal Use OnlyUnderstanding Your Device 235.microSD Card Slot (internal) allows you use a microSD card to expand the memory of your device. 6.Headset jack allows you to connect a hands-free headset so you can listen to music.7.Camera lens is used to take photos.8.IR Transmitter used to emit infrared signals used for controlling external devices. For more information, refer to “WatchON” on page 224.Side ViewsThe following illustration shows the side elements of your device: 1.Volume key allows you to adjust the ringer volume in standby mode (with the phone open) or adjust the voice volume during a call. When receiving an incoming call:•Pressing the volume key down mutes the ring tone. 2.Power/End key ends a call or switches the phone off and on. Press and hold for two seconds to access the Device options screen.4 573186FPO221FPOFPO

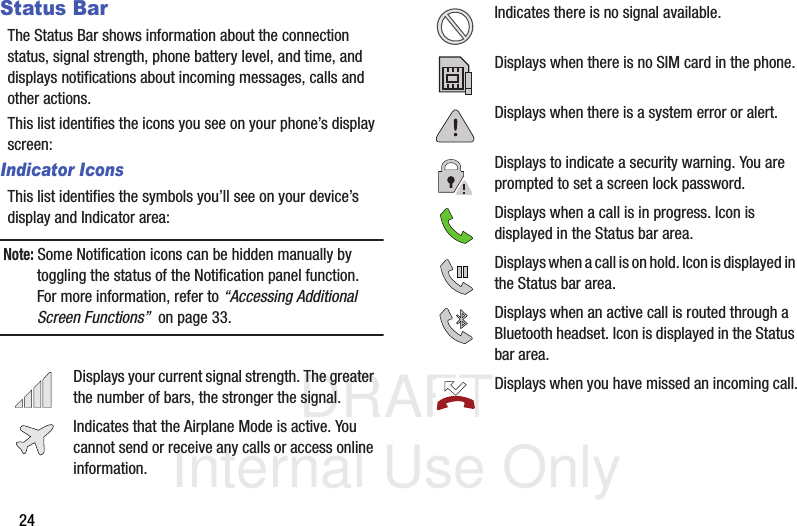

DRAFT Internal Use Only24Status BarThe Status Bar shows information about the connection status, signal strength, phone battery level, and time, and displays notifications about incoming messages, calls and other actions.This list identifies the icons you see on your phone’s display screen:Indicator IconsThis list identifies the symbols you’ll see on your device’s display and Indicator area:Note: Some Notification icons can be hidden manually by toggling the status of the Notification panel function. For more information, refer to “Accessing Additional Screen Functions” on page 33. Displays your current signal strength. The greater the number of bars, the stronger the signal.Indicates that the Airplane Mode is active. You cannot send or receive any calls or access online information.Indicates there is no signal available.Displays when there is no SIM card in the phone.Displays when there is a system error or alert.Displays to indicate a security warning. You are prompted to set a screen lock password.Displays when a call is in progress. Icon is displayed in the Status bar area.Displays when a call is on hold. Icon is displayed in the Status bar area.Displays when an active call is routed through a Bluetooth headset. Icon is displayed in the Status bar area.Displays when you have missed an incoming call.
DRAFT Internal Use OnlyUnderstanding Your Device 25Displays when you device is set to automatically reject all incoming calls. The All numbers option is enabled from within Call settings ➔ Call rejection ➔ Auto reject mode menu.Displays when the speakerphone is on. Icon is displayed in the Status bar area.Displays when the microphone is muted. Icon is displayed in the Status bar area.Displays when Call forwarding is set to Always forward. Displayed in the Status bar when the current call is minimized. For more information, refer to “Configuring Additional Voice Call Settings” on page 283.Displays your current battery charge level. Icon shown is fully charged.Displays when the current battery is 100 percent charged and the Display battery percentage option is enabled within the Settings ➔ Device tab ➔ Display menu. Displays your battery is currently charging.100%Displays your current battery charge level is low (Charge: ~28% - 15%).Displays your current battery charge level is very low (Charge: ~15% - 5%).Shows your current battery only has up to 4% power remaining and will soon shutdown. (Charge: ~4% - 1%).Displays when connected to the EDGE network.Displays when your phone is communicating with the EDGE network.Displays when connected to the 3G network. 3G indicator is only seen when roaming.Displays when your phone is communicating with the 3G network. 3G indicator is only seen when roaming.Displays when connected to the HSPA+ network.Displays when your phone is communicating with the HSPA+ network.
DRAFT Internal Use Only26Displays when your phone is communicating with the 4G LTE network.Displays when the phone has detected an active USB connection and is in a USB Debugging mode.Displays when there is a new text message.Displays when an outgoing text message has failed to be delivered.Displays when an incoming text message content has failed to be downloaded.Displays when there is a new voicemail message. Displays when there is a new visual voicemail message. Displays in the notifications window when there is a new Email message.Displays in the notifications window when there is a new Gmail message.Displays when a new Google+ notification has been received.Displays when the user is prompted to set up a new Dropbox account.Displays when the user is prompted with a Lookout Security notification.Displays when the T-Mobile Name ID application did not recognize a recent number and would like to know whether you wish to Not add, or add as a New or Existing number.Displays when the time and date for a Calendar Event has arrived. For more information, refer to “Calendar” on page 150.Displays when an alarm is set. For more information, refer to “Setting an Alarm” o n page 156.Displays when the device is in Silent mode. All sounds except media and alarms are silenced, and Silent mode is set to Vibrate. For more information, refer to “Silent mode via Device Options Screen” on page 265.
DRAFT Internal Use OnlyUnderstanding Your Device 27Displays when the device is in Silent mode. All sounds are silenced, and Silent mode is set to Mute.Displays when data synchronization and application sync is active and synchronization is in progress for Gmail, Calendar, and Contacts.Displays when the Blocking mode feature is active. For more information, refer to “Blocking Mode” on page 288.Displays when the Hands-free Mode is active.For more information, refer to “Hands-free Mode” on page 295.Displays when Bluetooth technology is active and enabled.Displays when the Bluetooth technology is active and communicating with an external device.Displays when the B is active and communicating with your device. XXX??Displays when the an outbound file transfer is in progress. Displays when a file or application download is in progress. Displays when the Share shot option is enabled from within the Camera Shooting mode menu and images and being shared via Wi-Fi Direct. For more information, refer to “Camera Options” on page 124.Displays when a screen capture has been taken and stored in the clipboard. For more information, refer to “Using Motions and Gestures” on page 46.Displays when your device is connected being used to control streaming media and is connected to a Digital Living Network Alliance (DLNA) certified devices.Displays when your device is currently sharing/streaming media to paired device using the Samsung Link application.
DRAFT Internal Use Only28Displays when AllShare Cast Hub is active, connected to your device, and communicating. For more information, refer to “AllShare Cast Hub” on page 143.Displays when updates are available for download.Displays when a Play Store download has completed.Displays when Hangout updates are available for download. Displays when Wi-Fi is connected, active, and communicating with a Wireless Access Point (WAP).Displays when Wi-Fi is active and there is an available open wireless network.Displays when Wi-Fi Direct is communicating with another compatible device.Displays to alert you to disable an active Wi-Fi Direct connection if not in use - to conserve battery power.Displays when the USB Tethering mode is active and communicating. For more information, refer to “Tethering and Mobile HotSpot” on page 248.Displays when Wi-Fi is being used as a Mobile HotSpot feature is active and communicating. For more information, refer to “Tethering and Mobile HotSpot” on page 248.Displays when the Wi-Fi calling feature is active. Minutes used while connected to the Wi-Fi network count against available rate plan minutes.Displays when the Wi-Fi calling feature is active and you are using it with within your current active call.Displays when there is an error in the use or 911 registration of the Wi-Fi Calling feature.Displays when you are currently in Emergency calling mode. You must exit this mode to resume normal calling function.Displays in the notifications window when a new T-Mobile account information is available.
DRAFT Internal Use OnlyUnderstanding Your Device 29For more details on configuring your phone’s settings, see “Changing Your Settings” on page 235.Displays in the notifications window when there are too many on-screen notification icons to display. Tap to show more notifications.Tap to select a text input method.Displays in the notifications window when a song is currently playing within the Music application.Displays in the notifications window when a song is currently playing within the Play Music application.Displays when your device’s GPS is on and communicating.Displays when the external SD card (internal microSD) has been disconnected (unmounted) from the phone and is now ready for either removal or formatting.Displays when the External SD card is being prepared for mounting to the device. This is required for communication with the External SD card.Displays when the microSD card has been improperly or unexpectedly removed.Displays when storage within either the internal location or the external SD card has reached its capacity. It is recommended you either move files off or delete them to make additional room.Displays when Power saving mode is enabled.Displays when the Power saving alert notification has been activated. You are then prompted to view your current battery level.Displays when TTY device has been inserted.
DRAFT Internal Use Only30Home ScreenThe Home screen is the starting point for using the applications on your phone. There are initially seven available panels, each populated with default shortcuts or applications. You can customize each of these panels. • Notification area displays those icons associated with end-user notifications such as: email messages, calls (missed, call in progress), new voicemail, upcoming event, USB connection, Emails, and Text/MMS messages.–These notifications appear at the top-left of the screen (within the Status bar area) and display important user information.–This information can be accessed by swiping down from the Status bar (page 32).• Status area displays those icons associated with the status of the device such as communication, coverage, Bluetooth, 4G/3G, Wi-Fi communication, battery levels, GPS, etc.• Home Screen is a customizable screen that provides information about notifications and device status, and allows access to application Widgets. • Extended Home Screens extend beyond the current visible screen width to provide more space for adding icons, widgets, and other customization features.–There are six available extended screens (panels) each of which may be populated with its own shortcuts or widgets. These screens share the use of the five Primary Shortcuts.–The current screen is indicated at the bottom by a white square. Up to seven (7) total screens are available. ScreenPrimaryNotificationShortcutsStatus BarareaStatusareaShortcutsBattery statusConnection StatusTimeSignal strength
DRAFT Internal Use OnlyUnderstanding Your Device 31Note: Both the status bar and primary shortcuts are visible across all screens.• Google search is an on-screen Internet search engine powered by Google™. Tap to access the Voice Actions feature where you can verbally enter a search term and initiate an online search.–Tap (Voice Actions) to launch the function from within this Google widget. • Widgets are self-contained on-screen applications (not shortcuts). These can be placed onto any of the available screens (Home or extended). • Shortcuts are icons that launch available device applications such as Camera, YouTube, Contacts, Phone, Email, Play Store, etc. These function the same as shortcuts on your computer.–Although some may already be found on the Extended Home screens, the majority can also be found within the Applications screens.–The Application screens can be accessed by tapping (Apps) from the Primary shortcuts area.–Shortcuts can be removed from a screen and added back any number of times.• Primary Shortcuts: are four shortcuts present throughout all of the available screens and can be used to both navigate within the device or launch any of the following functions:–Phone ( ) launches the phone-related screen functions (Keypad, Logs, Favorites, and Contacts). –Contacts ( ) launches the Contacts-related screens (Phone, Groups, Favorites, and Contacts). –Messages ( ) launches the Messaging menu (create new messages or open an existing message string).–Internet ( ) launches the built-in Web browser.–Apps launches the Applications page.•Tap (Apps) to access the Applications screens.•While in the Applications screens, tap (Back) to easily return to the Home screen.As you transition from screen to screen, a screen indicator (located at the bottom) displays the currently active panel.
DRAFT Internal Use Only32Home Screen Menu SettingsWhen on the Home screen, press and then select any of the following menu options:• Add apps and widgets allows you to quickly access the Widget tab where you can then drag a selected widget to an available area on a selected screen. • Create folder allows you to create on-screen folders to help organize files of application shortcuts.• Set wallpaper allows you to assign the current wallpaper for the Home screen, Lock screen, or Home and lock screens. Choose from Gallery, Live wallpapers, or Wallpapers.• Edit page allows you to add or remove extended screens from your device. You can have up to six extended screens (one Home screen and six Extended screens). • Settings provides quick access to the device’s settings menu.–The Settings menu can also be accessed by pressing and then tapping ➔ Settings.• Help displays the on-screen Help application. For more information, refer to “Help” on page 170.Notification BarThe Notification area indicates new message events (data sync status, new messages, calendar events, call status, etc). You can expand this area to display the Notification screen that provides more detailed information about the current on-screen notification icons.1. Touch the Status bar to reveal the Notifications tab, and then drag the tab to the bottom of the screen to open the Notifications panel (1).2. Tap a notification entry to open the associated application (2).

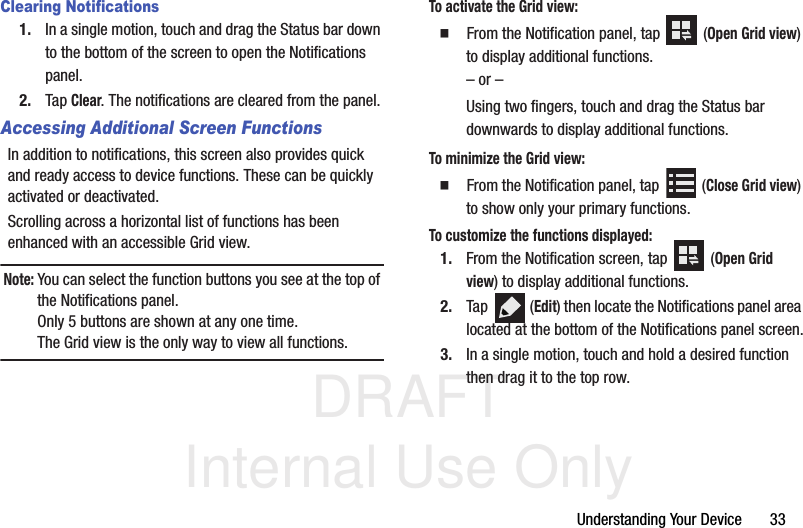

DRAFT Internal Use OnlyUnderstanding Your Device 33Clearing Notifications1. In a single motion, touch and drag the Status bar down to the bottom of the screen to open the Notifications panel.2. Tap Clear. The notifications are cleared from the panel.Accessing Additional Screen FunctionsIn addition to notifications, this screen also provides quick and ready access to device functions. These can be quickly activated or deactivated.Scrolling across a horizontal list of functions has been enhanced with an accessible Grid view. Note: You can select the function buttons you see at the top of the Notifications panel. Only 5 buttons are shown at any one time. The Grid view is the only way to view all functions.To activate the Grid view: From the Notification panel, tap (Open Grid view) to display additional functions.– or –Using two fingers, touch and drag the Status bar downwards to display additional functions.To minimize the Grid view: From the Notification panel, tap (Close Grid view) to show only your primary functions.To customize the functions displayed:1. From the Notification screen, tap (Open Grid view) to display additional functions.2. Tap (Edit) then locate the Notifications panel area located at the bottom of the Notifications panel screen.3. In a single motion, touch and hold a desired function then drag it to the top row.
DRAFT Internal Use Only34Customizing the ScreensYou can customize the Home screens (panels) to display the Widgets, Shortcuts, Folders, or Wallpapers. For example, one screen could contain the Music Player shortcut and other forms of media, while another screen might contain communication apps such as Gmail.You can customize your Home screen by doing the following:• Adding, Deleting, and Rearranging screens• Assigning a New Home screen• Adding and Removing Primary Shortcuts• Sharing Application Information• Managing Shortcuts• Adding and Removing Widgets• Changing the Background (Wallpapers)Adding and Deleting ScreensYour phone comes with five default screens. You can delete these screens and then add them back later.Note: These screens can be deleted and re-arranged.Important! Your phone can only contain at most seven screens and at least one screen.To delete a screen:1. From the Home screen, press and then tap Edit page. 2. Touch and hold, then drag the undesired screen up to the Remove shortcut tab ( ).3. Press to return to the main Home screen.To add a screen:1. From the Home screen, press and then tap Edit page. 2. Tap (Add screen). The newly added screen appears as the last page.3. Press to return to the main Home screen.
DRAFT Internal Use OnlyUnderstanding Your Device 35Rearranging the Screens1. From the Home screen, press and then tap Edit page. 2. Touch and hold a screen and then drag it into its new location. Upper-left is screen position #1 and bottom-right is screen last screen.Assigning a New Home Screen1. From the Home screen, press and then tap Edit page. 2. Tap . The new Home screen then indicates this (Home screen) icon at the top of the selected screen.Sharing an AppThe device’s Applications menu now comes with a feature that allows you to share information about your selected applications with external users.1. From the Home screen, tap (Apps).2. Press and then tap Share apps.3. Place a check mark alongside those applications you wish to share information about and tap Done.Note: Shared applications consist of those that have previously been downloaded from the Play Store.4. Select a sharing method. Choose from: Add to Dropbox, Bluetooth, ChatON, Email, Evernote - Create Note, Flipboard, Gmail, Google, Google+, Hangouts, Messages, S Note, Scrapbook, and Wi-Fi Direct. 5. The recipient will be notified about the receipt of the new information.Managing ShortcutsNote: To move a shortcut from one screen to another, you must carefully touch and hold the shortcut and slowly drag it to the edge of the screen. As the shortcut turns light blue, you can begin to move it to the adjacent screen.If this does not work, delete it from its current screen. Activate the new screen and then add the selected shortcut.
DRAFT Internal Use Only36To add a shortcut from the Applications screen:1. From the Home screen, select a screen location for your new shortcut by scrolling across your available screens until you reach the desired one.2. Tap Apps ( ) to reveal all your current available applications. By default, applications are displayed as an Alphabetical grid.3. Scroll across the screens and locate your desired application.4. Touch and hold the on-screen icon. The new shortcut then appears to hover over the current screen.5. While still holding the on-screen icon, position it on the current screen. Once complete, release the screen to lock the shortcut into its new position.To add a shortcut via the Add to Home screen:1. From the Home screen, navigate to a screen with an empty area.2. Touch and hold an empty area of the screen.3. From the Home screen window, tap Apps and widgets ➔ Apps.4. Scroll across the pages and in a single motion, touch and hold an application to place a copy on the current screen.To delete a shortcut:1. From the Home screen, touch and hold the desired shortcut. This unlocks it from its location on the current screen.2. Drag the shortcut over the Remove shortcut tab ( ) and release it.Adding and Removing Primary ShortcutsNote: You can change any of your primary shortcuts with the exception of the Apps shortcut.To remove a primary shortcut: From the Home screen, touch and hold the primary shortcut you want to replace, then drag it to an empty space on any available screen. The primary shortcuts are now updated to show an empty slot.
DRAFT Internal Use OnlyUnderstanding Your Device 37To insert a new primary shortcut:1. From the Home screen, tap (Apps).2. Locate your desired application, then touch and hold the on-screen icon to position it on a desired screen. For more information, refer to “Managing Shortcuts” on page 35.3. Locate the screen with the desired shortcut you want to add as the new primary shortcut.4. Touch and hold the shortcut until it detaches from the screen.5. In a single motion, touch and hold the new shortcut, then drag it into the empty space within the row of primary shortcuts. The new primary shortcut will now appear on both the Home and Extended screens.Adding and Removing WidgetsWidgets are self-contained applications that can be placed on any screen. Unlike shortcuts, widgets appear as applications.To add a Widget:1. From the Home screen, tap (Apps) ➔ Widgets tab.2. Scroll across the Widget pages and locate a desired Widget. 3. Touch and hold an available Widget until it detaches from the screen.4. While still holding the Widget, scroll left or right across the available screens and let go of the Widget to place it on your current screen.

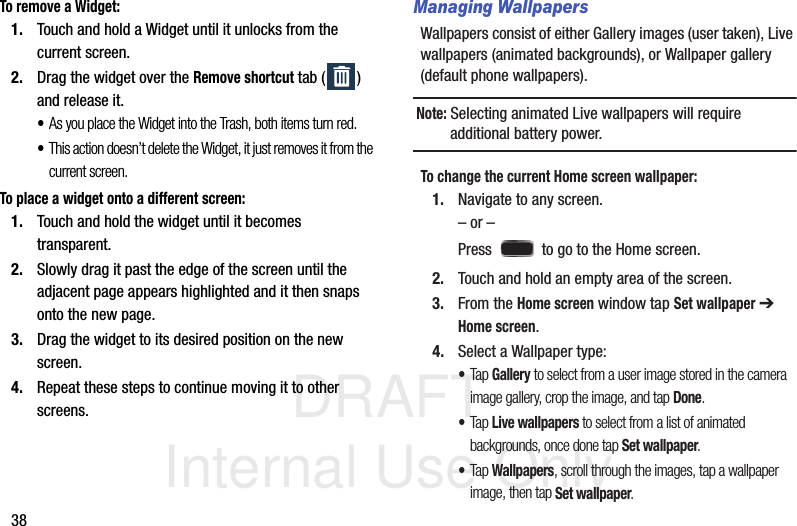

DRAFT Internal Use Only38To remove a Widget:1. Touch and hold a Widget until it unlocks from the current screen.2. Drag the widget over the Remove shortcut tab ( ) and release it.•As you place the Widget into the Trash, both items turn red.•This action doesn’t delete the Widget, it just removes it from the current screen.To place a widget onto a different screen:1. Touch and hold the widget until it becomes transparent.2. Slowly drag it past the edge of the screen until the adjacent page appears highlighted and it then snaps onto the new page.3. Drag the widget to its desired position on the new screen.4. Repeat these steps to continue moving it to other screens.Managing WallpapersWallpapers consist of either Gallery images (user taken), Live wallpapers (animated backgrounds), or Wallpaper gallery (default phone wallpapers).Note: Selecting animated Live wallpapers will require additional battery power.To change the current Home screen wallpaper:1. Navigate to any screen. – or –Press to go to the Home screen. 2. Touch and hold an empty area of the screen.3. From the Home screen window tap Set wallpaper ➔ Home screen.4. Select a Wallpaper type:•Tap Gallery to select from a user image stored in the camera image gallery, crop the image, and tap Done.•Tap Live wallpapers to select from a list of animated backgrounds, once done tap Set wallpaper. •Tap Wallpapers, scroll through the images, tap a wallpaper image, then tap Set wallpaper.
DRAFT Internal Use OnlyUnderstanding Your Device 39Note: Wallpapers supports the following image types: JPEG, PNG, GIF, BMP, and WBMP.To change Wallpapers from Settings Menu:1. From the main Settings page, tap Device tab ➔ Wallpaper.– or –Touch and hold an empty area of the screen and select Set wallpaper.2. Choose from Home screen, Lock screen, or Home and lock screens.Note: The Home and lock screens is an additional option that allows you to change both screens at the same time.3. Select a wallpaper type (Gallery, Live wallpaper, or Wallpapers).4. Choose an image and tap Done or Set wallpaper.To change the current Lock screen wallpaper:1. Navigate to any screen, touch and hold an empty area of the screen, and tap Set wallpaper ➔ Lock screen.– or –From the main Settings page, tap Device tab ➔ Wallpaper ➔ Lock screen.2. Select a Wallpaper type:•Tap Gallery to select from a user image stored in the camera image gallery, crop the image, and tap Done.•Tap Travel wallpaper to display recommended destination images on your lock screen. Select a slideshow interval.•Tap Wallpapers, scroll through the images, tap a wallpaper image, then tap Set wallpaper.

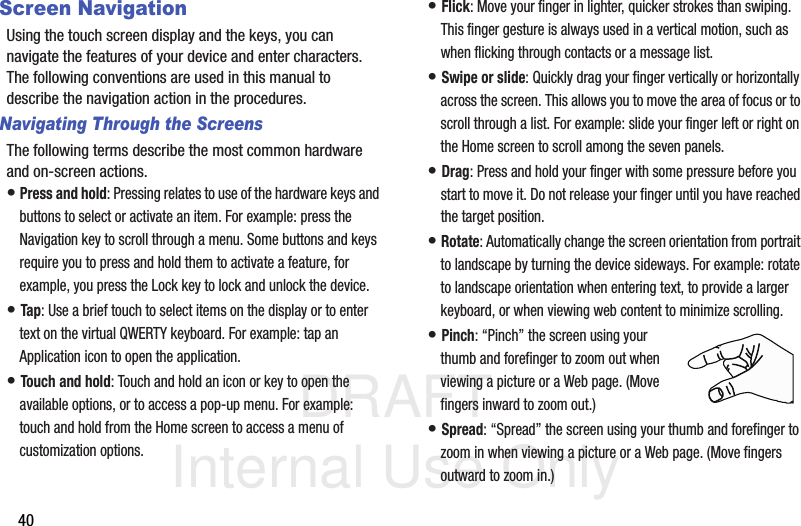

DRAFT Internal Use Only40Screen NavigationUsing the touch screen display and the keys, you can navigate the features of your device and enter characters. The following conventions are used in this manual to describe the navigation action in the procedures.Navigating Through the ScreensThe following terms describe the most common hardware and on-screen actions.• Press and hold: Pressing relates to use of the hardware keys and buttons to select or activate an item. For example: press the Navigation key to scroll through a menu. Some buttons and keys require you to press and hold them to activate a feature, for example, you press the Lock key to lock and unlock the device.• Tap: Use a brief touch to select items on the display or to enter text on the virtual QWERTY keyboard. For example: tap an Application icon to open the application. • Touch and hold: Touch and hold an icon or key to open the available options, or to access a pop-up menu. For example: touch and hold from the Home screen to access a menu of customization options. • Flick: Move your finger in lighter, quicker strokes than swiping. This finger gesture is always used in a vertical motion, such as when flicking through contacts or a message list.• Swipe or slide: Quickly drag your finger vertically or horizontally across the screen. This allows you to move the area of focus or to scroll through a list. For example: slide your finger left or right on the Home screen to scroll among the seven panels.• Drag: Press and hold your finger with some pressure before you start to move it. Do not release your finger until you have reached the target position.• Rotate: Automatically change the screen orientation from portrait to landscape by turning the device sideways. For example: rotate to landscape orientation when entering text, to provide a larger keyboard, or when viewing web content to minimize scrolling.• Pinch: “Pinch” the screen using your thumb and forefinger to zoom out when viewing a picture or a Web page. (Move fingers inward to zoom out.)• Spread: “Spread” the screen using your thumb and forefinger to zoom in when viewing a picture or a Web page. (Move fingers outward to zoom in.)
DRAFT Internal Use OnlyUnderstanding Your Device 41Note: These screens can be re-arranged in any desired order. For more information, refer to “Customizing the Screens” on page 34.• Motion Navigation and Activation: The device comes equipped with the ability to assign specific functions to certain device actions that are detected by both the accelerometer and gyroscope. Note: Motion must be enabled for this feature to be active. For more information, refer to “Motions and Gestures Settings” on page 297.S PenThe S Pen™ is a stylus that assists you in performing different functions. By using the Pen button, you can minimize having to switch between touch and pen input. Air View is a new S Pen technology that allows you to hover over the touch screen (< 2mm) and still interact with the display.1.Pen button: by pressing the Pen button, you can add functionality to the S Pen. 2.Stylus tip: the tip of the S Pen is used for tapping the screen.For more information, refer to “S Pen Settings” on page 295.12
DRAFT Internal Use Only42Rich S Pen Functionality• S Pen Input: When the S Pen hovers over an input area, selecting the (Handwriting Input) provides an on-screen Handwriting Area.• Air Button: S Pen provides a fast experience in performance by showing a menu via the Air Button interaction for different applicable contents.• Air Command: Once removed from its slot, S Pen shows an on-screen Air Command button toolbar that allows you to quickly activate frequently used applications or actions. • Action Memo: Located within the Air Command toolbar, allows you to quickly link short notes to applications like Phone, Contacts, Messages and so on.• Smart Clip: Instantly outline and crop anything on the screen and freely edit or share with others via several applications.• Effectively express yourself: Write/Draw directly into an email, or the calendar, annotate Word, Excel, PowerPoint, and PDF documents, capture your ideas in S Note, write a note on the back of the picture.Removing the S Pen from your PhoneThe S Pen is stored within your device to make it easier to keep track of.To remove the S Pen: Use your fingernail or a sharp object to pop the end of the S Pen out of the device and gently pull it out.FPO
DRAFT Internal Use OnlyUnderstanding Your Device 43Using the S PenThere are several different available functions.Screen Shots Using S PenTo take a screen capture using the pen:Note: These steps allow you to take a capture of the entire screen contents.1. Grasp the pen and press the Pen button.2. Pressing the S Pen button then touch and hold the screen for 2 seconds takes a screen shot.S Pen Input - Using Handwriting1. Remove the S Pen from its slot.2. Launch an application that contains an input area (ex: Messages, Calculator, Dailer Keypad, etc..)3. Hover the S Pen over a input area until (Handwriting Input) appears, then quickly tap the icon to reveal a new Handwriting Area. Use this area to enter your input (text or numbers) and then have the device recognize that information.Air ButtonThe S Pen displays a menu via the Air Button interaction for different applicable contents.1. Remove the S Pen from its slot.2. Launch an application that contains an attachment or selection field such as:•Attachment button within Messages or Email: provides a list of the most recently used•Recipient selector within Messages or Email•Enter message filed within MessagesHandwriting Input button
DRAFT Internal Use Only443. Press and hold the S Pen button to reveal some of your most used items, contents, or text strings.4. Make a selection.Air Command ToolbarOnce removed from its slot, S Pen shows an on-screen Air Command button toolbar that allows you to quickly activate frequently used applications or actions. S Pen - Using Action Memo1. Remove the S Pen from its slot.2. From the Air Command menu, select (Action Memo).3. Use the on-screen pop up page to enter in text and numbers.4. Select (Select content), circle the action memo content, and from the application toolbar, select an available application (such as Contacts).Action MemoScrap BookerScreen WriteS FinderPen Window
DRAFT Internal Use OnlyUnderstanding Your Device 455. The new content is then copied into your selected application.S Pen - Using Smart ClipInstantly outline and crop images displayed on the screen in any shape to share or paste with Smart Clip. Once desired image is selected, users can freely edit the cropped content, or personalize with their own handwriting.To take a selective screen capture:Note: These steps allow you to capture selected areas of a screen based on a freehand area drawn on-screen.1. Grasp the pen.2. In a single motion, press and hold the Pen button then quickly draw a freeform enclosed shape on the screen to select the area you want to capture.Note: The shape you draw must be completed by ending over the same point at which you started. This creates a closed shape.3. After a second, confirm the newly captured image appears on-screen. Note: Additional options are available by scrolling left across the bottom of the screen.Action MemoToolbarApplicationToolbar

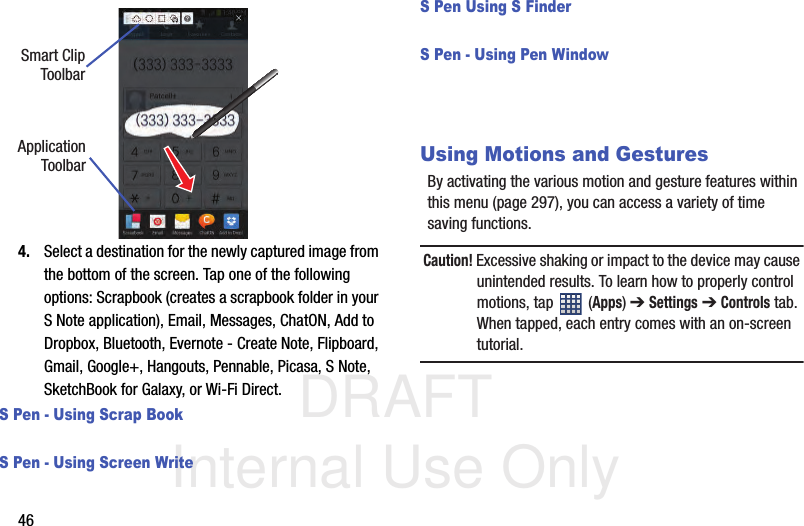

DRAFT Internal Use Only464. Select a destination for the newly captured image from the bottom of the screen. Tap one of the following options: Scrapbook (creates a scrapbook folder in your S Note application), Email, Messages, ChatON, Add to Dropbox, Bluetooth, Evernote - Create Note, Flipboard, Gmail, Google+, Hangouts, Pennable, Picasa, S Note, SketchBook for Galaxy, or Wi-Fi Direct.S Pen - Using Scrap BookS Pen - Using Screen WriteS Pen Using S FinderS Pen - Using Pen WindowUsing Motions and GesturesBy activating the various motion and gesture features within this menu (page 297), you can access a variety of time saving functions.Caution! Excessive shaking or impact to the device may cause unintended results. To learn how to properly control motions, tap (Apps) ➔ Settings ➔ Controls tab. When tapped, each entry comes with an on-screen tutorial.Smart ClipToolbarApplicationToolbar

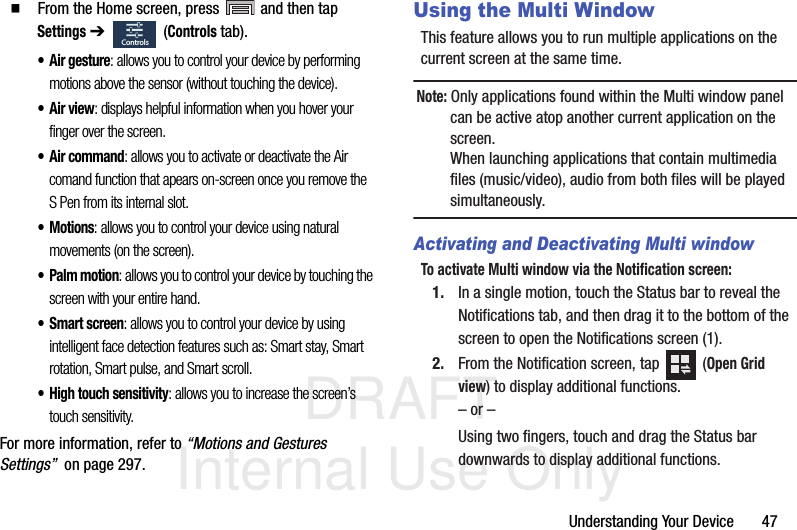

DRAFT Internal Use OnlyUnderstanding Your Device 47 From the Home screen, press and then tap Settings ➔ (Controls tab).• Air gesture: allows you to control your device by performing motions above the sensor (without touching the device).• Air view: displays helpful information when you hover your finger over the screen.• Air command: allows you to activate or deactivate the Air comand function that apears on-screen once you remove the S Pen from its internal slot.•Motions: allows you to control your device using natural movements (on the screen).• Palm motion: allows you to control your device by touching the screen with your entire hand.• Smart screen: allows you to control your device by using intelligent face detection features such as: Smart stay, Smart rotation, Smart pulse, and Smart scroll.• High touch sensitivity: allows you to increase the screen’s touch sensitivity.For more information, refer to “Motions and Gestures Settings” on page 297.Using the Multi WindowThis feature allows you to run multiple applications on the current screen at the same time. Note: Only applications found within the Multi window panel can be active atop another current application on the screen.When launching applications that contain multimedia files (music/video), audio from both files will be played simultaneously.Activating and Deactivating Multi windowTo activate Multi window via the Notification screen:1. In a single motion, touch the Status bar to reveal the Notifications tab, and then drag it to the bottom of the screen to open the Notifications screen (1).2. From the Notification screen, tap (Open Grid view) to display additional functions.– or –Using two fingers, touch and drag the Status bar downwards to display additional functions.Controls

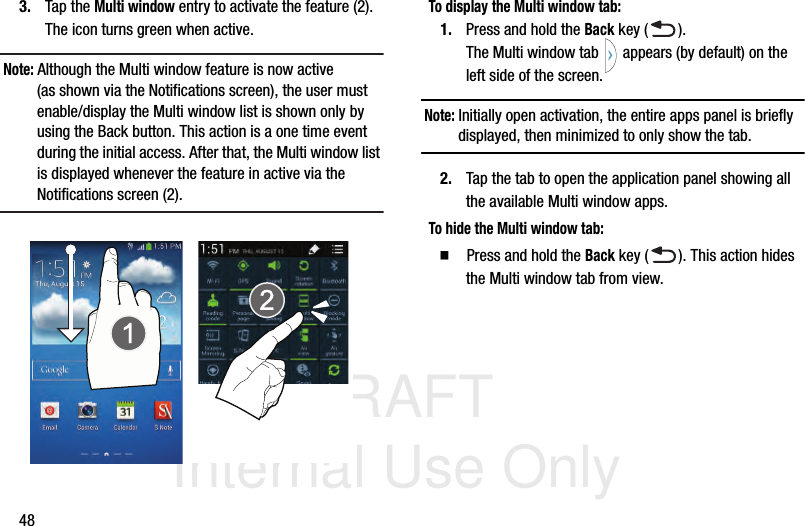

DRAFT Internal Use Only483. Tap the Multi window entry to activate the feature (2). The icon turns green when active. Note: Although the Multi window feature is now active (as shown via the Notifications screen), the user must enable/display the Multi window list is shown only by using the Back button. This action is a one time event during the initial access. After that, the Multi window list is displayed whenever the feature in active via the Notifications screen (2). To display the Multi window tab:1. Press and hold the Back key ( ). The Multi window tab appears (by default) on the left side of the screen.Note: Initially open activation, the entire apps panel is briefly displayed, then minimized to only show the tab.2. Tap the tab to open the application panel showing all the available Multi window apps.To hide the Multi window tab: Press and hold the Back key ( ). This action hides the Multi window tab from view.
DRAFT Internal Use OnlyUnderstanding Your Device 49Repositioning the Multi WindowThe Multi window contains two components: tab and apps panel. The tab can be manually moved across the screen. The apps panel (containing the scrollable apps) can be relocated to lock onto the different sides of the screen.To move the tab Up or Down:1. Activate the Multi window feature (page 47).2. Press and hold the Back key ( ) to view the tab.3. In a single motion, touch and hold the tab for approximately one-second, then slowly drag it to its new location along the current screen edge.Note: This is a quick way to get the tab out of the way if you can’t get to a button or option behind it.To relocate the Multi window apps panel:1. Activate the Multi window feature.2. Tap the tab to display the apps panel (containing the scrollable apps).Note: Its only when the tab is detached that the entire panel can be relocated.3. In a single motion, touch and hold for approximately one-second to detach it from the screen (1), then slowly drag it to its new location along any other available screen edge (2).
DRAFT Internal Use Only50Customizing the Multi Window appsThe applications found within the apps panel of the Multi window can be organized by either being rearranged or removed.To rearrange the Multi window applications:1. Activate the Multi window feature.2. Tap the tab to display the apps panel (containing the scrollable apps).3. In a single motion, touch and hold a desired app until it detaches from the panel, then carefully drag it to a new location in the list of apps. Lift your finger or stylus off the screen to let go of the app and drop it into its new location. To edit a Multi window application:1. Activate the Multi window feature.2. Tap the tab to display the apps panel (containing the scrollable apps).3. Tap More ➔ Edit (located at the bottom of the list) to reveal a staging area (on the right) that can house any removed applications from the Multi window panel.4. Tap Done once you have completed the removal process.CreateEditHelpMore - access to additional functionsCreate - create a user-defined customEdit - edit the available Multi window apps Multi window (presets)Edit - access to Help information
DRAFT Internal Use OnlyUnderstanding Your Device 51To restore a Multi window application:1. Activate the Multi window feature.2. Tap the tab to display the apps panel (containing the scrollable apps).3. Tap (More) ➔ (Edit) located at the bottom of the list) to reveal the staging area containing any previously removed apps.4. Locate the desired application.5. In a single motion, touch and hold a desired app until it detaches from the staging area, then carefully drag it to a new location in the current list of apps.Using Multi Window to run multiple apps on the same screenAny of the apps found within the Multi window panel can be run at the same time as a current on-screen app. Once multiple apps are running on the same screen, you can then choose to either swap their positions or maximize a desired app.Note: Only applications found within the Multi-window panel can be active atop another current application on the screen.When launching applications that contain multimedia files (music/video), audio from both files will be played simultaneously.Note: Multi window can now run two separate instances of the same application. If there are any issues with activating Multi window, confirm the setting is activated (page 269). Ex: Separate Messages within both the top and bottom split views.
DRAFT Internal Use Only52In this example we will be launching both the Internet and Maps applications.1. Launch an application.•From the Home screen, tap (Apps) ➔ (Internet).2. Activate the Multi window feature.3. Tap the tab to display the apps panel.4. Touch and hold the desired app, such as Maps, until it detaches from the panel.5. In a single motion, drag it over the current app and drop the new Multi window app over either the top or bottom area of the current on-screen app. Note: Once two applications are running, the device displays a split screen view containing both the initial app and the new Multi window app.Each application is still independent of the other.To switch the arrangement of the applications:1. Tap the desired application area (top or bottom).2. With the two applications shown in a split screen, tap the Border button to show the on-screen functions.3. Locate and tap (Switch app location). The current apps are switched.To increase the size of a desired application window:1. With the two applications shown in a split screen, locate the Border bar indicating the edge of the app window.2. In a single motion, touch and hold the Border bar then drag it to resize the desired window.App #1 Split/MaximizeApp #2 BorderSwitchPositions BarExitTile
DRAFT Internal Use OnlyUnderstanding Your Device 53To close a selected application:1. With the two applications shown in a split screen, tap one of the two on-screen apps to select it.2. Tap the Border bar to show the on-screen icons.3. Locate and tap (Exit the app). The current app is closed and the remaining app is maximized.To add more application windows with Tiles:You are no longer limited to 2 apps within a Multi window. Tiling now allows you to add more Multi window apps.1. With the two applications shown in a split screen, tap the Border button .2. Locate and tap (Add Multi window app). 3. Tap hold and in a single motion touch and drag a new app to either the top or bottom area.To view application windows with Tiles:1. With the two applications shown in a split screen, tap the Border button .2. Locate and tap (Tile windows). If the selected area contains more than one app, they will then appear as on-screen pop ups.3. Tap the upper right of the po up to exit the app.Creating a Customized Multi Window Preset1. Arrange the Multi window view as desired (app location, high of windows, etc..)1. Once configured, tap (More) ➔ (Create).2. Use the on-screen keyboard to name the new preset of paired windows.3. Tap OK. The new preset then appears at the top of the Multi window list of apps.
DRAFT Internal Use Only54Menu NavigationYou can tailor the device’s range of functions to fit your needs using both menus and applications. Menus, sub-menus, and features are accessed by scrolling through the available on-screen menus. Your device defaults with seven screens.Navigating Through the Application MenusThere are three default Application Menu screens available. As you add more applications from the Play Store, more screens are created to house these new apps.1. From the Home screen, tap (Apps). The first Application Menu screen displays.•To close the Applications screen, press (Home).2. Sweep the screen to access the other menus.3. Tap any of the on-screen icons to launch the associated application.Using Sub-MenusSub-menus are available from within most screen and applications. 1. Press . A sub-menu displays at the bottom of the screen.2. Tap an available on-screen option. Sub-Menu items
DRAFT Internal Use OnlyUnderstanding Your Device 55Using Context MenusContext menus (also called pop-up menus) contain options that apply to a specific item on the screen. They function similarly to menu options that appear when you right click your mouse on your desktop computer. Touch and hold an item on-screen to open its context menu. ContextMenu
DRAFT Internal Use Only56Section 3: Call Functions and Contacts ListThis section describes features and functionality associated with making or answering calls, and the Contacts list, which is used to store contact information.Displaying Your Phone Number From the Home screen, press and then tap Settings ➔ (General tab) ➔ About device ➔ Status. Your phone number displays in the My phone number field. Note: The device’s Settings menu can also be activated by pressing and then tapping (Apps) ➔ (Settings).Making a CallYou can store phone numbers that are regularly used to the SIM card or to the device’s memory. These entries are referred to as the Contacts list.1. From the Home screen, tap (Phone).2. Enter the phone number and then tap . If you make a mistake while dialing, tap to clear the last digit. Touch and hold to clear the entire sequence.Note: When you activate the Auto redial option from within the ➔ Call settings ➔ Additional settings menu, the device automatically redials up to 10 times when the person does not answer the call or is already on the phone, provided your call is not sent to voicemail.Note: If your screen goes black during your interaction with the device (launching Keypad, etc.), you might be accidentally swiping over the front sensors.General
DRAFT Internal Use OnlyCall Functions and Contacts List 57Quick Dialing a Number from the Contacts List1. From the Home screen, tap (Contacts).2. Locate a contact from the list.3. In a single motion, touch and drag your finger over the number by going to the right. This action places a call to the recipient. Running a Call in the BackgroundIf you exit the current call screen and return to the Home screen, you are visually notified that you are still on an active call by the green phone icon within the Status bar. This is the best way to stay on your current call and do something else (multi-task) such as access the Contacts list, view a recent email, locate a picture, etc.. Ending a Call Briefly tap key to end the call.Note: To redial a recent number, tap at the end of the call or locate the number from the Logs list, tap the entry and tap Call.Ending a Call from the Status Bar1. From an active call, you can launch a separate application or return to the Home screen. The current call is kept active in the background.2. Tap the Status bar to reveal the Notifications tab, and then drag the tab to the bottom of the screen to open the Notifications panel.3. Tap End to end the currently active call. In Call NotificationCall
DRAFT Internal Use Only58Making Emergency CallsIf you do not have a SIM card installed the first time you turn on the phone, the Insert SIM card to make calls message displays and an animated tutorial shows you how to install the SIM card.Without a SIM card, you can only make an emergency call with the phone; normal cell phone service is not available. Making an Emergency Call Without a SIM card installed1. Tap Emergency call from the on-screen display to make an emergency call.2. Enter 9-1-1 and tap . Complete your call. During this type of call, you will have access to the Speaker mode, Keypad, and End Call features.3. Tap to exit this calling mode.Making an Emergency Call With a SIM card installedThe Emergency calling mode makes redialing an emergency number a 1-tap process. Before you can resume normal calling operations, you should first exit this mode.1. Swipe the Lock screen to unlock the device.2. From the Home screen, tap . 3. Enter the emergency number (ex: 911) and then tap .4. Complete your call. During this type of call, you will have access to the Speaker mode, Keypad, and End Call features. Note: This mode can drain your battery power more rapidly than a normal calling mode. 5. At the Emergency Callback screen, follow the on-screen instructions.
DRAFT Internal Use OnlyCall Functions and Contacts List 59Dialing OptionsWhen you enter numbers on the Keypad, you will see three on-screen options. From the keypad screen, use one of the following options:• Voicemail ( ) to access your Voicemail service.• Call ( ) to call the entered number.• Delete ( ) to delete digits from the current number.To view additional dialing options: After entering a number, tap :• Send message to send the current caller a text message while still maintaining the current call active.•Add to contacts to add the current number to either a new or existing Contacts entry. • Speed dial setting to access the Speed dialing setting menu where you can assign a speed dial location to a current Contacts entry. • Add 2-sec pause to insert a two-second pause to enter a 2-second delay within a number string (the phone continues dialing after 2 seconds without any additional keys being pressed.Tip: You can create pauses longer than two seconds by entering multiple 2 second pauses.• Add wait to insert a hard pause within the number string (the phone waits for your input). A wait requires that any consecutive numbers be manually sent by tapping Yes.• One-handed operation on/off to enable or disable the resize and reposition the keypad/dialer for either left (off) or right handed operation (on).• Call settings to provide you access to the Call settings screen.
DRAFT Internal Use Only60Answering a CallWhen somebody calls you, the phone rings and displays the incoming call image. The caller's phone number, picture, or name if stored in Contacts List, displays.Pressing the Volume down button mutes the ringer.Answering a call with Air Gesture1. Verify the Air Gestures feature is on and Air call-accept is active. For more information, refer to “Using Motions and Gestures” on page 46.2. At the incoming call screen, wave your hand over the screen to accept the incoming call.•If active, the Air call-accept icon appears at the top of the incoming call screen.Managing Reject CallsThis feature allows you to categorize both known and unknown callers as rejected contacts. These Contacts are then added to your Rejection list which can be managed for individual entries from within the Contacts list or as a whole from the Call rejection screen.1. From the Home screen, tap . 2. Press and then tap Call settings ➔ Call rejection.Touch andslide in anydirection to Touch and slidein any directionto reject the callTouch and dragupward to rejectwith a message*answer thecallTap Create new messageto create a new custom message
DRAFT Internal Use OnlyCall Functions and Contacts List 613. Tap the Auto reject mode field to configure your automatic rejection settings. Rejected calls are routed automatically to your voicemail. Choose from:•Off: disables the auto rejection feature.• All numbers: enables the features for all known and unknown numbers, including those contacts that are not assigned to the rejection list.• Auto reject numbers: automatically rejects all entries assigned to the Reject list/Blacklist.Adding numbers to the rejection listEntries can be added to the list via either the Contacts menu or via the Auto reject list menu. The Contacts menu option assigns all numbers for an individual as rejected. The Auto reject list allows to assign individual numbers.To assign multiple numbers as rejected via Contacts:1. From the Home screen, tap (Contacts).2. Locate an entry and tap it to open the Contact Overview Screen (page 86).3. Press and then tap Add to reject list. All phone numbers associated with this entry are then added to the reject list.To assign single number as rejected via Auto reject list:1. From the main Call settings page, tap Call rejection ➔ Auto reject list. 2. Tap (Create) and either enter the phone number or select a Contact from your Logs or Contacts list.3. Tap Save to complete the assignment.International Calls1. From the Home screen, tap and then touch and hold until the device shows “+” on-screen.2. Use the on-screen keypad to enter the country code, area code, and phone number.3. If you make a mistake, tap once to delete a single digit.– or –Touch and hold to delete all digits.4. Tap .
DRAFT Internal Use Only62Pause DialingYou can dial or save phone numbers with pauses for use with automated systems, such as voicemail or financial phone numbers.• 2-Second Pause automatically sends the next set of numbers after a two-second pause. This is indicated in the number string as a comma (,).1. From the Home screen, tap and use the on-screen keypad to enter the phone number.2. Press and then tap Add 2-sec pause. This feature adds an automatic two-second pause.3. Use the keypad to enter the additional numbers that will be dialed automatically after the second pause.Tip: You can create pauses longer than three seconds by entering multiple 2 second pauses.4. Tap .Wait DialingInserting a Wait into your dialing sequence means that the phone waits until it hears a dial tone before proceeding with the next sequence of numbers.• Wait sends the next set of numbers only after tapping Yes. This is indicated in the number string as a semicolon (;).Note: Do not add multiple Waits (;) to a number string as this will continue to prompt you after each sequence.1. From the Home screen, tap and use the on-screen keypad to enter the phone number.2. Press and then tap Add wait. This feature causes the phone to require your acceptance before sending the next set of entered digits.3. Tap .4. Once prompted to Send the following tones?, tap Yes to dial the remaining digits.
DRAFT Internal Use OnlyCall Functions and Contacts List 63Redialing the Last NumberThe device stores the numbers of the calls you’ve dialed, received, or missed if the caller is identified.To recall any of these numbers:1. From the Home screen, tap . 2. Tap the (Logs tab) to display the list of recent calls. 3. Tap the name/number and tap .Speed DialingOnce you have stored phone numbers from your Contacts List, you can set up to 99 speed dial entries (2-100) and then dial them easily whenever you want, simply by touching the associated numeric key.Note: Speed dial location #1 must be reserved for Voicemail use.Setting Up Speed Dial EntriesImportant! Speed dial location #1 is reserved for Voicemail. No other number can be assigned to this slot.1. From the Home screen, tap ➔ (Keypad tab). 2. Press and then tap Speed dial setting. The Speed dial setting screen displays a virtual list of locations with the numbers 2 through 100. 3. Tap an unassigned number slot. The Select contact screen displays.4. Tap a contact and select a number to assign it to the speed dial location. The selected contact number/image is displayed in the speed dial number box.
DRAFT Internal Use Only64Changing a Speed Dial Entry Order1. From the Home screen, tap ➔ Keypad tab.2. Press and then tap Speed dial setting.Important! The number 1 is reserved for Voicemail and another number cannot be assigned to this slot.3. Press and then tap Change order.4. Tap the current entry then tap the new target speed dial location.Note: Tapping 2 existing speed dial locations causes the entries to switch positions.5. Tap Done. to store the change.6. Press to return to the previous screen.Removing a Speed Dial Entry1. From the Home screen, tap ➔ Keypad tab.2. Press and then tap Speed dial setting.3. Touch and hold a existing on-screen speed dial location and select Remove from the context menu.– or –Press and then tap Remove. Tap an entry and select (Remove entry). Select either Done (to complete the deletion) or Cancel (to exit).4. Press to return to the previous screen.Making a Call Using Speed DialYou can assign a short cut number to a phone number in the Contacts List for speed dialing.1. From the Home screen, tap .2. Touch and hold a previously created speed dial location (numbers 2-100, or 1 if you are dialing voice mail) until the number begins to dial.3. If you are not certain of the speed dial location, tap ➔ ➔ Speed dial setting and tap a speed dial number to view the assigned phone number.
DRAFT Internal Use OnlyCall Functions and Contacts List 65In Call OptionsYour device provides a number of features that are available for use during a call.Note: Noise reduction and Extra volume features are disabled while using Wi-Fi Calling.Personalizing the Call Sound SettingDuring a call it may be necessary to adjust the sound of the incoming call by selecting an audio equalizer setting for the current call.1. Tap (Personalize call sound).2. Confirm the option is enabled . Note: If prompted to enable the feature via the Call settings menu, go to Call settings ➔ Personalize call sound.3. Select an available option. Choose from: Adapt Sound, Soft sound, Clear sound, and Off.DialerAdds aActivates orDeactivatesEnds thecallPlaces acall on holdMutes or UnmutesActivates orDeactivatesBluetooththe call Headset speakerphonePersonalizedcall soundnew callBackgroundReductionCall durationExtra volumeNoise

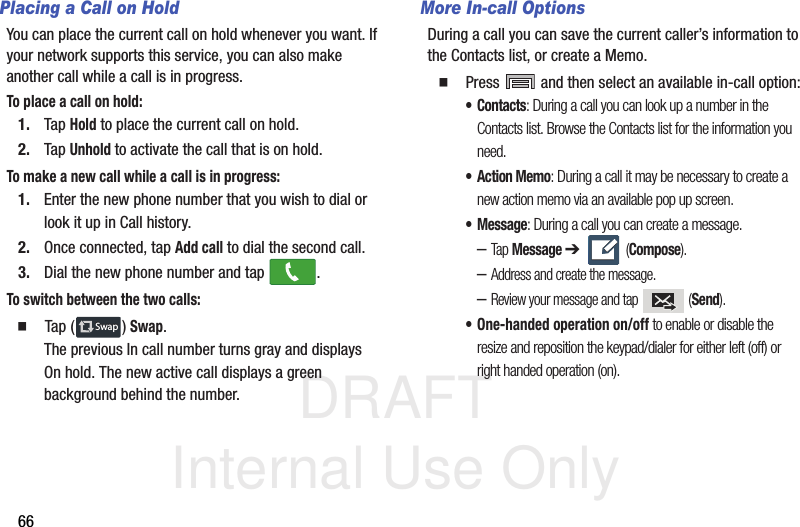

DRAFT Internal Use Only66Placing a Call on HoldYou can place the current call on hold whenever you want. If your network supports this service, you can also make another call while a call is in progress.To place a call on hold:1. Tap Hold to place the current call on hold.2. Tap Unhold to activate the call that is on hold.To make a new call while a call is in progress:1. Enter the new phone number that you wish to dial or look it up in Call history.2. Once connected, tap Add call to dial the second call.3. Dial the new phone number and tap .To switch between the two calls: Tap ( ) Swap.The previous In call number turns gray and displays On hold. The new active call displays a green background behind the number.More In-call OptionsDuring a call you can save the current caller’s information to the Contacts list, or create a Memo. Press and then select an available in-call option:•Contacts: During a call you can look up a number in the Contacts list. Browse the Contacts list for the information you need.•Action Memo: During a call it may be necessary to create a new action memo via an available pop up screen.• Message: During a call you can create a message.–Tap Message ➔ (Compose).–Address and create the message.–Review your message and tap (Send).• One-handed operation on/off to enable or disable the resize and reposition the keypad/dialer for either left (off) or right handed operation (on).SwapSwap
DRAFT Internal Use OnlyCall Functions and Contacts List 67Multi-Party callsMaking a Multi-Party CallA multi-party call is a network service that multiple people to participate in a multi-party or conference call.For further details about subscribing to this service, contact T-Mobile customer service.Setting up a Multi-Party Call1. From the Home screen, tap .2. Dial the number for the first participant and tap .3. Once connected, tap Add call, enter the second phone number and tap . The first caller is placed on hold.4. Wait for the second caller to answer the incoming call and tap Merge. The two calls are now joined into a multi-party call and display in the order in which they were called.Important! Multiple callers can be joined to a single multi-party line. Additional callers participate in a new Multiparty session and are held in conjunction with the previous multiparty call. You can swap or place each multi-party call on hold.Having a Private Conversation With One ParticipantNote: The Manage conference call option is not available for multi-party calls created while using the Wi-Fi Calling feature. You must be on the cellular network to use the manage feature.When you have two participants in a multi-party session, it might be necessary to place one of those participants on hold so that a private conversation can be held with a single caller. While you are in a multi-party call:1. Press and then tap Manage conference call. 2. Tap (Split Caller) adjacent to the participants you would like to split from the current multi-line call. The list displays the callers in the order they were dialed.
DRAFT Internal Use Only68Note: The Manage conference call option is not available for multi-party calls created while using the Wi-Fi Calling feature. You must be on the cellular network to use the manage feature.3. Tap the participant to which you want to speak privately.You can now talk privately to that person while the other participants can continue to converse with each other. If there is only one other participant, that person is placed on hold.4. To return to the multi-party call, tap the Merge icon. All of the multi-party call participants can now hear each other.Dropping One Participant1. Press and then tap Manage conference call ➔ to the right of the number to drop.The participant is disconnected and you can continue the call with the other participant.2. Tap to end your conversation with the remaining caller.Call WaitingYou can answer an incoming call while you have a call in progress, if this service is supported by the network and you have previously set the Call waiting option to Activate. You are notified of an incoming call by a call waiting tone. For more information, refer to “Configuring Additional Voice Call Settings” on page 283.To answer a new call while you have a call in progress:1. In a single motion, touch and slide it in any direction to answer the new incoming call. End
DRAFT Internal Use OnlyCall Functions and Contacts List 692. Tap an option from the Accept call after menu:• Putting xxx on hold to place the previous caller on hold while you answer the new incoming call.• Ending call with xxx to end the previous call and answer the new call.Note: The new caller appears at the top of the list. The previous caller is placed on hold and appears at the bottom of the list.3. Tap Swap to switch between the two calls. This places the new caller on hold and activates the previous call. Important! The currently active call is displayed with a green background.4. Tap Swap again to switch back.Logs TabThe Logs tab is a list of the phone numbers (or Contacts entries) for calls you placed, accepted, or missed. The Logs tab makes redialing a number fast and easy. It is continually updated as your device automatically adds new numbers to the beginning of the list and removes the oldest entries from the bottom of the list. The Notification area of the Home screen (upper left) displays phone notifications, status, or alerts such as: Displays when a call is in progress.Displays when a call was missed.
DRAFT Internal Use Only70Accessing the Logs Tab1. From the Home screen, tap ➔ (Logs tab).2. Tap an entry to view available options.Note: The Logs tab only records calls that occur while the phone is turned on. If a call is received while it is turned off, it will not be included in your calling history.Each entry contains the phone number (if it is available) and Contacts entry name (if the number is in your Contacts). Note: You can also view missed calls from within the Notifications area. Select and tap the Missed call entry to open the Logs screen. Call logs - Caller Overview • Tap a contact entry name or number to reveal the Call options screen:• Create contact to save the number if it is not already in your Contacts.•View contact to view the Contact details for the current entry.• Update existing to update an existing Contacts entry with the current number.•Call allows you to redial the entry by name or number.• Send message allows you to create a new text message to the selected entry.•Time provides the time and date of the call and its duration.•View more to view additional log information from the current entry.• Copy to dialing screen press to pass the current number to your dialer and then edit the selected number before you place your next outbound call.Indicates all outgoing calls made from your device.Indicates any received calls that were answered.Indicates a missed call.Indicates any received calls that were rejected.Indicates auto rejected calls.
DRAFT Internal Use OnlyCall Functions and Contacts List 71•Delete press to delete the Contacts entry.• Send number press to send the current Contacts entry information to an external recipient.• Add to reject list press to add the current phone number to an automatic rejection list. Similar to a block list, the selected caller will be blocked from making an incoming calls to your phone.• Touch and hold an entry to display the entry-specific context menu:• Copy to dialing screen to make alterations to the current phone number prior to redial. •Add to contacts to save the number if it is not already in your Contacts.• Send number to send the current Contacts entry information to an external recipient.•View contact to view the information for the currently stored Contacts entry.• Add to reject list to add the current phone number to an automatic rejection list. Similar to a block list, the selected caller will be blocked from making an incoming calls to your phone.•Delete to delete the entry from the Logs list.Altering Numbers from the Logs ListIf you need to make a call from the Logs screen and you need to alter the number prior to dialing, you can add the appropriate prefix by prepending the number.1. From the Home screen, tap ➔ Logs tab.2. Touch and hold an entry to access the entry-specific context menu.3. Tap Copy to dialing screen.4. Edit the number using the on-screen keypad or delete digits by pressing to erase the numbers.5. Tap once the number has been changed.
DRAFT Internal Use Only72Erasing the Call logs ListYou can delete either an individual call log entry or all current entries from the Logs list.To clear a single entry from the list:1. From the Home screen, tap ➔ Logs tab.2. Touch and hold an entry and select Delete ➔ Delete.To clear all entries from the list:1. From the Home screen, tap ➔ Logs tab.2. Press and then tap Delete.3. Tap Select all.4. Tap Delete ➔ Delete to continue with the erasure.– or –Tap Cancel to stop the current process.Call Duration1. From the Home screen, tap ➔ Logs tab.2. Press and then tap Call duration.3. The following times are displayed for Voice and Data: •Last call: shows the length of time for the last call.• Dialed calls: shows the total length of time for all calls made.• Received calls: shows the total length of time for all calls received.• All calls: shows the total length of time for all calls made and received.You may reset these times to zero by pressing then tapping Reset.
DRAFT Internal Use OnlyEntering Text 73Section 4: Entering TextThis section describes how to select the desired text input method when entering characters into your device. This section also describes the predictive text entry system that reduces the amount of key strokes associated with entering text.Your device comes equipped with an orientation detector that can tell if the phone is being held in an upright (Portrait) or sideways (Landscape) orientation. This is useful when entering text.Text Input MethodsThere are two text input methods available:• Google voice typing: provides a voice to text interface.• Samsung keyboard (default): an on-screen QWERTY keyboard that can be used in both portrait and landscape orientation.Note: SwiftKey Flow (previously known as Swipe) can be enabled from within the Samsung keyboard to allow word creating via swiping.The on-screen QWERTY keypad works the same in both portrait and landscape mode.Selecting the Text Input MethodThe Text Input Method can be assigned from within one of two locations:Settings Menu: From the Home screen, press and then tap Settings ➔ (Controls tab) ➔ Language and input ➔ Default and select an input method.Text Input field:1. From a screen where you can enter text, in a single motion, touch and drag the Status bar down to the bottom of the screen to open the Notifications screen.2. Tap (Select input method) and select an available input method. Controls
DRAFT Internal Use Only74Using the Google Voice TypingThis feature uses Google voice recognition to convert your spoken words into on-screen text. You can use your voice to enter text using the Google Voice typing feature.1. From the keyboard, touch the top of the screen and drag it down to display your notification panel.2. Tap (Select input method) ➔ Google voice typing.3. At the Listening prompt (Speak now), speak clearly and distinctly into the microphone. The text is displayed in the message as you are speaking. For more detailed information on configuring Google Voice Typing settings, see “Configure Google Voice Typing” on page 292.4. Tap (Done) when you are finished.– or –Tap (Resume) to resume recognition.Note: The feature works best when you break your message down into smaller segments.Using Google Voice Typing1. From a screen where you can enter text, in a single motion, touch and drag the Status bar down to the bottom of the screen, then select (Select input method) ➔ Google voice typing. The virtual keyboard is then removed and all subsequent input to done via the microphone as text to speech.2. Speak into the device’s microphone and watch your text being entered on-screen.3. If the text is incorrect, tap DELETE.
DRAFT Internal Use OnlyEntering Text 75Using the Samsung KeyboardThis QWERTY keyboard can be used to enter text in either a Portrait or landscape orientation. The only difference between the two orientations are the sizes of the keys. From a screen where you enter text, rotate your phone counterclockwise to a landscape orientation. The on-screen QWERTY keyboard displays.The Samsung KeyboardThis device has a built-in, QWERTY keypad (portrait mode) or keyboard (landscape mode). Using the QWERTY keypad/ keyboard, you can type letter, numbers, punctuation, and other characters.To use the Samsung keyboard you must first configure the settings to default to the Samsung keyboard.1. From the Home screen, press and then tap Settings ➔ (Controls tab) ➔ Language and input ➔ Default ➔ Samsung keyboard.– or –From a screen where you can enter text, in a single motion, touch and drag the Status bar down to the bottom of the screen, then select (Select input method) ➔ Samsung keyboard.2. The virtual keyboard is then assigned to the Samsung keyboard configuration for all subsequent text input. For more detailed information on configuring Samsung Keyboard settings, see “Samsung Keyboard Settings” on page 289.ControlsText input fieldShift keyInput ModeInput OptionsDeleteCurrent ModeIndicator Send/Settings
DRAFT Internal Use Only76Entering Text using Different Input OptionsAlthough the default text input method with the Samsung keyboard is to use the on-screen keys you have other options.Note: To access settings, touch and hold the Input Methods button , then tap (Settings) then select it from the available options.1. From within an active message, tap the text input field to reveal the on-screen keyboard.2. Tap (Input Methods) to use the default Voice typing input method to convert your spoken words to on-screen text.– or –Touch and hold to select from other input methods such as:• Voice to text to launch the device’s Google Voice typing application to covert spoken words into on-screen text.• Handwriting to launch an on-screen handwriting area that can be used to convert on-screen patterns (text) to text.•Clipboard to launch the device’s clipboard area from where you can select a current clipboard item to place in your current message.• Settings to access the Samsung keyboard settings menu.• Keyboard alignment to detach the on-screen keyboard so that you can manually dock it anywhere on the current text entry screen. Selecting the feature again redocks the keyboard into its original location using the original size.Changing the Text Input Mode in Keyboard1. From a screen where you can enter text, tap the text input field to reveal the on-screen keyboard.2. With Samsung keyboard as your text entry method, select one of the following text mode options:•Abc : to use alphabetic characters from the on-screen keyboard. In this mode, the text mode button displays .•Symbol/Numeric : to enter numbers by pressing the numbers selecting them on the on-screen keyboard. In this mode, the text mode button displays . There are up to 2 available pages of numeric symbols available by tapping .ABCABCSymSymSymSymABCABC1/21/2
DRAFT Internal Use OnlyEntering Text 77Note: After typing an initial uppercase character, tap to toggle capitalization. By default, the first letter of a new entry is capitalized and the following letters are lowercased. After a character is entered, the cursor automatically advances to the next space.Using ABC Mode in Samsung Keyboard1. From a screen where you can enter text, tap the text input field to reveal the on-screen keyboard.2. Tap to configure the keyboard for ABC mode. Once in this mode, the text input type shows .Note: After typing an initial uppercase character, the key changes to and all letters that follow are in lower case.3. Enter your text using the on-screen keyboard.–If you make a mistake, tap to erase a single character. Touch and hold to erase an entire word.4. Tap (Send) to deliver the message.All lowercaseDisplays when the next character is entered in lowercase.Initial UppercaseDisplays when the first character of each word is entered as uppercase but all subsequent characters are lowercase.All UppercaseDisplays when all characters will be entered as uppercase characters.ABCABCSymSym
DRAFT Internal Use Only78Using Symbol/Numeric ModeUse the Symbol/Numeric Mode to add numbers, symbols, or emoticons. While in this mode, the text mode key displays .1. From a screen where you can enter text, tap the text input field to reveal the on-screen keyboard. Rotate the phone counterclockwise to a landscape orientation, if desired.2. Tap to configure the keyboard for Symbol mode. Once in this mode, the text input type shows . 3. Tap a number, symbol, or emoticon character.4. Tap to return to ABC mode.To enter symbols:1. Tap to configure the keyboard for Symbol mode.2. Tap the appropriate symbol key.– or –Tap button to cycle through additional pages.•The first number on this key indicates which page (1 or 2) of additional characters is active.ABCABCSymSymABCABCABCABCSymSym1/21/2
DRAFT Internal Use OnlyContacts 79Section 5: ContactsThis section explains how to use and manage your Contacts List. You can save phone numbers to your phone’s memory.AccountsFrom the Accounts menu you decide if you want applications to synchronize, send, and receive data at any given time, or if you want the applications to synchronize automatically. After determining how you want the accounts to synchronize, indicate which account to synchronize with your Contacts list.1. Sign in to your Google account.2. From the Home screen, press and then tap Settings ➔ (General tab) ➔ Accounts and then navigate to the My accounts area.Note: The Accounts area lists those accounts that have been added to the device and provides an Add account button to quickly and easily add new ones.Contacts List GeneralCreate ContactsTabsTabbedNavigationSearchContacts Contactsfield
DRAFT Internal Use Only80Creating a ContactThe default storage location for saving phone numbers to your Contacts List is your device’s built-in memory. If existing Google and Corporate email accounts have been synchronized to your phone, these will be made available to your device during the creation of new entries. These new Contacts entries can be assigned or saved to synced accounts such as Phone, SIM, Google, or Corporate.Your device automatically sorts the Contacts entries alphabetically. You can create either a Device, SIM, Samsung account, Google, or Microsoft Exchange ActiveSync contact.Important! The Google and Microsoft Exchange ActiveSync account types are only visible after creating an email account of those types on your phone.• Device contacts are stored locally on the device.Note: If the phone is ever reset to its factory default parameters, contacts stored on the phone can be lost.• SIM contacts are stored within the micro SIM Card. Note: SIM contacts only store the Name and Phone number for an entry.• Samsung account contacts are shared with your existing Samsung account.• Google contacts are shared with your existing Google account and can also be imported to your phone after you have created a Google Mail account.• Microsoft Exchange ActiveSync (also known as Work or Outlook) contacts are those contacts that are intended to be shared with either an Exchange Server or from within Microsoft® Outlook®.• Add new account lets you create a new account type. Choose from Samsung account, Google, or Microsoft Exchange ActiveSync.Note: When storing an entry into your micro SIM card, note that only the Name, and Number are saved. To save additional information for a particular contact, such as notes, email, dates, etc., it is important to save that Contact into your phone’s onboard memory.
DRAFT Internal Use OnlyContacts 811. From the Home screen, tap (Contacts).2. Tap to create a contact.Note: You can also add a new contact by entering a number from the keypad and pressing and then tap Add to Contacts ➔ Create contact. Continue with step 3.3. Tap a destination type (Device, SIM, Samsung account, Google, or Microsoft Exchange ActiveSync) (depending on where you want to save the new contact information).4. Tap the Name field and enter a name for this contact using the displayed keypad. •Tap to access additional name entries such as: Name prefix, First name, Middle name, Last name, and Name suffix.5. Tap the image icon and select a photo for this contact. Selections are: Image, Pictures by people, Take picture, or S Note.Note: The label entries below can change and are dependant on the selected destination type (ex: the Other and Custom might not appear with an Exchange ActiveSync account destination type).6. Tap the label button (to the left of the Phone field) and scroll through the list to select a category such as Mobile, Home, Work, Work Fax, Home Fax, Pager, Other, Custom, or Callback.7. Tap a phone number field and enter a phone number.•Tap on the QWERTY keyboard to remove a previously entered phone number. •Tap to enter an additional phone number•Tap to remove a previously entered phone number.+
DRAFT Internal Use Only828. Enter additional information such as: Email, Groups, Ringtone, Message alert, Vibration pattern or tap Add another field to input additional category information.•Add another field contains the following options: Phonetic name, Organization, IM, Address, Notes, Nickname, Website, Internet call, Events, or Relationship.•Use your finger to slide the page up or down to see additional fields and categories.9. Tap Save to complete and store the new entry.– or –Tap Cancel to delete the current entry.To save a Number from your Keypad:1. From the Home screen, tap ➔ (Keypad tab). 2. Enter a phone number.3. Tap Add to Contacts ➔ Create contact.– or –Tap Add to Contacts ➔ Update existing, and select a Contact.4. Enter additional contact information. For more information, refer to “Creating a Contact” on page 80.Finding a ContactYou can store phone numbers and their corresponding names onto either your SIM card, your phone’s built-in memory, or an external location (such as Google, Exchange, etc..). They are all physically separate but are used as a single entity, called Contacts.Depending on the storage size of the particular SIM card, the maximum number of phone numbers the card can store may differ.1. From the Home screen, tap (Contacts).2. Swipe up or down until you see the contact displayed.– or –Tap the Search field and begin entering the entry’s name. Matching entries are then displayed. This process filters through all of your current account Contact entries to only show you the matching entries.– or –In a single motion, touch and hold the letter tab area (on the right) until on-screen letters appear, then scroll through the list. You are then taken to that section of the Contacts list. Touch the contact entry.
DRAFT Internal Use OnlyContacts 83Editing Contact Information1. From the Home screen, tap .2. Tap a contact name from the list and tap (Edit).– or –Select a contact name and press and then tap Edit.– or –Touch and hold a Contacts entry from the main Contacts list and then tap Edit. 3. Edit the contact information then:•Tap Save to complete and store the new entry or•Tap Cancel to delete the current entry.Adding a Number to an Existing Contact1. From the Home screen, tap .2. Touch and hold an entry and select Edit to reveal the Contact entry’s details screen.3. Tap a phone number field and enter a phone number.•Tap on the QWERTY keyboard to remove a previously entered phone number. •Tap to enter an additional phone number•Tap to remove a previously entered phone number.ContextMenu Contact Details Screen
DRAFT Internal Use Only844. Enter additional information such as: Email, Groups, Ringtone, Message alert, Vibration pattern or tap Add another field to input additional category information.•Add another field contains the following options: Phonetic name, Organization, IM, Address, Notes, Nickname, Website, Internet call, Events, or Relationship.•Use your finger to slide the page up or down to see additional fields and categories.5. Tap Save to complete and store the new entry.– or –Tap Cancel to delete the current entry.Deleting ContactsImportant! Once Contacts list entries are deleted, they cannot be recovered.1. From the Home screen, tap .2. Touch and hold a contact name from the list and select Delete ➔ OK.Contact List Options1. From the Home screen, tap .2. Press . The following options display:•Delete: allows you to delete 1 or more of your contacts.•Import/Export: imports or exports contacts to or from the USB storage location, SIM card, or SD card.•Share namecard via: allows you send selected namecards via methods such as Bluetooth, ChatON, Email, Evernote - Create Note, Gmail, Messages, or Wi-Fi Direct.• Merge accounts: allows you to merge all of your current Contact entries with either your active Google or Samsung account. If several of your contacts are from other external sources, this allows you to “back them up” or copy them to your Samsung account. Tap OK to continue or Cancel to exit.•Accounts: allows you to add and manage mobile accounts on Samsung account, ChatON, Google, or Microsoft Exchange ActiveSync. This option also allows you to manually synchronize all of your current contacts with their respective accounts. For more information, refer to “Synchronizing Contacts” on page 91.• Speed dial setting: allows you to set up speed-dialing.
DRAFT Internal Use OnlyContacts 85• Send message/email: allows you to send a text /picture message or an email using your Google account.• Contacts to display: allows you to choose to display All contacts, those on your Device, SIM card, Samsung account, Gmail, or only display contacts that are part of a Customized list.•Settings: allows you to configure where you save new contacts to, or view your service numbers, or send contact information. Options include: Only contacts with phones, List by, Display contacts by, Service numbers, and Contact sharing settings.•Help: provides an on-screen Help file that covers most high level topics for Contacts.Contact Menu Options1. From the Home screen, tap .2. Touch and hold an entry to reveal the context menu. The following options display:• Delete: allows you to delete the currently selected Contacts entry.•Share via: allows you to send the current Contact entry’s information to an external recipient via either Bluetooth, ChatON, Evernote - Create Note, Email (Exchange or Internet), Gmail, Messages, or Wi-Fi Direct.• Link contact: allows you to link the current contact to another current contact. Similar to a “see also” feature. If you can’t remember a contact’s information, linking entries can help you find the person you are looking for.• Add shortcut to home: adds a shortcut to the current Contacts entry to an available screen location.
DRAFT Internal Use Only86Contact Entry Options1. From the Home screen, tap . 2. Tap an entry to reveal the Contact entry’s Overview Screen. This screen contains Name, contact numbers, email, and linked contact information. 3. Press to reveal the context menu specific to this entry.4. Tap an available option.Linking Contact InformationMost people now maintain multiple email accounts, social networking logins, and other similar account information. For example, a Facebook account login name might differ from a corporate email account login because they are maintained separately and for different groups of people.This device can synchronize with multiple accounts. When you synchronize your phone with those accounts, each account creates a separate contact entry in the Contacts list.If one of your contacts (Amy Smith) has a regular email account that you maintain in Gmail, but also has a Facebook account under her maiden and married name, as well as a Video! chat account, when you merge those accounts into your Contacts list you can join all of her entries and view the information in one record.Joining contact information makes sending messages easy. You can select any account email address or information all from one screen, versus searching multiple, individual screens to locate the desired account information.Next time you synchronize your device with your accounts, any updates contacts make to email account names, email addresses, etc. automatically update in your contacts list.Contact Overview Screen
DRAFT Internal Use OnlyContacts 871. From the Home screen, tap .2. Tap a contact name (the name you want to link to another entry) to reveal the Contact entry’s Overview Screen.Note: Typically this is the same contact with a different name or account information.3. Press and then tap Link contact.4. Tap the second contact entry (the entry in which to link). The second contact is now linked with the first and the account information is merged into one screen. Note: The information is still maintained in both entries, but displays in one record for easier viewing when you link the contacts.Important! It is the first contact image that is displayed for both, and the first contact’s name that is used.For example: If Amy (original entry) is joined with Julie (second entry). Julie seems to disappear and only Amy remains. Tap the Amy entry (showing the Amy image) to view both.5. Tap the main linked contact to view the contact information you linked. The contacts and information displays with an icon next to the contact name to indicate what type of account information is contained in the entry.
DRAFT Internal Use Only88Unlinking a Contact1. From the Home screen, tap .2. Tap a contact name (the account name from which you want to unlink an entry). This reveals the details for entry.Note: Typically this is the same contact with a different name or account information.3. Tap the Connection area.– or –Press and then tap Separate contact.4. Tap next to the entry you want to unlink and select OK. The contacts are “unlinked” or separated and no longer display in the merged record screen. Both contacts now go back to being separately displayed.Marking a Contact as DefaultWhen you use applications such as the Voice Dialer or other messaging type applications, the application needs to know which information is primary (default) in a contact entry list. For example, when you say “Call John Smith”, if you have three phone records for John Smith, the Voice dialer is looking for the “default” number or entry.The Mark as default option marks one entry in a contact record to use as the default. This comes in handy when you have multiple entries for the same person.1. From the Home screen, tap .2. Tap a Contact entry.3. Press and then tap Mark as default. The Mark as default screen displays radio buttons next to the contact name, phone number, or other contact information.4. Tap the radio button next to the entry information you want to be the primary information (such as name, phone number, or email) and select Done.
DRAFT Internal Use OnlyContacts 89Note: If there are multiple phone numbers assigned to an entry, assigning one as the default will automatically dial that number when the contact is selected for dialing.Sending a NamecardA Namecard contains contact information, and can be sent to recipients as a Virtual Business Card (V-card) attachment using Bluetooth, Google Mail, or as a message.1. From the Home screen, tap .2. Tap a Contact entry.3. Press and then tap Share namecard via and select a delivery method: Bluetooth, ChatON, Email (Exchange or Internet), Evernote - Create Note, Email (Exchange or Internet), Gmail, Messages, or Wi-Fi Direct.The Namecard attaches to the selected message type and is delivered when you send the message.Note: Email appears as an option only after an Internet or Exchange email account has been created.For more information, refer to “Sending Contacts via Bluetooth” on page 248.Sending All Current NamecardsRather than selecting once Contact entry at a time, you can send all of your current entries at once.1. From the Home screen, tap .2. Press and then tap Share namecard via.3. Tap Select all to place a check mark alongside all currently displayed Contact entries.4. Tap Done and select a delivery method: • Bluetooth to transmit the contacts to another Bluetooth-compatible device.•ChatON to send the contacts to selected buddies.•Email to attach the contact cards to a new outgoing email (Exchange or Internet).• Evernote - Create Note to send the contacts via the Evernote application.•Gmail to attach the contact cards to a new outgoing Internet-based email.• Messages to attach the contact cards to a new outgoing text message.• Wi-Fi Direct to transmit the entries to another Wi-Fi Direct enabled device.
DRAFT Internal Use Only90Copying Contact InformationCopying Contact Information to the SIM CardThe default storage location for saving phone numbers to your Contacts list is your phone’s built-in memory. This procedure allows you to copy numbers saved to the phone’s memory, onto the SIM card.1. From the Home screen, tap .2. From the Contacts List, press and then tap Import/Export ➔ Export to SIM card.3. Tap Select all to choose all current phone contact entries.– or –Select a specific entry by touching an entry. A check mark indicates a selection.4. Tap Done. The name and phone number for the selected contact is then copied to the SIM.Copying Contact Information to the microSD CardThis procedure allows you to copy entry information saved on the phone’s memory, onto the SD card.1. From the Home screen, tap .2. From the Contacts List, press and then tap Import/Export ➔ Export to SD card.3. Tap OK to choose all current phone contact entries.
DRAFT Internal Use OnlyContacts 91Synchronizing ContactsSyncing data from your managed accounts allows you to add and manage a new or existing contact from your online or remote accounts to your phone. Prior to syncing, you must first have an active Google or Microsoft Exchange account with current Contact entries, and be signed into your account via the phone.With syncing, any Contacts entries (with phone numbers, email addresses, pictures, etc.) are updated and synced with your device. 1. From the Home screen, press and then tap Settings ➔ (General tab) ➔ Accounts and then navigate to the My accounts area.2. Select the email account containing the contacts you wish to synchronize.3. Tap within the adjacent account field to reveal the account’s synchronization settings screen.•If appears within the adjacent account field, this indicates a sync error. 4. To synchronize only Contacts, toggle the active state of the Sync Contacts field. A green check mark indicates the feature is enabled.Note: The process of updating your Contacts tab can take several minutes. If after 10-20 minutes, your list has not been updated, repeat step 2-3.5. Your Contacts tab then reflects any updated Contact information.Note: Syncing of contacts requires you are logged into your Gmail and Corporate accounts via the device.General
DRAFT Internal Use Only92Display OptionsThe Display options menu allows you to allows you to choose which contacts to display. You can also choose to display only contacts that have phone numbers.Note: Once a display filter has been selected, only those Contact entries are shown until the All contacts option is re-selected.1. From the Home screen, tap .2. Press and then tap Contacts to display. Select any of the following to filter according to the selection:•All contacts allows you to display all available Contacts.• Device lists those Contacts currently found only on your Phone.•SIM lists those Contacts currently found only on your SIM card.• Samsung account lists those Contacts currently found and sync’d within the Samsung account.•Google lists those Contacts currently found within the Google account.• Microsoft Exchange ActiveSync lists those Contacts currently found within the Exchange account.• Customized list allows you to enable which account categories are displayed. For example, on Google contacts, you can filter which Contact categories are shown (Friends, Family, etc..)Additional Contact OptionsSending an Email to a ContactNote: Contacts must contain and email account and address before you can use the Send email feature.1. From the Home screen, tap .2. Press and then tap Send message/email ➔ Send email. Contacts that contain an email address display.3. Tap the contact(s) to which you want to send an email. A check mark displays next to the selection.Note: The select contact must have an email as part of their details screen.4. Tap Done.5. Select an email account type.6. Compose the email and tap Send.
DRAFT Internal Use OnlyContacts 93Export/ImportFor more information, refer to “Copying Contact Information” on page 90.Contact List SettingsFrom this menu you can determine the default storage location for Contacts, display your phone’s primary number, and view service numbers listed in your Contact list.1. From the Home screen, tap .2. Press and then tap Settings. Configure any of the following options:• Only contacts with phones allows you to display only those contacts containing phone numbers.•List by defines how the current list of Contacts are sorted: First name or Last name.• Display contacts by defines how the current list of Contacts are listed: First name (ex: Steve Smith) or Last name first (Smith, Steve).• Service numbers lists the currently available service numbers.• Contact sharing settings allows you configure how your Contacts entries are sent: individually or as a single file containing all available entries. Tap Settings to select a share setting.–Send all namecards allows you to set your Contact sharing option to all so that your entire Contacts entries are sent as a group and not as multiple single files. If all your entries are selected only a single file is sent.Note: Your destination device must support this feature or no entries will be received by the external device.–Send individual namecards allows you to set your default to send individual contacts one at a time. Even if you select all your entries, each is sent individually.
DRAFT Internal Use Only94GroupsThis feature allows you to add a new or existing contact to a call group. This group can be one of the already present groups (Family, Friends, or Work) or a user-created group.Creating a New Caller Group1. From the Home screen, tap ➔ (Groups tab).2. Press and then tap Create.3. Tap the Group name field and use the on-screen keypad to enter a new group name. For more information, refer to “Text Input Methods” on page 73.4. Tap Group ringtone and select a ringtone for the group. Selections are: Default ringtone, Ringtones (select from available ringtones) or Add (to navigate your device and select an existing audio file).5. Tap Message alert and select a message alert ringtone to be associated with this group. 6. Tap Vibration pattern and select a unique vibration pattern either from an available list or Create your own. This pattern is then associated with this group. 7. Tap Add member to add Contacts to the new group.8. From the available list of contacts, tap the contact(s) you want to add. A check mark displays next to contact entry. Then tap Done.– or –Tap Select all to place a check mark alongside all current entries. Then tap Done.9. Tap Save to store the newly created group.Note: Some externally maintained group types (such as Google) can only be managed or updated remotely online vs via the device. These external types will not allow editing or deleting members locally via the phone.Adding an Existing Entry to a Current Caller Group1. From the Home screen, tap ➔ (Groups tab).2. Tap a group entry ➔ (Add group member).3. From the available list of contacts, tap the contact(s) you want to add. A check mark displays next to contact entry.+
DRAFT Internal Use OnlyContacts 954. Tap Done. The selected contacts are added to the group.Removing an Entry From a Caller Group1. From the Home screen, tap ➔ (Groups tab).2. Tap a group entry.3. Press and then tap Remove member.4. Tap all of the contacts you want to remove from this group. A check mark displays next to contact entry.5. Tap Done.The contacts are removed from the group.Editing a Caller GroupTo edit a Group entry, there must be at least one member as part of the selected group.1. From the Home screen, tap ➔ (Groups tab).2. Touch and hold a group entry then select Edit group.3. Make modifications to the Group name, Group ringtone, Message alert, Vibration pattern fields, or Add member. 4. Tap Save.Deleting a Caller Group1. From the Home screen, tap ➔ (Groups tab).2. Press and then tap Delete groups.3. Select either Select all or tap the desired group. 4. Tap Delete.5. Select either the Group only or Group and group members.6. Tap OK.Sending a Message to a Group 1. From the Home screen, tap ➔ (Groups tab).2. Tap an existing group, and press and then tap Send message. – or –Touch and hold a group entry and select Send message.3. Select the recipients of the new message (indicated by a green check mark). If an entry contains multiple phone numbers, each must be selected individually.4. Tap Done.

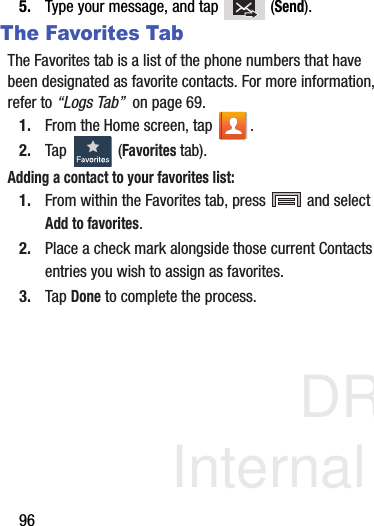

DRAFT Internal Use Only965. Type your message, and tap (Send).The Favorites TabThe Favorites tab is a list of the phone numbers that have been designated as favorite contacts. For more information, refer to “Logs Tab” on page 69.1. From the Home screen, tap .2. Tap (Favorites tab). Adding a contact to your favorites list:1. From within the Favorites tab, press and select Add to favorites.2. Place a check mark alongside those current Contacts entries you wish to assign as favorites.3. Tap Done to complete the process.
DRAFT Internal Use OnlyMessages 97Section 6: MessagesThis section describes how to send or receive different types of messages. It also explains the features and functionality associated with messaging.Types of MessagesYour phone provides the following message types:• Text Messages • Multimedia (Picture, Video, and Audio) Messages • Email and Gmail Messages• Hangouts• Messenger• ChatONThe Short Message Service (SMS) lets you send and receive text messages to and from other mobile phones or email addresses. To use this feature, you may need to subscribe to your service provider’s message service.The Multimedia Messaging Service (MMS) lets you send and receive multimedia messages (such as picture, video, and audio messages) to and from other mobile phones or email addresses. To use this feature, you may need to subscribe to your service provider’s multimedia message service.Important! During the creation of a text message, adding an image, sound file, or video clip automatically changes it from a text message (SMS) to a multimedia message (MMS).Message Icons on the Status BarMessaging icons are displayed on the Status Bar at the top of the display when new messages are received. For more information, refer to “Status Bar” on page 24.Note: The Messages application can also be accessed by pressing and then tapping (Apps) ➔ (Messages).
DRAFT Internal Use Only98Creating and Sending Messages1. From the Home screen, tap (Messages) ➔ (Compose).2. Tap the Enter recipient field to manually enter a recipient.– or –Tap to select from one of the following:•Groups: to select a recipient from the Group list.•Favorites: to select a recipient from the Favorites list.•Contacts: to select a recipient from your Contacts list (valid entries must have a wireless phone number or email address).•Logs: to select a recipient from a list of recently sent messages.3. If adding a recipient from these categories, tap the contact to place a check mark then tap Done. The contact displays in the recipient field.Note: Delete any unnecessary members by tapping their name/number in the recipient area and selecting Delete.4. Add more recipients by tapping either the Enter recipient field or and selecting recipients.5. Tap the Enter message field and use the on-screen keypad to enter a message. For more information, refer to “Text Input Methods” on page 73.6. Tap (Attach) to add an attachment to your message and select one of the following options:•Image: allows you to tap an existing image from your Pictures list to add it to your message.•Take a picture: allows you to temporarily exit the message, take a photo with phone’s camera, and then add it to your message by tapping Save.•Video: allows you to choose an existing video from the Videos list, then add it to your message.•Record video: allows you to temporarily exit the message, record a video clip using the phone’s camera, and then add it to your message by tapping Save.•Audio: allows you to choose an existing audio file from the Audio list, then add it to your message by tapping the circle to the right of the audio so that it turns green, then tapping Done.
DRAFT Internal Use OnlyMessages 99• Record audio: allows you to temporarily exit the message and record an audio clip using the phone’s microphone. It is then automatically attached to the message.•S Note: allows you to add an S Note that you have created.•Calendar: allows you to add an event from your calendar.•Location: allows you to attach a thumbnail of a map showing your location.•Contacts: allows you to tap on an existing Address Book entry, then add it to your message by tapping Done.7. Review your message and tap (Send).8. If you have more than one recipient, the same text message is sent to all recipients in the Enter Recipients field. Note: If you exit a message before you send it, it will be automatically saved as a draft.Quick Messaging a Number from the Contacts List1. From the Home screen, tap (Contacts). 2. Locate an entry from the Contacts list.3. In a single motion, touch and drag your finger over the number by going to the left. This action addresses a new text message to the selected recipient. Message Options Options before composing a message1. From the Home screen, tap (Messages).2. Before composing a message, from the main Message screen press from the main Messaging screen to display additional messaging options:•Search: allows you to search through all of your messages for a certain word or string of words. Use the on-screen keypad to enter a word or phrase in which to search, then tap . For more information, refer to “Message Search” on page 105.
DRAFT Internal Use Only100• Delete threads: allows you to delete any message thread. Select the messages to delete and a green check mark will appear next to the message. Tap Delete. For more information, refer to “Deleting message threads” on page 105.• Draft messages: displays the draft messages folder and its contents.• Locked messages: displays the locked messages folder and its contents.• Scheduled messages: displays the scheduled messages folder and its contents.• Spam messages: displays the spam messages folder and its contents.• Text templates: displays your available text message reply templates. For more information, refer to “Text Templates” on page 111.• Settings: allows you to access Messaging settings. For more information, refer to “Messaging Settings” on page 106.3. From the Messaging screen list, touch and hold an on-screen message and select an option:• Add to contacts: allows you to add the sender to either a new or existing Contacts entry.•View contact: allows you to view the current entry information for the sender.•Delete: deletes the entire message and its bubbles. • Add to spam numbers: allows you to tag a number as spam so that these messages can be directly delivered to your spam folder.

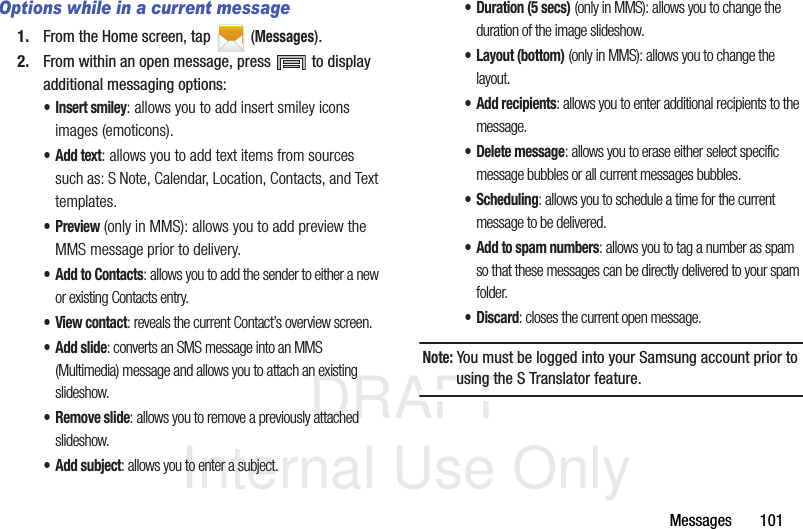

DRAFT Internal Use OnlyMessages 101Options while in a current message1. From the Home screen, tap (Messages).2. From within an open message, press to display additional messaging options:•Insert smiley: allows you to add insert smiley icons images (emoticons).•Add text: allows you to add text items from sources such as: S Note, Calendar, Location, Contacts, and Text templates.•Preview (only in MMS): allows you to add preview the MMS message prior to delivery.• Add to Contacts: allows you to add the sender to either a new or existing Contacts entry.•View contact: reveals the current Contact’s overview screen.• Add slide: converts an SMS message into an MMS (Multimedia) message and allows you to attach an existing slideshow. • Remove slide: allows you to remove a previously attached slideshow.• Add subject: allows you to enter a subject.• Duration (5 secs) (only in MMS): allows you to change the duration of the image slideshow.• Layout (bottom) (only in MMS): allows you to change the layout.• Add recipients: allows you to enter additional recipients to the message.• Delete message: allows you to erase either select specific message bubbles or all current messages bubbles.• Scheduling: allows you to schedule a time for the current message to be delivered.• Add to spam numbers: allows you to tag a number as spam so that these messages can be directly delivered to your spam folder.•Discard: closes the current open message.Note: You must be logged into your Samsung account prior to using the S Translator feature.
DRAFT Internal Use Only102•Translate: launches a Translate popup menu. Here you can both assign the sender’s original language and assign a target language for the recipient (they will receive your message in the designated language).–Enable the translate feature then configure the available options as desired. Tap OK to store the new settings.Adding Additional TextYou can copy text such as names, phone numbers, and events from your Contacts, Calendar, or a Memo.1. While composing a message, press ➔ Add text.2. At the Add text screen, select one of the following:•S Note: allows you to insert text from an existing S Note.•Calendar: allows you to add the name, date, and time of a calendar event to your message.•Location: allows you to add an address and the link to the location on Google Maps.•Contacts: allows you to add the name and phone number of any of your contacts to your message.• Text templates: allows you to add pre-defined phrases and sentences. For more information, refer to “Text Templates” on page 111.The information is added to your message.

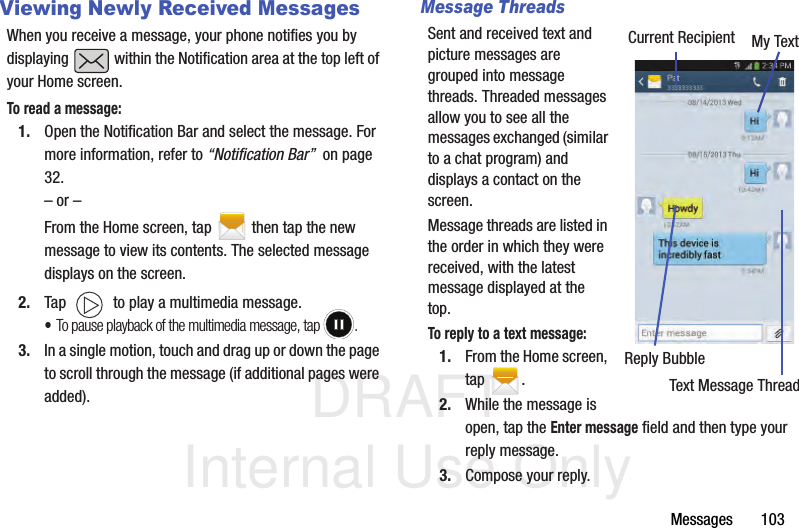

DRAFT Internal Use OnlyMessages 103Viewing Newly Received MessagesWhen you receive a message, your phone notifies you by displaying within the Notification area at the top left of your Home screen. To read a message:1. Open the Notification Bar and select the message. For more information, refer to “Notification Bar” on page 32.– or –From the Home screen, tap then tap the new message to view its contents. The selected message displays on the screen.2. Tap to play a multimedia message.•To pause playback of the multimedia message, tap .3. In a single motion, touch and drag up or down the page to scroll through the message (if additional pages were added).Message ThreadsSent and received text and picture messages are grouped into message threads. Threaded messages allow you to see all the messages exchanged (similar to a chat program) and displays a contact on the screen. Message threads are listed in the order in which they were received, with the latest message displayed at the top.To reply to a text message: 1. From the Home screen, tap .2. While the message is open, tap the Enter message field and then type your reply message.3. Compose your reply.Current Recipient My TextReply BubbleText Message Thread
DRAFT Internal Use Only1044. Tap (Send) to deliver your reply.– or –Press and then select one of the available message options (page 99).To access message thread options: From the main Messaging screen, touch and hold the message to display the following options:•View contact: displays the Contact’s Overview page.•Add to contact: begins the process of adding the new number to your Contacts list.• Delete thread: deletes the currently selected message thread.• Add to spam numbers: adds the current sender to a spam list. ny new texts from this sender are automatically blocked.To access additional Bubble options: Touch and hold the message bubble within an active message conversation to display the following options:•Delete: deletes the currently selected message bubble from the thread.•Copy: copies the currently selected message bubble from the thread.•Forward: allows you to forward the currently selected message bubble to an external recipient.•Lock/Unlock: locks or unlocks the currently selected message bubble from being accidentally deleted.•Share: allows you to share the contents of the currently selected bubble. Choose from Add to Dropbox, Bluetooth, ChatON, Email, Evernote - Create Note, Flipboard, Gmail, Google, Hangouts, Messages, S Note, Scrapbook, or Wi-Fi Direct.•Copy to SIM: copies the currently selected message bubble as a single text message within the SIM card.• View message details: displays details for the currently selected message bubble.
DRAFT Internal Use OnlyMessages 105•Translate: translates the text from the currently selected bubble into a desired language.Deleting MessagesDeleting message threads1. From the Home screen, tap .2. Touch and hold a message from the Messages list, then select Delete.– or –Press and then tap Delete threads, tap each message thread you want to delete, and tap Delete.Deleting message bubbles1. From the Home screen, tap .2. Open a message to reveal the message string.3. Touch and hold a message bubble, then select Delete.Message SearchYou can search through your messages by using the Message Search feature.1. From the Home screen, tap .2. Press and then tap Search.3. Use the on-screen keypad to enter a word or phrase in which to search, then tap .4. All messages that contain the entered search string display.
DRAFT Internal Use Only106Messaging SettingsTo configure the settings for text messages, multimedia messages, Voice mails, and Push messages.1. From the Home screen, tap .2. Press and then tap Settings.The following Messaging settings are available within the following available tabs:General TabGeneral settings• Delete old messages: deletes old messages when the limit is reached, rather than overwriting them.• Text message limit: allows you to set a limit on how many text messages are allowed in one conversation.• Multimedia message limit: allows you to set a limit on how many multimedia messages are allowed in one conversation.Display• Bubble style: allows you to choose from several bubble styles for your messages. Bubbles are the rounded boxes that surround each message.• Background style: allows you to choose from several background styles for your messages.•Split view: when in Landscape mode, allows you to view both the message list and the contents of the currently selected message.• Use the volume key: allows you to change the text size by using the up or down volume keys.Signature settings• Add signature: when enabled, this feature allows you to create a signature at the end of your outgoing text messages.• Signature text: allows you to enter a desired signature for your message.SMS/MMS TabText message (SMS) settings• Delivery reports: when this option is activated, the network informs you whether or not your message was delivered.• Manage SIM card messages: allows you to manage the messages stored on the SIM card.• Message center: allows you to enter the number of your message center where your messages reside while the system is attempting to deliver them.
DRAFT Internal Use OnlyMessages 107• Input mode: allows you to set the input mode for your text messages. Choose from: GSM Alphabet, Unicode, or Automatic.Multimedia message (MMS) settings• Delivery reports: when this option is activated, the network informs you whether or not your message was delivered.•Read reports: when this option is activated, your phone receives a request for a read reply along with your message to the recipient.•Auto retrieve: allows the message system to automatically retrieve messages.• Roaming auto retrieve: allows the message system to automatically retrieve while roaming.•Creation mode: allows you to select the creation mode: Free, Restricted, or Warning.–Restricted: you can only create and submit messages with content belonging to the Core MM Content Domain.–Warning: the phone will warn you via pop up messages that you are creating a multimedia message which does not fit the Core MM Content Domain.–Free: you may add any content to the message.• MMS alert: alerts you when the messaging modes changes from an SMS (text) to MMS (multimedia) mode.More TabPush message settings• Push messages: allows you to receive push messages from the network.• Service loading: allows you to set the type of service loading notification. Choose from: Always, Prompt, or Never.Notification settings• Notifications: allows you to see message notifications on your status bar.• Select ringtone: allows you to set the ringtone for your message notifications.•Vibrate: allows you to configure the vibration mode associated with message alerts. • Message alert repetition: allows you to set the interval for new message alerts. Choose from: Once, Every 2 minutes, or Every 10 minutes.• Preview message: when enabled, allows you to view a brief preview of new message text on the Status bar.
DRAFT Internal Use Only108Emergency message settings• Emergency alerts: allows you to configure emergency alert settings. You can enable/disable those alert categories you wish to receive. Choose from: Imminent extreme alert, Imminent severe alert, and AMBER alerts.Note: The Presidential alert can not be disabled.• Emergency notification preview: allows you to play a sample emergency alert tone. Tap Stop to cancel the playback.Spam message settings• Spam settings: when enabled, allows you to configure available spam settings such as:–Add to spam numbers: allows you to manually enter and assign a phone number as being sent from a spam source.–Add to spam phrases: allows you to assign a specific text phrase as belonging to a spam message. Ex: Dear friend.–Block unknown senders: when active, automatically blocks incoming messages from unknown sources or blocked numbers.Emergency Alert ConfigurationThis device is designed to receive wireless emergency alerts from the Commercial Mobile Alerting System (CMAS); which may also be known as the Personal Localized Alerting Network (PLAN). If your wireless provider has chosen to participate in CMAS/PLAN, alerts are available while in the provider's coverage area. If you travel outside your provider's coverage area, wireless emergency alerts may not be available. For more information, please contact your wireless provider.Emergency Alerts allows customers to receive geographically-targeted messages. Alert messages are provided by the US Department of Homeland Security and will alert customers of imminent threats to their safety within their area. There is no charge for receiving an Emergency Alert message.

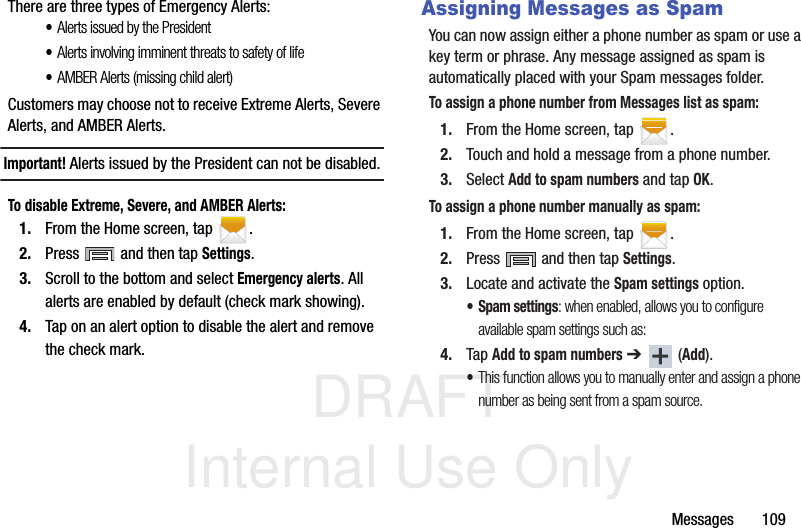

DRAFT Internal Use OnlyMessages 109There are three types of Emergency Alerts:•Alerts issued by the President•Alerts involving imminent threats to safety of life•AMBER Alerts (missing child alert)Customers may choose not to receive Extreme Alerts, Severe Alerts, and AMBER Alerts. Important! Alerts issued by the President can not be disabled.To disable Extreme, Severe, and AMBER Alerts:1. From the Home screen, tap .2. Press and then tap Settings.3. Scroll to the bottom and select Emergency alerts. All alerts are enabled by default (check mark showing). 4. Tap on an alert option to disable the alert and remove the check mark.Assigning Messages as SpamYou can now assign either a phone number as spam or use a key term or phrase. Any message assigned as spam is automatically placed with your Spam messages folder.To assign a phone number from Messages list as spam:1. From the Home screen, tap .2. Touch and hold a message from a phone number.3. Select Add to spam numbers and tap OK.To assign a phone number manually as spam:1. From the Home screen, tap .2. Press and then tap Settings.3. Locate and activate the Spam settings option.• Spam settings: when enabled, allows you to configure available spam settings such as:4. Tap Add to spam numbers ➔ (Add).•This function allows you to manually enter and assign a phone number as being sent from a spam source.
DRAFT Internal Use Only1105. Tap the Number field to manually enter phone number.– or –Tap to select from either your existing Logs or Contacts.– or –Tap Match criteria and select a parameter that must match for the spam action to take effect. Choose from: Same as, Starts with (ex: 800 or 888), Ends with, or includes.6. Tap Save. To register text phrases as spam:Some incoming messages might not be associated with a phone number but rather an email address. In these cases, the only way to block those messages, would be assign a key used term or phrase to activate the Spam block. Ex: “Dear friend”, “Stock Alert”, or “Act Now”.1. From the Home screen, tap .2. Press and then tap Settings.3. Locate and activate the Spam settings option.4. Tap Add to spam phrases ➔ (Add).•This function allows you to assign a specific text phrase as belonging to a spam message. Ex: Dear friend.5. Enter a term or word into the field.Note: The term is case sensitive. Ex: “Act Now” is not the same as “act now”.6. Tap Save. To register unknown numbers as spam:Some incoming messages might not be associated with either a phone number or email address. These incoming messages contain no information as their info is blocked by the sender.1. From the Home screen, tap .2. Press and then tap Settings.3. Locate and activate the Spam settings option.4. Tap Block unknown senders. A green check mark indicates the feature is active. • Block unknown senders: when active, automatically blocks incoming messages from unknown sources or blocked numbers.
DRAFT Internal Use OnlyMessages 111If an incoming message is designated in coming from an unknown sender, it is automatically assigned as spam and is now located in your Spam folder.Accessing Your Spam FolderAny message assigned as spam is automatically placed with your Spam messages folder.1. From the Home screen, tap .2. Press and then tap Spam messages.Text TemplatesThis screen displays your available text message reply templates. This is a readily accessible list of both default and user-defined text snippets that can be used to quickly reply to incoming messages.1. From the Home screen, tap .2. From the Messaging list, press and then tap Text templates.3. Tap a message to immediately insert it into your current message conversation.To create your own text template:1. From the Home screen, tap .2. From the Messaging list, press and then tap Text templates.3. Tap (Create text template).4. Enter a new text string and tap Save.Using EmailEmail (or Internet Email) enables you to review and create email using several email services. You can also receive text message alerts when you receive an important email. Your phone’s Email application lets you access and manage multiple email accounts simultaneously in one convenient location.There are currently three main types of email accounts on your phone: Gmail, Internet-based email (Gmail, Yahoo, etc..), and Microsoft Exchange (Corporate email or Outlook®).To send and receive email messages through an ISP (Internet Service Provider) account, or if you wish to use your device to access your corporate email through a VPN (Virtual Private Network), you will first need to set up an IMAP or POP account.
DRAFT Internal Use Only112• IMAP (Internet Message Access Protocol) - This protocol is frequently used in large networks and commercial settings. IMAP4 is the current standard.• POP3 (Post Office Protocol) - This protocol is supported by most ISPs (Internet service providers) and common among consumer applications. POP3 is the current standard.• Microsoft Exchange ActiveSync - This protocol is frequently used with a large corporate email server system and provides access to email, contact, and calendar synchronization.Creating an Internet Email Account1. From the Home screen, tap (Apps) ➔ (Email). 2. If you already have other email account setup:•Open an existing email account, press and then tap Settings ➔ (Add account). – or –Enter your Email address and Password information. • Email address: your Internet email address.• Password: typically your network access password (case-sensitive).3. Tap Show password to display the password as you enter it in the associated field.•Tap Manual setup to configure your connection settings manually (POP3 or IMAP). Follow the on-screen prompts and enter the information specific to your email provider.•Tap Send email from this account by default to assign this email account as your default account for all outgoing emails.4. Tap Next.
DRAFT Internal Use OnlyMessages 1135. At the Account options screen, select the frequency which the device should check for new email on the server and tap Next.Important! The Sync Email feature must be enabled to allow synching between your device and the remote server.•Tap the Notify me when email arrives field to receive new email notifications.•Tap the Automatically download attachments when connected to Wi-Fi field to assist with faster access to large email attachments when using Wi-Fi.6. At the Set up email screen, name the account and enter a screen name to identify yourself on this account. •The unique account name is used to differentiate this account from other email accounts accessed by your device.7. Tap Done to store the new account.Messages for this account display on the Inbox tab. You can also view Personal information for this account, Receipts (if you setup the account to return receipts), Travel information, and more (if available).Opening an Email1. From the Home screen, tap ➔ (Email). 2. Tap (account name field upper-left) to open the complete email account list page. •Selecting Combined view allows you to view all the emails for your current accounts, managed by the application, to be listed on a single screen.3. Select an email account and tap an email message.Account nameAccess availableaccounts andfoldersEmail functions
DRAFT Internal Use Only114Refreshing Email messages1. From the Home screen, tap ➔ (Email).2. Select an email account.•If you are already in an email account, tap the account name field (upper-left) to open the complete email account list page.•Select an available email account.3. Tap (Refresh).Composing Email1. From the Home screen, tap ➔ (Email).2. Tap (account name field upper-left) to open the complete email account list page. 3. Tap Inbox ➔ (Compose).4. Enter the recipient’s email address in the To field.•If you are sending the email message to several recipients, separate the email addresses with a comma. You can add as many message recipients as you want.5. Tap Cc/Bcc to add additional carbon copy and blind copy recipients.•Use the Cc field to carbon copy additional recipients.•Use the Bcc field to blind copy additional recipients.6. Tap the Subject field and enter the email subject.7. Tap the email text field and compose your email message.•To add an attachment (such as image, video, audio, etc..), tap Attach (from the top of the screen) and make a category selection.–Tap the file you wish to attach.–Tap to delete the attached file.Note: If you attach an image to your email, you have the option to resize it prior to delivery. Choose from: Original, Large (70%), Medium (30%), or Small (10%). Once chosen, tap either Always or Just once.8. Tap (Save) to store a draft of the current email on your device so that you can come back later and continue the email.9. Tap (Delete) to discard the current email.10. Once complete, tap (Send).
DRAFT Internal Use OnlyMessages 115Configuring Email Settings1. From the Home screen, tap ➔ (Email).2. Select an account.3. Press and then tap Settings and alter any of the following General settings:•Display: allows you to configure the way in which your email list is displayed. Options include: Auto fit content, Message preview line, and Title line list.• Composing and sending: allows you to configure the functions available during both creating and sending emails. Options include: Quick responses, Default image size, Delay email sending.•Auto advance: allows you to assign an action after an email is deleted. Choose from: Next email, Previous email, or Email list.• Confirm deletions: requires that you provide confirmation before deleting a selected email.•Priority senders: allows you to assign Contacts as priority senders, configure a priority sender inbox, assign email notifications, ringotnes, and vibration patterns for emails from these senders.• Spam addresses: allows you to create a list of spam email addresses.• Rules for filtering: allows you to create and manage filters for emails. Filter parameters include: Filter name, Subject includes, or From.• Split view mode: when in Landscape mode, turns on the split view mode that allows you to view both the message list and the contents of the currently selected message.– or –Press and then tap Settings ➔ Account settings ➔ <Account>. Alter any of the following settings:• Sync settings to configure the following sync options:–Sync Email: enables automatic email synching between your device and the remote server.–Sync schedule: allows you to control the email sync schedule on both Peak and Off-Peak times. –Size to retrieve emails: configures the incoming email size allowed to pass through to your phone automatically without user interaction. Emails with attachments larger than configured will have to be retrieved manually.
DRAFT Internal Use Only116•Signature: lets you attach a customized signature to the bottom of all outgoing emails. –In a single motion touch and slide the Signature slider to the right to turn it on. –Tap the Signature field, change the current text, and tap OK to save the new signature.• Default account: assign this account as the default email account used for outgoing messages. • Password: allows you to update your password to match the information on the email server.• Email notifications: activates the email notification icon to appear within the Notifications area of the status bar when a new email (Gmail, etc..) is received. • Select ringtone: plays a selected ringtone when a new email message is received. •Vibrate: activates a vibration when a new email message is received. 4. Tap the More settings field to access additional options:•Account name: displays your uniquely created account display name. •Your name: displays the name used in the From field of your outgoing email messages. • Always Cc/Bcc myself allows you to include your own email address in either the CC, Bcc, or None fields. Lets you always receive a copy of outgoing emails.•Show images: allows you to view embedded images located within the body of the currently displayed email.• Security options: allows you to enable several security options such as: Encrypt all, Sign all, Create keys, Private keys, Public keys, and Set default key. These security policies could restrict some functions from corporate servers.–Security policy list: lists the current email’s security policy. These policies could restrict some functions from corporate servers.• Number of emails to load: allows you to select the number of on-screen emails to keep loaded on the screen by default.
DRAFT Internal Use OnlyMessages 117• Auto download attachments: allows the device to automatically download email attachments when an active Wi-Fi connection is detected. This process speeds up the process of downloading an emails attachments for offline review by not using a 3G or 4G/LTE network connection.• Auto resend times: enables the device to resend an outgoing email a specified number of times if delivery fails. • Incoming settings: lets you specify incoming email settings, such as Email address, Username, Password, IMAP server, Security type, Port, and IMAP path prefix. • Outgoing settings: lets you specify outgoing email settings, such as SMTP server, Security type, Port, Require sign-in, User name, or Password. Note: Some the above options may not be displayed when using some Internet account types.Microsoft Exchange Email (Outlook)Your device also provides access to your company’s Outlook Exchange server. If your company uses either Microsoft Exchange Server 2003 or 2007, you can use this email application to wirelessly synchronize your email, Contacts, and Calendar information directly with your company’s Exchange server.Setting Up a Microsoft Exchange Email account1. From the Home screen, tap ➔ (Email).Note: If you have already set up an email account and want to add an additional email account, press and then tap Settings ➔ Add account.2. Enter your Email address and Password information. •Tap Show password to display the password as you enter it in the associated field.3. Follow the on-screen instructions.
DRAFT Internal Use Only118Note: If prompted with an on-screen notification that the connection that the “Setup could not finish”, tap Edit details to continue with a manual update of necessary information.Important! Remember to manually place the cursor in the correct spot and enter a Domain name before the “[Domain]\[user name]” entry. Most servers only provide a username.4. Consult your IT Administrator if it is necessary to enable the Use client certification option.5. Identify your new work email account with a unique name (Ex: Work), then tap Done.Opening an Exchange Email1. From the Home screen, tap ➔ (Email).2. Tap the account name field (upper-left) to open the complete email account list page. 3. Select an exchange email account and tap an email message.Refreshing Exchange Email1. From the Home screen, tap ➔ (Email).2. Select an email account.•If you are already in an email account, tap the account name field (upper-left) to open the complete email account list page.•Select an available email account.3. Tap (Refresh).Composing Exchange Email For more information, refer to “Composing Email” on page 114.
DRAFT Internal Use OnlyMessages 119Deleting an Exchange Email Message Touch and hold an email (from your inbox list) and select Delete from the on-screen context menu.– or –With the email message displayed, tap (Delete).Configuring Microsoft Exchange Email Settings1. From the Home screen, press and then tap Settings and then navigate to the Accounts area.2. Tap the Microsoft Exchange account.3. Press and then tap Settings and alter any of the following General settings:• Display settings: allows you to configure the way in which your email list is displayed. Options include: Auto fit content, Message preview line, and Title line list.• Compose and sending: allows you to configure the functions available during both creating and sending emails. Options include: Quick responses, Default image size, Delay email sending.•Auto advance: allows you to assign an action after an email is deleted. Choose from: Next email, Previous email, or Email list.• Confirm deletions: requires that you provide confirmation before deleting a selected email.•Priority senders: allows you to assign Contacts as priority senders, configure a priority sender inbox, assign email notifications, ringotnes, and vibration patterns for emails from these senders.• Spam addresses: allows you to create a list of spam email addresses.• Rules for filtering: allows you to create and manage filters for emails. Filter parameters include: Filter name, Subject includes, or From.• Split view mode: when in Landscape mode, turns on the split view mode that allows you to view both the message list and the contents of the currently selected message.– or –Press and then tap Settings ➔ Account settings ➔ <Microsoft Account>. Alter any of the following settings:• Sync settings to configure the following sync options:–Sync Email: enables automatic email synching between your device and the remote server.
DRAFT Internal Use Only120–Sync schedule: allows you to control the email sync schedule on both Peak and Off-Peak times. –Period to sync email to assign the sync range for your incoming and outgoing email messages between your phone and your external exchange server. How many days worth of email messages should the phone and server synchronize. Choose from: Automatic, All, 1 day, 3 days, 1 week, 2 weeks, or 1 month.–Size to retrieve emails configures the incoming email size allowed to pass through to your phone automatically without user interaction. Emails with attachments larger than configured will have to be retrieved manually.•Signature: lets you attach a customized signature to the bottom of all outgoing emails. –In a single motion touch and slide to the right to turn it on. –Tap the Signature field, change the current text, and tap Done to save the new signature.• Out of office settings allows you to both activate/deactivate your email’s out of office settings, and configure both the start/end dates and your outgoing message.•Default account: assign this account as the default email account used for outgoing messages. • Password: allows you to change your password• Email notifications: activates the email notification icon to appear within the Notifications area of the status bar when a new email is received. • Select ringtone: plays a selected ringtone when a new email message is received. •Vibrate: activates a vibration when a new email message is received. 4. Tap the More settings field to access additional options:• Account name displays the name used by the device to track the account. • Always Cc/Bcc myself allows you to include your own email address in either the CC, Bcc, or None fields. Lets you always receive a copy of outgoing emails.•Show images: allows you to view embedded images located within the body of the currently displayed email.
DRAFT Internal Use OnlyMessages 121• Auto download attachments: allows the device to automatically download email attachments when an active Wi-Fi connection is detected. This process speeds up the process of downloading an emails attachments for offline review by not using a 3G or 4G/LTE network connection.• Auto resend times enables the phone to resend an outgoing email a specified number of times if delivery fails. The default is 3 auto resends. • Folder sync settings allows you to configure the sync settings for various folders such as Inbox, Drafts, Outbox, etc..• Period to sync Calendar assigns a period for your phone to sync calendar events. Choose from: 2 weeks, 1 month, 3 months, 6 months, or All calendar.• Empty server trash: allows you to delete your email account’s trash bin remotely.• In case of sync conflict allows you to assign the master source on emails. If there is a conflict with the current email sync you can assign the server as the main source for all emails (Server has priority) or assign the phone to be the main source and update the server accordingly (Device has priority).•Security options: allows you to enable several security options such as: Encryption, Encryption algorithm, Sign, Sign algorithms, Email certificates, and Security policy list. These security policies could restrict some functions from corporate servers.–Security policy list: lists the current email’s security policy. These policies could restrict some functions from corporate servers.•Sync Contacts synchronizes the contacts between your device and the remote exchange server. •Sync Calendar synchronizes your exchange calendar entries between your device and the remote exchange server. • Sync Task synchronizes your exchange tasks entries between your device and the remote exchange server. • Exchange server settings provides access to the Domain\user name, Password, and Exchange server settings. 5. Press to return to the previous page.
DRAFT Internal Use Only122Section 7: MultimediaThis section explains how to use the multimedia features of your device, including the Camera/Camcorder, Music Player, Samsung Link, and how to manage your photos, images and sounds.You can take photographs and shoot video by using the built-in camera functionality. Your camera produces photos in JPEG format.Important! Do not take photos of people without their permission.Do not take photos in places where cameras are not allowed.Do not take photos in places where you may interfere with another person’s privacy.Note: An SD card is no longer needed to take pictures or shoot video since there is already built-in storage.Note: Using an older or slow microSD card can affect camera performance, especially for video recording.Assigning the Default Storage LocationImportant! Too many users can overlook this storage location until something goes wrong. It is recommended that you verify this location or change it before initiating the use of the camera or camcorder features.1. From the Home screen, tap (Apps) ➔ (Camera).2. Press and then tap Settings ➔ (Settings) and scroll up to the Storage entry.3. Tap this entry and select the desired default storage location for newly taken pictures or videos. Choose from: Device or Memory card.Note: It is recommended that you set the option to Memory card.4. Press to return to the Home screen.
DRAFT Internal Use OnlyMultimedia 123Using the CameraTaking PhotosTaking pictures with your device’s built-in camera is as simple as choosing a subject, pointing the camera, then pressing the camera key.Note: When taking a photo in direct sunlight or in bright conditions, shadows may appear on the photo.1. From the Home screen, tap (Apps) ➔ (Camera).2. Using the device’s main display screen as a viewfinder, adjust the image by aiming the camera at the subject.Note: On your initial activation of the camera, firmware configuration can take up to 1 minute. This is a one time process.3. Before you take a picture, use the Up and Down Volume keys to zoom in or out. You can magnify the picture up to x4 (400 percent).– or –Pinch the screen to zoom out or pinch outwards to zoom in.4. If desired, before taking the photo, you can tap on-screen icons to access various camera options and settings. 5. You can also tap the screen to move the focus to a desired area of interest.6. Tap (Camera) until the shutter sounds. (The picture is automatically stored within your designated storage location (page 122). If no microSD is installed, all pictures are stored on the Device.) For more information, refer to “Camera Options” on page 124.
DRAFT Internal Use Only124Note: Touch and hold to take a burst shot. These are saved using a Fine image quality.Camera OptionsOptions are represented by icons across both sides of the screen. 1. From the camera viewfinder, tap the Mode button to change the mode to one of the following:–Auto: Use this mode to automatically adjust the exposure, color, and brightness settings. This mode allows single image shots or burst shots.–Beauty face: Use this to take photos with lightened faces for gentler images.–Best photo: Use this to take multiple photos in a short time, and then choose the best photos among them. Press the Shutter button to take multiple photos. When Gallery opens, tap and hold thumbnails of photos to save, and tap Done.–Best face: Use this to take multiple group shots at the same time and combine them to create the best possible image. Press the Shutter button to take multiple photos. When Gallery opens, tap the yellow frame on each face, and choose the best individual face for the subject. After choosing a pose for each individual, tap Done to merge the images into a single photo, and tap Save.Dual CameraSelf-portraitEffectsRecord videobuttonCamera modeQuick Settings BatteryChargeImage viewerTakePictureMode (Change)ViewfinderFunctionsMODE
DRAFT Internal Use OnlyMultimedia 125–Sound & shot: Use this mode to enrich pictures by adding background sounds for a few seconds. The background sound is recorded for up to 9 seconds after taking the photo.–Drama: Use this to take a series of photos of a moving object and then merge them together into one image.–Animated photo: Use this to create a picture in which a few selected static objects move by animating objects detected by the device.–Golf: Use this feature to take pictures of a gold swing and then play the pictures back (forwards or backwards).–Rich tone (HDR): Use this to take photos with richer colors and contrasts by merging images taken at different exposure levels.–Eraser: Saves the best of 5 taken pictures and removes any passers by.–Panorama: Use this to take wide panoramic photos. Press the Shutter button to take a photo, and then move the camera in any direction. When the blue frame aligns with the preview screen, the camera automatically takes another shot in the panoramic sequence. To stop shooting, press the Shutter button again.–360 photo: Use this to take a 360-degree pictures that are then used to create a spherical panorama.–Sports: Use this to take fast action photos.–Night: Use this to take brighter, clearer pictures in low light settings without the use of the flash.2. From the top of the camera, the following shortcuts are available for the camera:Focus area: displays the area of the image used as the main focus area. If the image is too close, the square will turn red.Self portrait: allows you to set the front camera so you can take pictures of yourself.Front Camera/Dual Camera: allows you to activate both the front and rear cameras simultaneously. For more information, refer to “Taking Dual Camera Photos” on page 127.
DRAFT Internal Use Only126Quick SettingsTap at the top of the display to quickly change Camera settings. Not all of the following options are available in both still camera and video camera modes. The available options vary by mode. Quick Settings: activates the Quick Settings menu bar from where you can select several additional settings.For more information, refer to “Quick Settings” on page 126.Image viewer: allows you to access the Image viewer and the various viewing options for a selected picture. The last picture you took, will be displayed as a thumbnail in the Image viewer icon.Effects/Downloads: provides access to pre-installed and downloaded effects. Default effects include:No effect, Cartoon, Faded color, Fisheye, Grayscale, Moody, Oil pastel, Rugged, Sepia, Tint, Turquoise, Vignette, Vintage, and Download.Camcorder button: shoots a video when pressed.Camera button: takes a photo when pressed in Camera mode.Mode button: allows you to select from different camera modes.Storage location/Connection Status: indicates the device is connected to an adapter and the current storage location for images (Device or Memory card) on the device.Camera settings: configure Camera settings.Flash: activate or deactivate the flash.Night detection: use this activate/deactivate night detection.Voice control: activate or deactivate the voice control to take photos.MODE
DRAFT Internal Use OnlyMultimedia 127Taking Dual Camera PhotosWith the Dual Camera feature, you can take a picture with both the front and rear cameras at the same time.To take a Dual Camera picture:1. From the camera viewfinder, tap (Dual Camera) located at the top left side of the screen. The camera viewfinder displays an image from the front-facing camera within a mini picture frame on top of the main image displayed from the rear-facing camera.2. Tap (Camera) until the shutter sounds. To resize the front camera image: Touch and hold the mini picture frame until the resize handles appear, then drag a corner to enlarge the image.To reposition the front camera image: Touch and hold the mini picture frame to detach it and then place it in a desired location.Recording mode: select a resolution for videos. Choose from: Normal, Limit for MMS, Slow motion, or Fast motion.Share functions: activate or deactivate the sharing options. Choose from Off, Share Shot, Buddy photo share, ChatON phot share, or Remote viewfinder.Share shot - Shooting mode: lists the current shooting modes available from with the Share Shot mode. Choose from Easy connect, Wi-Fi Direct, or Cancel.Quick Settings: hide Quick settings.

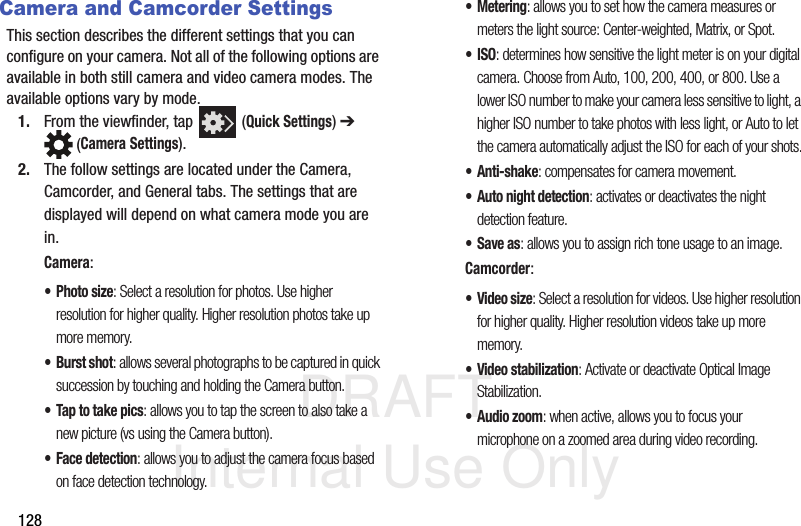

DRAFT Internal Use Only128Camera and Camcorder SettingsThis section describes the different settings that you can configure on your camera. Not all of the following options are available in both still camera and video camera modes. The available options vary by mode.1. From the viewfinder, tap (Quick Settings) ➔ (Camera Settings). 2. The follow settings are located under the Camera, Camcorder, and General tabs. The settings that are displayed will depend on what camera mode you are in.Camera:•Photo size: Select a resolution for photos. Use higher resolution for higher quality. Higher resolution photos take up more memory.• Burst shot: allows several photographs to be captured in quick succession by touching and holding the Camera button.• Tap to take pics: allows you to tap the screen to also take a new picture (vs using the Camera button). • Face detection: allows you to adjust the camera focus based on face detection technology.• Metering: allows you to set how the camera measures or meters the light source: Center-weighted, Matrix, or Spot.•ISO: determines how sensitive the light meter is on your digital camera. Choose from Auto, 100, 200, 400, or 800. Use a lower ISO number to make your camera less sensitive to light, a higher ISO number to take photos with less light, or Auto to let the camera automatically adjust the ISO for each of your shots.•Anti-shake: compensates for camera movement.• Auto night detection: activates or deactivates the night detection feature.• Save as: allows you to assign rich tone usage to an image.Camcorder:•Video size: Select a resolution for videos. Use higher resolution for higher quality. Higher resolution videos take up more memory.• Video stabilization: Activate or deactivate Optical Image Stabilization. • Audio zoom: when active, allows you to focus your microphone on a zoomed area during video recording.

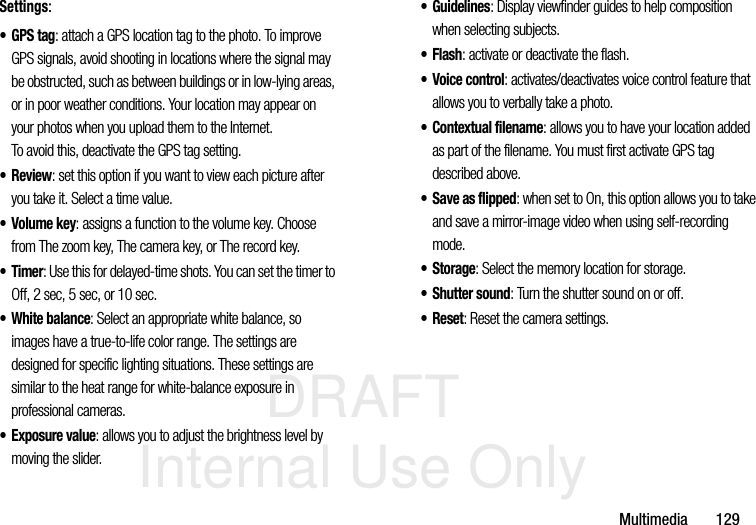

DRAFT Internal Use OnlyMultimedia 129Settings:•GPS tag: attach a GPS location tag to the photo. To improve GPS signals, avoid shooting in locations where the signal may be obstructed, such as between buildings or in low-lying areas, or in poor weather conditions. Your location may appear on your photos when you upload them to the Internet. To avoid this, deactivate the GPS tag setting.•Review: set this option if you want to view each picture after you take it. Select a time value.•Volume key: assigns a function to the volume key. Choose from The zoom key, The camera key, or The record key.•Timer: Use this for delayed-time shots. You can set the timer to Off, 2 sec, 5 sec, or 10 sec.• White balance: Select an appropriate white balance, so images have a true-to-life color range. The settings are designed for specific lighting situations. These settings are similar to the heat range for white-balance exposure in professional cameras.•Exposure value: allows you to adjust the brightness level by moving the slider.• Guidelines: Display viewfinder guides to help composition when selecting subjects.•Flash: activate or deactivate the flash.• Voice control: activates/deactivates voice control feature that allows you to verbally take a photo.• Contextual filename: allows you to have your location added as part of the filename. You must first activate GPS tag described above.•Save as flipped: when set to On, this option allows you to take and save a mirror-image video when using self-recording mode.•Storage: Select the memory location for storage.•Shutter sound: Turn the shutter sound on or off.• Reset: Reset the camera settings.
DRAFT Internal Use Only130Pictures and Videos Image Viewer OptionsAfter you take a photo or record a video, you can access various options.Photo viewing options1. Tap a thumbnail to view the picture.Note: If no control icons are displayed on the screen in addition to the picture, tap anywhere on the screen to display them.2. The following options are available at the top of the screen:• Change player : allows you to select a different AllShare/Samsung Link device from your available list.•Share via : allows you to share the picture via ChatON, Group Play, Add to Dropbox, Bluetooth, Email, Evernote - Create Note, Flipboard, Gmail, Google +, Hangouts, Messages, Pennable, Picasa, S Note, Scrapbook, Sketchbook for Galaxy, and Wi-Fi Direct.•Edit : (in Landscape mode) allows you to edit the current image. Launches the Photo Editor application. For more information, refer to “Editing a Photo” on page 140.• Delete : allows you to delete the current picture.3. Press for additional options such as: –Edit: (in Portrait mode) allows you to edit the current image.–Favorite: allows you to assign the current image as a favorite.–Slideshow: allows you to see your photos in a slideshow.–Photo frame: takes the current image and creates a surrounding photo frame that can be edited with edited text or drawn object, then saved.–Photo note: allows you to write notes on your current image and then save it.–Signature: allows you to edit the current image using the photo editor.–Copy to clipboard: allows you to copy one or more pictures to a different folder.–Print: allows you to print the current image on a compatible Samsung printer.–Rename: allows you to rename the current file.–Buddy photo share: allows you to share the current image with active ChatON buddies.–Rotate left: allows you to rotate the view of the current image in a counterclockwise direction.
DRAFT Internal Use OnlyMultimedia 131–Rotate right: allows you to rotate the view of the current image in a clockwise direction.–Crop: provides an on-screen box that allows you to crop the current picture. Tap Done to update the image with the new dimensions or tap Cancel to ignore any changes.–Set as: allows you to assign the current image as a Contact photo, Home screen, Lock screen, or Home and lock screens.–Scan for nearby devices: scans for nearby DLNA-compliant devices that can receive or display the current image.–Details: files details such as Title, Time, Width, Height, Orientation, File Size, and Path.–Settings: provides access to the Gallery options menu. Choose from SNS data management (Sync only via Wi-Fi), Tags (Tag buddy or Face tag), and Sound & shot (Auto play sound).Video viewing optionsNote: If no control icons are displayed on the screen in addition to the picture, tap anywhere on the screen to display them.1. Tap a video to select it. 2. Tap to play the video.•Share via : allows you to share the video via ChatON, Add to Dropbox, Bluetooth, Email, Evernote - Create Note, Gmail, Google+, Messages, Picassa, S Note. Scrapbook, Wi-Fi Direct, or YouTube.•Trim : activates the Trim feature so that you can edit the length of the current video.• Delete : allows you to delete the current video. Choose either OK or Cancel.3. Press for additional options.Using the CamcorderIn addition to taking photos, the camera also doubles as a camcorder that also allows you to record, view, and send high definition videos.Shooting VideoTip: When shooting video in direct sunlight or in bright conditions, it is recommended that you provide your subject with sufficient light by having the light source behind you.
DRAFT Internal Use Only132Note: The camera may not be able to properly record videos to a memory card with a slow transfer speed.1. From the Home screen, tap (Apps) ➔ (Camera) to activate the camera mode.2. Using the camera’s main display screen as a viewfinder, adjust the image by aiming the camcorder at the subject.3. Before you take a video, use the Volume control buttons to zoom in or out. You can magnify the video up to x4 (400 percent).Note: Use either the Up and Down volume keys or spread/pinch the screen to zoom in or out. For more information, refer to “Navigating Through the Screens” on page 40.4. Tap (Video) to begin shooting video. The red light will blink while recording.5. Tap anywhere on the screen to re-focus the camera on that object. The camcorder auto-focuses on the new target area.6. To capture an image from the video while recording, tap (Take Picture). This feature is not available while the anti-shake feature is activated.7. Tap (Stop) to stop the recording and save the video file to your Camera folder.– or –Tap (Pause) to pause the recording.8. Once the file has been saved, tap the image viewer, then tap (Play) to playback your video for review.9. Press to return to the viewer.
DRAFT Internal Use OnlyMultimedia 133Accessing VideosWhen you shoot a video, the file is saved in the Camera folder. You can view your videos immediately or view them anytime in the Camera folder.1. From the Home screen, tap (Apps) ➔ (Gallery).2. Select a folder location and tap a video icon to begin video playback.3. Tap (Play) to begin video playback.– or –Touch and hold the video icon from the main Gallery to select the video (indicated by a colored border) and display the following video menu context options:•Share via : allows you to share the video via ChatON, Add to Dropbox, Bluetooth, Email, Evernote - Create Note, Gmail, Google+, Messages, Picassa, S Note, Scrapbook, Wi-Fi Direct, or YouTube.• Delete : allows you to delete the current video. Choose either OK or Cancel.– or –Touch and hold a listed video file to place a checkmark alongside and then press for additional options:–Slideshow: allows you to see your files in a slideshow or access the slideshow settings.–Copy: allows you to create a duplicate of the currently selected file.–Move: allows you to move a selected file to a new location.–Create video clip: allows you to edit the current video, apply effects, and create a new video. Create video clips from your pictures. Select pictures from your album, select “create video clip”, choose one of the themes and save.–Rename: allows you to rename the filename of the currently selected video.–Details: displays video file information.– or –With the video displayed on-screen (but not playing), press for additional options:–Favorite: tags the current video as a favorite file.–Slideshow: create a new on-screen slideshow.
DRAFT Internal Use Only134–Rename: allows you to rename the filename of the currently selected video.–Details: displays video file information.–Settings: provide access to the Galley settings page. From this page you can configure the SNS data management and Tag options.Sharing PicturesPictures are the best way of remembering the moment, but an even better treat is to share them with others.Two new features allow you to either instantly share a series of pictures as they are taken or quickly share a picture without using email or messaging.• Share Shot is a great way to instantly share a series of pictures among a group of users. The best example for this feature is having multiple users instantly sharing each others pictures at a company or family gathering. As each person takes a separate picture with their own device, they are all pooled together and instantly appear in each user’s Gallery. No more “Email your pictures to me later”. Each person walks out of the event with all the pictures taken by everyone. This method of image transfer requires that both devices have Wi-Fi Direct active and be paired prior to use.Note: You can only share a shot with other external users who also have their Wi-Fi Direct feature active.• S Beam Transfer uses the NFC (near Field Communication) feature found on your device to transmit large files directly to another compatible device by direct touch. This method of image transfer requires NFC and S Beam to be enabled prior to use.For more information, refer to “Using S Beam to Share Pictures” on page 136.Enabling Share ShotShare shot is a Wi-Fi Direct group sharing feature where multiple users can Wi-Fi connect their devices and then all share each others pictures in real-time. This is really useful in group events (ex: family gathering or company party) where you don’t want to have to email everyone later and make sure you all can share your pics at a later date. For more information, refer to “Wi-Fi Direct Setup and Settings” on page 242.The general process is:•Enable Wi-Fi Direct communication•Pair your device with other users
