Section 1: Getting Started
Understanding this User Manual
The sections of this manual is laid out to assist your with
setup and follow the UI features of your device.
A robust index for features begins on page 65.
Also included is important safety information, beginning on
page 40, that you should know before using your device.
This manual gives navigation instructions according to the
default display settings.
Before using your device for the first time, you’ll need to
install and charge the battery and install the micro SIM card.
The micro SIM card is loaded with your subscription details,
such as your PIN, available optional services, and many other
features.
Unless otherwise specified, all instructions in this manual
assume you are starting from the Home screen.
Note:
Instructions in this manual are based on default settings,
and may vary from your device, depending on the
software version on your device, and any changes to the
device’s Settings.
Unless stated otherwise, instructions in this User Manual
start with the device at the Home screen.
All screen images in this manual are simulated. Actual
displays may vary, depending on the software version of
your device and any changes to the device’s firmware.
DRAFT
Internal Use Only
4
Special Text
Throughout this manual, you’ll find text that is set apart from
the rest. These are intended to point out important
information, share quick methods for activating features, to
define terms, and more. The definitions for these methods
are as follows:
•
Notes
: Presents alternative options for the current feature, menu,
or sub-menu.
•
Tips
: Provides quick or innovative methods, or useful shortcuts.
•
Important
: Points out important information about the current
feature that could affect performance.
•
Warning
: Brings to your attention important information to
prevent loss of data or functionality, or even prevent damage to
your phone.
Text Conventions
This manual provides condensed information about how to
use your phone. To make this possible, the following text
conventions are used to represent often-used steps:
Note:
From the Web portal home screen, select
➔

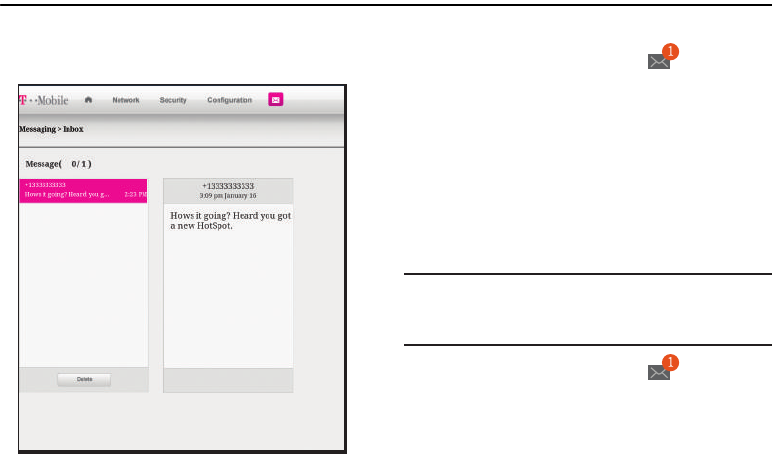

Messaging
tab.
Setting Up Your Device
These steps take you through an out-of-the-box setup
process. These procedures are intended to help you get your
device setup, activated, and assist you with your initial
connection.
➔
Arrows are used to represent the sequence of
selecting successive options in longer, or
repetitive, procedures.
DRAFT
Internal Use Only
Getting Started 5
Removing the Back Cover
1. Hold the device firmly and locate the cover release
latch (1).
2. Place your fingernail in the groove and firmly “pop” the
cover off the device (2).
Important!
Before removing or replacing the battery cover,
make sure the device is switched off. To turn the
device off, hold down the key until the
power-off image displays, then tap
Power off
.
Installing the 4G LTE microSIM Card

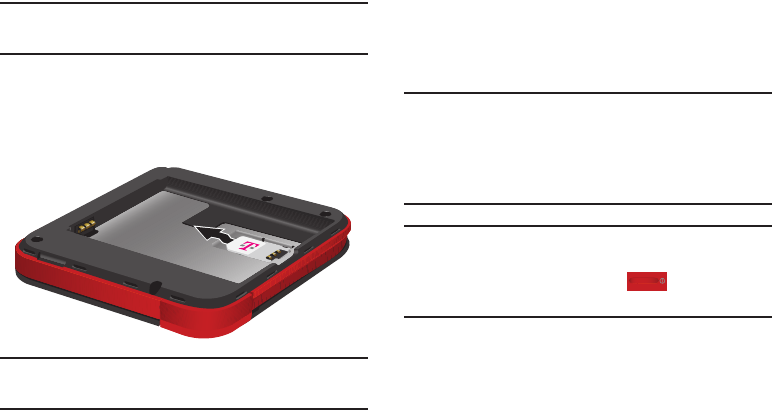

With the battery cover removed, carefully slide the
microSIM card into the SIM card slot until it “clicks”
into place with the label side facing up.
Important!
The 4G LTE microSIM Card MUST remain in the
device when in use.

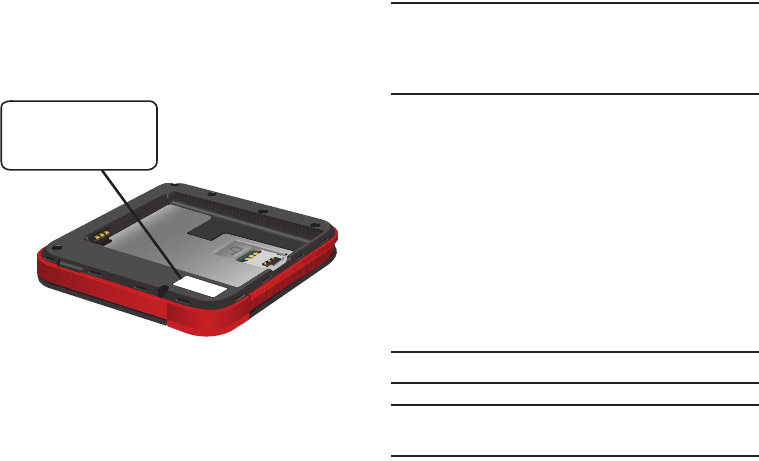

Release Latch
DRAFT
Internal Use Only
6
Caution!
Do not bend or scratch your microSIM Card. Avoid
exposing it to static electricity, water, or dirt.
Removing the 4G LTE microSIM Card
1. Remove the battery and cover (page 7).
2. Carefully slide the 4G LTE SIM card out of the SIM card
socket.
Important!
If your SIM card is ever separated from the device
or damaged, your device will not function.
If you experience any issues with your device, contact
Customer Service at XXX??????? or visit your nearest U.S.
T-Mobile® retail location.

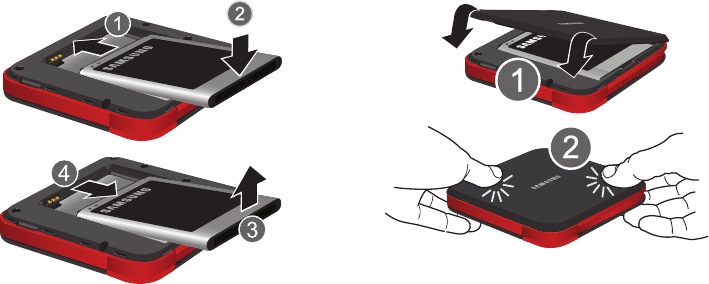

Installing the Battery
Your device is powered by a rechargeable, standard Li-Ion

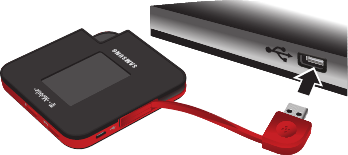

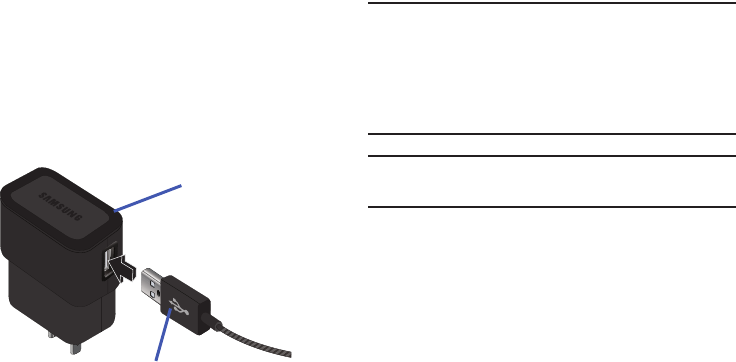

battery. A Wall/USB Charger (Charging Head and USB cable)
are included with the device, for charging the battery.
Note:
The battery comes partially charged. You must fully
charge the battery before using your device for the first
time.
After the first charge, you can use the device while
charging.
Important!
Before removing or replacing the battery cover,
make sure the device is switched off. To turn the
device off, hold down the key until the
power-off image displays, then tap
Power off
.
1. Insert the battery as shown, making sure to align the
gold contacts (1).
2. Press down gently to secure the battery (2).
DRAFT
Internal Use Only
Getting Started 7
Removing the Battery
Grip the battery at the top end (3) and lift it up and out
of the battery compartment (4).
Replacing the Back Cover
1. Position the battery cover over the battery
compartment (1).
2. Press down firmly along the edges of the cover (2).
Installing Battery
Removing Battery
DRAFT
Internal Use Only
8
Charging the Battery
Your device is powered by a rechargeable Li-ion battery. A
wall charger, which is used for charging the battery, is
included with your device. Use only approved batteries and
chargers. Ask your local Samsung dealer for further details.
Before using your device for the first time, you must fully
charge the battery.
Note:
Verify that the battery is installed prior to connecting the
wall charger. If both the wall charger is connected and
the battery is not installed, the device can power cycle
continuously and prevent proper operation. Failure to
unplug the wall charger before you remove the battery,
can cause the device to become damaged.
Important!
It is recommended you fully charge the battery
before using your device for the first time.

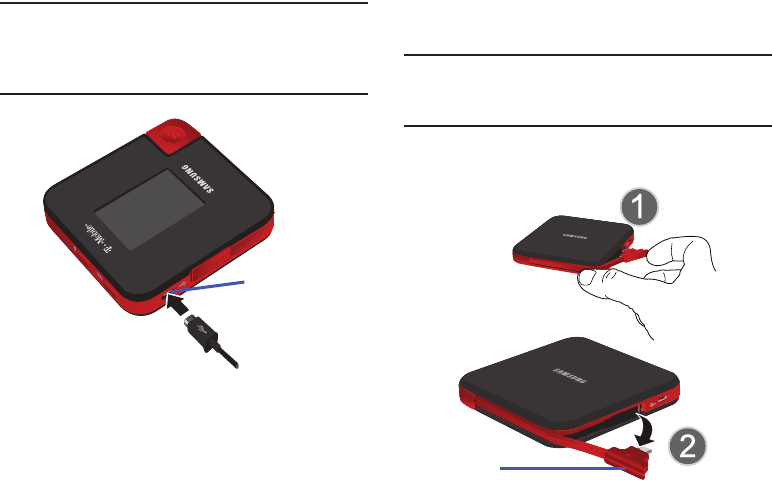

1. Connect the USB cable to the charging head.
2. Locate the Charging port.
3. Insert the USB cable into the device’s Charger/
Accessory jack.
4. Plug the charging head into a standard AC power
outlet. The device turns on and indicates both its
charge state and percent of charge.
Charging Head
USB Cable
DRAFT
Internal Use Only
Getting Started 9
Warning!
While the device is charging, if the screen does not
function due to an unstable power supply unplug the
USB power adapter from the power outlet or unplug
the USB cable from the device.
5. When charging is finished, first unplug the charger’s
power plug from the AC wall outlet, then disconnect
the charger’s connector from the device.
Installing the Optional microSD
Memory Card
Note:
The installation of an optional microSD card can provide
additional storage and access to additional files such as
document, image, and other multimedia content.

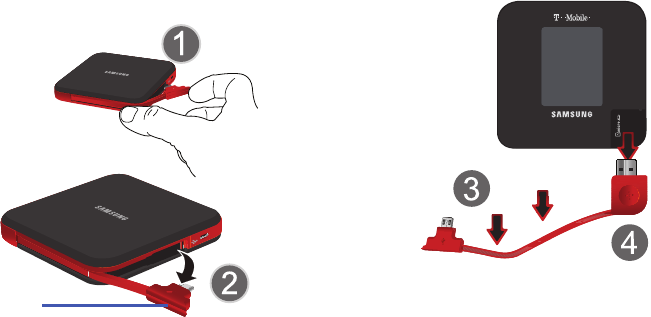

1. Using your fingertip (1), slide the mini USB connector
out from its current location (2).
Charging port
mini USB Cable
DRAFT
Internal Use Only
10
2. Pull the cable all the way round the unit (3) and then
carefully remove the other USB connector from its
slot (4). This action exposes the internal microSD card
slot.
3. Slide the memory card into the card slot until it “clicks”
into place.
4. Replace the USB cable firmly into its corresponding
slot.
5. Pull the cable around the side of the device and
carefully re-insert the mini USB cable back into its
corresponding slot.
USB slot
microSD card slot
DRAFT
Internal Use Only
Getting Started 11

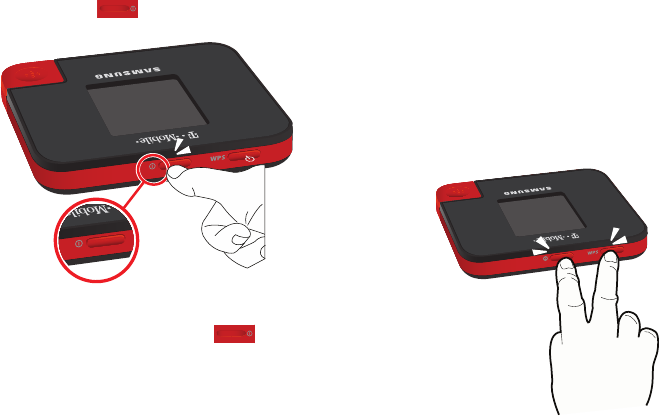

Turning Your Device On and Off
Turning Your Device On
Press and hold (
Power
) to turn the device on.
Turning Your Device Off
With the device on, press and hold (
Power
) to
turn the device off.
Factory Reset of Your Device
Resetting your device restores all factory defaults. You may
need to reset your device if you cannot connect device(s) to
your Wi-Fi HotSpot or can not regain access to the Web
portal.
1. Locate the
Power
and
WPS
buttons along the top of the
device.
2. Press and hold these two buttons for 10 seconds. Once
completed, the power should recycle and the main
screen will re-appear.
DRAFT
Internal Use Only
12
Section 2: Understanding Your Device
This section outlines key features of your device. It also
describes the device’s keys, screen and the icons that
display when the device is in use.
Features of Your Device
Your device is lightweight, easy-to-use and offers many
significant features. The following list outlines a few of the
features included in your device.
•
Delivers data speeds faster than the current 3G network
technology by using 4G LTE
•
Wi-Fi
®
Capability
•
Able to receive and send text messages via Web Portal
•
Expandable memory slot - supports up to XXX???GB microSD
•
Portable Wi-Fi HotSpot and USB Tethering-capability

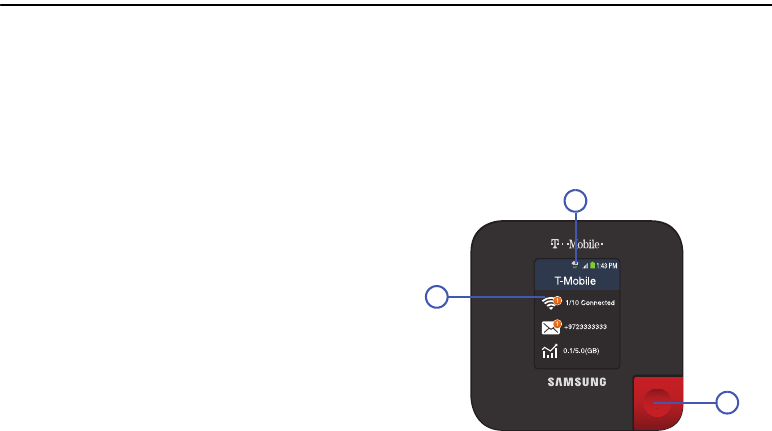

Front View
The following illustrations show the main elements of your
device. The following list correlates to the illustrations.
1.
Notification bar
shows information about the
connection status, signal strength, battery level, and
time, and displays notifications about incoming
messages, calls and other action
3
2
1
DRAFT
Internal Use Only
Understanding Your Device 13
2.
Display
shows all the information needed to operate
your device, such as the connection status, received
signal strength, battery level, connected number of
devices, data usage, and time.
3.
USB Connector
provides a direct connection for
USB-capable devices using this connector type.

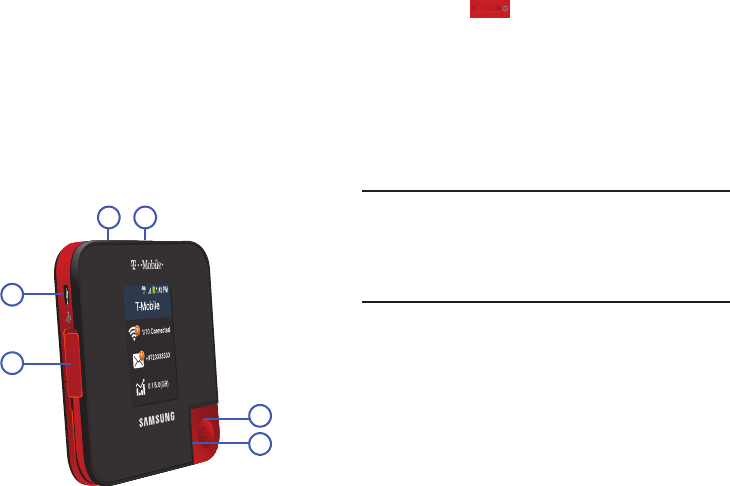

Side Views
The following illustration shows the side elements of your
device:
1.
Power key
ends switches the phone off and on.
2.
WPS key
allows you to pair with devices currently using
a WPS connection. The WPS (Wi-Fi Protected Setup)
feature allows you to pair your WAP-capable device
without the need for entering a passcode. This process
is similar to Wi-Fi Direct pairing.
3.
Charging Port
allows you to connect a compatible
power cable.
Caution!
Please use only an approved charging accessory to
charge your device. Improper handling of the
charging port, as well as the use of an incompatible
charger, may cause damage to your device and void
the warranty.
4.
Mini USB Connector
provides a mini USB for connection
to devices using this type of connector. This provides
your target device with wired Internet access.
5.
microSD Card Slot
(internal) allows you use a microSD
card to expand the memory of your device.
5
3
12
4
6
DRAFT
Internal Use Only
14
6.
USB Connector
provides a USB plug for connection to
devices using this type of connector. This provides your
target device with wired Internet access.
On-Screen Indicators
Displays your current signal strength. The greater
the number of bars, the stronger the signal.
Indicates there is no signal available.
Displays when there is no microSIM card in the
device.
Displays your current battery charge level. Icon
shown is fully charged.
Displays your battery is currently charging.
Shows your current battery only has up to 4%
power remaining and will soon shutdown.
(Charge: ~4% - 1%).
Displays when connected to the 3G network.
Displays when your device is connected to and
communicating with the 3G network.
Displays when connected to the HSPA+ network.
Displays when connected to and communicating
with the HSPA+ network.
Displays when your device is communicating
with the 4G LTE network.
Displays when Wi-Fi is active and indicates the
number of externally connected devices.
Displays when there is a new text message.
Displays your current data usage.
DRAFT
Internal Use Only
Connecting Your Device 15
Section 3: Connecting Your Device
With your new Wi-Fi HotSpot and your computer, a wireless
Internet connection can always be at your fingertips.
System Requirements
If you choose to connect with an external device via a direct
USB cable connection, your target device will need the meet
the following minimum system requirements:
•
One open Type-A USB Port (ex: Laptops, Desktops, etc..)
•
One open mini USB Port (ex: portable devices, mobile phones,
etc..)
Note: The USB Data cable is for charging only
.
Note:
It is recommended the battery be fully charged in order
to use your device via Wi-Fi for the first time, or connect
your device to the AC wall charger for power.
Before You Begin a Connection
Press and hold (
Power
) to turn the device on.
The following should occur once your device turns on:
•
The battery indicator shows a solid green color (if there is more
than a 20% charge.)
•
Once your device has been activated, it automatically connects
to the Internet provided that your cellular network broadband
service is available.
•
Confirm a network indicator icon, such as , appears in
the Notification area at the top of the display. This indicates the
device is in service and ready to connect.
DRAFT
Internal Use Only
16
Initial Connection to Your Device
1. Locate the internal sticker that provides both the
Username and password information for access to the
device’s portal.
2. Enable the Wi-Fi connection on your target device and
begin to scan for available Wi-Fi networks.
3. The VT100 HotSpot appears as a secured device
named: “
T-Mobile Broadband ##
”.
4. Enter the default password located on the sticker to
establish your initial connection.
Note:
The default password is also the last 8-digits of the
device IMEI.
For example: If the IMEI number is “123456
78901234
”,
the password is “78901234”.

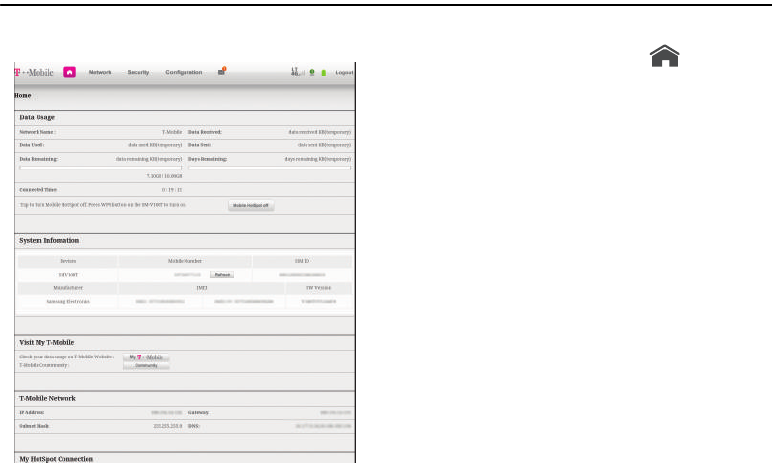

Accessing Your HotSpot via a Browser
1. With your device now connected to the HotSpot, launch
an available Browser on your target device.
2. Within the Browser’s Address field, enter either:
• mobile.hotspot.com
• 192.168.43.1:8080/
3. From the HotSpot’s main Web portal, locate the
Password
field.
4. Enter the HotSpot’s Administrator (Web portal)
password information and click
Apply
.
Note:
The default Administrator password is “
admin
”.
Note:
The default connection state for the HotSpot is secured.
Use the Web portal to configure the various settings.
Username: XXXXXXXXX
Password: XXXXXXXXX
URL: mobile.hotspot.com
Username: XXXXXXXXX
Password: XXXXXXXXX
URL: mobile.hotspot.com
DRAFT
Internal Use Only
Connecting Your Device 17

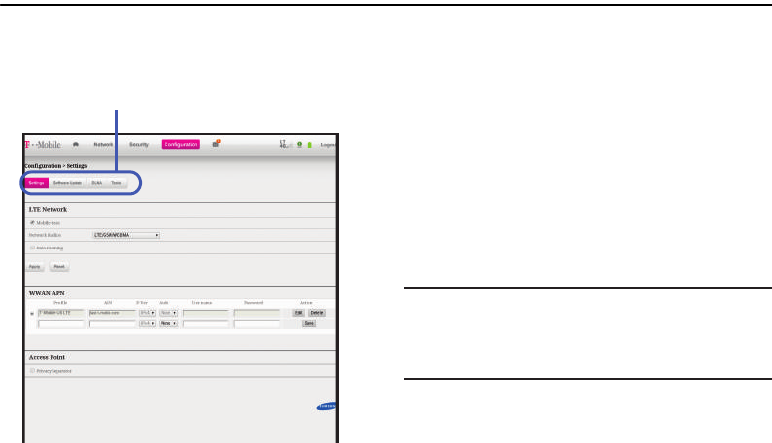

Configuring Your HotSpot
Changing your Web Portal Administrator
Password
Changing this password prevents other users from entering
the default “admin” password and gaining access to your
Web portal and changing the device’s settings.
1. Access the Web portal and select the
Configuration
➔
Tools
tab.
2. Select the
New Password
field and enter your updated
password information.
3. Re-enter your new password within the
Verify New
Password
field.
Caution!
Write down this new administrator password. If you
loose or forget it, you will need to do a Factory Reset
on the device to regain access. For more information,
refer to “Factory Reset of Your Device” on page 11.
4. Click
Apply
.
Changing your Wi-Fi Access Password
This password is different from the administrator password
that provides access to the Web portal. The Wi-Fi password
is used by external devices to gain a connection to the
HotSpot.

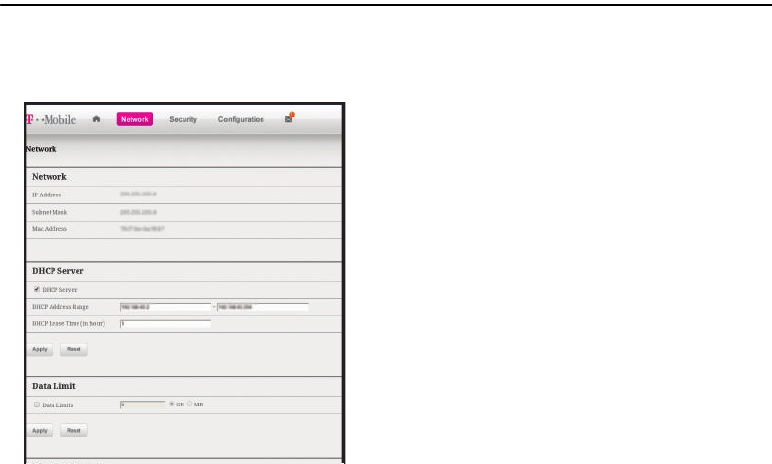

1. Access the Web portal and select
Network
.
2. From the bottom of the screen, tap the
Password
field,
and enter your new password.
3. Click
Apply
. Any currently connected devices will need
to update their connection passwords.
Changing your SSID Name
1. Access the Web portal and select
Network
.
2. Select the
Network Name (SSID)
field.
3. Delete the current information and enter a new name.
4. Click
Apply
. Any currently connected devices will need
to forget their previous connections and reconnect to
the newly named HotSpot.
DRAFT
Internal Use Only
18
Assigning Data Limits
1. Access the Web portal and select
Network
.
2. Tap the
Data Limits
checkbox to enable the feature.
3. Tap the adjacent field, enter a numeric value, and
select either GB (Gigabytes) or MB (Megabytes).
4. Click
Apply
. Once you reach your assigned data limit,
an on-screen notification will appear.
Hiding Your HotSpot
1. Access the Web portal and select
Network
.
2. From the bottom of the screen, tap the
Broadcast SSID
enable
checkbox. Removing the checkmark stops
broadcasting your SSID.
3. Tap the checkbox field again to re-enable SSID
broadcast.
Preparing your HotSpot for File Access
1. Access the Web portal and select (
Home
).
2. Scroll down the page and enable the
Media
device(MTP)
option.
3. Click
OK
.
4. Follow the USB connection procedures described on
page 19.
Files can also be accessed from the internal microSD
memory card by enabling the DLNA functionality. For more
information, refer to “DLNA Tab” on page 35.
DRAFT
Internal Use Only
Connecting Your Device 19
Connecting your Device to the HotSpot
via USB
1. Using your fingertip (1), slide the mini USB connector
out from its current location (2).
2. Pull the cable all the way round the unit (3) and then
carefully remove the other USB connector from its
slot (4).
3. Re-insert the mini USB cable back into its
corresponding port along the side of the device.
mini USB Cable
DRAFT
Internal Use Only
20
4. Locate the USB port on your target device and firmly
insert the HotSpot’s USB plug.
5. Open your computer’s local file browsing application
and locate the connected HotSpot that appears
connected as an external drive.
Factory Reset via the Web Portal
1. Access the Web portal and select the
Configuration
➔
Tools
tab.
2. From the bottom of the screen, select the Factory Reset
button to begin the process of resetting all values back
to their original configuration.
3. Follow the on-screen instructions to complete the
process.
DRAFT
Internal Use Only
Home Page 21
Section 4: Home Page
After accessing the Web portal, the default screen in the
Home page. This page provides overall system information.
Mobile HotSpot Home Page
1. Access the Web portal and select (
Home
).
2. Scroll down the page to review the available
information. The
Home
page Web portal lists the
following basic status information and options:
Data Usage
•
Network Name
: The name of the current cellular provider.
•
Data Received
: For the current Internet connection, the amount
of data received from your Wireless Provider’s network.
•
Data Used
: For the current Internet connection, the amount of
data received through the HotSpot and used by the connected
devices.
•
Data Sent
: For the current Internet connection, the amount of
data sent to your Wireless Provider’s network.
•
Data Remaining
: The amount of data usage remaining. This
values is set by either your current carrier data plan, or via the
Data Limit field.
•
Days Remaining
: The amount of days remaining in your current
monthly period of usage.
DRAFT
Internal Use Only
22
•
Connected Time
: For the current Internet connection, the period
of time which has elapsed since the connection was established.
Data Usage Buttons
•
Mobile HotSpot Off
: This button allows you to turn of the HotSpot
functionality off (this does not turn the device off). Press the
external
WPS
key to re-enable the HotSpot functionality.
System Information
This section provides the information for both the HotSpot
and any currently connected devices such as: Device Names,
Mobile NUmbers, SIM ID, Manufacturer, IMEI, and SW
Version.
Visit My T-Mobile
•
My T-Mobile
: This button allows you to quickly access your
account information via the current Browser.
•
T-Mobile Community
: This button provides ready-access to the
online T-Mobile Community website.
T-Mobile Network
•
IP Address
: The externally accessible IP address assigned to
your Mobile HotSpot.
•
Gateway
: The gateway IP address associated with the IP address
above.
•
Subnet Mask
: The network mask associated with the network
provided IP Address.
•
DNS
: The Domain Name Server currently used by your Mobile
HotSpot.
My HotSpot Connection
•
IP Address
: Internet Protocol address assigned to your Mobile
HotSpot.
•
Security
: The current Wi-Fi security protocol used by the HotSpot.
•
Subnet Mask
: The network mask associated with the current IP
Address.
USB Connection
The USB connection to the HotSpot (via either the USB or
mini USB connectors) can used to either:
•
Access files stored within the internal microSD card
•
Provide a directly connected device with Internet access via the
USB Tethering functionality
1. Select either the
Media device (MTP)
or
USB tethering
option.
2. Click
OK
.
Follow the USB connection procedures described on
page 19.
DRAFT
Internal Use Only
Home Page 23
Connected Devices
This area provides information about those connected
devices.
•
Device Name
: Allows you to rename the current MAC ID
information to something user-defined (ex: Pat’s GS4).
•
Tap
Save
to store the new name association.
•
Tap
Block
to stop connection to the externally connected
device.
•
Tap
Pause
to temporarily halt connection by the external
device.
•
Connection Information
: Displays information about the
currently connected device such as: IP Address, MAC Address,
Connected at and for information.
•
Set Time Limit
: Allows you to set a time limit for connection and
usage by the external device. This action limits how long it can be
connected. Enable the
Set Time Limit
checkbox, enter the
amount of hrs and min, then tap
Save
.
•
Data Usage
: Displays information about the current wireless
device’s data usage during a period of time.
•
Set Data Limit
: Allows you to set a data limit for connection and
usage by the external device. This action limits how much data
can be used by the external device. Enable the
Set Data Limit
checkbox, enter the amount of data in GB and/or MB, then tap
Save
.
DRAFT
Internal Use Only
24
Section 5: Network Page
Your HotSpot provides a wireless Local Area Network (LAN)
that can share access to the 4G or 3G data network. You can
use your Wi-Fi HotSpot’s
Network
pages to configure your
wireless LAN.
Mobile HotSpot Network Page
1. Access the Web portal and select
Network
.
2. Scroll down the page to review the available
information. The
Network
page Web portal lists the
following basic status information and options:
Network
Your Wi-Fi HotSpot is preconfigured to use private IP
addresses on the WAN side, and to act as a DHCP server.
The router's default WAN IP configuration is:
•
IP address
: 192.168.1.1
This is the LAN WAN IP address of the router.
•
Subnet mask
: 255.255.255.0
This is the LAN WAN Subnet Mask of the Mobile HotSpot router.
Combined with the IP address, the IP Subnet Mask allows a
device to know which other addresses are local to it, and which
must be reached through a gateway or other router.
DRAFT
Internal Use Only
Network Page 25
Note:
These addresses are part of a private address range for
use in private networks, and should be suitable in most
applications. If your network has a requirement to use a
different IP addressing scheme, you can make those
changes in this menu.
•
MAC Address
(display only): Displays the device MAC address.
DHCP Server
When enabled, the DHCP (Dynamic Host Configuration
Protocol) server allows your Mobile HotSpot to acquire
network configuration settings from your Wireless Provider’s
network automatically.
•
DHCP Server enable
: Click or touch to enable.
•
DHCP Address Range
: The range of IP addresses reserved for
use by the HotSpot’s DHCP server table. If a device with a static IP
address wants to connect to Mobile HotSpot’s network, the static
IP should be outside of the DHCP address range. Most devices do
not have a static IP.
•
DHCP Lease Time (in hour)
: Enter a value to assign a minimum
amount of time (in hours) for which the DHCP server will retain
the IP Address that will be allocated to a particular device.
DHCP Server Buttons
•
Apply
: Select to update the settings and apply them.
•
Reset
: Select to revert the settings to their previous values.
Data Limit
•
Data Limit
: Allows you to set a data limit for connected devices
on your current network. This action limits how much data can be
used by the external device. Enable the
Data Limits
checkbox,
enter the amount of data in GB and/or MB, then tap
Apply
.
Data Limit Buttons
•
Apply
: Select to update the settings and apply them.
•
Reset
: Select to revert the settings to their previous values.
DRAFT
Internal Use Only
26
Wi-Fi Configuration
Wi-Fi is a branded standard for wireless connecting
electronic devices. A Wi-Fi device, such as a personal
computer, video game console, smartphone, or digital audio
player can connect to the Internet via a wireless network
access point. The Wi-Fi HotSpot has a range of about
45 meters (150 feet) indoors and a greater range outdoors.
Multiple overlapping access points can cover large areas.
•
Network Name (SSID)
: Displays the network name. Click or
touch the field to enter a network ID.
•
Security
: Security provides different types of security protocols.
The protocols encrypt the data that is going between two points.
Click or touch the drop down menu to select a protocol. Protocols
are listed from least secure to most secure.
•
Password
: Displays the current network password. Click or touch
the field and enter a new password to password-protect access
to your network. WPA provides the highest level of Wi-Fi security,
but older Wi-Fi-enabled devices may not support WPA security.
WEP security is supported by virtually all Wi-Fi-enabled devices.
•
Broadcast Channel
: Click or touch
Auto
for the HotSpot to
automatically choose the best available channel. Click or touch
the drop down menu to select a specific channel. Make this
selection for either the 2.4 GHz or 5GHz bands.
•
Broadcast SSID enable
: Click or touch to enable. When
prompted, select
OK
to complete the section.
–
When enabled, other devices will see the Wi-Fi network access
point name in the list of available wireless networks.
–
When disabled, other devices will not see the Wi-Fi network
access point name in the list of available wireless networks.
Wi-Fi Configuration Buttons
•
Apply
: Select to update the settings and apply them.
•
Reset
: Select to revert the settings to their previous values.
DRAFT
Internal Use Only
Securing Your Device 27

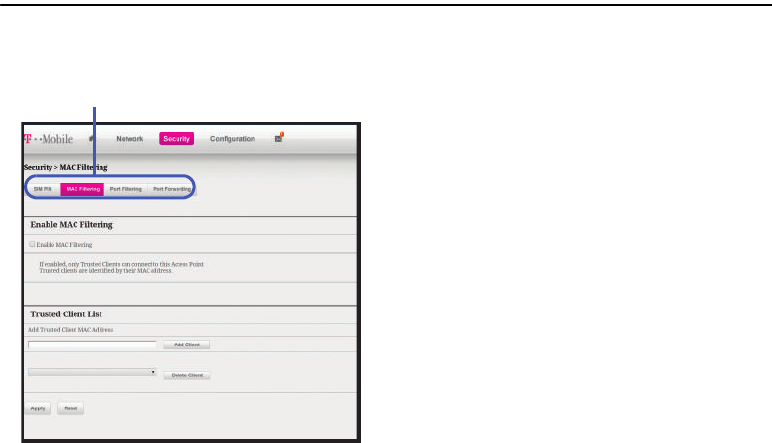

Section 6: Securing Your Device
This section outlines how to enable security features for your
Wi-Fi HotSpot. You can use your Wi-Fi HotSpot’s
Security
tabs
to configure your device’s security options.
Mobile HotSpot Security Page
1. Access the Web portal and select
Security
.
2. Select any of the available tabs and scroll down the
page to review the available information. The
Security
page Web portal lists the following basic status
information and options:
SIM PIN Tab
Prevent another user from using your microSIM card to make
unauthorized use of your data plan or access information
stored on your card by protecting the information with a PIN
code. If the microSIM card is locked, you will need to enter
the PIN code before you can use it.
To lock your SIM card:
1. Access the Web portal and select
Security
➔
SIM PIN
tab.
2. Enable the
Lock SIM Card
checkbox.
3. From the
Enter SIM PIN
field, enter a PIN number then
select
OK
.
Security Tabs
DRAFT
Internal Use Only
28
To unlock your SIM card:
1. Access the Web portal and select
Security
➔
SIM PIN
tab.
2. Enter your existing PIN code.
3. Once accepted, uncheck the
Lock SIM Card
checkbox.
To change your PIN code:
1. Access the Web portal and select
Security
➔
SIM PIN
tab.
2. Tap
Change
.
3. Enter the old SIM PIN code and tap
OK
.
4. Enter the new SIM PIN code and tap
OK
.
5. Re-type the new SIM PIN code and tap
OK
.
MAC Filtering Tab
MAC Filtering prevents unknown Wi-Fi clients from using
your access point. A MAC address is a low-level network ID
which is unique to a device. Access is allowed only for
trusted clients.
Access the Web portal and select
Security
➔
MAC
Filtering
tab.
Enable MAC Filtering
Caution!
Before enabling this feature, ensure that the MAC
address of your own PC or tablet is included in the
Trusted Client list. Otherwise, the HotSpot will
disconnect from your Wi-Fi device, and you won’t be
able to reconnect.
•
Enable MAC Filtering
: Click or touch the checkbox to enable
MAC Address Filtering.
When the featured is enabled only Trusted Clients can connect.
If the MAC address is in the
Trusted Client MAC Address List
,
access is allowed. Otherwise, access is blocked.
DRAFT
Internal Use Only
Securing Your Device 29
•
When this feature is disabled the MAC Address of each Wi-Fi
client is not checked. All clients will be allowed to connect to the
HotSpot as long as they have a valid password.
Note:
Whether enabled or disabled, clients must have the
correct Wi-Fi Security settings to connect.
Trusted Client List
MAC addresses of trusted clients are listed here. If you have
not entered any MAC addresses, this field will be empty.
To add a client to the Trusted Client List:
1. Enter the MAC Address of the trusted device.
2. Select the
Add Client
button.
Caution!
Before enabling MAC Filtering, add the MAC address
of your own PC or tablet to the Trusted Client list.
Otherwise, the HotSpot will disconnect from your
Wi-Fi device, and you won’t be able to reconnect.
To remove a client from the Trusted Client List:
1. Click or tap the drop down menu to select a device.
2. Select the
Delete Client
button.
Note:
On wireless devices, the "MAC address" is called the
"Physical Address". You can check the properties or
status of the wireless device to find the MAC address.
Trusted Client Buttons
•
Add Client
: Select to add the MAC address typed in the
Add
Trusted Client MAC Address
field to the Trusted Client List.
•
Delete Client
: Select to remove a device from the Trusted Client
List.
•
Apply
: Select to save changes made to the list.
•
Revert
: Select to discard changes made to the list.
DRAFT
Internal Use Only
30
Port Filtering Tab
Port Filtering blocks outgoing Internet traffic. When enabled,
only traffic from selected applications can access the
Internet. Traffic type is identified by port number.
Note: DNS (Domain Name Server)
should always be enabled
when using Port Filtering. Without DNS, it is not possible
to convert a Domain name (for example, www.msn.com)
to an IP address. DNS is used by E-mail, FTP, and many
other protocols as well as by Web browsers.
Access the Web portal and select
Security
➔
Port
FIltering
tab.
Enable Port Filtering
•
Enable Port Filtering
: Select the checkbox to enable Port
Filtering.
When the featured is enabled only traffic from selected
applications from the
Allowed Applications
list are allowed
access to the internet.
When the featured is disabled all traffic is allowed to access to the
internet.
Allowed Applications
Enable those applications you wish to give access to the
internet while the Port Filtering feature is enabled. All other
applications will be blocked.
Note: DNS (Domain Name Server)
should always be enabled
when using Port Filtering. Without DNS, it is not possible
to convert a Domain name (for example, www.msn.com)
to an IP address. DNS is used by E-mail, FTP, and many
other protocols as well as by Web browsers.
Custom Applications
Define your own
Allowed Applications
. Define and enable
additional applications.
•
Application Name
: Enter a name for the application you are
defining.
•
Port Range
: Define the ports used by the application. These ports
refer to outgoing traffic.
–
For a single port, enter the port number in both the
Start Port
and
End Port
fields.
–
For a port range, enter the beginning of the range in the
Start
Port
field and the end of the range in the
End Port
field.
DRAFT
Internal Use Only
Securing Your Device 31
–
Up to 5 ports or port ranges can be defined. Use as many rows
as necessary; unused rows can be left blank.
•
Port Type
: For each port range (each row), select the protocol
(TCP, UDP, or both) used by that port range.
Port FIltering Buttons
•
Apply
: When this button is activated, all settings (enabled, name,
port settings) for all applications are saved to this device.
•
Delete
: Select this button to erase a Custom Application
definition.
•
Revert
: Select this button to discard all changes made since the
last
Apply
operation.
•
Add
: Select this button to add another row for defining a Custom
Application.
Port Forwarding Panel
