Users Manual

GH68_XXXXXX฀฀Printed฀in฀KoreaANDROID SMARTPHONEUser ManualPlease read this manual before operating yourphone and keep it for future reference.SM-W750VThis document is watermarked because certain important information in the document has not yet been verified. This document has been sent to you as a draft and for informational purposes only. The document should only be used for internal purposes and may not be distributed outside of Samsung, except to Samsung's carrier customer for testing purposes. Distributing the document outside of Samsung, except to Samsung's carrier customer for testing purposes could result in legal exposure to the company if the preliminary, unverified information in the draft turns out to be inaccurate. DRAFT FOR INTERNAL USE ONLY
Intellectual PropertyAll฀Intellectual฀Property,฀as฀defined฀below,฀owned฀by฀or฀which฀is฀otherwise฀the฀property฀of฀Samsung฀or฀its฀respective฀suppliers฀relating฀to฀the฀SAMSUNG฀Phone,฀including฀but฀not฀limited฀to,฀accessories,฀parts,฀or฀software฀relating฀there฀to฀(the฀“Phone฀System”),฀is฀proprietary฀to฀Samsung฀and฀protected฀under฀federal฀laws,฀state฀laws,฀and฀international฀treaty฀provisions.฀Intellectual฀Property฀includes,฀but฀is฀not฀limited฀to,฀inventions฀(patentable฀or฀unpatentable),฀patents,฀trade฀secrets,฀copyrights,฀software,฀computer฀programs,฀and฀related฀documentation฀and฀other฀works฀of฀authorship.฀You฀may฀not฀infringe฀or฀otherwise฀violate฀the฀rights฀secured฀by฀the฀Intellectual฀Property.฀Moreover,฀you฀agree฀that฀you฀will฀not฀(and฀will฀not฀attempt฀to)฀modify,฀prepare฀derivative฀works฀of,฀reverse฀engineer,฀decompile,฀disassemble,฀or฀otherwise฀attempt฀to฀create฀source฀code฀from฀the฀software.฀No฀title฀to฀or฀ownership฀in฀the฀Intellectual฀Property฀is฀transferred฀to฀you.฀All฀applicable฀rights฀of฀the฀Intellectual฀Property฀shall฀remain฀with฀SAMSUNG฀and฀its฀suppliers.Open Source SoftwareSome฀software฀components฀of฀this฀product,฀including฀but฀not฀limited฀to฀'PowerTOP'฀and฀'e2fsprogs',฀incorporate฀source฀code฀covered฀under฀GNU฀General฀Public฀License฀(GPL),฀GNU฀Lesser฀General฀Public฀License฀(LGPL),฀OpenSSL฀License,฀BSD฀License฀and฀other฀open฀source฀licenses.฀To฀obtain฀the฀source฀code฀covered฀under฀the฀open฀source฀licenses,฀please฀visit:http://opensource.samsung.com.Disclaimer of Warranties; Exclusion of LiabilityEXCEPT฀AS฀SET฀FORTH฀IN฀THE฀EXPRESS฀WARRANTY฀CONTAINED฀ON฀THE฀WARRANTY฀PAGE฀ENCLOSED฀WITH฀THE฀PRODUCT,฀THE฀PURCHASER฀TAKES฀THE฀PRODUCT฀"AS฀IS",฀AND฀SAMSUNG฀MAKES฀NO฀EXPRESS฀OR฀IMPLIED฀WARRANTY฀OF฀ANY฀KIND฀WHATSOEVER฀WITH฀RESPECT฀TO฀THE฀PRODUCT,฀INCLUDING฀BUT฀NOT฀LIMITED฀TO฀THE฀MERCHANTABILITY฀OF฀THE฀PRODUCT฀OR฀ITS฀FITNESS฀FOR฀ANY฀PARTICULAR฀PURPOSE฀OR฀USE;฀THE฀DESIGN,฀CONDITION฀OR฀QUALITY฀OF฀THE฀PRODUCT;฀THE฀PERFORMANCE฀OF฀THE฀PRODUCT;฀THE฀WORKMANSHIP฀OF฀THE฀PRODUCT฀OR฀THE฀COMPONENTS฀CONTAINED฀THEREIN;฀OR฀COMPLIANCE฀OF฀THE฀PRODUCT฀WITH฀THE฀REQUIREMENTS฀OF฀ANY฀LAW,฀RULE,฀SPECIFICATION฀OR฀CONTRACT฀PERTAINING฀DRAFT FOR INTERNAL USE ONLY
THERETO.฀NOTHING฀CONTAINED฀IN฀THE฀INSTRUCTION฀MANUAL฀SHALL฀BE฀CONSTRUED฀TO฀CREATE฀AN฀EXPRESS฀OR฀IMPLIED฀WARRANTY฀OF฀ANY฀KIND฀WHATSOEVER฀WITH฀RESPECT฀TO฀THE฀PRODUCT.฀IN฀ADDITION,฀SAMSUNG฀SHALL฀NOT฀BE฀LIABLE฀FOR฀ANY฀DAMAGES฀OF฀ANY฀KIND฀RESULTING฀FROM฀THE฀PURCHASE฀OR฀USE฀OF฀THE฀PRODUCT฀OR฀ARISING฀FROM฀THE฀BREACH฀OF฀THE฀EXPRESS฀WARRANTY,฀INCLUDING฀INCIDENTAL,฀SPECIAL฀OR฀CONSEQUENTIAL฀DAMAGES,฀OR฀LOSS฀OF฀ANTICIPATED฀PROFITS฀OR฀BENEFITS.Modification of SoftwareSAMSUNG฀IS฀NOT฀LIABLE฀FOR฀PERFORMANCE฀ISSUES฀OR฀INCOMPATIBILITIES฀CAUSED฀BY฀YOUR฀EDITING฀OF฀REGISTRY฀SETTINGS,฀OR฀YOUR฀MODIFICATION฀OF฀OPERATING฀SYSTEM฀SOFTWARE.฀USING฀CUSTOM฀OPERATING฀SYSTEM฀SOFTWARE฀MAY฀CAUSE฀YOUR฀DEVICE฀AND฀APPLICATIONS฀TO฀WORK฀IMPROPERLY.฀YOUR฀CARRIER฀MAY฀NOT฀PERMIT฀USERS฀TO฀DOWNLOAD฀CERTAIN฀SOFTWARE,฀SUCH฀AS฀CUSTOM฀OS.IF฀YOUR฀CARRIER฀PROHIBITS฀THIS,฀IF฀YOU฀ATTEMPT฀TO฀DOWNLOAD฀SOFTWARE฀ONTO฀THE฀DEVICE฀WITHOUT฀AUTHORIZATION,฀YOU฀WILL฀BE฀NOTIFIED฀ON฀THE฀SCREEN฀THAT฀THE฀PHONE฀WILL฀NO฀LONGER฀OPERATE฀AND฀BE฀INSTRUCTED฀TO฀POWER฀DOWN฀THE฀DEVICE.฀YOU฀MUST฀THEN฀CONTACT฀YOUR฀CARRIER฀TO฀RESTORE฀THE฀DEVICE฀TO฀THE฀CARRIER฀AUTHORIZED฀SETTINGS.SAFE™ (Samsung Approved For Enterprise) SAFE™:฀"SAFE™"฀(Samsung฀for฀Enterprise)฀is฀a฀mark฀for฀a฀Samsung฀device฀which฀has฀been฀tested฀against฀Samsung's฀own฀internal฀criteria฀for฀interoperability฀with฀certain฀third฀party฀security-related฀solutions฀for฀MDM฀and฀VPN.฀The฀testing฀includes฀field฀testing฀with฀local฀network฀connection฀and฀menu฀tree฀testing฀which฀tests฀functionality฀of฀the฀solutions฀in฀conjunction฀with฀the฀Samsung฀device.฀฀During฀the฀testing,฀the฀device฀is฀tested฀with฀the฀security฀solutions฀to฀see฀if฀the฀solutions฀work฀with฀the฀device฀as฀described฀by฀the฀third฀party฀security฀solution฀providers.฀The฀testing,฀for฀example,฀includes฀field฀testing฀with฀local฀network฀connection฀and฀menu฀tree฀testing฀which฀tests฀functionality฀of฀the฀solutions฀in฀conjunction฀with฀the฀Samsung฀device.฀For฀more฀information฀about฀Samsung's฀SAFE™฀program,฀please฀refer฀to฀www.samsung.com/us/safe.Disclaimer฀of฀Warranties:฀฀EXCEPT฀AS฀OTHERWISE฀PROVIDED฀IN฀THEIR฀STANDARD฀END฀USER฀LICENSE฀AND฀WARRANTY,฀TO฀THE฀FULL฀EXTENT฀PERMITTED฀BY฀LAW฀SAMSUNG฀ELECTRONICS฀CO.,฀LTD.,฀SAMSUNG฀TELECOMMUNICATIONS฀AMERICA,฀LLC,฀AND฀DRAFT FOR INTERNAL USE ONLY
THEIR฀AFFILIATES฀(COLLECTIVELY฀REFERRED฀TO฀HEREIN฀AS฀THE฀"SAMSUNG฀ENTITIES")฀EXPRESSLY฀DISCLAIM฀ANY฀AND฀ALL฀WARRANTIES,฀EXPRESS฀OR฀IMPLIED,฀INCLUDING฀ANY฀WARRANTY฀OF฀MERCHANTABILITY,฀FITNESS฀FOR฀A฀PARTICULAR฀PURPOSE,฀INTEROPERABILITY฀OR฀NON-INFRINGEMENT,฀WITH฀RESPECT฀TO฀INFORMATION฀TECHNOLOGY฀SECURITY฀PROTECTION,฀SAFE™฀DEVICES฀AND฀APPLICATIONS฀TESTED฀WITH฀SAFE™฀DEVICES.฀IN฀NO฀EVENT฀SHALL฀THE฀SAMSUNG฀ENTITIES฀BE฀LIABLE฀FOR฀ANY฀DIRECT,฀INDIRECT,฀INCIDENTAL,฀PUNITIVE,฀OR฀CONSEQUENTIAL฀DAMAGES฀OF฀ANY฀KIND฀WHATSOEVER฀WITH฀RESPECT฀TO฀INFORMATION฀TECHNOLOGY฀SECURITY฀PROTECTION,฀SAFE™฀DEVICES฀OR฀APPLICATIONS฀TESTED฀WITH฀SAFE™฀DEVICES.฀In฀addition,฀information฀technology฀security฀protection฀will฀be฀affected฀by฀features฀or฀functionality฀associated฀with,฀among฀other฀things฀the฀e-mail฀platform,฀master฀data฀management,฀and฀virtual฀private฀network฀solutions฀selected฀by฀the฀software฀provider,฀solution฀provider฀or฀user.฀Choice฀of฀an฀e-mail,฀master฀data฀management,฀and฀virtual฀private฀network฀solution฀is฀at฀the฀sole฀discretion฀of฀the฀software฀provider,฀solution฀provider฀or฀user฀and฀any฀associated฀effect฀on฀information฀technology฀security฀protection฀is฀solely฀the฀responsibility฀of฀the฀software฀provider,฀solution฀provider฀or฀user.฀For฀complete฀statement฀of฀limited฀warranty,฀please฀refer฀to฀www.samsung.com/us/safe,฀available฀on฀the฀web฀and฀where฀Samsung฀smartphone฀and฀Galaxy฀Tab™฀devices฀are฀sold.฀[101212]฀DRAFT FOR INTERNAL USE ONLY
Samsung Telecommunications America (STA), LLC©2013฀Samsung฀Telecommunications฀America,฀LLC.฀Samsung฀is฀a฀registered฀trademark฀of฀Samsung฀Electronics฀Co.,฀Ltd.Do฀you฀have฀questions฀about฀your฀Samsung฀Mobile฀Phone?฀For฀24฀hour฀information฀and฀assistance,฀we฀offer฀a฀new฀FAQ/ARS฀System฀(Automated฀Response฀System)฀at:www.samsung.com/us/supportHeadquarters:1301฀E.฀Lookout฀DriveRichardson,฀TX฀75082Customer฀Care฀Center:1000฀Klein฀Rd.Plano,฀TX฀75074Toll฀Free฀Tel:฀1.888.987.HELP฀(4357)Internet฀Address:฀http://www.samsung.comDRAFT FOR INTERNAL USE ONLY

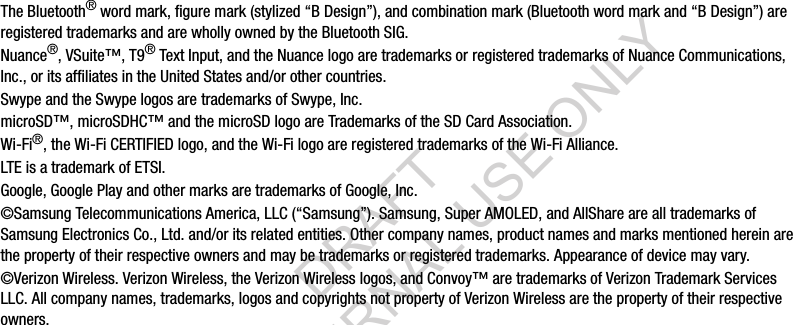

The฀Bluetooth®฀word฀mark,฀figure฀mark฀(stylized฀“B฀Design”),฀and฀combination฀mark฀(Bluetooth฀word฀mark฀and฀“B฀Design”)฀are฀registered฀trademarks฀and฀are฀wholly฀owned฀by฀the฀Bluetooth฀SIG.Nuance®,฀VSuite™,฀T9®฀Text฀Input,฀and฀the฀Nuance฀logo฀are฀trademarks฀or฀registered฀trademarks฀of฀Nuance฀Communications,฀Inc.,฀or฀its฀affiliates฀in฀the฀United฀States฀and/or฀other฀countries.Swype฀and฀the฀Swype฀logos฀are฀trademarks฀of฀Swype,฀Inc.microSD™,฀microSDHC™฀and฀the฀microSD฀logo฀are฀Trademarks฀of฀the฀SD฀Card฀Association.Wi-Fi®,฀the฀Wi-Fi฀CERTIFIED฀logo,฀and฀the฀Wi-Fi฀logo฀are฀registered฀trademarks฀of฀the฀Wi-Fi฀Alliance.LTE฀is฀a฀trademark฀of฀ETSI.Google,฀Google฀Play฀and฀other฀marks฀are฀trademarks฀of฀Google,฀Inc.©Samsung฀Telecommunications฀America,฀LLC฀(“Samsung”).฀Samsung,฀Super฀AMOLED,฀and฀AllShare฀are฀all฀trademarks฀of฀Samsung฀Electronics฀Co.,฀Ltd.฀and/or฀its฀related฀entities.฀Other฀company฀names,฀product฀names฀and฀marks฀mentioned฀herein฀are฀the฀property฀of฀their฀respective฀owners฀and฀may฀be฀trademarks฀or฀registered฀trademarks.฀Appearance฀of฀device฀may฀vary.©Verizon฀Wireless.฀Verizon฀Wireless,฀the฀Verizon฀Wireless฀logos,฀and฀Convoy™฀are฀trademarks฀of฀Verizon฀Trademark฀Services฀LLC.฀All฀company฀names,฀trademarks,฀logos฀and฀copyrights฀not฀property฀of฀Verizon฀Wireless฀are฀the฀property฀of฀their฀respective฀owners.DRAFT FOR INTERNAL USE ONLY
฀฀฀฀฀฀฀1Table of ContentsSection 1: Getting Started .......................... 5Understanding฀this฀User฀Manual฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀ 5Setting฀Up฀Your฀device฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀ 7Turning฀the฀Device฀On฀and฀Off฀ .฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀ 11Your฀Google฀Account฀฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀ 11Your฀Samsung฀Account฀฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀ 11Setup฀Wizard฀ .฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀ 12Help฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀ 12Your฀Phone฀Number฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀ 12Voice฀Mail฀฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀ 12TTY฀Mode฀ ฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀ 12Roaming฀ ฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀ 13Task฀Manager฀฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀ 13Memory฀Card฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀ 14Securing฀Your฀Device฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀ 15Section 2: Understanding Your Device .... 16Features฀ ฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀ 16Front฀฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀ 17Side฀ .฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀ 19Back฀ ฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀ 20S฀Pen฀ .฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀ 21Home฀Screen฀ .฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀ 26Navigation฀฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀ 28Multi฀Window฀ .฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀ 30Notifications฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀ 32LED฀Indicator฀฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀ 33Status฀Bar฀ ฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀ 34Primary฀Shortcuts฀ ฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀ 36Widgets฀฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀ 37Shortcuts฀ .฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀ 37Folders฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀ 38Wallpaper฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀ 38Apps฀ ฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀ 39Entering฀Text฀฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀ 39Section 3: Contacts and Accounts ...........43Accounts฀฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀ 43Contacts฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀ 44Speed฀Dials฀฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀ 54DRAFT FOR INTERNAL USE ONLY

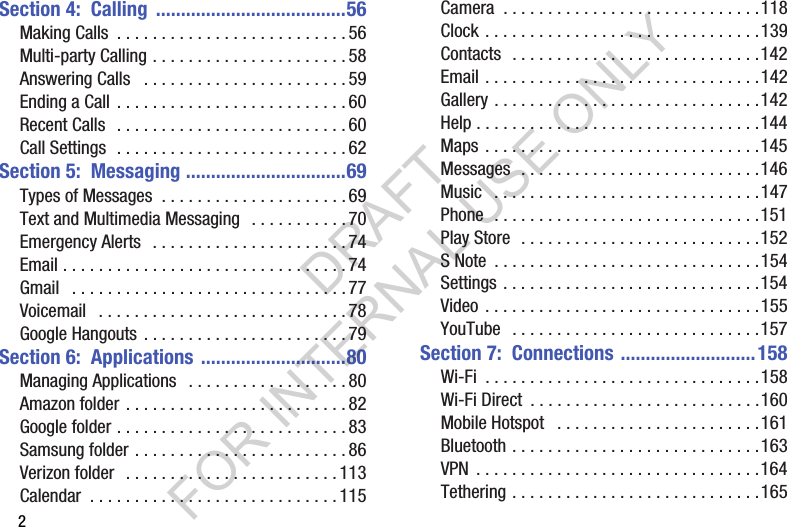

2Section 4: Calling ......................................56Making฀Calls฀ .฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀. 56Multi-party฀Calling฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀. 58Answering฀Calls฀ ฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀. 59Ending฀a฀Call฀ .฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀. 60Recent฀Calls฀ ฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀. 60Call฀Settings฀฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀. 62Section 5: Messaging ................................69Types฀of฀Messages฀฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀. 69Text฀and฀Multimedia฀Messaging฀ ฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀. 70Emergency฀Alerts฀ ฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀. 74Email฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀. 74Gmail฀ ฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀. 77Voicemail฀ ฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀. 78Google฀Hangouts฀ .฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀. 79Section 6: Applications .............................80Managing฀Applications฀ ฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀. 80Amazon฀folder฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀. 82Google฀folder฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀. 83Samsung฀folder฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀. 86Verizon฀folder฀ ฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀. 113Calendar฀ .฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀. 115Camera฀ .฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.118Clock฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.139Contacts฀฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.142Email฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.142Gallery฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.142Help฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.144Maps฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.145Messages฀฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.146Music฀ ฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.147Phone฀฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.151Play฀Store฀฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.152S฀Note฀ .฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.154Settings฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.154Video฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.155YouTube฀ ฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.157Section 7: Connections ...........................158Wi-Fi฀ .฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.158Wi-Fi฀Direct฀ .฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.160Mobile฀Hotspot฀ ฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.161Bluetooth฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.163VPN฀ .฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.164Tethering฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.165DRAFT FOR INTERNAL USE ONLY
฀฀฀฀฀฀฀3NFC฀and฀Beaming฀ ฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀ 166S฀Beam฀฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀ 166Nearby฀devices฀ ฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀ 167Connecting฀to฀a฀Computer฀฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀ 168Memory฀Card฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀ 169Section 8: Settings ................................. 171Accessing฀Settings฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀ 171Wireless฀and฀network฀ ฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀ 171Device฀ .฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀ 172More฀Wireless฀and฀Network฀Settings฀฀.฀.฀.฀.฀.฀.฀ 177Device฀ .฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀ 183Personal฀ ฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀ 194Security฀ .฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀ 201One-handed฀operation฀ .฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀ 204Language฀and฀input฀ .฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀ 205Back฀up฀and฀reset฀฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀ 211Accounts฀฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀ 212System฀ ฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀ 213S฀Pen฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀ 215Accessory฀ ฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀ 217Date฀and฀time฀ ฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀ 217Accessibility฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀ 218About฀phone฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀ 225Section 9: Health and Safety Information ............................................226Exposure฀to฀Radio฀Frequency฀(RF)฀Signals฀ ฀.฀.฀ 226Specific฀Absorption฀Rate฀(SAR)฀Certification฀Information฀ .฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀ 231FCC฀Part฀15฀Information฀to฀User฀ .฀.฀.฀.฀.฀.฀.฀.฀.฀.฀ 233Commercial฀Mobile฀Alerting฀System฀(CMAS)฀ .฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀ 233Smart฀Practices฀While฀Driving฀ ฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀ 233Battery฀Use฀and฀Safety฀ .฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀ 235Samsung฀Mobile฀Products฀and฀Recycling฀ .฀.฀.฀ 237UL฀Certified฀Travel฀Charger฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀ 238Display฀/฀Touch-Screen฀ ฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀ 238GPS฀฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀ 239Emergency฀Calls฀ ฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀ 239Care฀and฀Maintenance฀ .฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀ 240Responsible฀Listening฀ ฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀ 241Operating฀Environment฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀ 243FCC฀Hearing฀Aid฀Compatibility฀(HAC)฀Regulations฀for฀Wireless฀Devices฀ ฀.฀.฀.฀.฀.฀.฀.฀ 245DRAFT FOR INTERNAL USE ONLY
4Restricting฀Children's฀Access฀to฀Your฀Mobile฀Device฀ ฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀. 247FCC฀Notice฀and฀Cautions฀ .฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀. 247Other฀Important฀Safety฀Information฀฀.฀.฀.฀.฀.฀.฀.฀. 248Section 10: Warranty Information ..........250Standard฀Limited฀Warranty฀฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀.฀. 250End฀User฀License฀Agreement฀for฀Software฀.฀.฀. 255Index .........................................................263DRAFT FOR INTERNAL USE ONLY
Getting฀Started฀฀฀฀฀฀฀5Section 1: Getting StartedUnderstanding this User ManualThe฀sections฀of฀this฀manual฀generally฀follow฀the฀features฀of฀your฀device.฀A฀robust฀index฀for฀features฀begins฀on฀page 263.Also฀included฀is฀important฀safety฀information฀beginning฀on฀page 226,฀that฀you฀should฀know฀before฀using฀your฀device.This฀manual฀gives฀navigation฀instructions฀according฀to฀the฀default฀display฀settings.฀If฀you฀select฀other฀settings,฀navigation฀steps฀may฀be฀different.Unless฀otherwise฀specified,฀all฀instructions฀in฀this฀manual฀assume฀that฀you฀are฀starting฀from฀the฀Home฀screen.฀To฀get฀to฀the฀Home฀screen,฀you฀may฀need฀to฀unlock฀the฀device.฀For฀more฀information,฀see฀“Securing Your Device”฀on฀page 15.Note:Instructions฀in฀this฀manual฀are฀based฀on฀default฀settings,฀and฀may฀vary฀from฀your฀device,฀depending฀on฀the฀software฀version฀on฀your฀device,฀and฀any฀changes฀to฀the฀device’s฀Settings.฀Unless฀stated฀otherwise,฀instructions฀in฀this฀User฀Manual฀start฀with฀the฀device฀unlocked,฀at฀the฀Home฀screen.฀All฀screen฀images฀in฀this฀manual฀are฀simulated.฀Actual฀displays฀may฀vary,฀depending฀on฀the฀software฀version฀of฀your฀device฀and฀any฀changes฀to฀the฀device’s฀Settings.฀DRAFT FOR INTERNAL USE ONLY
6Special TextIn฀this฀manual,฀you’ll฀find฀text฀that฀is฀set฀apart฀from฀the฀rest.฀These฀are฀intended฀to฀point฀out฀important฀information,฀share฀quick฀methods฀for฀activating฀features,฀to฀define฀terms,฀and฀more.฀The฀definitions฀for฀these฀methods฀are฀as฀follows:•฀Notes:฀Presents฀alternative฀options฀for฀the฀current฀feature฀or฀menu.•฀Tips:฀Provides฀quick฀or฀innovative฀methods,฀or฀useful฀shortcuts.•฀Important:฀Points฀out฀important฀information฀about฀the฀current฀feature฀that฀could฀affect฀performance.•฀Warning:฀Brings฀to฀your฀attention฀important฀information฀to฀prevent฀loss฀of฀data฀or฀functionality,฀or฀even฀prevent฀damage฀to฀your฀device.Text ConventionsThis฀manual฀provides฀condensed฀information฀about฀how฀to฀use฀your฀device.฀To฀make฀this฀possible,฀the฀following฀text฀conventions฀are฀used฀to฀represent฀frequently-used฀steps: ➔ Arrows฀are฀used฀to฀represent฀the฀sequence฀of฀selecting฀successive฀options฀in฀procedures.฀For฀example:“From฀the฀Home฀screen,฀touch฀฀Apps ➔ ฀Settings ➔฀Wi-Fi.”Many฀settings฀use฀an฀On/Off฀switch.฀Touch฀the฀On/Off฀switch฀to฀turn฀a฀setting฀On฀or฀Off.฀This฀graphic฀is฀used฀to฀represent฀the฀On/Off฀switch.DRAFT FOR INTERNAL USE ONLY

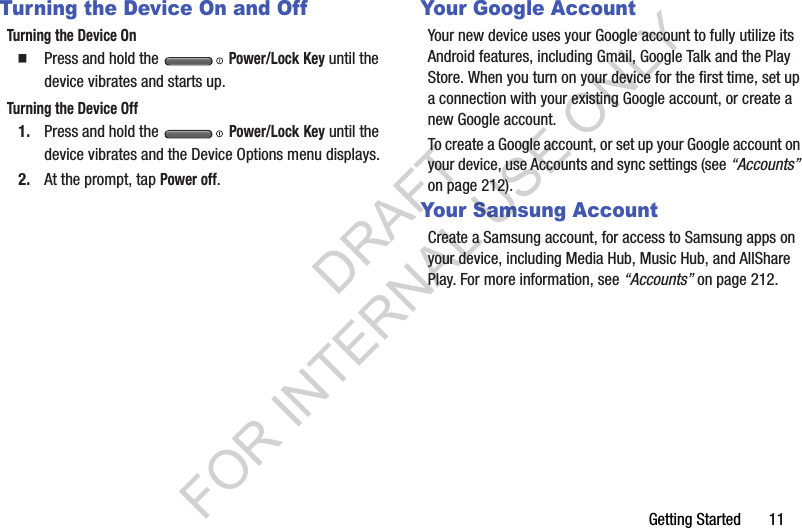

Getting฀Started฀฀฀฀฀฀฀11Turning the Device On and OffTurning the Device On䡲Press฀and฀hold฀the฀ Power/Lock฀Key฀until฀the฀device฀vibrates฀and฀starts฀up.Turning the Device Off1. Press฀and฀hold฀the฀ ฀Power/Lock฀Key฀until฀the฀device฀vibrates฀and฀the฀Device฀Options฀menu฀displays.2. At฀the฀prompt,฀tap฀Power off.Your Google AccountYour฀new฀device฀uses฀your฀Google฀account฀to฀fully฀utilize฀its฀Android฀features,฀including฀Gmail,฀Google฀Talk฀and฀the฀Play฀Store.฀When฀you฀turn฀on฀your฀device฀for฀the฀first฀time,฀set฀up฀a฀connection฀with฀your฀existing฀Google฀account,฀or฀create฀a฀new฀Google฀account.To฀create฀a฀Google฀account,฀or฀set฀up฀your฀Google฀account฀on฀your฀device,฀use฀Accounts฀and฀sync฀settings฀(see฀“Accounts”฀on฀page 212).Your Samsung AccountCreate฀a฀Samsung฀account,฀for฀access฀to฀Samsung฀apps฀on฀your฀device,฀including฀Media฀Hub,฀Music฀Hub,฀and฀AllShare฀Play.฀For฀more฀information,฀see฀“Accounts”฀on฀page 212.DRAFT FOR INTERNAL USE ONLY

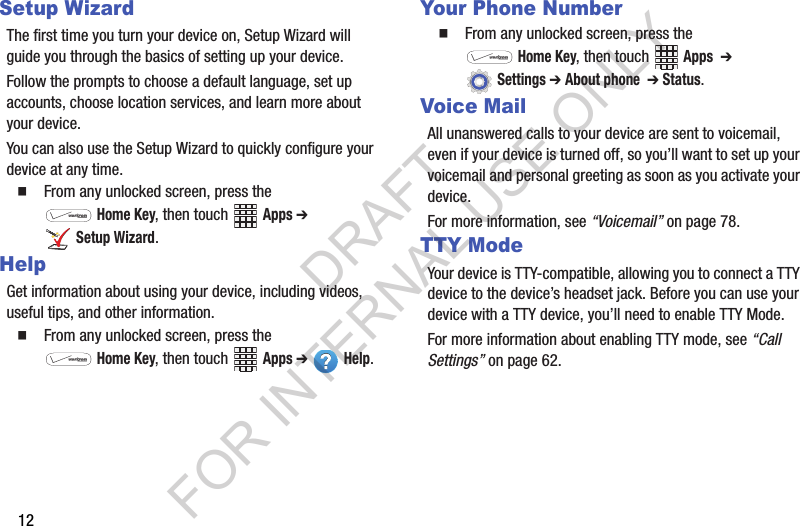

12Setup WizardThe฀first฀time฀you฀turn฀your฀device฀on,฀Setup฀Wizard฀will฀guide฀you฀through฀the฀basics฀of฀setting฀up฀your฀device.Follow฀the฀prompts฀to฀choose฀a฀default฀language,฀set฀up฀accounts,฀choose฀location฀services,฀and฀learn฀more฀about฀your฀device.You฀can฀also฀use฀the฀Setup฀Wizard฀to฀quickly฀configure฀your฀device฀at฀any฀time.฀䡲From฀any฀unlocked฀screen,฀press฀the฀Home Key,฀then฀touch฀ ฀Apps ➔ Setup Wizard.HelpGet฀information฀about฀using฀your฀device,฀including฀videos,฀useful฀tips,฀and฀other฀information.䡲From฀any฀unlocked฀screen,฀press฀the฀Home Key,฀then฀touch฀ ฀Apps ➔ ฀Help.฀Your Phone Number䡲From฀any฀unlocked฀screen,฀press฀the฀Home Key,฀then฀touch฀฀Apps ➔ Settings ➔ About phone ➔ Status.Voice MailAll฀unanswered฀calls฀to฀your฀device฀are฀sent฀to฀voicemail,฀even฀if฀your฀device฀is฀turned฀off,฀so฀you’ll฀want฀to฀set฀up฀your฀voicemail฀and฀personal฀greeting฀as฀soon฀as฀you฀activate฀your฀device.฀For฀more฀information,฀see฀“Voicemail”฀on฀page 78.TTY ModeYour฀device฀is฀TTY-compatible,฀allowing฀you฀to฀connect฀a฀TTY฀device฀to฀the฀device’s฀headset฀jack.฀Before฀you฀can฀use฀your฀device฀with฀a฀TTY฀device,฀you’ll฀need฀to฀enable฀TTY฀Mode.฀For฀more฀information฀about฀enabling฀TTY฀mode,฀see฀“Call Settings”฀on฀page 62.DRAFT FOR INTERNAL USE ONLY

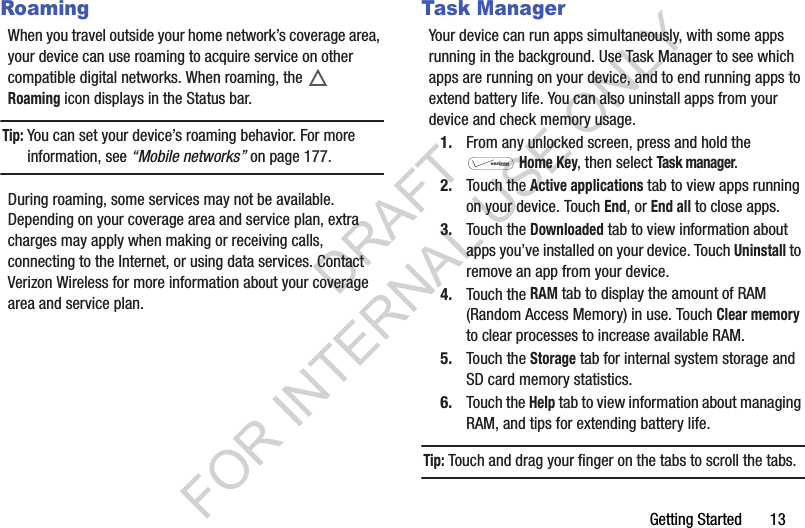

Getting฀Started฀฀฀฀฀฀฀13RoamingWhen฀you฀travel฀outside฀your฀home฀network’s฀coverage฀area,฀your฀device฀can฀use฀roaming฀to฀acquire฀service฀on฀other฀compatible฀digital฀networks.฀When฀roaming,฀the฀ ฀Roaming฀icon฀displays฀in฀the฀Status฀bar.Tip:You฀can฀set฀your฀device’s฀roaming฀behavior.฀For฀more฀information,฀see฀“Mobile networks”฀on฀page 177.During฀roaming,฀some฀services฀may฀not฀be฀available.฀Depending฀on฀your฀coverage฀area฀and฀service฀plan,฀extra฀charges฀may฀apply฀when฀making฀or฀receiving฀calls,฀connecting฀to฀the฀Internet,฀or฀using฀data฀services.฀Contact฀Verizon฀Wireless฀for฀more฀information฀about฀your฀coverage฀area฀and฀service฀plan.Task ManagerYour฀device฀can฀run฀apps฀simultaneously,฀with฀some฀apps฀running฀in฀the฀background.฀Use฀Task฀Manager฀to฀see฀which฀apps฀are฀running฀on฀your฀device,฀and฀to฀end฀running฀apps฀to฀extend฀battery฀life.฀You฀can฀also฀uninstall฀apps฀from฀your฀device฀and฀check฀memory฀usage.1. From฀any฀unlocked฀screen,฀press฀and฀hold฀the฀฀Home Key,฀then฀select฀Task manager.2. Touch฀the฀Active applications฀tab฀to฀view฀apps฀running฀on฀your฀device.฀Touch฀End,฀or฀End all฀to฀close฀apps.3. Touch฀the฀Downloaded฀tab฀to฀view฀information฀about฀apps฀you’ve฀installed฀on฀your฀device.฀Touch฀Uninstall฀to฀remove฀an฀app฀from฀your฀device.4. Touch฀the฀RAM฀tab฀to฀display฀the฀amount฀of฀RAM฀(Random฀Access฀Memory)฀in฀use.฀Touch฀Clear memory฀to฀clear฀processes฀to฀increase฀available฀RAM.฀5. Touch฀the฀Storage฀tab฀for฀internal฀system฀storage฀and฀SD฀card฀memory฀statistics.6. Touch฀the฀Help฀tab฀to฀view฀information฀about฀managing฀RAM,฀and฀tips฀for฀extending฀battery฀life.Tip:Touch฀and฀drag฀your฀finger฀on฀the฀tabs฀to฀scroll฀the฀tabs.DRAFT FOR INTERNAL USE ONLY
Getting฀Started฀฀฀฀฀฀฀15Securing Your DeviceUse฀your฀device’s฀screen฀lock฀features฀to฀secure฀your฀device.Note:Unless฀stated฀otherwise,฀instructions฀in฀this฀User฀Manual฀start฀with฀the฀device฀unlocked,฀at฀the฀Home฀screen.To฀set฀a฀personal฀screen฀lock,฀use฀the฀Screen฀lock฀option฀under฀Security฀settings.฀For฀more฀information,฀see฀“Screen lock”฀on฀page 196.For฀other฀settings฀related฀to฀securing฀your฀device,฀see฀“Security”฀on฀page 201.Locking the Device䡲By฀default,฀the฀device฀locks฀automatically฀when฀the฀screen฀times฀out.–฀or฀–Press฀the฀ ฀Power/Lock Key.Tip:When฀the฀device฀is฀locked,฀the฀Emergency฀call฀feature฀is฀available฀on฀the฀lock฀screen,฀to฀allow฀you฀to฀make฀emergency฀calls฀even฀while฀the฀device฀is฀locked.Unlocking the DeviceUnlock฀the฀device฀using฀one฀of฀the฀default฀unlock฀screens,฀or฀use฀Screen฀lock฀options฀for฀increased฀security.䡲Press฀the฀ ฀Power/Lock Key,฀then฀touch฀and฀drag฀your฀finger฀across฀the฀screen.Tip:Special฀notification฀icons฀display฀for฀missed฀calls฀or฀new฀messages.฀Drag฀a฀missed฀call฀or฀message฀icon฀to฀view฀the฀message฀or฀call฀log.DRAFT FOR INTERNAL USE ONLY
16Section 2: Understanding Your DeviceFeatures•฀Touch฀screen฀with฀virtual฀(on-screen)฀QWERTY฀keyboard•฀Brilliant฀4.99XX??”฀HD฀Super฀AMOLED®฀screen฀(1920฀x฀1080)•฀1.9XX??฀gigahertz฀quad-core฀processor•฀Delivering฀data฀speeds฀faster฀than฀the฀current฀3G฀network฀technology฀by฀using฀4G฀LTE฀and฀High฀Speed฀Packet฀Access฀Plus฀(HSPA+).•฀Android฀4.3,฀Jelly฀Bean฀Platform•฀USB฀3.0฀connector฀for฀fast฀transfer฀speeds•฀Smart฀Switch™฀compliant.฀For฀more฀information,฀see฀฀www.samsungsmartswitch.com•฀Support฀for฀Air฀View®฀and฀Air฀Gestures®.•฀S฀Pen฀functionality•฀Wi-Fi฀®฀Capability•฀WatchON®฀–฀Rich฀TV฀experience฀with฀Infrared฀(IR)฀remote•฀Apps฀available฀to฀download฀from฀the฀Google฀Play™฀Store฀and฀Samsung฀Apps•฀Access฀Movies,฀TV฀Shows,฀Music,฀Games,฀and฀Books฀with฀Samsung฀Hub™฀•฀Samsung฀Link™฀to฀share฀your฀media฀content฀across฀connected฀devices.฀Cloud฀connectivity฀is฀achieved฀using฀an฀external฀Web฀storage฀service฀•฀Compliant฀with฀AllShare฀Cast฀Hub®฀•฀13฀Megapixel฀Camera฀and฀Camcorder฀with฀autofocus฀and฀digital฀zoom฀XX??•฀2฀Megapixel฀Front฀Facing฀camera฀for฀Video฀Chat฀XX??•฀Share฀Shot฀picture฀sharing฀functionality,฀Camera฀sharing฀over฀multi-connect฀Wi-Fi฀Direct฀connection•฀S-Beam฀file฀transfer฀technology•฀Bluetooth฀enabled•฀NFC-compatible•฀Full฀Integration฀of฀Google฀Mobile™฀Services฀(Gmail,฀YouTube,฀Google฀Maps,฀Google฀Voice฀Search)•฀Multiple฀Messaging฀Options:฀Text/Picture/Video฀Messaging฀and฀Google฀Hangouts™•฀Corporate฀and฀Personal฀Email•฀Music฀Player฀with฀multitasking฀featuresDRAFT FOR INTERNAL USE ONLY
22Easy ClipInstantly฀outline฀and฀crop฀images฀on฀the฀screen,฀in฀any฀shape,฀to฀share฀or฀paste.฀You฀can฀edit฀the฀cropped฀content,฀or฀personalize฀it฀with฀your฀own฀handwriting.To use Easy Clip:1. Press฀and฀hold฀the฀S฀Pen฀button,฀then฀draw฀around฀the฀image฀you฀want฀to฀clip,฀making฀sure฀to฀close฀the฀shape.2. Tap฀the฀app฀you฀want฀to฀paste฀the฀image฀into,฀or฀if฀you฀do฀nothing,฀the฀image฀is฀pasted฀to฀Clipboard.Air ViewHover฀S฀Pen฀over฀the฀screen฀to฀preview฀content,฀or฀view฀information฀about฀an฀item฀on฀the฀screen.฀For฀example:•฀Hover฀over฀an฀email฀in฀a฀list฀to฀preview฀the฀message฀before฀opening฀it.•฀Hover฀over฀a฀photo฀album฀to฀preview฀the฀contents,฀or฀see฀a฀picture฀enlarged.•฀Hover฀over฀the฀timeline฀during฀video฀playback฀to฀preview฀and฀navigate฀to฀specific฀scenes.•฀In฀S฀Planner,฀hover฀over฀dates฀and฀events฀to฀see฀details•฀Hover฀over฀an฀icon฀or฀screen฀button฀to฀view฀the฀item’s฀titleFor฀more฀information฀about฀Air฀View,฀and฀to฀configure฀settings,฀touch฀ ฀Apps ➔ ฀Settings ➔ S Pen ➔ Air View,฀or฀see฀“Air view”฀on฀page 216.DRAFT FOR INTERNAL USE ONLY
Understanding฀Your฀Device฀฀฀฀฀฀฀23Quick CommandMultitask฀like฀never฀before.฀Launch฀Quick฀Command฀pad฀from฀any฀screen,฀to฀hand-write฀tasks.฀Use฀S฀Pen฀to฀draw฀a฀Quick฀Command฀to฀launch฀a฀feature,฀or฀draw฀a฀Quick฀Command฀followed฀by฀a฀keyword฀to฀personalize฀the฀command.฀For฀example,฀draw฀a฀question฀mark฀“?”฀to฀search฀the฀Internet,฀or฀draw฀a฀question฀mark฀followed฀by฀a฀search฀term฀to฀search฀on฀the฀term.For฀more฀information฀about฀Quick฀Command,฀and฀to฀configure฀settings,฀touch฀ ฀Apps ➔ ฀Settings ➔ S Pen ➔ Quick Command settings,฀or฀see฀“Quick Command settings”฀on฀page 216.To launch Quick Command:䡲Press฀and฀hold฀the฀S฀Pen฀button฀and฀swipe฀upwards฀on฀the฀screen.Idea SketchExpress฀your฀ideas฀with฀an฀image.฀Add฀illustrations฀by฀hand-writing฀keywords฀on฀the฀Idea฀Sketch฀pad.To฀use฀Idea฀Sketch:1. From฀the฀Home฀screen,฀touch฀ ฀Apps ➔ ฀S Note.2. From฀the฀toolbar,฀select฀the฀Insert฀tool,฀then฀choose฀Idea Sketch฀from฀the฀menu.3. Write฀a฀search฀term฀for฀something฀you฀want฀to฀draw฀or฀insert฀into฀your฀S฀Note.฀Or,฀select฀List฀and฀choose฀a฀category.4. S฀Note฀displays฀images฀matching฀your฀search฀term.฀Select฀an฀image฀to฀insert฀it฀into฀your฀S฀Note.฀You฀can฀edit฀the฀image,฀or฀draw฀on฀it,฀and฀changes฀are฀saved฀in฀the฀note.DRAFT FOR INTERNAL USE ONLY

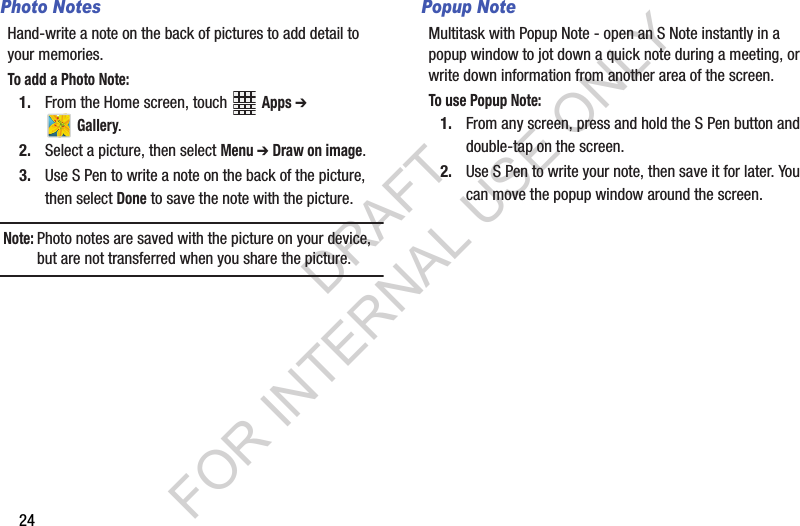

24Photo NotesHand-write฀a฀note฀on฀the฀back฀of฀pictures฀to฀add฀detail฀to฀your฀memories.To add a Photo Note:1. From฀the฀Home฀screen,฀touch฀ ฀Apps ➔ ฀Gallery.2. Select฀a฀picture,฀then฀select฀Menu ➔ Draw on image.3. Use฀S฀Pen฀to฀write฀a฀note฀on฀the฀back฀of฀the฀picture,฀then฀select฀Done฀to฀save฀the฀note฀with฀the฀picture.Note:Photo฀notes฀are฀saved฀with฀the฀picture฀on฀your฀device,฀but฀are฀not฀transferred฀when฀you฀share฀the฀picture.Popup NoteMultitask฀with฀Popup฀Note฀-฀open฀an฀S฀Note฀instantly฀in฀a฀popup฀window฀to฀jot฀down฀a฀quick฀note฀during฀a฀meeting,฀or฀write฀down฀information฀from฀another฀area฀of฀the฀screen.To use Popup Note:1. From฀any฀screen,฀press฀and฀hold฀the฀S฀Pen฀button฀and฀double-tap฀on฀the฀screen.2. Use฀S฀Pen฀to฀write฀your฀note,฀then฀save฀it฀for฀later.฀You฀can฀move฀the฀popup฀window฀around฀the฀screen.DRAFT FOR INTERNAL USE ONLY
Understanding฀Your฀Device฀฀฀฀฀฀฀25Popup VideoMultitask฀with฀Popup฀Video฀-฀transform฀your฀video฀player฀into฀a฀popup฀window฀floating฀on฀the฀screen.฀The฀video฀will฀continue฀to฀play,฀and฀the฀popup฀window฀can฀be฀resized฀or฀moved฀anywhere฀on฀the฀screen.To use Popup Video:䡲While฀watching฀a฀video,฀touch฀the฀ Popup Video฀icon฀in฀the฀lower฀right฀corner฀of฀the฀screen.Popup BrowserMultitask฀with฀Popup฀Browser฀-฀Launch฀a฀new,฀floating฀browser฀window฀by฀selecting฀a฀web฀link฀from฀any฀application.To launch Popup Browser:䡲In฀any฀app,฀touch฀a฀web฀link,฀then฀choose฀Popup Browser฀from฀the฀menu.Other S Pen gesturesYou฀can฀perform฀other฀functions฀with฀S฀Pen,฀for฀example:•฀Go back:฀Press฀and฀hold฀the฀S฀Pen฀button,฀then฀draw฀ ฀on฀the฀screen.•฀Open menu:฀Press฀and฀hold฀the฀S฀Pen฀button,฀then฀draw฀ ฀on฀the฀screen.•฀Screen capture:฀Press฀and฀hold฀the฀S฀Pen฀button,฀then฀touch฀and฀hold฀S฀Pen฀on฀the฀screen.•฀Select text:฀Press฀and฀hold฀the฀S฀Pen฀button,฀then฀touch฀and฀drag฀S฀Pen฀over฀the฀text฀to฀selectDRAFT FOR INTERNAL USE ONLY
Understanding฀Your฀Device฀฀฀฀฀฀฀27Extended Home ScreenThe฀Home฀screen฀consists฀of฀the฀Home฀panel,฀plus฀panels฀that฀extend฀beyond฀the฀display฀width฀to฀provide฀more฀space฀for฀adding฀shortcuts,฀widgets฀and฀folders.Slide฀your฀finger฀horizontally฀across฀the฀screen฀to฀scroll฀to฀the฀left฀or฀right฀side฀panels.฀As฀you฀scroll,฀the฀indicator฀at฀the฀bottom฀of฀the฀display฀shows฀your฀current฀position.Customizing the Home ScreenCustomize฀the฀Home฀screen฀to฀suit฀your฀preferences.•฀Add App Shortcuts:฀For฀more฀information,฀see฀“Shortcuts”฀on฀page 37.•฀Add Widgets:฀For฀more฀information,฀see฀“Widgets”฀on฀page 37.•฀Add Folders:฀For฀more฀information,฀see฀“Folders”฀on฀page 38.•฀Change the Wallpaper:฀For฀more฀information,฀see฀“Wallpaper”฀on฀page 38.•฀Display settings:฀For฀more฀information,฀see฀“Display”฀on฀page 187.Adding and removing Home screen panelsYour฀device฀comes฀with฀6฀Home฀screen฀panels.฀You฀can฀customize฀the฀Home฀screen฀to฀include฀up฀to฀the฀seven฀default฀panels.1. From฀the฀Home฀screen,฀touch฀฀Menu ➔ Edit page.2. Slide฀your฀finger฀across฀the฀screen฀to฀scroll฀the฀panels,฀and฀use฀these฀controls฀to฀configure฀panels:Tip:You฀can฀also฀“pinch”฀the฀Home฀screen฀to฀display฀Edit฀page฀options.฀For฀more฀information,฀refer฀to฀“Pinch”฀on฀page฀28.฀Remove:฀Touch฀and฀hold฀on฀a฀panel,฀then฀drag฀it฀to฀Remove.Add:฀Touch฀a฀previously-removed฀panel฀to฀add฀it,฀up฀to฀the฀default฀total฀of฀seven.Set as Home:฀The฀panel฀set฀as฀Home฀will฀display฀when฀you฀press฀the฀฀Home Key.DRAFT FOR INTERNAL USE ONLY
28NavigationNavigate฀your฀device’s฀features฀using฀the฀command฀keys฀and฀the฀touch฀screen.Warning!Please฀note฀that฀a฀touch฀screen฀responds฀best฀to฀a฀light฀touch฀from฀the฀pad฀of฀your฀finger฀or฀a฀non-metallic฀stylus.฀Using฀excessive฀force฀or฀a฀metallic฀object฀when฀pressing฀on฀the฀touch฀screen฀may฀damage฀the฀tempered฀glass฀surface฀and฀void฀the฀warranty.฀For฀more฀information,฀see฀“Warranty Information”฀on฀page 250.Context-sensitive MenusWhile฀using฀your฀device,฀context-sensitive฀menus฀offer฀options฀for฀the฀feature฀or฀screen.฀To access context-sensitive menus:•Touch Menu.•Touch and hold on an item.Finger GesturesTouchTouch฀items฀to฀select฀or฀launch฀them.฀For฀example:•฀Touch฀the฀onscreen฀keyboard฀to฀enter฀characters฀or฀text.•฀Touch฀an฀item฀to฀select฀it.•฀Touch฀an฀app’s฀icon฀to฀launch฀the฀application.Touch and HoldActivate฀items฀by฀a฀touch฀and฀hold฀gesture.฀For฀example:฀•฀Touch฀and฀hold฀a฀widget฀on฀the฀Home฀screen฀to฀move฀it.•฀Touch฀and฀hold฀on฀a฀field฀to฀display฀a฀pop-up฀menu฀of฀options.SwipeSwipe฀your฀finger฀across฀the฀screen.฀For฀example:•฀Unlocking฀the฀screen•฀Scrolling฀the฀Home฀screen฀or฀a฀menu•฀Combine฀touch฀and฀hold฀with฀swipe฀to฀drag฀an฀item.PinchUsing฀two฀fingers,฀make฀a฀pinch฀motion฀on฀the฀screen.฀For฀example:•฀Pinch฀in฀to฀zoom฀in฀on฀pictures฀or฀screens.•฀Pinch฀out฀to฀zoom฀out฀on฀pictures฀or฀screens.DRAFT FOR INTERNAL USE ONLY

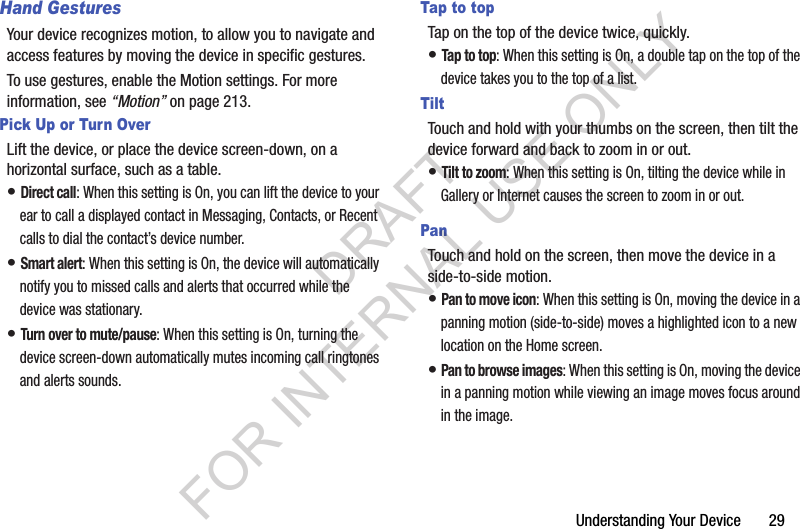

Understanding฀Your฀Device฀฀฀฀฀฀฀29Hand GesturesYour฀device฀recognizes฀motion,฀to฀allow฀you฀to฀navigate฀and฀access฀features฀by฀moving฀the฀device฀in฀specific฀gestures.To฀use฀gestures,฀enable฀the฀Motion฀settings.฀For฀more฀information,฀see฀“Motion”฀on฀page 213.Pick Up or Turn OverLift฀the฀device,฀or฀place฀the฀device฀screen-down,฀on฀a฀horizontal฀surface,฀such฀as฀a฀table.•฀Direct call:฀When฀this฀setting฀is฀On,฀you฀can฀lift฀the฀device฀to฀your฀ear฀to฀call฀a฀displayed฀contact฀in฀Messaging,฀Contacts,฀or฀Recent฀calls฀to฀dial฀the฀contact’s฀device฀number.•฀Smart alert:฀When฀this฀setting฀is฀On,฀the฀device฀will฀automatically฀notify฀you฀to฀missed฀calls฀and฀alerts฀that฀occurred฀while฀the฀device฀was฀stationary.•฀Turn over to mute/pause:฀When฀this฀setting฀is฀On,฀turning฀the฀device฀screen-down฀automatically฀mutes฀incoming฀call฀ringtones฀and฀alerts฀sounds.Tap to topTap฀on฀the฀top฀of฀the฀device฀twice,฀quickly.•฀Tap to t op:฀When฀this฀setting฀is฀On,฀a฀double฀tap฀on฀the฀top฀of฀the฀device฀takes฀you฀to฀the฀top฀of฀a฀list.TiltTouch฀and฀hold฀with฀your฀thumbs฀on฀the฀screen,฀then฀tilt฀the฀device฀forward฀and฀back฀to฀zoom฀in฀or฀out.•฀Tilt to zoom:฀When฀this฀setting฀is฀On,฀tilting฀the฀device฀while฀in฀Gallery฀or฀Internet฀causes฀the฀screen฀to฀zoom฀in฀or฀out.PanTouch฀and฀hold฀on฀the฀screen,฀then฀move฀the฀device฀in฀a฀side-to-side฀motion.•฀Pan to move icon:฀When฀this฀setting฀is฀On,฀moving฀the฀device฀in฀a฀panning฀motion฀(side-to-side)฀moves฀a฀highlighted฀icon฀to฀a฀new฀location฀on฀the฀Home฀screen.•฀Pan to browse images:฀When฀this฀setting฀is฀On,฀moving฀the฀device฀in฀a฀panning฀motion฀while฀viewing฀an฀image฀moves฀focus฀around฀in฀the฀image.DRAFT FOR INTERNAL USE ONLY
30ShakeShake฀your฀device฀to฀scan฀for฀nearby฀devices,฀such฀as฀Bluetooth฀or฀Kies฀air฀devices,฀and฀more,฀for฀connecting฀to฀your฀device฀for฀sharing฀files.•฀Shake to update:฀When฀this฀setting฀is฀On,฀shaking฀the฀device฀starts฀a฀scan฀for฀nearby฀devices฀for฀sharing.PalmUse฀your฀hand฀to฀swipe฀across฀the฀screen,฀or฀cover฀the฀screen.•฀Palm swipe to capture:฀When฀this฀setting฀is฀On,฀swiping฀the฀screen฀with฀the฀side฀of฀your฀hand฀(left฀to฀right,฀or฀right฀to฀left)฀captures฀a฀screen฀shot.•฀Palm touch to mute/pause:฀When฀this฀setting฀is฀On,฀covering฀the฀screen฀with฀your฀hand฀mutes฀or฀pauses฀media฀playback.Multi WindowMulti฀Window฀allows฀you฀to฀use฀multiple฀apps฀on฀the฀same฀screen,฀in฀multiple,฀resizable฀windows.Enabling Multi WindowEnable฀Multi฀window฀on฀the฀Notifications฀screen.1. Sweep฀your฀finger฀down฀from฀the฀top฀of฀the฀screen฀to฀display฀Notifications.2. Scroll฀the฀settings฀at฀the฀top฀of฀Notifications,฀then฀touch฀Multi window฀to฀enable฀it.Displaying Multi WindowWhen฀Multi฀window฀is฀enabled,฀the฀tab฀appears฀on฀the฀left฀side฀of฀the฀screen฀by฀default.฀You฀can฀show฀or฀hide฀the฀tab.䡲Touch฀and฀hold฀the฀ ฀Back Key.Moving the Multi Window TabWhen฀Multi฀window฀is฀enabled,฀its฀tab฀displays฀on฀the฀edge฀of฀the฀screen฀where฀it’s฀docked.฀You฀can฀move฀the฀Multi฀window฀tab฀up฀or฀down฀on฀the฀edge฀of฀the฀screen.䡲Touch฀and฀hold฀on฀the฀tab,฀then฀drag฀it฀up฀or฀down฀along฀the฀edge฀of฀the฀screen.DRAFT FOR INTERNAL USE ONLY
Understanding฀Your฀Device฀฀฀฀฀฀฀31Moving Multi WindowBy฀default,฀Multi฀window฀is฀docked฀on฀the฀left฀side฀of฀the฀screen.฀You฀can฀dock฀the฀Multi฀window฀at฀any฀edge฀of฀the฀screen฀(top,฀bottom,฀or฀either฀side).䡲Touch฀the฀tab฀to฀open฀Multi฀Window฀(the฀tab฀turns฀gray),฀then฀drag฀Multi฀Window฀to฀another฀edge฀of฀the฀screen.Using Multi Window to Run Multiple AppsYou฀can฀launch฀apps฀from฀Multi฀window,฀or฀drag฀an฀app฀to฀the฀screen฀to฀run฀multiple฀apps฀at฀the฀same฀time.The฀apps฀display฀together฀on฀a฀split฀screen.฀You฀can฀switch฀between฀the฀apps,฀or฀adjust฀the฀size฀of฀their฀display฀on฀the฀screen.Launching multiple appsWhen฀you฀drag฀an฀app฀from฀Multi฀Window฀on฀top฀of฀an฀open฀app,฀both฀apps฀display฀in฀a฀split฀window.1. While฀using฀one฀app,฀touch฀the฀tab฀to฀display฀Multi฀Window,฀then฀touch฀and฀drag฀an฀app฀to฀the฀screen.฀2. As฀you฀drag฀the฀app฀over฀the฀screen,฀a฀blue฀screen฀displays.฀Release฀the฀app฀when฀the฀blue฀screen฀displays฀where฀you฀want฀to฀place฀the฀app.Adjusting the size of app windowsYou฀can฀adjust฀the฀size฀of฀the฀two฀apps฀on฀the฀screen.Touch฀and฀drag฀the฀border฀between฀the฀windows.Switching Multi window positions and making an app full screenYou฀can฀switch฀the฀position฀of฀the฀app฀windows฀from฀top฀to฀bottom.䡲Touch฀the฀border฀between฀the฀windows,฀then฀touch฀ Switch.Making an app full screenYou฀can฀change฀from฀the฀split฀window฀display฀to฀full฀screen.䡲Touch฀the฀border฀between฀the฀windows,฀then฀touch฀ Full screen.DRAFT FOR INTERNAL USE ONLY
32NotificationsNotifications฀shows฀information฀about฀connections,฀alerts฀and฀other฀items.1. Touch฀and฀drag฀downward฀from฀the฀top฀of฀the฀screen฀to฀display฀notifications.2. Touch฀an฀item฀to฀open฀the฀item,฀or฀to฀launch฀the฀related฀app฀or฀feature.World ClockWhile฀displaying฀Notifications,฀touch฀the฀time฀in฀the฀Status฀bar฀to฀display฀a฀World฀clock.฀Add฀cities฀to฀the฀clock฀to฀display฀the฀time฀in฀different฀zones฀around฀the฀world.Clearing Notifications1. Sweep฀your฀finger฀downward฀from฀the฀top฀of฀the฀screen฀to฀display฀Notifications.2. Touch฀a฀notification฀to฀clear฀it,฀or฀touch฀Clear฀to฀clear฀all฀notifications.SettingsUse฀settings฀at฀the฀top฀of฀Notifications฀to฀control฀popular฀settings.฀Slide฀your฀finger฀right฀and฀left฀to฀see฀all฀the฀icons.•฀Bluetooth:฀Turn฀Bluetooth฀On฀or฀Off.฀See฀“Bluetooth” on฀page฀163•฀GPS:฀Turn฀Standalone฀GPS฀services฀on฀or฀off.฀See฀“Standalone GPS services” on฀page฀195•฀Sound:฀Switch฀between฀your฀sound฀settings,฀Mute฀(all฀sounds฀silenced)฀and฀Vibrate฀(all฀sounds฀replaced฀by฀vibration).•฀Mobile data:฀Activate฀or฀deactivate฀your฀device’s฀access฀to฀mobile฀data฀service.฀See฀“Mobile networks” on฀page฀177•฀Screen rotation:฀Enable฀or฀disable฀the฀Auto฀rotation฀setting,฀to฀control฀whether฀the฀screen฀automatically฀updates฀when฀you฀rotate฀the฀device.฀See฀“Auto-rotate screen” on฀page฀189•฀Airplane mode:฀Turn฀Airplane฀mode฀On฀or฀Off.฀See฀“Airplane mode” on฀page฀171•฀Power saving:฀Enable฀or฀disable฀Power฀saving฀mode.฀See฀“Power saving mode” on฀page฀192•฀Driving mode:฀Enable฀or฀disable฀Driving฀mode,฀to฀have฀incoming฀caller฀ID฀and฀text฀messages฀read฀out.฀See฀“Text-to-speech output” on฀page฀210DRAFT FOR INTERNAL USE ONLY
Understanding฀Your฀Device฀฀฀฀฀฀฀33•฀AllShare Cast:฀Enable฀or฀disable฀AllShare฀Cast,฀for฀easy฀sharing฀with฀other฀devices.•฀Multi window:฀Enable฀or฀disable฀the฀multi฀window฀feature.฀When฀enabled,฀touching฀and฀holding฀on฀the฀Back฀Key฀activates฀the฀multi฀window฀feature฀on฀the฀screen.฀Multi฀window฀gives฀you฀quick฀access฀to฀apps฀from฀a฀window฀on฀the฀right฀side฀of฀the฀screen,฀and฀you฀can฀drag฀an฀app฀from฀the฀multi฀window฀to฀run฀multiple฀apps฀on฀the฀same฀screen.฀LED IndicatorThe฀LED฀indicator,฀on฀the฀front฀of฀the฀device฀above฀the฀screen฀(see฀“Front”฀on฀page 17)฀animates฀or฀glows฀to฀show฀alerts฀or฀device฀status.Blue •฀Pulses฀in฀multi-color฀blue฀while฀the฀device฀is฀turning฀On฀or฀Off.•฀Blinks฀blue฀for฀a฀missed฀call,฀message฀or฀other฀notification.Red •฀Glows฀red฀when฀the฀device฀is฀connected฀to฀a฀charger฀and฀charging.•฀Blinks฀red฀when฀the฀device฀is฀connected฀to฀a฀charger฀and฀there฀is฀a฀problem฀with฀charging.•฀Blinks฀red฀when฀battery฀power฀is฀low฀(device฀not฀connected฀to฀charger)Green •฀Glows฀green฀when฀the฀device฀is฀connected฀to฀a฀charger฀and฀the฀battery฀is฀fully฀charged.DRAFT FOR INTERNAL USE ONLY
34Status BarThe฀Status฀Bar฀shows฀network฀and฀battery฀status฀and฀other฀details,฀including฀these฀common฀icons.Airplane Mode Active:฀All฀wireless฀communications฀are฀disabled.฀See฀“Airplane mode” on฀page฀171USB Connected:฀The฀device฀is฀connected฀to฀a฀computer฀using฀a฀USB฀cable.฀For฀more฀information฀about฀transferring฀data฀between฀your฀device฀and฀a฀computer,฀see฀“Transferring Data”฀on฀page 168.Voice Call:฀A฀voice฀call฀is฀in฀progress.Speakerphone:฀Speakerphone฀is฀enabled.Missed Call:฀Displays฀when฀there฀is฀a฀missed฀call.Mute:฀Voice฀or฀playback฀volume฀is฀muted.Battery Level:฀Shown฀fully฀charged.Battery Charging:฀Battery฀is฀charging.Device Power Critical:฀Battery฀has฀very฀little฀power฀remaining.฀Charge฀immediately.GPS E911 Only:฀E911฀location฀is฀active฀(cannot฀be฀turned฀off).฀See฀“E911” on฀page฀194GPS Location Active:฀One฀or฀more฀GPS฀location฀services฀are฀active.฀See฀“Location services” on฀page฀194Missing SIM:฀No฀SIM฀is฀installed.No Network:฀No฀wireless฀network฀is฀available.3G connection:฀device฀is฀active฀on฀a฀3G฀system.฀The฀arrows฀are฀colored฀when฀data฀is฀being฀transferred.4G LTE Connection:฀device฀is฀active฀on฀a฀4G฀LTE฀system.฀The฀arrows฀are฀colored฀when฀data฀is฀being฀transferred.Signal Strength:฀Current฀signal฀strength.฀The฀greater฀the฀number฀of฀bars,฀the฀stronger฀the฀signal.DRAFT FOR INTERNAL USE ONLY
Understanding฀Your฀Device฀฀฀฀฀฀฀35Signal Strength Roaming, Open:฀Current฀signal฀strength,฀when฀the฀device฀is฀roaming.฀The฀greater฀the฀number฀of฀bars,฀the฀stronger฀the฀signal.Signal Strength Roaming, CDMA:฀Current฀signal฀strength,฀when฀the฀device฀is฀roaming฀on฀CDMA฀networks.฀The฀greater฀the฀number฀of฀bars,฀the฀stronger฀the฀signal.Wi-Fi Active:฀Wi-Fi฀is฀active,฀and฀connected฀to฀a฀Wi-Fi฀network.฀The฀greater฀the฀number฀of฀rays,฀the฀stronger฀the฀signal.฀The฀arrows฀are฀colored฀when฀data฀is฀being฀transferred.฀For฀more฀information฀about฀configuring฀Wi-Fi,฀see฀“Wi-Fi”฀on฀page 158.Wi-Fi Action Needed:฀Action฀needed฀to฀connect฀to฀฀฀Wi-Fi฀network.฀For฀more฀information฀about฀configuring฀Wi-Fi,฀see฀“Wi-Fi”฀on฀page 158.New Message:฀You฀have฀new฀message(s).New Voicemail:฀You฀have฀new฀voicemail.฀A฀number฀indicates฀the฀number฀of฀new฀messages.RNew Email Message:฀You฀have฀new฀email.Download Successful:฀A฀file฀was฀downloaded฀successfully.฀Update Available:฀An฀update฀is฀available฀for฀an฀installed฀app.฀Update Successful:฀An฀update฀was฀installed฀for฀an฀app.฀Alarm:฀An฀alarm฀is฀set.Silent mode:฀All฀sounds฀except฀media฀and฀alarms฀are฀silenced,฀and฀Vibrate฀is฀not฀active.Vibrate:฀Vibrate฀Silent฀mode฀is฀active.Music Playing:฀Music฀is฀playing,฀but฀the฀app฀is฀in฀the฀background.฀You฀can฀control฀playback฀from฀Notifications,฀or฀from฀Music฀player.Music Paused:฀Music฀playback฀is฀paused.฀You฀can฀control฀playback฀from฀Notifications,฀or฀from฀Music฀player.DRAFT FOR INTERNAL USE ONLY

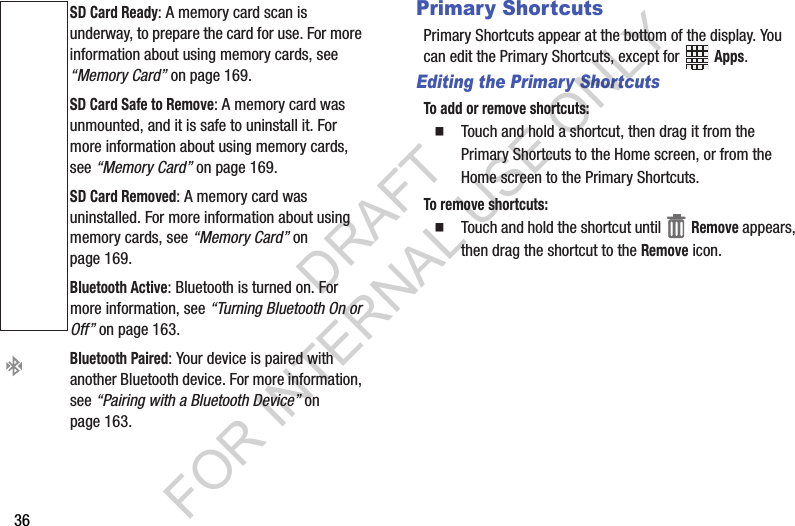

36Primary ShortcutsPrimary฀Shortcuts฀appear฀at฀the฀bottom฀of฀the฀display.฀You฀can฀edit฀the฀Primary฀Shortcuts,฀except฀for฀ ฀Apps.฀Editing the Primary ShortcutsTo add or remove shortcuts:䡲Touch฀and฀hold฀a฀shortcut,฀then฀drag฀it฀from฀the฀Primary฀Shortcuts฀to฀the฀Home฀screen,฀or฀from฀the฀Home฀screen฀to฀the฀Primary฀Shortcuts.To remove shortcuts:䡲Touch฀and฀hold฀the฀shortcut฀until฀ ฀Remove฀appears,฀then฀drag฀the฀shortcut฀to฀the฀Remove฀icon.SD Card Ready:฀A฀memory฀card฀scan฀is฀underway,฀to฀prepare฀the฀card฀for฀use.฀For฀more฀information฀about฀using฀memory฀cards,฀see฀“Memory Card”฀on฀page 169.SD Card Safe to Remove:฀A฀memory฀card฀was฀unmounted,฀and฀it฀is฀safe฀to฀uninstall฀it.฀For฀more฀information฀about฀using฀memory฀cards,฀see฀“Memory Card”฀on฀page 169.SD Card Removed:฀A฀memory฀card฀was฀uninstalled.฀For฀more฀information฀about฀using฀memory฀cards,฀see฀“Memory Card”฀on฀page 169.Bluetooth Active:฀Bluetooth฀is฀turned฀on.฀For฀more฀information,฀see฀“Turning Bluetooth On or Off”฀on฀page 163.Bluetooth Paired:฀Your฀device฀is฀paired฀with฀another฀Bluetooth฀device.฀For฀more฀information,฀see฀“Pairing with a Bluetooth Device”฀on฀page 163.DRAFT FOR INTERNAL USE ONLY
Understanding฀Your฀Device฀฀฀฀฀฀฀37WidgetsWidgets฀are฀self-contained฀applications฀that฀you฀can฀place฀on฀the฀Home฀screen฀for฀quick฀access.Adding Widgets to the Home screenAdding widgets from the Home screen1. Navigate฀to฀a฀Home฀screen฀panel,฀then฀touch฀and฀hold฀on฀the฀screen฀to฀display฀the฀Home฀screen฀menu.2. Touch฀Apps and widgets.฀3. Touch฀the฀Widgets฀tab,฀then฀touch฀and฀hold฀and฀drag฀it฀to฀the฀Home฀screen.Adding Shortcuts from Widgets1. Navigate฀to฀a฀Home฀screen฀panel.2. Touch฀ ฀Apps,฀then฀touch฀the฀Widgets฀tab.3. Touch฀a฀widget,฀then฀follow฀the฀prompts฀to฀configure฀the฀widget฀and฀place฀it฀on฀the฀Home฀screen.Removing Widgets䡲Touch฀and฀hold฀the฀widget฀until฀ ฀Remove฀appears,฀then฀drag฀the฀widget฀to฀the฀Remove฀icon.ShortcutsUse฀App฀shortcuts฀for฀quick฀access฀to฀applications฀from฀the฀Home฀screen.฀Your฀device฀comes฀with฀app฀shortcuts฀already฀placed฀on฀the฀Home฀screen,฀and฀you฀can฀add฀your฀favorites.Adding Shortcuts to the Home ScreenAdding shortcuts from the Home screen1. Navigate฀to฀a฀Home฀screen฀panel,฀then฀touch฀and฀hold฀on฀the฀screen฀to฀display฀the฀Add to Home฀screen฀menu.2. Touch฀Apps and widgets.฀3. Touch฀and฀hold฀an฀app฀to฀add฀it฀to฀the฀Home฀screen.Adding Shortcuts from Apps1. Navigate฀to฀a฀Home฀screen฀panel.2. Touch฀ ฀Apps.3. Touch฀and฀hold฀an฀app฀to฀add฀it฀to฀the฀Home฀screen.Removing Shortcuts䡲Touch฀and฀hold฀the฀shortcut฀until฀ ฀Remove฀appears,฀then฀drag฀the฀shortcut฀to฀the฀Remove฀icon.DRAFT FOR INTERNAL USE ONLY
38FoldersPlace฀folders฀on฀the฀Home฀screen฀to฀organize฀items.Adding Folders1. Navigate฀to฀a฀Home฀screen฀panel,฀then฀touch฀and฀hold฀on฀the฀screen฀to฀display฀the฀Home฀screen฀menu2. Touch Folder.฀The฀folder฀displays฀on฀the฀Home฀screen.฀Touch฀the฀folder฀to฀name฀it.Removing Folders䡲Touch฀and฀hold฀the฀folder฀until฀ ฀Remove฀appears,฀then฀drag฀the฀folder฀to฀the฀Remove฀icon.WallpaperChoose฀a฀picture฀to฀display฀in฀the฀background฀of฀the฀Home฀screen.฀You฀can฀choose฀pre-loaded฀wallpaper฀images,฀or฀select฀a฀picture฀you’ve฀taken฀with฀Camera฀or฀downloaded.1. From฀the฀Home฀screen,฀touch฀and฀hold฀on฀the฀screen฀to฀display฀the฀Home฀screen฀menu,฀then฀select฀Set wallpaper.฀2. Choose฀Home screen,฀Lock screen,฀or฀Home and lock screens.3. Choose฀a฀source:• Gallery: Choose a picture stored on your device or on an optional installed memory card. Touch a picture to select it, then use the crop tool to resize the picture, if desired. Touch Done to set the picture as wallpaper.• Live wallpapers: Choose from pre-loaded interactive moving wallpapers. Touch a wallpaper, then touch Set wallpaper.•Wallpaper: Choose from pre-loaded wallpaper images. Touch a wallpaper, then touch Set wallpaper.Note:You฀can฀also฀set฀Wallpaper฀in฀Settings.฀For฀more฀information,฀see฀“Wallpaper”฀on฀page 187.DRAFT FOR INTERNAL USE ONLY
Understanding฀Your฀Device฀฀฀฀฀฀฀39AppsApps฀holds฀all฀applications฀installed฀on฀your฀device.฀Applications฀that฀you฀download฀and฀install฀are฀also฀added฀to฀Apps.฀The฀Apps฀screen฀is฀like฀the฀Home฀screen,฀it฀consists฀of฀panels฀that฀extend฀beyond฀the฀display฀width฀to฀provide฀more฀space.฀Slide฀your฀finger฀horizontally฀across฀the฀screen฀to฀scroll฀to฀the฀left฀or฀right฀side฀panels.฀As฀you฀scroll,฀the฀indicator฀at฀the฀bottom฀of฀the฀display฀shows฀your฀current฀position.For฀more฀information฀about฀applications,฀see฀“Applications”฀on฀page 80.You฀can฀place฀shortcuts฀to฀apps฀on฀the฀Home฀screen,฀for฀quick฀access฀to฀the฀app.฀For฀more฀information,฀see฀“Adding Shortcuts from Apps”฀on฀page 37.1. From฀the฀Home฀screen,฀touch฀ ฀Apps.2. Slide฀your฀finger฀left฀or฀right฀to฀scroll฀the฀Apps฀screens.3. Touch฀an฀icon฀to฀launch฀the฀application.Entering TextYour฀device฀uses฀a฀virtual฀QWERTY฀keyboard฀for฀text฀entry.฀Use฀the฀keyboard฀to฀enter฀letters,฀punctuation,฀numbers,฀and฀other฀characters฀into฀text฀entry฀fields฀or฀applications.฀Access฀the฀keyboard฀by฀touching฀any฀text฀entry฀field.You฀can฀also฀use฀voice฀input฀to฀speak฀your฀inputs.The฀virtual฀QWERTY฀keyboard฀displays฀at฀the฀bottom฀of฀the฀screen.฀By฀default,฀when฀you฀rotate฀the฀device,฀the฀screen฀orientation฀updates฀to฀display฀the฀keyboard฀at฀the฀bottom฀of฀the฀screen.Text Input MethodsYour฀device฀offers฀three฀text฀input฀methods:฀Google฀voice฀typing,฀Samsung฀keyboard,฀and฀Swype.You฀can฀set฀a฀default฀text฀entry฀method฀in฀Settings.฀For฀more฀information,฀see฀“Keyboards and input methods”฀on฀page 205.To฀choose฀a฀text฀input฀method฀at฀any฀time:䡲While฀entering฀text,฀touch฀and฀drag฀downward฀from฀the฀top฀of฀the฀screen฀to฀display฀Notifications,฀then฀touch฀Choose input method.DRAFT FOR INTERNAL USE ONLY
40Using Samsung KeyboardThe฀Samsung฀keyboard฀is฀a฀custom฀virtual฀QWERTY฀keyboard,฀featuring฀optional฀predictive฀text.฀Input฀characters฀by฀tapping฀the฀on-screen฀keys฀with฀your฀finger,฀or฀use฀speech฀recognition.You฀can฀enable฀predictive฀text,฀to฀have฀the฀Samsung฀keyboard฀match฀your฀key฀touches฀to฀common฀words฀and฀displays฀them.฀Select฀a฀word฀from฀the฀display฀to฀insert฀it฀into฀your฀text.Configuring Samsung keyboardConfigure฀the฀Samsung฀keyboard฀to฀your฀preferences.฀•฀For฀more฀information,฀see฀“Samsung keyboard”฀on฀page 206.•฀While฀entering฀text,฀touch฀ ,฀then฀select฀ ฀from฀the฀pop-up฀menu.Entering Upper and Lower Case LettersThe฀default฀case฀is฀lower฀case฀(abc).฀Enter฀upper฀and฀lower฀case฀alphabet฀letters฀by฀touching฀the฀Shift฀key฀to฀toggle฀the฀case,฀before฀touching฀the฀letter฀key(s).•Touch once to switch from abc to Abc mode•Touch and hold to switch to ABC modeEntering Symbols and NumbersTo฀enter฀common฀symbols,฀touch฀ ฀to฀switch฀to฀symbol฀mode,฀then฀touch฀the฀corresponding฀key.To฀enter฀less-common฀symbols,฀touch฀ ➔ ,฀then฀touch฀the฀corresponding฀key.To฀enter฀numbers,฀touch฀ ,฀then฀touch฀the฀number฀keys.Using Google Voice Typing from the Samsung keyboardWhen฀you฀enable฀the฀Voice฀input฀setting฀for฀Samsung฀keyboard,฀you฀can฀access฀Google฀Voice฀Typing฀from฀the฀Samsung฀keyboard.For฀more฀information฀about฀enabling฀Voice฀input,฀see฀“Samsung keyboard”฀on฀page 206.䡲Touch฀ ,฀then฀speak฀your฀input.Using Predictive textWhen฀using฀Predictive฀text,฀you฀can฀have฀next-letter฀prediction฀and฀regional฀error฀correction,฀which฀compensates฀for฀pressing฀the฀wrong฀keys฀on฀the฀QWERTY฀keyboard.䡲While฀entering฀characters,฀potential฀word฀matches฀display฀in฀the฀Predictive฀text฀area฀above฀the฀keyboard.฀Touch฀a฀word฀to฀insert฀it฀into฀your฀text.DRAFT FOR INTERNAL USE ONLY
Understanding฀Your฀Device฀฀฀฀฀฀฀41Using Google Voice TypingUse฀your฀voice฀to฀enter฀text฀using฀the฀Google฀Voice฀typing฀feature.1. While฀entering฀text,฀touch฀and฀drag฀downward฀from฀the฀top฀of฀the฀screen฀to฀display฀Notifications,฀then฀touch฀Select input method ➔ Google voice typing.2. At฀the฀Listening฀prompt,฀speak฀your฀text.฀As฀you฀speak,฀the฀text฀is฀displayed฀in฀the฀text฀field.Entering Text using SwypeSwype฀is฀a฀new฀way฀to฀enter฀text฀on฀touch฀screens.฀Instead฀of฀touching฀each฀key฀individually,฀use฀your฀finger฀to฀trace฀over฀the฀letters฀of฀a฀word.฀For฀each฀word,฀place฀your฀finger฀on฀the฀first฀letter฀and฀glide฀to฀the฀subsequent฀letters,฀lifting฀on฀the฀last฀letter.Swype HelpWhile฀entering฀text,฀you฀can฀get฀information฀about฀Swype.䡲Touch฀and฀hold฀ ฀Swype฀to฀access฀Settings,฀for฀the฀How to Swype฀tutorial.DRAFT FOR INTERNAL USE ONLY
42Configuring SwypeConfigure฀Swype฀options฀in฀the฀Language฀and฀input฀settings.฀•฀While฀entering฀text,฀touch฀and฀hold฀ ฀Swype.•฀For฀more฀information฀about฀Swype฀settings,฀see฀“Swype”฀on฀page 208.Using the Numeric KeyboardSwitch฀to฀a฀Numeric฀Keyboard,฀to฀quickly฀enter฀numbers฀and฀mathematical฀operators.䡲Touch฀ .Entering Symbols and NumbersUsing฀the฀Swype฀Keyboard:•฀Touch฀and฀hold฀on฀a฀key฀to฀enter฀the฀character฀at฀the฀top฀of฀the฀key.•฀Touch฀and฀hold฀on฀a฀key฀until฀a฀menu฀of฀all฀characters฀available฀on฀that฀key฀appears,฀then฀touch฀a฀character฀to฀enter฀it.•฀Touch฀ ฀to฀switch฀to฀Symbol฀mode,฀then฀touch฀a฀key.Editing KeyboardThe฀Editing฀Keyboard฀provides฀a฀quick฀way฀to฀move฀the฀cursor฀and฀highlight฀text.฀If฀the฀application฀in฀which฀you฀are฀working฀supports฀editing,฀you฀can฀cut,฀copy฀or฀paste฀highlighted฀text.䡲Swype฀from฀ Swype to฀ .Using Swype Voice InputEnter฀text฀by฀speaking.฀Swype฀recognizes฀your฀speech฀and฀enters฀text฀for฀you.䡲Touch฀ ฀Voice Input.฀At฀the฀prompt,฀speak฀the฀text฀you฀want฀to฀enter.DRAFT FOR INTERNAL USE ONLY
Contacts฀and฀Accounts฀฀฀฀฀฀฀43Section 3: Contacts and AccountsAccountsYour฀device฀provides฀the฀ability฀to฀synchronize฀information,฀from฀a฀variety฀of฀accounts,฀including฀Email,฀Facebook,฀Google,฀and฀your฀Samsung฀account.฀Depending฀on฀the฀account,฀you฀can฀choose฀to฀synchronize฀your฀calendar,฀contacts,฀and฀other฀types฀of฀content.Contacts฀from฀your฀accounts฀appear฀in฀your฀device’s฀Contacts.With฀synchronization,฀you฀can฀ensure฀that฀information฀on฀your฀device฀is฀updated฀with฀any฀information฀that฀changes฀in฀your฀accounts.Setting Up Your AccountsSet฀up฀and฀manage฀your฀accounts฀with฀the฀Accounts฀settings.฀For฀information฀about฀setting฀up฀other,฀non-synchronized฀email฀accounts,฀see฀“Setting Up Email Accounts”฀on฀page 74.Tip:For฀more฀information฀on฀setting฀up฀your฀email,฀visit฀the฀Smartphone฀Resource฀Center฀at:฀https://smartphones.verizonwireless.comAdding an account1. From฀the฀Home฀screen,฀touch฀ ฀Apps ➔ ฀Settings ➔ Add account.2. Select฀an฀account฀provider,฀then฀follow฀the฀prompts฀to฀enter฀your฀credentials฀and฀sign฀in.3. The฀device฀communicates฀with฀the฀provider’s฀server฀to฀set฀up฀your฀account฀on฀the฀device.DRAFT FOR INTERNAL USE ONLY

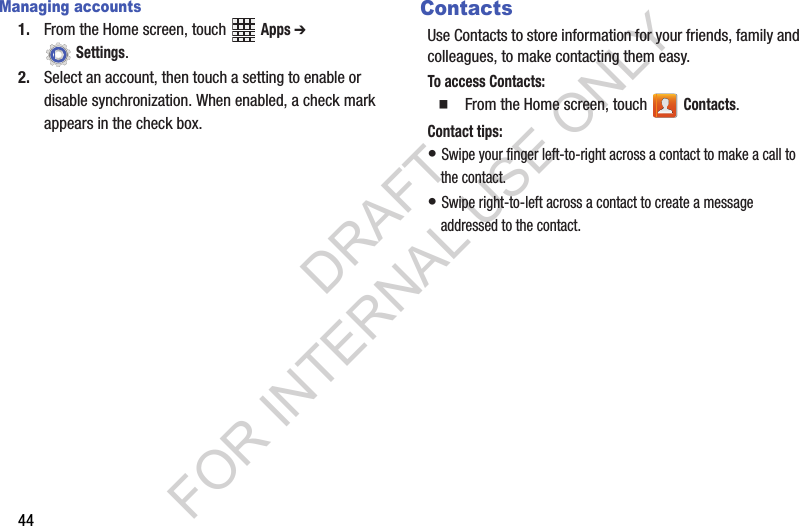

44Managing accounts1. From฀the฀Home฀screen,฀touch฀ ฀Apps ➔ ฀Settings.2. Select฀an฀account,฀then฀touch฀a฀setting฀to฀enable฀or฀disable฀synchronization.฀When฀enabled,฀a฀check฀mark฀appears฀in฀the฀check฀box.ContactsUse฀Contacts฀to฀store฀information฀for฀your฀friends,฀family฀and฀colleagues,฀to฀make฀contacting฀them฀easy.To access Contacts:䡲From฀the฀Home฀screen,฀touch฀ ฀Contacts.Contact tips:•฀Swipe฀your฀finger฀left-to-right฀across฀a฀contact฀to฀make฀a฀call฀to฀the฀contact.•฀Swipe฀right-to-left฀across฀a฀contact฀to฀create฀a฀message฀addressed฀to฀the฀contact.DRAFT FOR INTERNAL USE ONLY

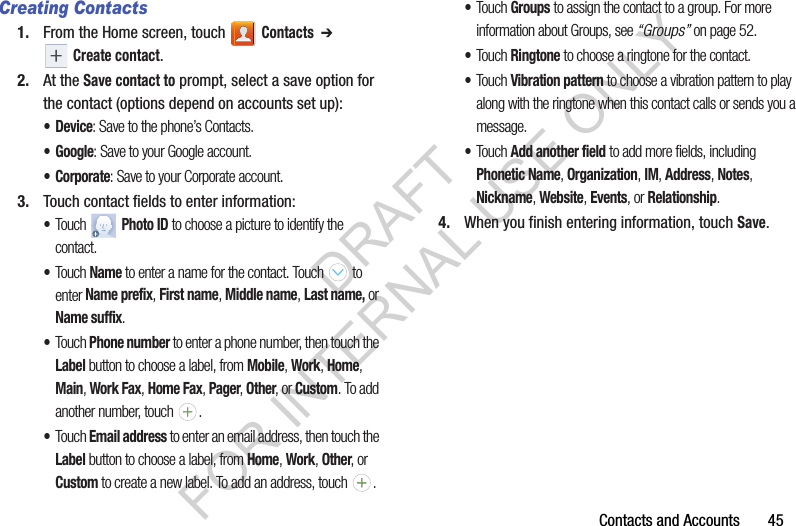

Contacts฀and฀Accounts฀฀฀฀฀฀฀45Creating Contacts1. From฀the฀Home฀screen,฀touch฀ ฀Contacts ➔ ฀Create contact.2. At฀the฀Save contact to฀prompt,฀select฀a฀save฀option฀for฀the฀contact฀(options฀depend฀on฀accounts฀set฀up):•Device: Save to the phone’s Contacts.• Google: Save to your Google account.•Corporate: Save to your Corporate account.3. Touch฀contact฀fields฀to฀enter฀information:•Touch ฀Photo ID to choose a picture to identify the contact.•Touch Name to enter a name for the contact. Touch to enter Name prefix, First name, Middle name, Last name, or Name suffix.•Touch Phone number to enter a phone number, then touch the Label button to choose a label, from Mobile, Work, Home, Main, Work Fax, Home Fax, Pager, Other, or Custom. To add another number, touch . •Touch Email address to enter an email address, then touch the Label button to choose a label, from Home, Work, Other, or Custom to create a new label. To add an address, touch . •Touch Groups to assign the contact to a group. For more information about Groups, see “Groups” on page 52.•Touch Ringtone to choose a ringtone for the contact.•Touch Vibration pattern to choose a vibration pattern to play along with the ringtone when this contact calls or sends you a message.•Touch Add another field to add more fields, including Phonetic Name, Organization, IM, Address, Notes, Nickname, Website, Events, or Relationship. 4. When฀you฀finish฀entering฀information,฀touch฀Save.DRAFT FOR INTERNAL USE ONLY

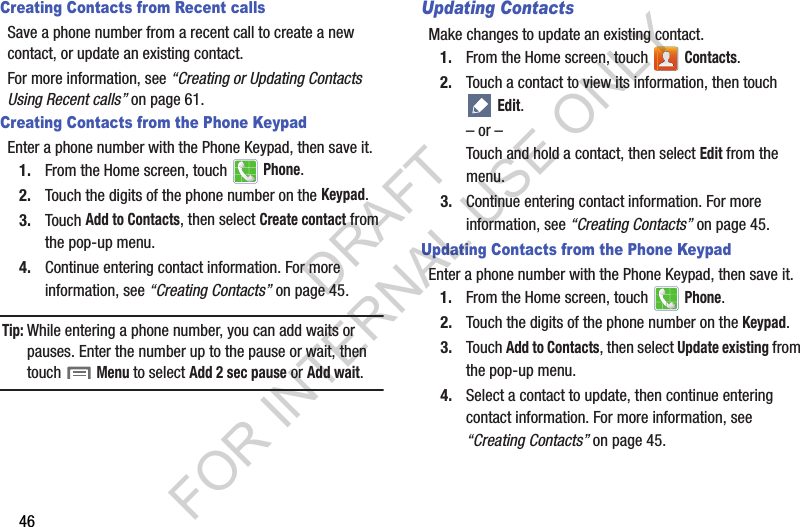

46Creating Contacts from Recent callsSave฀a฀phone฀number฀from฀a฀recent฀call฀to฀create฀a฀new฀contact,฀or฀update฀an฀existing฀contact.For฀more฀information,฀see฀“Creating or Updating Contacts Using Recent calls”฀on฀page 61.Creating Contacts from the Phone KeypadEnter฀a฀phone฀number฀with฀the฀Phone฀Keypad,฀then฀save฀it.1. From฀the฀Home฀screen,฀touch฀ ฀Phone.2. Touch฀the฀digits฀of฀the฀phone฀number฀on฀the฀Keypad.3. Touch฀Add to Contacts,฀then฀select฀Create contact฀from฀the฀pop-up฀menu.4. Continue฀entering฀contact฀information.฀For฀more฀information,฀see฀“Creating Contacts”฀on฀page 45.Tip:While฀entering฀a฀phone฀number,฀you฀can฀add฀waits฀or฀pauses.฀Enter฀the฀number฀up฀to฀the฀pause฀or฀wait,฀then฀touch฀฀Menu to฀select฀Add 2 sec pause฀or฀Add wait.Updating ContactsMake฀changes฀to฀update฀an฀existing฀contact.1. From฀the฀Home฀screen,฀touch฀ ฀Contacts.2. Touch฀a฀contact฀to฀view฀its฀information,฀then฀touch฀฀Edit.–฀or฀–Touch฀and฀hold฀a฀contact,฀then฀select฀Edit฀from฀the฀menu.3. Continue฀entering฀contact฀information.฀For฀more฀information,฀see฀“Creating Contacts”฀on฀page 45.Updating Contacts from the Phone KeypadEnter฀a฀phone฀number฀with฀the฀Phone฀Keypad,฀then฀save฀it.1. From฀the฀Home฀screen,฀touch฀ ฀Phone.2. Touch฀the฀digits฀of฀the฀phone฀number฀on฀the฀Keypad.3. Touch฀Add to Contacts,฀then฀select฀Update existing฀from฀the฀pop-up฀menu.4. Select฀a฀contact฀to฀update,฀then฀continue฀entering฀contact฀information.฀For฀more฀information,฀see฀“Creating Contacts”฀on฀page 45.DRAFT FOR INTERNAL USE ONLY
Contacts฀and฀Accounts฀฀฀฀฀฀฀47Updating Contacts from Recent callsSave฀a฀phone฀number฀from฀a฀recent฀call฀to฀create฀a฀new฀contact,฀or฀update฀an฀existing฀contact.For฀more฀information,฀see฀“Creating or Updating Contacts Using Recent calls”฀on฀page 61.Choosing Contacts to Display1. From฀the฀Home฀screen,฀touch฀ ฀Contacts.2. Touch฀฀Menu,฀then฀touch฀Contacts to display:•Choose All contacts to show all contacts.•Choose an account to only display contacts from that account.•Touch Device to show only show contacts saved to the phone.•Touch SIM to show only contacts saved to the SIM card.•Choose Customized list to select contact types for each account, or the phone.Contacts Settings1. From฀the฀Home฀screen,฀touch฀ ฀Contacts.2. Touch฀฀Menu,฀then฀touch฀Settings:•Select Only contacts with phones to show contacts with at least one stored phone number.•Touch List by to sort contacts by first or last name.•Touch Display contacts by to list contacts by first or last name.•Touch Service numbers to view and call customer service for your service provider.•Touch Contact sharing settings to set your preferences for transferring contacts by Bluetooth. You can choose to send all namecards at once, or individually. For more information about sending contacts, see “Sending Namecards (vCards)” on page 50.DRAFT FOR INTERNAL USE ONLY
48Other Contacts Options1. From฀the฀Home฀screen,฀touch฀ ฀Contacts.2. Touch฀a฀contact฀to฀display฀it,฀then฀touch฀฀Menu:•History: View calls and messages to and from this contact.•Edit: Modify contact information.•Delete: Erase the contact record.• Link contact/Separate contact: Manage multiple contacts as one. For information, see “Linking Contacts” on page 49.• Mark as default: Set a default phone number or other field (such as IM or email address). Defaults are the contact method used when creating a message or calling a contact. You can also set a default by touching and holding on a contact field.• Share namecard via: Send one or more selected contacts as namecards. For information, see “Sending Namecards (vCards)” on page 50.• Add to reject list: Mark the contact so that calls or messages from the contact are rejected automatically. To remove a contact form the reject list, touch and hold on the contact in the main contacts screen, then choose Remove from reject list.• Place to home screen: Add a shortcut icon to a Home screen to provide direct access to this contact. My Local ProfileMy฀local฀profile฀is฀your฀own฀contact฀record,฀listed฀under฀ME฀in฀Contacts.฀You฀can฀send฀My฀local฀profile฀as฀a฀vCard฀over฀a฀Bluetooth฀connection฀or฀as฀an฀attachment฀to฀a฀message.Creating My Local Profile1. From฀the฀Home฀screen,฀touch฀ ฀Contacts.2. At฀the฀top฀of฀the฀Contacts฀list,฀touch฀Set up profile,฀then฀enter฀your฀information฀in฀the฀contact฀fields.฀For฀more฀information,฀see฀“Creating Contacts”฀on฀page 45.Sending My Local ProfileYou฀can฀send฀your฀profile฀as฀a฀vCard฀over฀a฀Bluetooth฀connection฀or฀as฀an฀attachment฀to฀a฀message.1. From฀the฀Home฀screen,฀touch฀ ฀Contacts.2. Under฀ME,฀touch฀your฀profile฀to฀display฀your฀contact฀information.3. Touch฀฀Menu,฀then฀touch฀Share namecard via.฀4. Choose฀a฀sending฀method,฀then฀follow฀the฀prompts฀to฀send฀the฀profile.DRAFT FOR INTERNAL USE ONLY
Contacts฀and฀Accounts฀฀฀฀฀฀฀49Linking ContactsYour฀device฀can฀synchronize฀with฀multiple฀accounts,฀including฀Google,฀Corporate,฀and฀other฀providers,฀plus฀social฀networking฀sites฀like฀Facebook.฀When฀you฀synchronize฀contacts฀from฀these฀accounts฀with฀your฀device,฀you฀may฀have฀multiple฀contacts฀for฀one฀person.฀Linking฀contact฀records฀allows฀you฀to฀see฀all฀the฀contact’s฀numbers฀and฀addresses฀together.฀Linking฀also฀helps฀you฀keep฀your฀contacts฀updated,฀because฀any฀changes฀to฀information฀in฀the฀respective฀accounts฀is฀automatically฀updated฀the฀next฀time฀you฀synchronize฀with฀the฀account.Linking contacts1. From฀the฀Home฀screen,฀touch฀ ฀Contacts.2. Touch฀and฀hold฀on฀a฀contact,฀then฀select฀Link contact.3. Select฀a฀contact฀to฀join฀to฀the฀selected฀contact.Separating contacts1. From฀the฀Home฀screen,฀touch฀ ฀Contacts.2. Touch฀a฀contact฀to฀display฀its฀information.3. Under฀the฀Connection฀heading,฀phone฀icons฀show฀how฀many฀contacts฀are฀linked฀to฀this฀one.฀Touch฀the฀ ฀icon฀to฀display฀the฀linked฀contacts.4. Touch฀ ฀next฀to฀a฀contact฀to฀remove฀it฀from฀the฀Linked contact฀list.DRAFT FOR INTERNAL USE ONLY
50Exporting and Importing ContactsYou฀can฀export฀your฀contact฀list฀to฀and฀from฀USB฀storage฀(your฀device’s฀memory),฀or฀an฀installed฀memory฀card.฀Contacts฀are฀exported฀and฀imported฀as฀a฀special฀VCF฀file,฀and฀contacts฀are฀sent฀as฀vCards.1. From฀the฀Home฀screen,฀touch฀ ฀Contacts.2. Touch฀฀Menu,฀then฀touch฀Import/Export.3. Select฀an฀option,฀then฀follow฀the฀prompts฀to฀complete฀the฀operation:• Import from USB storage: Copy contacts that are saved in device memory.• Export to USB storage: Copy contacts to device memory.• Import from SD card: Copy contacts from an optional installed memory card (not included).• Export to SD card: Copy contacts to an installed memory card.• Import from SIM card: Copy contacts that are saved to the SIM card to device memory.• Share namecard via: Share contacts as vCards. For more information, see “Sending Namecards (vCards)” on page 50.Sending Namecards (vCards)You฀can฀send฀a฀contact฀namecard฀as฀a฀vCards฀using฀a฀Bluetooth฀connection฀to฀other฀Bluetooth฀devices,฀or฀as฀an฀attachment฀to฀a฀Gmail฀or฀Email฀message.Important!Not฀all฀Bluetooth฀devices฀will฀accept฀contacts,฀and฀not฀all฀devices฀support฀transfers฀of฀multiple฀contacts.฀Check฀the฀target฀device’s฀documentation.1. From฀the฀Home฀screen,฀touch฀ ฀Contacts.2. Touch฀฀Menu,฀then฀touch฀Import/Export฀➔฀Share namecard via.฀3. Touch฀contacts฀to฀mark฀them฀for฀sending,฀or฀touch฀Select all฀to฀mark฀all฀contacts.฀A฀check฀mark฀appears฀in฀the฀check฀box฀for฀marked฀contacts.4. Touch฀Done.฀At฀the฀prompt,฀choose฀a฀sending฀method,฀then฀follow฀the฀prompts฀to฀send฀the฀namecard:• Bluetooth: For more information about sending using Bluetooth, see “Bluetooth” on page 163.•Email: For more information about sending email, see “Email” on page 74.DRAFT FOR INTERNAL USE ONLY
Contacts฀and฀Accounts฀฀฀฀฀฀฀51•Gmail: For more information about sending Gmail, see “Composing and Sending Gmail” on page 77.• Messaging: For more information about sending messages, see “Creating and Sending Messages” on page 70.• Wi-Fi Direct: For more information about using Wi-Fi Direct, see see “Wi-Fi Direct” on page 160.Backing Up ContactsUse฀Backup฀Assistant฀Plus฀to฀save฀a฀copy฀of฀your฀Contacts฀to฀a฀secure฀web฀site.฀For฀more฀information,฀see฀“Backup Assistant Plus”฀on฀page 212.฀1. From฀the฀Home฀screen,฀touch฀ ฀Contacts.2. Touch฀฀Menu,฀then฀touch฀Backup.฀3. Follow฀the฀prompts฀to฀log฀in฀to฀your฀Backup฀Assistant฀Plus฀account.DRAFT FOR INTERNAL USE ONLY

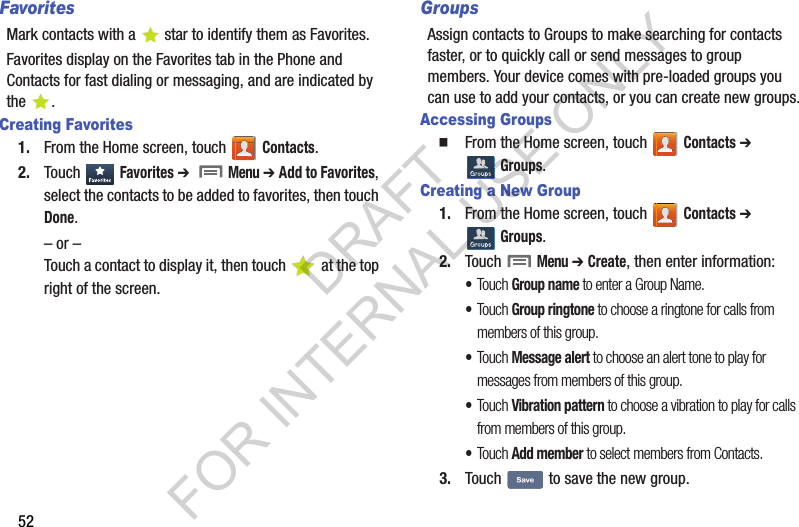

52FavoritesMark฀contacts฀with฀a฀ star฀to฀identify฀them฀as฀Favorites.Favorites฀display฀on฀the฀Favorites฀tab฀in฀the฀Phone฀and฀Contacts฀for฀fast฀dialing฀or฀messaging,฀and฀are฀indicated฀by฀the฀ .Creating Favorites1. From฀the฀Home฀screen,฀touch฀ ฀Contacts.฀2. Touch฀Favorites฀➔฀฀฀Menu฀➔฀Add to Favorites,฀select฀the฀contacts฀to฀be฀added฀to฀favorites,฀then฀touch฀Done.฀–฀or฀–Touch฀a฀contact฀to฀display฀it,฀then฀touch฀ ฀at฀the฀top฀right฀of฀the฀screen.฀GroupsAssign฀contacts฀to฀Groups฀to฀make฀searching฀for฀contacts฀faster,฀or฀to฀quickly฀call฀or฀send฀messages฀to฀group฀members.฀Your฀device฀comes฀with฀pre-loaded฀groups฀you฀can฀use฀to฀add฀your฀contacts,฀or฀you฀can฀create฀new฀groups.Accessing Groups䡲From฀the฀Home฀screen,฀touch฀ ฀Contacts฀➔฀฀Groups.Creating a New Group1. From฀the฀Home฀screen,฀touch฀ ฀Contacts฀➔฀฀Groups.2. Touch฀฀Menu฀➔฀Create,฀then฀enter฀information:•Touch Group name to enter a Group Name.•Touch Group ringtone to choose a ringtone for calls from members of this group.•Touch Message alert to choose an alert tone to play for messages from members of this group.•Touch Vibration pattern to choose a vibration to play for calls from members of this group.•Touch Add member to select members from Contacts.3. Touch฀ ฀to฀save฀the฀new฀group.฀DRAFT FOR INTERNAL USE ONLY
Contacts฀and฀Accounts฀฀฀฀฀฀฀53Editing a Group1. From฀the฀Home฀screen,฀touch฀ ฀Contacts฀➔฀฀Groups.2. Touch฀a฀Group฀to฀display฀it.3. Touch฀฀Menu฀➔฀Edit group,฀then฀update฀information฀for฀the฀group.฀For฀more฀information,฀see฀“Creating a New Group”฀on฀page 52.Deleting a Group1. From฀the฀Home฀screen,฀touch฀ ฀Contacts฀➔฀฀Groups.2. Touch฀฀Menu,฀then฀touch฀Delete groups.฀3. Touch฀a฀group฀to฀mark฀it฀for฀deletion,฀or฀touch฀Select all฀to฀mark฀all฀groups.฀When฀selected,฀a฀check฀mark฀appears฀in฀the฀check฀box.฀You฀cannot฀delete฀pre-loaded฀groups.4. Touch฀Delete,฀then฀choose฀Group only฀or฀Group฀and group members.5. When฀prompted,฀touch฀OK฀to฀delete฀the฀selected฀group(s).฀Adding Contacts to a Group1. From฀the฀Home฀screen,฀touch฀ ฀Contacts฀➔฀฀Groups.2. Touch฀a฀Group฀to฀display฀it,฀then฀touch฀ ฀Add member.3. Touch฀contact(s)฀to฀mark฀them฀for฀addition,฀or฀touch฀Select all to฀mark฀all฀contacts.฀When฀selected,฀a฀check฀mark฀appears฀in฀the฀check฀box.4. Touch฀Done฀to฀add฀the฀selected฀contact(s).Removing Contacts from a Group1. From฀the฀Home฀screen,฀touch฀ ฀Contacts฀➔฀Groups.2. Touch฀a฀Group฀to฀display฀it.3. Touch฀฀Menu,฀then฀touch฀Remove member.฀4. Touch฀contact(s)฀to฀mark฀them฀for฀removal,฀or฀touch฀Select all฀to฀mark฀all฀contacts.฀When฀selected,฀a฀check฀mark฀appears฀in฀the฀check฀box.5. Touch฀Done฀to฀remove฀the฀selected฀contact(s).DRAFT FOR INTERNAL USE ONLY
54Sending a Message to Group MembersCreate฀a฀new฀text฀or฀email฀message,฀addressed฀to฀the฀group’s฀members.1. From฀the฀Home฀screen,฀touch฀ ฀Contacts฀➔฀Groups.2. Touch฀a฀Group฀to฀display฀it.3. Touch฀฀Menu,฀then฀touch฀Send message฀or฀Send email.฀4. Touch฀contacts฀to฀mark฀them฀as฀recipients฀for฀the฀new฀message,฀then฀touch฀Done.5. The฀new฀message฀opens,฀with฀the฀marked฀contacts฀as฀recipients.฀Continue฀creating฀the฀message,฀as฀desired.฀For฀more฀information,฀see฀“Creating and Sending Messages”฀on฀page 70,฀or฀see฀“Composing and Sending Email”฀on฀page 76.Speed DialsSpeed฀dials฀are฀1-,฀2-,฀or฀3-digit฀shortcuts฀(1฀to฀100)฀you฀assign฀to฀contacts,฀to฀allow฀you฀to฀quickly฀call฀the฀contact.For฀more฀information฀about฀calling฀using฀speed฀dials,฀see฀“Making Calls using Speed Dials”฀on฀page 56.Note:Some฀speed฀dials฀are฀reserved฀by฀default,฀and฀cannot฀be฀assigned:Speed฀dial฀1฀is฀reserved฀for฀Voicemail.Speed฀dial฀96฀is฀reserved฀for฀data฀usage฀inquiries.Speed฀dial฀97฀is฀reserved฀for฀balance฀inquiries.Speed฀dial฀98฀is฀reserved฀for฀minutes฀inquiries.Speed฀dial฀99฀is฀reserved฀for฀payment฀inquiries.Assigning Speed Dials1. From฀the฀Home฀screen,฀touch฀ ฀Contacts.2. Touch฀฀Menu,฀then฀touch฀Speed dial setting.3. A฀list฀of฀speed฀dials฀displays.Touch฀a฀speed฀dial,฀then฀touch฀a฀contact฀to฀assign฀the฀contact฀to฀the฀speed฀dial.DRAFT FOR INTERNAL USE ONLY

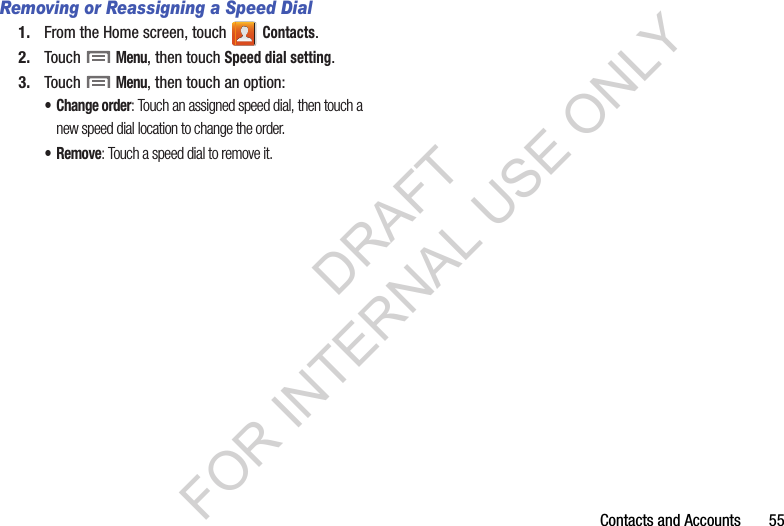

Contacts฀and฀Accounts฀฀฀฀฀฀฀55Removing or Reassigning a Speed Dial1. From฀the฀Home฀screen,฀touch฀ ฀Contacts.2. Touch฀฀Menu,฀then฀touch฀Speed dial setting.3. Touch฀฀Menu,฀then฀touch฀an฀option:• Change order: Touch an assigned speed dial, then touch a new speed dial location to change the order.•Remove: Touch a speed dial to remove it.DRAFT FOR INTERNAL USE ONLY
56Section 4: CallingMaking CallsYour฀device฀offers฀multiple฀ways฀to฀make฀calls:•฀Use฀the฀touch฀screen฀Phone Keypad฀to฀enter฀the฀phone฀number฀or฀speed฀dial.•฀Call฀a฀contact฀from฀Contacts.•฀Call฀a฀contact฀from฀Favorites.•฀Return฀a฀call,฀or฀call฀a฀recent฀caller,฀from฀Recent฀calls.•฀Voice฀dial฀using฀S Voice.Making Calls Using the Phone Keypad1. From฀the฀Home฀screen,฀touch฀ ฀Phone.2. Touch฀the฀digits฀of฀the฀telephone฀number฀on฀the฀Keypad.3. Touch฀ ฀to฀place฀the฀call.Making Calls using Speed DialsSpeed฀Dials฀are฀1-,฀2-,฀or฀3-digit฀shortcuts฀(1฀to฀100)฀you฀assign฀to฀contacts,฀to฀allow฀you฀to฀quickly฀call฀the฀contact.For฀more฀information฀about฀setting฀speed฀dials,฀see฀“Speed Dials”฀on฀page 54.1. From฀the฀Home฀screen,฀touch฀ ฀Phone.2. Touch฀the฀digits฀of฀the฀speed฀dial฀number฀on฀the฀Keypad,฀holding฀the฀last฀digit฀until฀the฀number฀dials.DRAFT FOR INTERNAL USE ONLY

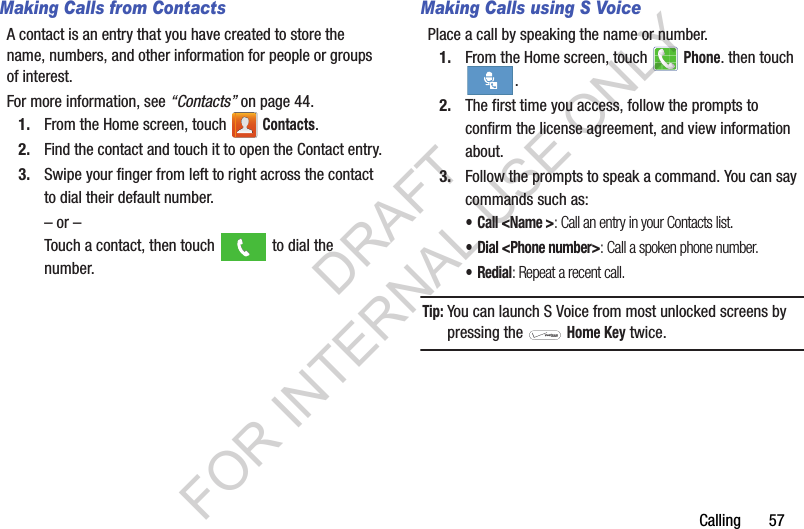

Calling฀฀฀฀฀฀฀57Making Calls from ContactsA฀contact฀is฀an฀entry฀that฀you฀have฀created฀to฀store฀the฀name,฀numbers,฀and฀other฀information฀for฀people฀or฀groups฀of฀interest.For฀more฀information,฀see฀“Contacts”฀on฀page 44.1. From฀the฀Home฀screen,฀touch฀ ฀Contacts.2. Find฀the฀contact฀and฀touch฀it฀to฀open฀the฀Contact฀entry.3. Swipe฀your฀finger฀from฀left฀to฀right฀across฀the฀contact฀to฀dial฀their฀default฀number.–฀or฀–Touch฀a฀contact,฀then฀touch฀ ฀to฀dial฀the฀number.Making Calls using S VoicePlace฀a฀call฀by฀speaking฀the฀name฀or฀number.฀1. From฀the฀Home฀screen,฀touch฀ ฀Phone.฀then฀touch฀.2. The฀first฀time฀you฀access,฀follow฀the฀prompts฀to฀confirm฀the฀license฀agreement,฀and฀view฀information฀about.3. Follow฀the฀prompts฀to฀speak฀a฀command.฀You฀can฀say฀commands฀such฀as:• Call <Name >: Call an entry in your Contacts list.• Dial <Phone number>: Call a spoken phone number.•Redial: Repeat a recent call.Tip:You฀can฀launch฀S฀Voice฀from฀most฀unlocked฀screens฀by฀pressing฀the฀ ฀Home Key฀twice.DRAFT FOR INTERNAL USE ONLY
58Making Calls using FavoritesFavorites฀are฀contacts฀that฀you฀designate฀as฀favorites฀by฀starring฀them.฀For฀more฀information฀about฀creating฀favorites,฀see฀“Favorites”฀on฀page 52.1. From฀the฀Home฀screen,฀touch฀ ฀Phone.2. Touch฀ ฀Favorites฀to฀display฀favorites.3. Find฀the฀contact฀and฀touch฀it฀to฀open฀the฀Contact฀entry.4. Swipe฀your฀finger฀from฀left฀to฀right฀across฀the฀contact฀to฀dial฀their฀default฀number.–฀or฀–Touch฀a฀contact,฀then฀touch฀ ฀to฀dial฀the฀number.Making Calls from Recent callsReturn฀a฀call,฀or฀call฀a฀number฀from฀a฀recent฀call฀stored฀in฀Recent฀calls.฀For฀more฀information,฀see฀“Recent Calls”฀on฀page 60.฀Multi-party CallingUse฀multi-party฀call฀features฀to฀set฀up฀a฀call฀between฀multiple฀callers,฀such฀as฀for฀a฀conference฀call.1. Establish฀the฀first฀call,฀by฀answering฀an฀incoming฀call฀or฀making฀a฀call.2. Touch฀Add call.฀The฀first฀call฀is฀placed฀on฀hold.฀3. Make฀the฀second฀call฀by฀touching฀the฀phone฀number฀digits,฀then฀press฀ .4. Touch฀Merge฀to฀merge฀the฀calls฀into฀one฀conference฀call.5. To฀end฀the฀call฀touch฀.DRAFT FOR INTERNAL USE ONLY

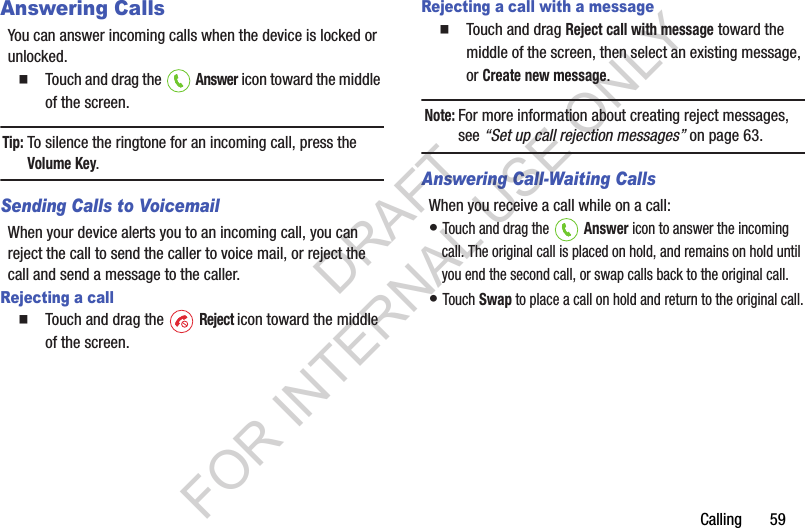

Calling฀฀฀฀฀฀฀59Answering CallsYou฀can฀answer฀incoming฀calls฀when฀the฀device฀is฀locked฀or฀unlocked.䡲Touch฀and฀drag฀the฀ ฀Answer฀icon฀toward฀the฀middle฀of฀the฀screen.Tip:To฀silence฀the฀ringtone฀for฀an฀incoming฀call,฀press฀the฀Volume Key.Sending Calls to VoicemailWhen฀your฀device฀alerts฀you฀to฀an฀incoming฀call,฀you฀can฀reject฀the฀call฀to฀send฀the฀caller฀to฀voice฀mail,฀or฀reject฀the฀call฀and฀send฀a฀message฀to฀the฀caller.฀Rejecting a call䡲Touch฀and฀drag฀the฀ ฀Reject icon฀toward฀the฀middle฀of฀the฀screen.Rejecting a call with a message䡲Touch฀and฀drag฀Reject call with message฀toward฀the฀middle฀of฀the฀screen,฀then฀select฀an฀existing฀message,฀or฀Create new message.Note:For฀more฀information฀about฀creating฀reject฀messages,฀see฀“Set up call rejection messages”฀on฀page 63.Answering Call-Waiting CallsWhen฀you฀receive฀a฀call฀while฀on฀a฀call:•฀Touch฀and฀drag฀the฀ ฀Answer฀icon฀to฀answer฀the฀incoming฀call.฀The฀original฀call฀is฀placed฀on฀hold,฀and฀remains฀on฀hold฀until฀you฀end฀the฀second฀call,฀or฀swap฀calls฀back฀to฀the฀original฀call.•฀Touch฀Swap฀to฀place฀a฀call฀on฀hold฀and฀return฀to฀the฀original฀call.DRAFT FOR INTERNAL USE ONLY
60Options During a CallWhile฀in฀a฀call,฀you฀can฀use฀these฀features:•฀Add call:฀Display฀the฀Dialer฀to฀set฀up฀a฀multi-party฀call.•฀Keypad:฀Display฀a฀keypad฀to฀enter฀numbers.•฀End call:฀End฀the฀phone฀call.•฀Speaker:฀Enable฀or฀disable฀speakerphone.•฀Mute:฀Mute฀or฀unmute฀your฀voice฀on฀the฀call.•฀Headset:฀Switch฀the฀call’s฀audio฀to฀a฀Bluetooth฀headset฀(device฀and฀headset฀must฀already฀be฀paired;฀for฀more฀information฀see฀“Pairing with a Bluetooth Device”฀on฀page 163).•฀Touch฀ ฀Menu for฀options:–Contacts:฀Launch฀Contacts.–Message:฀Launch฀Messaging.–S Note:฀Launch฀S฀Note.–Noise reduction on/Noise reduction off:฀Enable฀or฀disable฀noise฀reduction,฀to฀improve฀call฀audio฀quality฀in฀noisy฀environments.–My call sound:฀Choose฀options฀for฀call฀audio,฀in฀cases฀where฀you฀might฀need฀the฀sound฀softer฀or฀clear,฀or฀optimized฀for฀your฀right฀or฀left฀ear.Ending a Call䡲To฀end฀a฀call,฀touch฀ .Recent CallsWhen฀you฀place,฀answer,฀or฀miss฀a฀call,฀a฀record฀of฀the฀call฀is฀saved฀in฀Recent฀calls.Accessing Recent calls䡲From฀the฀Home฀screen,฀touch฀ ฀Phone฀➔ ฀Recent calls.Making Calls using Recent calls1. From฀the฀Home฀screen,฀touch฀ ฀Phone.2. Touch฀ ฀Recent฀to฀display฀recent฀calls.3. Swipe฀your฀finger฀from฀left฀to฀right฀across฀the฀call฀to฀redial.–฀or฀–Touch฀a฀call,฀then฀touch฀ ฀to฀dial฀the฀number.DRAFT FOR INTERNAL USE ONLY

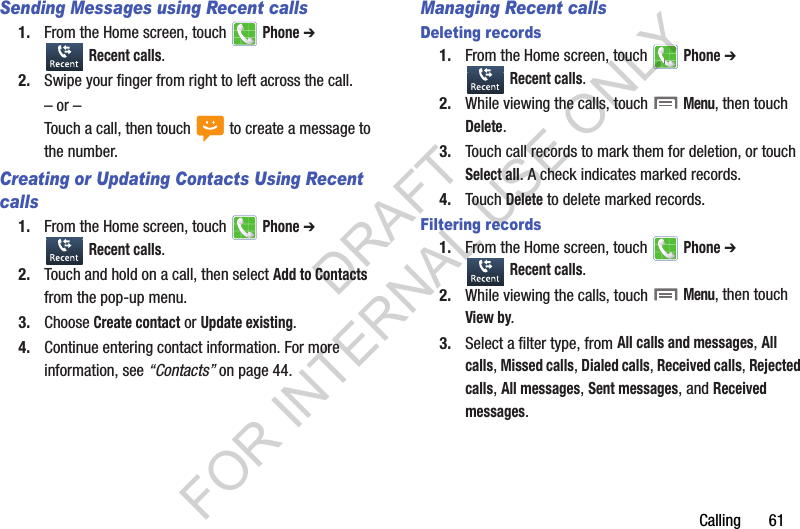

Calling฀฀฀฀฀฀฀61Sending Messages using Recent calls1. From฀the฀Home฀screen,฀touch฀ ฀Phone฀➔ ฀Recent calls.2. Swipe฀your฀finger฀from฀right฀to฀left฀across฀the฀call.–฀or฀–Touch฀a฀call,฀then฀touch฀ ฀to฀create฀a฀message฀to฀the฀number.Creating or Updating Contacts Using Recent calls1. From฀the฀Home฀screen,฀touch฀ ฀Phone฀➔ ฀Recent calls.2. Touch฀and฀hold฀on฀a฀call,฀then฀select฀Add to Contacts฀from฀the฀pop-up฀menu.3. Choose฀Create contact฀or฀Update existing.4. Continue฀entering฀contact฀information.฀For฀more฀information,฀see฀“Contacts”฀on฀page 44.Managing Recent callsDeleting records1. From฀the฀Home฀screen,฀touch฀ ฀Phone฀➔ ฀Recent calls.2. While฀viewing฀the฀calls,฀touch฀฀Menu,฀then฀touch฀Delete.3. Touch฀call฀records฀to฀mark฀them฀for฀deletion,฀or฀touch฀Select all.฀A฀check฀indicates฀marked฀records.4. Touch฀Delete฀to฀delete฀marked฀records.Filtering records1. From฀the฀Home฀screen,฀touch฀ ฀Phone฀➔ ฀Recent calls.2. While฀viewing฀the฀calls,฀touch฀฀Menu,฀then฀touch฀View by.3. Select฀a฀filter฀type,฀from฀All calls and messages,฀All calls,฀Missed calls,฀Dialed calls,฀Received calls,฀Rejected calls,฀All messages,฀Sent messages,฀and฀Received messages.DRAFT FOR INTERNAL USE ONLY
62Viewing call durationsView฀the฀length฀of฀the฀Last฀call,฀all฀Dialed฀calls,฀all฀Received฀calls,฀or฀All฀calls.1. From฀the฀Home฀screen,฀touch฀ ฀Phone฀➔ ฀Recent calls.2. While฀viewing฀calls,฀touch฀฀Menu,฀then฀touch฀Call฀duration.Call SettingsConfigure฀settings฀for฀calling฀with฀your฀device.Call blockManage฀your฀phone’s฀Auto฀Reject/Accept฀mode.฀1. From฀the฀Home฀screen,฀touch฀ ฀Phone.2. Touch฀฀Menu฀➔ Call settings.3. Select฀Call block฀for฀these฀options:฀• Incoming call: –Block calls: Set blocking of incoming calls Off, to apply to All numbers, or to apply to numbers in your Call block list only. –Call block list: Choose to block all incoming calls with Unknown number, and/or Create/manage numbers whose calls are to be blocked. • Outgoing call: –Block calls: Set blocking of outgoing calls Off, to apply to All numbers, or to apply to numbers in your Call block list only. –Call block list: Create/manage numbers to whom outgoing calls are to be blocked. DRAFT FOR INTERNAL USE ONLY
Calling฀฀฀฀฀฀฀63Set up call rejection messagesCreate฀and฀manage฀text฀messages฀to฀send฀to฀callers฀when฀rejecting฀incoming฀calls.฀Messages฀you฀create฀here฀are฀available฀from฀the฀incoming฀call฀screen฀when฀you฀use฀the฀Reject฀with฀message฀option.฀1. From฀the฀Home฀screen,฀touch฀ ฀Phone.2. Touch฀฀Menu฀➔ Call Settings฀➔ Set up call rejection messages.3. Manage฀messages:•To create new messages, touch Create, then follow the prompts.•To change an existing message, touch the message, then edit the text.•To delete an existing message, touch , select the message(s) to be deleted or touch Select all, then touch Delete. Answering/ending callsManage฀settings฀for฀answering฀and฀ending฀calls.1. From฀the฀Home฀screen,฀touch฀ ฀Phone.2. Touch฀฀Menu฀➔ Call Settings฀➔ Answering/ending calls.3. Configure฀these฀options:• The home key answers calls: When enabled, you can answer an incoming call by pressing the ฀Home Key. • Voice control: When enabled, you can answer an incoming call using voice commands. • The power key ends calls: When enabled, pressing the Power/Lock฀Key ends a call, without turning off the screen. DRAFT FOR INTERNAL USE ONLY
64Turn off screen during callsWhen฀enabled,฀the฀screen฀automatically฀turns฀off฀during฀phone฀calls,฀and฀the฀proximity฀sensor฀on฀the฀front฀of฀the฀device฀is฀used฀to฀turn฀the฀screen฀back฀on฀when฀the฀device฀is฀moved฀or฀brought฀close฀to฀another฀surface,฀such฀as฀when฀you฀move฀the฀device฀to฀your฀ear.1. From฀the฀Home฀screen,฀touch฀ ฀Phone.2. Touch฀฀Menu฀➔ Call Settings.3. Touch Turn off screen during calls฀to฀enable฀or฀disable฀the฀option.Call alertsSet฀options฀for฀sounds฀and฀vibrations฀to฀occur฀during฀calls.1. From฀the฀Home฀screen,฀touch฀ ฀Phone.2. Touch฀฀Menu฀➔ Call Settings฀➔ Call alerts.3. Configure฀options:• Call vibrations: Enable Vibrate on connection to network to have your device vibrate when it connects to the network. Enable on Call-end vibration to have the device vibrate when the other caller ends the call.• Call status tones: Choose options for sounds to play during calls. Enable Call connect tone to have the device play a tone when the other caller answers a call. Enable Minute minder to have a tone play once per minute during a call. Enable Call end tone to have the device play a tone when the other caller ends the call. Touch OK to save the settings.• Alerts on call: Enable to have notifications for alarms and new messages play during phone calls. When disabled, these notifications will be muted during a call.DRAFT FOR INTERNAL USE ONLY
Calling฀฀฀฀฀฀฀65Incoming call notificationsWhen฀enabled,฀incoming฀voice฀call฀notification฀pop-ups฀appear,฀when฀the฀screen฀is฀on.฀1. From฀the฀Home฀screen,฀touch฀ ฀Phone.2. Touch฀฀Menu฀➔ Call Settings ➔ Incoming call notifications฀to฀enable฀or฀disable฀this฀option.฀A฀check฀mark฀appears฀to฀indicate฀this฀option฀is฀enabled.฀Accessory settings for callConfigure฀headset฀options฀for฀calls.1. From฀the฀Home฀screen,฀touch฀ ฀Phone.2. Touch฀฀Menu฀➔ Call Settings฀➔ Call accessories.3. Configure฀settings:• Automatic answering: When enabled, and you have a headset connected to the Headset Jack, incoming calls are answered automatically after a delay, set at Automatic answering timer.• Automatic answering timer: Choose a time period to delay before automatically answering an incoming call when Automatic answering is enabled and a headset is connected to the device.• Outgoing call conditions: When the device is paired with a Bluetooth headset, you can choose to make calls even when the device is locked. DRAFT FOR INTERNAL USE ONLY
66Ringtones and keypad tonesChoose฀tones฀and/or฀vibration฀to฀play฀for฀incoming฀calls฀and฀keypad฀touches.1. From฀the฀Home฀screen,฀touch฀ ฀Phone.2. Touch฀฀Menu฀➔ Call Settings ➔ Ringtones and keypad tones.3. Configure฀settings:•Ringtones: Choose a default ringtone for incoming calls.•Vibrations: Choose a vibration pattern, or create your own pattern, to play for incoming calls when Incoming call vibration is turned On. Vibration plays along with the ringtone, if Silent mode is not enabled.• Vibrate when ringing: When enabled, the Device vibration plays for incoming calls.• Keypad tones: When turned on, sounds play when you touch the Phone keypad.Personalize call soundChoose฀options฀for฀call฀audio,฀in฀cases฀where฀you฀might฀need฀the฀sound฀softer฀or฀more฀clear,฀or฀optimized฀for฀your฀right฀or฀left฀ear.฀These฀are฀the฀defaults,฀but฀you฀can฀change฀them฀during฀a฀call฀by฀touching฀฀Menu ➔ My call sound.1. From฀the฀Home฀screen,฀touch฀ ฀Phone.2. Touch฀฀Menu฀➔ Call Settings฀➔ Personalize call sound.3. Configure฀options:• Adapt sound: Follow the prompts to find the best call sound for you.• Soft sound: Higher voice frequencies are reduced. •Clear sound: Higher voice frequencies are encreased. •Off: Choose Off to use the phone’s defaults, or choose Soft sound, Clear sound, Optimized for left ear, or Optimized for right ear.DRAFT FOR INTERNAL USE ONLY
Calling฀฀฀฀฀฀฀67Noise reductionEnable฀or฀disable฀noise฀reduction.฀When฀enabled,฀the฀effect฀of฀background฀noise฀is฀suppressed,฀to฀help฀you฀and฀the฀other฀caller฀hear฀better.1. From฀the฀Home฀screen,฀touch฀ ฀Phone.2. Touch฀฀Menu฀➔ Call Settings.฀3. Touch฀Noise reduction฀to฀enable฀or฀disable฀the฀option.Increase volume in pocketWhen฀enabled,฀the฀device฀uses฀the฀proximity฀sensor฀to฀detect฀when฀the฀device฀is฀in฀a฀pocket฀or฀other฀close-fitting฀location฀such฀as฀a฀purse฀or฀bag,฀and฀increases฀the฀volume฀for฀incoming฀call฀ringtones.1. From฀the฀Home฀screen,฀touch฀ ฀Phone.2. Touch฀฀Menu฀➔ Call Settings.3. Touch Increase volume in pocket฀to฀enable฀or฀disable฀the฀option.VoicemailConfigure฀options฀for฀voicemail.1. From฀the฀Home฀screen,฀touch฀ ฀Phone.2. Touch฀฀Menu฀➔ Call Settings.3. Configure฀options:• Voicemail service: By default, your device uses your wireless service provider’s voicemail service. If you have another option for voicemail installed, select it here.• Voicemail settings: By default, the speed dial for calling voicemail for your service provider is *86 (*VM). If you wish to use another speed dial, touch Voicemail number to set a new one.•Sound: Choose a ringtone to play for a voicemail notification.•Vibrate: Choose an option for vibration to play for a voicemail notification.DRAFT FOR INTERNAL USE ONLY
68Other call settings1. From฀the฀Home฀screen,฀touch฀ ฀Phone.2. Touch฀฀Menu฀➔ Call Settings.3. Configure฀options:• Current country: Choose the country you are in. This is used in Assisted dialing.• Assisted dialing: When turned On, your phone automatically dials appropriate codes and prefixes for international calls. Touch to turn the option On or Off, then touch Assisted dialing to configure settings.•Auto retry: When enabled, the device will automatically redial a call if it receives a busy signal from the network.• TTY mode: Choose a TTY mode to enable TTY mode, for use with optional TTY equipment.• Hearing aids: Enable or disable hearing aid support.DRAFT FOR INTERNAL USE ONLY

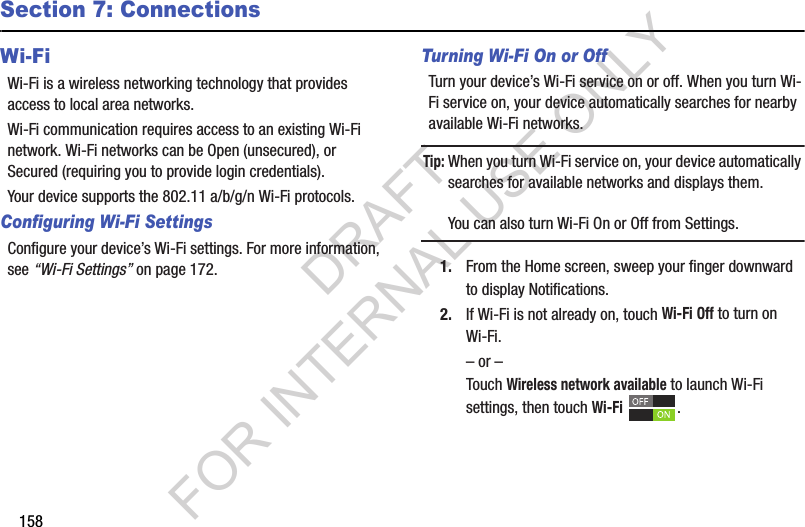

158Section 7: ConnectionsWi-FiWi-Fi฀is฀a฀wireless฀networking฀technology฀that฀provides฀access฀to฀local฀area฀networks.Wi-Fi฀communication฀requires฀access฀to฀an฀existing฀Wi-Fi฀network.฀Wi-Fi฀networks฀can฀be฀Open฀(unsecured),฀or฀Secured฀(requiring฀you฀to฀provide฀login฀credentials).Your฀device฀supports฀the฀802.11฀a/b/g/n฀Wi-Fi฀protocols.Configuring Wi-Fi SettingsConfigure฀your฀device’s฀Wi-Fi฀settings.฀For฀more฀information,฀see฀“Wi-Fi Settings”฀on฀page 172.Turning Wi-Fi On or OffTurn฀your฀device’s฀Wi-Fi฀service฀on฀or฀off.฀When฀you฀turn฀Wi-Fi฀service฀on,฀your฀device฀automatically฀searches฀for฀nearby฀available฀Wi-Fi฀networks.Tip:When฀you฀turn฀Wi-Fi฀service฀on,฀your฀device฀automatically฀searches฀for฀available฀networks฀and฀displays฀them.You฀can฀also฀turn฀Wi-Fi฀On฀or฀Off฀from฀Settings.1. From฀the฀Home฀screen,฀sweep฀your฀finger฀downward฀to฀display฀Notifications.฀2. If฀Wi-Fi฀is฀not฀already฀on,฀touch฀Wi-Fi฀Off฀to฀turn฀on฀Wi-Fi.–฀or฀–Touch฀Wireless network available฀to฀launch฀Wi-Fi฀settings,฀then฀touch฀Wi-Fi฀.DRAFT FOR INTERNAL USE ONLY

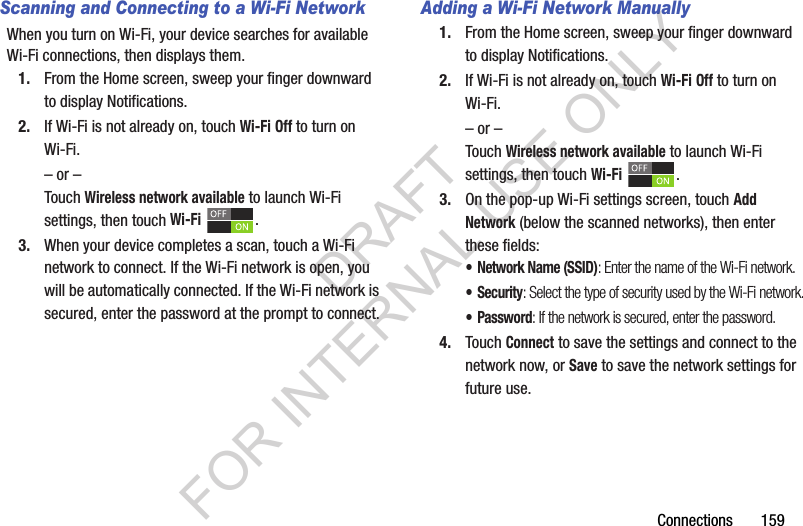

Connections฀฀฀฀฀฀฀159Scanning and Connecting to a Wi-Fi NetworkWhen฀you฀turn฀on฀Wi-Fi,฀your฀device฀searches฀for฀available฀Wi-Fi฀connections,฀then฀displays฀them.1. From฀the฀Home฀screen,฀sweep฀your฀finger฀downward฀to฀display฀Notifications.฀2. If฀Wi-Fi฀is฀not฀already฀on,฀touch฀Wi-Fi฀Off฀to฀turn฀on฀Wi-Fi.–฀or฀–Touch฀Wireless network available฀to฀launch฀Wi-Fi฀settings,฀then฀touch฀Wi-Fi฀.3. When฀your฀device฀completes฀a฀scan,฀touch฀a฀Wi-Fi฀network฀to฀connect.฀If฀the฀Wi-Fi฀network฀is฀open,฀you฀will฀be฀automatically฀connected.฀If฀the฀Wi-Fi฀network฀is฀secured,฀enter฀the฀password฀at฀the฀prompt฀to฀connect.Adding a Wi-Fi Network Manually1. From฀the฀Home฀screen,฀sweep฀your฀finger฀downward฀to฀display฀Notifications.฀2. If฀Wi-Fi฀is฀not฀already฀on,฀touch฀Wi-Fi฀Off฀to฀turn฀on฀Wi-Fi.–฀or฀–Touch฀Wireless network available฀to฀launch฀Wi-Fi฀settings,฀then฀touch฀Wi-Fi฀.3. On฀the฀pop-up฀Wi-Fi฀settings฀screen,฀touch฀Add Network฀(below฀the฀scanned฀networks),฀then฀enter฀these฀fields:• Network Name (SSID): Enter the name of the Wi-Fi network.•Security: Select the type of security used by the Wi-Fi network.•Password: If the network is secured, enter the password.4. Touch฀Connect฀to฀save฀the฀settings฀and฀connect฀to฀the฀network฀now,฀or฀Save฀to฀save฀the฀network฀settings฀for฀future฀use.DRAFT FOR INTERNAL USE ONLY
160Wi-Fi DirectWi-Fi฀Direct฀is฀a฀standard฀that฀allows฀devices฀to฀connect฀to฀each฀other฀directly฀using฀Wi-Fi,฀without฀a฀Wi-Fi฀network฀or฀hotspot,฀and฀without฀having฀to฀set฀up฀the฀connection.฀This฀type฀of฀connection฀is฀commonly฀called฀peer-to-peer.฀For฀example,฀your฀device฀can฀use฀Wi-Fi฀Direct฀to฀share฀photos,฀contacts฀and฀other฀content฀with฀other฀Wi-Fi฀Direct฀devices.฀Many฀of฀the฀apps฀on฀your฀device฀provide฀options฀for฀sharing฀over฀Wi-Fi฀Direct฀under฀฀Menu.Turning Wi-Fi Direct On or Off1. From฀the฀Home฀screen,฀touch฀฀Menu,฀then฀select Settings ➔ More settings.2. Touch฀Wi-Fi Direct฀ ฀to฀turn฀Wi-Fi฀Direct฀On฀or฀Off.Connecting to Wi-Fi Direct Devices1. First,฀enable฀Wi-Fi฀Direct฀on฀your฀device.฀From฀the฀Home฀screen,฀touch฀฀Menu,฀then฀select Settings ➔ More settings,฀then฀touch฀Wi-Fi Direct฀.2. Enable฀Wi-Fi฀Direct฀on฀the฀other฀device(s).฀Consult฀the฀other฀device’s฀documentation฀for฀more฀information.3. On฀your฀device,฀touch฀Wi-Fi Direct฀to฀scan฀for฀the฀other฀device(s).฀4. In฀the฀scanned฀list,฀touch฀a฀device฀to฀connect฀with฀it,฀or฀touch฀Multi-connect฀to฀connect฀to฀multiple฀devices฀(not฀all฀devices฀support฀multi-connect).5. Follow฀the฀prompts฀on฀both฀devices฀to฀complete฀the฀connection.DRAFT FOR INTERNAL USE ONLY

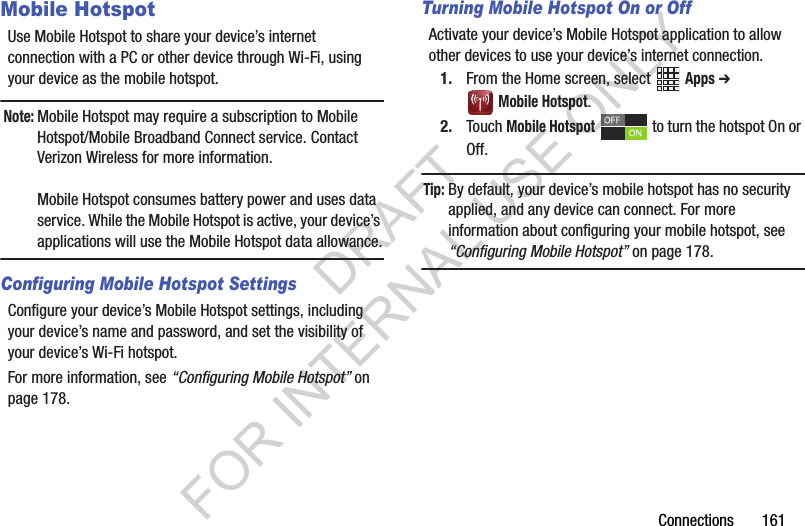

Connections฀฀฀฀฀฀฀161Mobile HotspotUse฀Mobile฀Hotspot฀to฀share฀your฀device’s฀internet฀connection฀with฀a฀PC฀or฀other฀device฀through฀Wi-Fi,฀using฀your฀device฀as฀the฀mobile฀hotspot.Note:Mobile฀Hotspot฀may฀require฀a฀subscription฀to฀Mobile฀Hotspot/Mobile฀Broadband฀Connect฀service.฀Contact฀Verizon฀Wireless฀for฀more฀information.Mobile฀Hotspot฀consumes฀battery฀power฀and฀uses฀data฀service.฀While฀the฀Mobile฀Hotspot฀is฀active,฀your฀device’s฀applications฀will฀use฀the฀Mobile฀Hotspot฀data฀allowance.Configuring Mobile Hotspot SettingsConfigure฀your฀device’s฀Mobile฀Hotspot฀settings,฀including฀your฀device’s฀name฀and฀password,฀and฀set฀the฀visibility฀of฀your฀device’s฀Wi-Fi฀hotspot.฀For฀more฀information,฀see฀“Configuring Mobile Hotspot”฀on฀page 178.Turning Mobile Hotspot On or OffActivate฀your฀device’s฀Mobile฀Hotspot฀application฀to฀allow฀other฀devices฀to฀use฀your฀device’s฀internet฀connection.1. From฀the฀Home฀screen,฀select฀ ฀Apps ➔ ฀Mobile Hotspot.2. Touch฀Mobile Hotspot฀ ฀to฀turn฀the฀hotspot฀On฀or฀Off.Tip:By฀default,฀your฀device’s฀mobile฀hotspot฀has฀no฀security฀applied,฀and฀any฀device฀can฀connect.฀For฀more฀information฀about฀configuring฀your฀mobile฀hotspot,฀see฀“Configuring Mobile Hotspot”฀on฀page 178.DRAFT FOR INTERNAL USE ONLY
162Connecting a Device to Mobile HotspotUse฀the฀other฀device’s฀Wi-Fi฀control฀to฀connect฀to฀your฀device’s฀Mobile฀Hotspot.1. Turn฀on฀Mobile฀Hotspot฀on฀your฀device.฀For฀more฀information,฀see฀“Turning Mobile Hotspot On or Off”฀on฀page 161.2. Activate฀Wi-Fi฀on฀the฀device,฀using฀the฀device’s฀Wi-Fi฀control.3. Scan฀for฀Wi-Fi฀hotspots,฀and฀select฀your฀device฀from฀the฀list.฀To฀find฀your฀device’s฀name,฀see฀“Configuring Mobile Hotspot”฀on฀page 178.4. At฀the฀prompt,฀enter฀your฀device’s฀Mobile฀Hotspot฀password.฀By฀default,฀the฀password฀is฀your฀device’s฀telephone฀number.฀For฀more฀information,฀see฀“Configuring Mobile Hotspot”฀on฀page 178.Allowed Device ListControl฀whether฀devices฀connect฀to฀your฀Mobile฀Hotspot฀with฀the฀Allowed฀device฀list.฀After฀you฀add฀devices฀to฀the฀list,฀they฀can฀scan฀for฀your฀device฀and฀connect฀using฀your฀device’s฀mobile฀hotspot฀name฀and฀password.Note:Using฀your฀device฀as฀a฀mobile฀hotspot฀consumes฀battery฀power฀and฀uses฀data฀service.฀While฀Mobile฀Hotspot฀is฀active,฀your฀device’s฀applications฀will฀use฀the฀Mobile฀Hotspot฀data฀service.฀Roaming฀while฀using฀your฀device฀as฀a฀mobile฀hotspot฀will฀incur฀extra฀data฀charges.1. From฀the฀Home฀screen,฀select฀ ฀Apps ➔ ฀Mobile Hotspot.2. Touch฀Allowed devices,฀then฀touch฀the฀button฀at฀the฀top฀of฀the฀screen฀to฀enter฀the฀other฀device’s฀Device฀name฀and฀MAC฀address.3. Touch฀OK฀to฀add฀the฀device฀to฀the฀Allowed฀devices฀list.DRAFT FOR INTERNAL USE ONLY

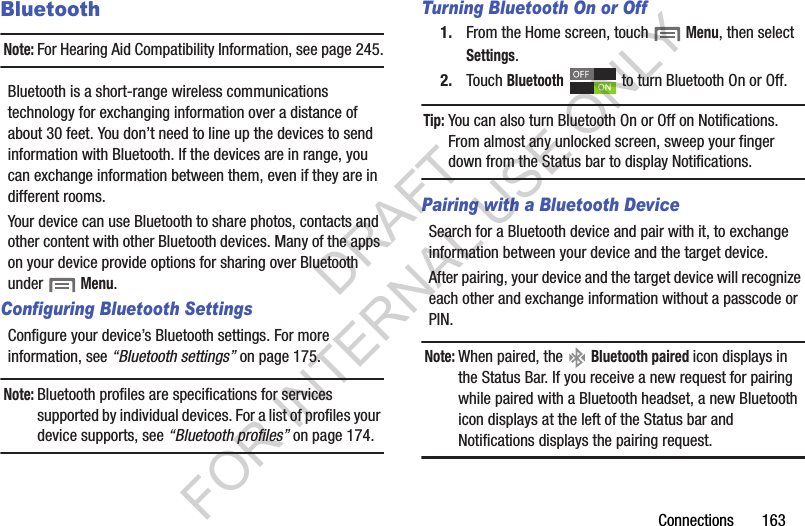

Connections฀฀฀฀฀฀฀163BluetoothNote:For฀Hearing฀Aid฀Compatibility฀Information,฀see฀page 245.Bluetooth฀is฀a฀short-range฀wireless฀communications฀technology฀for฀exchanging฀information฀over฀a฀distance฀of฀about฀30฀feet.฀You฀don’t฀need฀to฀line฀up฀the฀devices฀to฀send฀information฀with฀Bluetooth.฀If฀the฀devices฀are฀in฀range,฀you฀can฀exchange฀information฀between฀them,฀even฀if฀they฀are฀in฀different฀rooms.Your฀device฀can฀use฀Bluetooth฀to฀share฀photos,฀contacts฀and฀other฀content฀with฀other฀Bluetooth฀devices.฀Many฀of฀the฀apps฀on฀your฀device฀provide฀options฀for฀sharing฀over฀Bluetooth฀under฀฀Menu.Configuring Bluetooth SettingsConfigure฀your฀device’s฀Bluetooth฀settings.฀For฀more฀information,฀see฀“Bluetooth settings”฀on฀page 175.Note:Bluetooth฀profiles฀are฀specifications฀for฀services฀supported฀by฀individual฀devices.฀For฀a฀list฀of฀profiles฀your฀device฀supports,฀see฀“Bluetooth profiles”฀on฀page 174.Turning Bluetooth On or Off1. From฀the฀Home฀screen,฀touch฀฀Menu,฀then฀select Settings.2. Touch฀Bluetooth฀ ฀to฀turn฀Bluetooth฀On฀or฀Off.Tip:You฀can฀also฀turn฀Bluetooth฀On฀or฀Off฀on฀Notifications.฀From฀almost฀any฀unlocked฀screen,฀sweep฀your฀finger฀down฀from฀the฀Status฀bar฀to฀display฀Notifications.Pairing with a Bluetooth DeviceSearch฀for฀a฀Bluetooth฀device฀and฀pair฀with฀it,฀to฀exchange฀information฀between฀your฀device฀and฀the฀target฀device.฀After฀pairing,฀your฀device฀and฀the฀target฀device฀will฀recognize฀each฀other฀and฀exchange฀information฀without฀a฀passcode฀or฀PIN.Note:When฀paired,฀the฀ ฀Bluetooth paired icon฀displays฀in฀the฀Status฀Bar.฀If฀you฀receive฀a฀new฀request฀for฀pairing฀while฀paired฀with฀a฀Bluetooth฀headset,฀a฀new฀Bluetooth฀icon฀displays฀at฀the฀left฀of฀the฀Status฀bar฀and฀Notifications฀displays฀the฀pairing฀request.DRAFT FOR INTERNAL USE ONLY
1641. From฀the฀Home฀screen,฀touch฀฀Menu,฀then฀select Settings ➔ Bluetooth.2. Touch฀Bluetooth฀ ฀to฀turn฀Bluetooth฀On.3. Activate฀the฀target฀device’s฀discoverable฀mode.4. Touch฀Scan.5. From฀the฀list฀of฀scanned฀devices,฀touch฀the฀target฀device,฀then฀follow฀the฀prompts฀to฀complete฀the฀pairing:•If the target device requires a PIN, enter a PIN for the target device and touch OK. When prompted, enter the PIN on the target device.•If the device allows automatic or smart pairing, your device will attempt to pair with the device automatically. Follow the prompts on your device and the target device to complete the pairing.VPNYou฀can฀use฀your฀device’s฀VPN฀(Virtual฀Private฀Network)฀feature฀to฀connect฀to฀VPNs.฀Configuring VPN SettingsConfigure฀your฀device’s฀VPN฀settings.฀For฀more฀information,฀see฀“Nearby devices”฀on฀page 181.Note:You฀must฀enable฀at฀least฀Pattern฀security฀before฀setting฀up฀a฀VPN.฀If฀you฀have฀not฀yet฀enabled฀security,฀you’ll฀be฀prompted฀to฀do฀so฀the฀first฀time฀you฀launch฀VPN฀settings.Adding a VPN1. From฀the฀Home฀screen,฀touch฀฀Menu,฀then฀select Settings ➔ More settings ➔ VPN.2. Touch Add VPN network฀to฀set฀up฀a฀connection฀to฀a฀VPN.฀Available฀settings฀depend฀on฀the฀type฀of฀VPN.DRAFT FOR INTERNAL USE ONLY
Connections฀฀฀฀฀฀฀165TetheringUse฀Tethering฀to฀share฀your฀device’s฀internet฀connection฀with฀a฀computer฀that฀connects฀to฀your฀device฀using฀the฀USB฀cable,฀or฀by฀Bluetooth.Touch฀Help฀under฀Tethering฀settings฀to฀view฀information฀about฀tethering,฀and฀for฀links฀to฀more฀information.Note:Mobile฀Broadband฀Connect฀may฀require฀a฀subscription฀to฀Mobile฀Hotspot/Mobile฀Broadband฀Connect฀service.฀Contact฀Verizon฀Wireless฀for฀more฀information.฀Mobile฀Hotspot฀consumes฀battery฀power฀and฀uses฀data฀service.฀While฀the฀Mobile฀Hotspot฀is฀active,฀your฀device’s฀applications฀will฀use฀the฀Mobile฀Hotspot฀data฀allowance.Mobile Broadband ConnectUse฀Mobile฀Broadband฀Connect฀to฀share฀your฀device’s฀network฀connection฀with฀a฀computer฀that฀connects฀to฀your฀device฀using฀the฀USB฀cable.1. From฀the฀Home฀screen,฀touch฀฀Menu,฀then฀select Settings ➔ More settings ➔ Tethering.2. Connect฀the฀other฀device฀to฀yours฀using฀the฀USB฀cable.3. Touch฀Mobile Broadband connect฀to฀turn฀tethering฀On฀or฀Off.Bluetooth tetheringBefore฀starting,฀pair฀your฀computer฀with฀your฀device,฀then฀configure฀your฀computer฀to฀obtain฀its฀network฀connection฀using฀Bluetooth.1. From฀the฀Home฀screen,฀touch฀฀Menu,฀then฀select Settings ➔ More settings ➔ Tethering.2. Pair฀the฀other฀device฀to฀yours฀using฀Bluetooth.3. Touch฀Bluetooth tethering฀to฀turn฀tethering฀On฀or฀Off.Important!Tethering฀consumes฀battery฀power฀and฀increases฀your฀data฀usage.฀Roaming฀while฀using฀tethering฀will฀incur฀extra฀data฀charges.DRAFT FOR INTERNAL USE ONLY
166NFC and BeamingUse฀NFC฀(Near฀Field฀Communication)฀to฀share฀information฀between฀your฀device฀and฀another฀NFC฀device฀by฀beaming,฀typically฀by฀touching฀the฀devices฀together฀back-to-back.Your฀device฀uses฀NFC฀for฀the฀S฀Beam฀feature.฀NFC฀must฀be฀turned฀on฀to฀use฀S฀Beam.1. From฀the฀Home฀screen,฀touch฀฀Menu,฀then฀select Settings ➔ More settings.2. Touch฀NFC฀to฀turn฀NFC฀On฀or฀Off.Note:NFC฀must฀be฀turned฀on฀to฀use฀S฀Beam.S BeamShare฀more฀and฀share฀it฀faster฀with฀S฀Beam.฀From฀photos฀to฀documents,฀large฀video฀files฀to฀maps,฀you฀can฀share฀almost฀anything฀instantly฀with฀one฀touch,฀simply฀by฀placing฀your฀devices฀back-to-back.S฀Beam฀uses฀your฀device’s฀NFC฀(Near฀Field฀Communication)฀feature฀to฀send,฀or฀“beam”,฀content฀to฀other฀NFC฀and฀Wi-Fi฀Direct฀devices,฀by฀holding฀the฀devices฀close฀together.฀S฀Beam฀works฀in฀the฀background.฀Use฀the฀sharing฀options฀from฀your฀favorite฀apps฀to฀select฀content฀to฀share฀over฀S฀Beam.฀For฀example,฀you฀can฀beam฀pictures฀or฀videos฀from฀Gallery,฀or฀songs฀from฀Music฀player.฀Just฀bring฀the฀devices฀together฀(typically฀back-to-back),฀then฀tap฀the฀screen.1. From฀the฀Home฀screen,฀touch฀฀Menu,฀then฀select Settings ➔ More settings.2. Touch฀NFC฀to฀turn฀NFC฀On.฀NFC฀must฀be฀turned฀On฀to฀use฀S฀Beam.3. Touch฀S Beam,฀then฀touch฀ ฀to฀turn฀S฀Beam฀On฀or฀Off.฀Note:If฀you฀turn฀on฀S฀Beam,฀NFC฀is฀automatically฀turned฀On.DRAFT FOR INTERNAL USE ONLY

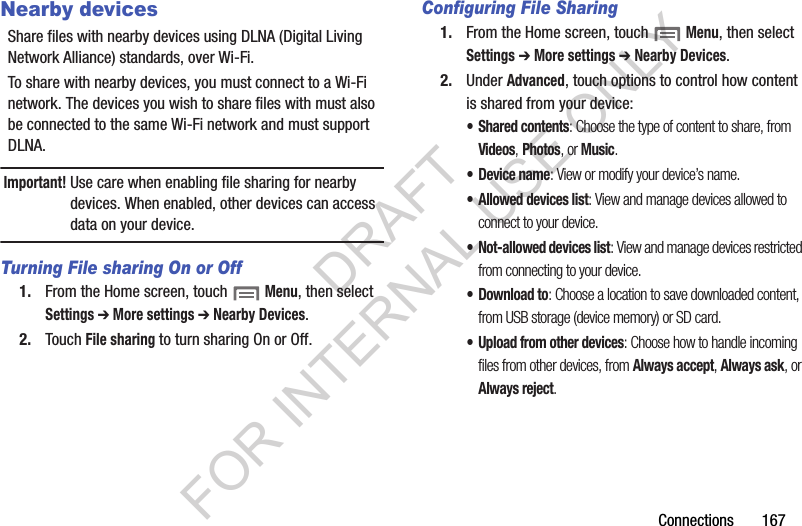

Connections฀฀฀฀฀฀฀167Nearby devicesShare฀files฀with฀nearby฀devices฀using฀DLNA฀(Digital฀Living฀Network฀Alliance)฀standards,฀over฀Wi-Fi.To฀share฀with฀nearby฀devices,฀you฀must฀connect฀to฀a฀Wi-Fi฀network.฀The฀devices฀you฀wish฀to฀share฀files฀with฀must฀also฀be฀connected฀to฀the฀same฀Wi-Fi฀network฀and฀must฀support฀DLNA.Important!Use฀care฀when฀enabling฀file฀sharing฀for฀nearby฀devices.฀When฀enabled,฀other฀devices฀can฀access฀data฀on฀your฀device.Turning File sharing On or Off1. From฀the฀Home฀screen,฀touch฀฀Menu,฀then฀select Settings ➔ More settings ➔ Nearby Devices.2. Touch฀File sharing฀to฀turn฀sharing฀On฀or฀Off.Configuring File Sharing1. From฀the฀Home฀screen,฀touch฀฀Menu,฀then฀select Settings ➔ More settings ➔ Nearby Devices.2. Under฀Advanced,฀touch฀options฀to฀control฀how฀content฀is฀shared฀from฀your฀device:• Shared contents: Choose the type of content to share, from Videos, Photos, or Music.•Device name: View or modify your device’s name.• Allowed devices list: View and manage devices allowed to connect to your device.• Not-allowed devices list: View and manage devices restricted from connecting to your device.• Download to: Choose a location to save downloaded content, from USB storage (device memory) or SD card.• Upload from other devices: Choose how to handle incoming files from other devices, from Always accept, Always ask, or Always reject.DRAFT FOR INTERNAL USE ONLY
168Connecting to a ComputerConnect฀your฀device฀to฀a฀computer฀to฀transfer฀data฀between฀your฀device฀and฀the฀computer.฀Use฀the฀USB฀cable฀that฀comes฀with฀your฀device,฀or฀use฀one฀of฀the฀pre-loaded฀apps฀on฀your฀device฀to฀connect฀wirelessly.Transferring DataConnect฀your฀device฀to฀a฀computer,฀using฀the฀USB฀cable,฀to฀transfer฀data฀as฀a฀Media฀device฀using฀MTP฀(Media฀Transfer฀Protocol),฀or฀as฀a฀Camera฀using฀PTP฀(Photo฀Transfer฀Protocol).1. Attach฀your฀device฀to฀the฀computer฀with฀a฀USB฀data฀cable.฀Your฀device฀recognizes฀the฀connection฀as฀the฀last฀connection฀method฀you฀used,฀and฀displays฀a฀connection alert฀in฀the฀Status฀bar฀and฀Notifications.2. From฀the฀Home฀screen,฀sweep฀your฀finger฀downward฀to฀display฀Notifications,฀then฀touch฀the฀alert.3. Select฀a฀connection฀method:• Media device (MTP): Transfer media files with Windows, or using Android file transfer on a Mac (see www.android.com/filetransfer).•Camera (PTP): Transfer photos using camera software, and transfer files to computers that do not support MTP.4. On฀your฀computer,฀choose฀a฀method฀for฀accessing฀your฀device.฀Available฀options฀depend฀on฀the฀programs฀installed฀on฀your฀computer.5. Transfer฀files฀to฀the฀memory฀card.฀When฀finished,฀you฀can฀disconnect฀the฀USB฀cable.Kies airManage฀content฀saved฀on฀your฀device฀using฀your฀desktop฀or฀mobile฀browser฀and฀Wi-Fi฀technology.฀The฀pre-loaded฀Kies฀air฀app฀connects฀over฀Wi-Fi฀to฀the฀Kies฀application,฀which฀you฀can฀install฀on฀your฀computer.฀For฀more฀information,฀visit:฀www.฀samsung.com/us/kiesNote:To฀sync฀your฀device฀to฀a฀PC,฀it฀is฀highly฀recommended฀that฀you฀install฀Samsung฀Kies,฀which฀is฀available฀at฀http://www.samsung.com/kies฀(for฀Windows/Mac).Note:If฀you฀are฀a฀Windows฀XP฀user,฀ensure฀that฀you฀have฀Windows฀XP฀Service฀Pack฀3฀or฀higher฀installed฀on฀your฀computer.฀Also,฀ensure฀that฀you฀have฀Samsung฀Kies฀2.0฀or฀Windows฀Media฀Player฀10฀or฀higher฀installed฀on฀your฀computer.DRAFT FOR INTERNAL USE ONLY
Connections฀฀฀฀฀฀฀169Memory CardYour฀device฀supports฀removable฀microSD™฀or฀microSDHC™฀memory฀cards฀of฀up฀to฀64GB฀capacity,฀for฀storage฀of฀music,฀pictures,฀videos,฀and฀other฀files.By฀default,฀files฀that฀you฀download,฀or฀that฀you฀create฀with฀your฀device,฀such฀as฀pictures฀and฀videos฀you฀capture฀with฀Camera,฀are฀stored฀to฀your฀device’s฀memory.฀For฀more฀storage฀capacity,฀you฀can฀set฀the฀memory฀card฀as฀the฀primary฀storage฀location฀for฀apps฀with฀the฀app’s฀options.For฀more฀information฀about฀viewing฀memory฀usage฀for฀the฀memory฀card,฀see฀“SD card”฀on฀page 192.Installing and Removing a Memory CardFor฀more฀information฀about฀installing฀and฀removing฀a฀memory฀card,฀see฀“Memory Card”฀on฀page 14.Important!To฀prevent฀damage฀to฀data฀stored฀on฀the฀memory฀card,฀unmount฀the฀card฀before฀removing฀it฀from฀the฀device.Mounting and Unmounting a Memory CardMounting฀a฀memory฀card฀establishes฀the฀connection฀between฀your฀device฀and฀the฀card,฀to฀prepare฀for฀saving฀files฀to฀the฀memory฀card.฀In฀most฀cases,฀the฀device฀mounts฀the฀card฀automatically฀when฀you฀install฀it,฀and฀displays฀the฀memory฀card฀status฀on฀Notifications.Before฀removing฀the฀card,฀use฀the฀Mount/Unmount฀setting฀to฀unmount,฀it฀to฀prevent฀damage฀to฀data฀stored฀on฀the฀card.1. From฀the฀Home฀screen,฀touch฀฀Menu,฀then฀select Settings ➔ Storage.2. Touch฀Unmount SD card,฀then฀follow฀the฀prompts.฀DRAFT FOR INTERNAL USE ONLY

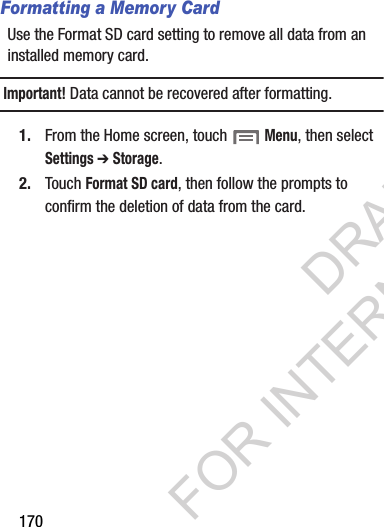

170Formatting a Memory CardUse฀the฀Format฀SD฀card฀setting฀to฀remove฀all฀data฀from฀an฀installed฀memory฀card.Important!Data฀cannot฀be฀recovered฀after฀formatting.1. From฀the฀Home฀screen,฀touch฀฀Menu,฀then฀select Settings ➔ Storage.2. Touch฀Format SD card,฀then฀follow฀the฀prompts฀to฀confirm฀the฀deletion฀of฀data฀from฀the฀card.DRAFT FOR INTERNAL USE ONLY
Settings฀฀฀฀฀฀฀171Section 8: SettingsAccessing SettingsFrom the Home screen䡲Touch฀ ฀Apps ➔ ฀Settings.฀–฀or฀–Touch฀฀Menu,฀then฀select฀Settings.From Notifications䡲Touch฀and฀drag฀down฀from฀the฀top฀of฀the฀screen฀to฀display฀notifications,฀then฀touch฀ .Wireless and networkAirplane modeWhen฀airplane฀mode฀is฀enabled,฀all฀your฀device’s฀wireless฀connections฀are฀disabled,฀and฀you฀cannot฀make฀or฀receive฀calls฀or฀messages฀or฀connect฀to฀networks.฀While฀in฀airplane฀mode,฀you฀can฀use฀other฀features฀of฀your฀device,฀such฀as฀playing฀music,฀watching฀videos,฀or฀other฀applications.1. From฀the฀Home฀screen,฀touch฀ ฀Apps ➔ ฀Settings.2. Touch฀Airplane mode฀to฀enable฀or฀disable฀airplane฀mode.Note:Airplane฀mode฀can฀also฀be฀controlled฀from฀Notifications,฀and฀from฀Device฀options฀when฀you฀press฀and฀hold฀the฀฀Power/Lock Key.DRAFT FOR INTERNAL USE ONLY

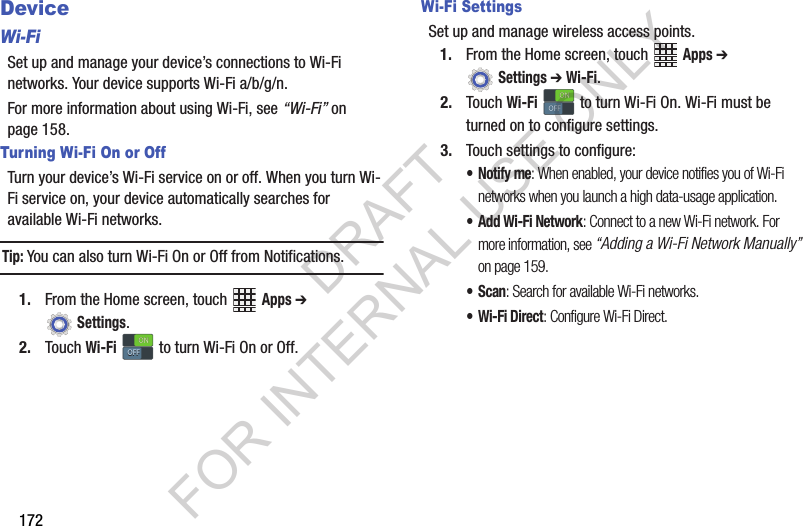

172DeviceWi-FiSet฀up฀and฀manage฀your฀device’s฀connections฀to฀Wi-Fi฀networks.฀Your฀device฀supports฀Wi-Fi฀a/b/g/n.For฀more฀information฀about฀using฀Wi-Fi,฀see฀“Wi-Fi”฀on฀page 158.Turning Wi-Fi On or OffTurn฀your฀device’s฀Wi-Fi฀service฀on฀or฀off.฀When฀you฀turn฀Wi-Fi฀service฀on,฀your฀device฀automatically฀searches฀for฀available฀Wi-Fi฀networks.Tip:You฀can฀also฀turn฀Wi-Fi฀On฀or฀Off฀from฀Notifications.1. From฀the฀Home฀screen,฀touch฀ ฀Apps ➔ ฀Settings.฀2. Touch฀Wi-Fi฀ ฀to฀turn฀Wi-Fi฀On฀or฀Off.Wi-Fi SettingsSet฀up฀and฀manage฀wireless฀access฀points.1. From฀the฀Home฀screen,฀touch฀ ฀Apps ➔ ฀Settings ➔ Wi-Fi.฀2. Touch฀Wi-Fi฀ ฀to฀turn฀Wi-Fi฀On.฀Wi-Fi฀must฀be฀turned฀on฀to฀configure฀settings.3. Touch฀settings฀to฀configure:•Notify me: When enabled, your device notifies you of Wi-Fi networks when you launch a high data-usage application.•Add Wi-Fi Network: Connect to a new Wi-Fi network. For more information, see “Adding a Wi-Fi Network Manually” on page 159. •Scan: Search for available Wi-Fi networks.• Wi-Fi Direct: Configure Wi-Fi Direct.ONONOFFOFFONONOFFOFFDRAFT FOR INTERNAL USE ONLY
Settings฀฀฀฀฀฀฀173Other Wi-Fi settings1. From฀the฀Home฀screen,฀touch฀ ฀Apps ➔ ฀Settings ➔ Wi-Fi.2. Touch฀฀Menu for฀additional฀settings:• Advanced:–Auto-connect: When enabled, your device will automatically connect to known Wi-Fi networks when you launch a high data-usage application, even if Wi-Fi is turned off. A known Wi-Fi network is one that you previously added.–Keep Wi-Fi on during sleep: Specify when to switch from Wi-Fi to mobile data for data communications, when the device goes to sleep (when the backlight goes out). This setting can affect your data usage, and the behavior of devices you connect to your device, such as when tethering or using Mobile Hotspot.–Check for Internet service: When enabled, your device will check for Wi-Fi Internet service when connected to a Wi-Fi access point.–MAC address: (Not configurable) View your device’s MAC address, needed for connecting to some secured networks.–IP address: (Not configurable) View your device’s IP address.• Manage networks: View and manage your saved Wi-Fi networks. Touch a network to connect to it, or to forget or modify its settings.• WPS push button: Set up a connection to a WPS (Wi-Fi Protected Setup) router or equipment.• WPS PIN entry: View the PIN used by your device to set up a PIN-secured connection to a Wi-Fi router.DRAFT FOR INTERNAL USE ONLY

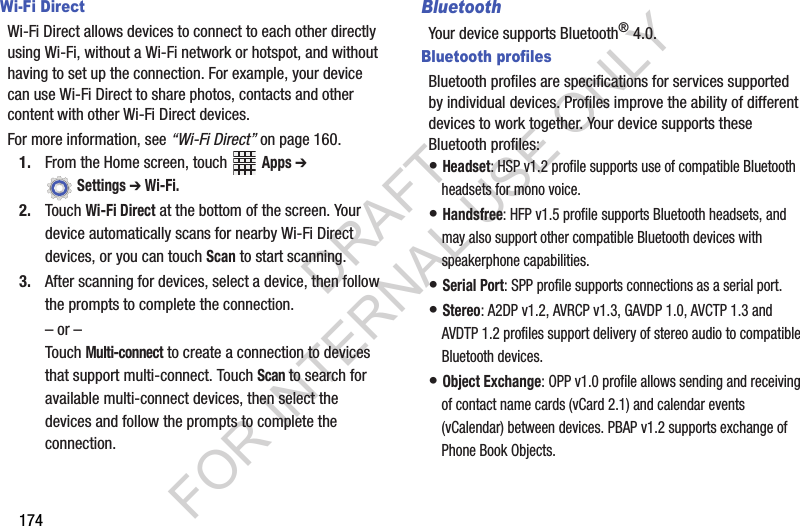

174Wi-Fi DirectWi-Fi฀Direct฀allows฀devices฀to฀connect฀to฀each฀other฀directly฀using฀Wi-Fi,฀without฀a฀Wi-Fi฀network฀or฀hotspot,฀and฀without฀having฀to฀set฀up฀the฀connection.฀For฀example,฀your฀device฀can฀use฀Wi-Fi฀Direct฀to฀share฀photos,฀contacts฀and฀other฀content฀with฀other฀Wi-Fi฀Direct฀devices.฀For฀more฀information,฀see฀“Wi-Fi Direct”฀on฀page 160.1. From฀the฀Home฀screen,฀touch฀ ฀Apps ➔ ฀Settings ➔ Wi-Fi.2. Touch฀Wi-Fi Direct฀at฀the฀bottom฀of฀the฀screen.฀Your฀device฀automatically฀scans฀for฀nearby฀Wi-Fi฀Direct฀devices,฀or฀you฀can฀touch฀Scan฀to฀start฀scanning.3. After฀scanning฀for฀devices,฀select฀a฀device,฀then฀follow฀the฀prompts฀to฀complete฀the฀connection.–฀or฀–Touch฀Multi-connect฀to฀create฀a฀connection฀to฀devices฀that฀support฀multi-connect.฀Touch฀Scan฀to฀search฀for฀available฀multi-connect฀devices,฀then฀select฀the฀devices฀and฀follow฀the฀prompts฀to฀complete฀the฀connection.BluetoothYour฀device฀supports฀Bluetooth®฀4.0.Bluetooth profilesBluetooth฀profiles฀are฀specifications฀for฀services฀supported฀by฀individual฀devices.฀Profiles฀improve฀the฀ability฀of฀different฀devices฀to฀work฀together.฀Your฀device฀supports฀these฀Bluetooth฀profiles:•฀Headset:฀HSP฀v1.2฀profile฀supports฀use฀of฀compatible฀Bluetooth฀headsets฀for฀mono฀voice.•฀Handsfree:฀HFP฀v1.5฀profile฀supports฀Bluetooth฀headsets,฀and฀may฀also฀support฀other฀compatible฀Bluetooth฀devices฀with฀speakerphone฀capabilities.•฀Serial Port:฀SPP฀profile฀supports฀connections฀as฀a฀serial฀port.•฀Stereo:฀A2DP฀v1.2,฀AVRCP฀v1.3,฀GAVDP฀1.0,฀AVCTP฀1.3฀and฀AVDTP฀1.2฀profiles฀support฀delivery฀of฀stereo฀audio฀to฀compatible฀Bluetooth฀devices.•฀Object Exchange:฀OPP฀v1.0฀profile฀allows฀sending฀and฀receiving฀of฀contact฀name฀cards฀(vCard฀2.1)฀and฀calendar฀events฀(vCalendar)฀between฀devices.฀PBAP฀v1.2฀supports฀exchange฀of฀Phone฀Book฀Objects.DRAFT FOR INTERNAL USE ONLY
Settings฀฀฀฀฀฀฀175•฀Human Interface Devices:฀HID฀v1.0฀profile฀supports฀certain฀interface฀devices.•฀Personal Area Network:฀PAN฀1.0฀supports฀exchange฀of฀data฀with฀other฀devices.•฀Message Access Profile:฀MAP฀1.0฀allows฀exchange฀of฀SMS฀messages฀between฀devices,฀such฀as฀with฀an฀automotive฀hands-free฀device.Note:This฀device฀does฀not฀support฀all฀Bluetooth฀profiles.฀For฀vehicle/accessory฀compatibility,฀visit฀www.verizonwireless.com/bluetoothchart.Turning Bluetooth On or Off1. From฀the฀Home฀screen,฀touch฀ ฀Apps ➔ ฀Settings.2. Touch฀Bluetooth฀ ฀to฀turn฀Bluetooth฀On฀or฀Off.Tip:You฀can฀also฀turn฀Bluetooth฀On฀or฀Off฀at฀Notifications.Bluetooth settingsPair฀with฀other฀Bluetooth฀devices,฀manage฀your฀Bluetooth฀connections,฀and฀control฀your฀device’s฀visibility฀to฀other฀devices.Note:Bluetooth฀must฀be฀turned฀On฀to฀access฀Bluetooth฀settings.1. From฀the฀Home฀screen,฀touch฀ ฀Apps ➔ ฀Settings ➔ Bluetooth.2. Touch฀a฀setting฀to฀configure฀Bluetooth:•Touch ฀to turn Bluetooth On or Off.•Touch your device’s name to control its visibility to other devices’ Bluetooth searches. Available when Bluetooth is turned On.•Touch a paired device to connect to it, or touch beside the device to change its settings.•Touch Scan to search for visible Bluetooth devices. After searching, touch a device to pair with it. For more information, see “Pairing with a Bluetooth Device” on page 163.ONONOFFOFFONONOFFOFFDRAFT FOR INTERNAL USE ONLY

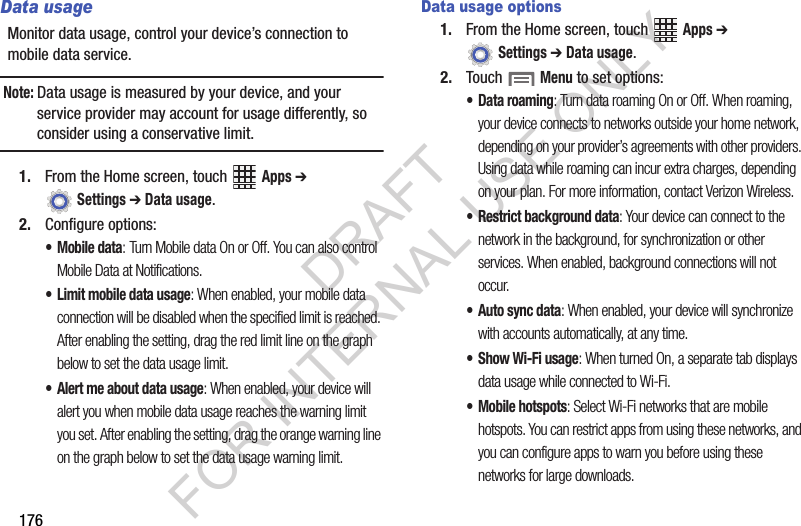

176Data usageMonitor฀data฀usage,฀control฀your฀device’s฀connection฀to฀mobile฀data฀service.Note:Data฀usage฀is฀measured฀by฀your฀device,฀and฀your฀service฀provider฀may฀account฀for฀usage฀differently,฀so฀consider฀using฀a฀conservative฀limit.1. From฀the฀Home฀screen,฀touch฀ ฀Apps ➔ ฀Settings ➔ Data usage.2. Configure฀options:•Mobile data: Turn Mobile data On or Off. You can also control Mobile Data at Notifications.• Limit mobile data usage: When enabled, your mobile data connection will be disabled when the specified limit is reached. After enabling the setting, drag the red limit line on the graph below to set the data usage limit.• Alert me about data usage: When enabled, your device will alert you when mobile data usage reaches the warning limit you set. After enabling the setting, drag the orange warning line on the graph below to set the data usage warning limit.Data usage options1. From฀the฀Home฀screen,฀touch฀ ฀Apps ➔ ฀Settings ➔ Data usage.2. Touch฀฀Menu฀to฀set฀options:• Data roaming: Turn data roaming On or Off. When roaming, your device connects to networks outside your home network, depending on your provider’s agreements with other providers. Using data while roaming can incur extra charges, depending on your plan. For more information, contact Verizon Wireless.• Restrict background data: Your device can connect to the network in the background, for synchronization or other services. When enabled, background connections will not occur.• Auto sync data: When enabled, your device will synchronize with accounts automatically, at any time.•Show Wi-Fi usage: When turned On, a separate tab displays data usage while connected to Wi-Fi.• Mobile hotspots: Select Wi-Fi networks that are mobile hotspots. You can restrict apps from using these networks, and you can configure apps to warn you before using these networks for large downloads.DRAFT FOR INTERNAL USE ONLY
Settings฀฀฀฀฀฀฀177More Wireless and Network SettingsMobile networksSet฀options฀for฀network฀selection฀and฀data฀service.Important!Depending฀on฀your฀service฀plan,฀changes฀you฀make฀to฀mobile฀networks฀settings฀may฀incur฀extra฀charges.฀Consult฀Verizon฀Wireless฀for฀information.1. From฀the฀Home฀screen,฀touch฀ ฀Apps ➔ ฀Settings ➔ More settings ➔ Mobile networks.2. Set฀these฀options:• Mobile data: Enable or disable your device’s connection to the mobile data network. You can also control this setting at Notifications with the Mobile data toggle.• Global Data Roaming Access: Enable or disable connection to data services when your device is roaming on another network.•Roaming: (Not configurable) Current roaming status.• Signal strength: (Not configurable) Current signal strength.•Network mode: Choose a preferred network mode.• Access Point Names: Configure wireless network access.• Network operators: Configure network operators.Mobile HotspotUse฀Mobile฀Hotspot฀to฀share฀your฀device’s฀internet฀connection฀with฀other฀devices,฀through฀Wi-Fi.฀You฀can฀connect฀up฀to฀5฀other฀devices฀in฀3G,฀or฀10฀in฀4G.฀You฀can฀control฀whether฀devices฀connect฀to฀your฀Mobile฀Hotspot฀with฀the฀Allowed฀device฀list.For฀more฀information฀about฀using฀your฀device฀as฀a฀mobile฀hotspot,฀see฀“Mobile Hotspot”฀on฀page 161.฀You฀can฀also฀access฀Mobile฀Hotspot฀with฀the฀ ฀Mobile Hotspot฀app.Note:Mobile฀Hotspot฀may฀require฀a฀subscription฀to฀Mobile฀Hotspot/Mobile฀Broadband฀Connect฀service.฀For฀more฀information,฀contact฀Verizon฀Wireless.฀Using฀your฀device฀as฀a฀mobile฀hotspot฀consumes฀battery฀power฀and฀uses฀data฀service.฀While฀Mobile฀Hotspot฀is฀active,฀your฀device’s฀applications฀will฀use฀the฀Mobile฀Hotspot฀data฀service.฀Roaming฀while฀using฀your฀device฀as฀a฀mobile฀hotspot฀will฀incur฀extra฀data฀charges.DRAFT FOR INTERNAL USE ONLY
178Turning Mobile Hotspot On or Off1. From฀the฀Home฀screen,฀touch฀ ฀Apps ➔ ฀Settings.2. Touch฀Mobile Hotspot฀ ฀to฀turn฀Mobile฀Hotspot฀On฀or฀Off.Note:Using฀your฀device฀as฀a฀mobile฀hotspot฀consumes฀battery฀power฀and฀uses฀data฀service.฀While฀Mobile฀Hotspot฀is฀active,฀your฀device’s฀applications฀will฀use฀the฀Mobile฀Hotspot฀data฀service.฀Roaming฀while฀using฀your฀device฀as฀a฀mobile฀hotspot฀will฀incur฀extra฀data฀charges.Configuring Mobile Hotspot1. From฀the฀Home฀screen,฀touch฀ ฀Apps ➔ ฀Settings ➔ Mobile Hotspot.2. Touch฀Configure฀for฀these฀options:• Network SSID: View and change the name of your mobile hotspot.• Hide my device: When enabled, your mobile hotspot is not visible to other Wi-Fi devices during a scan. Other devices can still connect to your mobile hotspot, but will have to set up the connection manually with your Network SSID and Password.• Security: Choose the security level for your Mobile Hotspot.• Password: If you choose a security level that uses a password, enter the password. By default, the password is your mobile telephone number.• Show password: Enable to make the Password field visible.• Show advanced options: Enable to access advanced options, including Broadcast channel, to specify the channel your device uses for Mobile Hotspot.ONONOFFOFFDRAFT FOR INTERNAL USE ONLY
Settings฀฀฀฀฀฀฀179Allowed DevicesControl฀whether฀devices฀connect฀to฀your฀Mobile฀Hotspot฀with฀the฀Allowed฀devices฀list.฀After฀you฀add฀devices฀to฀the฀list,฀they฀can฀scan฀for฀your฀device฀and฀connect฀using฀your฀device’s฀mobile฀hotspot฀name฀and฀password.Note:Using฀your฀device฀as฀a฀mobile฀hotspot฀consumes฀battery฀power฀and฀uses฀data฀service.฀While฀Mobile฀Hotspot฀is฀active,฀your฀device’s฀applications฀will฀use฀the฀Mobile฀Hotspot฀data฀service.฀Roaming฀while฀using฀your฀device฀as฀a฀mobile฀hotspot฀will฀incur฀extra฀data฀charges.1. From฀the฀Home฀screen,฀touch฀ ฀Apps ➔ ฀Settings ➔ Mobile Hotspot ➔ Allowed devices.2. Touch฀ ,฀then฀enter฀the฀other฀device’s฀Device฀name฀and฀MAC฀address.3. Touch฀฀to฀add฀the฀device฀to฀the฀Allowed devices฀list.Tip:For฀information฀about฀connecting฀to฀your฀Mobile฀Hotspot,฀see฀“Connecting a Device to Mobile Hotspot”฀on฀page 162.TetheringUse฀Tethering฀to฀share฀your฀device’s฀internet฀connection฀with฀a฀computer฀that฀connects฀to฀your฀device฀using฀the฀USB฀cable,฀or฀by฀Bluetooth.For฀more฀information฀about฀connecting฀computers฀to฀your฀device฀for฀Tethering,฀see฀“Tethering”฀on฀page 165.1. From฀the฀Home฀screen,฀touch฀ ฀Apps ➔ ฀Settings ➔ More settings ➔ Tethering.2. Choose฀a฀tethering฀method:• Mobile Broadband Connect: Connect the computer to the device using the USB cable, then touch Mobile Broadband Connect to turn tethering On or Off.• Bluetooth tethering: Pair your device with the computer using Bluetooth. Consult the computer’s documentation for more information about configuring your computer to pair using Bluetooth. Touch Bluetooth Tethering to turn tethering On or Off. Note:Using฀Mobile฀Broadband฀Connect฀tethering฀requires฀a฀subscription฀to฀Mobile฀Hotspot/Mobile฀Broadband฀Connect฀service.฀For฀more฀information,฀contact฀Verizon฀Wireless.DRAFT FOR INTERNAL USE ONLY
180VPNSet฀up฀and฀manage฀Virtual฀Private฀Networks฀(VPNs).฀For฀more฀information฀about฀using฀VPNs,฀see฀“VPN”฀on฀page 164.Note:You฀must฀enable฀screen฀security฀before฀setting฀up฀a฀VPN.฀For฀information฀about฀screen฀security,฀see฀“Screen lock”฀on฀page 196.Adding a VPN1. From฀the฀Home฀screen,฀touch฀ ฀Apps ➔ ฀Settings ➔ More settings ➔ VPN.2. Touch Add VPN network฀to฀set฀up฀a฀connection฀to฀a฀VPN,฀using฀the฀following฀settings:•Name: Enter a name for the VPN connection.•Type: Choose the type of VPN.• Server address: Enter the IP address of the VPN server.• PPP encryption (MPPE): Touch to enable or disable encryption.• Show advanced options: Touch to show more options. Available options depend on the type of VPN you are adding.NFCUse฀NFC฀(Near฀Field฀Communication)฀to฀share฀information฀between฀your฀device฀and฀another฀NFC฀device฀by฀touching฀the฀devices฀together,฀typically฀back-to-back.For฀more฀information฀about฀sharing฀information฀with฀NFC,฀see฀“NFC and Beaming”฀on฀page 166.1. From฀the฀Home฀screen,฀touch฀ ฀Apps ➔ ฀Settings ➔ More settings.2. Touch฀NFC฀ ฀to฀turn฀NFC฀On฀or฀Off.ONONOFFOFFDRAFT FOR INTERNAL USE ONLY
Settings฀฀฀฀฀฀฀181S BeamS฀Beam฀uses฀your฀device’s฀NFC฀(Near฀Field฀Communication)฀to฀send,฀or฀“beam”,฀content฀to฀other฀NFC฀and฀Wi-Fi฀Direct฀devices,฀by฀holding฀the฀devices฀close฀together.฀S฀Beam฀works฀in฀the฀background.฀Use฀the฀sharing฀options฀from฀your฀favorite฀apps฀to฀select฀content฀to฀share฀using฀S฀Beam.฀For฀example,฀you฀can฀beam฀pictures฀or฀videos฀from฀Gallery,฀songs฀from฀Music฀player,฀notes฀from฀S฀Note,฀and฀more.฀Just฀bring฀the฀devices฀together฀(typically฀back-to-back),฀then฀tap฀your฀screen.1. From฀the฀Home฀screen,฀touch฀ ฀Apps ➔ ฀Settings ➔ More settings.2. Touch฀S Beam฀ ฀to฀turn฀S฀Beam฀On฀or฀Off.Nearby devicesShare฀files฀with฀devices฀using฀DLNA฀(Digital฀Living฀Network฀Alliance)฀standards,฀over฀Wi-Fi.To฀Nearby฀devices,฀you฀must฀connect฀to฀the฀same฀Wi-Fi฀network฀as฀the฀devices฀you฀which฀to฀share฀with,฀and฀the฀other฀devices฀must฀support฀DLNA.For฀more฀information฀about฀connecting฀to฀Wi-Fi,฀see฀“Wi-Fi”฀on฀page 172.Important!Use฀care฀when฀enabling฀file฀sharing฀for฀devices.฀When฀enabled,฀other฀devices฀can฀access฀data฀on฀your฀device.1. From฀the฀Home฀screen,฀touch฀ ฀Apps ➔ ฀Settings ➔ More settings ➔ Nearby devices.2. Touch File sharing฀to฀enable฀or฀disable฀file฀sharing.3. Under฀Advanced,฀touch฀options฀to฀control฀how฀content฀is฀shared฀from฀your฀device:• Shared contents: Choose the type of content to share, from Videos, Photos, or Music.•Device name: View or modify your device’s name.ONONOFFOFFDRAFT FOR INTERNAL USE ONLY
182• Allowed devices list: View and manage devices allowed to connect to your device.• Not-allowed devices list: View and manage devices restricted from connecting to your device.•Download to: Choose a location to save downloaded content, from USB storage (device memory) or optional installed SD card (not included).• Upload from other devices: Choose how to handle incoming files from other devices, from Always accept, Always ask, or Always reject.AllShare CastWith฀AllShare฀Cast,฀you฀can฀wirelessly฀share฀your฀phone’s฀screen฀with฀Wi-Fi-enabled฀TVs฀using฀the฀optional฀AllShare฀Cast฀Hub฀accessory฀(not฀included).1. From฀the฀Home฀screen,฀touch฀ ฀Apps ➔ ฀Settings ➔ More settings ➔ AllShare Cast.2. Touch฀AllShare Cast฀ ฀to฀turn฀the฀feature฀On฀or฀Off.Note:For฀information฀about฀connecting฀to฀a฀device,฀touch฀Help.ONONOFFOFFDRAFT FOR INTERNAL USE ONLY
Settings฀฀฀฀฀฀฀183DeviceHome screen modeYour฀phone฀offers฀two฀Home฀screen฀modes:•฀Starter฀mode฀provides฀an฀easier฀experience฀for฀the฀first-time฀smartphone฀user.•฀Standard฀mode฀provides฀a฀conventional฀layout฀for฀apps฀and฀widgets฀on฀the฀Home฀screen.1. From฀the฀Home฀screen,฀touch฀ ฀Apps ➔ ฀Settings ➔ Home screen mode.2. Choose฀a฀mode฀from฀the฀pulldown฀menu,฀then฀touch฀Apply.SoundVolumeSet฀the฀system฀volume฀level,฀and฀set฀default฀volume฀for฀call฀ringtones,฀notifications,฀and฀media฀playback.Note:You฀can฀also฀set฀System฀volume฀from฀the฀Home฀screen฀by฀pressing฀the฀Volume Key.1. From฀the฀Home฀screen,฀touch฀ ฀Apps ➔ ฀Settings ➔ Sound ➔ Volume.2. Touch฀and฀drag฀the฀sliders฀for:• Music, video, games, and other media: Set the default volume level for audio playback. You can also adjust volume from this default inside the apps.•Ringtone: Set the volume for incoming call ringtones.• Notifications: Set the volume for notifications, such as new messages and event reminders.• System: Set the volume for all other system sounds, such as keytones played for screen touches. You can control whether tones play for screen touches with other sound settings.3. Touch฀ ฀to฀save฀your฀settings.DRAFT FOR INTERNAL USE ONLY
184Vibration intensitySet฀the฀level฀for฀vibration฀to฀accompany฀ringtones฀and฀notifications.1. From฀the฀Home฀screen,฀touch฀ ฀Apps ➔ ฀Settings ➔ Sound ➔ Vibration intensity.2. Touch฀and฀drag฀the฀sliders฀for:• Incoming call: Set the vibration level for incoming call ringtones.• Notification: Set the vibration level for notifications, such as new messages and event reminders.• Haptic feedback: Set the vibration level vibrations to accompany screen touches.3. Touch฀ ฀to฀save฀your฀settings.Device ringtoneChoose฀a฀ringtone฀for฀incoming฀calls.1. From฀the฀Home฀screen,฀touch฀ ฀Apps ➔ ฀Settings ➔ Sound ➔ Device ringtone.2. Touch฀a฀ringtone฀to฀select฀it.฀As฀you฀touch฀ringtones,฀a฀sample฀plays,฀unless฀you฀have฀Mute฀or฀Vibrate฀mode฀enabled.฀3. Touch฀ ฀to฀save฀your฀settings.Tip:You฀can฀also฀set฀songs฀as฀ringtones฀for฀all฀calls,฀or฀for฀a฀selected฀contact.฀For฀more฀information,฀see฀“Making a Song a Phone Ringtone”฀on฀page 148.DRAFT FOR INTERNAL USE ONLY
Settings฀฀฀฀฀฀฀185Device vibrationChoose฀a฀vibration฀pattern฀to฀use฀when฀vibration฀is฀enabled.1. From฀the฀Home฀screen,฀touch฀ ฀Apps ➔ ฀Settings ➔ Sound ➔ Device vibration.2. Touch฀a฀pattern฀to฀select฀it.฀As฀you฀touch฀patterns,฀a฀sample฀plays.3. To฀create฀your฀own฀pattern,฀touch฀Create.฀Touch฀Tap to create฀in฀the฀pattern,฀then฀touch฀Stop.฀Touch฀Save฀to฀save฀your฀pattern.4. Touch฀ ฀to฀save฀your฀settings.Default notificationsChoose฀a฀default฀sound฀to฀play฀for฀notifications,฀such฀as฀for฀new฀messages฀and฀event฀reminders.1. From฀the฀Home฀screen,฀touch฀ ฀Apps ➔ ฀Settings ➔ Sound ➔ Default notifications.2. Touch฀a฀sound฀to฀select฀it.฀As฀you฀touch฀sounds,฀a฀sample฀plays.3. Touch฀ ฀to฀save฀your฀settings.Tip:You฀can฀also฀set฀songs฀as฀ringtones.฀For฀more฀information,฀see฀“Making a Song a Phone Ringtone”฀on฀page 148.Sound and vibrationWhen฀enabled,฀vibration฀is฀played฀at฀the฀same฀time฀as฀sounds฀for฀calls฀and฀alerts.1. From฀the฀Home฀screen,฀touch฀ ฀Apps ➔ ฀Settings ➔ Sound ➔ Sound and vibration.2. Touch฀Sound and vibration฀to฀turn฀the฀feature฀On฀or฀Off.DRAFT FOR INTERNAL USE ONLY
186KeytonesKeytones฀are฀sounds฀that฀play฀when฀you฀touch฀keys฀on฀the฀Phone฀keypad.1. From฀the฀Home฀screen,฀touch฀ ฀Apps ➔ ฀Settings ➔ Sound.2. Touch฀Keytones฀to฀turn฀key฀sounds฀On฀or฀Off.Touch soundsTouch฀sounds฀play฀when฀you฀touch฀items฀on฀the฀screen,฀such฀as฀when฀making฀a฀selection.1. From฀the฀Home฀screen,฀touch฀ ฀Apps ➔ ฀Settings ➔ Sound.2. Touch฀Touch sounds฀to฀turn฀sounds฀On฀or฀Off.Screen lock soundScreen฀lock฀sound฀plays฀when฀you฀lock฀or฀unlock฀the฀screen.1. From฀the฀Home฀screen,฀touch฀ ฀Apps ➔ ฀Settings ➔ Sound.2. Touch฀Screen lock sounds฀to฀turn฀sounds฀On฀or฀Off.Haptic feedbackWhen฀turned฀On,฀the฀device฀vibrates฀to฀indicate฀screen฀touches฀and฀other฀interactions.฀1. From฀the฀Home฀screen,฀touch฀ ฀Apps ➔ ฀Settings ➔ Sound.2. Touch฀Haptic feedback฀to฀turn฀touch฀vibrations฀On฀or฀Off.Emergency toneYou฀can฀choose฀to฀have฀a฀tone฀play,฀or฀have฀your฀phone฀vibrate,฀periodically฀during฀an฀emergency฀call.1. From฀the฀Home฀screen,฀touch฀ ฀Apps ➔ ฀Settings ➔ Sound ➔ Emergency tone.2. Select฀Off,฀Alert,฀or฀Vibrate.DRAFT FOR INTERNAL USE ONLY
Settings฀฀฀฀฀฀฀187DisplayWallpaperCustomize฀the฀background฀of฀the฀Home฀and฀Lock฀screens.1. From฀the฀Home฀screen,฀touch฀ ฀Apps ➔ ฀Settings ➔ Display ➔ Wallpaper.2. Select฀a฀screen,฀from฀Home screen,฀Lock screen,฀or฀Home and lock screens.3. Select฀a฀source฀for฀wallpaper,฀from฀Gallery,฀Live wallpaper,฀or฀Wallpapers.4. Follow฀the฀prompts฀to฀set฀the฀picture฀or฀wallpaper.Note:You฀can฀also฀set฀Wallpaper฀by฀touching฀and฀holding฀on฀the฀Home฀screen.LED IndicatorThe฀LED฀indicator฀on฀the฀front฀of฀the฀device฀displays฀when฀the฀device฀is฀locked,฀to฀notify฀you฀of฀status฀changes฀and฀events.฀Use฀LED฀indicator฀settings฀to฀configure฀how฀the฀LED฀functions.1. From฀the฀Home฀screen,฀touch฀ ฀Apps ➔ ฀Settings ➔ Display ➔ LED Indicator.2. Select฀options:•Charging: When turned On, the LED glows red during charging, and green when the battery is fully charged.•Low battery: When turned On, the LED blinks red to indicate low battery charge.• Missed event: When turned on, the LED blinks orange to show that you have missed calls, new messages, or application events.DRAFT FOR INTERNAL USE ONLY
188Multi windowWhen฀enabled,฀Multi฀Window฀allows฀you฀to฀use฀multiple฀apps฀on฀the฀same฀screen,฀in฀multiple,฀resizable฀windows.For฀more฀information฀about฀Multi฀window,฀see฀“Multi Window”฀on฀page 30.1. From฀the฀Home฀screen,฀touch฀ ฀Apps ➔ ฀Settings ➔ Display.2. Touch฀Multi window฀to฀enable฀or฀disable฀the฀feature.Tip:You฀can฀also฀enable฀or฀disable฀Multi฀window฀from฀Notifications.฀Sweep฀your฀finger฀down฀from฀the฀top฀of฀the฀screen฀to฀display฀Notifications,฀then฀touch฀Multi฀window.Page buddyEnable฀Page฀buddy฀to฀have฀selected฀Page฀buddies฀automatically฀appear฀on฀the฀Home฀screen฀when฀you฀use฀S฀Pen,฀or฀optional฀accessories฀such฀as฀earphones฀or฀a฀dock,฀or฀while฀you฀are฀roaming.฀Page฀buddies฀give฀you฀information฀about฀using฀the฀connected฀accessory,฀and฀offer฀apps฀at฀the฀bottom฀of฀the฀screen฀you฀might฀like฀to฀use฀with฀the฀accessory.฀An฀icon฀will฀appear฀in฀the฀Home฀screen฀page฀indicator,฀to฀let฀you฀know฀a฀Page฀buddy฀is฀active.1. From฀the฀Home฀screen,฀touch฀ ฀Apps ➔ ฀Settings ➔ Display.2. Touch฀Page buddy฀ ฀to฀turn฀the฀feature฀On฀or฀Off.3. Touch฀Page buddy,฀then฀select฀page฀buddies.Tip:For฀more฀information฀about฀page฀buddies,฀touch฀Page buddy help.ONONOFFOFFDRAFT FOR INTERNAL USE ONLY
Settings฀฀฀฀฀฀฀189Screen modeChoose฀a฀screen฀mode฀to฀match฀your฀type฀of฀viewing.1. From฀the฀Home฀screen,฀touch฀ ฀Apps ➔ ฀Settings ➔ Display.2. Touch฀Screen฀mode,฀then฀select฀a฀mode.BrightnessSet฀the฀default฀screen฀brightness.1. From฀the฀Home฀screen,฀touch฀ ฀Apps ➔ ฀Settings ➔ Display ➔ Brightness.2. Drag฀the฀slider฀to฀set฀the฀brightness,฀or฀touch฀Automatic brightness฀to฀allow฀the฀device฀to฀adjust฀brightness฀in฀response฀to฀light฀conditions.3. Touch฀ ฀to฀save฀the฀setting.Auto-rotate screenWhen฀enabled,฀the฀screen’s฀orientation฀automatically฀changes฀when฀you฀rotate฀the฀device.1. From฀the฀Home฀screen,฀touch฀ ฀Apps ➔ ฀Settings ➔ Display.2. Touch฀Auto-rotate screen฀to฀turn฀the฀feature฀On฀or฀Off.Tip:You฀can฀also฀control฀Auto-rotate฀from฀Notifications฀with฀the฀Screen฀rotation฀setting.Screen timeoutSet฀the฀length฀of฀delay฀between฀the฀last฀key฀press฀or฀screen฀touch฀and฀the฀automatic฀screen฀timeout฀(dim฀and฀lock).1. From฀the฀Home฀screen,฀touch฀ ฀Apps ➔ ฀Settings ➔ Display ➔ Screen timeout.2. Touch฀a฀setting฀to฀select฀it.DRAFT FOR INTERNAL USE ONLY
190Smart rotationWhen฀enabled,฀your฀device฀automatically฀adjusts฀or฀disables฀automatic฀screen฀rotation฀to฀allow฀for฀the฀position฀of฀your฀face฀and฀the฀device.1. From฀the฀Home฀screen,฀touch฀ ฀Apps ➔ ฀Settings ➔ Display.2. Touch฀Smart rotation฀to฀enable฀or฀disable฀the฀setting.Smart stayWhen฀enabled,฀your฀device฀automatically฀disables฀the฀screen฀timeout฀to฀keep฀the฀screen฀on฀as฀long฀as฀you฀are฀looking฀at฀it.1. From฀the฀Home฀screen,฀touch฀ ฀Apps ➔ ฀Settings ➔ Display.2. Touch฀Smart stay฀to฀enable฀or฀disable฀the฀setting.Font styleSet฀the฀font฀for฀screen฀displays.1. From฀the฀Home฀screen,฀touch฀ ฀Apps ➔ ฀Settings ➔ Display ➔ Font style.2. Select฀a฀font,฀or฀touch฀Get fonts online฀to฀browse฀and฀download฀a฀new฀font.Font sizeSet฀the฀font฀size฀for฀screen฀displays.1. From฀the฀Home฀screen,฀touch฀ ฀Apps ➔ ฀Settings ➔ Display ➔ Font size.2. Select฀a฀font฀size.Touch key light durationSet฀the฀length฀of฀time฀the฀Menu฀and฀Back฀Keys฀remain฀lit฀after฀you฀touch฀them.1. From฀the฀Home฀screen,฀touch฀ ฀Apps ➔ ฀Settings ➔ Display ➔ Touch key light duration.2. Choose฀a฀time฀period,฀or฀Always off฀or฀Always on.DRAFT FOR INTERNAL USE ONLY

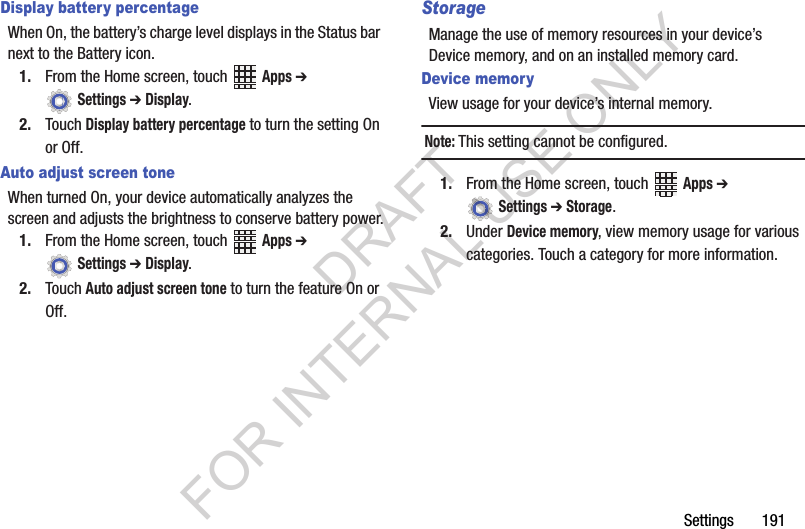

Settings฀฀฀฀฀฀฀191Display battery percentageWhen฀On,฀the฀battery’s฀charge฀level฀displays฀in฀the฀Status฀bar฀next฀to฀the฀Battery฀icon.1. From฀the฀Home฀screen,฀touch฀ ฀Apps ➔ ฀Settings ➔ Display.2. Touch฀Display battery percentage฀to฀turn฀the฀setting฀On฀or฀Off.Auto adjust screen toneWhen฀turned฀On,฀your฀device฀automatically฀analyzes฀the฀screen฀and฀adjusts฀the฀brightness฀to฀conserve฀battery฀power.1. From฀the฀Home฀screen,฀touch฀ ฀Apps ➔ ฀Settings ➔ Display.2. Touch฀Auto adjust screen tone฀to฀turn฀the฀feature฀On฀or฀Off.StorageManage฀the฀use฀of฀memory฀resources฀in฀your฀device’s฀Device฀memory,฀and฀on฀an฀installed฀memory฀card.Device memoryView฀usage฀for฀your฀device’s฀internal฀memory.Note:This฀setting฀cannot฀be฀configured.1. From฀the฀Home฀screen,฀touch฀ ฀Apps ➔ ฀Settings ➔ Storage.2. Under฀Device memory,฀view฀memory฀usage฀for฀various฀categories.฀Touch฀a฀category฀for฀more฀information.DRAFT FOR INTERNAL USE ONLY
192SD card1. From฀the฀Home฀screen,฀touch฀ ฀Apps ➔ ฀Settings ➔ Storage.2. Under฀SD card,฀view฀memory฀usage฀for฀various฀categories.฀Touch฀a฀category฀for฀more฀information.3. Touch฀Unmount SD card฀to฀prepare฀the฀memory฀card฀for฀safe฀removal฀or฀formatting.฀For฀more฀information,฀see฀“Removing a Memory Card”฀on฀page 14.4. Touch฀Format SD card฀to฀permanently฀remove฀all฀content฀from฀an฀installed฀memory฀card.Power saving modeConfigure฀Power฀saving฀mode฀settings฀to฀conserve฀battery฀power.1. From฀the฀Home฀screen,฀touch฀ ฀Apps ➔ ฀Settings ➔ Power saving mode.2. Touch฀Power saving mode฀ ฀to฀turn฀the฀setting฀On฀or฀Off.฀The฀setting฀must฀be฀On฀to฀configure฀options.3. Touch฀Power saving mode฀to฀configure฀options:• CPU power saving: When enabled, the device’s maximum performance is limited. This does not affect normal usage, such as browsing and video playback.• Screen power saving: When enabled, the screen uses reduced frame refresh rate and lower brightness.• Background color: When enabled, the background uses lower brightness in Email and Internet.• Turn off Haptic feedback: When enabled, Haptic feedback is turned off, and no vibration plays when you touch the screen.• Learn about power saving: View details about Power saving options.ONONOFFOFFDRAFT FOR INTERNAL USE ONLY
Settings฀฀฀฀฀฀฀193BatterySee฀what’s฀using฀battery฀power.1. From฀the฀Home฀screen,฀touch฀ ฀Apps ➔ ฀Settings ➔ Battery.2. View฀battery฀usage฀for฀applications฀and฀services฀currently฀running.฀Touch฀an฀item฀for฀more฀information,฀or฀to฀configure฀options฀for฀managing฀power฀use.Application managerYou฀can฀download฀and฀install฀applications฀from฀the฀Google฀Play™฀Store฀or฀S฀Suggest,฀or฀create฀applications฀using฀the฀Android฀SDK฀and฀install฀them฀on฀your฀device.฀Use฀Application฀manager฀to฀manage฀applications฀on฀your฀device.Warning!Because฀this฀device฀can฀be฀configured฀with฀system฀software฀not฀provided฀by฀or฀supported฀by฀Google฀or฀any฀other฀company,฀end-users฀operate฀these฀devices฀at฀their฀own฀risk.฀1. From฀the฀Home฀screen,฀touch฀ ฀Apps ➔ ฀Settings ➔ Application manager.2. Touch฀Downloaded,฀Running,฀or฀All฀to฀view฀the฀status฀of฀applications฀and฀services.฀Touch฀an฀app฀or฀service฀for฀more฀information,฀and฀for฀app฀options,฀such฀as฀stopping฀or฀uninstalling.DRAFT FOR INTERNAL USE ONLY
194PersonalLocation servicesLocation฀services฀control฀your฀device's฀use฀of฀GPS฀signals.฀Some฀apps฀may฀require฀one฀or฀more฀location฀services฀be฀turned฀On฀for฀full฀app฀functionality.GPS฀signals฀may฀be฀affected฀by฀your฀surroundings,฀including:•฀Buildings•฀Tunnels฀or฀underground฀structures•฀Weather฀conditions•฀High-voltage฀or฀electromagnetic฀fields•฀Tinted฀windowsImportant!Verizon฀Wireless฀values฀your฀privacy.฀Because฀of฀this,฀your฀device฀is฀defaulted฀to฀only฀acquire฀your฀location฀when฀you฀dial฀911.฀To฀use฀Location-Based฀Services,฀you฀must฀first฀enable฀location฀services฀on฀your฀device.E911E911฀location฀service฀is฀standard฀on฀all฀mobile฀phones,฀to฀allow฀sharing฀of฀your฀GPS฀location฀with฀emergency฀personnel฀when฀you฀make฀a฀call฀to฀emergency฀services฀(such฀as฀911).฀This฀setting฀is฀not฀configurable.䡲From฀the฀Home฀screen,฀touch฀ ฀Apps ➔ ฀Settings ➔ Location services ➔ E911.DRAFT FOR INTERNAL USE ONLY

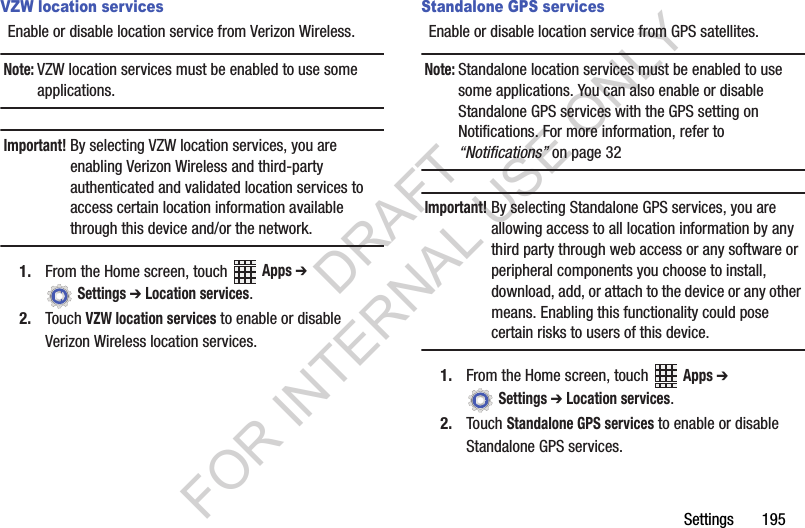

Settings฀฀฀฀฀฀฀195VZW location servicesEnable฀or฀disable฀location฀service฀from฀Verizon฀Wireless.Note:VZW฀location฀services฀must฀be฀enabled฀to฀use฀some฀applications.Important!By฀selecting฀VZW฀location฀services,฀you฀are฀enabling฀Verizon฀Wireless฀and฀third-party฀authenticated฀and฀validated฀location฀services฀to฀access฀certain฀location฀information฀available฀through฀this฀device฀and/or฀the฀network.1. From฀the฀Home฀screen,฀touch฀ ฀Apps ➔ ฀Settings ➔ Location services.2. Touch฀VZW location services฀to฀enable฀or฀disable฀Verizon฀Wireless฀location฀services.Standalone GPS servicesEnable฀or฀disable฀location฀service฀from฀GPS฀satellites.฀Note:Standalone฀location฀services฀must฀be฀enabled฀to฀use฀some฀applications.฀You฀can฀also฀enable฀or฀disable฀Standalone฀GPS฀services฀with฀the฀GPS฀setting฀on฀Notifications.฀For฀more฀information,฀refer฀to฀“Notifications”฀on฀page฀32Important!By฀selecting฀Standalone฀GPS฀services,฀you฀are฀allowing฀access฀to฀all฀location฀information฀by฀any฀third฀party฀through฀web฀access฀or฀any฀software฀or฀peripheral฀components฀you฀choose฀to฀install,฀download,฀add,฀or฀attach฀to฀the฀device฀or฀any฀other฀means.฀Enabling฀this฀functionality฀could฀pose฀certain฀risks฀to฀users฀of฀this฀device.1. From฀the฀Home฀screen,฀touch฀ ฀Apps ➔ ฀Settings ➔ Location services.2. Touch฀Standalone GPS services฀to฀enable฀or฀disable฀Standalone฀GPS฀services.DRAFT FOR INTERNAL USE ONLY
196Google location servicesEnable฀or฀disable฀location฀services฀from฀Google฀location฀services.฀Note:Google฀location฀services฀must฀be฀enabled฀to฀use฀some฀applications.Important!By฀selecting฀Google฀location฀services,฀you฀are฀allowing฀Google’s฀location฀service฀to฀collect฀anonymous฀location฀data.฀Some฀data฀may฀be฀stored฀on฀your฀device.฀Collection฀may฀occur฀even฀when฀no฀apps฀are฀running.1. From฀the฀Home฀screen,฀touch฀ ฀Apps ➔ ฀Settings ➔ Location services.2. Touch฀Google location services฀to฀enable฀or฀disable฀Google฀location฀services.Lock screenChoose฀settings฀for฀unlocking฀your฀device.฀For฀more฀information฀about฀using฀the฀lock฀and฀unlock฀features,฀see฀“Securing Your Device”฀on฀page 15.Screen lock1. From฀the฀Home฀screen,฀touch฀ ฀Apps ➔ ฀Settings ➔ Lock screen.2. Touch Screen lock฀for฀settings:•Swipe: When enabled, you unlock the device by swiping your finger across the screen. This is the default screen lock, and offers no security, but you can set special lock screen options; see “Lock screen” on page 196.•Motion: When enabled, you unlock the device by touching and holding on the screen and tilting the device forward. Touch the option for more information and a demonstration of the motion. This screen lock offers no security, but you can set special lock screen options; see “Lock screen” on page 196.• Face unlock: When enabled, you unlock the device by looking at the screen. This option offers low security, because someone who looks similar to you could unlock your device. Touch the option for more information, and to set up Face unlock.DRAFT FOR INTERNAL USE ONLY
Settings฀฀฀฀฀฀฀197• Face and voice: When enabled, you unlock the device by looking at the screen and speaking. This option offers low security, because someone who looks and/or sounds similar to you could unlock your device. Touch the option for more information, and to set up Face and voice unlock.• Pattern: When enabled, you draw a pattern, which you create, on the screen to unlock the device. Touch the option, then follow the prompts to create or change your screen unlock pattern.•PIN: When enabled, you enter a numeric PIN (Personal Identification Number), which you create, to unlock the device. with PIN screen lock, you can also set the With swipe lock and Lock screen options.•Password: When enabled, you enter an alphanumeric password, which you create, to unlock the device.•None: Disable all custom screen lock settings, to use the default swipe unlock screen.With swipe lockWhen฀you฀have฀Face,฀Face฀and฀voice,฀Pattern,฀PIN,฀or฀Password฀screen฀locks฀enabled,฀you฀may฀choose฀to฀have฀your฀device฀prompt฀you฀to฀swipe฀the฀screen฀before฀attempting฀to฀unlock฀the฀screen.1. From฀the฀Home฀screen,฀touch฀ ฀Apps ➔ ฀Settings ➔ Lock screen.2. Touch฀With swipe lock฀to฀enable฀or฀disable฀the฀option.Note:The฀With฀swipe฀lock฀setting฀is฀only฀available฀if฀you฀have฀set฀one฀of฀the฀screen฀locks฀listed฀above.DRAFT FOR INTERNAL USE ONLY
198Lock screen optionsWhen฀the฀Screen฀lock฀is฀set฀to฀Swipe฀or฀Motion,฀or฀you฀have฀the฀With฀swipe฀lock฀option฀enabled,฀you฀can฀set฀special฀options฀for฀the฀lock฀screen.1. From฀the฀Home฀screen,฀touch฀ ฀Apps ➔ ฀Settings ➔ Lock screen ➔ Lock screen options.2. Configure฀these฀options:•Shortcuts: Touch to control display of app shortcuts at the bottom of the lock screen. Touch Shortcuts to choose shortcuts to display: touch and drag a shortcut to a new position, or to the trash can to remove it, and touch + to select a new shortcut.• Information ticker: Set news, stock, or Facebook to display on a ticker on the lock screen.•Clock: When enabled, the lock screen displays a digital clock.•Dual clock: Touch to control display of a dual clock to show the time in two zones when you’re traveling. Touch Dual clock to set a home city. When you have location services turned on while traveling, the dual clock will display the time in your home city and current location.• Weather: Touch to control display of the current location’s weather on the lock screen.• Ripple effect: When enabled, a ripple effect shows on the lock screen when you touch the screen. If you choose a live wallpaper for the lock screen, ripple effect is disabled.• Ink effect: When enabled, an ink effect shows on the lock screen when you touch the screen. If you choose a live wallpaper for the lock screen, the ripple effect is disabled.•Help text: Touch the check box to control display of tips as you use the lock screen.• Camera quick access: Touch to control access to the camera from the lock screen using a motion gesture. When enabled, touch and hold on the lock screen, then rotate the device to landscape orientation to launch the Camera. Touch Camera quick access to learn more.• Wake up in lock screen: Touch the check box to enable or disable unlocking by spoken wake-up command.• Set wake-up command: Configure wake-up commands, to be used when the Wake up in lock screen option is enabled. You can configure commands to wake up the device, or other popular features.ONONOFFOFFONONOFFOFFONONOFFOFFDRAFT FOR INTERNAL USE ONLY
Settings฀฀฀฀฀฀฀199Popup Note on lock screenWhen฀enabled,฀a฀Popup฀Note฀appears฀on฀the฀lock฀screen฀(when฀screen฀lock฀options฀other฀than฀Swipe฀or฀Motion฀are฀active).1. From฀the฀Home฀screen,฀touch฀ ฀Apps ➔ ฀Settings ➔ Lock screen.2. Touch฀Popup Note on lock screen฀to฀enable฀or฀disable฀the฀setting.Improve facial recognitionWhen฀you฀have฀Face฀screen฀lock฀set,฀you฀can฀use฀the฀Improve฀facial฀recognition฀setting฀to฀improve฀your฀device’s฀recognition฀of฀your฀face.1. From฀the฀Home฀screen,฀touch฀ ฀Apps ➔ ฀Settings ➔ Lock screen.2. Touch฀Improve facial recognition฀to฀enable฀or฀disable฀the฀setting.Note:The฀Improve฀facial฀recognition฀setting฀is฀only฀available฀if฀you฀have฀set฀a฀Face฀screen฀lock.Presence checkWhen฀you฀have฀Face฀screen฀lock฀set,฀you฀can฀choose฀to฀have฀the฀device฀prompt฀you฀to฀blink฀to฀start฀facial฀recognition,฀to฀improve฀security.1. From฀the฀Home฀screen,฀touch฀ ฀Apps ➔ ฀Settings ➔ Lock screen.2. Touch฀Presence check฀to฀enable฀or฀disable฀the฀setting.Note:The฀Presence฀check฀setting฀is฀only฀available฀if฀you฀have฀set฀a฀Face฀screen฀lock.Make pattern visibleWhen฀you฀have฀a฀Pattern฀screen฀lock฀set,฀you฀can฀choose฀whether฀the฀pattern฀is฀visible฀briefly฀as฀you฀draw฀it฀on฀the฀lock฀screen.1. From฀the฀Home฀screen,฀touch฀ ฀Apps ➔ ฀Settings ➔ Lock screen.2. Touch฀Make pattern visible฀to฀enable฀or฀disable฀the฀setting.Note:The฀Make฀pattern฀visible฀setting฀is฀only฀available฀if฀you฀have฀set฀a฀pattern฀screen฀lock.DRAFT FOR INTERNAL USE ONLY
200Lock automaticallyWhen฀you฀have฀a฀screen฀lock฀set,฀you฀can฀choose฀a฀a฀time฀period฀for฀automatically฀locking฀the฀screen฀after฀the฀screen฀turns฀off,฀or฀choose฀to฀have฀the฀screen฀lock฀immediately฀when฀the฀screen฀turns฀off.1. From฀the฀Home฀screen,฀touch฀ ฀Apps ➔ ฀Settings ➔ Lock screen.2. Touch฀Lock automatically,฀then฀select฀an฀option.Note:The฀Lock฀automatically฀setting฀is฀only฀available฀if฀you฀have฀set฀a฀screen฀lock.Lock instantly with power keyWhen฀enabled,฀pressing฀the฀ ฀Power/Lock Key฀locks฀the฀screen฀instantly.1. From฀the฀Home฀screen,฀touch฀ ฀Apps ➔ ฀Settings ➔ Lock screen.2. Touch฀Lock instantly with power key฀to฀enable฀or฀disable฀the฀option.Vibrate on screen tapWhen฀enabled,฀the฀device฀vibrates฀when฀you฀touch฀the฀lock฀screen.1. From฀the฀Home฀screen,฀touch฀ ฀Apps ➔ ฀Settings ➔ Lock screen.2. Touch฀Vibrate on screen tap฀to฀enable฀or฀disable฀the฀option.Owner informationEnter฀text฀to฀display฀on฀the฀Lock฀screen.1. From฀the฀Home฀screen,฀touch฀ ฀Apps ➔ ฀Settings ➔ Lock screen ➔ Owner information.2. Touch฀Show owner info on lock screen฀to฀enable฀display฀of฀Owner฀information฀on฀the฀Lock฀screen.3. Enter฀Owner฀information฀text.฀For฀more฀information฀about฀entering฀text,฀see฀see฀“Entering Text”฀on฀page 39.DRAFT FOR INTERNAL USE ONLY
Settings฀฀฀฀฀฀฀201SecurityEncryptionAs฀a฀security฀measure,฀you฀can฀encrypt฀the฀contents฀of฀your฀device฀or฀an฀optional฀installed฀memory฀card฀(not฀included),฀and฀require฀a฀password฀each฀time฀you฀turn฀on฀the฀device฀or฀access฀the฀memory฀card.Encryption฀may฀take฀an฀hour฀or฀more฀to฀complete.฀Start฀with฀a฀charged฀battery,฀and฀attach฀the฀charger฀until฀encryption฀is฀complete.฀Loss฀of฀power฀or฀other฀interruption฀may฀cause฀the฀loss฀of฀some฀or฀all฀data.Encrypt deviceAs฀a฀security฀measure,฀you฀can฀encrypt฀the฀contents฀of฀your฀device฀and฀require฀a฀password฀to฀access฀the฀contents฀each฀time฀you฀turn฀it฀on.1. From฀the฀Home฀screen,฀touch฀ ฀Apps ➔ ฀Settings ➔ Security.2. Touch฀Encrypt device฀to฀start฀encryption.฀Follow฀the฀prompts฀to฀complete฀encryption.Encrypt external SD cardAs฀a฀security฀measure,฀you฀can฀encrypt฀the฀contents฀of฀an฀optional฀installed฀SD฀card฀(not฀included),฀and฀require฀a฀password฀each฀time฀you฀access฀the฀card.1. From฀the฀Home฀screen,฀touch฀ ฀Apps ➔ ฀Settings ➔ Security.2. Touch฀Encrypt external SD card฀card฀to฀start฀encryption.฀Follow฀the฀prompts฀to฀complete฀encryption.SIM card lockSet up SIM card lockAs฀a฀security฀measure,฀you฀can฀choose฀to฀lock฀the฀SIM฀card,฀and฀require฀a฀PIN฀to฀use฀the฀device.1. From฀the฀Home฀screen,฀touch฀ ฀Apps ➔ ฀Settings ➔ Security.2. Touch Set up SIM card lock฀for฀these฀settings:•Lock SIM card: Enable to require a PIN be entered to use the device, then set the PIN.• Change SIM PIN: Create a PIN for accessing the SIM card.DRAFT FOR INTERNAL USE ONLY
202PasswordsMake passwords visibleWhen฀enabled,฀password฀characters฀display฀briefly฀as฀you฀enter฀them.1. From฀the฀Home฀screen,฀touch฀ ฀Apps ➔ ฀Settings ➔ Security.2. Touch฀Make passwords visible฀to฀enable฀or฀disable฀brief฀displays฀of฀password฀characters.Device administrationView฀or฀disable฀device฀administrators.฀Some฀applications,฀such฀as฀Corporate฀email,฀may฀require฀you฀allow฀access฀to฀your฀device฀by฀device฀administrators฀in฀certain฀circumstances,฀such฀as฀if฀your฀device฀is฀lost฀or฀stolen.Some฀features฀a฀device฀administrator฀might฀control฀include:฀•฀Setting฀the฀number฀of฀failed฀password฀attempts฀before฀the฀device฀is฀restored฀to฀factory฀settings•฀Automatically฀locking฀the฀device.•฀Restoring฀factory฀settings฀on฀the฀device.Device administratorsView,฀add฀or฀remove฀device฀administrators.1. From฀the฀Home฀screen,฀touch฀ ฀Apps ➔ ฀Settings ➔ Security.2. Touch฀Select device administrators.DRAFT FOR INTERNAL USE ONLY
Settings฀฀฀฀฀฀฀203Unknown sourcesWhen฀enabled,฀you฀can฀install฀applications฀from฀sources฀other฀than฀Google฀Play®.1. From฀the฀Home฀screen,฀touch฀ ฀Apps ➔ ฀Settings ➔ Security.2. Touch฀Unknown sources฀to฀enable฀or฀disable฀the฀option.Warning!Because฀this฀device฀can฀be฀configured฀with฀system฀software฀not฀provided฀by฀or฀supported฀by฀Google฀or฀any฀other฀company,฀end-users฀operate฀these฀devices฀at฀their฀own฀risk.฀Credential storageTrusted credentialsYou฀can฀install฀credentials฀from฀an฀installed฀memory฀card,฀and฀use฀the฀Credential฀storage฀settings฀to฀allow฀applications฀to฀access฀the฀secure฀certificates฀and฀other฀credentials.Trusted credentials1. From฀the฀Home฀screen,฀touch฀ ฀Apps ➔ ฀Settings ➔ Security.2. Touch฀Trusted credentials to฀view฀certificates฀you’ve฀installed.Install from device storageInstall฀encrypted฀certificates฀from฀an฀installed฀memory฀card.Note:You฀must฀have฀installed฀a฀memory฀card฀containing฀encrypted฀certificates฀to฀use฀this฀feature.1. From฀the฀Home฀screen,฀touch฀ ฀Apps ➔ ฀Settings ➔ Security.2. Touch฀Install from device storage,฀then฀choose฀a฀certificate฀and฀follow฀the฀prompts฀to฀install.DRAFT FOR INTERNAL USE ONLY
204Clear credentialsClear฀stored฀credentials฀and฀reset฀the฀password.Note:This฀setting฀is฀only฀available฀if฀you฀have฀installed฀certificates.1. From฀the฀Home฀screen,฀touch฀ ฀Apps ➔ ฀Settings ➔ Security.2. Touch฀Clear credentials,฀then฀follow฀the฀prompts฀to฀clear฀stored฀credentials฀and฀reset฀the฀password.One-handed operationConfigure฀options฀to฀make฀using฀your฀device฀easier฀with฀one฀hand.฀When฀an฀option฀is฀enabled,฀you฀can฀adjust฀the฀position฀of฀the฀feature฀left฀or฀right฀by฀touching฀arrows฀on฀the฀screen.1. From฀the฀Home฀screen,฀touch฀ ฀Apps ➔ ฀Settings ➔ One-handed operation.2. Configure฀options:• Keypad & in-call buttons: When enabled, you can adjust the position of the dialing keypad and in-call buttons.• Samsung keyboard: When enabled, you can adjust the position of the Samsung keyboard.•Calculator: When enabled, you can adjust the Calculator’s position.• Unlock pattern: When enabled, you adjust the position of the unlock pattern on the lock screen.Tip:Touch฀Learn about one-handed operation฀for฀help฀with฀using฀this฀feature.DRAFT FOR INTERNAL USE ONLY

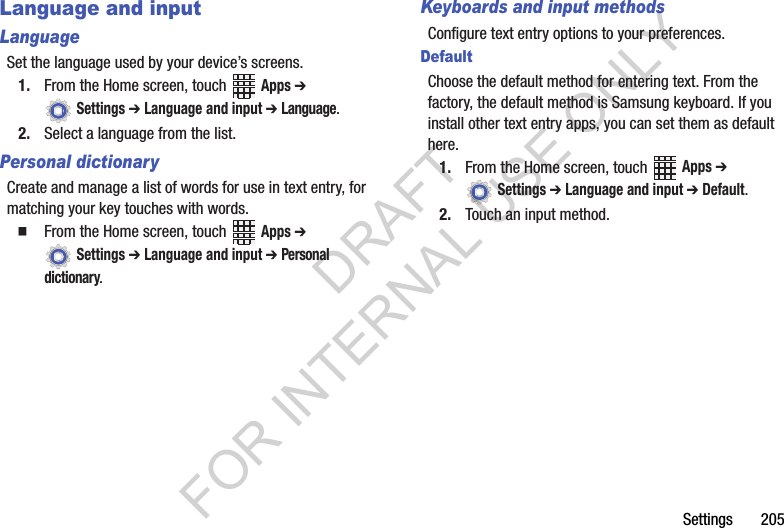

Settings฀฀฀฀฀฀฀205Language and inputLanguageSet฀the฀language฀used฀by฀your฀device’s฀screens.1. From฀the฀Home฀screen,฀touch฀ ฀Apps ➔ ฀Settings ➔ Language and input ➔ Language.2. Select฀a฀language฀from฀the฀list.Personal dictionaryCreate฀and฀manage฀a฀list฀of฀words฀for฀use฀in฀text฀entry,฀for฀matching฀your฀key฀touches฀with฀words.䡲From฀the฀Home฀screen,฀touch฀ ฀Apps ➔ ฀Settings ➔ Language and input ➔ Personal dictionary.Keyboards and input methodsConfigure฀text฀entry฀options฀to฀your฀preferences.DefaultChoose฀the฀default฀method฀for฀entering฀text.฀From฀the฀factory,฀the฀default฀method฀is฀Samsung฀keyboard.฀If฀you฀install฀other฀text฀entry฀apps,฀you฀can฀set฀them฀as฀default฀here.1. From฀the฀Home฀screen,฀touch฀ ฀Apps ➔ ฀Settings ➔ Language and input ➔ Default.2. Touch฀an฀input฀method.DRAFT FOR INTERNAL USE ONLY
206Google voice typingConfigure฀Google฀voice฀input฀settings.฀When฀you฀enable฀Google฀voice฀in฀Settings,฀it฀is฀available฀for฀text฀entry฀when฀you฀touch฀a฀text฀field฀to฀enter฀text.For฀more฀information,฀see฀“Using Google Voice Typing”฀on฀page 41.1. From฀the฀Home฀screen,฀touch฀ ฀Apps ➔ ฀Settings ➔ Language and input.2. Touch฀Google voice typing฀to฀enable฀it.3. Touch฀ ฀beside฀Google฀voice฀typing฀to฀configure฀options:• Choose input languages: Select languages for Google voice typing. Select Automatic to use the Default language exclusively, or choose other language(s).• Block offensive words: When enabled, words many people find offensive are not shown in results of Google voice searches. Offensive words are replaced in results with a placeholder (####).• Download offline speech recognition: Install additional speech recognition.Samsung keyboardConfigure฀Samsung฀keypad฀settings.฀When฀you฀enable฀Samsung฀keyboard฀in฀Settings,฀it฀is฀available฀for฀text฀entry฀when฀you฀touch฀a฀text฀field฀to฀enter฀text.For฀more฀information,฀see฀“Using Samsung Keyboard”฀on฀page 40.1. From฀the฀Home฀screen,฀touch฀ ฀Apps ➔ ฀Settings ➔ Language and input.2.Samsung keyboard฀is฀enabled฀by฀default.฀Touch฀ ฀to฀configure฀options:• Portrait keyboard types: Choose the default keypad when the screen is in portrait mode, from Qwerty or 3x4 keyboard (similar to a phone keypad).• Input language: Select languages for the Samsung keyboard. Tip:When฀you฀have฀more฀than฀one฀language฀selected,฀you฀can฀slide฀your฀finger฀on฀the฀space฀bar฀while฀entering฀text฀to฀switch฀languages.DRAFT FOR INTERNAL USE ONLY
Settings฀฀฀฀฀฀฀207• Predictive text: Touch to enable predictive text, to have predictive text suggest words matching your text entries and optionally, complete common words automatically. Touch Predictive text to configure options:–Personalized data: When enabled, predictive text uses personal language data you have entered to make better predictions. Samsung keyboard can collect all the text you enter, including personal data and credit card numbers, in order to give better prediction results.–Learn from Facebook: Log into Facebook to allow your device to learn from your Facebook postings.–Learn from Gmail: Log into Gmail to allow your device to learn from your Gmail email.–Learn from Twitter: Log into Twitter to allow your device to learn from your Twitter postings.–Clear remote data: Delete your information stored on the personalization server.–Clear personalized data: Remove all personalized data you have entered.–Privacy: Read the privacy policy.• Swiftkey flow: When enabled, you can enter text by sliding your finger across the keyboard.•Pen detection: When enabled, a handwriting pad is automatically displayed when your device detects the S Pen.• One-handed operation: When enabled, Samsung keyboard features can be adjusted right or left for easier use with one hand.• Handwriting: –Input languages: Choose languages to use with handwriting and Samsung keyboard.–Recognition type: Choose the type of handwriting recognition, from strokes, or complete letters.–Recognition time: Choose the length of time the keyboard waits to evaluate handwriting gestures.–Pen thickness: Choose the size of handwriting strokes on the screen.–Pen color: Choose the color of handwriting strokes on screen.–Gesture guide: Learn about gestures you can use while handwriting text.–Tutorial: Learn about using handwriting.–About: View information about Samsung keyboard handwriting.ONONOFFOFFDRAFT FOR INTERNAL USE ONLY
208• Advanced:–Auto-capitalization: When enabled, predictive text automatically capitalizes words in your text based on common usage, such as at the beginning of sentences.–Auto-punctuate: When enabled, a period and space are automatically entered to end a sentence, when you tap the space bar twice.–Character preview: When enabled, characters available on the key you touch display briefly as you enter text.–Key-tap vibration: When enabled, a vibration plays for your key touches.–Key-tap sound: When enabled, a sound plays for your key touches.•Tutorial: Learn about using Samsung keyboard.• Reset settings: Return Samsung keyboard settings to the defaults.Swype1. From฀the฀Home฀screen,฀touch฀ ฀Apps ➔ ฀Settings ➔ Language and input.2.Swype฀is฀enabled฀by฀default.฀Touch฀ ฀to฀configure:•How to Swype: Learn about using Swype.• Preferences: Set Swype options:–Vibrate on keypress: When enabled, the devices vibrates for your Swype touches.–Sound on keypress: When enabled, the device plays sounds for your Swype touches.–Show helpful tips: When enabled, Swype displays helpful information as you Swype.–Auto-spacing: When enabled, Swype automatically inserts spaces between words as you complete them.–Auto-capitalization: When enabled, Swype automatically capitalizes the first word of sentences.–Show complete trace: When enabled, Swype displays the trace of each word until you start the next word.–Pop-up on keypress: When enabled, characters display above keys as you enter text.DRAFT FOR INTERNAL USE ONLY

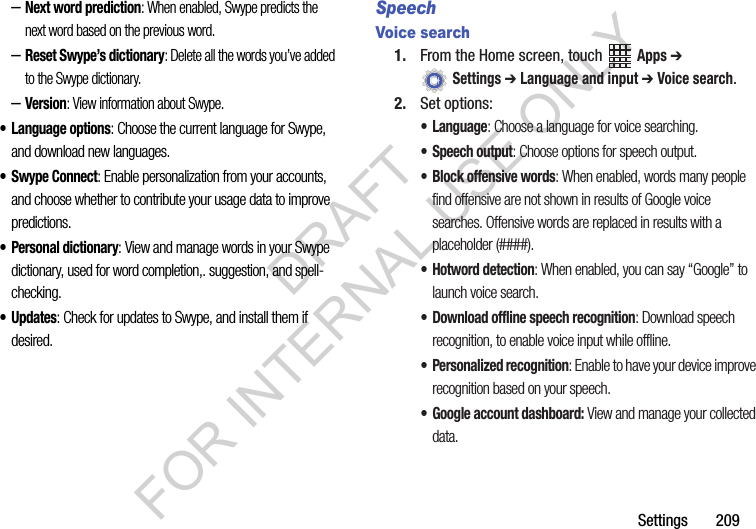

Settings฀฀฀฀฀฀฀209–Next word prediction: When enabled, Swype predicts the next word based on the previous word.–Reset Swype’s dictionary: Delete all the words you’ve added to the Swype dictionary.–Version: View information about Swype.• Language options: Choose the current language for Swype, and download new languages.• Swype Connect: Enable personalization from your accounts, and choose whether to contribute your usage data to improve predictions.• Personal dictionary: View and manage words in your Swype dictionary, used for word completion,. suggestion, and spell-checking.•Updates: Check for updates to Swype, and install them if desired.SpeechVoice search1. From฀the฀Home฀screen,฀touch฀ ฀Apps ➔ ฀Settings ➔ Language and input ➔ Voice search.2. Set฀options:• Language: Choose a language for voice searching.• Speech output: Choose options for speech output.• Block offensive words: When enabled, words many people find offensive are not shown in results of Google voice searches. Offensive words are replaced in results with a placeholder (####).• Hotword detection: When enabled, you can say “Google” to launch voice search.• Download offline speech recognition: Download speech recognition, to enable voice input while offline.• Personalized recognition: Enable to have your device improve recognition based on your speech.• Google account dashboard: View and manage your collected data.DRAFT FOR INTERNAL USE ONLY
210Text-to-speech outputText-to-speech฀(TTS)฀provides฀audible฀readout฀of฀text,฀for฀example,฀the฀contents฀of฀text฀messages,฀and฀the฀Caller฀ID฀for฀incoming฀calls.1. From฀the฀Home฀screen,฀touch฀ ฀Apps ➔ ฀Settings ➔ Language and input ➔ Text-to-speech output.2. Touch฀a฀setting฀to฀configure:• Preferred TTS engine–Select Google Text-to-speech Engine, or Samsung TTS.• General–Speech rate: Choose a rate at which text readouts are spoken.–Listen to an example: Play a sample of speech synthesis.–Driving mode: When enabled, incoming calls and new notifications are read out automatically. Touch to enable. Touch Driving mode to choose items for readout when Driving mode is enabled.Mouse/trackpadCustomize฀the฀response฀of฀your฀screen฀swipes.1. From฀the฀Home฀screen,฀touch฀ ฀Apps ➔ ฀Settings ➔ Language and input ➔ Pointer speed.2. Touch฀and฀drag฀along฀the฀scale฀to฀set฀the฀pointer฀speed.ONONOFFOFFDRAFT FOR INTERNAL USE ONLY

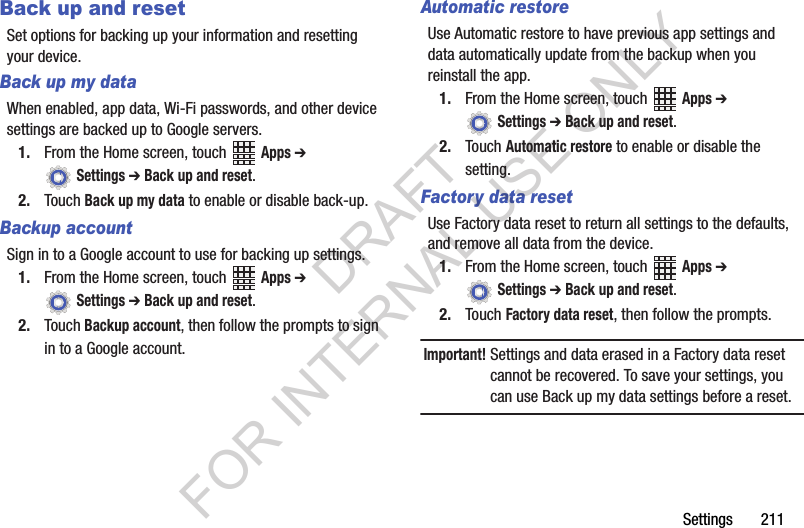

Settings฀฀฀฀฀฀฀211Back up and resetSet฀options฀for฀backing฀up฀your฀information฀and฀resetting฀your฀device.Back up my dataWhen฀enabled,฀app฀data,฀Wi-Fi฀passwords,฀and฀other฀device฀settings฀are฀backed฀up฀to฀Google฀servers.1. From฀the฀Home฀screen,฀touch฀ ฀Apps ➔ ฀Settings ➔ Back up and reset.2. Touch฀Back up my data฀to฀enable฀or฀disable฀back-up.Backup accountSign฀in฀to฀a฀Google฀account฀to฀use฀for฀backing฀up฀settings.1. From฀the฀Home฀screen,฀touch฀ ฀Apps ➔ ฀Settings ➔ Back up and reset.2. Touch฀Backup account,฀then฀follow฀the฀prompts฀to฀sign฀in฀to฀a฀Google฀account.Automatic restoreUse฀Automatic฀restore฀to฀have฀previous฀app฀settings฀and฀data฀automatically฀update฀from฀the฀backup฀when฀you฀reinstall฀the฀app.1. From฀the฀Home฀screen,฀touch฀ ฀Apps ➔ ฀Settings ➔ Back up and reset.2. Touch฀Automatic restore฀to฀enable฀or฀disable฀the฀setting.Factory data resetUse฀Factory฀data฀reset฀to฀return฀all฀settings฀to฀the฀defaults,฀and฀remove฀all฀data฀from฀the฀device.1. From฀the฀Home฀screen,฀touch฀ ฀Apps ➔ ฀Settings ➔ Back up and reset.2. Touch฀Factory data reset,฀then฀follow฀the฀prompts.Important!Settings฀and฀data฀erased฀in฀a฀Factory฀data฀reset฀cannot฀be฀recovered.฀To฀save฀your฀settings,฀you฀can฀use฀Back฀up฀my฀data฀settings฀before฀a฀reset.DRAFT FOR INTERNAL USE ONLY
212AccountsGoogleConfigure฀options฀for฀Google฀account฀and฀privacy฀settings.1. From฀the฀Home฀screen,฀touch฀ ฀Apps ➔ ฀Settings ➔ Google.2. Configure฀options:•Accounts: View Google accounts set up on your device, and configure syncing.•Privacy: Choose Google features, to configure privacy and account settings.Backup Assistant PlusBackup฀AssistantSM฀Plus฀is฀a฀free฀service฀that฀protects฀your฀contacts฀by฀saving฀to฀a฀secure฀web฀site.฀If฀your฀phone฀is฀lost,฀stolen฀or฀damaged,฀or฀if฀you฀change฀phones,฀Backup฀Assistant฀can฀restore฀your฀saved฀contacts฀to฀a฀new฀phone,฀wirelessly.฀Schedule฀backups฀to฀save฀your฀information฀manually฀or฀automatically.฀Log฀in฀to฀your฀web฀account฀for฀full฀access฀to฀your฀contacts฀for฀viewing,฀printing,฀adding,฀deleting฀and฀editing.Visit฀http://verizonwireless.com/baplus,฀or฀contact฀Verizon฀Wireless฀for฀more฀information.䡲From฀the฀Home฀screen,฀touch฀ ฀Apps ➔ ฀Settings ➔ Accounts and sync ➔ Backup Assistant.Tip:You฀can฀also฀launch฀Backup฀Assistant฀from฀ ฀Contacts.฀From฀Contacts,฀touch฀฀Menu฀➔ Backup.DRAFT FOR INTERNAL USE ONLY
Settings฀฀฀฀฀฀฀213Add accountSet฀up฀an฀account,฀to฀synchronize฀the฀account฀with฀your฀device.฀When฀an฀account฀is฀set฀up฀on฀your฀device,฀you฀don’t฀have฀to฀log฀in฀each฀time฀you฀access฀the฀account฀from฀the฀device.1. From฀the฀Home฀screen,฀touch฀ ฀Apps ➔ ฀Settings ➔ Add account.2. Select฀an฀account,฀then฀follow฀the฀prompts฀to฀enter฀your฀credentials฀and฀set฀up฀the฀account฀on฀your฀device.SystemMotionYour฀device฀recognizes฀motion,฀to฀allow฀you฀to฀navigate฀and฀access฀features฀by฀moving฀the฀device฀in฀specific฀gestures.Configure฀specific฀motion฀gestures฀and฀settings,฀to฀customize฀your฀device฀to฀your฀preferences.For฀more฀information฀about฀using฀gestures,฀see฀“Hand Gestures”฀on฀page 29.1. From฀the฀Home฀screen,฀touch฀ ฀Apps ➔ ฀Settings ➔ Motion.2. Touch฀Motion฀ ฀to฀turn฀Motion฀On฀or฀Off.3. Touch฀Motion฀to฀configure฀settings:• Quick glance: Check key information at a glance while the screen is off, by reaching toward your device.• Direct call: When enabled, you can lift the device to your ear while viewing a contact to dial the contact’s device number.•Smart alert: When enabled, the device will automatically notify you to missed calls and alerts that occurred while the device was stationary.• Double tap to top: When enabled, a double tap on the top of the device takes you to the top of the list.ONONOFFOFFDRAFT FOR INTERNAL USE ONLY
214• Tilt to zoom: When enabled, tilting the device while in Gallery or Internet causes the screen to zoom in or out.• Pan to move icon: When enabled, moving the device in a panning motion (side-to-side) moves a highlighted icon to a new location on the Home screen.• Pan to browse images: When enabled, moving the device in a panning motion while viewing an image moves focus around in the image.• Shake to update: When enabled, shaking the device starts a new scan for available devices.• Turn over to mute/pause: When enabled, turning the device screen-down automatically mutes incoming call ringtones and alerts sounds.• Advanced settings:–Quick glance: Choose key information, to display when you have the Quick glance motion enabled. Quick glance must be enabled to configure this advanced setting.–Gyroscope calibration: Tune the motion detection using your device’s internal gyroscope.–Tilt to zoom: Choose the speed at which you tilt to zoom, when you have the Tilt to zoom motion enabled. Tilt to zoom must be enabled to configure this advanced setting.–Pan to move icon: Choose the sensitivity of the device to panning motions, when you have the Pan to move icon motion enabled. Pan to move icon must be enabled to configure this advanced setting.–Pan to browse images: Choose the sensitivity of the device to panning motions, when you have the Pan to browse images motion enabled. Pan to browse images must be enabled to configure this advanced setting.• Learn about hand motions: Get help with understanding motion gestures.• Palm swipe to capture: When enabled, swiping the side of your hand across the screen side-to-side saves a screen shot of the current screen.• Palm touch to mute: When enabled, covering the screen with your hand mutes or pauses media playback.• Learn about hand motions: Get help with understanding the palm swipe and palm touch gestures.DRAFT FOR INTERNAL USE ONLY
Settings฀฀฀฀฀฀฀215S PenDominant handChoose฀the฀hand฀you฀write฀with฀most฀often,฀to฀maximize฀S฀Pen฀performance.1. From฀the฀Home฀screen,฀touch฀ ฀Apps ➔ ฀Settings ➔ S Pen ➔ Dominant hand.2. Choose฀Left handed฀or฀Right handed.Pen attach/detach soundChoose฀a฀sound฀to฀play฀when฀you฀attach฀or฀detach฀S฀Pen฀from฀your฀device.1. From฀the฀Home฀screen,฀touch฀ ฀Apps ➔ ฀Settings ➔ S Pen.2. Choose฀a฀sound,฀or฀choose฀Off฀for฀no฀sound.Open Popup NoteWhen฀enabled,฀Popup฀Note฀launches฀automatically฀when฀you฀detach฀S฀Pen฀from฀your฀device.1. From฀the฀Home฀screen,฀touch฀ ฀Apps ➔ ฀Settings ➔ S Pen.2. Touch฀Open Popup Note฀to฀enable฀or฀disable฀the฀setting.Battery savingBy฀default,฀your฀device฀detects฀when฀S฀Pen฀is฀detached,฀and฀displays฀the฀S฀Pen฀icon฀in฀the฀Status฀bar.฀To฀save฀battery฀power,฀you฀can฀disable฀this฀setting.1. From฀the฀Home฀screen,฀touch฀ ฀Apps ➔ ฀Settings ➔ S Pen.2. Touch฀Battery saving฀to฀enable฀or฀disable฀the฀setting.S Pen keeperWhen฀enabled,฀your฀device฀plays฀a฀sound฀and฀displays฀an฀alert฀if฀you฀walk฀with฀the฀device฀while฀S฀Pen฀is฀detached.1. From฀the฀Home฀screen,฀touch฀ ฀Apps ➔ ฀Settings ➔ S Pen.2. Touch฀S Pen keeper฀to฀enable฀or฀disable฀the฀setting.DRAFT FOR INTERNAL USE ONLY
216Air viewWhen฀turned฀On,฀hovering฀S฀Pen฀near฀an฀item฀on฀the฀screen฀displays฀information฀about฀the฀item.1. From฀the฀Home฀screen,฀touch฀ ฀Apps ➔ ฀Settings ➔ S Pen.2. Touch฀Air view฀ ฀to฀turn฀the฀option฀On฀or฀Off.3. When฀Air฀view฀is฀on,฀touch฀Air view฀for฀options:•Pointer: When enabled, a pointer displays on the screen to show S Pen position.• Information preview: When enabled, hovering over an item displays a preview, full text, or a zoomed-in image.• Icon labels (by pen nib): When enabled, hovering over icons on the screen displays their labels.• List scrolling: When enabled, holding S Pen over the edge of the screen scrolls through a list.Sound and haptic feedbackWhen฀enabled,฀sound฀and฀vibration฀plays฀for฀S฀Pen฀actions.1. From฀the฀Home฀screen,฀touch฀ ฀Apps ➔ ฀Settings ➔ S Pen.2. Touch฀Sound and haptic feedback฀to฀enable฀or฀disable฀the฀setting.Quick Command settingsUse฀S฀Pen฀gestures฀to฀open฀applications฀or฀perform฀tasks.฀Use฀preloaded฀gestures,฀or฀create฀your฀own฀combination฀of฀symbols,฀characters,฀or฀words.1. From฀the฀Home฀screen,฀touch฀ ฀Apps ➔ ฀Settings ➔ S Pen.2. Touch฀Quick Command settings฀to฀configure฀options:• Add a command: Select an application or function to launch, then configure a gesture by writing your own combination of symbols, characters, or words with S Pen.• Internet search: Write a question mark (?) with S Pen to launch Internet.•Email: Write the “at” symbol (@) with S Pen to launch Email.•Maps: Write an exclamation mark (!) with S Pen to launch Maps.•Call: Write a pound sign (#) with S Pen to launch Phone.• Messaging: Write a tilde sign (~) with S Pen to launch Messaging.ONONOFFOFFDRAFT FOR INTERNAL USE ONLY
Settings฀฀฀฀฀฀฀217S Pen helpLearn฀about฀S฀Pen.䡲From฀the฀Home฀screen,฀touch฀ ฀Apps ➔ ฀Settings ➔ S Pen ➔ S Pen help.AccessoryConfigure฀your฀device’s฀behavior฀when฀it฀is฀connected฀to฀an฀optional฀dock฀(not฀included).1. From฀the฀Home฀screen,฀touch฀ ฀Apps ➔ ฀Settings ➔ Accessory.2. Configure฀settings:• Dock sound: When enabled, a sound plays when you insert and remove the device from the dock.• Audio output mode: When enabled, audio plays through the dock speakers when the device is docked.• Desk home screen display: When enabled, displays a special screen when the device is docked.• Audio output: Choose a destination for audio output when you connect to devices using an HDMI cable.Date and timeBy฀default,฀your฀device฀receives฀date฀and฀time฀information฀from฀the฀wireless฀network.฀When฀you฀are฀outside฀network฀coverage,฀you฀may฀want฀to฀set฀date฀and฀time฀information฀manually฀using฀the฀Date฀&฀time฀settings.1. From฀the฀Home฀screen,฀touch฀ ฀Apps ➔ ฀Settings ➔ Date and time.2. Touch฀a฀setting฀to฀configure:• Automatic date and time: When enabled, the device takes date and time updates from the wireless network.•Set date: Enter the current date (only available when Automatic date and time is disabled).•Set time: Enter the current time (only available when the Automatic setting is disabled).• Automatic time zone: When enabled, the device takes the time zone from the wireless network.• Select time zone: Choose your local time zone (only available when the Automatic setting is disabled).• Use 24-hour format: Set the format for time displays.• Select date format: Set the format for date displays.DRAFT FOR INTERNAL USE ONLY
218AccessibilityYour฀device฀offers฀features฀to฀make฀using฀the฀device฀easier฀for฀those฀with฀certain฀physical฀disabilities.฀Use฀the฀Accessibility฀settings฀to฀activate฀these฀services.SystemAuto-rotate screenWhen฀enabled,฀the฀screen’s฀orientation฀automatically฀changes฀when฀you฀rotate฀the฀device.1. From฀the฀Home฀screen,฀touch฀ ฀Apps ➔ ฀Settings ➔ Accessibility.2. Touch฀Auto-rotate screen฀to฀turn฀the฀feature฀On฀or฀Off.Tip:You฀can฀also฀set฀Auto฀rotate฀from฀Notifications฀with฀the฀Screen฀rotation฀setting.Screen timeoutSet฀the฀length฀of฀delay฀between฀the฀last฀key฀press฀or฀screen฀touch฀and฀the฀automatic฀screen฀timeout฀(dim฀and฀lock).1. From฀the฀Home฀screen,฀touch฀ ฀Apps ➔ ฀Settings ➔ Accessibility ➔ Screen timeout.2. Touch฀a฀setting฀to฀select฀it.Lock automaticallyWhen฀you฀have฀a฀screen฀lock฀set,฀you฀can฀choose฀a฀a฀time฀period฀for฀automatically฀locking฀the฀screen฀after฀the฀screen฀turns฀off,฀or฀choose฀to฀have฀the฀screen฀lock฀immediately฀when฀the฀screen฀turns฀off.1. From฀the฀Home฀screen,฀touch฀ ฀Apps ➔ ฀Settings ➔ Accessibility ➔ Lock automatically.2. Touch฀a฀setting฀to฀select฀it.Note:The฀Lock฀automatically฀setting฀is฀only฀available฀if฀you฀have฀set฀a฀screen฀lock.DRAFT FOR INTERNAL USE ONLY
Settings฀฀฀฀฀฀฀219Speak passwordsWhen฀enabled,฀you฀can฀speak฀passwords฀for฀log-ins.1. From฀the฀Home฀screen,฀touch฀ ฀Apps ➔ ฀Settings ➔ Accessibility.2. Touch฀Speak passwords฀to฀turn฀the฀feature฀On฀or฀Off.Answering/ending callsYou฀can฀set฀options฀for฀answering฀and฀ending฀calls.฀1. From฀the฀Home฀screen,฀touch฀ ฀Apps ➔ ฀Settings ➔ Accessibility ➔ Answering/ending calls.2. Touch฀an฀option฀to฀enable฀or฀disable฀it:• Answering key: When enabled, pressing the Home Key answers incoming calls.• The power key ends calls: When enabled, you can end voice calls by pressing the Power/Lock Key. When this option is enabled, pressing the Power/Lock Key during a call does not lock the screen.Accessibility shortcutWhen฀enabled,฀a฀link฀to฀Accessibility฀settings฀displays฀on฀the฀Device฀options฀menu,฀when฀you฀press฀and฀hold฀the฀฀Power/Lock Key.฀This฀provides฀quick฀access฀to฀accessibility฀settings,฀to฀make฀changes฀as฀you฀use฀the฀device.1. From฀the฀Home฀screen,฀touch฀ ฀Apps ➔ ฀Settings ➔ Accessibility.2. Touch฀Accessibility shortcut฀to฀enable฀or฀disable฀the฀setting.ServicesTalkBackEnable฀or฀disable฀accessibility฀services.1. From฀the฀Home฀screen,฀touch฀ ฀Apps ➔ ฀Settings ➔ Accessibility.2. Touch฀TalkBack฀to฀enable฀or฀disable฀readout฀of฀menu฀options,฀application฀titles,฀contacts,฀and฀other฀items฀when฀scrolling฀and฀making฀selections.DRAFT FOR INTERNAL USE ONLY
220VisionFont sizeSet฀the฀font฀size฀for฀screen฀displays.1. From฀the฀Home฀screen,฀touch฀ ฀Apps ➔ ฀Settings฀➔ Settings ➔ Accessibility ➔ Font size.2. Select฀a฀size.Negative colorsWhen฀enabled,฀Negative฀colors฀reverses฀the฀colors฀on฀the฀screen.1. From฀the฀Home฀screen,฀touch฀ ฀Apps ➔ ฀Settings฀➔ Settings ➔ Accessibility.2. Touch฀Negative colors฀to฀enable฀or฀disable฀reversal฀of฀screen฀colors.Text-to-speech outputText-to-speech฀(TTS)฀provides฀audible฀readout฀of฀text,฀for฀example,฀the฀contents฀of฀text฀messages,฀and฀the฀Caller฀ID฀for฀incoming฀calls.1. From฀the฀Home฀screen,฀touch฀ ฀Apps ➔ ฀Settings ➔ Language and input ➔ Text-to-speech output.2. Touch฀a฀setting฀to฀configure:• Preferred TTS engine–Select Google Text-to-speech Engine, or Samsung TTS.• General–Speech rate: Choose a rate at which text readouts are spoken.–Listen to an example: Play a sample of speech synthesis.–Driving mode: When enabled, incoming calls and new notifications are read out automatically. Touch to enable, then touch Driving mode to choose items for readout when Driving mode is enabled.ONONOFFOFFDRAFT FOR INTERNAL USE ONLY

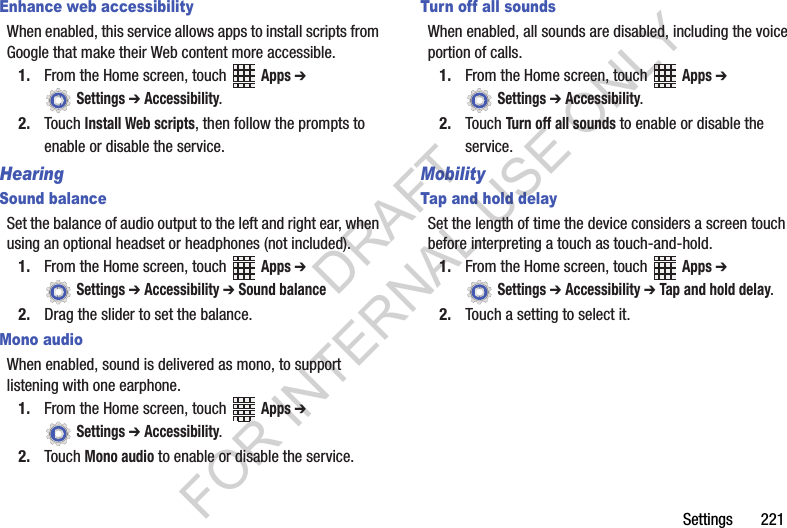

Settings฀฀฀฀฀฀฀221Enhance web accessibilityWhen฀enabled,฀this฀service฀allows฀apps฀to฀install฀scripts฀from฀Google฀that฀make฀their฀Web฀content฀more฀accessible.1. From฀the฀Home฀screen,฀touch฀ ฀Apps ➔ ฀Settings ➔ Accessibility.2. Touch฀Install Web scripts,฀then฀follow฀the฀prompts฀to฀enable฀or฀disable฀the฀service.HearingSound balanceSet฀the฀balance฀of฀audio฀output฀to฀the฀left฀and฀right฀ear,฀when฀using฀an฀optional฀headset฀or฀headphones฀(not฀included).1. From฀the฀Home฀screen,฀touch฀ ฀Apps ➔ ฀Settings ➔ Accessibility ➔ Sound balance2. Drag฀the฀slider฀to฀set฀the฀balance.Mono audioWhen฀enabled,฀sound฀is฀delivered฀as฀mono,฀to฀support฀listening฀with฀one฀earphone.1. From฀the฀Home฀screen,฀touch฀ ฀Apps ➔ ฀Settings ➔ Accessibility.2. Touch฀Mono audio฀to฀enable฀or฀disable฀the฀service.Turn off all soundsWhen฀enabled,฀all฀sounds฀are฀disabled,฀including฀the฀voice฀portion฀of฀calls.1. From฀the฀Home฀screen,฀touch฀ ฀Apps ➔ ฀Settings ➔ Accessibility.2. Touch฀Turn off all sounds฀to฀enable฀or฀disable฀the฀service.MobilityTap and hold delaySet฀the฀length฀of฀time฀the฀device฀considers฀a฀screen฀touch฀before฀interpreting฀a฀touch฀as฀touch-and-hold.1. From฀the฀Home฀screen,฀touch฀ ฀Apps ➔ ฀Settings ➔ Accessibility ➔ Tap and hold delay.2. Touch฀a฀setting฀to฀select฀it.DRAFT FOR INTERNAL USE ONLY
222Developer optionsSet฀options฀for฀use฀when฀developing฀apps฀for฀devices.Important!These฀settings฀are฀intended฀for฀development฀use฀only.฀They฀can฀cause฀errors฀to฀occur฀on฀your฀device฀and฀with฀the฀applications฀on฀it.Turning Developer options On or Off1. From฀the฀Home฀screen,฀touch฀ ฀Apps ➔ ฀Settings ➔ Developer options.2. Touch฀Developer options฀ ฀to฀turn฀the฀setting฀On฀or฀Off.Desktop backup passwordSet฀a฀password฀for฀protecting฀full฀desktop฀backups.1. From฀the฀Home฀screen,฀touch฀ ฀Apps ➔ ฀Settings ➔ Developer options.2. Touch฀Desktop backup password,฀then฀enter฀the฀current฀and฀new฀passwords.฀Touch฀Set backup password฀to฀save฀your฀settings.Stay awakeWhen฀enabled,฀the฀screen฀will฀never฀sleep฀while฀charging.1. From฀the฀Home฀screen,฀touch฀ ฀Apps ➔ ฀Settings ➔ Developer options.2. Touch฀Stay awake฀to฀enable฀or฀disable฀the฀setting.Protect SD cardWhen฀enabled,฀apps฀must฀request฀permission฀to฀read฀an฀installed฀optional฀SD฀card฀(not฀included).1. From฀the฀Home฀screen,฀touch฀ ฀Apps ➔ ฀Settings ➔ Developer options.2. Touch฀Protect SD card฀to฀enable฀or฀disable฀the฀setting.ONONOFFOFFDRAFT FOR INTERNAL USE ONLY
Settings฀฀฀฀฀฀฀223DebuggingEnable฀or฀disable฀debugging฀options.1. From฀the฀Home฀screen,฀touch฀ ฀Apps ➔ ฀Settings ➔ Developer options.2. Configure฀options:• USB debugging: When enabled, connecting your device to a computer with a USB data cable launches debugging mode.• Allow mock locations: When enabled, mock locations are allowed during debugging.• Select app to be debugged: Choose an app to be debugged when device is in debugging mode.• Wait for debugger: When enabled, a device to be debugged waits for the debugger to be attached.InputConfigure฀options฀for฀input.1. From฀the฀Home฀screen,฀touch฀ ฀Apps ➔ ฀Settings ➔ Developer options.2. Configure฀options:• Show touches: When enabled, screen touches cause the screen to display visual feedback.• Show pointer location: When enabled, the current pointer location shows on a screen overlay.DRAFT FOR INTERNAL USE ONLY
224DrawingConfigure฀options฀for฀drawing฀screens.1. From฀the฀Home฀screen,฀touch฀ ฀Apps ➔ ฀Settings ➔ Developer options.2. Configure฀options:• Show layout boundaries: When enabled, clip boundaries, margins, and other layout details display.• Show GPU view updates: When enabled, views are flashed inside windows when they are drawn with the GPU.• Show screen updates: When enabled, areas of the screen flash as they update.• Window animation scale: Choose a scale for window animations.• Transition animation scale: Choose a scale for screen transitions.• Animator duration scale: Choose a scale for animators.• Disable hardware overlays: When enabled, the GPU is always used for screen compositing.• Force GPU rendering: When enabled, 2D hardware acceleration is used in applications.MonitoringConfigure฀options฀for฀monitoring฀apps.1. From฀the฀Home฀screen,฀touch฀ ฀Apps ➔ ฀Settings ➔ Developer options.2. Configure฀options:•Strict mode: When enabled, the screen flashes while apps perform long operations.• Show CPU usage: When enabled CPU usage displays on a screen overlay.• GPU rendering profile: When enabled, rendering time is measured in adb shell dumpsys gfxinfo.• Enable traces: Choose traces.DRAFT FOR INTERNAL USE ONLY
Settings฀฀฀฀฀฀฀225AppsConfigure฀app฀options.1. From฀the฀Home฀screen,฀touch฀ ฀Apps ➔ ฀Settings ➔ Developer options.2. Configure฀options:• Do not keep activities: When enabled, activities are destroyed as soon as the user leaves them.• Limit background processes: Choose options for processes running in the background.• Show all ANRs: When enabled, an App Not Responding dialog displays for apps running in the background.About phoneView฀information฀about฀your฀device,฀including฀status,฀legal฀information,฀hardware฀and฀software฀versions,฀and฀a฀tutorial.1. From฀the฀Home฀screen,฀touch฀ ฀Apps ➔ ฀Settings ➔ About phone.2. Touch฀items฀to฀view฀details:• Software update: Check availability and install updates.•Status: View information about your device’s current status.• Legal information: Display open source licenses, configure license settings, including your DivX® VOD registration, and Google info.• Model number: View your device’s model number.• Android version: View the firmware version of your device.• Baseband version: View the baseband version of your device.•Kernel version: View the kernel version of your device.• Build number: View the build number of your device.• Hardware version: View the hardware version of your device.DRAFT FOR INTERNAL USE ONLY
226Section 9: Health and Safety InformationThis฀device฀is฀capable฀of฀operating฀in฀Wi-Fi™฀mode฀in฀the฀2.4฀and฀5 GHz฀bands.฀The฀FCC฀requires฀that฀devices฀operating฀within฀5.15-5.25 GHz฀may฀only฀be฀used฀indoors,฀not฀outside,฀in฀order฀to฀avoid฀interference฀with฀Mobile฀Satellite฀Services฀(MSS).฀Therefore,฀this฀device฀is฀restricted฀from฀being฀used฀outdoors฀when฀operating฀in฀frequencies฀between฀5.15-5.25 GHz.This฀section฀outlines฀the฀safety฀precautions฀associated฀with฀using฀your฀phone.฀The฀terms฀“mobile฀device”฀or฀“cell฀phone”฀are฀used฀in฀this฀section฀to฀refer฀to฀your฀phone.฀Read this information before using your mobile device.Exposure to Radio Frequency (RF) SignalsThe฀U.S.฀Food฀and฀Drug฀Administration฀(FDA)฀has฀published฀information฀for฀consumers฀relating฀to฀Radio฀Frequency฀(RF)฀exposure฀from฀wireless฀phones.฀The฀FDA฀publication฀includes฀the฀following฀information:Do cell phones pose a health hazard?Many฀people฀are฀concerned฀that฀cell฀phone฀radiation฀will฀cause฀cancer฀or฀other฀serious฀health฀hazards.฀The฀weight฀of฀scientific฀evidence฀has฀not฀linked฀cell฀phones฀with฀any฀health฀problems.Cell฀phones฀emit฀low฀levels฀of฀Radio฀Frequency฀(RF)฀energy.฀Over฀the฀past฀15฀years,฀scientists฀have฀conducted฀hundreds฀of฀studies฀looking฀at฀the฀biological฀effects฀of฀the฀radio฀frequency฀energy฀emitted฀by฀cell฀phones.฀While฀some฀researchers฀have฀reported฀biological฀changes฀associated฀with฀RF฀energy,฀these฀studies฀have฀failed฀to฀be฀replicated.฀The฀majority฀of฀studies฀published฀have฀failed฀to฀show฀an฀association฀between฀exposure฀to฀radio฀frequency฀from฀a฀cell฀phone฀and฀health฀problems.The฀low฀levels฀of฀RF฀cell฀phones฀emit฀while฀in฀use฀are฀in฀the฀microwave฀frequency฀range.฀They฀also฀emit฀RF฀at฀substantially฀reduced฀time฀intervals฀when฀in฀the฀stand-by฀mode.฀Whereas฀high฀levels฀of฀RF฀can฀produce฀health฀effects฀(by฀heating฀tissue),฀exposure฀to฀low฀level฀RF฀that฀does฀not฀produce฀heating฀effects฀causes฀no฀known฀adverse฀health฀effects.DRAFT FOR INTERNAL USE ONLY
Health฀and฀Safety฀Information฀฀฀฀฀฀฀227The฀biological฀effects฀of฀radio฀frequency฀energy฀should฀not฀be฀confused฀with฀the฀effects฀from฀other฀types฀of฀electromagnetic฀energy.Very฀high฀levels฀of฀electromagnetic฀energy,฀such฀as฀is฀found฀in฀X-rays฀and฀gamma฀rays,฀can฀ionize฀biological฀tissues.฀Ionization฀is฀a฀process฀where฀electrons฀are฀stripped฀away฀from฀their฀normal฀locations฀in฀atoms฀and฀molecules.฀It฀can฀permanently฀damage฀biological฀tissues฀including฀DNA,฀the฀genetic฀material.The฀energy฀levels฀associated฀with฀radio฀frequency฀energy,฀including฀both฀radio฀waves฀and฀microwaves,฀are฀not฀great฀enough฀to฀cause฀ionization฀of฀atoms฀and฀molecules.฀Therefore,฀RF฀energy฀is฀a฀type฀of฀non-ionizing฀radiation.฀Other฀types฀of฀non-ionizing฀radiation฀include฀visible฀light,฀infrared฀radiation฀(heat),฀and฀other฀forms฀of฀electromagnetic฀radiation฀with฀relatively฀low฀frequencies.While฀RF฀energy฀does฀not฀ionize฀particles,฀large฀amounts฀can฀increase฀body฀temperatures฀and฀cause฀tissue฀damage.฀Two฀areas฀of฀the฀body,฀the฀eyes฀and฀the฀testes,฀are฀particularly฀vulnerable฀to฀RF฀heating฀because฀there฀is฀relatively฀little฀blood฀flow฀in฀them฀to฀carry฀away฀excess฀heat.Research Results to Date: Is there a connection between RF and certain health problems?The฀results฀of฀most฀studies฀conducted฀to฀date฀say฀no.฀In฀addition,฀attempts฀to฀replicate฀and฀confirm฀the฀few฀studies฀that฀have฀shown฀a฀connection฀have฀failed.The฀scientific฀community฀at฀large฀therefore฀believes฀that฀the฀weight฀of฀scientific฀evidence฀does฀not฀show฀an฀association฀between฀exposure฀to฀Radio฀Frequency฀(RF)฀from฀cell฀phones฀and฀adverse฀health฀outcomes.฀Still฀the฀scientific฀community฀has฀supported฀additional฀research฀to฀address฀gaps฀in฀knowledge.฀Some฀of฀these฀studies฀are฀described฀below.Interphone StudyInterphone฀is฀a฀large฀international฀study฀designed฀to฀determine฀whether฀cell฀phones฀increase฀the฀risk฀of฀head฀and฀neck฀cancer.฀A฀report฀published฀in฀the฀International฀Journal฀of฀Epidemiology฀(June,฀2010)฀compared฀cell฀phone฀usage฀for฀more฀than฀5,000฀people฀with฀brain฀tumors฀(glioma฀and฀meningioma)฀and฀a฀similar฀number฀of฀healthy฀controls.Results฀of฀this฀study฀did฀NOT฀show฀that฀cell฀phones฀caused฀brain฀cancer.฀In฀this฀study,฀most฀people฀had฀no฀increased฀risk฀of฀brain฀cancer฀from฀using฀cell฀phones.฀For฀people฀with฀the฀heaviest฀use฀of฀cell฀phones฀(an฀average฀of฀more฀than฀½฀hour฀per฀day,฀every฀day,฀for฀over฀10฀years)฀the฀study฀suggested฀a฀DRAFT FOR INTERNAL USE ONLY
228slight฀increase฀in฀brain฀cancer.฀However,฀the฀authors฀determined฀that฀biases฀and฀errors฀prevented฀any฀conclusions฀being฀drawn฀from฀this฀data.฀Additional฀information฀about฀Interphone฀can฀be฀found฀at฀http://www.iarc.fr/en/media-centre/pr/2010/pdfs/pr200_E.pdf.Interphone฀is฀the฀largest฀cell฀phone฀study฀to฀date,฀but฀it฀did฀not฀answer฀all฀questions฀about฀cell฀phone฀safety.฀Additional฀research฀is฀being฀conducted฀around฀the฀world,฀and฀the฀FDA฀continues฀to฀monitor฀developments฀in฀this฀field.International Cohort Study on Mobile Phone Users (COSMOS)The฀COSMOS฀study฀aims฀to฀conduct฀long-term฀health฀monitoring฀of฀a฀large฀group฀of฀people฀to฀determine฀if฀there฀are฀any฀health฀issues฀linked฀to฀long-term฀exposure฀to฀radio฀frequency฀energy฀from฀cell฀phone฀use.฀The฀COSMOS฀study฀will฀follow฀approximately฀300,000฀adult฀cell฀phone฀users฀in฀Europe฀for฀20฀to฀30฀years.฀Additional฀information฀about฀the฀COSMOS฀study฀can฀be฀found฀at฀http://www.ukcosmos.org/index.html.Risk of Brain Cancer from Exposure to Radio Frequency Fields in Childhood and Adolescence (MOBI-KIDS)MOBI-KIDS฀is฀an฀international฀study฀investigating฀the฀relationship฀between฀exposure฀to฀radio฀frequency฀energy฀from฀communication฀technologies฀including฀cell฀phones฀and฀brain฀cancer฀in฀young฀people.฀This฀is฀an฀international฀multi-center฀study฀involving฀14฀European฀and฀non-European฀countries.฀Additional฀information฀about฀MOBI-KIDS฀can฀be฀found฀athttp://www.creal.cat/programes-recerca/en_projectes-creal/view.php?ID=39.Surveillance, Epidemiology, and End Results (SEER) Program of the National Cancer InstituteThe฀National฀Cancer฀Institute฀(NCI)฀actively฀follows฀cancer฀statistics฀in฀the฀United฀States฀to฀detect฀any฀change฀in฀rates฀of฀new฀cases฀for฀brain฀cancer.฀If฀cell฀phones฀play฀a฀role฀in฀risk฀for฀brain฀cancer,฀rates฀should฀go฀up,฀because฀heavy฀cell฀phone฀use฀has฀been฀common฀for฀quite฀some฀time฀in฀the฀U.S.฀Between฀1987฀and฀2005,฀the฀overall฀age-adjusted฀incidence฀of฀brain฀cancer฀did฀not฀increase.฀Additional฀information฀about฀SEER฀can฀be฀found฀at฀฀http://seer.cancer.gov/.DRAFT FOR INTERNAL USE ONLY

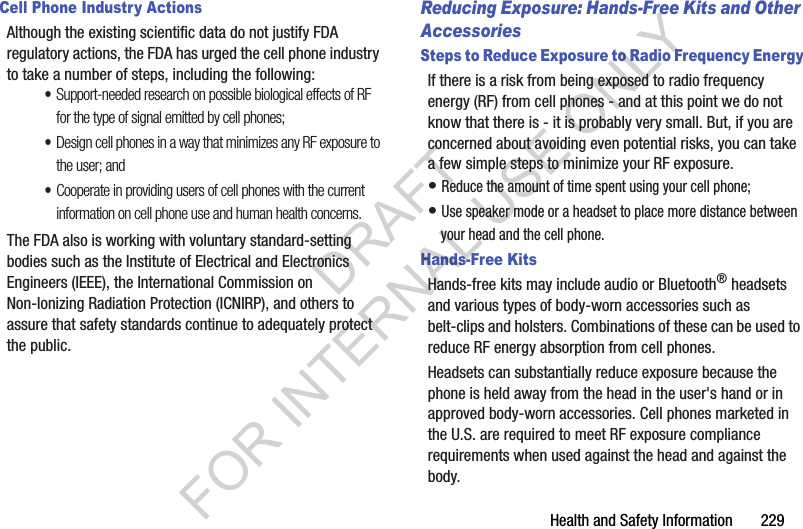

Health฀and฀Safety฀Information฀฀฀฀฀฀฀229Cell Phone Industry ActionsAlthough฀the฀existing฀scientific฀data฀do฀not฀justify฀FDA฀regulatory฀actions,฀the฀FDA฀has฀urged฀the฀cell฀phone฀industry฀to฀take฀a฀number฀of฀steps,฀including฀the฀following:•Support-needed research on possible biological effects of RF for the type of signal emitted by cell phones;•Design cell phones in a way that minimizes any RF exposure to the user; and•Cooperate in providing users of cell phones with the current information on cell phone use and human health concerns.The฀FDA฀also฀is฀working฀with฀voluntary฀standard-setting฀bodies฀such฀as฀the฀Institute฀of฀Electrical฀and฀Electronics฀Engineers฀(IEEE),฀the฀International฀Commission฀on฀Non-Ionizing฀Radiation฀Protection฀(ICNIRP),฀and฀others฀to฀assure฀that฀safety฀standards฀continue฀to฀adequately฀protect฀the฀public.Reducing Exposure: Hands-Free Kits and Other AccessoriesSteps to Reduce Exposure to Radio Frequency EnergyIf฀there฀is฀a฀risk฀from฀being฀exposed฀to฀radio฀frequency฀energy฀(RF)฀from฀cell฀phones฀-฀and฀at฀this฀point฀we฀do฀not฀know฀that฀there฀is฀-฀it฀is฀probably฀very฀small.฀But,฀if฀you฀are฀concerned฀about฀avoiding฀even฀potential฀risks,฀you฀can฀take฀a฀few฀simple฀steps฀to฀minimize฀your฀RF฀exposure.•฀Reduce฀the฀amount฀of฀time฀spent฀using฀your฀cell฀phone;•฀Use฀speaker฀mode฀or฀a฀headset฀to฀place฀more฀distance฀between฀your฀head฀and฀the฀cell฀phone.Hands-Free KitsHands-free฀kits฀may฀include฀audio฀or฀Bluetooth®฀headsets฀and฀various฀types฀of฀body-worn฀accessories฀such฀as฀belt-clips฀and฀holsters.฀Combinations฀of฀these฀can฀be฀used฀to฀reduce฀RF฀energy฀absorption฀from฀cell฀phones.Headsets฀can฀substantially฀reduce฀exposure฀because฀the฀phone฀is฀held฀away฀from฀the฀head฀in฀the฀user's฀hand฀or฀in฀approved฀body-worn฀accessories.฀Cell฀phones฀marketed฀in฀the฀U.S.฀are฀required฀to฀meet฀RF฀exposure฀compliance฀requirements฀when฀used฀against฀the฀head฀and฀against฀the฀body.DRAFT FOR INTERNAL USE ONLY

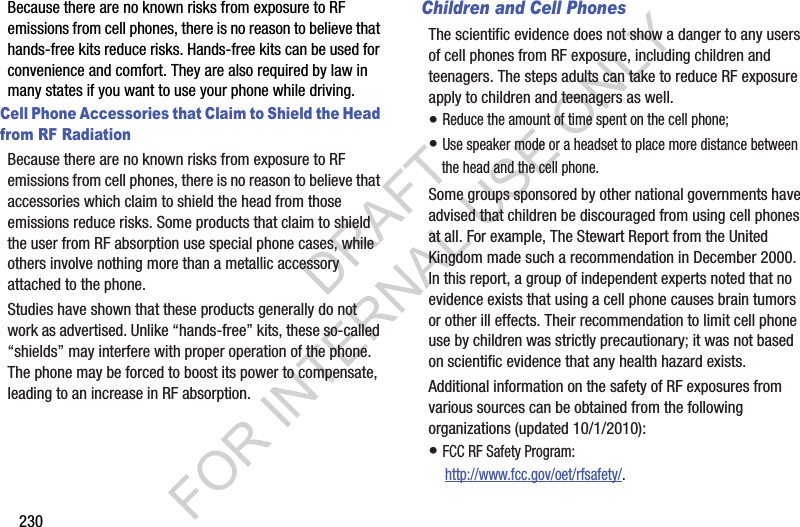

230Because฀there฀are฀no฀known฀risks฀from฀exposure฀to฀RF฀emissions฀from฀cell฀phones,฀there฀is฀no฀reason฀to฀believe฀that฀hands-free฀kits฀reduce฀risks.฀Hands-free฀kits฀can฀be฀used฀for฀convenience฀and฀comfort.฀They฀are฀also฀required฀by฀law฀in฀many฀states฀if฀you฀want฀to฀use฀your฀phone฀while฀driving.Cell Phone Accessories that Claim to Shield the Head from RF RadiationBecause฀there฀are฀no฀known฀risks฀from฀exposure฀to฀RF฀emissions฀from฀cell฀phones,฀there฀is฀no฀reason฀to฀believe฀that฀accessories฀which฀claim฀to฀shield฀the฀head฀from฀those฀emissions฀reduce฀risks.฀Some฀products฀that฀claim฀to฀shield฀the฀user฀from฀RF฀absorption฀use฀special฀phone฀cases,฀while฀others฀involve฀nothing฀more฀than฀a฀metallic฀accessory฀attached฀to฀the฀phone.฀Studies฀have฀shown฀that฀these฀products฀generally฀do฀not฀work฀as฀advertised.฀Unlike฀“hands-free”฀kits,฀these฀so-called฀“shields”฀may฀interfere฀with฀proper฀operation฀of฀the฀phone.฀The฀phone฀may฀be฀forced฀to฀boost฀its฀power฀to฀compensate,฀leading฀to฀an฀increase฀in฀RF฀absorption.Children and Cell PhonesThe฀scientific฀evidence฀does฀not฀show฀a฀danger฀to฀any฀users฀of฀cell฀phones฀from฀RF฀exposure,฀including฀children฀and฀teenagers.฀The฀steps฀adults฀can฀take฀to฀reduce฀RF฀exposure฀apply฀to฀children฀and฀teenagers฀as฀well.•฀Reduce฀the฀amount฀of฀time฀spent฀on฀the฀cell฀phone;•฀Use฀speaker฀mode฀or฀a฀headset฀to฀place฀more฀distance฀between฀the฀head฀and฀the฀cell฀phone.Some฀groups฀sponsored฀by฀other฀national฀governments฀have฀advised฀that฀children฀be฀discouraged฀from฀using฀cell฀phones฀at฀all.฀For฀example,฀The฀Stewart฀Report฀from฀the฀United฀Kingdom฀made฀such฀a฀recommendation฀in฀December฀2000.฀In฀this฀report,฀a฀group฀of฀independent฀experts฀noted฀that฀no฀evidence฀exists฀that฀using฀a฀cell฀phone฀causes฀brain฀tumors฀or฀other฀ill฀effects.฀Their฀recommendation฀to฀limit฀cell฀phone฀use฀by฀children฀was฀strictly฀precautionary;฀it฀was฀not฀based฀on฀scientific฀evidence฀that฀any฀health฀hazard฀exists.Additional฀information฀on฀the฀safety฀of฀RF฀exposures฀from฀various฀sources฀can฀be฀obtained฀from฀the฀following฀organizations฀(updated฀10/1/2010):•฀FCC฀RF฀Safety฀Program:฀http://www.fcc.gov/oet/rfsafety/.DRAFT FOR INTERNAL USE ONLY
Health฀and฀Safety฀Information฀฀฀฀฀฀฀231•฀Environmental฀Protection฀Agency฀(EPA):http://www.epa.gov/radtown/wireless-tech.html.•฀Occupational฀Safety฀and฀Health฀Administration฀(OSHA):฀http://www.osha.gov/SLTC/radiofrequencyradiation/.(Note:฀This฀web฀address฀is฀case฀sensitive.)•฀National฀Institute฀for฀Occupational฀Safety฀and฀Health฀(NIOSH):฀http://www.cdc.gov/niosh/.•฀World฀Health฀Organization฀(WHO):฀http://www.who.int/peh-emf/en/.•฀International฀Commission฀on฀Non-Ionizing฀Radiation฀Protection:฀http://www.icnirp.de.•฀Health฀Protection฀Agency:฀http://www.hpa.org.uk/Topics/Radiation/.•฀US฀Food฀and฀Drug฀Administration:฀http://www.fda.gov/Radiation-EmittingProducts/RadiationEmittingProductsandProcedures/HomeBusinessandEntertainment/CellPhones/default.htm.Specific Absorption Rate (SAR) Certification InformationYour฀wireless฀phone฀is฀a฀radio฀transmitter฀and฀receiver.฀It฀is฀designed฀and฀manufactured฀not฀to฀exceed฀the฀exposure฀limits฀for฀Radio฀Frequency฀(RF)฀energy฀set฀by฀the฀Federal฀Communications฀Commission฀(FCC)฀of฀the฀U.S.฀Government.These฀FCC฀RF฀exposure฀limits฀are฀derived฀from฀the฀recommendations฀of฀two฀expert฀organizations:฀the฀National฀Council฀on฀Radiation฀Protection฀and฀Measurement฀(NCRP)฀and฀the฀Institute฀of฀Electrical฀and฀Electronics฀Engineers฀(IEEE).฀In฀both฀cases,฀the฀recommendations฀were฀developed฀by฀scientific฀and฀engineering฀experts฀drawn฀from฀industry,฀government,฀and฀academia฀after฀extensive฀reviews฀of฀the฀scientific฀literature฀related฀to฀the฀biological฀effects฀of฀RF฀energy.The฀RF฀exposure฀limit฀set฀by฀the฀FCC฀for฀wireless฀mobile฀phones฀employs฀a฀unit฀of฀measurement฀known฀as฀the฀Specific฀Absorption฀Rate฀(SAR).฀The฀SAR฀is฀a฀measure฀of฀the฀rate฀of฀absorption฀of฀RF฀energy฀by฀the฀human฀body฀expressed฀in฀units฀of฀watts฀per฀kilogram฀(W/kg).฀The฀FCC฀requires฀wireless฀phones฀to฀comply฀with฀a฀safety฀limit฀of฀1.6฀watts฀per฀kilogram฀(1.6฀W/kg).DRAFT FOR INTERNAL USE ONLY
232The฀FCC฀SAR฀limit฀incorporates฀a฀substantial฀margin฀of฀safety฀to฀give฀additional฀protection฀to฀the฀public฀and฀to฀account฀for฀any฀variations฀in฀measurements.SAR฀tests฀are฀conducted฀using฀standard฀operating฀positions฀accepted฀by฀the฀FCC฀with฀the฀phone฀transmitting฀at฀its฀highest฀certified฀power฀level฀in฀all฀tested฀frequency฀bands.฀Although฀the฀SAR฀is฀determined฀at฀the฀highest฀certified฀power฀level,฀the฀actual฀SAR฀level฀of฀the฀phone฀while฀operating฀can฀be฀well฀below฀the฀maximum฀reported฀value.฀This฀is฀because฀the฀phone฀is฀designed฀to฀operate฀at฀multiple฀power฀levels฀so฀as฀to฀use฀only฀the฀power฀required฀to฀reach฀the฀network.฀In฀general,฀the฀closer฀you฀are฀to฀a฀wireless฀base฀station฀antenna,฀the฀lower฀the฀power฀output฀of฀the฀phone.Before฀a฀new฀model฀phone฀is฀available฀for฀sale฀to฀the฀public,฀it฀must฀be฀tested฀and฀certified฀to฀the฀FCC฀that฀it฀does฀not฀exceed฀the฀SAR฀limit฀established฀by฀the฀FCC.฀Tests฀for฀each฀model฀phone฀are฀performed฀in฀positions฀and฀locations฀(e.g.฀at฀the฀ear฀and฀worn฀on฀the฀body)฀as฀required฀by฀the฀FCC.฀For฀body-worn฀operation,฀this฀phone฀has฀been฀tested฀and฀meets฀FCC฀RF฀exposure฀guidelines฀when฀used฀with฀an฀accessory฀that฀contains฀no฀metal฀and฀that฀positions฀the฀mobile฀device฀a฀minimum฀of฀1.0฀cm฀from฀the฀body.Use฀of฀other฀accessories฀may฀not฀ensure฀compliance฀with฀FCC฀RF฀exposure฀guidelines.฀The฀FCC฀has฀granted฀an฀Equipment฀Authorization฀for฀this฀mobile฀device฀with฀all฀reported฀SAR฀levels฀evaluated฀as฀in฀compliance฀with฀the฀FCC฀RF฀exposure฀guidelines.฀This฀[mobile฀phone/tablet/device]฀has฀a฀FCC฀ID฀number:฀A3LSMW750V฀[Model฀Number:฀SM-W750V]฀and฀the฀specific฀SAR฀levels฀for฀this฀mobile฀phone฀can฀be฀found฀at฀the฀following฀FCC฀website:http://www.fcc.gov/oet/ea/.The฀SAR฀information฀for฀this฀device฀can฀also฀be฀found฀on฀Samsung’s฀website:฀http://www.samsung.com/sar.SAR฀information฀on฀this฀and฀other฀model฀phones฀can฀be฀accessed฀online฀on฀the฀FCC's฀website฀through฀http://transition.fcc.gov/oet/rfsafety/sar.html.฀To฀find฀information฀that฀pertains฀to฀a฀particular฀model฀phone,฀this฀site฀uses฀the฀phone฀FCC฀ID฀number฀which฀is฀usually฀printed฀somewhere฀on฀the฀case฀of฀the฀phone.฀Sometimes฀it฀may฀be฀necessary฀to฀remove฀the฀battery฀pack฀to฀find฀the฀number.฀Once฀you฀have฀the฀FCC฀ID฀number฀for฀a฀particular฀phone,฀follow฀the฀instructions฀on฀the฀website฀and฀it฀should฀provide฀values฀for฀typical฀or฀maximum฀SAR฀for฀a฀particular฀phone.฀Additional฀DRAFT FOR INTERNAL USE ONLY
Health฀and฀Safety฀Information฀฀฀฀฀฀฀233SAR฀information฀can฀also฀be฀obtained฀at฀http://www.fcc.gov/encyclopedia/specific-absorption-rate-sar-cellular-telephones.FCC Part 15 Information to UserPursuant฀to฀part฀15.21฀of฀the฀FCC฀Rules,฀you฀are฀cautioned฀that฀changes฀or฀modifications฀not฀expressly฀approved฀by฀Samsung฀could฀void฀your฀authority฀to฀operate฀the฀device.This฀device฀complies฀with฀part฀15฀of฀the฀FCC฀Rules.฀Operation฀is฀subject฀to฀the฀following฀two฀conditions:฀(1)฀This฀device฀may฀not฀cause฀harmful฀interference,฀and฀(2)฀this฀device฀must฀accept฀any฀interference฀received,฀including฀interference฀that฀may฀cause฀undesired฀operation.Note:฀This฀equipment฀has฀been฀tested฀and฀found฀to฀comply฀with฀the฀limits฀for฀a฀Class฀B฀digital฀device,฀pursuant฀to฀part฀15฀of฀the฀FCC฀Rules.฀These฀limits฀are฀designed฀to฀provide฀reasonable฀protection฀against฀harmful฀interference฀in฀a฀residential฀installation.฀This฀equipment฀generates,฀uses฀and฀can฀radiate฀radio฀frequency฀energy฀and,฀if฀not฀installed฀and฀used฀in฀accordance฀with฀the฀instructions,฀may฀cause฀harmful฀interference฀to฀radio฀communications.฀However,฀there฀is฀no฀guarantee฀that฀interference฀will฀not฀occur฀in฀a฀particular฀installation.฀If฀this฀equipment฀does฀cause฀harmful฀interference฀to฀radio฀or฀television฀reception,฀which฀can฀be฀determined฀by฀turning฀the฀equipment฀off฀and฀on,฀the฀user฀is฀encouraged฀to฀try฀to฀correct฀the฀interference฀by฀one฀or฀more฀of฀the฀following฀measures:•฀Reorient฀or฀relocate฀the฀receiving฀antenna.•฀Increase฀the฀separation฀between฀the฀equipment฀and฀receiver.•฀Connect฀the฀equipment฀into฀an฀outlet฀on฀a฀circuit฀different฀from฀that฀to฀which฀the฀receiver฀is฀connected.•฀Consult฀the฀dealer฀or฀an฀experienced฀radio/TV฀technician฀for฀help.Commercial Mobile Alerting System (CMAS)This฀device฀is฀designed฀to฀receive฀Wireless฀Emergency฀Alerts฀from฀CMAS.฀If฀your฀wireless฀provider฀has฀chosen฀to฀participate฀in฀CMAS,฀alerts฀are฀available฀while฀in฀the฀provider's฀coverage฀area.฀If฀you฀travel฀outside฀your฀provider's฀coverage฀area,฀wireless฀emergency฀alerts฀may฀not฀be฀available.฀For฀more฀information,฀please฀contact฀your฀wireless฀provider.Smart Practices While DrivingOn the Road - Off the PhoneThe฀primary฀responsibility฀of฀every฀driver฀is฀the฀safe฀operation฀of฀his฀or฀her฀vehicle.DRAFT FOR INTERNAL USE ONLY
234Responsible฀drivers฀understand฀that฀no฀secondary฀task฀should฀be฀performed฀while฀driving฀whether฀it฀be฀eating,฀drinking,฀talking฀to฀passengers,฀or฀talking฀on฀a฀mobile฀phone฀-฀unless฀the฀driver฀has฀assessed฀the฀driving฀conditions฀and฀is฀confident฀that฀the฀secondary฀task฀will฀not฀interfere฀with฀their฀primary฀responsibility.฀Do not engage in any activity while driving a moving vehicle which may cause you to take your eyes off the road or become so absorbed in the activity that your ability to concentrate on the act of driving becomes impaired.฀Samsung฀is฀committed฀to฀promoting฀responsible฀driving฀and฀giving฀drivers฀the฀tools฀they฀need฀to฀understand฀and฀address฀distractions.Check the laws and regulations on the use of mobile devices and their accessories in the areas where you drive. Always obey them. The use of these devices may be prohibited or restricted in certain areas. For example, only hands-free use may be permitted in certain areas.Before฀answering฀calls,฀consider฀your฀circumstances.฀Let฀the฀call฀go฀to฀voicemail฀when฀driving฀conditions฀require.฀Remember,฀driving฀comes฀first,฀not฀the฀call!If฀you฀consider฀a฀call฀necessary฀and฀appropriate,฀follow฀these฀tips:•฀Use฀a฀hands-free฀device;•฀Secure฀your฀phone฀within฀easy฀reach;•฀Place฀calls฀when฀you฀are฀not฀moving;•฀Plan฀calls฀when฀your฀car฀will฀be฀stationary;•฀Do฀not฀engage฀in฀stressful฀or฀emotional฀conversations;•฀Let฀the฀person฀with฀whom฀you฀are฀speaking฀know฀that฀you฀are฀driving฀and฀will฀suspend฀the฀call฀if฀necessary;•฀Do฀not฀take฀notes฀or฀look฀up฀phone฀numbers฀while฀driving;Notice฀regarding฀legal฀restrictions฀on฀mounting฀this฀device฀in฀an฀automobile:Laws฀in฀some฀states฀may฀prohibit฀mounting฀this฀device฀on฀or฀near฀the฀windshield฀of฀an฀automobile.฀In฀other฀states,฀the฀law฀may฀permit฀mounting฀this฀device฀only฀in฀specific฀locations฀in฀the฀automobile.฀Be฀sure฀to฀consult฀the฀state฀and฀local฀laws฀or฀ordinances฀where฀you฀drive฀before฀mounting฀this฀device฀in฀an฀automobile.฀Failure฀to฀comply฀with฀these฀restrictions฀could฀result฀in฀fines,฀penalties,฀or฀other฀damages.Never฀mount฀this฀device฀in฀a฀manner฀that฀will฀obstruct฀the฀driver's฀clear฀view฀of฀the฀street฀and฀traffic.DRAFT FOR INTERNAL USE ONLY
Health฀and฀Safety฀Information฀฀฀฀฀฀฀235Never use wireless data services such as text messaging, Web browsing, or e-mail while operating a vehicle.Never watch videos, such as a movie or clip, or play video games while operating a vehicle.For฀more฀information,฀go฀to฀http://www.ctia.org.Battery Use and SafetyImportant! Handle and store batteries properly to avoid injury or damage.฀Most฀battery฀issues฀arise฀from฀improper฀handling฀of฀batteries฀and,฀particularly,฀from฀the฀continued฀use฀of฀damaged฀batteries.•฀Do not disassemble, crush, puncture, shred, or otherwise attempt to change the form of your battery.฀Do฀not฀put฀a฀high฀degree฀of฀pressure฀on฀the฀battery.฀This฀can฀cause฀leakage฀or฀an฀internal฀short-circuit,฀resulting฀in฀overheating.•฀Do not let the phone or battery come in contact with liquids. Liquids฀can฀get฀into฀the฀phone's฀circuits,฀leading฀to฀corrosion.฀Even฀when฀the฀phone฀appears฀to฀be฀dry฀and฀appears฀to฀operate฀normally,฀the฀circuitry฀could฀slowly฀corrode฀and฀pose฀a฀safety฀hazard.฀If฀the฀phone฀and/or฀battery฀get฀wet,฀have฀them฀checked฀by฀your฀service฀provider฀or฀contact฀Samsung,฀even฀if฀they฀appear฀to฀be฀working฀properly.•฀Do not place your battery in or near a heat source.฀Excessive฀heating฀can฀damage฀the฀phone฀or฀the฀battery฀and฀could฀cause฀the฀phone฀or฀the฀battery฀to฀explode.฀Do฀not฀dry฀a฀wet฀or฀damp฀battery฀with฀an฀appliance฀or฀heat฀source฀such฀as฀a฀microwave฀oven,฀hair฀dryer,฀iron,฀or฀radiator.฀Avoid฀leaving฀your฀phone฀in฀your฀car฀in฀high฀temperatures.•฀Do not dispose of the phone or the battery in a fire.฀The฀phone฀or฀the฀battery฀may฀explode฀when฀overheated.•฀Do not handle a damaged or leaking battery.฀Do฀not฀let฀leaking฀battery฀fluid฀come฀in฀contact฀with฀your฀eyes,฀skin฀or฀clothing.฀For฀safe฀disposal฀options,฀contact฀your฀nearest฀Samsung-authorized฀service฀center.DRAFT FOR INTERNAL USE ONLY
236•฀Avoid dropping the cell phone.฀Dropping฀the฀phone฀or฀the฀battery,฀especially฀on฀a฀hard฀surface,฀can฀potentially฀cause฀damage฀to฀the฀phone฀and฀battery.฀If฀you฀suspect฀damage฀to฀the฀phone฀or฀battery,฀take฀it฀to฀a฀service฀center฀for฀inspection.•฀Never use any charger or battery that is damaged in any way.•฀Do not allow the battery to touch metal objects.฀Accidental฀short-circuiting฀can฀occur฀when฀a฀metallic฀object฀(coin,฀key,฀jewelry,฀clip,฀or฀pen)฀causes฀a฀direct฀connection฀between฀the฀+฀and฀-฀terminals฀of฀the฀battery฀(metal฀strips฀on฀the฀battery),฀for฀example฀when฀you฀carry฀a฀spare฀battery฀in฀a฀pocket฀or฀bag.฀Short-circuiting฀the฀terminals฀may฀damage฀the฀battery฀or฀the฀object฀causing฀the฀short-circuiting.Important! Use฀only฀Samsung-approved฀batteries,฀and฀recharge฀your฀battery฀only฀with฀Samsung-approved฀chargers฀which฀are฀specifically฀designed฀for฀your฀phone.WARNING!Use of a non-Samsung-approved battery or charger may present a risk of fire, explosion, leakage, or other hazard.฀Samsung's฀warranty฀does฀not฀cover฀damage฀to฀the฀phone฀caused฀by฀non-Samsung-approved฀batteries฀and/or฀chargers.•฀Do not use incompatible cell phone batteries and chargers.฀Some฀websites฀and฀second-hand฀dealers฀not฀associated฀with฀reputable฀manufacturers฀and฀carriers,฀might฀be฀selling฀incompatible฀or฀even฀counterfeit฀batteries฀and฀chargers.฀Consumers฀should฀purchase฀manufacturer฀or฀carrier-recommended฀products฀and฀accessories.฀If฀unsure฀about฀whether฀a฀replacement฀battery฀or฀charger฀is฀compatible,฀contact฀the฀manufacturer฀of฀the฀battery฀or฀charger.•฀Misuse or use of incompatible phones, batteries, and charging devices could result in damage to the equipment and a possible risk of fire, explosion, or leakage, leading to serious injuries, damages to your phone, or other serious hazard.DRAFT FOR INTERNAL USE ONLY
Health฀and฀Safety฀Information฀฀฀฀฀฀฀237Samsung Mobile Products and RecyclingSamsung฀cares฀for฀the฀environment฀and฀encourages฀its฀customers฀to฀recycle฀Samsung฀mobile฀devices฀and฀genuine฀Samsung฀accessories.Proper฀disposal฀of฀your฀mobile฀device฀and฀its฀battery฀is฀not฀only฀important฀for฀safety,฀it฀benefits฀the฀environment.฀Batteries฀must฀be฀recycled฀or฀disposed฀of฀properly.Recycling฀programs฀for฀your฀mobile฀device,฀batteries,฀and฀accessories฀may฀not฀be฀available฀in฀your฀area.We've฀made฀it฀easy฀for฀you฀to฀recycle฀your฀old฀Samsung฀mobile฀device฀by฀working฀with฀respected฀take-back฀companies฀in฀every฀state฀in฀the฀country.Drop It OffYou฀can฀drop฀off฀your฀Samsung-branded฀mobile฀device฀and฀batteries฀for฀recycling฀at฀one฀of฀our฀numerous฀Samsung฀Recycling฀Direct฀(SM)฀locations.฀A฀list฀of฀these฀locations฀may฀be฀found฀at:฀http://pages.samsung.com/us/recyclingdirect/usactivities_environment_samsungrecyclingdirect_locations.jsp.Samsung-branded฀devices฀and฀batteries฀will฀be฀accepted฀at฀these฀locations฀for฀no฀fee.Consumers฀may฀also฀recycle฀their฀used฀mobile฀device฀or฀batteries฀at฀many฀retail฀or฀carrier-provided฀locations฀where฀mobile฀devices฀and฀batteries฀are฀sold.฀Additional฀information฀regarding฀specific฀locations฀may฀be฀found฀at:฀http://www.epa.gov/epawaste/partnerships/plugin/cellphone/index.htm฀or฀at฀http://www.call2recycle.org/.Mail It InThe฀Samsung฀Mobile฀Take-Back฀Program฀will฀provide฀Samsung฀customers฀with฀a฀free฀recycling฀mailing฀label.฀Just฀go฀tohttp://fun.samsungmobileusa.com/recycling/index.jsp.Dispose฀of฀unwanted฀electronics฀through฀an฀approved฀recycler.To฀find฀the฀nearest฀recycling฀location,฀go฀to฀our฀website:www.samsung.com/recyclingdirect฀Or฀call,฀(877)฀278-0799.DRAFT FOR INTERNAL USE ONLY

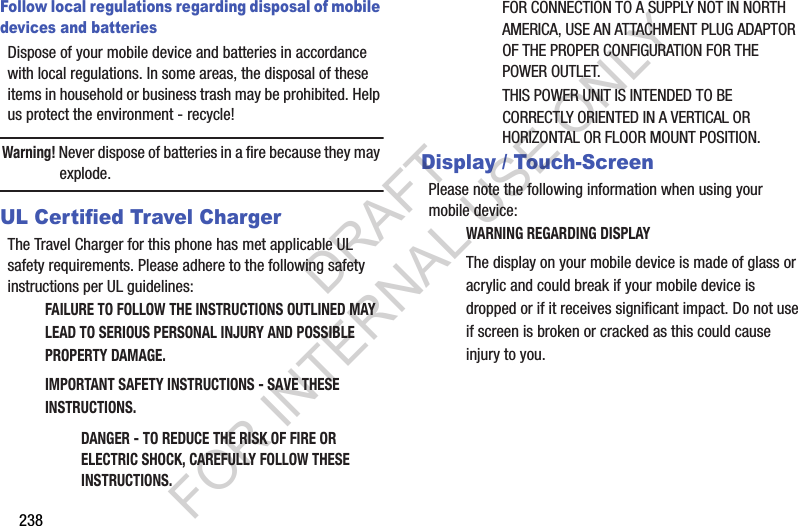

238Follow local regulations regarding disposal of mobile devices and batteriesDispose฀of฀your฀mobile฀device฀and฀batteries฀in฀accordance฀with฀local฀regulations.฀In฀some฀areas,฀the฀disposal฀of฀these฀items฀in฀household฀or฀business฀trash฀may฀be฀prohibited.฀Help฀us฀protect฀the฀environment฀-฀recycle!Warning! Never฀dispose฀of฀batteries฀in฀a฀fire฀because฀they฀may฀explode.UL Certified Travel ChargerThe฀Travel฀Charger฀for฀this฀phone฀has฀met฀applicable฀UL฀safety฀requirements.฀Please฀adhere฀to฀the฀following฀safety฀instructions฀per฀UL฀guidelines:FAILURE TO FOLLOW THE INSTRUCTIONS OUTLINED MAY LEAD TO SERIOUS PERSONAL INJURY AND POSSIBLE PROPERTY DAMAGE.IMPORTANT SAFETY INSTRUCTIONS - SAVE THESE INSTRUCTIONS.DANGER - TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, CAREFULLY FOLLOW THESE INSTRUCTIONS.FOR฀CONNECTION฀TO฀A฀SUPPLY฀NOT฀IN฀NORTH฀AMERICA,฀USE฀AN฀ATTACHMENT฀PLUG฀ADAPTOR฀OF฀THE฀PROPER฀CONFIGURATION฀FOR฀THE฀POWER฀OUTLET.THIS฀POWER฀UNIT฀IS฀INTENDED฀TO฀BE฀CORRECTLY฀ORIENTED฀IN฀A฀VERTICAL฀OR฀HORIZONTAL฀OR฀FLOOR฀MOUNT฀POSITION.Display / Touch-ScreenPlease฀note฀the฀following฀information฀when฀using฀your฀mobile฀device:WARNING REGARDING DISPLAYThe฀display฀on฀your฀mobile฀device฀is฀made฀of฀glass฀or฀acrylic฀and฀could฀break฀if฀your฀mobile฀device฀is฀dropped฀or฀if฀it฀receives฀significant฀impact.฀Do฀not฀use฀if฀screen฀is฀broken฀or฀cracked฀as฀this฀could฀cause฀injury฀to฀you.DRAFT FOR INTERNAL USE ONLY

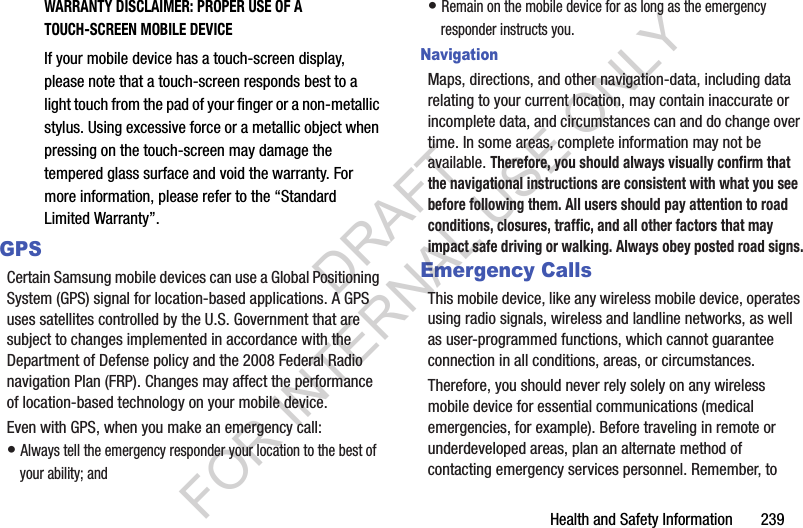

Health฀and฀Safety฀Information฀฀฀฀฀฀฀239WARRANTY DISCLAIMER: PROPER USE OF A TOUCH-SCREEN MOBILE DEVICEIf฀your฀mobile฀device฀has฀a฀touch-screen฀display,฀please฀note฀that฀a฀touch-screen฀responds฀best฀to฀a฀light฀touch฀from฀the฀pad฀of฀your฀finger฀or฀a฀non-metallic฀stylus.฀Using฀excessive฀force฀or฀a฀metallic฀object฀when฀pressing฀on฀the฀touch-screen฀may฀damage฀the฀tempered฀glass฀surface฀and฀void฀the฀warranty.฀For฀more฀information,฀please฀refer฀to฀the฀“Standard฀Limited฀Warranty”.GPSCertain฀Samsung฀mobile฀devices฀can฀use฀a฀Global฀Positioning฀System฀(GPS)฀signal฀for฀location-based฀applications.฀A฀GPS฀uses฀satellites฀controlled฀by฀the฀U.S.฀Government฀that฀are฀subject฀to฀changes฀implemented฀in฀accordance฀with฀the฀Department฀of฀Defense฀policy฀and฀the฀2008฀Federal฀Radio฀navigation฀Plan฀(FRP).฀Changes฀may฀affect฀the฀performance฀of฀location-based฀technology฀on฀your฀mobile฀device.Even฀with฀GPS,฀when฀you฀make฀an฀emergency฀call:•฀Always฀tell฀the฀emergency฀responder฀your฀location฀to฀the฀best฀of฀your฀ability;฀and•฀Remain฀on฀the฀mobile฀device฀for฀as฀long฀as฀the฀emergency฀responder฀instructs฀you.NavigationMaps,฀directions,฀and฀other฀navigation-data,฀including฀data฀relating฀to฀your฀current฀location,฀may฀contain฀inaccurate฀or฀incomplete฀data,฀and฀circumstances฀can฀and฀do฀change฀over฀time.฀In฀some฀areas,฀complete฀information฀may฀not฀be฀available.฀Therefore, you should always visually confirm that the navigational instructions are consistent with what you see before following them. All users should pay attention to road conditions, closures, traffic, and all other factors that may impact safe driving or walking. Always obey posted road signs.Emergency CallsThis฀mobile฀device,฀like฀any฀wireless฀mobile฀device,฀operates฀using฀radio฀signals,฀wireless฀and฀landline฀networks,฀as฀well฀as฀user-programmed฀functions,฀which฀cannot฀guarantee฀connection฀in฀all฀conditions,฀areas,฀or฀circumstances.฀Therefore,฀you฀should฀never฀rely฀solely฀on฀any฀wireless฀mobile฀device฀for฀essential฀communications฀(medical฀emergencies,฀for฀example).฀Before฀traveling฀in฀remote฀or฀underdeveloped฀areas,฀plan฀an฀alternate฀method฀of฀contacting฀emergency฀services฀personnel.฀Remember,฀to฀DRAFT FOR INTERNAL USE ONLY
240make฀or฀receive฀any฀calls,฀the฀mobile฀device฀must฀be฀switched฀on฀and฀in฀a฀service฀area฀with฀adequate฀signal฀strength.Emergency฀calls฀may฀not฀be฀possible฀on฀all฀wireless฀mobile฀device฀networks฀or฀when฀certain฀network฀services฀and/or฀mobile฀device฀features฀are฀in฀use.฀Check฀with฀local฀service฀providers.To make an emergency call:1. If฀the฀mobile฀device฀is฀not฀on,฀switch฀it฀on.2. From฀the฀Home฀screen,฀touch฀ ฀Phone.฀3. Key฀in฀the฀emergency฀number฀for฀your฀present฀location฀(for฀example,฀911฀or฀other฀official฀emergency฀number).฀Emergency฀numbers฀vary฀by฀location.4. Press฀the฀“Send”฀key฀ .฀If฀certain฀features฀are฀in฀use฀(call฀blocking,฀for฀example),฀you฀may฀first฀need฀to฀deactivate฀those฀features฀before฀you฀can฀make฀an฀emergency฀call.฀Consult฀your฀User฀Manual฀and฀your฀local฀cellular฀service฀provider.฀When฀making฀an฀emergency฀call,฀remember฀to฀give฀all฀the฀necessary฀information฀as฀accurately฀as฀possible.฀Remember฀that฀your฀mobile฀device฀may฀be฀the฀only฀means฀of฀communication฀at฀the฀scene฀of฀an฀accident;฀do฀not฀cut฀off฀the฀call฀until฀given฀permission฀to฀do฀so.Care and MaintenanceYour฀mobile฀device฀is฀a฀product฀of฀superior฀design฀and฀craftsmanship฀and฀should฀be฀treated฀with฀care.฀The฀suggestions฀below฀will฀help฀you฀fulfill฀any฀warranty฀obligations฀and฀allow฀you฀to฀enjoy฀this฀product฀for฀many฀years:Keep your Samsung Mobile Device away from:Liquids of any kindKeep฀the฀mobile฀device฀dry.฀Precipitation,฀humidity,฀and฀liquids฀contain฀minerals฀that฀will฀corrode฀electronic฀circuits.฀If฀the฀mobile฀device฀does฀get฀wet,฀do฀not฀accelerate฀drying฀with฀the฀use฀of฀an฀oven,฀microwave,฀or฀dryer,฀because฀this฀may฀damage฀the฀mobile฀device฀and฀could฀cause฀a฀fire฀or฀explosion.฀Do฀not฀use฀the฀mobile฀device฀with฀a฀wet฀hand.฀Doing฀so฀may฀cause฀an฀electric฀shock฀to฀you฀or฀damage฀to฀the฀mobile฀device.DRAFT FOR INTERNAL USE ONLY
Health฀and฀Safety฀Information฀฀฀฀฀฀฀241Extreme heat or coldAvoid฀temperatures฀below฀0°C฀/฀32°F฀or฀above฀45°C฀/฀113°F.MicrowavesDo฀not฀try฀to฀dry฀your฀mobile฀device฀in฀a฀microwave฀oven.฀Doing฀so฀may฀cause฀a฀fire฀or฀explosion.Dust and dirtDo฀not฀expose฀your฀mobile฀device฀to฀dust,฀dirt,฀or฀sand.Cleaning solutionsDo฀not฀use฀harsh฀chemicals,฀cleaning฀solvents,฀or฀strong฀detergents฀to฀clean฀the฀mobile฀device.฀Wipe฀it฀with฀a฀soft฀cloth฀slightly฀dampened฀in฀a฀mild฀soap-and-water฀solution.Shock or vibrationDo฀not฀drop,฀knock,฀or฀shake฀the฀mobile฀device.฀Rough฀handling฀can฀break฀internal฀circuit฀boards.PaintDo฀not฀paint฀the฀mobile฀device.฀Paint฀can฀clog฀the฀device’s฀moving฀parts฀or฀ventilation฀openings฀and฀prevent฀proper฀operation.Responsible ListeningCaution! Avoid potential hearing loss.Damage฀to฀hearing฀occurs฀when฀a฀person฀is฀exposed฀to฀loud฀sounds฀over฀time.฀The฀risk฀of฀hearing฀loss฀increases฀as฀sound฀is฀played฀louder฀and฀for฀longer฀durations.฀Prolonged฀exposure฀to฀loud฀sounds฀(including฀music)฀is฀the฀most฀common฀cause฀of฀preventable฀hearing฀loss.฀Some฀scientific฀research฀suggests฀that฀using฀portable฀audio฀devices,฀such฀as฀portable฀music฀players฀and฀cell฀phones,฀at฀high฀volume฀settings฀for฀long฀durations฀may฀lead฀to฀permanent฀noise-induced฀hearing฀loss.฀This฀includes฀the฀use฀of฀headphones฀(including฀headsets,฀earbuds,฀and฀Bluetooth®฀or฀other฀wireless฀devices).฀Exposure฀to฀very฀loud฀sound฀has฀also฀been฀associated฀in฀some฀studies฀with฀tinnitus฀(a฀ringing฀in฀the฀ear),฀hypersensitivity฀to฀sound,฀and฀distorted฀hearing.฀Individual฀susceptibility฀to฀noise-induced฀hearing฀loss฀and฀potential฀hearing฀problem฀varies.฀Additionally,฀the฀amount฀of฀sound฀produced฀by฀a฀portable฀audio฀device฀varies฀depending฀on฀the฀nature฀of฀the฀sound,฀the฀device฀settings,฀and฀the฀headphones฀DRAFT FOR INTERNAL USE ONLY

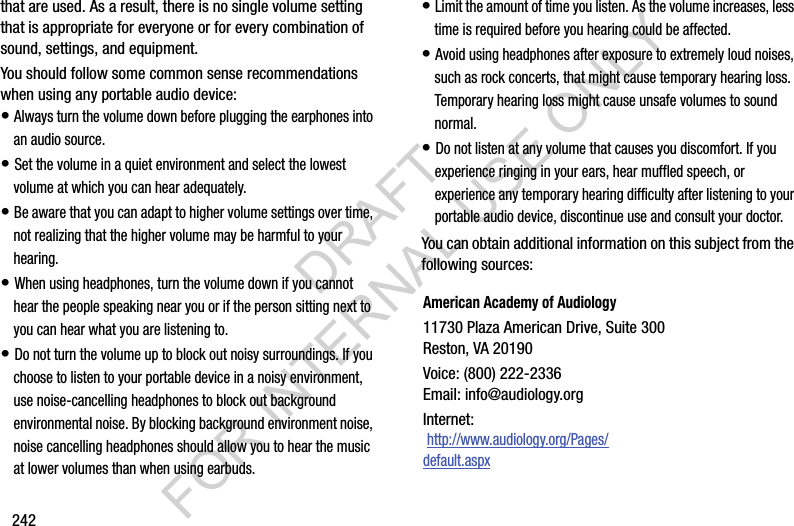

242that฀are฀used.฀As฀a฀result,฀there฀is฀no฀single฀volume฀setting฀that฀is฀appropriate฀for฀everyone฀or฀for฀every฀combination฀of฀sound,฀settings,฀and฀equipment.You฀should฀follow฀some฀common฀sense฀recommendations฀when฀using฀any฀portable฀audio฀device:•฀Always฀turn฀the฀volume฀down฀before฀plugging฀the฀earphones฀into฀an฀audio฀source.•฀Set฀the฀volume฀in฀a฀quiet฀environment฀and฀select฀the฀lowest฀volume฀at฀which฀you฀can฀hear฀adequately.•฀Be฀aware฀that฀you฀can฀adapt฀to฀higher฀volume฀settings฀over฀time,฀not฀realizing฀that฀the฀higher฀volume฀may฀be฀harmful฀to฀your฀hearing.•฀When฀using฀headphones,฀turn฀the฀volume฀down฀if฀you฀cannot฀hear฀the฀people฀speaking฀near฀you฀or฀if฀the฀person฀sitting฀next฀to฀you฀can฀hear฀what฀you฀are฀listening฀to.•฀Do฀not฀turn฀the฀volume฀up฀to฀block฀out฀noisy฀surroundings.฀If฀you฀choose฀to฀listen฀to฀your฀portable฀device฀in฀a฀noisy฀environment,฀use฀noise-cancelling฀headphones฀to฀block฀out฀background฀environmental฀noise.฀By฀blocking฀background฀environment฀noise,฀noise฀cancelling฀headphones฀should฀allow฀you฀to฀hear฀the฀music฀at฀lower฀volumes฀than฀when฀using฀earbuds.•฀Limit฀the฀amount฀of฀time฀you฀listen.฀As฀the฀volume฀increases,฀less฀time฀is฀required฀before฀you฀hearing฀could฀be฀affected.•฀Avoid฀using฀headphones฀after฀exposure฀to฀extremely฀loud฀noises,฀such฀as฀rock฀concerts,฀that฀might฀cause฀temporary฀hearing฀loss.฀Temporary฀hearing฀loss฀might฀cause฀unsafe฀volumes฀to฀sound฀normal.•฀Do฀not฀listen฀at฀any฀volume฀that฀causes฀you฀discomfort.฀If฀you฀experience฀ringing฀in฀your฀ears,฀hear฀muffled฀speech,฀or฀experience฀any฀temporary฀hearing฀difficulty฀after฀listening฀to฀your฀portable฀audio฀device,฀discontinue฀use฀and฀consult฀your฀doctor.You฀can฀obtain฀additional฀information฀on฀this฀subject฀from฀the฀following฀sources:American Academy of Audiology11730฀Plaza฀American฀Drive,฀Suite฀300Reston,฀VA฀20190Voice:฀(800)฀222-2336Email:฀info@audiology.orgInternet:฀http://www.audiology.org/Pages/default.aspxDRAFT FOR INTERNAL USE ONLY

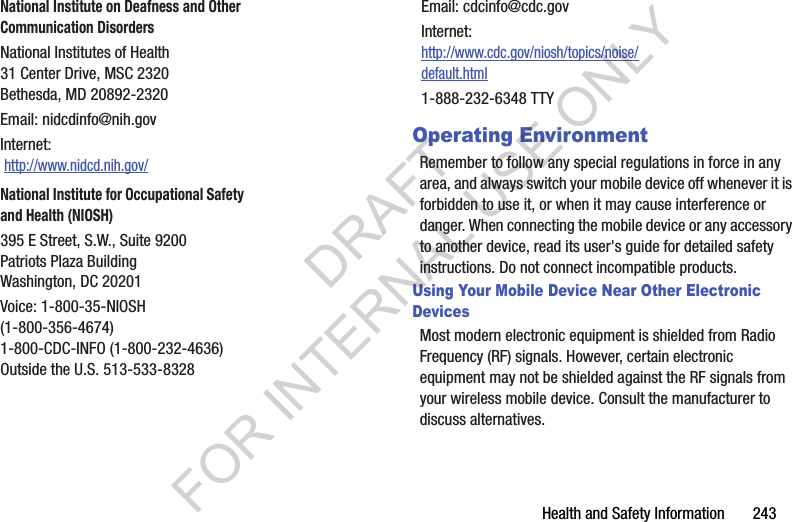

Health฀and฀Safety฀Information฀฀฀฀฀฀฀243Operating EnvironmentRemember฀to฀follow฀any฀special฀regulations฀in฀force฀in฀any฀area,฀and฀always฀switch฀your฀mobile฀device฀off฀whenever฀it฀is฀forbidden฀to฀use฀it,฀or฀when฀it฀may฀cause฀interference฀or฀danger.฀When฀connecting฀the฀mobile฀device฀or฀any฀accessory฀to฀another฀device,฀read฀its฀user's฀guide฀for฀detailed฀safety฀instructions.฀Do฀not฀connect฀incompatible฀products.Using Your Mobile Device Near Other Electronic DevicesMost฀modern฀electronic฀equipment฀is฀shielded฀from฀Radio฀Frequency฀(RF)฀signals.฀However,฀certain฀electronic฀equipment฀may฀not฀be฀shielded฀against฀the฀RF฀signals฀from฀your฀wireless฀mobile฀device.฀Consult฀the฀manufacturer฀to฀discuss฀alternatives.National Institute on Deafness and Other Communication DisordersNational฀Institutes฀of฀Health31฀Center฀Drive,฀MSC฀2320Bethesda,฀MD฀20892-2320Email:฀nidcdinfo@nih.govInternet:฀฀http://www.nidcd.nih.gov/National Institute for Occupational Safety and Health (NIOSH)395฀E฀Street,฀S.W.,฀Suite฀9200Patriots฀Plaza฀BuildingWashington,฀DC฀20201Voice:฀1-800-35-NIOSH฀(1-800-356-4674)1-800-CDC-INFO฀(1-800-232-4636)Outside฀the฀U.S.฀513-533-8328Email:฀cdcinfo@cdc.govInternet:http://www.cdc.gov/niosh/topics/noise/default.html1-888-232-6348฀TTYDRAFT FOR INTERNAL USE ONLY
244Implantable Medical DevicesA฀minimum฀separation฀of฀six฀(6)฀inches฀should฀be฀maintained฀between฀a฀handheld฀wireless฀mobile฀device฀and฀an฀implantable฀medical฀device,฀such฀as฀a฀pacemaker฀or฀implantable฀cardioverter฀defibrillator,฀to฀avoid฀potential฀interference฀with฀the฀device.Persons฀who฀have฀such฀devices:•฀Should฀ALWAYS฀keep฀the฀mobile฀device฀more฀than฀six฀(6)฀inches฀from฀their฀implantable฀medical฀device฀when฀the฀mobile฀device฀is฀turned฀ON;•฀Should฀not฀carry฀the฀mobile฀device฀in฀a฀breast฀pocket;•฀Should฀use฀the฀ear฀opposite฀the฀implantable฀medical฀device฀to฀minimize฀the฀potential฀for฀interference;•฀Should฀turn฀the฀mobile฀device฀OFF฀immediately฀if฀there฀is฀any฀reason฀to฀suspect฀that฀interference฀is฀taking฀place;•฀Should฀read฀and฀follow฀the฀directions฀from฀the฀manufacturer฀of฀your฀implantable฀medical฀device.฀If฀you฀have฀any฀questions฀about฀using฀your฀wireless฀mobile฀device฀with฀an฀implantable฀medical฀device,฀consult฀your฀health฀care฀provider.For฀more฀information฀see:฀http://www.fcc.gov/oet/rfsafety/rf-faqs.html#.Other Medical DevicesIf฀you฀use฀any฀other฀personal฀medical฀devices,฀consult฀the฀manufacturer฀of฀your฀device฀to฀determine฀if฀it฀is฀adequately฀shielded฀from฀external฀RF฀energy.฀Your฀physician฀may฀be฀able฀to฀assist฀you฀in฀obtaining฀this฀information.฀Switch฀your฀mobile฀device฀off฀in฀health฀care฀facilities฀when฀any฀regulations฀posted฀in฀these฀areas฀instruct฀you฀to฀do฀so.฀Hospitals฀or฀health฀care฀facilities฀may฀be฀using฀equipment฀that฀could฀be฀sensitive฀to฀external฀RF฀energy.VehiclesRF฀signals฀may฀affect฀improperly฀installed฀or฀inadequately฀shielded฀electronic฀systems฀in฀motor฀vehicles.฀Check฀with฀the฀manufacturer฀or฀its฀representative฀regarding฀your฀vehicle฀before฀using฀your฀mobile฀device฀in฀a฀motor฀vehicle.฀You฀should฀also฀consult฀the฀manufacturer฀of฀any฀equipment฀that฀has฀been฀added฀to฀your฀vehicle.Posted FacilitiesSwitch฀your฀mobile฀device฀off฀in฀any฀facility฀where฀posted฀notices฀require฀you฀to฀do฀so.Potentially Explosive EnvironmentsSwitch฀your฀mobile฀device฀off฀when฀in฀any฀area฀with฀a฀potentially฀explosive฀atmosphere฀and฀obey฀all฀signs฀and฀instructions.฀Sparks฀in฀such฀areas฀could฀cause฀an฀explosion฀DRAFT FOR INTERNAL USE ONLY
Health฀and฀Safety฀Information฀฀฀฀฀฀฀245or฀fire฀resulting฀in฀bodily฀injury฀or฀even฀death.฀Users฀are฀advised฀to฀switch฀the฀mobile฀device฀off฀while฀at฀a฀refueling฀point฀(service฀station).฀Users฀are฀reminded฀of฀the฀need฀to฀observe฀restrictions฀on฀the฀use฀of฀radio฀equipment฀in฀fuel฀depots฀(fuel฀storage฀and฀distribution฀areas),฀chemical฀plants,฀or฀where฀blasting฀operations฀are฀in฀progress.฀Areas฀with฀a฀potentially฀explosive฀atmosphere฀are฀often,฀but฀not฀always,฀clearly฀marked.฀They฀include฀below฀deck฀on฀boats,฀chemical฀transfer฀or฀storage฀facilities,฀vehicles฀using฀liquefied฀petroleum฀gas฀(such฀as฀propane฀or฀butane),฀areas฀where฀the฀air฀contains฀chemicals฀or฀particles,฀such฀as฀grain,฀dust,฀or฀metal฀powders,฀and฀any฀other฀area฀where฀you฀would฀normally฀be฀advised฀to฀turn฀off฀your฀vehicle฀engine.฀Vehicles฀using฀liquefied฀petroleum฀gas฀(such฀as฀propane฀or฀butane)฀must฀comply฀with฀the฀National฀Fire฀Protection฀Standard฀(NFPA-58).฀For฀a฀copy฀of฀this฀standard,฀contact฀the฀National฀Fire฀Protection฀Association.When your Device is WetDo฀not฀turn฀on฀your฀device฀if฀it฀is฀wet.฀If฀your฀device฀is฀already฀on,฀turn฀it฀off฀and฀remove฀the฀battery฀immediately฀(if฀the฀device฀will฀not฀turn฀off฀or฀you฀cannot฀remove฀the฀battery,฀leave฀it฀as-is).฀Then,฀dry฀the฀device฀with฀a฀towel฀and฀take฀it฀to฀a฀service฀center.FCC Hearing Aid Compatibility (HAC) Regulations for Wireless DevicesThe฀U.S.฀Federal฀Communications฀Commission฀(FCC)฀has฀established฀requirements฀for฀digital฀wireless฀mobile฀devices฀to฀be฀compatible฀with฀hearing฀aids฀and฀other฀assistive฀hearing฀devices.When฀individuals฀employing฀some฀assistive฀hearing฀devices฀(hearing฀aids฀and฀cochlear฀implants)฀use฀wireless฀mobile฀devices,฀they฀may฀detect฀a฀buzzing,฀humming,฀or฀whining฀noise.฀Some฀hearing฀devices฀are฀more฀immune฀than฀others฀to฀this฀interference฀noise,฀and฀mobile฀devices฀also฀vary฀in฀the฀amount฀of฀interference฀they฀generate.The฀wireless฀telephone฀industry฀has฀developed฀a฀rating฀system฀for฀wireless฀mobile฀devices฀to฀assist฀hearing฀device฀users฀find฀mobile฀devices฀that฀may฀be฀compatible฀with฀their฀hearing฀devices.฀Not฀all฀mobile฀devices฀have฀been฀rated.฀Mobile฀devices฀that฀are฀rated฀have฀the฀rating฀on฀their฀box฀or฀a฀label฀located฀on฀the฀box.The฀ratings฀are฀not฀guarantees.฀Results฀will฀vary฀depending฀on฀the฀user's฀hearing฀device฀and฀hearing฀loss.฀If฀your฀hearing฀device฀happens฀to฀be฀vulnerable฀to฀interference,฀you฀may฀not฀DRAFT FOR INTERNAL USE ONLY

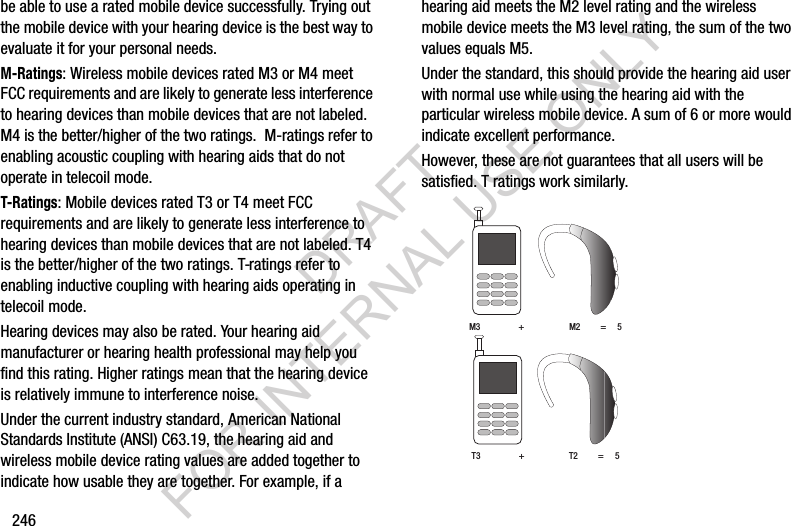

246be฀able฀to฀use฀a฀rated฀mobile฀device฀successfully.฀Trying฀out฀the฀mobile฀device฀with฀your฀hearing฀device฀is฀the฀best฀way฀to฀evaluate฀it฀for฀your฀personal฀needs.M-Ratings:฀Wireless฀mobile฀devices฀rated฀M3฀or฀M4฀meet฀FCC฀requirements฀and฀are฀likely฀to฀generate฀less฀interference฀to฀hearing฀devices฀than฀mobile฀devices฀that฀are฀not฀labeled.฀M4฀is฀the฀better/higher฀of฀the฀two฀ratings.฀฀M-ratings฀refer฀to฀enabling฀acoustic฀coupling฀with฀hearing฀aids฀that฀do฀not฀operate฀in฀telecoil฀mode.T-Ratings:฀Mobile฀devices฀rated฀T3฀or฀T4฀meet฀FCC฀requirements฀and฀are฀likely฀to฀generate฀less฀interference฀to฀hearing฀devices฀than฀mobile฀devices฀that฀are฀not฀labeled.฀T4฀is฀the฀better/higher฀of฀the฀two฀ratings.฀T-ratings฀refer฀to฀enabling฀inductive฀coupling฀with฀hearing฀aids฀operating฀in฀telecoil฀mode.Hearing฀devices฀may฀also฀be฀rated.฀Your฀hearing฀aid฀manufacturer฀or฀hearing฀health฀professional฀may฀help฀you฀find฀this฀rating.฀Higher฀ratings฀mean฀that฀the฀hearing฀device฀is฀relatively฀immune฀to฀interference฀noise.฀Under฀the฀current฀industry฀standard,฀American฀National฀Standards฀Institute฀(ANSI)฀C63.19,฀the฀hearing฀aid฀and฀wireless฀mobile฀device฀rating฀values฀are฀added฀together฀to฀indicate฀how฀usable฀they฀are฀together.฀For฀example,฀if฀a฀hearing฀aid฀meets฀the฀M2฀level฀rating฀and฀the฀wireless฀mobile฀device฀meets฀the฀M3฀level฀rating,฀the฀sum฀of฀the฀two฀values฀equals฀M5.฀Under฀the฀standard,฀this฀should฀provide฀the฀hearing฀aid฀user฀with฀normal฀use฀while฀using฀the฀hearing฀aid฀with฀the฀particular฀wireless฀mobile฀device.฀A฀sum฀of฀6฀or฀more฀would฀indicate฀excellent฀performance.฀฀However,฀these฀are฀not฀guarantees฀that฀all฀users฀will฀be฀satisfied.฀T฀ratings฀work฀similarly.฀M3฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀+฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀M2฀฀฀฀฀฀฀฀฀=฀฀฀฀฀5T3฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀+฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀T2฀฀฀฀฀฀฀฀฀=฀฀฀฀฀5DRAFT FOR INTERNAL USE ONLY
Health฀and฀Safety฀Information฀฀฀฀฀฀฀247The฀HAC฀rating฀and฀measurement฀procedure฀are฀described฀in฀the฀American฀National฀Standards฀Institute฀(ANSI)฀C63.19฀standard.HAC for Newer TechnologiesThis฀phone฀has฀been฀tested฀and฀rated฀for฀use฀with฀hearing฀aids฀for฀some฀of฀the฀wireless฀technologies฀that฀it฀uses.฀However,฀there฀may฀be฀some฀newer฀wireless฀technologies฀used฀in฀this฀phone฀that฀have฀not฀been฀tested฀yet฀for฀use฀with฀hearing฀aids.฀It฀is฀important฀to฀try฀the฀different฀features฀of฀this฀phone฀thoroughly฀and฀in฀different฀locations,฀using฀your฀hearing฀aid฀or฀cochlear฀implant,฀to฀determine฀if฀you฀hear฀any฀interfering฀noise.฀Consult฀your฀service฀provider฀or฀the฀manufacturer฀of฀this฀phone฀for฀information฀on฀hearing฀aid฀compatibility.฀If฀you฀have฀questions฀about฀return฀or฀exchange฀policies,฀consult฀your฀service฀provider฀or฀phone฀retailer.Restricting Children's Access to Your Mobile DeviceYour฀mobile฀device฀is฀not฀a฀toy.฀Do฀not฀allow฀children฀to฀play฀with฀it฀because฀they฀could฀hurt฀themselves฀and฀others,฀damage฀the฀mobile฀device,฀or฀make฀calls฀that฀increase฀your฀mobile฀device฀bill.Keep฀the฀mobile฀device฀and฀all฀its฀parts฀and฀accessories฀out฀of฀the฀reach฀of฀small฀children.FCC Notice and CautionsFCC NoticeThe฀mobile฀device฀may฀cause฀TV฀or฀radio฀interference฀if฀used฀in฀close฀proximity฀to฀receiving฀equipment.฀The฀FCC฀can฀require฀you฀to฀stop฀using฀the฀mobile฀device฀if฀such฀interference฀cannot฀be฀eliminated.฀CautionsAny฀changes฀or฀modifications฀to฀your฀mobile฀device฀not฀expressly฀approved฀by฀Samsung฀could฀void฀your฀warranty฀for฀this฀equipment฀and฀void฀your฀authority฀to฀operate฀this฀equipment.฀Only฀use฀approved฀batteries,฀antennas,฀and฀chargers.฀The฀use฀of฀any฀unauthorized฀accessories฀may฀be฀dangerous฀and฀void฀the฀mobile฀device฀warranty฀if฀said฀accessories฀cause฀damage฀or฀a฀defect฀to฀the฀mobile฀device.฀Although฀your฀mobile฀device฀is฀quite฀sturdy,฀it฀is฀a฀complex฀piece฀of฀equipment฀and฀can฀be฀broken.฀Avoid฀dropping,฀hitting,฀bending,฀or฀sitting฀on฀it.DRAFT FOR INTERNAL USE ONLY
248Other Important Safety Information•฀Only฀qualified฀personnel฀should฀service฀the฀mobile฀device฀or฀install฀the฀mobile฀device฀in฀a฀vehicle.฀Faulty฀installation฀or฀service฀may฀be฀dangerous฀and฀may฀invalidate฀any฀warranty฀applicable฀to฀the฀device.•฀Ensure฀that฀any฀mobile฀devices฀or฀related฀equipment฀installed฀in฀your฀vehicle฀are฀securely฀mounted.•฀Check฀regularly฀that฀all฀wireless฀mobile฀device฀equipment฀in฀your฀vehicle฀is฀mounted฀and฀operating฀properly.•฀When฀using฀a฀headset฀in฀dry฀environments,฀static฀electricity฀can฀build฀up฀in฀the฀headset฀and฀cause฀a฀small฀quick฀static฀electrical฀shock.฀To฀minimize฀the฀risk฀of฀electrostatic฀discharge฀from฀the฀headset฀avoid฀using฀the฀headset฀in฀extremely฀dry฀environments฀or฀touch฀a฀grounded฀unpainted฀metal฀object฀to฀discharge฀static฀electricity฀before฀inserting฀the฀headset.•฀Do฀not฀store฀or฀carry฀flammable฀liquids,฀gases,฀or฀explosive฀materials฀in฀the฀same฀compartment฀as฀the฀mobile฀device,฀its฀parts,฀or฀accessories.•฀For฀vehicles฀equipped฀with฀an฀air฀bag,฀remember฀that฀an฀air฀bag฀inflates฀with฀great฀force.฀Do฀not฀place฀objects,฀including฀installed฀or฀portable฀wireless฀equipment฀near฀or฀in฀the฀area฀over฀the฀air฀bag฀or฀in฀the฀air฀bag฀deployment฀area.฀If฀wireless฀equipment฀is฀improperly฀installed฀and฀the฀air฀bag฀inflates,฀serious฀injury฀could฀result.•฀Switch฀your฀mobile฀device฀off฀before฀boarding฀an฀aircraft.฀The฀use฀of฀wireless฀mobile฀devices฀in฀aircraft฀is฀illegal฀and฀may฀be฀dangerous฀to฀the฀aircraft's฀operation.฀Check฀with฀appropriate฀authorities฀before฀using฀any฀function฀of฀a฀mobile฀device฀while฀on฀an฀aircraft.•฀Failure฀to฀observe฀these฀instructions฀may฀lead฀to฀the฀suspension฀or฀denial฀of฀cell฀phone฀services฀to฀the฀offender,฀or฀legal฀action,฀or฀both.•฀While฀using฀your฀device,฀leave฀some฀lights฀on฀in฀the฀room฀and฀do฀not฀hold฀the฀screen฀too฀close฀to฀your฀eyes.•฀Seizures฀or฀blackouts฀can฀occur฀when฀you฀are฀exposed฀to฀flashing฀lights฀while฀watching฀videos฀or฀playing฀games฀for฀extended฀periods.฀If฀you฀feel฀any฀discomfort,฀stop฀using฀the฀device฀immediately.DRAFT FOR INTERNAL USE ONLY
Health฀and฀Safety฀Information฀฀฀฀฀฀฀249•฀Reduce฀risk฀of฀repetitive฀motion฀injuries.฀When฀you฀repetitively฀perform฀actions,฀such฀as฀pressing฀keys,฀drawing฀characters฀on฀a฀touch฀screen฀with฀your฀fingers,฀or฀playing฀games,฀you฀may฀experience฀occasional฀discomfort฀in฀your฀hands,฀neck,฀shoulders,฀or฀other฀parts฀of฀your฀body.฀฀When฀using฀your฀device฀for฀extended฀periods,฀hold฀the฀device฀with฀a฀relaxed฀grip,฀press฀the฀keys฀lightly,฀and฀take฀frequent฀breaks.฀If฀you฀continue฀to฀have฀discomfort฀during฀or฀after฀such฀use,฀stop฀use฀and฀see฀a฀physician.•฀If฀your฀device฀has฀a฀camera฀flash฀or฀light,฀do฀not฀use฀the฀flash฀or฀light฀close฀to฀the฀eyes฀of฀people฀or฀pets.฀[122011]DRAFT FOR INTERNAL USE ONLY
250Section 10: Warranty InformationStandard Limited WarrantyWhat is covered and for how long?SAMSUNG฀TELECOMMUNICATIONS฀AMERICA,฀LLC฀(“SAMSUNG”)฀warrants฀that฀SAMSUNG’s฀handsets฀and฀accessories฀(“Products”)฀are฀free฀from฀defects฀in฀material฀and฀workmanship฀under฀normal฀use฀and฀service฀for฀the฀period฀commencing฀upon฀the฀date฀of฀purchase฀by฀the฀first฀consumer฀purchaser฀and฀continuing฀for฀the฀following฀specified฀period฀of฀time฀after฀that฀date:What is not covered?This฀Limited฀Warranty฀is฀conditioned฀upon฀proper฀use฀of฀the฀Product.฀This฀Limited฀Warranty฀does฀not฀cover:฀(a)฀defects฀or฀damage฀resulting฀from฀accident,฀misuse,฀abnormal฀use,฀abnormal฀conditions,฀improper฀storage,฀exposure฀to฀liquid,฀moisture,฀dampness,฀sand฀or฀dirt,฀neglect,฀or฀unusual฀physical,฀electrical฀or฀electromechanical฀stress;฀(b) scratches,฀dents฀and฀cosmetic฀damage,฀unless฀caused฀by฀SAMSUNG;฀(c) defects฀or฀damage฀resulting฀from฀excessive฀force฀or฀use฀of฀a฀metallic฀object฀when฀pressing฀on฀a฀touch฀screen;฀(d) equipment฀that฀has฀the฀serial฀number฀or฀the฀enhancement฀data฀code฀removed,฀defaced,฀damaged,฀altered฀or฀made฀illegible;฀(e) ordinary฀wear฀and฀tear;฀(f) defects฀or฀damage฀resulting฀from฀the฀use฀of฀Product฀in฀conjunction฀or฀connection฀with฀accessories,฀products,฀or฀ancillary/peripheral฀equipment฀not฀furnished฀or฀approved฀by฀SAMSUNG;฀(g) defects฀or฀damage฀resulting฀from฀improper฀testing,฀operation,฀maintenance,฀installation,฀service,฀or฀adjustment฀not฀furnished฀or฀approved฀by฀SAMSUNG;฀(h) defects฀or฀damage฀resulting฀from฀external฀causes฀such฀as฀collision฀with฀an฀object,฀fire,฀flooding,฀dirt,฀windstorm,฀lightning,฀earthquake,฀exposure฀to฀weather฀conditions,฀theft,฀blown฀fuse,฀or฀improper฀use฀of฀any฀electrical฀source;฀(i) defects฀or฀damage฀resulting฀from฀cellular฀signal฀reception฀Phone 1฀YearBatteries 1฀YearCase/Pouch/Holster 90฀DaysOther฀Phone฀Accessories 1฀YearDRAFT FOR INTERNAL USE ONLY
Warranty฀Information฀฀฀฀฀฀฀251or฀transmission,฀or฀viruses฀or฀other฀software฀problems฀introduced฀into฀the฀Product;฀or฀(j) Product฀used฀or฀purchased฀outside฀the฀United฀States.฀This฀Limited฀Warranty฀covers฀batteries฀only฀if฀battery฀capacity฀falls฀below฀80%฀of฀rated฀capacity฀or฀the฀battery฀leaks,฀and฀this฀Limited฀Warranty฀does฀not฀cover฀any฀battery฀if฀(i) the฀battery฀has฀been฀charged฀by฀a฀battery฀charger฀not฀specified฀or฀approved฀by฀SAMSUNG฀for฀charging฀the฀battery;฀(ii) any฀of฀the฀seals฀on฀the฀battery฀are฀broken฀or฀show฀evidence฀of฀tampering;฀or฀(iii) the฀battery฀has฀been฀used฀in฀equipment฀other฀than฀the฀SAMSUNG฀phone฀for฀which฀it฀is฀specified.What are SAMSUNG’s obligations?During฀the฀applicable฀warranty฀period,฀provided฀the฀Product฀is฀returned฀in฀accordance฀with฀the฀terms฀of฀this฀Limited฀Warranty,฀SAMSUNG฀will฀repair฀or฀replace฀the฀Product,฀at฀SAMSUNG’s฀sole฀option,฀without฀charge.฀SAMSUNG฀may,฀at฀SAMSUNG’s฀sole฀option,฀use฀rebuilt,฀reconditioned,฀or฀new฀parts฀or฀components฀when฀repairing฀any฀Product,฀or฀may฀replace฀the฀Product฀with฀a฀rebuilt,฀reconditioned฀or฀new฀Product.฀Repaired/replaced฀cases,฀pouches฀and฀holsters฀will฀be฀warranted฀for฀a฀period฀of฀ninety฀(90)฀days.฀All฀other฀repaired/replaced฀Products฀will฀be฀warranted฀for฀a฀period฀equal฀to฀the฀remainder฀of฀the฀original฀Limited฀Warranty฀on฀the฀original฀Product฀or฀for฀ninety฀(90)฀days,฀whichever฀is฀longer.฀All฀replaced฀Products,฀parts,฀components,฀boards฀and฀equipment฀shall฀become฀the฀property฀of฀SAMSUNG.฀Except฀to฀any฀extent฀expressly฀allowed฀by฀applicable฀law,฀transfer฀or฀assignment฀of฀this฀Limited฀Warranty฀is฀prohibited.What must you do to obtain warranty service?To฀obtain฀service฀under฀this฀Limited฀Warranty,฀you฀must฀return฀the฀Product฀to฀an฀authorized฀phone฀service฀facility฀in฀an฀adequate฀container฀for฀shipping,฀accompanied฀by฀the฀sales฀receipt฀or฀comparable฀proof฀of฀sale฀showing฀the฀original฀date฀of฀purchase,฀the฀serial฀number฀of฀the฀Product฀and฀the฀seller’s฀name฀and฀address.฀To฀obtain฀assistance฀on฀where฀to฀deliver฀the฀Product,฀please฀call฀SAMSUNG฀Customer฀Care฀at฀1-888-987-4357.฀If฀SAMSUNG฀determines฀that฀any฀Product฀is฀not฀covered฀by฀this฀Limited฀Warranty,฀you฀must฀pay฀all฀parts,฀shipping,฀and฀labor฀charges฀for฀the฀repair฀or฀return฀of฀such฀Product.You฀should฀keep฀a฀separate฀backup฀copy฀of฀any฀contents฀of฀the฀Product฀before฀delivering฀the฀Product฀to฀SAMSUNG฀for฀warranty฀service,฀as฀some฀or฀all฀of฀the฀contents฀may฀be฀deleted฀or฀reformatted฀during฀the฀course฀of฀warranty฀service.DRAFT FOR INTERNAL USE ONLY
252What are the limits on SAMSUNG’s liability?THIS฀LIMITED฀WARRANTY฀SETS฀OUT฀THE฀FULL฀EXTENT฀OF฀SAMSUNG’S฀RESPONSIBILITIES,฀AND฀THE฀EXCLUSIVE฀REMEDY฀REGARDING฀THE฀PRODUCTS.฀ALL฀IMPLIED฀WARRANTIES,฀INCLUDING฀WITHOUT฀LIMITATION,฀IMPLIED฀WARRANTIES฀OF฀MERCHANTABILITY฀AND฀FITNESS฀FOR฀A฀PARTICULAR฀PURPOSE,฀ARE฀LIMITED฀TO฀THE฀DURATION฀OF฀THIS฀LIMITED฀WARRANTY.฀IN฀NO฀EVENT฀SHALL฀SAMSUNG฀BE฀LIABLE฀FOR฀DAMAGES฀IN฀EXCESS฀OF฀THE฀PURCHASE฀PRICE฀OF฀THE฀PRODUCT฀OR฀FOR,฀WITHOUT฀LIMITATION,฀COMMERCIAL฀LOSS฀OF฀ANY฀SORT;฀LOSS฀OF฀USE,฀TIME,฀DATA,฀REPUTATION,฀OPPORTUNITY,฀GOODWILL,฀PROFITS฀OR฀SAVINGS;฀INCONVENIENCE;฀INCIDENTAL,฀SPECIAL,฀CONSEQUENTIAL฀OR฀PUNITIVE฀DAMAGES;฀OR฀DAMAGES฀ARISING฀FROM฀THE฀USE฀OR฀INABILITY฀TO฀USE฀THE฀PRODUCT.฀SOME฀STATES฀AND฀JURISDICTIONS฀DO฀NOT฀ALLOW฀LIMITATIONS฀ON฀HOW฀LONG฀AN฀IMPLIED฀WARRANTY฀LASTS,฀OR฀THE฀DISCLAIMER฀OR฀LIMITATION฀OF฀INCIDENTAL฀OR฀CONSEQUENTIAL฀DAMAGES,฀SO฀THE฀ABOVE฀LIMITATIONS฀AND฀DISCLAIMERS฀MAY฀NOT฀APPLY฀TO฀YOU.SAMSUNG฀MAKES฀NO฀WARRANTIES฀OR฀REPRESENTATIONS,฀EXPRESS฀OR฀IMPLIED,฀STATUTORY฀OR฀OTHERWISE,฀AS฀TO฀THE฀QUALITY,฀CAPABILITIES,฀OPERATIONS,฀PERFORMANCE฀OR฀SUITABILITY฀OF฀ANY฀THIRD-PARTY฀SOFTWARE฀OR฀EQUIPMENT฀USED฀IN฀CONJUNCTION฀WITH฀THE฀PRODUCT,฀OR฀THE฀ABILITY฀TO฀INTEGRATE฀ANY฀SUCH฀SOFTWARE฀OR฀EQUIPMENT฀WITH฀THE฀PRODUCT,฀WHETHER฀SUCH฀THIRD-PARTY฀SOFTWARE฀OR฀EQUIPMENT฀IS฀INCLUDED฀WITH฀THE฀PRODUCT฀DISTRIBUTED฀BY฀SAMSUNG฀OR฀OTHERWISE.฀RESPONSIBILITY฀FOR฀THE฀QUALITY,฀CAPABILITIES,฀OPERATIONS,฀PERFORMANCE฀AND฀SUITABILITY฀OF฀ANY฀SUCH฀THIRD-PARTY฀SOFTWARE฀OR฀EQUIPMENT฀RESTS฀SOLELY฀WITH฀THE฀USER฀AND฀THE฀DIRECT฀VENDOR,฀OWNER฀OR฀SUPPLIER฀OF฀SUCH฀THIRD-PARTY฀SOFTWARE฀OR฀EQUIPMENT.Nothing฀in฀the฀Product฀instructions฀or฀information฀shall฀be฀construed฀to฀create฀an฀express฀warranty฀of฀any฀kind฀with฀respect฀to฀the฀Products.฀No฀agent,฀employee,฀dealer,฀representative฀or฀reseller฀is฀authorized฀to฀modify฀or฀extend฀this฀Limited฀Warranty฀or฀to฀make฀binding฀representations฀or฀claims,฀whether฀in฀advertising,฀presentations฀or฀otherwise,฀on฀behalf฀of฀SAMSUNG฀regarding฀the฀Products฀or฀this฀Limited฀Warranty.This฀Limited฀Warranty฀gives฀you฀specific฀legal฀rights,฀and฀you฀may฀also฀have฀other฀rights฀that฀vary฀from฀state฀to฀state.DRAFT FOR INTERNAL USE ONLY
Warranty฀Information฀฀฀฀฀฀฀253What is the procedure for resolving disputes?ALL฀DISPUTES฀WITH฀SAMSUNG฀ARISING฀IN฀ANY฀WAY฀FROM฀THIS฀LIMITED฀WARRANTY฀OR฀THE฀SALE,฀CONDITION฀OR฀PERFORMANCE฀OF฀THE฀PRODUCTS฀SHALL฀BE฀RESOLVED฀EXCLUSIVELY฀THROUGH฀FINAL฀AND฀BINDING฀ARBITRATION,฀AND฀NOT฀BY฀A฀COURT฀OR฀JURY.฀Any฀such฀dispute฀shall฀not฀be฀combined฀or฀consolidated฀with฀a฀dispute฀involving฀any฀other฀person’s฀or฀entity’s฀Product฀or฀claim,฀and฀specifically,฀without฀limitation฀of฀the฀foregoing,฀shall฀not฀under฀any฀circumstances฀proceed฀as฀part฀of฀a฀class฀action.฀The฀arbitration฀shall฀be฀conducted฀before฀a฀single฀arbitrator,฀whose฀award฀may฀not฀exceed,฀in฀form฀or฀amount,฀the฀relief฀allowed฀by฀the฀applicable฀law.฀The฀arbitration฀shall฀be฀conducted฀according฀to฀the฀American฀Arbitration฀Association฀(AAA)฀Commercial฀Arbitration฀Rules฀applicable฀to฀consumer฀disputes.฀This฀arbitration฀provision฀is฀entered฀pursuant฀to฀the฀Federal฀Arbitration฀Act.฀The฀laws฀of฀the฀State฀of฀Texas,฀without฀reference฀to฀its฀choice฀of฀laws฀principles,฀shall฀govern฀the฀interpretation฀of฀the฀Limited฀Warranty฀and฀all฀disputes฀that฀are฀subject฀to฀this฀arbitration฀provision.฀The฀arbitrator฀shall฀decide฀all฀issues฀of฀interpretation฀and฀application฀of฀this฀arbitration฀provision฀and฀the฀Limited฀Warranty.For฀any฀arbitration฀in฀which฀your฀total฀damage฀claims,฀exclusive฀of฀attorney฀fees฀and฀expert฀witness฀fees,฀are฀$5,000.00฀or฀less฀(“Small฀Claim”),฀the฀arbitrator฀may,฀if฀you฀prevail,฀award฀your฀reasonable฀attorney฀fees,฀expert฀witness฀fees฀and฀costs฀as฀part฀of฀any฀award,฀but฀may฀not฀grant฀SAMSUNG฀its฀attorney฀fees,฀expert฀witness฀fees฀or฀costs฀unless฀it฀is฀determined฀that฀the฀claim฀was฀brought฀in฀bad฀faith.฀In฀a฀Small฀Claim฀case,฀you฀shall฀be฀required฀to฀pay฀no฀more฀than฀half฀of฀the฀total฀administrative,฀facility฀and฀arbitrator฀fees,฀or฀$50.00฀of฀such฀fees,฀whichever฀is฀less,฀and฀SAMSUNG฀shall฀pay฀the฀remainder฀of฀such฀fees.฀Administrative,฀facility฀and฀arbitrator฀fees฀for฀arbitrations฀in฀which฀your฀total฀damage฀claims,฀exclusive฀of฀attorney฀fees฀and฀expert฀witness฀fees,฀exceed฀$5,000.00฀(“Large฀Claim”)฀shall฀be฀determined฀according฀to฀AAA฀rules.฀In฀a฀Large฀Claim฀case,฀the฀arbitrator฀may฀grant฀to฀the฀prevailing฀party,฀or฀apportion฀among฀the฀parties,฀reasonable฀attorney฀fees,฀expert฀witness฀fees฀and฀costs.฀Judgment฀may฀be฀entered฀on฀the฀arbitrator’s฀award฀in฀any฀court฀of฀competent฀jurisdiction.This฀arbitration฀provision฀also฀applies฀to฀claims฀against฀SAMSUNG’s฀employees,฀representatives฀and฀affiliates฀if฀any฀such฀claim฀arises฀from฀the฀Product’s฀sale,฀condition฀or฀performance.DRAFT FOR INTERNAL USE ONLY
254You may opt out of this dispute resolution procedure by providing notice to SAMSUNG no later than 30 calendar days from the date of the first consumer purchaser’s purchase of the Product. To opt out, you must send notice by e-mail to optout@sta.samsung.com, with the subject line: “Arbitration Opt Out.” You must include in the opt out e-mail (a) your name and address; (b) the date on which the Product was purchased; (c) the Product model name or model number; and (d) the IMEI or MEID or Serial Number, as applicable, if you have it (the IMEI or MEID or Serial Number can be found (i) on the Product box; (ii) on the Product information screen, which can be found under “Settings;” (iii) on a label on the back of the Product beneath the battery, if the battery is removable; and (iv) on the outside of the Product if the battery is not removable). Alternatively, you may opt out by calling 1-888-987-4357 no later than 30 calendar days from the date of the first consumer purchaser’s purchase of the Product and providing the same information. These are the only two forms of notice that will be effective to opt out of this dispute resolution procedure. Opting out of this dispute resolution procedure will not affect the coverage of the Limited Warranty in any way, and you will continue to enjoy the benefits of the Limited Warranty.SeverabilityIf฀any฀portion฀of฀this฀Limited฀Warranty฀is฀held฀to฀be฀illegal฀or฀unenforceable,฀such฀partial฀illegality฀or฀unenforceability฀shall฀not฀affect฀the฀enforceability฀of฀the฀remainder฀of฀the฀Limited฀Warranty.Precautions for Transfer and DisposalIf฀data฀stored฀on฀this฀device฀is฀deleted฀or฀reformatted฀using฀the฀standard฀methods,฀the฀data฀only฀appears฀to฀be฀removed฀on฀a฀superficial฀level,฀and฀it฀may฀be฀possible฀for฀someone฀to฀retrieve฀and฀reuse฀the฀data฀by฀means฀of฀special฀software.To฀avoid฀unintended฀information฀leaks฀and฀other฀problems฀of฀this฀sort,฀it฀is฀recommended฀that฀the฀device฀be฀returned฀to฀Samsung’s฀Customer฀Care฀Center฀for฀an฀Extended฀File฀System฀(EFS)฀Clear฀which฀will฀eliminate฀all฀user฀memory฀and฀return฀all฀settings฀to฀default฀settings.฀Please฀contact฀the฀Samsung Customer Care Center for฀details.Important! Please฀provide฀warranty฀information฀(proof฀of฀purchase)฀to฀Samsung’s฀Customer฀Care฀Center฀in฀order฀to฀provide฀this฀service฀at฀no฀charge.฀If฀the฀warranty฀has฀expired฀on฀the฀device,฀charges฀may฀apply.DRAFT FOR INTERNAL USE ONLY

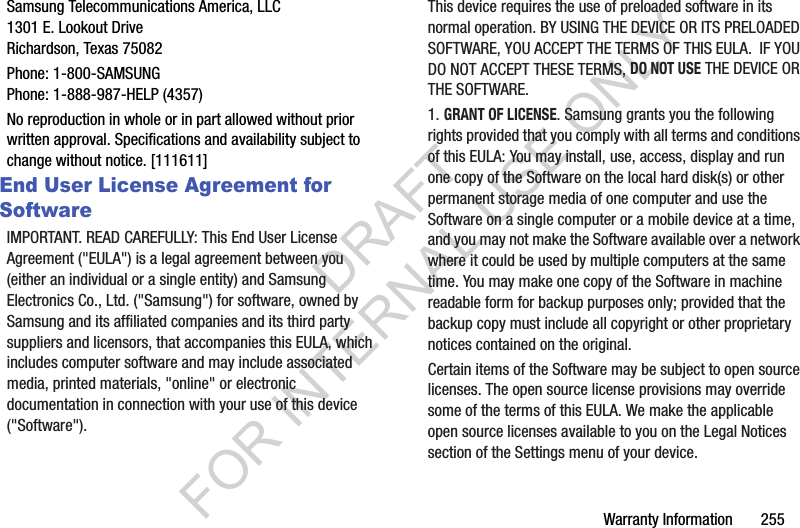

Warranty฀Information฀฀฀฀฀฀฀255Samsung฀Telecommunications฀America,฀LLC1301฀E.฀Lookout฀DriveRichardson,฀Texas฀75082Phone:฀1-800-SAMSUNGPhone:฀1-888-987-HELP฀(4357)No฀reproduction฀in฀whole฀or฀in฀part฀allowed฀without฀prior฀written฀approval.฀Specifications฀and฀availability฀subject฀to฀change฀without฀notice.฀[111611]End User License Agreement for SoftwareIMPORTANT.฀READ฀CAREFULLY:฀This฀End฀User฀License฀Agreement฀("EULA")฀is฀a฀legal฀agreement฀between฀you฀(either฀an฀individual฀or฀a฀single฀entity)฀and฀Samsung฀Electronics฀Co.,฀Ltd.฀("Samsung")฀for฀software,฀owned฀by฀Samsung฀and฀its฀affiliated฀companies฀and฀its฀third฀party฀suppliers฀and฀licensors,฀that฀accompanies฀this฀EULA,฀which฀includes฀computer฀software฀and฀may฀include฀associated฀media,฀printed฀materials,฀"online"฀or฀electronic฀documentation฀in฀connection฀with฀your฀use฀of฀this฀device฀("Software").This฀device฀requires฀the฀use฀of฀preloaded฀software฀in฀its฀normal฀operation.฀BY฀USING฀THE฀DEVICE฀OR฀ITS฀PRELOADED฀SOFTWARE,฀YOU฀ACCEPT฀THE฀TERMS฀OF฀THIS฀EULA.฀฀IF฀YOU฀DO฀NOT฀ACCEPT฀THESE฀TERMS,฀DO NOT USE฀THE฀DEVICE฀OR฀THE฀SOFTWARE.1.฀GRANT OF LICENSE.฀Samsung฀grants฀you฀the฀following฀rights฀provided฀that฀you฀comply฀with฀all฀terms฀and฀conditions฀of฀this฀EULA:฀You฀may฀install,฀use,฀access,฀display฀and฀run฀one฀copy฀of฀the฀Software฀on฀the฀local฀hard฀disk(s)฀or฀other฀permanent฀storage฀media฀of฀one฀computer฀and฀use฀the฀Software฀on฀a฀single฀computer฀or฀a฀mobile฀device฀at฀a฀time,฀and฀you฀may฀not฀make฀the฀Software฀available฀over฀a฀network฀where฀it฀could฀be฀used฀by฀multiple฀computers฀at฀the฀same฀time.฀You฀may฀make฀one฀copy฀of฀the฀Software฀in฀machine฀readable฀form฀for฀backup฀purposes฀only;฀provided฀that฀the฀backup฀copy฀must฀include฀all฀copyright฀or฀other฀proprietary฀notices฀contained฀on฀the฀original.Certain฀items฀of฀the฀Software฀may฀be฀subject฀to฀open฀source฀licenses.฀The฀open฀source฀license฀provisions฀may฀override฀some฀of฀the฀terms฀of฀this฀EULA.฀We฀make฀the฀applicable฀open฀source฀licenses฀available฀to฀you฀on฀the฀Legal฀Notices฀section฀of฀the฀Settings฀menu฀of฀your฀device.DRAFT FOR INTERNAL USE ONLY

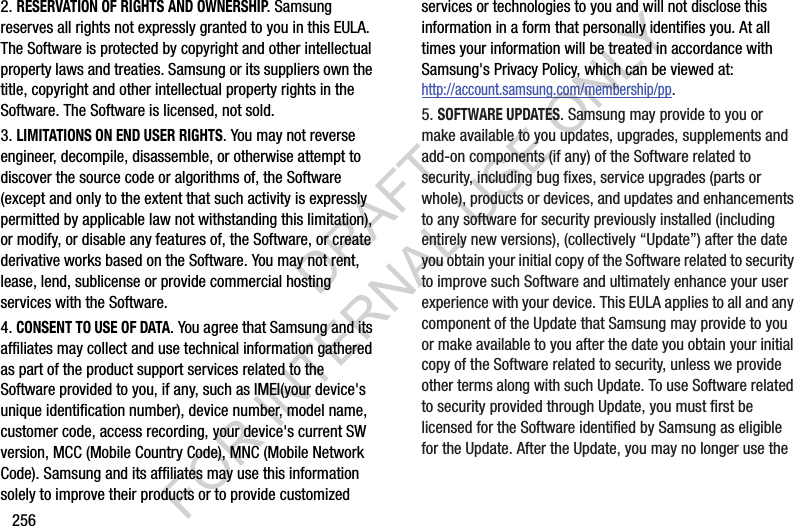

2562.฀RESERVATION OF RIGHTS AND OWNERSHIP.฀Samsung฀reserves฀all฀rights฀not฀expressly฀granted฀to฀you฀in฀this฀EULA.฀The฀Software฀is฀protected฀by฀copyright฀and฀other฀intellectual฀property฀laws฀and฀treaties.฀Samsung฀or฀its฀suppliers฀own฀the฀title,฀copyright฀and฀other฀intellectual฀property฀rights฀in฀the฀Software.฀The฀Software฀is฀licensed,฀not฀sold.3.฀LIMITATIONS ON END USER RIGHTS.฀You฀may฀not฀reverse฀engineer,฀decompile,฀disassemble,฀or฀otherwise฀attempt฀to฀discover฀the฀source฀code฀or฀algorithms฀of,฀the฀Software฀(except฀and฀only฀to฀the฀extent฀that฀such฀activity฀is฀expressly฀permitted฀by฀applicable฀law฀not฀withstanding฀this฀limitation),฀or฀modify,฀or฀disable฀any฀features฀of,฀the฀Software,฀or฀create฀derivative฀works฀based฀on฀the฀Software.฀You฀may฀not฀rent,฀lease,฀lend,฀sublicense฀or฀provide฀commercial฀hosting฀services฀with฀the฀Software.4.฀CONSENT TO USE OF DATA.฀You฀agree฀that฀Samsung฀and฀its฀affiliates฀may฀collect฀and฀use฀technical฀information฀gathered฀as฀part฀of฀the฀product฀support฀services฀related฀to฀the฀Software฀provided฀to฀you,฀if฀any,฀such฀as฀IMEI(your฀device's฀unique฀identification฀number),฀device฀number,฀model฀name,฀customer฀code,฀access฀recording,฀your฀device's฀current฀SW฀version,฀MCC฀(Mobile฀Country฀Code),฀MNC฀(Mobile฀Network฀Code).฀Samsung฀and฀its฀affiliates฀may฀use฀this฀information฀solely฀to฀improve฀their฀products฀or฀to฀provide฀customized฀services฀or฀technologies฀to฀you฀and฀will฀not฀disclose฀this฀information฀in฀a฀form฀that฀personally฀identifies฀you.฀At฀all฀times฀your฀information฀will฀be฀treated฀in฀accordance฀with฀Samsung's฀Privacy฀Policy,฀which฀can฀be฀viewed฀at:฀http://account.samsung.com/membership/pp.5.฀SOFTWARE UPDATES.฀Samsung฀may฀provide฀to฀you฀or฀make฀available฀to฀you฀updates,฀upgrades,฀supplements฀and฀add-on฀components฀(if฀any)฀of฀the฀Software฀related฀to฀security,฀including฀bug฀fixes,฀service฀upgrades฀(parts฀or฀whole),฀products฀or฀devices,฀and฀updates฀and฀enhancements฀to฀any฀software฀for฀security฀previously฀installed฀(including฀entirely฀new฀versions),฀(collectively฀“Update”)฀after฀the฀date฀you฀obtain฀your฀initial฀copy฀of฀the฀Software฀related฀to฀security฀to฀improve฀such฀Software฀and฀ultimately฀enhance฀your฀user฀experience฀with฀your฀device.฀This฀EULA฀applies฀to฀all฀and฀any฀component฀of฀the฀Update฀that฀Samsung฀may฀provide฀to฀you฀or฀make฀available฀to฀you฀after฀the฀date฀you฀obtain฀your฀initial฀copy฀of฀the฀Software฀related฀to฀security,฀unless฀we฀provide฀other฀terms฀along฀with฀such฀Update.฀To฀use฀Software฀related฀to฀security฀provided฀through฀Update,฀you฀must฀first฀be฀licensed฀for฀the฀Software฀identified฀by฀Samsung฀as฀eligible฀for฀the฀Update.฀After฀the฀Update,฀you฀may฀no฀longer฀use฀the฀DRAFT FOR INTERNAL USE ONLY
Warranty฀Information฀฀฀฀฀฀฀257Software฀that฀formed฀the฀basis฀for฀your฀Update฀eligibility.฀The฀updated฀Software฀version฀may฀add฀new฀functions฀and,฀in฀some฀limited฀cases,฀may฀delete฀existing฀functions.While฀the฀Update฀will฀be฀generally฀available,฀in฀some฀limited฀circumstances,฀the฀Software฀updates฀will฀only฀be฀offered฀by฀your฀network฀carrier,฀and฀such฀Software฀updates฀will฀be฀governed฀by฀your฀contractual฀relationship฀with฀your฀network฀carrier.With฀the฀“Automatic฀Update”฀function฀enabled฀(as฀in฀the฀default฀setting฀in฀the฀Security฀menu฀in฀the฀Setting),฀your฀device฀downloads฀some฀Updates฀automatically฀from฀time฀to฀time.฀Given฀the฀importance฀of฀receiving฀Updates฀for฀security฀software฀in฀a฀timely฀manner฀to฀defend฀against฀new฀threats,฀such฀Update฀may฀be฀automatically฀downloaded฀and฀installed.฀We฀recommend฀that฀you฀check฀availability฀of฀any฀new฀Updates฀periodically฀for฀optimal฀use฀of฀your฀device.฀If฀you฀want฀to฀avoid฀any฀use฀of฀network฀data฀for฀the฀Update฀downloads,฀then฀you฀should฀choose฀the฀“Wi-Fi฀Only”฀option฀in฀the฀Setting.6.฀Some฀features฀of฀the฀Software฀may฀require฀your฀device฀to฀have฀access฀to฀the฀internet฀and฀may฀be฀subject฀to฀restrictions฀imposed฀by฀your฀network฀or฀internet฀provider.฀฀Unless฀your฀device฀is฀connected฀to฀the฀internet฀through฀Wi-Fi฀connection,฀the฀Software฀will฀access฀through฀your฀mobile฀network,฀which฀may฀result฀in฀additional฀charges฀depending฀on฀your฀payment฀plan.฀In฀addition,฀your฀enjoyment฀of฀some฀features฀of฀the฀Software฀may฀be฀affected฀by฀the฀suitability฀and฀performance฀of฀your฀device฀hardware฀or฀data฀access.7.฀SOFTWARE TRANSFER.฀You฀may฀not฀transfer฀this฀EULA฀or฀the฀rights฀to฀the฀Software฀granted฀herein฀to฀any฀third฀party฀unless฀it฀is฀in฀connection฀with฀the฀sale฀of฀the฀mobile฀device฀which฀the฀Software฀accompanied.฀In฀such฀event,฀the฀transfer฀must฀include฀all฀of฀the฀Software฀(including฀all฀component฀parts,฀the฀media฀and฀printed฀materials,฀any฀upgrades,฀this฀EULA)฀and฀you฀may฀not฀retain฀any฀copies฀of฀the฀Software.฀The฀transfer฀may฀not฀be฀an฀indirect฀transfer,฀such฀as฀a฀consignment.฀Prior฀to฀the฀transfer,฀the฀end฀user฀receiving฀the฀Software฀must฀agree฀to฀all฀the฀EULA฀terms.8.฀EXPORT RESTRICTIONS.฀You฀acknowledge฀that฀the฀Software฀is฀subject฀to฀export฀restrictions฀of฀various฀countries.฀You฀agree฀to฀comply฀with฀all฀applicable฀international฀and฀national฀laws฀that฀apply฀to฀the฀Software,฀including฀all฀the฀applicable฀export฀restriction฀laws฀and฀regulations.9.฀TERMINATION.฀This฀EULA฀is฀effective฀until฀terminated.฀Your฀rights฀under฀this฀License฀will฀terminate฀automatically฀without฀notice฀from฀Samsung฀if฀you฀fail฀to฀comply฀with฀any฀of฀the฀DRAFT FOR INTERNAL USE ONLY

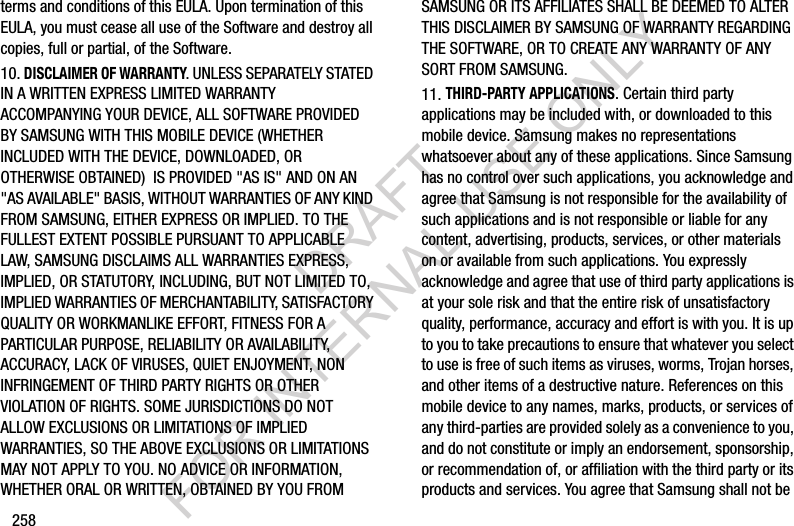

258terms฀and฀conditions฀of฀this฀EULA.฀Upon฀termination฀of฀this฀EULA,฀you฀must฀cease฀all฀use฀of฀the฀Software฀and฀destroy฀all฀copies,฀full฀or฀partial,฀of฀the฀Software.10.฀DISCLAIMER OF WARRANTY.฀UNLESS฀SEPARATELY฀STATED฀IN฀A฀WRITTEN฀EXPRESS฀LIMITED฀WARRANTY฀ACCOMPANYING฀YOUR฀DEVICE,฀ALL฀SOFTWARE฀PROVIDED฀BY฀SAMSUNG฀WITH฀THIS฀MOBILE฀DEVICE฀(WHETHER฀INCLUDED฀WITH฀THE฀DEVICE,฀DOWNLOADED,฀OR฀OTHERWISE฀OBTAINED)฀฀IS฀PROVIDED฀"AS฀IS"฀AND฀ON฀AN฀"AS฀AVAILABLE"฀BASIS,฀WITHOUT฀WARRANTIES฀OF฀ANY฀KIND฀FROM฀SAMSUNG,฀EITHER฀EXPRESS฀OR฀IMPLIED.฀TO฀THE฀FULLEST฀EXTENT฀POSSIBLE฀PURSUANT฀TO฀APPLICABLE฀LAW,฀SAMSUNG฀DISCLAIMS฀ALL฀WARRANTIES฀EXPRESS,฀IMPLIED,฀OR฀STATUTORY,฀INCLUDING,฀BUT฀NOT฀LIMITED฀TO,฀IMPLIED฀WARRANTIES฀OF฀MERCHANTABILITY,฀SATISFACTORY฀QUALITY฀OR฀WORKMANLIKE฀EFFORT,฀FITNESS฀FOR฀A฀PARTICULAR฀PURPOSE,฀RELIABILITY฀OR฀AVAILABILITY,฀ACCURACY,฀LACK฀OF฀VIRUSES,฀QUIET฀ENJOYMENT,฀NON฀INFRINGEMENT฀OF฀THIRD฀PARTY฀RIGHTS฀OR฀OTHER฀VIOLATION฀OF฀RIGHTS.฀SOME฀JURISDICTIONS฀DO฀NOT฀ALLOW฀EXCLUSIONS฀OR฀LIMITATIONS฀OF฀IMPLIED฀WARRANTIES,฀SO฀THE฀ABOVE฀EXCLUSIONS฀OR฀LIMITATIONS฀MAY฀NOT฀APPLY฀TO฀YOU.฀NO฀ADVICE฀OR฀INFORMATION,฀WHETHER฀ORAL฀OR฀WRITTEN,฀OBTAINED฀BY฀YOU฀FROM฀SAMSUNG฀OR฀ITS฀AFFILIATES฀SHALL฀BE฀DEEMED฀TO฀ALTER฀THIS฀DISCLAIMER฀BY฀SAMSUNG฀OF฀WARRANTY฀REGARDING฀THE฀SOFTWARE,฀OR฀TO฀CREATE฀ANY฀WARRANTY฀OF฀ANY฀SORT฀FROM฀SAMSUNG.11.฀THIRD-PARTY APPLICATIONS.฀Certain฀third฀party฀applications฀may฀be฀included฀with,฀or฀downloaded฀to฀this฀mobile฀device.฀Samsung฀makes฀no฀representations฀whatsoever฀about฀any฀of฀these฀applications.฀Since฀Samsung฀has฀no฀control฀over฀such฀applications,฀you฀acknowledge฀and฀agree฀that฀Samsung฀is฀not฀responsible฀for฀the฀availability฀of฀such฀applications฀and฀is฀not฀responsible฀or฀liable฀for฀any฀content,฀advertising,฀products,฀services,฀or฀other฀materials฀on฀or฀available฀from฀such฀applications.฀You฀expressly฀acknowledge฀and฀agree฀that฀use฀of฀third฀party฀applications฀is฀at฀your฀sole฀risk฀and฀that฀the฀entire฀risk฀of฀unsatisfactory฀quality,฀performance,฀accuracy฀and฀effort฀is฀with฀you.฀It฀is฀up฀to฀you฀to฀take฀precautions฀to฀ensure฀that฀whatever฀you฀select฀to฀use฀is฀free฀of฀such฀items฀as฀viruses,฀worms,฀Trojan฀horses,฀and฀other฀items฀of฀a฀destructive฀nature.฀References฀on฀this฀mobile฀device฀to฀any฀names,฀marks,฀products,฀or฀services฀of฀any฀third-parties฀are฀provided฀solely฀as฀a฀convenience฀to฀you,฀and฀do฀not฀constitute฀or฀imply฀an฀endorsement,฀sponsorship,฀or฀recommendation฀of,฀or฀affiliation฀with฀the฀third฀party฀or฀its฀products฀and฀services.฀You฀agree฀that฀Samsung฀shall฀not฀be฀DRAFT FOR INTERNAL USE ONLY
Warranty฀Information฀฀฀฀฀฀฀259responsible฀or฀liable,฀directly฀or฀indirectly,฀for฀any฀damage฀or฀loss,฀including฀but฀not฀limited฀to฀any฀damage฀to฀the฀mobile฀device฀or฀loss฀of฀data,฀caused฀or฀alleged฀to฀be฀caused฀by,฀or฀in฀connection฀with,฀use฀of฀or฀reliance฀on฀any฀such฀third฀party฀content,฀products,฀or฀services฀available฀on฀or฀through฀any฀such฀application.฀You฀acknowledge฀and฀agree฀that฀the฀use฀of฀any฀third-party฀application฀is฀governed฀by฀such฀third฀party฀application฀provider's฀Terms฀of฀Use,฀License฀Agreement,฀Privacy฀Policy,฀or฀other฀such฀agreement฀and฀that฀any฀information฀or฀personal฀data฀you฀provide,฀whether฀knowingly฀or฀unknowingly,฀to฀such฀third-party฀application฀provider,฀will฀be฀subject฀to฀such฀third฀party฀application฀provider's฀privacy฀policy,฀if฀such฀a฀policy฀exists.฀SAMSUNG฀DISCLAIMS฀ANY฀RESPONSIBILITY฀FOR฀ANY฀DISCLOSURE฀OF฀INFORMATION฀OR฀ANY฀OTHER฀PRACTICES฀OF฀ANY฀THIRD฀PARTY฀APPLICATION฀PROVIDER.฀SAMSUNG฀EXPRESSLY฀DISCLAIMS฀ANY฀WARRANTY฀REGARDING฀WHETHER฀YOUR฀PERSONAL฀INFORMATION฀IS฀CAPTURED฀BY฀ANY฀THIRD฀PARTY฀APPLICATION฀PROVIDER฀OR฀THE฀USE฀TO฀WHICH฀SUCH฀PERSONAL฀INFORMATION฀MAY฀BE฀PUT฀BY฀SUCH฀THIRD฀PARTY฀APPLICATION฀PROVIDER.12.฀SAMSUNG APPLICATIONS.฀Certain฀Samsung฀applications฀and฀services฀may฀be฀included฀with,฀or฀downloaded฀to,฀this฀mobile฀device.฀Many฀of฀them฀require฀Samsung฀Services฀membership฀registration฀("Samsung฀Account"),฀and฀your฀rights฀and฀obligations฀will฀be฀set฀forth฀in฀separate฀Samsung฀Account฀terms฀and฀conditions฀and฀privacy฀policies.฀There฀are฀non-Samsung฀Account฀applications฀and฀services฀that฀require฀your฀consent฀to฀their฀separate฀terms฀and฀conditions฀and฀privacy฀policies.฀You฀expressly฀acknowledge฀and฀agree฀that฀your฀use฀of฀such฀applications฀and฀services฀will฀be฀subject฀to฀the฀applicable฀terms฀and฀conditions฀and฀privacy฀policies.13.฀LIMITATION OF LIABILITY.฀SAMSUNG฀WILL฀NOT฀BE฀LIABLE฀FOR฀ANY฀DAMAGES฀OF฀ANY฀KIND฀ARISING฀OUT฀OF฀OR฀RELATING฀TO฀THE฀USE฀OR฀THE฀INABILITY฀TO฀USE฀THE฀SOFTWARE฀OR฀ANY฀THIRD฀PARTY฀APPLICATION,฀ITS฀CONTENT฀OR฀FUNCTIONALITY,฀INCLUDING฀BUT฀NOT฀LIMITED฀TO฀DAMAGES฀CAUSED฀BY฀OR฀RELATED฀TO฀ERRORS,฀OMISSIONS,฀INTERRUPTIONS,฀DEFECTS,฀DELAY฀IN฀OPERATION฀OR฀TRANSMISSION,฀COMPUTER฀VIRUS,฀FAILURE฀TO฀CONNECT,฀NETWORK฀CHARGES,฀IN-APP฀PURCHASES,฀AND฀ALL฀OTHER฀DIRECT,฀INDIRECT,฀SPECIAL,฀INCIDENTAL,฀EXEMPLARY,฀OR฀CONSEQUENTIAL฀DAMAGES฀EVEN฀IF฀SAMSUNG฀HAS฀BEEN฀ADVISED฀OF฀THE฀POSSIBILITY฀OF฀SUCH฀DAMAGES.฀SOME฀JURISDICTIONS฀DO฀NOT฀ALLOW฀THE฀EXCLUSION฀OR฀LIMITATION฀OF฀INCIDENTAL฀OR฀CONSEQUENTIAL฀DAMAGES,฀SO฀THE฀ABOVE฀EXCLUSIONS฀OR฀LIMITATIONS฀MAY฀NOT฀APPLY฀TO฀YOU.฀NOTWITHSTANDING฀DRAFT FOR INTERNAL USE ONLY
260THE฀FOREGOING,฀SAMSUNG฀ELECTRONIC฀CO.'S฀TOTAL฀LIABILITY฀TO฀YOU฀FOR฀ALL฀LOSSES,฀DAMAGES,฀CAUSES฀OF฀ACTION,฀INCLUDING฀BUT฀NOT฀LIMITED฀TO฀THOSE฀BASED฀ON฀CONTRACT,฀TORT,฀OR฀OTHERWISE,฀ARISING฀OUT฀OF฀YOUR฀USE฀OF฀THE฀SOFTWARE฀OR฀THIRD฀PARTY฀APPLICATIONS฀ON฀THIS฀MOBILE฀DEVICE,฀OR฀ANY฀OTHER฀PROVISION฀OF฀THIS฀EULA,฀SHALL฀NOT฀EXCEED฀THE฀AMOUNT฀PURCHASER฀PAID฀SPECIFICALLY฀FOR฀THIS฀MOBILE฀DEVICE฀OR฀ANY฀SUCH฀THIRD฀PARTY฀APPLICATION฀THAT฀WAS฀INCLUDED฀WITH฀THIS฀MOBILE฀DEVICE.฀THE฀FOREGOING฀LIMITATIONS,฀EXCLUSIONS,฀AND฀DISCLAIMERS฀(INCLUDING฀SECTIONS฀10,฀11,฀12฀AND฀13)฀SHALL฀APPLY฀TO฀THE฀MAXIMUM฀EXTENT฀PERMITTED฀BY฀APPLICABLE฀LAW,฀EVEN฀IF฀ANY฀REMEDY฀FAILS฀ITS฀ESSENTIAL฀PURPOSE.14.฀U.S. GOVERNMENT END USERS RESTRICTED RIGHTS.฀The฀Software฀is฀licensed฀only฀with฀"restricted฀rights"฀and฀as฀"commercial฀items"฀consisting฀of฀"commercial฀software"฀and฀"commercial฀software฀documentation"฀with฀only฀those฀rights฀as฀are฀granted฀to฀all฀other฀end฀users฀pursuant฀to฀the฀terms฀and฀conditions฀herein.฀All฀Products฀are฀provided฀only฀with฀"restricted฀rights"฀with฀only฀those฀rights฀as฀are฀granted฀to฀all฀other฀end฀users฀pursuant฀to฀the฀terms฀and฀conditions฀herein.฀All฀Software฀and฀Products฀are฀provided฀subject฀to฀Federal฀Acquisition฀Regulation฀(FAR)฀52.227.19.15.฀APPLICABLE LAW.฀This฀EULA฀is฀governed฀by฀the฀laws฀of฀the฀jurisdiction฀where฀you฀are฀a฀resident฀or,฀if฀a฀resident฀of฀the฀United฀States,฀by฀the฀laws฀of฀the฀state฀of฀Texas,฀without฀regard฀to฀its฀conflict฀of฀law฀provisions.฀This฀EULA฀shall฀not฀be฀governed฀by฀the฀UN฀Convention฀on฀Contracts฀for฀the฀International฀Sale฀of฀Goods,฀the฀application฀of฀which฀is฀expressly฀excluded.16.฀฀DISPUTE RESOLUTION.฀฀(a)฀Non-United฀States฀residents.฀If฀a฀dispute,฀controversy฀or฀difference฀arising฀in฀any฀way฀from฀this฀EULA฀or฀your฀use฀of฀the฀Software฀is฀not฀amicably฀settled,฀it฀shall฀be฀subject฀to฀the฀non-exclusive฀jurisdiction฀of฀the฀courts฀of฀the฀jurisdiction฀where฀you฀are฀a฀resident.฀Notwithstanding฀the฀foregoing,฀Samsung฀may฀apply฀for฀injunctive฀remedies฀(or฀an฀equivalent฀type฀of฀urgent฀legal฀relief)฀in฀any฀jurisdiction.(b)฀United฀States฀residents.฀ALL฀DISPUTES฀WITH฀SAMSUNG฀ARISING฀IN฀ANY฀WAY฀FROM฀THIS฀EULA฀OR฀YOUR฀USE฀OF฀THE฀SOFTWARE฀SHALL฀BE฀RESOLVED฀EXCLUSIVELY฀THROUGH฀FINAL฀AND฀BINDING฀ARBITRATION,฀AND฀NOT฀BY฀A฀COURT฀OR฀JURY.฀฀Any฀such฀dispute฀shall฀not฀be฀combined฀or฀consolidated฀with฀any฀other฀person's฀or฀entity's฀claim฀or฀dispute,฀and฀specifically,฀without฀limitation฀of฀the฀foregoing,฀shall฀not฀under฀any฀circumstances฀proceed฀as฀part฀of฀a฀class฀DRAFT FOR INTERNAL USE ONLY
Warranty฀Information฀฀฀฀฀฀฀261action.฀The฀arbitration฀shall฀be฀conducted฀before฀a฀single฀arbitrator,฀whose฀award฀may฀not฀exceed,฀in฀form฀or฀amount,฀the฀relief฀allowed฀by฀the฀applicable฀law.฀The฀arbitration฀shall฀be฀conducted฀according฀to฀the฀American฀Arbitration฀Association฀(AAA)฀Commercial฀Arbitration฀Rules฀applicable฀to฀consumer฀disputes.฀This฀arbitration฀provision฀is฀entered฀pursuant฀to฀the฀Federal฀Arbitration฀Act.฀The฀laws฀of฀the฀State฀of฀Texas,฀without฀reference฀to฀its฀choice฀of฀laws฀principles,฀shall฀govern฀the฀interpretation฀of฀the฀EULA฀and฀all฀disputes฀that฀are฀subject฀to฀this฀arbitration฀provision.฀The฀arbitrator฀shall฀decide฀all฀issues฀of฀interpretation฀and฀application฀of฀this฀arbitration฀provision฀and฀the฀EULA.฀For฀any฀arbitration฀in฀which฀your฀total฀damage฀claims,฀exclusive฀of฀attorney฀fees฀and฀expert฀witness฀fees,฀are฀$5,000.00฀or฀less฀("Small฀Claim"),฀the฀arbitrator฀may,฀if฀you฀prevail,฀award฀your฀reasonable฀attorney฀fees,฀expert฀witness฀fees฀and฀costs฀as฀part฀of฀any฀award,฀but฀may฀not฀grant฀Samsung฀its฀attorney฀fees,฀expert฀witness฀fees฀or฀costs฀unless฀it฀is฀determined฀that฀the฀claim฀was฀brought฀in฀bad฀faith.฀In฀a฀Small฀Claim฀case,฀you฀shall฀be฀required฀to฀pay฀no฀more฀than฀half฀of฀the฀total฀administrative,฀facility฀and฀arbitrator฀fees,฀or฀$50.00฀of฀such฀fees,฀whichever฀is฀less,฀and฀Samsung฀shall฀pay฀the฀remainder฀of฀such฀fees.฀Administrative,฀facility฀and฀arbitrator฀fees฀for฀arbitrations฀in฀which฀your฀total฀damage฀claims,฀exclusive฀of฀attorney฀fees฀and฀expert฀witness฀fees,฀exceed฀$5,000.00฀("Large฀Claim")฀shall฀be฀determined฀according฀to฀AAA฀rules.฀In฀a฀Large฀Claim฀case,฀the฀arbitrator฀may฀grant฀to฀the฀prevailing฀party,฀or฀apportion฀among฀the฀parties,฀reasonable฀attorney฀fees,฀expert฀witness฀fees฀and฀costs.฀Judgment฀may฀be฀entered฀on฀the฀arbitrator's฀award฀in฀any฀court฀of฀competent฀jurisdiction.฀This฀arbitration฀provision฀also฀applies฀to฀claims฀against฀Samsung's฀employees,฀representatives฀and฀affiliates฀if฀any฀such฀claim฀arises฀from฀the฀licensing฀or฀use฀of฀the฀Software.฀You฀may฀opt฀out฀of฀this฀dispute฀resolution฀procedure฀by฀providing฀notice฀to฀Samsung฀no฀later฀than฀30฀calendar฀days฀from฀the฀date฀of฀the฀first฀consumer฀purchaser's฀purchase฀of฀this฀device.฀To฀opt฀out,฀you฀must฀send฀notice฀by฀e-mail฀to฀optout@sta.samsung.com,฀with฀the฀subject฀line:฀"Arbitration฀Opt฀Out."฀You฀must฀include฀in฀the฀opt฀out฀e-mail฀(a)฀your฀name฀and฀address;฀(b)฀the฀date฀on฀which฀the฀device฀was฀purchased;฀(c)฀the฀device฀model฀name฀or฀model฀number;฀and฀(d)฀the฀IMEI฀or฀MEID฀or฀Serial฀Number,฀as฀applicable,฀if฀you฀have฀it฀(the฀IMEI฀or฀MEID฀or฀Serial฀Number฀can฀be฀found฀(i)฀on฀the฀device฀box;฀(ii)฀on฀the฀device฀information฀screen,฀which฀can฀be฀found฀under฀"Settings;"฀(iii)฀on฀a฀label฀on฀the฀back฀of฀the฀device฀beneath฀the฀battery,฀if฀the฀battery฀is฀removable;฀and฀(iv)฀on฀the฀outside฀of฀the฀device฀if฀the฀battery฀is฀not฀DRAFT FOR INTERNAL USE ONLY
262removable).฀Alternatively,฀you฀may฀opt฀out฀by฀calling฀1-888-987-4357฀no฀later฀than฀30฀calendar฀days฀from฀the฀date฀of฀the฀first฀consumer฀purchaser's฀purchase฀of฀the฀device฀and฀providing฀the฀same฀information.฀These฀are฀the฀only฀two฀forms฀of฀notice฀that฀will฀be฀effective฀to฀opt฀out฀of฀this฀dispute฀resolution฀procedure.฀Opting฀out฀of฀this฀dispute฀resolution฀procedure฀will฀not฀affect฀your฀use฀of฀the฀device฀or฀its฀preloaded฀Software,฀and฀you฀will฀continue฀to฀enjoy฀the฀benefits฀of฀this฀license.17.฀ENTIRE AGREEMENT; SEVERABILITY.฀This฀EULA฀is฀the฀entire฀agreement฀between฀you฀and฀Samsung฀relating฀to฀the฀Software฀and฀supersedes฀all฀prior฀or฀contemporaneous฀oral฀or฀written฀communications,฀proposals฀and฀representations฀with฀respect฀to฀the฀Software฀or฀any฀other฀subject฀matter฀covered฀by฀this฀EULA.฀If฀any฀provision฀of฀this฀EULA฀is฀held฀to฀be฀void,฀invalid,฀unenforceable฀or฀illegal,฀the฀other฀provisions฀shall฀continue฀in฀full฀force฀and฀effect.฀[090413]DRAFT FOR INTERNAL USE ONLY
฀฀฀฀฀฀฀263IndexAAcces to My Location฀145Accessibility settingsservices฀219Accountsadding฀a฀Google฀account฀43Google฀11Samsung฀11setting฀up฀43Action MemoCreating฀a฀New฀Memo฀86Adobe PDF฀95Airplane mode฀171AlarmDeleting฀an฀Existing฀Alarm฀140Setting฀139AllShare Cast HubActivation฀on฀Device฀144Connecting฀143Set฀Up฀Hardware฀143AllShare Playsee฀Samsung฀Link฀102,฀103AllShareCast Hub฀102Application cache and dataClearing฀154Applications฀39Bloomberg+฀88Calculator฀88Email฀142Google฀Maps฀145Internet฀92KNOX฀92Messages฀146Using฀the฀Camcorder฀128Using฀the฀Camera฀119Video฀155Voice฀Recorder฀107YouTube฀157Appsinstalling฀80uninstalling฀80BBatterycharging฀10cover,฀removing฀&฀installing฀7indicator฀9installing฀9removing฀9Battery Use & Safety฀235Bloomberg+฀88Bluetoothpairing฀with฀a฀device฀163profiles฀174settings฀175turning฀on฀or฀off฀163Burst Shots฀120CCalculatorScientific฀Functions฀88CalendarCreating฀An฀Event฀116Handwriting฀Mode฀116Settings฀117DRAFT FOR INTERNAL USE ONLY
264Call logcreating/updating฀contacts฀61managing฀61sending฀messages฀61Callsanswering฀59call-waiting฀59ending฀60from฀Call฀log฀58from฀Contacts฀57from฀Favorites฀58in-call฀options฀60recent฀60rejecting฀59sending฀to฀voicemail฀59settings฀62silencing฀a฀ringer฀59three-way฀58using฀the฀Keypad฀56Camcorder฀128Accessing฀the฀Video฀Folder฀129Settings฀124Shooting฀Video฀128CameraCamera฀Options฀120Enabling฀Share฀Shot฀131Quick฀Settings฀122Settings฀124Taking฀Pictures฀119Care and Maintenance฀240ChatONBuddy฀photo฀share฀127Children and Cell Phones฀230ClearingApplication฀cache฀and฀data฀154Commercial Mobile Alerting System (CMAS)฀233Connecting to Video Devices฀169ConnectionsAccessing฀the฀Internet฀92ContactPhoto฀136Contactsbacking฀up฀51Backup฀Assistant฀51creating฀45creating฀from฀Call฀log฀46creating฀from฀the฀Keypad฀46exporting฀and฀importing฀50groups฀52joining฀49My฀Profile฀48namecards฀50speed฀dials฀54starred฀contacts฀52updating฀46updating฀from฀Call฀log฀47,฀61updating฀from฀Keypad฀46Creating a Playlist฀149DDefault StorageAssigning฀118Camcorder฀118Camera฀118DeregisterWeb฀Storage฀104Desk Clock฀139Display / Touch-Screen฀238DRAFT FOR INTERNAL USE ONLY
฀฀฀฀฀฀฀265Display settingsbrightness฀189font฀style฀and฀size฀190screen฀timeout฀189Do cell phones pose a health hazard?฀226DownloadingNew฀application฀152Downloads฀89Dropbox฀104Dual Camera฀123Relocate฀123Resize฀123Dual Viewsee฀Dual฀Camera฀123EEditing a Picture฀137Emailaccount฀settings฀75combined฀Inbox฀75composing฀and฀sending฀76configuring฀accounts฀74refreshing฀your฀accounts฀75Emergency Calls฀239Entering TextGoogle฀voice฀typing฀41Samsung฀keyboard฀40Exposure to Radio Frequency (RF) Signals฀226FFCC Hearing Aid Compatibility (HAC) Regulations for Wireless Devices฀245FCC Notice and Cautions฀247Flipboard฀89GGalleryFolder฀Options฀134Opening฀142Picture-In-Picture฀156Gmailcomposing฀and฀sending฀77configuring฀your฀account฀77managing฀your฀account฀77refreshing฀your฀account฀77GoogleGmail฀77Hangouts฀79location฀services฀setting฀196managing฀an฀account฀44setting฀up฀an฀account฀43Settings฀83your฀account฀11Google MapsEnabling฀a฀location฀source฀145Opening฀a฀map฀146Google Now฀86Google Settings฀83GPS฀239GroupJoining฀90Group Play฀89Creating฀a฀Group฀90Joining฀a฀Group฀90Share฀Music฀92,฀148Share฀Pictures฀126Sharing฀Pictures฀90Spanning฀Screens฀91DRAFT FOR INTERNAL USE ONLY

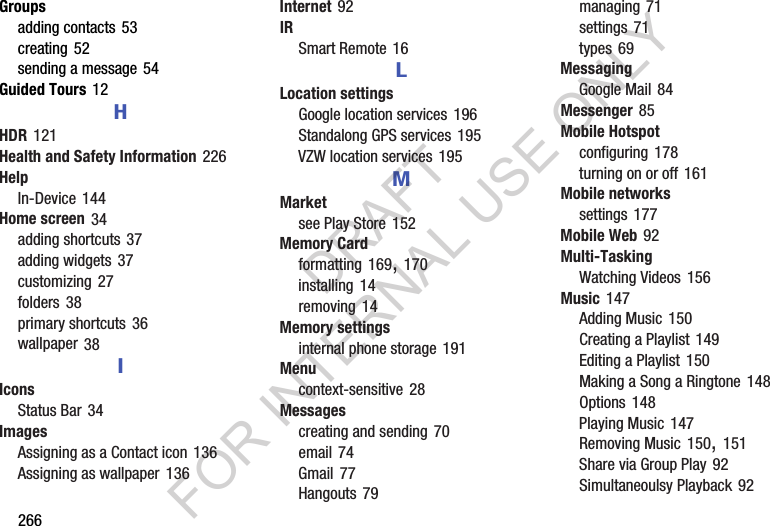

266Groupsadding฀contacts฀53creating฀52sending฀a฀message฀54Guided Tours฀12HHDR฀121Health and Safety Information฀226HelpIn-Device฀144Home screen฀34adding฀shortcuts฀37adding฀widgets฀37customizing฀27folders฀38primary฀shortcuts฀36wallpaper฀38IIconsStatus฀Bar฀34ImagesAssigning฀as฀a฀Contact฀icon฀136Assigning฀as฀wallpaper฀136Internet฀92IRSmart฀Remote฀16LLocation settingsGoogle฀location฀services฀196Standalong฀GPS฀services฀195VZW฀location฀services฀195MMarketsee฀Play฀Store฀152Memory Cardformatting฀169,฀170installing฀14removing฀14Memory settingsinternal฀phone฀storage฀191Menucontext-sensitive฀28Messagescreating฀and฀sending฀70email฀74Gmail฀77Hangouts฀79managing฀71settings฀71types฀69MessagingGoogle฀Mail฀84Messenger฀85Mobile Hotspotconfiguring฀178turning฀on฀or฀off฀161Mobile networkssettings฀177Mobile Web฀92Multi-TaskingWatching฀Videos฀156Music฀147Adding฀Music฀150Creating฀a฀Playlist฀149Editing฀a฀Playlist฀150Making฀a฀Song฀a฀Ringtone฀148Options฀148Playing฀Music฀147Removing฀Music฀150,฀151Share฀via฀Group฀Play฀92Simultaneoulsy฀Playback฀92DRAFT FOR INTERNAL USE ONLY

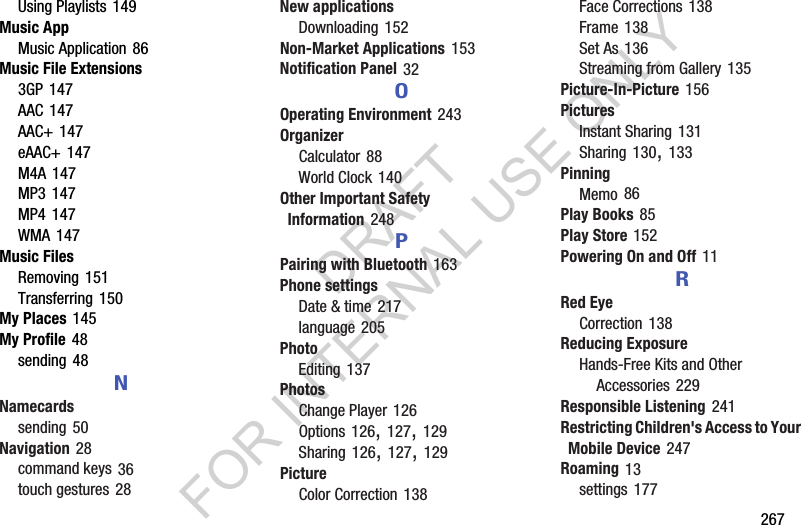

฀฀฀฀฀฀฀267Using฀Playlists฀149Music AppMusic฀Application฀86Music File Extensions3GP฀147AAC฀147AAC+฀147eAAC+฀147M4A฀147MP3฀147MP4฀147WMA฀147Music FilesRemoving฀151Transferring฀150My Places฀145My Profile฀48sending฀48NNamecardssending฀50Navigation฀28command฀keys฀36touch฀gestures฀28New applicationsDownloading฀152Non-Market Applications฀153Notification Panel฀32OOperating Environment฀243OrganizerCalculator฀88World฀Clock฀140Other Important Safety Information฀248PPairing with Bluetooth฀163Phone settingsDate฀&฀time฀217language฀205PhotoEditing฀137PhotosChange฀Player฀126Options฀126,฀127,฀129Sharing฀126,฀127,฀129PictureColor฀Correction฀138Face฀Corrections฀138Frame฀138Set฀As฀136Streaming฀from฀Gallery฀135Picture-In-Picture฀156PicturesInstant฀Sharing฀131Sharing฀130,฀133PinningMemo฀86Play Books฀85Play Store฀152Powering On and Off฀11RRed EyeCorrection฀138Reducing ExposureHands-Free฀Kits฀and฀Other฀Accessories฀229Responsible Listening฀241Restricting Children's Access to Your Mobile Device฀247Roaming฀13settings฀177DRAFT FOR INTERNAL USE ONLY
268rvice฀104SS BeamSharing฀Multiple฀Pictures฀134Sharing฀Pictures฀133S Note฀154S TranslatorTranslate฀Text฀96Translate฀Using฀Voice฀96S Voice฀97Using฀97Samsung HubCreating฀a฀New฀Account฀98Using฀99Samsung keyboardconfiguring฀40entering฀text฀40Samsung LinkConfiguring฀Settings฀103Definitions฀102Deregister฀Storage฀104Sharing฀Media฀105Web฀Storage฀Setup฀104Samsung Mobile Products and Recycling฀237Scan for Nearby Devices฀148Scrapbook฀106Screen CaptureTaking฀a฀Screen฀Shot฀135Screen MirroringActivate฀on฀Device฀144On฀144Using฀AllShare฀Cast฀Hub฀143Securitylocking฀and฀unlocking฀15Security settingscredential฀storage฀203Setting an alarm฀139Settings฀124,฀171Share Shot฀131Activate฀123Configuring฀132Enabling฀132Stop฀Sharing฀132Taking฀Images฀132Share Videos฀91SketchBook for Galaxy฀106SkyDrive฀104Smart Alarm฀140Smart Practices While Driving฀233Smart Switch฀16Snooze฀140Repeat฀139SongSet฀As฀148Specific Absorption Rate (SAR) Certification Information฀231Speed Dialsassigning฀54removing฀or฀reassigning฀55Split ScreensGroup฀Play฀91Standard Limited Warranty฀250Storagesettings฀191SugarSync฀104Synchronization settingsbackground฀data฀212DRAFT FOR INTERNAL USE ONLY
฀฀฀฀฀฀฀269TTask Manager฀13Textentering฀39Text settingsdefault฀205Google฀voice฀typing฀206Samsung฀keyboard฀206Third-Party ApplicationsUninstalling฀154ToolsCamera฀119Transferring Large Files฀133Transferring Music Files฀150TTY Mode฀12Turning Your Phone On and Off฀11UUL Certified Travel Charger฀238UninstallingThird-party฀applications฀154Unknown Sources฀153USB 3.0฀16Use GPS Satellites฀145Use Wireless Networks฀145VVideoPicture-In-Picture฀156Sharing฀Videos฀155VideosOptions฀127Voice Search฀86Voicemailchecking฀78setting฀up฀78Volumekey฀20VPNadding฀164settings฀181WWallpapersAssigning฀from฀Gallery฀127Warranty Information฀250WatchON฀108Adding฀a฀New฀Room฀112Changing฀Channels฀111Configure฀Just฀For฀You฀112Customizing฀Your฀Remote฀109Initial฀Configuration฀109Locating฀Programs฀111Personalize฀112Settings฀112Using฀111Web฀92Widgets฀37Settings฀154Stopwatch฀141Wi-Fiadding฀a฀connection฀manually฀159Mobile฀Hotspot฀161scanning฀and฀connecting฀159settings฀172turning฀on฀or฀off฀158DRAFT FOR INTERNAL USE ONLY
270Wi-Fi Directconnecting฀to฀devices฀160On฀131turning฀on฀or฀off฀160Wireless NetworkingBluetooth฀163VPN฀164Wi-Fi฀158World ClockDST฀Settings฀140DRAFT FOR INTERNAL USE ONLY

Navigation menu
