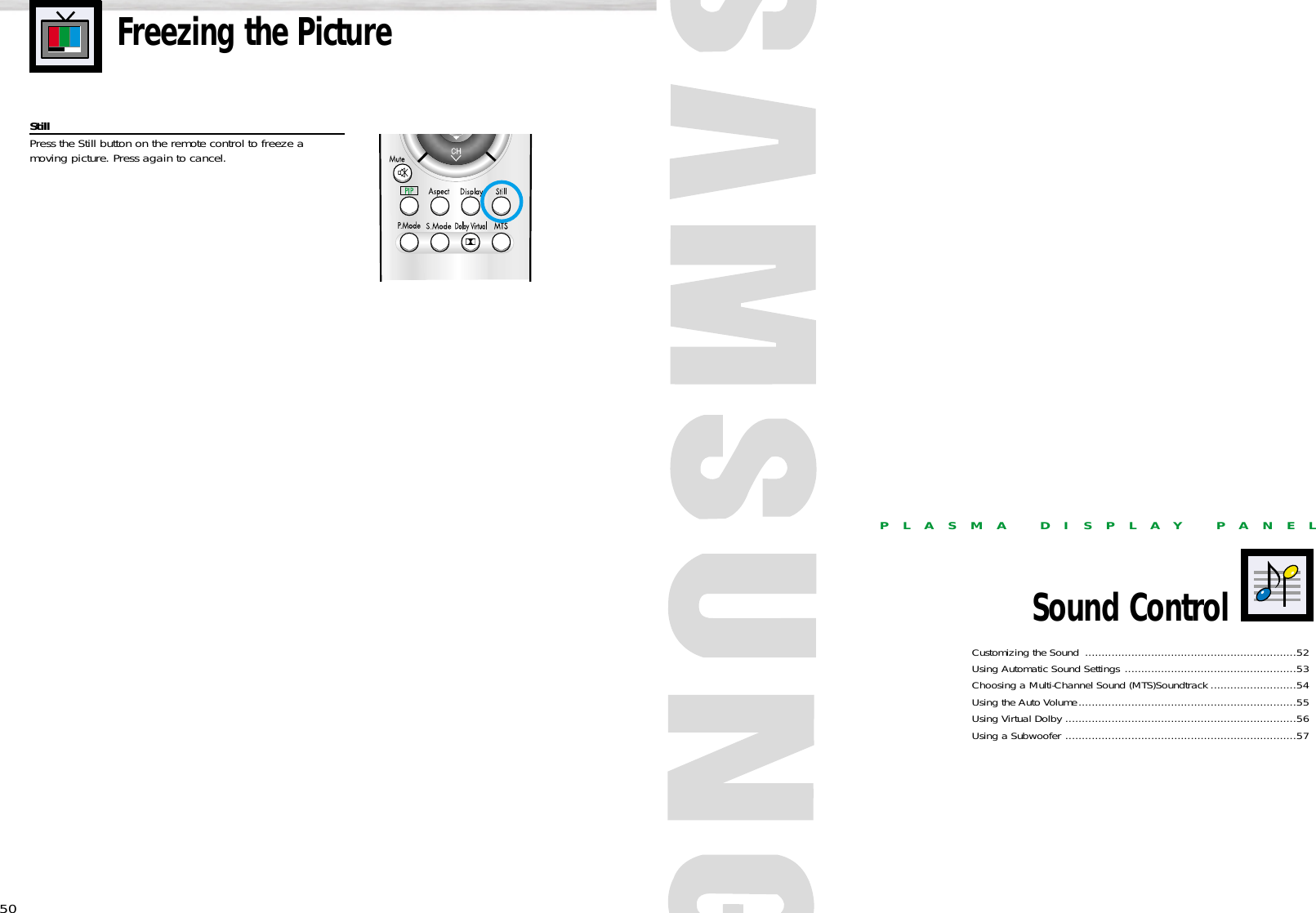

50PLASMA DISPLAY PANELSound ControlCustomizing the Sound ................................................................52Using Automatic Sound Settings ....................................................53Choosing a Multi-Channel Sound (MTS)Soundtrack ..........................54Using the Auto Volume..................................................................55Using Virtual Dolby ......................................................................56Using a Subwoofer ......................................................................57Freezing the PictureStillPress the Still button on the remote control to freeze a moving picture. Press again to cancel.

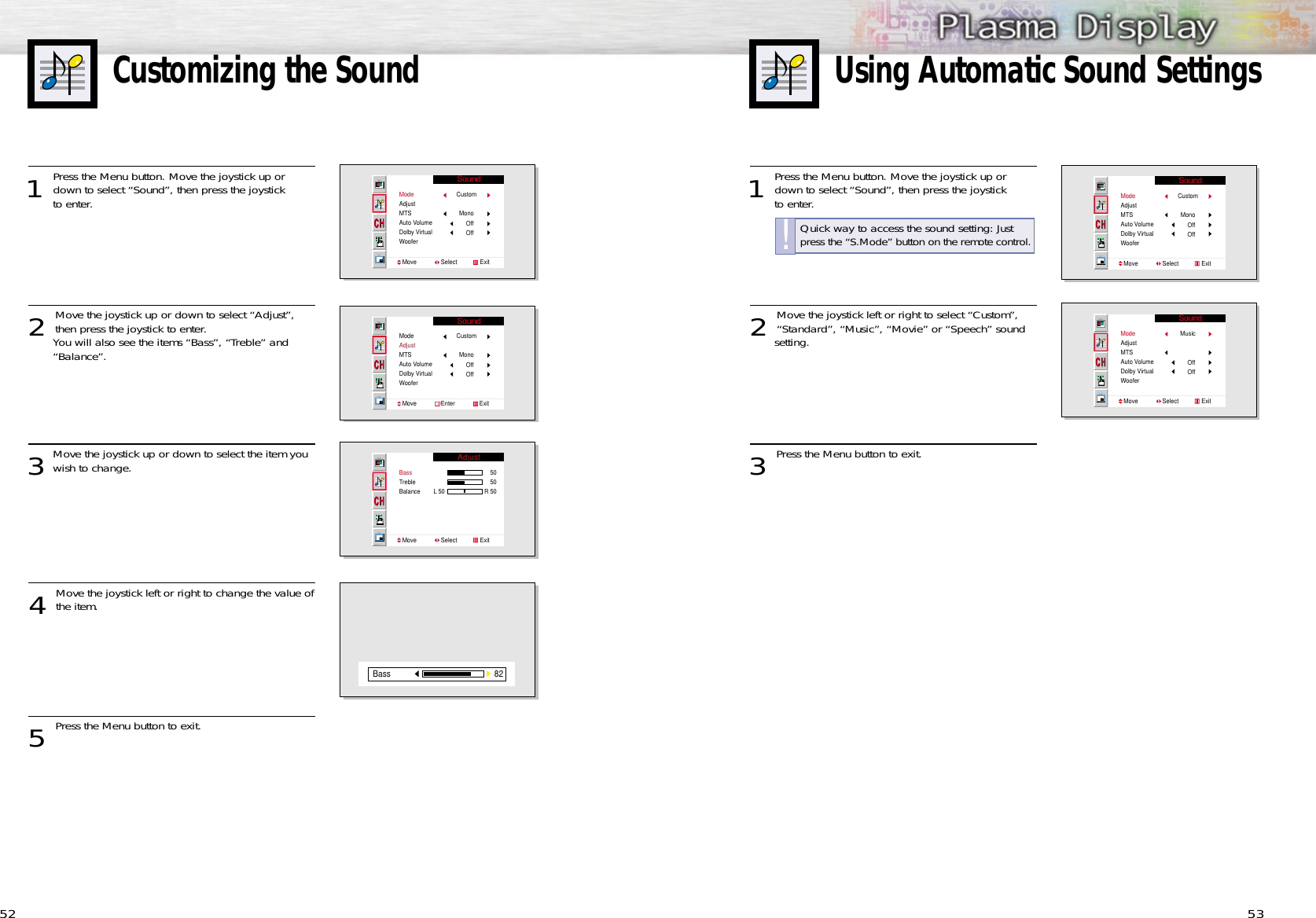

53Customizing the Sound521 Press the Menu button. Move the joystick up ordown to select “Sound”, then press the joystick to enter. 2 Move the joystick left or right to select “Custom”,“Standard”, “Music”, “Movie” or “Speech” sound setting.3 Press the Menu button to exit.Using Automatic Sound SettingsSoundModeAdjustMTSAuto VolumeDolby VirtualWooferMove Select ExitCustomMonoOffOffSoundModeAdjustMTSAuto VolumeDolby VirtualWooferMove Select ExitMusic OffOff1 Press the Menu button. Move the joystick up ordown to select “Sound”, then press the joystick to enter. 2 Move the joystick up or down to select “Adjust”,then press the joystick to enter. You will also see the items “Bass”, “Treble” and “Balance”. 3Move the joystick up or down to select the item you wish to change.4 Move the joystick left or right to change the value ofthe item.5 Press the Menu button to exit.SoundModeAdjustMTSAuto VolumeDolby VirtualWooferMove Select ExitCustomMonoOffOffSoundModeAdjustMTSAuto VolumeDolby VirtualWooferMove Enter ExitCustom MonoOffOffAdjustBassTrebleBalanceMove Select Exit5050R 50L 5082BassQuick way to access the sound setting: Justpress the “S.Mode” button on the remote control.!

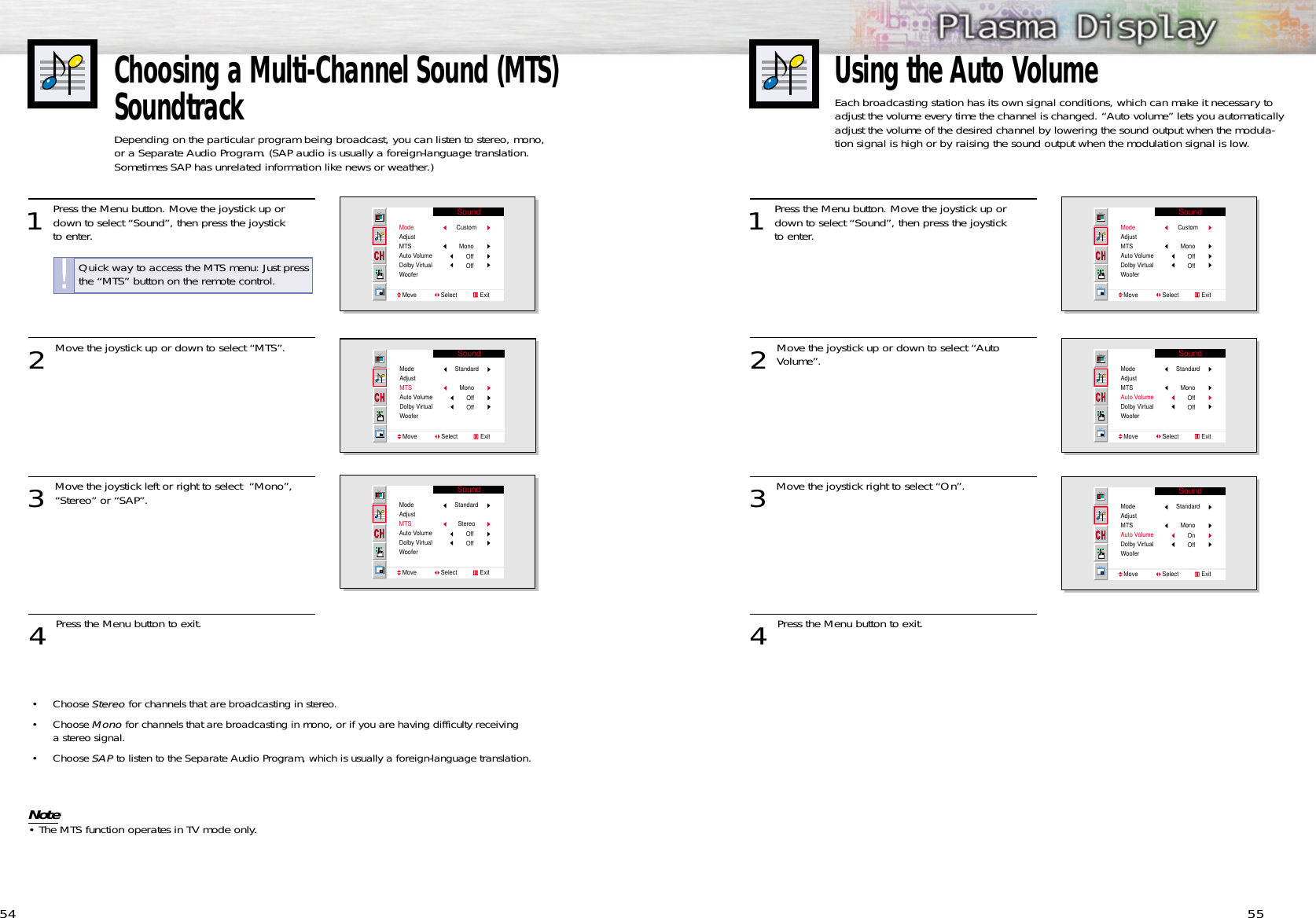

55Choosing a Multi-Channel Sound (MTS)SoundtrackDepending on the particular program being broadcast, you can listen to stereo, mono, or a Separate Audio Program. (SAP audio is usually a foreign-language translation. Sometimes SAP has unrelated information like news or weather.) 541 Press the Menu button. Move the joystick up ordown to select “Sound”, then press the joystick to enter. 2 Move the joystick up or down to select “MTS”.3 Move the joystick left or right to select “Mono”,“Stereo” or “SAP”. 4 Press the Menu button to exit.SoundModeAdjustMTSAuto VolumeDolby VirtualWooferMove Select ExitCustomMonoOffOffSoundModeAdjustMTSAuto VolumeDolby VirtualWooferMove Select ExitStandardMonoOffOffSoundModeAdjustMTSAuto VolumeDolby VirtualWooferMove Select ExitStandardStereoOffOffQuick way to access the MTS menu: Just pressthe “MTS” button on the remote control.!Using the Auto VolumeEach broadcasting station has its own signal conditions, which can make it necessary toadjust the volume every time the channel is changed. “Auto volume” lets you automaticallyadjust the volume of the desired channel by lowering the sound output when the modula-tion signal is high or by raising the sound output when the modulation signal is low.1 Press the Menu button. Move the joystick up ordown to select “Sound”, then press the joystick to enter. 2 Move the joystick up or down to select “Auto Volume”.3 Move the joystick right to select “On”. 4 Press the Menu button to exit.SoundModeAdjustMTSAuto VolumeDolby VirtualWooferMove Select ExitCustomMonoOffOffSoundModeAdjustMTSAuto VolumeDolby VirtualWooferMove Select ExitStandardMonoOffOffSoundModeAdjustMTSAuto VolumeDolby VirtualWooferMove Select ExitStandardMonoOnOff• Choose StereoStereo for channels that are broadcasting in stereo.• Choose MonoMono for channels that are broadcasting in mono, or if you are having difficulty receiving a stereo signal.• Choose SAPSAP to listen to the Separate Audio Program, which is usually a foreign-language translation.Note• The MTS function operates in TV mode only.

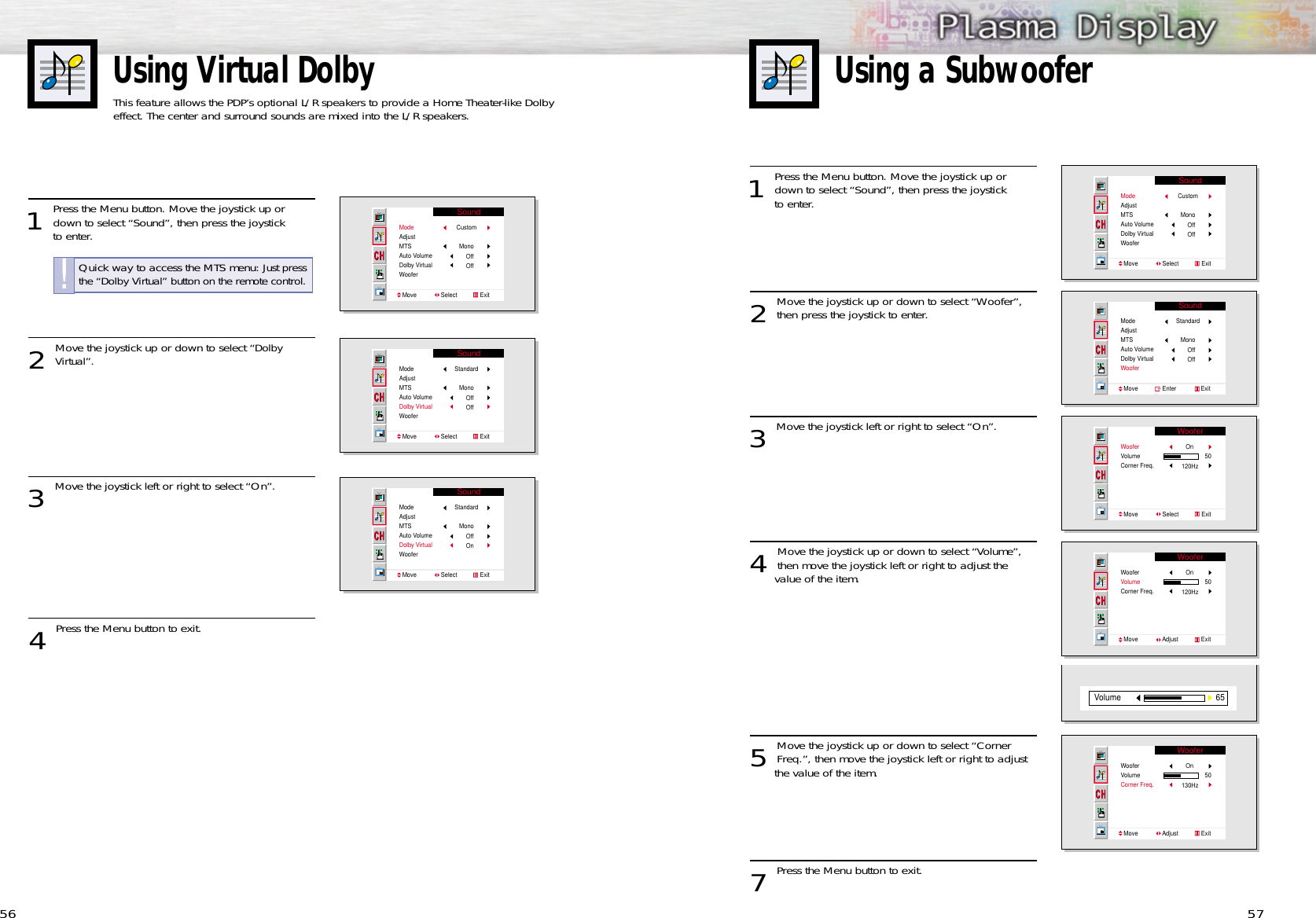

Using Virtual DolbyThis feature allows the PDP’s optional L/R speakers to provide a Home Theater-like Dolbyeffect. The center and surround sounds are mixed into the L/R speakers.Using a Subwoofer56 571 Press the Menu button. Move the joystick up ordown to select “Sound”, then press the joystick to enter. 2 Move the joystick up or down to select “Woofer”,then press the joystick to enter.3 Move the joystick left or right to select “On”.4 Move the joystick up or down to select “Volume”,then move the joystick left or right to adjust the value of the item.5 Move the joystick up or down to select “CornerFreq.”, then move the joystick left or right to adjust the value of the item.7 Press the Menu button to exit.SoundModeAdjustMTSAuto VolumeDolby VirtualWooferMove Select ExitCustomMonoOffOffSoundModeAdjustMTSAuto VolumeDolby VirtualWooferMove Enter ExitStandardMonoOffOffWooferWooferVolumeCorner Freq.Move Select ExitOn50120HzWooferWooferVolumeCorner Freq.Move Adjust ExitOn50120Hz65VolumeWooferWooferVolumeCorner Freq.Move Adjust ExitOn50130Hz1 Press the Menu button. Move the joystick up ordown to select “Sound”, then press the joystick to enter. 2 Move the joystick up or down to select “Dolby Virtual”.3 Move the joystick left or right to select “On”. 4 Press the Menu button to exit.SoundModeAdjustMTSAuto VolumeDolby VirtualWooferMove Select ExitCustomMonoOffOffSoundModeAdjustMTSAuto VolumeDolby VirtualWooferMove Select ExitStandardMonoOffOffSoundModeAdjustMTSAuto VolumeDolby VirtualWooferMove Select ExitStandardMonoOffOnQuick way to access the MTS menu: Just pressthe “Dolby Virtual” button on the remote control.!

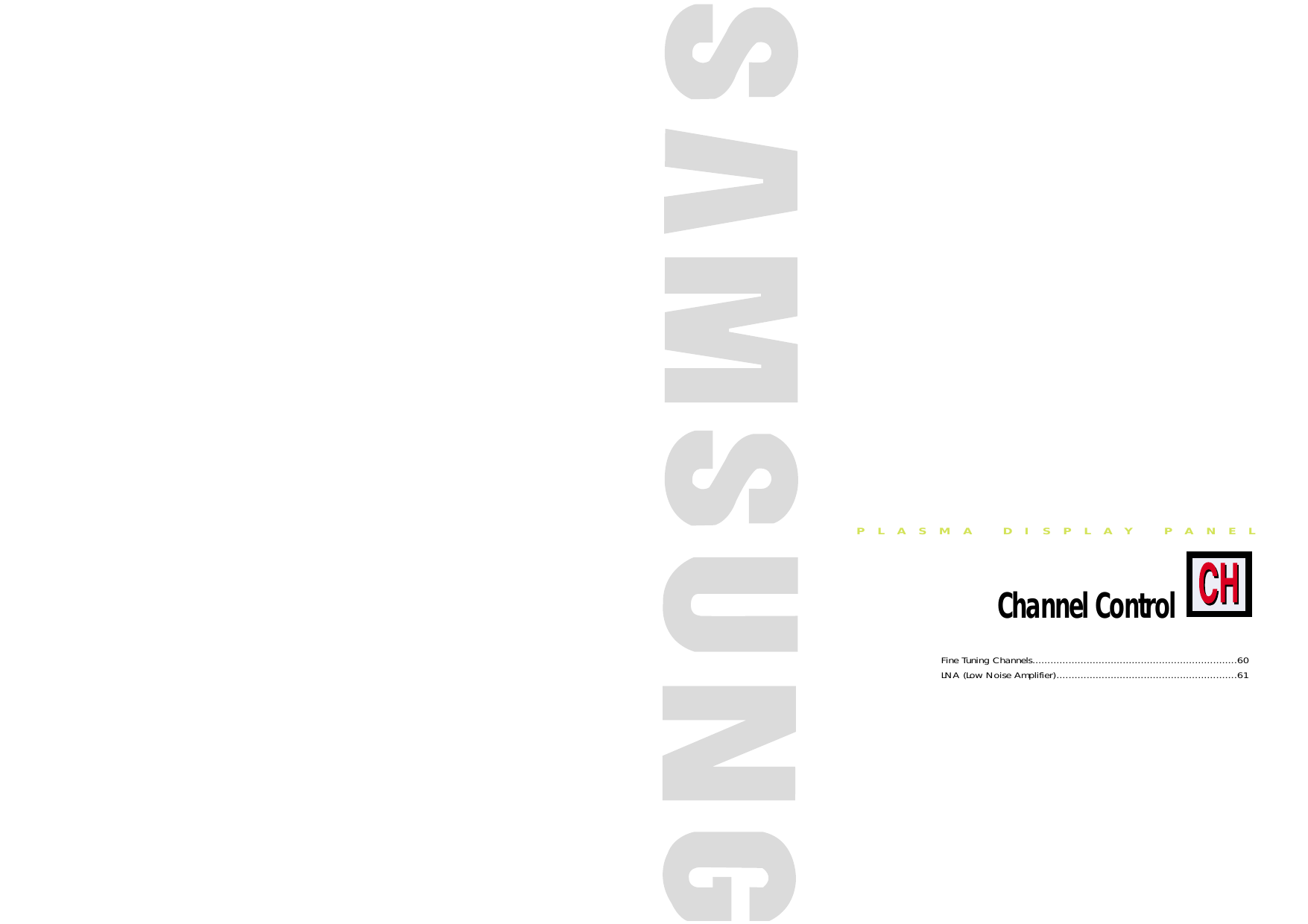

PLASMA DISPLAY PANELChannel ControlFine Tuning Channels....................................................................60LNA (Low Noise Amplifier)............................................................61

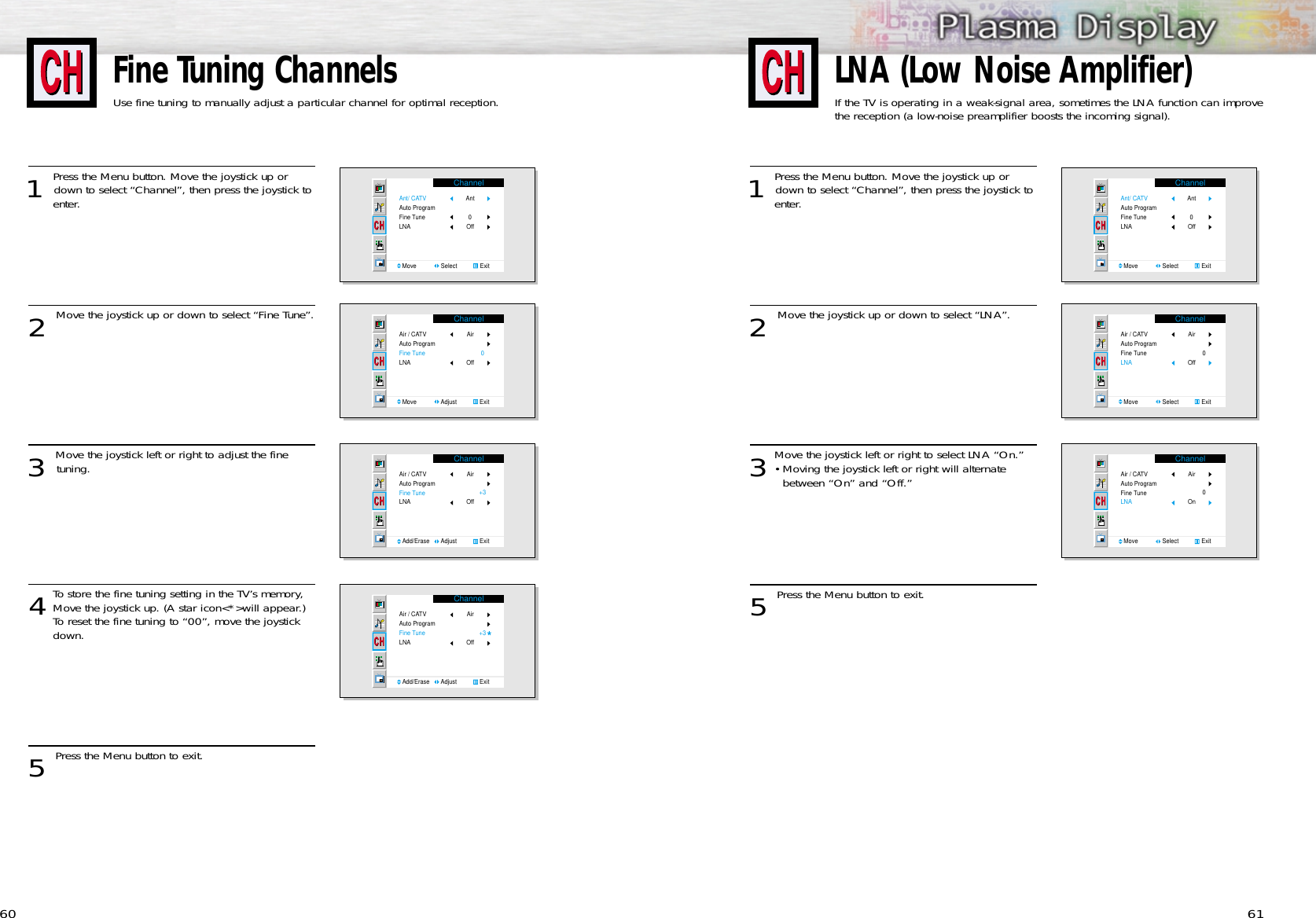

61Fine Tuning ChannelsUse fine tuning to manually adjust a particular channel for optimal reception.601 Press the Menu button. Move the joystick up ordown to select “Channel”, then press the joystick to enter. 2 Move the joystick up or down to select “Fine Tune”.3 Move the joystick left or right to adjust the fine tuning.4To store the fine tuning setting in the TV’s memory,Move the joystick up. (A star icon<*>will appear.)To reset the fine tuning to “00”, move the joystick down.5 Press the Menu button to exit.ChannelAnt/ CATVAuto ProgramFine TuneLNAMove Select ExitAnt Off 0ChannelAir / CATVAuto ProgramFine TuneLNAMove Adjust ExitAir Off 0ChannelAir / CATVAuto ProgramFine TuneLNAAdd/Erase Adjust ExitAir Off +3ChannelAir / CATVAuto ProgramFine TuneLNAAdd/Erase Adjust ExitAir Off +3LNA (Low Noise Amplifier)If the TV is operating in a weak-signal area, sometimes the LNA function can improve the reception (a low-noise preamplifier boosts the incoming signal). 1 Press the Menu button. Move the joystick up ordown to select “Channel”, then press the joystick to enter. 2 Move the joystick up or down to select “LNA”.3Move the joystick left or right to select LNA “On.”•Moving the joystick left or right will alternate between “On” and “Off.” 5 Press the Menu button to exit.ChannelAnt/ CATVAuto ProgramFine TuneLNAMove Select ExitAnt Off 0ChannelAir / CATVAuto ProgramFine TuneLNAMove Select ExitAir Off 0ChannelAir / CATVAuto ProgramFine TuneLNAMove Select ExitAir On 0

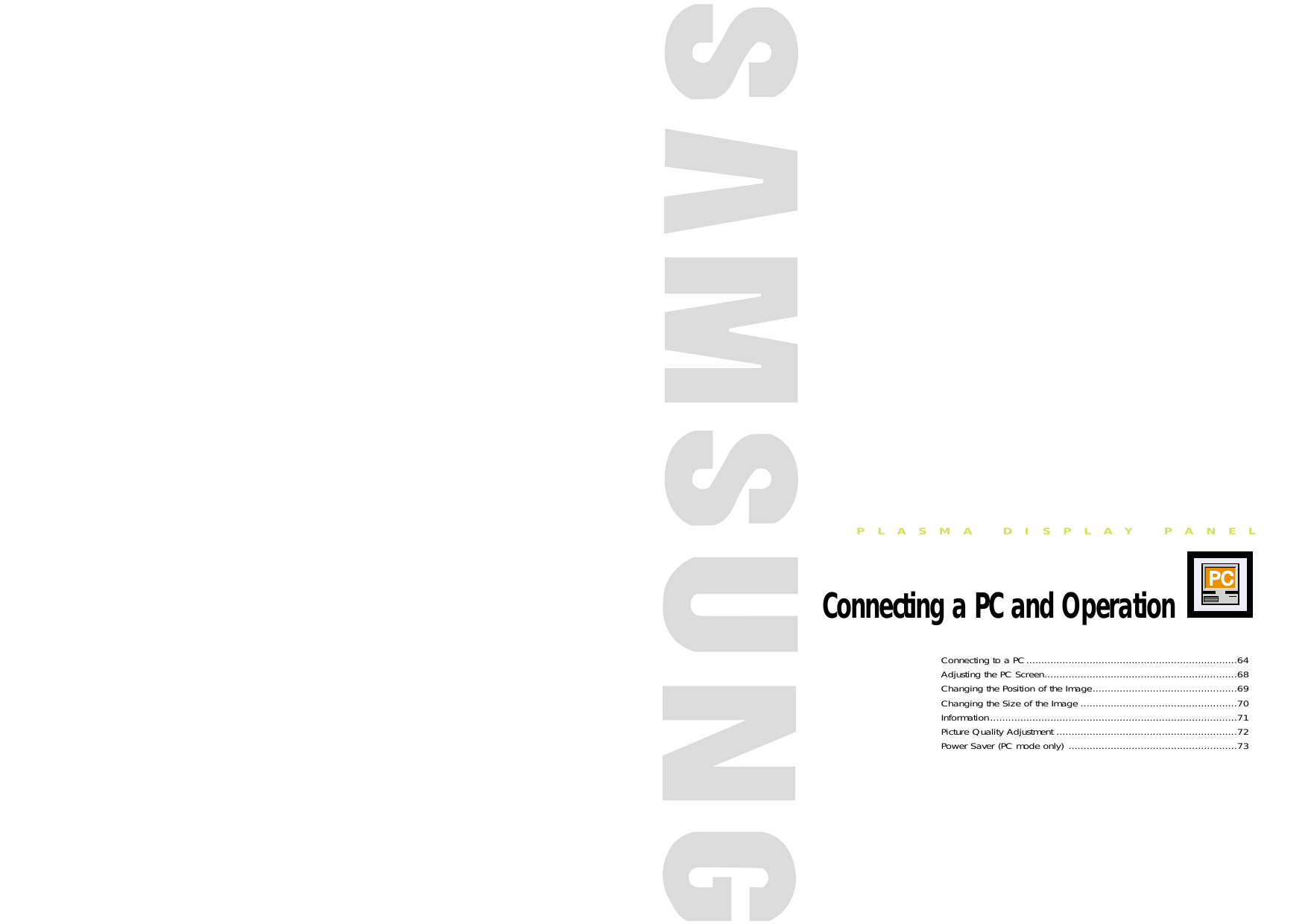

PLASMA DISPLAY PANELConnecting a PC and OperationConnecting to a PC......................................................................64Adjusting the PC Screen................................................................68Changing the Position of the Image................................................69Changing the Size of the Image ....................................................70Information..................................................................................71Picture Quality Adjustment ............................................................72Power Saver (PC mode only) ........................................................73

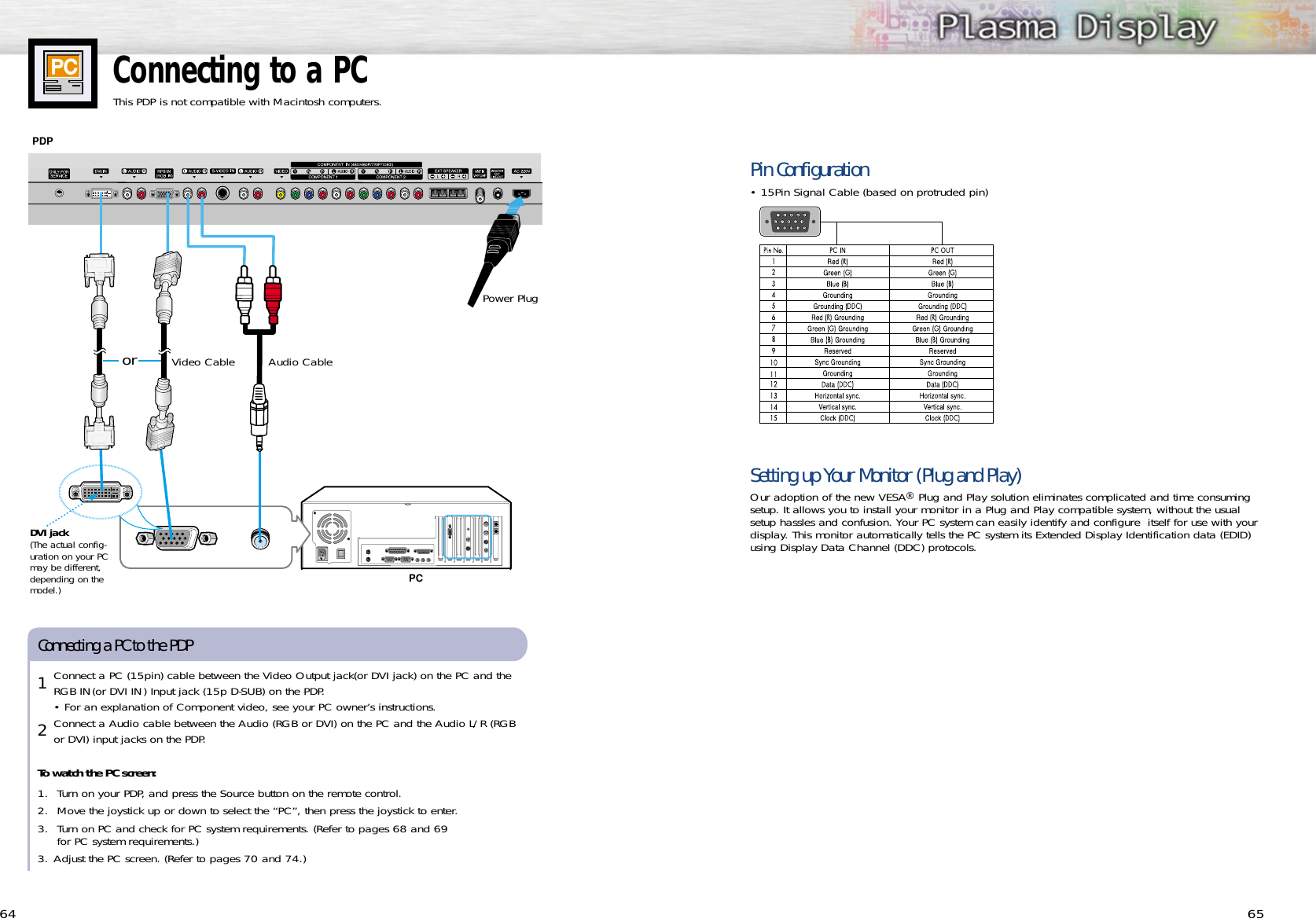

65Connecting to a PCThis PDP is not compatible with Macintosh computers.64Connect a PC (15pin) cable between the Video Output jack(or DVI jack) on the PC and theRGB IN(or DVI IN) Input jack (15p D-SUB) on the PDP. • For an explanation of Component video, see your PC owner’s instructions.Connect a Audio cable between the Audio (RGB or DVI) on the PC and the Audio L/R (RGBor DVI) input jacks on the PDP. To watch the PC screen:1. Turn on your PDP, and press the Source button on the remote control.2. Move the joystick up or down to select the “PC”, then press the joystick to enter.3. Turn on PC and check for PC system requirements. (Refer to pages 68 and 69 for PC system requirements.)3. Adjust the PC screen. (Refer to pages 70 and 74.)Connecting a PC to the PDPAudio CableVideo CablePower Plug12Pin Configuration• 15Pin Signal Cable (based on protruded pin)Setting up Your Monitor (Plug and Play)Our adoption of the new VESAPlug and Play solution eliminates complicated and time consumingsetup. It allows you to install your monitor in a Plug and Play compatible system, without the usualsetup hassles and confusion. Your PC system can easily identify and configure itself for use with yourdisplay. This monitor automatically tells the PC system its Extended Display Identification data (EDID)using Display Data Channel (DDC) protocols. DVI jack(The actual config-uration on your PCmay be different,depending on themodel.)PDPPCor

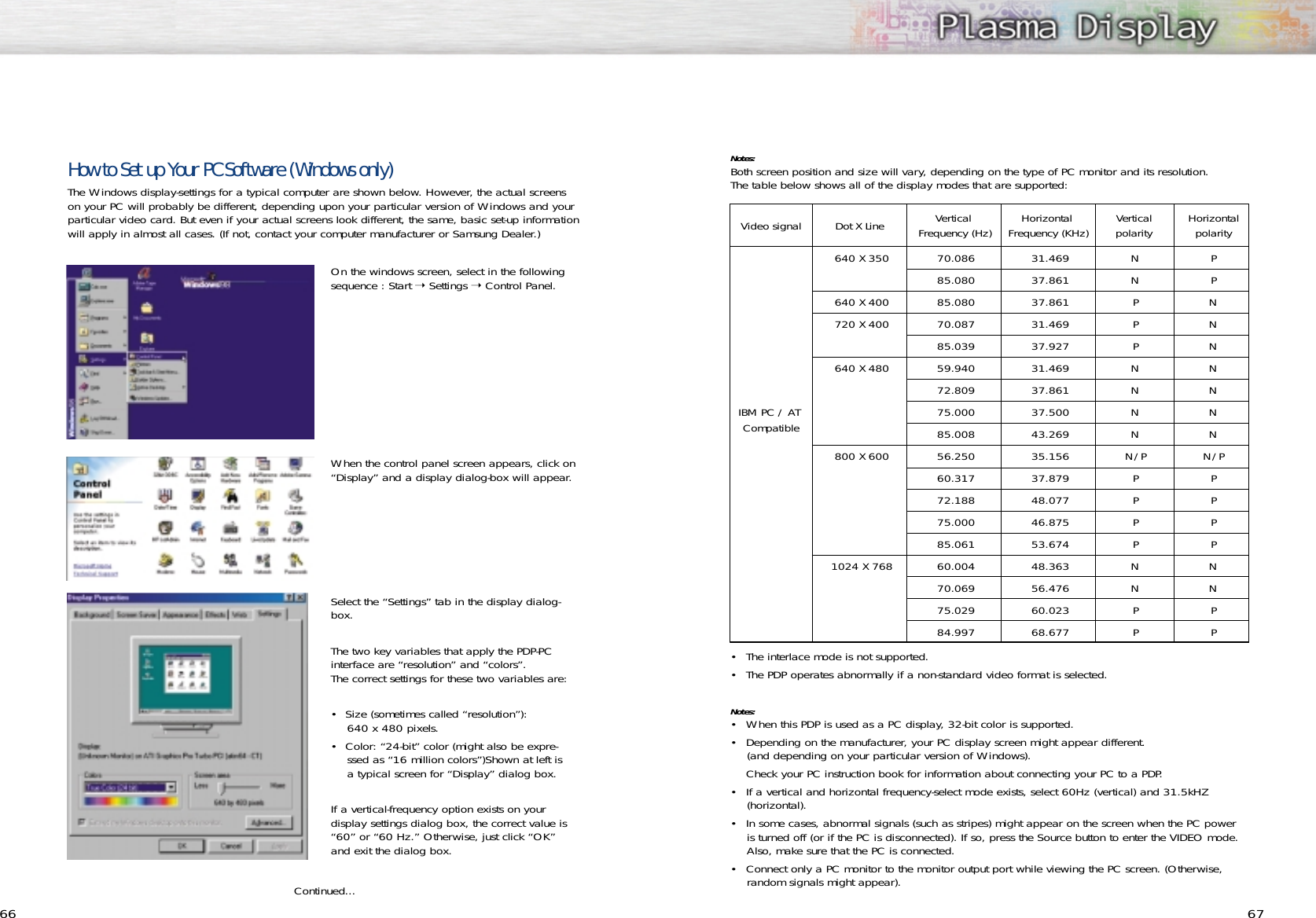

6766How to Set up Your PC Software (Windows only)The Windows display-settings for a typical computer are shown below. However, the actual screenson your PC will probably be different, depending upon your particular version of Windows and yourparticular video card. But even if your actual screens look different, the same, basic set-up informationwill apply in almost all cases. (If not, contact your computer manufacturer or Samsung Dealer.)On the windows screen, select in the followingsequence : Start ➝ Settings ➝ Control Panel.When the control panel screen appears, click on“Display” and a display dialog-box will appear.Select the “Settings” tab in the display dialog-box.The two key variables that apply the PDP-PC interface are “resolution” and “colors”. The correct settings for these two variables are:• Size (sometimes called “resolution”): 640 x 480 pixels.• Color: “24-bit” color (might also be expre-ssed as “16 million colors”)Shown at left is a typical screen for “Display” dialog box. If a vertical-frequency option exists on your display settings dialog box, the correct value is“60” or “60 Hz.” Otherwise, just click “OK” and exit the dialog box.Continued...Notes: Both screen position and size will vary, depending on the type of PC monitor and its resolution. The table below shows all of the display modes that are supported:• The interlace mode is not supported.• The PDP operates abnormally if a non-standard video format is selected.Notes: • When this PDP is used as a PC display, 32-bit color is supported.• Depending on the manufacturer, your PC display screen might appear different.(and depending on your particular version of Windows). Check your PC instruction book for information about connecting your PC to a PDP.• If a vertical and horizontal frequency-select mode exists, select 60Hz (vertical) and 31.5kHZ (horizontal).• In some cases, abnormal signals (such as stripes) might appear on the screen when the PC power is turned off (or if the PC is disconnected). If so, press the Source button to enter the VIDEO mode. Also, make sure that the PC is connected.• Connect only a PC monitor to the monitor output port while viewing the PC screen. (Otherwise, random signals might appear).Video signal Dot X Line640 X 350640 X 400720 X 400640 X 480800 X 6001024 X 76870.08685.08085.08070.08785.03959.94072.80975.00085.00856.25060.31772.18875.00085.06160.00470.06975.02984.99731.46937.86137.86131.46937.92731.46937.86137.50043.26935.15637.87948.07746.87553.67448.36356.47660.02368.677NNPPPNNNNN/PPPPPNNPPPPNNNNNNNN/PPPPPNNPPVertical Frequency (Hz) Horizontal Frequency (KHz) Verticalpolarity HorizontalpolarityIBM PC / AT Compatible

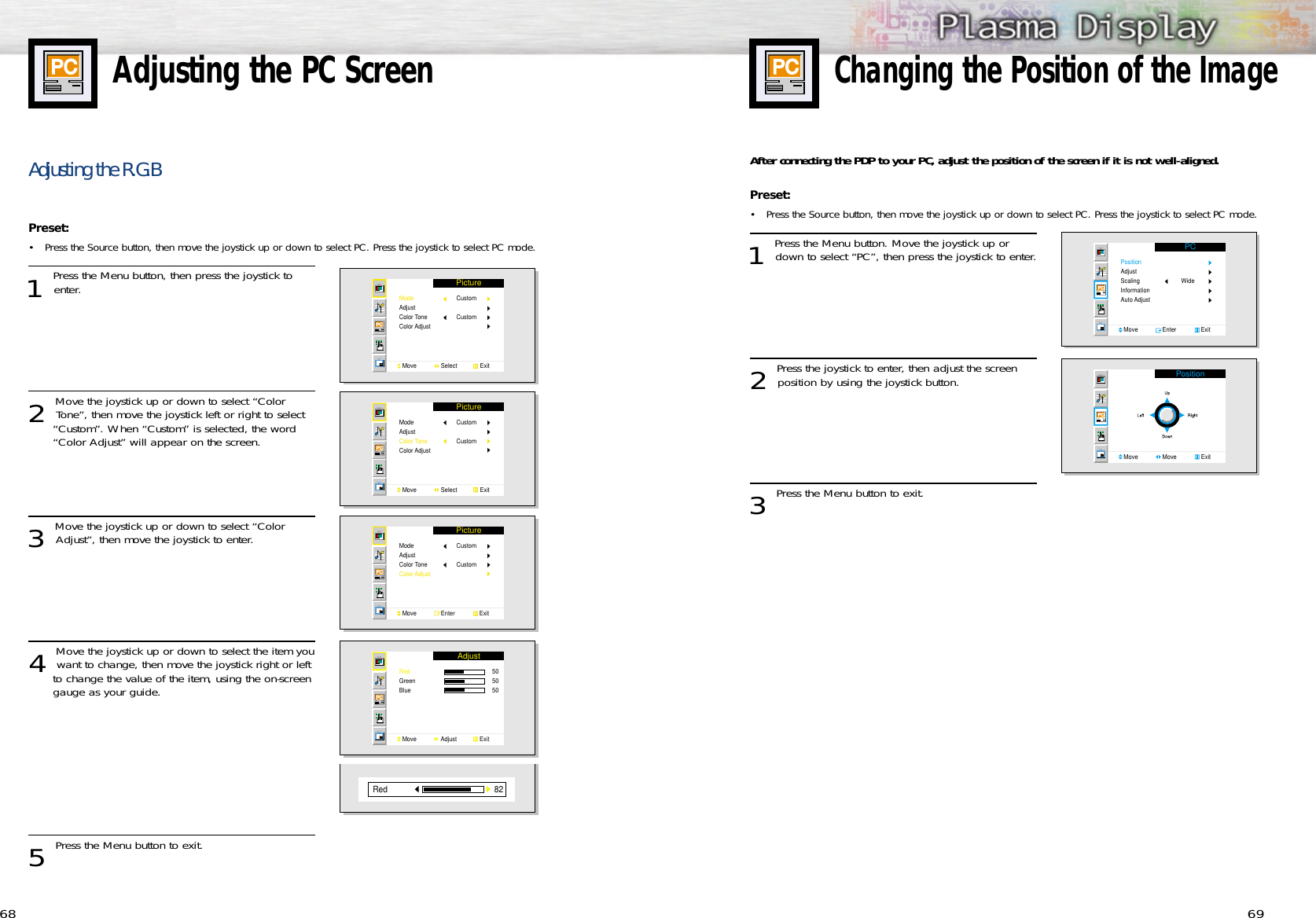

69Adjusting the PC Screen68Adjusting the R.G.BPreset: •Press the Source button, then move the joystick up or down to select PC. Press the joystick to select PC mode.1 Press the Menu button, then press the joystick toenter.2 Move the joystick up or down to select “ColorTone”, then move the joystick left or right to select “Custom”. When “Custom” is selected, the word “Color Adjust” will appear on the screen.3 Move the joystick up or down to select “ColorAdjust”, then move the joystick to enter.4 Move the joystick up or down to select the item youwant to change, then move the joystick right or left to change the value of the item, using the on-screen gauge as your guide.5 Press the Menu button to exit.PictureModeAdjustColor ToneColor AdjustMove Select ExitCustomCustomPictureModeAdjustColor ToneColor AdjustMove Select ExitCustomCustomPictureModeAdjustColor ToneColor AdjustMove Enter ExitCustomCustomAdjustRedGreenBlue Move Adjust Exit50505082RedChanging the Position of the ImageAfter connecting the PDP to your PC, adjust the position of the screen if it is not well-aligned.Preset: •Press the Source button, then move the joystick up or down to select PC. Press the joystick to select PC mode. 1 Press the Menu button. Move the joystick up ordown to select “PC”, then press the joystick to enter.2 Press the joystick to enter, then adjust the screenposition by using the joystick button. 3 Press the Menu button to exit.PCPositionAdjustScalingInformationAuto AdjustMove Enter ExitWidePositionMove Move Exit

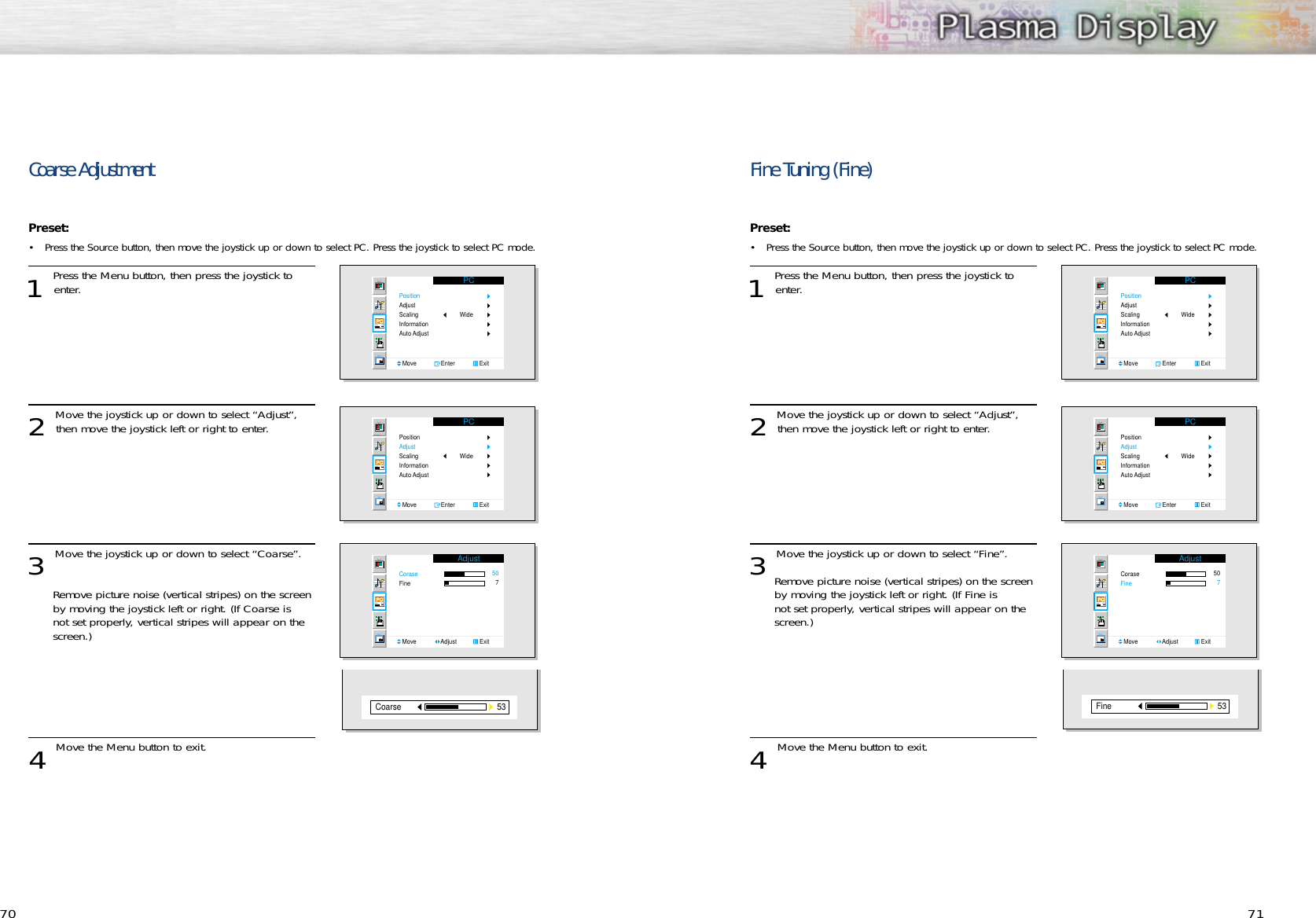

7170Coarse AdjustmentPreset: •Press the Source button, then move the joystick up or down to select PC. Press the joystick to select PC mode.1 Press the Menu button, then press the joystick toenter.2 Move the joystick up or down to select “Adjust”,then move the joystick left or right to enter.3 Move the joystick up or down to select “Coarse”.Remove picture noise (vertical stripes) on the screen by moving the joystick left or right. (If Coarse is not set properly, vertical stripes will appear on the screen.)4 Move the Menu button to exit.PCPositionAdjustScalingInformationAuto AdjustMove Enter ExitWidePCPositionAdjustScalingInformationAuto AdjustMove Enter ExitWideAdjustCoraseFineMove Adjust Exit507Fine Tuning (Fine)Preset: •Press the Source button, then move the joystick up or down to select PC. Press the joystick to select PC mode.1 Press the Menu button, then press the joystick toenter.2 Move the joystick up or down to select “Adjust”,then move the joystick left or right to enter.3 Move the joystick up or down to select “Fine”. Remove picture noise (vertical stripes) on the screen by moving the joystick left or right. (If Fine is not set properly, vertical stripes will appear on the screen.)4 Move the Menu button to exit.PCPositionAdjustScalingInformationAuto AdjustMove Enter ExitWidePCPositionAdjustScalingInformationAuto AdjustMove Enter ExitWideAdjustCoraseFineMove Adjust Exit50753Coarse 53Fine

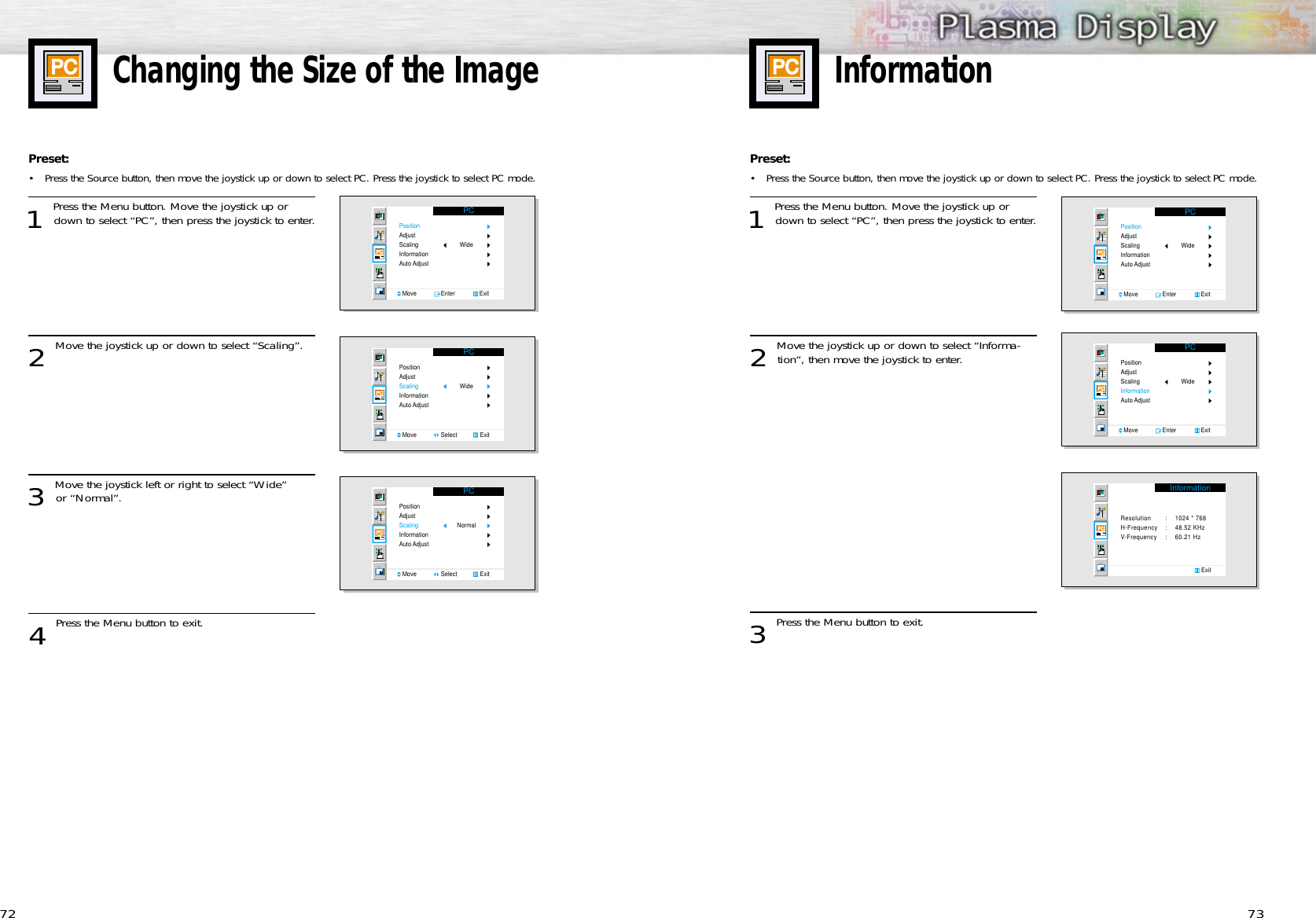

73Changing the Size of the Image72Preset: •Press the Source button, then move the joystick up or down to select PC. Press the joystick to select PC mode.1 Press the Menu button. Move the joystick up ordown to select “PC”, then press the joystick to enter.2 Move the joystick up or down to select “Scaling”.3 Move the joystick left or right to select “Wide” or “Normal”. 4 Press the Menu button to exit.PCPositionAdjustScalingInformationAuto AdjustMove Enter ExitWidePCPositionAdjustScalingInformationAuto AdjustMove Select ExitWidePCPositionAdjustScalingInformationAuto AdjustMove Select ExitNormalInformationPreset: •Press the Source button, then move the joystick up or down to select PC. Press the joystick to select PC mode.1 Press the Menu button. Move the joystick up ordown to select “PC”, then press the joystick to enter.2 Move the joystick up or down to select “Informa-tion”, then move the joystick to enter.3 Press the Menu button to exit.PCPositionAdjustScalingInformationAuto AdjustMove Enter ExitWidePCPositionAdjustScalingInformationAuto AdjustMove Enter ExitWideInformationResolution : 1024 * 768H-Frequency : 48.52 KHzV-Frequency : 60.21 Hz Exit

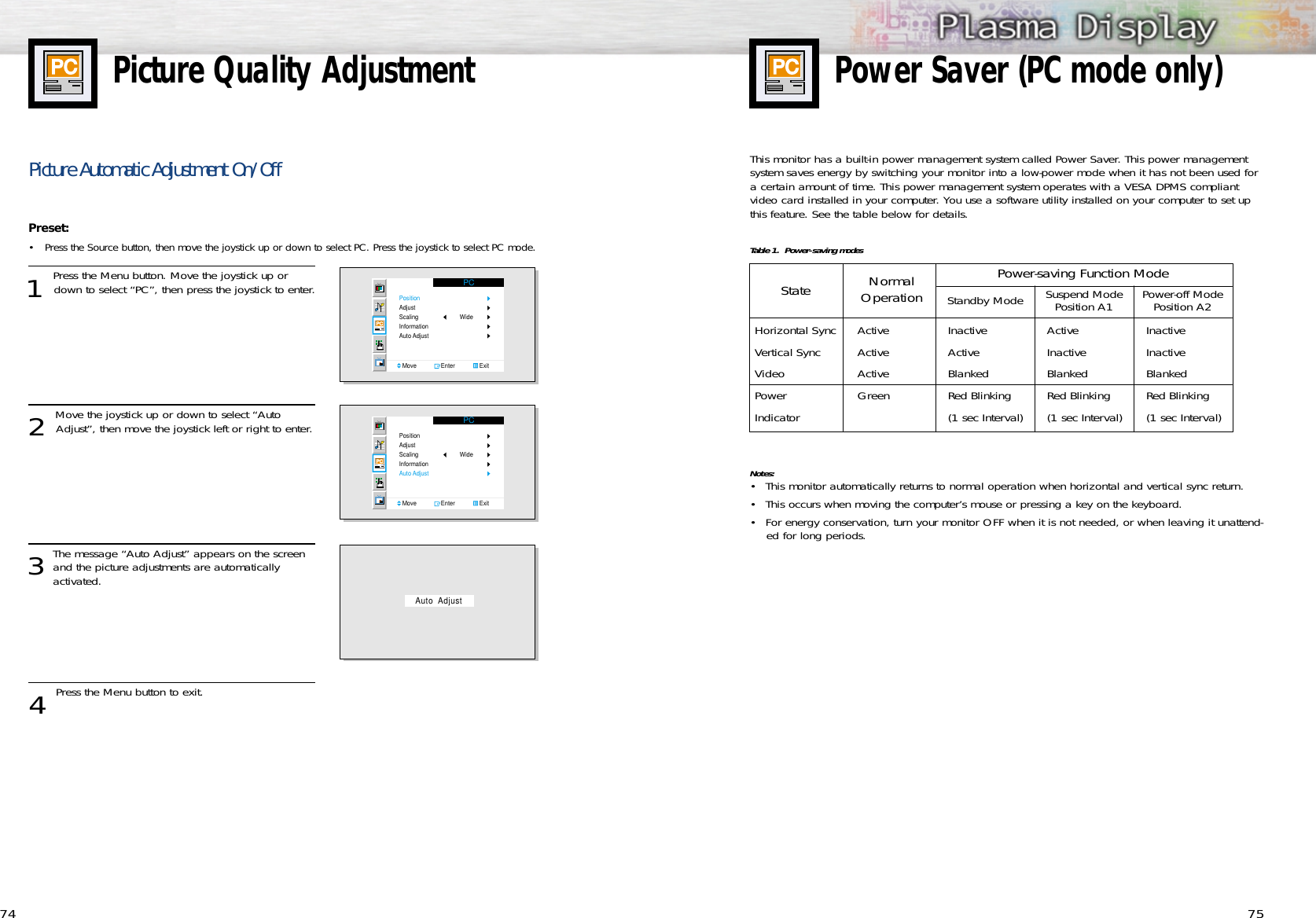

Picture Quality Adjustment74 75Picture Automatic Adjustment On/OffPreset: •Press the Source button, then move the joystick up or down to select PC. Press the joystick to select PC mode.1 Press the Menu button. Move the joystick up ordown to select “PC”, then press the joystick to enter.2 Move the joystick up or down to select “AutoAdjust”, then move the joystick left or right to enter.3The message “Auto Adjust” appears on the screenand the picture adjustments are automatically activated. 4 Press the Menu button to exit.PCPositionAdjustScalingInformationAuto AdjustMove Enter ExitWidePower Saver (PC mode only)This monitor has a built-in power management system called Power Saver. This power management system saves energy by switching your monitor into a low-power mode when it has not been used fora certain amount of time. This power management system operates with a VESA DPMS compliantvideo card installed in your computer. You use a software utility installed on your computer to set upthis feature. See the table below for details.Table 1. Power-saving modesNotes: •This monitor automatically returns to normal operation when horizontal and vertical sync return.•This occurs when moving the computer’s mouse or pressing a key on the keyboard.•For energy conservation, turn your monitor OFF when it is not needed, or when leaving it unattend-ed for long periods.PCPositionAdjustScalingInformationAuto AdjustMove Enter ExitWidePCPositionAdjustScalingInformationAuto AdjustMove Enter ExitWideAuto AdjustState NormalOperationPower-saving Function ModeInactiveActiveBlankedRed Blinking(1 sec Interval)ActiveInactiveBlankedRed Blinking(1 sec Interval)InactiveInactiveBlankedRed Blinking(1 sec Interval)Horizontal SyncVertical SyncVideoPowerIndicatorActiveActiveActiveGreenStandby Mode Suspend ModePosition A1 Power-off ModePosition A2

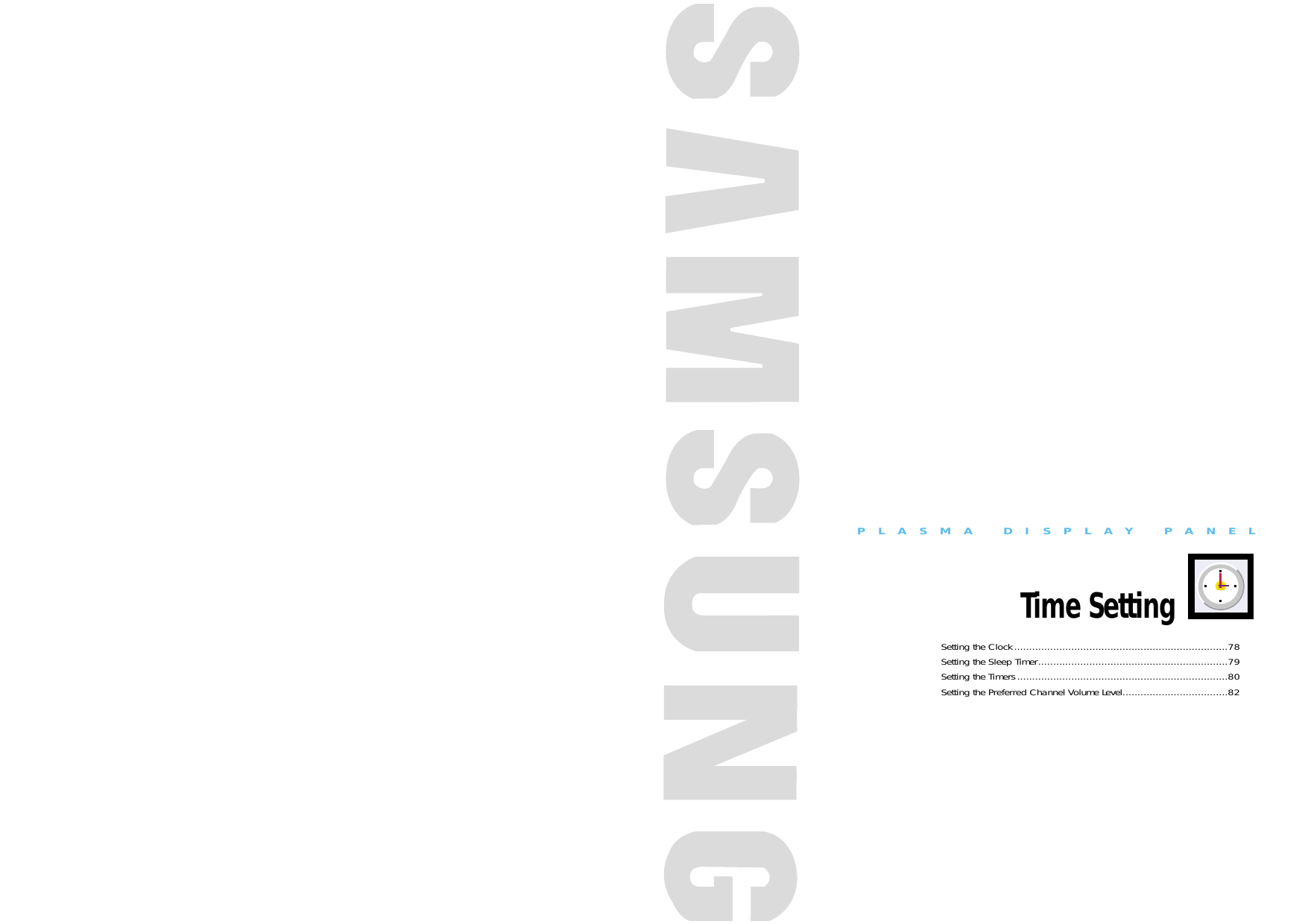

PLASMA DISPLAY PANELTime SettingSetting the Clock.......................................................................78Setting the Sleep Timer...............................................................79Setting the Timers......................................................................80Setting the Preferred Channel Volume Level...................................82

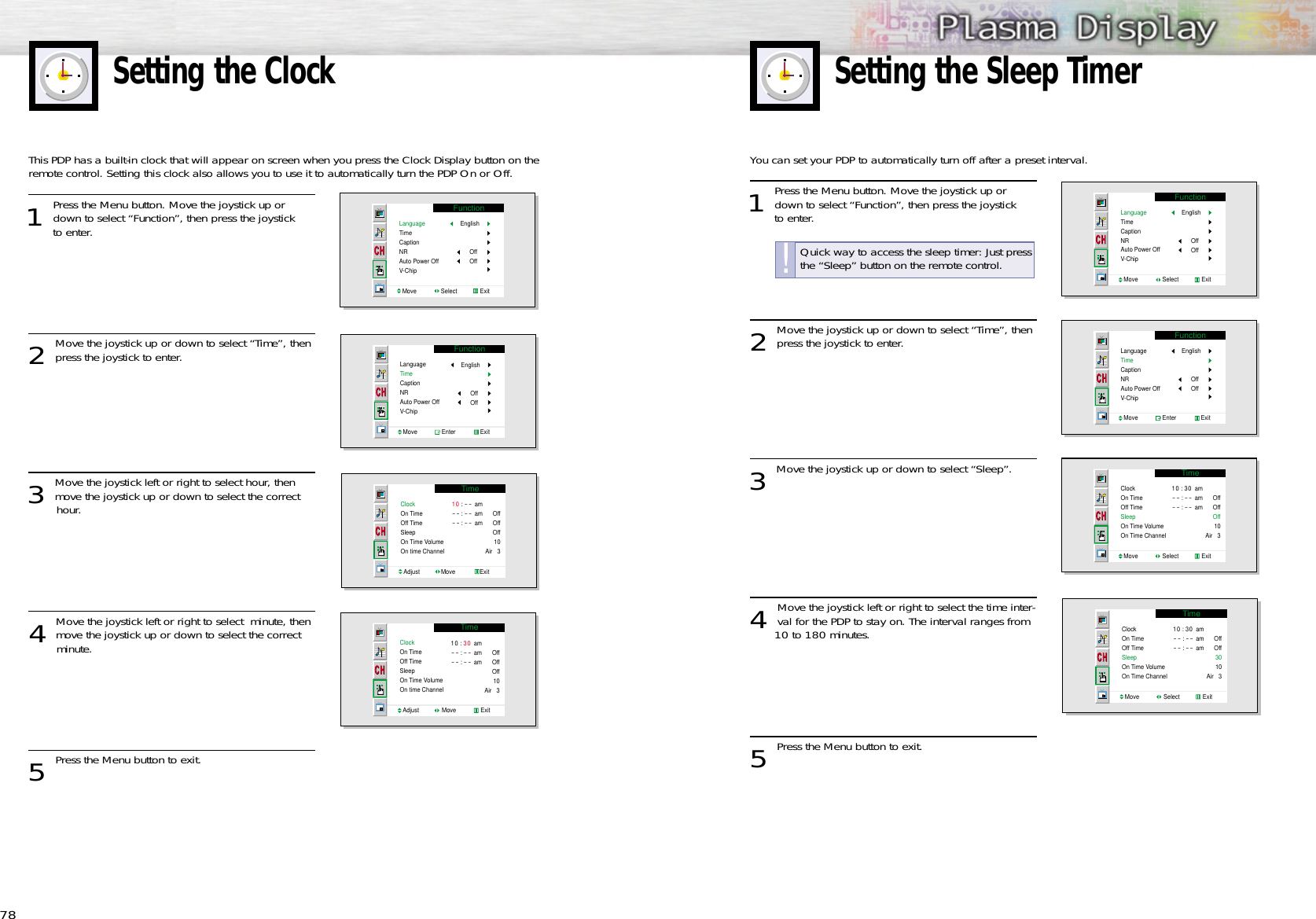

78Setting the ClockYou can set your PDP to automatically turn off after a preset interval.1 Press the Menu button. Move the joystick up ordown to select “Function”, then press the joystick to enter. 2 Move the joystick up or down to select “Time”, thenpress the joystick to enter.3 Move the joystick up or down to select “Sleep”.4 Move the joystick left or right to select the time inter-val for the PDP to stay on. The interval ranges from 10 to 180 minutes.5 Press the Menu button to exit.Setting the Sleep TimerFunctionLanguageTimeCaptionNRAuto Power OffV-ChipMove Select ExitEnglishOffOffTimeClockOn TimeOff TimeSleepOn Time VolumeOn Time ChannelMove Select Exit10 : 30 am- - : - - am- - : - - amOffOffOff10Air 3FunctionLanguageTimeCaptionNRAuto Power OffV-ChipMove Enter ExitEnglishOffOffTimeClockOn TimeOff TimeSleepOn Time VolumeOn Time ChannelMove Select Exit10 : 30 am- - : - - am- - : - - amOffOff3010Air 3This PDP has a built-in clock that will appear on screen when you press the Clock Display button on theremote control. Setting this clock also allows you to use it to automatically turn the PDP On or Off.1 Press the Menu button. Move the joystick up ordown to select “Function”, then press the joystick to enter. 2 Move the joystick up or down to select “Time”, thenpress the joystick to enter.3 Move the joystick left or right to select hour, thenmove the joystick up or down to select the correct hour.4 Move the joystick left or right to select minute, thenmove the joystick up or down to select the correct minute.5 Press the Menu button to exit.FunctionLanguageTimeCaptionNRAuto Power OffV-ChipMove Select ExitEnglishOffOffFunctionLanguageTimeCaptionNRAuto Power OffV-ChipMove Enter ExitEnglishOffOffTimeClockOn TimeOff TimeSleepOn Time VolumeOn time ChannelAdjust Move Exit10 : - - am- - : - - am- - : - - amOffOffOff10Air 3TimeClockOn TimeOff TimeSleepOn Time VolumeOn time ChannelAdjust Move Exit10 : 30 am- - : - - am- - : - - amOffOffOff10Air 3Quick way to access the sleep timer: Just pressthe “Sleep” button on the remote control.!

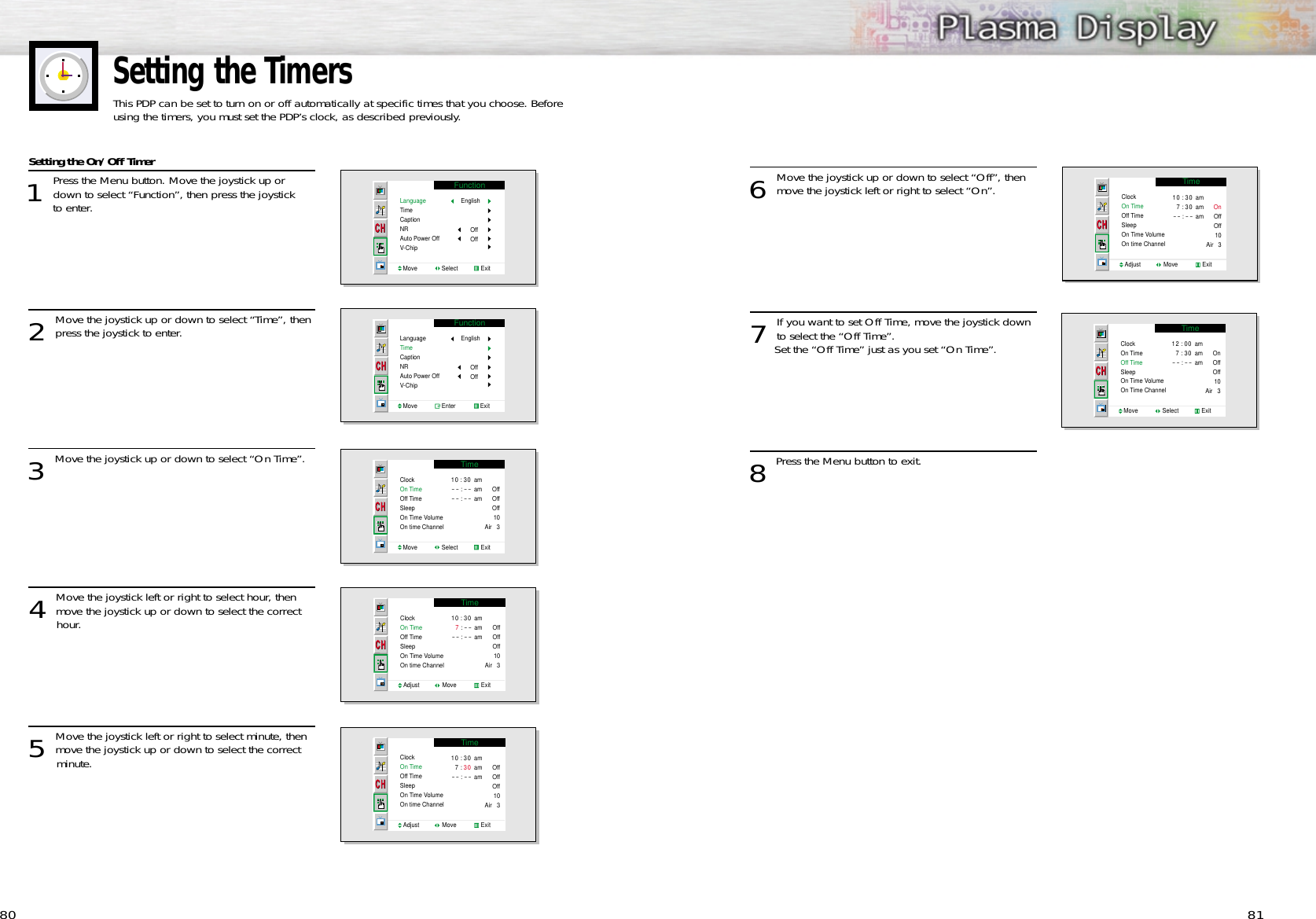

8180Setting the TimersThis PDP can be set to turn on or off automatically at specific times that you choose. Beforeusing the timers, you must set the PDP’s clock, as described previously.6 Move the joystick up or down to select “Off”, thenmove the joystick left or right to select “On”.7 If you want to set Off Time, move the joystick downto select the “Off Time”.Set the “Off Time” just as you set “On Time”.8 Press the Menu button to exit.Setting the On/Off Timer1 Press the Menu button. Move the joystick up ordown to select “Function”, then press the joystick to enter. 2 Move the joystick up or down to select “Time”, thenpress the joystick to enter. 3 Move the joystick up or down to select “On Time”.4 Move the joystick left or right to select hour, thenmove the joystick up or down to select the correct hour.5 Move the joystick left or right to select minute, thenmove the joystick up or down to select the correct minute.FunctionLanguageTimeCaptionNRAuto Power OffV-ChipMove Select ExitEnglishOffOffFunctionLanguageTimeCaptionNRAuto Power OffV-ChipMove Enter ExitEnglishOffOffTimeClockOn TimeOff TimeSleepOn Time VolumeOn time ChannelMove Select Exit10 : 30 am- - : - - am- - : - - amOffOffOff10Air 3TimeClockOn TimeOff TimeSleepOn Time VolumeOn time ChannelAdjust Move Exit10 : 30 am7 : - - am- - : - - amOffOffOff10Air 3TimeClockOn TimeOff TimeSleepOn Time VolumeOn time ChannelAdjust Move Exit10 : 30 am7 : 30 am- - : - - amOffOffOff10Air 3TimeClockOn TimeOff TimeSleepOn Time VolumeOn time ChannelAdjust Move Exit10 : 30 am7 : 30 am- - : - - amOnOffOff10Air 3TimeClockOn TimeOff TimeSleepOn Time VolumeOn Time ChannelMove Select Exit12 : 00 am7 : 30 am- - : - - amOnOffOff10Air 3
Selecting a Menu Language .....................................................84Picture Quality Adjustment .......................................................85Digital Noise Reduction ...........................................................86Setting Auto Power Off ...........................................................87Using the V-Chip .....................................................................88PLASMA DISPLAY PANELFunction Description82Setting the Preferred Channel Volume LevelThe preferred channel and volume can be set for when the timer automatically turns on the TV.1 Press the Menu button. Move the joystick up ordown to select “Function”, then press the joystick to enter. 2 Move the joystick up or down to select “Time”, thenpress the joystick to enter.3 Move the joystick up or down to select “On TimeVolume”.Move the joystick left or right to adjust volume level.4Move the joystick up or down to select “On TimeChannel”. Move the joystick left or right to select channel.FunctionLanguageTimeCaptionNRAuto Power OffV-ChipMove Select ExitEnglishOffOffFunctionLanguageTimeCaptionNRAuto Power OffV-ChipMove Enter ExitEnglishOffOffTimeClockOn TimeOff TimeSleepOn Time VolumeOn Time ChannelMove Select Exit- - : - - am- - : - - am- - : - - amOffOffOff10Air 3TimeClockOn TimeOff TimeSleepOn Time VolumeOn Time ChannelMove Select Exit- - : - - am- - : - - am- - : - - amOffOffOff10Air 3

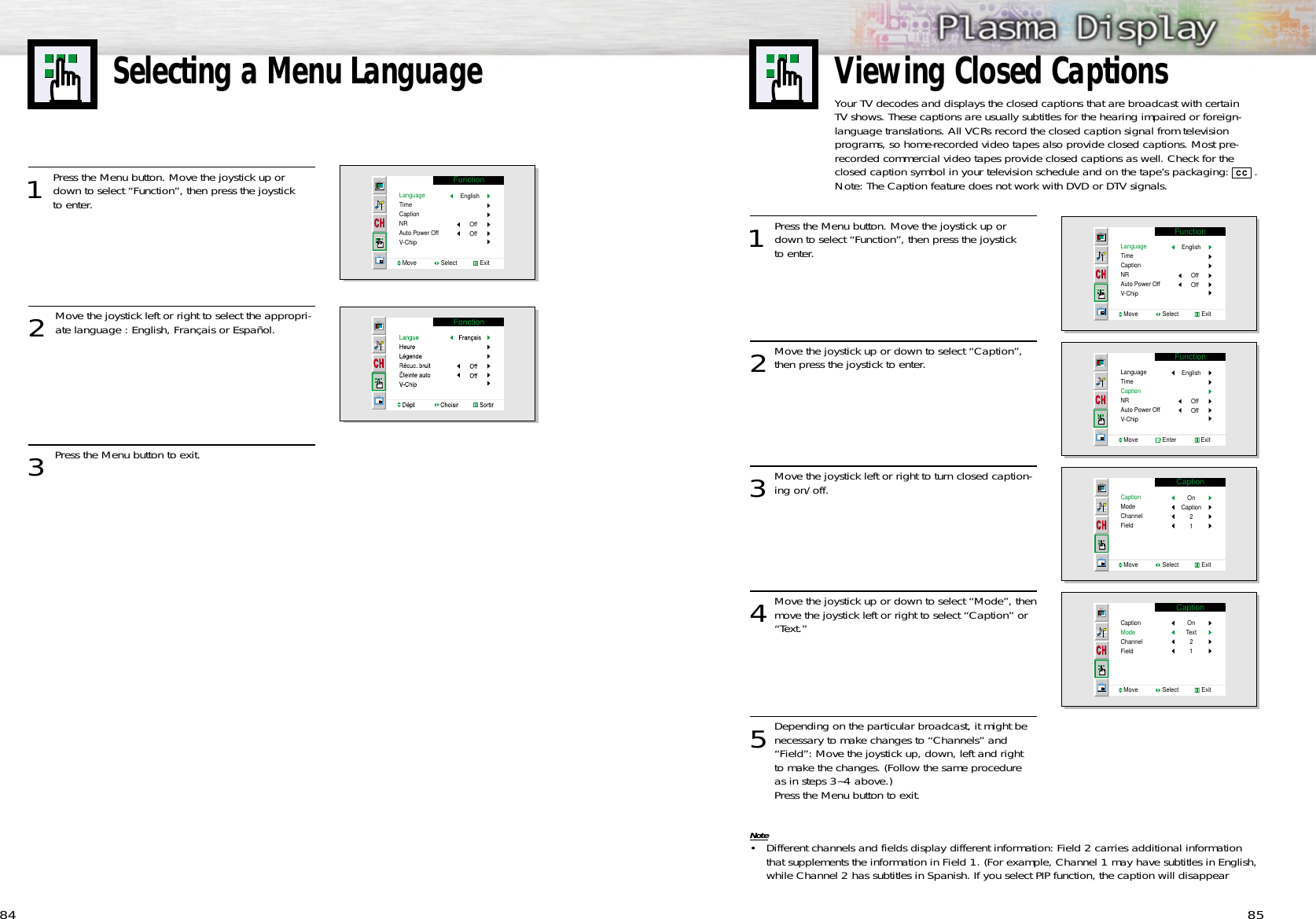

Selecting a Menu Language85841 Press the Menu button. Move the joystick up ordown to select “Function”, then press the joystick to enter. 2Move the joystick up or down to select “Caption”,then press the joystick to enter.3Move the joystick left or right to turn closed caption-ing on/off.4Move the joystick up or down to select “Mode”, thenmove the joystick left or right to select “Caption” or “Text.” 5Depending on the particular broadcast, it might benecessary to make changes to “Channels” and “Field”: Move the joystick up, down, left and right to make the changes. (Follow the same procedure as in steps 3~4 above.)Press the Menu button to exit.Note• Different channels and fields display different information: Field 2 carries additional information that supplements the information in Field 1. (For example, Channel 1 may have subtitles in English,while Channel 2 has subtitles in Spanish. If you select PIP function, the caption will disappearFunctionLanguageTimeCaptionNRAuto Power OffV-ChipMove Select ExitEnglishOffOffFunctionLanguageTimeCaptionNRAuto Power OffV-ChipMove Enter ExitEnglishOffOffCaptionCaptionModeChannelFieldMove Select ExitOnCaption21CaptionCaptionModeChannelFieldMove Select ExitOnText211 Press the Menu button. Move the joystick up ordown to select “Function”, then press the joystick to enter. 2 Move the joystick left or right to select the appropri-ate language : English, Français or Español.3 Press the Menu button to exit.FunctionLanguageTimeCaptionNRAuto Power OffV-ChipMove Select ExitEnglishOffOffViewing Closed CaptionsYour TV decodes and displays the closed captions that are broadcast with certainTV shows. These captions are usually subtitles for the hearing impaired or foreign-language translations. All VCRs record the closed caption signal from television programs, so home-recorded video tapes also provide closed captions. Most pre-recorded commercial video tapes provide closed captions as well. Check for theclosed caption symbol in your television schedule and on the tape’s packaging: . Note: The Caption feature does not work with DVD or DTV signals.

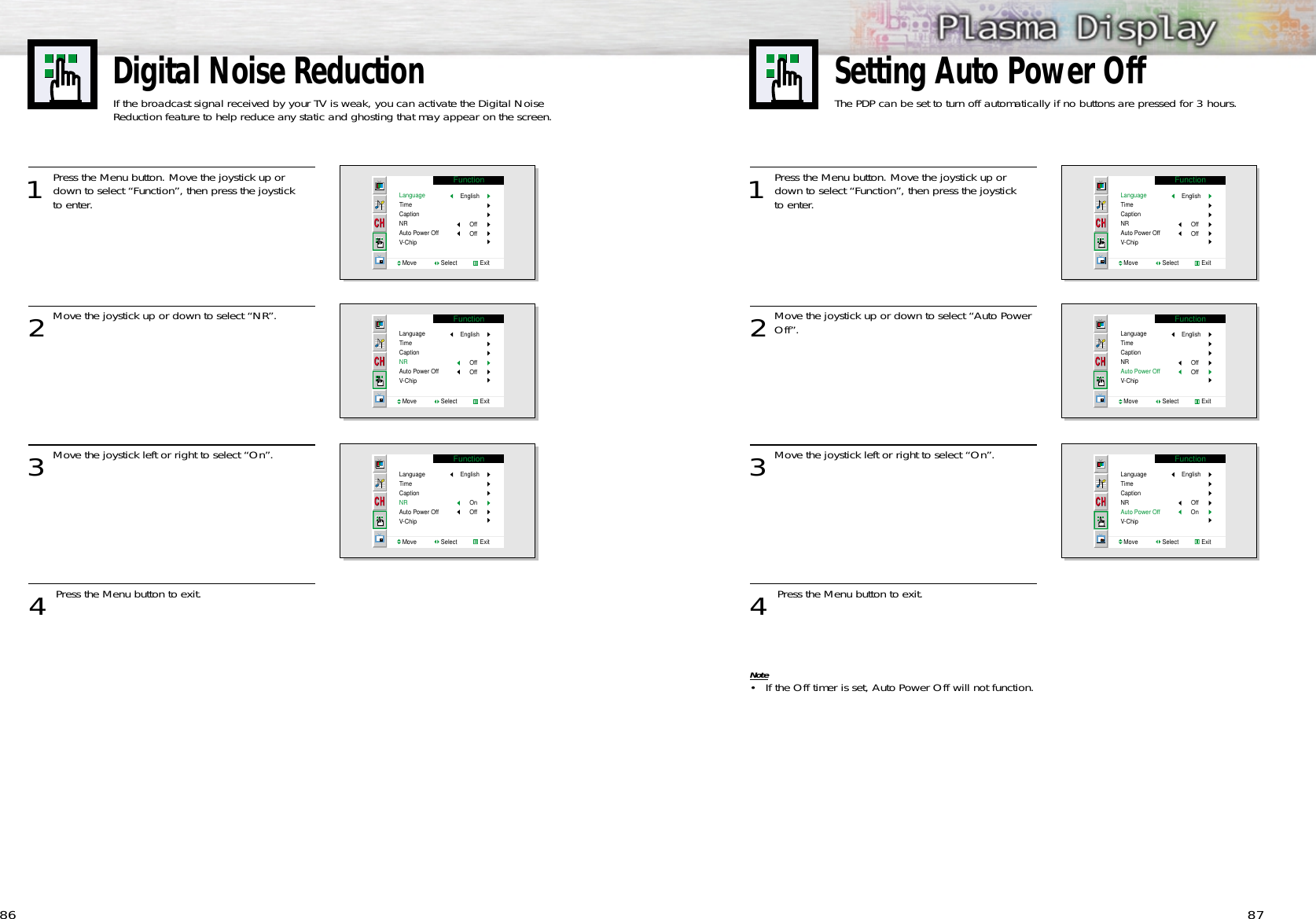

1 Press the Menu button. Move the joystick up ordown to select “Function”, then press the joystick to enter. 2Move the joystick up or down to select “Auto PowerOff”.3Move the joystick left or right to select “On”.4 Press the Menu button to exit.Note• If the Off timer is set, Auto Power Off will not function.8786Digital Noise ReductionIf the broadcast signal received by your TV is weak, you can activate the Digital Noise Reduction feature to help reduce any static and ghosting that may appear on the screen.1 Press the Menu button. Move the joystick up ordown to select “Function”, then press the joystick to enter. 2Move the joystick up or down to select “NR”.3Move the joystick left or right to select “On”.4 Press the Menu button to exit.FunctionLanguageTimeCaptionNRAuto Power OffV-ChipMove Select ExitEnglishOffOffFunctionLanguageTimeCaptionNRAuto Power OffV-ChipMove Select ExitEnglishOffOffFunctionLanguageTimeCaptionNRAuto Power OffV-ChipMove Select ExitEnglishOnOffFunctionLanguageTimeCaptionNRAuto Power OffV-ChipMove Select ExitEnglishOffOffFunctionLanguageTimeCaptionNRAuto Power OffV-ChipMove Select ExitEnglishOffOffFunctionLanguageTimeCaptionNRAuto Power OffV-ChipMove Select ExitEnglishOffOnSetting Auto Power OffThe PDP can be set to turn off automatically if no buttons are pressed for 3 hours.

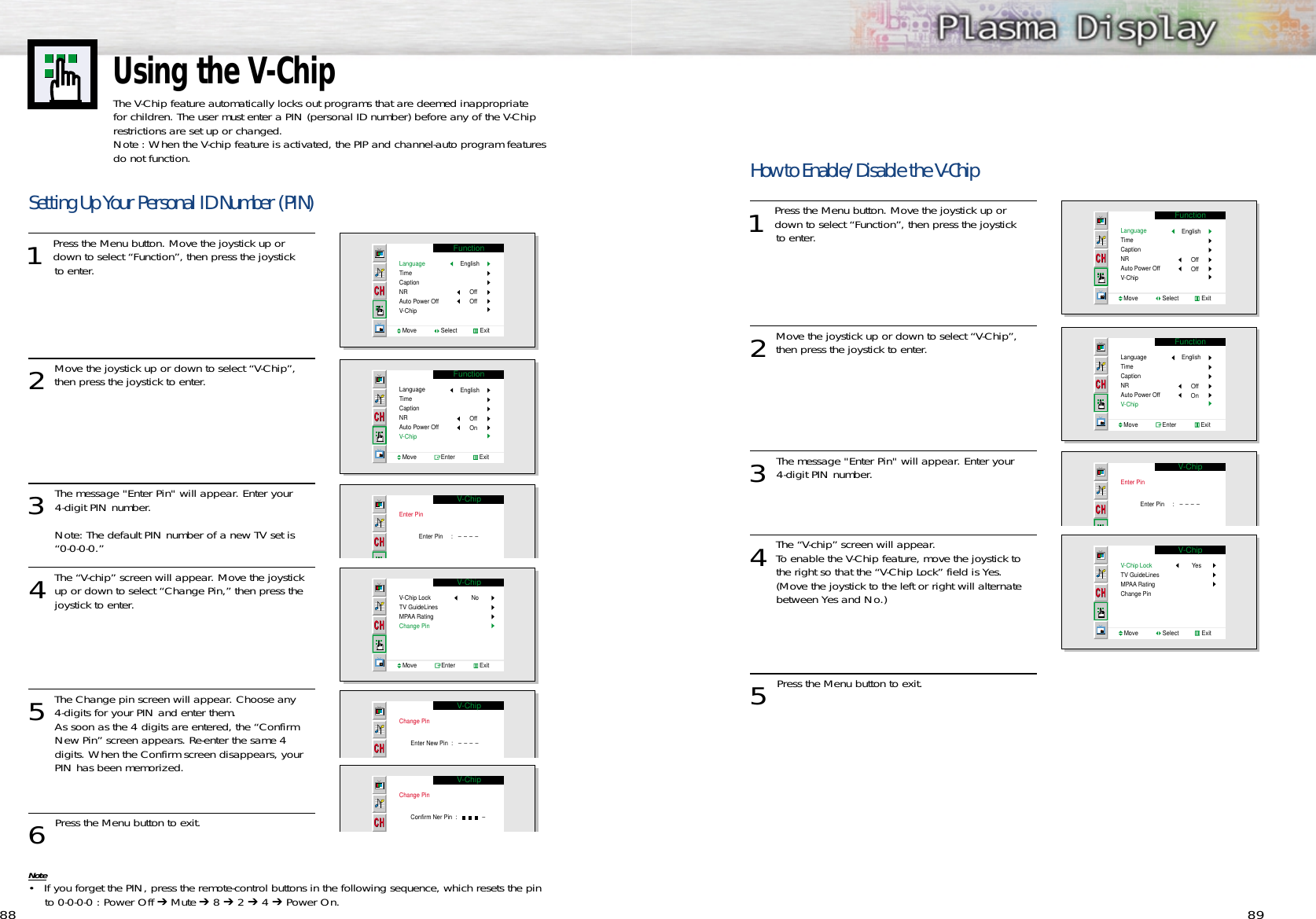

8988Using the V-ChipThe V-Chip feature automatically locks out programs that are deemed inappropriate for children. The user must enter a PIN (personal ID number) before any of the V-Chiprestrictions are set up or changed.Note : When the V-chip feature is activated, the PIP and channel-auto program featuresdo not function.Setting Up Your Personal ID Number (PIN)1 Press the Menu button. Move the joystick up ordown to select “Function”, then press the joystick to enter. 2Move the joystick up or down to select “V-Chip”,then press the joystick to enter. 3 The message "Enter Pin" will appear. Enter your 4-digit PIN number. Note: The default PIN number of a new TV set is “0-0-0-0.”4The “V-chip” screen will appear. Move the joystickup or down to select “Change Pin,” then press the joystick to enter.5The Change pin screen will appear. Choose any 4-digits for your PIN and enter them. As soon as the 4 digits are entered, the “Confirm New Pin” screen appears. Re-enter the same 4 digits. When the Confirm screen disappears, your PIN has been memorized. 6 Press the Menu button to exit.Note• If you forget the PIN, press the remote-control buttons in the following sequence, which resets the pinto 0-0-0-0 : Power Off ➔ Mute ➔8 ➔2 ➔4 ➔Power On.FunctionLanguageTimeCaptionNRAuto Power OffV-ChipMove Select ExitEnglishOffOffFunctionLanguageTimeCaptionNRAuto Power OffV-ChipMove Enter ExitEnglishOffOnV-ChipEnter PinEnter Pin : ----V-ChipV-Chip LockTV GuideLinesMPAA Rating Change PinNoMove Enter ExitV-ChipChange PinEnter New Pin : ----V-ChipChange PinConfirm Ner Pin : -How to Enable/Disable the V-Chip1 Press the Menu button. Move the joystick up ordown to select “Function”, then press the joystick to enter. 2Move the joystick up or down to select “V-Chip”,then press the joystick to enter. 3 The message "Enter Pin" will appear. Enter your 4-digit PIN number. 4The “V-chip” screen will appear. To enable the V-Chip feature, move the joystick to the right so that the “V-Chip Lock” field is Yes. (Move the joystick to the left or right will alternate between Yes and No.)5 Press the Menu button to exit.FunctionLanguageTimeCaptionNRAuto Power OffV-ChipMove Select ExitEnglishOffOffFunctionLanguageTimeCaptionNRAuto Power OffV-ChipMove Enter ExitEnglishOffOnV-ChipEnter PinEnter Pin : ----V-ChipV-Chip LockTV GuideLinesMPAA Rating Change PinYesMove Select Exit

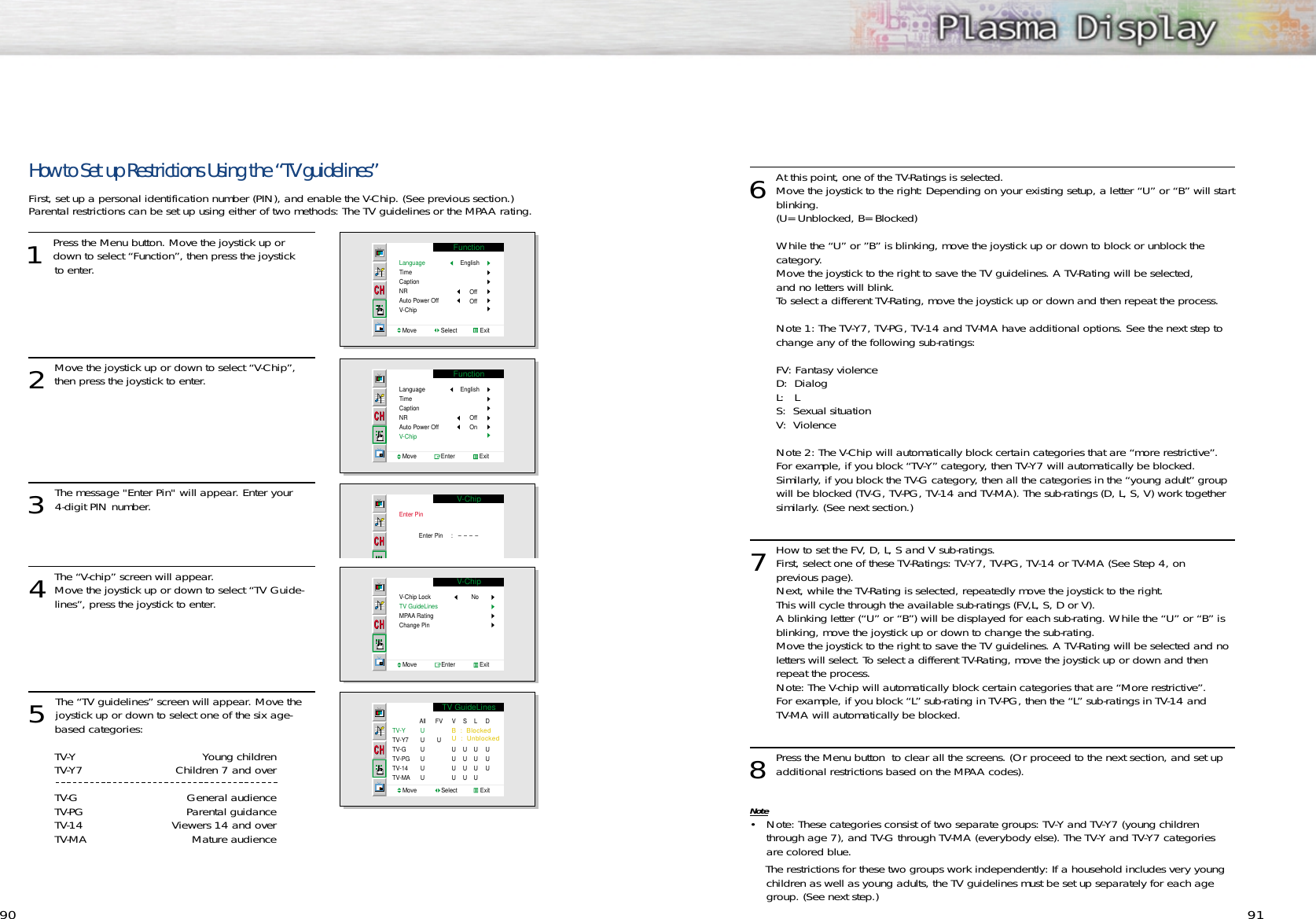

9190How to Set up Restrictions Using the “TV guidelines”First, set up a personal identification number (PIN), and enable the V-Chip. (See previous section.) Parental restrictions can be set up using either of two methods: The TV guidelines or the MPAA rating.1 Press the Menu button. Move the joystick up ordown to select “Function”, then press the joystick to enter. 2Move the joystick up or down to select “V-Chip”,then press the joystick to enter. 3 The message "Enter Pin" will appear. Enter your 4-digit PIN number. 4The “V-chip” screen will appear. Move the joystick up or down to select “TV Guide-lines”, press the joystick to enter.5 The “TV guidelines” screen will appear. Move thejoystick up or down to select one of the six age-based categories:TV-Y Young childrenTV-Y7 Children 7 and overTV-G General audienceTV-PG Parental guidanceTV-14 Viewers 14 and overTV-MA Mature audienceFunctionLanguageTimeCaptionNRAuto Power OffV-ChipMove Select ExitEnglishOffOffFunctionLanguageTimeCaptionNRAuto Power OffV-ChipMove Enter ExitEnglishOffOnV-ChipEnter PinEnter Pin : ----V-ChipV-Chip LockTV GuideLinesMPAA Rating Change PinNoMove Enter Exit6At this point, one of the TV-Ratings is selected. Move the joystick to the right: Depending on your existing setup, a letter “U” or “B” will startblinking.(U= Unblocked, B= Blocked)While the “U” or ”B” is blinking, move the joystick up or down to block or unblock the category.Move the joystick to the right to save the TV guidelines. A TV-Rating will be selected, and no letters will blink. To select a different TV-Rating, move the joystick up or down and then repeat the process.Note 1: The TV-Y7, TV-PG, TV-14 and TV-MA have additional options. See the next step to change any of the following sub-ratings:FV: Fantasy violenceD: DialogL: LS: Sexual situationV: ViolenceNote 2: The V-Chip will automatically block certain categories that are “more restrictive”. For example, if you block “TV-Y” category, then TV-Y7 will automatically be blocked. Similarly, if you block the TV-G category, then all the categories in the “young adult” group will be blocked (TV-G, TV-PG, TV-14 and TV-MA). The sub-ratings (D, L, S, V) work together similarly. (See next section.)7How to set the FV, D, L, S and V sub-ratings.First, select one of these TV-Ratings: TV-Y7, TV-PG, TV-14 or TV-MA (See Step 4, on previous page). Next, while the TV-Rating is selected, repeatedly move the joystick to the right. This will cycle through the available sub-ratings (FV,L, S, D or V).A blinking letter (“U” or “B”) will be displayed for each sub-rating. While the “U” or “B” is blinking, move the joystick up or down to change the sub-rating.Move the joystick to the right to save the TV guidelines. A TV-Rating will be selected and no letters will select. To select a different TV-Rating, move the joystick up or down and then repeat the process.Note: The V-chip will automatically block certain categories that are “More restrictive”. For example, if you block “L” sub-rating in TV-PG, then the “L” sub-ratings in TV-14 and TV-MA will automatically be blocked.8Press the Menu button to clear all the screens. (Or proceed to the next section, and set upadditional restrictions based on the MPAA codes).Note• Note: These categories consist of two separate groups: TV-Y and TV-Y7 (young childrenthrough age 7), and TV-G through TV-MA (everybody else). The TV-Y and TV-Y7 categories are colored blue. The restrictions for these two groups work independently: If a household includes very youngchildren as well as young adults, the TV guidelines must be set up separately for each agegroup. (See next step.)TV GuideLinesB : BlockedU : UnblockedTV-YTV-Y7TV-GTV-PGTV-14TV-MAAllUUUUUUFVUVUUUUSUUUULUUUUDUUU Move Select Exit

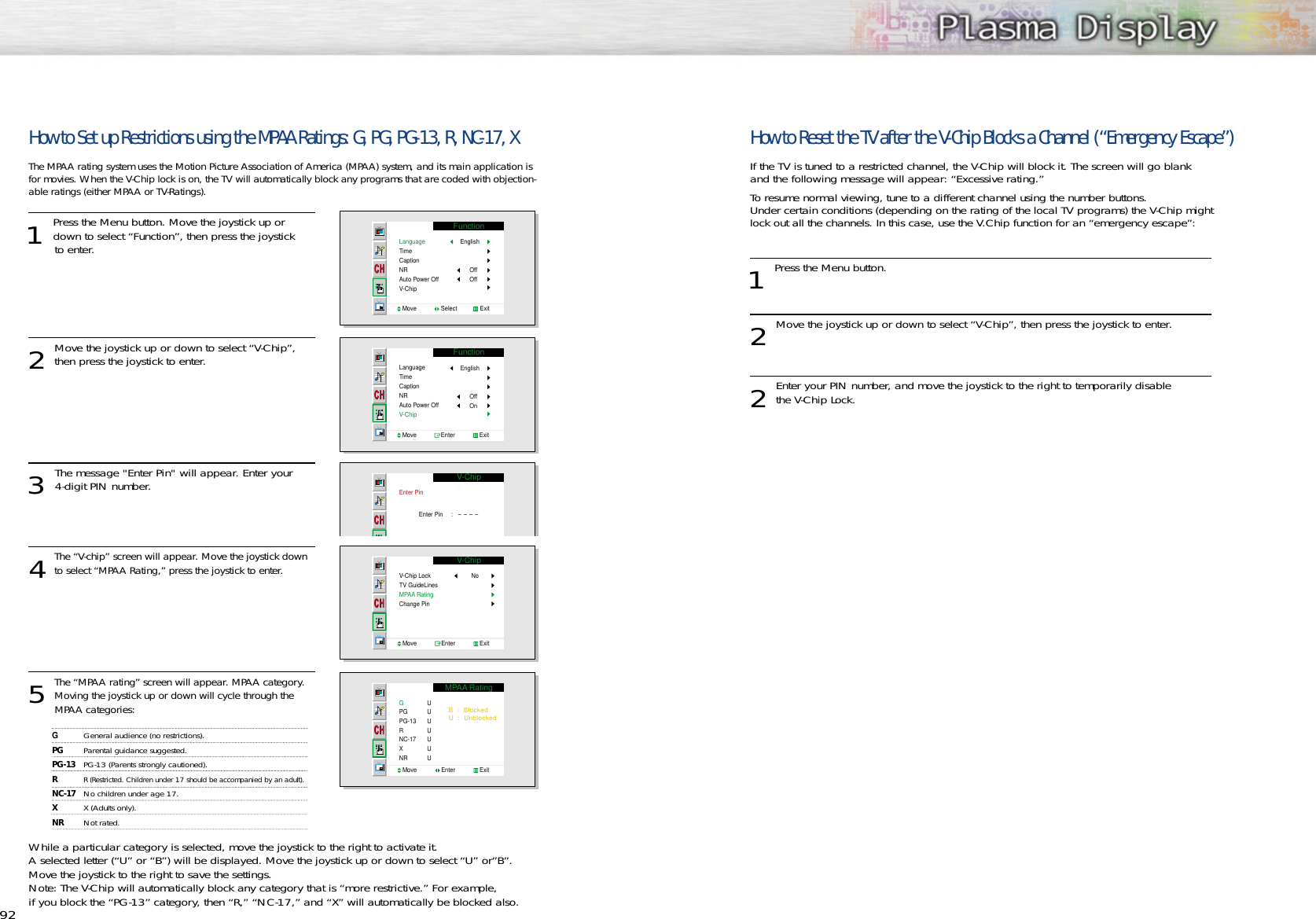

92How to Set up Restrictions using the MPAA Ratings: G, PG, PG-13, R, NC-17, XThe MPAA rating system uses the Motion Picture Association of America (MPAA) system, and its main application isfor movies. When the V-Chip lock is on, the TV will automatically block any programs that are coded with objection-able ratings (either MPAA or TV-Ratings).1 Press the Menu button. Move the joystick up ordown to select “Function”, then press the joystick to enter. 2Move the joystick up or down to select “V-Chip”,then press the joystick to enter. 3 The message "Enter Pin" will appear. Enter your 4-digit PIN number. 4The “V-chip” screen will appear. Move the joystick downto select “MPAA Rating,” press the joystick to enter.5The “MPAA rating” screen will appear. MPAA category.Moving the joystick up or down will cycle through the MPAA categories:While a particular category is selected, move the joystick to the right to activate it. A selected letter (“U” or “B”) will be displayed. Move the joystick up or down to select “U” or”B”.Move the joystick to the right to save the settings.Note: The V-Chip will automatically block any category that is “more restrictive.” For example, if you block the “PG-13” category, then “R,” “NC-17,” and “X” will automatically be blocked also.How to Reset the TV after the V-Chip Blocks a Channel (“Emergency Escape”)If the TV is tuned to a restricted channel, the V-Chip will block it. The screen will go blank and the following message will appear: “Excessive rating.” To resume normal viewing, tune to a different channel using the number buttons. Under certain conditions (depending on the rating of the local TV programs) the V-Chip might lock out all the channels. In this case, use the V.Chip function for an “emergency escape”:1 Press the Menu button. 2Move the joystick up or down to select “V-Chip”, then press the joystick to enter. 2Enter your PIN number, and move the joystick to the right to temporarily disable the V-Chip Lock. FunctionLanguageTimeCaptionNRAuto Power OffV-ChipMove Select ExitEnglishOffOffFunctionLanguageTimeCaptionNRAuto Power OffV-ChipMove Enter ExitEnglishOffOnV-ChipEnter PinEnter Pin : ----V-ChipV-Chip LockTV GuideLinesMPAA Rating Change PinNoMove Enter ExitMPAA RatingGPGPG-13RNC-17XNRUUUUUUUMove Enter ExitB : BlockedU : UnblockedGGeneral audience (no restrictions).PG Parental guidance suggested.PG-13 PG-13 (Parents strongly cautioned).RR (Restricted. Children under 17 should be accompanied by an adult).NC-17 No children under age 17. XX (Adults only).NR Not rated.

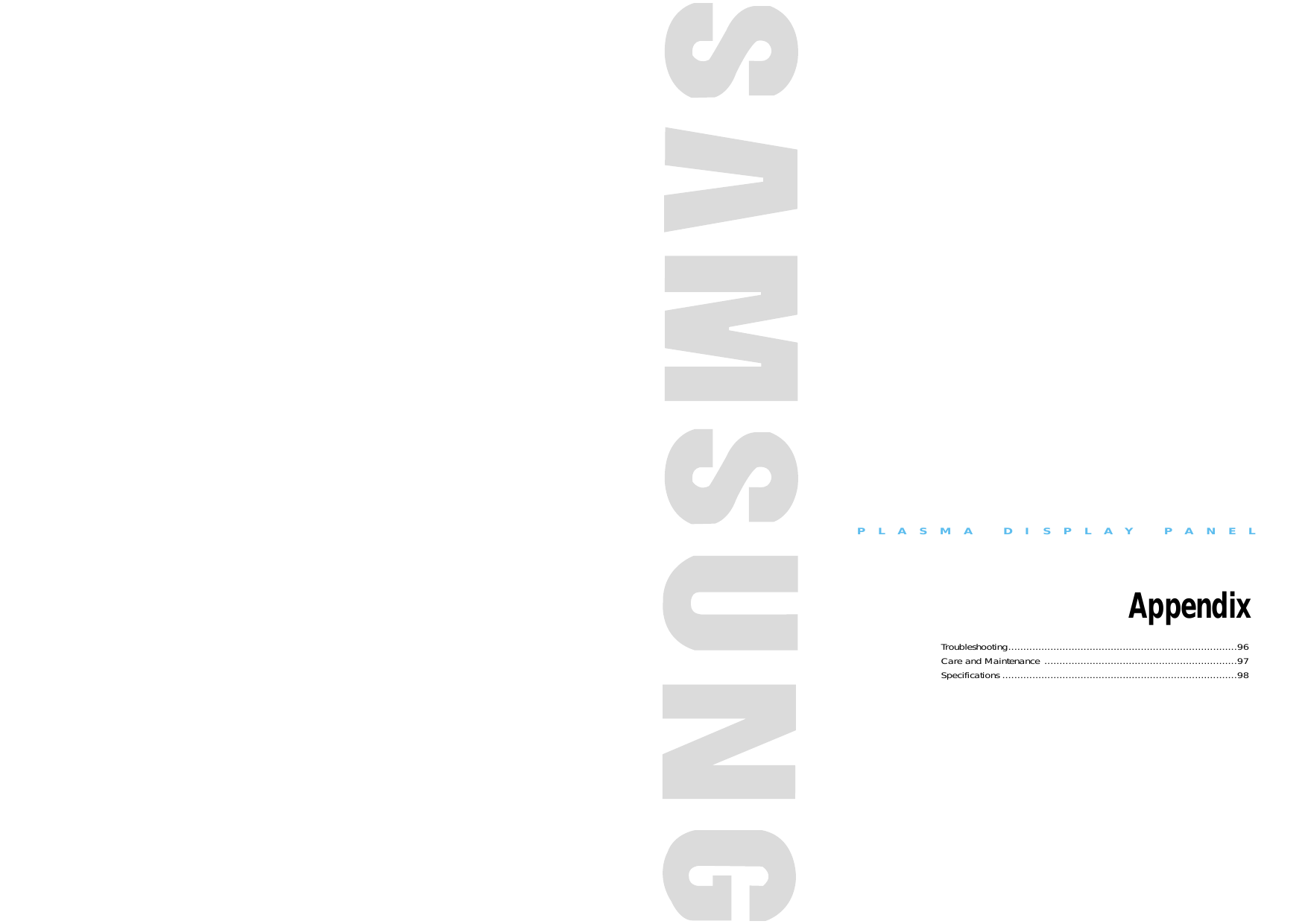

PLASMA DISPLAY PANELAppendixTroubleshooting............................................................................96Care and Maintenance ................................................................97Specifications ..............................................................................98

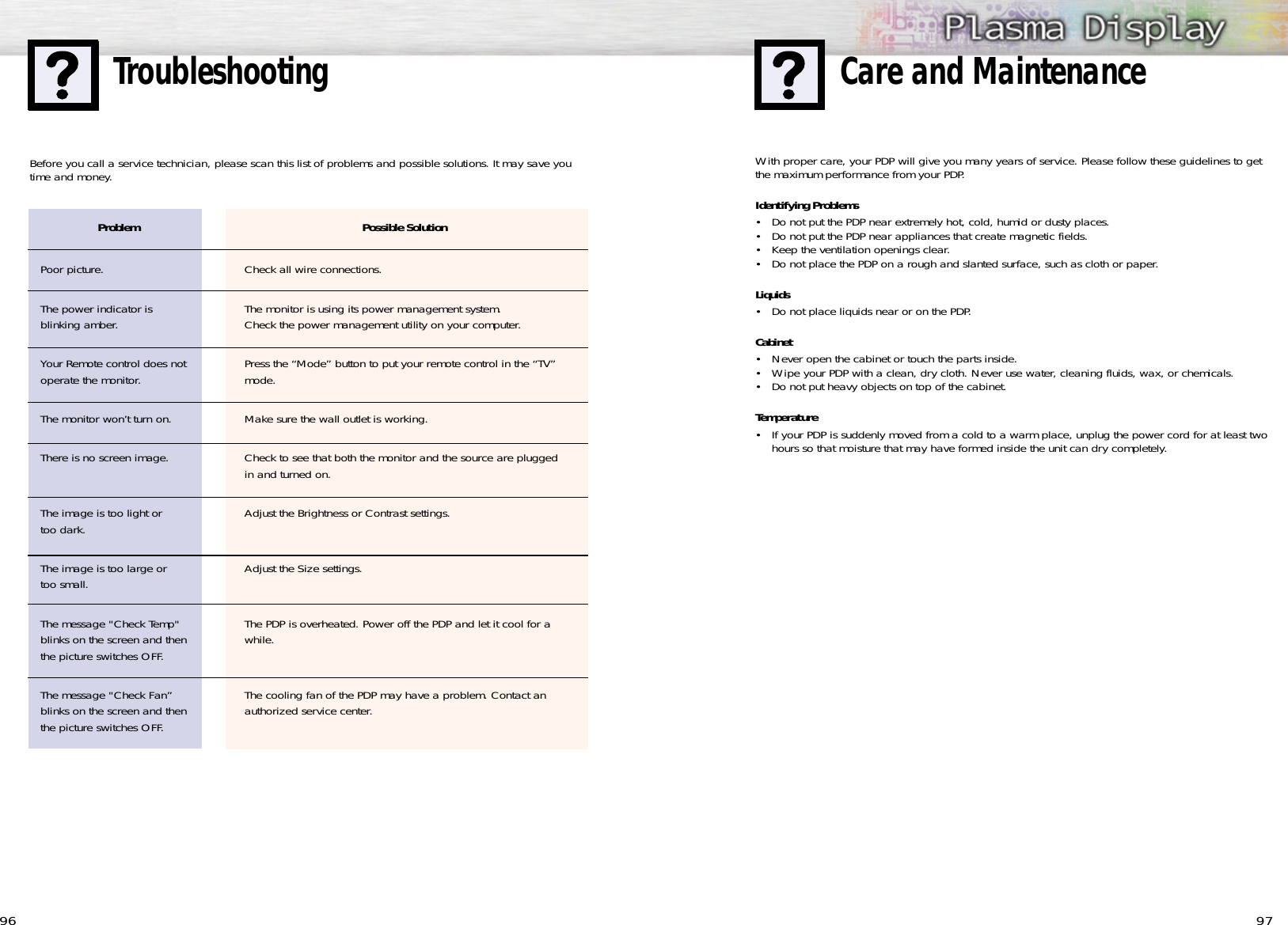

9796TroubleshootingProblemPoor picture.The power indicator is blinking amber.Your Remote control does notoperate the monitor.The monitor won’t turn on.There is no screen image.The image is too light or too dark. The image is too large or too small.The message "Check Temp"blinks on the screen and thenthe picture switches OFF.The message "Check Fan”blinks on the screen and thenthe picture switches OFF.Before you call a service technician, please scan this list of problems and possible solutions. It may save youtime and money.Possible SolutionCheck all wire connections.The monitor is using its power management system. Check the power management utility on your computer.Press the “Mode” button to put your remote control in the “TV”mode.Make sure the wall outlet is working.Check to see that both the monitor and the source are pluggedin and turned on.Adjust the Brightness or Contrast settings.Adjust the Size settings.The PDP is overheated. Power off the PDP and let it cool for awhile.The cooling fan of the PDP may have a problem. Contact anauthorized service center.With proper care, your PDP will give you many years of service. Please follow these guidelines to getthe maximum performance from your PDP.Identifying Problems• Do not put the PDP near extremely hot, cold, humid or dusty places.• Do not put the PDP near appliances that create magnetic fields.• Keep the ventilation openings clear.• Do not place the PDP on a rough and slanted surface, such as cloth or paper.Liquids• Do not place liquids near or on the PDP.Cabinet• Never open the cabinet or touch the parts inside.• Wipe your PDP with a clean, dry cloth. Never use water, cleaning fluids, wax, or chemicals.• Do not put heavy objects on top of the cabinet.Temperature• If your PDP is suddenly moved from a cold to a warm place, unplug the power cord for at least twohours so that moisture that may have formed inside the unit can dry completely.Care and Maintenance

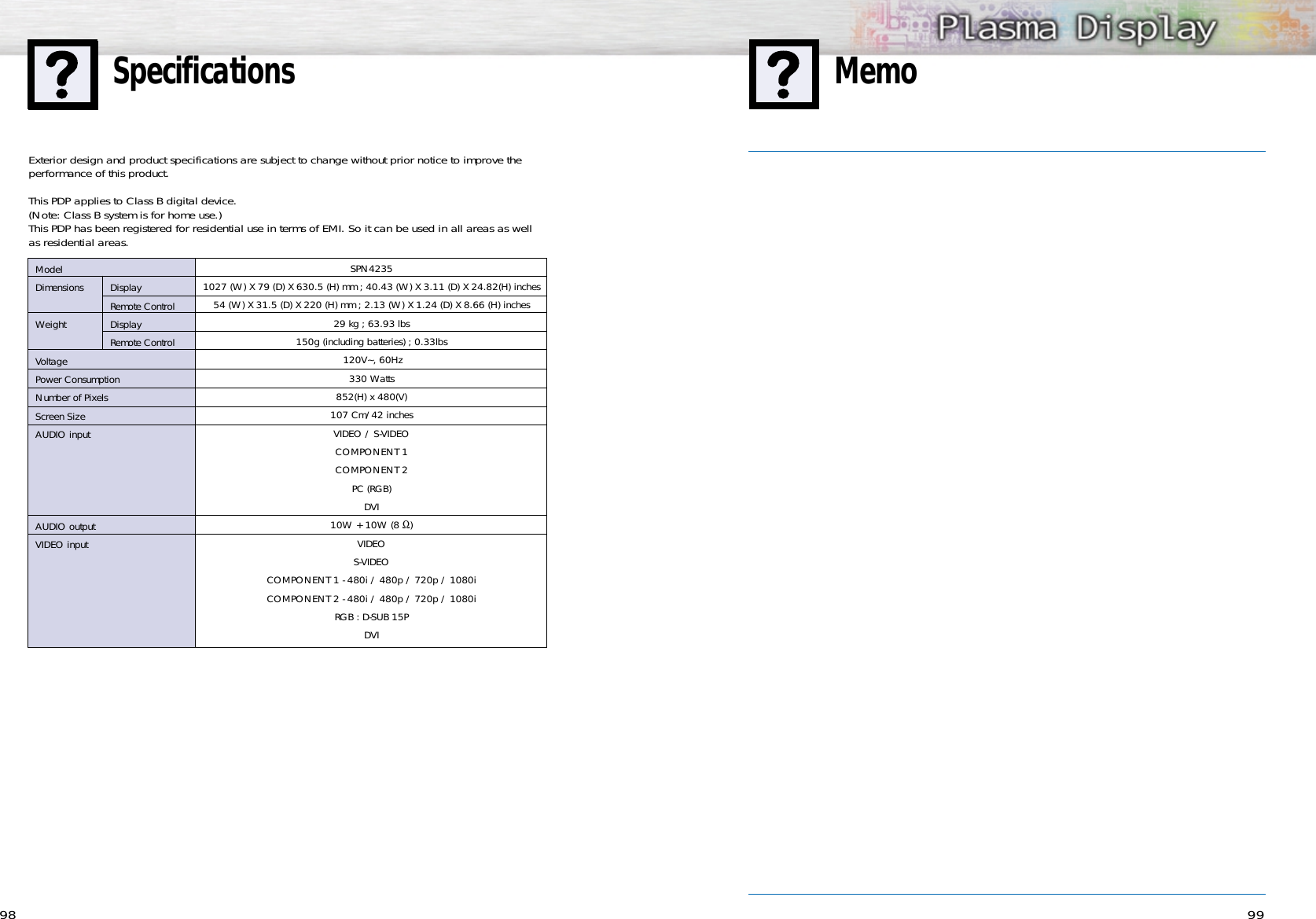

9998MemoSpecificationsSPN42351027 (W) X 79 (D) X 630.5 (H) mm ; 40.43 (W) X 3.11 (D) X 24.82(H) inches54 (W) X 31.5 (D) X 220 (H) mm ; 2.13 (W) X 1.24 (D) X 8.66 (H) inches29 kg ; 63.93 lbs150g (including batteries) ; 0.33lbs120V~, 60Hz 330 Watts852(H) x 480(V) 107 Cm/42 inches VIDEO / S-VIDEOCOMPONENT 1COMPONENT 2PC (RGB)DVI10W + 10W (8 Ω)VIDEOS-VIDEOCOMPONENT 1 - 480i / 480p / 720p / 1080iCOMPONENT 2 - 480i / 480p / 720p / 1080iRGB : D-SUB 15PDVIModelDimensions DisplayRemote ControlWeight DisplayRemote ControlVoltagePower ConsumptionNumber of PixelsScreen SizeAUDIO inputAUDIO outputVIDEO inputExterior design and product specifications are subject to change without prior notice to improve theperformance of this product.This PDP applies to Class B digital device.(Note: Class B system is for home use.)This PDP has been registered for residential use in terms of EMI. So it can be used in all areas as wellas residential areas.
